Workbench - Comprehensive Assembly Plan And Visual Guide

A heavy-duty wooden workbench featuring an A-frame leg design, a large top work surface, and a full-length lower storage shelf. - Workbench

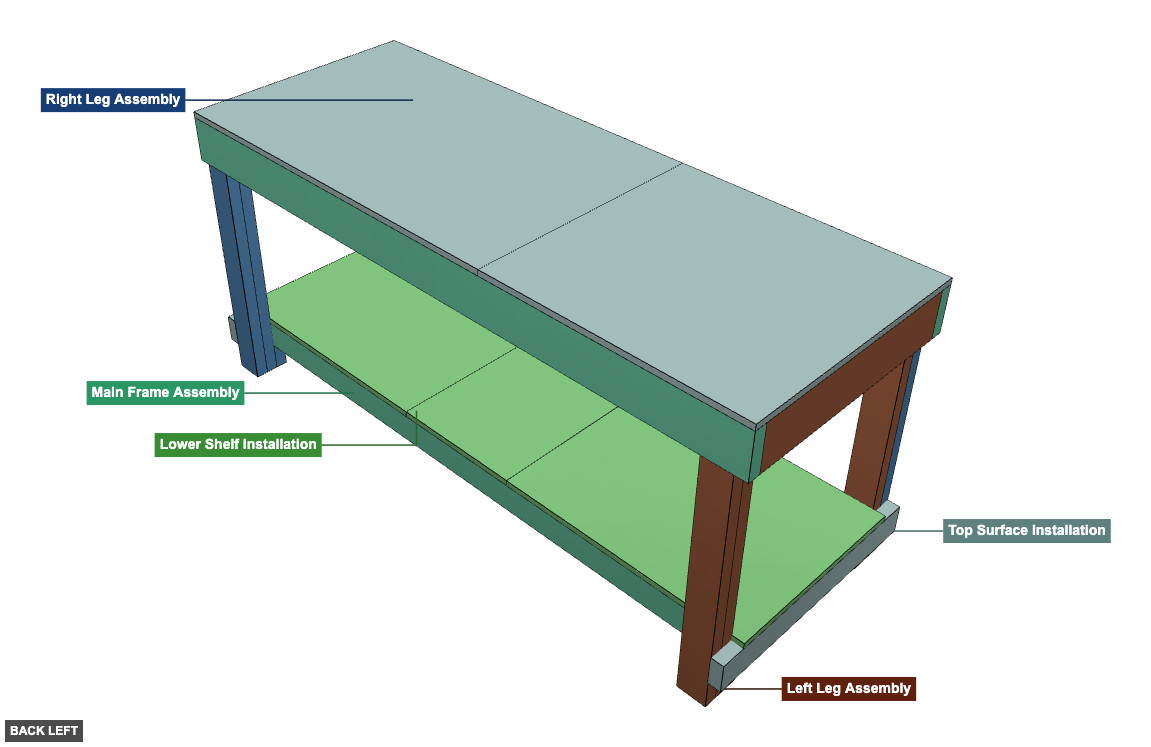

Phase 1: Group Overview

Angle: back left

Right Leg Assembly

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Left Leg Assembly

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

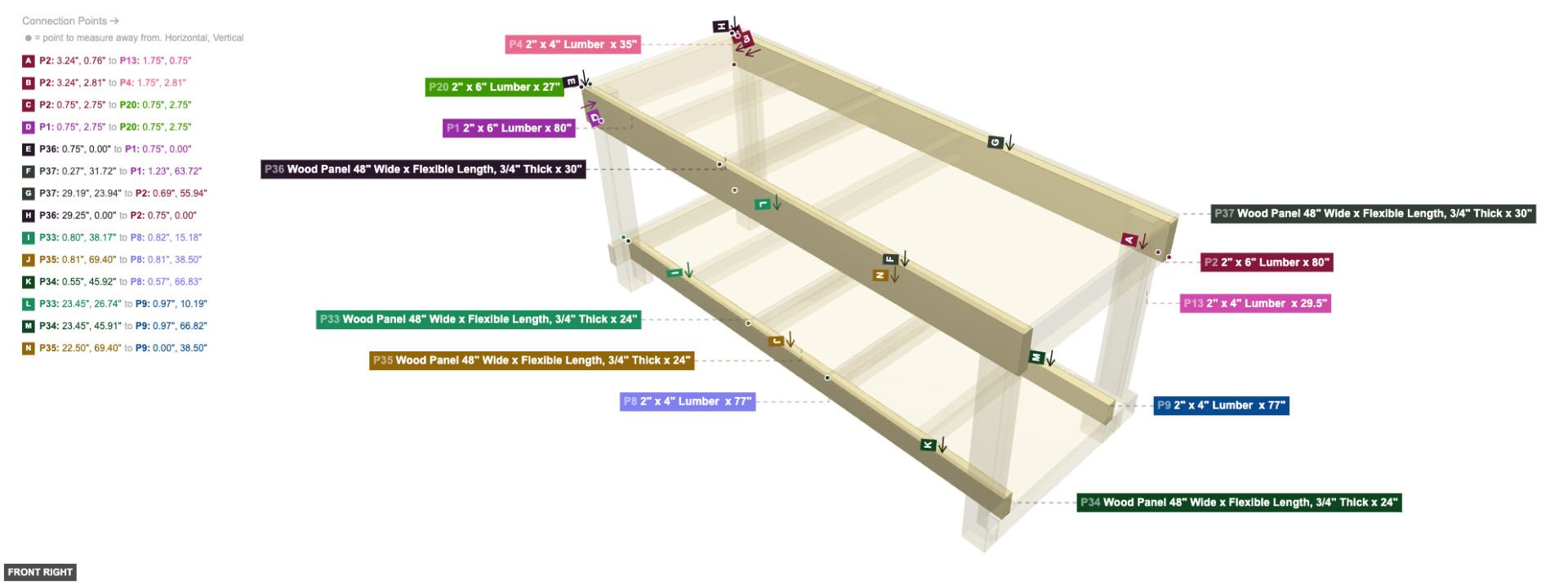

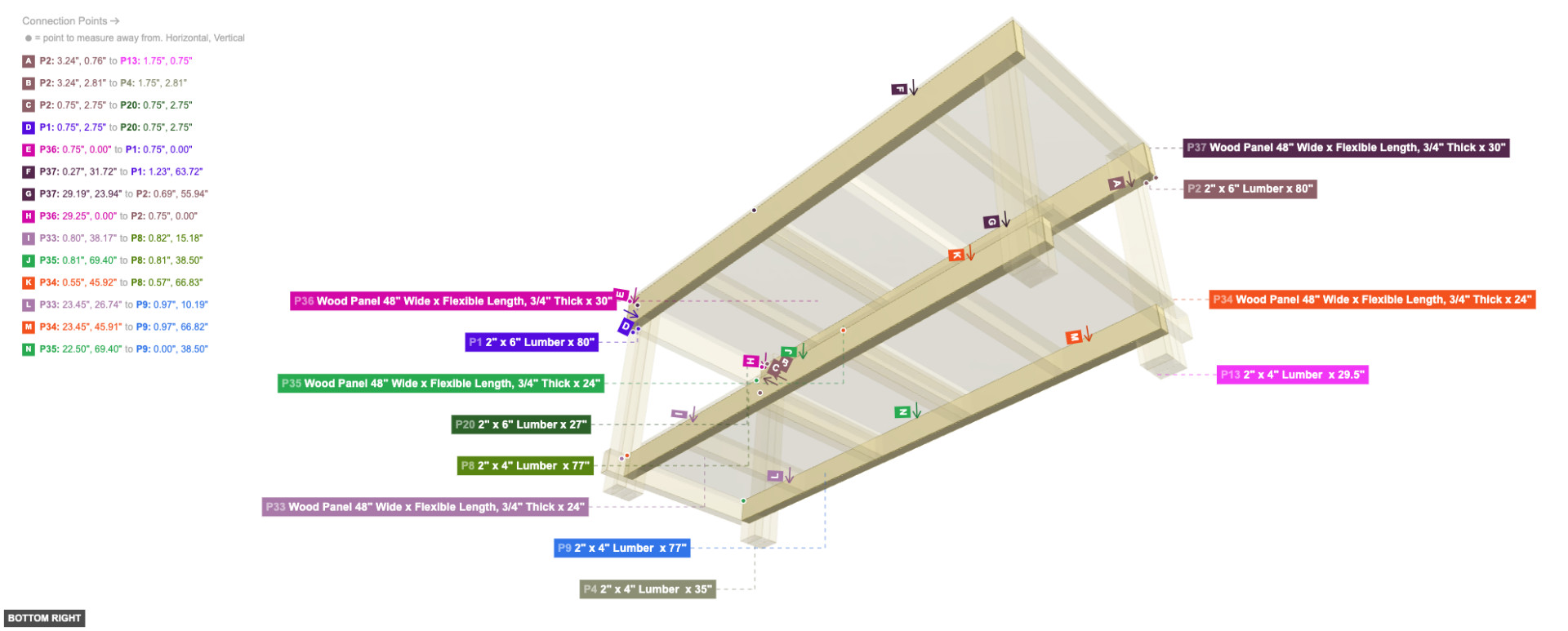

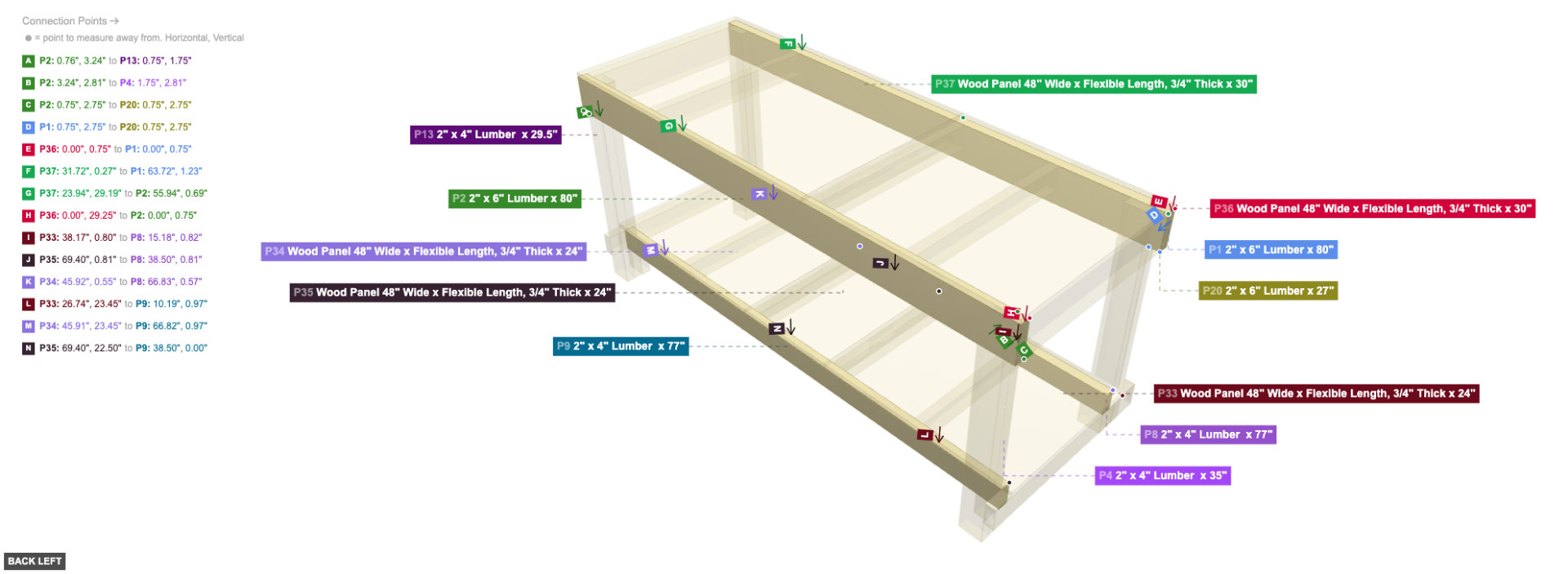

Main Frame Assembly

2" x 6" Lumber x 80"x 2

2" x 4" Lumber x 77"x 2

Lower Shelf Installation

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Top Surface Installation

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

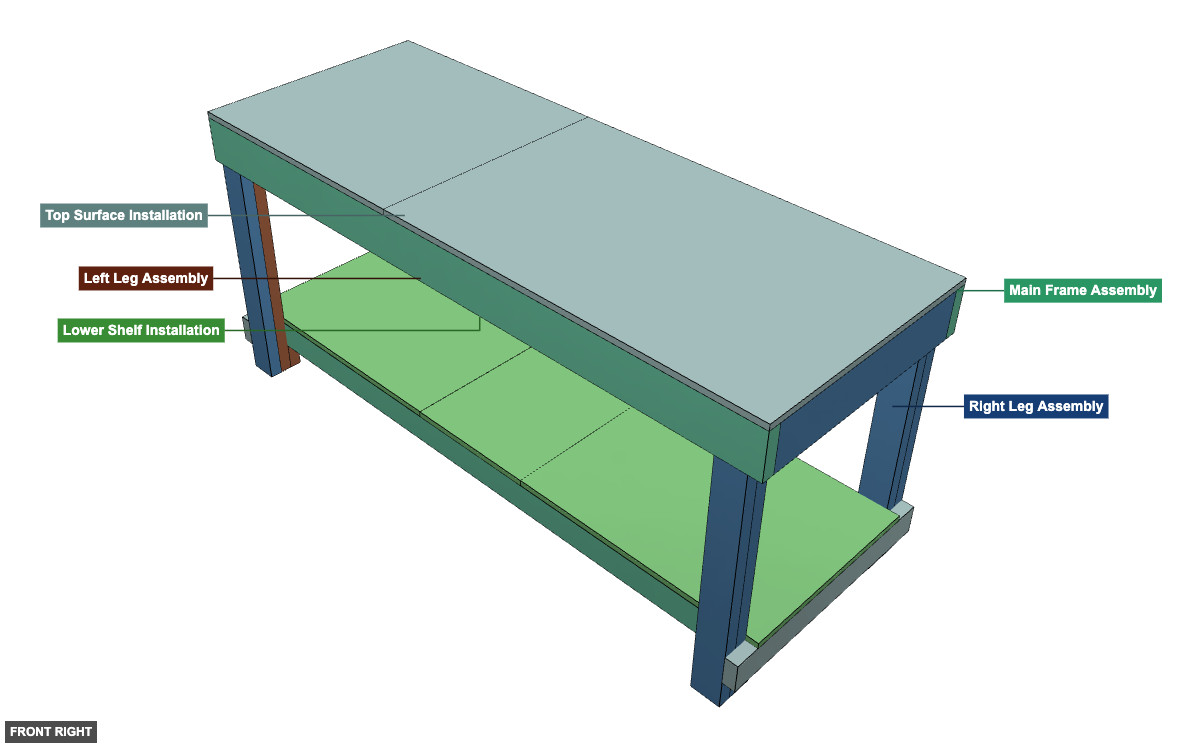

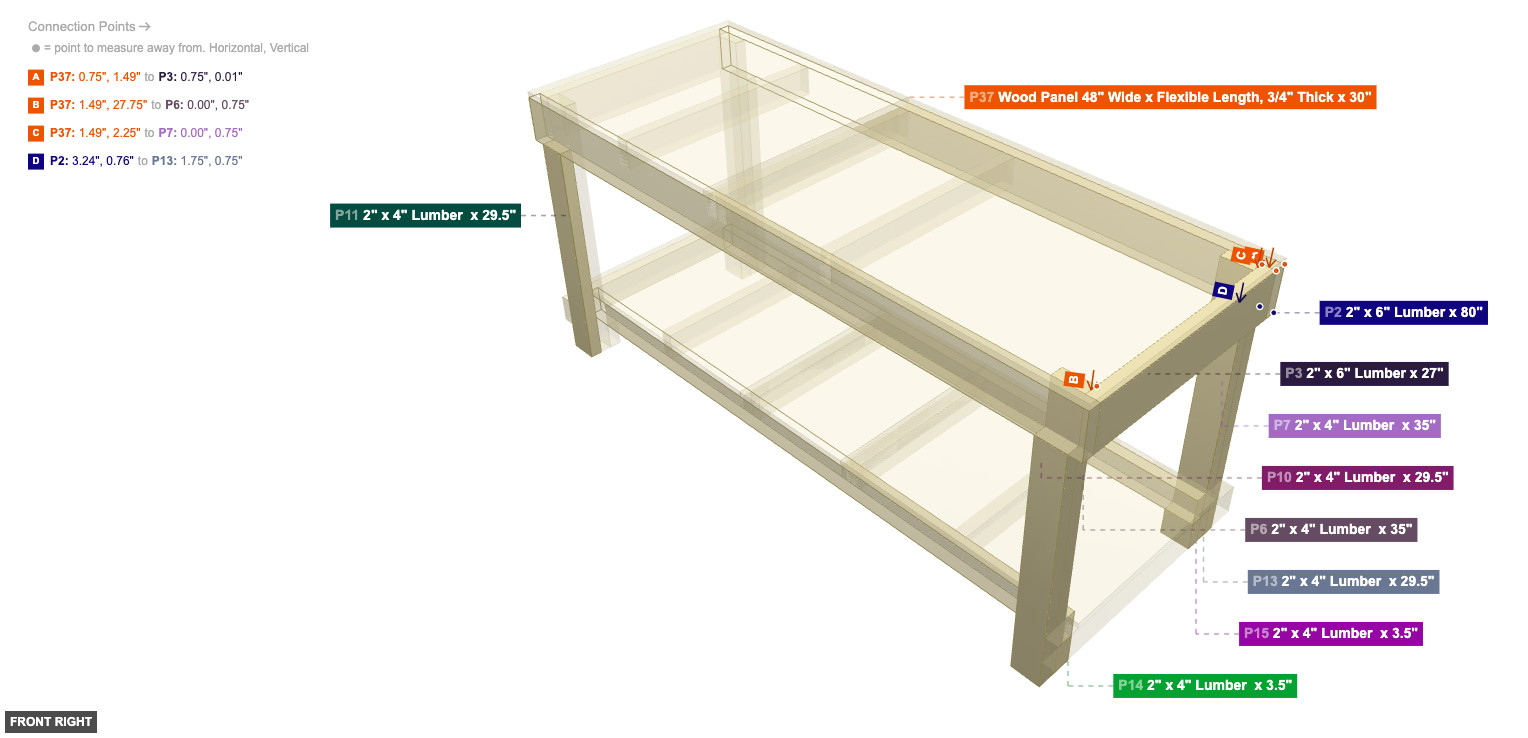

Angle: front right

Right Leg Assembly

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Left Leg Assembly

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Main Frame Assembly

2" x 6" Lumber x 80"x 2

2" x 4" Lumber x 77"x 2

Lower Shelf Installation

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Top Surface Installation

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

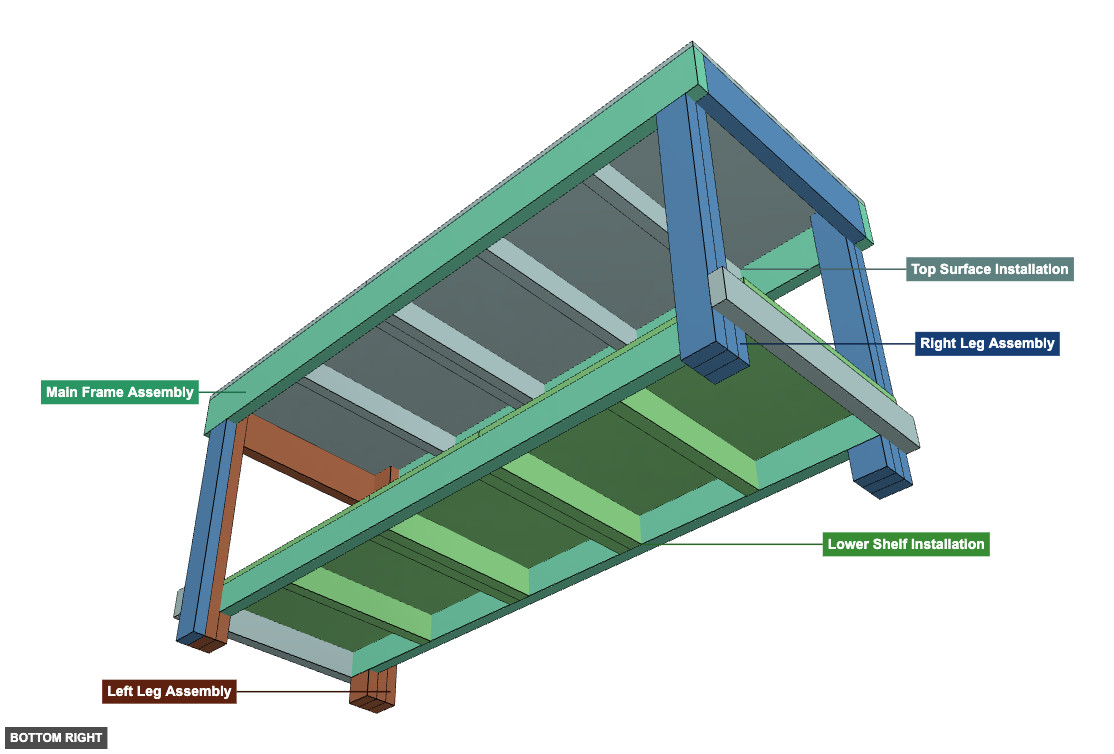

Angle: bottom right

Right Leg Assembly

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Left Leg Assembly

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Main Frame Assembly

2" x 6" Lumber x 80"x 2

2" x 4" Lumber x 77"x 2

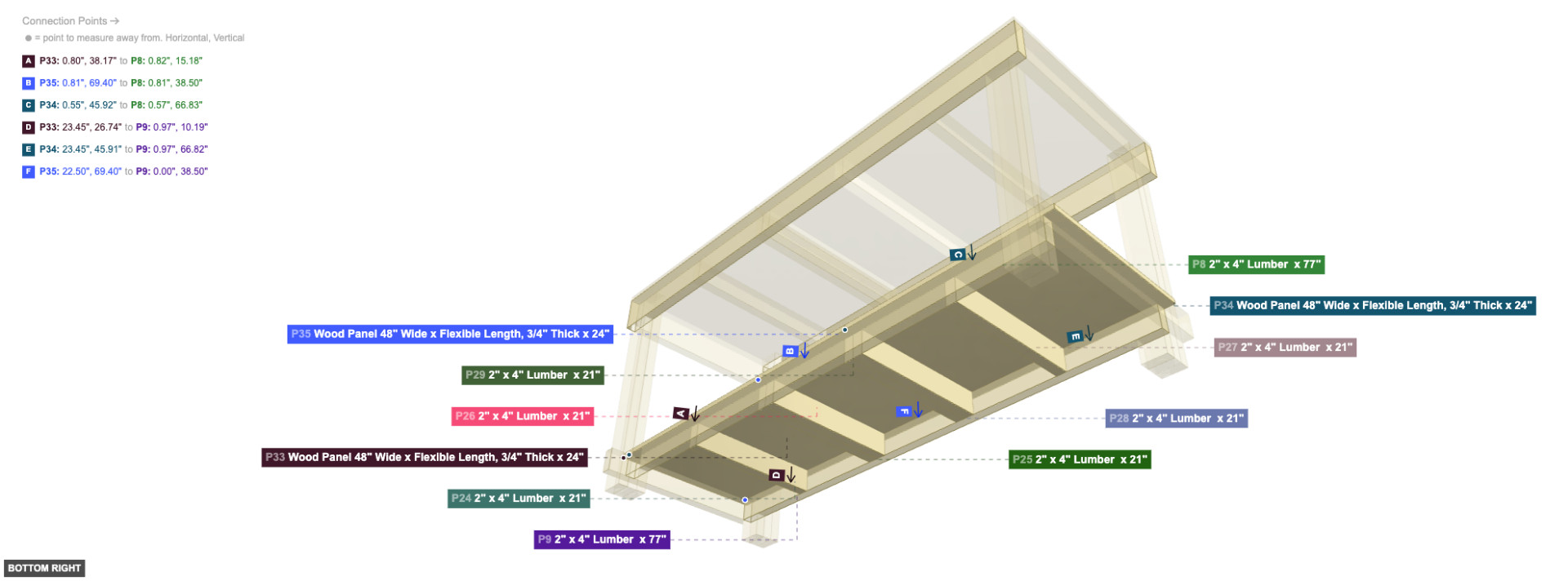

Lower Shelf Installation

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Top Surface Installation

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Phase 2: Individual Group Assembly

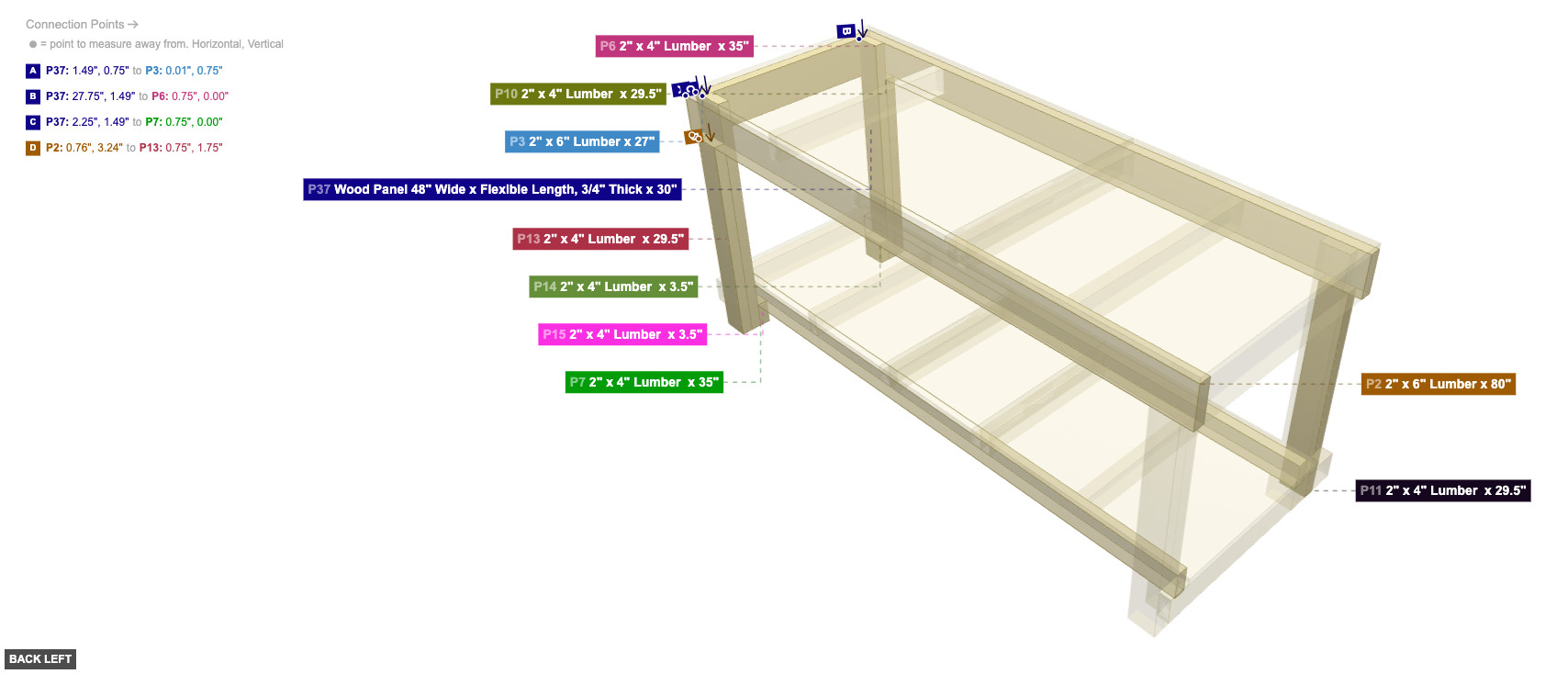

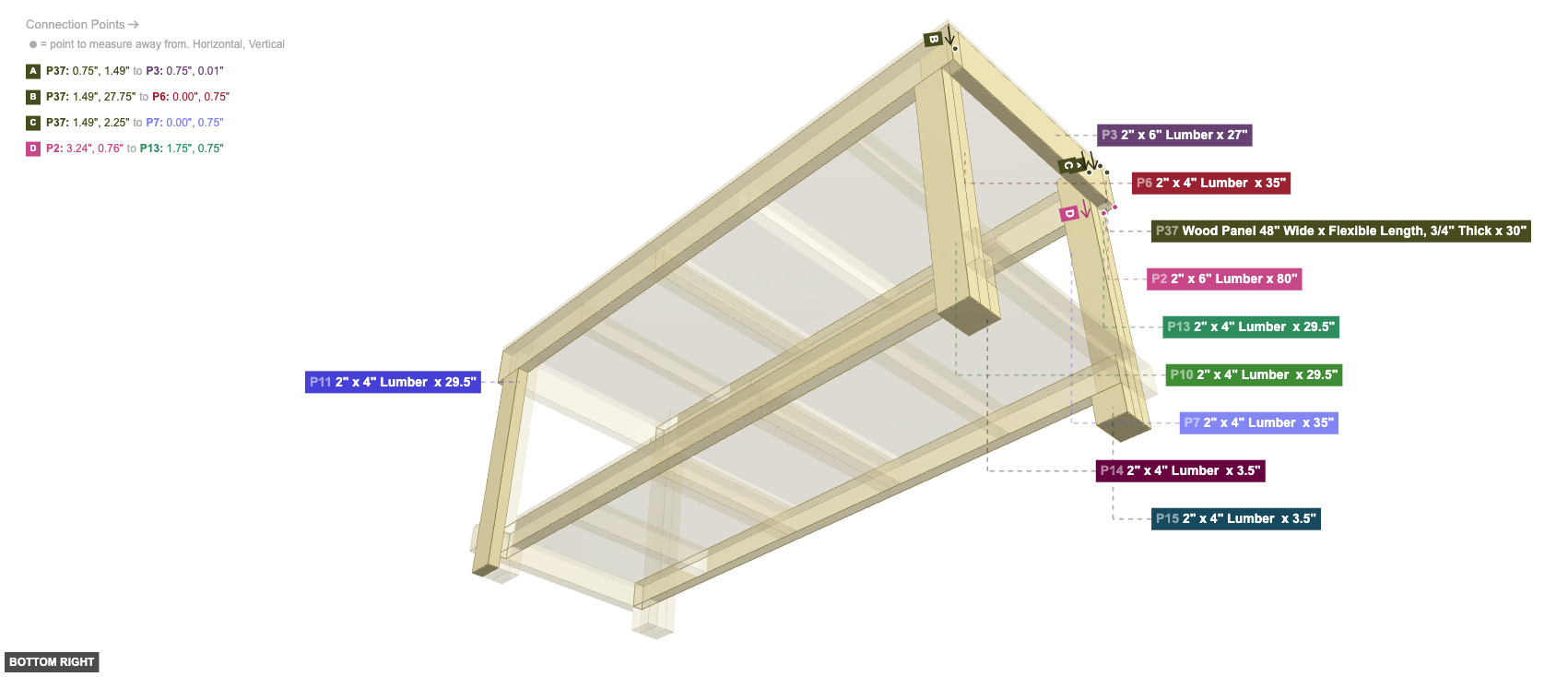

Group: Right Leg Assembly

Forms the right-side A-frame support structure for the workbench.

Attach the top of the angled legs (P6 and P7) to the top cross-member (P3). Connect the lower cross-member (P13) between the legs to form the A-frame. Attach the small front support (P10) and back support (P14) to the outer side of leg P6. Attach the remaining supports (P11, P15) symmetrically.

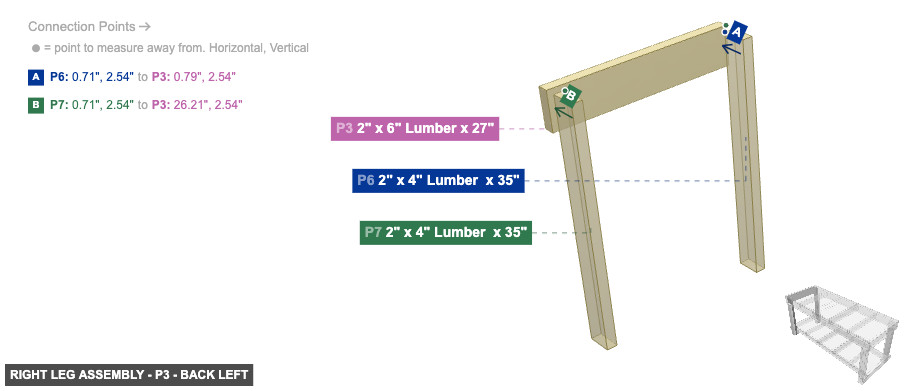

Part: 2" x 6" Lumber x 27" - Angle: back left

P3 (2" x 6" Lumber 27" length) - its 2" x 6" Wood Side #4, which is left-facing, should connect to part 6's 2" x 4" Wood Side #1. Additionally, its 2" x 6" Wood End #1 should be directed front, and its 2" x 6" Wood Side #2 should be directed right. Additionally, its 2" x 6" Wood Side #3 should be directed bottom, plus its 2" x 6" Wood End #2 must be oriented back

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

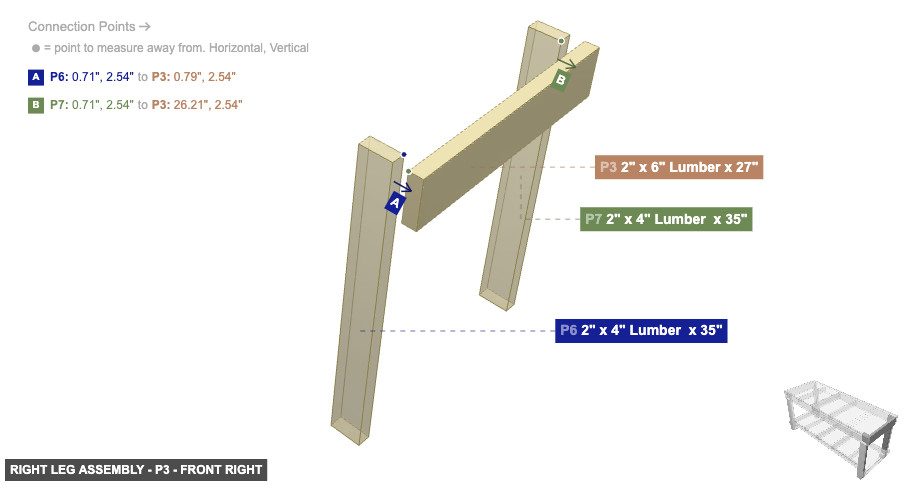

Part: 2" x 6" Lumber x 27" - Angle: front right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

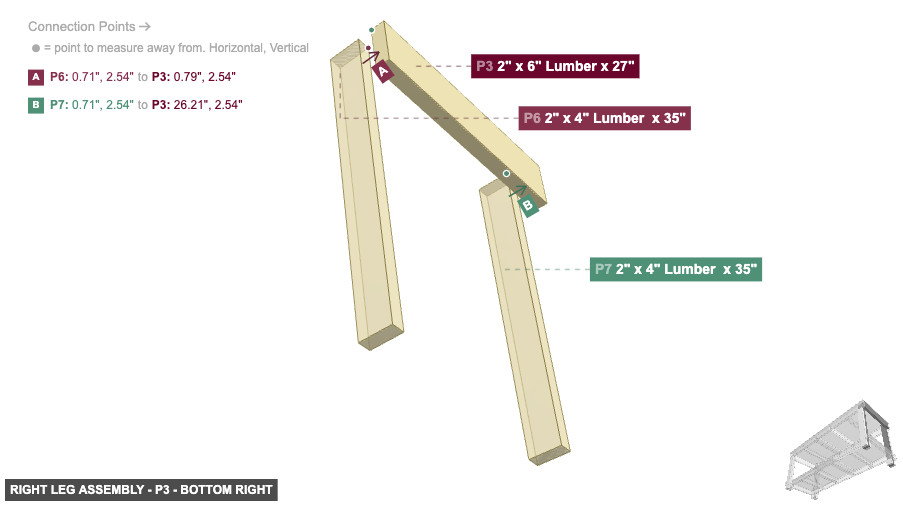

Part: 2" x 6" Lumber x 27" - Angle: bottom right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

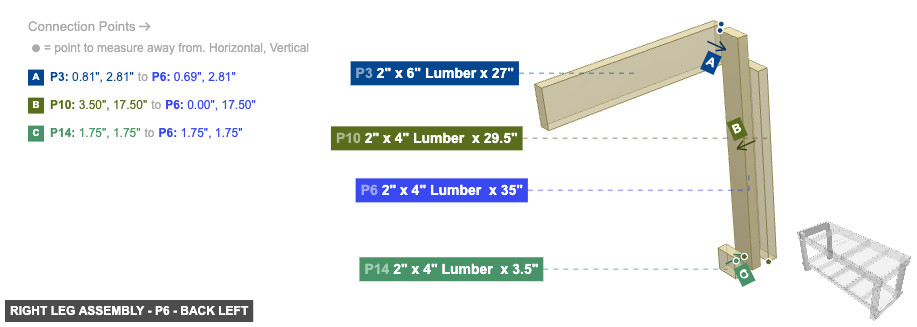

Part: 2" x 4" Lumber x 35" - Angle: back left

P6 (2" x 4" Lumber 35" length) - attach its 2" x 4" Wood Side #1 facing right to part 3's 2" x 6" Wood Side #4, plus attach its 2" x 4" Wood Side #2 facing front to part 10's 2" x 4" Wood Side #2, then connect its 2" x 4" Wood Side #4 oriented back links with part 14's 2" x 4" Wood Side #2. Next, ensure its 2" x 4" Wood Side #3 faces left, and its 2" x 4" Wood End #2 must be oriented bottom

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

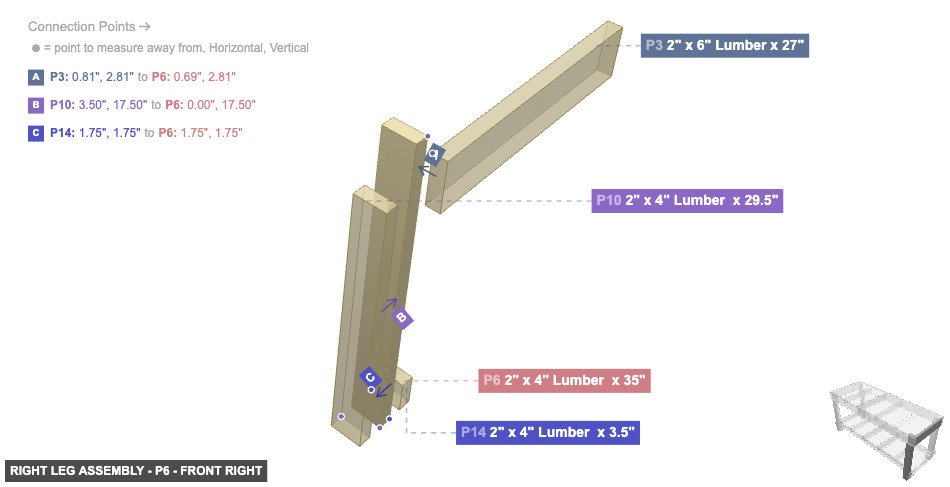

Part: 2" x 4" Lumber x 35" - Angle: front right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

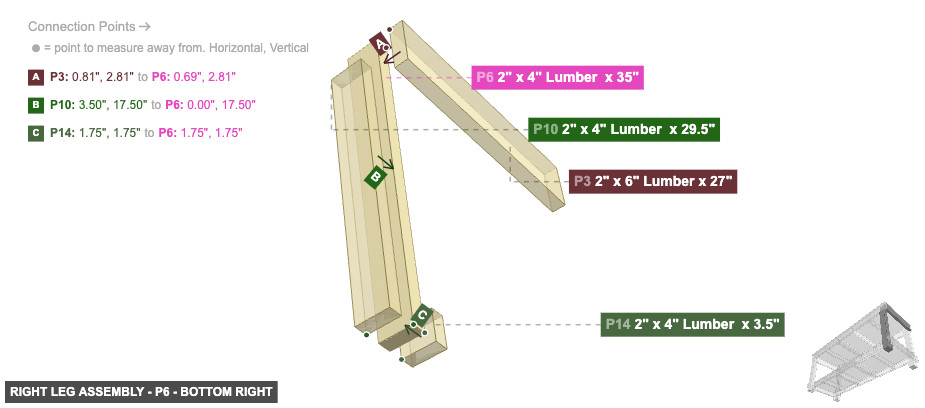

Part: 2" x 4" Lumber x 35" - Angle: bottom right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Part: 2" x 4" Lumber x 35" - Angle: back left

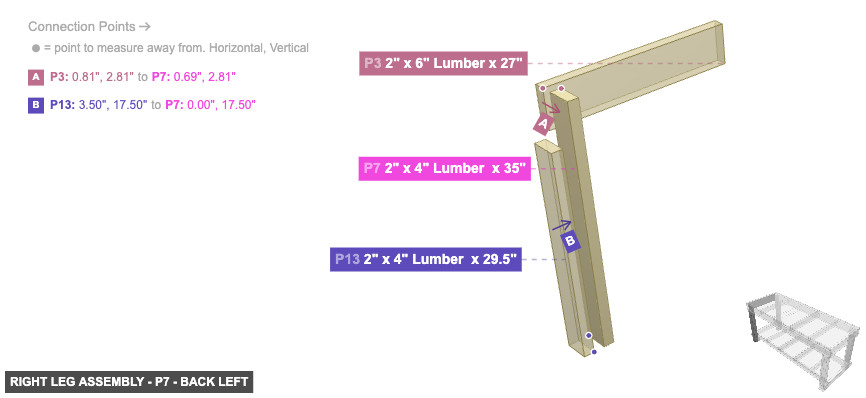

P7 (2" x 4" Lumber 35" length) - attach its 2" x 4" Wood Side #1 facing right to part 3's 2" x 6" Wood Side #4, plus attach its 2" x 4" Wood Side #4 facing back to part 13's 2" x 4" Wood Side #2, then ensure its 2" x 4" Wood Side #2 faces front, and its 2" x 4" Wood Side #3 must be oriented left. Additionally, its 2" x 4" Wood End #2 should be directed bottom

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

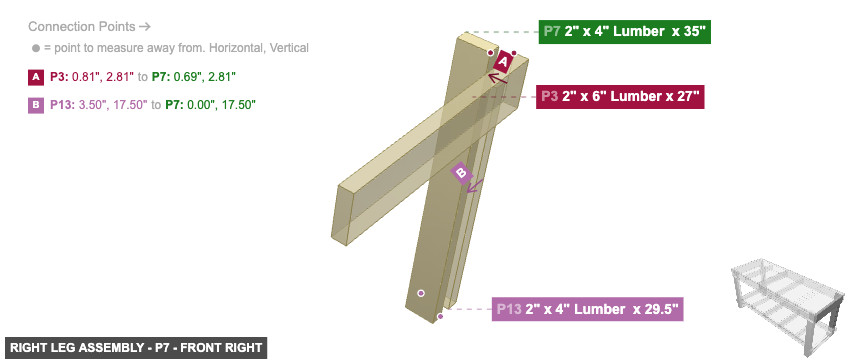

Part: 2" x 4" Lumber x 35" - Angle: front right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

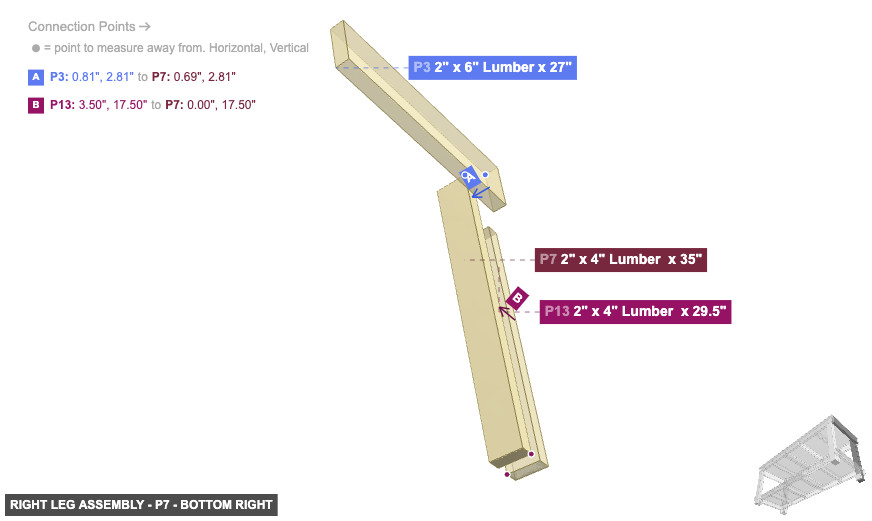

Part: 2" x 4" Lumber x 35" - Angle: bottom right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

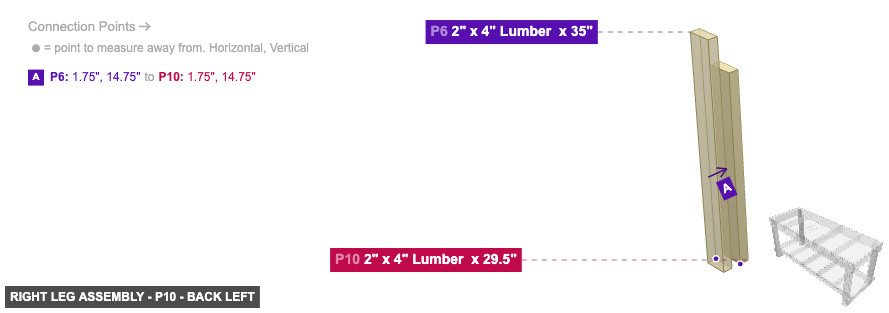

Part: 2" x 4" Lumber x 29.5" - Angle: back left

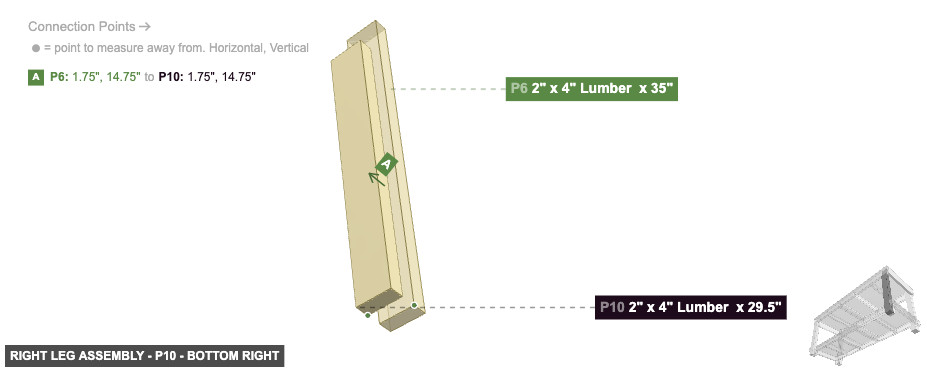

P10 (2" x 4" Lumber 29.5" length) - connect its 2" x 4" Wood Side #2 oriented back links with part 6's 2" x 4" Wood Side #2. After that, ensure its 2" x 4" Wood End #1 faces bottom. Additionally, its 2" x 4" Wood Side #1 must be oriented right. Also, ensure its 2" x 4" Wood Side #3 faces left. Additionally, its 2" x 4" Wood Side #4 should be directed front. Additionally, its 2" x 4" Wood End #2 needs to point top

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

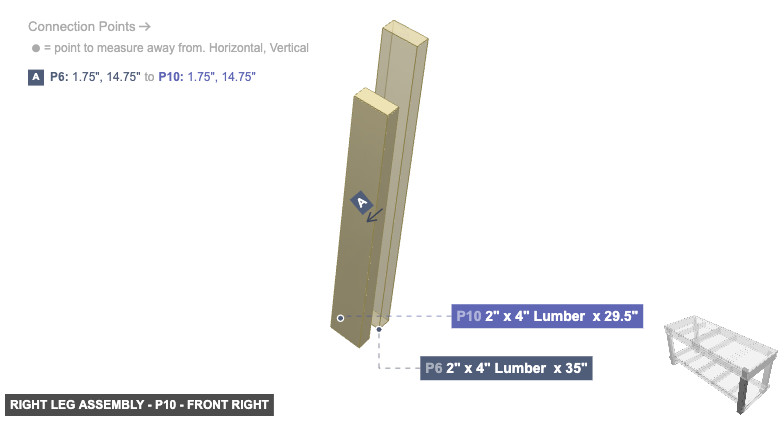

Part: 2" x 4" Lumber x 29.5" - Angle: front right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Part: 2" x 4" Lumber x 29.5" - Angle: bottom right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Part: 2" x 4" Lumber x 29.5" - Angle: back left

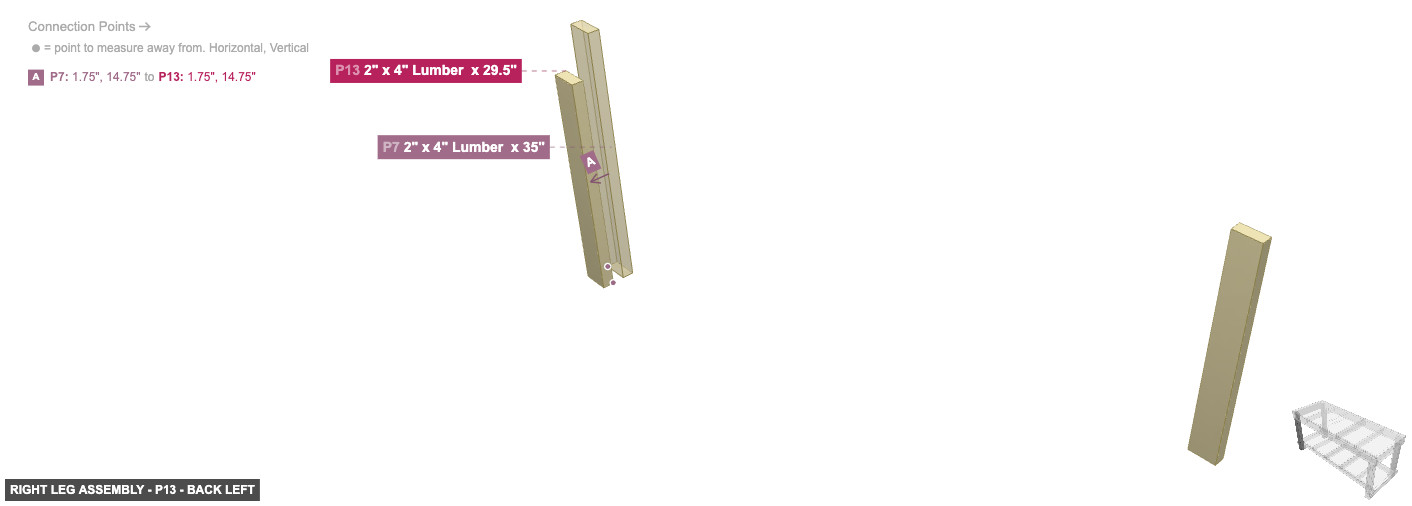

P13 (2" x 4" Lumber 29.5" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 7's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood Side #1 needs to point right, also ensure its 2" x 4" Wood Side #3 faces left, then its 2" x 4" Wood Side #4 must be oriented back. Next, its 2" x 4" Wood End #2 should be directed bottom

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

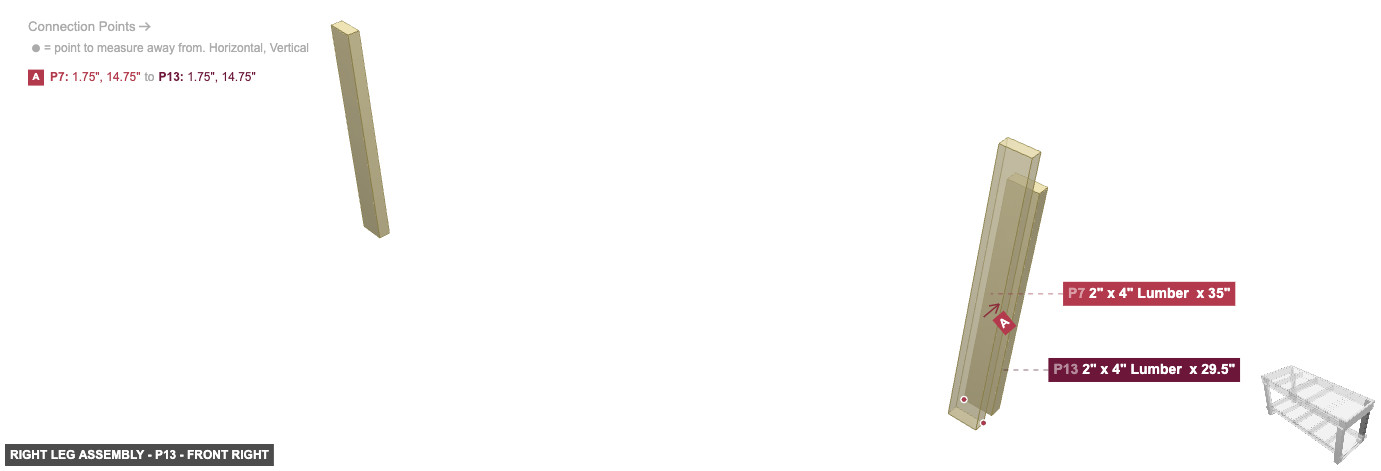

Part: 2" x 4" Lumber x 29.5" - Angle: front right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Part: 2" x 4" Lumber x 29.5" - Angle: bottom right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

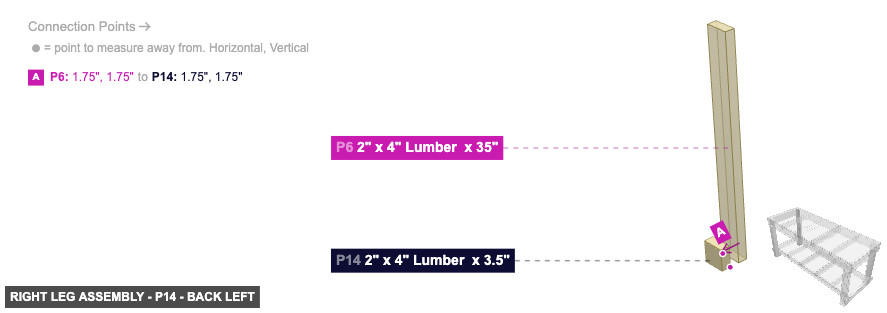

Part: 2" x 4" Lumber x 3.5" - Angle: back left

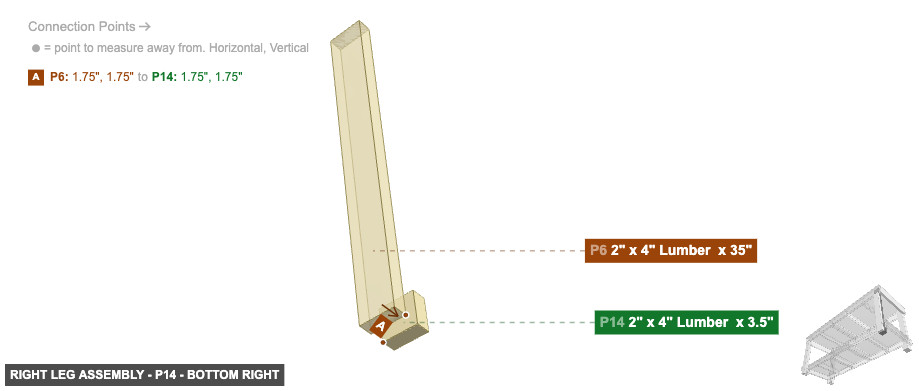

P14 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 6's 2" x 4" Wood Side #4, plus its 2" x 4" Wood End #1 should be directed top. Next, ensure its 2" x 4" Wood Side #1 faces right, then ensure its 2" x 4" Wood Side #3 faces left. Additionally, its 2" x 4" Wood Side #4 should be directed back, also its 2" x 4" Wood End #2 should be directed bottom

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

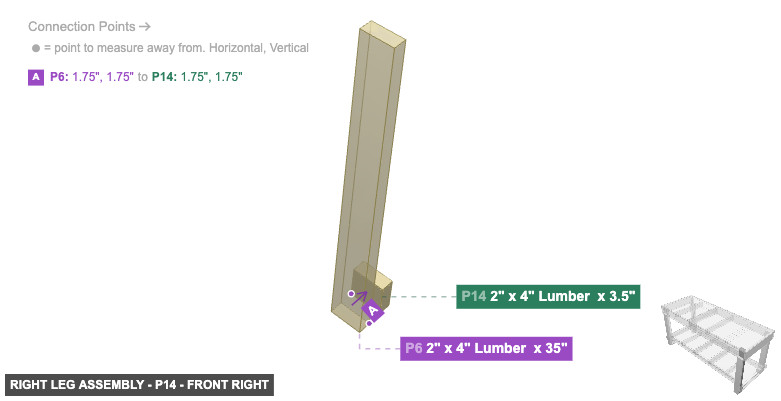

Part: 2" x 4" Lumber x 3.5" - Angle: front right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Part: 2" x 4" Lumber x 3.5" - Angle: bottom right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

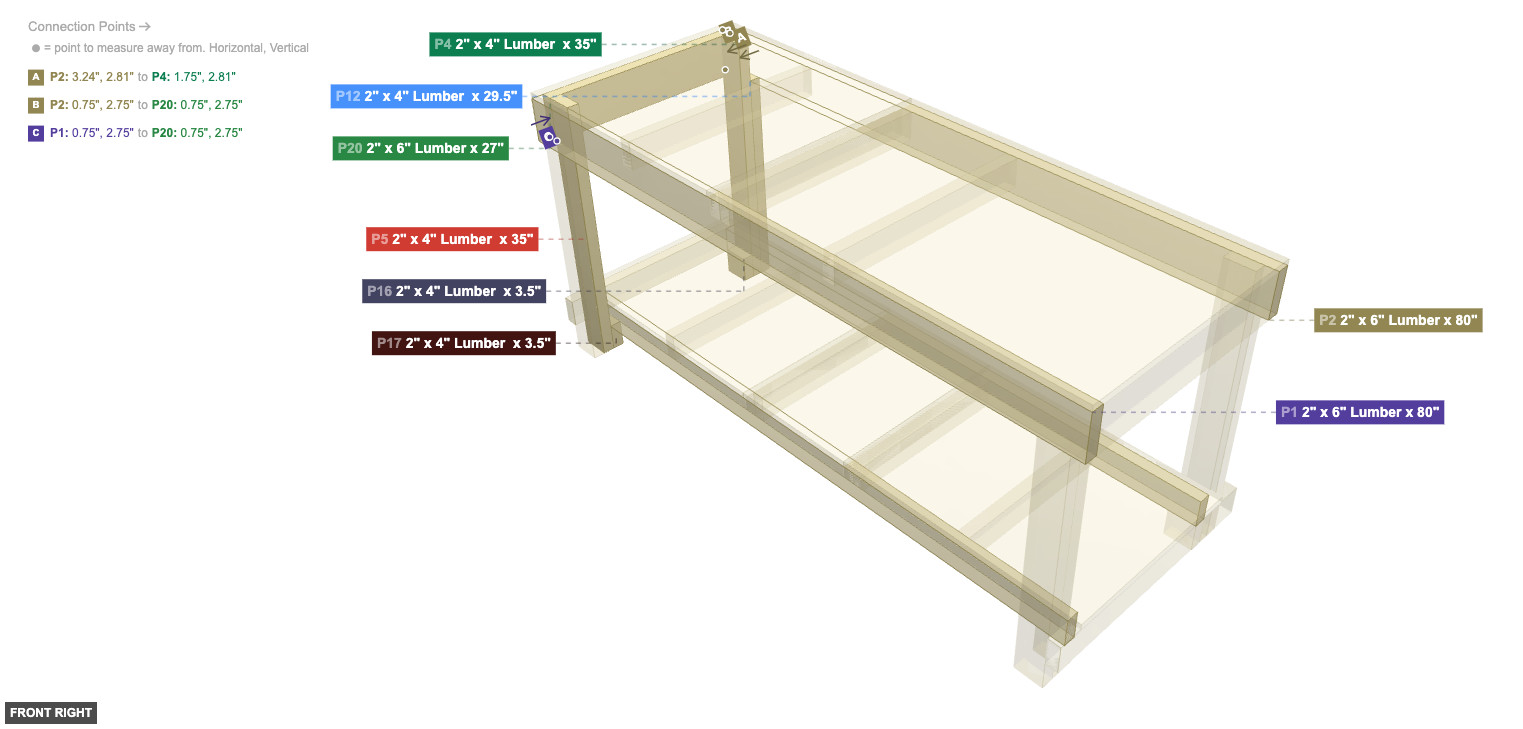

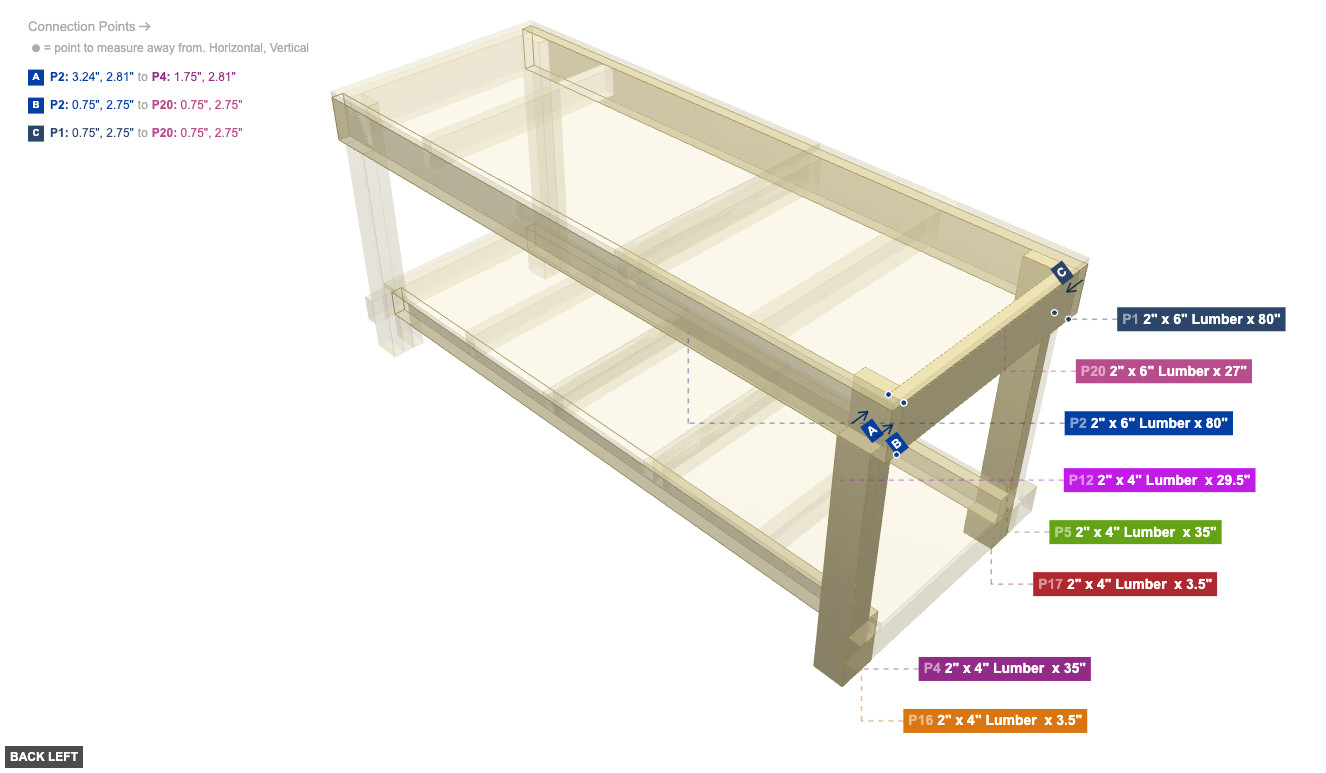

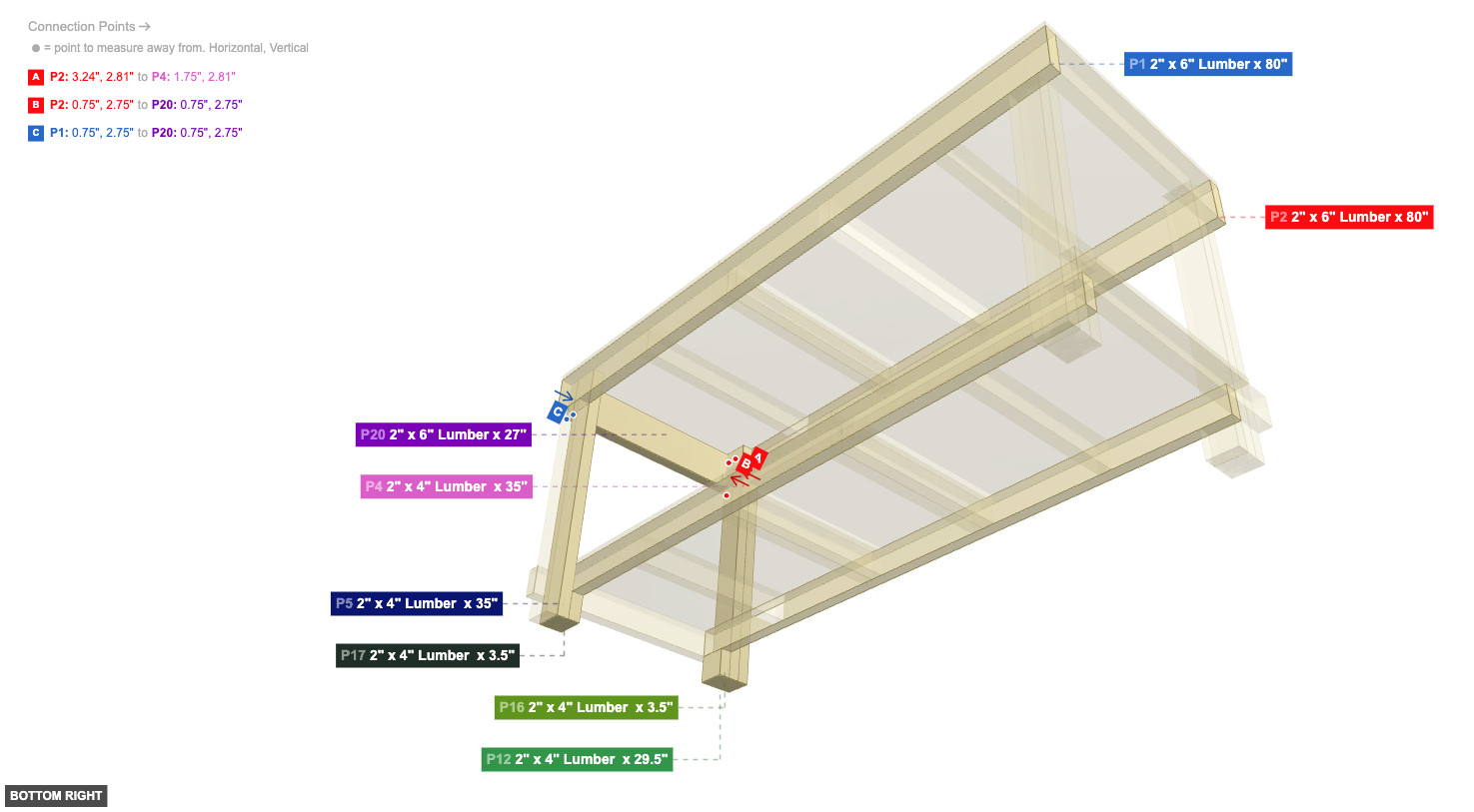

Group: Left Leg Assembly

Forms the left-side A-frame support structure for the workbench.

Attach the top of the angled legs (P4 and P5) to the top cross-member (P20). Connect the lower cross-member (P12) between the legs to form the A-frame. Attach the small front support (P16) to the outer side of leg P4. Attach the remaining support (P17) symmetrically.

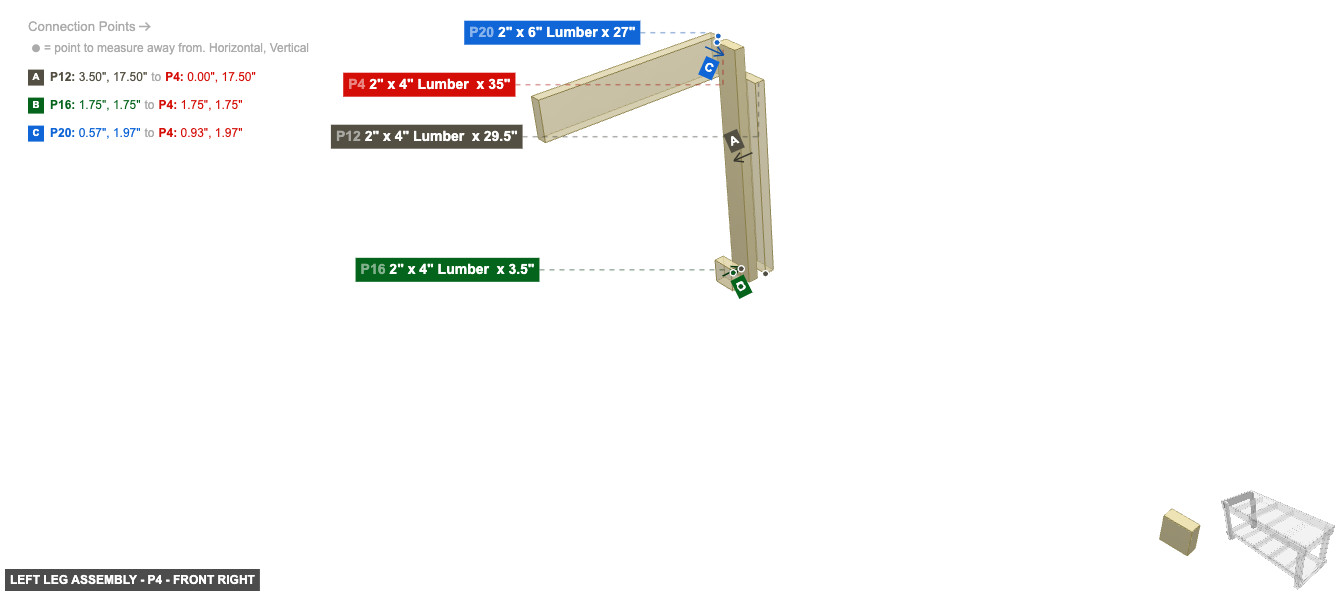

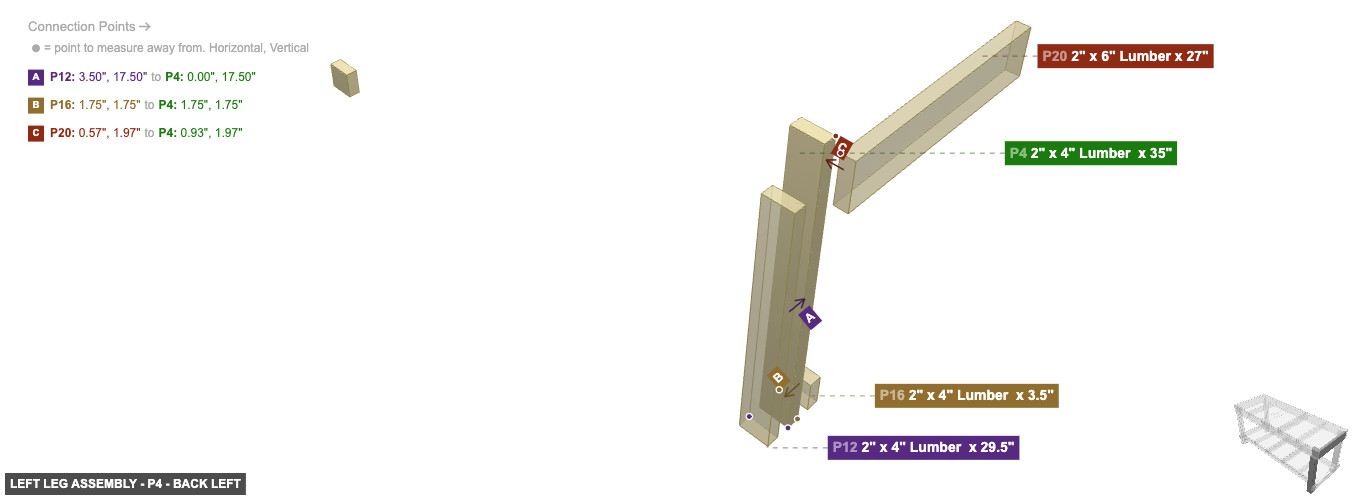

Part: 2" x 4" Lumber x 35" - Angle: back left

P4 (2" x 4" Lumber 35" length) - connect its 2" x 4" Wood Side #1 oriented left links with part 20's 2" x 6" Wood Side #2. Additionally, attach its 2" x 4" Wood Side #4 facing front to part 16's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 needs to point top. Additionally, ensure its 2" x 4" Wood Side #3 faces right, also its 2" x 4" Wood End #2 should be directed bottom

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Part: 2" x 4" Lumber x 35" - Angle: front right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

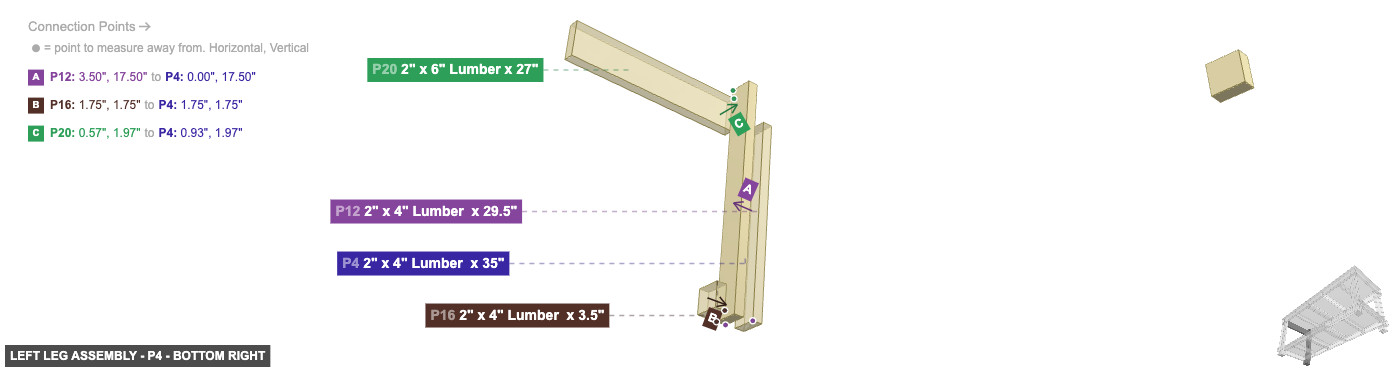

Part: 2" x 4" Lumber x 35" - Angle: bottom right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Part: 2" x 4" Lumber x 35" - Angle: back left

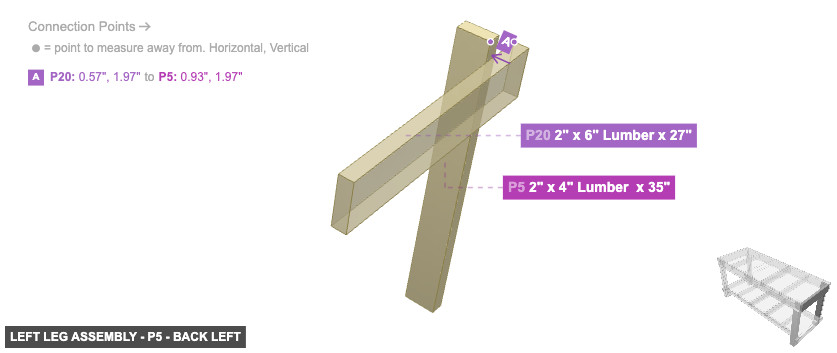

P5 (2" x 4" Lumber 35" length) - its 2" x 4" Wood Side #1, which is left-facing, should connect to part 20's 2" x 6" Wood Side #2, plus its 2" x 4" Wood End #1 should be directed top, plus ensure its 2" x 4" Wood Side #2 faces back, then its 2" x 4" Wood Side #3 should be directed right. Also, its 2" x 4" Wood Side #4 should be directed front. Also, ensure its 2" x 4" Wood End #2 faces bottom

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

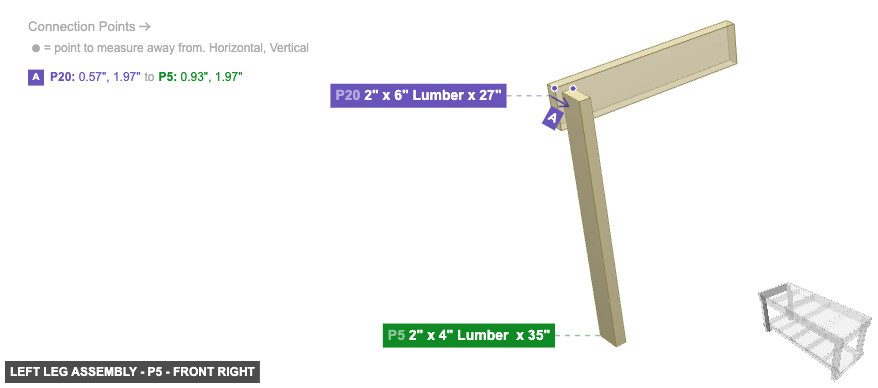

Part: 2" x 4" Lumber x 35" - Angle: front right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

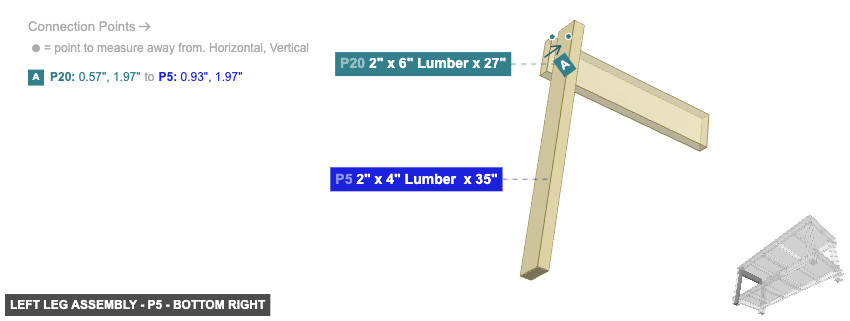

Part: 2" x 4" Lumber x 35" - Angle: bottom right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

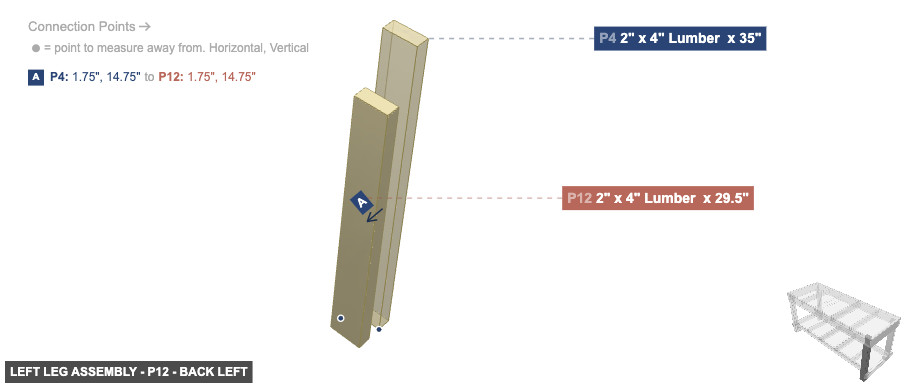

Part: 2" x 4" Lumber x 29.5" - Angle: back left

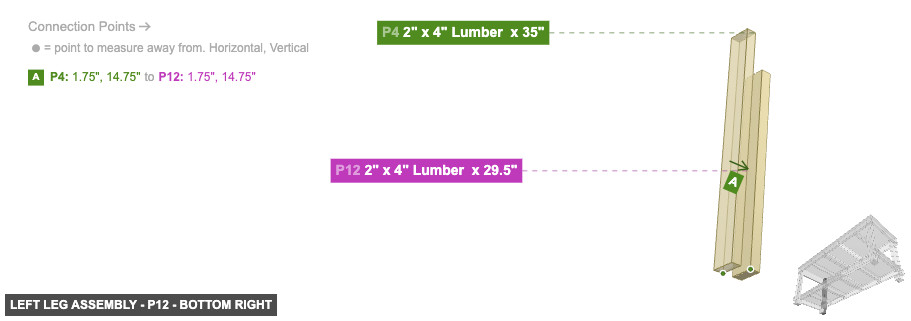

P12 (2" x 4" Lumber 29.5" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 4's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood End #1 should be directed bottom. Also, its 2" x 4" Wood Side #1 must be oriented left, plus its 2" x 4" Wood Side #3 should be directed right. After that, its 2" x 4" Wood Side #4 must be oriented back, plus its 2" x 4" Wood End #2 should be directed top

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

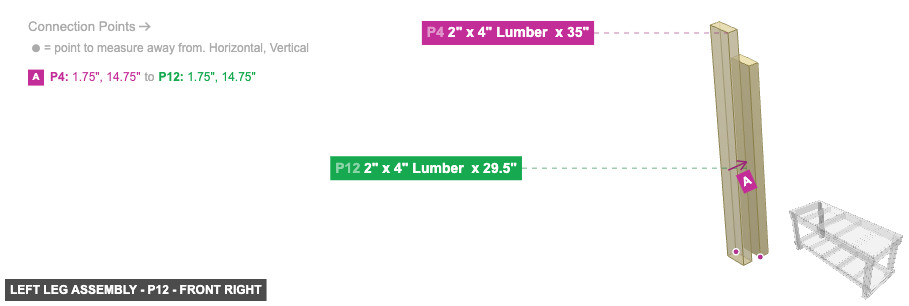

Part: 2" x 4" Lumber x 29.5" - Angle: front right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Part: 2" x 4" Lumber x 29.5" - Angle: bottom right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

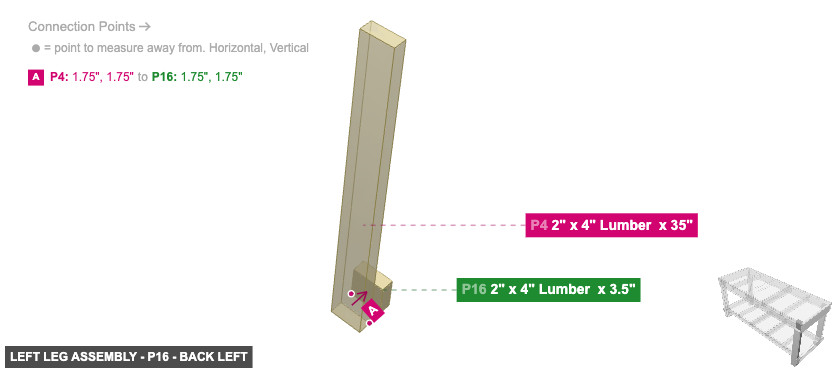

Part: 2" x 4" Lumber x 3.5" - Angle: back left

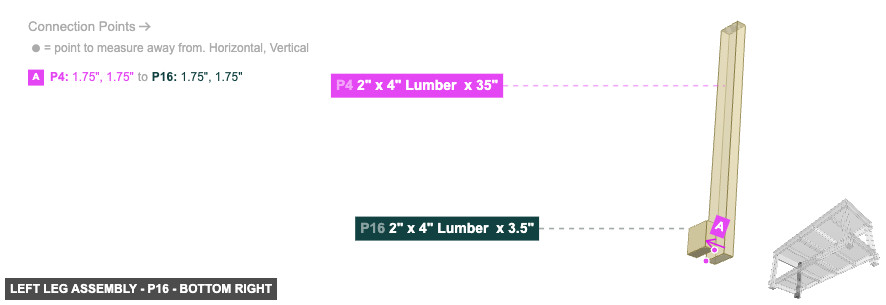

P16 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 4's 2" x 4" Wood Side #4, plus ensure its 2" x 4" Wood End #1 faces top. Next, its 2" x 4" Wood Side #1 needs to point left, plus ensure its 2" x 4" Wood Side #3 faces right, plus its 2" x 4" Wood Side #4 must be oriented front. Additionally, its 2" x 4" Wood End #2 needs to point bottom

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

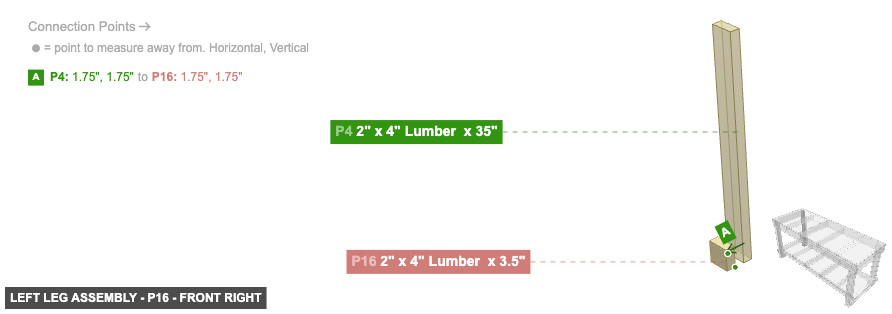

Part: 2" x 4" Lumber x 3.5" - Angle: front right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Part: 2" x 4" Lumber x 3.5" - Angle: bottom right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

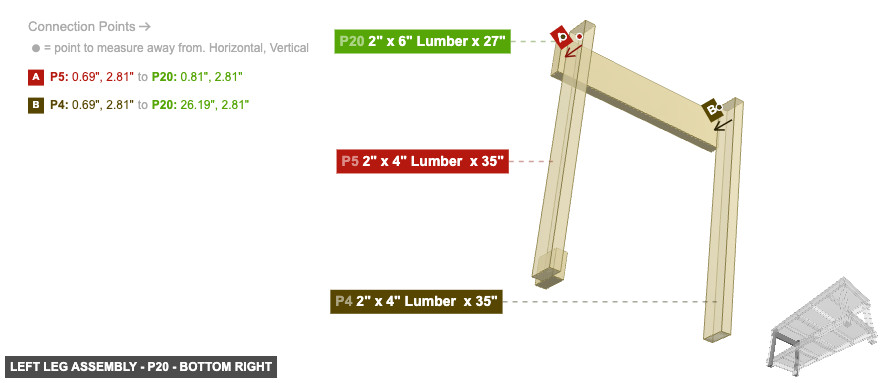

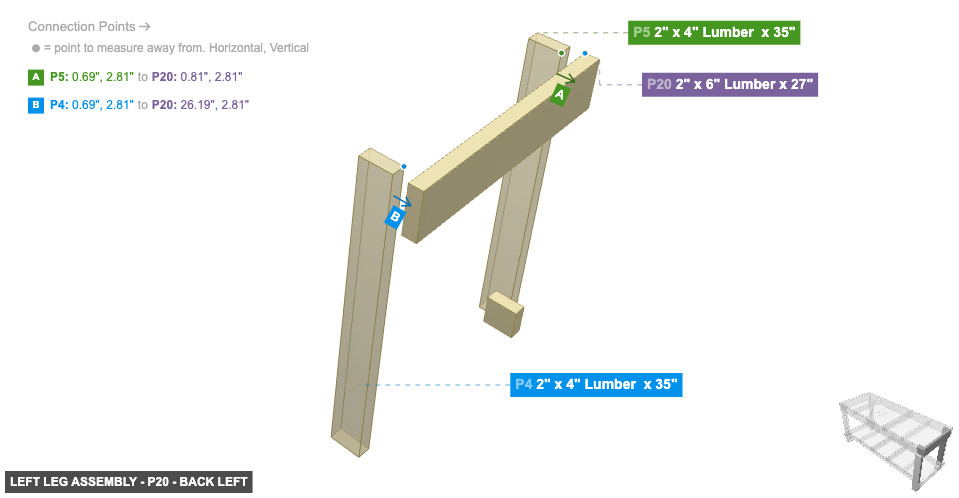

Part: 2" x 6" Lumber x 27" - Angle: back left

P20 (2" x 6" Lumber 27" length) - connect its 2" x 6" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #1. Also, its 2" x 6" Wood Side #1 must be oriented top, plus its 2" x 6" Wood Side #3 should be directed bottom. Next, its 2" x 6" Wood Side #4 needs to point left

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

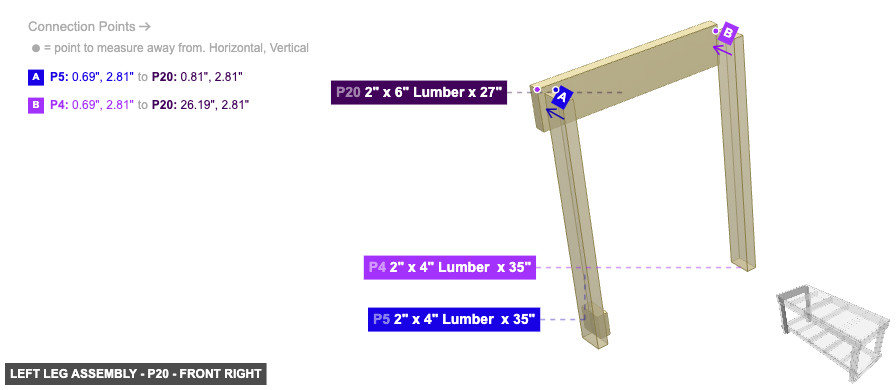

Part: 2" x 6" Lumber x 27" - Angle: front right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Part: 2" x 6" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

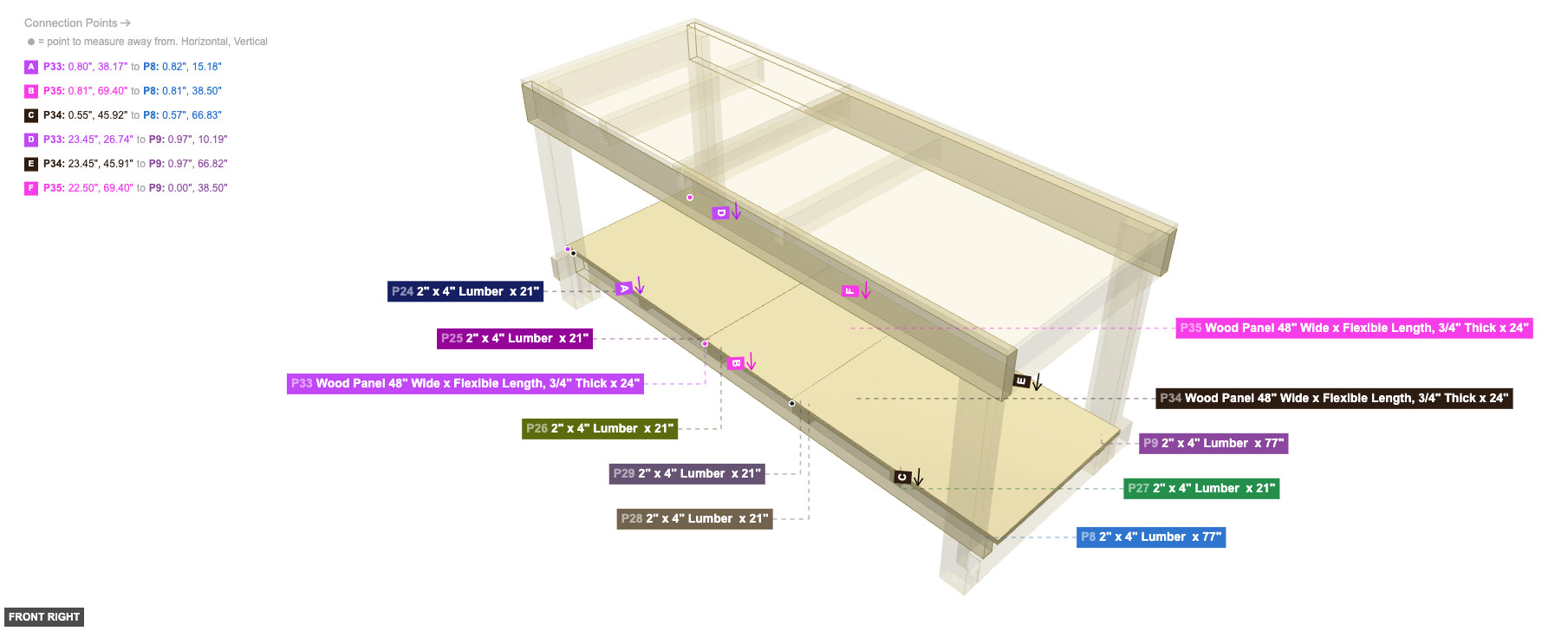

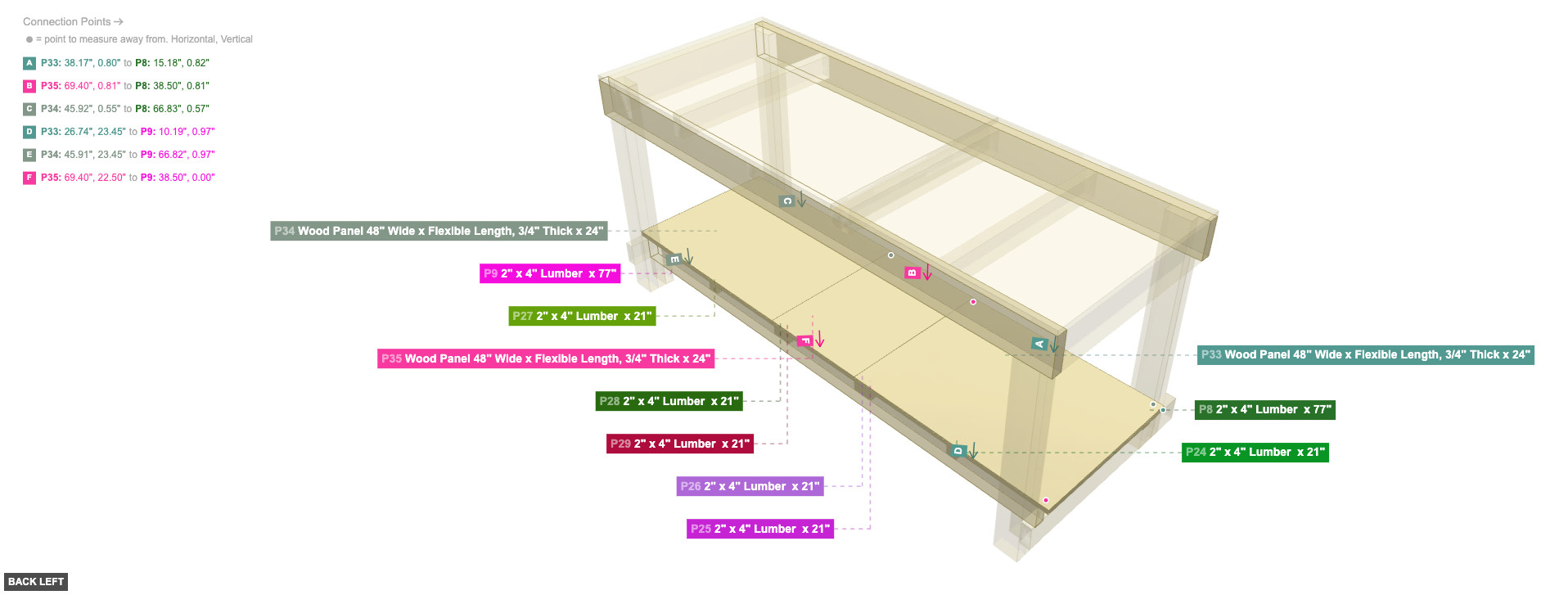

Group: Lower Shelf Installation

Creates the lower storage shelf.

Install the six shelf cross supports (P24, P25, P26, P27, P28, P29) between the lower long stretchers (P8 and P9). Then, lay the three lower shelf panels (P33, P34, P35) onto the cross supports and secure them.

Part: 2" x 4" Lumber x 21" - Angle: back left

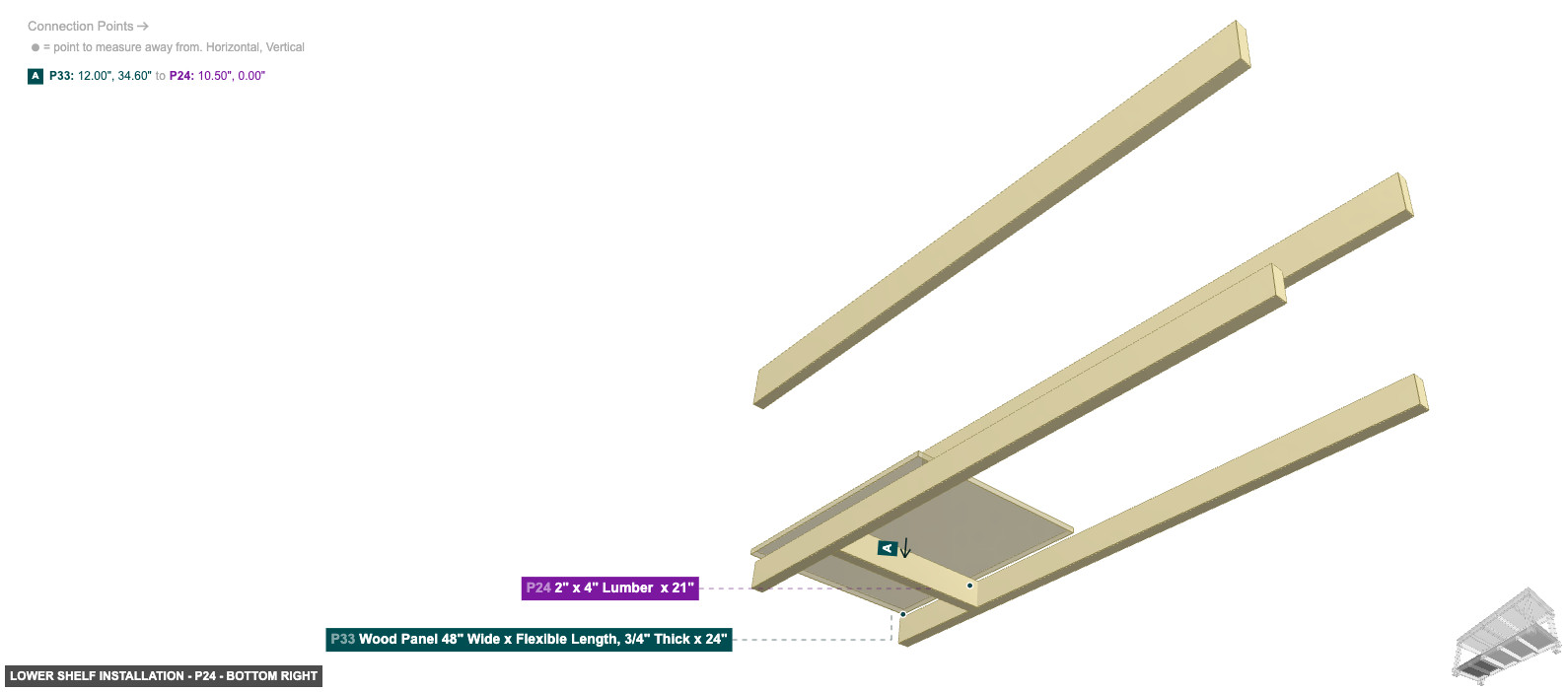

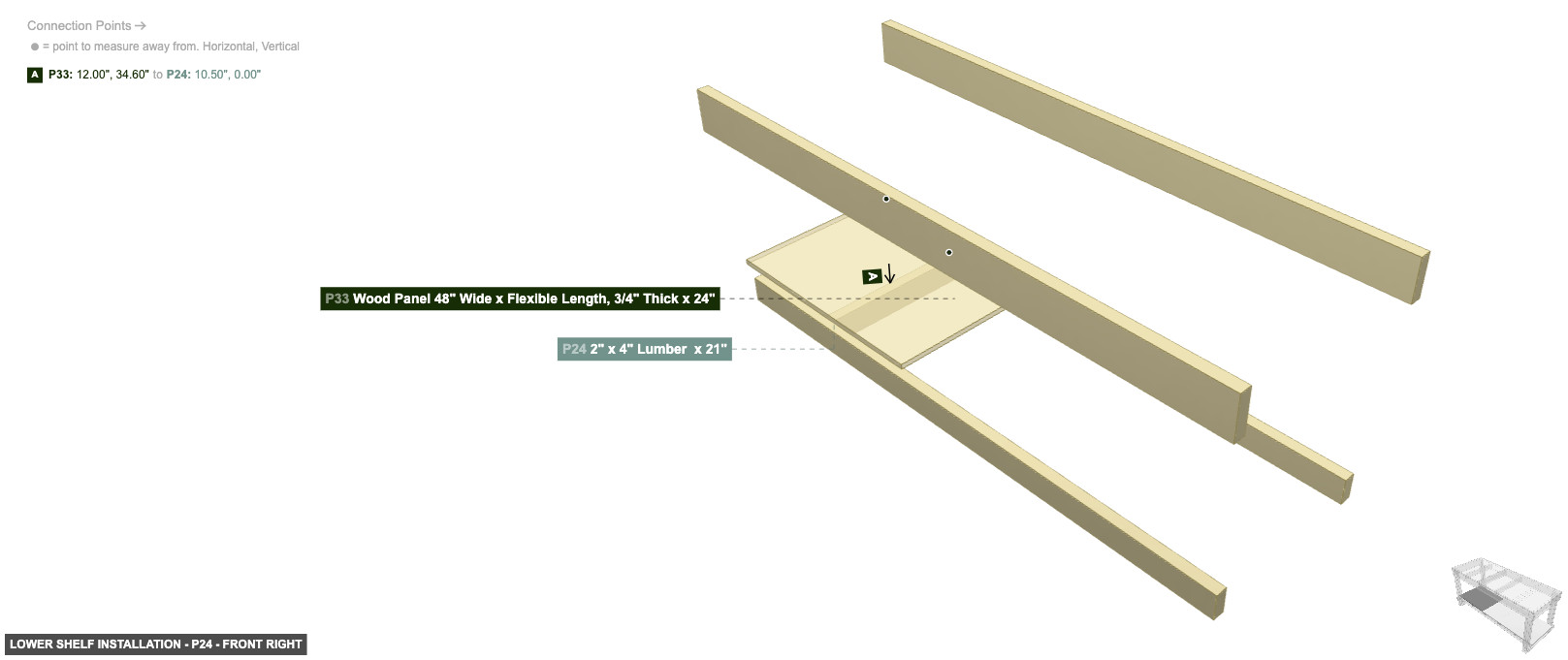

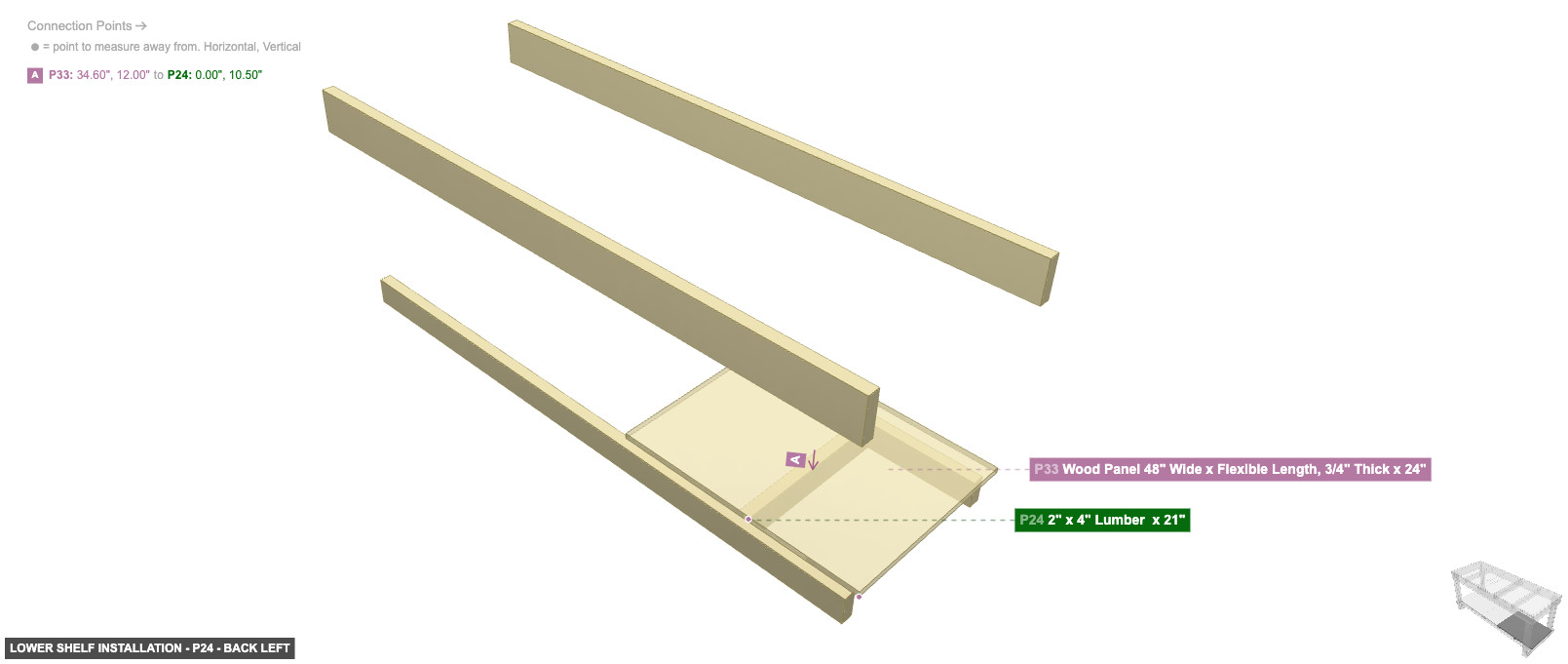

P24 (2" x 4" Lumber 21" length) - connect its 2" x 4" Wood Side #1 oriented top links with part 33's 48" x 0.75" Wood Side #2. Next, ensure its 2" x 4" Wood End #1 faces back. After that, ensure its 2" x 4" Wood Side #2 faces left, and its 2" x 4" Wood Side #3 must be oriented bottom. Next, its 2" x 4" Wood Side #4 needs to point right. Also, ensure its 2" x 4" Wood End #2 faces front

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: 2" x 4" Lumber x 21" - Angle: front right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: 2" x 4" Lumber x 21" - Angle: bottom right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: 2" x 4" Lumber x 21" - Angle: back left

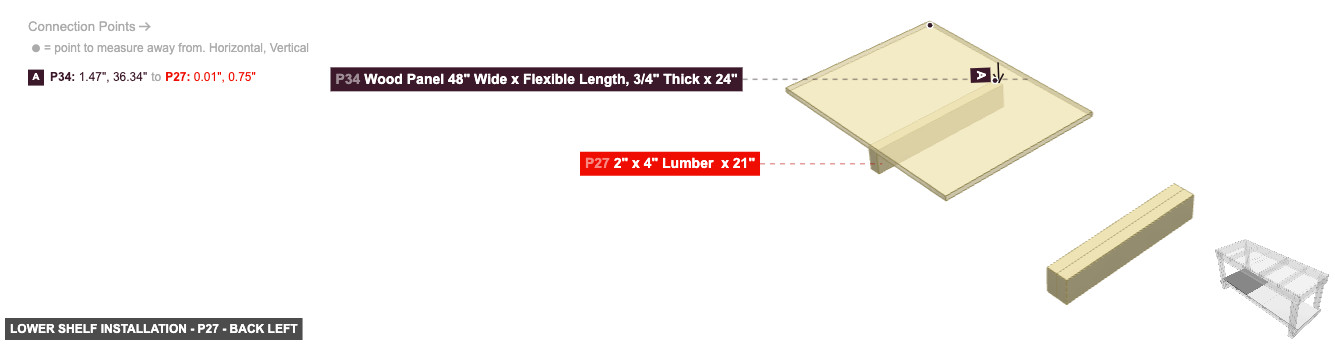

P27 (2" x 4" Lumber 21" length) - connect its 2" x 4" Wood Side #3 oriented top links with part 34's 48" x 0.75" Wood Side #2, plus its 2" x 4" Wood End #1 should be directed back. Also, its 2" x 4" Wood Side #1 needs to point bottom. Additionally, its 2" x 4" Wood Side #2 must be oriented right, plus ensure its 2" x 4" Wood Side #4 faces left. Next, its 2" x 4" Wood End #2 must be oriented front

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

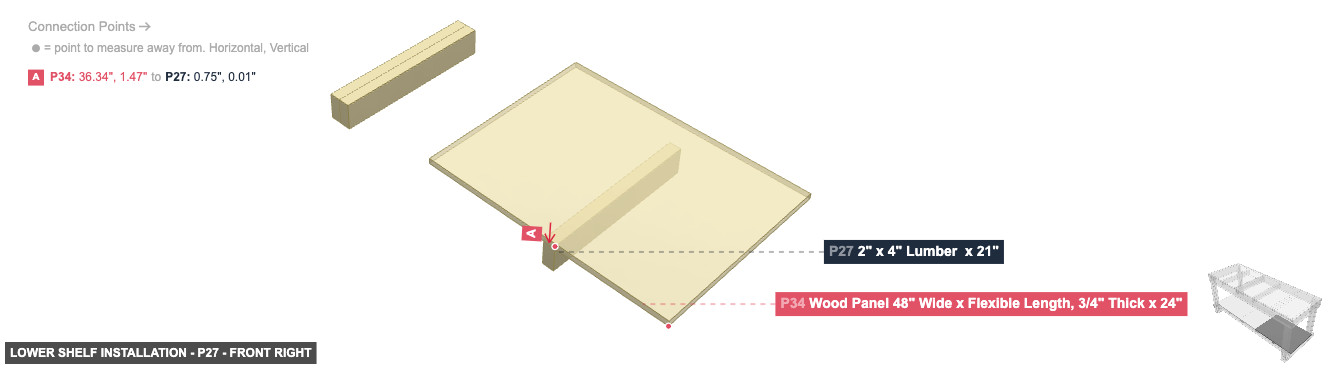

Part: 2" x 4" Lumber x 21" - Angle: front right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

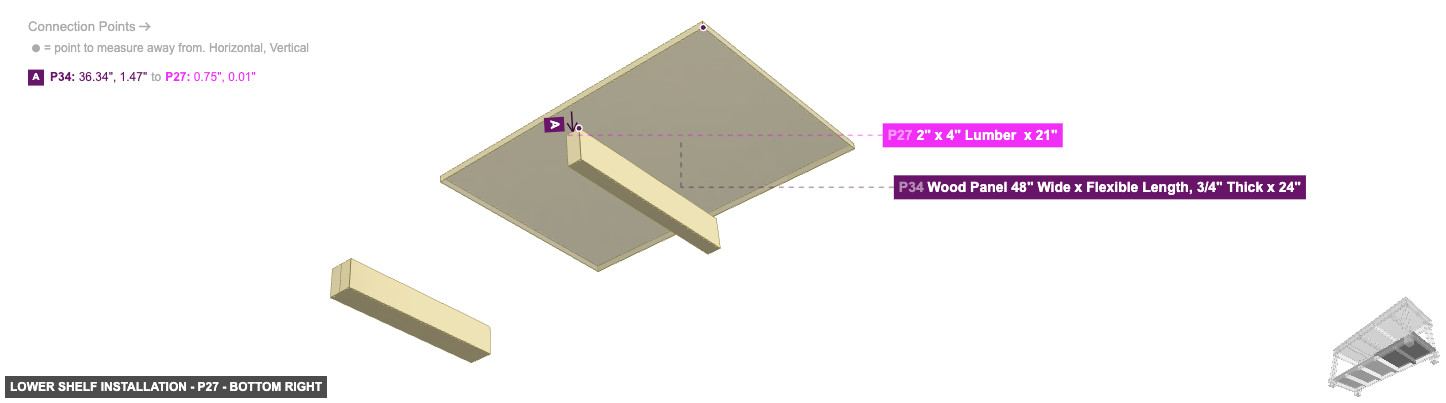

Part: 2" x 4" Lumber x 21" - Angle: bottom right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

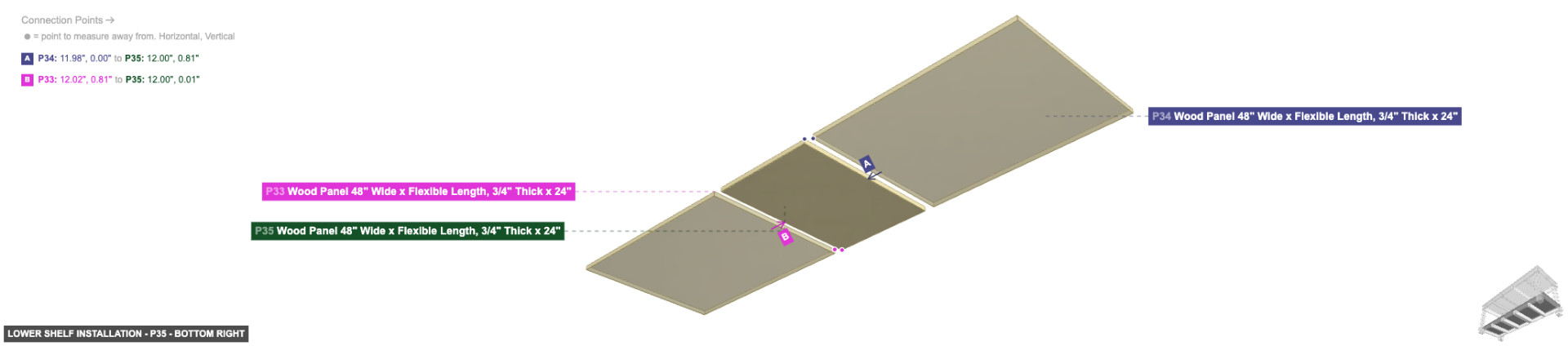

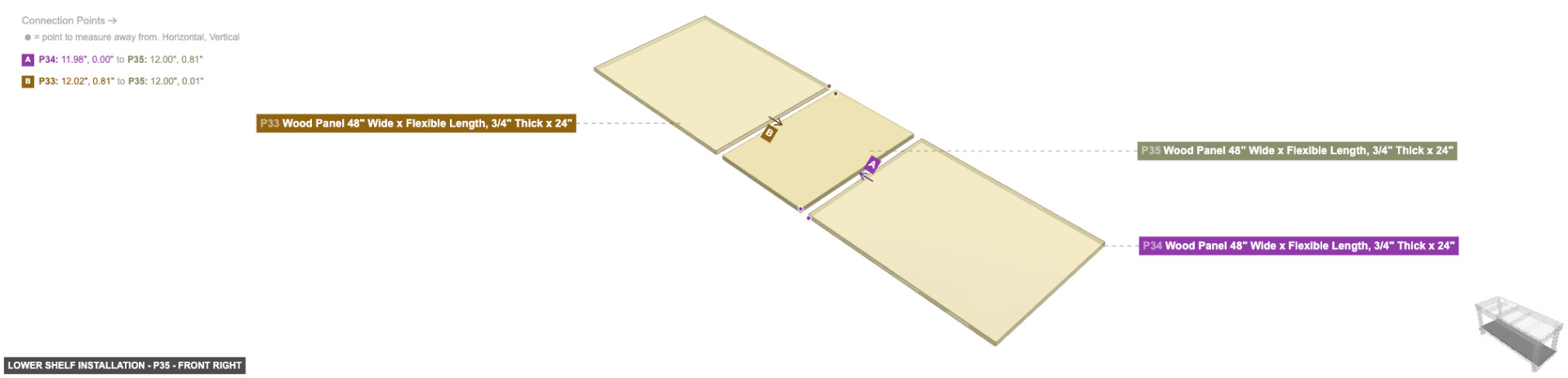

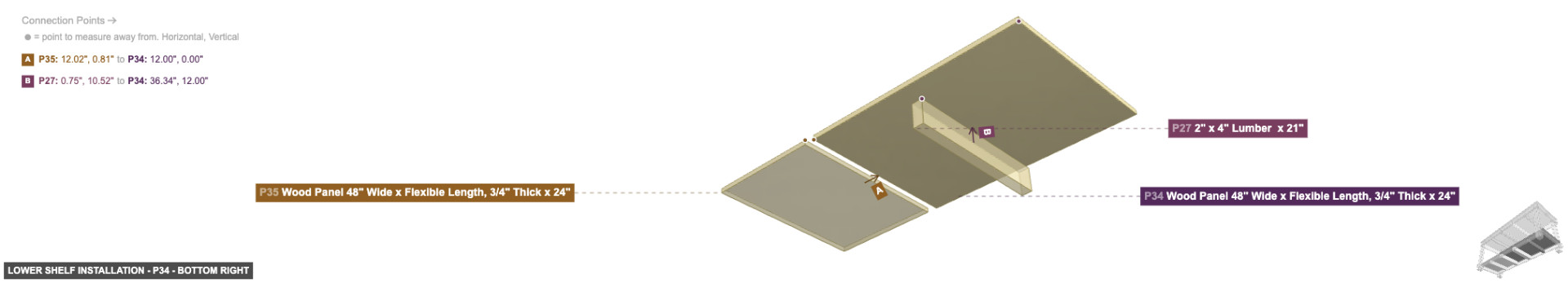

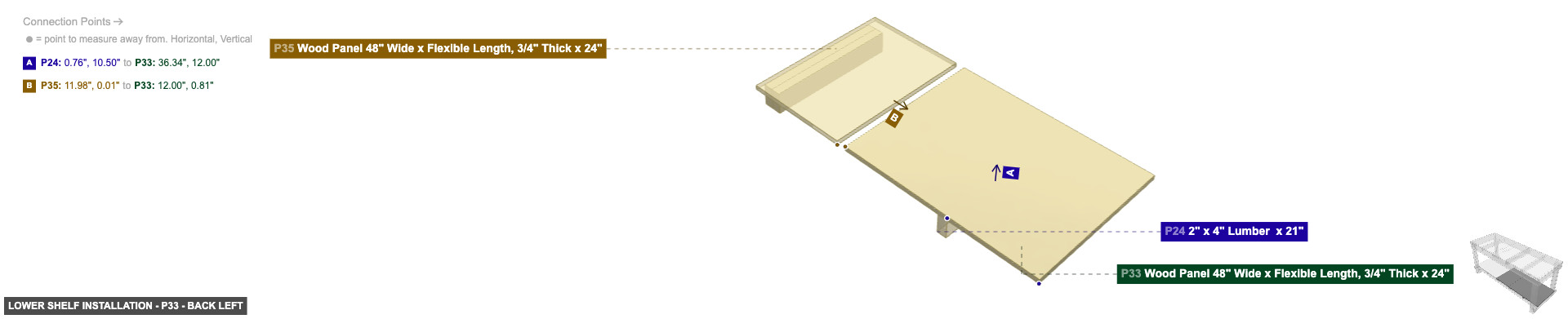

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: back left

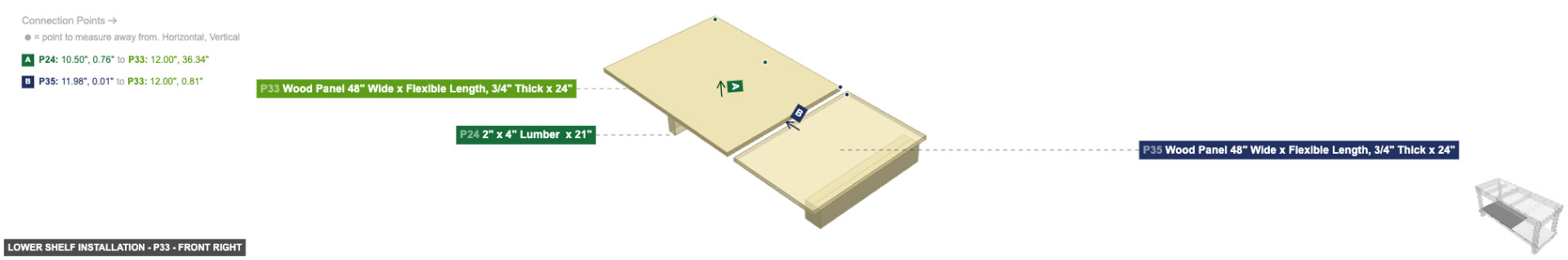

Lower Shelf Installation - Part Wood Panel 48

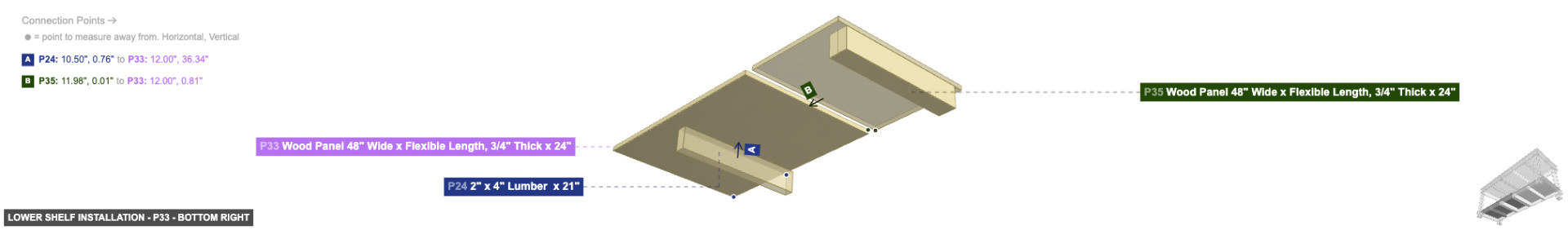

P33 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 24" length) - attach its 48" x 0.75" Wood Side #1 facing right to part 35's 48" x 0.75" Wood Side #3, also attach its 48" x 0.75" Wood Side #2 facing bottom to part 24's 2" x 4" Wood Side #1, also its 48" x 0.75" Wood End #1 should be directed front. Next, its 48" x 0.75" Wood Side #3 should be directed left, also its 48" x 0.75" Wood Side #4 needs to point top. Also, its 48" x 0.75" Wood End #2 should be directed back

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: front right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: bottom right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

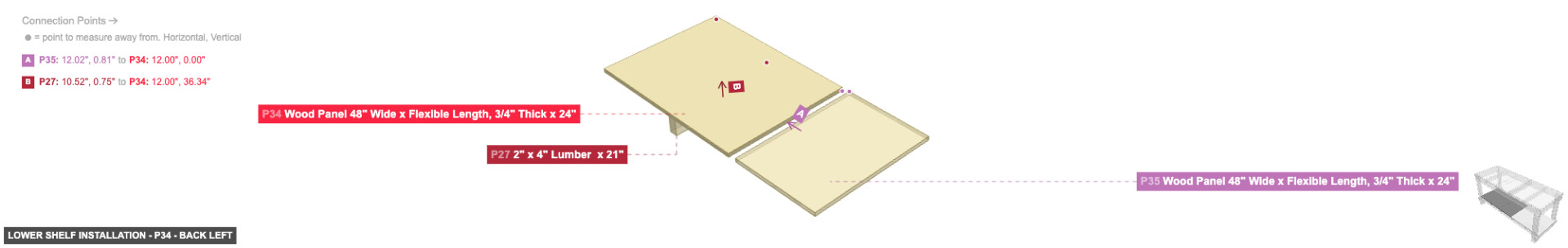

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: back left

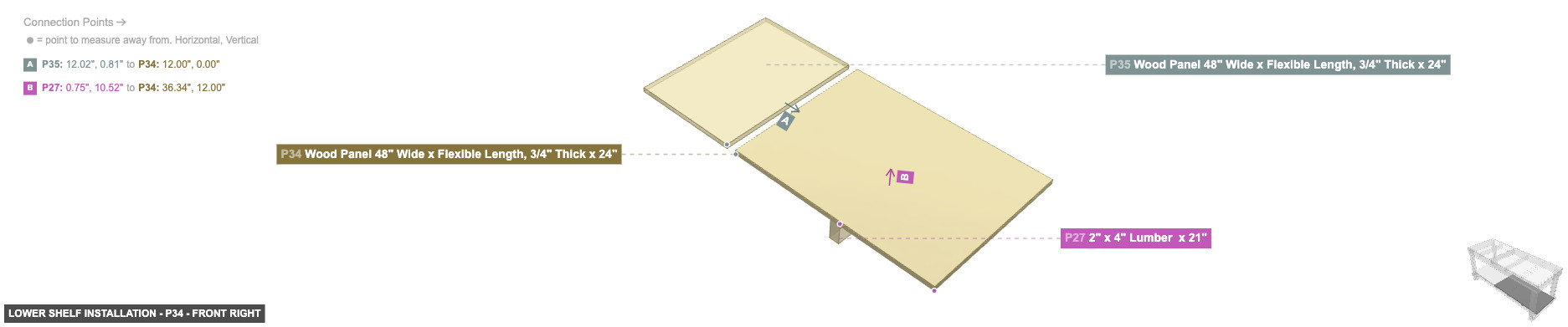

P34 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 24" length) - attach its 48" x 0.75" Wood Side #1 facing left to part 35's 48" x 0.75" Wood Side #1. After that, attach its 48" x 0.75" Wood Side #2 facing bottom to part 27's 2" x 4" Wood Side #3, plus its 48" x 0.75" Wood End #1 needs to point back. After that, its 48" x 0.75" Wood Side #3 must be oriented right, and ensure its 48" x 0.75" Wood Side #4 faces top, then its 48" x 0.75" Wood End #2 must be oriented front

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: front right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: bottom right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: back left

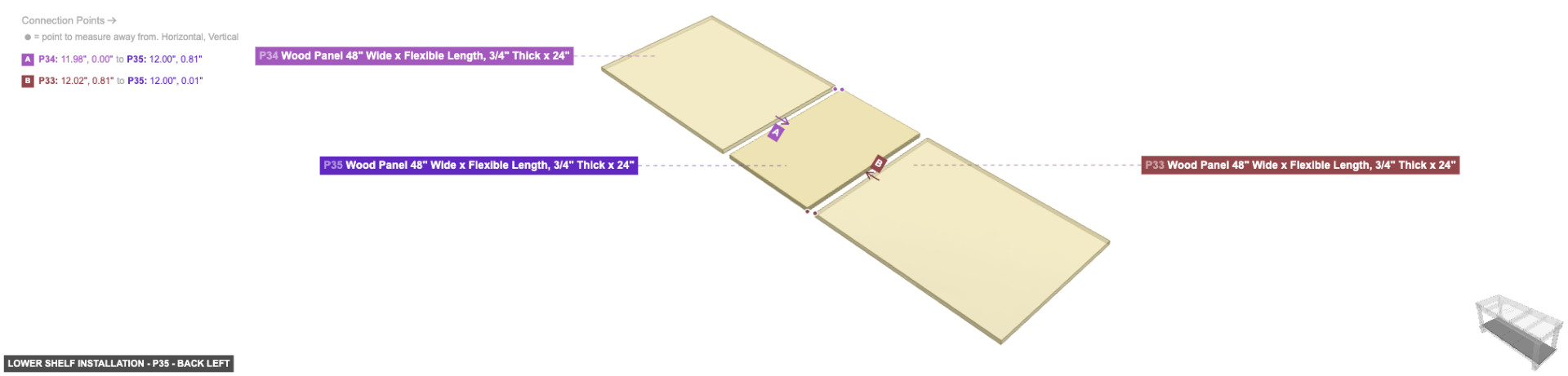

P35 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 24" length) - its 48" x 0.75" Wood Side #1, which is right-facing, should connect to part 34's 48" x 0.75" Wood Side #1, plus its 48" x 0.75" Wood Side #3, which is left-facing, should connect to part 33's 48" x 0.75" Wood Side #1. After that, its 48" x 0.75" Wood End #1 should be directed front, and ensure its 48" x 0.75" Wood Side #4 faces top. Next, ensure its 48" x 0.75" Wood End #2 faces back

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: front right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24" - Angle: bottom right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

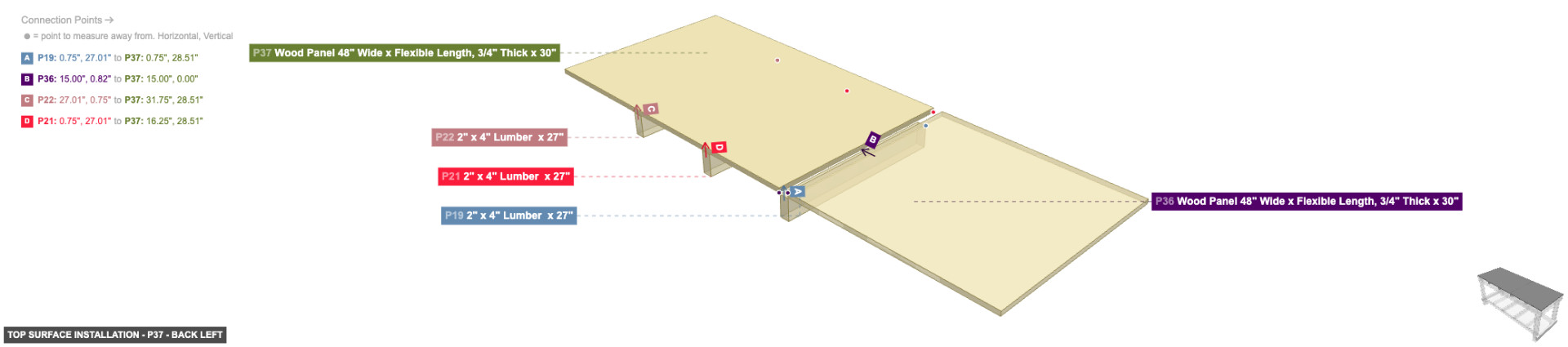

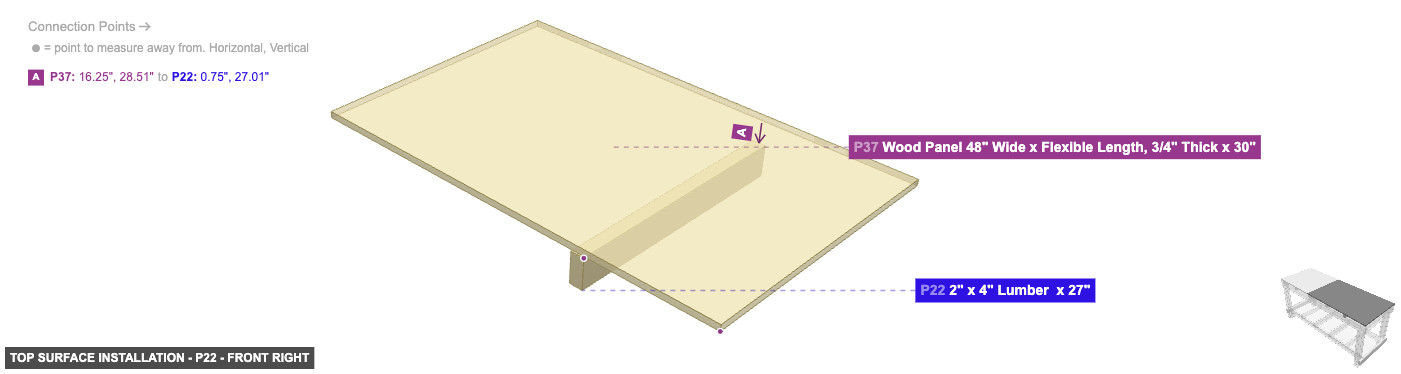

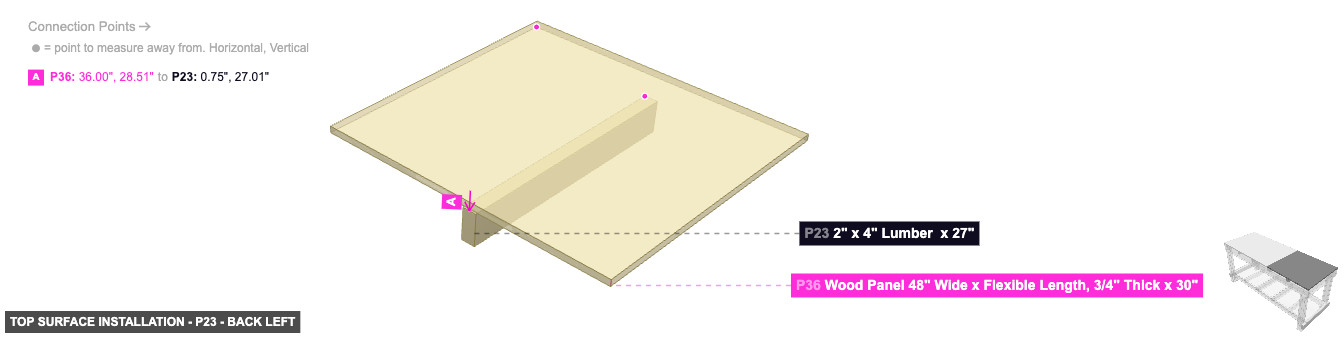

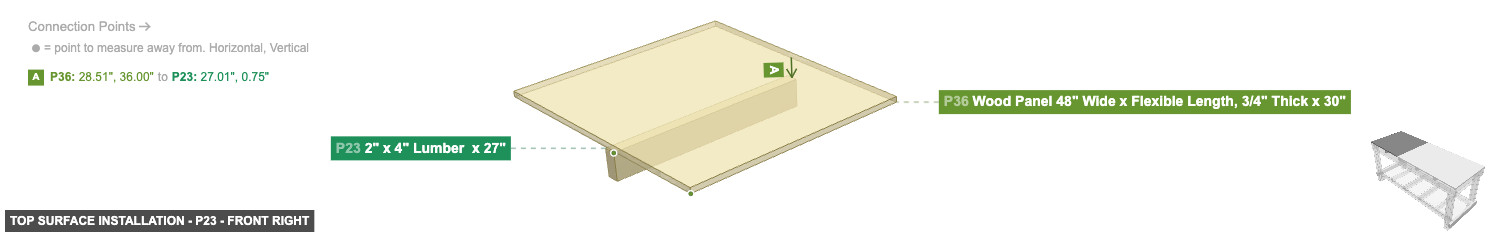

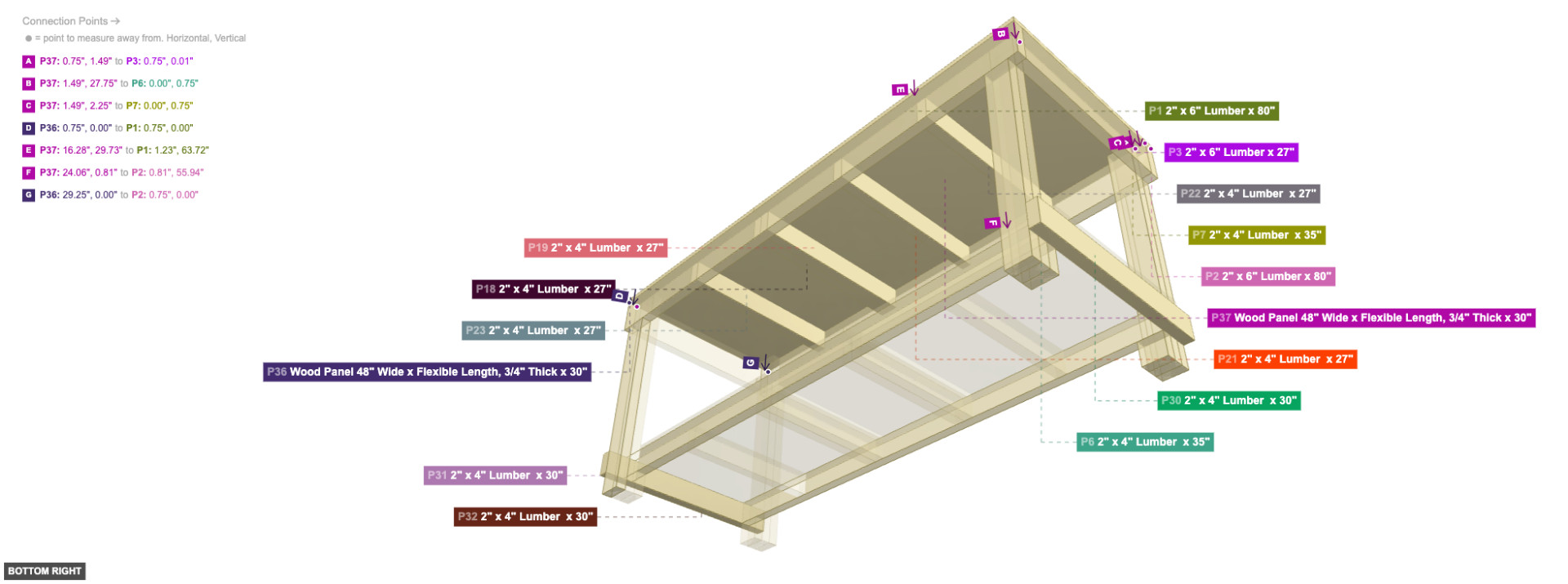

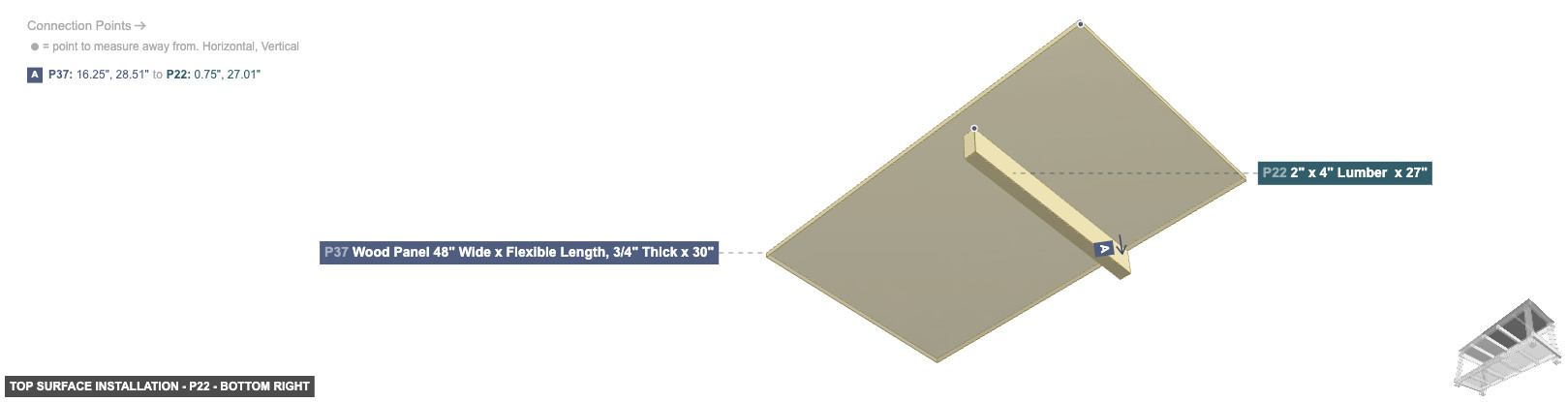

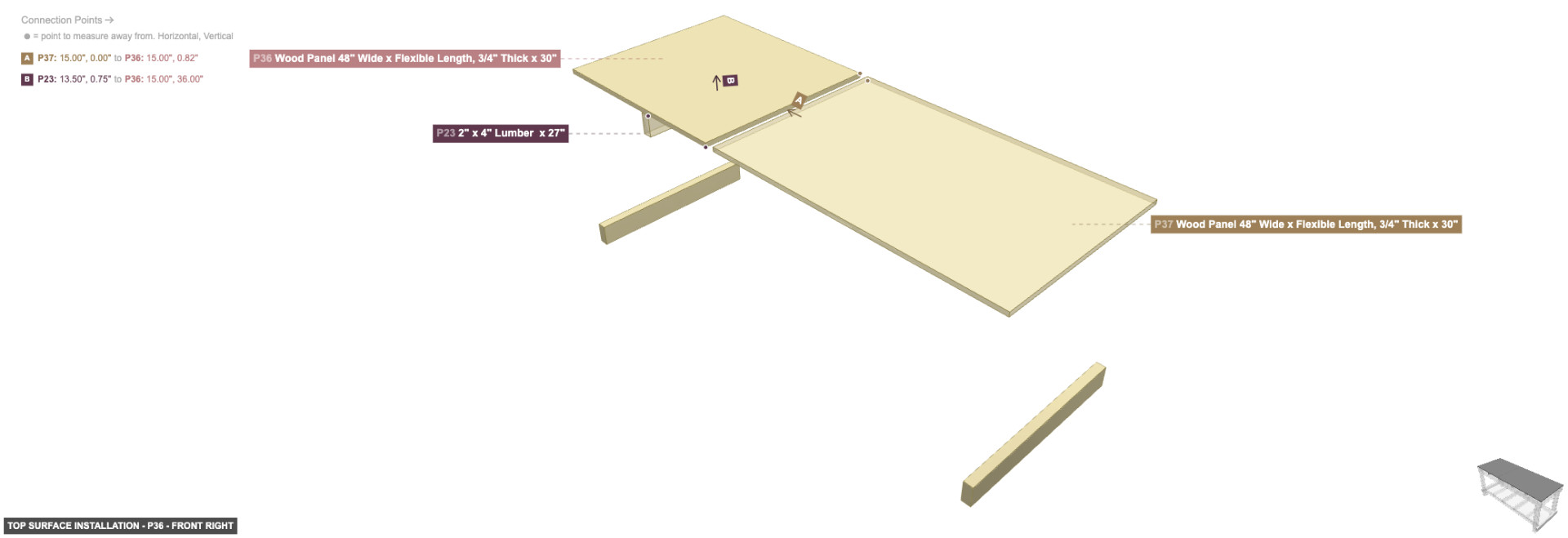

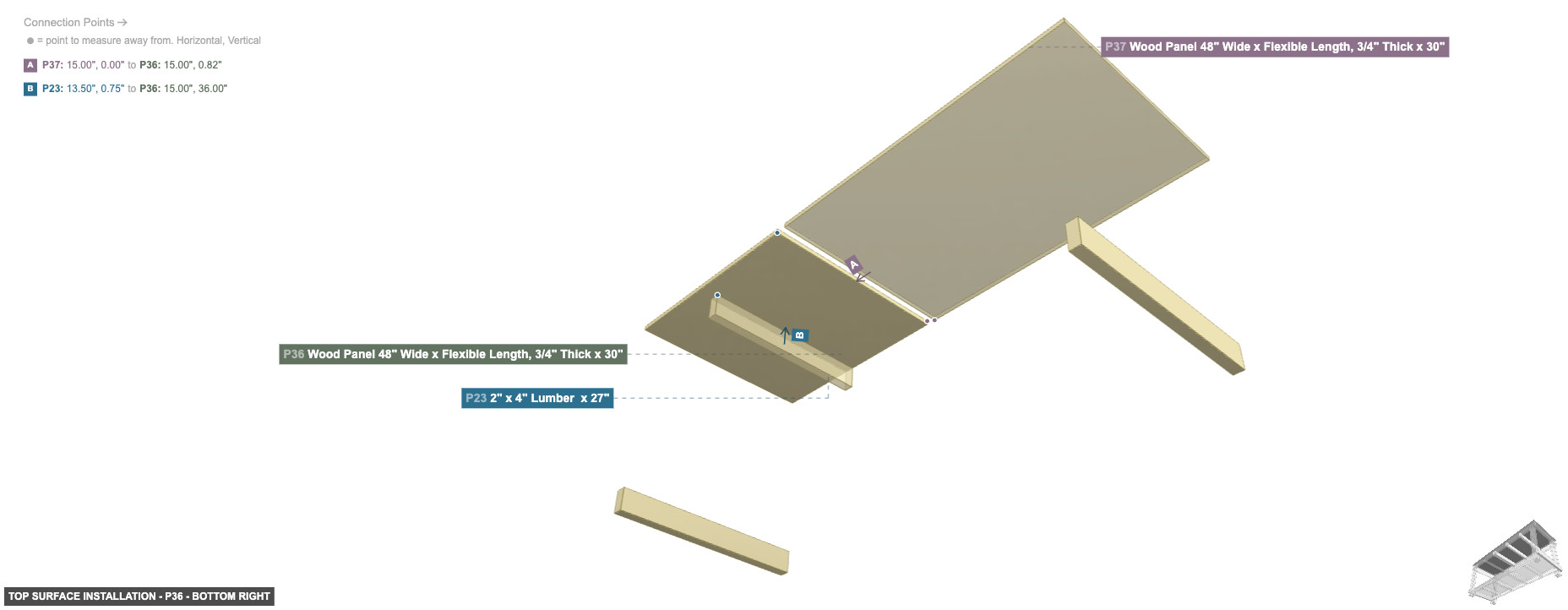

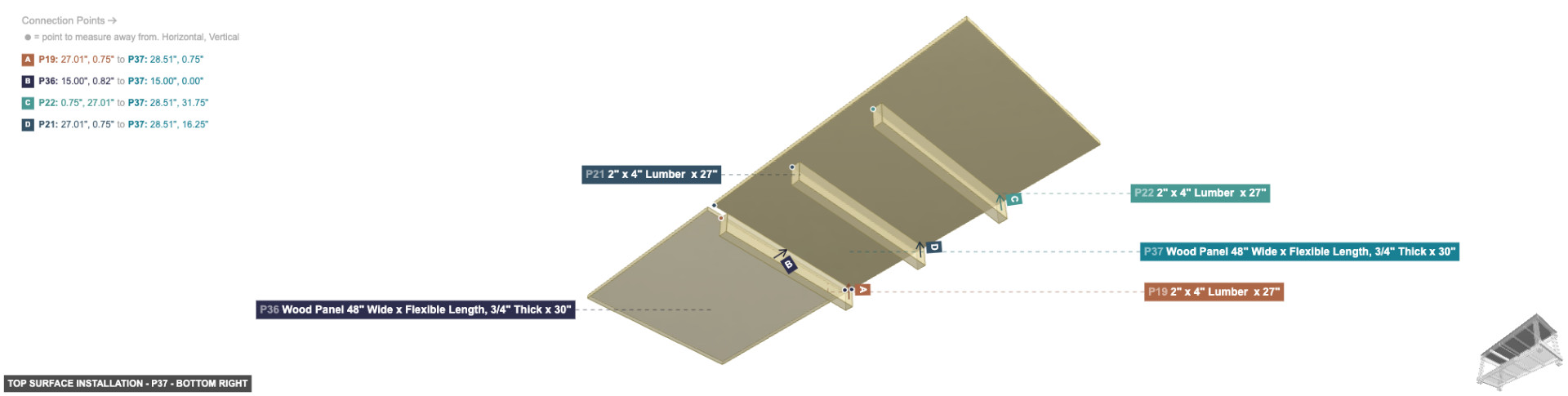

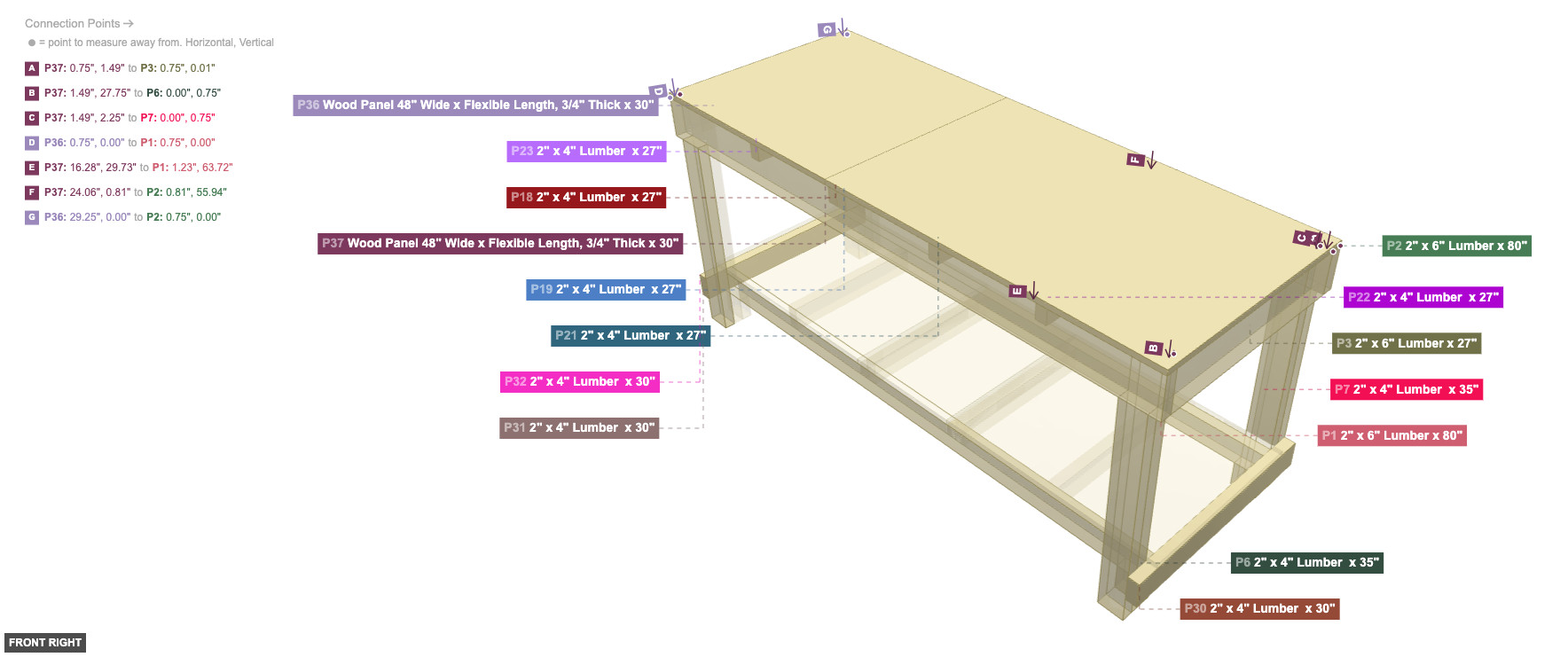

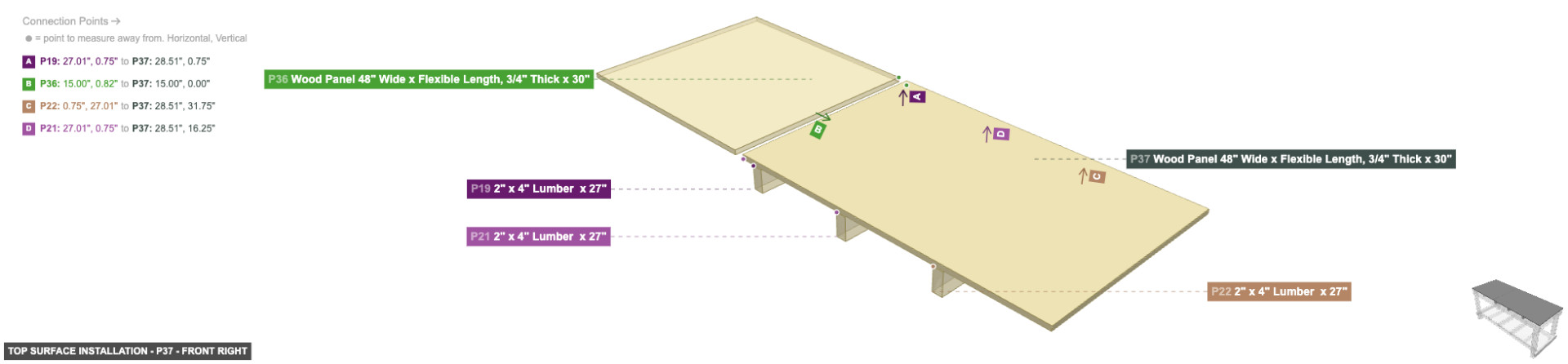

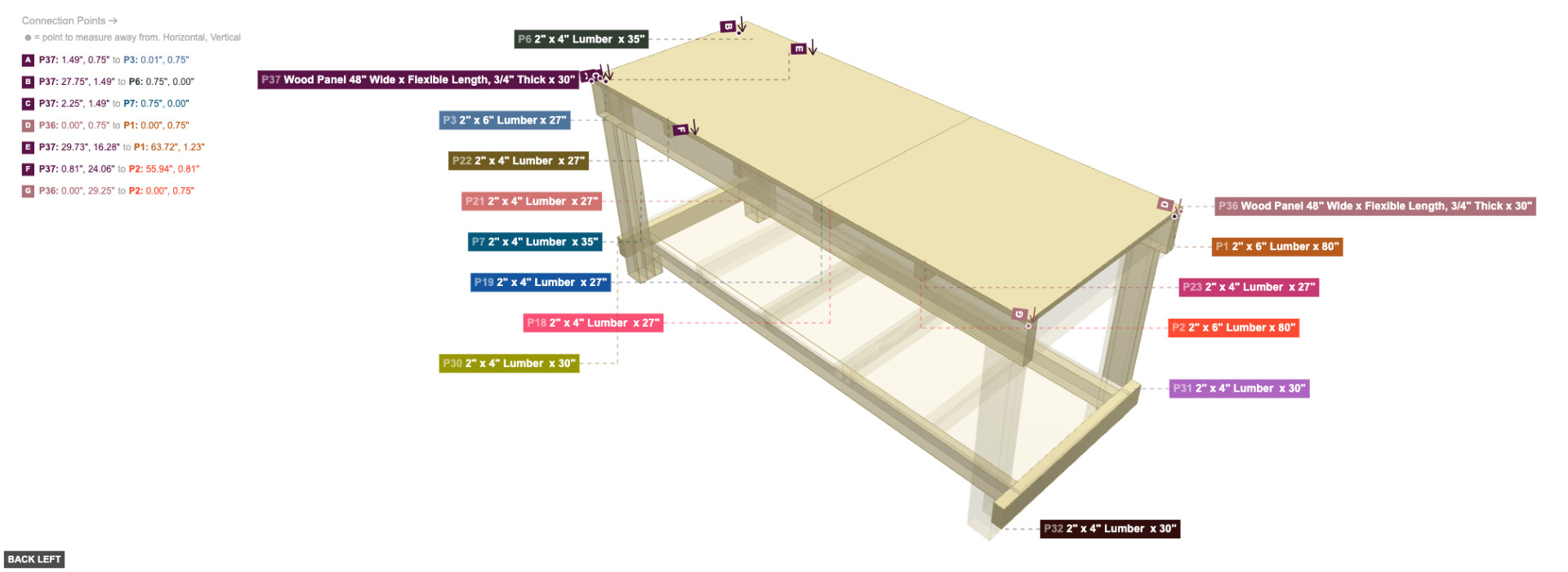

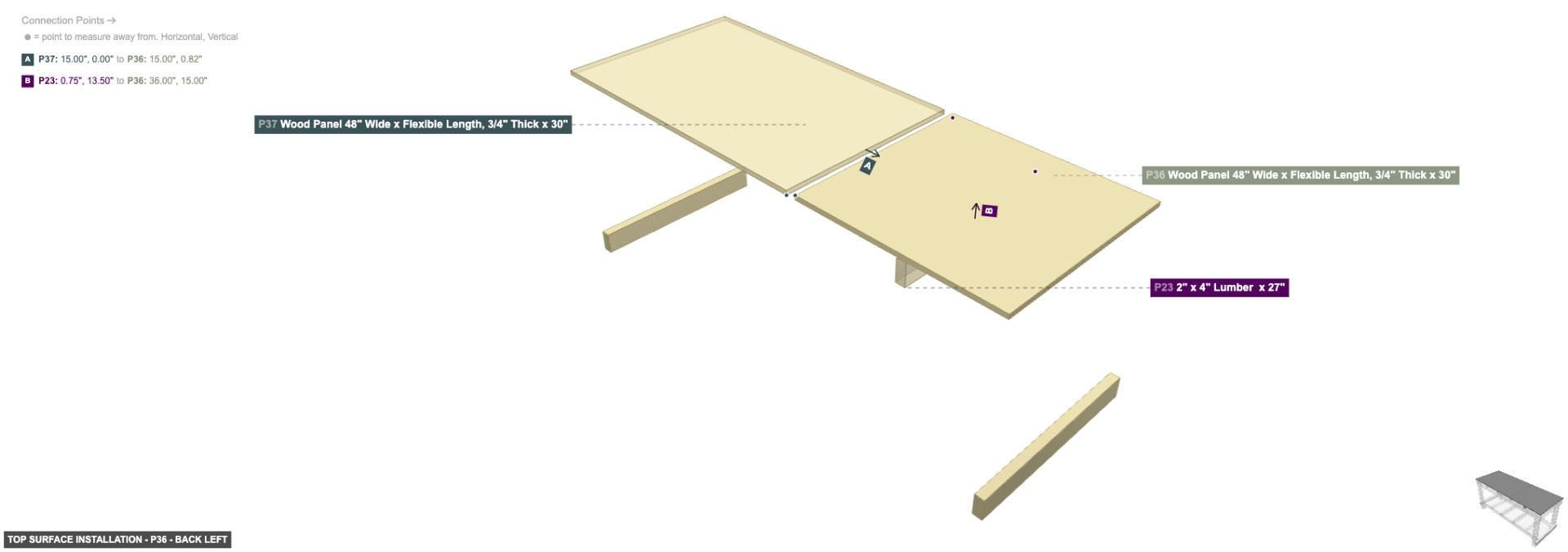

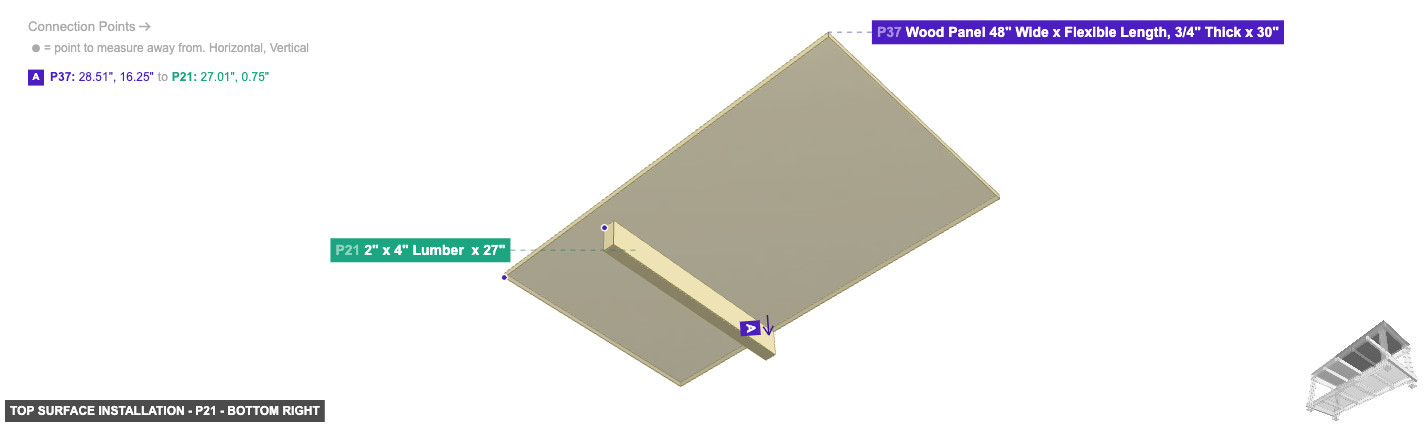

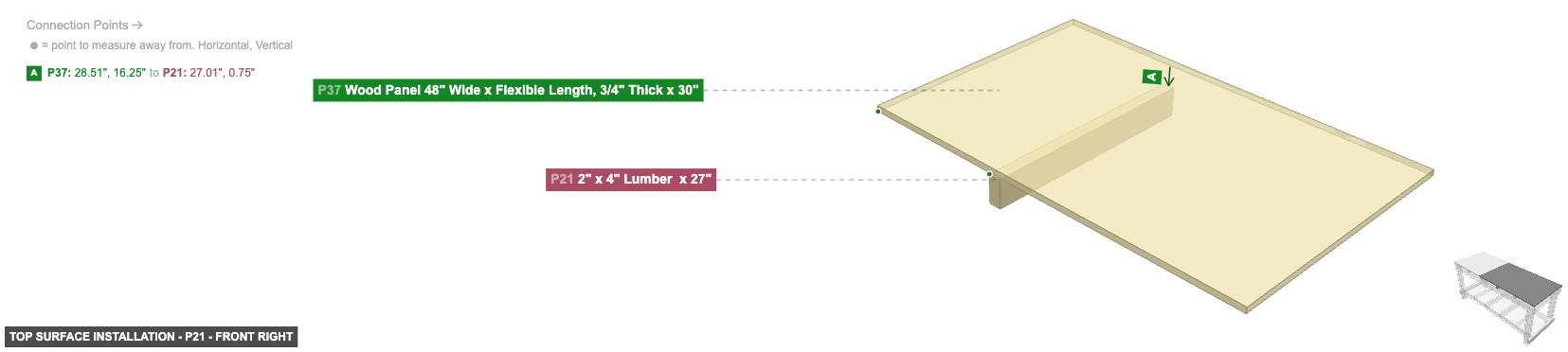

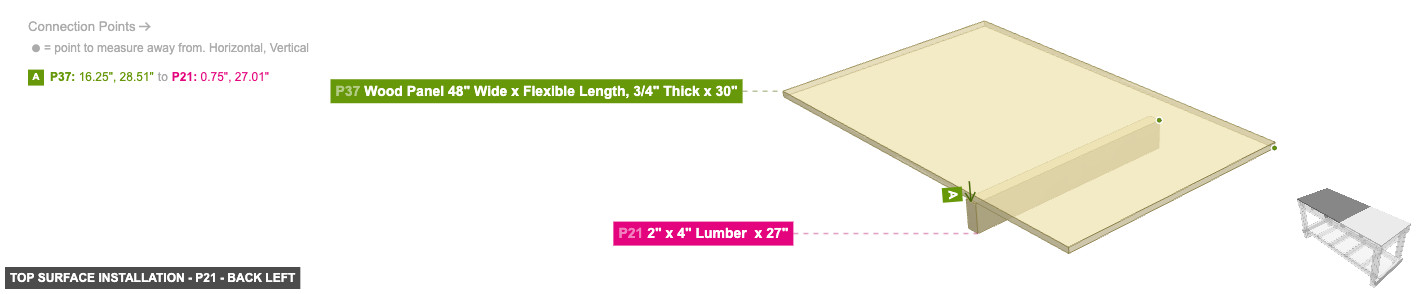

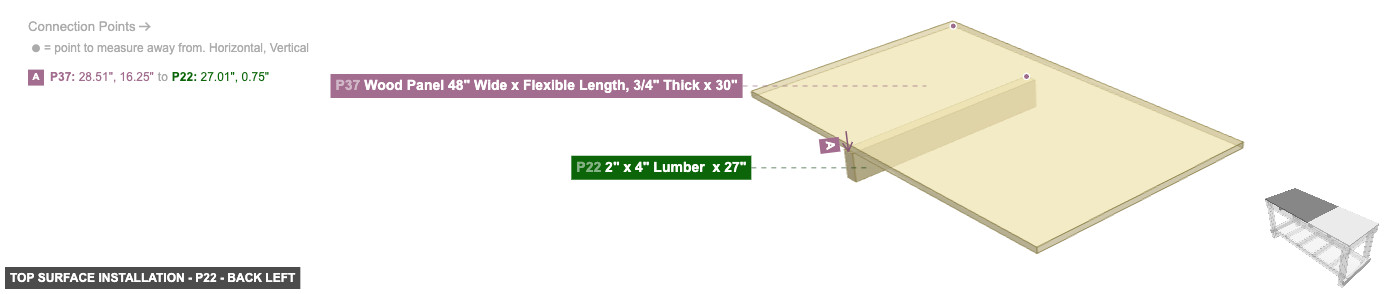

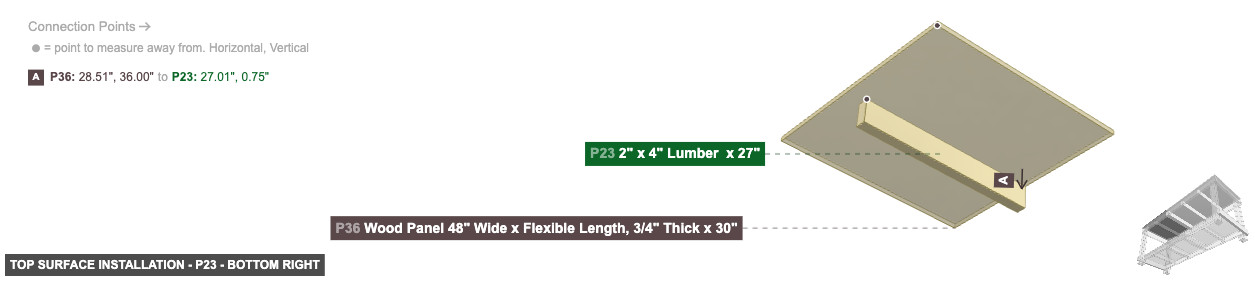

Group: Top Surface Installation

Creates the main work surface.

Install the top cross supports (P18, P19, P21, P22, P23, P30, P31, P32) between the top long stretchers (P1 and P2). Then, lay the two top surface panels (P36 and P37) onto the frame and secure them.

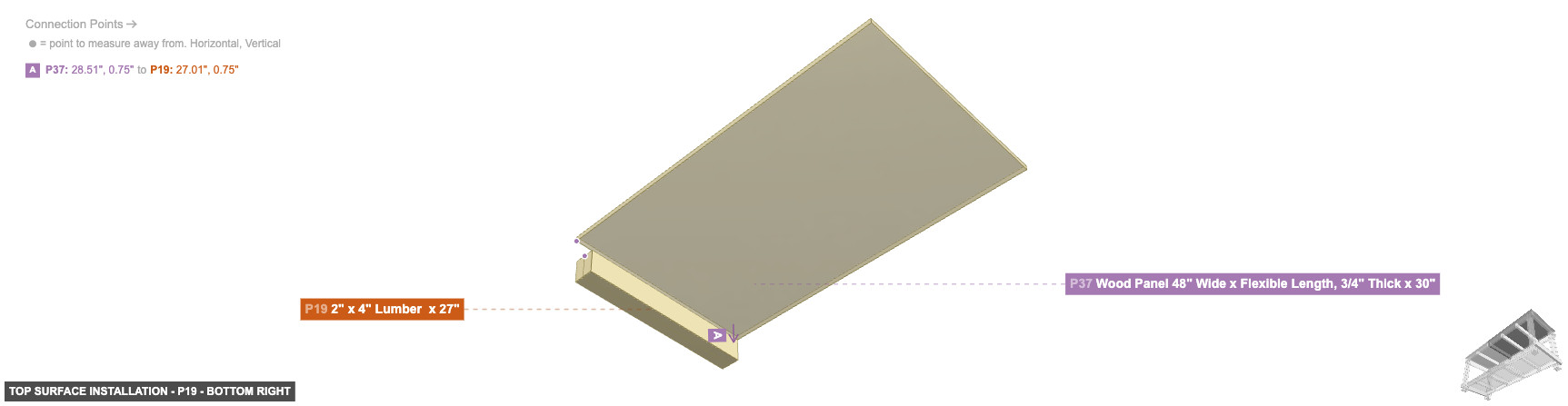

Part: 2" x 4" Lumber x 27" - Angle: back left

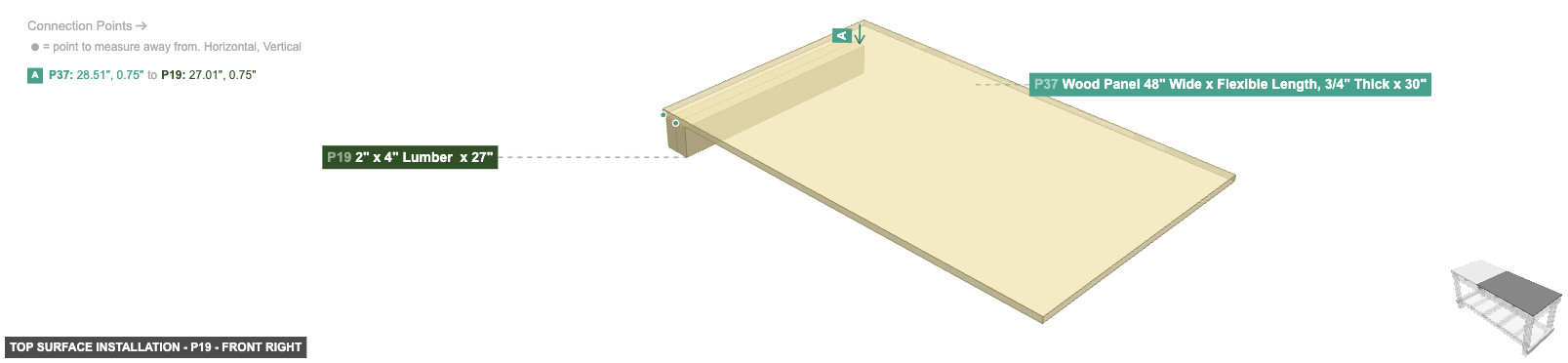

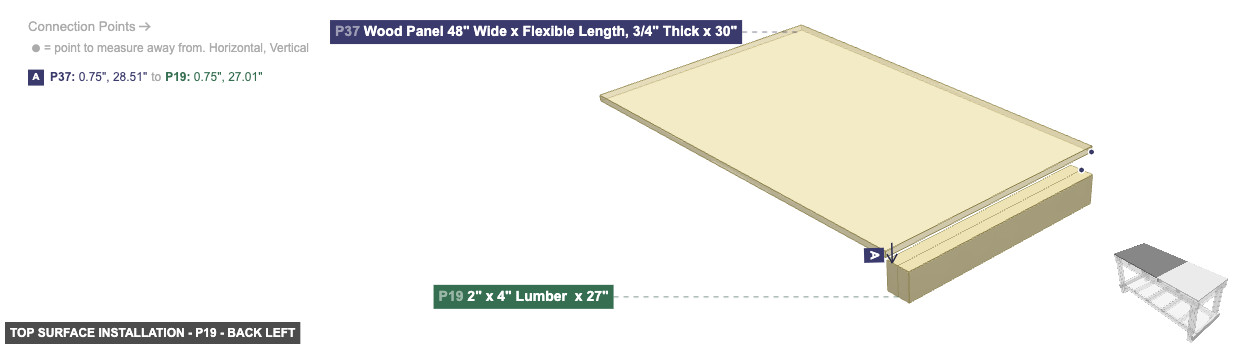

P19 (2" x 4" Lumber 27" length) - attach its 2" x 4" Wood Side #1 facing top to part 37's 48" x 0.75" Wood Side #2, also ensure its 2" x 4" Wood End #1 faces front, also its 2" x 4" Wood Side #2 should be directed right. After that, its 2" x 4" Wood Side #3 must be oriented bottom, then its 2" x 4" Wood Side #4 needs to point left. Additionally, its 2" x 4" Wood End #2 should be directed back

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: back left

P21 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood Side #1 oriented top links with part 37's 48" x 0.75" Wood Side #2. Additionally, its 2" x 4" Wood End #1 needs to point front, also its 2" x 4" Wood Side #2 must be oriented right, plus its 2" x 4" Wood Side #3 needs to point bottom. Additionally, ensure its 2" x 4" Wood Side #4 faces left. Next, ensure its 2" x 4" Wood End #2 faces back

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: back left

P22 (2" x 4" Lumber 27" length) - attach its 2" x 4" Wood Side #1 facing top to part 37's 48" x 0.75" Wood Side #2, also ensure its 2" x 4" Wood End #1 faces front. After that, its 2" x 4" Wood Side #2 needs to point right. Also, its 2" x 4" Wood Side #3 must be oriented bottom. Additionally, ensure its 2" x 4" Wood Side #4 faces left. Additionally, its 2" x 4" Wood End #2 should be directed back

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: back left

P23 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood Side #1 oriented top links with part 36's 48" x 0.75" Wood Side #2, then its 2" x 4" Wood End #1 needs to point front. Additionally, its 2" x 4" Wood Side #2 should be directed right. After that, its 2" x 4" Wood Side #3 needs to point bottom. After that, ensure its 2" x 4" Wood Side #4 faces left, also its 2" x 4" Wood End #2 needs to point back

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30" - Angle: back left

Top Surface Installation - Part Wood Panel 48

P36 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 30" length) - its 48" x 0.75" Wood Side #3, which is right-facing, should connect to part 37's 48" x 0.75" Wood Side #1, also its 48" x 0.75" Wood End #1 must be oriented back, and its 48" x 0.75" Wood Side #1 needs to point left. Also, its 48" x 0.75" Wood Side #4 must be oriented top, plus ensure its 48" x 0.75" Wood End #2 faces front

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30" - Angle: front right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30" - Angle: bottom right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30" - Angle: back left

P37 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 30" length) - attach its 48" x 0.75" Wood Side #1 facing left to part 36's 48" x 0.75" Wood Side #3. Additionally, attach its 48" x 0.75" Wood Side #2 facing bottom to part 19's 2" x 4" Wood Side #1, also its 48" x 0.75" Wood End #1 should be directed back, plus its 48" x 0.75" Wood Side #3 must be oriented right, then its 48" x 0.75" Wood Side #4 must be oriented top. Additionally, its 48" x 0.75" Wood End #2 needs to point front

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30" - Angle: front right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Part: Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30" - Angle: bottom right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Phase 3: Inter-Group Assembly

Attaching: Right Leg Assembly

Forms the right-side A-frame support structure for the workbench.

This assembly will be connected to the Left Leg Assembly in a later step.

Angle: back left

Assembly of Right Leg Assembly - back_left

P3 (2" x 6" Lumber 27" length) - attach its 2" x 6" Wood Side #1 facing top to part 37's 48" x 0.75" Wood Side #2. Next, attach its 2" x 6" Wood Side #4 facing left to part 6's 2" x 4" Wood Side #1. Next, its 2" x 6" Wood End #1 must be oriented front. Next, its 2" x 6" Wood Side #2 needs to point right. Next, its 2" x 6" Wood Side #3 needs to point bottom, and ensure its 2" x 6" Wood End #2 faces back P6 (2" x 4" Lumber 35" length) - connect its 2" x 4" Wood End #1 oriented top links with part 37's 48" x 0.75" Wood Side #2. Also, its 2" x 4" Wood Side #1, which is right-facing, should connect to part 3's 2" x 6" Wood Side #4, then its 2" x 4" Wood Side #2, which is front-facing, should connect to part 10's 2" x 4" Wood Side #2. Additionally, attach its 2" x 4" Wood Side #4 facing back to part 14's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #3 should be directed left, then its 2" x 4" Wood End #2 should be directed bottom P7 (2" x 4" Lumber 35" length) - connect its 2" x 4" Wood End #1 oriented top links with part 37's 48" x 0.75" Wood Side #2, and its 2" x 4" Wood Side #1, which is right-facing, should connect to part 3's 2" x 6" Wood Side #4, then connect its 2" x 4" Wood Side #4 oriented back links with part 13's 2" x 4" Wood Side #2. After that, ensure its 2" x 4" Wood Side #2 faces front, and its 2" x 4" Wood Side #3 must be oriented left, also ensure its 2" x 4" Wood End #2 faces bottom P10 (2" x 4" Lumber 29.5" length) - attach its 2" x 4" Wood Side #2 facing back to part 6's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 needs to point bottom. Also, its 2" x 4" Wood Side #1 must be oriented right, and its 2" x 4" Wood Side #3 needs to point left, also its 2" x 4" Wood Side #4 must be oriented front, and its 2" x 4" Wood End #2 must be oriented top P11 (2" x 4" Lumber 29.5" length) - its 2" x 4" Wood End #1 should be directed bottom, also ensure its 2" x 4" Wood Side #1 faces right, also its 2" x 4" Wood Side #2 needs to point back, then its 2" x 4" Wood Side #3 should be directed left. Also, ensure its 2" x 4" Wood Side #4 faces front. Additionally, its 2" x 4" Wood End #2 needs to point top P13 (2" x 4" Lumber 29.5" length) - attach its 2" x 4" Wood End #1 facing top to part 2's 2" x 6" Wood Side #3, then connect its 2" x 4" Wood Side #2 oriented front links with part 7's 2" x 4" Wood Side #4, plus its 2" x 4" Wood Side #1 needs to point right, also its 2" x 4" Wood Side #3 must be oriented left, plus its 2" x 4" Wood Side #4 should be directed back, then its 2" x 4" Wood End #2 must be oriented bottom P14 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 6's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood End #1 should be directed top, also its 2" x 4" Wood Side #1 should be directed right, plus its 2" x 4" Wood Side #3 needs to point left, also its 2" x 4" Wood Side #4 should be directed back, then its 2" x 4" Wood End #2 must be oriented bottom P15 (2" x 4" Lumber 3.5" length) - ensure its 2" x 4" Wood End #1 faces bottom, and ensure its 2" x 4" Wood Side #1 faces right. After that, its 2" x 4" Wood Side #2 needs to point back. Also, its 2" x 4" Wood Side #3 must be oriented left. Next, its 2" x 4" Wood Side #4 needs to point front. Next, its 2" x 4" Wood End #2 needs to point top

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Angle: front right

Assembly of Right Leg Assembly - front_right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Angle: bottom right

Assembly of Right Leg Assembly - bottom_right

2" x 6" Lumber x 27"x 1

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 3

2" x 4" Lumber x 3.5"x 2

Attaching: Left Leg Assembly

Forms the left-side A-frame support structure for the workbench.

This assembly will stand opposite the Right Leg Assembly.

Angle: back left

Assembly of Left Leg Assembly - back_left

P4 (2" x 4" Lumber 35" length) - attach its 2" x 4" Wood Side #1 facing left to part 20's 2" x 6" Wood Side #2. Next, connect its 2" x 4" Wood Side #2 oriented back links with part 2's 2" x 6" Wood Side #4. Next, attach its 2" x 4" Wood Side #4 facing front to part 16's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood End #1 should be directed top, plus ensure its 2" x 4" Wood Side #3 faces right. Also, its 2" x 4" Wood End #2 should be directed bottom P5 (2" x 4" Lumber 35" length) - its 2" x 4" Wood Side #1, which is left-facing, should connect to part 20's 2" x 6" Wood Side #2, then ensure its 2" x 4" Wood End #1 faces top. Additionally, its 2" x 4" Wood Side #2 should be directed back. Also, its 2" x 4" Wood Side #3 needs to point right. Next, its 2" x 4" Wood Side #4 should be directed front, also its 2" x 4" Wood End #2 must be oriented bottom P12 (2" x 4" Lumber 29.5" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 4's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #1 should be directed bottom. After that, its 2" x 4" Wood Side #1 must be oriented left. Also, its 2" x 4" Wood Side #3 needs to point right, also its 2" x 4" Wood Side #4 must be oriented back. Also, its 2" x 4" Wood End #2 should be directed top P16 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #2 facing back to part 4's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 needs to point top. Next, ensure its 2" x 4" Wood Side #1 faces left. Also, its 2" x 4" Wood Side #3 needs to point right. After that, its 2" x 4" Wood Side #4 needs to point front, then its 2" x 4" Wood End #2 must be oriented bottom P17 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood End #1 should be directed bottom, then its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 needs to point front. Next, its 2" x 4" Wood Side #3 should be directed right, then its 2" x 4" Wood Side #4 needs to point back. Next, its 2" x 4" Wood End #2 should be directed top P20 (2" x 6" Lumber 27" length) - its 2" x 6" Wood End #1, which is front-facing, should connect to part 1's 2" x 6" Wood Side #2, and connect its 2" x 6" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #1, also connect its 2" x 6" Wood End #2 oriented back links with part 2's 2" x 6" Wood Side #4, plus its 2" x 6" Wood Side #1 must be oriented top, plus its 2" x 6" Wood Side #3 must be oriented bottom, and its 2" x 6" Wood Side #4 should be directed left

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Angle: front right

Assembly of Left Leg Assembly - front_right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Angle: bottom right

Assembly of Left Leg Assembly - bottom_right

2" x 4" Lumber x 35"x 2

2" x 4" Lumber x 29.5"x 1

2" x 4" Lumber x 3.5"x 2

2" x 6" Lumber x 27"x 1

Attaching: Main Frame Assembly

Connects the two leg assemblies to form the main structure of the workbench.

This completed frame is now ready for the shelf and top surface installation.

Angle: back left

Assembly of Main Frame Assembly - back_left

P1 (2" x 6" Lumber 80" length) - connect its 2" x 6" Wood Side #1 oriented top links with part 36's 48" x 0.75" Wood Side #2. After that, its 2" x 6" Wood Side #2, which is back-facing, should connect to part 20's 2" x 6" Wood End #1. After that, its 2" x 6" Wood End #1 should be directed right, plus its 2" x 6" Wood Side #3 needs to point bottom, then its 2" x 6" Wood Side #4 should be directed front. Next, its 2" x 6" Wood End #2 needs to point left P2 (2" x 6" Lumber 80" length) - connect its 2" x 6" Wood Side #1 oriented top links with part 37's 48" x 0.75" Wood Side #2, plus attach its 2" x 6" Wood Side #3 facing bottom to part 13's 2" x 4" Wood End #1. Additionally, connect its 2" x 6" Wood Side #4 oriented front links with part 4's 2" x 4" Wood Side #2, also ensure its 2" x 6" Wood End #1 faces right. Additionally, ensure its 2" x 6" Wood Side #2 faces back. Also, ensure its 2" x 6" Wood End #2 faces left P8 (2" x 4" Lumber 77" length) - attach its 2" x 4" Wood Side #3 facing top to part 33's 48" x 0.75" Wood Side #2, also its 2" x 4" Wood End #1 needs to point right. Also, its 2" x 4" Wood Side #1 must be oriented bottom. After that, its 2" x 4" Wood Side #2 should be directed front. After that, its 2" x 4" Wood Side #4 should be directed back, then its 2" x 4" Wood End #2 must be oriented left P9 (2" x 4" Lumber 77" length) - connect its 2" x 4" Wood Side #3 oriented top links with part 33's 48" x 0.75" Wood Side #2, and its 2" x 4" Wood End #1 must be oriented right. After that, its 2" x 4" Wood Side #1 needs to point bottom. Next, its 2" x 4" Wood Side #2 should be directed front, and its 2" x 4" Wood Side #4 needs to point back, and its 2" x 4" Wood End #2 should be directed left

2" x 6" Lumber x 80"x 2

2" x 4" Lumber x 77"x 2

Angle: front right

Assembly of Main Frame Assembly - front_right

2" x 6" Lumber x 80"x 2

2" x 4" Lumber x 77"x 2

Angle: bottom right

Assembly of Main Frame Assembly - bottom_right

2" x 6" Lumber x 80"x 2

2" x 4" Lumber x 77"x 2

Attaching: Lower Shelf Installation

Creates the lower storage shelf.

This completes the lower portion of the workbench.

Angle: back left

Assembly of Lower Shelf Installation - back_left

P24 (2" x 4" Lumber 21" length) - its 2" x 4" Wood Side #1, which is top-facing, should connect to part 33's 48" x 0.75" Wood Side #2, also its 2" x 4" Wood End #1 needs to point back. Next, ensure its 2" x 4" Wood Side #2 faces left, also its 2" x 4" Wood Side #3 should be directed bottom. Next, its 2" x 4" Wood Side #4 needs to point right. Additionally, its 2" x 4" Wood End #2 must be oriented front P25 (2" x 4" Lumber 21" length) - its 2" x 4" Wood End #1 should be directed back. Next, ensure its 2" x 4" Wood Side #1 faces top. Also, its 2" x 4" Wood Side #2 must be oriented left. Next, its 2" x 4" Wood Side #3 must be oriented bottom. Next, ensure its 2" x 4" Wood Side #4 faces right. Additionally, its 2" x 4" Wood End #2 must be oriented front P26 (2" x 4" Lumber 21" length) - ensure its 2" x 4" Wood End #1 faces back, plus its 2" x 4" Wood Side #1 must be oriented top. After that, its 2" x 4" Wood Side #2 should be directed left. Additionally, ensure its 2" x 4" Wood Side #3 faces bottom. Also, its 2" x 4" Wood Side #4 must be oriented right. After that, its 2" x 4" Wood End #2 needs to point front P27 (2" x 4" Lumber 21" length) - connect its 2" x 4" Wood Side #3 oriented top links with part 34's 48" x 0.75" Wood Side #2, then its 2" x 4" Wood End #1 must be oriented back, then its 2" x 4" Wood Side #1 should be directed bottom, then its 2" x 4" Wood Side #2 must be oriented right. Also, its 2" x 4" Wood Side #4 should be directed left. After that, its 2" x 4" Wood End #2 should be directed front P28 (2" x 4" Lumber 21" length) - its 2" x 4" Wood End #1 should be directed back. After that, its 2" x 4" Wood Side #1 should be directed bottom. Next, ensure its 2" x 4" Wood Side #2 faces right, and its 2" x 4" Wood Side #3 should be directed top. Next, ensure its 2" x 4" Wood Side #4 faces left. Also, its 2" x 4" Wood End #2 must be oriented front P29 (2" x 4" Lumber 21" length) - ensure its 2" x 4" Wood End #1 faces back, and ensure its 2" x 4" Wood Side #1 faces bottom. Additionally, its 2" x 4" Wood Side #2 must be oriented right, and ensure its 2" x 4" Wood Side #3 faces top, and ensure its 2" x 4" Wood Side #4 faces left, and its 2" x 4" Wood End #2 needs to point front P33 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 24" length) - connect its 48" x 0.75" Wood Side #1 oriented right links with part 35's 48" x 0.75" Wood Side #3. After that, attach its 48" x 0.75" Wood Side #2 facing bottom to part 24's 2" x 4" Wood Side #1, then ensure its 48" x 0.75" Wood End #1 faces front. Also, its 48" x 0.75" Wood Side #3 should be directed left. Next, its 48" x 0.75" Wood Side #4 must be oriented top, and ensure its 48" x 0.75" Wood End #2 faces back P34 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 24" length) - its 48" x 0.75" Wood Side #1, which is left-facing, should connect to part 35's 48" x 0.75" Wood Side #1, also its 48" x 0.75" Wood Side #2, which is bottom-facing, should connect to part 27's 2" x 4" Wood Side #3, also its 48" x 0.75" Wood End #1 should be directed back, then ensure its 48" x 0.75" Wood Side #3 faces right, then its 48" x 0.75" Wood Side #4 must be oriented top, and its 48" x 0.75" Wood End #2 must be oriented front P35 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 24" length) - attach its 48" x 0.75" Wood Side #1 facing right to part 34's 48" x 0.75" Wood Side #1. Additionally, its 48" x 0.75" Wood Side #2, which is bottom-facing, should connect to part 8's 2" x 4" Wood Side #3. Also, connect its 48" x 0.75" Wood Side #3 oriented left links with part 33's 48" x 0.75" Wood Side #1. Additionally, its 48" x 0.75" Wood End #1 needs to point front. Next, ensure its 48" x 0.75" Wood Side #4 faces top, plus its 48" x 0.75" Wood End #2 should be directed back

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Angle: front right

Assembly of Lower Shelf Installation - front_right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Angle: bottom right

Assembly of Lower Shelf Installation - bottom_right

2" x 4" Lumber x 21"x 6

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 24"x 3

Attaching: Top Surface Installation

Creates the main work surface.

The workbench assembly is now complete.

Angle: back left

Assembly of Top Surface Installation - back_left

P18 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1 must be oriented front, also ensure its 2" x 4" Wood Side #1 faces top. Next, its 2" x 4" Wood Side #2 must be oriented right. Next, its 2" x 4" Wood Side #3 needs to point bottom. Additionally, its 2" x 4" Wood Side #4 needs to point left, also its 2" x 4" Wood End #2 needs to point back P19 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood Side #1 oriented top links with part 37's 48" x 0.75" Wood Side #2, and its 2" x 4" Wood End #1 needs to point front, also its 2" x 4" Wood Side #2 needs to point right. Next, its 2" x 4" Wood Side #3 should be directed bottom, plus its 2" x 4" Wood Side #4 should be directed left, plus its 2" x 4" Wood End #2 should be directed back P21 (2" x 4" Lumber 27" length) - attach its 2" x 4" Wood Side #1 facing top to part 37's 48" x 0.75" Wood Side #2, and ensure its 2" x 4" Wood End #1 faces front. Next, its 2" x 4" Wood Side #2 should be directed right, and ensure its 2" x 4" Wood Side #3 faces bottom, and its 2" x 4" Wood Side #4 must be oriented left. Additionally, ensure its 2" x 4" Wood End #2 faces back P22 (2" x 4" Lumber 27" length) - its 2" x 4" Wood Side #1, which is top-facing, should connect to part 37's 48" x 0.75" Wood Side #2, and its 2" x 4" Wood End #1 must be oriented front, then its 2" x 4" Wood Side #2 should be directed right, then its 2" x 4" Wood Side #3 should be directed bottom. Additionally, its 2" x 4" Wood Side #4 must be oriented left, and its 2" x 4" Wood End #2 must be oriented back P23 (2" x 4" Lumber 27" length) - its 2" x 4" Wood Side #1, which is top-facing, should connect to part 36's 48" x 0.75" Wood Side #2, and its 2" x 4" Wood End #1 should be directed front, then its 2" x 4" Wood Side #2 must be oriented right, and ensure its 2" x 4" Wood Side #3 faces bottom, plus its 2" x 4" Wood Side #4 needs to point left, plus its 2" x 4" Wood End #2 should be directed back P30 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #1 should be directed front, then ensure its 2" x 4" Wood Side #1 faces top. Additionally, its 2" x 4" Wood Side #2 needs to point right, also its 2" x 4" Wood Side #3 needs to point bottom. Additionally, its 2" x 4" Wood Side #4 must be oriented left, also ensure its 2" x 4" Wood End #2 faces back P31 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #1 must be oriented front, then its 2" x 4" Wood Side #1 must be oriented top. Additionally, its 2" x 4" Wood Side #2 must be oriented right, then its 2" x 4" Wood Side #3 should be directed bottom. Next, its 2" x 4" Wood Side #4 must be oriented left, then its 2" x 4" Wood End #2 must be oriented back P32 (2" x 4" Lumber 30" length) - ensure its 2" x 4" Wood End #1 faces front. Additionally, ensure its 2" x 4" Wood Side #1 faces top. Next, its 2" x 4" Wood Side #2 needs to point right. After that, its 2" x 4" Wood Side #3 needs to point bottom. After that, its 2" x 4" Wood Side #4 must be oriented left, plus its 2" x 4" Wood End #2 needs to point back P36 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 30" length) - its 48" x 0.75" Wood Side #2, which is bottom-facing, should connect to part 1's 2" x 6" Wood Side #1, and attach its 48" x 0.75" Wood Side #3 facing right to part 37's 48" x 0.75" Wood Side #1. Also, ensure its 48" x 0.75" Wood End #1 faces back. After that, its 48" x 0.75" Wood Side #1 should be directed left. After that, its 48" x 0.75" Wood Side #4 needs to point top. Additionally, its 48" x 0.75" Wood End #2 needs to point front P37 (Wood Panel 48" Wide x Flexible Length, 3/4" Thick 30" length) - attach its 48" x 0.75" Wood Side #1 facing left to part 36's 48" x 0.75" Wood Side #3, plus connect its 48" x 0.75" Wood Side #2 oriented bottom links with part 19's 2" x 4" Wood Side #1. After that, its 48" x 0.75" Wood End #1 needs to point back. Next, its 48" x 0.75" Wood Side #3 should be directed right. Additionally, its 48" x 0.75" Wood Side #4 must be oriented top. After that, its 48" x 0.75" Wood End #2 needs to point front

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Angle: front right

Assembly of Top Surface Installation - front_right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2

Angle: bottom right

Assembly of Top Surface Installation - bottom_right

2" x 4" Lumber x 27"x 5

2" x 4" Lumber x 30"x 3

Wood Panel 48" Wide x Flexible Length, 3/4" Thick x 30"x 2
