Shoe Rack 2 - Comprehensive Assembly Plan And Visual Guide

A four-tiered wooden shoe rack constructed from 2x2 lumber for the vertical posts and horizontal supports, and 1x4 lumber for the shelf planks. - Shoe Rack

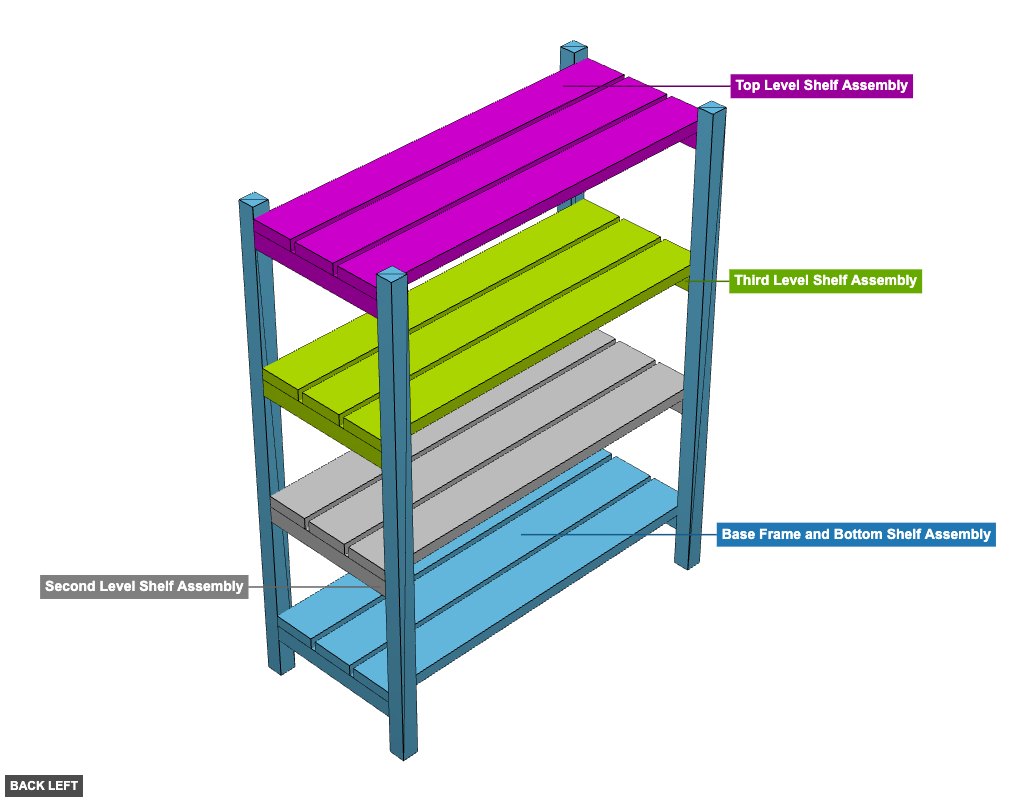

Phase 1: Group Overview

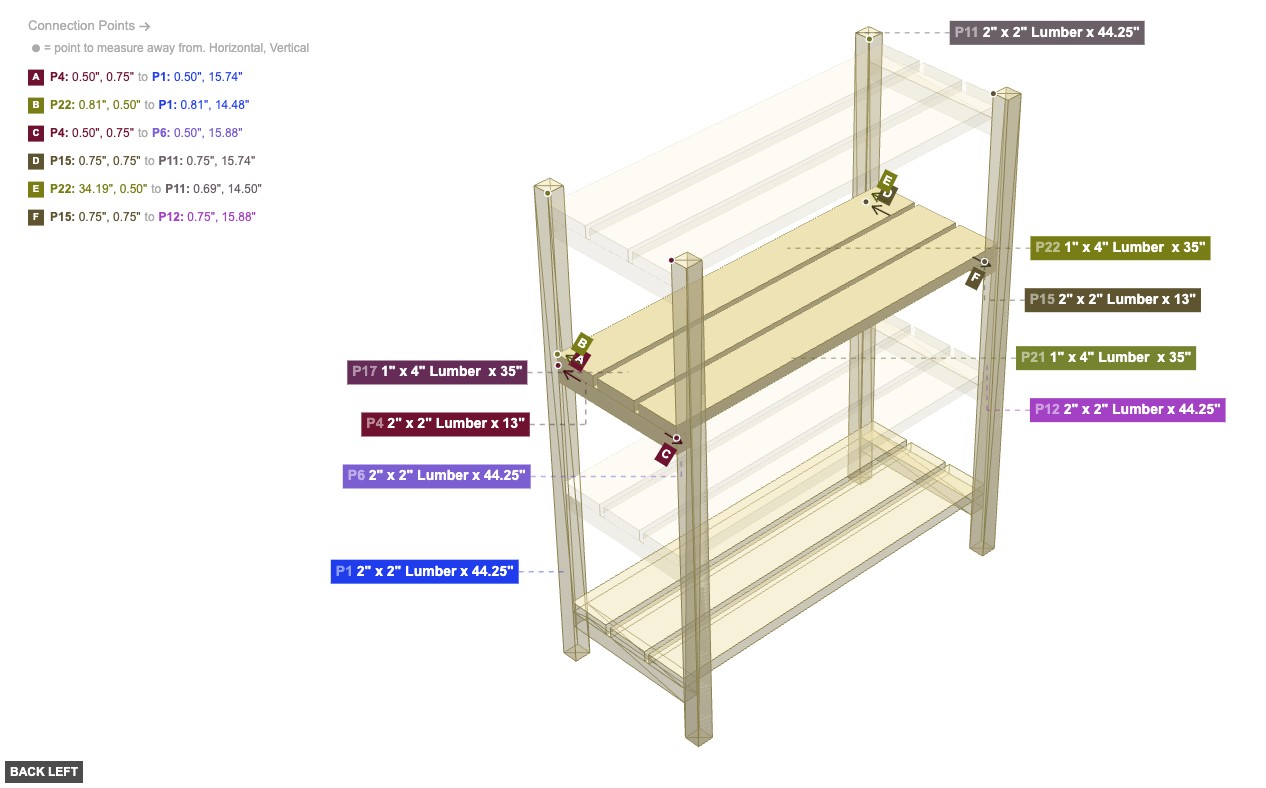

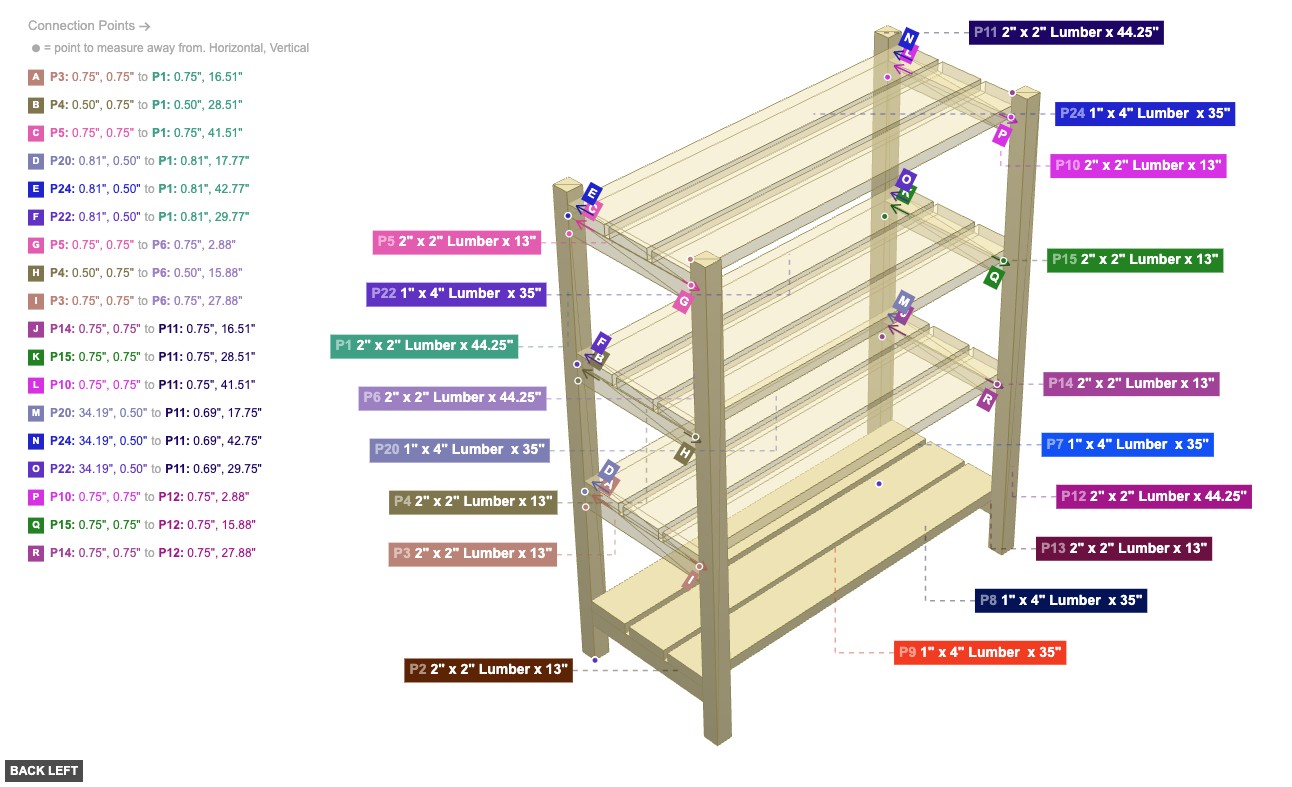

Angle: back left

Base Frame and Bottom Shelf Assembly

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Second Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

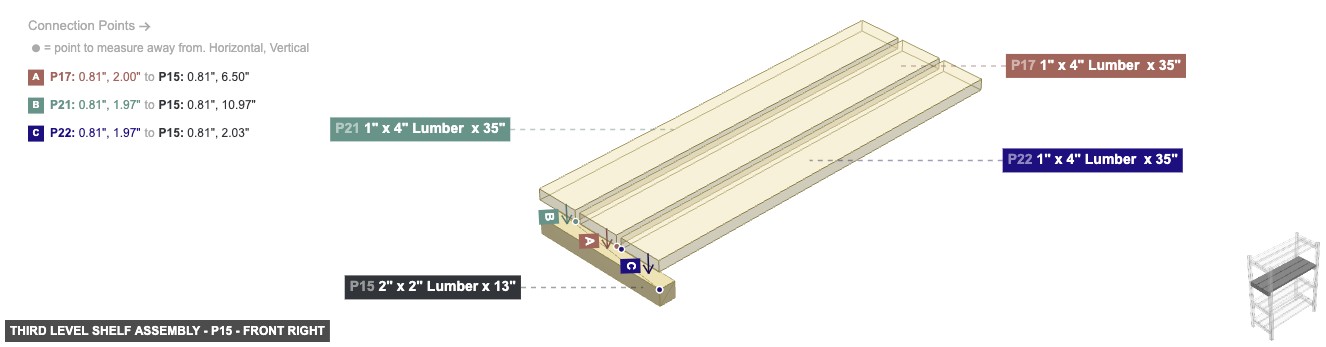

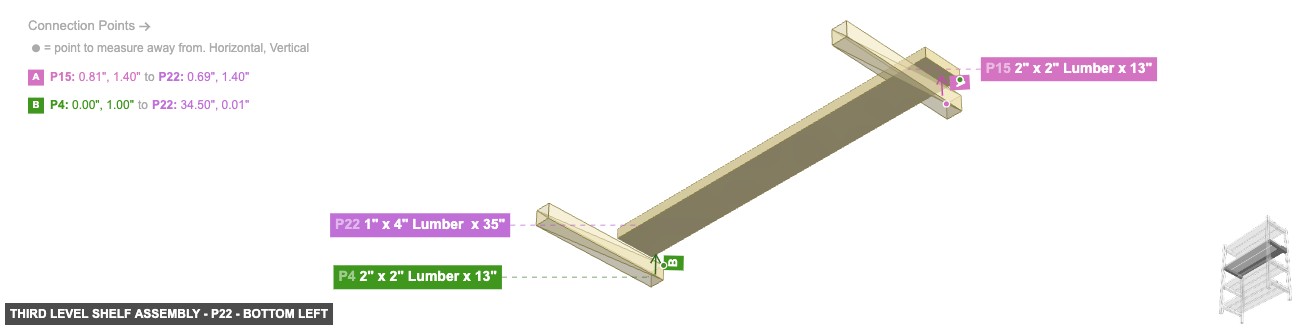

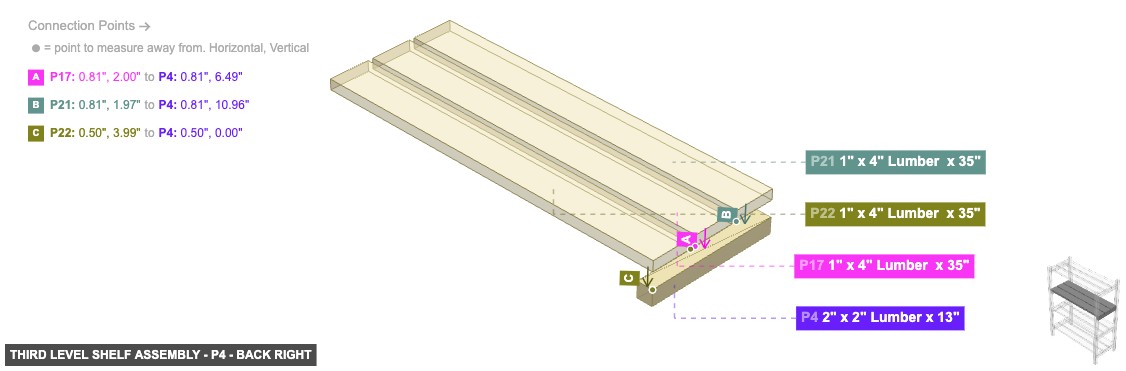

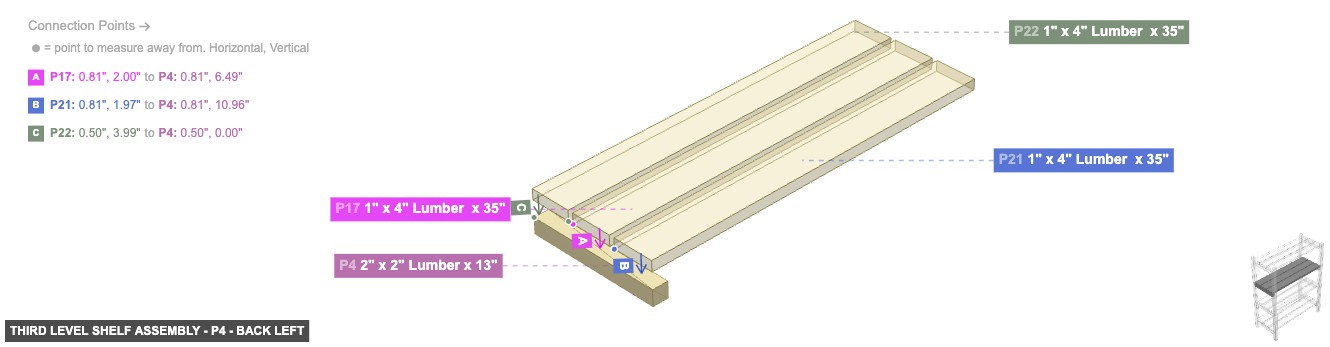

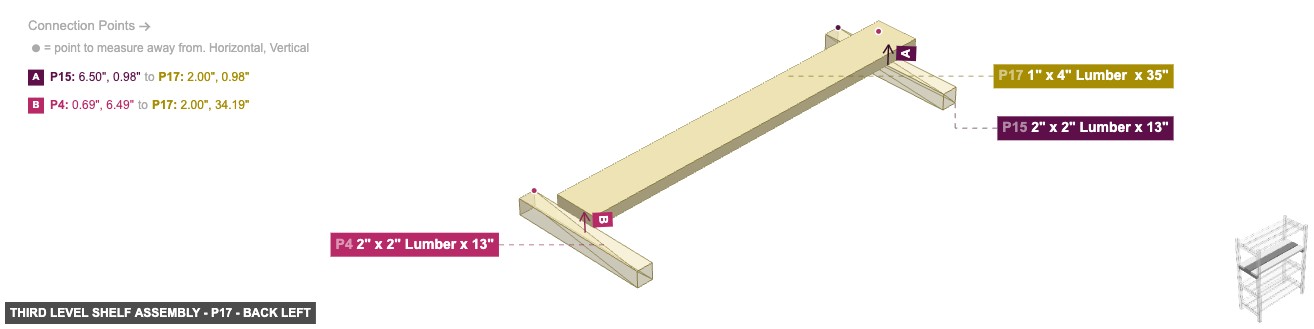

Third Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

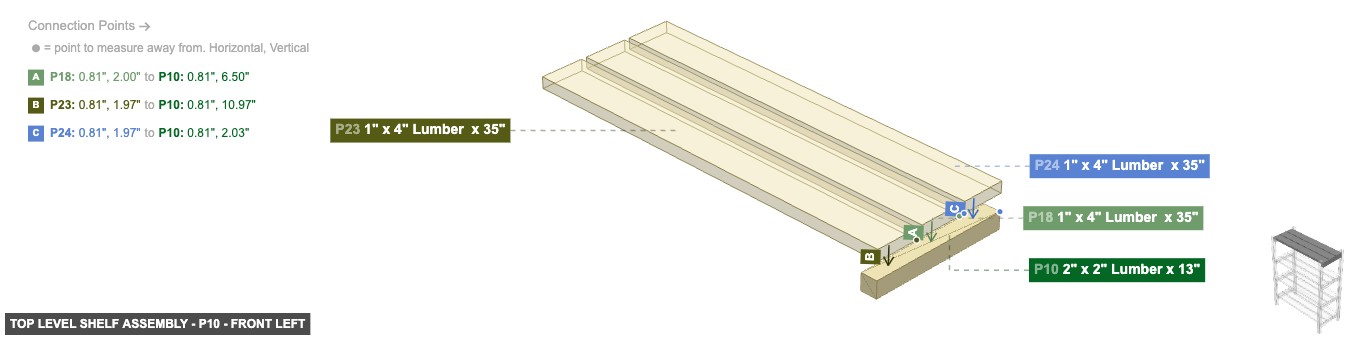

Top Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

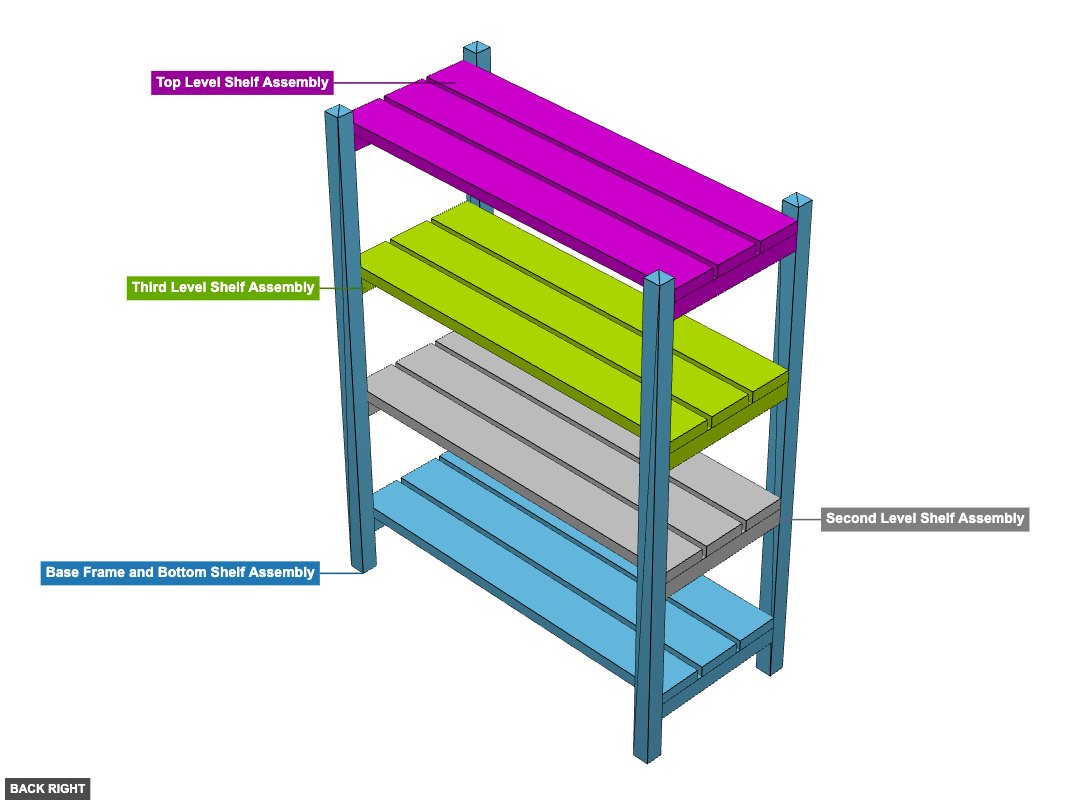

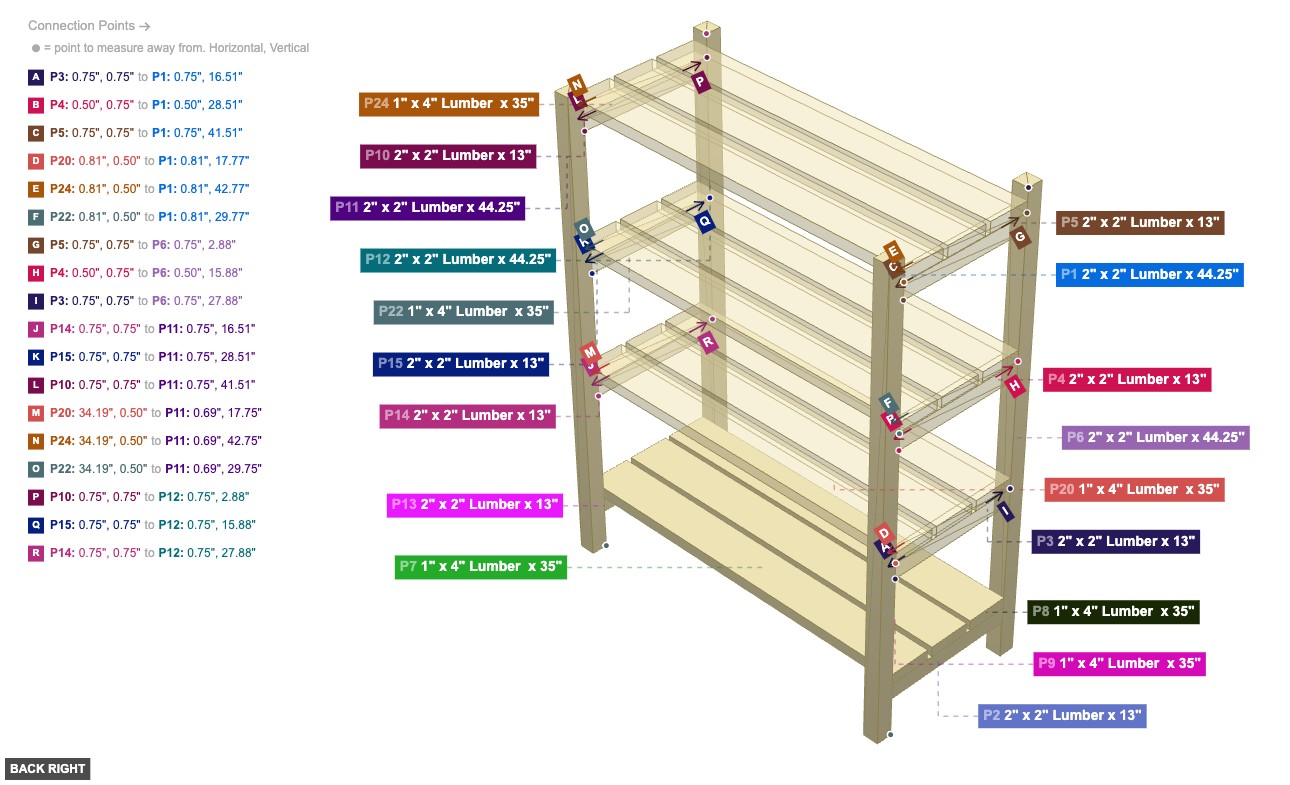

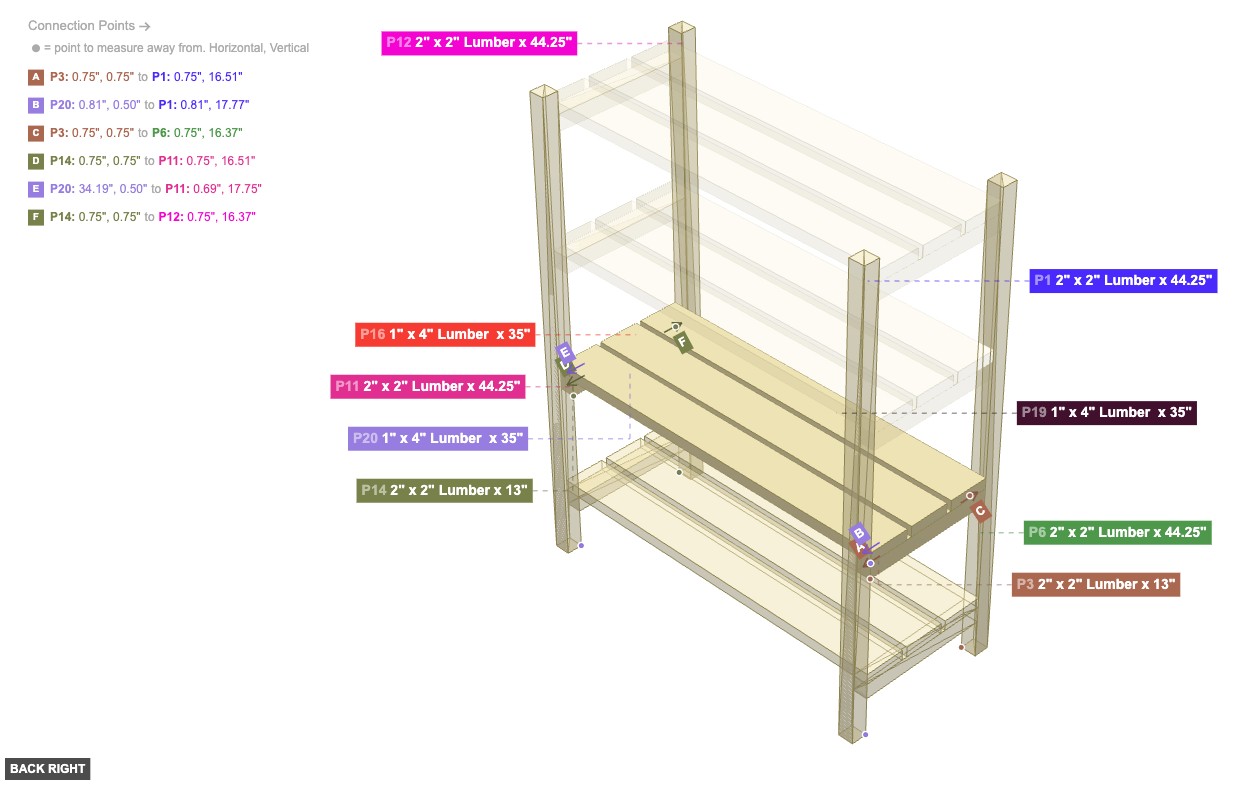

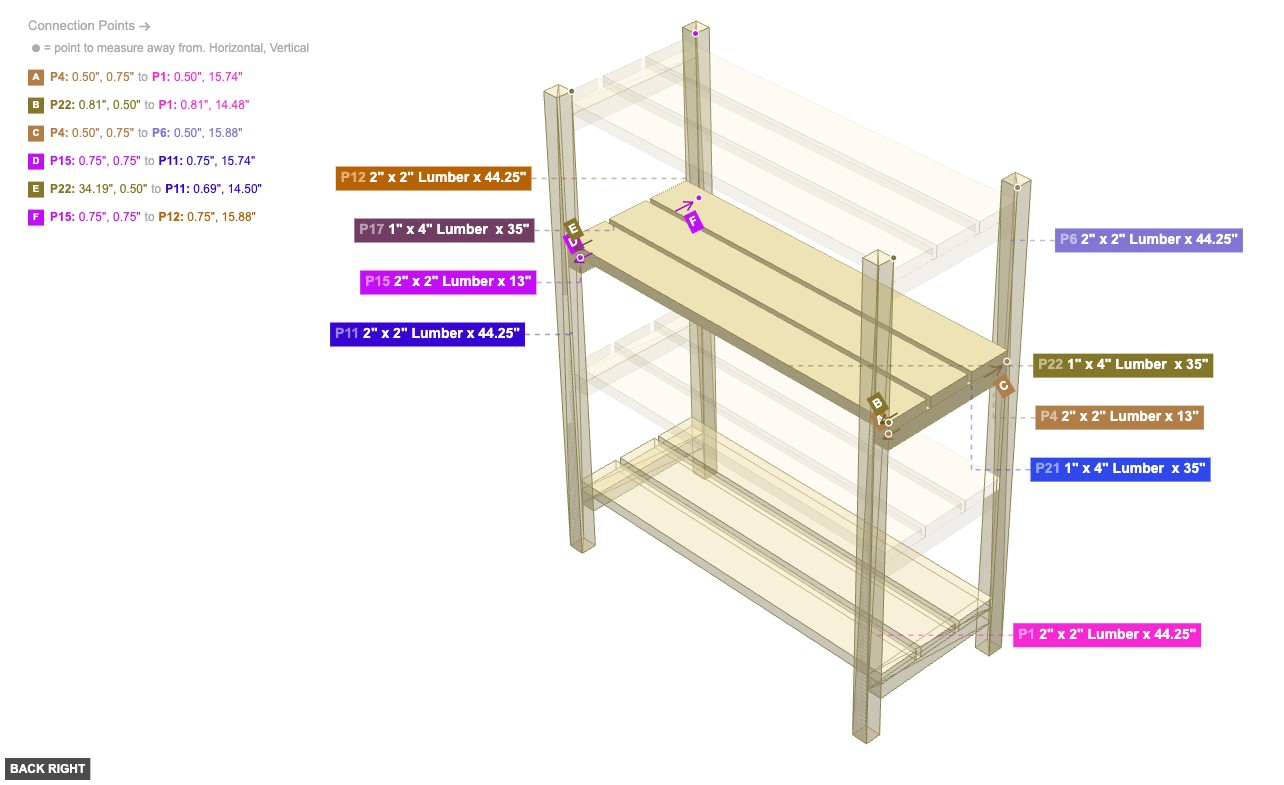

Angle: back right

Base Frame and Bottom Shelf Assembly

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Second Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Third Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Top Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

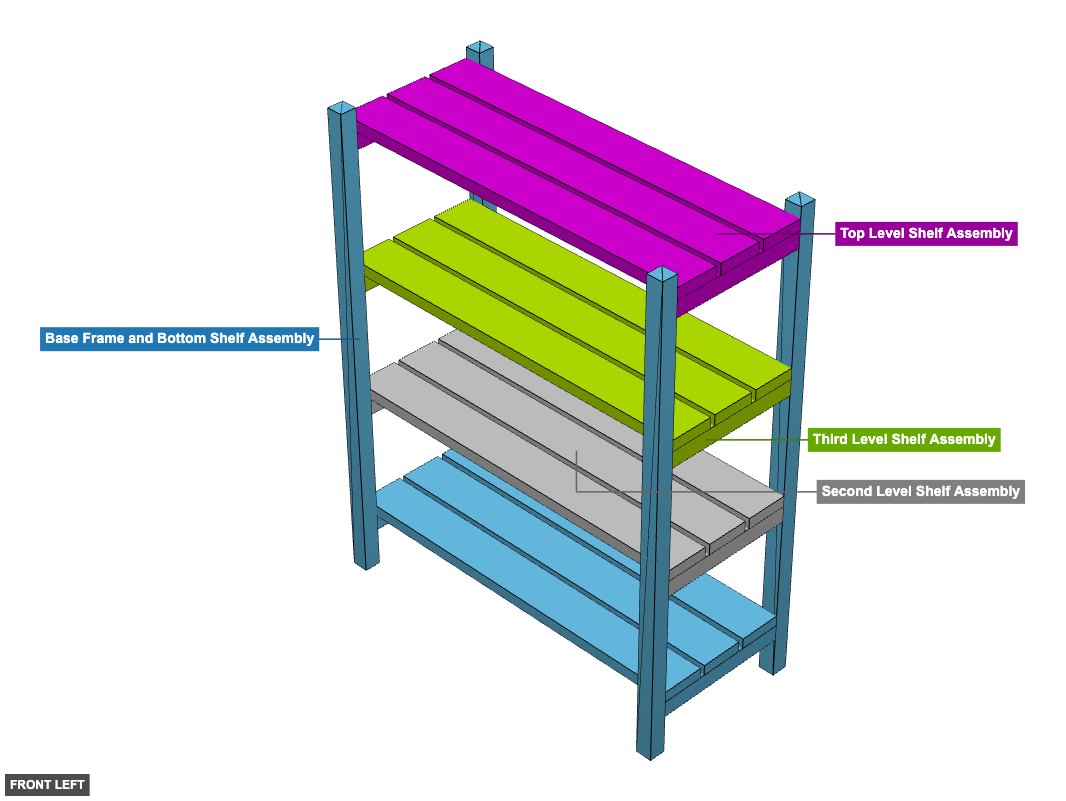

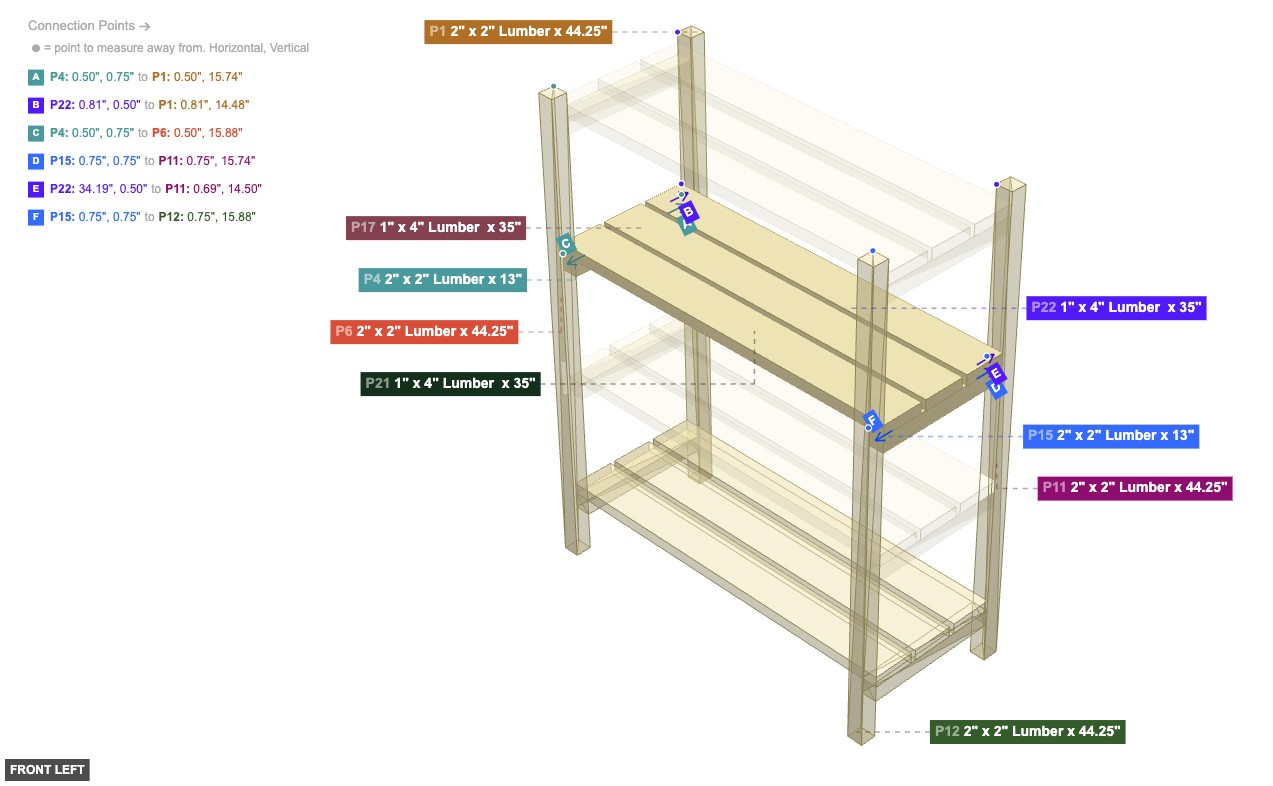

Angle: front left

Base Frame and Bottom Shelf Assembly

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Second Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Third Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Top Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

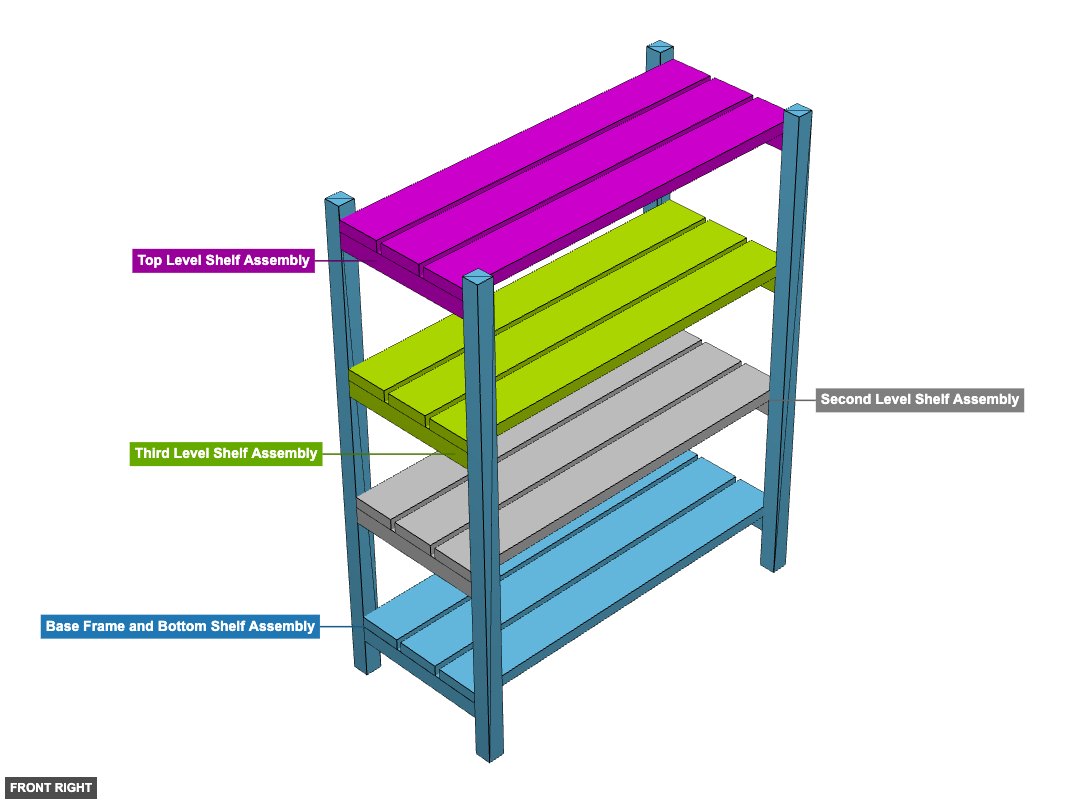

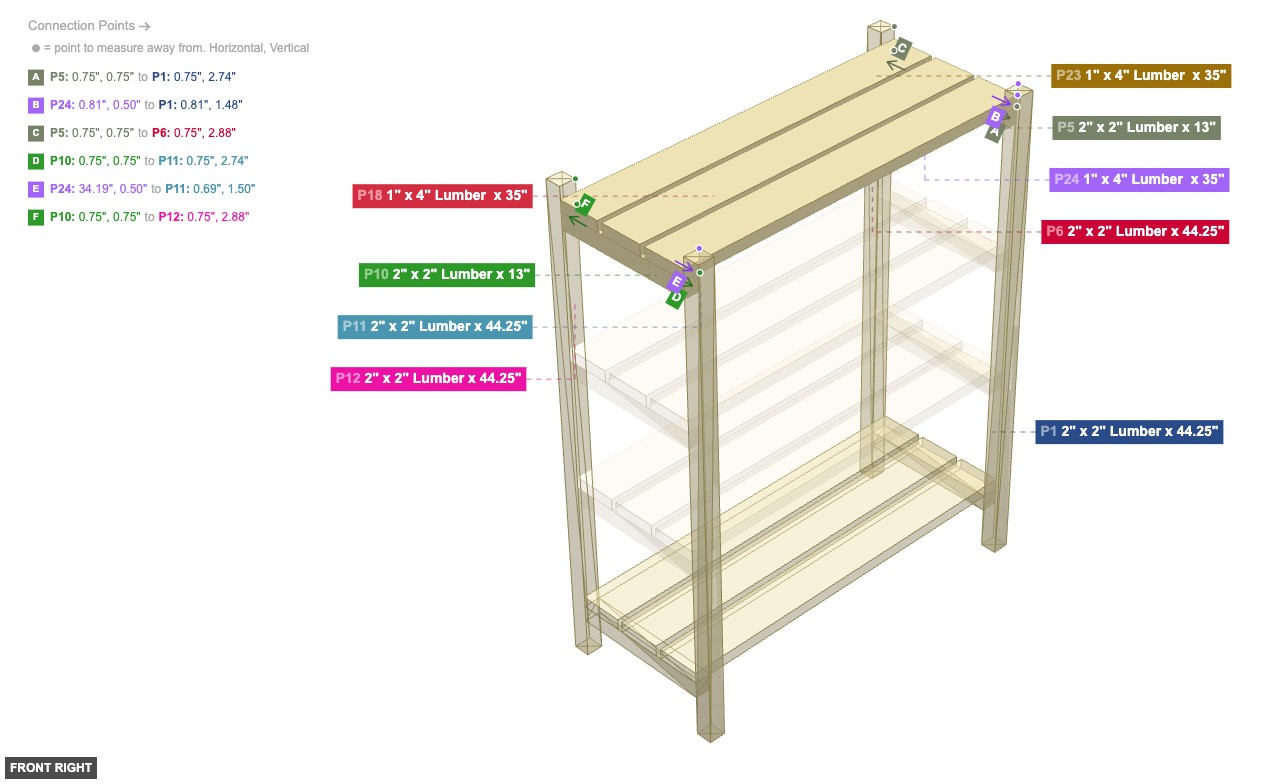

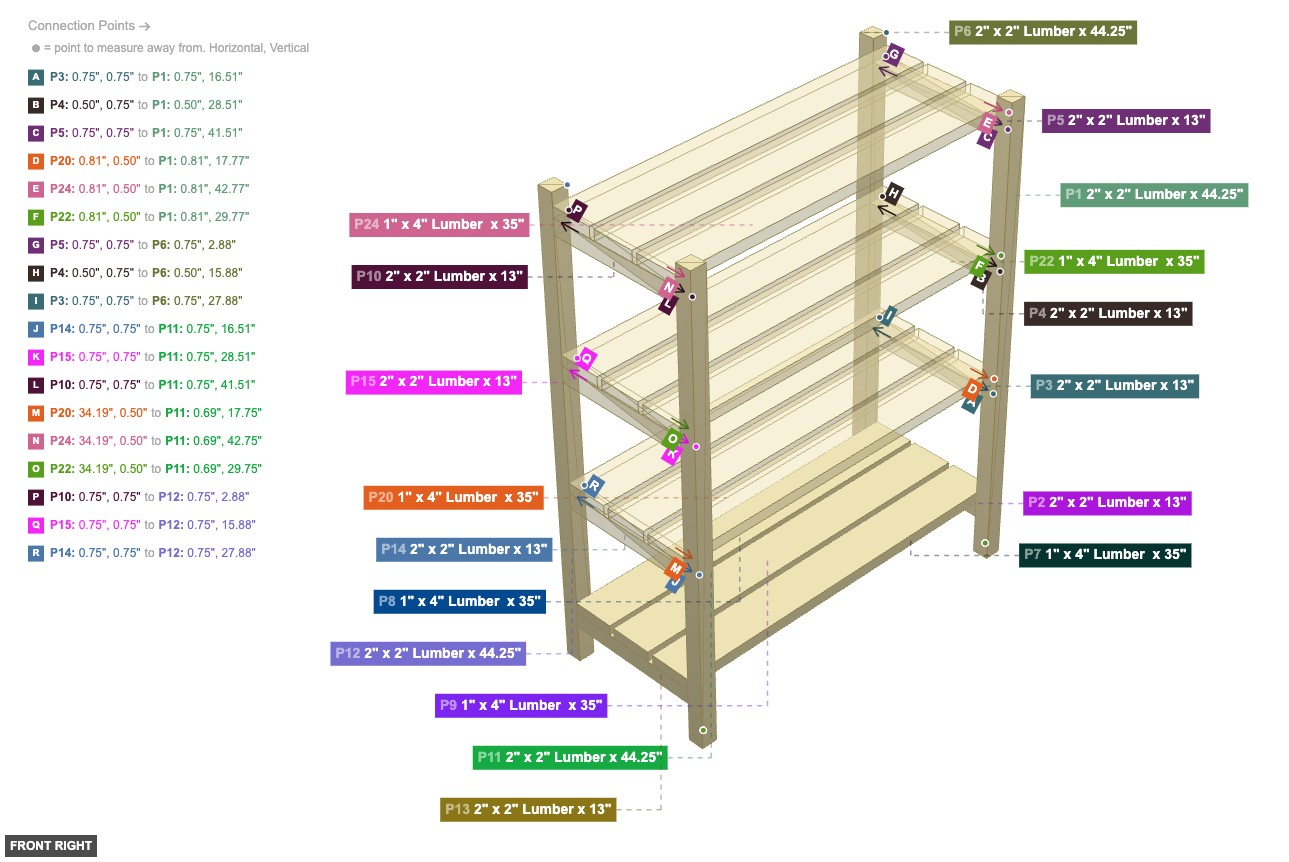

Angle: front right

Base Frame and Bottom Shelf Assembly

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Second Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Third Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Top Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

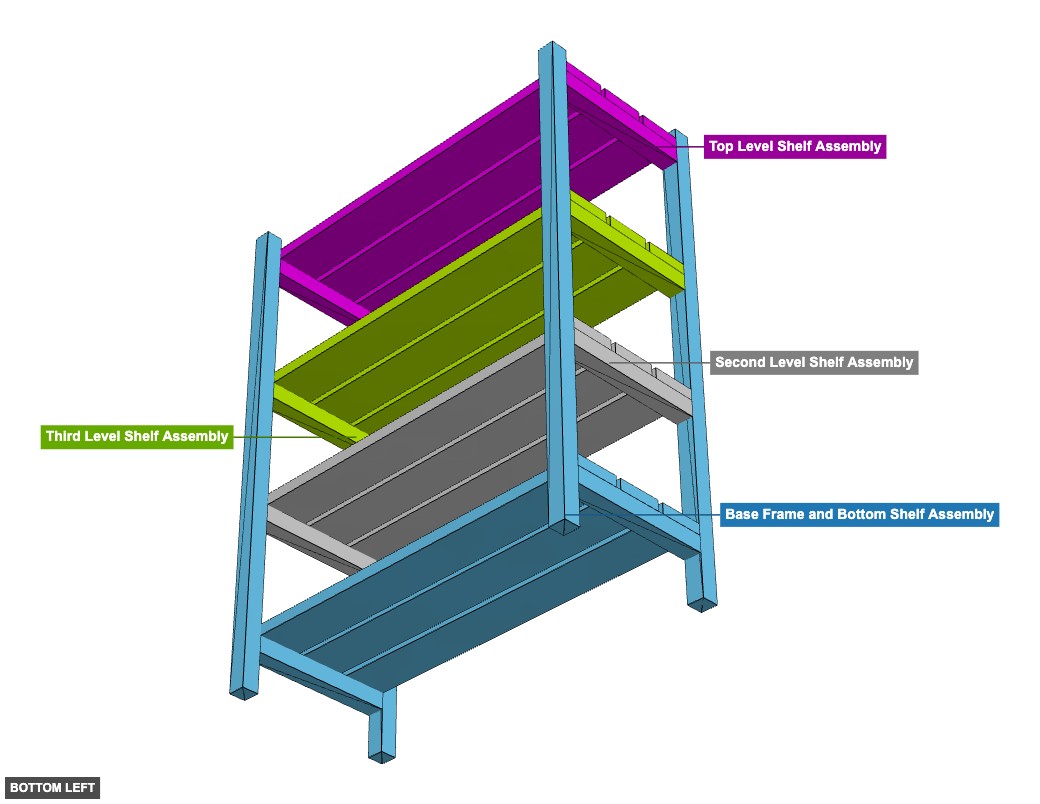

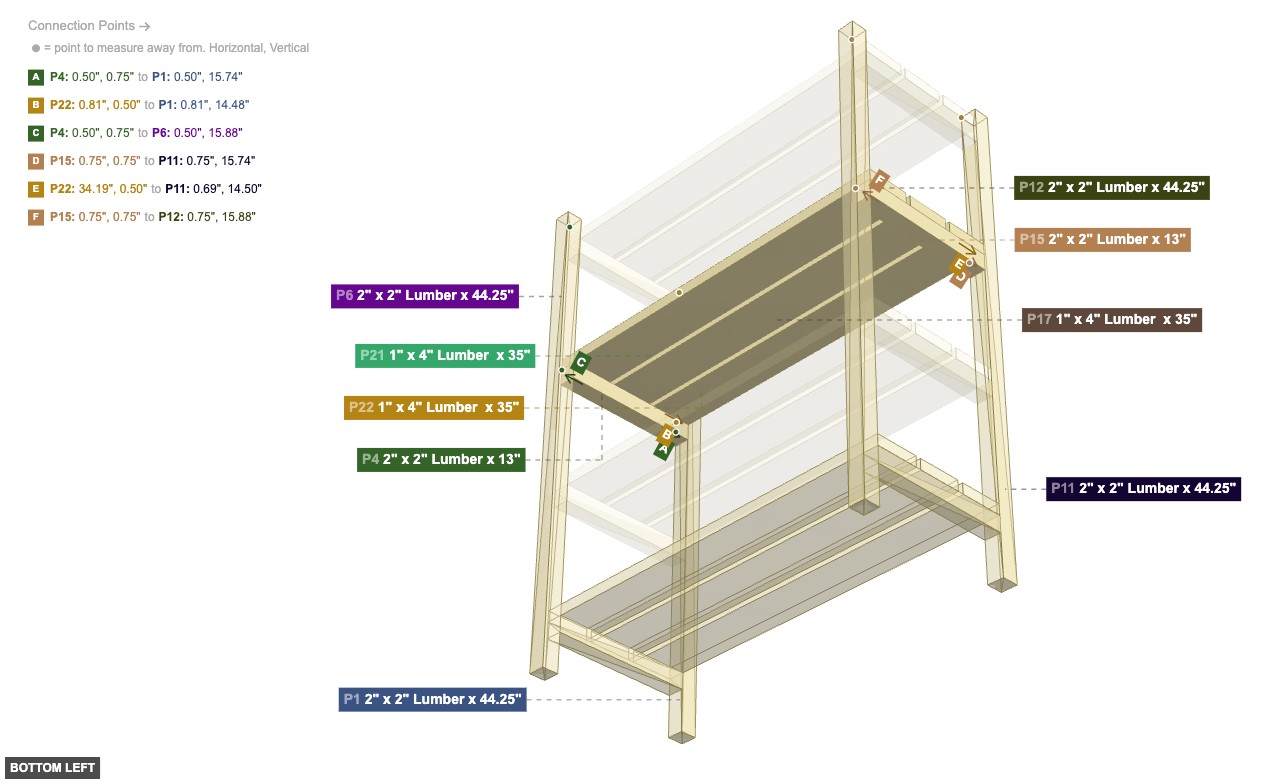

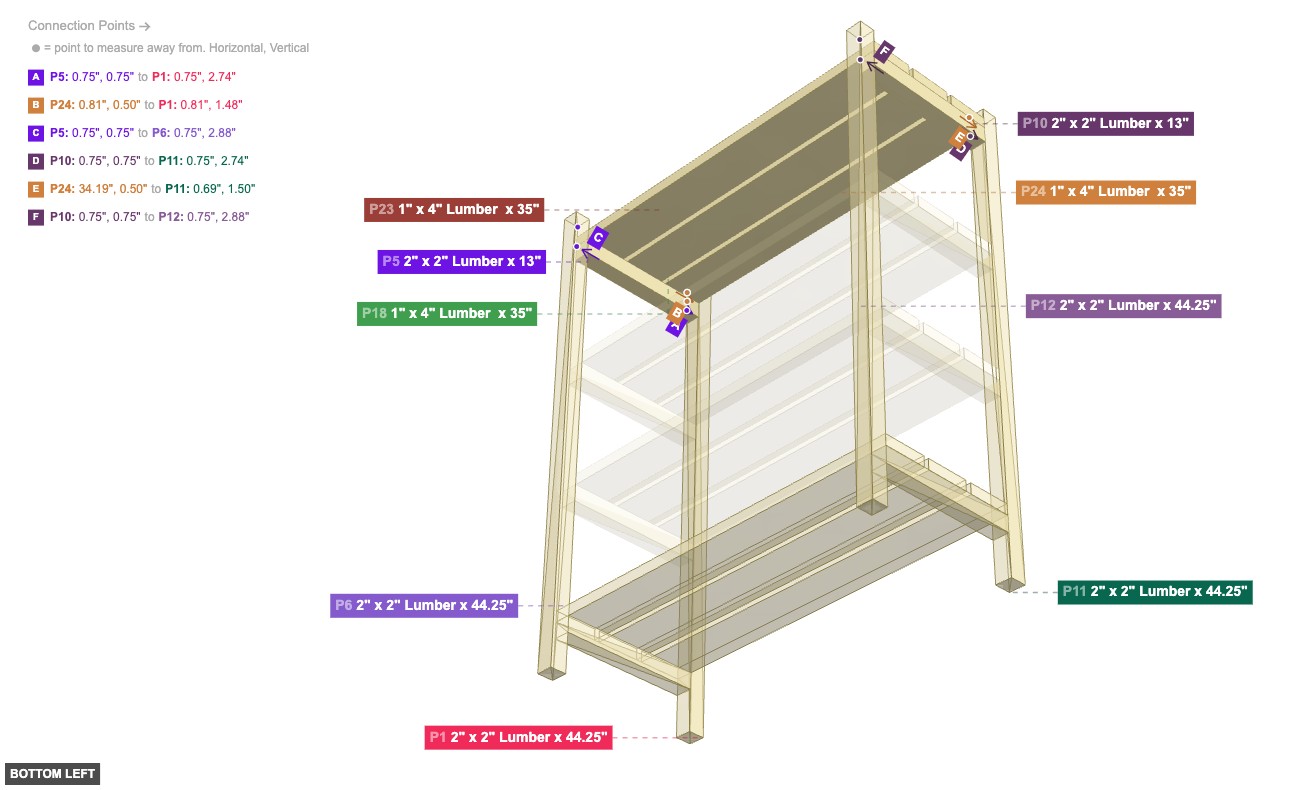

Angle: bottom left

Base Frame and Bottom Shelf Assembly

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Second Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Third Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Top Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

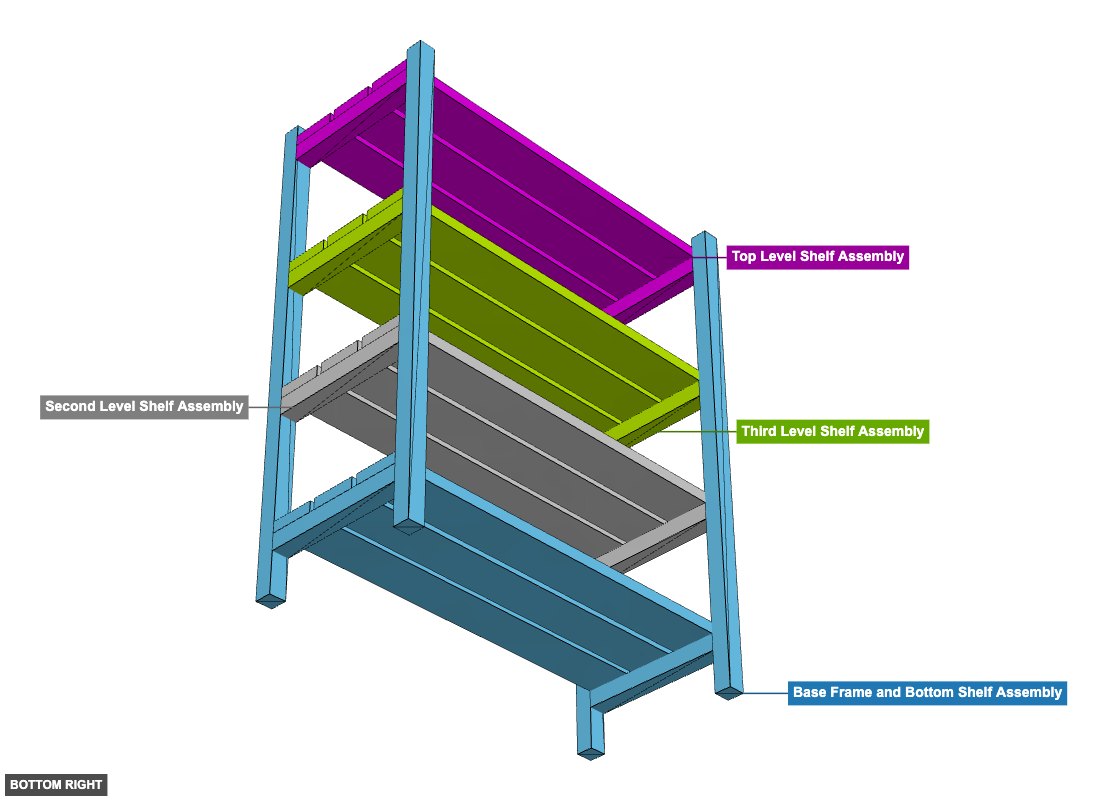

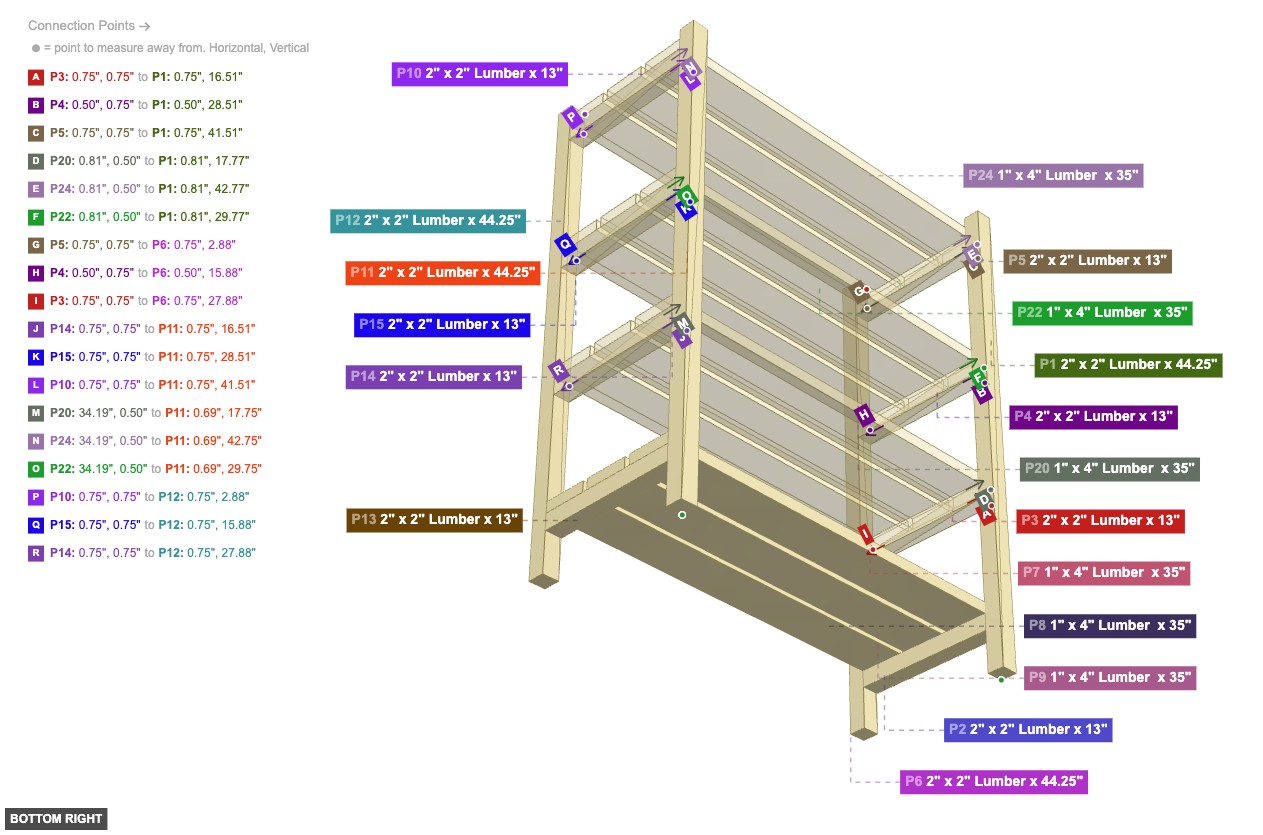

Angle: bottom right

Base Frame and Bottom Shelf Assembly

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Second Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Third Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Top Level Shelf Assembly

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Phase 2: Individual Group Assembly

Group: Base Frame and Bottom Shelf Assembly

Assemble the four vertical posts (P1, P6, P11, P12) with the bottom horizontal supports (P2, P13), then attach the bottom shelf planks (P7, P8, P9).

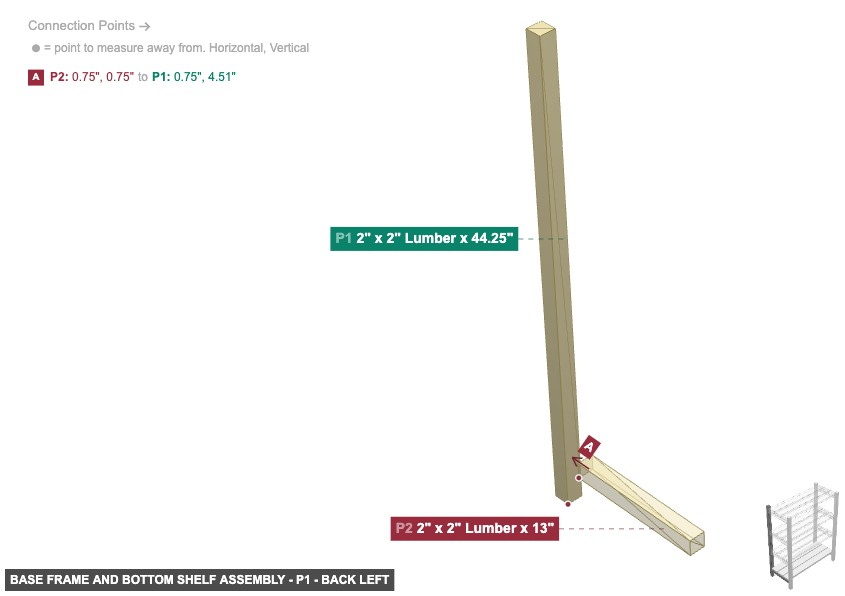

Part: 2" x 2" Lumber x 44.25" - Angle: back left

Base Frame and Bottom Shelf Assembly - Part 2

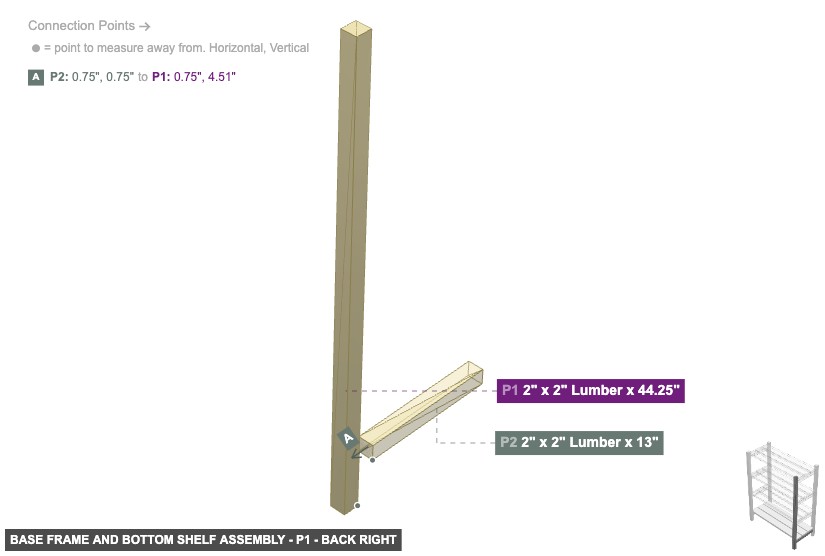

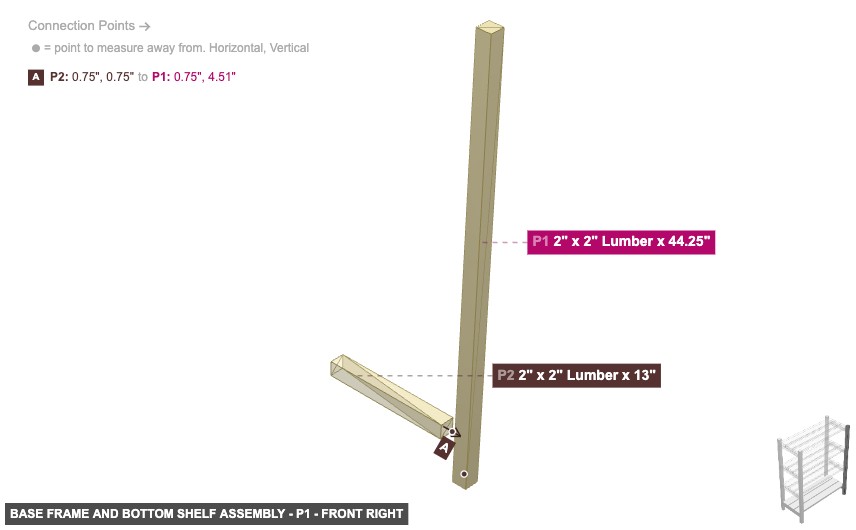

P1 (2" x 2" Lumber 44.25" length) - its 2" x 2" Wood Side #1, which is left-facing, should connect to part 2's 2" x 2" Wood End #2, then ensure its 2" x 2" Wood End #1 faces top, and its 2" x 2" Wood Side #2 must be oriented back, also its 2" x 2" Wood Side #3 must be oriented right. After that, ensure its 2" x 2" Wood Side #4 faces front, then ensure its 2" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

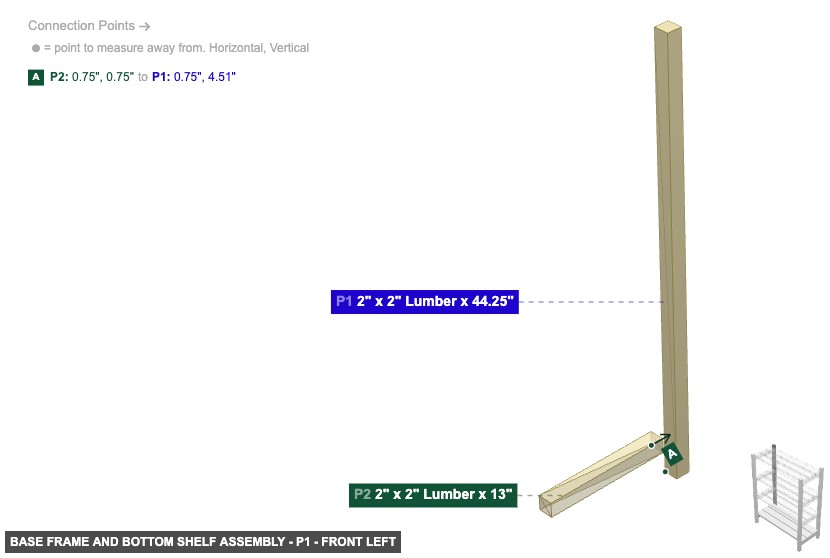

Part: 2" x 2" Lumber x 44.25" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

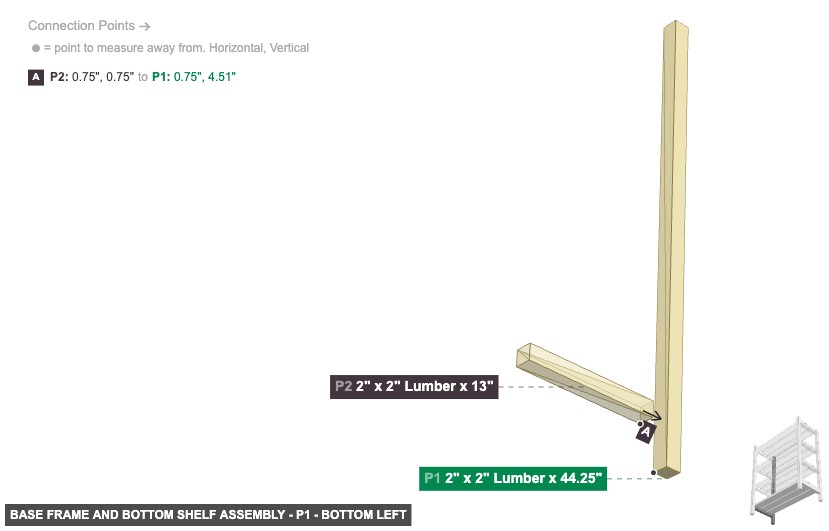

Part: 2" x 2" Lumber x 44.25" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

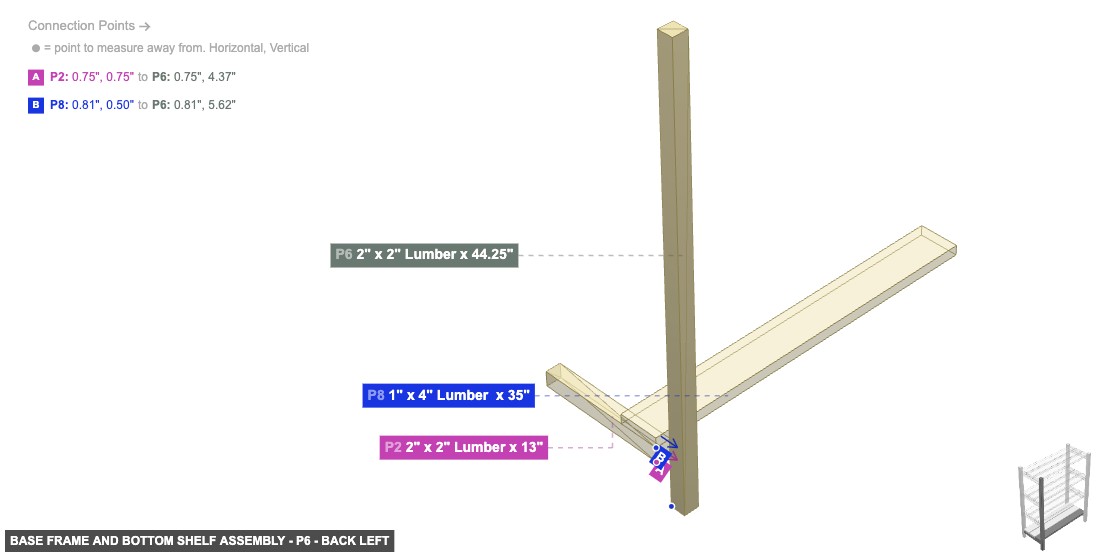

Part: 2" x 2" Lumber x 44.25" - Angle: back left

P6 (2" x 2" Lumber 44.25" length) - its 2" x 2" Wood Side #1, which is right-facing, should connect to part 2's 2" x 2" Wood End #1, also its 2" x 2" Wood End #1 should be directed top. After that, its 2" x 2" Wood Side #2 needs to point front, plus its 2" x 2" Wood Side #3 must be oriented left, also its 2" x 2" Wood Side #4 should be directed back. After that, its 2" x 2" Wood End #2 must be oriented bottom

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

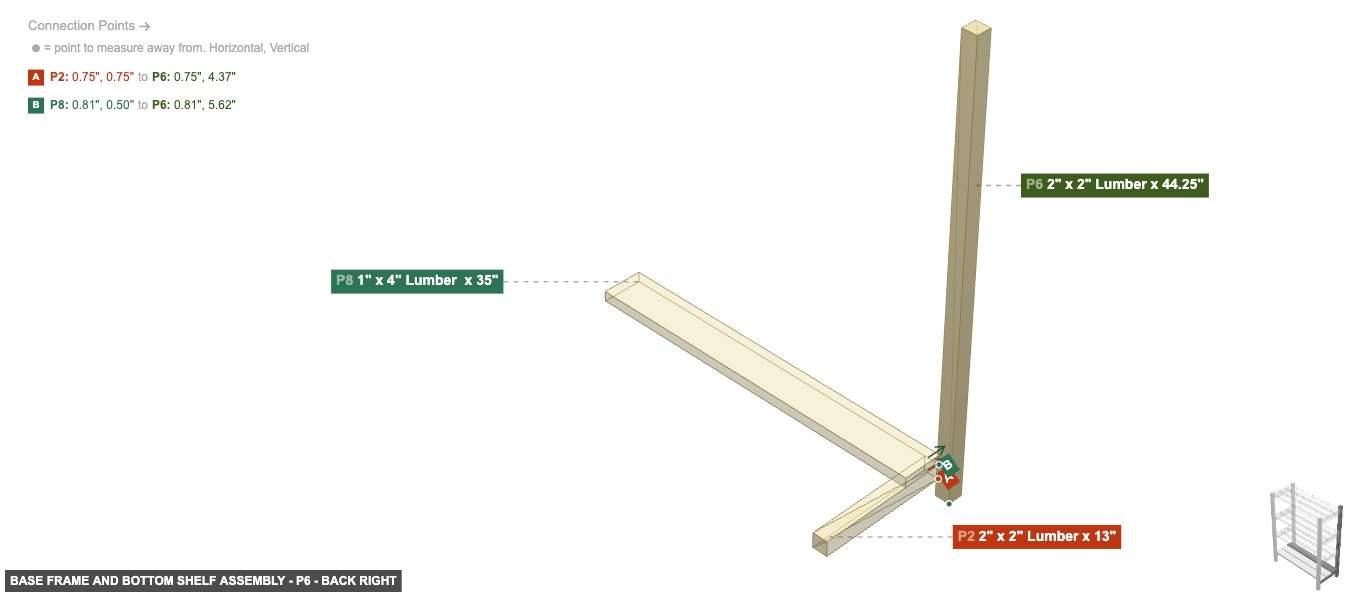

Part: 2" x 2" Lumber x 44.25" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

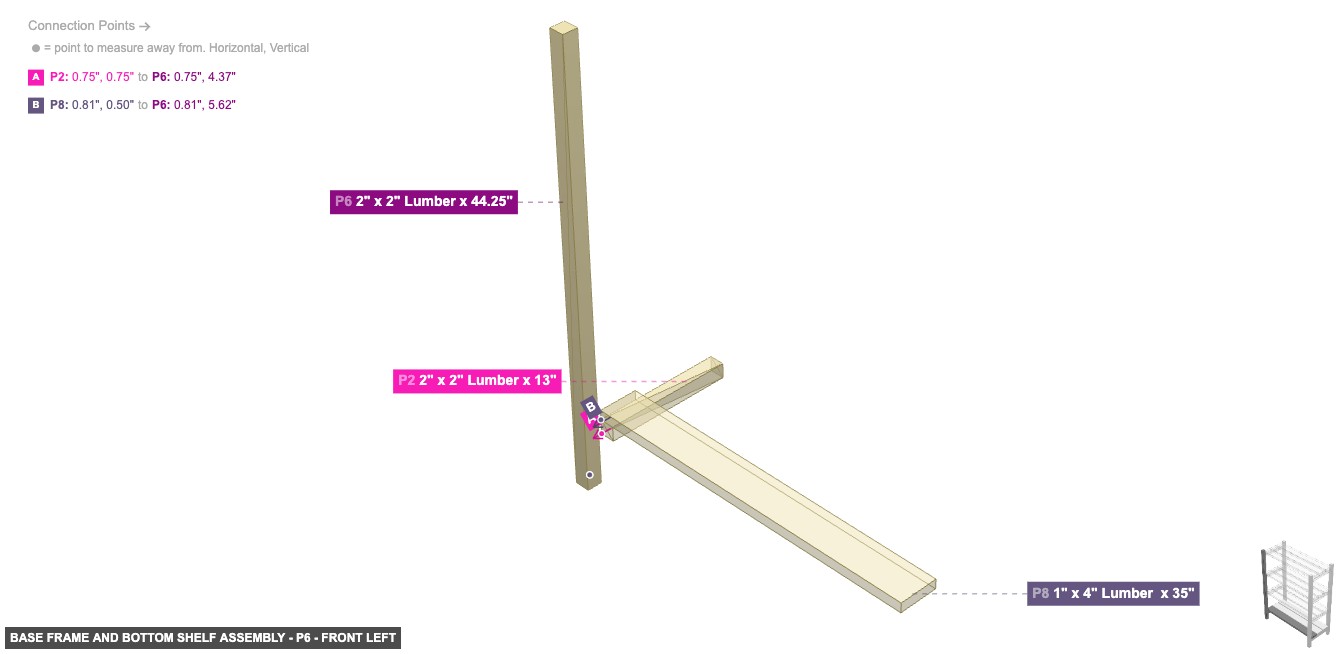

Part: 2" x 2" Lumber x 44.25" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

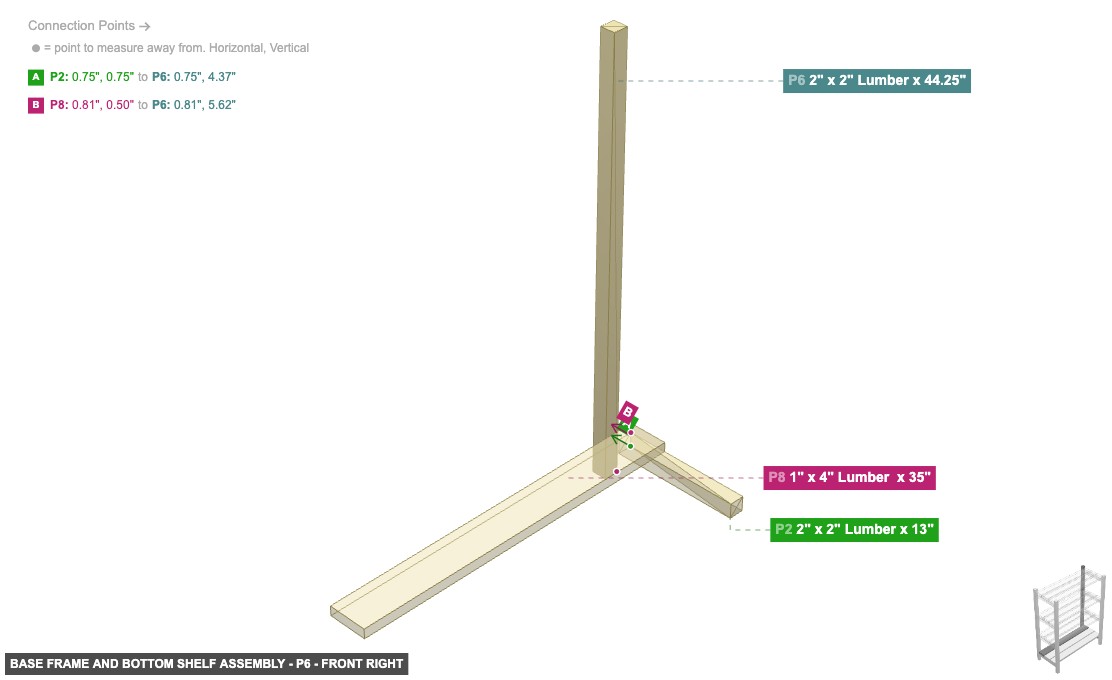

Part: 2" x 2" Lumber x 44.25" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

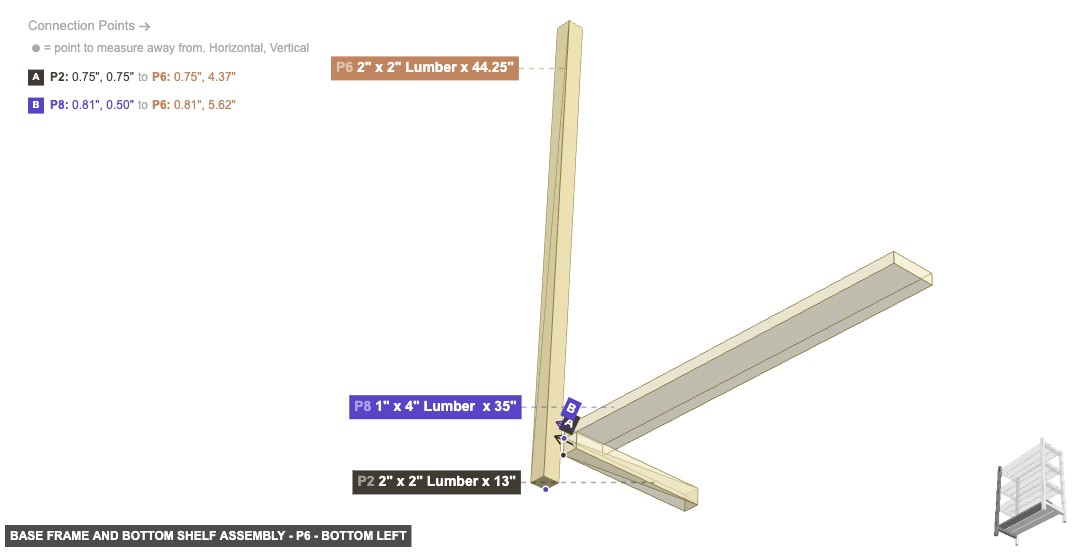

Part: 2" x 2" Lumber x 44.25" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

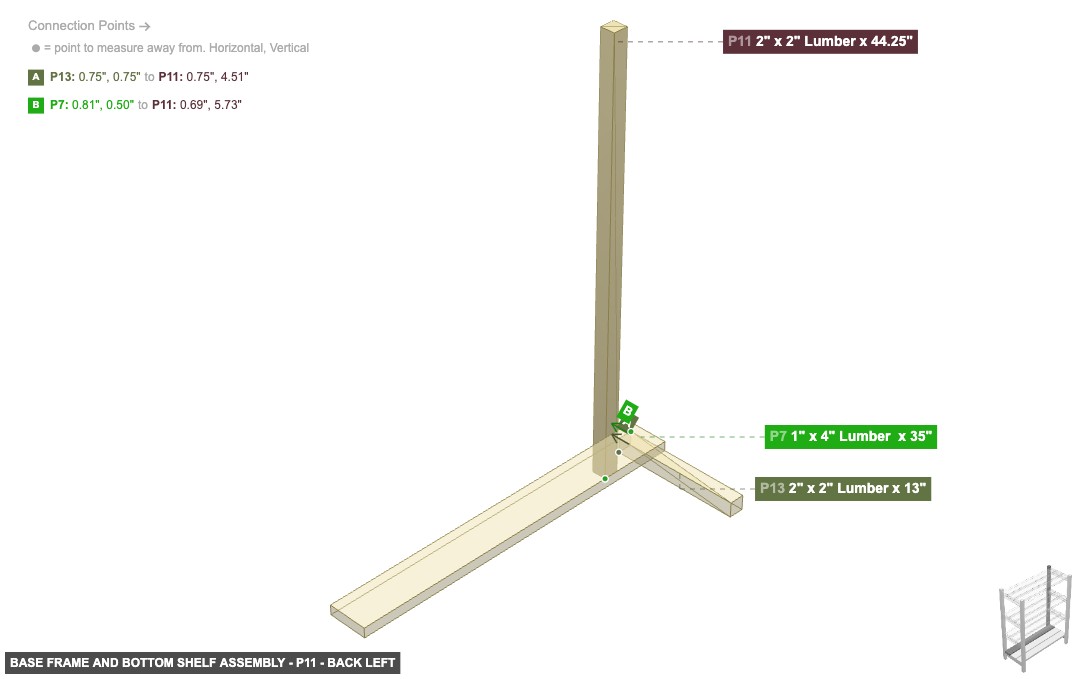

Part: 2" x 2" Lumber x 44.25" - Angle: back left

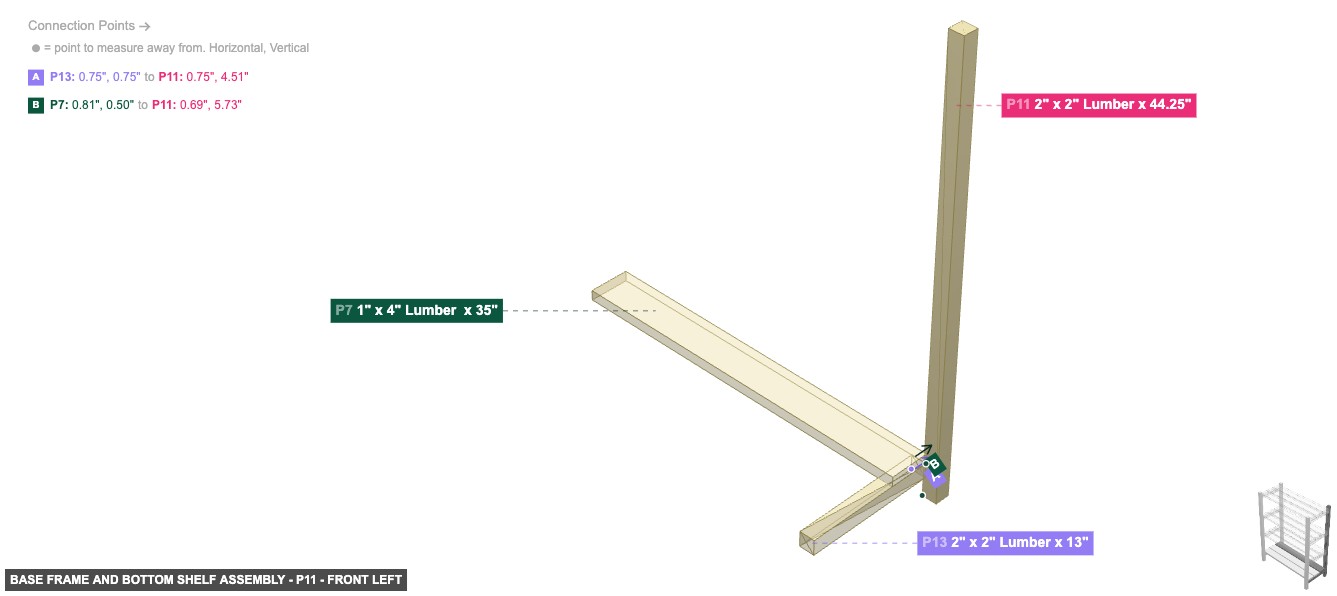

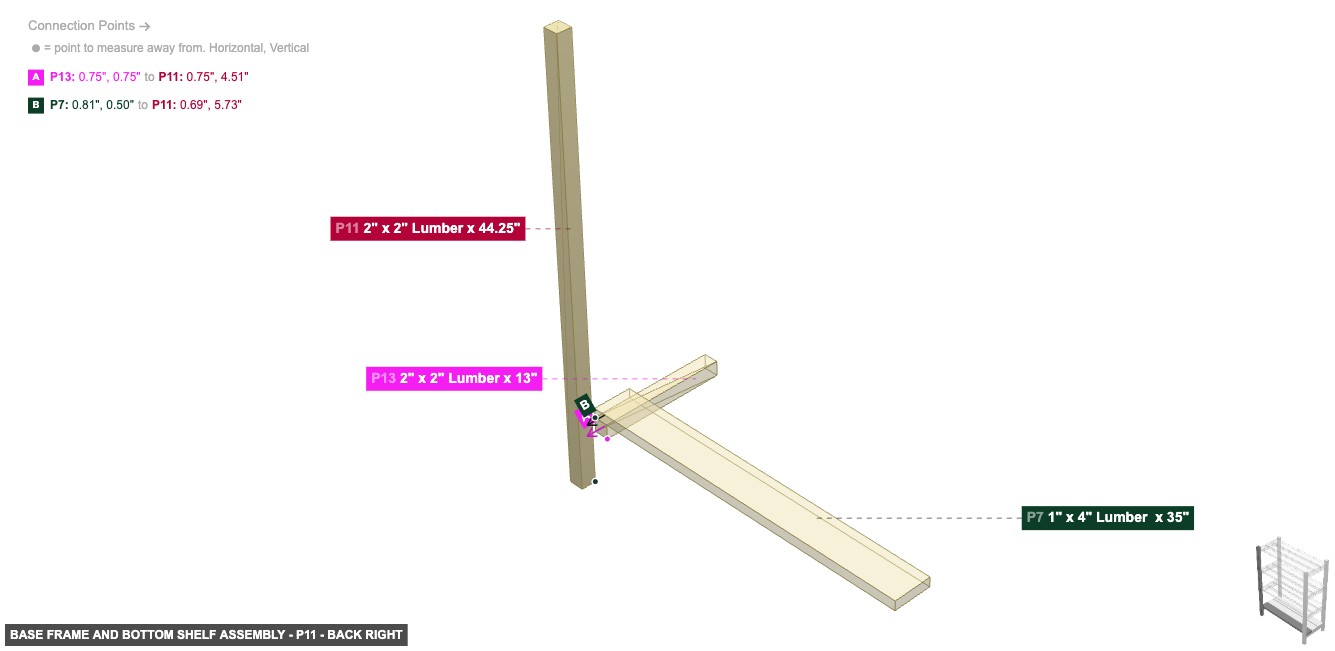

P11 (2" x 2" Lumber 44.25" length) - its 2" x 2" Wood Side #1, which is left-facing, should connect to part 13's 2" x 2" Wood End #2, then its 2" x 2" Wood End #1 must be oriented top, also ensure its 2" x 2" Wood Side #2 faces back. Also, its 2" x 2" Wood Side #3 must be oriented right, and its 2" x 2" Wood Side #4 needs to point front. Next, ensure its 2" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

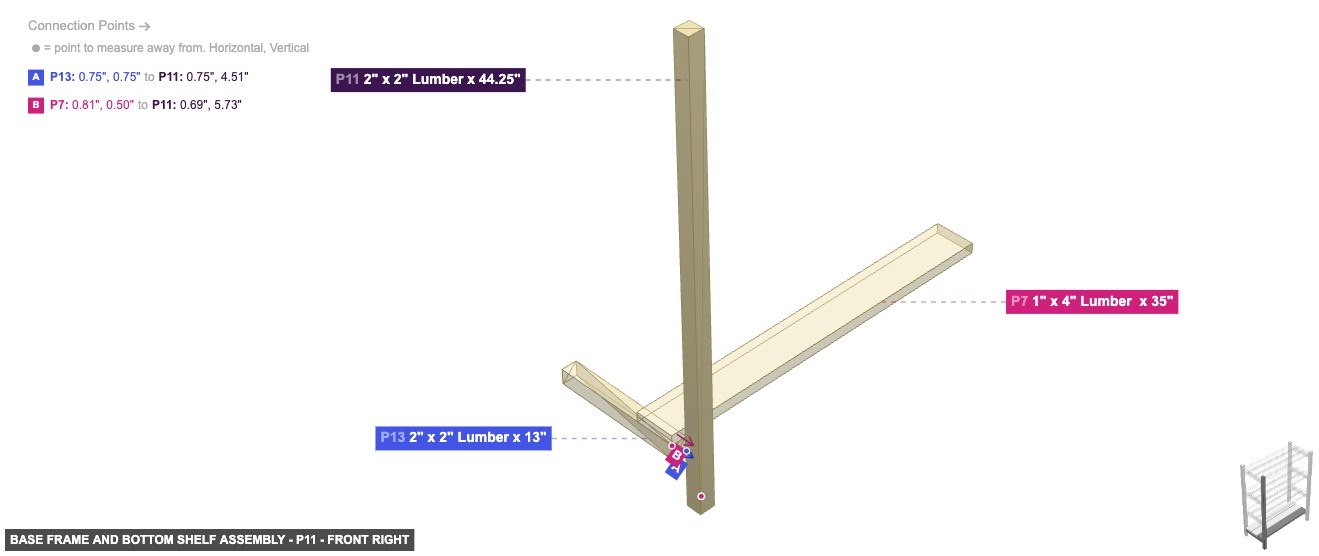

Part: 2" x 2" Lumber x 44.25" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

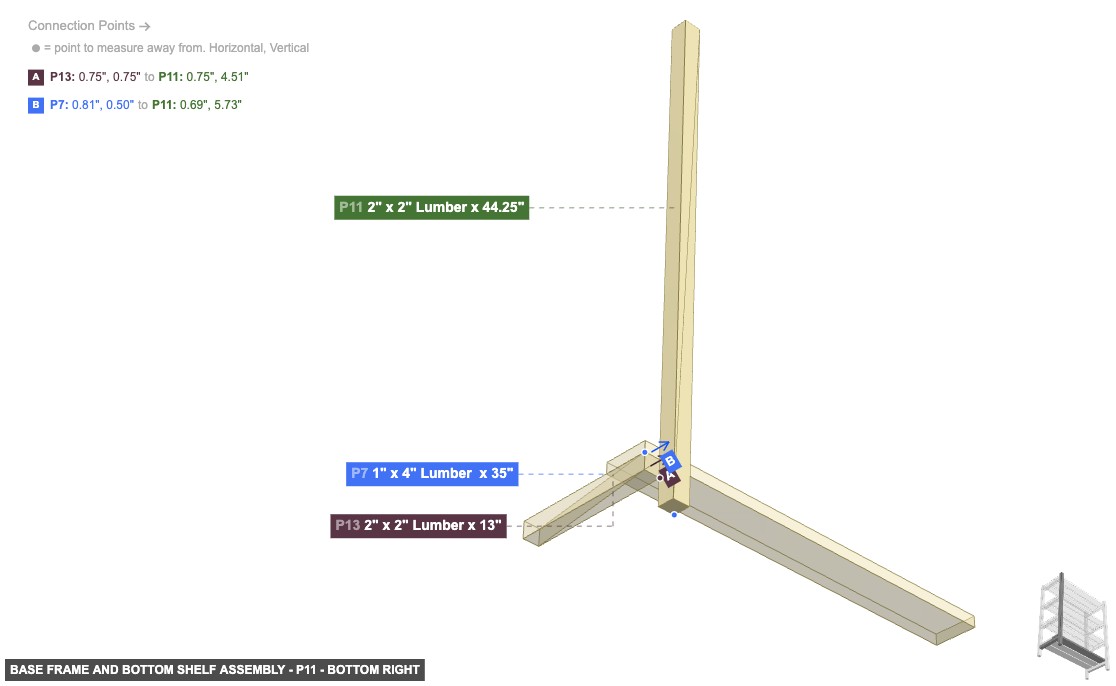

Part: 2" x 2" Lumber x 44.25" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

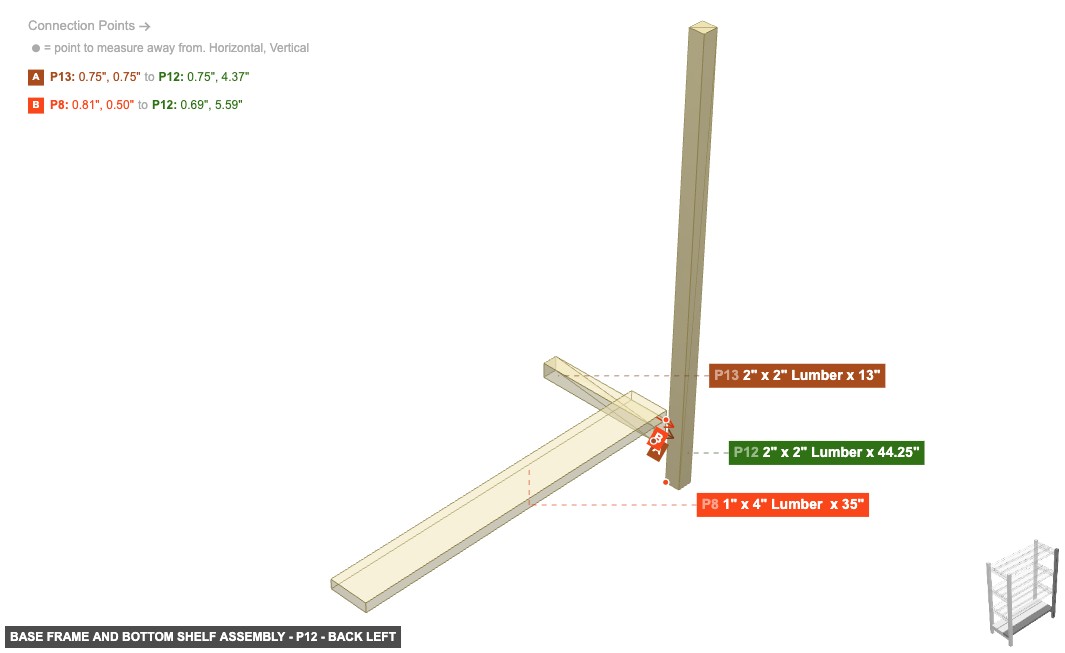

Part: 2" x 2" Lumber x 44.25" - Angle: back left

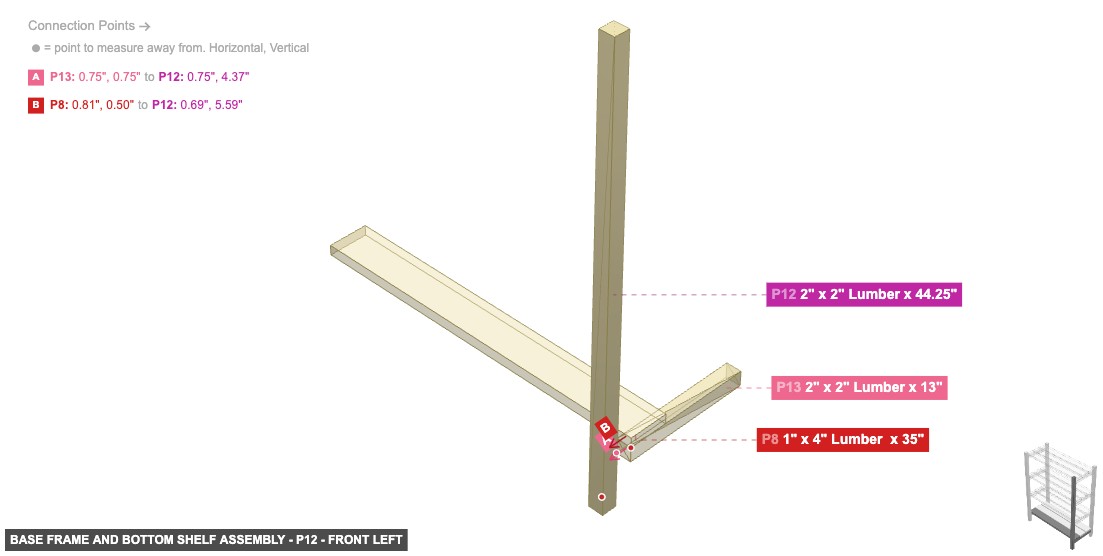

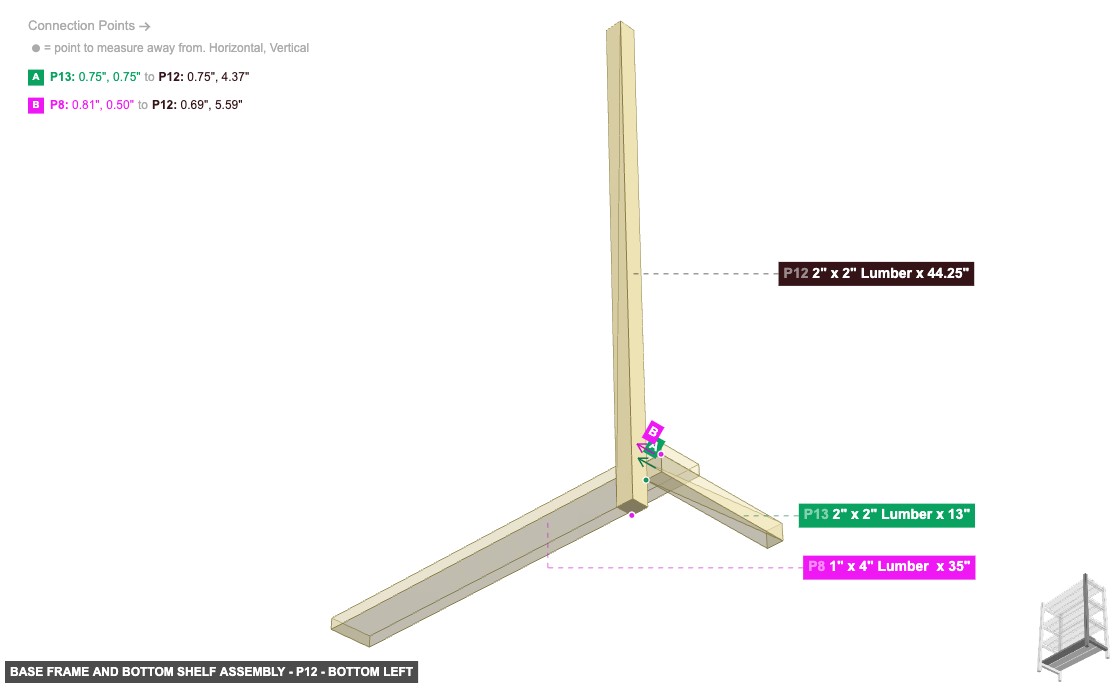

P12 (2" x 2" Lumber 44.25" length) - its 2" x 2" Wood Side #1, which is right-facing, should connect to part 13's 2" x 2" Wood End #1. Additionally, its 2" x 2" Wood End #1 must be oriented top. After that, its 2" x 2" Wood Side #2 should be directed front. Next, its 2" x 2" Wood Side #3 should be directed left, also its 2" x 2" Wood Side #4 needs to point back, plus its 2" x 2" Wood End #2 must be oriented bottom

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

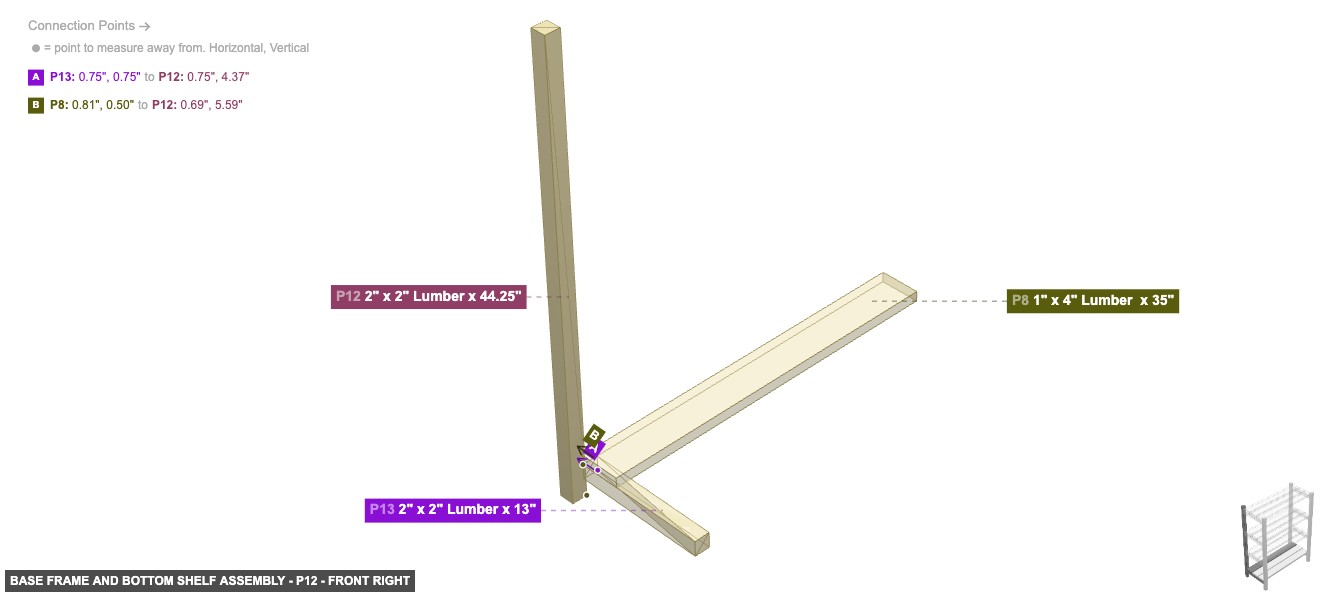

Part: 2" x 2" Lumber x 44.25" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 44.25" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

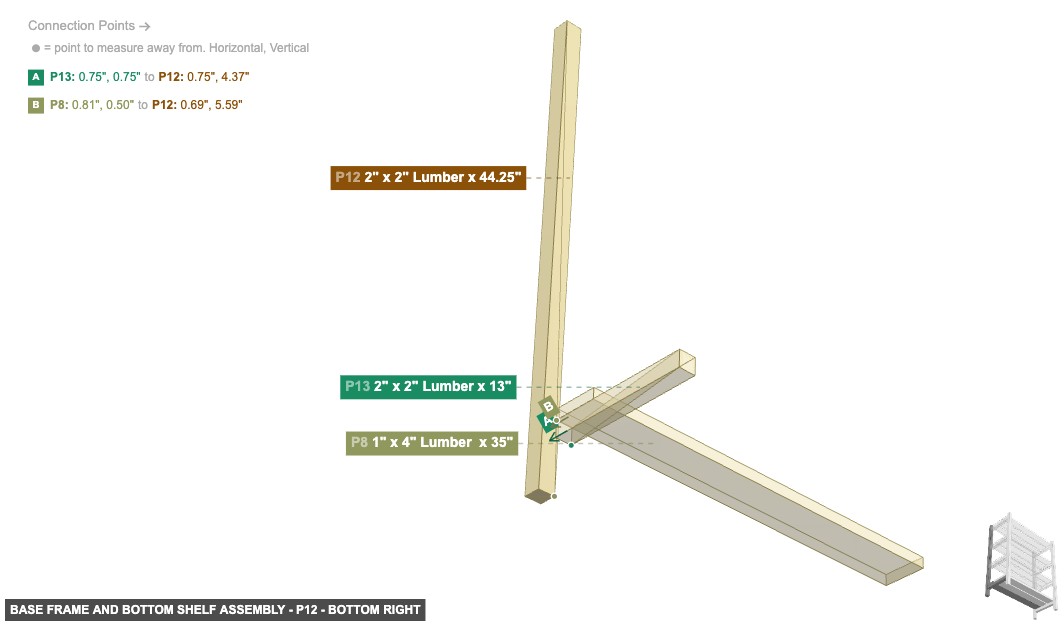

Part: 2" x 2" Lumber x 44.25" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back left

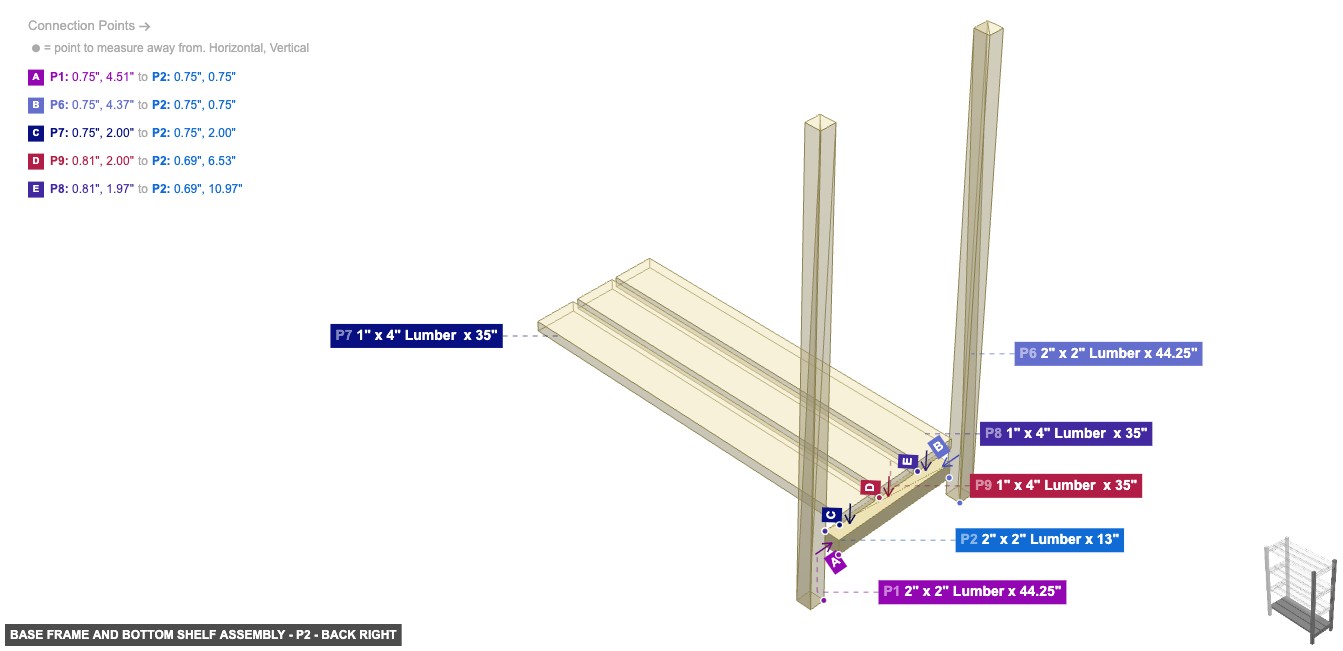

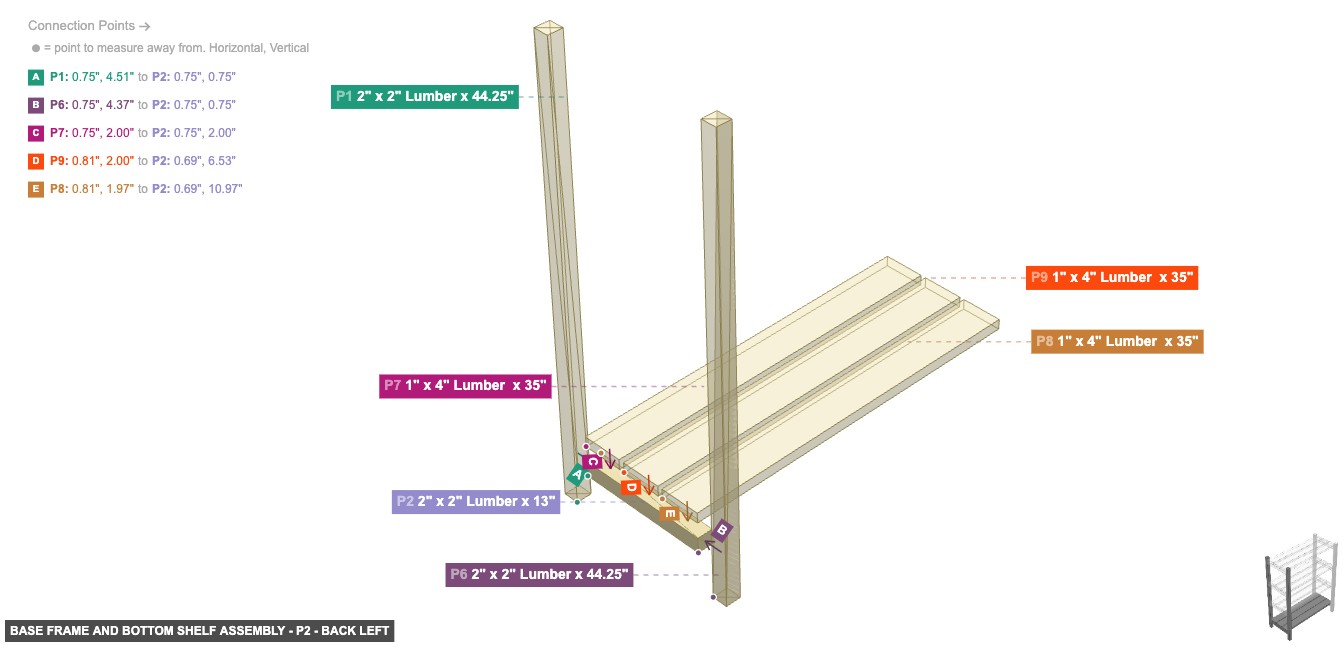

P2 (2" x 2" Lumber 13" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 6's 2" x 2" Wood Side #1. Additionally, connect its 2" x 2" Wood Side #3 oriented top links with part 7's 1" x 4" Wood Side #2. After that, attach its 2" x 2" Wood End #2 facing right to part 1's 2" x 2" Wood Side #1. Also, its 2" x 2" Wood Side #1 needs to point bottom. Additionally, ensure its 2" x 2" Wood Side #2 faces back, then ensure its 2" x 2" Wood Side #4 faces front

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

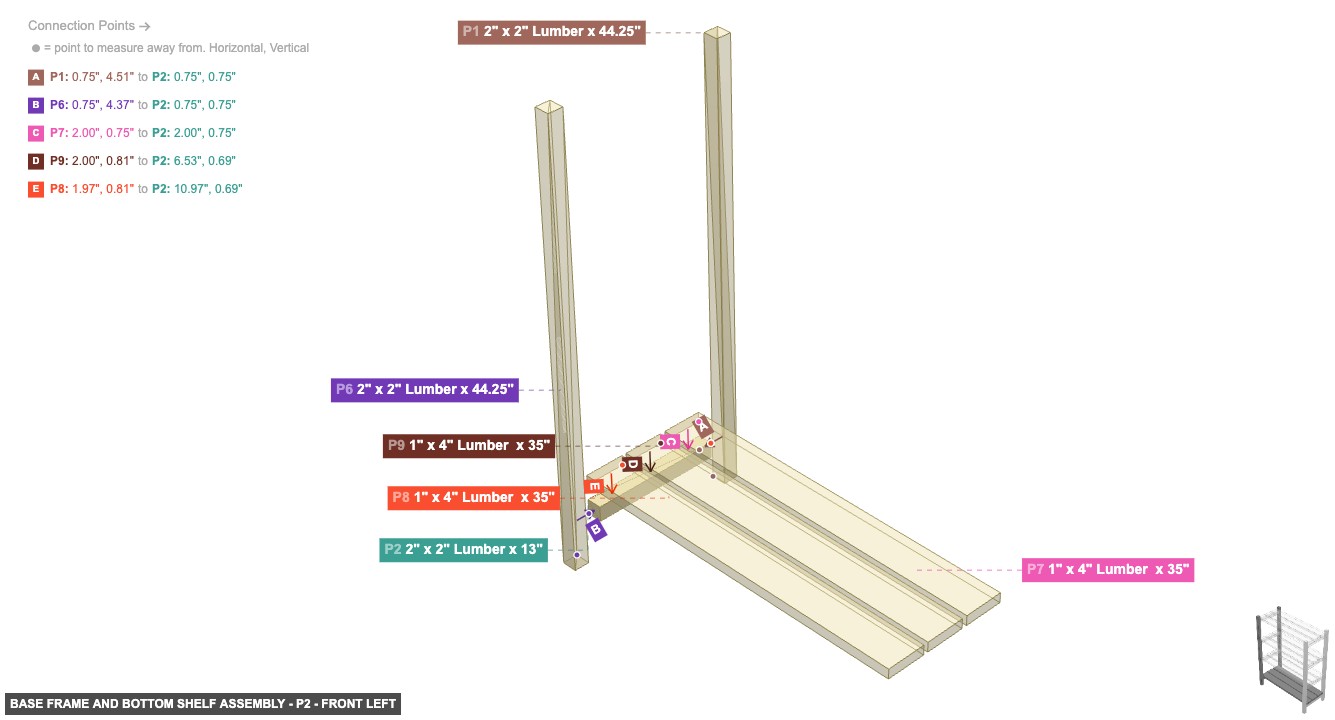

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

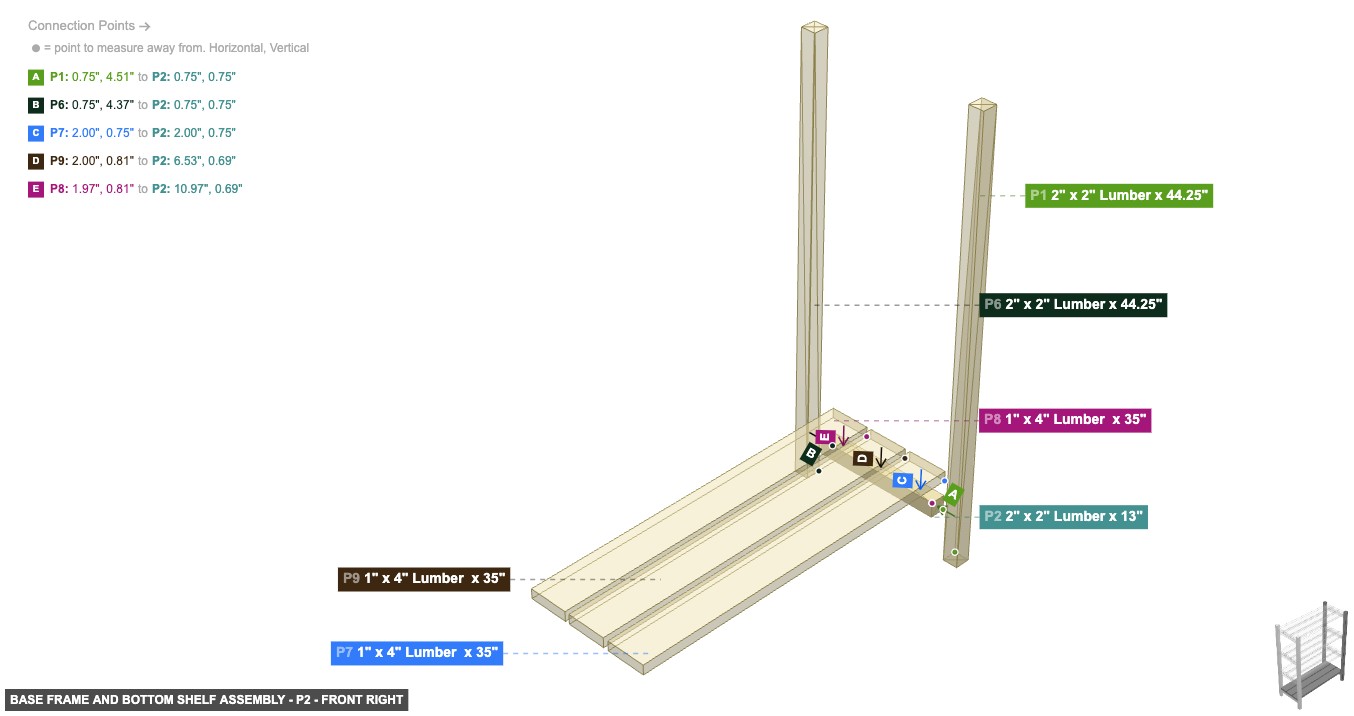

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

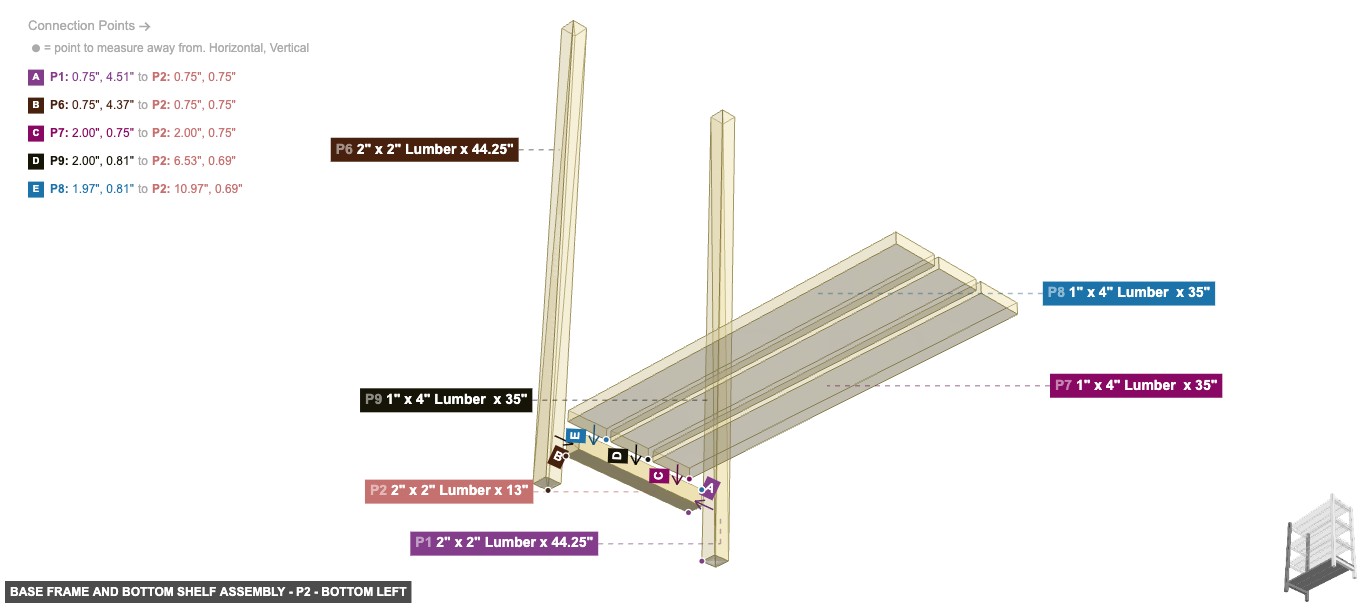

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

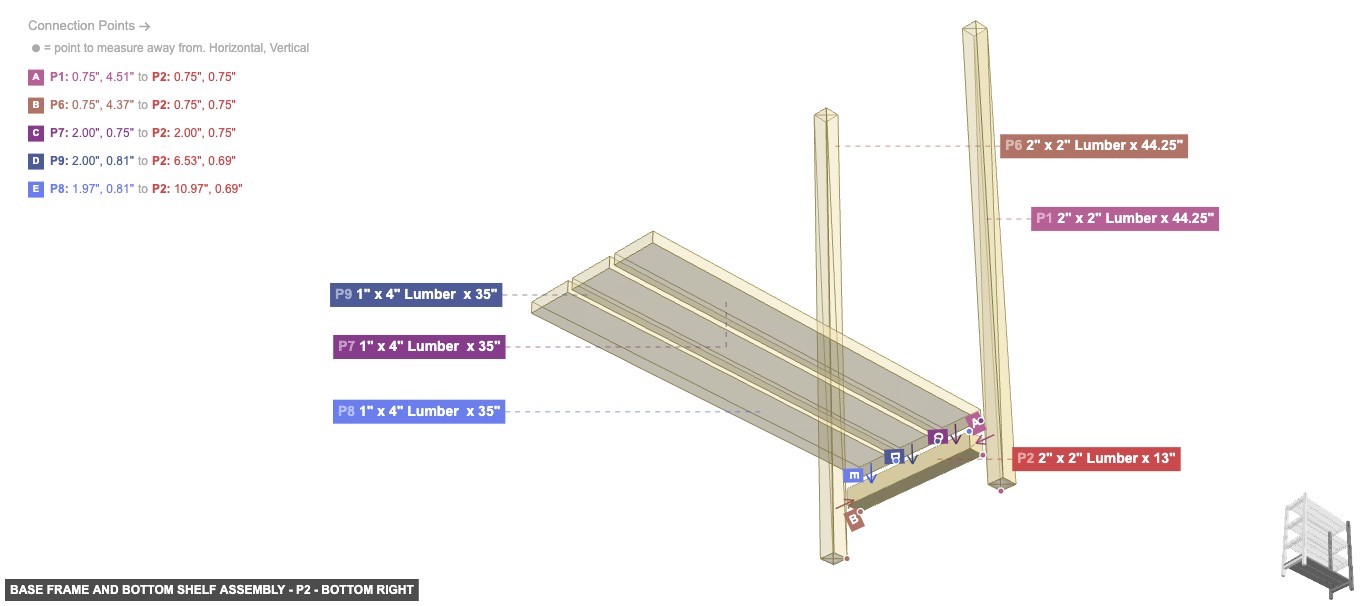

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back left

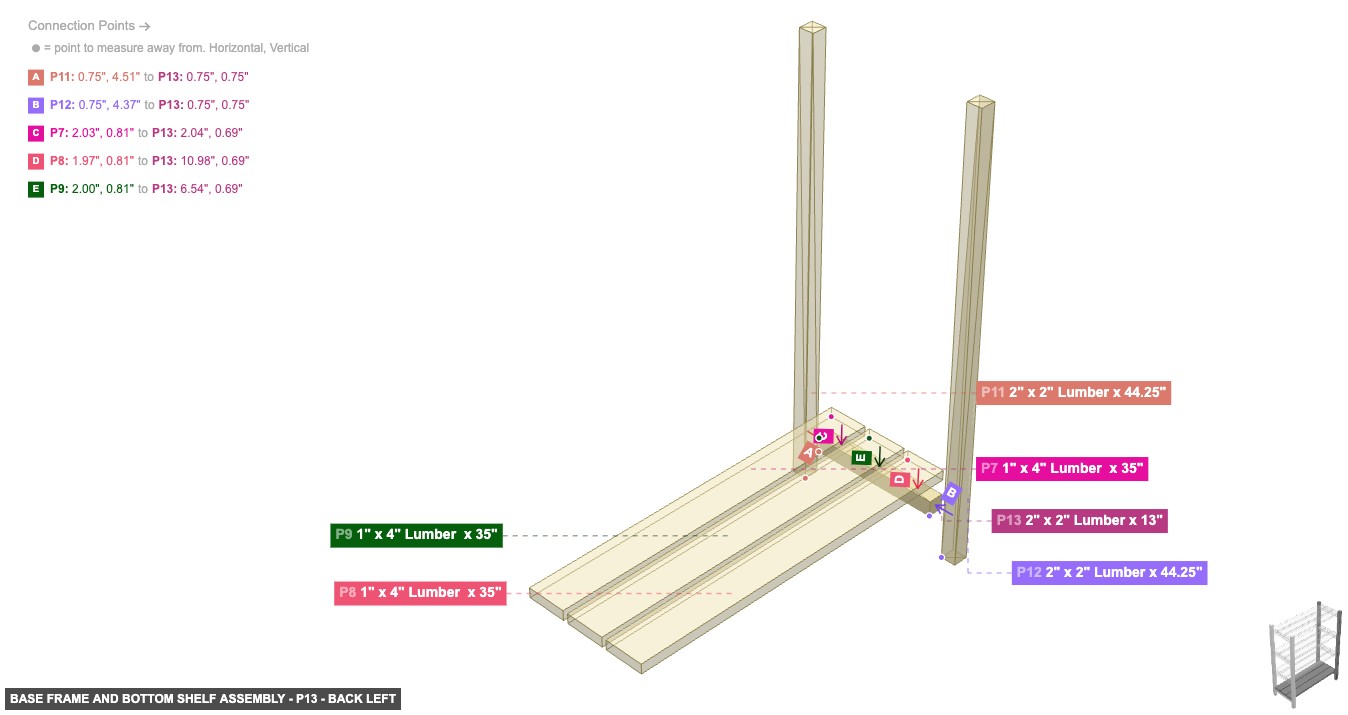

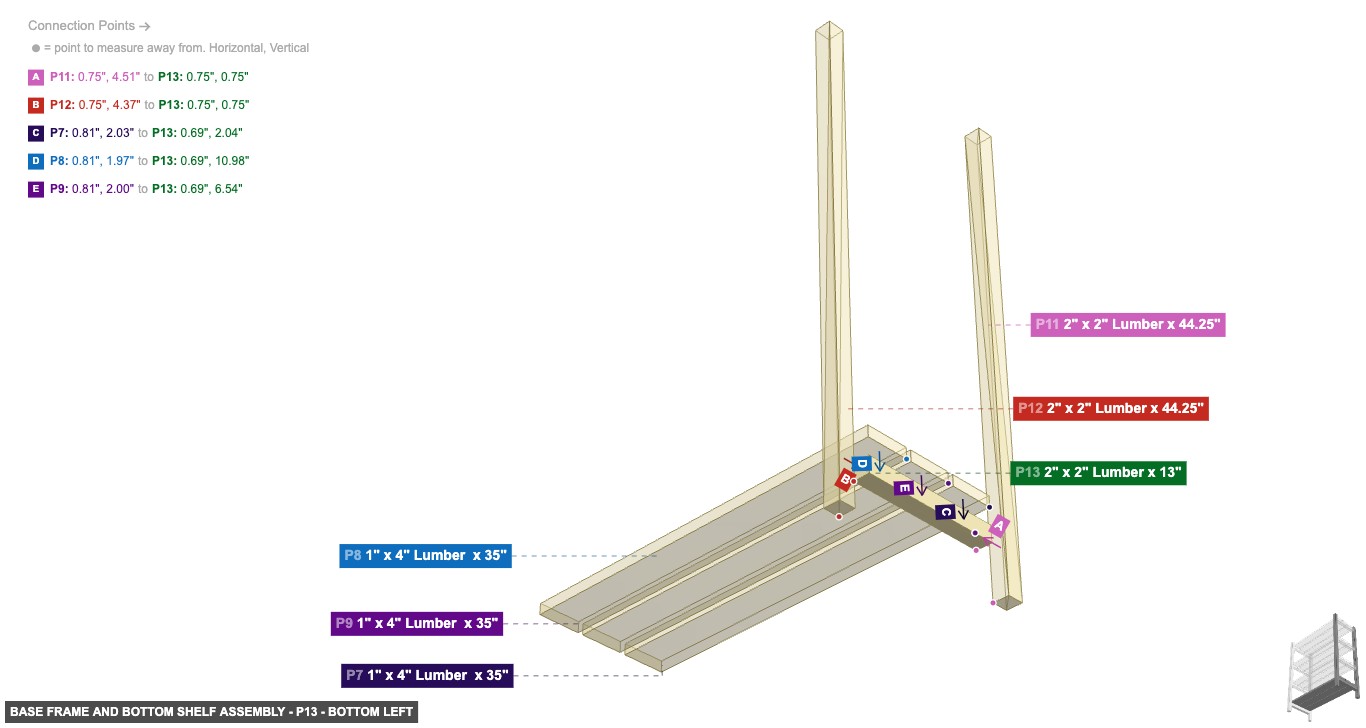

P13 (2" x 2" Lumber 13" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 12's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #3, which is top-facing, should connect to part 7's 1" x 4" Wood Side #2, also connect its 2" x 2" Wood End #2 oriented right links with part 11's 2" x 2" Wood Side #1. After that, ensure its 2" x 2" Wood Side #1 faces bottom. Also, its 2" x 2" Wood Side #2 should be directed back. After that, ensure its 2" x 2" Wood Side #4 faces front

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

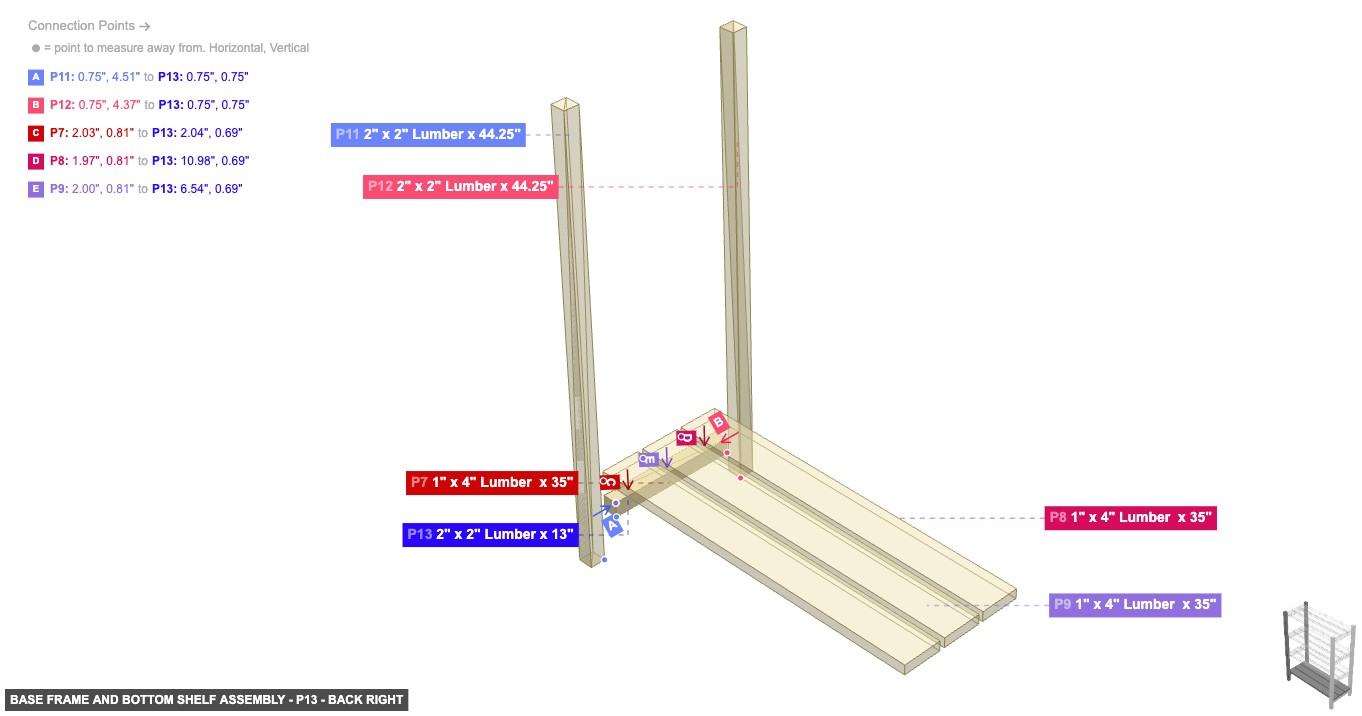

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

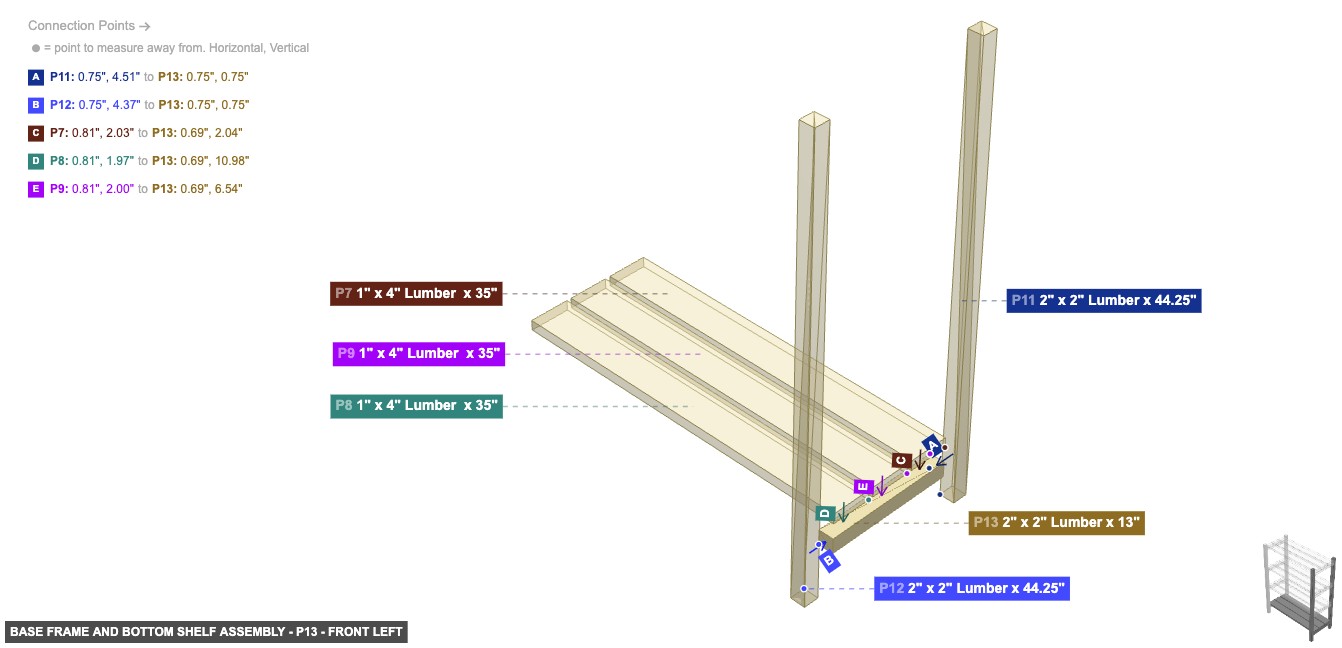

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

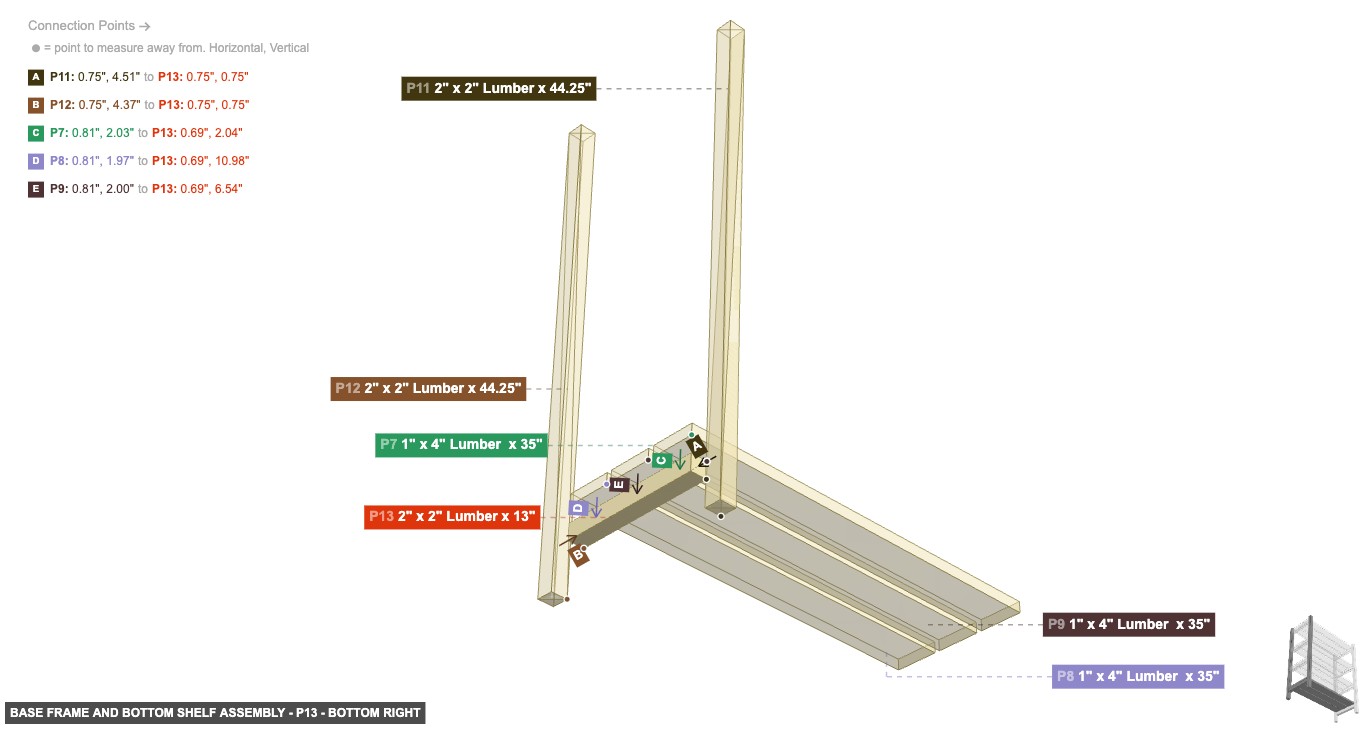

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

Base Frame and Bottom Shelf Assembly - Part 1

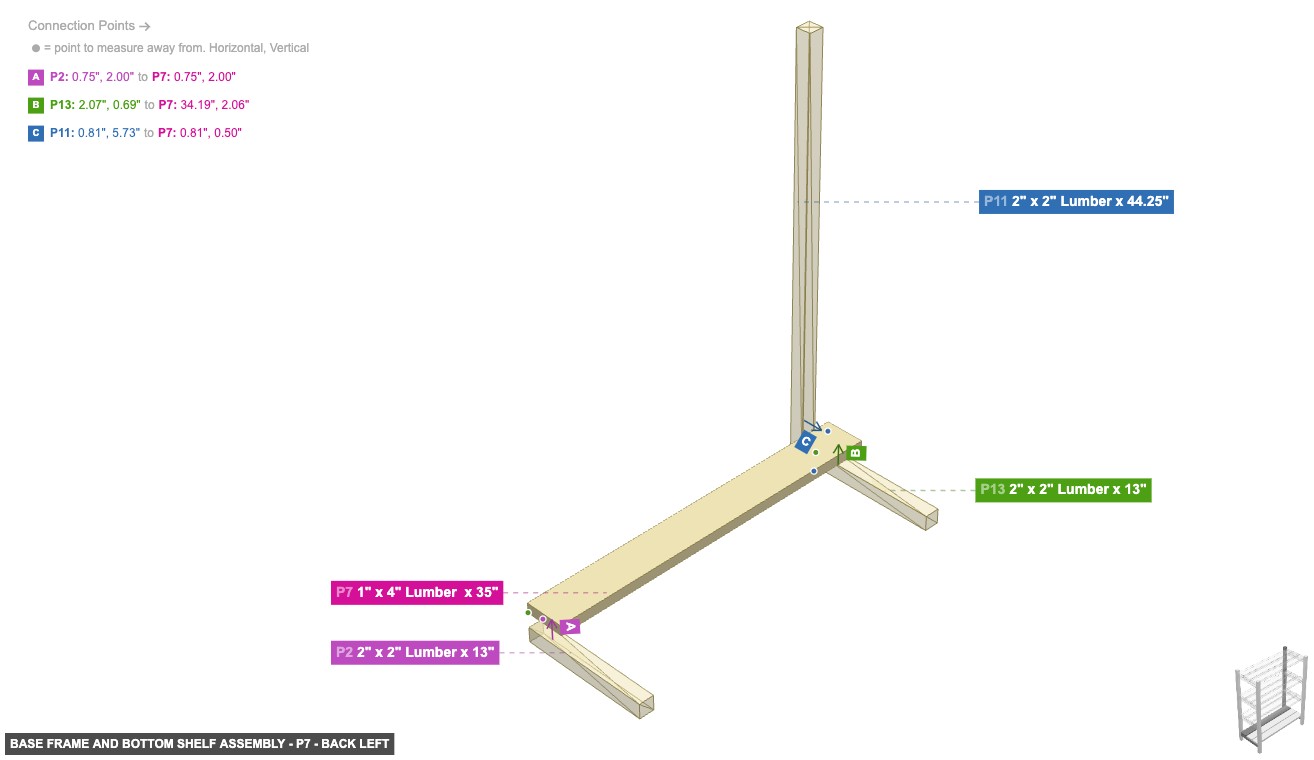

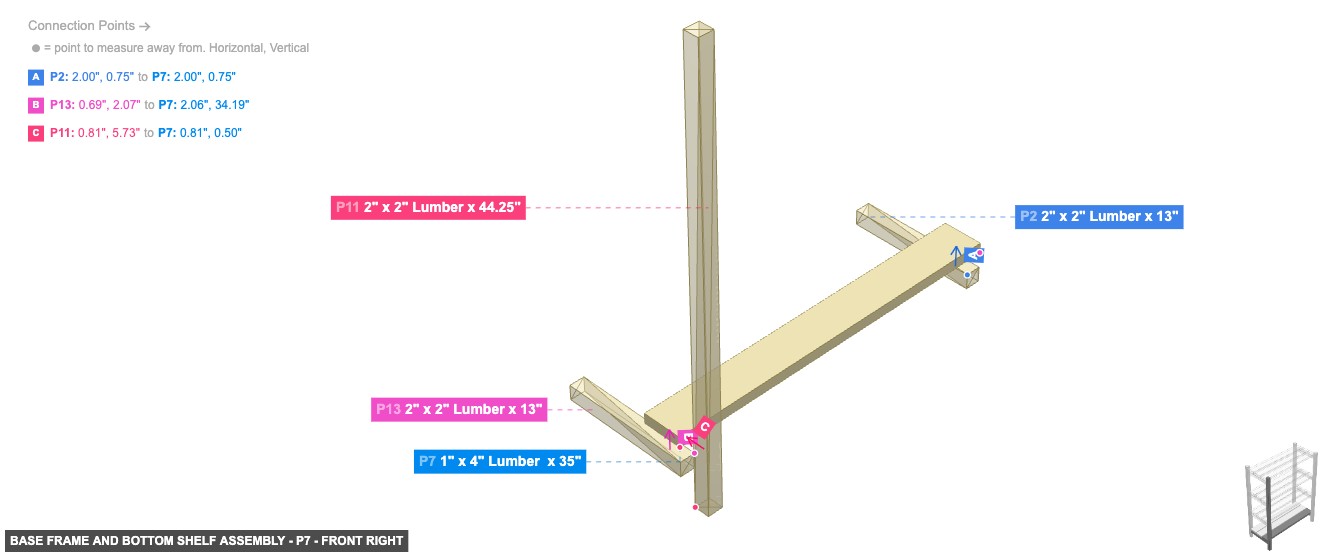

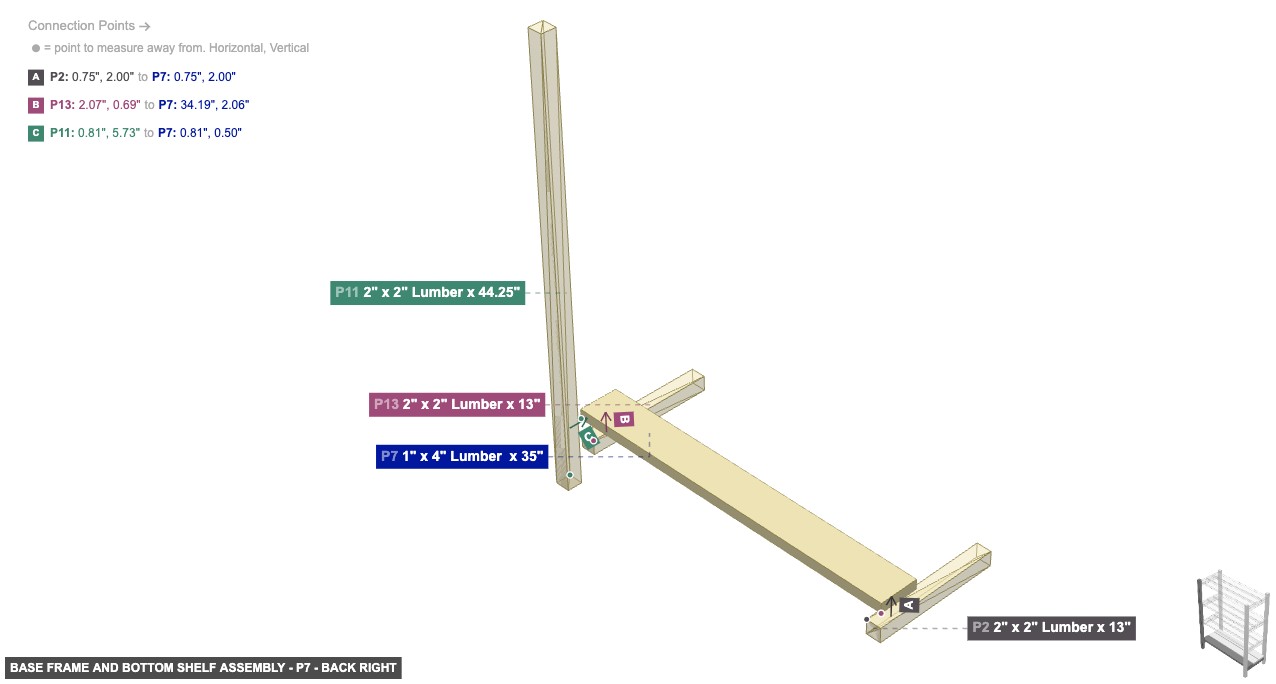

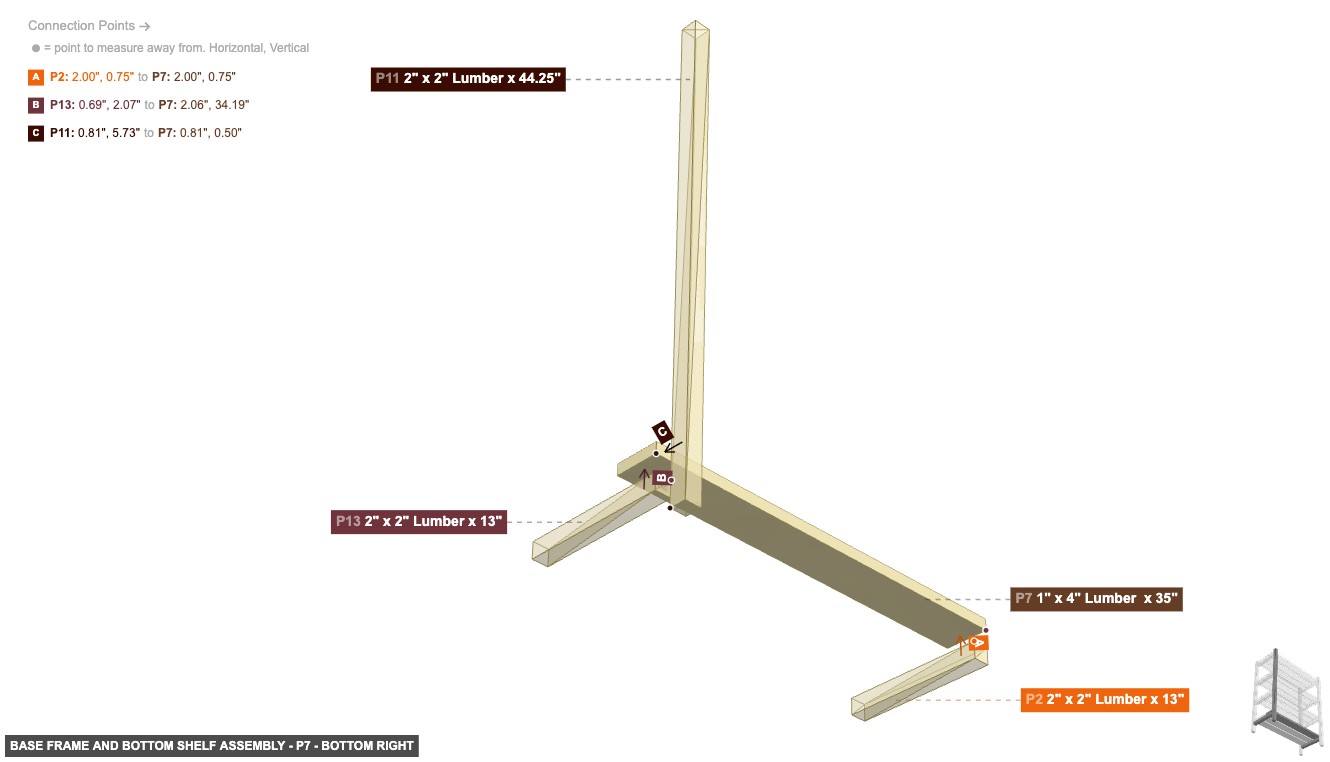

P7 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #1 oriented right links with part 11's 2" x 2" Wood Side #1, also its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 2's 2" x 2" Wood Side #3. Additionally, its 1" x 4" Wood End #1 should be directed front, plus its 1" x 4" Wood Side #3 needs to point left. Additionally, its 1" x 4" Wood Side #4 needs to point top. Next, its 1" x 4" Wood End #2 must be oriented back

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

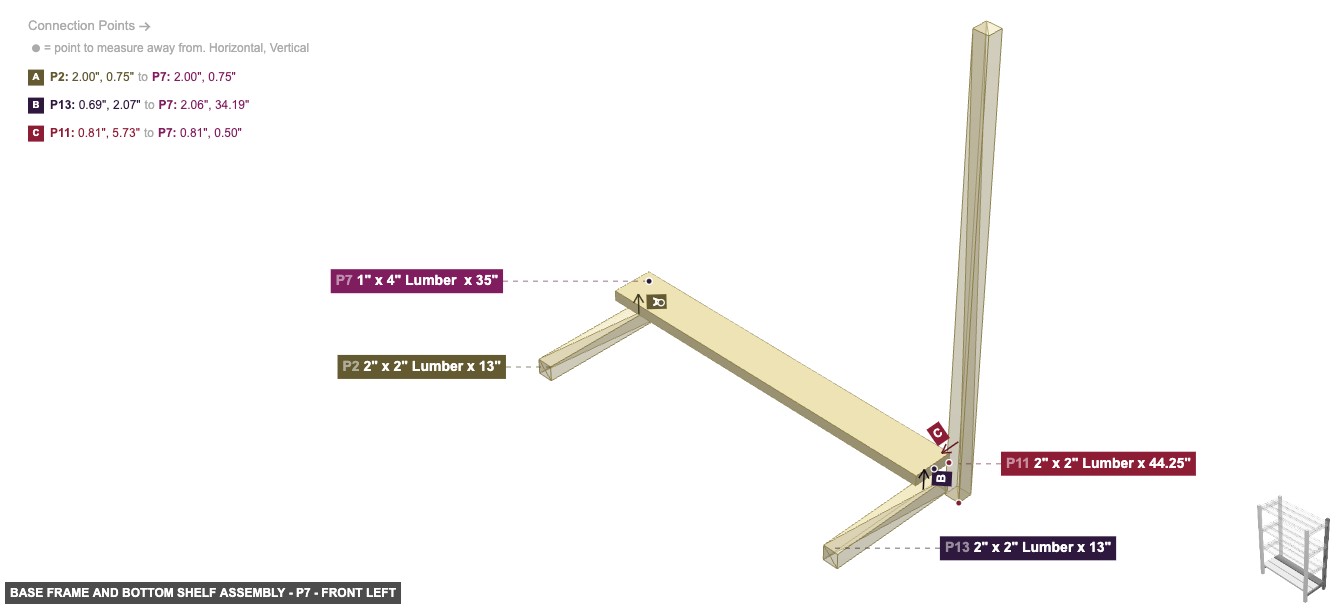

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

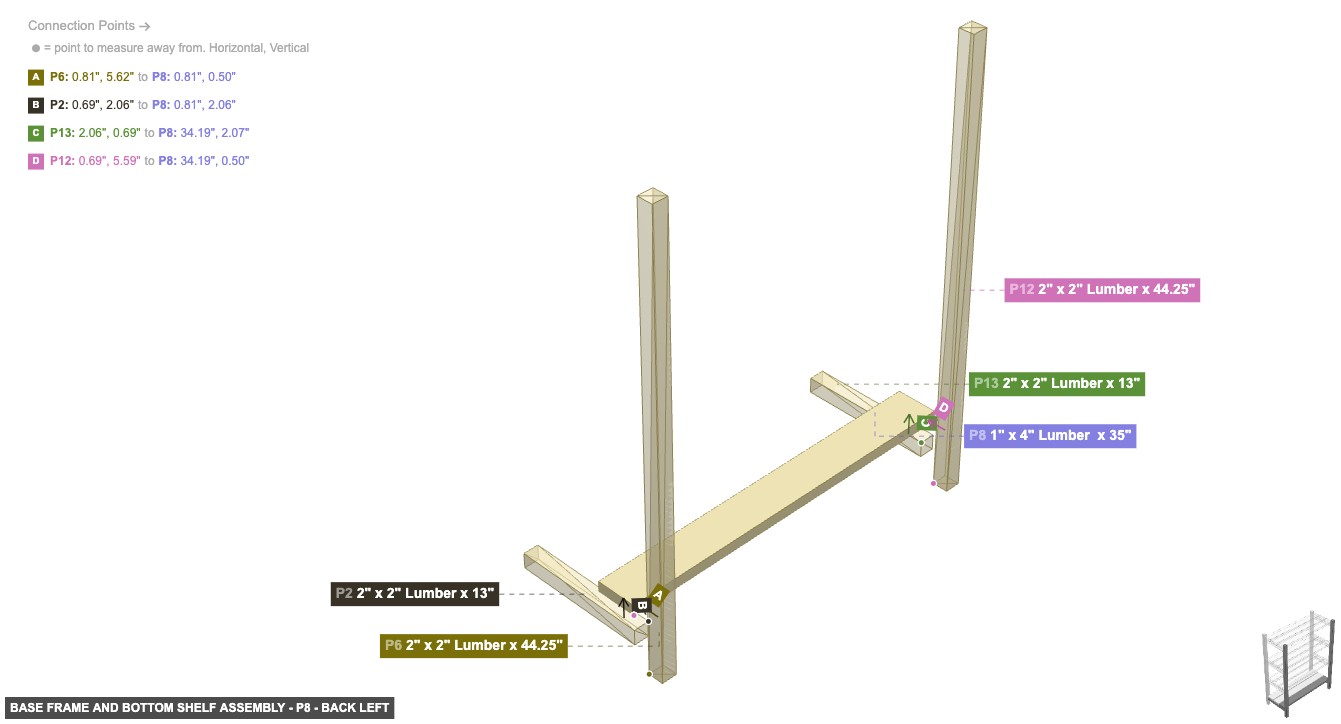

Part: 1" x 4" Lumber x 35" - Angle: back left

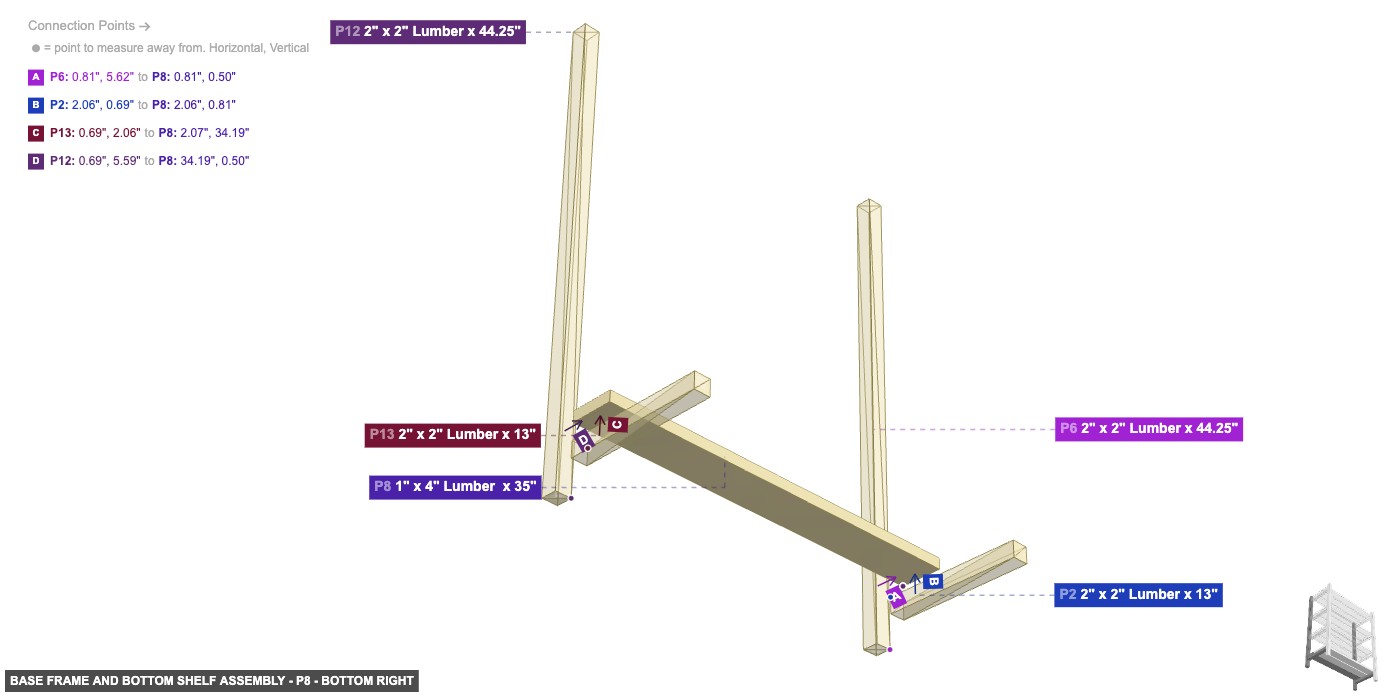

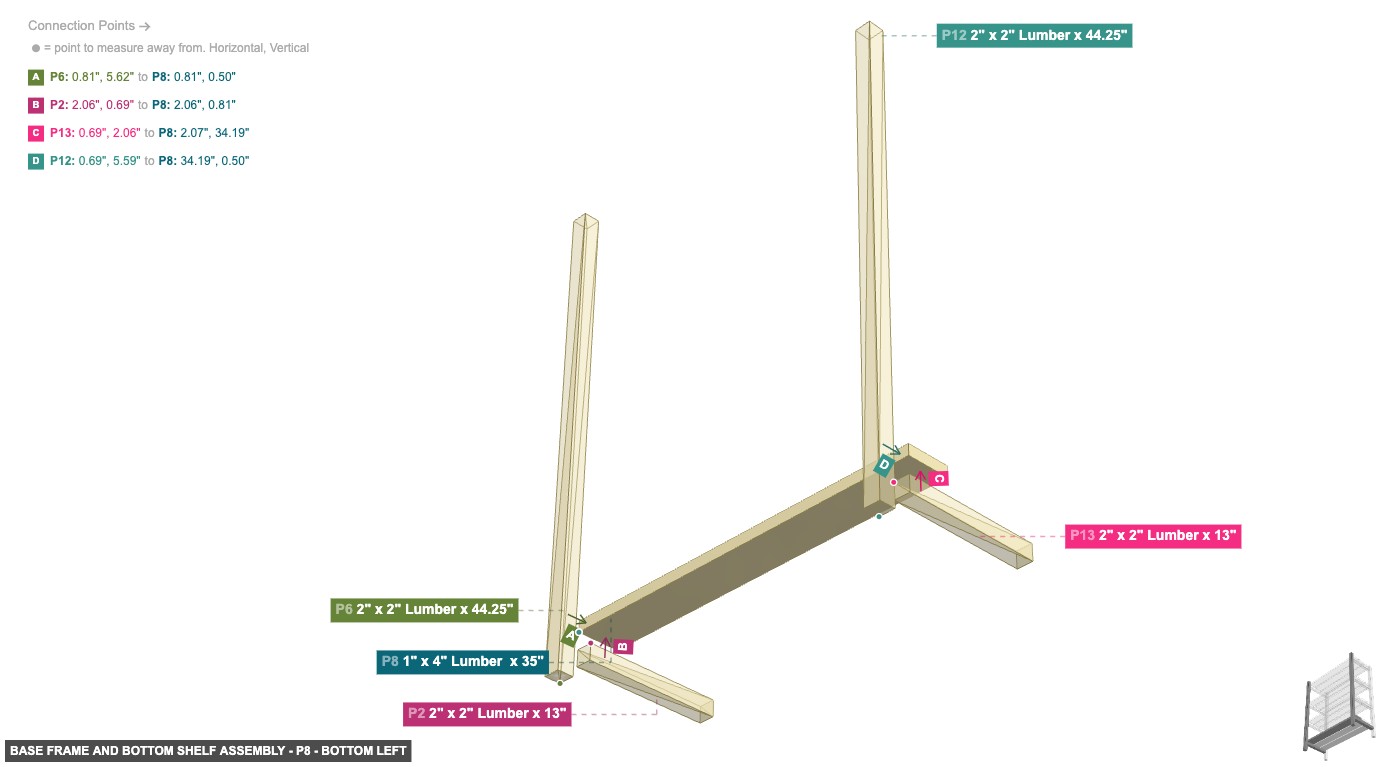

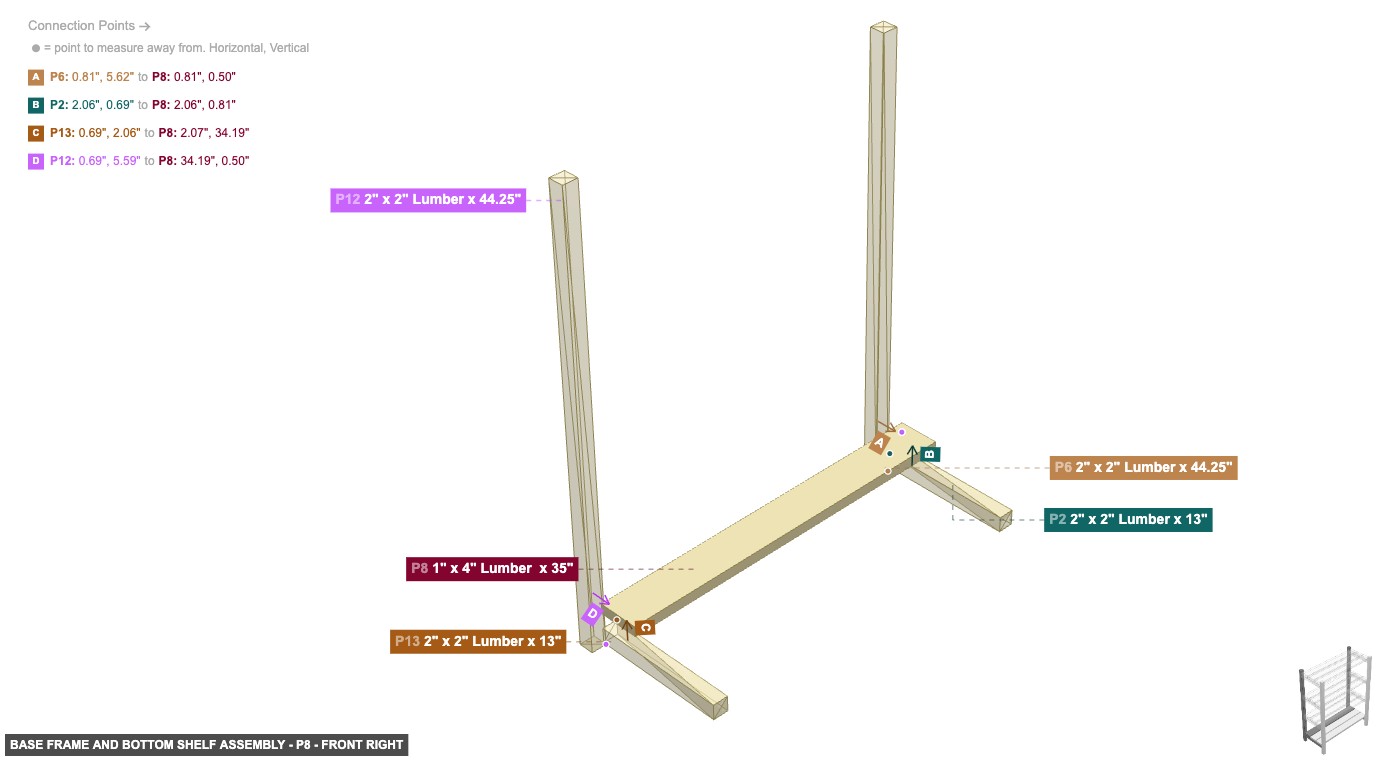

P8 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 2's 2" x 2" Wood Side #3. Additionally, connect its 1" x 4" Wood Side #3 oriented left links with part 6's 2" x 2" Wood Side #1. Also, its 1" x 4" Wood End #1 should be directed front. Also, its 1" x 4" Wood Side #1 should be directed right. Also, its 1" x 4" Wood Side #4 needs to point top. Next, its 1" x 4" Wood End #2 should be directed back

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

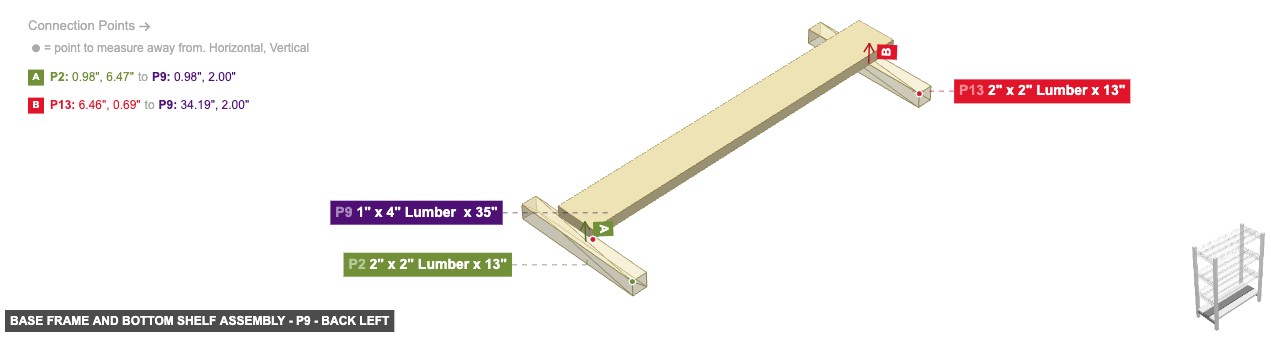

Part: 1" x 4" Lumber x 35" - Angle: back left

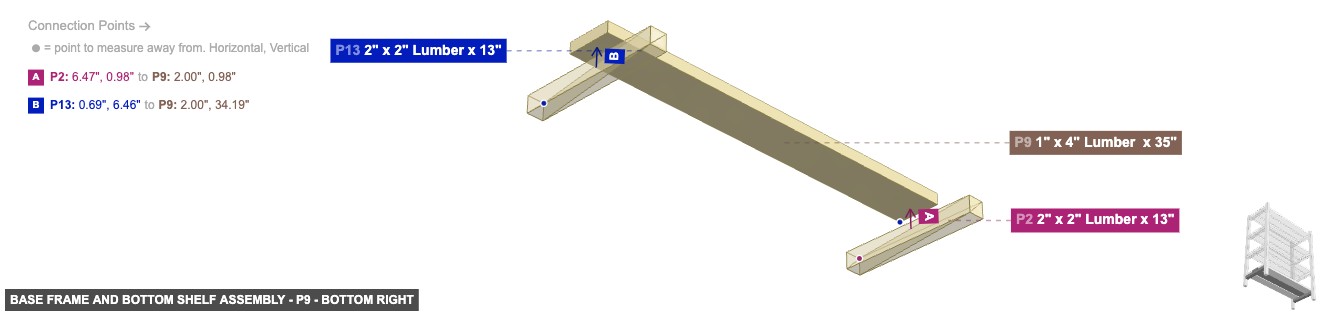

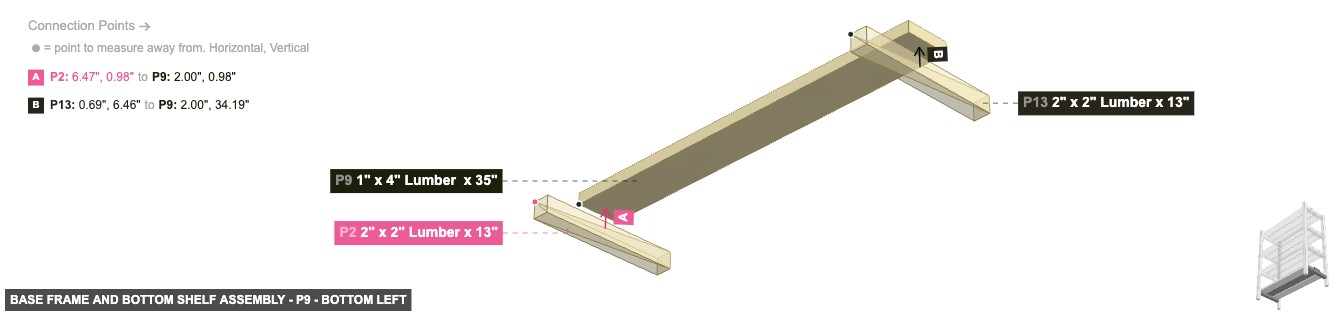

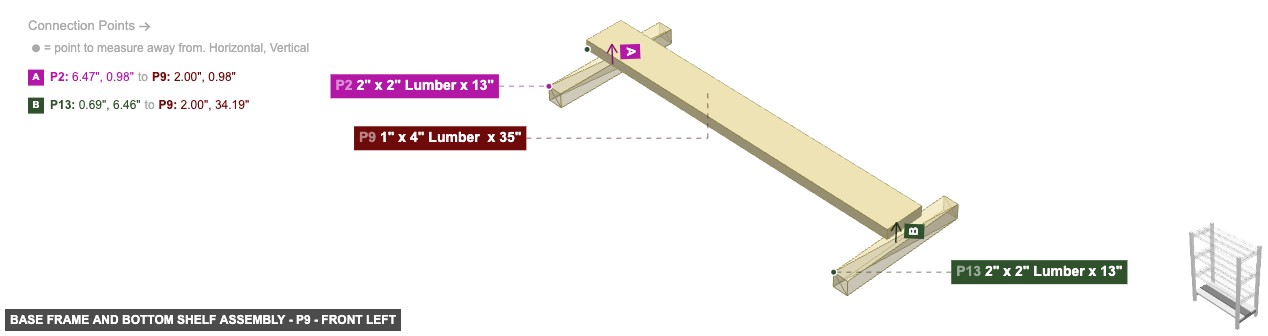

P9 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 2's 2" x 2" Wood Side #3, plus its 1" x 4" Wood End #1 needs to point front. Additionally, its 1" x 4" Wood Side #1 needs to point right, plus its 1" x 4" Wood Side #3 must be oriented left. Next, its 1" x 4" Wood Side #4 must be oriented top, then its 1" x 4" Wood End #2 needs to point back

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

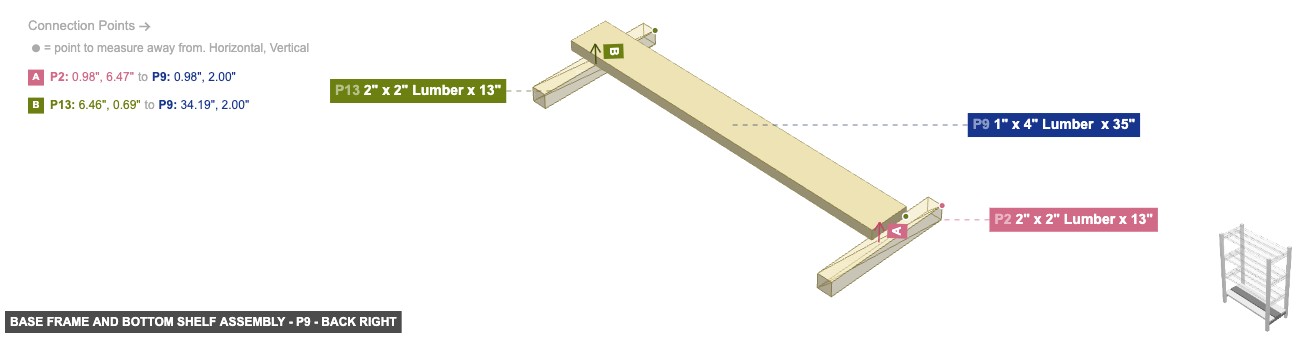

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

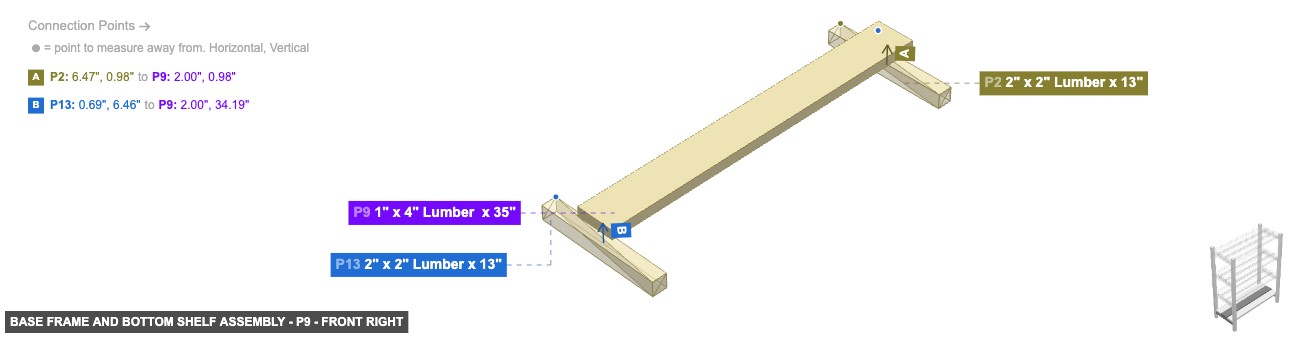

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

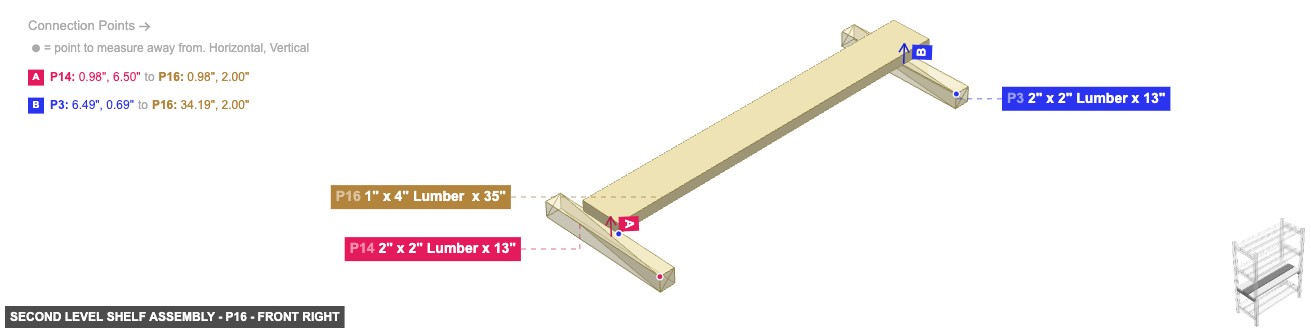

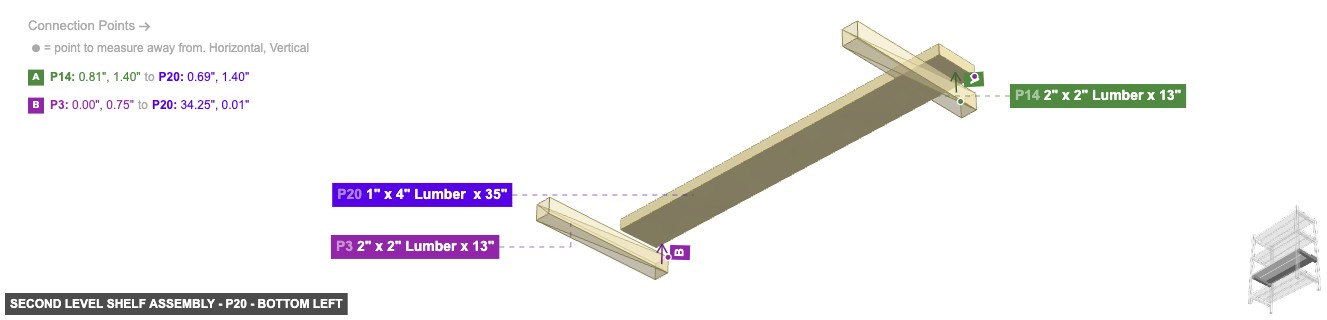

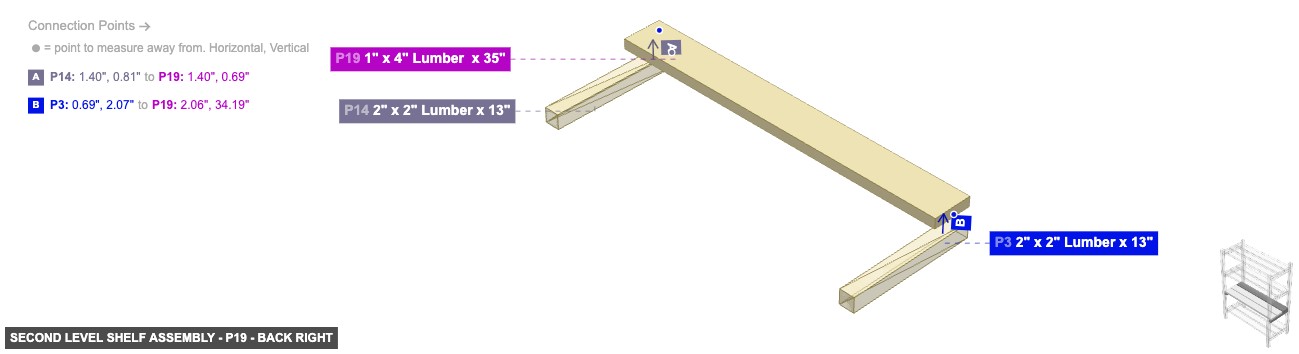

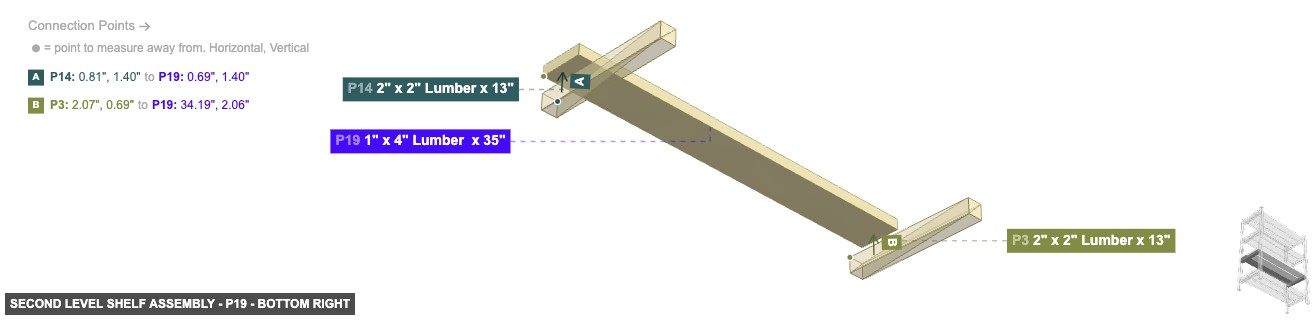

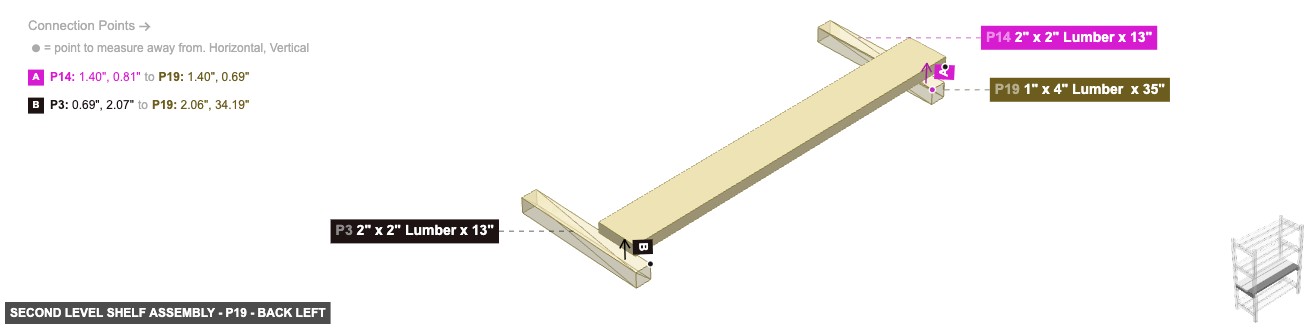

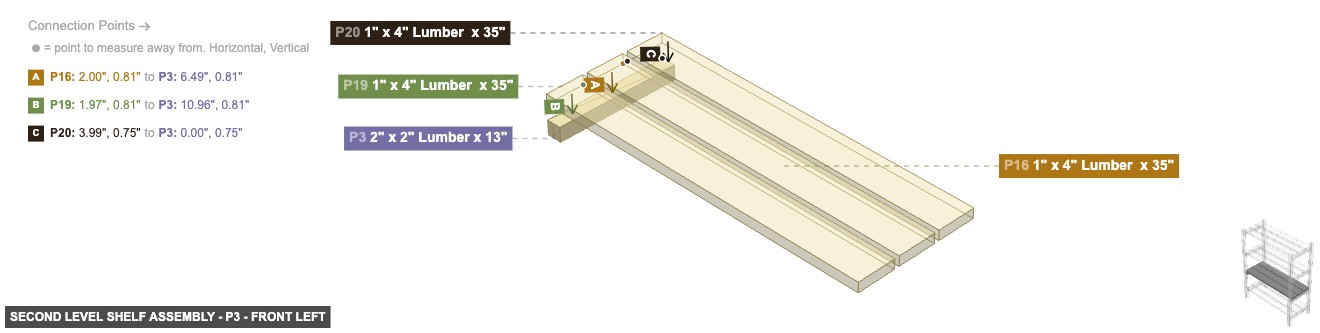

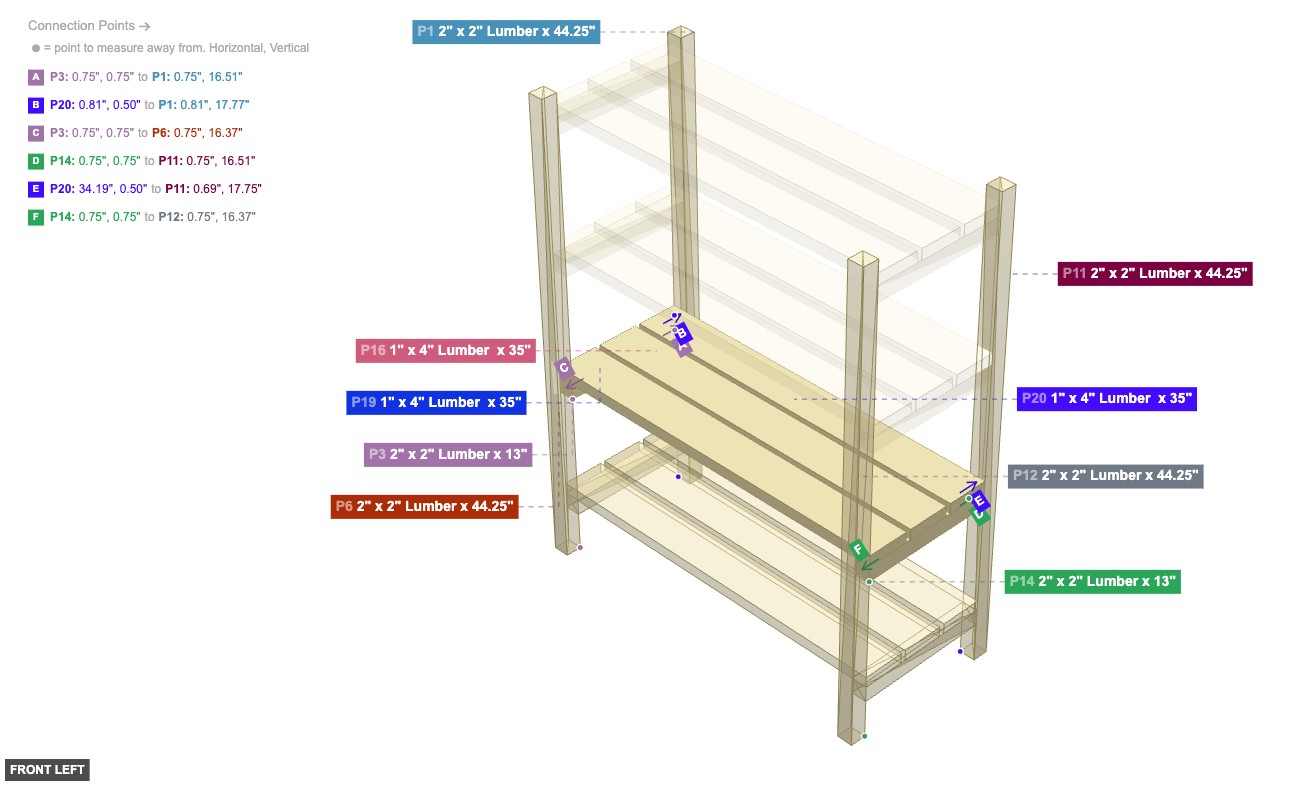

Group: Second Level Shelf Assembly

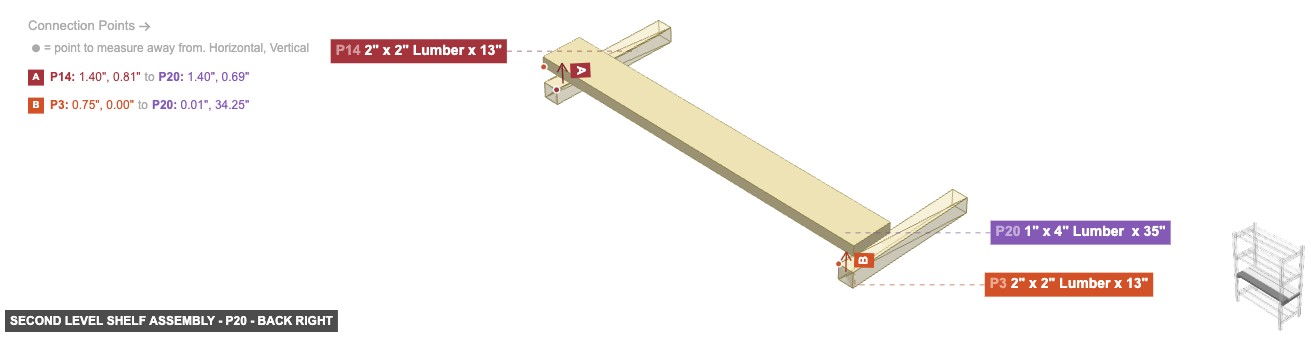

Attach the second level horizontal supports (P3, P14) to the posts, then add the second level shelf planks (P16, P19, P20).

Part: 2" x 2" Lumber x 13" - Angle: back left

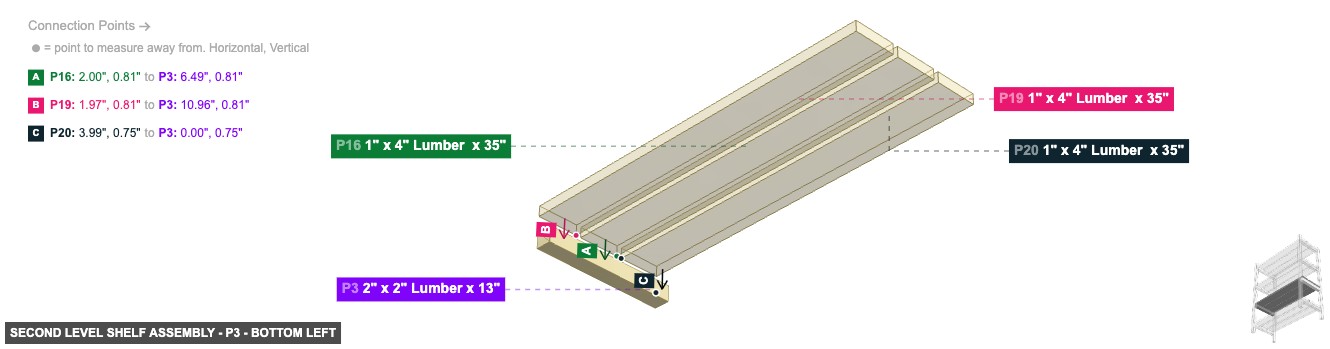

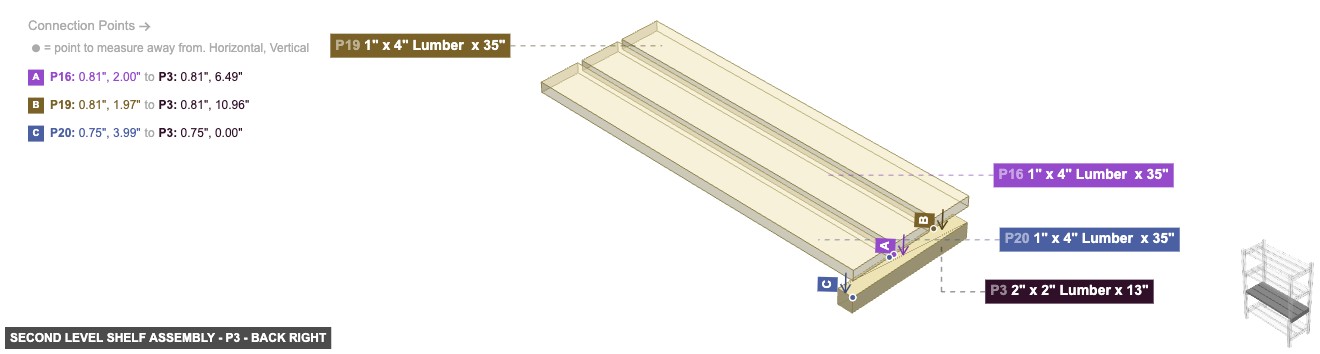

P3 (2" x 2" Lumber 13" length) - its 2" x 2" Wood Side #3, which is top-facing, should connect to part 16's 1" x 4" Wood Side #2. After that, its 2" x 2" Wood Side #1 needs to point bottom, and its 2" x 2" Wood Side #2 needs to point back, also its 2" x 2" Wood Side #4 must be oriented front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

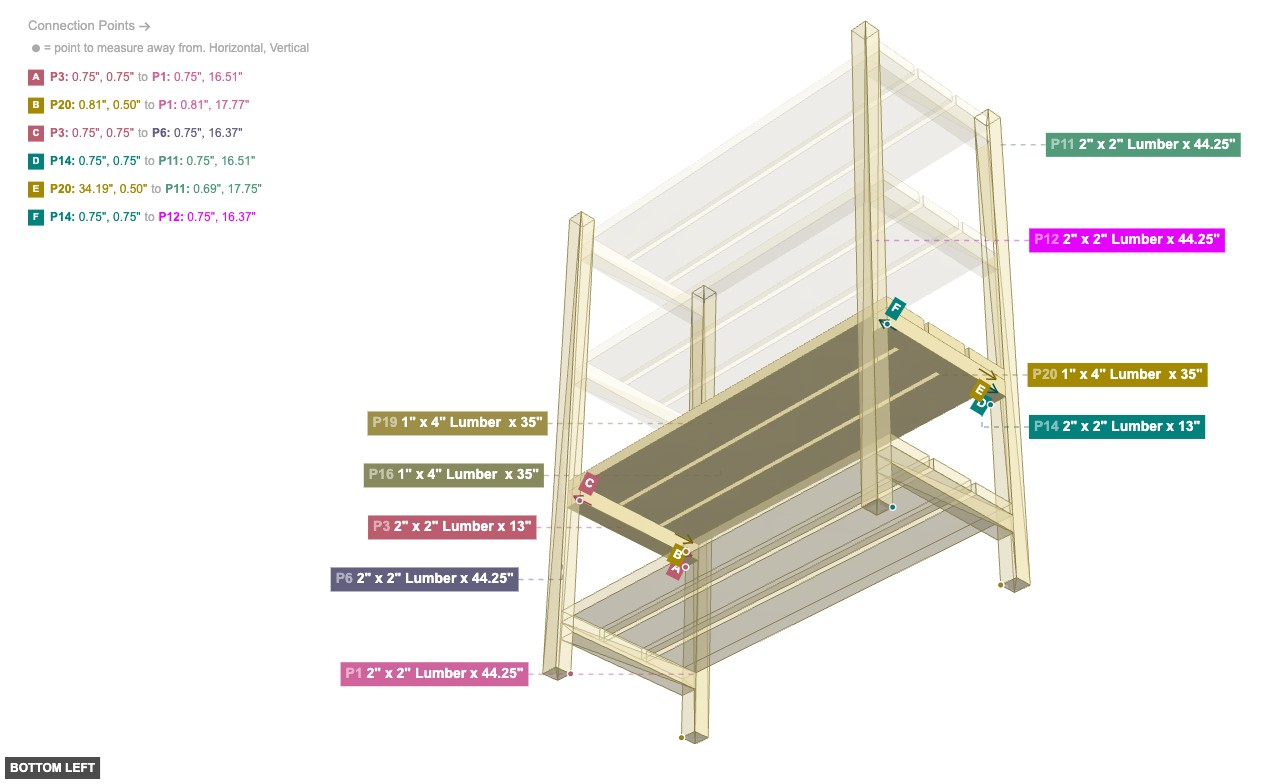

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

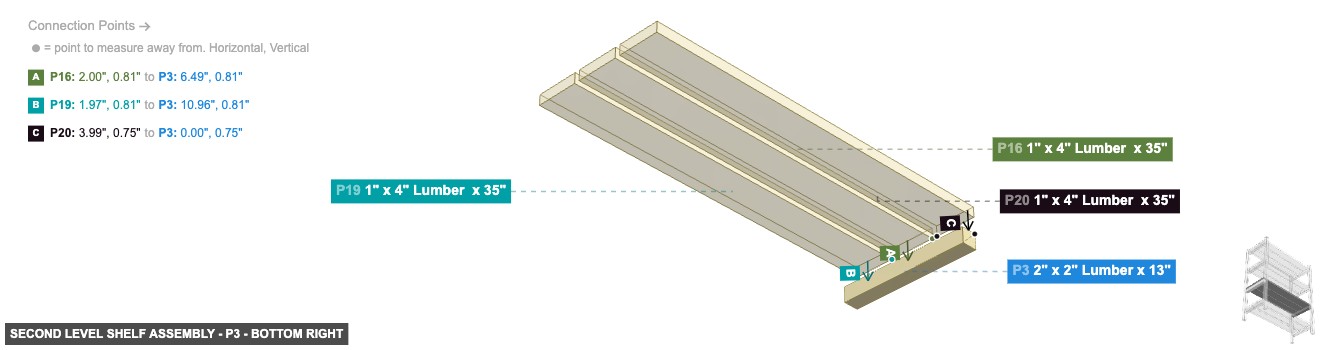

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back left

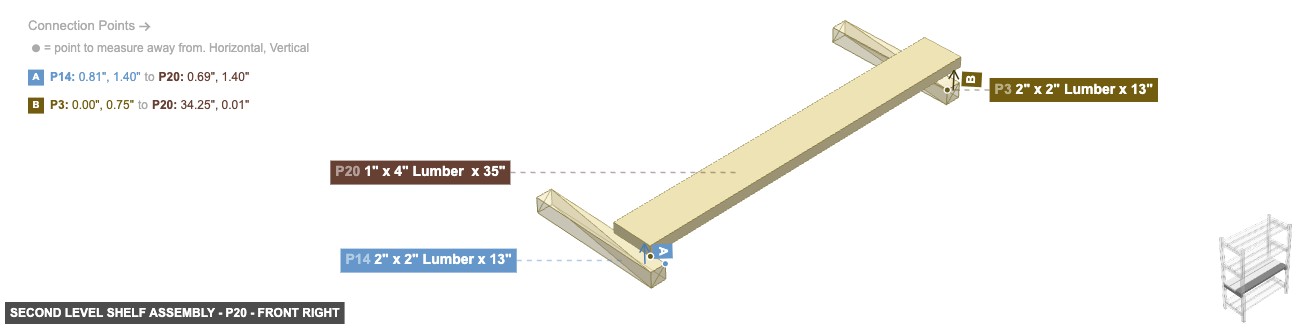

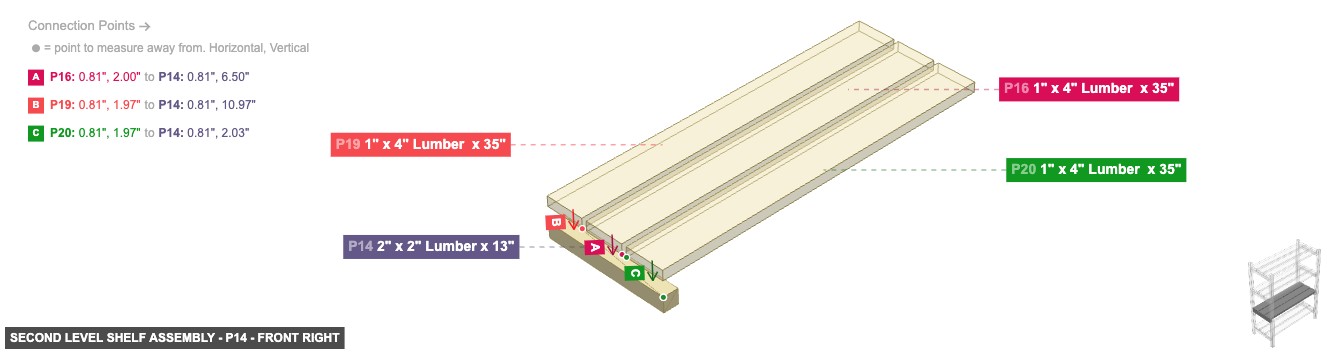

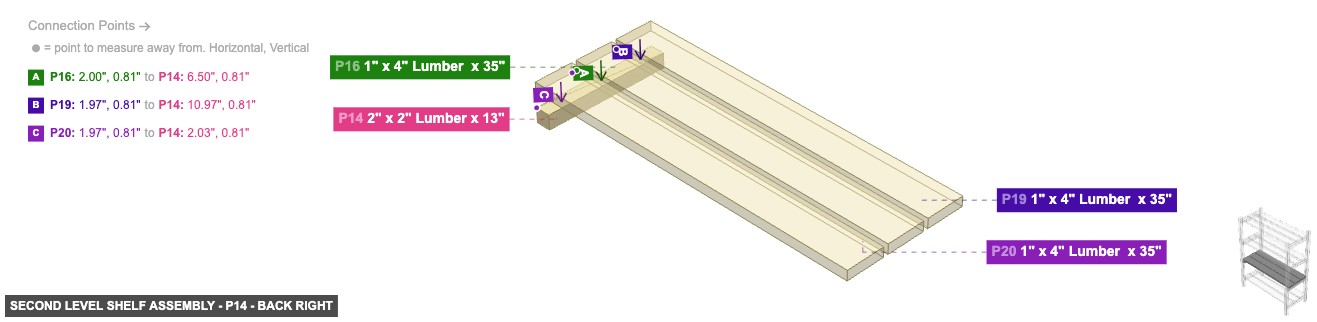

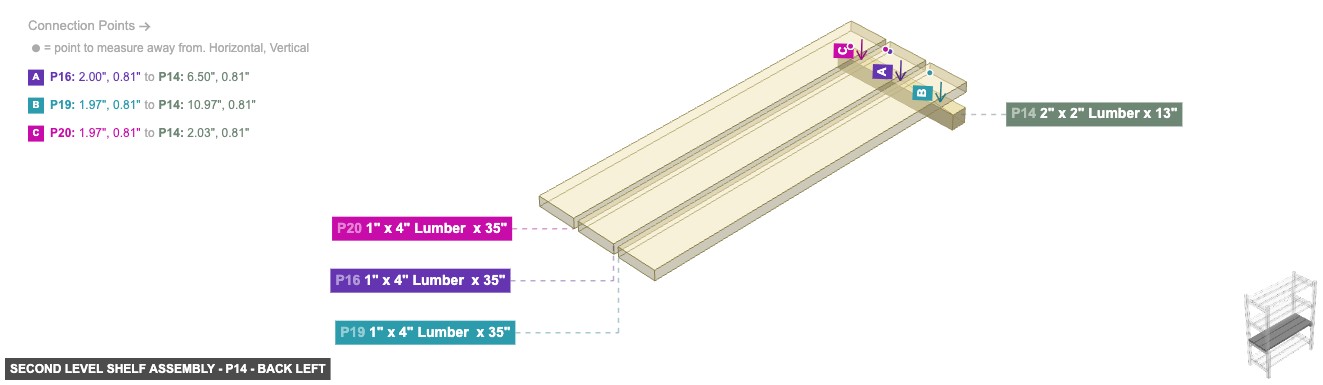

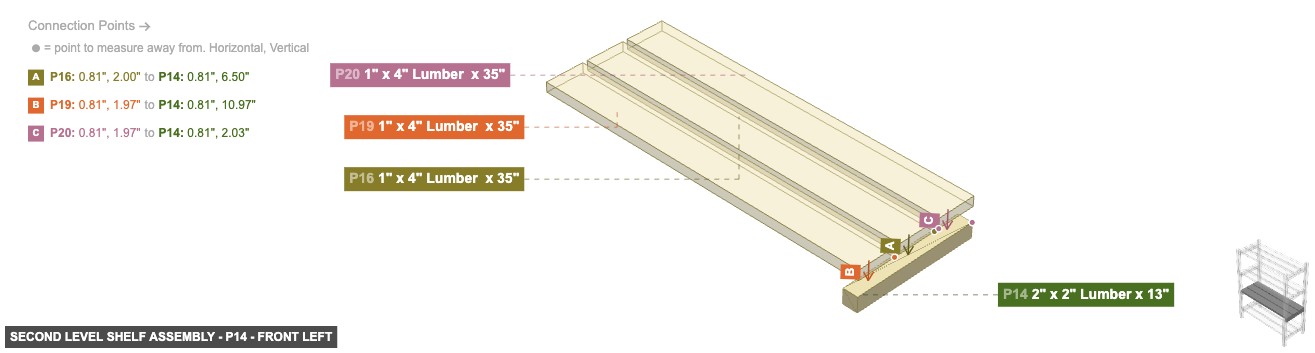

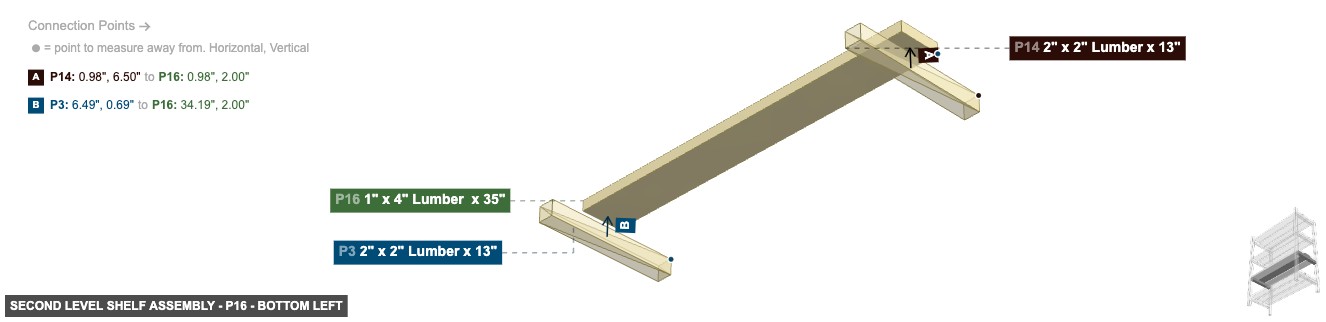

P14 (2" x 2" Lumber 13" length) - connect its 2" x 2" Wood Side #3 oriented top links with part 16's 1" x 4" Wood Side #2. Also, its 2" x 2" Wood Side #1 needs to point bottom, plus its 2" x 2" Wood Side #2 must be oriented back, and its 2" x 2" Wood Side #4 should be directed front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

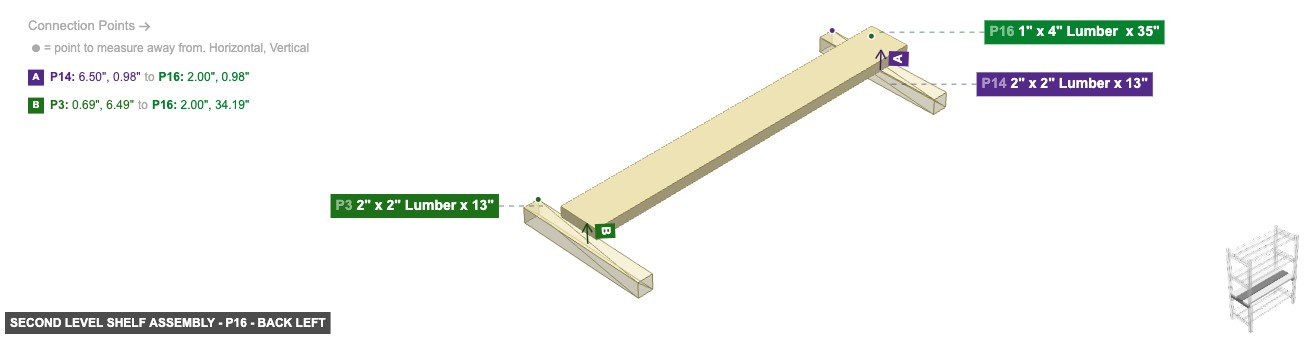

Part: 1" x 4" Lumber x 35" - Angle: back left

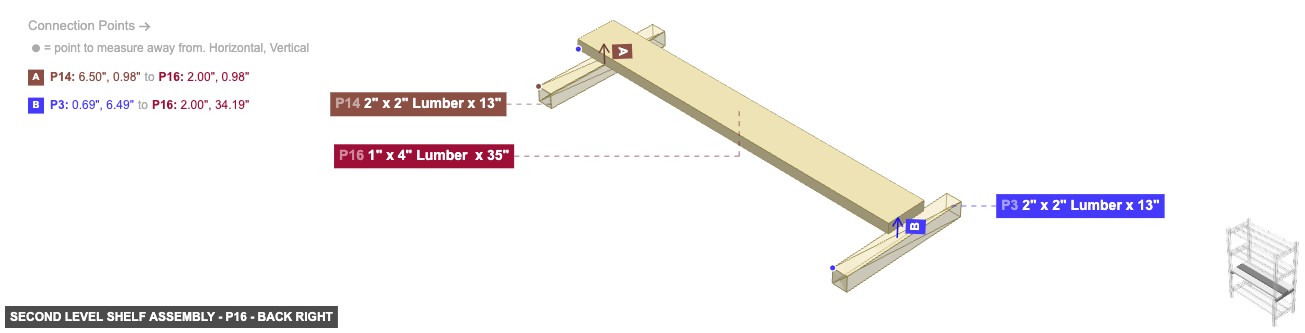

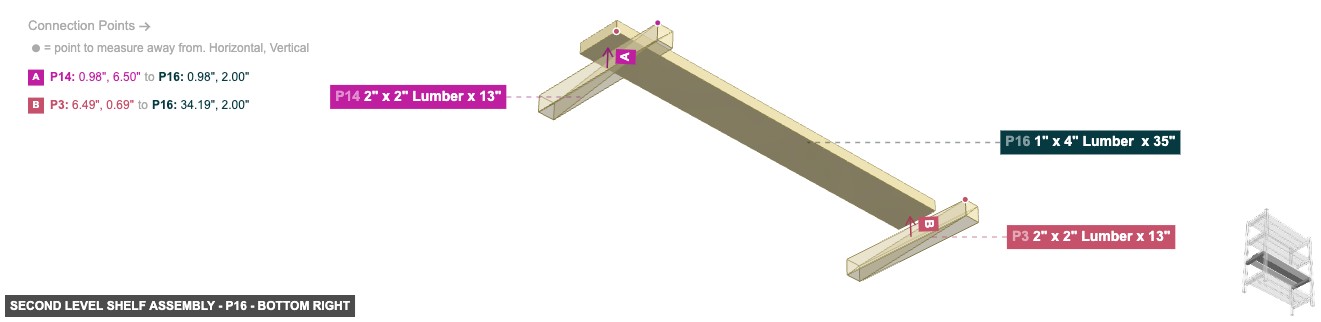

P16 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 14's 2" x 2" Wood Side #3, then its 1" x 4" Wood End #1 should be directed back, then its 1" x 4" Wood Side #1 should be directed left. Next, ensure its 1" x 4" Wood Side #3 faces right. After that, its 1" x 4" Wood Side #4 must be oriented top. Next, its 1" x 4" Wood End #2 should be directed front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

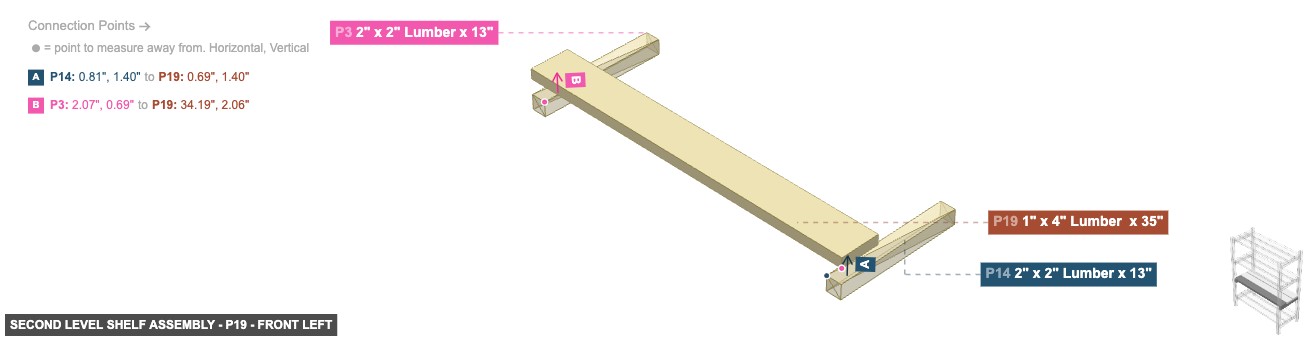

P19 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 14's 2" x 2" Wood Side #3. After that, its 1" x 4" Wood End #1 needs to point back, then its 1" x 4" Wood Side #1 needs to point left, and its 1" x 4" Wood Side #3 must be oriented right. After that, its 1" x 4" Wood Side #4 must be oriented top. Additionally, its 1" x 4" Wood End #2 needs to point front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

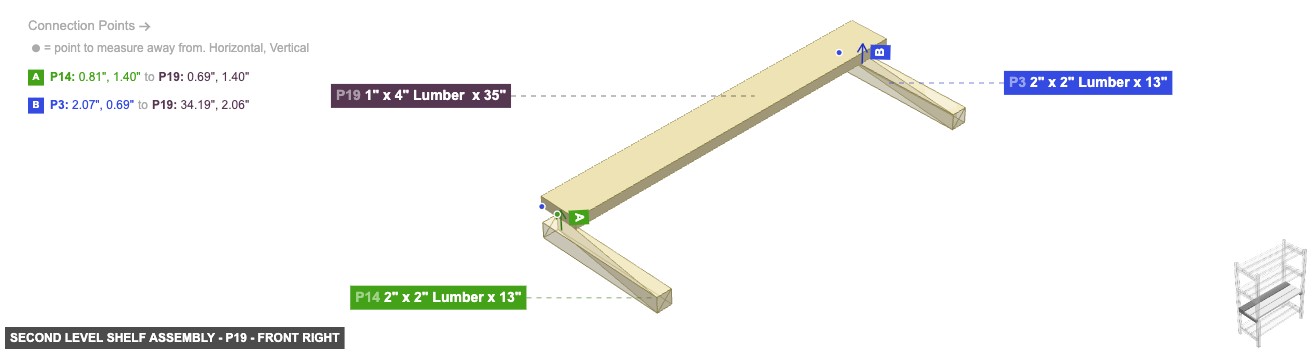

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

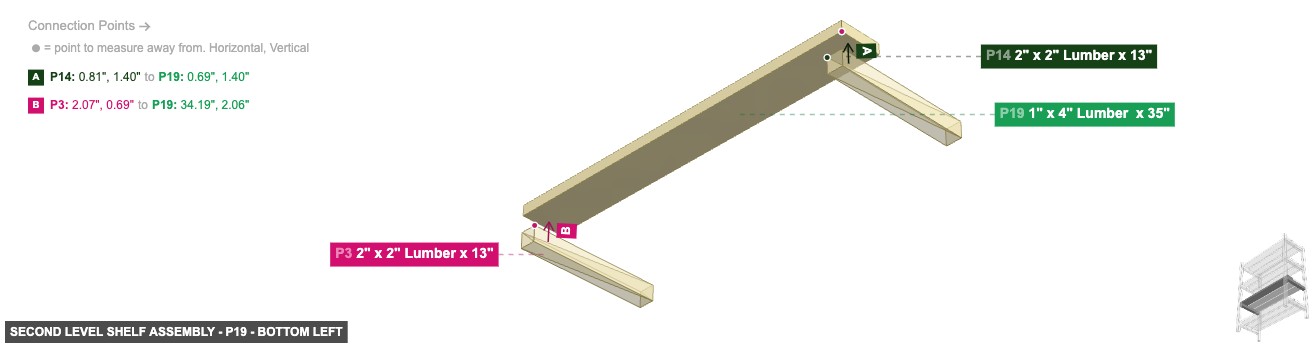

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

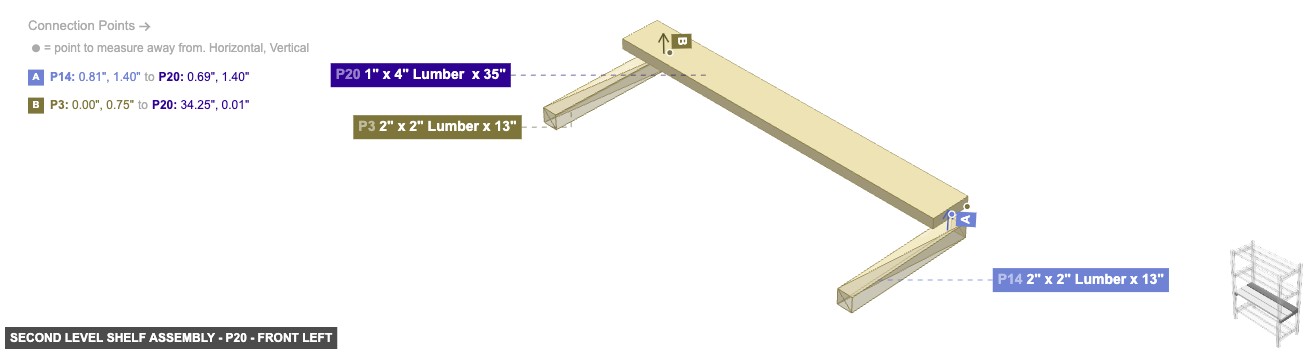

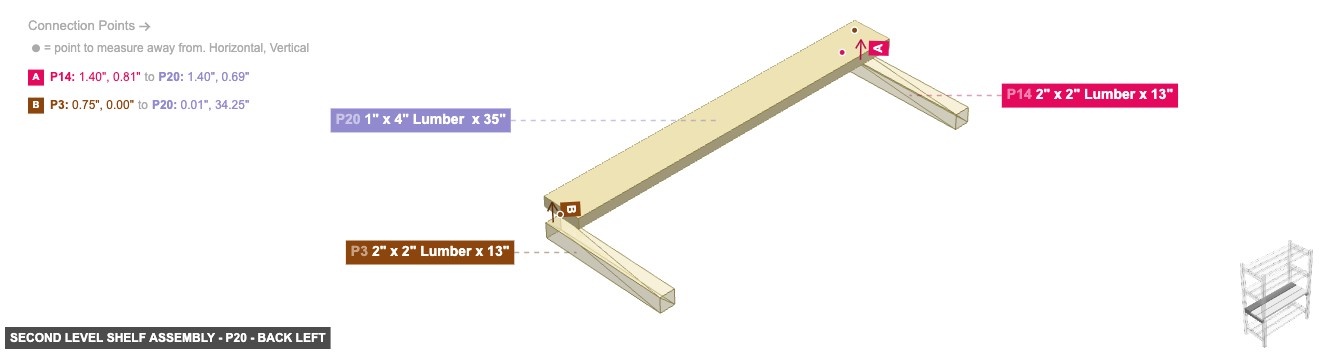

P20 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 14's 2" x 2" Wood Side #3. Additionally, its 1" x 4" Wood End #1 should be directed back. After that, its 1" x 4" Wood Side #1 needs to point left. Also, its 1" x 4" Wood Side #4 must be oriented top. Next, ensure its 1" x 4" Wood End #2 faces front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Group: Third Level Shelf Assembly

Attach the third level horizontal supports (P4, P15) to the posts, then add the third level shelf planks (P17, P21, P22).

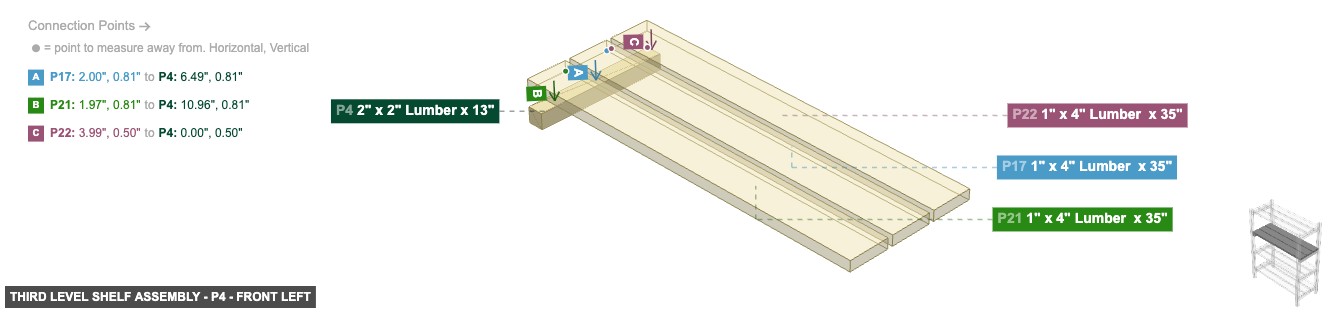

Part: 2" x 2" Lumber x 13" - Angle: back left

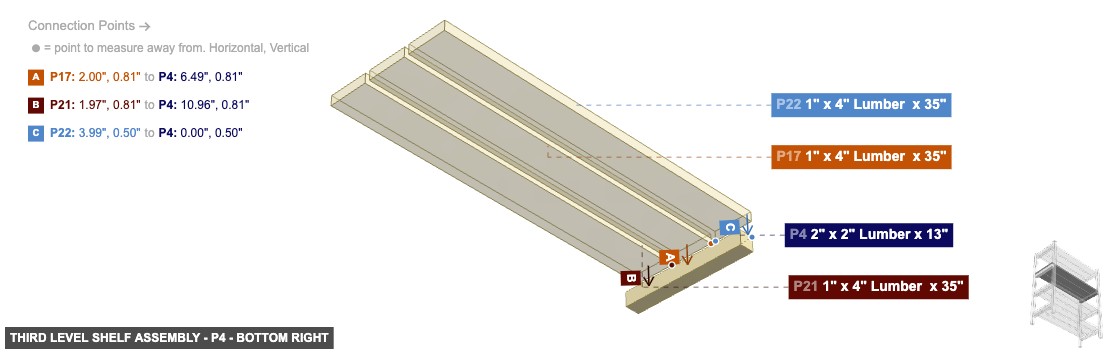

P4 (2" x 2" Lumber 13" length) - attach its 2" x 2" Wood Side #3 facing top to part 17's 1" x 4" Wood Side #2. Also, its 2" x 2" Wood Side #1 needs to point bottom. Additionally, its 2" x 2" Wood Side #2 must be oriented back, plus its 2" x 2" Wood Side #4 needs to point front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

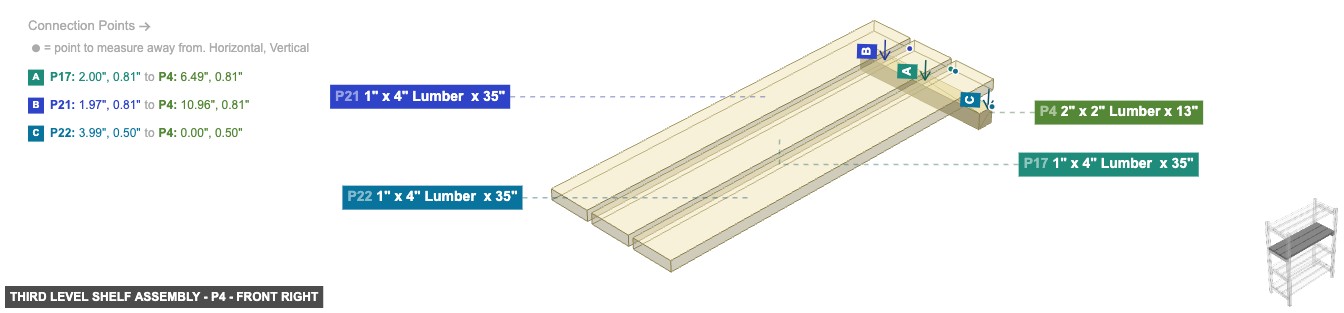

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

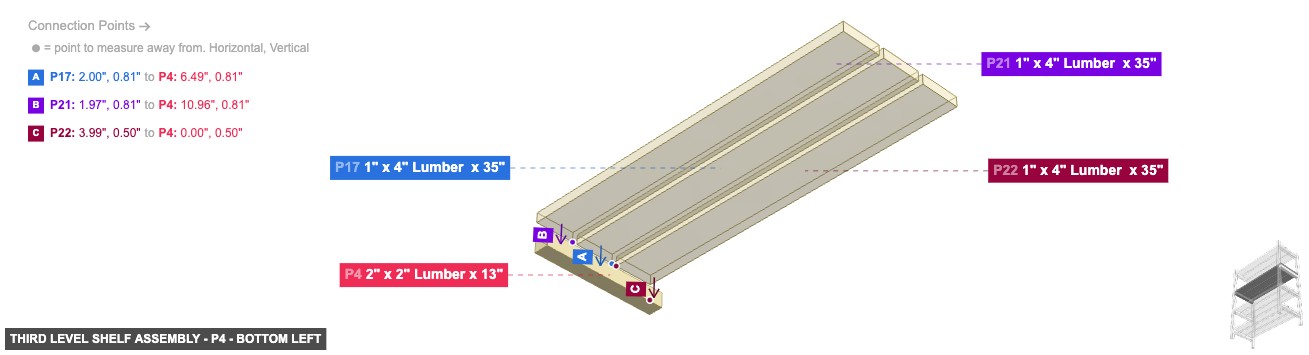

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

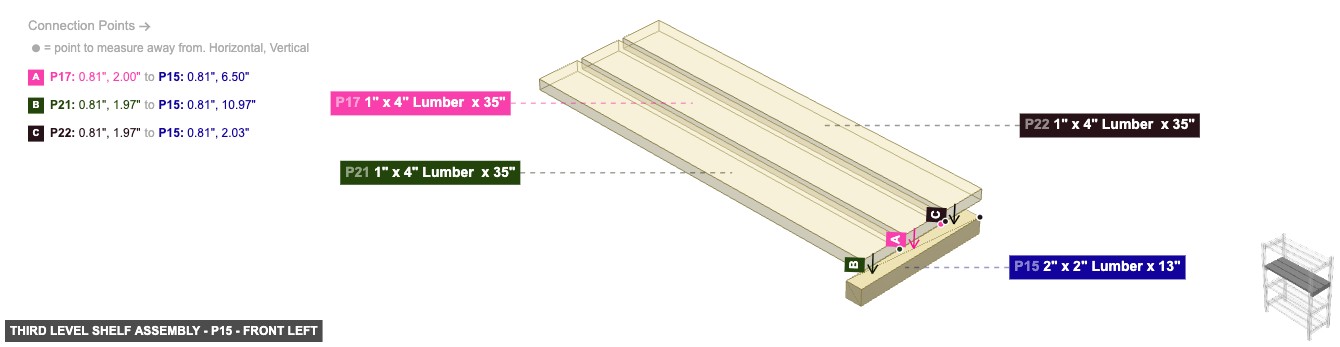

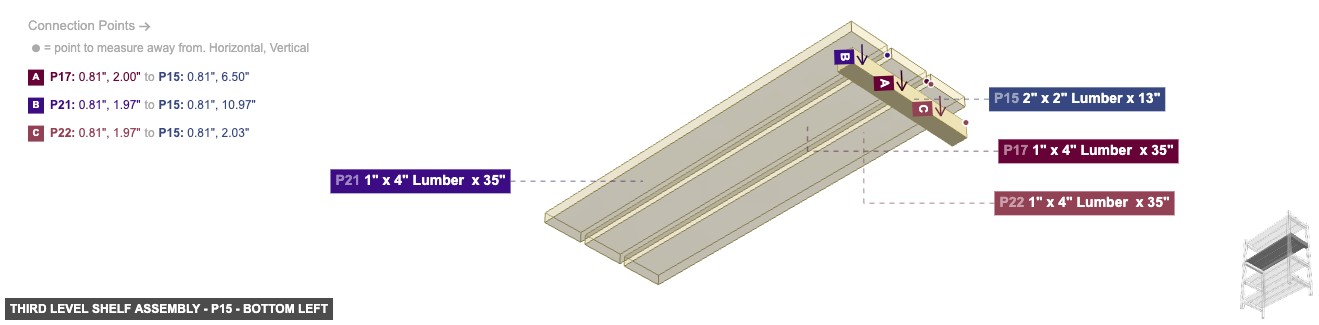

Part: 2" x 2" Lumber x 13" - Angle: back left

P15 (2" x 2" Lumber 13" length) - its 2" x 2" Wood Side #3, which is top-facing, should connect to part 17's 1" x 4" Wood Side #2, and ensure its 2" x 2" Wood Side #1 faces bottom. Next, its 2" x 2" Wood Side #2 needs to point back. Next, its 2" x 2" Wood Side #4 needs to point front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

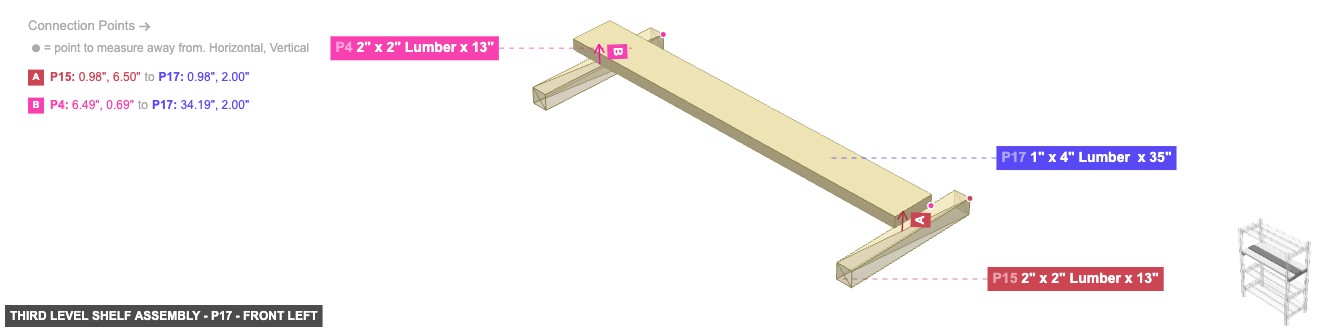

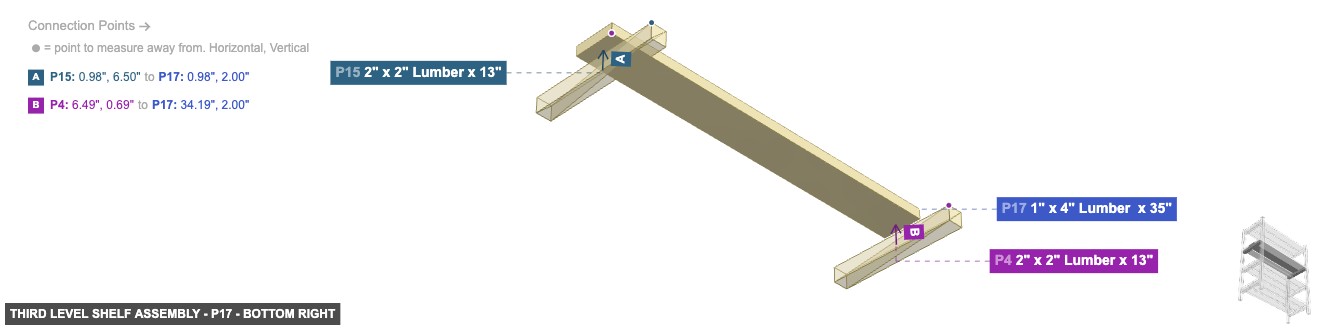

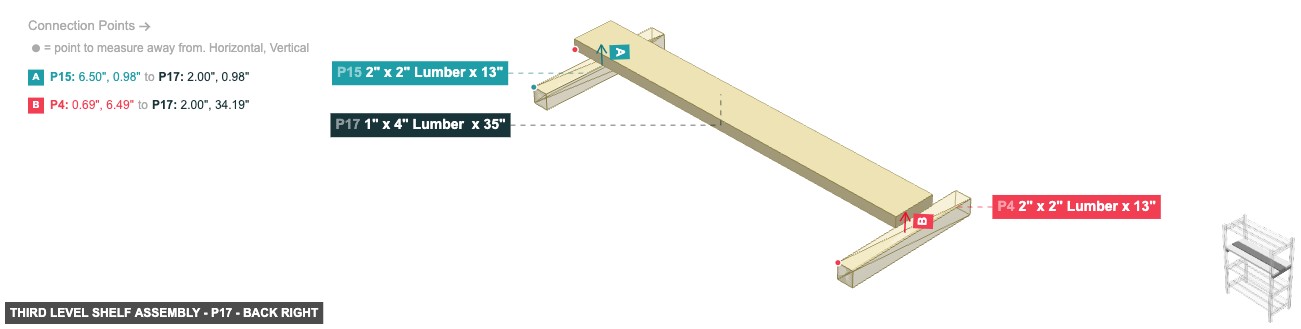

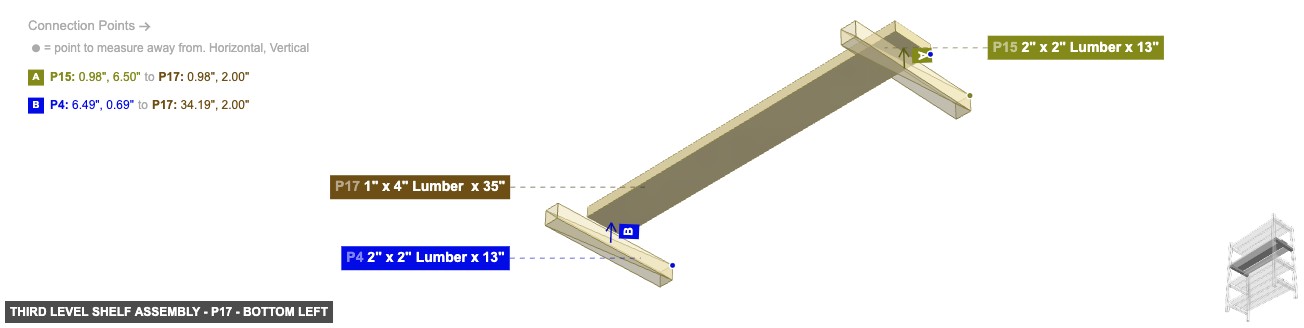

P17 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 15's 2" x 2" Wood Side #3. Also, ensure its 1" x 4" Wood End #1 faces back. After that, ensure its 1" x 4" Wood Side #1 faces left, plus its 1" x 4" Wood Side #3 should be directed right, also its 1" x 4" Wood Side #4 should be directed top, also its 1" x 4" Wood End #2 should be directed front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

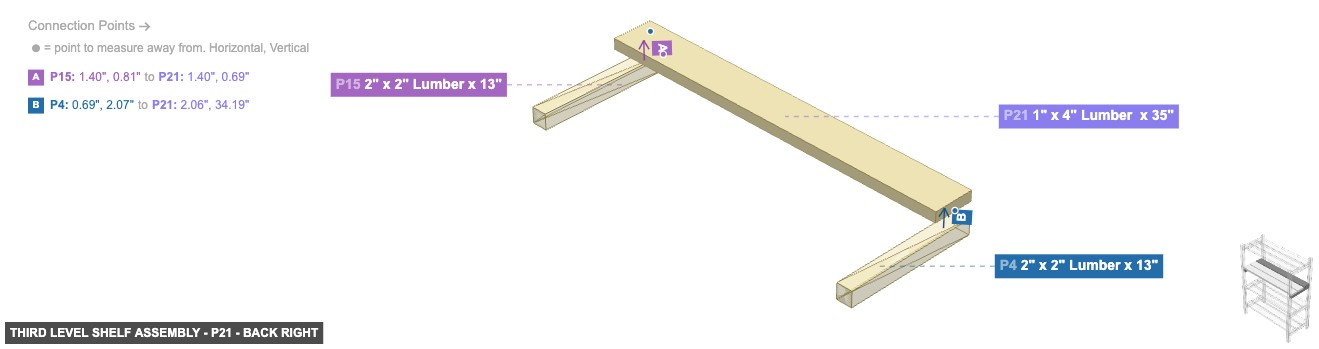

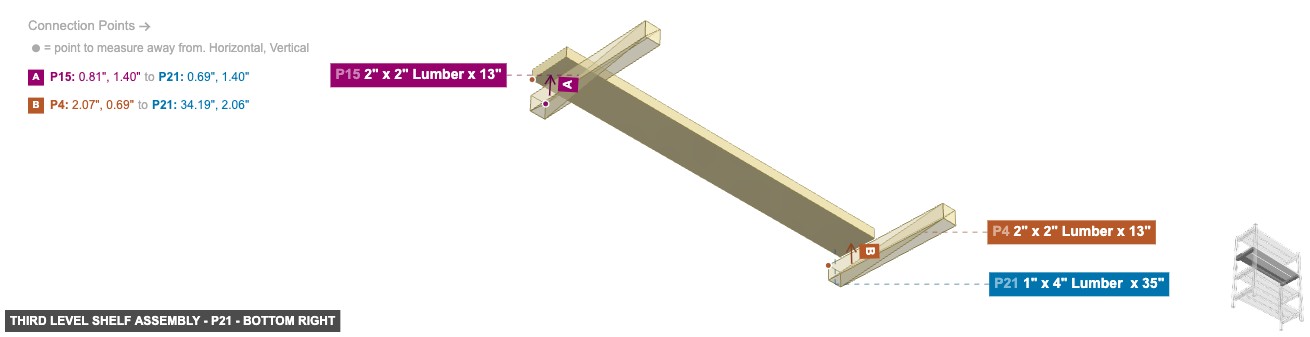

P21 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 15's 2" x 2" Wood Side #3, plus its 1" x 4" Wood End #1 needs to point back, then its 1" x 4" Wood Side #1 must be oriented left. Additionally, its 1" x 4" Wood Side #3 should be directed right, also its 1" x 4" Wood Side #4 should be directed top, and its 1" x 4" Wood End #2 should be directed front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

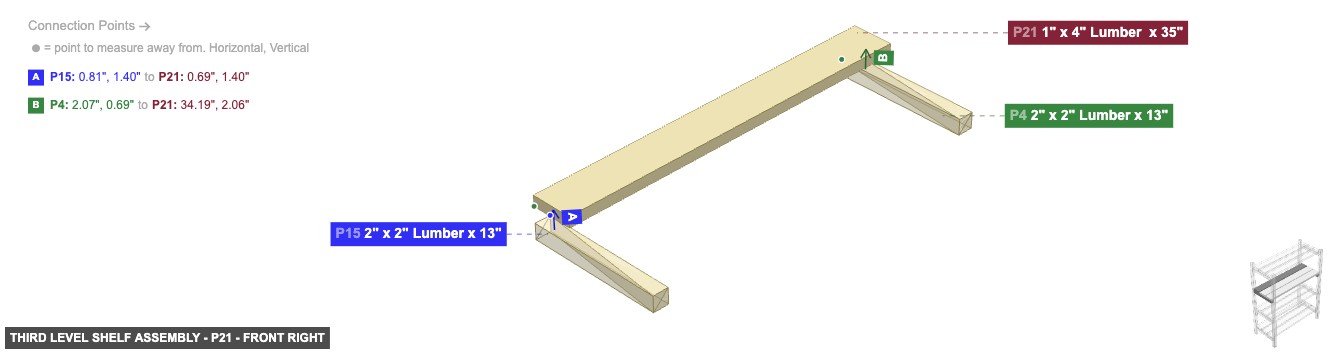

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

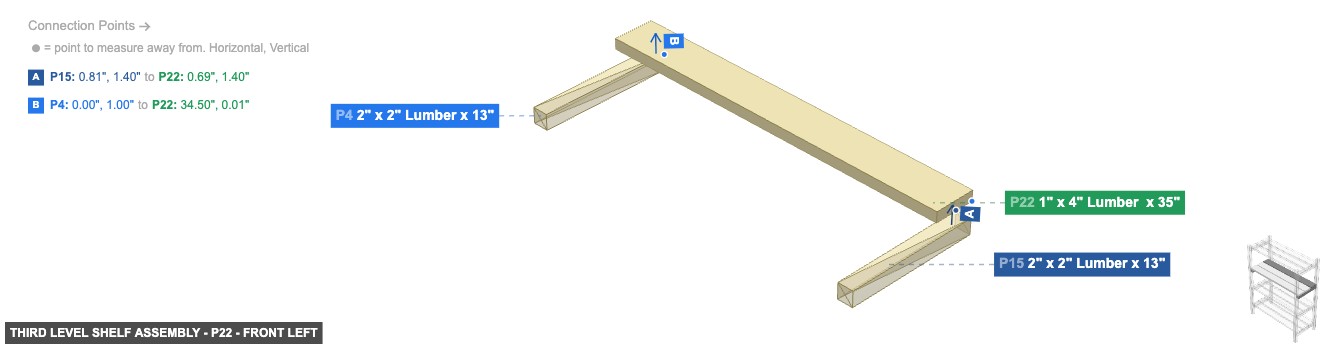

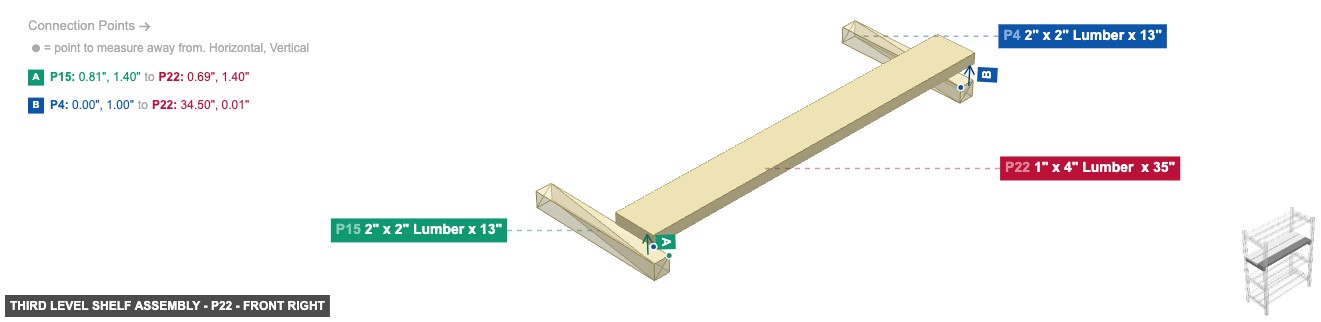

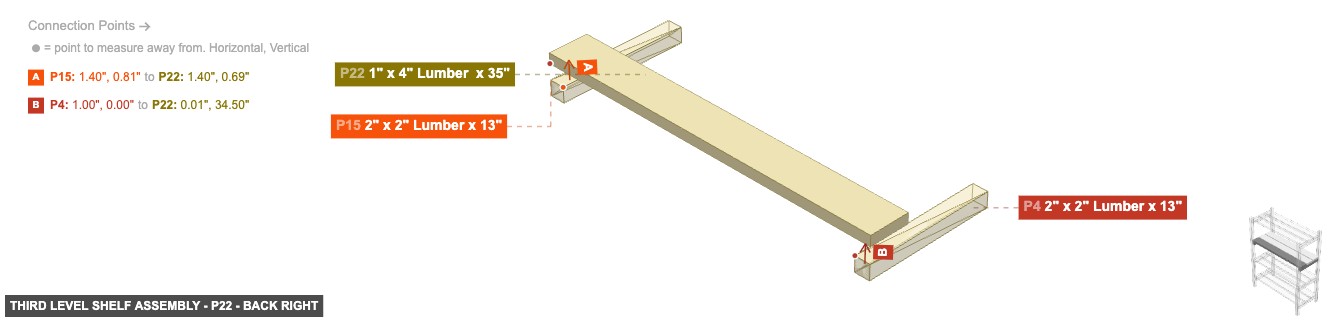

P22 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 15's 2" x 2" Wood Side #3, then its 1" x 4" Wood End #1 should be directed back, plus ensure its 1" x 4" Wood Side #1 faces left. Additionally, its 1" x 4" Wood Side #4 must be oriented top, and its 1" x 4" Wood End #2 needs to point front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

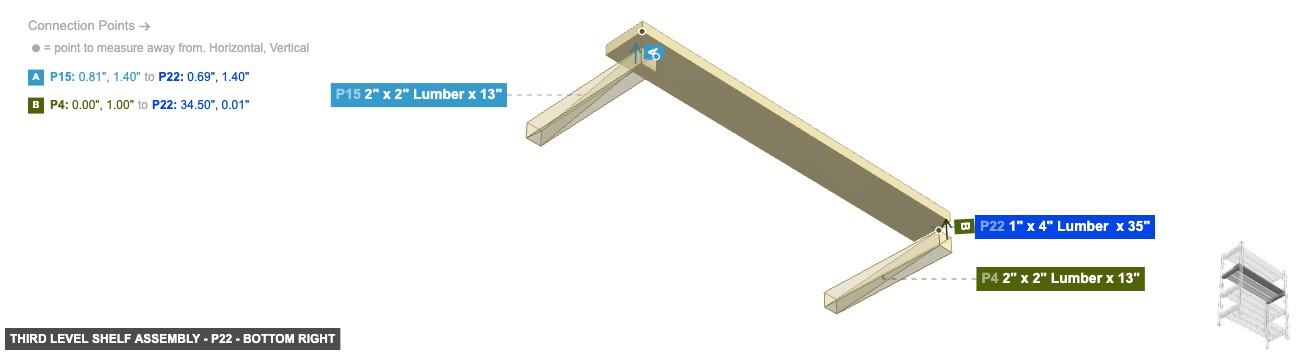

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

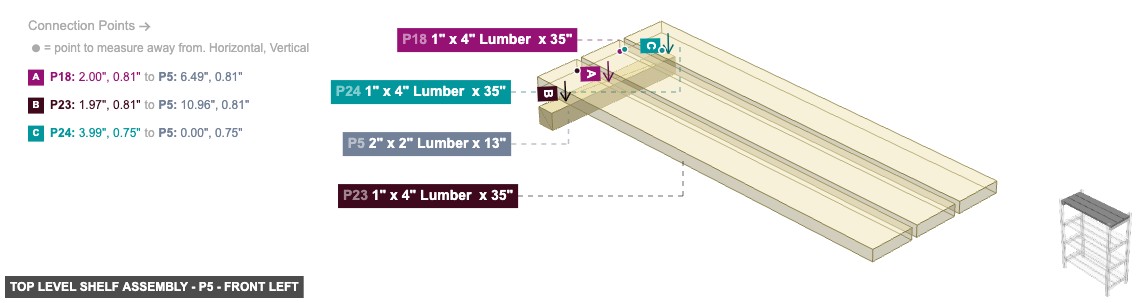

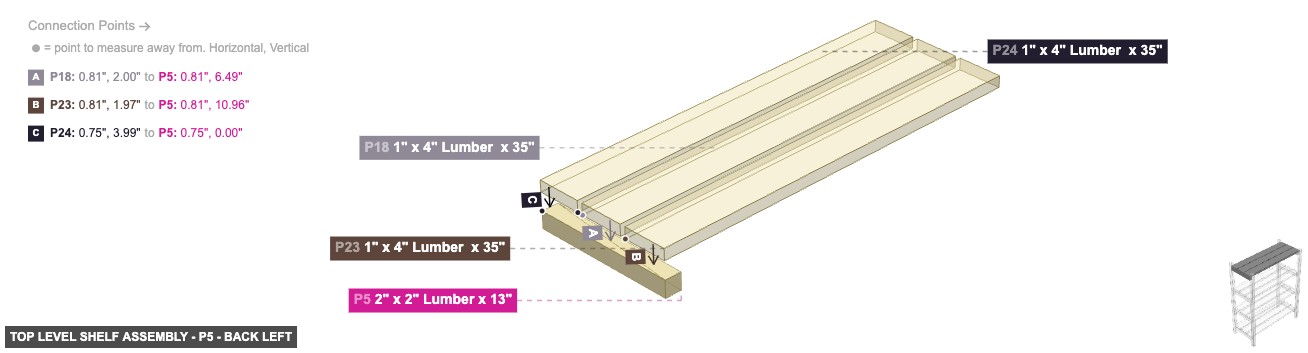

Group: Top Level Shelf Assembly

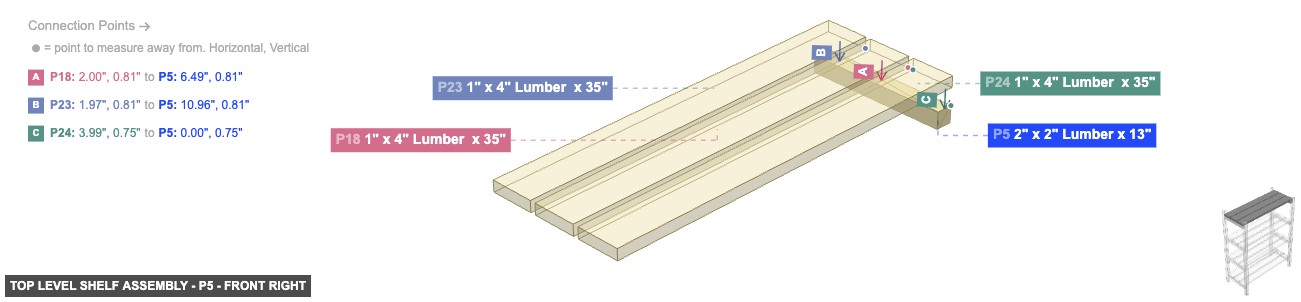

Attach the top level horizontal supports (P5, P10) to the posts, then add the top level shelf planks (P18, P23, P24).

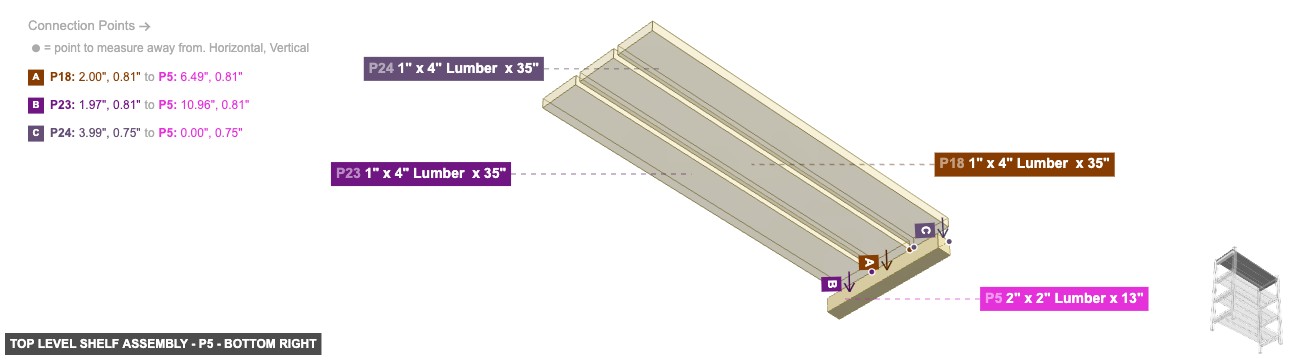

Part: 2" x 2" Lumber x 13" - Angle: back left

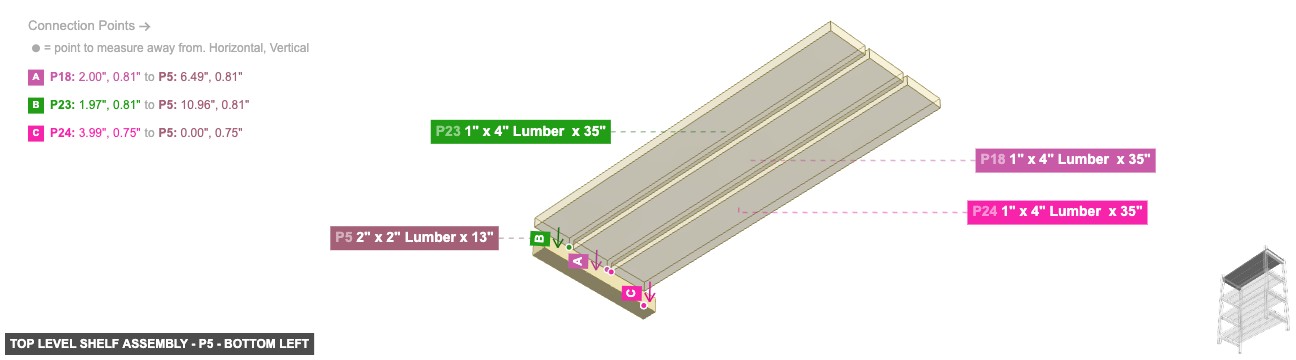

P5 (2" x 2" Lumber 13" length) - connect its 2" x 2" Wood Side #3 oriented top links with part 18's 1" x 4" Wood Side #2, then its 2" x 2" Wood Side #1 needs to point bottom. Additionally, its 2" x 2" Wood Side #2 needs to point back, also its 2" x 2" Wood Side #4 must be oriented front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

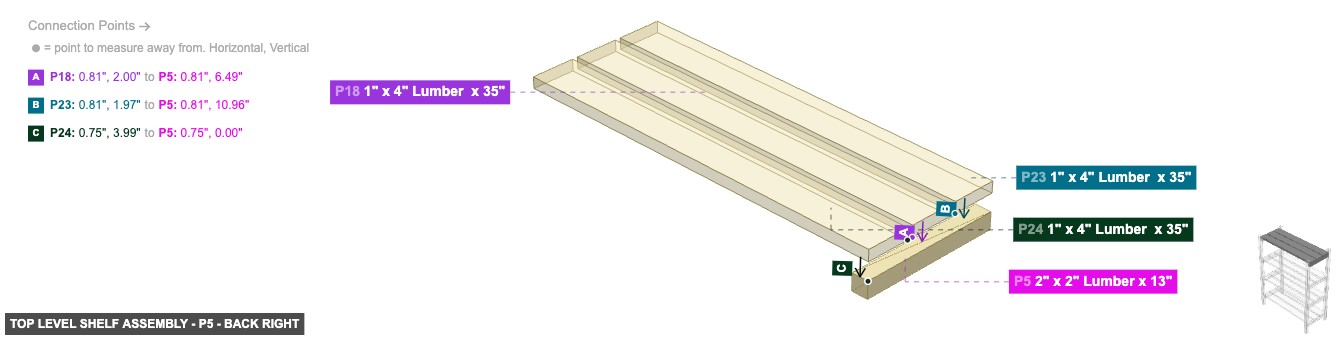

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back left

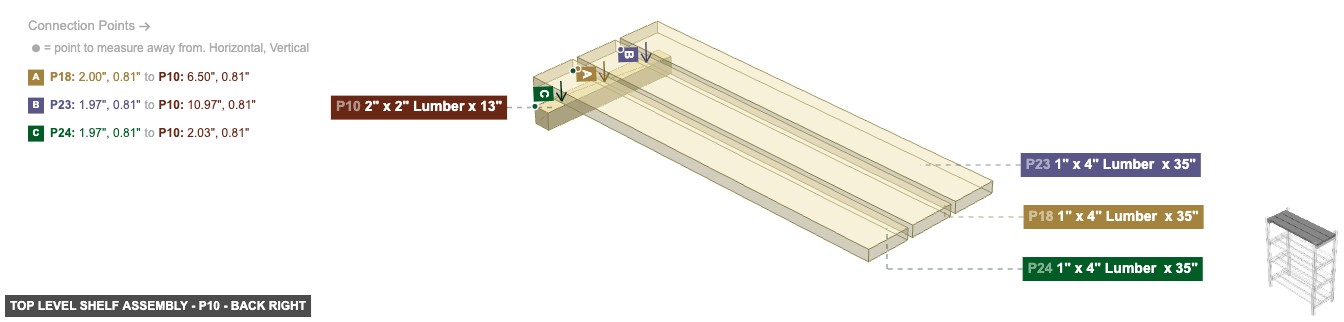

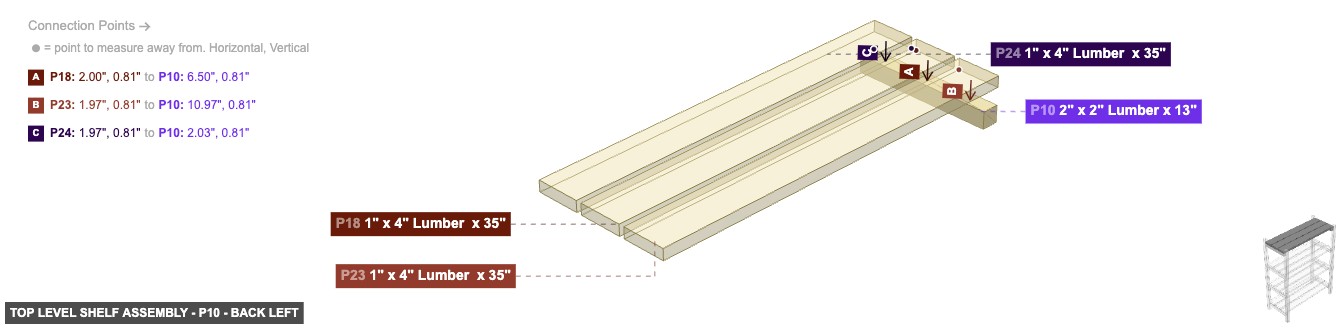

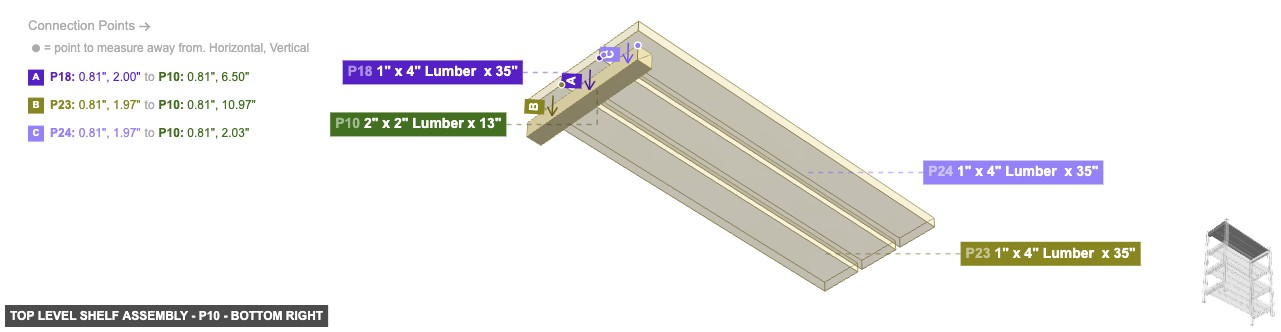

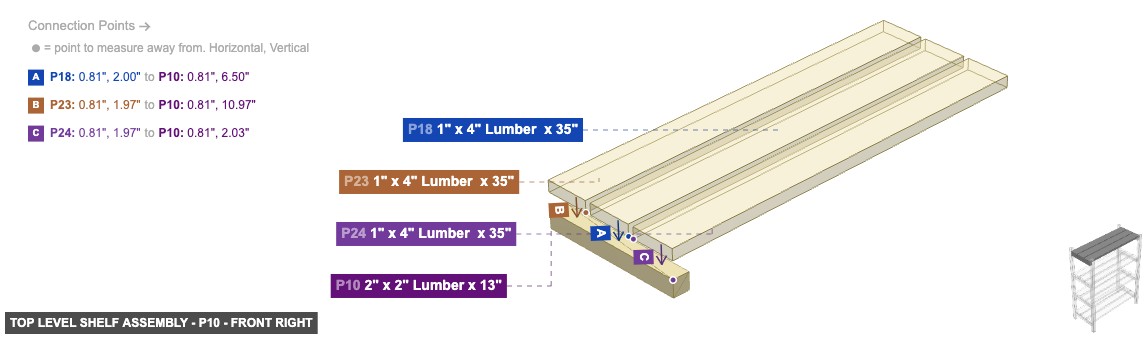

P10 (2" x 2" Lumber 13" length) - attach its 2" x 2" Wood Side #3 facing top to part 18's 1" x 4" Wood Side #2, then its 2" x 2" Wood Side #1 needs to point bottom, also its 2" x 2" Wood Side #2 needs to point back, and its 2" x 2" Wood Side #4 must be oriented front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

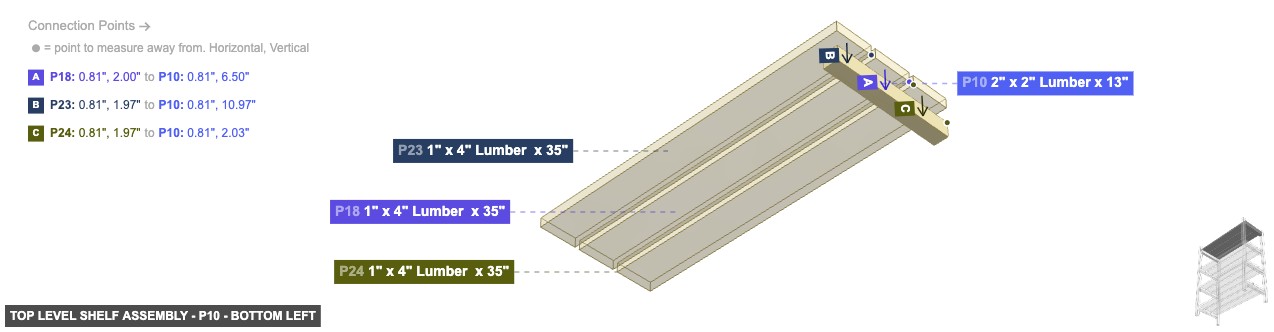

Part: 2" x 2" Lumber x 13" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 2" x 2" Lumber x 13" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

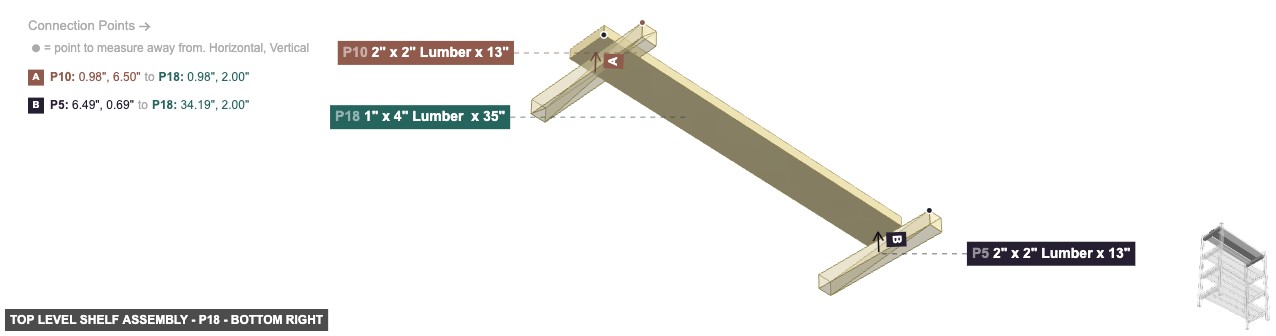

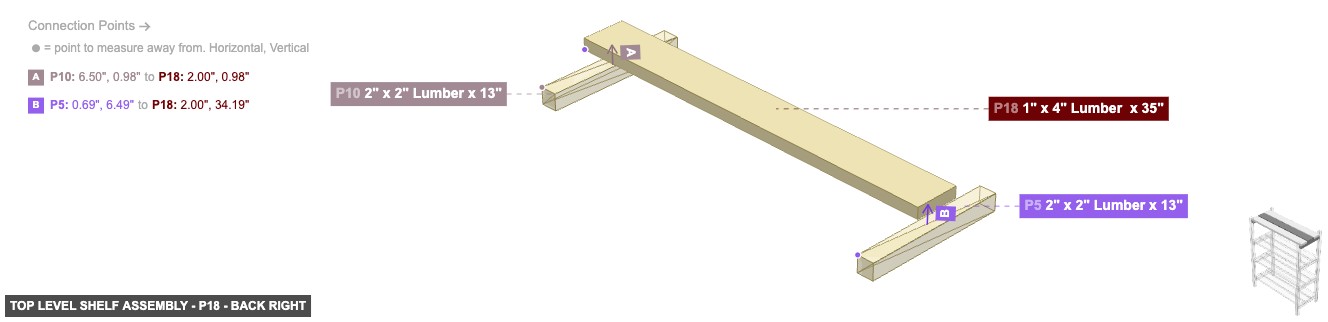

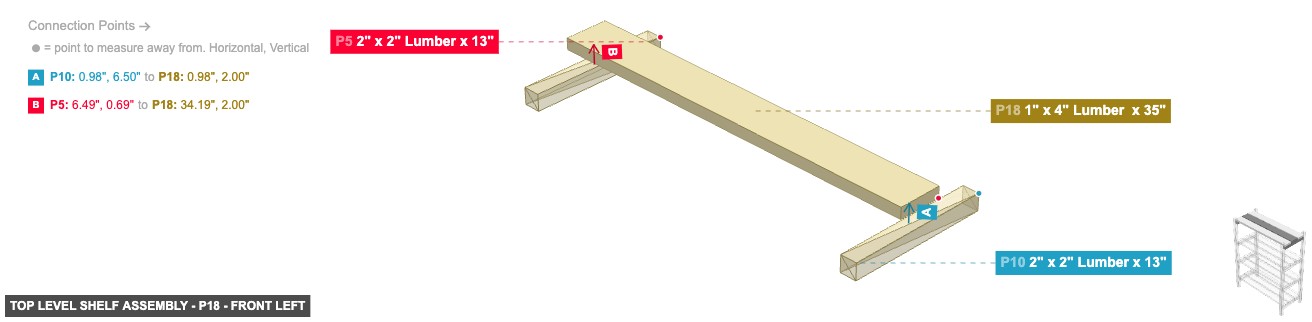

P18 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 10's 2" x 2" Wood Side #3, also its 1" x 4" Wood End #1 needs to point back. Next, its 1" x 4" Wood Side #1 must be oriented left. Additionally, its 1" x 4" Wood Side #3 must be oriented right, plus its 1" x 4" Wood Side #4 should be directed top, also ensure its 1" x 4" Wood End #2 faces front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

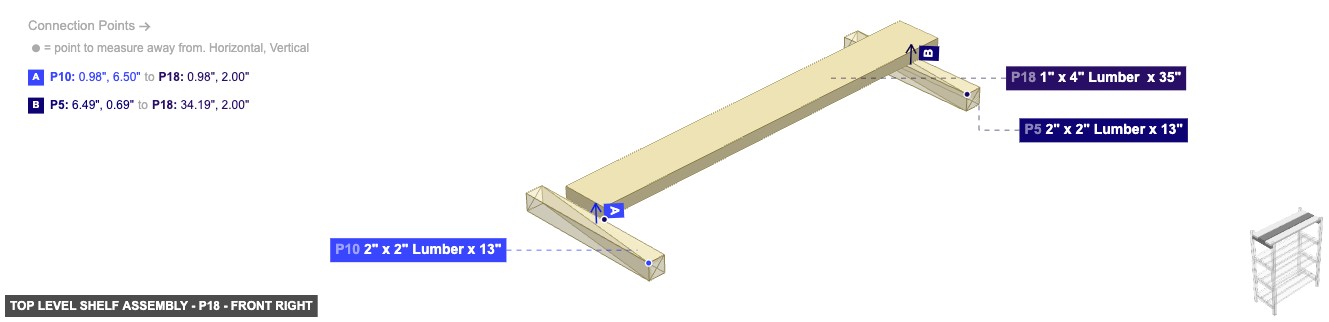

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

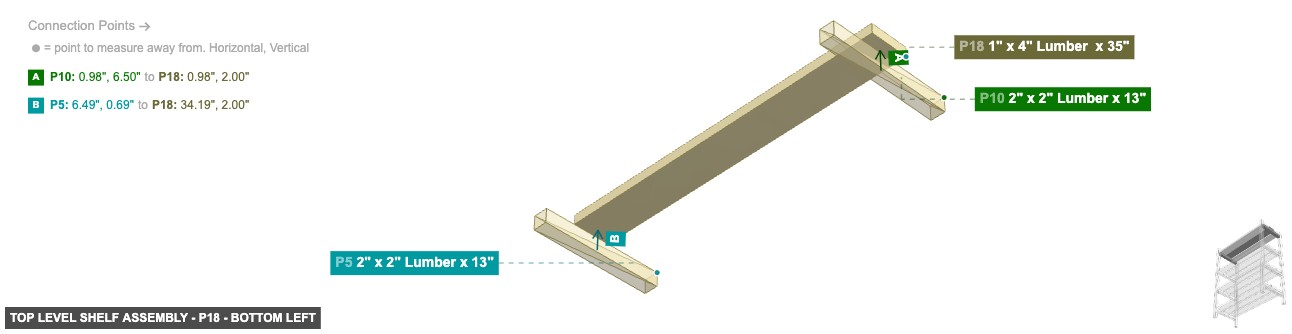

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

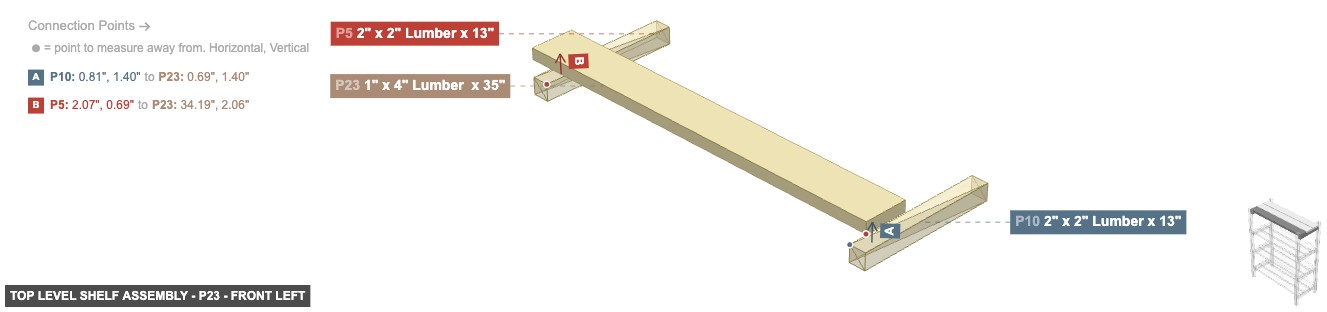

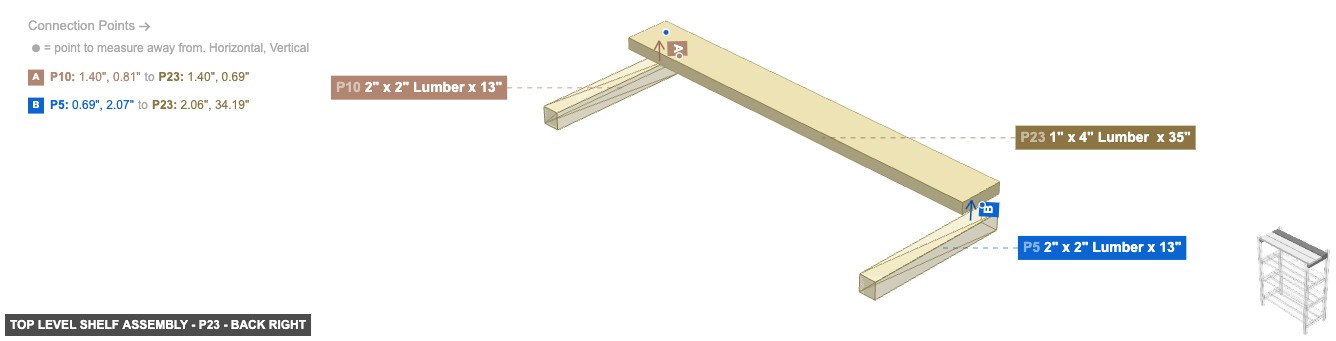

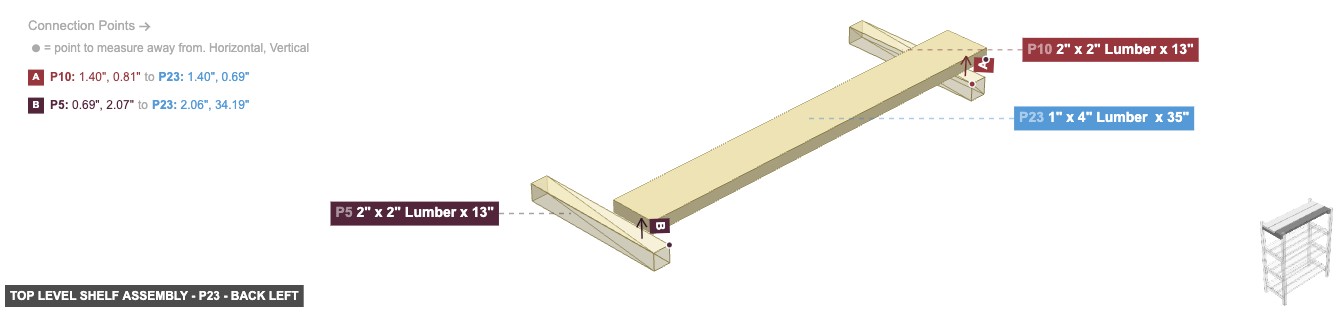

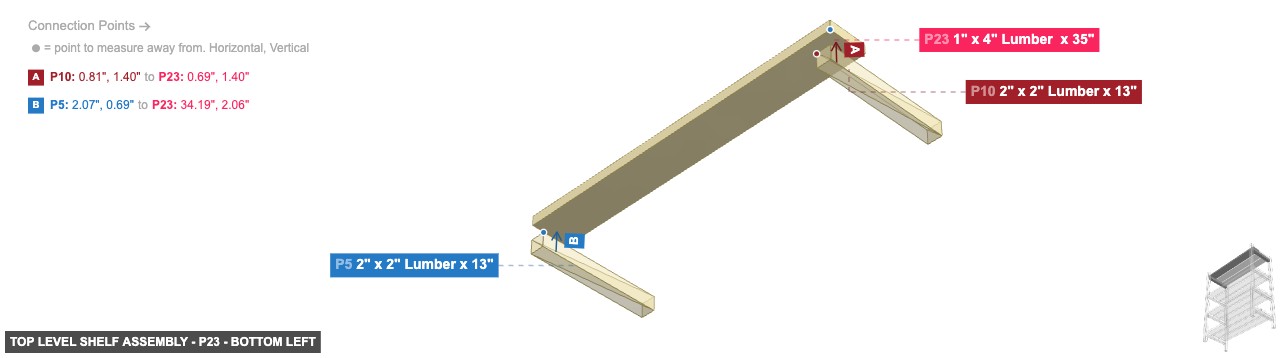

P23 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 10's 2" x 2" Wood Side #3. Next, its 1" x 4" Wood End #1 needs to point back. Additionally, ensure its 1" x 4" Wood Side #1 faces left, plus its 1" x 4" Wood Side #3 should be directed right, and its 1" x 4" Wood Side #4 should be directed top. Next, its 1" x 4" Wood End #2 should be directed front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

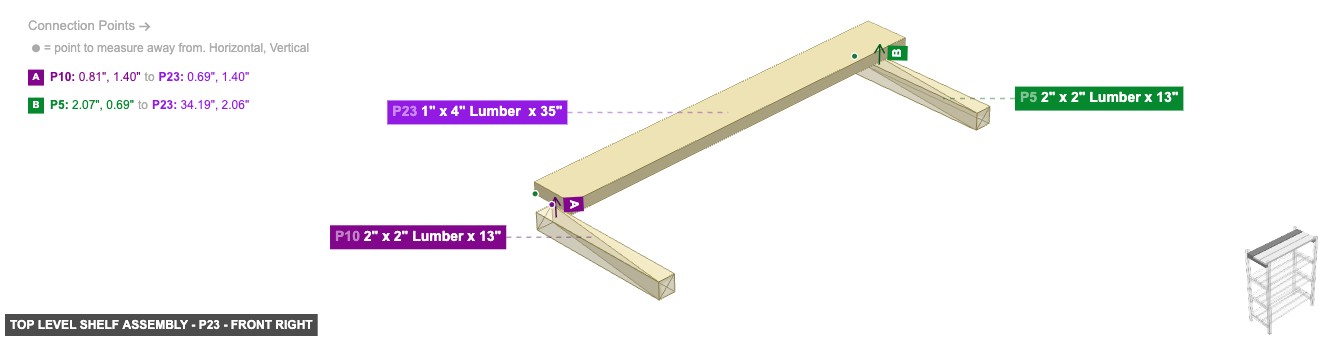

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

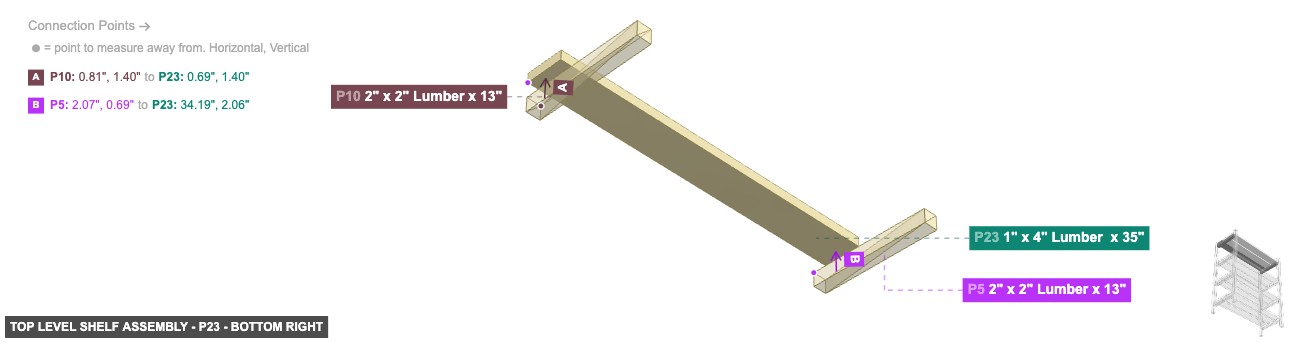

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back left

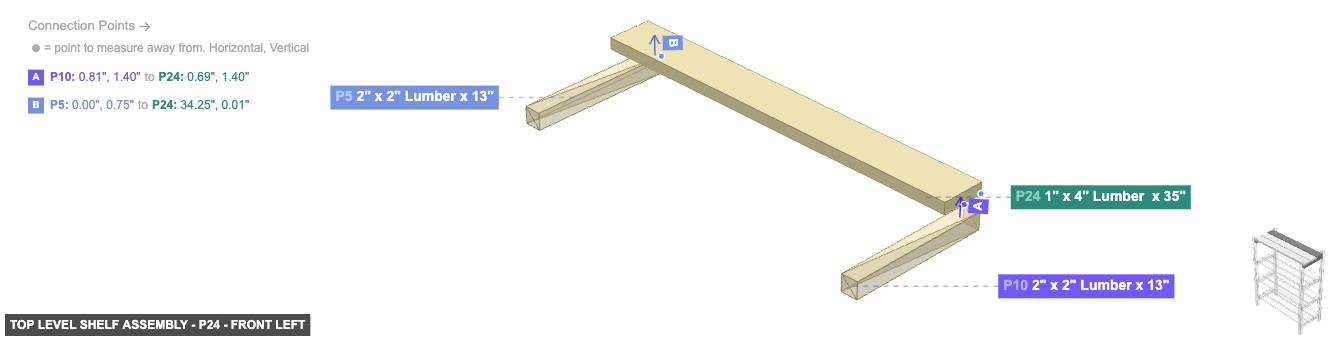

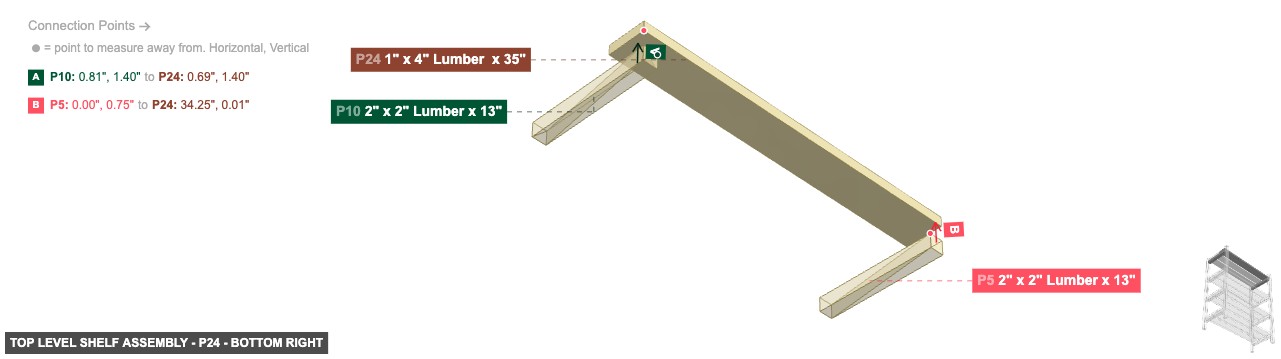

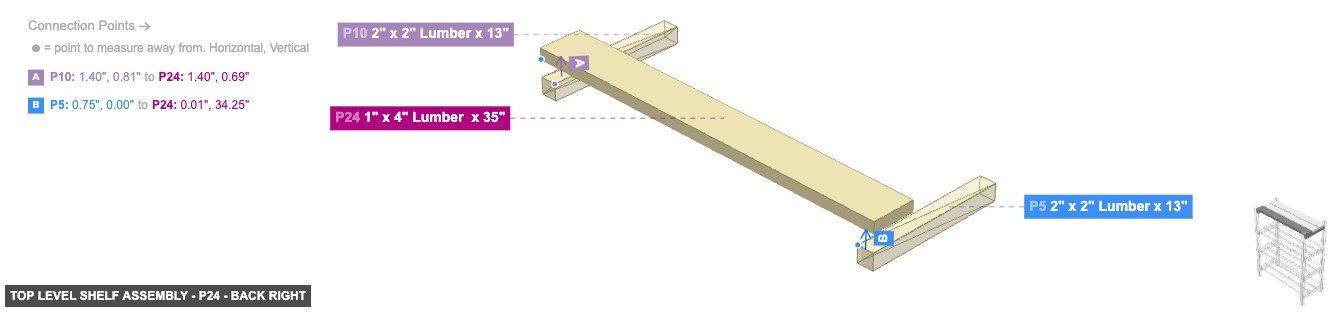

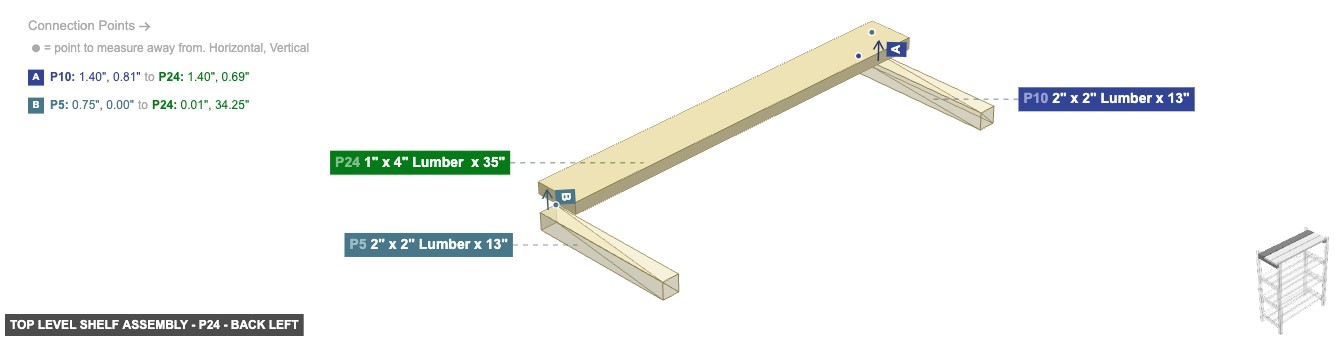

P24 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 10's 2" x 2" Wood Side #3, and ensure its 1" x 4" Wood End #1 faces back, also its 1" x 4" Wood Side #1 should be directed left. After that, its 1" x 4" Wood Side #4 needs to point top. Additionally, its 1" x 4" Wood End #2 needs to point front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: back right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: front right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Part: 1" x 4" Lumber x 35" - Angle: bottom right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Phase 3: Inter-Group Assembly

Attaching: Base Frame and Bottom Shelf Assembly

Assemble the four vertical posts (P1, P6, P11, P12) with the bottom horizontal supports (P2, P13), then attach the bottom shelf planks (P7, P8, P9).

Angle: back left

Assembly of Base Frame and Bottom Shelf Assembly - back_left

P1 (2" x 2" Lumber 44.25" length) - its 2" x 2" Wood Side #1, which is left-facing, should connect to part 2's 2" x 2" Wood End #2, then its 2" x 2" Wood End #1 needs to point top, plus its 2" x 2" Wood Side #2 needs to point back. Next, its 2" x 2" Wood Side #3 should be directed right, plus its 2" x 2" Wood Side #4 must be oriented front. Next, its 2" x 2" Wood End #2 needs to point bottom P6 (2" x 2" Lumber 44.25" length) - attach its 2" x 2" Wood Side #1 facing right to part 2's 2" x 2" Wood End #1. Also, its 2" x 2" Wood End #1 should be directed top, and its 2" x 2" Wood Side #2 should be directed front, also its 2" x 2" Wood Side #3 needs to point left, plus ensure its 2" x 2" Wood Side #4 faces back. Also, its 2" x 2" Wood End #2 needs to point bottom P11 (2" x 2" Lumber 44.25" length) - connect its 2" x 2" Wood Side #1 oriented left links with part 13's 2" x 2" Wood End #2, and its 2" x 2" Wood End #1 must be oriented top. Next, its 2" x 2" Wood Side #2 must be oriented back. Additionally, ensure its 2" x 2" Wood Side #3 faces right. Additionally, its 2" x 2" Wood Side #4 needs to point front. After that, its 2" x 2" Wood End #2 must be oriented bottom P12 (2" x 2" Lumber 44.25" length) - attach its 2" x 2" Wood Side #1 facing right to part 13's 2" x 2" Wood End #1, plus its 2" x 2" Wood End #1 needs to point top, also its 2" x 2" Wood Side #2 should be directed front. Next, its 2" x 2" Wood Side #3 should be directed left, plus its 2" x 2" Wood Side #4 should be directed back, plus its 2" x 2" Wood End #2 must be oriented bottom P2 (2" x 2" Lumber 13" length) - connect its 2" x 2" Wood End #1 oriented left links with part 6's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #3, which is top-facing, should connect to part 7's 1" x 4" Wood Side #2, plus attach its 2" x 2" Wood End #2 facing right to part 1's 2" x 2" Wood Side #1. Next, ensure its 2" x 2" Wood Side #1 faces bottom, plus its 2" x 2" Wood Side #2 should be directed back. Also, its 2" x 2" Wood Side #4 must be oriented front P13 (2" x 2" Lumber 13" length) - attach its 2" x 2" Wood End #1 facing left to part 12's 2" x 2" Wood Side #1. Additionally, connect its 2" x 2" Wood Side #3 oriented top links with part 7's 1" x 4" Wood Side #2, plus attach its 2" x 2" Wood End #2 facing right to part 11's 2" x 2" Wood Side #1, and its 2" x 2" Wood Side #1 should be directed bottom. Next, its 2" x 2" Wood Side #2 must be oriented back. After that, its 2" x 2" Wood Side #4 should be directed front P7 (1" x 4" Lumber 35" length) - attach its 1" x 4" Wood Side #1 facing right to part 11's 2" x 2" Wood Side #1. Additionally, attach its 1" x 4" Wood Side #2 facing bottom to part 2's 2" x 2" Wood Side #3. Also, ensure its 1" x 4" Wood End #1 faces front, then its 1" x 4" Wood Side #3 should be directed left. Also, its 1" x 4" Wood Side #4 should be directed top. Next, its 1" x 4" Wood End #2 should be directed back P8 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 2's 2" x 2" Wood Side #3, then its 1" x 4" Wood Side #3, which is left-facing, should connect to part 6's 2" x 2" Wood Side #1, then its 1" x 4" Wood End #1 must be oriented front, and ensure its 1" x 4" Wood Side #1 faces right, also ensure its 1" x 4" Wood Side #4 faces top. Also, its 1" x 4" Wood End #2 must be oriented back P9 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 2's 2" x 2" Wood Side #3, then ensure its 1" x 4" Wood End #1 faces front. Additionally, ensure its 1" x 4" Wood Side #1 faces right, plus ensure its 1" x 4" Wood Side #3 faces left. Additionally, its 1" x 4" Wood Side #4 needs to point top, and its 1" x 4" Wood End #2 should be directed back

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: back right

Assembly of Base Frame and Bottom Shelf Assembly - back_right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: front left

Assembly of Base Frame and Bottom Shelf Assembly - front_left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

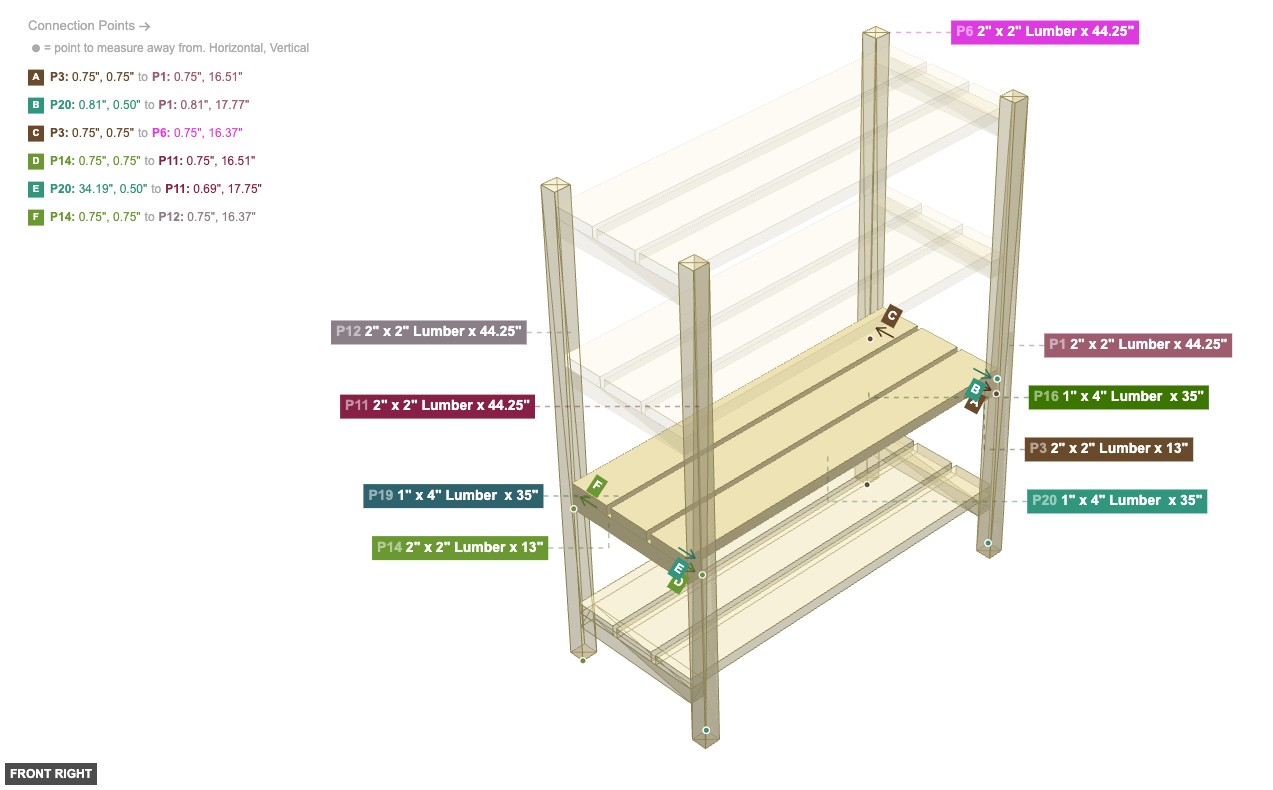

Angle: front right

Assembly of Base Frame and Bottom Shelf Assembly - front_right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: bottom left

Assembly of Base Frame and Bottom Shelf Assembly - bottom_left

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: bottom right

Assembly of Base Frame and Bottom Shelf Assembly - bottom_right

2" x 2" Lumber x 44.25"x 4

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Attaching: Second Level Shelf Assembly

Attach the second level horizontal supports (P3, P14) to the posts, then add the second level shelf planks (P16, P19, P20).

Angle: back left

Assembly of Second Level Shelf Assembly - back_left

P3 (2" x 2" Lumber 13" length) - attach its 2" x 2" Wood End #1 facing left to part 6's 2" x 2" Wood Side #1, plus attach its 2" x 2" Wood Side #3 facing top to part 16's 1" x 4" Wood Side #2. After that, its 2" x 2" Wood End #2, which is right-facing, should connect to part 1's 2" x 2" Wood Side #1. Also, ensure its 2" x 2" Wood Side #1 faces bottom, then its 2" x 2" Wood Side #2 should be directed back. Next, ensure its 2" x 2" Wood Side #4 faces front P14 (2" x 2" Lumber 13" length) - connect its 2" x 2" Wood End #1 oriented left links with part 12's 2" x 2" Wood Side #1. After that, connect its 2" x 2" Wood Side #3 oriented top links with part 16's 1" x 4" Wood Side #2, also connect its 2" x 2" Wood End #2 oriented right links with part 11's 2" x 2" Wood Side #1. Also, ensure its 2" x 2" Wood Side #1 faces bottom. Additionally, its 2" x 2" Wood Side #2 must be oriented back. After that, its 2" x 2" Wood Side #4 must be oriented front P16 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 14's 2" x 2" Wood Side #3. Additionally, its 1" x 4" Wood End #1 should be directed back, also its 1" x 4" Wood Side #1 must be oriented left. Next, its 1" x 4" Wood Side #3 should be directed right, and its 1" x 4" Wood Side #4 must be oriented top, also its 1" x 4" Wood End #2 should be directed front P19 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 14's 2" x 2" Wood Side #3, also ensure its 1" x 4" Wood End #1 faces back, then its 1" x 4" Wood Side #1 must be oriented left, and ensure its 1" x 4" Wood Side #3 faces right. Additionally, its 1" x 4" Wood Side #4 needs to point top, also its 1" x 4" Wood End #2 must be oriented front P20 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 14's 2" x 2" Wood Side #3. After that, connect its 1" x 4" Wood Side #3 oriented right links with part 1's 2" x 2" Wood Side #1. After that, its 1" x 4" Wood End #1 needs to point back. Next, its 1" x 4" Wood Side #1 needs to point left. Also, its 1" x 4" Wood Side #4 needs to point top. Also, its 1" x 4" Wood End #2 should be directed front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: back right

Assembly of Second Level Shelf Assembly - back_right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: front left

Assembly of Second Level Shelf Assembly - front_left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: front right

Assembly of Second Level Shelf Assembly - front_right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: bottom left

Assembly of Second Level Shelf Assembly - bottom_left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: bottom right

Assembly of Second Level Shelf Assembly - bottom_right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Attaching: Third Level Shelf Assembly

Attach the third level horizontal supports (P4, P15) to the posts, then add the third level shelf planks (P17, P21, P22).

Angle: back left

Assembly of Third Level Shelf Assembly - back_left

P4 (2" x 2" Lumber 13" length) - connect its 2" x 2" Wood End #1 oriented left links with part 6's 2" x 2" Wood Side #1. Next, connect its 2" x 2" Wood Side #3 oriented top links with part 17's 1" x 4" Wood Side #2. Additionally, its 2" x 2" Wood End #2, which is right-facing, should connect to part 1's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #1 must be oriented bottom, plus its 2" x 2" Wood Side #2 needs to point back. Additionally, its 2" x 2" Wood Side #4 should be directed front P15 (2" x 2" Lumber 13" length) - connect its 2" x 2" Wood End #1 oriented left links with part 12's 2" x 2" Wood Side #1, also connect its 2" x 2" Wood Side #3 oriented top links with part 17's 1" x 4" Wood Side #2, plus its 2" x 2" Wood End #2, which is right-facing, should connect to part 11's 2" x 2" Wood Side #1. Additionally, its 2" x 2" Wood Side #1 must be oriented bottom. Additionally, its 2" x 2" Wood Side #2 should be directed back. Next, its 2" x 2" Wood Side #4 must be oriented front P17 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 15's 2" x 2" Wood Side #3. Next, ensure its 1" x 4" Wood End #1 faces back, then its 1" x 4" Wood Side #1 should be directed left, then its 1" x 4" Wood Side #3 should be directed right, also ensure its 1" x 4" Wood Side #4 faces top, plus its 1" x 4" Wood End #2 must be oriented front P21 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 15's 2" x 2" Wood Side #3, plus its 1" x 4" Wood End #1 must be oriented back. Additionally, its 1" x 4" Wood Side #1 needs to point left. Next, its 1" x 4" Wood Side #3 needs to point right, also its 1" x 4" Wood Side #4 must be oriented top, also its 1" x 4" Wood End #2 should be directed front P22 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 15's 2" x 2" Wood Side #3. After that, its 1" x 4" Wood Side #3, which is right-facing, should connect to part 1's 2" x 2" Wood Side #1. After that, ensure its 1" x 4" Wood End #1 faces back. Additionally, its 1" x 4" Wood Side #1 should be directed left, also its 1" x 4" Wood Side #4 must be oriented top. Additionally, its 1" x 4" Wood End #2 needs to point front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: back right

Assembly of Third Level Shelf Assembly - back_right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: front left

Assembly of Third Level Shelf Assembly - front_left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

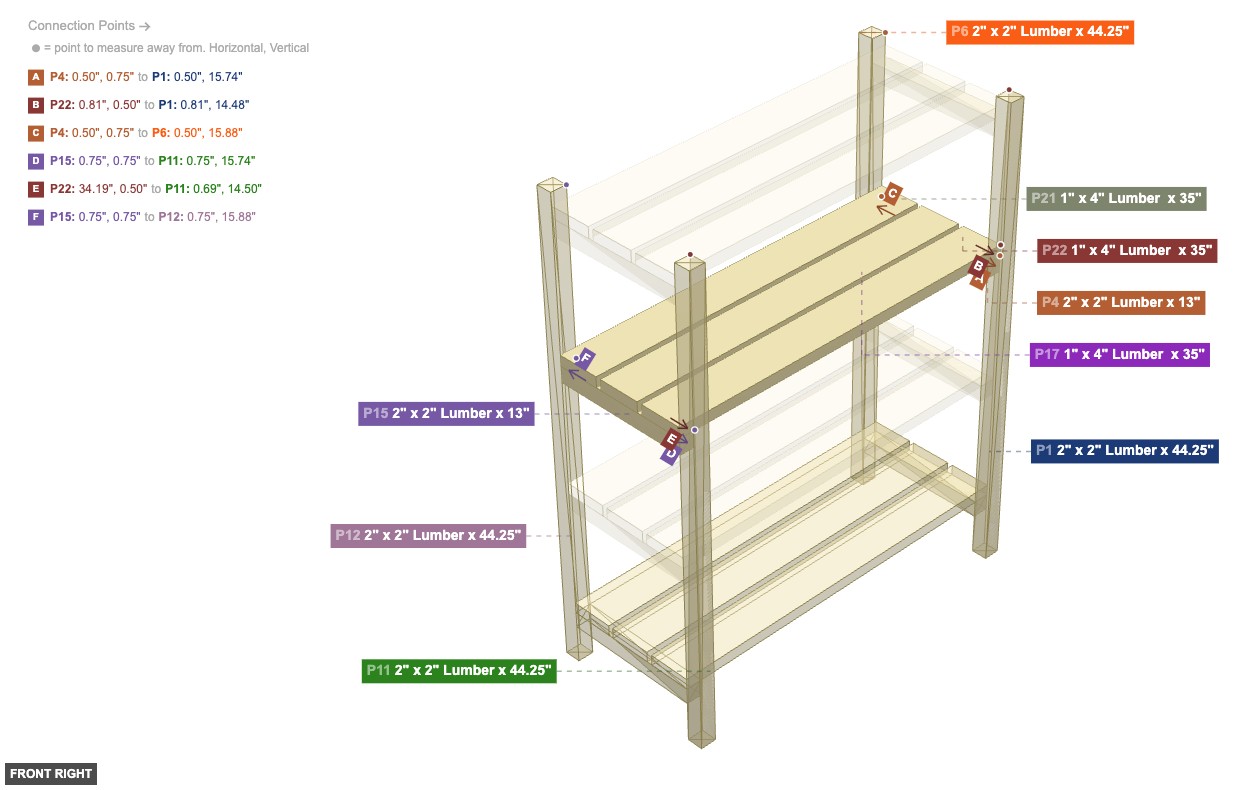

Angle: front right

Assembly of Third Level Shelf Assembly - front_right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

Angle: bottom left

Assembly of Third Level Shelf Assembly - bottom_left

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

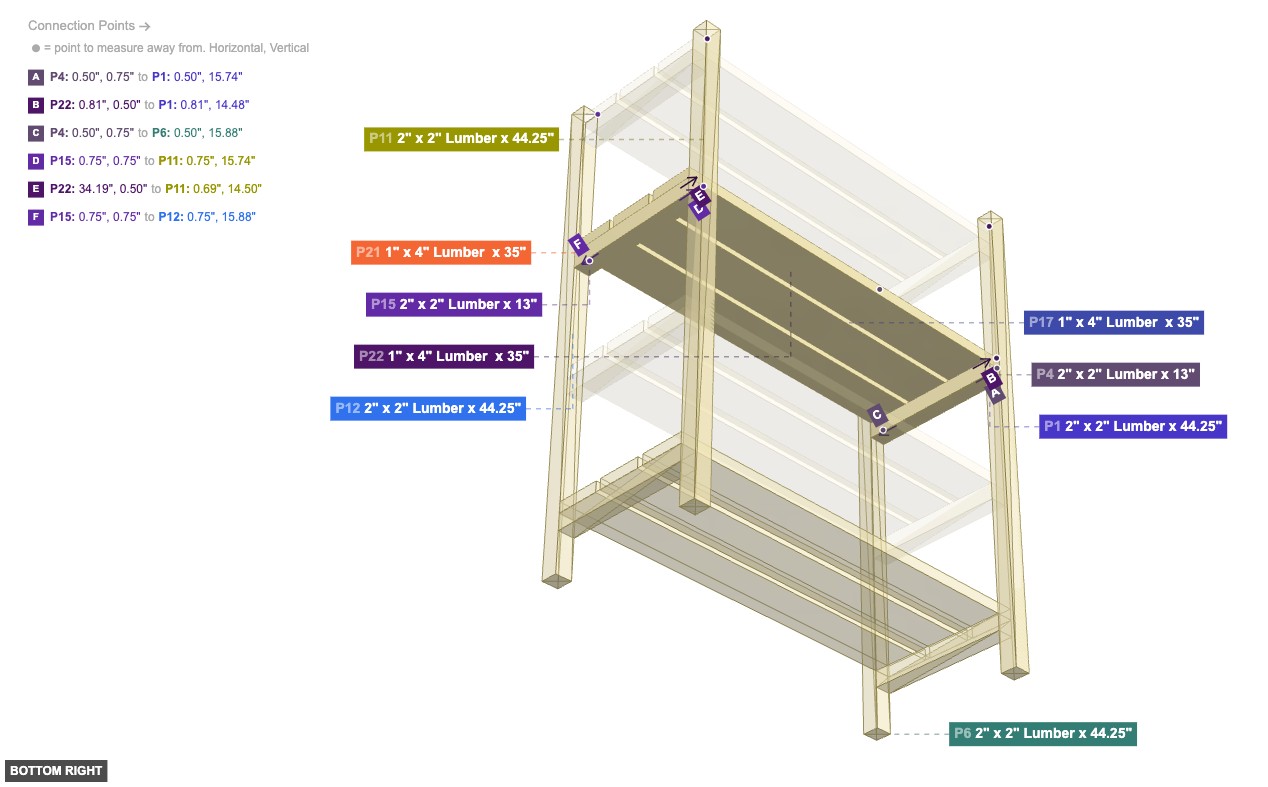

Angle: bottom right

Assembly of Third Level Shelf Assembly - bottom_right

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3

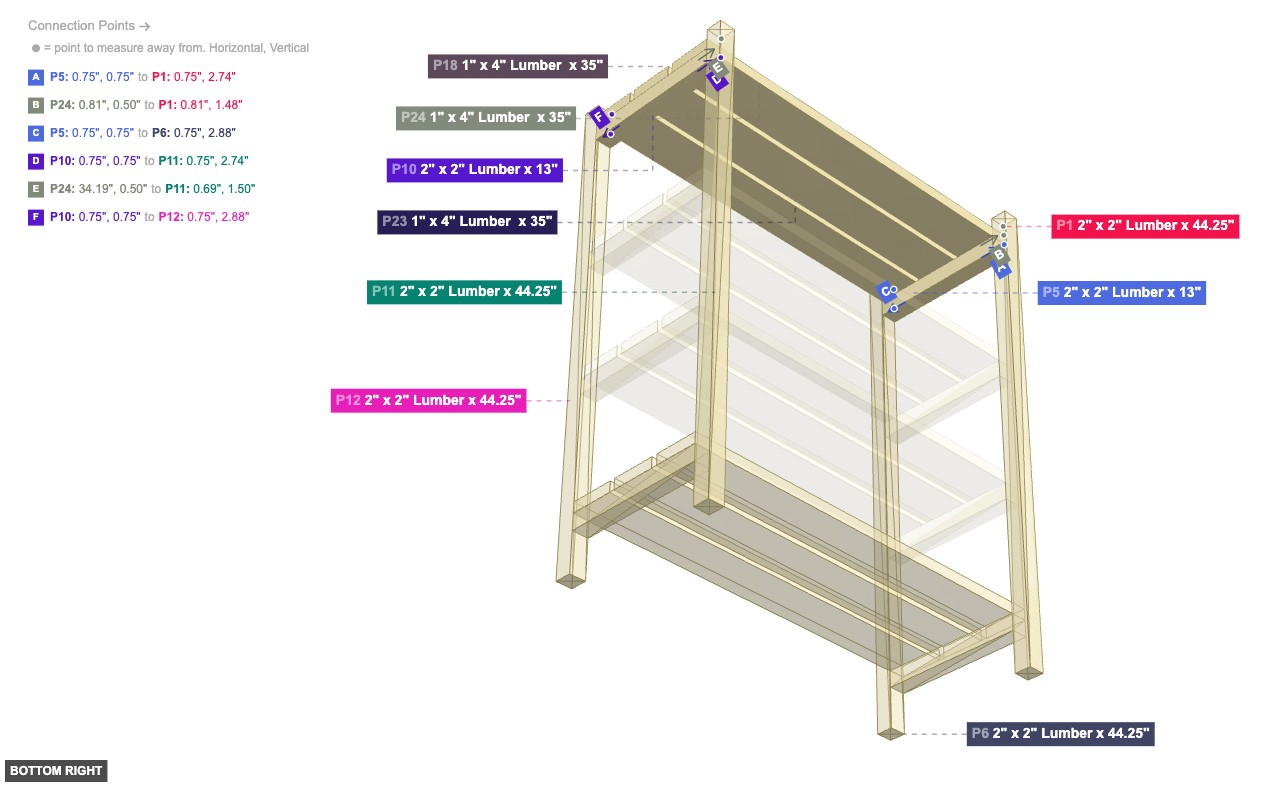

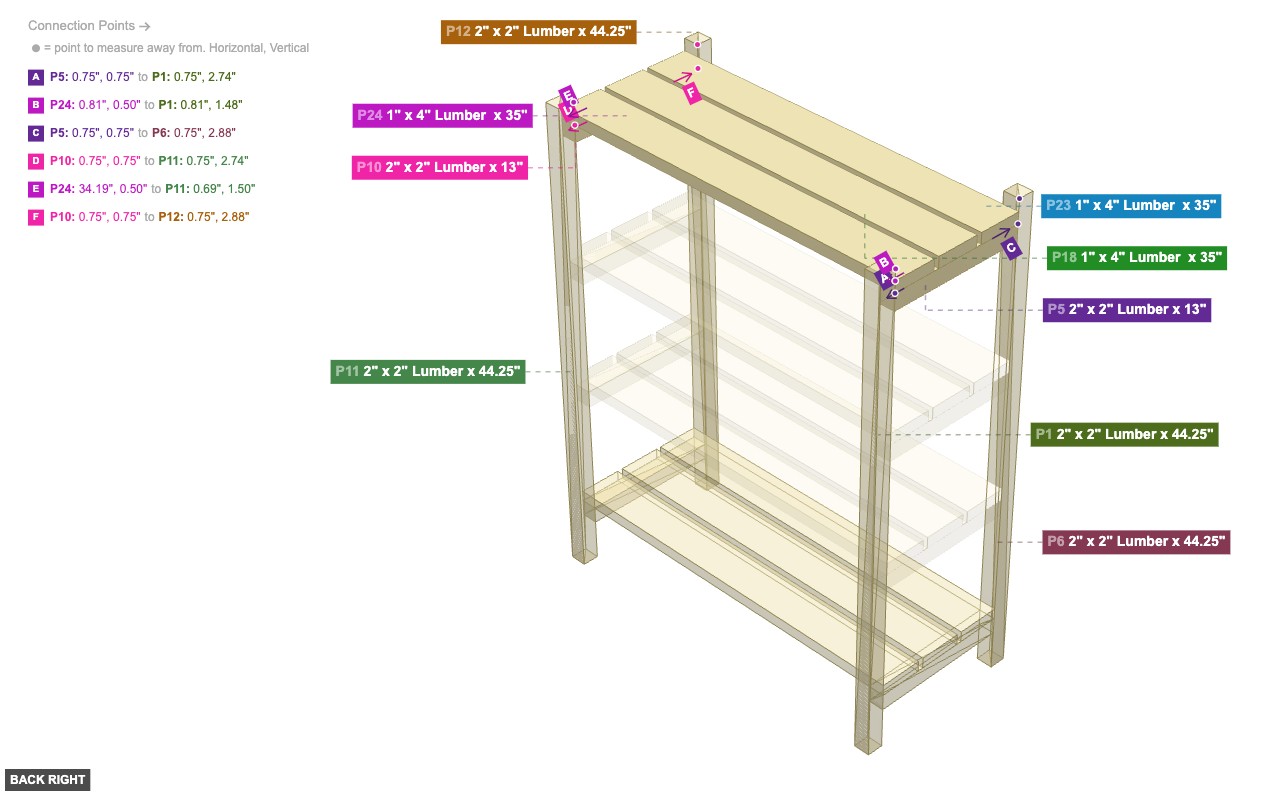

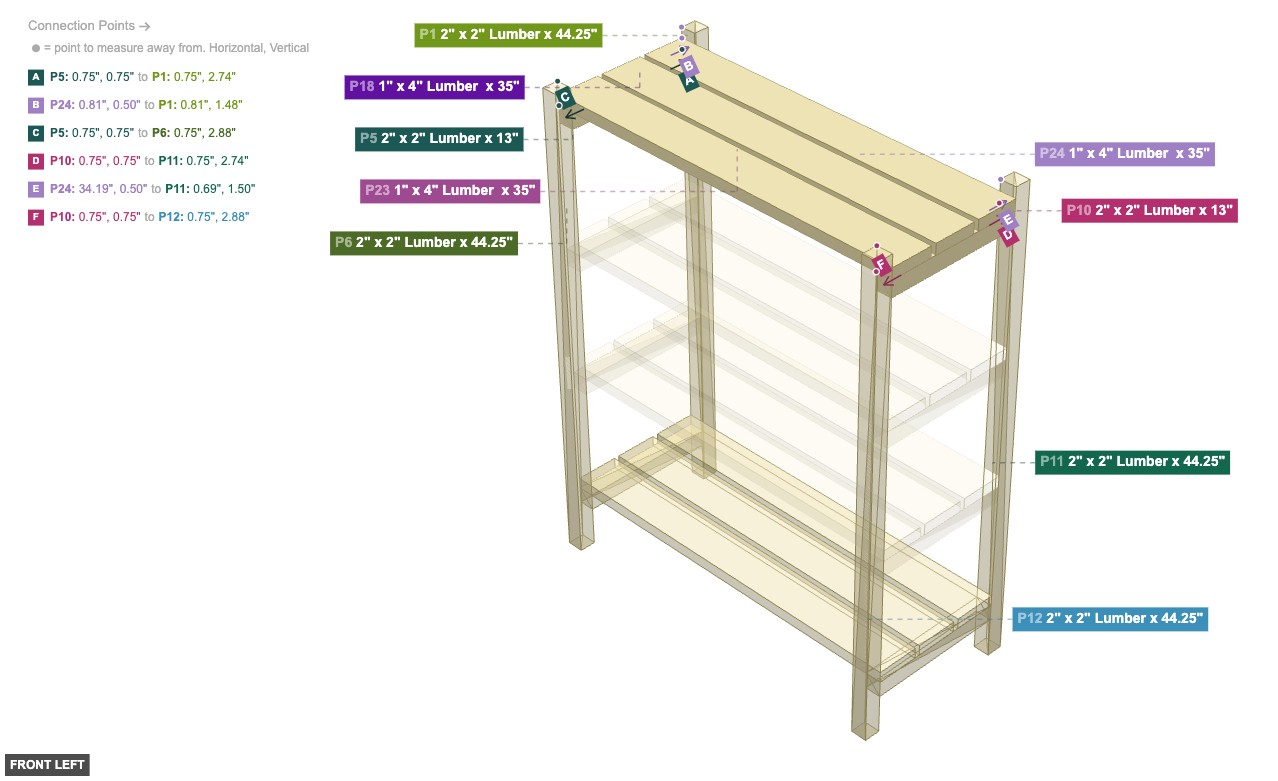

Attaching: Top Level Shelf Assembly

Attach the top level horizontal supports (P5, P10) to the posts, then add the top level shelf planks (P18, P23, P24).

Angle: back left

Assembly of Top Level Shelf Assembly - back_left

P5 (2" x 2" Lumber 13" length) - connect its 2" x 2" Wood End #1 oriented left links with part 6's 2" x 2" Wood Side #1. Also, connect its 2" x 2" Wood Side #3 oriented top links with part 18's 1" x 4" Wood Side #2. Also, attach its 2" x 2" Wood End #2 facing right to part 1's 2" x 2" Wood Side #1, then its 2" x 2" Wood Side #1 should be directed bottom. After that, its 2" x 2" Wood Side #2 must be oriented back, plus its 2" x 2" Wood Side #4 needs to point front P10 (2" x 2" Lumber 13" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 12's 2" x 2" Wood Side #1. Additionally, connect its 2" x 2" Wood Side #3 oriented top links with part 18's 1" x 4" Wood Side #2, then connect its 2" x 2" Wood End #2 oriented right links with part 11's 2" x 2" Wood Side #1. After that, its 2" x 2" Wood Side #1 should be directed bottom, plus its 2" x 2" Wood Side #2 needs to point back. After that, its 2" x 2" Wood Side #4 should be directed front P18 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 10's 2" x 2" Wood Side #3. Next, its 1" x 4" Wood End #1 must be oriented back. After that, its 1" x 4" Wood Side #1 should be directed left, and its 1" x 4" Wood Side #3 needs to point right. After that, its 1" x 4" Wood Side #4 should be directed top. Next, its 1" x 4" Wood End #2 needs to point front P23 (1" x 4" Lumber 35" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 10's 2" x 2" Wood Side #3, and its 1" x 4" Wood End #1 needs to point back, plus its 1" x 4" Wood Side #1 needs to point left, and its 1" x 4" Wood Side #3 must be oriented right. Also, its 1" x 4" Wood Side #4 needs to point top, and its 1" x 4" Wood End #2 needs to point front P24 (1" x 4" Lumber 35" length) - attach its 1" x 4" Wood Side #2 facing bottom to part 10's 2" x 2" Wood Side #3, and its 1" x 4" Wood Side #3, which is right-facing, should connect to part 1's 2" x 2" Wood Side #1. Also, ensure its 1" x 4" Wood End #1 faces back. Next, its 1" x 4" Wood Side #1 needs to point left, also ensure its 1" x 4" Wood Side #4 faces top. Additionally, its 1" x 4" Wood End #2 should be directed front

2" x 2" Lumber x 13"x 2

1" x 4" Lumber x 35"x 3
