Aluminum Small Cart - Comprehensive Assembly Plan And Visual Guide

Aluminum Small Cart Free Plan And Visual Guide

A small, mobile utility cart constructed from T-slot aluminum extrusions (80/20 style), featuring four wheels, four vertical posts, a rectangular top and bottom frame, cross-bracing, a solid top panel, and a pull handle. - Aluminum Small CartA small, mobile cart constructed from aluminum T-slot rails, featuring a cubic frame, four wheels, a top acrylic panel, and a pull handle. - Aluminum Small Cart

Phase 1: Group Overview

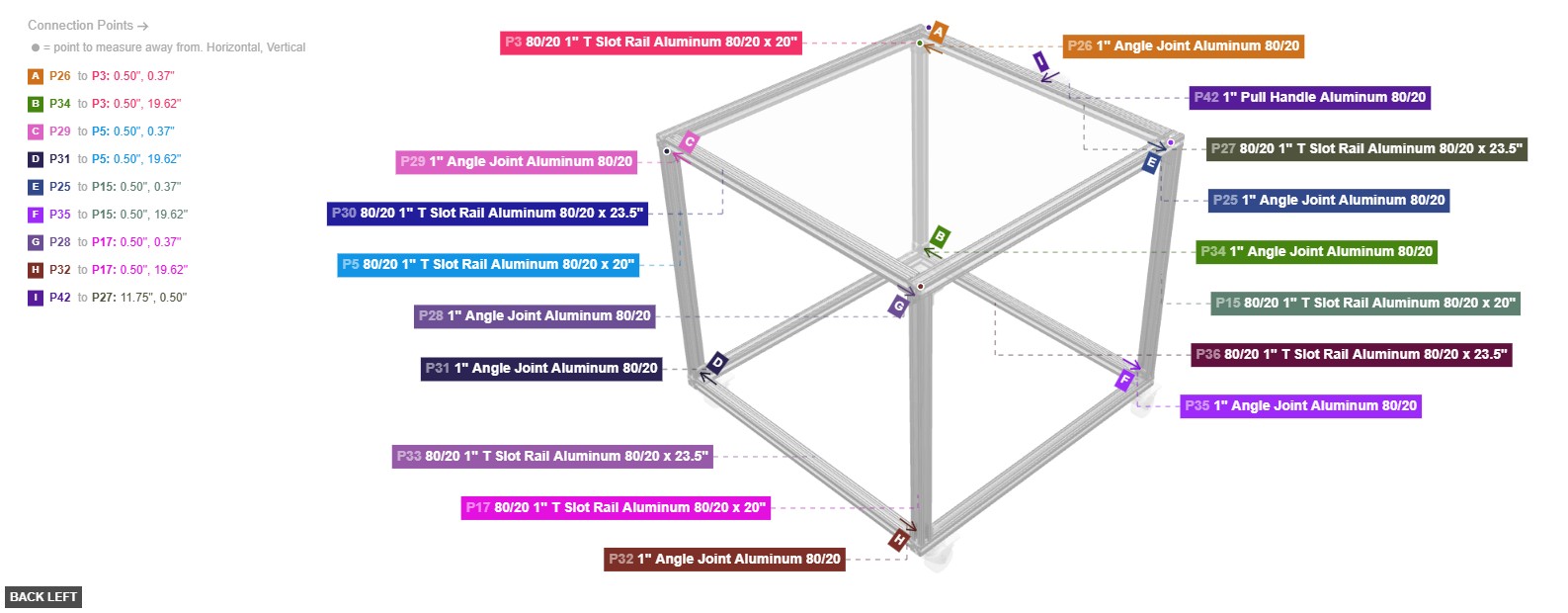

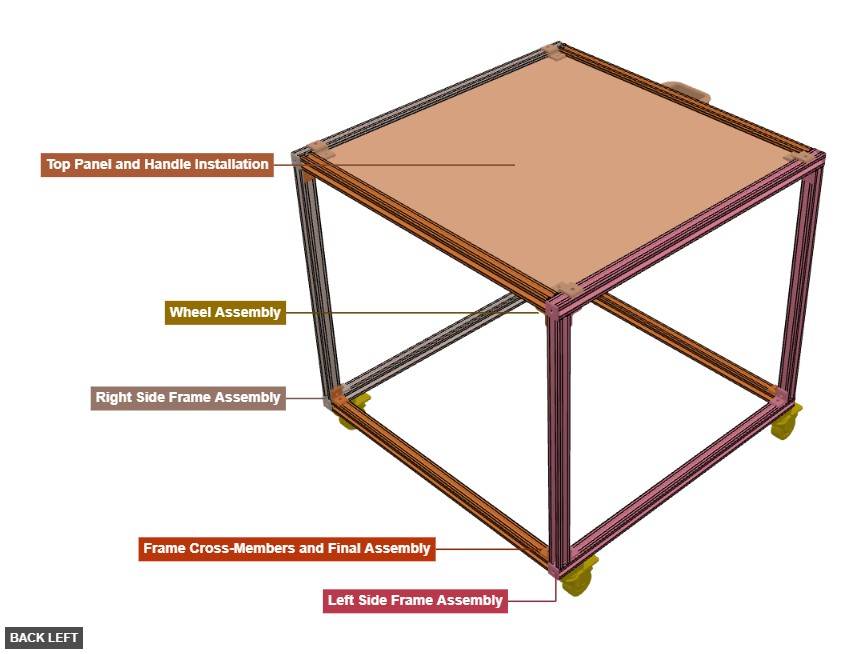

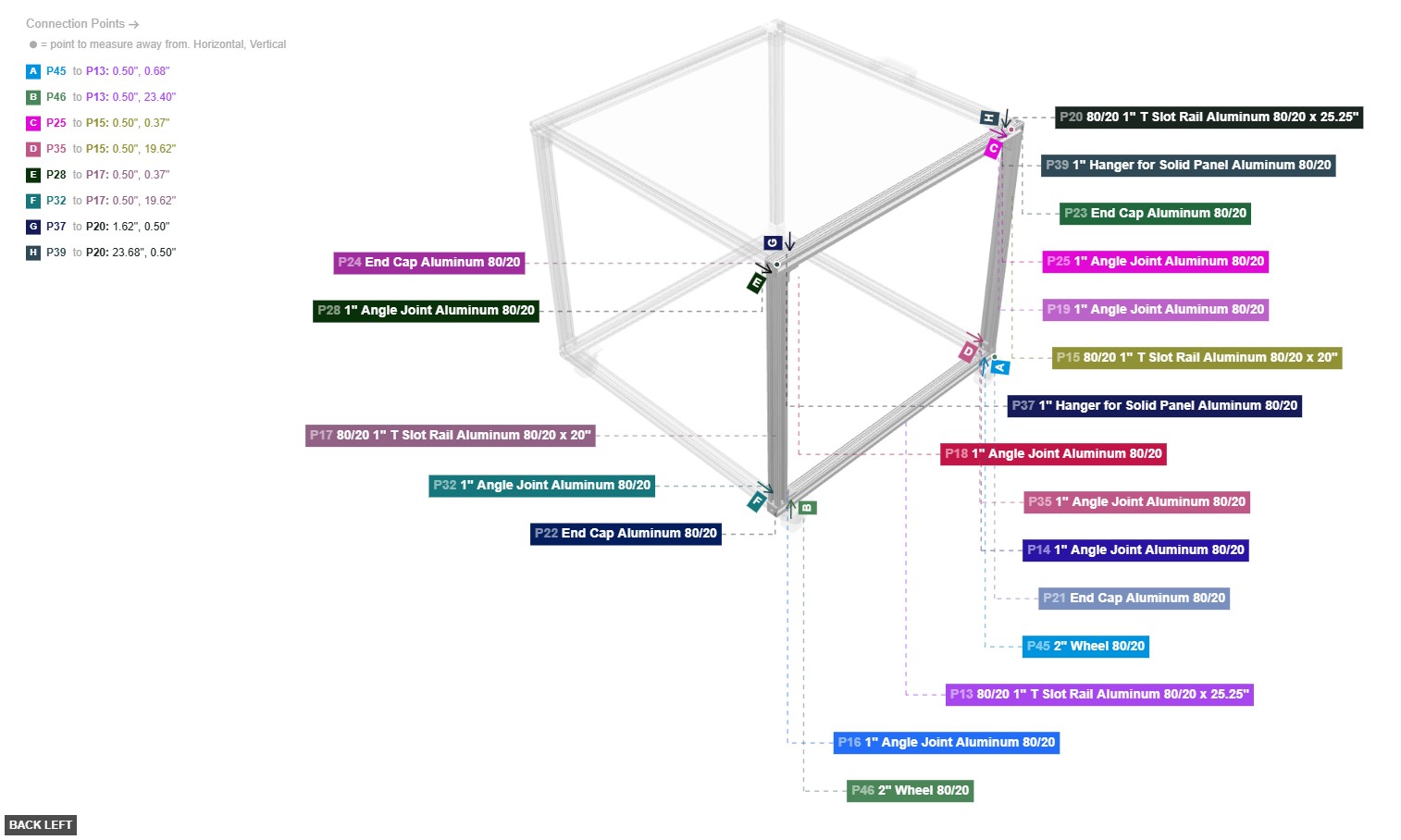

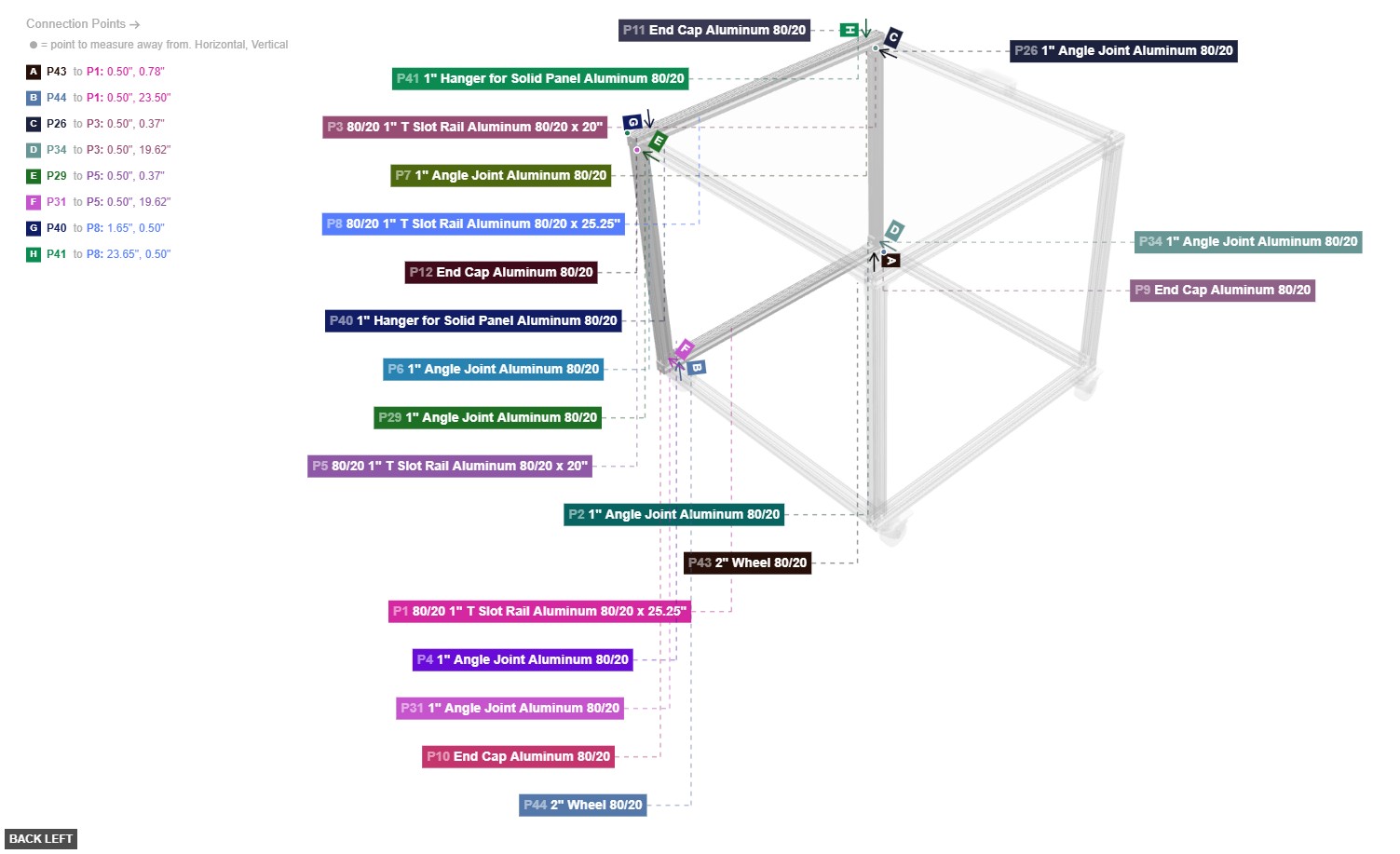

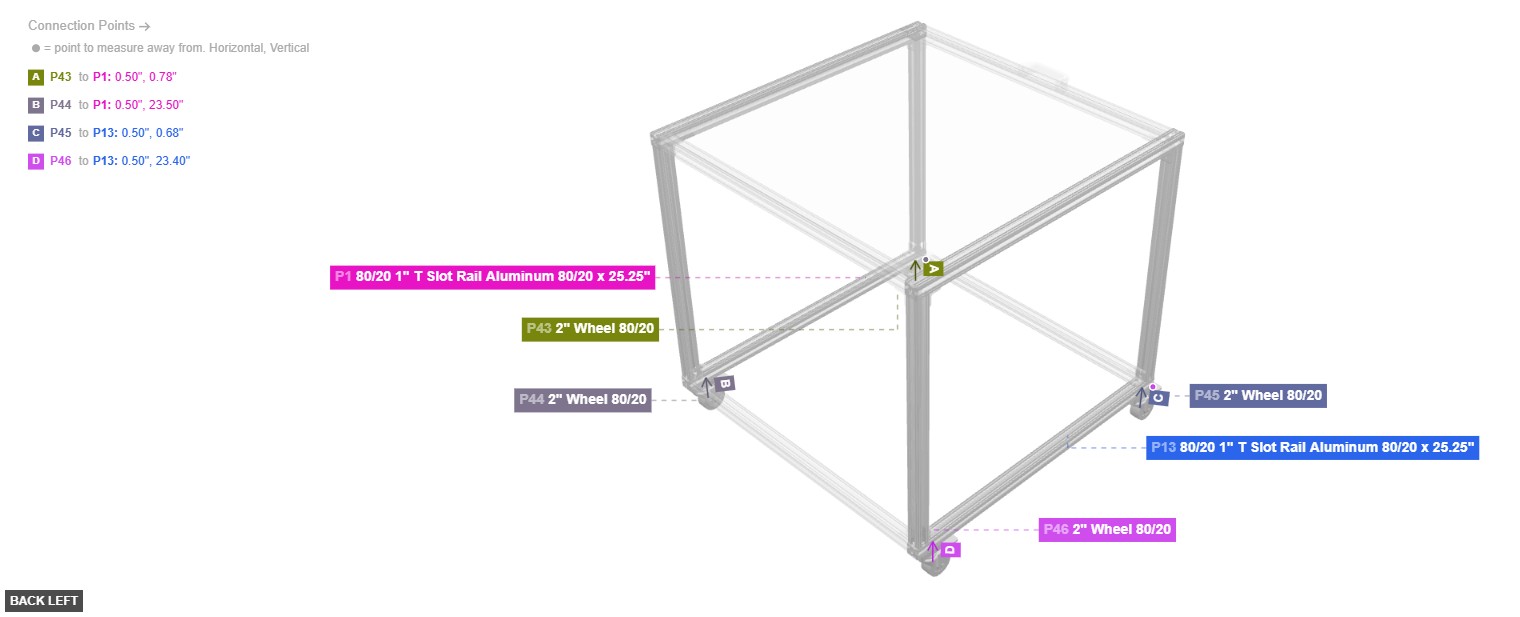

Angle: back left

Aluminum Small Cart - Overview back_left

Right Side Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

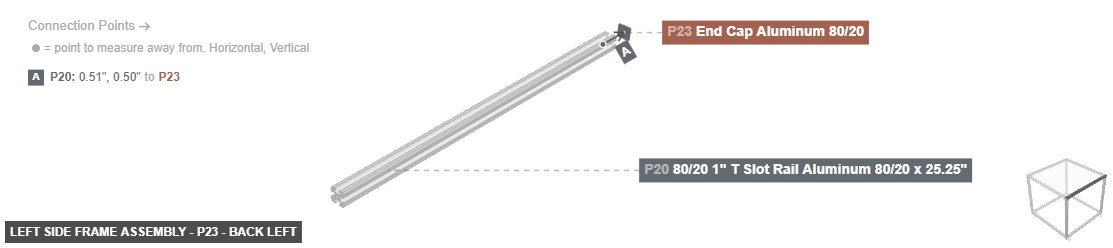

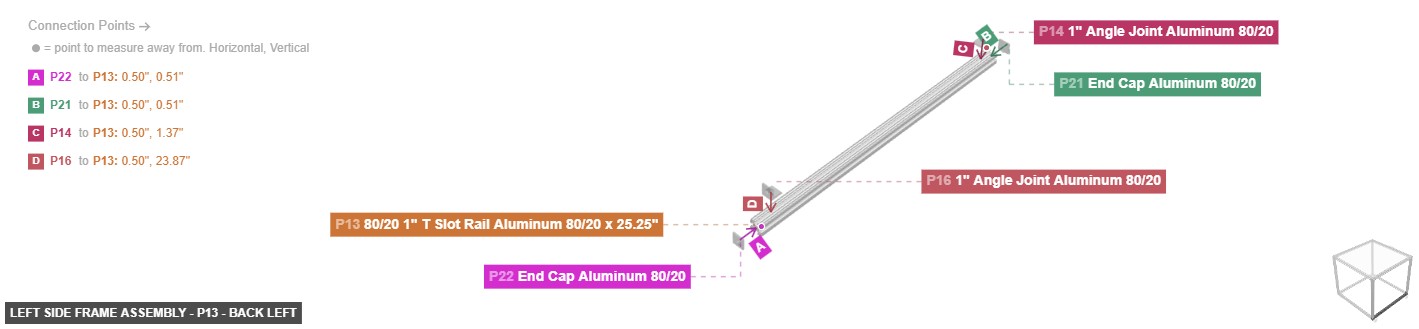

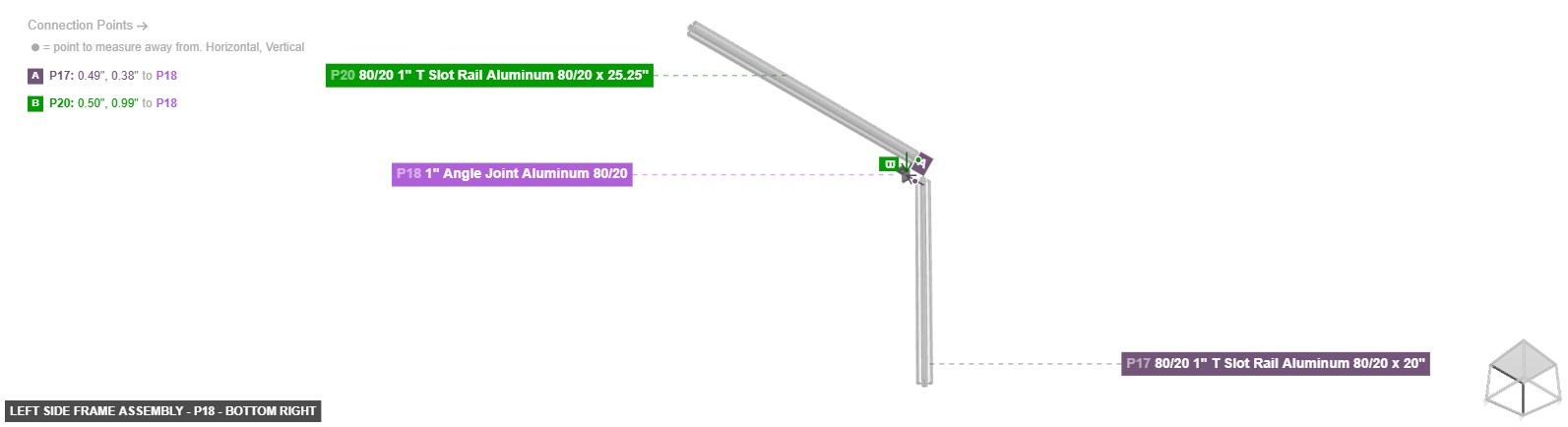

Left Side Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Frame Cross-Members and Final Assembly

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

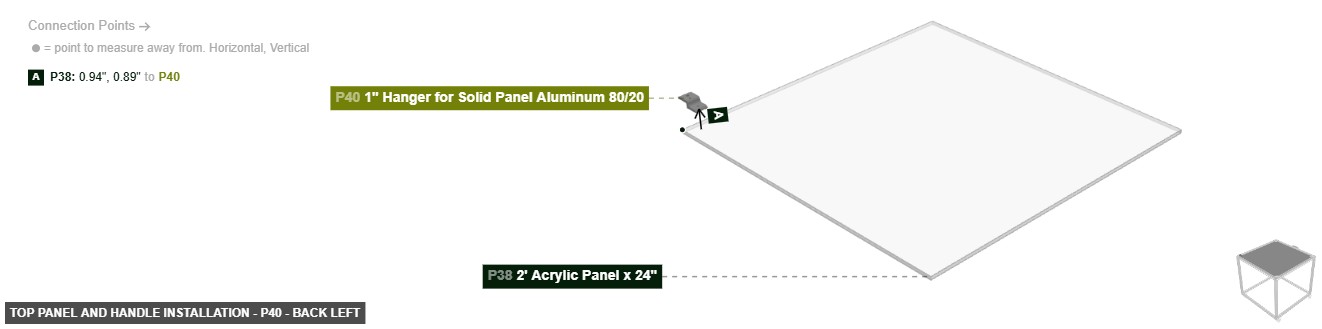

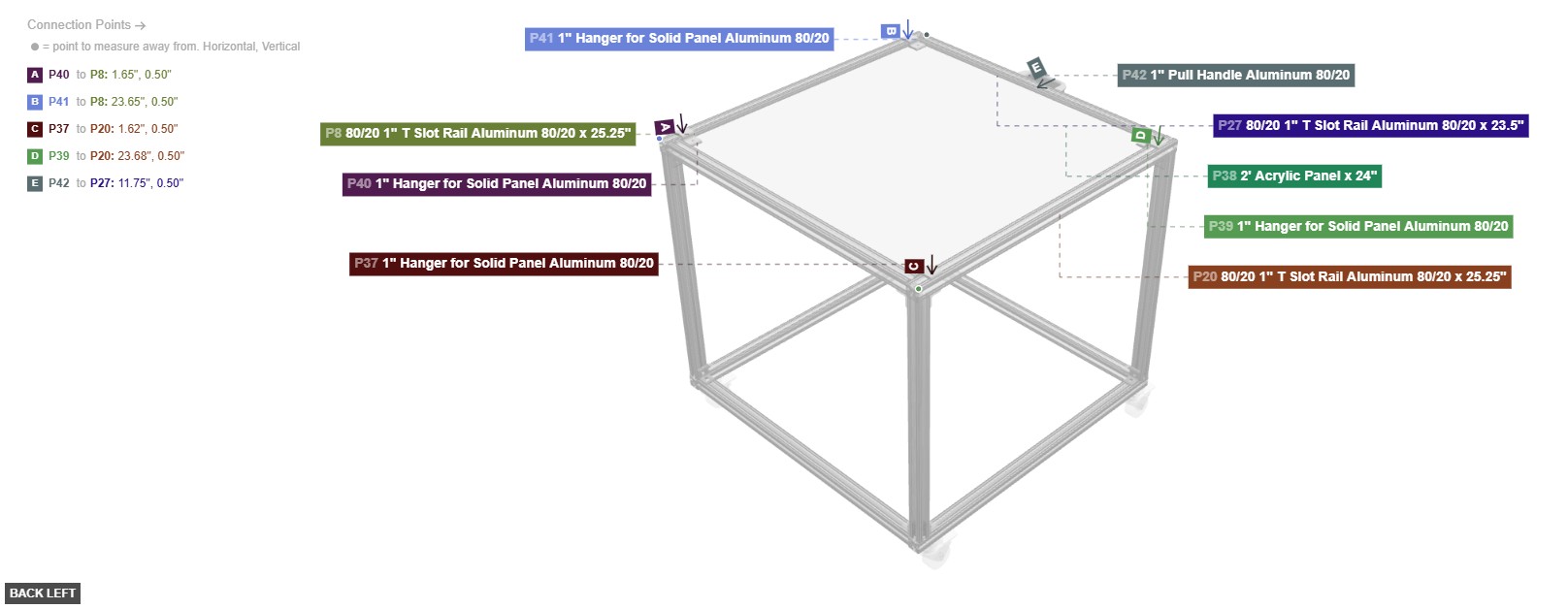

Top Panel and Handle Installation

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Wheel Assembly

2" Wheel 80/20x 4

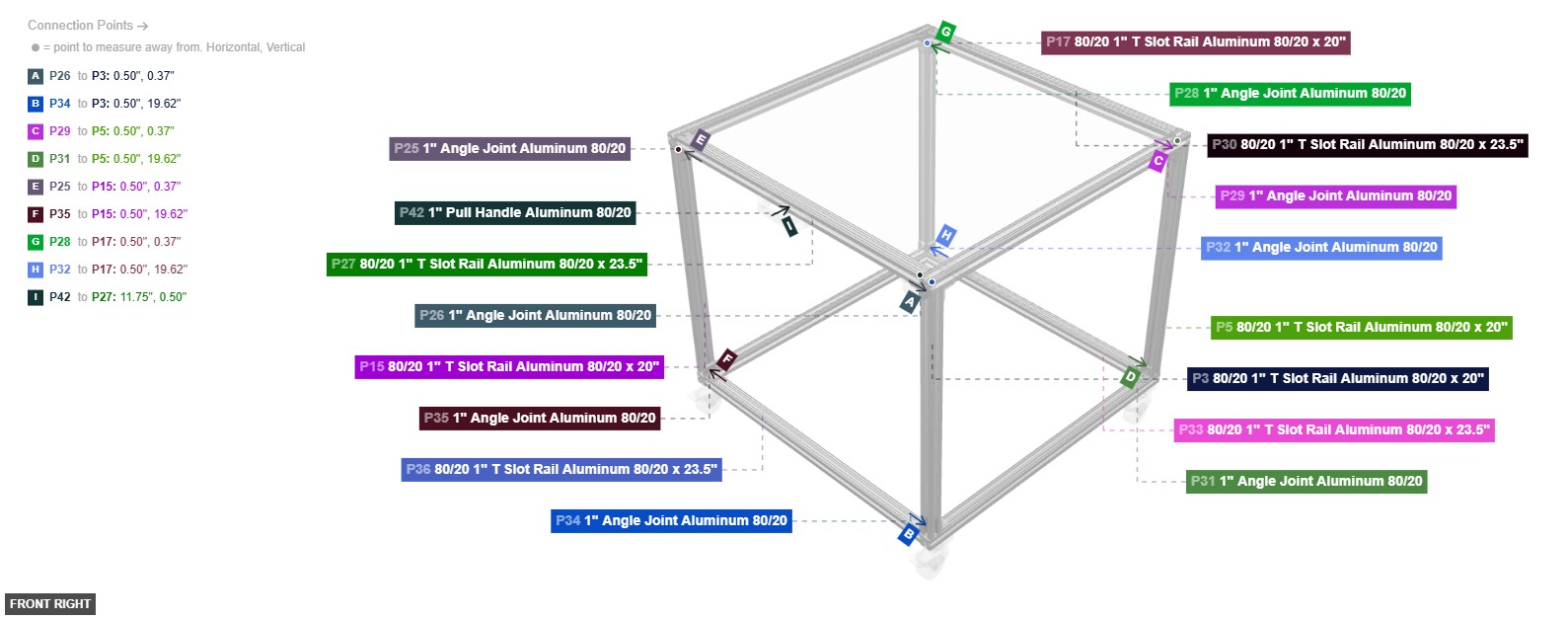

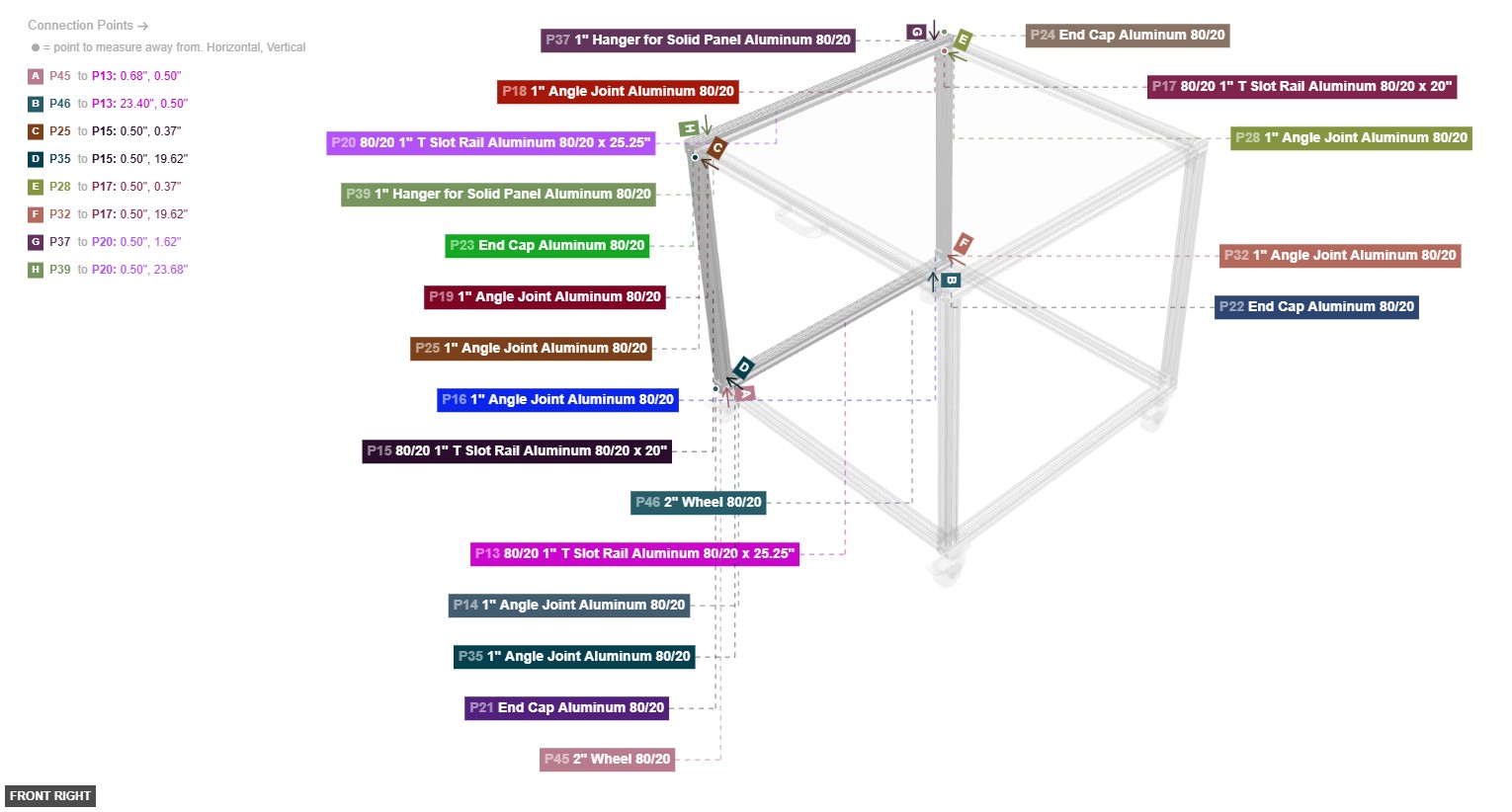

Angle: front right

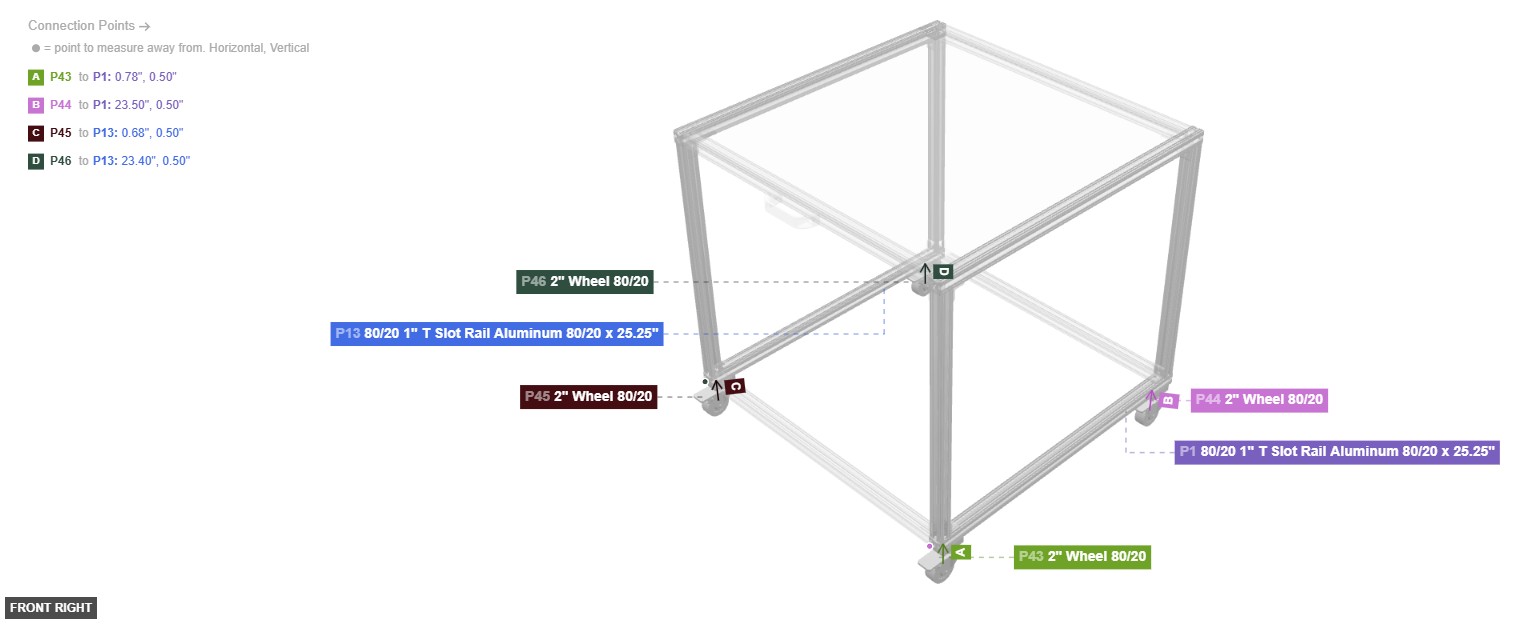

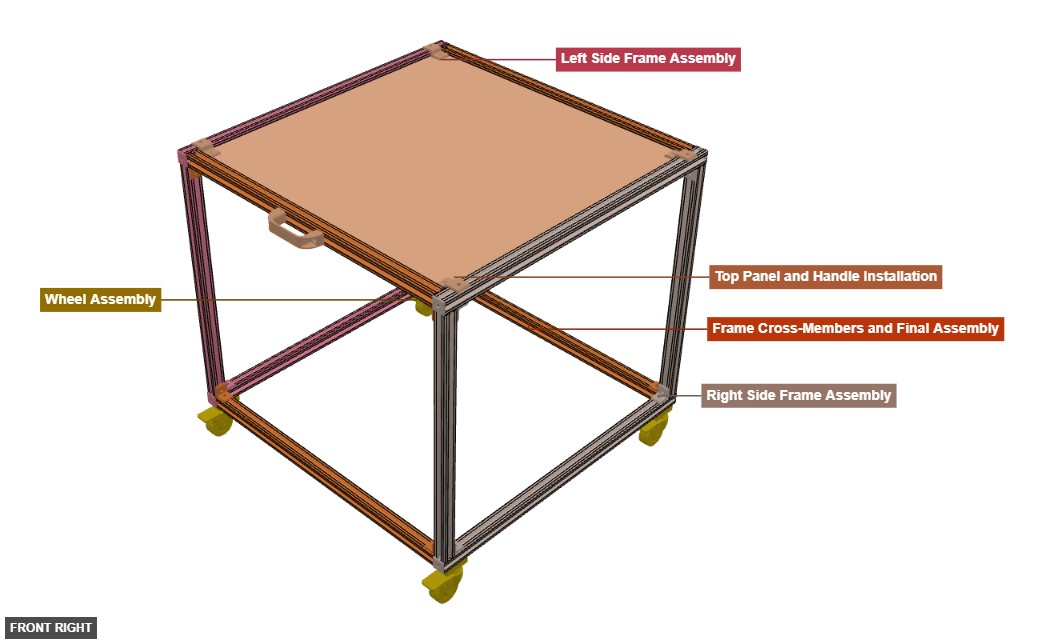

Aluminum Small Cart - Overview front_right

Right Side Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Left Side Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Frame Cross-Members and Final Assembly

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Top Panel and Handle Installation

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Wheel Assembly

2" Wheel 80/20x 4

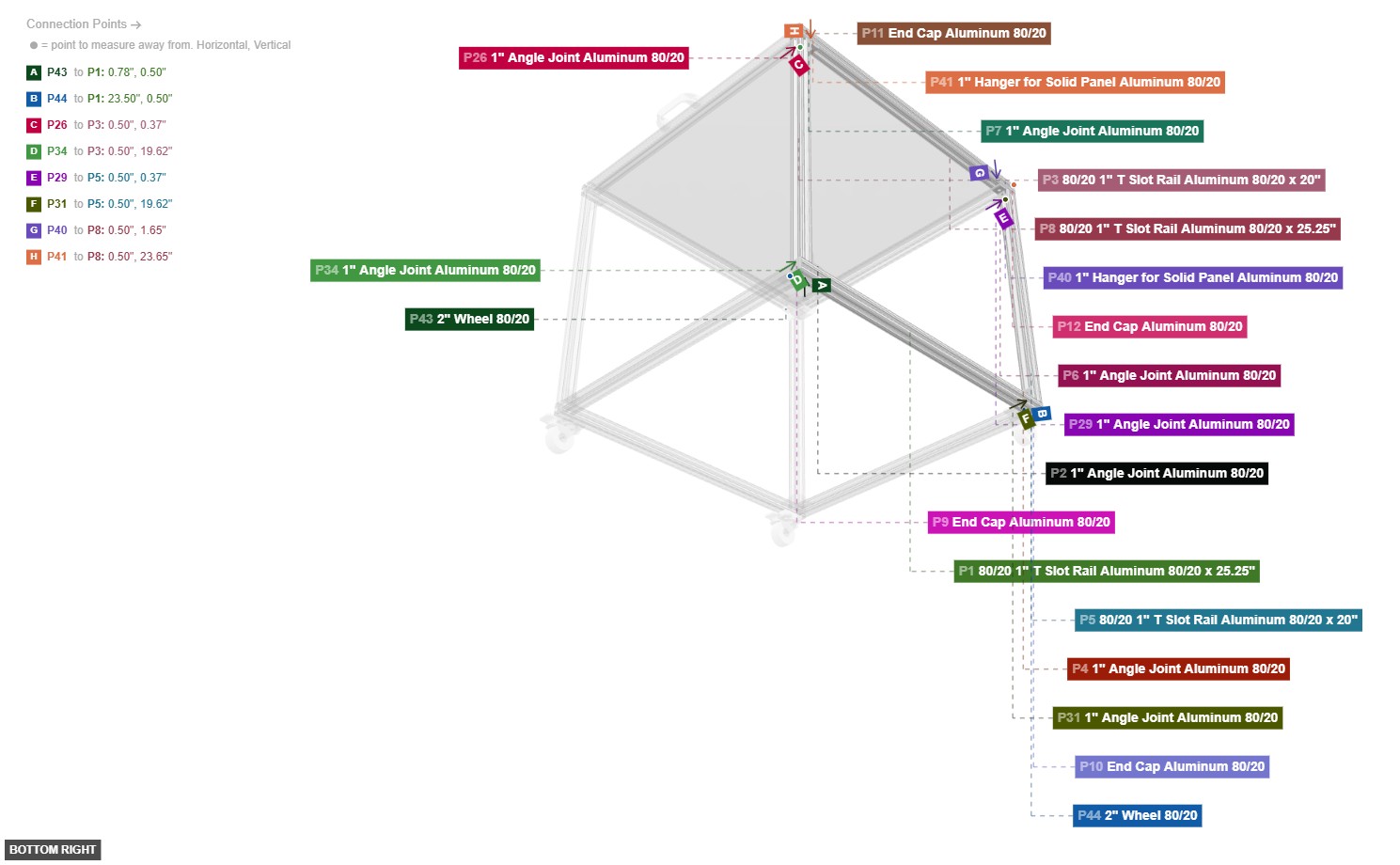

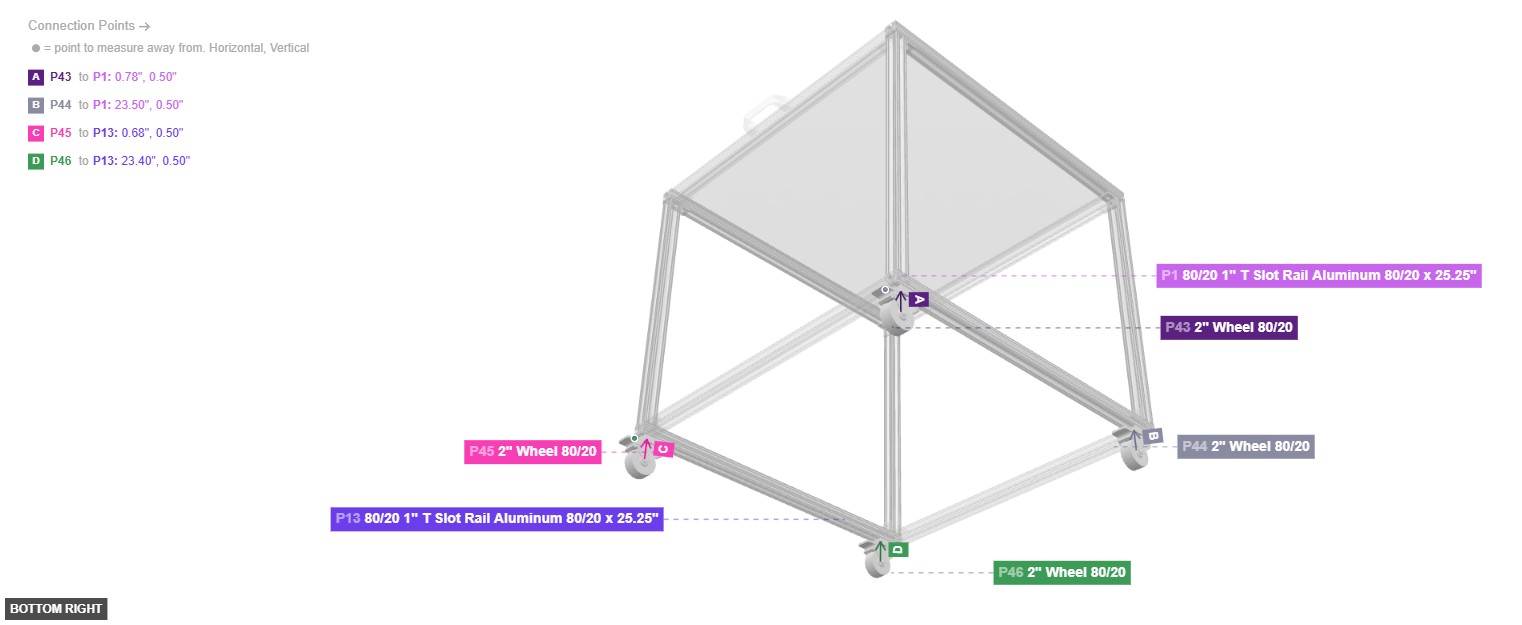

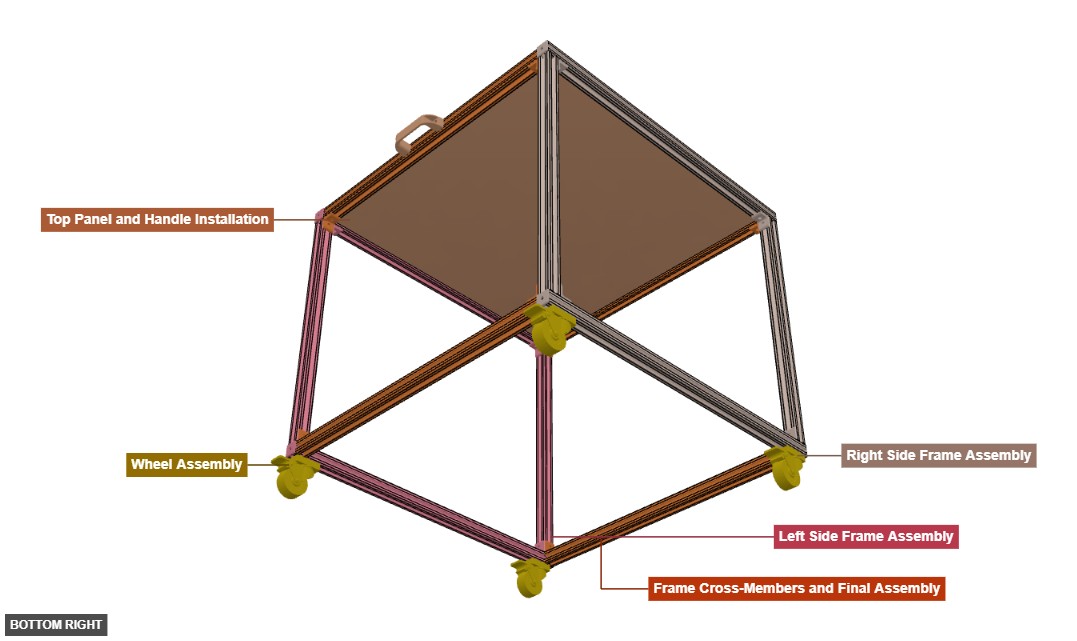

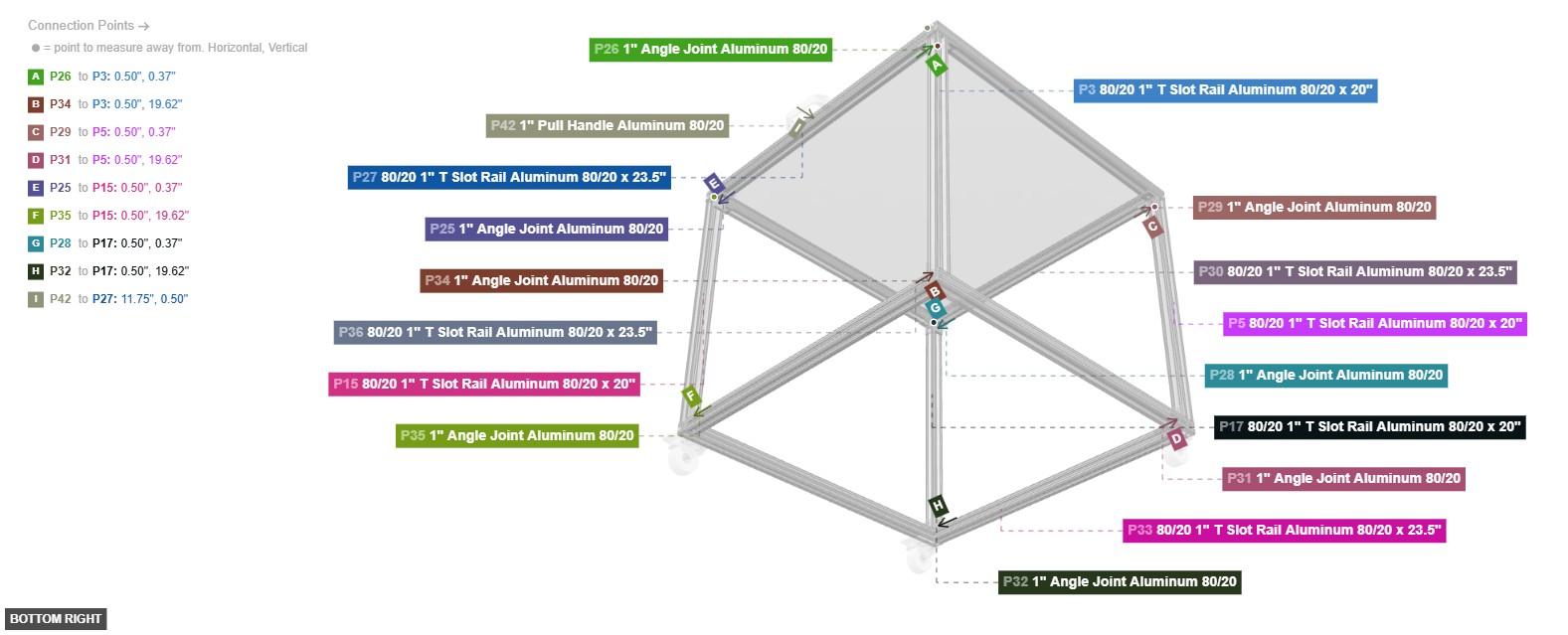

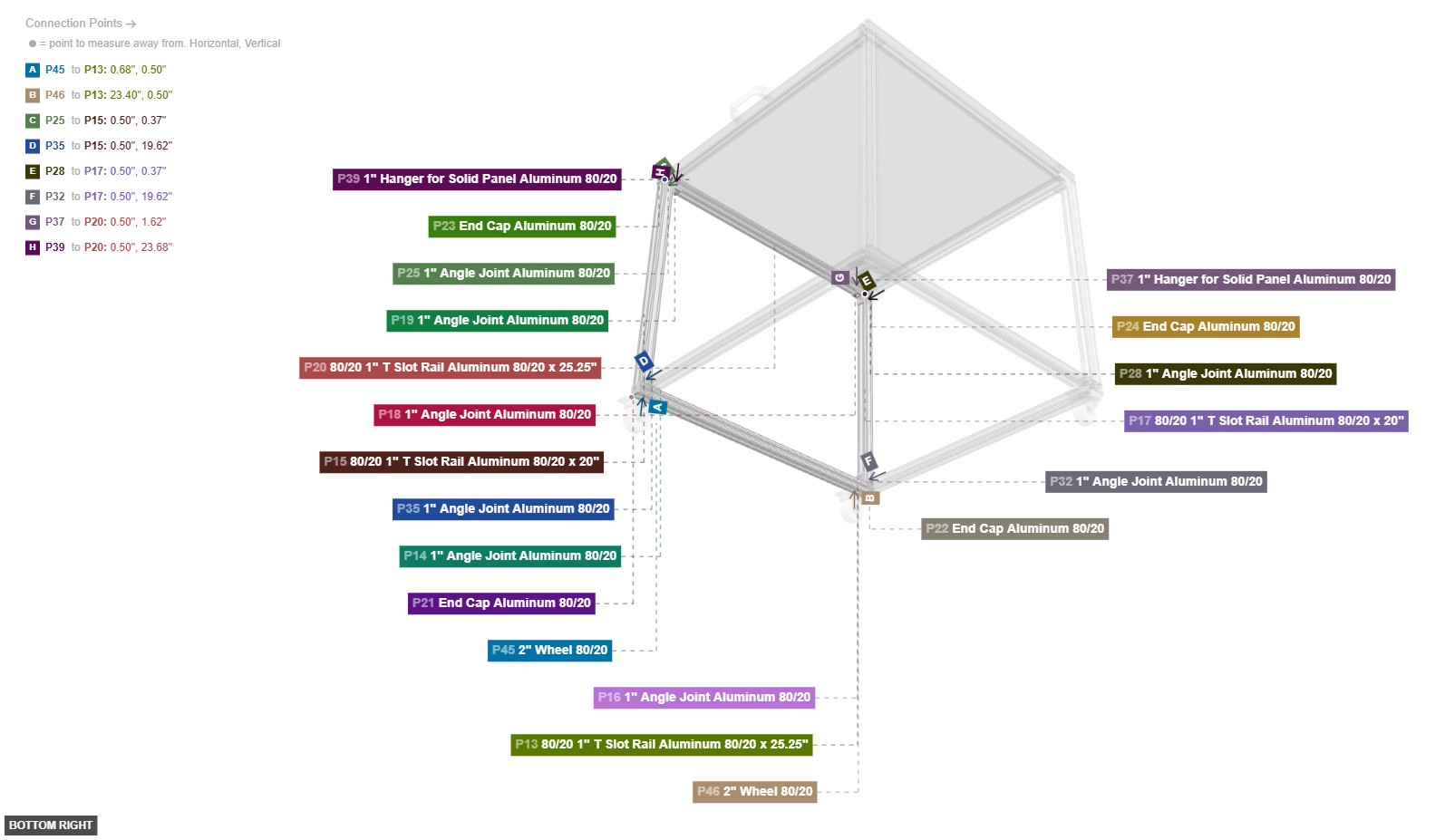

Angle: bottom right

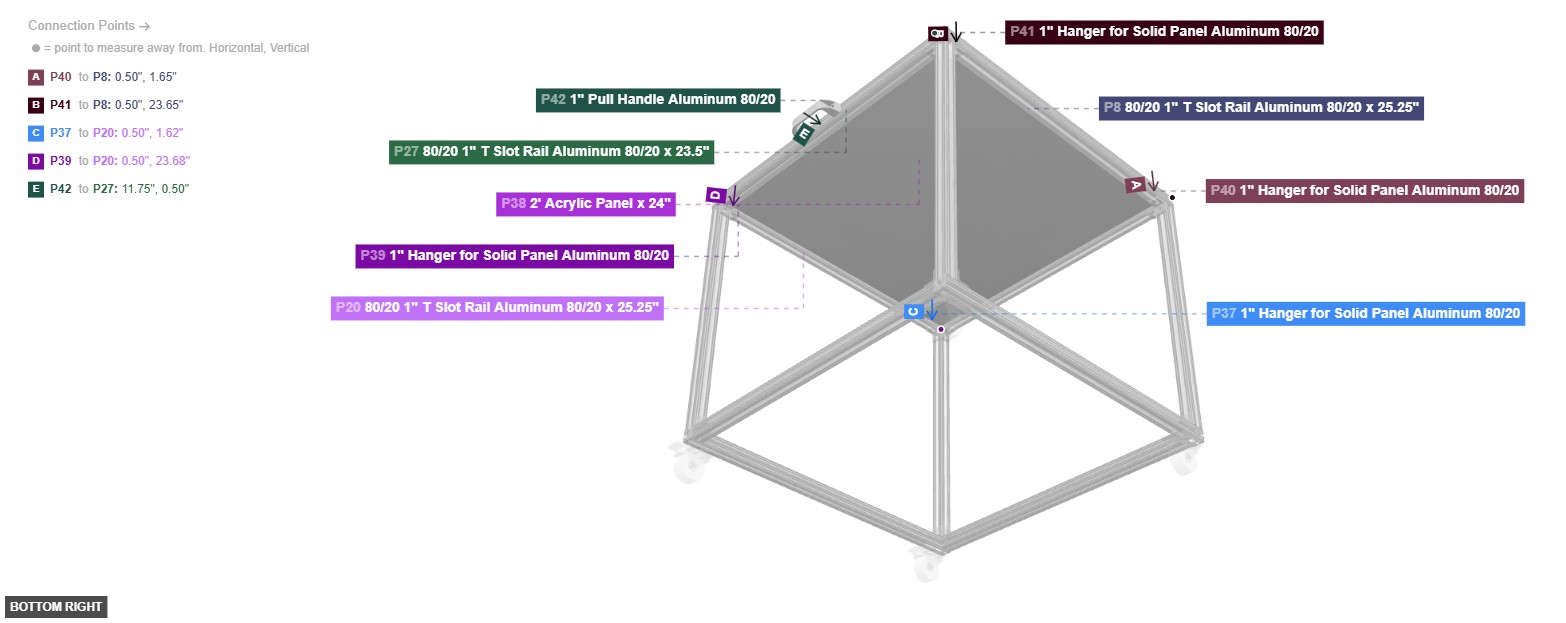

Aluminum Small Cart - Overview bottom_right

Right Side Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Left Side Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Frame Cross-Members and Final Assembly

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Top Panel and Handle Installation

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Wheel Assembly

2" Wheel 80/20x 4

Phase 2: Individual Group Assembly

Group: Right Side Frame Assembly

Forms the main rectangular frame for the right side of the cart.

First, create the rectangular frame. Connect the front vertical rail (P3) and back vertical rail (P5) to the bottom rail (P1) using angle joints P2 and P4. Then, attach the top rail (P8) to the vertical rails (P3 and P5) using angle joints P7 and P6. Finally, press the end caps (P9, P10, P11, P12) into the open ends of the top and bottom rails (P1 and P8).

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: back left

Right Side Frame Assembly - Part 80/20 1

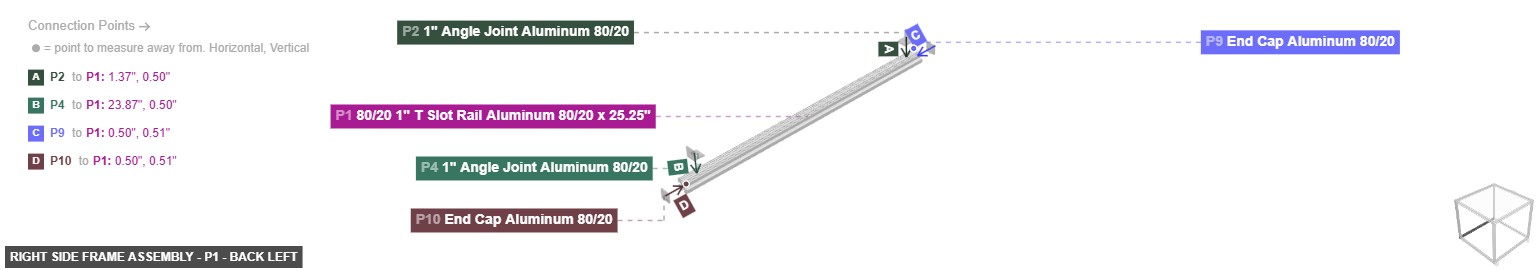

P1 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 9's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #2, which is top-facing, should connect to part 2's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 10's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1 needs to point left. Next, its 1" Rail 80/20 F #3 must be oriented right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

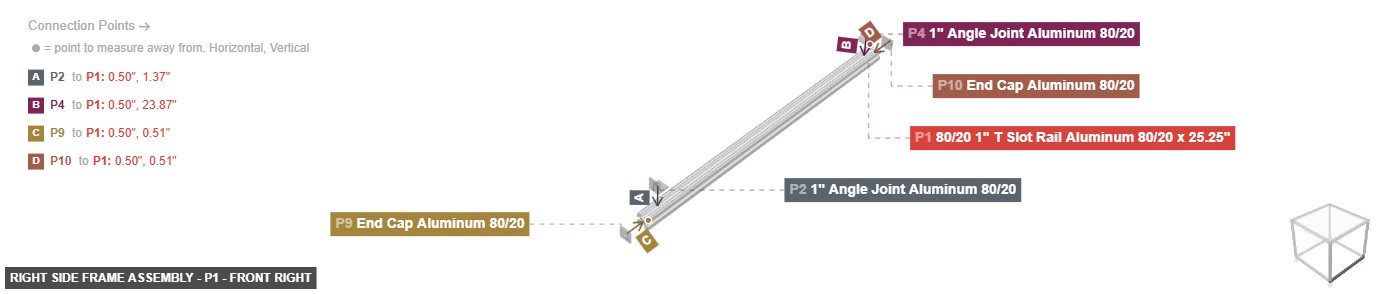

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

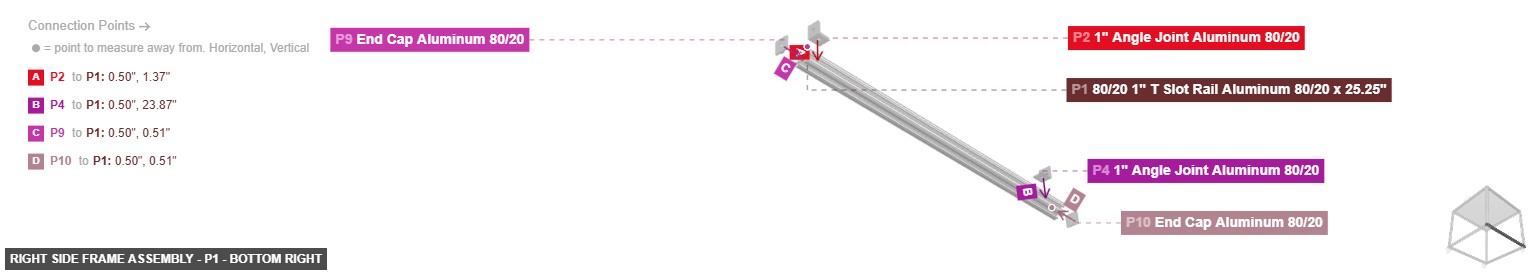

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

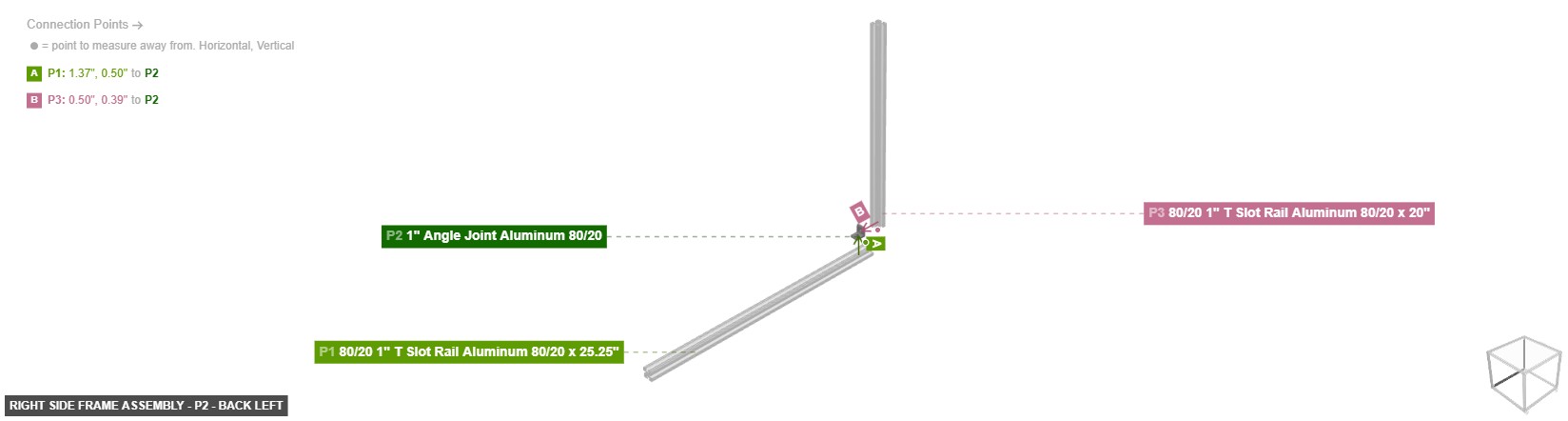

P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 1's 1" Rail 80/20 F #2, and connect its 1" Rail 80/20 M #2 oriented front links with part 3's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

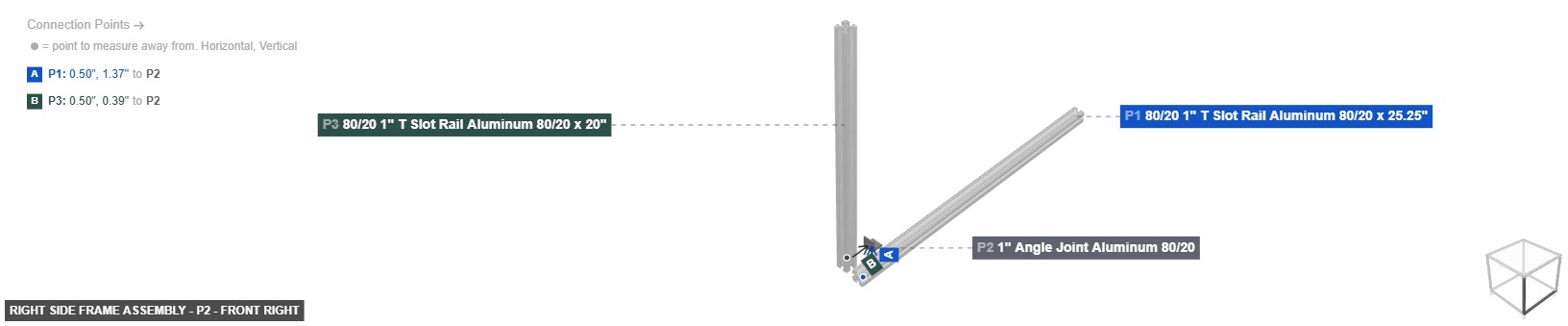

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

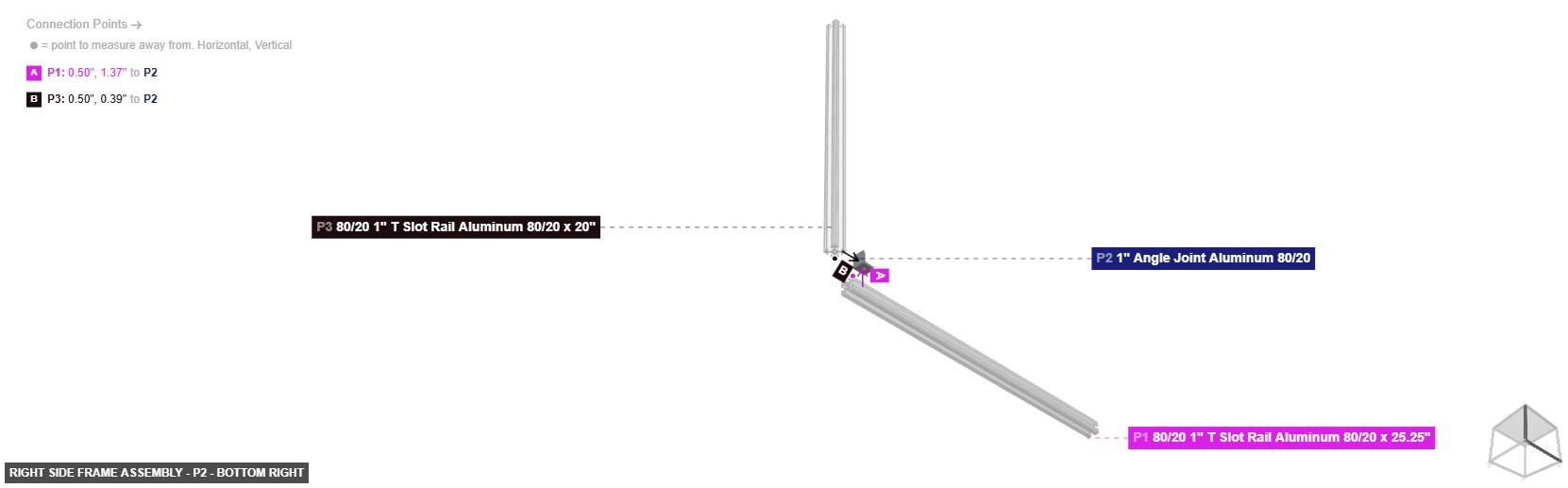

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

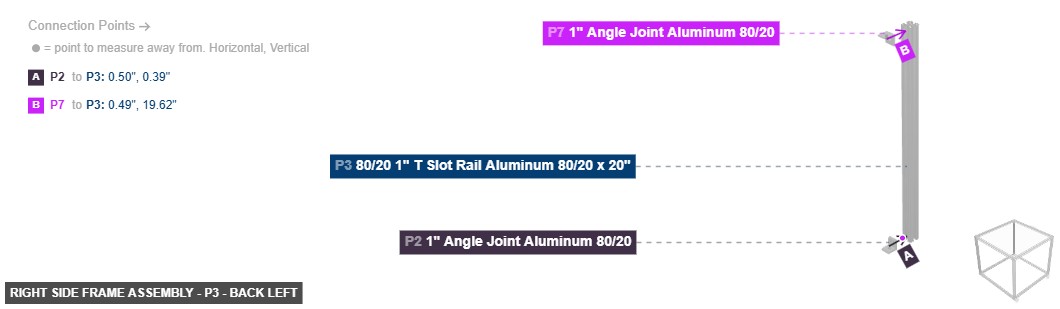

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: back left

P3 (4" 1" T Slot Rail Aluminum 80/20 20" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 2's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 should be directed top, then its 1" Rail 80/20 F #2 needs to point right. After that, its 1" Rail 80/20 F #3 needs to point front, plus ensure its 1" 80/20 End Hole F #2 faces bottom

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

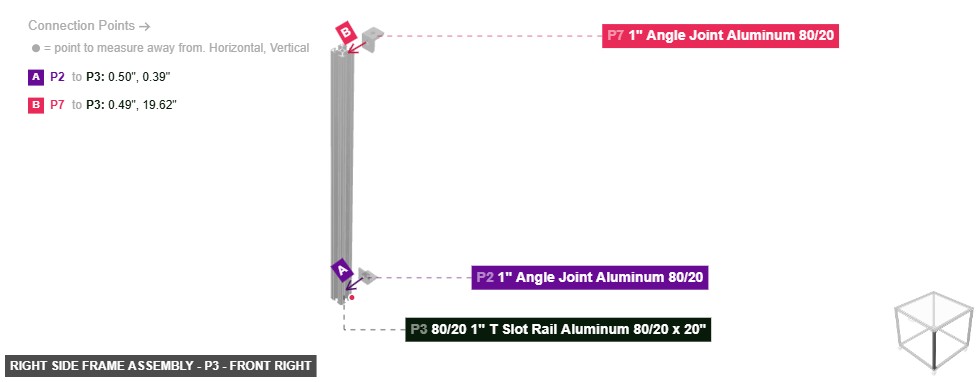

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

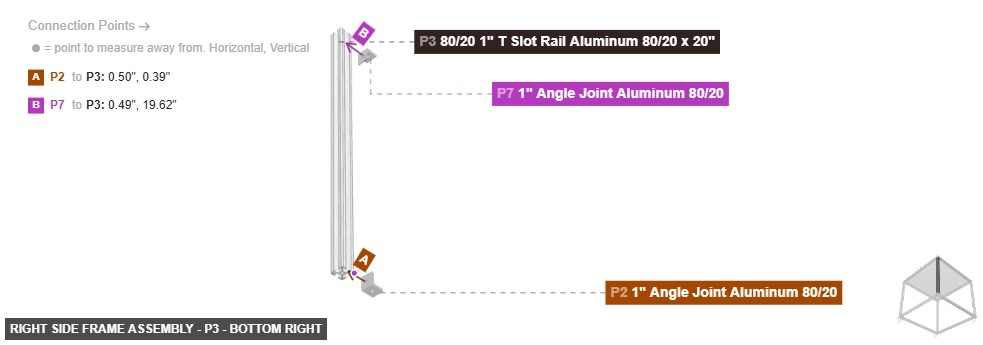

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

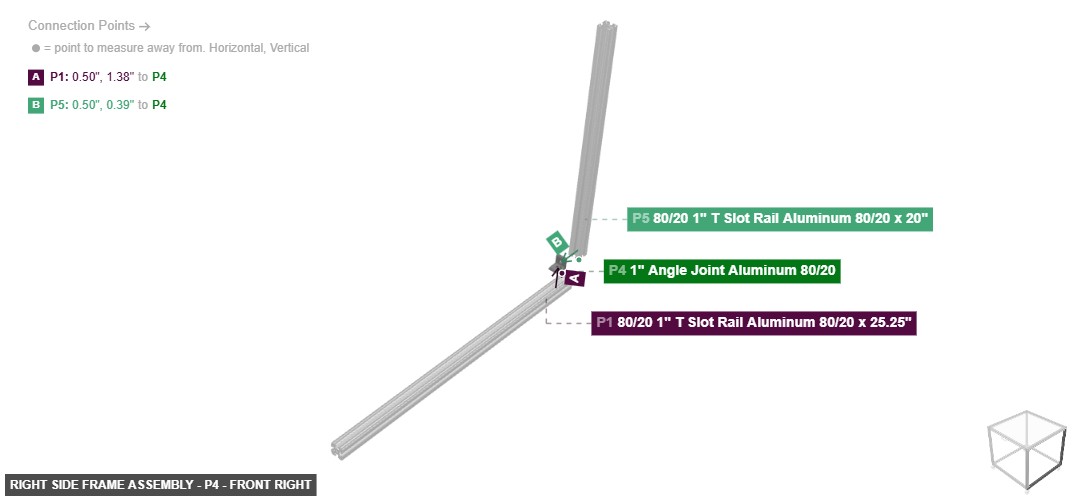

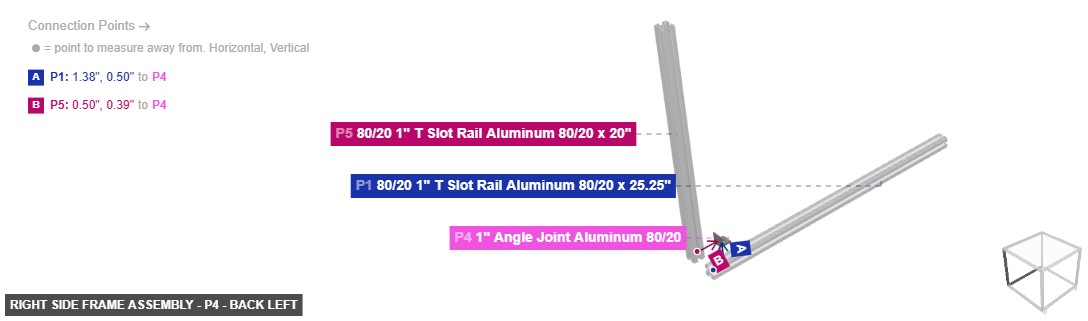

P4 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 1's 1" Rail 80/20 F #2, plus its 1" Rail 80/20 M #2, which is back-facing, should connect to part 5's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

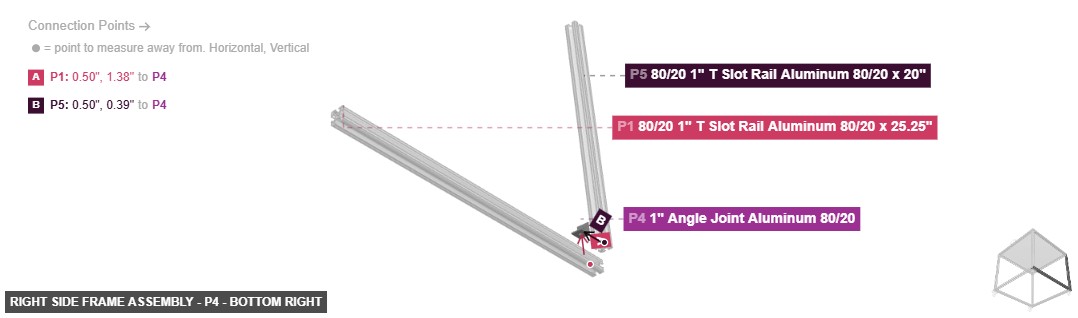

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

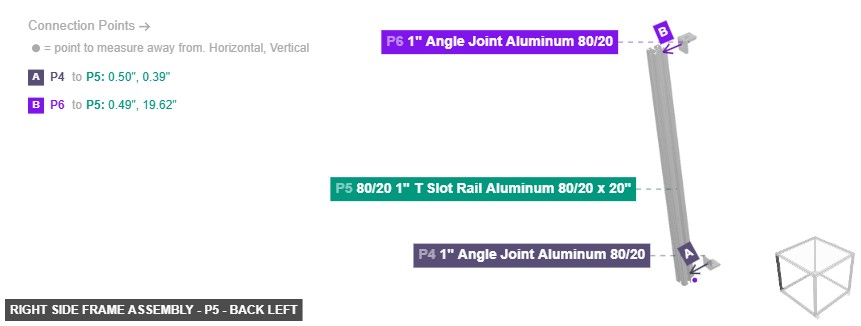

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: back left

P5 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" Rail 80/20 F #1 facing front to part 4's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 needs to point top, then its 1" Rail 80/20 F #3 must be oriented back. After that, ensure its 1" Rail 80/20 F #4 faces right. Next, its 1" 80/20 End Hole F #2 must be oriented bottom

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

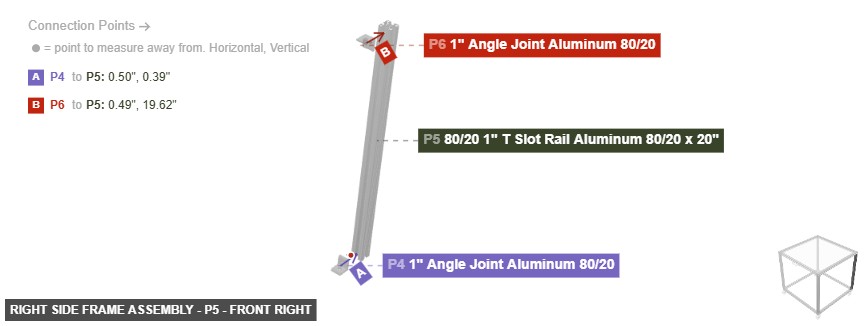

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

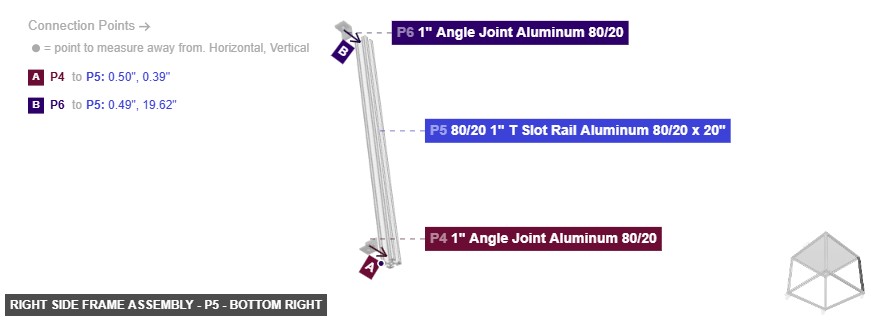

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

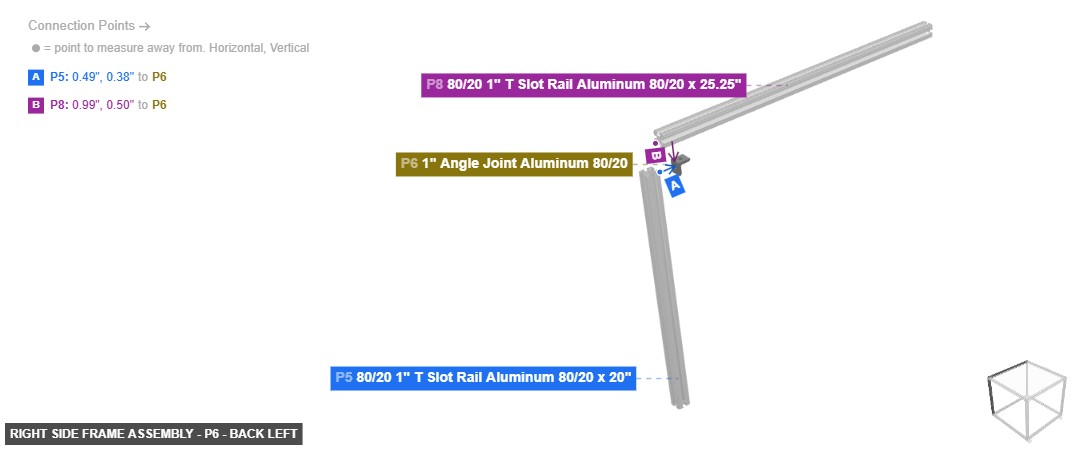

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

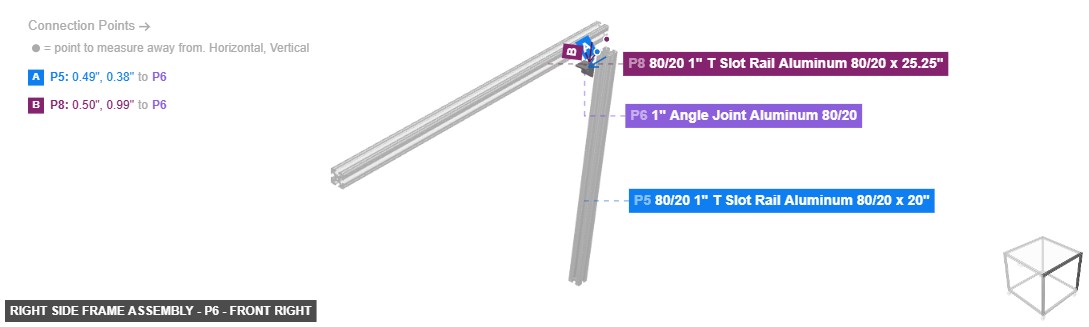

P6 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 5's 1" Rail 80/20 F #1, and connect its 1" Rail 80/20 M #2 oriented top links with part 8's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

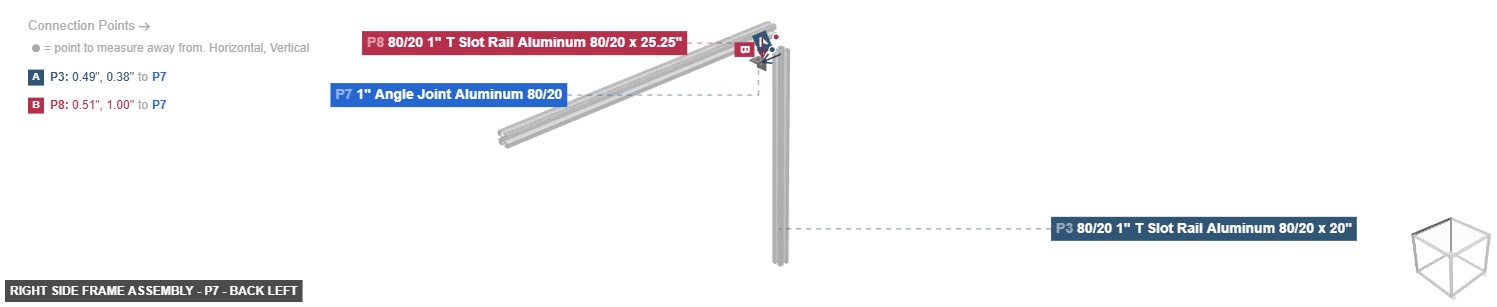

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

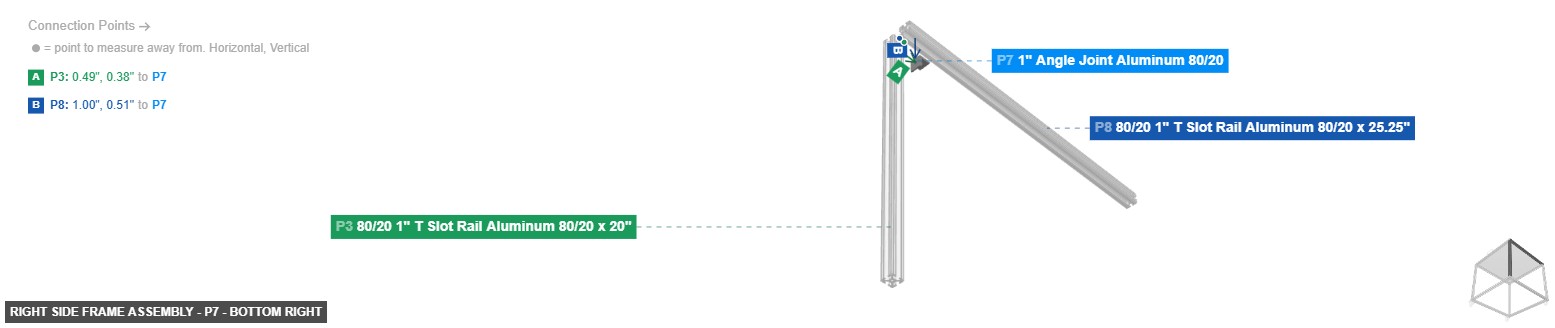

P7 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 3's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 8's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

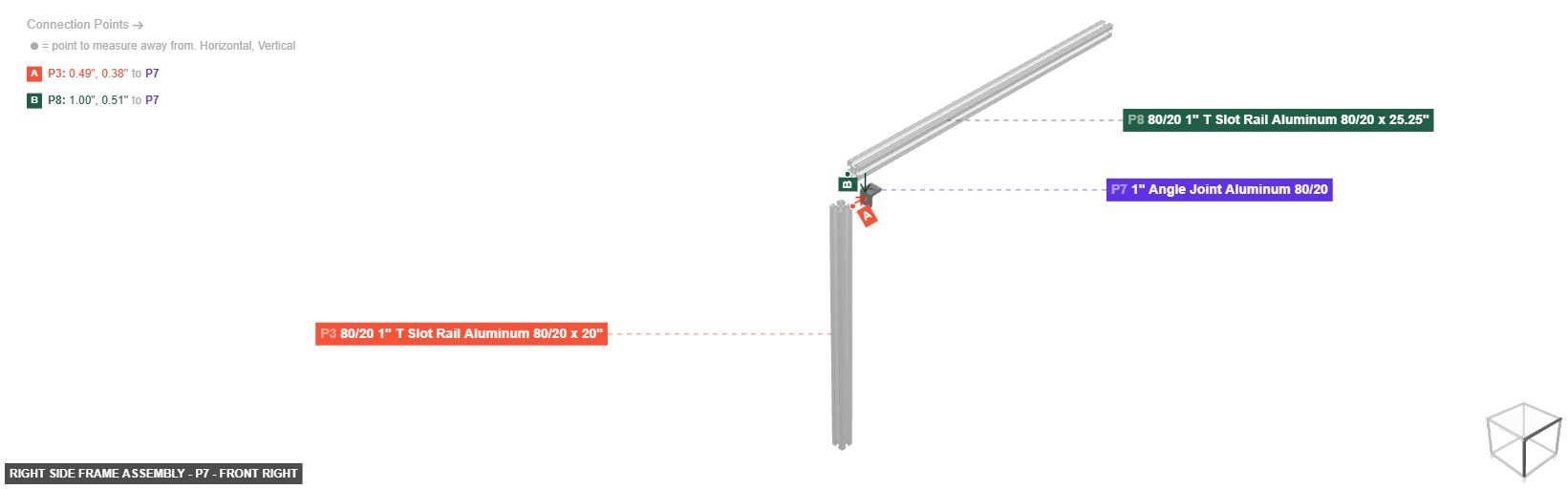

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

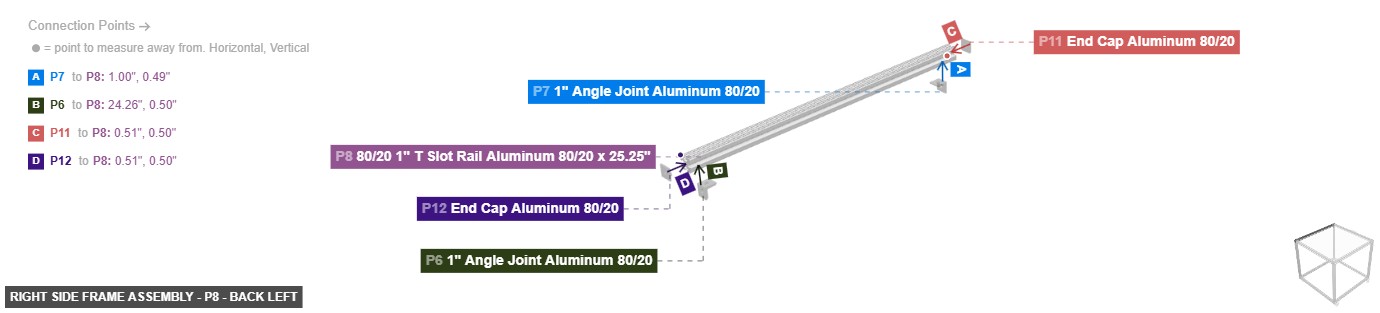

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: back left

P8 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 12's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 7's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #2, which is front-facing, should connect to part 11's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 should be directed right. Next, ensure its 1" Rail 80/20 F #4 faces left

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

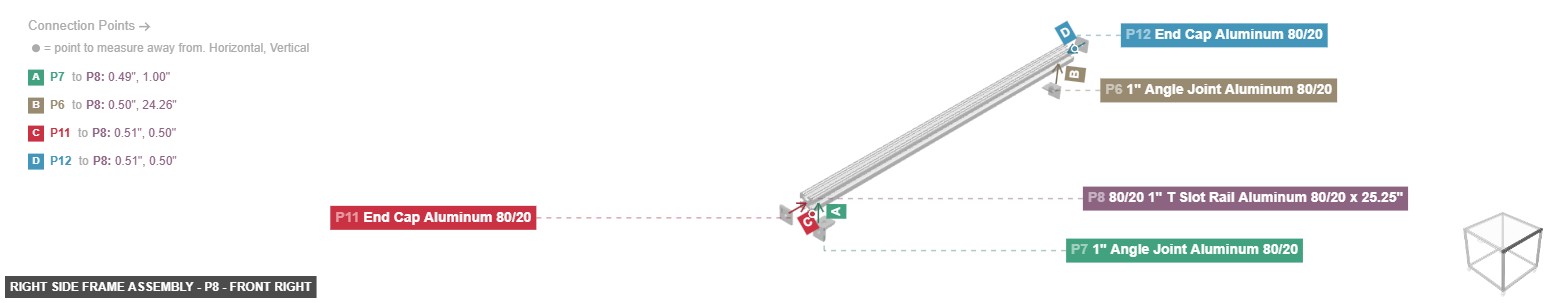

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

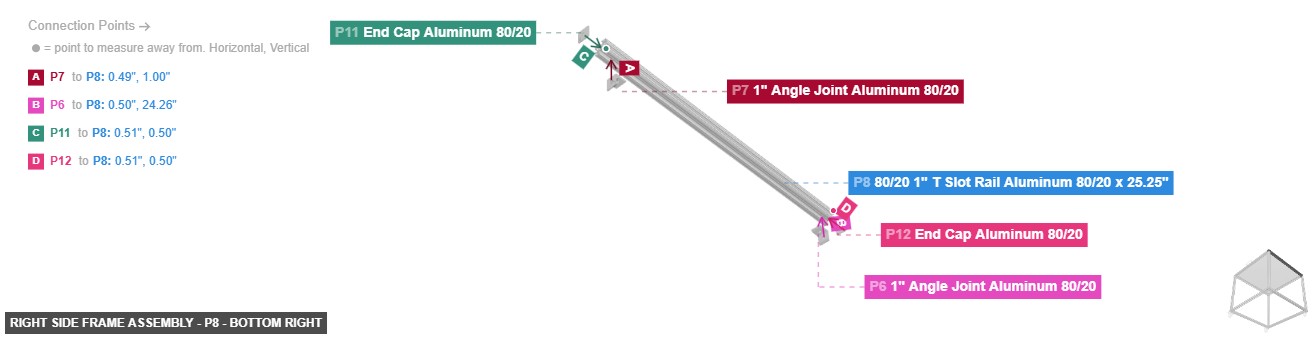

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

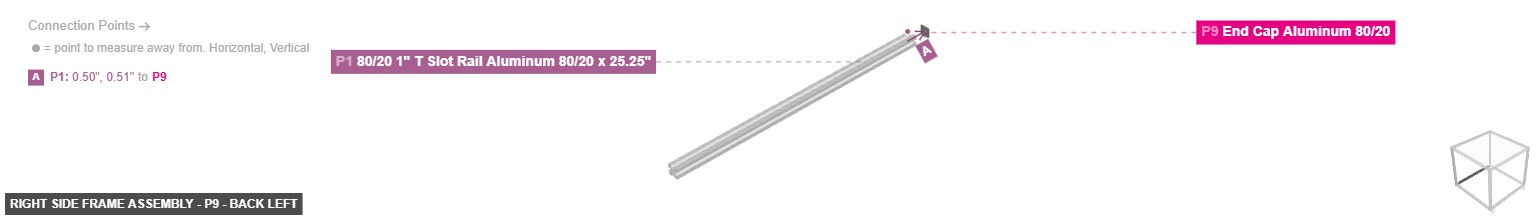

Part: End Cap Aluminum 80/20 - Angle: back left

Right Side Frame Assembly - Part End Cap Aluminum 80/20 - back_left

P9 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 1's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

Right Side Frame Assembly - Part End Cap Aluminum 80/20 - front_right

P9 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 1's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

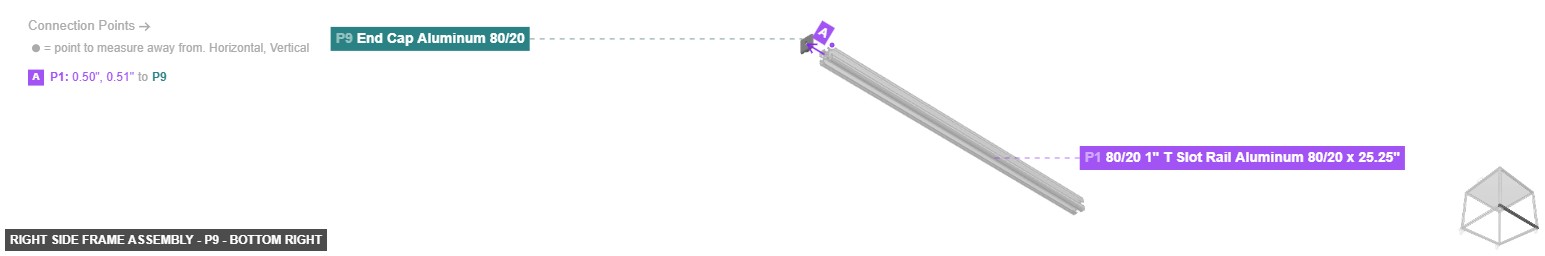

Right Side Frame Assembly - Part End Cap Aluminum 80/20 - bottom_right

P9 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 1's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

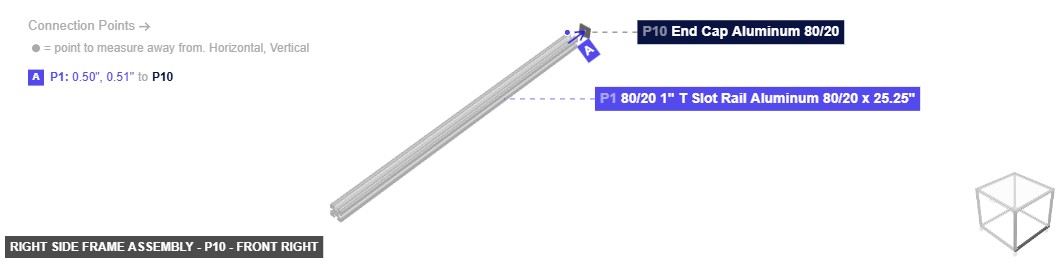

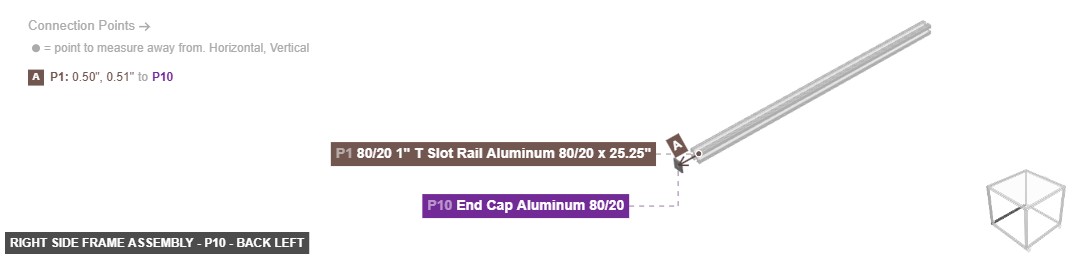

P10 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

P10 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

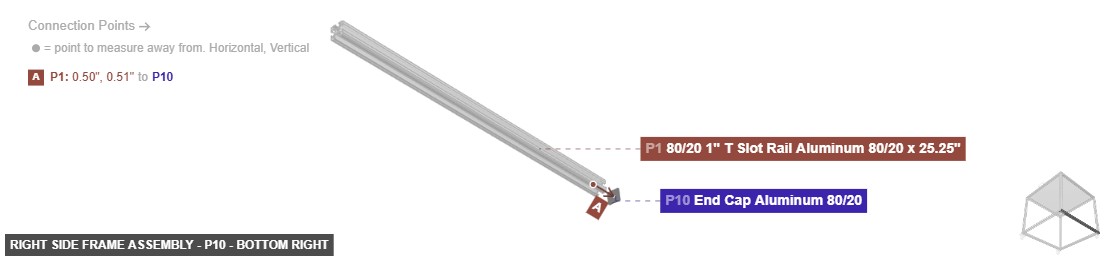

Part: End Cap Aluminum 80/20 - Angle: bottom right

P10 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

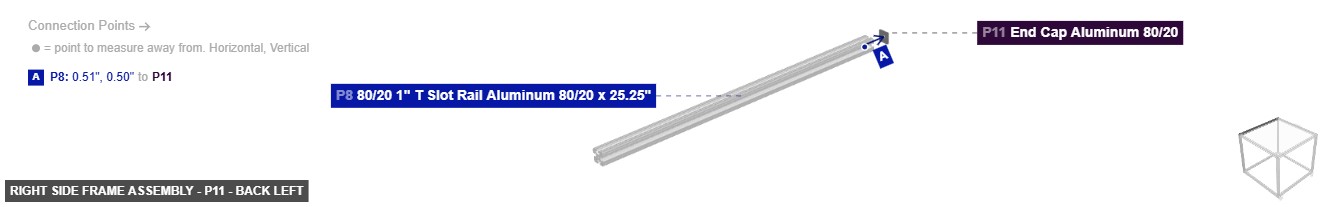

P11 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 8's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

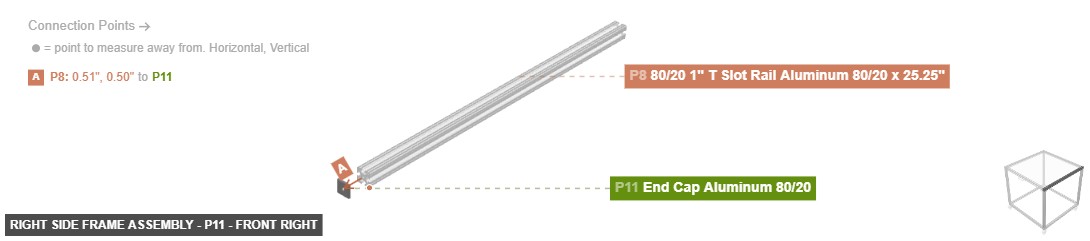

P11 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 8's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

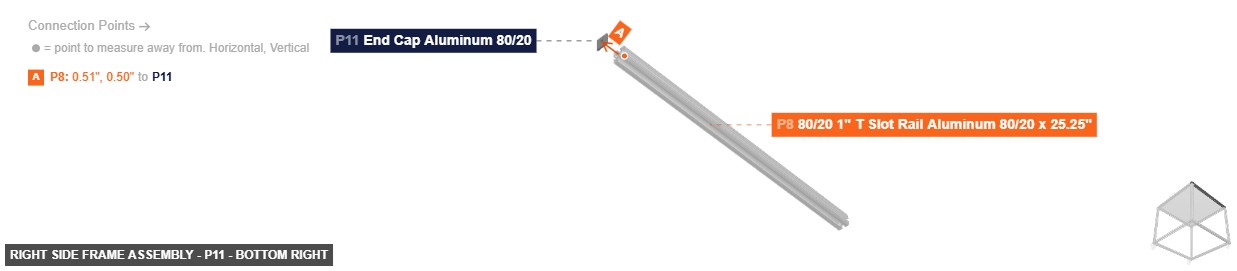

Part: End Cap Aluminum 80/20 - Angle: bottom right

P11 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 8's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

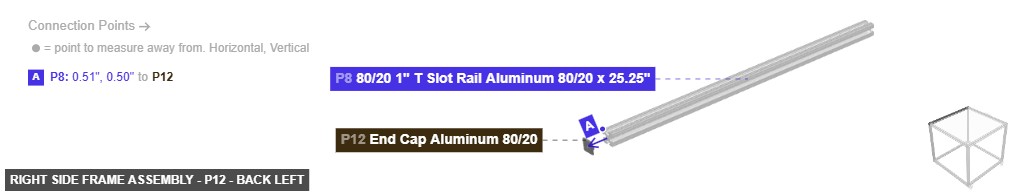

Part: End Cap Aluminum 80/20 - Angle: back left

P12 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 8's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

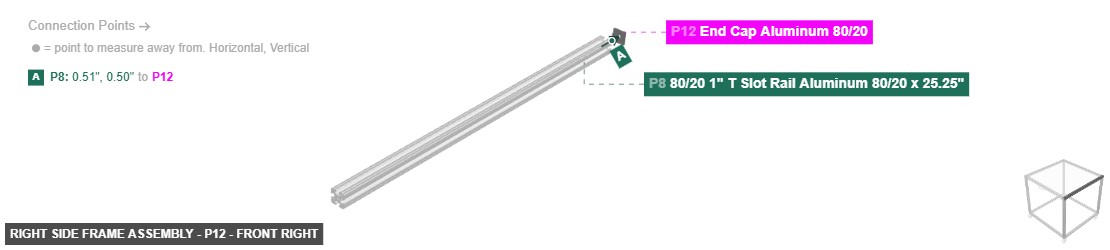

Part: End Cap Aluminum 80/20 - Angle: front right

P12 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 8's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

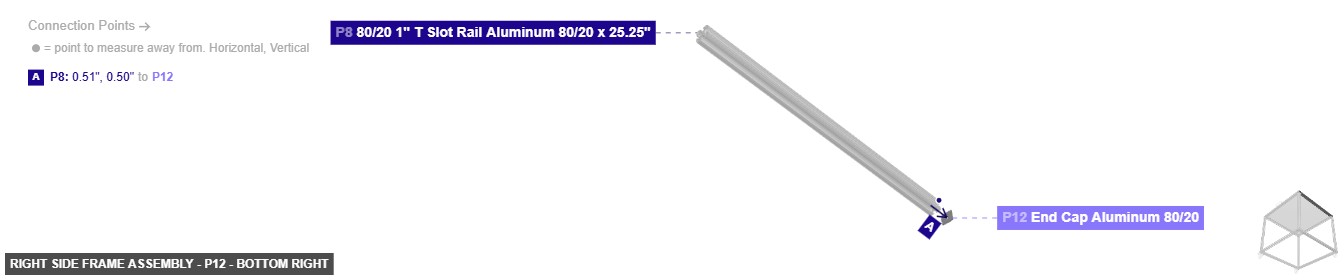

Part: End Cap Aluminum 80/20 - Angle: bottom right

P12 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 8's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Group: Left Side Frame Assembly

Forms the main rectangular frame for the left side of the cart, mirroring the right side.

Create the second rectangular frame. Connect the front vertical rail (P15) and back vertical rail (P17) to the bottom rail (P13) using angle joints P14 and P16. Then, attach the top rail (P20) to the vertical rails (P15 and P17) using angle joints P19 and P18. Finally, press the end caps (P21, P22, P23, P24) into the open ends of the top and bottom rails (P13 and P20).

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: back left

P13 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - attach its 1" 80/20 End Hole F #1 facing front to part 21's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2, which is top-facing, should connect to part 14's 1" Rail 80/20 M #1. Also, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 22's 1" 80/20 End Hole M #1, also ensure its 1" Rail 80/20 F #1 faces left, also its 1" Rail 80/20 F #3 needs to point right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

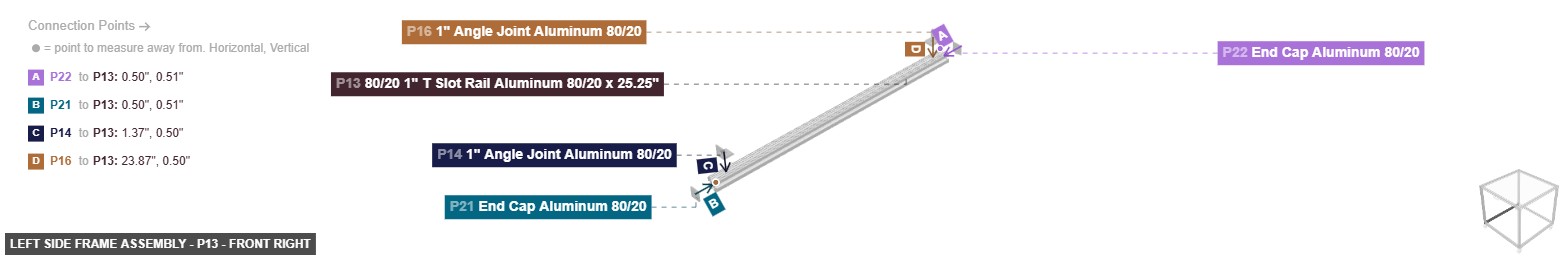

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

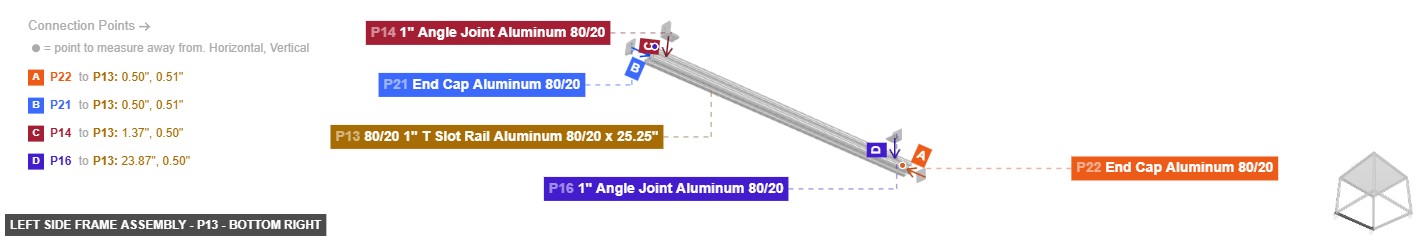

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

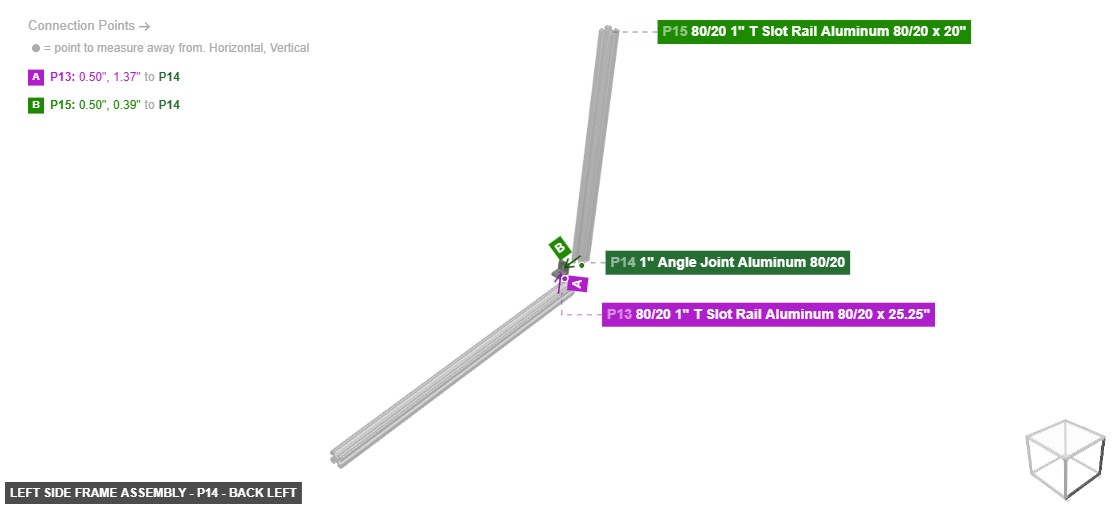

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P14 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 13's 1" Rail 80/20 F #2, also its 1" Rail 80/20 M #2, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

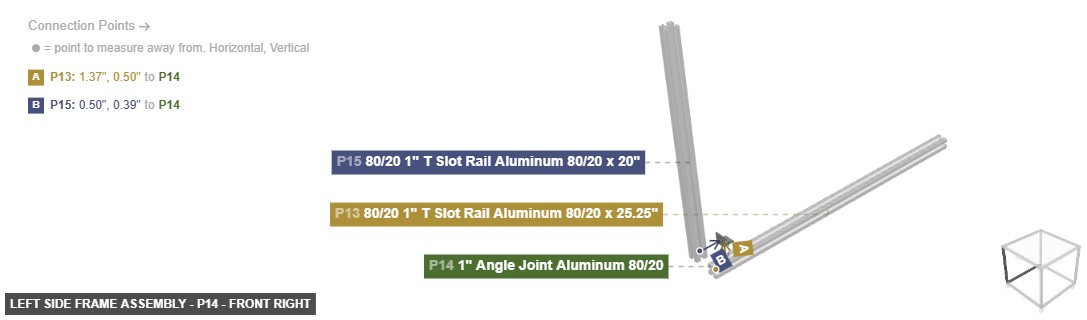

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

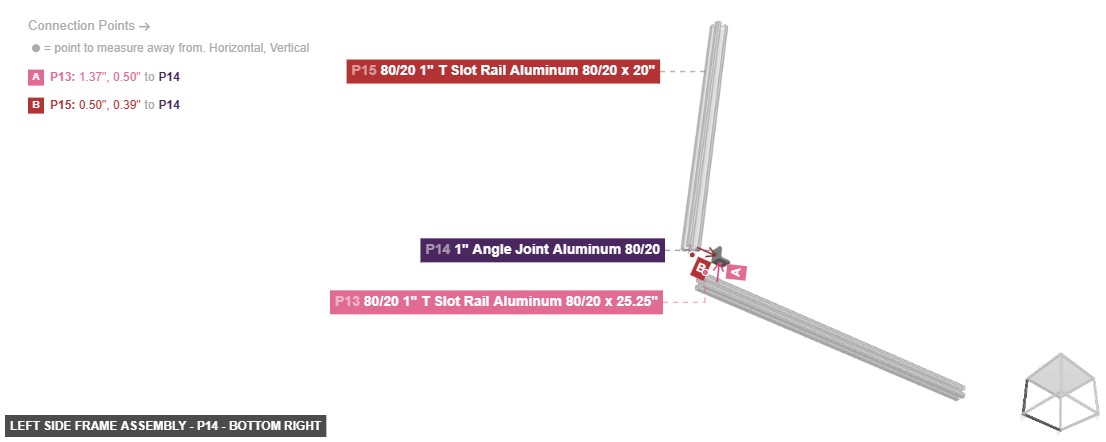

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

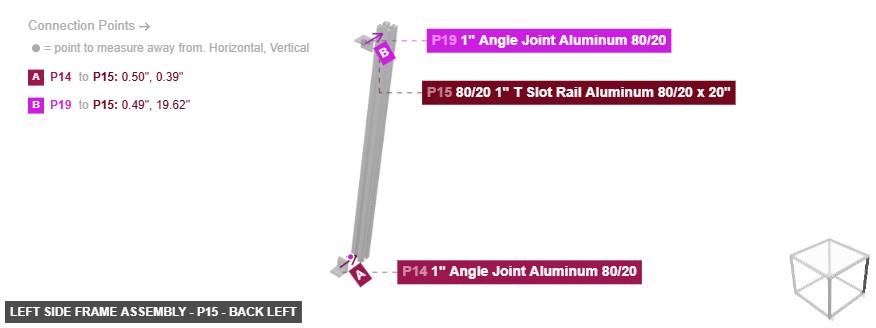

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: back left

P15 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" Rail 80/20 F #1 facing back to part 14's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 should be directed top. Additionally, its 1" Rail 80/20 F #3 must be oriented front. Next, its 1" Rail 80/20 F #4 needs to point left, also its 1" 80/20 End Hole F #2 needs to point bottom

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

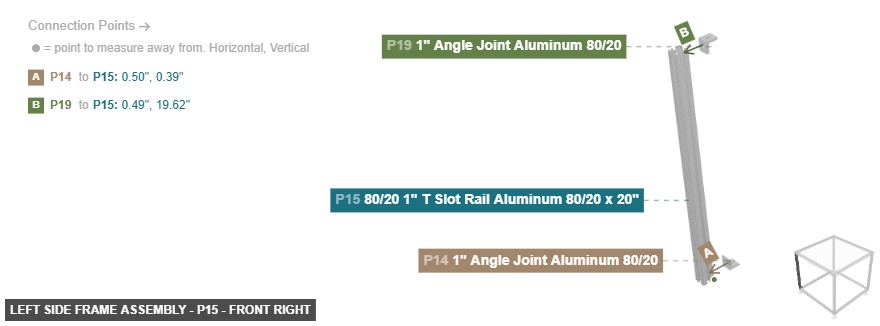

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

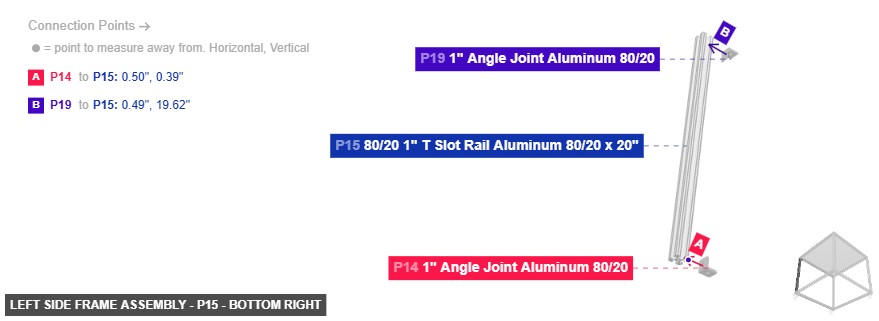

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

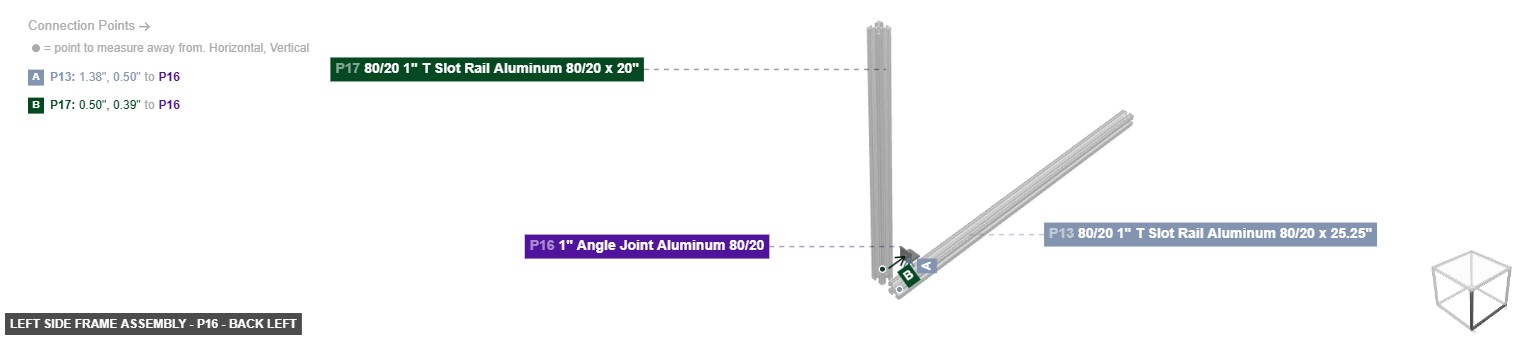

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P16 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 13's 1" Rail 80/20 F #2, and attach its 1" Rail 80/20 M #2 facing back to part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

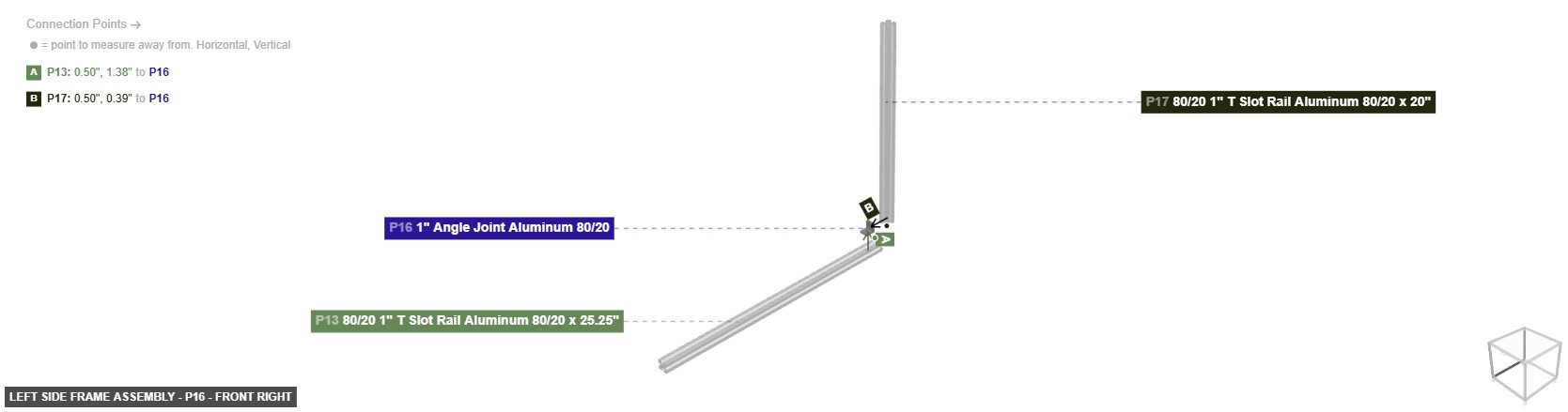

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P16 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 13's 1" Rail 80/20 F #2, and attach its 1" Rail 80/20 M #2 facing back to part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

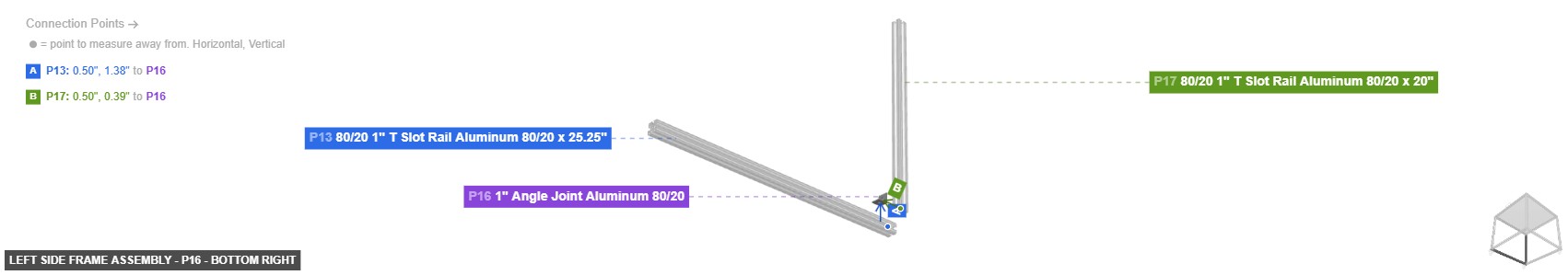

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P16 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 13's 1" Rail 80/20 F #2, and attach its 1" Rail 80/20 M #2 facing back to part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

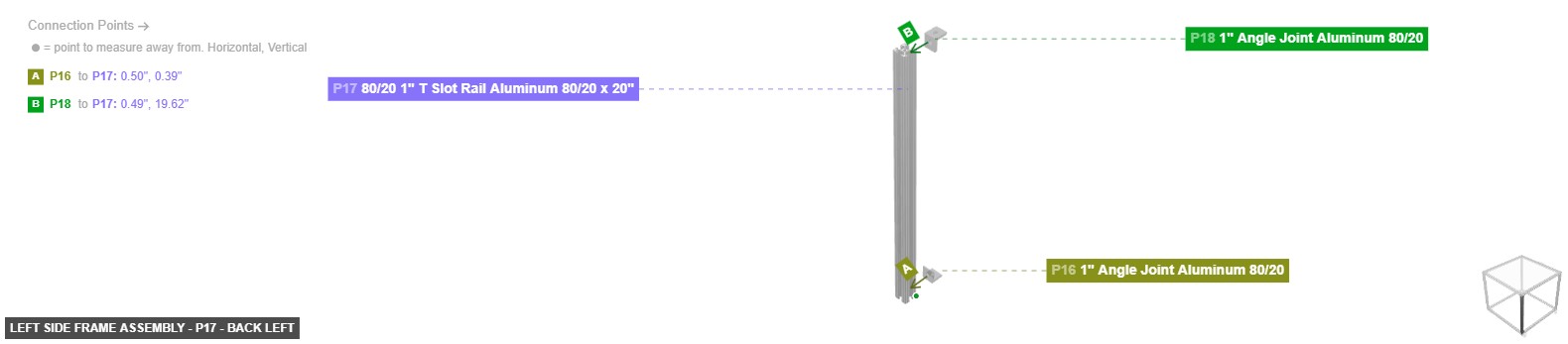

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: back left

P17 (4" 1" T Slot Rail Aluminum 80/20 20" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 16's 1" Rail 80/20 M #2, also ensure its 1" 80/20 End Hole F #1 faces top, and its 1" Rail 80/20 F #2 needs to point left, plus its 1" Rail 80/20 F #3 must be oriented back. After that, its 1" 80/20 End Hole F #2 needs to point bottom

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

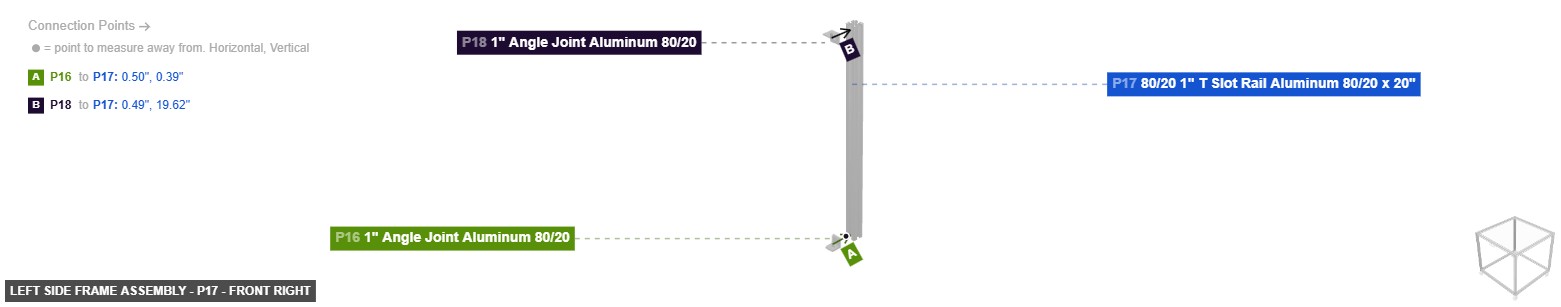

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

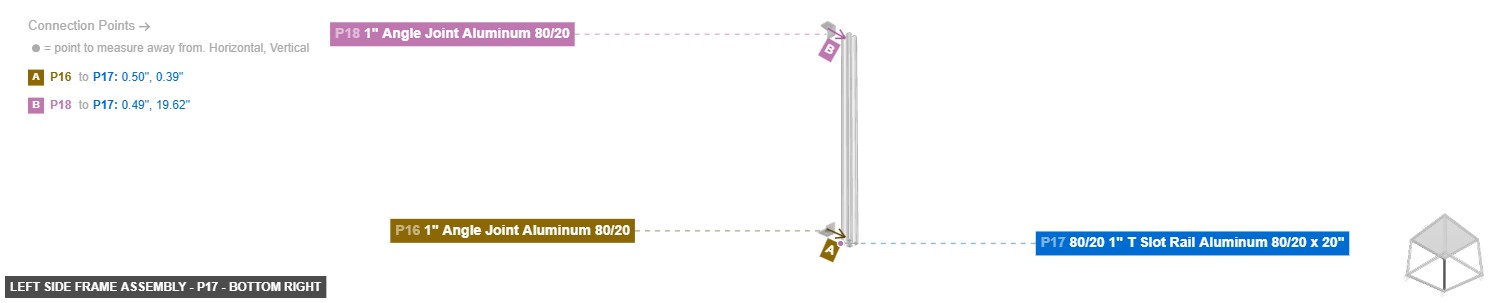

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

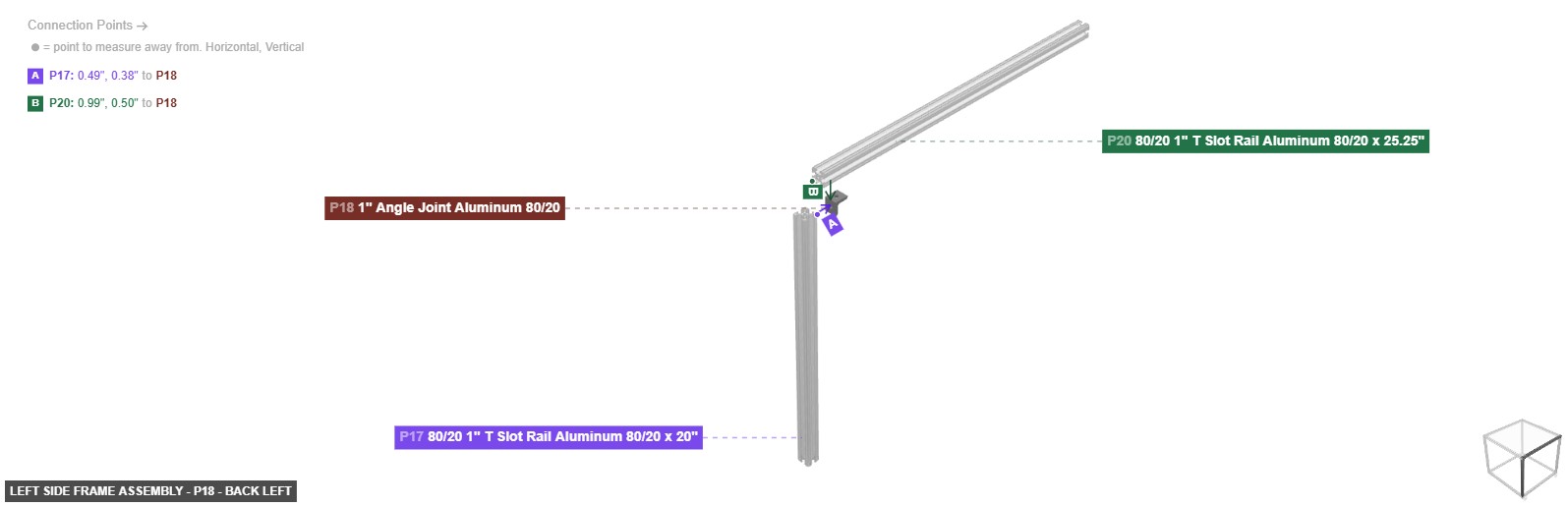

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P18 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #1, plus its 1" Rail 80/20 M #2, which is top-facing, should connect to part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

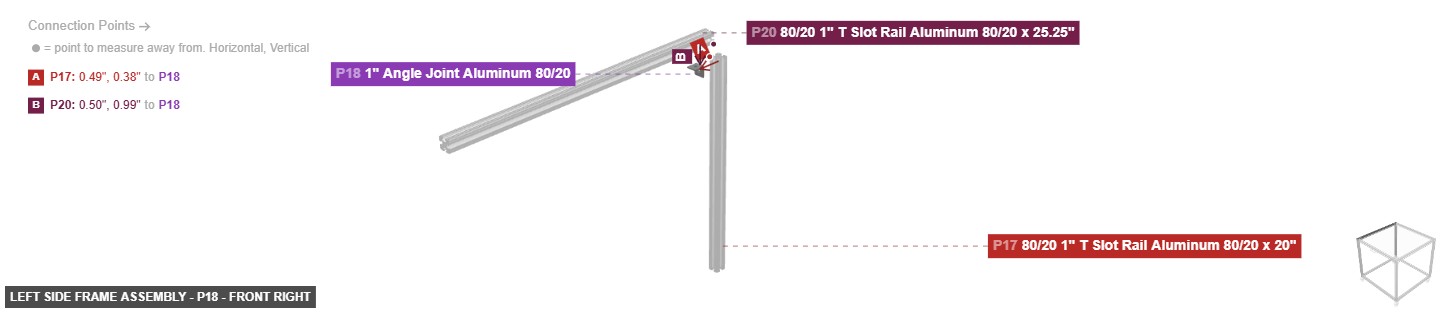

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

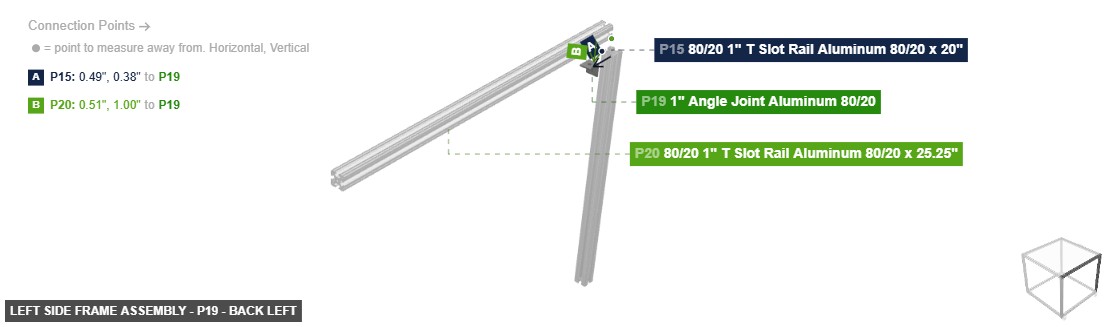

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P19 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1, plus attach its 1" Rail 80/20 M #2 facing top to part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

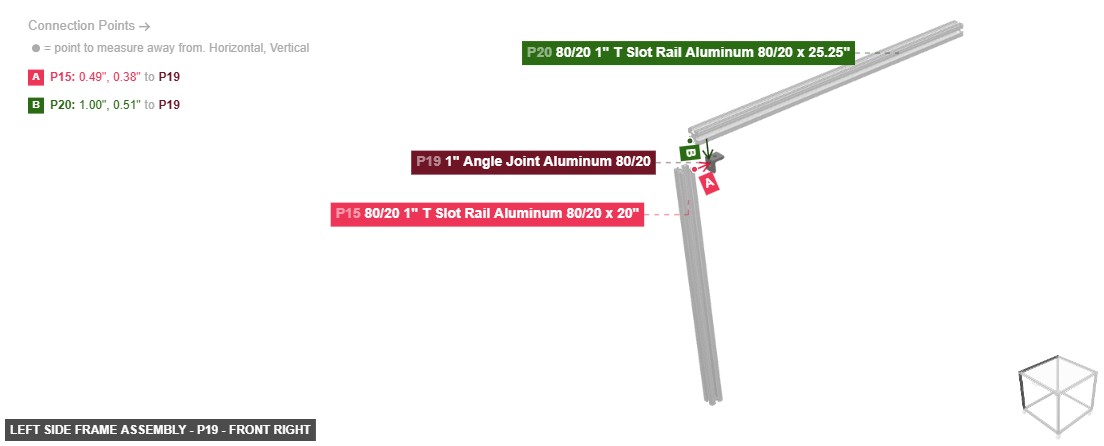

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

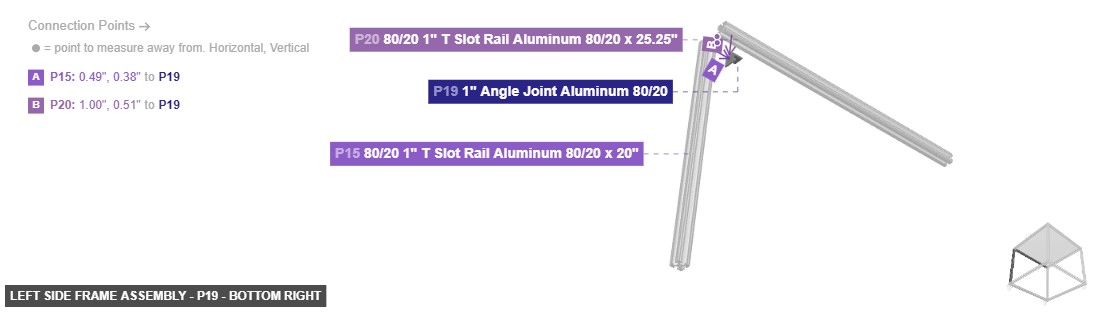

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

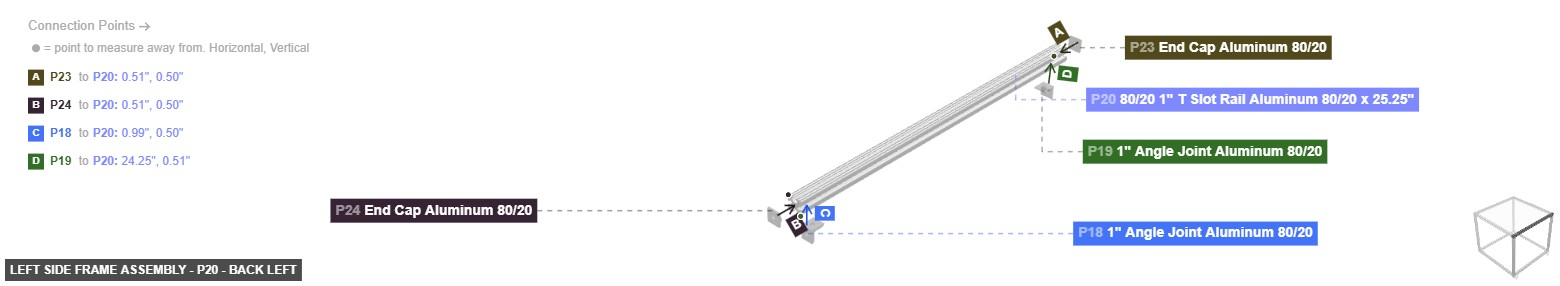

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: back left

P20 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - attach its 1" 80/20 End Hole F #1 facing back to part 24's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 18's 1" Rail 80/20 M #2. Additionally, connect its 1" 80/20 End Hole F #2 oriented front links with part 23's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #2 should be directed right, then ensure its 1" Rail 80/20 F #4 faces left

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

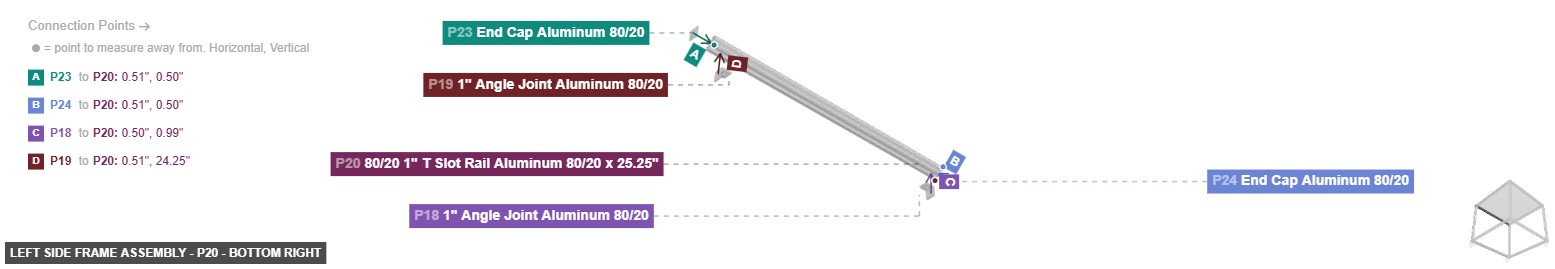

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 25.25" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

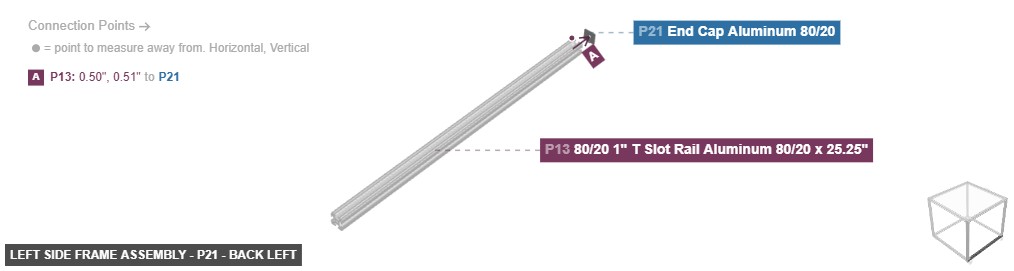

Part: End Cap Aluminum 80/20 - Angle: back left

Left Side Frame Assembly - Part End Cap Aluminum 80/20 - back_left

P21 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 13's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

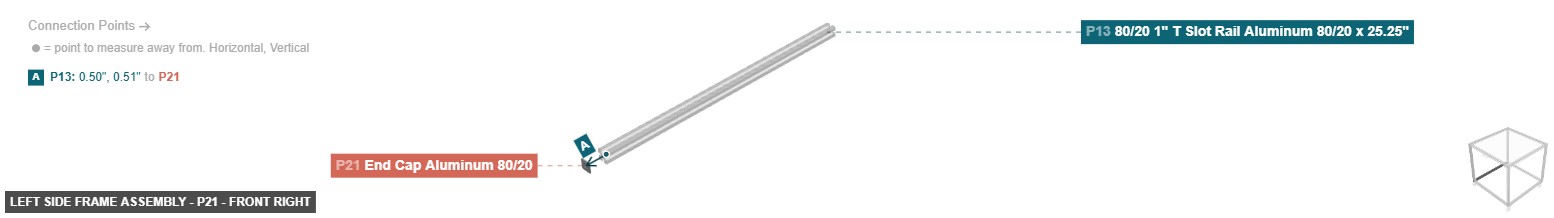

Part: End Cap Aluminum 80/20 - Angle: front right

Left Side Frame Assembly - Part End Cap Aluminum 80/20 - front_right

P21 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 13's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

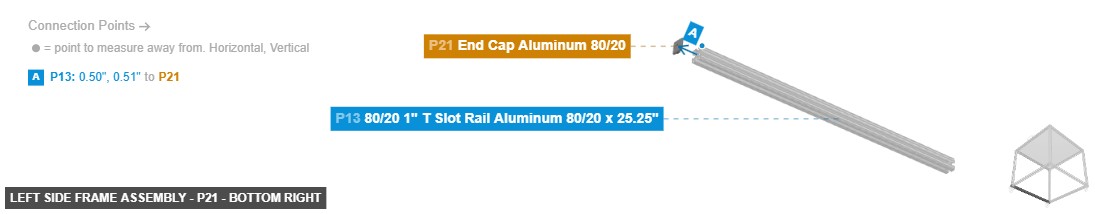

Part: End Cap Aluminum 80/20 - Angle: bottom right

Left Side Frame Assembly - Part End Cap Aluminum 80/20 - bottom_right

P21 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 13's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

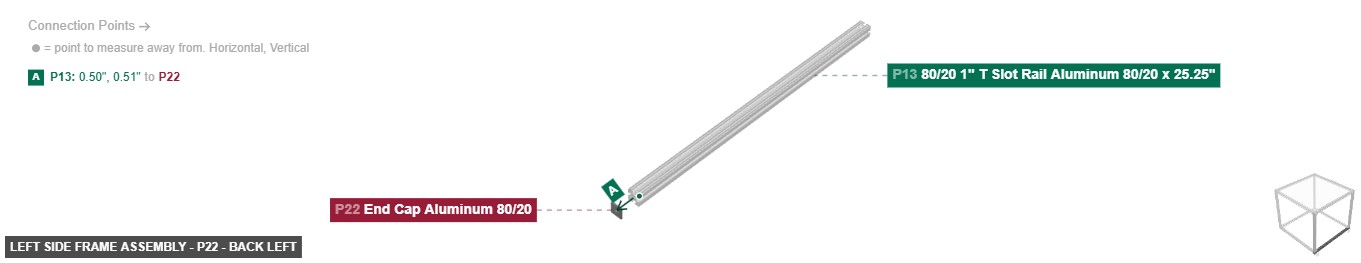

Part: End Cap Aluminum 80/20 - Angle: back left

P22 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 13's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

P22 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 13's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

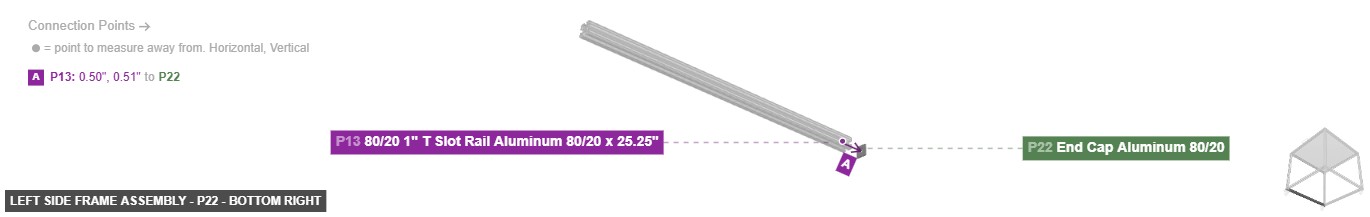

Part: End Cap Aluminum 80/20 - Angle: bottom right

P22 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 13's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

P23 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 20's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

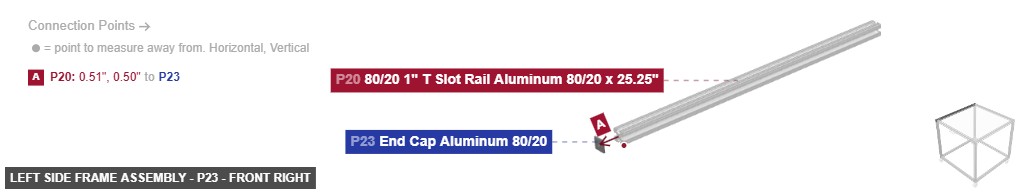

Part: End Cap Aluminum 80/20 - Angle: front right

P23 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 20's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

P23 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 20's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

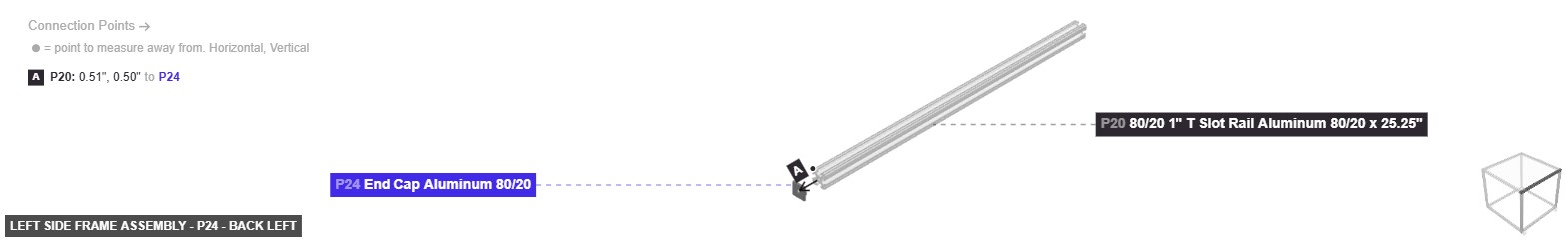

Part: End Cap Aluminum 80/20 - Angle: back left

P24 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 20's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

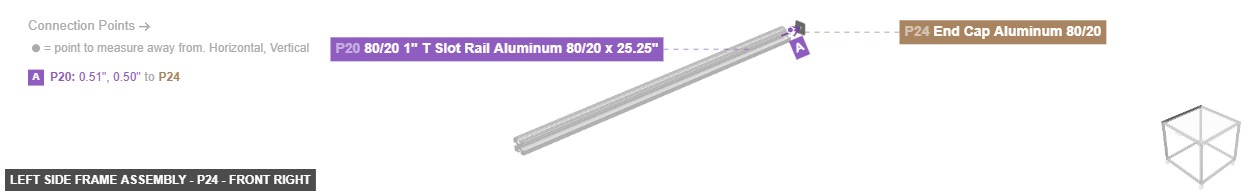

Part: End Cap Aluminum 80/20 - Angle: front right

P24 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 20's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

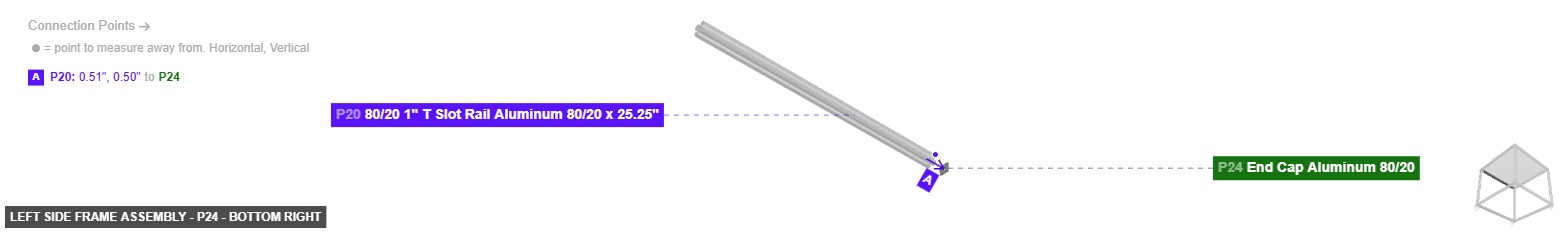

Part: End Cap Aluminum 80/20 - Angle: bottom right

P24 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 20's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

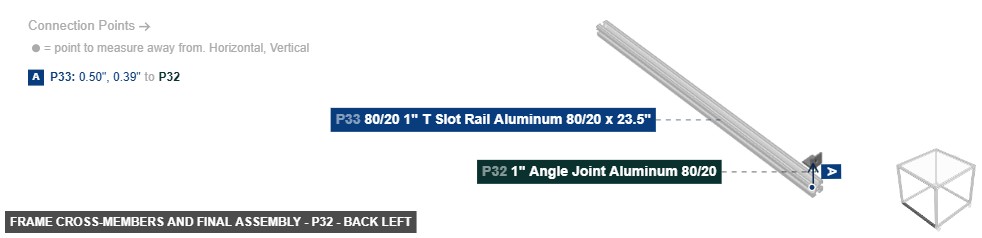

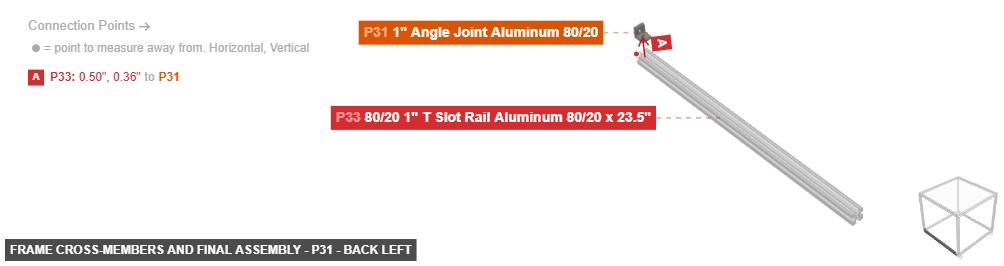

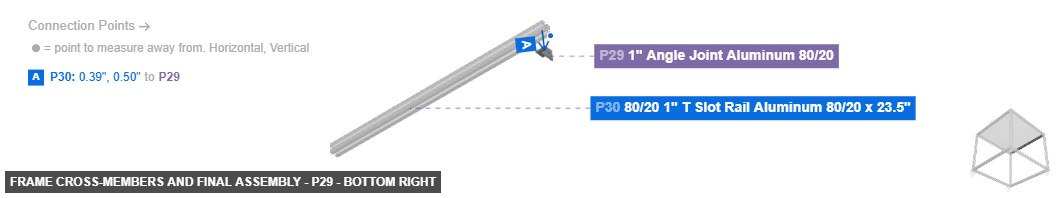

Group: Frame Cross-Members and Final Assembly

Connects the left and right side frames to form the complete cart structure.

Stand the Left and Right Side Frames upright. Connect the top front cross-member (P27) between the two frames using angle joints P26 and P25. Connect the top back cross-member (P30) using angle joints P29 and P28. Connect the bottom front cross-member (P36) using angle joints P34 and P35. Finally, connect the bottom back cross-member (P33) using angle joints P31 and P32.

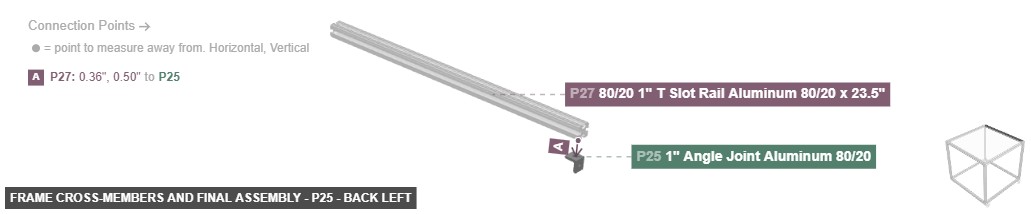

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Frame Cross-Members and Final Assembly - Part 1

P25 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 27's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

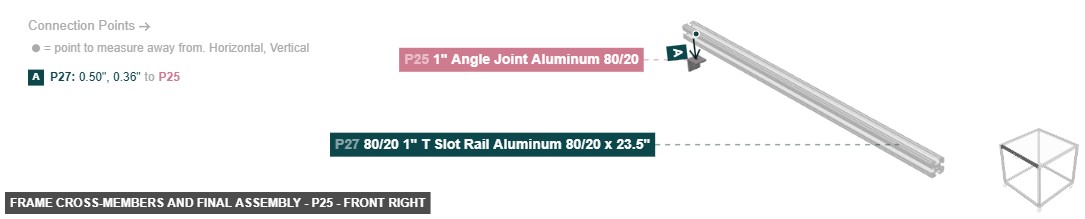

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P25 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 27's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

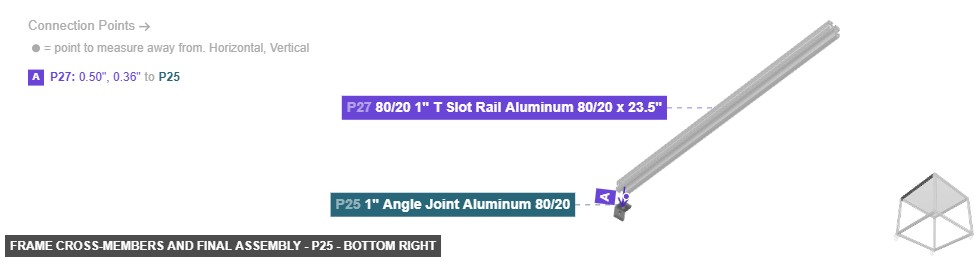

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P25 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 27's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

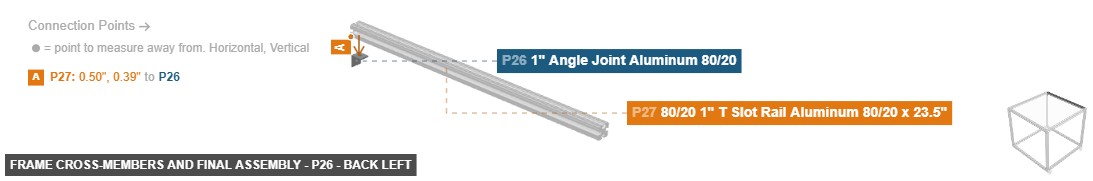

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P26 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 27's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

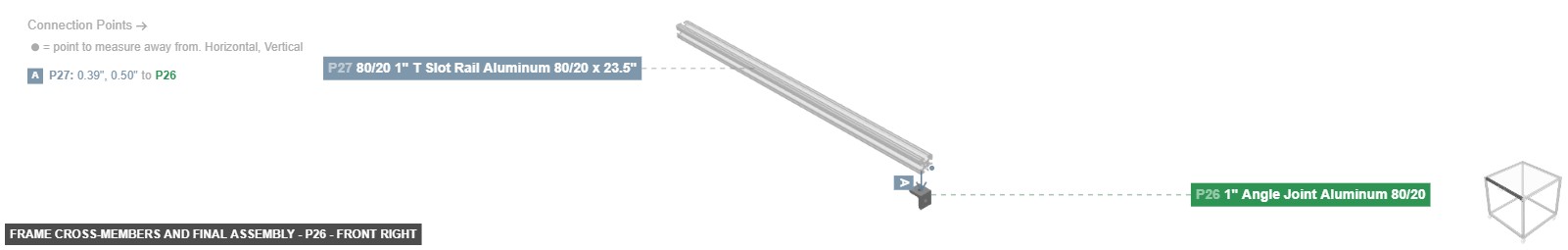

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P26 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 27's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

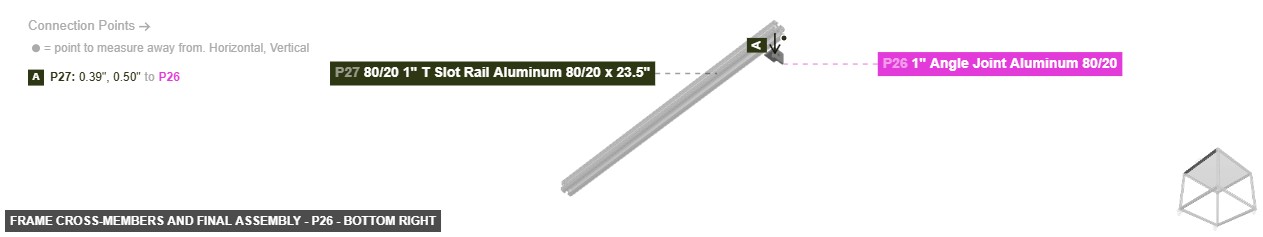

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P26 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 27's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

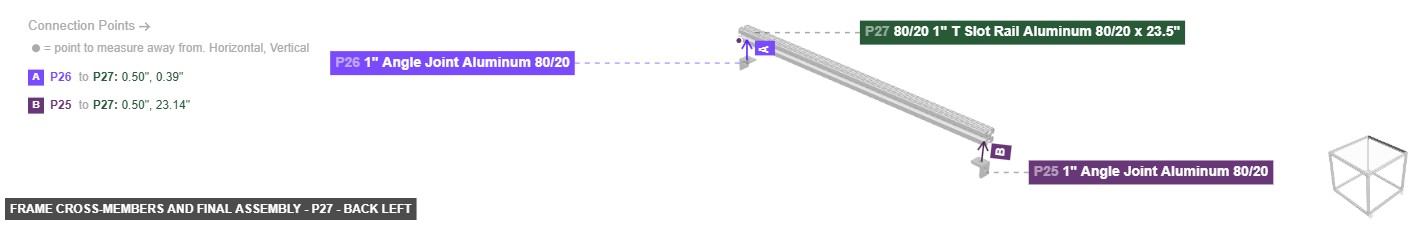

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

Frame Cross-Members and Final Assembly - Part 80/20 1

P27 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 26's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 must be oriented left, and its 1" Rail 80/20 F #2 should be directed back, also its 1" Rail 80/20 F #3 should be directed top, also its 1" 80/20 End Hole F #2 should be directed right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

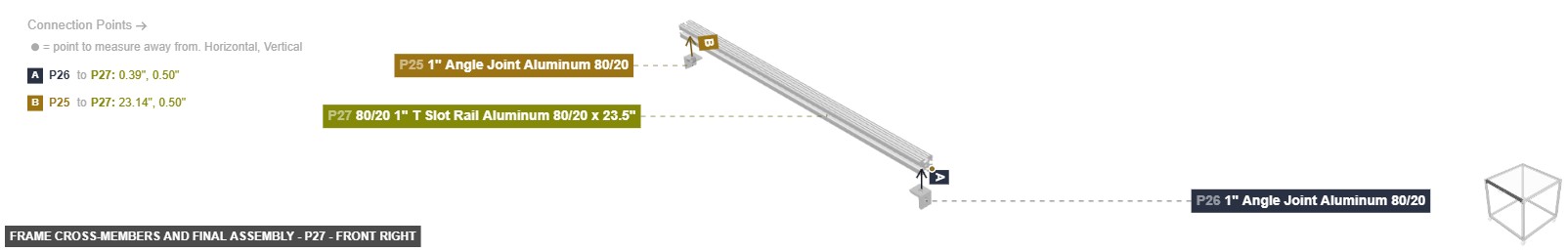

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

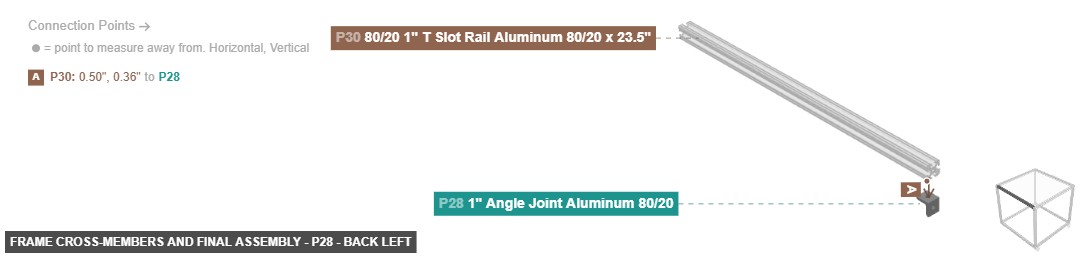

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 30's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

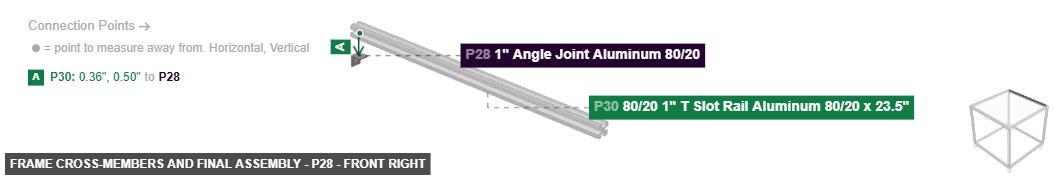

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 30's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

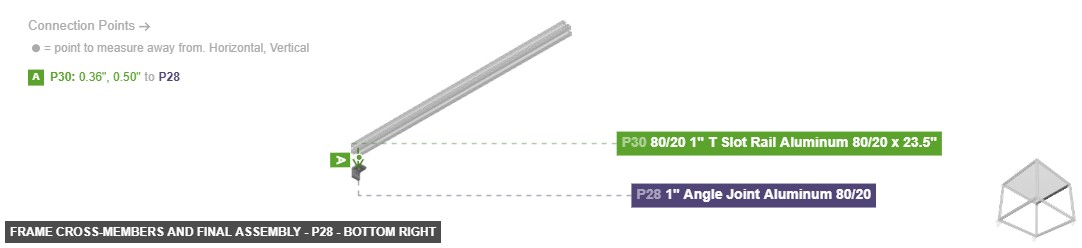

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 30's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

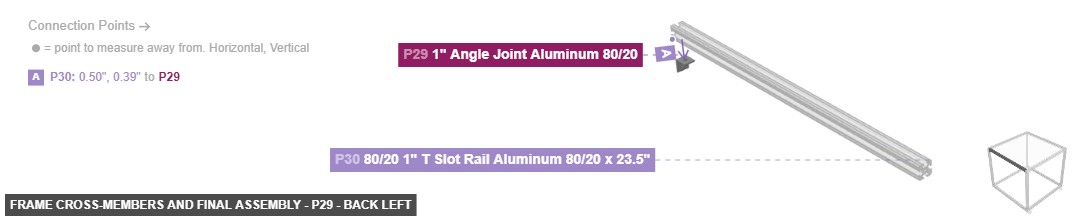

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P29 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

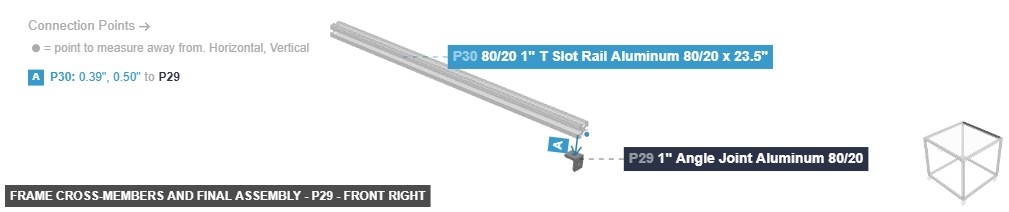

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P29 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P29 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

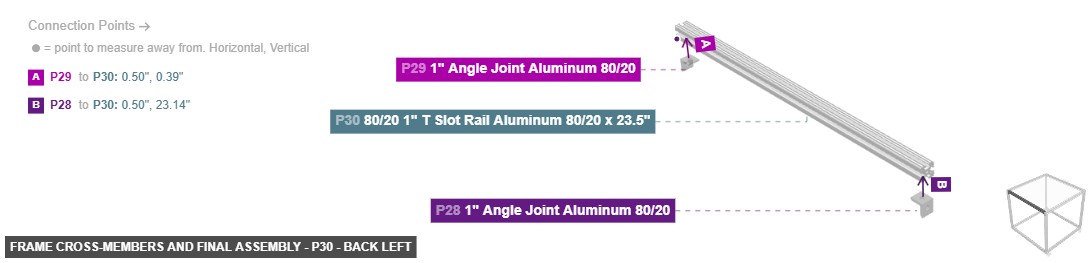

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

P30 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 29's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point left, and ensure its 1" Rail 80/20 F #2 faces back, and its 1" Rail 80/20 F #3 should be directed top. Additionally, its 1" Rail 80/20 F #4 needs to point front, then ensure its 1" 80/20 End Hole F #2 faces right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

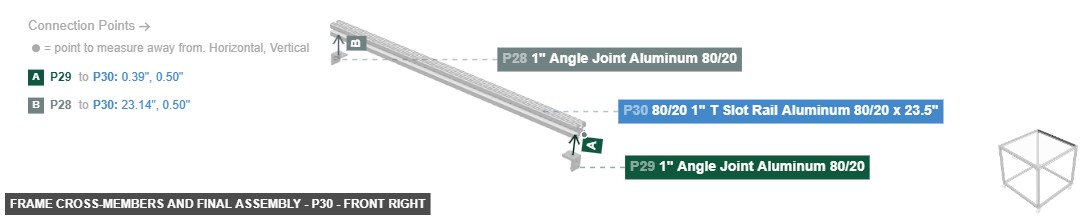

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

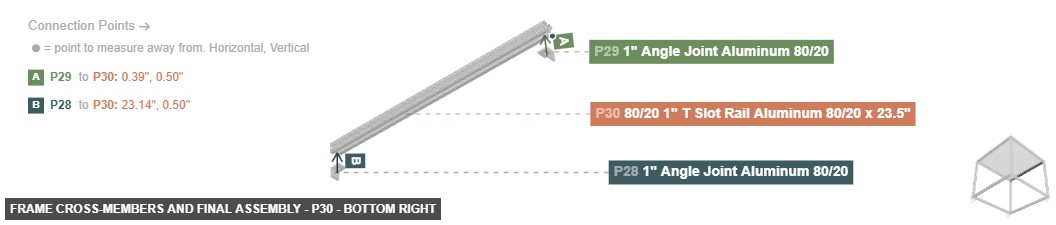

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P31 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented bottom links with part 33's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

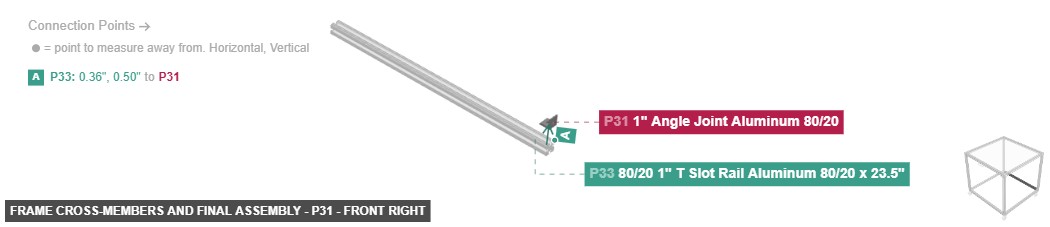

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P31 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented bottom links with part 33's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

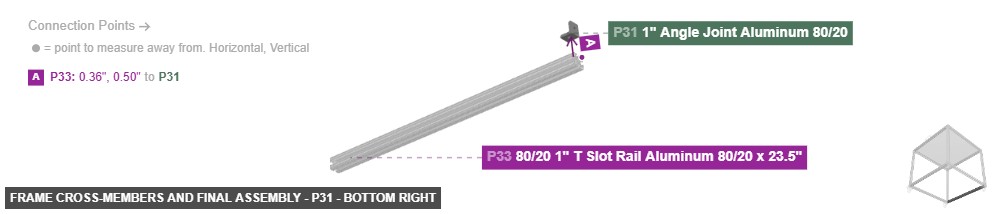

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P31 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented bottom links with part 33's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P32 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing bottom to part 33's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

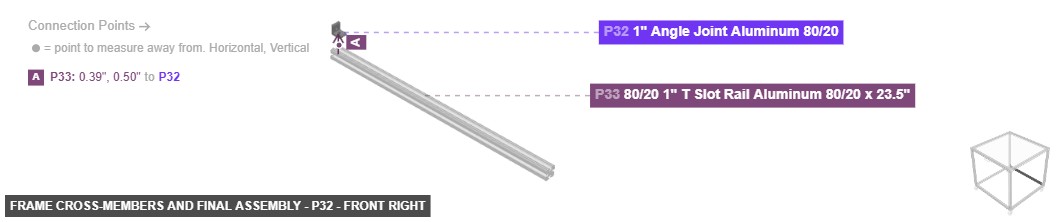

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P32 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing bottom to part 33's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

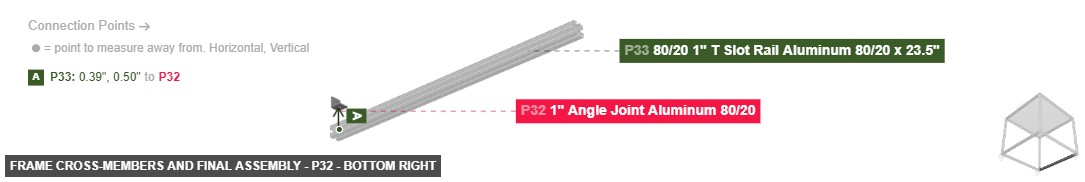

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P32 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing bottom to part 33's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

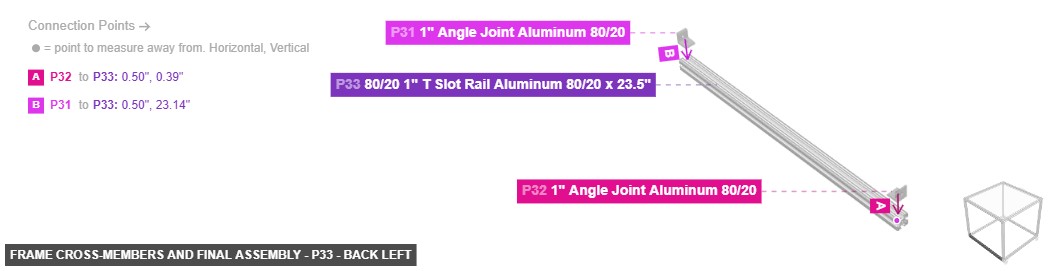

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

P33 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is top-facing, should connect to part 32's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 must be oriented right. After that, its 1" Rail 80/20 F #2 needs to point back. Additionally, ensure its 1" Rail 80/20 F #3 faces bottom. Also, its 1" Rail 80/20 F #4 needs to point front. Also, ensure its 1" 80/20 End Hole F #2 faces left

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

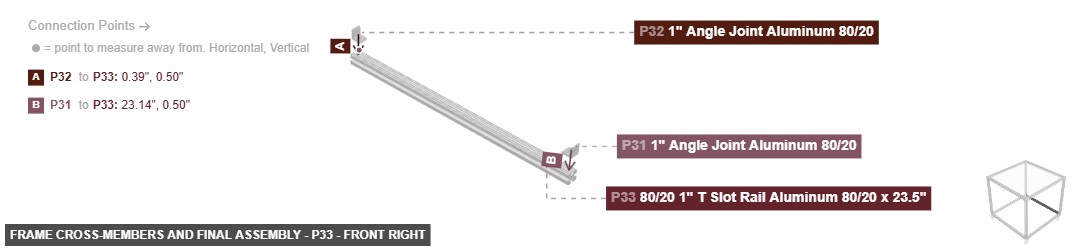

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

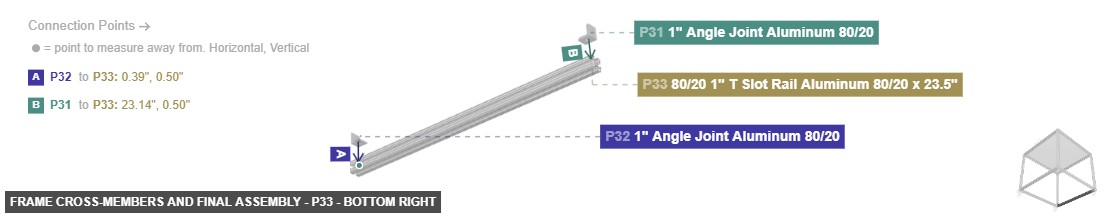

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

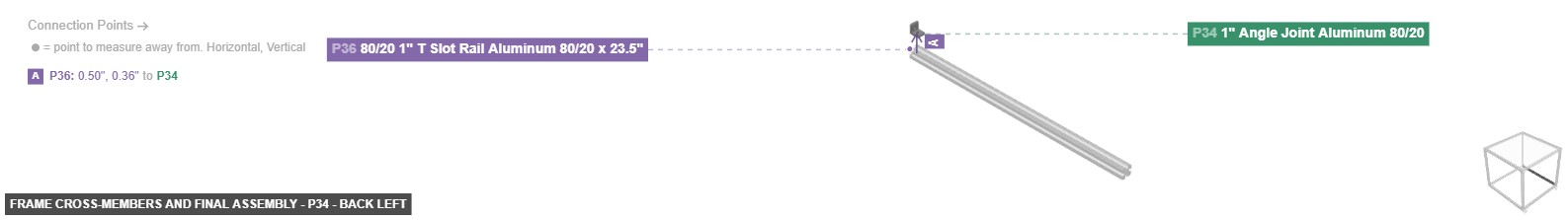

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 36's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

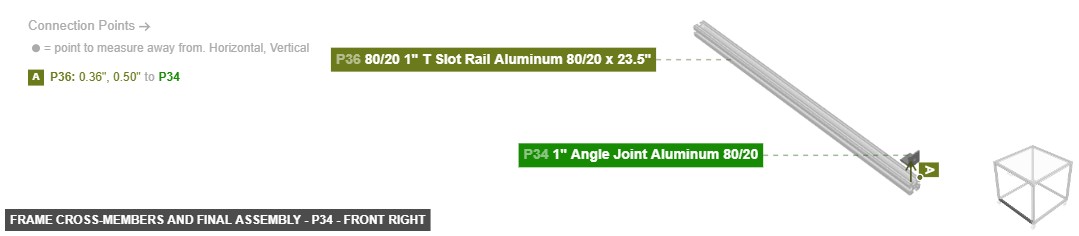

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 36's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

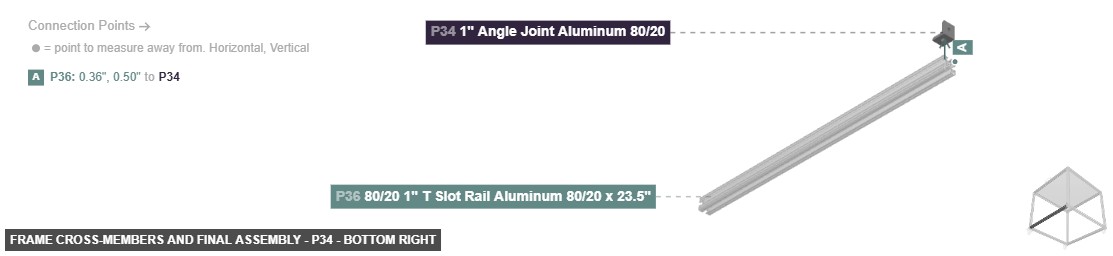

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 36's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

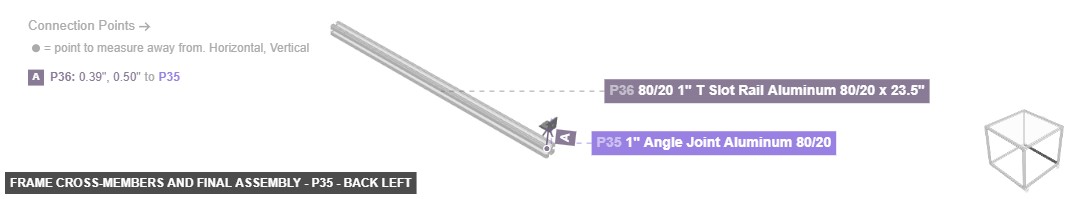

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P35 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 36's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

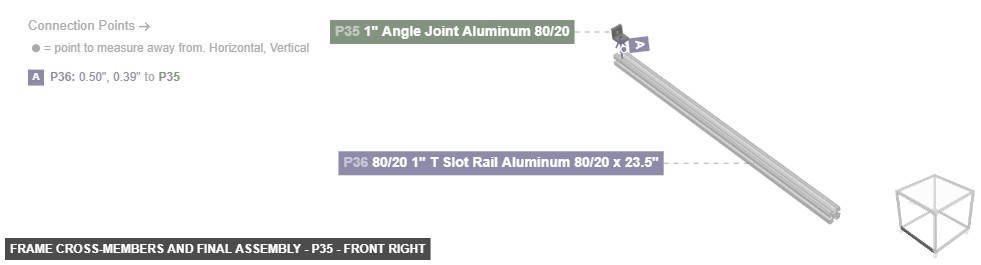

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P35 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 36's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

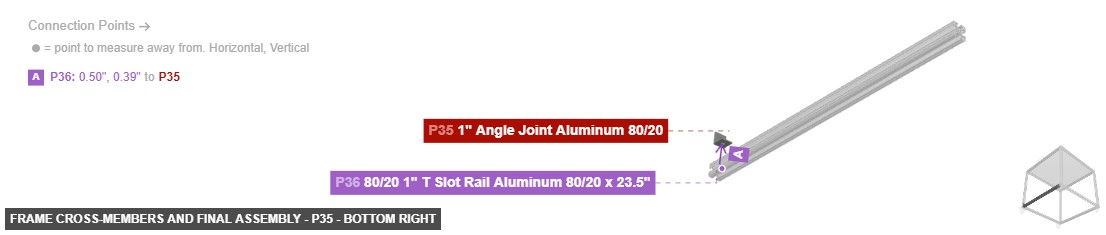

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P35 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 36's 1" Rail 80/20 F #1

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

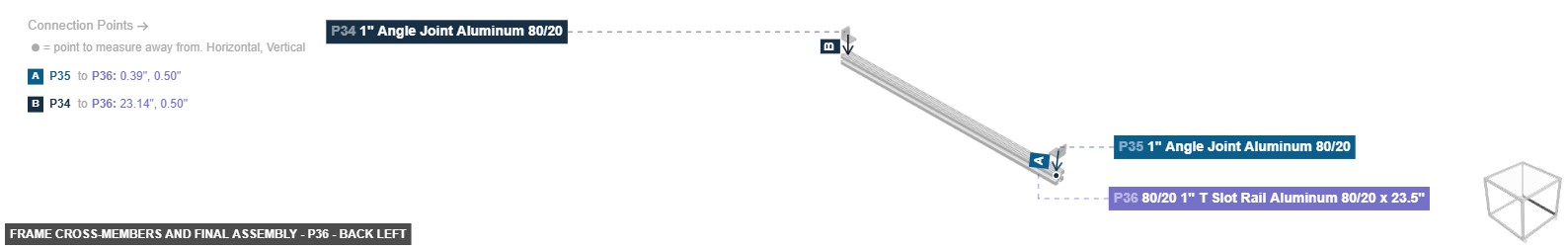

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

P36 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing top to part 35's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 needs to point right, plus ensure its 1" Rail 80/20 F #2 faces back, plus its 1" Rail 80/20 F #3 must be oriented bottom. After that, its 1" Rail 80/20 F #4 must be oriented front. Additionally, its 1" 80/20 End Hole F #2 should be directed left

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

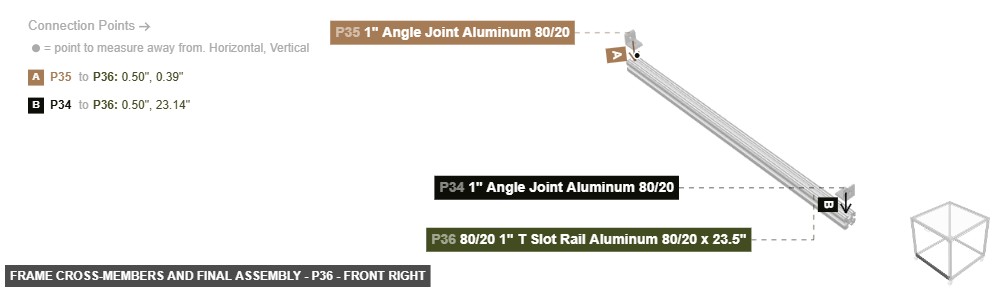

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

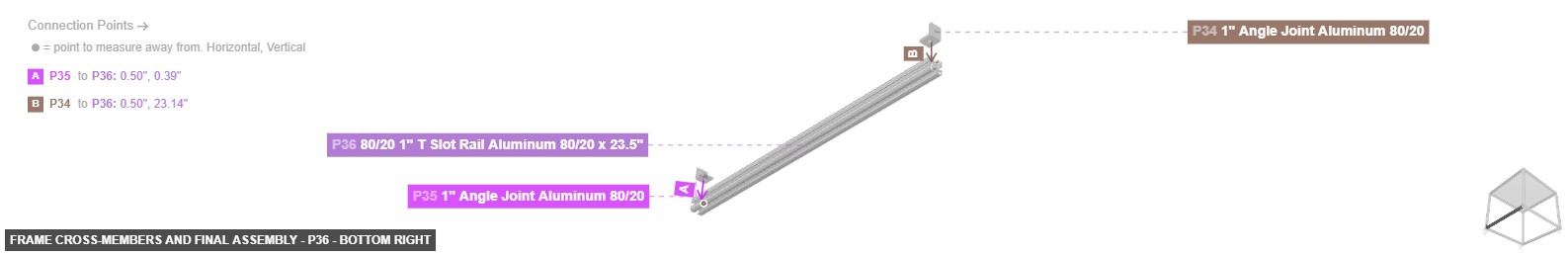

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

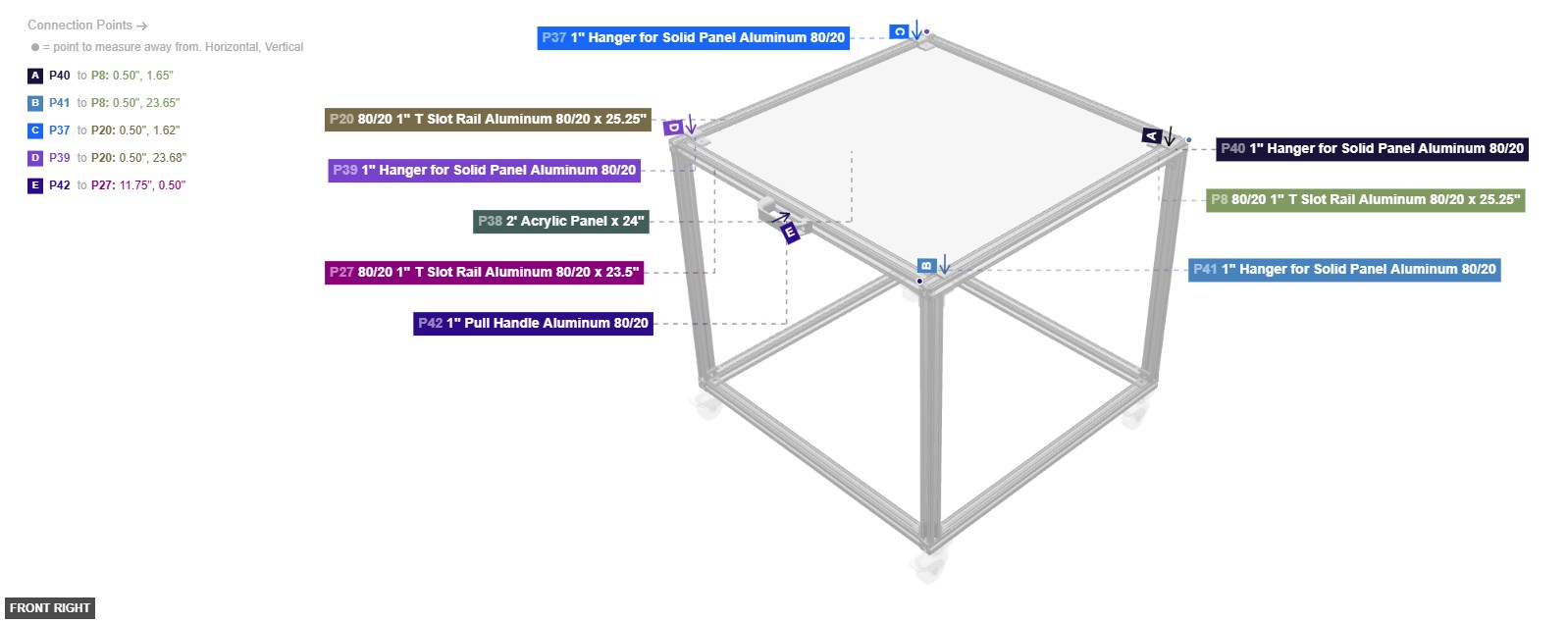

Group: Top Panel and Handle Installation

Provides the top surface for the cart and a handle for pulling it.

Attach the four panel hangers (P37, P39, P40, P41) to the top rails (P8 and P20) of the assembled frame. Secure the acrylic panel (P38) to the hangers. Attach the pull handle (P42) to the front top cross-member (P27).

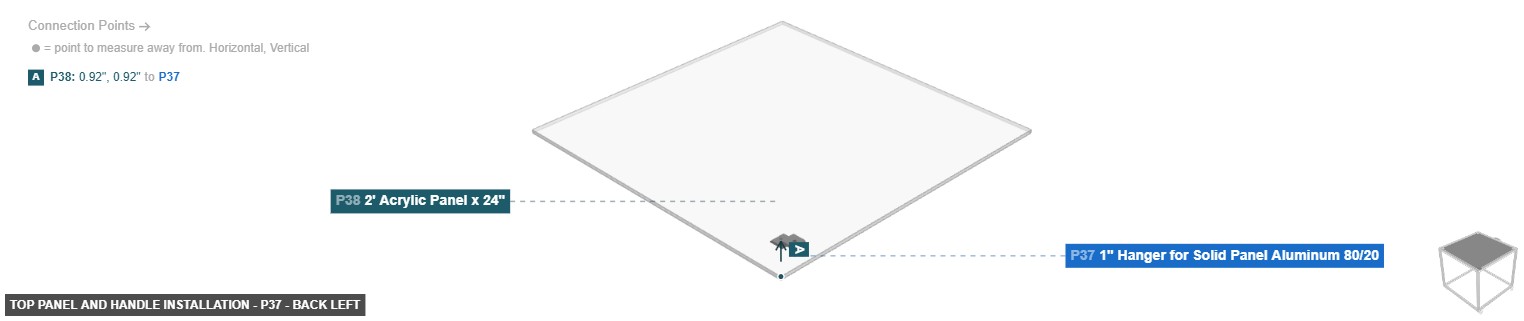

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Top Panel and Handle Installation - Part 1

P37 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #4

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

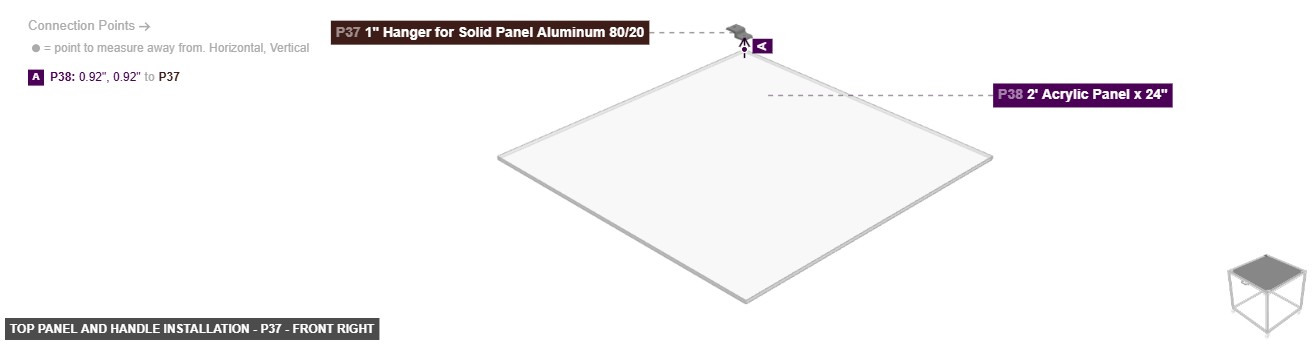

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P37 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #4

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

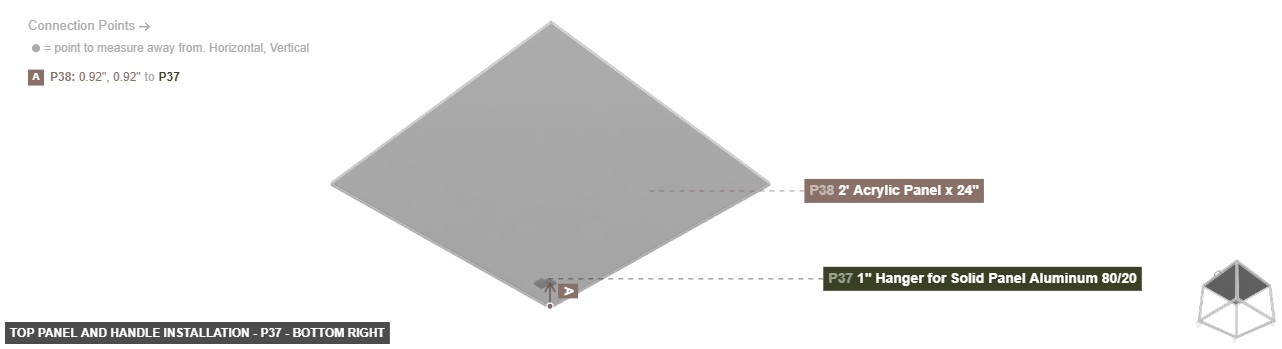

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P37 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #4

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

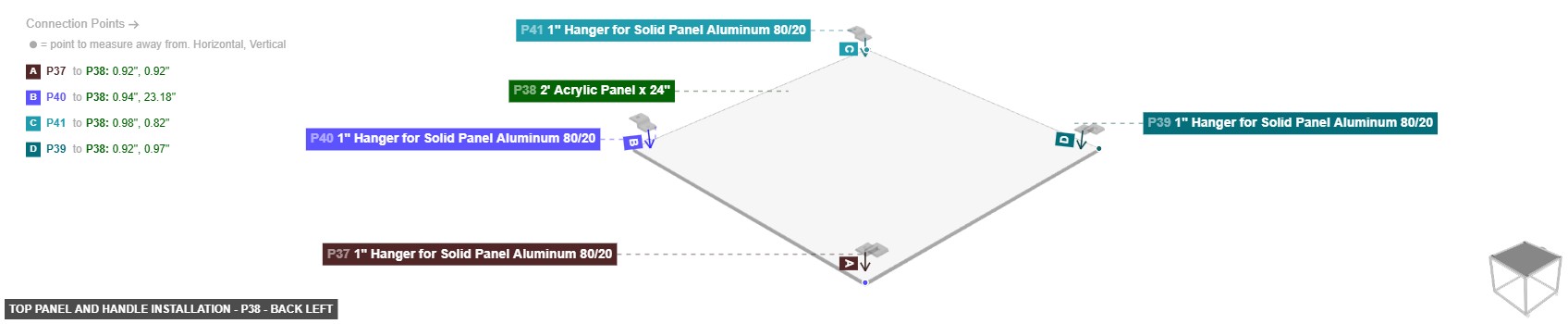

Part: 2' Acrylic Panel x 24" - Angle: back left

Top Panel and Handle Installation - Part 2' Acrylic Panel x 24

P38 (2' Acrylic Panel 24" length) - attach its 1" 80 20 Panel #1 facing top to part 41's 1" 80 20 Panel Holder #1, plus attach its 1" 80 20 Panel #2 facing top to part 39's 1" 80 20 Panel Holder #1. Additionally, attach its 1" 80 20 Panel #3 facing top to part 40's 1" 80 20 Panel Holder #1, then connect its 1" 80 20 Panel #4 oriented top links with part 37's 1" 80 20 Panel Holder #1

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

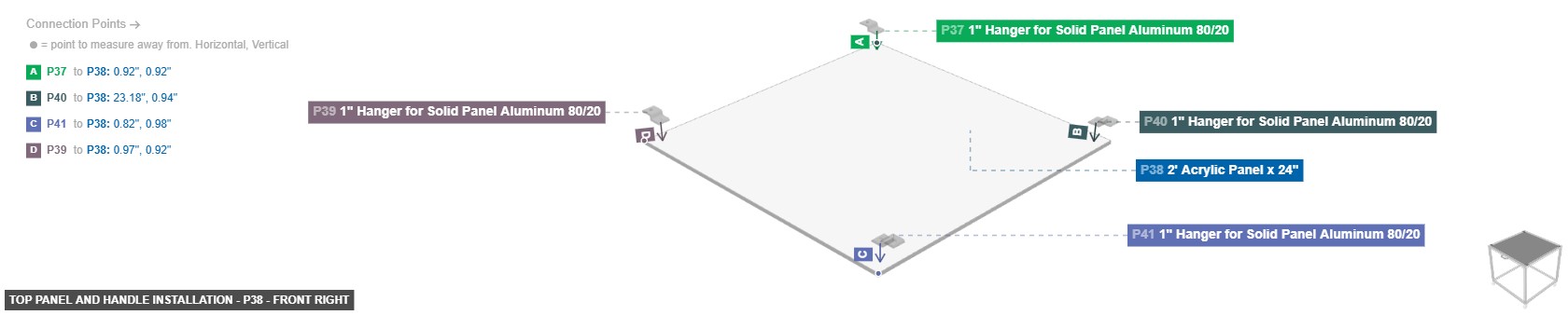

Part: 2' Acrylic Panel x 24" - Angle: front right

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

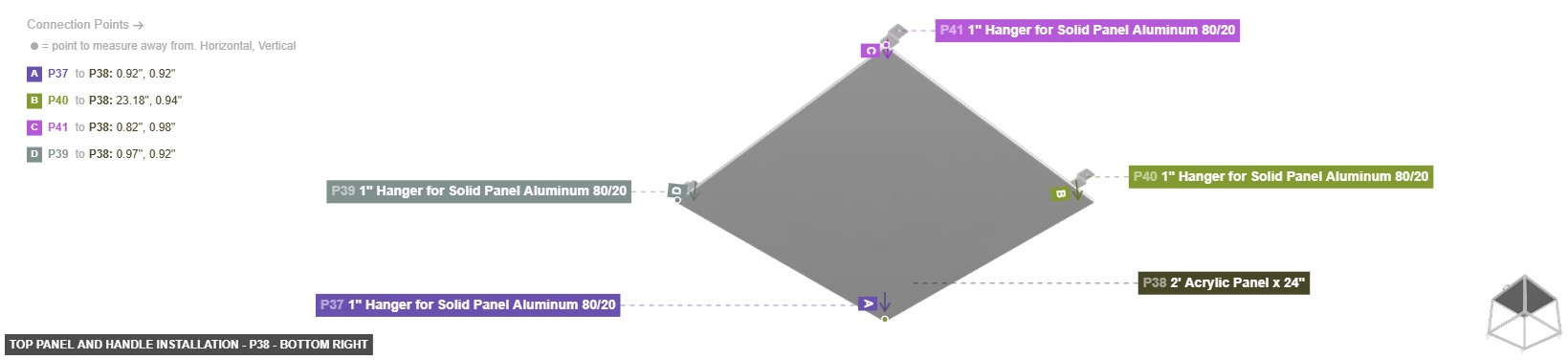

Part: 2' Acrylic Panel x 24" - Angle: bottom right

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

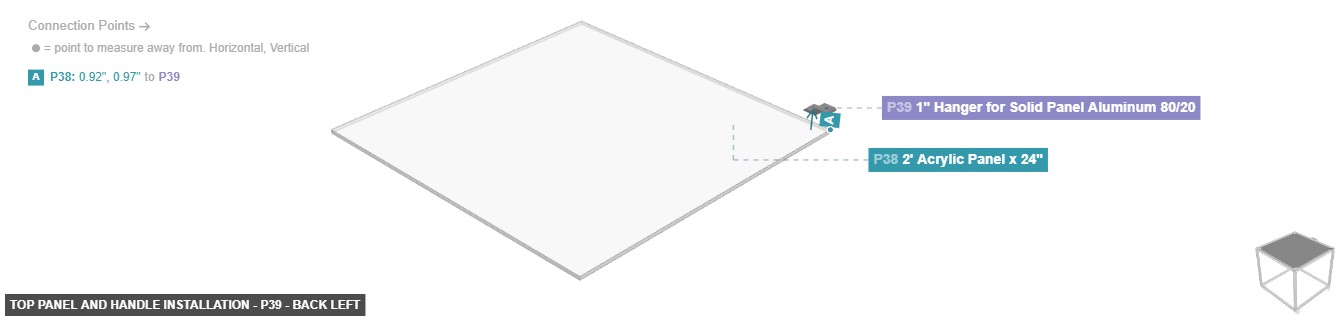

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

P39 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 38's 1" 80 20 Panel #2

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

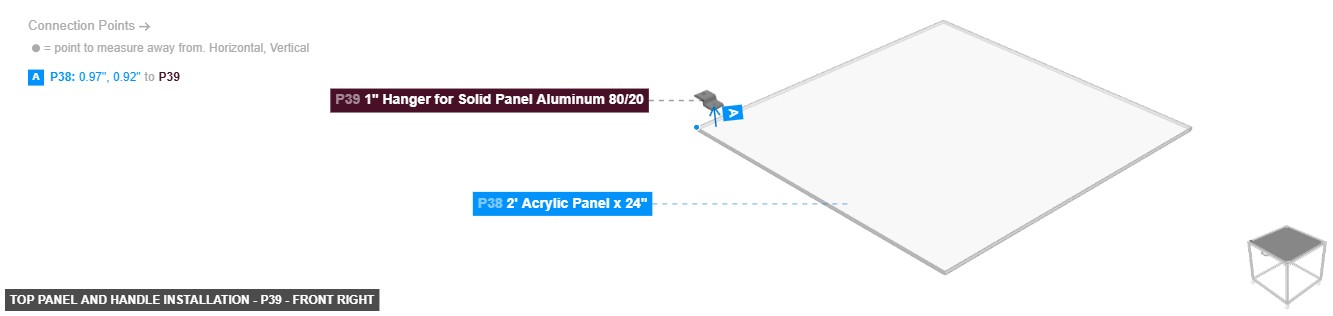

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P39 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 38's 1" 80 20 Panel #2

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

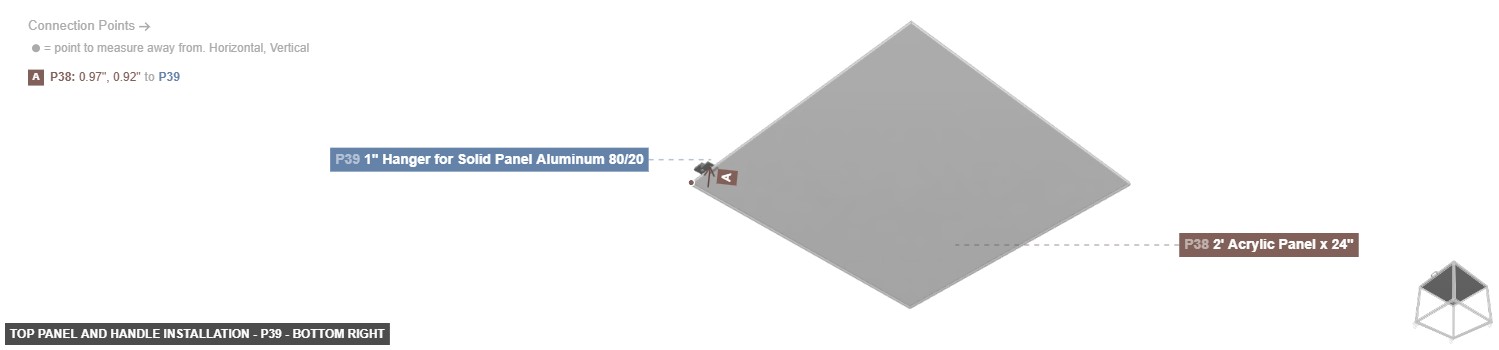

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P39 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 38's 1" 80 20 Panel #2

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

P40 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #3

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

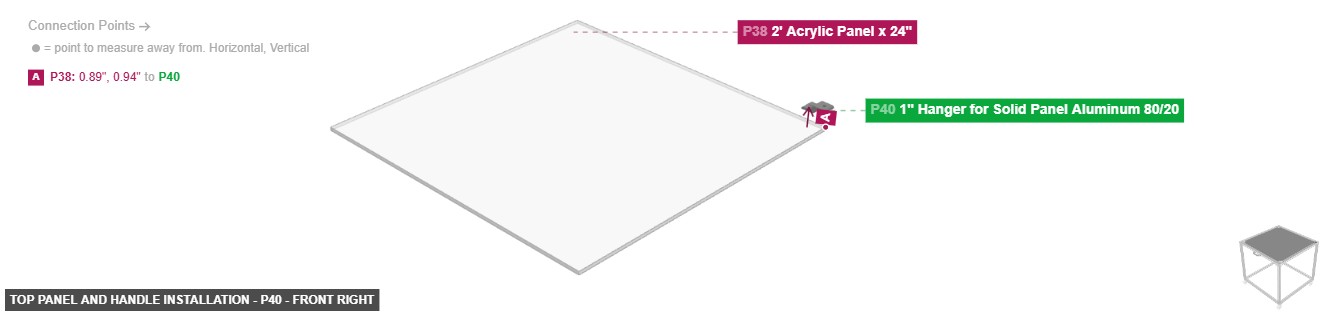

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P40 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #3

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

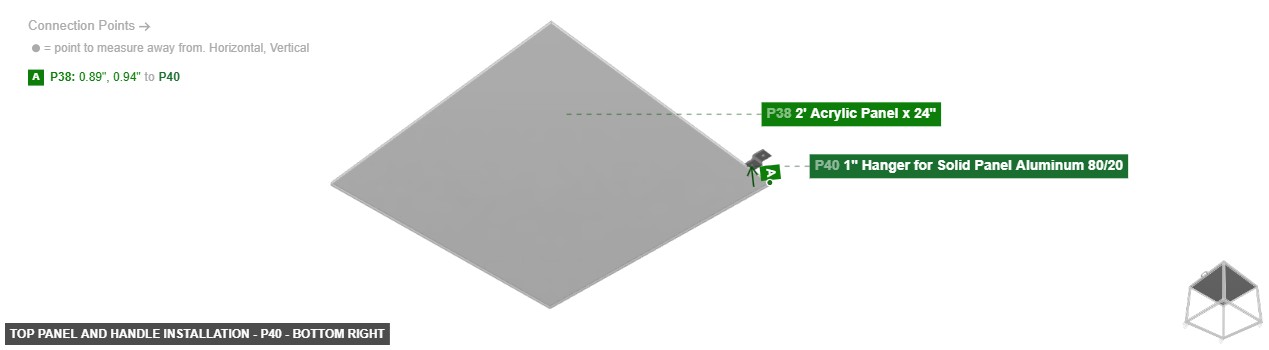

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P40 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #3

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

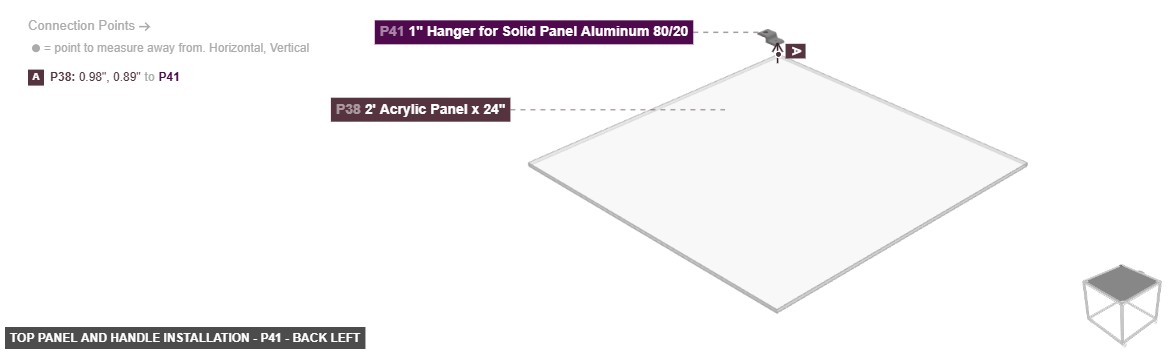

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

P41 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 38's 1" 80 20 Panel #1

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

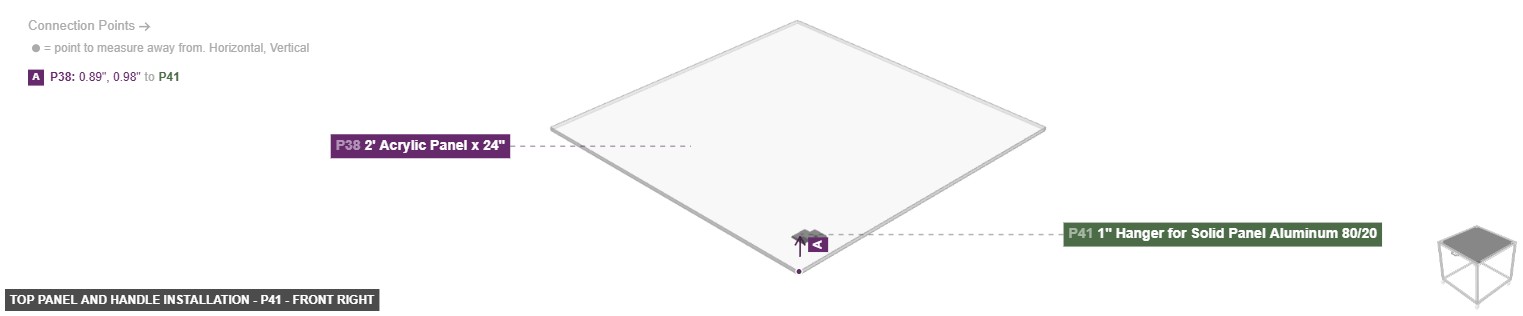

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P41 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 38's 1" 80 20 Panel #1

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

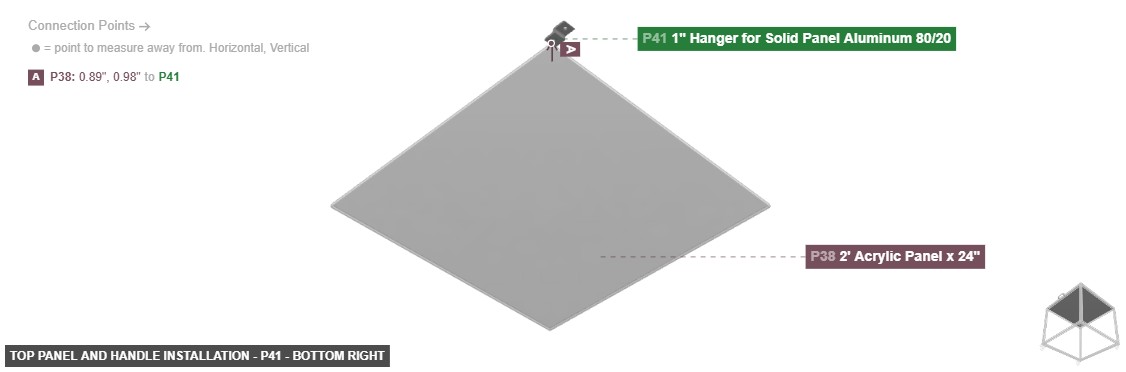

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P41 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 38's 1" 80 20 Panel #1

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Phase 3: Inter-Group Assembly

Attaching: Right Side Frame Assembly

Forms the main rectangular frame for the right side of the cart.

This frame will be connected to the Left Side Frame using the cross-members in a later step.

Angle: back left

Assembly of Right Side Frame Assembly - back_left

P1 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 9's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #2 facing top to part 2's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #4 oriented bottom links with part 43's 1" Rail 80/20 M #1, then attach its 1" 80/20 End Hole F #2 facing back to part 10's 1" 80/20 End Hole M #1, also ensure its 1" Rail 80/20 F #1 faces left. Next, its 1" Rail 80/20 F #3 should be directed right P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 1's 1" Rail 80/20 F #2, then attach its 1" Rail 80/20 M #2 facing front to part 3's 1" Rail 80/20 F #1 P3 (4" 1" T Slot Rail Aluminum 80/20 20" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 2's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #4, which is left-facing, should connect to part 26's 1" Rail 80/20 M #1, then ensure its 1" 80/20 End Hole F #1 faces top, also ensure its 1" Rail 80/20 F #2 faces right. Next, its 1" Rail 80/20 F #3 should be directed front. Additionally, its 1" 80/20 End Hole F #2 needs to point bottom P4 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 1's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented back links with part 5's 1" Rail 80/20 F #1 P5 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" Rail 80/20 F #1 facing front to part 4's 1" Rail 80/20 M #2. Additionally, attach its 1" Rail 80/20 F #2 facing left to part 29's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 needs to point top, then its 1" Rail 80/20 F #3 should be directed back, also its 1" Rail 80/20 F #4 should be directed right, plus its 1" 80/20 End Hole F #2 needs to point bottom P6 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 5's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing top to part 8's 1" Rail 80/20 F #1 P7 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 3's 1" Rail 80/20 F #1. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 8's 1" Rail 80/20 F #1 P8 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - attach its 1" 80/20 End Hole F #1 facing back to part 12's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 7's 1" Rail 80/20 M #2, also attach its 1" Rail 80/20 F #3 facing top to part 40's 1" Rail 80/20 M #1, also connect its 1" 80/20 End Hole F #2 oriented front links with part 11's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 needs to point right, then its 1" Rail 80/20 F #4 must be oriented left P9 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1 P10 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2 P11 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 8's 1" 80/20 End Hole F #2 P12 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 8's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

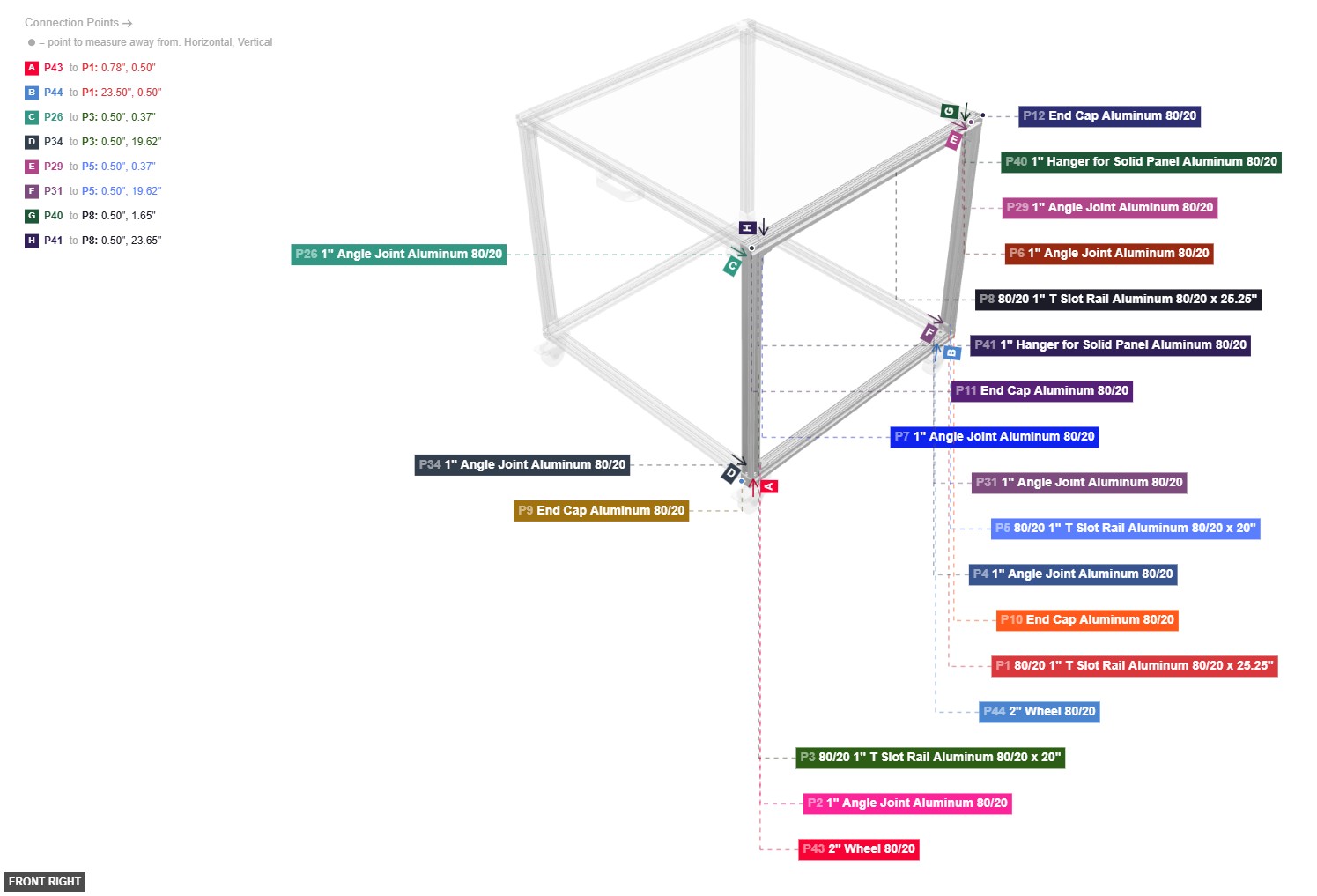

Angle: front right

Assembly of Right Side Frame Assembly - front_right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

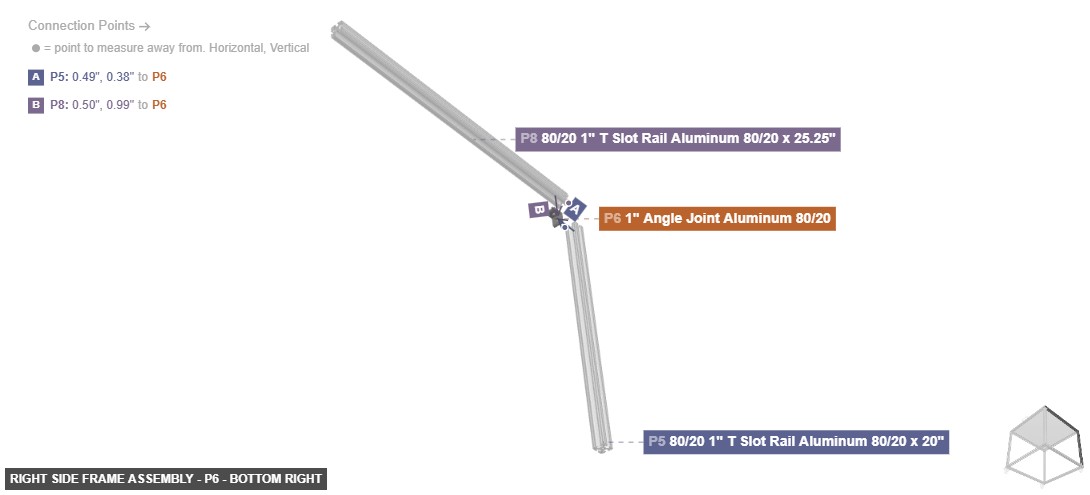

Angle: bottom right

Assembly of Right Side Frame Assembly - bottom_right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Attaching: Left Side Frame Assembly

Forms the main rectangular frame for the left side of the cart, mirroring the right side.

This frame will be connected to the Right Side Frame using the cross-members in the next step.

Angle: back left

Assembly of Left Side Frame Assembly - back_left

P13 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 21's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #2 facing top to part 14's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 45's 1" Rail 80/20 M #1. After that, connect its 1" 80/20 End Hole F #2 oriented back links with part 22's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 should be directed left. Additionally, ensure its 1" Rail 80/20 F #3 faces right P14 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 13's 1" Rail 80/20 F #2. Also, connect its 1" Rail 80/20 M #2 oriented front links with part 15's 1" Rail 80/20 F #1 P15 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" Rail 80/20 F #1 facing back to part 14's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2, which is right-facing, should connect to part 25's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented top. After that, ensure its 1" Rail 80/20 F #3 faces front, plus ensure its 1" Rail 80/20 F #4 faces left. After that, ensure its 1" 80/20 End Hole F #2 faces bottom P16 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 13's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented back links with part 17's 1" Rail 80/20 F #1 P17 (4" 1" T Slot Rail Aluminum 80/20 20" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 16's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #4, which is right-facing, should connect to part 28's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point top. Additionally, ensure its 1" Rail 80/20 F #2 faces left. Also, ensure its 1" Rail 80/20 F #3 faces back. Also, ensure its 1" 80/20 End Hole F #2 faces bottom P18 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 17's 1" Rail 80/20 F #1, then connect its 1" Rail 80/20 M #2 oriented top links with part 20's 1" Rail 80/20 F #1 P19 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 15's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing top to part 20's 1" Rail 80/20 F #1 P20 (4" 1" T Slot Rail Aluminum 80/20 25.25" length) - connect its 1" 80/20 End Hole F #1 oriented back links with part 24's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented bottom links with part 18's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing top to part 37's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #2, which is front-facing, should connect to part 23's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #2 needs to point right, plus its 1" Rail 80/20 F #4 should be directed left P21 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 13's 1" 80/20 End Hole F #1 P22 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 13's 1" 80/20 End Hole F #2 P23 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 20's 1" 80/20 End Hole F #2 P24 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 20's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

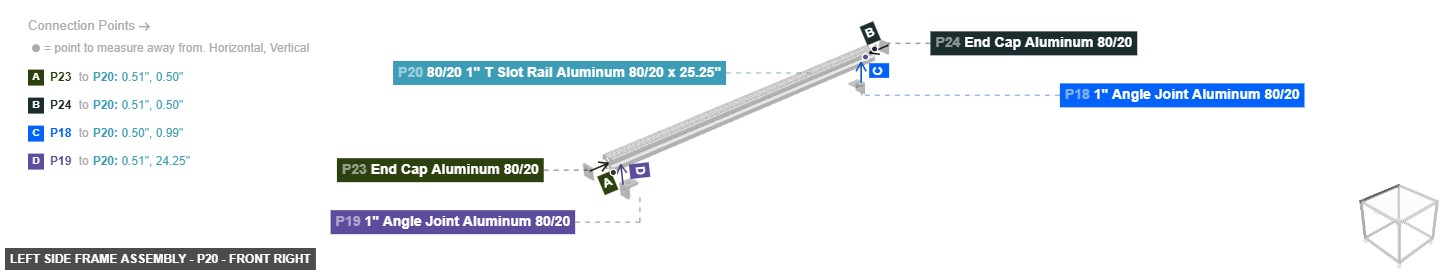

Angle: front right

Assembly of Left Side Frame Assembly - front_right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

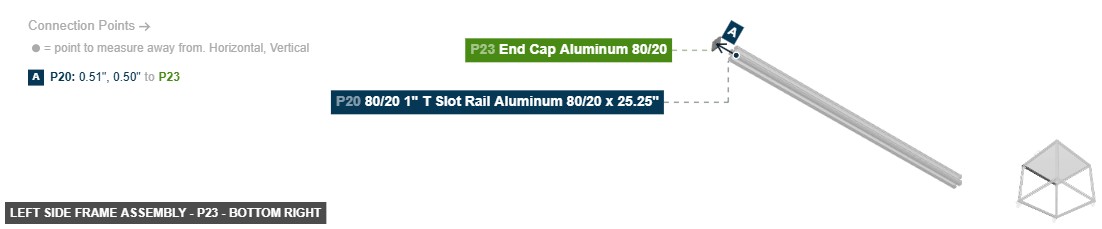

Angle: bottom right

Assembly of Left Side Frame Assembly - bottom_right

80/20 1" T Slot Rail Aluminum 80/20 x 25.25"x 2

1" Angle Joint Aluminum 80/20x 4

80/20 1" T Slot Rail Aluminum 80/20 x 20"x 2

End Cap Aluminum 80/20x 4

Attaching: Frame Cross-Members and Final Assembly

Connects the left and right side frames to form the complete cart structure.

This step joins the previously assembled side frames into a single, rigid cube structure.

Angle: back left

Assembly of Frame Cross-Members and Final Assembly - back_left

P25 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 15's 1" Rail 80/20 F #2. After that, attach its 1" Rail 80/20 M #2 facing top to part 27's 1" Rail 80/20 F #1 P26 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 3's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 27's 1" Rail 80/20 F #1 P27 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 26's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #4, which is front-facing, should connect to part 42's 1" Rail 80/20 M #1, plus ensure its 1" 80/20 End Hole F #1 faces left. After that, its 1" Rail 80/20 F #2 needs to point back, plus its 1" Rail 80/20 F #3 should be directed top. Also, its 1" 80/20 End Hole F #2 must be oriented right P28 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 17's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1 P29 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 5's 1" Rail 80/20 F #2, and its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1 P30 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 29's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 should be directed left. Additionally, its 1" Rail 80/20 F #2 must be oriented back. After that, its 1" Rail 80/20 F #3 needs to point top. Additionally, ensure its 1" Rail 80/20 F #4 faces front. Next, its 1" 80/20 End Hole F #2 should be directed right P31 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 5's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented bottom links with part 33's 1" Rail 80/20 F #1 P32 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 17's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 33's 1" Rail 80/20 F #1 P33 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - connect its 1" Rail 80/20 F #1 oriented top links with part 32's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right, and its 1" Rail 80/20 F #2 should be directed back. Also, its 1" Rail 80/20 F #3 must be oriented bottom, plus its 1" Rail 80/20 F #4 should be directed front, also its 1" 80/20 End Hole F #2 should be directed left P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 3's 1" Rail 80/20 F #4, then attach its 1" Rail 80/20 M #2 facing bottom to part 36's 1" Rail 80/20 F #1 P35 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 15's 1" Rail 80/20 F #2. Next, attach its 1" Rail 80/20 M #2 facing bottom to part 36's 1" Rail 80/20 F #1 P36 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is top-facing, should connect to part 35's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right, plus ensure its 1" Rail 80/20 F #2 faces back, and its 1" Rail 80/20 F #3 must be oriented bottom. After that, its 1" Rail 80/20 F #4 should be directed front. Next, its 1" 80/20 End Hole F #2 must be oriented left

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Angle: front right

Assembly of Frame Cross-Members and Final Assembly - front_right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Angle: bottom right

Assembly of Frame Cross-Members and Final Assembly - bottom_right

1" Angle Joint Aluminum 80/20x 8

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

Attaching: Top Panel and Handle Installation

Provides the top surface for the cart and a handle for pulling it.

This group installs onto the top of the assembled cart frame.

Angle: back left

Assembly of Top Panel and Handle Installation - back_left

P37 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 20's 1" Rail 80/20 F #3. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #4 P38 (2' Acrylic Panel 24" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 41's 1" 80 20 Panel Holder #1. Additionally, its 1" 80 20 Panel #2, which is top-facing, should connect to part 39's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #3, which is top-facing, should connect to part 40's 1" 80 20 Panel Holder #1. Next, its 1" 80 20 Panel #4, which is top-facing, should connect to part 37's 1" 80 20 Panel Holder #1 P39 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 20's 1" Rail 80/20 F #3. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #2 P40 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 8's 1" Rail 80/20 F #3. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 38's 1" 80 20 Panel #3 P41 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 8's 1" Rail 80/20 F #3. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 38's 1" 80 20 Panel #1 P42 (1" Pull Handle Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 27's 1" Rail 80/20 F #4

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Angle: front right

Assembly of Top Panel and Handle Installation - front_right

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Angle: bottom right

Assembly of Top Panel and Handle Installation - bottom_right

1" Hanger for Solid Panel Aluminum 80/20x 4

2' Acrylic Panel x 24"x 1

1" Pull Handle Aluminum 80/20x 1

Attaching: Wheel Assembly

Adds mobility to the cart.

These wheels attach to the bottom of the fully assembled cart frame, completing the design.

Angle: back left

P43 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4 P44 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 1's 1" Rail 80/20 F #4 P45 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 13's 1" Rail 80/20 F #4 P46 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 13's 1" Rail 80/20 F #4

2" Wheel 80/20x 4

Angle: front right

Assembly of Wheel Assembly - front_right

2" Wheel 80/20x 4

Angle: bottom right

Assembly of Wheel Assembly - bottom_right

2" Wheel 80/20x 4
