PVC Wheel Chair (16'' back wheel, 10'' front wheels) - Comprehensive Assembly Plan And Visual Guide
A wheelchair constructed primarily from PVC pipes and fittings, featuring 16-inch rear wheels and 10-inch front wheels, a seat base, backrest, armrests, and footrest. - PVC Wheelchair

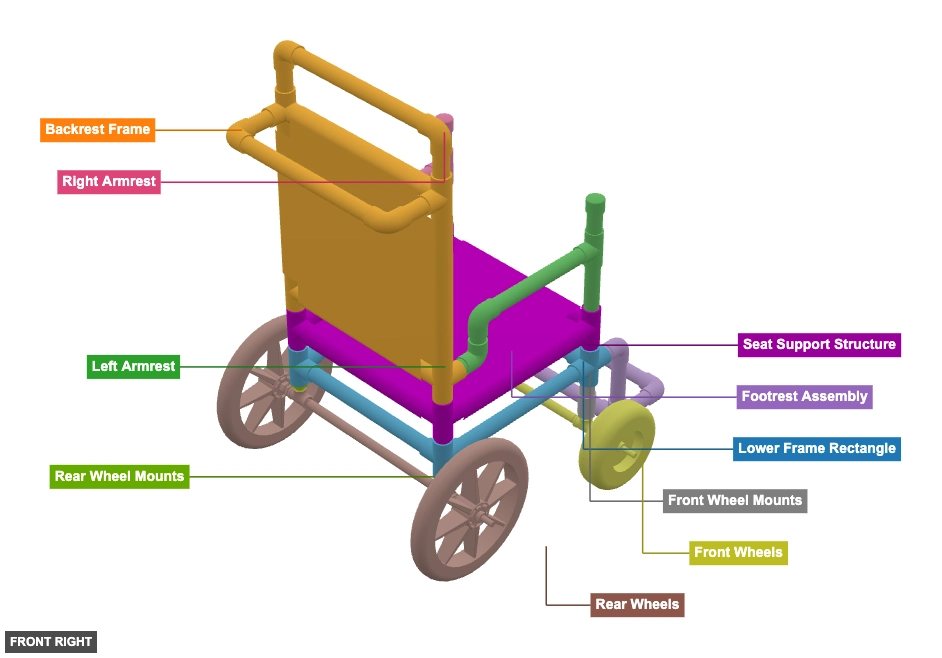

Phase 1: Group Overview

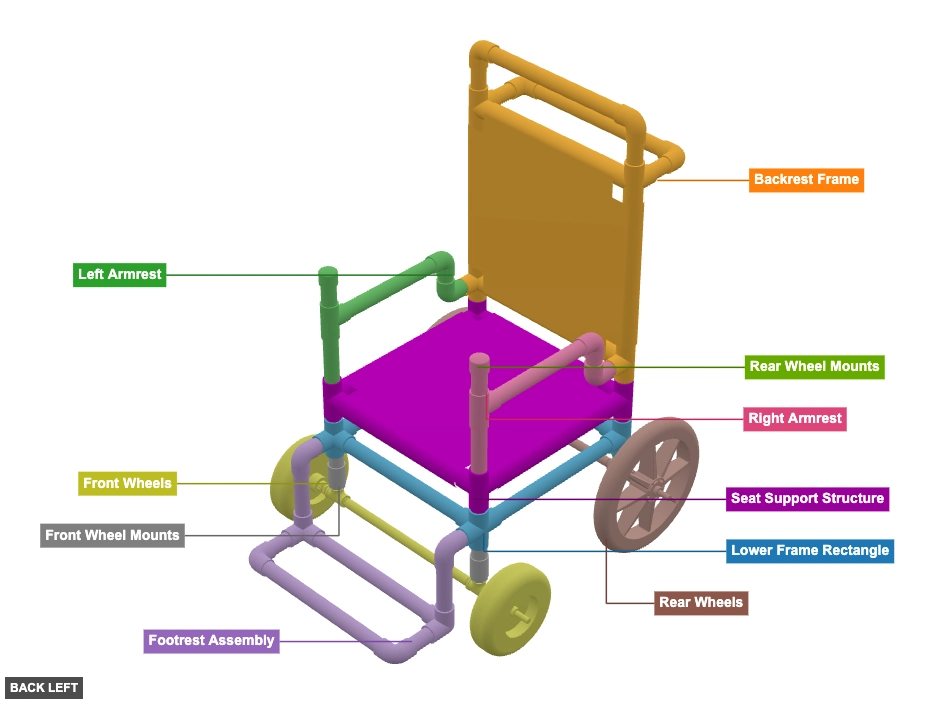

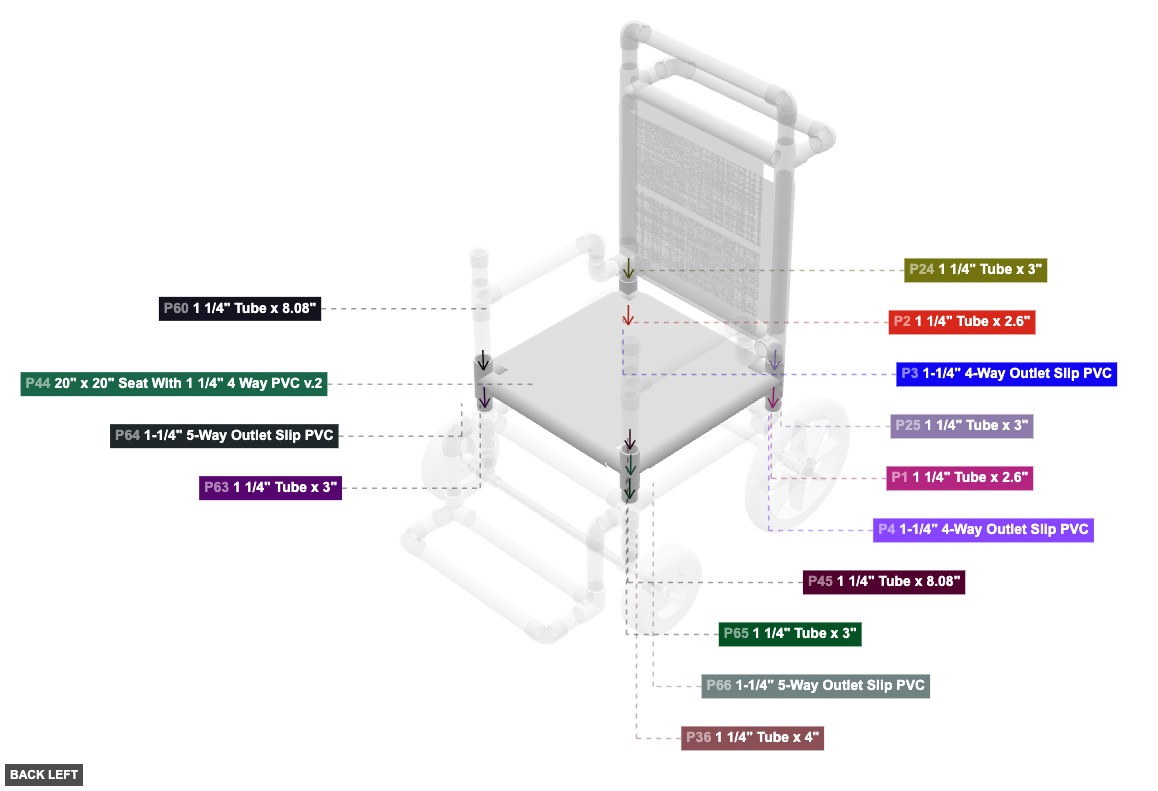

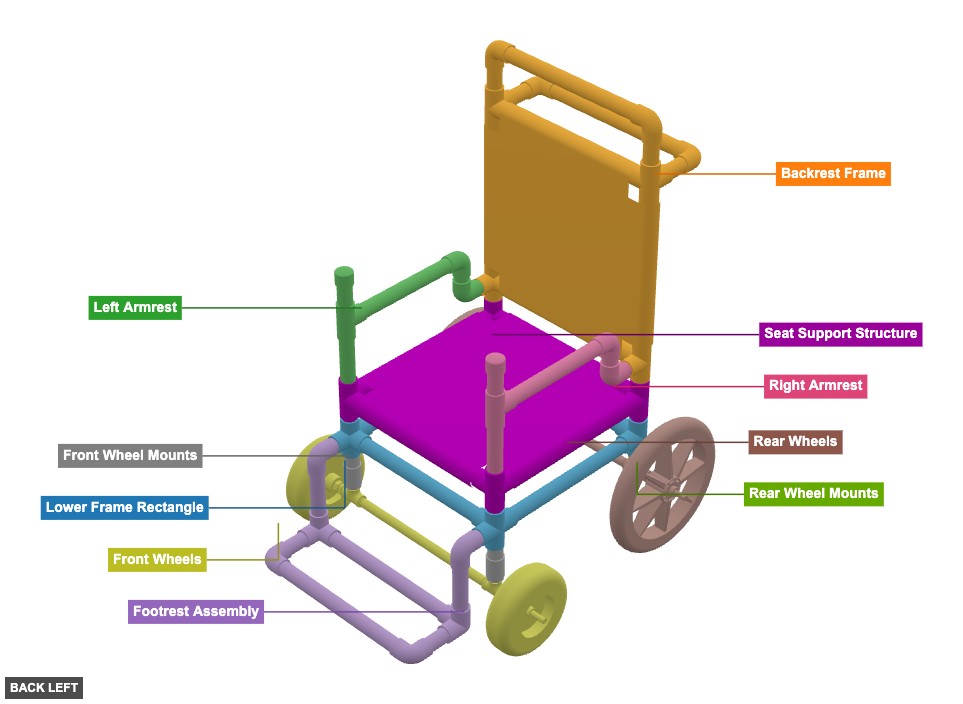

Angle: back left
Lower Frame Rectangle

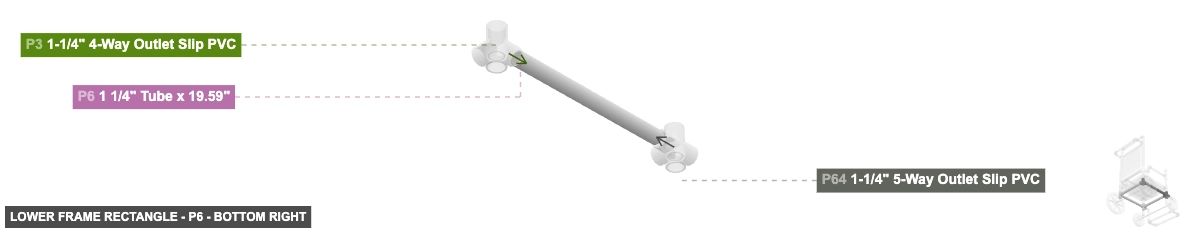

1-1/4" 4-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.55"x 1
1 1/4" Tube x 19.59"x 2

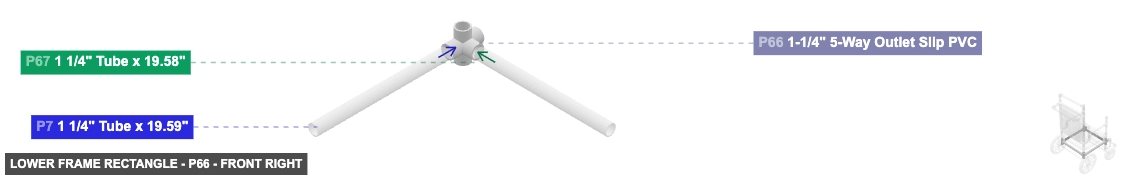

1-1/4" 5-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.58"x 1Front Wheel Mounts
1 1/4" Tube x 4"x 2
1-1/4" Coupler Slip PVCx 2
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 1" Long Nipple Black Steelx 2Rear Wheel Mounts
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 2" Nipplex 2Seat Support Structure
1 1/4" Tube x 2.6"x 2
20" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/4" Tube x 3"x 2Footrest Assembly

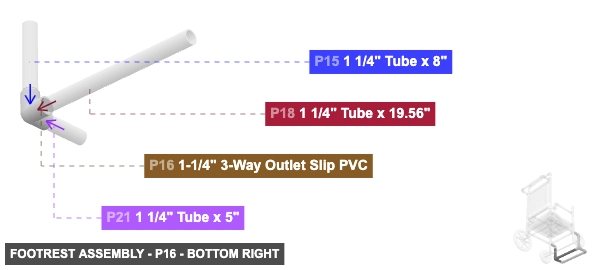

1-1/4" 90° Elbow Slip PVC x 4

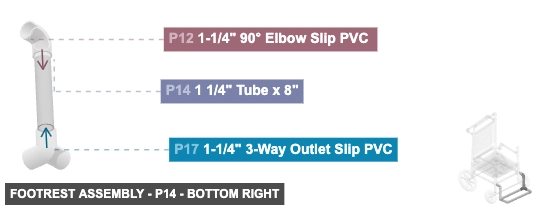

1 1/4" Tube x 8"x 2

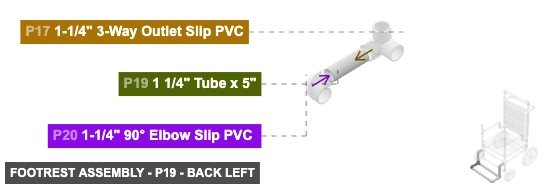

1-1/4" 3-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.56"x 1
1 1/4" Tube x 5"x 2
1 1/4" Tube x 19.81"x 1

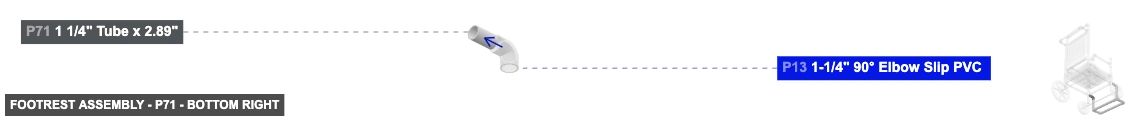

1 1/4" Tube x 2.89"x 2Backrest Frame
1 1/4" Tube x 3"x 2
1 1/4" Tube x 5"x 3

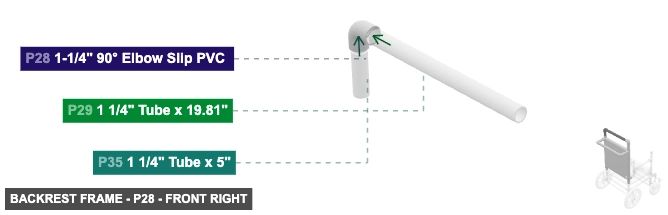

1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 19.81"x 2
1 1/4" Tube x 5.03"x 1

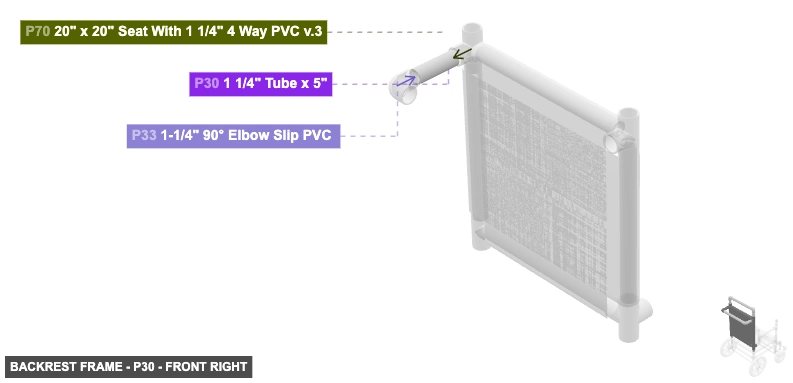

20" x 20" Seat With 1 1/4" 4 Way PVC v.3x 1Left Armrest
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.03"x 1
1 1/4" Tube x 15"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 5"x 1

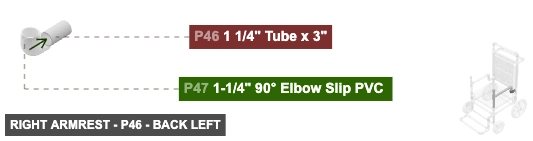

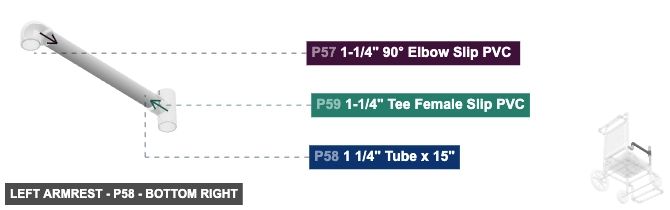

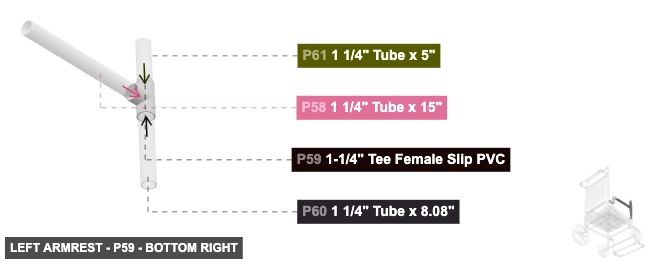

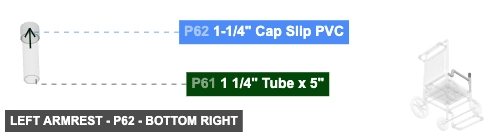

1-1/4" Cap Slip PVCx 1Right Armrest
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 3"x 1

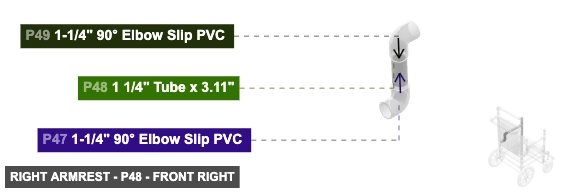

1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.11"x 1
1 1/4" Tube x 14.98"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1Front Wheels
10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connectionx 1Rear Wheels

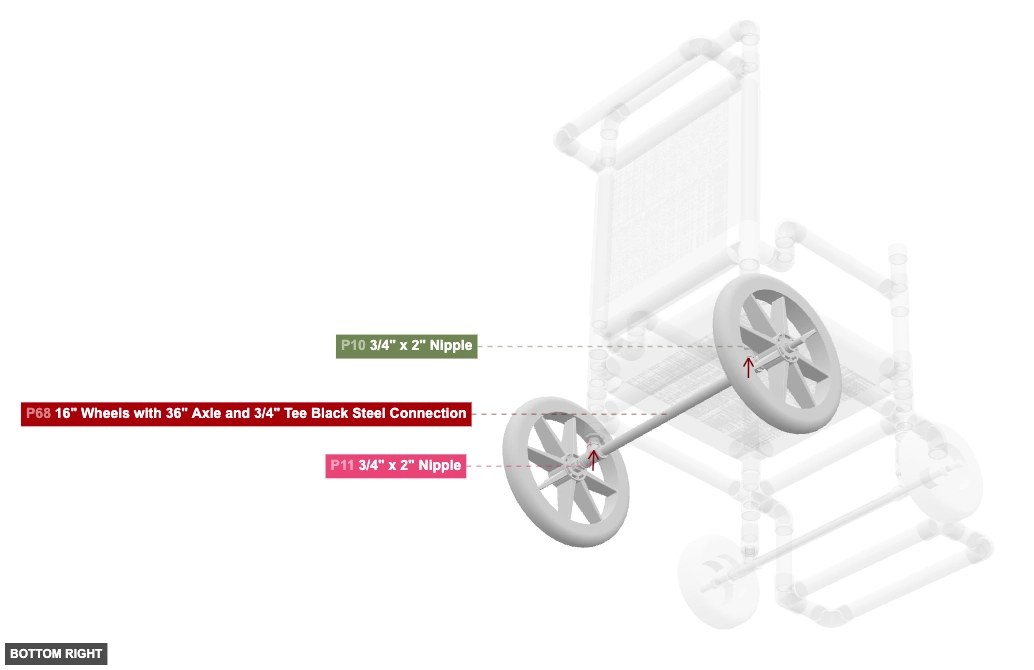

16" Wheels with 36" Axle and 3/4" Tee Black Steel Connectionx 1

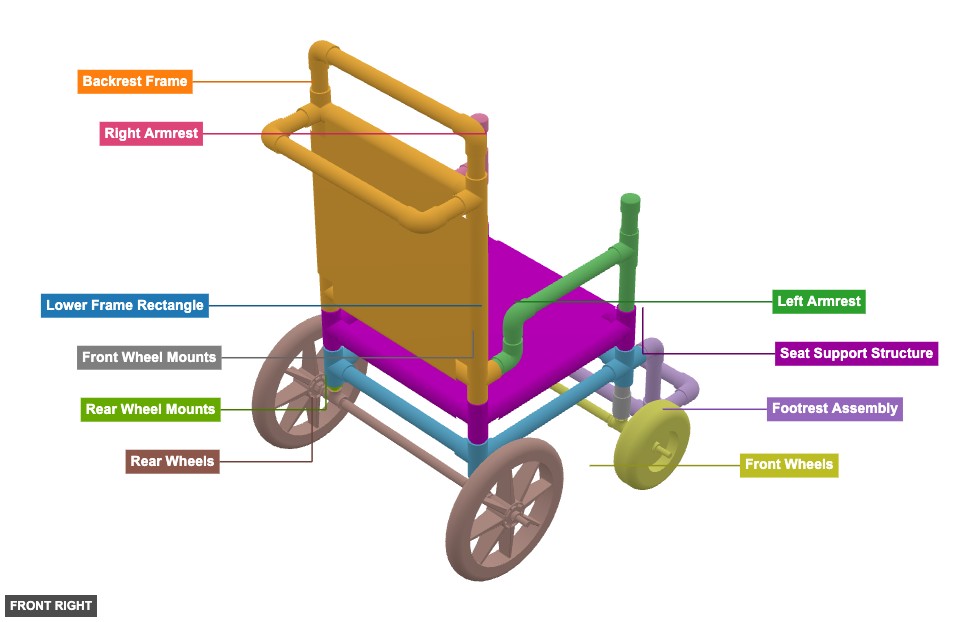

Angle: front right
Lower Frame Rectangle
1-1/4" 4-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.55"x 1
1 1/4" Tube x 19.59"x 2
1-1/4" 5-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.58"x 1Front Wheel Mounts
1 1/4" Tube x 4"x 2
1-1/4" Coupler Slip PVCx 2
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 1" Long Nipple Black Steelx 2Rear Wheel Mounts
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 2" Nipplex 2Seat Support Structure
1 1/4" Tube x 2.6"x 2
20" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/4" Tube x 3"x 2Footrest Assembly
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 8"x 2
1-1/4" 3-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.56"x 1
1 1/4" Tube x 5"x 2
1 1/4" Tube x 19.81"x 1
1 1/4" Tube x 2.89"x 2Backrest Frame
1 1/4" Tube x 3"x 2
1 1/4" Tube x 5"x 3
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 19.81"x 2
1 1/4" Tube x 5.03"x 1
20" x 20" Seat With 1 1/4" 4 Way PVC v.3x 1Left Armrest
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.03"x 1
1 1/4" Tube x 15"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1Right Armrest
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.11"x 1
1 1/4" Tube x 14.98"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1Front Wheels
10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connectionx 1Rear Wheels
16" Wheels with 36" Axle and 3/4" Tee Black Steel Connectionx 1

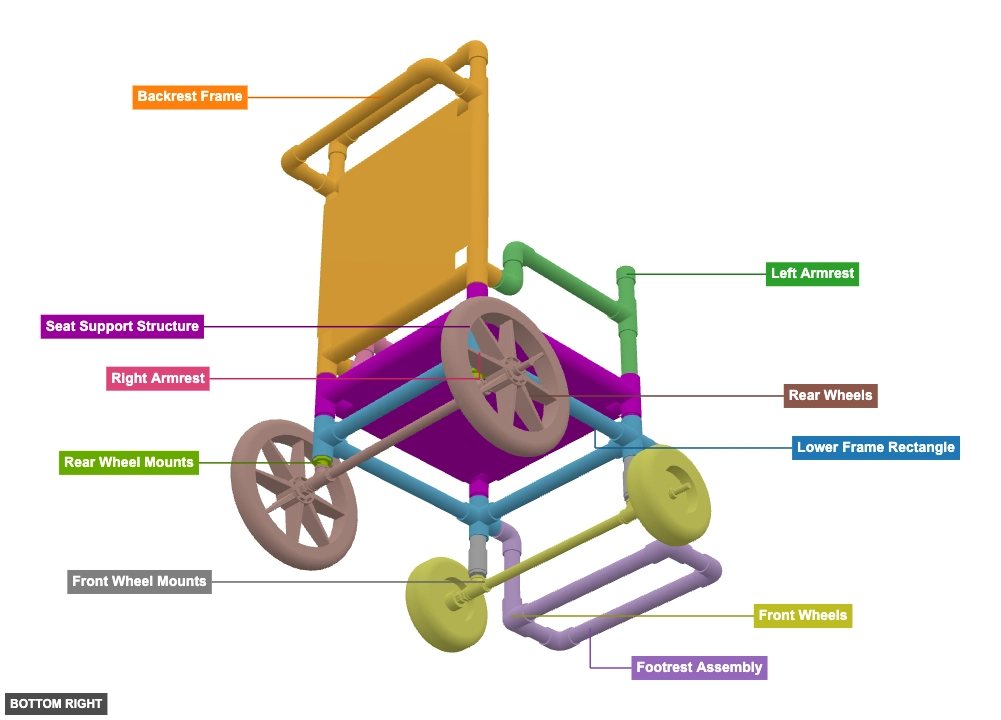

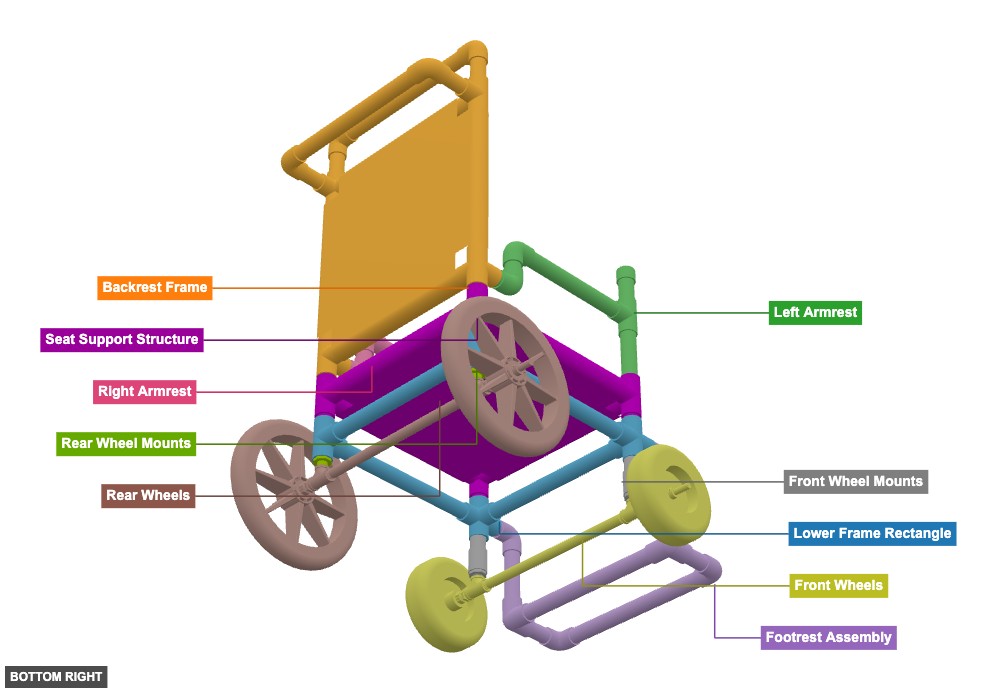

Angle: bottom right
Lower Frame Rectangle
1-1/4" 4-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.55"x 1
1 1/4" Tube x 19.59"x 2
1-1/4" 5-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.58"x 1Front Wheel Mounts
1 1/4" Tube x 4"x 2
1-1/4" Coupler Slip PVCx 2
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 1" Long Nipple Black Steelx 2Rear Wheel Mounts
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 2" Nipplex 2Seat Support Structure
1 1/4" Tube x 2.6"x 2
20" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/4" Tube x 3"x 2Footrest Assembly
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 8"x 2
1-1/4" 3-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.56"x 1
1 1/4" Tube x 5"x 2
1 1/4" Tube x 19.81"x 1
1 1/4" Tube x 2.89"x 2Backrest Frame
1 1/4" Tube x 3"x 2
1 1/4" Tube x 5"x 3
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 19.81"x 2
1 1/4" Tube x 5.03"x 1
20" x 20" Seat With 1 1/4" 4 Way PVC v.3x 1Left Armrest
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.03"x 1
1 1/4" Tube x 15"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1Right Armrest
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.11"x 1
1 1/4" Tube x 14.98"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1Front Wheels
10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connectionx 1Rear Wheels
16" Wheels with 36" Axle and 3/4" Tee Black Steel Connectionx 1
Phase 2: Individual Group Assembly
Group: Lower Frame Rectangle

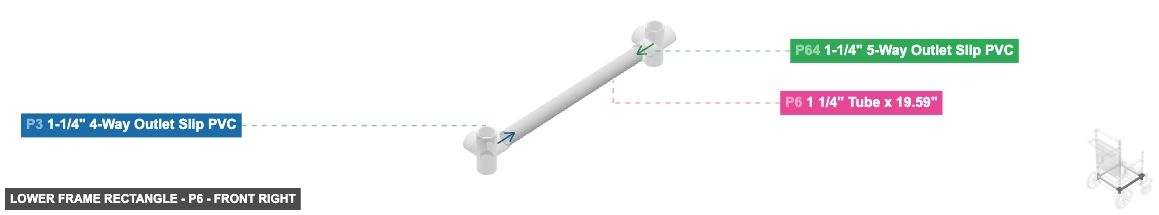

Forms the main rectangular base of the wheelchair frame, connecting the points where the front and rear wheel mounts and seat supports will attach.
Connect P5 (1.25" Tube 19.55") between the front-facing Female SLIP 1.25" ports of P3 (Left 1.25" 4-Way Outlet) and P4 (Right 1.25" 4-Way Outlet). Connect P67 (1.25" Tube 19.58") between the rear-facing Female SLIP 1.25" ports of P64 (Left 1.25" 5-Way Outlet) and P66 (Right 1.25" 5-Way Outlet). Connect P6 (1.25" Tube 19.59") between the left-facing Female SLIP 1.25" port of P3 and the front-facing Female SLIP 1.25" port of P64. Connect P7 (1.25" Tube 19.59") between the right-facing Female SLIP 1.25" port of P4 and the front-facing Female SLIP 1.25" port of P66.

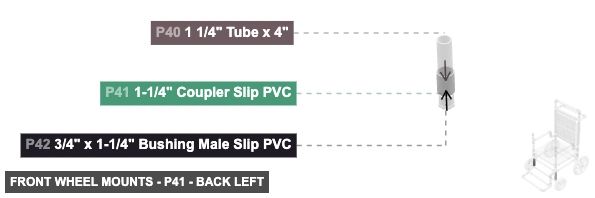

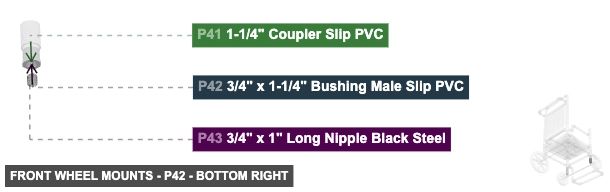

Group: Front Wheel Mounts
Creates the downward structures from the rear corners of the lower frame to attach the front wheels.

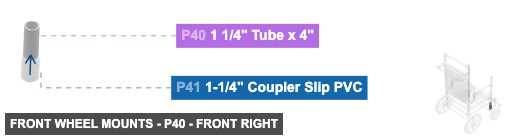

For the right mount: Insert P40 (1.25" Tube 4") Male SLIP 1.25" bottom into P41 (1.25" Coupler) Female SLIP 1.25" top. Insert P42 (0.75" x 1-1/4" Bushing) Male SLIP 1.25" into P41 Female SLIP 1.25" bottom. Screw P43 (0.75" x 1" Nipple) Male Threaded 3/4" into P42 Female Threaded 3/4". For the left mount: Insert P36 (1.25" Tube 4") Male SLIP 1.25" bottom into P37 (1.25" Coupler) Female SLIP 1.25" top. Insert P38 (0.75" x 1-1/4" Bushing) Male SLIP 1.25" into P37 Female SLIP 1.25" bottom. Screw P39 (0.75" x 1" Nipple) Male Threaded 3/4" into P38 Female Threaded 3/4".

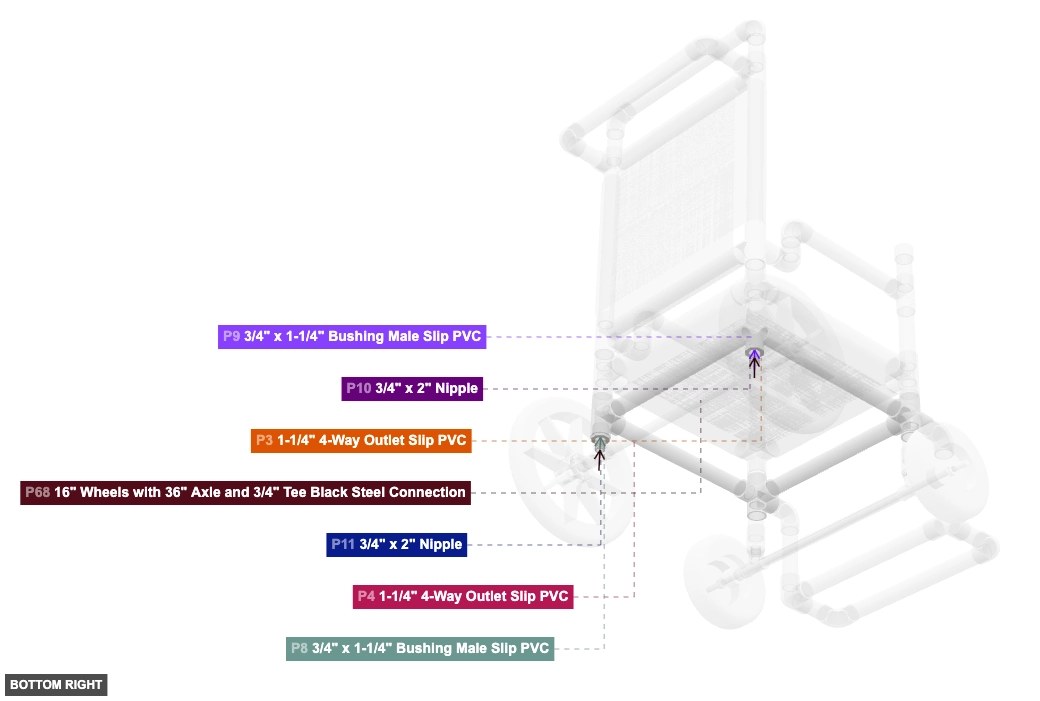

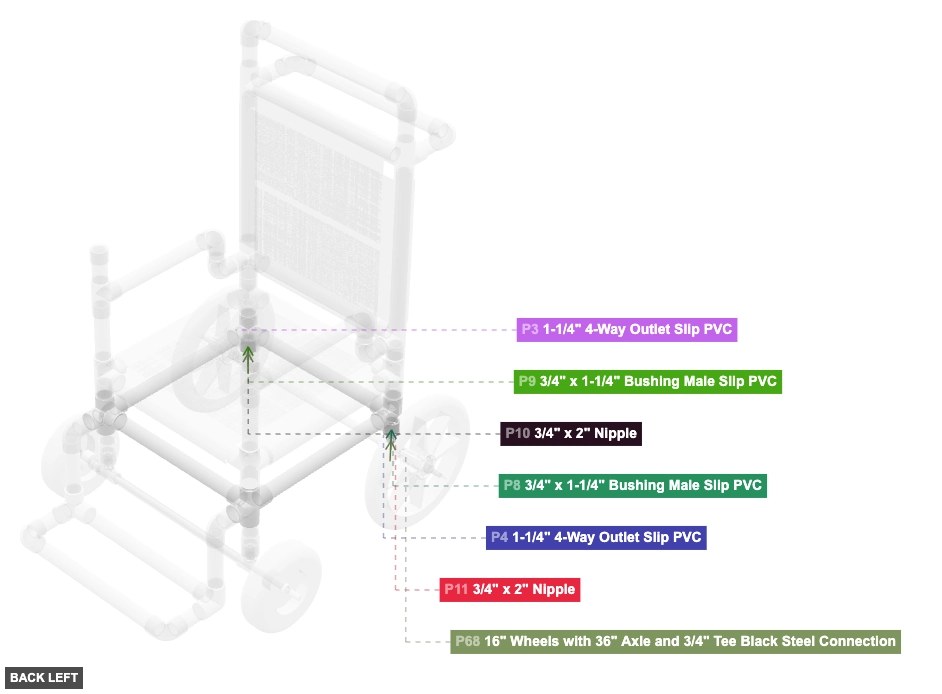

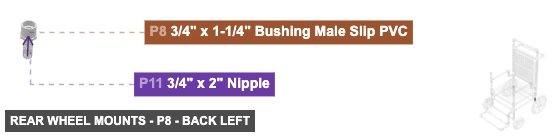

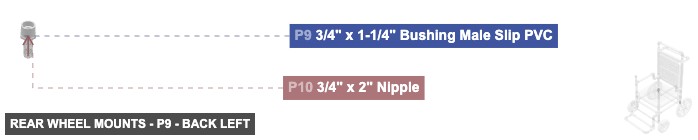

Group: Rear Wheel Mounts

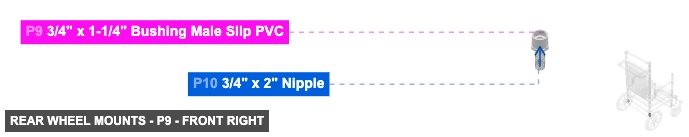

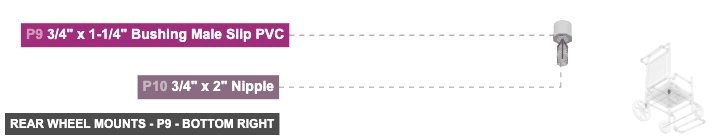

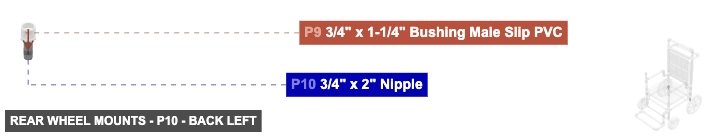

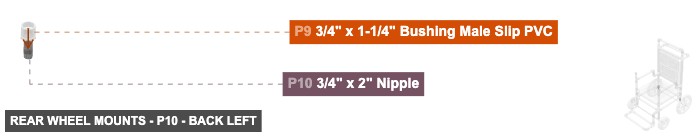

Creates the downward structures from the front corners of the lower frame to attach the rear wheels.

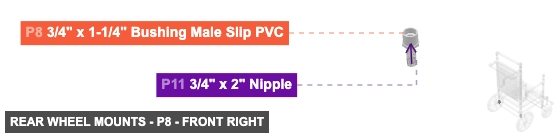

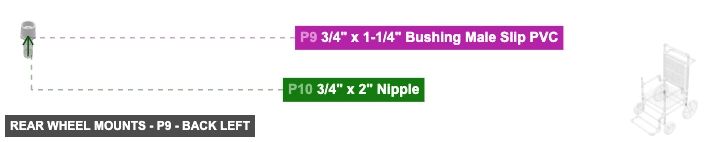

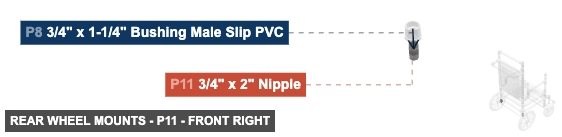

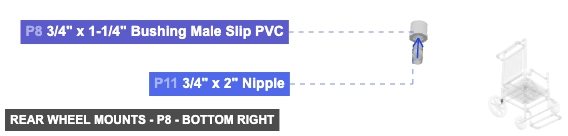

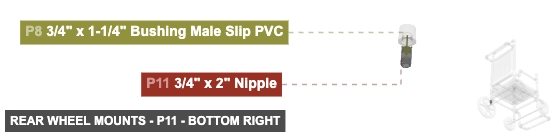

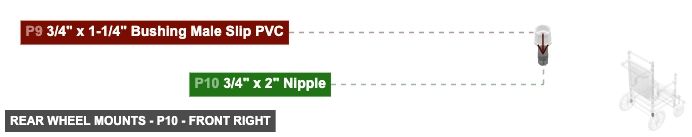

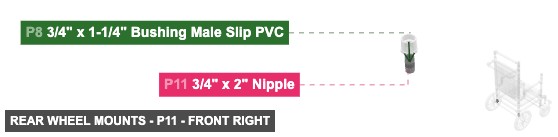

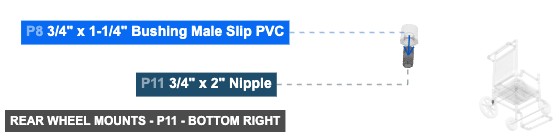

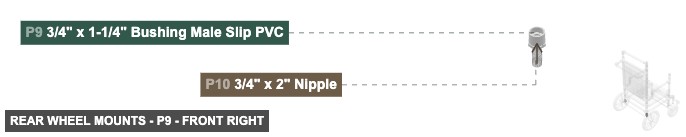

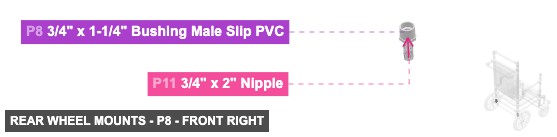

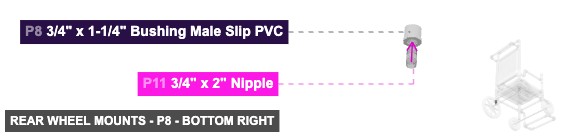

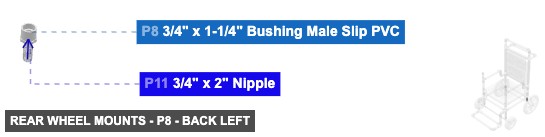

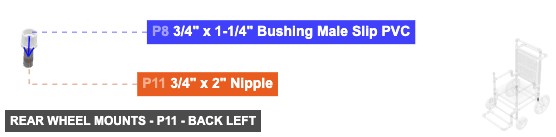

For the right mount: Insert P8 (0.75" x 1-1/4" Bushing) Male SLIP 1.25" into the bottom-facing Female SLIP 1.25" port of P4 (Lower Frame). Screw P11 (0.75" x 2" Nipple) Male Threaded 3/4" into P8 Female Threaded 3/4". For the left mount: Insert P9 (0.75" x 1-1/4" Bushing) Male SLIP 1.25" into the bottom-facing Female SLIP 1.25" port of P3 (Lower Frame). Screw P10 (0.75" x 2" Nipple) Male Threaded 3/4" into P9 Female Threaded 3/4".

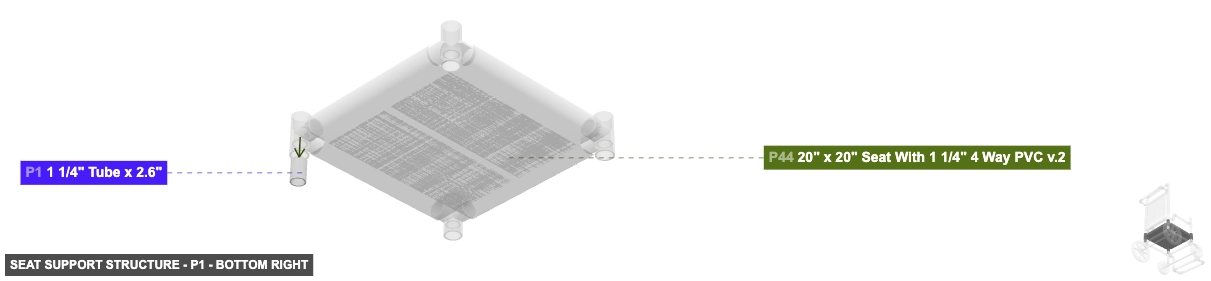

Group: Seat Support Structure

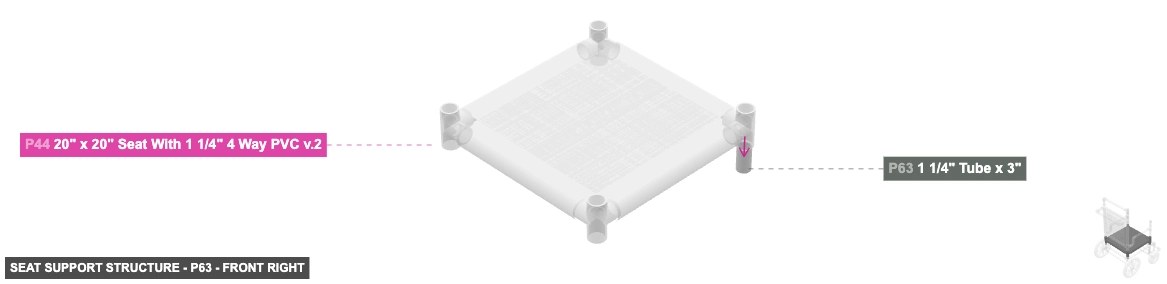

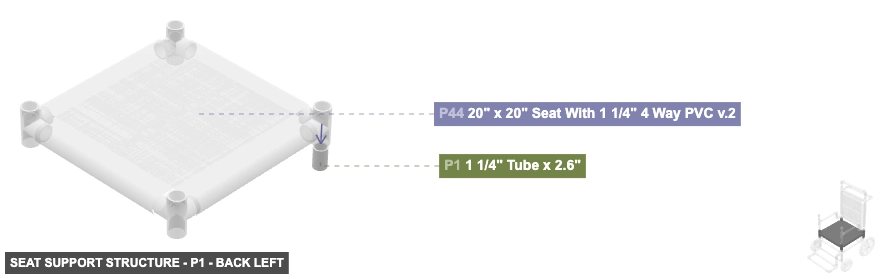

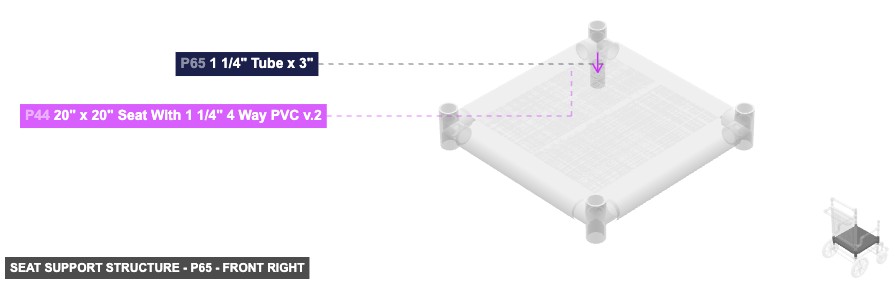

Builds the vertical supports from the lower frame up to the main seat fitting.
Insert P1 (1.25" Tube 2.6") Male SLIP 1.25" bottom into the top-facing Female SLIP 1.25" port of P4 (Lower Frame). Insert P2 (1.25" Tube 2.6") Male SLIP 1.25" bottom into the top-facing Female SLIP 1.25" port of P3 (Lower Frame). Insert P63 (1.25" Tube 3") Male SLIP 1.25" bottom into the top-facing Female SLIP 1.25" port of P64 (Lower Frame). Insert P65 (1.25" Tube 3") Male SLIP 1.25" bottom into the top-facing Female SLIP 1.25" port of P66 (Lower Frame). Place P44 (Seat Fitting) onto the upright tubes: Connect P1 Male SLIP 1.25" top to P44 Female SLIP 1.25" bottom (right-rear). Connect P2 Male SLIP 1.25" top to P44 Female SLIP 1.25" bottom (left-rear). Connect P63 Male SLIP 1.25" top to P44 Female SLIP 1.25" bottom (right-front). Connect P65 Male SLIP 1.25" top to P44 Female SLIP 1.25" bottom (left-front).

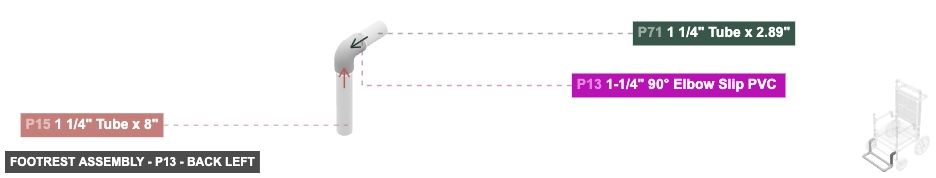

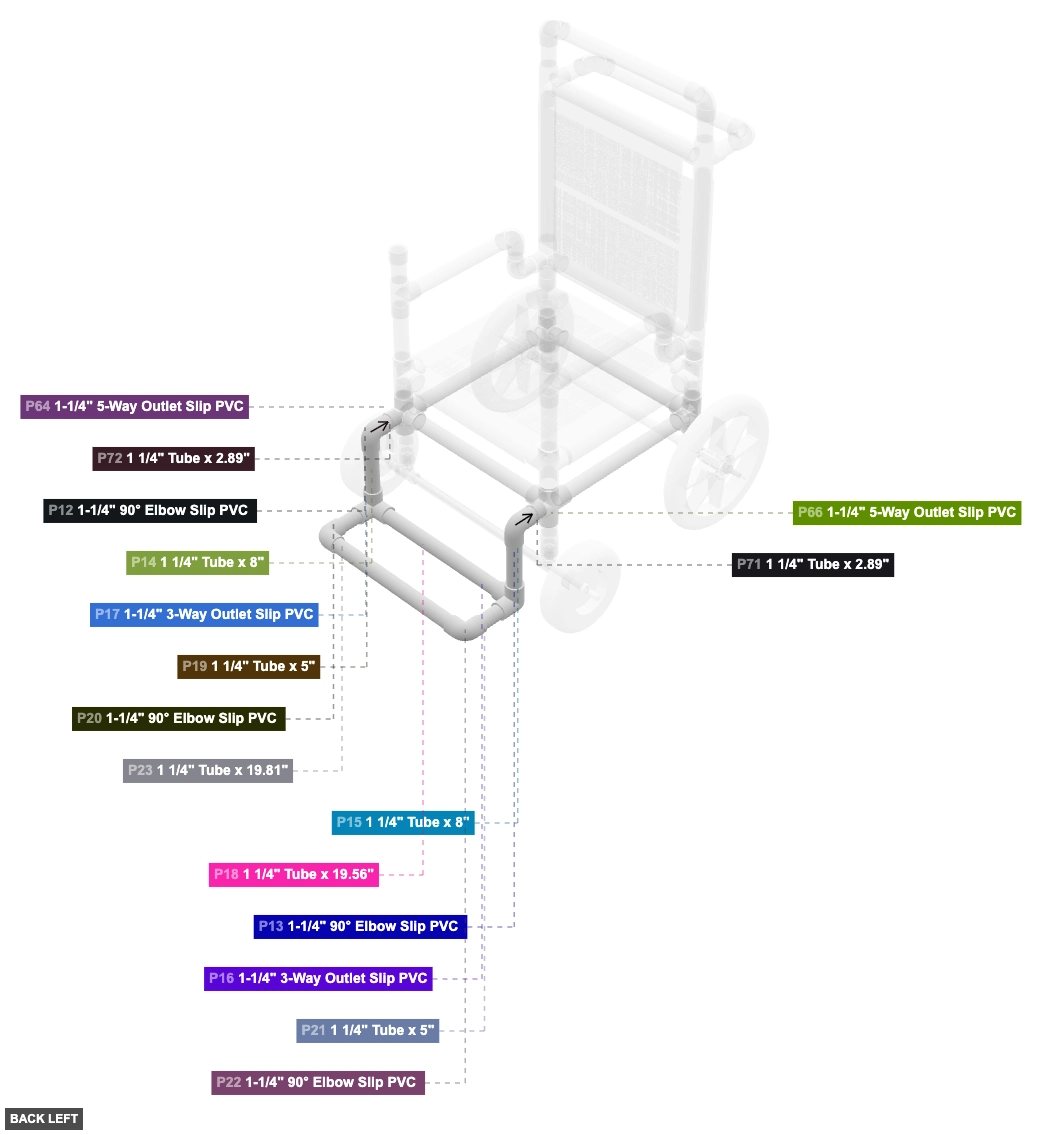

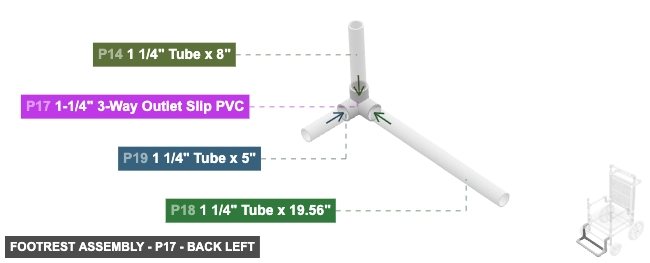

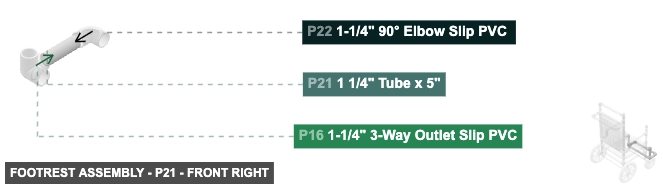

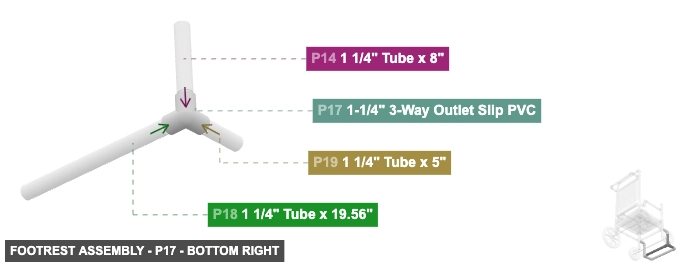

Group: Footrest Assembly

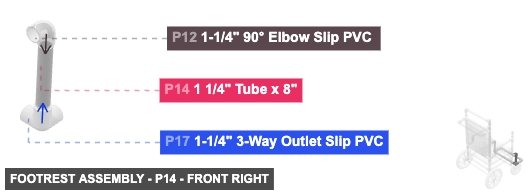

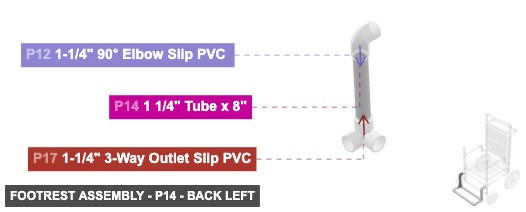

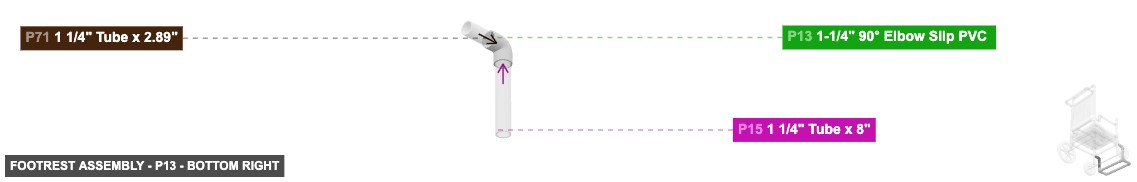

Constructs the footrest section which extends forward from the lower frame.

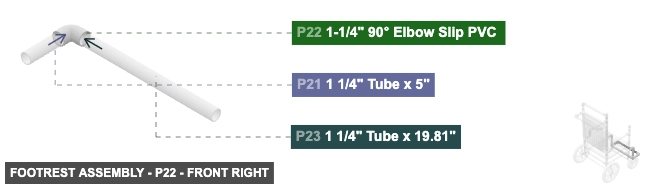

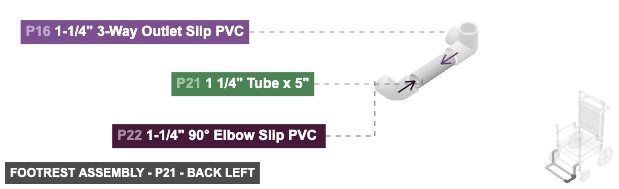

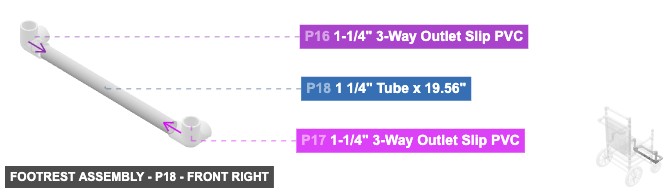

Connect P18 (1.25" Tube 19.56") between the side-facing Female SLIP 1.25" ports of P16 (Left 1.25" 3-Way Outlet) and P17 (Right 1.25" 3-Way Outlet). Insert P15 (1.25" Tube 8") Male SLIP 1.25" bottom into the top-facing Female SLIP 1.25" port of P16. Insert P14 (1.25" Tube 8") Male SLIP 1.25" bottom into the top-facing Female SLIP 1.25" port of P17. Connect P13 (1.25" 90° Elbow) Female SLIP 1.25" bottom to P15 Male SLIP 1.25" top. Connect P12 (1.25" 90° Elbow) Female SLIP 1.25" bottom to P14 Male SLIP 1.25" top. Connect P71 (1.25" Tube 2.89") Male SLIP 1.25" back to P13 Female SLIP 1.25" front. Connect P72 (1.25" Tube 2.89") Male SLIP 1.25" back to P12 Female SLIP 1.25" front. Connect P21 (1.25" Tube 5") Male SLIP 1.25" front to the rear-facing Female SLIP 1.25" port of P16. Connect P19 (1.25" Tube 5") Male SLIP 1.25" front to the rear-facing Female SLIP 1.25" port of P17. Connect P22 (1.25" 90° Elbow) Female SLIP 1.25" front to P21 Male SLIP 1.25" back. Connect P20 (1.25" 90° Elbow) Female SLIP 1.25" front to P19 Male SLIP 1.25" back. Connect P23 (1.25" Tube 19.81") between the side-facing Female SLIP 1.25" ports of P20 and P22.

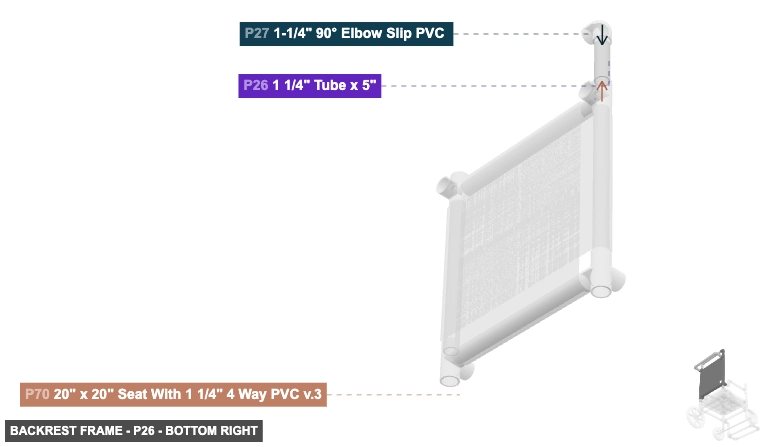

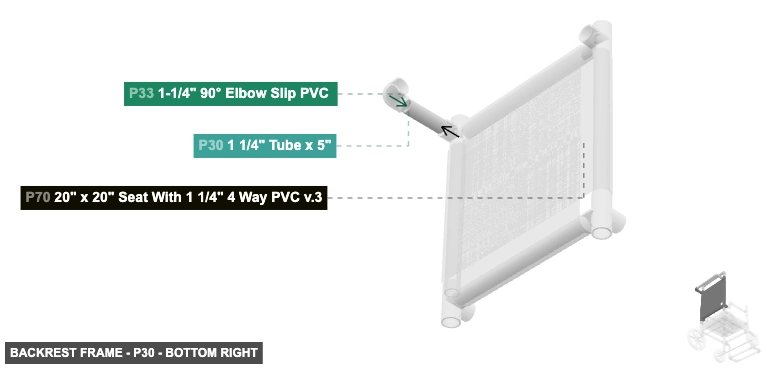

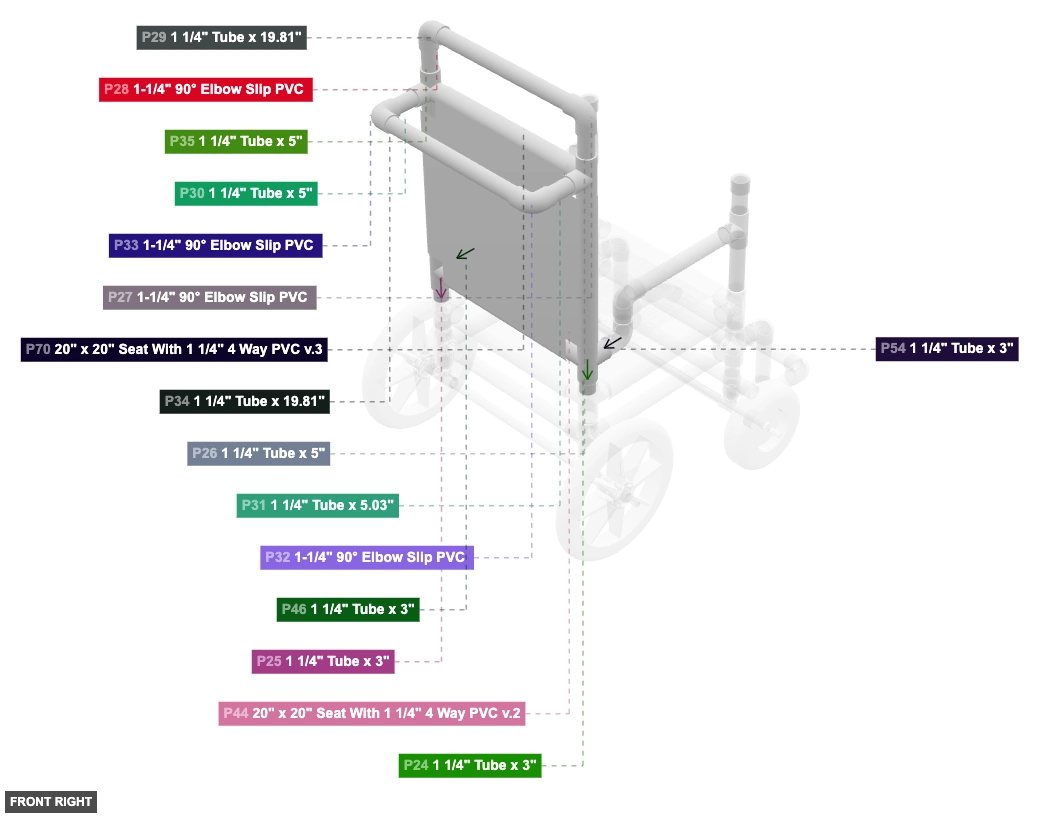

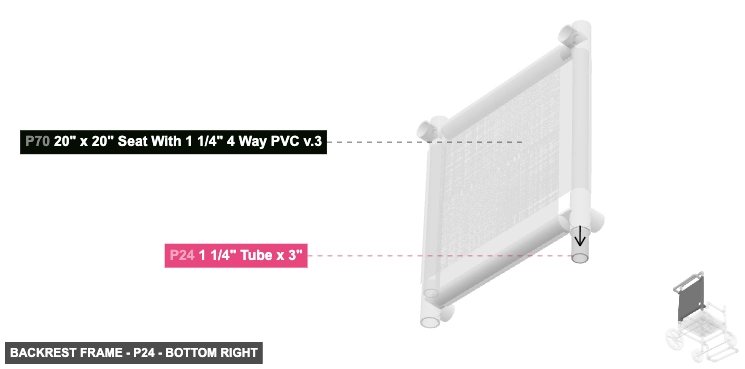

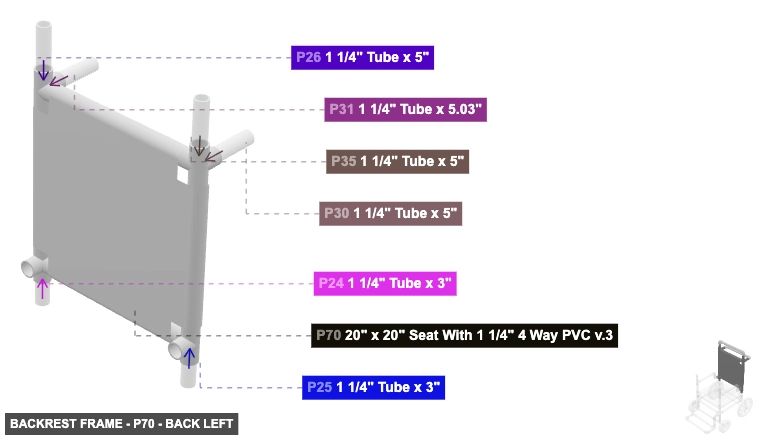

Group: Backrest Frame

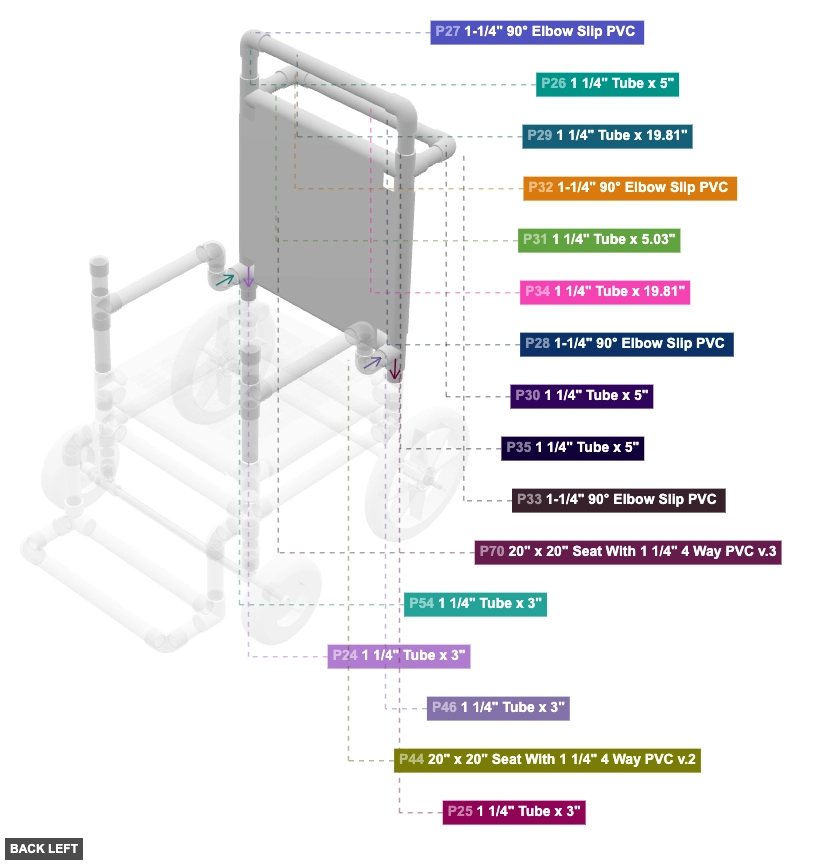

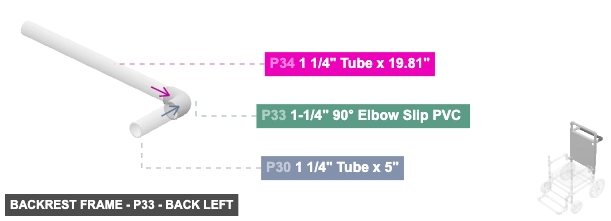

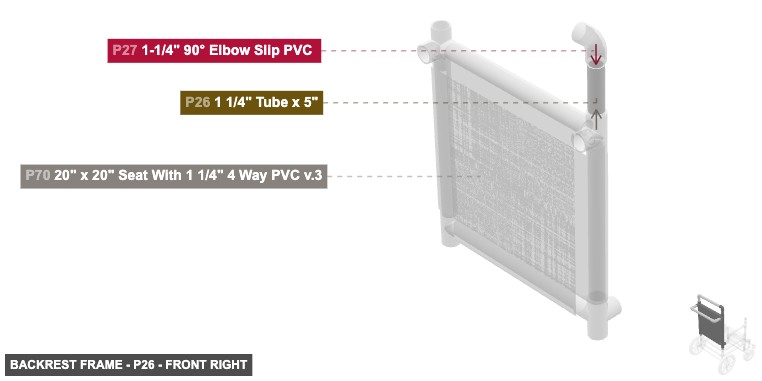

Builds the backrest structure, including the upper frame and push handles.

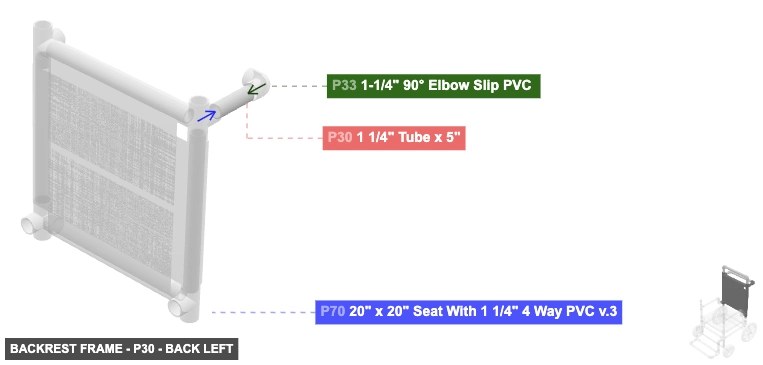

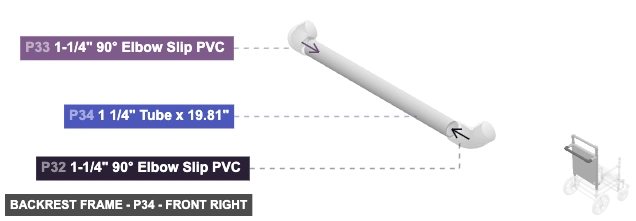

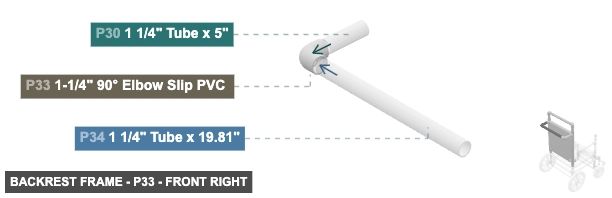

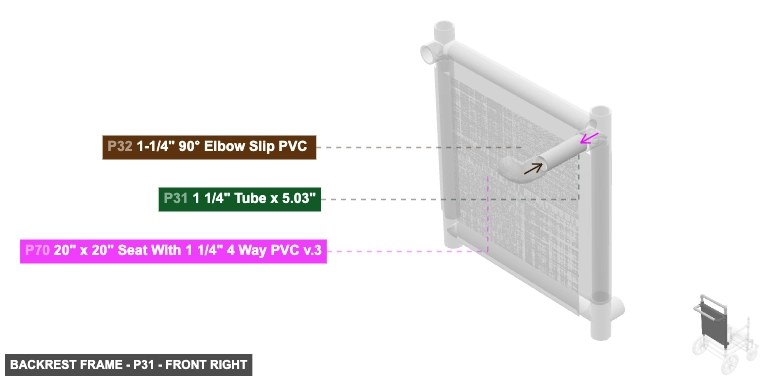

Insert P24 (1.25" Tube 3") Male SLIP 1.25" bottom into the top-right Female SLIP 1.25" port of P44 (Seat Support). Insert P25 (1.25" Tube 3") Male SLIP 1.25" bottom into the top-left Female SLIP 1.25" port of P44. Place P70 (Backrest Fitting) onto these tubes: Connect P24 Male SLIP 1.25" top to P70 Female SLIP 1.25" bottom (right). Connect P25 Male SLIP 1.25" top to P70 Female SLIP 1.25" bottom (left). Insert P26 (1.25" Tube 5") Male SLIP 1.25" bottom into the top-right Female SLIP 1.25" port of P70. Insert P35 (1.25" Tube 5") Male SLIP 1.25" bottom into the top-left Female SLIP 1.25" port of P70. Connect P27 (1.25" 90° Elbow) Female SLIP 1.25" bottom to P26 Male SLIP 1.25" top. Connect P28 (1.25" 90° Elbow) Female SLIP 1.25" bottom to P35 Male SLIP 1.25" top. Connect P29 (1.25" Tube 19.81") between the side-facing Female SLIP 1.25" ports of P27 and P28. Insert P30 (1.25" Tube 5") Male SLIP 1.25" back into the front-right Female SLIP 1.25" port of P70. Insert P31 (1.25" Tube 5.03") Male SLIP 1.25" back into the front-left Female SLIP 1.25" port of P70. Connect P33 (1.25" 90° Elbow) Female SLIP 1.25" back to P30 Male SLIP 1.25" front. Connect P32 (1.25" 90° Elbow) Female SLIP 1.25" back to P31 Male SLIP 1.25" front. Connect P34 (1.25" Tube 19.81") between the side-facing Female SLIP 1.25" ports of P32 and P33.

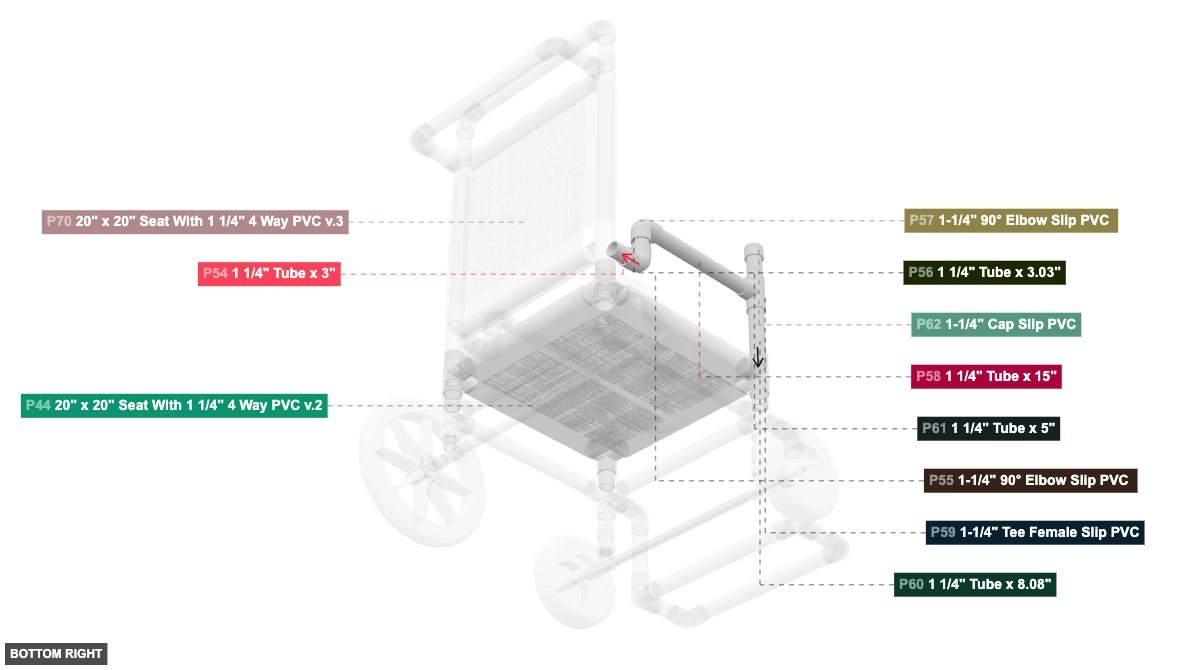

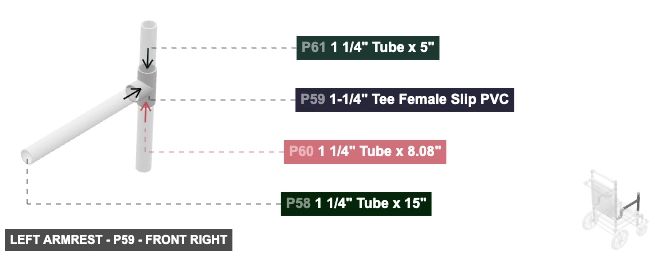

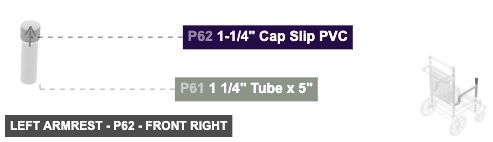

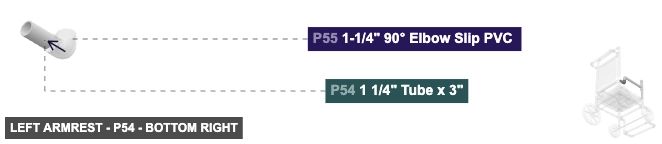

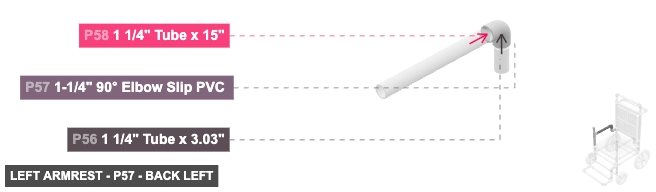

Group: Left Armrest

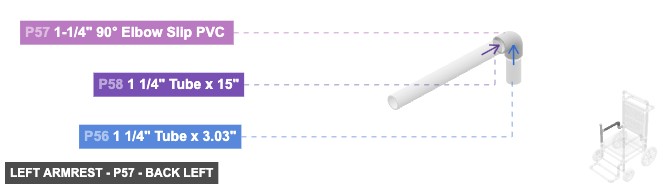

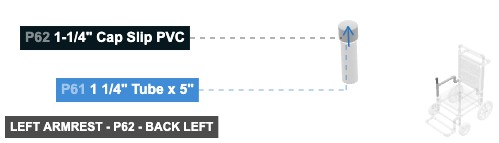

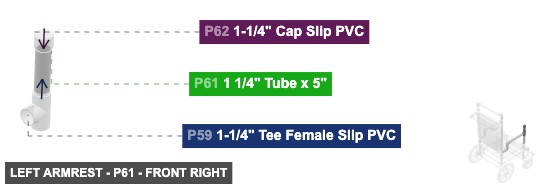

Constructs the left armrest assembly.

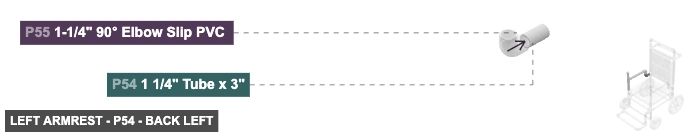

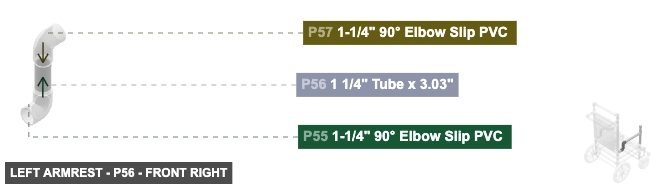

Insert P60 (1.25" Tube 8.08") Male SLIP 1.25" bottom into the top-rear-left Female SLIP 1.25" port of P44 (Seat Support). Insert P60 Male SLIP 1.25" top into the bottom Female SLIP 1.25" port of P59 (1.25" Tee). Insert P61 (1.25" Tube 5") Male SLIP 1.25" bottom into the top Female SLIP 1.25" port of P59. Attach P62 (1.25" Cap) to P61 Male SLIP 1.25" top. Insert P58 (1.25" Tube 15") Male SLIP 1.25" back into the front Female SLIP 1.25" port of P59. Connect P57 (1.25" 90° Elbow) Female SLIP 1.25" back to P58 Male SLIP 1.25" front. Insert P56 (1.25" Tube 3.03") Male SLIP 1.25" top into the bottom Female SLIP 1.25" port of P57. Connect P55 (1.25" 90° Elbow) Female SLIP 1.25" top to P56 Male SLIP 1.25" bottom. Insert P54 (1.25" Tube 3") Male SLIP 1.25" front into the side Female SLIP 1.25" port of P55.

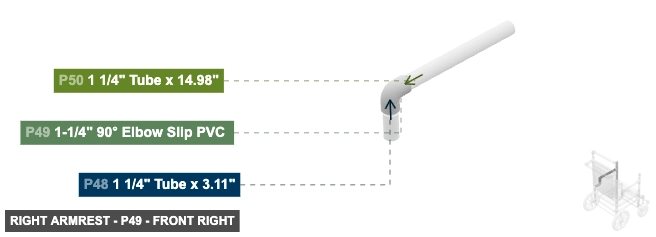

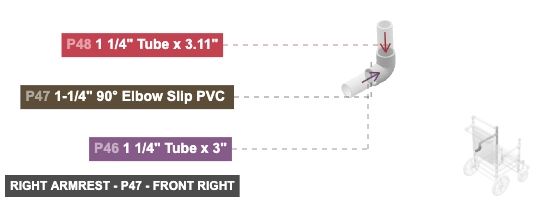

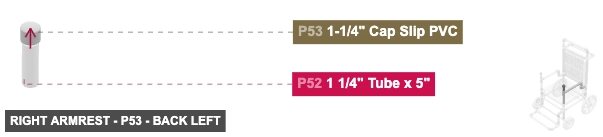

Group: Right Armrest

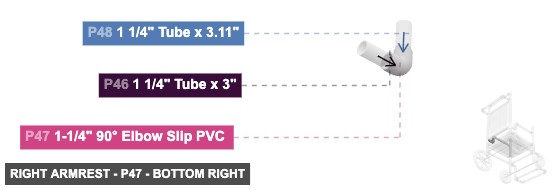

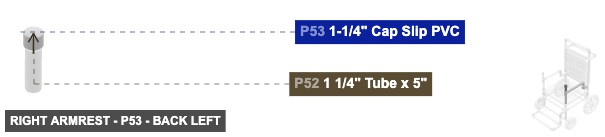

Constructs the right armrest assembly.

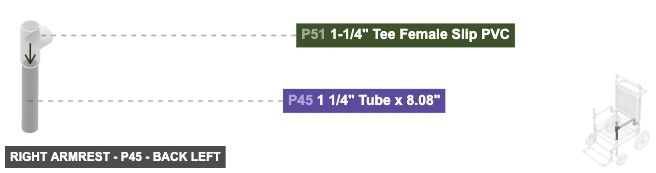

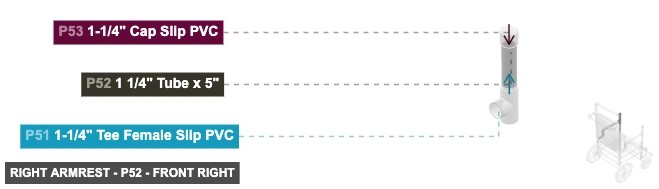

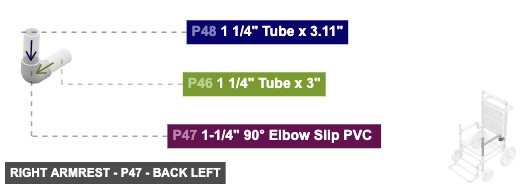

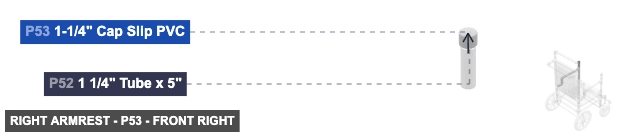

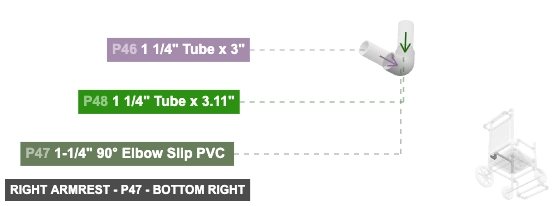

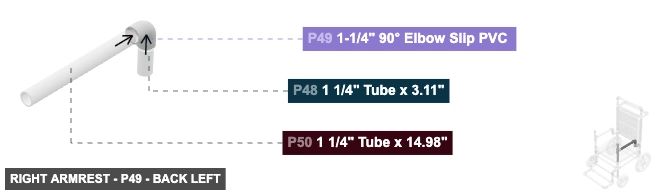

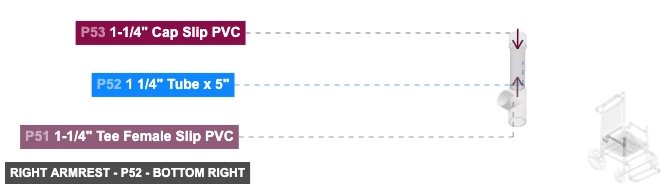

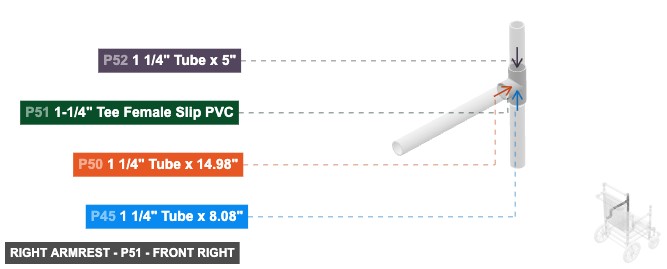

Insert P45 (1.25" Tube 8.08") Male SLIP 1.25" bottom into the top-rear-right Female SLIP 1.25" port of P44 (Seat Support). Insert P45 Male SLIP 1.25" top into the bottom Female SLIP 1.25" port of P51 (1.25" Tee). Insert P52 (1.25" Tube 5") Male SLIP 1.25" bottom into the top Female SLIP 1.25" port of P51. Attach P53 (1.25" Cap) to P52 Male SLIP 1.25" top. Insert P50 (1.25" Tube 14.98") Male SLIP 1.25" back into the front Female SLIP 1.25" port of P51. Connect P49 (1.25" 90° Elbow) Female SLIP 1.25" back to P50 Male SLIP 1.25" front. Insert P48 (1.25" Tube 3.11") Male SLIP 1.25" top into the bottom Female SLIP 1.25" port of P49. Connect P47 (1.25" 90° Elbow) Female SLIP 1.25" top to P48 Male SLIP 1.25" bottom. Insert P46 (1.25" Tube 3") Male SLIP 1.25" front into the side Female SLIP 1.25" port of P47.
Phase 3: Inter-Group Assembly

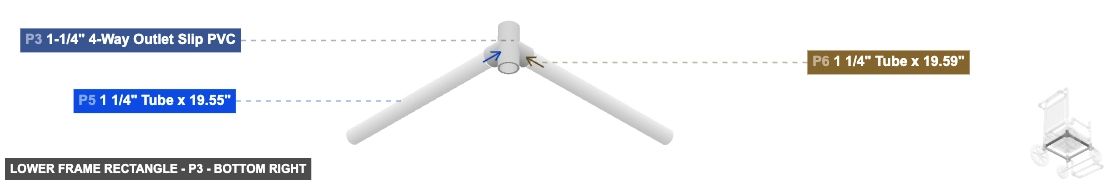

Attaching: Lower Frame Rectangle
Forms the main rectangular base of the wheelchair frame, connecting the points where the front and rear wheel mounts and seat supports will attach.
This is the foundational frame. Subsequent groups (Wheel Mounts, Seat Supports, Footrest) will attach to this rectangle.

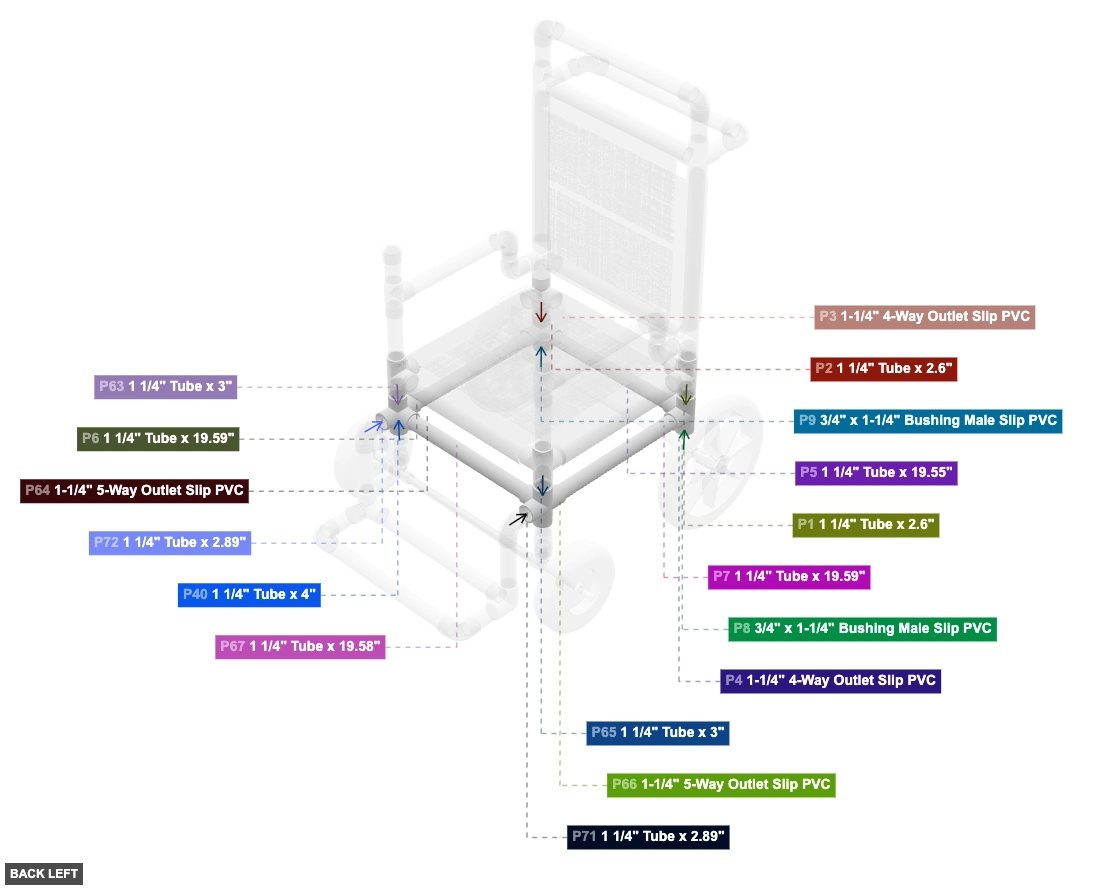

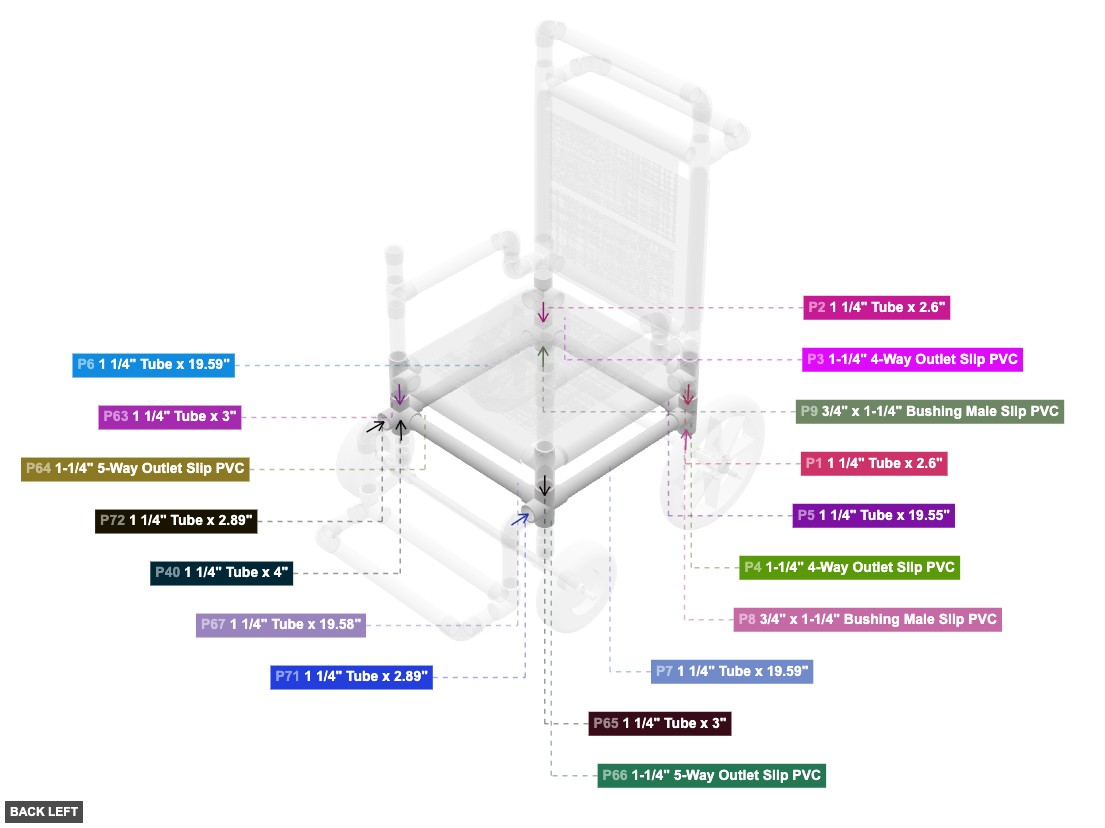

Angle: back left

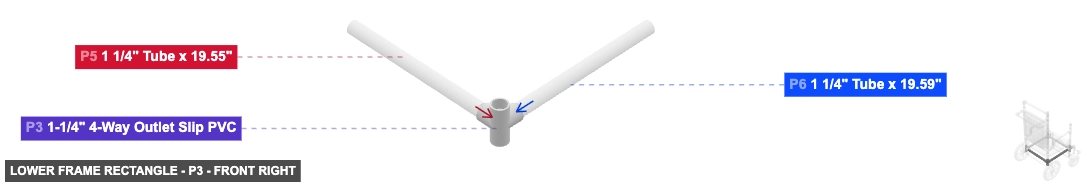

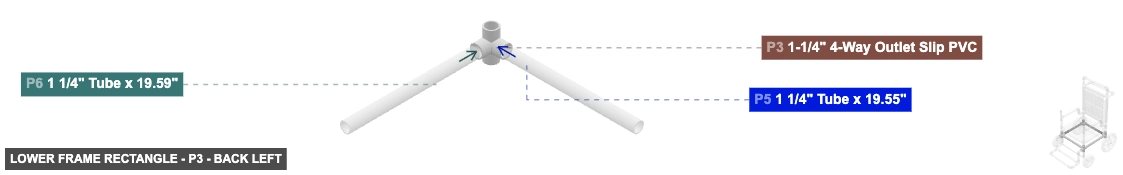

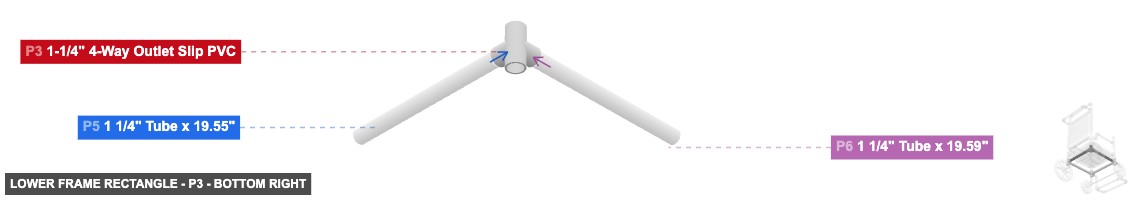

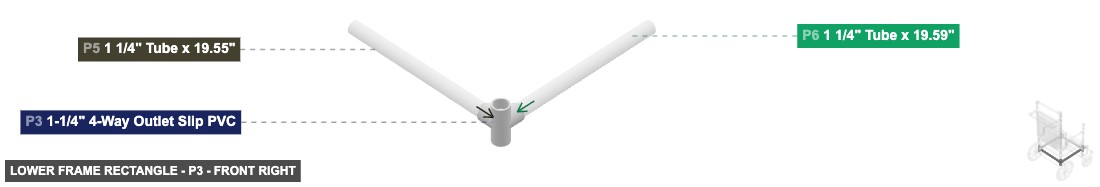

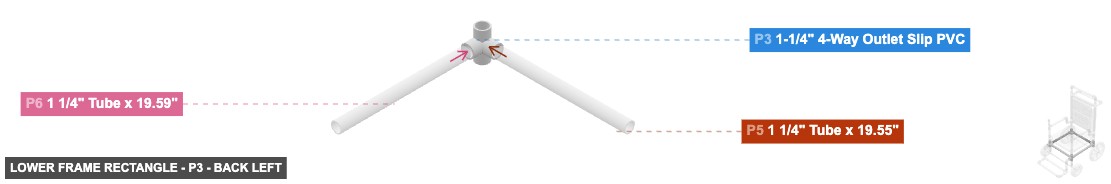

P3 (1.25" 4-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 6's 1.25" M SLIP #2. Next, its 1.25" F SLIP #2, which is left-facing, should connect to part 5's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #3 oriented top links with part 2's 1.25" M SLIP #1, then its 1.25" F SLIP #4, which is bottom-facing, should connect to part 9's 1.25" M SLIP #1

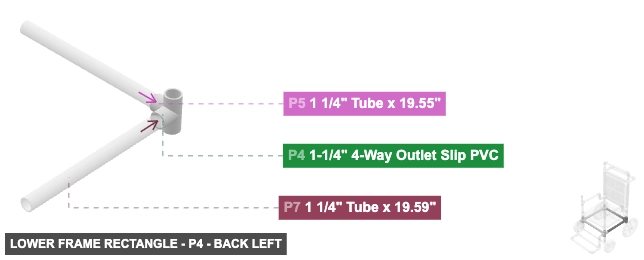

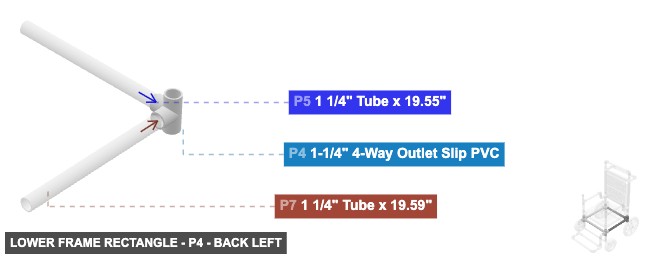

P4 (1.25" 4-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 5's 1.25" M SLIP #2. Also, its 1.25" F SLIP #2, which is back-facing, should connect to part 7's 1.25" M SLIP #2. After that, connect its 1.25" F SLIP #3 oriented top links with part 1's 1.25" M SLIP #1, and its 1.25" F SLIP #4, which is bottom-facing, should connect to part 8's 1.25" M SLIP #1

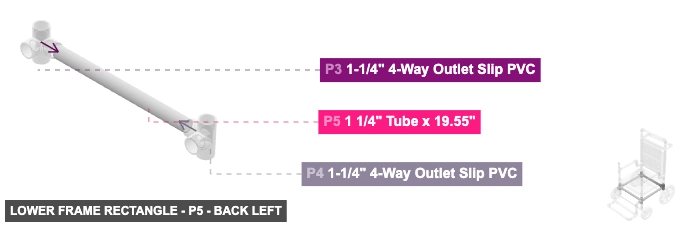

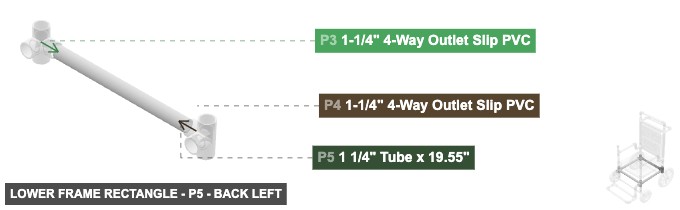

P5 (1.25" Tube 19.55" length) - attach its 1.25" M SLIP #1 facing right to part 3's 1.25" F SLIP #2, plus its 1.25" M SLIP #2, which is left-facing, should connect to part 4's 1.25" F SLIP #1

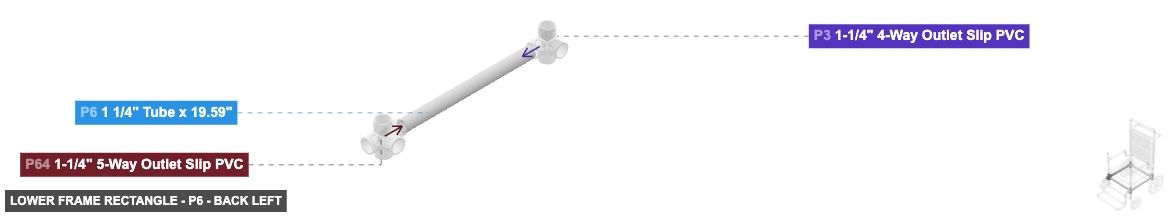

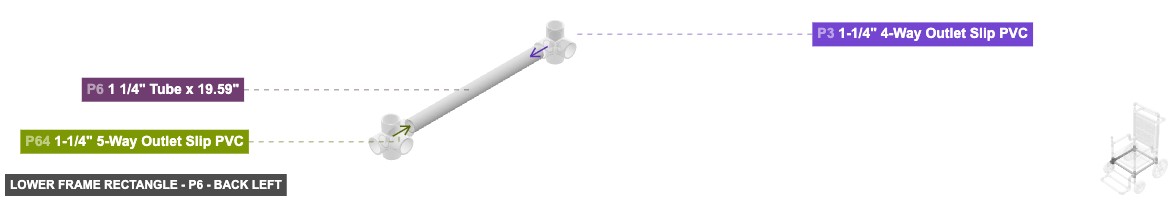

P6 (1.25" Tube 19.59" length) - attach its 1.25" M SLIP #1 facing back to part 64's 1.25" F SLIP #4. Next, connect its 1.25" M SLIP #2 oriented front links with part 3's 1.25" F SLIP #1

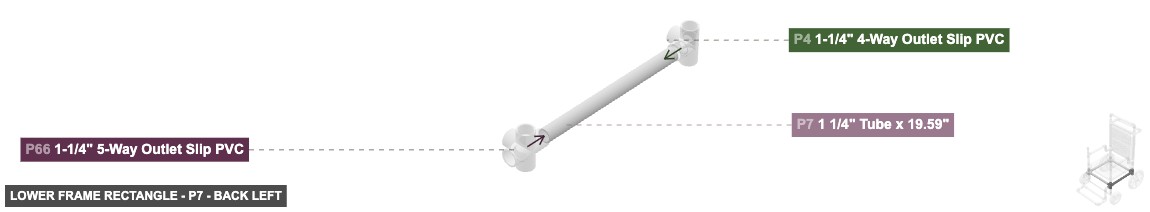

P7 (1.25" Tube 19.59" length) - attach its 1.25" M SLIP #1 facing back to part 66's 1.25" F SLIP #5. Also, attach its 1.25" M SLIP #2 facing front to part 4's 1.25" F SLIP #2

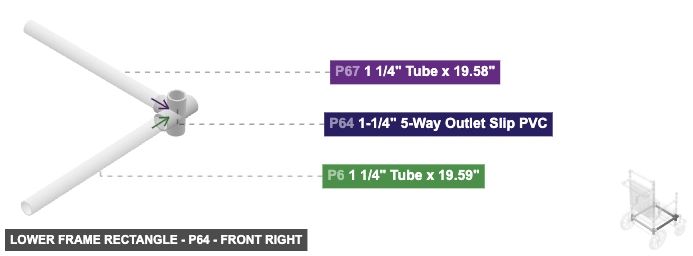

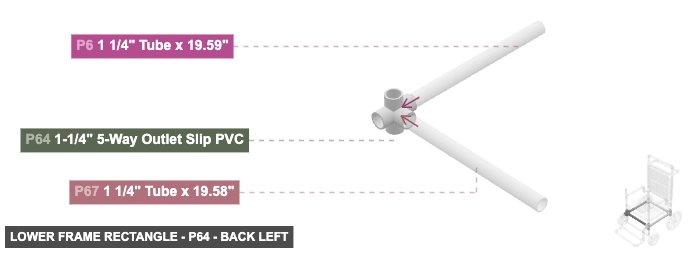

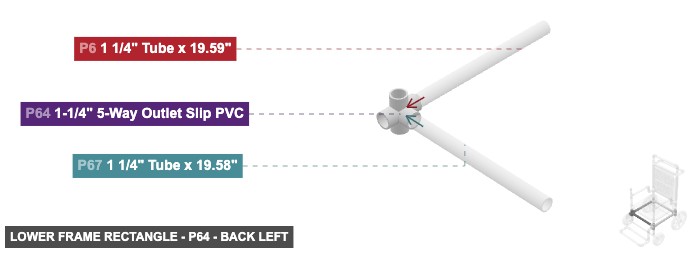

P64 (1.25" 5-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 63's 1.25" M SLIP #1. After that, attach its 1.25" F SLIP #2 facing bottom to part 40's 1.25" M SLIP #2, then attach its 1.25" F SLIP #3 facing left to part 67's 1.25" M SLIP #1, also connect its 1.25" F SLIP #4 oriented front links with part 6's 1.25" M SLIP #1, then connect its 1.25" F SLIP #5 oriented back links with part 72's 1.25" M SLIP #2

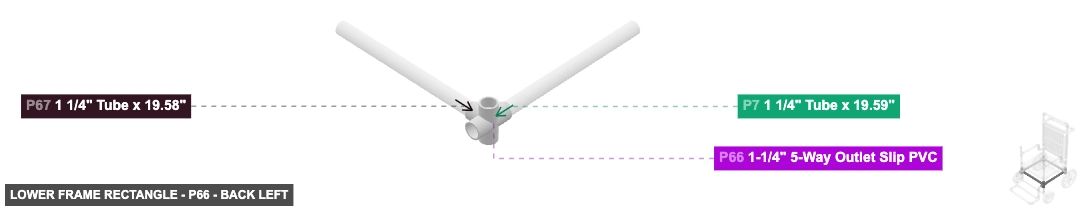

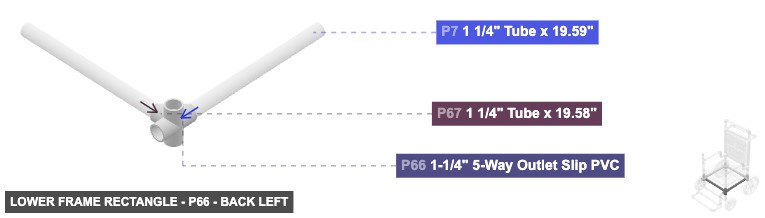

P66 (1.25" 5-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 65's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #3 oriented right links with part 67's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #4, which is back-facing, should connect to part 71's 1.25" M SLIP #2, and connect its 1.25" F SLIP #5 oriented front links with part 7's 1.25" M SLIP #1, also its 1.25" F SLIP #2 needs to point bottom

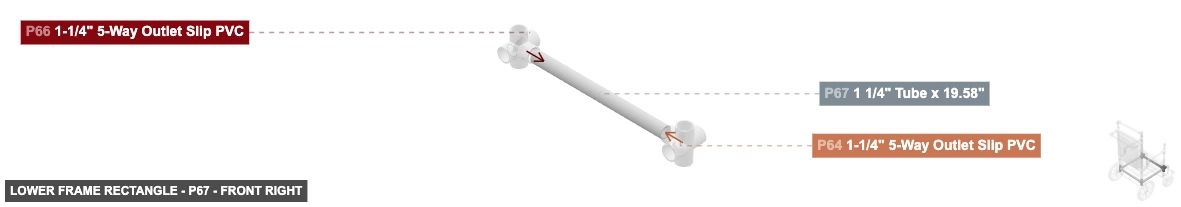

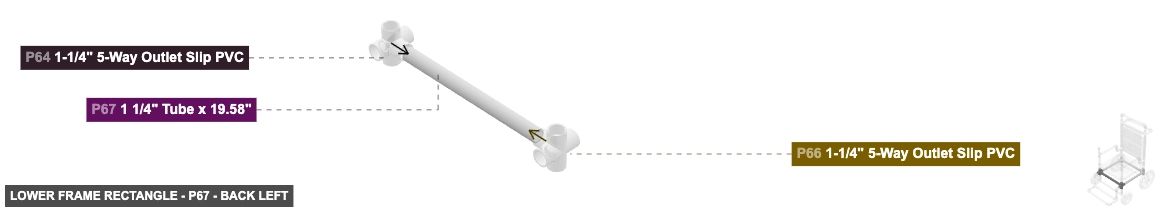

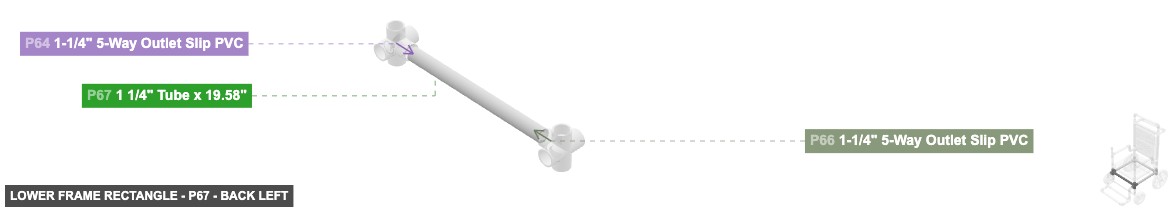

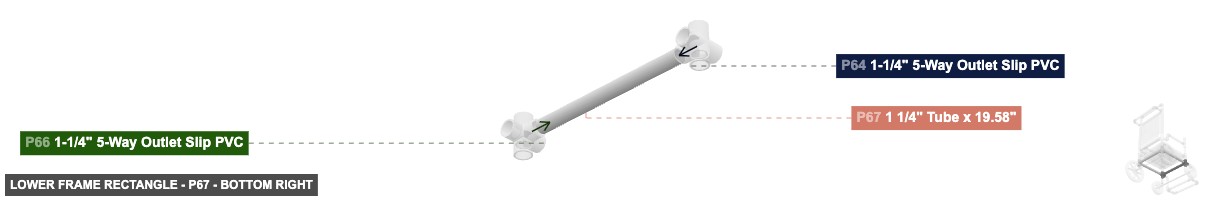

P67 (1.25" Tube 19.58" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 64's 1.25" F SLIP #3. Next, its 1.25" M SLIP #2, which is left-facing, should connect to part 66's 1.25" F SLIP #3
1-1/4" 4-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.55"x 1
1 1/4" Tube x 19.59"x 2
1-1/4" 5-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.58"x 1

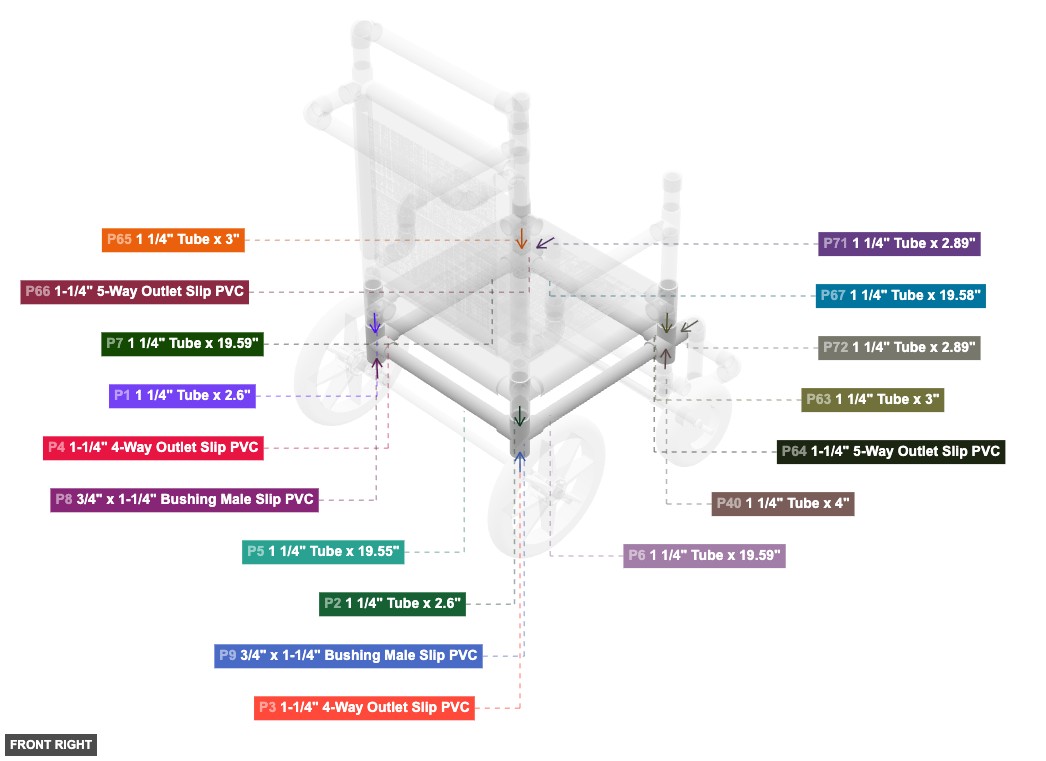

Angle: front right
P3 (1.25" 4-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 6's 1.25" M SLIP #2. Next, its 1.25" F SLIP #2, which is left-facing, should connect to part 5's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #3 oriented top links with part 2's 1.25" M SLIP #1, then its 1.25" F SLIP #4, which is bottom-facing, should connect to part 9's 1.25" M SLIP #1

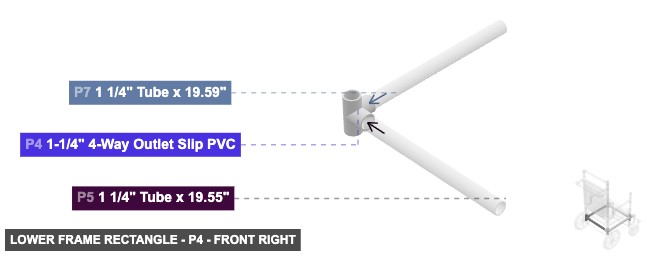

P4 (1.25" 4-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 5's 1.25" M SLIP #2. Also, its 1.25" F SLIP #2, which is back-facing, should connect to part 7's 1.25" M SLIP #2. After that, connect its 1.25" F SLIP #3 oriented top links with part 1's 1.25" M SLIP #1, and its 1.25" F SLIP #4, which is bottom-facing, should connect to part 8's 1.25" M SLIP #1

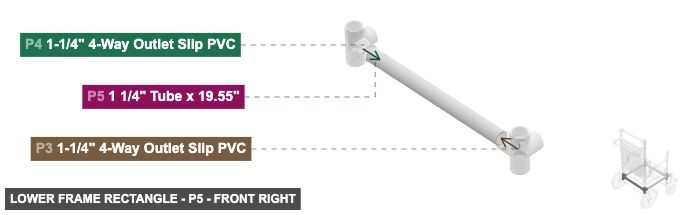

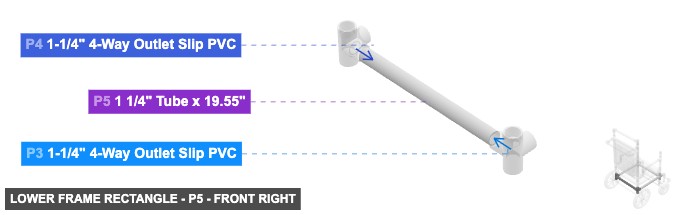

P5 (1.25" Tube 19.55" length) - attach its 1.25" M SLIP #1 facing right to part 3's 1.25" F SLIP #2, plus its 1.25" M SLIP #2, which is left-facing, should connect to part 4's 1.25" F SLIP #1

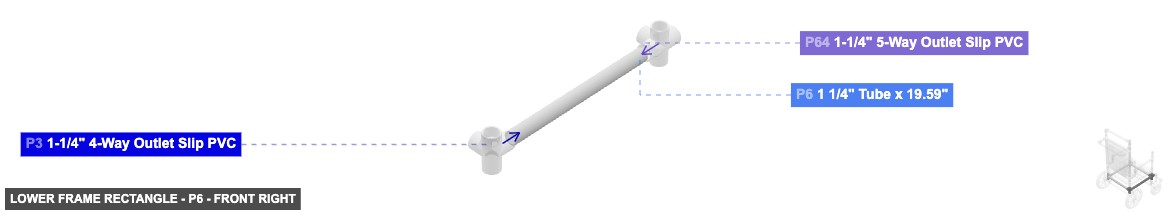

P6 (1.25" Tube 19.59" length) - attach its 1.25" M SLIP #1 facing back to part 64's 1.25" F SLIP #4. Next, connect its 1.25" M SLIP #2 oriented front links with part 3's 1.25" F SLIP #1

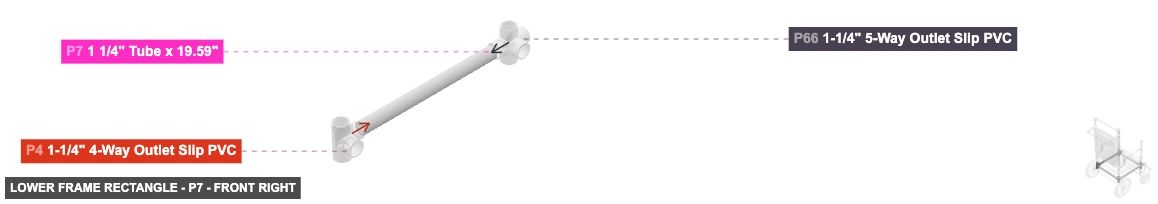

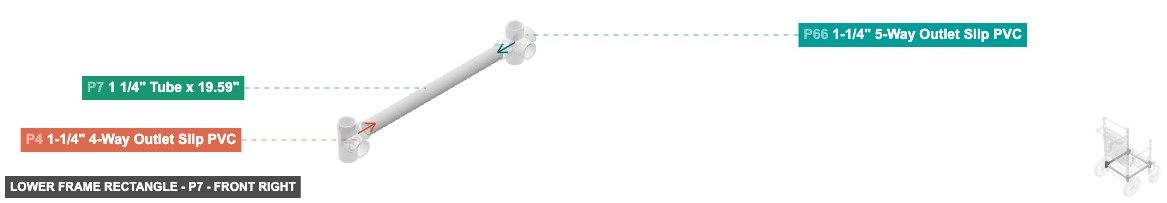

P7 (1.25" Tube 19.59" length) - attach its 1.25" M SLIP #1 facing back to part 66's 1.25" F SLIP #5. Also, attach its 1.25" M SLIP #2 facing front to part 4's 1.25" F SLIP #2

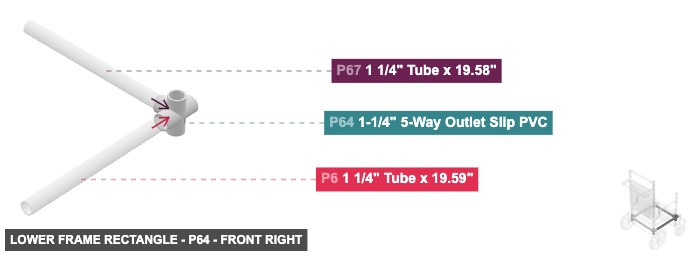

P64 (1.25" 5-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 63's 1.25" M SLIP #1. After that, attach its 1.25" F SLIP #2 facing bottom to part 40's 1.25" M SLIP #2, then attach its 1.25" F SLIP #3 facing left to part 67's 1.25" M SLIP #1, also connect its 1.25" F SLIP #4 oriented front links with part 6's 1.25" M SLIP #1, then connect its 1.25" F SLIP #5 oriented back links with part 72's 1.25" M SLIP #2

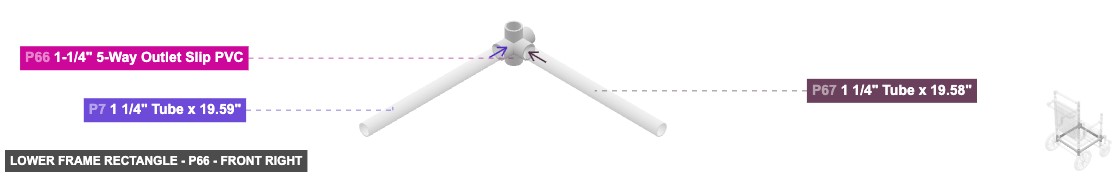

P66 (1.25" 5-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 65's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #3 oriented right links with part 67's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #4, which is back-facing, should connect to part 71's 1.25" M SLIP #2, and connect its 1.25" F SLIP #5 oriented front links with part 7's 1.25" M SLIP #1, also its 1.25" F SLIP #2 needs to point bottom

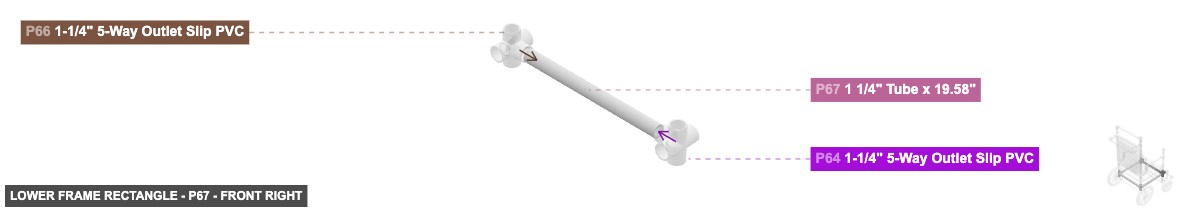

P67 (1.25" Tube 19.58" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 64's 1.25" F SLIP #3. Next, its 1.25" M SLIP #2, which is left-facing, should connect to part 66's 1.25" F SLIP #3
1-1/4" 4-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.55"x 1
1 1/4" Tube x 19.59"x 2
1-1/4" 5-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.58"x 1
Angle: bottom right
P3 (1.25" 4-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 6's 1.25" M SLIP #2. Next, its 1.25" F SLIP #2, which is left-facing, should connect to part 5's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #3 oriented top links with part 2's 1.25" M SLIP #1, then its 1.25" F SLIP #4, which is bottom-facing, should connect to part 9's 1.25" M SLIP #1

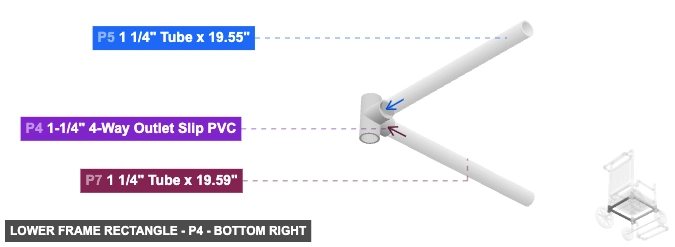

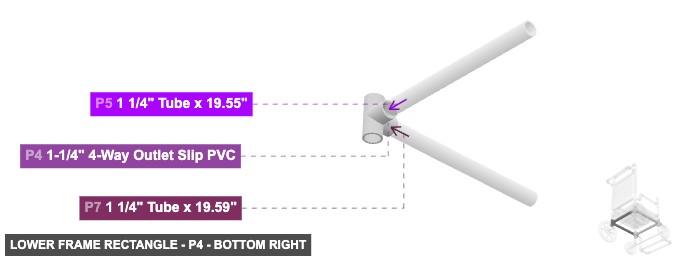

P4 (1.25" 4-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 5's 1.25" M SLIP #2. Also, its 1.25" F SLIP #2, which is back-facing, should connect to part 7's 1.25" M SLIP #2. After that, connect its 1.25" F SLIP #3 oriented top links with part 1's 1.25" M SLIP #1, and its 1.25" F SLIP #4, which is bottom-facing, should connect to part 8's 1.25" M SLIP #1

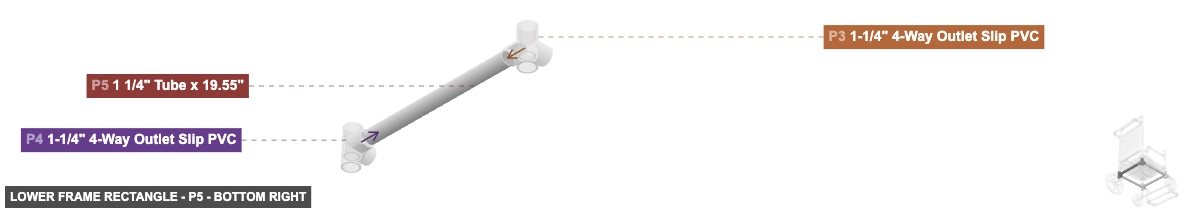

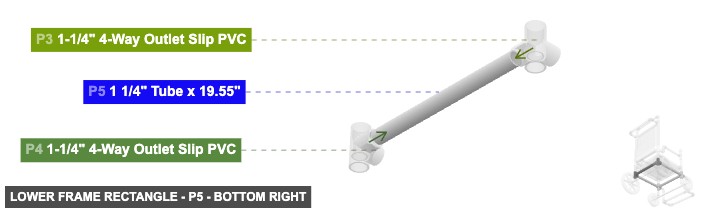

P5 (1.25" Tube 19.55" length) - attach its 1.25" M SLIP #1 facing right to part 3's 1.25" F SLIP #2, plus its 1.25" M SLIP #2, which is left-facing, should connect to part 4's 1.25" F SLIP #1
P6 (1.25" Tube 19.59" length) - attach its 1.25" M SLIP #1 facing back to part 64's 1.25" F SLIP #4. Next, connect its 1.25" M SLIP #2 oriented front links with part 3's 1.25" F SLIP #1

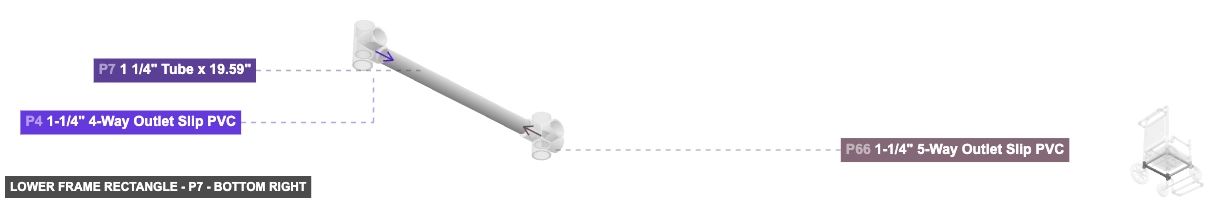

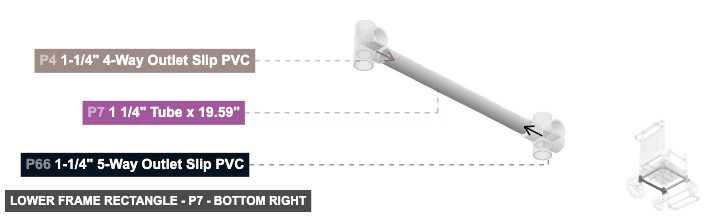

P7 (1.25" Tube 19.59" length) - attach its 1.25" M SLIP #1 facing back to part 66's 1.25" F SLIP #5. Also, attach its 1.25" M SLIP #2 facing front to part 4's 1.25" F SLIP #2

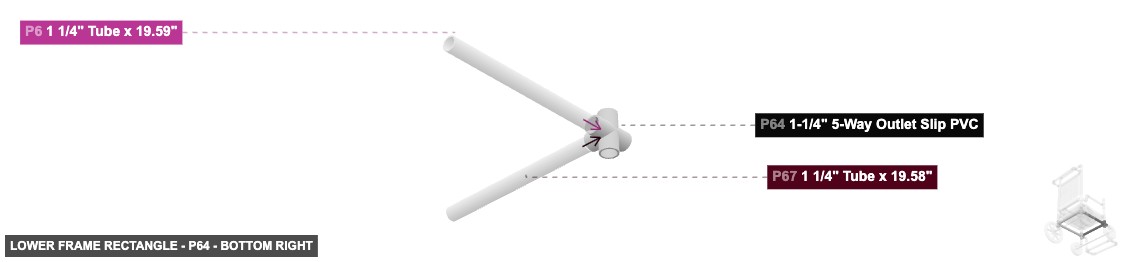

P64 (1.25" 5-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 63's 1.25" M SLIP #1. After that, attach its 1.25" F SLIP #2 facing bottom to part 40's 1.25" M SLIP #2, then attach its 1.25" F SLIP #3 facing left to part 67's 1.25" M SLIP #1, also connect its 1.25" F SLIP #4 oriented front links with part 6's 1.25" M SLIP #1, then connect its 1.25" F SLIP #5 oriented back links with part 72's 1.25" M SLIP #2

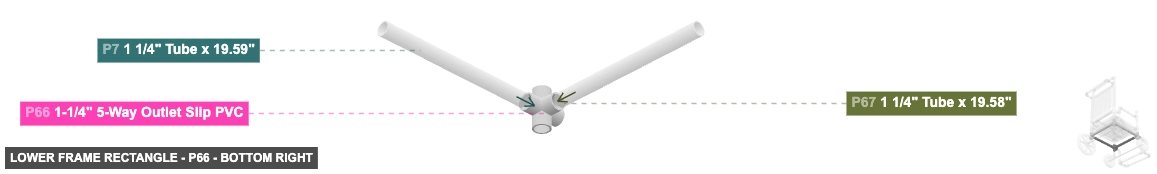

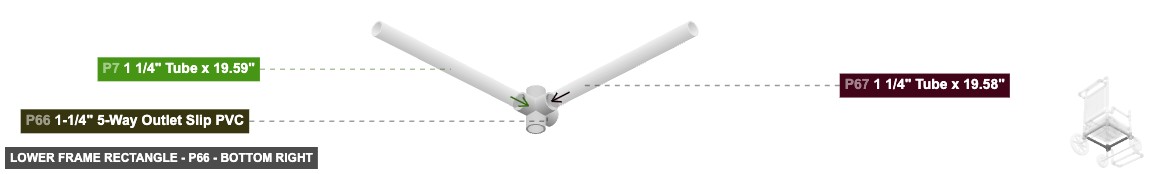

P66 (1.25" 5-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 65's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #3 oriented right links with part 67's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #4, which is back-facing, should connect to part 71's 1.25" M SLIP #2, and connect its 1.25" F SLIP #5 oriented front links with part 7's 1.25" M SLIP #1, also its 1.25" F SLIP #2 needs to point bottom

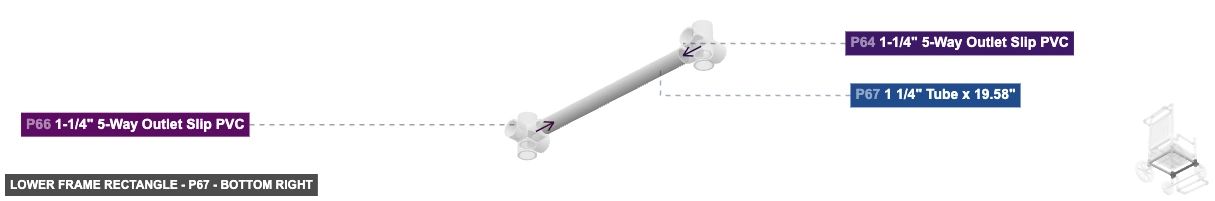

P67 (1.25" Tube 19.58" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 64's 1.25" F SLIP #3. Next, its 1.25" M SLIP #2, which is left-facing, should connect to part 66's 1.25" F SLIP #3
1-1/4" 4-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.55"x 1
1 1/4" Tube x 19.59"x 2
1-1/4" 5-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.58"x 1

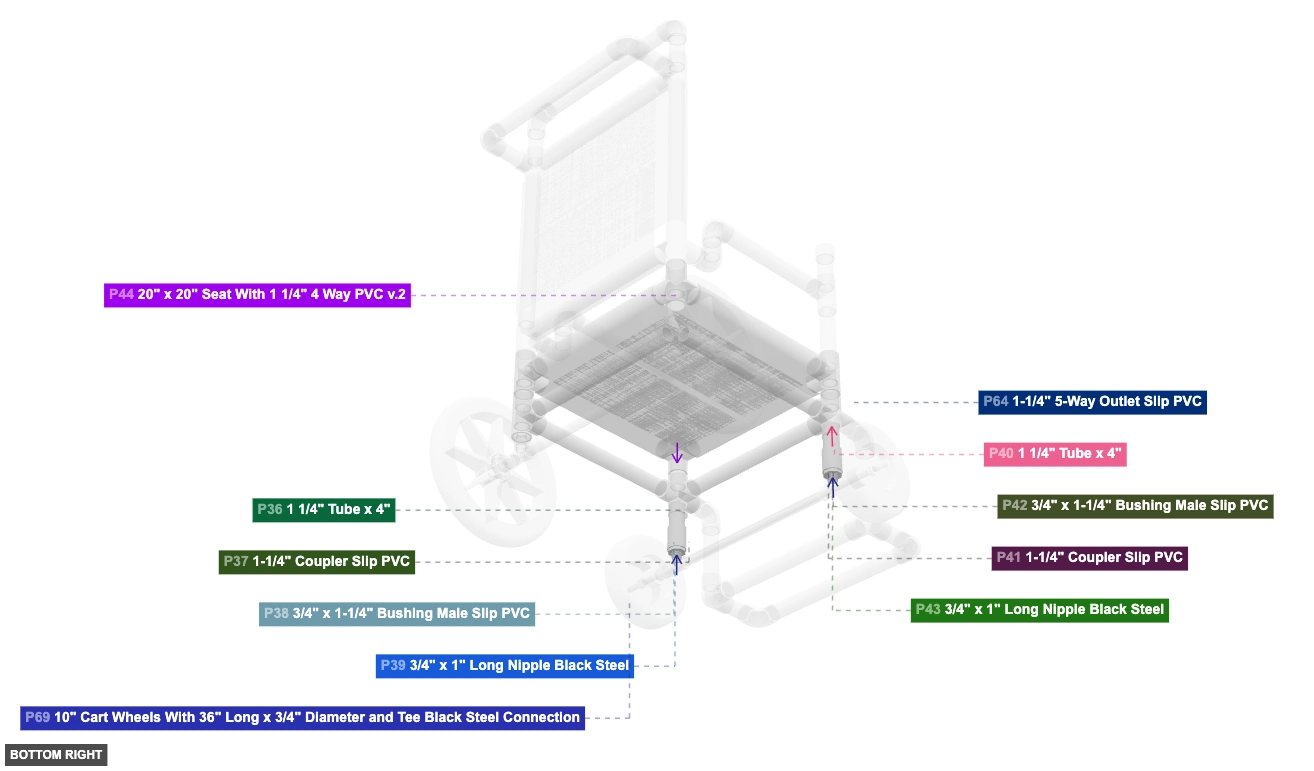

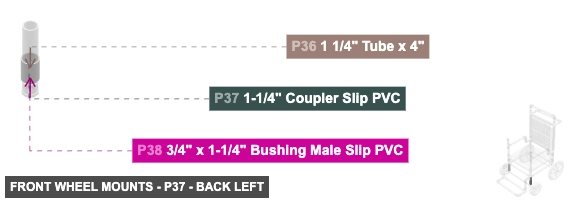

Attaching: Front Wheel Mounts
Creates the downward structures from the rear corners of the lower frame to attach the front wheels.

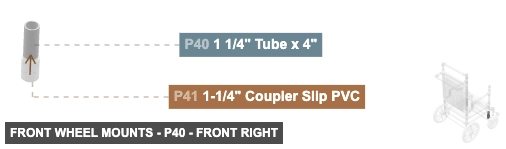

Attach the Right Front Wheel Mount by inserting P40 Male SLIP 1.25" top into the bottom-facing Female SLIP 1.25" port of P64 (Lower Frame). Attach the Left Front Wheel Mount by inserting P36 Male SLIP 1.25" top into the bottom-facing Female SLIP 1.25" port of P66 (Lower Frame). The Front Wheels (Group 9) will attach to the bottom of these mounts.

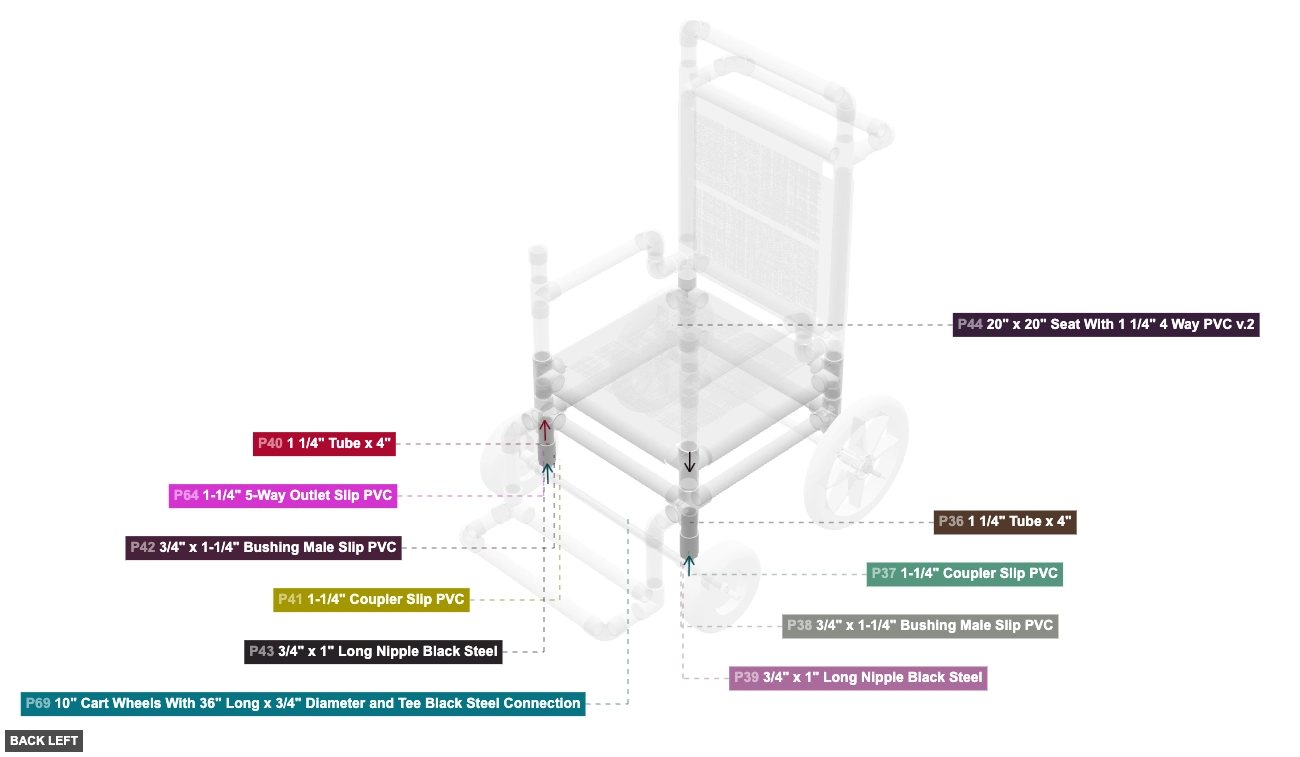

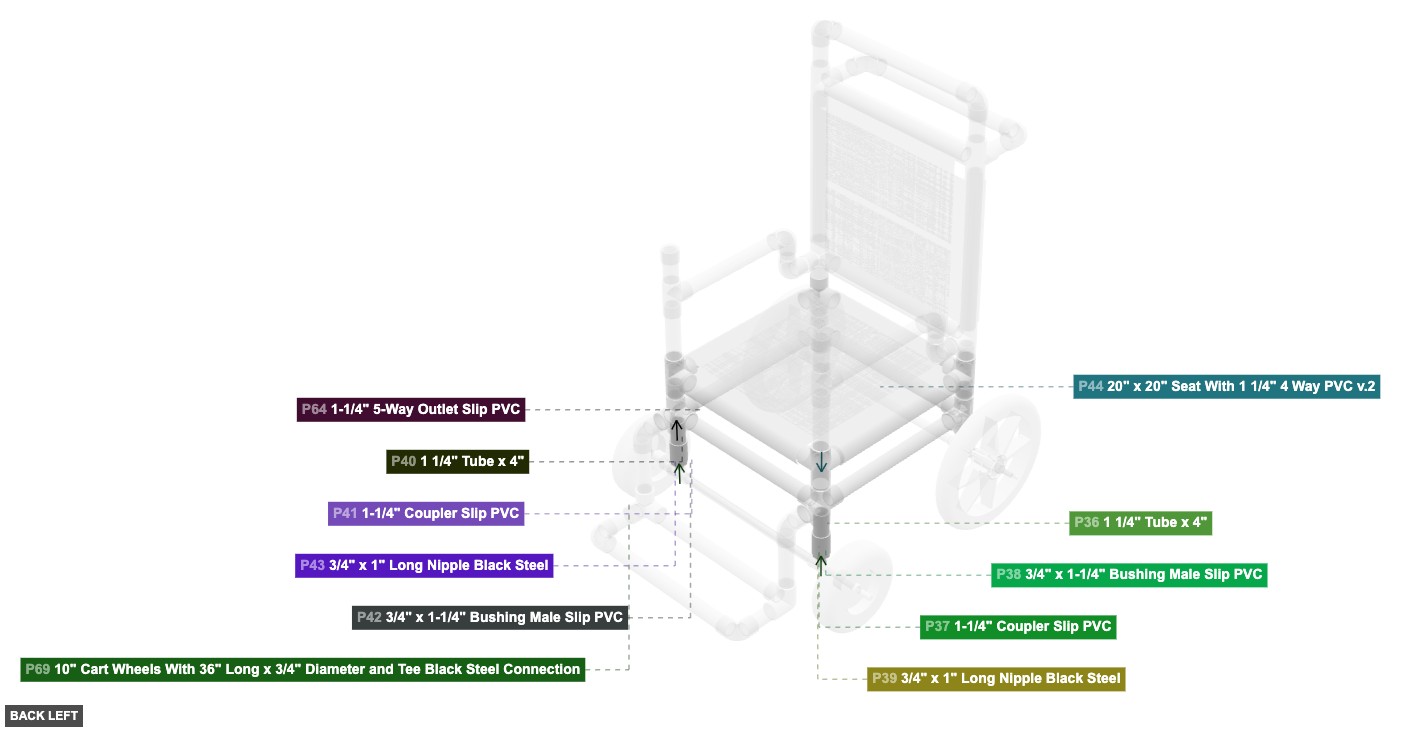

Angle: back left

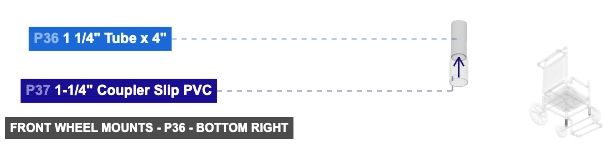

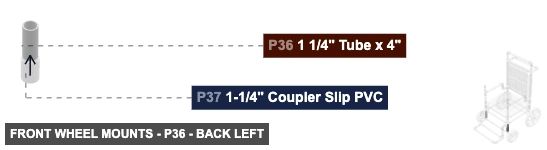

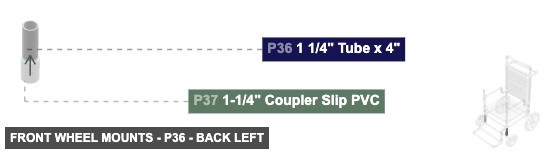

P36 (1.25" Tube 4" length) - attach its 1.25" M SLIP #1 facing bottom to part 37's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 44's 1.25" F SLIP #5

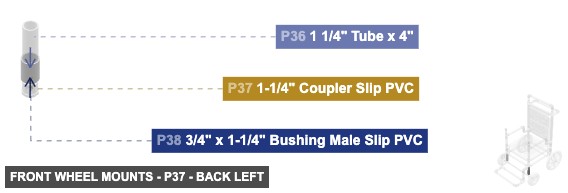

P37 (1.25" Coupler Slip PVC) - connect its 1.25" F SLIP #1 oriented top links with part 36's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented bottom links with part 38's 1.25" M SLIP #1

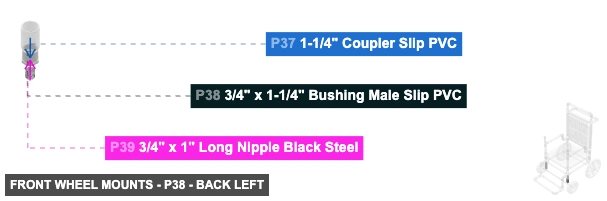

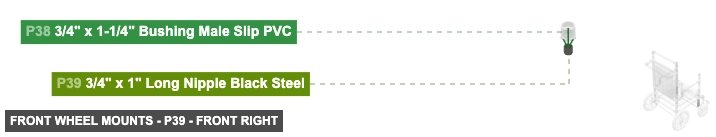

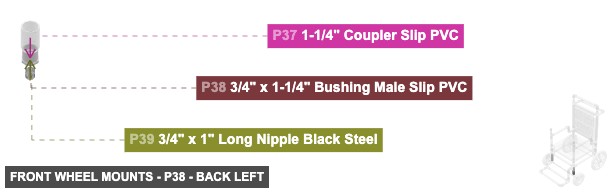

P38 (0.75" x 1-1/4" Bushing M Slip PVC) - connect its 0.75" F Threaded #1 oriented bottom links with part 39's 0.75" M Threaded #1. After that, its 1.25" M SLIP #1, which is top-facing, should connect to part 37's 1.25" F SLIP #2

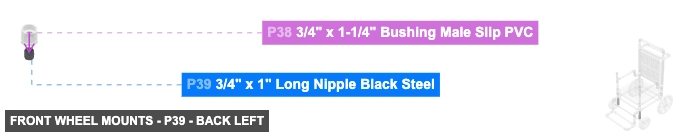

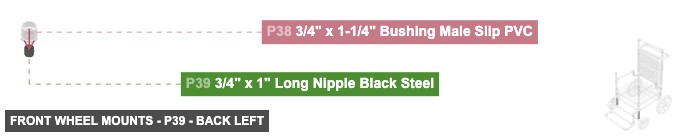

P39 (0.75" x 1" Long Nipple Black Steel) - attach its 0.75" M Threaded #1 facing top to part 38's 0.75" F Threaded #1, then connect its 0.75" M Threaded #2 oriented bottom links with part 69's 0.75" F Threaded #2

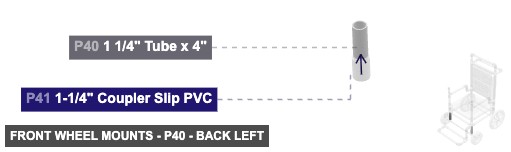

P40 (1.25" Tube 4" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 41's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing top to part 64's 1.25" F SLIP #2

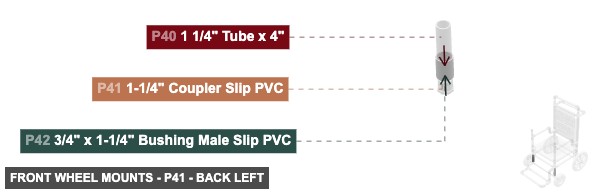

P41 (1.25" Coupler Slip PVC) - connect its 1.25" F SLIP #1 oriented top links with part 40's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is bottom-facing, should connect to part 42's 1.25" M SLIP #1

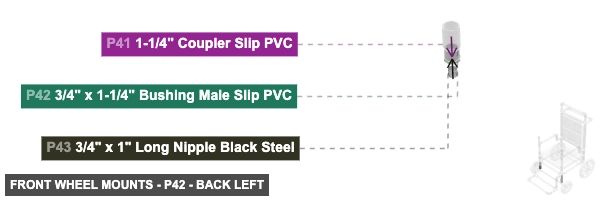

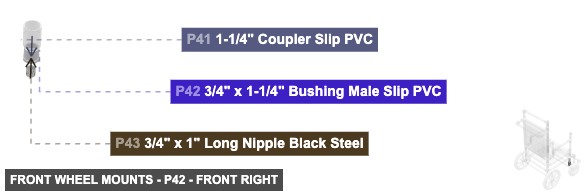

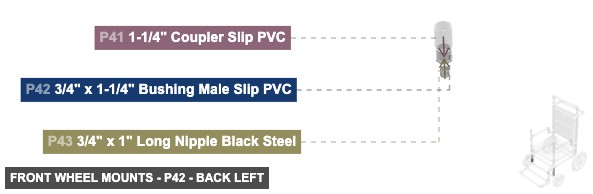

P42 (0.75" x 1-1/4" Bushing M Slip PVC) - connect its 0.75" F Threaded #1 oriented bottom links with part 43's 0.75" M Threaded #1, plus its 1.25" M SLIP #1, which is top-facing, should connect to part 41's 1.25" F SLIP #2

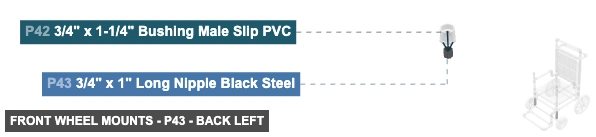

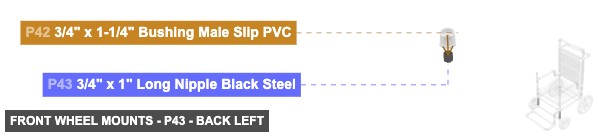

P43 (0.75" x 1" Long Nipple Black Steel) - connect its 0.75" M Threaded #1 oriented top links with part 42's 0.75" F Threaded #1, plus its 0.75" M Threaded #2, which is bottom-facing, should connect to part 69's 0.75" F Threaded #1
1 1/4" Tube x 4"x 2
1-1/4" Coupler Slip PVCx 2
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 1" Long Nipple Black Steelx 2
Angle: front right

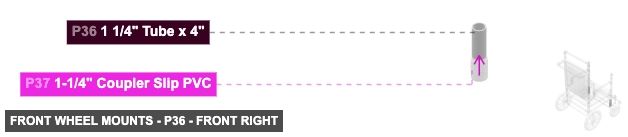

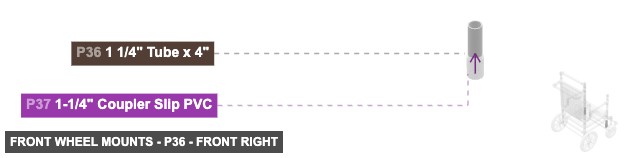

P36 (1.25" Tube 4" length) - attach its 1.25" M SLIP #1 facing bottom to part 37's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 44's 1.25" F SLIP #5

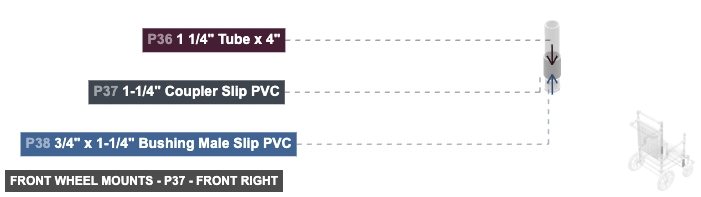

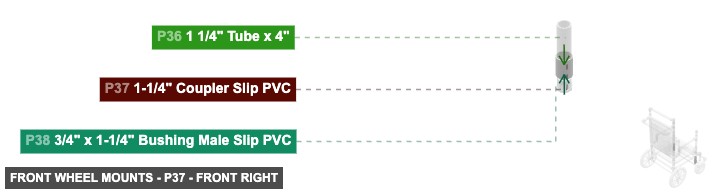

P37 (1.25" Coupler Slip PVC) - connect its 1.25" F SLIP #1 oriented top links with part 36's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented bottom links with part 38's 1.25" M SLIP #1

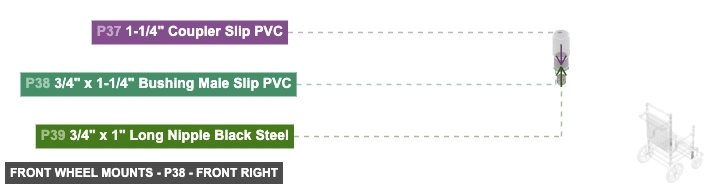

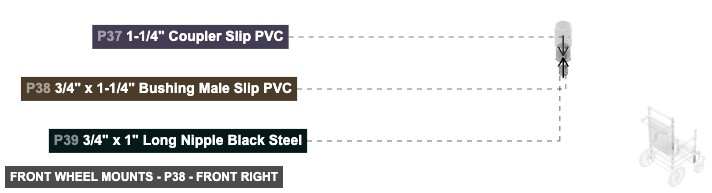

P38 (0.75" x 1-1/4" Bushing M Slip PVC) - connect its 0.75" F Threaded #1 oriented bottom links with part 39's 0.75" M Threaded #1. After that, its 1.25" M SLIP #1, which is top-facing, should connect to part 37's 1.25" F SLIP #2
P39 (0.75" x 1" Long Nipple Black Steel) - attach its 0.75" M Threaded #1 facing top to part 38's 0.75" F Threaded #1, then connect its 0.75" M Threaded #2 oriented bottom links with part 69's 0.75" F Threaded #2
P40 (1.25" Tube 4" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 41's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing top to part 64's 1.25" F SLIP #2

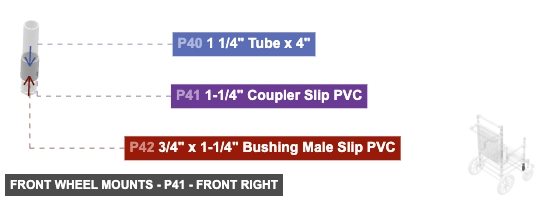

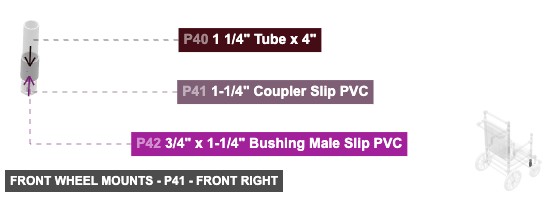

P41 (1.25" Coupler Slip PVC) - connect its 1.25" F SLIP #1 oriented top links with part 40's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is bottom-facing, should connect to part 42's 1.25" M SLIP #1
P42 (0.75" x 1-1/4" Bushing M Slip PVC) - connect its 0.75" F Threaded #1 oriented bottom links with part 43's 0.75" M Threaded #1, plus its 1.25" M SLIP #1, which is top-facing, should connect to part 41's 1.25" F SLIP #2

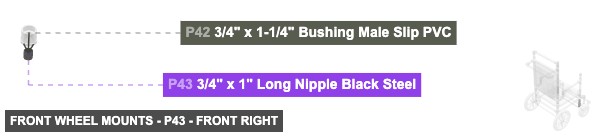

P43 (0.75" x 1" Long Nipple Black Steel) - connect its 0.75" M Threaded #1 oriented top links with part 42's 0.75" F Threaded #1, plus its 0.75" M Threaded #2, which is bottom-facing, should connect to part 69's 0.75" F Threaded #1
1 1/4" Tube x 4"x 2
1-1/4" Coupler Slip PVCx 2
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 1" Long Nipple Black Steelx 2

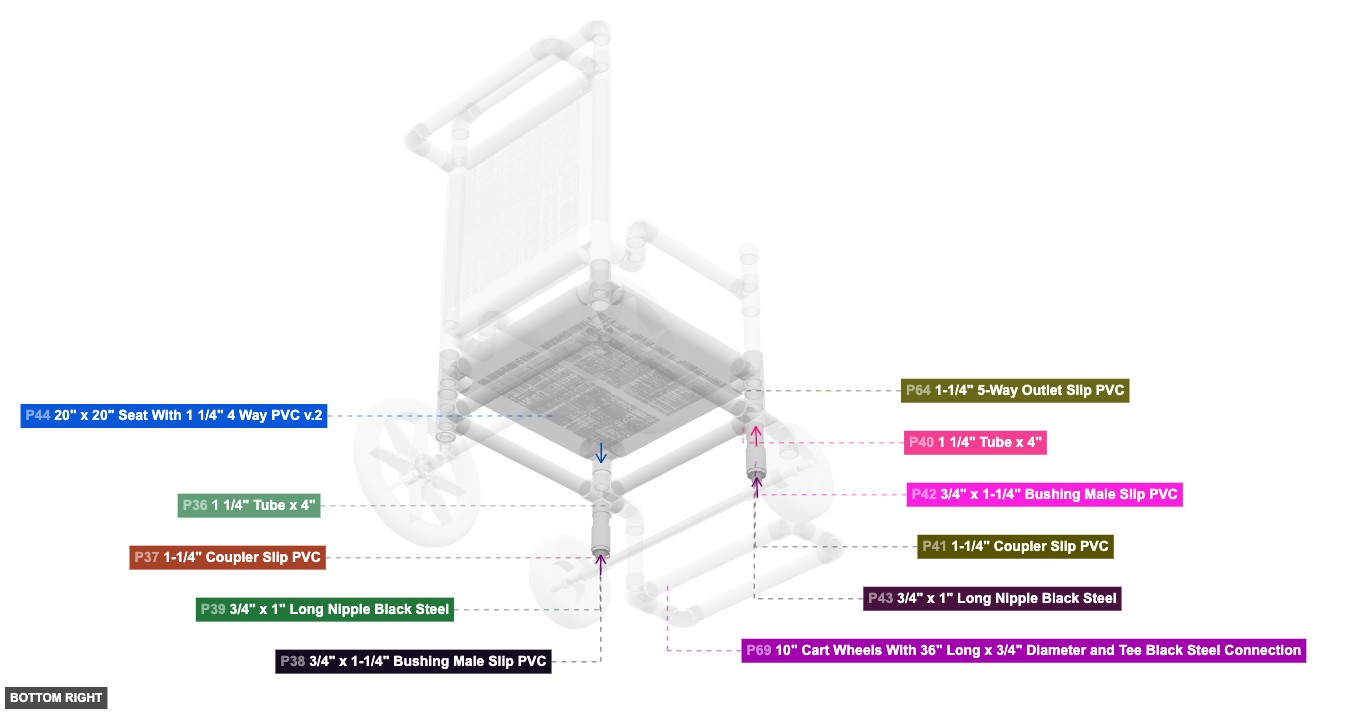

Angle: bottom right

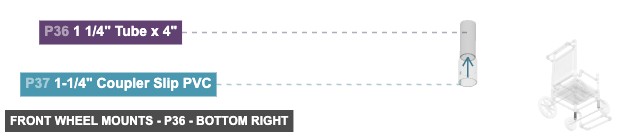

P36 (1.25" Tube 4" length) - attach its 1.25" M SLIP #1 facing bottom to part 37's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 44's 1.25" F SLIP #5

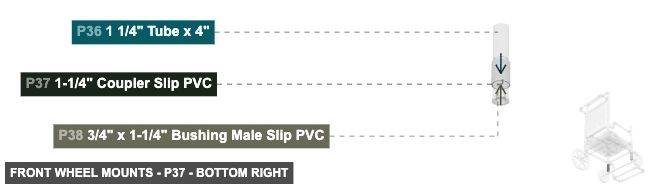

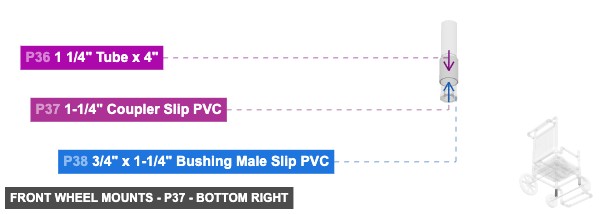

P37 (1.25" Coupler Slip PVC) - connect its 1.25" F SLIP #1 oriented top links with part 36's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented bottom links with part 38's 1.25" M SLIP #1

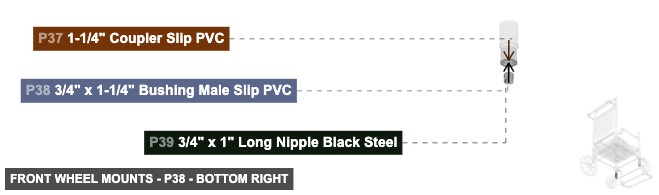

P38 (0.75" x 1-1/4" Bushing M Slip PVC) - connect its 0.75" F Threaded #1 oriented bottom links with part 39's 0.75" M Threaded #1. After that, its 1.25" M SLIP #1, which is top-facing, should connect to part 37's 1.25" F SLIP #2

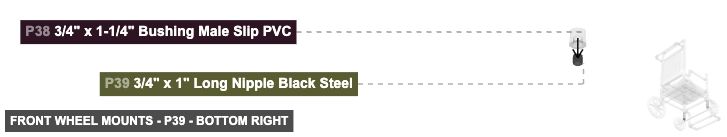

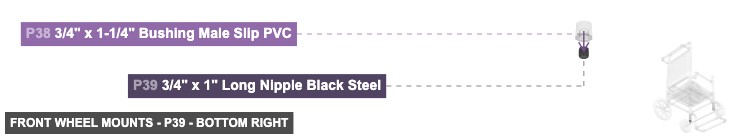

P39 (0.75" x 1" Long Nipple Black Steel) - attach its 0.75" M Threaded #1 facing top to part 38's 0.75" F Threaded #1, then connect its 0.75" M Threaded #2 oriented bottom links with part 69's 0.75" F Threaded #2

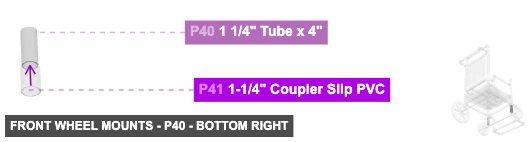

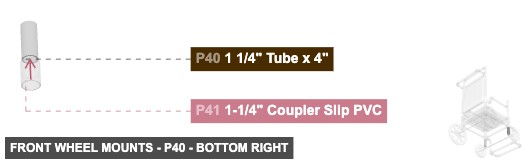

P40 (1.25" Tube 4" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 41's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing top to part 64's 1.25" F SLIP #2

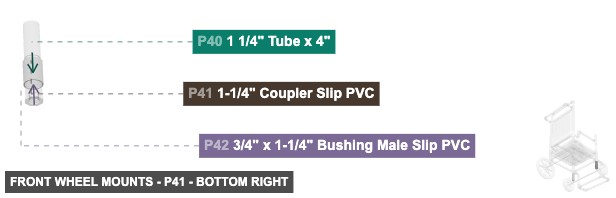

P41 (1.25" Coupler Slip PVC) - connect its 1.25" F SLIP #1 oriented top links with part 40's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is bottom-facing, should connect to part 42's 1.25" M SLIP #1

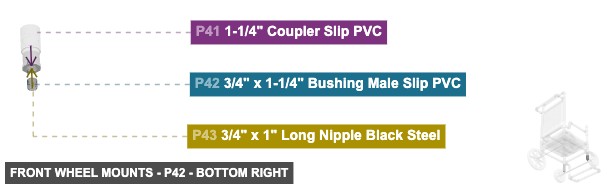

P42 (0.75" x 1-1/4" Bushing M Slip PVC) - connect its 0.75" F Threaded #1 oriented bottom links with part 43's 0.75" M Threaded #1, plus its 1.25" M SLIP #1, which is top-facing, should connect to part 41's 1.25" F SLIP #2

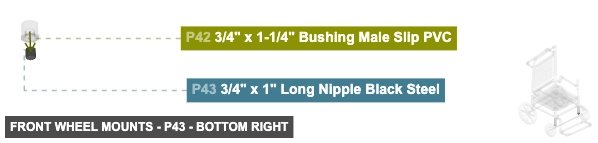

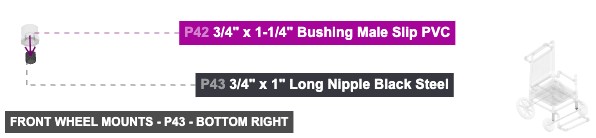

P43 (0.75" x 1" Long Nipple Black Steel) - connect its 0.75" M Threaded #1 oriented top links with part 42's 0.75" F Threaded #1, plus its 0.75" M Threaded #2, which is bottom-facing, should connect to part 69's 0.75" F Threaded #1
1 1/4" Tube x 4"x 2
1-1/4" Coupler Slip PVCx 2
3/4" x 1-1/4" Bushing Male Slip PVCx 2
3/4" x 1" Long Nipple Black Steelx 2

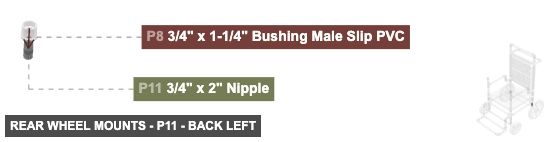

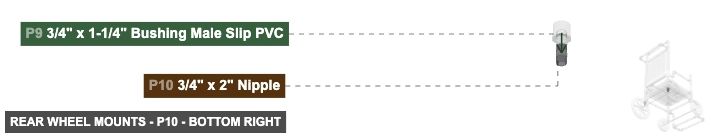

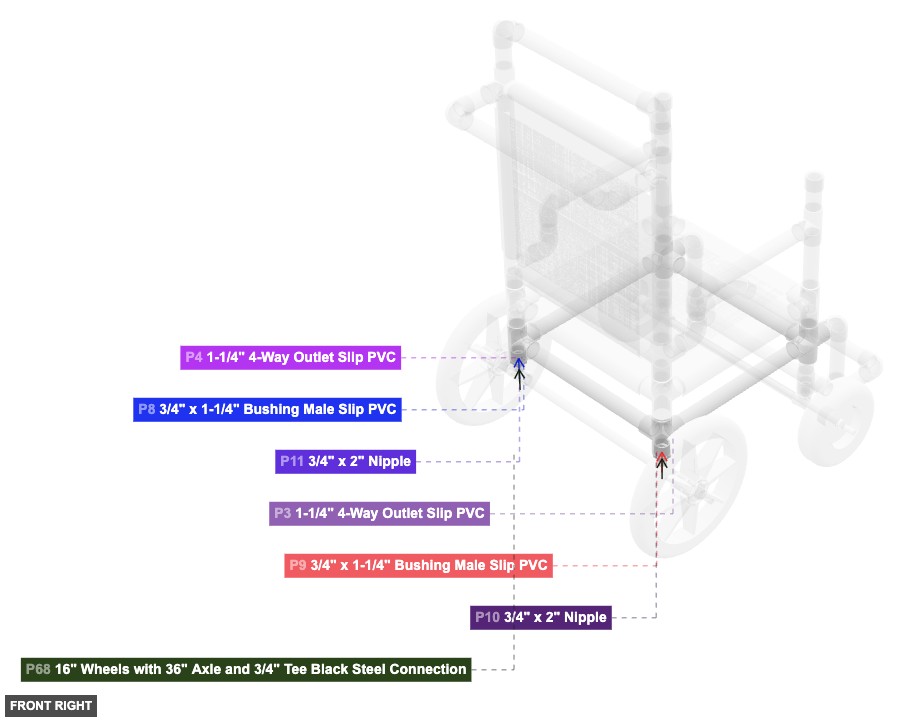

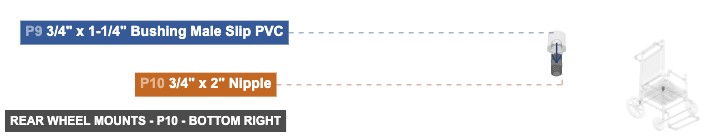

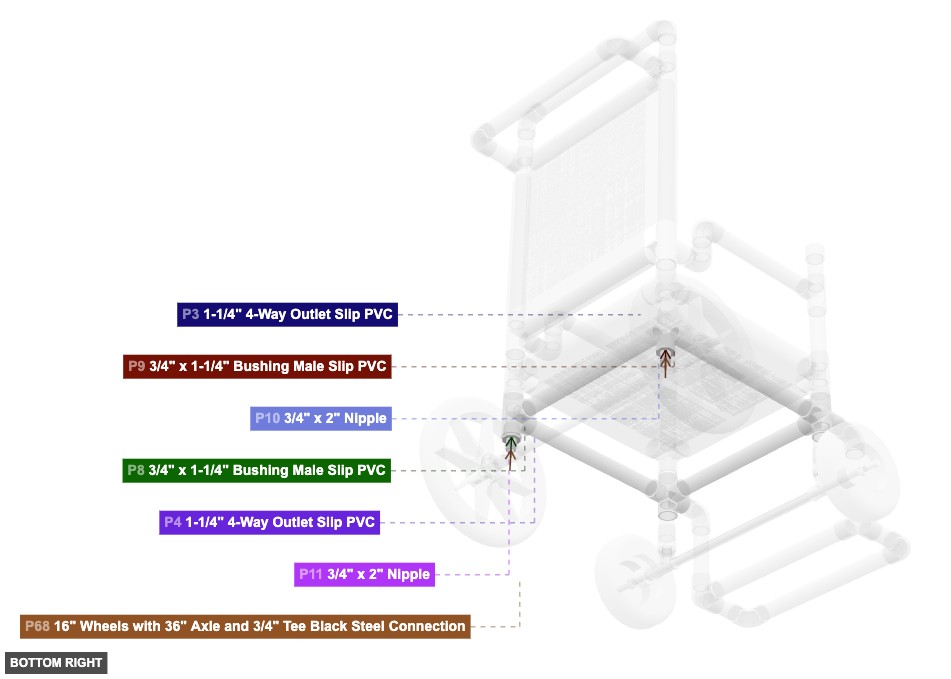

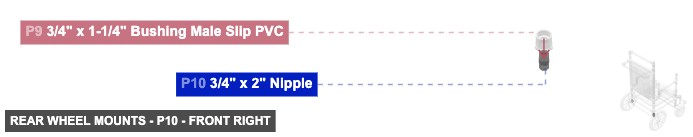

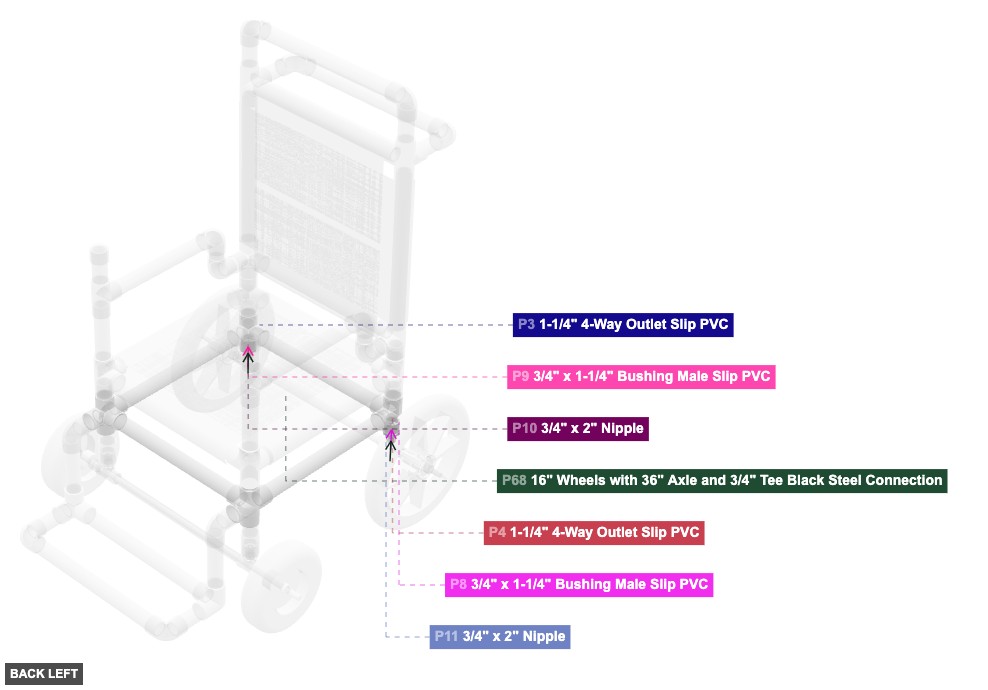

Attaching: Rear Wheel Mounts
Creates the downward structures from the front corners of the lower frame to attach the rear wheels.
These mounts attach directly to the Lower Frame Rectangle (Group 1) during their assembly. The Rear Wheels (Group 10) will attach to the bottom of these mounts.

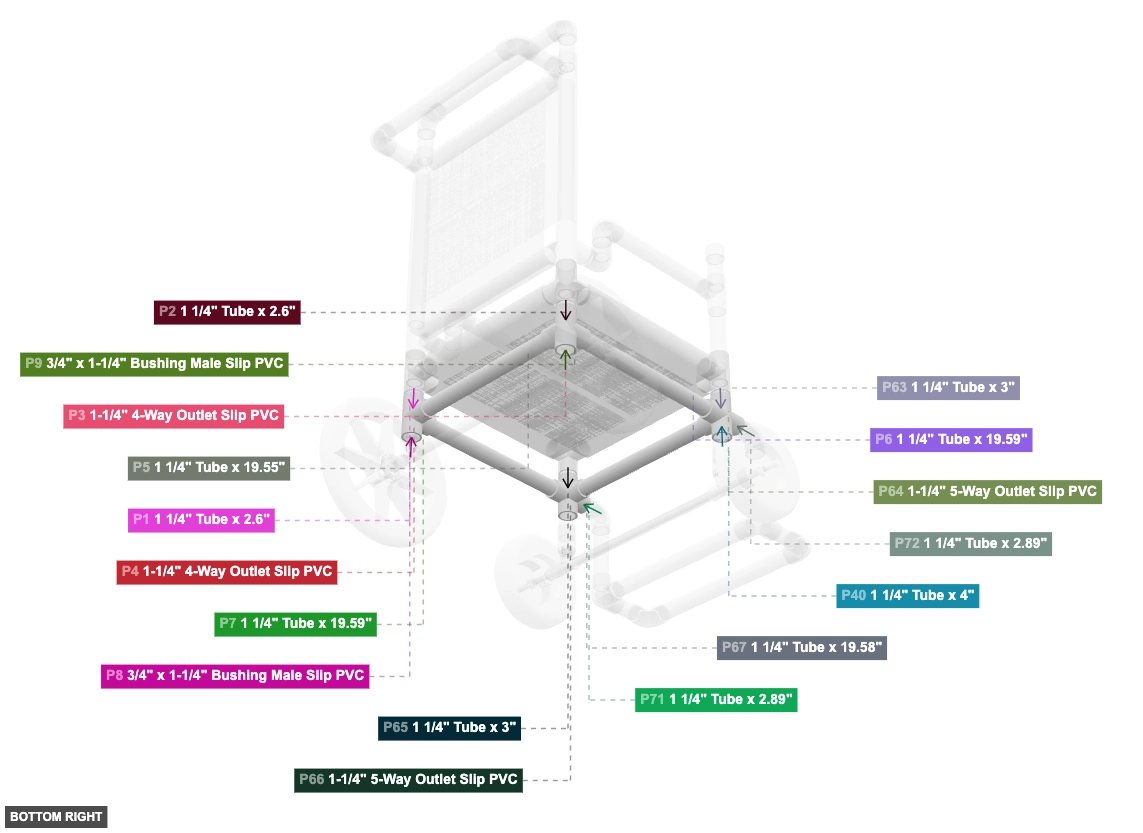

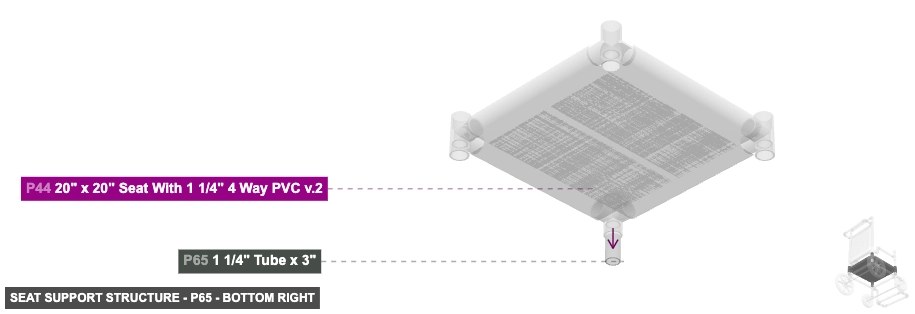

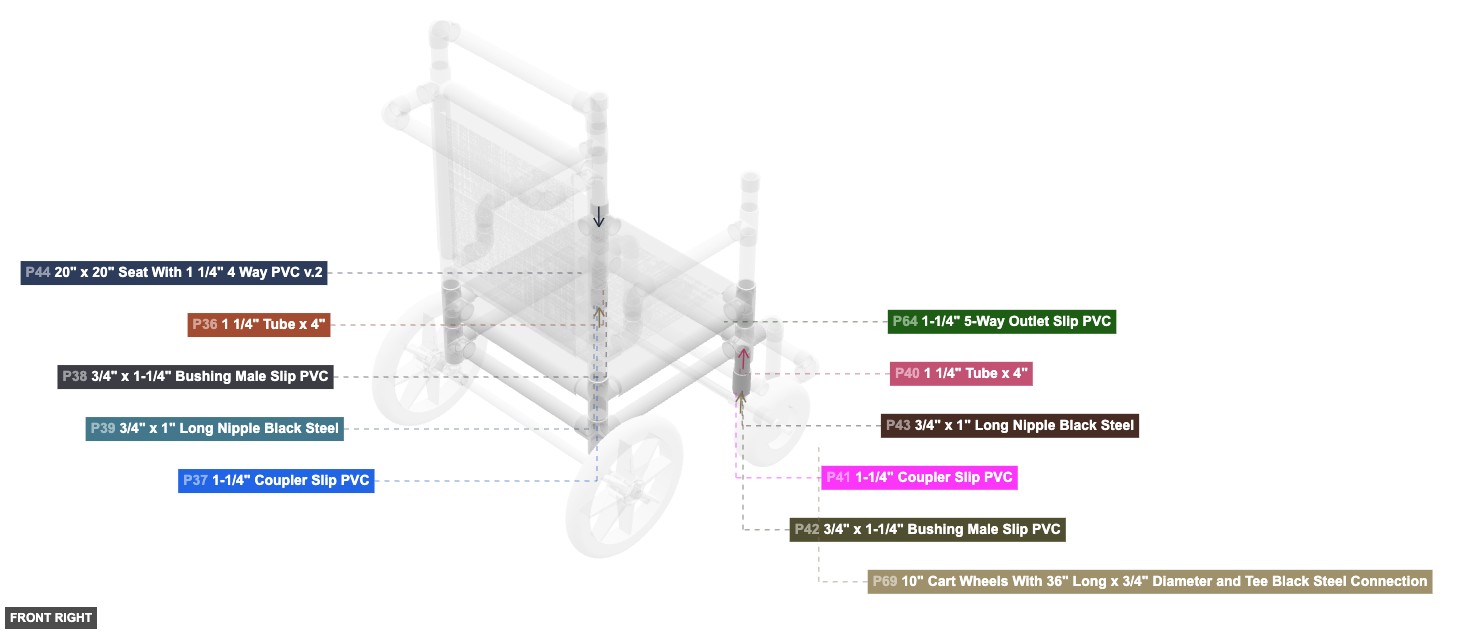

Attaching: Seat Support Structure
Builds the vertical supports from the lower frame up to the main seat fitting.
This structure attaches directly to the Lower Frame Rectangle (Group 1) during its assembly. The Backrest (Group 6) and Armrests (Group 7 & 8) will attach to this structure.

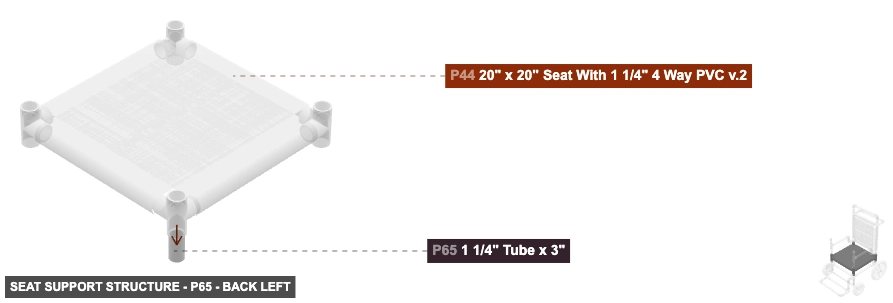

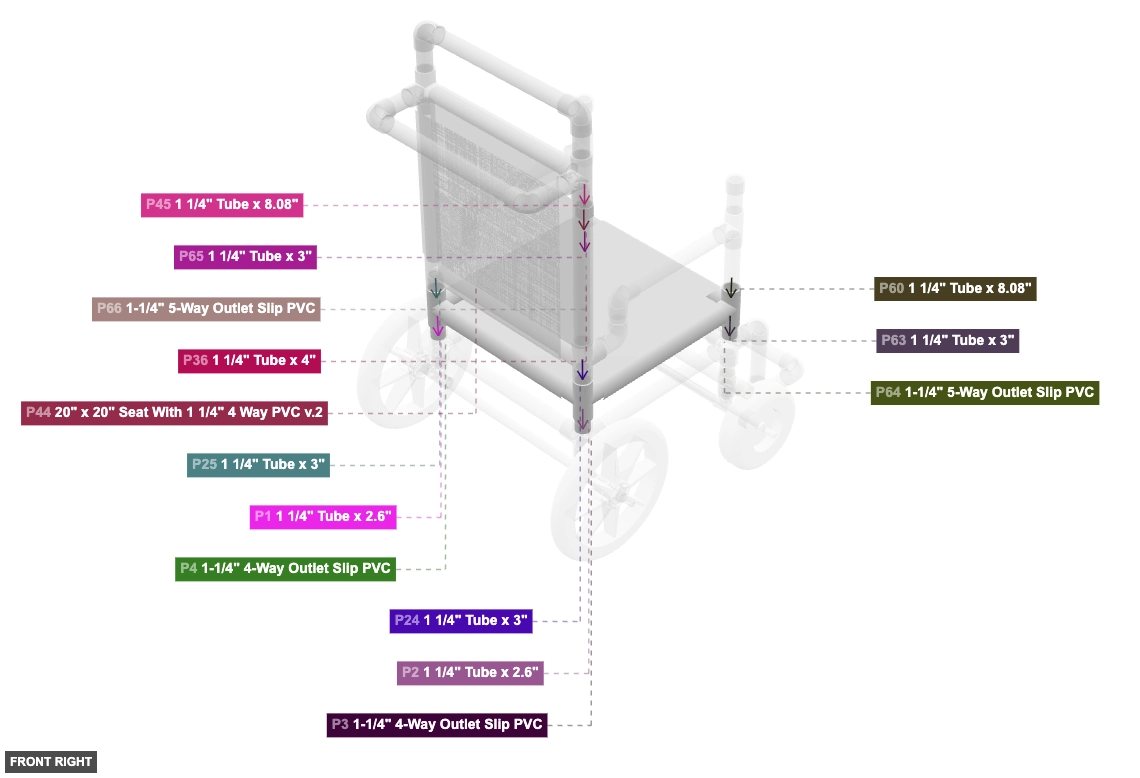

Angle: back left

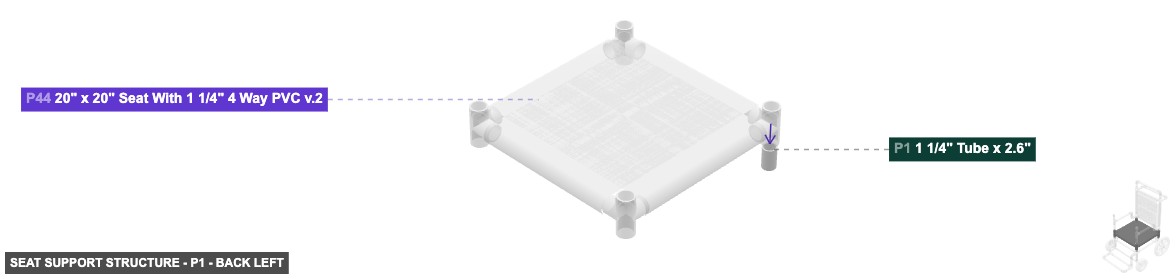

P1 (1.25" Tube 2.6" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 4's 1.25" F SLIP #3. Additionally, attach its 1.25" M SLIP #2 facing top to part 44's 1.25" F SLIP #1

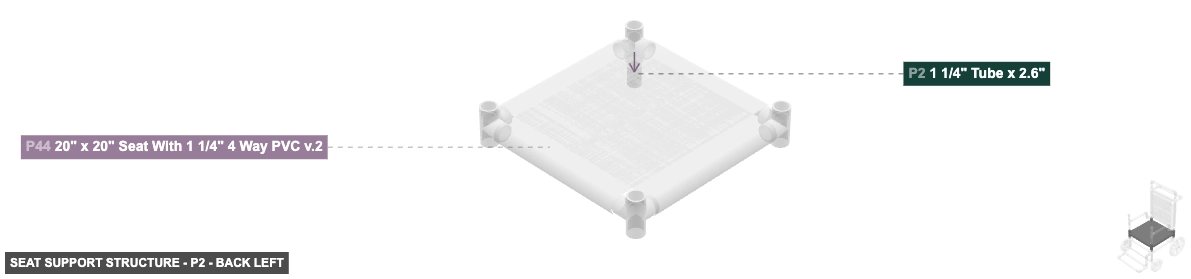

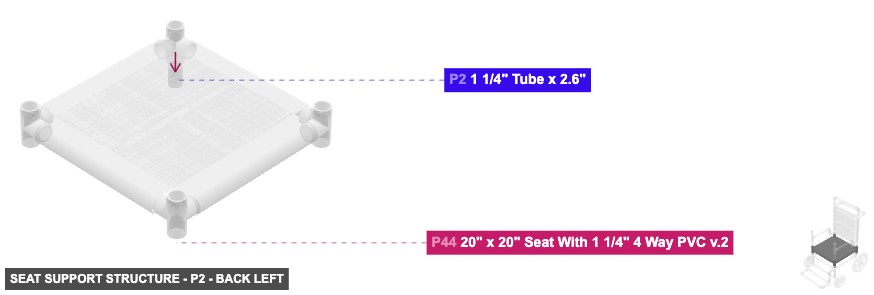

P2 (1.25" Tube 2.6" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 3's 1.25" F SLIP #3. After that, attach its 1.25" M SLIP #2 facing top to part 44's 1.25" F SLIP #3

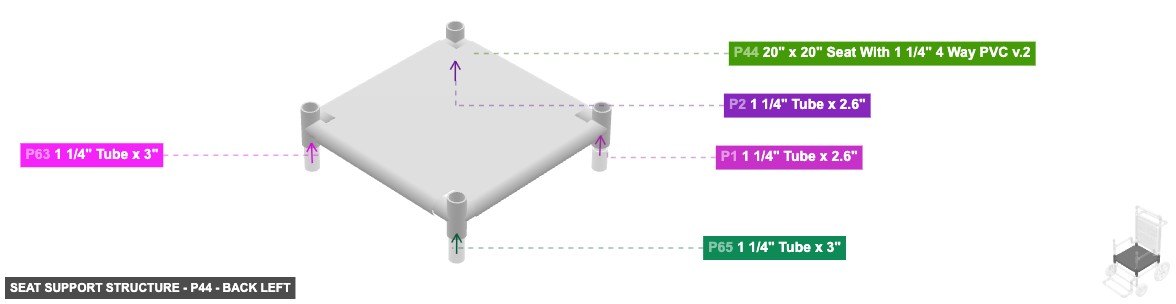

P44 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - attach its 1.25" F SLIP #1 facing bottom to part 1's 1.25" M SLIP #2, and attach its 1.25" F SLIP #2 facing top to part 25's 1.25" M SLIP #2. Also, its 1.25" F SLIP #3, which is bottom-facing, should connect to part 2's 1.25" M SLIP #2, also connect its 1.25" F SLIP #4 oriented top links with part 24's 1.25" M SLIP #2, then connect its 1.25" F SLIP #5 oriented bottom links with part 65's 1.25" M SLIP #2. Next, its 1.25" F SLIP #6, which is top-facing, should connect to part 45's 1.25" M SLIP #2, also its 1.25" F SLIP #7, which is bottom-facing, should connect to part 63's 1.25" M SLIP #2, also attach its 1.25" F SLIP #8 facing top to part 60's 1.25" M SLIP #1

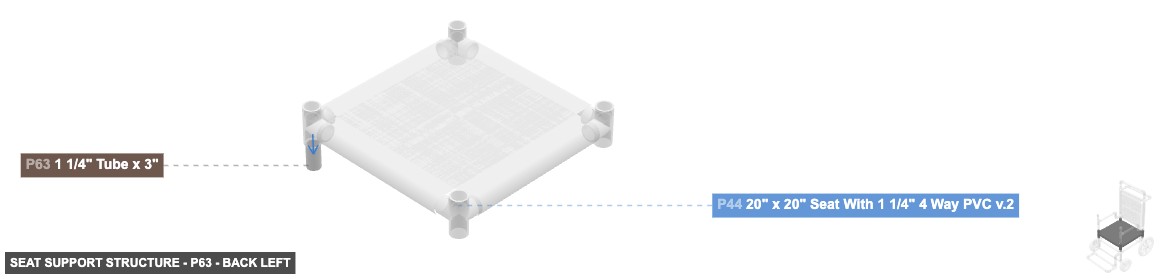

P63 (1.25" Tube 3" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 64's 1.25" F SLIP #1. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 44's 1.25" F SLIP #7

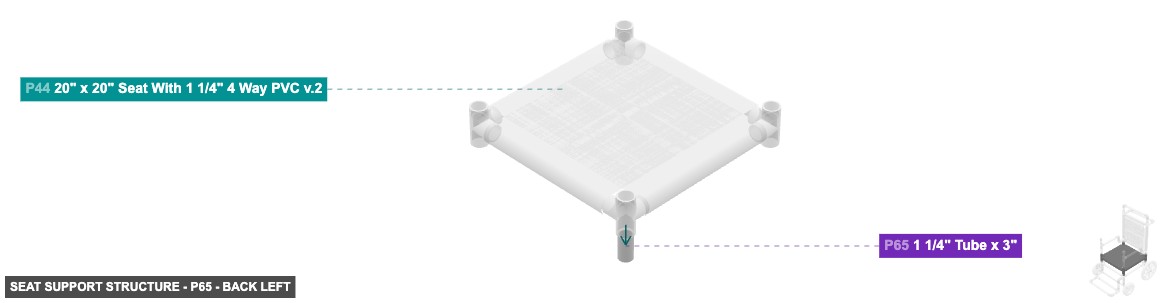

P65 (1.25" Tube 3" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 66's 1.25" F SLIP #1, also connect its 1.25" M SLIP #2 oriented top links with part 44's 1.25" F SLIP #5
1 1/4" Tube x 2.6"x 2
20" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/4" Tube x 3"x 2

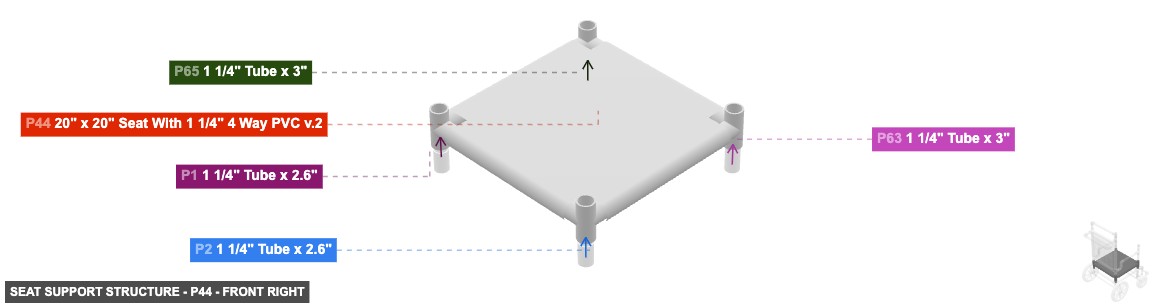

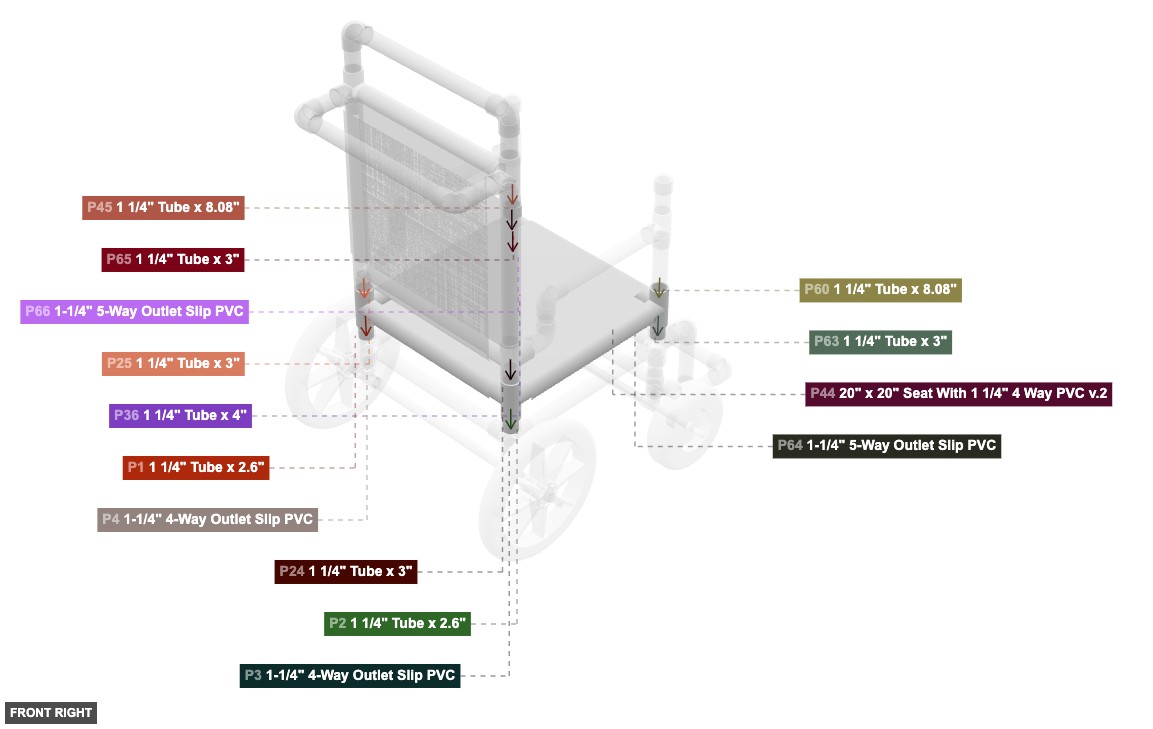

Angle: front right

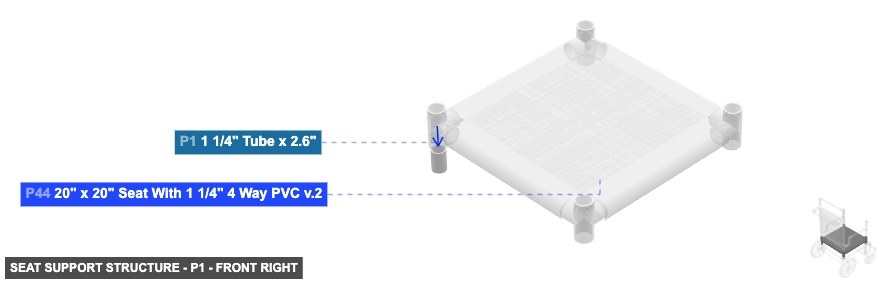

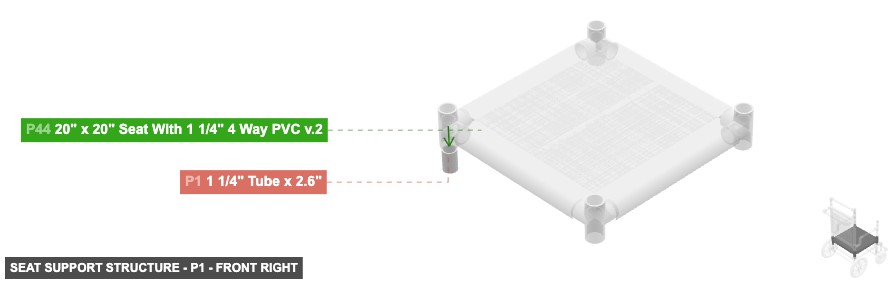

P1 (1.25" Tube 2.6" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 4's 1.25" F SLIP #3. Additionally, attach its 1.25" M SLIP #2 facing top to part 44's 1.25" F SLIP #1

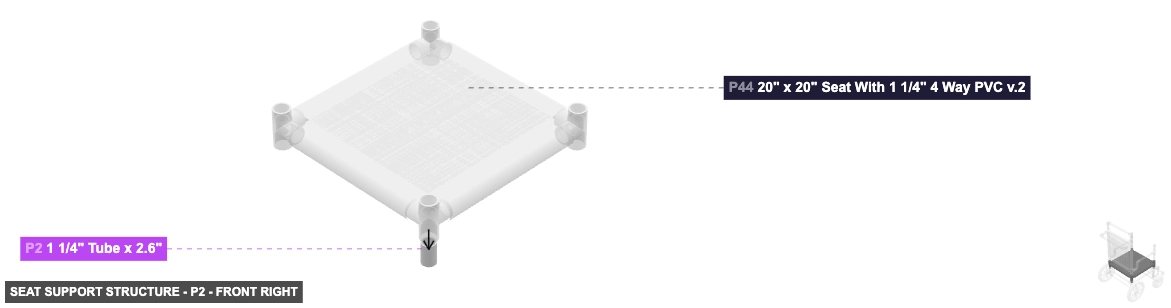

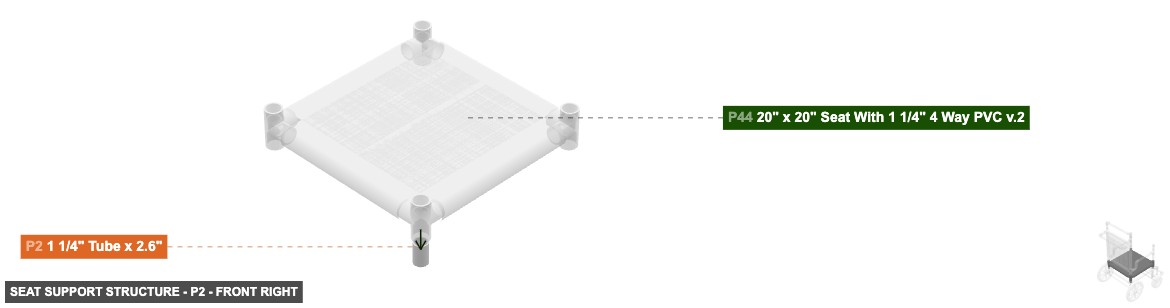

P2 (1.25" Tube 2.6" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 3's 1.25" F SLIP #3. After that, attach its 1.25" M SLIP #2 facing top to part 44's 1.25" F SLIP #3

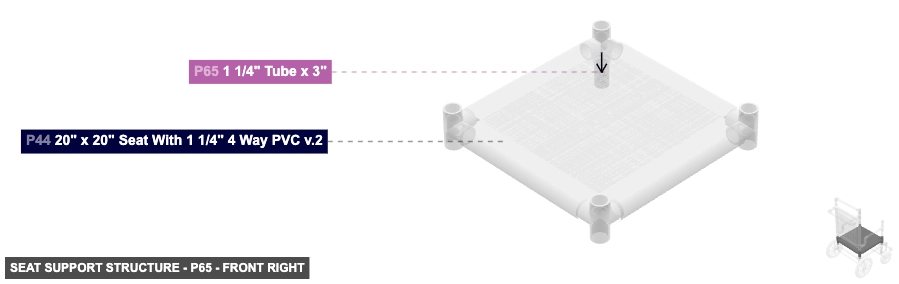

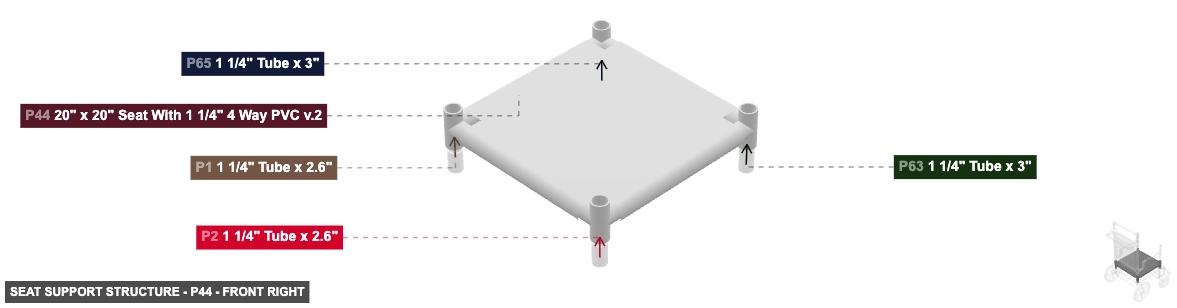

P44 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - attach its 1.25" F SLIP #1 facing bottom to part 1's 1.25" M SLIP #2, and attach its 1.25" F SLIP #2 facing top to part 25's 1.25" M SLIP #2. Also, its 1.25" F SLIP #3, which is bottom-facing, should connect to part 2's 1.25" M SLIP #2, also connect its 1.25" F SLIP #4 oriented top links with part 24's 1.25" M SLIP #2, then connect its 1.25" F SLIP #5 oriented bottom links with part 65's 1.25" M SLIP #2. Next, its 1.25" F SLIP #6, which is top-facing, should connect to part 45's 1.25" M SLIP #2, also its 1.25" F SLIP #7, which is bottom-facing, should connect to part 63's 1.25" M SLIP #2, also attach its 1.25" F SLIP #8 facing top to part 60's 1.25" M SLIP #1

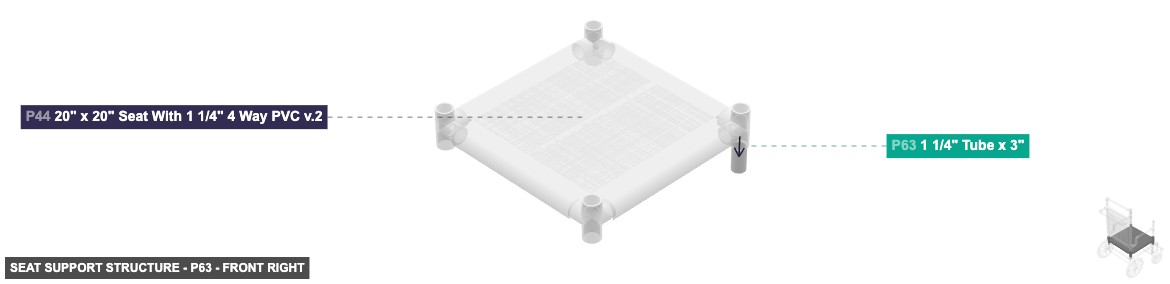

P63 (1.25" Tube 3" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 64's 1.25" F SLIP #1. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 44's 1.25" F SLIP #7
P65 (1.25" Tube 3" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 66's 1.25" F SLIP #1, also connect its 1.25" M SLIP #2 oriented top links with part 44's 1.25" F SLIP #5
1 1/4" Tube x 2.6"x 2
20" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/4" Tube x 3"x 2

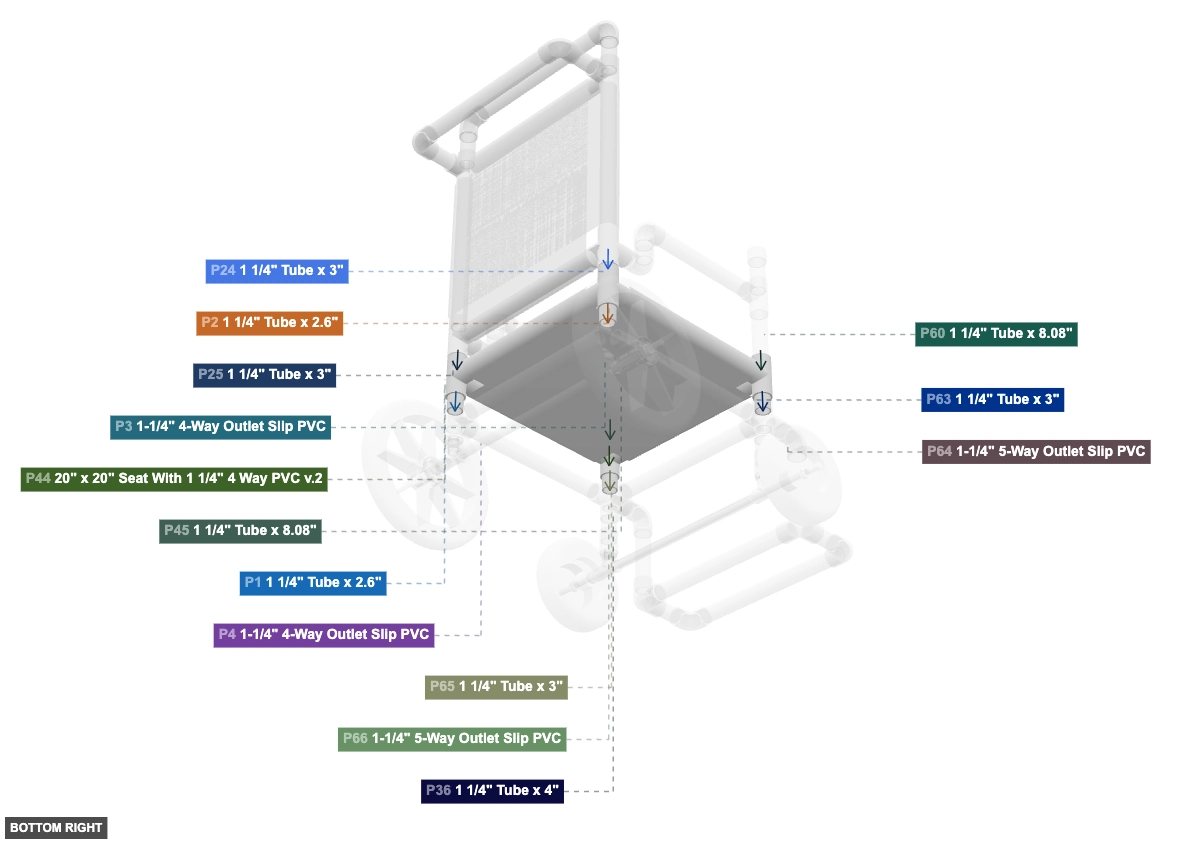

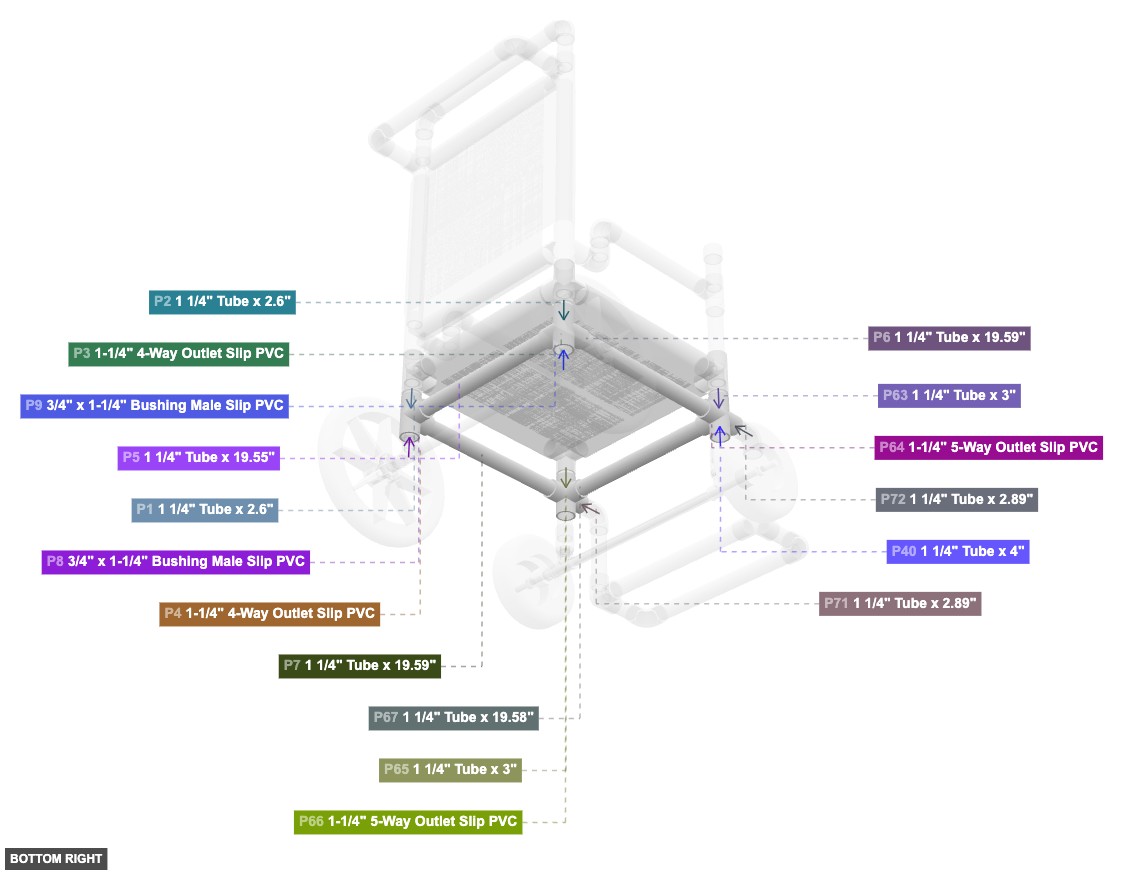

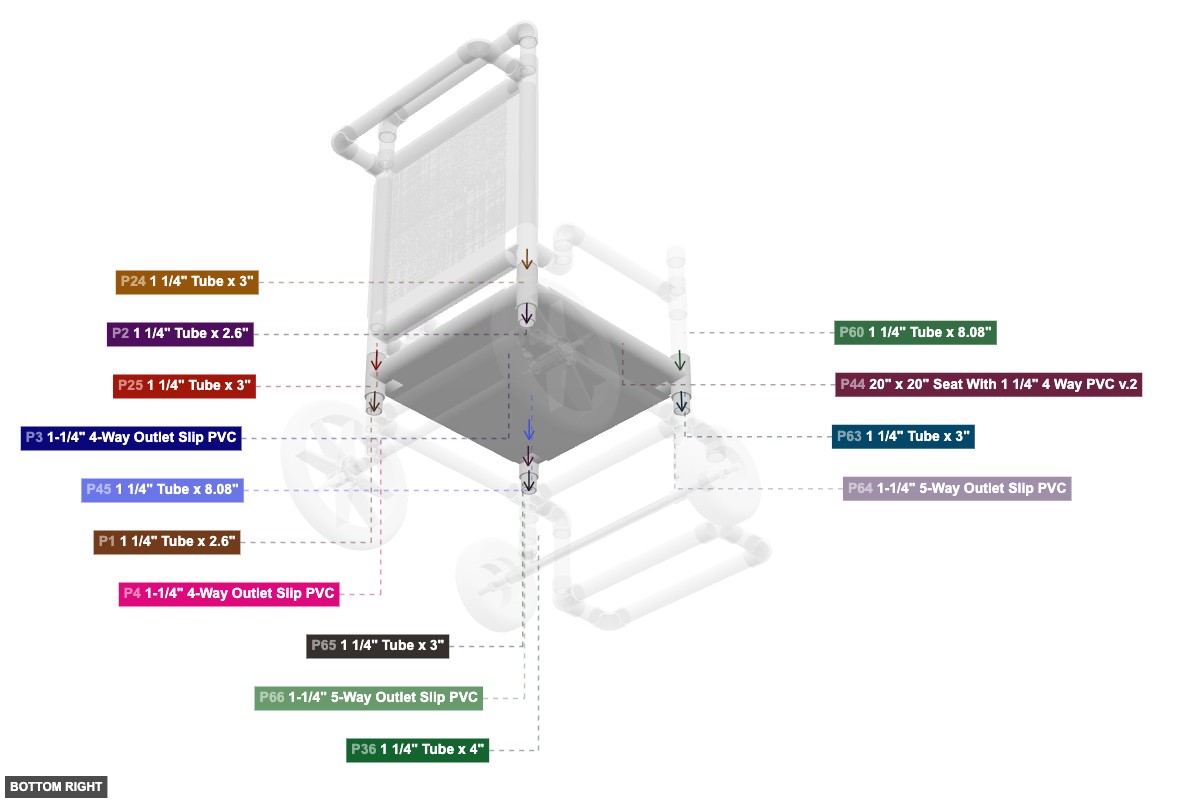

Angle: bottom right

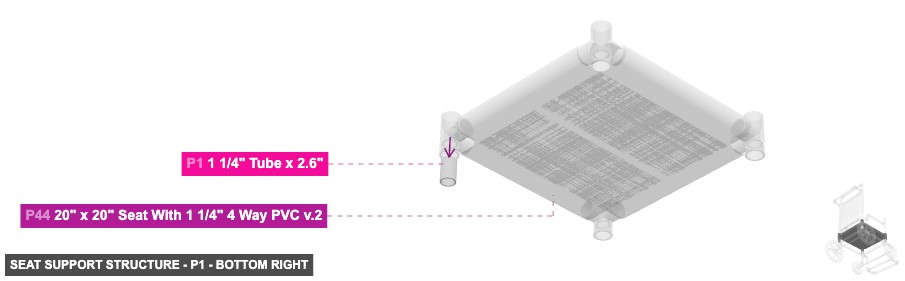

P1 (1.25" Tube 2.6" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 4's 1.25" F SLIP #3. Additionally, attach its 1.25" M SLIP #2 facing top to part 44's 1.25" F SLIP #1

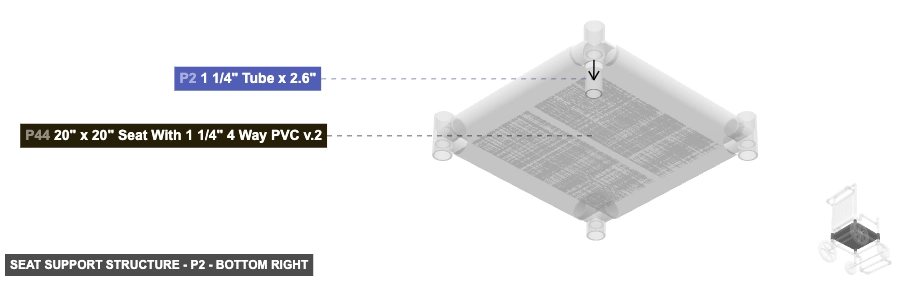

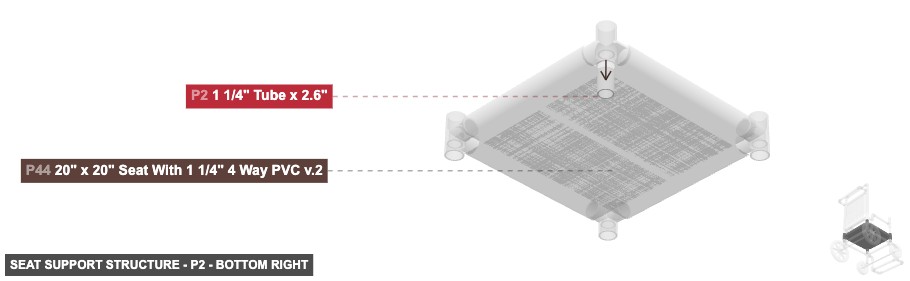

P2 (1.25" Tube 2.6" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 3's 1.25" F SLIP #3. After that, attach its 1.25" M SLIP #2 facing top to part 44's 1.25" F SLIP #3

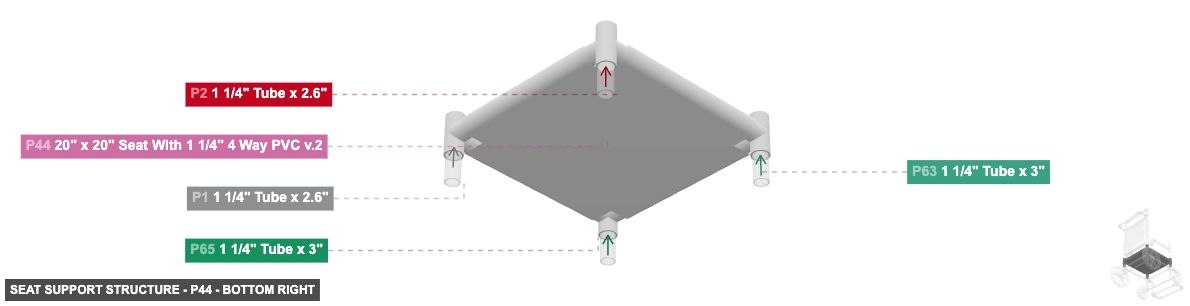

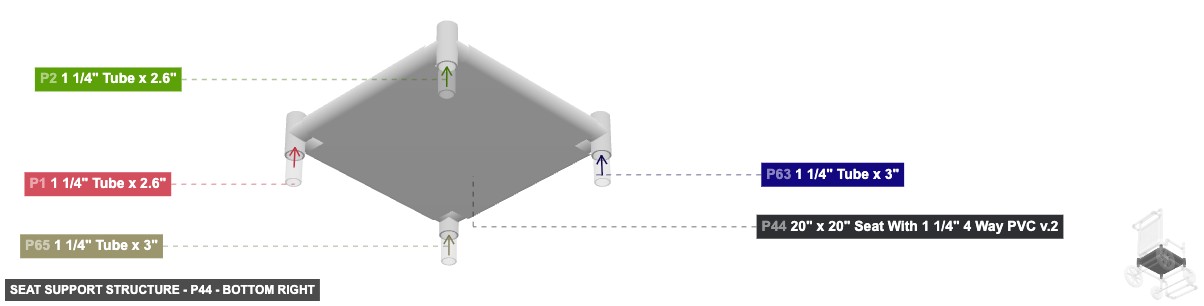

P44 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - attach its 1.25" F SLIP #1 facing bottom to part 1's 1.25" M SLIP #2, and attach its 1.25" F SLIP #2 facing top to part 25's 1.25" M SLIP #2. Also, its 1.25" F SLIP #3, which is bottom-facing, should connect to part 2's 1.25" M SLIP #2, also connect its 1.25" F SLIP #4 oriented top links with part 24's 1.25" M SLIP #2, then connect its 1.25" F SLIP #5 oriented bottom links with part 65's 1.25" M SLIP #2. Next, its 1.25" F SLIP #6, which is top-facing, should connect to part 45's 1.25" M SLIP #2, also its 1.25" F SLIP #7, which is bottom-facing, should connect to part 63's 1.25" M SLIP #2, also attach its 1.25" F SLIP #8 facing top to part 60's 1.25" M SLIP #1

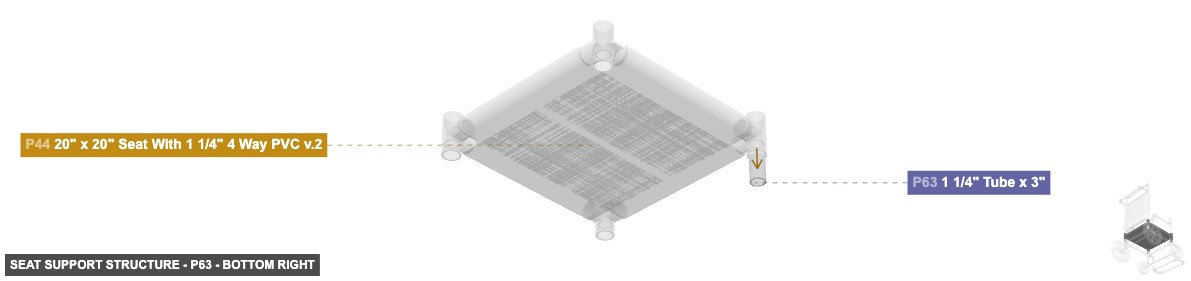

P63 (1.25" Tube 3" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 64's 1.25" F SLIP #1. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 44's 1.25" F SLIP #7

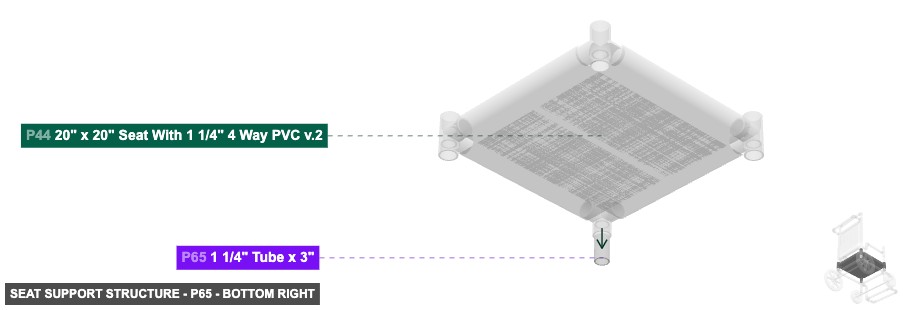

P65 (1.25" Tube 3" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 66's 1.25" F SLIP #1, also connect its 1.25" M SLIP #2 oriented top links with part 44's 1.25" F SLIP #5
1 1/4" Tube x 2.6"x 2
20" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/4" Tube x 3"x 2
Attaching: Footrest Assembly
Constructs the footrest section which extends forward from the lower frame.
Attach the assembled footrest by inserting P72 Male SLIP 1.25" front into the rear-facing Female SLIP 1.25" port of P64 (Lower Frame). Insert P71 Male SLIP 1.25" front into the rear-facing Female SLIP 1.25" port of P66 (Lower Frame).

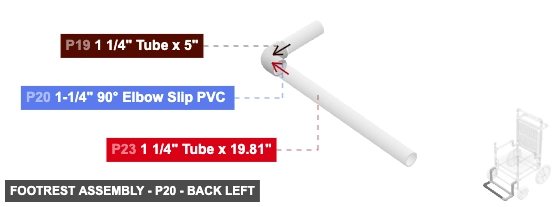

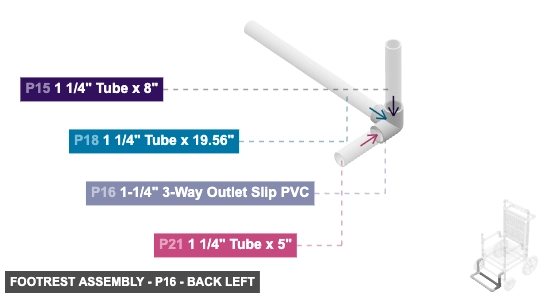

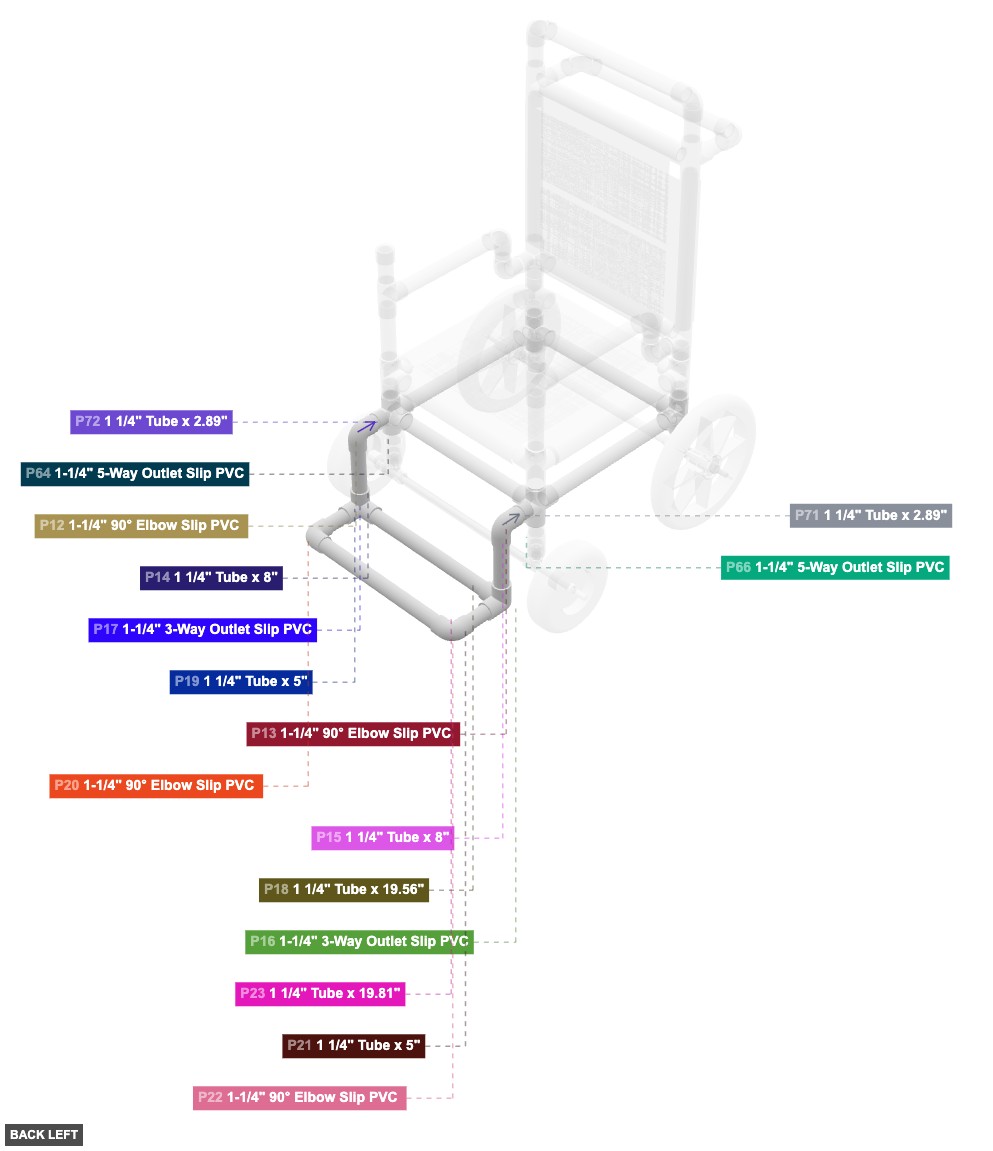

Angle: back left

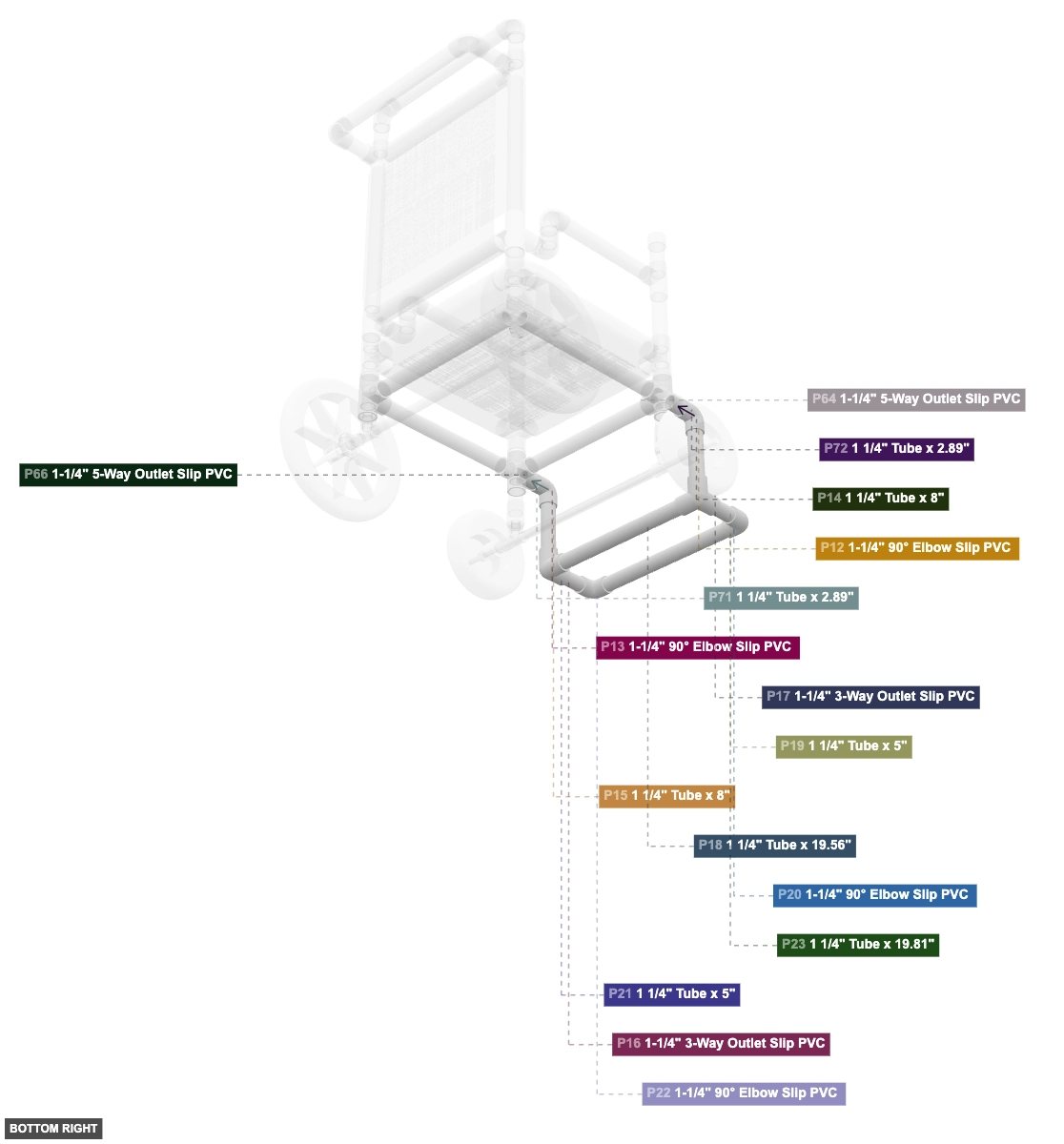

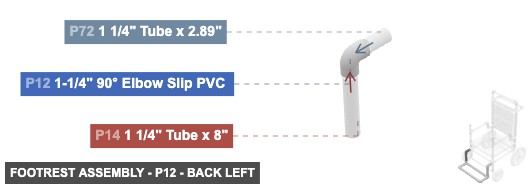

P12 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 72's 1.25" M SLIP #1, plus its 1.25" F SLIP #2, which is bottom-facing, should connect to part 14's 1.25" M SLIP #2

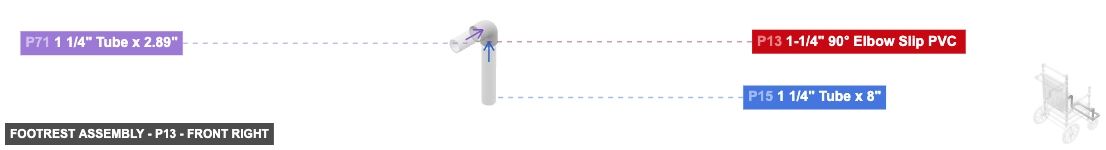

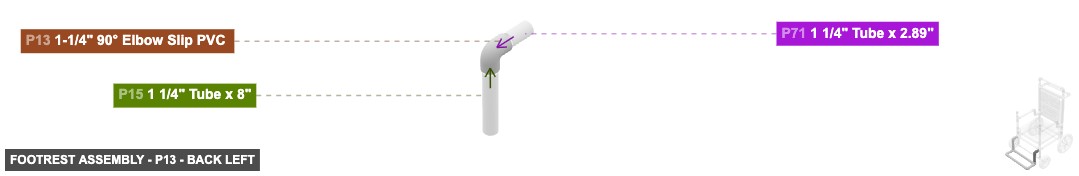

P13 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 71's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented bottom links with part 15's 1.25" M SLIP #2
P14 (1.25" Tube 8" length) - attach its 1.25" M SLIP #1 facing bottom to part 17's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented top links with part 12's 1.25" F SLIP #2

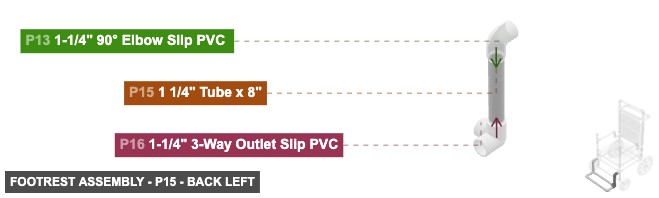

P15 (1.25" Tube 8" length) - attach its 1.25" M SLIP #1 facing bottom to part 16's 1.25" F SLIP #1. Additionally, its 1.25" M SLIP #2, which is top-facing, should connect to part 13's 1.25" F SLIP #2

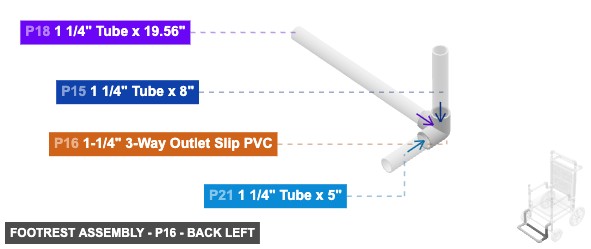

P16 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 15's 1.25" M SLIP #1, then attach its 1.25" F SLIP #2 facing back to part 21's 1.25" M SLIP #2, also attach its 1.25" F SLIP #3 facing right to part 18's 1.25" M SLIP #1

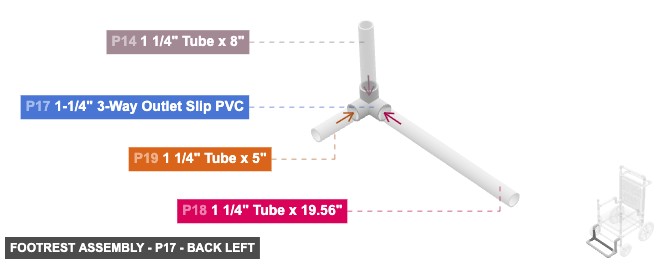

P17 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is top-facing, should connect to part 14's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented left links with part 18's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #3 oriented back links with part 19's 1.25" M SLIP #2

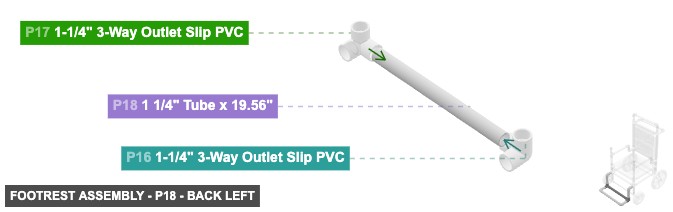

P18 (1.25" Tube 19.56" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 16's 1.25" F SLIP #3, plus connect its 1.25" M SLIP #2 oriented right links with part 17's 1.25" F SLIP #2

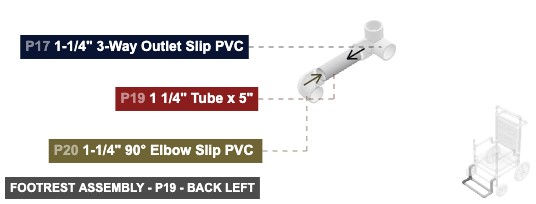

P19 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 20's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 17's 1.25" F SLIP #3

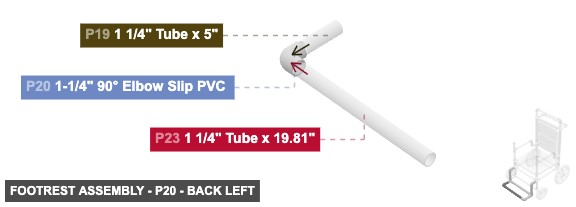

P20 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing front to part 19's 1.25" M SLIP #1. After that, connect its 1.25" F SLIP #2 oriented left links with part 23's 1.25" M SLIP #1

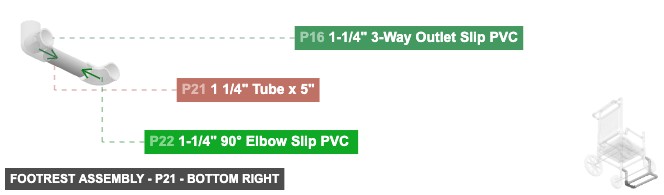

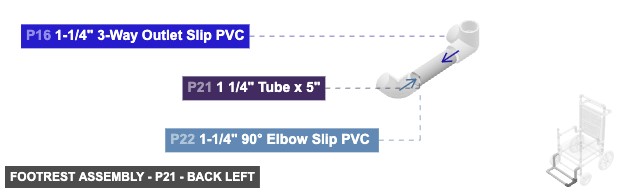

P21 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 22's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is front-facing, should connect to part 16's 1.25" F SLIP #2

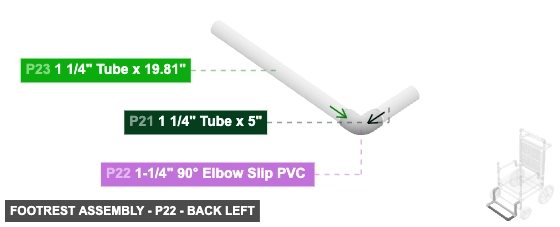

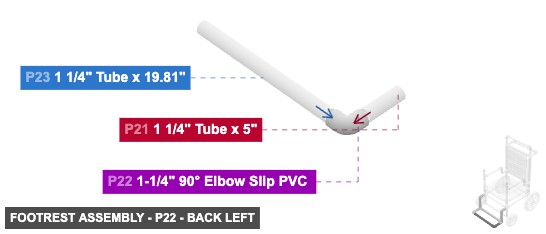

P22 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented front links with part 21's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing right to part 23's 1.25" M SLIP #2

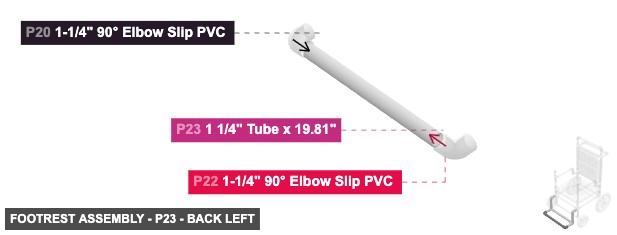

P23 (1.25" Tube 19.81" length) - connect its 1.25" M SLIP #1 oriented right links with part 20's 1.25" F SLIP #2. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 22's 1.25" F SLIP #2

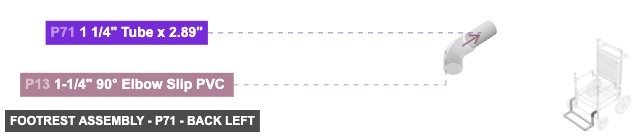

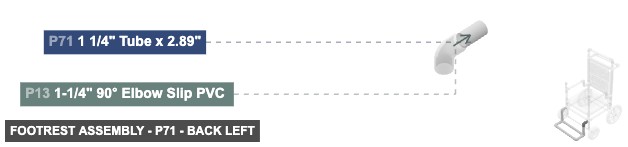

P71 (1.25" Tube 2.89" length) - attach its 1.25" M SLIP #1 facing back to part 13's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is front-facing, should connect to part 66's 1.25" F SLIP #4

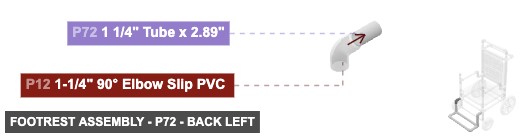

P72 (1.25" Tube 2.89" length) - connect its 1.25" M SLIP #1 oriented back links with part 12's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 64's 1.25" F SLIP #5
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 8"x 2
1-1/4" 3-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.56"x 1
1 1/4" Tube x 5"x 2
1 1/4" Tube x 19.81"x 1
1 1/4" Tube x 2.89"x 2

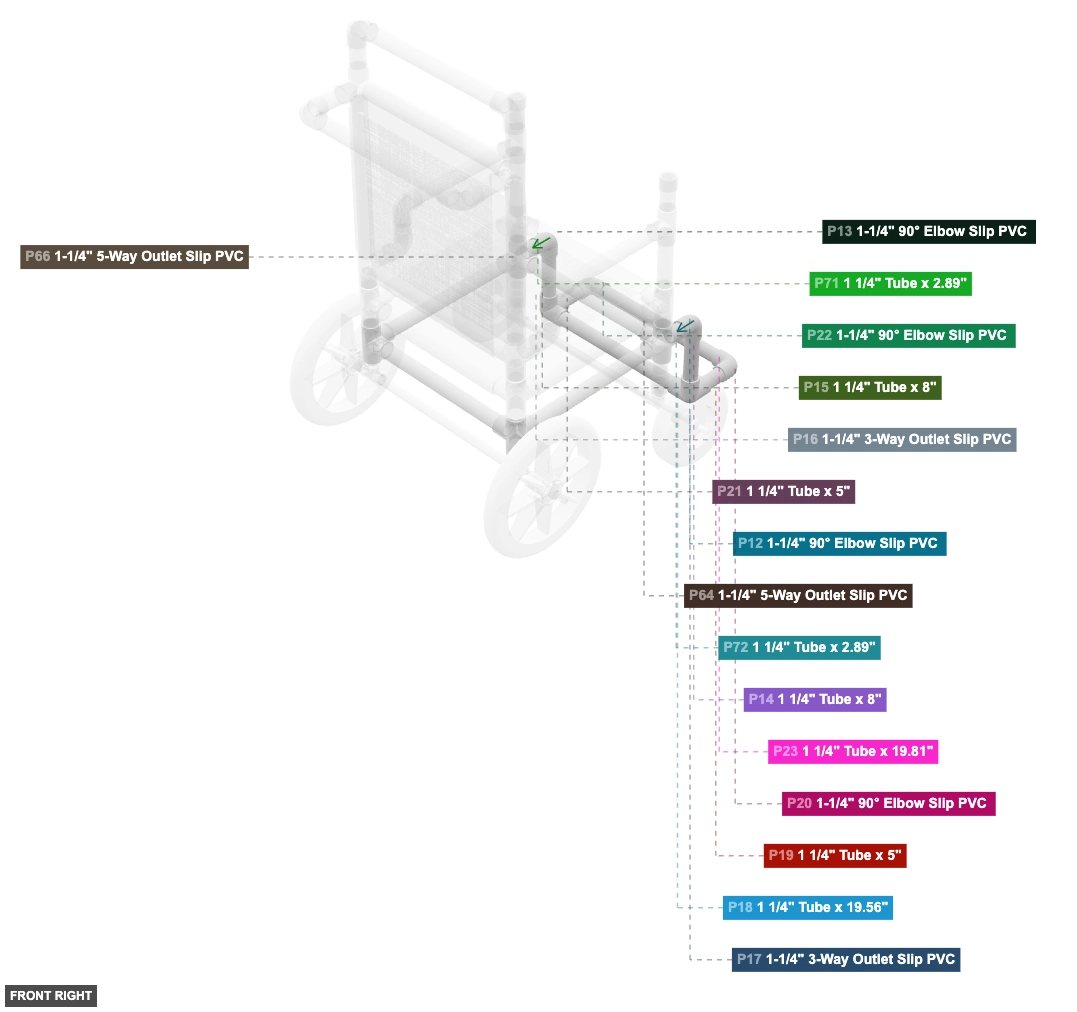

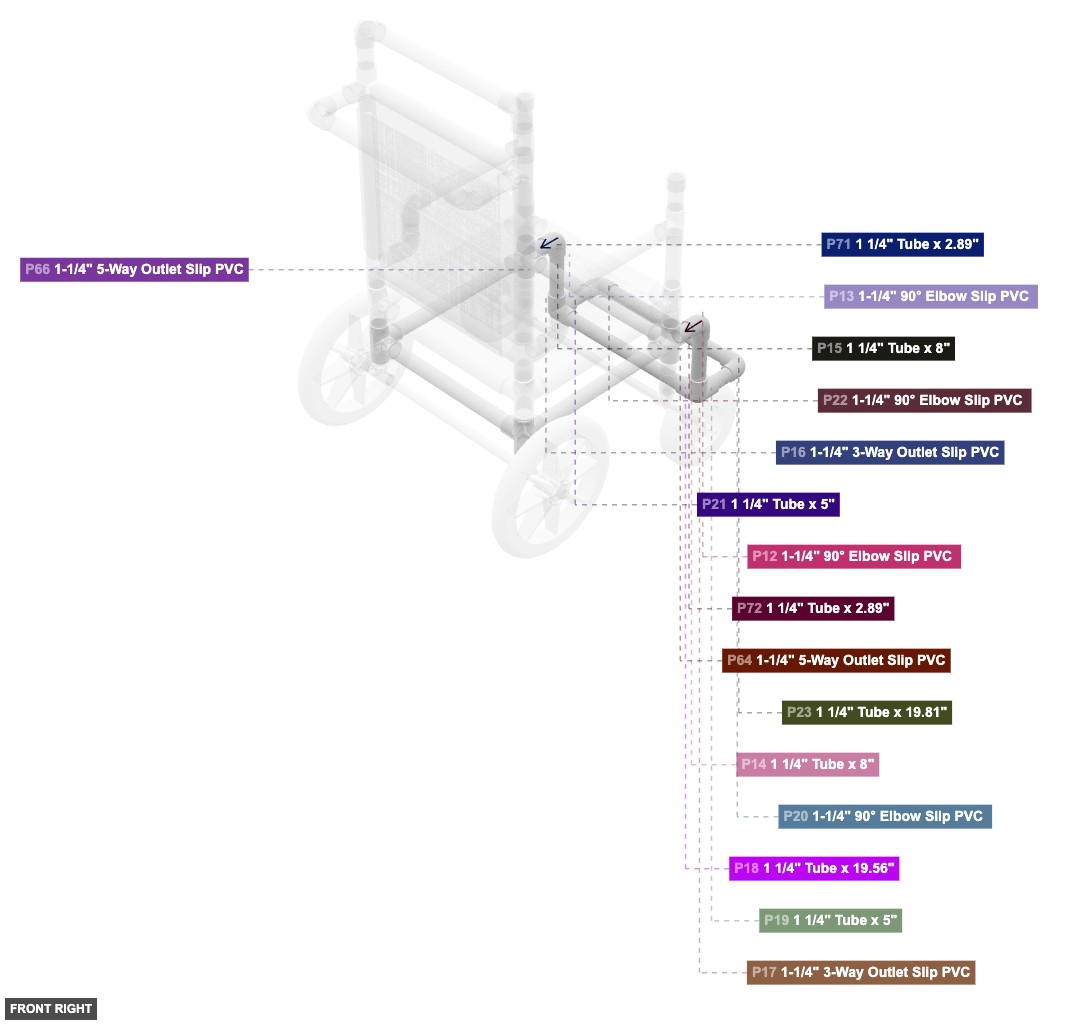

Angle: front right

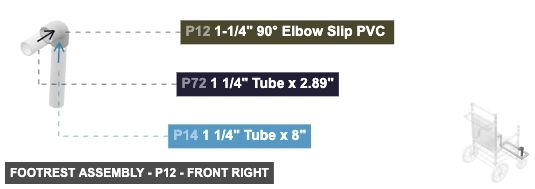

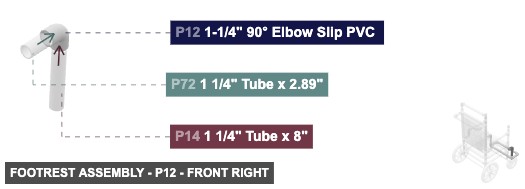

P12 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 72's 1.25" M SLIP #1, plus its 1.25" F SLIP #2, which is bottom-facing, should connect to part 14's 1.25" M SLIP #2

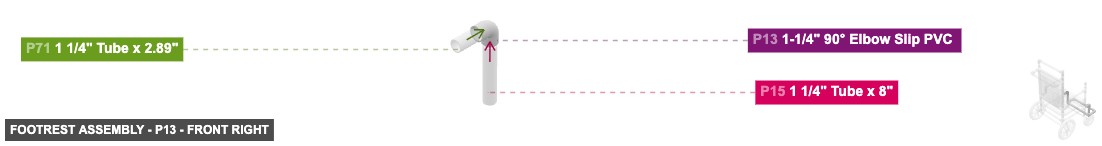

P13 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 71's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented bottom links with part 15's 1.25" M SLIP #2

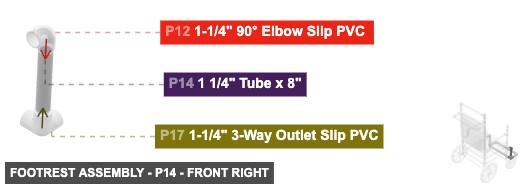

P14 (1.25" Tube 8" length) - attach its 1.25" M SLIP #1 facing bottom to part 17's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented top links with part 12's 1.25" F SLIP #2

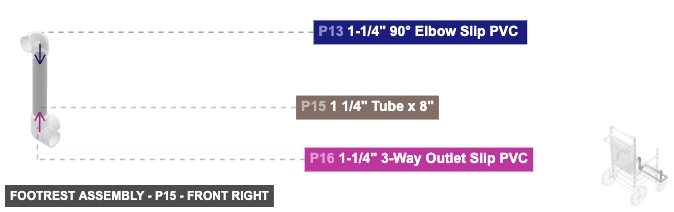

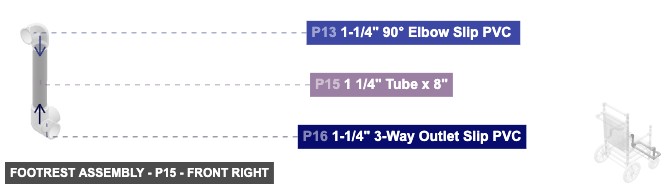

P15 (1.25" Tube 8" length) - attach its 1.25" M SLIP #1 facing bottom to part 16's 1.25" F SLIP #1. Additionally, its 1.25" M SLIP #2, which is top-facing, should connect to part 13's 1.25" F SLIP #2

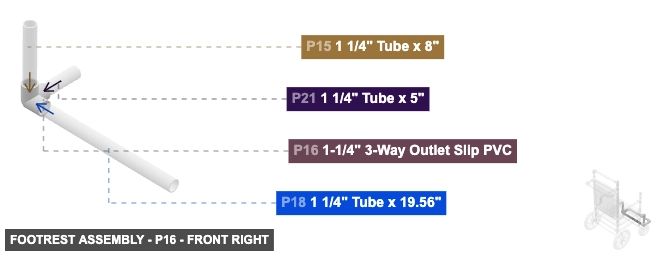

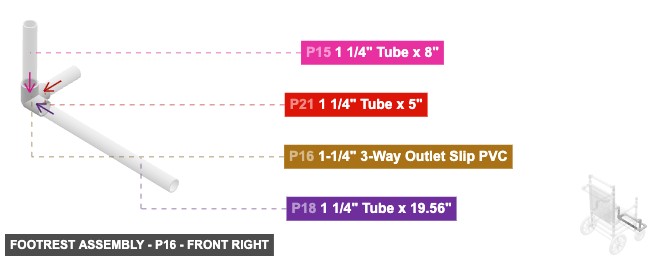

P16 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 15's 1.25" M SLIP #1, then attach its 1.25" F SLIP #2 facing back to part 21's 1.25" M SLIP #2, also attach its 1.25" F SLIP #3 facing right to part 18's 1.25" M SLIP #1

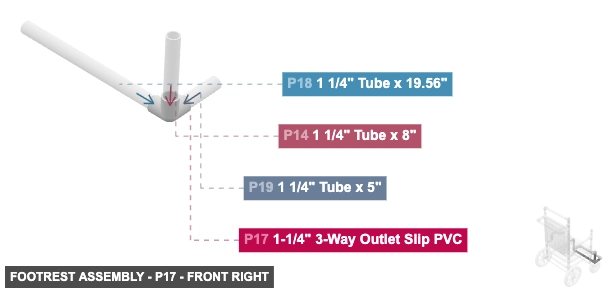

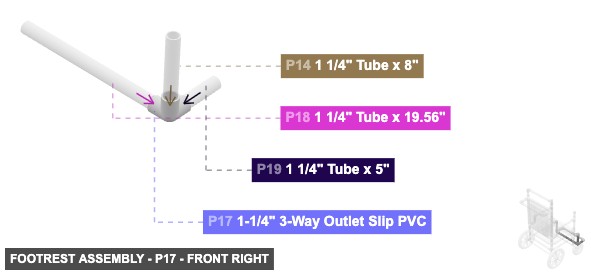

P17 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is top-facing, should connect to part 14's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented left links with part 18's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #3 oriented back links with part 19's 1.25" M SLIP #2
P18 (1.25" Tube 19.56" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 16's 1.25" F SLIP #3, plus connect its 1.25" M SLIP #2 oriented right links with part 17's 1.25" F SLIP #2

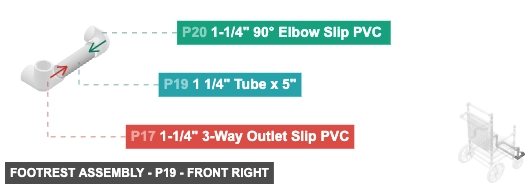

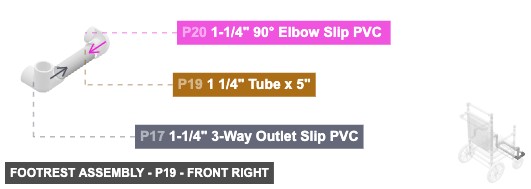

P19 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 20's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 17's 1.25" F SLIP #3

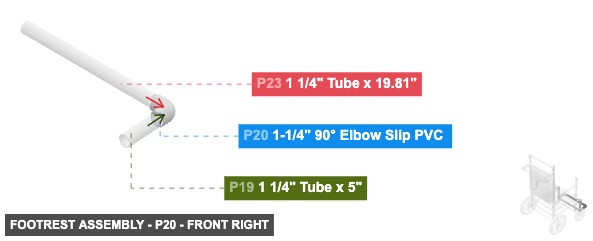

P20 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing front to part 19's 1.25" M SLIP #1. After that, connect its 1.25" F SLIP #2 oriented left links with part 23's 1.25" M SLIP #1
P21 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 22's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is front-facing, should connect to part 16's 1.25" F SLIP #2

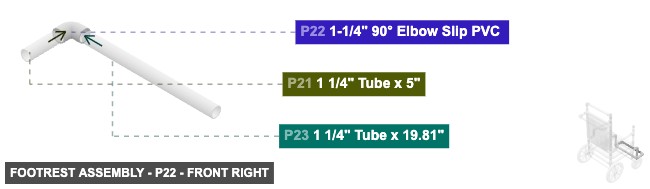

P22 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented front links with part 21's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing right to part 23's 1.25" M SLIP #2

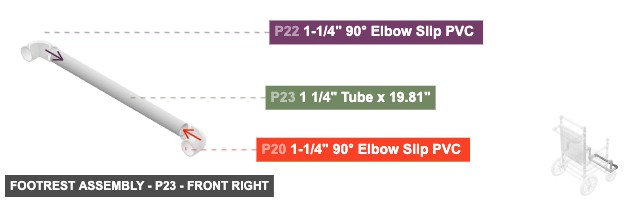

P23 (1.25" Tube 19.81" length) - connect its 1.25" M SLIP #1 oriented right links with part 20's 1.25" F SLIP #2. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 22's 1.25" F SLIP #2

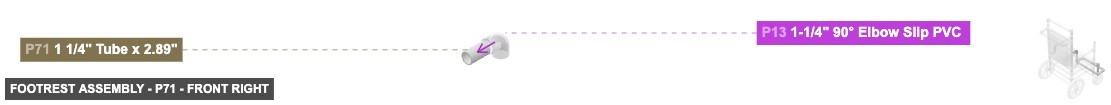

P71 (1.25" Tube 2.89" length) - attach its 1.25" M SLIP #1 facing back to part 13's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is front-facing, should connect to part 66's 1.25" F SLIP #4

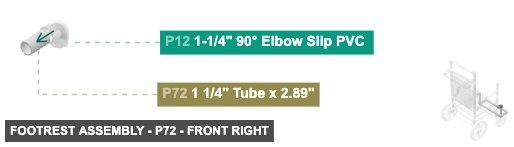

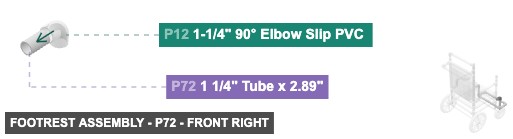

P72 (1.25" Tube 2.89" length) - connect its 1.25" M SLIP #1 oriented back links with part 12's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 64's 1.25" F SLIP #5
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 8"x 2
1-1/4" 3-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.56"x 1
1 1/4" Tube x 5"x 2
1 1/4" Tube x 19.81"x 1
1 1/4" Tube x 2.89"x 2

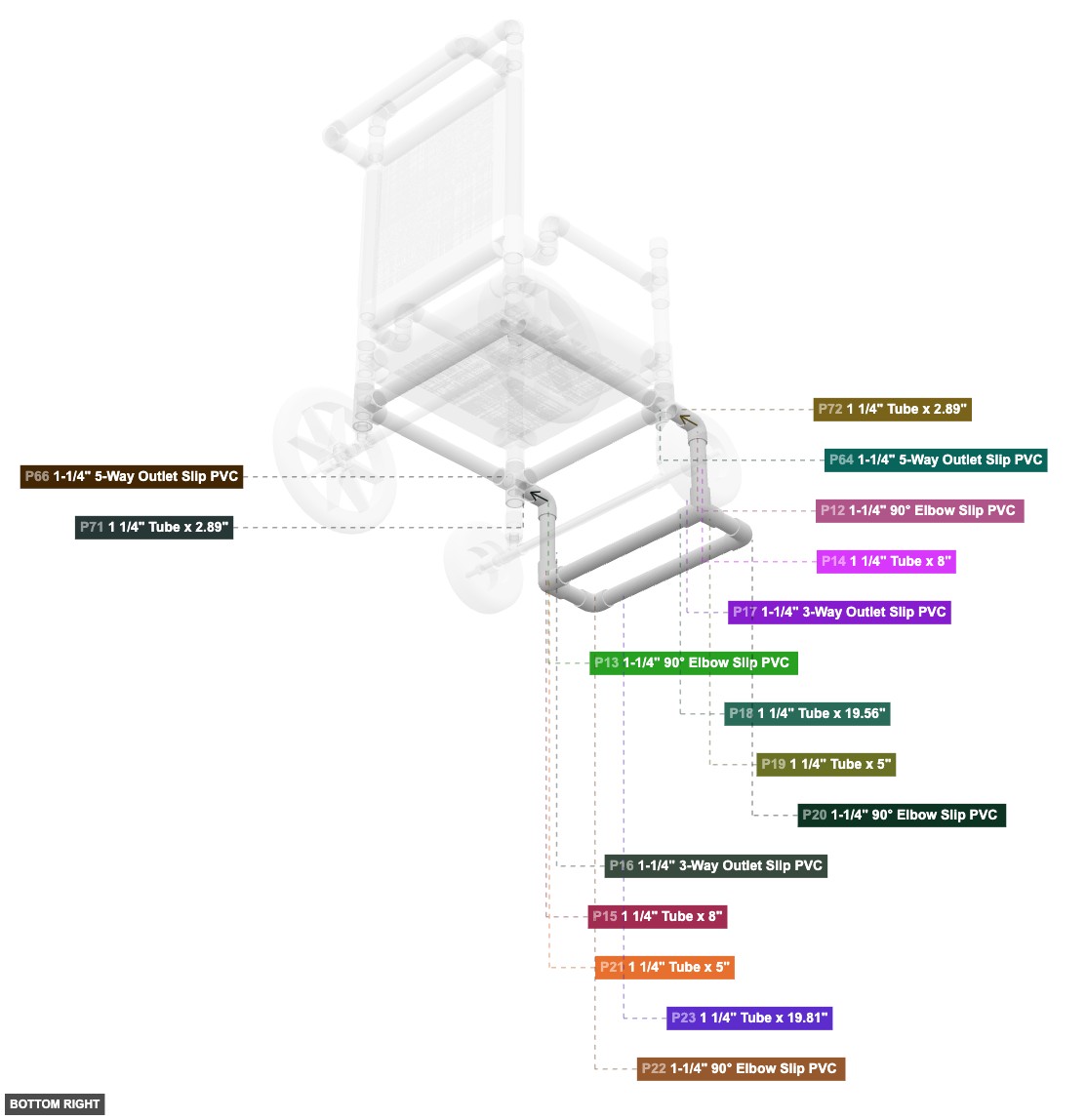

Angle: bottom right

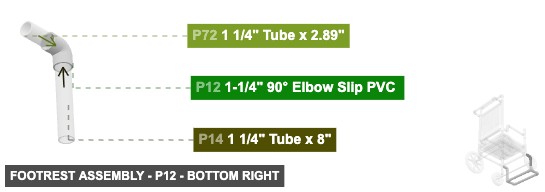

P12 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 72's 1.25" M SLIP #1, plus its 1.25" F SLIP #2, which is bottom-facing, should connect to part 14's 1.25" M SLIP #2

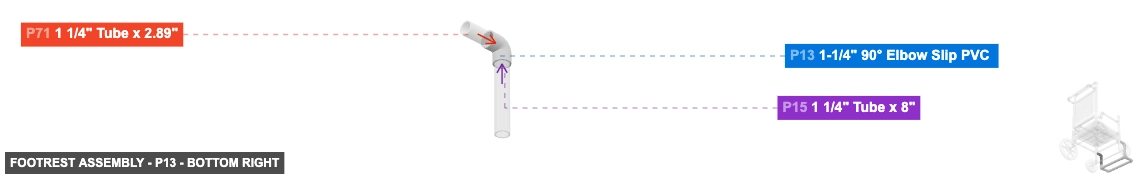

P13 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 71's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented bottom links with part 15's 1.25" M SLIP #2

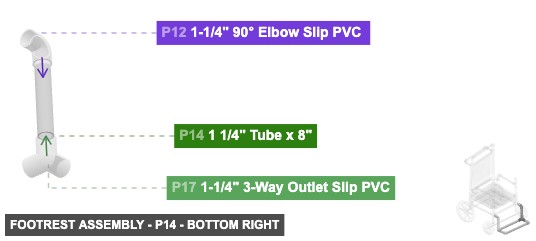

P14 (1.25" Tube 8" length) - attach its 1.25" M SLIP #1 facing bottom to part 17's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented top links with part 12's 1.25" F SLIP #2

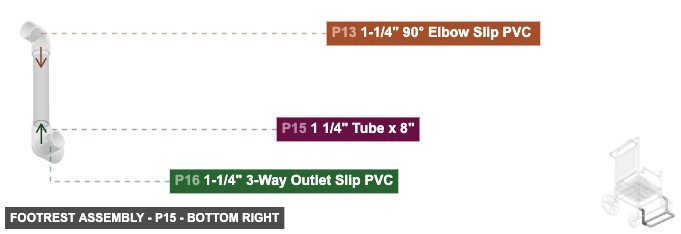

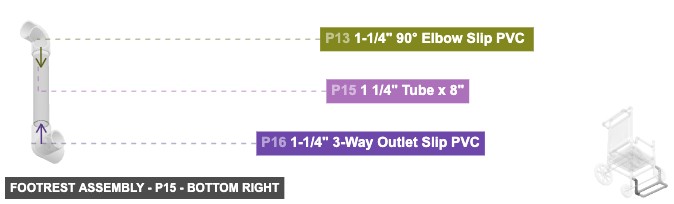

P15 (1.25" Tube 8" length) - attach its 1.25" M SLIP #1 facing bottom to part 16's 1.25" F SLIP #1. Additionally, its 1.25" M SLIP #2, which is top-facing, should connect to part 13's 1.25" F SLIP #2

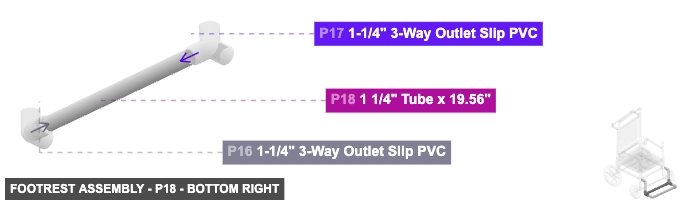

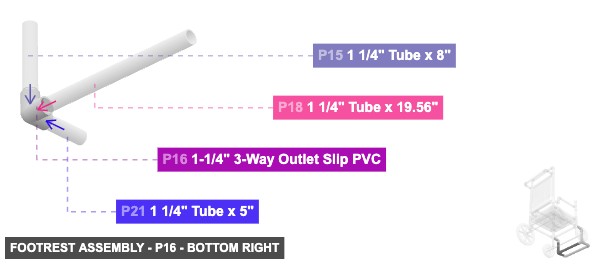

P16 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 15's 1.25" M SLIP #1, then attach its 1.25" F SLIP #2 facing back to part 21's 1.25" M SLIP #2, also attach its 1.25" F SLIP #3 facing right to part 18's 1.25" M SLIP #1

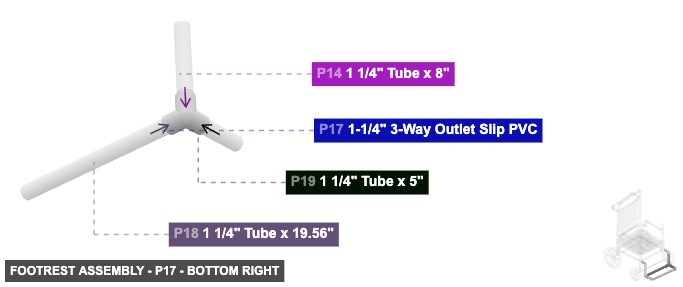

P17 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is top-facing, should connect to part 14's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented left links with part 18's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #3 oriented back links with part 19's 1.25" M SLIP #2

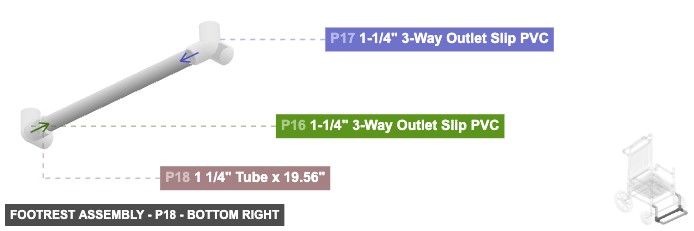

P18 (1.25" Tube 19.56" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 16's 1.25" F SLIP #3, plus connect its 1.25" M SLIP #2 oriented right links with part 17's 1.25" F SLIP #2

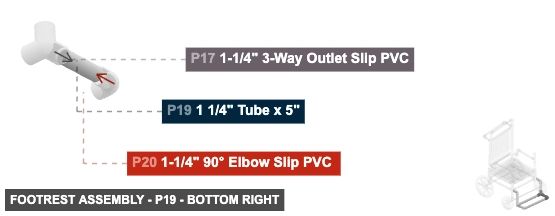

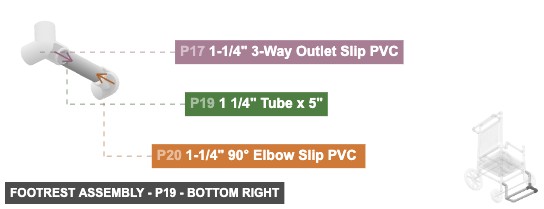

P19 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 20's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 17's 1.25" F SLIP #3

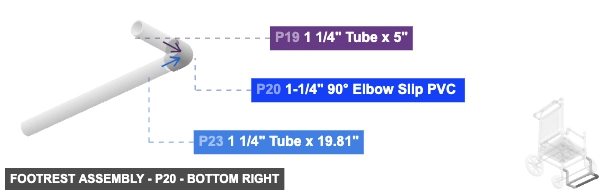

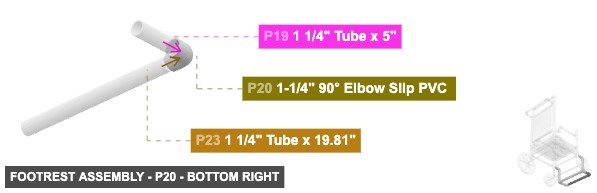

P20 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing front to part 19's 1.25" M SLIP #1. After that, connect its 1.25" F SLIP #2 oriented left links with part 23's 1.25" M SLIP #1
P21 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 22's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is front-facing, should connect to part 16's 1.25" F SLIP #2

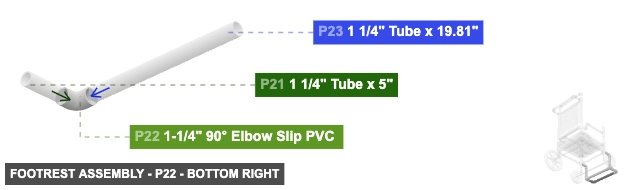

P22 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented front links with part 21's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing right to part 23's 1.25" M SLIP #2

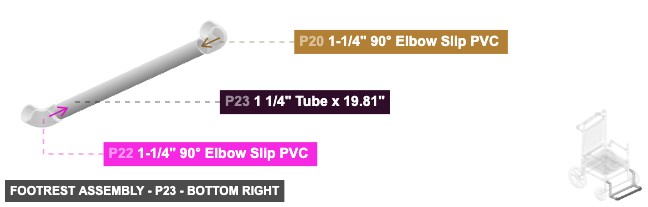

P23 (1.25" Tube 19.81" length) - connect its 1.25" M SLIP #1 oriented right links with part 20's 1.25" F SLIP #2. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 22's 1.25" F SLIP #2

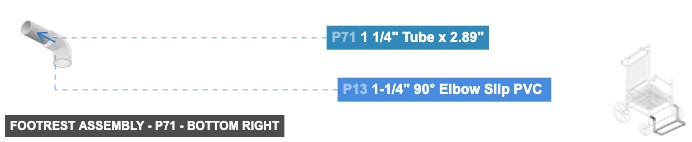

P71 (1.25" Tube 2.89" length) - attach its 1.25" M SLIP #1 facing back to part 13's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is front-facing, should connect to part 66's 1.25" F SLIP #4

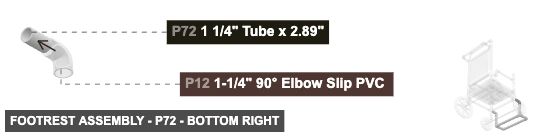

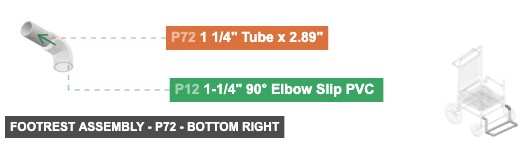

P72 (1.25" Tube 2.89" length) - connect its 1.25" M SLIP #1 oriented back links with part 12's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 64's 1.25" F SLIP #5
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 8"x 2
1-1/4" 3-Way Outlet Slip PVCx 2
1 1/4" Tube x 19.56"x 1
1 1/4" Tube x 5"x 2
1 1/4" Tube x 19.81"x 1
1 1/4" Tube x 2.89"x 2
Attaching: Backrest Frame
Builds the backrest structure, including the upper frame and push handles.
This structure attaches directly to the Seat Support Structure (Group 4) during its assembly. The Armrests (Group 7 & 8) will also connect to this frame.

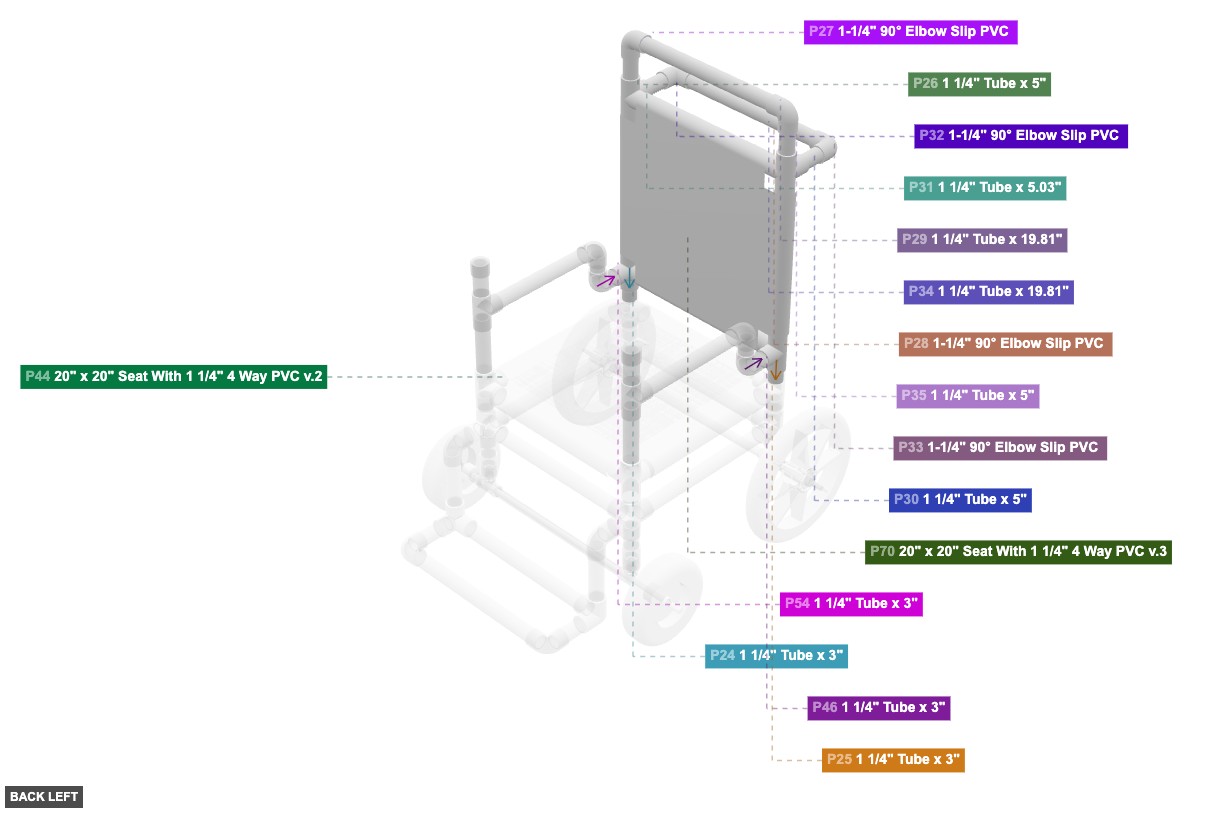

Angle: back left

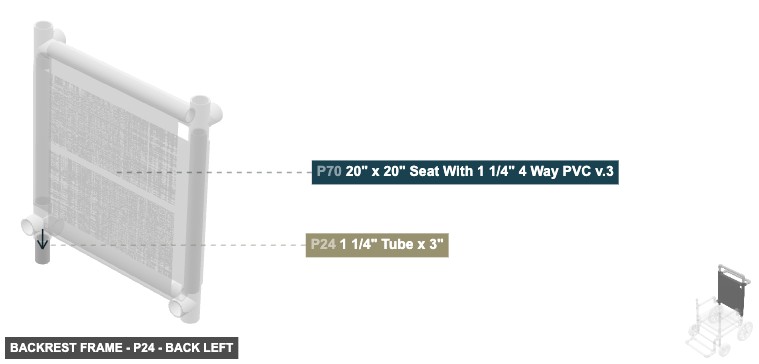

P24 (1.25" Tube 3" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 70's 1.25" F SLIP #2. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 44's 1.25" F SLIP #4

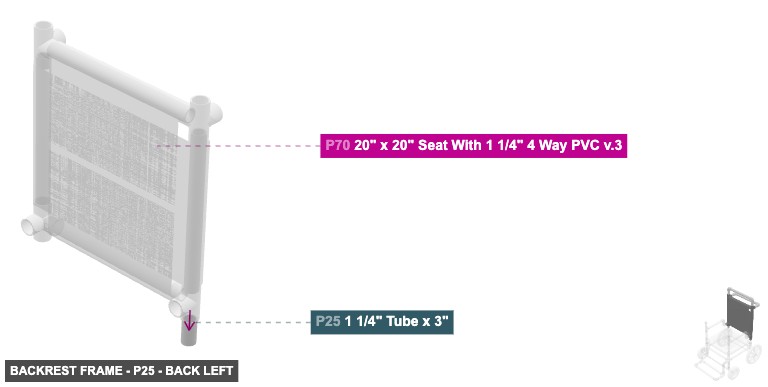

P25 (1.25" Tube 3" length) - attach its 1.25" M SLIP #1 facing top to part 70's 1.25" F SLIP #5. Also, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 44's 1.25" F SLIP #2

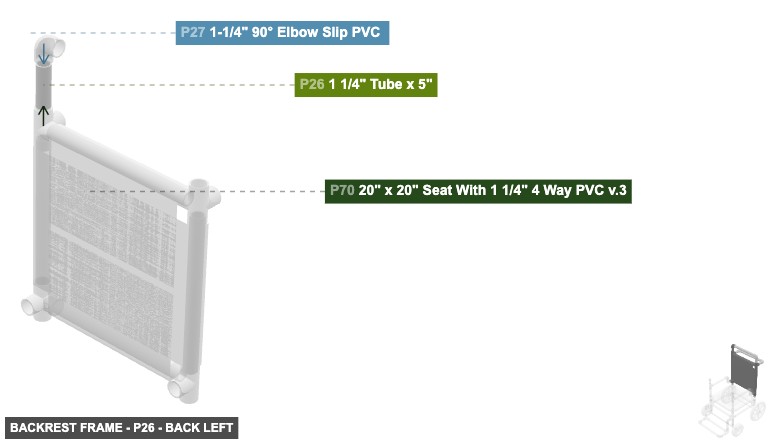

P26 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 27's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing bottom to part 70's 1.25" F SLIP #4

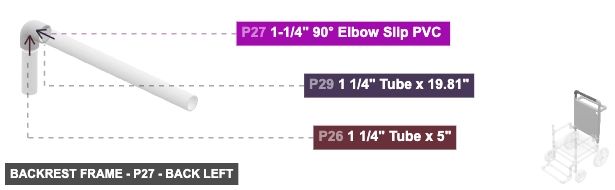

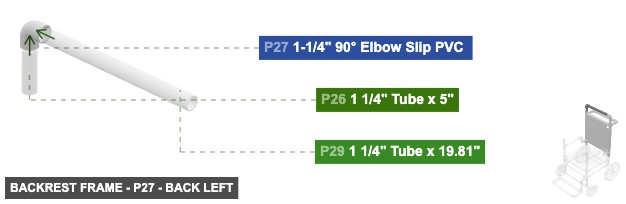

P27 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 26's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing left to part 29's 1.25" M SLIP #1

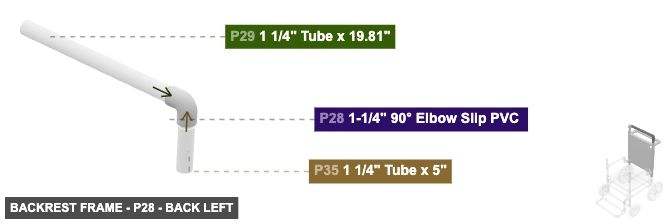

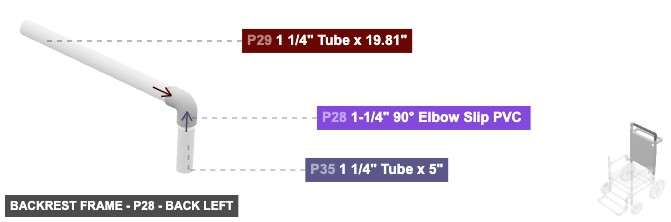

P28 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 35's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #2, which is right-facing, should connect to part 29's 1.25" M SLIP #2

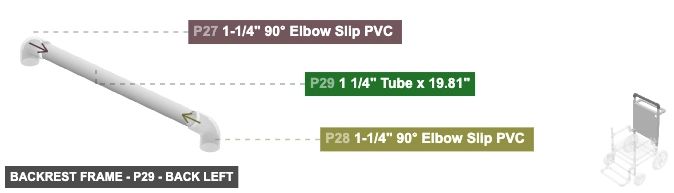

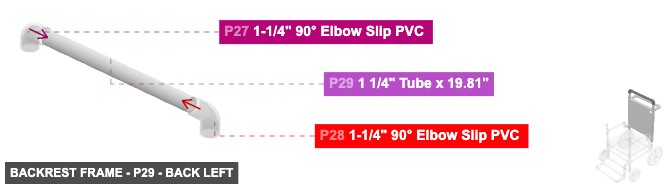

P29 (1.25" Tube 19.81" length) - attach its 1.25" M SLIP #1 facing right to part 27's 1.25" F SLIP #2, then connect its 1.25" M SLIP #2 oriented left links with part 28's 1.25" F SLIP #2

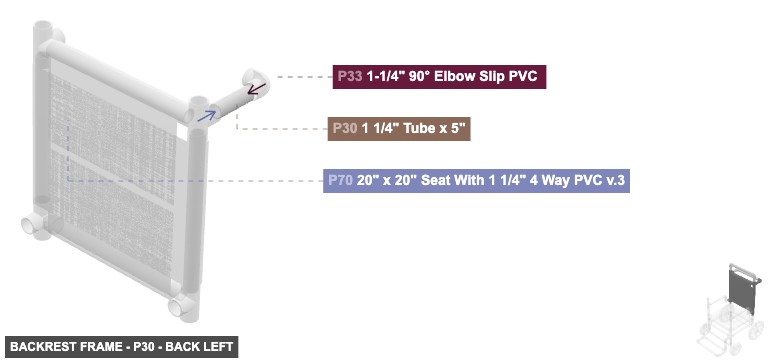

P30 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing front to part 33's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-facing, should connect to part 70's 1.25" F SLIP #8

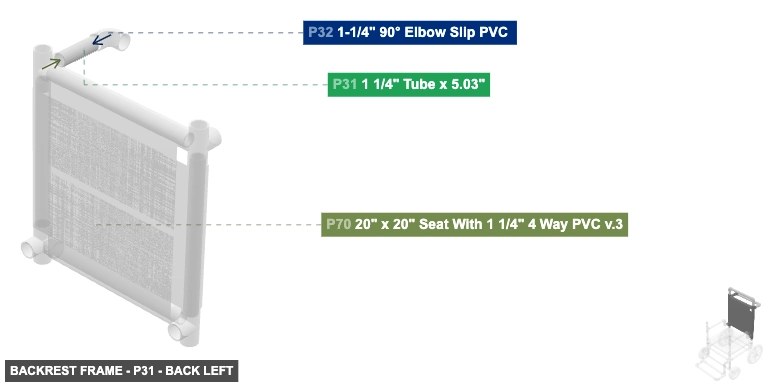

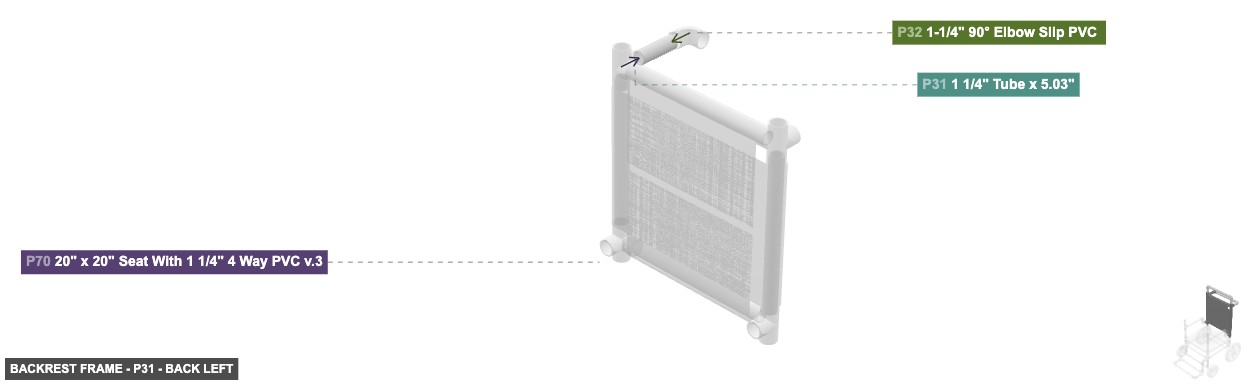

P31 (1.25" Tube 5.03" length) - attach its 1.25" M SLIP #1 facing front to part 32's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-facing, should connect to part 70's 1.25" F SLIP #3

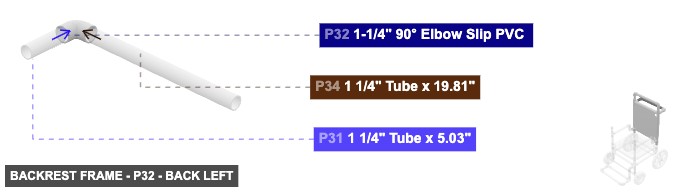

P32 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented back links with part 31's 1.25" M SLIP #1, and attach its 1.25" F SLIP #2 facing left to part 34's 1.25" M SLIP #1

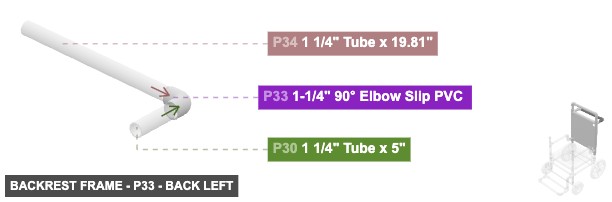

P33 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is back-facing, should connect to part 30's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is right-facing, should connect to part 34's 1.25" M SLIP #2

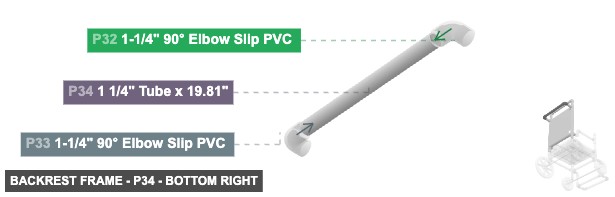

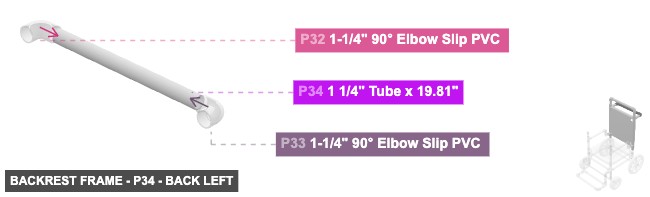

P34 (1.25" Tube 19.81" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 32's 1.25" F SLIP #2. Next, attach its 1.25" M SLIP #2 facing left to part 33's 1.25" F SLIP #2

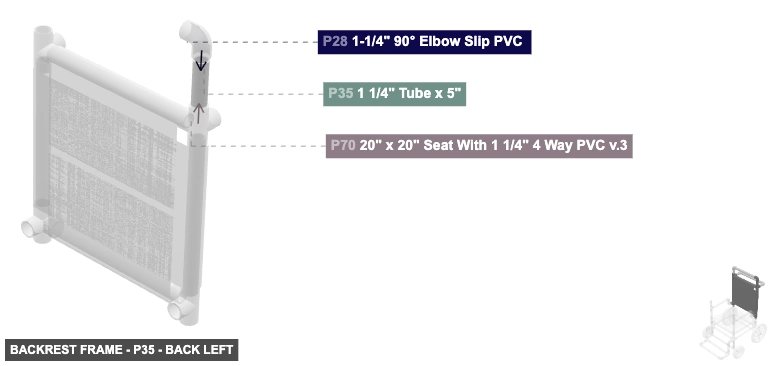

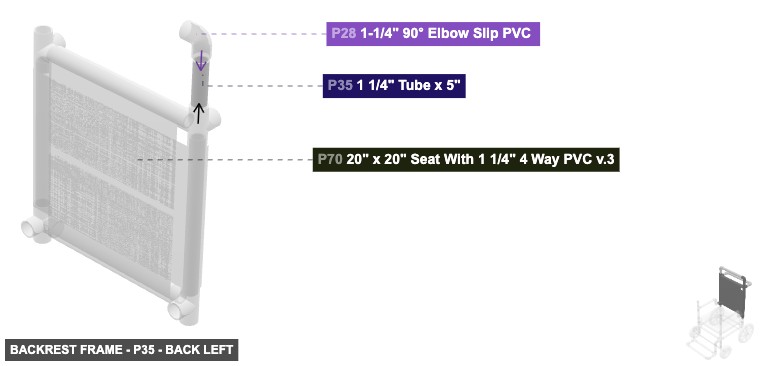

P35 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing bottom to part 70's 1.25" F SLIP #7. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 28's 1.25" F SLIP #1

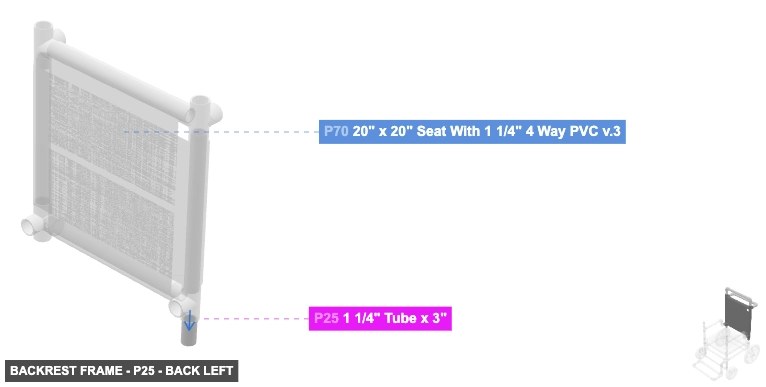

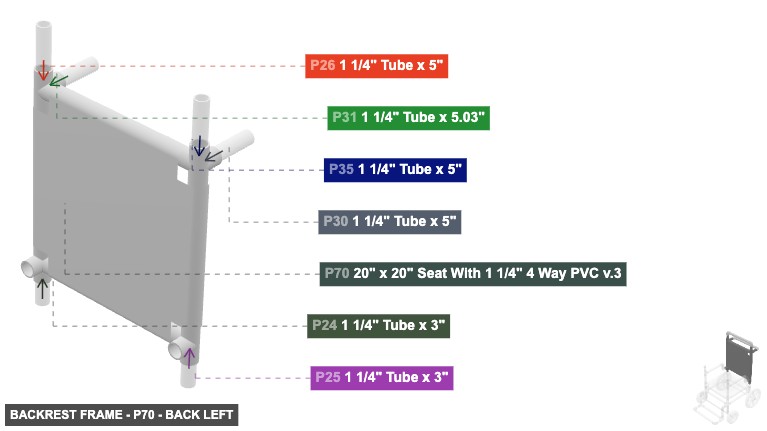

P70 (20" x 20" Seat With 1 1/4" 4 Way PVC v.3) - attach its 1.25" F SLIP #1 facing back to part 54's 1.25" M SLIP #2. Next, connect its 1.25" F SLIP #2 oriented bottom links with part 24's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #3 facing front to part 31's 1.25" M SLIP #2, then connect its 1.25" F SLIP #4 oriented top links with part 26's 1.25" M SLIP #2, also connect its 1.25" F SLIP #5 oriented bottom links with part 25's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #6 oriented back links with part 46's 1.25" M SLIP #2, also attach its 1.25" F SLIP #7 facing top to part 35's 1.25" M SLIP #1. Also, its 1.25" F SLIP #8, which is front-facing, should connect to part 30's 1.25" M SLIP #2
1 1/4" Tube x 3"x 2
1 1/4" Tube x 5"x 3
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 19.81"x 2
1 1/4" Tube x 5.03"x 1
20" x 20" Seat With 1 1/4" 4 Way PVC v.3x 1

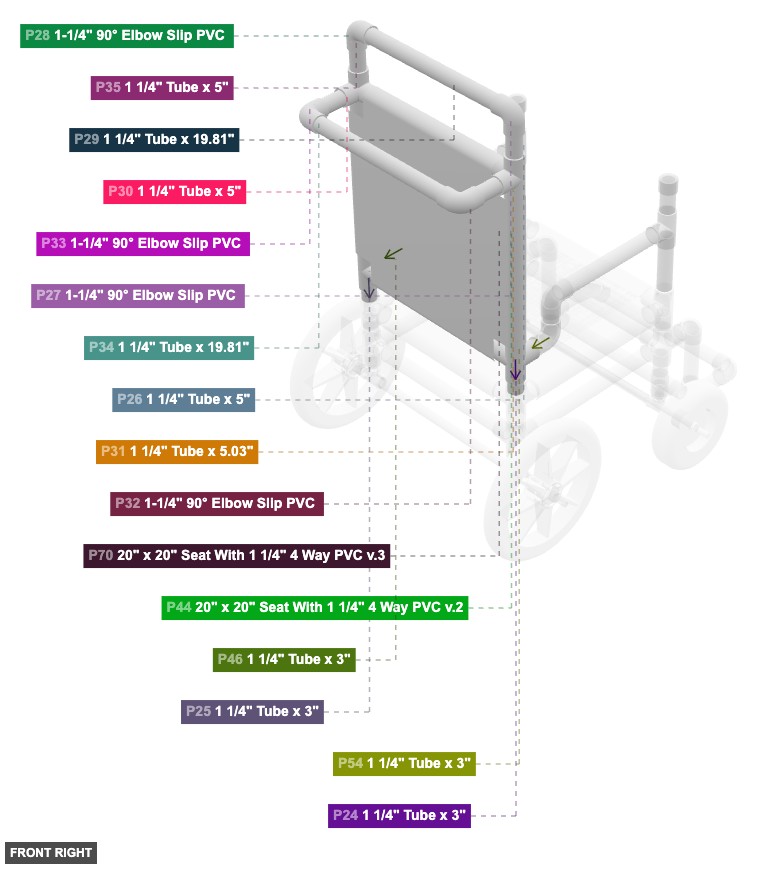

Angle: front right

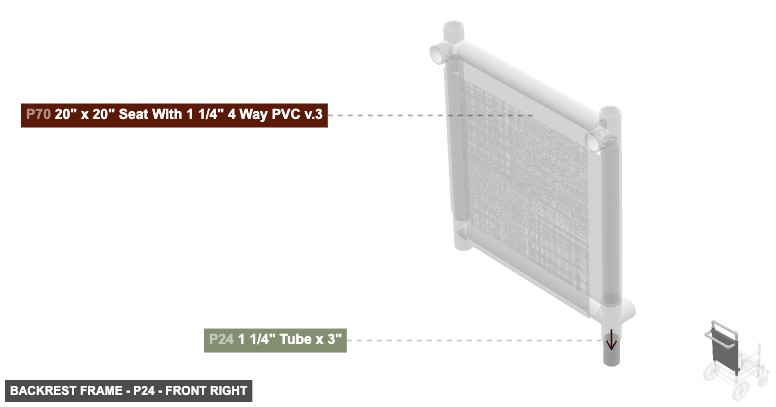

P24 (1.25" Tube 3" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 70's 1.25" F SLIP #2. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 44's 1.25" F SLIP #4

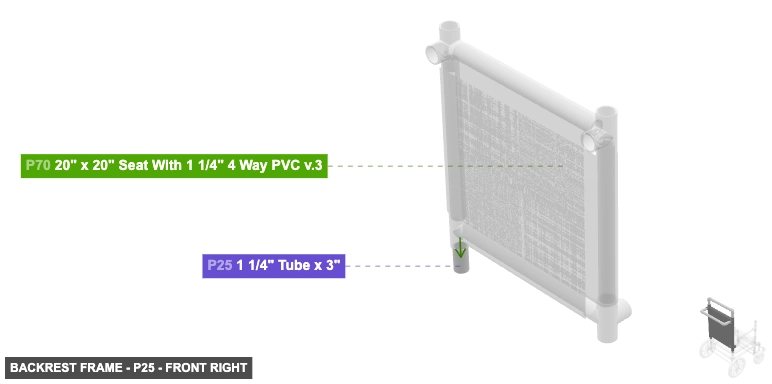

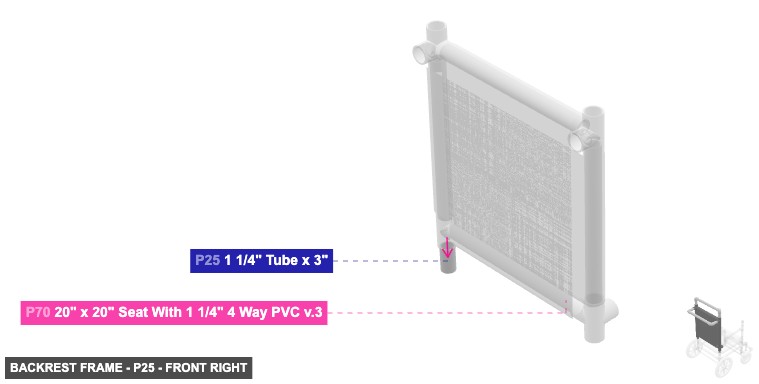

P25 (1.25" Tube 3" length) - attach its 1.25" M SLIP #1 facing top to part 70's 1.25" F SLIP #5. Also, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 44's 1.25" F SLIP #2

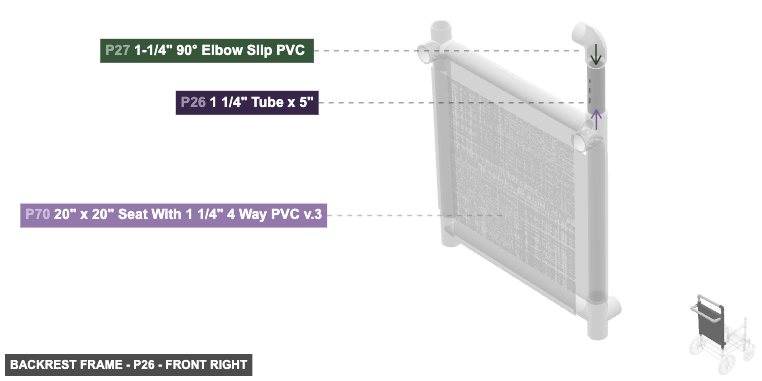

P26 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 27's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing bottom to part 70's 1.25" F SLIP #4

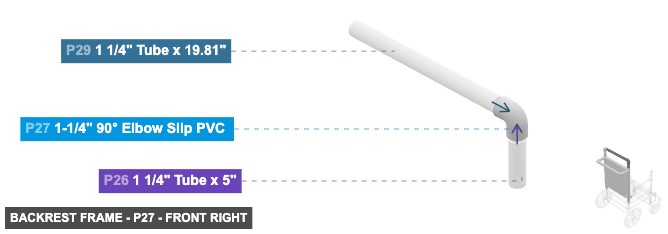

P27 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 26's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing left to part 29's 1.25" M SLIP #1

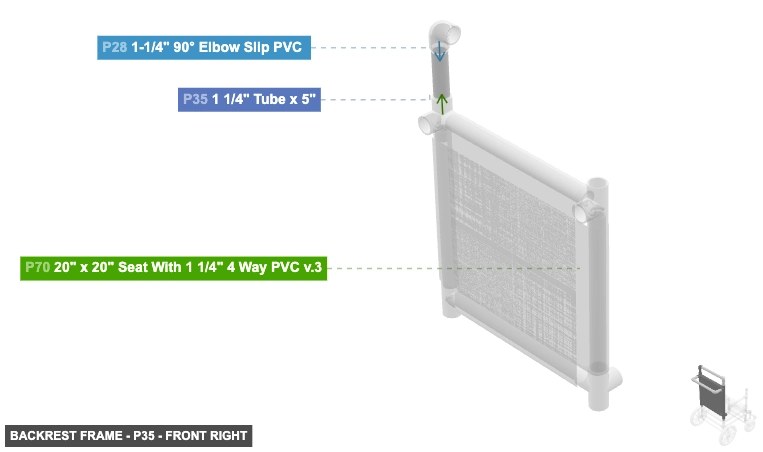

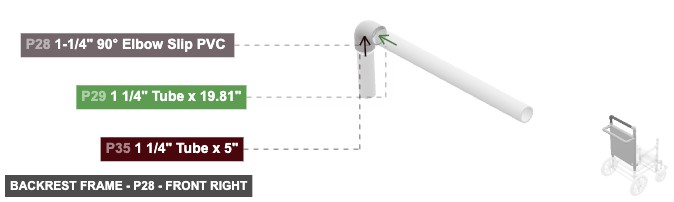

P28 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 35's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #2, which is right-facing, should connect to part 29's 1.25" M SLIP #2

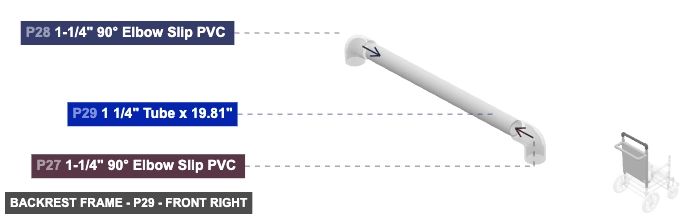

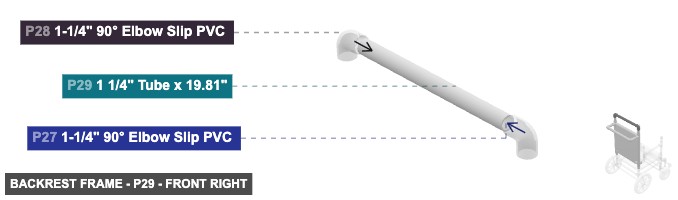

P29 (1.25" Tube 19.81" length) - attach its 1.25" M SLIP #1 facing right to part 27's 1.25" F SLIP #2, then connect its 1.25" M SLIP #2 oriented left links with part 28's 1.25" F SLIP #2

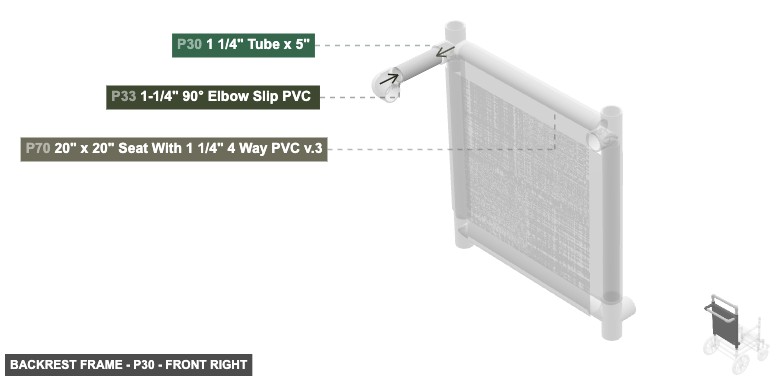

P30 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing front to part 33's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-facing, should connect to part 70's 1.25" F SLIP #8

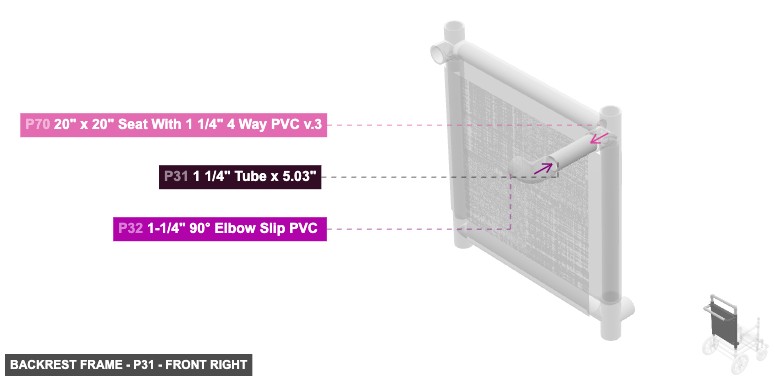

P31 (1.25" Tube 5.03" length) - attach its 1.25" M SLIP #1 facing front to part 32's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-facing, should connect to part 70's 1.25" F SLIP #3

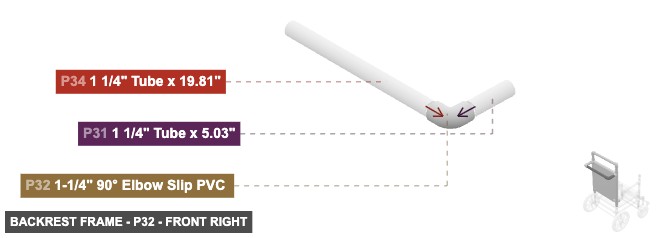

P32 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented back links with part 31's 1.25" M SLIP #1, and attach its 1.25" F SLIP #2 facing left to part 34's 1.25" M SLIP #1

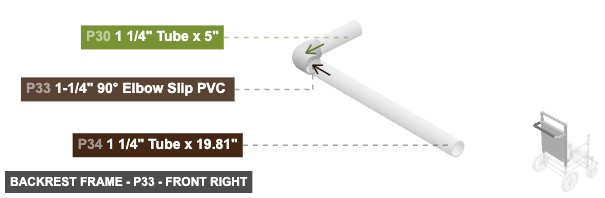

P33 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is back-facing, should connect to part 30's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is right-facing, should connect to part 34's 1.25" M SLIP #2

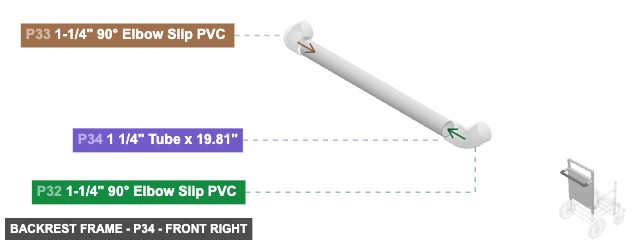

P34 (1.25" Tube 19.81" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 32's 1.25" F SLIP #2. Next, attach its 1.25" M SLIP #2 facing left to part 33's 1.25" F SLIP #2

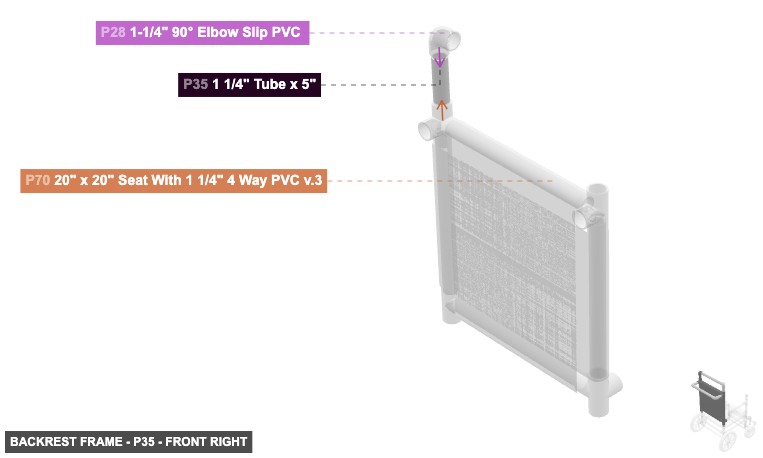

P35 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing bottom to part 70's 1.25" F SLIP #7. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 28's 1.25" F SLIP #1

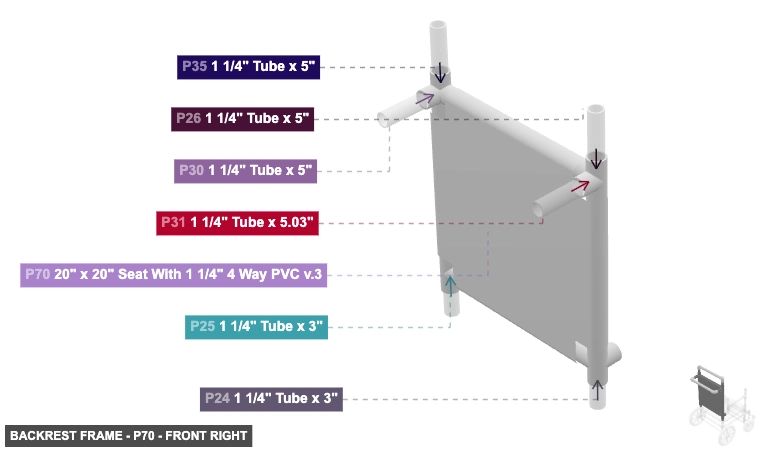

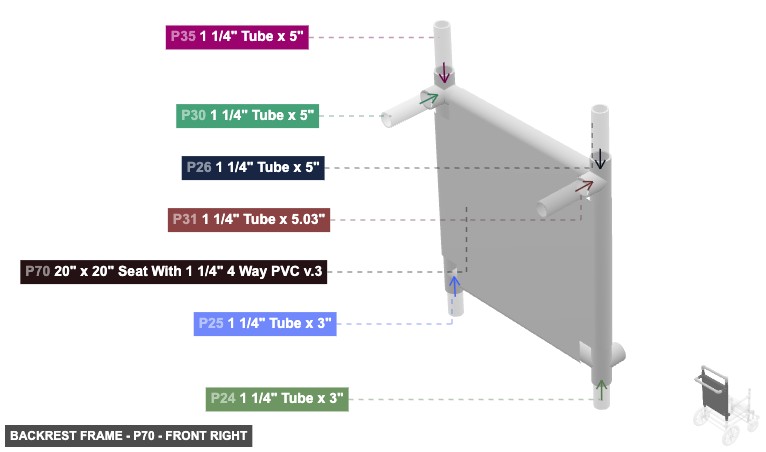

P70 (20" x 20" Seat With 1 1/4" 4 Way PVC v.3) - attach its 1.25" F SLIP #1 facing back to part 54's 1.25" M SLIP #2. Next, connect its 1.25" F SLIP #2 oriented bottom links with part 24's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #3 facing front to part 31's 1.25" M SLIP #2, then connect its 1.25" F SLIP #4 oriented top links with part 26's 1.25" M SLIP #2, also connect its 1.25" F SLIP #5 oriented bottom links with part 25's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #6 oriented back links with part 46's 1.25" M SLIP #2, also attach its 1.25" F SLIP #7 facing top to part 35's 1.25" M SLIP #1. Also, its 1.25" F SLIP #8, which is front-facing, should connect to part 30's 1.25" M SLIP #2
1 1/4" Tube x 3"x 2
1 1/4" Tube x 5"x 3
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 19.81"x 2
1 1/4" Tube x 5.03"x 1
20" x 20" Seat With 1 1/4" 4 Way PVC v.3x 1

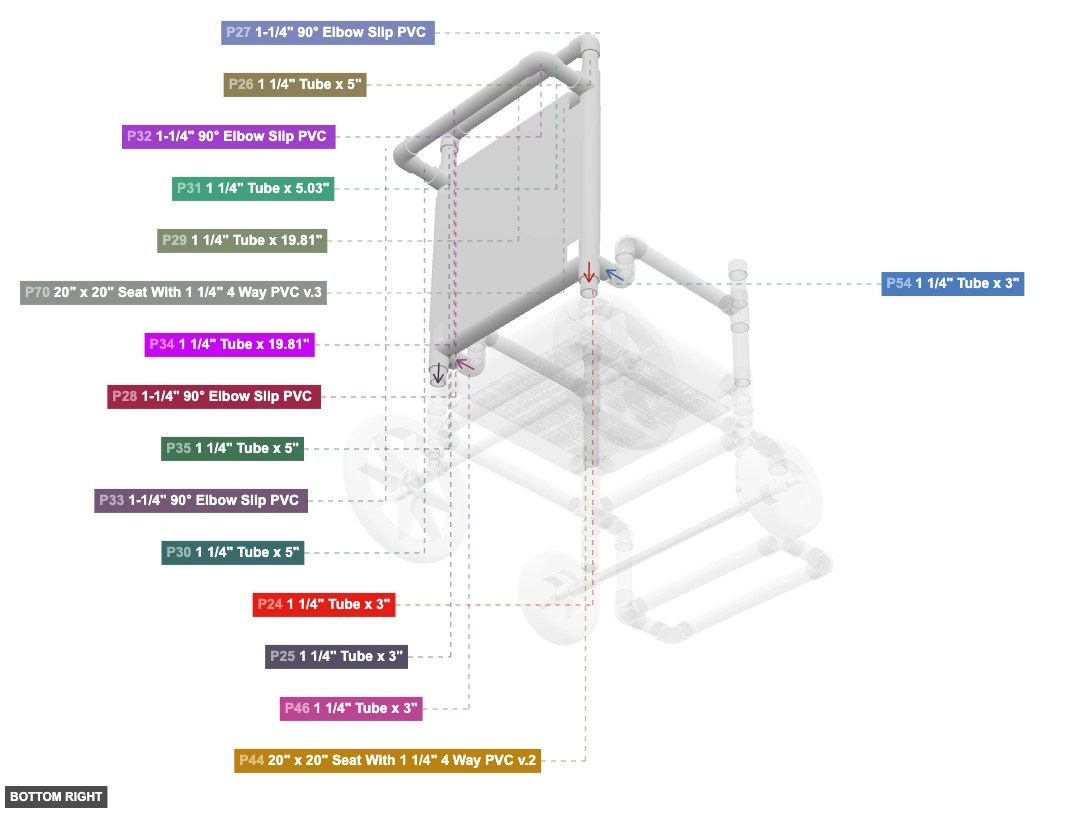

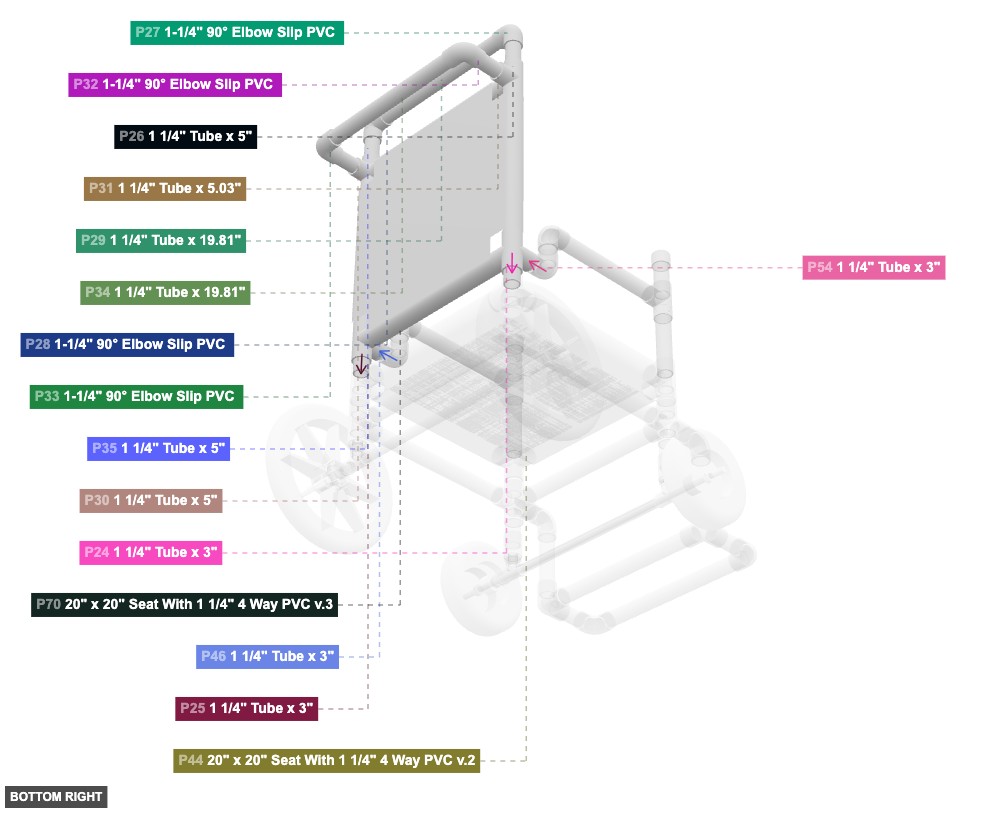

Angle: bottom right

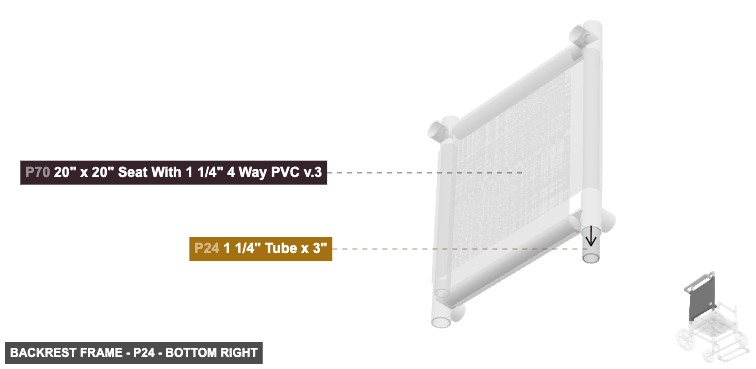

P24 (1.25" Tube 3" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 70's 1.25" F SLIP #2. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 44's 1.25" F SLIP #4

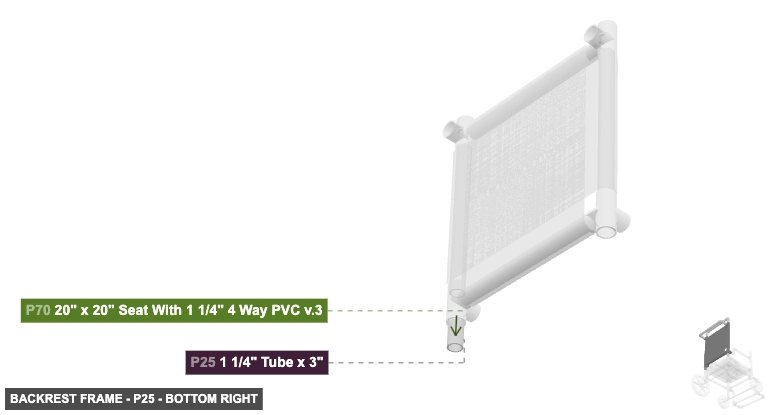

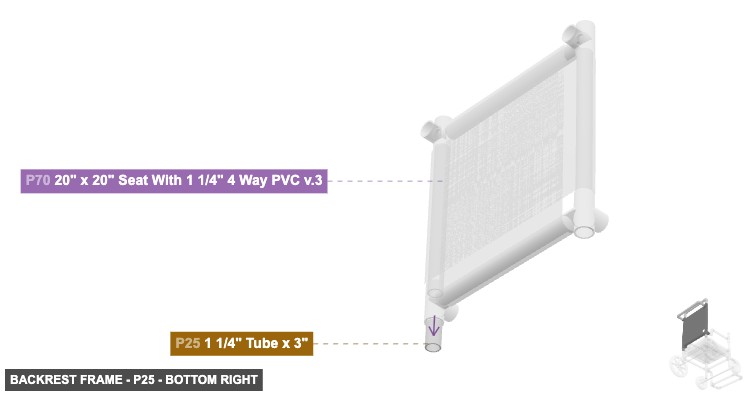

P25 (1.25" Tube 3" length) - attach its 1.25" M SLIP #1 facing top to part 70's 1.25" F SLIP #5. Also, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 44's 1.25" F SLIP #2

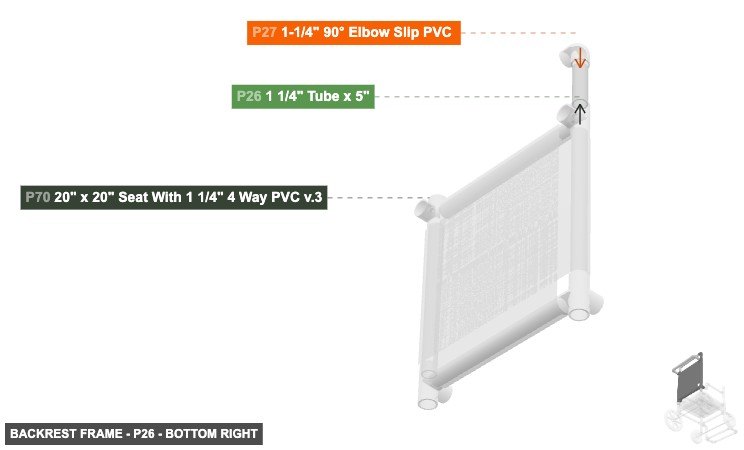

P26 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 27's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing bottom to part 70's 1.25" F SLIP #4

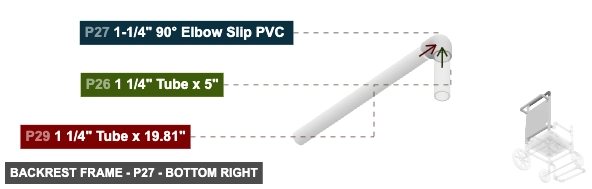

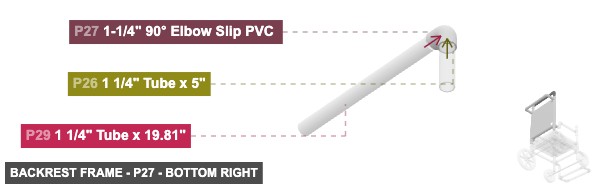

P27 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 26's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing left to part 29's 1.25" M SLIP #1

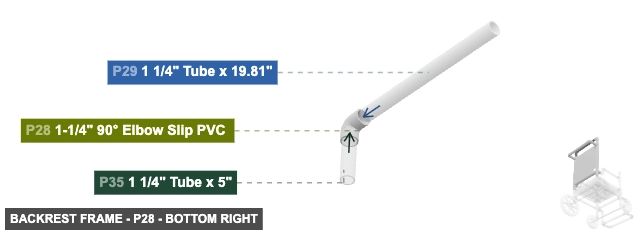

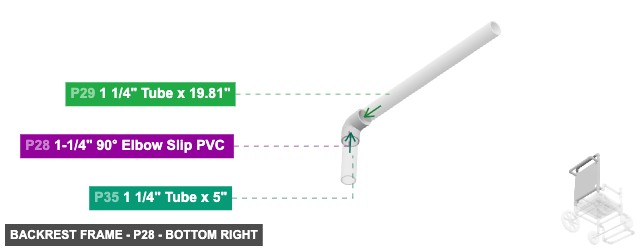

P28 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 35's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #2, which is right-facing, should connect to part 29's 1.25" M SLIP #2

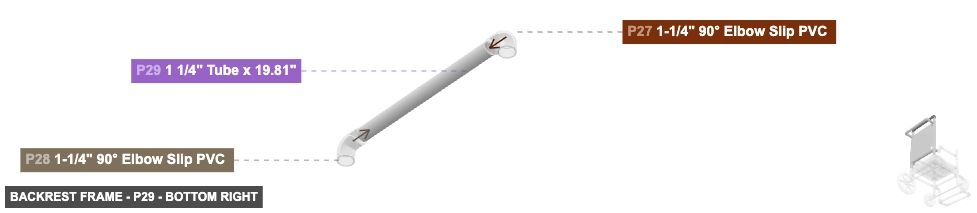

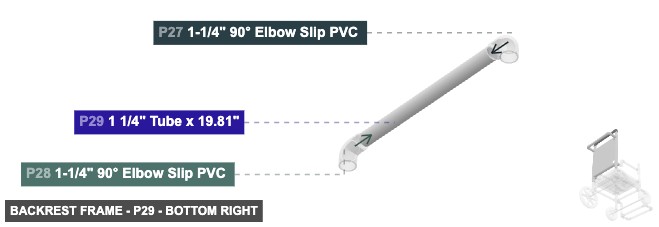

P29 (1.25" Tube 19.81" length) - attach its 1.25" M SLIP #1 facing right to part 27's 1.25" F SLIP #2, then connect its 1.25" M SLIP #2 oriented left links with part 28's 1.25" F SLIP #2

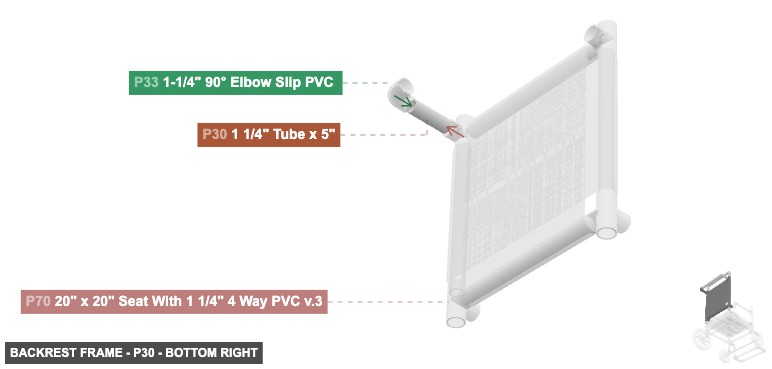

P30 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing front to part 33's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-facing, should connect to part 70's 1.25" F SLIP #8

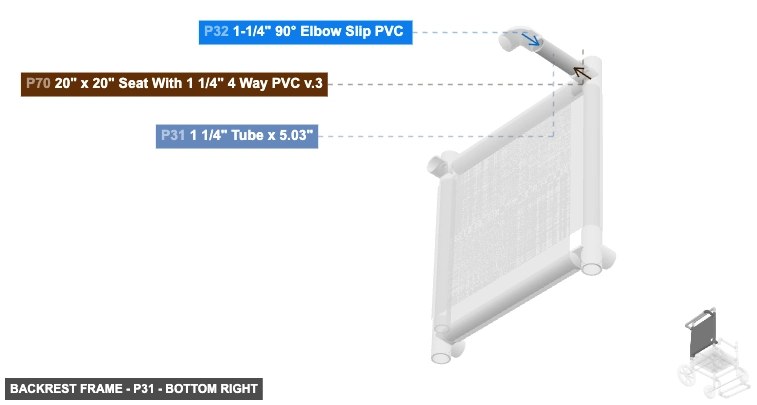

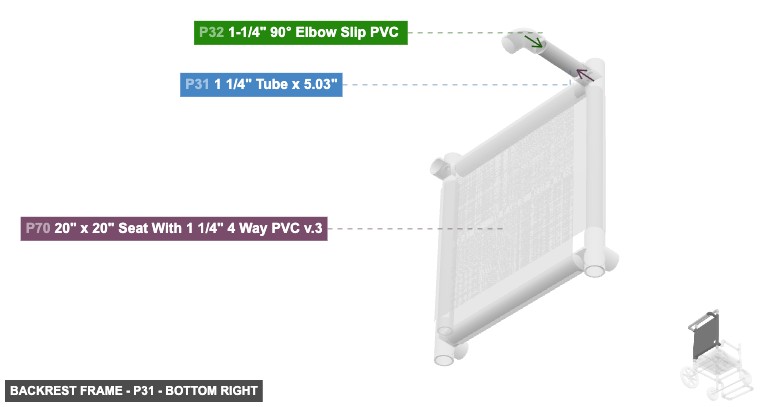

P31 (1.25" Tube 5.03" length) - attach its 1.25" M SLIP #1 facing front to part 32's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-facing, should connect to part 70's 1.25" F SLIP #3

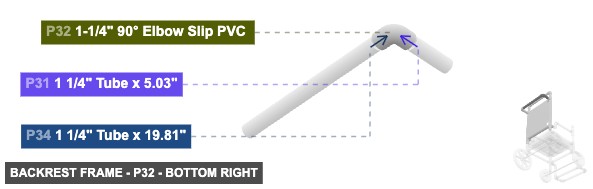

P32 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented back links with part 31's 1.25" M SLIP #1, and attach its 1.25" F SLIP #2 facing left to part 34's 1.25" M SLIP #1

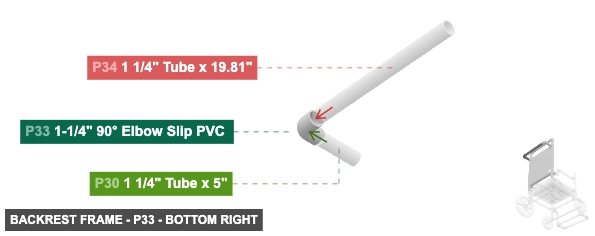

P33 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is back-facing, should connect to part 30's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is right-facing, should connect to part 34's 1.25" M SLIP #2

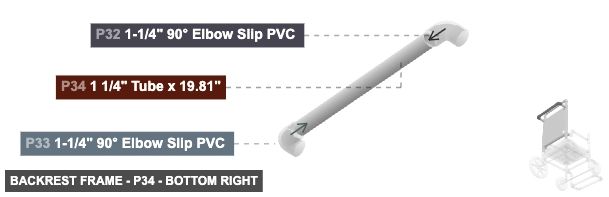

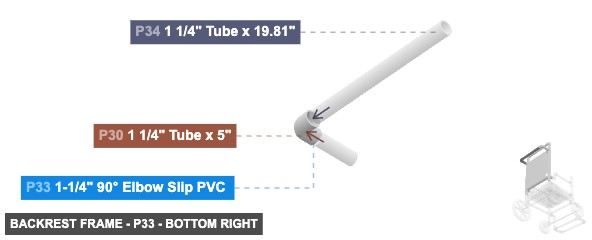

P34 (1.25" Tube 19.81" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 32's 1.25" F SLIP #2. Next, attach its 1.25" M SLIP #2 facing left to part 33's 1.25" F SLIP #2

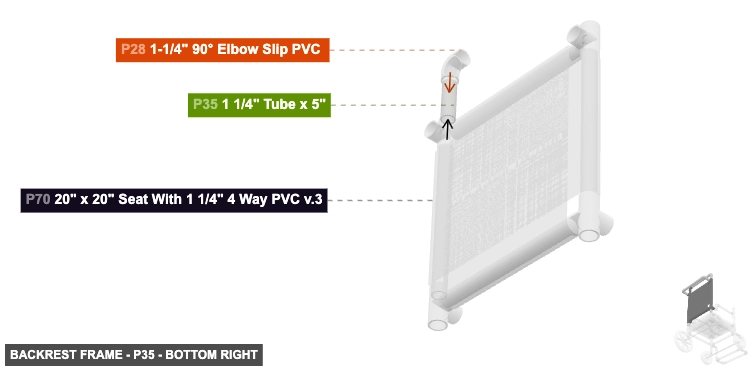

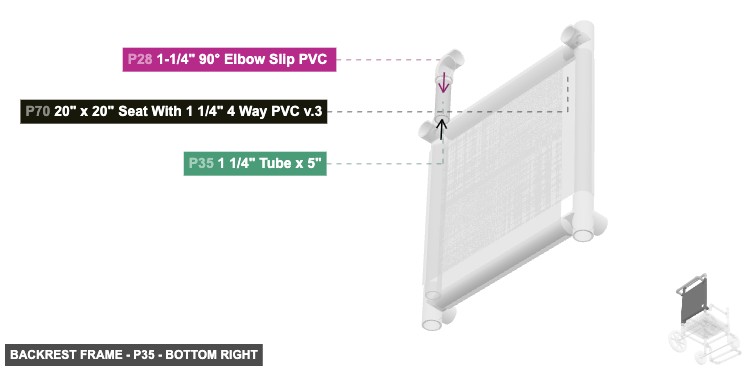

P35 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing bottom to part 70's 1.25" F SLIP #7. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 28's 1.25" F SLIP #1

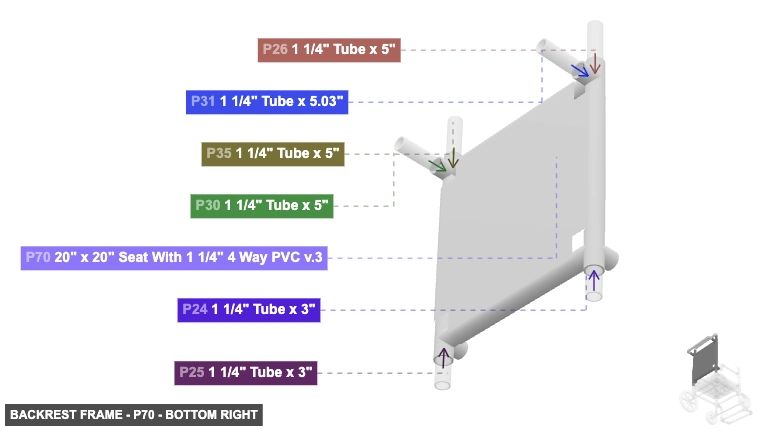

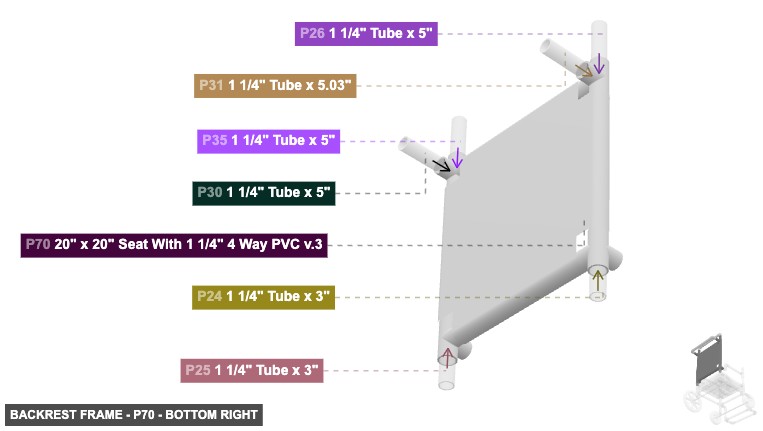

P70 (20" x 20" Seat With 1 1/4" 4 Way PVC v.3) - attach its 1.25" F SLIP #1 facing back to part 54's 1.25" M SLIP #2. Next, connect its 1.25" F SLIP #2 oriented bottom links with part 24's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #3 facing front to part 31's 1.25" M SLIP #2, then connect its 1.25" F SLIP #4 oriented top links with part 26's 1.25" M SLIP #2, also connect its 1.25" F SLIP #5 oriented bottom links with part 25's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #6 oriented back links with part 46's 1.25" M SLIP #2, also attach its 1.25" F SLIP #7 facing top to part 35's 1.25" M SLIP #1. Also, its 1.25" F SLIP #8, which is front-facing, should connect to part 30's 1.25" M SLIP #2
1 1/4" Tube x 3"x 2
1 1/4" Tube x 5"x 3
1-1/4" 90° Elbow Slip PVC x 4
1 1/4" Tube x 19.81"x 2
1 1/4" Tube x 5.03"x 1
20" x 20" Seat With 1 1/4" 4 Way PVC v.3x 1
Attaching: Left Armrest
Constructs the left armrest assembly.
Attach the armrest by inserting P54 Male SLIP 1.25" back into the rear-left Female SLIP 1.25" port of P70 (Backrest Frame). The connection to P44 (Seat Support) is made during the armrest assembly.

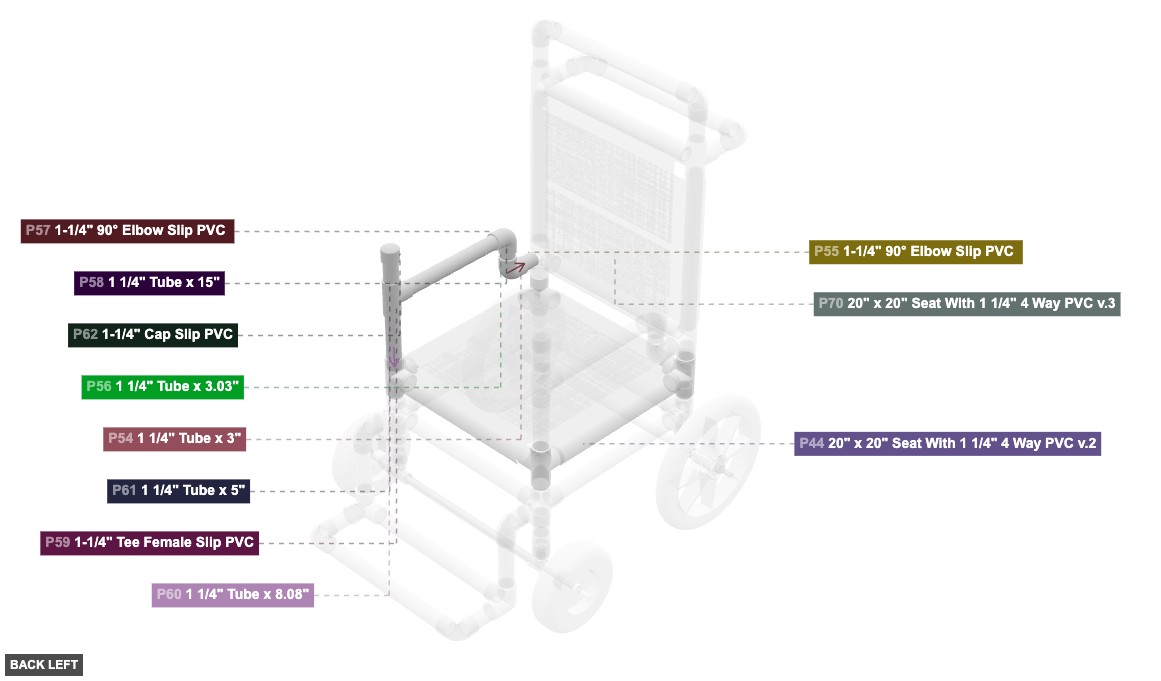

Angle: back left

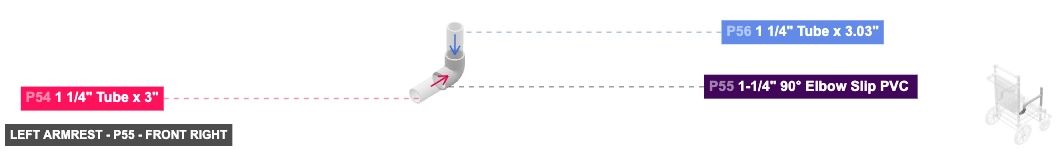

P54 (1.25" Tube 3" length) - connect its 1.25" M SLIP #1 oriented back links with part 55's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 70's 1.25" F SLIP #1

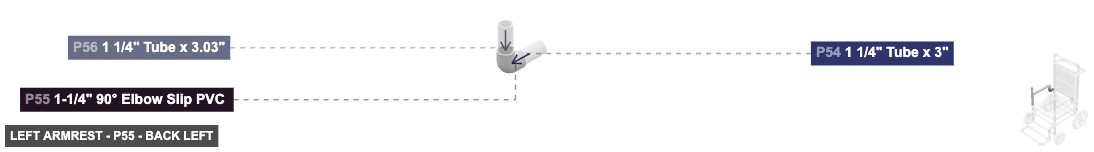

P55 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented front links with part 54's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented top links with part 56's 1.25" M SLIP #2

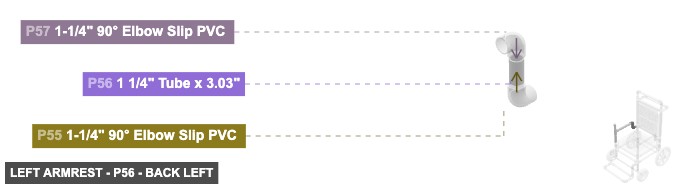

P56 (1.25" Tube 3.03" length) - attach its 1.25" M SLIP #1 facing top to part 57's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing bottom to part 55's 1.25" F SLIP #2

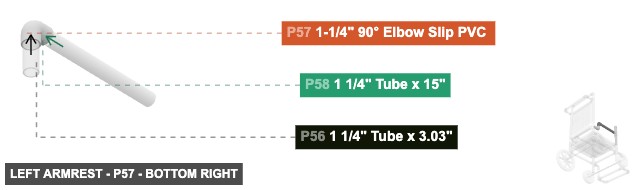

P57 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 56's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing back to part 58's 1.25" M SLIP #2

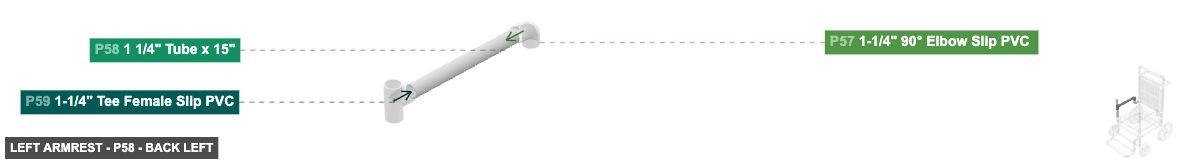

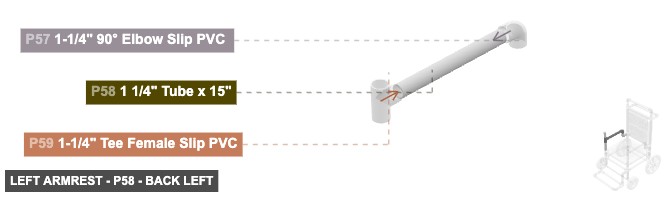

P58 (1.25" Tube 15" length) - connect its 1.25" M SLIP #1 oriented back links with part 59's 1.25" F SLIP #3, then its 1.25" M SLIP #2, which is front-facing, should connect to part 57's 1.25" F SLIP #2

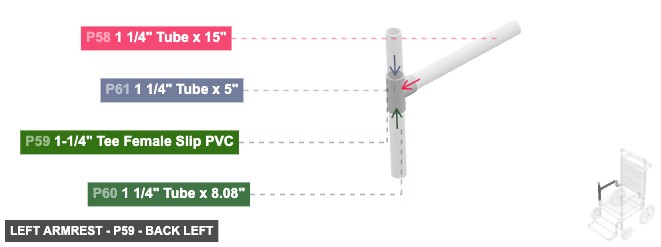

P59 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 61's 1.25" M SLIP #2, then connect its 1.25" F SLIP #2 oriented bottom links with part 60's 1.25" M SLIP #2, and its 1.25" F SLIP #3, which is front-facing, should connect to part 58's 1.25" M SLIP #1

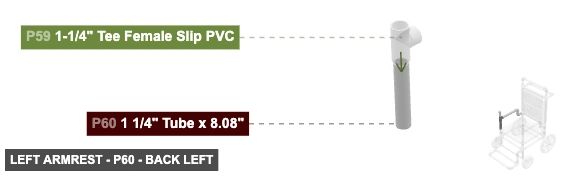

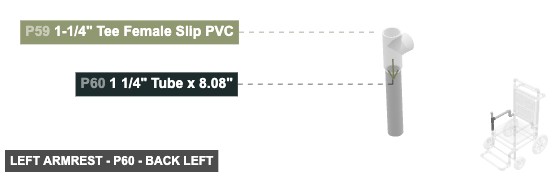

P60 (1.25" Tube 8.08" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 44's 1.25" F SLIP #8. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 59's 1.25" F SLIP #2

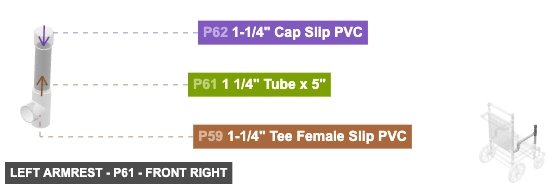

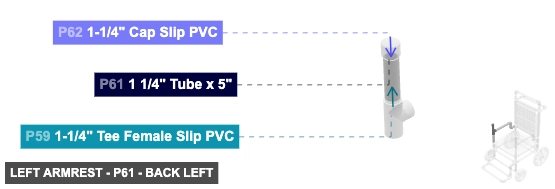

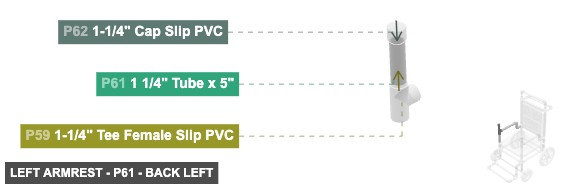

P61 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 62's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is bottom-facing, should connect to part 59's 1.25" F SLIP #1

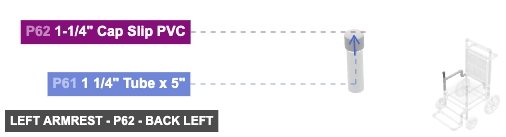

P62 (1.25" Cap Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 61's 1.25" M SLIP #1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.03"x 1
1 1/4" Tube x 15"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1

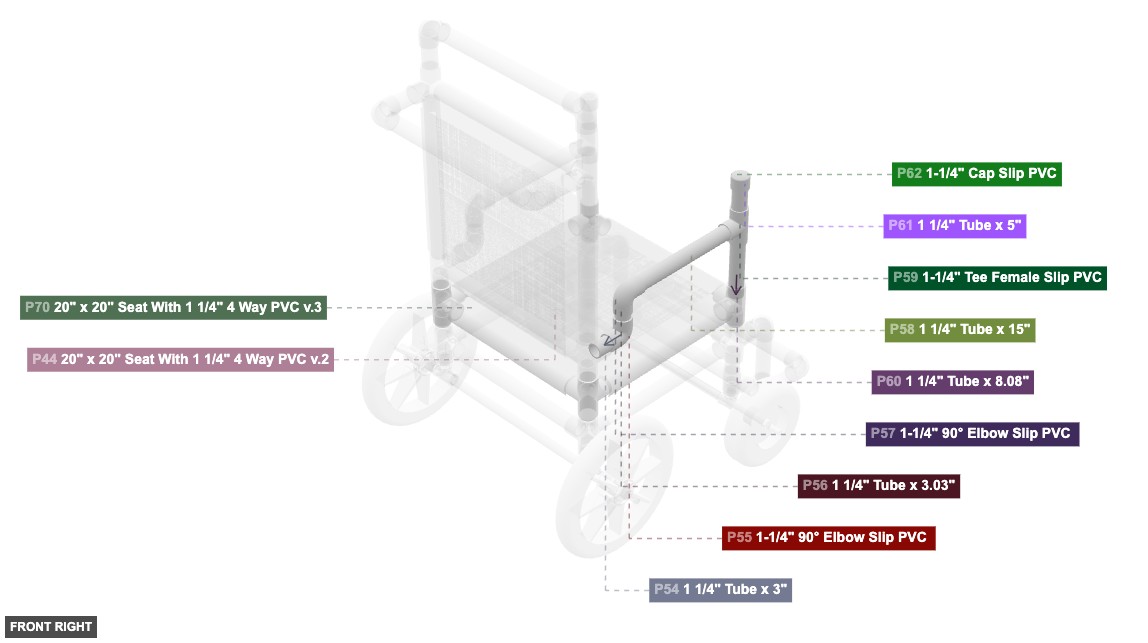

Angle: front right

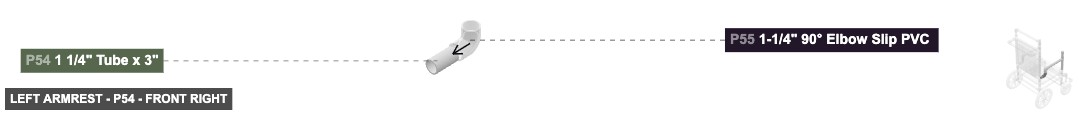

P54 (1.25" Tube 3" length) - connect its 1.25" M SLIP #1 oriented back links with part 55's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 70's 1.25" F SLIP #1

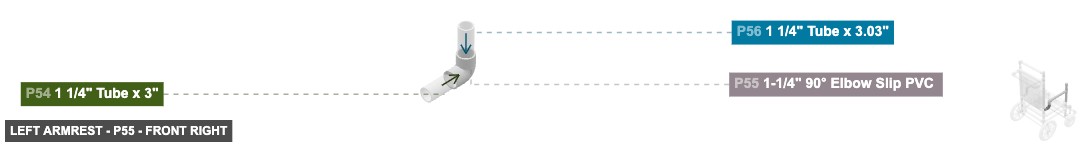

P55 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented front links with part 54's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented top links with part 56's 1.25" M SLIP #2

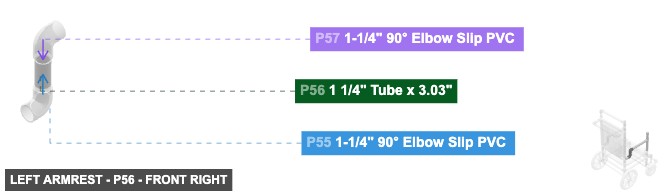

P56 (1.25" Tube 3.03" length) - attach its 1.25" M SLIP #1 facing top to part 57's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing bottom to part 55's 1.25" F SLIP #2

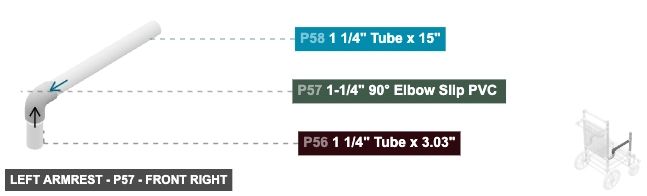

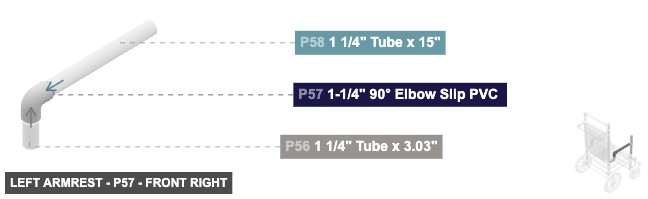

P57 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 56's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing back to part 58's 1.25" M SLIP #2

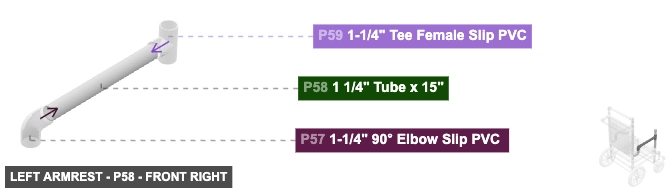

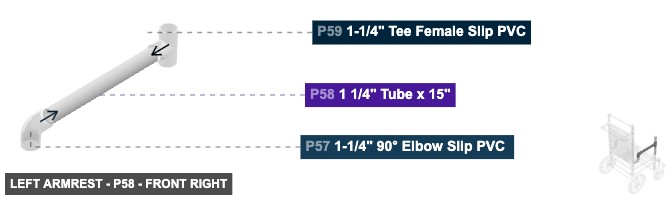

P58 (1.25" Tube 15" length) - connect its 1.25" M SLIP #1 oriented back links with part 59's 1.25" F SLIP #3, then its 1.25" M SLIP #2, which is front-facing, should connect to part 57's 1.25" F SLIP #2

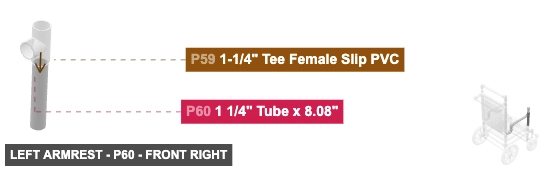

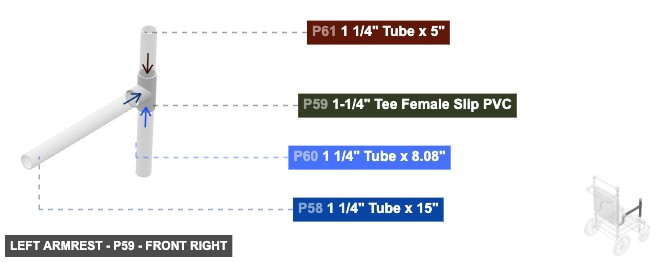

P59 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 61's 1.25" M SLIP #2, then connect its 1.25" F SLIP #2 oriented bottom links with part 60's 1.25" M SLIP #2, and its 1.25" F SLIP #3, which is front-facing, should connect to part 58's 1.25" M SLIP #1

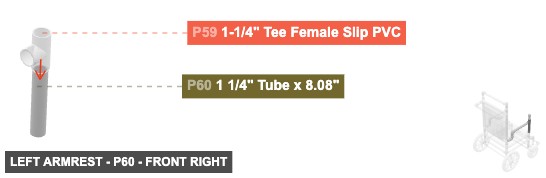

P60 (1.25" Tube 8.08" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 44's 1.25" F SLIP #8. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 59's 1.25" F SLIP #2
P61 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 62's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is bottom-facing, should connect to part 59's 1.25" F SLIP #1

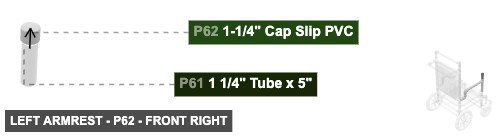

P62 (1.25" Cap Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 61's 1.25" M SLIP #1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.03"x 1
1 1/4" Tube x 15"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1

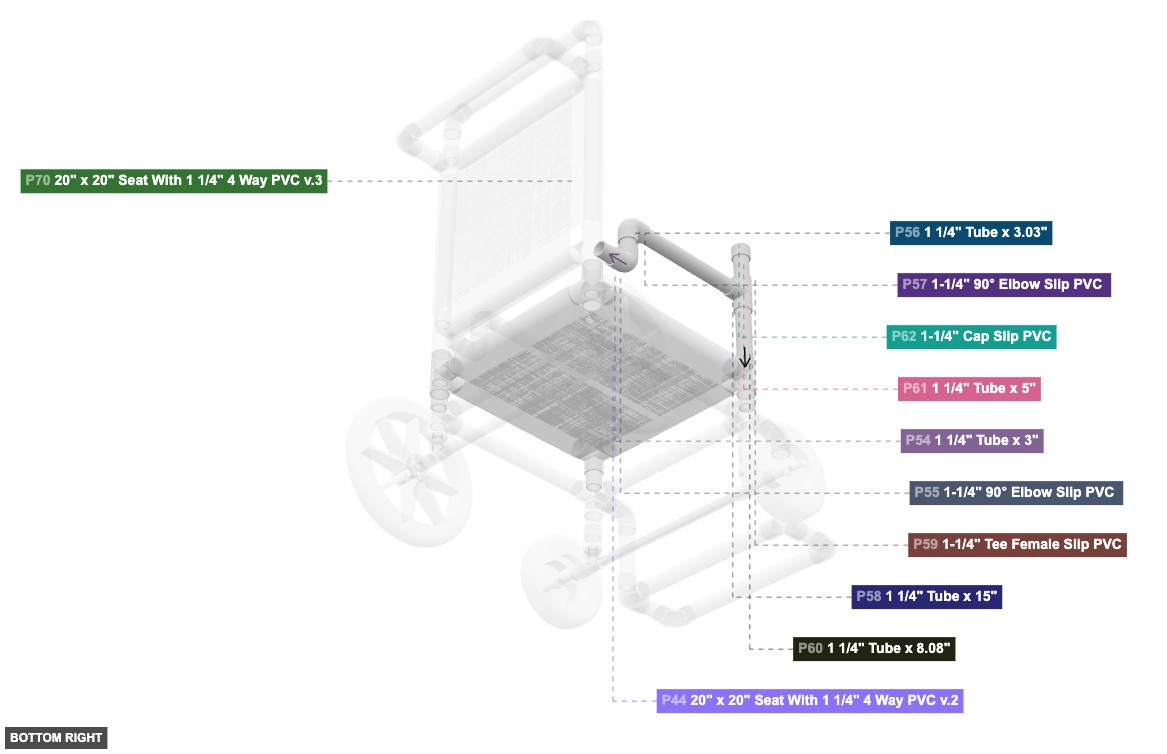

Angle: bottom right

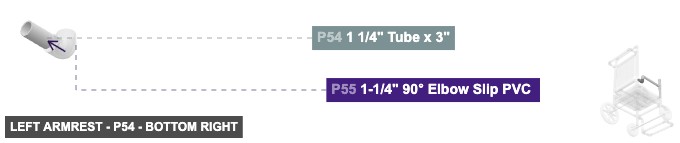

P54 (1.25" Tube 3" length) - connect its 1.25" M SLIP #1 oriented back links with part 55's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is front-facing, should connect to part 70's 1.25" F SLIP #1

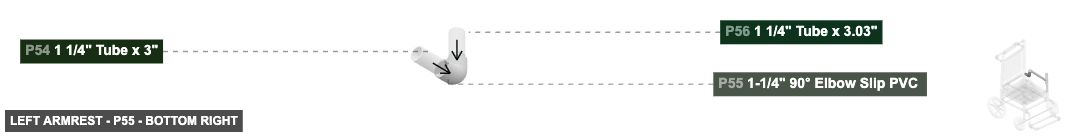

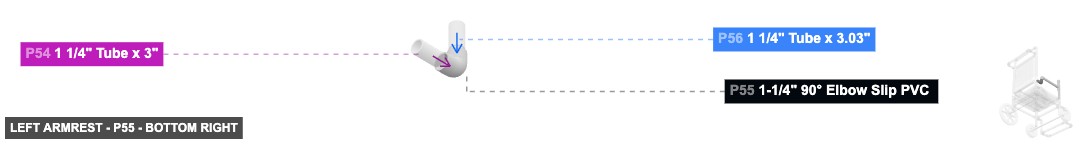

P55 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented front links with part 54's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented top links with part 56's 1.25" M SLIP #2

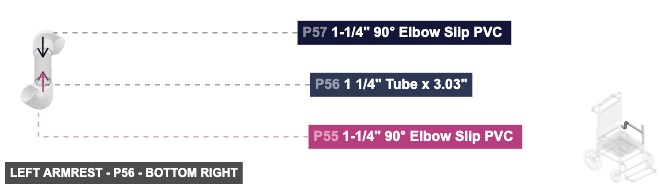

P56 (1.25" Tube 3.03" length) - attach its 1.25" M SLIP #1 facing top to part 57's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing bottom to part 55's 1.25" F SLIP #2
P57 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 56's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing back to part 58's 1.25" M SLIP #2

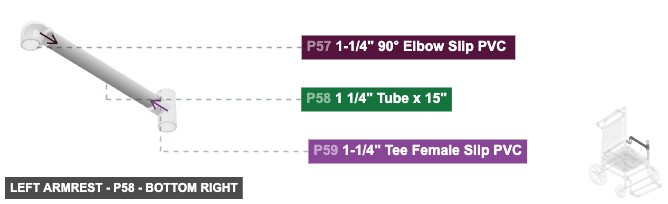

P58 (1.25" Tube 15" length) - connect its 1.25" M SLIP #1 oriented back links with part 59's 1.25" F SLIP #3, then its 1.25" M SLIP #2, which is front-facing, should connect to part 57's 1.25" F SLIP #2

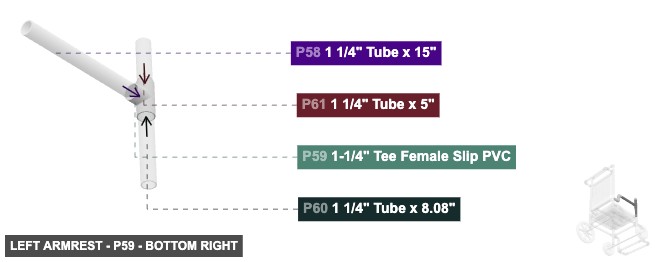

P59 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 61's 1.25" M SLIP #2, then connect its 1.25" F SLIP #2 oriented bottom links with part 60's 1.25" M SLIP #2, and its 1.25" F SLIP #3, which is front-facing, should connect to part 58's 1.25" M SLIP #1

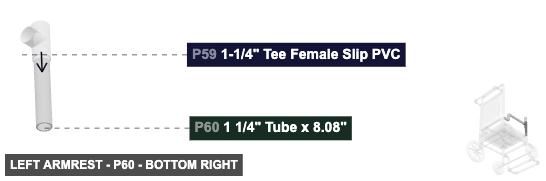

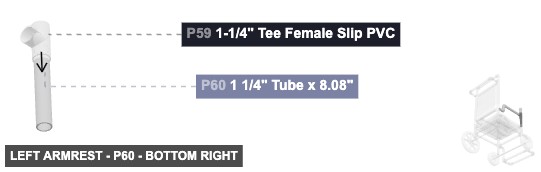

P60 (1.25" Tube 8.08" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 44's 1.25" F SLIP #8. Also, its 1.25" M SLIP #2, which is top-facing, should connect to part 59's 1.25" F SLIP #2

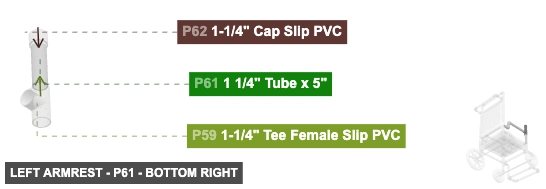

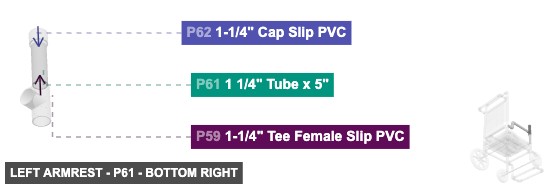

P61 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 62's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is bottom-facing, should connect to part 59's 1.25" F SLIP #1

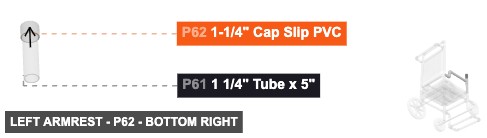

P62 (1.25" Cap Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 61's 1.25" M SLIP #1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.03"x 1
1 1/4" Tube x 15"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1
Attaching: Right Armrest
Constructs the right armrest assembly.
Attach the armrest by inserting P46 Male SLIP 1.25" back into the rear-right Female SLIP 1.25" port of P70 (Backrest Frame). The connection to P44 (Seat Support) is made during the armrest assembly.

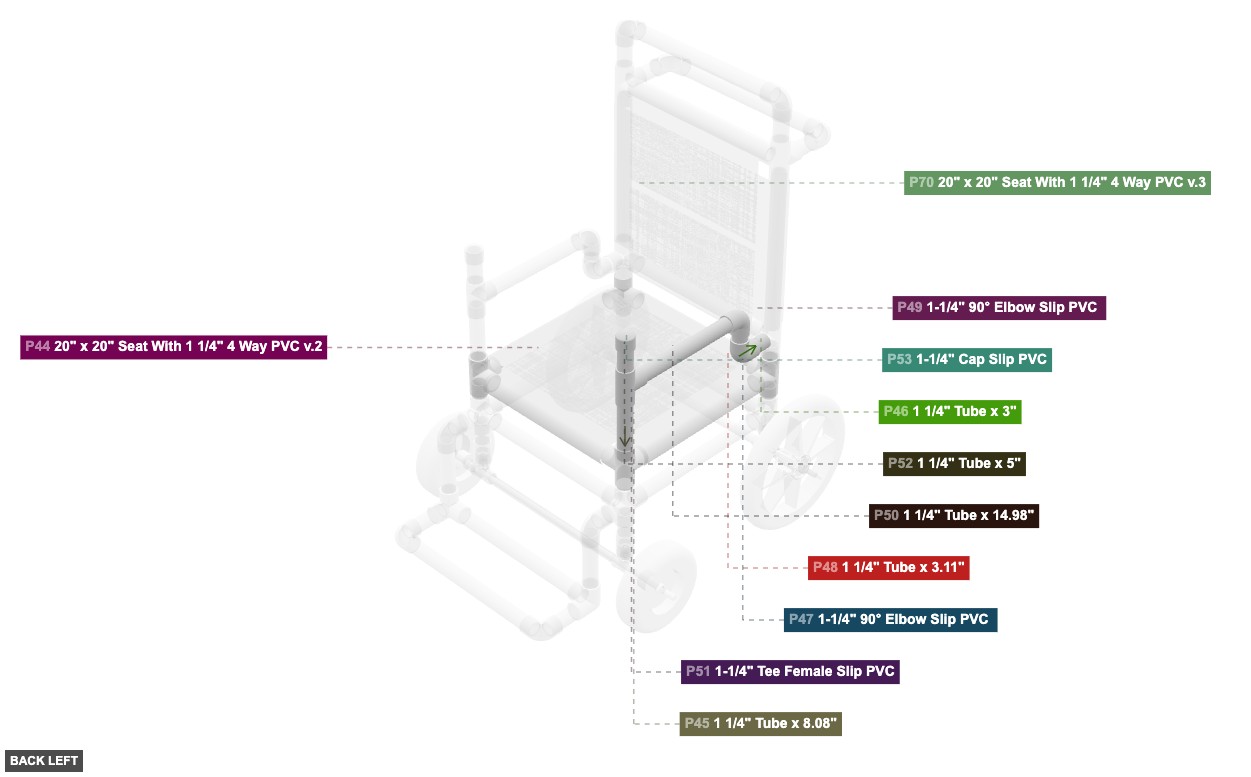

Angle: back left

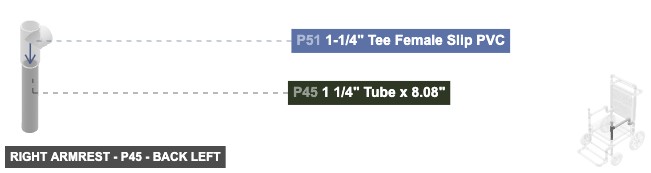

P45 (1.25" Tube 8.08" length) - attach its 1.25" M SLIP #1 facing top to part 51's 1.25" F SLIP #2, and attach its 1.25" M SLIP #2 facing bottom to part 44's 1.25" F SLIP #6

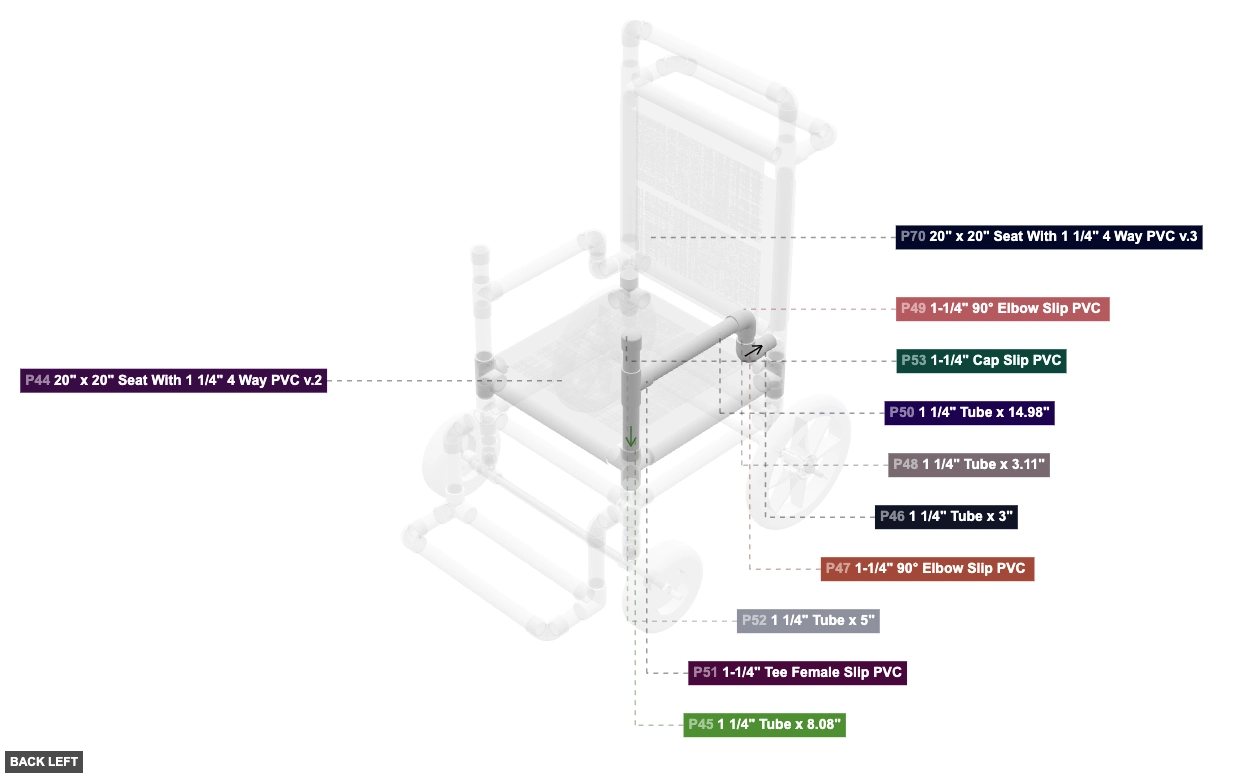

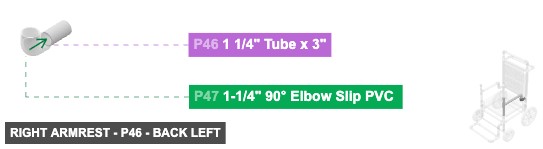

P46 (1.25" Tube 3" length) - attach its 1.25" M SLIP #1 facing back to part 47's 1.25" F SLIP #1, also connect its 1.25" M SLIP #2 oriented front links with part 70's 1.25" F SLIP #6

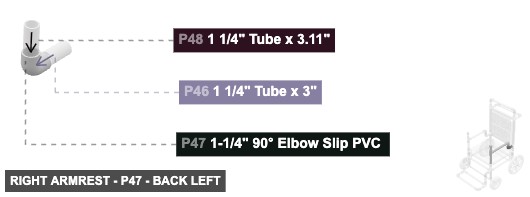

P47 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 46's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is top-facing, should connect to part 48's 1.25" M SLIP #2

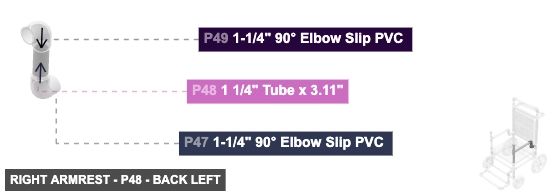

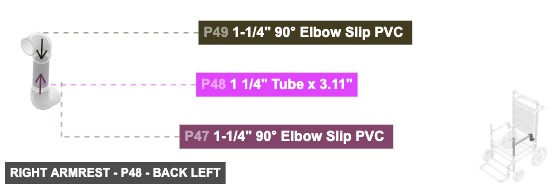

P48 (1.25" Tube 3.11" length) - connect its 1.25" M SLIP #1 oriented top links with part 49's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is bottom-facing, should connect to part 47's 1.25" F SLIP #2

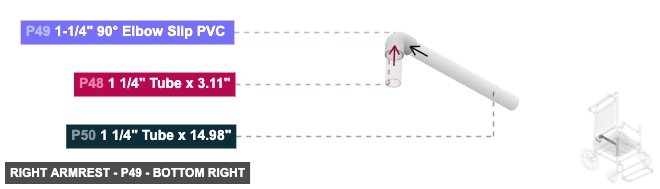

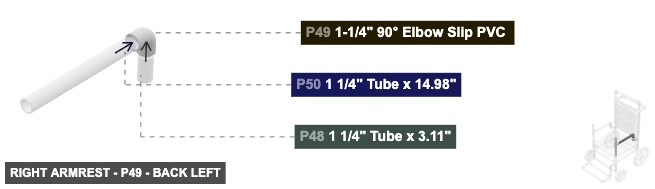

P49 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 48's 1.25" M SLIP #1, then attach its 1.25" F SLIP #2 facing back to part 50's 1.25" M SLIP #2

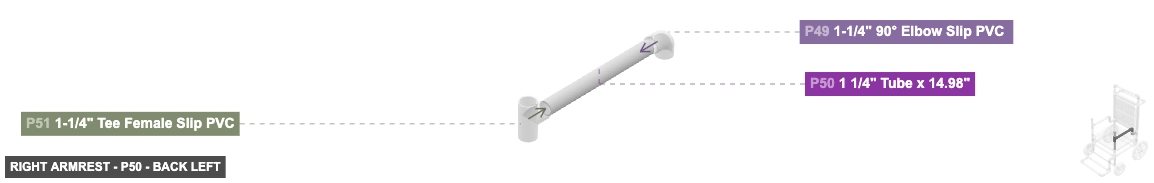

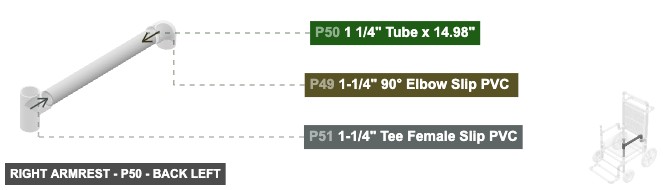

P50 (1.25" Tube 14.98" length) - attach its 1.25" M SLIP #1 facing back to part 51's 1.25" F SLIP #3. Also, its 1.25" M SLIP #2, which is front-facing, should connect to part 49's 1.25" F SLIP #2

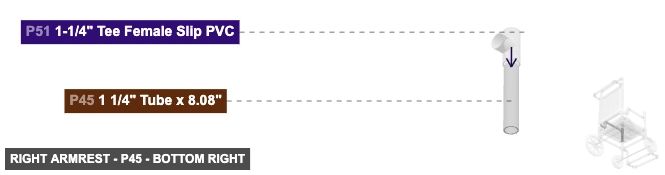

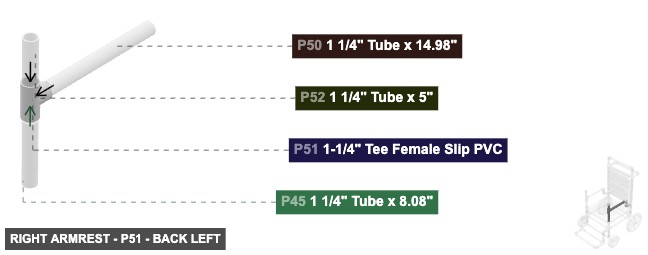

P51 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 52's 1.25" M SLIP #2, plus attach its 1.25" F SLIP #2 facing bottom to part 45's 1.25" M SLIP #1, plus its 1.25" F SLIP #3, which is front-facing, should connect to part 50's 1.25" M SLIP #1

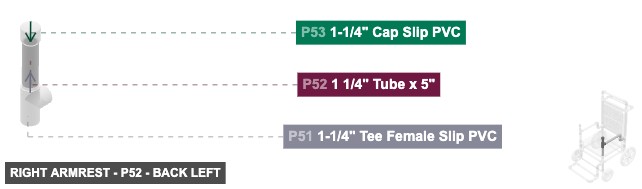

P52 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 53's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is bottom-facing, should connect to part 51's 1.25" F SLIP #1
P53 (1.25" Cap Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 52's 1.25" M SLIP #1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.11"x 1
1 1/4" Tube x 14.98"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1

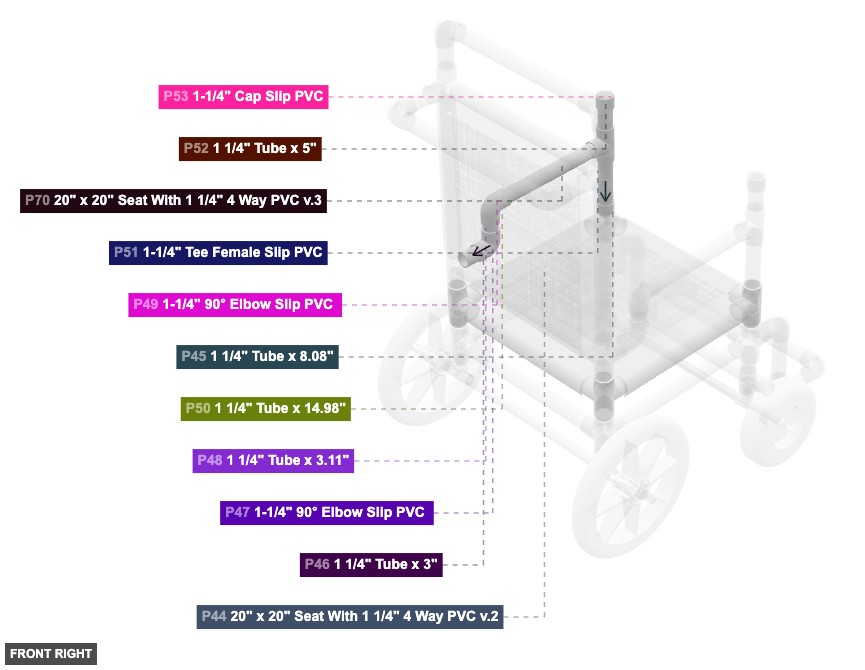

Angle: front right

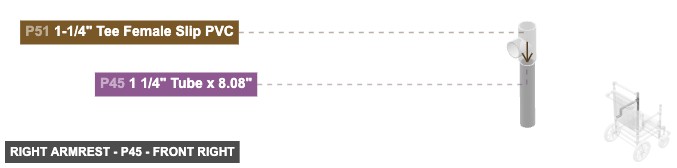

P45 (1.25" Tube 8.08" length) - attach its 1.25" M SLIP #1 facing top to part 51's 1.25" F SLIP #2, and attach its 1.25" M SLIP #2 facing bottom to part 44's 1.25" F SLIP #6

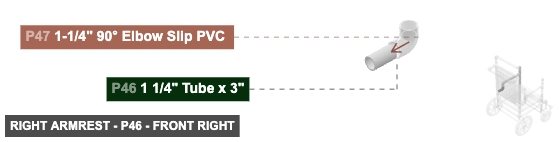

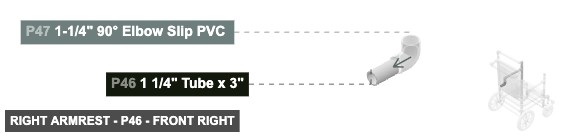

P46 (1.25" Tube 3" length) - attach its 1.25" M SLIP #1 facing back to part 47's 1.25" F SLIP #1, also connect its 1.25" M SLIP #2 oriented front links with part 70's 1.25" F SLIP #6

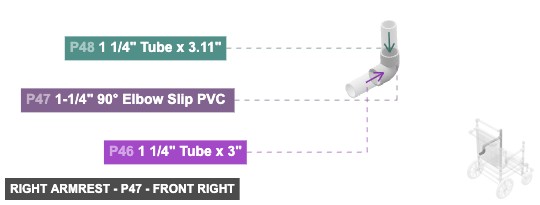

P47 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 46's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is top-facing, should connect to part 48's 1.25" M SLIP #2

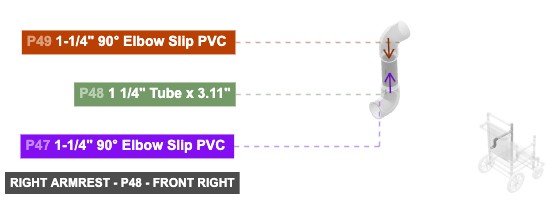

P48 (1.25" Tube 3.11" length) - connect its 1.25" M SLIP #1 oriented top links with part 49's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is bottom-facing, should connect to part 47's 1.25" F SLIP #2

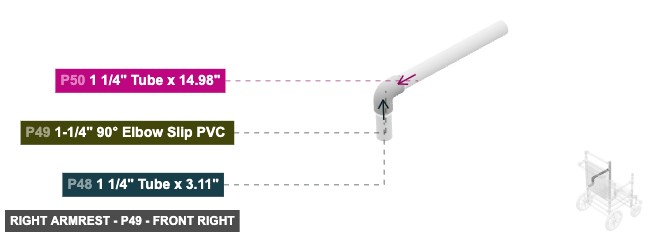

P49 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 48's 1.25" M SLIP #1, then attach its 1.25" F SLIP #2 facing back to part 50's 1.25" M SLIP #2

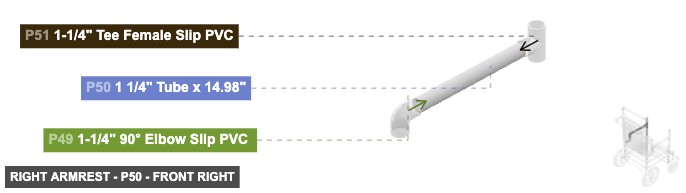

P50 (1.25" Tube 14.98" length) - attach its 1.25" M SLIP #1 facing back to part 51's 1.25" F SLIP #3. Also, its 1.25" M SLIP #2, which is front-facing, should connect to part 49's 1.25" F SLIP #2

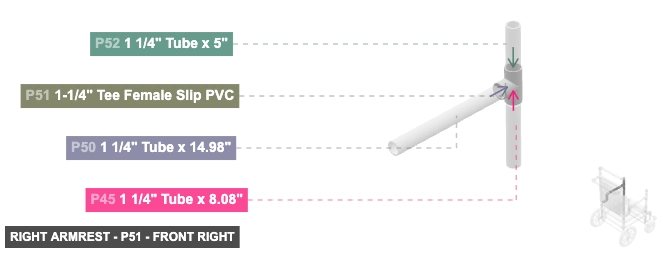

P51 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 52's 1.25" M SLIP #2, plus attach its 1.25" F SLIP #2 facing bottom to part 45's 1.25" M SLIP #1, plus its 1.25" F SLIP #3, which is front-facing, should connect to part 50's 1.25" M SLIP #1

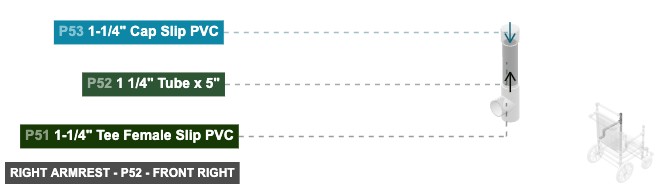

P52 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 53's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is bottom-facing, should connect to part 51's 1.25" F SLIP #1

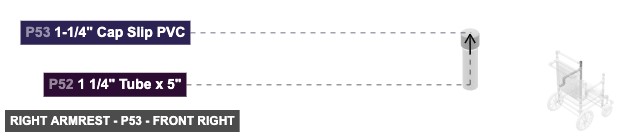

P53 (1.25" Cap Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 52's 1.25" M SLIP #1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.11"x 1
1 1/4" Tube x 14.98"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1

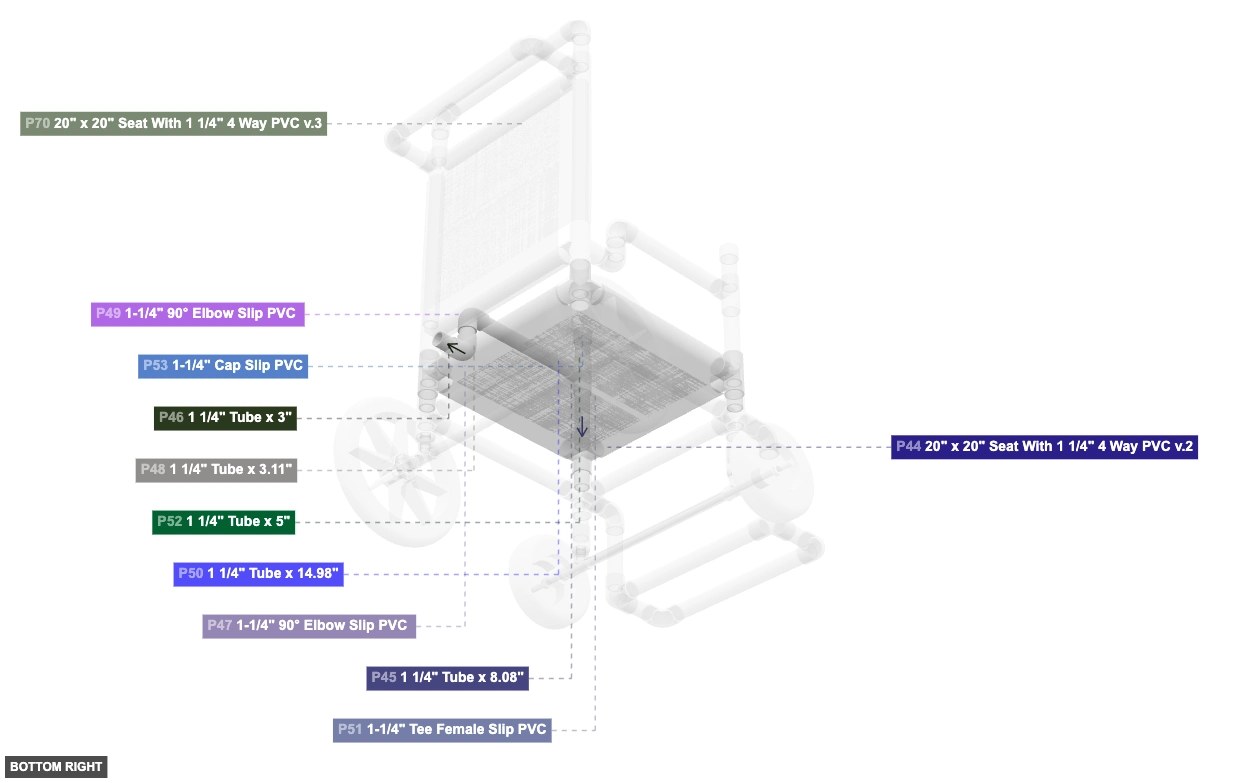

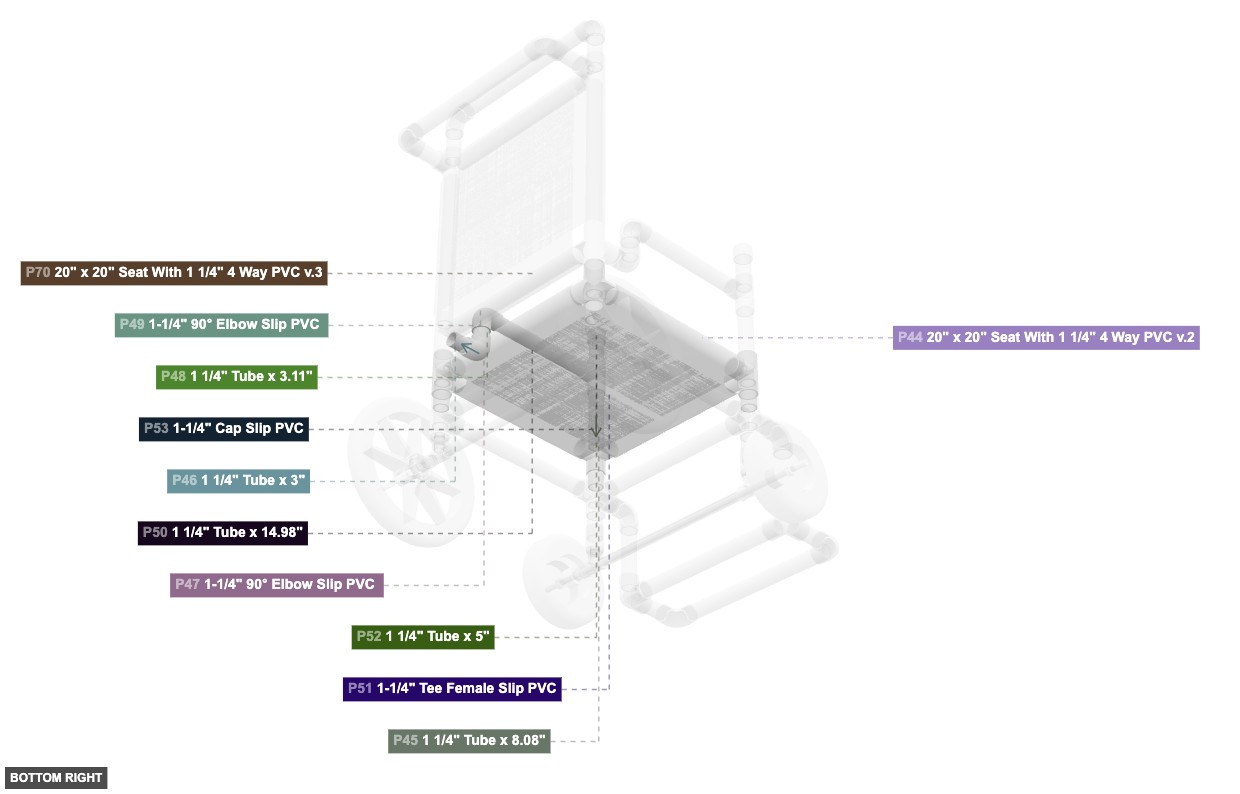

Angle: bottom right

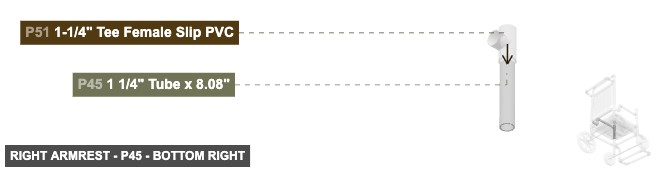

P45 (1.25" Tube 8.08" length) - attach its 1.25" M SLIP #1 facing top to part 51's 1.25" F SLIP #2, and attach its 1.25" M SLIP #2 facing bottom to part 44's 1.25" F SLIP #6

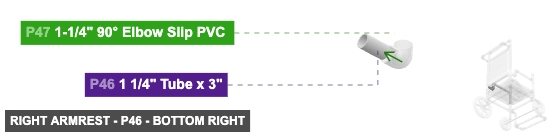

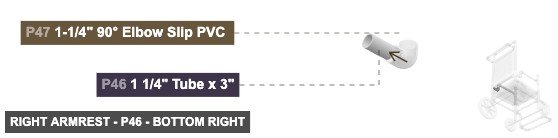

P46 (1.25" Tube 3" length) - attach its 1.25" M SLIP #1 facing back to part 47's 1.25" F SLIP #1, also connect its 1.25" M SLIP #2 oriented front links with part 70's 1.25" F SLIP #6
P47 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is front-facing, should connect to part 46's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is top-facing, should connect to part 48's 1.25" M SLIP #2

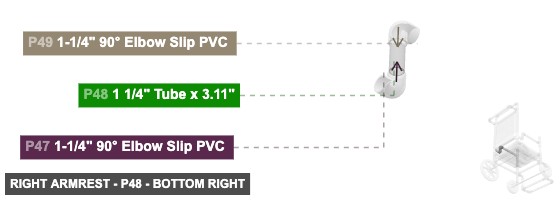

P48 (1.25" Tube 3.11" length) - connect its 1.25" M SLIP #1 oriented top links with part 49's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is bottom-facing, should connect to part 47's 1.25" F SLIP #2

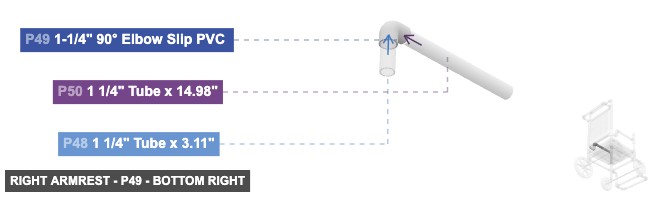

P49 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 48's 1.25" M SLIP #1, then attach its 1.25" F SLIP #2 facing back to part 50's 1.25" M SLIP #2

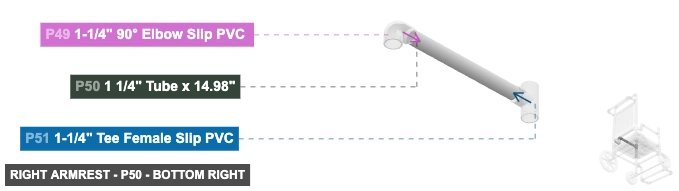

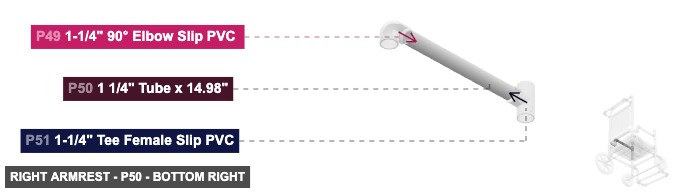

P50 (1.25" Tube 14.98" length) - attach its 1.25" M SLIP #1 facing back to part 51's 1.25" F SLIP #3. Also, its 1.25" M SLIP #2, which is front-facing, should connect to part 49's 1.25" F SLIP #2

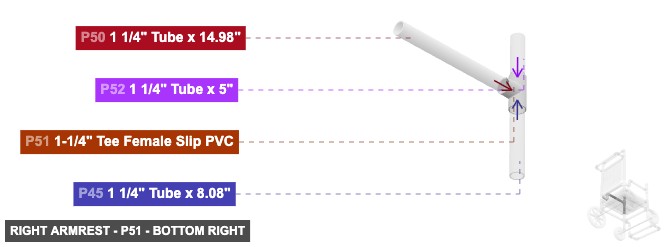

P51 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing top to part 52's 1.25" M SLIP #2, plus attach its 1.25" F SLIP #2 facing bottom to part 45's 1.25" M SLIP #1, plus its 1.25" F SLIP #3, which is front-facing, should connect to part 50's 1.25" M SLIP #1

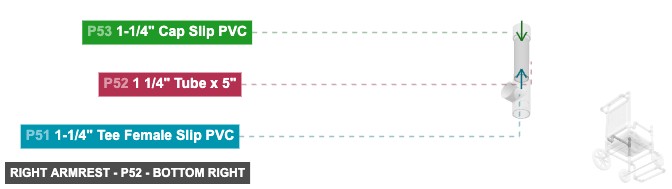

P52 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 53's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is bottom-facing, should connect to part 51's 1.25" F SLIP #1

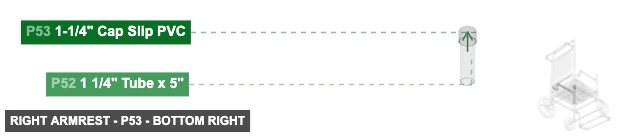

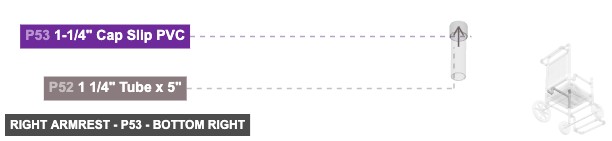

P53 (1.25" Cap Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 52's 1.25" M SLIP #1
1 1/4" Tube x 8.08"x 1
1 1/4" Tube x 3"x 1
1-1/4" 90° Elbow Slip PVC x 2
1 1/4" Tube x 3.11"x 1
1 1/4" Tube x 14.98"x 1
1-1/4" Tee Female Slip PVCx 1
1 1/4" Tube x 5"x 1
1-1/4" Cap Slip PVCx 1

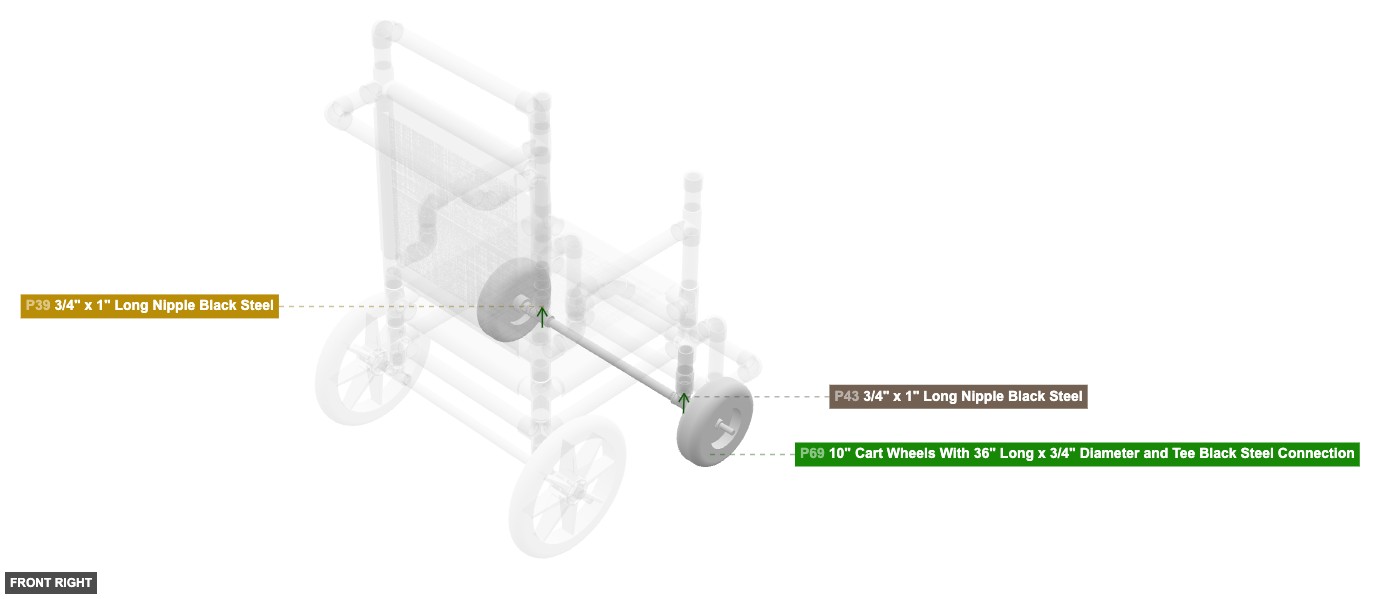

Attaching: Front Wheels
The front wheel and axle assembly.

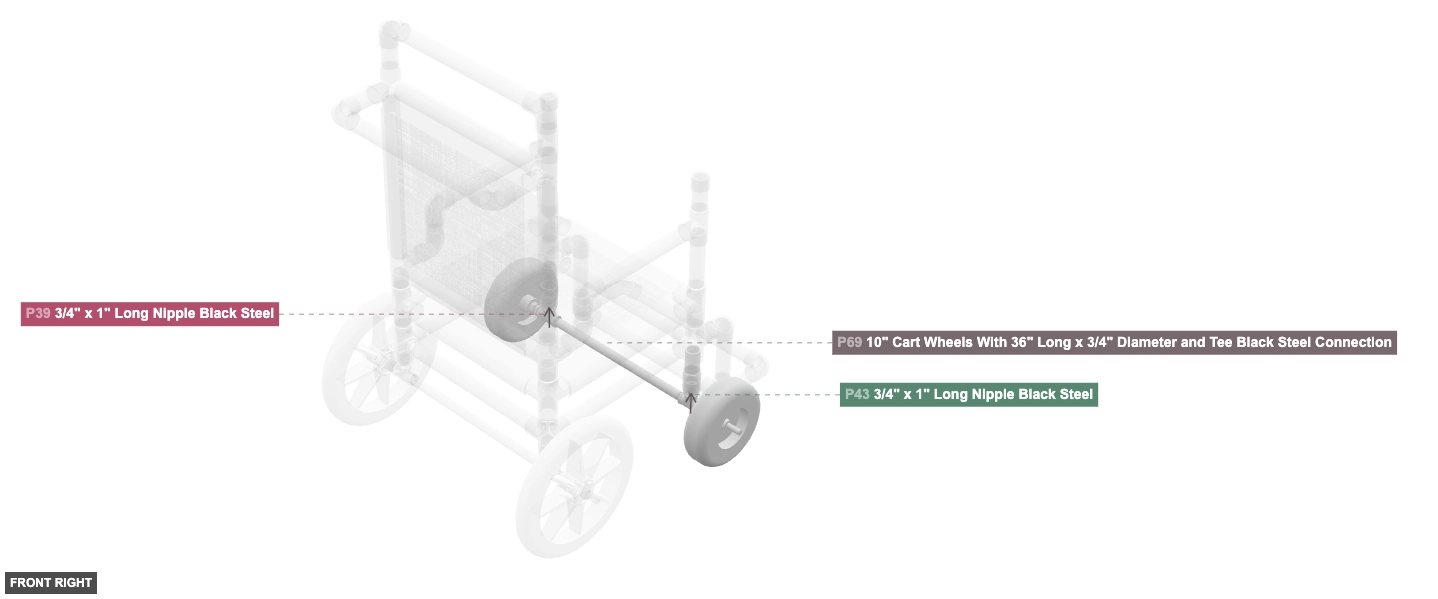

Attach P69 (10" Wheels with Axle/Tee) by screwing its top-facing Female Threaded 3/4" ports onto the bottom Male Threaded 3/4" ports of P43 (Right Front Mount) and P39 (Left Front Mount) from Group 2.
Angle: back left

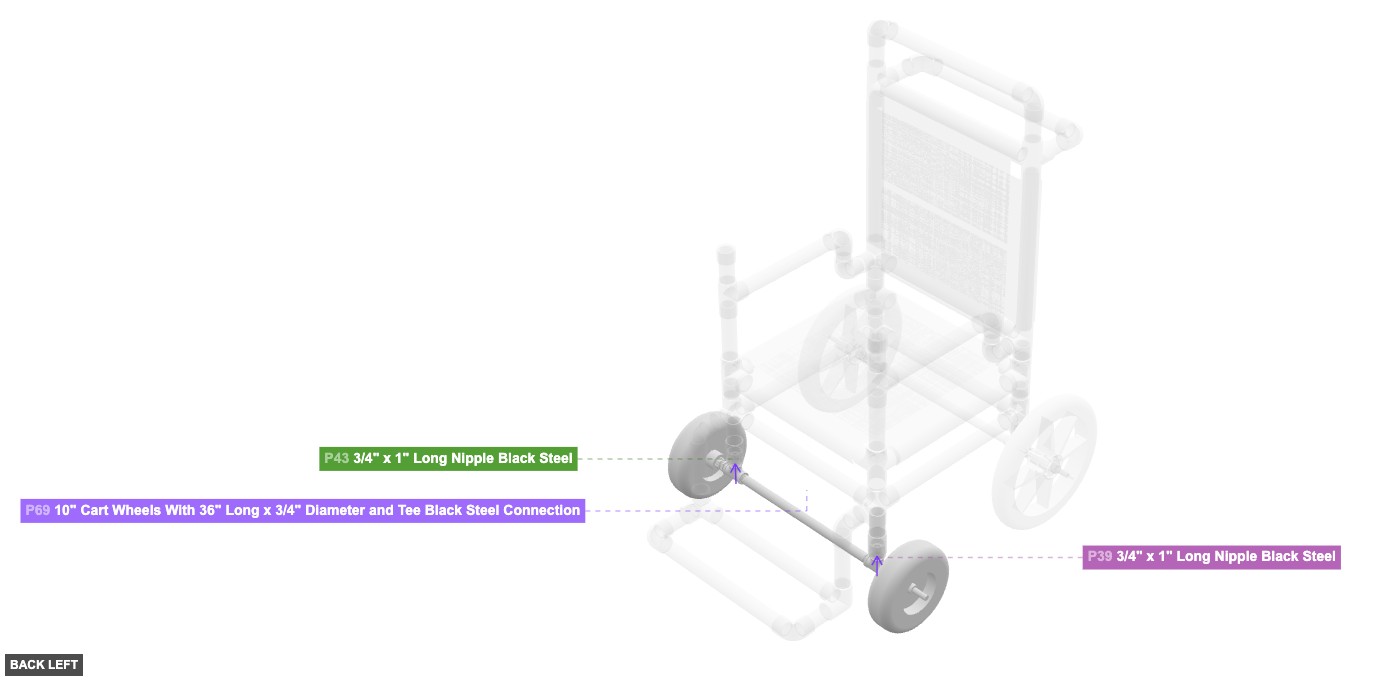

P69 (10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connection) - connect its 0.75" F Threaded #1 oriented top links with part 43's 0.75" M Threaded #2, and attach its 0.75" F Threaded #2 facing top to part 39's 0.75" M Threaded #2
10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connectionx 1
Angle: front right
P69 (10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connection) - connect its 0.75" F Threaded #1 oriented top links with part 43's 0.75" M Threaded #2, and attach its 0.75" F Threaded #2 facing top to part 39's 0.75" M Threaded #2
10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connectionx 1
Angle: bottom right

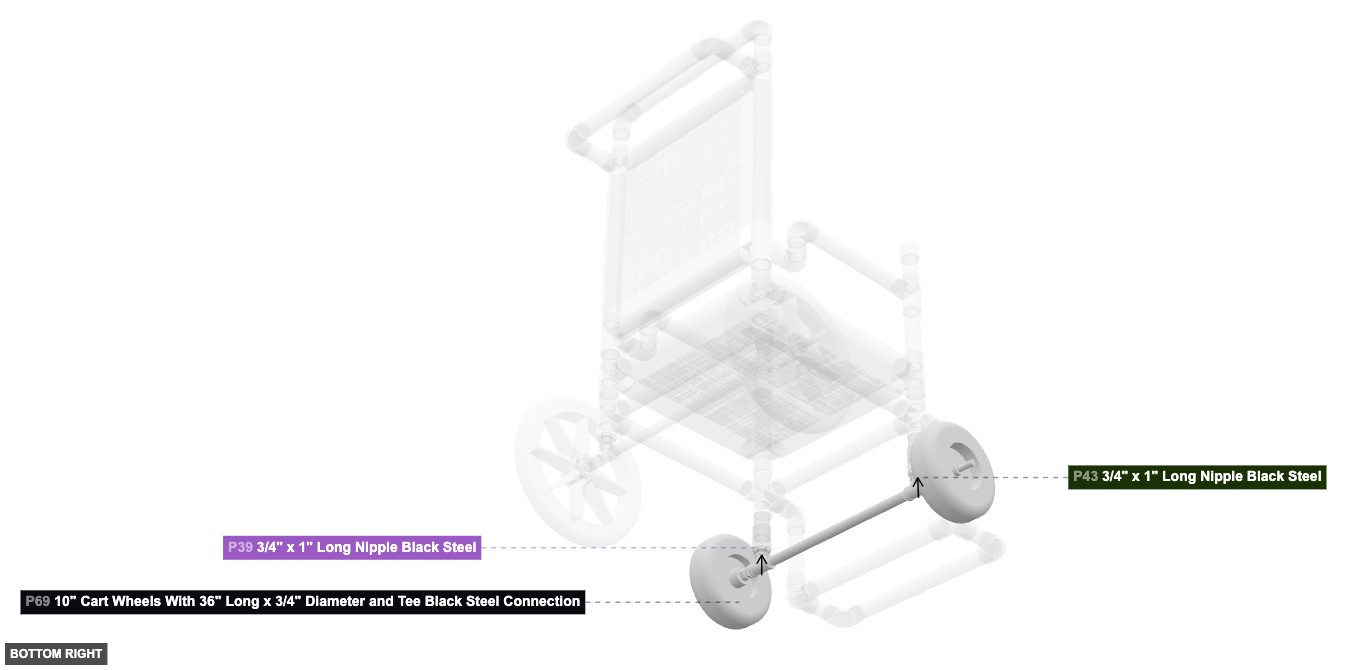

P69 (10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connection) - connect its 0.75" F Threaded #1 oriented top links with part 43's 0.75" M Threaded #2, and attach its 0.75" F Threaded #2 facing top to part 39's 0.75" M Threaded #2
10" Cart Wheels With 36" Long x 3/4" Diameter and Tee Black Steel Connectionx 1
Attaching: Rear Wheels
The rear wheel and axle assembly.
Attach P68 (16" Wheels with Axle/Tee) by screwing its top-facing Female Threaded 3/4" ports onto the bottom Male Threaded 3/4" ports of P11 (Right Rear Mount) and P10 (Left Rear Mount) from Group 3.
Angle: back left

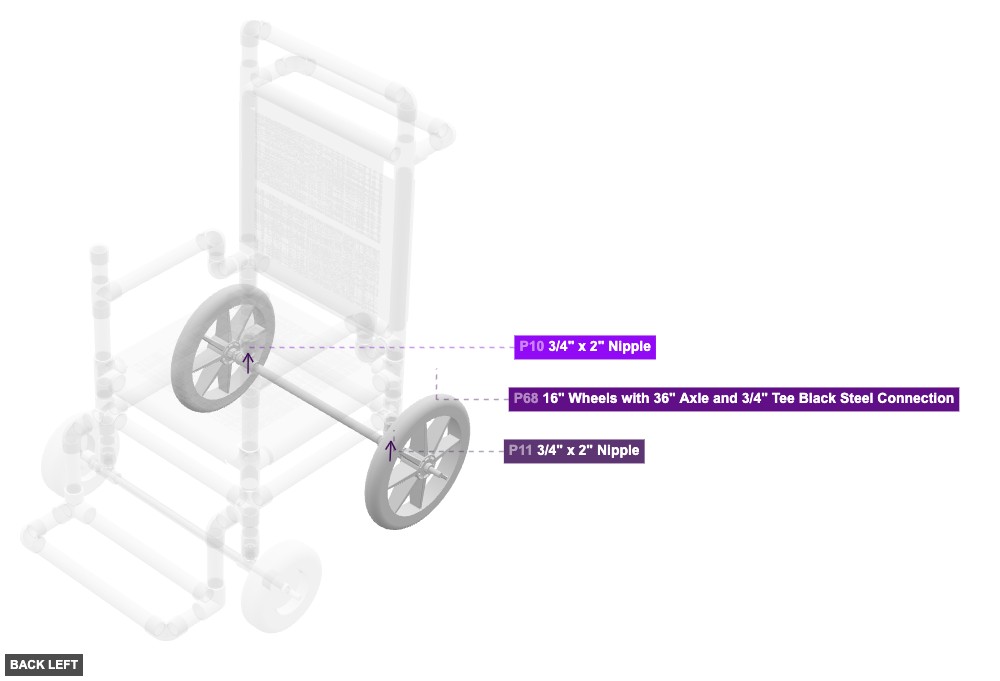

P68 (16" Wheels with 36" Axle and 3/4" Tee Black Steel Connection) - its 0.75" F Threaded #1, which is top-facing, should connect to part 10's 0.75" M Threaded #2. Also, its 0.75" F Threaded #2, which is top-facing, should connect to part 11's 0.75" M Threaded #2
16" Wheels with 36" Axle and 3/4" Tee Black Steel Connectionx 1

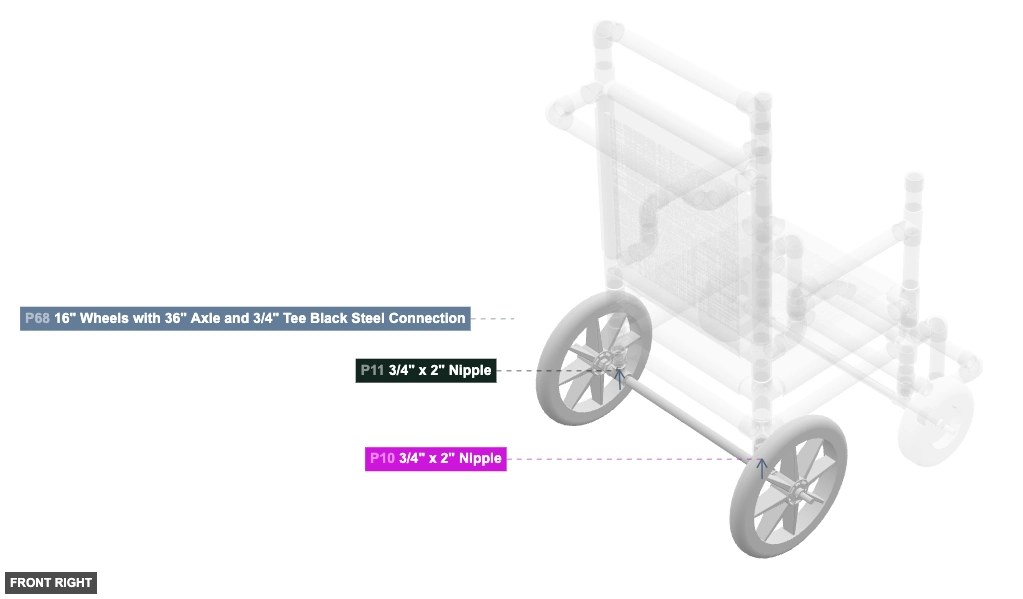

Angle: front right

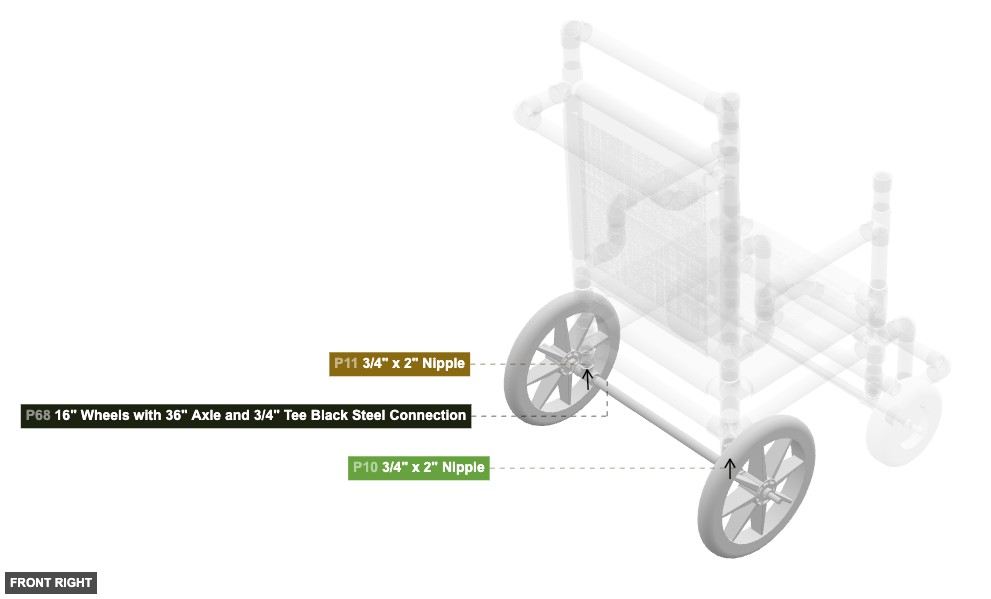

P68 (16" Wheels with 36" Axle and 3/4" Tee Black Steel Connection) - its 0.75" F Threaded #1, which is top-facing, should connect to part 10's 0.75" M Threaded #2. Also, its 0.75" F Threaded #2, which is top-facing, should connect to part 11's 0.75" M Threaded #2
16" Wheels with 36" Axle and 3/4" Tee Black Steel Connectionx 1
Angle: bottom right

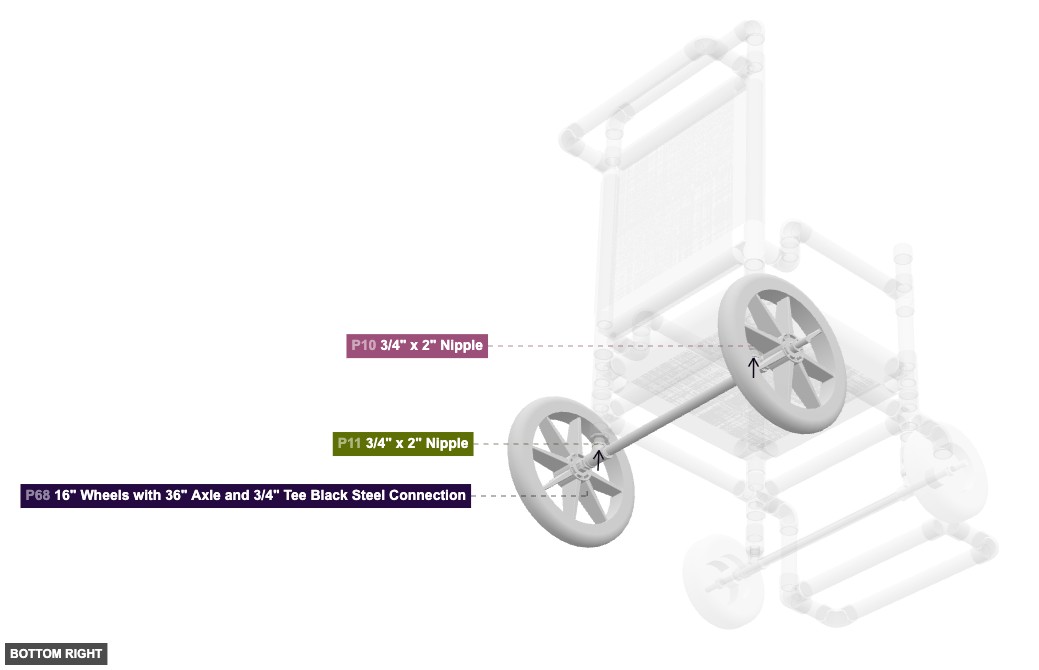

P68 (16" Wheels with 36" Axle and 3/4" Tee Black Steel Connection) - its 0.75" F Threaded #1, which is top-facing, should connect to part 10's 0.75" M Threaded #2. Also, its 0.75" F Threaded #2, which is top-facing, should connect to part 11's 0.75" M Threaded #2
16" Wheels with 36" Axle and 3/4" Tee Black Steel Connectionx 1
