Wood Bar 2 - Comprehensive Assembly Plan And Visual Guide

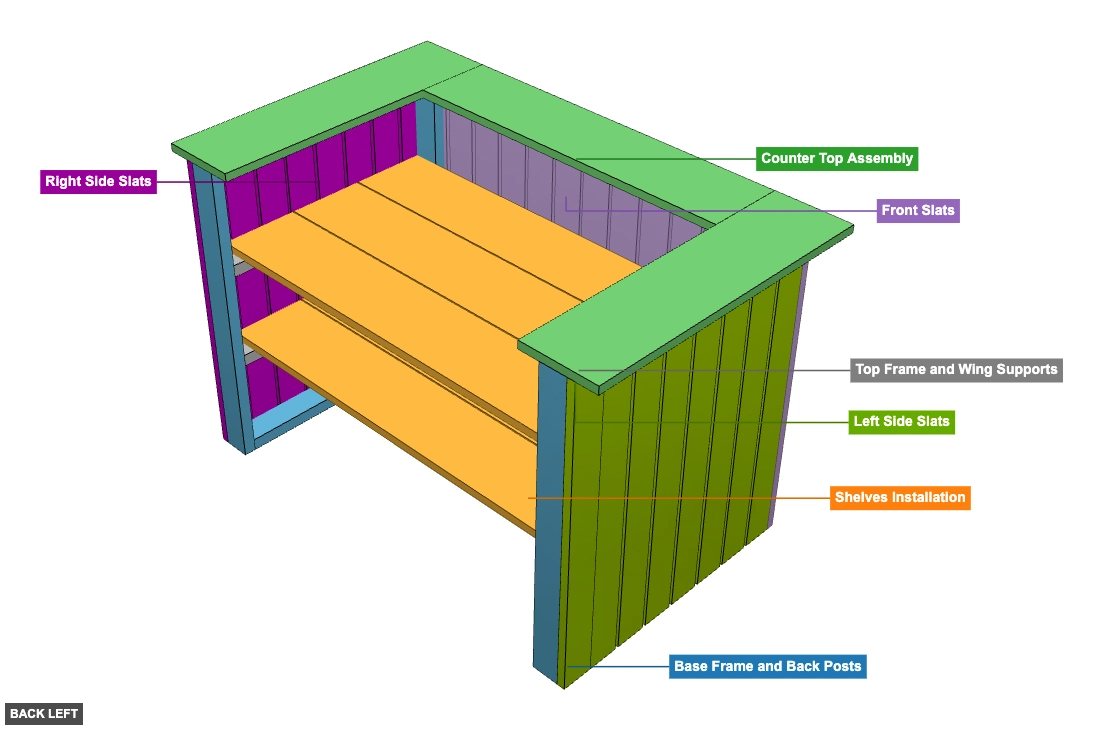

Wood Bar 2 Free Plan And Visual Guide

This is a U-shaped wooden bar counter. It features a main counter section and two side wings with internal shelves. The structure is built using dimensional lumber (2x4s, 2x2s) for the frame and thinner boards (1x4s, 1x5s, 1x10s) for the paneling, shelves, and countertop. - Wood Bar Counter

Phase 1: Group Overview

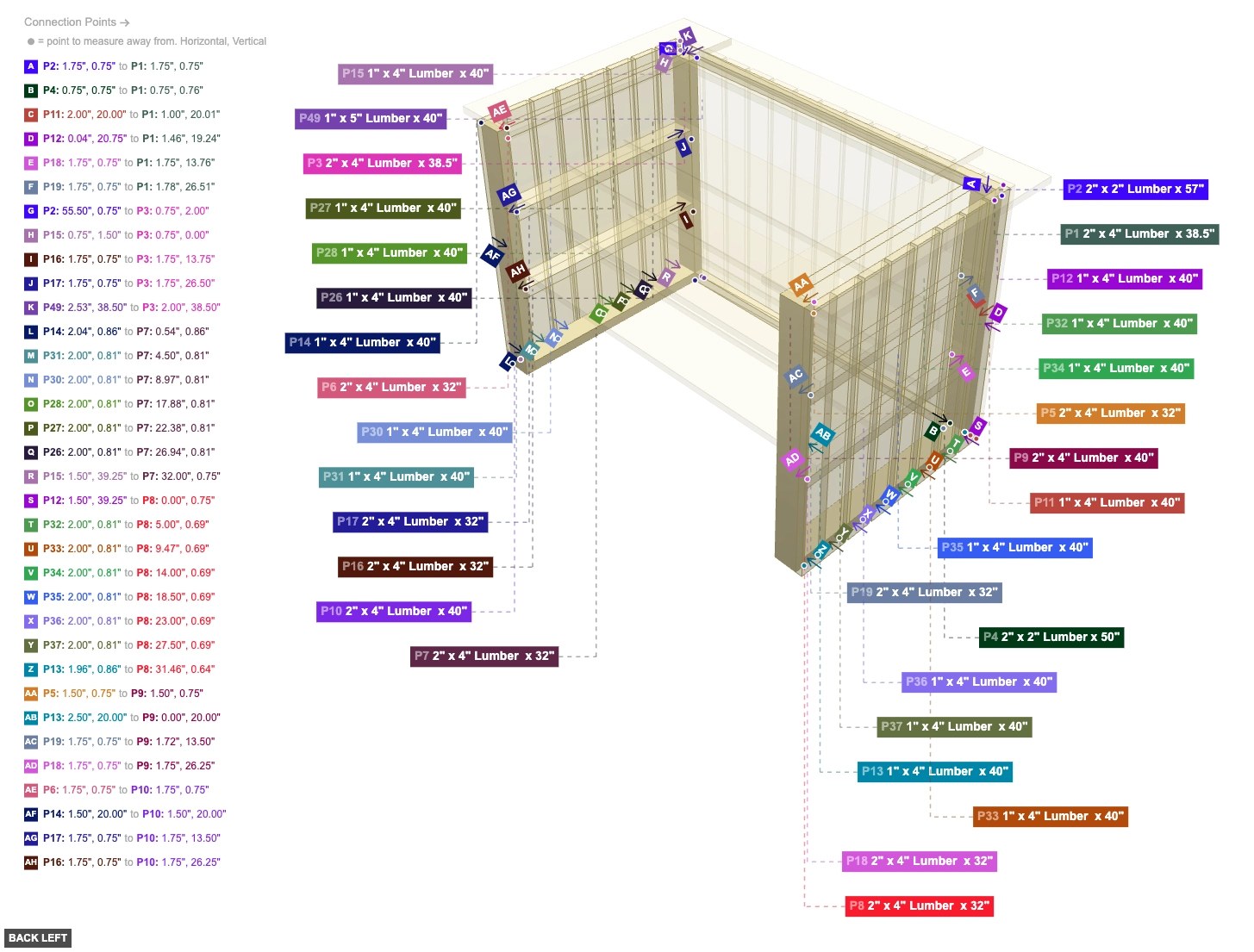

Angle: back left

Wood Bar 2 - Overview back_left
Base Frame and Back Posts
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2
Top Frame and Wing Supports
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6
Left Side Slats
11" x 4" Lumber x 40"x 8
Right Side Slats
11" x 4" Lumber x 40"x 8

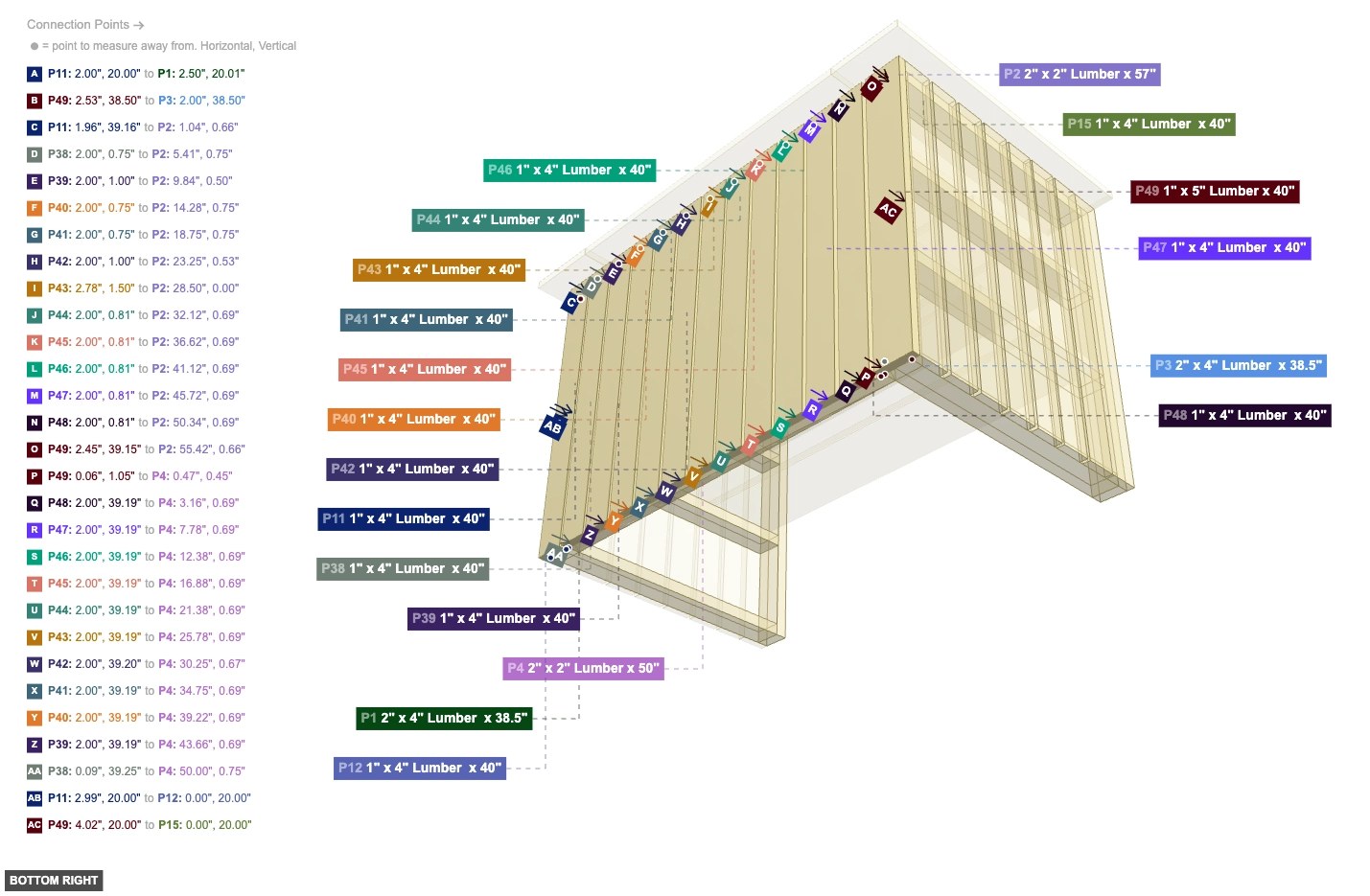

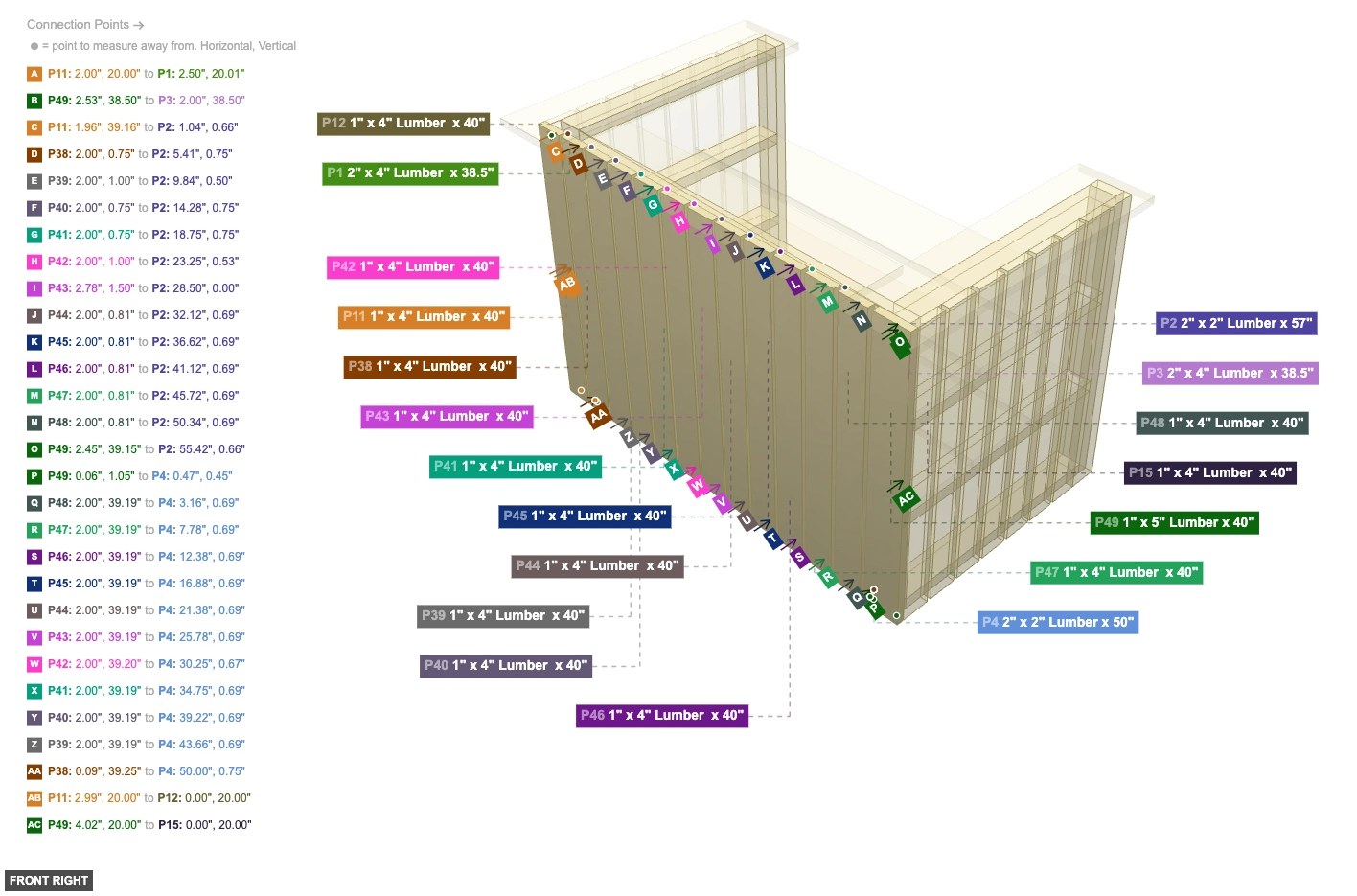

Front Slats
11" x 4" Lumber x 40"x 12
11" x 5" Lumber x 40"x 1

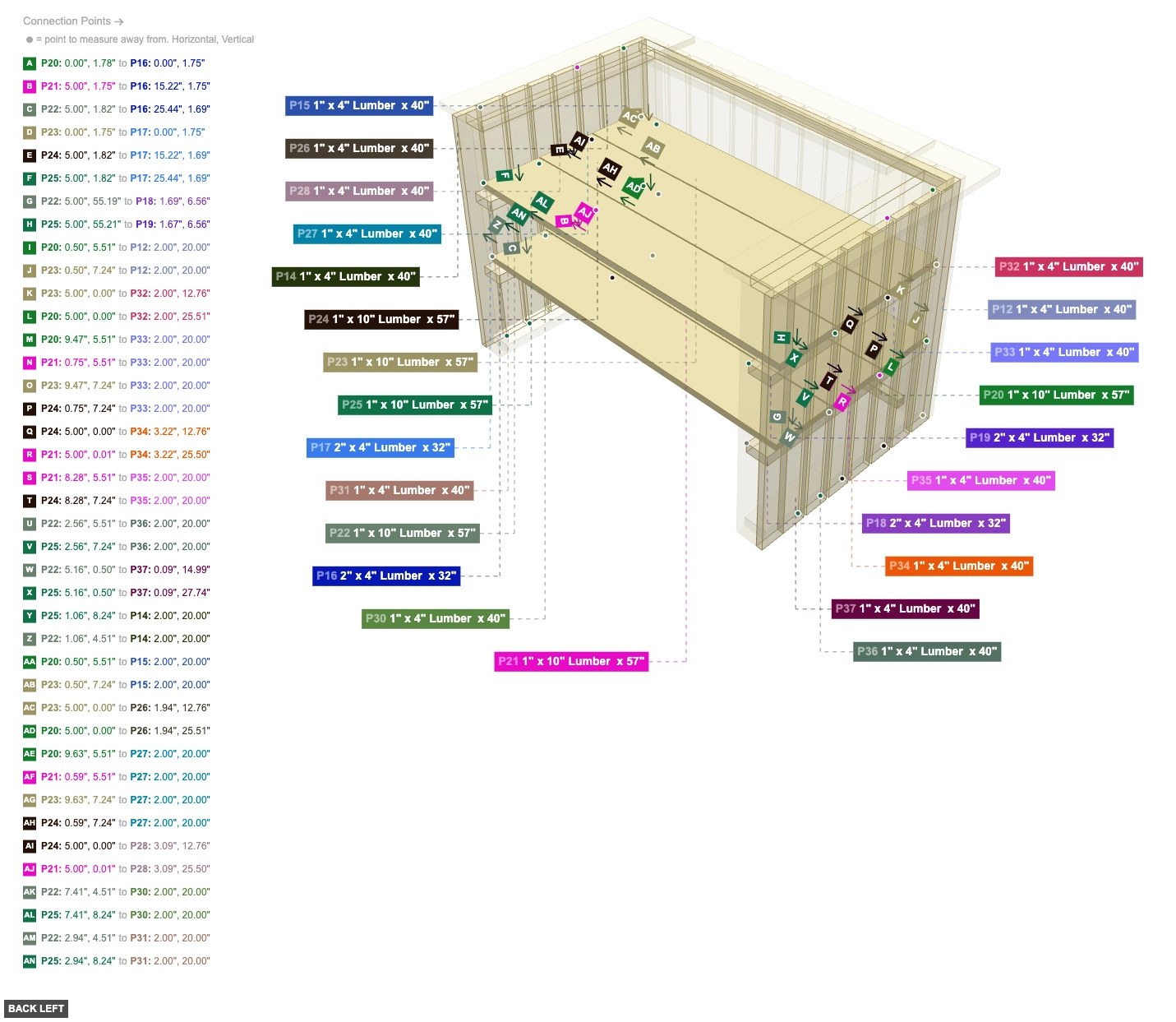

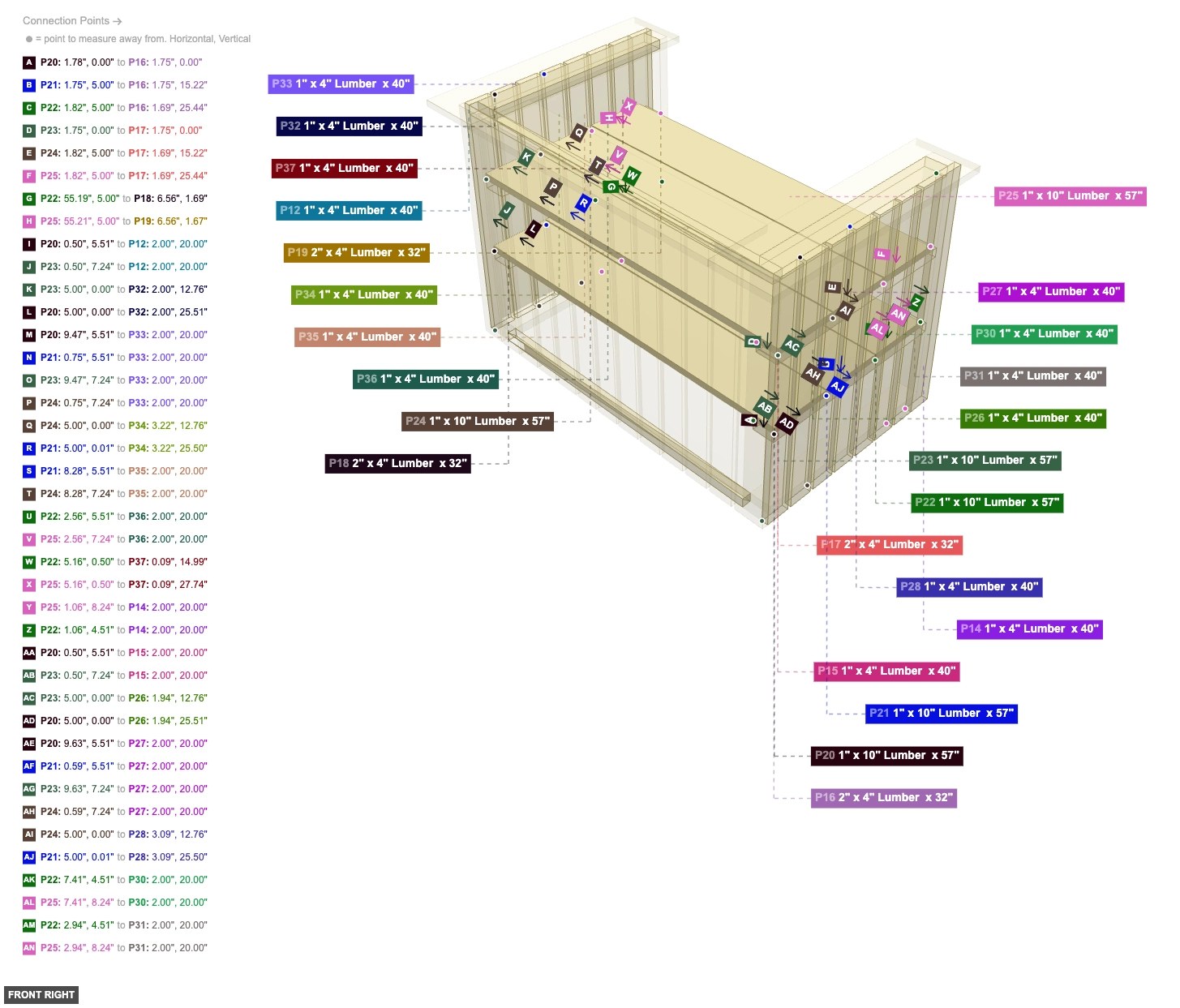

Shelves Installation
11" x 10" Lumber x 57"x 6
Counter Top Assembly
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

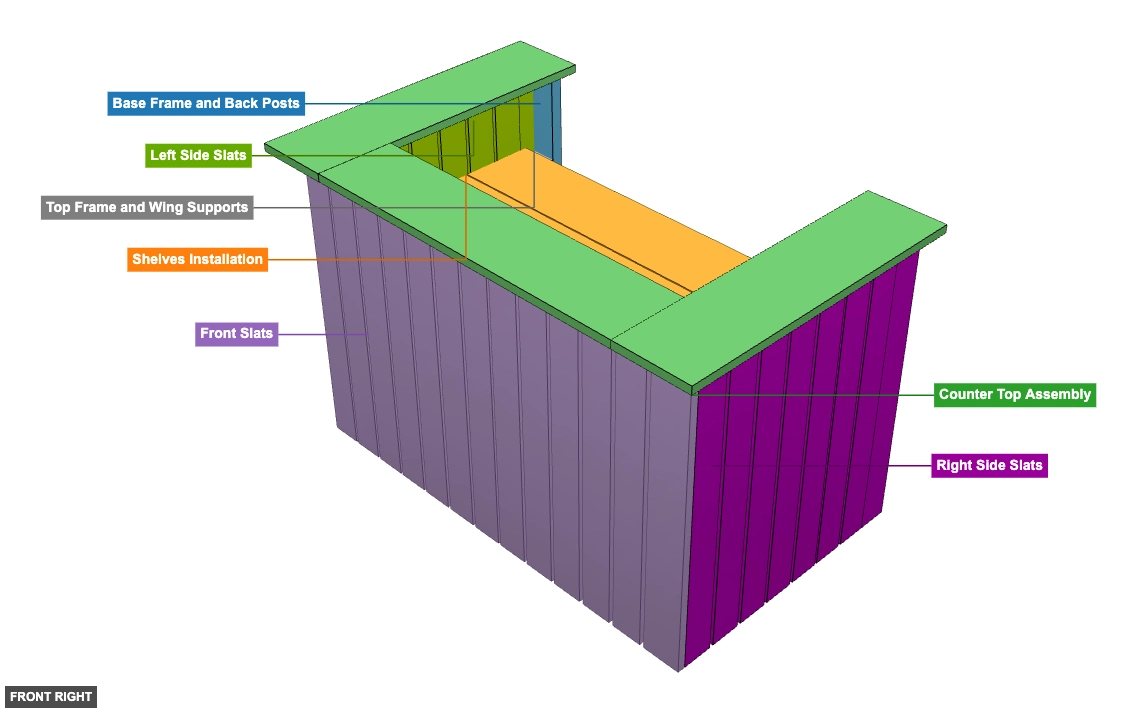

Angle: front right

Wood Bar 2 - Overview front_right
Base Frame and Back Posts
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2
Top Frame and Wing Supports
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6
Left Side Slats
11" x 4" Lumber x 40"x 8
Right Side Slats
11" x 4" Lumber x 40"x 8
Front Slats
11" x 4" Lumber x 40"x 12
11" x 5" Lumber x 40"x 1
Shelves Installation
11" x 10" Lumber x 57"x 6
Counter Top Assembly
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

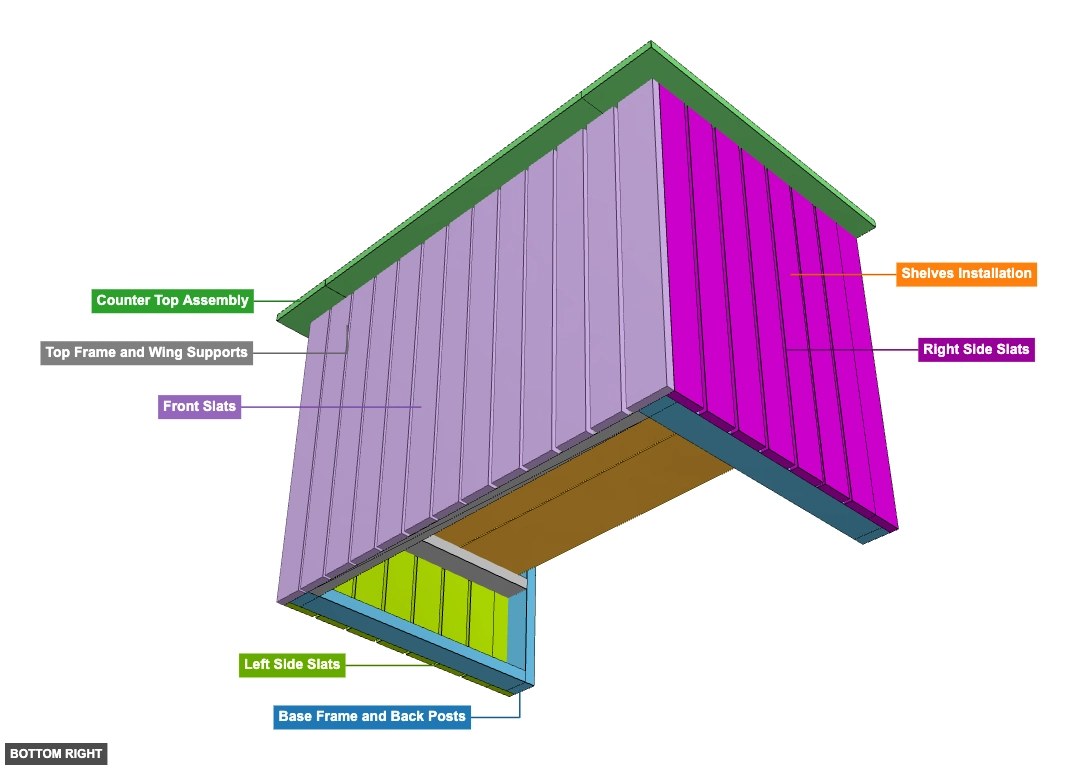

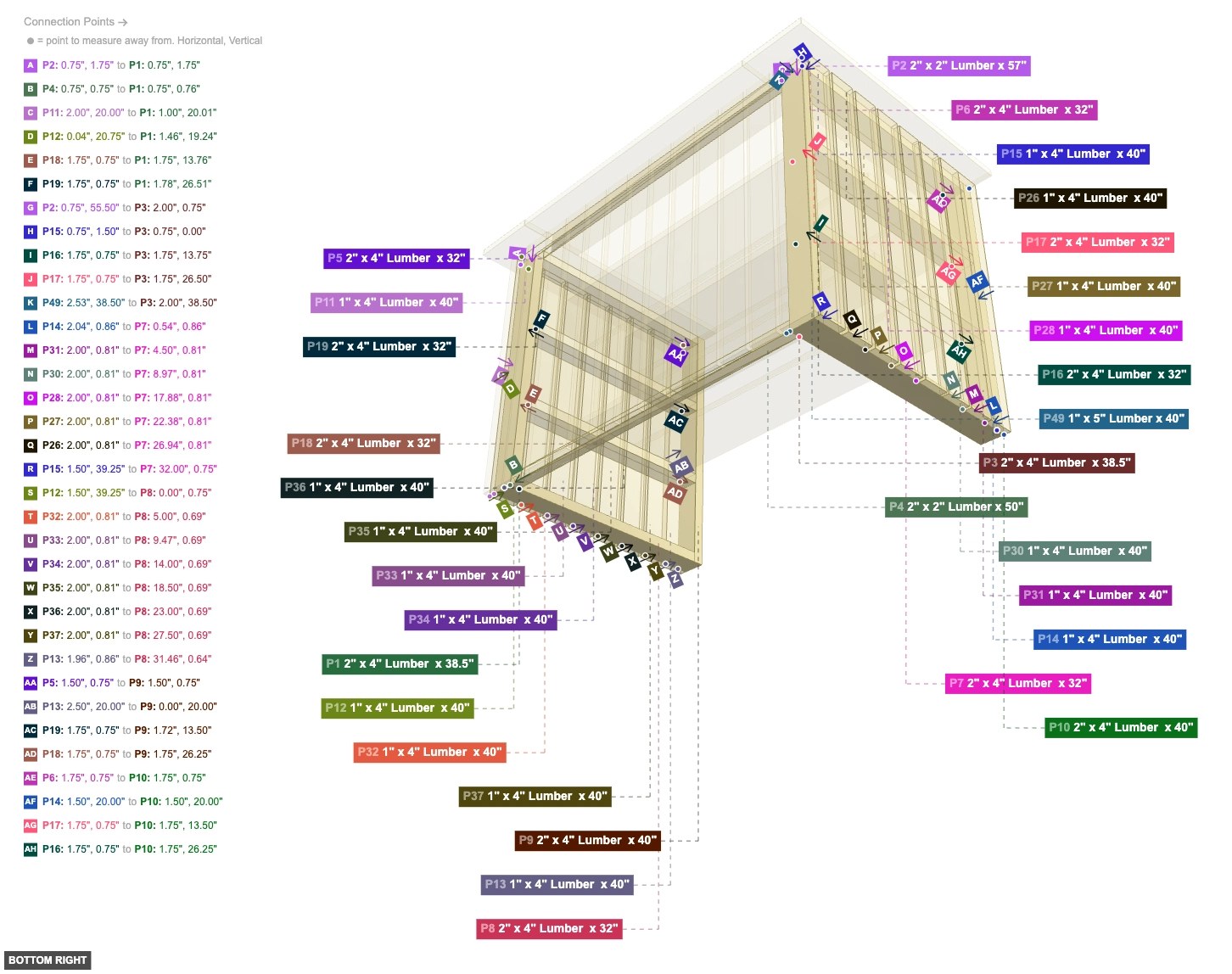

Angle: bottom right

Wood Bar 2 - Overview bottom_right
Base Frame and Back Posts
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2
Top Frame and Wing Supports
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6
Left Side Slats
11" x 4" Lumber x 40"x 8
Right Side Slats
11" x 4" Lumber x 40"x 8
Front Slats
11" x 4" Lumber x 40"x 12
11" x 5" Lumber x 40"x 1

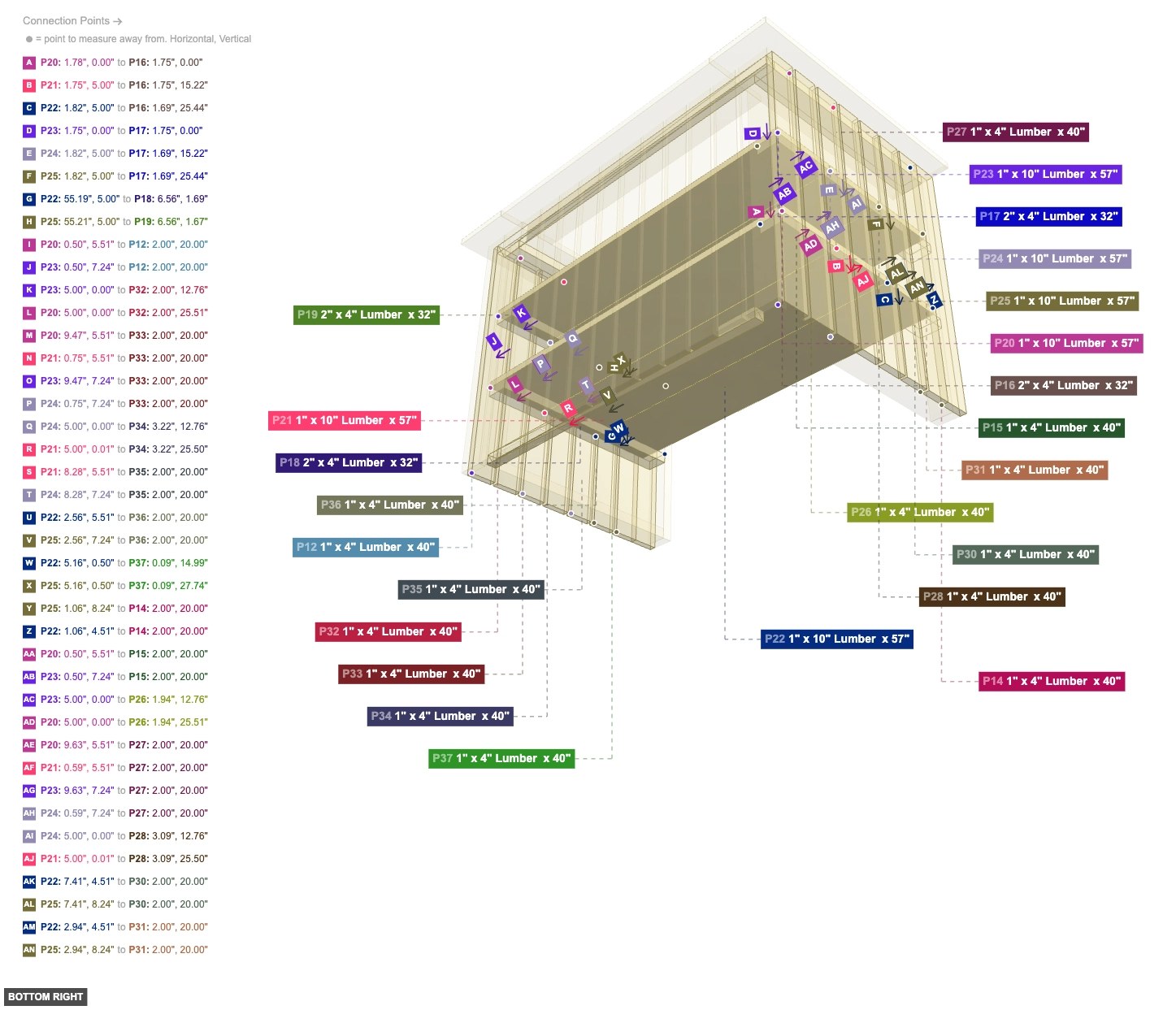

Shelves Installation
11" x 10" Lumber x 57"x 6
Counter Top Assembly
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Phase 2: Individual Group Assembly

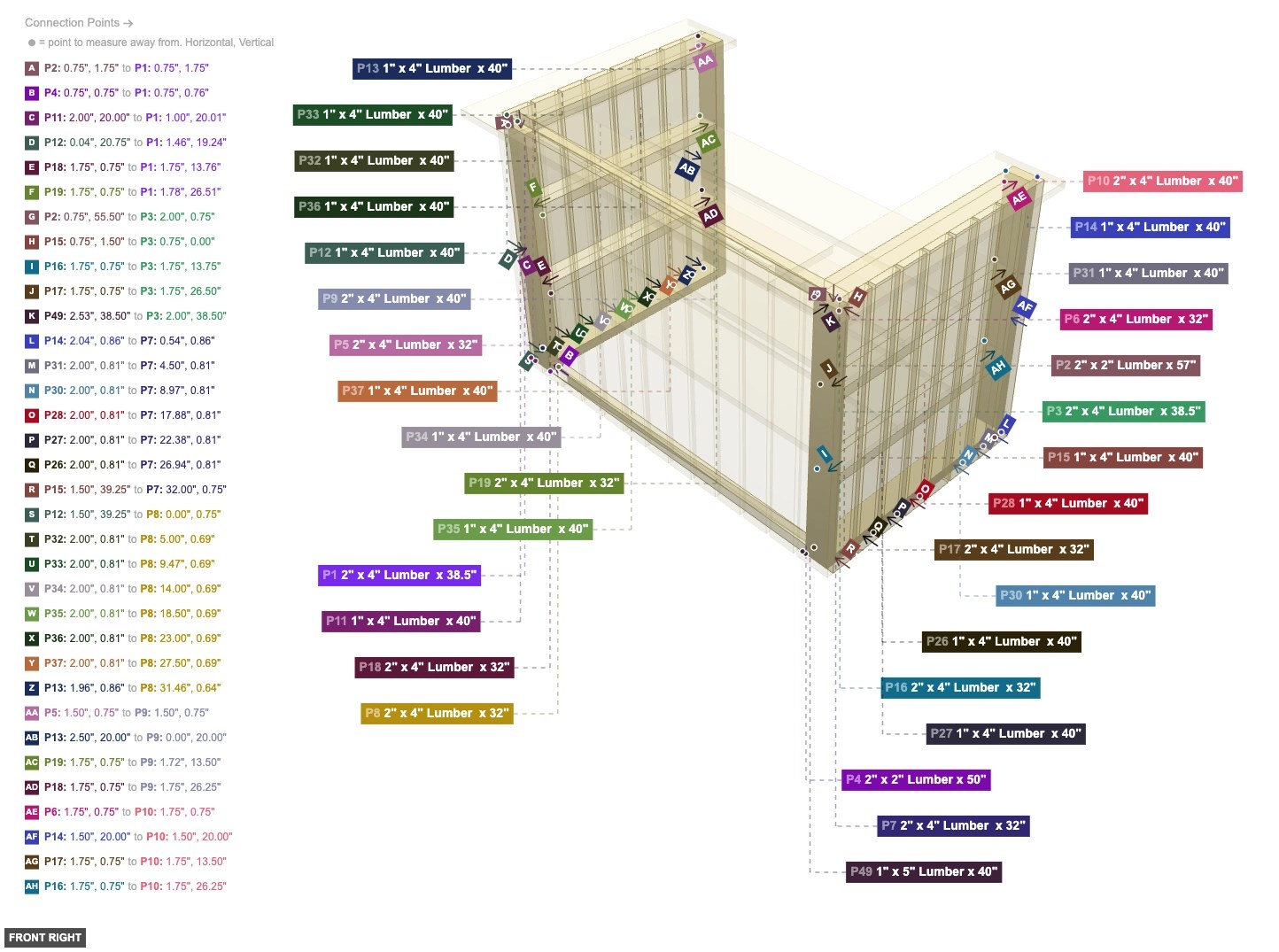

Group: Base Frame and Back Posts

Assemble the main base frame components (P1, P3) and attach the rear vertical posts (P9, P10) along with their lower connecting supports (P7, P8).

Part: 2" x 4" Lumber x 38.5" - Angle: back left

Base Frame and Back Posts - Part 2
P1 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood Side #2 facing back to part 8's 2" x 4" Wood End #2. Also, its 2" x 4" Wood End #2 must be oriented bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

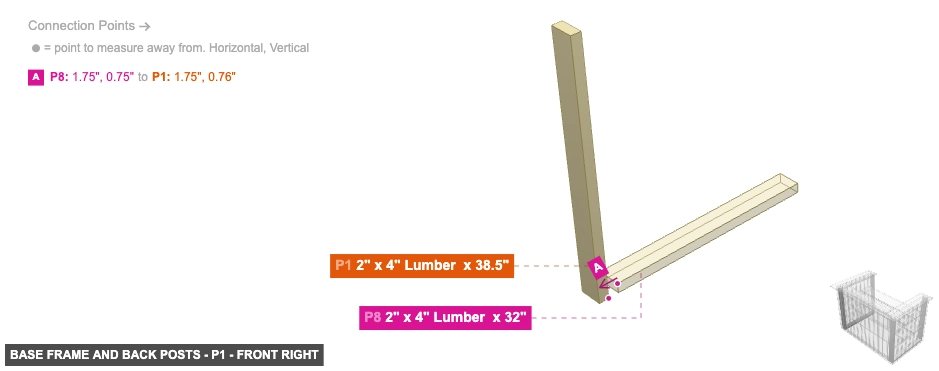

Part: 2" x 4" Lumber x 38.5" - Angle: front right

Base Frame and Back Posts - Part 2
P1 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood Side #2 facing back to part 8's 2" x 4" Wood End #2. Also, its 2" x 4" Wood End #2 must be oriented bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

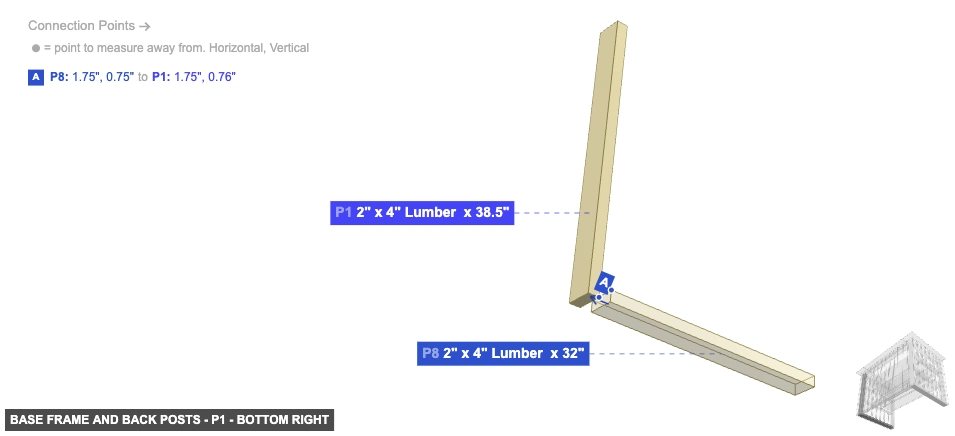

Part: 2" x 4" Lumber x 38.5" - Angle: bottom right

Base Frame and Back Posts - Part 2
P1 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood Side #2 facing back to part 8's 2" x 4" Wood End #2. Also, its 2" x 4" Wood End #2 must be oriented bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

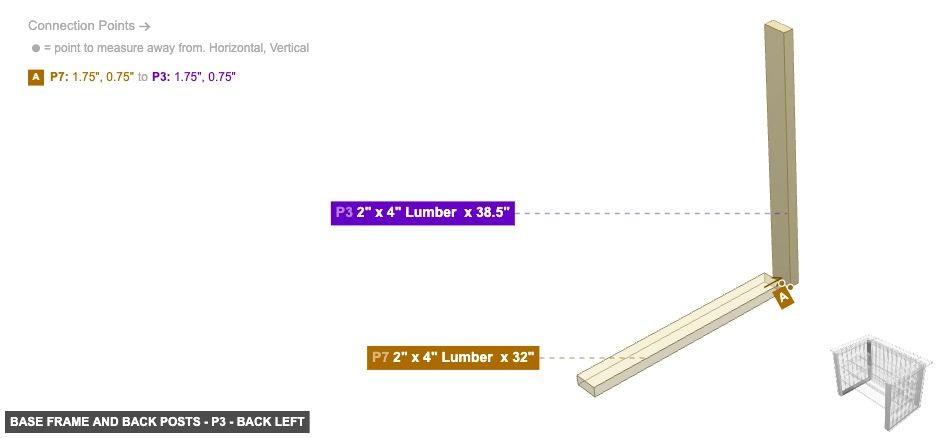

Part: 2" x 4" Lumber x 38.5" - Angle: back left

Base Frame and Back Posts - Part 2
P3 (2" x 4" Lumber 38.5" length) - connect its 2" x 4" Wood Side #4 oriented back links with part 7's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #1 must be oriented bottom. Also, ensure its 2" x 4" Wood Side #1 faces left
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

Part: 2" x 4" Lumber x 38.5" - Angle: front right

Base Frame and Back Posts - Part 2
P3 (2" x 4" Lumber 38.5" length) - connect its 2" x 4" Wood Side #4 oriented back links with part 7's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #1 must be oriented bottom. Also, ensure its 2" x 4" Wood Side #1 faces left
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

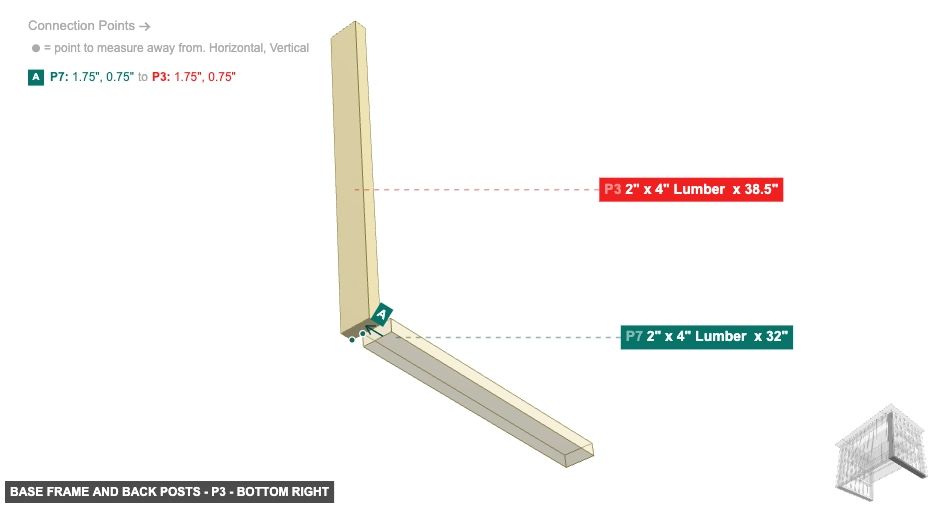

Part: 2" x 4" Lumber x 38.5" - Angle: bottom right

Base Frame and Back Posts - Part 2
P3 (2" x 4" Lumber 38.5" length) - connect its 2" x 4" Wood Side #4 oriented back links with part 7's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #1 must be oriented bottom. Also, ensure its 2" x 4" Wood Side #1 faces left
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

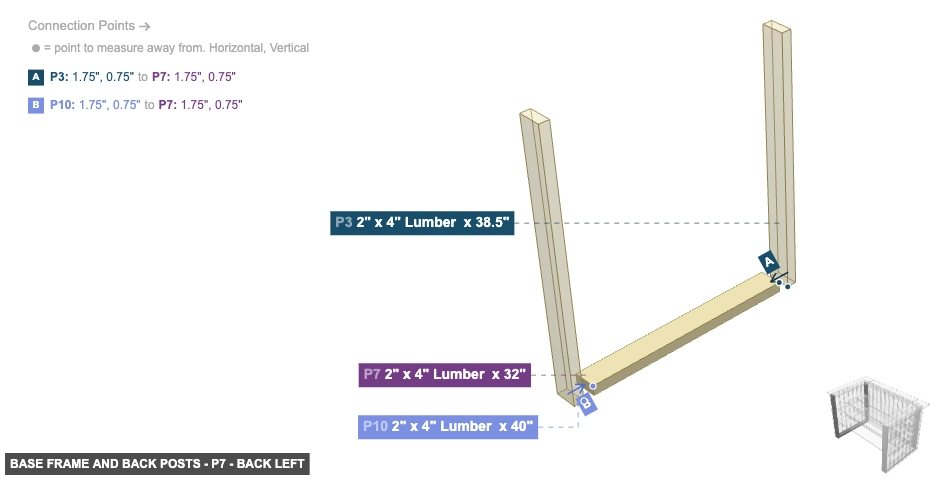

Part: 2" x 4" Lumber x 32" - Angle: back left

Base Frame and Back Posts - Part 2
P7 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 10's 2" x 4" Wood Side #2. Additionally, connect its 2" x 4" Wood End #2 oriented front links with part 3's 2" x 4" Wood Side #4, then ensure its 2" x 4" Wood Side #1 faces left. After that, ensure its 2" x 4" Wood Side #2 faces bottom. Next, its 2" x 4" Wood Side #4 must be oriented top
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

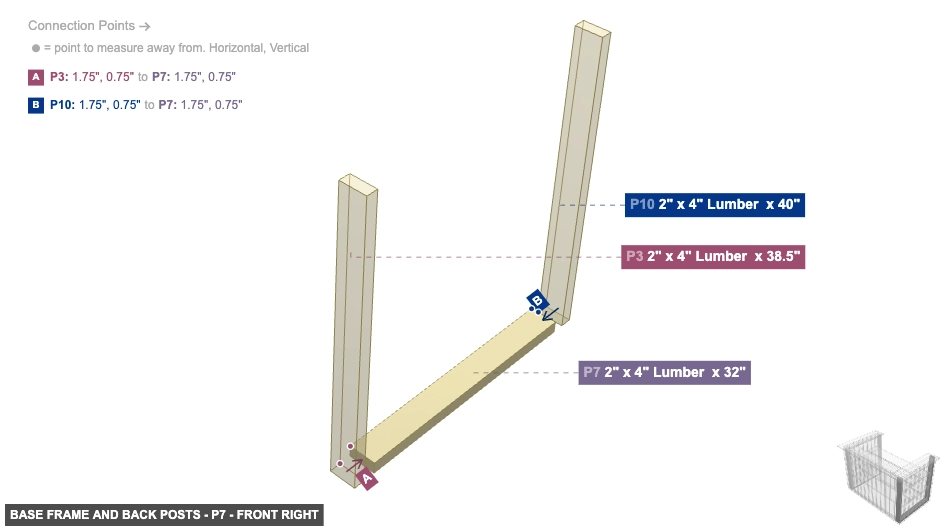

Part: 2" x 4" Lumber x 32" - Angle: front right

Base Frame and Back Posts - Part 2
P7 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 10's 2" x 4" Wood Side #2. Additionally, connect its 2" x 4" Wood End #2 oriented front links with part 3's 2" x 4" Wood Side #4, then ensure its 2" x 4" Wood Side #1 faces left. After that, ensure its 2" x 4" Wood Side #2 faces bottom. Next, its 2" x 4" Wood Side #4 must be oriented top
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

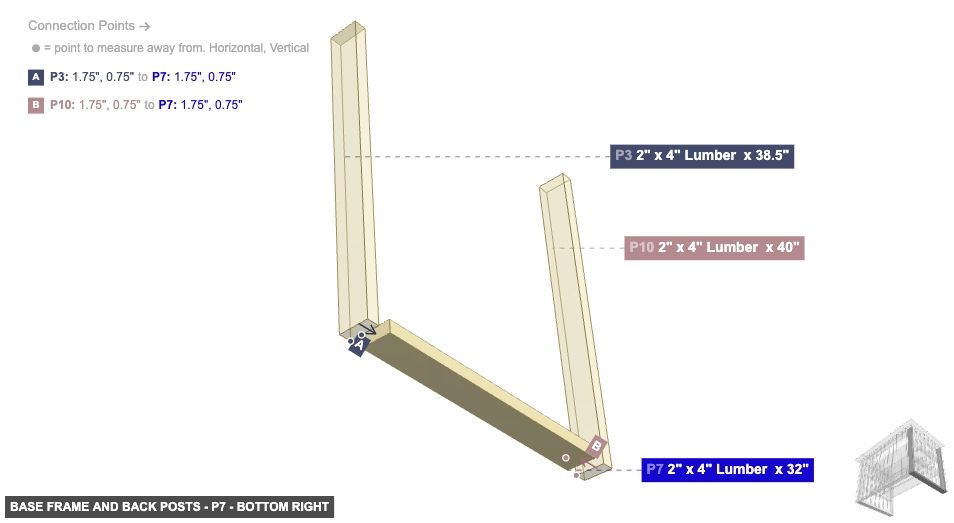

Part: 2" x 4" Lumber x 32" - Angle: bottom right

Base Frame and Back Posts - Part 2
P7 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 10's 2" x 4" Wood Side #2. Additionally, connect its 2" x 4" Wood End #2 oriented front links with part 3's 2" x 4" Wood Side #4, then ensure its 2" x 4" Wood Side #1 faces left. After that, ensure its 2" x 4" Wood Side #2 faces bottom. Next, its 2" x 4" Wood Side #4 must be oriented top
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

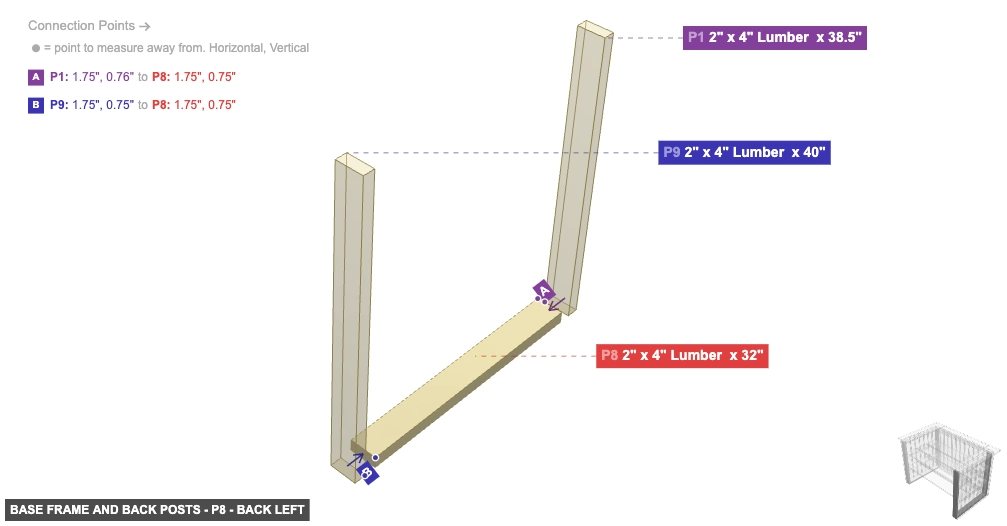

Part: 2" x 4" Lumber x 32" - Angle: back left

Base Frame and Back Posts - Part 2
P8 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 9's 2" x 4" Wood Side #2. Also, connect its 2" x 4" Wood End #2 oriented front links with part 1's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #2 needs to point bottom, and its 2" x 4" Wood Side #3 needs to point right. Additionally, its 2" x 4" Wood Side #4 must be oriented top
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

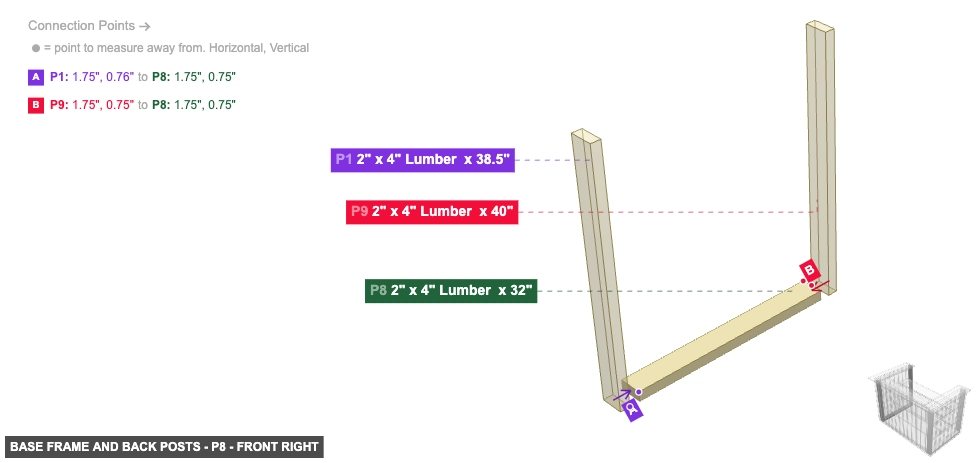

Part: 2" x 4" Lumber x 32" - Angle: front right

Base Frame and Back Posts - Part 2
P8 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 9's 2" x 4" Wood Side #2. Also, connect its 2" x 4" Wood End #2 oriented front links with part 1's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #2 needs to point bottom, and its 2" x 4" Wood Side #3 needs to point right. Additionally, its 2" x 4" Wood Side #4 must be oriented top
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

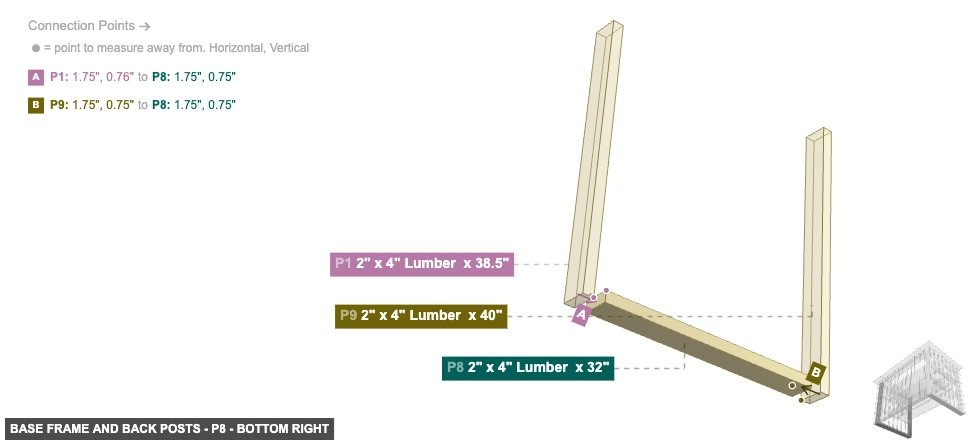

Part: 2" x 4" Lumber x 32" - Angle: bottom right

Base Frame and Back Posts - Part 2
P8 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 9's 2" x 4" Wood Side #2. Also, connect its 2" x 4" Wood End #2 oriented front links with part 1's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #2 needs to point bottom, and its 2" x 4" Wood Side #3 needs to point right. Additionally, its 2" x 4" Wood Side #4 must be oriented top
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

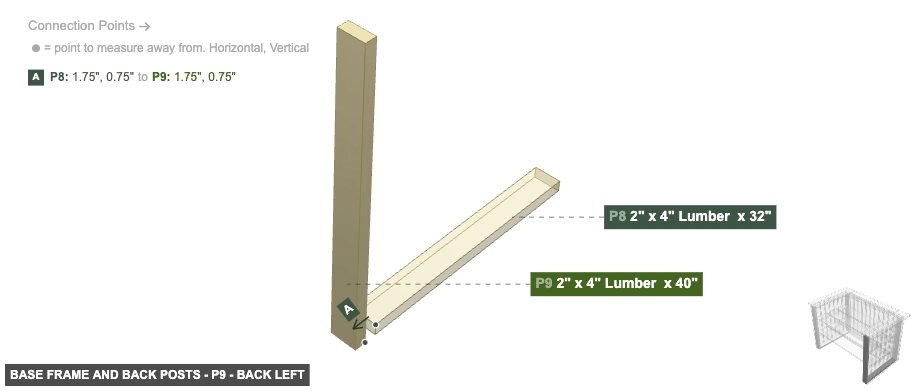

Part: 2" x 4" Lumber x 40" - Angle: back left

Base Frame and Back Posts - Part 2
P9 (2" x 4" Lumber 40" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 8's 2" x 4" Wood End #1. Also, ensure its 2" x 4" Wood End #1 faces top. Next, its 2" x 4" Wood Side #1 should be directed right. After that, ensure its 2" x 4" Wood Side #4 faces back, then its 2" x 4" Wood End #2 needs to point bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

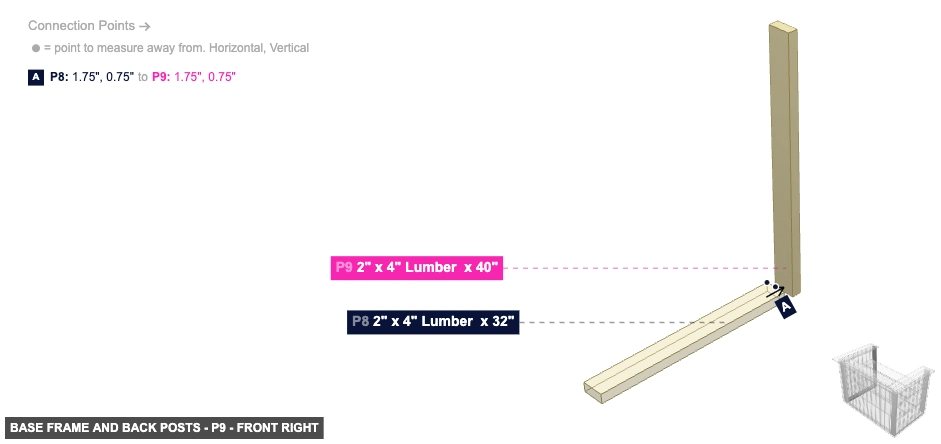

Part: 2" x 4" Lumber x 40" - Angle: front right

Base Frame and Back Posts - Part 2
P9 (2" x 4" Lumber 40" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 8's 2" x 4" Wood End #1. Also, ensure its 2" x 4" Wood End #1 faces top. Next, its 2" x 4" Wood Side #1 should be directed right. After that, ensure its 2" x 4" Wood Side #4 faces back, then its 2" x 4" Wood End #2 needs to point bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

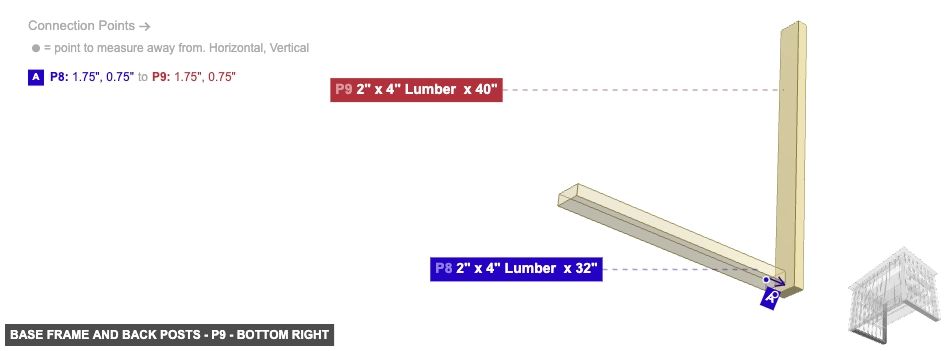

Part: 2" x 4" Lumber x 40" - Angle: bottom right

Base Frame and Back Posts - Part 2
P9 (2" x 4" Lumber 40" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 8's 2" x 4" Wood End #1. Also, ensure its 2" x 4" Wood End #1 faces top. Next, its 2" x 4" Wood Side #1 should be directed right. After that, ensure its 2" x 4" Wood Side #4 faces back, then its 2" x 4" Wood End #2 needs to point bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

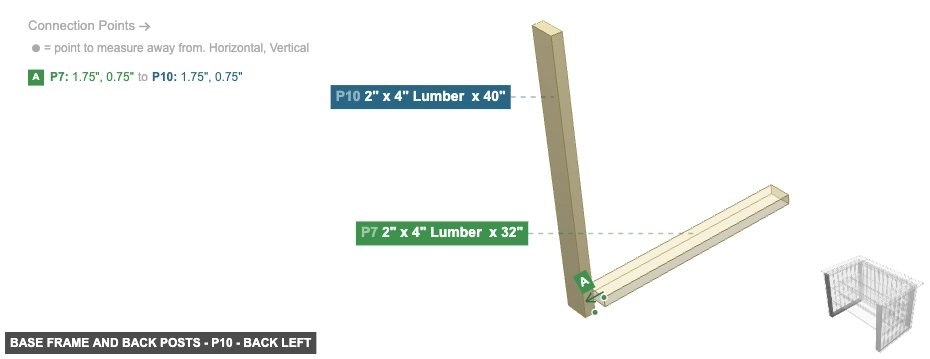

Part: 2" x 4" Lumber x 40" - Angle: back left

Base Frame and Back Posts - Part 2
P10 (2" x 4" Lumber 40" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 7's 2" x 4" Wood End #1, and ensure its 2" x 4" Wood End #1 faces top. After that, its 2" x 4" Wood Side #3 should be directed left. Also, its 2" x 4" Wood Side #4 needs to point back. Next, its 2" x 4" Wood End #2 should be directed bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

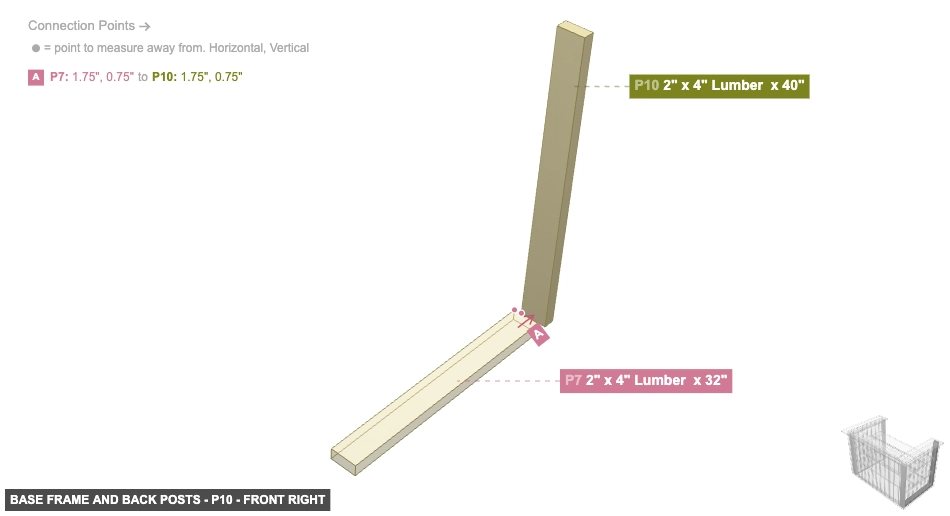

Part: 2" x 4" Lumber x 40" - Angle: front right

Base Frame and Back Posts - Part 2
P10 (2" x 4" Lumber 40" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 7's 2" x 4" Wood End #1, and ensure its 2" x 4" Wood End #1 faces top. After that, its 2" x 4" Wood Side #3 should be directed left. Also, its 2" x 4" Wood Side #4 needs to point back. Next, its 2" x 4" Wood End #2 should be directed bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

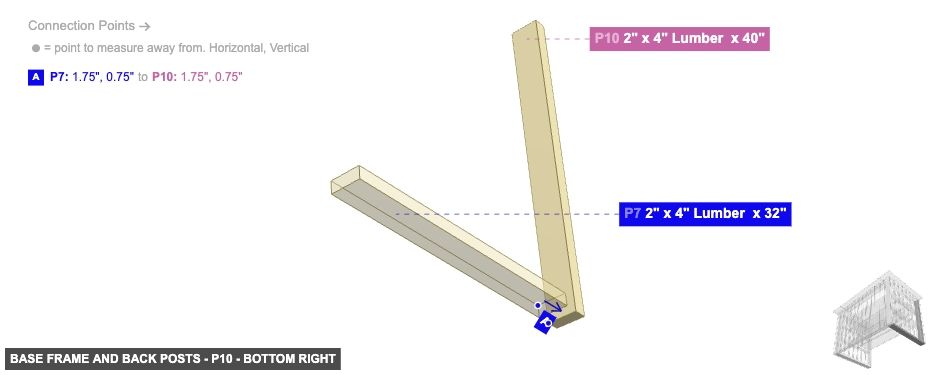

Part: 2" x 4" Lumber x 40" - Angle: bottom right

Base Frame and Back Posts - Part 2
P10 (2" x 4" Lumber 40" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 7's 2" x 4" Wood End #1, and ensure its 2" x 4" Wood End #1 faces top. After that, its 2" x 4" Wood Side #3 should be directed left. Also, its 2" x 4" Wood Side #4 needs to point back. Next, its 2" x 4" Wood End #2 should be directed bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

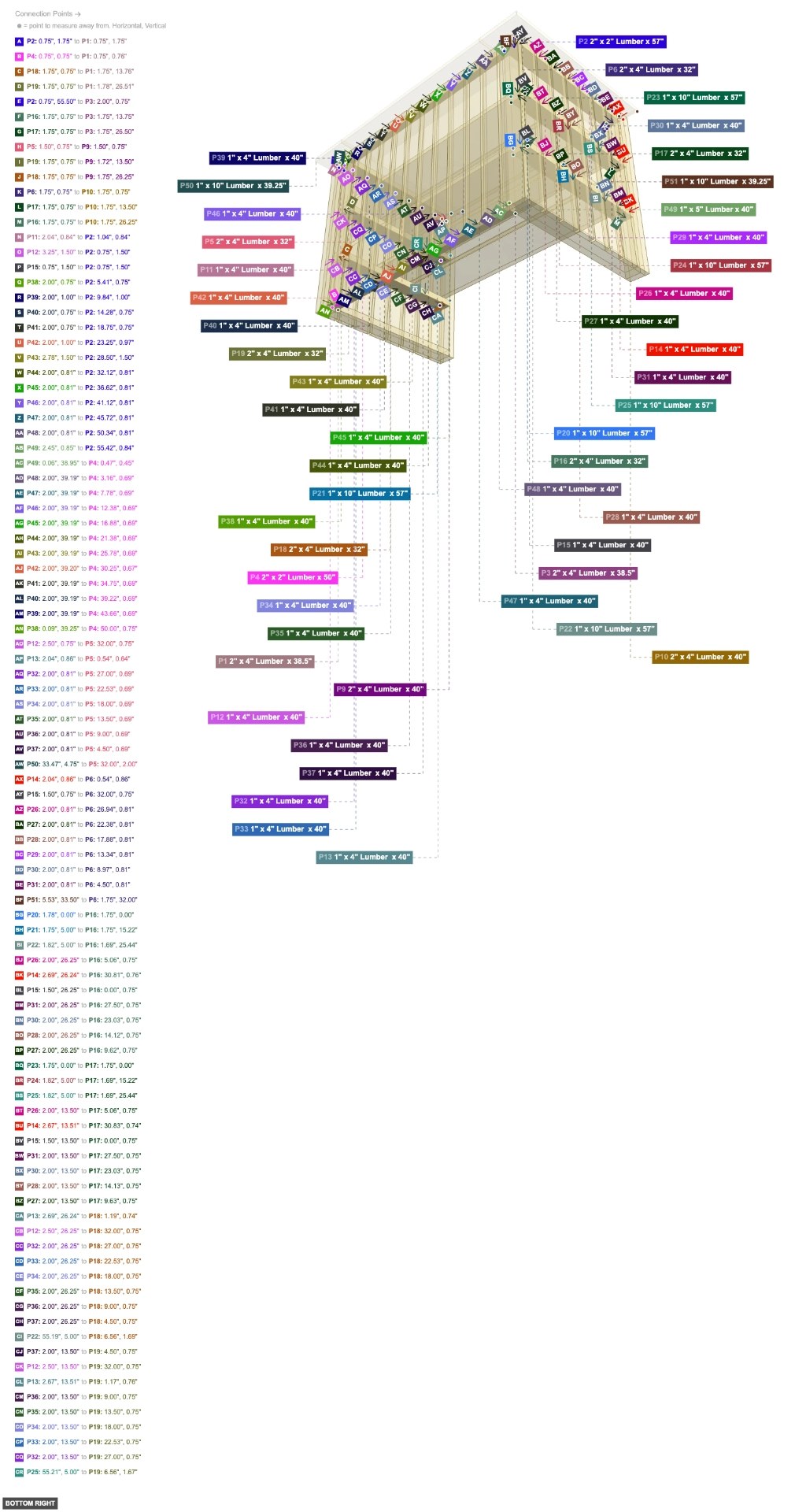

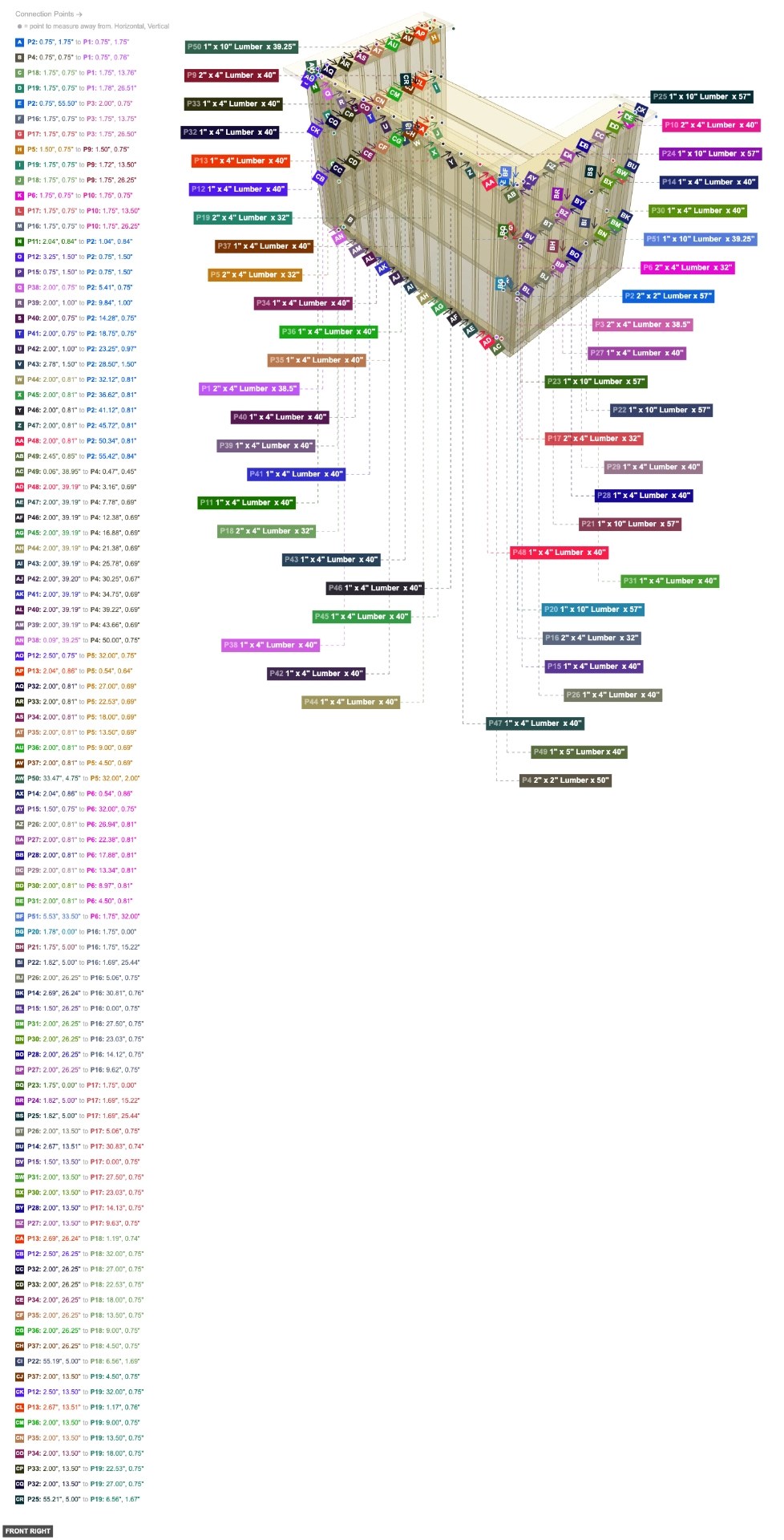

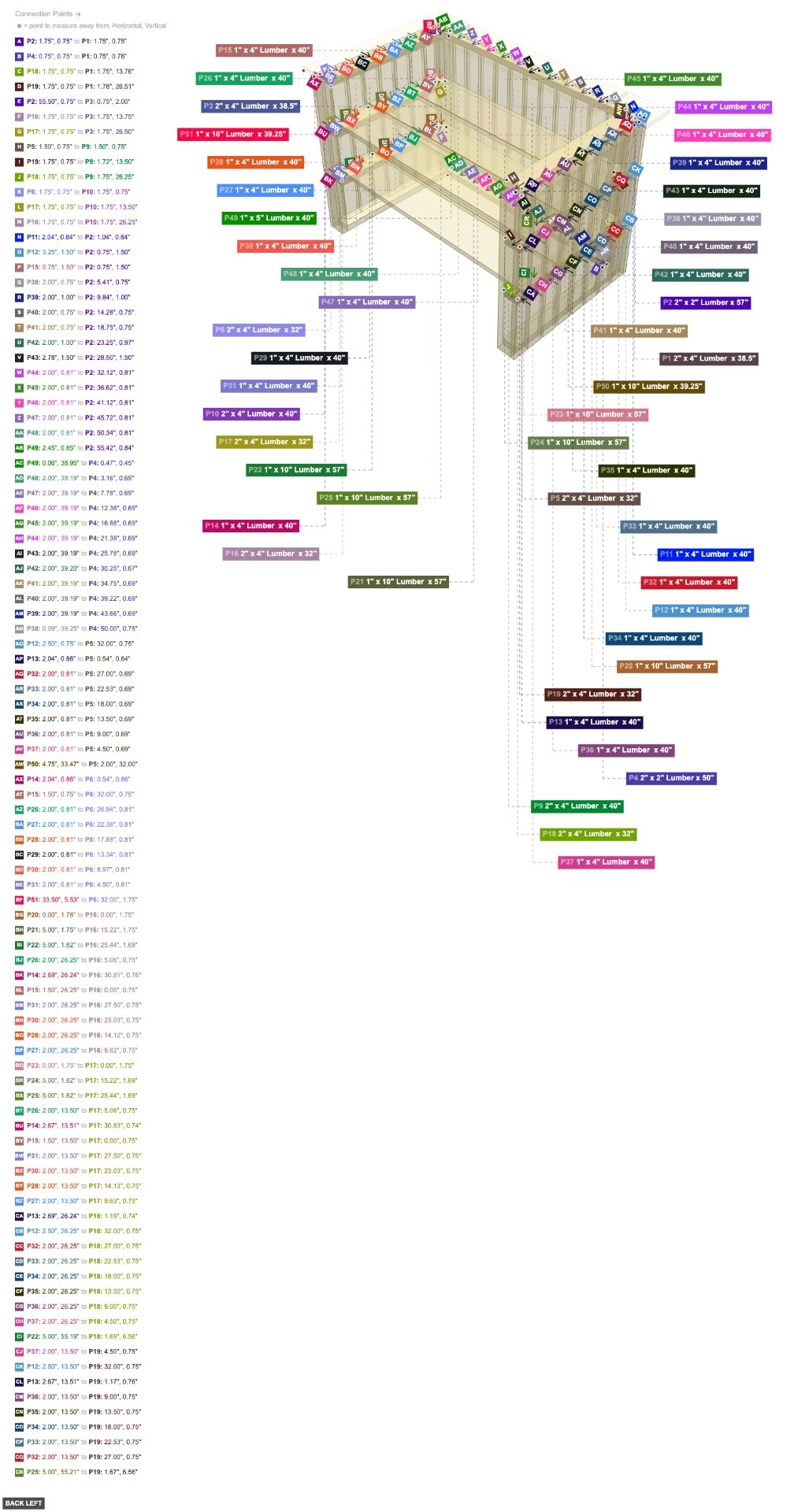

Group: Top Frame and Wing Supports

Assemble the upper frame components (P2, P4) and the remaining vertical/horizontal supports for the side wings (P5, P6, P16, P17, P18, P19). Connect this assembly to the Base Frame.

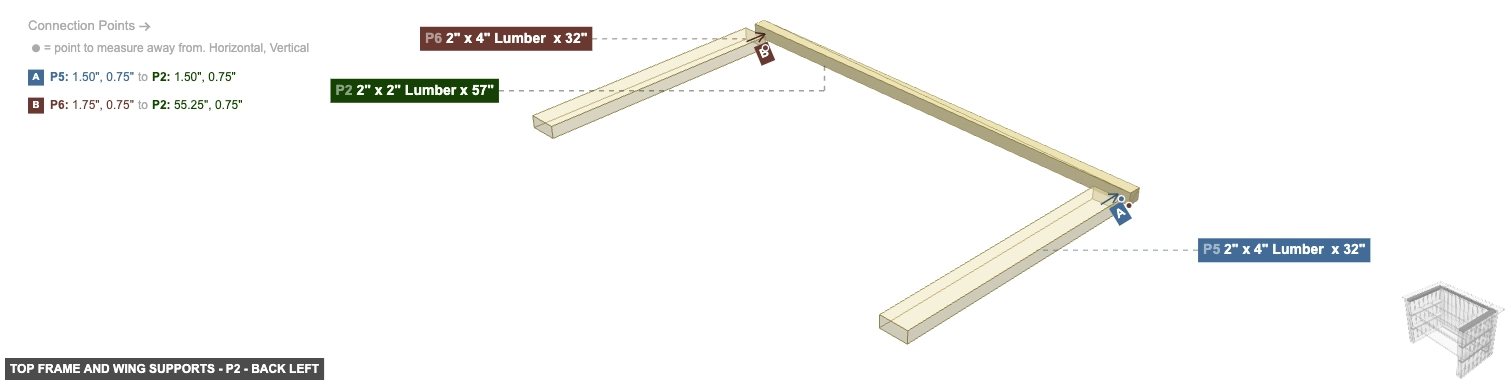

Part: 2" x 2" Lumber x 57" - Angle: back left

Top Frame and Wing Supports - Part 2
P2 (2" x 2" Lumber 57" length) - its 2" x 2" Wood Side #4, which is back-facing, should connect to part 5's 2" x 4" Wood End #2. After that, ensure its 2" x 2" Wood Side #3 faces top
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

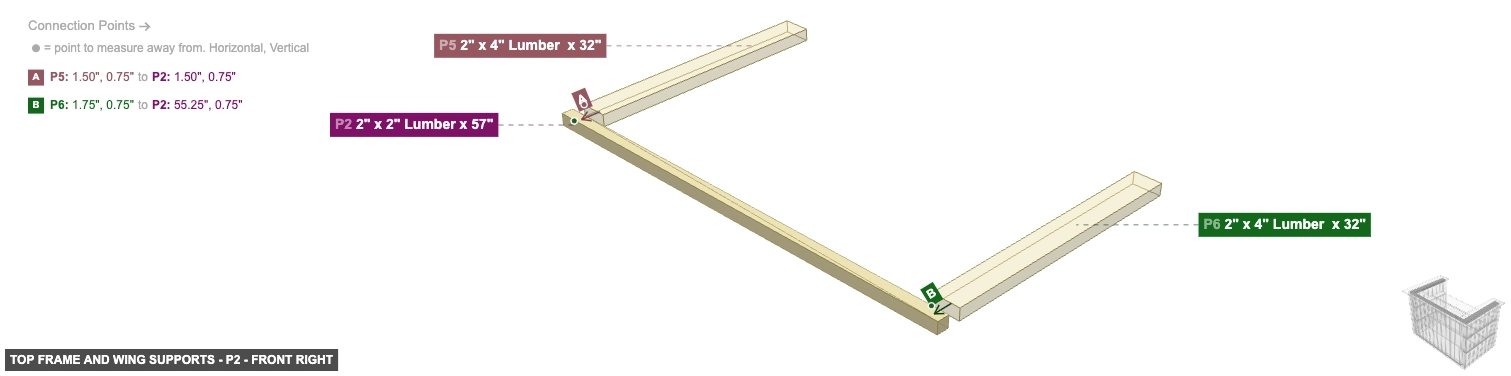

Part: 2" x 2" Lumber x 57" - Angle: front right

Top Frame and Wing Supports - Part 2
P2 (2" x 2" Lumber 57" length) - its 2" x 2" Wood Side #4, which is back-facing, should connect to part 5's 2" x 4" Wood End #2. After that, ensure its 2" x 2" Wood Side #3 faces top
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

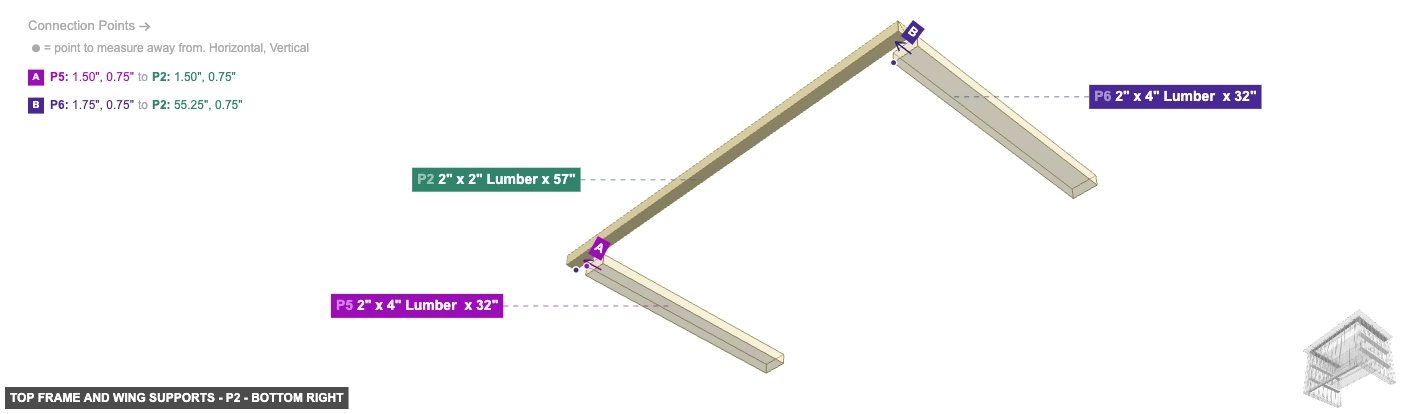

Part: 2" x 2" Lumber x 57" - Angle: bottom right

Top Frame and Wing Supports - Part 2
P2 (2" x 2" Lumber 57" length) - its 2" x 2" Wood Side #4, which is back-facing, should connect to part 5's 2" x 4" Wood End #2. After that, ensure its 2" x 2" Wood Side #3 faces top
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

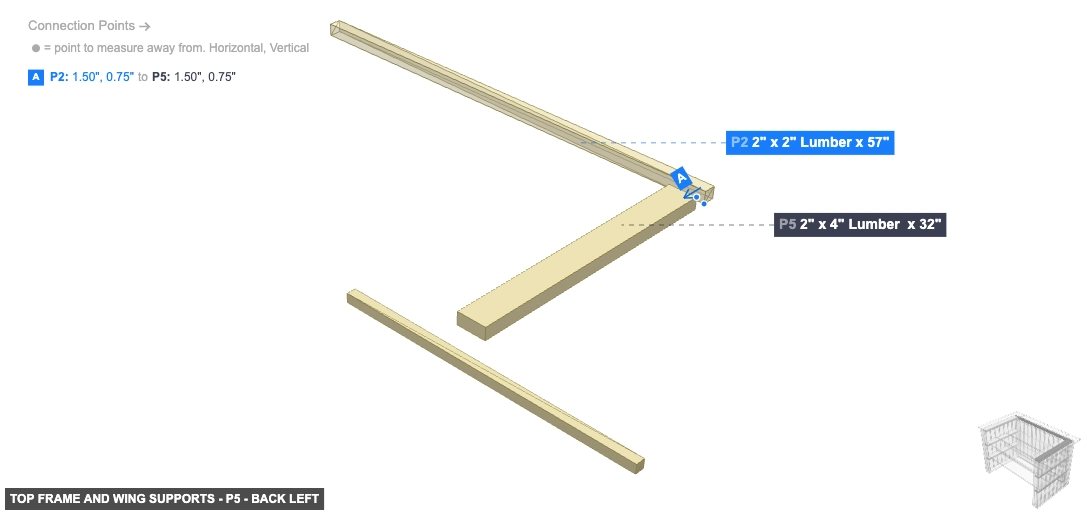

Part: 2" x 4" Lumber x 32" - Angle: back left

Top Frame and Wing Supports - Part 2
P5 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #2 facing front to part 2's 2" x 2" Wood Side #4, also its 2" x 4" Wood Side #1 should be directed right. Additionally, ensure its 2" x 4" Wood Side #4 faces bottom
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

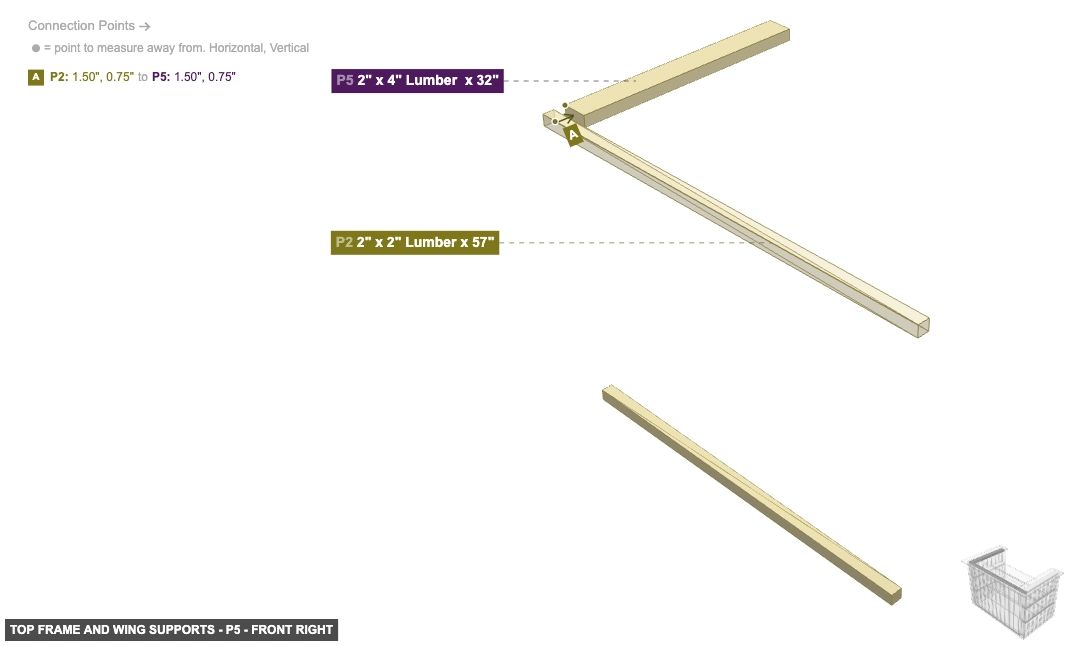

Part: 2" x 4" Lumber x 32" - Angle: front right

Top Frame and Wing Supports - Part 2
P5 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #2 facing front to part 2's 2" x 2" Wood Side #4, also its 2" x 4" Wood Side #1 should be directed right. Additionally, ensure its 2" x 4" Wood Side #4 faces bottom
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

Part: 2" x 4" Lumber x 32" - Angle: bottom right

Top Frame and Wing Supports - Part 2
P5 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #2 facing front to part 2's 2" x 2" Wood Side #4, also its 2" x 4" Wood Side #1 should be directed right. Additionally, ensure its 2" x 4" Wood Side #4 faces bottom
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

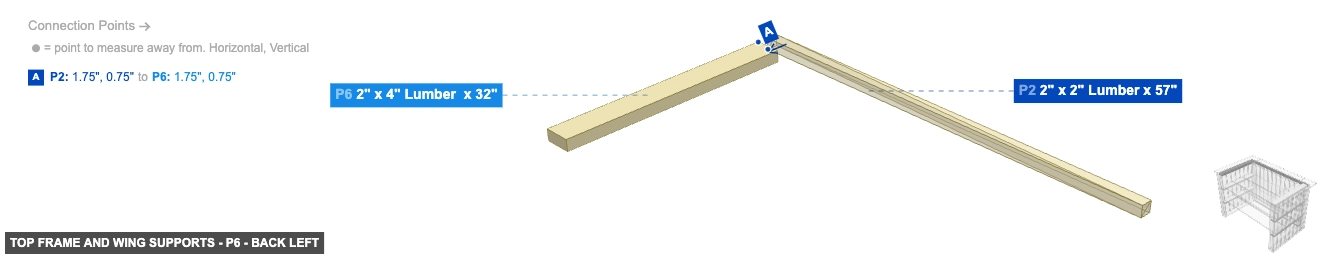

Part: 2" x 4" Lumber x 32" - Angle: back left

Top Frame and Wing Supports - Part 2
P6 (2" x 4" Lumber 32" length) - connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4. After that, ensure its 2" x 4" Wood Side #3 faces left, then its 2" x 4" Wood Side #4 should be directed bottom
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

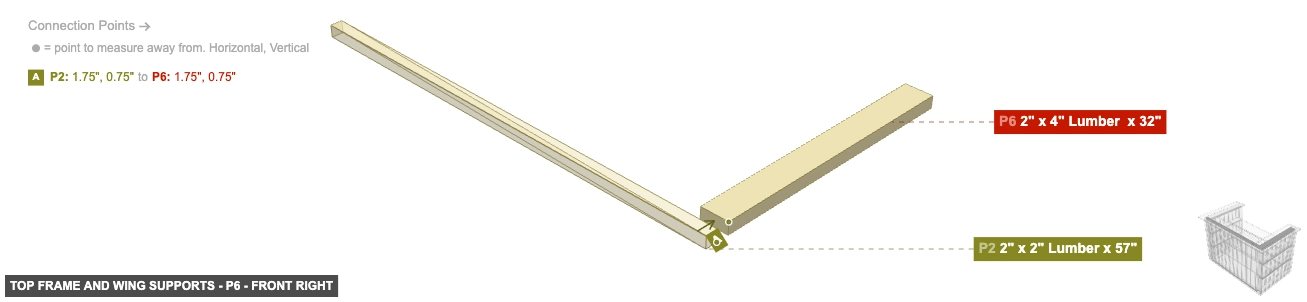

Part: 2" x 4" Lumber x 32" - Angle: front right

Top Frame and Wing Supports - Part 2
P6 (2" x 4" Lumber 32" length) - connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4. After that, ensure its 2" x 4" Wood Side #3 faces left, then its 2" x 4" Wood Side #4 should be directed bottom
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

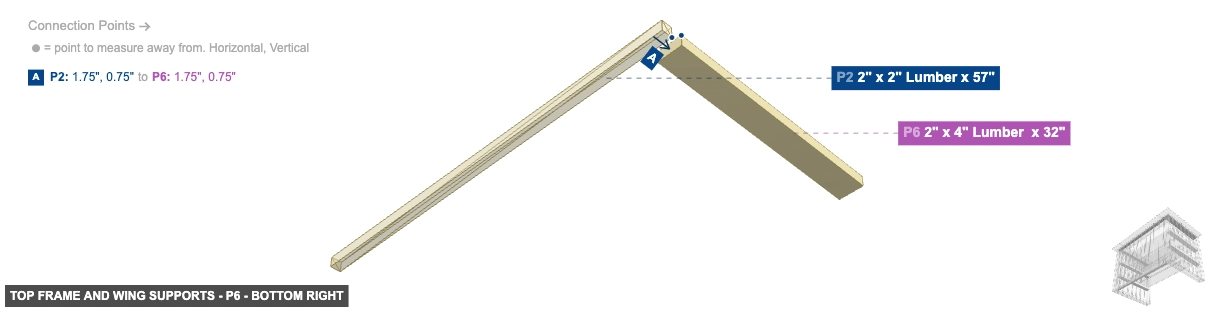

Part: 2" x 4" Lumber x 32" - Angle: bottom right

Top Frame and Wing Supports - Part 2
P6 (2" x 4" Lumber 32" length) - connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4. After that, ensure its 2" x 4" Wood Side #3 faces left, then its 2" x 4" Wood Side #4 should be directed bottom
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

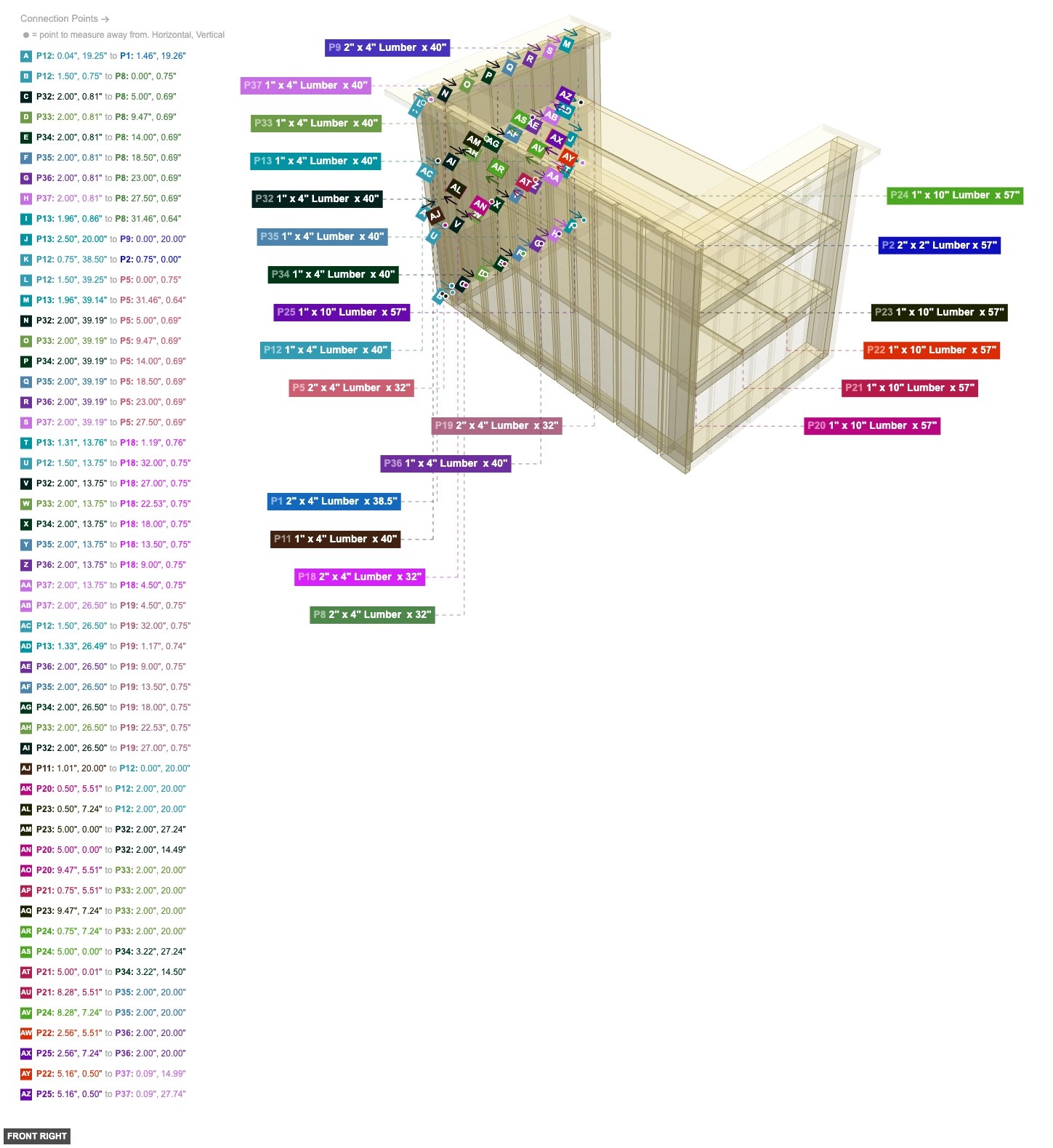

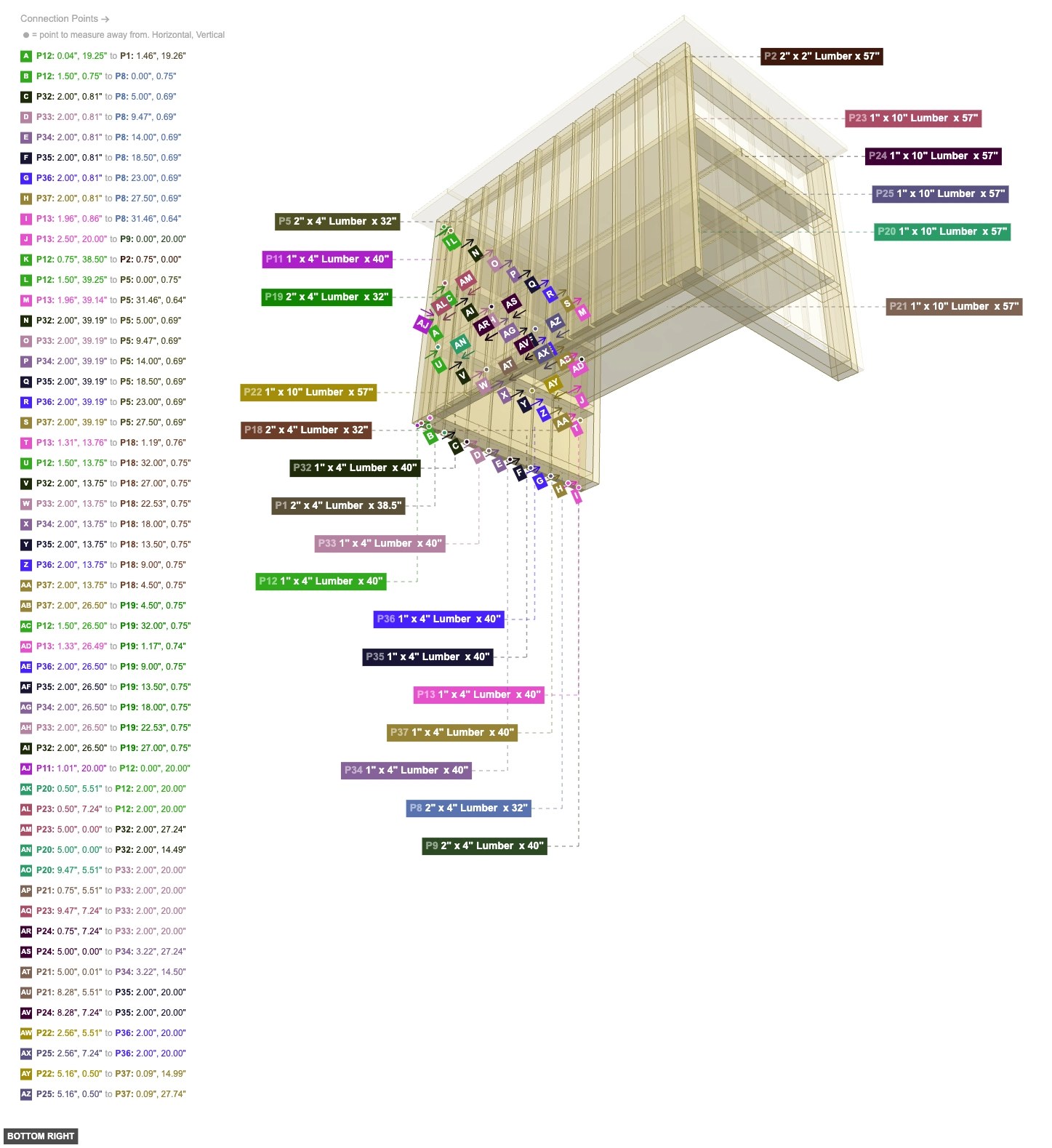

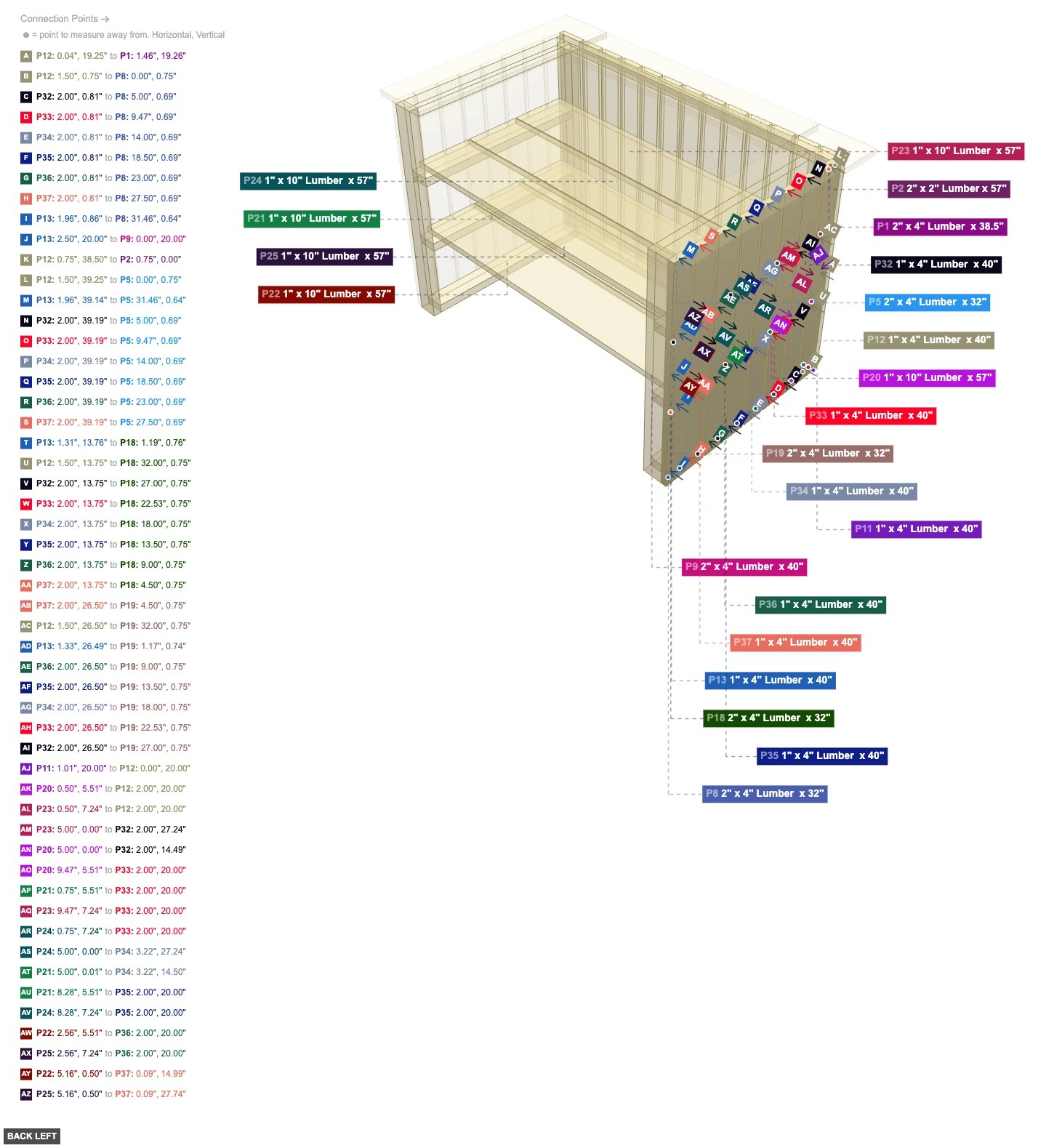

Group: Left Side Slats

Attach the vertical slats (P12, P13, P32-P37) that form the panels for the left side wing.

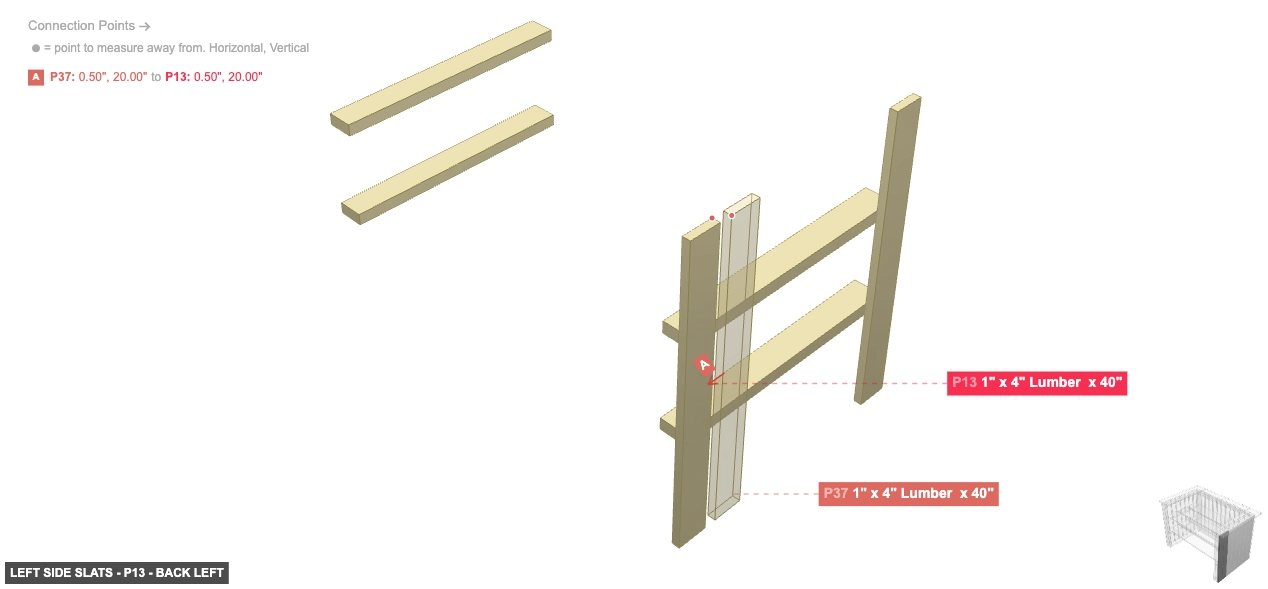

Part: 1" x 4" Lumber x 40" - Angle: back left

Left Side Slats - Part 1
P13 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #1 oriented front links with part 37's 1" x 4" Wood Side #3, and its 1" x 4" Wood End #1 should be directed bottom, plus ensure its 1" x 4" Wood Side #3 faces back. Next, its 1" x 4" Wood Side #4 must be oriented left, then its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

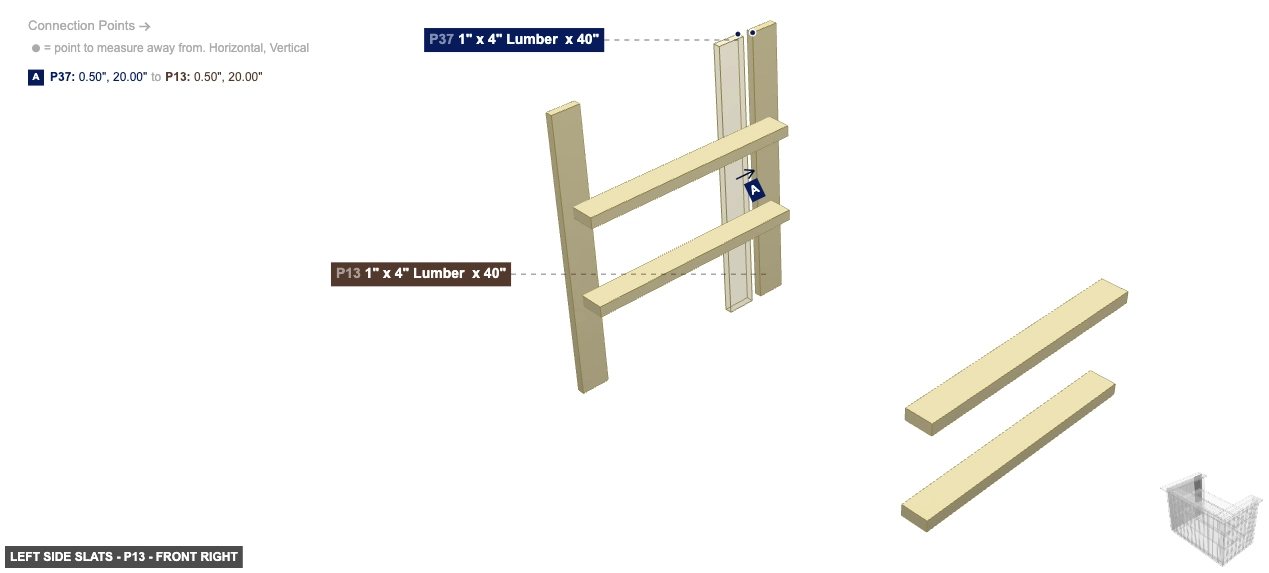

Part: 1" x 4" Lumber x 40" - Angle: front right

Left Side Slats - Part 1
P13 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #1 oriented front links with part 37's 1" x 4" Wood Side #3, and its 1" x 4" Wood End #1 should be directed bottom, plus ensure its 1" x 4" Wood Side #3 faces back. Next, its 1" x 4" Wood Side #4 must be oriented left, then its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

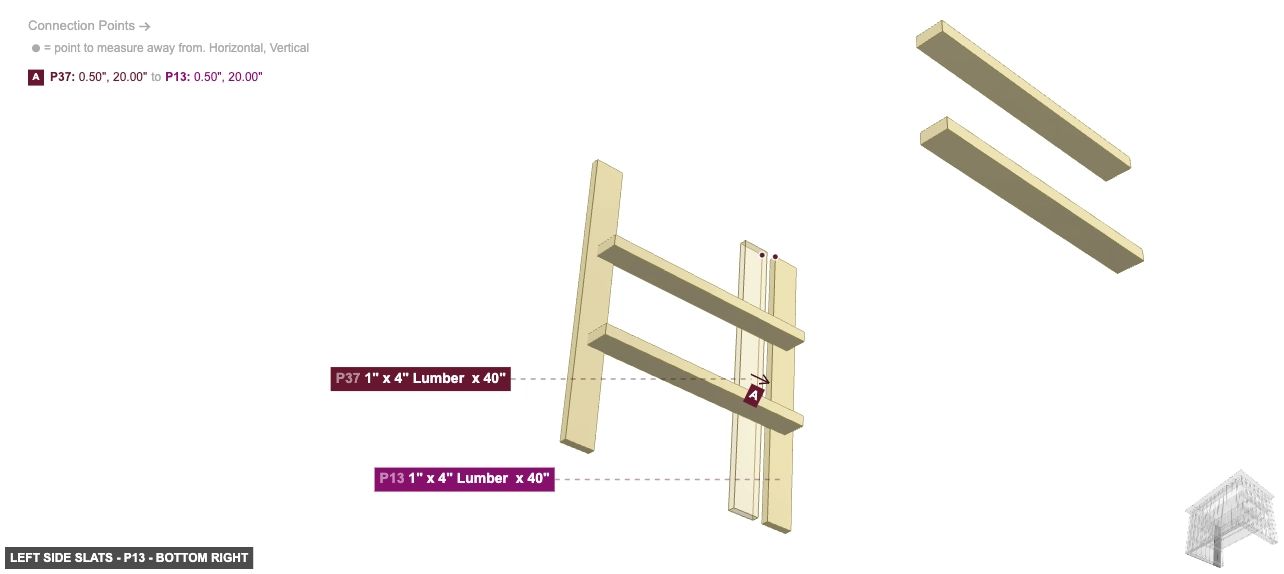

Part: 1" x 4" Lumber x 40" - Angle: bottom right

Left Side Slats - Part 1
P13 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #1 oriented front links with part 37's 1" x 4" Wood Side #3, and its 1" x 4" Wood End #1 should be directed bottom, plus ensure its 1" x 4" Wood Side #3 faces back. Next, its 1" x 4" Wood Side #4 must be oriented left, then its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

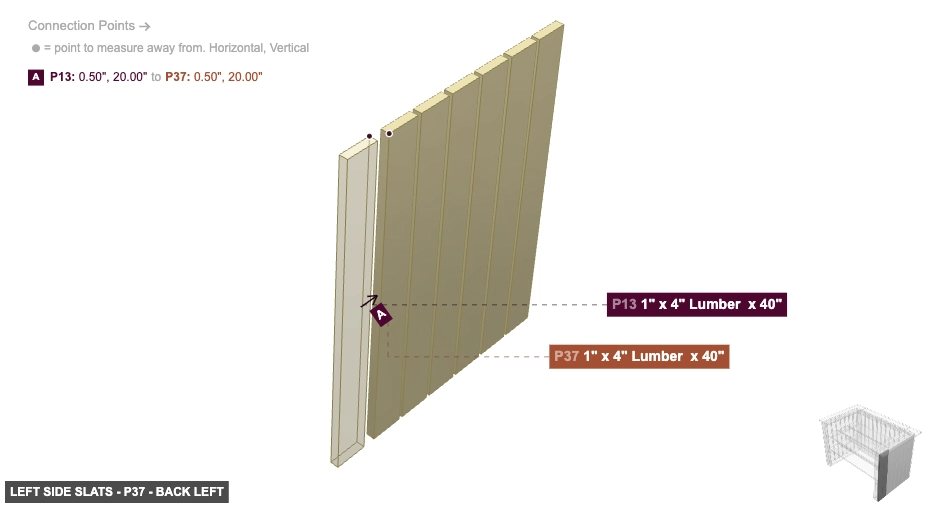

Part: 1" x 4" Lumber x 40" - Angle: back left

Left Side Slats - Part 1
P37 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #3 facing back to part 13's 1" x 4" Wood Side #1, and its 1" x 4" Wood End #1 must be oriented bottom. After that, ensure its 1" x 4" Wood Side #1 faces front. Next, ensure its 1" x 4" Wood Side #4 faces left. Additionally, its 1" x 4" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 8

Part: 1" x 4" Lumber x 40" - Angle: front right

Left Side Slats - Part 1
P37 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #3 facing back to part 13's 1" x 4" Wood Side #1, and its 1" x 4" Wood End #1 must be oriented bottom. After that, ensure its 1" x 4" Wood Side #1 faces front. Next, ensure its 1" x 4" Wood Side #4 faces left. Additionally, its 1" x 4" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 8

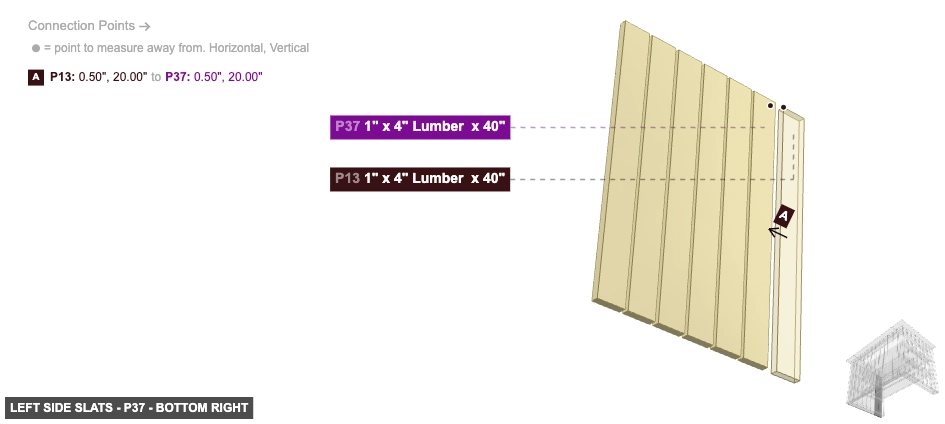

Part: 1" x 4" Lumber x 40" - Angle: bottom right

Left Side Slats - Part 1
P37 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #3 facing back to part 13's 1" x 4" Wood Side #1, and its 1" x 4" Wood End #1 must be oriented bottom. After that, ensure its 1" x 4" Wood Side #1 faces front. Next, ensure its 1" x 4" Wood Side #4 faces left. Additionally, its 1" x 4" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 8

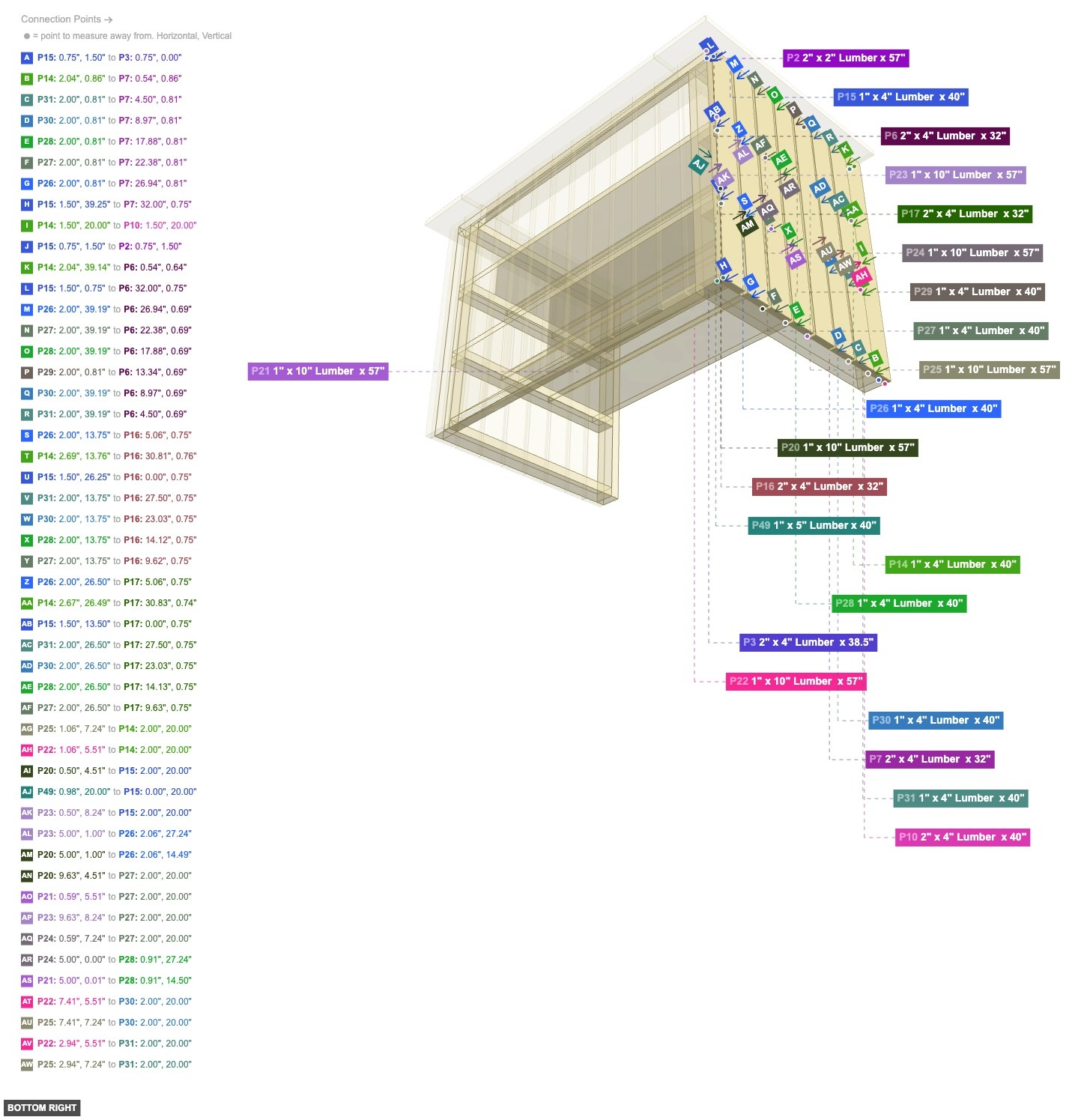

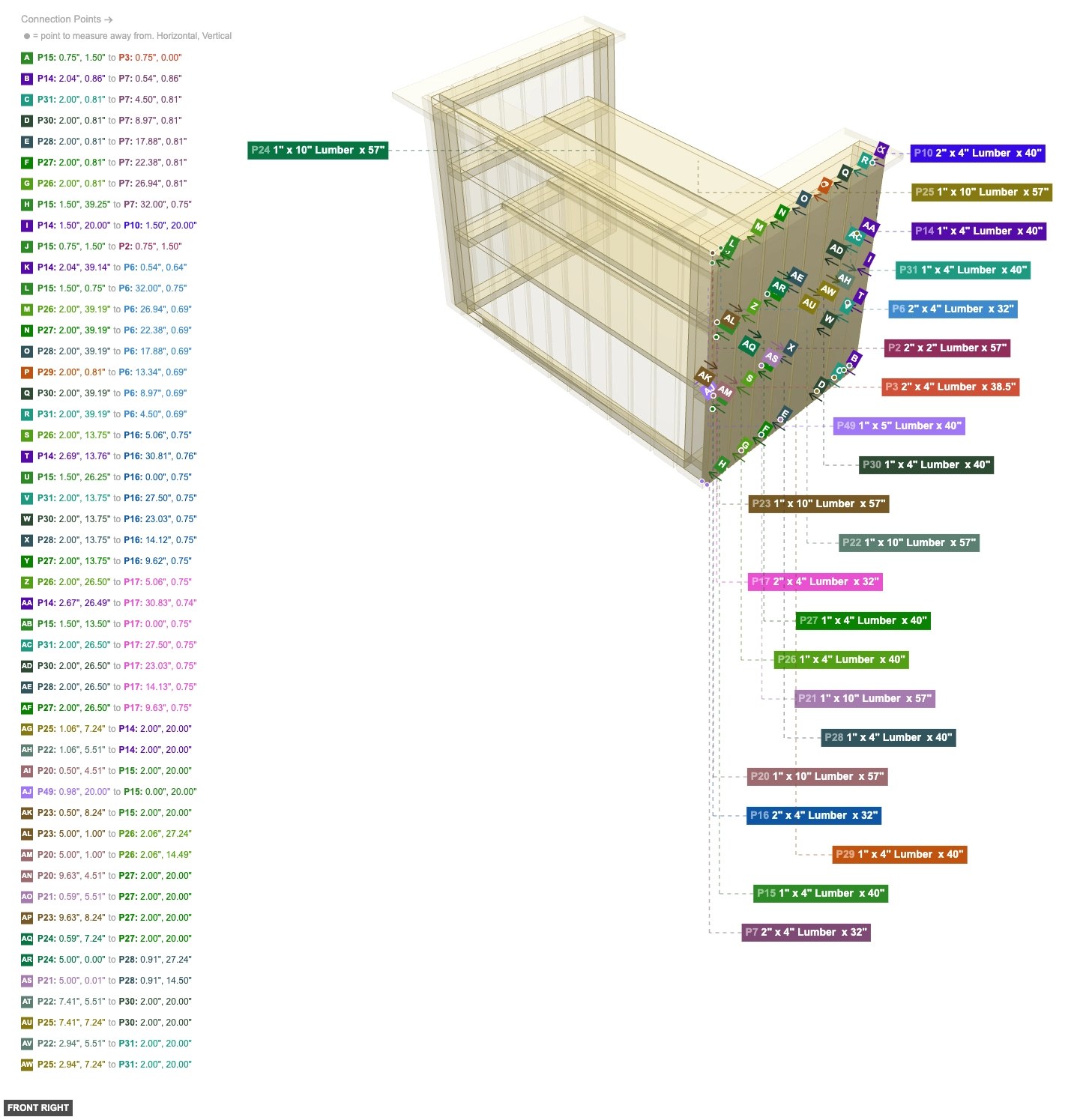

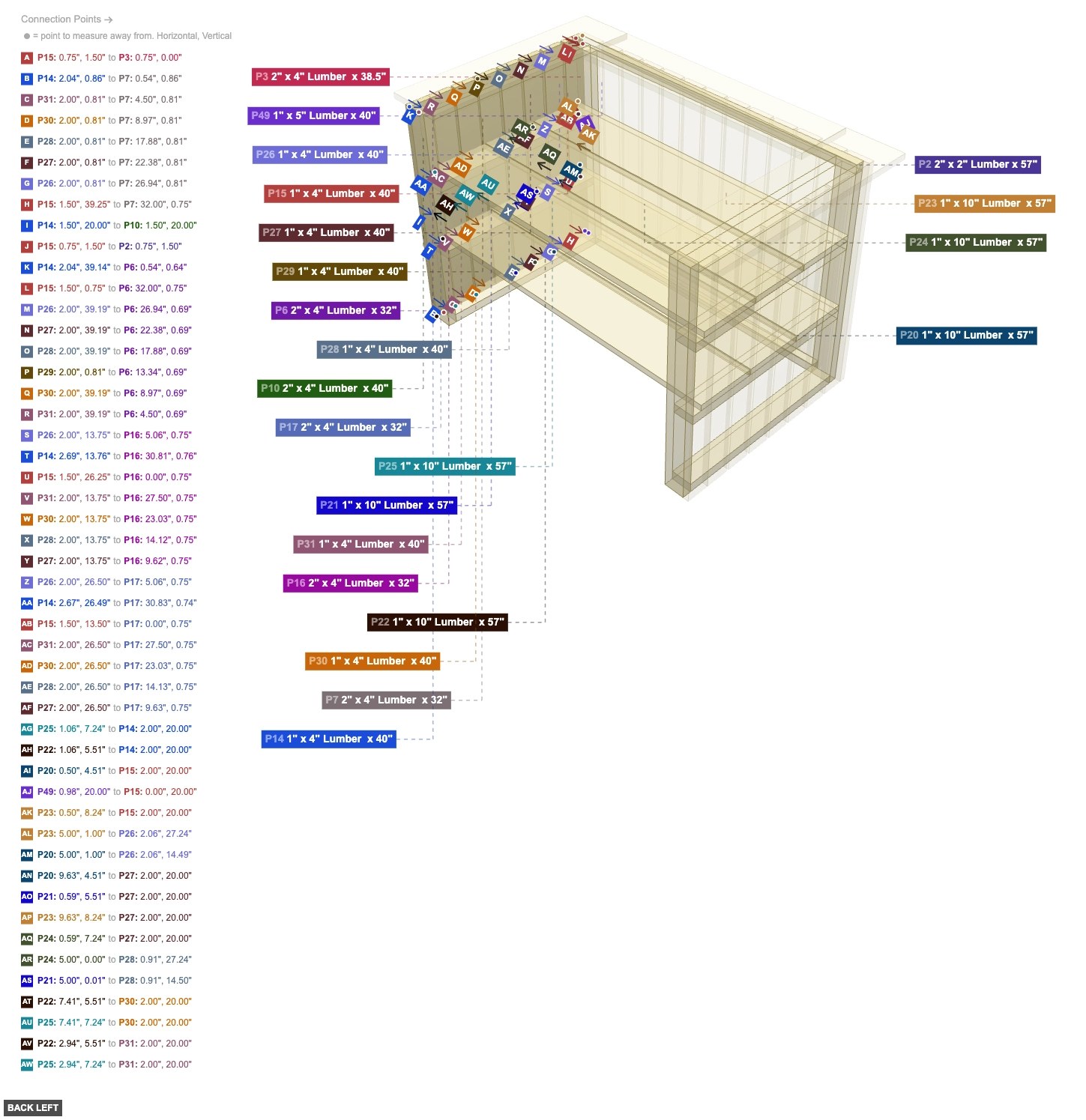

Group: Right Side Slats

Attach the vertical slats (P14, P15, P26-P31) that form the panels for the right side wing.

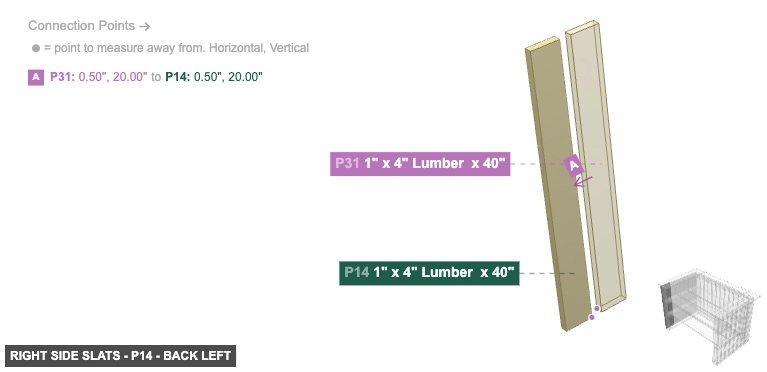

Part: 1" x 4" Lumber x 40" - Angle: back left

Right Side Slats - Part 1
P14 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #3 facing front to part 31's 1" x 4" Wood Side #1. Next, its 1" x 4" Wood End #1 needs to point bottom. Next, its 1" x 4" Wood Side #1 must be oriented back. After that, ensure its 1" x 4" Wood Side #4 faces right. After that, ensure its 1" x 4" Wood End #2 faces top
11" x 4" Lumber x 40"x 8

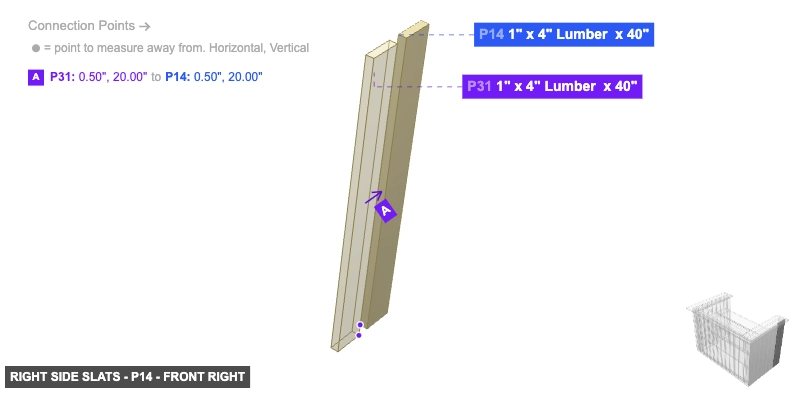

Part: 1" x 4" Lumber x 40" - Angle: front right

Right Side Slats - Part 1
P14 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #3 facing front to part 31's 1" x 4" Wood Side #1. Next, its 1" x 4" Wood End #1 needs to point bottom. Next, its 1" x 4" Wood Side #1 must be oriented back. After that, ensure its 1" x 4" Wood Side #4 faces right. After that, ensure its 1" x 4" Wood End #2 faces top
11" x 4" Lumber x 40"x 8

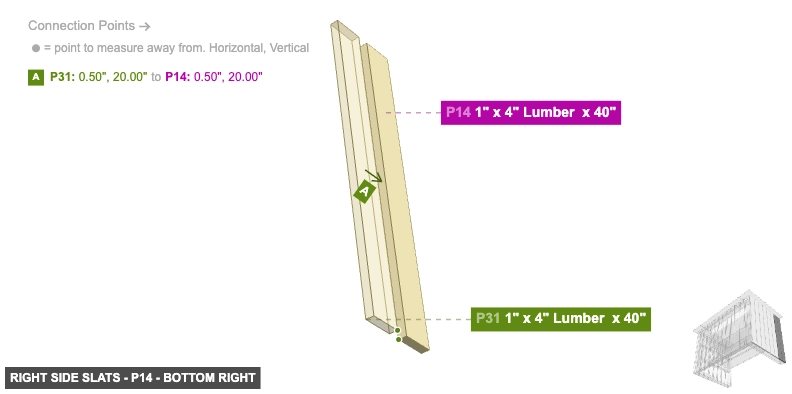

Part: 1" x 4" Lumber x 40" - Angle: bottom right

Right Side Slats - Part 1
P14 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #3 facing front to part 31's 1" x 4" Wood Side #1. Next, its 1" x 4" Wood End #1 needs to point bottom. Next, its 1" x 4" Wood Side #1 must be oriented back. After that, ensure its 1" x 4" Wood Side #4 faces right. After that, ensure its 1" x 4" Wood End #2 faces top
11" x 4" Lumber x 40"x 8

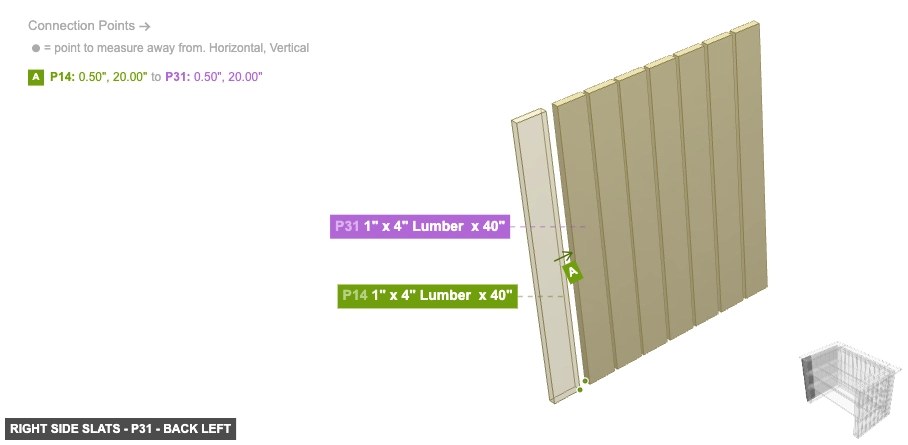

Part: 1" x 4" Lumber x 40" - Angle: back left

Right Side Slats - Part 1
P31 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #1, which is back-facing, should connect to part 14's 1" x 4" Wood Side #3. Also, ensure its 1" x 4" Wood End #1 faces bottom. Next, its 1" x 4" Wood Side #3 needs to point front. Next, its 1" x 4" Wood Side #4 needs to point right. Next, its 1" x 4" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 8

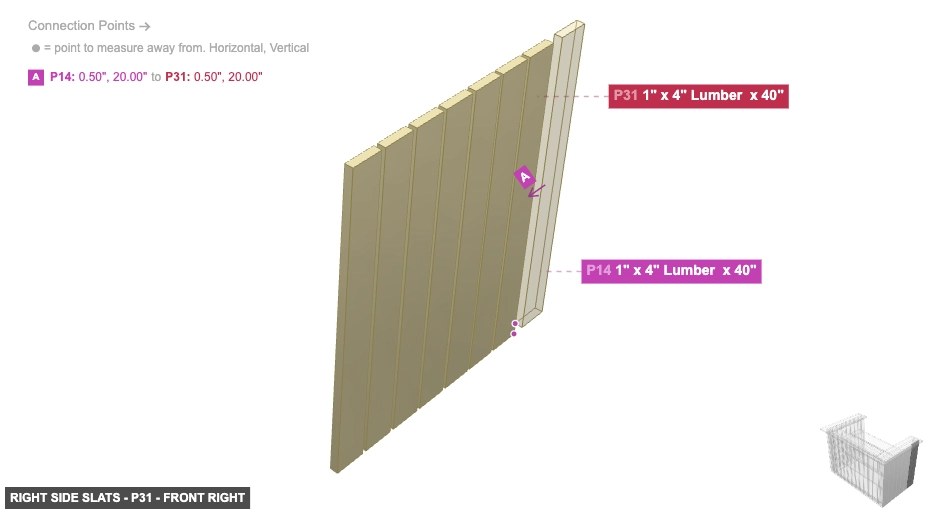

Part: 1" x 4" Lumber x 40" - Angle: front right

Right Side Slats - Part 1
P31 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #1, which is back-facing, should connect to part 14's 1" x 4" Wood Side #3. Also, ensure its 1" x 4" Wood End #1 faces bottom. Next, its 1" x 4" Wood Side #3 needs to point front. Next, its 1" x 4" Wood Side #4 needs to point right. Next, its 1" x 4" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 8

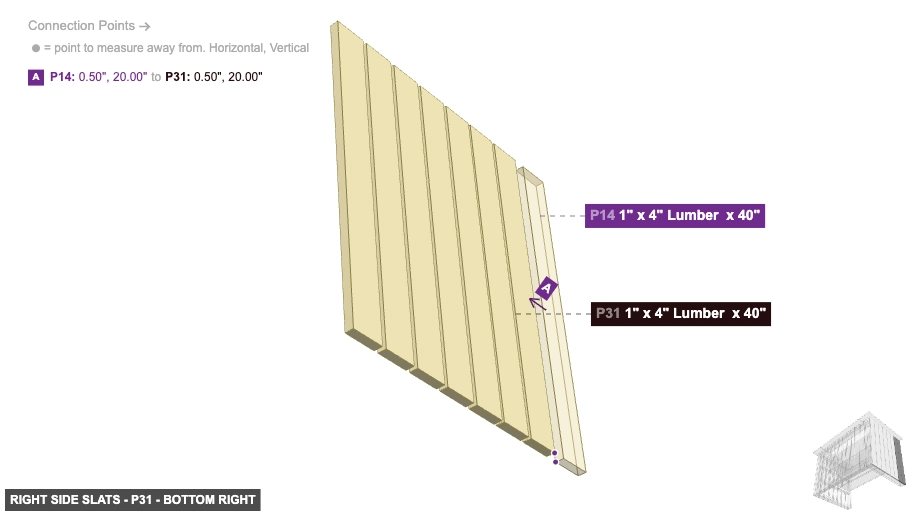

Part: 1" x 4" Lumber x 40" - Angle: bottom right

Right Side Slats - Part 1
P31 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #1, which is back-facing, should connect to part 14's 1" x 4" Wood Side #3. Also, ensure its 1" x 4" Wood End #1 faces bottom. Next, its 1" x 4" Wood Side #3 needs to point front. Next, its 1" x 4" Wood Side #4 needs to point right. Next, its 1" x 4" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 8

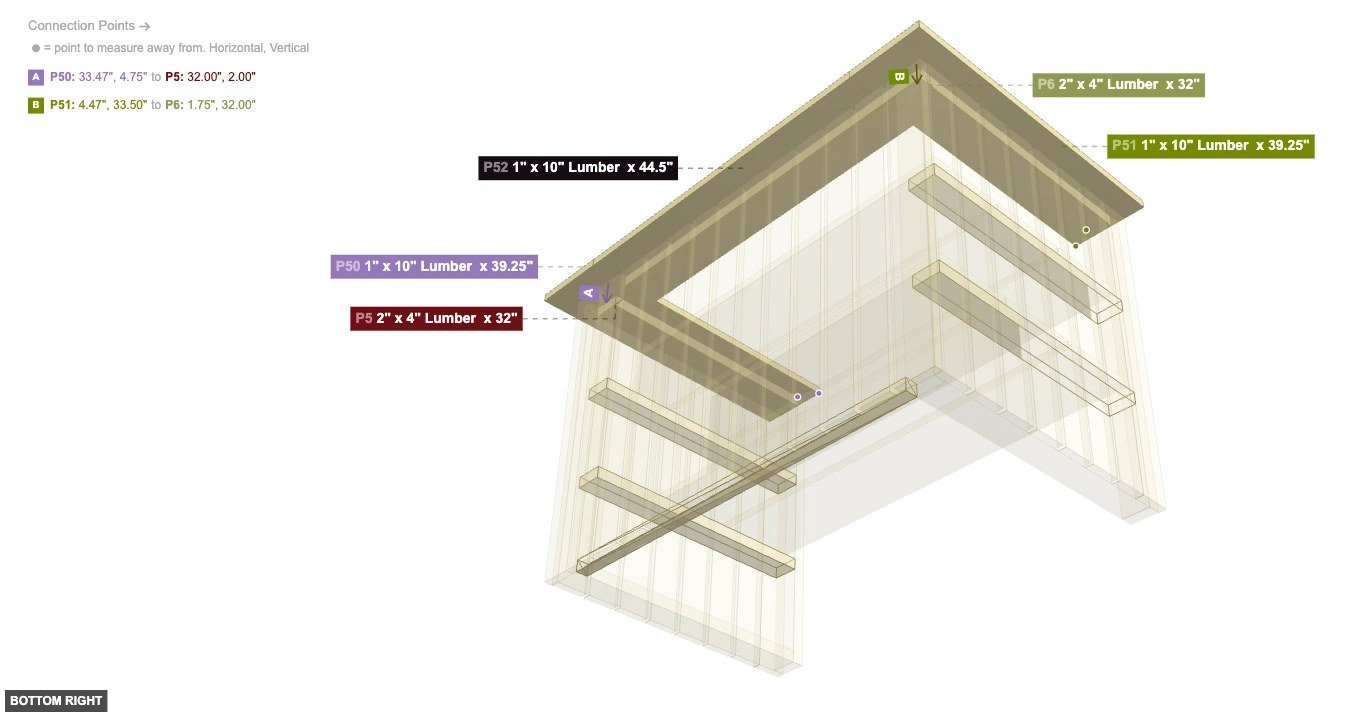

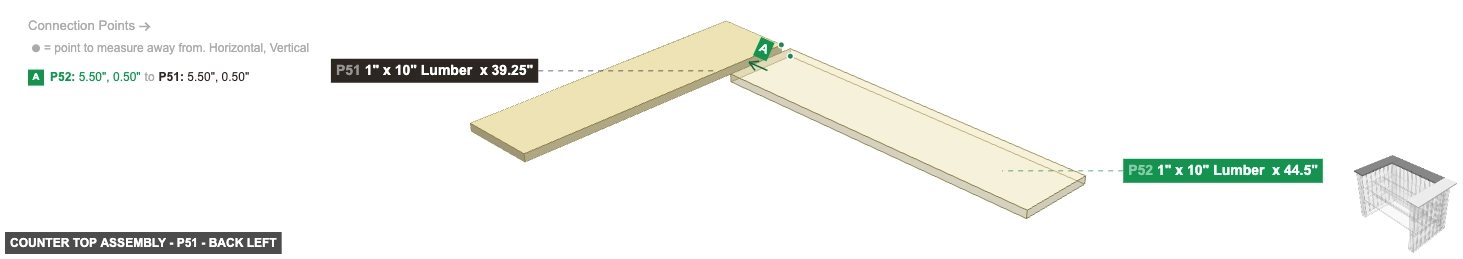

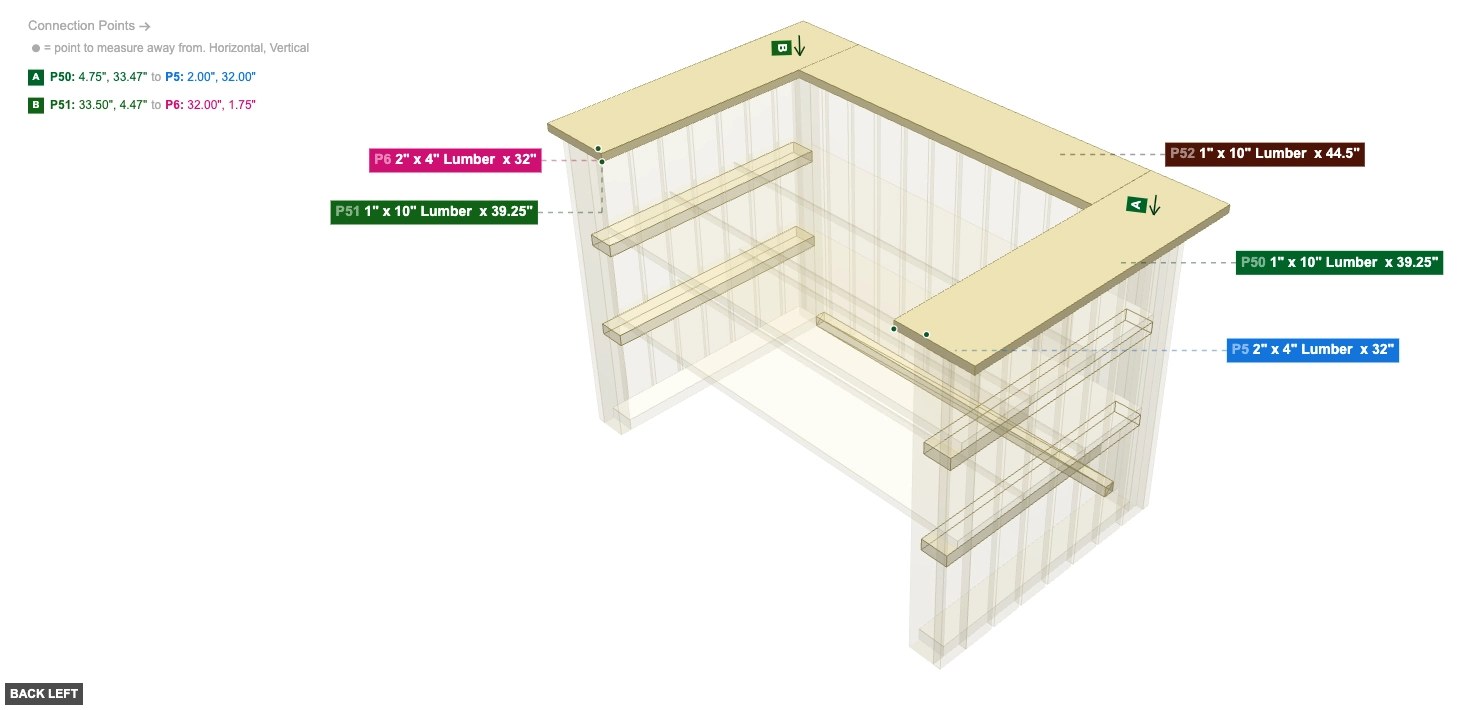

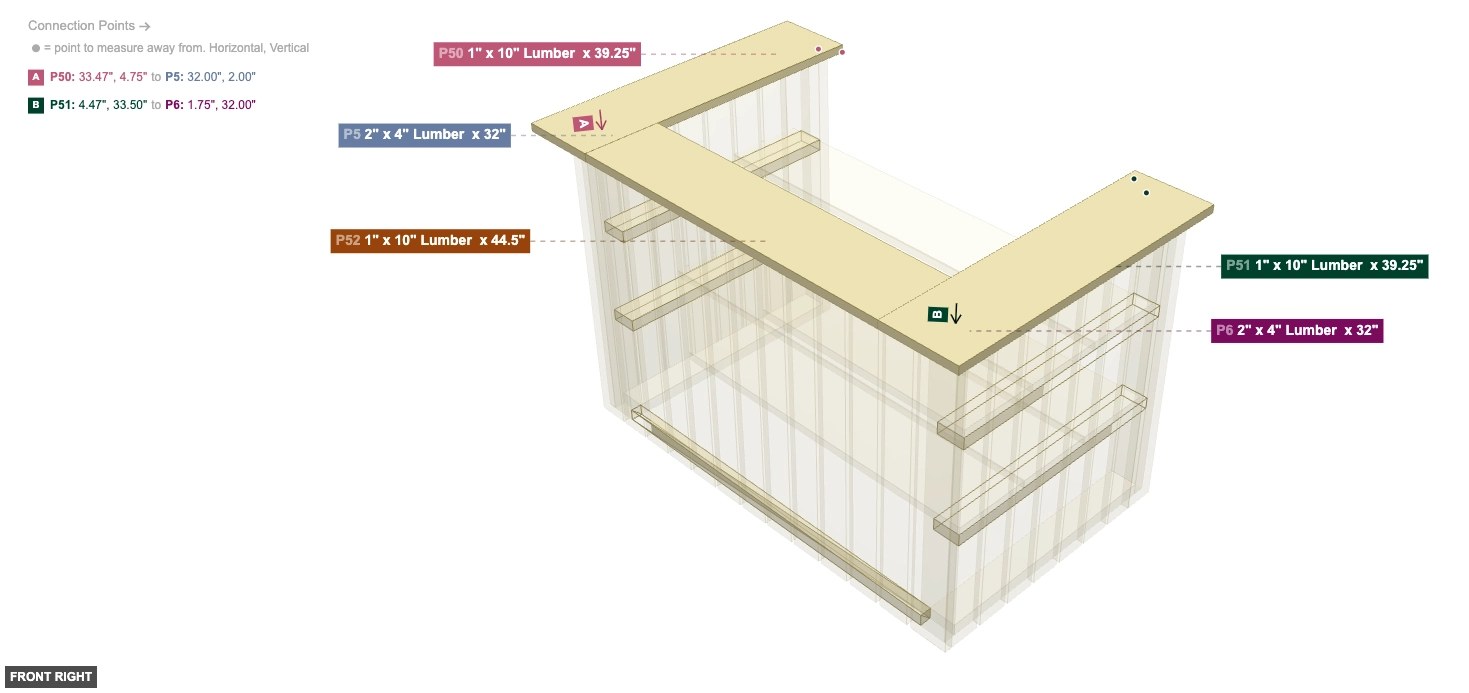

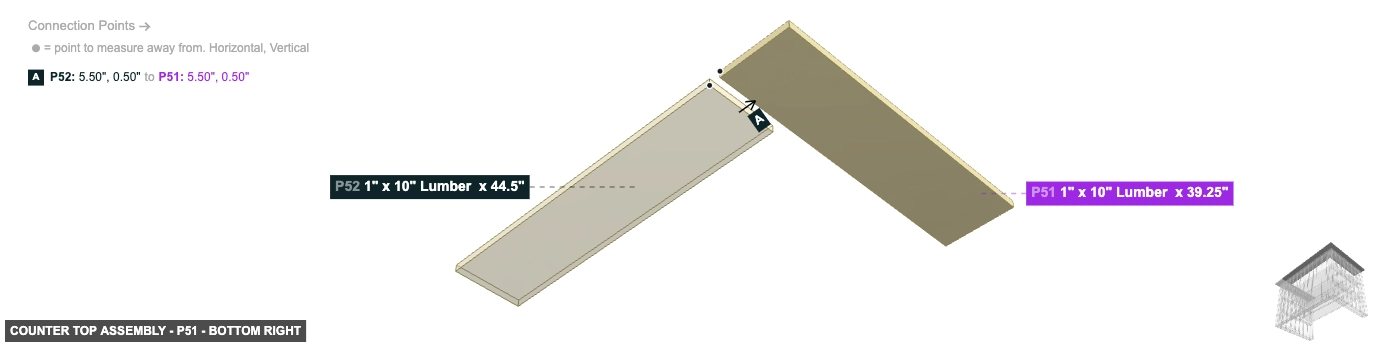

Group: Counter Top Assembly

Assemble the three parts of the counter top (P50, P51, P52) and attach the complete top surface to the main bar structure.

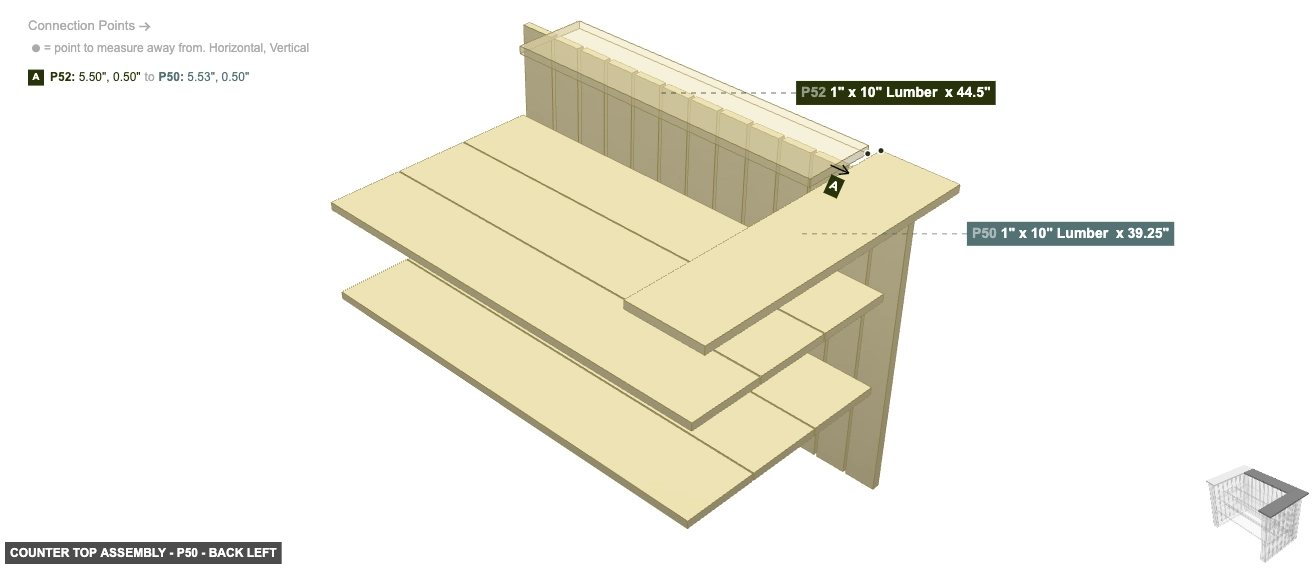

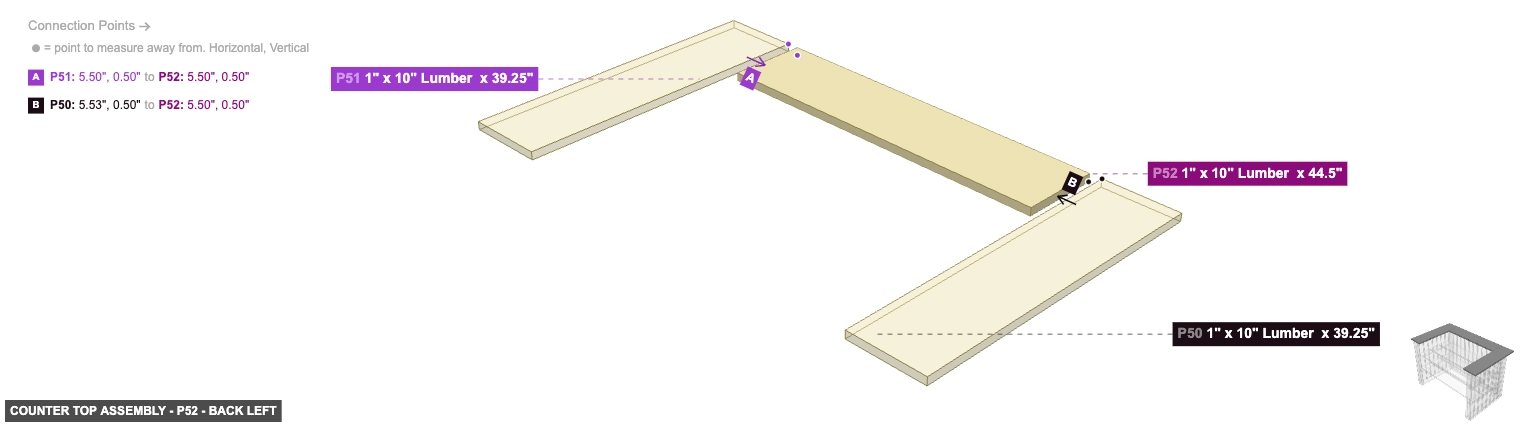

Part: 1" x 10" Lumber x 39.25" - Angle: back left

Counter Top Assembly - Part 1
P50 (1" x 10" Lumber 39.25" length) - its 1" x 10" Wood Side #1, which is right-facing, should connect to part 52's 1" x 10" Wood End #1, and its 1" x 10" Wood End #1 needs to point front, then its 1" x 10" Wood Side #3 needs to point left. Additionally, its 1" x 10" Wood Side #4 must be oriented top, also its 1" x 10" Wood End #2 needs to point back
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

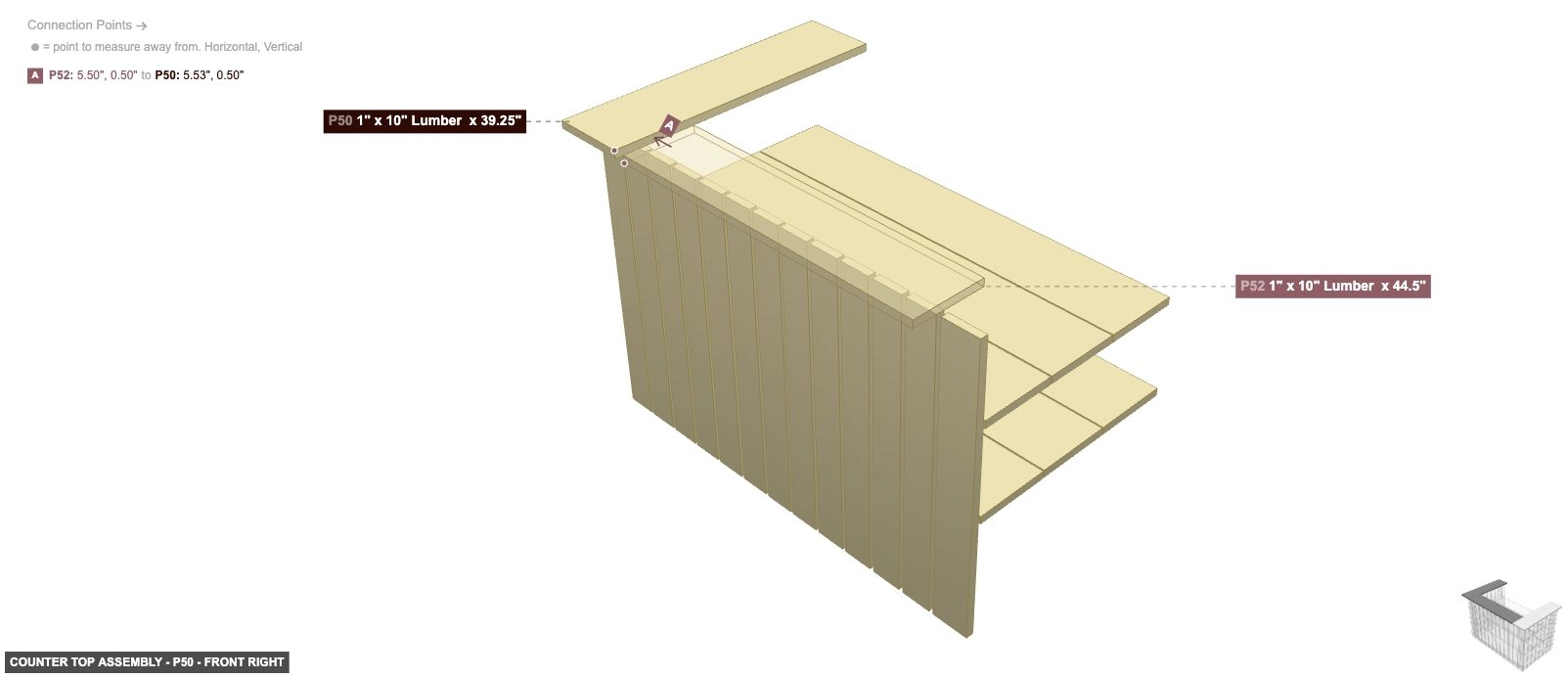

Part: 1" x 10" Lumber x 39.25" - Angle: front right

Counter Top Assembly - Part 1
P50 (1" x 10" Lumber 39.25" length) - its 1" x 10" Wood Side #1, which is right-facing, should connect to part 52's 1" x 10" Wood End #1, and its 1" x 10" Wood End #1 needs to point front, then its 1" x 10" Wood Side #3 needs to point left. Additionally, its 1" x 10" Wood Side #4 must be oriented top, also its 1" x 10" Wood End #2 needs to point back
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Part: 1" x 10" Lumber x 39.25" - Angle: bottom right

Counter Top Assembly - Part 1
P50 (1" x 10" Lumber 39.25" length) - its 1" x 10" Wood Side #1, which is right-facing, should connect to part 52's 1" x 10" Wood End #1, and its 1" x 10" Wood End #1 needs to point front, then its 1" x 10" Wood Side #3 needs to point left. Additionally, its 1" x 10" Wood Side #4 must be oriented top, also its 1" x 10" Wood End #2 needs to point back
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Part: 1" x 10" Lumber x 39.25" - Angle: back left

Counter Top Assembly - Part 1
P51 (1" x 10" Lumber 39.25" length) - connect its 1" x 10" Wood Side #3 oriented left links with part 52's 1" x 10" Wood End #2. After that, its 1" x 10" Wood End #1 should be directed front. Next, ensure its 1" x 10" Wood Side #1 faces right. Next, its 1" x 10" Wood Side #4 must be oriented top. Additionally, its 1" x 10" Wood End #2 should be directed back
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Part: 1" x 10" Lumber x 39.25" - Angle: front right

Counter Top Assembly - Part 1
P51 (1" x 10" Lumber 39.25" length) - connect its 1" x 10" Wood Side #3 oriented left links with part 52's 1" x 10" Wood End #2. After that, its 1" x 10" Wood End #1 should be directed front. Next, ensure its 1" x 10" Wood Side #1 faces right. Next, its 1" x 10" Wood Side #4 must be oriented top. Additionally, its 1" x 10" Wood End #2 should be directed back
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Part: 1" x 10" Lumber x 39.25" - Angle: bottom right

Counter Top Assembly - Part 1
P51 (1" x 10" Lumber 39.25" length) - connect its 1" x 10" Wood Side #3 oriented left links with part 52's 1" x 10" Wood End #2. After that, its 1" x 10" Wood End #1 should be directed front. Next, ensure its 1" x 10" Wood Side #1 faces right. Next, its 1" x 10" Wood Side #4 must be oriented top. Additionally, its 1" x 10" Wood End #2 should be directed back
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Part: 1" x 10" Lumber x 44.5" - Angle: back left

Counter Top Assembly - Part 1
P52 (1" x 10" Lumber 44.5" length) - attach its 1" x 10" Wood End #1 facing left to part 50's 1" x 10" Wood Side #1, and attach its 1" x 10" Wood End #2 facing right to part 51's 1" x 10" Wood Side #3, then its 1" x 10" Wood Side #1 must be oriented front, then its 1" x 10" Wood Side #2 needs to point bottom. Additionally, its 1" x 10" Wood Side #3 should be directed back. Also, ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Part: 1" x 10" Lumber x 44.5" - Angle: front right

Counter Top Assembly - Part 1
P52 (1" x 10" Lumber 44.5" length) - attach its 1" x 10" Wood End #1 facing left to part 50's 1" x 10" Wood Side #1, and attach its 1" x 10" Wood End #2 facing right to part 51's 1" x 10" Wood Side #3, then its 1" x 10" Wood Side #1 must be oriented front, then its 1" x 10" Wood Side #2 needs to point bottom. Additionally, its 1" x 10" Wood Side #3 should be directed back. Also, ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Part: 1" x 10" Lumber x 44.5" - Angle: bottom right

Counter Top Assembly - Part 1
P52 (1" x 10" Lumber 44.5" length) - attach its 1" x 10" Wood End #1 facing left to part 50's 1" x 10" Wood Side #1, and attach its 1" x 10" Wood End #2 facing right to part 51's 1" x 10" Wood Side #3, then its 1" x 10" Wood Side #1 must be oriented front, then its 1" x 10" Wood Side #2 needs to point bottom. Additionally, its 1" x 10" Wood Side #3 should be directed back. Also, ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Phase 3: Inter-Group Assembly

Attaching: Base Frame and Back Posts

Assemble the main base frame components (P1, P3) and attach the rear vertical posts (P9, P10) along with their lower connecting supports (P7, P8).

Angle: back left

Assembly of Base Frame and Back Posts - back_left
P1 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood End #1 facing top to part 2's 2" x 2" Wood Side #1. Additionally, connect its 2" x 4" Wood Side #1 oriented left links with part 12's 1" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #2, which is back-facing, should connect to part 8's 2" x 4" Wood End #2. Next, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 4's 2" x 2" Wood End #2. Additionally, attach its 2" x 4" Wood Side #4 facing front to part 11's 1" x 4" Wood Side #2. After that, its 2" x 4" Wood End #2 must be oriented bottom P3 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood Side #2 facing front to part 49's 1" x 5" Wood Side #2. Next, attach its 2" x 4" Wood Side #3 facing right to part 15's 1" x 4" Wood Side #2, and attach its 2" x 4" Wood Side #4 facing back to part 7's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #2, which is top-facing, should connect to part 2's 2" x 2" Wood Side #1. Next, its 2" x 4" Wood End #1 must be oriented bottom, also ensure its 2" x 4" Wood Side #1 faces left P7 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. Next, attach its 2" x 4" Wood Side #3 facing right to part 14's 1" x 4" Wood Side #2. After that, connect its 2" x 4" Wood End #2 oriented front links with part 3's 2" x 4" Wood Side #4, and its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 must be oriented bottom. Additionally, its 2" x 4" Wood Side #4 needs to point top P8 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #1 facing left to part 12's 1" x 4" Wood Side #2, also attach its 2" x 4" Wood End #2 facing front to part 1's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #2 should be directed bottom. Next, its 2" x 4" Wood Side #3 should be directed right, then ensure its 2" x 4" Wood Side #4 faces top P9 (2" x 4" Lumber 40" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 8's 2" x 4" Wood End #1, plus attach its 2" x 4" Wood Side #3 facing left to part 13's 1" x 4" Wood Side #2, then its 2" x 4" Wood End #1 should be directed top. Additionally, ensure its 2" x 4" Wood Side #1 faces right. Next, its 2" x 4" Wood Side #4 should be directed back. Additionally, its 2" x 4" Wood End #2 needs to point bottom P10 (2" x 4" Lumber 40" length) - connect its 2" x 4" Wood Side #1 oriented right links with part 14's 1" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #2 facing front to part 7's 2" x 4" Wood End #1, plus ensure its 2" x 4" Wood End #1 faces top, plus ensure its 2" x 4" Wood Side #3 faces left, and ensure its 2" x 4" Wood Side #4 faces back. Next, its 2" x 4" Wood End #2 should be directed bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

Angle: front right

Assembly of Base Frame and Back Posts - front_right
P1 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood End #1 facing top to part 2's 2" x 2" Wood Side #1. Additionally, connect its 2" x 4" Wood Side #1 oriented left links with part 12's 1" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #2, which is back-facing, should connect to part 8's 2" x 4" Wood End #2. Next, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 4's 2" x 2" Wood End #2. Additionally, attach its 2" x 4" Wood Side #4 facing front to part 11's 1" x 4" Wood Side #2. After that, its 2" x 4" Wood End #2 must be oriented bottom P3 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood Side #2 facing front to part 49's 1" x 5" Wood Side #2. Next, attach its 2" x 4" Wood Side #3 facing right to part 15's 1" x 4" Wood Side #2, and attach its 2" x 4" Wood Side #4 facing back to part 7's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #2, which is top-facing, should connect to part 2's 2" x 2" Wood Side #1. Next, its 2" x 4" Wood End #1 must be oriented bottom, also ensure its 2" x 4" Wood Side #1 faces left P7 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. Next, attach its 2" x 4" Wood Side #3 facing right to part 14's 1" x 4" Wood Side #2. After that, connect its 2" x 4" Wood End #2 oriented front links with part 3's 2" x 4" Wood Side #4, and its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 must be oriented bottom. Additionally, its 2" x 4" Wood Side #4 needs to point top P8 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #1 facing left to part 12's 1" x 4" Wood Side #2, also attach its 2" x 4" Wood End #2 facing front to part 1's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #2 should be directed bottom. Next, its 2" x 4" Wood Side #3 should be directed right, then ensure its 2" x 4" Wood Side #4 faces top P9 (2" x 4" Lumber 40" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 8's 2" x 4" Wood End #1, plus attach its 2" x 4" Wood Side #3 facing left to part 13's 1" x 4" Wood Side #2, then its 2" x 4" Wood End #1 should be directed top. Additionally, ensure its 2" x 4" Wood Side #1 faces right. Next, its 2" x 4" Wood Side #4 should be directed back. Additionally, its 2" x 4" Wood End #2 needs to point bottom P10 (2" x 4" Lumber 40" length) - connect its 2" x 4" Wood Side #1 oriented right links with part 14's 1" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #2 facing front to part 7's 2" x 4" Wood End #1, plus ensure its 2" x 4" Wood End #1 faces top, plus ensure its 2" x 4" Wood Side #3 faces left, and ensure its 2" x 4" Wood Side #4 faces back. Next, its 2" x 4" Wood End #2 should be directed bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

Angle: bottom right

Assembly of Base Frame and Back Posts - bottom_right
P1 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood End #1 facing top to part 2's 2" x 2" Wood Side #1. Additionally, connect its 2" x 4" Wood Side #1 oriented left links with part 12's 1" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #2, which is back-facing, should connect to part 8's 2" x 4" Wood End #2. Next, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 4's 2" x 2" Wood End #2. Additionally, attach its 2" x 4" Wood Side #4 facing front to part 11's 1" x 4" Wood Side #2. After that, its 2" x 4" Wood End #2 must be oriented bottom P3 (2" x 4" Lumber 38.5" length) - attach its 2" x 4" Wood Side #2 facing front to part 49's 1" x 5" Wood Side #2. Next, attach its 2" x 4" Wood Side #3 facing right to part 15's 1" x 4" Wood Side #2, and attach its 2" x 4" Wood Side #4 facing back to part 7's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #2, which is top-facing, should connect to part 2's 2" x 2" Wood Side #1. Next, its 2" x 4" Wood End #1 must be oriented bottom, also ensure its 2" x 4" Wood Side #1 faces left P7 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. Next, attach its 2" x 4" Wood Side #3 facing right to part 14's 1" x 4" Wood Side #2. After that, connect its 2" x 4" Wood End #2 oriented front links with part 3's 2" x 4" Wood Side #4, and its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 must be oriented bottom. Additionally, its 2" x 4" Wood Side #4 needs to point top P8 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #1 facing left to part 12's 1" x 4" Wood Side #2, also attach its 2" x 4" Wood End #2 facing front to part 1's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #2 should be directed bottom. Next, its 2" x 4" Wood Side #3 should be directed right, then ensure its 2" x 4" Wood Side #4 faces top P9 (2" x 4" Lumber 40" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 8's 2" x 4" Wood End #1, plus attach its 2" x 4" Wood Side #3 facing left to part 13's 1" x 4" Wood Side #2, then its 2" x 4" Wood End #1 should be directed top. Additionally, ensure its 2" x 4" Wood Side #1 faces right. Next, its 2" x 4" Wood Side #4 should be directed back. Additionally, its 2" x 4" Wood End #2 needs to point bottom P10 (2" x 4" Lumber 40" length) - connect its 2" x 4" Wood Side #1 oriented right links with part 14's 1" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #2 facing front to part 7's 2" x 4" Wood End #1, plus ensure its 2" x 4" Wood End #1 faces top, plus ensure its 2" x 4" Wood Side #3 faces left, and ensure its 2" x 4" Wood Side #4 faces back. Next, its 2" x 4" Wood End #2 should be directed bottom
22" x 4" Lumber x 38.5"x 2
22" x 4" Lumber x 32"x 2
22" x 4" Lumber x 40"x 2

Attaching: Top Frame and Wing Supports

Assemble the upper frame components (P2, P4) and the remaining vertical/horizontal supports for the side wings (P5, P6, P16, P17, P18, P19). Connect this assembly to the Base Frame.

Angle: back left

Assembly of Top Frame and Wing Supports - back_left
P2 (2" x 2" Lumber 57" length) - attach its 2" x 2" Wood End #1 facing right to part 15's 1" x 4" Wood Side #2. After that, connect its 2" x 2" Wood Side #1 oriented bottom links with part 1's 2" x 4" Wood End #1, plus connect its 2" x 2" Wood Side #2 oriented front links with part 11's 1" x 4" Wood Side #2, plus connect its 2" x 2" Wood Side #4 oriented back links with part 5's 2" x 4" Wood End #2, also attach its 2" x 2" Wood End #2 facing left to part 12's 1" x 4" Wood Side #2, plus its 2" x 2" Wood Side #3 should be directed top P4 (2" x 2" Lumber 50" length) - connect its 2" x 2" Wood Side #4 oriented front links with part 49's 1" x 5" Wood Side #2, also attach its 2" x 2" Wood End #2 facing left to part 1's 2" x 4" Wood Side #3. Next, its 2" x 2" Wood End #1 should be directed right, and its 2" x 2" Wood Side #1 should be directed top, plus its 2" x 2" Wood Side #2 should be directed back, also ensure its 2" x 2" Wood Side #3 faces bottom P5 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #2, which is top-facing, should connect to part 50's 1" x 10" Wood Side #2. Additionally, connect its 2" x 4" Wood Side #3 oriented left links with part 12's 1" x 4" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4, and ensure its 2" x 4" Wood Side #1 faces right. Also, ensure its 2" x 4" Wood Side #4 faces bottom P6 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #1 oriented right links with part 14's 1" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #2 facing top to part 51's 1" x 10" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4, and its 2" x 4" Wood Side #3 must be oriented left. Additionally, ensure its 2" x 4" Wood Side #4 faces bottom P16 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 10's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 26's 1" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #4, which is top-facing, should connect to part 20's 1" x 10" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 2" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 needs to point left. Also, its 2" x 4" Wood Side #2 needs to point bottom P17 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 26's 1" x 4" Wood Side #2, and its 2" x 4" Wood Side #4, which is top-facing, should connect to part 23's 1" x 10" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 2" x 4" Wood Side #4, then its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 needs to point bottom P18 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 9's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1, which is left-facing, should connect to part 13's 1" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented top links with part 22's 1" x 10" Wood Side #2. After that, attach its 2" x 4" Wood End #2 facing front to part 1's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #2 should be directed bottom, plus its 2" x 4" Wood Side #3 should be directed right P19 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1, which is left-facing, should connect to part 37's 1" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #4 facing top to part 25's 1" x 10" Wood Side #2. After that, its 2" x 4" Wood End #2, which is front-facing, should connect to part 1's 2" x 4" Wood Side #2, plus its 2" x 4" Wood Side #2 needs to point bottom. Additionally, its 2" x 4" Wood Side #3 must be oriented right
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

Angle: front right

Assembly of Top Frame and Wing Supports - front_right
P2 (2" x 2" Lumber 57" length) - attach its 2" x 2" Wood End #1 facing right to part 15's 1" x 4" Wood Side #2. After that, connect its 2" x 2" Wood Side #1 oriented bottom links with part 1's 2" x 4" Wood End #1, plus connect its 2" x 2" Wood Side #2 oriented front links with part 11's 1" x 4" Wood Side #2, plus connect its 2" x 2" Wood Side #4 oriented back links with part 5's 2" x 4" Wood End #2, also attach its 2" x 2" Wood End #2 facing left to part 12's 1" x 4" Wood Side #2, plus its 2" x 2" Wood Side #3 should be directed top P4 (2" x 2" Lumber 50" length) - connect its 2" x 2" Wood Side #4 oriented front links with part 49's 1" x 5" Wood Side #2, also attach its 2" x 2" Wood End #2 facing left to part 1's 2" x 4" Wood Side #3. Next, its 2" x 2" Wood End #1 should be directed right, and its 2" x 2" Wood Side #1 should be directed top, plus its 2" x 2" Wood Side #2 should be directed back, also ensure its 2" x 2" Wood Side #3 faces bottom P5 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #2, which is top-facing, should connect to part 50's 1" x 10" Wood Side #2. Additionally, connect its 2" x 4" Wood Side #3 oriented left links with part 12's 1" x 4" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4, and ensure its 2" x 4" Wood Side #1 faces right. Also, ensure its 2" x 4" Wood Side #4 faces bottom P6 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #1 oriented right links with part 14's 1" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #2 facing top to part 51's 1" x 10" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4, and its 2" x 4" Wood Side #3 must be oriented left. Additionally, ensure its 2" x 4" Wood Side #4 faces bottom P16 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 10's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 26's 1" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #4, which is top-facing, should connect to part 20's 1" x 10" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 2" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 needs to point left. Also, its 2" x 4" Wood Side #2 needs to point bottom P17 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 26's 1" x 4" Wood Side #2, and its 2" x 4" Wood Side #4, which is top-facing, should connect to part 23's 1" x 10" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 2" x 4" Wood Side #4, then its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 needs to point bottom P18 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 9's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1, which is left-facing, should connect to part 13's 1" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented top links with part 22's 1" x 10" Wood Side #2. After that, attach its 2" x 4" Wood End #2 facing front to part 1's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #2 should be directed bottom, plus its 2" x 4" Wood Side #3 should be directed right P19 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1, which is left-facing, should connect to part 37's 1" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #4 facing top to part 25's 1" x 10" Wood Side #2. After that, its 2" x 4" Wood End #2, which is front-facing, should connect to part 1's 2" x 4" Wood Side #2, plus its 2" x 4" Wood Side #2 needs to point bottom. Additionally, its 2" x 4" Wood Side #3 must be oriented right
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

Angle: bottom right

Assembly of Top Frame and Wing Supports - bottom_right
P2 (2" x 2" Lumber 57" length) - attach its 2" x 2" Wood End #1 facing right to part 15's 1" x 4" Wood Side #2. After that, connect its 2" x 2" Wood Side #1 oriented bottom links with part 1's 2" x 4" Wood End #1, plus connect its 2" x 2" Wood Side #2 oriented front links with part 11's 1" x 4" Wood Side #2, plus connect its 2" x 2" Wood Side #4 oriented back links with part 5's 2" x 4" Wood End #2, also attach its 2" x 2" Wood End #2 facing left to part 12's 1" x 4" Wood Side #2, plus its 2" x 2" Wood Side #3 should be directed top P4 (2" x 2" Lumber 50" length) - connect its 2" x 2" Wood Side #4 oriented front links with part 49's 1" x 5" Wood Side #2, also attach its 2" x 2" Wood End #2 facing left to part 1's 2" x 4" Wood Side #3. Next, its 2" x 2" Wood End #1 should be directed right, and its 2" x 2" Wood Side #1 should be directed top, plus its 2" x 2" Wood Side #2 should be directed back, also ensure its 2" x 2" Wood Side #3 faces bottom P5 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #2, which is top-facing, should connect to part 50's 1" x 10" Wood Side #2. Additionally, connect its 2" x 4" Wood Side #3 oriented left links with part 12's 1" x 4" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4, and ensure its 2" x 4" Wood Side #1 faces right. Also, ensure its 2" x 4" Wood Side #4 faces bottom P6 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #1 oriented right links with part 14's 1" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #2 facing top to part 51's 1" x 10" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 2's 2" x 2" Wood Side #4, and its 2" x 4" Wood Side #3 must be oriented left. Additionally, ensure its 2" x 4" Wood Side #4 faces bottom P16 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 10's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 26's 1" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #4, which is top-facing, should connect to part 20's 1" x 10" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 2" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 needs to point left. Also, its 2" x 4" Wood Side #2 needs to point bottom P17 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #3, which is right-facing, should connect to part 26's 1" x 4" Wood Side #2, and its 2" x 4" Wood Side #4, which is top-facing, should connect to part 23's 1" x 10" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 2" x 4" Wood Side #4, then its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 needs to point bottom P18 (2" x 4" Lumber 32" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 9's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1, which is left-facing, should connect to part 13's 1" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented top links with part 22's 1" x 10" Wood Side #2. After that, attach its 2" x 4" Wood End #2 facing front to part 1's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #2 should be directed bottom, plus its 2" x 4" Wood Side #3 should be directed right P19 (2" x 4" Lumber 32" length) - attach its 2" x 4" Wood End #1 facing back to part 9's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1, which is left-facing, should connect to part 37's 1" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #4 facing top to part 25's 1" x 10" Wood Side #2. After that, its 2" x 4" Wood End #2, which is front-facing, should connect to part 1's 2" x 4" Wood Side #2, plus its 2" x 4" Wood Side #2 needs to point bottom. Additionally, its 2" x 4" Wood Side #3 must be oriented right
22" x 2" Lumber x 57"x 1
22" x 2" Lumber x 50"x 1
22" x 4" Lumber x 32"x 6

Attaching: Left Side Slats

Attach the vertical slats (P12, P13, P32-P37) that form the panels for the left side wing.

Angle: back left

Assembly of Left Side Slats - back_left
P12 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #1 oriented front links with part 11's 1" x 4" Wood Side #2. Also, connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3, plus its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #3 must be oriented back, then its 1" x 4" Wood Side #4 must be oriented left, and ensure its 1" x 4" Wood End #2 faces top P13 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #1, which is front-facing, should connect to part 37's 1" x 4" Wood Side #3, plus its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. After that, its 1" x 4" Wood End #1 must be oriented bottom. Also, its 1" x 4" Wood Side #3 must be oriented back. Also, its 1" x 4" Wood Side #4 should be directed left. Next, its 1" x 4" Wood End #2 needs to point top P32 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. Additionally, its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #1 needs to point front. Additionally, ensure its 1" x 4" Wood Side #3 faces back. Additionally, its 1" x 4" Wood Side #4 needs to point left. Also, its 1" x 4" Wood End #2 must be oriented top P33 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3. Additionally, ensure its 1" x 4" Wood End #1 faces bottom. Also, ensure its 1" x 4" Wood Side #1 faces front, also its 1" x 4" Wood Side #3 needs to point back. Next, its 1" x 4" Wood Side #4 needs to point left, plus its 1" x 4" Wood End #2 needs to point top P34 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3. Also, its 1" x 4" Wood End #1 must be oriented bottom. Next, ensure its 1" x 4" Wood Side #1 faces front. Additionally, its 1" x 4" Wood Side #3 should be directed back. After that, its 1" x 4" Wood Side #4 should be directed left. Also, its 1" x 4" Wood End #2 needs to point top P35 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3, also its 1" x 4" Wood End #1 must be oriented bottom. Also, its 1" x 4" Wood Side #1 needs to point front. Next, ensure its 1" x 4" Wood Side #3 faces back, also its 1" x 4" Wood Side #4 should be directed left. Also, its 1" x 4" Wood End #2 must be oriented top P36 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing right to part 5's 2" x 4" Wood Side #3. After that, ensure its 1" x 4" Wood End #1 faces bottom, also its 1" x 4" Wood Side #1 should be directed front, and ensure its 1" x 4" Wood Side #3 faces back. After that, its 1" x 4" Wood Side #4 should be directed left, also its 1" x 4" Wood End #2 must be oriented top P37 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. Additionally, its 1" x 4" Wood Side #3, which is back-facing, should connect to part 13's 1" x 4" Wood Side #1. Next, its 1" x 4" Wood End #1 must be oriented bottom. Next, ensure its 1" x 4" Wood Side #1 faces front, and its 1" x 4" Wood Side #4 must be oriented left, and its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

Angle: front right

Assembly of Left Side Slats - front_right
P12 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #1 oriented front links with part 11's 1" x 4" Wood Side #2. Also, connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3, plus its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #3 must be oriented back, then its 1" x 4" Wood Side #4 must be oriented left, and ensure its 1" x 4" Wood End #2 faces top P13 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #1, which is front-facing, should connect to part 37's 1" x 4" Wood Side #3, plus its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. After that, its 1" x 4" Wood End #1 must be oriented bottom. Also, its 1" x 4" Wood Side #3 must be oriented back. Also, its 1" x 4" Wood Side #4 should be directed left. Next, its 1" x 4" Wood End #2 needs to point top P32 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. Additionally, its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #1 needs to point front. Additionally, ensure its 1" x 4" Wood Side #3 faces back. Additionally, its 1" x 4" Wood Side #4 needs to point left. Also, its 1" x 4" Wood End #2 must be oriented top P33 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3. Additionally, ensure its 1" x 4" Wood End #1 faces bottom. Also, ensure its 1" x 4" Wood Side #1 faces front, also its 1" x 4" Wood Side #3 needs to point back. Next, its 1" x 4" Wood Side #4 needs to point left, plus its 1" x 4" Wood End #2 needs to point top P34 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3. Also, its 1" x 4" Wood End #1 must be oriented bottom. Next, ensure its 1" x 4" Wood Side #1 faces front. Additionally, its 1" x 4" Wood Side #3 should be directed back. After that, its 1" x 4" Wood Side #4 should be directed left. Also, its 1" x 4" Wood End #2 needs to point top P35 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3, also its 1" x 4" Wood End #1 must be oriented bottom. Also, its 1" x 4" Wood Side #1 needs to point front. Next, ensure its 1" x 4" Wood Side #3 faces back, also its 1" x 4" Wood Side #4 should be directed left. Also, its 1" x 4" Wood End #2 must be oriented top P36 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing right to part 5's 2" x 4" Wood Side #3. After that, ensure its 1" x 4" Wood End #1 faces bottom, also its 1" x 4" Wood Side #1 should be directed front, and ensure its 1" x 4" Wood Side #3 faces back. After that, its 1" x 4" Wood Side #4 should be directed left, also its 1" x 4" Wood End #2 must be oriented top P37 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. Additionally, its 1" x 4" Wood Side #3, which is back-facing, should connect to part 13's 1" x 4" Wood Side #1. Next, its 1" x 4" Wood End #1 must be oriented bottom. Next, ensure its 1" x 4" Wood Side #1 faces front, and its 1" x 4" Wood Side #4 must be oriented left, and its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

Angle: bottom right

Assembly of Left Side Slats - bottom_right
P12 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #1 oriented front links with part 11's 1" x 4" Wood Side #2. Also, connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3, plus its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #3 must be oriented back, then its 1" x 4" Wood Side #4 must be oriented left, and ensure its 1" x 4" Wood End #2 faces top P13 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #1, which is front-facing, should connect to part 37's 1" x 4" Wood Side #3, plus its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. After that, its 1" x 4" Wood End #1 must be oriented bottom. Also, its 1" x 4" Wood Side #3 must be oriented back. Also, its 1" x 4" Wood Side #4 should be directed left. Next, its 1" x 4" Wood End #2 needs to point top P32 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. Additionally, its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #1 needs to point front. Additionally, ensure its 1" x 4" Wood Side #3 faces back. Additionally, its 1" x 4" Wood Side #4 needs to point left. Also, its 1" x 4" Wood End #2 must be oriented top P33 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3. Additionally, ensure its 1" x 4" Wood End #1 faces bottom. Also, ensure its 1" x 4" Wood Side #1 faces front, also its 1" x 4" Wood Side #3 needs to point back. Next, its 1" x 4" Wood Side #4 needs to point left, plus its 1" x 4" Wood End #2 needs to point top P34 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3. Also, its 1" x 4" Wood End #1 must be oriented bottom. Next, ensure its 1" x 4" Wood Side #1 faces front. Additionally, its 1" x 4" Wood Side #3 should be directed back. After that, its 1" x 4" Wood Side #4 should be directed left. Also, its 1" x 4" Wood End #2 needs to point top P35 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented right links with part 5's 2" x 4" Wood Side #3, also its 1" x 4" Wood End #1 must be oriented bottom. Also, its 1" x 4" Wood Side #1 needs to point front. Next, ensure its 1" x 4" Wood Side #3 faces back, also its 1" x 4" Wood Side #4 should be directed left. Also, its 1" x 4" Wood End #2 must be oriented top P36 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing right to part 5's 2" x 4" Wood Side #3. After that, ensure its 1" x 4" Wood End #1 faces bottom, also its 1" x 4" Wood Side #1 should be directed front, and ensure its 1" x 4" Wood Side #3 faces back. After that, its 1" x 4" Wood Side #4 should be directed left, also its 1" x 4" Wood End #2 must be oriented top P37 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 5's 2" x 4" Wood Side #3. Additionally, its 1" x 4" Wood Side #3, which is back-facing, should connect to part 13's 1" x 4" Wood Side #1. Next, its 1" x 4" Wood End #1 must be oriented bottom. Next, ensure its 1" x 4" Wood Side #1 faces front, and its 1" x 4" Wood Side #4 must be oriented left, and its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

Attaching: Right Side Slats

Attach the vertical slats (P14, P15, P26-P31) that form the panels for the right side wing.

Angle: back left

Assembly of Right Side Slats - back_left
P14 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1. Also, attach its 1" x 4" Wood Side #3 facing front to part 31's 1" x 4" Wood Side #1, also its 1" x 4" Wood End #1 should be directed bottom. Also, its 1" x 4" Wood Side #1 needs to point back, then its 1" x 4" Wood Side #4 must be oriented right. Also, its 1" x 4" Wood End #2 needs to point top P15 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 4" Wood Side #1, also connect its 1" x 4" Wood Side #3 oriented front links with part 49's 1" x 5" Wood Side #2. After that, its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #1 must be oriented back, then ensure its 1" x 4" Wood Side #4 faces right, plus its 1" x 4" Wood End #2 should be directed top P26 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, plus its 1" x 4" Wood End #1 needs to point bottom. Next, ensure its 1" x 4" Wood Side #1 faces back. Next, its 1" x 4" Wood Side #3 needs to point front. Next, its 1" x 4" Wood Side #4 must be oriented right, and its 1" x 4" Wood End #2 should be directed top P27 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 4" Wood Side #1. Additionally, its 1" x 4" Wood End #1 must be oriented bottom, plus its 1" x 4" Wood Side #1 needs to point back. Next, its 1" x 4" Wood Side #3 should be directed front. Also, its 1" x 4" Wood Side #4 must be oriented right. Next, ensure its 1" x 4" Wood End #2 faces top P28 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is left-facing, should connect to part 6's 2" x 4" Wood Side #1. After that, its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #1 needs to point back, plus its 1" x 4" Wood Side #3 needs to point front, also its 1" x 4" Wood Side #4 should be directed right, then its 1" x 4" Wood End #2 needs to point top P29 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, also ensure its 1" x 4" Wood End #1 faces bottom, then ensure its 1" x 4" Wood Side #1 faces back, also ensure its 1" x 4" Wood Side #3 faces front. Also, ensure its 1" x 4" Wood Side #4 faces right. Next, its 1" x 4" Wood End #2 should be directed top P30 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, and its 1" x 4" Wood End #1 needs to point bottom. Also, ensure its 1" x 4" Wood Side #1 faces back, and its 1" x 4" Wood Side #3 needs to point front, then its 1" x 4" Wood Side #4 should be directed right, then ensure its 1" x 4" Wood End #2 faces top P31 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #1 facing back to part 14's 1" x 4" Wood Side #3. After that, attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1. Also, its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #3 should be directed front. Also, ensure its 1" x 4" Wood Side #4 faces right. After that, its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

Angle: front right

Assembly of Right Side Slats - front_right
P14 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1. Also, attach its 1" x 4" Wood Side #3 facing front to part 31's 1" x 4" Wood Side #1, also its 1" x 4" Wood End #1 should be directed bottom. Also, its 1" x 4" Wood Side #1 needs to point back, then its 1" x 4" Wood Side #4 must be oriented right. Also, its 1" x 4" Wood End #2 needs to point top P15 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 4" Wood Side #1, also connect its 1" x 4" Wood Side #3 oriented front links with part 49's 1" x 5" Wood Side #2. After that, its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #1 must be oriented back, then ensure its 1" x 4" Wood Side #4 faces right, plus its 1" x 4" Wood End #2 should be directed top P26 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, plus its 1" x 4" Wood End #1 needs to point bottom. Next, ensure its 1" x 4" Wood Side #1 faces back. Next, its 1" x 4" Wood Side #3 needs to point front. Next, its 1" x 4" Wood Side #4 must be oriented right, and its 1" x 4" Wood End #2 should be directed top P27 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 4" Wood Side #1. Additionally, its 1" x 4" Wood End #1 must be oriented bottom, plus its 1" x 4" Wood Side #1 needs to point back. Next, its 1" x 4" Wood Side #3 should be directed front. Also, its 1" x 4" Wood Side #4 must be oriented right. Next, ensure its 1" x 4" Wood End #2 faces top P28 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is left-facing, should connect to part 6's 2" x 4" Wood Side #1. After that, its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #1 needs to point back, plus its 1" x 4" Wood Side #3 needs to point front, also its 1" x 4" Wood Side #4 should be directed right, then its 1" x 4" Wood End #2 needs to point top P29 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, also ensure its 1" x 4" Wood End #1 faces bottom, then ensure its 1" x 4" Wood Side #1 faces back, also ensure its 1" x 4" Wood Side #3 faces front. Also, ensure its 1" x 4" Wood Side #4 faces right. Next, its 1" x 4" Wood End #2 should be directed top P30 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, and its 1" x 4" Wood End #1 needs to point bottom. Also, ensure its 1" x 4" Wood Side #1 faces back, and its 1" x 4" Wood Side #3 needs to point front, then its 1" x 4" Wood Side #4 should be directed right, then ensure its 1" x 4" Wood End #2 faces top P31 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #1 facing back to part 14's 1" x 4" Wood Side #3. After that, attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1. Also, its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #3 should be directed front. Also, ensure its 1" x 4" Wood Side #4 faces right. After that, its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

Angle: bottom right

Assembly of Right Side Slats - bottom_right
P14 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1. Also, attach its 1" x 4" Wood Side #3 facing front to part 31's 1" x 4" Wood Side #1, also its 1" x 4" Wood End #1 should be directed bottom. Also, its 1" x 4" Wood Side #1 needs to point back, then its 1" x 4" Wood Side #4 must be oriented right. Also, its 1" x 4" Wood End #2 needs to point top P15 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 4" Wood Side #1, also connect its 1" x 4" Wood Side #3 oriented front links with part 49's 1" x 5" Wood Side #2. After that, its 1" x 4" Wood End #1 must be oriented bottom. After that, its 1" x 4" Wood Side #1 must be oriented back, then ensure its 1" x 4" Wood Side #4 faces right, plus its 1" x 4" Wood End #2 should be directed top P26 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, plus its 1" x 4" Wood End #1 needs to point bottom. Next, ensure its 1" x 4" Wood Side #1 faces back. Next, its 1" x 4" Wood Side #3 needs to point front. Next, its 1" x 4" Wood Side #4 must be oriented right, and its 1" x 4" Wood End #2 should be directed top P27 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 4" Wood Side #1. Additionally, its 1" x 4" Wood End #1 must be oriented bottom, plus its 1" x 4" Wood Side #1 needs to point back. Next, its 1" x 4" Wood Side #3 should be directed front. Also, its 1" x 4" Wood Side #4 must be oriented right. Next, ensure its 1" x 4" Wood End #2 faces top P28 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is left-facing, should connect to part 6's 2" x 4" Wood Side #1. After that, its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #1 needs to point back, plus its 1" x 4" Wood Side #3 needs to point front, also its 1" x 4" Wood Side #4 should be directed right, then its 1" x 4" Wood End #2 needs to point top P29 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, also ensure its 1" x 4" Wood End #1 faces bottom, then ensure its 1" x 4" Wood Side #1 faces back, also ensure its 1" x 4" Wood Side #3 faces front. Also, ensure its 1" x 4" Wood Side #4 faces right. Next, its 1" x 4" Wood End #2 should be directed top P30 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1, and its 1" x 4" Wood End #1 needs to point bottom. Also, ensure its 1" x 4" Wood Side #1 faces back, and its 1" x 4" Wood Side #3 needs to point front, then its 1" x 4" Wood Side #4 should be directed right, then ensure its 1" x 4" Wood End #2 faces top P31 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #1 facing back to part 14's 1" x 4" Wood Side #3. After that, attach its 1" x 4" Wood Side #2 facing left to part 6's 2" x 4" Wood Side #1. Also, its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #3 should be directed front. Also, ensure its 1" x 4" Wood Side #4 faces right. After that, its 1" x 4" Wood End #2 needs to point top
11" x 4" Lumber x 40"x 8

Attaching: Front Slats

Attach the vertical slats (P11, P38-P49) that form the front panel of the bar.

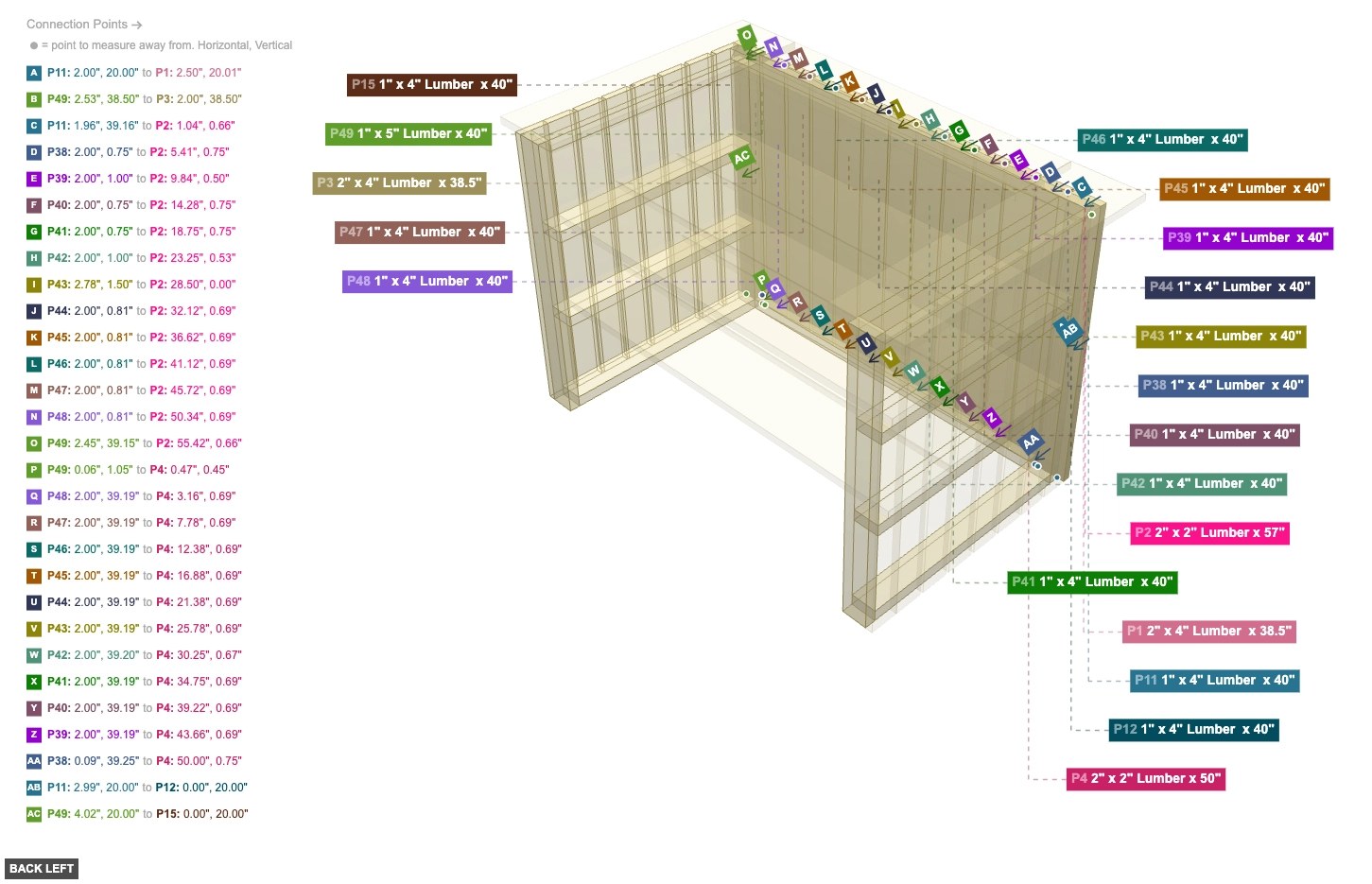

Angle: back left

Assembly of Front Slats - back_left
P11 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2. After that, its 1" x 4" Wood End #1 must be oriented bottom. Additionally, its 1" x 4" Wood Side #1 must be oriented right, plus its 1" x 4" Wood Side #3 needs to point left. Also, ensure its 1" x 4" Wood Side #4 faces front. After that, its 1" x 4" Wood End #2 should be directed top P38 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, also its 1" x 4" Wood End #1 needs to point bottom. Also, its 1" x 4" Wood Side #1 must be oriented right. After that, its 1" x 4" Wood Side #3 should be directed left. After that, its 1" x 4" Wood Side #4 should be directed front, and ensure its 1" x 4" Wood End #2 faces top P39 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 should be directed bottom, then its 1" x 4" Wood Side #1 needs to point right. Also, its 1" x 4" Wood Side #3 needs to point left, and ensure its 1" x 4" Wood Side #4 faces front. After that, its 1" x 4" Wood End #2 should be directed top P40 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, then ensure its 1" x 4" Wood End #1 faces bottom, and its 1" x 4" Wood Side #1 should be directed right, plus ensure its 1" x 4" Wood Side #3 faces left. After that, its 1" x 4" Wood Side #4 should be directed front. Also, its 1" x 4" Wood End #2 needs to point top P41 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 needs to point bottom, plus its 1" x 4" Wood Side #1 must be oriented right. After that, its 1" x 4" Wood Side #3 must be oriented left, also its 1" x 4" Wood Side #4 needs to point front. Also, its 1" x 4" Wood End #2 should be directed top P42 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #1 needs to point right. Next, its 1" x 4" Wood Side #3 should be directed left. After that, its 1" x 4" Wood Side #4 should be directed front. Next, ensure its 1" x 4" Wood End #2 faces top P43 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom. Next, its 1" x 4" Wood Side #1 should be directed right. Next, its 1" x 4" Wood Side #3 must be oriented left. Also, ensure its 1" x 4" Wood Side #4 faces front. Additionally, its 1" x 4" Wood End #2 needs to point top P44 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, and its 1" x 4" Wood Side #1 should be directed right. Next, ensure its 1" x 4" Wood Side #3 faces left. After that, its 1" x 4" Wood Side #4 must be oriented front. Also, its 1" x 4" Wood End #2 must be oriented top P45 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, also its 1" x 4" Wood End #1 must be oriented bottom, plus ensure its 1" x 4" Wood Side #1 faces right, and its 1" x 4" Wood Side #3 should be directed left. Additionally, ensure its 1" x 4" Wood Side #4 faces front, and its 1" x 4" Wood End #2 needs to point top P46 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, also ensure its 1" x 4" Wood End #1 faces bottom. Also, ensure its 1" x 4" Wood Side #1 faces right. After that, its 1" x 4" Wood Side #3 should be directed left, plus its 1" x 4" Wood Side #4 should be directed front. Next, its 1" x 4" Wood End #2 should be directed top P47 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, then its 1" x 4" Wood Side #1 should be directed right, also its 1" x 4" Wood Side #3 should be directed left. Additionally, its 1" x 4" Wood Side #4 should be directed front, also its 1" x 4" Wood End #2 must be oriented top P48 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, plus its 1" x 4" Wood Side #1 should be directed right. Next, its 1" x 4" Wood Side #3 needs to point left. Also, its 1" x 4" Wood Side #4 should be directed front. Additionally, ensure its 1" x 4" Wood End #2 faces top P49 (1" x 5" Lumber 40" length) - attach its 1" x 5" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2. After that, its 1" x 5" Wood End #1 should be directed bottom. Additionally, ensure its 1" x 5" Wood Side #1 faces right, and its 1" x 5" Wood Side #3 should be directed left, also ensure its 1" x 5" Wood Side #4 faces front, then its 1" x 5" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 12
11" x 5" Lumber x 40"x 1

Angle: front right

Assembly of Front Slats - front_right
P11 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2. After that, its 1" x 4" Wood End #1 must be oriented bottom. Additionally, its 1" x 4" Wood Side #1 must be oriented right, plus its 1" x 4" Wood Side #3 needs to point left. Also, ensure its 1" x 4" Wood Side #4 faces front. After that, its 1" x 4" Wood End #2 should be directed top P38 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, also its 1" x 4" Wood End #1 needs to point bottom. Also, its 1" x 4" Wood Side #1 must be oriented right. After that, its 1" x 4" Wood Side #3 should be directed left. After that, its 1" x 4" Wood Side #4 should be directed front, and ensure its 1" x 4" Wood End #2 faces top P39 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 should be directed bottom, then its 1" x 4" Wood Side #1 needs to point right. Also, its 1" x 4" Wood Side #3 needs to point left, and ensure its 1" x 4" Wood Side #4 faces front. After that, its 1" x 4" Wood End #2 should be directed top P40 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, then ensure its 1" x 4" Wood End #1 faces bottom, and its 1" x 4" Wood Side #1 should be directed right, plus ensure its 1" x 4" Wood Side #3 faces left. After that, its 1" x 4" Wood Side #4 should be directed front. Also, its 1" x 4" Wood End #2 needs to point top P41 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 needs to point bottom, plus its 1" x 4" Wood Side #1 must be oriented right. After that, its 1" x 4" Wood Side #3 must be oriented left, also its 1" x 4" Wood Side #4 needs to point front. Also, its 1" x 4" Wood End #2 should be directed top P42 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #1 needs to point right. Next, its 1" x 4" Wood Side #3 should be directed left. After that, its 1" x 4" Wood Side #4 should be directed front. Next, ensure its 1" x 4" Wood End #2 faces top P43 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom. Next, its 1" x 4" Wood Side #1 should be directed right. Next, its 1" x 4" Wood Side #3 must be oriented left. Also, ensure its 1" x 4" Wood Side #4 faces front. Additionally, its 1" x 4" Wood End #2 needs to point top P44 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, and its 1" x 4" Wood Side #1 should be directed right. Next, ensure its 1" x 4" Wood Side #3 faces left. After that, its 1" x 4" Wood Side #4 must be oriented front. Also, its 1" x 4" Wood End #2 must be oriented top P45 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, also its 1" x 4" Wood End #1 must be oriented bottom, plus ensure its 1" x 4" Wood Side #1 faces right, and its 1" x 4" Wood Side #3 should be directed left. Additionally, ensure its 1" x 4" Wood Side #4 faces front, and its 1" x 4" Wood End #2 needs to point top P46 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, also ensure its 1" x 4" Wood End #1 faces bottom. Also, ensure its 1" x 4" Wood Side #1 faces right. After that, its 1" x 4" Wood Side #3 should be directed left, plus its 1" x 4" Wood Side #4 should be directed front. Next, its 1" x 4" Wood End #2 should be directed top P47 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, then its 1" x 4" Wood Side #1 should be directed right, also its 1" x 4" Wood Side #3 should be directed left. Additionally, its 1" x 4" Wood Side #4 should be directed front, also its 1" x 4" Wood End #2 must be oriented top P48 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, plus its 1" x 4" Wood Side #1 should be directed right. Next, its 1" x 4" Wood Side #3 needs to point left. Also, its 1" x 4" Wood Side #4 should be directed front. Additionally, ensure its 1" x 4" Wood End #2 faces top P49 (1" x 5" Lumber 40" length) - attach its 1" x 5" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2. After that, its 1" x 5" Wood End #1 should be directed bottom. Additionally, ensure its 1" x 5" Wood Side #1 faces right, and its 1" x 5" Wood Side #3 should be directed left, also ensure its 1" x 5" Wood Side #4 faces front, then its 1" x 5" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 12
11" x 5" Lumber x 40"x 1

Angle: bottom right

Assembly of Front Slats - bottom_right
P11 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2. After that, its 1" x 4" Wood End #1 must be oriented bottom. Additionally, its 1" x 4" Wood Side #1 must be oriented right, plus its 1" x 4" Wood Side #3 needs to point left. Also, ensure its 1" x 4" Wood Side #4 faces front. After that, its 1" x 4" Wood End #2 should be directed top P38 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, also its 1" x 4" Wood End #1 needs to point bottom. Also, its 1" x 4" Wood Side #1 must be oriented right. After that, its 1" x 4" Wood Side #3 should be directed left. After that, its 1" x 4" Wood Side #4 should be directed front, and ensure its 1" x 4" Wood End #2 faces top P39 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 should be directed bottom, then its 1" x 4" Wood Side #1 needs to point right. Also, its 1" x 4" Wood Side #3 needs to point left, and ensure its 1" x 4" Wood Side #4 faces front. After that, its 1" x 4" Wood End #2 should be directed top P40 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, then ensure its 1" x 4" Wood End #1 faces bottom, and its 1" x 4" Wood Side #1 should be directed right, plus ensure its 1" x 4" Wood Side #3 faces left. After that, its 1" x 4" Wood Side #4 should be directed front. Also, its 1" x 4" Wood End #2 needs to point top P41 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 needs to point bottom, plus its 1" x 4" Wood Side #1 must be oriented right. After that, its 1" x 4" Wood Side #3 must be oriented left, also its 1" x 4" Wood Side #4 needs to point front. Also, its 1" x 4" Wood End #2 should be directed top P42 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #1 must be oriented bottom, and its 1" x 4" Wood Side #1 needs to point right. Next, its 1" x 4" Wood Side #3 should be directed left. After that, its 1" x 4" Wood Side #4 should be directed front. Next, ensure its 1" x 4" Wood End #2 faces top P43 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom. Next, its 1" x 4" Wood Side #1 should be directed right. Next, its 1" x 4" Wood Side #3 must be oriented left. Also, ensure its 1" x 4" Wood Side #4 faces front. Additionally, its 1" x 4" Wood End #2 needs to point top P44 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, and its 1" x 4" Wood Side #1 should be directed right. Next, ensure its 1" x 4" Wood Side #3 faces left. After that, its 1" x 4" Wood Side #4 must be oriented front. Also, its 1" x 4" Wood End #2 must be oriented top P45 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, also its 1" x 4" Wood End #1 must be oriented bottom, plus ensure its 1" x 4" Wood Side #1 faces right, and its 1" x 4" Wood Side #3 should be directed left. Additionally, ensure its 1" x 4" Wood Side #4 faces front, and its 1" x 4" Wood End #2 needs to point top P46 (1" x 4" Lumber 40" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 2's 2" x 2" Wood Side #2, also ensure its 1" x 4" Wood End #1 faces bottom. Also, ensure its 1" x 4" Wood Side #1 faces right. After that, its 1" x 4" Wood Side #3 should be directed left, plus its 1" x 4" Wood Side #4 should be directed front. Next, its 1" x 4" Wood End #2 should be directed top P47 (1" x 4" Lumber 40" length) - attach its 1" x 4" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, then its 1" x 4" Wood Side #1 should be directed right, also its 1" x 4" Wood Side #3 should be directed left. Additionally, its 1" x 4" Wood Side #4 should be directed front, also its 1" x 4" Wood End #2 must be oriented top P48 (1" x 4" Lumber 40" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 2's 2" x 2" Wood Side #2, and ensure its 1" x 4" Wood End #1 faces bottom, plus its 1" x 4" Wood Side #1 should be directed right. Next, its 1" x 4" Wood Side #3 needs to point left. Also, its 1" x 4" Wood Side #4 should be directed front. Additionally, ensure its 1" x 4" Wood End #2 faces top P49 (1" x 5" Lumber 40" length) - attach its 1" x 5" Wood Side #2 facing back to part 2's 2" x 2" Wood Side #2. After that, its 1" x 5" Wood End #1 should be directed bottom. Additionally, ensure its 1" x 5" Wood Side #1 faces right, and its 1" x 5" Wood Side #3 should be directed left, also ensure its 1" x 5" Wood Side #4 faces front, then its 1" x 5" Wood End #2 should be directed top
11" x 4" Lumber x 40"x 12
11" x 5" Lumber x 40"x 1

Attaching: Shelves Installation

Install the horizontal shelves (P20-P25) within the left and right side wings, attaching them to the frame supports and side slats.

Angle: back left

Assembly of Shelves Installation - back_left
P20 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 12's 1" x 4" Wood Side #2, plus attach its 1" x 10" Wood Side #2 facing bottom to part 16's 2" x 4" Wood Side #4, also its 1" x 10" Wood End #2, which is right-facing, should connect to part 15's 1" x 4" Wood Side #2. Also, its 1" x 10" Wood Side #1 needs to point front, also its 1" x 10" Wood Side #3 should be directed back, and its 1" x 10" Wood Side #4 should be directed top P21 (1" x 10" Lumber 57" length) - attach its 1" x 10" Wood End #1 facing left to part 34's 1" x 4" Wood Side #2, and its 1" x 10" Wood Side #2, which is bottom-facing, should connect to part 16's 2" x 4" Wood Side #4. Additionally, its 1" x 10" Wood End #2, which is right-facing, should connect to part 28's 1" x 4" Wood Side #2. Also, ensure its 1" x 10" Wood Side #1 faces front, plus ensure its 1" x 10" Wood Side #3 faces back. After that, its 1" x 10" Wood Side #4 needs to point top P22 (1" x 10" Lumber 57" length) - attach its 1" x 10" Wood End #1 facing left to part 36's 1" x 4" Wood Side #2. Also, connect its 1" x 10" Wood Side #2 oriented bottom links with part 16's 2" x 4" Wood Side #4, then attach its 1" x 10" Wood End #2 facing right to part 31's 1" x 4" Wood Side #2. Additionally, its 1" x 10" Wood Side #1 needs to point front. After that, its 1" x 10" Wood Side #3 should be directed back, also ensure its 1" x 10" Wood Side #4 faces top P23 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 32's 1" x 4" Wood Side #2. Additionally, connect its 1" x 10" Wood Side #2 oriented bottom links with part 17's 2" x 4" Wood Side #4, and attach its 1" x 10" Wood End #2 facing right to part 26's 1" x 4" Wood Side #2. Next, its 1" x 10" Wood Side #1 should be directed front, and ensure its 1" x 10" Wood Side #3 faces back. After that, its 1" x 10" Wood Side #4 needs to point top P24 (1" x 10" Lumber 57" length) - its 1" x 10" Wood End #1, which is left-facing, should connect to part 34's 1" x 4" Wood Side #2, also its 1" x 10" Wood Side #2, which is bottom-facing, should connect to part 17's 2" x 4" Wood Side #4, then attach its 1" x 10" Wood End #2 facing right to part 28's 1" x 4" Wood Side #2. After that, ensure its 1" x 10" Wood Side #1 faces front, then its 1" x 10" Wood Side #3 needs to point back. Next, its 1" x 10" Wood Side #4 needs to point top P25 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 36's 1" x 4" Wood Side #2. After that, connect its 1" x 10" Wood Side #2 oriented bottom links with part 17's 2" x 4" Wood Side #4. Additionally, its 1" x 10" Wood End #2, which is right-facing, should connect to part 14's 1" x 4" Wood Side #2, and its 1" x 10" Wood Side #1 should be directed front. Additionally, its 1" x 10" Wood Side #3 must be oriented back, plus ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 57"x 6

Angle: front right

Assembly of Shelves Installation - front_right
P20 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 12's 1" x 4" Wood Side #2, plus attach its 1" x 10" Wood Side #2 facing bottom to part 16's 2" x 4" Wood Side #4, also its 1" x 10" Wood End #2, which is right-facing, should connect to part 15's 1" x 4" Wood Side #2. Also, its 1" x 10" Wood Side #1 needs to point front, also its 1" x 10" Wood Side #3 should be directed back, and its 1" x 10" Wood Side #4 should be directed top P21 (1" x 10" Lumber 57" length) - attach its 1" x 10" Wood End #1 facing left to part 34's 1" x 4" Wood Side #2, and its 1" x 10" Wood Side #2, which is bottom-facing, should connect to part 16's 2" x 4" Wood Side #4. Additionally, its 1" x 10" Wood End #2, which is right-facing, should connect to part 28's 1" x 4" Wood Side #2. Also, ensure its 1" x 10" Wood Side #1 faces front, plus ensure its 1" x 10" Wood Side #3 faces back. After that, its 1" x 10" Wood Side #4 needs to point top P22 (1" x 10" Lumber 57" length) - attach its 1" x 10" Wood End #1 facing left to part 36's 1" x 4" Wood Side #2. Also, connect its 1" x 10" Wood Side #2 oriented bottom links with part 16's 2" x 4" Wood Side #4, then attach its 1" x 10" Wood End #2 facing right to part 31's 1" x 4" Wood Side #2. Additionally, its 1" x 10" Wood Side #1 needs to point front. After that, its 1" x 10" Wood Side #3 should be directed back, also ensure its 1" x 10" Wood Side #4 faces top P23 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 32's 1" x 4" Wood Side #2. Additionally, connect its 1" x 10" Wood Side #2 oriented bottom links with part 17's 2" x 4" Wood Side #4, and attach its 1" x 10" Wood End #2 facing right to part 26's 1" x 4" Wood Side #2. Next, its 1" x 10" Wood Side #1 should be directed front, and ensure its 1" x 10" Wood Side #3 faces back. After that, its 1" x 10" Wood Side #4 needs to point top P24 (1" x 10" Lumber 57" length) - its 1" x 10" Wood End #1, which is left-facing, should connect to part 34's 1" x 4" Wood Side #2, also its 1" x 10" Wood Side #2, which is bottom-facing, should connect to part 17's 2" x 4" Wood Side #4, then attach its 1" x 10" Wood End #2 facing right to part 28's 1" x 4" Wood Side #2. After that, ensure its 1" x 10" Wood Side #1 faces front, then its 1" x 10" Wood Side #3 needs to point back. Next, its 1" x 10" Wood Side #4 needs to point top P25 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 36's 1" x 4" Wood Side #2. After that, connect its 1" x 10" Wood Side #2 oriented bottom links with part 17's 2" x 4" Wood Side #4. Additionally, its 1" x 10" Wood End #2, which is right-facing, should connect to part 14's 1" x 4" Wood Side #2, and its 1" x 10" Wood Side #1 should be directed front. Additionally, its 1" x 10" Wood Side #3 must be oriented back, plus ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 57"x 6

Angle: bottom right

Assembly of Shelves Installation - bottom_right
P20 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 12's 1" x 4" Wood Side #2, plus attach its 1" x 10" Wood Side #2 facing bottom to part 16's 2" x 4" Wood Side #4, also its 1" x 10" Wood End #2, which is right-facing, should connect to part 15's 1" x 4" Wood Side #2. Also, its 1" x 10" Wood Side #1 needs to point front, also its 1" x 10" Wood Side #3 should be directed back, and its 1" x 10" Wood Side #4 should be directed top P21 (1" x 10" Lumber 57" length) - attach its 1" x 10" Wood End #1 facing left to part 34's 1" x 4" Wood Side #2, and its 1" x 10" Wood Side #2, which is bottom-facing, should connect to part 16's 2" x 4" Wood Side #4. Additionally, its 1" x 10" Wood End #2, which is right-facing, should connect to part 28's 1" x 4" Wood Side #2. Also, ensure its 1" x 10" Wood Side #1 faces front, plus ensure its 1" x 10" Wood Side #3 faces back. After that, its 1" x 10" Wood Side #4 needs to point top P22 (1" x 10" Lumber 57" length) - attach its 1" x 10" Wood End #1 facing left to part 36's 1" x 4" Wood Side #2. Also, connect its 1" x 10" Wood Side #2 oriented bottom links with part 16's 2" x 4" Wood Side #4, then attach its 1" x 10" Wood End #2 facing right to part 31's 1" x 4" Wood Side #2. Additionally, its 1" x 10" Wood Side #1 needs to point front. After that, its 1" x 10" Wood Side #3 should be directed back, also ensure its 1" x 10" Wood Side #4 faces top P23 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 32's 1" x 4" Wood Side #2. Additionally, connect its 1" x 10" Wood Side #2 oriented bottom links with part 17's 2" x 4" Wood Side #4, and attach its 1" x 10" Wood End #2 facing right to part 26's 1" x 4" Wood Side #2. Next, its 1" x 10" Wood Side #1 should be directed front, and ensure its 1" x 10" Wood Side #3 faces back. After that, its 1" x 10" Wood Side #4 needs to point top P24 (1" x 10" Lumber 57" length) - its 1" x 10" Wood End #1, which is left-facing, should connect to part 34's 1" x 4" Wood Side #2, also its 1" x 10" Wood Side #2, which is bottom-facing, should connect to part 17's 2" x 4" Wood Side #4, then attach its 1" x 10" Wood End #2 facing right to part 28's 1" x 4" Wood Side #2. After that, ensure its 1" x 10" Wood Side #1 faces front, then its 1" x 10" Wood Side #3 needs to point back. Next, its 1" x 10" Wood Side #4 needs to point top P25 (1" x 10" Lumber 57" length) - connect its 1" x 10" Wood End #1 oriented left links with part 36's 1" x 4" Wood Side #2. After that, connect its 1" x 10" Wood Side #2 oriented bottom links with part 17's 2" x 4" Wood Side #4. Additionally, its 1" x 10" Wood End #2, which is right-facing, should connect to part 14's 1" x 4" Wood Side #2, and its 1" x 10" Wood Side #1 should be directed front. Additionally, its 1" x 10" Wood Side #3 must be oriented back, plus ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 57"x 6

Attaching: Counter Top Assembly

Assemble the three parts of the counter top (P50, P51, P52) and attach the complete top surface to the main bar structure.

Angle: back left

Assembly of Counter Top Assembly - back_left
P50 (1" x 10" Lumber 39.25" length) - its 1" x 10" Wood Side #1, which is right-facing, should connect to part 52's 1" x 10" Wood End #1. After that, connect its 1" x 10" Wood Side #2 oriented bottom links with part 5's 2" x 4" Wood Side #2, also its 1" x 10" Wood End #1 must be oriented front. After that, ensure its 1" x 10" Wood Side #3 faces left, and ensure its 1" x 10" Wood Side #4 faces top, also its 1" x 10" Wood End #2 should be directed back P51 (1" x 10" Lumber 39.25" length) - attach its 1" x 10" Wood Side #2 facing bottom to part 6's 2" x 4" Wood Side #2. Also, attach its 1" x 10" Wood Side #3 facing left to part 52's 1" x 10" Wood End #2. Also, its 1" x 10" Wood End #1 needs to point front. Next, its 1" x 10" Wood Side #1 must be oriented right, also its 1" x 10" Wood Side #4 must be oriented top, plus its 1" x 10" Wood End #2 should be directed back P52 (1" x 10" Lumber 44.5" length) - attach its 1" x 10" Wood End #1 facing left to part 50's 1" x 10" Wood Side #1, then attach its 1" x 10" Wood End #2 facing right to part 51's 1" x 10" Wood Side #3, plus ensure its 1" x 10" Wood Side #1 faces front. Additionally, its 1" x 10" Wood Side #2 should be directed bottom. Next, ensure its 1" x 10" Wood Side #3 faces back, then ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Angle: front right

Assembly of Counter Top Assembly - front_right
P50 (1" x 10" Lumber 39.25" length) - its 1" x 10" Wood Side #1, which is right-facing, should connect to part 52's 1" x 10" Wood End #1. After that, connect its 1" x 10" Wood Side #2 oriented bottom links with part 5's 2" x 4" Wood Side #2, also its 1" x 10" Wood End #1 must be oriented front. After that, ensure its 1" x 10" Wood Side #3 faces left, and ensure its 1" x 10" Wood Side #4 faces top, also its 1" x 10" Wood End #2 should be directed back P51 (1" x 10" Lumber 39.25" length) - attach its 1" x 10" Wood Side #2 facing bottom to part 6's 2" x 4" Wood Side #2. Also, attach its 1" x 10" Wood Side #3 facing left to part 52's 1" x 10" Wood End #2. Also, its 1" x 10" Wood End #1 needs to point front. Next, its 1" x 10" Wood Side #1 must be oriented right, also its 1" x 10" Wood Side #4 must be oriented top, plus its 1" x 10" Wood End #2 should be directed back P52 (1" x 10" Lumber 44.5" length) - attach its 1" x 10" Wood End #1 facing left to part 50's 1" x 10" Wood Side #1, then attach its 1" x 10" Wood End #2 facing right to part 51's 1" x 10" Wood Side #3, plus ensure its 1" x 10" Wood Side #1 faces front. Additionally, its 1" x 10" Wood Side #2 should be directed bottom. Next, ensure its 1" x 10" Wood Side #3 faces back, then ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1

Angle: bottom right

Assembly of Counter Top Assembly - bottom_right
P50 (1" x 10" Lumber 39.25" length) - its 1" x 10" Wood Side #1, which is right-facing, should connect to part 52's 1" x 10" Wood End #1. After that, connect its 1" x 10" Wood Side #2 oriented bottom links with part 5's 2" x 4" Wood Side #2, also its 1" x 10" Wood End #1 must be oriented front. After that, ensure its 1" x 10" Wood Side #3 faces left, and ensure its 1" x 10" Wood Side #4 faces top, also its 1" x 10" Wood End #2 should be directed back P51 (1" x 10" Lumber 39.25" length) - attach its 1" x 10" Wood Side #2 facing bottom to part 6's 2" x 4" Wood Side #2. Also, attach its 1" x 10" Wood Side #3 facing left to part 52's 1" x 10" Wood End #2. Also, its 1" x 10" Wood End #1 needs to point front. Next, its 1" x 10" Wood Side #1 must be oriented right, also its 1" x 10" Wood Side #4 must be oriented top, plus its 1" x 10" Wood End #2 should be directed back P52 (1" x 10" Lumber 44.5" length) - attach its 1" x 10" Wood End #1 facing left to part 50's 1" x 10" Wood Side #1, then attach its 1" x 10" Wood End #2 facing right to part 51's 1" x 10" Wood Side #3, plus ensure its 1" x 10" Wood Side #1 faces front. Additionally, its 1" x 10" Wood Side #2 should be directed bottom. Next, ensure its 1" x 10" Wood Side #3 faces back, then ensure its 1" x 10" Wood Side #4 faces top
11" x 10" Lumber x 39.25"x 2
11" x 10" Lumber x 44.5"x 1
