Wooden Desk 2 - Comprehensive Assembly Plan And Visual Guide

Wooden Desk 2 Free Plan And Visual Guide

A wooden desk consisting of a right leg assembly with shelves, a left side panel assembly, and a desktop surface supported by these legs and a central beam. - Wooden Desk 2A wooden desk consisting of three main sub-assemblies: a detailed right leg structure, a simple left panel support, and a tabletop unit incorporating a central connecting beam. - Wooden Desk 2

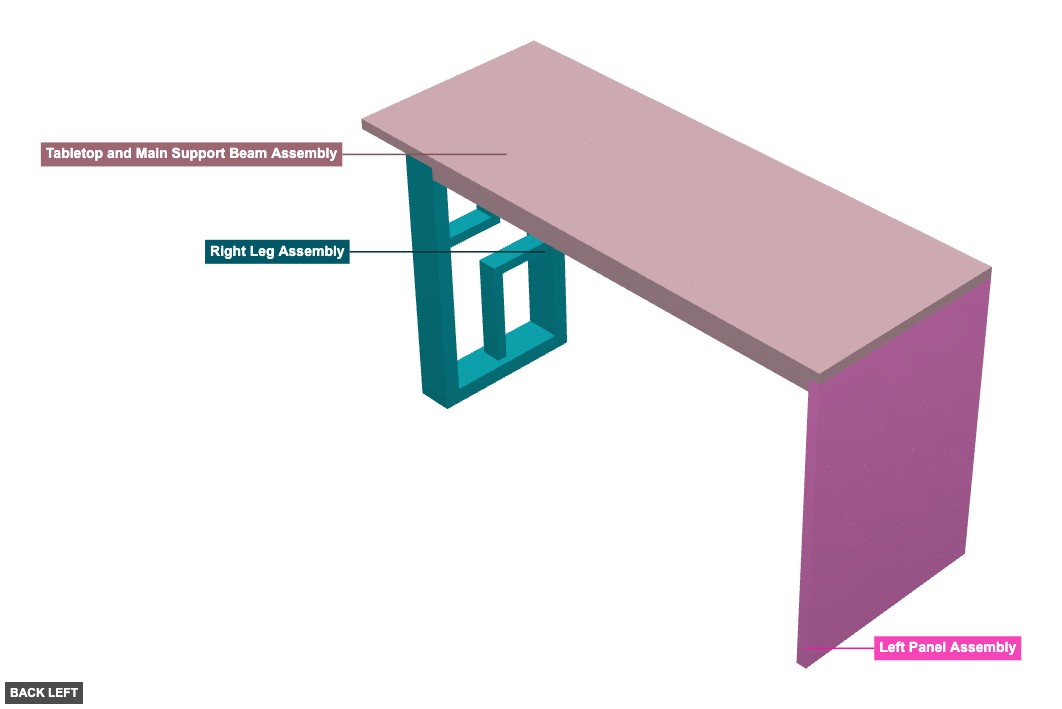

Phase 1: Group Overview

Angle: back left

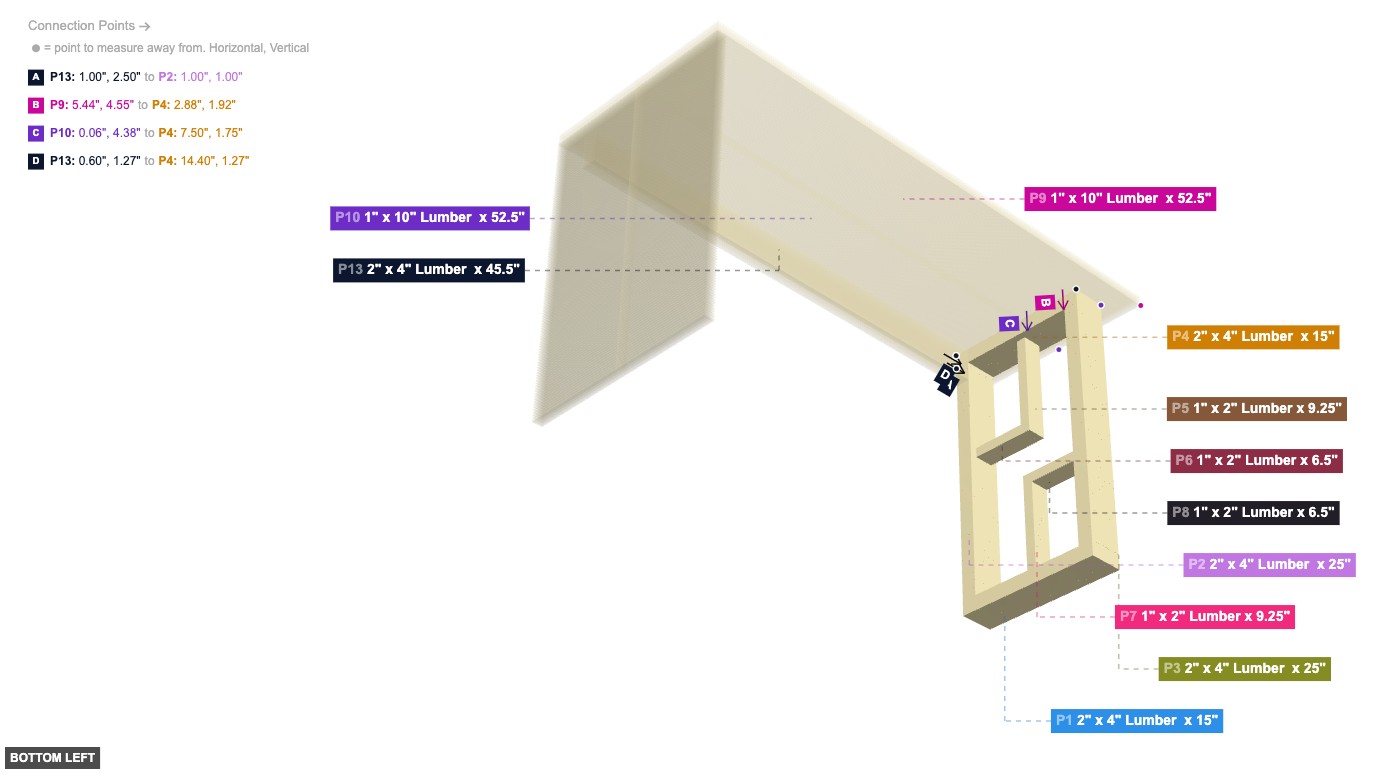

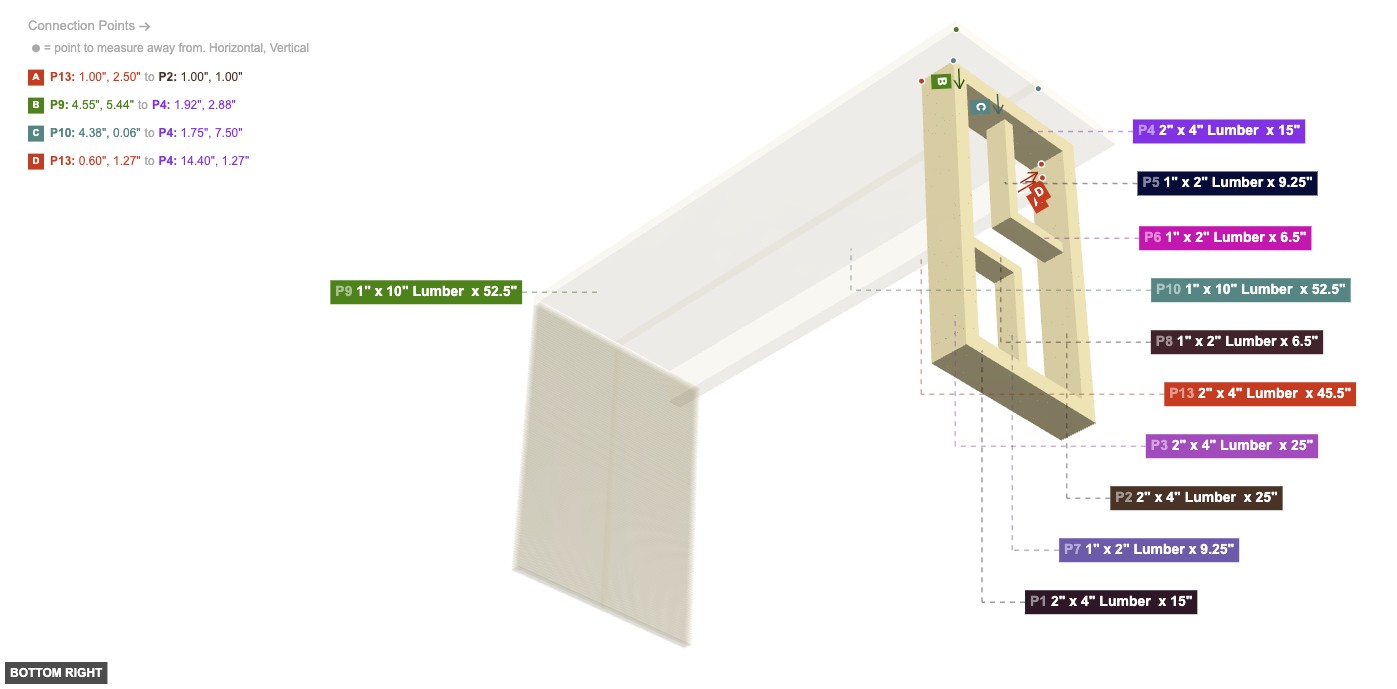

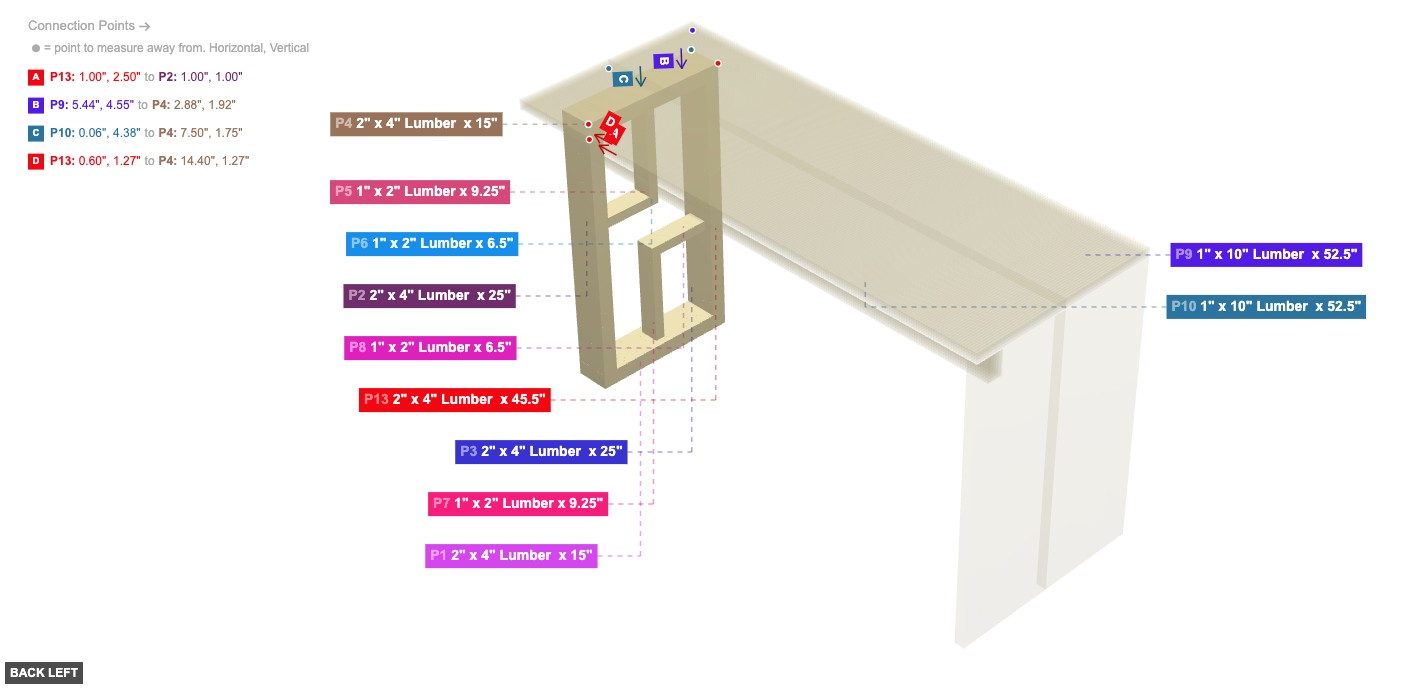

Right Leg Assembly

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Left Panel Assembly

1" x 10" Lumber x 28"x 2

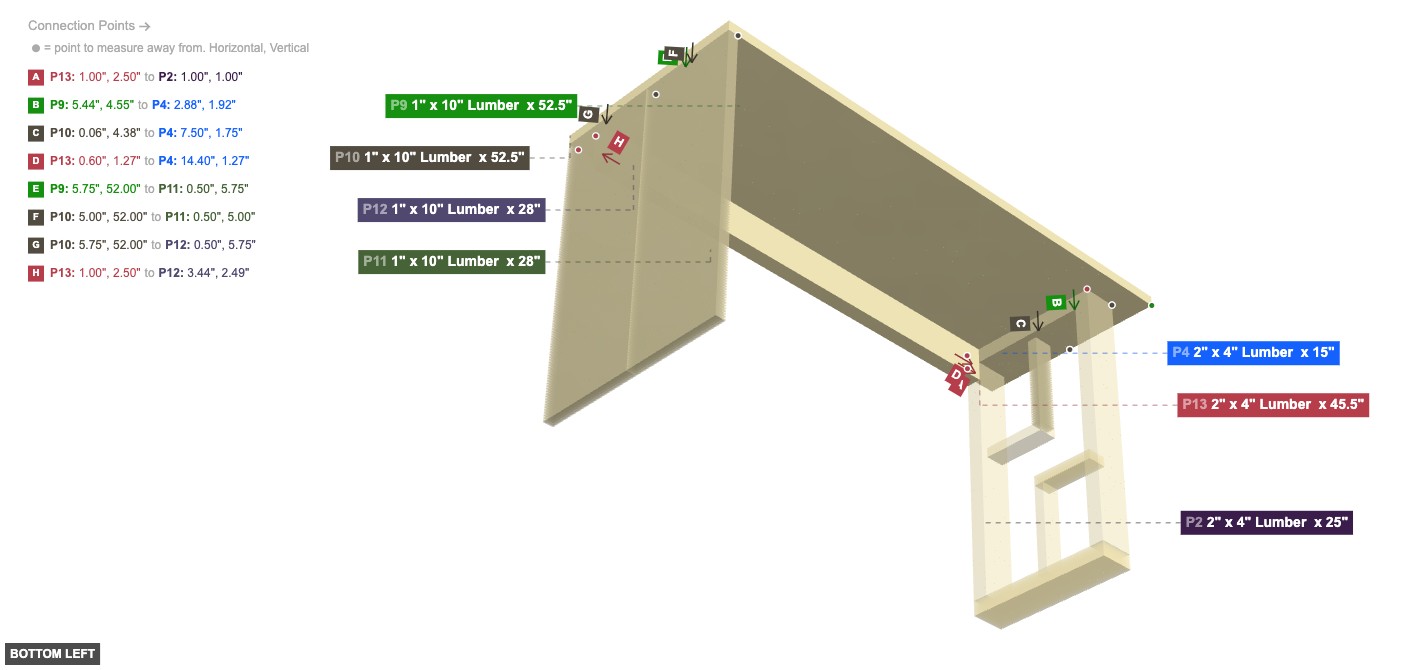

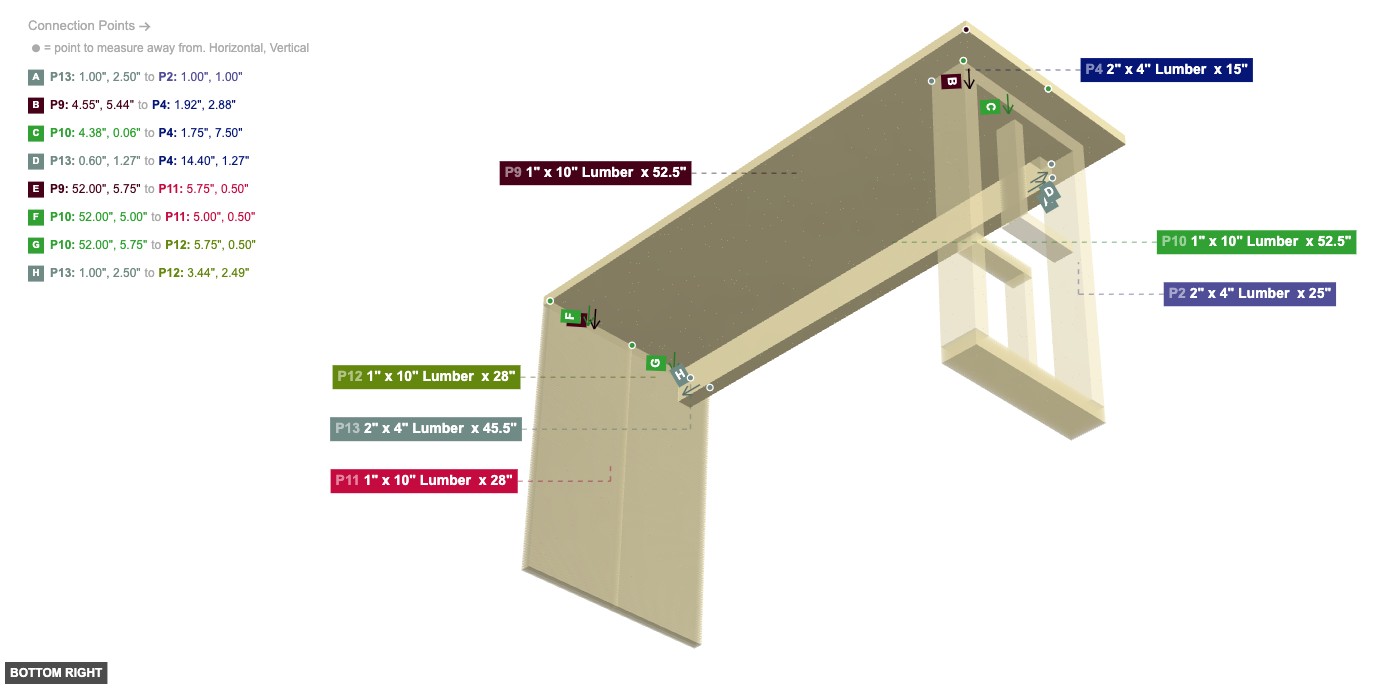

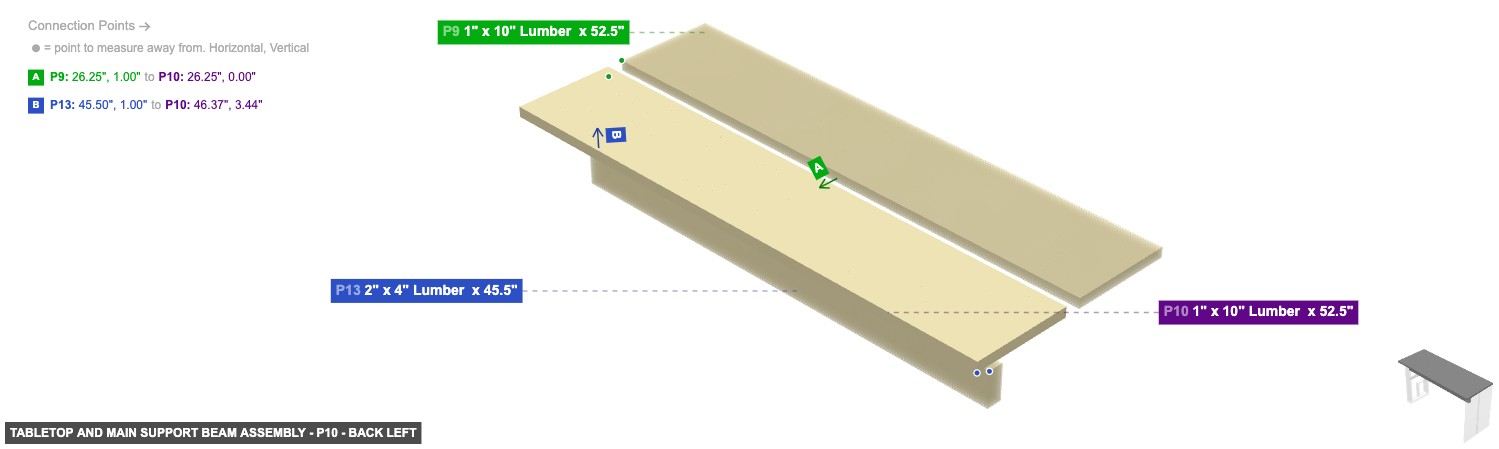

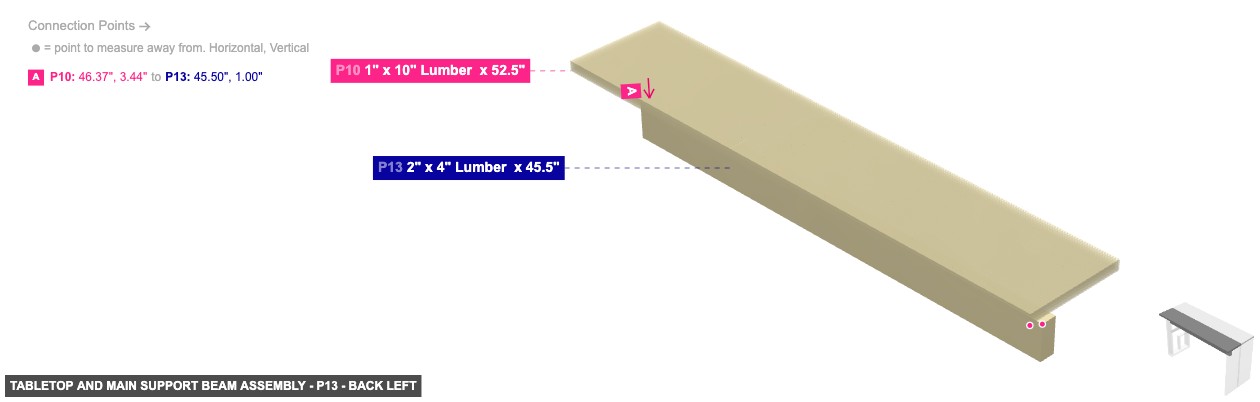

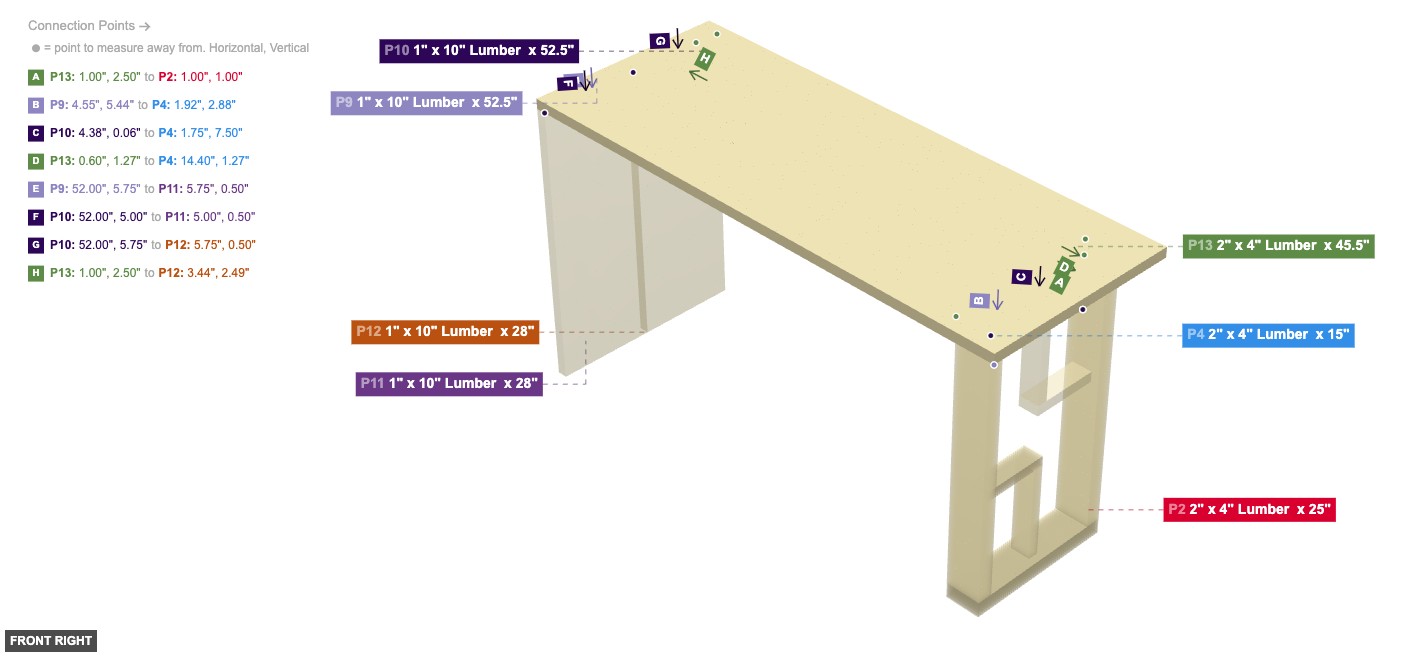

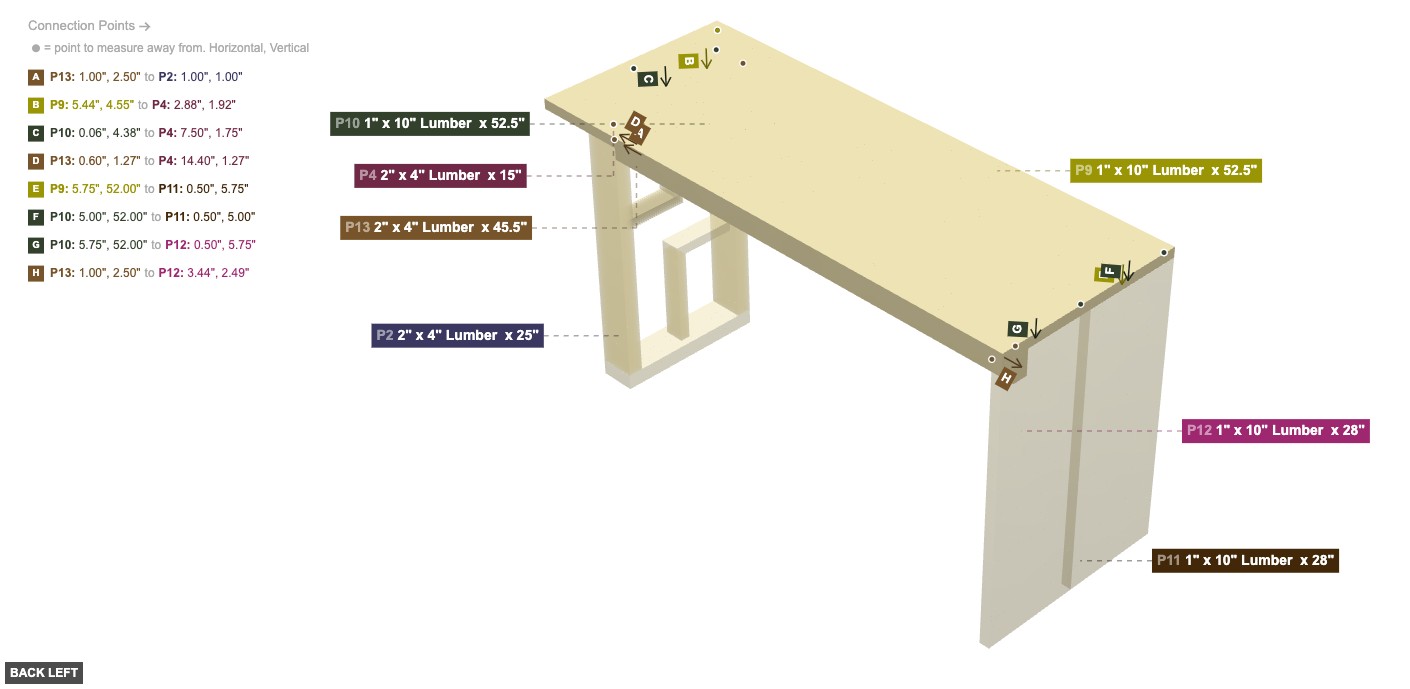

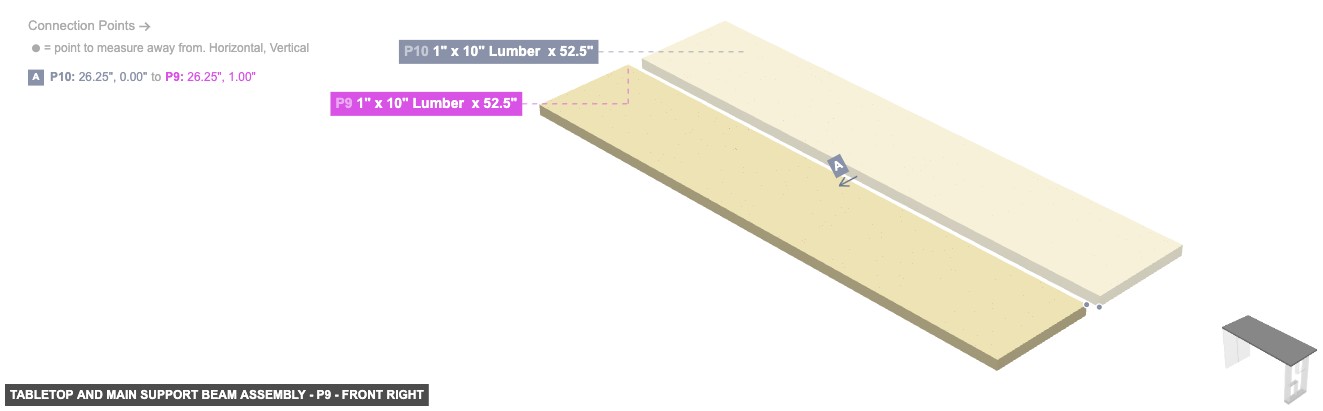

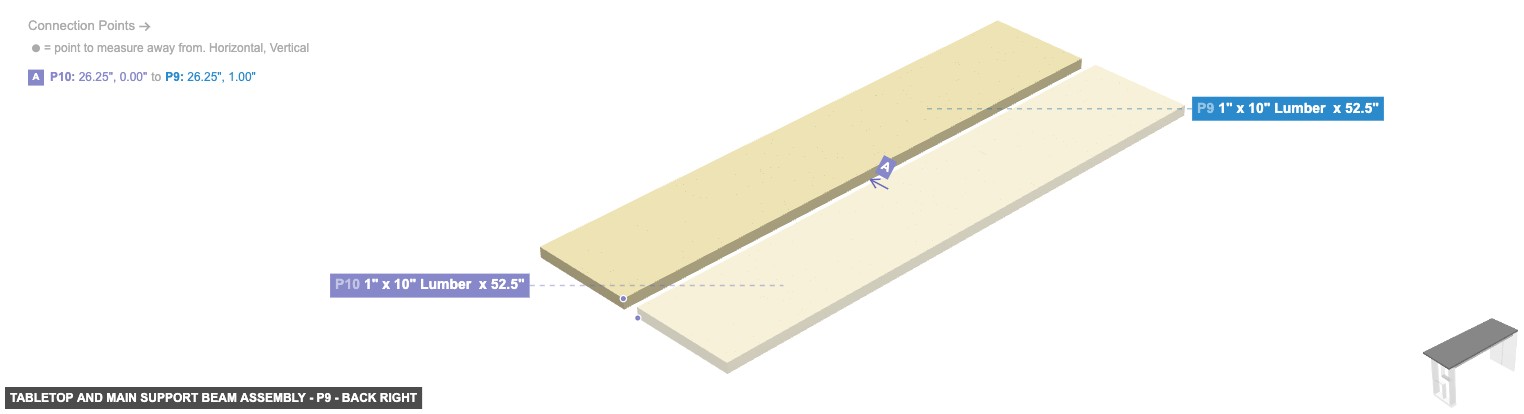

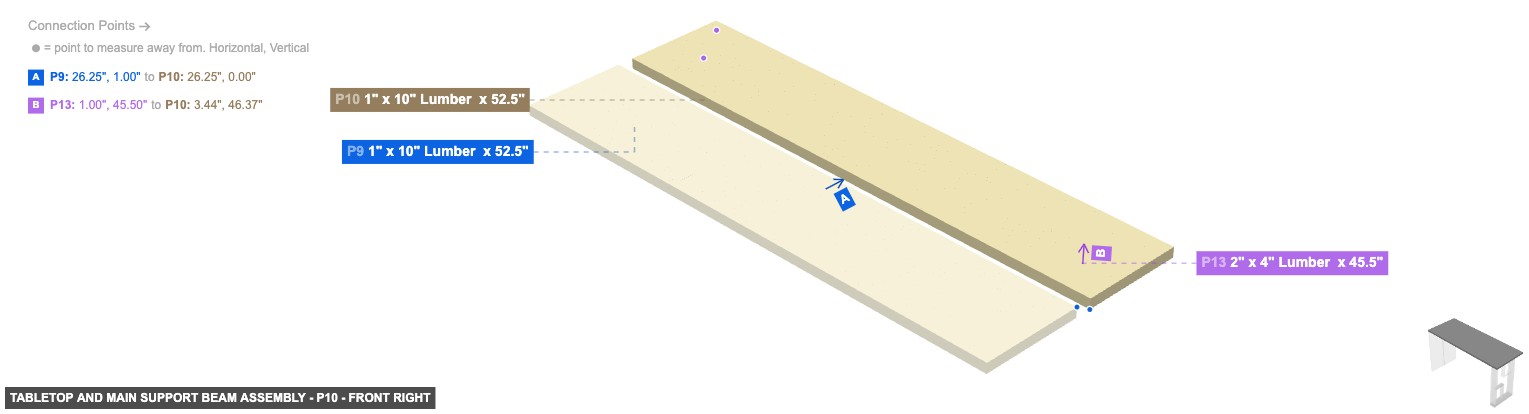

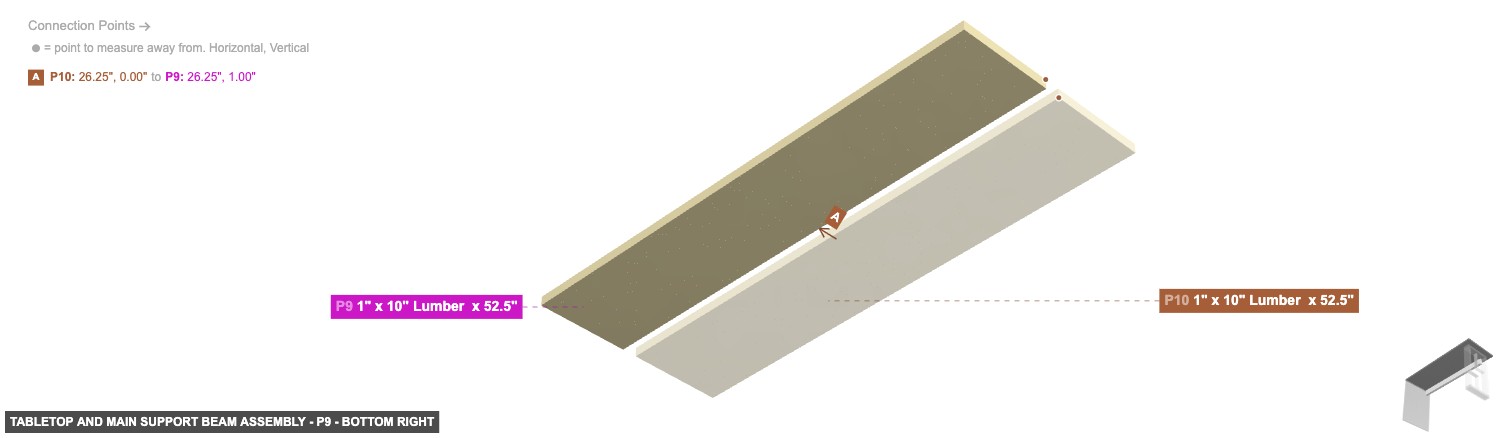

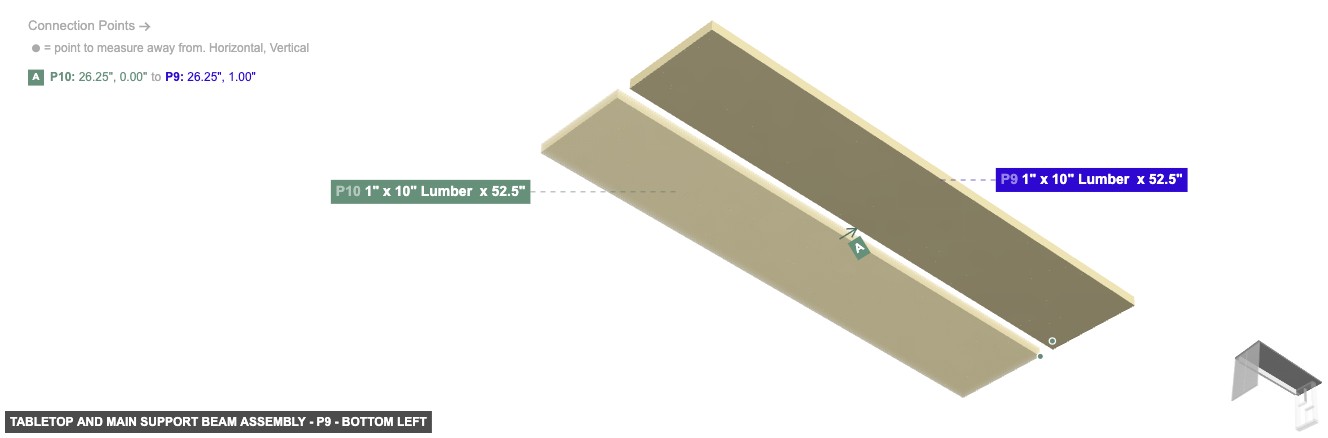

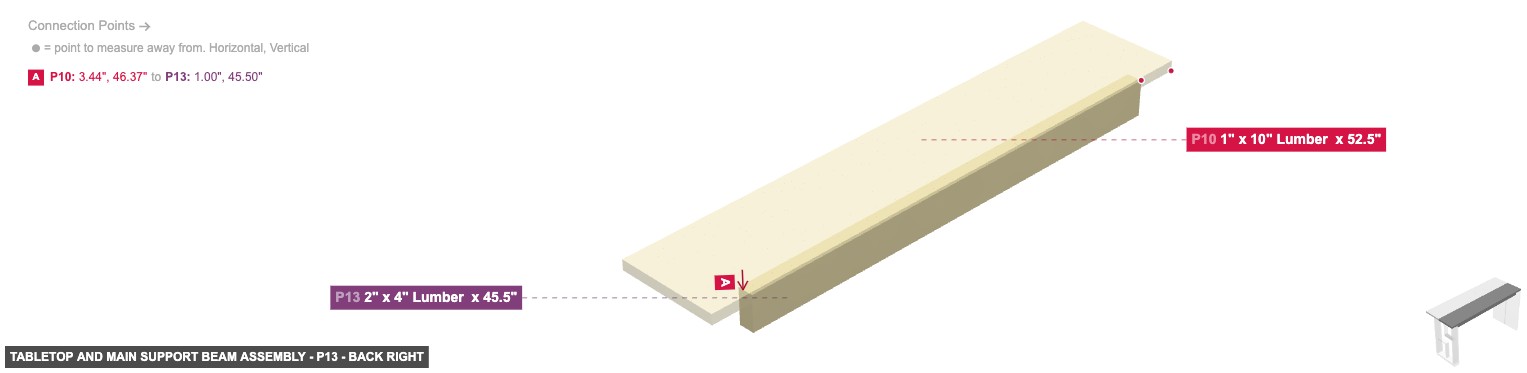

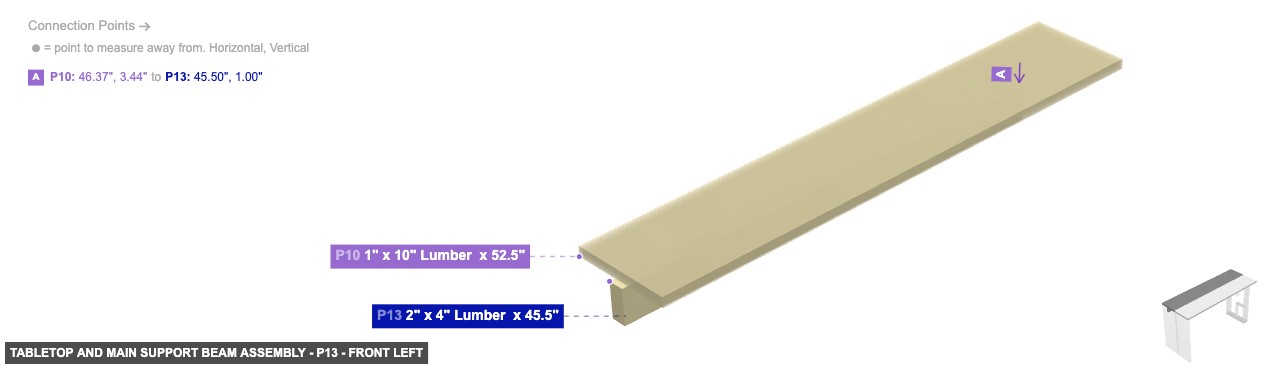

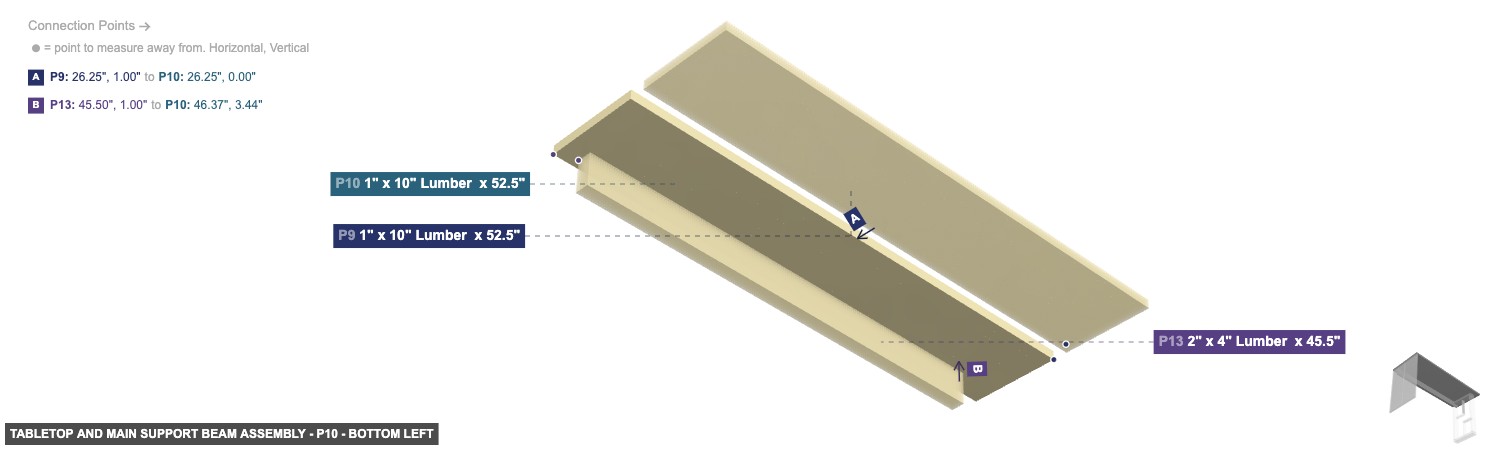

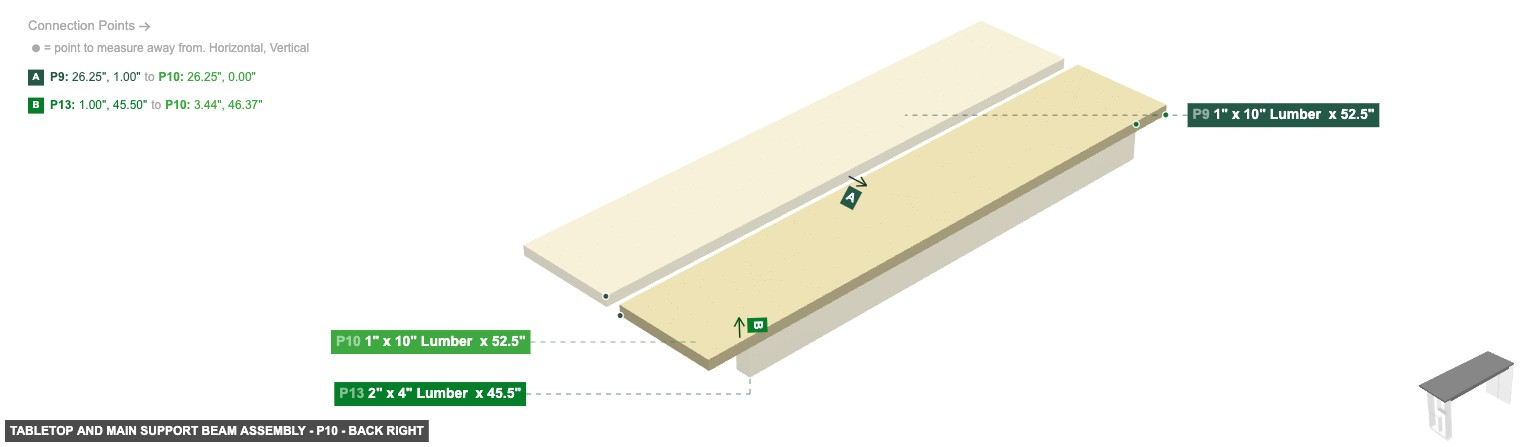

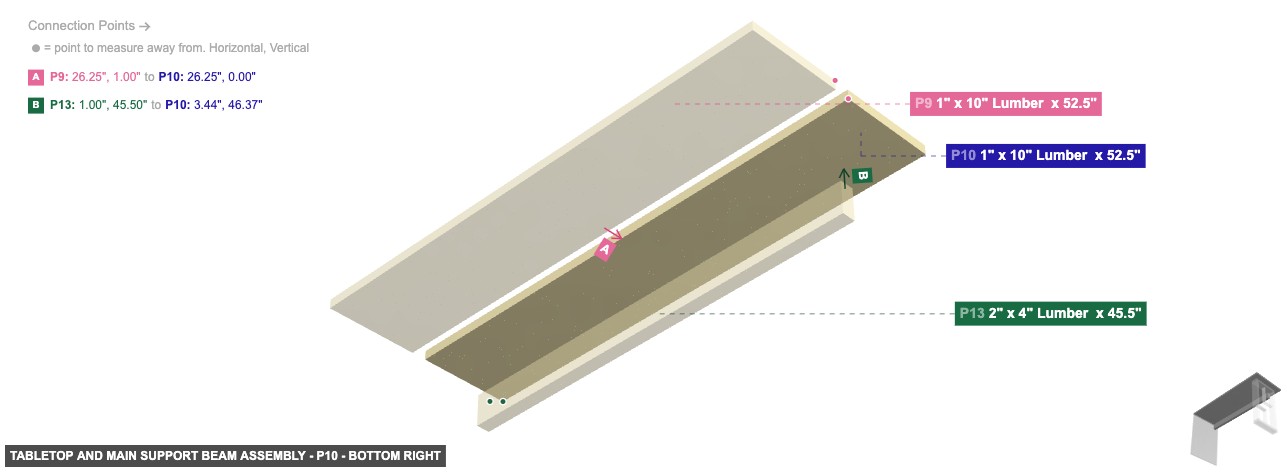

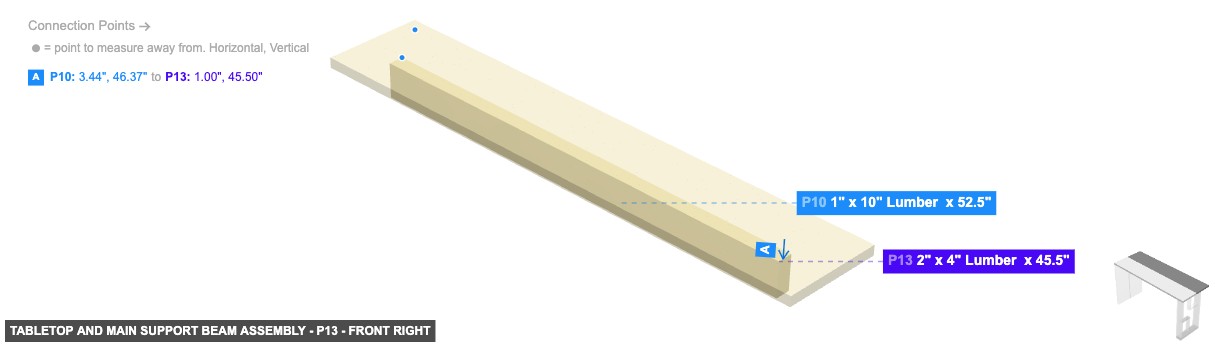

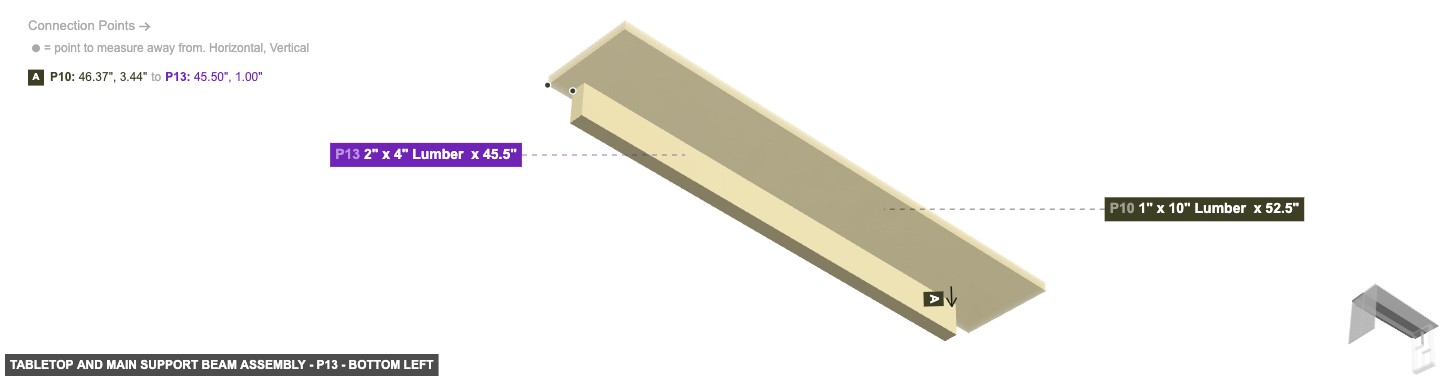

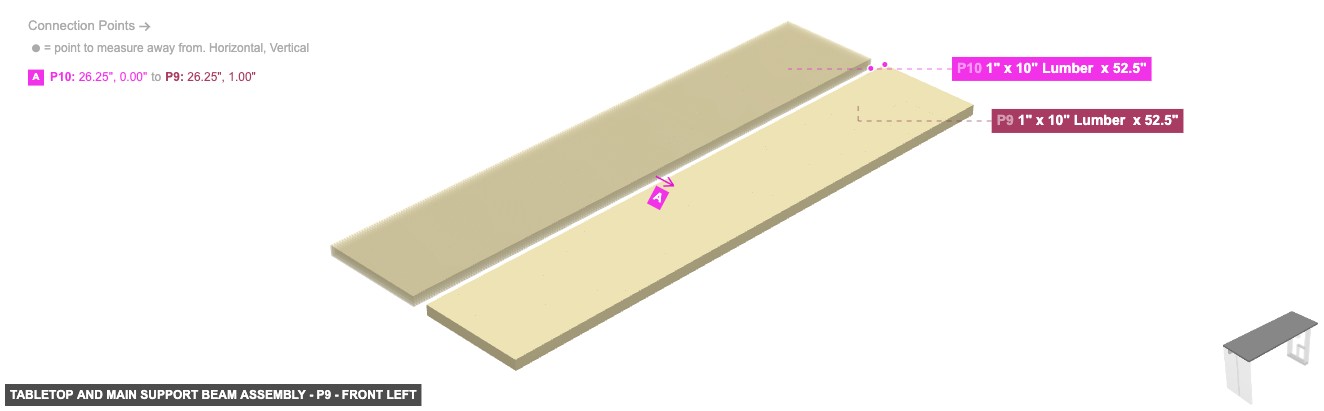

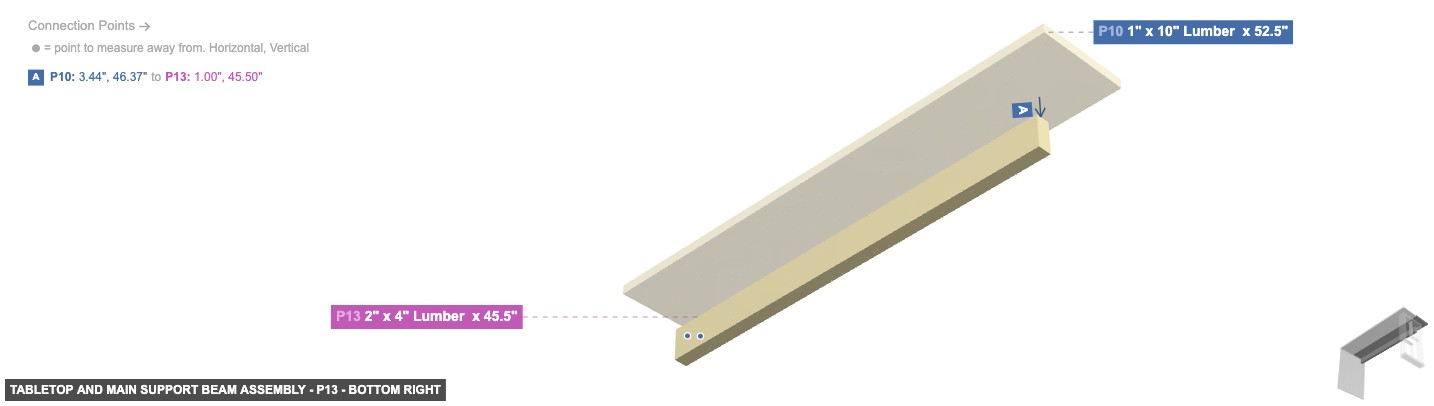

Tabletop and Main Support Beam Assembly

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

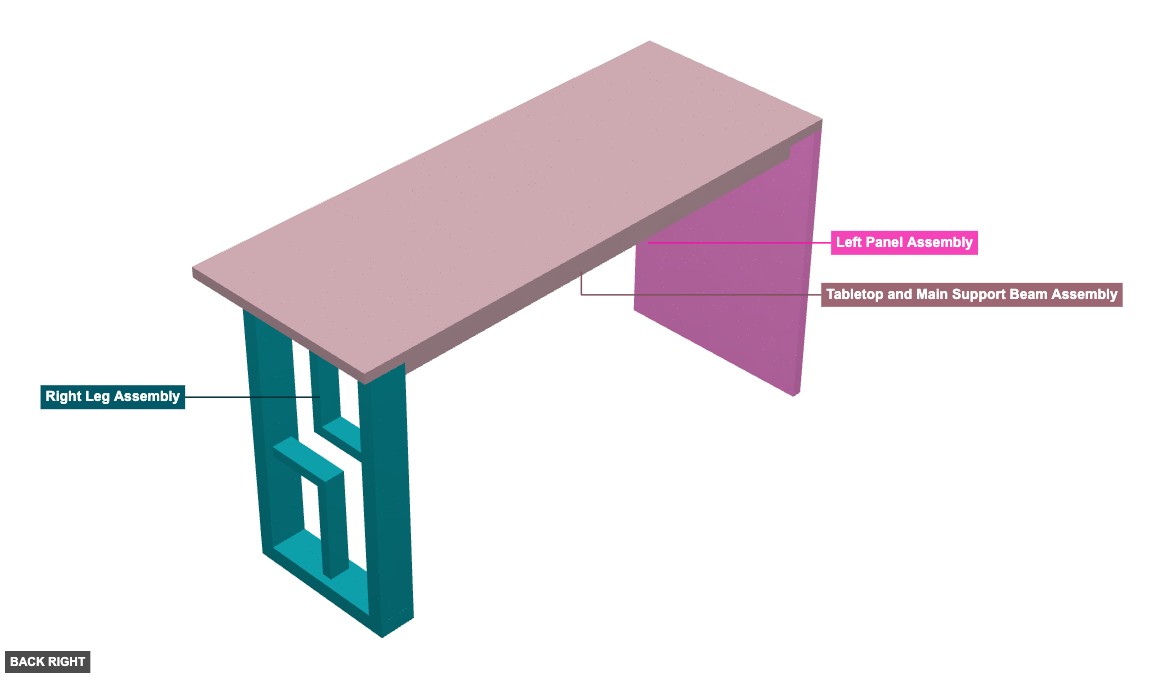

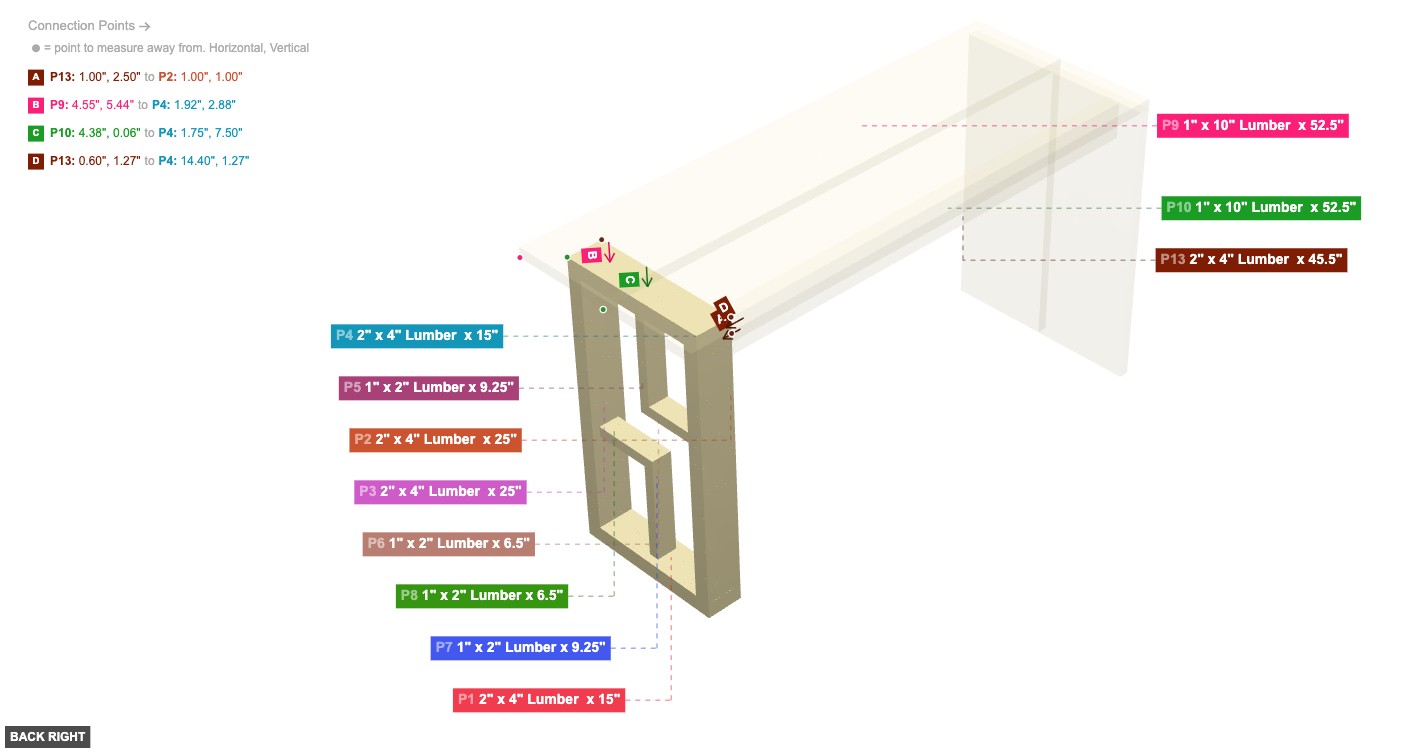

Angle: back right

Right Leg Assembly

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Left Panel Assembly

1" x 10" Lumber x 28"x 2

Tabletop and Main Support Beam Assembly

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

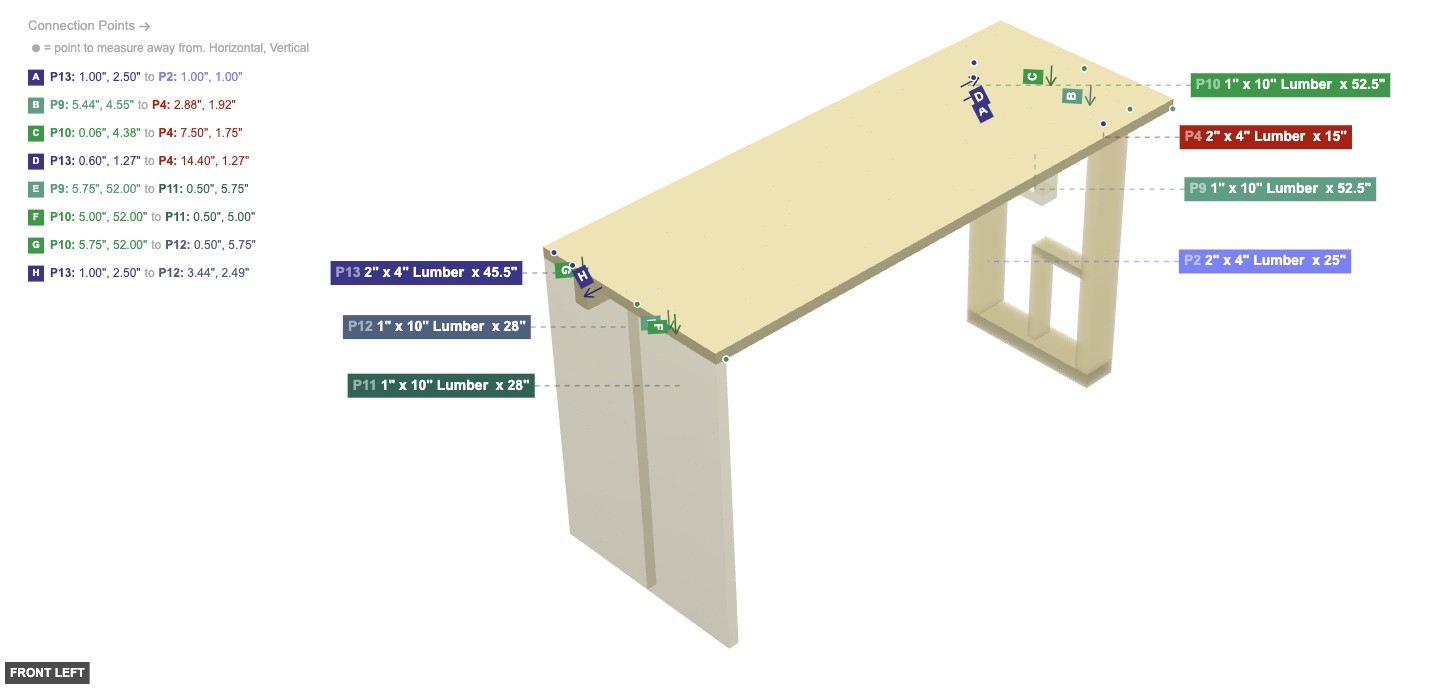

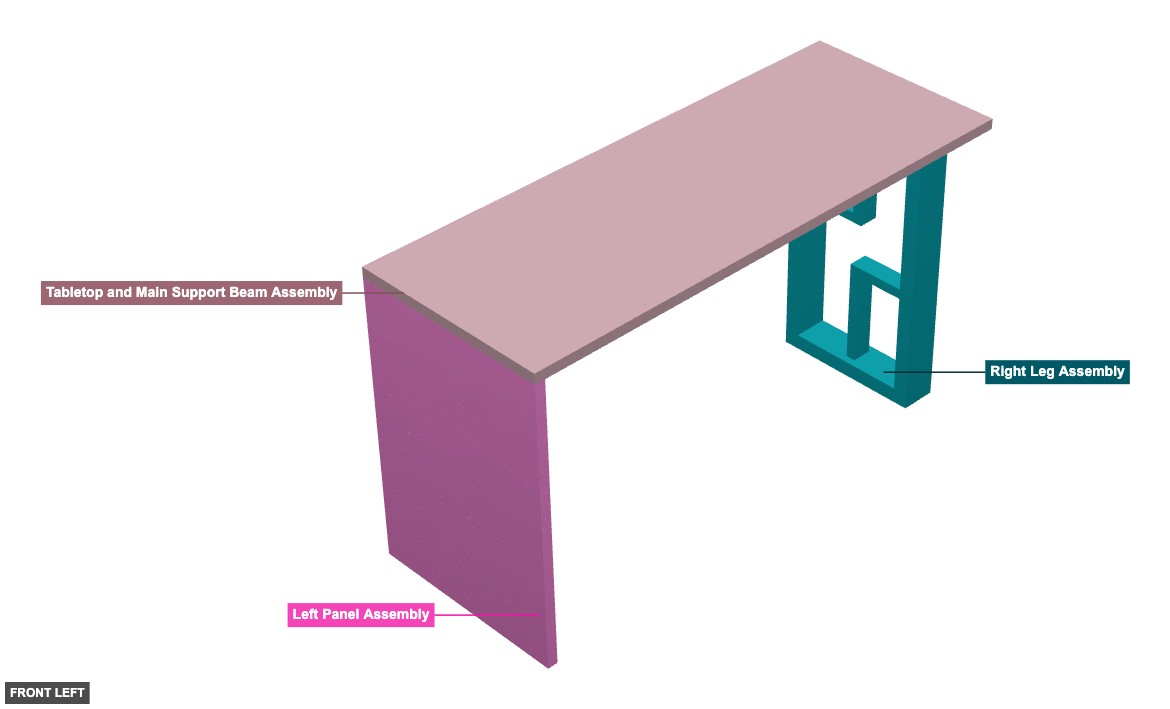

Angle: front left

Right Leg Assembly

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Left Panel Assembly

1" x 10" Lumber x 28"x 2

Tabletop and Main Support Beam Assembly

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

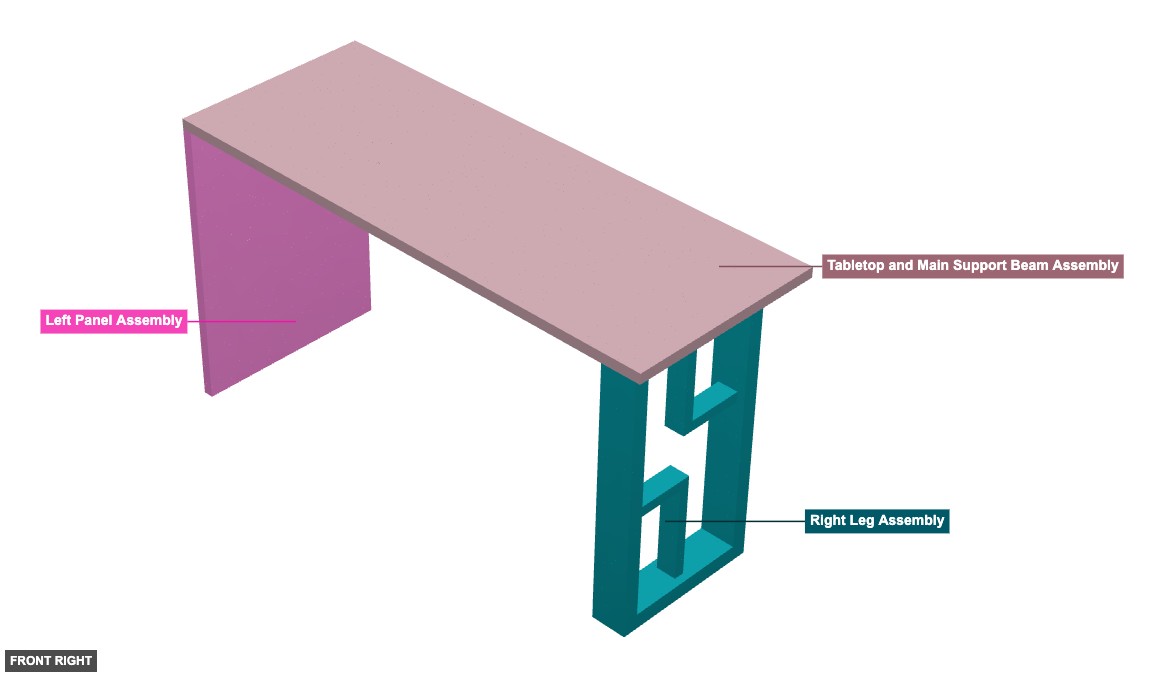

Angle: front right

Right Leg Assembly

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Left Panel Assembly

1" x 10" Lumber x 28"x 2

Tabletop and Main Support Beam Assembly

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

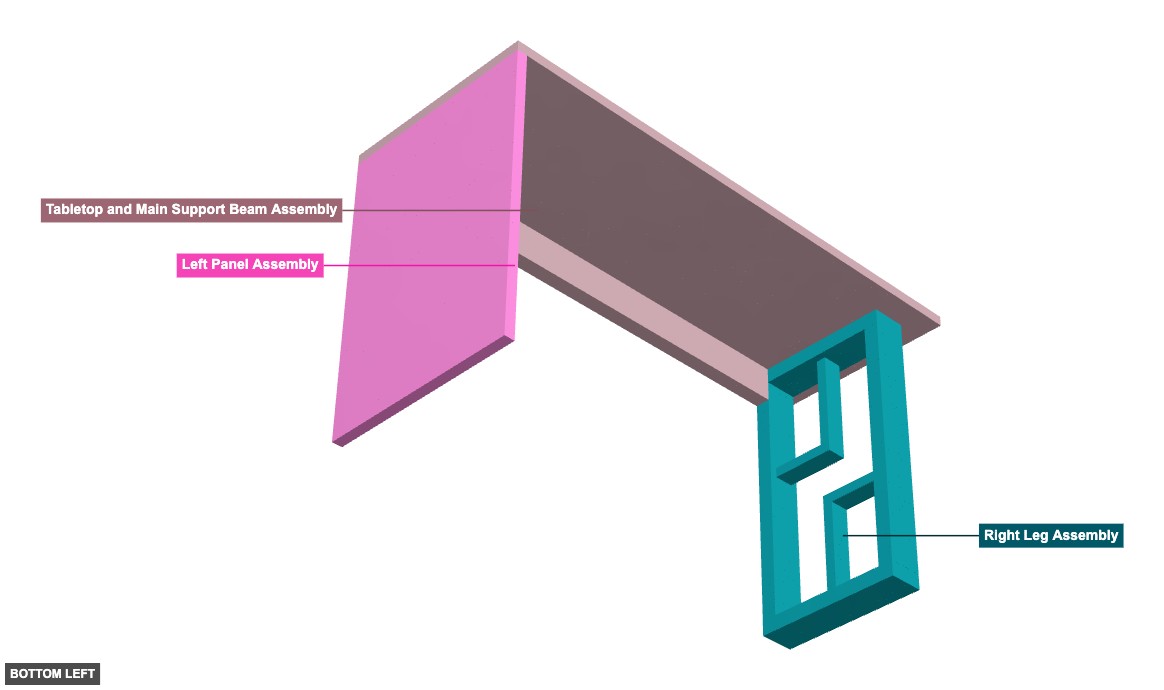

Angle: bottom left

Right Leg Assembly

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Left Panel Assembly

1" x 10" Lumber x 28"x 2

Tabletop and Main Support Beam Assembly

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

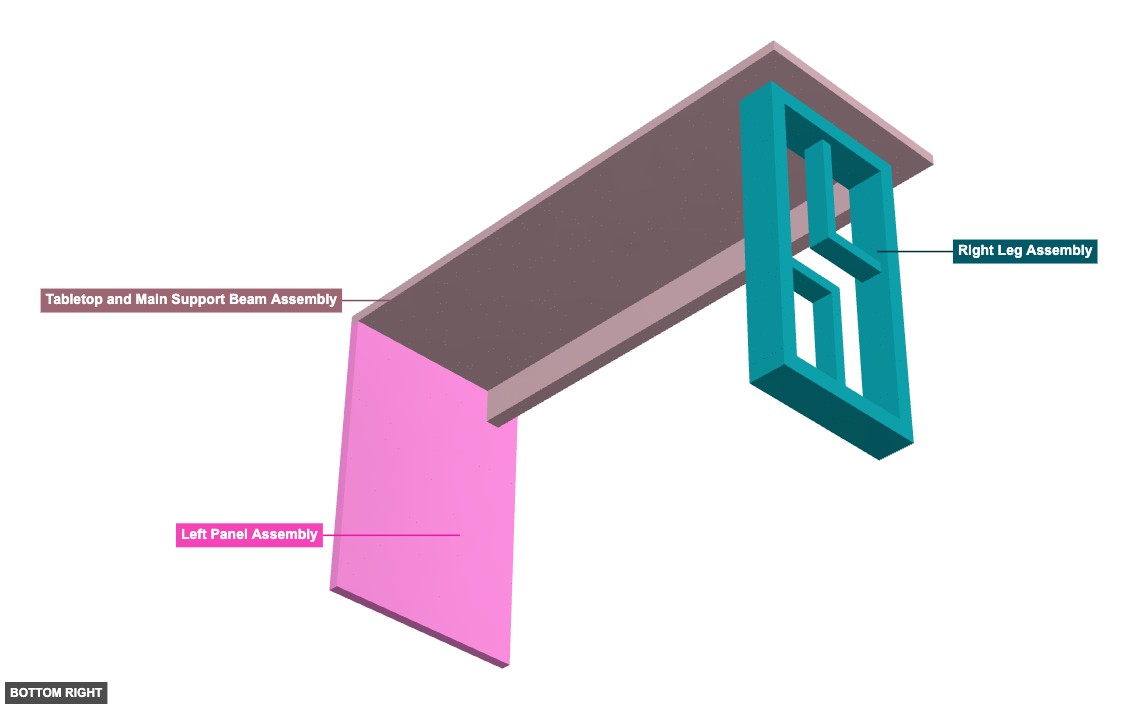

Angle: bottom right

Right Leg Assembly

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Left Panel Assembly

1" x 10" Lumber x 28"x 2

Tabletop and Main Support Beam Assembly

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Phase 2: Individual Group Assembly

Group: Right Leg Assembly

Forms the structural right leg of the desk, including its base, uprights, top crossbar, and inner supports.

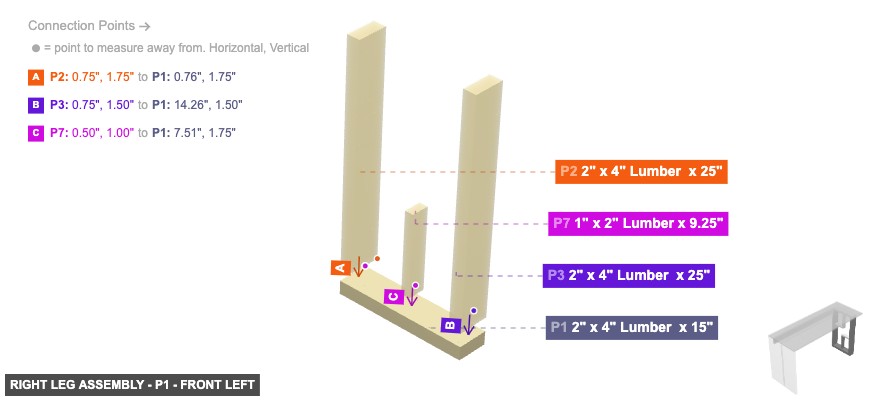

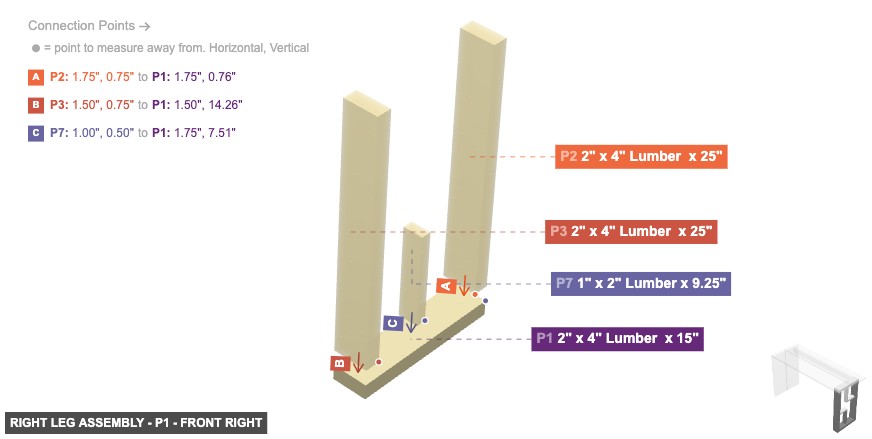

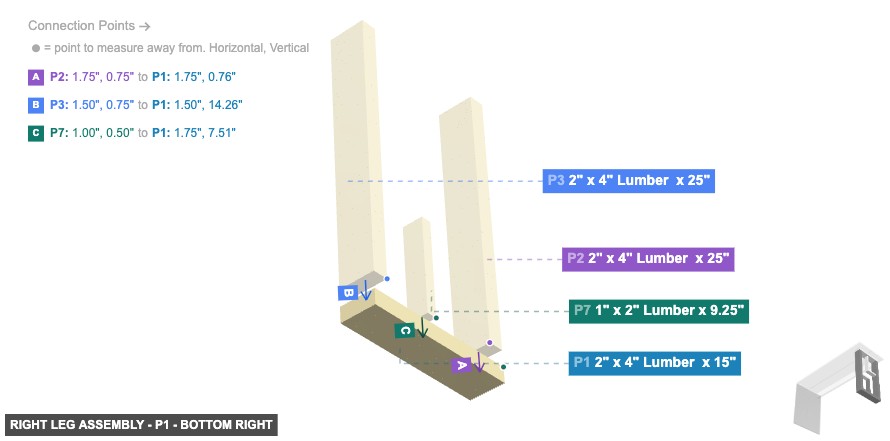

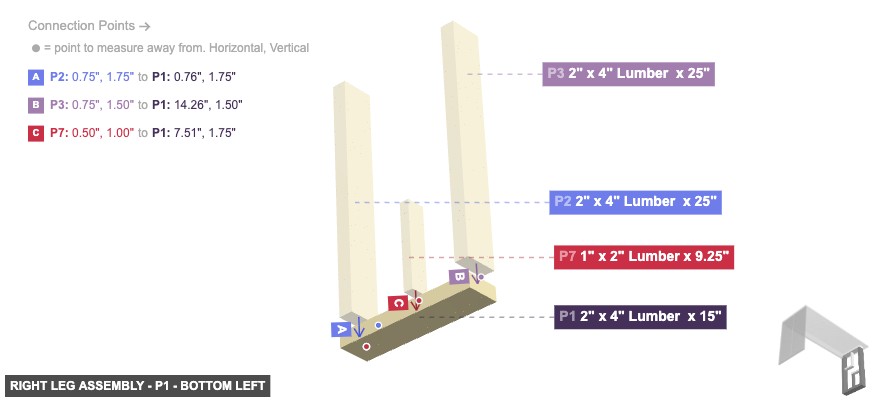

1. Connect upright P2 (its 2" x 4" Wood End #2) to the base P1 (its 2" x 4" Wood Side #2). 2. Connect upright P3 (its 2" x 4" Wood End #2) to the base P1 (its 2" x 4" Wood Side #2). 3. Attach the top crossbar P4 (its 2" x 4" Wood Side #2) to upright P2 (its 2" x 4" Wood End #1). 4. Attach the top crossbar P4 (its 2" x 4" Wood Side #2) to upright P3 (its 2" x 4" Wood End #1). 5. Assemble the front inner support: Connect P6 (its 1" x 2" Wood End #1) to P2 (its 2" x 4" Wood Side #4). Then, connect P5 (its 1" x 2" Wood End #1) to P6 (its 1" x 2" Wood Side #2). Finally, connect P5 (its 1" x 2" Wood End #2) to P4 (its 2" x 4" Wood Side #2). 6. Assemble the rear inner support: Connect P8 (its 1" x 2" Wood End #1) to P3 (its 2" x 4" Wood Side #2). Then, connect P7 (its 1" x 2" Wood End #1) to P8 (its 1" x 2" Wood Side #2). Finally, connect P7 (its 1" x 2" Wood End #2) to P1 (its 2" x 4" Wood Side #2).

Part: 2" x 4" Lumber x 15" - Angle: back left

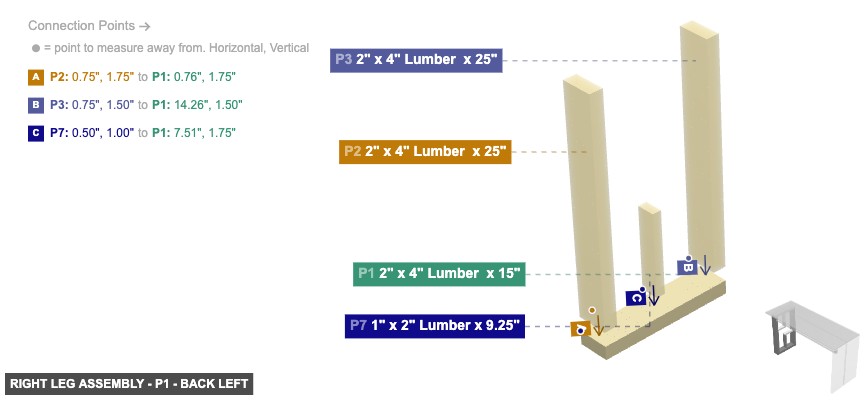

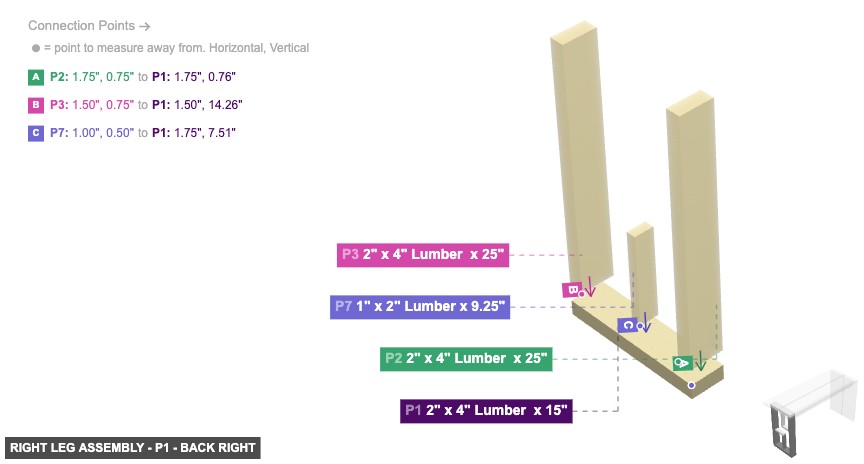

P1 (2" x 4" Lumber 15" length) - connect its 2" x 4" Wood Side #2 oriented top links with part 2's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #1 must be oriented front. Also, its 2" x 4" Wood Side #1 should be directed left. Additionally, its 2" x 4" Wood Side #3 needs to point right, plus its 2" x 4" Wood Side #4 needs to point bottom. Also, its 2" x 4" Wood End #2 must be oriented back

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

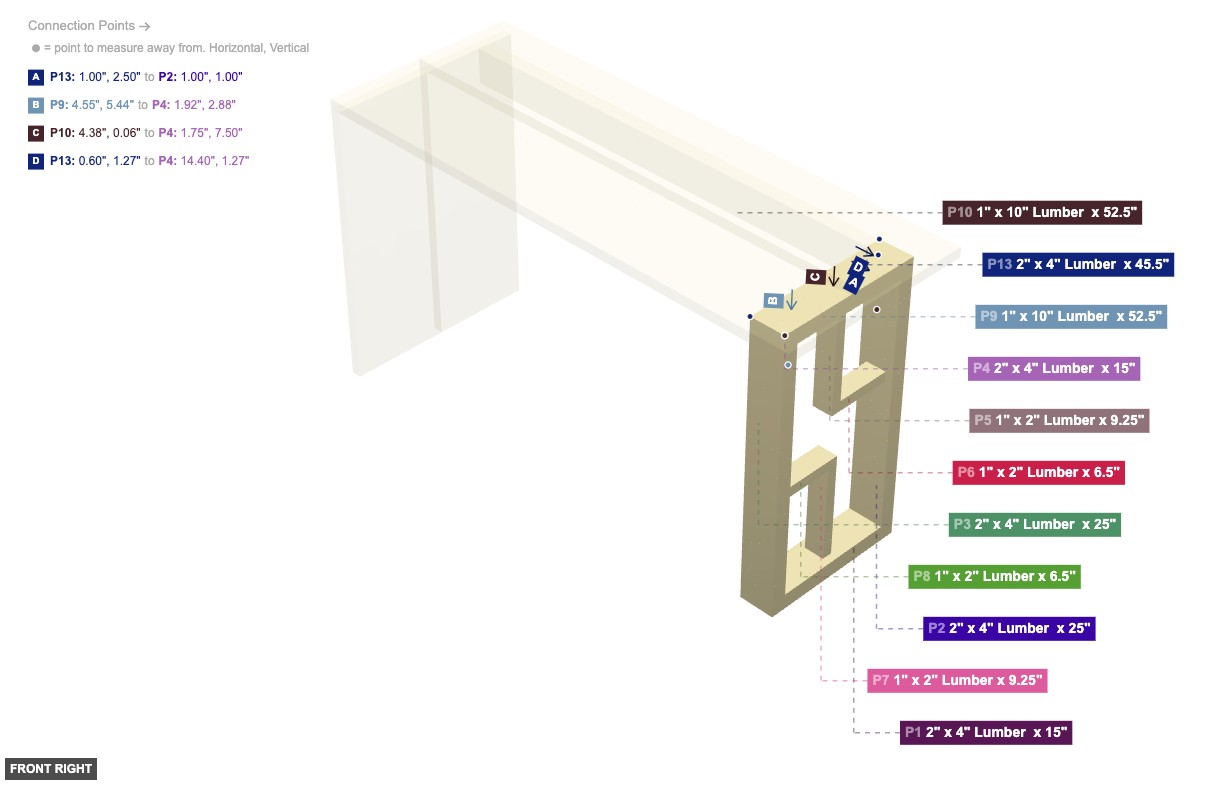

Part: 2" x 4" Lumber x 15" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

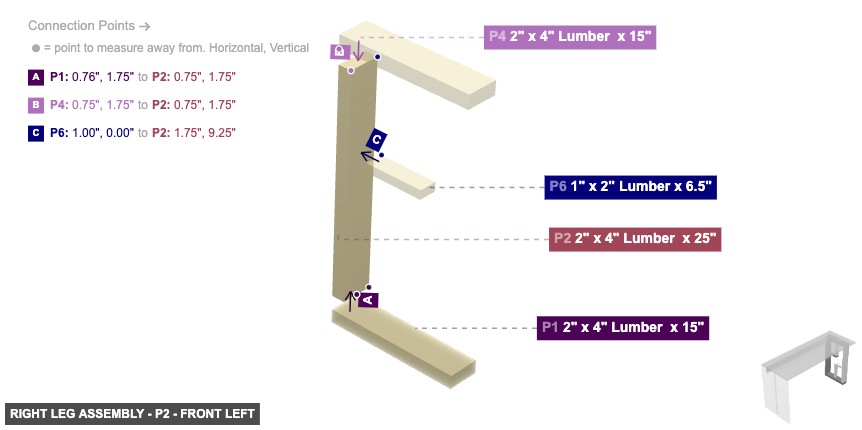

Part: 2" x 4" Lumber x 25" - Angle: back left

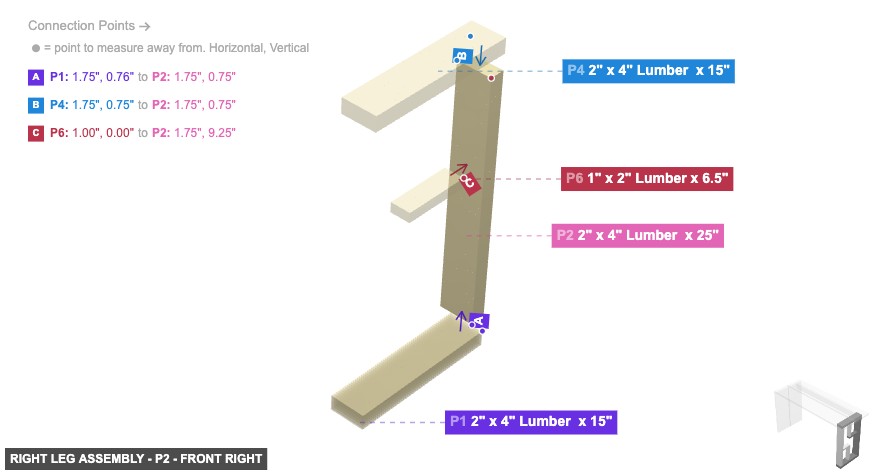

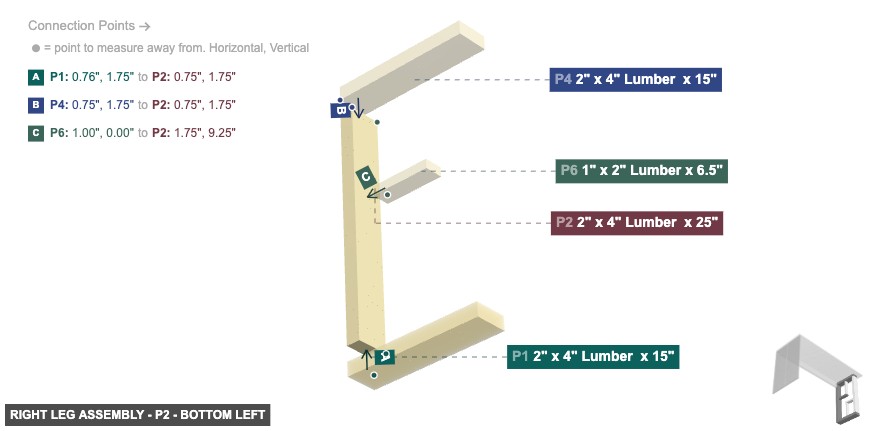

P2 (2" x 4" Lumber 25" length) - its 2" x 4" Wood End #1, which is top-facing, should connect to part 4's 2" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #4 facing front to part 6's 1" x 2" Wood End #1. Next, its 2" x 4" Wood End #2, which is bottom-facing, should connect to part 1's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #2 should be directed back, also its 2" x 4" Wood Side #3 should be directed right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

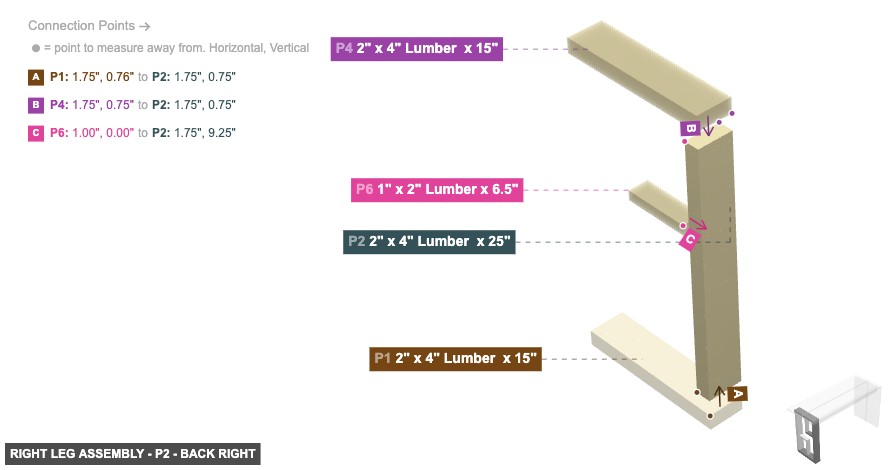

Part: 2" x 4" Lumber x 25" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

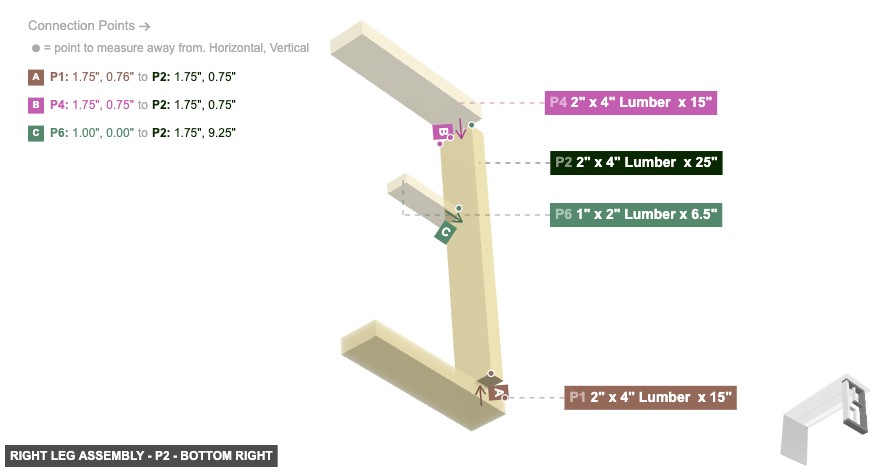

Part: 2" x 4" Lumber x 25" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: back left

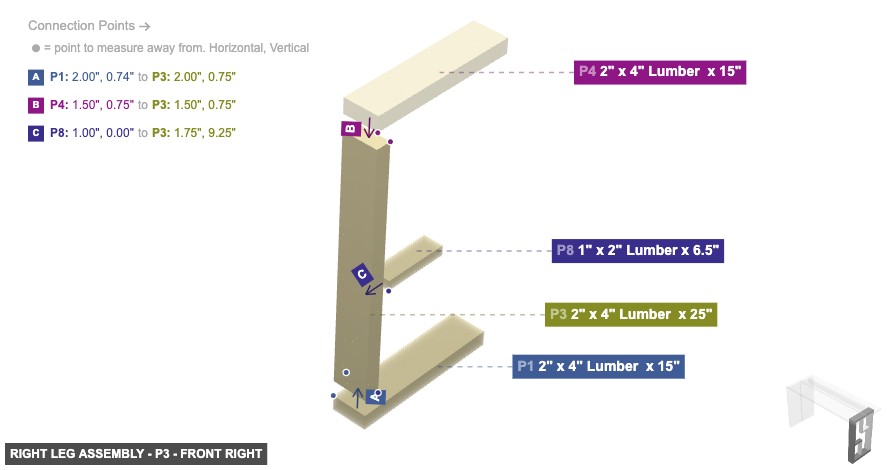

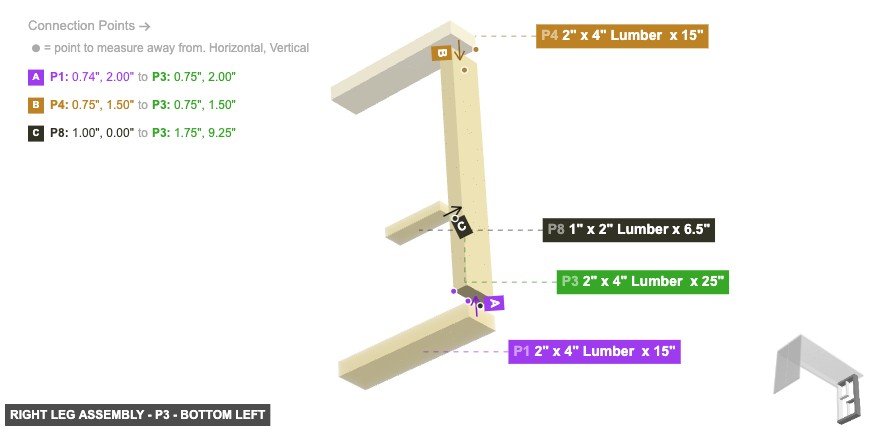

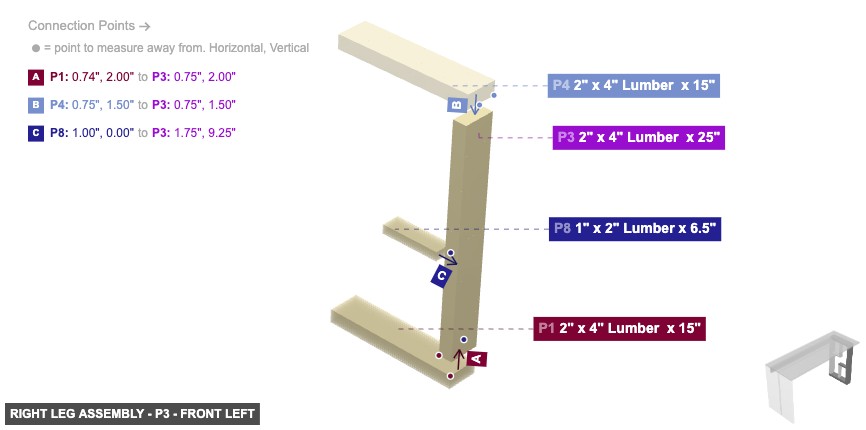

P3 (2" x 4" Lumber 25" length) - attach its 2" x 4" Wood End #1 facing top to part 4's 2" x 4" Wood Side #2. Next, connect its 2" x 4" Wood Side #2 oriented back links with part 8's 1" x 2" Wood End #1, then connect its 2" x 4" Wood End #2 oriented bottom links with part 1's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #3 must be oriented right. Also, its 2" x 4" Wood Side #4 should be directed front

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 25" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

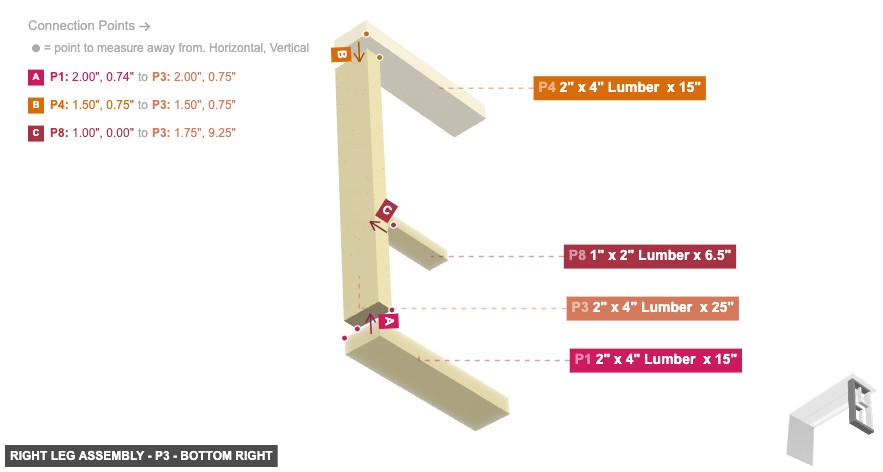

Part: 2" x 4" Lumber x 25" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: back left

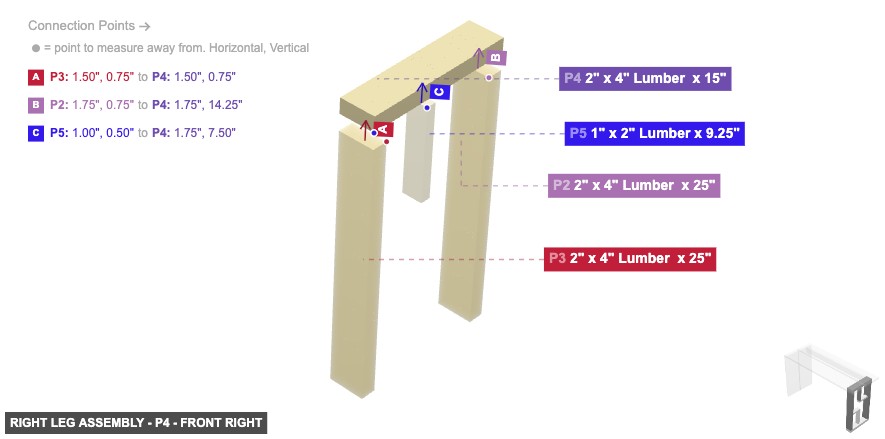

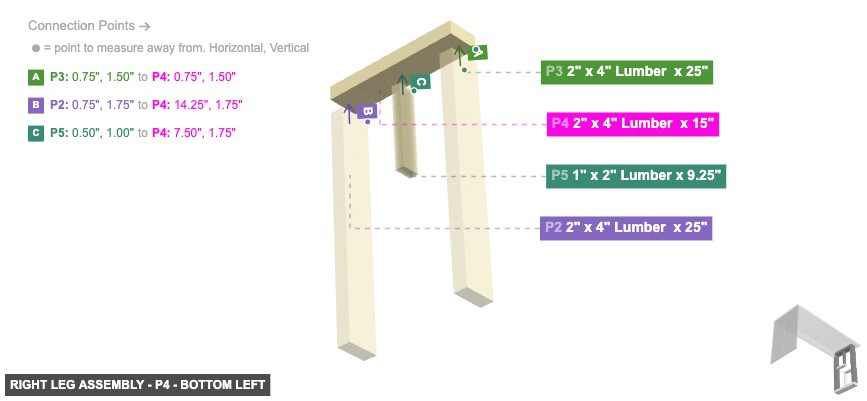

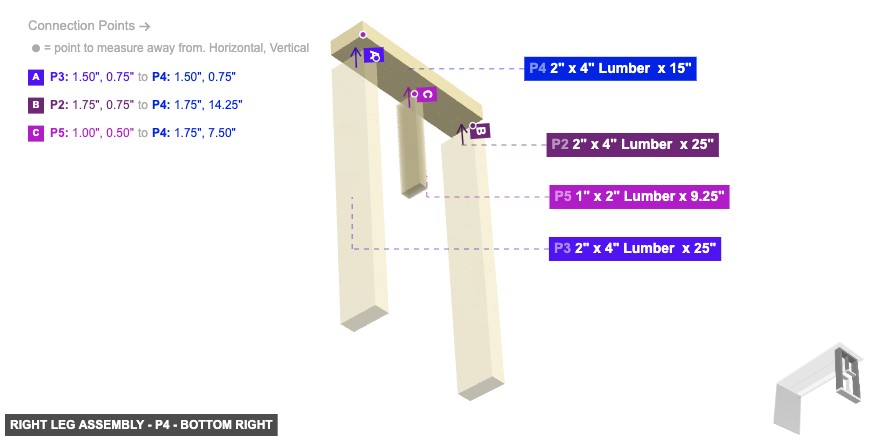

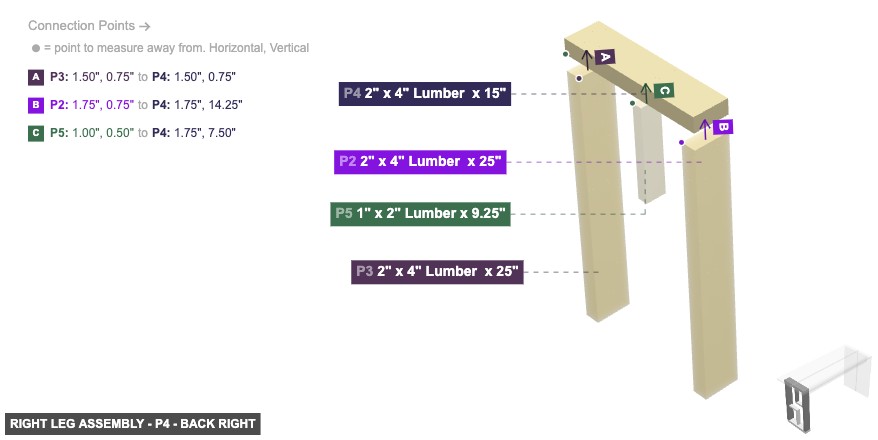

P4 (2" x 4" Lumber 15" length) - its 2" x 4" Wood Side #2, which is bottom-facing, should connect to part 3's 2" x 4" Wood End #1, and its 2" x 4" Wood End #1 must be oriented back. Additionally, ensure its 2" x 4" Wood Side #3 faces right. After that, its 2" x 4" Wood End #2 must be oriented front

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 2" x 4" Lumber x 15" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

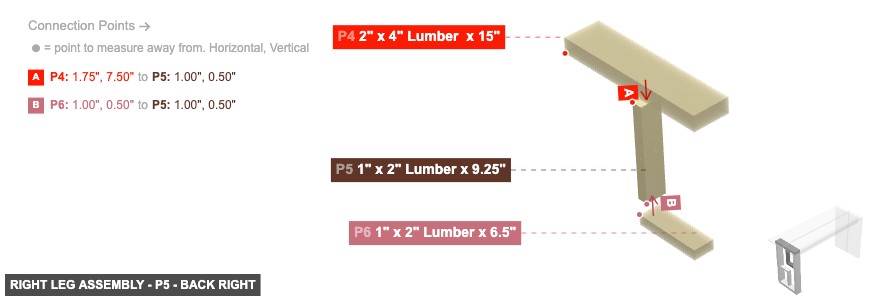

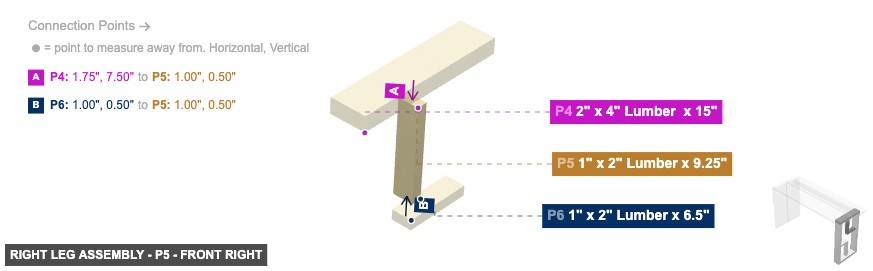

Part: 1" x 2" Lumber x 9.25" - Angle: back left

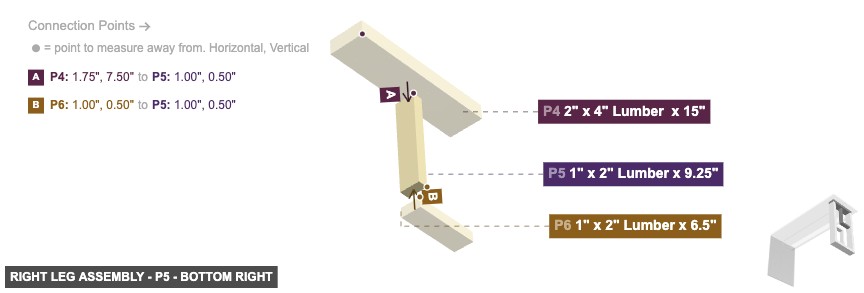

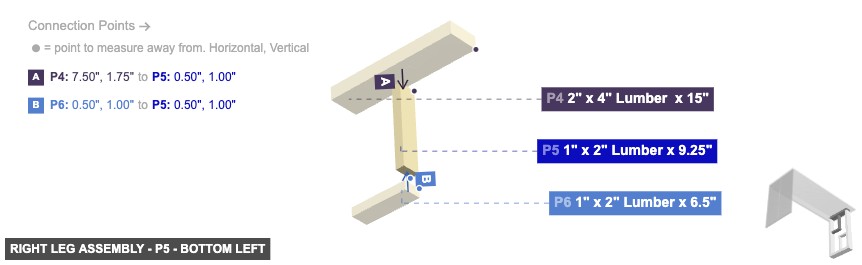

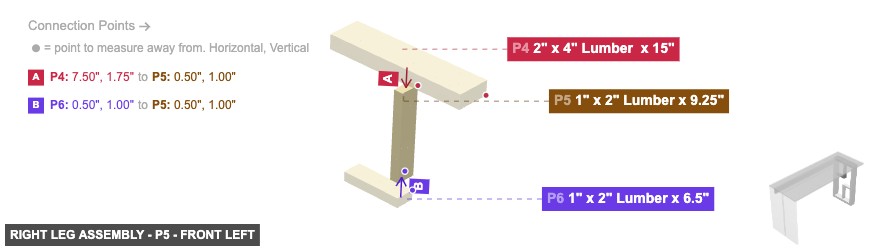

P5 (1" x 2" Lumber 9.25" length) - attach its 1" x 2" Wood End #1 facing bottom to part 6's 1" x 2" Wood Side #2, also attach its 1" x 2" Wood End #2 facing top to part 4's 2" x 4" Wood Side #2. Next, its 1" x 2" Wood Side #1 must be oriented left. Additionally, its 1" x 2" Wood Side #2 needs to point front. Next, its 1" x 2" Wood Side #3 needs to point right. Next, its 1" x 2" Wood Side #4 should be directed back

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 6.5" - Angle: back left

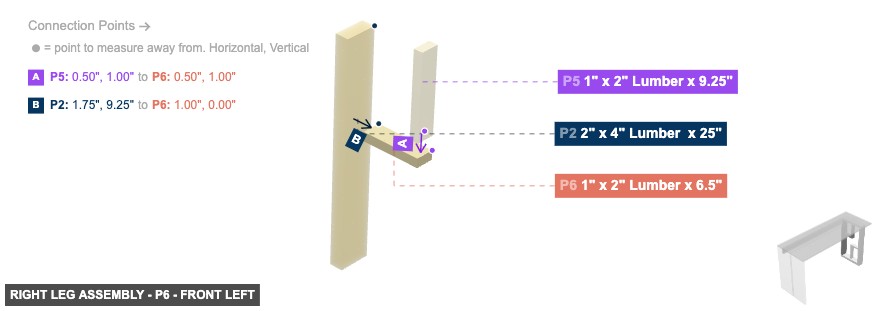

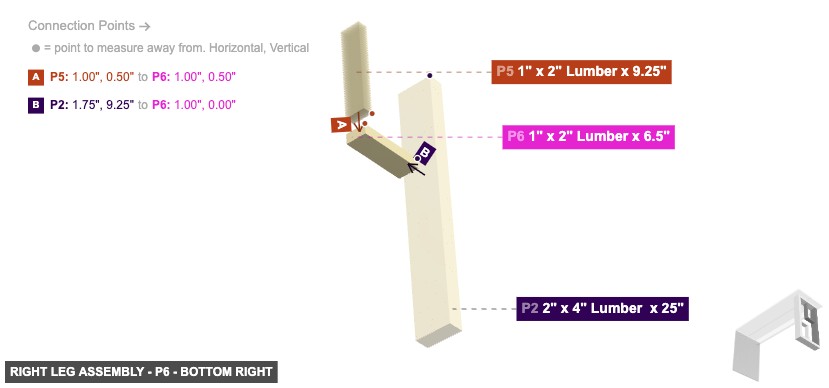

P6 (1" x 2" Lumber 6.5" length) - attach its 1" x 2" Wood End #1 facing back to part 2's 2" x 4" Wood Side #4. Also, its 1" x 2" Wood Side #2, which is top-facing, should connect to part 5's 1" x 2" Wood End #1, plus its 1" x 2" Wood Side #1 should be directed right. Additionally, its 1" x 2" Wood Side #3 should be directed left, also its 1" x 2" Wood Side #4 needs to point bottom, also its 1" x 2" Wood End #2 needs to point front

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

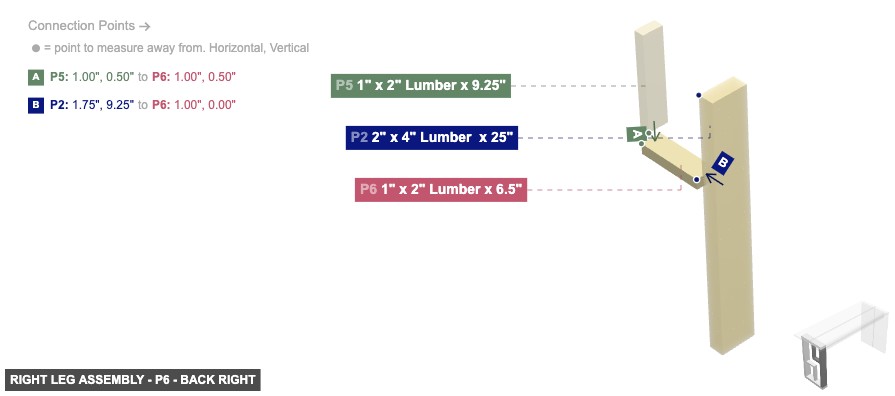

Part: 1" x 2" Lumber x 6.5" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 6.5" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

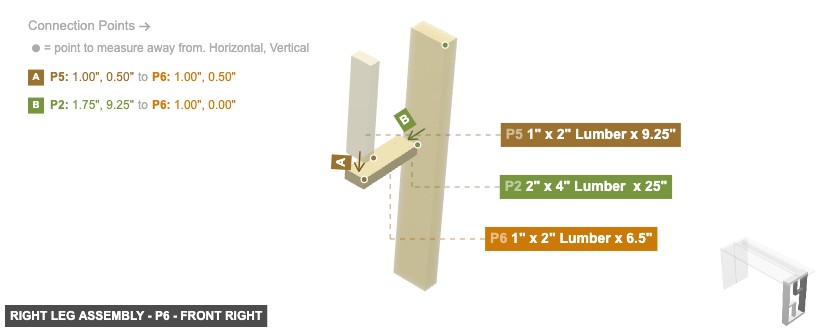

Part: 1" x 2" Lumber x 6.5" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

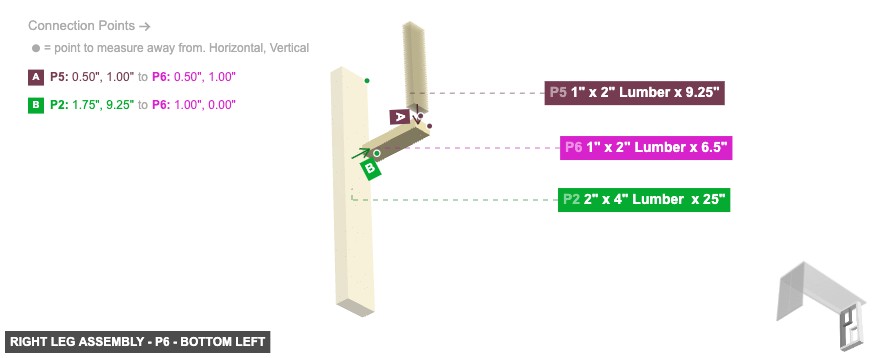

Part: 1" x 2" Lumber x 6.5" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 6.5" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: back left

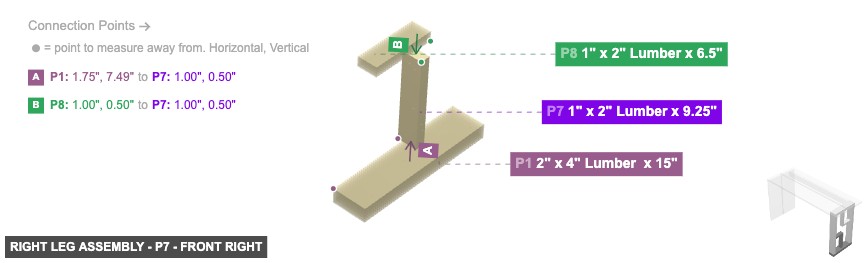

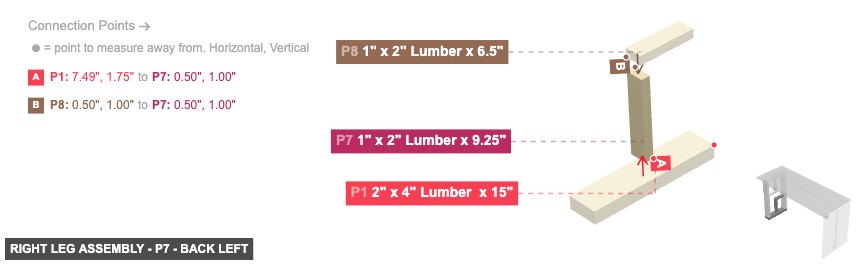

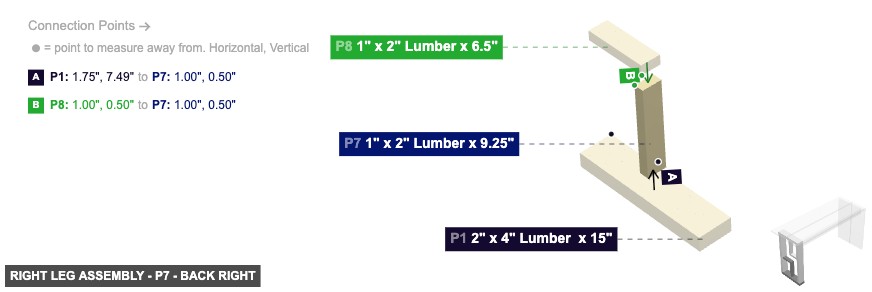

P7 (1" x 2" Lumber 9.25" length) - attach its 1" x 2" Wood End #1 facing top to part 8's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood End #2, which is bottom-facing, should connect to part 1's 2" x 4" Wood Side #2, and its 1" x 2" Wood Side #1 needs to point left, also ensure its 1" x 2" Wood Side #2 faces back, also its 1" x 2" Wood Side #3 must be oriented right. After that, its 1" x 2" Wood Side #4 must be oriented front

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

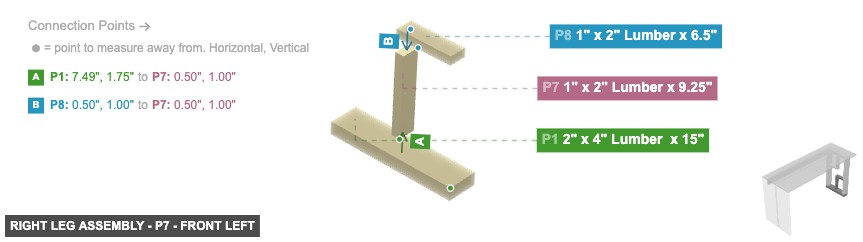

Part: 1" x 2" Lumber x 9.25" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 9.25" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

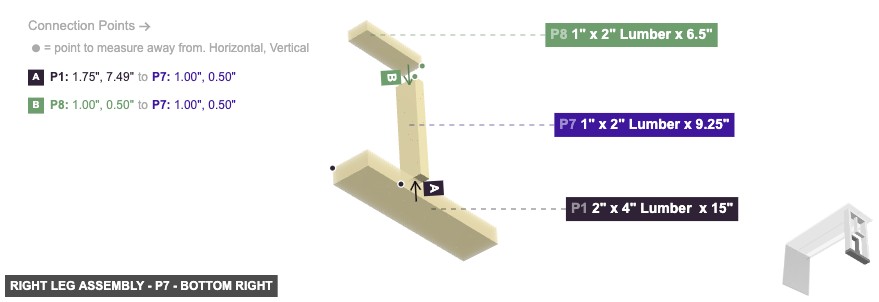

Part: 1" x 2" Lumber x 9.25" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

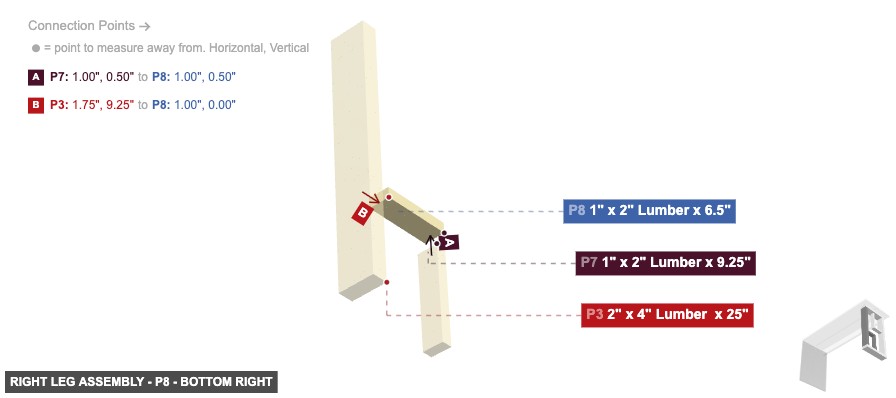

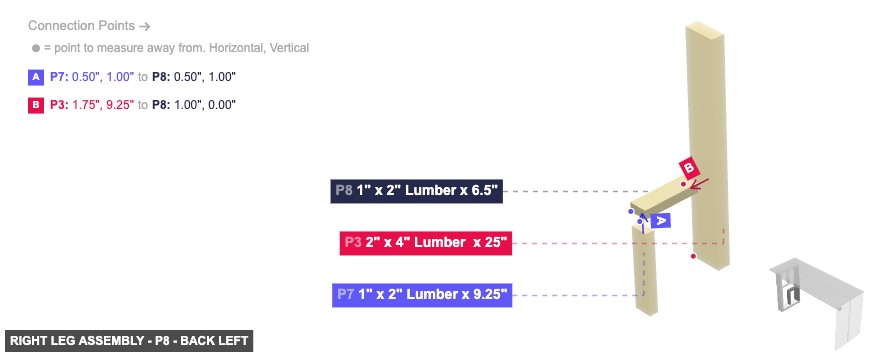

Part: 1" x 2" Lumber x 6.5" - Angle: back left

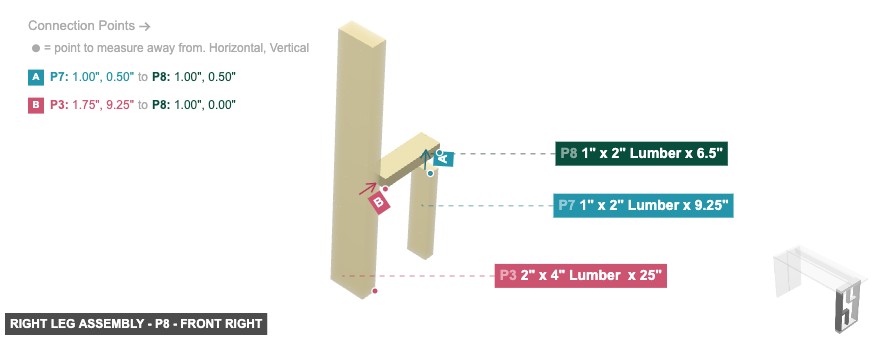

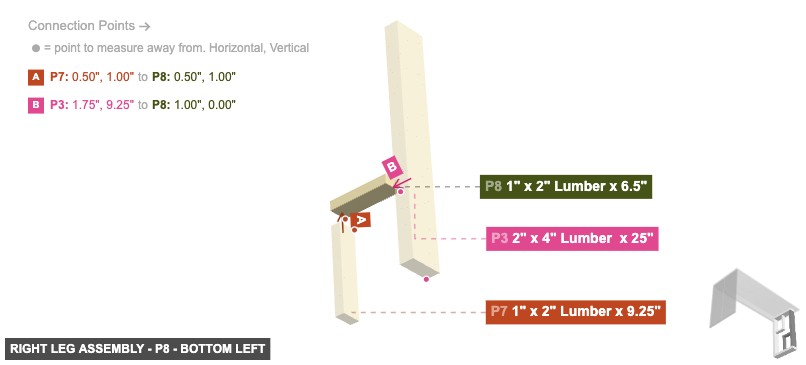

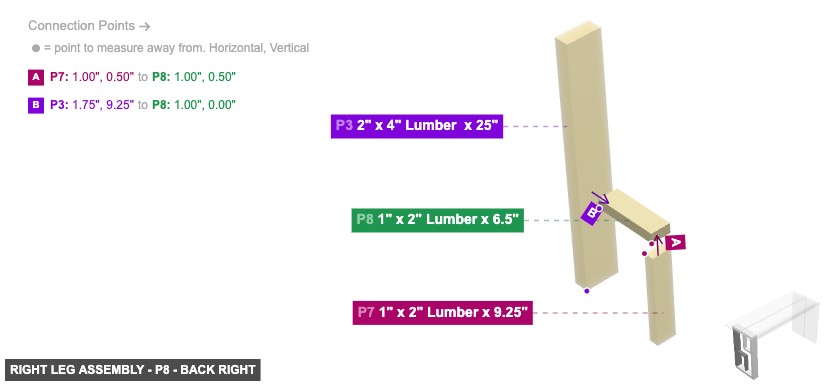

P8 (1" x 2" Lumber 6.5" length) - its 1" x 2" Wood End #1, which is front-facing, should connect to part 3's 2" x 4" Wood Side #2. Also, attach its 1" x 2" Wood Side #2 facing bottom to part 7's 1" x 2" Wood End #1, also its 1" x 2" Wood Side #1 should be directed right. Also, its 1" x 2" Wood Side #3 should be directed left. Additionally, its 1" x 2" Wood Side #4 should be directed top, also its 1" x 2" Wood End #2 needs to point back

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 6.5" - Angle: back right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

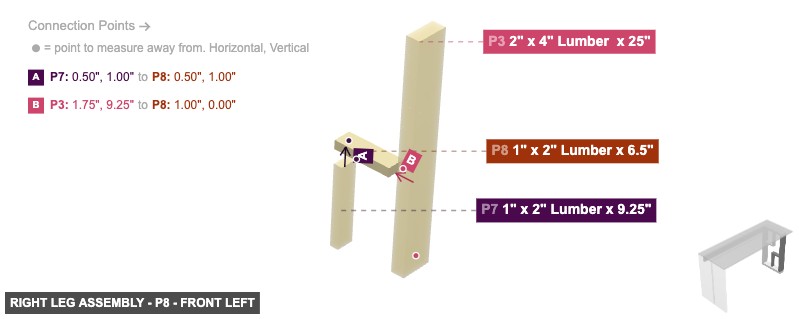

Part: 1" x 2" Lumber x 6.5" - Angle: front left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 6.5" - Angle: front right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 6.5" - Angle: bottom left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Part: 1" x 2" Lumber x 6.5" - Angle: bottom right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

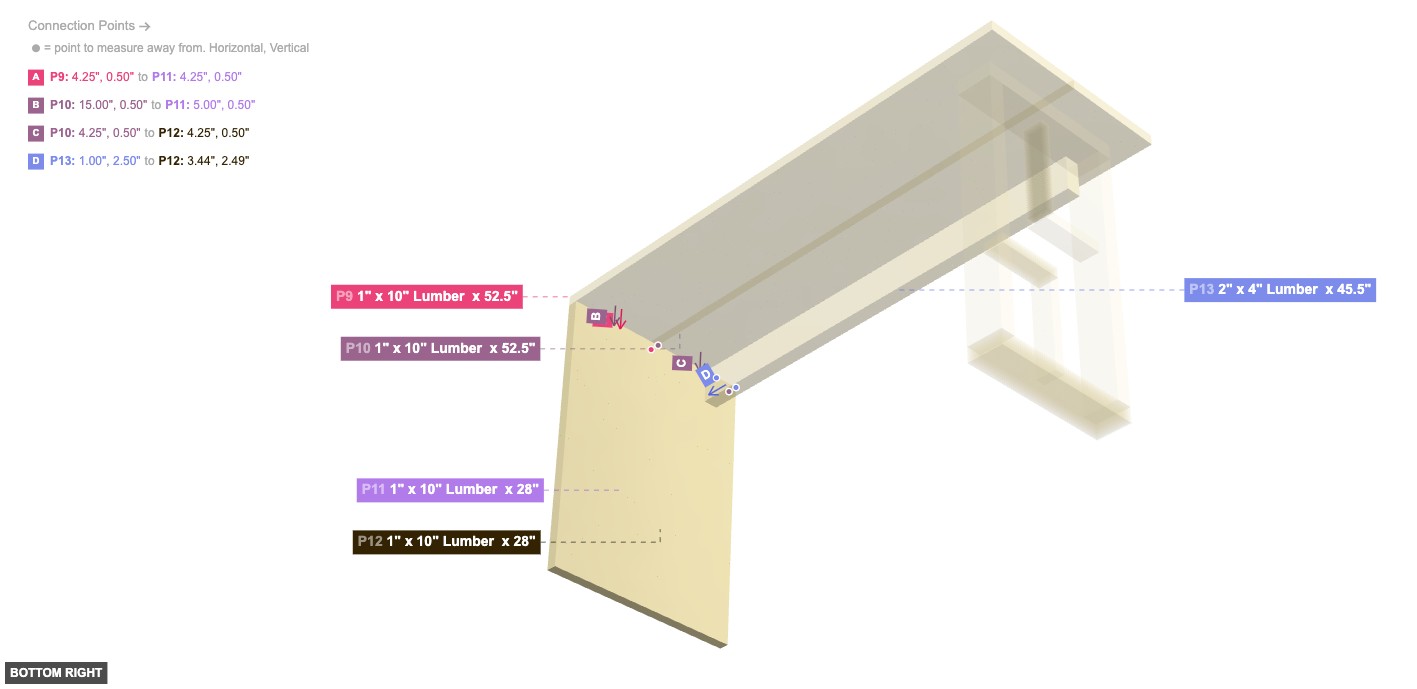

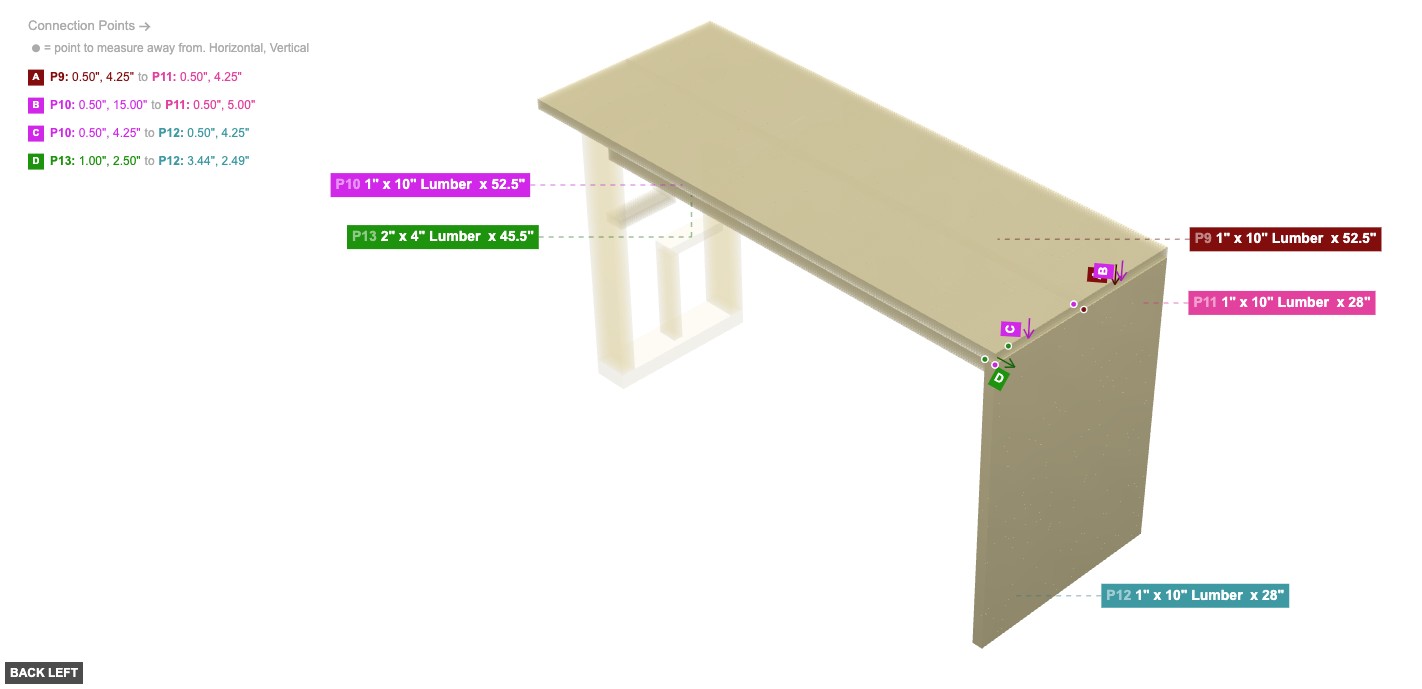

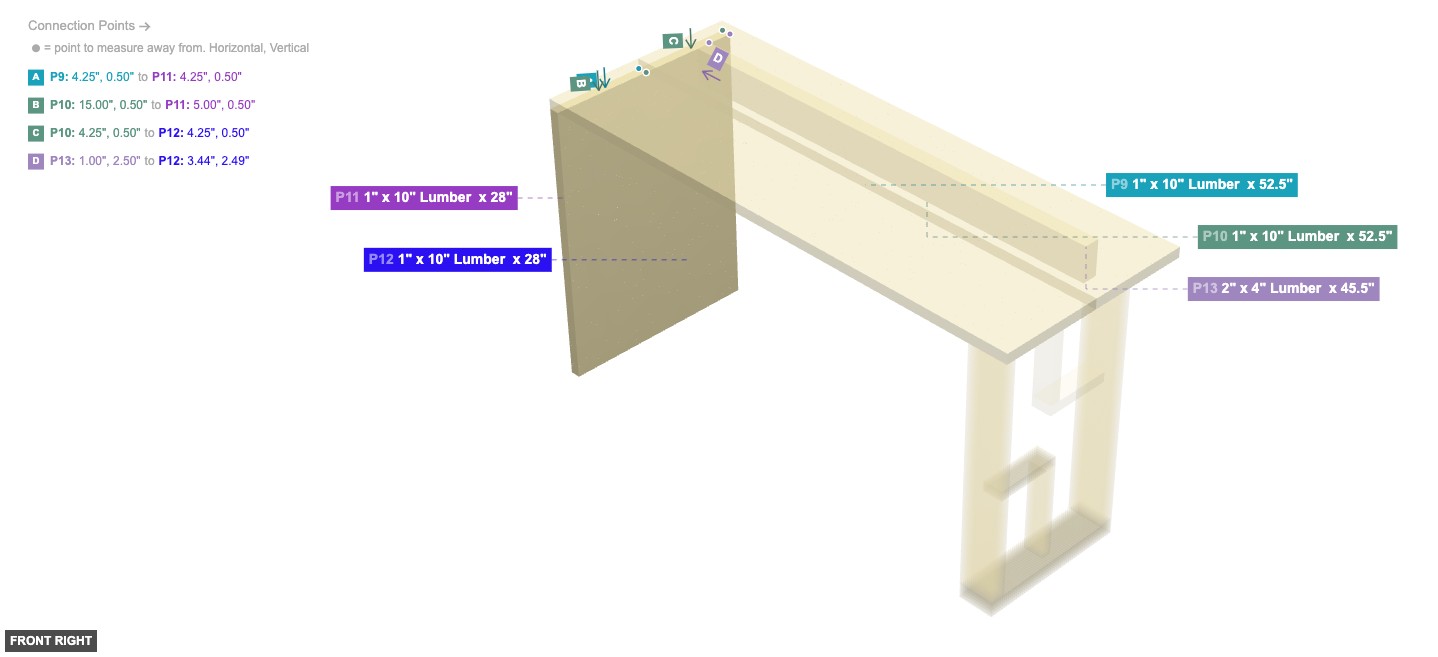

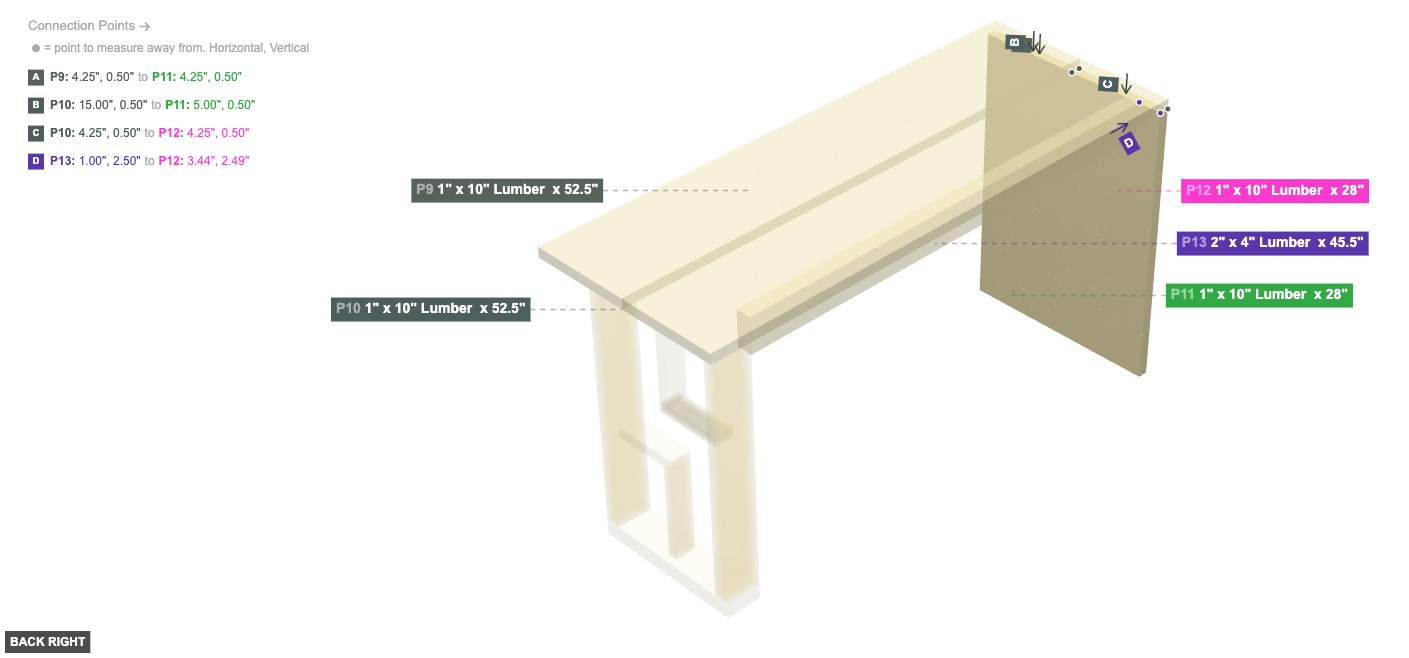

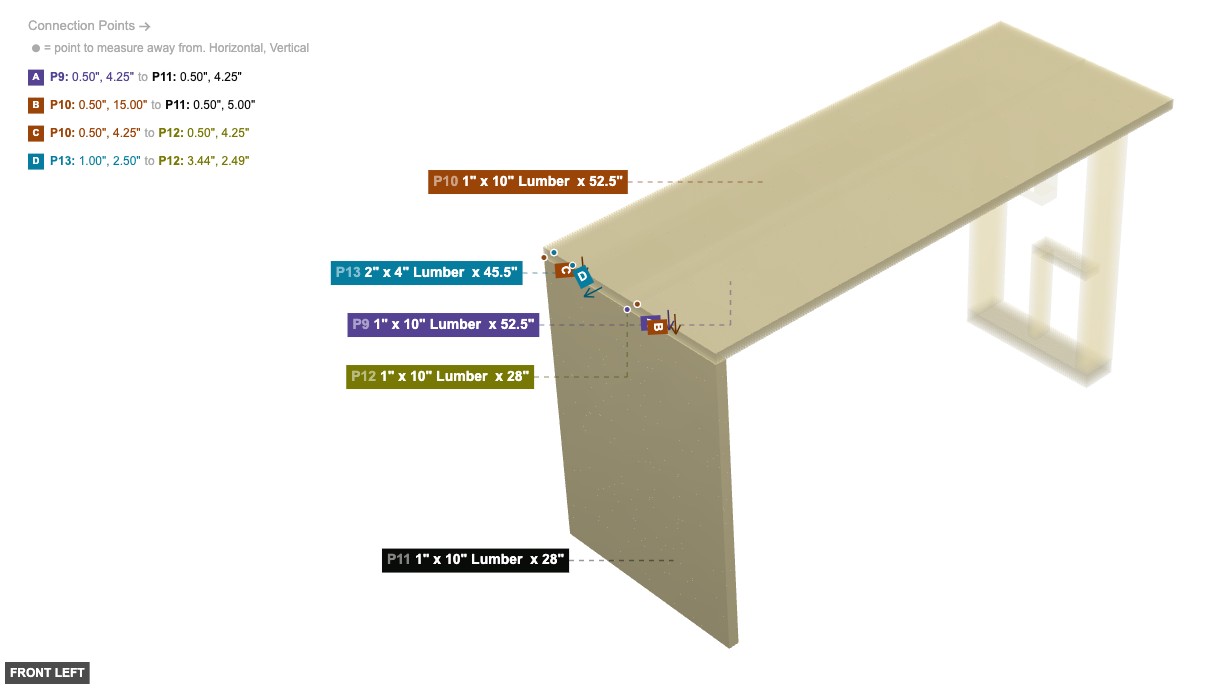

Group: Left Panel Assembly

Forms the structural left side panel support for the desk.

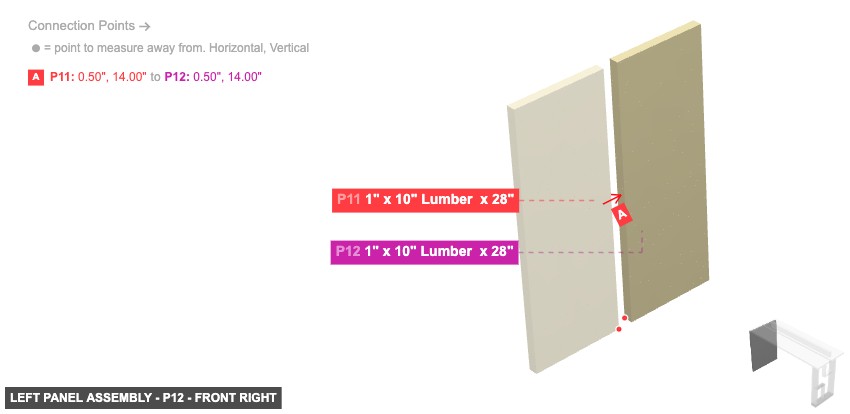

1. Join the two panel pieces: Connect P12 (its 1" x 10" Wood Side #1) to P11 (its 1" x 10" Wood Side #3).

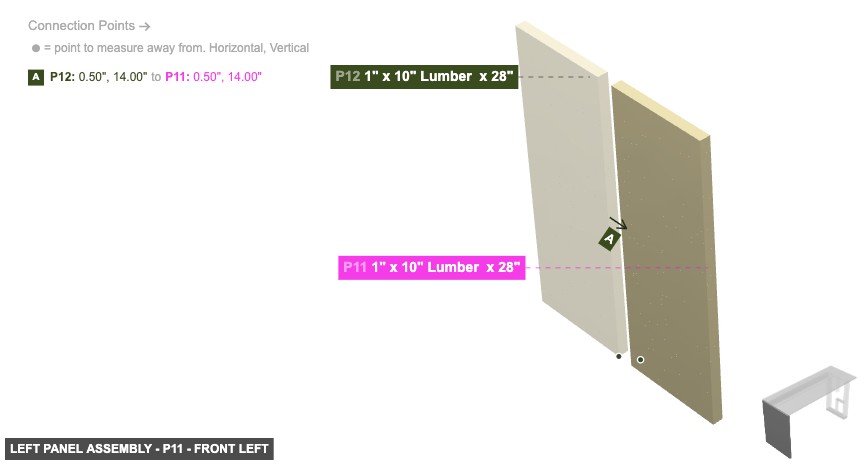

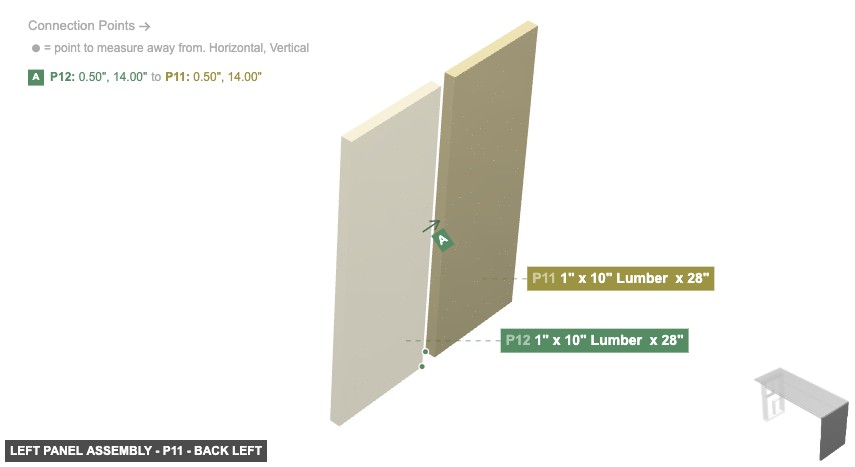

Part: 1" x 10" Lumber x 28" - Angle: back left

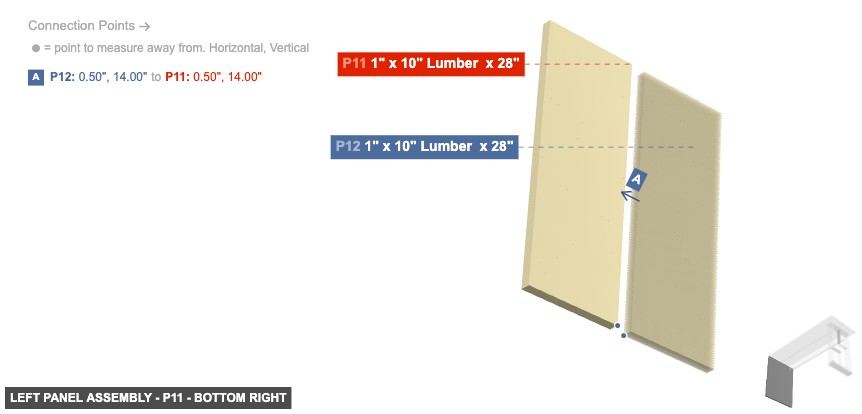

P11 (1" x 10" Lumber 28" length) - attach its 1" x 10" Wood Side #3 facing back to part 12's 1" x 10" Wood Side #1, also its 1" x 10" Wood End #1 must be oriented bottom, then its 1" x 10" Wood Side #1 needs to point front, and ensure its 1" x 10" Wood Side #2 faces right, and its 1" x 10" Wood Side #4 must be oriented left

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: back right

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: front left

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: front right

1" x 10" Lumber x 28"x 2

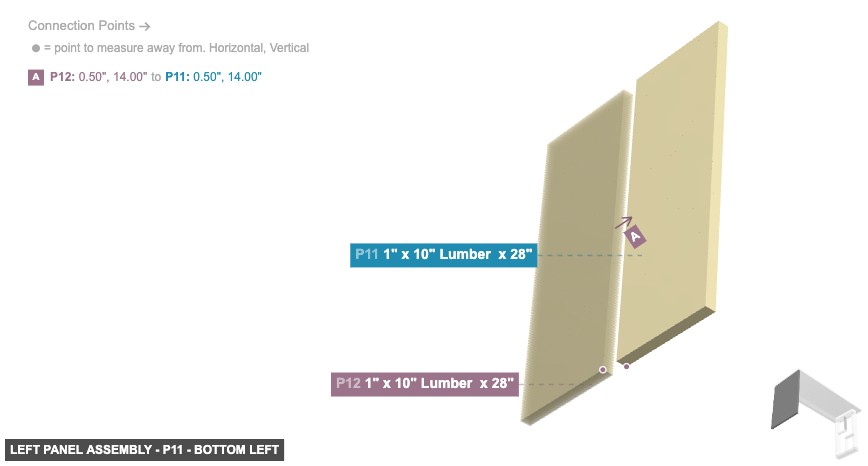

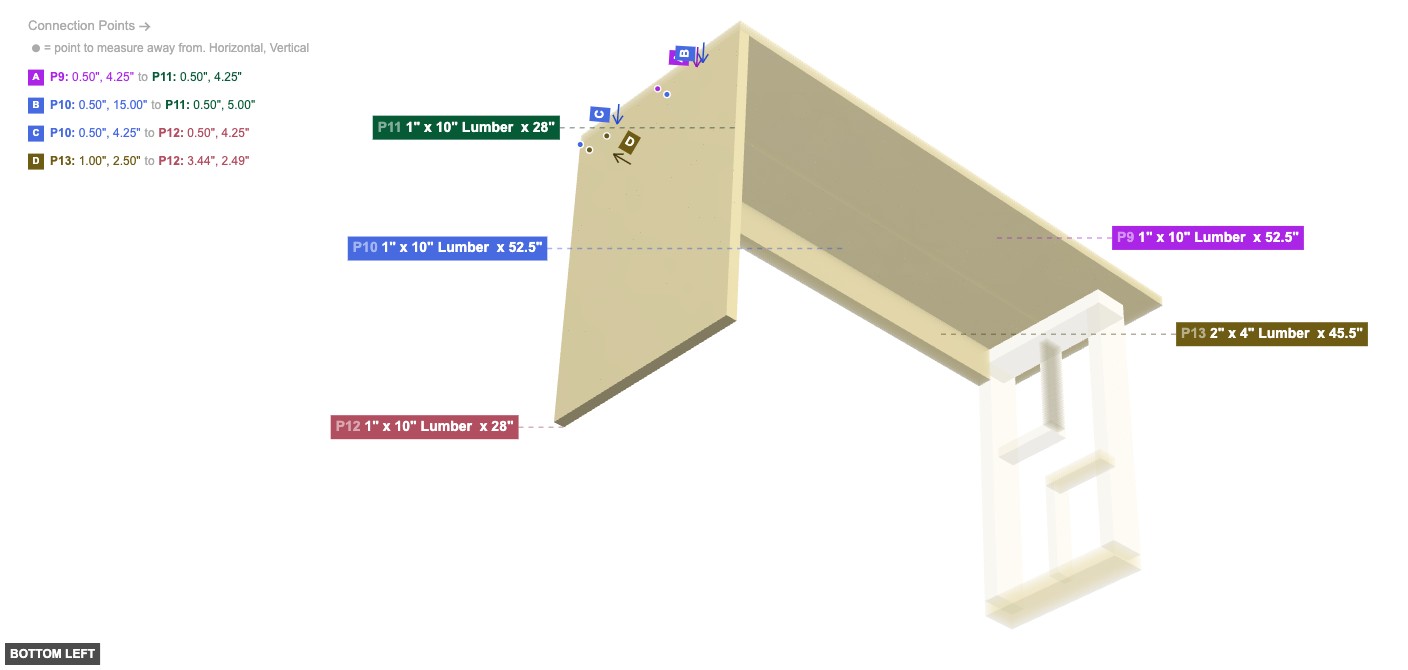

Part: 1" x 10" Lumber x 28" - Angle: bottom left

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: bottom right

1" x 10" Lumber x 28"x 2

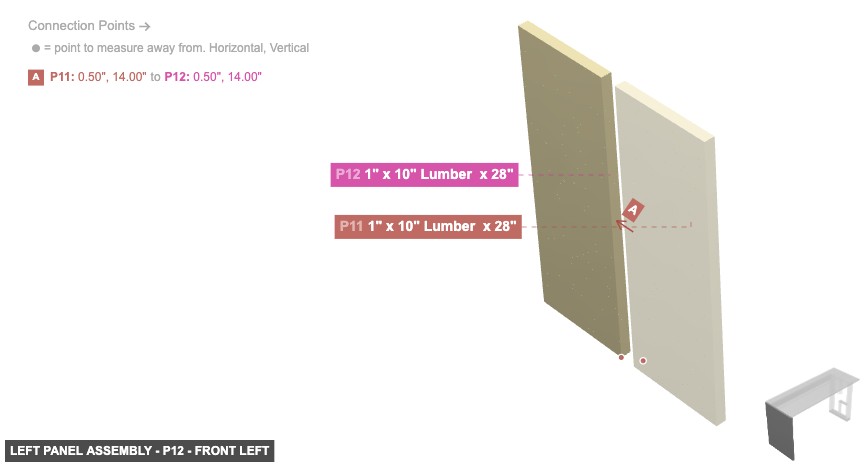

Part: 1" x 10" Lumber x 28" - Angle: back left

P12 (1" x 10" Lumber 28" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 11's 1" x 10" Wood Side #3. After that, its 1" x 10" Wood End #1 should be directed bottom, and its 1" x 10" Wood Side #3 must be oriented back, then its 1" x 10" Wood Side #4 needs to point left

1" x 10" Lumber x 28"x 2

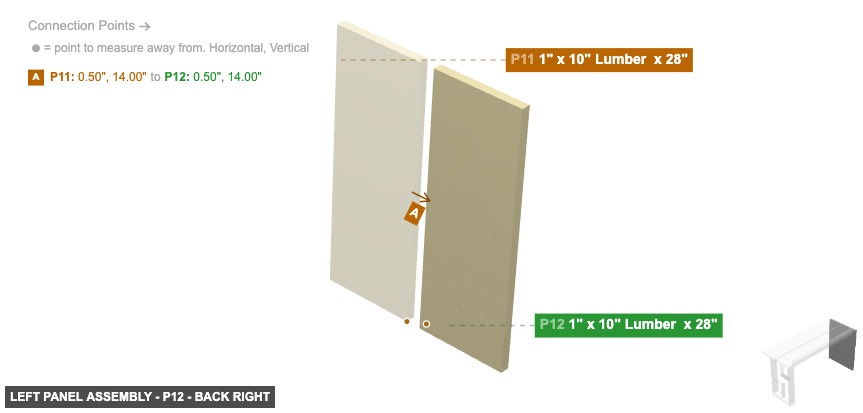

Part: 1" x 10" Lumber x 28" - Angle: back right

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: front left

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: front right

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: bottom left

1" x 10" Lumber x 28"x 2

Part: 1" x 10" Lumber x 28" - Angle: bottom right

1" x 10" Lumber x 28"x 2

Group: Tabletop and Main Support Beam Assembly

Forms the main desk surface and integrates the central support beam that connects the legs.

1. Join the two tabletop pieces: Connect P10 (its 1" x 10" Wood Side #1) to P9 (its 1" x 10" Wood Side #3). 2. Attach the main support beam P13 (its 2" x 4" Wood Side #3) to the underside of tabletop piece P10 (its 1" x 10" Wood Side #2).

Part: 1" x 10" Lumber x 52.5" - Angle: back left

Tabletop and Main Support Beam Assembly - Part 1

P9 (1" x 10" Lumber 52.5" length) - connect its 1" x 10" Wood Side #3 oriented back links with part 10's 1" x 10" Wood Side #1. Additionally, its 1" x 10" Wood End #1 must be oriented left, plus its 1" x 10" Wood Side #1 needs to point front, plus ensure its 1" x 10" Wood Side #4 faces top. Next, ensure its 1" x 10" Wood End #2 faces right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: back right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: front left

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: front right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: bottom left

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: bottom right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: back left

P10 (1" x 10" Lumber 52.5" length) - attach its 1" x 10" Wood Side #1 facing front to part 9's 1" x 10" Wood Side #3, and ensure its 1" x 10" Wood End #1 faces left, also its 1" x 10" Wood Side #3 needs to point back. After that, its 1" x 10" Wood Side #4 must be oriented top, plus ensure its 1" x 10" Wood End #2 faces right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: back right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: front left

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: front right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: bottom left

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 1" x 10" Lumber x 52.5" - Angle: bottom right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 2" x 4" Lumber x 45.5" - Angle: back left

Tabletop and Main Support Beam Assembly - Part 2

P13 (2" x 4" Lumber 45.5" length) - attach its 2" x 4" Wood Side #3 facing top to part 10's 1" x 10" Wood Side #2, plus its 2" x 4" Wood Side #1 must be oriented bottom. Next, ensure its 2" x 4" Wood Side #2 faces back. Additionally, its 2" x 4" Wood Side #4 should be directed front

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 2" x 4" Lumber x 45.5" - Angle: back right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 2" x 4" Lumber x 45.5" - Angle: front left

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 2" x 4" Lumber x 45.5" - Angle: front right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 2" x 4" Lumber x 45.5" - Angle: bottom left

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Part: 2" x 4" Lumber x 45.5" - Angle: bottom right

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1

Phase 3: Inter-Group Assembly

Attaching: Right Leg Assembly

Forms the structural right leg of the desk, including its base, uprights, top crossbar, and inner supports.

Set aside the completed Right Leg Assembly. It will be attached to the Tabletop and Main Support Beam Assembly (Group 3) in a later step.

Angle: back left

Assembly of Right Leg Assembly - back_left

P1 (2" x 4" Lumber 15" length) - connect its 2" x 4" Wood Side #2 oriented top links with part 2's 2" x 4" Wood End #2. After that, ensure its 2" x 4" Wood End #1 faces front, then its 2" x 4" Wood Side #1 needs to point left, also ensure its 2" x 4" Wood Side #3 faces right, then its 2" x 4" Wood Side #4 must be oriented bottom, also its 2" x 4" Wood End #2 must be oriented back P2 (2" x 4" Lumber 25" length) - its 2" x 4" Wood End #1, which is top-facing, should connect to part 4's 2" x 4" Wood Side #2. Next, connect its 2" x 4" Wood Side #1 oriented left links with part 13's 2" x 4" Wood End #2, and its 2" x 4" Wood Side #4, which is front-facing, should connect to part 6's 1" x 2" Wood End #1, plus connect its 2" x 4" Wood End #2 oriented bottom links with part 1's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #2 should be directed back. Also, its 2" x 4" Wood Side #3 must be oriented right P3 (2" x 4" Lumber 25" length) - connect its 2" x 4" Wood End #1 oriented top links with part 4's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #2, which is back-facing, should connect to part 8's 1" x 2" Wood End #1, plus connect its 2" x 4" Wood End #2 oriented bottom links with part 1's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1 must be oriented left, and ensure its 2" x 4" Wood Side #3 faces right. Next, its 2" x 4" Wood Side #4 should be directed front P4 (2" x 4" Lumber 15" length) - its 2" x 4" Wood Side #1, which is left-facing, should connect to part 13's 2" x 4" Wood End #2. After that, connect its 2" x 4" Wood Side #2 oriented bottom links with part 3's 2" x 4" Wood End #1, then connect its 2" x 4" Wood Side #4 oriented top links with part 9's 1" x 10" Wood Side #2. Also, its 2" x 4" Wood End #1 should be directed back. After that, ensure its 2" x 4" Wood Side #3 faces right. Also, its 2" x 4" Wood End #2 must be oriented front P5 (1" x 2" Lumber 9.25" length) - attach its 1" x 2" Wood End #1 facing bottom to part 6's 1" x 2" Wood Side #2. Additionally, attach its 1" x 2" Wood End #2 facing top to part 4's 2" x 4" Wood Side #2. Additionally, its 1" x 2" Wood Side #1 should be directed left, plus its 1" x 2" Wood Side #2 must be oriented front. After that, its 1" x 2" Wood Side #3 needs to point right, then its 1" x 2" Wood Side #4 must be oriented back P6 (1" x 2" Lumber 6.5" length) - its 1" x 2" Wood End #1, which is back-facing, should connect to part 2's 2" x 4" Wood Side #4. Next, connect its 1" x 2" Wood Side #2 oriented top links with part 5's 1" x 2" Wood End #1, then its 1" x 2" Wood Side #1 should be directed right, plus ensure its 1" x 2" Wood Side #3 faces left. After that, its 1" x 2" Wood Side #4 needs to point bottom. Also, its 1" x 2" Wood End #2 must be oriented front P7 (1" x 2" Lumber 9.25" length) - attach its 1" x 2" Wood End #1 facing top to part 8's 1" x 2" Wood Side #2. Also, connect its 1" x 2" Wood End #2 oriented bottom links with part 1's 2" x 4" Wood Side #2, also its 1" x 2" Wood Side #1 must be oriented left. Next, its 1" x 2" Wood Side #2 must be oriented back. Also, its 1" x 2" Wood Side #3 needs to point right. Also, its 1" x 2" Wood Side #4 must be oriented front P8 (1" x 2" Lumber 6.5" length) - its 1" x 2" Wood End #1, which is front-facing, should connect to part 3's 2" x 4" Wood Side #2. After that, connect its 1" x 2" Wood Side #2 oriented bottom links with part 7's 1" x 2" Wood End #1. Additionally, ensure its 1" x 2" Wood Side #1 faces right, plus its 1" x 2" Wood Side #3 must be oriented left. After that, its 1" x 2" Wood Side #4 should be directed top. Additionally, its 1" x 2" Wood End #2 should be directed back

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Angle: back right

Assembly of Right Leg Assembly - back_right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Angle: front left

Assembly of Right Leg Assembly - front_left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Angle: front right

Assembly of Right Leg Assembly - front_right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Angle: bottom left

Assembly of Right Leg Assembly - bottom_left

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Angle: bottom right

Assembly of Right Leg Assembly - bottom_right

2" x 4" Lumber x 15"x 2

2" x 4" Lumber x 25"x 2

1" x 2" Lumber x 9.25"x 2

1" x 2" Lumber x 6.5"x 2

Attaching: Left Panel Assembly

Forms the structural left side panel support for the desk.

Set aside the completed Left Panel Assembly. It will be attached to the Tabletop and Main Support Beam Assembly (Group 3) in a later step.

Angle: back left

Assembly of Left Panel Assembly - back_left

P11 (1" x 10" Lumber 28" length) - its 1" x 10" Wood Side #3, which is back-facing, should connect to part 12's 1" x 10" Wood Side #1, plus attach its 1" x 10" Wood End #2 facing top to part 9's 1" x 10" Wood Side #2. Next, its 1" x 10" Wood End #1 needs to point bottom, plus its 1" x 10" Wood Side #1 should be directed front, also its 1" x 10" Wood Side #2 needs to point right, and its 1" x 10" Wood Side #4 must be oriented left P12 (1" x 10" Lumber 28" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 11's 1" x 10" Wood Side #3. Next, connect its 1" x 10" Wood Side #2 oriented right links with part 13's 2" x 4" Wood End #1, then connect its 1" x 10" Wood End #2 oriented top links with part 10's 1" x 10" Wood Side #2. Next, its 1" x 10" Wood End #1 must be oriented bottom. Additionally, its 1" x 10" Wood Side #3 must be oriented back. Next, its 1" x 10" Wood Side #4 should be directed left

1" x 10" Lumber x 28"x 2

Angle: back right

Assembly of Left Panel Assembly - back_right

1" x 10" Lumber x 28"x 2

Angle: front left

Assembly of Left Panel Assembly - front_left

1" x 10" Lumber x 28"x 2

Angle: front right

Assembly of Left Panel Assembly - front_right

1" x 10" Lumber x 28"x 2

Angle: bottom left

Assembly of Left Panel Assembly - bottom_left

1" x 10" Lumber x 28"x 2

Angle: bottom right

Assembly of Left Panel Assembly - bottom_right

1" x 10" Lumber x 28"x 2

Attaching: Tabletop and Main Support Beam Assembly

Forms the main desk surface and integrates the central support beam that connects the legs.

First, attach the previously assembled Right Leg Assembly (Group 1) to this Tabletop assembly: 1. Connect P9 (its 1" x 10" Wood Side #2) of this assembly to P4 (its 2" x 4" Wood Side #4) of the Right Leg Assembly. 2. Connect P10 (its 1" x 10" Wood Side #2) of this assembly to P4 (its 2" x 4" Wood Side #4) of the Right Leg Assembly. 3. Connect P13 (its 2" x 4" Wood End #2) of this assembly to P2 (its 2" x 4" Wood Side #1) of the Right Leg Assembly. 4. Connect P13 (its 2" x 4" Wood End #2) of this assembly to P4 (its 2" x 4" Wood Side #1) of the Right Leg Assembly. Next, attach the previously assembled Left Panel Assembly (Group 2) to this Tabletop assembly: 1. Connect P11 (its 1" x 10" Wood End #2) of the Left Panel Assembly to P9 (its 1" x 10" Wood Side #2) of this assembly. 2. Connect P12 (its 1" x 10" Wood End #2) of the Left Panel Assembly to P10 (its 1" x 10" Wood Side #2) of this assembly. 3. Connect P12 (its 1" x 10" Wood Side #2) of the Left Panel Assembly to P13 (its 2" x 4" Wood End #1) of this assembly.

Angle: back left

Assembly of Tabletop and Main Support Beam Assembly - back_left

P9 (1" x 10" Lumber 52.5" length) - its 1" x 10" Wood Side #2, which is bottom-facing, should connect to part 4's 2" x 4" Wood Side #4. After that, attach its 1" x 10" Wood Side #3 facing back to part 10's 1" x 10" Wood Side #1, then its 1" x 10" Wood End #1 should be directed left. After that, its 1" x 10" Wood Side #1 should be directed front. Also, its 1" x 10" Wood Side #4 must be oriented top, then its 1" x 10" Wood End #2 should be directed right P10 (1" x 10" Lumber 52.5" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 9's 1" x 10" Wood Side #3. Additionally, connect its 1" x 10" Wood Side #2 oriented bottom links with part 4's 2" x 4" Wood Side #4, then its 1" x 10" Wood End #1 should be directed left. Also, its 1" x 10" Wood Side #3 needs to point back. After that, its 1" x 10" Wood Side #4 must be oriented top, also its 1" x 10" Wood End #2 must be oriented right P13 (2" x 4" Lumber 45.5" length) - connect its 2" x 4" Wood End #1 oriented left links with part 12's 1" x 10" Wood Side #2. Next, connect its 2" x 4" Wood Side #3 oriented top links with part 10's 1" x 10" Wood Side #2. Next, its 2" x 4" Wood End #2, which is right-facing, should connect to part 2's 2" x 4" Wood Side #1. Also, ensure its 2" x 4" Wood Side #1 faces bottom, plus its 2" x 4" Wood Side #2 should be directed back. Additionally, its 2" x 4" Wood Side #4 needs to point front

1" x 10" Lumber x 52.5"x 2

2" x 4" Lumber x 45.5"x 1
