Double Dog House 2 - Comprehensive Assembly Plan And Visual Guide

A wooden dog house designed for two dogs, featuring a central divider, separate entrances, and a pitched roof. It is constructed primarily from 2x2, 1x4, 1x6, and 1x8 lumber. - Double Dog House -A wooden structure designed as a house for two dogs, featuring a framed base, floor panels, side walls, a central divider, a front entry/porch area for each side, and a pitched roof. - Double Dog House -This is a wooden double dog house with a pitched roof, a central divider, and a front porch area with railings. It appears to be constructed primarily from 2x2 lumber for the frame and 1x4, 1x6, and 1x8 lumber for the siding, flooring, and roofing. - Double Dog HouseThe design features a common rectangular floor base supporting two adjacent bays for dogs. These bays are separated by a central dividing wall and covered by a single, continuous gabled roof. Each bay has its own small porch at the front, complete with flooring and railings. - A wooden double-bay dog house under a single shared gabled roof, with individual front porches for each bay.A wooden dog house, likely for two dogs, featuring a gabled main enclosure and an attached front porch with railings. The construction uses dimensional lumber for framing and planking for floors, walls, and roofing. - Double Dog House 2A wooden double-bay dog house featuring two gabled roof sections, a central dividing structure which may include a small porch, planked flooring, and wood siding. The structure is assembled from various lumber parts. - Double Dog House 2A wooden, two-compartment dog house with a central divider, a pitched roof, and an attached front porch with railings. - Double Dog House 2A wooden structure designed as a shelter for two dogs, featuring two separate compartments under a common pitched roof, a central dividing wall, and a small covered porch area at the front. The assembly involves creating a floor frame, erecting a central wall, building the roof structure in sections, adding a front porch, and then applying floor, roof, and wall cladding along with trim details. - Double Dog House with Pitched Roof and Front Porch AreaA large, two-section wooden dog house with a gabled roof, an internal divider, and an attached front porch with railings. The structure is built with a timber frame and covered in wooden planks. - Double Dog House

Phase 1: Group Overview

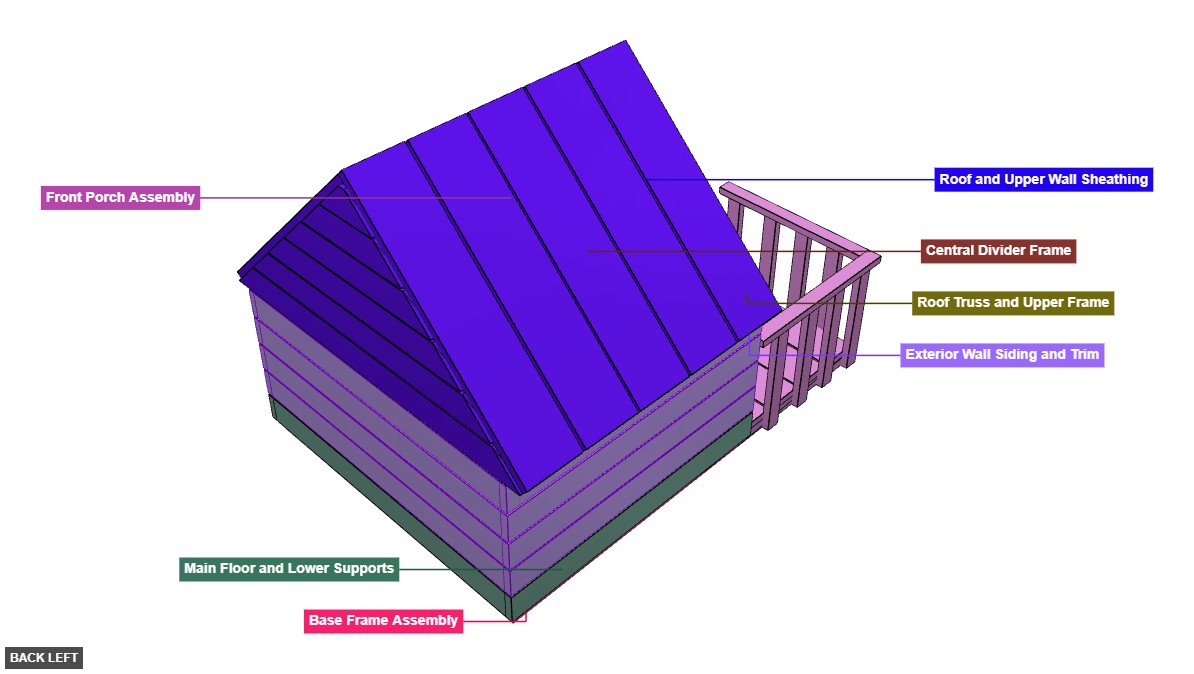

Angle: back left

Base Frame Assembly

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Main Floor and Lower Supports

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

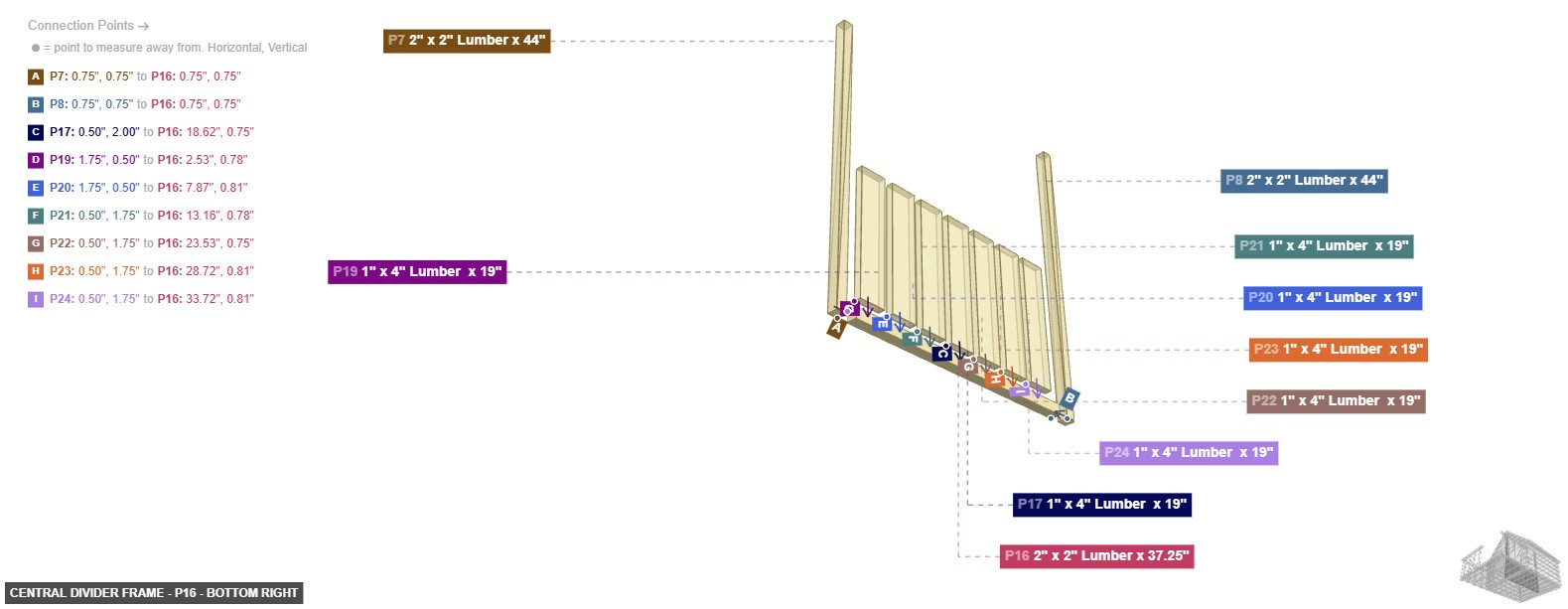

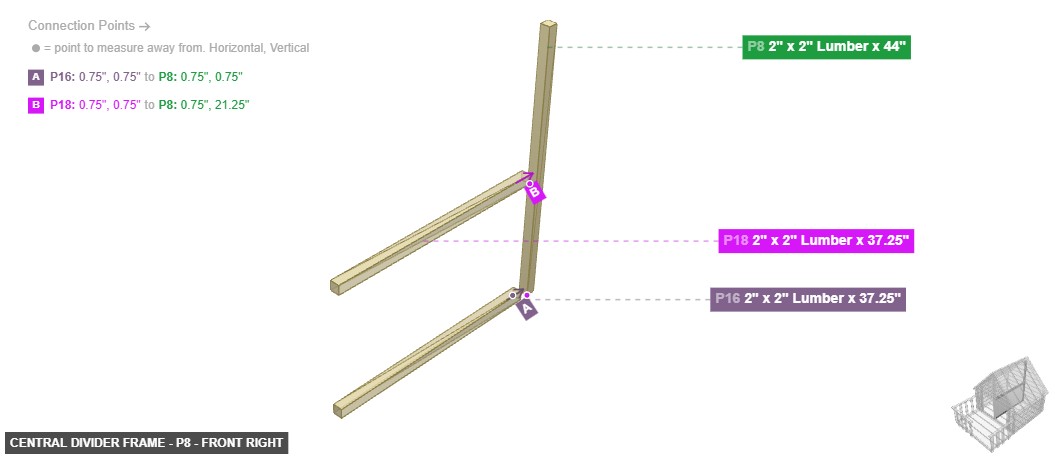

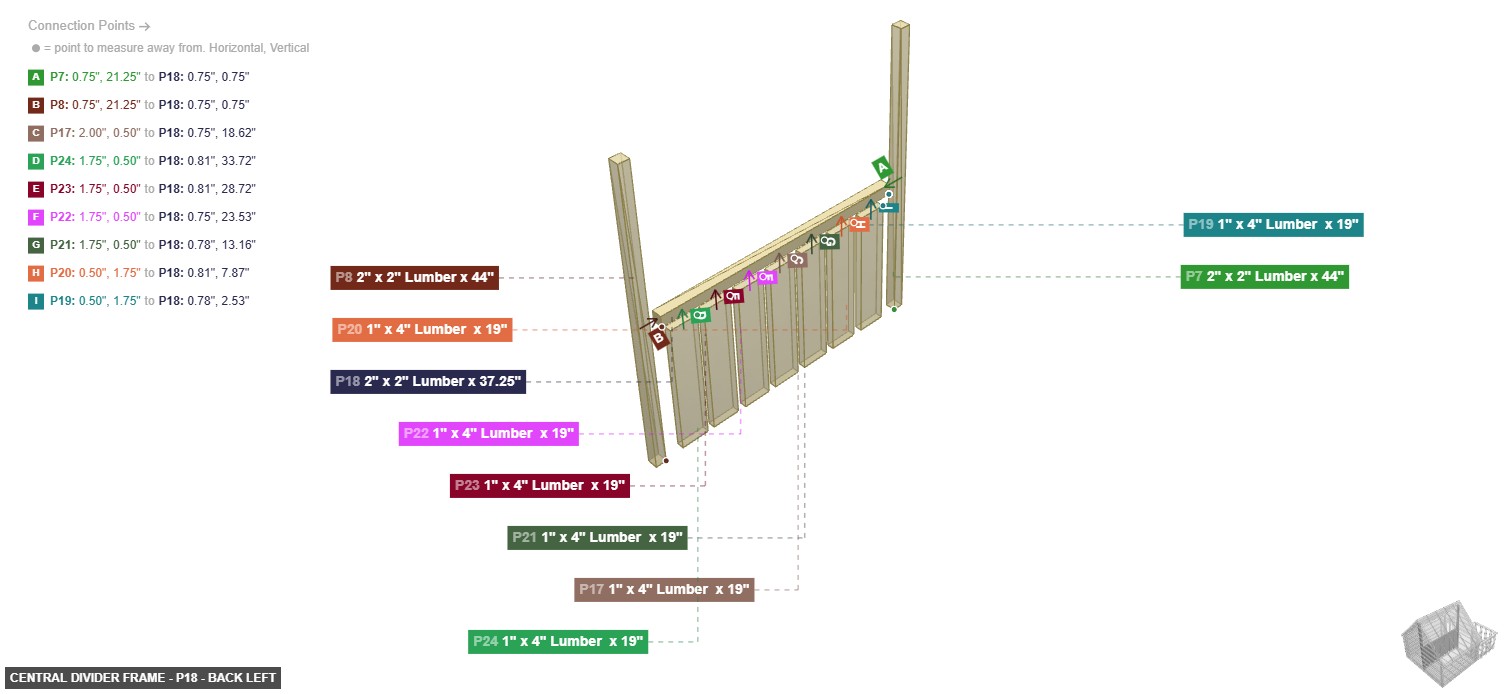

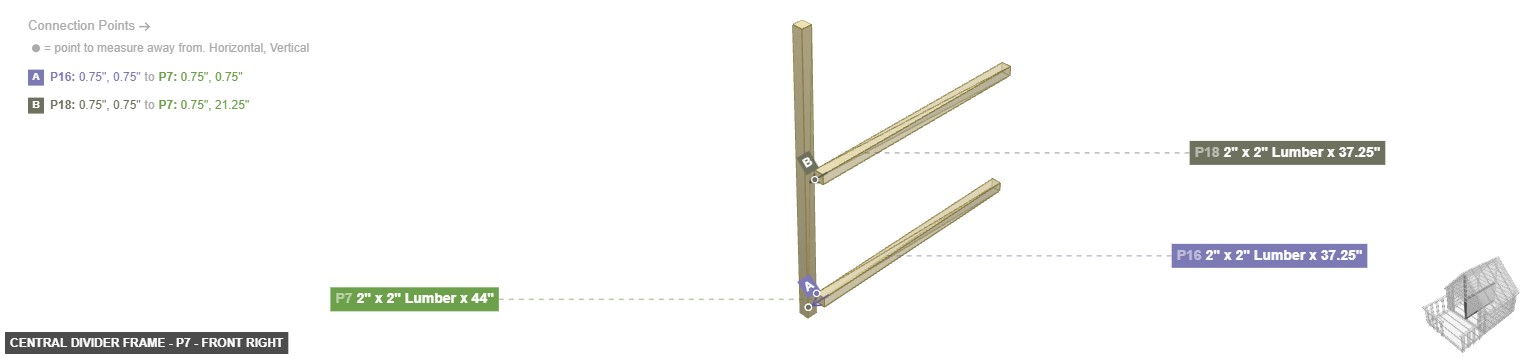

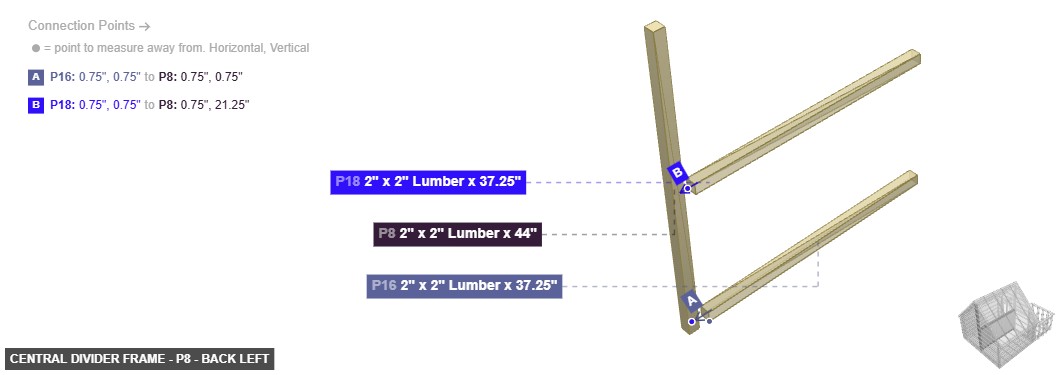

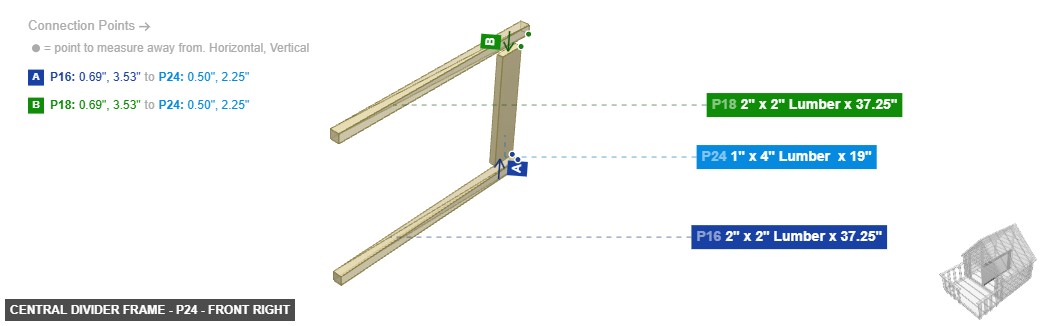

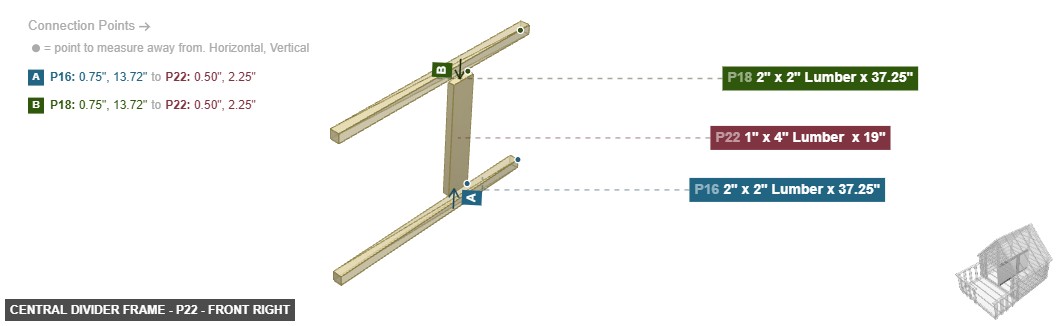

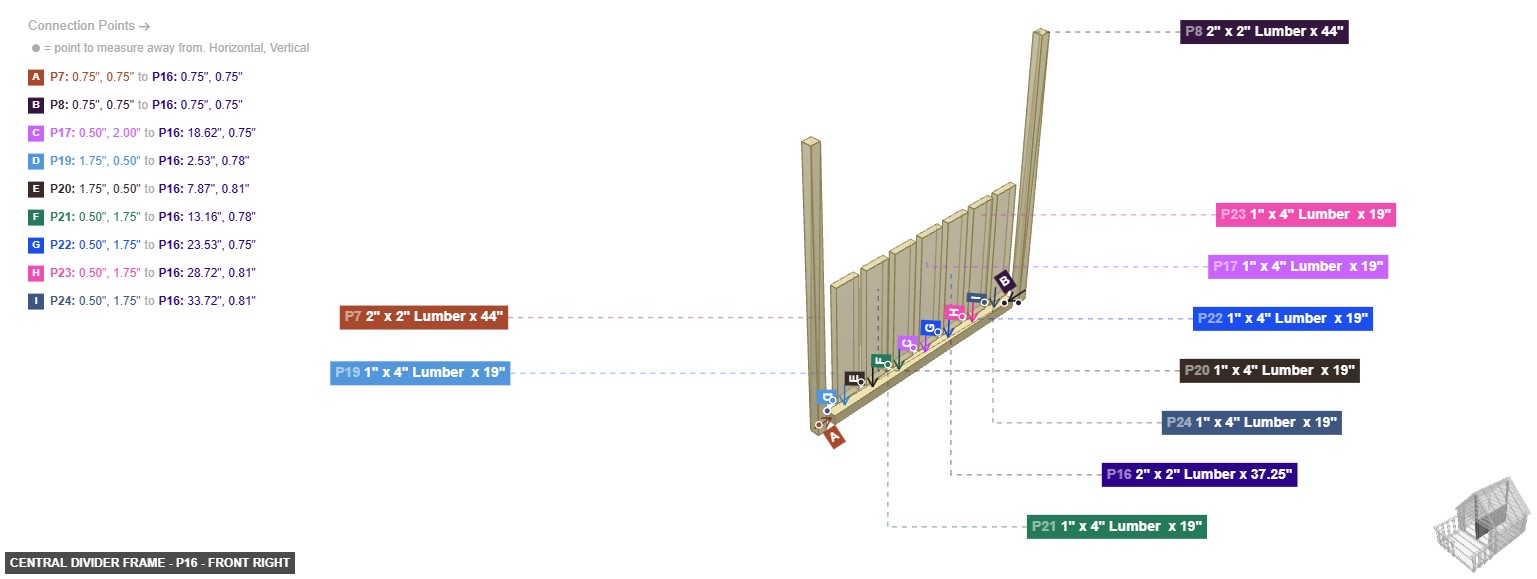

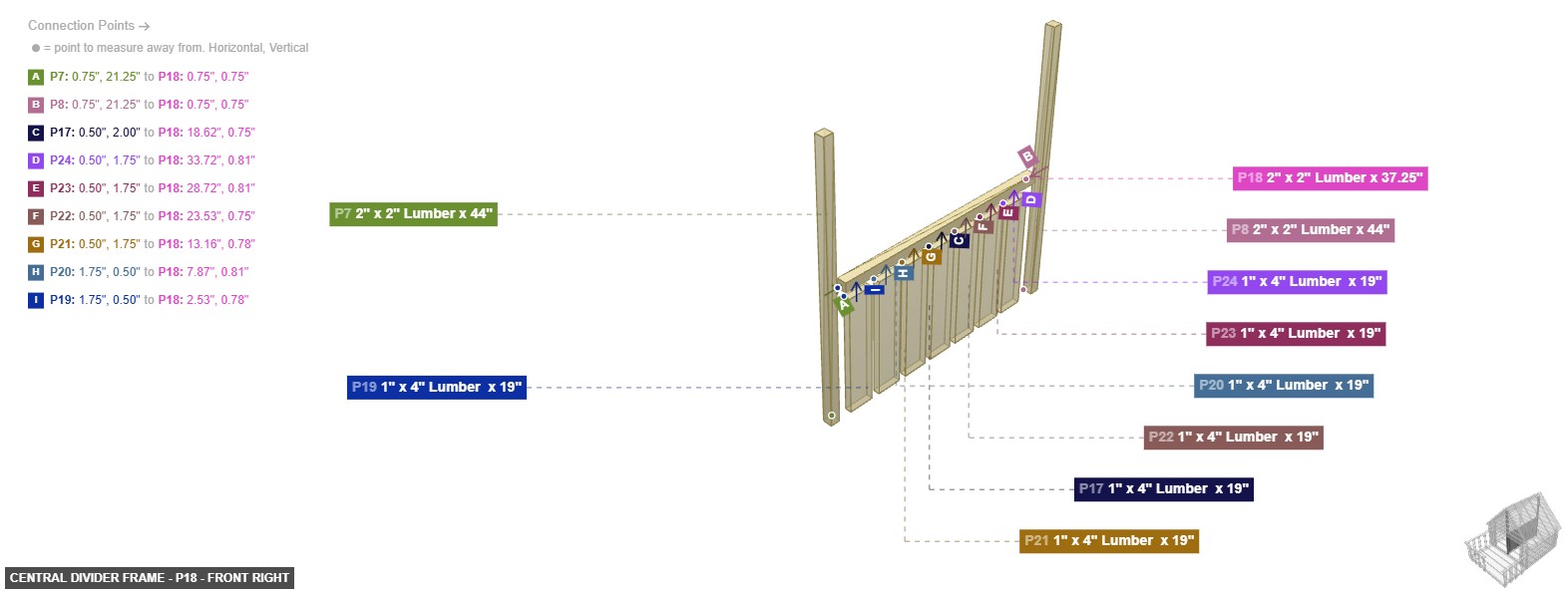

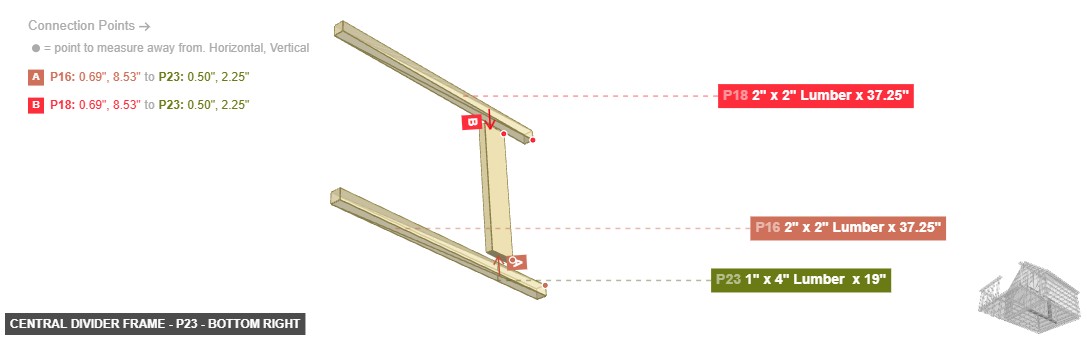

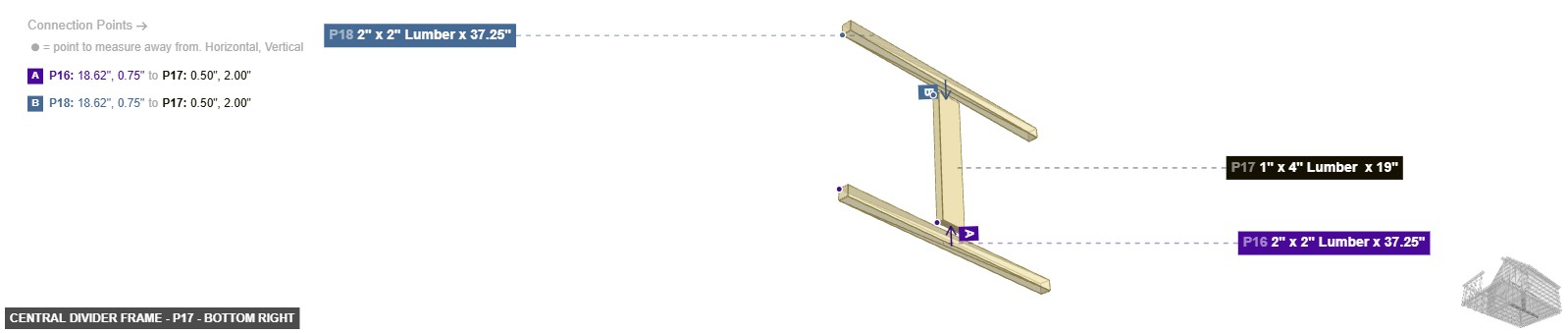

Central Divider Frame

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

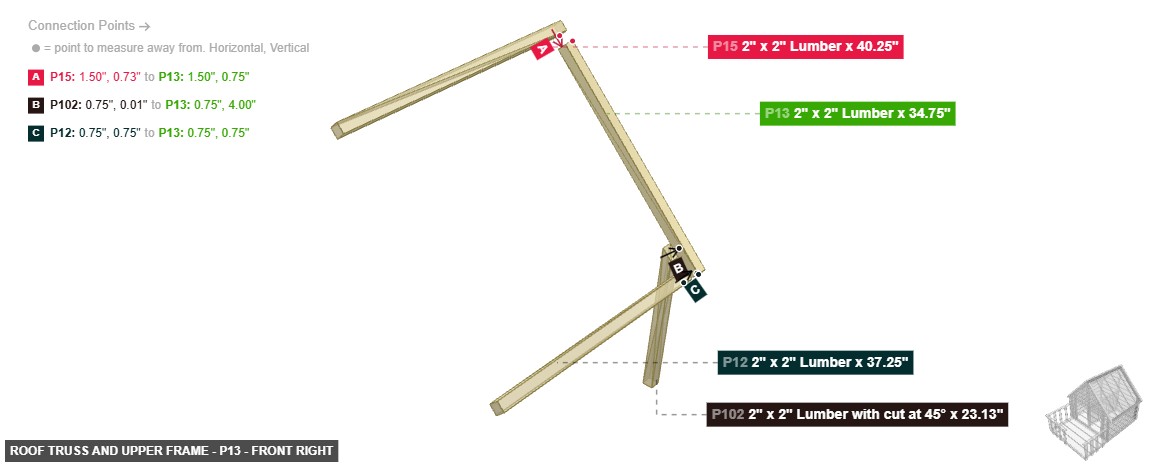

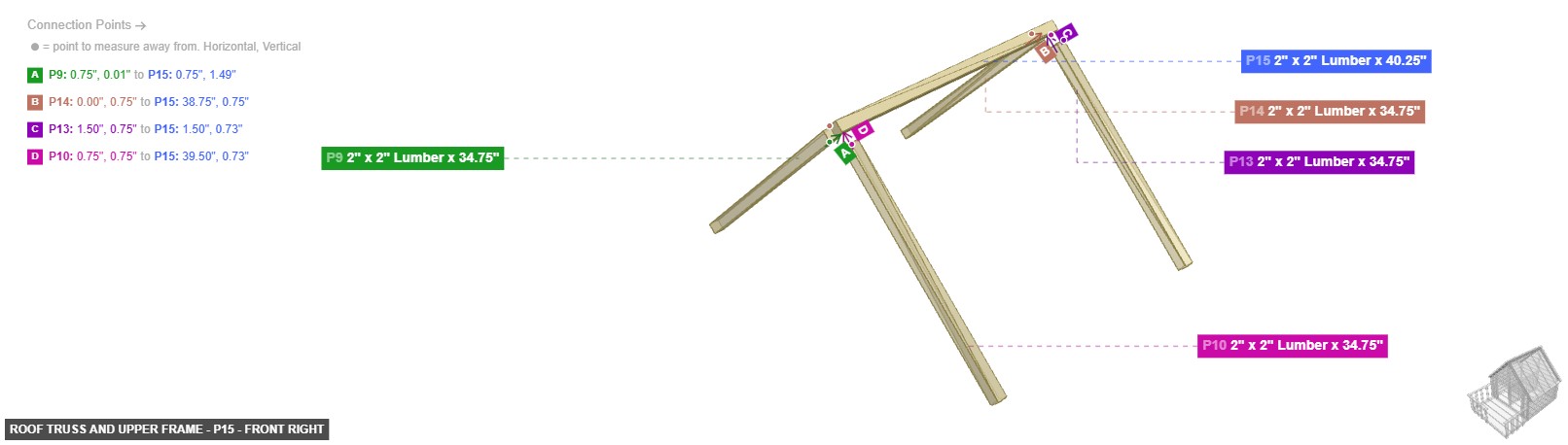

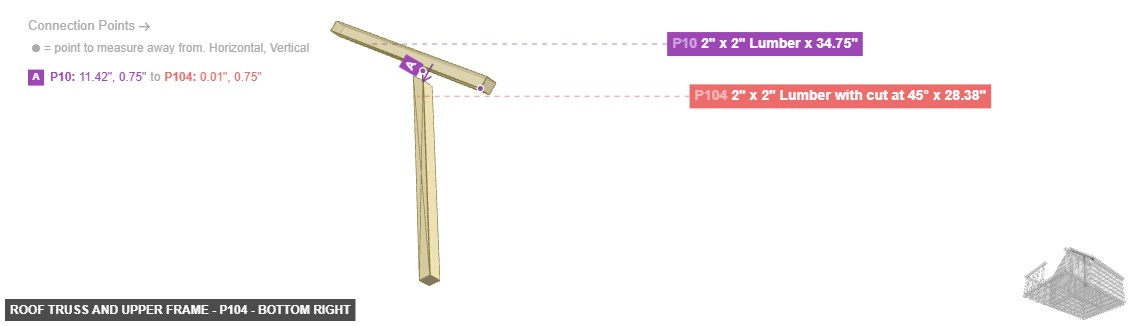

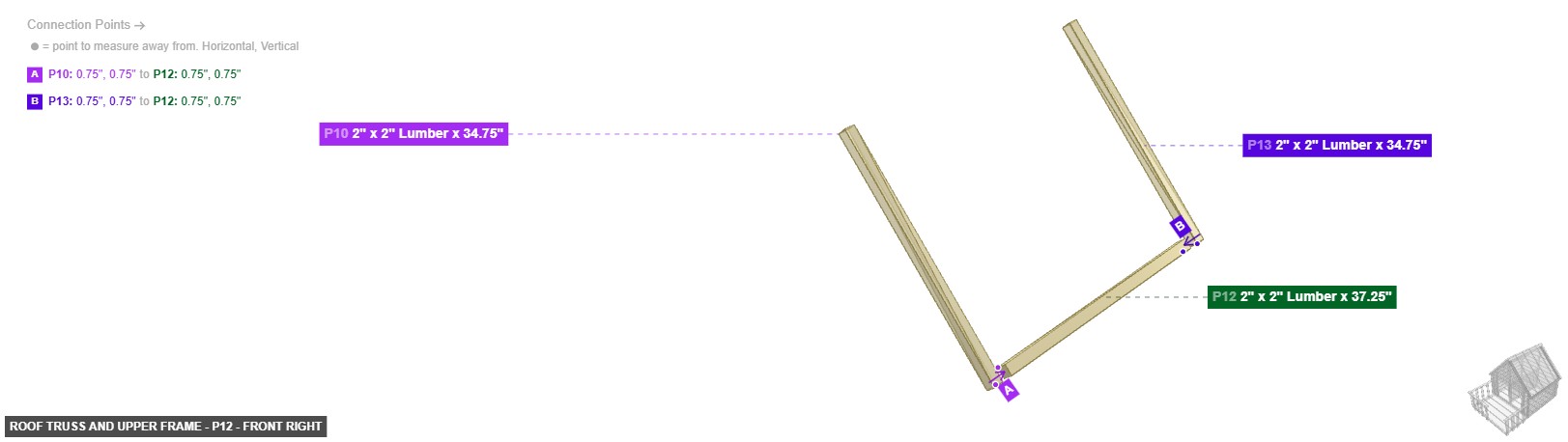

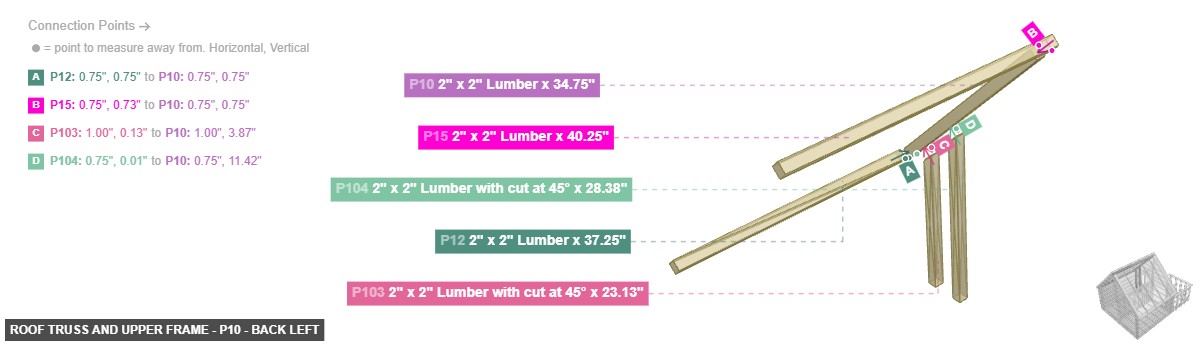

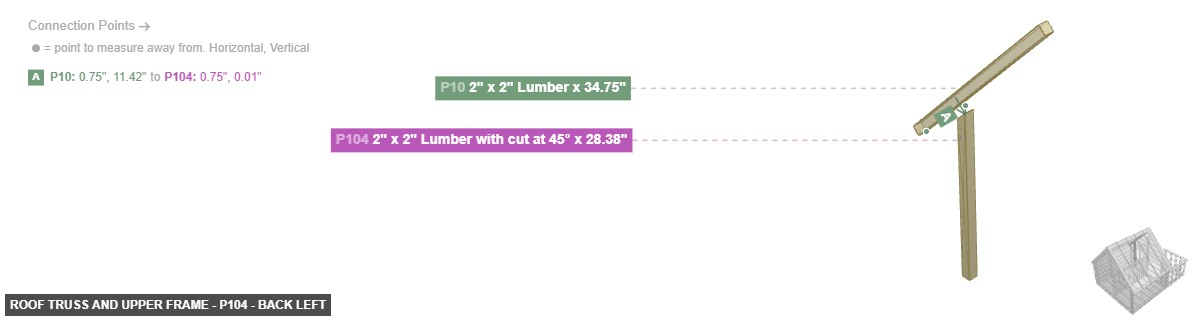

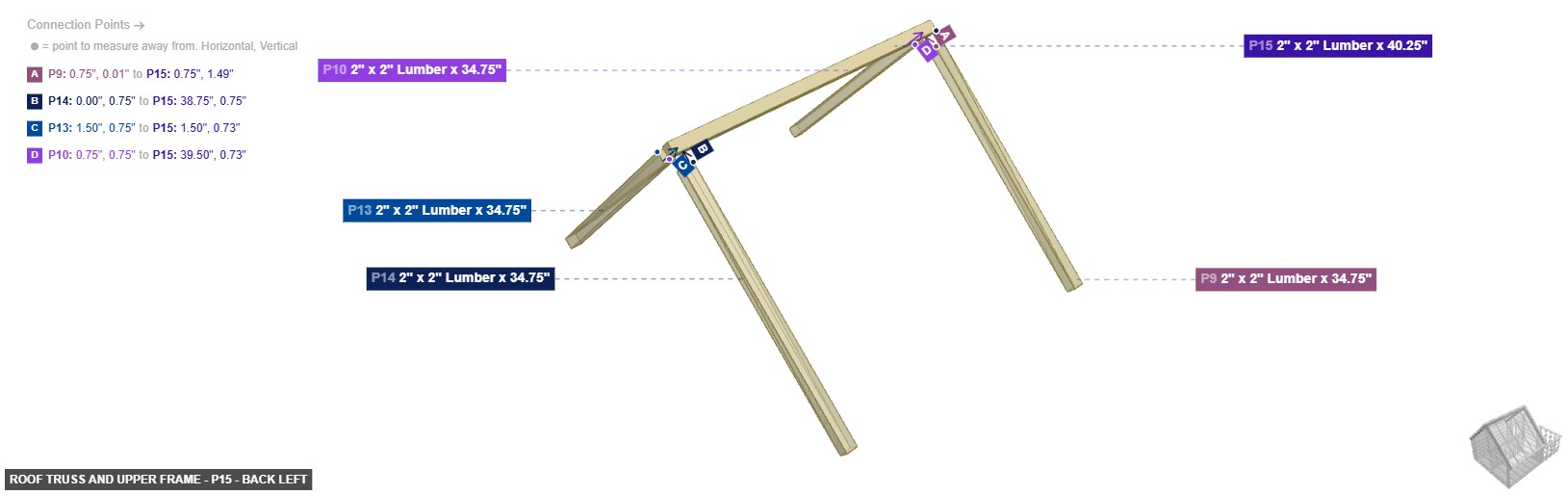

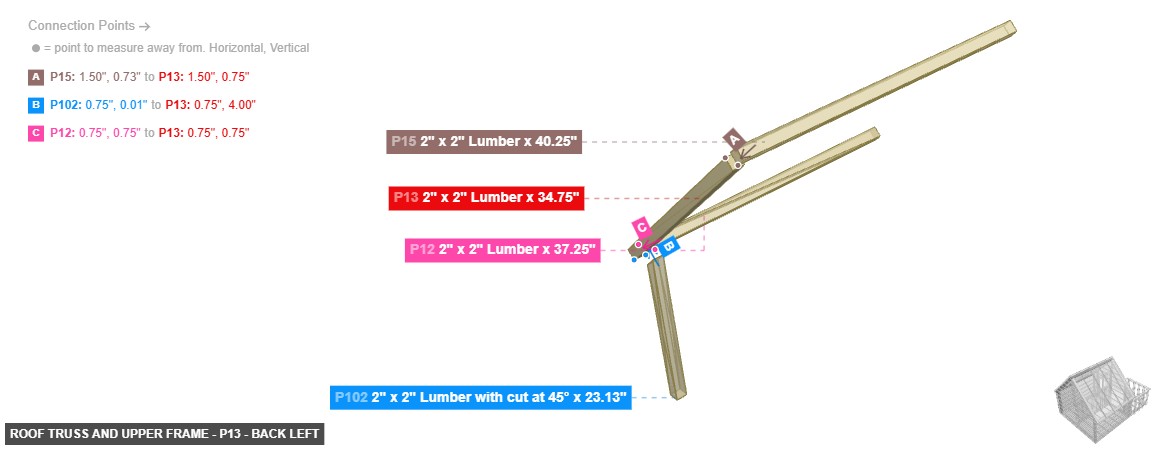

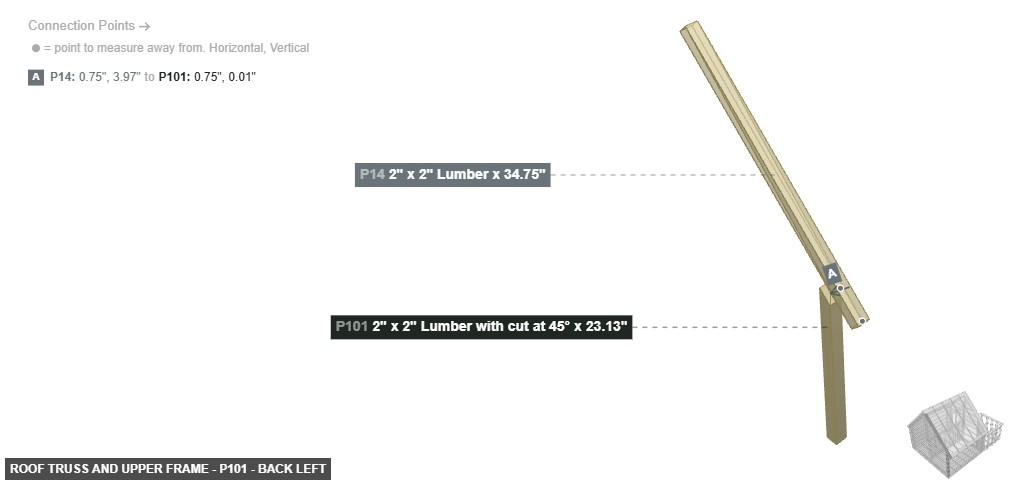

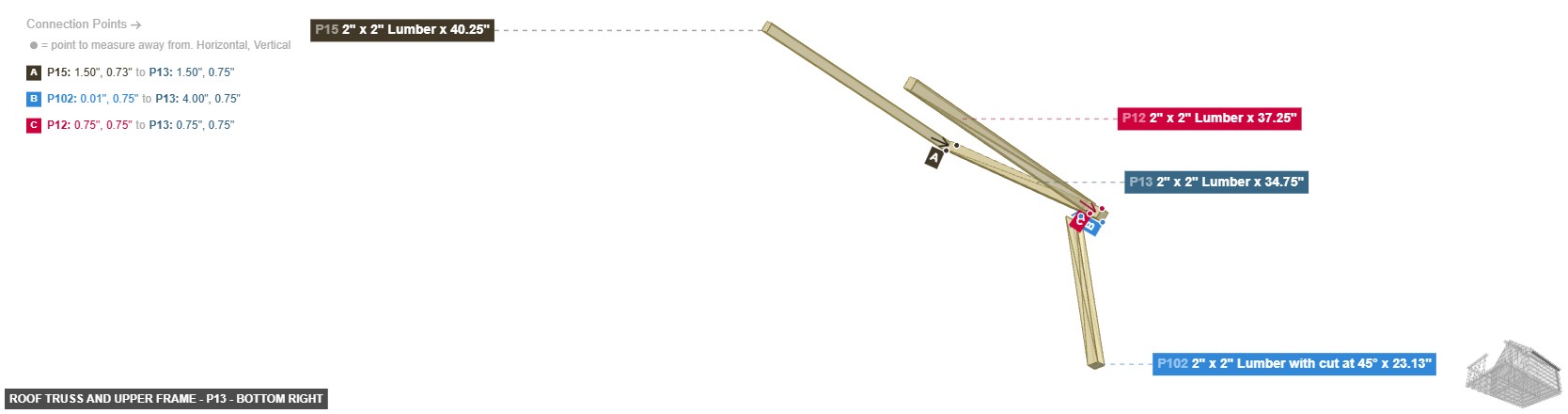

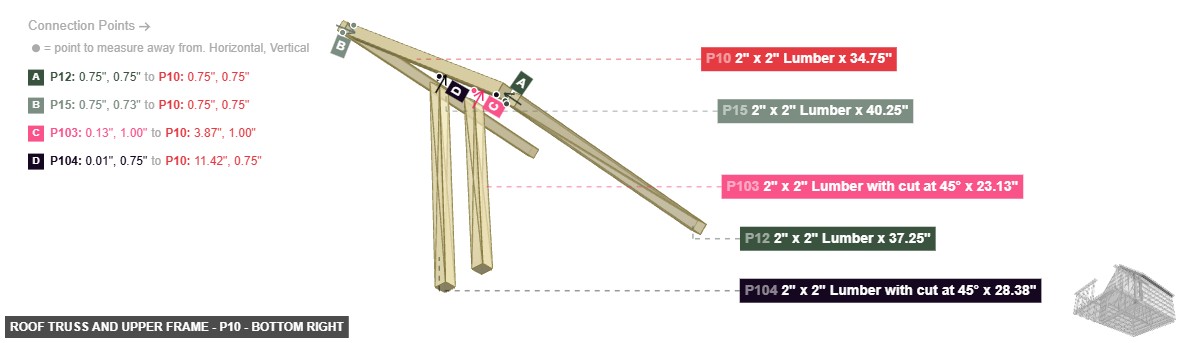

Roof Truss and Upper Frame

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

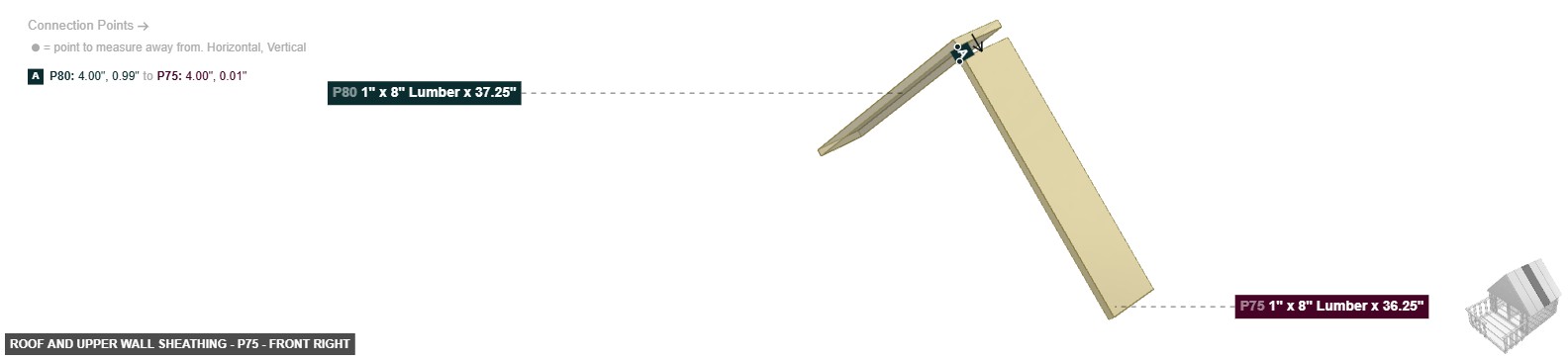

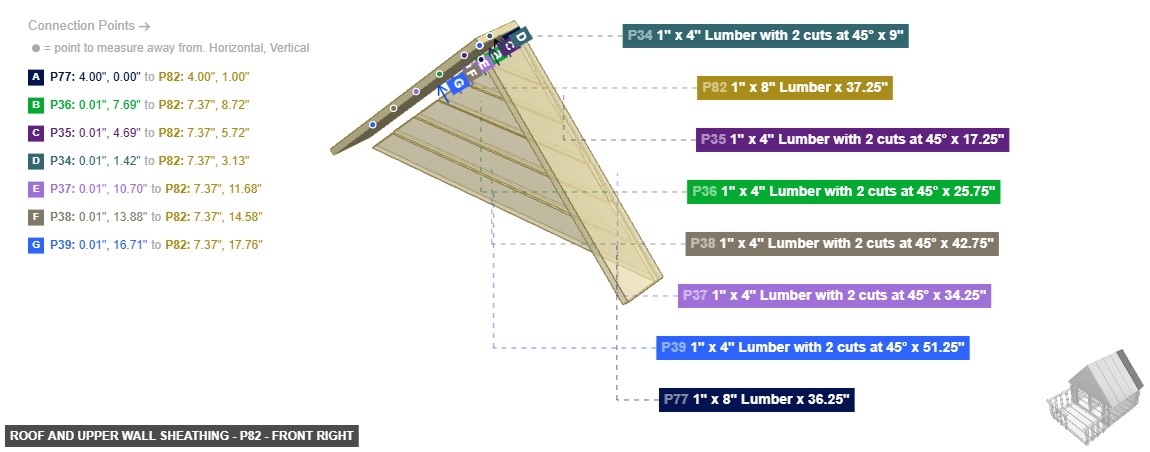

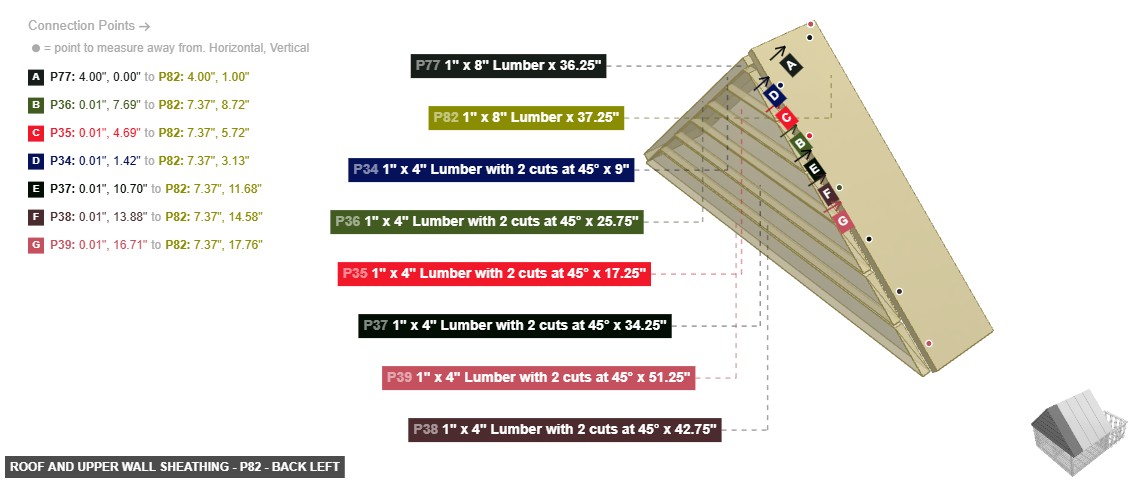

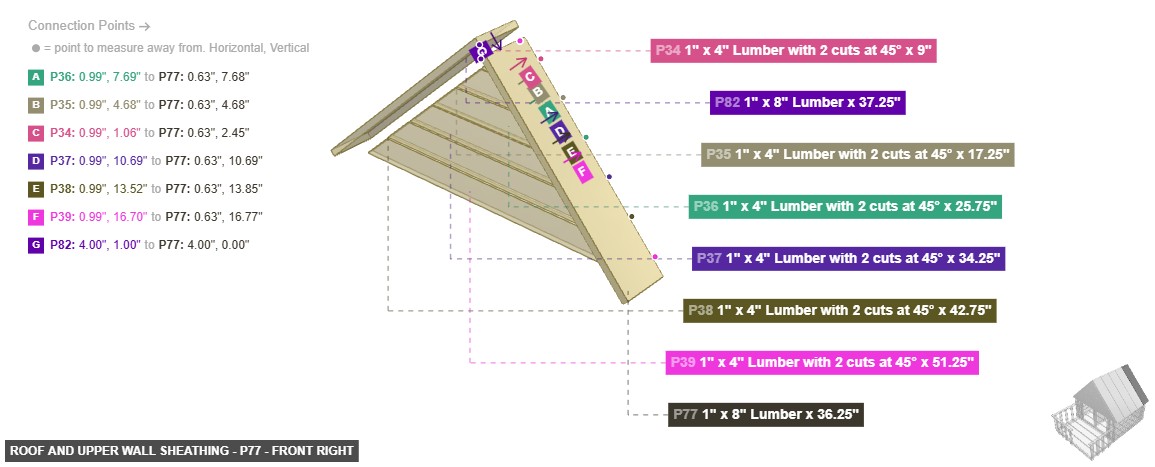

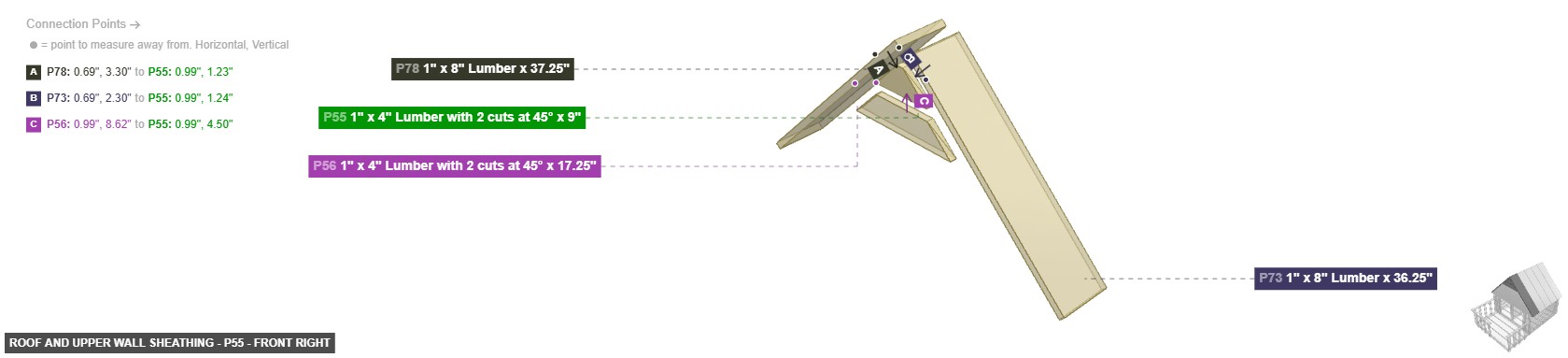

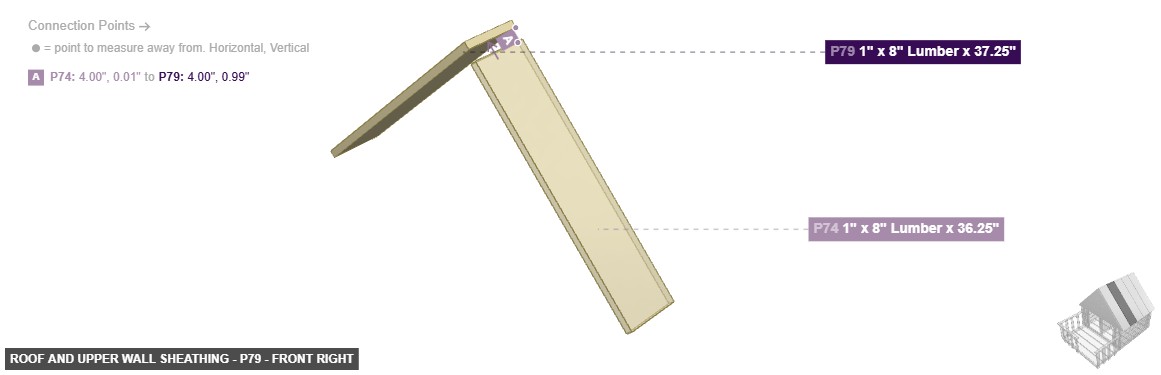

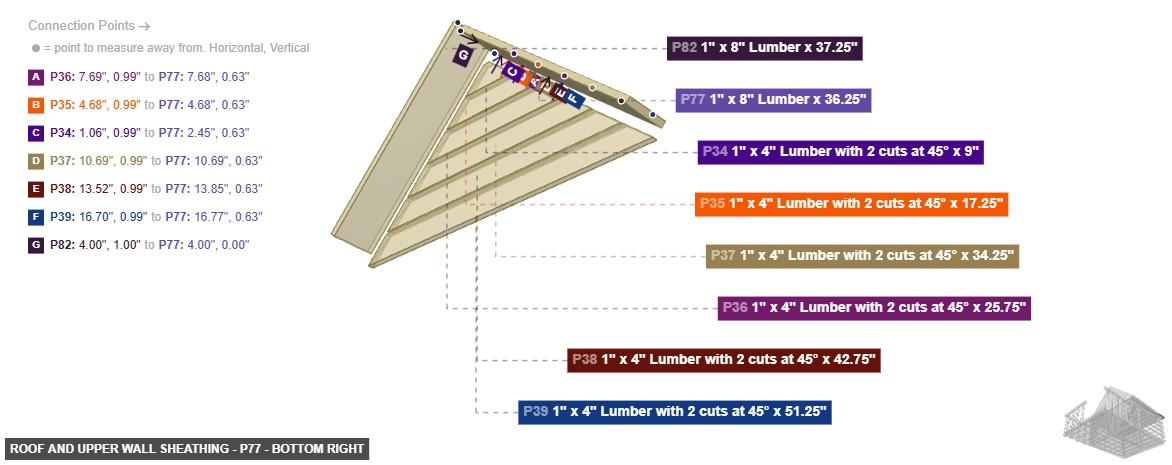

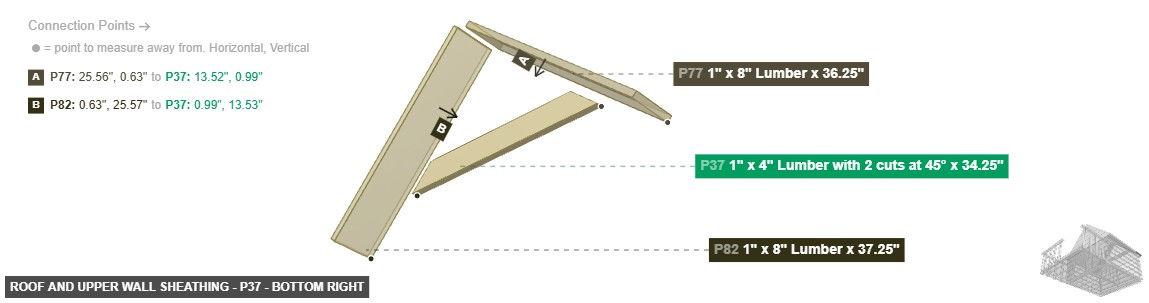

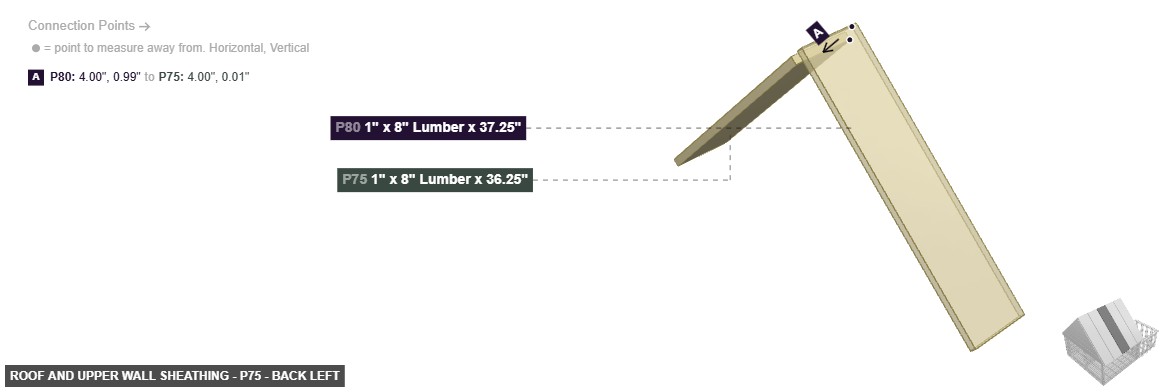

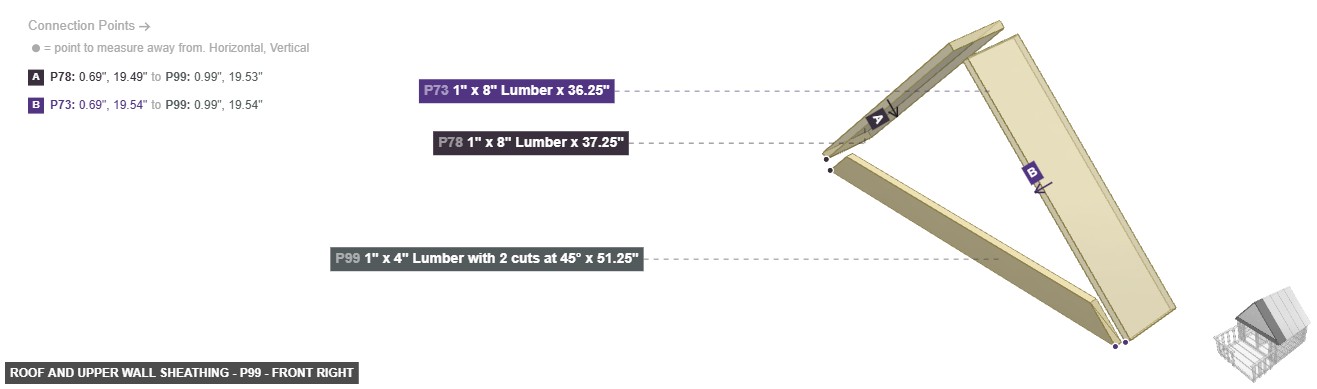

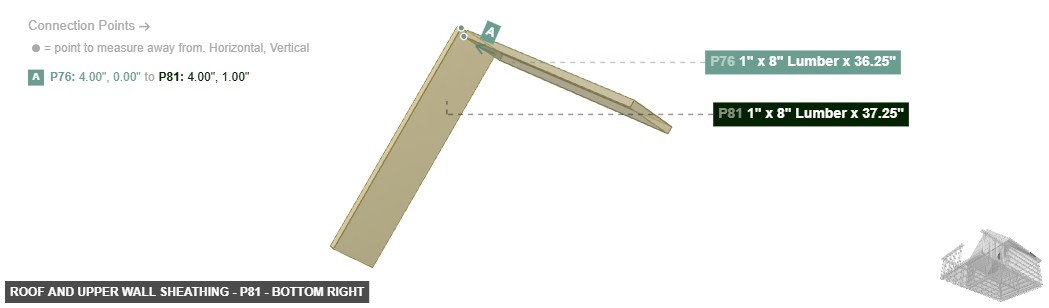

Roof and Upper Wall Sheathing

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

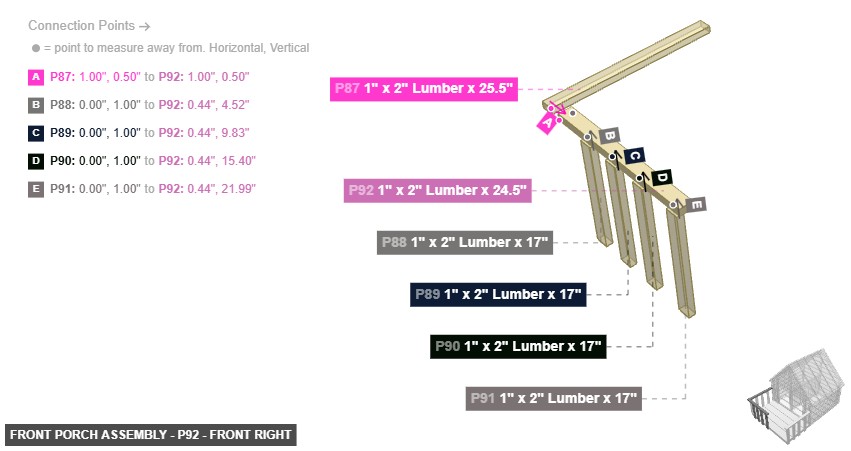

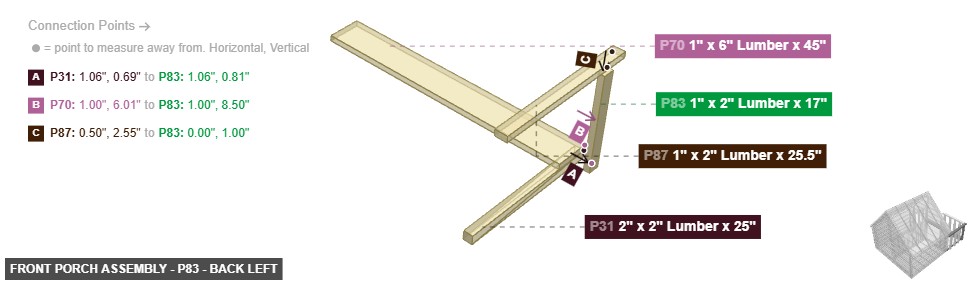

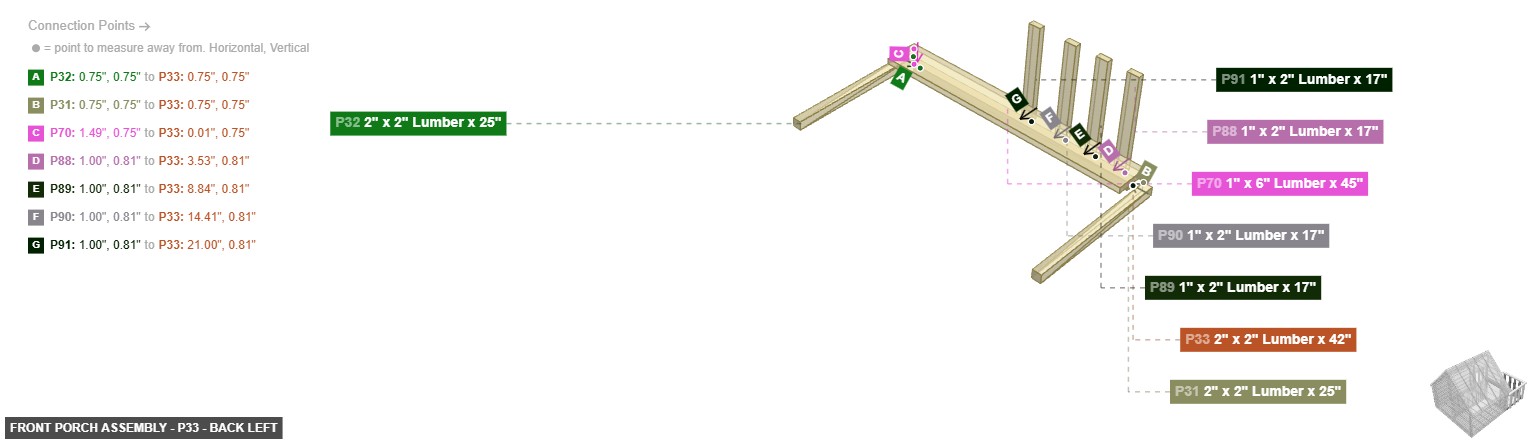

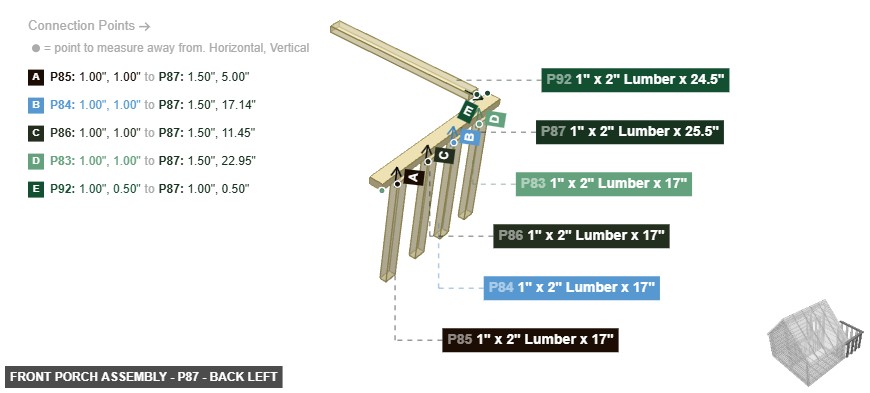

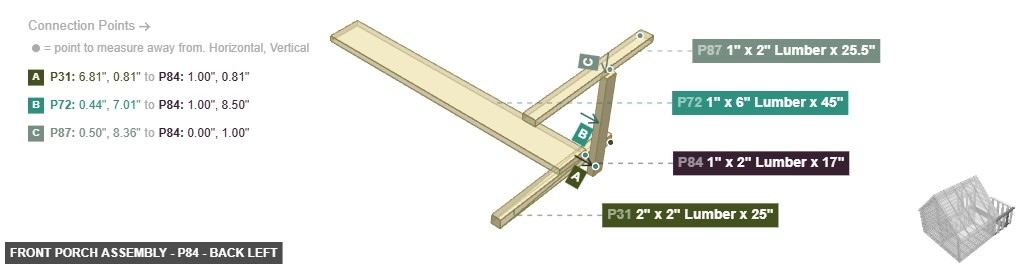

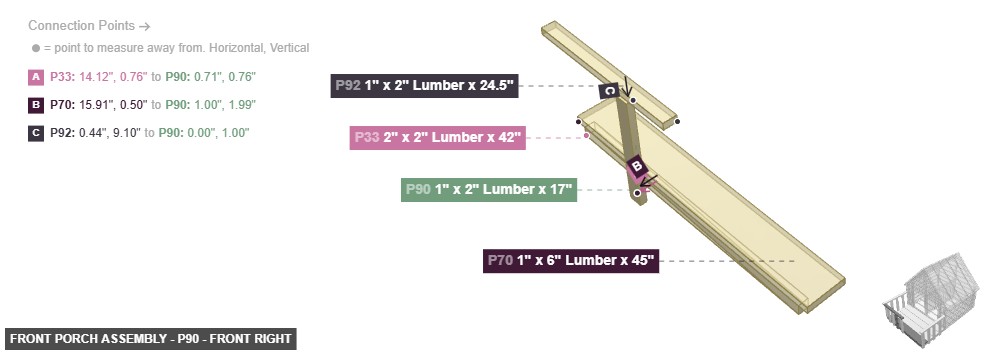

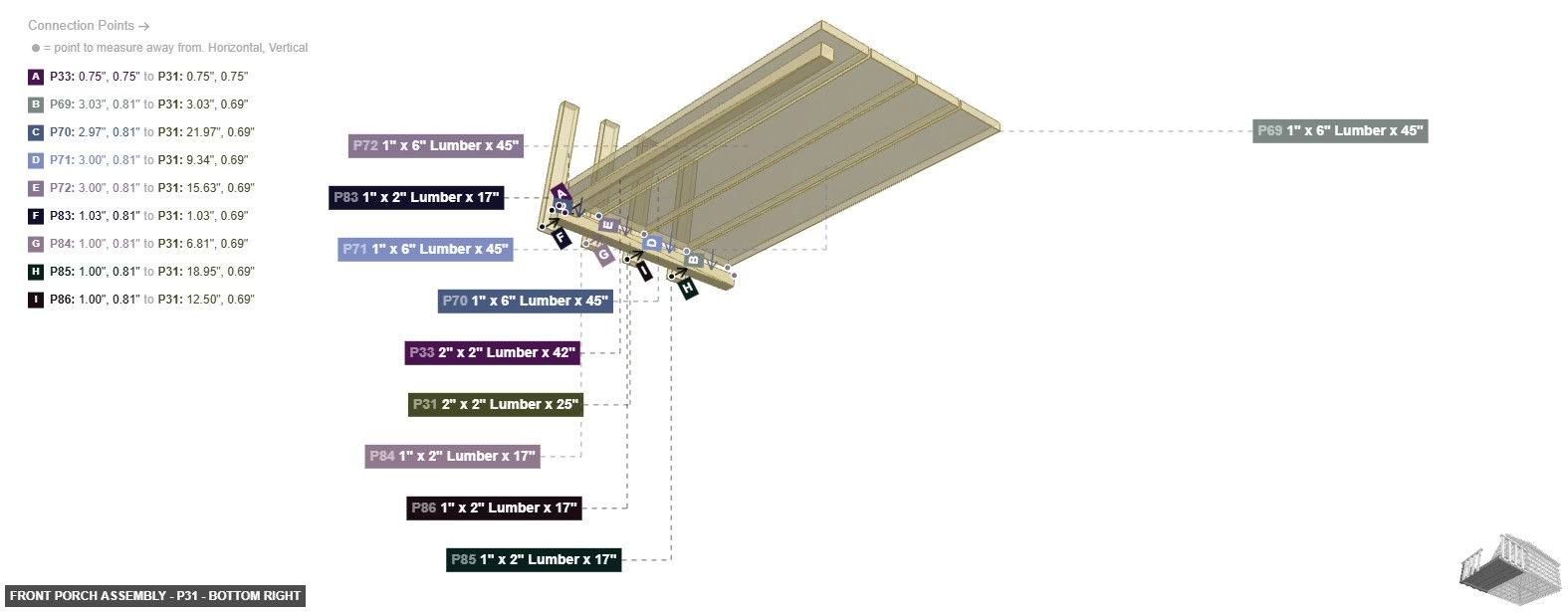

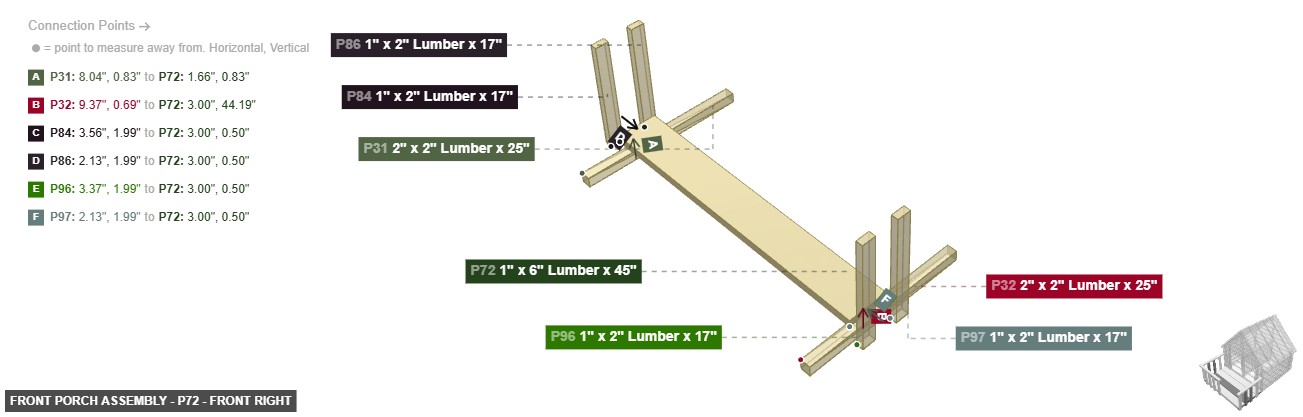

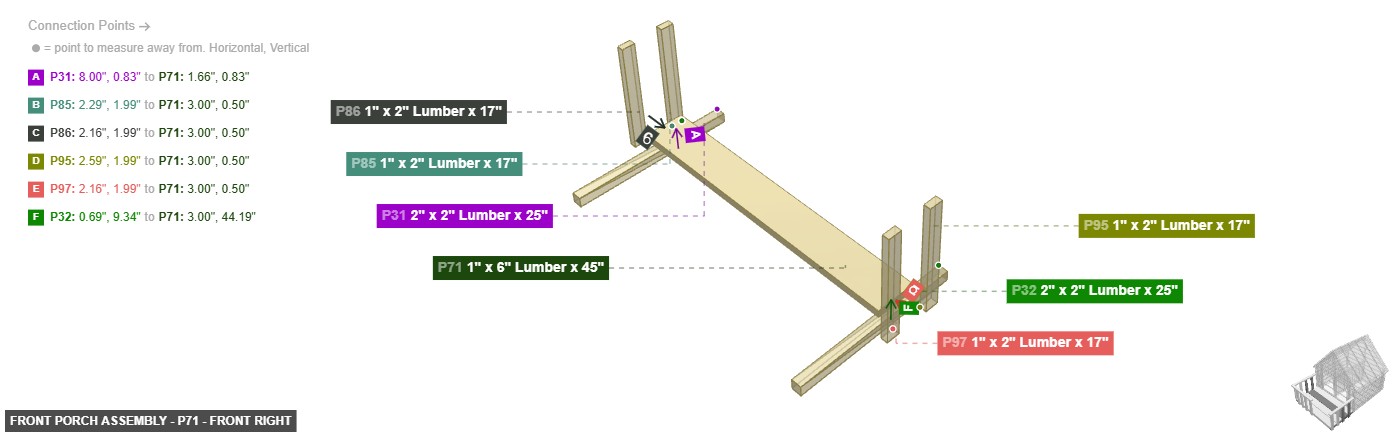

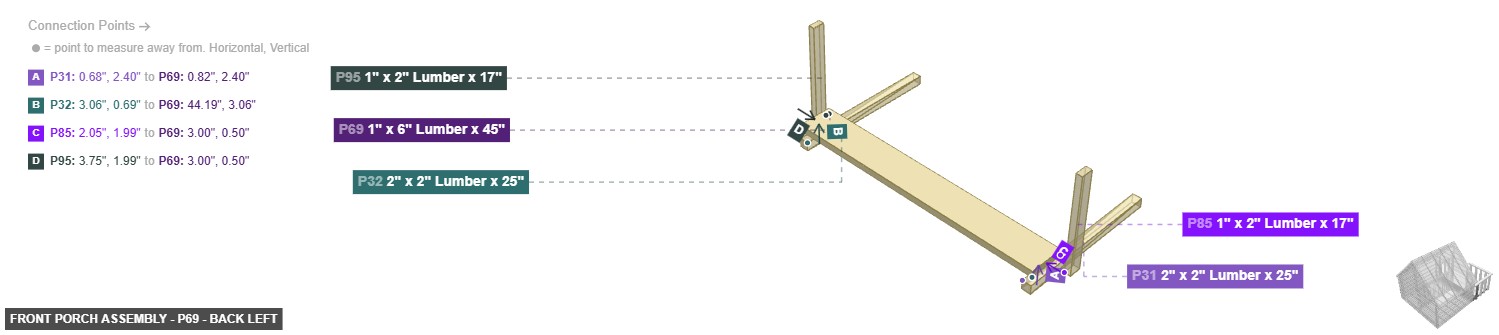

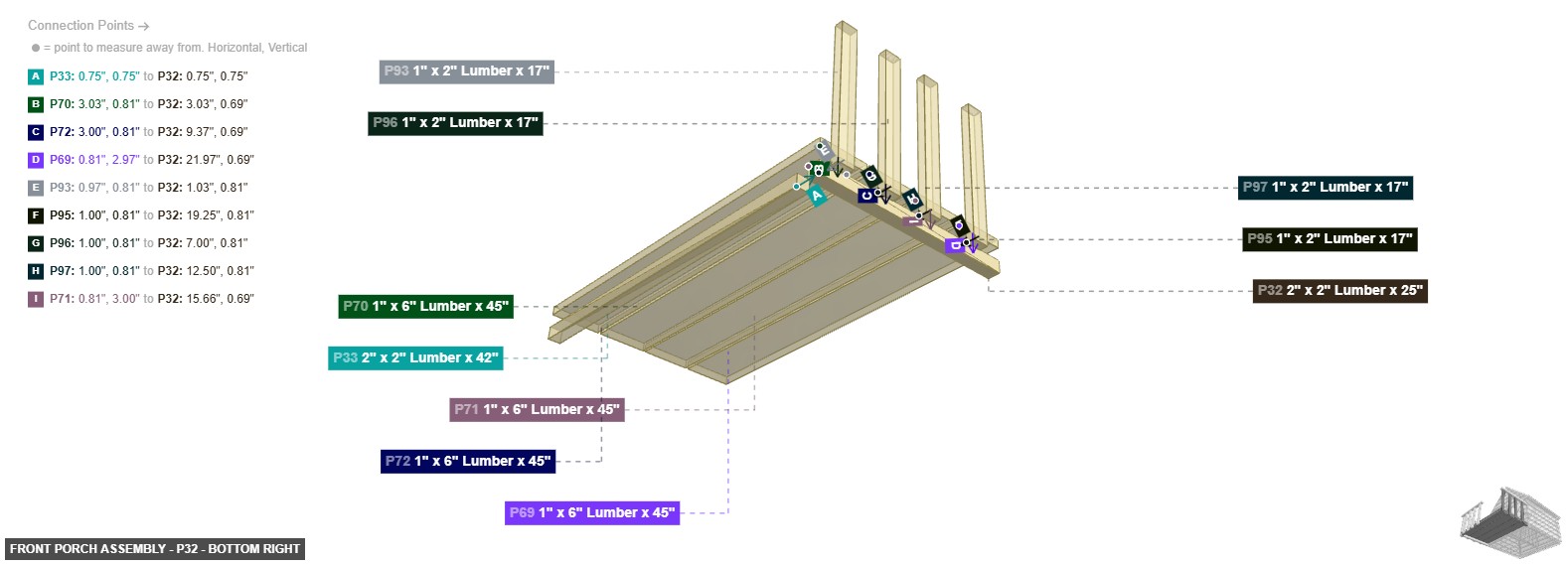

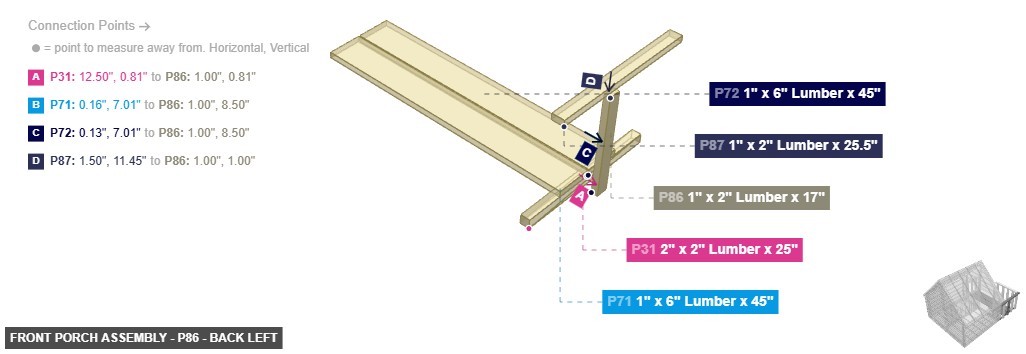

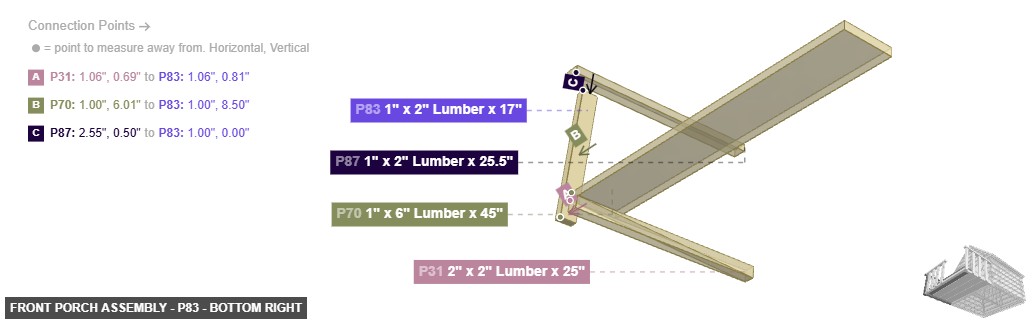

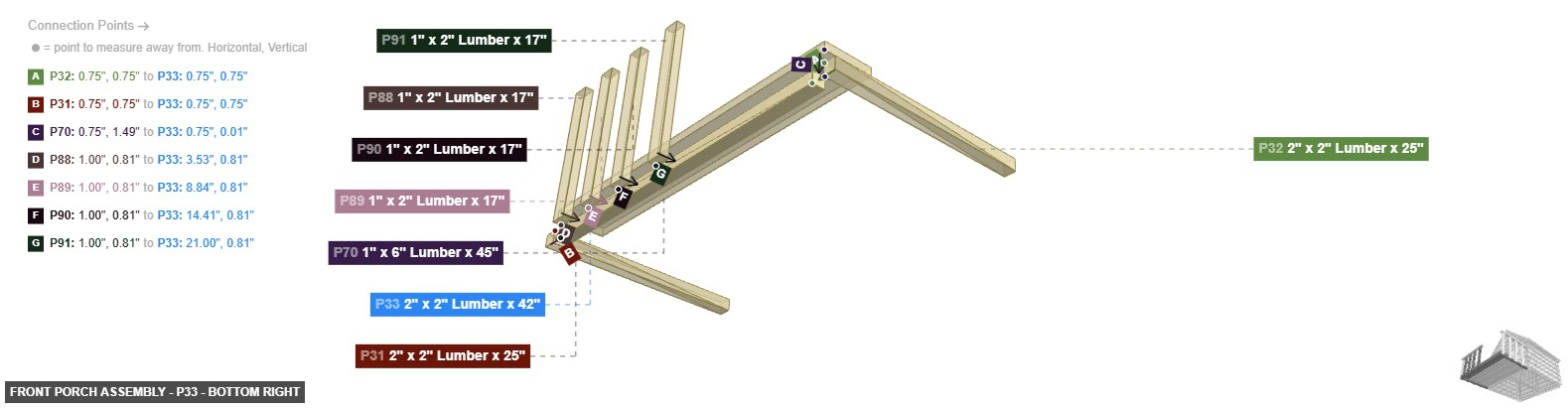

Front Porch Assembly

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

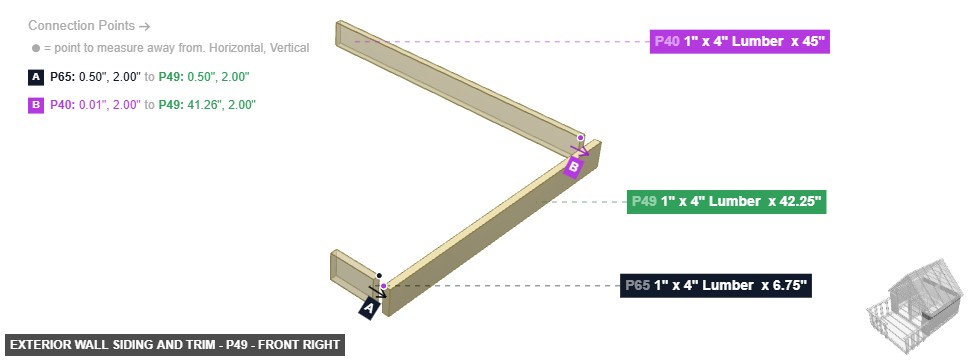

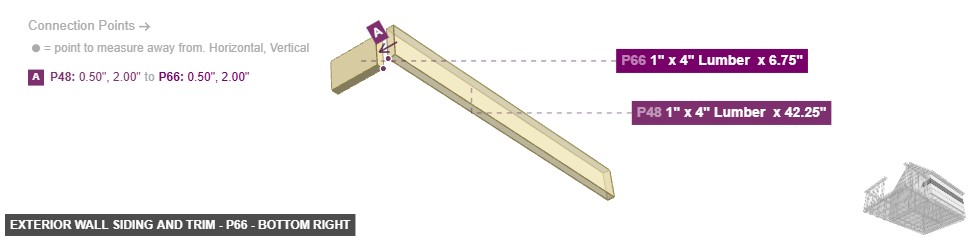

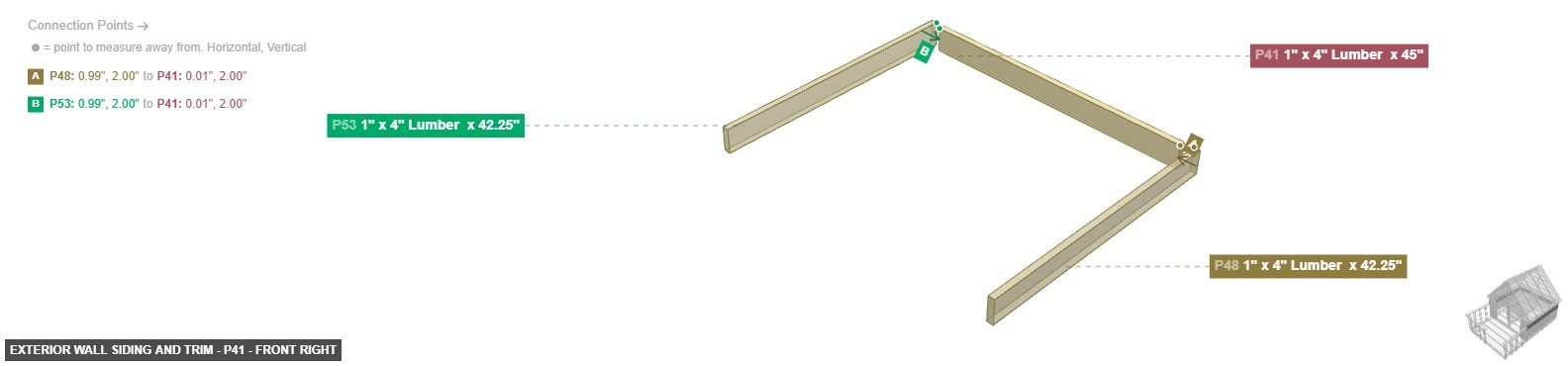

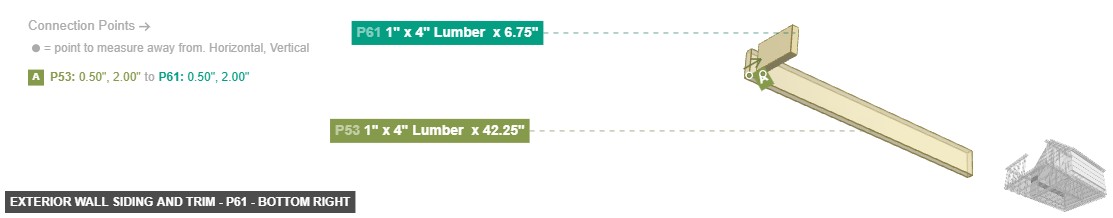

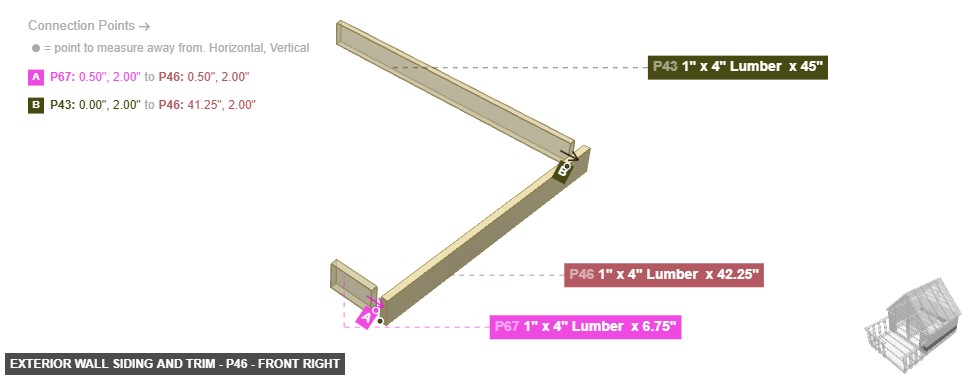

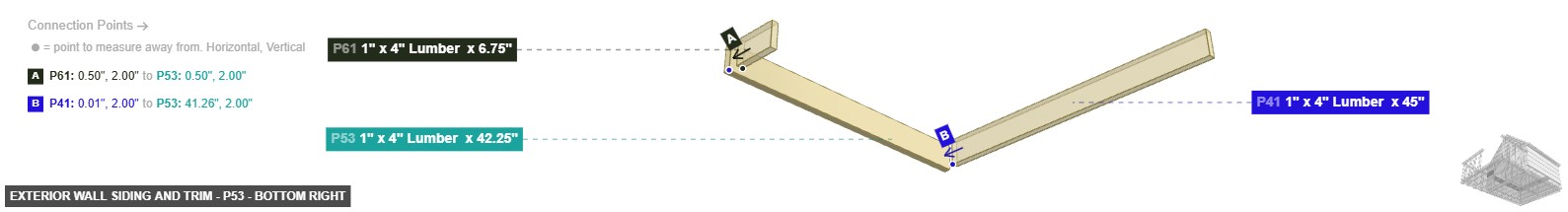

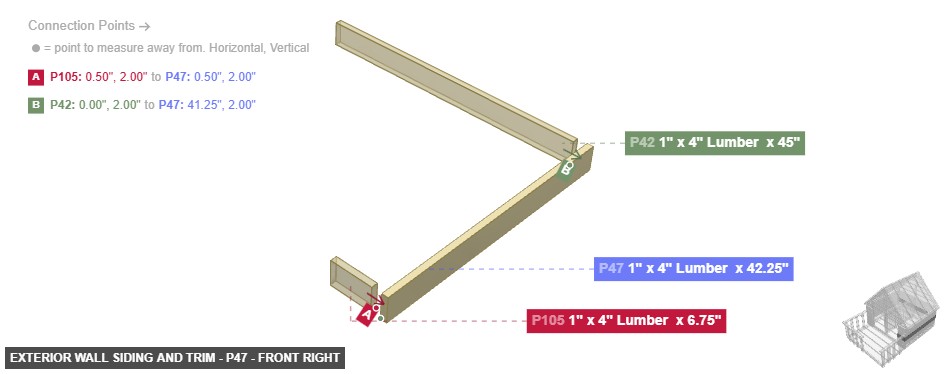

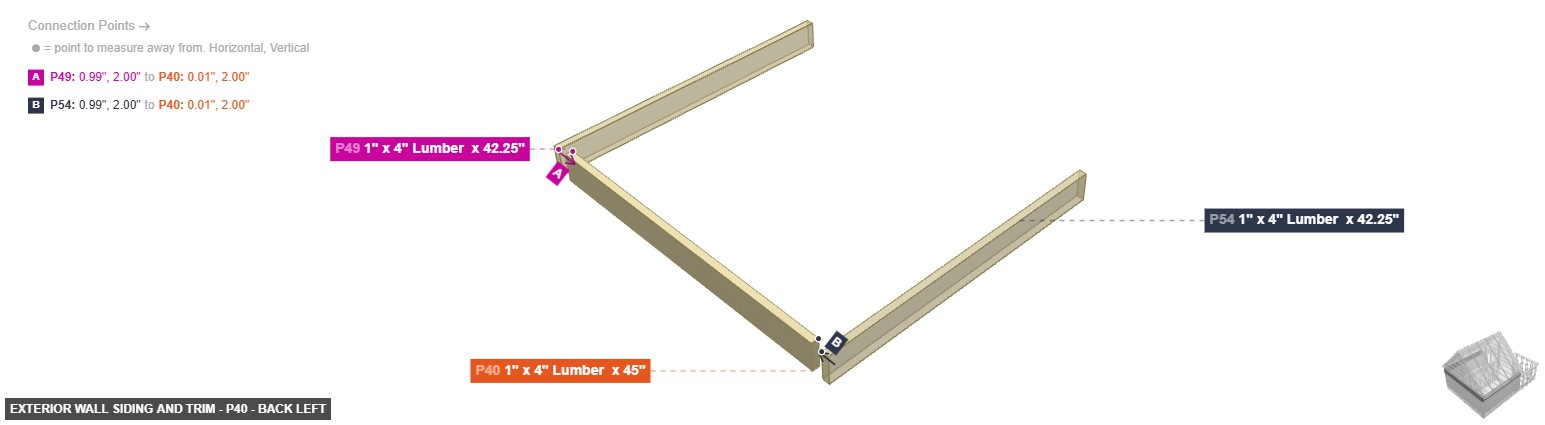

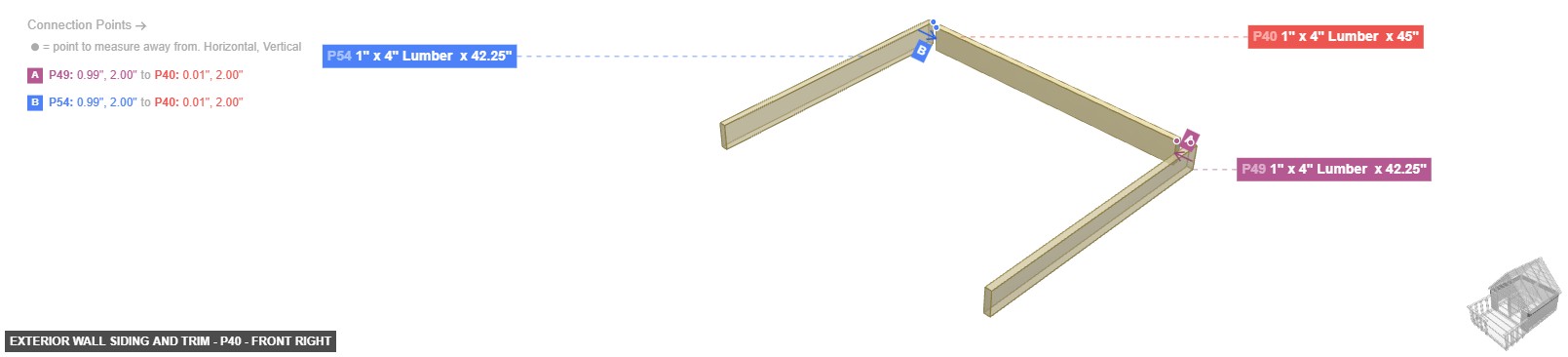

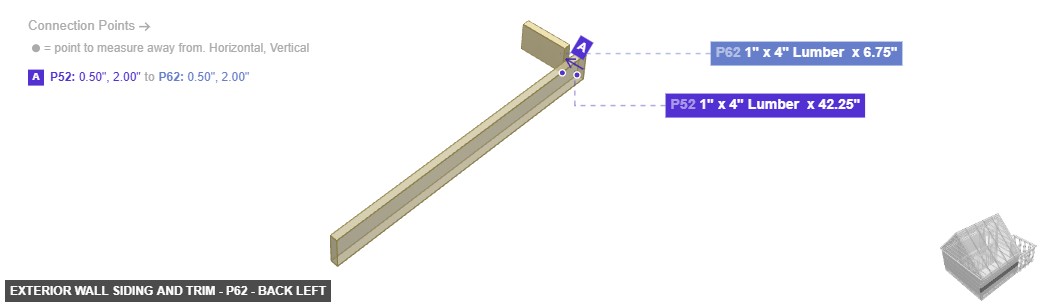

Exterior Wall Siding and Trim

1" x 4" Lumber x 45"x 4

1" x 4" Lumber x 42.25"x 8

1" x 4" Lumber x 6.75"x 10

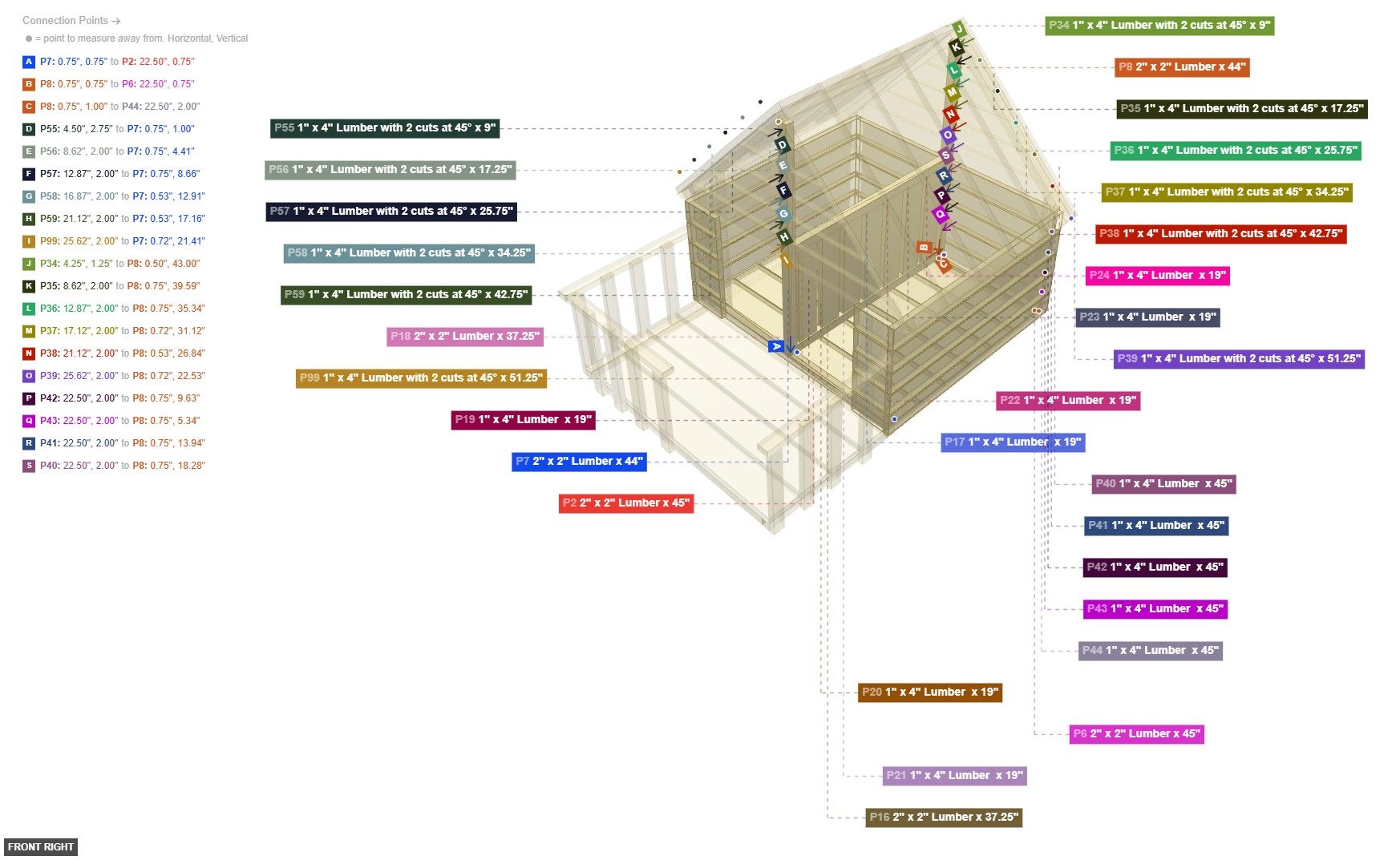

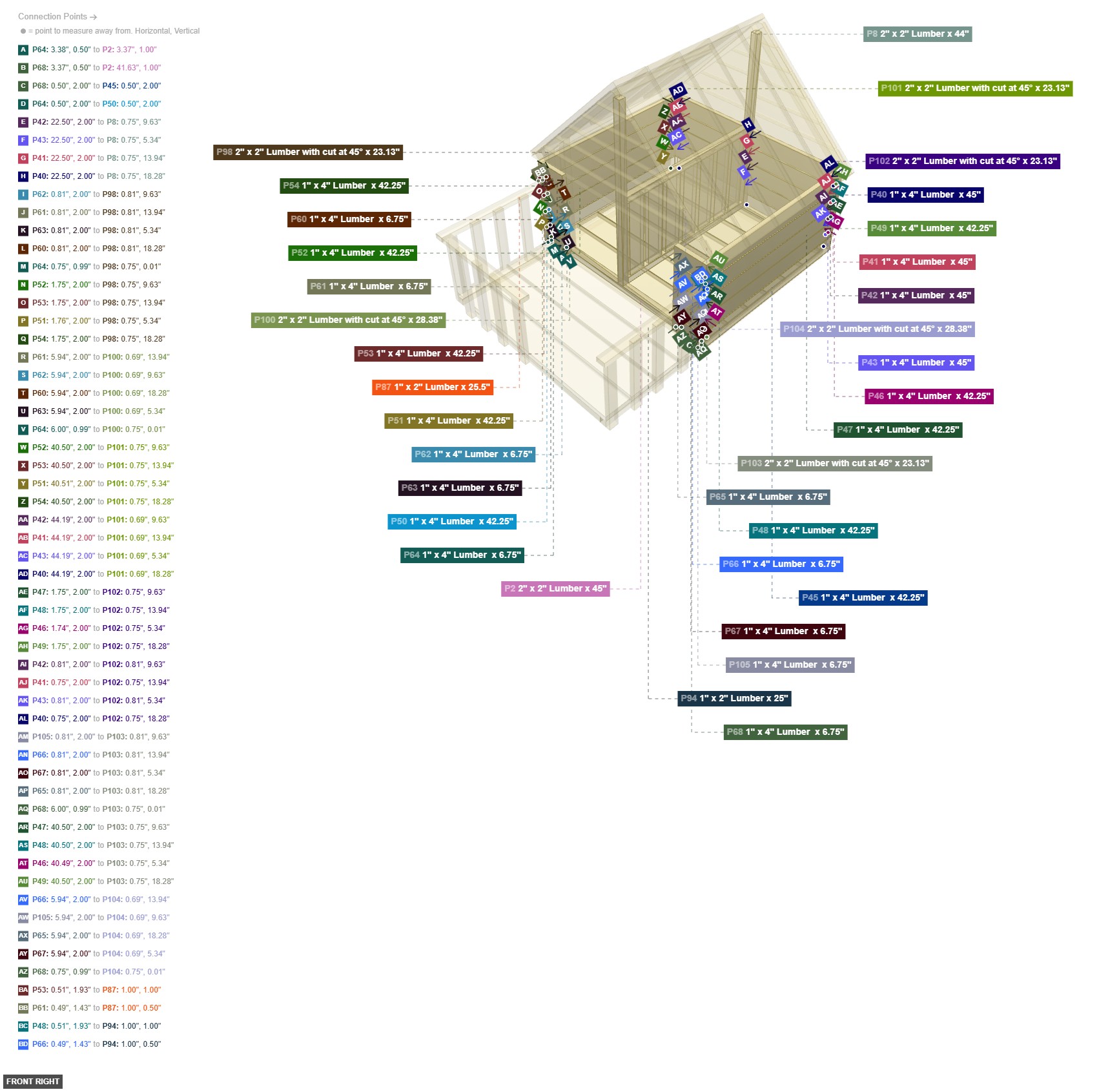

Angle: front right

Base Frame Assembly

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Main Floor and Lower Supports

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Central Divider Frame

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

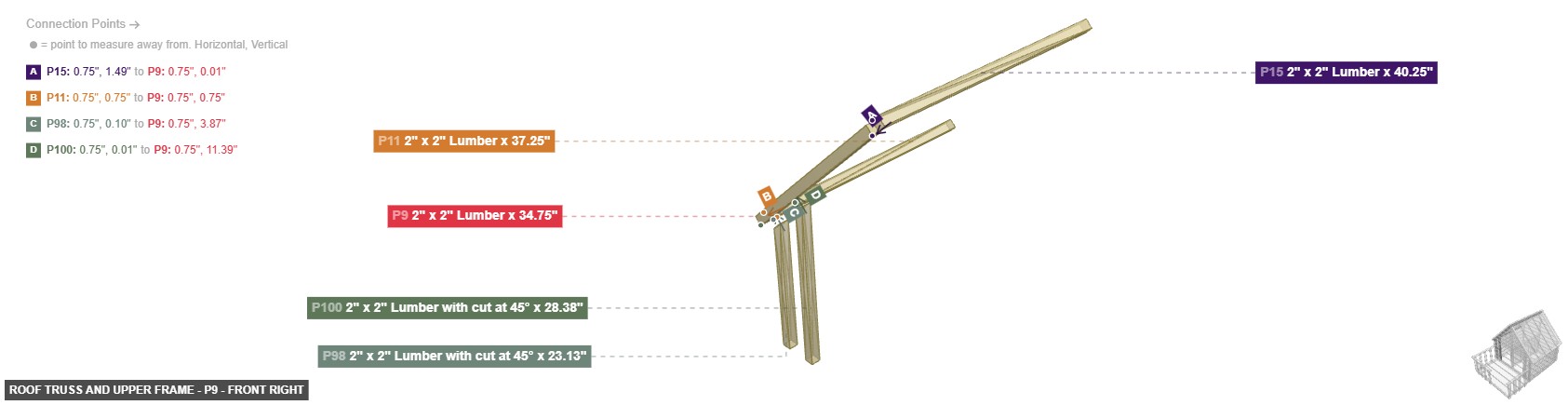

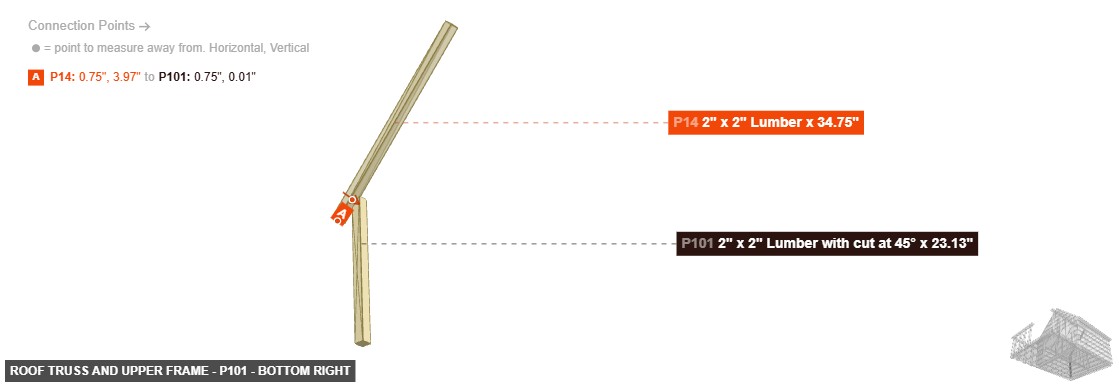

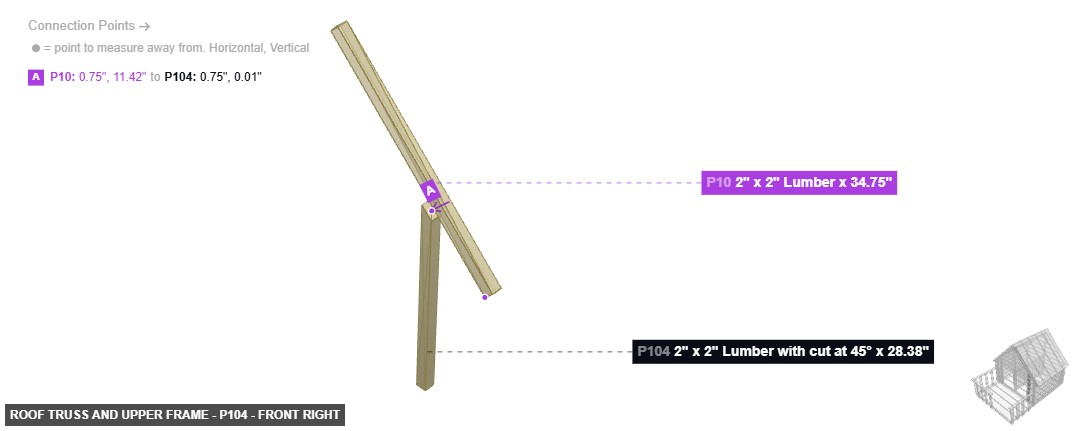

Roof Truss and Upper Frame

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

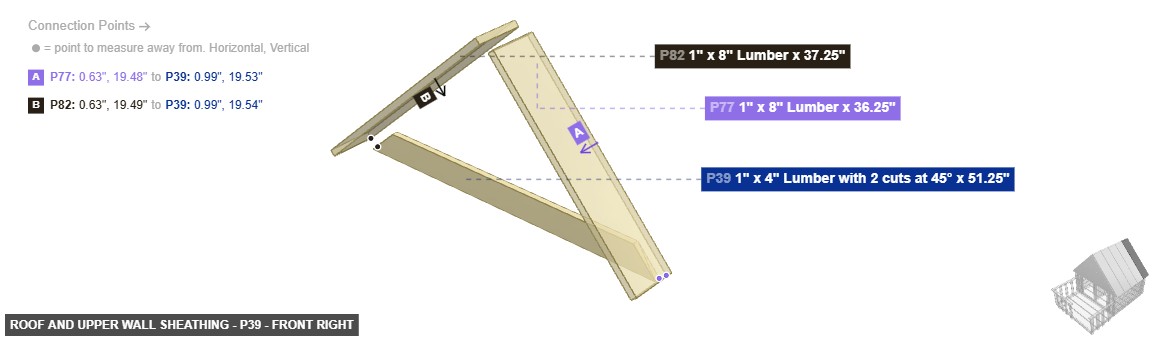

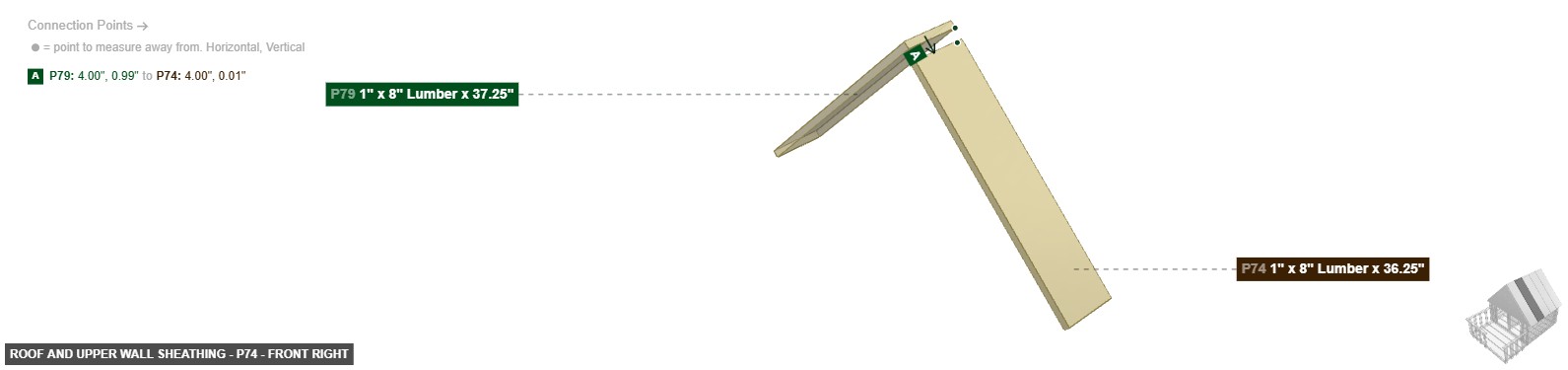

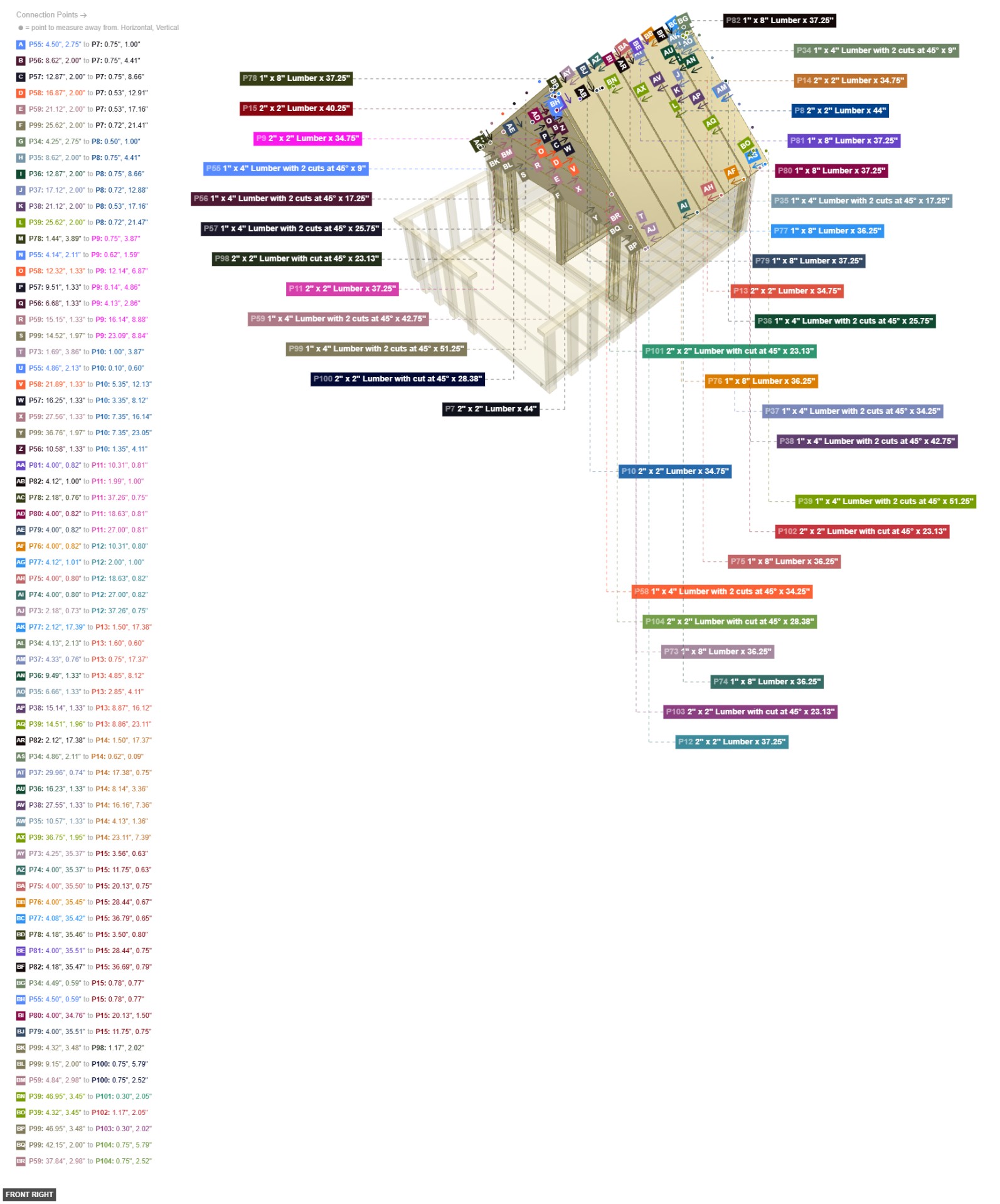

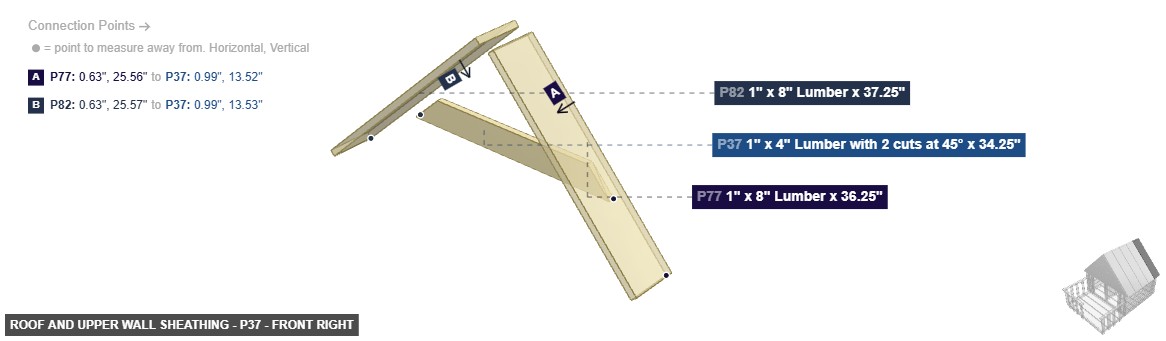

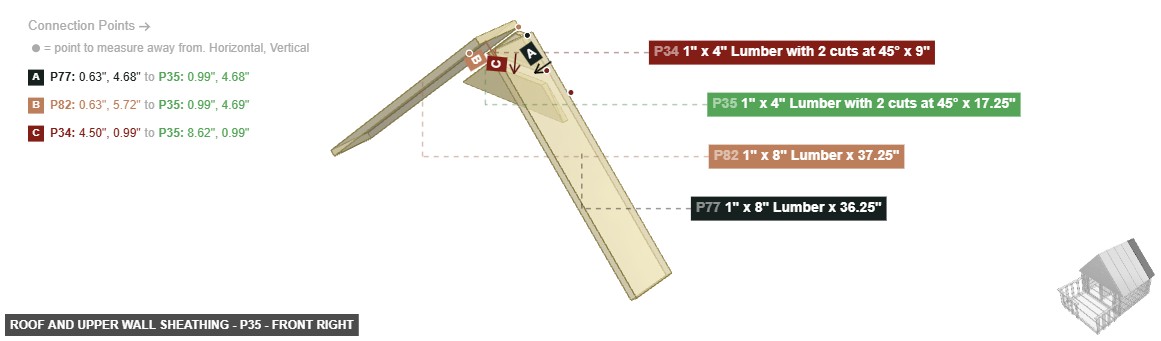

Roof and Upper Wall Sheathing

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

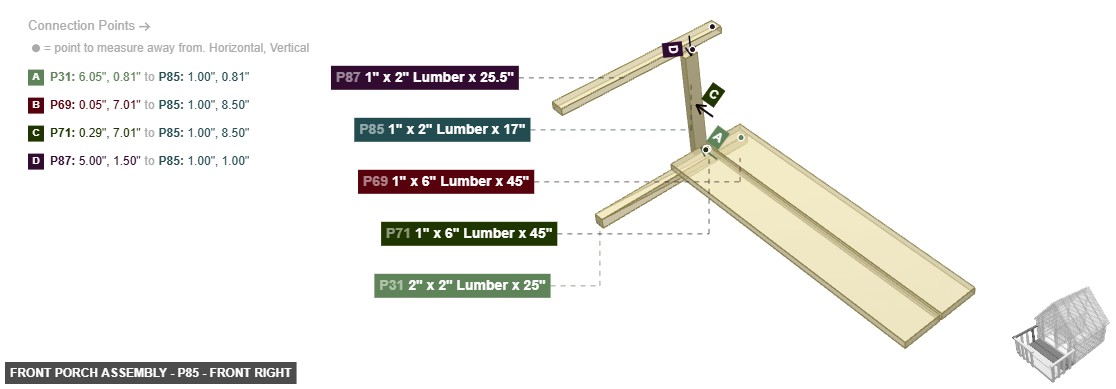

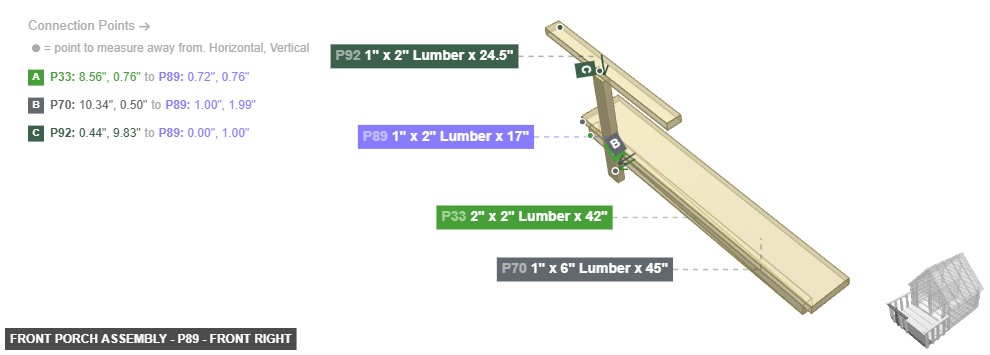

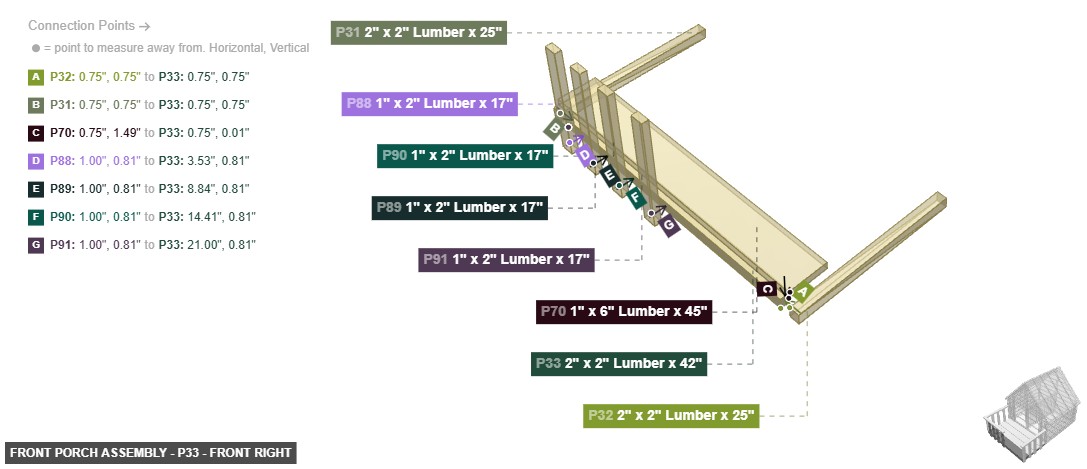

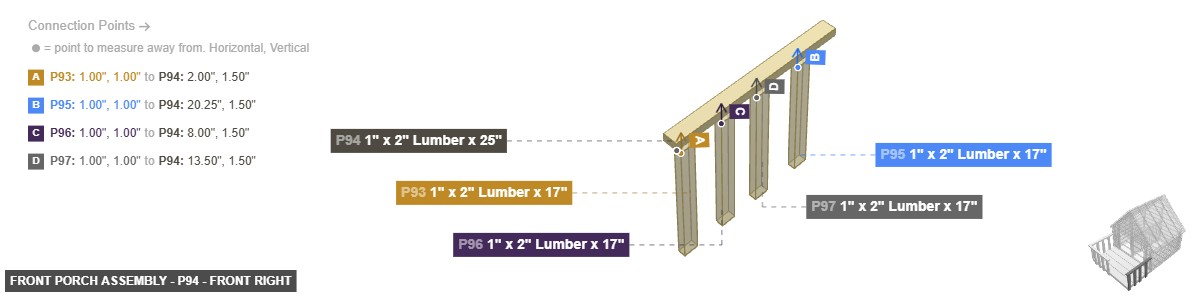

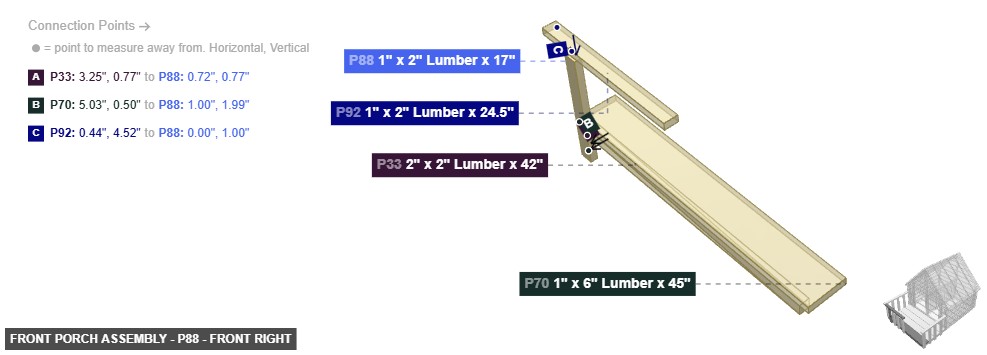

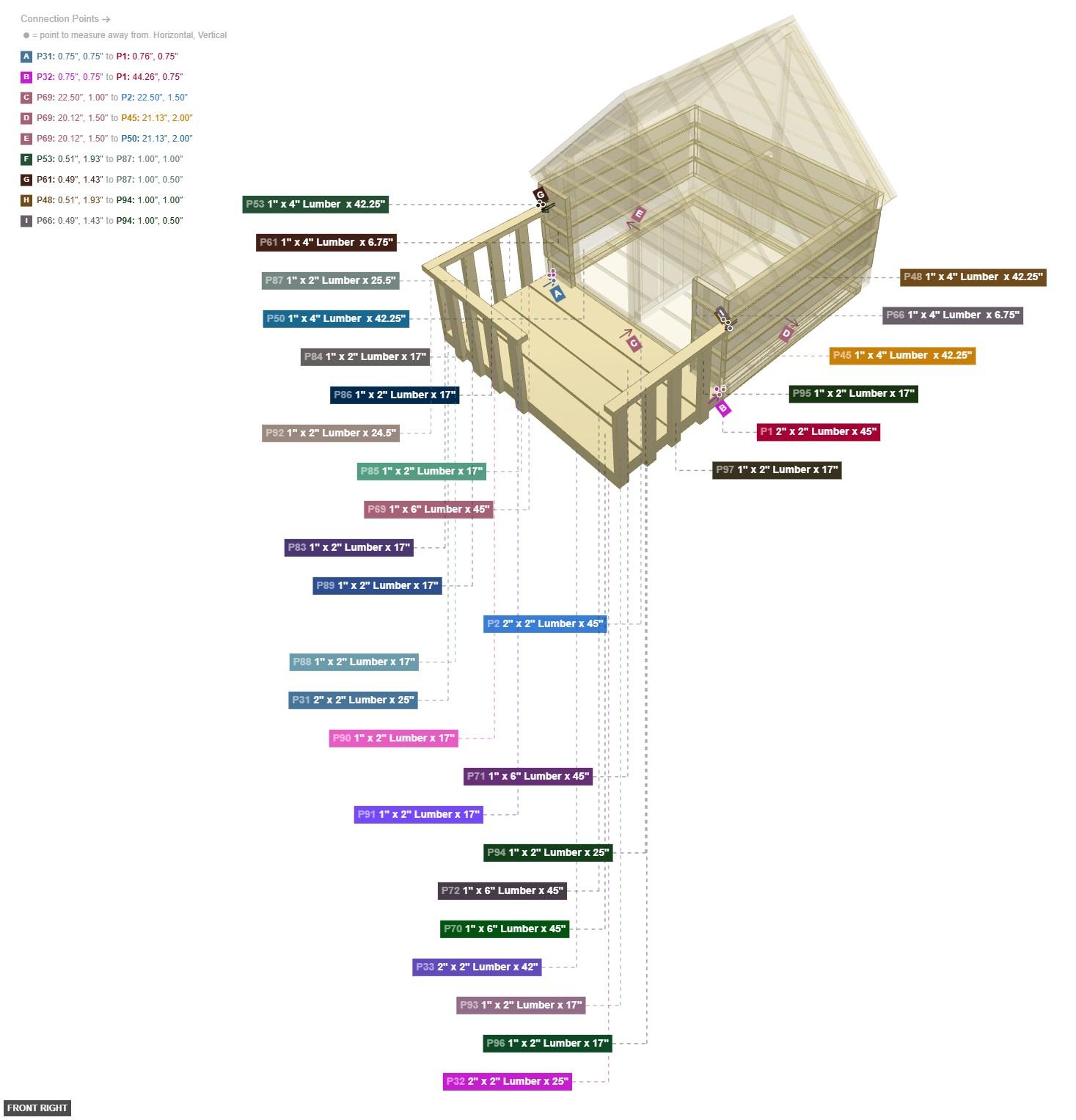

Front Porch Assembly

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

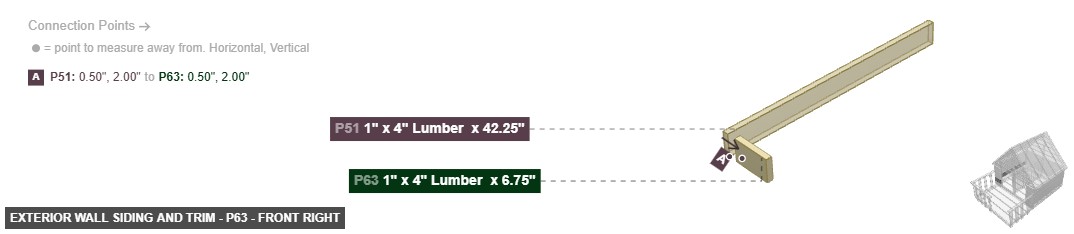

Exterior Wall Siding and Trim

1" x 4" Lumber x 45"x 4

1" x 4" Lumber x 42.25"x 8

1" x 4" Lumber x 6.75"x 10

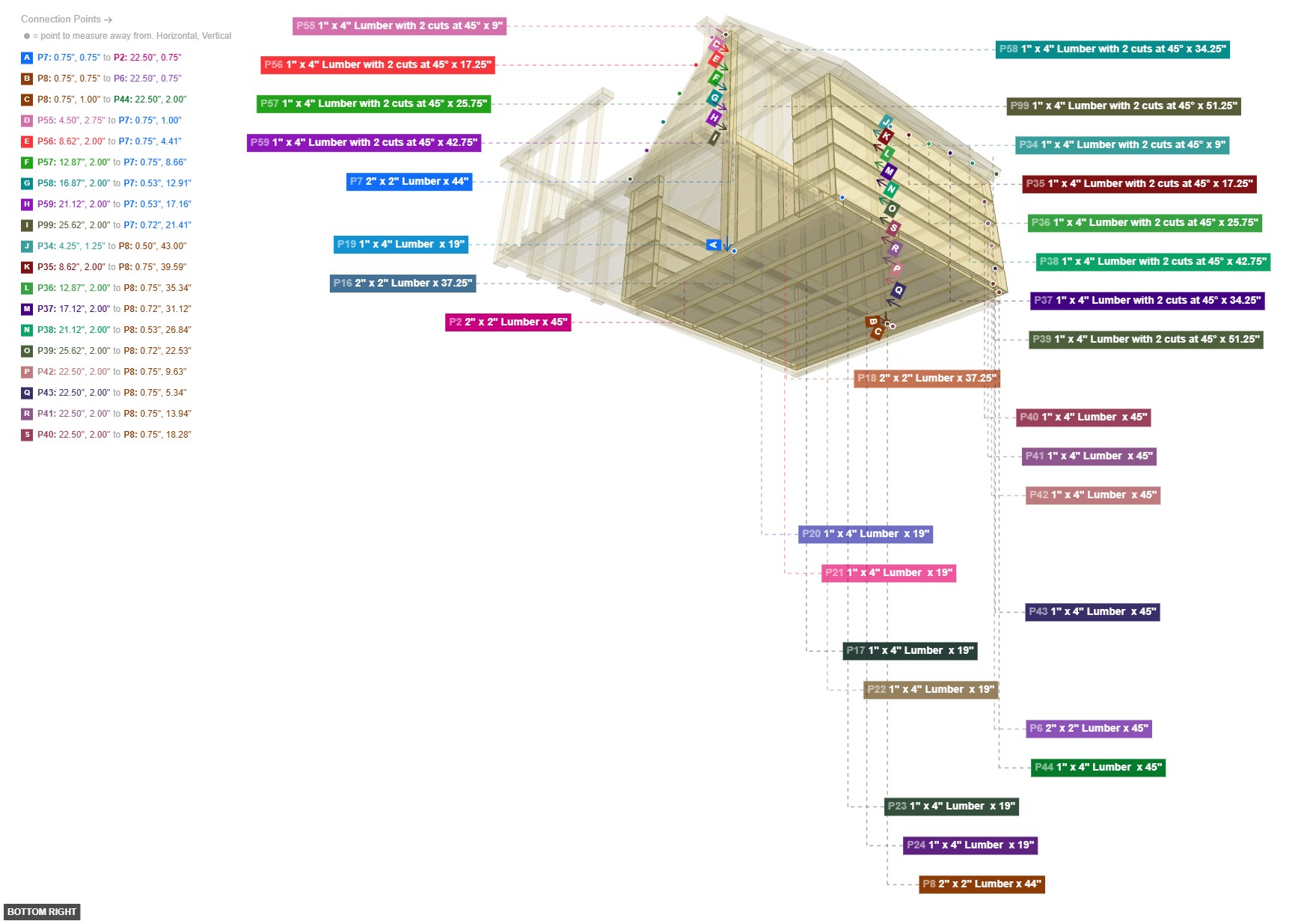

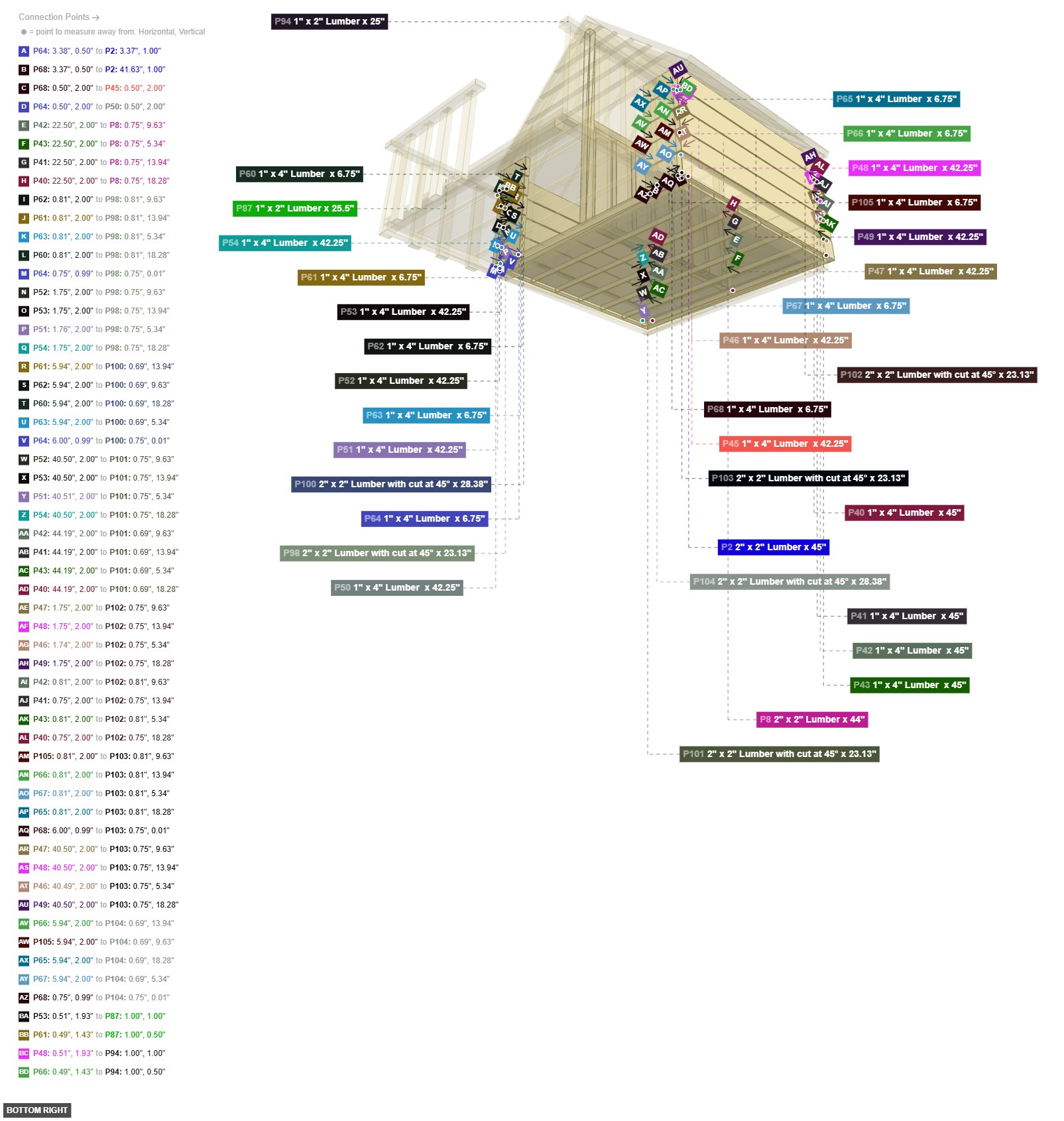

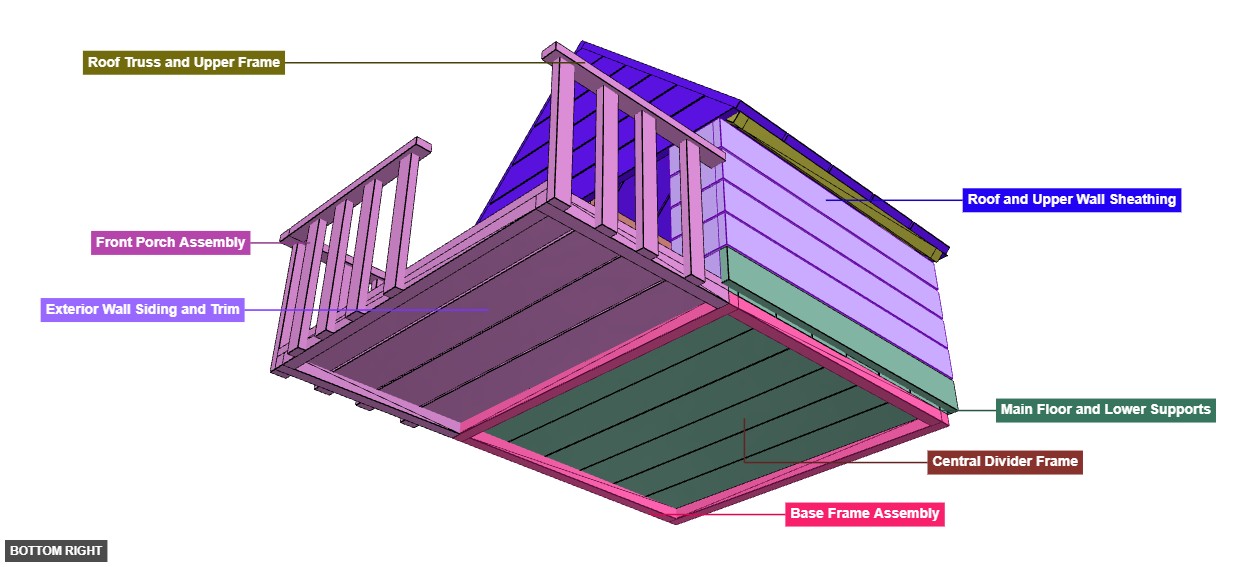

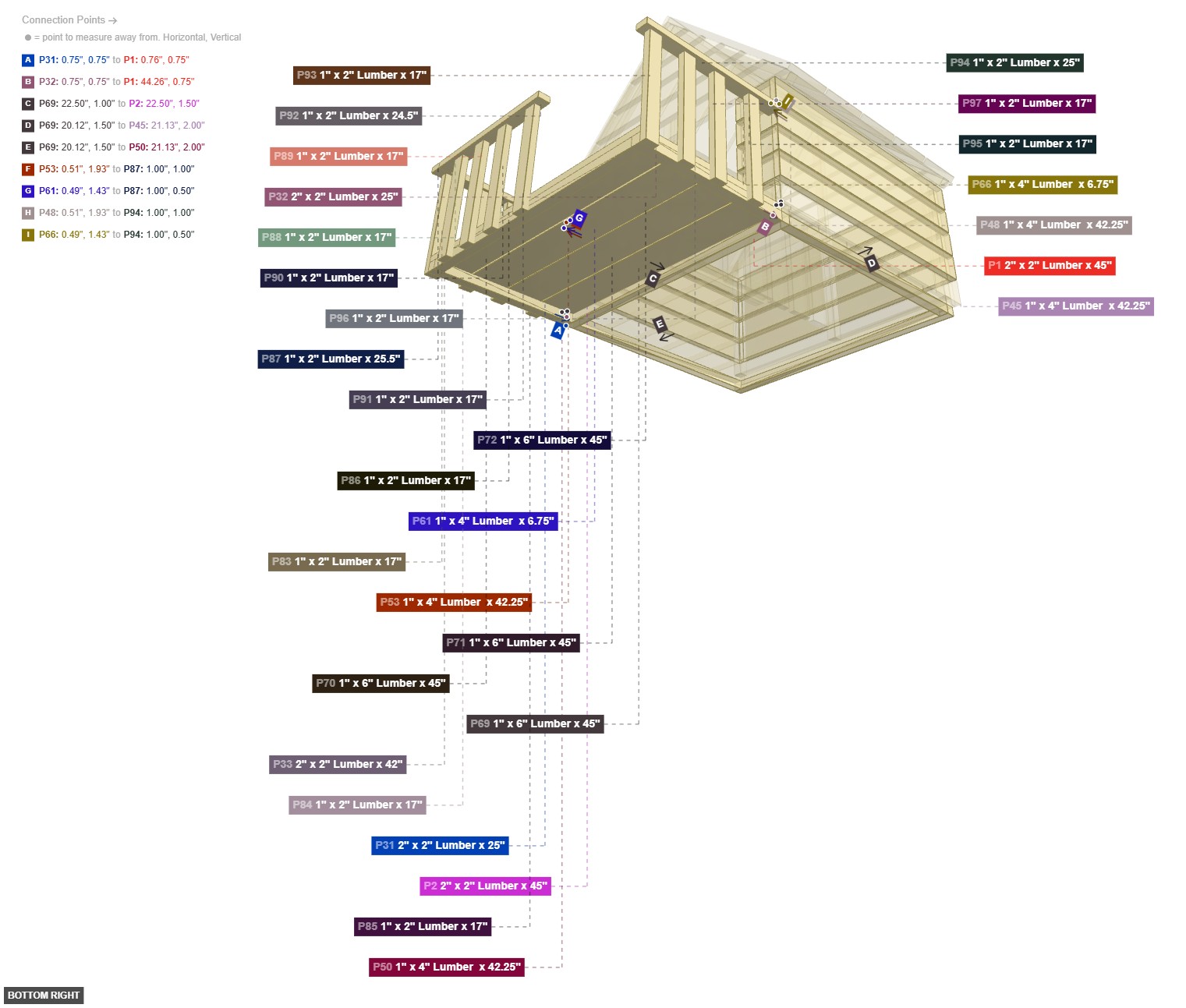

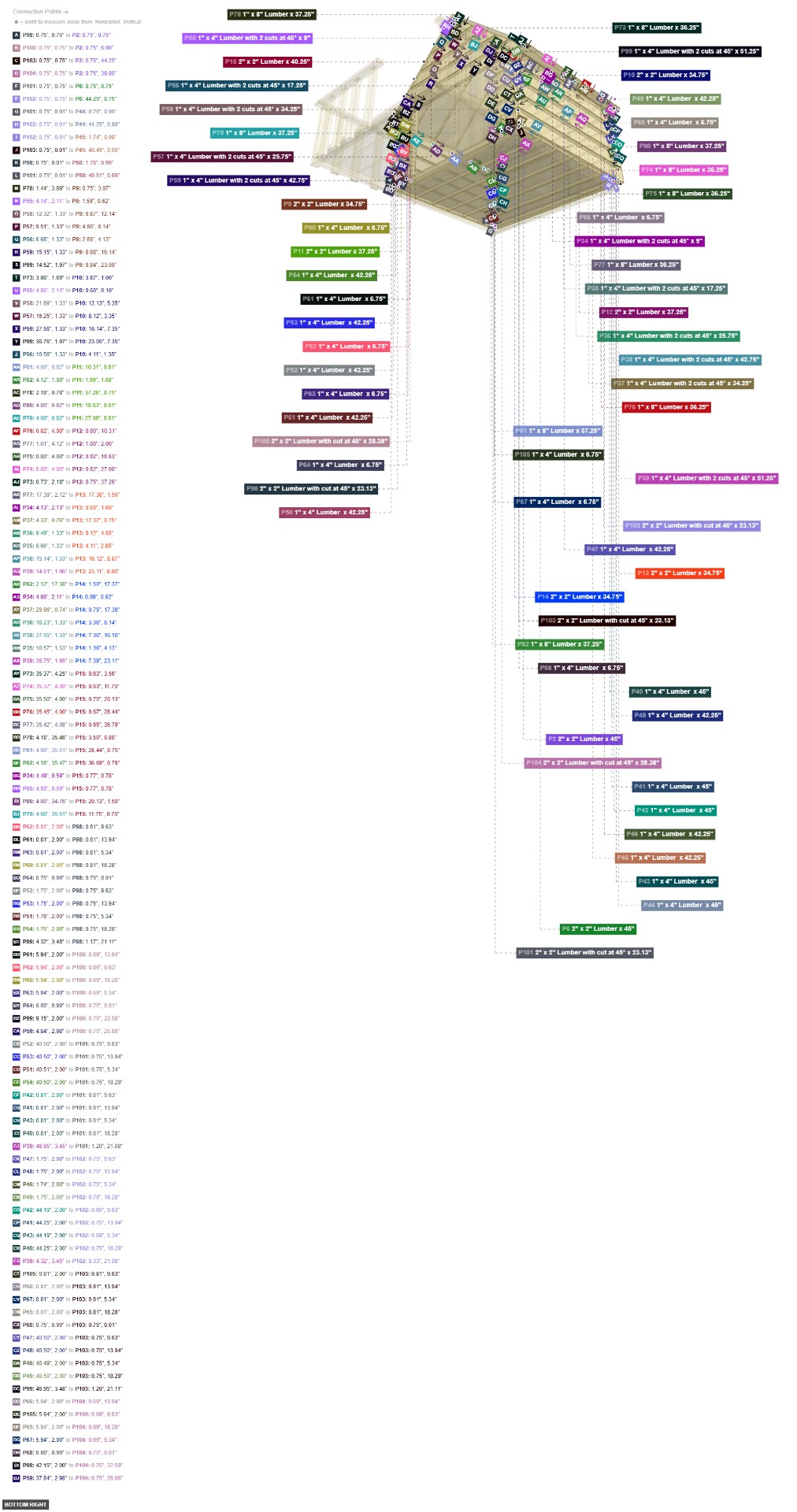

Angle: bottom right

Base Frame Assembly

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Main Floor and Lower Supports

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

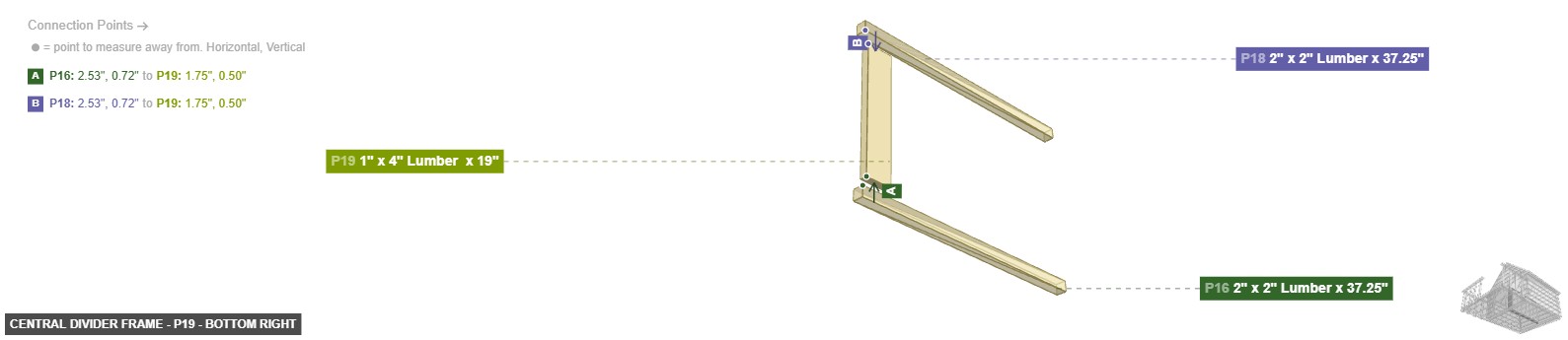

Central Divider Frame

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

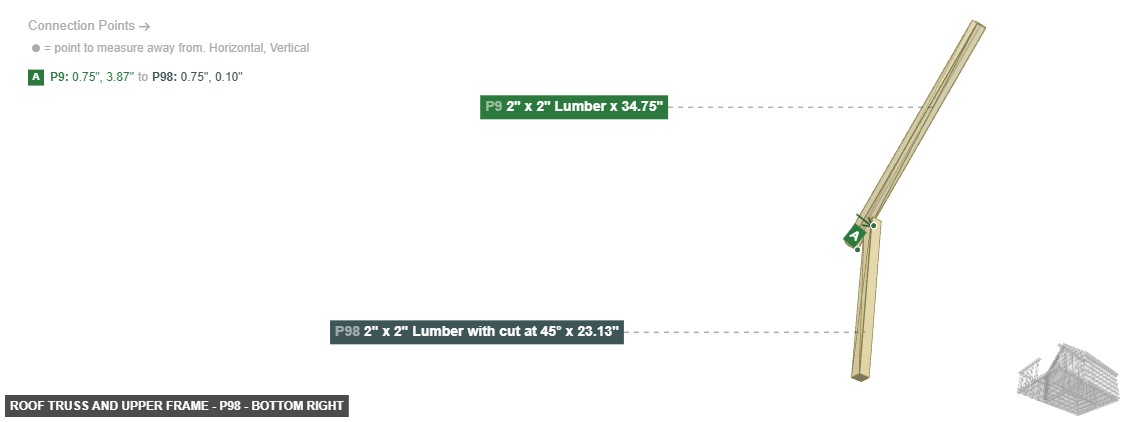

Roof Truss and Upper Frame

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

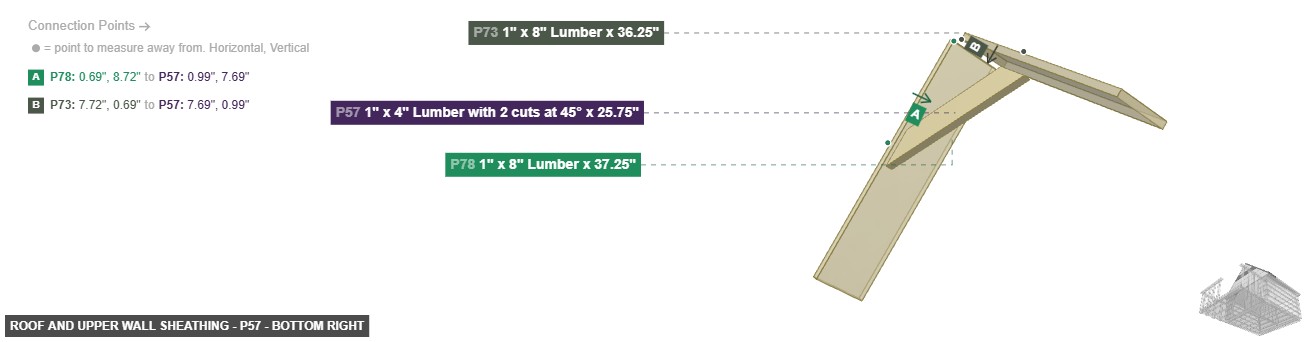

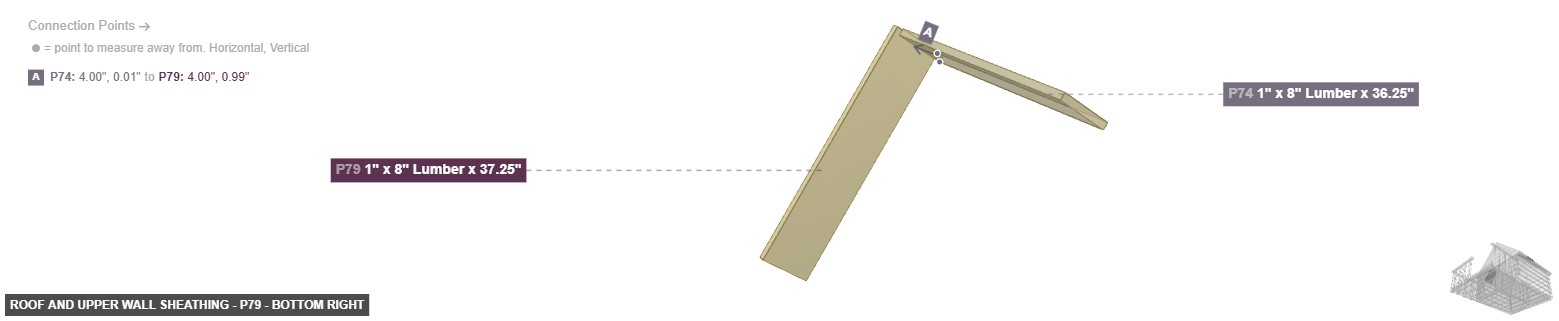

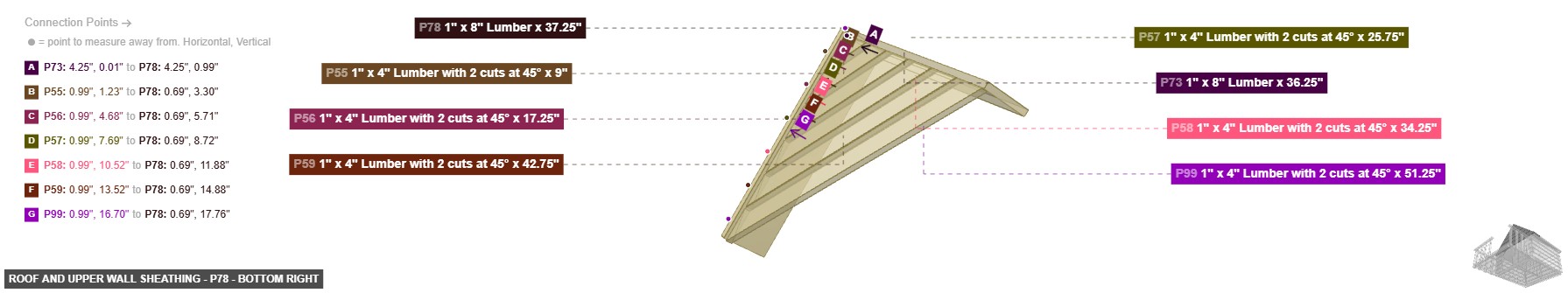

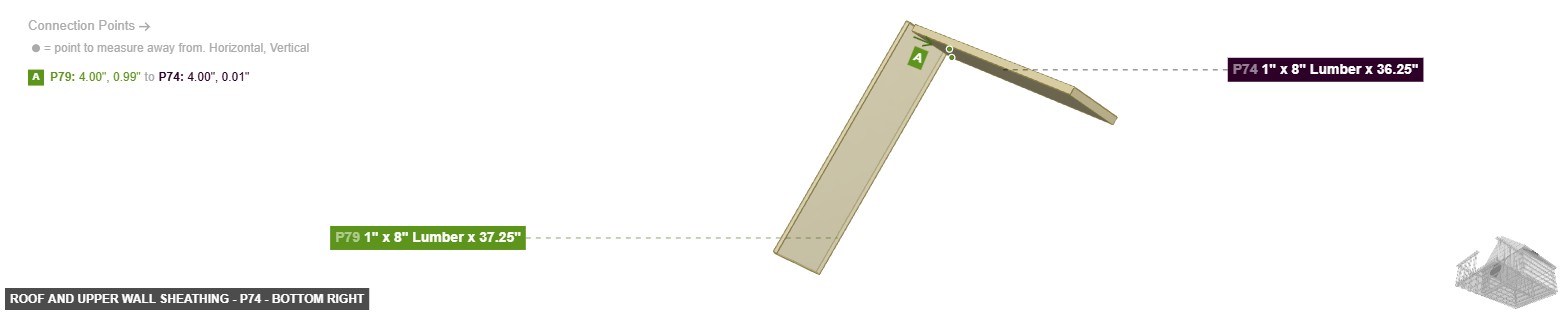

Roof and Upper Wall Sheathing

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

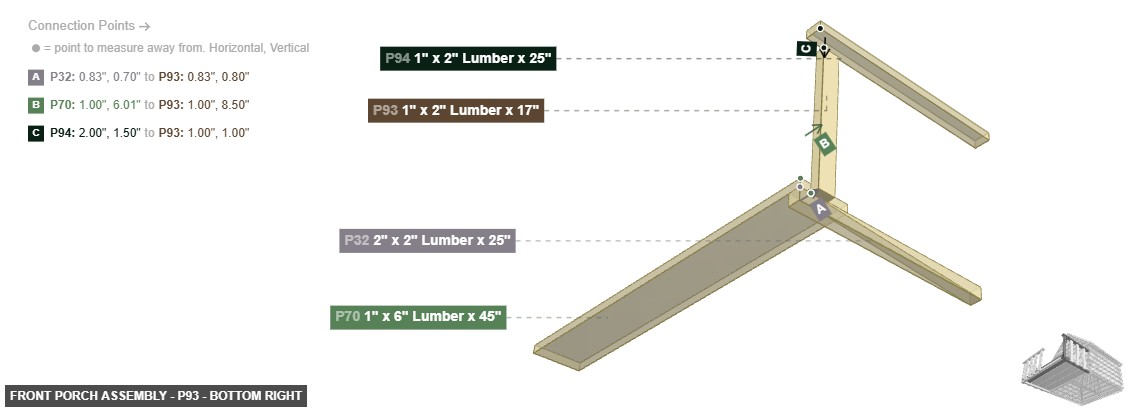

Front Porch Assembly

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

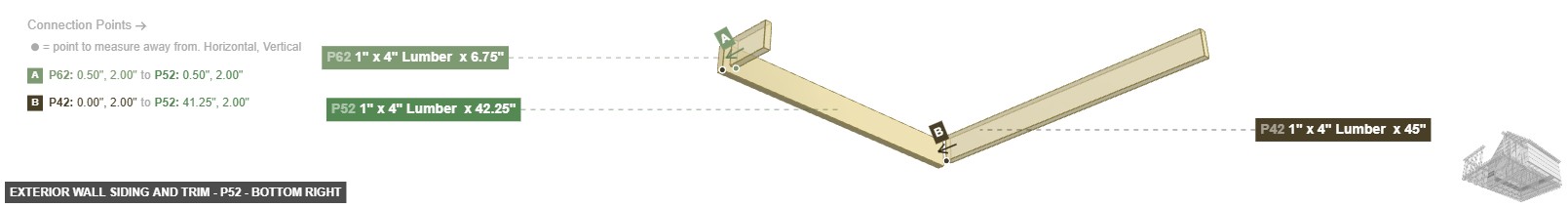

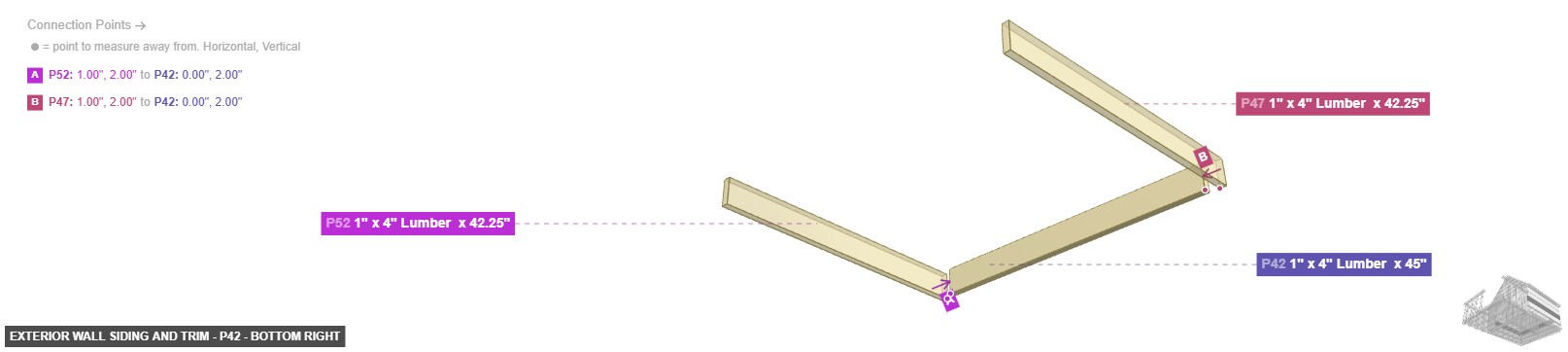

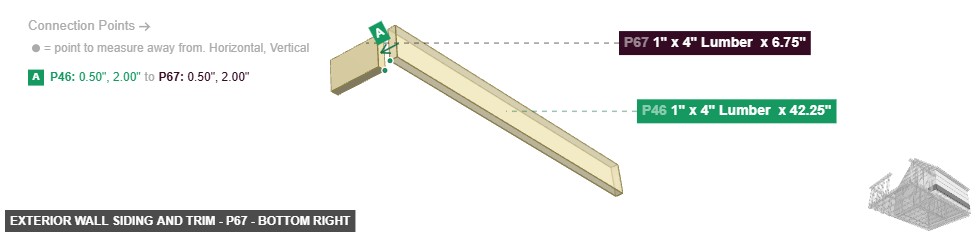

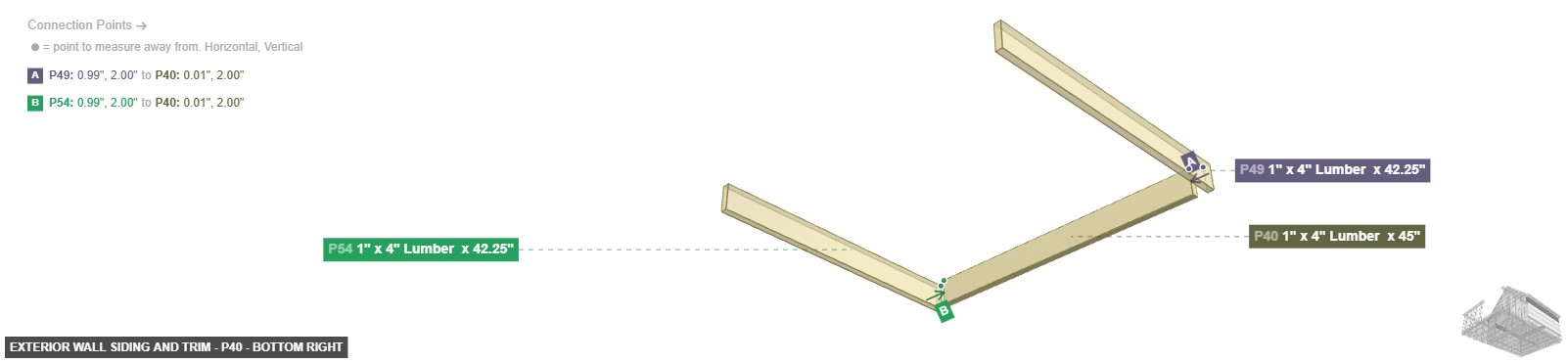

Exterior Wall Siding and Trim

1" x 4" Lumber x 45"x 4

1" x 4" Lumber x 42.25"x 8

1" x 4" Lumber x 6.75"x 10

Phase 2: Individual Group Assembly

Group: Base Frame Assembly

Forms the rectangular foundation of the dog house.

Connect the two long beams, P1 and P5, using the shorter cross beams, P3 and P4, to create a rectangular base. P3 and P4 should be attached to the back-facing sides of P1 and P5.

Part: 2" x 2" Lumber x 45" - Angle: back left

P1 (2" x 2" Lumber 45" length) - connect its 2" x 2" Wood Side #3 oriented back links with part 3's 2" x 2" Wood End #2, plus its 2" x 2" Wood End #1 must be oriented right. Next, its 2" x 2" Wood Side #4 must be oriented bottom, and its 2" x 2" Wood End #2 needs to point left

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 45" - Angle: front right

P1 (2" x 2" Lumber 45" length) - connect its 2" x 2" Wood Side #3 oriented back links with part 3's 2" x 2" Wood End #2, plus its 2" x 2" Wood End #1 must be oriented right. Next, its 2" x 2" Wood Side #4 must be oriented bottom, and its 2" x 2" Wood End #2 needs to point left

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 45" - Angle: bottom right

P1 (2" x 2" Lumber 45" length) - connect its 2" x 2" Wood Side #3 oriented back links with part 3's 2" x 2" Wood End #2, plus its 2" x 2" Wood End #1 must be oriented right. Next, its 2" x 2" Wood Side #4 must be oriented bottom, and its 2" x 2" Wood End #2 needs to point left

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: back left

P3 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 5's 2" x 2" Wood Side #1, plus its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #3. Also, its 2" x 2" Wood Side #1 must be oriented right, plus its 2" x 2" Wood Side #3 should be directed left, plus ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

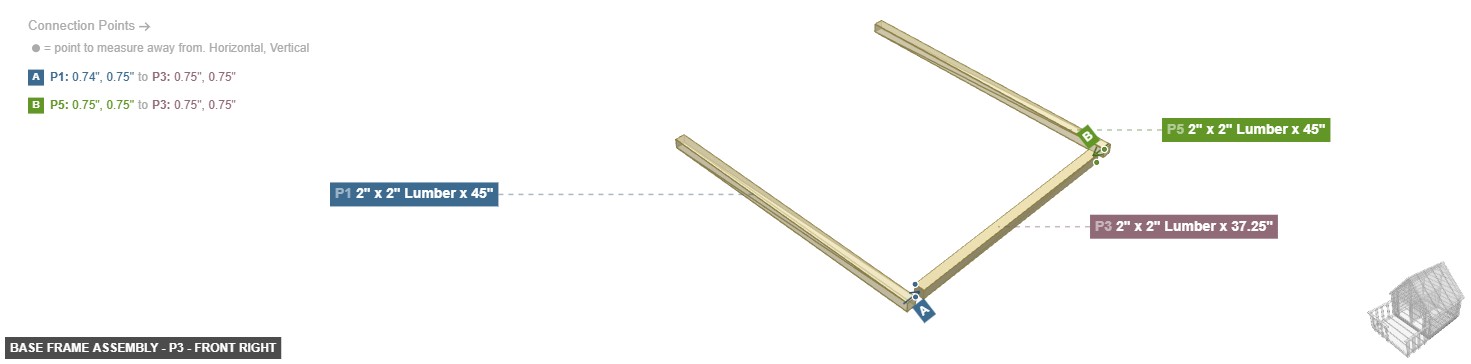

Part: 2" x 2" Lumber x 37.25" - Angle: front right

P3 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 5's 2" x 2" Wood Side #1, plus its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #3. Also, its 2" x 2" Wood Side #1 must be oriented right, plus its 2" x 2" Wood Side #3 should be directed left, plus ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: bottom right

P3 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 5's 2" x 2" Wood Side #1, plus its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #3. Also, its 2" x 2" Wood Side #1 must be oriented right, plus its 2" x 2" Wood Side #3 should be directed left, plus ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: back left

P4 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 5's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #3. Also, its 2" x 2" Wood Side #1 needs to point right, also its 2" x 2" Wood Side #3 must be oriented left, then ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: front right

P4 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 5's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #3. Also, its 2" x 2" Wood Side #1 needs to point right, also its 2" x 2" Wood Side #3 must be oriented left, then ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: bottom right

P4 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 5's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #3. Also, its 2" x 2" Wood Side #1 needs to point right, also its 2" x 2" Wood Side #3 must be oriented left, then ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 45" - Angle: back left

P5 (2" x 2" Lumber 45" length) - its 2" x 2" Wood Side #1, which is front-facing, should connect to part 4's 2" x 2" Wood End #1, and its 2" x 2" Wood End #1 needs to point right, then its 2" x 2" Wood Side #3 should be directed back, and its 2" x 2" Wood Side #4 must be oriented bottom. Additionally, ensure its 2" x 2" Wood End #2 faces left

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

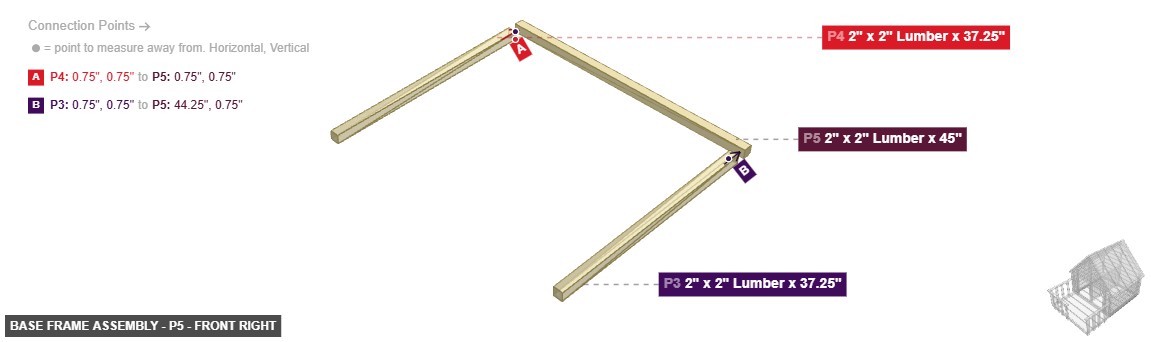

Part: 2" x 2" Lumber x 45" - Angle: front right

P5 (2" x 2" Lumber 45" length) - its 2" x 2" Wood Side #1, which is front-facing, should connect to part 4's 2" x 2" Wood End #1, and its 2" x 2" Wood End #1 needs to point right, then its 2" x 2" Wood Side #3 should be directed back, and its 2" x 2" Wood Side #4 must be oriented bottom. Additionally, ensure its 2" x 2" Wood End #2 faces left

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

Part: 2" x 2" Lumber x 45" - Angle: bottom right

P5 (2" x 2" Lumber 45" length) - its 2" x 2" Wood Side #1, which is front-facing, should connect to part 4's 2" x 2" Wood End #1, and its 2" x 2" Wood End #1 needs to point right, then its 2" x 2" Wood Side #3 should be directed back, and its 2" x 2" Wood Side #4 must be oriented bottom. Additionally, ensure its 2" x 2" Wood End #2 faces left

2" x 2" Lumber x 45"x 2

2" x 2" Lumber x 37.25"x 2

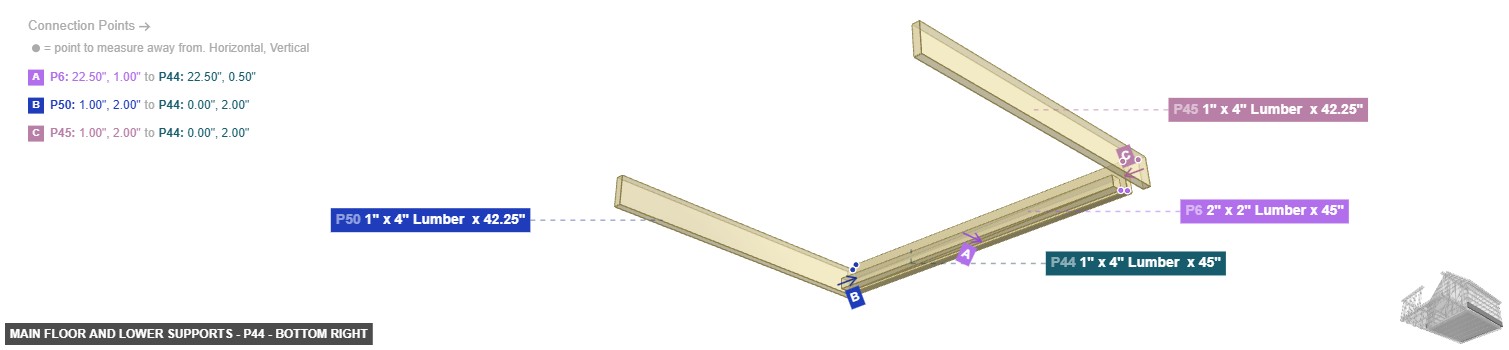

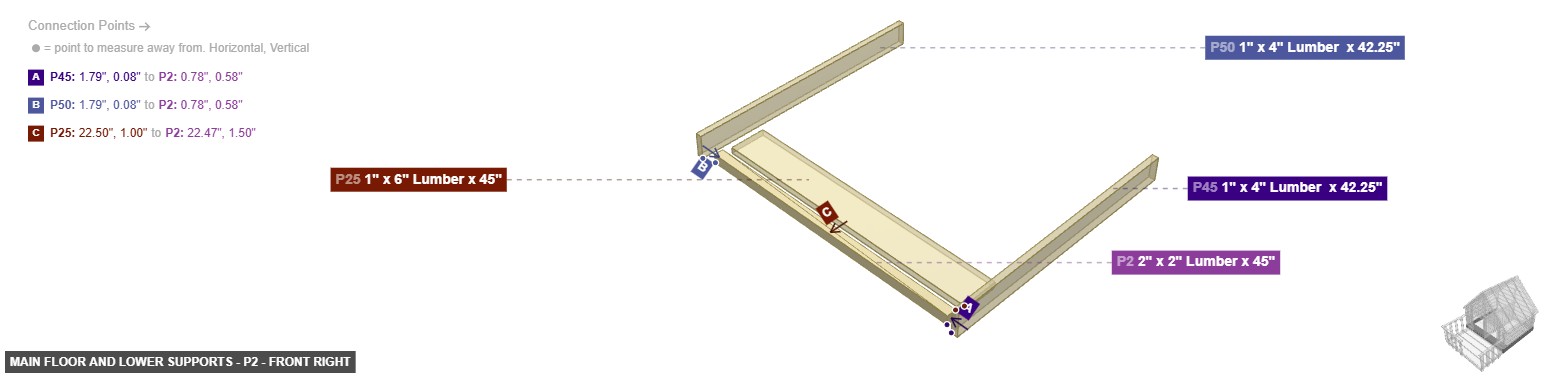

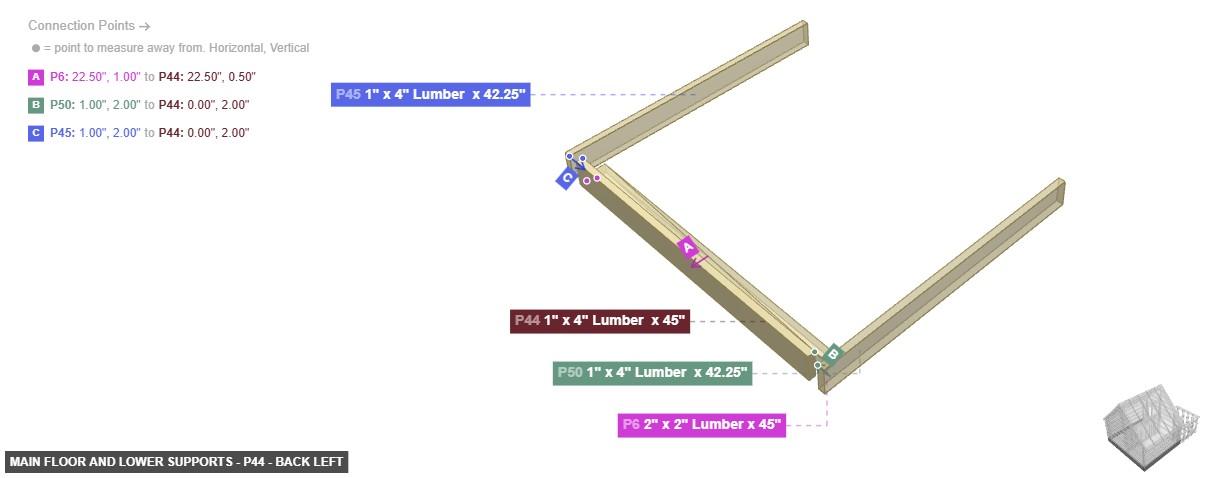

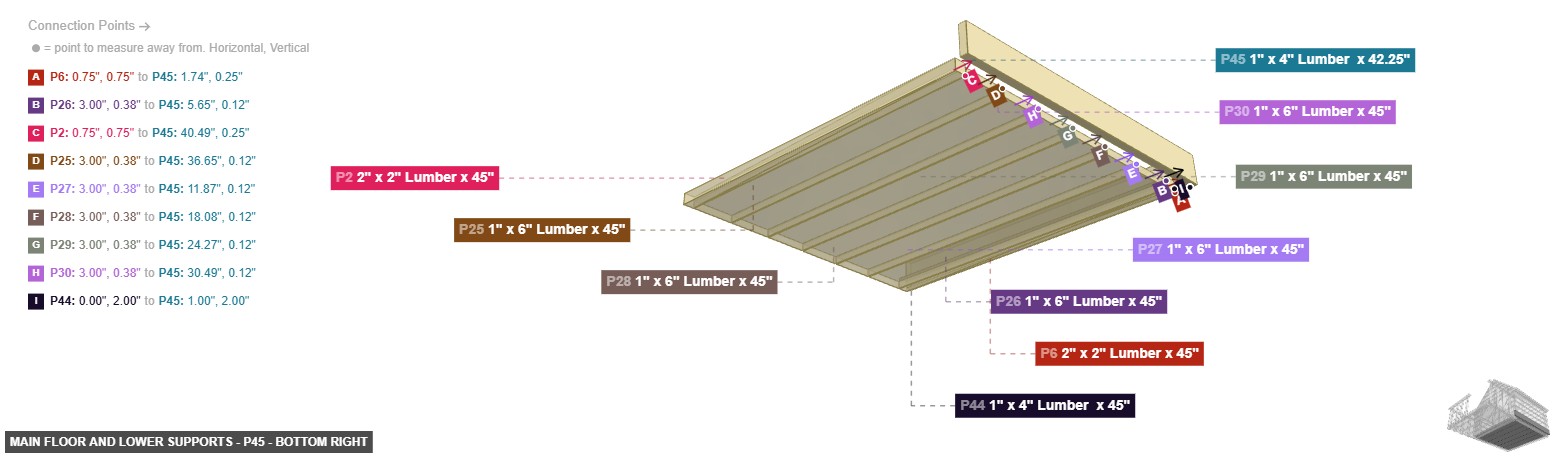

Group: Main Floor and Lower Supports

Creates the main floor surface and the side trim.

Place the upper floor rails, P2 and P6, on top of the base frame beams P1 and P5. Lay the floorboards (P25, P26, P27, P28, P29, P30) across the frame. Attach the side trim pieces P44, P45, and P50 to the left and right ends of the floor assembly.

Part: 2" x 2" Lumber x 45" - Angle: back left

P2 (2" x 2" Lumber 45" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2, then its 2" x 2" Wood Side #2, which is back-facing, should connect to part 25's 1" x 6" Wood Side #3, plus connect its 2" x 2" Wood End #2 oriented right links with part 45's 1" x 4" Wood Side #2

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 2" x 2" Lumber x 45" - Angle: front right

P2 (2" x 2" Lumber 45" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2, then its 2" x 2" Wood Side #2, which is back-facing, should connect to part 25's 1" x 6" Wood Side #3, plus connect its 2" x 2" Wood End #2 oriented right links with part 45's 1" x 4" Wood Side #2

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 2" x 2" Lumber x 45" - Angle: bottom right

P2 (2" x 2" Lumber 45" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2, then its 2" x 2" Wood Side #2, which is back-facing, should connect to part 25's 1" x 6" Wood Side #3, plus connect its 2" x 2" Wood End #2 oriented right links with part 45's 1" x 4" Wood Side #2

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

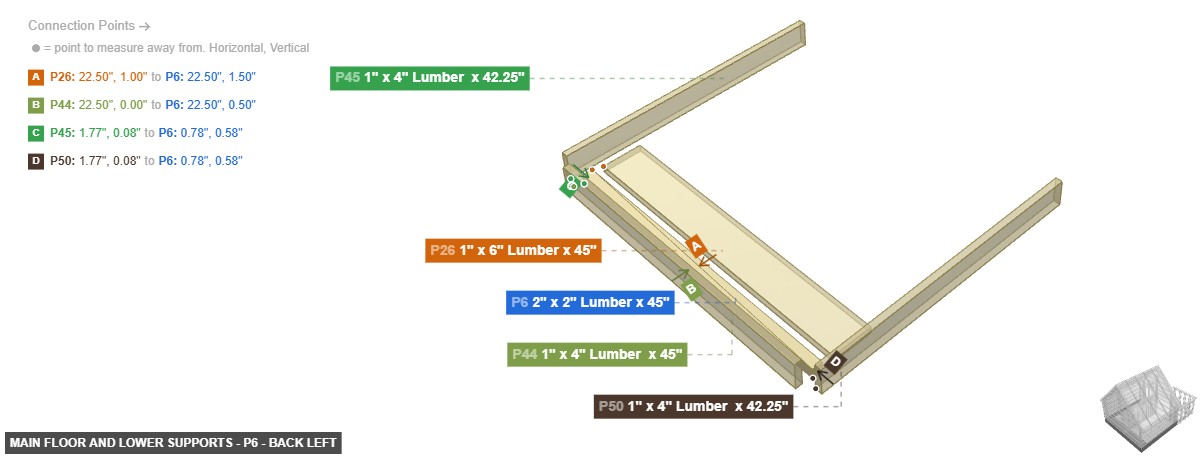

Part: 2" x 2" Lumber x 45" - Angle: back left

P6 (2" x 2" Lumber 45" length) - connect its 2" x 2" Wood End #1 oriented left links with part 50's 1" x 4" Wood Side #2, also its 2" x 2" Wood Side #2, which is back-facing, should connect to part 44's 1" x 4" Wood Side #2. Additionally, attach its 2" x 2" Wood Side #4 facing front to part 26's 1" x 6" Wood Side #1, then attach its 2" x 2" Wood End #2 facing right to part 45's 1" x 4" Wood Side #2

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 2" x 2" Lumber x 45" - Angle: front right

P6 (2" x 2" Lumber 45" length) - connect its 2" x 2" Wood End #1 oriented left links with part 50's 1" x 4" Wood Side #2, also its 2" x 2" Wood Side #2, which is back-facing, should connect to part 44's 1" x 4" Wood Side #2. Additionally, attach its 2" x 2" Wood Side #4 facing front to part 26's 1" x 6" Wood Side #1, then attach its 2" x 2" Wood End #2 facing right to part 45's 1" x 4" Wood Side #2

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

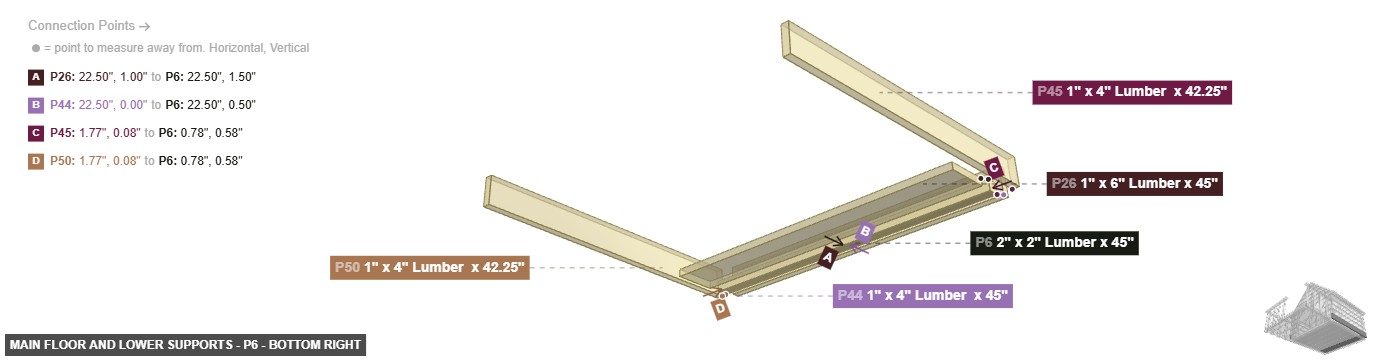

Part: 2" x 2" Lumber x 45" - Angle: bottom right

P6 (2" x 2" Lumber 45" length) - connect its 2" x 2" Wood End #1 oriented left links with part 50's 1" x 4" Wood Side #2, also its 2" x 2" Wood Side #2, which is back-facing, should connect to part 44's 1" x 4" Wood Side #2. Additionally, attach its 2" x 2" Wood Side #4 facing front to part 26's 1" x 6" Wood Side #1, then attach its 2" x 2" Wood End #2 facing right to part 45's 1" x 4" Wood Side #2

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: back left

P25 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2, then attach its 1" x 6" Wood Side #1 facing back to part 30's 1" x 6" Wood Side #3, also attach its 1" x 6" Wood Side #3 facing front to part 2's 2" x 2" Wood Side #2. Next, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2. After that, its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

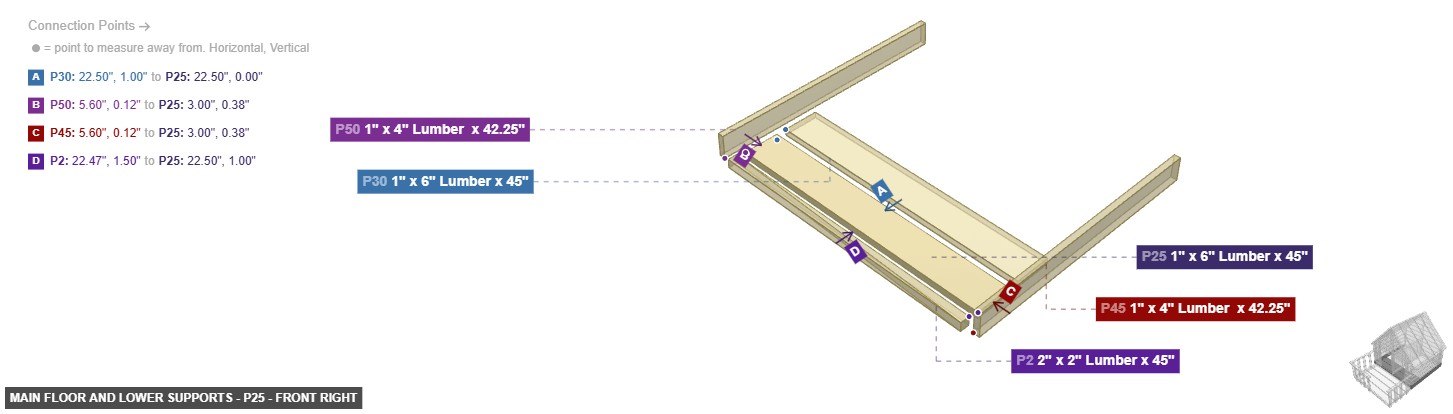

Part: 1" x 6" Lumber x 45" - Angle: front right

P25 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2, then attach its 1" x 6" Wood Side #1 facing back to part 30's 1" x 6" Wood Side #3, also attach its 1" x 6" Wood Side #3 facing front to part 2's 2" x 2" Wood Side #2. Next, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2. After that, its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P25 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2, then attach its 1" x 6" Wood Side #1 facing back to part 30's 1" x 6" Wood Side #3, also attach its 1" x 6" Wood Side #3 facing front to part 2's 2" x 2" Wood Side #2. Next, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2. After that, its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

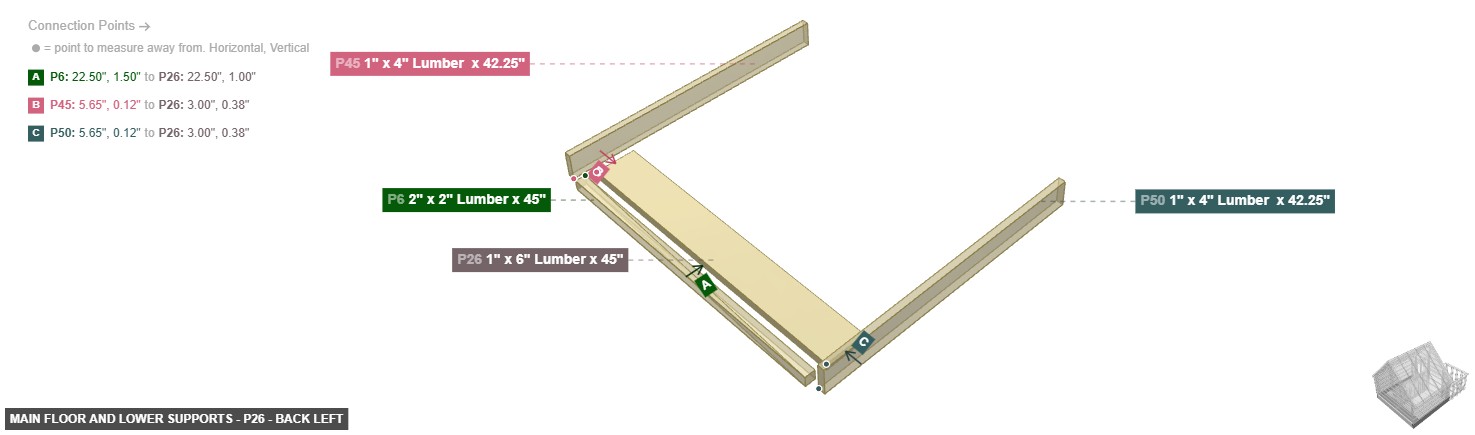

Part: 1" x 6" Lumber x 45" - Angle: back left

P26 (1" x 6" Lumber 45" length) - connect its 1" x 6" Wood End #1 oriented right links with part 45's 1" x 4" Wood Side #2. Additionally, connect its 1" x 6" Wood Side #1 oriented back links with part 6's 2" x 2" Wood Side #4. Next, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, and its 1" x 6" Wood Side #3 needs to point front. Additionally, its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: front right

P26 (1" x 6" Lumber 45" length) - connect its 1" x 6" Wood End #1 oriented right links with part 45's 1" x 4" Wood Side #2. Additionally, connect its 1" x 6" Wood Side #1 oriented back links with part 6's 2" x 2" Wood Side #4. Next, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, and its 1" x 6" Wood Side #3 needs to point front. Additionally, its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P26 (1" x 6" Lumber 45" length) - connect its 1" x 6" Wood End #1 oriented right links with part 45's 1" x 4" Wood Side #2. Additionally, connect its 1" x 6" Wood Side #1 oriented back links with part 6's 2" x 2" Wood Side #4. Next, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, and its 1" x 6" Wood Side #3 needs to point front. Additionally, its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

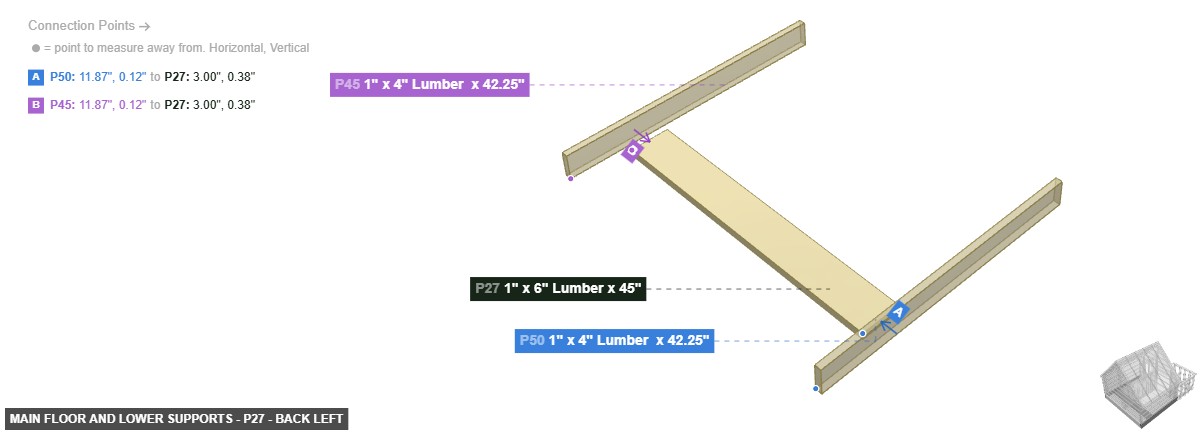

Part: 1" x 6" Lumber x 45" - Angle: back left

P27 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, and its 1" x 6" Wood Side #1 needs to point back, and its 1" x 6" Wood Side #3 should be directed front, and its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

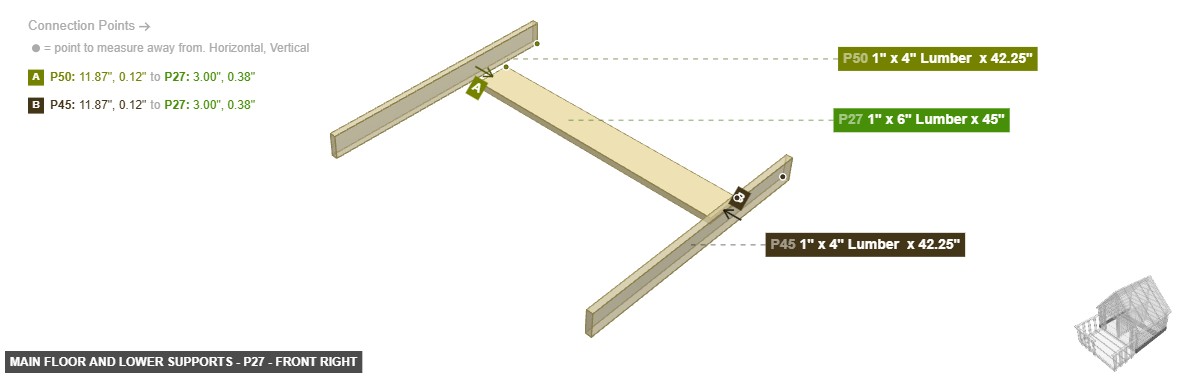

Part: 1" x 6" Lumber x 45" - Angle: front right

P27 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, and its 1" x 6" Wood Side #1 needs to point back, and its 1" x 6" Wood Side #3 should be directed front, and its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

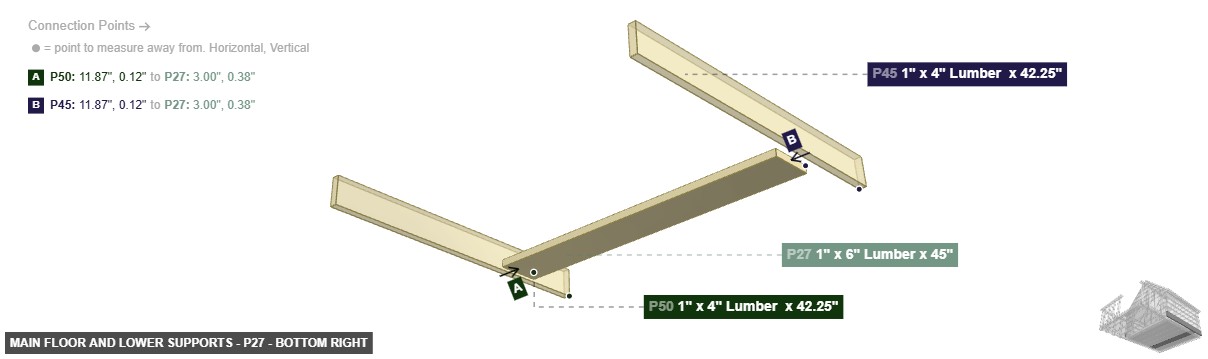

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P27 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, and its 1" x 6" Wood Side #1 needs to point back, and its 1" x 6" Wood Side #3 should be directed front, and its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

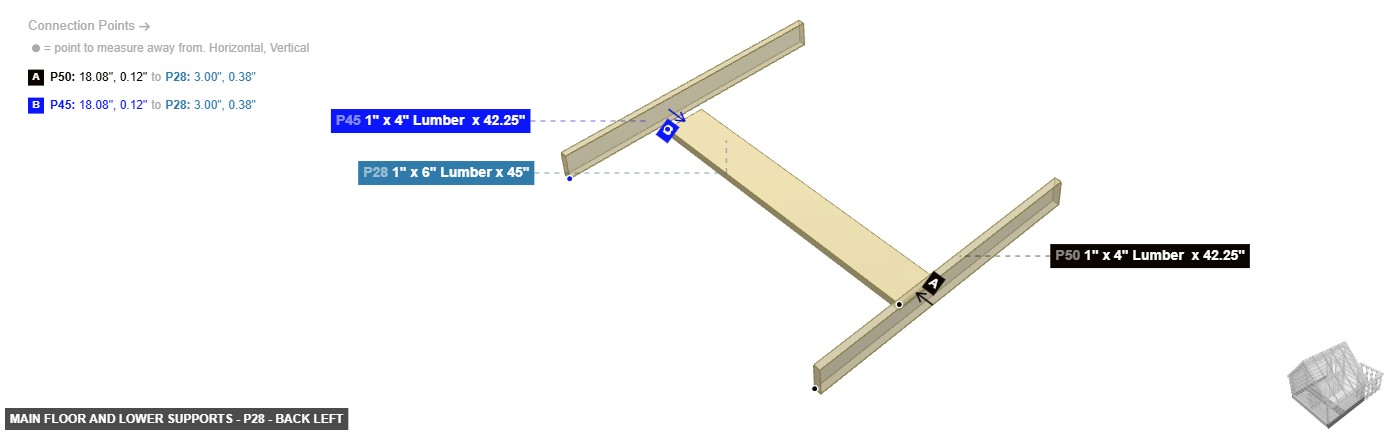

Part: 1" x 6" Lumber x 45" - Angle: back left

P28 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 45's 1" x 4" Wood Side #2. Also, its 1" x 6" Wood End #2, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2. Additionally, its 1" x 6" Wood Side #1 must be oriented back. Additionally, its 1" x 6" Wood Side #3 needs to point front. After that, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: front right

P28 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 45's 1" x 4" Wood Side #2. Also, its 1" x 6" Wood End #2, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2. Additionally, its 1" x 6" Wood Side #1 must be oriented back. Additionally, its 1" x 6" Wood Side #3 needs to point front. After that, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P28 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 45's 1" x 4" Wood Side #2. Also, its 1" x 6" Wood End #2, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2. Additionally, its 1" x 6" Wood Side #1 must be oriented back. Additionally, its 1" x 6" Wood Side #3 needs to point front. After that, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

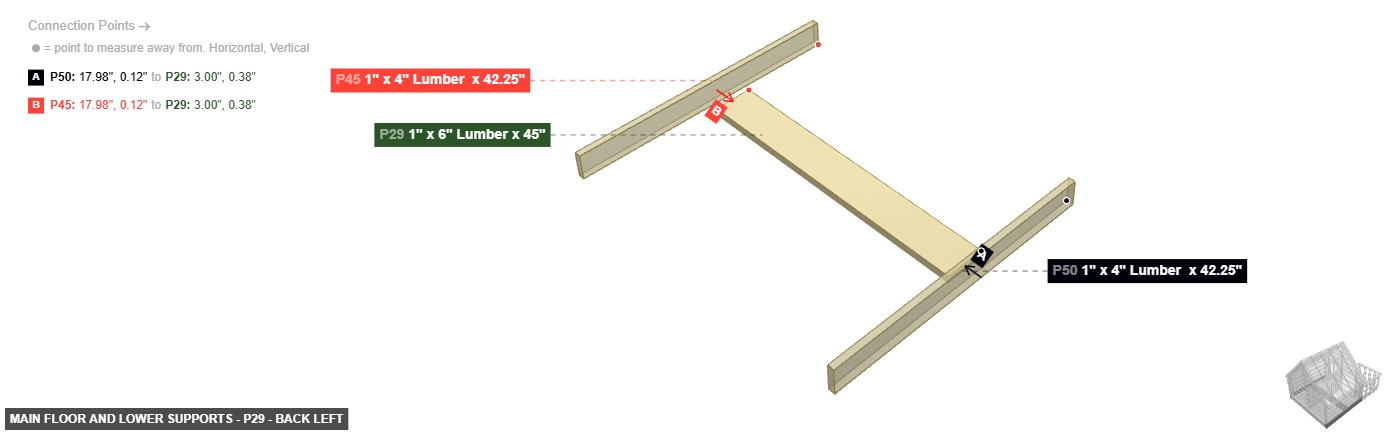

Part: 1" x 6" Lumber x 45" - Angle: back left

P29 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 45's 1" x 4" Wood Side #2, and its 1" x 6" Wood End #2, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2. Next, its 1" x 6" Wood Side #1 needs to point back, plus ensure its 1" x 6" Wood Side #3 faces front, also ensure its 1" x 6" Wood Side #4 faces top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: front right

P29 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 45's 1" x 4" Wood Side #2, and its 1" x 6" Wood End #2, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2. Next, its 1" x 6" Wood Side #1 needs to point back, plus ensure its 1" x 6" Wood Side #3 faces front, also ensure its 1" x 6" Wood Side #4 faces top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P29 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 45's 1" x 4" Wood Side #2, and its 1" x 6" Wood End #2, which is left-facing, should connect to part 50's 1" x 4" Wood Side #2. Next, its 1" x 6" Wood Side #1 needs to point back, plus ensure its 1" x 6" Wood Side #3 faces front, also ensure its 1" x 6" Wood Side #4 faces top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

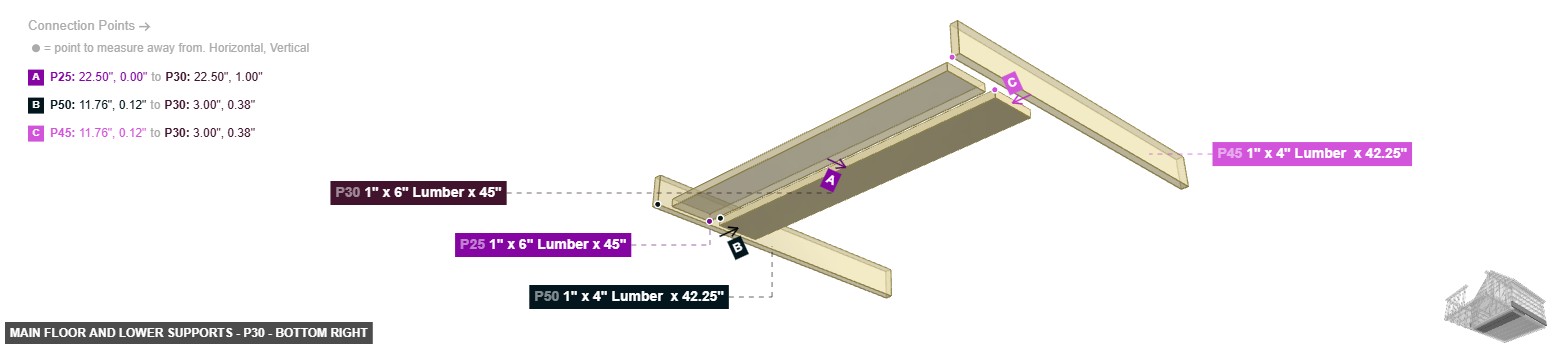

Part: 1" x 6" Lumber x 45" - Angle: back left

P30 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2. Next, connect its 1" x 6" Wood Side #3 oriented front links with part 25's 1" x 6" Wood Side #1. Also, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, then ensure its 1" x 6" Wood Side #1 faces back, and its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: front right

P30 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2. Next, connect its 1" x 6" Wood Side #3 oriented front links with part 25's 1" x 6" Wood Side #1. Also, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, then ensure its 1" x 6" Wood Side #1 faces back, and its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P30 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 45's 1" x 4" Wood Side #2. Next, connect its 1" x 6" Wood Side #3 oriented front links with part 25's 1" x 6" Wood Side #1. Also, connect its 1" x 6" Wood End #2 oriented left links with part 50's 1" x 4" Wood Side #2, then ensure its 1" x 6" Wood Side #1 faces back, and its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 45" - Angle: back left

P44 (1" x 4" Lumber 45" length) - attach its 1" x 4" Wood End #1 facing left to part 50's 1" x 4" Wood Side #2, plus connect its 1" x 4" Wood Side #2 oriented front links with part 6's 2" x 2" Wood Side #2. After that, attach its 1" x 4" Wood End #2 facing right to part 45's 1" x 4" Wood Side #2. Additionally, its 1" x 4" Wood Side #1 must be oriented top, and ensure its 1" x 4" Wood Side #3 faces bottom. Also, its 1" x 4" Wood Side #4 needs to point back

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 45" - Angle: front right

P44 (1" x 4" Lumber 45" length) - attach its 1" x 4" Wood End #1 facing left to part 50's 1" x 4" Wood Side #2, plus connect its 1" x 4" Wood Side #2 oriented front links with part 6's 2" x 2" Wood Side #2. After that, attach its 1" x 4" Wood End #2 facing right to part 45's 1" x 4" Wood Side #2. Additionally, its 1" x 4" Wood Side #1 must be oriented top, and ensure its 1" x 4" Wood Side #3 faces bottom. Also, its 1" x 4" Wood Side #4 needs to point back

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 45" - Angle: bottom right

P44 (1" x 4" Lumber 45" length) - attach its 1" x 4" Wood End #1 facing left to part 50's 1" x 4" Wood Side #2, plus connect its 1" x 4" Wood Side #2 oriented front links with part 6's 2" x 2" Wood Side #2. After that, attach its 1" x 4" Wood End #2 facing right to part 45's 1" x 4" Wood Side #2. Additionally, its 1" x 4" Wood Side #1 must be oriented top, and ensure its 1" x 4" Wood Side #3 faces bottom. Also, its 1" x 4" Wood Side #4 needs to point back

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 42.25" - Angle: back left

P45 (1" x 4" Lumber 42.25" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 2" Wood End #2. Next, its 1" x 4" Wood End #1 needs to point back. Also, its 1" x 4" Wood Side #1 should be directed top. Also, its 1" x 4" Wood Side #3 should be directed bottom, then its 1" x 4" Wood Side #4 should be directed right, plus its 1" x 4" Wood End #2 must be oriented front

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 42.25" - Angle: front right

P45 (1" x 4" Lumber 42.25" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 2" Wood End #2. Next, its 1" x 4" Wood End #1 needs to point back. Also, its 1" x 4" Wood Side #1 should be directed top. Also, its 1" x 4" Wood Side #3 should be directed bottom, then its 1" x 4" Wood Side #4 should be directed right, plus its 1" x 4" Wood End #2 must be oriented front

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 42.25" - Angle: bottom right

P45 (1" x 4" Lumber 42.25" length) - connect its 1" x 4" Wood Side #2 oriented left links with part 6's 2" x 2" Wood End #2. Next, its 1" x 4" Wood End #1 needs to point back. Also, its 1" x 4" Wood Side #1 should be directed top. Also, its 1" x 4" Wood Side #3 should be directed bottom, then its 1" x 4" Wood Side #4 should be directed right, plus its 1" x 4" Wood End #2 must be oriented front

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 42.25" - Angle: back left

P50 (1" x 4" Lumber 42.25" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 26's 1" x 6" Wood End #2, plus ensure its 1" x 4" Wood End #1 faces back. Also, its 1" x 4" Wood Side #1 should be directed bottom. Also, ensure its 1" x 4" Wood Side #3 faces top. Also, its 1" x 4" Wood Side #4 should be directed left, also its 1" x 4" Wood End #2 must be oriented front

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 42.25" - Angle: front right

P50 (1" x 4" Lumber 42.25" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 26's 1" x 6" Wood End #2, plus ensure its 1" x 4" Wood End #1 faces back. Also, its 1" x 4" Wood Side #1 should be directed bottom. Also, ensure its 1" x 4" Wood Side #3 faces top. Also, its 1" x 4" Wood Side #4 should be directed left, also its 1" x 4" Wood End #2 must be oriented front

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

Part: 1" x 4" Lumber x 42.25" - Angle: bottom right

P50 (1" x 4" Lumber 42.25" length) - its 1" x 4" Wood Side #2, which is right-facing, should connect to part 26's 1" x 6" Wood End #2, plus ensure its 1" x 4" Wood End #1 faces back. Also, its 1" x 4" Wood Side #1 should be directed bottom. Also, ensure its 1" x 4" Wood Side #3 faces top. Also, its 1" x 4" Wood Side #4 should be directed left, also its 1" x 4" Wood End #2 must be oriented front

2" x 2" Lumber x 45"x 2

1" x 6" Lumber x 45"x 6

1" x 4" Lumber x 45"x 1

1" x 4" Lumber x 42.25"x 2

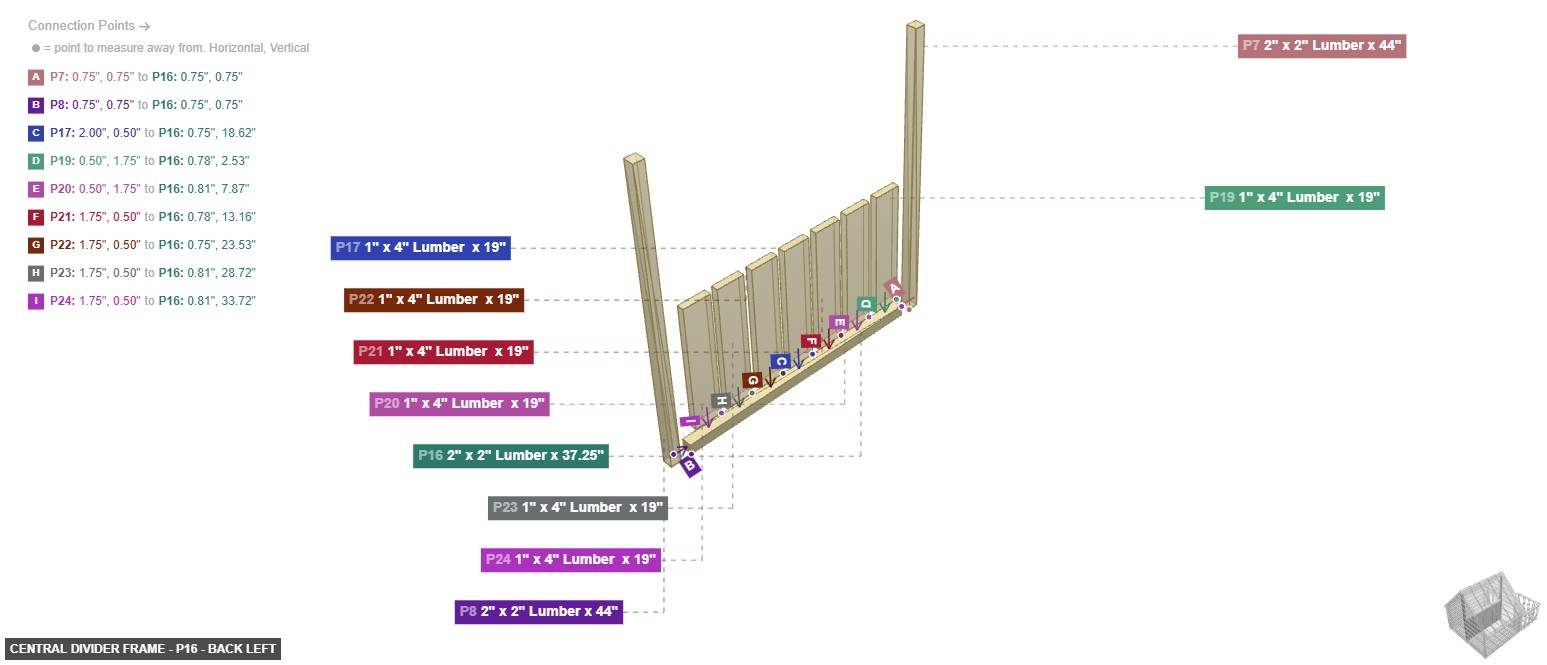

Group: Central Divider Frame

Builds the internal wall that separates the two sections and provides central support for the roof.

Connect the two main vertical posts, P7 and P8, using the horizontal beams P16 and P18. Fit the vertical slats (P17, P19, P20, P21, P22, P23, P24) between P16 and P18 to form the divider wall.

Part: 2" x 2" Lumber x 44" - Angle: back left

P7 (2" x 2" Lumber 44" length) - its 2" x 2" Wood Side #2, which is back-facing, should connect to part 16's 2" x 2" Wood End #2. Next, ensure its 2" x 2" Wood End #1 faces top. After that, its 2" x 2" Wood Side #1 should be directed left, then its 2" x 2" Wood Side #3 must be oriented right

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 44" - Angle: front right

P7 (2" x 2" Lumber 44" length) - its 2" x 2" Wood Side #2, which is back-facing, should connect to part 16's 2" x 2" Wood End #2. Next, ensure its 2" x 2" Wood End #1 faces top. After that, its 2" x 2" Wood Side #1 should be directed left, then its 2" x 2" Wood Side #3 must be oriented right

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 44" - Angle: bottom right

P7 (2" x 2" Lumber 44" length) - its 2" x 2" Wood Side #2, which is back-facing, should connect to part 16's 2" x 2" Wood End #2. Next, ensure its 2" x 2" Wood End #1 faces top. After that, its 2" x 2" Wood Side #1 should be directed left, then its 2" x 2" Wood Side #3 must be oriented right

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 44" - Angle: back left

P8 (2" x 2" Lumber 44" length) - connect its 2" x 2" Wood Side #4 oriented front links with part 16's 2" x 2" Wood End #1. After that, ensure its 2" x 2" Wood End #1 faces top. Next, its 2" x 2" Wood Side #1 needs to point left. After that, ensure its 2" x 2" Wood Side #3 faces right

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 44" - Angle: front right

P8 (2" x 2" Lumber 44" length) - connect its 2" x 2" Wood Side #4 oriented front links with part 16's 2" x 2" Wood End #1. After that, ensure its 2" x 2" Wood End #1 faces top. Next, its 2" x 2" Wood Side #1 needs to point left. After that, ensure its 2" x 2" Wood Side #3 faces right

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 44" - Angle: bottom right

P8 (2" x 2" Lumber 44" length) - connect its 2" x 2" Wood Side #4 oriented front links with part 16's 2" x 2" Wood End #1. After that, ensure its 2" x 2" Wood End #1 faces top. Next, its 2" x 2" Wood Side #1 needs to point left. After that, ensure its 2" x 2" Wood Side #3 faces right

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 37.25" - Angle: back left

P16 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 8's 2" x 2" Wood Side #4. Additionally, connect its 2" x 2" Wood Side #3 oriented top links with part 17's 1" x 4" Wood End #2. Next, its 2" x 2" Wood End #2, which is front-facing, should connect to part 7's 2" x 2" Wood Side #2, and ensure its 2" x 2" Wood Side #1 faces bottom. Next, ensure its 2" x 2" Wood Side #2 faces right, then its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 37.25" - Angle: front right

P16 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 8's 2" x 2" Wood Side #4. Additionally, connect its 2" x 2" Wood Side #3 oriented top links with part 17's 1" x 4" Wood End #2. Next, its 2" x 2" Wood End #2, which is front-facing, should connect to part 7's 2" x 2" Wood Side #2, and ensure its 2" x 2" Wood Side #1 faces bottom. Next, ensure its 2" x 2" Wood Side #2 faces right, then its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 37.25" - Angle: bottom right

P16 (2" x 2" Lumber 37.25" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 8's 2" x 2" Wood Side #4. Additionally, connect its 2" x 2" Wood Side #3 oriented top links with part 17's 1" x 4" Wood End #2. Next, its 2" x 2" Wood End #2, which is front-facing, should connect to part 7's 2" x 2" Wood Side #2, and ensure its 2" x 2" Wood Side #1 faces bottom. Next, ensure its 2" x 2" Wood Side #2 faces right, then its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: back left

P17 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Next, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3. Also, ensure its 1" x 4" Wood Side #1 faces back, also its 1" x 4" Wood Side #2 should be directed right. After that, ensure its 1" x 4" Wood Side #3 faces front, also ensure its 1" x 4" Wood Side #4 faces left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: front right

P17 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Next, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3. Also, ensure its 1" x 4" Wood Side #1 faces back, also its 1" x 4" Wood Side #2 should be directed right. After that, ensure its 1" x 4" Wood Side #3 faces front, also ensure its 1" x 4" Wood Side #4 faces left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: bottom right

P17 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Next, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3. Also, ensure its 1" x 4" Wood Side #1 faces back, also its 1" x 4" Wood Side #2 should be directed right. After that, ensure its 1" x 4" Wood Side #3 faces front, also ensure its 1" x 4" Wood Side #4 faces left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 37.25" - Angle: back left

P18 (2" x 2" Lumber 37.25" length) - attach its 2" x 2" Wood End #1 facing back to part 8's 2" x 2" Wood Side #4. Additionally, connect its 2" x 2" Wood Side #1 oriented bottom links with part 17's 1" x 4" Wood End #1. Additionally, attach its 2" x 2" Wood End #2 facing front to part 7's 2" x 2" Wood Side #2, and its 2" x 2" Wood Side #2 should be directed right. Additionally, its 2" x 2" Wood Side #3 should be directed top, and its 2" x 2" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 37.25" - Angle: front right

P18 (2" x 2" Lumber 37.25" length) - attach its 2" x 2" Wood End #1 facing back to part 8's 2" x 2" Wood Side #4. Additionally, connect its 2" x 2" Wood Side #1 oriented bottom links with part 17's 1" x 4" Wood End #1. Additionally, attach its 2" x 2" Wood End #2 facing front to part 7's 2" x 2" Wood Side #2, and its 2" x 2" Wood Side #2 should be directed right. Additionally, its 2" x 2" Wood Side #3 should be directed top, and its 2" x 2" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 2" x 2" Lumber x 37.25" - Angle: bottom right

P18 (2" x 2" Lumber 37.25" length) - attach its 2" x 2" Wood End #1 facing back to part 8's 2" x 2" Wood Side #4. Additionally, connect its 2" x 2" Wood Side #1 oriented bottom links with part 17's 1" x 4" Wood End #1. Additionally, attach its 2" x 2" Wood End #2 facing front to part 7's 2" x 2" Wood Side #2, and its 2" x 2" Wood Side #2 should be directed right. Additionally, its 2" x 2" Wood Side #3 should be directed top, and its 2" x 2" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: back left

P19 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Also, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3, and ensure its 1" x 4" Wood Side #1 faces back, then its 1" x 4" Wood Side #2 needs to point right. Additionally, its 1" x 4" Wood Side #3 must be oriented front, plus its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: front right

P19 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Also, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3, and ensure its 1" x 4" Wood Side #1 faces back, then its 1" x 4" Wood Side #2 needs to point right. Additionally, its 1" x 4" Wood Side #3 must be oriented front, plus its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: bottom right

P19 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Also, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3, and ensure its 1" x 4" Wood Side #1 faces back, then its 1" x 4" Wood Side #2 needs to point right. Additionally, its 1" x 4" Wood Side #3 must be oriented front, plus its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

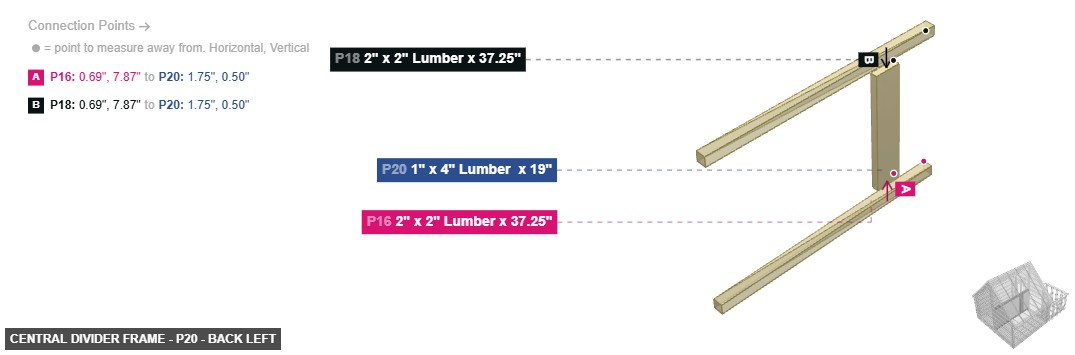

Part: 1" x 4" Lumber x 19" - Angle: back left

P20 (1" x 4" Lumber 19" length) - connect its 1" x 4" Wood End #1 oriented top links with part 18's 2" x 2" Wood Side #1, plus connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3. Additionally, its 1" x 4" Wood Side #1 should be directed back. Also, its 1" x 4" Wood Side #2 must be oriented right, also its 1" x 4" Wood Side #3 must be oriented front. Additionally, its 1" x 4" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: front right

P20 (1" x 4" Lumber 19" length) - connect its 1" x 4" Wood End #1 oriented top links with part 18's 2" x 2" Wood Side #1, plus connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3. Additionally, its 1" x 4" Wood Side #1 should be directed back. Also, its 1" x 4" Wood Side #2 must be oriented right, also its 1" x 4" Wood Side #3 must be oriented front. Additionally, its 1" x 4" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: bottom right

P20 (1" x 4" Lumber 19" length) - connect its 1" x 4" Wood End #1 oriented top links with part 18's 2" x 2" Wood Side #1, plus connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3. Additionally, its 1" x 4" Wood Side #1 should be directed back. Also, its 1" x 4" Wood Side #2 must be oriented right, also its 1" x 4" Wood Side #3 must be oriented front. Additionally, its 1" x 4" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: back left

P21 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Next, its 1" x 4" Wood End #2, which is bottom-facing, should connect to part 16's 2" x 2" Wood Side #3, and its 1" x 4" Wood Side #1 must be oriented back. Next, its 1" x 4" Wood Side #2 must be oriented right. Also, ensure its 1" x 4" Wood Side #3 faces front. Next, its 1" x 4" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: front right

P21 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Next, its 1" x 4" Wood End #2, which is bottom-facing, should connect to part 16's 2" x 2" Wood Side #3, and its 1" x 4" Wood Side #1 must be oriented back. Next, its 1" x 4" Wood Side #2 must be oriented right. Also, ensure its 1" x 4" Wood Side #3 faces front. Next, its 1" x 4" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: bottom right

P21 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Next, its 1" x 4" Wood End #2, which is bottom-facing, should connect to part 16's 2" x 2" Wood Side #3, and its 1" x 4" Wood Side #1 must be oriented back. Next, its 1" x 4" Wood Side #2 must be oriented right. Also, ensure its 1" x 4" Wood Side #3 faces front. Next, its 1" x 4" Wood Side #4 should be directed left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: back left

P22 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1, also attach its 1" x 4" Wood End #2 facing bottom to part 16's 2" x 2" Wood Side #3, then its 1" x 4" Wood Side #1 must be oriented back, and its 1" x 4" Wood Side #2 must be oriented right, plus ensure its 1" x 4" Wood Side #3 faces front. Additionally, its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: front right

P22 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1, also attach its 1" x 4" Wood End #2 facing bottom to part 16's 2" x 2" Wood Side #3, then its 1" x 4" Wood Side #1 must be oriented back, and its 1" x 4" Wood Side #2 must be oriented right, plus ensure its 1" x 4" Wood Side #3 faces front. Additionally, its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: bottom right

P22 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1, also attach its 1" x 4" Wood End #2 facing bottom to part 16's 2" x 2" Wood Side #3, then its 1" x 4" Wood Side #1 must be oriented back, and its 1" x 4" Wood Side #2 must be oriented right, plus ensure its 1" x 4" Wood Side #3 faces front. Additionally, its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: back left

P23 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Also, its 1" x 4" Wood End #2, which is bottom-facing, should connect to part 16's 2" x 2" Wood Side #3. After that, its 1" x 4" Wood Side #1 should be directed back. Also, its 1" x 4" Wood Side #2 needs to point right, and its 1" x 4" Wood Side #3 must be oriented front, also ensure its 1" x 4" Wood Side #4 faces left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

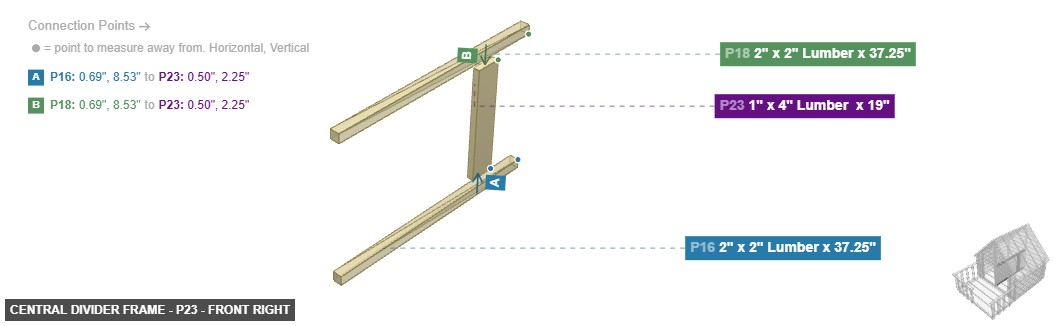

Part: 1" x 4" Lumber x 19" - Angle: front right

P23 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Also, its 1" x 4" Wood End #2, which is bottom-facing, should connect to part 16's 2" x 2" Wood Side #3. After that, its 1" x 4" Wood Side #1 should be directed back. Also, its 1" x 4" Wood Side #2 needs to point right, and its 1" x 4" Wood Side #3 must be oriented front, also ensure its 1" x 4" Wood Side #4 faces left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: bottom right

P23 (1" x 4" Lumber 19" length) - attach its 1" x 4" Wood End #1 facing top to part 18's 2" x 2" Wood Side #1. Also, its 1" x 4" Wood End #2, which is bottom-facing, should connect to part 16's 2" x 2" Wood Side #3. After that, its 1" x 4" Wood Side #1 should be directed back. Also, its 1" x 4" Wood Side #2 needs to point right, and its 1" x 4" Wood Side #3 must be oriented front, also ensure its 1" x 4" Wood Side #4 faces left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: back left

P24 (1" x 4" Lumber 19" length) - its 1" x 4" Wood End #1, which is top-facing, should connect to part 18's 2" x 2" Wood Side #1. Next, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3, then its 1" x 4" Wood Side #1 must be oriented back, also its 1" x 4" Wood Side #2 must be oriented right. Next, its 1" x 4" Wood Side #3 should be directed front, plus its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: front right

P24 (1" x 4" Lumber 19" length) - its 1" x 4" Wood End #1, which is top-facing, should connect to part 18's 2" x 2" Wood Side #1. Next, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3, then its 1" x 4" Wood Side #1 must be oriented back, also its 1" x 4" Wood Side #2 must be oriented right. Next, its 1" x 4" Wood Side #3 should be directed front, plus its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

Part: 1" x 4" Lumber x 19" - Angle: bottom right

P24 (1" x 4" Lumber 19" length) - its 1" x 4" Wood End #1, which is top-facing, should connect to part 18's 2" x 2" Wood Side #1. Next, connect its 1" x 4" Wood End #2 oriented bottom links with part 16's 2" x 2" Wood Side #3, then its 1" x 4" Wood Side #1 must be oriented back, also its 1" x 4" Wood Side #2 must be oriented right. Next, its 1" x 4" Wood Side #3 should be directed front, plus its 1" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 44"x 2

2" x 2" Lumber x 37.25"x 2

1" x 4" Lumber x 19"x 7

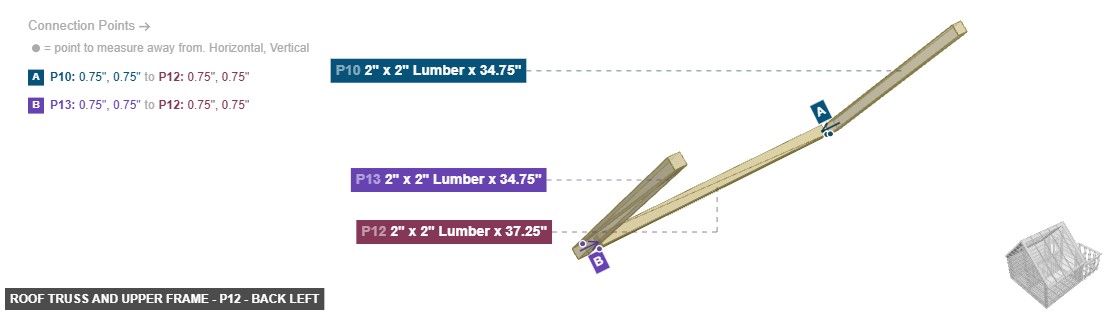

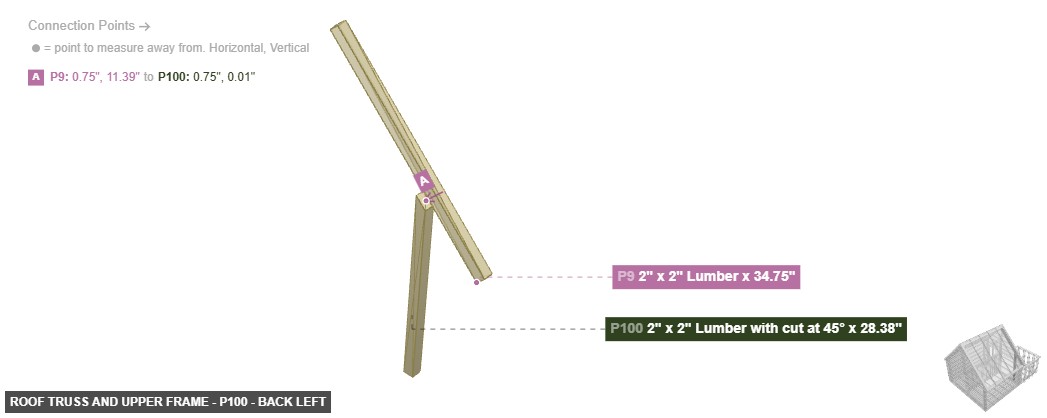

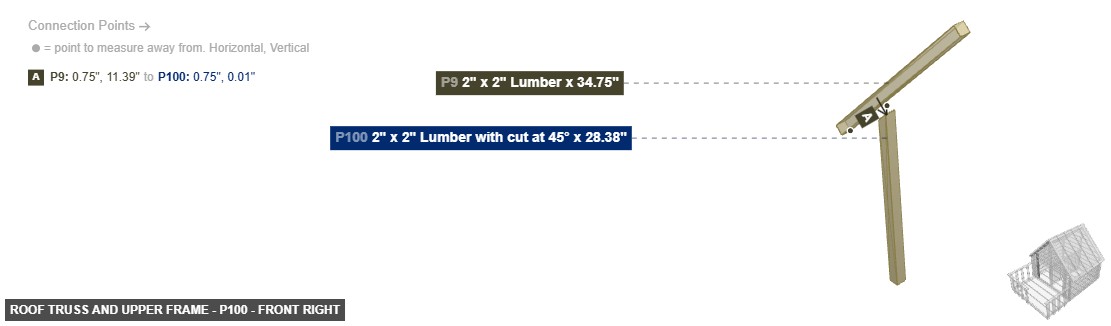

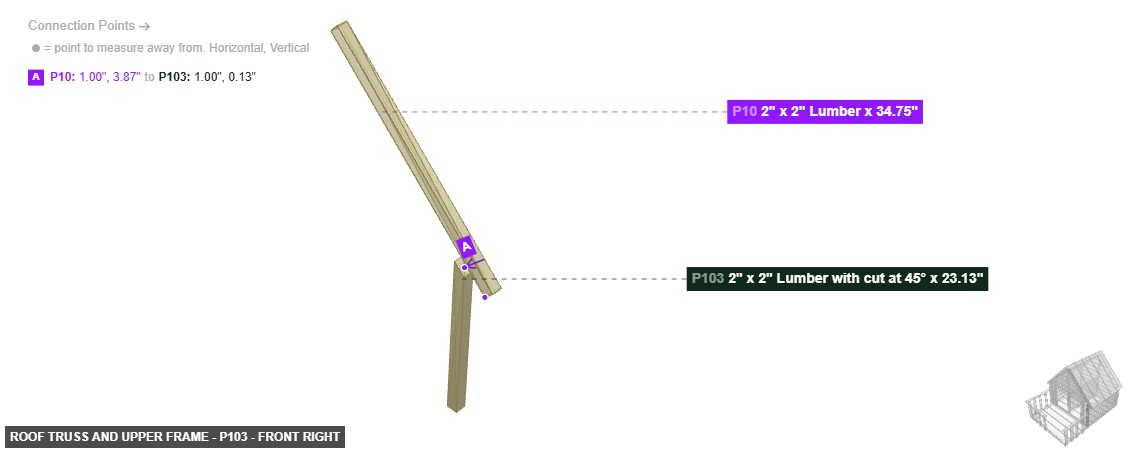

Group: Roof Truss and Upper Frame

Constructs the primary angled framework for the roof.

Assemble the main A-frame trusses. Connect P9, P10, and the ridge beam P15 for the front truss. Connect P13, P14, and P15 for the rear truss. Join the front and rear trusses using side rafters P11 and P12. Reinforce the structure by attaching the angled support braces (P98, P100, P101, P102, P103, P104) to the trusses and the main wall frame below.

Part: 2" x 2" Lumber x 34.75" - Angle: back left

P9 (2" x 2" Lumber 34.75" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 15's 2" x 2" Wood Side #1. After that, attach its 2" x 2" Wood Side #1 facing right-bottom to part 98's 2" x 2" Wood End #1. Also, attach its 2" x 2" Wood Side #4 facing back to part 11's 2" x 2" Wood End #2. Also, its 2" x 2" Wood End #2 should be directed left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: front right

P9 (2" x 2" Lumber 34.75" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 15's 2" x 2" Wood Side #1. After that, attach its 2" x 2" Wood Side #1 facing right-bottom to part 98's 2" x 2" Wood End #1. Also, attach its 2" x 2" Wood Side #4 facing back to part 11's 2" x 2" Wood End #2. Also, its 2" x 2" Wood End #2 should be directed left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

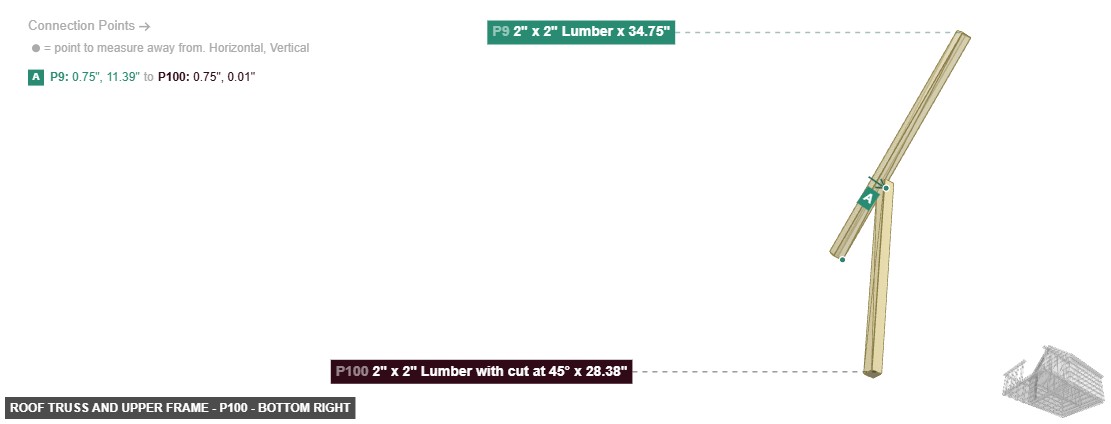

Part: 2" x 2" Lumber x 34.75" - Angle: bottom right

P9 (2" x 2" Lumber 34.75" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 15's 2" x 2" Wood Side #1. After that, attach its 2" x 2" Wood Side #1 facing right-bottom to part 98's 2" x 2" Wood End #1. Also, attach its 2" x 2" Wood Side #4 facing back to part 11's 2" x 2" Wood End #2. Also, its 2" x 2" Wood End #2 should be directed left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: back left

P10 (2" x 2" Lumber 34.75" length) - connect its 2" x 2" Wood End #1 oriented left-top links with part 15's 2" x 2" Wood Side #4. Next, connect its 2" x 2" Wood Side #1 oriented left-bottom links with part 103's 2" x 2" Wood End #1. After that, attach its 2" x 2" Wood Side #2 facing back to part 12's 2" x 2" Wood End #2. Also, its 2" x 2" Wood End #2 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: front right

P10 (2" x 2" Lumber 34.75" length) - connect its 2" x 2" Wood End #1 oriented left-top links with part 15's 2" x 2" Wood Side #4. Next, connect its 2" x 2" Wood Side #1 oriented left-bottom links with part 103's 2" x 2" Wood End #1. After that, attach its 2" x 2" Wood Side #2 facing back to part 12's 2" x 2" Wood End #2. Also, its 2" x 2" Wood End #2 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: bottom right

P10 (2" x 2" Lumber 34.75" length) - connect its 2" x 2" Wood End #1 oriented left-top links with part 15's 2" x 2" Wood Side #4. Next, connect its 2" x 2" Wood Side #1 oriented left-bottom links with part 103's 2" x 2" Wood End #1. After that, attach its 2" x 2" Wood Side #2 facing back to part 12's 2" x 2" Wood End #2. Also, its 2" x 2" Wood End #2 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: back left

P11 (2" x 2" Lumber 37.25" length) - connect its 2" x 2" Wood End #1 oriented back links with part 14's 2" x 2" Wood Side #1, and attach its 2" x 2" Wood End #2 facing front to part 9's 2" x 2" Wood Side #4. Next, ensure its 2" x 2" Wood Side #1 faces right-top, plus its 2" x 2" Wood Side #3 must be oriented left-bottom, also its 2" x 2" Wood Side #4 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: front right

P11 (2" x 2" Lumber 37.25" length) - connect its 2" x 2" Wood End #1 oriented back links with part 14's 2" x 2" Wood Side #1, and attach its 2" x 2" Wood End #2 facing front to part 9's 2" x 2" Wood Side #4. Next, ensure its 2" x 2" Wood Side #1 faces right-top, plus its 2" x 2" Wood Side #3 must be oriented left-bottom, also its 2" x 2" Wood Side #4 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: bottom right

P11 (2" x 2" Lumber 37.25" length) - connect its 2" x 2" Wood End #1 oriented back links with part 14's 2" x 2" Wood Side #1, and attach its 2" x 2" Wood End #2 facing front to part 9's 2" x 2" Wood Side #4. Next, ensure its 2" x 2" Wood Side #1 faces right-top, plus its 2" x 2" Wood Side #3 must be oriented left-bottom, also its 2" x 2" Wood Side #4 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: back left

P12 (2" x 2" Lumber 37.25" length) - attach its 2" x 2" Wood End #1 facing back to part 13's 2" x 2" Wood Side #1, and its 2" x 2" Wood End #2, which is front-facing, should connect to part 10's 2" x 2" Wood Side #2, also its 2" x 2" Wood Side #1 should be directed right-bottom, and its 2" x 2" Wood Side #3 must be oriented left-top. After that, its 2" x 2" Wood Side #4 must be oriented left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: front right

P12 (2" x 2" Lumber 37.25" length) - attach its 2" x 2" Wood End #1 facing back to part 13's 2" x 2" Wood Side #1, and its 2" x 2" Wood End #2, which is front-facing, should connect to part 10's 2" x 2" Wood Side #2, also its 2" x 2" Wood Side #1 should be directed right-bottom, and its 2" x 2" Wood Side #3 must be oriented left-top. After that, its 2" x 2" Wood Side #4 must be oriented left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 37.25" - Angle: bottom right

P12 (2" x 2" Lumber 37.25" length) - attach its 2" x 2" Wood End #1 facing back to part 13's 2" x 2" Wood Side #1, and its 2" x 2" Wood End #2, which is front-facing, should connect to part 10's 2" x 2" Wood Side #2, also its 2" x 2" Wood Side #1 should be directed right-bottom, and its 2" x 2" Wood Side #3 must be oriented left-top. After that, its 2" x 2" Wood Side #4 must be oriented left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: back left

P13 (2" x 2" Lumber 34.75" length) - its 2" x 2" Wood Side #1, which is front-facing, should connect to part 12's 2" x 2" Wood End #1, and its 2" x 2" Wood Side #4, which is left-bottom-facing, should connect to part 102's 2" x 2" Wood End #1, plus attach its 2" x 2" Wood End #2 facing left-top to part 15's 2" x 2" Wood Side #4, then its 2" x 2" Wood End #1 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: front right

P13 (2" x 2" Lumber 34.75" length) - its 2" x 2" Wood Side #1, which is front-facing, should connect to part 12's 2" x 2" Wood End #1, and its 2" x 2" Wood Side #4, which is left-bottom-facing, should connect to part 102's 2" x 2" Wood End #1, plus attach its 2" x 2" Wood End #2 facing left-top to part 15's 2" x 2" Wood Side #4, then its 2" x 2" Wood End #1 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: bottom right

P13 (2" x 2" Lumber 34.75" length) - its 2" x 2" Wood Side #1, which is front-facing, should connect to part 12's 2" x 2" Wood End #1, and its 2" x 2" Wood Side #4, which is left-bottom-facing, should connect to part 102's 2" x 2" Wood End #1, plus attach its 2" x 2" Wood End #2 facing left-top to part 15's 2" x 2" Wood Side #4, then its 2" x 2" Wood End #1 needs to point right-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: back left

P14 (2" x 2" Lumber 34.75" length) - connect its 2" x 2" Wood End #1 oriented right-top links with part 15's 2" x 2" Wood Side #1, then its 2" x 2" Wood Side #1, which is front-facing, should connect to part 11's 2" x 2" Wood End #1, also its 2" x 2" Wood Side #4, which is right-bottom-facing, should connect to part 101's 2" x 2" Wood End #1. Additionally, ensure its 2" x 2" Wood End #2 faces left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: front right

P14 (2" x 2" Lumber 34.75" length) - connect its 2" x 2" Wood End #1 oriented right-top links with part 15's 2" x 2" Wood Side #1, then its 2" x 2" Wood Side #1, which is front-facing, should connect to part 11's 2" x 2" Wood End #1, also its 2" x 2" Wood Side #4, which is right-bottom-facing, should connect to part 101's 2" x 2" Wood End #1. Additionally, ensure its 2" x 2" Wood End #2 faces left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 34.75" - Angle: bottom right

P14 (2" x 2" Lumber 34.75" length) - connect its 2" x 2" Wood End #1 oriented right-top links with part 15's 2" x 2" Wood Side #1, then its 2" x 2" Wood Side #1, which is front-facing, should connect to part 11's 2" x 2" Wood End #1, also its 2" x 2" Wood Side #4, which is right-bottom-facing, should connect to part 101's 2" x 2" Wood End #1. Additionally, ensure its 2" x 2" Wood End #2 faces left-bottom

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 40.25" - Angle: back left

P15 (2" x 2" Lumber 40.25" length) - its 2" x 2" Wood Side #1, which is left-bottom-facing, should connect to part 9's 2" x 2" Wood End #1. After that, attach its 2" x 2" Wood Side #4 facing right-bottom to part 13's 2" x 2" Wood End #2

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 40.25" - Angle: front right

P15 (2" x 2" Lumber 40.25" length) - its 2" x 2" Wood Side #1, which is left-bottom-facing, should connect to part 9's 2" x 2" Wood End #1. After that, attach its 2" x 2" Wood Side #4 facing right-bottom to part 13's 2" x 2" Wood End #2

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber x 40.25" - Angle: bottom right

P15 (2" x 2" Lumber 40.25" length) - its 2" x 2" Wood Side #1, which is left-bottom-facing, should connect to part 9's 2" x 2" Wood End #1. After that, attach its 2" x 2" Wood Side #4 facing right-bottom to part 13's 2" x 2" Wood End #2

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: back left

P98 (2" x 2" Lumber with cut at 45° 23.13" length) - connect its 2" x 2" Wood End #1 oriented left-top links with part 9's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #1 must be oriented back. Also, its 2" x 2" Wood Side #2 must be oriented right

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: front right

P98 (2" x 2" Lumber with cut at 45° 23.13" length) - connect its 2" x 2" Wood End #1 oriented left-top links with part 9's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #1 must be oriented back. Also, its 2" x 2" Wood Side #2 must be oriented right

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: bottom right

P98 (2" x 2" Lumber with cut at 45° 23.13" length) - connect its 2" x 2" Wood End #1 oriented left-top links with part 9's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #1 must be oriented back. Also, its 2" x 2" Wood Side #2 must be oriented right

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 28.38" - Angle: back left

P100 (2" x 2" Lumber with cut at 45° 28.38" length) - its 2" x 2" Wood End #1, which is left-top-facing, should connect to part 9's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #1 must be oriented back. Also, its 2" x 2" Wood Side #2 needs to point right. Next, its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 28.38" - Angle: front right

P100 (2" x 2" Lumber with cut at 45° 28.38" length) - its 2" x 2" Wood End #1, which is left-top-facing, should connect to part 9's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #1 must be oriented back. Also, its 2" x 2" Wood Side #2 needs to point right. Next, its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 28.38" - Angle: bottom right

P100 (2" x 2" Lumber with cut at 45° 28.38" length) - its 2" x 2" Wood End #1, which is left-top-facing, should connect to part 9's 2" x 2" Wood Side #1. Next, its 2" x 2" Wood Side #1 must be oriented back. Also, its 2" x 2" Wood Side #2 needs to point right. Next, its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: back left

P101 (2" x 2" Lumber with cut at 45° 23.13" length) - its 2" x 2" Wood End #1, which is left-top-facing, should connect to part 14's 2" x 2" Wood Side #4. Also, ensure its 2" x 2" Wood Side #2 faces right, plus its 2" x 2" Wood Side #3 must be oriented front

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: front right

P101 (2" x 2" Lumber with cut at 45° 23.13" length) - its 2" x 2" Wood End #1, which is left-top-facing, should connect to part 14's 2" x 2" Wood Side #4. Also, ensure its 2" x 2" Wood Side #2 faces right, plus its 2" x 2" Wood Side #3 must be oriented front

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: bottom right

P101 (2" x 2" Lumber with cut at 45° 23.13" length) - its 2" x 2" Wood End #1, which is left-top-facing, should connect to part 14's 2" x 2" Wood Side #4. Also, ensure its 2" x 2" Wood Side #2 faces right, plus its 2" x 2" Wood Side #3 must be oriented front

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: back left

P102 (2" x 2" Lumber with cut at 45° 23.13" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 13's 2" x 2" Wood Side #4. Additionally, its 2" x 2" Wood Side #1 must be oriented front. Next, its 2" x 2" Wood Side #2 should be directed left

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: front right

P102 (2" x 2" Lumber with cut at 45° 23.13" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 13's 2" x 2" Wood Side #4. Additionally, its 2" x 2" Wood Side #1 must be oriented front. Next, its 2" x 2" Wood Side #2 should be directed left

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: bottom right

P102 (2" x 2" Lumber with cut at 45° 23.13" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 13's 2" x 2" Wood Side #4. Additionally, its 2" x 2" Wood Side #1 must be oriented front. Next, its 2" x 2" Wood Side #2 should be directed left

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: back left

P103 (2" x 2" Lumber with cut at 45° 23.13" length) - attach its 2" x 2" Wood End #1 facing right-top to part 10's 2" x 2" Wood Side #1. After that, its 2" x 2" Wood Side #2 should be directed left. Next, its 2" x 2" Wood Side #3 should be directed back

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: front right

P103 (2" x 2" Lumber with cut at 45° 23.13" length) - attach its 2" x 2" Wood End #1 facing right-top to part 10's 2" x 2" Wood Side #1. After that, its 2" x 2" Wood Side #2 should be directed left. Next, its 2" x 2" Wood Side #3 should be directed back

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 23.13" - Angle: bottom right

P103 (2" x 2" Lumber with cut at 45° 23.13" length) - attach its 2" x 2" Wood End #1 facing right-top to part 10's 2" x 2" Wood Side #1. After that, its 2" x 2" Wood Side #2 should be directed left. Next, its 2" x 2" Wood Side #3 should be directed back

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 28.38" - Angle: back left

P104 (2" x 2" Lumber with cut at 45° 28.38" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 10's 2" x 2" Wood Side #1, also ensure its 2" x 2" Wood Side #2 faces left, plus its 2" x 2" Wood Side #3 must be oriented back, also its 2" x 2" Wood Side #4 must be oriented right

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 28.38" - Angle: front right

P104 (2" x 2" Lumber with cut at 45° 28.38" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 10's 2" x 2" Wood Side #1, also ensure its 2" x 2" Wood Side #2 faces left, plus its 2" x 2" Wood Side #3 must be oriented back, also its 2" x 2" Wood Side #4 must be oriented right

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

Part: 2" x 2" Lumber with cut at 45° x 28.38" - Angle: bottom right

P104 (2" x 2" Lumber with cut at 45° 28.38" length) - its 2" x 2" Wood End #1, which is right-top-facing, should connect to part 10's 2" x 2" Wood Side #1, also ensure its 2" x 2" Wood Side #2 faces left, plus its 2" x 2" Wood Side #3 must be oriented back, also its 2" x 2" Wood Side #4 must be oriented right

2" x 2" Lumber x 34.75"x 4

2" x 2" Lumber x 37.25"x 2

2" x 2" Lumber x 40.25"x 1

2" x 2" Lumber with cut at 45° x 23.13"x 4

2" x 2" Lumber with cut at 45° x 28.38"x 2

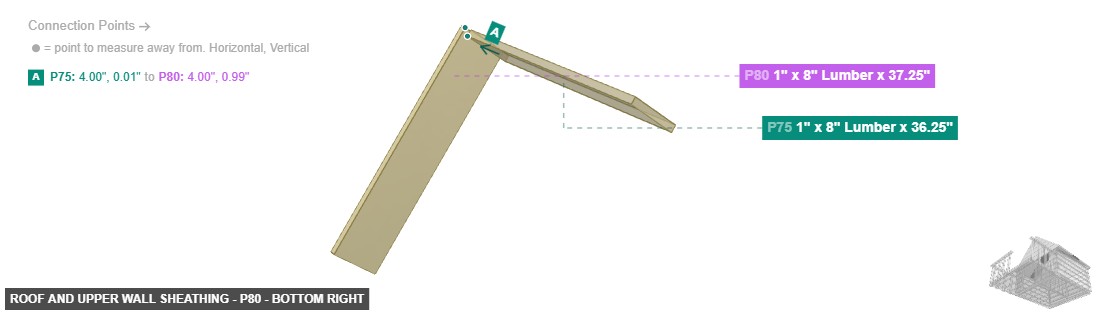

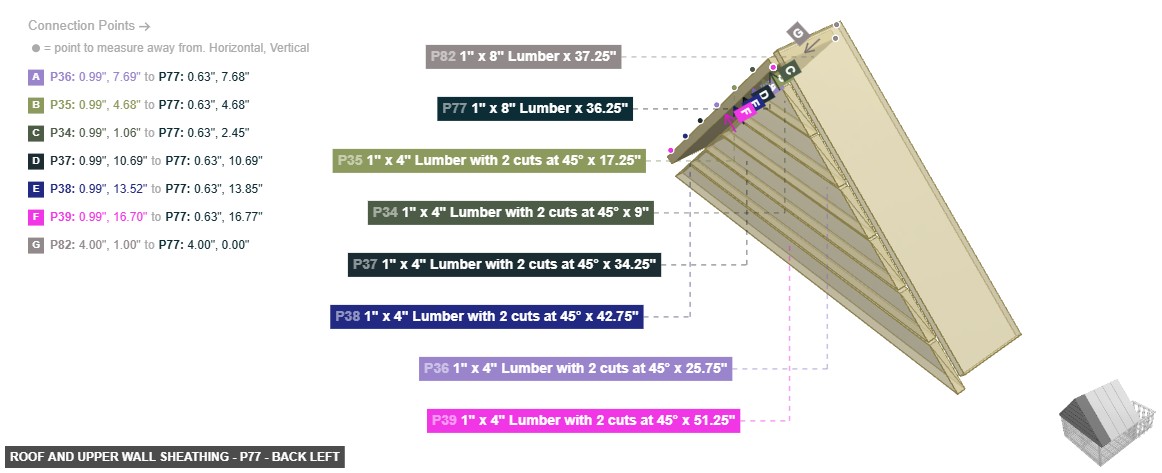

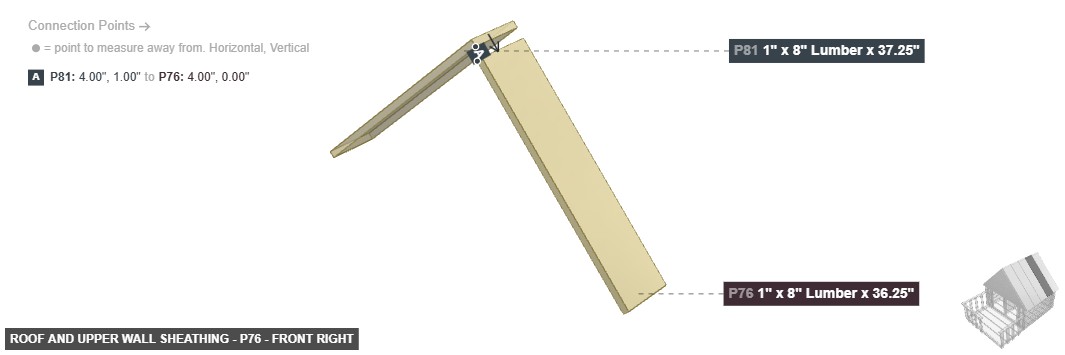

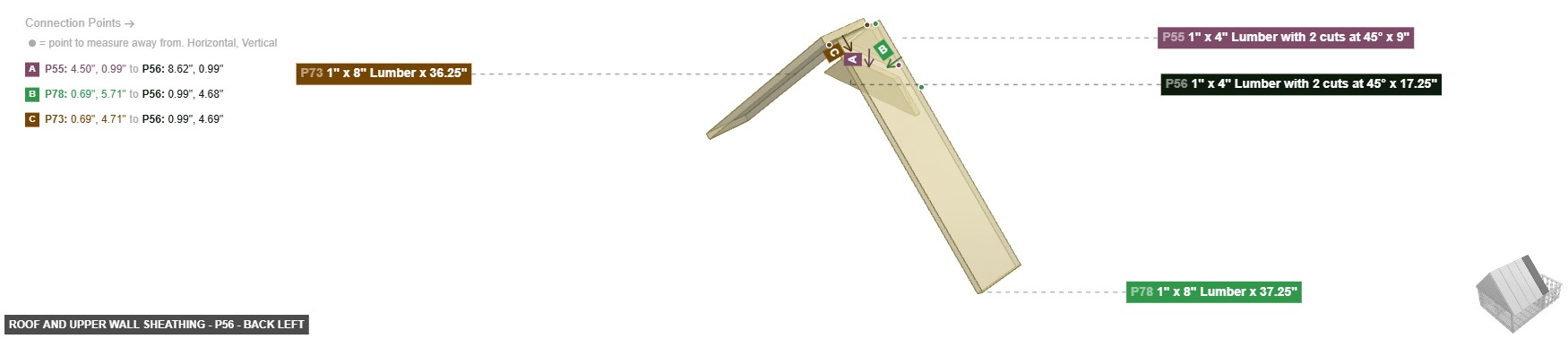

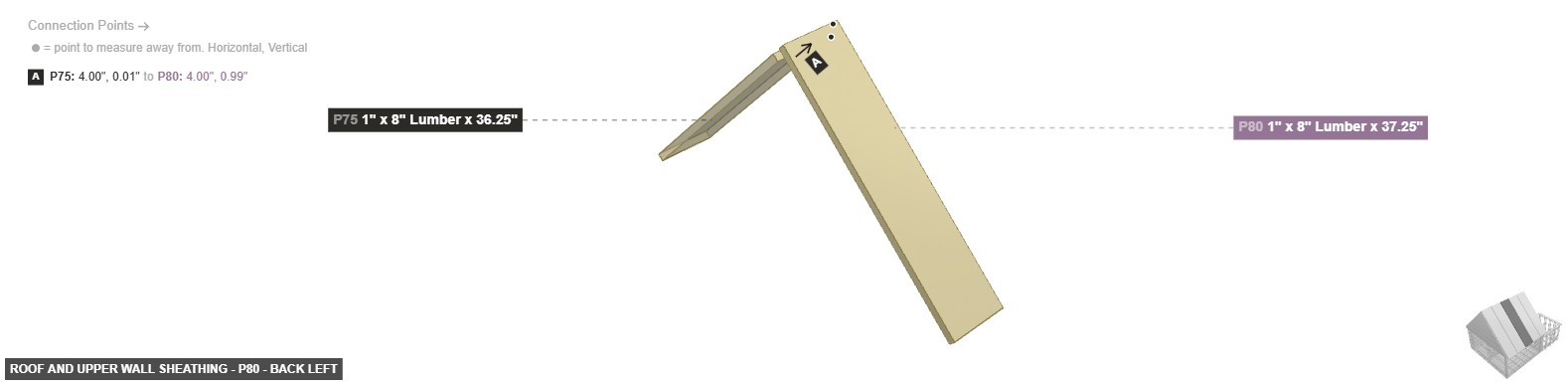

Group: Roof and Upper Wall Sheathing

Covers the roof frame with planks to create a solid, weatherproof roof.

Begin by attaching the side roof planks. Fasten the left-side planks (P78, P79, P80, P81, P82) and right-side planks (P73, P74, P75, P76, P77) to the rafters. Then, cover the front slope with planks P55, P56, P57, P58, P59, and P99. Finally, cover the back slope with planks P34, P35, P36, P37, P38, and P39.

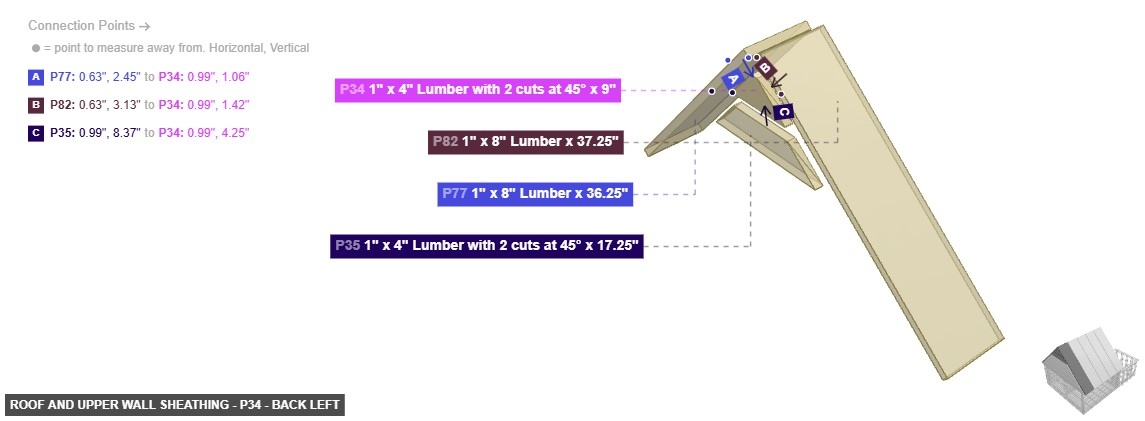

Part: 1" x 4" Lumber with 2 cuts at 45° x 9" - Angle: back left

P34 (1" x 4" Lumber with 2 cuts at 45° 9" length) - its 1" x 4" Wood End #1, which is left-top-facing, should connect to part 82's 1" x 8" Wood Side #2. Also, attach its 1" x 4" Wood Side #2 facing bottom to part 35's 1" x 4" Wood Side #4. Additionally, attach its 1" x 4" Wood End #2 facing right-top to part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #3 needs to point back. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 9" - Angle: front right

P34 (1" x 4" Lumber with 2 cuts at 45° 9" length) - its 1" x 4" Wood End #1, which is left-top-facing, should connect to part 82's 1" x 8" Wood Side #2. Also, attach its 1" x 4" Wood Side #2 facing bottom to part 35's 1" x 4" Wood Side #4. Additionally, attach its 1" x 4" Wood End #2 facing right-top to part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #3 needs to point back. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 9" - Angle: bottom right

P34 (1" x 4" Lumber with 2 cuts at 45° 9" length) - its 1" x 4" Wood End #1, which is left-top-facing, should connect to part 82's 1" x 8" Wood Side #2. Also, attach its 1" x 4" Wood Side #2 facing bottom to part 35's 1" x 4" Wood Side #4. Additionally, attach its 1" x 4" Wood End #2 facing right-top to part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #3 needs to point back. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 17.25" - Angle: back left

P35 (1" x 4" Lumber with 2 cuts at 45° 17.25" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2, plus attach its 1" x 4" Wood Side #4 facing top to part 34's 1" x 4" Wood Side #2, also its 1" x 4" Wood End #2, which is right-top-facing, should connect to part 77's 1" x 8" Wood Side #2, and ensure its 1" x 4" Wood Side #2 faces bottom, then its 1" x 4" Wood Side #3 needs to point back

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 17.25" - Angle: front right

P35 (1" x 4" Lumber with 2 cuts at 45° 17.25" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2, plus attach its 1" x 4" Wood Side #4 facing top to part 34's 1" x 4" Wood Side #2, also its 1" x 4" Wood End #2, which is right-top-facing, should connect to part 77's 1" x 8" Wood Side #2, and ensure its 1" x 4" Wood Side #2 faces bottom, then its 1" x 4" Wood Side #3 needs to point back

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

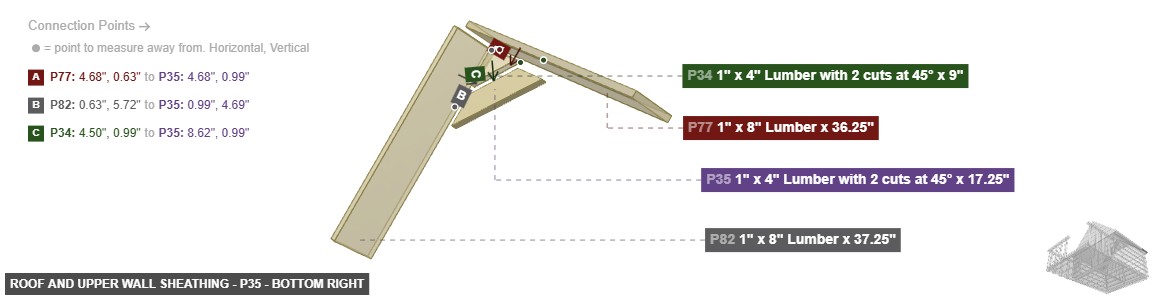

Part: 1" x 4" Lumber with 2 cuts at 45° x 17.25" - Angle: bottom right

P35 (1" x 4" Lumber with 2 cuts at 45° 17.25" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2, plus attach its 1" x 4" Wood Side #4 facing top to part 34's 1" x 4" Wood Side #2, also its 1" x 4" Wood End #2, which is right-top-facing, should connect to part 77's 1" x 8" Wood Side #2, and ensure its 1" x 4" Wood Side #2 faces bottom, then its 1" x 4" Wood Side #3 needs to point back

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

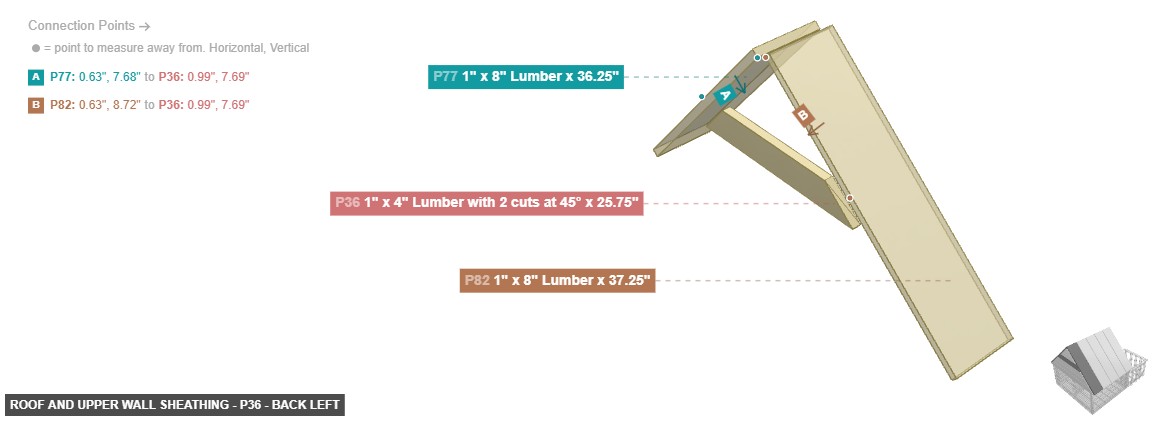

Part: 1" x 4" Lumber with 2 cuts at 45° x 25.75" - Angle: back left

P36 (1" x 4" Lumber with 2 cuts at 45° 25.75" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2. Next, attach its 1" x 4" Wood End #2 facing right-top to part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 needs to point bottom. After that, ensure its 1" x 4" Wood Side #3 faces back. Also, its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

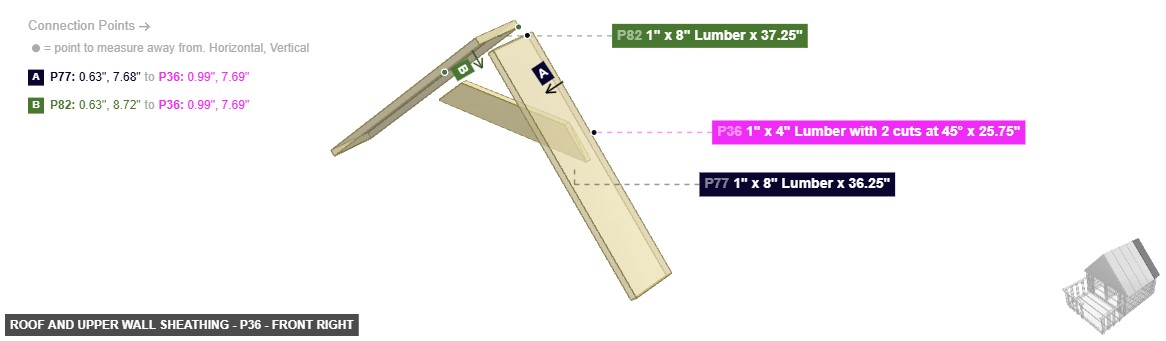

Part: 1" x 4" Lumber with 2 cuts at 45° x 25.75" - Angle: front right

P36 (1" x 4" Lumber with 2 cuts at 45° 25.75" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2. Next, attach its 1" x 4" Wood End #2 facing right-top to part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 needs to point bottom. After that, ensure its 1" x 4" Wood Side #3 faces back. Also, its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 25.75" - Angle: bottom right

P36 (1" x 4" Lumber with 2 cuts at 45° 25.75" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2. Next, attach its 1" x 4" Wood End #2 facing right-top to part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 needs to point bottom. After that, ensure its 1" x 4" Wood Side #3 faces back. Also, its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 34.25" - Angle: back left

P37 (1" x 4" Lumber with 2 cuts at 45° 34.25" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2, plus its 1" x 4" Wood End #2, which is right-top-facing, should connect to part 77's 1" x 8" Wood Side #2, plus ensure its 1" x 4" Wood Side #2 faces bottom. Next, its 1" x 4" Wood Side #3 needs to point back, also ensure its 1" x 4" Wood Side #4 faces top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 34.25" - Angle: front right

P37 (1" x 4" Lumber with 2 cuts at 45° 34.25" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2, plus its 1" x 4" Wood End #2, which is right-top-facing, should connect to part 77's 1" x 8" Wood Side #2, plus ensure its 1" x 4" Wood Side #2 faces bottom. Next, its 1" x 4" Wood Side #3 needs to point back, also ensure its 1" x 4" Wood Side #4 faces top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 34.25" - Angle: bottom right

P37 (1" x 4" Lumber with 2 cuts at 45° 34.25" length) - connect its 1" x 4" Wood End #1 oriented left-top links with part 82's 1" x 8" Wood Side #2, plus its 1" x 4" Wood End #2, which is right-top-facing, should connect to part 77's 1" x 8" Wood Side #2, plus ensure its 1" x 4" Wood Side #2 faces bottom. Next, its 1" x 4" Wood Side #3 needs to point back, also ensure its 1" x 4" Wood Side #4 faces top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 42.75" - Angle: back left

P38 (1" x 4" Lumber with 2 cuts at 45° 42.75" length) - its 1" x 4" Wood End #1, which is left-top-facing, should connect to part 82's 1" x 8" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented right-top links with part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 needs to point bottom, and its 1" x 4" Wood Side #3 must be oriented back. After that, its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 42.75" - Angle: front right

P38 (1" x 4" Lumber with 2 cuts at 45° 42.75" length) - its 1" x 4" Wood End #1, which is left-top-facing, should connect to part 82's 1" x 8" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented right-top links with part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 needs to point bottom, and its 1" x 4" Wood Side #3 must be oriented back. After that, its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 42.75" - Angle: bottom right

P38 (1" x 4" Lumber with 2 cuts at 45° 42.75" length) - its 1" x 4" Wood End #1, which is left-top-facing, should connect to part 82's 1" x 8" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented right-top links with part 77's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 needs to point bottom, and its 1" x 4" Wood Side #3 must be oriented back. After that, its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 51.25" - Angle: back left

P39 (1" x 4" Lumber with 2 cuts at 45° 51.25" length) - attach its 1" x 4" Wood End #1 facing left-top to part 82's 1" x 8" Wood Side #2. After that, connect its 1" x 4" Wood End #2 oriented right-top links with part 77's 1" x 8" Wood Side #2, and ensure its 1" x 4" Wood Side #2 faces bottom. Also, its 1" x 4" Wood Side #3 needs to point back, plus its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 51.25" - Angle: front right

P39 (1" x 4" Lumber with 2 cuts at 45° 51.25" length) - attach its 1" x 4" Wood End #1 facing left-top to part 82's 1" x 8" Wood Side #2. After that, connect its 1" x 4" Wood End #2 oriented right-top links with part 77's 1" x 8" Wood Side #2, and ensure its 1" x 4" Wood Side #2 faces bottom. Also, its 1" x 4" Wood Side #3 needs to point back, plus its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

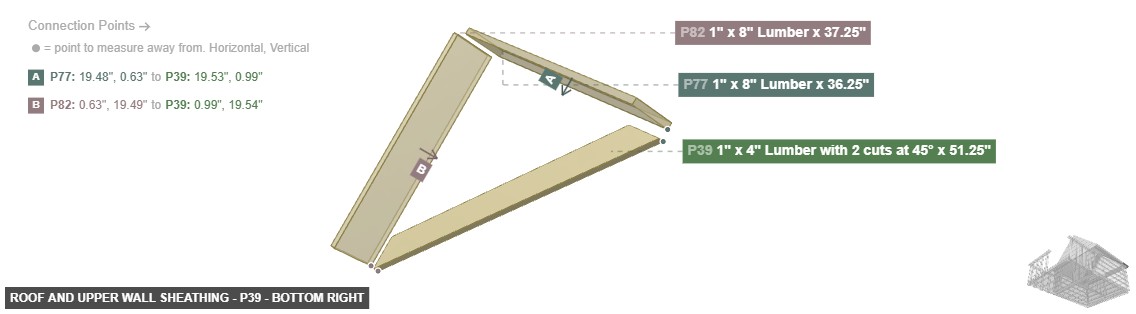

Part: 1" x 4" Lumber with 2 cuts at 45° x 51.25" - Angle: bottom right

P39 (1" x 4" Lumber with 2 cuts at 45° 51.25" length) - attach its 1" x 4" Wood End #1 facing left-top to part 82's 1" x 8" Wood Side #2. After that, connect its 1" x 4" Wood End #2 oriented right-top links with part 77's 1" x 8" Wood Side #2, and ensure its 1" x 4" Wood Side #2 faces bottom. Also, its 1" x 4" Wood Side #3 needs to point back, plus its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 9" - Angle: back left

P55 (1" x 4" Lumber with 2 cuts at 45° 9" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2, also attach its 1" x 4" Wood Side #2 facing bottom to part 56's 1" x 4" Wood Side #4. Additionally, its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #3 should be directed front, also its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 9" - Angle: front right

P55 (1" x 4" Lumber with 2 cuts at 45° 9" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2, also attach its 1" x 4" Wood Side #2 facing bottom to part 56's 1" x 4" Wood Side #4. Additionally, its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #3 should be directed front, also its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 9" - Angle: bottom right

P55 (1" x 4" Lumber with 2 cuts at 45° 9" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2, also attach its 1" x 4" Wood Side #2 facing bottom to part 56's 1" x 4" Wood Side #4. Additionally, its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #3 should be directed front, also its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 17.25" - Angle: back left

P56 (1" x 4" Lumber with 2 cuts at 45° 17.25" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2. Additionally, connect its 1" x 4" Wood Side #4 oriented top links with part 55's 1" x 4" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented left-top links with part 78's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 must be oriented bottom, also ensure its 1" x 4" Wood Side #3 faces front

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 17.25" - Angle: front right

P56 (1" x 4" Lumber with 2 cuts at 45° 17.25" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2. Additionally, connect its 1" x 4" Wood Side #4 oriented top links with part 55's 1" x 4" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented left-top links with part 78's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 must be oriented bottom, also ensure its 1" x 4" Wood Side #3 faces front

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 17.25" - Angle: bottom right

P56 (1" x 4" Lumber with 2 cuts at 45° 17.25" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2. Additionally, connect its 1" x 4" Wood Side #4 oriented top links with part 55's 1" x 4" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented left-top links with part 78's 1" x 8" Wood Side #2, then its 1" x 4" Wood Side #2 must be oriented bottom, also ensure its 1" x 4" Wood Side #3 faces front

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 25.75" - Angle: back left

P57 (1" x 4" Lumber with 2 cuts at 45° 25.75" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2, also connect its 1" x 4" Wood End #2 oriented left-top links with part 78's 1" x 8" Wood Side #2, plus ensure its 1" x 4" Wood Side #2 faces bottom, then its 1" x 4" Wood Side #3 should be directed front. Also, its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 25.75" - Angle: front right

P57 (1" x 4" Lumber with 2 cuts at 45° 25.75" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2, also connect its 1" x 4" Wood End #2 oriented left-top links with part 78's 1" x 8" Wood Side #2, plus ensure its 1" x 4" Wood Side #2 faces bottom, then its 1" x 4" Wood Side #3 should be directed front. Also, its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 25.75" - Angle: bottom right

P57 (1" x 4" Lumber with 2 cuts at 45° 25.75" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2, also connect its 1" x 4" Wood End #2 oriented left-top links with part 78's 1" x 8" Wood Side #2, plus ensure its 1" x 4" Wood Side #2 faces bottom, then its 1" x 4" Wood Side #3 should be directed front. Also, its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 34.25" - Angle: back left

P58 (1" x 4" Lumber with 2 cuts at 45° 34.25" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood Side #2 should be directed bottom. Also, ensure its 1" x 4" Wood Side #3 faces front. Next, its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 34.25" - Angle: front right

P58 (1" x 4" Lumber with 2 cuts at 45° 34.25" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood Side #2 should be directed bottom. Also, ensure its 1" x 4" Wood Side #3 faces front. Next, its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 34.25" - Angle: bottom right

P58 (1" x 4" Lumber with 2 cuts at 45° 34.25" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood Side #2 should be directed bottom. Also, ensure its 1" x 4" Wood Side #3 faces front. Next, its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 42.75" - Angle: back left

P59 (1" x 4" Lumber with 2 cuts at 45° 42.75" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2, plus its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood Side #2 must be oriented bottom, also its 1" x 4" Wood Side #3 should be directed front. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 42.75" - Angle: front right

P59 (1" x 4" Lumber with 2 cuts at 45° 42.75" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2, plus its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood Side #2 must be oriented bottom, also its 1" x 4" Wood Side #3 should be directed front. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 42.75" - Angle: bottom right

P59 (1" x 4" Lumber with 2 cuts at 45° 42.75" length) - connect its 1" x 4" Wood End #1 oriented right-top links with part 73's 1" x 8" Wood Side #2, plus its 1" x 4" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Next, its 1" x 4" Wood Side #2 must be oriented bottom, also its 1" x 4" Wood Side #3 should be directed front. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: back left

P73 (1" x 8" Lumber 36.25" length) - its 1" x 8" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Additionally, ensure its 1" x 8" Wood End #1 faces right-bottom. Also, its 1" x 8" Wood Side #1 must be oriented back. Next, its 1" x 8" Wood Side #3 must be oriented front. Also, its 1" x 8" Wood Side #4 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: front right

P73 (1" x 8" Lumber 36.25" length) - its 1" x 8" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Additionally, ensure its 1" x 8" Wood End #1 faces right-bottom. Also, its 1" x 8" Wood Side #1 must be oriented back. Next, its 1" x 8" Wood Side #3 must be oriented front. Also, its 1" x 8" Wood Side #4 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: bottom right

P73 (1" x 8" Lumber 36.25" length) - its 1" x 8" Wood End #2, which is left-top-facing, should connect to part 78's 1" x 8" Wood Side #2. Additionally, ensure its 1" x 8" Wood End #1 faces right-bottom. Also, its 1" x 8" Wood Side #1 must be oriented back. Next, its 1" x 8" Wood Side #3 must be oriented front. Also, its 1" x 8" Wood Side #4 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: back left

P74 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 79's 1" x 8" Wood Side #2, then its 1" x 8" Wood End #1 needs to point right-bottom. Additionally, its 1" x 8" Wood Side #1 should be directed back. After that, its 1" x 8" Wood Side #3 must be oriented front. Next, ensure its 1" x 8" Wood Side #4 faces right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: front right

P74 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 79's 1" x 8" Wood Side #2, then its 1" x 8" Wood End #1 needs to point right-bottom. Additionally, its 1" x 8" Wood Side #1 should be directed back. After that, its 1" x 8" Wood Side #3 must be oriented front. Next, ensure its 1" x 8" Wood Side #4 faces right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: bottom right

P74 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 79's 1" x 8" Wood Side #2, then its 1" x 8" Wood End #1 needs to point right-bottom. Additionally, its 1" x 8" Wood Side #1 should be directed back. After that, its 1" x 8" Wood Side #3 must be oriented front. Next, ensure its 1" x 8" Wood Side #4 faces right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: back left

P75 (1" x 8" Lumber 36.25" length) - its 1" x 8" Wood End #2, which is left-top-facing, should connect to part 80's 1" x 8" Wood Side #2, and ensure its 1" x 8" Wood End #1 faces right-bottom, and ensure its 1" x 8" Wood Side #1 faces back, and its 1" x 8" Wood Side #3 needs to point front. Additionally, its 1" x 8" Wood Side #4 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: front right

P75 (1" x 8" Lumber 36.25" length) - its 1" x 8" Wood End #2, which is left-top-facing, should connect to part 80's 1" x 8" Wood Side #2, and ensure its 1" x 8" Wood End #1 faces right-bottom, and ensure its 1" x 8" Wood Side #1 faces back, and its 1" x 8" Wood Side #3 needs to point front. Additionally, its 1" x 8" Wood Side #4 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: bottom right

P75 (1" x 8" Lumber 36.25" length) - its 1" x 8" Wood End #2, which is left-top-facing, should connect to part 80's 1" x 8" Wood Side #2, and ensure its 1" x 8" Wood End #1 faces right-bottom, and ensure its 1" x 8" Wood Side #1 faces back, and its 1" x 8" Wood Side #3 needs to point front. Additionally, its 1" x 8" Wood Side #4 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: back left

P76 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 81's 1" x 8" Wood Side #2. Additionally, its 1" x 8" Wood End #1 must be oriented right-bottom, then its 1" x 8" Wood Side #1 needs to point back, and its 1" x 8" Wood Side #3 needs to point front. Next, its 1" x 8" Wood Side #4 should be directed right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: front right

P76 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 81's 1" x 8" Wood Side #2. Additionally, its 1" x 8" Wood End #1 must be oriented right-bottom, then its 1" x 8" Wood Side #1 needs to point back, and its 1" x 8" Wood Side #3 needs to point front. Next, its 1" x 8" Wood Side #4 should be directed right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: bottom right

P76 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 81's 1" x 8" Wood Side #2. Additionally, its 1" x 8" Wood End #1 must be oriented right-bottom, then its 1" x 8" Wood Side #1 needs to point back, and its 1" x 8" Wood Side #3 needs to point front. Next, its 1" x 8" Wood Side #4 should be directed right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: back left

P77 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 82's 1" x 8" Wood Side #2. After that, its 1" x 8" Wood End #1 needs to point right-bottom. Also, its 1" x 8" Wood Side #1 should be directed back. Additionally, its 1" x 8" Wood Side #3 must be oriented front, plus its 1" x 8" Wood Side #4 should be directed right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: front right

P77 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 82's 1" x 8" Wood Side #2. After that, its 1" x 8" Wood End #1 needs to point right-bottom. Also, its 1" x 8" Wood Side #1 should be directed back. Additionally, its 1" x 8" Wood Side #3 must be oriented front, plus its 1" x 8" Wood Side #4 should be directed right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 36.25" - Angle: bottom right

P77 (1" x 8" Lumber 36.25" length) - connect its 1" x 8" Wood End #2 oriented left-top links with part 82's 1" x 8" Wood Side #2. After that, its 1" x 8" Wood End #1 needs to point right-bottom. Also, its 1" x 8" Wood Side #1 should be directed back. Additionally, its 1" x 8" Wood Side #3 must be oriented front, plus its 1" x 8" Wood Side #4 should be directed right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: back left

P78 (1" x 8" Lumber 37.25" length) - its 1" x 8" Wood Side #2, which is right-bottom-facing, should connect to part 73's 1" x 8" Wood End #2. Next, ensure its 1" x 8" Wood End #1 faces right-top. Also, ensure its 1" x 8" Wood Side #1 faces back. After that, its 1" x 8" Wood Side #3 should be directed front, plus ensure its 1" x 8" Wood Side #4 faces left-top, and its 1" x 8" Wood End #2 must be oriented left-bottom

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: front right

P78 (1" x 8" Lumber 37.25" length) - its 1" x 8" Wood Side #2, which is right-bottom-facing, should connect to part 73's 1" x 8" Wood End #2. Next, ensure its 1" x 8" Wood End #1 faces right-top. Also, ensure its 1" x 8" Wood Side #1 faces back. After that, its 1" x 8" Wood Side #3 should be directed front, plus ensure its 1" x 8" Wood Side #4 faces left-top, and its 1" x 8" Wood End #2 must be oriented left-bottom

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: bottom right

P78 (1" x 8" Lumber 37.25" length) - its 1" x 8" Wood Side #2, which is right-bottom-facing, should connect to part 73's 1" x 8" Wood End #2. Next, ensure its 1" x 8" Wood End #1 faces right-top. Also, ensure its 1" x 8" Wood Side #1 faces back. After that, its 1" x 8" Wood Side #3 should be directed front, plus ensure its 1" x 8" Wood Side #4 faces left-top, and its 1" x 8" Wood End #2 must be oriented left-bottom

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: back left

P79 (1" x 8" Lumber 37.25" length) - its 1" x 8" Wood Side #2, which is right-bottom-facing, should connect to part 74's 1" x 8" Wood End #2. Also, its 1" x 8" Wood End #1 must be oriented left-bottom. Also, its 1" x 8" Wood Side #1 should be directed front. Next, ensure its 1" x 8" Wood Side #3 faces back. Additionally, its 1" x 8" Wood Side #4 needs to point left-top. Also, its 1" x 8" Wood End #2 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: front right

P79 (1" x 8" Lumber 37.25" length) - its 1" x 8" Wood Side #2, which is right-bottom-facing, should connect to part 74's 1" x 8" Wood End #2. Also, its 1" x 8" Wood End #1 must be oriented left-bottom. Also, its 1" x 8" Wood Side #1 should be directed front. Next, ensure its 1" x 8" Wood Side #3 faces back. Additionally, its 1" x 8" Wood Side #4 needs to point left-top. Also, its 1" x 8" Wood End #2 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: bottom right

P79 (1" x 8" Lumber 37.25" length) - its 1" x 8" Wood Side #2, which is right-bottom-facing, should connect to part 74's 1" x 8" Wood End #2. Also, its 1" x 8" Wood End #1 must be oriented left-bottom. Also, its 1" x 8" Wood Side #1 should be directed front. Next, ensure its 1" x 8" Wood Side #3 faces back. Additionally, its 1" x 8" Wood Side #4 needs to point left-top. Also, its 1" x 8" Wood End #2 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: back left

P80 (1" x 8" Lumber 37.25" length) - attach its 1" x 8" Wood Side #2 facing right-bottom to part 75's 1" x 8" Wood End #2. Additionally, its 1" x 8" Wood End #1 must be oriented left-bottom, also ensure its 1" x 8" Wood Side #1 faces front. Also, its 1" x 8" Wood Side #3 must be oriented back, then its 1" x 8" Wood Side #4 must be oriented left-top. Additionally, its 1" x 8" Wood End #2 must be oriented right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: front right

P80 (1" x 8" Lumber 37.25" length) - attach its 1" x 8" Wood Side #2 facing right-bottom to part 75's 1" x 8" Wood End #2. Additionally, its 1" x 8" Wood End #1 must be oriented left-bottom, also ensure its 1" x 8" Wood Side #1 faces front. Also, its 1" x 8" Wood Side #3 must be oriented back, then its 1" x 8" Wood Side #4 must be oriented left-top. Additionally, its 1" x 8" Wood End #2 must be oriented right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: bottom right

P80 (1" x 8" Lumber 37.25" length) - attach its 1" x 8" Wood Side #2 facing right-bottom to part 75's 1" x 8" Wood End #2. Additionally, its 1" x 8" Wood End #1 must be oriented left-bottom, also ensure its 1" x 8" Wood Side #1 faces front. Also, its 1" x 8" Wood Side #3 must be oriented back, then its 1" x 8" Wood Side #4 must be oriented left-top. Additionally, its 1" x 8" Wood End #2 must be oriented right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: back left

P81 (1" x 8" Lumber 37.25" length) - connect its 1" x 8" Wood Side #2 oriented right-bottom links with part 76's 1" x 8" Wood End #2, and ensure its 1" x 8" Wood End #1 faces left-bottom, and its 1" x 8" Wood Side #1 must be oriented front. Also, its 1" x 8" Wood Side #3 must be oriented back. After that, its 1" x 8" Wood Side #4 should be directed left-top. Next, ensure its 1" x 8" Wood End #2 faces right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: front right

P81 (1" x 8" Lumber 37.25" length) - connect its 1" x 8" Wood Side #2 oriented right-bottom links with part 76's 1" x 8" Wood End #2, and ensure its 1" x 8" Wood End #1 faces left-bottom, and its 1" x 8" Wood Side #1 must be oriented front. Also, its 1" x 8" Wood Side #3 must be oriented back. After that, its 1" x 8" Wood Side #4 should be directed left-top. Next, ensure its 1" x 8" Wood End #2 faces right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: bottom right

P81 (1" x 8" Lumber 37.25" length) - connect its 1" x 8" Wood Side #2 oriented right-bottom links with part 76's 1" x 8" Wood End #2, and ensure its 1" x 8" Wood End #1 faces left-bottom, and its 1" x 8" Wood Side #1 must be oriented front. Also, its 1" x 8" Wood Side #3 must be oriented back. After that, its 1" x 8" Wood Side #4 should be directed left-top. Next, ensure its 1" x 8" Wood End #2 faces right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: back left

P82 (1" x 8" Lumber 37.25" length) - attach its 1" x 8" Wood Side #2 facing right-bottom to part 77's 1" x 8" Wood End #2, also its 1" x 8" Wood End #1 needs to point left-bottom. Also, ensure its 1" x 8" Wood Side #1 faces front. Also, its 1" x 8" Wood Side #3 should be directed back. After that, its 1" x 8" Wood Side #4 must be oriented left-top. After that, its 1" x 8" Wood End #2 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: front right

P82 (1" x 8" Lumber 37.25" length) - attach its 1" x 8" Wood Side #2 facing right-bottom to part 77's 1" x 8" Wood End #2, also its 1" x 8" Wood End #1 needs to point left-bottom. Also, ensure its 1" x 8" Wood Side #1 faces front. Also, its 1" x 8" Wood Side #3 should be directed back. After that, its 1" x 8" Wood Side #4 must be oriented left-top. After that, its 1" x 8" Wood End #2 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 8" Lumber x 37.25" - Angle: bottom right

P82 (1" x 8" Lumber 37.25" length) - attach its 1" x 8" Wood Side #2 facing right-bottom to part 77's 1" x 8" Wood End #2, also its 1" x 8" Wood End #1 needs to point left-bottom. Also, ensure its 1" x 8" Wood Side #1 faces front. Also, its 1" x 8" Wood Side #3 should be directed back. After that, its 1" x 8" Wood Side #4 must be oriented left-top. After that, its 1" x 8" Wood End #2 needs to point right-top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 51.25" - Angle: back left

P99 (1" x 4" Lumber with 2 cuts at 45° 51.25" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2. Also, attach its 1" x 4" Wood End #2 facing left-top to part 78's 1" x 8" Wood Side #2. After that, its 1" x 4" Wood Side #2 should be directed bottom, also its 1" x 4" Wood Side #3 must be oriented front. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 51.25" - Angle: front right

P99 (1" x 4" Lumber with 2 cuts at 45° 51.25" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2. Also, attach its 1" x 4" Wood End #2 facing left-top to part 78's 1" x 8" Wood Side #2. After that, its 1" x 4" Wood Side #2 should be directed bottom, also its 1" x 4" Wood Side #3 must be oriented front. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Part: 1" x 4" Lumber with 2 cuts at 45° x 51.25" - Angle: bottom right

P99 (1" x 4" Lumber with 2 cuts at 45° 51.25" length) - its 1" x 4" Wood End #1, which is right-top-facing, should connect to part 73's 1" x 8" Wood Side #2. Also, attach its 1" x 4" Wood End #2 facing left-top to part 78's 1" x 8" Wood Side #2. After that, its 1" x 4" Wood Side #2 should be directed bottom, also its 1" x 4" Wood Side #3 must be oriented front. After that, its 1" x 4" Wood Side #4 needs to point top

1" x 4" Lumber with 2 cuts at 45° x 9"x 2

1" x 4" Lumber with 2 cuts at 45° x 17.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 25.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 34.25"x 2

1" x 4" Lumber with 2 cuts at 45° x 42.75"x 2

1" x 4" Lumber with 2 cuts at 45° x 51.25"x 2

1" x 8" Lumber x 36.25"x 5

1" x 8" Lumber x 37.25"x 5

Group: Front Porch Assembly

Builds the attached front porch, including its frame, floor, and safety railings.

First, build the porch's base frame using P31, P32, and P33. Lay the porch floorboards (P69, P70, P71, P72) onto this frame. Next, construct the railings by installing the vertical posts (P83, P84, P85, P86 on the left; P88, P89, P90, P91 in front; P93, P95, P96, P97 on the right). Cap the posts with the top rails P87, P92, and P94 to complete the railing.

Part: 2" x 2" Lumber x 25" - Angle: back left

P31 (2" x 2" Lumber 25" length) - its 2" x 2" Wood Side #1, which is left-facing, should connect to part 83's 1" x 2" Wood Side #2. After that, connect its 2" x 2" Wood Side #2 oriented top links with part 69's 1" x 6" Wood Side #2. Also, its 2" x 2" Wood Side #3, which is right-facing, should connect to part 33's 2" x 2" Wood End #1, and ensure its 2" x 2" Wood End #1 faces front, then ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 25" - Angle: front right

P31 (2" x 2" Lumber 25" length) - its 2" x 2" Wood Side #1, which is left-facing, should connect to part 83's 1" x 2" Wood Side #2. After that, connect its 2" x 2" Wood Side #2 oriented top links with part 69's 1" x 6" Wood Side #2. Also, its 2" x 2" Wood Side #3, which is right-facing, should connect to part 33's 2" x 2" Wood End #1, and ensure its 2" x 2" Wood End #1 faces front, then ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 25" - Angle: bottom right

P31 (2" x 2" Lumber 25" length) - its 2" x 2" Wood Side #1, which is left-facing, should connect to part 83's 1" x 2" Wood Side #2. After that, connect its 2" x 2" Wood Side #2 oriented top links with part 69's 1" x 6" Wood Side #2. Also, its 2" x 2" Wood Side #3, which is right-facing, should connect to part 33's 2" x 2" Wood End #1, and ensure its 2" x 2" Wood End #1 faces front, then ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 25" - Angle: back left

P32 (2" x 2" Lumber 25" length) - attach its 2" x 2" Wood Side #1 facing left to part 33's 2" x 2" Wood End #2. Additionally, attach its 2" x 2" Wood Side #2 facing top to part 70's 1" x 6" Wood Side #2. Also, connect its 2" x 2" Wood Side #3 oriented right links with part 93's 1" x 2" Wood Side #2, then its 2" x 2" Wood End #1 needs to point front, also ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 25" - Angle: front right

P32 (2" x 2" Lumber 25" length) - attach its 2" x 2" Wood Side #1 facing left to part 33's 2" x 2" Wood End #2. Additionally, attach its 2" x 2" Wood Side #2 facing top to part 70's 1" x 6" Wood Side #2. Also, connect its 2" x 2" Wood Side #3 oriented right links with part 93's 1" x 2" Wood Side #2, then its 2" x 2" Wood End #1 needs to point front, also ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 25" - Angle: bottom right

P32 (2" x 2" Lumber 25" length) - attach its 2" x 2" Wood Side #1 facing left to part 33's 2" x 2" Wood End #2. Additionally, attach its 2" x 2" Wood Side #2 facing top to part 70's 1" x 6" Wood Side #2. Also, connect its 2" x 2" Wood Side #3 oriented right links with part 93's 1" x 2" Wood Side #2, then its 2" x 2" Wood End #1 needs to point front, also ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 42" - Angle: back left

P33 (2" x 2" Lumber 42" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 31's 2" x 2" Wood Side #3, plus attach its 2" x 2" Wood Side #2 facing top to part 70's 1" x 6" Wood Side #2, plus connect its 2" x 2" Wood Side #3 oriented front links with part 88's 1" x 2" Wood Side #2. After that, attach its 2" x 2" Wood End #2 facing right to part 32's 2" x 2" Wood Side #1. After that, ensure its 2" x 2" Wood Side #1 faces back, and ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 42" - Angle: front right

P33 (2" x 2" Lumber 42" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 31's 2" x 2" Wood Side #3, plus attach its 2" x 2" Wood Side #2 facing top to part 70's 1" x 6" Wood Side #2, plus connect its 2" x 2" Wood Side #3 oriented front links with part 88's 1" x 2" Wood Side #2. After that, attach its 2" x 2" Wood End #2 facing right to part 32's 2" x 2" Wood Side #1. After that, ensure its 2" x 2" Wood Side #1 faces back, and ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 2" x 2" Lumber x 42" - Angle: bottom right

P33 (2" x 2" Lumber 42" length) - its 2" x 2" Wood End #1, which is left-facing, should connect to part 31's 2" x 2" Wood Side #3, plus attach its 2" x 2" Wood Side #2 facing top to part 70's 1" x 6" Wood Side #2, plus connect its 2" x 2" Wood Side #3 oriented front links with part 88's 1" x 2" Wood Side #2. After that, attach its 2" x 2" Wood End #2 facing right to part 32's 2" x 2" Wood Side #1. After that, ensure its 2" x 2" Wood Side #1 faces back, and ensure its 2" x 2" Wood Side #4 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: back left

P69 (1" x 6" Lumber 45" length) - its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 31's 2" x 2" Wood Side #2, also its 1" x 6" Wood Side #1 needs to point front, then its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: front right

P69 (1" x 6" Lumber 45" length) - its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 31's 2" x 2" Wood Side #2, also its 1" x 6" Wood Side #1 needs to point front, then its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P69 (1" x 6" Lumber 45" length) - its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 31's 2" x 2" Wood Side #2, also its 1" x 6" Wood Side #1 needs to point front, then its 1" x 6" Wood Side #4 should be directed top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: back left

P70 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 93's 1" x 2" Wood Side #2, plus its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 31's 2" x 2" Wood Side #2. After that, connect its 1" x 6" Wood Side #3 oriented front links with part 88's 1" x 2" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 83's 1" x 2" Wood Side #2. Also, its 1" x 6" Wood Side #1 needs to point back, then ensure its 1" x 6" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: front right

P70 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 93's 1" x 2" Wood Side #2, plus its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 31's 2" x 2" Wood Side #2. After that, connect its 1" x 6" Wood Side #3 oriented front links with part 88's 1" x 2" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 83's 1" x 2" Wood Side #2. Also, its 1" x 6" Wood Side #1 needs to point back, then ensure its 1" x 6" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P70 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 93's 1" x 2" Wood Side #2, plus its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 31's 2" x 2" Wood Side #2. After that, connect its 1" x 6" Wood Side #3 oriented front links with part 88's 1" x 2" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 83's 1" x 2" Wood Side #2. Also, its 1" x 6" Wood Side #1 needs to point back, then ensure its 1" x 6" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: back left

P71 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 95's 1" x 2" Wood Side #2, also attach its 1" x 6" Wood Side #2 facing bottom to part 31's 2" x 2" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 85's 1" x 2" Wood Side #2. Next, its 1" x 6" Wood Side #1 should be directed back. Also, its 1" x 6" Wood Side #3 must be oriented front. Also, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: front right

P71 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 95's 1" x 2" Wood Side #2, also attach its 1" x 6" Wood Side #2 facing bottom to part 31's 2" x 2" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 85's 1" x 2" Wood Side #2. Next, its 1" x 6" Wood Side #1 should be directed back. Also, its 1" x 6" Wood Side #3 must be oriented front. Also, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P71 (1" x 6" Lumber 45" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 95's 1" x 2" Wood Side #2, also attach its 1" x 6" Wood Side #2 facing bottom to part 31's 2" x 2" Wood Side #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 85's 1" x 2" Wood Side #2. Next, its 1" x 6" Wood Side #1 should be directed back. Also, its 1" x 6" Wood Side #3 must be oriented front. Also, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: back left

P72 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 96's 1" x 2" Wood Side #2. After that, connect its 1" x 6" Wood Side #2 oriented bottom links with part 31's 2" x 2" Wood Side #2. After that, its 1" x 6" Wood End #2, which is left-facing, should connect to part 84's 1" x 2" Wood Side #2. Next, its 1" x 6" Wood Side #1 needs to point back. Additionally, its 1" x 6" Wood Side #3 should be directed front. Additionally, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: front right

P72 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 96's 1" x 2" Wood Side #2. After that, connect its 1" x 6" Wood Side #2 oriented bottom links with part 31's 2" x 2" Wood Side #2. After that, its 1" x 6" Wood End #2, which is left-facing, should connect to part 84's 1" x 2" Wood Side #2. Next, its 1" x 6" Wood Side #1 needs to point back. Additionally, its 1" x 6" Wood Side #3 should be directed front. Additionally, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 6" Lumber x 45" - Angle: bottom right

P72 (1" x 6" Lumber 45" length) - attach its 1" x 6" Wood End #1 facing right to part 96's 1" x 2" Wood Side #2. After that, connect its 1" x 6" Wood Side #2 oriented bottom links with part 31's 2" x 2" Wood Side #2. After that, its 1" x 6" Wood End #2, which is left-facing, should connect to part 84's 1" x 2" Wood Side #2. Next, its 1" x 6" Wood Side #1 needs to point back. Additionally, its 1" x 6" Wood Side #3 should be directed front. Additionally, its 1" x 6" Wood Side #4 needs to point top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P83 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 31's 2" x 2" Wood Side #1, then its 1" x 2" Wood End #2, which is top-facing, should connect to part 87's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 should be directed bottom, then its 1" x 2" Wood Side #1 must be oriented front. Additionally, its 1" x 2" Wood Side #3 needs to point back. Next, ensure its 1" x 2" Wood Side #4 faces left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P83 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 31's 2" x 2" Wood Side #1, then its 1" x 2" Wood End #2, which is top-facing, should connect to part 87's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 should be directed bottom, then its 1" x 2" Wood Side #1 must be oriented front. Additionally, its 1" x 2" Wood Side #3 needs to point back. Next, ensure its 1" x 2" Wood Side #4 faces left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P83 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 31's 2" x 2" Wood Side #1, then its 1" x 2" Wood End #2, which is top-facing, should connect to part 87's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 should be directed bottom, then its 1" x 2" Wood Side #1 must be oriented front. Additionally, its 1" x 2" Wood Side #3 needs to point back. Next, ensure its 1" x 2" Wood Side #4 faces left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P84 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 31's 2" x 2" Wood Side #1. After that, attach its 1" x 2" Wood End #2 facing top to part 87's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 must be oriented front, plus its 1" x 2" Wood Side #3 must be oriented back. Next, its 1" x 2" Wood Side #4 must be oriented left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P84 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 31's 2" x 2" Wood Side #1. After that, attach its 1" x 2" Wood End #2 facing top to part 87's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 must be oriented front, plus its 1" x 2" Wood Side #3 must be oriented back. Next, its 1" x 2" Wood Side #4 must be oriented left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P84 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 31's 2" x 2" Wood Side #1. After that, attach its 1" x 2" Wood End #2 facing top to part 87's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 must be oriented front, plus its 1" x 2" Wood Side #3 must be oriented back. Next, its 1" x 2" Wood Side #4 must be oriented left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P85 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 31's 2" x 2" Wood Side #1, also its 1" x 2" Wood End #2, which is top-facing, should connect to part 87's 1" x 2" Wood Side #2, and ensure its 1" x 2" Wood End #1 faces bottom, then its 1" x 2" Wood Side #1 needs to point front. After that, its 1" x 2" Wood Side #3 needs to point back, and its 1" x 2" Wood Side #4 should be directed left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P85 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 31's 2" x 2" Wood Side #1, also its 1" x 2" Wood End #2, which is top-facing, should connect to part 87's 1" x 2" Wood Side #2, and ensure its 1" x 2" Wood End #1 faces bottom, then its 1" x 2" Wood Side #1 needs to point front. After that, its 1" x 2" Wood Side #3 needs to point back, and its 1" x 2" Wood Side #4 should be directed left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P85 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 31's 2" x 2" Wood Side #1, also its 1" x 2" Wood End #2, which is top-facing, should connect to part 87's 1" x 2" Wood Side #2, and ensure its 1" x 2" Wood End #1 faces bottom, then its 1" x 2" Wood Side #1 needs to point front. After that, its 1" x 2" Wood Side #3 needs to point back, and its 1" x 2" Wood Side #4 should be directed left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P86 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 31's 2" x 2" Wood Side #1, plus attach its 1" x 2" Wood End #2 facing top to part 87's 1" x 2" Wood Side #2, and its 1" x 2" Wood End #1 must be oriented bottom. Additionally, ensure its 1" x 2" Wood Side #1 faces front. After that, its 1" x 2" Wood Side #3 should be directed back, also its 1" x 2" Wood Side #4 must be oriented left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P86 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 31's 2" x 2" Wood Side #1, plus attach its 1" x 2" Wood End #2 facing top to part 87's 1" x 2" Wood Side #2, and its 1" x 2" Wood End #1 must be oriented bottom. Additionally, ensure its 1" x 2" Wood Side #1 faces front. After that, its 1" x 2" Wood Side #3 should be directed back, also its 1" x 2" Wood Side #4 must be oriented left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P86 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 31's 2" x 2" Wood Side #1, plus attach its 1" x 2" Wood End #2 facing top to part 87's 1" x 2" Wood Side #2, and its 1" x 2" Wood End #1 must be oriented bottom. Additionally, ensure its 1" x 2" Wood Side #1 faces front. After that, its 1" x 2" Wood Side #3 should be directed back, also its 1" x 2" Wood Side #4 must be oriented left

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 25.5" - Angle: back left

P87 (1" x 2" Lumber 25.5" length) - attach its 1" x 2" Wood Side #1 facing right to part 92's 1" x 2" Wood End #2. Also, connect its 1" x 2" Wood Side #2 oriented bottom links with part 85's 1" x 2" Wood End #2. After that, its 1" x 2" Wood End #1 needs to point front, then its 1" x 2" Wood Side #3 must be oriented left, and ensure its 1" x 2" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 25.5" - Angle: front right

P87 (1" x 2" Lumber 25.5" length) - attach its 1" x 2" Wood Side #1 facing right to part 92's 1" x 2" Wood End #2. Also, connect its 1" x 2" Wood Side #2 oriented bottom links with part 85's 1" x 2" Wood End #2. After that, its 1" x 2" Wood End #1 needs to point front, then its 1" x 2" Wood Side #3 must be oriented left, and ensure its 1" x 2" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 25.5" - Angle: bottom right

P87 (1" x 2" Lumber 25.5" length) - attach its 1" x 2" Wood Side #1 facing right to part 92's 1" x 2" Wood End #2. Also, connect its 1" x 2" Wood Side #2 oriented bottom links with part 85's 1" x 2" Wood End #2. After that, its 1" x 2" Wood End #1 needs to point front, then its 1" x 2" Wood Side #3 must be oriented left, and ensure its 1" x 2" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P88 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented back links with part 33's 2" x 2" Wood Side #3. After that, connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom, and its 1" x 2" Wood Side #1 should be directed right. Additionally, its 1" x 2" Wood Side #3 must be oriented left, then its 1" x 2" Wood Side #4 needs to point front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P88 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented back links with part 33's 2" x 2" Wood Side #3. After that, connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom, and its 1" x 2" Wood Side #1 should be directed right. Additionally, its 1" x 2" Wood Side #3 must be oriented left, then its 1" x 2" Wood Side #4 needs to point front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P88 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented back links with part 33's 2" x 2" Wood Side #3. After that, connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom, and its 1" x 2" Wood Side #1 should be directed right. Additionally, its 1" x 2" Wood Side #3 must be oriented left, then its 1" x 2" Wood Side #4 needs to point front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P89 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is back-facing, should connect to part 33's 2" x 2" Wood Side #3, also connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood End #1 needs to point bottom. Next, its 1" x 2" Wood Side #1 must be oriented right, plus ensure its 1" x 2" Wood Side #3 faces left. After that, ensure its 1" x 2" Wood Side #4 faces front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P89 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is back-facing, should connect to part 33's 2" x 2" Wood Side #3, also connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood End #1 needs to point bottom. Next, its 1" x 2" Wood Side #1 must be oriented right, plus ensure its 1" x 2" Wood Side #3 faces left. After that, ensure its 1" x 2" Wood Side #4 faces front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P89 (1" x 2" Lumber 17" length) - its 1" x 2" Wood Side #2, which is back-facing, should connect to part 33's 2" x 2" Wood Side #3, also connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood End #1 needs to point bottom. Next, its 1" x 2" Wood Side #1 must be oriented right, plus ensure its 1" x 2" Wood Side #3 faces left. After that, ensure its 1" x 2" Wood Side #4 faces front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P90 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood Side #2 facing back to part 33's 2" x 2" Wood Side #3, also connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 should be directed bottom, also its 1" x 2" Wood Side #1 needs to point right, plus its 1" x 2" Wood Side #3 must be oriented left. Also, its 1" x 2" Wood Side #4 should be directed front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P90 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood Side #2 facing back to part 33's 2" x 2" Wood Side #3, also connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 should be directed bottom, also its 1" x 2" Wood Side #1 needs to point right, plus its 1" x 2" Wood Side #3 must be oriented left. Also, its 1" x 2" Wood Side #4 should be directed front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P90 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood Side #2 facing back to part 33's 2" x 2" Wood Side #3, also connect its 1" x 2" Wood End #2 oriented top links with part 92's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 should be directed bottom, also its 1" x 2" Wood Side #1 needs to point right, plus its 1" x 2" Wood Side #3 must be oriented left. Also, its 1" x 2" Wood Side #4 should be directed front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P91 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood Side #2 facing back to part 33's 2" x 2" Wood Side #3. Additionally, its 1" x 2" Wood End #2, which is top-facing, should connect to part 92's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood End #1 must be oriented bottom. Additionally, ensure its 1" x 2" Wood Side #1 faces right. Additionally, its 1" x 2" Wood Side #3 should be directed left. Additionally, ensure its 1" x 2" Wood Side #4 faces front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P91 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood Side #2 facing back to part 33's 2" x 2" Wood Side #3. Additionally, its 1" x 2" Wood End #2, which is top-facing, should connect to part 92's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood End #1 must be oriented bottom. Additionally, ensure its 1" x 2" Wood Side #1 faces right. Additionally, its 1" x 2" Wood Side #3 should be directed left. Additionally, ensure its 1" x 2" Wood Side #4 faces front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P91 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood Side #2 facing back to part 33's 2" x 2" Wood Side #3. Additionally, its 1" x 2" Wood End #2, which is top-facing, should connect to part 92's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood End #1 must be oriented bottom. Additionally, ensure its 1" x 2" Wood Side #1 faces right. Additionally, its 1" x 2" Wood Side #3 should be directed left. Additionally, ensure its 1" x 2" Wood Side #4 faces front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 24.5" - Angle: back left

P92 (1" x 2" Lumber 24.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 88's 1" x 2" Wood End #2, also connect its 1" x 2" Wood End #2 oriented left links with part 87's 1" x 2" Wood Side #1. Also, its 1" x 2" Wood End #1 needs to point right, plus its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 needs to point front. Next, ensure its 1" x 2" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 24.5" - Angle: front right

P92 (1" x 2" Lumber 24.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 88's 1" x 2" Wood End #2, also connect its 1" x 2" Wood End #2 oriented left links with part 87's 1" x 2" Wood Side #1. Also, its 1" x 2" Wood End #1 needs to point right, plus its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 needs to point front. Next, ensure its 1" x 2" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 24.5" - Angle: bottom right

P92 (1" x 2" Lumber 24.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 88's 1" x 2" Wood End #2, also connect its 1" x 2" Wood End #2 oriented left links with part 87's 1" x 2" Wood Side #1. Also, its 1" x 2" Wood End #1 needs to point right, plus its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 needs to point front. Next, ensure its 1" x 2" Wood Side #4 faces top

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P93 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3, and connect its 1" x 2" Wood End #2 oriented top links with part 94's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 needs to point front, and its 1" x 2" Wood Side #4 needs to point right

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P93 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3, and connect its 1" x 2" Wood End #2 oriented top links with part 94's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 needs to point front, and its 1" x 2" Wood Side #4 needs to point right

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P93 (1" x 2" Lumber 17" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3, and connect its 1" x 2" Wood End #2 oriented top links with part 94's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 needs to point front, and its 1" x 2" Wood Side #4 needs to point right

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 25" - Angle: back left

P94 (1" x 2" Lumber 25" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 93's 1" x 2" Wood End #2, and its 1" x 2" Wood Side #1 must be oriented left, plus its 1" x 2" Wood Side #3 must be oriented right, also ensure its 1" x 2" Wood Side #4 faces top. After that, its 1" x 2" Wood End #2 should be directed front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 25" - Angle: front right

P94 (1" x 2" Lumber 25" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 93's 1" x 2" Wood End #2, and its 1" x 2" Wood Side #1 must be oriented left, plus its 1" x 2" Wood Side #3 must be oriented right, also ensure its 1" x 2" Wood Side #4 faces top. After that, its 1" x 2" Wood End #2 should be directed front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 25" - Angle: bottom right

P94 (1" x 2" Lumber 25" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 93's 1" x 2" Wood End #2, and its 1" x 2" Wood Side #1 must be oriented left, plus its 1" x 2" Wood Side #3 must be oriented right, also ensure its 1" x 2" Wood Side #4 faces top. After that, its 1" x 2" Wood End #2 should be directed front

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P95 (1" x 2" Lumber 17" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 94's 1" x 2" Wood Side #2, and connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3. After that, ensure its 1" x 2" Wood Side #1 faces front, then its 1" x 2" Wood Side #3 should be directed back. Also, its 1" x 2" Wood Side #4 must be oriented right. Also, its 1" x 2" Wood End #2 needs to point bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P95 (1" x 2" Lumber 17" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 94's 1" x 2" Wood Side #2, and connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3. After that, ensure its 1" x 2" Wood Side #1 faces front, then its 1" x 2" Wood Side #3 should be directed back. Also, its 1" x 2" Wood Side #4 must be oriented right. Also, its 1" x 2" Wood End #2 needs to point bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P95 (1" x 2" Lumber 17" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 94's 1" x 2" Wood Side #2, and connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3. After that, ensure its 1" x 2" Wood Side #1 faces front, then its 1" x 2" Wood Side #3 should be directed back. Also, its 1" x 2" Wood Side #4 must be oriented right. Also, its 1" x 2" Wood End #2 needs to point bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P96 (1" x 2" Lumber 17" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 94's 1" x 2" Wood Side #2, also connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3. Also, its 1" x 2" Wood Side #1 must be oriented front. Also, ensure its 1" x 2" Wood Side #3 faces back. After that, its 1" x 2" Wood Side #4 needs to point right, and ensure its 1" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P96 (1" x 2" Lumber 17" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 94's 1" x 2" Wood Side #2, also connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3. Also, its 1" x 2" Wood Side #1 must be oriented front. Also, ensure its 1" x 2" Wood Side #3 faces back. After that, its 1" x 2" Wood Side #4 needs to point right, and ensure its 1" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P96 (1" x 2" Lumber 17" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 94's 1" x 2" Wood Side #2, also connect its 1" x 2" Wood Side #2 oriented left links with part 32's 2" x 2" Wood Side #3. Also, its 1" x 2" Wood Side #1 must be oriented front. Also, ensure its 1" x 2" Wood Side #3 faces back. After that, its 1" x 2" Wood Side #4 needs to point right, and ensure its 1" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: back left

P97 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood End #1 facing top to part 94's 1" x 2" Wood Side #2. After that, its 1" x 2" Wood Side #2, which is left-facing, should connect to part 32's 2" x 2" Wood Side #3, also its 1" x 2" Wood Side #1 should be directed front. Additionally, its 1" x 2" Wood Side #3 needs to point back, then ensure its 1" x 2" Wood Side #4 faces right, also ensure its 1" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: front right

P97 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood End #1 facing top to part 94's 1" x 2" Wood Side #2. After that, its 1" x 2" Wood Side #2, which is left-facing, should connect to part 32's 2" x 2" Wood Side #3, also its 1" x 2" Wood Side #1 should be directed front. Additionally, its 1" x 2" Wood Side #3 needs to point back, then ensure its 1" x 2" Wood Side #4 faces right, also ensure its 1" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Part: 1" x 2" Lumber x 17" - Angle: bottom right

P97 (1" x 2" Lumber 17" length) - attach its 1" x 2" Wood End #1 facing top to part 94's 1" x 2" Wood Side #2. After that, its 1" x 2" Wood Side #2, which is left-facing, should connect to part 32's 2" x 2" Wood Side #3, also its 1" x 2" Wood Side #1 should be directed front. Additionally, its 1" x 2" Wood Side #3 needs to point back, then ensure its 1" x 2" Wood Side #4 faces right, also ensure its 1" x 2" Wood End #2 faces bottom

2" x 2" Lumber x 25"x 2

2" x 2" Lumber x 42"x 1

1" x 6" Lumber x 45"x 4

1" x 2" Lumber x 17"x 12

1" x 2" Lumber x 25.5"x 1

1" x 2" Lumber x 24.5"x 1

1" x 2" Lumber x 25"x 1

Group: Exterior Wall Siding and Trim

Adds the final exterior wall planks and decorative trim to complete the look of the dog house.

Install the siding planks onto the main structure's walls. Use P40, P41, P42, P43 for the back wall. Use P51, P52, P53, P54 for the left wall. Use P46, P47, P48, P49 for the right wall. Finish the assembly by attaching the various trim pieces (P60, P61, P62, P63, P64, P65, P66, P67, P68, P105) around the base, walls, and porch to cover joints and add detail.

Part: 1" x 4" Lumber x 45" - Angle: back left

P40 (1" x 4" Lumber 45" length) - connect its 1" x 4" Wood End #1 oriented right links with part 49's 1" x 4" Wood Side #2, also its 1" x 4" Wood End #2, which is left-facing, should connect to part 54's 1" x 4" Wood Side #2. Next, its 1" x 4" Wood Side #1 should be directed bottom. Also, its 1" x 4" Wood Side #3 needs to point top, and its 1" x 4" Wood Side #4 must be oriented back

1" x 4" Lumber x 45"x 4

1" x 4" Lumber x 42.25"x 8

1" x 4" Lumber x 6.75"x 10
