PVC Greenhouse 1.1 - Comprehensive Assembly Plan And Visual Guide
A greenhouse frame constructed from PVC pipes and various fittings (Tees, Elbows, Crosses, 3-Way Corners). It features a rectangular base, vertical wall supports, and a pitched roof structure. - PVC Greenhouse Frame

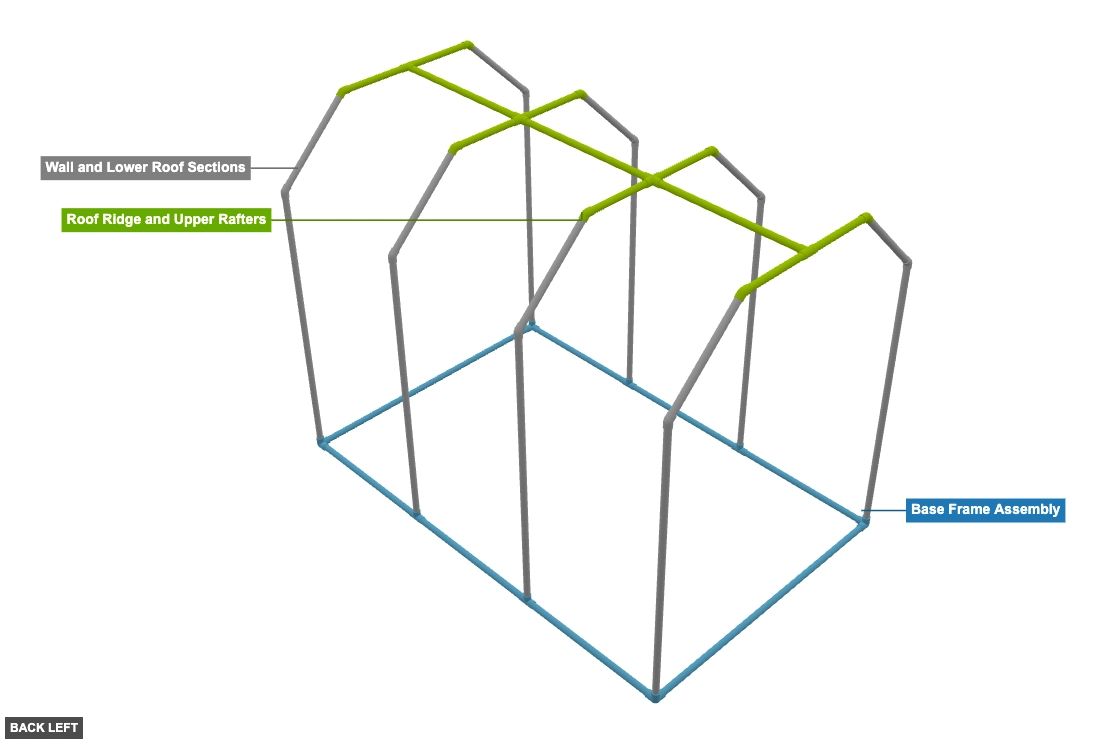

Phase 1: Group Overview

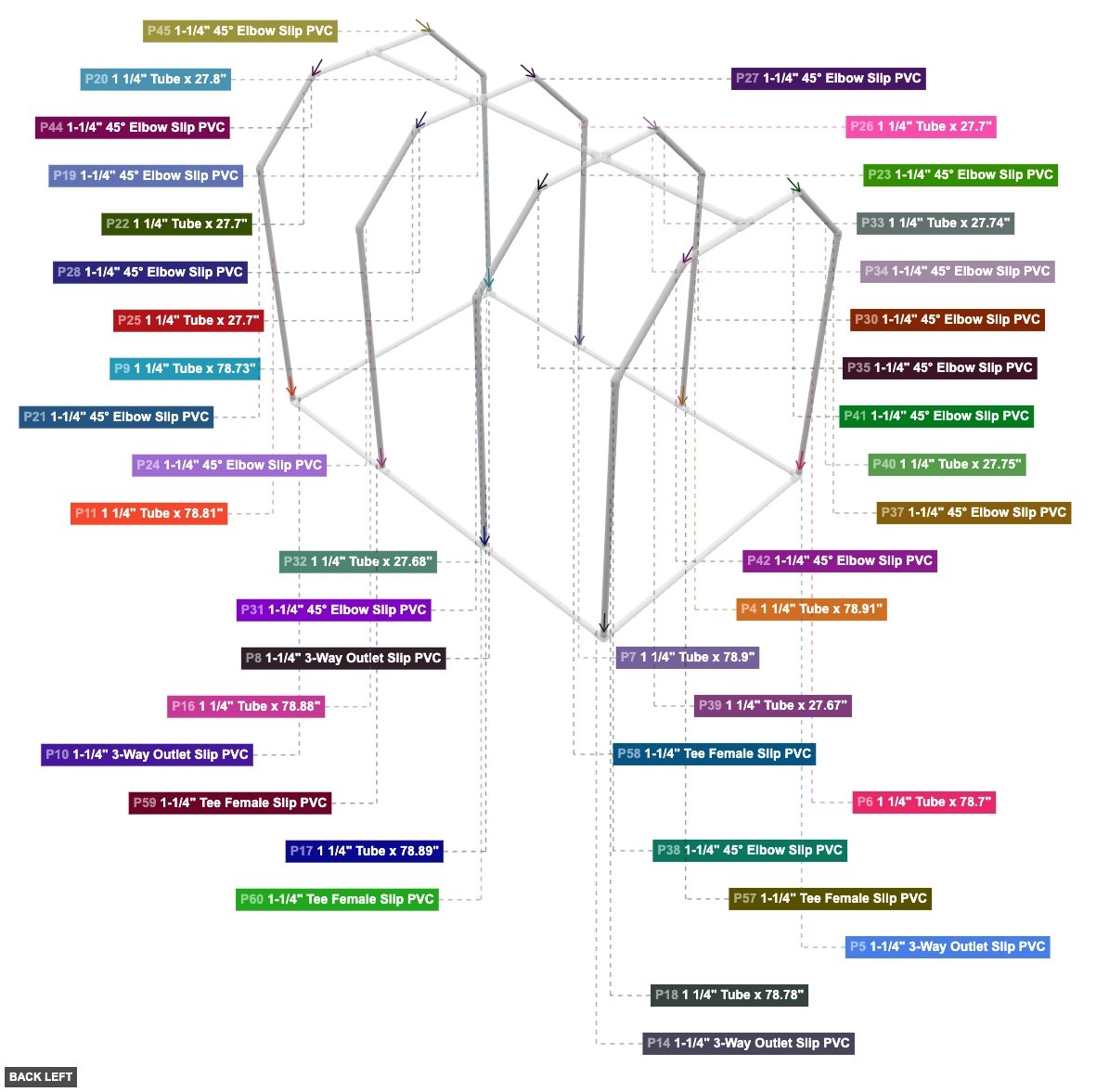

Angle: back left
Base Frame Assembly
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.21"x 3
1-1/4" 3-Way Outlet Slip PVCx 4
1 1/4" Tube x 78.45"x 1
1-1/4" Tee Female Slip PVCx 4
1 1/4" Tube x 40.42"x 1
1 1/4" Tube x 40.59"x 1Wall and Lower Roof Sections
1 1/4" Tube x 78.91"x 1
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 78.9"x 1
1 1/4" Tube x 78.73"x 1
1 1/4" Tube x 78.81"x 1
1 1/4" Tube x 78.88"x 1
1 1/4" Tube x 78.89"x 1
1 1/4" Tube x 78.78"x 1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 27.8"x 1
1 1/4" Tube x 27.7"x 3
1 1/4" Tube x 27.68"x 1
1 1/4" Tube x 27.74"x 1
1 1/4" Tube x 27.67"x 1
1 1/4" Tube x 27.75"x 1Roof Ridge and Upper Rafters
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 18.96"x 1
1 1/4" Tube x 18.97"x 1
1 1/4" Tube x 19.2"x 1
1-1/4" Tee Female Slip PVCx 2
1 1/4" Tube x 19.3"x 1
1 1/4" Tube x 18.48"x 2
1-1/4" Cross Slip PVCx 2
1 1/4" Tube x 40.23"x 1
1 1/4" Tube x 18.68"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.09"x 1
1 1/4" Tube x 18.79"x 1

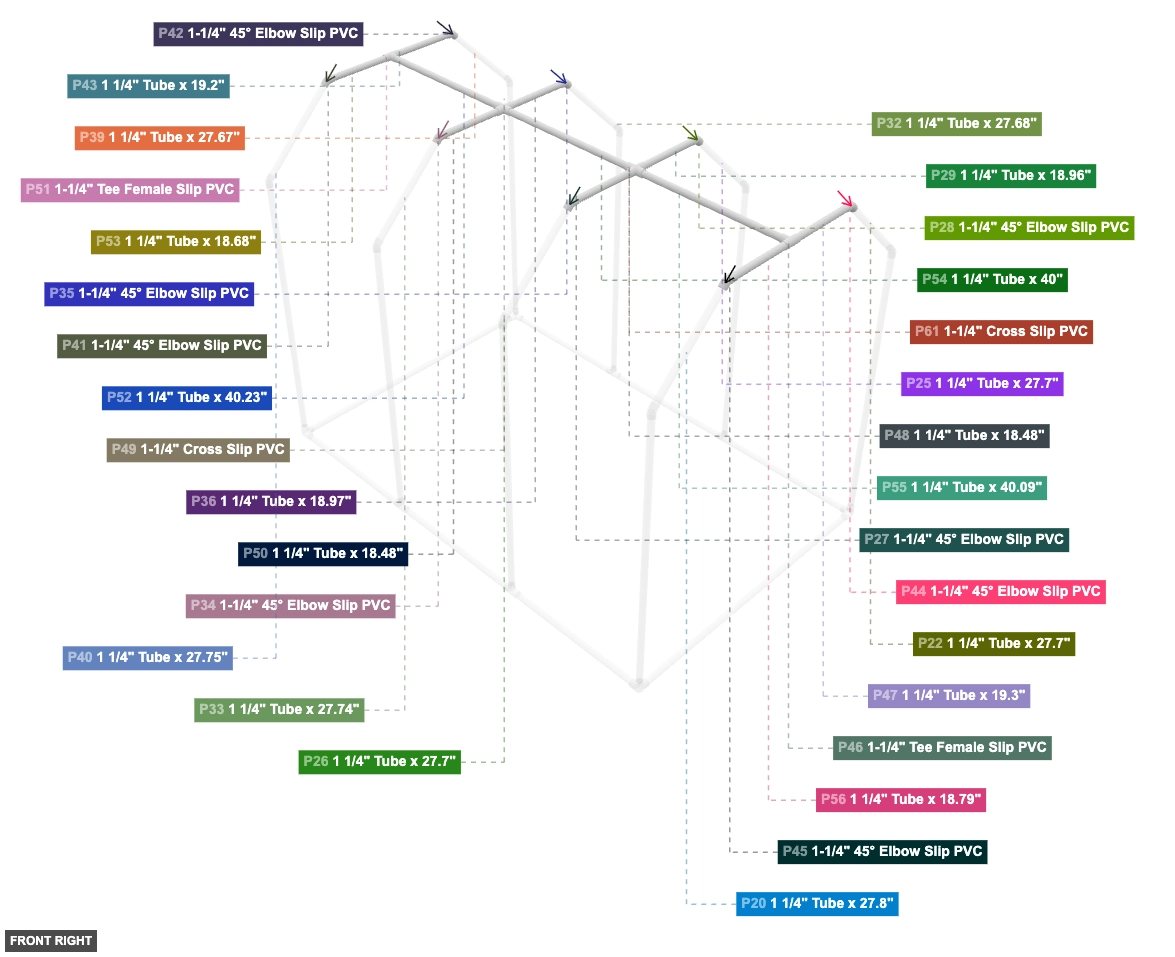

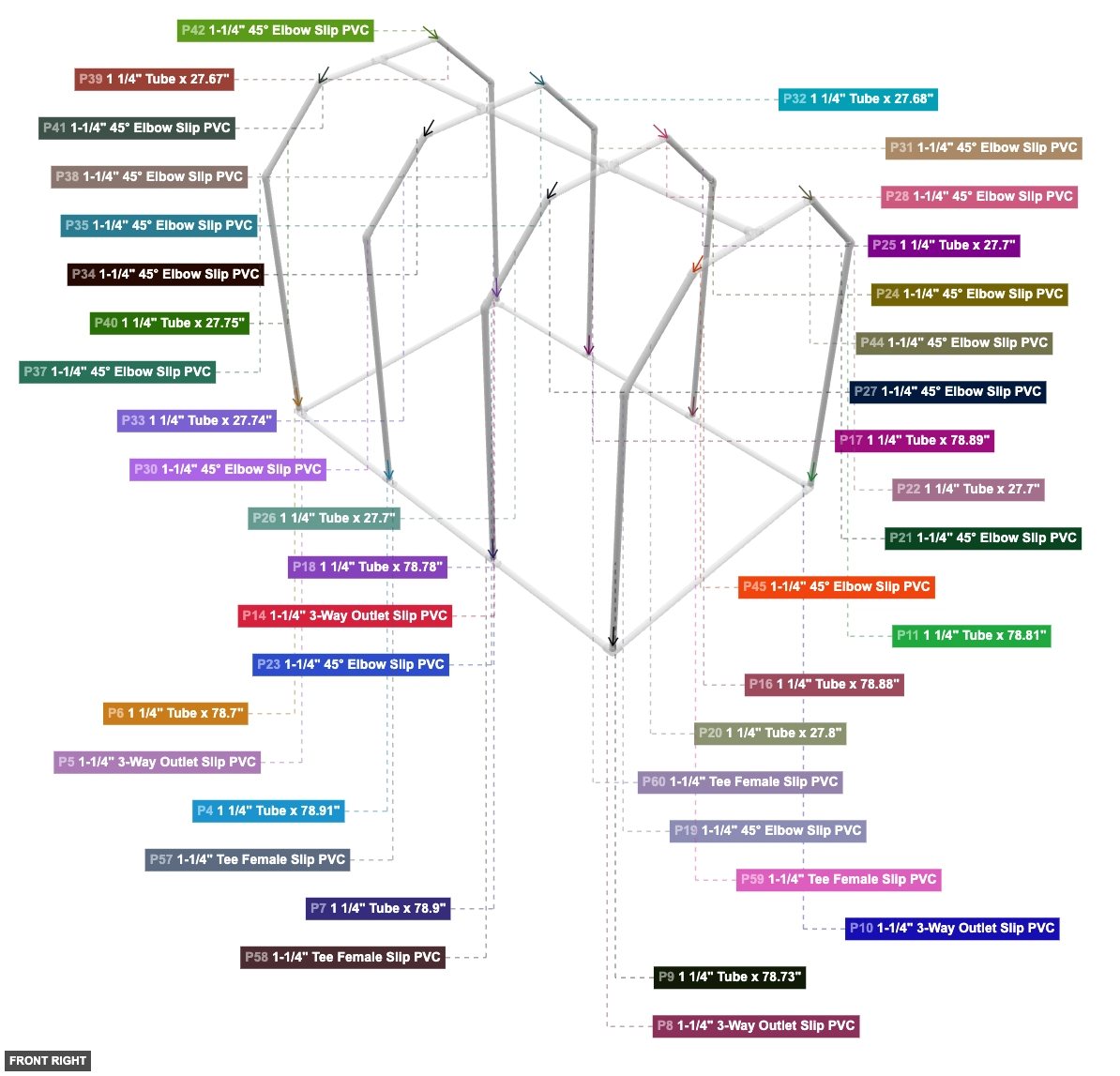

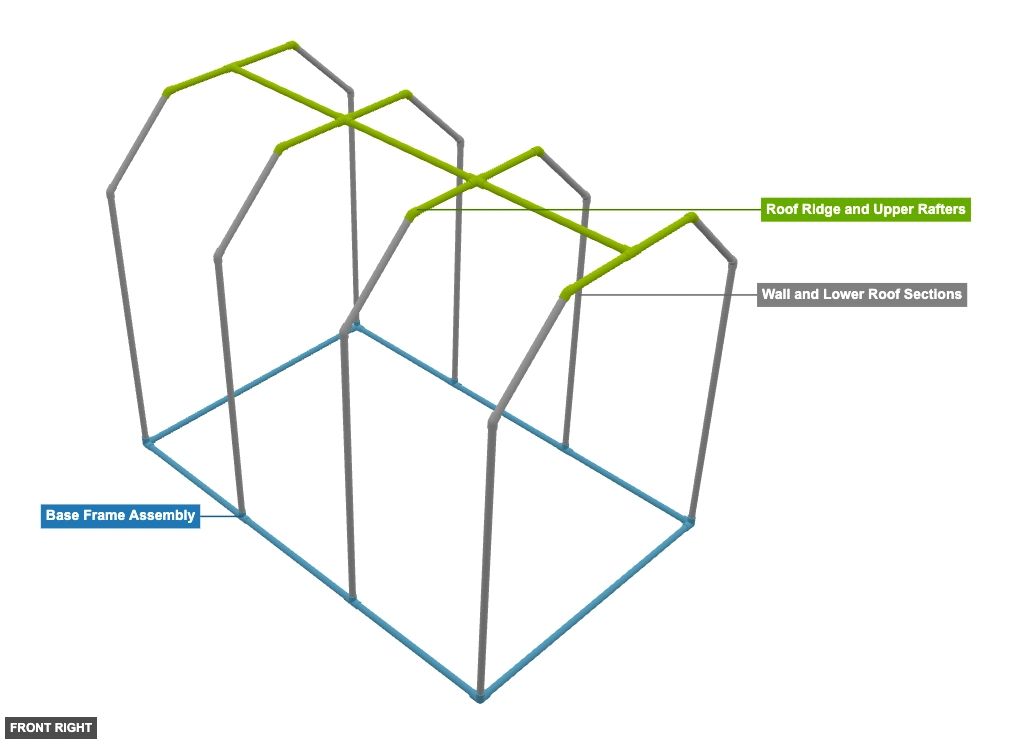

Angle: front right
Base Frame Assembly
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.21"x 3
1-1/4" 3-Way Outlet Slip PVCx 4
1 1/4" Tube x 78.45"x 1
1-1/4" Tee Female Slip PVCx 4
1 1/4" Tube x 40.42"x 1
1 1/4" Tube x 40.59"x 1Wall and Lower Roof Sections
1 1/4" Tube x 78.91"x 1
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 78.9"x 1
1 1/4" Tube x 78.73"x 1
1 1/4" Tube x 78.81"x 1
1 1/4" Tube x 78.88"x 1
1 1/4" Tube x 78.89"x 1
1 1/4" Tube x 78.78"x 1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 27.8"x 1
1 1/4" Tube x 27.7"x 3
1 1/4" Tube x 27.68"x 1
1 1/4" Tube x 27.74"x 1
1 1/4" Tube x 27.67"x 1
1 1/4" Tube x 27.75"x 1Roof Ridge and Upper Rafters
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 18.96"x 1
1 1/4" Tube x 18.97"x 1
1 1/4" Tube x 19.2"x 1
1-1/4" Tee Female Slip PVCx 2
1 1/4" Tube x 19.3"x 1
1 1/4" Tube x 18.48"x 2
1-1/4" Cross Slip PVCx 2
1 1/4" Tube x 40.23"x 1
1 1/4" Tube x 18.68"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.09"x 1
1 1/4" Tube x 18.79"x 1

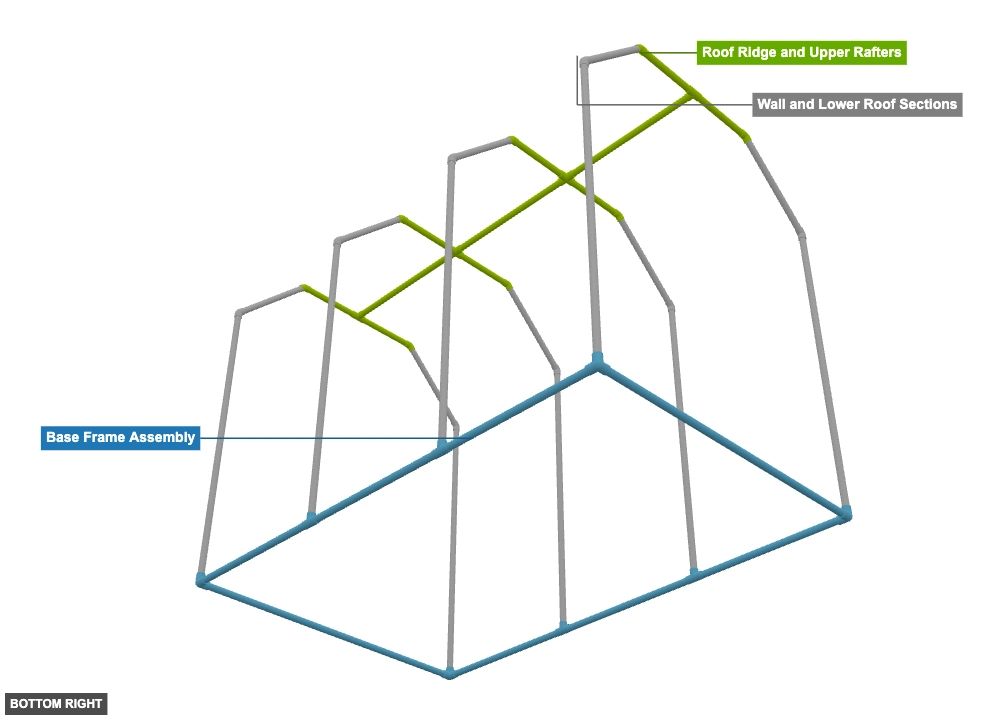

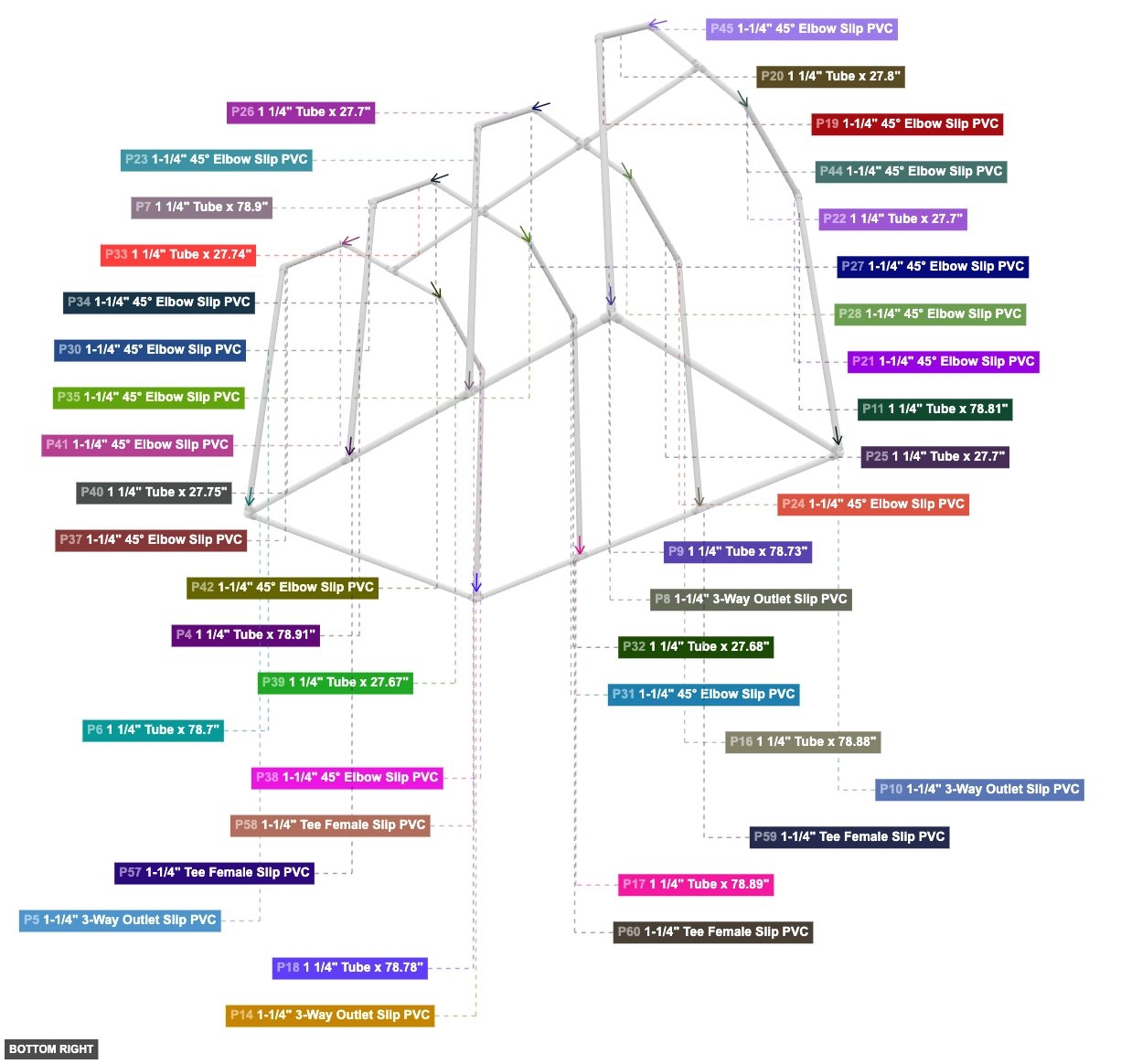

Angle: bottom right
Base Frame Assembly
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.21"x 3
1-1/4" 3-Way Outlet Slip PVCx 4
1 1/4" Tube x 78.45"x 1
1-1/4" Tee Female Slip PVCx 4
1 1/4" Tube x 40.42"x 1
1 1/4" Tube x 40.59"x 1Wall and Lower Roof Sections
1 1/4" Tube x 78.91"x 1
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 78.9"x 1
1 1/4" Tube x 78.73"x 1
1 1/4" Tube x 78.81"x 1
1 1/4" Tube x 78.88"x 1
1 1/4" Tube x 78.89"x 1
1 1/4" Tube x 78.78"x 1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 27.8"x 1
1 1/4" Tube x 27.7"x 3
1 1/4" Tube x 27.68"x 1
1 1/4" Tube x 27.74"x 1
1 1/4" Tube x 27.67"x 1
1 1/4" Tube x 27.75"x 1Roof Ridge and Upper Rafters
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 18.96"x 1
1 1/4" Tube x 18.97"x 1
1 1/4" Tube x 19.2"x 1
1-1/4" Tee Female Slip PVCx 2
1 1/4" Tube x 19.3"x 1
1 1/4" Tube x 18.48"x 2
1-1/4" Cross Slip PVCx 2
1 1/4" Tube x 40.23"x 1
1 1/4" Tube x 18.68"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.09"x 1
1 1/4" Tube x 18.79"x 1
Phase 2: Individual Group Assembly
Group: Base Frame Assembly
Forms the rectangular foundation of the greenhouse structure.

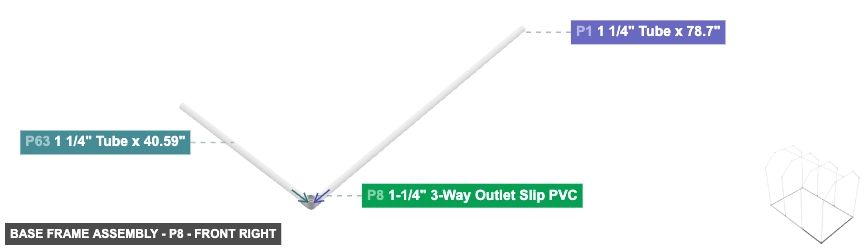

1. Connect P63 (Tube 40.59") between P8 (3-Way Corner) Female SLIP 1 1/4" (left facing) and P58 (Tee) Female SLIP 1 1/4" (right facing).
2. Connect P62 (Tube 40.42") between P58 (Tee) Female SLIP 1 1/4" (left facing) and P57 (Tee) Female SLIP 1 1/4" (right facing).
3. Connect P3 (Tube 40.21") between P57 (Tee) Female SLIP 1 1/4" (left facing) and P5 (3-Way Corner) Female SLIP 1 1/4" (right facing).

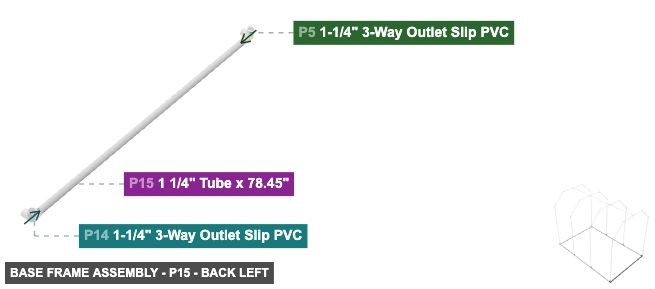

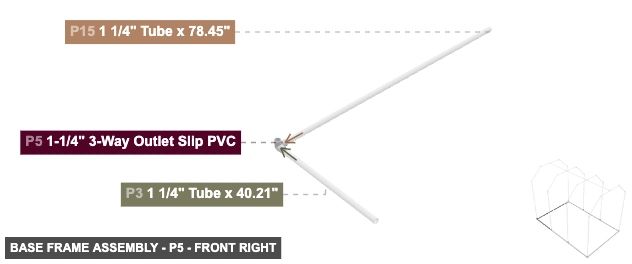

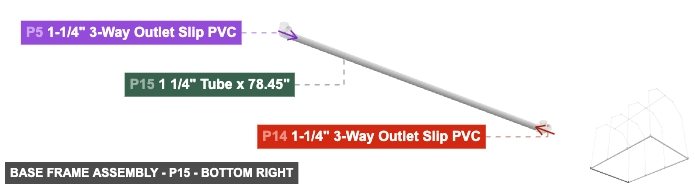

4. Connect P15 (Tube 78.45") between P5 (3-Way Corner) Female SLIP 1 1/4" (back facing) and P14 (3-Way Corner) Female SLIP 1 1/4" (front facing).

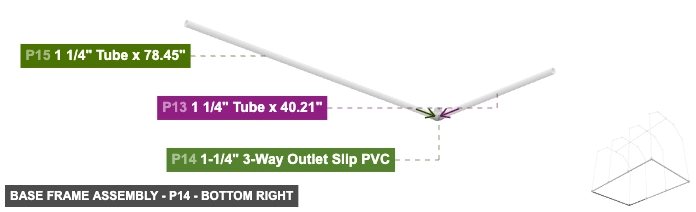

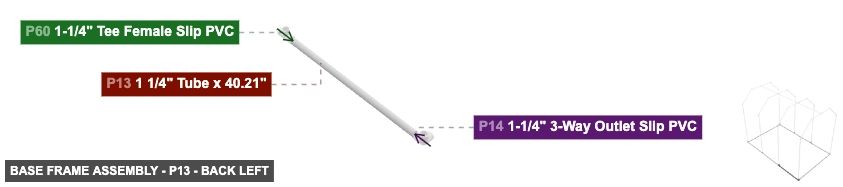

5. Connect P13 (Tube 40.21") between P14 (3-Way Corner) Female SLIP 1 1/4" (right facing) and P60 (Tee) Female SLIP 1 1/4" (left facing).

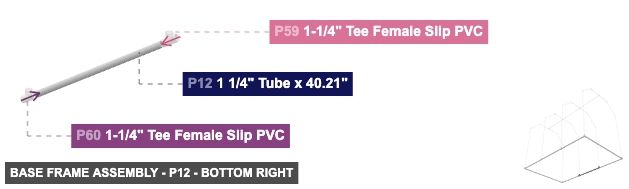

6. Connect P12 (Tube 40.21") between P60 (Tee) Female SLIP 1 1/4" (right facing) and P59 (Tee) Female SLIP 1 1/4" (left facing).

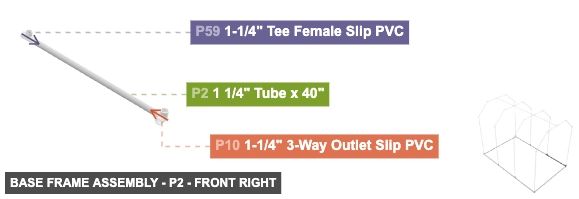

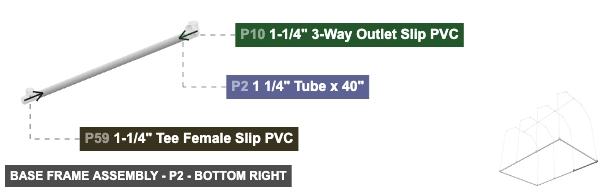

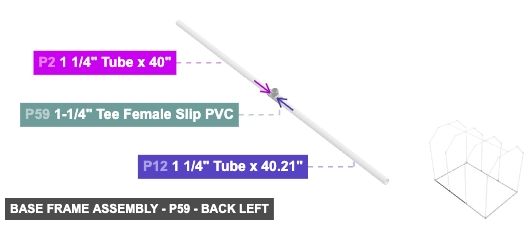

7. Connect P2 (Tube 40") between P59 (Tee) Female SLIP 1 1/4" (right facing) and P10 (3-Way Corner) Female SLIP 1 1/4" (left facing).

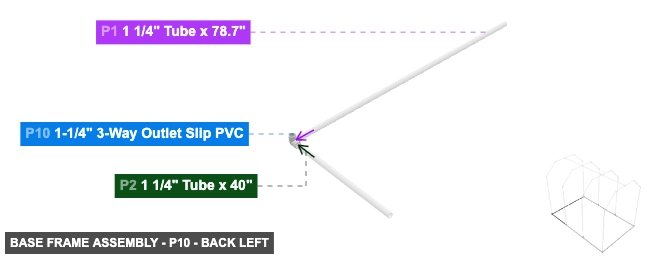

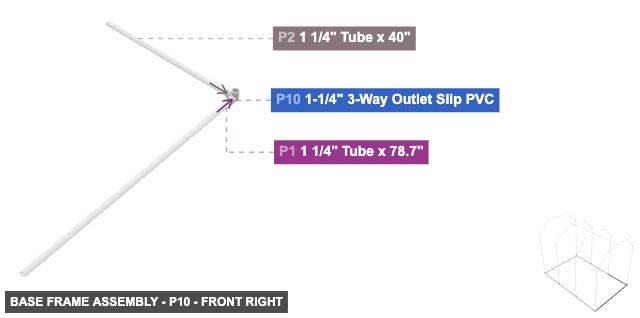

8. Connect P1 (Tube 78.7") between P10 (3-Way Corner) Female SLIP 1 1/4" (back facing) and P8 (3-Way Corner) Female SLIP 1 1/4" (front facing).

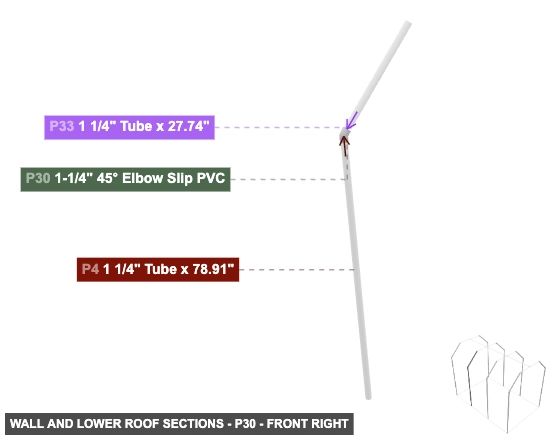

Group: Wall and Lower Roof Sections
Creates the vertical walls and the initial upward slope of the roof structure.
1. For each vertical tube (P4, P6, P7, P9, P11, P16, P17, P18), attach the corresponding lower 45° Elbow (P30, P37, P23, P19, P21, P24, P31, P38) to its top end.
2. Connect the corresponding lower angled roof tube (P33, P40, P26, P20, P22, P25, P32, P39) into the upper socket (Female SLIP 1 1/4") of each elbow, ensuring correct orientation (e.g., P40 connects to P37's back-top socket, P22 connects to P21's front-top socket).

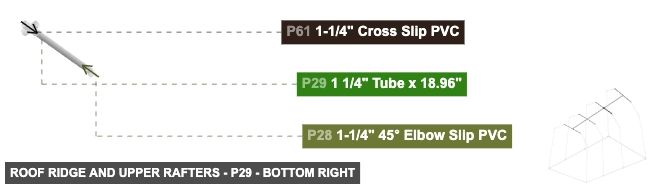

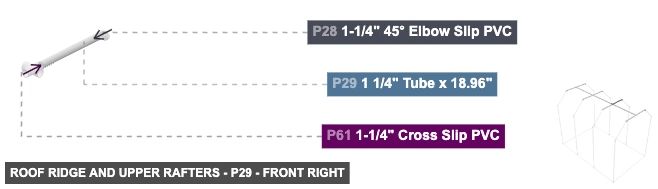

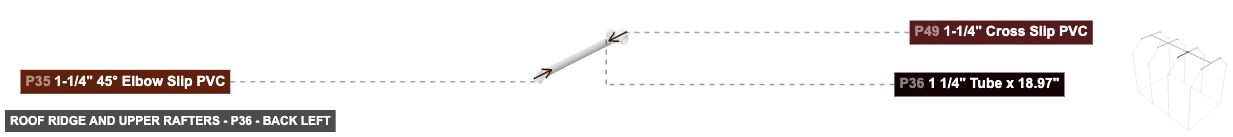

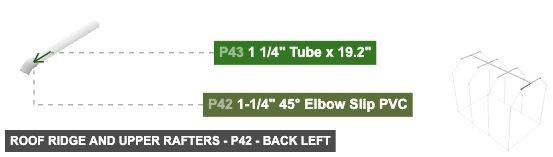

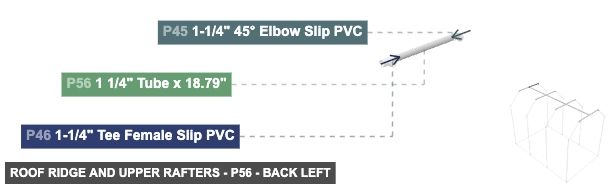

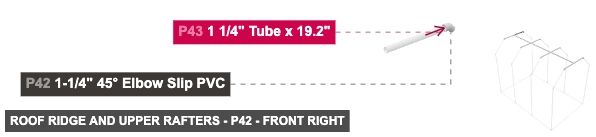

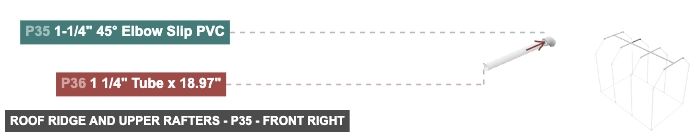

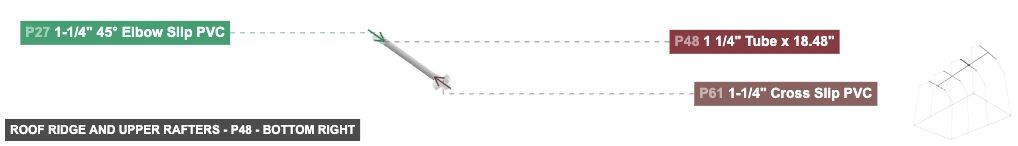

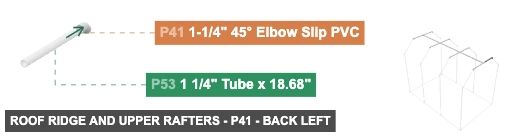

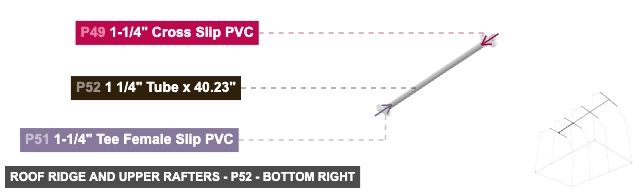

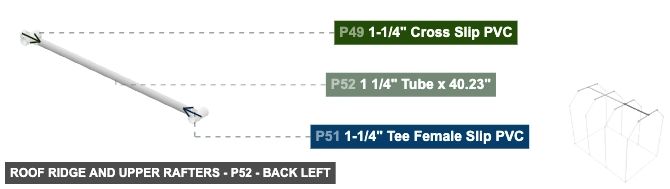

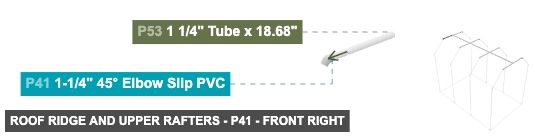

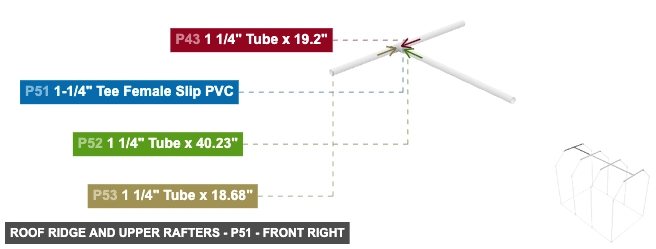

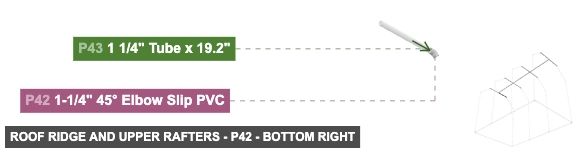

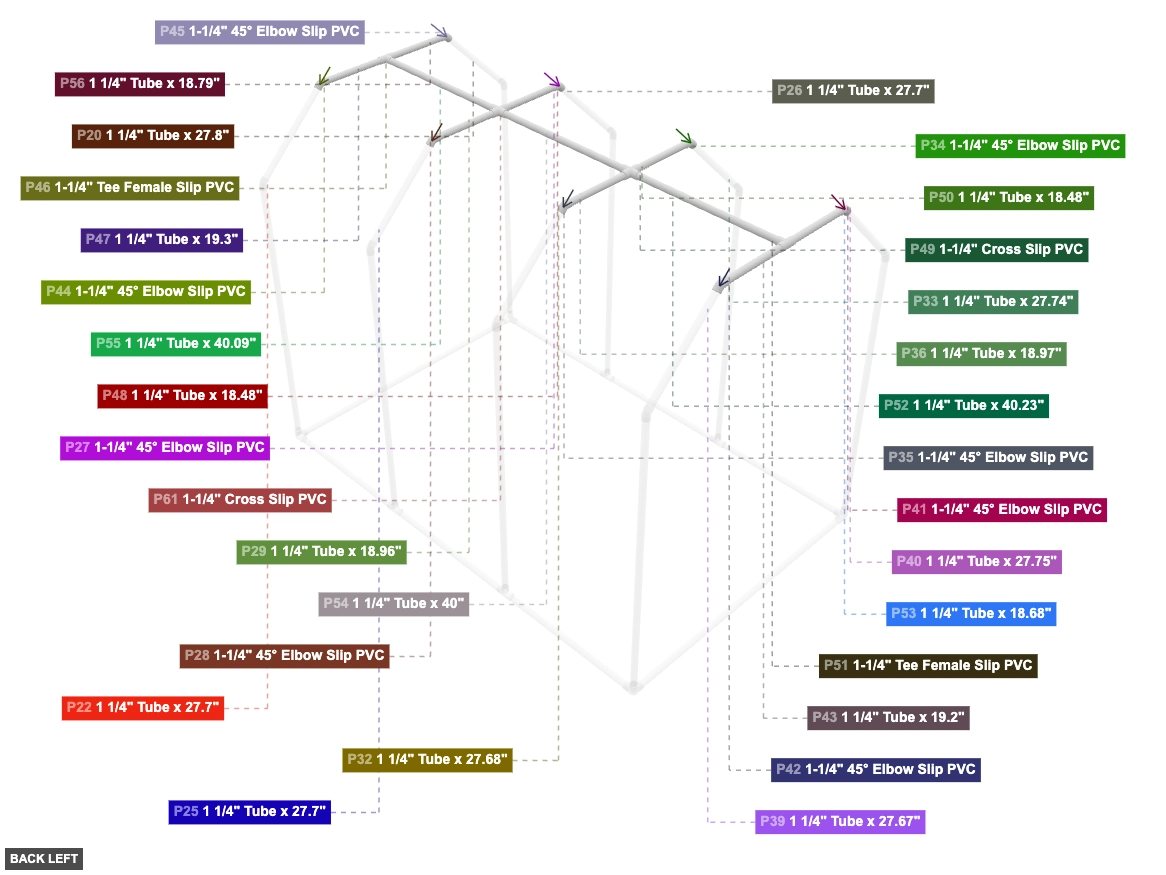

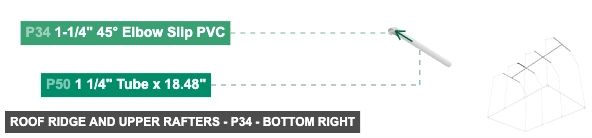

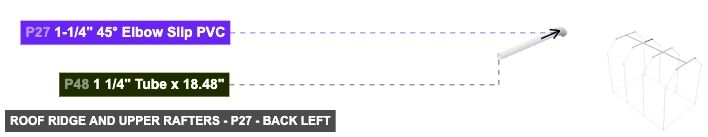

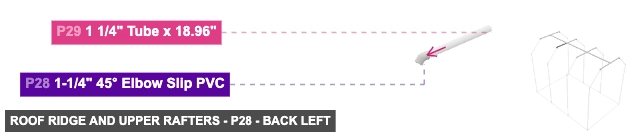

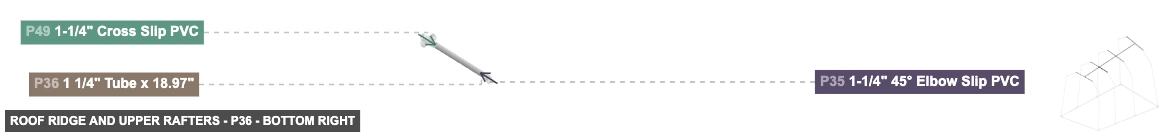

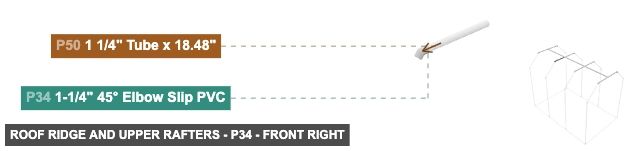

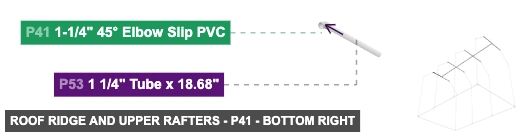

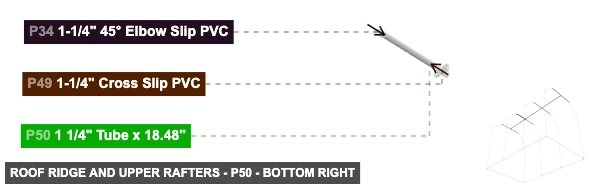

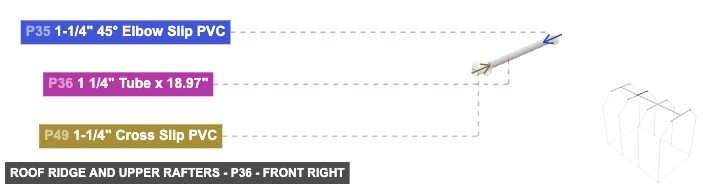

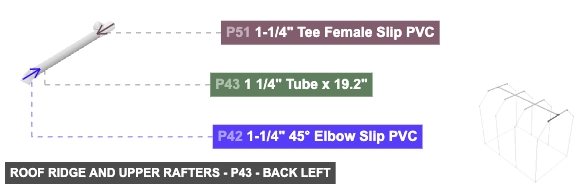

Group: Roof Ridge and Upper Rafters

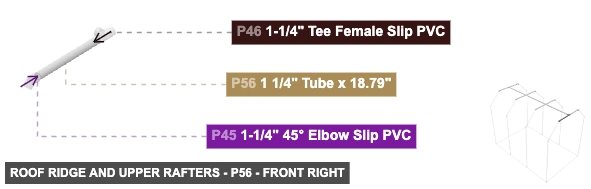

Forms the central peak of the roof and connects the lower roof sections together.

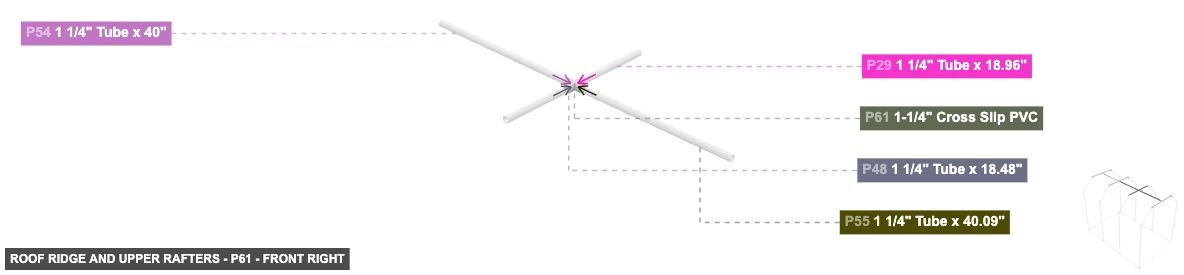

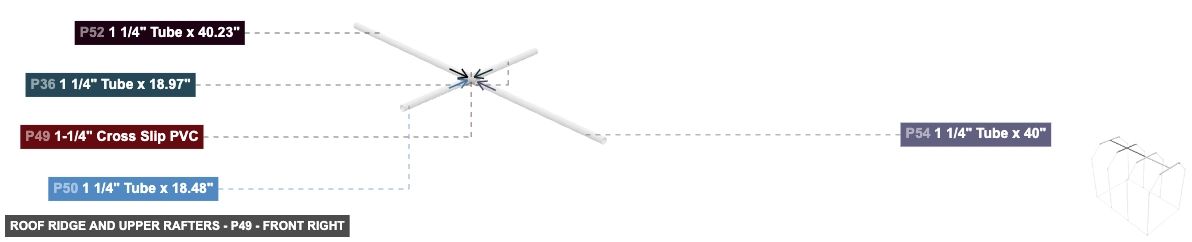

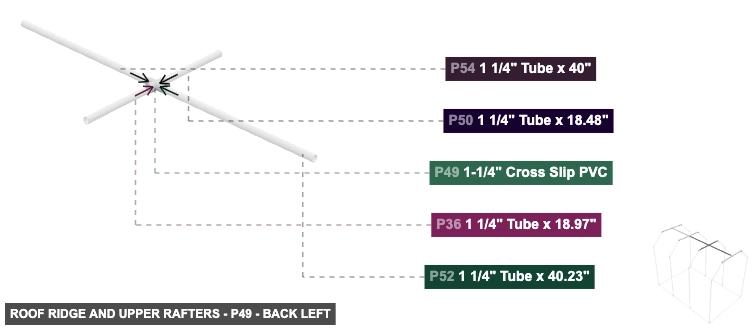

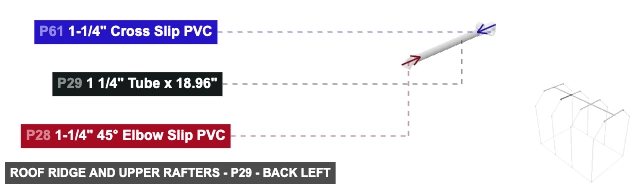

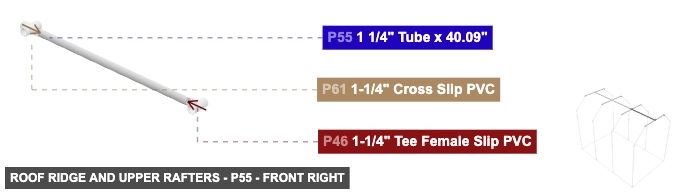

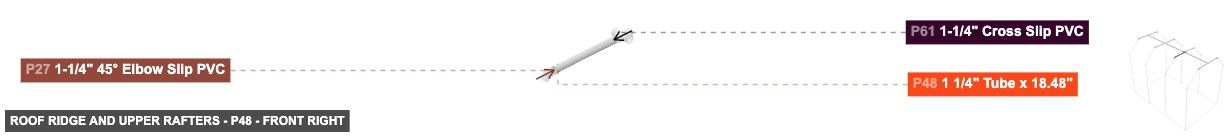

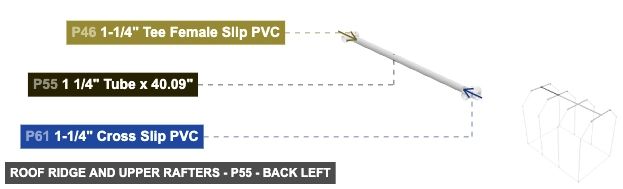

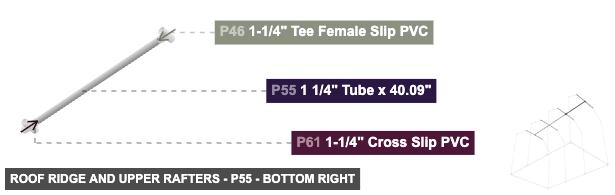

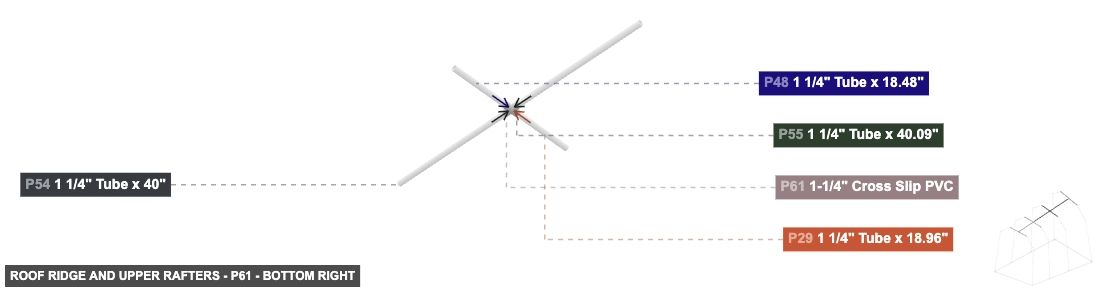

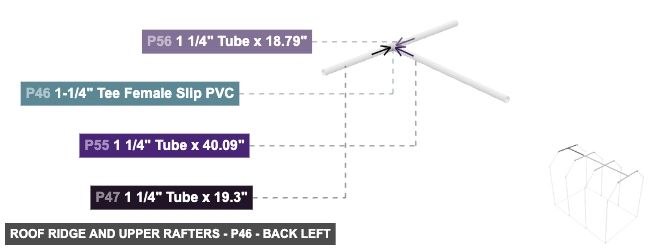

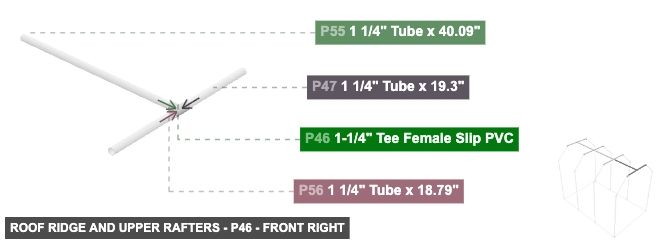

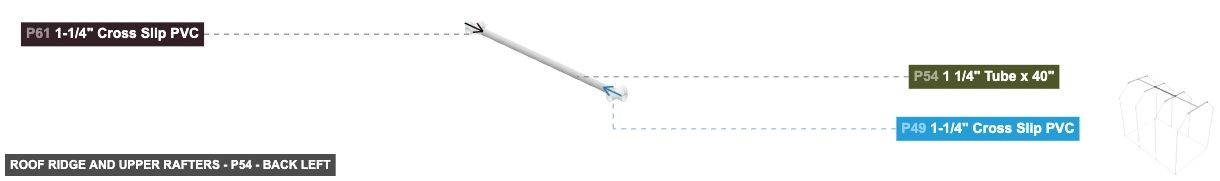

1. Assemble the central ridge: Connect P55 between P61 (Cross) and P46 (Tee). Connect P54 between P49 (Cross) and P61 (Cross). Connect P52 between P51 (Tee) and P49 (Cross).

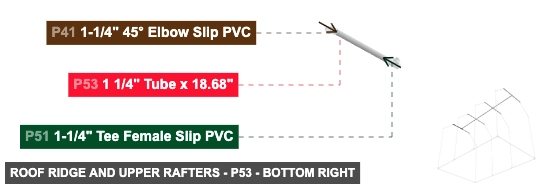

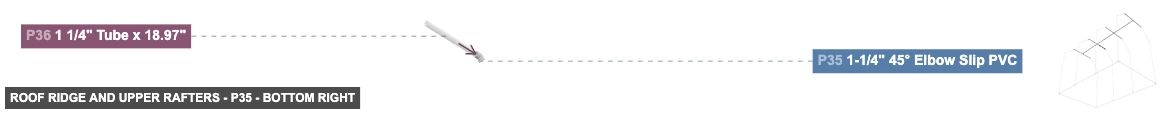

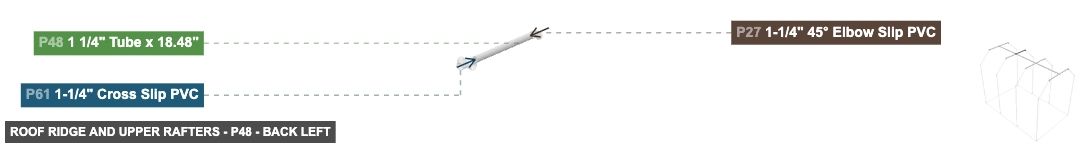

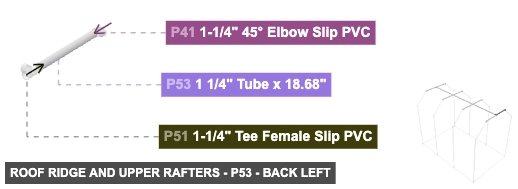

2. Prepare upper rafter assemblies: Connect each ridge connecting tube (P56, P47, P48, P29, P50, P36, P53, P43) to the appropriate socket on the central ridge connectors (P46, P46, P61, P61, P49, P49, P51, P51 respectively).

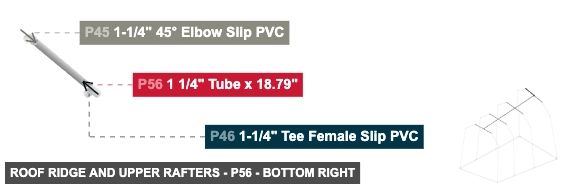

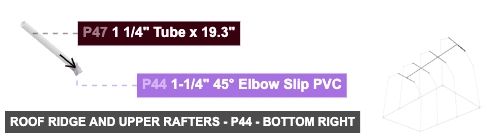

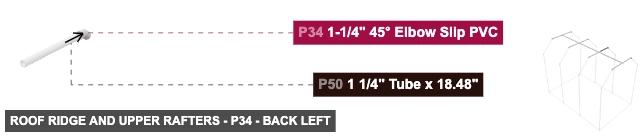

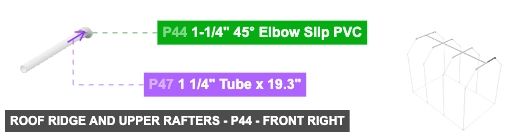

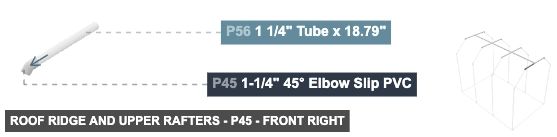

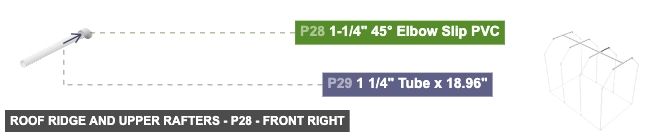

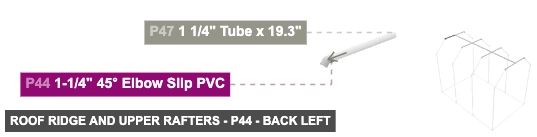

3. Attach the corresponding upper 45° Elbow (P45, P44, P27, P28, P34, P35, P41, P42) to the other end of each ridge connecting tube.
Phase 3: Inter-Group Assembly
Attaching: Base Frame Assembly
Forms the rectangular foundation of the greenhouse structure.
This completed base frame serves as the foundation for the Wall and Lower Roof Sections.

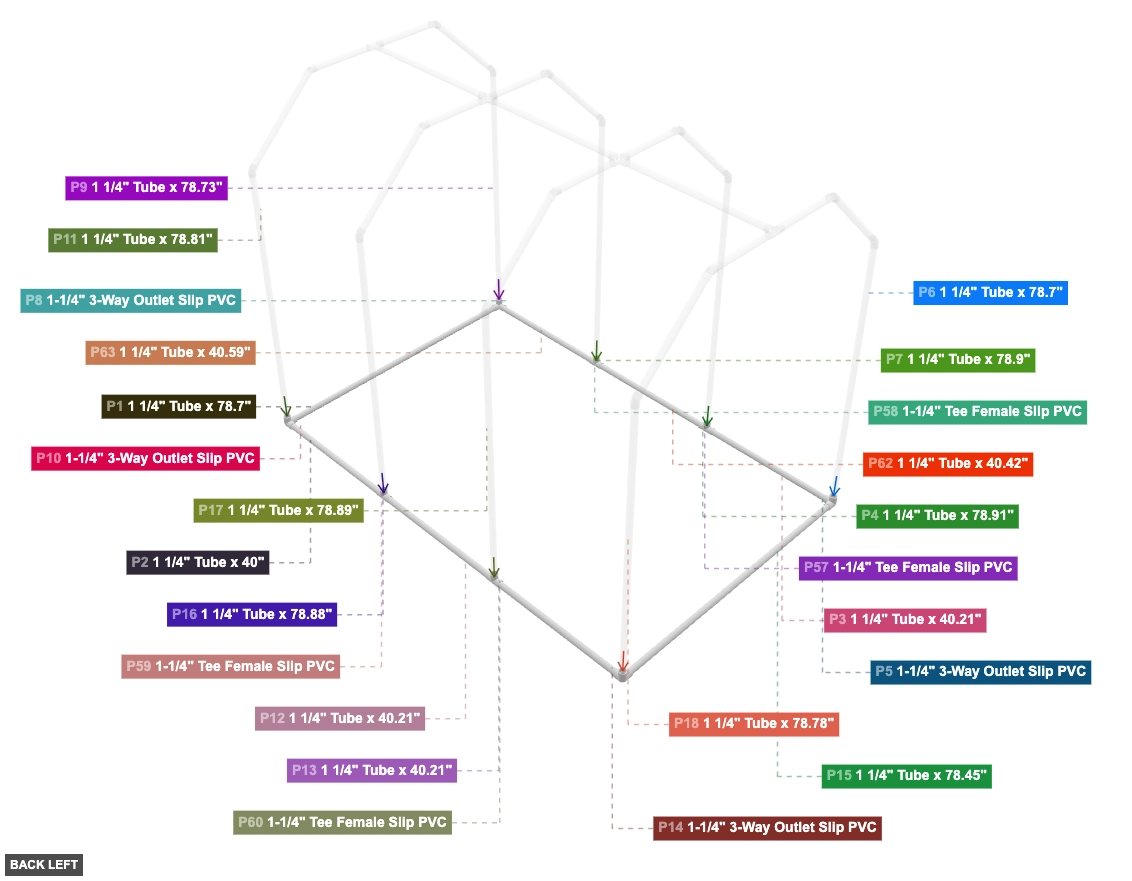

Angle: back left

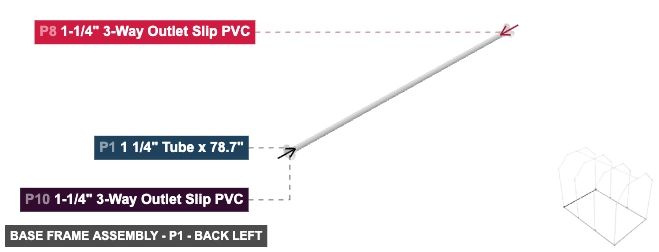

P1 (1.25" Tube 78.7" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 8's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing back to part 10's 1.25" F SLIP #1

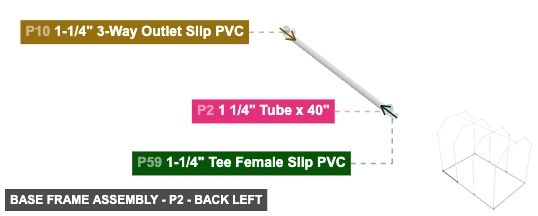

P2 (1.25" Tube 40" length) - connect its 1.25" M SLIP #1 oriented left links with part 59's 1.25" F SLIP #2, plus attach its 1.25" M SLIP #2 facing right to part 10's 1.25" F SLIP #2

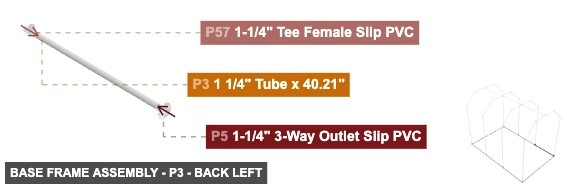

P3 (1.25" Tube 40.21" length) - connect its 1.25" M SLIP #1 oriented left links with part 5's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing right to part 57's 1.25" F SLIP #1

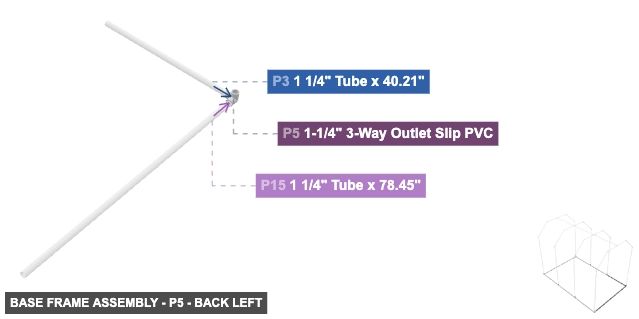

P5 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is right-facing, should connect to part 3's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing top to part 6's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #3 facing back to part 15's 1.25" M SLIP #2

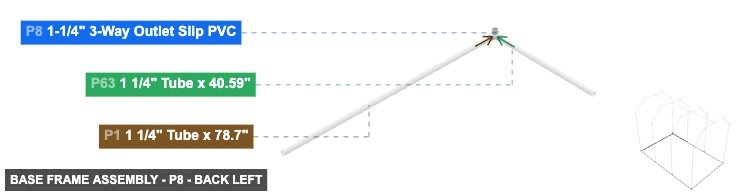

P8 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 1's 1.25" M SLIP #1, then its 1.25" F SLIP #2, which is top-facing, should connect to part 9's 1.25" M SLIP #2, then its 1.25" F SLIP #3, which is left-facing, should connect to part 63's 1.25" M SLIP #1
P10 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing front to part 1's 1.25" M SLIP #2. Next, connect its 1.25" F SLIP #2 oriented left links with part 2's 1.25" M SLIP #2. Also, its 1.25" F SLIP #3, which is top-facing, should connect to part 11's 1.25" M SLIP #2

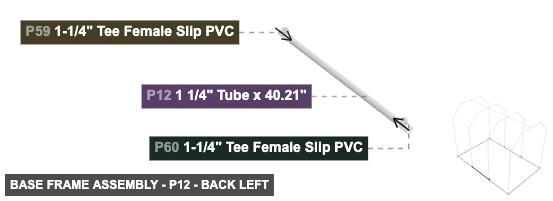

P12 (1.25" Tube 40.21" length) - connect its 1.25" M SLIP #1 oriented left links with part 60's 1.25" F SLIP #2. After that, attach its 1.25" M SLIP #2 facing right to part 59's 1.25" F SLIP #1

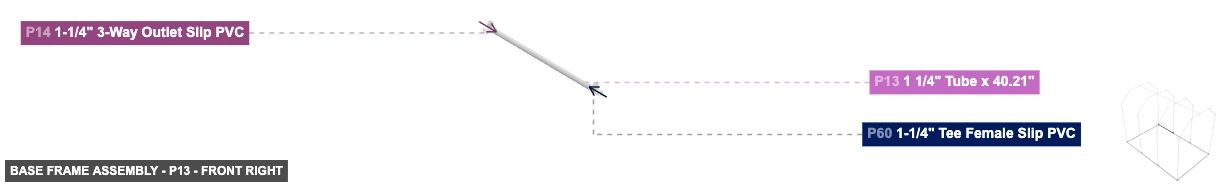

P13 (1.25" Tube 40.21" length) - attach its 1.25" M SLIP #1 facing left to part 14's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented right links with part 60's 1.25" F SLIP #1

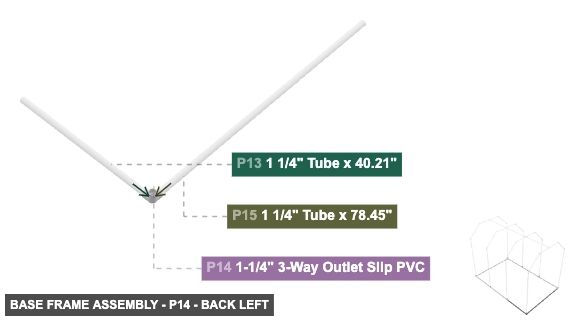

P14 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 13's 1.25" M SLIP #1. After that, its 1.25" F SLIP #2, which is front-facing, should connect to part 15's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #3 facing top to part 18's 1.25" M SLIP #2
P15 (1.25" Tube 78.45" length) - attach its 1.25" M SLIP #1 facing back to part 14's 1.25" F SLIP #2. Next, its 1.25" M SLIP #2, which is front-facing, should connect to part 5's 1.25" F SLIP #3

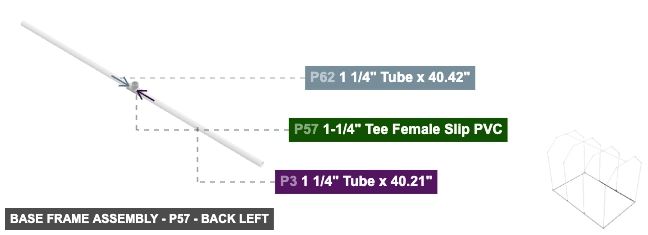

P57 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 3's 1.25" M SLIP #2, then its 1.25" F SLIP #2, which is right-facing, should connect to part 62's 1.25" M SLIP #2, plus its 1.25" F SLIP #3, which is top-facing, should connect to part 4's 1.25" M SLIP #2

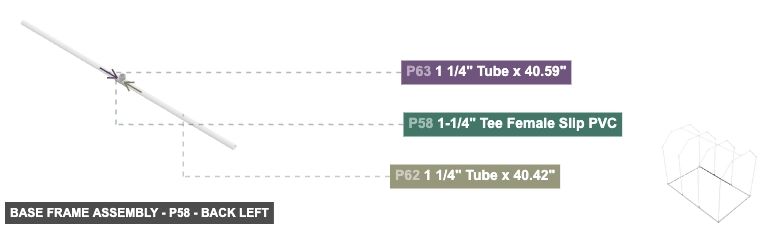

P58 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 62's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented right links with part 63's 1.25" M SLIP #2, and connect its 1.25" F SLIP #3 oriented top links with part 7's 1.25" M SLIP #2
P59 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented left links with part 12's 1.25" M SLIP #2, also attach its 1.25" F SLIP #2 facing right to part 2's 1.25" M SLIP #1. After that, connect its 1.25" F SLIP #3 oriented top links with part 16's 1.25" M SLIP #2

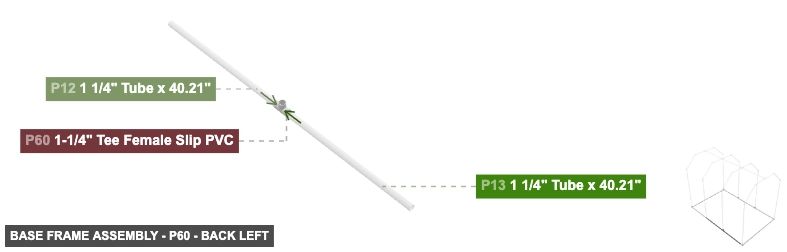

P60 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 13's 1.25" M SLIP #2. Also, its 1.25" F SLIP #2, which is right-facing, should connect to part 12's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #3 facing top to part 17's 1.25" M SLIP #2

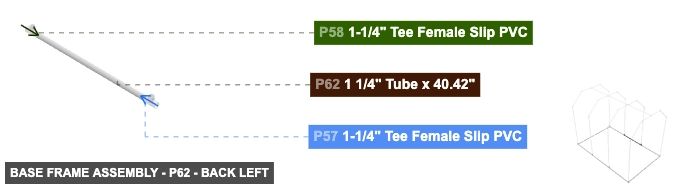

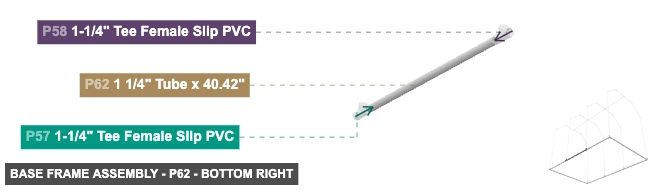

P62 (1.25" Tube 40.42" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 58's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 57's 1.25" F SLIP #2

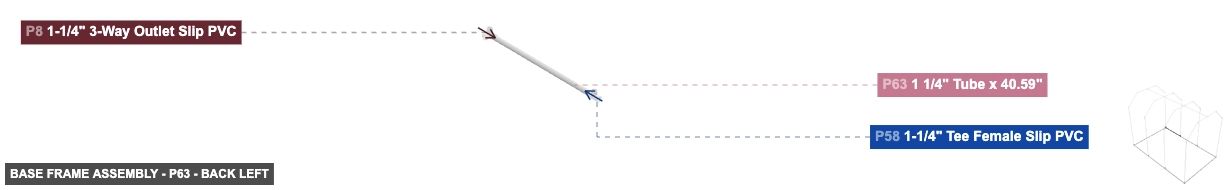

P63 (1.25" Tube 40.59" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 8's 1.25" F SLIP #3, and connect its 1.25" M SLIP #2 oriented left links with part 58's 1.25" F SLIP #2
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.21"x 3
1-1/4" 3-Way Outlet Slip PVCx 4
1 1/4" Tube x 78.45"x 1
1-1/4" Tee Female Slip PVCx 4
1 1/4" Tube x 40.42"x 1
1 1/4" Tube x 40.59"x 1

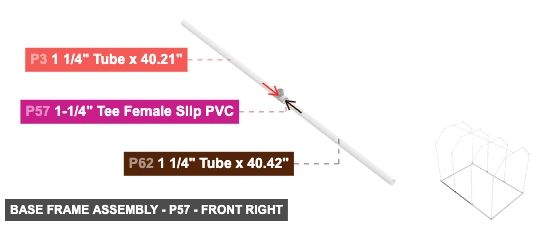

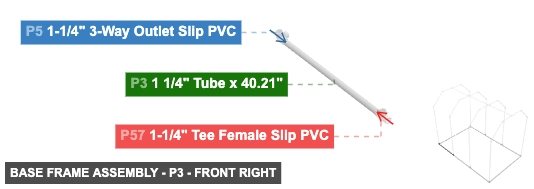

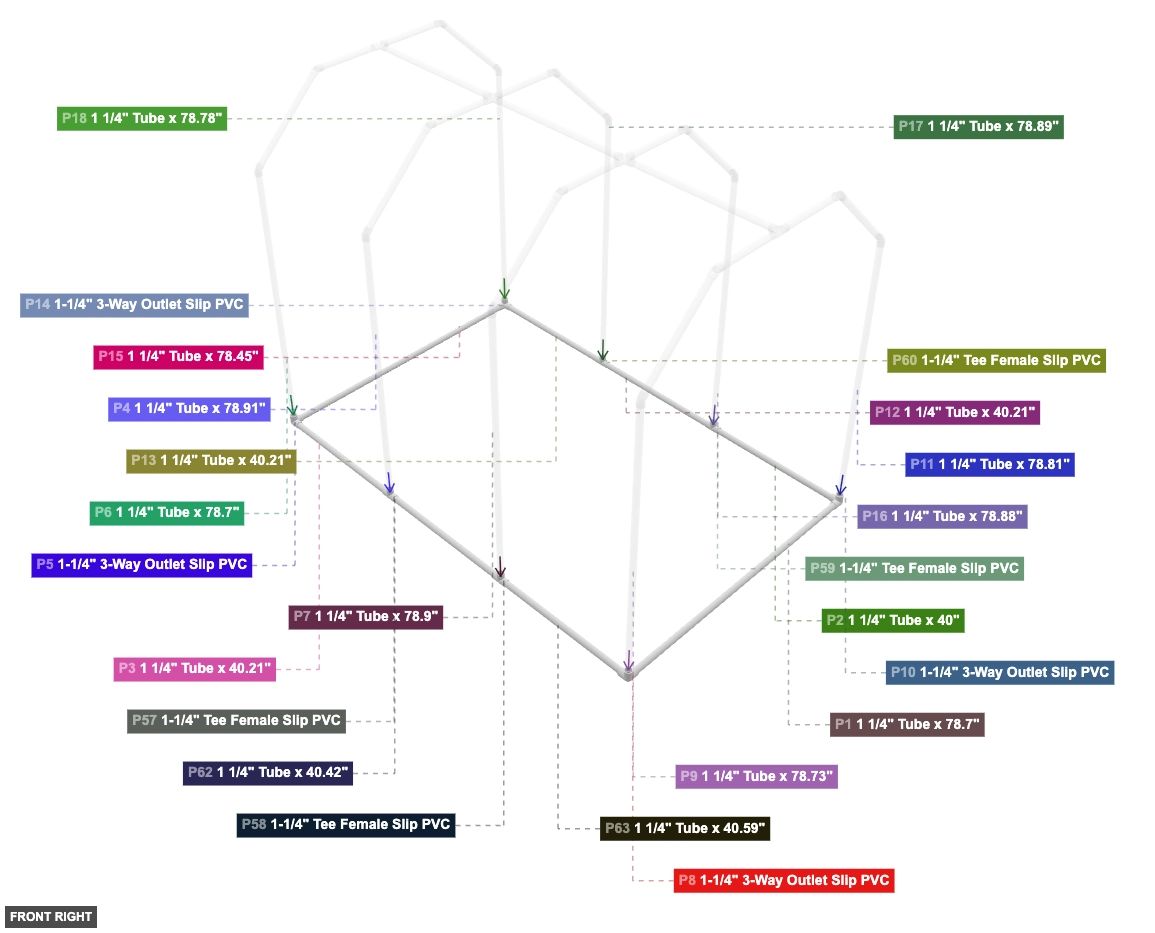

Angle: front right

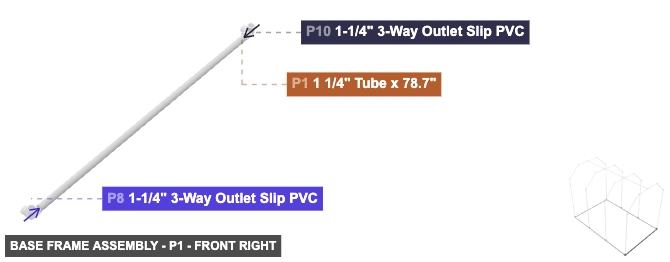

P1 (1.25" Tube 78.7" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 8's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing back to part 10's 1.25" F SLIP #1
P2 (1.25" Tube 40" length) - connect its 1.25" M SLIP #1 oriented left links with part 59's 1.25" F SLIP #2, plus attach its 1.25" M SLIP #2 facing right to part 10's 1.25" F SLIP #2
P3 (1.25" Tube 40.21" length) - connect its 1.25" M SLIP #1 oriented left links with part 5's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing right to part 57's 1.25" F SLIP #1
P5 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is right-facing, should connect to part 3's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing top to part 6's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #3 facing back to part 15's 1.25" M SLIP #2
P8 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 1's 1.25" M SLIP #1, then its 1.25" F SLIP #2, which is top-facing, should connect to part 9's 1.25" M SLIP #2, then its 1.25" F SLIP #3, which is left-facing, should connect to part 63's 1.25" M SLIP #1
P10 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing front to part 1's 1.25" M SLIP #2. Next, connect its 1.25" F SLIP #2 oriented left links with part 2's 1.25" M SLIP #2. Also, its 1.25" F SLIP #3, which is top-facing, should connect to part 11's 1.25" M SLIP #2
P12 (1.25" Tube 40.21" length) - connect its 1.25" M SLIP #1 oriented left links with part 60's 1.25" F SLIP #2. After that, attach its 1.25" M SLIP #2 facing right to part 59's 1.25" F SLIP #1
P13 (1.25" Tube 40.21" length) - attach its 1.25" M SLIP #1 facing left to part 14's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented right links with part 60's 1.25" F SLIP #1

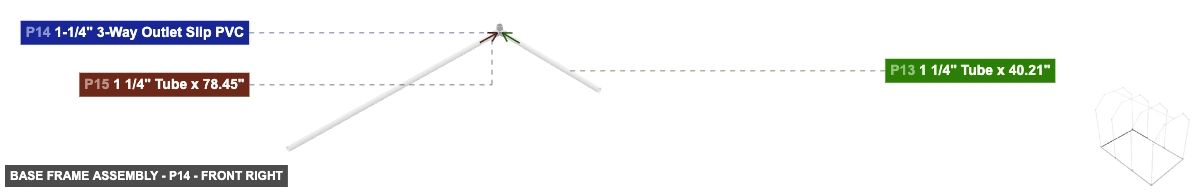

P14 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 13's 1.25" M SLIP #1. After that, its 1.25" F SLIP #2, which is front-facing, should connect to part 15's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #3 facing top to part 18's 1.25" M SLIP #2

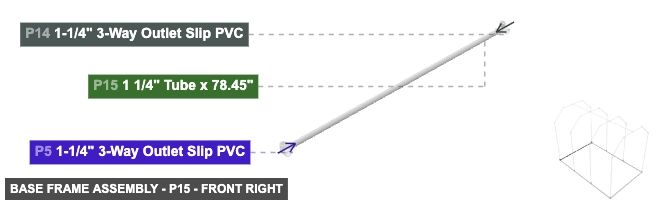

P15 (1.25" Tube 78.45" length) - attach its 1.25" M SLIP #1 facing back to part 14's 1.25" F SLIP #2. Next, its 1.25" M SLIP #2, which is front-facing, should connect to part 5's 1.25" F SLIP #3
P57 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 3's 1.25" M SLIP #2, then its 1.25" F SLIP #2, which is right-facing, should connect to part 62's 1.25" M SLIP #2, plus its 1.25" F SLIP #3, which is top-facing, should connect to part 4's 1.25" M SLIP #2

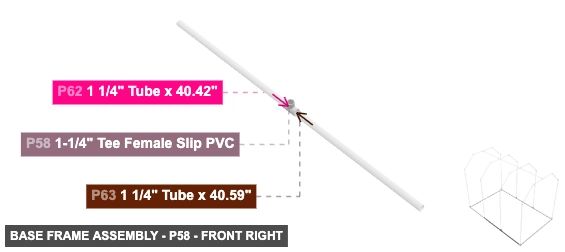

P58 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 62's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented right links with part 63's 1.25" M SLIP #2, and connect its 1.25" F SLIP #3 oriented top links with part 7's 1.25" M SLIP #2

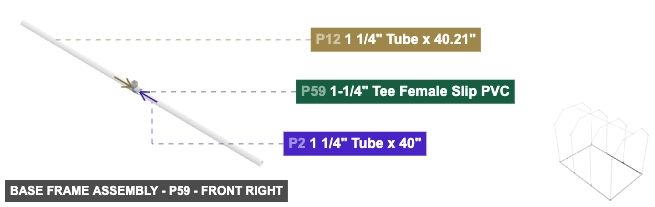

P59 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented left links with part 12's 1.25" M SLIP #2, also attach its 1.25" F SLIP #2 facing right to part 2's 1.25" M SLIP #1. After that, connect its 1.25" F SLIP #3 oriented top links with part 16's 1.25" M SLIP #2

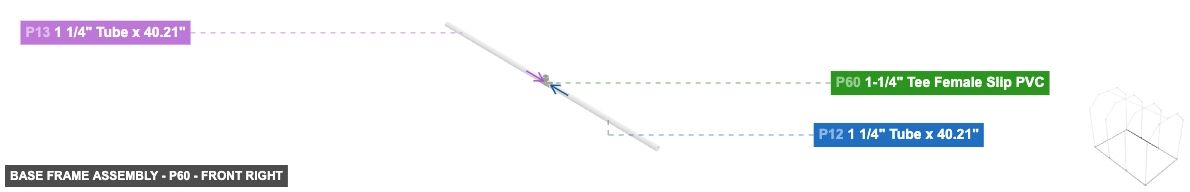

P60 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 13's 1.25" M SLIP #2. Also, its 1.25" F SLIP #2, which is right-facing, should connect to part 12's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #3 facing top to part 17's 1.25" M SLIP #2

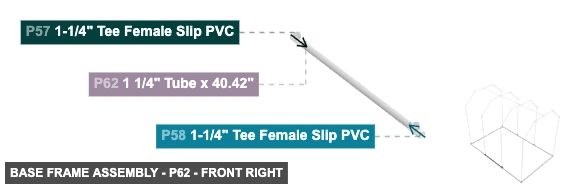

P62 (1.25" Tube 40.42" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 58's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 57's 1.25" F SLIP #2
P63 (1.25" Tube 40.59" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 8's 1.25" F SLIP #3, and connect its 1.25" M SLIP #2 oriented left links with part 58's 1.25" F SLIP #2
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.21"x 3
1-1/4" 3-Way Outlet Slip PVCx 4
1 1/4" Tube x 78.45"x 1
1-1/4" Tee Female Slip PVCx 4
1 1/4" Tube x 40.42"x 1
1 1/4" Tube x 40.59"x 1

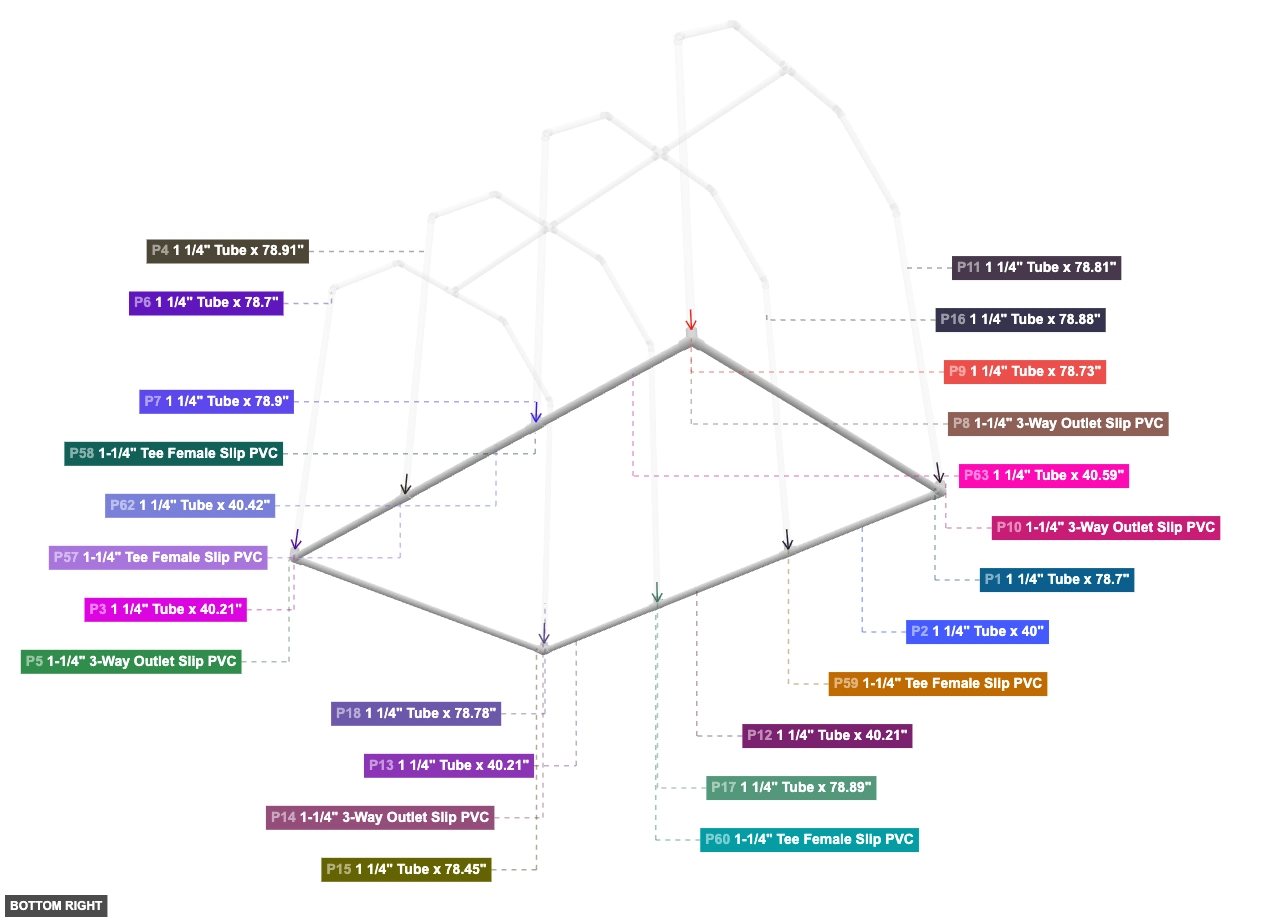

Angle: bottom right

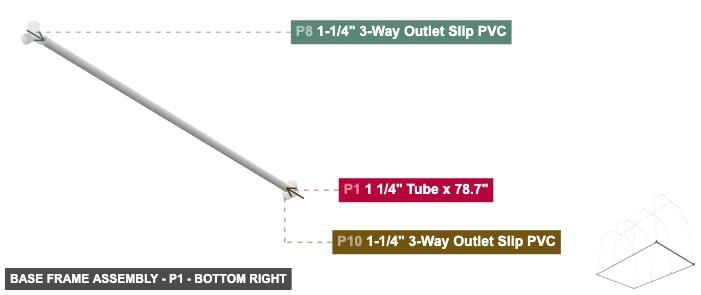

P1 (1.25" Tube 78.7" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 8's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing back to part 10's 1.25" F SLIP #1
P2 (1.25" Tube 40" length) - connect its 1.25" M SLIP #1 oriented left links with part 59's 1.25" F SLIP #2, plus attach its 1.25" M SLIP #2 facing right to part 10's 1.25" F SLIP #2

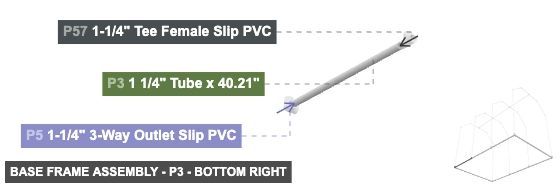

P3 (1.25" Tube 40.21" length) - connect its 1.25" M SLIP #1 oriented left links with part 5's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing right to part 57's 1.25" F SLIP #1

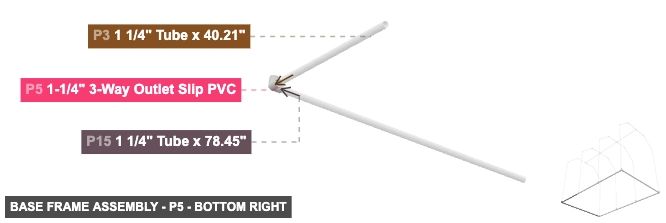

P5 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is right-facing, should connect to part 3's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing top to part 6's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #3 facing back to part 15's 1.25" M SLIP #2

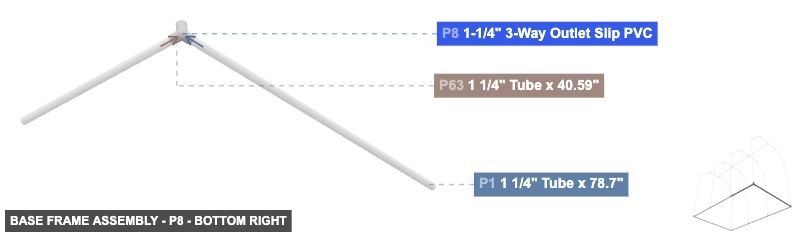

P8 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 1's 1.25" M SLIP #1, then its 1.25" F SLIP #2, which is top-facing, should connect to part 9's 1.25" M SLIP #2, then its 1.25" F SLIP #3, which is left-facing, should connect to part 63's 1.25" M SLIP #1

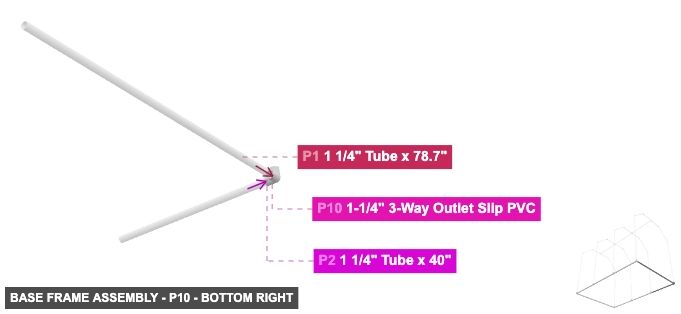

P10 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing front to part 1's 1.25" M SLIP #2. Next, connect its 1.25" F SLIP #2 oriented left links with part 2's 1.25" M SLIP #2. Also, its 1.25" F SLIP #3, which is top-facing, should connect to part 11's 1.25" M SLIP #2
P12 (1.25" Tube 40.21" length) - connect its 1.25" M SLIP #1 oriented left links with part 60's 1.25" F SLIP #2. After that, attach its 1.25" M SLIP #2 facing right to part 59's 1.25" F SLIP #1

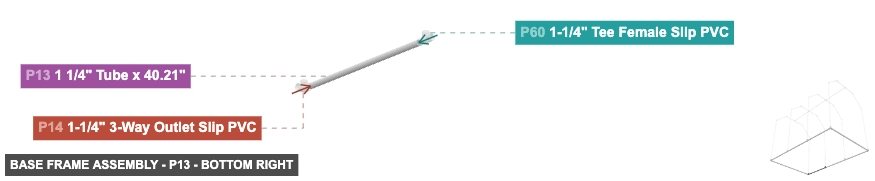

P13 (1.25" Tube 40.21" length) - attach its 1.25" M SLIP #1 facing left to part 14's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented right links with part 60's 1.25" F SLIP #1
P14 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 13's 1.25" M SLIP #1. After that, its 1.25" F SLIP #2, which is front-facing, should connect to part 15's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #3 facing top to part 18's 1.25" M SLIP #2
P15 (1.25" Tube 78.45" length) - attach its 1.25" M SLIP #1 facing back to part 14's 1.25" F SLIP #2. Next, its 1.25" M SLIP #2, which is front-facing, should connect to part 5's 1.25" F SLIP #3

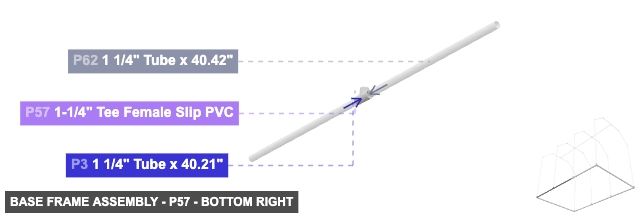

P57 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 3's 1.25" M SLIP #2, then its 1.25" F SLIP #2, which is right-facing, should connect to part 62's 1.25" M SLIP #2, plus its 1.25" F SLIP #3, which is top-facing, should connect to part 4's 1.25" M SLIP #2
P58 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 62's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented right links with part 63's 1.25" M SLIP #2, and connect its 1.25" F SLIP #3 oriented top links with part 7's 1.25" M SLIP #2

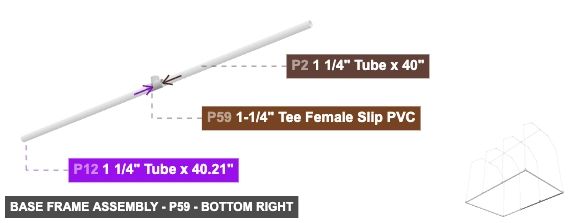

P59 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented left links with part 12's 1.25" M SLIP #2, also attach its 1.25" F SLIP #2 facing right to part 2's 1.25" M SLIP #1. After that, connect its 1.25" F SLIP #3 oriented top links with part 16's 1.25" M SLIP #2
P60 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 13's 1.25" M SLIP #2. Also, its 1.25" F SLIP #2, which is right-facing, should connect to part 12's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #3 facing top to part 17's 1.25" M SLIP #2
P62 (1.25" Tube 40.42" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 58's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 57's 1.25" F SLIP #2

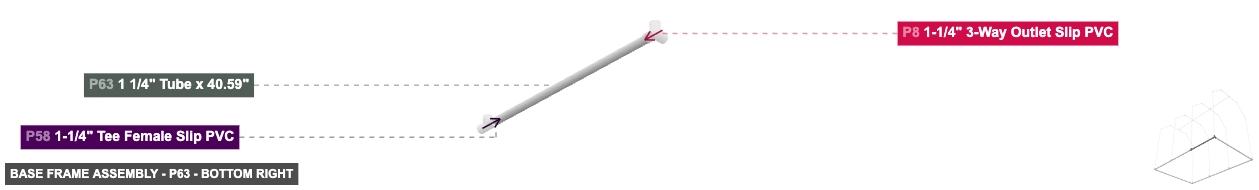

P63 (1.25" Tube 40.59" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 8's 1.25" F SLIP #3, and connect its 1.25" M SLIP #2 oriented left links with part 58's 1.25" F SLIP #2
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.21"x 3
1-1/4" 3-Way Outlet Slip PVCx 4
1 1/4" Tube x 78.45"x 1
1-1/4" Tee Female Slip PVCx 4
1 1/4" Tube x 40.42"x 1
1 1/4" Tube x 40.59"x 1
Attaching: Wall and Lower Roof Sections
Creates the vertical walls and the initial upward slope of the roof structure.
Insert the bottom end (Male SLIP 1 1/4") of each assembled vertical section (e.g., P6+P37+P40) into the corresponding upward-facing Female SLIP 1 1/4" socket on the assembled Base Frame (P5, P8, P10, P14, P57, P58, P59, P60).
Angle: back left

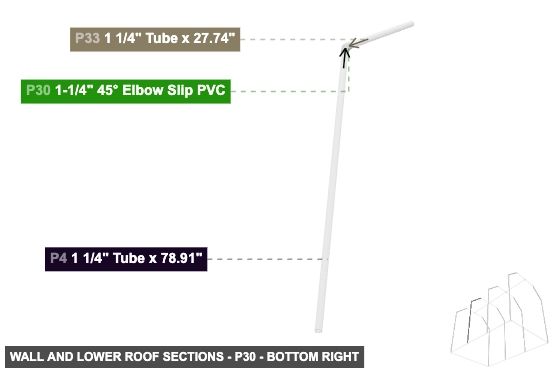

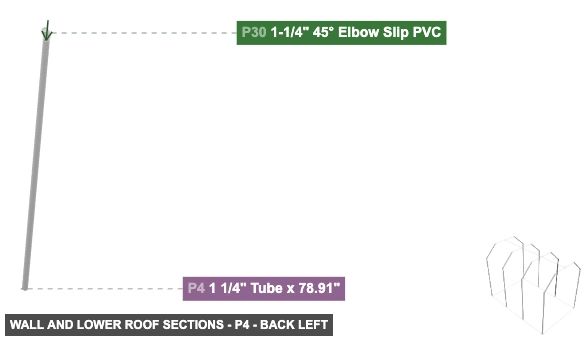

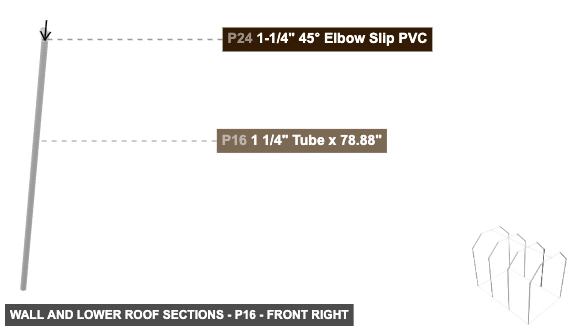

P4 (1.25" Tube 78.91" length) - attach its 1.25" M SLIP #1 facing top to part 30's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is bottom-facing, should connect to part 57's 1.25" F SLIP #3

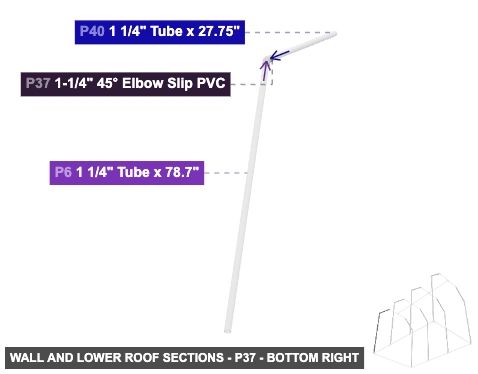

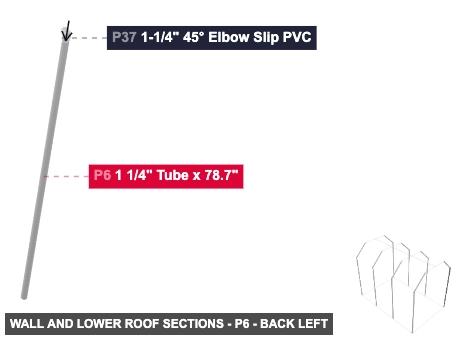

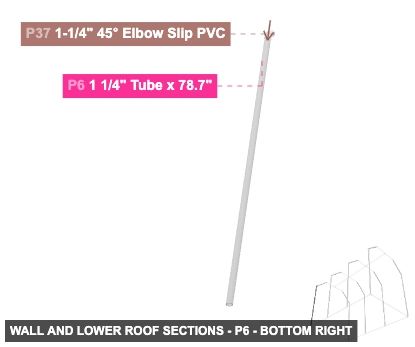

P6 (1.25" Tube 78.7" length) - attach its 1.25" M SLIP #1 facing top to part 37's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 5's 1.25" F SLIP #2

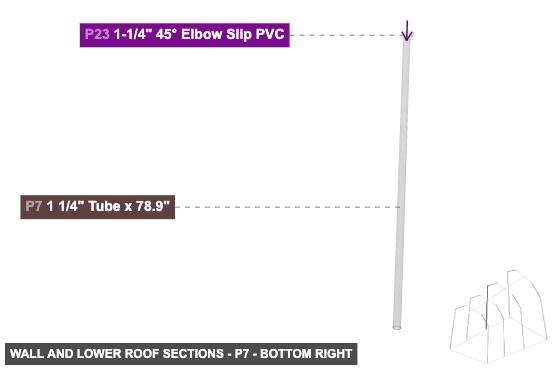

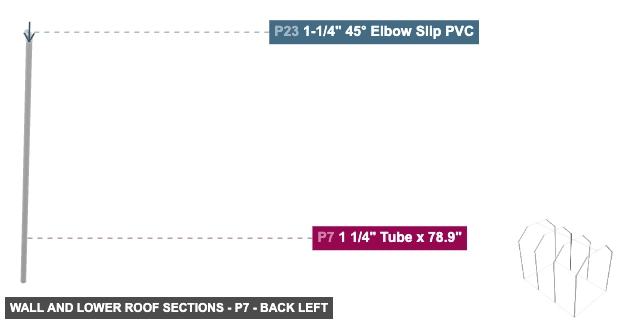

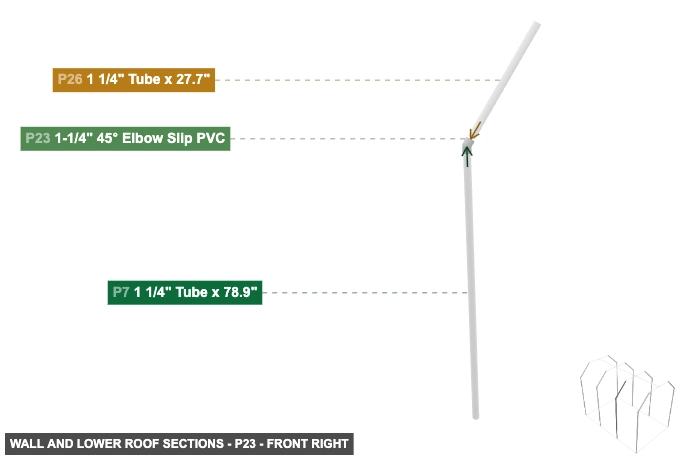

P7 (1.25" Tube 78.9" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented bottom links with part 58's 1.25" F SLIP #3

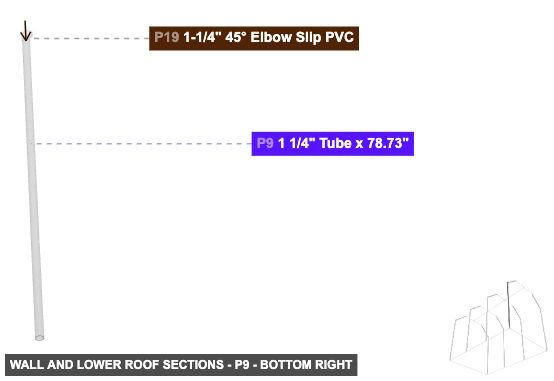

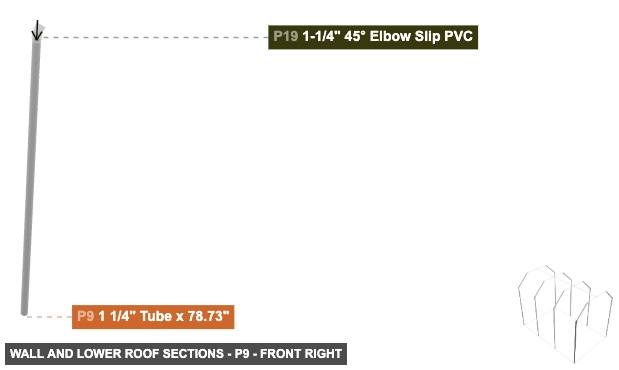

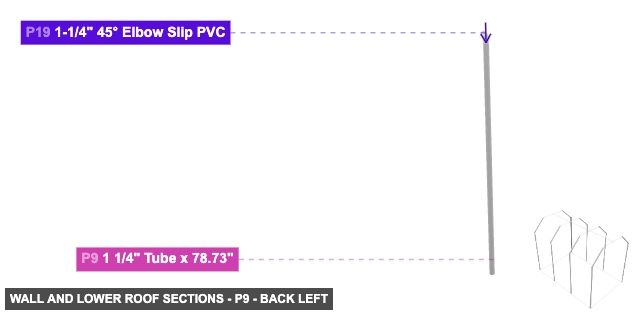

P9 (1.25" Tube 78.73" length) - connect its 1.25" M SLIP #1 oriented top links with part 19's 1.25" F SLIP #1. Next, connect its 1.25" M SLIP #2 oriented bottom links with part 8's 1.25" F SLIP #2

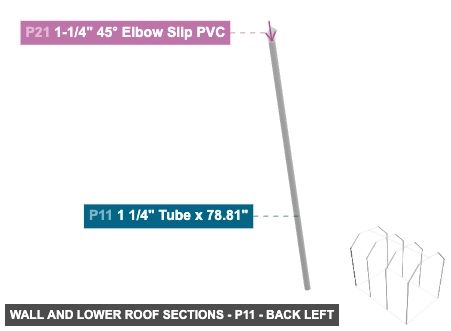

P11 (1.25" Tube 78.81" length) - attach its 1.25" M SLIP #1 facing top to part 21's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 10's 1.25" F SLIP #3

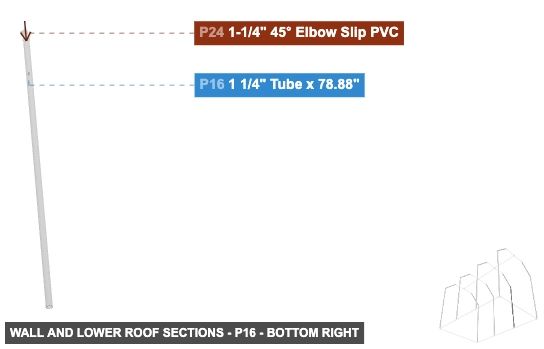

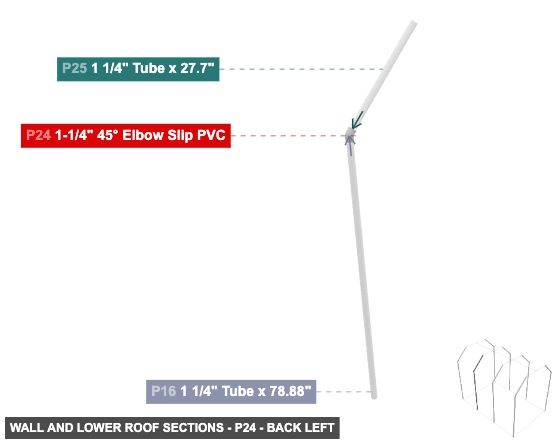

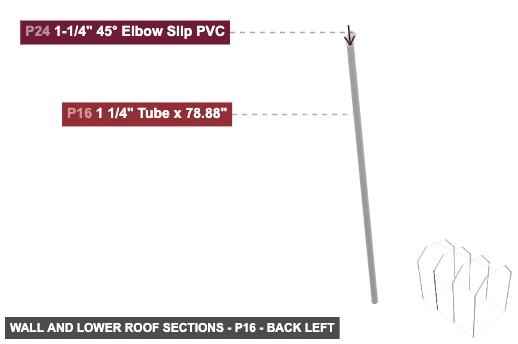

P16 (1.25" Tube 78.88" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 24's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing bottom to part 59's 1.25" F SLIP #3

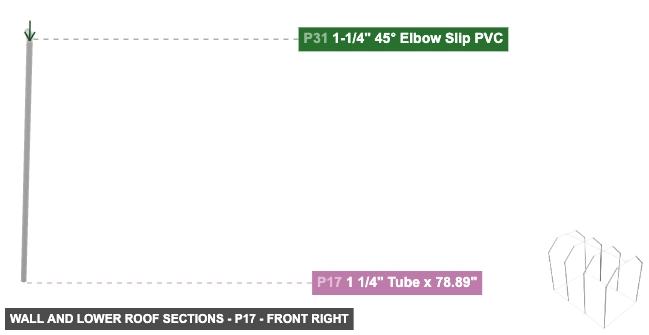

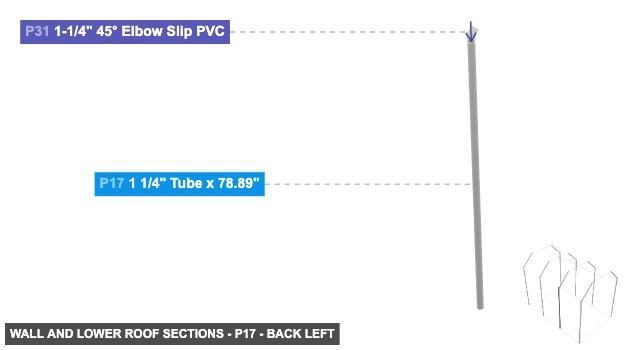

P17 (1.25" Tube 78.89" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 31's 1.25" F SLIP #1. Next, attach its 1.25" M SLIP #2 facing bottom to part 60's 1.25" F SLIP #3

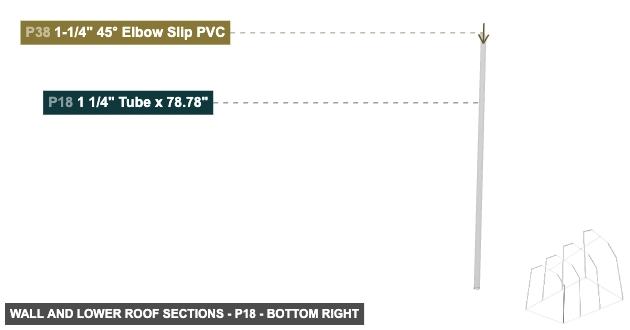

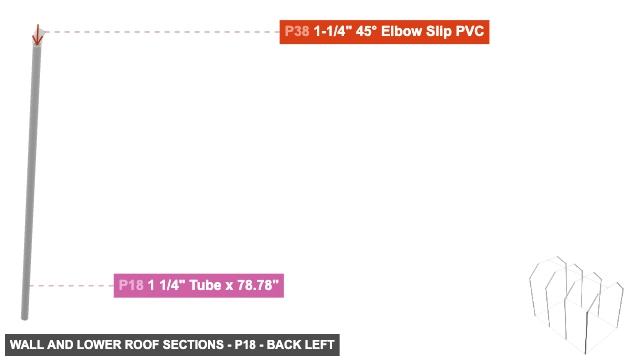

P18 (1.25" Tube 78.78" length) - attach its 1.25" M SLIP #1 facing top to part 38's 1.25" F SLIP #1. After that, attach its 1.25" M SLIP #2 facing bottom to part 14's 1.25" F SLIP #3

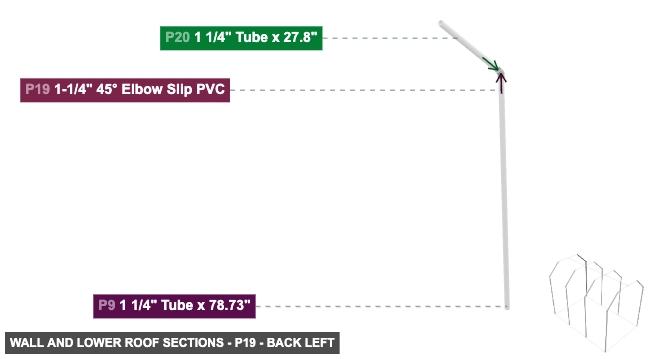

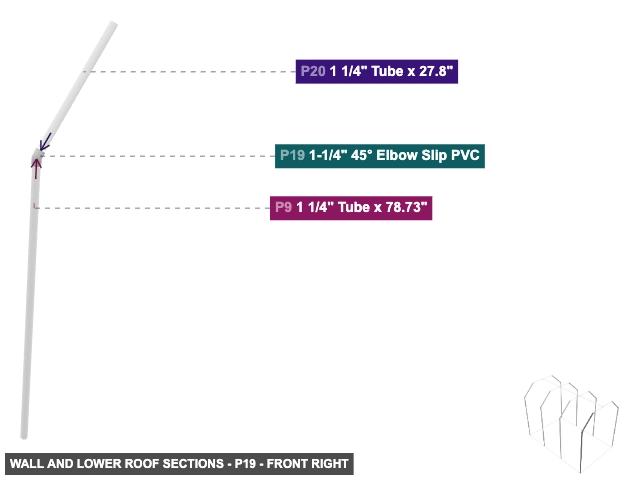

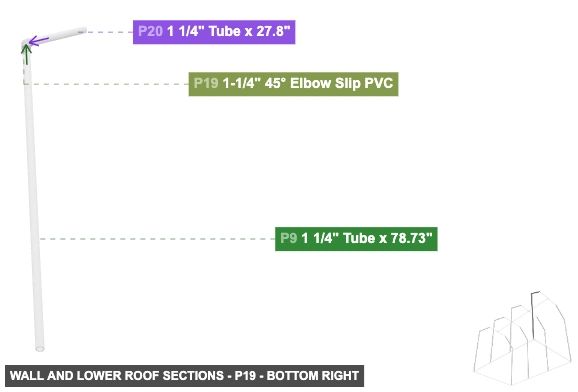

P19 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 9's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented back-top links with part 20's 1.25" M SLIP #2

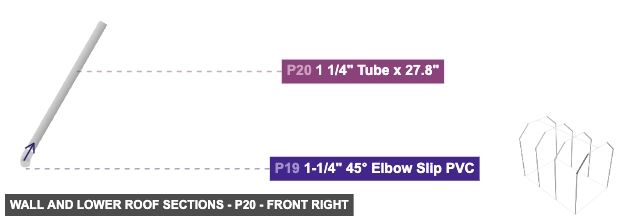

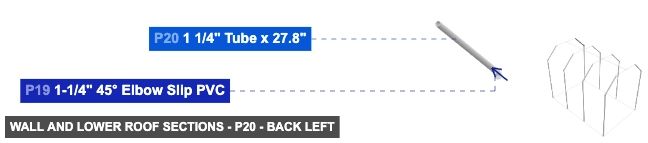

P20 (1.25" Tube 27.8" length) - connect its 1.25" M SLIP #1 oriented back-top links with part 45's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing front-bottom to part 19's 1.25" F SLIP #2

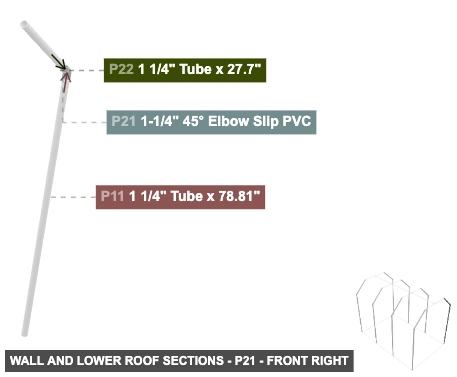

P21 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing bottom to part 11's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing front-top to part 22's 1.25" M SLIP #2

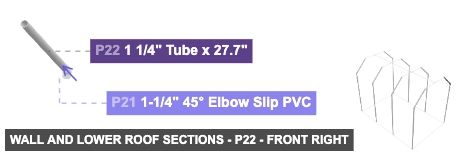

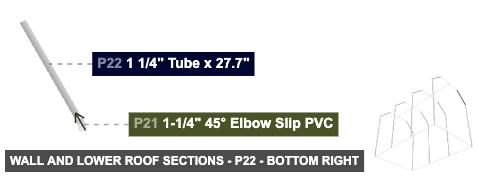

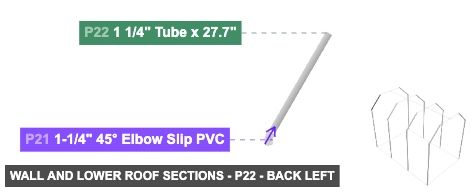

P22 (1.25" Tube 27.7" length) - attach its 1.25" M SLIP #1 facing front-top to part 44's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing back-bottom to part 21's 1.25" F SLIP #2

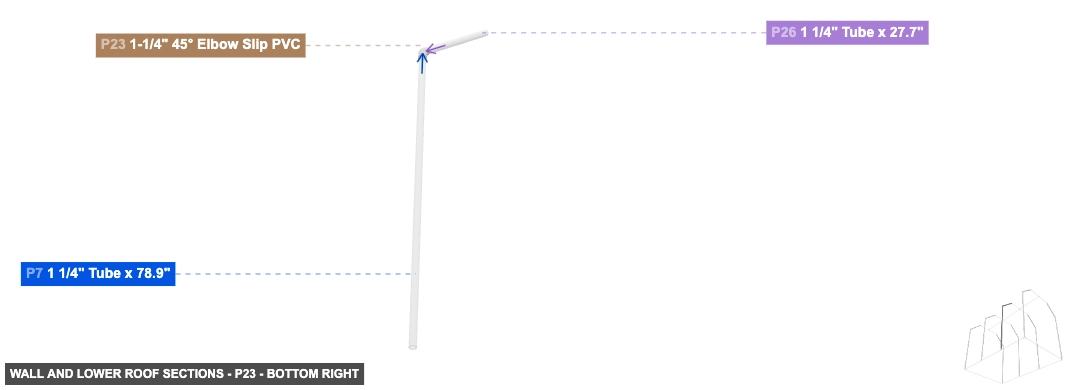

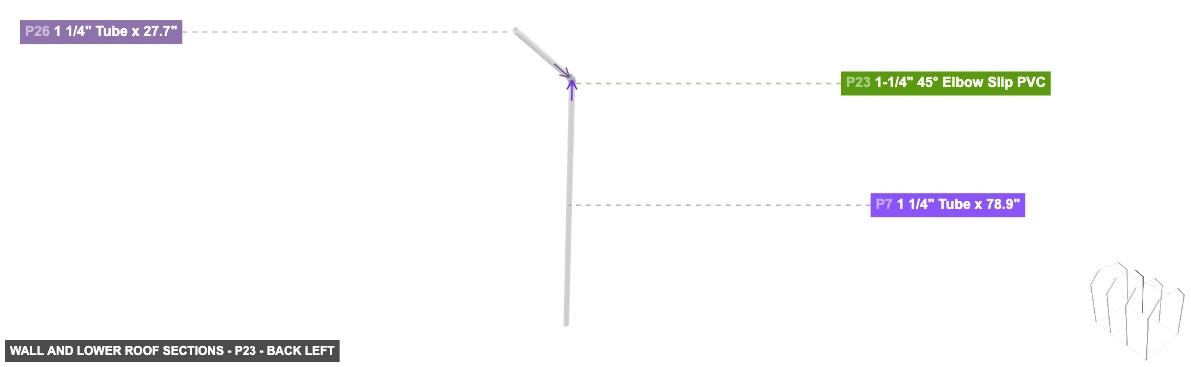

P23 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 7's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing back-top to part 26's 1.25" M SLIP #2

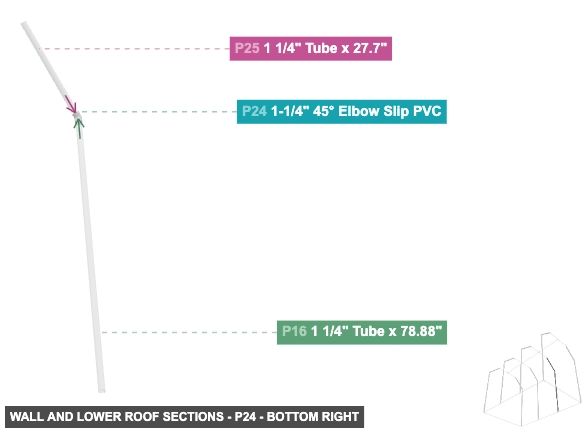

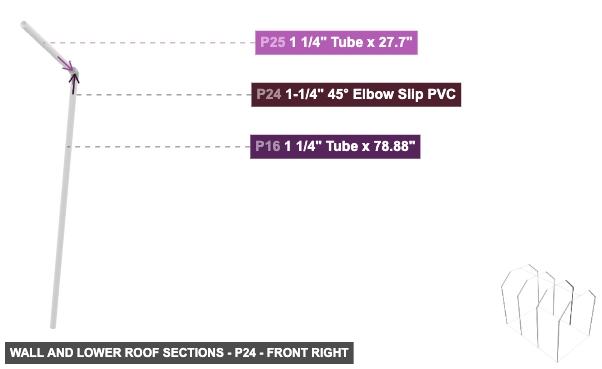

P24 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing bottom to part 16's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented front-top links with part 25's 1.25" M SLIP #2

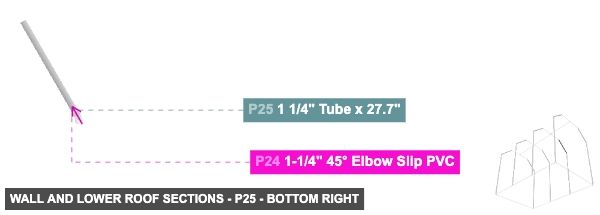

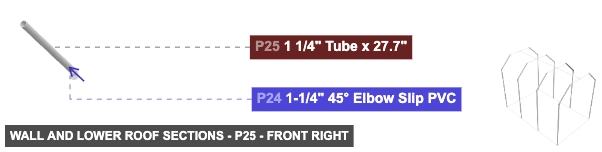

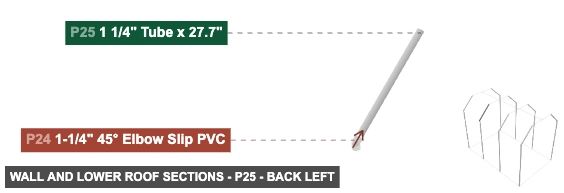

P25 (1.25" Tube 27.7" length) - connect its 1.25" M SLIP #1 oriented front-top links with part 28's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-bottom-facing, should connect to part 24's 1.25" F SLIP #2

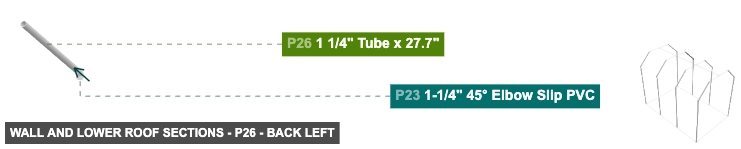

P26 (1.25" Tube 27.7" length) - attach its 1.25" M SLIP #1 facing back-top to part 27's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing front-bottom to part 23's 1.25" F SLIP #2

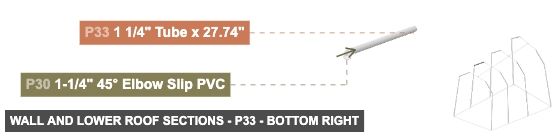

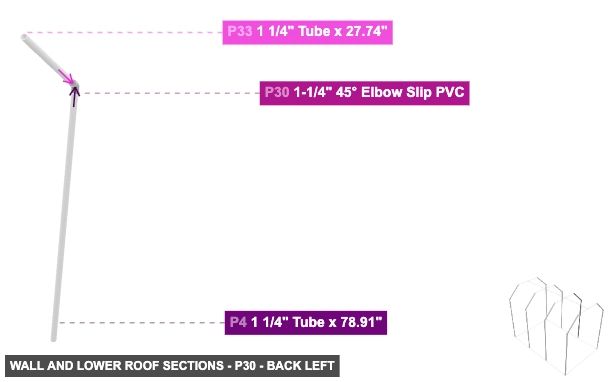

P30 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 4's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented back-top links with part 33's 1.25" M SLIP #2

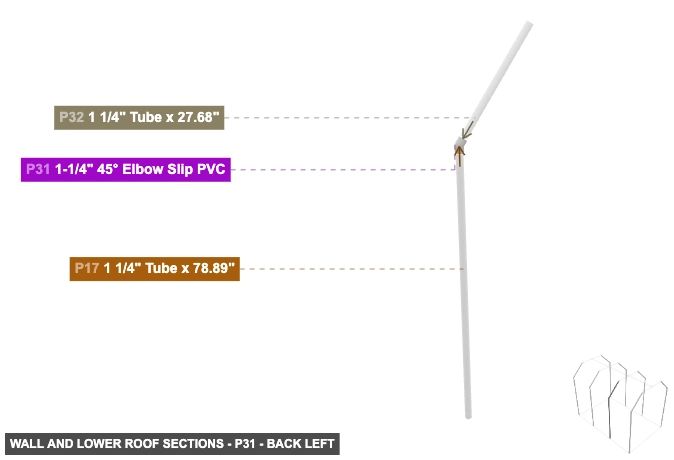

P31 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 17's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is front-top-facing, should connect to part 32's 1.25" M SLIP #2

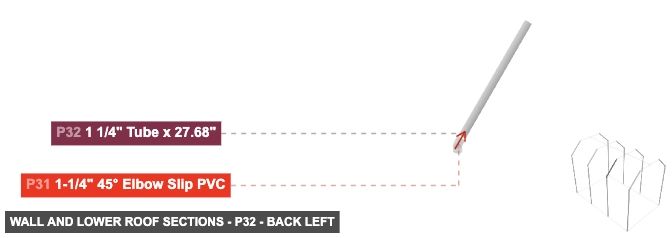

P32 (1.25" Tube 27.68" length) - connect its 1.25" M SLIP #1 oriented front-top links with part 35's 1.25" F SLIP #1, plus connect its 1.25" M SLIP #2 oriented back-bottom links with part 31's 1.25" F SLIP #2

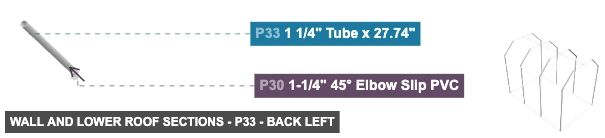

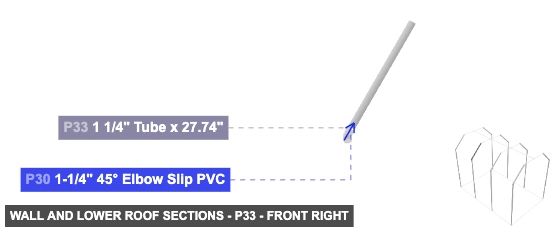

P33 (1.25" Tube 27.74" length) - its 1.25" M SLIP #1, which is back-top-facing, should connect to part 34's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing front-bottom to part 30's 1.25" F SLIP #2

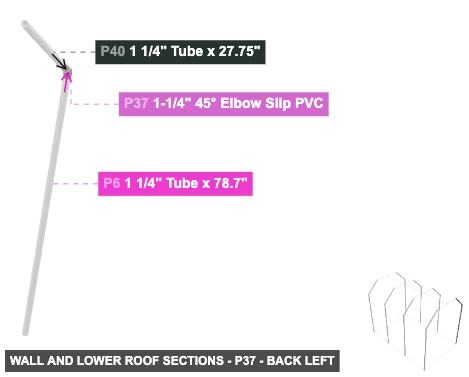

P37 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 6's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing back-top to part 40's 1.25" M SLIP #2

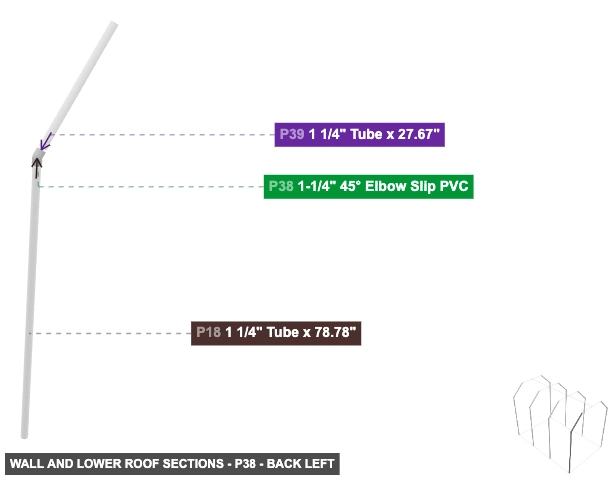

P38 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1, then connect its 1.25" F SLIP #2 oriented front-top links with part 39's 1.25" M SLIP #2

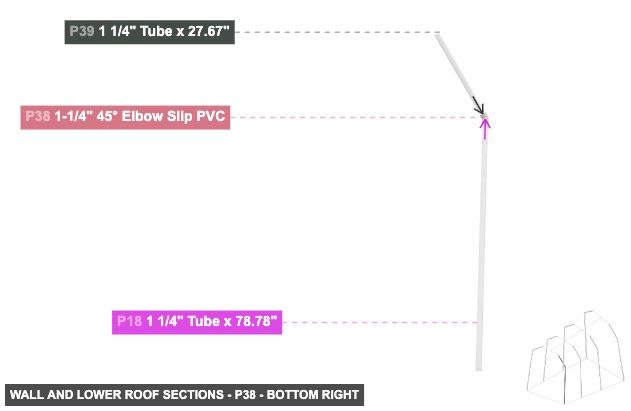

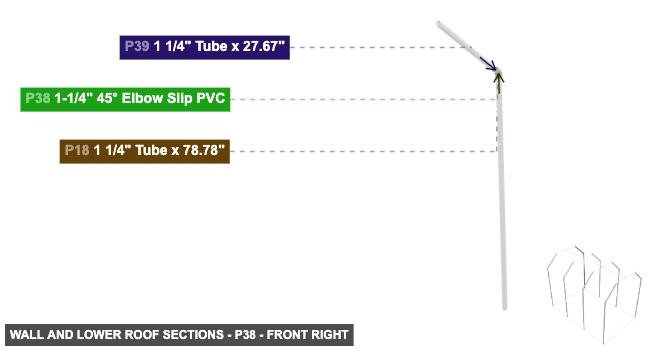

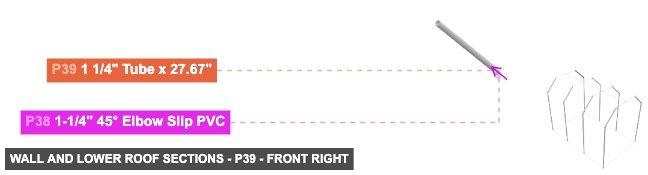

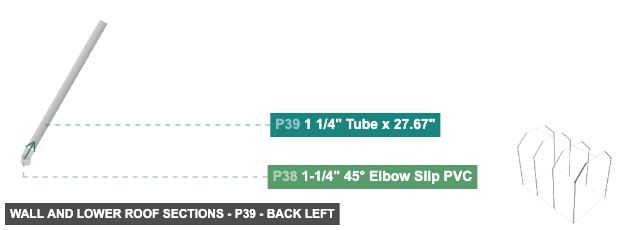

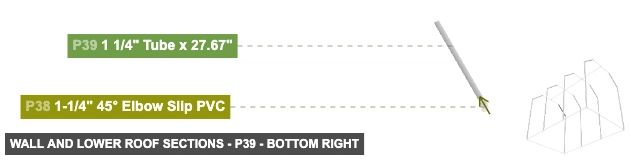

P39 (1.25" Tube 27.67" length) - its 1.25" M SLIP #1, which is front-top-facing, should connect to part 42's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented back-bottom links with part 38's 1.25" F SLIP #2

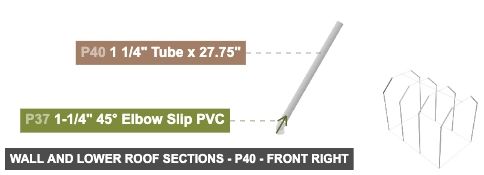

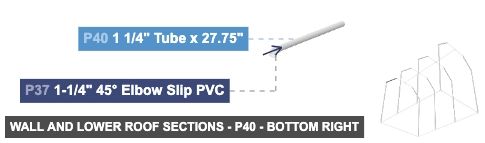

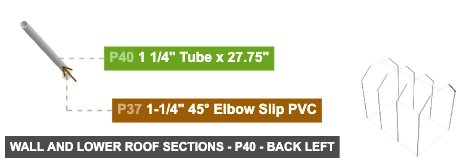

P40 (1.25" Tube 27.75" length) - attach its 1.25" M SLIP #1 facing back-top to part 41's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is front-bottom-facing, should connect to part 37's 1.25" F SLIP #2
1 1/4" Tube x 78.91"x 1
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 78.9"x 1
1 1/4" Tube x 78.73"x 1
1 1/4" Tube x 78.81"x 1
1 1/4" Tube x 78.88"x 1
1 1/4" Tube x 78.89"x 1
1 1/4" Tube x 78.78"x 1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 27.8"x 1
1 1/4" Tube x 27.7"x 3
1 1/4" Tube x 27.68"x 1
1 1/4" Tube x 27.74"x 1
1 1/4" Tube x 27.67"x 1
1 1/4" Tube x 27.75"x 1

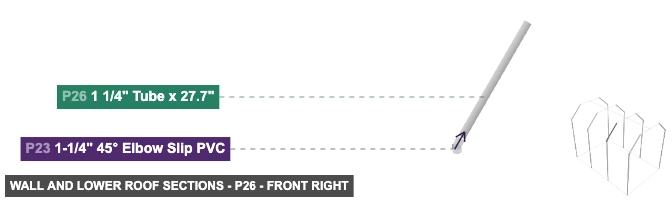

Angle: front right

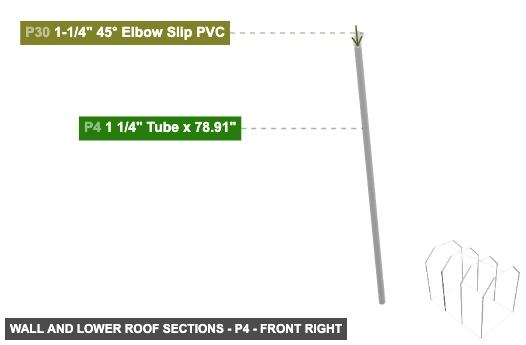

P4 (1.25" Tube 78.91" length) - attach its 1.25" M SLIP #1 facing top to part 30's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is bottom-facing, should connect to part 57's 1.25" F SLIP #3

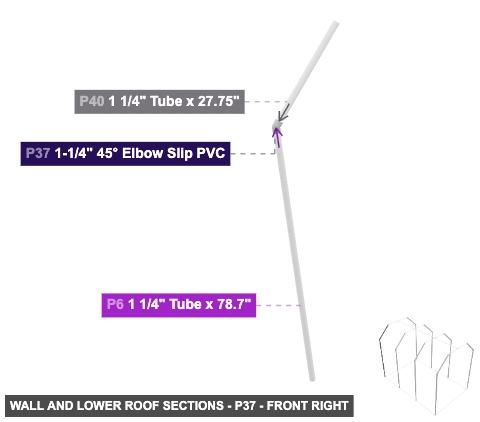

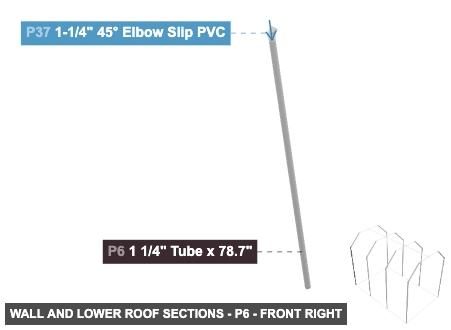

P6 (1.25" Tube 78.7" length) - attach its 1.25" M SLIP #1 facing top to part 37's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 5's 1.25" F SLIP #2

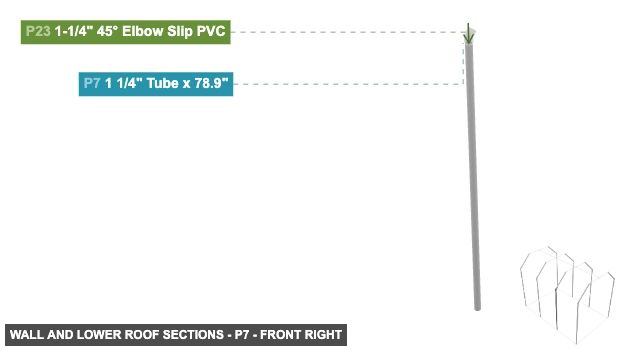

P7 (1.25" Tube 78.9" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented bottom links with part 58's 1.25" F SLIP #3
P9 (1.25" Tube 78.73" length) - connect its 1.25" M SLIP #1 oriented top links with part 19's 1.25" F SLIP #1. Next, connect its 1.25" M SLIP #2 oriented bottom links with part 8's 1.25" F SLIP #2

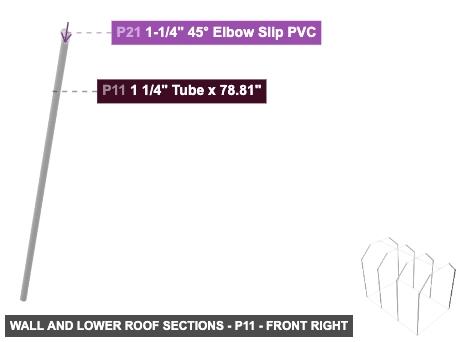

P11 (1.25" Tube 78.81" length) - attach its 1.25" M SLIP #1 facing top to part 21's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 10's 1.25" F SLIP #3
P16 (1.25" Tube 78.88" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 24's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing bottom to part 59's 1.25" F SLIP #3
P17 (1.25" Tube 78.89" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 31's 1.25" F SLIP #1. Next, attach its 1.25" M SLIP #2 facing bottom to part 60's 1.25" F SLIP #3

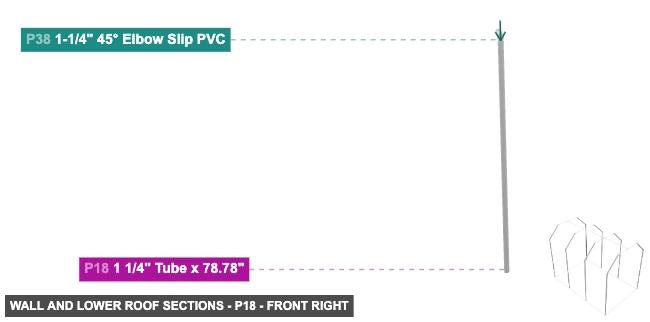

P18 (1.25" Tube 78.78" length) - attach its 1.25" M SLIP #1 facing top to part 38's 1.25" F SLIP #1. After that, attach its 1.25" M SLIP #2 facing bottom to part 14's 1.25" F SLIP #3
P19 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 9's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented back-top links with part 20's 1.25" M SLIP #2
P20 (1.25" Tube 27.8" length) - connect its 1.25" M SLIP #1 oriented back-top links with part 45's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing front-bottom to part 19's 1.25" F SLIP #2
P21 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing bottom to part 11's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing front-top to part 22's 1.25" M SLIP #2
P22 (1.25" Tube 27.7" length) - attach its 1.25" M SLIP #1 facing front-top to part 44's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing back-bottom to part 21's 1.25" F SLIP #2
P23 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 7's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing back-top to part 26's 1.25" M SLIP #2
P24 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing bottom to part 16's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented front-top links with part 25's 1.25" M SLIP #2
P25 (1.25" Tube 27.7" length) - connect its 1.25" M SLIP #1 oriented front-top links with part 28's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-bottom-facing, should connect to part 24's 1.25" F SLIP #2
P26 (1.25" Tube 27.7" length) - attach its 1.25" M SLIP #1 facing back-top to part 27's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing front-bottom to part 23's 1.25" F SLIP #2
P30 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 4's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented back-top links with part 33's 1.25" M SLIP #2

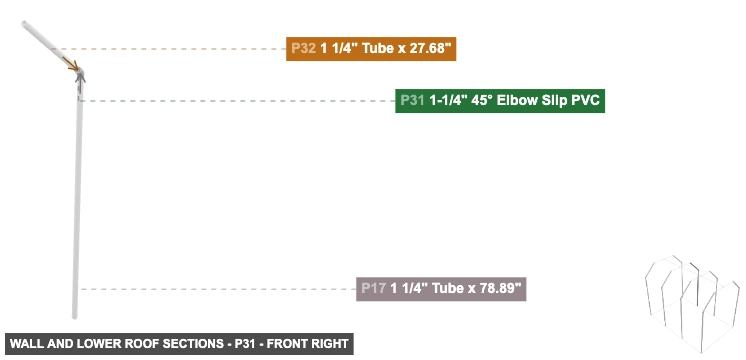

P31 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 17's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is front-top-facing, should connect to part 32's 1.25" M SLIP #2

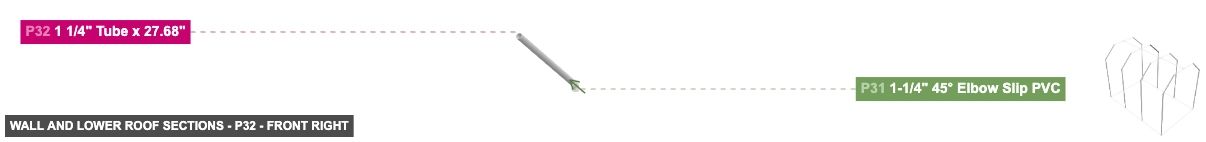

P32 (1.25" Tube 27.68" length) - connect its 1.25" M SLIP #1 oriented front-top links with part 35's 1.25" F SLIP #1, plus connect its 1.25" M SLIP #2 oriented back-bottom links with part 31's 1.25" F SLIP #2
P33 (1.25" Tube 27.74" length) - its 1.25" M SLIP #1, which is back-top-facing, should connect to part 34's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing front-bottom to part 30's 1.25" F SLIP #2
P37 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 6's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing back-top to part 40's 1.25" M SLIP #2
P38 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1, then connect its 1.25" F SLIP #2 oriented front-top links with part 39's 1.25" M SLIP #2
P39 (1.25" Tube 27.67" length) - its 1.25" M SLIP #1, which is front-top-facing, should connect to part 42's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented back-bottom links with part 38's 1.25" F SLIP #2
P40 (1.25" Tube 27.75" length) - attach its 1.25" M SLIP #1 facing back-top to part 41's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is front-bottom-facing, should connect to part 37's 1.25" F SLIP #2
1 1/4" Tube x 78.91"x 1
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 78.9"x 1
1 1/4" Tube x 78.73"x 1
1 1/4" Tube x 78.81"x 1
1 1/4" Tube x 78.88"x 1
1 1/4" Tube x 78.89"x 1
1 1/4" Tube x 78.78"x 1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 27.8"x 1
1 1/4" Tube x 27.7"x 3
1 1/4" Tube x 27.68"x 1
1 1/4" Tube x 27.74"x 1
1 1/4" Tube x 27.67"x 1
1 1/4" Tube x 27.75"x 1
Angle: bottom right

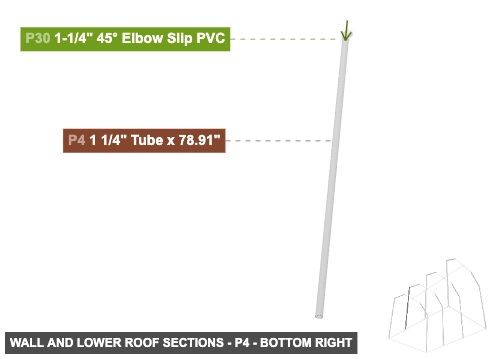

P4 (1.25" Tube 78.91" length) - attach its 1.25" M SLIP #1 facing top to part 30's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is bottom-facing, should connect to part 57's 1.25" F SLIP #3
P6 (1.25" Tube 78.7" length) - attach its 1.25" M SLIP #1 facing top to part 37's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 5's 1.25" F SLIP #2
P7 (1.25" Tube 78.9" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented bottom links with part 58's 1.25" F SLIP #3
P9 (1.25" Tube 78.73" length) - connect its 1.25" M SLIP #1 oriented top links with part 19's 1.25" F SLIP #1. Next, connect its 1.25" M SLIP #2 oriented bottom links with part 8's 1.25" F SLIP #2

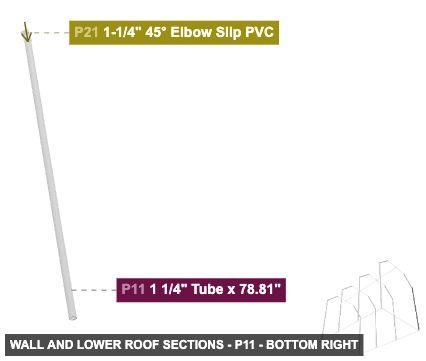

P11 (1.25" Tube 78.81" length) - attach its 1.25" M SLIP #1 facing top to part 21's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 10's 1.25" F SLIP #3
P16 (1.25" Tube 78.88" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 24's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing bottom to part 59's 1.25" F SLIP #3

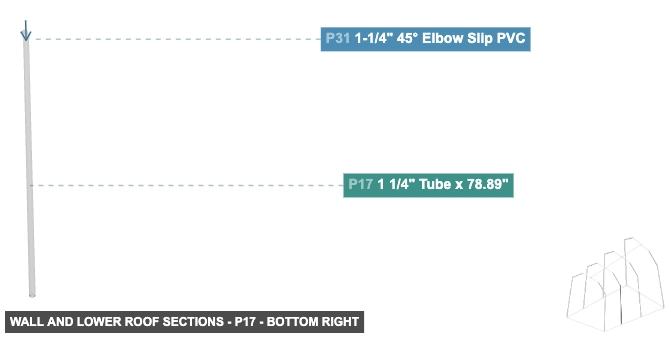

P17 (1.25" Tube 78.89" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 31's 1.25" F SLIP #1. Next, attach its 1.25" M SLIP #2 facing bottom to part 60's 1.25" F SLIP #3
P18 (1.25" Tube 78.78" length) - attach its 1.25" M SLIP #1 facing top to part 38's 1.25" F SLIP #1. After that, attach its 1.25" M SLIP #2 facing bottom to part 14's 1.25" F SLIP #3
P19 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 9's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented back-top links with part 20's 1.25" M SLIP #2

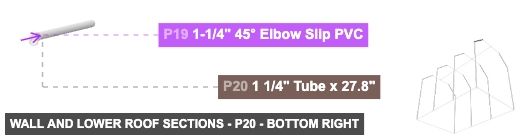

P20 (1.25" Tube 27.8" length) - connect its 1.25" M SLIP #1 oriented back-top links with part 45's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing front-bottom to part 19's 1.25" F SLIP #2

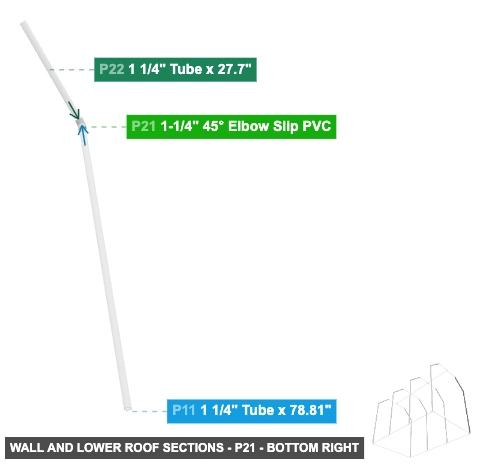

P21 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing bottom to part 11's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing front-top to part 22's 1.25" M SLIP #2
P22 (1.25" Tube 27.7" length) - attach its 1.25" M SLIP #1 facing front-top to part 44's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing back-bottom to part 21's 1.25" F SLIP #2
P23 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 7's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing back-top to part 26's 1.25" M SLIP #2
P24 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing bottom to part 16's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented front-top links with part 25's 1.25" M SLIP #2
P25 (1.25" Tube 27.7" length) - connect its 1.25" M SLIP #1 oriented front-top links with part 28's 1.25" F SLIP #1, also its 1.25" M SLIP #2, which is back-bottom-facing, should connect to part 24's 1.25" F SLIP #2

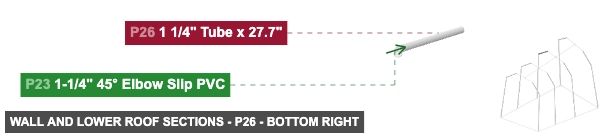

P26 (1.25" Tube 27.7" length) - attach its 1.25" M SLIP #1 facing back-top to part 27's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing front-bottom to part 23's 1.25" F SLIP #2
P30 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 4's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented back-top links with part 33's 1.25" M SLIP #2

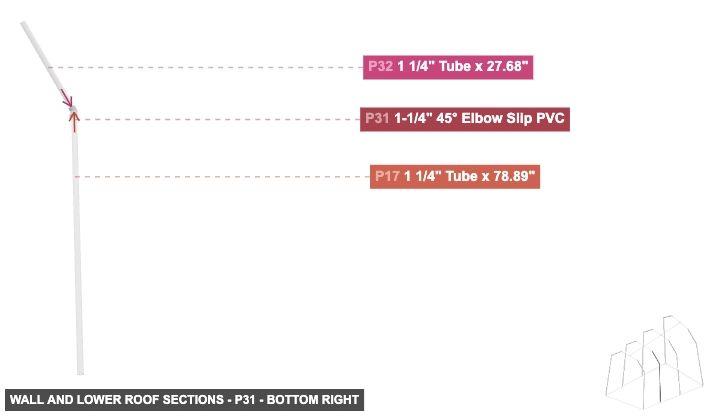

P31 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 17's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is front-top-facing, should connect to part 32's 1.25" M SLIP #2
P32 (1.25" Tube 27.68" length) - connect its 1.25" M SLIP #1 oriented front-top links with part 35's 1.25" F SLIP #1, plus connect its 1.25" M SLIP #2 oriented back-bottom links with part 31's 1.25" F SLIP #2
P33 (1.25" Tube 27.74" length) - its 1.25" M SLIP #1, which is back-top-facing, should connect to part 34's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing front-bottom to part 30's 1.25" F SLIP #2
P37 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented bottom links with part 6's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing back-top to part 40's 1.25" M SLIP #2
P38 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1, then connect its 1.25" F SLIP #2 oriented front-top links with part 39's 1.25" M SLIP #2
P39 (1.25" Tube 27.67" length) - its 1.25" M SLIP #1, which is front-top-facing, should connect to part 42's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented back-bottom links with part 38's 1.25" F SLIP #2
P40 (1.25" Tube 27.75" length) - attach its 1.25" M SLIP #1 facing back-top to part 41's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is front-bottom-facing, should connect to part 37's 1.25" F SLIP #2
1 1/4" Tube x 78.91"x 1
1 1/4" Tube x 78.7"x 1
1 1/4" Tube x 78.9"x 1
1 1/4" Tube x 78.73"x 1
1 1/4" Tube x 78.81"x 1
1 1/4" Tube x 78.88"x 1
1 1/4" Tube x 78.89"x 1
1 1/4" Tube x 78.78"x 1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 27.8"x 1
1 1/4" Tube x 27.7"x 3
1 1/4" Tube x 27.68"x 1
1 1/4" Tube x 27.74"x 1
1 1/4" Tube x 27.67"x 1
1 1/4" Tube x 27.75"x 1
Attaching: Roof Ridge and Upper Rafters
Forms the central peak of the roof and connects the lower roof sections together.
Connect the open socket (Female SLIP 1 1/4") on each upper 45° Elbow assembly (e.g., P56+P45) to the exposed Male SLIP 1 1/4" end of the corresponding lower angled roof tube from the previous group (P20, P22, P26, P25, P33, P32, P40, P39 respectively).
Angle: back left
P27 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is front-bottom-facing, should connect to part 26's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing back to part 48's 1.25" M SLIP #1
P28 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing back-bottom to part 25's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented front links with part 29's 1.25" M SLIP #2
P29 (1.25" Tube 18.96" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 61's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is back-facing, should connect to part 28's 1.25" F SLIP #2
P34 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented front-bottom links with part 33's 1.25" M SLIP #1. Next, its 1.25" F SLIP #2, which is back-facing, should connect to part 50's 1.25" M SLIP #1

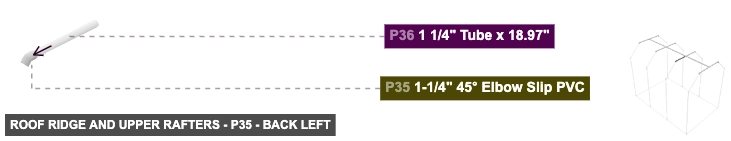

P35 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented back-bottom links with part 32's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing front to part 36's 1.25" M SLIP #2
P36 (1.25" Tube 18.97" length) - attach its 1.25" M SLIP #1 facing front to part 49's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing back to part 35's 1.25" F SLIP #2
P41 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing front-bottom to part 40's 1.25" M SLIP #1, also its 1.25" F SLIP #2, which is back-facing, should connect to part 53's 1.25" M SLIP #1
P42 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is back-bottom-facing, should connect to part 39's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing front to part 43's 1.25" M SLIP #2
P43 (1.25" Tube 19.2" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 51's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is back-facing, should connect to part 42's 1.25" F SLIP #2
P44 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is back-bottom-facing, should connect to part 22's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented front links with part 47's 1.25" M SLIP #1

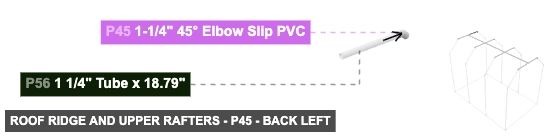

P45 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is front-bottom-facing, should connect to part 20's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented back links with part 56's 1.25" M SLIP #1
P46 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 56's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #2, which is back-facing, should connect to part 47's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #3 facing left to part 55's 1.25" M SLIP #1

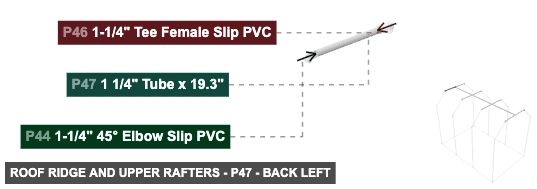

P47 (1.25" Tube 19.3" length) - connect its 1.25" M SLIP #1 oriented back links with part 44's 1.25" F SLIP #2. Additionally, connect its 1.25" M SLIP #2 oriented front links with part 46's 1.25" F SLIP #2
P48 (1.25" Tube 18.48" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 27's 1.25" F SLIP #2, plus attach its 1.25" M SLIP #2 facing back to part 61's 1.25" F SLIP #2
P49 (1.25" Cross Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 36's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #2 facing front to part 50's 1.25" M SLIP #2. After that, its 1.25" F SLIP #3, which is right-facing, should connect to part 54's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #4 oriented left links with part 52's 1.25" M SLIP #1

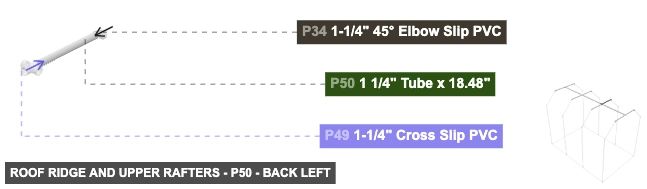

P50 (1.25" Tube 18.48" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 34's 1.25" F SLIP #2, then its 1.25" M SLIP #2, which is back-facing, should connect to part 49's 1.25" F SLIP #2

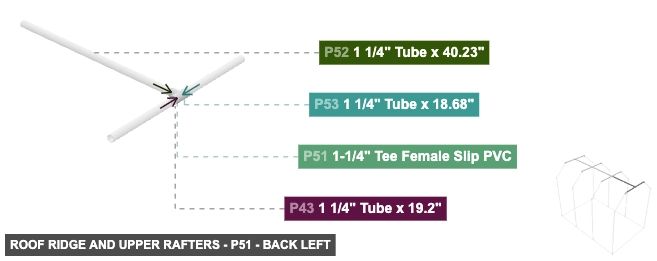

P51 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 43's 1.25" M SLIP #1, plus its 1.25" F SLIP #2, which is front-facing, should connect to part 53's 1.25" M SLIP #2, also attach its 1.25" F SLIP #3 facing right to part 52's 1.25" M SLIP #2
P52 (1.25" Tube 40.23" length) - connect its 1.25" M SLIP #1 oriented right links with part 49's 1.25" F SLIP #4. After that, attach its 1.25" M SLIP #2 facing left to part 51's 1.25" F SLIP #3
P53 (1.25" Tube 18.68" length) - connect its 1.25" M SLIP #1 oriented front links with part 41's 1.25" F SLIP #2, also connect its 1.25" M SLIP #2 oriented back links with part 51's 1.25" F SLIP #2
P54 (1.25" Tube 40" length) - connect its 1.25" M SLIP #1 oriented right links with part 61's 1.25" F SLIP #4. Also, connect its 1.25" M SLIP #2 oriented left links with part 49's 1.25" F SLIP #3
P55 (1.25" Tube 40.09" length) - attach its 1.25" M SLIP #1 facing right to part 46's 1.25" F SLIP #3. Next, its 1.25" M SLIP #2, which is left-facing, should connect to part 61's 1.25" F SLIP #3
P56 (1.25" Tube 18.79" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 45's 1.25" F SLIP #2, plus its 1.25" M SLIP #2, which is back-facing, should connect to part 46's 1.25" F SLIP #1

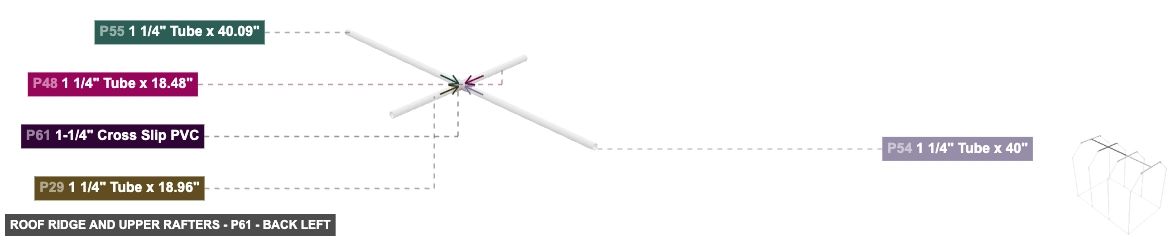

P61 (1.25" Cross Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 29's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing front to part 48's 1.25" M SLIP #2, then attach its 1.25" F SLIP #3 facing right to part 55's 1.25" M SLIP #2. Next, its 1.25" F SLIP #4, which is left-facing, should connect to part 54's 1.25" M SLIP #1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 18.96"x 1
1 1/4" Tube x 18.97"x 1
1 1/4" Tube x 19.2"x 1
1-1/4" Tee Female Slip PVCx 2
1 1/4" Tube x 19.3"x 1
1 1/4" Tube x 18.48"x 2
1-1/4" Cross Slip PVCx 2
1 1/4" Tube x 40.23"x 1
1 1/4" Tube x 18.68"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.09"x 1
1 1/4" Tube x 18.79"x 1
Angle: front right

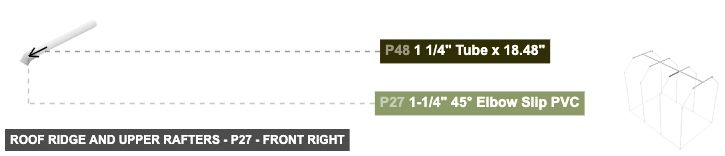

P27 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is front-bottom-facing, should connect to part 26's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing back to part 48's 1.25" M SLIP #1
P28 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing back-bottom to part 25's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented front links with part 29's 1.25" M SLIP #2
P29 (1.25" Tube 18.96" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 61's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is back-facing, should connect to part 28's 1.25" F SLIP #2
P34 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented front-bottom links with part 33's 1.25" M SLIP #1. Next, its 1.25" F SLIP #2, which is back-facing, should connect to part 50's 1.25" M SLIP #1
P35 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented back-bottom links with part 32's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing front to part 36's 1.25" M SLIP #2
P36 (1.25" Tube 18.97" length) - attach its 1.25" M SLIP #1 facing front to part 49's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing back to part 35's 1.25" F SLIP #2
P41 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing front-bottom to part 40's 1.25" M SLIP #1, also its 1.25" F SLIP #2, which is back-facing, should connect to part 53's 1.25" M SLIP #1
P42 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is back-bottom-facing, should connect to part 39's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing front to part 43's 1.25" M SLIP #2

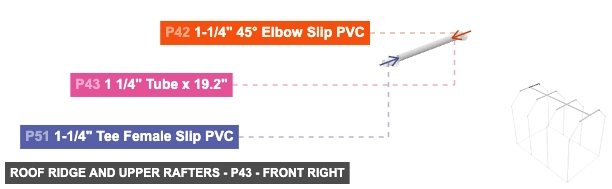

P43 (1.25" Tube 19.2" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 51's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is back-facing, should connect to part 42's 1.25" F SLIP #2
P44 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is back-bottom-facing, should connect to part 22's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented front links with part 47's 1.25" M SLIP #1
P45 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is front-bottom-facing, should connect to part 20's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented back links with part 56's 1.25" M SLIP #1
P46 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 56's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #2, which is back-facing, should connect to part 47's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #3 facing left to part 55's 1.25" M SLIP #1

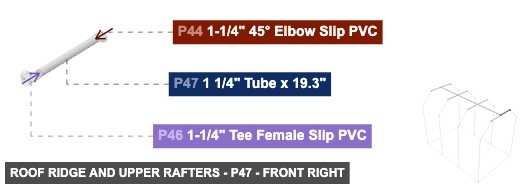

P47 (1.25" Tube 19.3" length) - connect its 1.25" M SLIP #1 oriented back links with part 44's 1.25" F SLIP #2. Additionally, connect its 1.25" M SLIP #2 oriented front links with part 46's 1.25" F SLIP #2
P48 (1.25" Tube 18.48" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 27's 1.25" F SLIP #2, plus attach its 1.25" M SLIP #2 facing back to part 61's 1.25" F SLIP #2
P49 (1.25" Cross Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 36's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #2 facing front to part 50's 1.25" M SLIP #2. After that, its 1.25" F SLIP #3, which is right-facing, should connect to part 54's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #4 oriented left links with part 52's 1.25" M SLIP #1
P50 (1.25" Tube 18.48" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 34's 1.25" F SLIP #2, then its 1.25" M SLIP #2, which is back-facing, should connect to part 49's 1.25" F SLIP #2
P51 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 43's 1.25" M SLIP #1, plus its 1.25" F SLIP #2, which is front-facing, should connect to part 53's 1.25" M SLIP #2, also attach its 1.25" F SLIP #3 facing right to part 52's 1.25" M SLIP #2

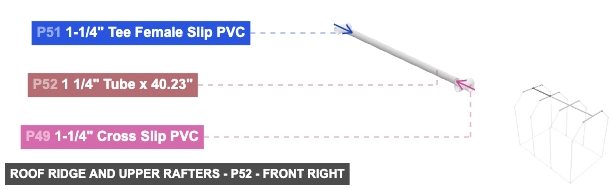

P52 (1.25" Tube 40.23" length) - connect its 1.25" M SLIP #1 oriented right links with part 49's 1.25" F SLIP #4. After that, attach its 1.25" M SLIP #2 facing left to part 51's 1.25" F SLIP #3

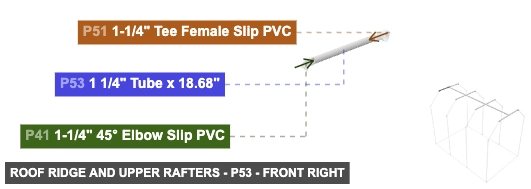

P53 (1.25" Tube 18.68" length) - connect its 1.25" M SLIP #1 oriented front links with part 41's 1.25" F SLIP #2, also connect its 1.25" M SLIP #2 oriented back links with part 51's 1.25" F SLIP #2

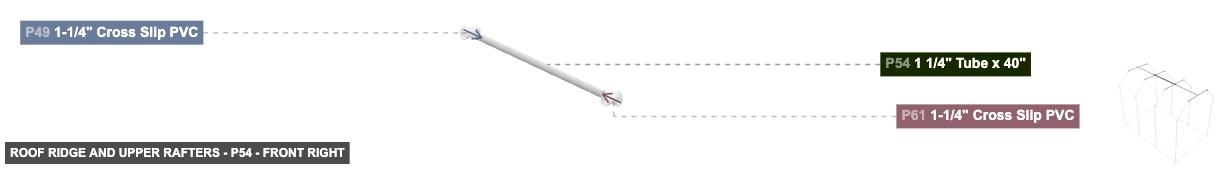

P54 (1.25" Tube 40" length) - connect its 1.25" M SLIP #1 oriented right links with part 61's 1.25" F SLIP #4. Also, connect its 1.25" M SLIP #2 oriented left links with part 49's 1.25" F SLIP #3
P55 (1.25" Tube 40.09" length) - attach its 1.25" M SLIP #1 facing right to part 46's 1.25" F SLIP #3. Next, its 1.25" M SLIP #2, which is left-facing, should connect to part 61's 1.25" F SLIP #3
P56 (1.25" Tube 18.79" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 45's 1.25" F SLIP #2, plus its 1.25" M SLIP #2, which is back-facing, should connect to part 46's 1.25" F SLIP #1
P61 (1.25" Cross Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 29's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing front to part 48's 1.25" M SLIP #2, then attach its 1.25" F SLIP #3 facing right to part 55's 1.25" M SLIP #2. Next, its 1.25" F SLIP #4, which is left-facing, should connect to part 54's 1.25" M SLIP #1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 18.96"x 1
1 1/4" Tube x 18.97"x 1
1 1/4" Tube x 19.2"x 1
1-1/4" Tee Female Slip PVCx 2
1 1/4" Tube x 19.3"x 1
1 1/4" Tube x 18.48"x 2
1-1/4" Cross Slip PVCx 2
1 1/4" Tube x 40.23"x 1
1 1/4" Tube x 18.68"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.09"x 1
1 1/4" Tube x 18.79"x 1

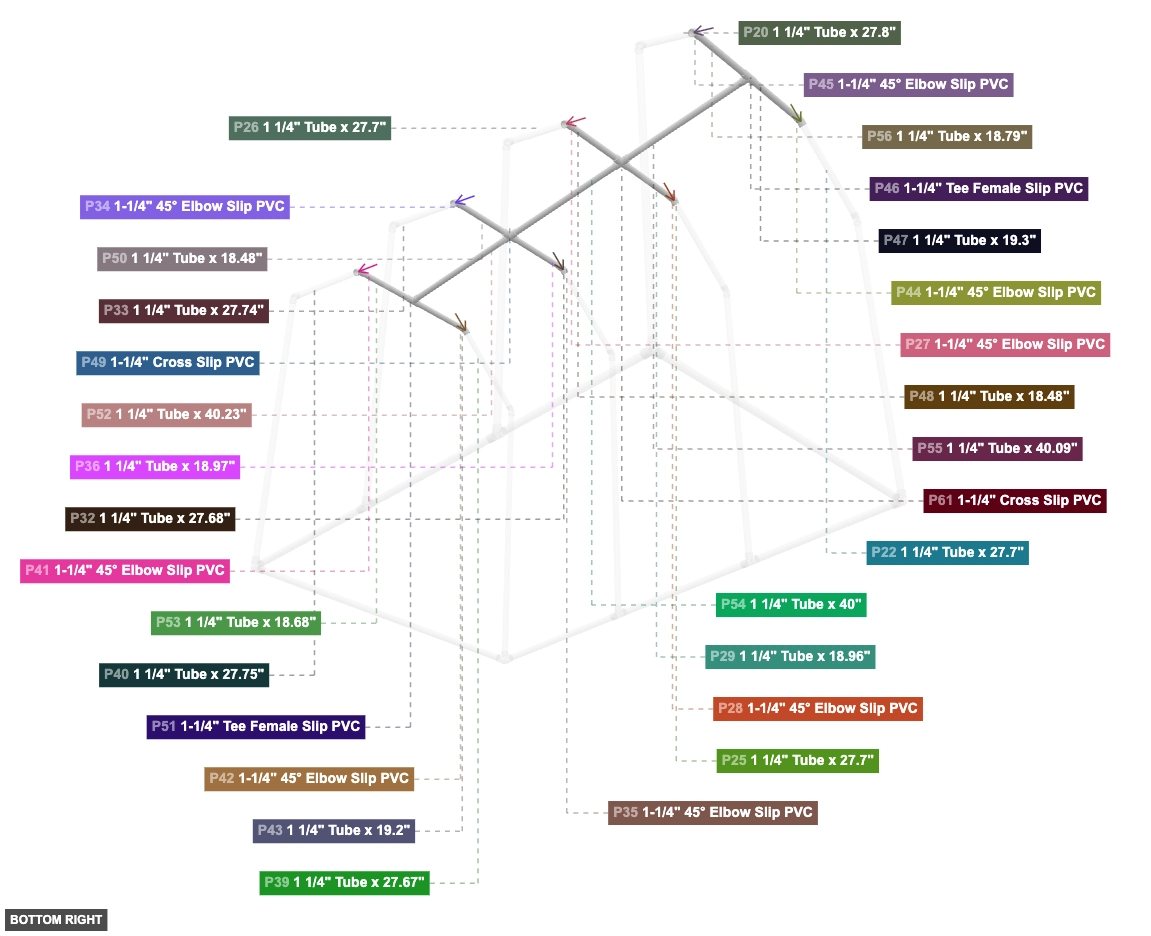

Angle: bottom right

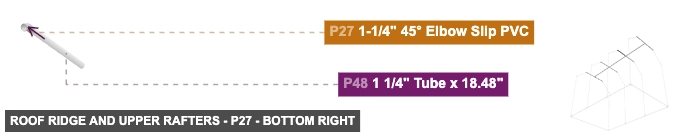

P27 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is front-bottom-facing, should connect to part 26's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing back to part 48's 1.25" M SLIP #1

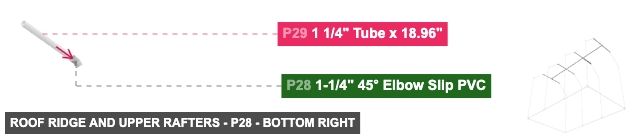

P28 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing back-bottom to part 25's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented front links with part 29's 1.25" M SLIP #2
P29 (1.25" Tube 18.96" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 61's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is back-facing, should connect to part 28's 1.25" F SLIP #2
P34 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented front-bottom links with part 33's 1.25" M SLIP #1. Next, its 1.25" F SLIP #2, which is back-facing, should connect to part 50's 1.25" M SLIP #1
P35 (1.25" 45° Elbow Slip PVC) - connect its 1.25" F SLIP #1 oriented back-bottom links with part 32's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing front to part 36's 1.25" M SLIP #2
P36 (1.25" Tube 18.97" length) - attach its 1.25" M SLIP #1 facing front to part 49's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing back to part 35's 1.25" F SLIP #2
P41 (1.25" 45° Elbow Slip PVC) - attach its 1.25" F SLIP #1 facing front-bottom to part 40's 1.25" M SLIP #1, also its 1.25" F SLIP #2, which is back-facing, should connect to part 53's 1.25" M SLIP #1
P42 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is back-bottom-facing, should connect to part 39's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing front to part 43's 1.25" M SLIP #2

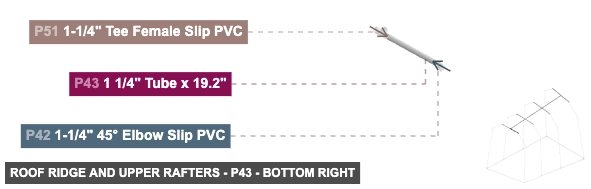

P43 (1.25" Tube 19.2" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 51's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is back-facing, should connect to part 42's 1.25" F SLIP #2
P44 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is back-bottom-facing, should connect to part 22's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented front links with part 47's 1.25" M SLIP #1

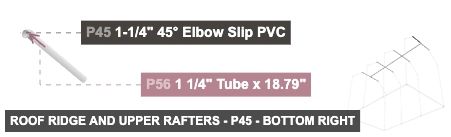

P45 (1.25" 45° Elbow Slip PVC) - its 1.25" F SLIP #1, which is front-bottom-facing, should connect to part 20's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented back links with part 56's 1.25" M SLIP #1

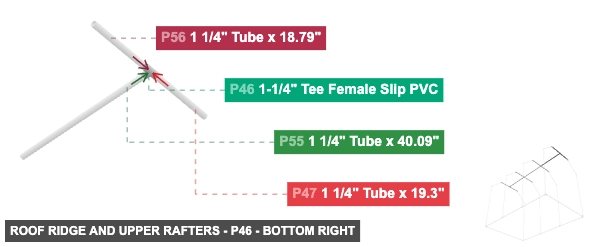

P46 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 56's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #2, which is back-facing, should connect to part 47's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #3 facing left to part 55's 1.25" M SLIP #1

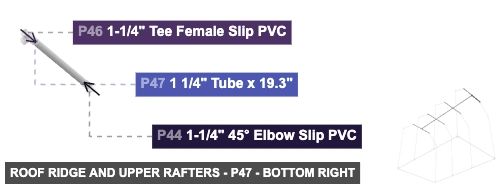

P47 (1.25" Tube 19.3" length) - connect its 1.25" M SLIP #1 oriented back links with part 44's 1.25" F SLIP #2. Additionally, connect its 1.25" M SLIP #2 oriented front links with part 46's 1.25" F SLIP #2
P48 (1.25" Tube 18.48" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 27's 1.25" F SLIP #2, plus attach its 1.25" M SLIP #2 facing back to part 61's 1.25" F SLIP #2

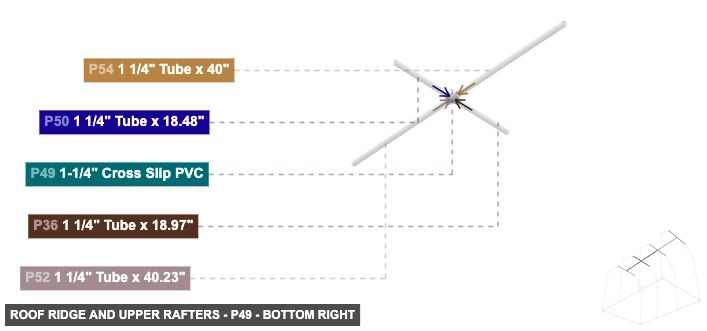

P49 (1.25" Cross Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 36's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #2 facing front to part 50's 1.25" M SLIP #2. After that, its 1.25" F SLIP #3, which is right-facing, should connect to part 54's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #4 oriented left links with part 52's 1.25" M SLIP #1
P50 (1.25" Tube 18.48" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 34's 1.25" F SLIP #2, then its 1.25" M SLIP #2, which is back-facing, should connect to part 49's 1.25" F SLIP #2

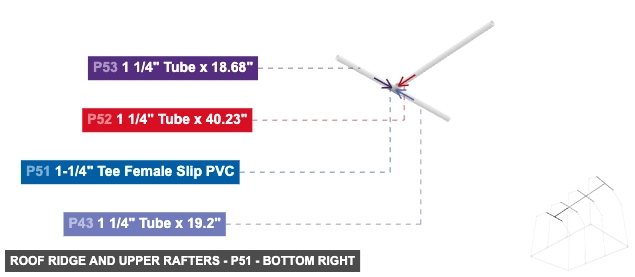

P51 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 43's 1.25" M SLIP #1, plus its 1.25" F SLIP #2, which is front-facing, should connect to part 53's 1.25" M SLIP #2, also attach its 1.25" F SLIP #3 facing right to part 52's 1.25" M SLIP #2
P52 (1.25" Tube 40.23" length) - connect its 1.25" M SLIP #1 oriented right links with part 49's 1.25" F SLIP #4. After that, attach its 1.25" M SLIP #2 facing left to part 51's 1.25" F SLIP #3
P53 (1.25" Tube 18.68" length) - connect its 1.25" M SLIP #1 oriented front links with part 41's 1.25" F SLIP #2, also connect its 1.25" M SLIP #2 oriented back links with part 51's 1.25" F SLIP #2

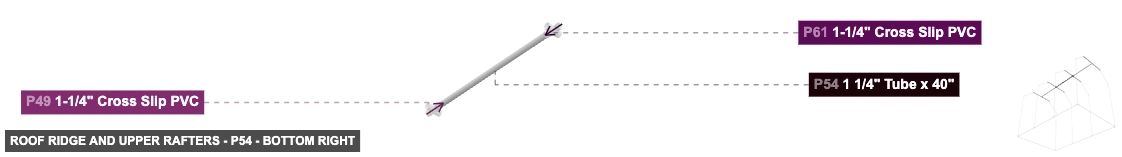

P54 (1.25" Tube 40" length) - connect its 1.25" M SLIP #1 oriented right links with part 61's 1.25" F SLIP #4. Also, connect its 1.25" M SLIP #2 oriented left links with part 49's 1.25" F SLIP #3
P55 (1.25" Tube 40.09" length) - attach its 1.25" M SLIP #1 facing right to part 46's 1.25" F SLIP #3. Next, its 1.25" M SLIP #2, which is left-facing, should connect to part 61's 1.25" F SLIP #3
P56 (1.25" Tube 18.79" length) - its 1.25" M SLIP #1, which is front-facing, should connect to part 45's 1.25" F SLIP #2, plus its 1.25" M SLIP #2, which is back-facing, should connect to part 46's 1.25" F SLIP #1
P61 (1.25" Cross Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 29's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing front to part 48's 1.25" M SLIP #2, then attach its 1.25" F SLIP #3 facing right to part 55's 1.25" M SLIP #2. Next, its 1.25" F SLIP #4, which is left-facing, should connect to part 54's 1.25" M SLIP #1
1-1/4" 45° Elbow Slip PVCx 8
1 1/4" Tube x 18.96"x 1
1 1/4" Tube x 18.97"x 1
1 1/4" Tube x 19.2"x 1
1-1/4" Tee Female Slip PVCx 2
1 1/4" Tube x 19.3"x 1
1 1/4" Tube x 18.48"x 2
1-1/4" Cross Slip PVCx 2
1 1/4" Tube x 40.23"x 1
1 1/4" Tube x 18.68"x 1
1 1/4" Tube x 40"x 1
1 1/4" Tube x 40.09"x 1
1 1/4" Tube x 18.79"x 1
