Double Cat Bed - Comprehensive Assembly Plan And Visual Guide

Double Cat Bed Free Plan And Visual Guide

A two-tiered structure made from PVC pipes, fittings, and two flat platforms (P1 and P16). It appears to be a bunk bed or multi-level perch designed for cats. - Double Cat Bed

Phase 1: Group Overview

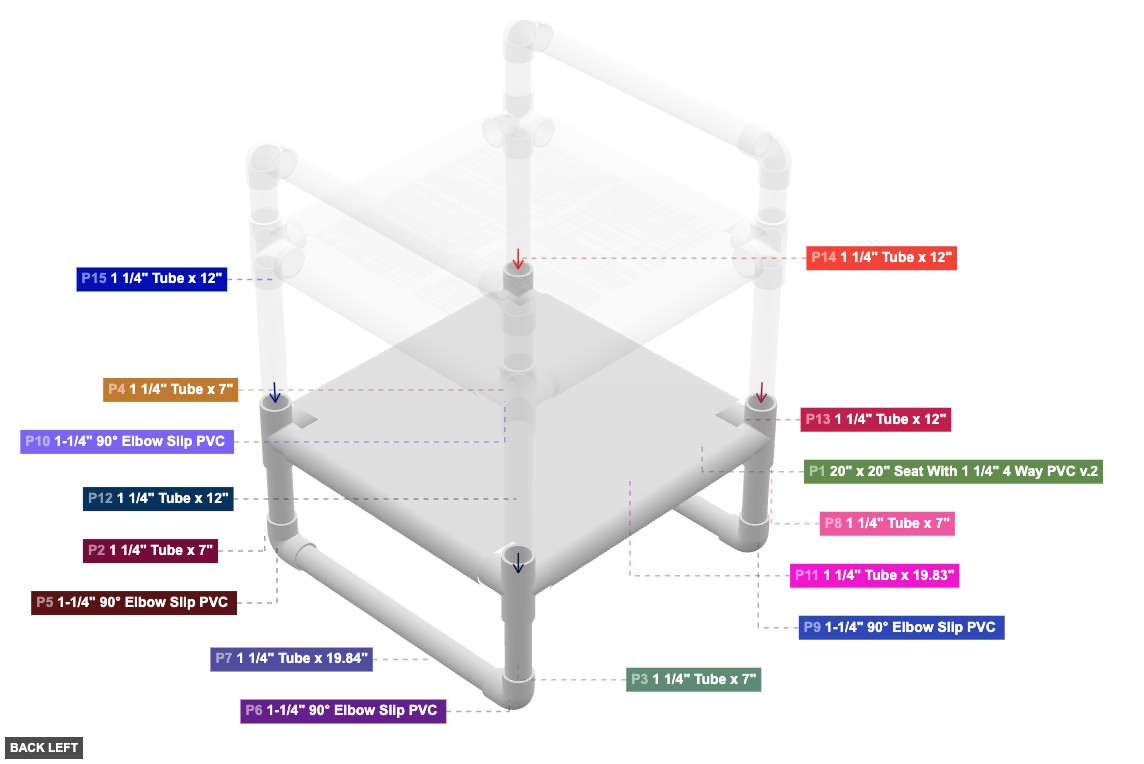

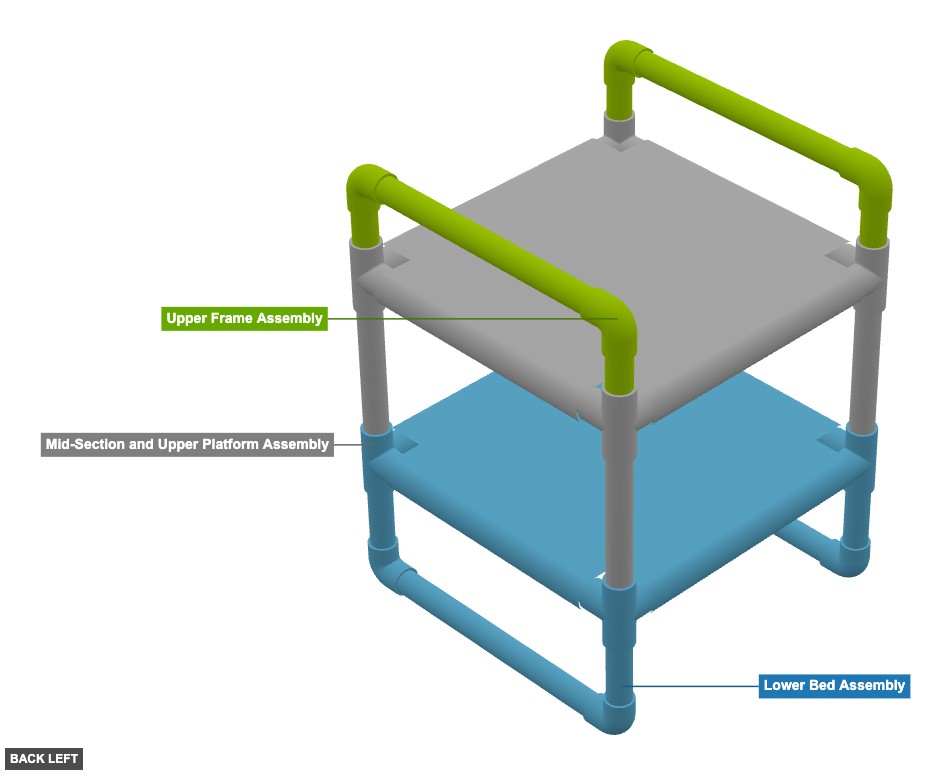

Angle: back left

Double Cat Bed - Overview back_left
Lower Bed Assembly
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

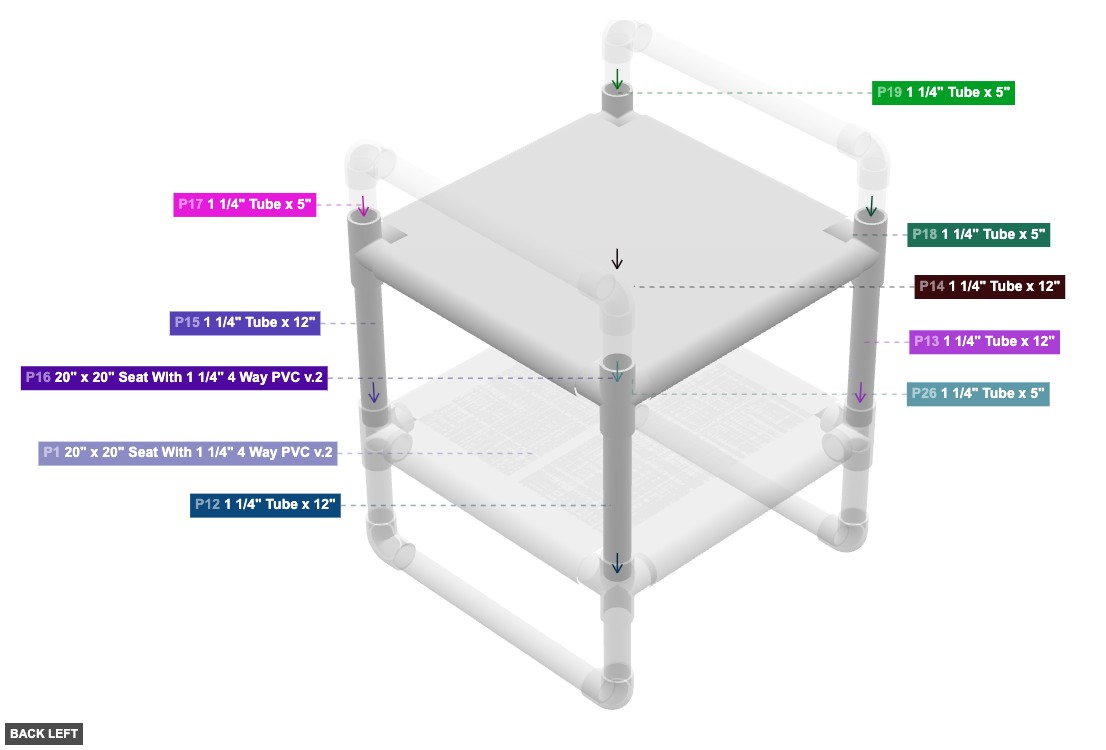

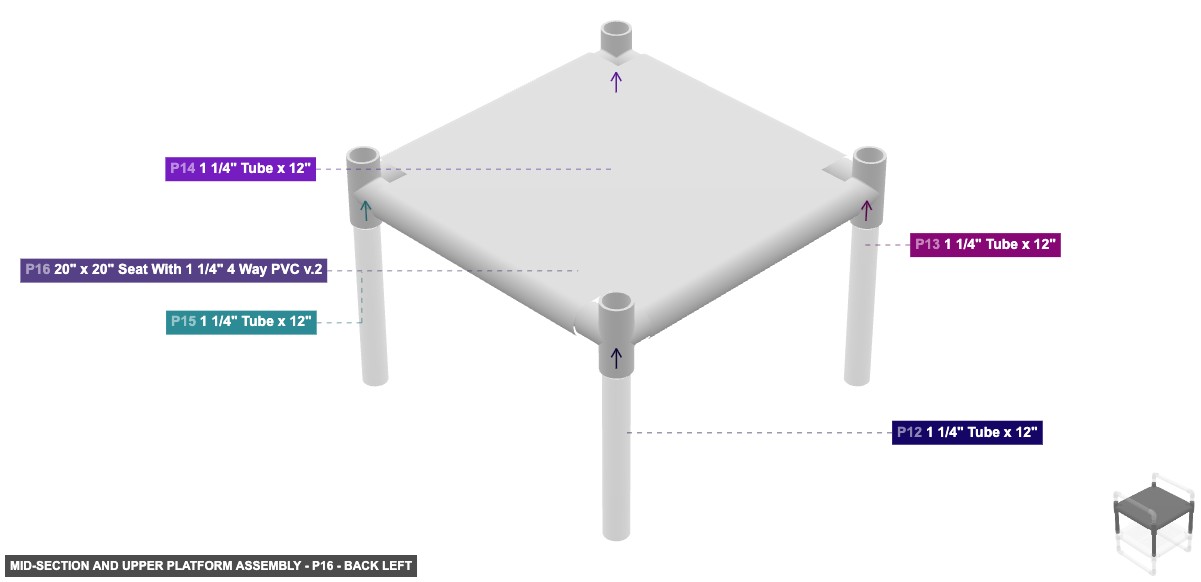

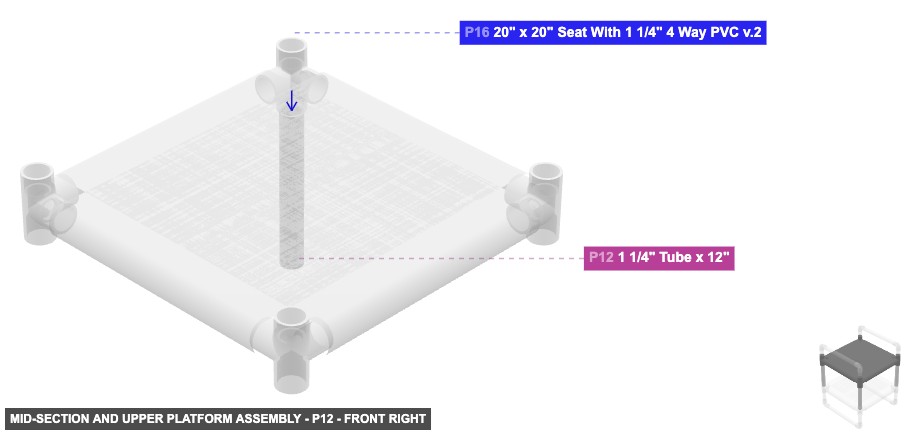

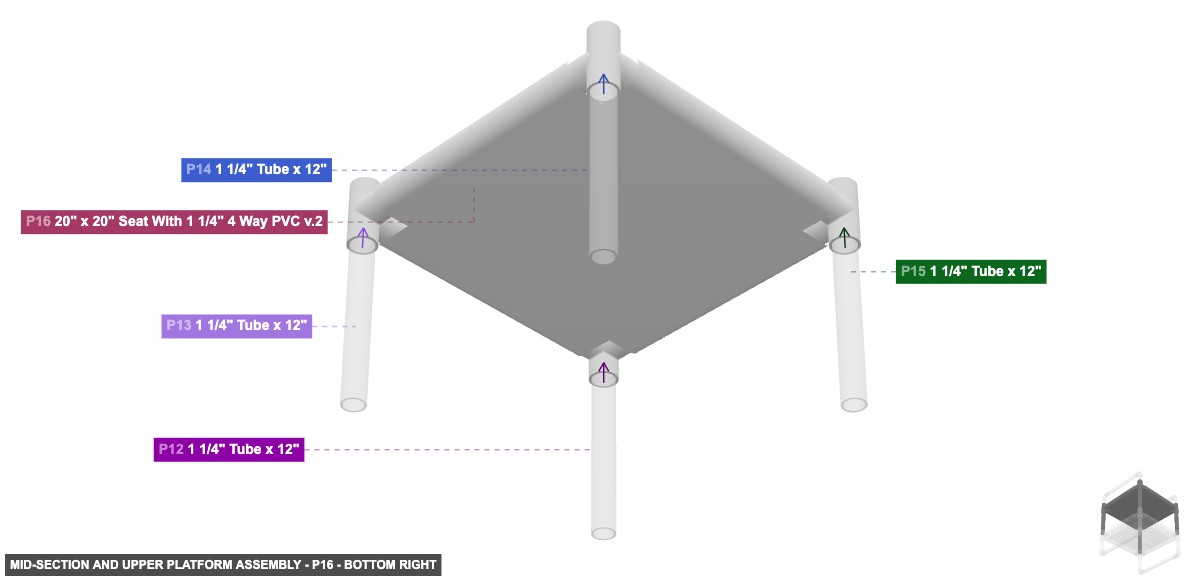

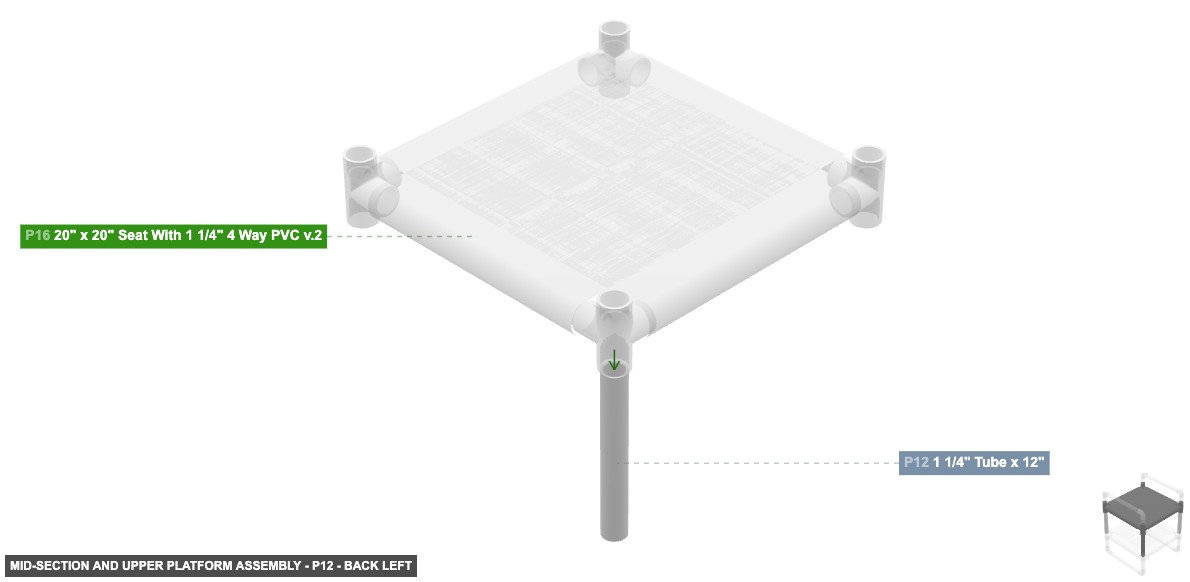

Mid-Section and Upper Platform Assembly
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

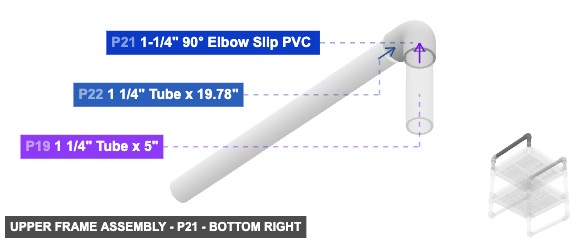

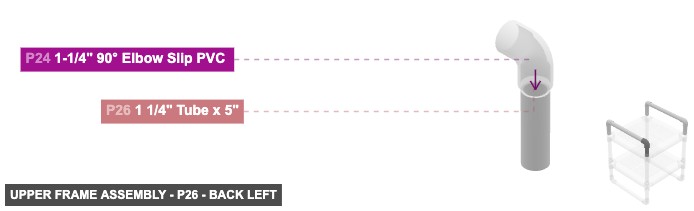

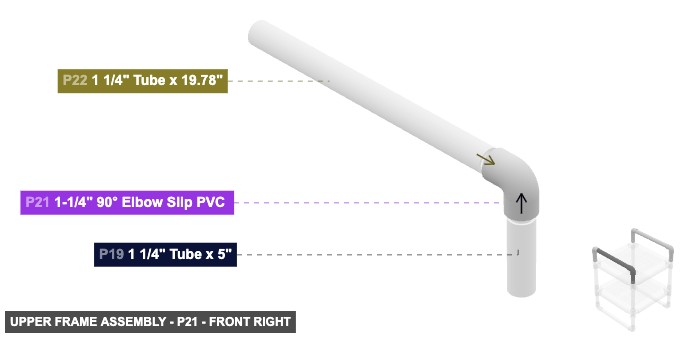

Upper Frame Assembly
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

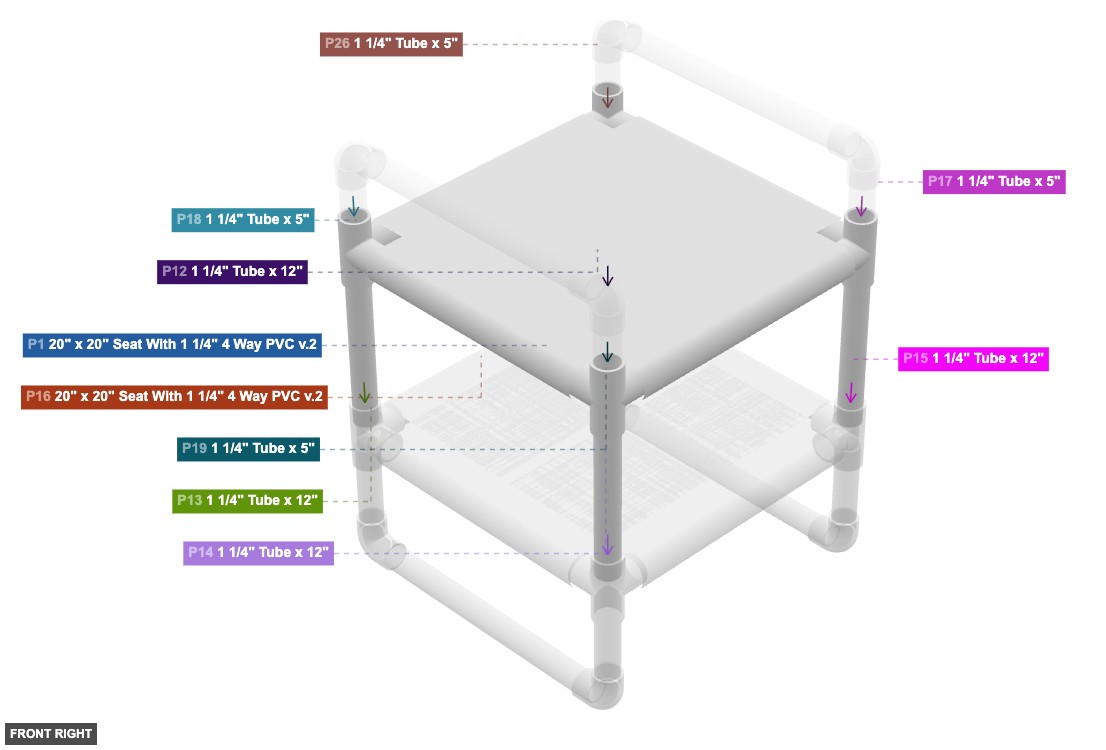

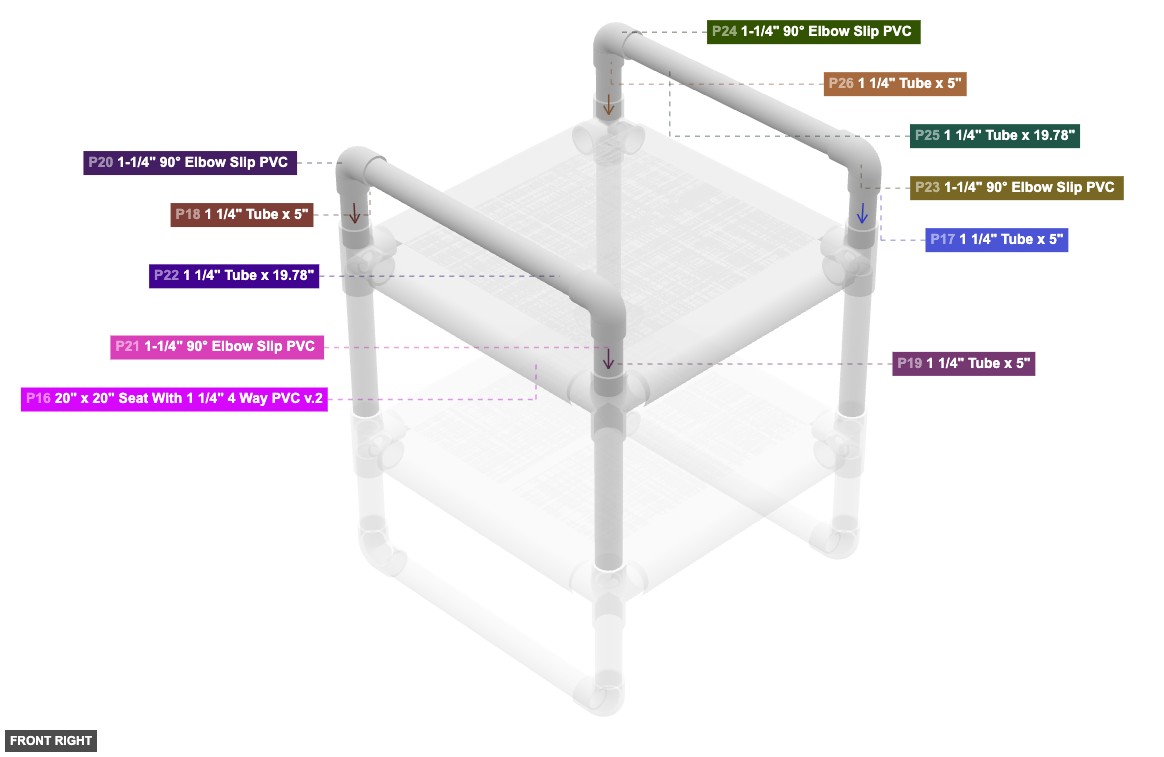

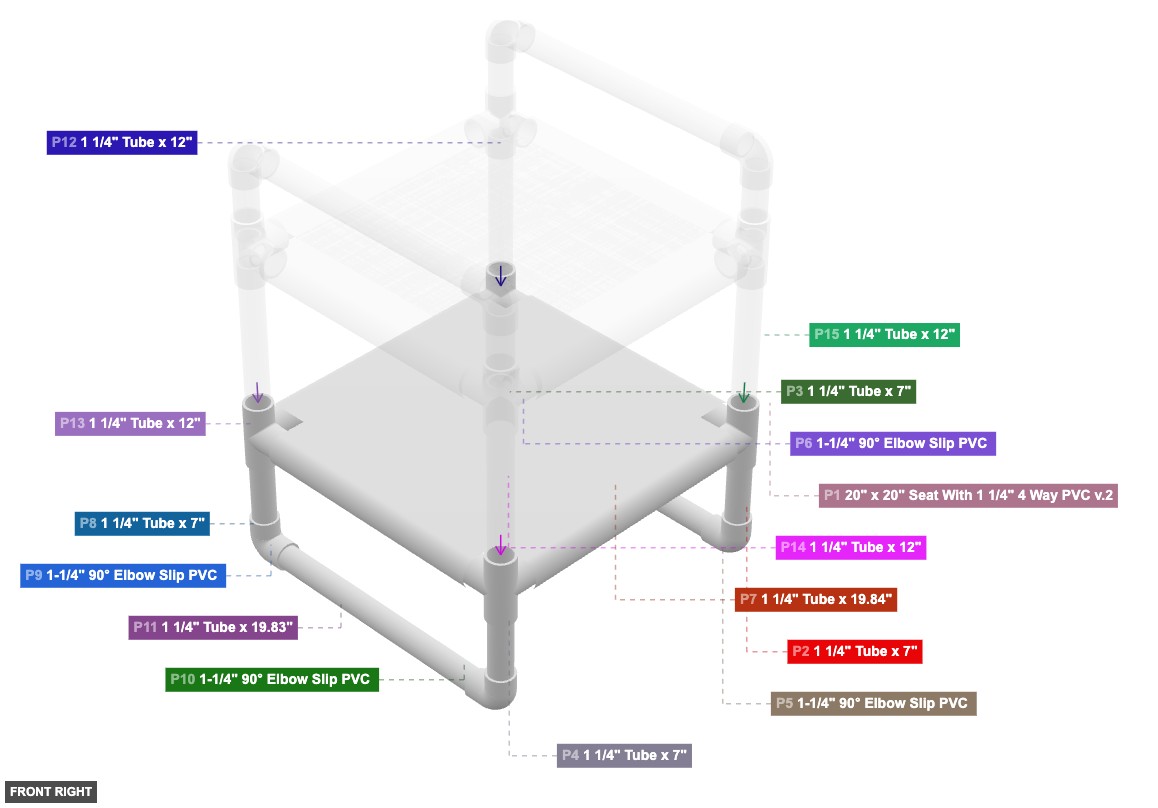

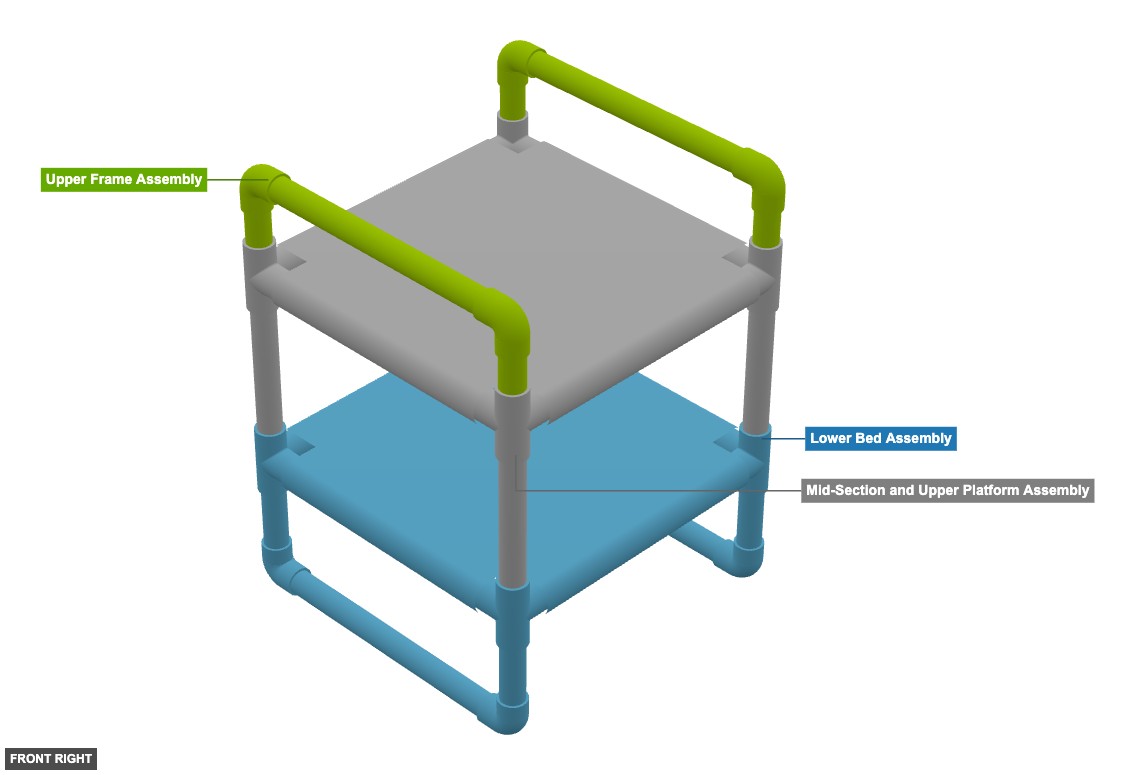

Angle: front right

Double Cat Bed - Overview front_right
Lower Bed Assembly
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1
Mid-Section and Upper Platform Assembly
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
Upper Frame Assembly
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

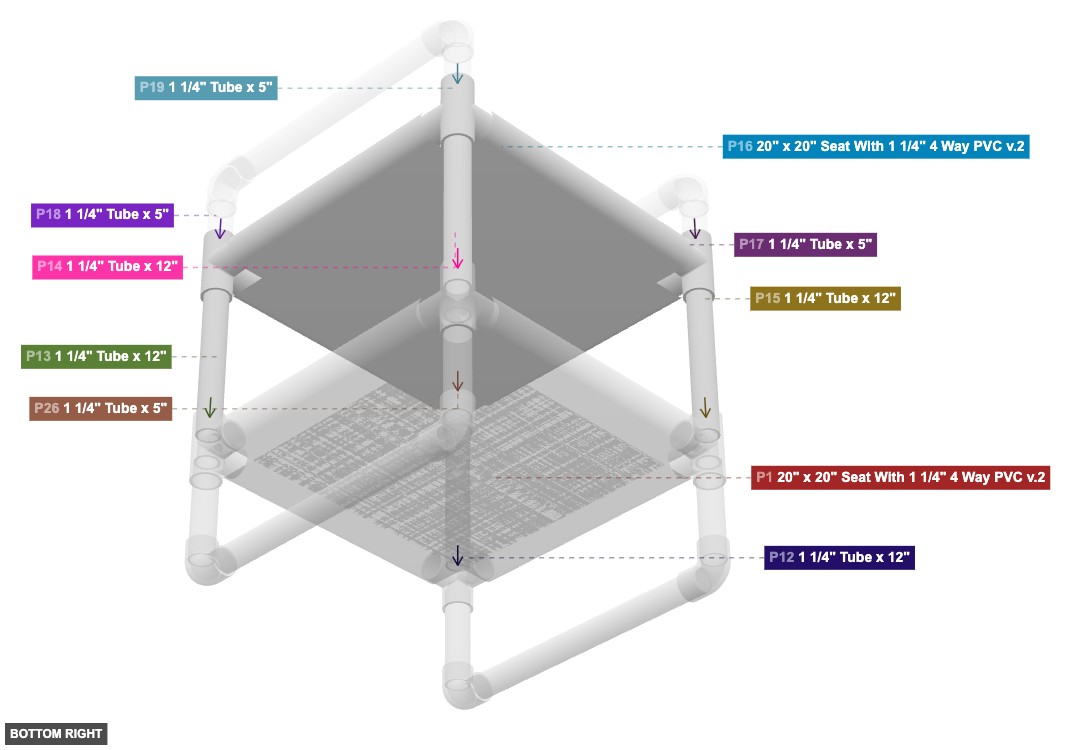

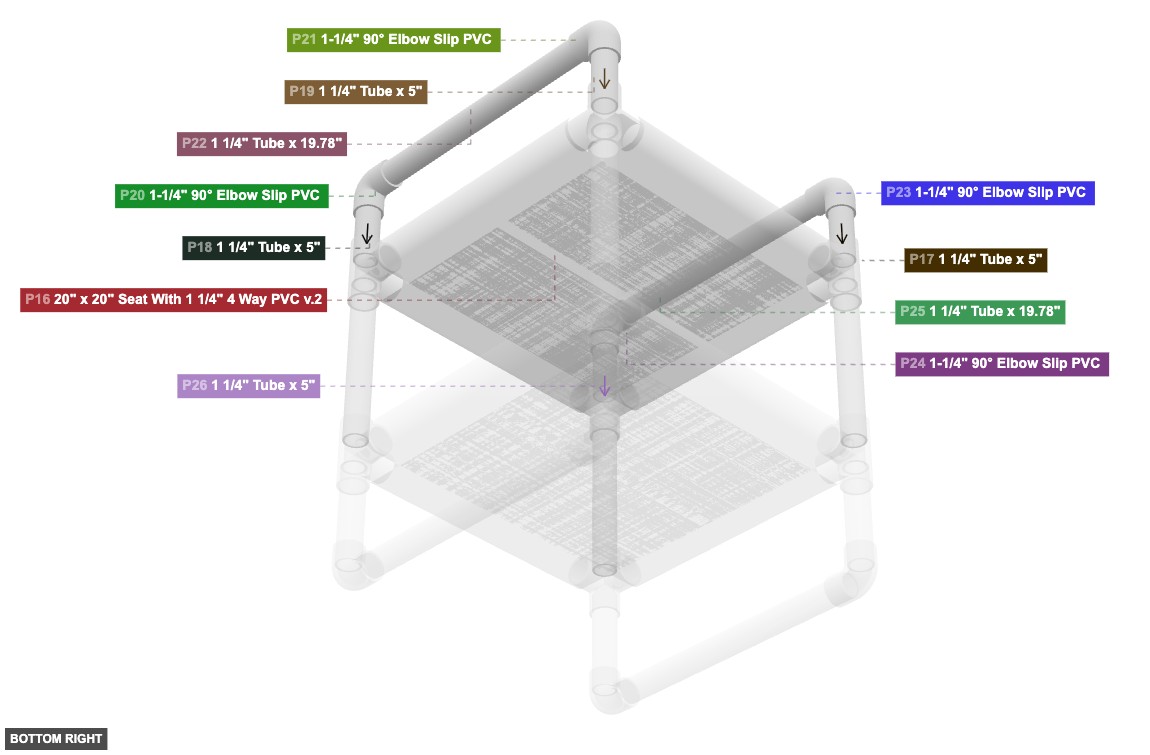

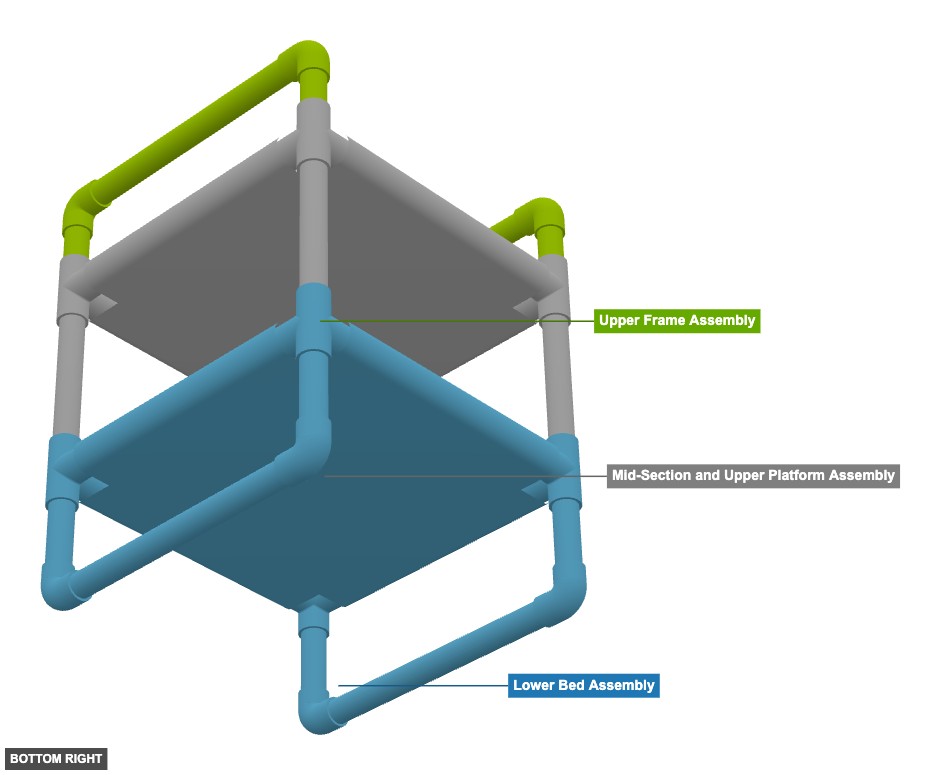

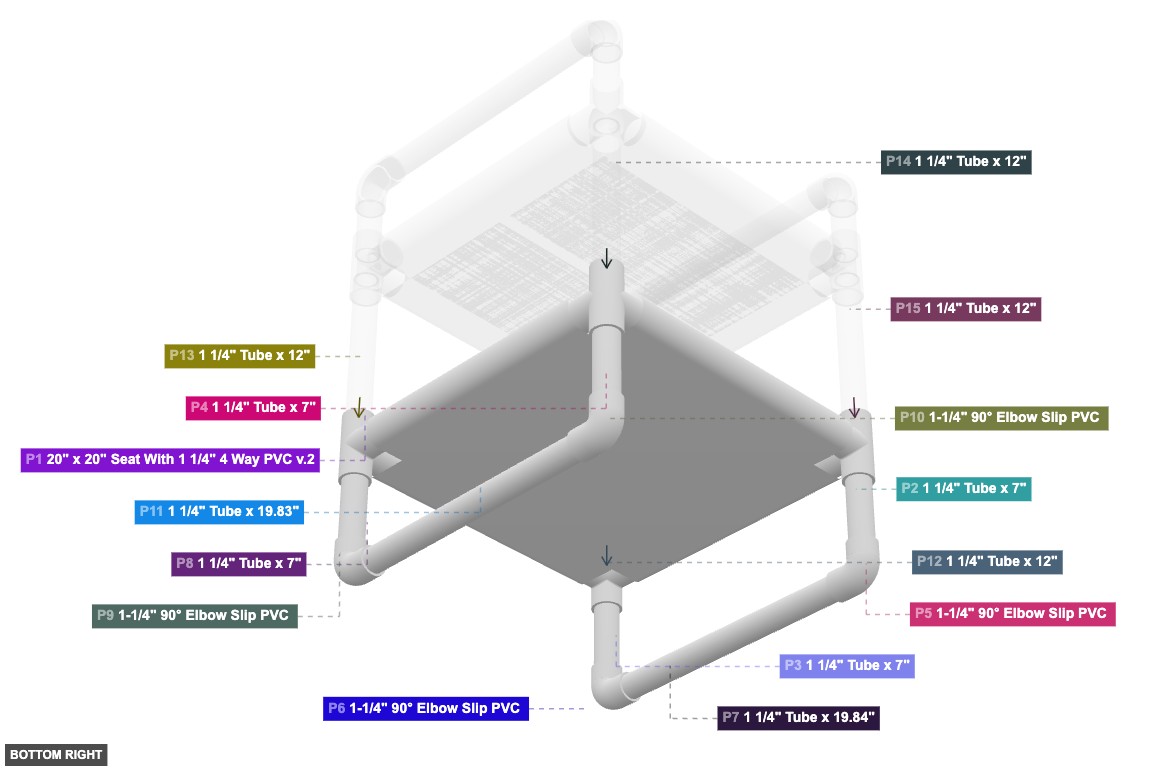

Angle: bottom right

Double Cat Bed - Overview bottom_right
Lower Bed Assembly
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

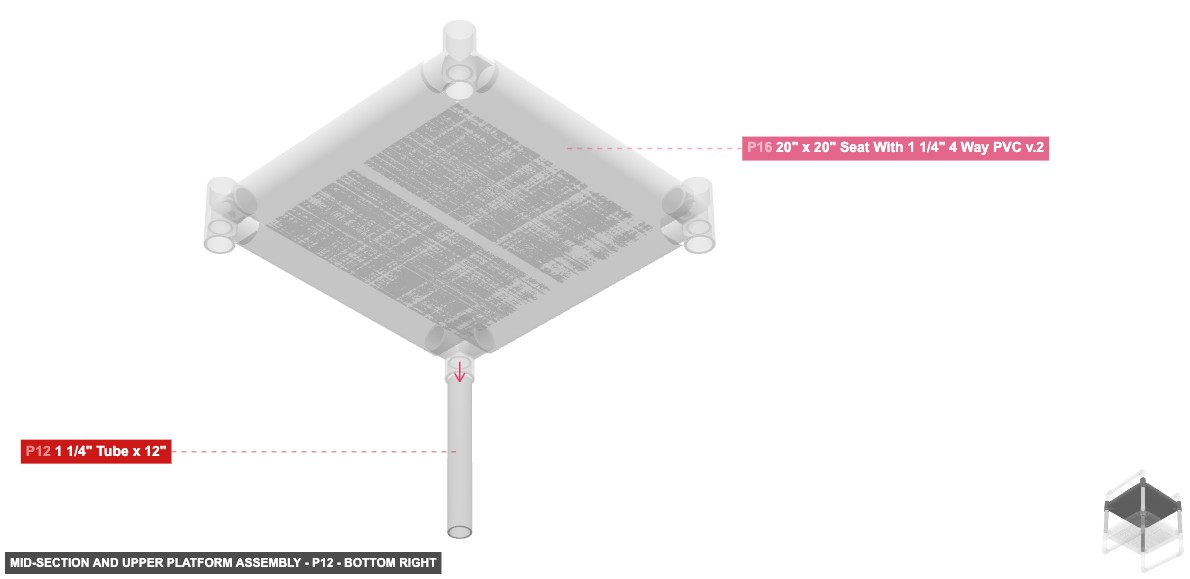

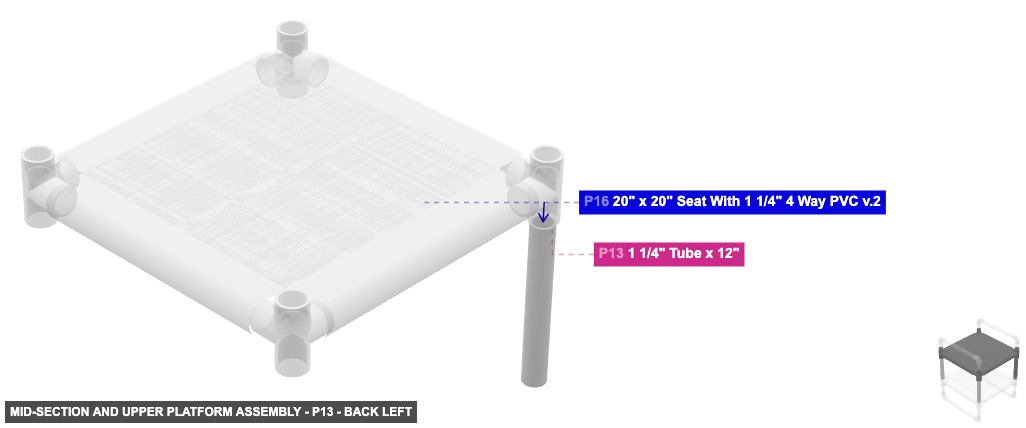

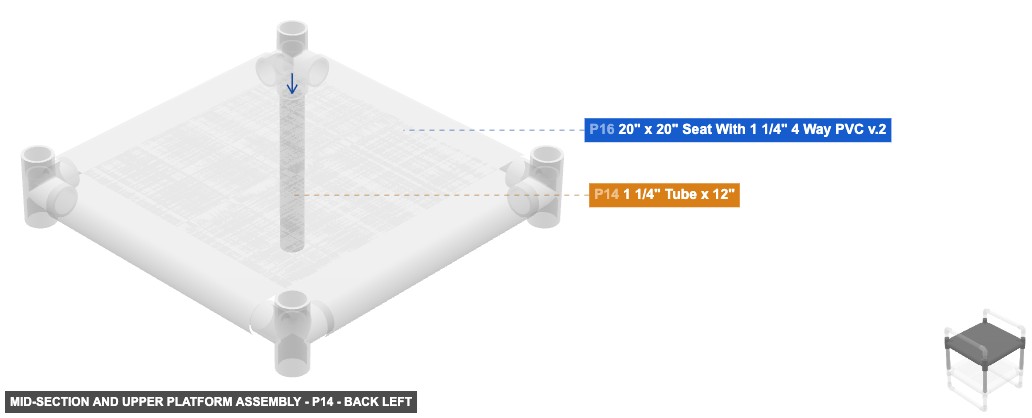

Mid-Section and Upper Platform Assembly
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

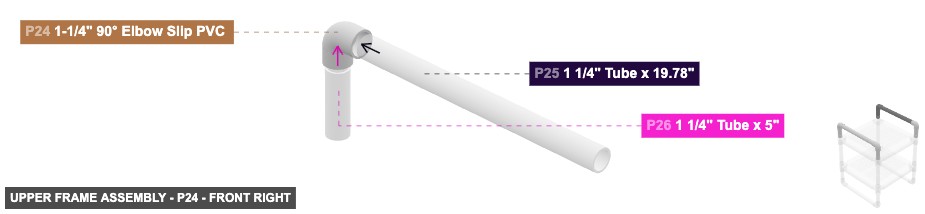

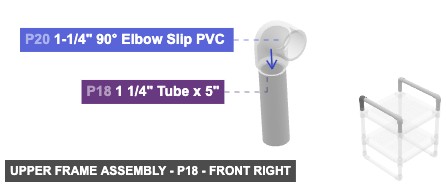

Upper Frame Assembly
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Phase 2: Individual Group Assembly

Group: Lower Bed Assembly

Forms the complete lower level including the base frame, lower legs, and the lower platform.

1. Connect the right end (Male SLIP 1 1/4") of P7 (Tube 19.84") into the left opening (Female SLIP 1 1/4") of P5 (Elbow). Connect the left end (Male SLIP 1 1/4") of P7 into the right opening (Female SLIP 1 1/4") of P6 (Elbow). This forms the front base rail. 2. Connect the left end (Male SLIP 1 1/4") of P11 (Tube 19.83") into the right opening (Female SLIP 1 1/4") of P9 (Elbow). Connect the right end (Male SLIP 1 1/4") of P11 into the left opening (Female SLIP 1 1/4") of P10 (Elbow). This forms the rear base rail. 3. Insert the bottom end (Male SLIP 1 1/4") of P2 (Tube 7") into the top opening (Female SLIP 1 1/4") of P5. 4. Insert the bottom end (Male SLIP 1 1/4") of P3 (Tube 7") into the top opening (Female SLIP 1 1/4") of P6. 5. Insert the bottom end (Male SLIP 1 1/4") of P8 (Tube 7") into the top opening (Female SLIP 1 1/4") of P9. 6. Insert the bottom end (Male SLIP 1 1/4") of P4 (Tube 7") into the top opening (Female SLIP 1 1/4") of P10. 7. Take P1 (Platform). Insert the top ends (Male SLIP 1 1/4") of the assembled legs (P2, P3, P4, P8) into the four corner connectors (Female SLIP 1 1/4") on the underside of Platform P1.

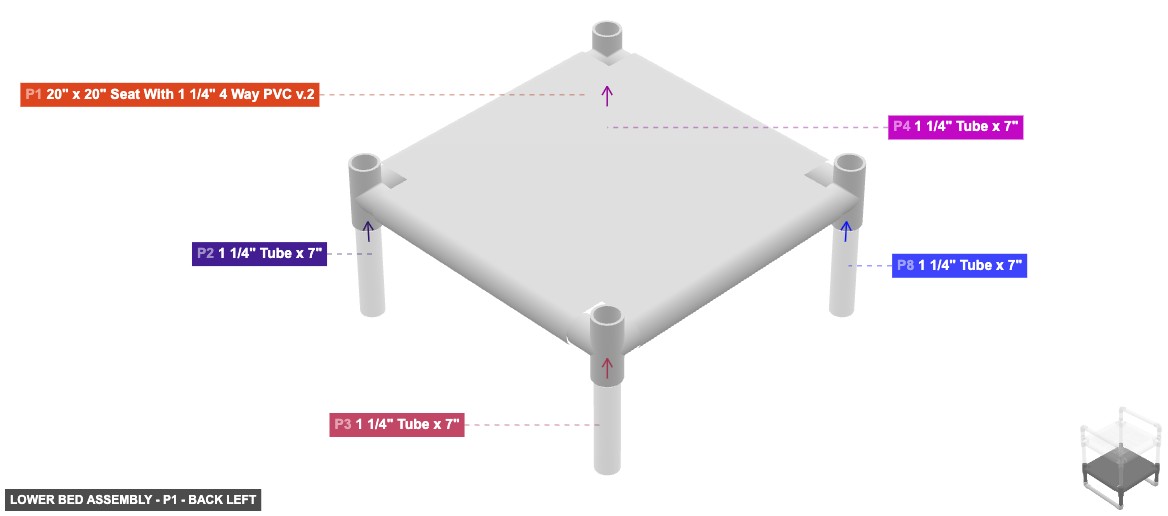

Part: 20" x 20" Seat With 1 1/4" 4 Way PVC v.2 - Angle: back left

Lower Bed Assembly - Part 20
P1 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #2, which is bottom-facing, should connect to part 3's 1.25" M SLIP #2. Next, its 1.25" F SLIP #4, which is bottom-facing, should connect to part 2's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #6 oriented bottom links with part 8's 1.25" M SLIP #2, then its 1.25" F SLIP #8, which is bottom-facing, should connect to part 4's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

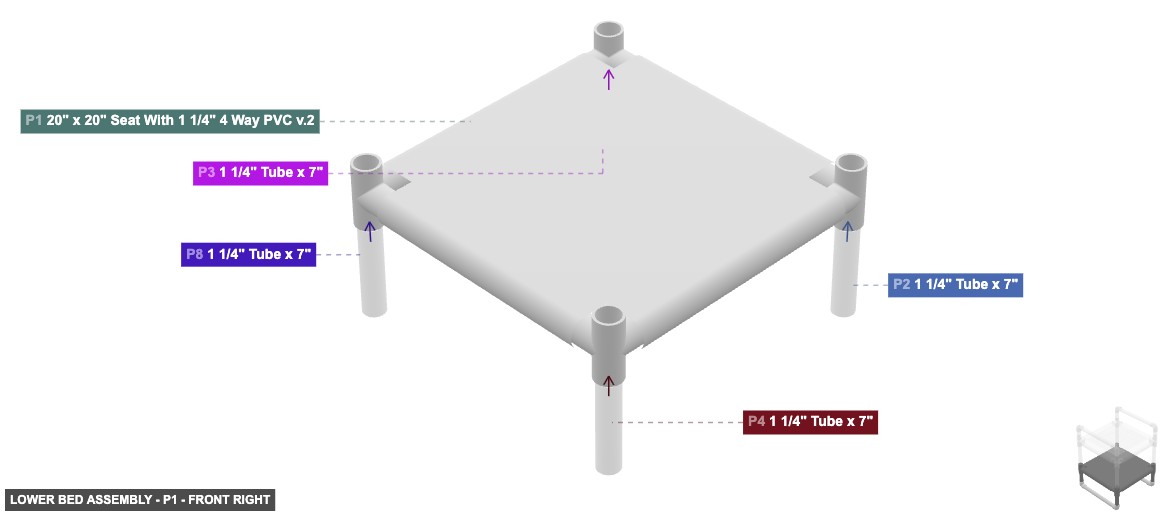

Part: 20" x 20" Seat With 1 1/4" 4 Way PVC v.2 - Angle: front right

Lower Bed Assembly - Part 20
P1 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #2, which is bottom-facing, should connect to part 3's 1.25" M SLIP #2. Next, its 1.25" F SLIP #4, which is bottom-facing, should connect to part 2's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #6 oriented bottom links with part 8's 1.25" M SLIP #2, then its 1.25" F SLIP #8, which is bottom-facing, should connect to part 4's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

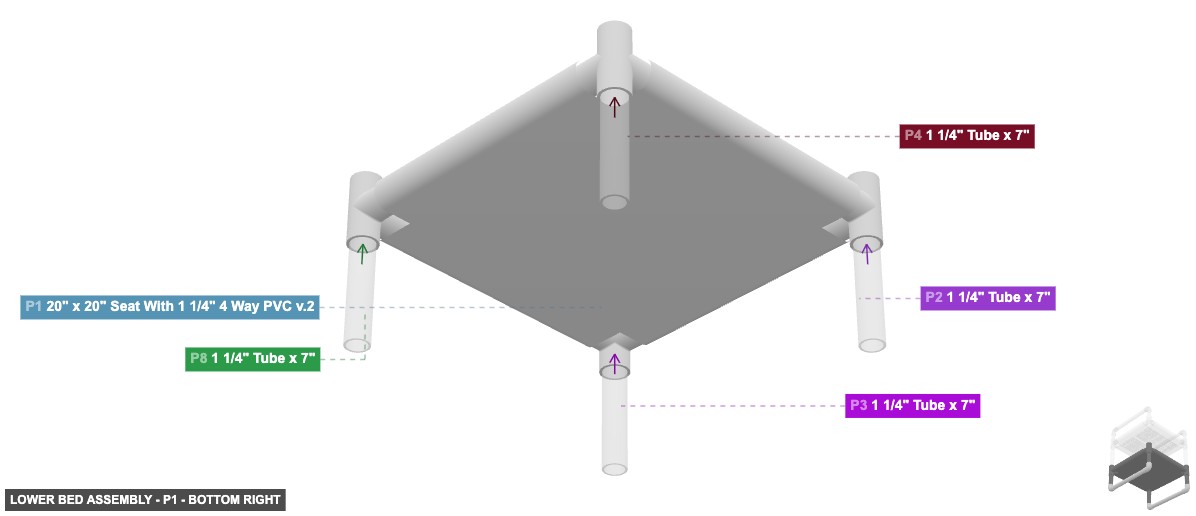

Part: 20" x 20" Seat With 1 1/4" 4 Way PVC v.2 - Angle: bottom right

Lower Bed Assembly - Part 20
P1 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #2, which is bottom-facing, should connect to part 3's 1.25" M SLIP #2. Next, its 1.25" F SLIP #4, which is bottom-facing, should connect to part 2's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #6 oriented bottom links with part 8's 1.25" M SLIP #2, then its 1.25" F SLIP #8, which is bottom-facing, should connect to part 4's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

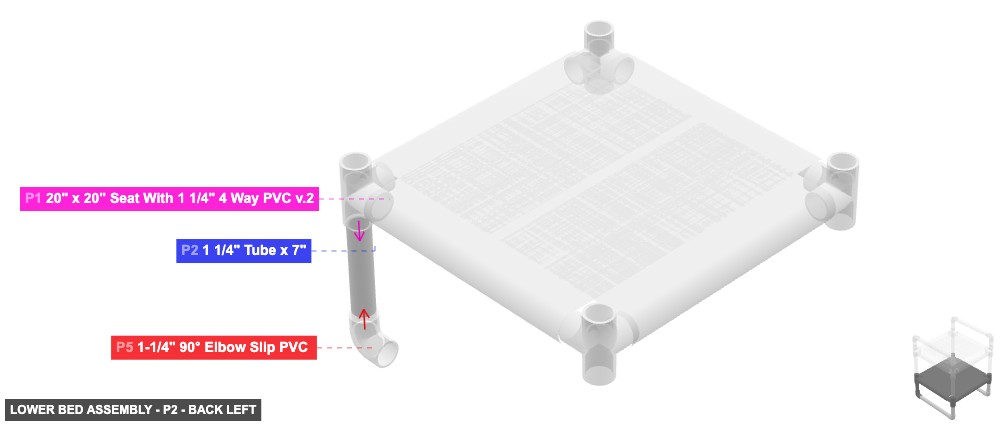

Part: 1 1/4" Tube x 7" - Angle: back left

Lower Bed Assembly - Part 1 1/4
P2 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 5's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

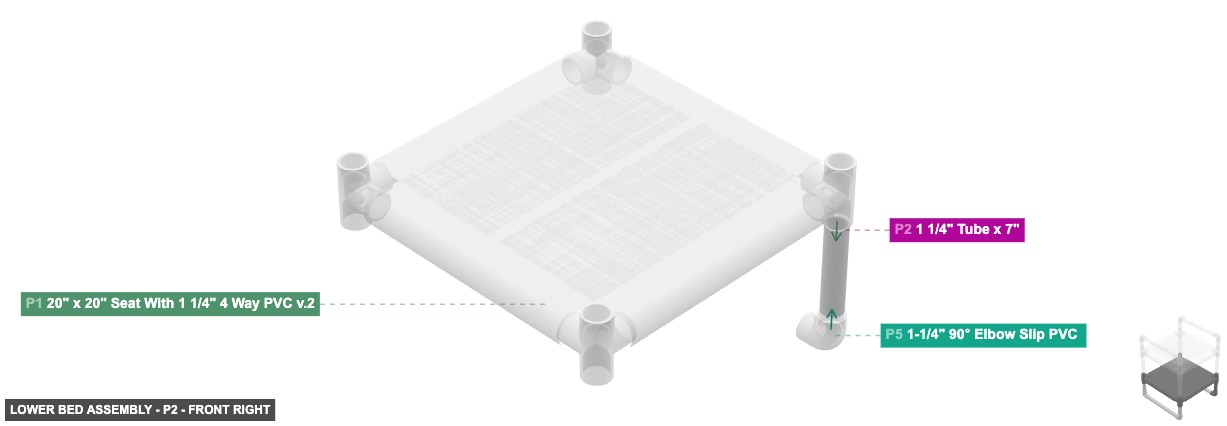

Part: 1 1/4" Tube x 7" - Angle: front right

Lower Bed Assembly - Part 1 1/4
P2 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 5's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

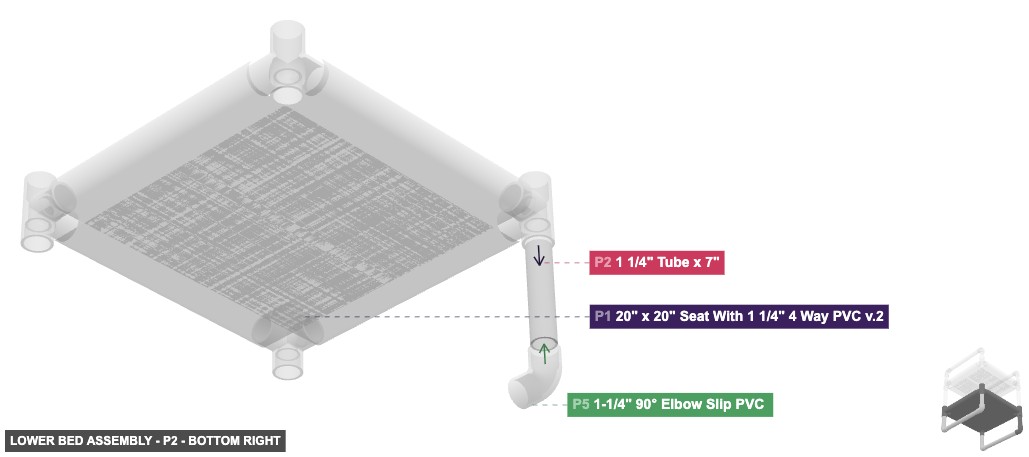

Part: 1 1/4" Tube x 7" - Angle: bottom right

Lower Bed Assembly - Part 1 1/4
P2 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 5's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

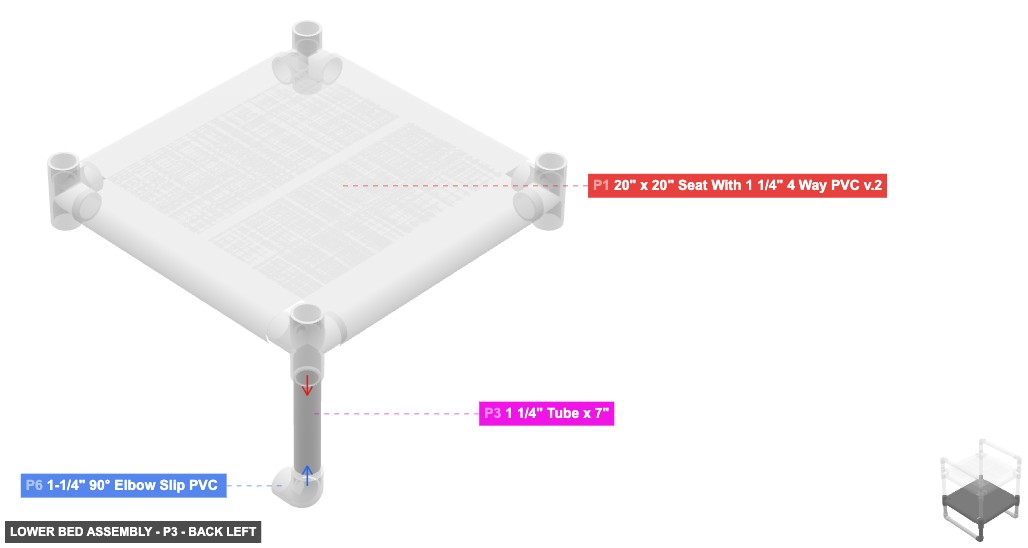

Part: 1 1/4" Tube x 7" - Angle: back left

Lower Bed Assembly - Part 1 1/4
P3 (1.25" Tube 7" length) - attach its 1.25" M SLIP #1 facing bottom to part 6's 1.25" F SLIP #1. Additionally, its 1.25" M SLIP #2, which is top-facing, should connect to part 1's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

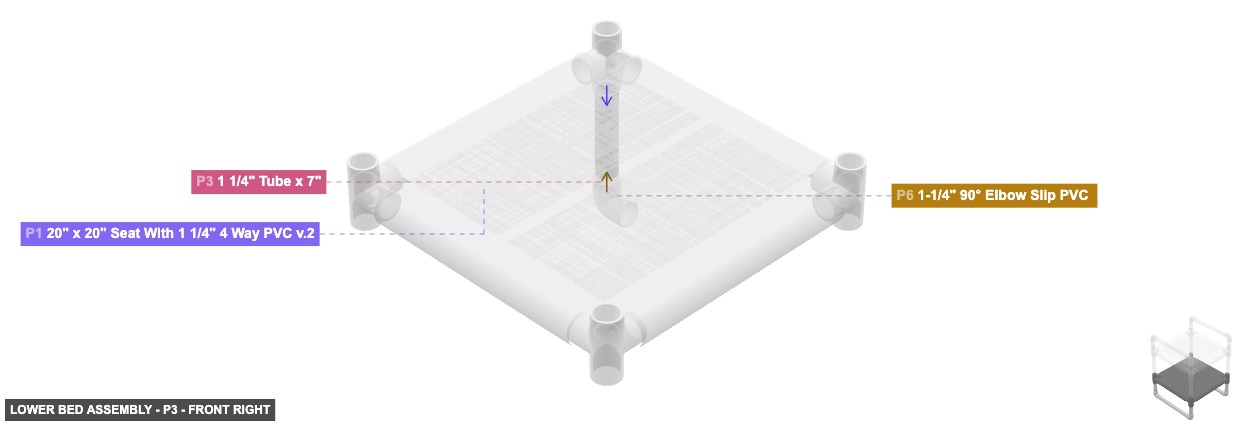

Part: 1 1/4" Tube x 7" - Angle: front right

Lower Bed Assembly - Part 1 1/4
P3 (1.25" Tube 7" length) - attach its 1.25" M SLIP #1 facing bottom to part 6's 1.25" F SLIP #1. Additionally, its 1.25" M SLIP #2, which is top-facing, should connect to part 1's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

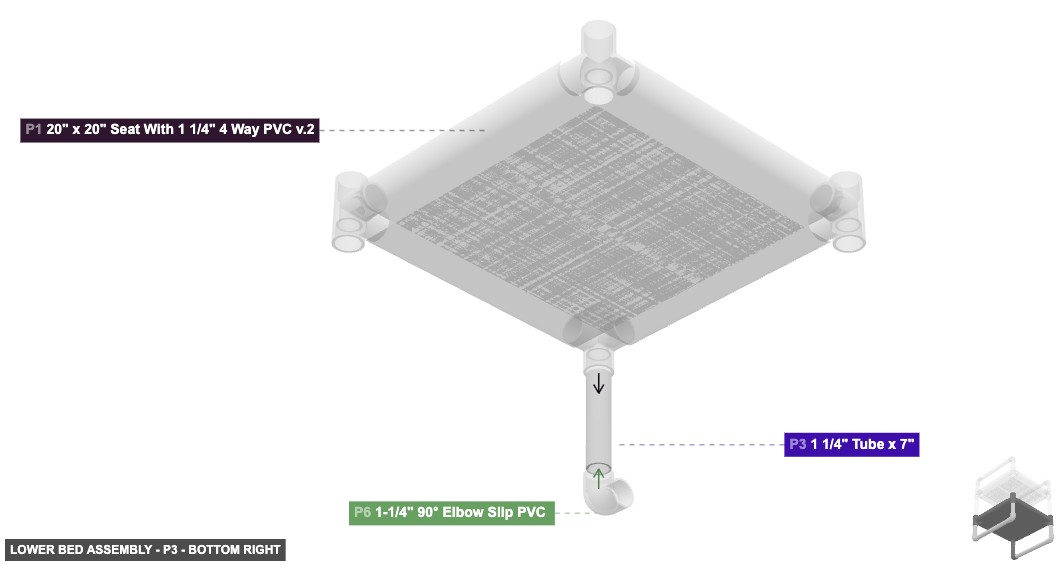

Part: 1 1/4" Tube x 7" - Angle: bottom right

Lower Bed Assembly - Part 1 1/4
P3 (1.25" Tube 7" length) - attach its 1.25" M SLIP #1 facing bottom to part 6's 1.25" F SLIP #1. Additionally, its 1.25" M SLIP #2, which is top-facing, should connect to part 1's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

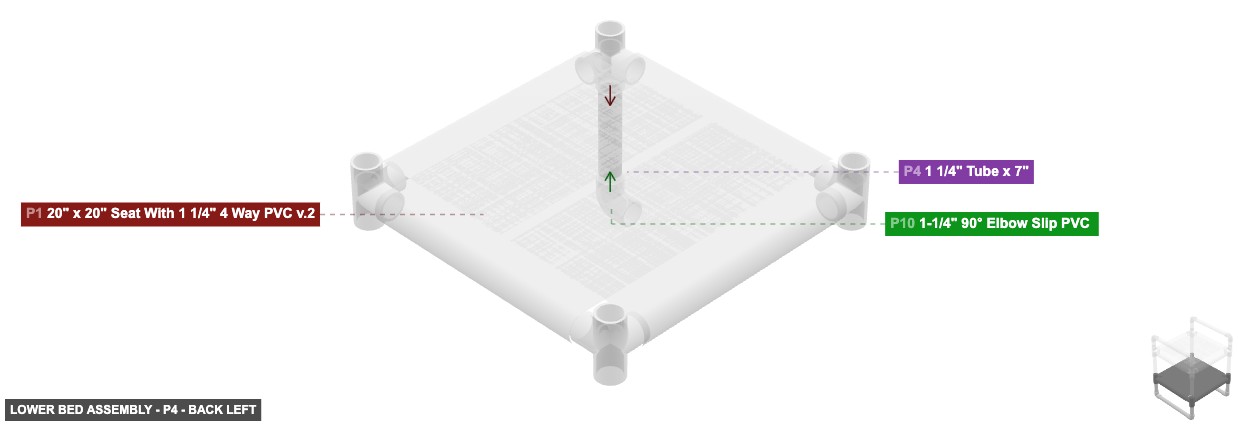

Part: 1 1/4" Tube x 7" - Angle: back left

Lower Bed Assembly - Part 1 1/4
P4 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 10's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #8
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

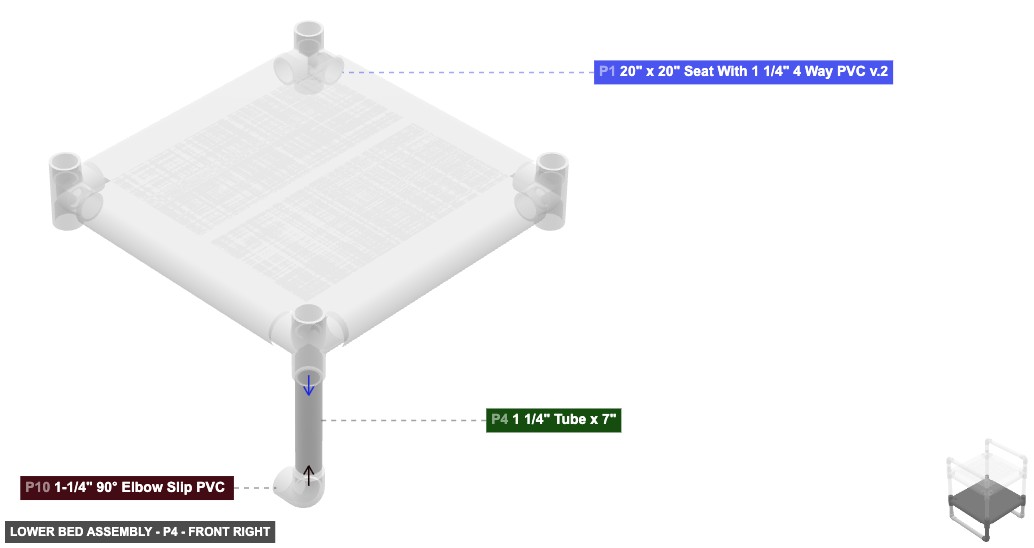

Part: 1 1/4" Tube x 7" - Angle: front right

Lower Bed Assembly - Part 1 1/4
P4 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 10's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #8
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

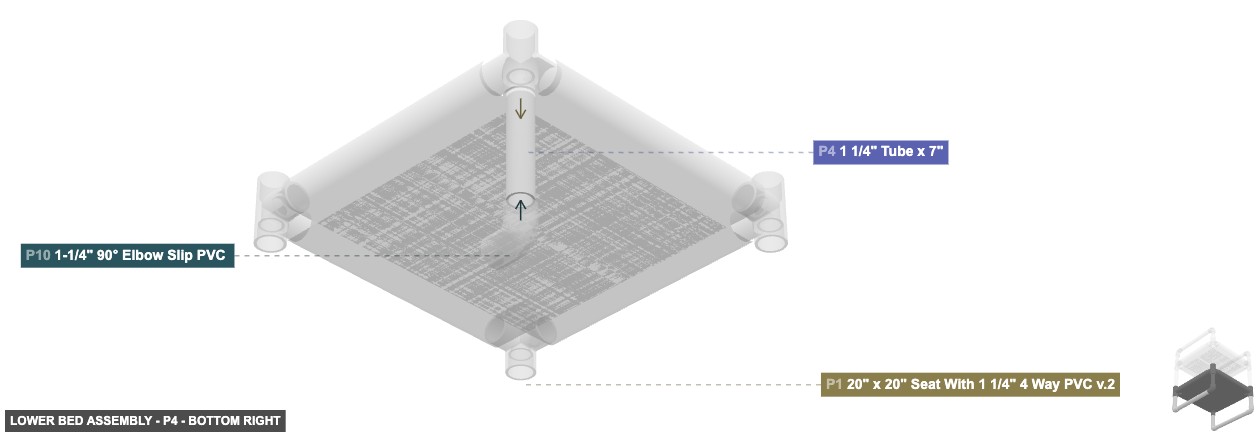

Part: 1 1/4" Tube x 7" - Angle: bottom right

Lower Bed Assembly - Part 1 1/4
P4 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 10's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #8
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

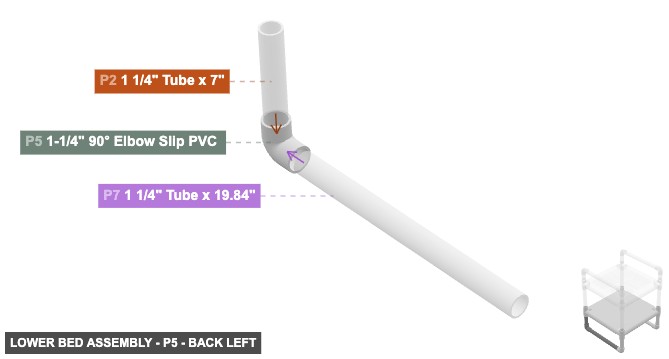

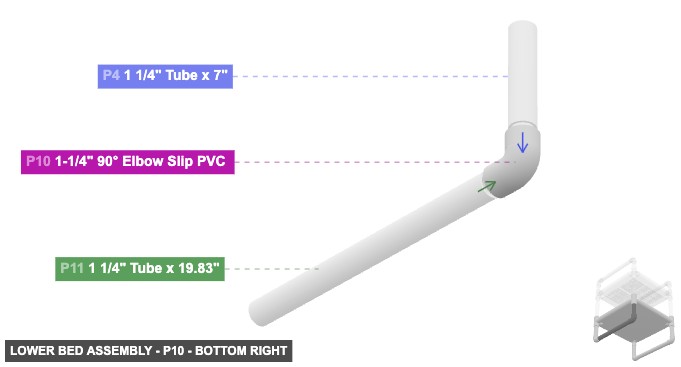

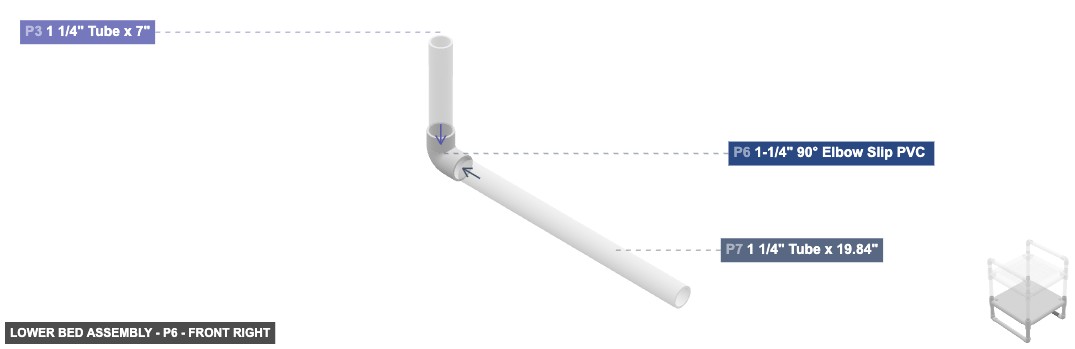

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Lower Bed Assembly - Part 1-1/4
P5 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 2's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented left links with part 7's 1.25" M SLIP #1
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

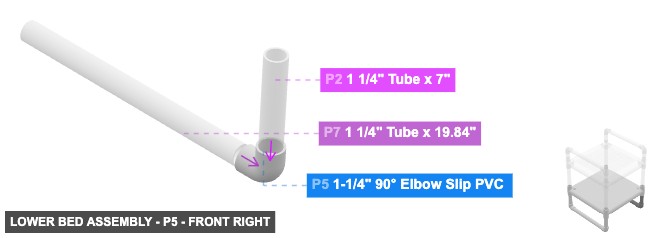

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Lower Bed Assembly - Part 1-1/4
P5 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 2's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented left links with part 7's 1.25" M SLIP #1
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

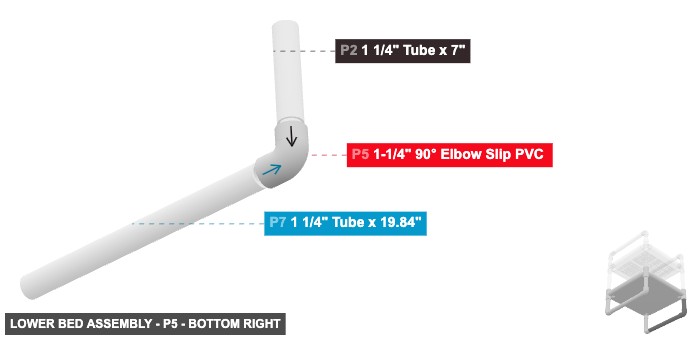

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Lower Bed Assembly - Part 1-1/4
P5 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 2's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented left links with part 7's 1.25" M SLIP #1
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

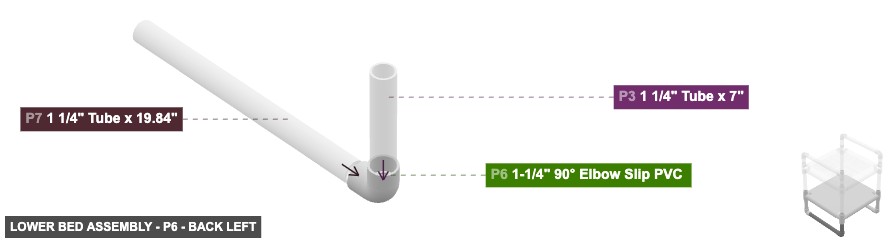

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Lower Bed Assembly - Part 1-1/4
P6 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 3's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented right links with part 7's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Lower Bed Assembly - Part 1-1/4
P6 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 3's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented right links with part 7's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

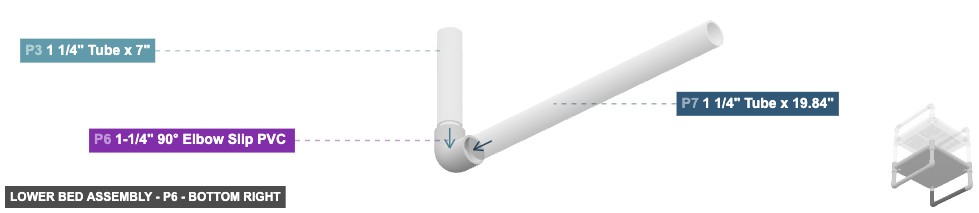

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Lower Bed Assembly - Part 1-1/4
P6 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 3's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented right links with part 7's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

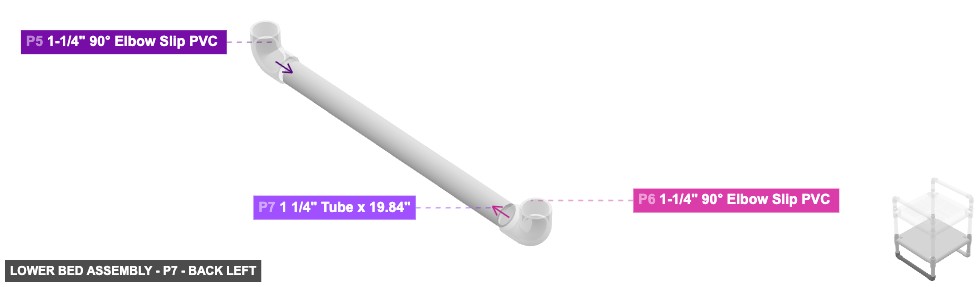

Part: 1 1/4" Tube x 19.84" - Angle: back left

Lower Bed Assembly - Part 1 1/4
P7 (1.25" Tube 19.84" length) - connect its 1.25" M SLIP #1 oriented right links with part 5's 1.25" F SLIP #2. After that, connect its 1.25" M SLIP #2 oriented left links with part 6's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

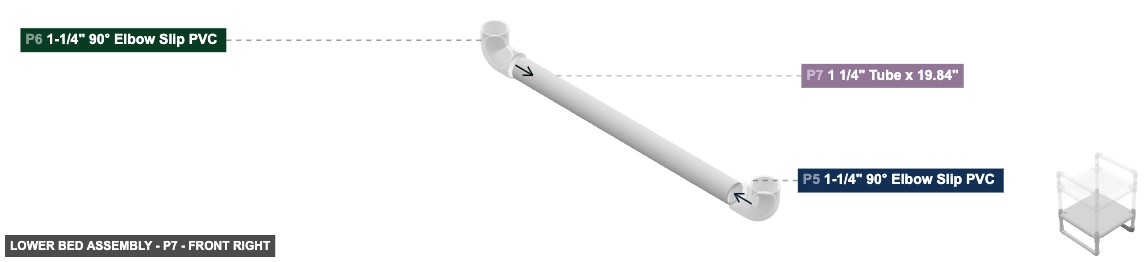

Part: 1 1/4" Tube x 19.84" - Angle: front right

Lower Bed Assembly - Part 1 1/4
P7 (1.25" Tube 19.84" length) - connect its 1.25" M SLIP #1 oriented right links with part 5's 1.25" F SLIP #2. After that, connect its 1.25" M SLIP #2 oriented left links with part 6's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

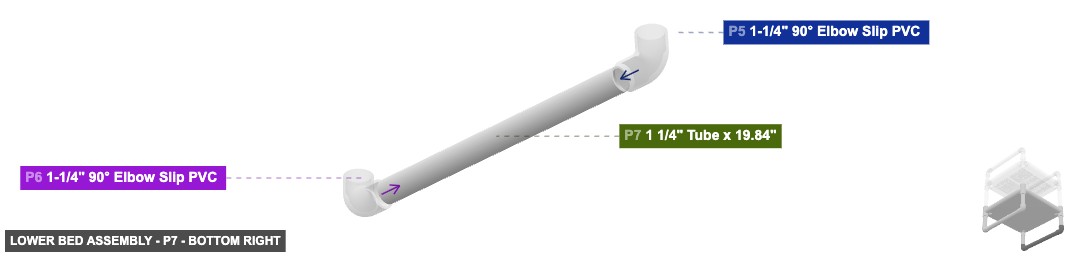

Part: 1 1/4" Tube x 19.84" - Angle: bottom right

Lower Bed Assembly - Part 1 1/4
P7 (1.25" Tube 19.84" length) - connect its 1.25" M SLIP #1 oriented right links with part 5's 1.25" F SLIP #2. After that, connect its 1.25" M SLIP #2 oriented left links with part 6's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

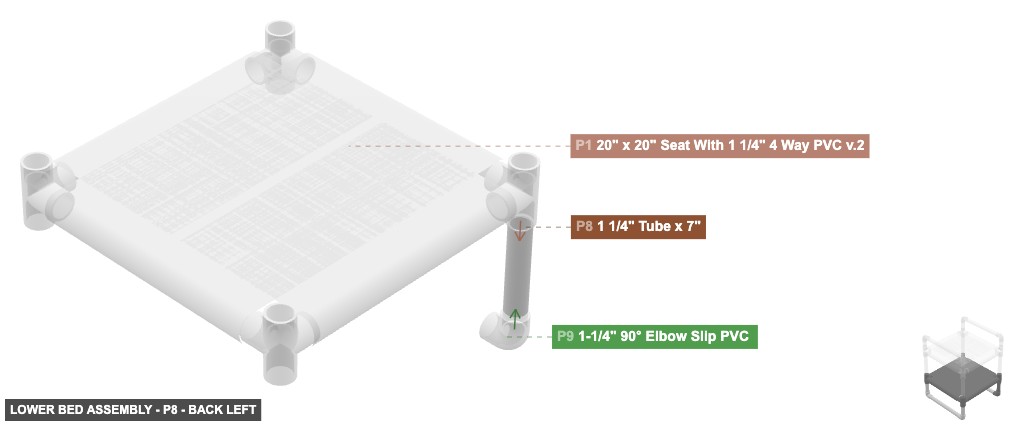

Part: 1 1/4" Tube x 7" - Angle: back left

Lower Bed Assembly - Part 1 1/4
P8 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 9's 1.25" F SLIP #1. Also, attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #6
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

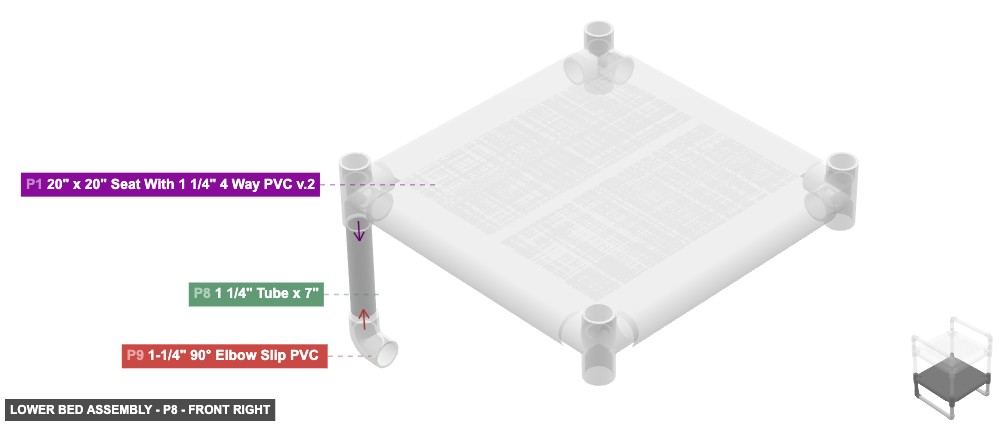

Part: 1 1/4" Tube x 7" - Angle: front right

Lower Bed Assembly - Part 1 1/4
P8 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 9's 1.25" F SLIP #1. Also, attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #6
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

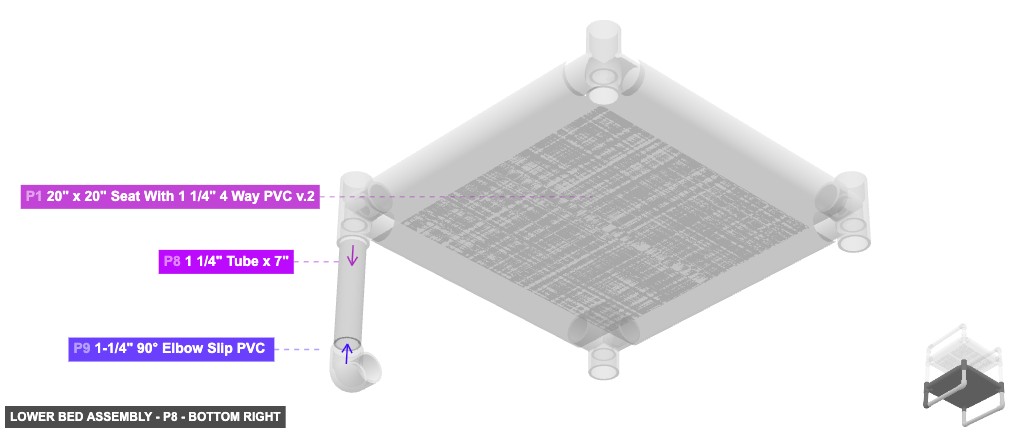

Part: 1 1/4" Tube x 7" - Angle: bottom right

Lower Bed Assembly - Part 1 1/4
P8 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 9's 1.25" F SLIP #1. Also, attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #6
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

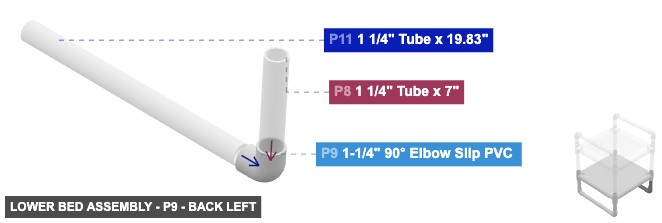

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Lower Bed Assembly - Part 1-1/4
P9 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is top-facing, should connect to part 8's 1.25" M SLIP #1. After that, its 1.25" F SLIP #2, which is right-facing, should connect to part 11's 1.25" M SLIP #1
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

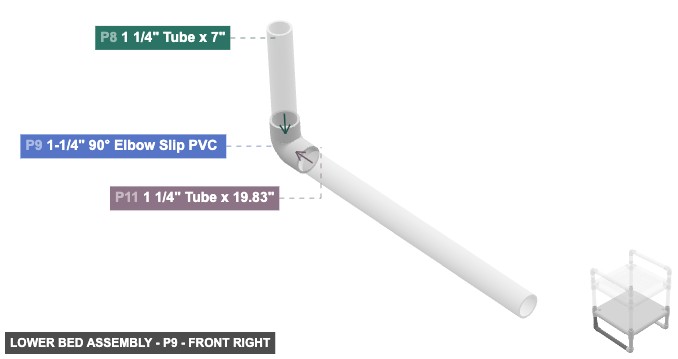

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Lower Bed Assembly - Part 1-1/4
P9 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is top-facing, should connect to part 8's 1.25" M SLIP #1. After that, its 1.25" F SLIP #2, which is right-facing, should connect to part 11's 1.25" M SLIP #1
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

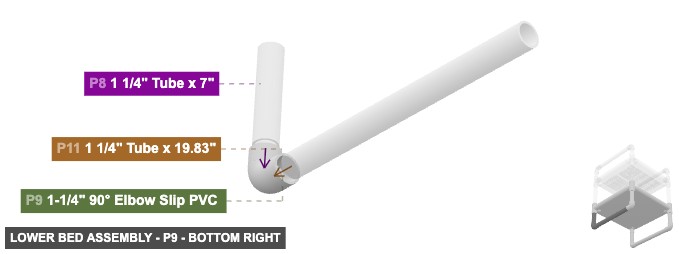

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Lower Bed Assembly - Part 1-1/4
P9 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is top-facing, should connect to part 8's 1.25" M SLIP #1. After that, its 1.25" F SLIP #2, which is right-facing, should connect to part 11's 1.25" M SLIP #1
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

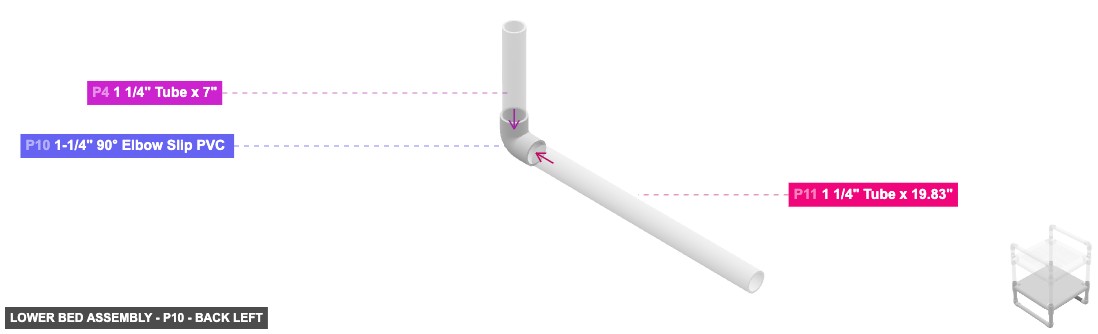

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Lower Bed Assembly - Part 1-1/4
P10 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 4's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented left links with part 11's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Lower Bed Assembly - Part 1-1/4

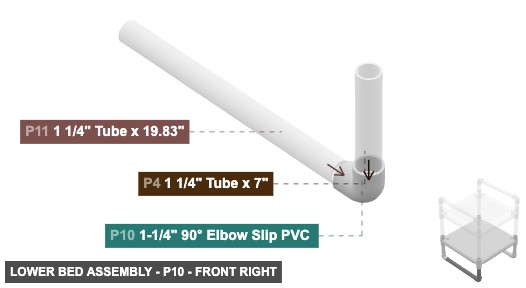

P10 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 4's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented left links with part 11's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Lower Bed Assembly - Part 1-1/4
P10 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 4's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented left links with part 11's 1.25" M SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

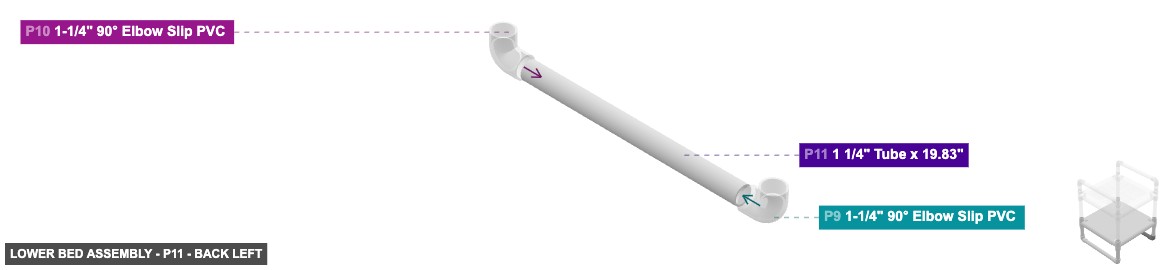

Part: 1 1/4" Tube x 19.83" - Angle: back left

Lower Bed Assembly - Part 1 1/4
P11 (1.25" Tube 19.83" length) - attach its 1.25" M SLIP #1 facing left to part 9's 1.25" F SLIP #2. After that, its 1.25" M SLIP #2, which is right-facing, should connect to part 10's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

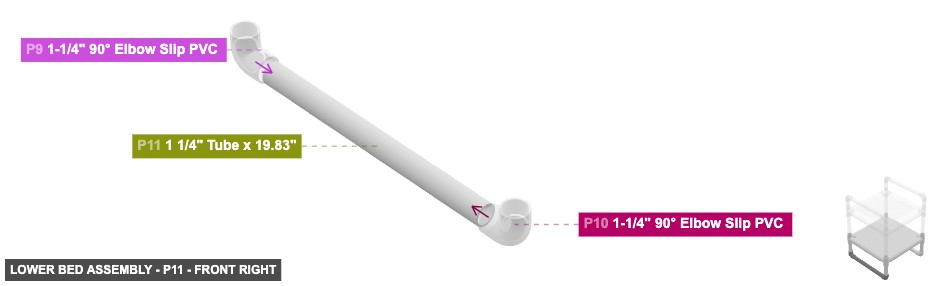

Part: 1 1/4" Tube x 19.83" - Angle: front right

Lower Bed Assembly - Part 1 1/4
P11 (1.25" Tube 19.83" length) - attach its 1.25" M SLIP #1 facing left to part 9's 1.25" F SLIP #2. After that, its 1.25" M SLIP #2, which is right-facing, should connect to part 10's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

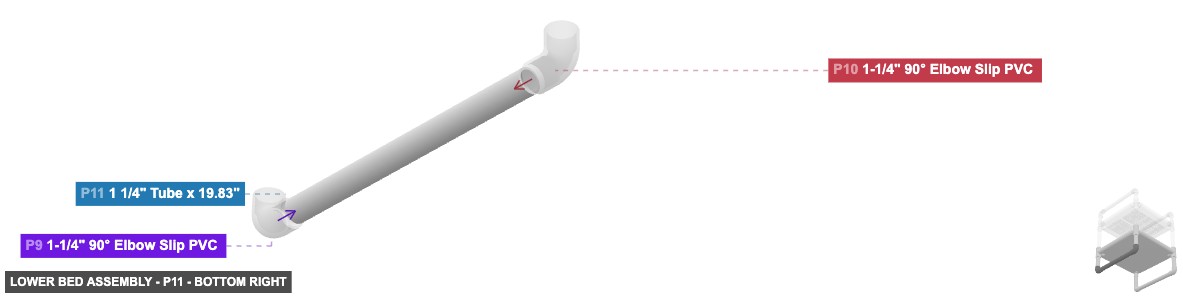

Part: 1 1/4" Tube x 19.83" - Angle: bottom right

Lower Bed Assembly - Part 1 1/4
P11 (1.25" Tube 19.83" length) - attach its 1.25" M SLIP #1 facing left to part 9's 1.25" F SLIP #2. After that, its 1.25" M SLIP #2, which is right-facing, should connect to part 10's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

Group: Mid-Section and Upper Platform Assembly

Adds the mid-section legs and the upper platform to the lower bed assembly.

1. Take the Lower Bed Assembly (Group 1). Insert the bottom ends (Male SLIP 1 1/4") of the four mid-section legs (P12, P13, P14, P15 - all Tube 12") into the four corner connectors (Female SLIP 1 1/4") on the top side of Platform P1. 2. Take P16 (Platform). Place Platform P16 onto the top ends (Male SLIP 1 1/4") of the four mid-section legs (P12, P13, P14, P15), inserting the legs into the four corner connectors (Female SLIP 1 1/4") on the underside of Platform P16.

Part: 1 1/4" Tube x 12" - Angle: back left

Mid-Section and Upper Platform Assembly - Part 1 1/4
P12 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #5
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Part: 1 1/4" Tube x 12" - Angle: front right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P12 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #5
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

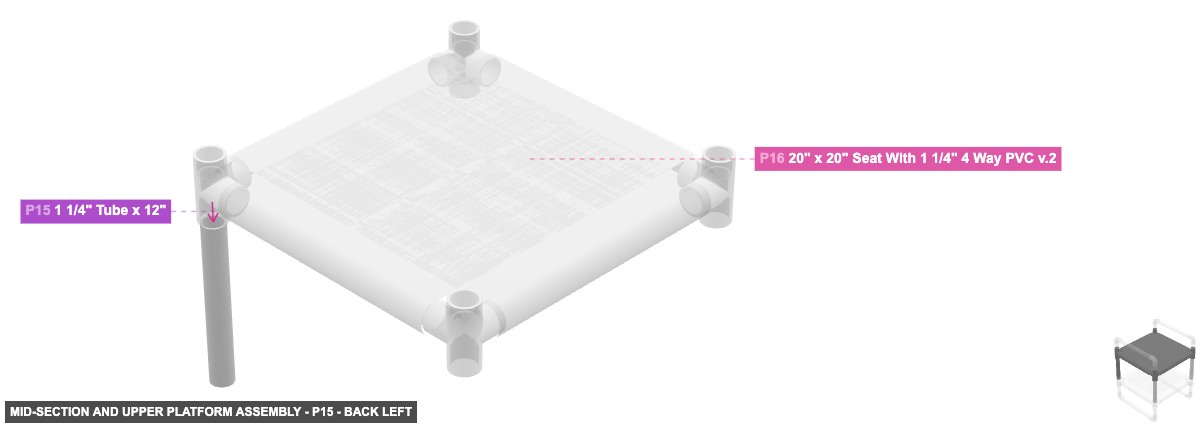

Part: 1 1/4" Tube x 12" - Angle: bottom right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P12 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #5
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Part: 1 1/4" Tube x 12" - Angle: back left

Mid-Section and Upper Platform Assembly - Part 1 1/4
P13 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #1
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

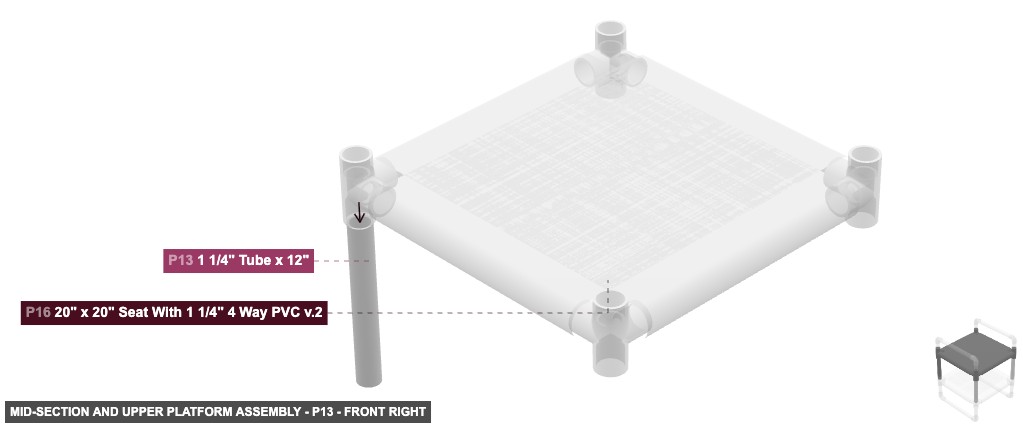

Part: 1 1/4" Tube x 12" - Angle: front right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P13 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #1
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

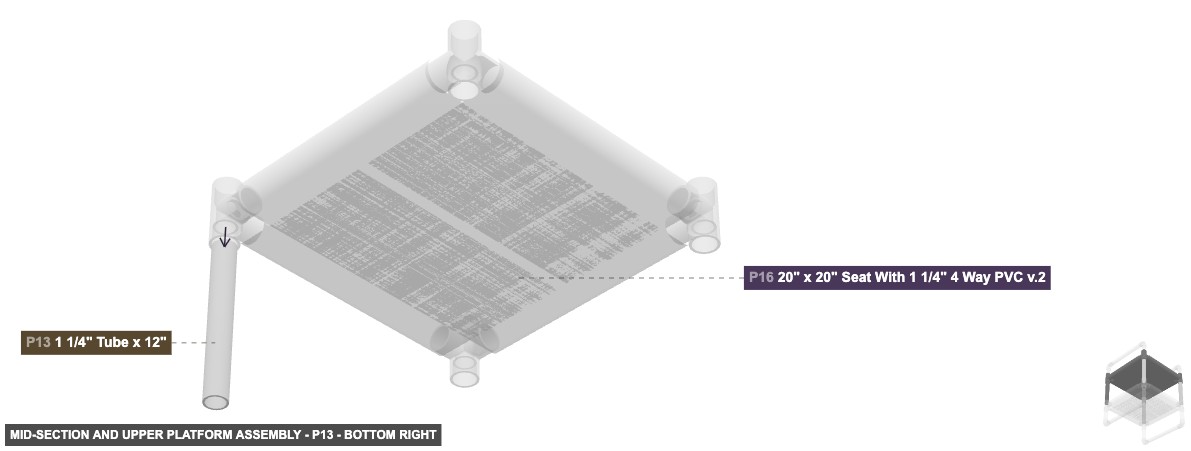

Part: 1 1/4" Tube x 12" - Angle: bottom right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P13 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #1
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Part: 1 1/4" Tube x 12" - Angle: back left

Mid-Section and Upper Platform Assembly - Part 1 1/4
P14 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #3
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

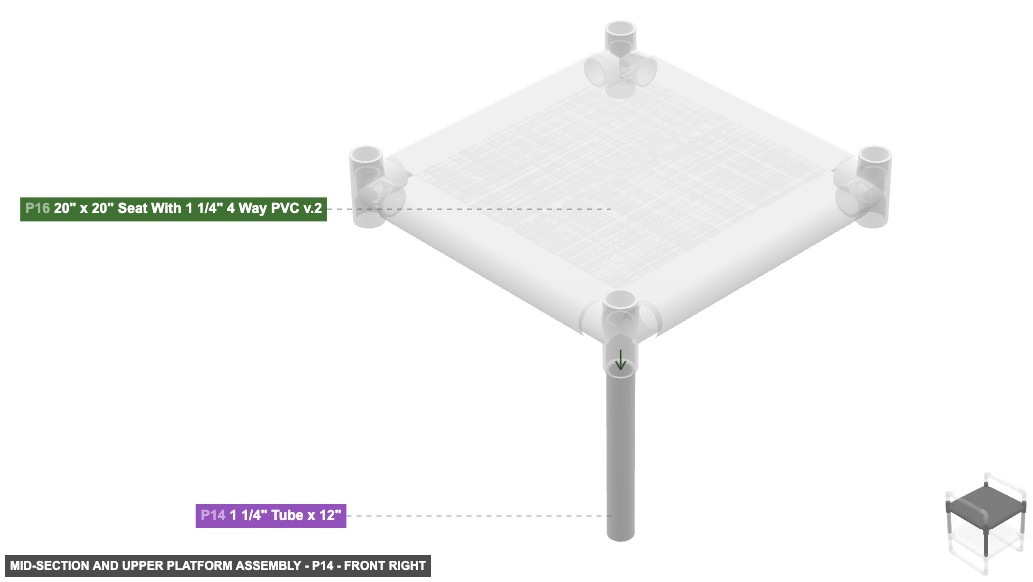

Part: 1 1/4" Tube x 12" - Angle: front right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P14 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #3
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

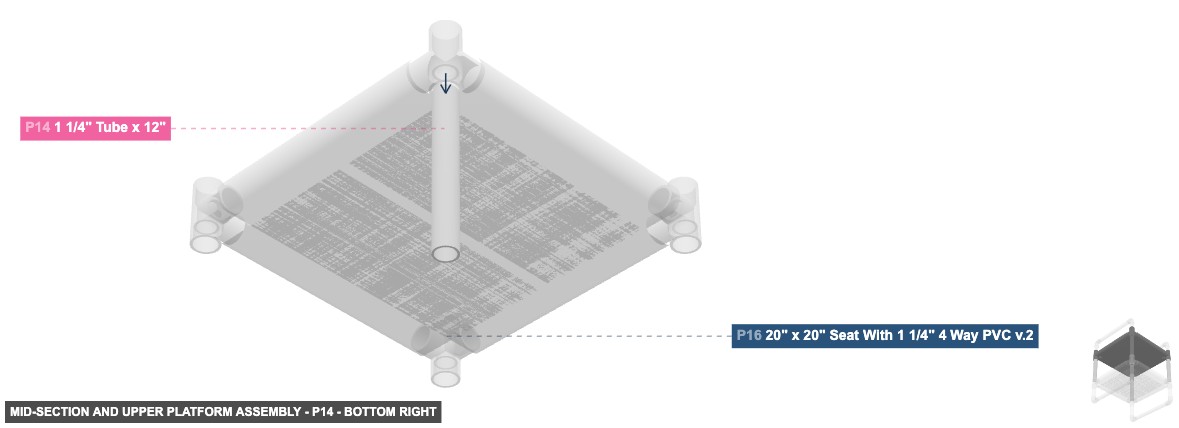

Part: 1 1/4" Tube x 12" - Angle: bottom right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P14 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented top links with part 16's 1.25" F SLIP #3
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Part: 1 1/4" Tube x 12" - Angle: back left

Mid-Section and Upper Platform Assembly - Part 1 1/4
P15 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #7
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Part: 1 1/4" Tube x 12" - Angle: front right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P15 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #7
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

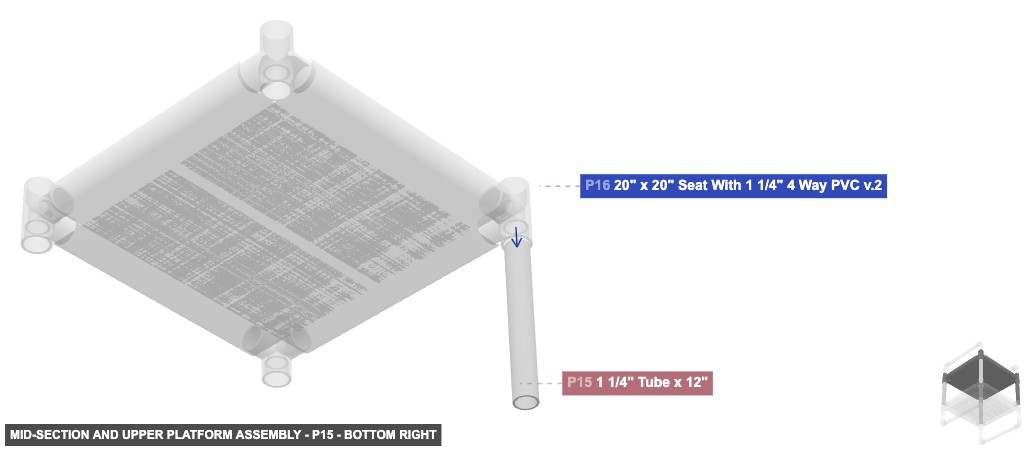

Part: 1 1/4" Tube x 12" - Angle: bottom right

Mid-Section and Upper Platform Assembly - Part 1 1/4
P15 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #7
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Part: 20" x 20" Seat With 1 1/4" 4 Way PVC v.2 - Angle: back left

Mid-Section and Upper Platform Assembly - Part 20
P16 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - connect its 1.25" F SLIP #1 oriented bottom links with part 13's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #3 facing bottom to part 14's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #5 facing bottom to part 12's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #7 facing bottom to part 15's 1.25" M SLIP #1
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

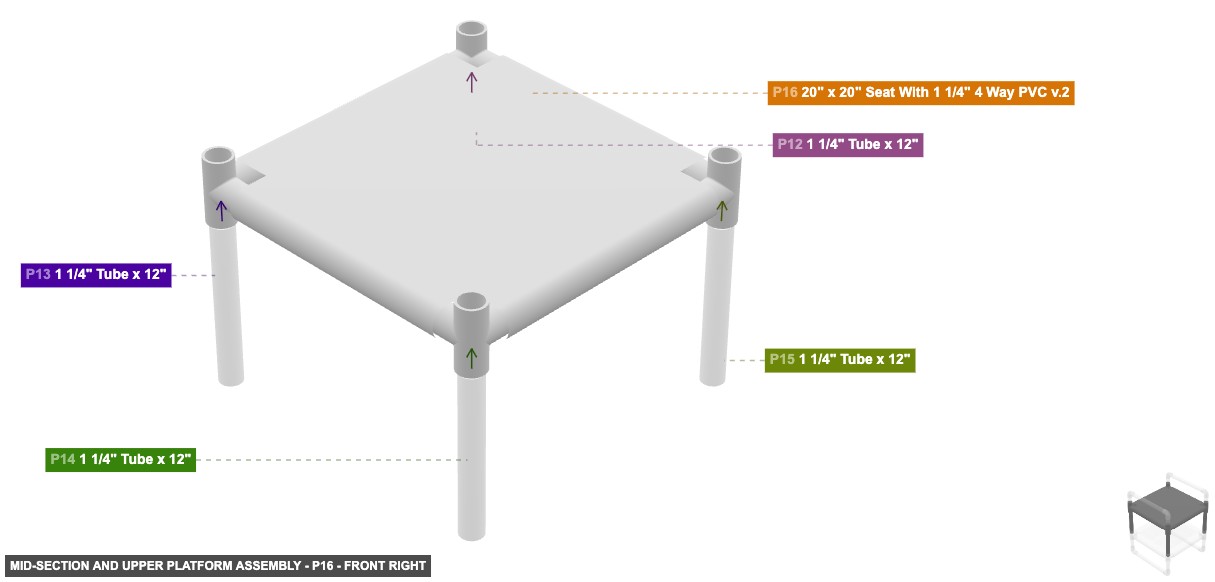

Part: 20" x 20" Seat With 1 1/4" 4 Way PVC v.2 - Angle: front right

Mid-Section and Upper Platform Assembly - Part 20
P16 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - connect its 1.25" F SLIP #1 oriented bottom links with part 13's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #3 facing bottom to part 14's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #5 facing bottom to part 12's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #7 facing bottom to part 15's 1.25" M SLIP #1
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Part: 20" x 20" Seat With 1 1/4" 4 Way PVC v.2 - Angle: bottom right

Mid-Section and Upper Platform Assembly - Part 20
P16 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - connect its 1.25" F SLIP #1 oriented bottom links with part 13's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #3 facing bottom to part 14's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #5 facing bottom to part 12's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #7 facing bottom to part 15's 1.25" M SLIP #1
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

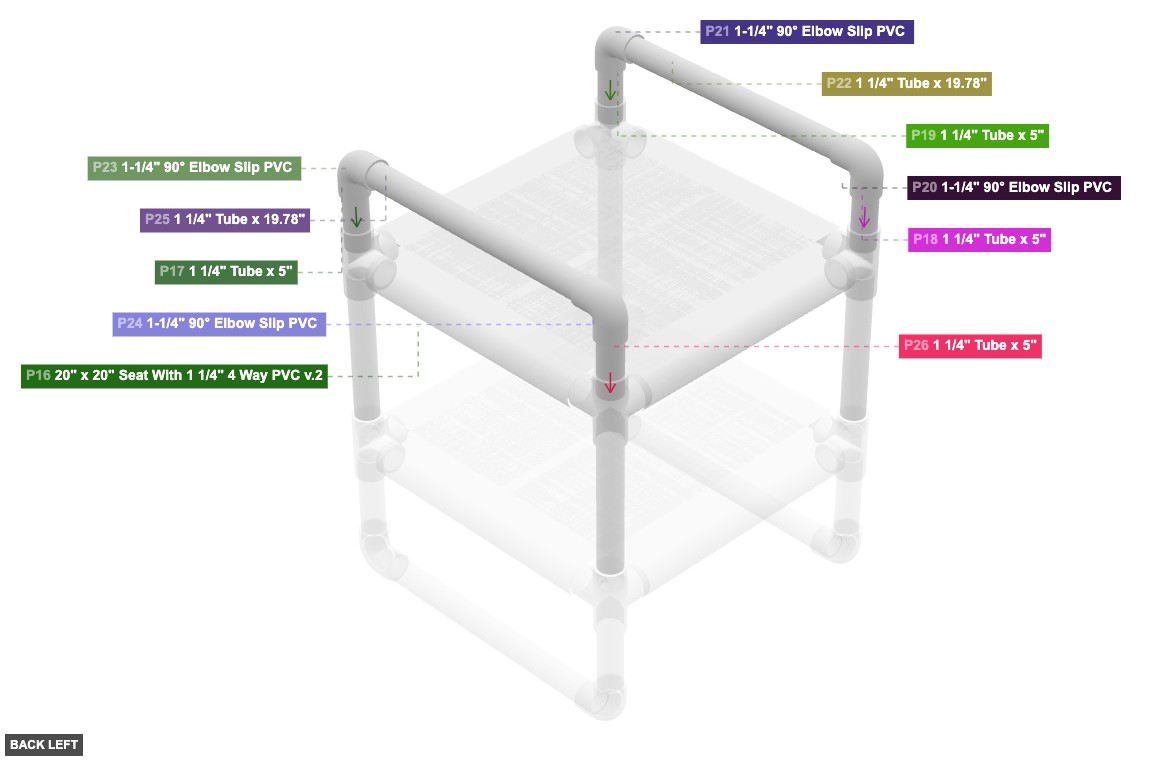

Group: Upper Frame Assembly

Forms the complete upper frame structure and attaches it to the upper platform.

1. Connect the left end (Male SLIP 1 1/4") of P22 (Tube 19.78") into the right opening (Female SLIP 1 1/4") of P20 (Elbow). Connect the right end (Male SLIP 1 1/4") of P22 into the left opening (Female SLIP 1 1/4") of P21 (Elbow). This forms the front top rail. 2. Connect the right end (Male SLIP 1 1/4") of P25 (Tube 19.78") into the left opening (Female SLIP 1 1/4") of P23 (Elbow). Connect the left end (Male SLIP 1 1/4") of P25 into the right opening (Female SLIP 1 1/4") of P24 (Elbow). This forms the rear top rail. 3. Insert the bottom end (Male SLIP 1 1/4") of P18 (Tube 5") into the bottom opening (Female SLIP 1 1/4") of P20. 4. Insert the bottom end (Male SLIP 1 1/4") of P19 (Tube 5") into the bottom opening (Female SLIP 1 1/4") of P21. 5. Insert the bottom end (Male SLIP 1 1/4") of P17 (Tube 5") into the bottom opening (Female SLIP 1 1/4") of P23. 6. Insert the bottom end (Male SLIP 1 1/4") of P26 (Tube 5") into the bottom opening (Female SLIP 1 1/4") of P24. 7. Take the structure assembled in Group 1 and Group 2. Place the assembled top frame with legs attached onto Platform P16, inserting the bottom ends (Male SLIP 1 1/4") of the four top legs (P17, P18, P19, P26) into the four corner connectors (Female SLIP 1 1/4") on the top side of Platform P16.

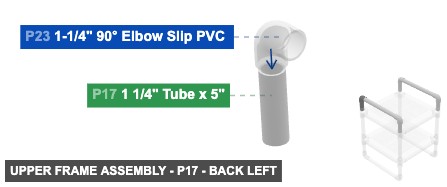

Part: 1 1/4" Tube x 5" - Angle: back left

Upper Frame Assembly - Part 1 1/4
P17 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

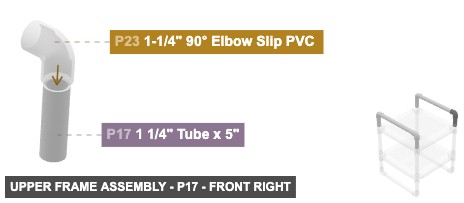

Part: 1 1/4" Tube x 5" - Angle: front right

Upper Frame Assembly - Part 1 1/4
P17 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

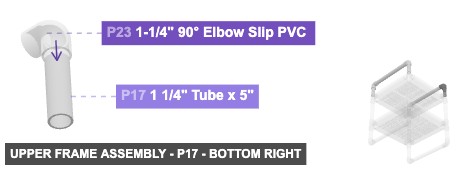

Part: 1 1/4" Tube x 5" - Angle: bottom right

Upper Frame Assembly - Part 1 1/4
P17 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

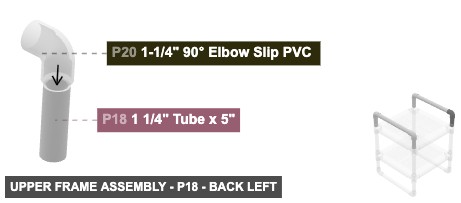

Part: 1 1/4" Tube x 5" - Angle: back left

Upper Frame Assembly - Part 1 1/4
P18 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 20's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Part: 1 1/4" Tube x 5" - Angle: front right

Upper Frame Assembly - Part 1 1/4
P18 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 20's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

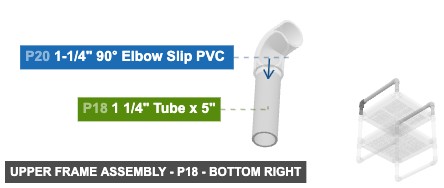

Part: 1 1/4" Tube x 5" - Angle: bottom right

Upper Frame Assembly - Part 1 1/4
P18 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 20's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

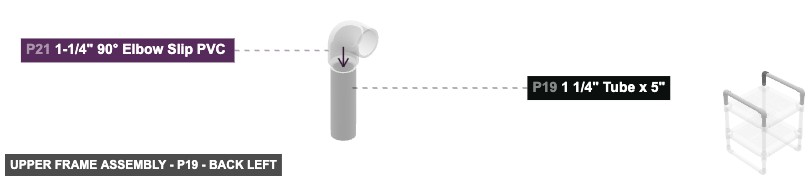

Part: 1 1/4" Tube x 5" - Angle: back left

Upper Frame Assembly - Part 1 1/4
P19 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 21's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

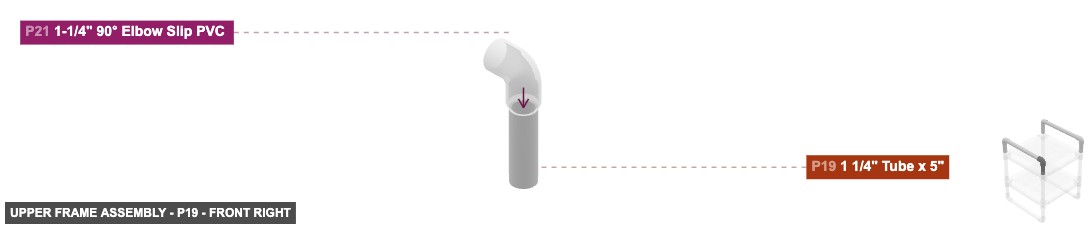

Part: 1 1/4" Tube x 5" - Angle: front right

Upper Frame Assembly - Part 1 1/4
P19 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 21's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

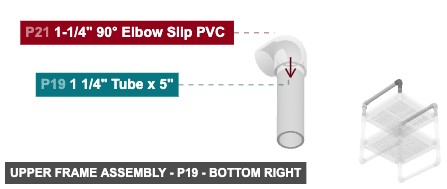

Part: 1 1/4" Tube x 5" - Angle: bottom right

Upper Frame Assembly - Part 1 1/4
P19 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 21's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

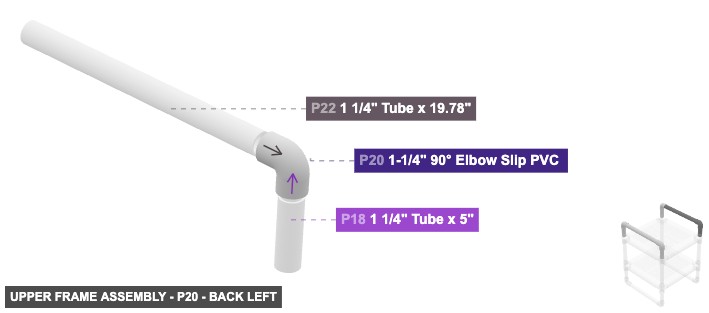

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Upper Frame Assembly - Part 1-1/4
P20 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is right-facing, should connect to part 22's 1.25" M SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

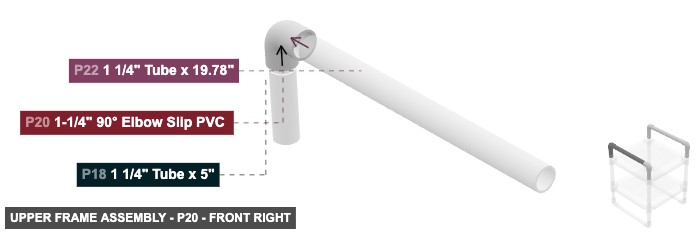

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Upper Frame Assembly - Part 1-1/4
P20 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is right-facing, should connect to part 22's 1.25" M SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

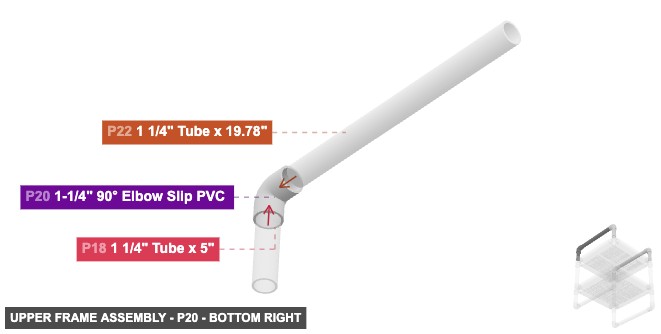

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Upper Frame Assembly - Part 1-1/4
P20 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is right-facing, should connect to part 22's 1.25" M SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

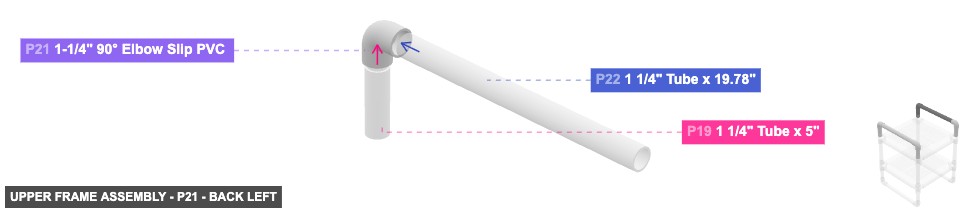

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Upper Frame Assembly - Part 1-1/4
P21 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 19's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing left to part 22's 1.25" M SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Upper Frame Assembly - Part 1-1/4
P21 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 19's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing left to part 22's 1.25" M SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Upper Frame Assembly - Part 1-1/4
P21 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 19's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing left to part 22's 1.25" M SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

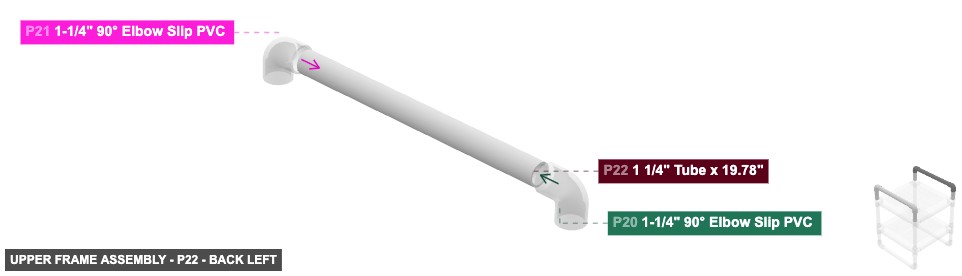

Part: 1 1/4" Tube x 19.78" - Angle: back left

Upper Frame Assembly - Part 1 1/4
P22 (1.25" Tube 19.78" length) - connect its 1.25" M SLIP #1 oriented left links with part 20's 1.25" F SLIP #2. Additionally, attach its 1.25" M SLIP #2 facing right to part 21's 1.25" F SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

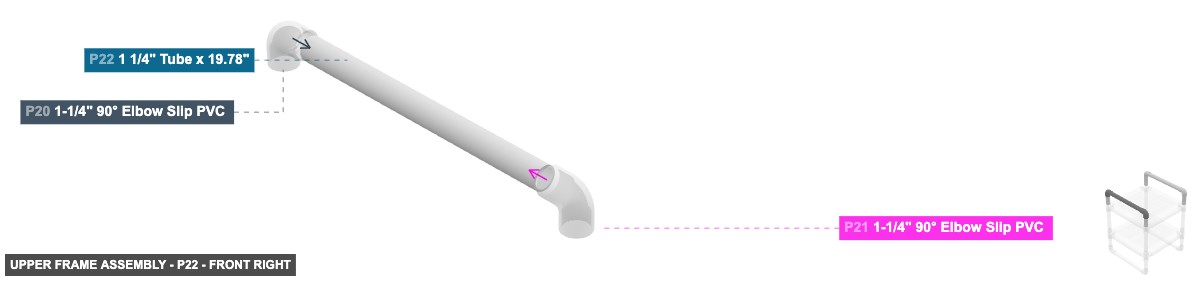

Part: 1 1/4" Tube x 19.78" - Angle: front right

Upper Frame Assembly - Part 1 1/4
P22 (1.25" Tube 19.78" length) - connect its 1.25" M SLIP #1 oriented left links with part 20's 1.25" F SLIP #2. Additionally, attach its 1.25" M SLIP #2 facing right to part 21's 1.25" F SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

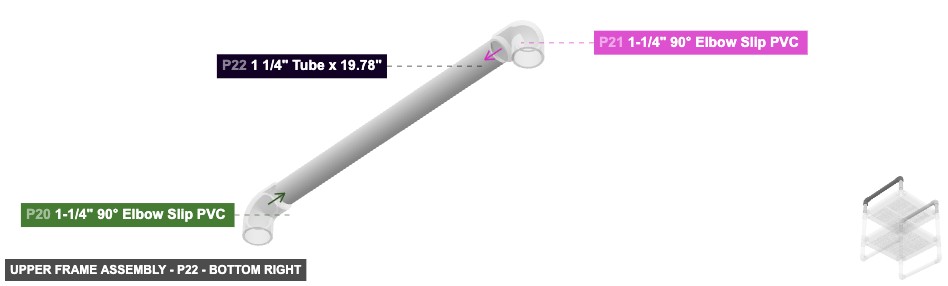

Part: 1 1/4" Tube x 19.78" - Angle: bottom right

Upper Frame Assembly - Part 1 1/4
P22 (1.25" Tube 19.78" length) - connect its 1.25" M SLIP #1 oriented left links with part 20's 1.25" F SLIP #2. Additionally, attach its 1.25" M SLIP #2 facing right to part 21's 1.25" F SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

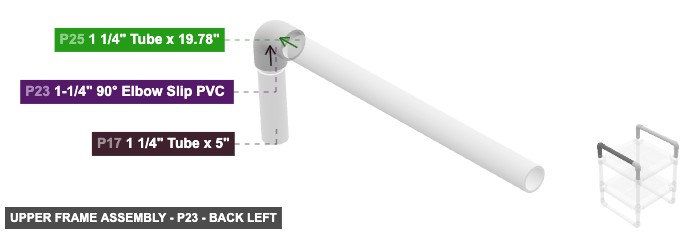

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Upper Frame Assembly - Part 1-1/4
P23 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 17's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing left to part 25's 1.25" M SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

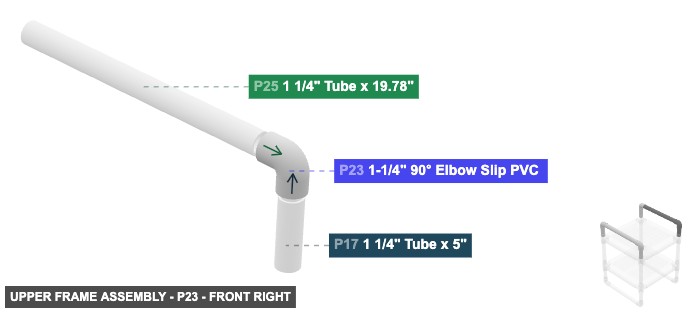

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Upper Frame Assembly - Part 1-1/4
P23 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 17's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing left to part 25's 1.25" M SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

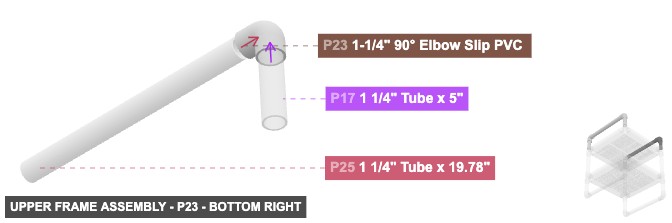

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Upper Frame Assembly - Part 1-1/4
P23 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 17's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing left to part 25's 1.25" M SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

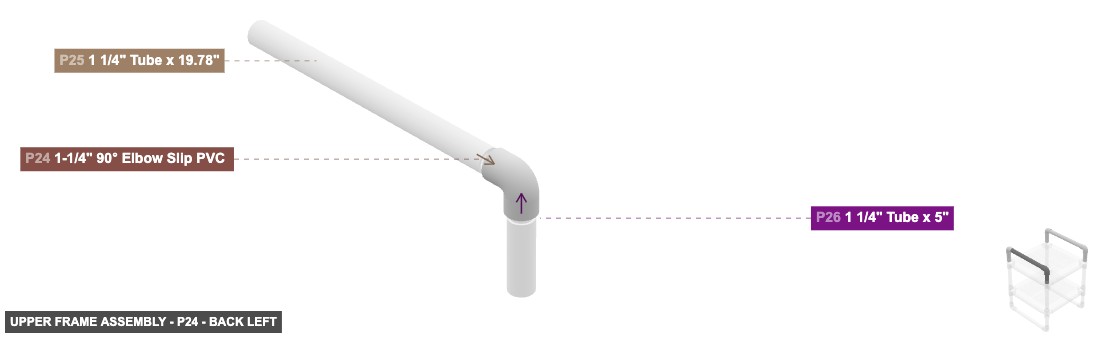

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

Upper Frame Assembly - Part 1-1/4
P24 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 26's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing right to part 25's 1.25" M SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

Upper Frame Assembly - Part 1-1/4
P24 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 26's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing right to part 25's 1.25" M SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

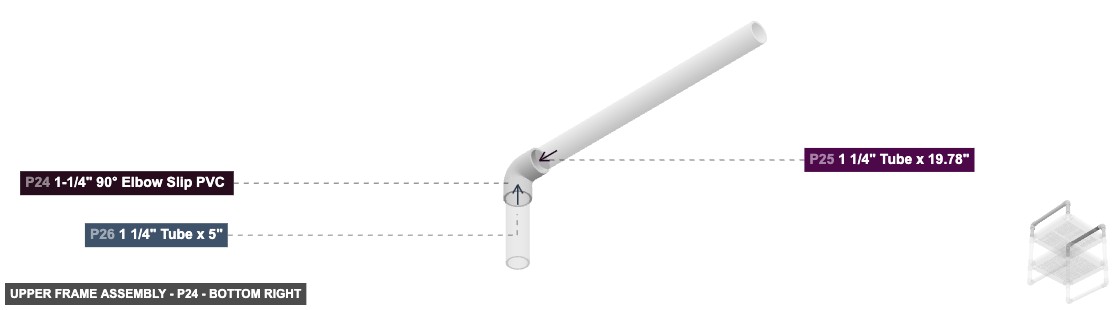

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

Upper Frame Assembly - Part 1-1/4
P24 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 26's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing right to part 25's 1.25" M SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Part: 1 1/4" Tube x 19.78" - Angle: back left

Upper Frame Assembly - Part 1 1/4
P25 (1.25" Tube 19.78" length) - attach its 1.25" M SLIP #1 facing right to part 23's 1.25" F SLIP #2, plus connect its 1.25" M SLIP #2 oriented left links with part 24's 1.25" F SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

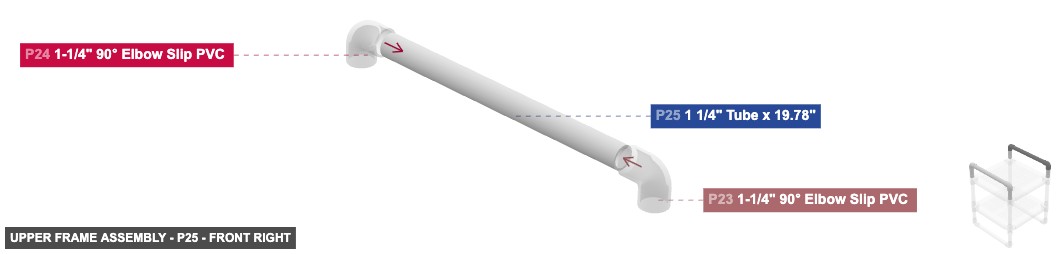

Part: 1 1/4" Tube x 19.78" - Angle: front right

Upper Frame Assembly - Part 1 1/4
P25 (1.25" Tube 19.78" length) - attach its 1.25" M SLIP #1 facing right to part 23's 1.25" F SLIP #2, plus connect its 1.25" M SLIP #2 oriented left links with part 24's 1.25" F SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

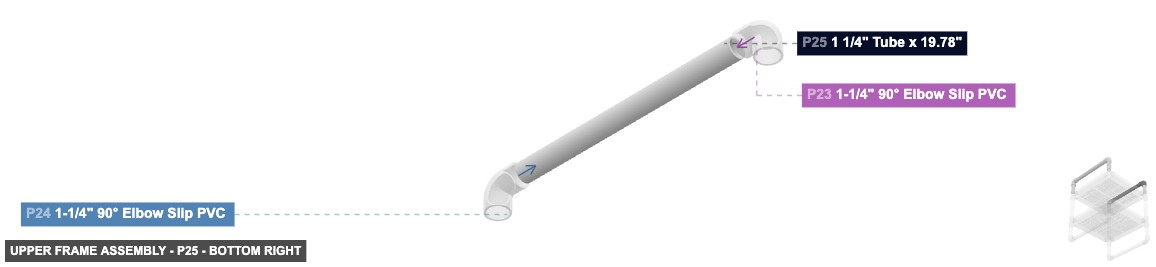

Part: 1 1/4" Tube x 19.78" - Angle: bottom right

Upper Frame Assembly - Part 1 1/4
P25 (1.25" Tube 19.78" length) - attach its 1.25" M SLIP #1 facing right to part 23's 1.25" F SLIP #2, plus connect its 1.25" M SLIP #2 oriented left links with part 24's 1.25" F SLIP #2
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Part: 1 1/4" Tube x 5" - Angle: back left

Upper Frame Assembly - Part 1 1/4
P26 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 24's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

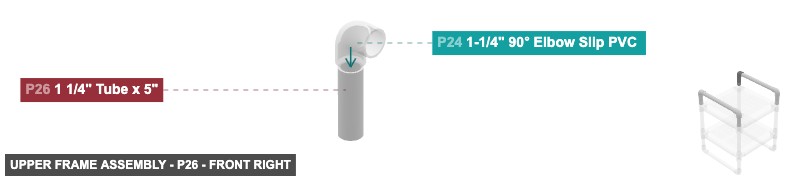

Part: 1 1/4" Tube x 5" - Angle: front right

Upper Frame Assembly - Part 1 1/4
P26 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 24's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

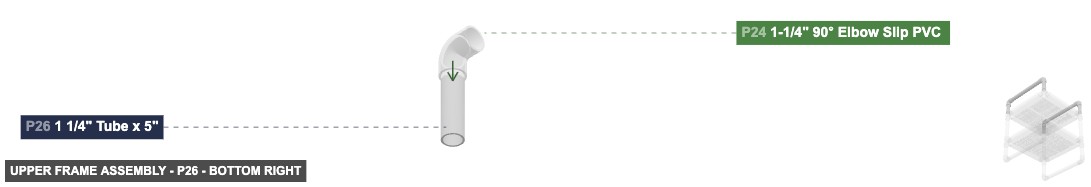

Part: 1 1/4" Tube x 5" - Angle: bottom right

Upper Frame Assembly - Part 1 1/4
P26 (1.25" Tube 5" length) - attach its 1.25" M SLIP #1 facing top to part 24's 1.25" F SLIP #1
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Phase 3: Inter-Group Assembly

Attaching: Lower Bed Assembly

Forms the complete lower level including the base frame, lower legs, and the lower platform.

The top connectors of Platform P1 will connect to the Mid-Section Legs and Upper Platform Assembly (Group 2).

Angle: back left

Assembly of Lower Bed Assembly - back_left
P1 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #1, which is top-facing, should connect to part 12's 1.25" M SLIP #2, also its 1.25" F SLIP #2, which is bottom-facing, should connect to part 3's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #3 oriented top links with part 15's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #4 facing bottom to part 2's 1.25" M SLIP #2, also its 1.25" F SLIP #5, which is top-facing, should connect to part 13's 1.25" M SLIP #2. Next, attach its 1.25" F SLIP #6 facing bottom to part 8's 1.25" M SLIP #2, and attach its 1.25" F SLIP #7 facing top to part 14's 1.25" M SLIP #2, plus connect its 1.25" F SLIP #8 oriented bottom links with part 4's 1.25" M SLIP #2 P2 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 5's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #4 P3 (1.25" Tube 7" length) - attach its 1.25" M SLIP #1 facing bottom to part 6's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #2 P4 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 10's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #8 P5 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 2's 1.25" M SLIP #1. Also, its 1.25" F SLIP #2, which is left-facing, should connect to part 7's 1.25" M SLIP #1 P6 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 3's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is right-facing, should connect to part 7's 1.25" M SLIP #2 P7 (1.25" Tube 19.84" length) - connect its 1.25" M SLIP #1 oriented right links with part 5's 1.25" F SLIP #2, then its 1.25" M SLIP #2, which is left-facing, should connect to part 6's 1.25" F SLIP #2 P8 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 9's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is top-facing, should connect to part 1's 1.25" F SLIP #6 P9 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 8's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented right links with part 11's 1.25" M SLIP #1 P10 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 4's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing left to part 11's 1.25" M SLIP #2 P11 (1.25" Tube 19.83" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 9's 1.25" F SLIP #2, then connect its 1.25" M SLIP #2 oriented right links with part 10's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

Angle: front right

Assembly of Lower Bed Assembly - front_right
P1 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #1, which is top-facing, should connect to part 12's 1.25" M SLIP #2, also its 1.25" F SLIP #2, which is bottom-facing, should connect to part 3's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #3 oriented top links with part 15's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #4 facing bottom to part 2's 1.25" M SLIP #2, also its 1.25" F SLIP #5, which is top-facing, should connect to part 13's 1.25" M SLIP #2. Next, attach its 1.25" F SLIP #6 facing bottom to part 8's 1.25" M SLIP #2, and attach its 1.25" F SLIP #7 facing top to part 14's 1.25" M SLIP #2, plus connect its 1.25" F SLIP #8 oriented bottom links with part 4's 1.25" M SLIP #2 P2 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 5's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #4 P3 (1.25" Tube 7" length) - attach its 1.25" M SLIP #1 facing bottom to part 6's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #2 P4 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 10's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #8 P5 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 2's 1.25" M SLIP #1. Also, its 1.25" F SLIP #2, which is left-facing, should connect to part 7's 1.25" M SLIP #1 P6 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 3's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is right-facing, should connect to part 7's 1.25" M SLIP #2 P7 (1.25" Tube 19.84" length) - connect its 1.25" M SLIP #1 oriented right links with part 5's 1.25" F SLIP #2, then its 1.25" M SLIP #2, which is left-facing, should connect to part 6's 1.25" F SLIP #2 P8 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 9's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is top-facing, should connect to part 1's 1.25" F SLIP #6 P9 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 8's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented right links with part 11's 1.25" M SLIP #1 P10 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 4's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing left to part 11's 1.25" M SLIP #2 P11 (1.25" Tube 19.83" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 9's 1.25" F SLIP #2, then connect its 1.25" M SLIP #2 oriented right links with part 10's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

Angle: bottom right

Assembly of Lower Bed Assembly - bottom_right
P1 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #1, which is top-facing, should connect to part 12's 1.25" M SLIP #2, also its 1.25" F SLIP #2, which is bottom-facing, should connect to part 3's 1.25" M SLIP #2. Also, connect its 1.25" F SLIP #3 oriented top links with part 15's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #4 facing bottom to part 2's 1.25" M SLIP #2, also its 1.25" F SLIP #5, which is top-facing, should connect to part 13's 1.25" M SLIP #2. Next, attach its 1.25" F SLIP #6 facing bottom to part 8's 1.25" M SLIP #2, and attach its 1.25" F SLIP #7 facing top to part 14's 1.25" M SLIP #2, plus connect its 1.25" F SLIP #8 oriented bottom links with part 4's 1.25" M SLIP #2 P2 (1.25" Tube 7" length) - its 1.25" M SLIP #1, which is bottom-facing, should connect to part 5's 1.25" F SLIP #1, also attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #4 P3 (1.25" Tube 7" length) - attach its 1.25" M SLIP #1 facing bottom to part 6's 1.25" F SLIP #1, plus attach its 1.25" M SLIP #2 facing top to part 1's 1.25" F SLIP #2 P4 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 10's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented top links with part 1's 1.25" F SLIP #8 P5 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 2's 1.25" M SLIP #1. Also, its 1.25" F SLIP #2, which is left-facing, should connect to part 7's 1.25" M SLIP #1 P6 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 3's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is right-facing, should connect to part 7's 1.25" M SLIP #2 P7 (1.25" Tube 19.84" length) - connect its 1.25" M SLIP #1 oriented right links with part 5's 1.25" F SLIP #2, then its 1.25" M SLIP #2, which is left-facing, should connect to part 6's 1.25" F SLIP #2 P8 (1.25" Tube 7" length) - connect its 1.25" M SLIP #1 oriented bottom links with part 9's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is top-facing, should connect to part 1's 1.25" F SLIP #6 P9 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing top to part 8's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented right links with part 11's 1.25" M SLIP #1 P10 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented top links with part 4's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing left to part 11's 1.25" M SLIP #2 P11 (1.25" Tube 19.83" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 9's 1.25" F SLIP #2, then connect its 1.25" M SLIP #2 oriented right links with part 10's 1.25" F SLIP #2
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1
1 1/41 1/4" Tube x 7"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.84"x 1
1 1/41 1/4" Tube x 19.83"x 1

Attaching: Mid-Section and Upper Platform Assembly

Adds the mid-section legs and the upper platform to the lower bed assembly.

This assembly attaches to the top of the Lower Bed Assembly (Group 1). The top connectors of Platform P16 will connect to the Upper Frame Assembly (Group 3).

Angle: back left

Assembly of Mid-Section and Upper Platform Assembly - back_left
P12 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #5, and connect its 1.25" M SLIP #2 oriented bottom links with part 1's 1.25" F SLIP #1 P13 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is bottom-facing, should connect to part 1's 1.25" F SLIP #5 P14 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing top to part 16's 1.25" F SLIP #3. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 1's 1.25" F SLIP #7 P15 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing top to part 16's 1.25" F SLIP #7. After that, attach its 1.25" M SLIP #2 facing bottom to part 1's 1.25" F SLIP #3 P16 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 13's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing top to part 18's 1.25" M SLIP #2, plus attach its 1.25" F SLIP #3 facing bottom to part 14's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #4 oriented top links with part 19's 1.25" M SLIP #2, then attach its 1.25" F SLIP #5 facing bottom to part 12's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #6 facing top to part 26's 1.25" M SLIP #2. After that, connect its 1.25" F SLIP #7 oriented bottom links with part 15's 1.25" M SLIP #1, then connect its 1.25" F SLIP #8 oriented top links with part 17's 1.25" M SLIP #2
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Angle: front right

Assembly of Mid-Section and Upper Platform Assembly - front_right
P12 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #5, and connect its 1.25" M SLIP #2 oriented bottom links with part 1's 1.25" F SLIP #1 P13 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is bottom-facing, should connect to part 1's 1.25" F SLIP #5 P14 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing top to part 16's 1.25" F SLIP #3. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 1's 1.25" F SLIP #7 P15 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing top to part 16's 1.25" F SLIP #7. After that, attach its 1.25" M SLIP #2 facing bottom to part 1's 1.25" F SLIP #3 P16 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 13's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing top to part 18's 1.25" M SLIP #2, plus attach its 1.25" F SLIP #3 facing bottom to part 14's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #4 oriented top links with part 19's 1.25" M SLIP #2, then attach its 1.25" F SLIP #5 facing bottom to part 12's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #6 facing top to part 26's 1.25" M SLIP #2. After that, connect its 1.25" F SLIP #7 oriented bottom links with part 15's 1.25" M SLIP #1, then connect its 1.25" F SLIP #8 oriented top links with part 17's 1.25" M SLIP #2
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Angle: bottom right

Assembly of Mid-Section and Upper Platform Assembly - bottom_right
P12 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #5, and connect its 1.25" M SLIP #2 oriented bottom links with part 1's 1.25" F SLIP #1 P13 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 16's 1.25" F SLIP #1, and its 1.25" M SLIP #2, which is bottom-facing, should connect to part 1's 1.25" F SLIP #5 P14 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing top to part 16's 1.25" F SLIP #3. Additionally, attach its 1.25" M SLIP #2 facing bottom to part 1's 1.25" F SLIP #7 P15 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing top to part 16's 1.25" F SLIP #7. After that, attach its 1.25" M SLIP #2 facing bottom to part 1's 1.25" F SLIP #3 P16 (20" x 20" Seat With 1 1/4" 4 Way PVC v.2) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 13's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing top to part 18's 1.25" M SLIP #2, plus attach its 1.25" F SLIP #3 facing bottom to part 14's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #4 oriented top links with part 19's 1.25" M SLIP #2, then attach its 1.25" F SLIP #5 facing bottom to part 12's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #6 facing top to part 26's 1.25" M SLIP #2. After that, connect its 1.25" F SLIP #7 oriented bottom links with part 15's 1.25" M SLIP #1, then connect its 1.25" F SLIP #8 oriented top links with part 17's 1.25" M SLIP #2
1 1/41 1/4" Tube x 12"x 4
2020" x 20" Seat With 1 1/4" 4 Way PVC v.2x 1

Attaching: Upper Frame Assembly

Forms the complete upper frame structure and attaches it to the upper platform.

This assembly attaches to the top of the Mid-Section and Upper Platform Assembly (Group 2), completing the structure.

Angle: back left

Assembly of Upper Frame Assembly - back_left
P17 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is bottom-facing, should connect to part 16's 1.25" F SLIP #8 P18 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 20's 1.25" F SLIP #1, and connect its 1.25" M SLIP #2 oriented bottom links with part 16's 1.25" F SLIP #2 P19 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 21's 1.25" F SLIP #1, and attach its 1.25" M SLIP #2 facing bottom to part 16's 1.25" F SLIP #4 P20 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing right to part 22's 1.25" M SLIP #1 P21 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 19's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing left to part 22's 1.25" M SLIP #2 P22 (1.25" Tube 19.78" length) - connect its 1.25" M SLIP #1 oriented left links with part 20's 1.25" F SLIP #2, also connect its 1.25" M SLIP #2 oriented right links with part 21's 1.25" F SLIP #2 P23 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 17's 1.25" M SLIP #1, then connect its 1.25" F SLIP #2 oriented left links with part 25's 1.25" M SLIP #1 P24 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 26's 1.25" M SLIP #1, and attach its 1.25" F SLIP #2 facing right to part 25's 1.25" M SLIP #2 P25 (1.25" Tube 19.78" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 23's 1.25" F SLIP #2, also its 1.25" M SLIP #2, which is left-facing, should connect to part 24's 1.25" F SLIP #2 P26 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 24's 1.25" F SLIP #1. Also, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 16's 1.25" F SLIP #6
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Angle: front right

Assembly of Upper Frame Assembly - front_right
P17 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is bottom-facing, should connect to part 16's 1.25" F SLIP #8 P18 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 20's 1.25" F SLIP #1, and connect its 1.25" M SLIP #2 oriented bottom links with part 16's 1.25" F SLIP #2 P19 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 21's 1.25" F SLIP #1, and attach its 1.25" M SLIP #2 facing bottom to part 16's 1.25" F SLIP #4 P20 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing right to part 22's 1.25" M SLIP #1 P21 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 19's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing left to part 22's 1.25" M SLIP #2 P22 (1.25" Tube 19.78" length) - connect its 1.25" M SLIP #1 oriented left links with part 20's 1.25" F SLIP #2, also connect its 1.25" M SLIP #2 oriented right links with part 21's 1.25" F SLIP #2 P23 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 17's 1.25" M SLIP #1, then connect its 1.25" F SLIP #2 oriented left links with part 25's 1.25" M SLIP #1 P24 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 26's 1.25" M SLIP #1, and attach its 1.25" F SLIP #2 facing right to part 25's 1.25" M SLIP #2 P25 (1.25" Tube 19.78" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 23's 1.25" F SLIP #2, also its 1.25" M SLIP #2, which is left-facing, should connect to part 24's 1.25" F SLIP #2 P26 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 24's 1.25" F SLIP #1. Also, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 16's 1.25" F SLIP #6
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2

Angle: bottom right

Assembly of Upper Frame Assembly - bottom_right
P17 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 23's 1.25" F SLIP #1, plus its 1.25" M SLIP #2, which is bottom-facing, should connect to part 16's 1.25" F SLIP #8 P18 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 20's 1.25" F SLIP #1, and connect its 1.25" M SLIP #2 oriented bottom links with part 16's 1.25" F SLIP #2 P19 (1.25" Tube 5" length) - connect its 1.25" M SLIP #1 oriented top links with part 21's 1.25" F SLIP #1, and attach its 1.25" M SLIP #2 facing bottom to part 16's 1.25" F SLIP #4 P20 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is bottom-facing, should connect to part 18's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing right to part 22's 1.25" M SLIP #1 P21 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing bottom to part 19's 1.25" M SLIP #1. Next, attach its 1.25" F SLIP #2 facing left to part 22's 1.25" M SLIP #2 P22 (1.25" Tube 19.78" length) - connect its 1.25" M SLIP #1 oriented left links with part 20's 1.25" F SLIP #2, also connect its 1.25" M SLIP #2 oriented right links with part 21's 1.25" F SLIP #2 P23 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 17's 1.25" M SLIP #1, then connect its 1.25" F SLIP #2 oriented left links with part 25's 1.25" M SLIP #1 P24 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented bottom links with part 26's 1.25" M SLIP #1, and attach its 1.25" F SLIP #2 facing right to part 25's 1.25" M SLIP #2 P25 (1.25" Tube 19.78" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 23's 1.25" F SLIP #2, also its 1.25" M SLIP #2, which is left-facing, should connect to part 24's 1.25" F SLIP #2 P26 (1.25" Tube 5" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 24's 1.25" F SLIP #1. Also, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 16's 1.25" F SLIP #6
1 1/41 1/4" Tube x 5"x 4
1-1/41-1/4" 90° Elbow Slip PVC x 4
1 1/41 1/4" Tube x 19.78"x 2
