Art Cart 2 - Comprehensive Assembly Plan And Visual Guide

A multi-level wooden mobile art cart with four caster wheels. It features multiple shelves, a push handle made of metal pipe fittings, an open storage unit on one side, and a compartment storage unit on the other side. - Art Cart -A multi-level wooden art cart featuring multiple shelves, a side storage box section, a side tool holder section, a pipe handle, and four caster wheels for mobility. It appears designed to hold various art supplies and tools. - Art Cart -A multi-shelf wooden utility cart on casters. It features several main shelves between two vertical supports, a tall side structure attached to one support, a smaller side box structure with internal dividers attached to the other support, and a pipe handle connecting the main supports at the top. Four casters provide mobility. - Art Cart / Utility Cart -A mobile art cart with multiple shelves, a top surface, a side compartment with dividers, a front internal organizer structure, a handle, and wheels. - Art Cart

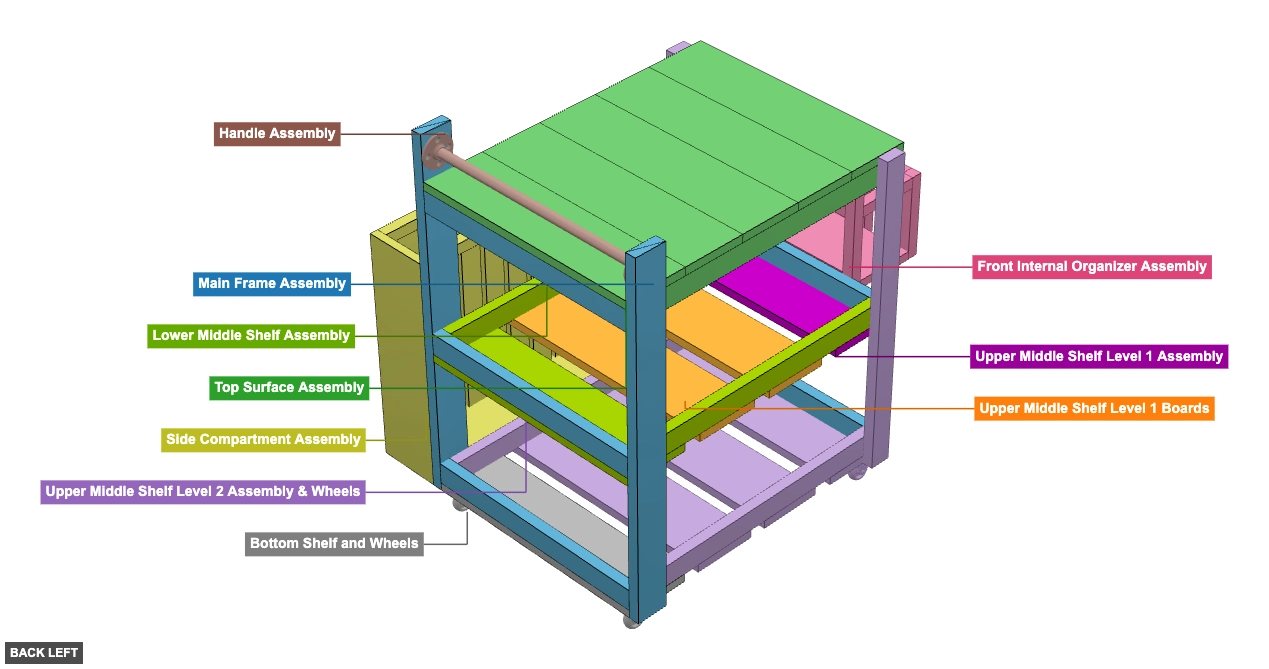

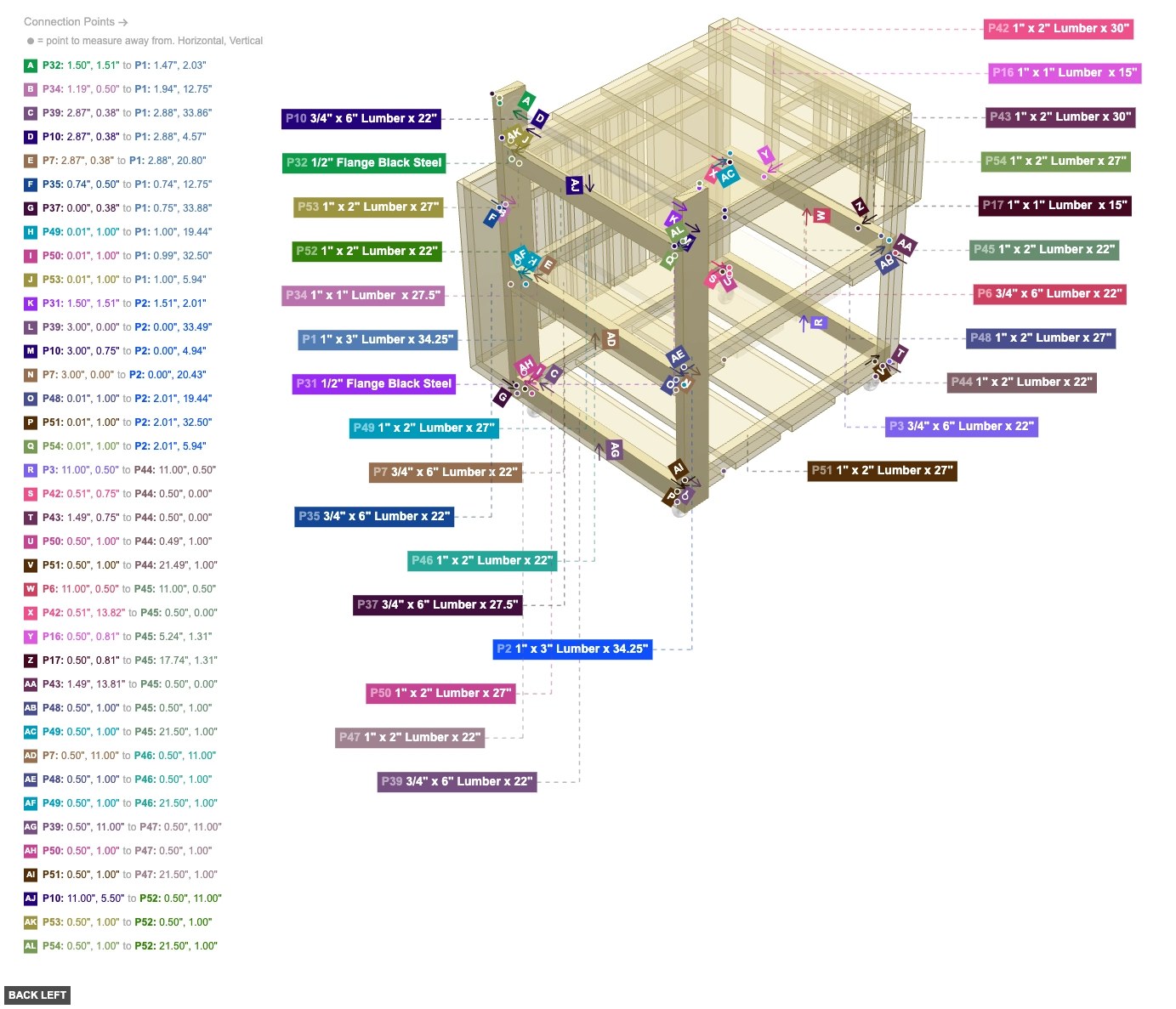

Phase 1: Group Overview

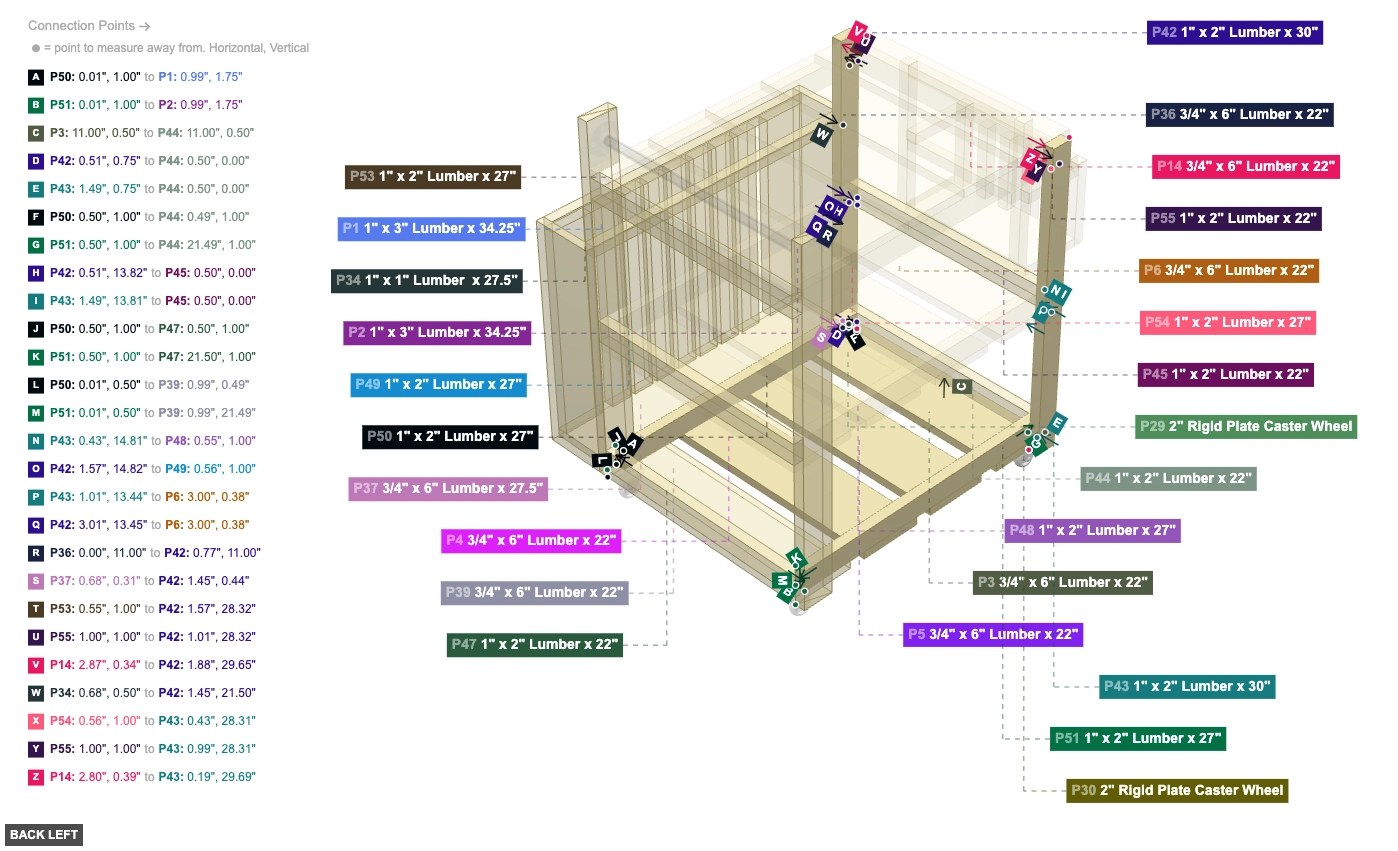

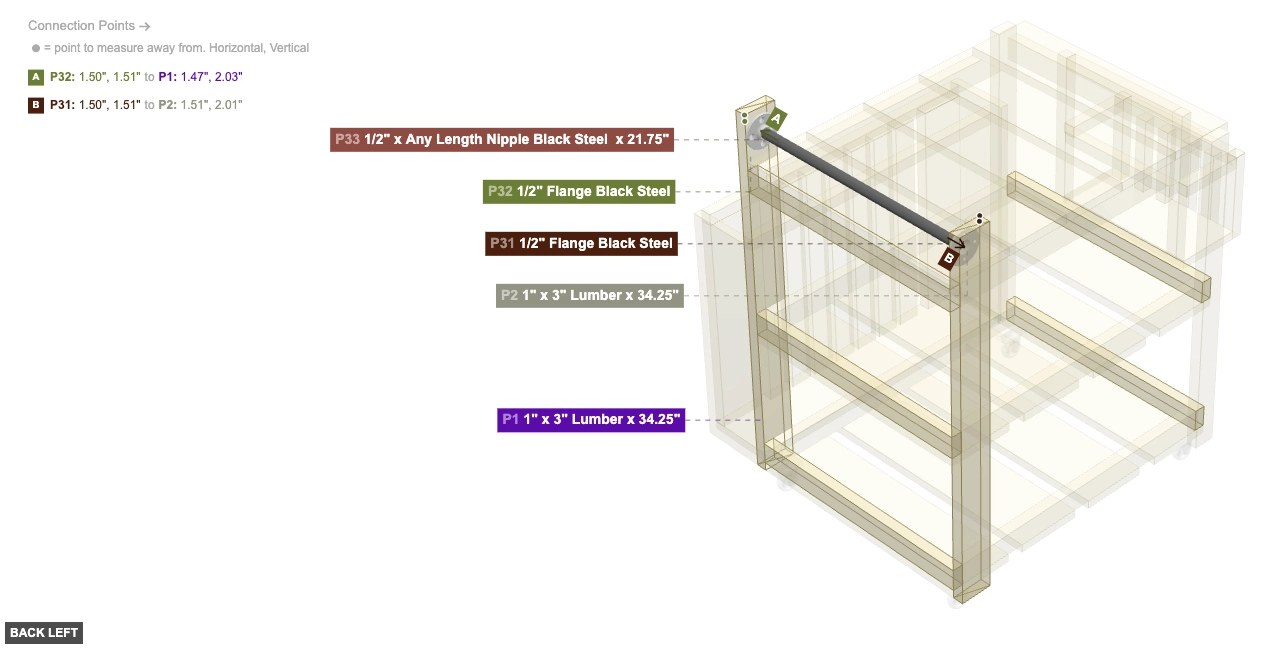

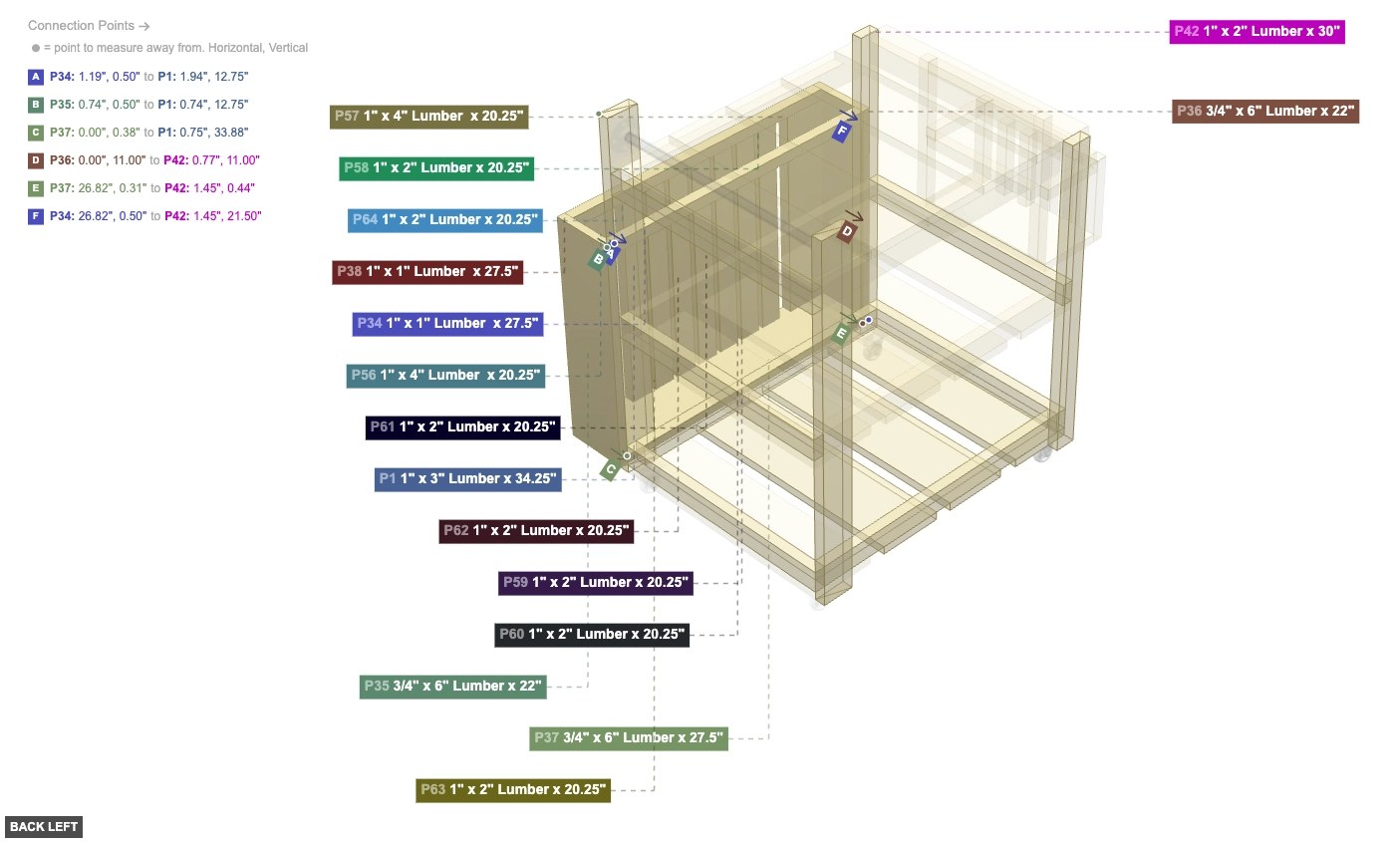

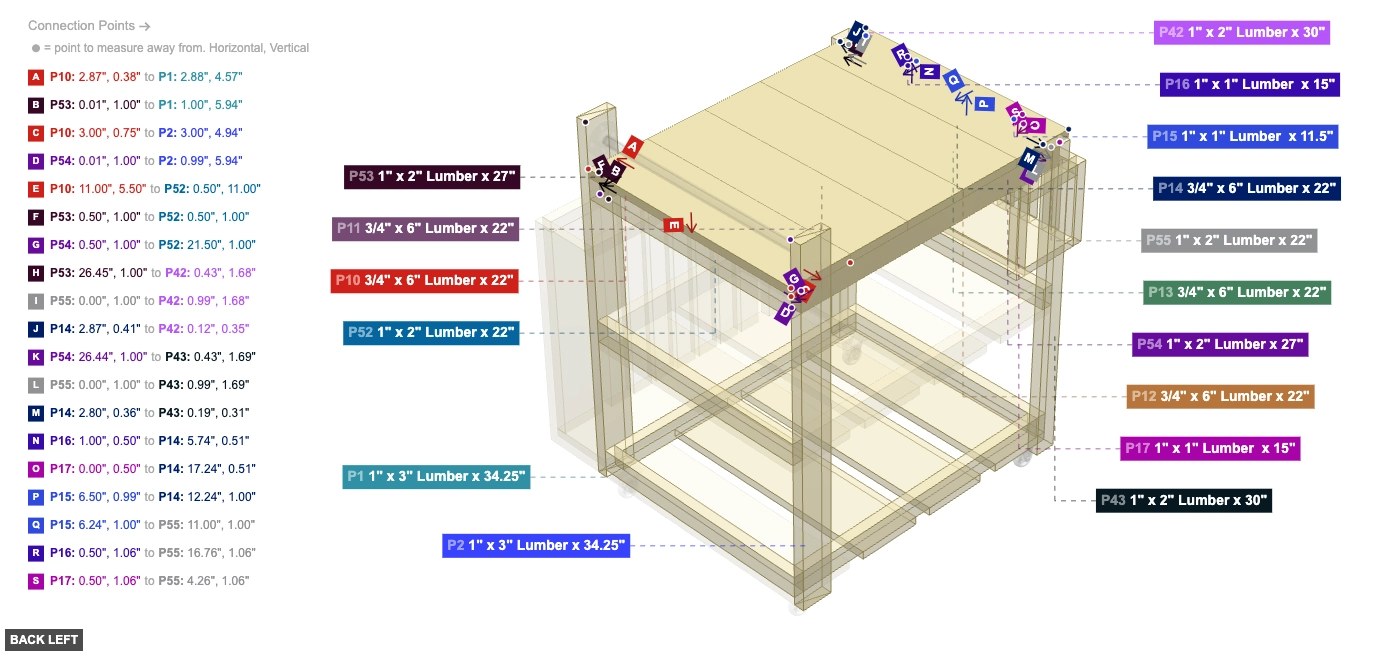

Angle: back left

Main Frame Assembly

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Bottom Shelf and Wheels

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Lower Middle Shelf Assembly

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Upper Middle Shelf Level 1 Assembly

3/4" x 6" Lumber x 22"x 1

Upper Middle Shelf Level 2 Assembly & Wheels

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

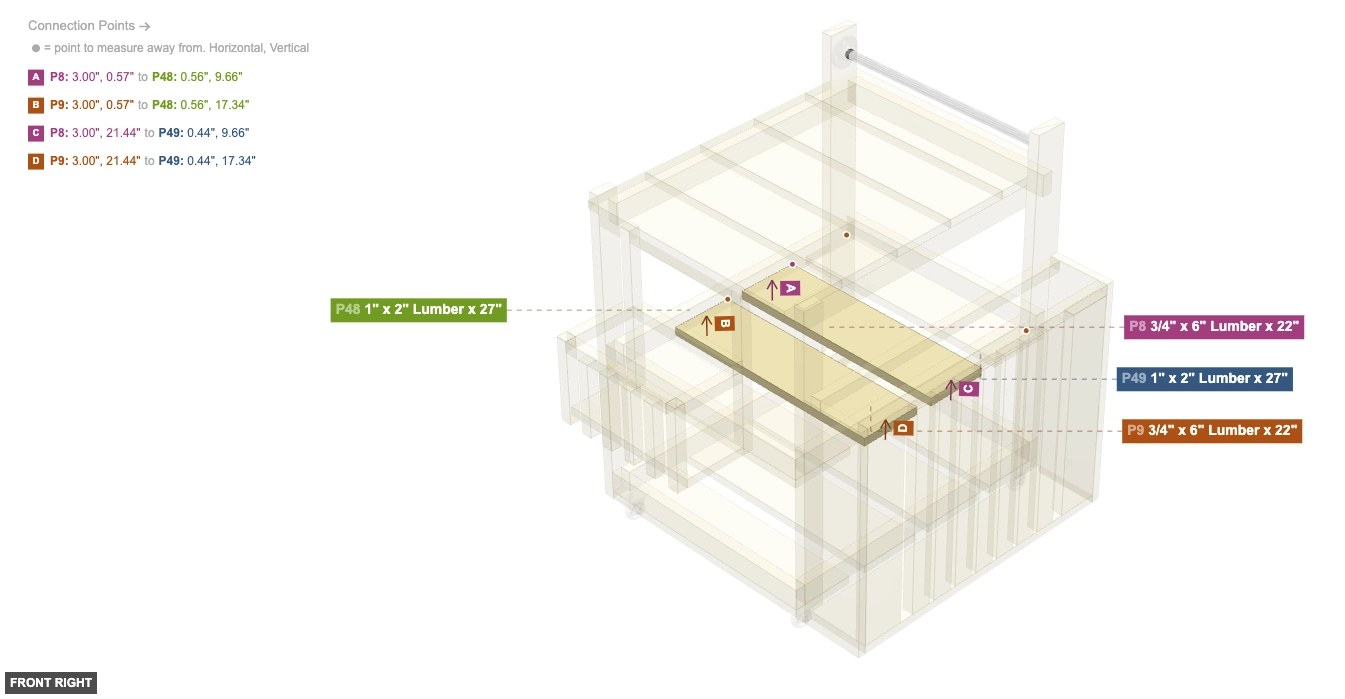

Upper Middle Shelf Level 1 Boards

3/4" x 6" Lumber x 22"x 2

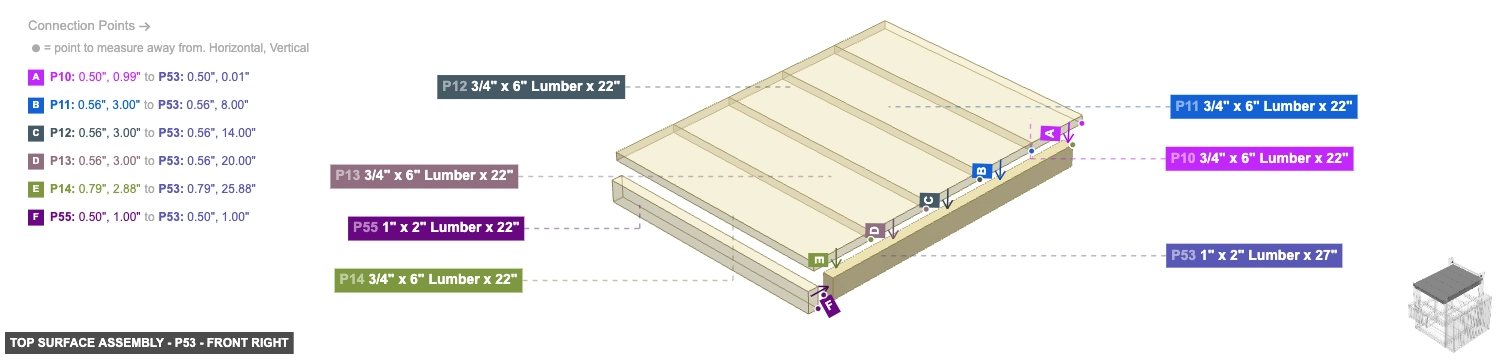

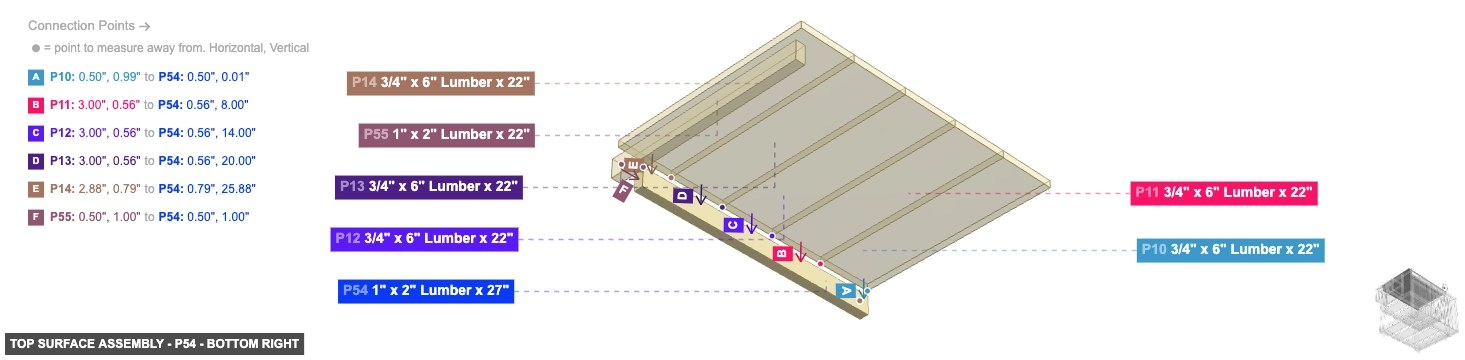

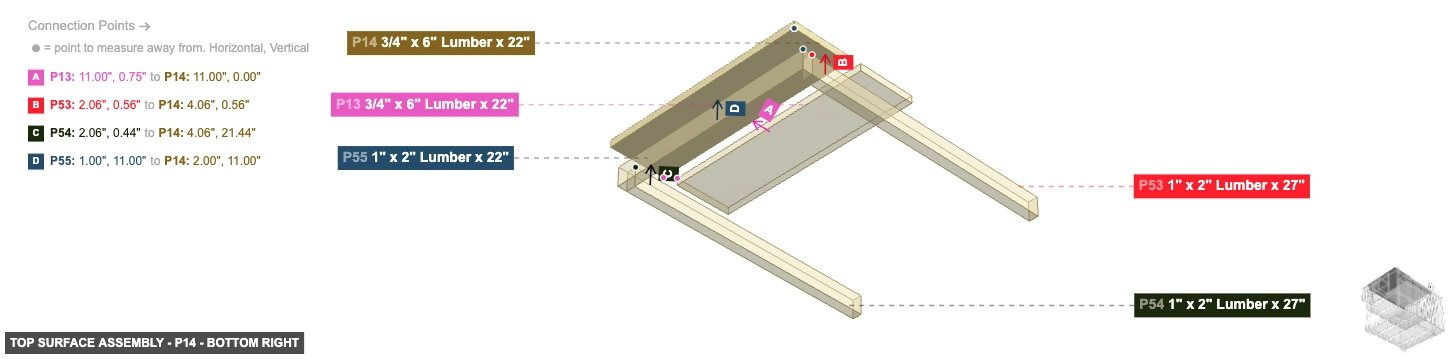

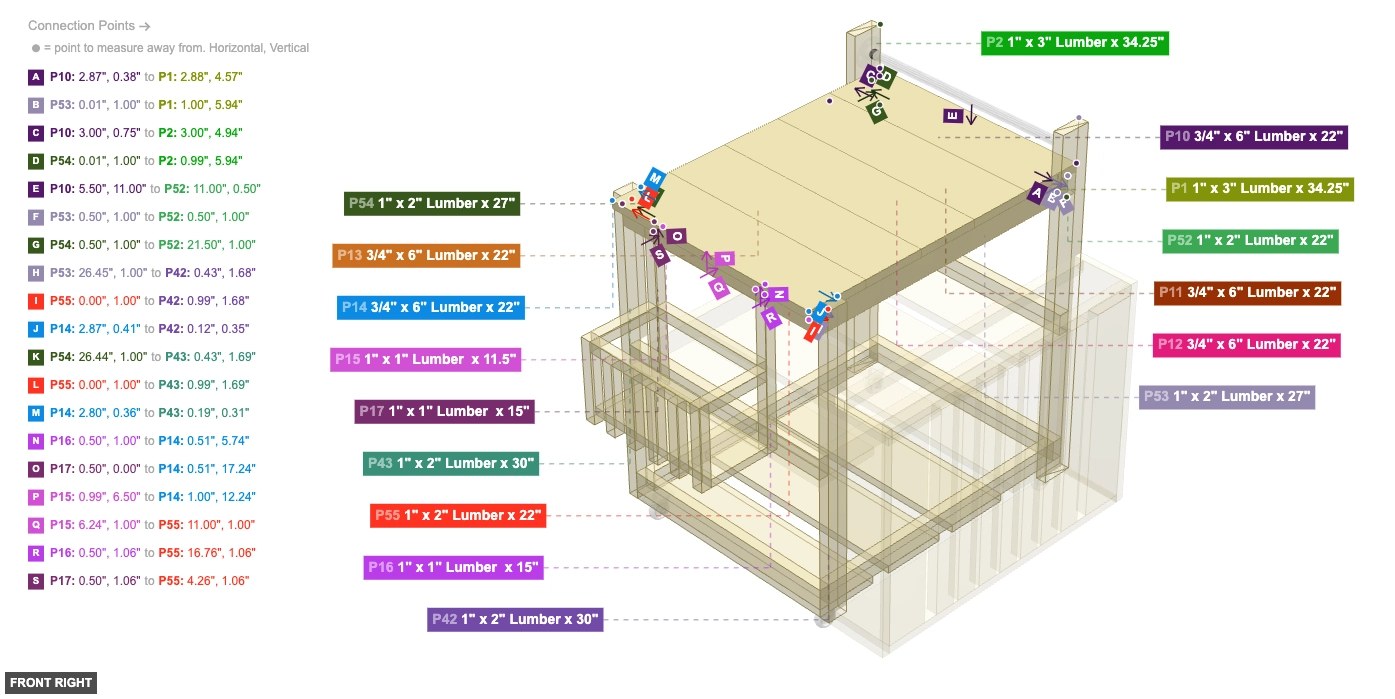

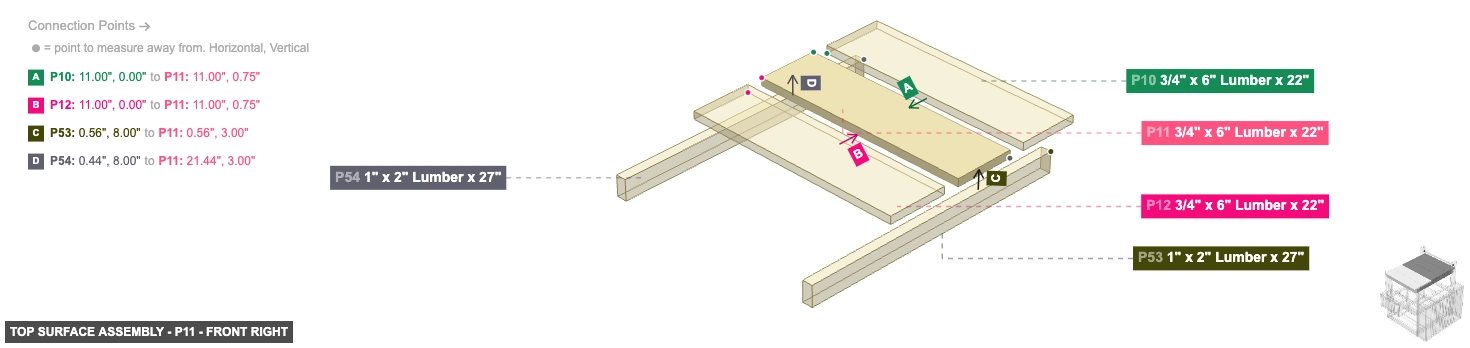

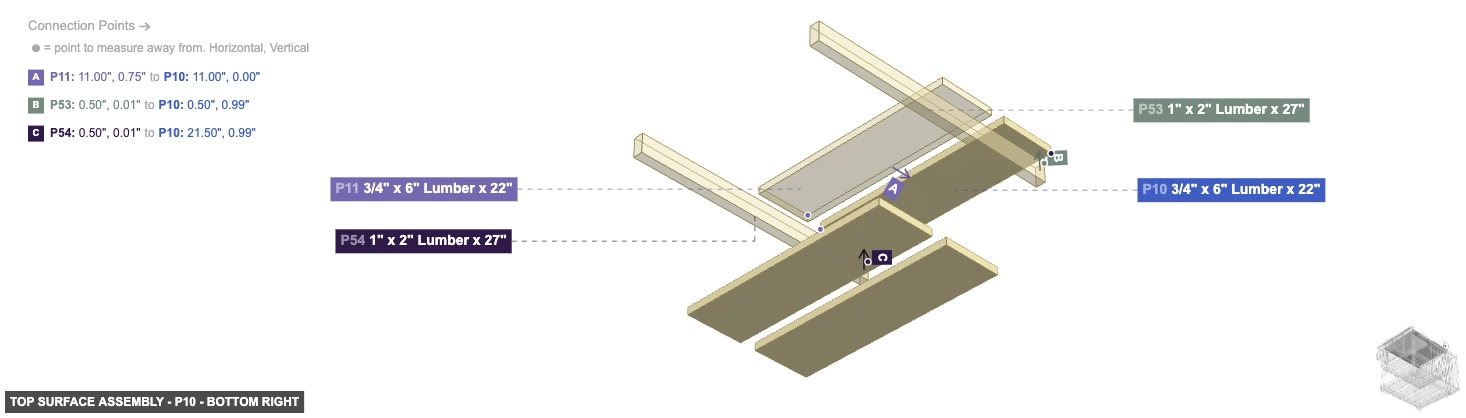

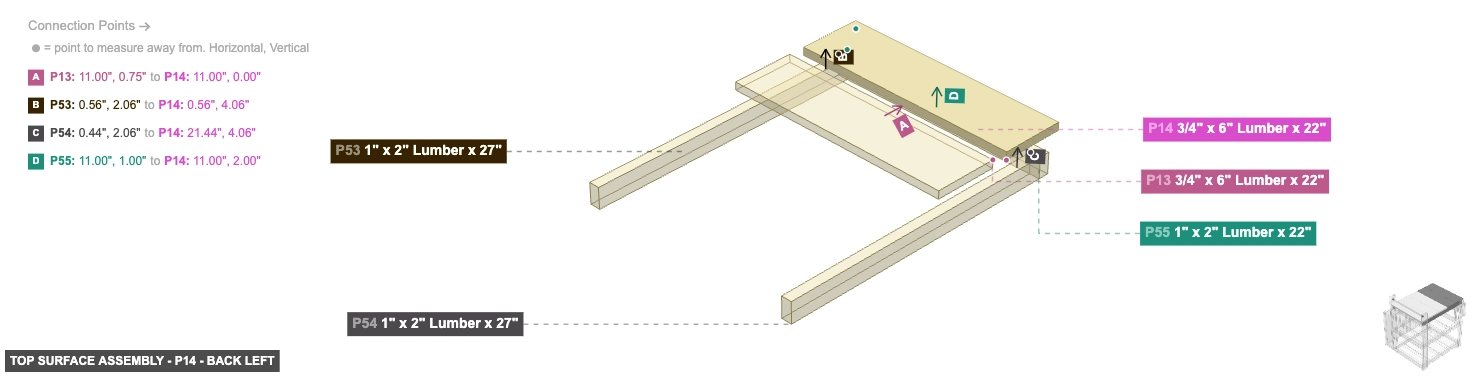

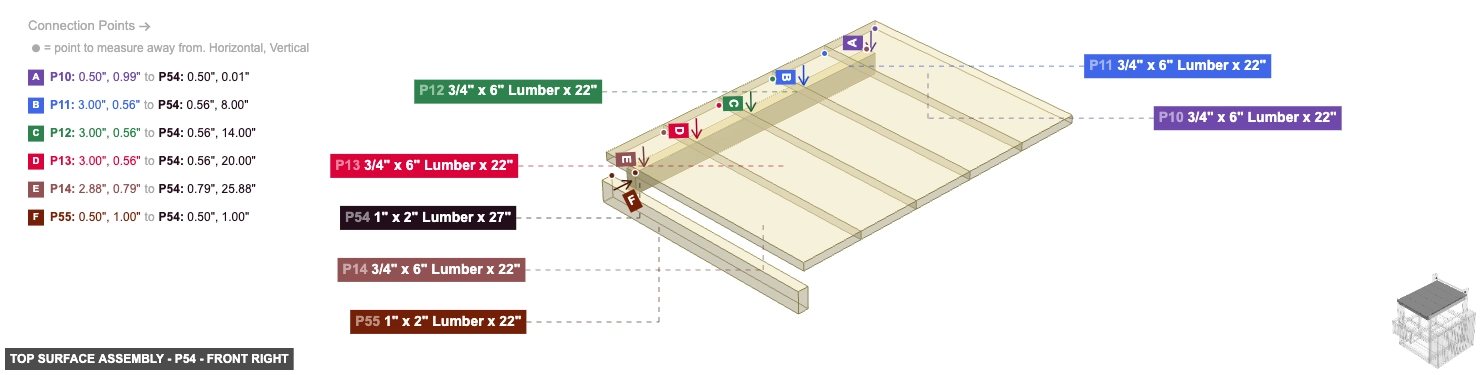

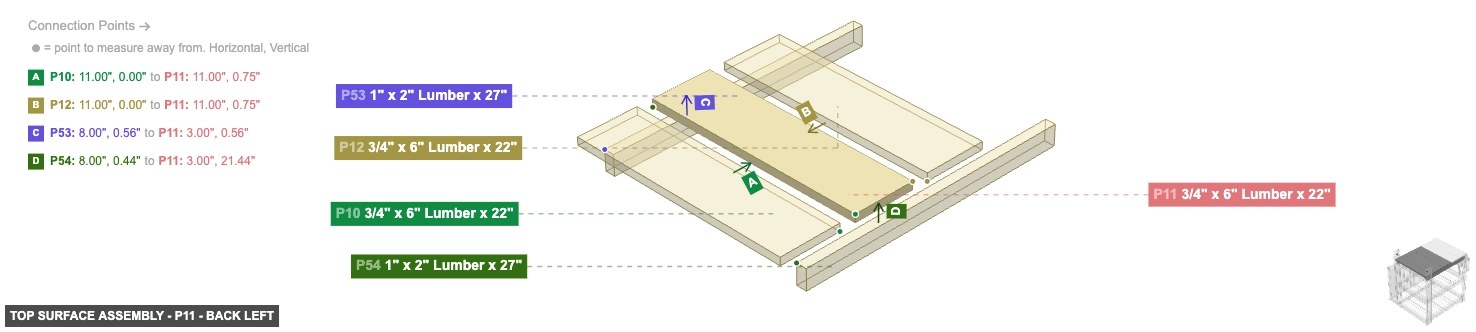

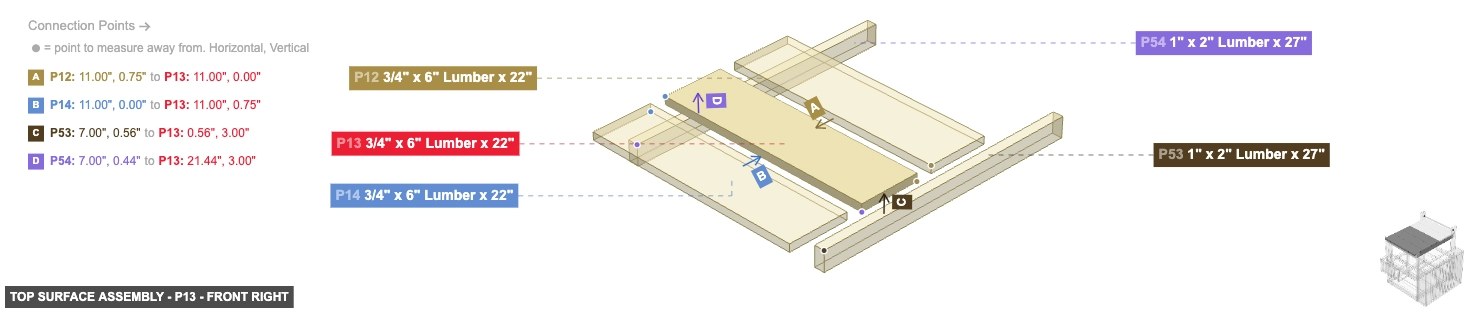

Top Surface Assembly

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

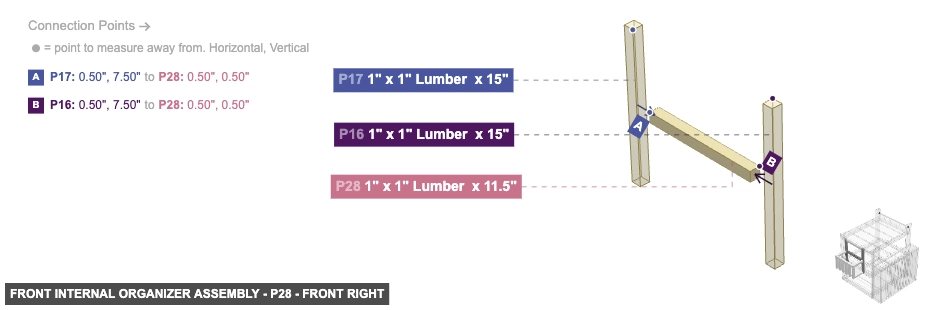

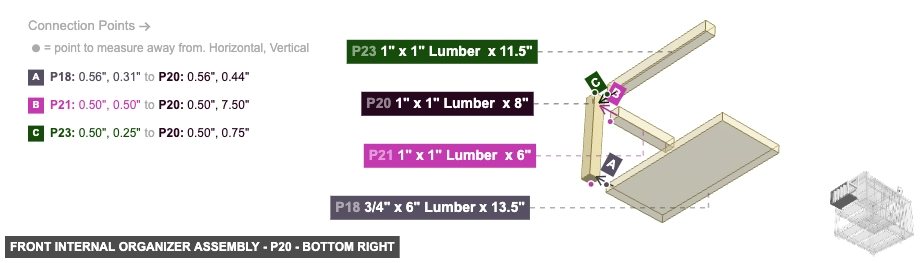

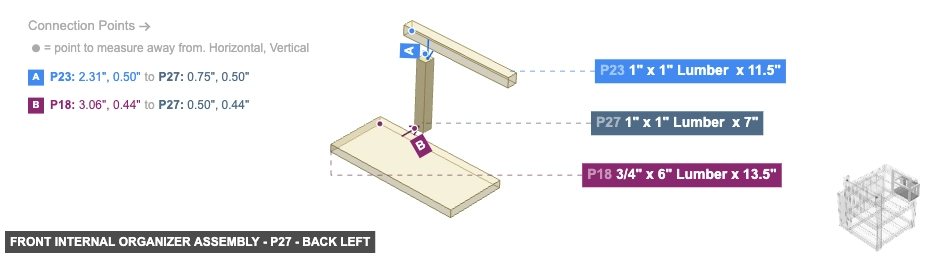

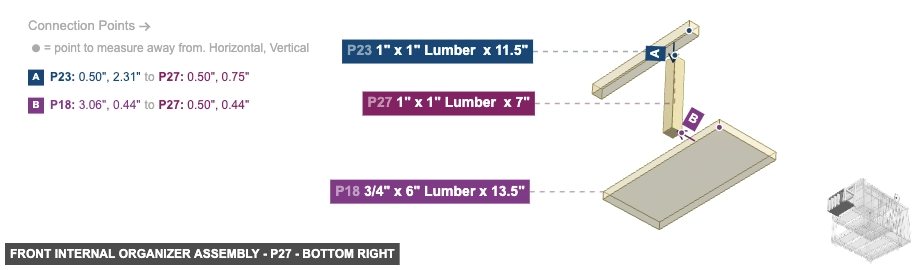

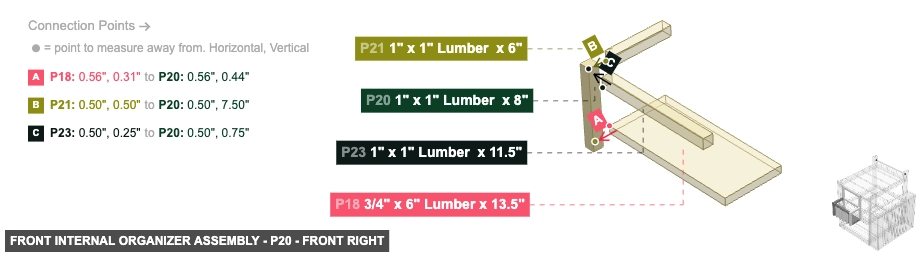

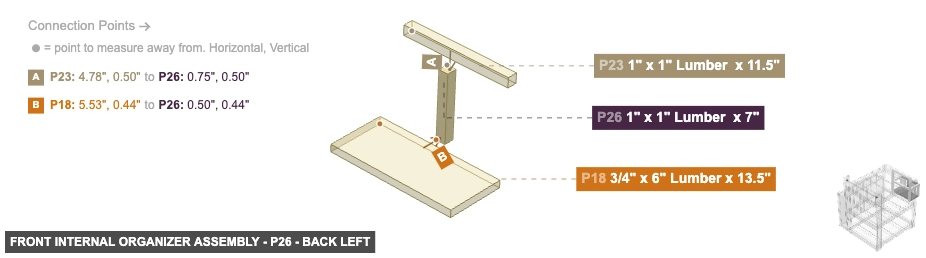

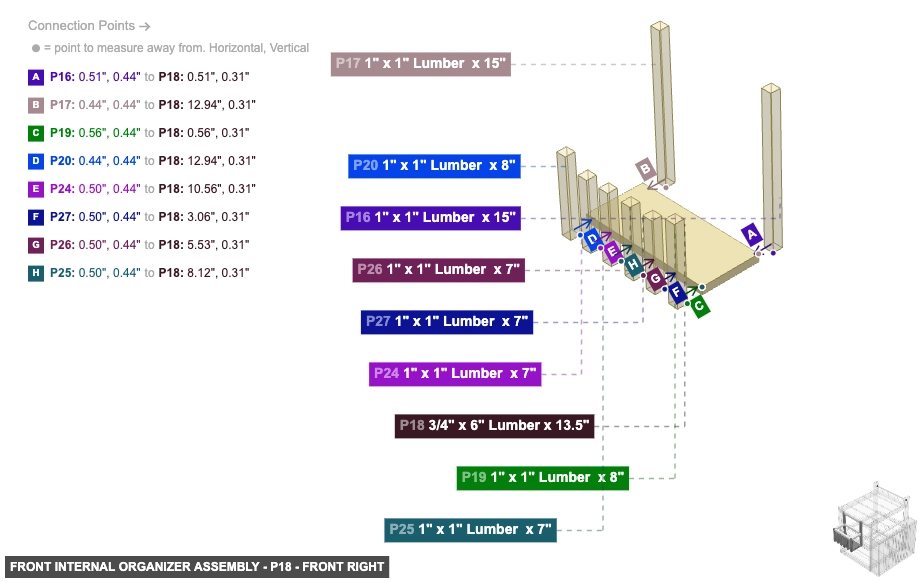

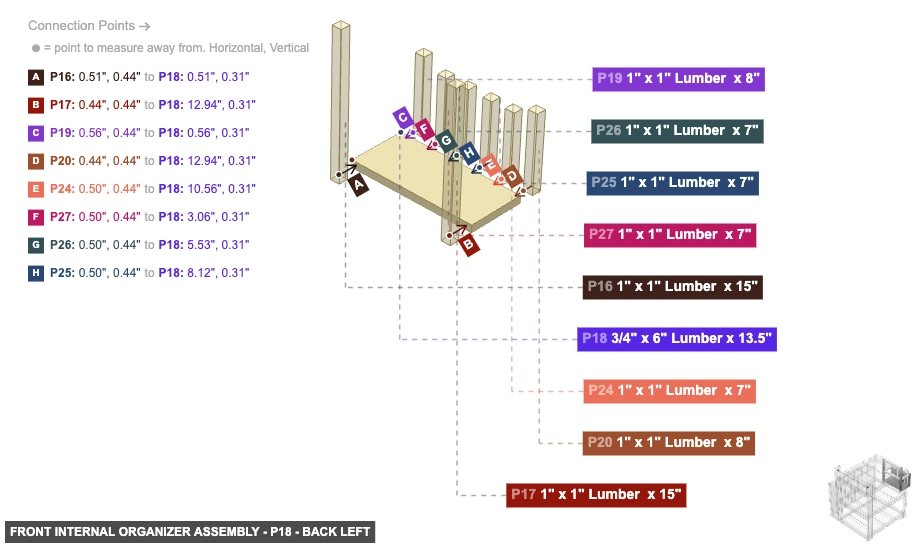

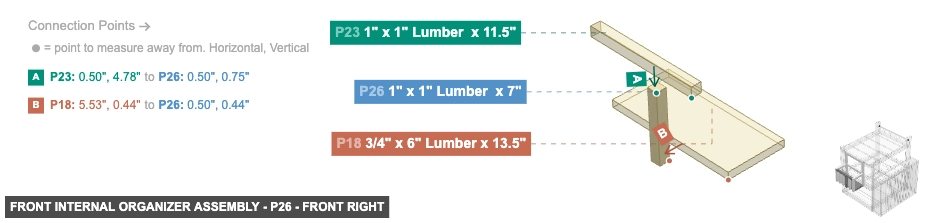

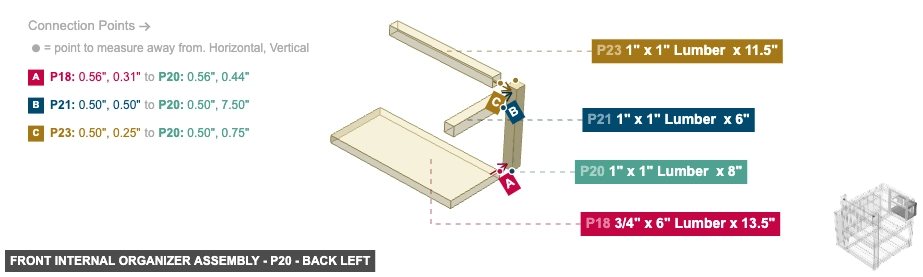

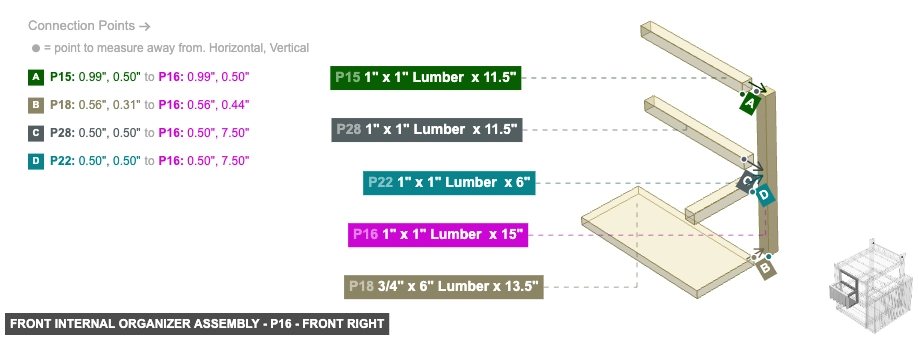

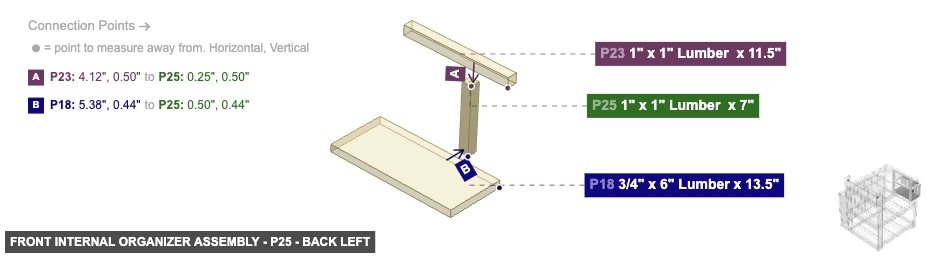

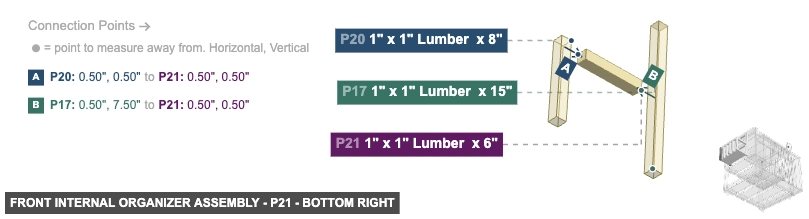

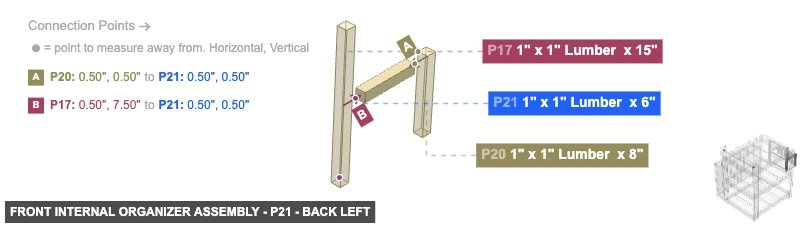

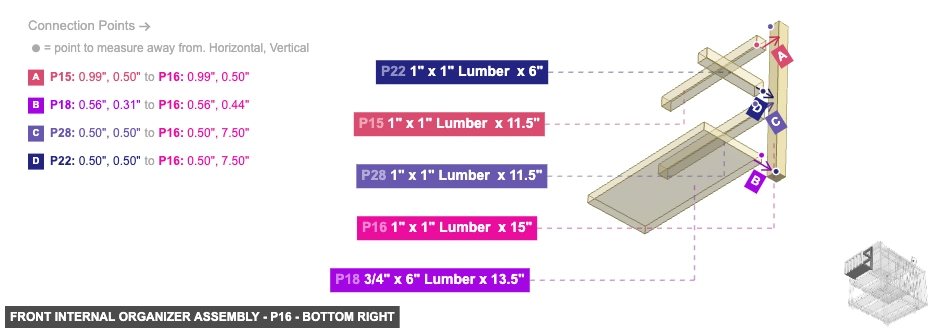

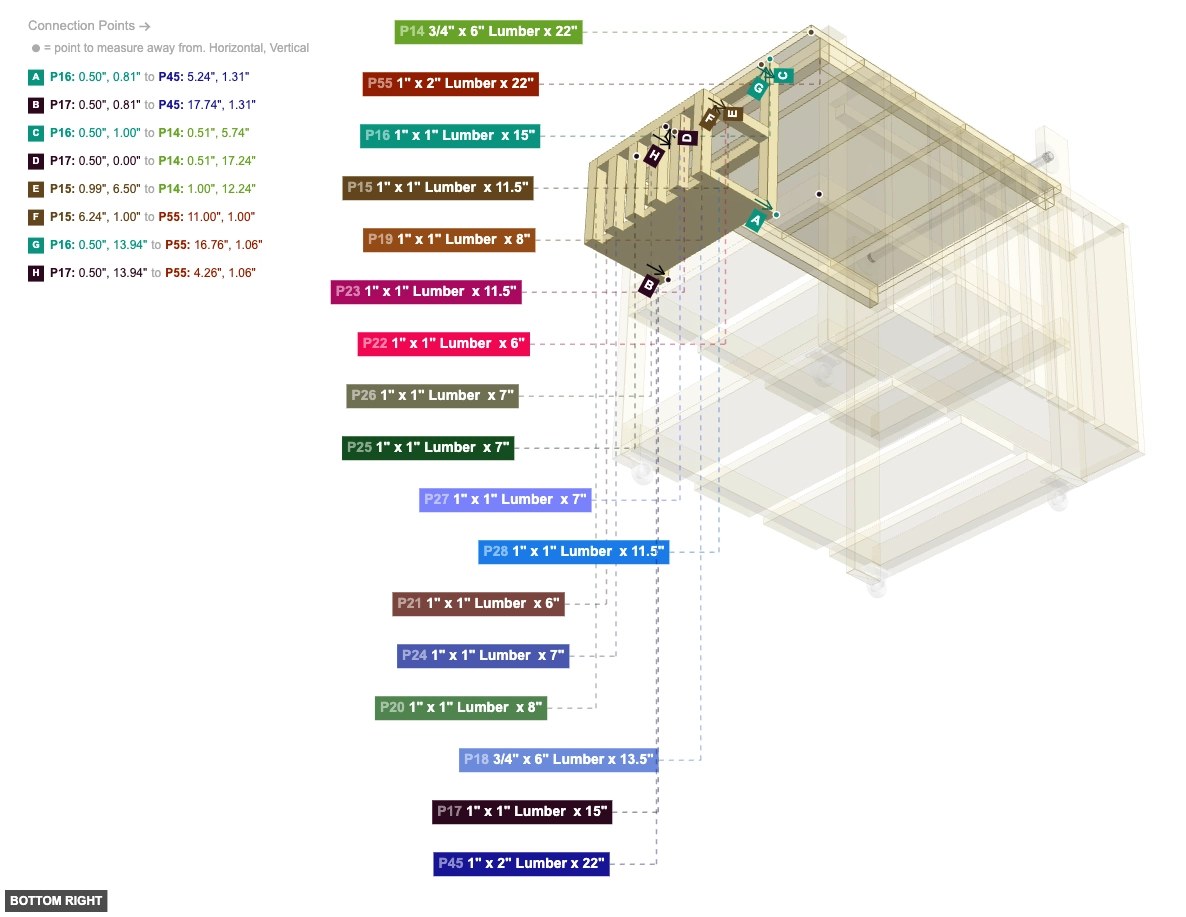

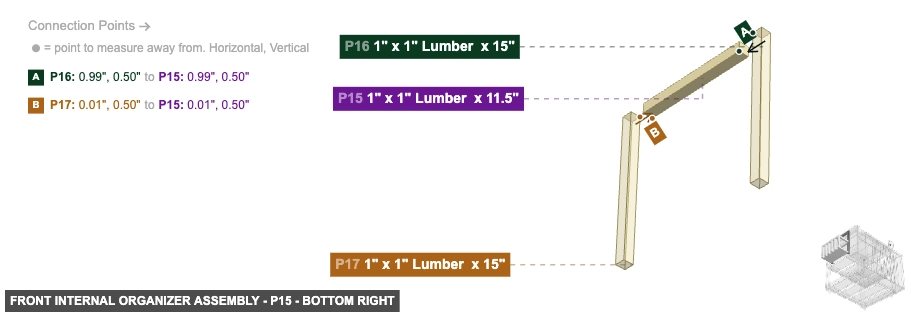

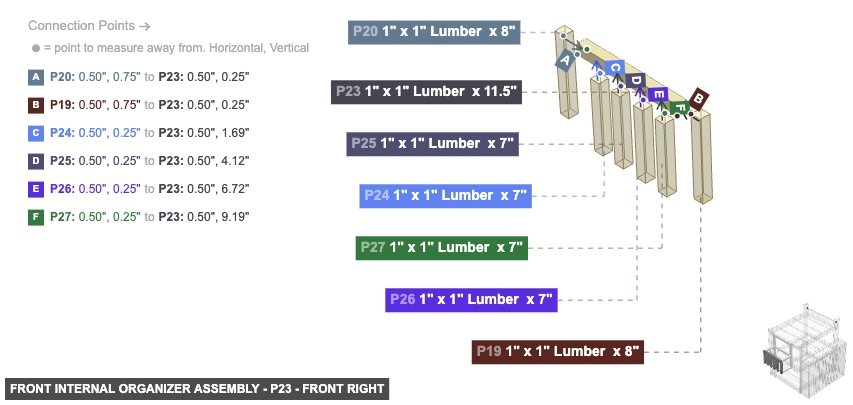

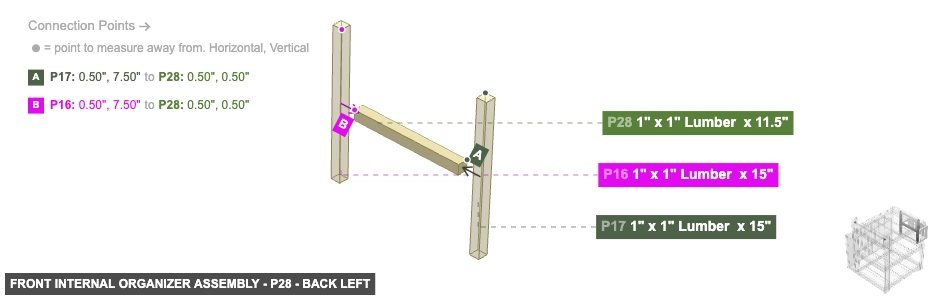

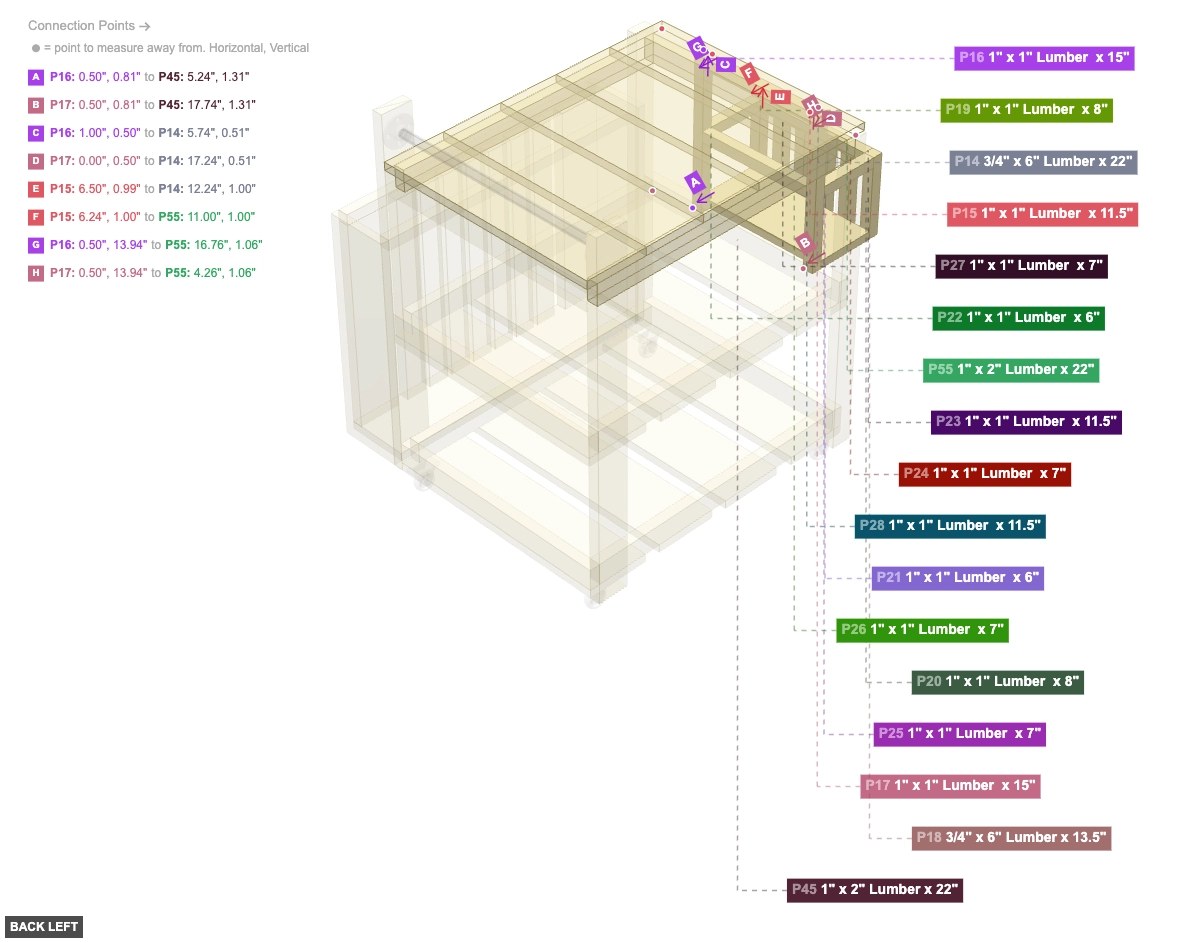

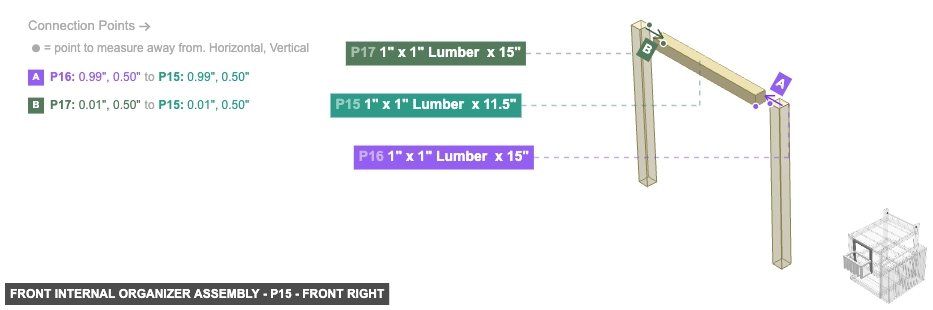

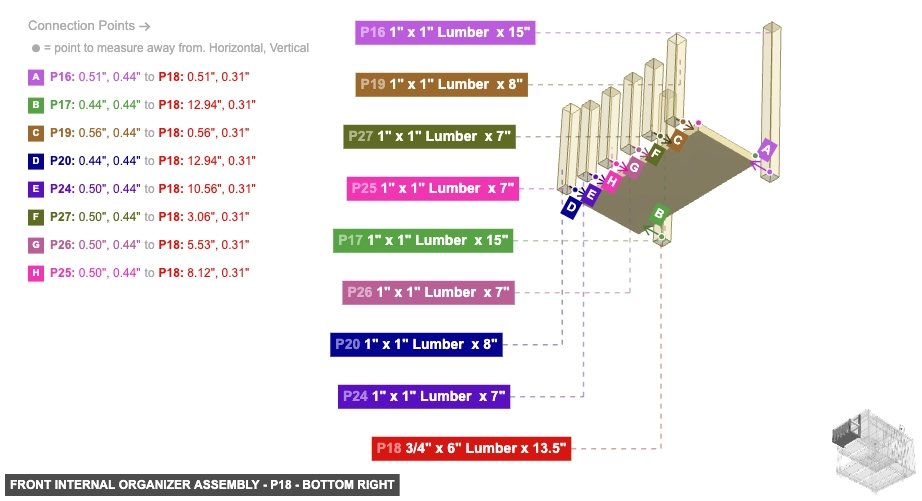

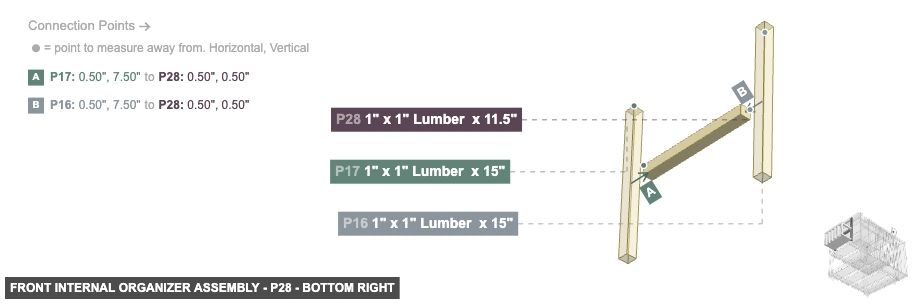

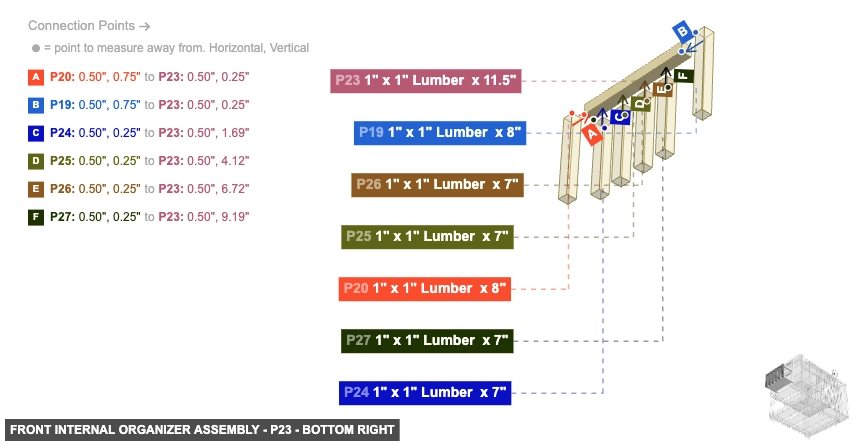

Front Internal Organizer Assembly

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

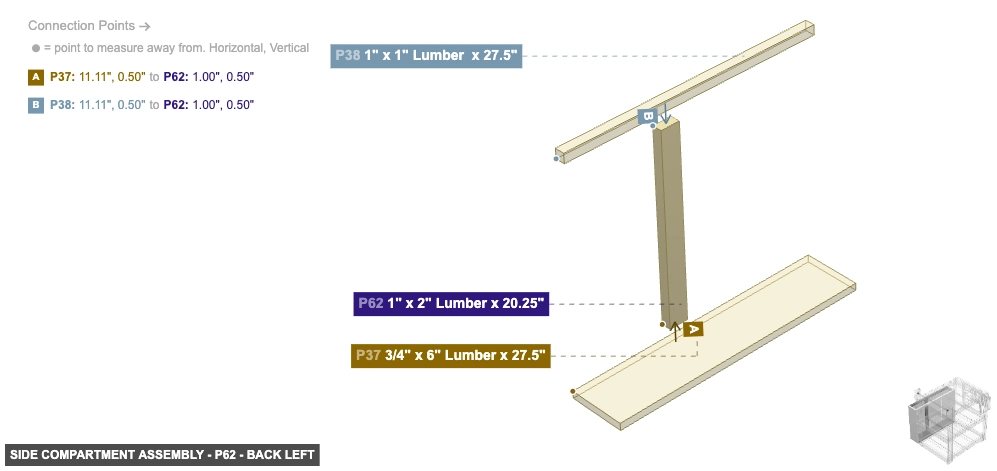

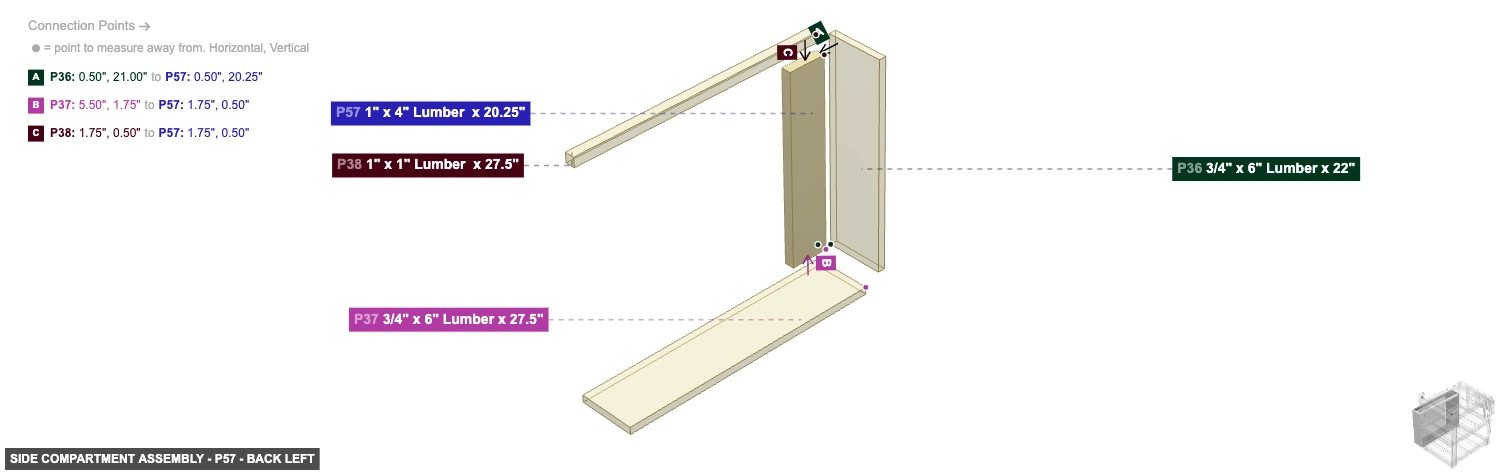

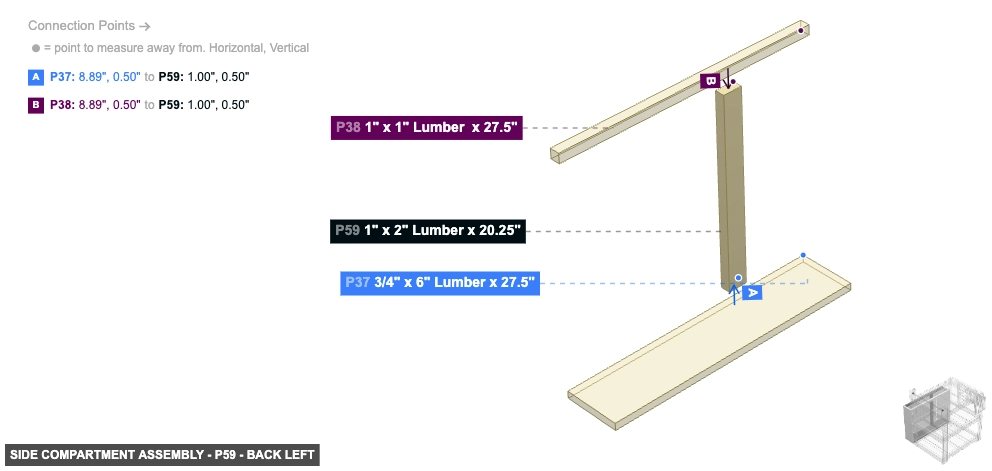

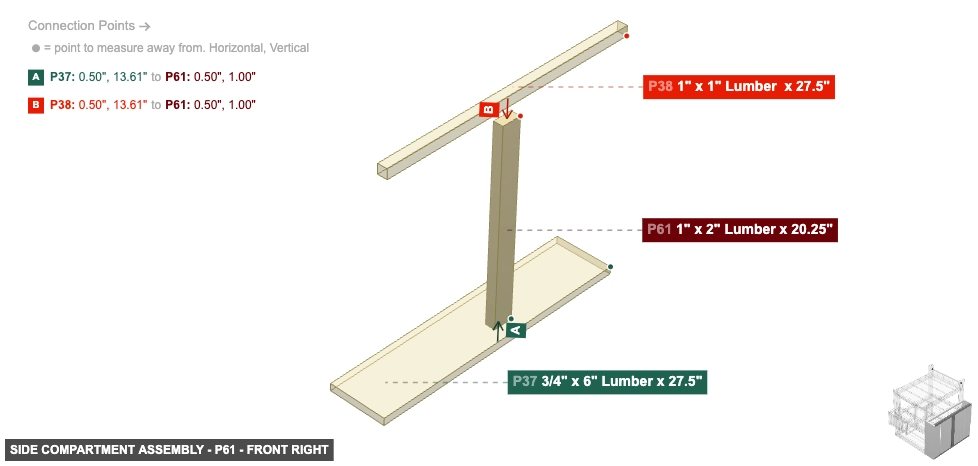

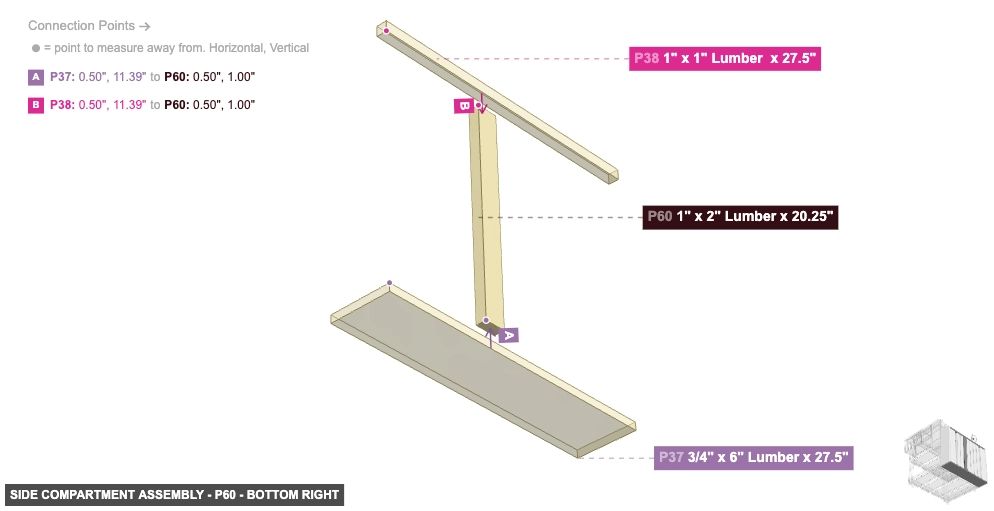

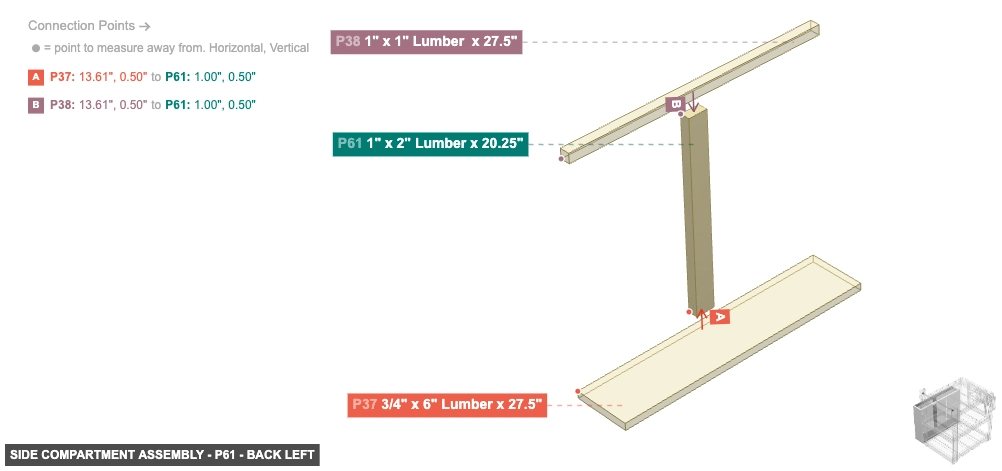

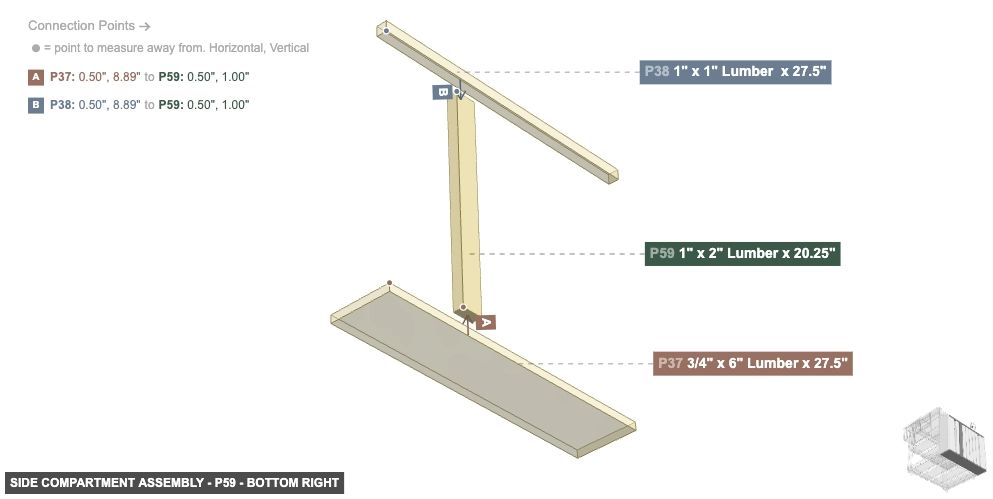

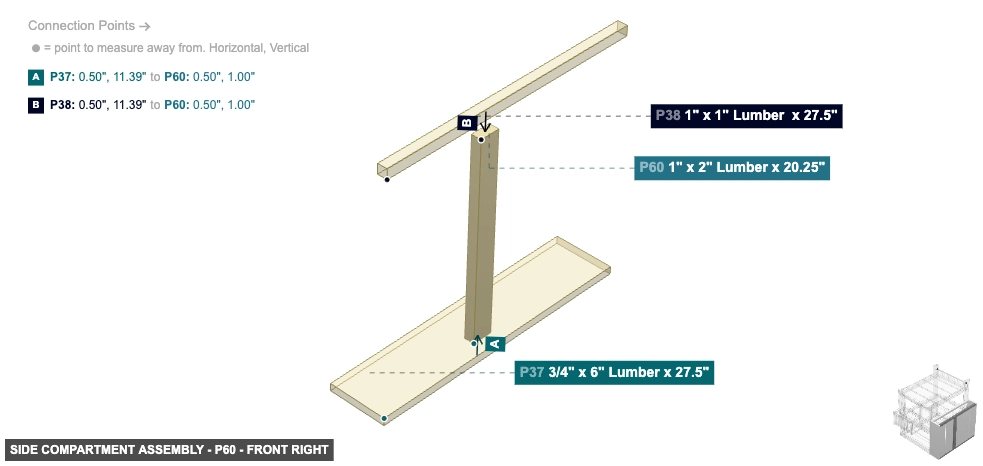

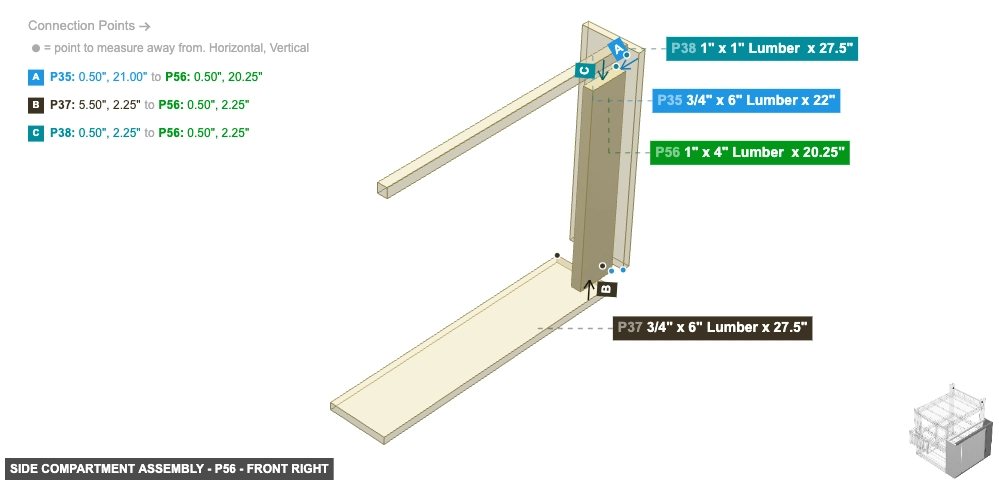

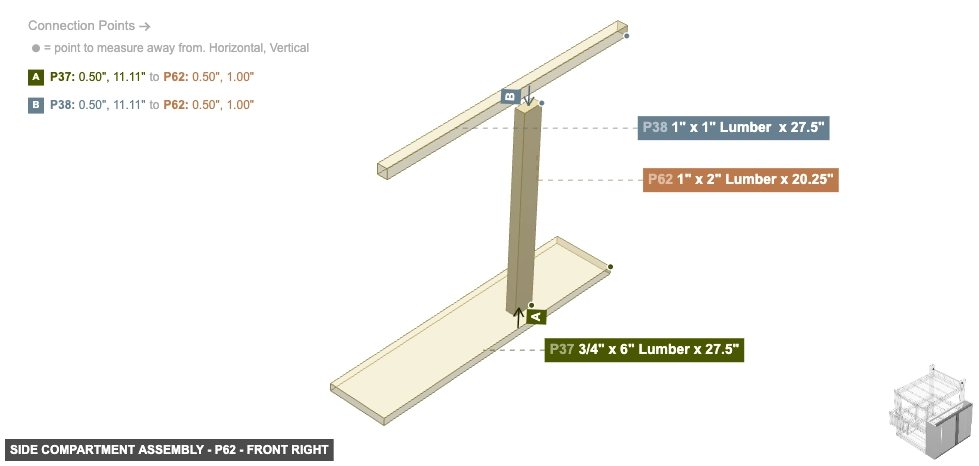

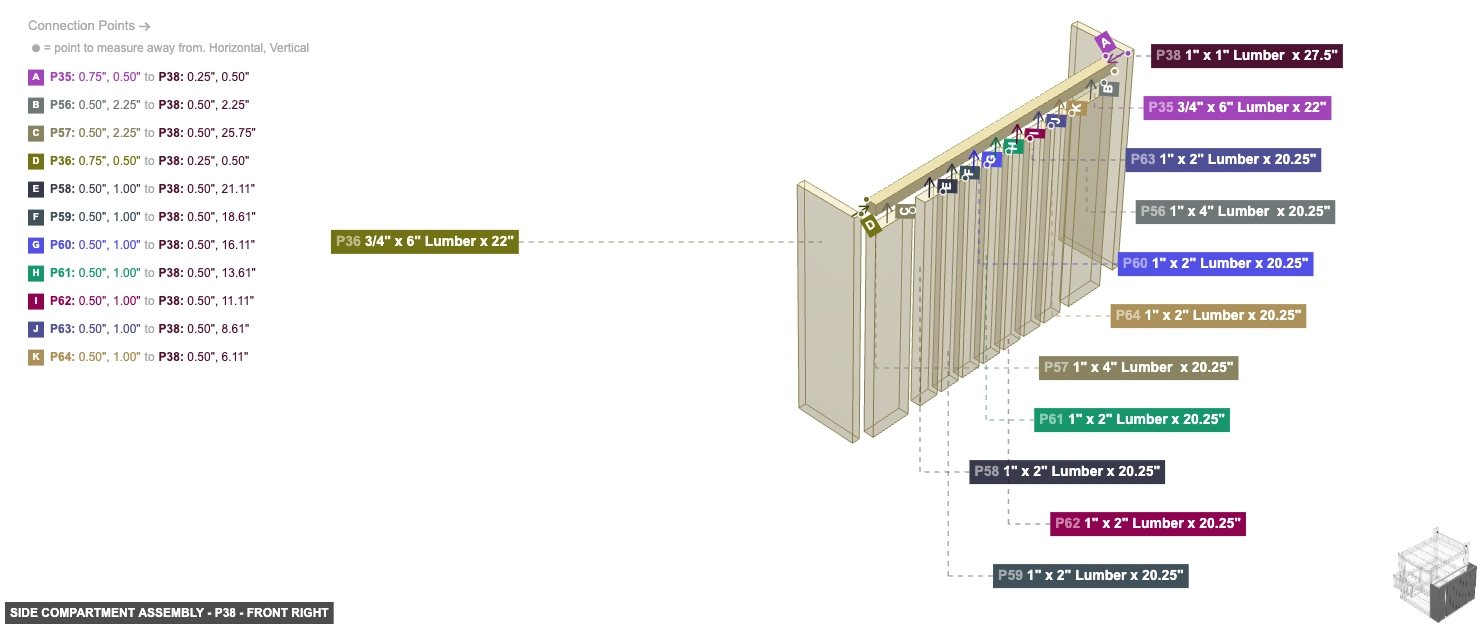

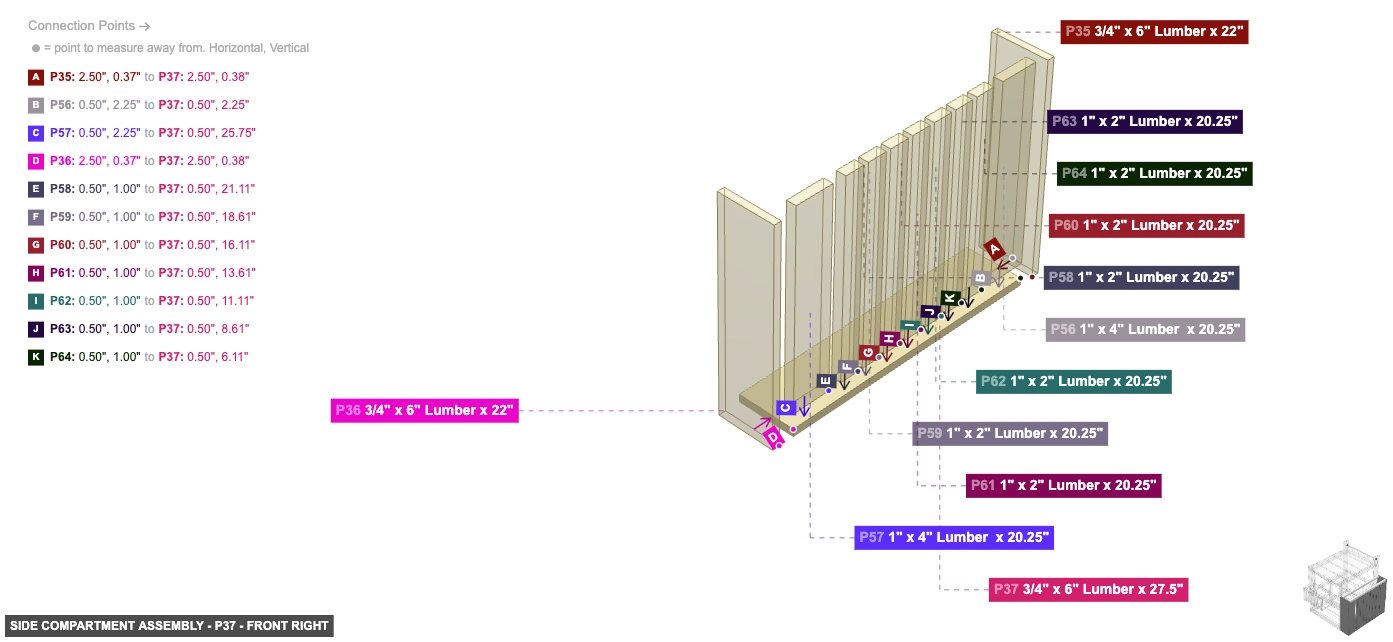

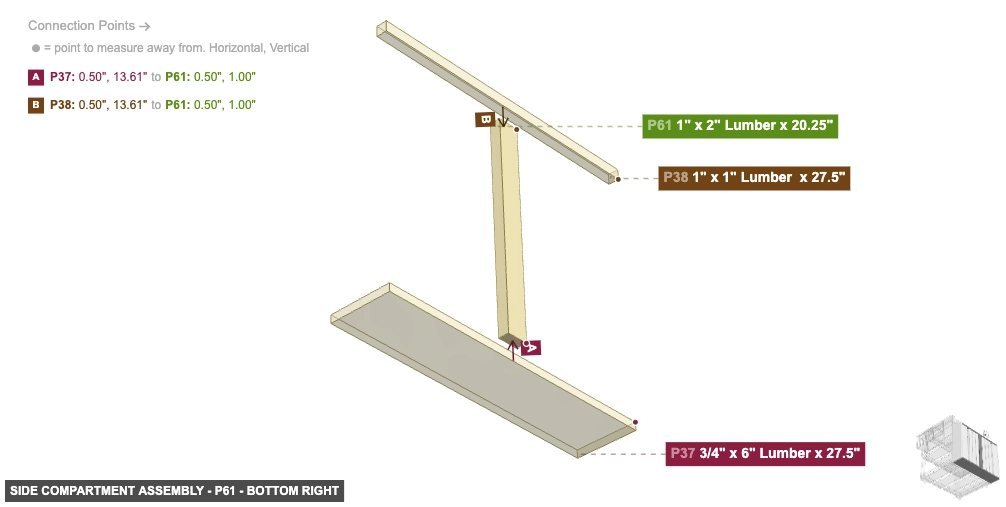

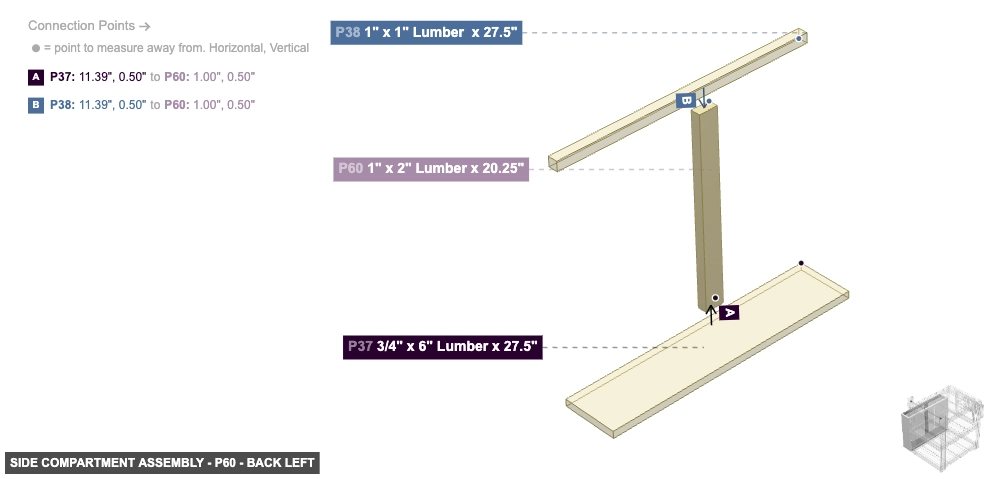

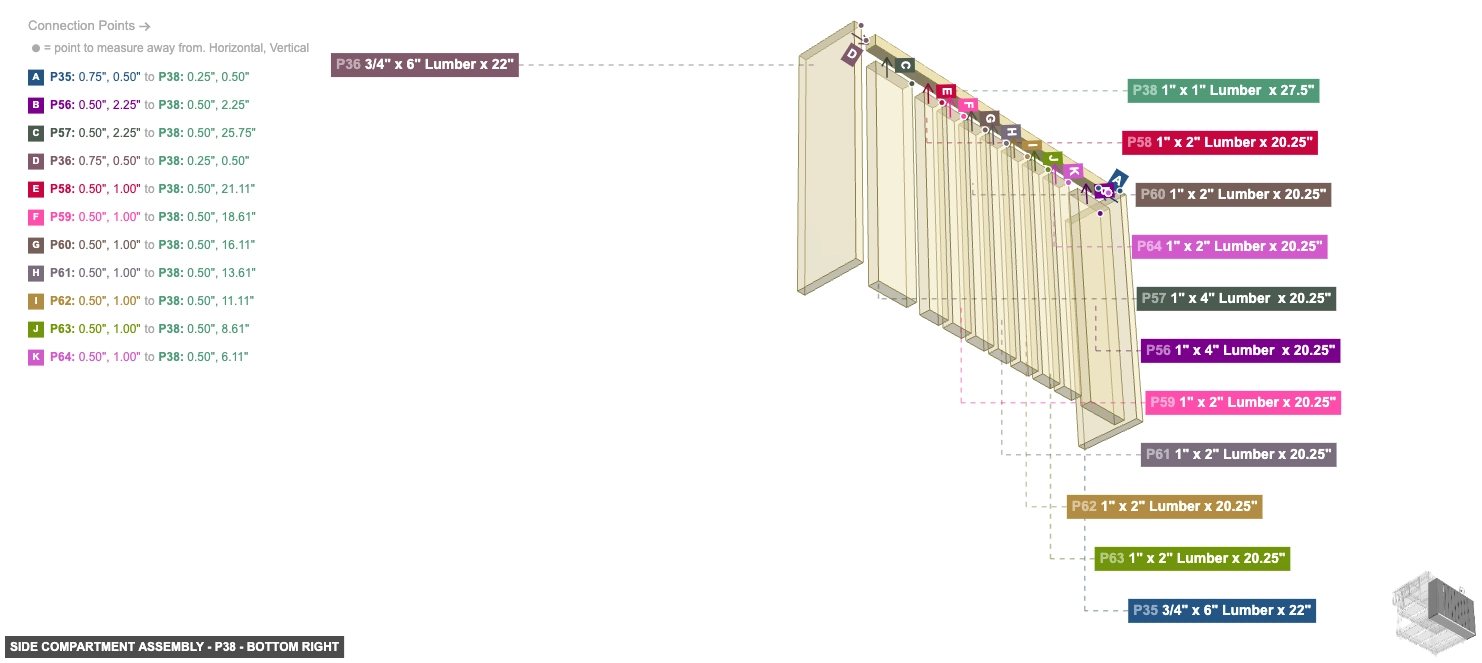

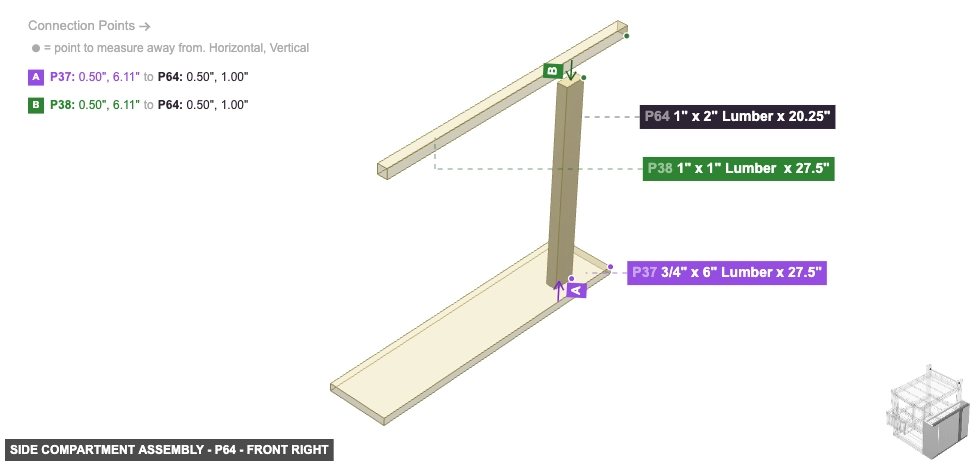

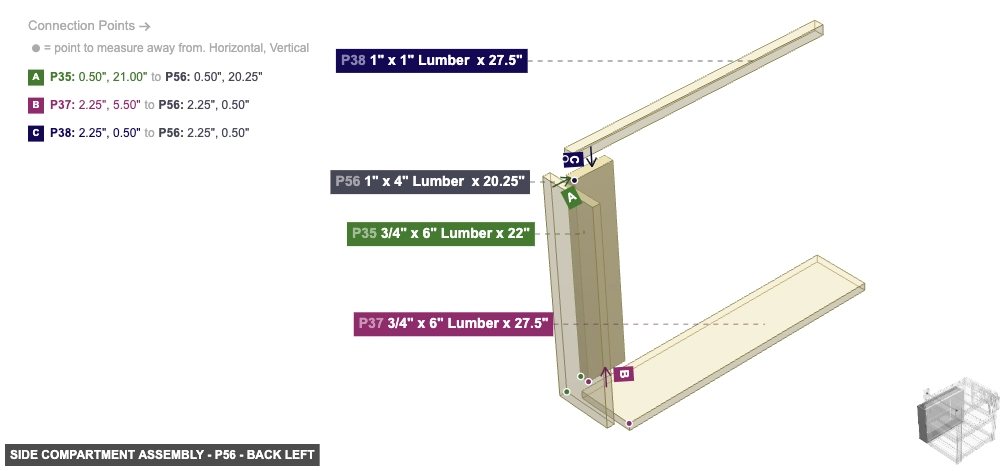

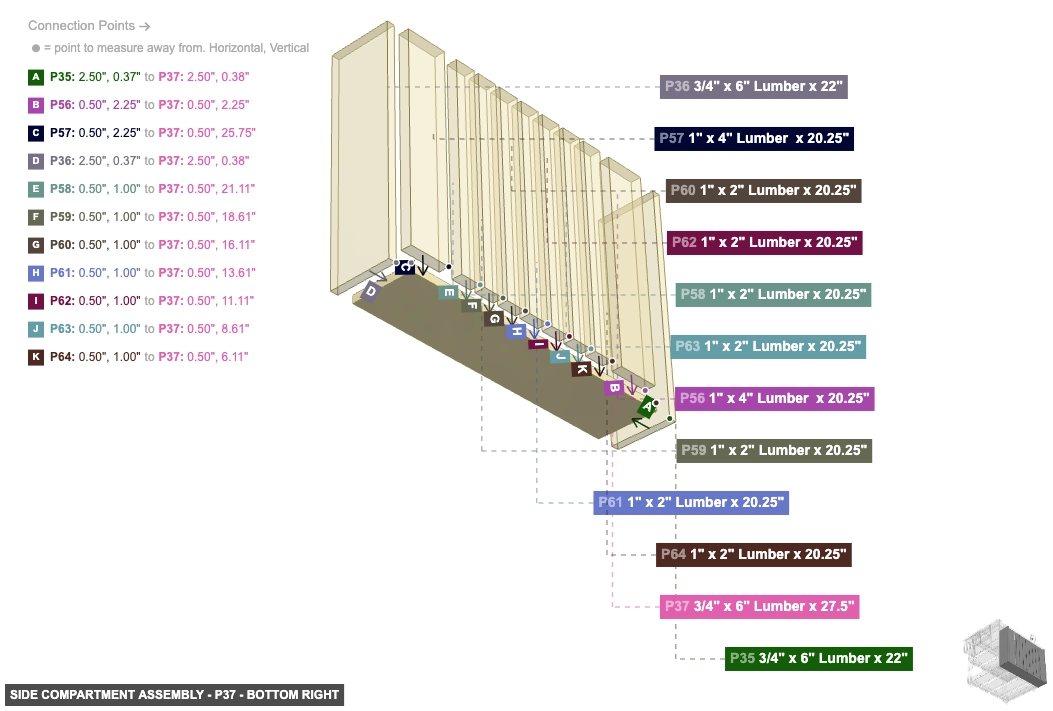

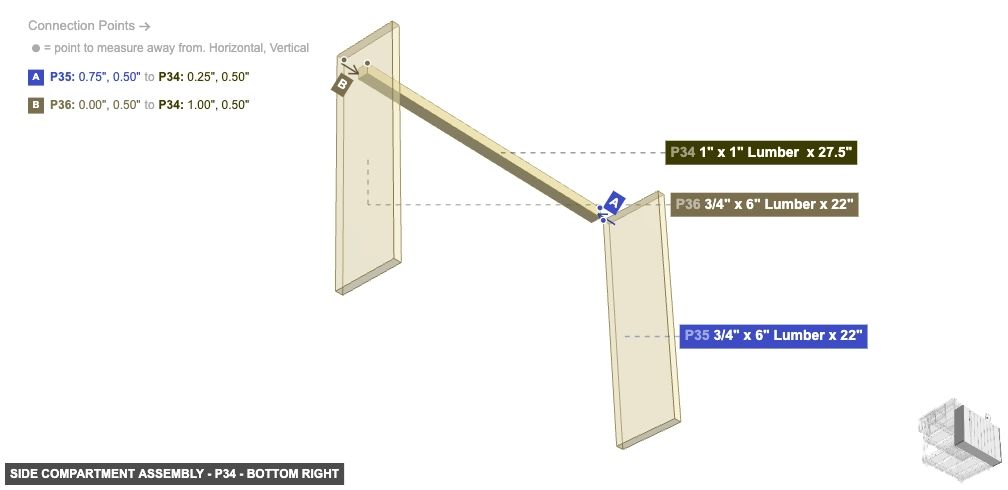

Side Compartment Assembly

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

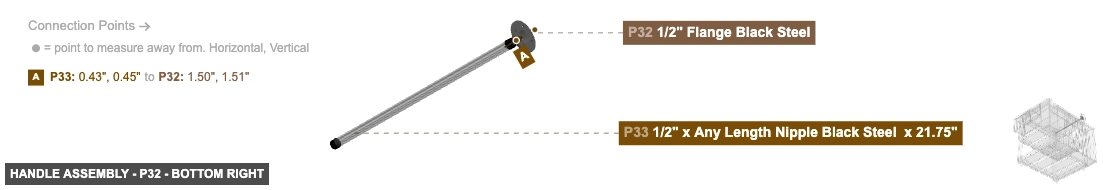

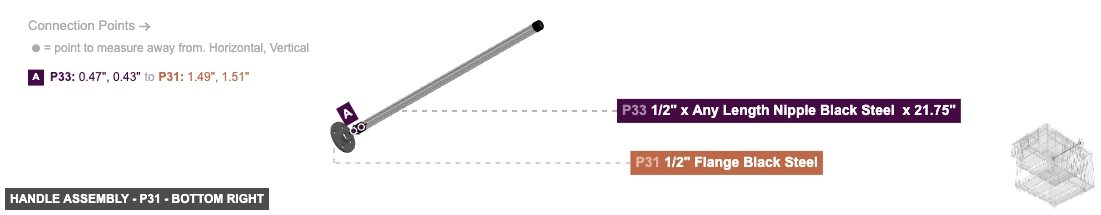

Handle Assembly

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

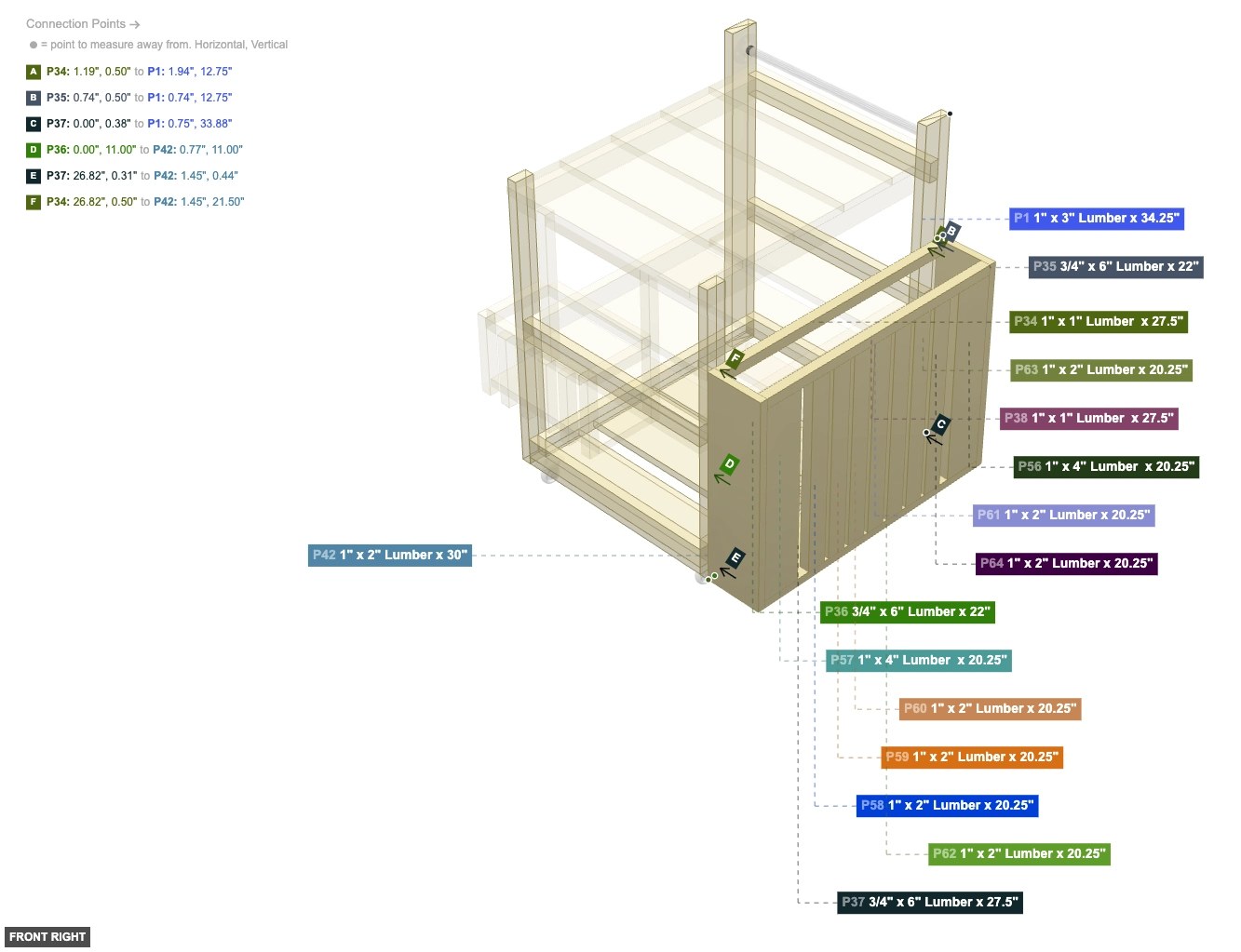

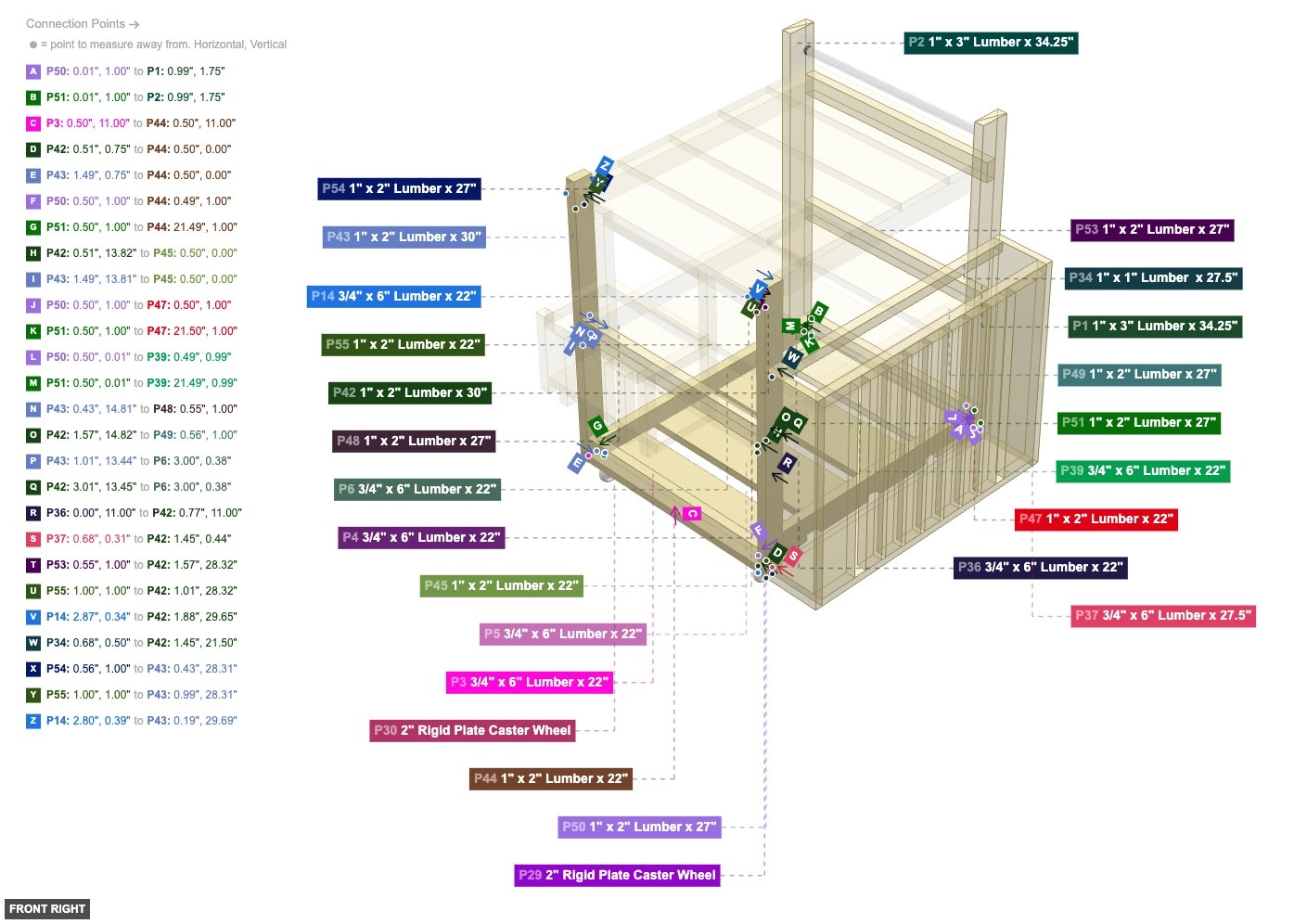

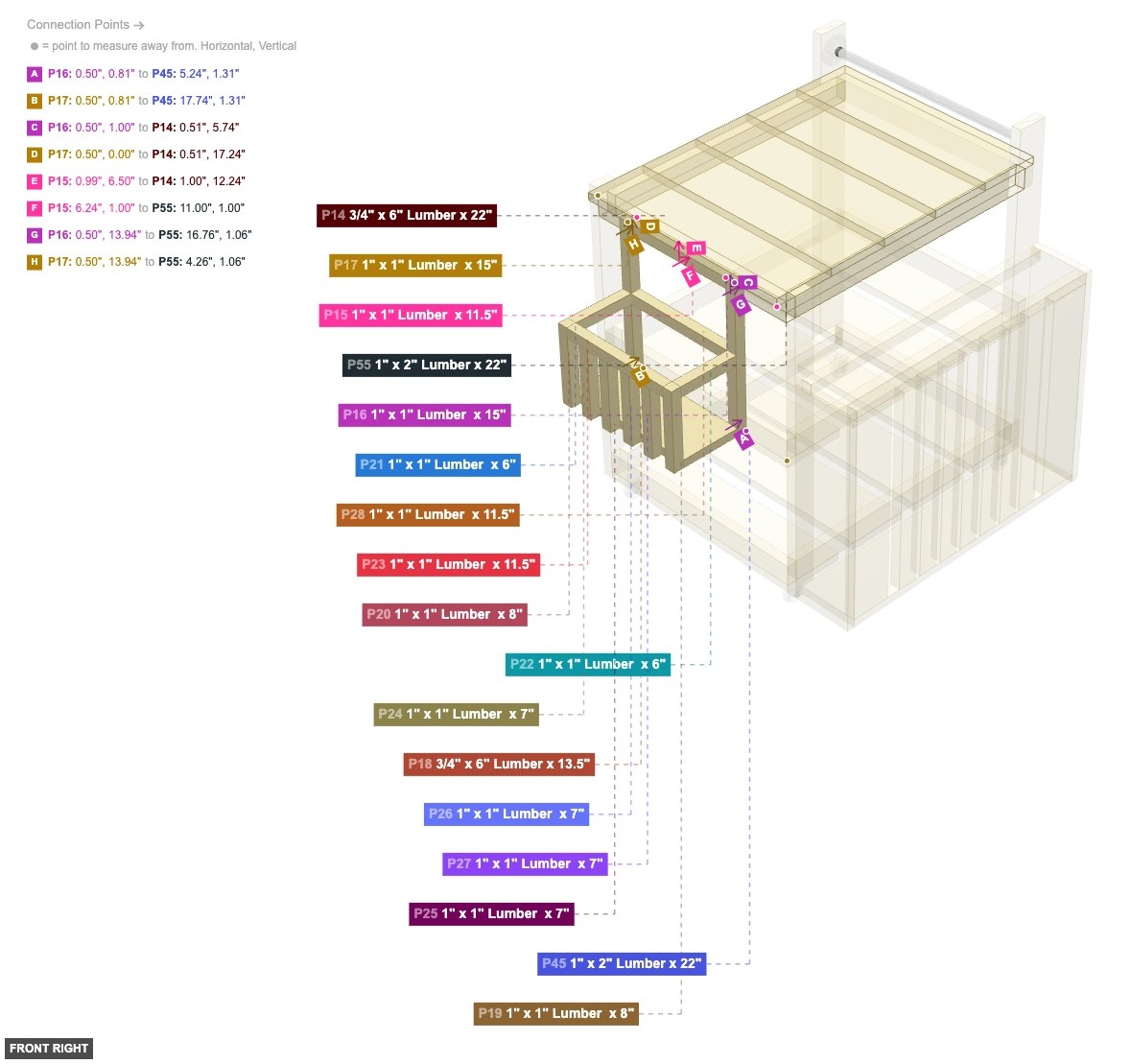

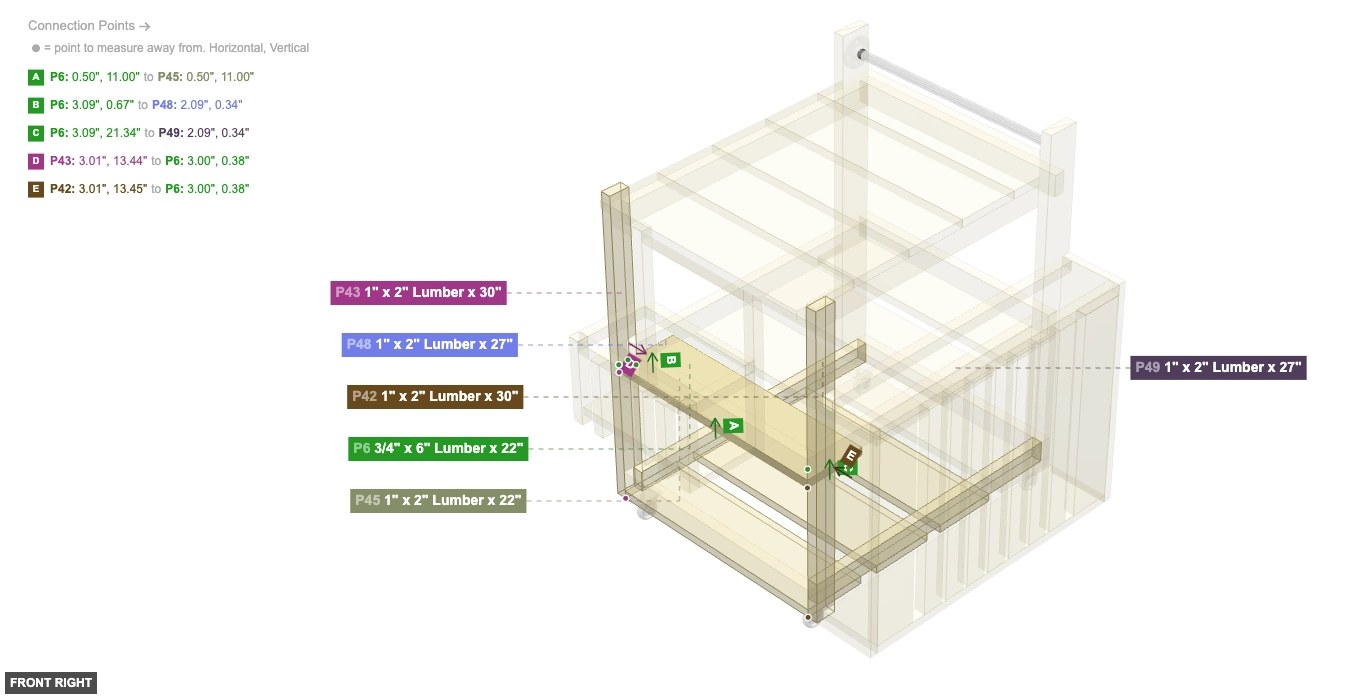

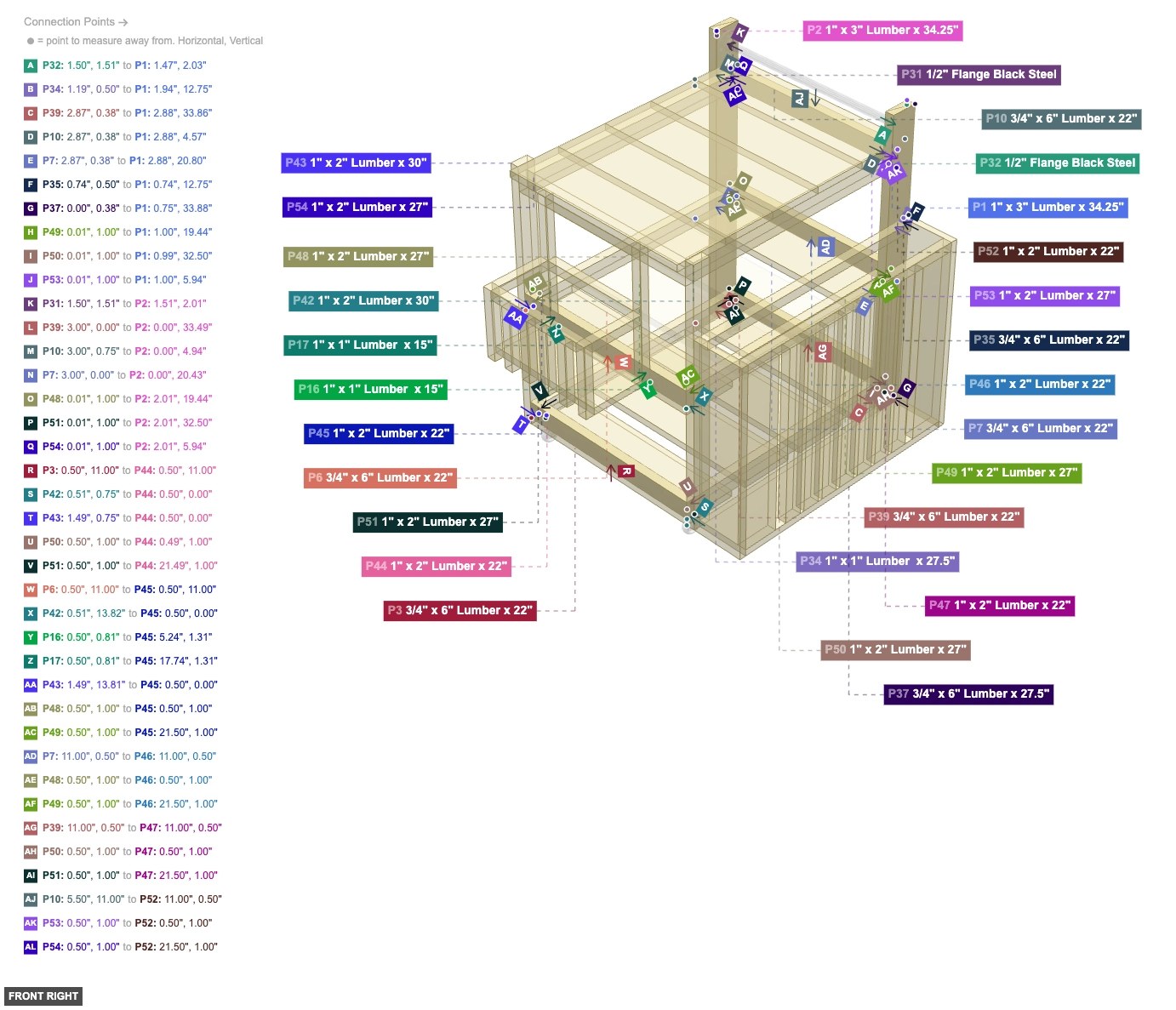

Angle: front right

Main Frame Assembly

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Bottom Shelf and Wheels

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Lower Middle Shelf Assembly

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Upper Middle Shelf Level 1 Assembly

3/4" x 6" Lumber x 22"x 1

Upper Middle Shelf Level 2 Assembly & Wheels

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Upper Middle Shelf Level 1 Boards

3/4" x 6" Lumber x 22"x 2

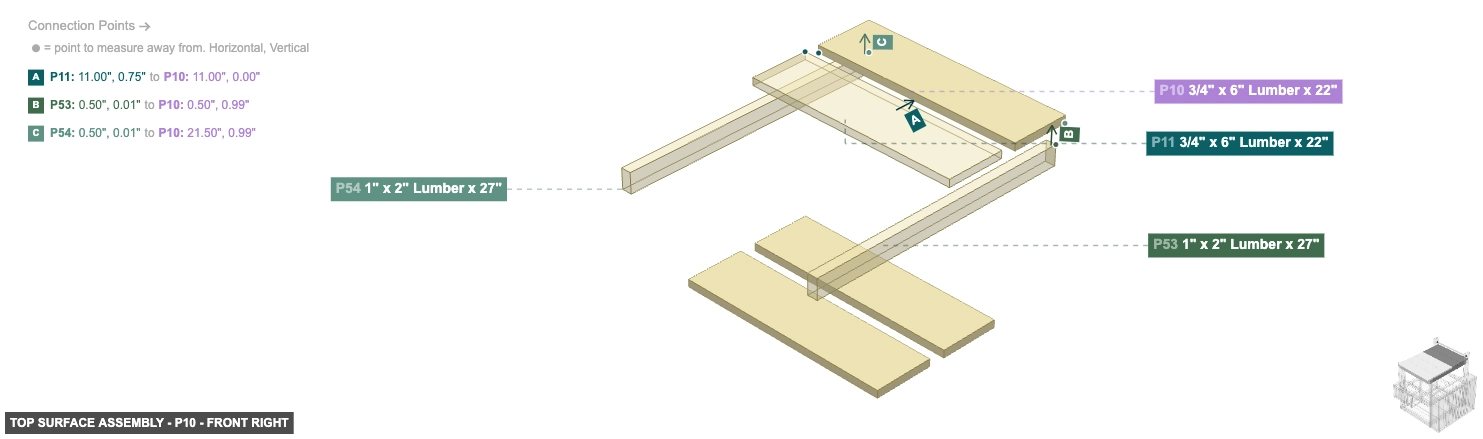

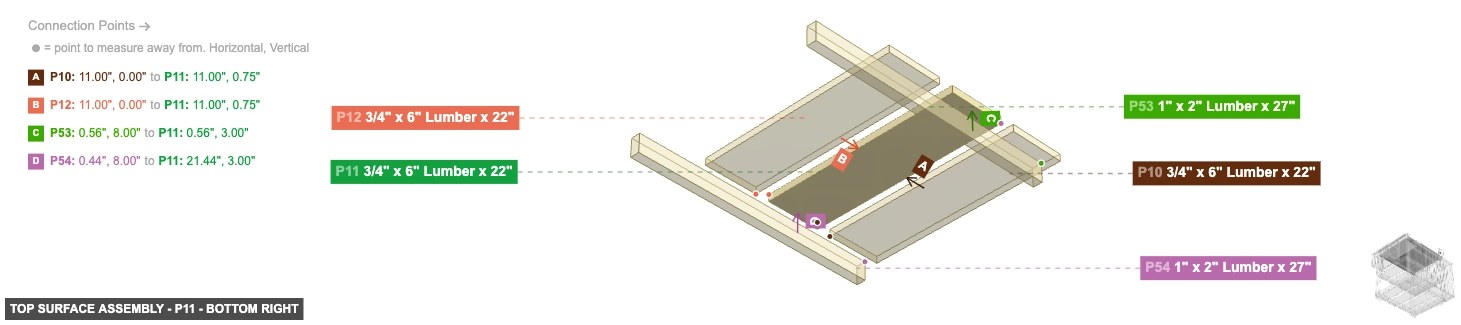

Top Surface Assembly

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

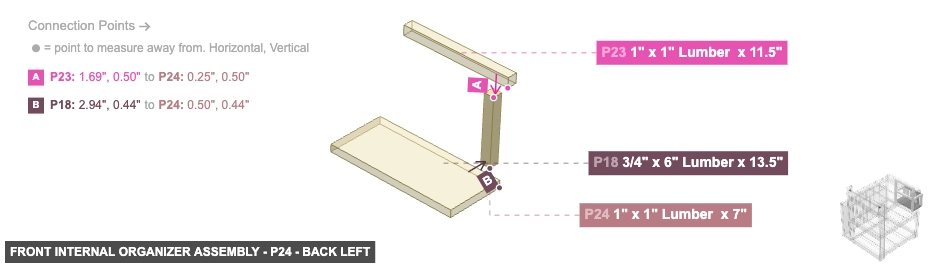

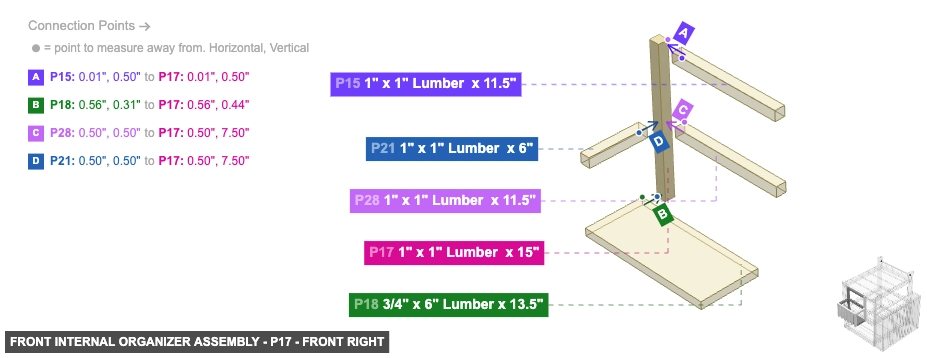

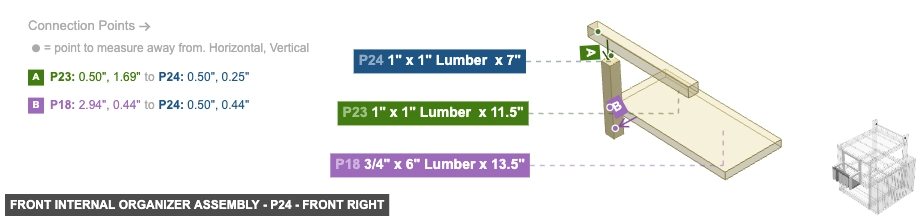

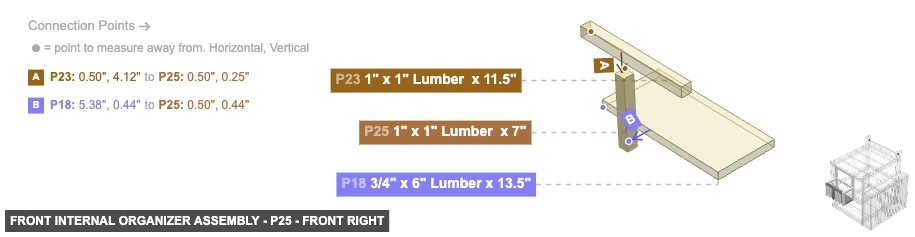

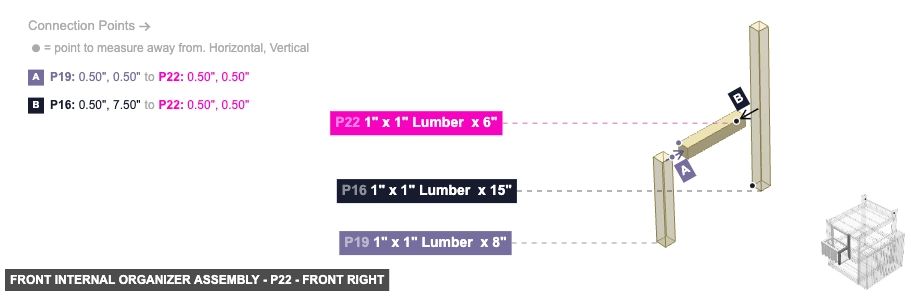

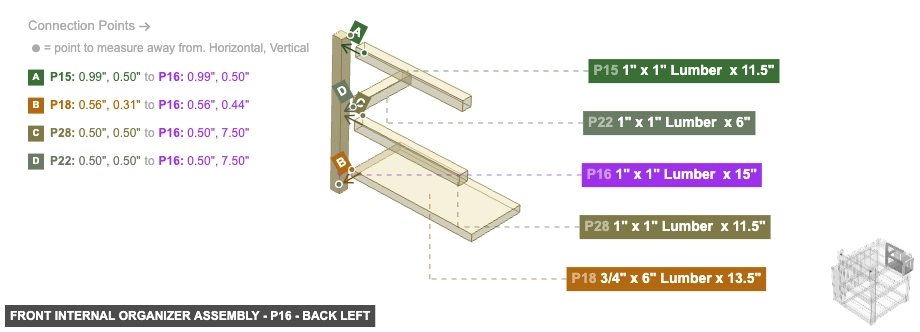

Front Internal Organizer Assembly

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

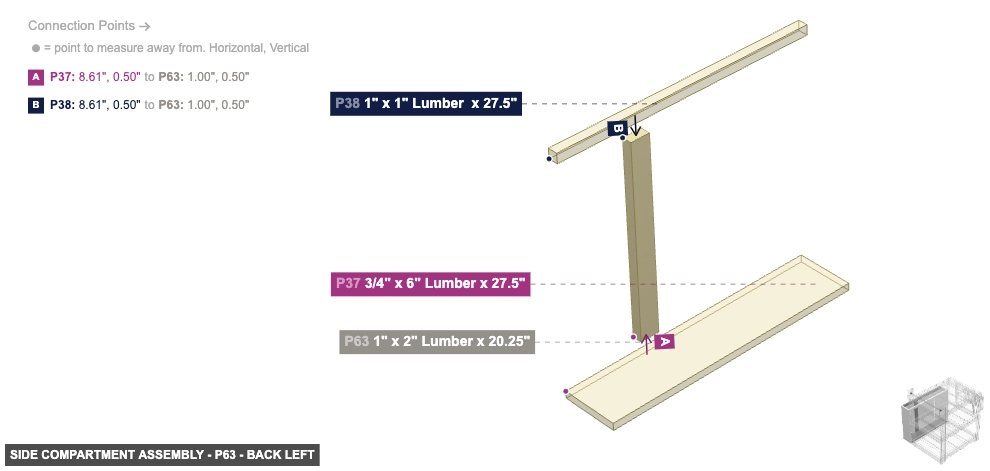

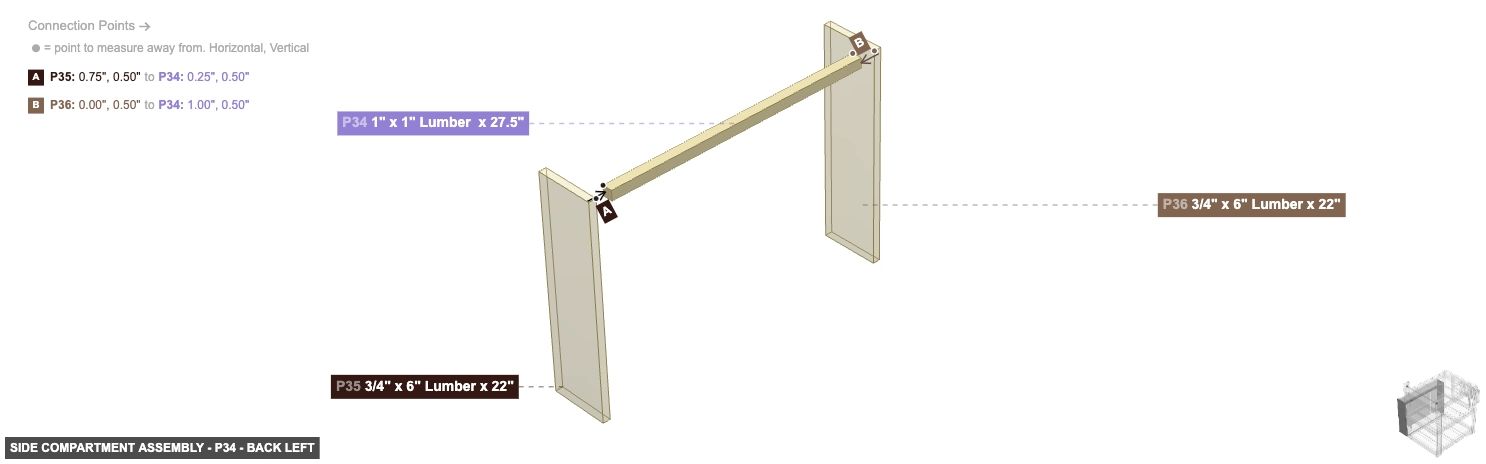

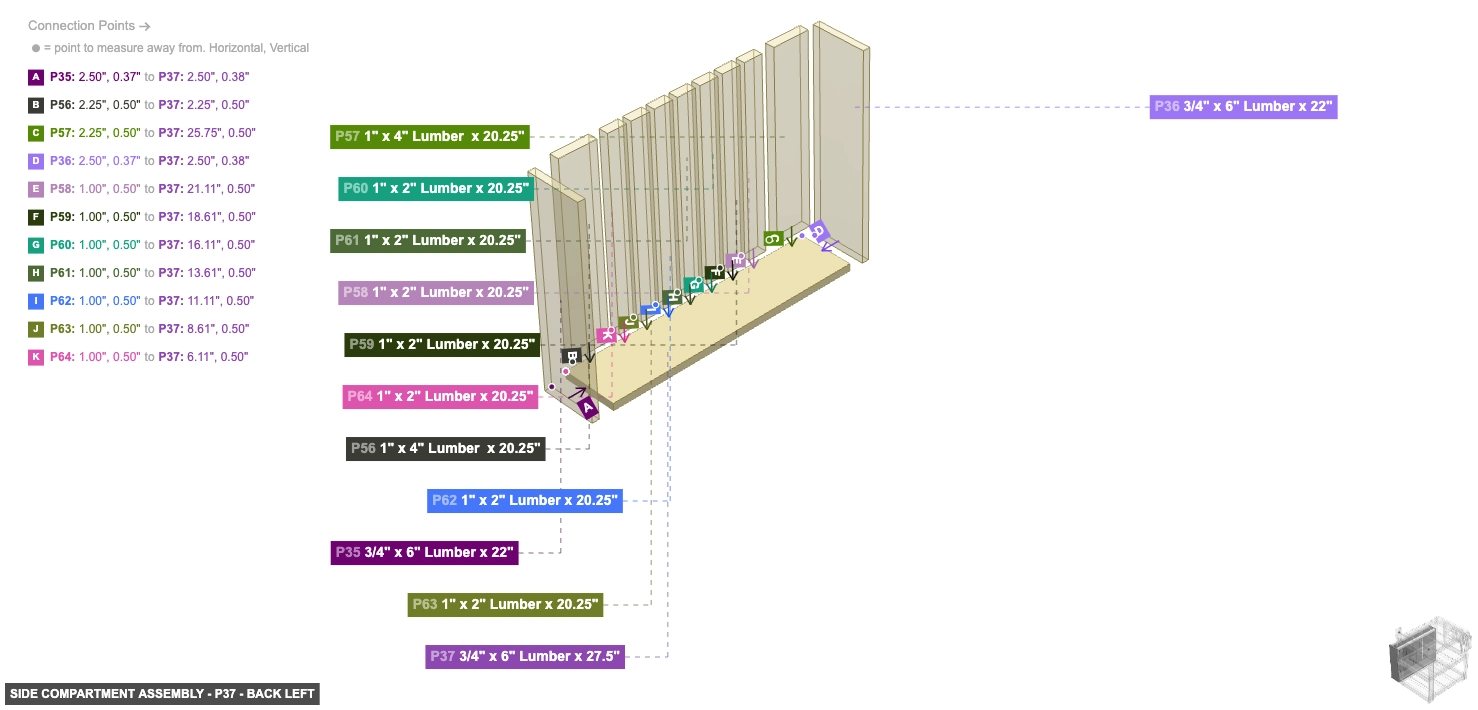

Side Compartment Assembly

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

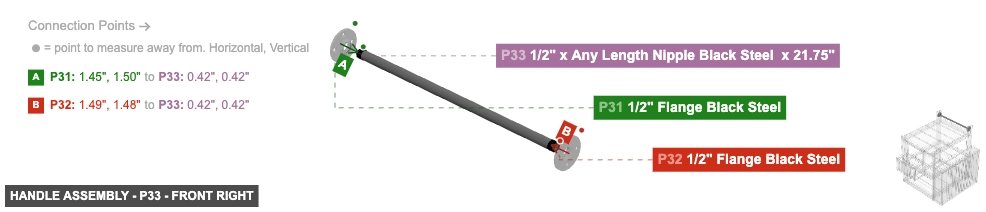

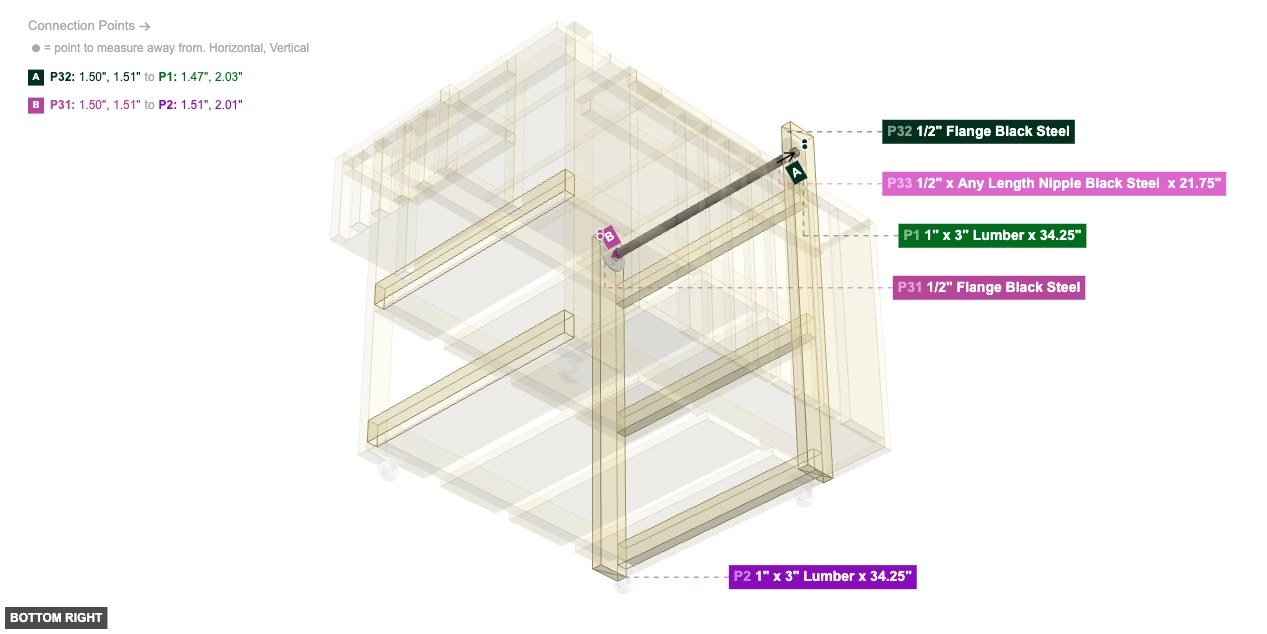

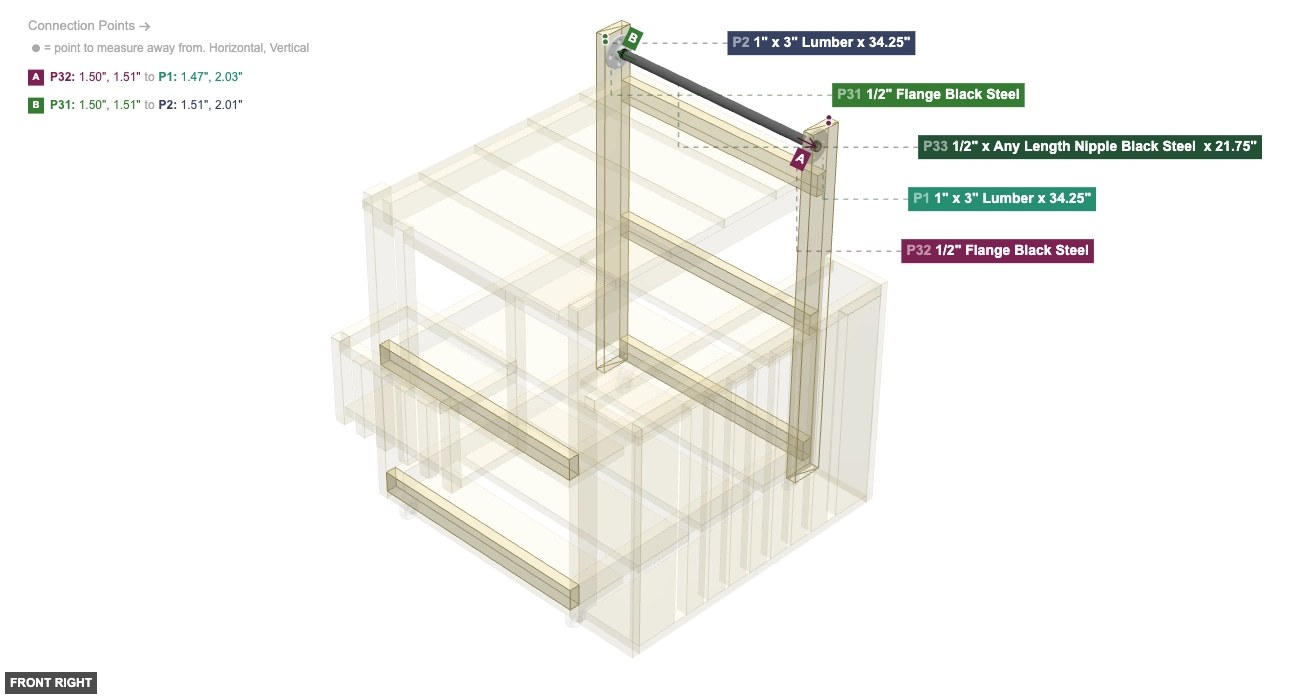

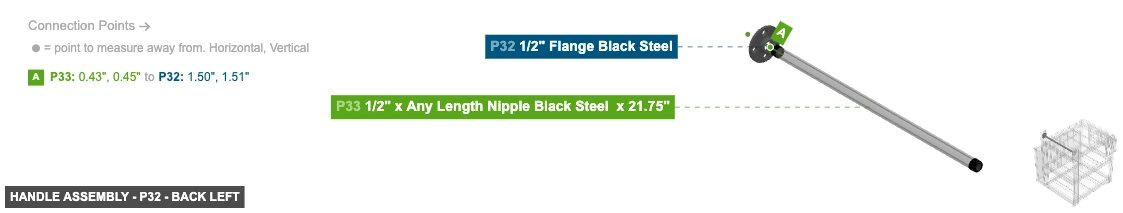

Handle Assembly

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

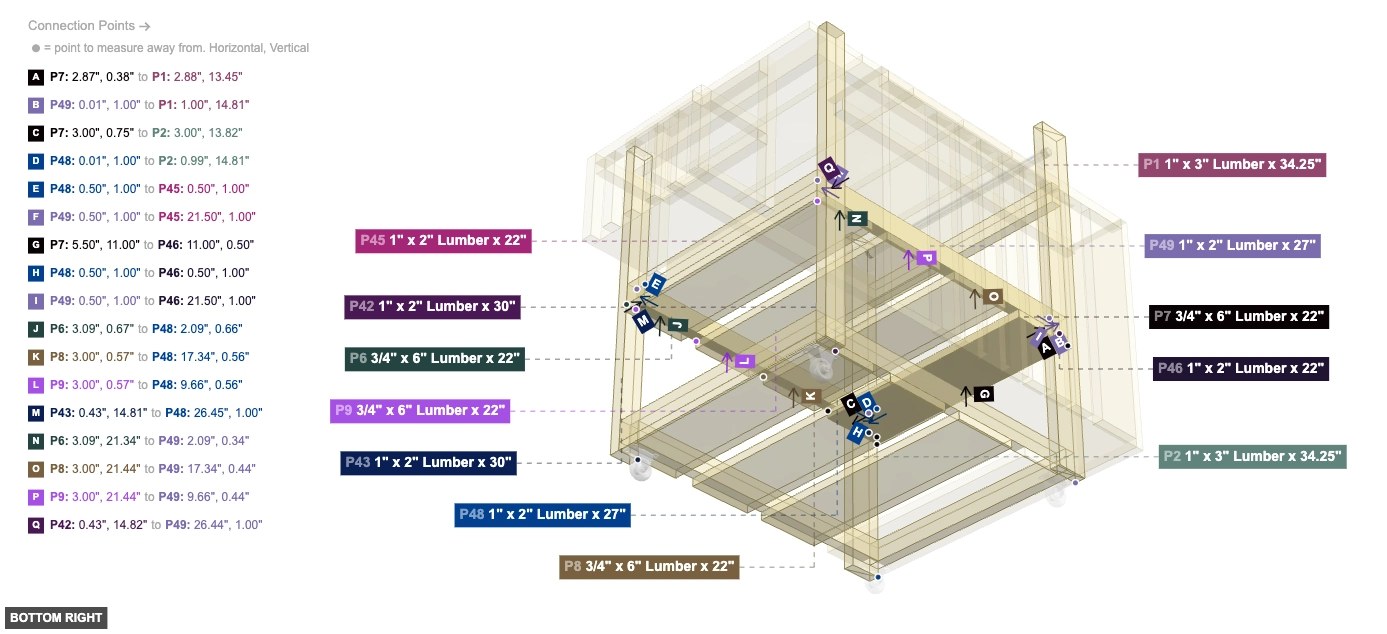

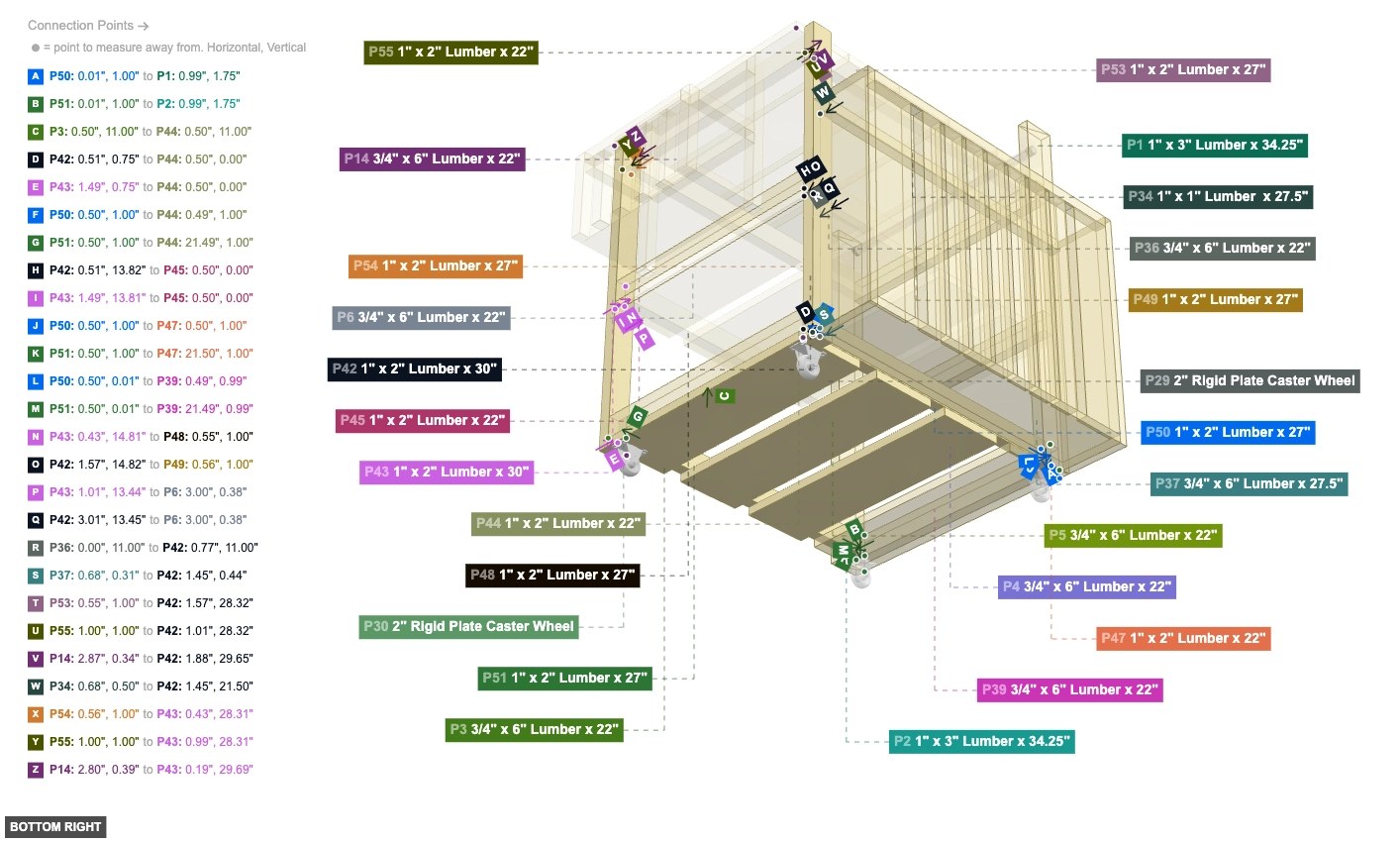

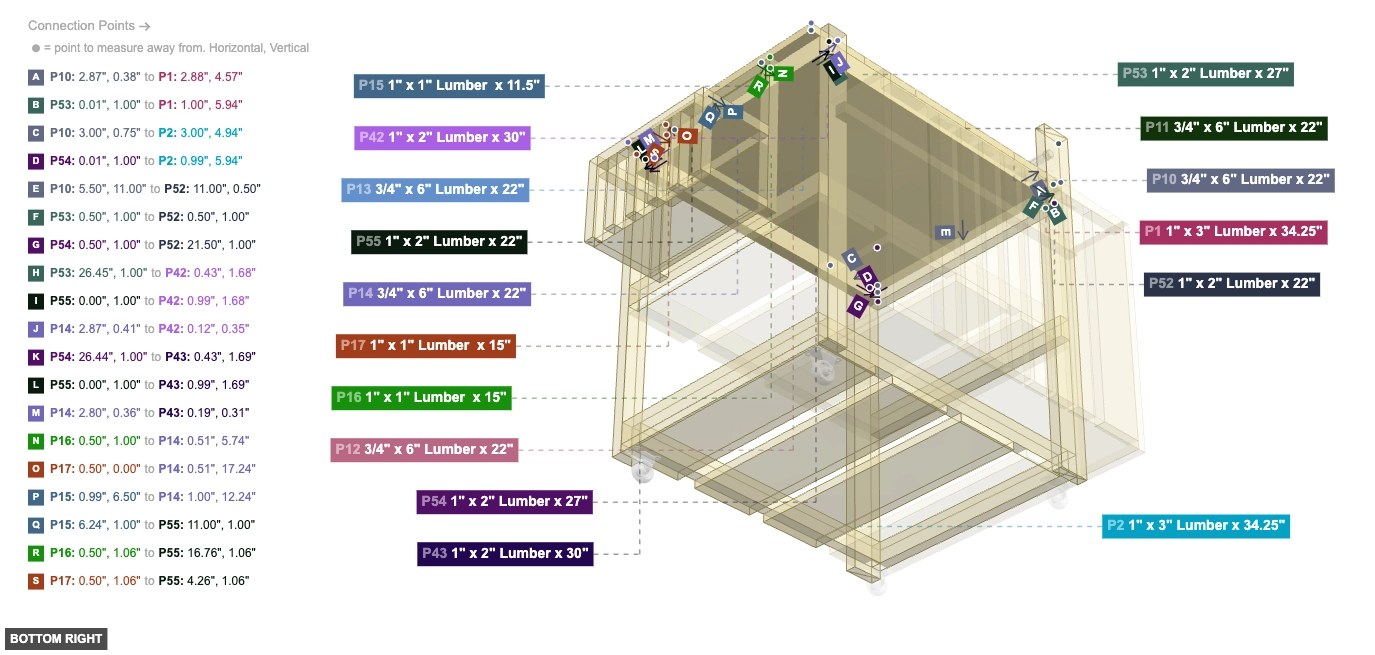

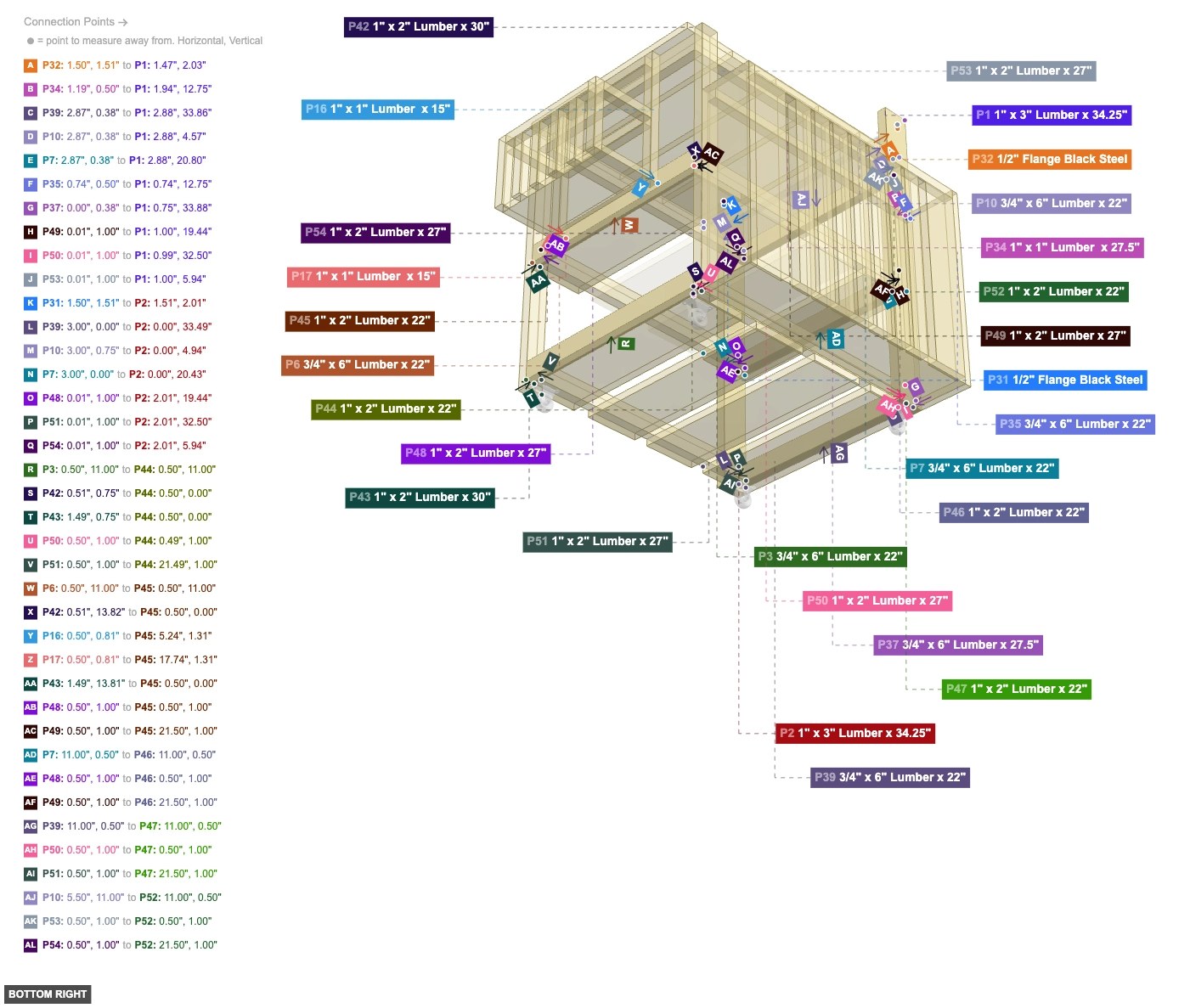

Angle: bottom right

Main Frame Assembly

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Bottom Shelf and Wheels

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

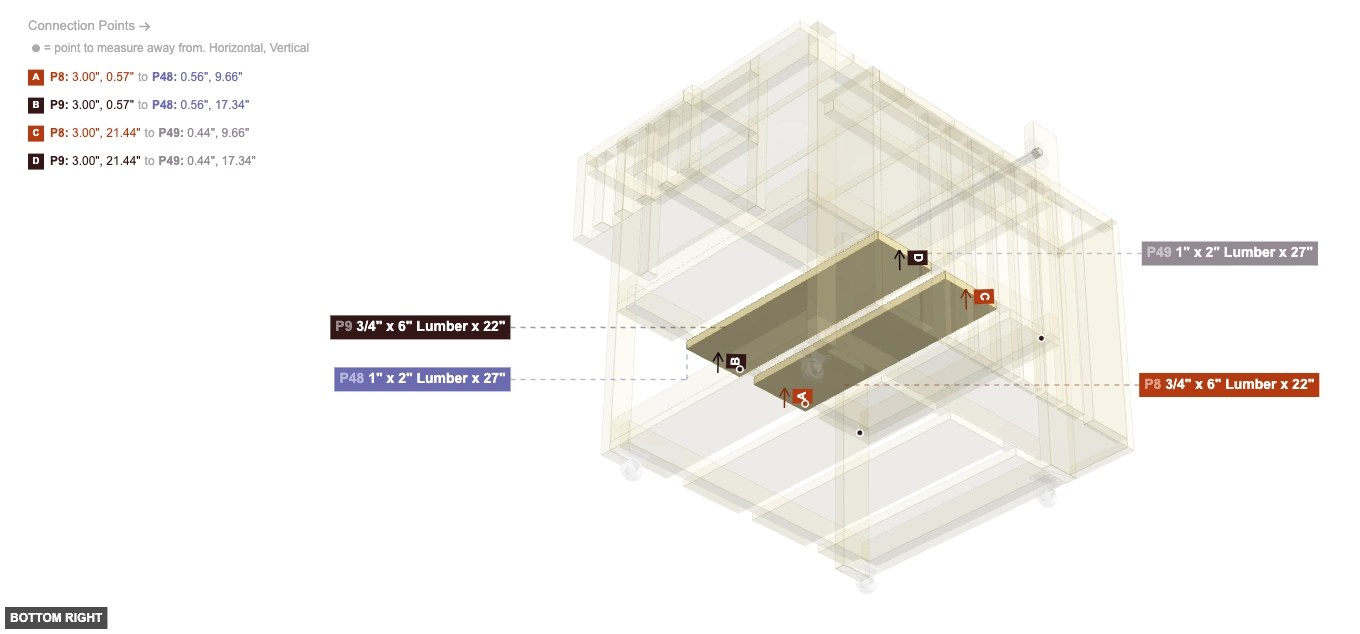

Lower Middle Shelf Assembly

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Upper Middle Shelf Level 1 Assembly

3/4" x 6" Lumber x 22"x 1

Upper Middle Shelf Level 2 Assembly & Wheels

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Upper Middle Shelf Level 1 Boards

3/4" x 6" Lumber x 22"x 2

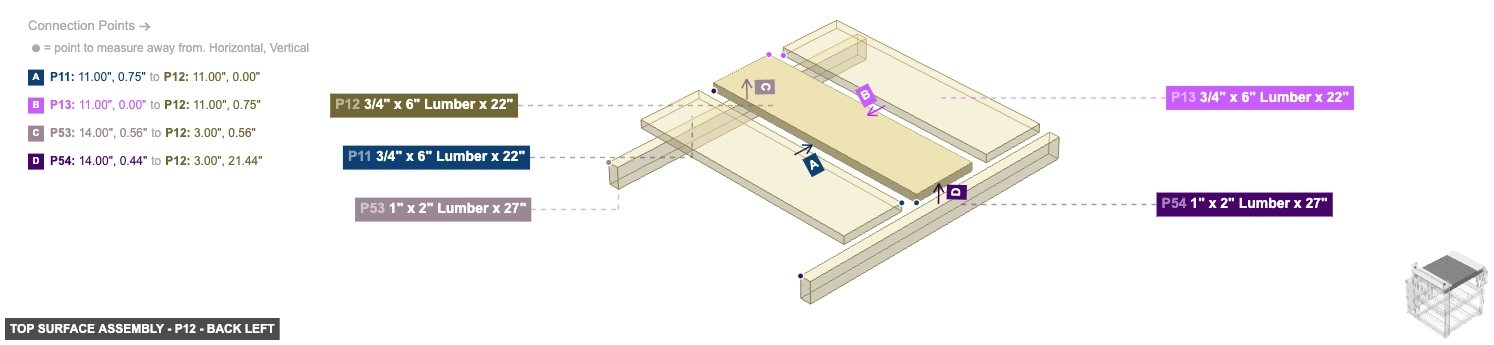

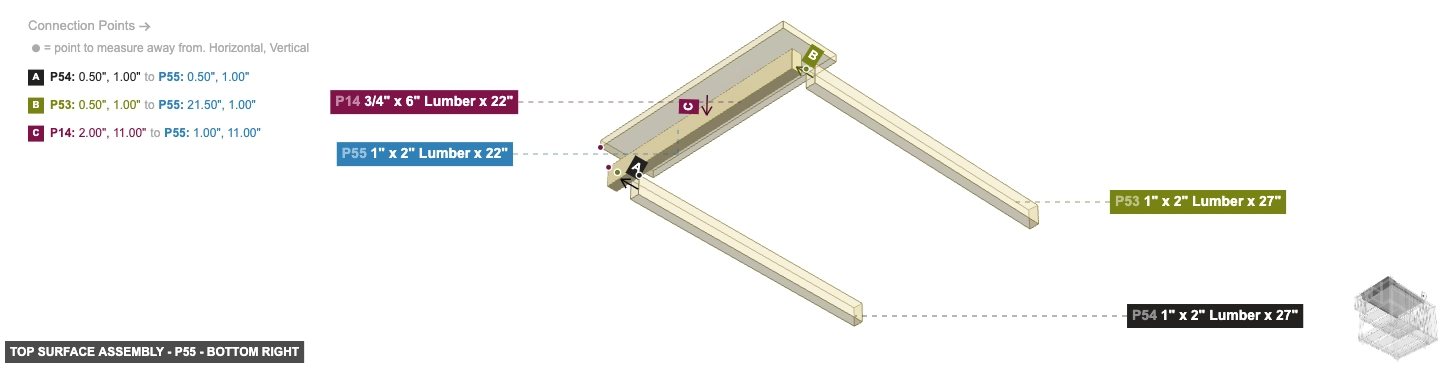

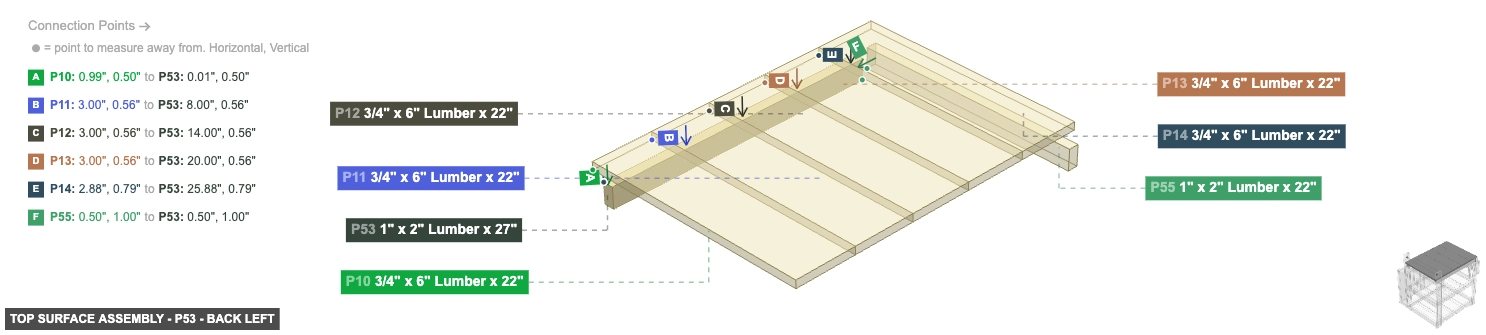

Top Surface Assembly

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

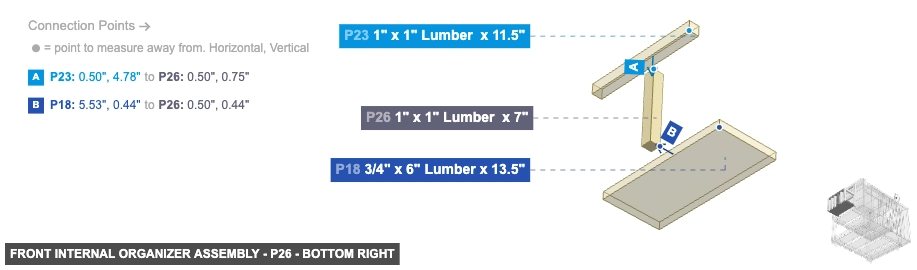

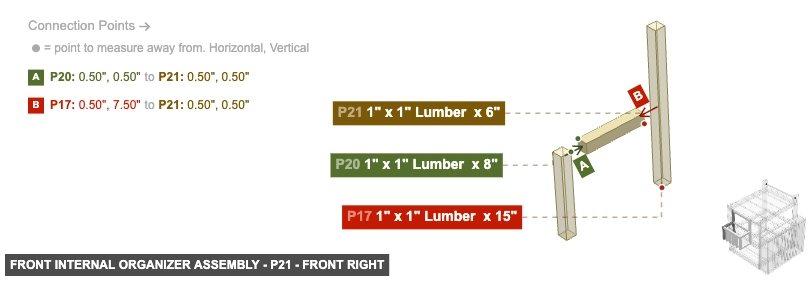

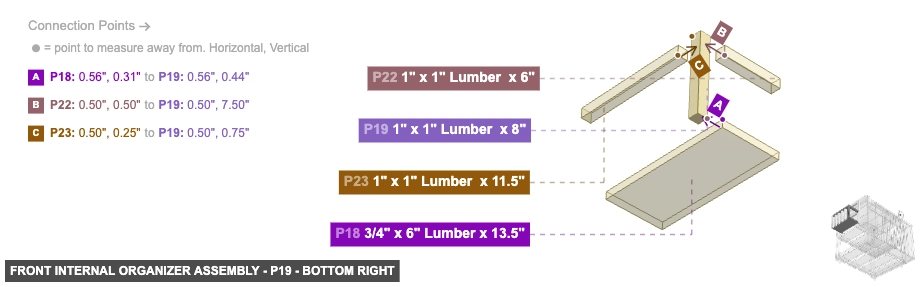

Front Internal Organizer Assembly

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

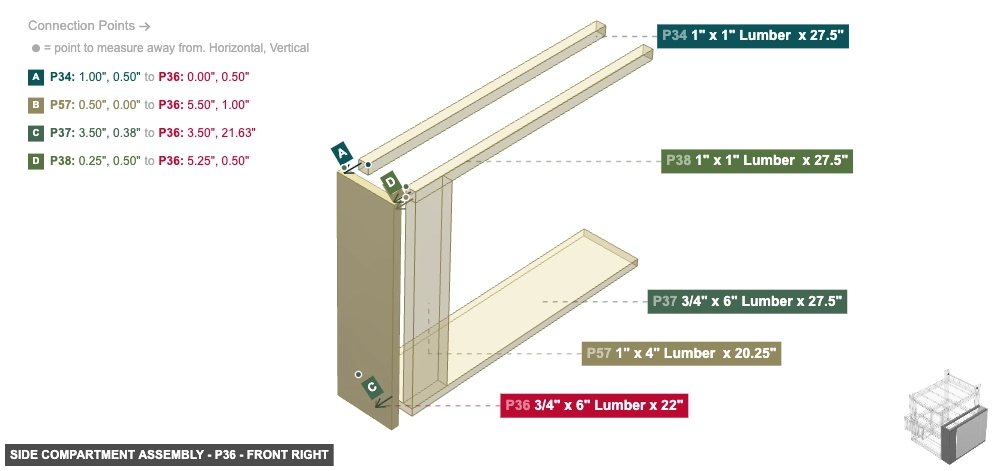

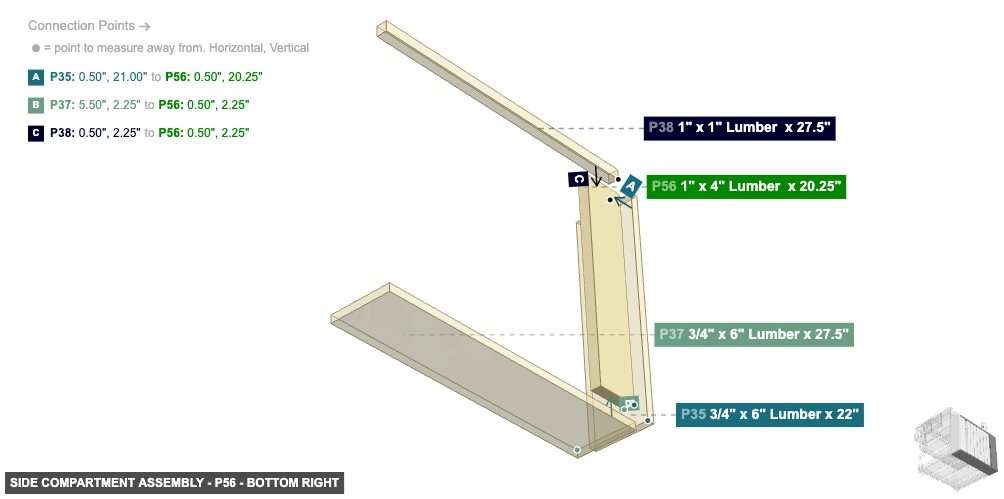

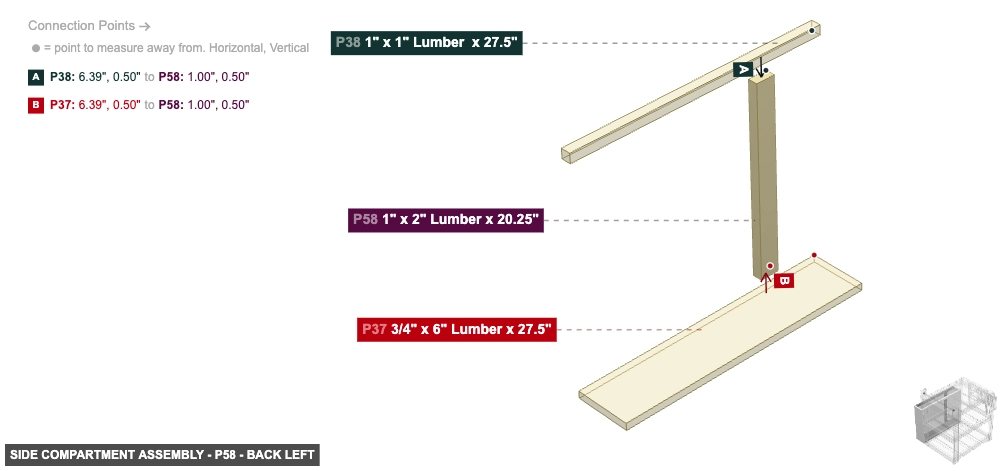

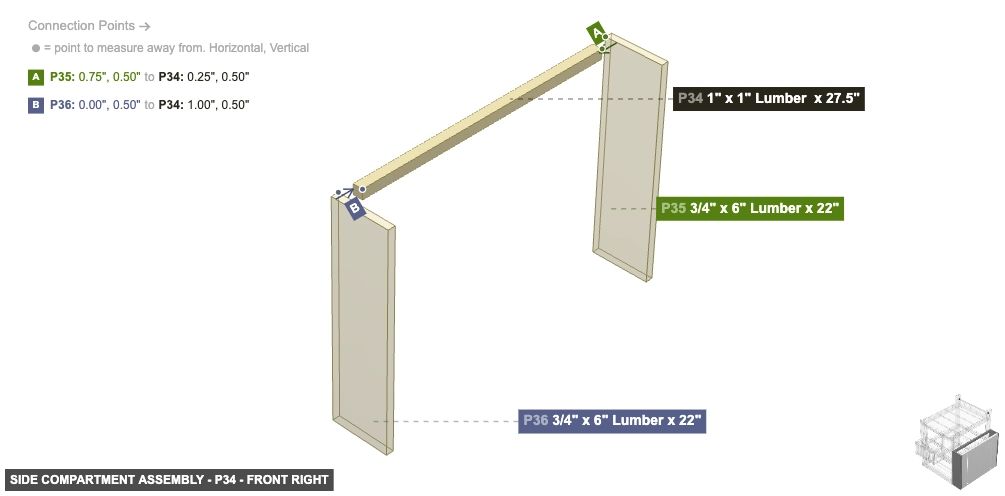

Side Compartment Assembly

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

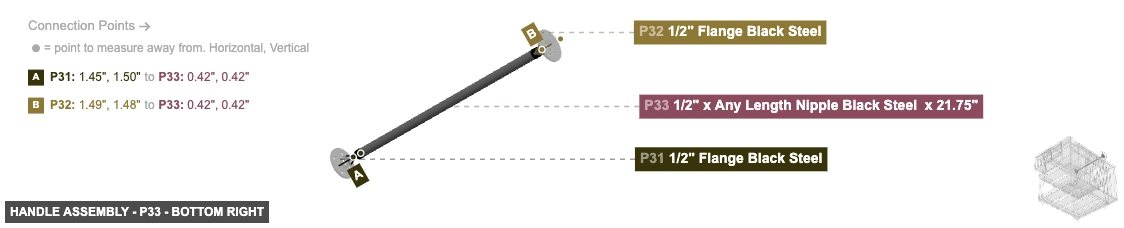

Handle Assembly

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Phase 2: Individual Group Assembly

Group: Main Frame Assembly

Assemble the main vertical posts and the horizontal supports that connect them.

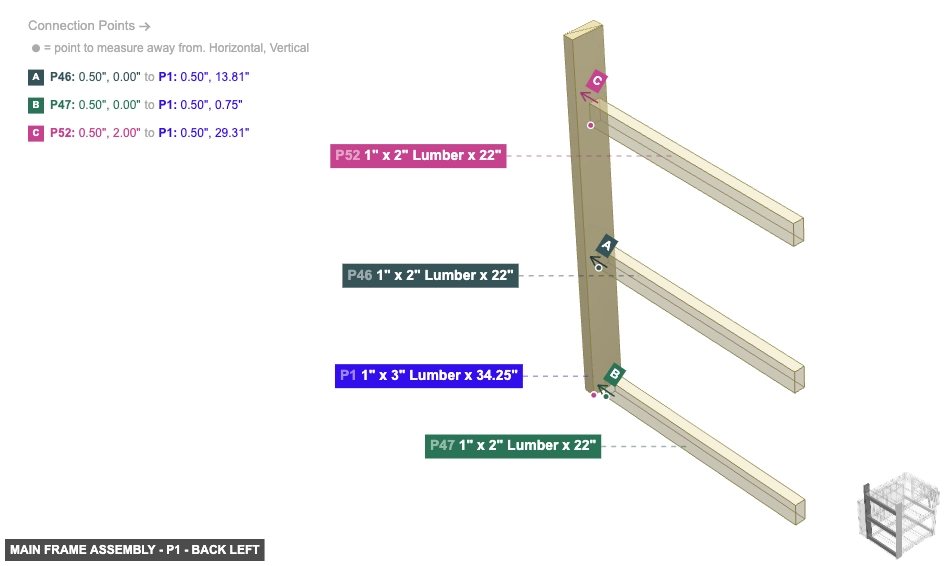

Part: 1" x 3" Lumber x 34.25" - Angle: back left

P1 (1" x 3" Lumber 34.25" length) - ensure its 1"x 3" Wood End #1 faces top, plus its 1"x 3" Wood Side #1 should be directed front, plus its 1"x 3" Wood Side #3 needs to point back. Additionally, its 1"x 3" Wood End #2 should be directed bottom

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

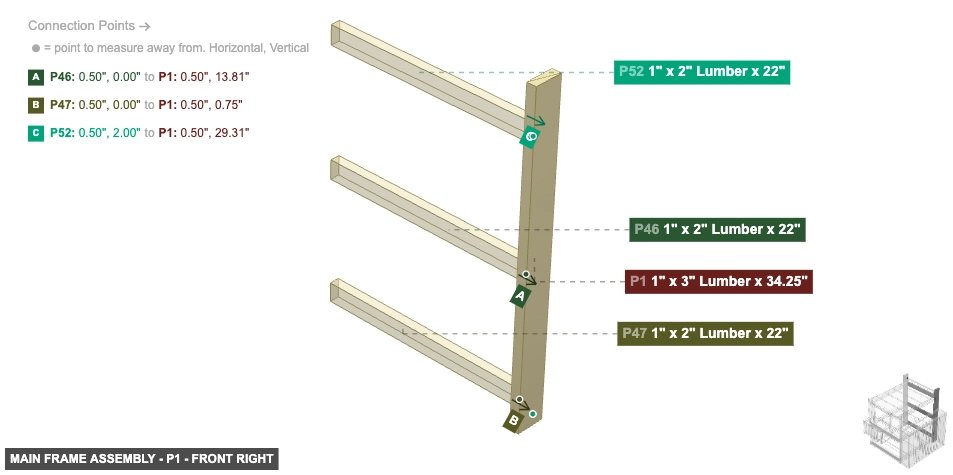

Part: 1" x 3" Lumber x 34.25" - Angle: front right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

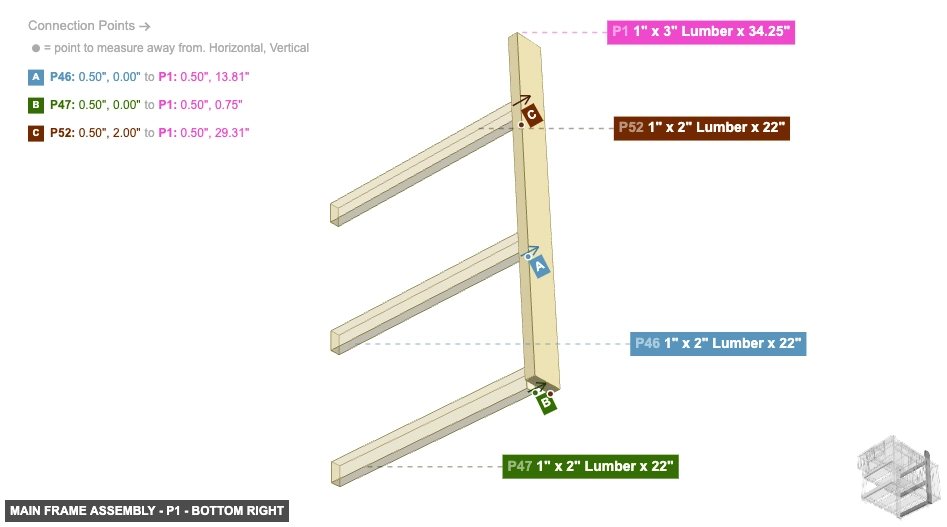

Part: 1" x 3" Lumber x 34.25" - Angle: bottom right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Part: 1" x 3" Lumber x 34.25" - Angle: back left

P2 (1" x 3" Lumber 34.25" length) - its 1"x 3" Wood End #1 must be oriented top. Additionally, its 1"x 3" Wood Side #1 needs to point back, then ensure its 1"x 3" Wood Side #3 faces front. Also, its 1"x 3" Wood Side #4 needs to point left. After that, its 1"x 3" Wood End #2 must be oriented bottom

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

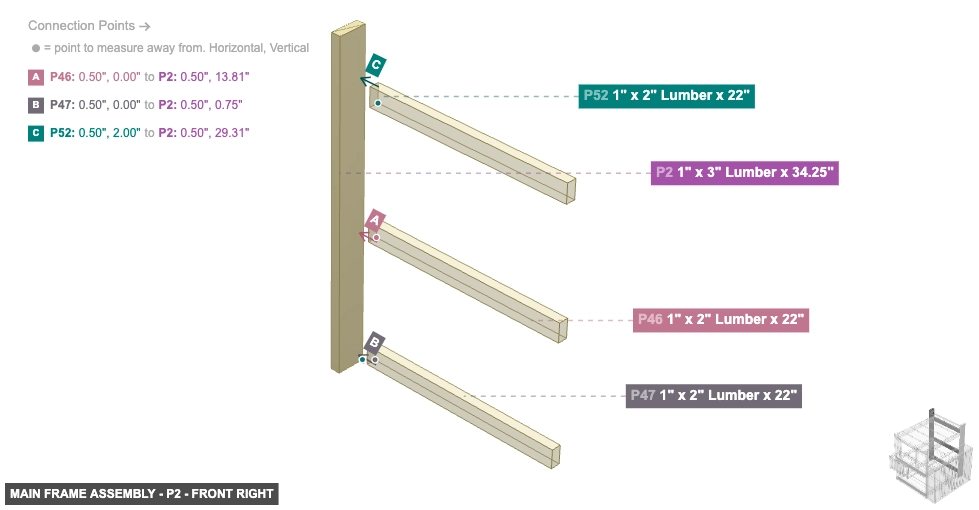

Part: 1" x 3" Lumber x 34.25" - Angle: front right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Part: 1" x 3" Lumber x 34.25" - Angle: bottom right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Part: 1" x 2" Lumber x 22" - Angle: back left

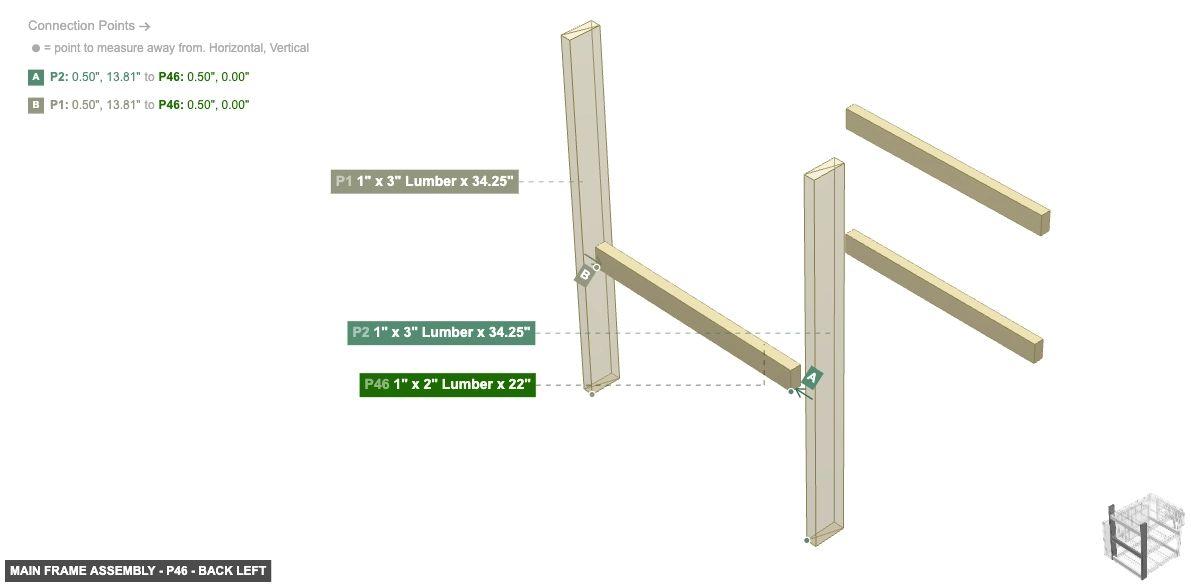

P46 (1" x 2" Lumber 22" length) - connect its 1" x 2" Wood End #1 oriented right links with part 1's 1"x 3" Wood Side #2, also connect its 1" x 2" Wood End #2 oriented left links with part 2's 1"x 3" Wood Side #2, plus its 1" x 2" Wood Side #3 needs to point top, and its 1" x 2" Wood Side #4 must be oriented back

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Part: 1" x 2" Lumber x 22" - Angle: front right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

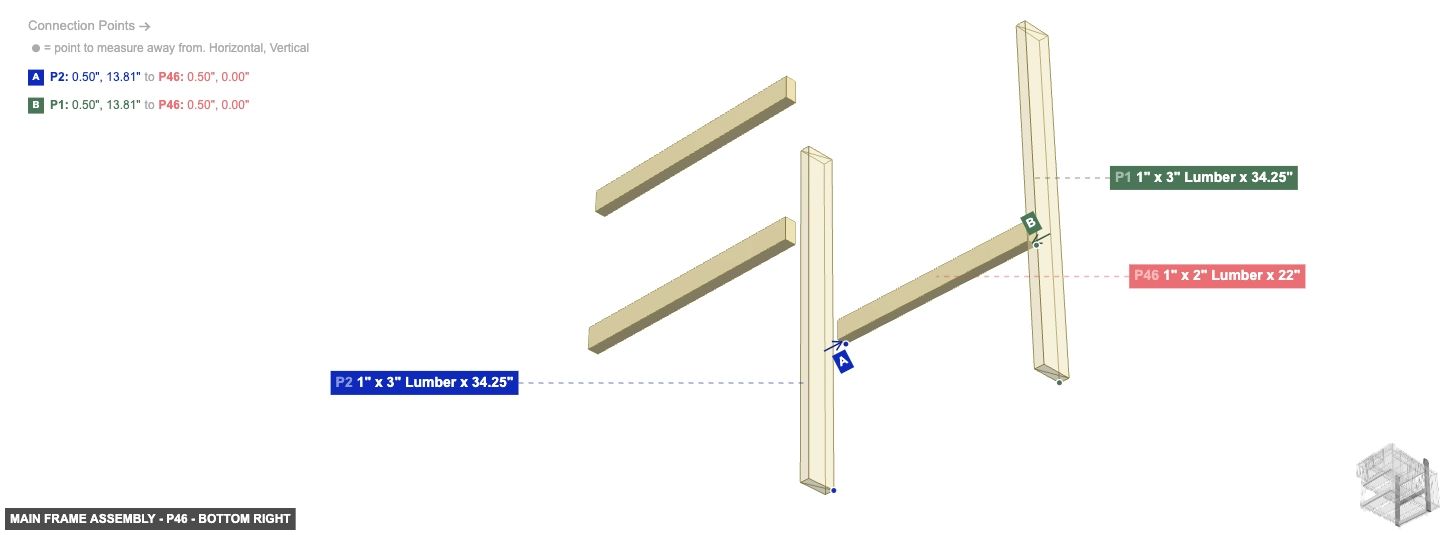

Part: 1" x 2" Lumber x 22" - Angle: bottom right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

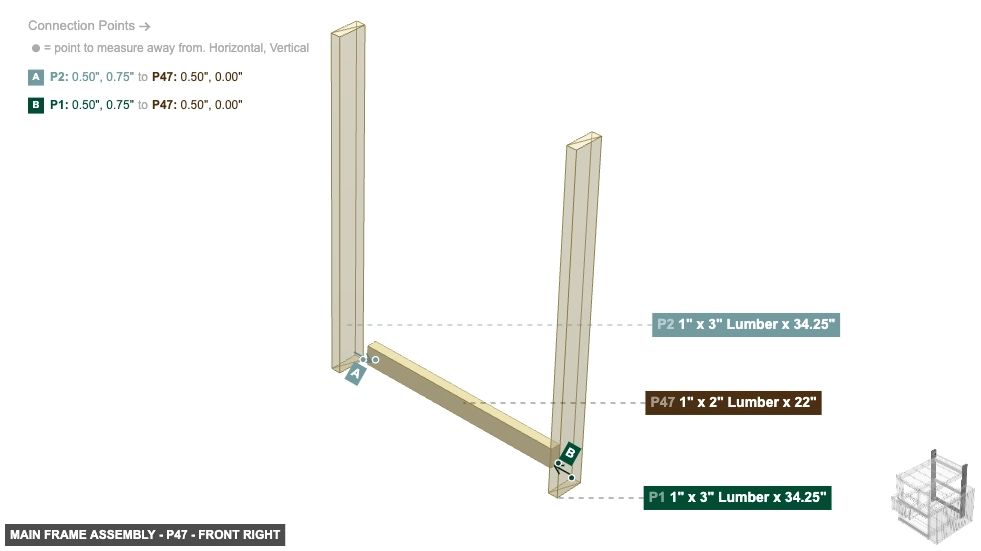

Part: 1" x 2" Lumber x 22" - Angle: back left

P47 (1" x 2" Lumber 22" length) - connect its 1" x 2" Wood End #1 oriented right links with part 1's 1"x 3" Wood Side #2. Next, its 1" x 2" Wood End #2, which is left-facing, should connect to part 2's 1"x 3" Wood Side #2. Additionally, its 1" x 2" Wood Side #3 should be directed top, plus its 1" x 2" Wood Side #4 must be oriented back

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Part: 1" x 2" Lumber x 22" - Angle: front right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

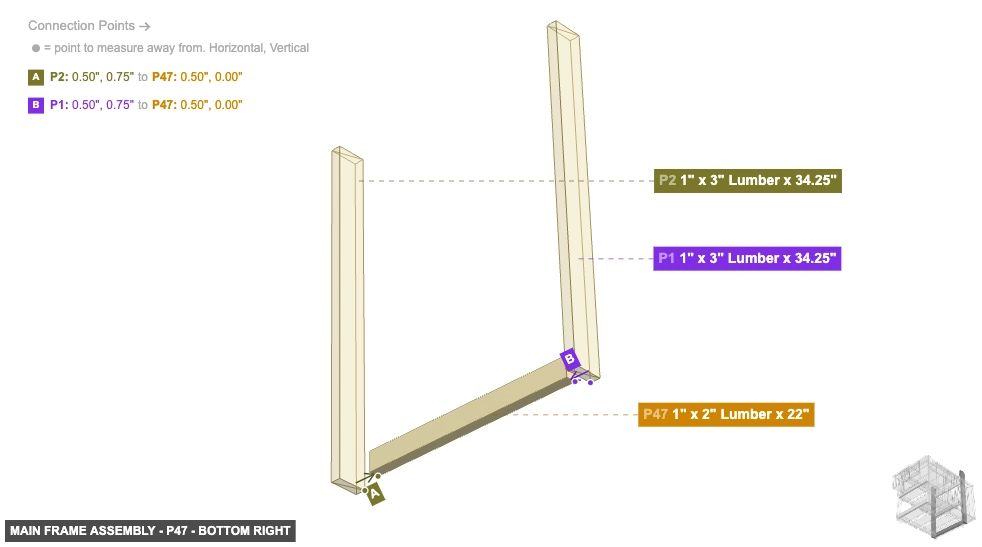

Part: 1" x 2" Lumber x 22" - Angle: bottom right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Part: 1" x 2" Lumber x 22" - Angle: back left

P52 (1" x 2" Lumber 22" length) - attach its 1" x 2" Wood End #1 facing right to part 1's 1"x 3" Wood Side #2. Additionally, connect its 1" x 2" Wood End #2 oriented left links with part 2's 1"x 3" Wood Side #2, then ensure its 1" x 2" Wood Side #2 faces back, also ensure its 1" x 2" Wood Side #3 faces bottom

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Part: 1" x 2" Lumber x 22" - Angle: front right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

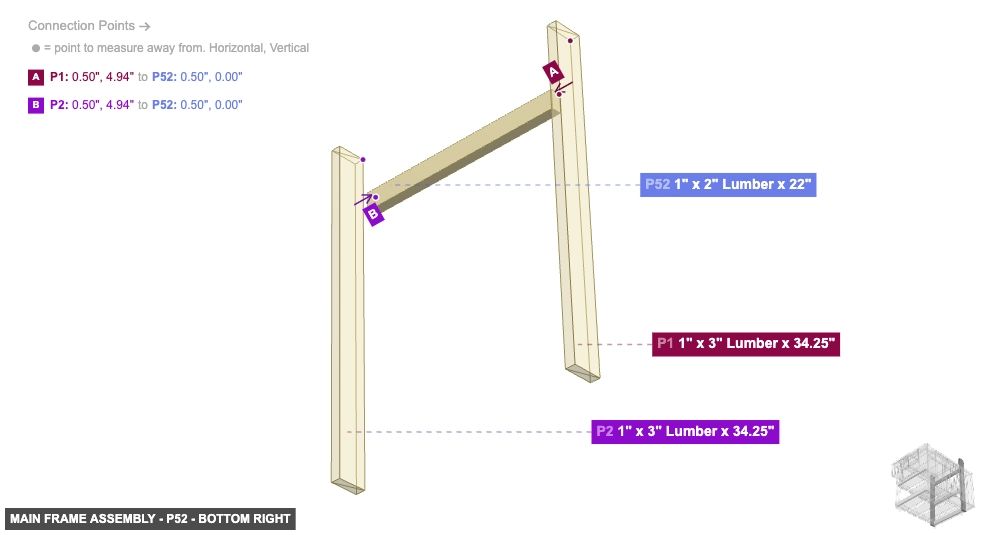

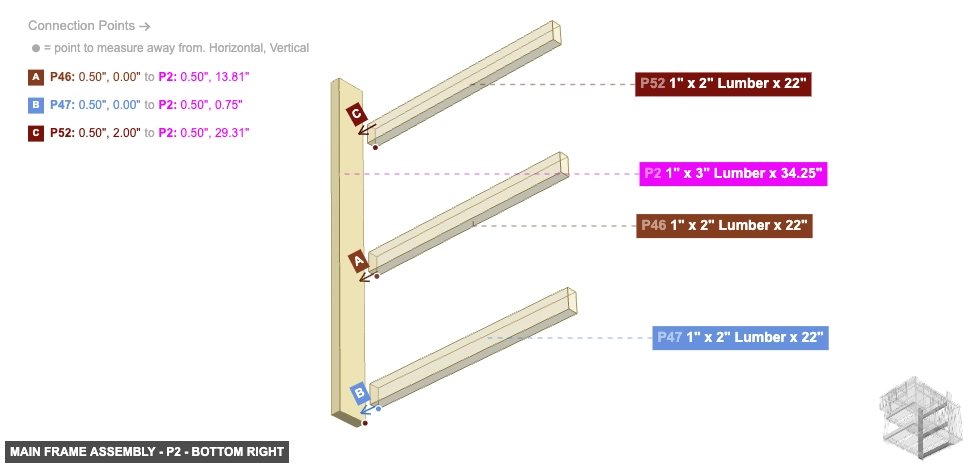

Part: 1" x 2" Lumber x 22" - Angle: bottom right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

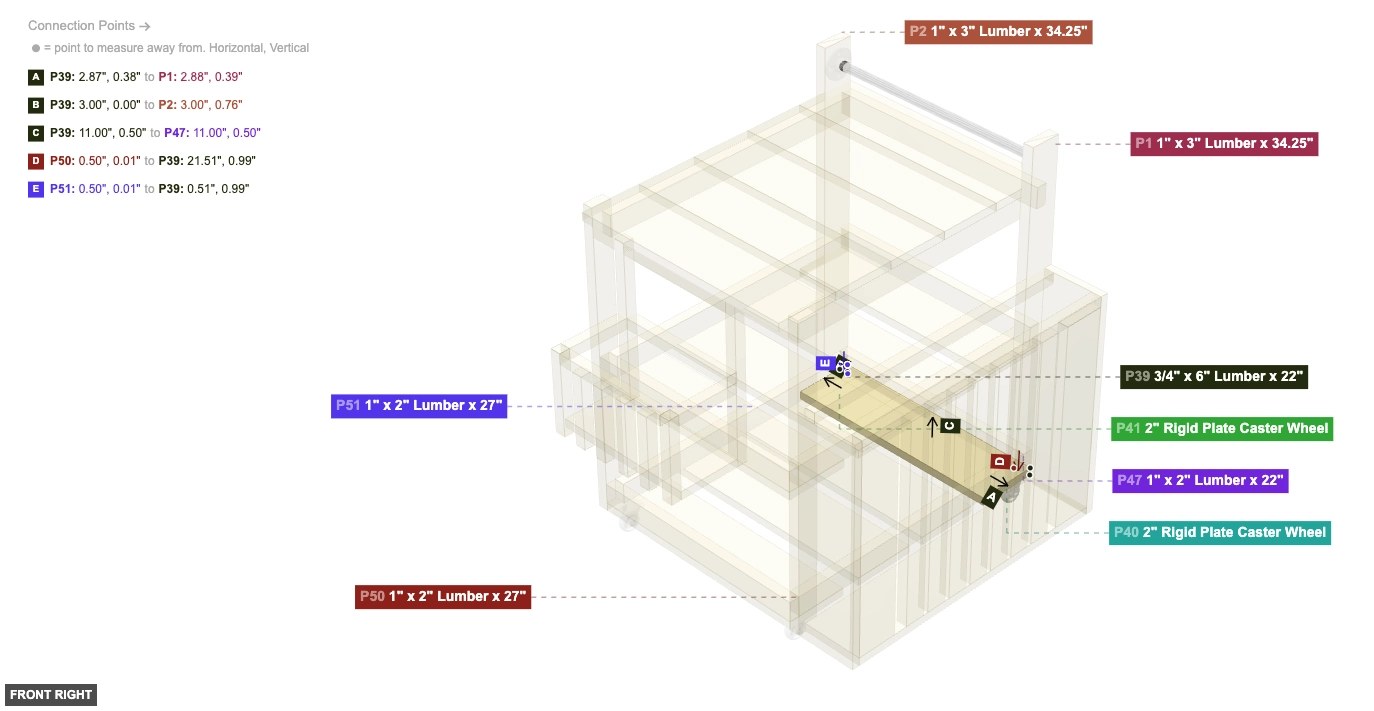

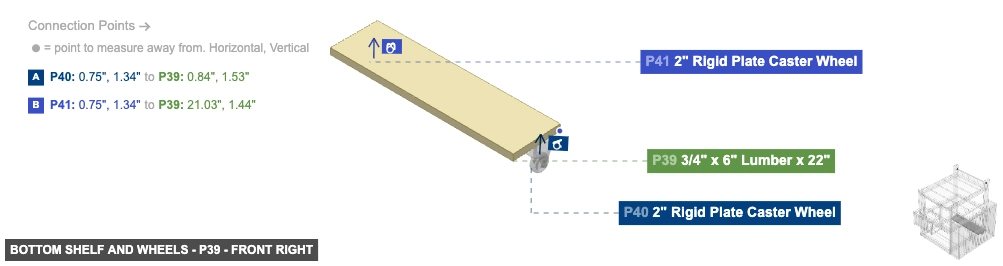

Group: Bottom Shelf and Wheels

Attach the bottom shelf board to the main frame and install its wheels.

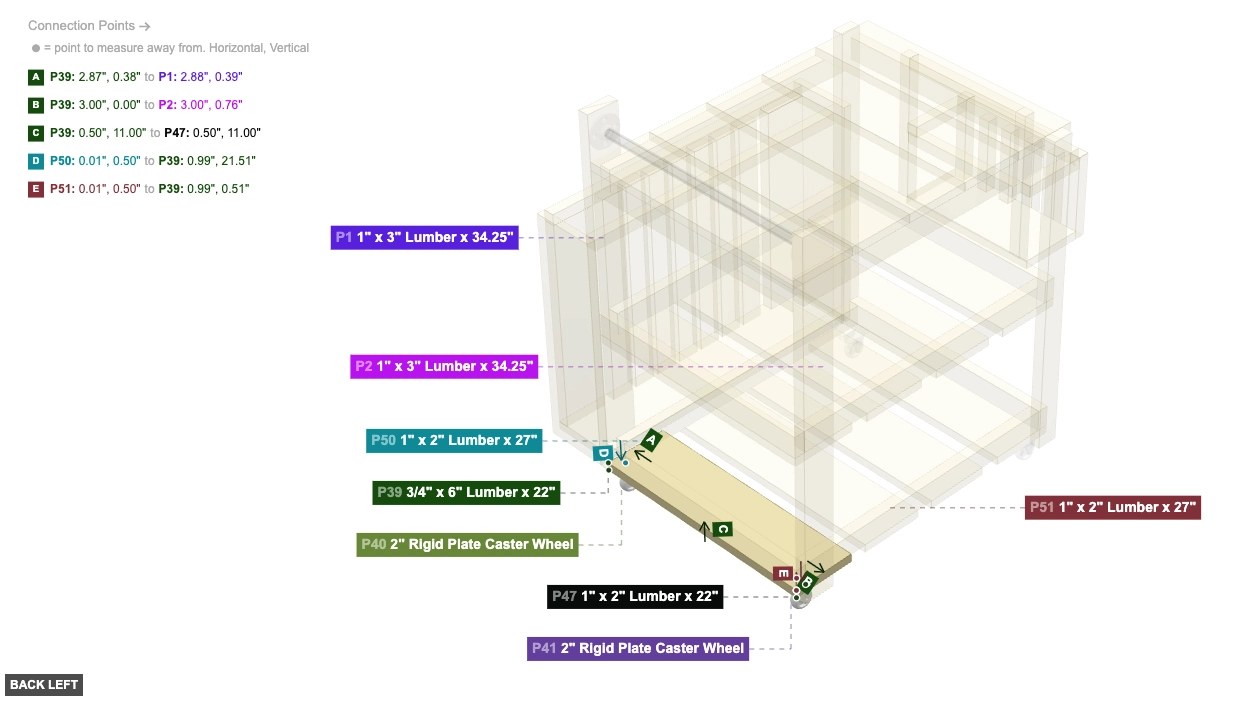

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P39 (0.75" x 6" Lumber 22" length) - attach its 1" x 6" Wood Side #4 facing bottom to part 40's Screw-In Screw In #1, then its 1" x 6" Wood Side #1 needs to point front, then its 1" x 6" Wood Side #3 must be oriented back

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

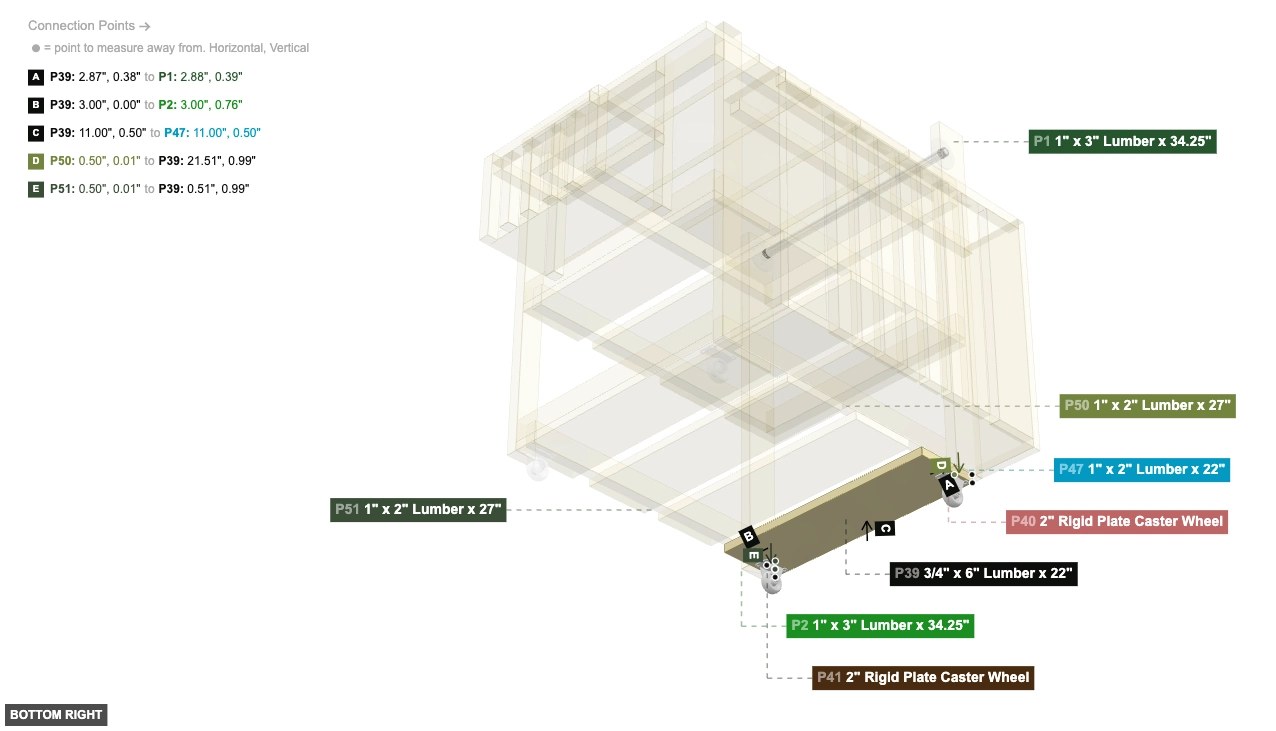

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Part: 2" Rigid Plate Caster Wheel - Angle: back left

P40 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 39's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

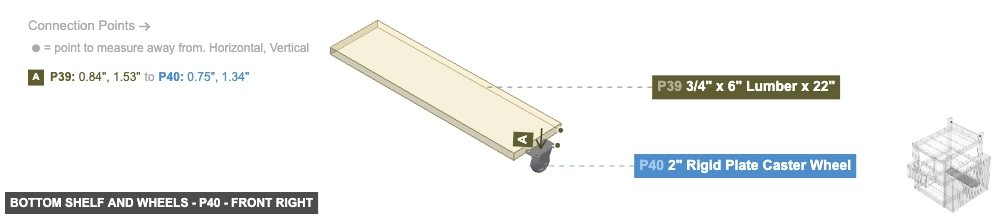

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P40 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 39's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P40 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 39's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Part: 2" Rigid Plate Caster Wheel - Angle: back left

P41 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 39's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

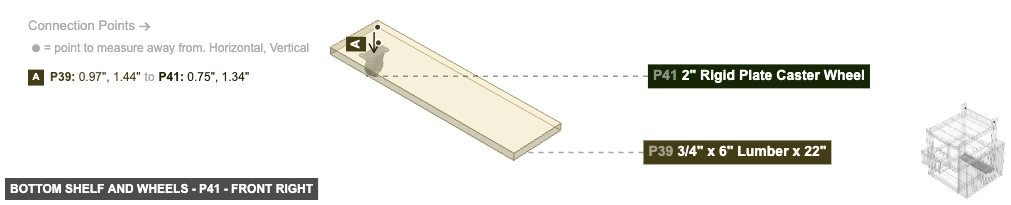

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P41 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 39's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

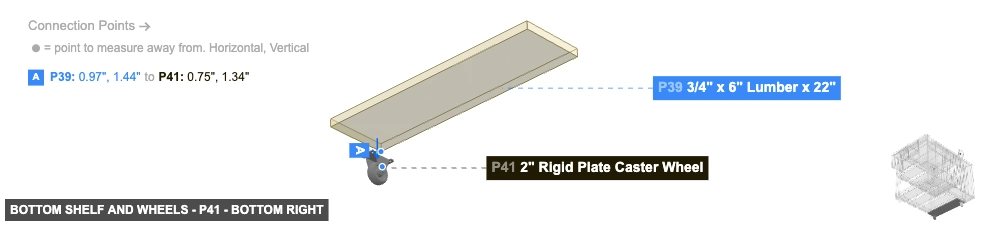

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P41 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 39's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Group: Lower Middle Shelf Assembly

Install the shelf board and cross supports for the second level from the bottom.

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P7 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1 should be directed front. Next, ensure its 1" x 6" Wood Side #3 faces back, also ensure its 1" x 6" Wood Side #4 faces bottom

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Part: 3/4" x 6" Lumber x 22" - Angle: front right

P7 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1 should be directed front. Next, ensure its 1" x 6" Wood Side #3 faces back, also ensure its 1" x 6" Wood Side #4 faces bottom

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

P7 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1 should be directed front. Next, ensure its 1" x 6" Wood Side #3 faces back, also ensure its 1" x 6" Wood Side #4 faces bottom

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: back left

P48 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #3 should be directed top, then its 1" x 2" Wood Side #4 should be directed right

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

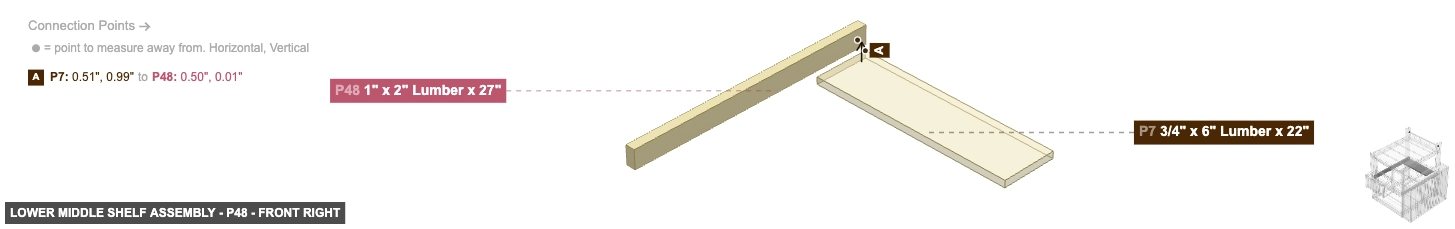

Part: 1" x 2" Lumber x 27" - Angle: front right

P48 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #3 should be directed top, then its 1" x 2" Wood Side #4 should be directed right

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

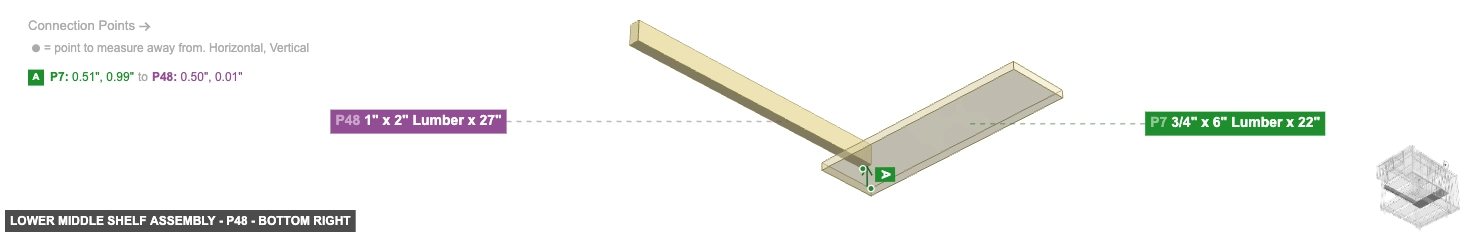

Part: 1" x 2" Lumber x 27" - Angle: bottom right

P48 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #3 should be directed top, then its 1" x 2" Wood Side #4 should be directed right

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

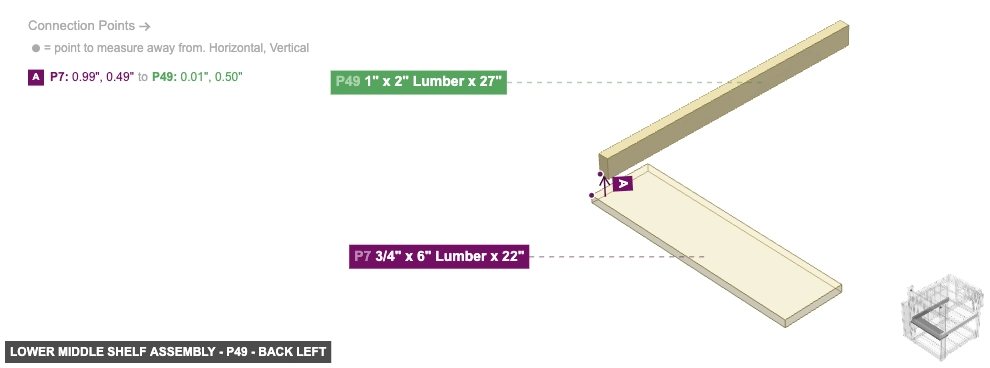

Part: 1" x 2" Lumber x 27" - Angle: back left

P49 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #2 should be directed left, and its 1" x 2" Wood Side #3 needs to point top

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: front right

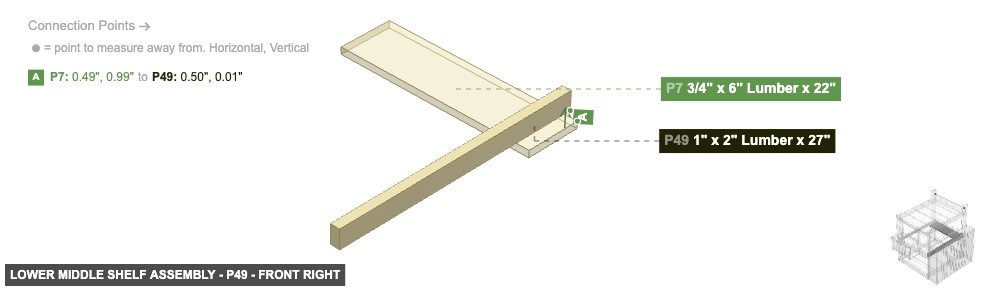

P49 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #2 should be directed left, and its 1" x 2" Wood Side #3 needs to point top

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: bottom right

P49 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #2 should be directed left, and its 1" x 2" Wood Side #3 needs to point top

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

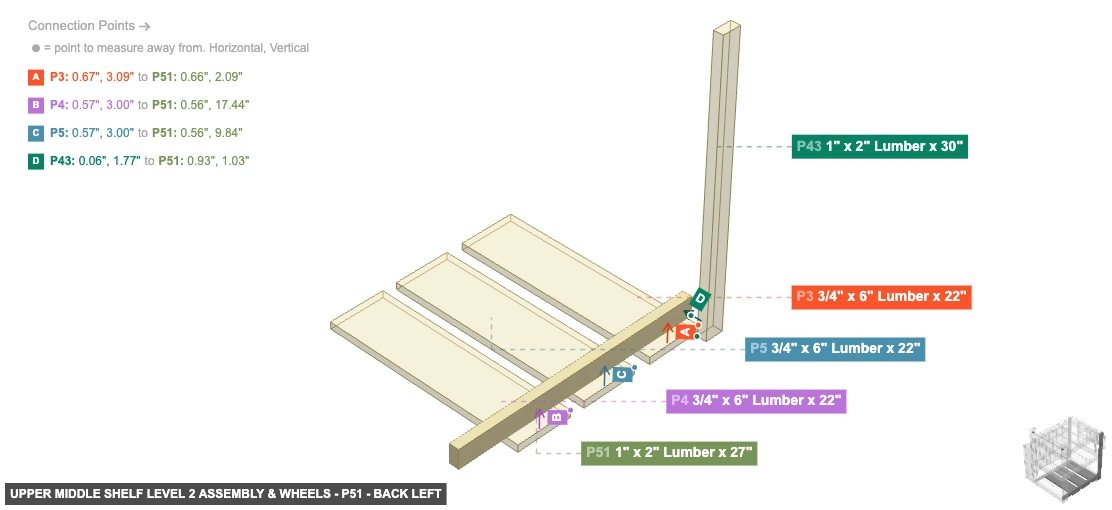

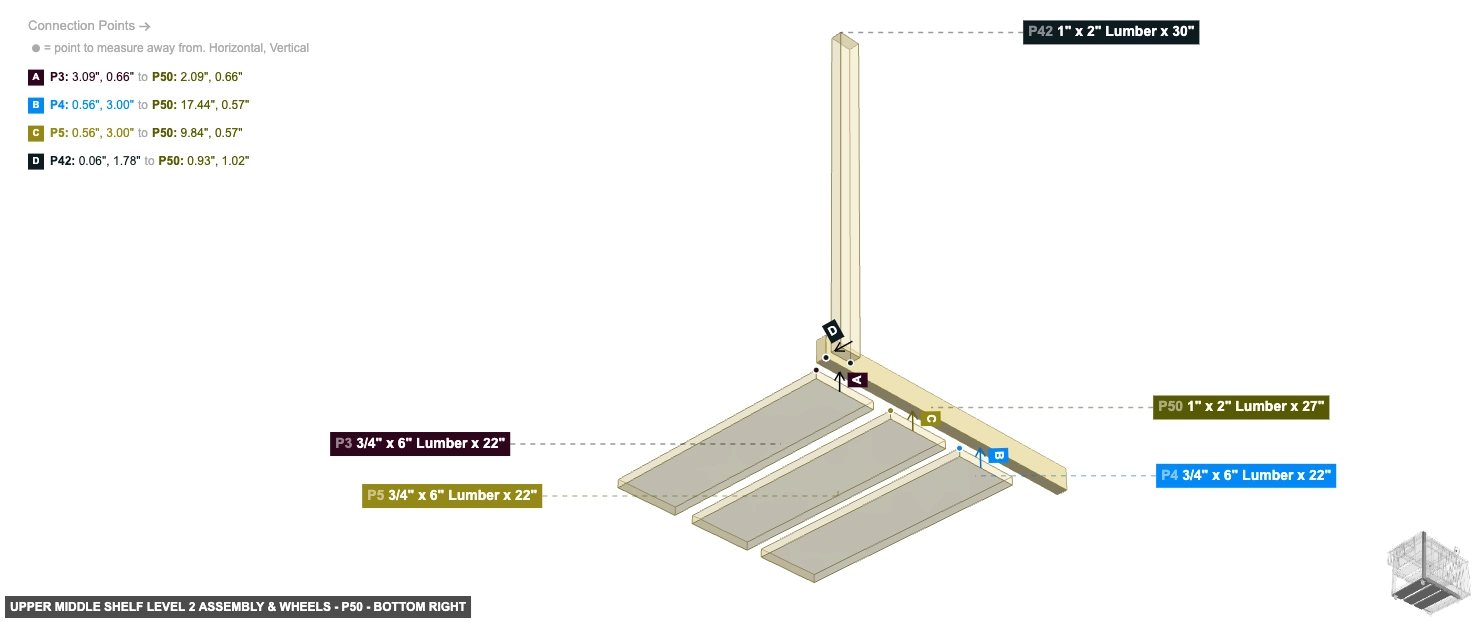

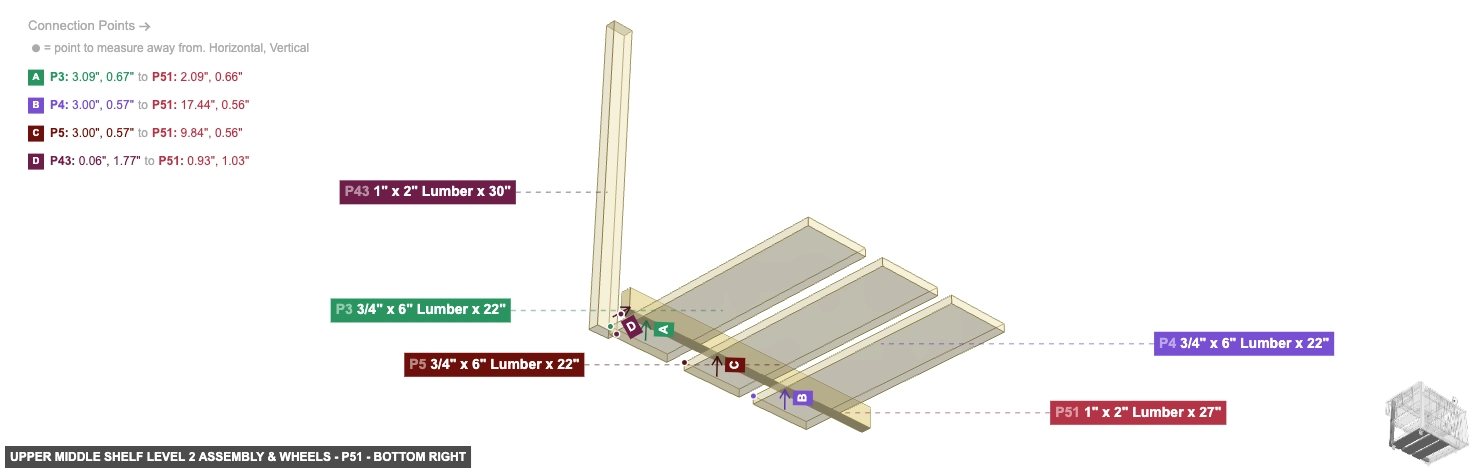

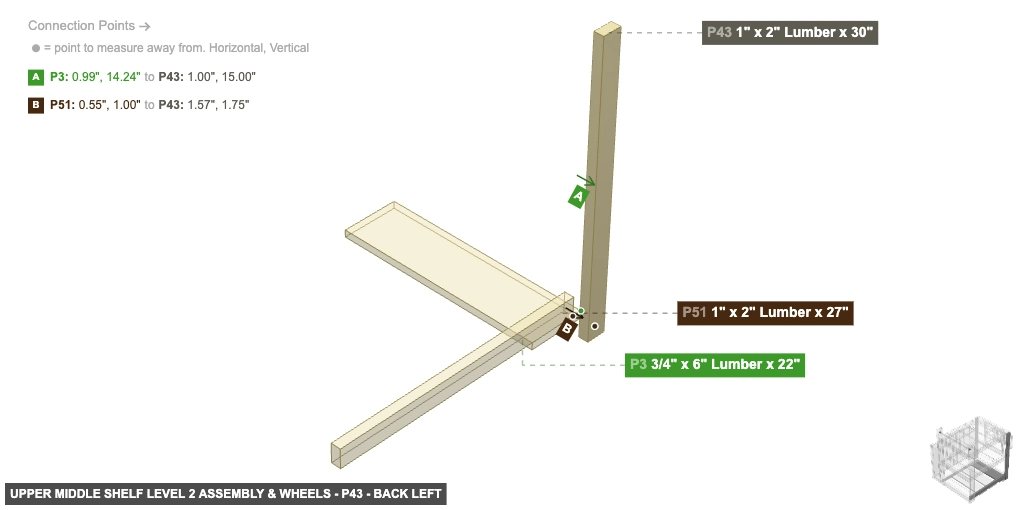

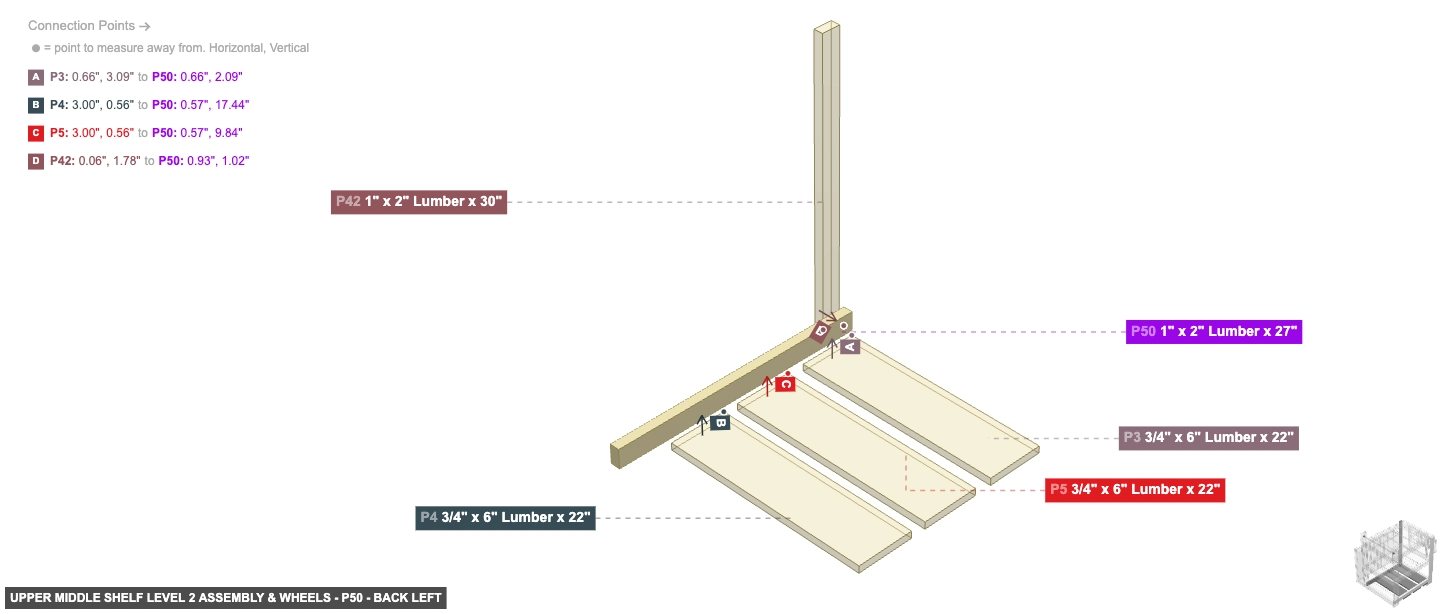

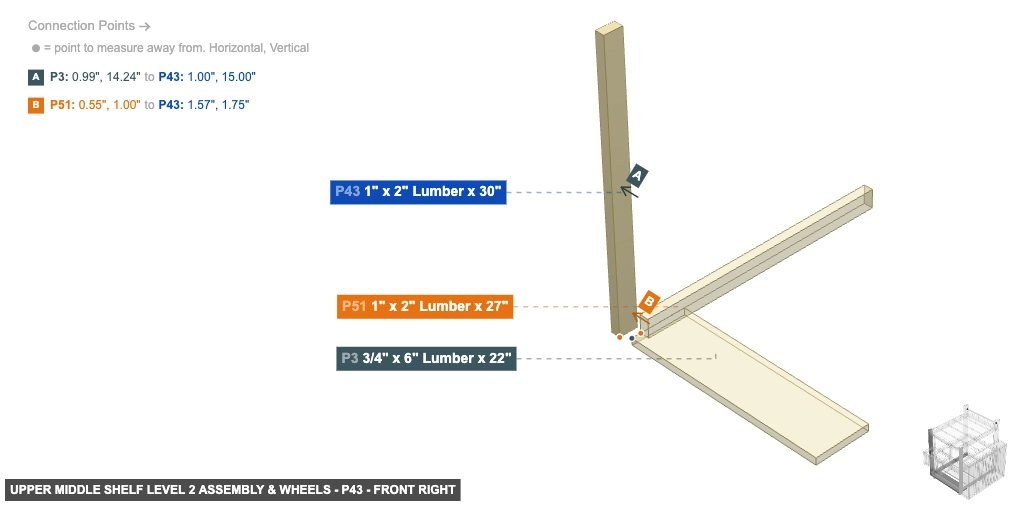

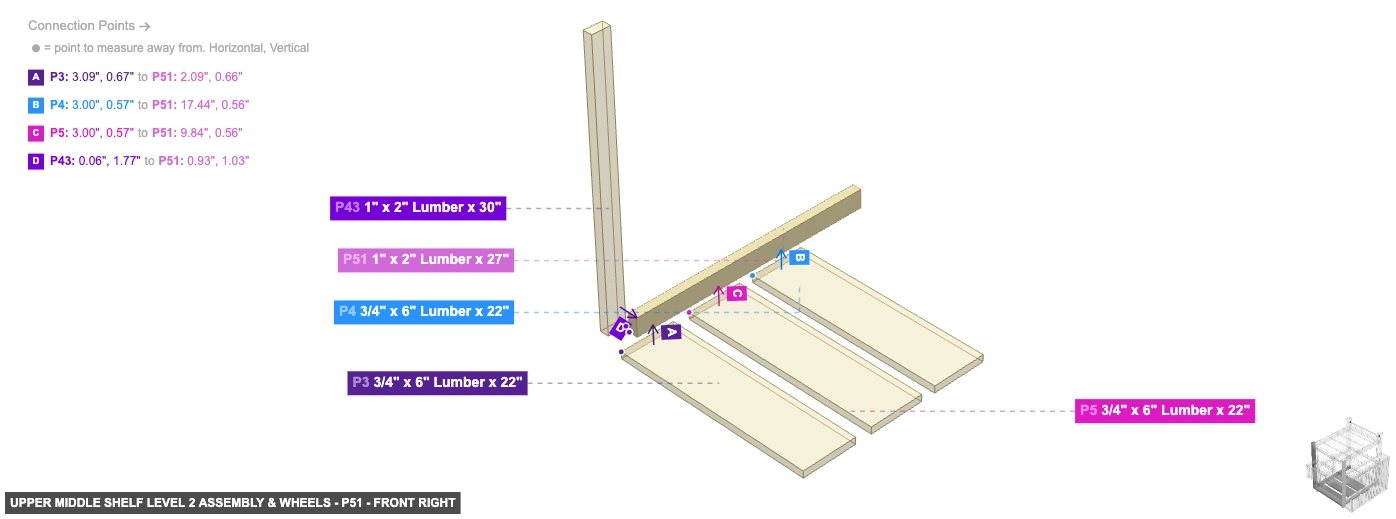

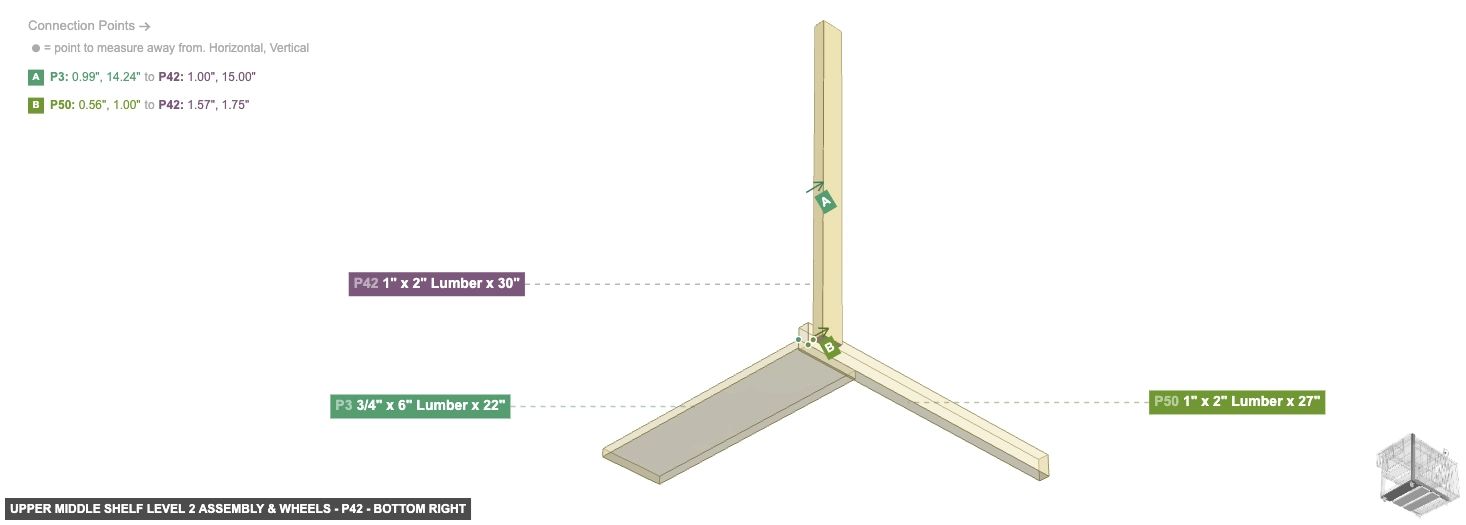

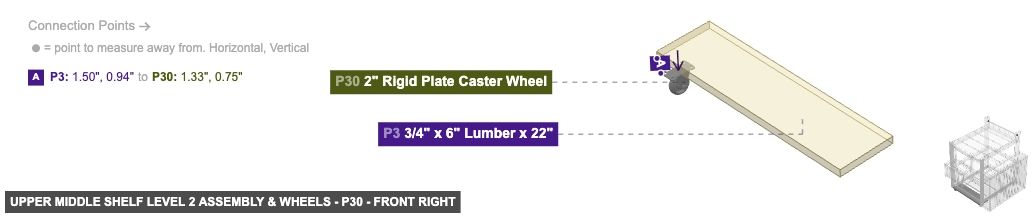

Group: Upper Middle Shelf Level 2 Assembly & Wheels

Install the shelf boards, side supports, cross supports, and wheels for the fourth level from the bottom.

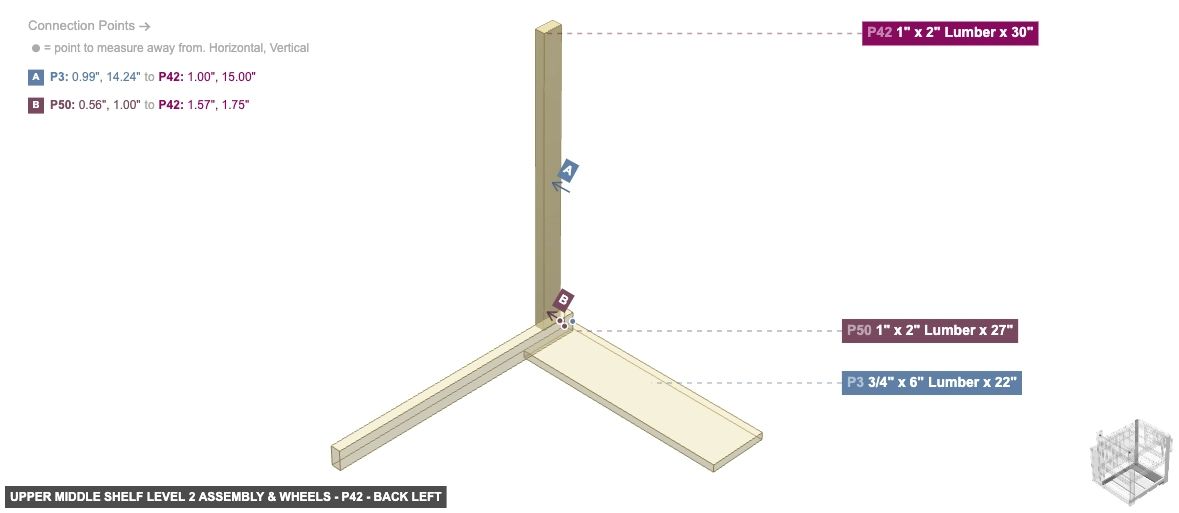

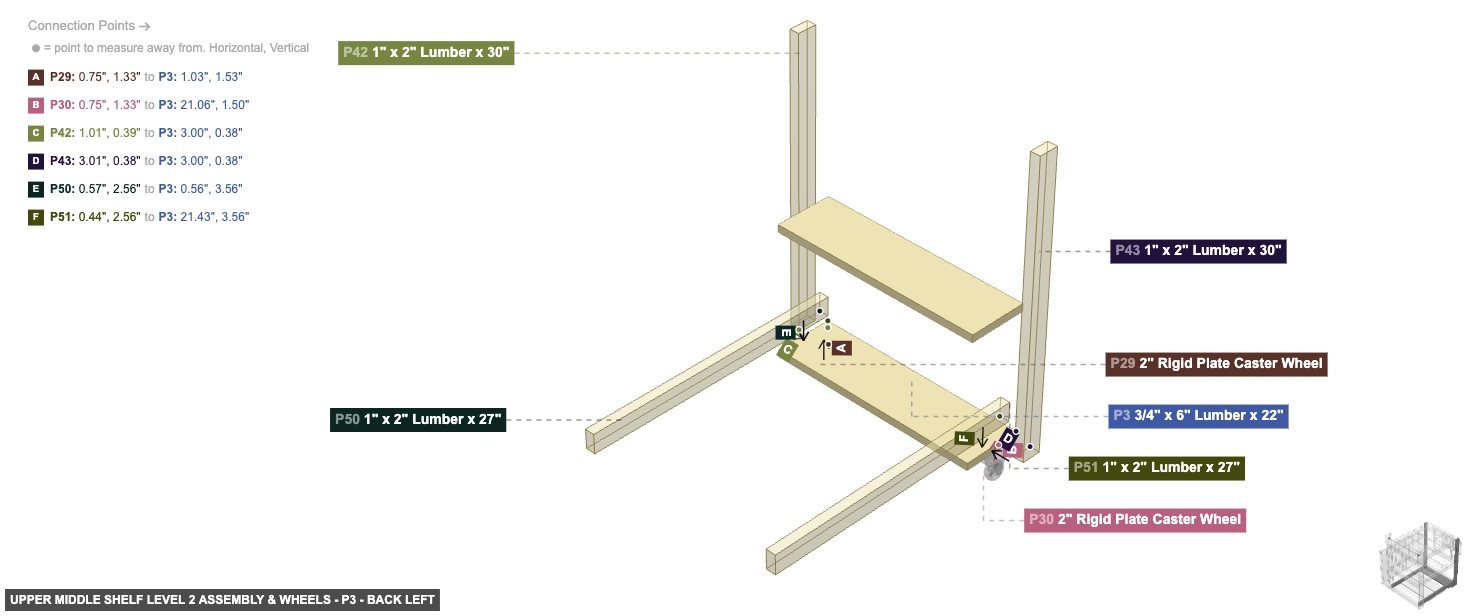

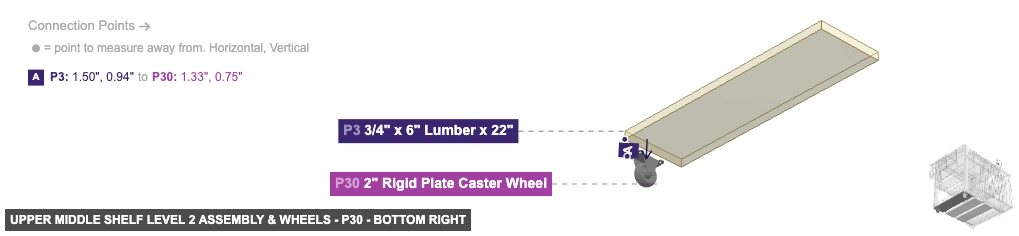

Part: 3/4" x 6" Lumber x 22" - Angle: back left

Upper Middle Shelf Level 2 Assembly & Wheels - Part 3/4

P3 (0.75" x 6" Lumber 22" length) - attach its 1" x 6" Wood End #1 facing right to part 42's 1" x 2" Wood Side #2, then connect its 1" x 6" Wood Side #4 oriented bottom links with part 29's Screw-In Screw In #1, plus its 1" x 6" Wood End #2, which is left-facing, should connect to part 43's 1" x 2" Wood Side #2. Additionally, its 1" x 6" Wood Side #1 needs to point front, plus its 1" x 6" Wood Side #3 should be directed back

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

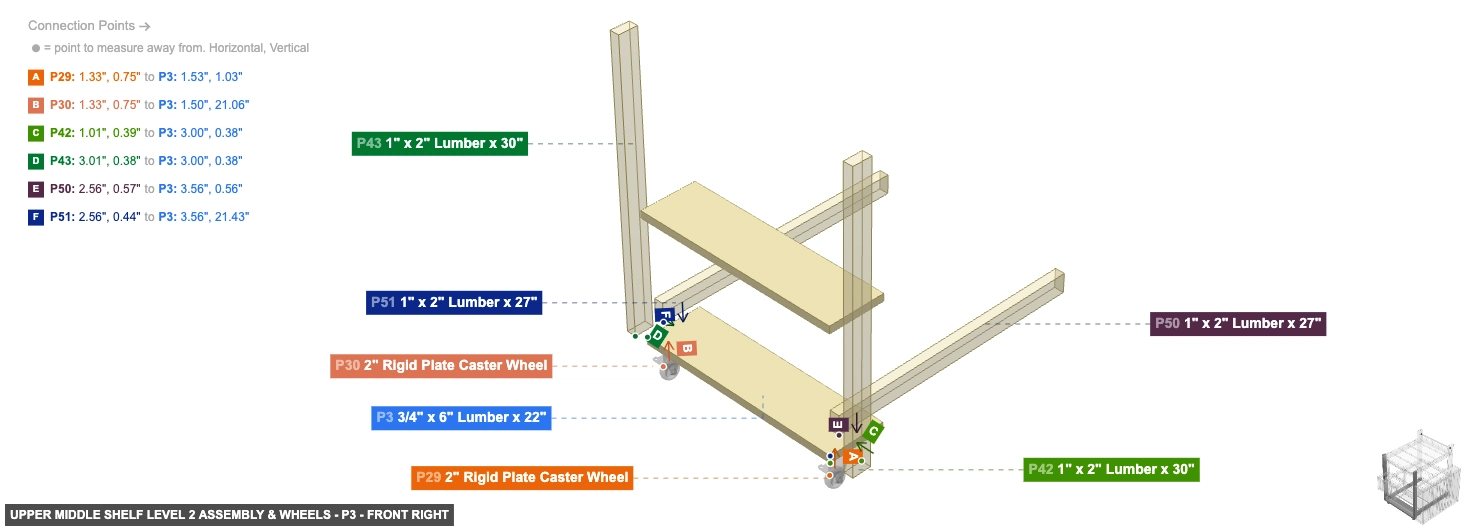

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 3/4" x 6" Lumber x 22" - Angle: back left

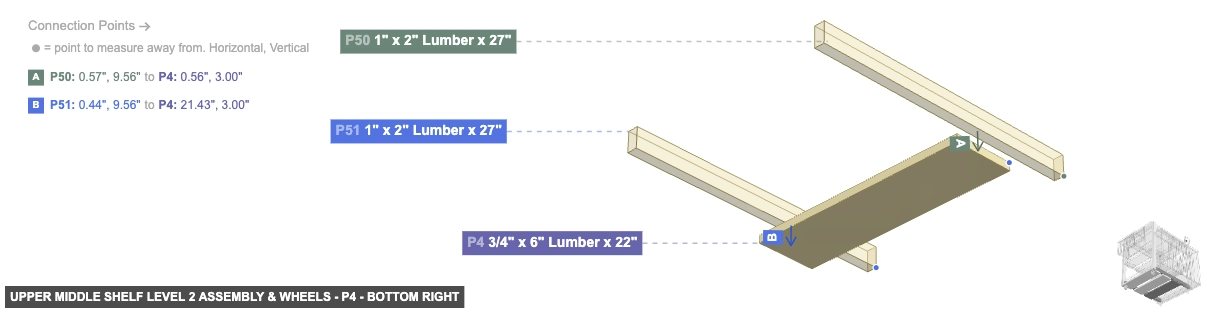

P4 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood Side #2 oriented top links with part 50's 1" x 2" Wood Side #1, also its 1" x 6" Wood End #1 needs to point right, also its 1" x 6" Wood Side #1 should be directed front, plus its 1" x 6" Wood Side #3 needs to point back. Next, its 1" x 6" Wood Side #4 must be oriented bottom. Also, its 1" x 6" Wood End #2 must be oriented left

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

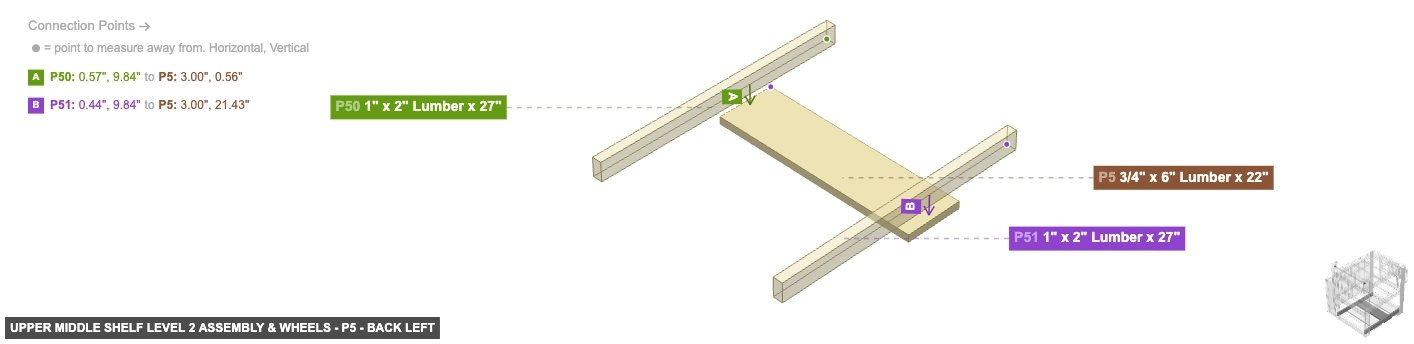

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P5 (0.75" x 6" Lumber 22" length) - attach its 1" x 6" Wood Side #2 facing top to part 50's 1" x 2" Wood Side #1, plus its 1" x 6" Wood End #1 must be oriented right. Also, its 1" x 6" Wood Side #1 should be directed front. Next, ensure its 1" x 6" Wood Side #3 faces back. After that, ensure its 1" x 6" Wood Side #4 faces bottom. After that, its 1" x 6" Wood End #2 should be directed left

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

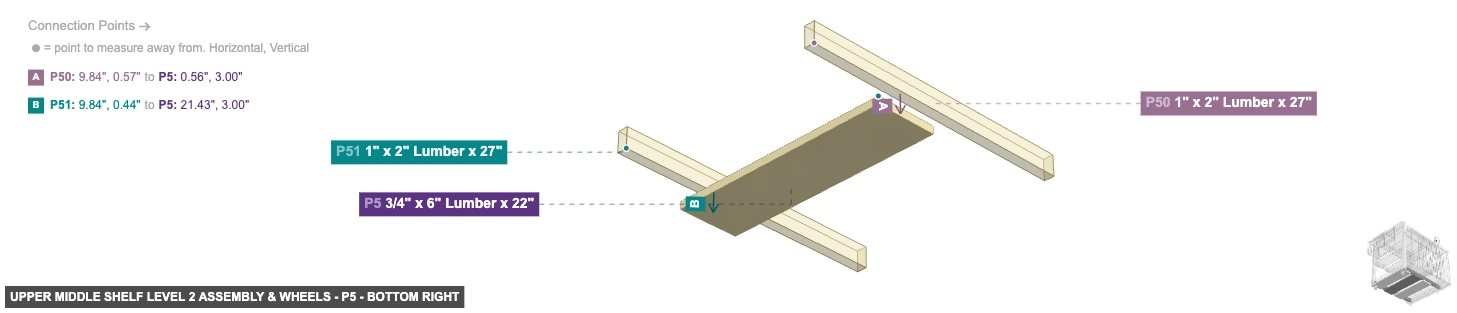

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 2" Rigid Plate Caster Wheel - Angle: back left

Upper Middle Shelf Level 2 Assembly & Wheels - Part 2

P29 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 3's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P29 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 3's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P29 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 3's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 2" Rigid Plate Caster Wheel - Angle: back left

P30 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 3's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P30 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 3's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P30 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 3's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 30" - Angle: back left

Upper Middle Shelf Level 2 Assembly & Wheels - Part 1

P42 (1" x 2" Lumber 30" length) - attach its 1" x 2" Wood Side #2 facing left to part 3's 1" x 6" Wood End #1, and its 1" x 2" Wood End #1 must be oriented bottom. Also, its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 should be directed front. Also, its 1" x 2" Wood End #2 must be oriented top

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 30" - Angle: front right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 30" - Angle: bottom right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 30" - Angle: back left

P43 (1" x 2" Lumber 30" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 3's 1" x 6" Wood End #2, also ensure its 1" x 2" Wood End #1 faces bottom, also its 1" x 2" Wood Side #1 must be oriented front. Next, its 1" x 2" Wood Side #3 needs to point back, also ensure its 1" x 2" Wood Side #4 faces left. Additionally, its 1" x 2" Wood End #2 needs to point top

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 30" - Angle: front right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 30" - Angle: bottom right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: back left

P50 (1" x 2" Lumber 27" length) - attach its 1" x 2" Wood Side #1 facing bottom to part 3's 1" x 6" Wood Side #2, also its 1" x 2" Wood Side #2 needs to point left, plus ensure its 1" x 2" Wood Side #3 faces top

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: front right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: bottom right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: back left

P51 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #1, which is bottom-facing, should connect to part 3's 1" x 6" Wood Side #2, then its 1" x 2" Wood Side #3 must be oriented top. Additionally, ensure its 1" x 2" Wood Side #4 faces right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: front right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Part: 1" x 2" Lumber x 27" - Angle: bottom right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Group: Top Surface Assembly

Assemble the boards and supports that form the top working surface of the cart.

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P10 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood Side #3 oriented front links with part 11's 1" x 6" Wood Side #1. Also, its 1" x 6" Wood Side #1 should be directed back. Also, its 1" x 6" Wood Side #4 should be directed top

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P11 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood Side #1 oriented back links with part 10's 1" x 6" Wood Side #3. Also, its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 53's 1" x 2" Wood Side #1. Additionally, its 1" x 6" Wood Side #3, which is front-facing, should connect to part 12's 1" x 6" Wood Side #1, plus its 1" x 6" Wood End #1 should be directed right, and its 1" x 6" Wood Side #4 should be directed top. Additionally, its 1" x 6" Wood End #2 must be oriented left

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P12 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1, which is back-facing, should connect to part 11's 1" x 6" Wood Side #3. Also, attach its 1" x 6" Wood Side #2 facing bottom to part 53's 1" x 2" Wood Side #1. After that, connect its 1" x 6" Wood Side #3 oriented front links with part 13's 1" x 6" Wood Side #1, plus its 1" x 6" Wood End #1 needs to point right, and its 1" x 6" Wood Side #4 should be directed top, then its 1" x 6" Wood End #2 must be oriented left

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P13 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1, which is back-facing, should connect to part 12's 1" x 6" Wood Side #3, and its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 53's 1" x 2" Wood Side #1, and attach its 1" x 6" Wood Side #3 facing front to part 14's 1" x 6" Wood Side #1, and ensure its 1" x 6" Wood End #1 faces right. After that, ensure its 1" x 6" Wood Side #4 faces top. After that, its 1" x 6" Wood End #2 needs to point left

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P14 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1, which is back-facing, should connect to part 13's 1" x 6" Wood Side #3, also ensure its 1" x 6" Wood Side #3 faces front. Next, ensure its 1" x 6" Wood Side #4 faces top

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 27" - Angle: back left

P53 (1" x 2" Lumber 27" length) - connect its 1" x 2" Wood End #1 oriented front links with part 55's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood Side #1, which is top-facing, should connect to part 10's 1" x 6" Wood Side #2, also its 1" x 2" Wood Side #3 should be directed bottom. After that, its 1" x 2" Wood Side #4 should be directed left

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 27" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 27" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 27" - Angle: back left

P54 (1" x 2" Lumber 27" length) - connect its 1" x 2" Wood End #1 oriented front links with part 55's 1" x 2" Wood Side #2, also connect its 1" x 2" Wood Side #1 oriented top links with part 10's 1" x 6" Wood Side #2. Next, its 1" x 2" Wood Side #2 must be oriented right. Also, ensure its 1" x 2" Wood Side #3 faces bottom

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 27" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 27" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 22" - Angle: back left

P55 (1" x 2" Lumber 22" length) - its 1" x 2" Wood Side #2, which is back-facing, should connect to part 54's 1" x 2" Wood End #1, and its 1" x 2" Wood Side #3, which is top-facing, should connect to part 14's 1" x 6" Wood Side #2, plus its 1" x 2" Wood Side #1 needs to point bottom

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

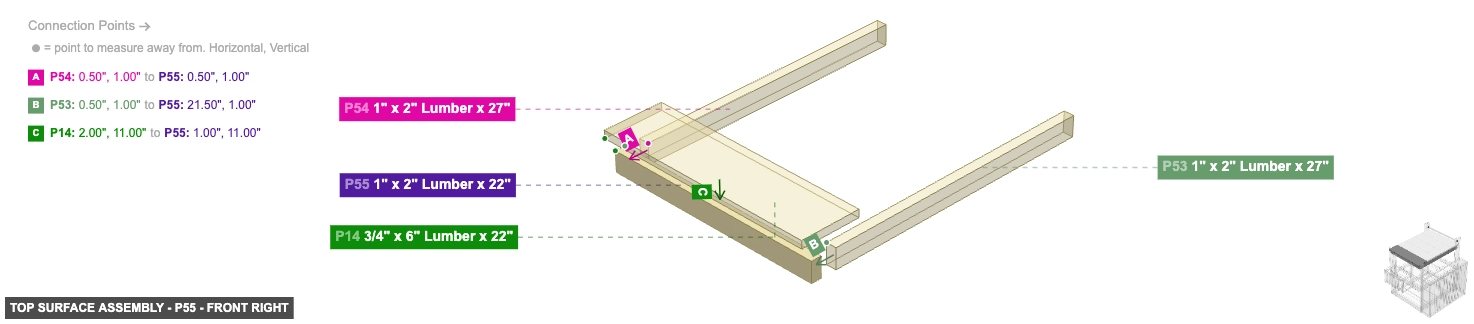

Part: 1" x 2" Lumber x 22" - Angle: front right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Part: 1" x 2" Lumber x 22" - Angle: bottom right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Group: Front Internal Organizer Assembly

Assemble the small compartment structure located under the front of the top surface.

Part: 1" x 1" Lumber x 11.5" - Angle: back left

Front Internal Organizer Assembly - Part 1

P15 (1" x 1" Lumber 11.5" length) - connect its 1" x 1" Wood End #1 oriented right links with part 16's 1" x 1" Wood Side #1. Also, connect its 1" x 1" Wood End #2 oriented left links with part 17's 1" x 1" Wood Side #1. Additionally, its 1" x 1" Wood Side #2 must be oriented bottom, then its 1" x 1" Wood Side #3 should be directed front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 15" - Angle: back left

P16 (1" x 1" Lumber 15" length) - connect its 1" x 1" Wood Side #1 oriented left links with part 15's 1" x 1" Wood End #1, also attach its 1" x 1" Wood Side #2 facing front to part 18's 1" x 6" Wood Side #1. Also, its 1" x 1" Wood End #1 should be directed bottom. Also, its 1" x 1" Wood Side #3 must be oriented right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 15" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 15" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 15" - Angle: back left

P17 (1" x 1" Lumber 15" length) - connect its 1" x 1" Wood Side #1 oriented right links with part 15's 1" x 1" Wood End #2, and attach its 1" x 1" Wood Side #4 facing front to part 18's 1" x 6" Wood Side #1, and its 1" x 1" Wood End #1 needs to point bottom. Additionally, its 1" x 1" Wood Side #3 should be directed left

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 15" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 15" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 3/4" x 6" Lumber x 13.5" - Angle: back left

Front Internal Organizer Assembly - Part 3/4

P18 (0.75" x 6" Lumber 13.5" length) - attach its 1" x 6" Wood Side #1 facing back to part 16's 1" x 1" Wood Side #2, plus attach its 1" x 6" Wood Side #3 facing front to part 19's 1" x 1" Wood Side #1. Also, its 1" x 6" Wood End #1 should be directed left. Additionally, its 1" x 6" Wood Side #2 needs to point top. After that, its 1" x 6" Wood Side #4 needs to point bottom. Next, its 1" x 6" Wood End #2 needs to point right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 3/4" x 6" Lumber x 13.5" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 3/4" x 6" Lumber x 13.5" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 8" - Angle: back left

P19 (1" x 1" Lumber 8" length) - attach its 1" x 1" Wood Side #1 facing back to part 18's 1" x 6" Wood Side #3, plus attach its 1" x 1" Wood Side #4 facing left to part 23's 1" x 1" Wood End #1. Also, its 1" x 1" Wood End #1 needs to point top. Additionally, its 1" x 1" Wood Side #2 must be oriented right. Also, ensure its 1" x 1" Wood Side #3 faces front. Next, its 1" x 1" Wood End #2 needs to point bottom

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 8" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 8" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 8" - Angle: back left

P20 (1" x 1" Lumber 8" length) - attach its 1" x 1" Wood Side #1 facing back to part 18's 1" x 6" Wood Side #3. Additionally, attach its 1" x 1" Wood Side #2 facing right to part 23's 1" x 1" Wood End #2, plus ensure its 1" x 1" Wood End #1 faces top, then its 1" x 1" Wood Side #3 needs to point front, plus its 1" x 1" Wood Side #4 must be oriented left. After that, its 1" x 1" Wood End #2 must be oriented bottom

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 8" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 8" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 6" - Angle: back left

P21 (1" x 1" Lumber 6" length) - attach its 1" x 1" Wood End #1 facing back to part 17's 1" x 1" Wood Side #4, and connect its 1" x 1" Wood End #2 oriented front links with part 20's 1" x 1" Wood Side #1. Next, its 1" x 1" Wood Side #1 needs to point bottom, plus its 1" x 1" Wood Side #2 must be oriented right. Also, ensure its 1" x 1" Wood Side #3 faces top, plus ensure its 1" x 1" Wood Side #4 faces left

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 6" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 6" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

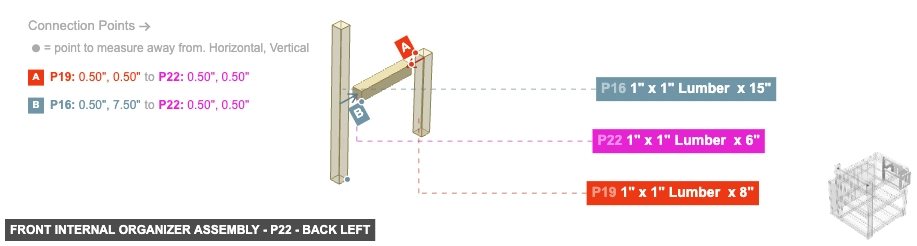

Part: 1" x 1" Lumber x 6" - Angle: back left

P22 (1" x 1" Lumber 6" length) - connect its 1" x 1" Wood End #1 oriented back links with part 16's 1" x 1" Wood Side #2, and its 1" x 1" Wood End #2, which is front-facing, should connect to part 19's 1" x 1" Wood Side #1, plus its 1" x 1" Wood Side #1 must be oriented bottom, also its 1" x 1" Wood Side #2 needs to point right, plus its 1" x 1" Wood Side #3 should be directed top, also its 1" x 1" Wood Side #4 should be directed left

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 6" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 6" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: back left

P23 (1" x 1" Lumber 11.5" length) - connect its 1" x 1" Wood End #1 oriented right links with part 19's 1" x 1" Wood Side #4. Next, its 1" x 1" Wood Side #3, which is bottom-facing, should connect to part 24's 1" x 1" Wood End #2, and connect its 1" x 1" Wood End #2 oriented left links with part 20's 1" x 1" Wood Side #2. Next, ensure its 1" x 1" Wood Side #1 faces top, and ensure its 1" x 1" Wood Side #2 faces back. After that, its 1" x 1" Wood Side #4 must be oriented front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: back left

P24 (1" x 1" Lumber 7" length) - its 1" x 1" Wood Side #2, which is back-facing, should connect to part 18's 1" x 6" Wood Side #3, plus its 1" x 1" Wood End #2, which is top-facing, should connect to part 23's 1" x 1" Wood Side #3. Additionally, its 1" x 1" Wood End #1 needs to point bottom, plus ensure its 1" x 1" Wood Side #1 faces right. After that, its 1" x 1" Wood Side #3 needs to point left. Also, its 1" x 1" Wood Side #4 needs to point front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: back left

P25 (1" x 1" Lumber 7" length) - connect its 1" x 1" Wood Side #2 oriented back links with part 18's 1" x 6" Wood Side #3. Also, attach its 1" x 1" Wood End #2 facing top to part 23's 1" x 1" Wood Side #3. After that, its 1" x 1" Wood End #1 needs to point bottom. After that, its 1" x 1" Wood Side #1 needs to point right, and its 1" x 1" Wood Side #3 needs to point left, then its 1" x 1" Wood Side #4 should be directed front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: back left

P26 (1" x 1" Lumber 7" length) - its 1" x 1" Wood Side #2, which is back-facing, should connect to part 18's 1" x 6" Wood Side #3. Additionally, connect its 1" x 1" Wood End #2 oriented top links with part 23's 1" x 1" Wood Side #3. After that, its 1" x 1" Wood End #1 should be directed bottom. Also, its 1" x 1" Wood Side #1 should be directed right, and its 1" x 1" Wood Side #3 should be directed left. Also, its 1" x 1" Wood Side #4 needs to point front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: back left

P27 (1" x 1" Lumber 7" length) - connect its 1" x 1" Wood Side #2 oriented back links with part 18's 1" x 6" Wood Side #3. Next, its 1" x 1" Wood End #2, which is top-facing, should connect to part 23's 1" x 1" Wood Side #3, and its 1" x 1" Wood End #1 needs to point bottom, also its 1" x 1" Wood Side #1 should be directed right, plus its 1" x 1" Wood Side #3 needs to point left. Additionally, its 1" x 1" Wood Side #4 should be directed front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 7" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: back left

P28 (1" x 1" Lumber 11.5" length) - its 1" x 1" Wood End #1, which is right-facing, should connect to part 16's 1" x 1" Wood Side #1. After that, attach its 1" x 1" Wood End #2 facing left to part 17's 1" x 1" Wood Side #1, also its 1" x 1" Wood Side #1 must be oriented top. After that, its 1" x 1" Wood Side #2 must be oriented back. Additionally, its 1" x 1" Wood Side #3 should be directed bottom, plus ensure its 1" x 1" Wood Side #4 faces front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: front right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Part: 1" x 1" Lumber x 11.5" - Angle: bottom right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Group: Side Compartment Assembly

Assemble the taller side structure frame and install the internal dividers.

Part: 1" x 1" Lumber x 27.5" - Angle: back left

P34 (1" x 1" Lumber 27.5" length) - its 1" x 1" Wood End #1, which is front-facing, should connect to part 36's 1" x 6" Wood Side #2, and connect its 1" x 1" Wood End #2 oriented back links with part 35's 1" x 6" Wood Side #2, then ensure its 1" x 1" Wood Side #2 faces top. Additionally, its 1" x 1" Wood Side #3 needs to point right, plus its 1" x 1" Wood Side #4 should be directed bottom

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 1" Lumber x 27.5" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 1" Lumber x 27.5" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P35 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood Side #2 oriented front links with part 34's 1" x 1" Wood End #2, also its 1" x 6" Wood End #1 needs to point bottom. Also, its 1" x 6" Wood Side #3 needs to point right. Also, its 1" x 6" Wood Side #4 should be directed back, also its 1" x 6" Wood End #2 should be directed top

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

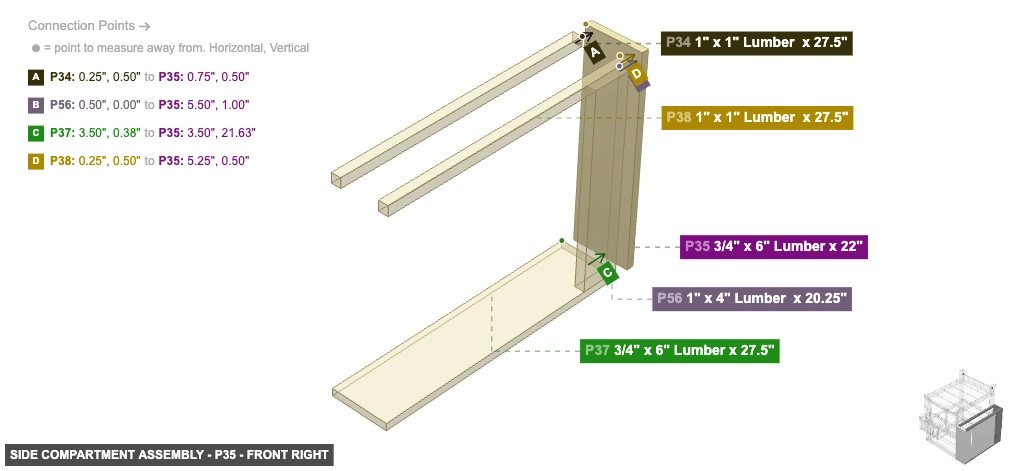

Part: 3/4" x 6" Lumber x 22" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

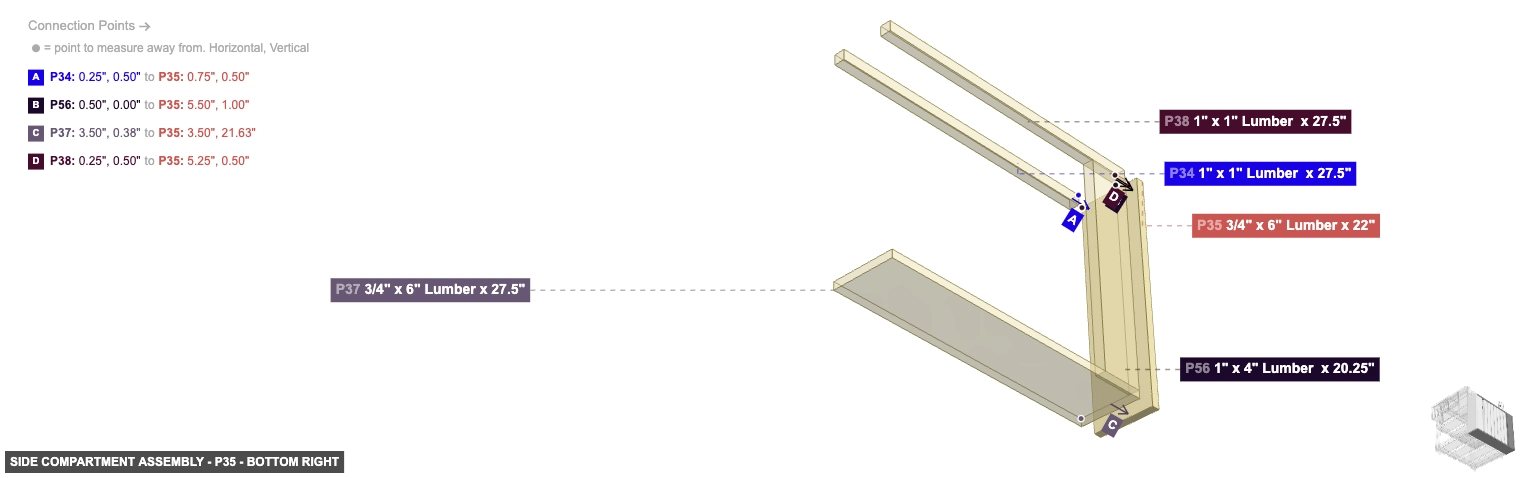

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 3/4" x 6" Lumber x 22" - Angle: back left

P36 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood Side #2 oriented back links with part 34's 1" x 1" Wood End #1, then its 1" x 6" Wood End #1 must be oriented bottom. Also, ensure its 1" x 6" Wood Side #1 faces right. Also, ensure its 1" x 6" Wood Side #4 faces front, and its 1" x 6" Wood End #2 should be directed top

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 3/4" x 6" Lumber x 22" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 3/4" x 6" Lumber x 22" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 3/4" x 6" Lumber x 27.5" - Angle: back left

P37 (0.75" x 6" Lumber 27.5" length) - its 1" x 6" Wood End #1, which is front-facing, should connect to part 36's 1" x 6" Wood Side #2, and attach its 1" x 6" Wood Side #2 facing top to part 56's 1" x 4" Wood End #1. After that, attach its 1" x 6" Wood End #2 facing back to part 35's 1" x 6" Wood Side #2. Also, its 1" x 6" Wood Side #3 must be oriented right. Also, its 1" x 6" Wood Side #4 needs to point bottom

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 3/4" x 6" Lumber x 27.5" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 3/4" x 6" Lumber x 27.5" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 1" Lumber x 27.5" - Angle: back left

P38 (1" x 1" Lumber 27.5" length) - its 1" x 1" Wood End #1, which is front-facing, should connect to part 36's 1" x 6" Wood Side #2, then connect its 1" x 1" Wood Side #1 oriented bottom links with part 56's 1" x 4" Wood End #2. Next, connect its 1" x 1" Wood End #2 oriented back links with part 35's 1" x 6" Wood Side #2, then its 1" x 1" Wood Side #2 needs to point left, and its 1" x 1" Wood Side #3 needs to point top, and its 1" x 1" Wood Side #4 needs to point right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 1" Lumber x 27.5" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 1" Lumber x 27.5" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 4" Lumber x 20.25" - Angle: back left

P56 (1" x 4" Lumber 20.25" length) - attach its 1" x 4" Wood End #1 facing bottom to part 37's 1" x 6" Wood Side #2, also connect its 1" x 4" Wood Side #1 oriented back links with part 35's 1" x 6" Wood Side #2, plus connect its 1" x 4" Wood End #2 oriented top links with part 38's 1" x 1" Wood Side #1. Next, its 1" x 4" Wood Side #2 must be oriented left, and its 1" x 4" Wood Side #3 needs to point front, and its 1" x 4" Wood Side #4 must be oriented right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 4" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 4" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 4" Lumber x 20.25" - Angle: back left

P57 (1" x 4" Lumber 20.25" length) - attach its 1" x 4" Wood End #1 facing bottom to part 37's 1" x 6" Wood Side #2. Also, its 1" x 4" Wood Side #3, which is front-facing, should connect to part 36's 1" x 6" Wood Side #2. After that, connect its 1" x 4" Wood End #2 oriented top links with part 38's 1" x 1" Wood Side #1, plus its 1" x 4" Wood Side #1 needs to point back. After that, ensure its 1" x 4" Wood Side #2 faces left, also its 1" x 4" Wood Side #4 needs to point right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 4" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 4" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: back left

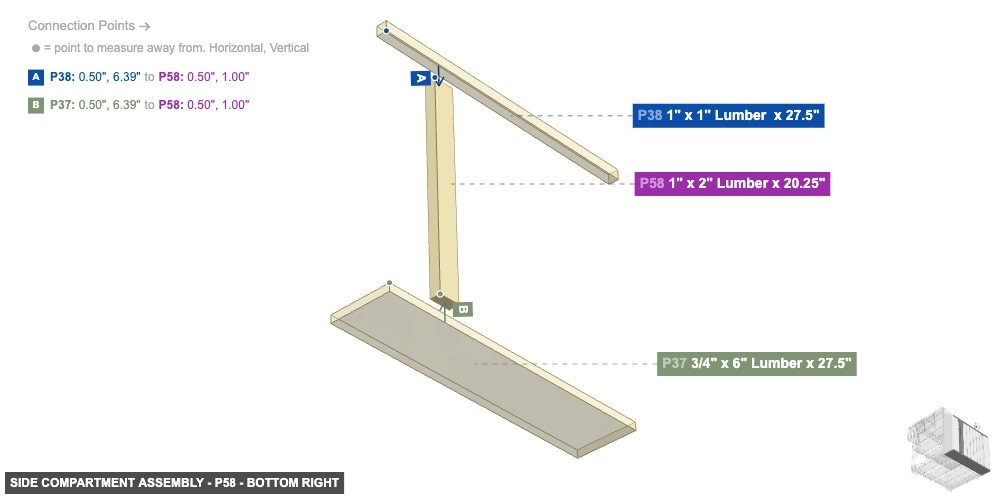

P58 (1" x 2" Lumber 20.25" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 37's 1" x 6" Wood Side #2. After that, attach its 1" x 2" Wood End #2 facing top to part 38's 1" x 1" Wood Side #1. Next, its 1" x 2" Wood Side #1 must be oriented back, also ensure its 1" x 2" Wood Side #2 faces left. After that, its 1" x 2" Wood Side #3 should be directed front, also its 1" x 2" Wood Side #4 should be directed right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: back left

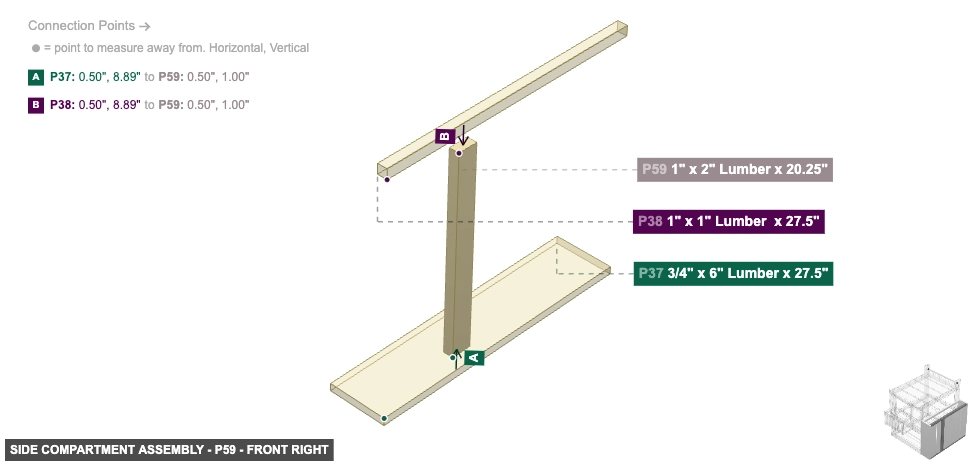

P59 (1" x 2" Lumber 20.25" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 37's 1" x 6" Wood Side #2, plus attach its 1" x 2" Wood End #2 facing top to part 38's 1" x 1" Wood Side #1, and ensure its 1" x 2" Wood Side #1 faces back. Also, its 1" x 2" Wood Side #2 must be oriented left. Also, ensure its 1" x 2" Wood Side #3 faces front, plus ensure its 1" x 2" Wood Side #4 faces right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: back left

P60 (1" x 2" Lumber 20.25" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 37's 1" x 6" Wood Side #2. Additionally, its 1" x 2" Wood End #2, which is top-facing, should connect to part 38's 1" x 1" Wood Side #1. Next, ensure its 1" x 2" Wood Side #1 faces back, plus its 1" x 2" Wood Side #2 should be directed left. Also, its 1" x 2" Wood Side #3 needs to point front. Next, its 1" x 2" Wood Side #4 needs to point right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: back left

P61 (1" x 2" Lumber 20.25" length) - connect its 1" x 2" Wood End #1 oriented bottom links with part 37's 1" x 6" Wood Side #2. Also, connect its 1" x 2" Wood End #2 oriented top links with part 38's 1" x 1" Wood Side #1. After that, ensure its 1" x 2" Wood Side #1 faces back, and ensure its 1" x 2" Wood Side #2 faces left. After that, its 1" x 2" Wood Side #3 needs to point front, and its 1" x 2" Wood Side #4 needs to point right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: back left

P62 (1" x 2" Lumber 20.25" length) - connect its 1" x 2" Wood End #1 oriented bottom links with part 37's 1" x 6" Wood Side #2. Also, its 1" x 2" Wood End #2, which is top-facing, should connect to part 38's 1" x 1" Wood Side #1, also its 1" x 2" Wood Side #1 should be directed back. Next, its 1" x 2" Wood Side #2 needs to point left, then its 1" x 2" Wood Side #3 must be oriented front, also ensure its 1" x 2" Wood Side #4 faces right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: back left

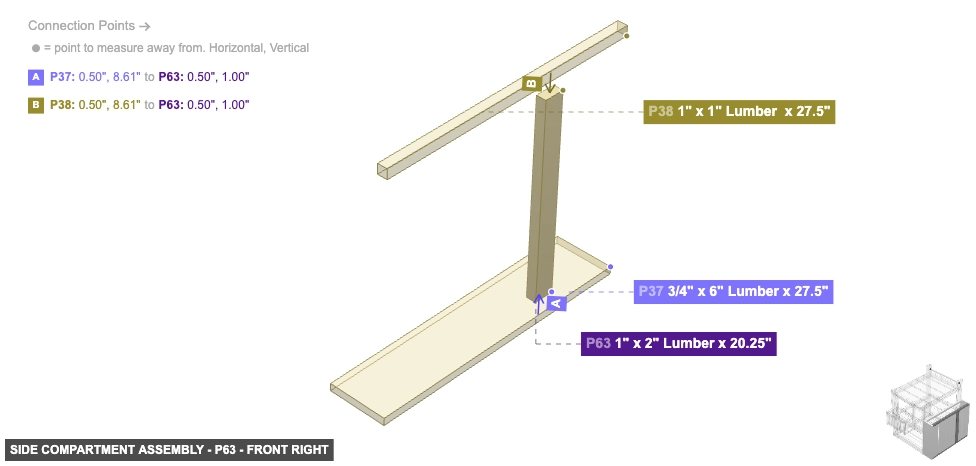

P63 (1" x 2" Lumber 20.25" length) - attach its 1" x 2" Wood End #1 facing bottom to part 37's 1" x 6" Wood Side #2, then attach its 1" x 2" Wood End #2 facing top to part 38's 1" x 1" Wood Side #1, plus ensure its 1" x 2" Wood Side #1 faces back, also its 1" x 2" Wood Side #2 needs to point left, plus its 1" x 2" Wood Side #3 should be directed front, plus ensure its 1" x 2" Wood Side #4 faces right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: back left

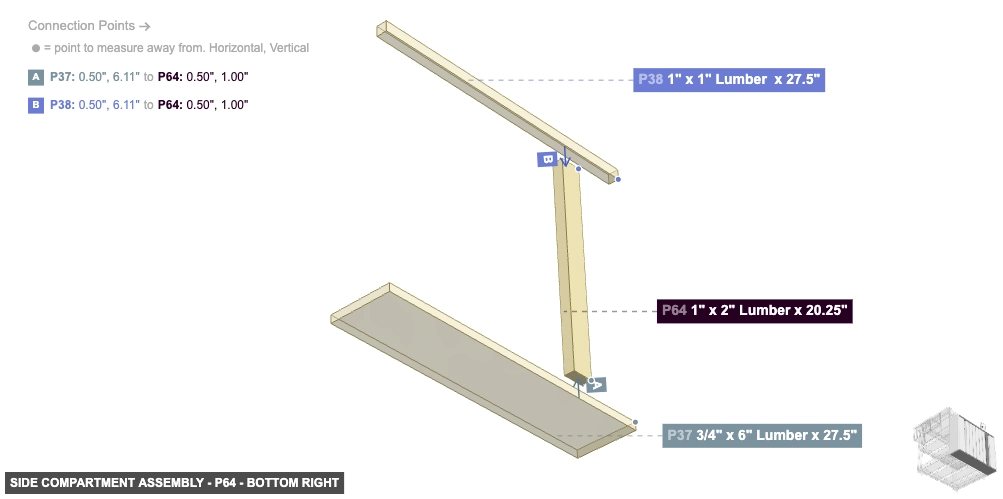

P64 (1" x 2" Lumber 20.25" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 37's 1" x 6" Wood Side #2. After that, attach its 1" x 2" Wood End #2 facing top to part 38's 1" x 1" Wood Side #1. Also, its 1" x 2" Wood Side #1 needs to point back. Next, ensure its 1" x 2" Wood Side #2 faces left, then its 1" x 2" Wood Side #3 should be directed front. Next, ensure its 1" x 2" Wood Side #4 faces right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: front right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Part: 1" x 2" Lumber x 20.25" - Angle: bottom right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Group: Handle Assembly

Assemble the pipe handle components and attach them to the main frame.

Part: 1/2" Flange Black Steel - Angle: back left

P31 (0.5" Flange Black Steel) - connect its 0.5" F Threaded #1 oriented right links with part 33's 0.5" M Threaded #1

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" Flange Black Steel - Angle: front right

P31 (0.5" Flange Black Steel) - connect its 0.5" F Threaded #1 oriented right links with part 33's 0.5" M Threaded #1

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" Flange Black Steel - Angle: bottom right

P31 (0.5" Flange Black Steel) - connect its 0.5" F Threaded #1 oriented right links with part 33's 0.5" M Threaded #1

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" Flange Black Steel - Angle: back left

P32 (0.5" Flange Black Steel) - attach its 0.5" F Threaded #1 facing left to part 33's 0.5" M Threaded #2

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" Flange Black Steel - Angle: front right

P32 (0.5" Flange Black Steel) - attach its 0.5" F Threaded #1 facing left to part 33's 0.5" M Threaded #2

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" Flange Black Steel - Angle: bottom right

P32 (0.5" Flange Black Steel) - attach its 0.5" F Threaded #1 facing left to part 33's 0.5" M Threaded #2

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" x Any Length Nipple Black Steel x 21.75" - Angle: back left

P33 (0.5" x Any Length Nipple Black Steel 21.75" length) - its 0.5" M Threaded #1, which is left-facing, should connect to part 31's 0.5" F Threaded #1. Additionally, connect its 0.5" M Threaded #2 oriented right links with part 32's 0.5" F Threaded #1

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" x Any Length Nipple Black Steel x 21.75" - Angle: front right

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Part: 1/2" x Any Length Nipple Black Steel x 21.75" - Angle: bottom right

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Phase 3: Inter-Group Assembly

Attaching: Main Frame Assembly

Assemble the main vertical posts and the horizontal supports that connect them.

Angle: back left

Assembly of Main Frame Assembly - back_left

P1 (1" x 3" Lumber 34.25" length) - connect its 1"x 3" Wood Side #2 oriented left links with part 32's Screw-In Screw In #1, then attach its 1"x 3" Wood Side #4 facing right to part 34's 1" x 1" Wood Side #1. Additionally, its 1"x 3" Wood End #1 needs to point top. Next, its 1"x 3" Wood Side #1 needs to point front. Next, ensure its 1"x 3" Wood Side #3 faces back. Also, its 1"x 3" Wood End #2 must be oriented bottom P2 (1" x 3" Lumber 34.25" length) - connect its 1"x 3" Wood Side #2 oriented right links with part 31's Screw-In Screw In #1, and its 1"x 3" Wood End #1 must be oriented top, and ensure its 1"x 3" Wood Side #1 faces back. After that, its 1"x 3" Wood Side #3 must be oriented front, plus its 1"x 3" Wood Side #4 must be oriented left. Additionally, its 1"x 3" Wood End #2 needs to point bottom P44 (1" x 2" Lumber 22" length) - attach its 1" x 2" Wood End #1 facing right to part 42's 1" x 2" Wood Side #2. After that, connect its 1" x 2" Wood Side #1 oriented bottom links with part 3's 1" x 6" Wood Side #2. Also, connect its 1" x 2" Wood Side #4 oriented back links with part 50's 1" x 2" Wood End #1. Next, attach its 1" x 2" Wood End #2 facing left to part 43's 1" x 2" Wood Side #2. After that, ensure its 1" x 2" Wood Side #2 faces front, plus its 1" x 2" Wood Side #3 needs to point top P45 (1" x 2" Lumber 22" length) - attach its 1" x 2" Wood End #1 facing right to part 42's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood Side #1, which is bottom-facing, should connect to part 6's 1" x 6" Wood Side #2, then connect its 1" x 2" Wood Side #2 oriented front links with part 16's 1" x 1" Wood Side #4, then attach its 1" x 2" Wood Side #4 facing back to part 48's 1" x 2" Wood End #1, then connect its 1" x 2" Wood End #2 oriented left links with part 43's 1" x 2" Wood Side #2. After that, ensure its 1" x 2" Wood Side #3 faces top P46 (1" x 2" Lumber 22" length) - its 1" x 2" Wood End #1, which is right-facing, should connect to part 1's 1"x 3" Wood Side #2, also connect its 1" x 2" Wood Side #1 oriented bottom links with part 7's 1" x 6" Wood Side #2. Next, connect its 1" x 2" Wood Side #2 oriented front links with part 48's 1" x 2" Wood End #2. Additionally, attach its 1" x 2" Wood End #2 facing left to part 2's 1"x 3" Wood Side #2, and ensure its 1" x 2" Wood Side #3 faces top. After that, its 1" x 2" Wood Side #4 needs to point back P47 (1" x 2" Lumber 22" length) - connect its 1" x 2" Wood End #1 oriented right links with part 1's 1"x 3" Wood Side #2, also attach its 1" x 2" Wood Side #1 facing bottom to part 39's 1" x 6" Wood Side #2, plus attach its 1" x 2" Wood Side #2 facing front to part 50's 1" x 2" Wood End #2. Also, its 1" x 2" Wood End #2, which is left-facing, should connect to part 2's 1"x 3" Wood Side #2, also its 1" x 2" Wood Side #3 must be oriented top, and ensure its 1" x 2" Wood Side #4 faces back P52 (1" x 2" Lumber 22" length) - connect its 1" x 2" Wood End #1 oriented right links with part 1's 1"x 3" Wood Side #2, plus attach its 1" x 2" Wood Side #1 facing top to part 10's 1" x 6" Wood Side #2, plus its 1" x 2" Wood Side #4, which is front-facing, should connect to part 53's 1" x 2" Wood End #2, then its 1" x 2" Wood End #2, which is left-facing, should connect to part 2's 1"x 3" Wood Side #2, also its 1" x 2" Wood Side #2 must be oriented back. Additionally, its 1" x 2" Wood Side #3 must be oriented bottom

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Angle: front right

Assembly of Main Frame Assembly - front_right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Angle: bottom right

Assembly of Main Frame Assembly - bottom_right

1" x 3" Lumber x 34.25"x 2

1" x 2" Lumber x 22"x 5

Attaching: Bottom Shelf and Wheels

Attach the bottom shelf board to the main frame and install its wheels.

Angle: back left

Assembly of Bottom Shelf and Wheels - back_left

P39 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood End #1 oriented right links with part 1's 1"x 3" Wood Side #2, then attach its 1" x 6" Wood Side #2 facing top to part 47's 1" x 2" Wood Side #1. After that, attach its 1" x 6" Wood Side #4 facing bottom to part 40's Screw-In Screw In #1. Next, connect its 1" x 6" Wood End #2 oriented left links with part 2's 1"x 3" Wood Side #2, also its 1" x 6" Wood Side #1 must be oriented front, then ensure its 1" x 6" Wood Side #3 faces back P40 (2" Rigid Plate Caster Wheel) - connect its Screw-In Screw In #1 oriented top links with part 39's 1" x 6" Wood Side #4 P41 (2" Rigid Plate Caster Wheel) - connect its Screw-In Screw In #1 oriented top links with part 39's 1" x 6" Wood Side #4

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Angle: front right

Assembly of Bottom Shelf and Wheels - front_right

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Angle: bottom right

Assembly of Bottom Shelf and Wheels - bottom_right

3/4" x 6" Lumber x 22"x 1

2" Rigid Plate Caster Wheelx 2

Attaching: Lower Middle Shelf Assembly

Install the shelf board and cross supports for the second level from the bottom.

Angle: back left

Assembly of Lower Middle Shelf Assembly - back_left

P7 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood End #1 oriented right links with part 1's 1"x 3" Wood Side #2, also attach its 1" x 6" Wood Side #2 facing top to part 46's 1" x 2" Wood Side #1. Also, attach its 1" x 6" Wood End #2 facing left to part 2's 1"x 3" Wood Side #2. Additionally, ensure its 1" x 6" Wood Side #1 faces front. Also, its 1" x 6" Wood Side #3 needs to point back. After that, its 1" x 6" Wood Side #4 needs to point bottom P48 (1" x 2" Lumber 27" length) - connect its 1" x 2" Wood End #1 oriented front links with part 45's 1" x 2" Wood Side #4, also its 1" x 2" Wood Side #1, which is bottom-facing, should connect to part 6's 1" x 6" Wood Side #2, then attach its 1" x 2" Wood Side #2 facing left to part 2's 1"x 3" Wood Side #2, then connect its 1" x 2" Wood End #2 oriented back links with part 46's 1" x 2" Wood Side #2, also ensure its 1" x 2" Wood Side #3 faces top. After that, ensure its 1" x 2" Wood Side #4 faces right P49 (1" x 2" Lumber 27" length) - attach its 1" x 2" Wood End #1 facing front to part 45's 1" x 2" Wood Side #4. Also, connect its 1" x 2" Wood Side #1 oriented bottom links with part 6's 1" x 6" Wood Side #2, also its 1" x 2" Wood Side #4, which is right-facing, should connect to part 1's 1"x 3" Wood Side #2, plus its 1" x 2" Wood End #2, which is back-facing, should connect to part 46's 1" x 2" Wood Side #2. Next, ensure its 1" x 2" Wood Side #2 faces left, then its 1" x 2" Wood Side #3 needs to point top

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Angle: front right

Assembly of Lower Middle Shelf Assembly - front_right

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Angle: bottom right

Assembly of Lower Middle Shelf Assembly - bottom_right

3/4" x 6" Lumber x 22"x 1

1" x 2" Lumber x 27"x 2

Attaching: Upper Middle Shelf Level 1 Assembly

Install the main shelf board for the third level from the bottom.

Angle: back left

Assembly of Upper Middle Shelf Level 1 Assembly - back_left

P6 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 42's 1" x 2" Wood Side #2, then attach its 1" x 6" Wood Side #2 facing top to part 45's 1" x 2" Wood Side #1. After that, connect its 1" x 6" Wood End #2 oriented left links with part 43's 1" x 2" Wood Side #2, plus ensure its 1" x 6" Wood Side #1 faces front. After that, its 1" x 6" Wood Side #3 must be oriented back, then its 1" x 6" Wood Side #4 must be oriented bottom

3/4" x 6" Lumber x 22"x 1

Angle: front right

Assembly of Upper Middle Shelf Level 1 Assembly - front_right

3/4" x 6" Lumber x 22"x 1

Angle: bottom right

Assembly of Upper Middle Shelf Level 1 Assembly - bottom_right

3/4" x 6" Lumber x 22"x 1

Attaching: Upper Middle Shelf Level 2 Assembly & Wheels

Install the shelf boards, side supports, cross supports, and wheels for the fourth level from the bottom.

Angle: back left

Assembly of Upper Middle Shelf Level 2 Assembly & Wheels - back_left

P3 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 42's 1" x 2" Wood Side #2. Also, attach its 1" x 6" Wood Side #2 facing top to part 44's 1" x 2" Wood Side #1. After that, connect its 1" x 6" Wood Side #4 oriented bottom links with part 29's Screw-In Screw In #1. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 43's 1" x 2" Wood Side #2. After that, its 1" x 6" Wood Side #1 must be oriented front. After that, its 1" x 6" Wood Side #3 must be oriented back P4 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #2, which is top-facing, should connect to part 50's 1" x 2" Wood Side #1. Also, its 1" x 6" Wood End #1 must be oriented right. Next, ensure its 1" x 6" Wood Side #1 faces front, plus ensure its 1" x 6" Wood Side #3 faces back, then ensure its 1" x 6" Wood Side #4 faces bottom. Next, ensure its 1" x 6" Wood End #2 faces left P5 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #2, which is top-facing, should connect to part 50's 1" x 2" Wood Side #1. Next, ensure its 1" x 6" Wood End #1 faces right. After that, its 1" x 6" Wood Side #1 needs to point front, plus its 1" x 6" Wood Side #3 should be directed back, and ensure its 1" x 6" Wood Side #4 faces bottom. After that, ensure its 1" x 6" Wood End #2 faces left P29 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 3's 1" x 6" Wood Side #4 P30 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 3's 1" x 6" Wood Side #4 P42 (1" x 2" Lumber 30" length) - attach its 1" x 2" Wood Side #2 facing left to part 3's 1" x 6" Wood End #1. Next, its 1" x 2" Wood Side #4, which is right-facing, should connect to part 36's 1" x 6" Wood Side #3, also its 1" x 2" Wood End #1 must be oriented bottom, also its 1" x 2" Wood Side #1 must be oriented back. Also, its 1" x 2" Wood Side #3 should be directed front, then its 1" x 2" Wood End #2 needs to point top P43 (1" x 2" Lumber 30" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 3's 1" x 6" Wood End #2, and ensure its 1" x 2" Wood End #1 faces bottom. Also, its 1" x 2" Wood Side #1 must be oriented front, then its 1" x 2" Wood Side #3 needs to point back, plus ensure its 1" x 2" Wood Side #4 faces left, plus its 1" x 2" Wood End #2 must be oriented top P50 (1" x 2" Lumber 27" length) - connect its 1" x 2" Wood End #1 oriented front links with part 44's 1" x 2" Wood Side #4. Additionally, its 1" x 2" Wood Side #1, which is bottom-facing, should connect to part 3's 1" x 6" Wood Side #2. After that, its 1" x 2" Wood Side #4, which is right-facing, should connect to part 1's 1"x 3" Wood Side #2, plus its 1" x 2" Wood End #2, which is back-facing, should connect to part 47's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood Side #2 needs to point left, then ensure its 1" x 2" Wood Side #3 faces top P51 (1" x 2" Lumber 27" length) - its 1" x 2" Wood End #1, which is front-facing, should connect to part 44's 1" x 2" Wood Side #4. Next, its 1" x 2" Wood Side #1, which is bottom-facing, should connect to part 3's 1" x 6" Wood Side #2, and attach its 1" x 2" Wood Side #2 facing left to part 2's 1"x 3" Wood Side #2. Additionally, its 1" x 2" Wood End #2, which is back-facing, should connect to part 47's 1" x 2" Wood Side #2, then its 1" x 2" Wood Side #3 needs to point top. Additionally, its 1" x 2" Wood Side #4 should be directed right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Angle: front right

Assembly of Upper Middle Shelf Level 2 Assembly & Wheels - front_right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

Angle: bottom right

Assembly of Upper Middle Shelf Level 2 Assembly & Wheels - bottom_right

3/4" x 6" Lumber x 22"x 3

2" Rigid Plate Caster Wheelx 2

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 27"x 2

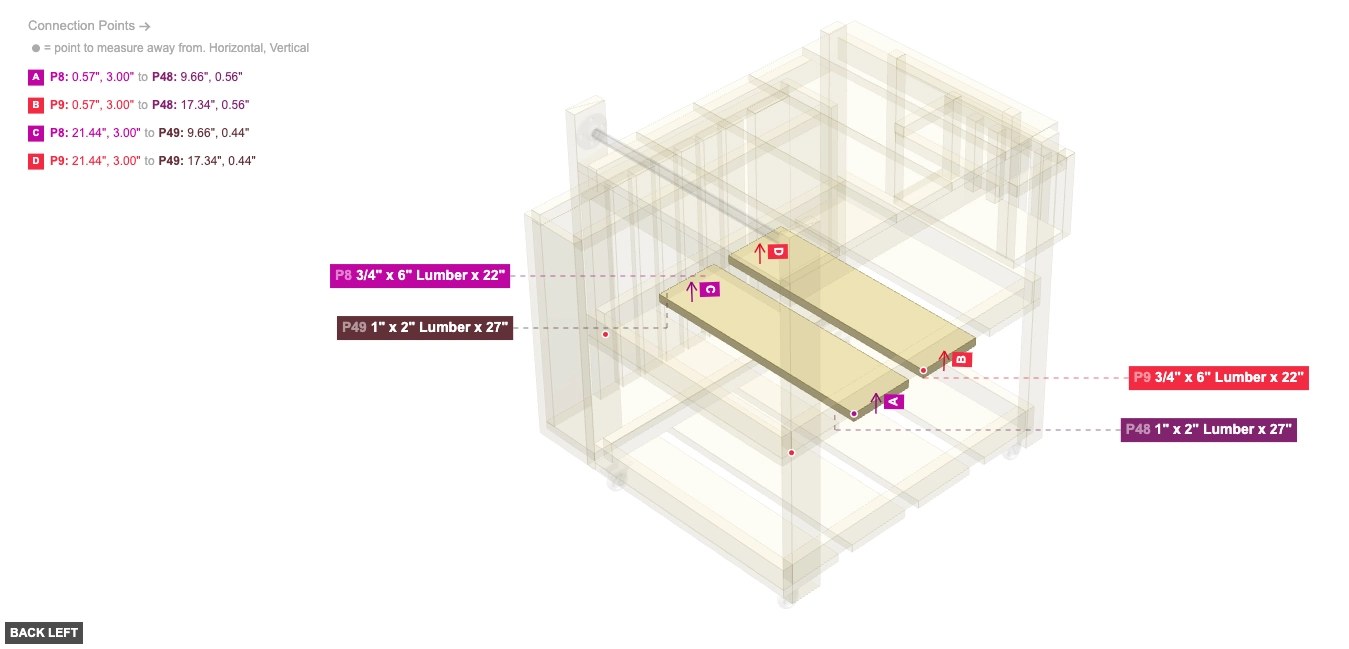

Attaching: Upper Middle Shelf Level 1 Boards

Place the shelf boards onto the previously assembled supports for the third level from the bottom.

Angle: back left

Assembly of Upper Middle Shelf Level 1 Boards - back_left

P8 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood Side #2 oriented top links with part 48's 1" x 2" Wood Side #1, also its 1" x 6" Wood End #1 must be oriented right. Additionally, its 1" x 6" Wood Side #1 needs to point front. Also, ensure its 1" x 6" Wood Side #3 faces back, also its 1" x 6" Wood Side #4 should be directed bottom. Also, its 1" x 6" Wood End #2 needs to point left P9 (0.75" x 6" Lumber 22" length) - attach its 1" x 6" Wood Side #2 facing top to part 48's 1" x 2" Wood Side #1, also ensure its 1" x 6" Wood End #1 faces right, also its 1" x 6" Wood Side #1 needs to point front. Additionally, its 1" x 6" Wood Side #3 must be oriented back, then its 1" x 6" Wood Side #4 should be directed bottom. After that, its 1" x 6" Wood End #2 should be directed left

3/4" x 6" Lumber x 22"x 2

Angle: front right

Assembly of Upper Middle Shelf Level 1 Boards - front_right

3/4" x 6" Lumber x 22"x 2

Angle: bottom right

Assembly of Upper Middle Shelf Level 1 Boards - bottom_right

3/4" x 6" Lumber x 22"x 2

Attaching: Top Surface Assembly

Assemble the boards and supports that form the top working surface of the cart.

Angle: back left

Assembly of Top Surface Assembly - back_left

P10 (0.75" x 6" Lumber 22" length) - attach its 1" x 6" Wood End #1 facing right to part 1's 1"x 3" Wood Side #2. Also, connect its 1" x 6" Wood Side #2 oriented bottom links with part 52's 1" x 2" Wood Side #1, and its 1" x 6" Wood Side #3, which is front-facing, should connect to part 11's 1" x 6" Wood Side #1, and attach its 1" x 6" Wood End #2 facing left to part 2's 1"x 3" Wood Side #2, and ensure its 1" x 6" Wood Side #1 faces back, plus its 1" x 6" Wood Side #4 must be oriented top P11 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1, which is back-facing, should connect to part 10's 1" x 6" Wood Side #3. After that, its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 53's 1" x 2" Wood Side #1. Additionally, connect its 1" x 6" Wood Side #3 oriented front links with part 12's 1" x 6" Wood Side #1. Also, ensure its 1" x 6" Wood End #1 faces right, plus its 1" x 6" Wood Side #4 must be oriented top, and its 1" x 6" Wood End #2 needs to point left P12 (0.75" x 6" Lumber 22" length) - attach its 1" x 6" Wood Side #1 facing back to part 11's 1" x 6" Wood Side #3. Also, attach its 1" x 6" Wood Side #2 facing bottom to part 53's 1" x 2" Wood Side #1. Additionally, attach its 1" x 6" Wood Side #3 facing front to part 13's 1" x 6" Wood Side #1, plus its 1" x 6" Wood End #1 needs to point right, plus its 1" x 6" Wood Side #4 must be oriented top, and its 1" x 6" Wood End #2 must be oriented left P13 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #1, which is back-facing, should connect to part 12's 1" x 6" Wood Side #3, and connect its 1" x 6" Wood Side #2 oriented bottom links with part 53's 1" x 2" Wood Side #1, and connect its 1" x 6" Wood Side #3 oriented front links with part 14's 1" x 6" Wood Side #1. Next, its 1" x 6" Wood End #1 should be directed right. Next, ensure its 1" x 6" Wood Side #4 faces top, plus ensure its 1" x 6" Wood End #2 faces left P14 (0.75" x 6" Lumber 22" length) - connect its 1" x 6" Wood End #1 oriented right links with part 42's 1" x 2" Wood Side #2, also connect its 1" x 6" Wood Side #1 oriented back links with part 13's 1" x 6" Wood Side #3, plus its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 16's 1" x 1" Wood End #2. Additionally, connect its 1" x 6" Wood End #2 oriented left links with part 43's 1" x 2" Wood Side #2. Additionally, its 1" x 6" Wood Side #3 must be oriented front. Also, its 1" x 6" Wood Side #4 needs to point top P53 (1" x 2" Lumber 27" length) - connect its 1" x 2" Wood End #1 oriented front links with part 55's 1" x 2" Wood Side #2, plus its 1" x 2" Wood Side #1, which is top-facing, should connect to part 10's 1" x 6" Wood Side #2, plus its 1" x 2" Wood Side #2, which is right-facing, should connect to part 1's 1"x 3" Wood Side #2, plus its 1" x 2" Wood End #2, which is back-facing, should connect to part 52's 1" x 2" Wood Side #4. Additionally, ensure its 1" x 2" Wood Side #3 faces bottom, then its 1" x 2" Wood Side #4 must be oriented left P54 (1" x 2" Lumber 27" length) - its 1" x 2" Wood End #1, which is front-facing, should connect to part 55's 1" x 2" Wood Side #2, plus its 1" x 2" Wood Side #1, which is top-facing, should connect to part 10's 1" x 6" Wood Side #2, then its 1" x 2" Wood Side #4, which is left-facing, should connect to part 2's 1"x 3" Wood Side #2. Additionally, attach its 1" x 2" Wood End #2 facing back to part 52's 1" x 2" Wood Side #4, then its 1" x 2" Wood Side #2 should be directed right, then its 1" x 2" Wood Side #3 must be oriented bottom P55 (1" x 2" Lumber 22" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 43's 1" x 2" Wood Side #2, plus attach its 1" x 2" Wood Side #2 facing back to part 54's 1" x 2" Wood End #1, plus attach its 1" x 2" Wood Side #3 facing top to part 14's 1" x 6" Wood Side #2, also its 1" x 2" Wood Side #4, which is front-facing, should connect to part 15's 1" x 1" Wood Side #1, also connect its 1" x 2" Wood End #2 oriented right links with part 42's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood Side #1 needs to point bottom

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Angle: front right

Assembly of Top Surface Assembly - front_right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Angle: bottom right

Assembly of Top Surface Assembly - bottom_right

3/4" x 6" Lumber x 22"x 5

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 22"x 1

Attaching: Front Internal Organizer Assembly

Assemble the small compartment structure located under the front of the top surface.

Angle: back left

Assembly of Front Internal Organizer Assembly - back_left

P15 (1" x 1" Lumber 11.5" length) - connect its 1" x 1" Wood End #1 oriented right links with part 16's 1" x 1" Wood Side #1, also its 1" x 1" Wood Side #1, which is back-facing, should connect to part 55's 1" x 2" Wood Side #4, plus its 1" x 1" Wood Side #4, which is top-facing, should connect to part 14's 1" x 6" Wood Side #2. Also, its 1" x 1" Wood End #2, which is left-facing, should connect to part 17's 1" x 1" Wood Side #1, plus its 1" x 1" Wood Side #2 needs to point bottom. Additionally, its 1" x 1" Wood Side #3 should be directed front P16 (1" x 1" Lumber 15" length) - attach its 1" x 1" Wood Side #1 facing left to part 15's 1" x 1" Wood End #1. Also, connect its 1" x 1" Wood Side #2 oriented front links with part 18's 1" x 6" Wood Side #1, also connect its 1" x 1" Wood Side #4 oriented back links with part 45's 1" x 2" Wood Side #2, also connect its 1" x 1" Wood End #2 oriented top links with part 14's 1" x 6" Wood Side #2. Also, its 1" x 1" Wood End #1 needs to point bottom. Additionally, its 1" x 1" Wood Side #3 should be directed right P17 (1" x 1" Lumber 15" length) - its 1" x 1" Wood Side #1, which is right-facing, should connect to part 15's 1" x 1" Wood End #2. Additionally, connect its 1" x 1" Wood Side #2 oriented back links with part 45's 1" x 2" Wood Side #2. Also, its 1" x 1" Wood Side #4, which is front-facing, should connect to part 18's 1" x 6" Wood Side #1. Additionally, connect its 1" x 1" Wood End #2 oriented top links with part 14's 1" x 6" Wood Side #2. Additionally, its 1" x 1" Wood End #1 needs to point bottom. After that, its 1" x 1" Wood Side #3 should be directed left P18 (0.75" x 6" Lumber 13.5" length) - its 1" x 6" Wood Side #1, which is back-facing, should connect to part 16's 1" x 1" Wood Side #2. After that, attach its 1" x 6" Wood Side #3 facing front to part 19's 1" x 1" Wood Side #1, then its 1" x 6" Wood End #1 must be oriented left. Also, its 1" x 6" Wood Side #2 needs to point top, then ensure its 1" x 6" Wood Side #4 faces bottom. Next, its 1" x 6" Wood End #2 needs to point right P19 (1" x 1" Lumber 8" length) - connect its 1" x 1" Wood Side #1 oriented back links with part 18's 1" x 6" Wood Side #3. Next, its 1" x 1" Wood Side #4, which is left-facing, should connect to part 23's 1" x 1" Wood End #1, plus ensure its 1" x 1" Wood End #1 faces top. Also, ensure its 1" x 1" Wood Side #2 faces right, then ensure its 1" x 1" Wood Side #3 faces front. Additionally, its 1" x 1" Wood End #2 must be oriented bottom P20 (1" x 1" Lumber 8" length) - connect its 1" x 1" Wood Side #1 oriented back links with part 18's 1" x 6" Wood Side #3, and attach its 1" x 1" Wood Side #2 facing right to part 23's 1" x 1" Wood End #2, then its 1" x 1" Wood End #1 needs to point top, and its 1" x 1" Wood Side #3 should be directed front. After that, its 1" x 1" Wood Side #4 must be oriented left. Next, ensure its 1" x 1" Wood End #2 faces bottom P21 (1" x 1" Lumber 6" length) - its 1" x 1" Wood End #1, which is back-facing, should connect to part 17's 1" x 1" Wood Side #4, plus its 1" x 1" Wood End #2, which is front-facing, should connect to part 20's 1" x 1" Wood Side #1, plus its 1" x 1" Wood Side #1 must be oriented bottom, also its 1" x 1" Wood Side #2 needs to point right. Also, its 1" x 1" Wood Side #3 should be directed top, and its 1" x 1" Wood Side #4 should be directed left P22 (1" x 1" Lumber 6" length) - attach its 1" x 1" Wood End #1 facing back to part 16's 1" x 1" Wood Side #2. Next, its 1" x 1" Wood End #2, which is front-facing, should connect to part 19's 1" x 1" Wood Side #1, also its 1" x 1" Wood Side #1 should be directed bottom, and ensure its 1" x 1" Wood Side #2 faces right, also its 1" x 1" Wood Side #3 must be oriented top. After that, its 1" x 1" Wood Side #4 must be oriented left P23 (1" x 1" Lumber 11.5" length) - its 1" x 1" Wood End #1, which is right-facing, should connect to part 19's 1" x 1" Wood Side #4. Also, attach its 1" x 1" Wood Side #3 facing bottom to part 24's 1" x 1" Wood End #2. After that, attach its 1" x 1" Wood End #2 facing left to part 20's 1" x 1" Wood Side #2. Also, ensure its 1" x 1" Wood Side #1 faces top. Also, ensure its 1" x 1" Wood Side #2 faces back, plus its 1" x 1" Wood Side #4 should be directed front P24 (1" x 1" Lumber 7" length) - connect its 1" x 1" Wood Side #2 oriented back links with part 18's 1" x 6" Wood Side #3, and its 1" x 1" Wood End #2, which is top-facing, should connect to part 23's 1" x 1" Wood Side #3, plus its 1" x 1" Wood End #1 must be oriented bottom. After that, ensure its 1" x 1" Wood Side #1 faces right. Additionally, its 1" x 1" Wood Side #3 should be directed left, and its 1" x 1" Wood Side #4 should be directed front P25 (1" x 1" Lumber 7" length) - its 1" x 1" Wood Side #2, which is back-facing, should connect to part 18's 1" x 6" Wood Side #3, then attach its 1" x 1" Wood End #2 facing top to part 23's 1" x 1" Wood Side #3. Also, its 1" x 1" Wood End #1 needs to point bottom, then ensure its 1" x 1" Wood Side #1 faces right, plus ensure its 1" x 1" Wood Side #3 faces left. Additionally, its 1" x 1" Wood Side #4 needs to point front P26 (1" x 1" Lumber 7" length) - attach its 1" x 1" Wood Side #2 facing back to part 18's 1" x 6" Wood Side #3. Next, connect its 1" x 1" Wood End #2 oriented top links with part 23's 1" x 1" Wood Side #3. Also, its 1" x 1" Wood End #1 needs to point bottom. After that, its 1" x 1" Wood Side #1 should be directed right. Additionally, its 1" x 1" Wood Side #3 needs to point left, then its 1" x 1" Wood Side #4 needs to point front P27 (1" x 1" Lumber 7" length) - connect its 1" x 1" Wood Side #2 oriented back links with part 18's 1" x 6" Wood Side #3. After that, its 1" x 1" Wood End #2, which is top-facing, should connect to part 23's 1" x 1" Wood Side #3. Additionally, its 1" x 1" Wood End #1 must be oriented bottom, plus its 1" x 1" Wood Side #1 needs to point right, and its 1" x 1" Wood Side #3 needs to point left, plus its 1" x 1" Wood Side #4 needs to point front P28 (1" x 1" Lumber 11.5" length) - connect its 1" x 1" Wood End #1 oriented right links with part 16's 1" x 1" Wood Side #1. After that, its 1" x 1" Wood End #2, which is left-facing, should connect to part 17's 1" x 1" Wood Side #1, plus its 1" x 1" Wood Side #1 needs to point top. After that, ensure its 1" x 1" Wood Side #2 faces back, plus its 1" x 1" Wood Side #3 needs to point bottom. Additionally, its 1" x 1" Wood Side #4 must be oriented front

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Angle: front right

Assembly of Front Internal Organizer Assembly - front_right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Angle: bottom right

Assembly of Front Internal Organizer Assembly - bottom_right

1" x 1" Lumber x 11.5"x 3

1" x 1" Lumber x 15"x 2

3/4" x 6" Lumber x 13.5"x 1

1" x 1" Lumber x 8"x 2

1" x 1" Lumber x 6"x 2

1" x 1" Lumber x 7"x 4

Attaching: Side Compartment Assembly

Assemble the taller side structure frame and install the internal dividers.

Angle: back left

Assembly of Side Compartment Assembly - back_left

P34 (1" x 1" Lumber 27.5" length) - attach its 1" x 1" Wood End #1 facing front to part 36's 1" x 6" Wood Side #2, plus its 1" x 1" Wood Side #1, which is left-facing, should connect to part 1's 1"x 3" Wood Side #4, also attach its 1" x 1" Wood End #2 facing back to part 35's 1" x 6" Wood Side #2, then its 1" x 1" Wood Side #2 should be directed top, plus its 1" x 1" Wood Side #3 should be directed right, and ensure its 1" x 1" Wood Side #4 faces bottom P35 (0.75" x 6" Lumber 22" length) - attach its 1" x 6" Wood Side #1 facing left to part 1's 1"x 3" Wood Side #4, then connect its 1" x 6" Wood Side #2 oriented front links with part 34's 1" x 1" Wood End #2, also its 1" x 6" Wood End #1 should be directed bottom. Additionally, its 1" x 6" Wood Side #3 must be oriented right. Additionally, its 1" x 6" Wood Side #4 needs to point back, also its 1" x 6" Wood End #2 must be oriented top P36 (0.75" x 6" Lumber 22" length) - its 1" x 6" Wood Side #2, which is back-facing, should connect to part 34's 1" x 1" Wood End #1. Additionally, its 1" x 6" Wood Side #3, which is left-facing, should connect to part 42's 1" x 2" Wood Side #4. Additionally, its 1" x 6" Wood End #1 should be directed bottom, also its 1" x 6" Wood Side #1 must be oriented right. After that, its 1" x 6" Wood Side #4 must be oriented front. Also, ensure its 1" x 6" Wood End #2 faces top P37 (0.75" x 6" Lumber 27.5" length) - attach its 1" x 6" Wood End #1 facing front to part 36's 1" x 6" Wood Side #2. Additionally, attach its 1" x 6" Wood Side #1 facing left to part 1's 1"x 3" Wood Side #4, also connect its 1" x 6" Wood Side #2 oriented top links with part 56's 1" x 4" Wood End #1, also connect its 1" x 6" Wood End #2 oriented back links with part 35's 1" x 6" Wood Side #2. After that, its 1" x 6" Wood Side #3 needs to point right. Additionally, its 1" x 6" Wood Side #4 should be directed bottom P38 (1" x 1" Lumber 27.5" length) - attach its 1" x 1" Wood End #1 facing front to part 36's 1" x 6" Wood Side #2, then attach its 1" x 1" Wood Side #1 facing bottom to part 56's 1" x 4" Wood End #2, also attach its 1" x 1" Wood End #2 facing back to part 35's 1" x 6" Wood Side #2, then its 1" x 1" Wood Side #2 should be directed left. Also, its 1" x 1" Wood Side #3 should be directed top. After that, its 1" x 1" Wood Side #4 needs to point right P56 (1" x 4" Lumber 20.25" length) - its 1" x 4" Wood End #1, which is bottom-facing, should connect to part 37's 1" x 6" Wood Side #2. After that, its 1" x 4" Wood Side #1, which is back-facing, should connect to part 35's 1" x 6" Wood Side #2, then attach its 1" x 4" Wood End #2 facing top to part 38's 1" x 1" Wood Side #1, also its 1" x 4" Wood Side #2 must be oriented left, plus ensure its 1" x 4" Wood Side #3 faces front. Additionally, its 1" x 4" Wood Side #4 must be oriented right P57 (1" x 4" Lumber 20.25" length) - connect its 1" x 4" Wood End #1 oriented bottom links with part 37's 1" x 6" Wood Side #2. Additionally, attach its 1" x 4" Wood Side #3 facing front to part 36's 1" x 6" Wood Side #2. Additionally, its 1" x 4" Wood End #2, which is top-facing, should connect to part 38's 1" x 1" Wood Side #1, then ensure its 1" x 4" Wood Side #1 faces back. Also, its 1" x 4" Wood Side #2 must be oriented left. Additionally, its 1" x 4" Wood Side #4 should be directed right P58 (1" x 2" Lumber 20.25" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 37's 1" x 6" Wood Side #2, then connect its 1" x 2" Wood End #2 oriented top links with part 38's 1" x 1" Wood Side #1, plus its 1" x 2" Wood Side #1 must be oriented back, plus its 1" x 2" Wood Side #2 must be oriented left, plus its 1" x 2" Wood Side #3 must be oriented front, then its 1" x 2" Wood Side #4 should be directed right P59 (1" x 2" Lumber 20.25" length) - connect its 1" x 2" Wood End #1 oriented bottom links with part 37's 1" x 6" Wood Side #2, plus its 1" x 2" Wood End #2, which is top-facing, should connect to part 38's 1" x 1" Wood Side #1, also its 1" x 2" Wood Side #1 should be directed back, plus its 1" x 2" Wood Side #2 needs to point left. After that, its 1" x 2" Wood Side #3 needs to point front. After that, its 1" x 2" Wood Side #4 must be oriented right P60 (1" x 2" Lumber 20.25" length) - connect its 1" x 2" Wood End #1 oriented bottom links with part 37's 1" x 6" Wood Side #2. Next, connect its 1" x 2" Wood End #2 oriented top links with part 38's 1" x 1" Wood Side #1. Additionally, its 1" x 2" Wood Side #1 needs to point back, also ensure its 1" x 2" Wood Side #2 faces left, then its 1" x 2" Wood Side #3 needs to point front, plus its 1" x 2" Wood Side #4 should be directed right P61 (1" x 2" Lumber 20.25" length) - attach its 1" x 2" Wood End #1 facing bottom to part 37's 1" x 6" Wood Side #2. Next, its 1" x 2" Wood End #2, which is top-facing, should connect to part 38's 1" x 1" Wood Side #1. After that, its 1" x 2" Wood Side #1 must be oriented back. After that, its 1" x 2" Wood Side #2 needs to point left, also its 1" x 2" Wood Side #3 needs to point front. Additionally, its 1" x 2" Wood Side #4 needs to point right P62 (1" x 2" Lumber 20.25" length) - attach its 1" x 2" Wood End #1 facing bottom to part 37's 1" x 6" Wood Side #2. After that, attach its 1" x 2" Wood End #2 facing top to part 38's 1" x 1" Wood Side #1, and its 1" x 2" Wood Side #1 must be oriented back. After that, its 1" x 2" Wood Side #2 should be directed left, plus its 1" x 2" Wood Side #3 should be directed front. Also, its 1" x 2" Wood Side #4 needs to point right P63 (1" x 2" Lumber 20.25" length) - connect its 1" x 2" Wood End #1 oriented bottom links with part 37's 1" x 6" Wood Side #2. Next, its 1" x 2" Wood End #2, which is top-facing, should connect to part 38's 1" x 1" Wood Side #1, then its 1" x 2" Wood Side #1 must be oriented back. Also, its 1" x 2" Wood Side #2 needs to point left, plus ensure its 1" x 2" Wood Side #3 faces front, also its 1" x 2" Wood Side #4 needs to point right P64 (1" x 2" Lumber 20.25" length) - attach its 1" x 2" Wood End #1 facing bottom to part 37's 1" x 6" Wood Side #2. After that, attach its 1" x 2" Wood End #2 facing top to part 38's 1" x 1" Wood Side #1. Next, its 1" x 2" Wood Side #1 should be directed back, and ensure its 1" x 2" Wood Side #2 faces left, also its 1" x 2" Wood Side #3 needs to point front. Additionally, ensure its 1" x 2" Wood Side #4 faces right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Angle: front right

Assembly of Side Compartment Assembly - front_right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Angle: bottom right

Assembly of Side Compartment Assembly - bottom_right

1" x 1" Lumber x 27.5"x 2

3/4" x 6" Lumber x 22"x 2

3/4" x 6" Lumber x 27.5"x 1

1" x 4" Lumber x 20.25"x 2

1" x 2" Lumber x 20.25"x 7

Attaching: Handle Assembly

Assemble the pipe handle components and attach them to the main frame.

Angle: back left

P31 (0.5" Flange Black Steel) - attach its 0.5" F Threaded #1 facing right to part 33's 0.5" M Threaded #1. Next, its Screw-In Screw In #1, which is left-facing, should connect to part 2's 1"x 3" Wood Side #2 P32 (0.5" Flange Black Steel) - its 0.5" F Threaded #1, which is left-facing, should connect to part 33's 0.5" M Threaded #2, also its Screw-In Screw In #1, which is right-facing, should connect to part 1's 1"x 3" Wood Side #2 P33 (0.5" x Any Length Nipple Black Steel 21.75" length) - attach its 0.5" M Threaded #1 facing left to part 31's 0.5" F Threaded #1. Also, connect its 0.5" M Threaded #2 oriented right links with part 32's 0.5" F Threaded #1

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Angle: front right

Assembly of Handle Assembly - front_right

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1

Angle: bottom right

Assembly of Handle Assembly - bottom_right

1/2" Flange Black Steelx 2

1/2" x Any Length Nipple Black Steel x 21.75"x 1
