Loft Bed 2 - Comprehensive Assembly Plan And Visual Guide

This is a wooden loft bed frame. It features four main support legs, horizontal rails forming the bed base frame, slats to support a mattress, a ladder integrated into the front-left side, and guard rail elements on the right side and back. - Loft Bed

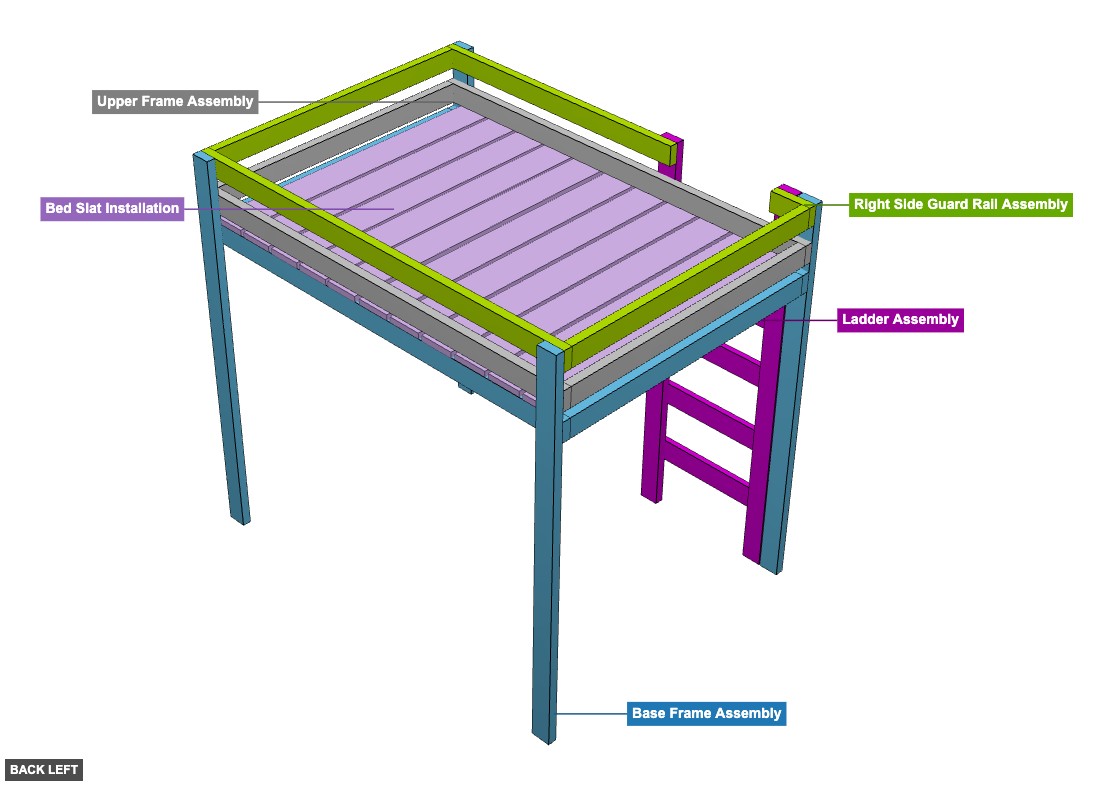

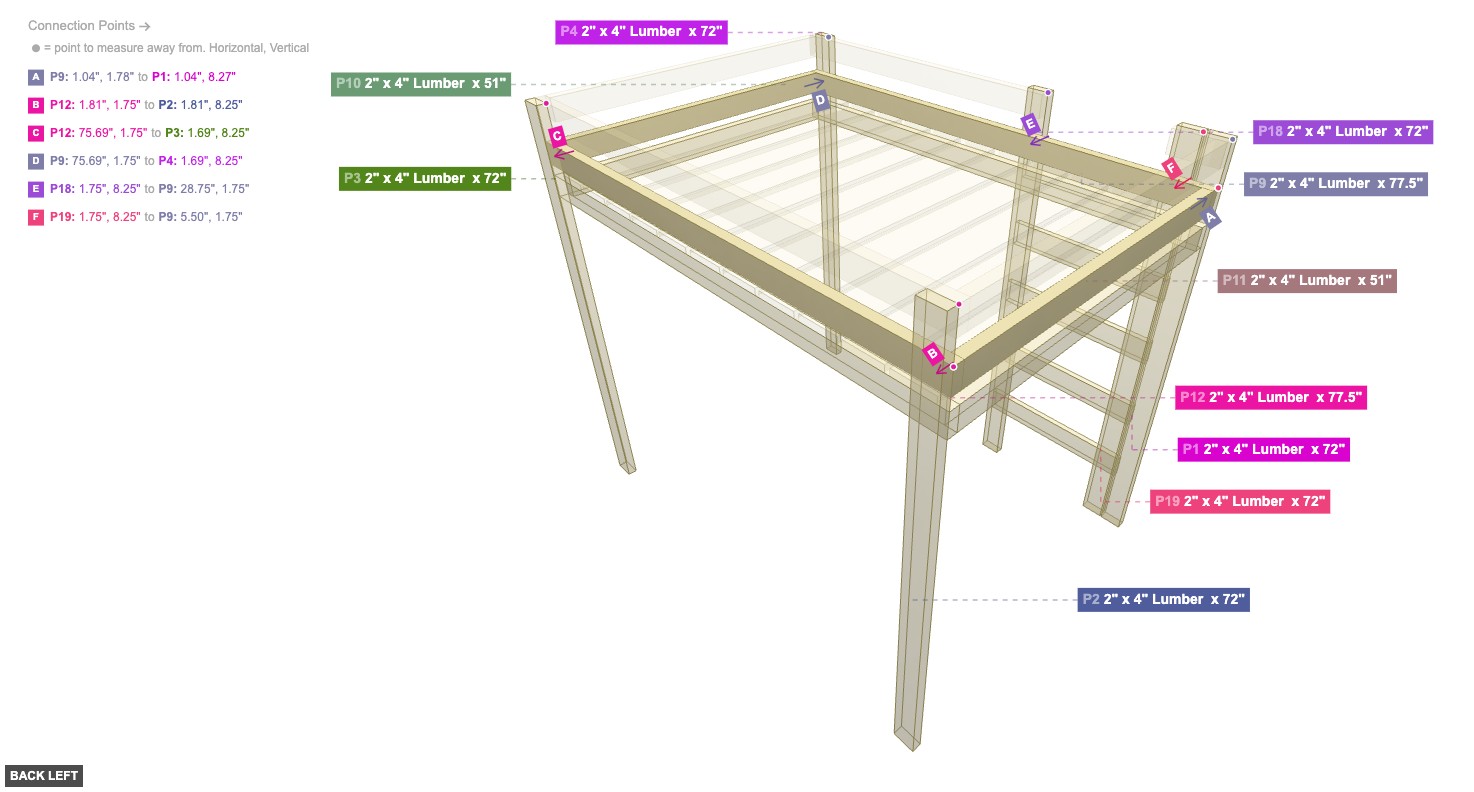

Phase 1: Group Overview

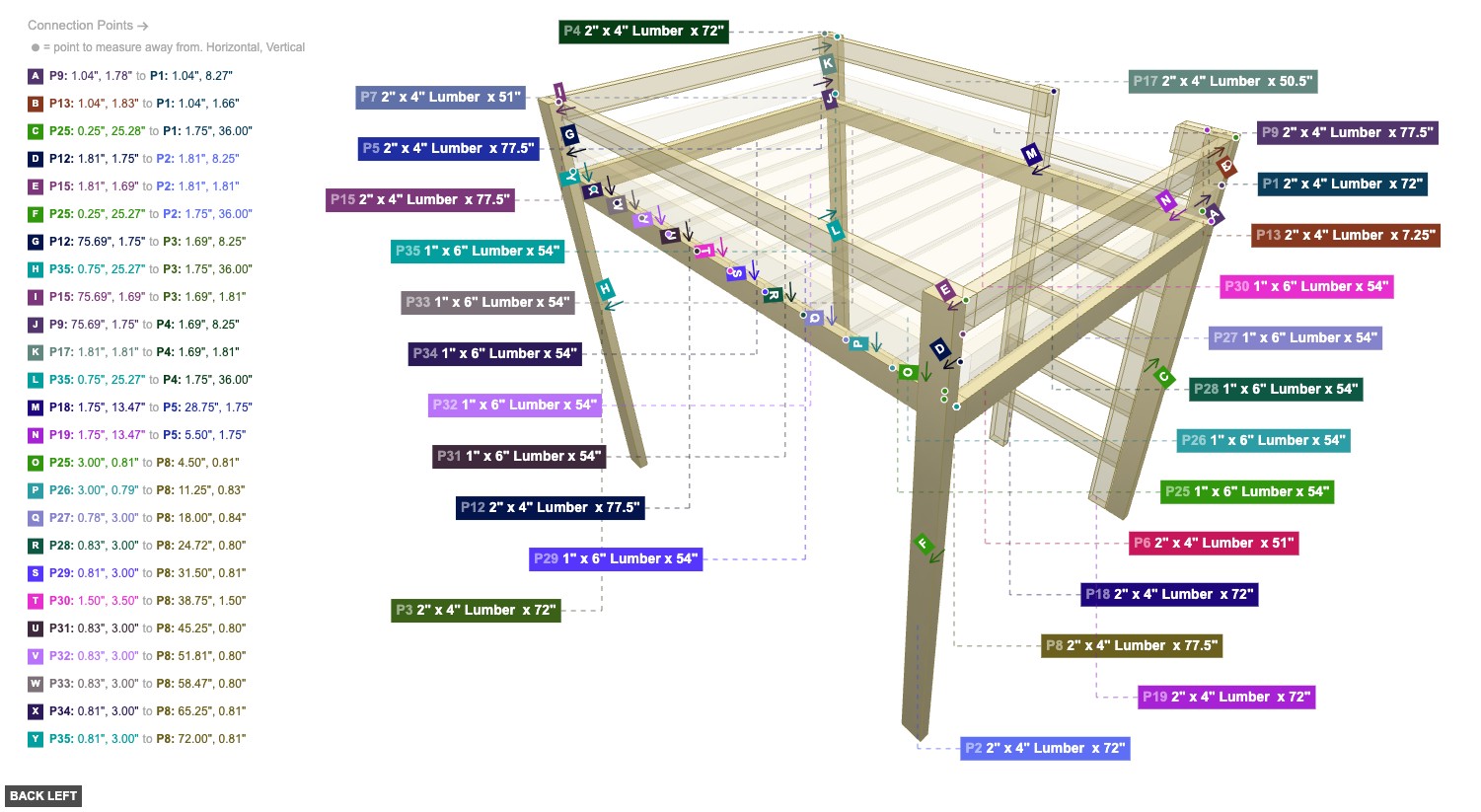

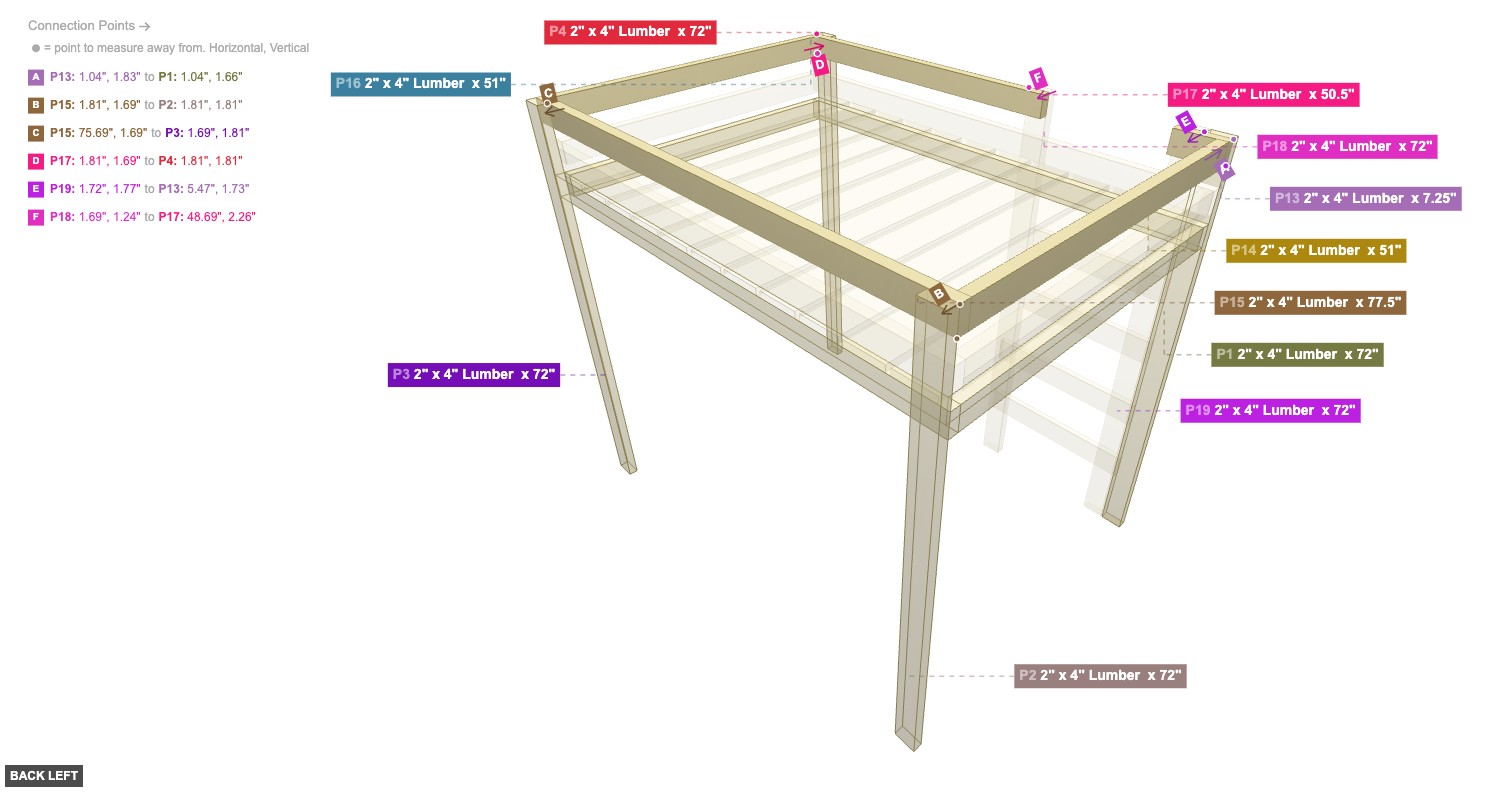

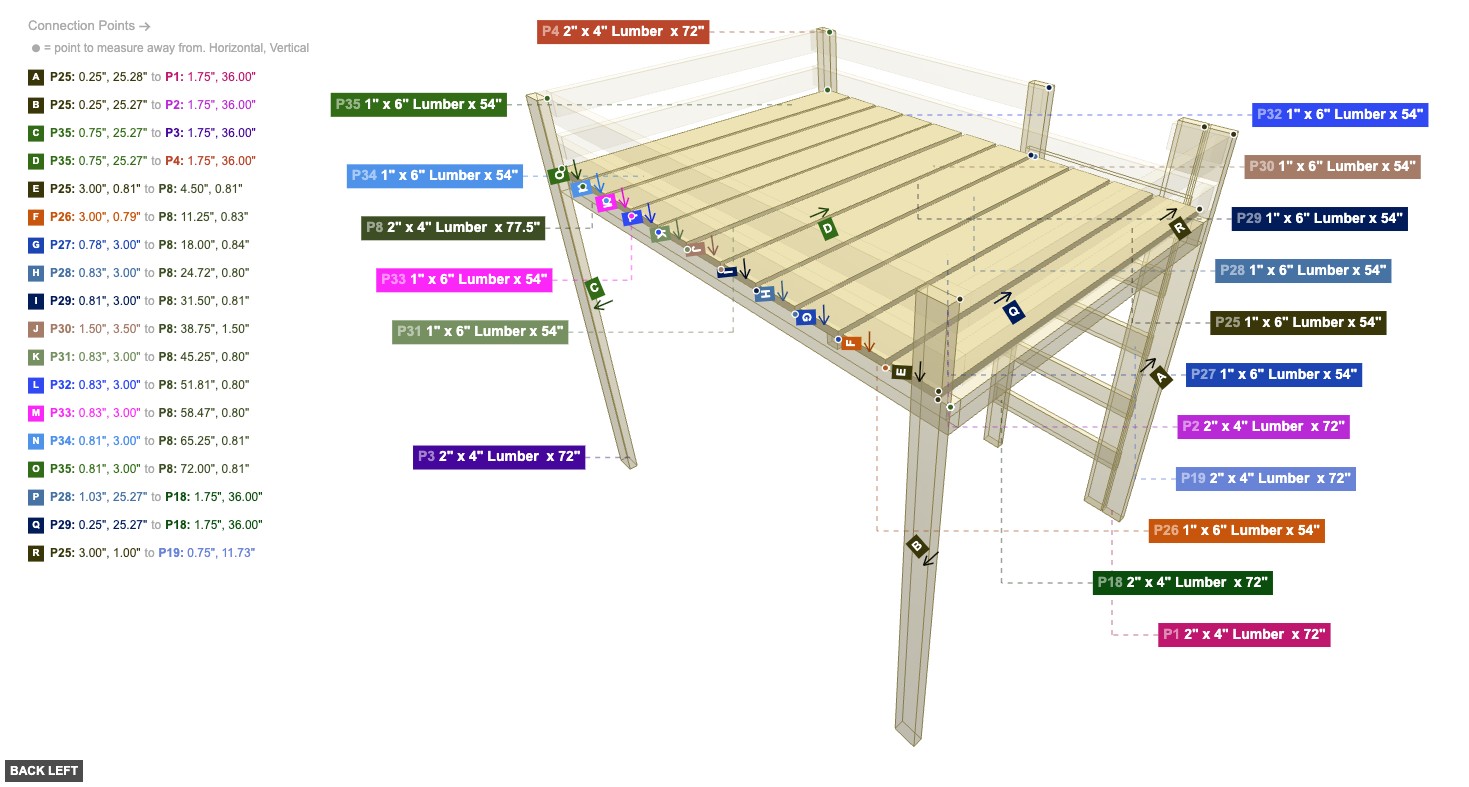

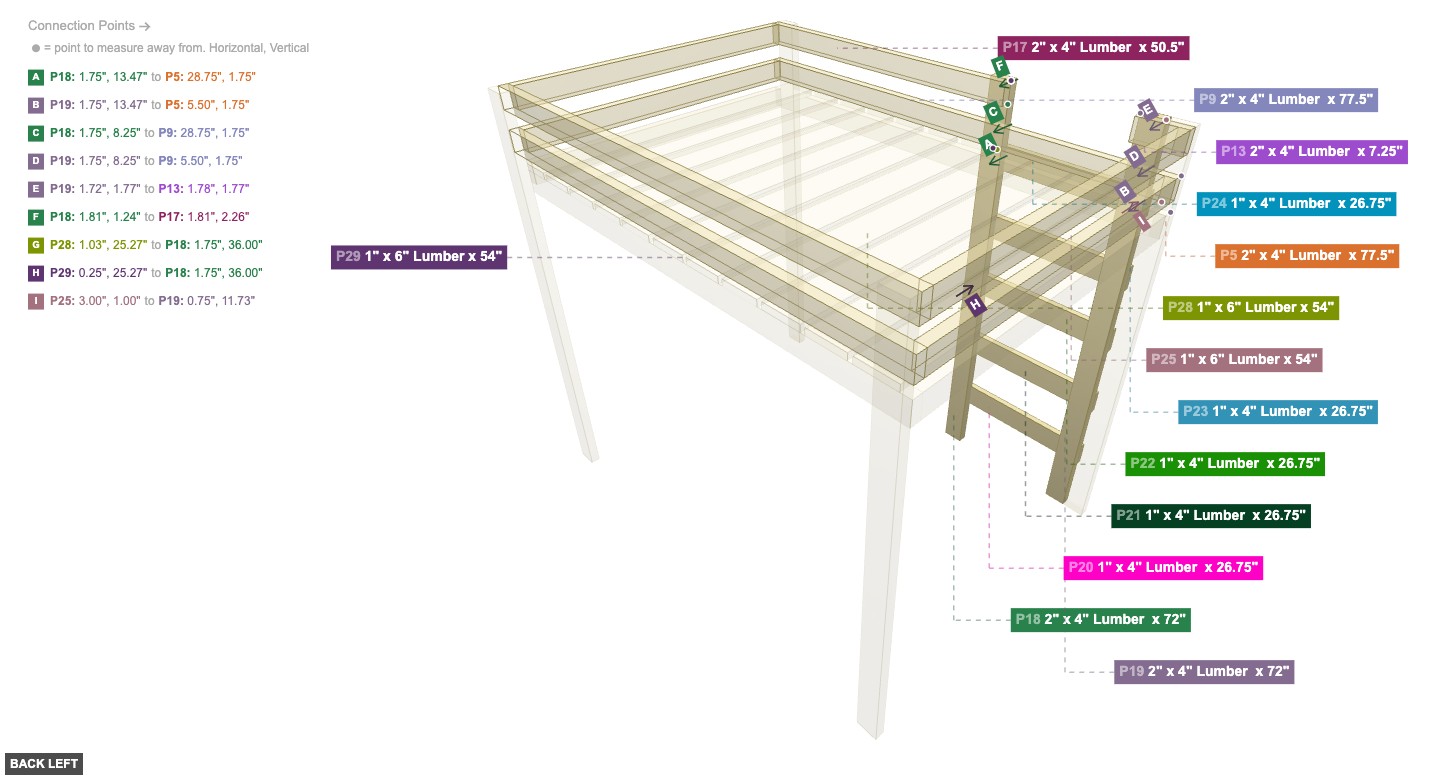

Angle: back left

Base Frame Assembly

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Upper Frame Assembly

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Right Side Guard Rail Assembly

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Ladder Assembly

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

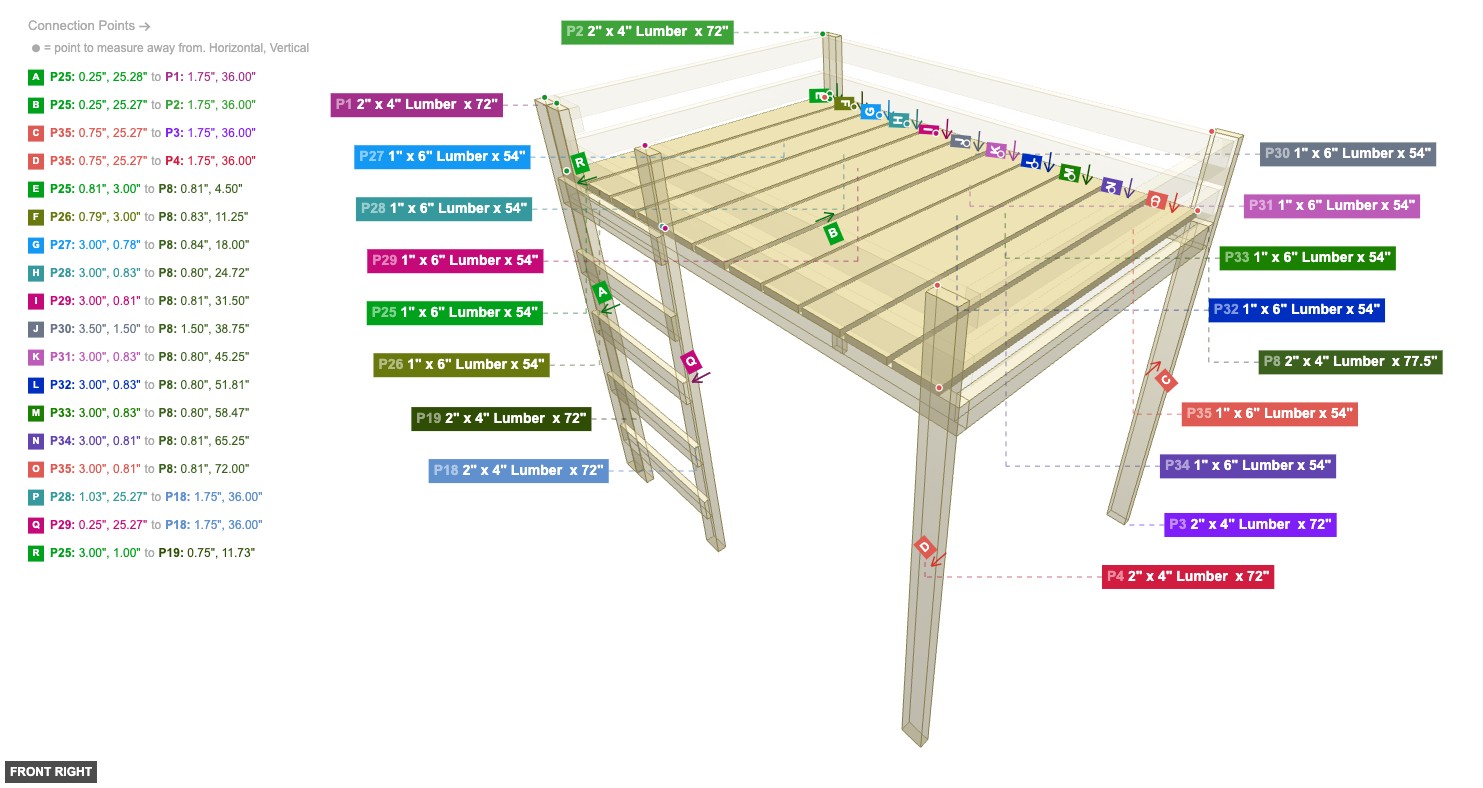

Bed Slat Installation

1" x 6" Lumber x 54"x 11

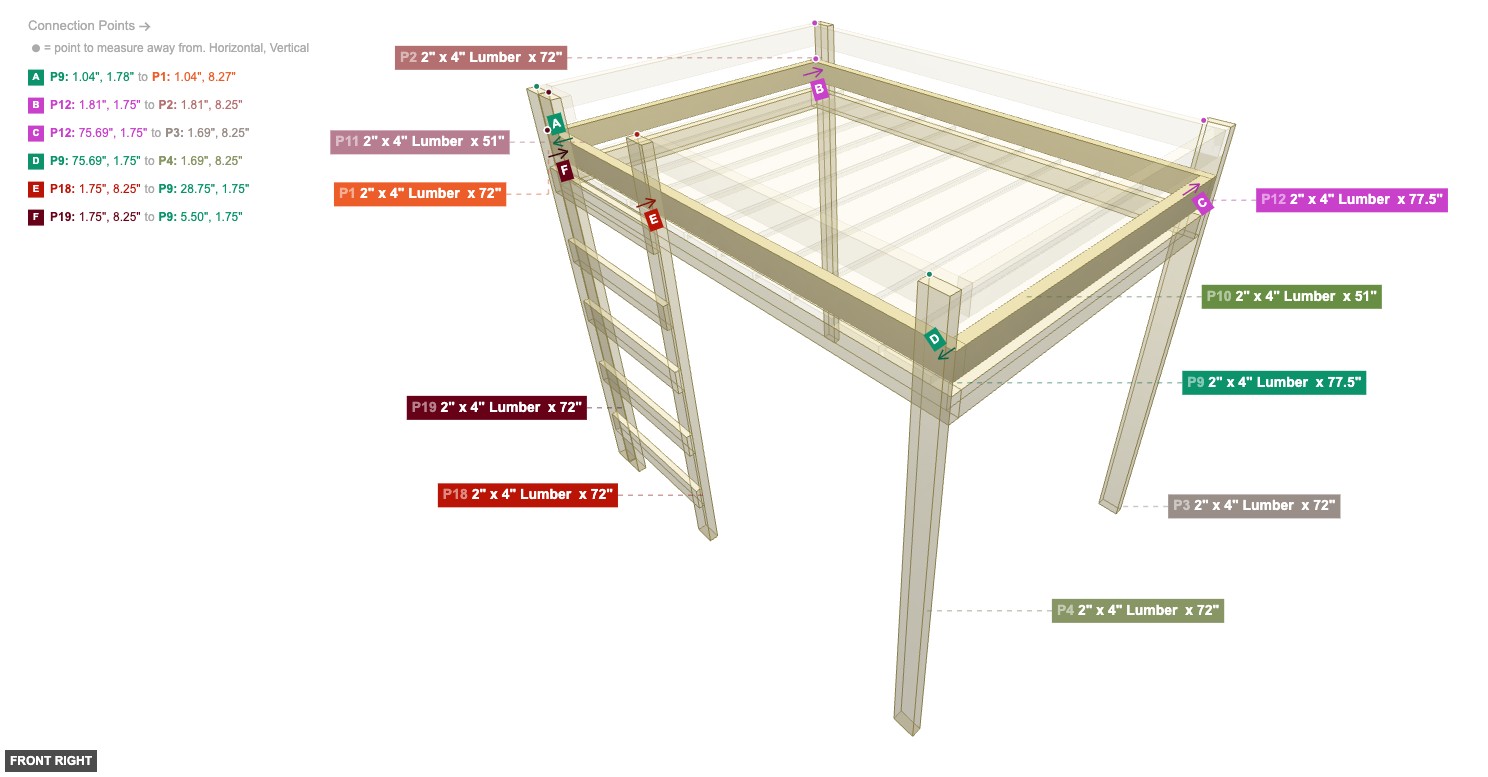

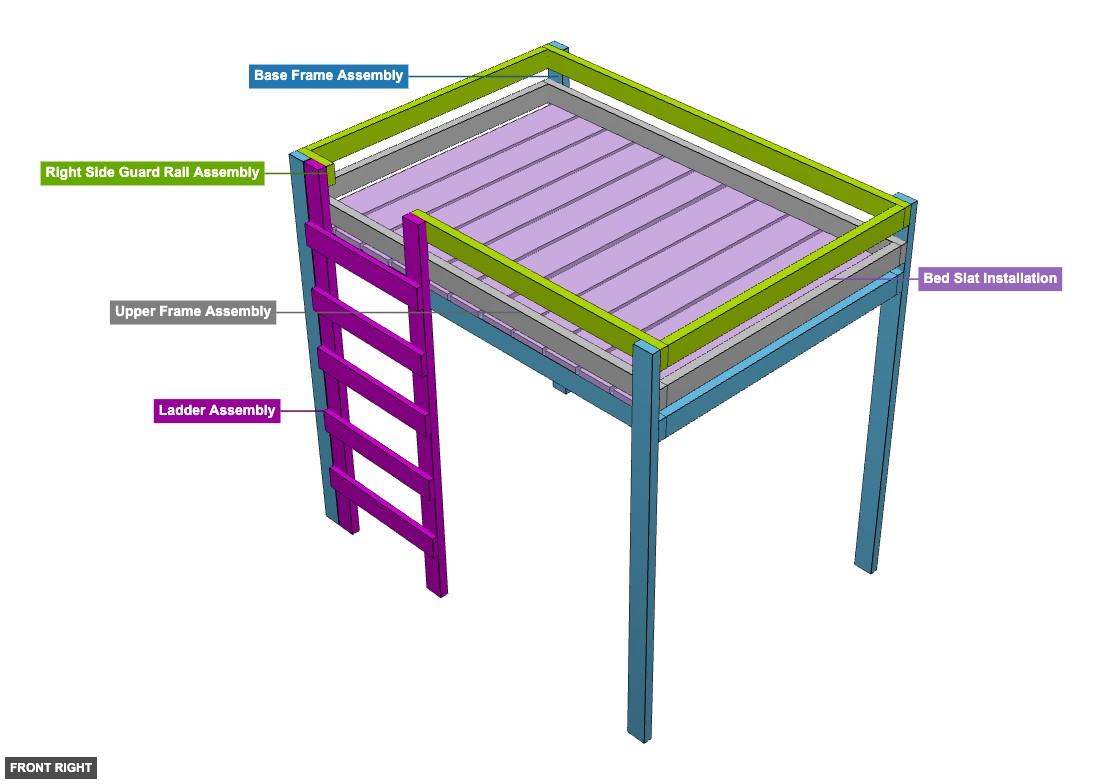

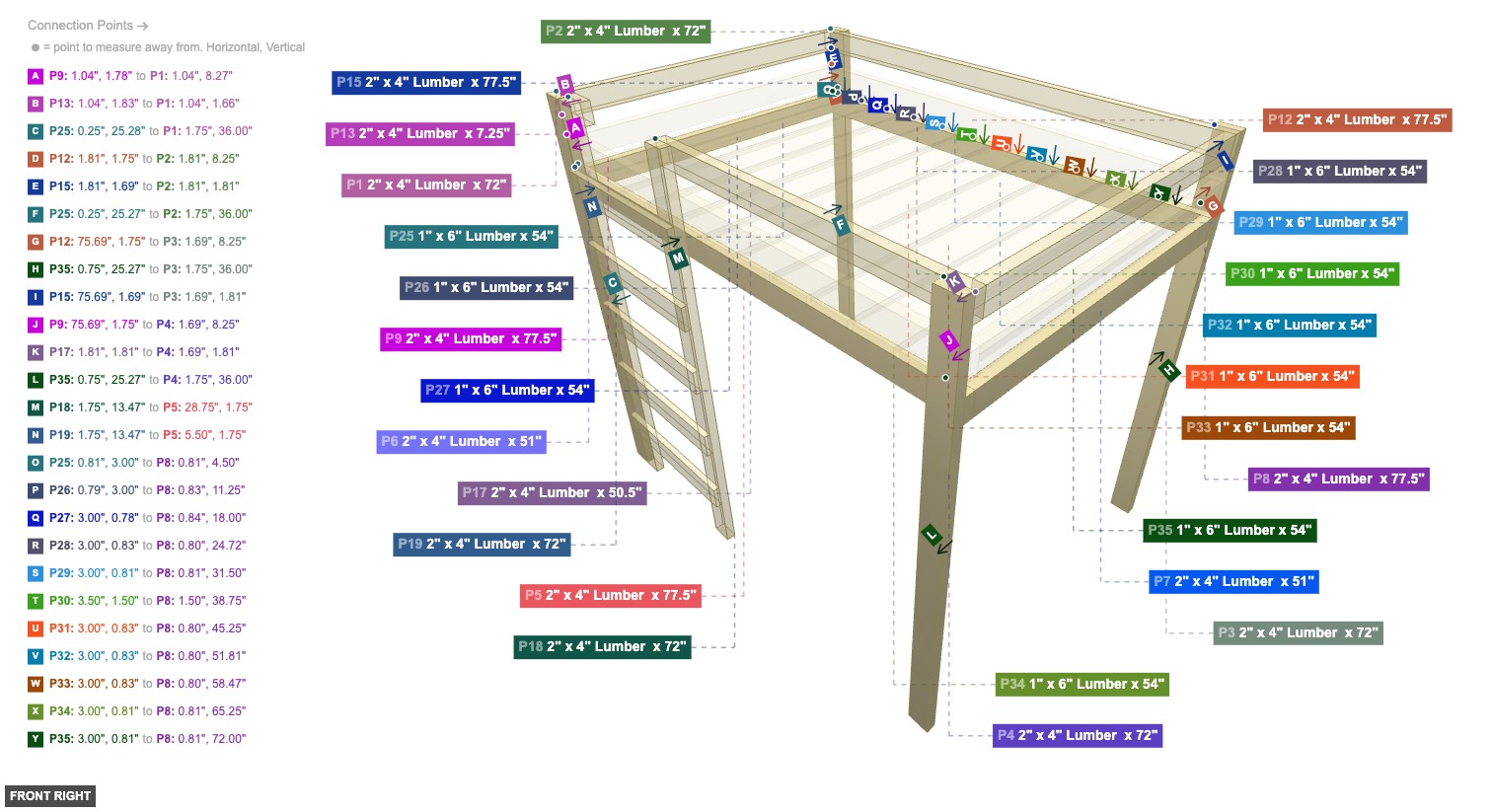

Angle: front right

Base Frame Assembly

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Upper Frame Assembly

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Right Side Guard Rail Assembly

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Ladder Assembly

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Bed Slat Installation

1" x 6" Lumber x 54"x 11

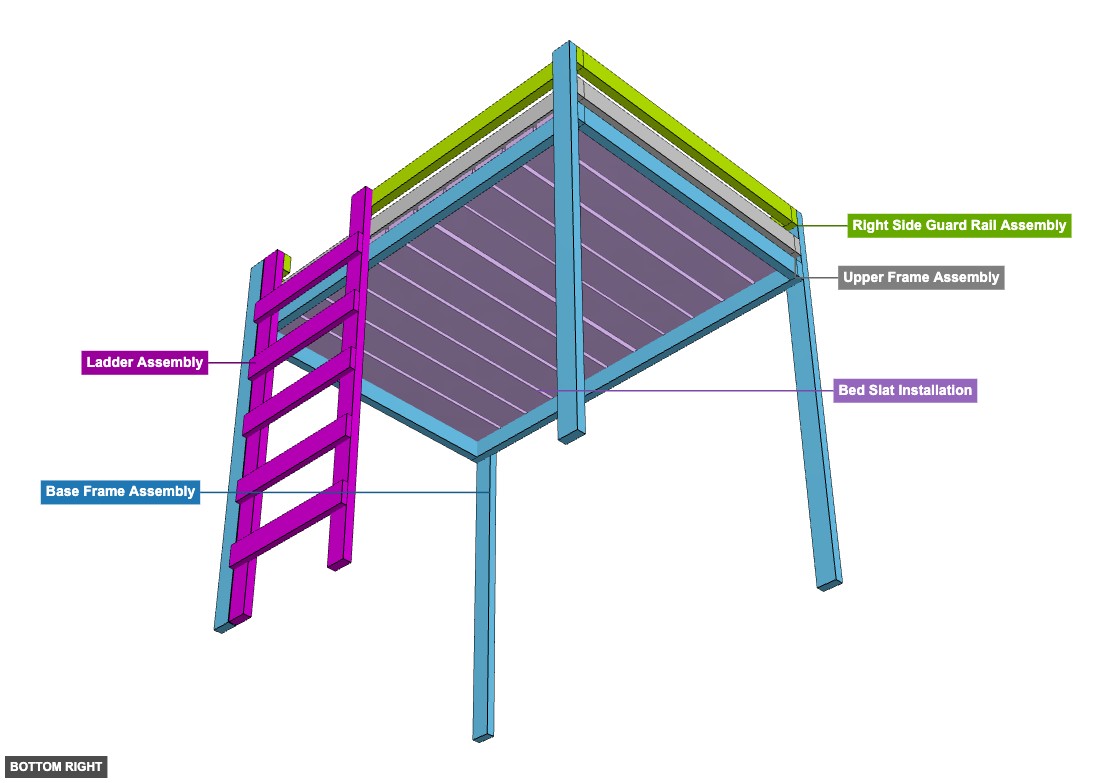

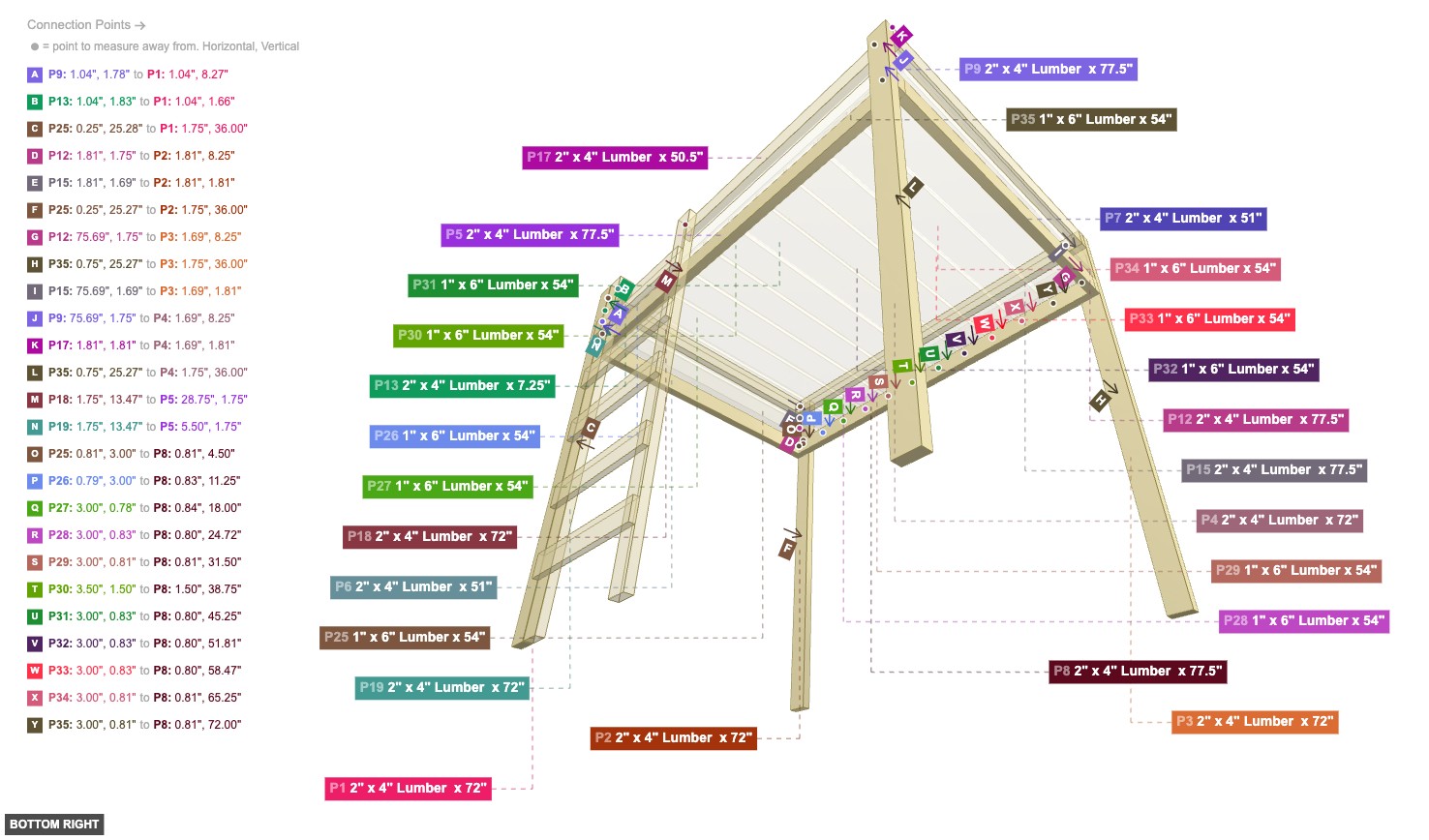

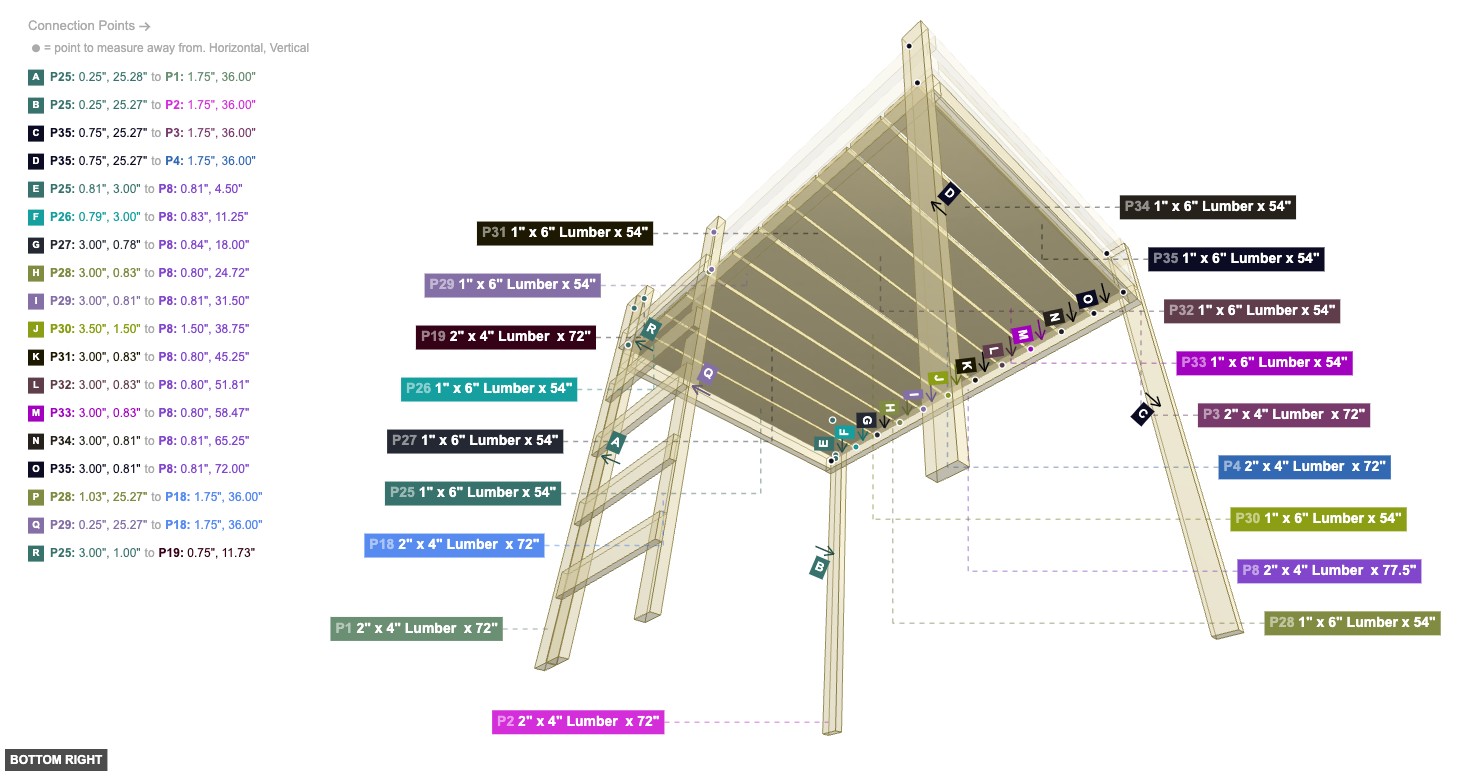

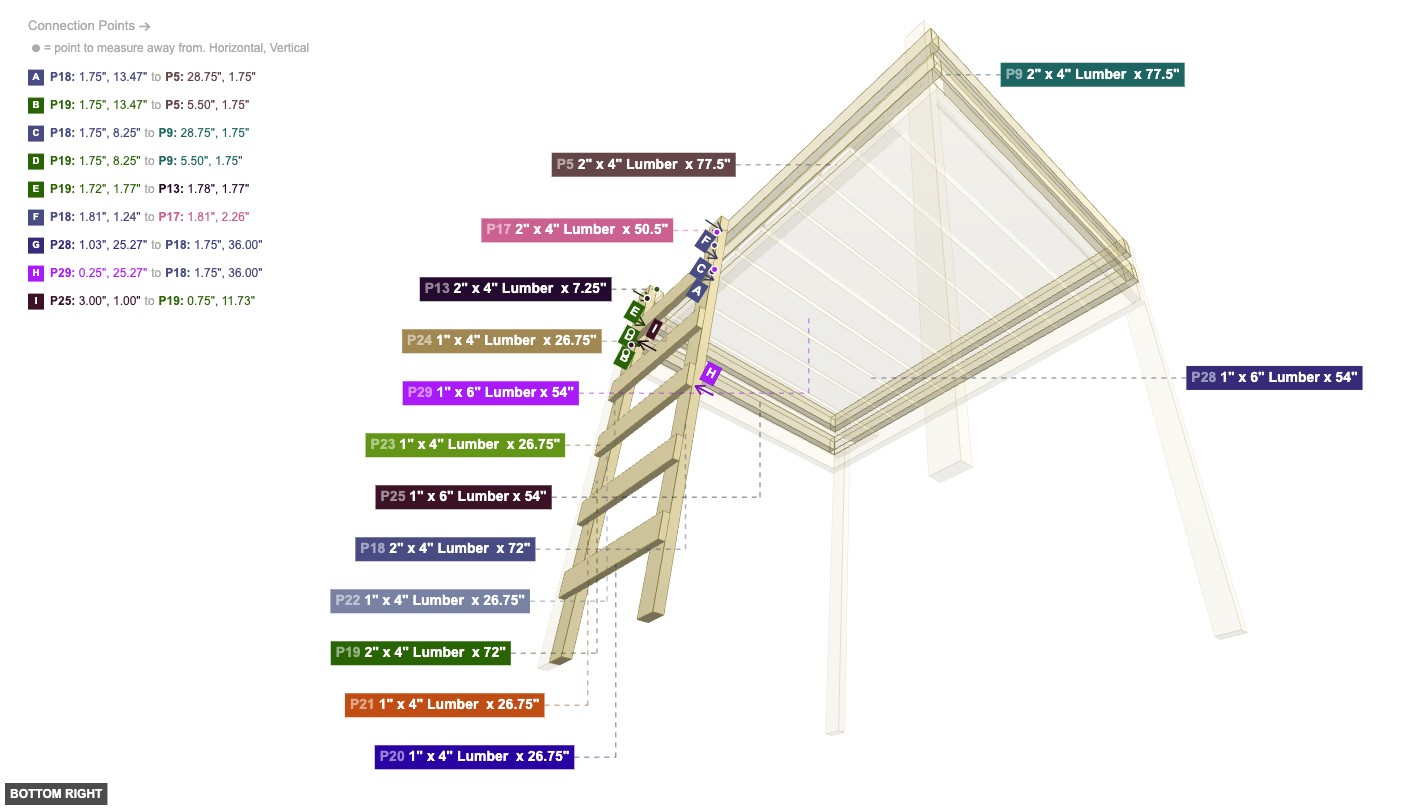

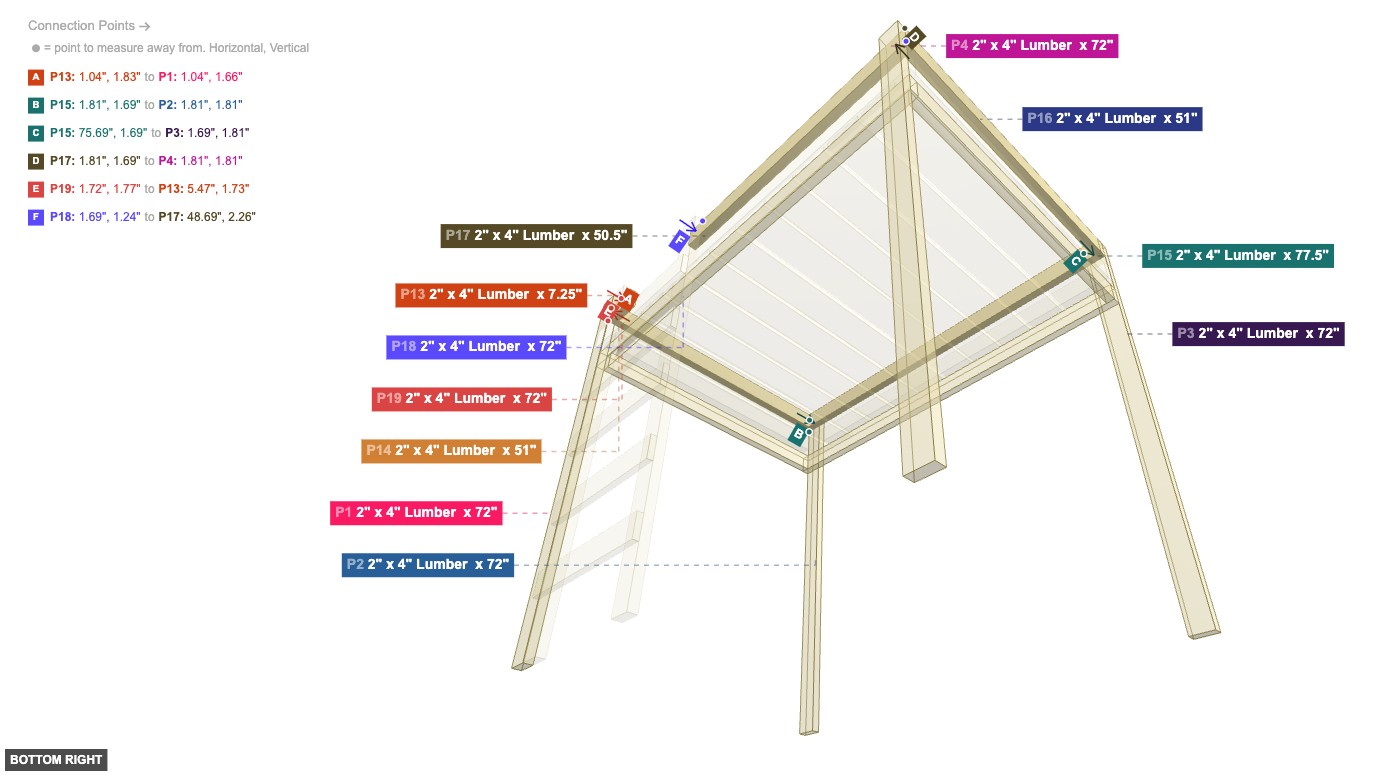

Angle: bottom right

Base Frame Assembly

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Upper Frame Assembly

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Right Side Guard Rail Assembly

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Ladder Assembly

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Bed Slat Installation

1" x 6" Lumber x 54"x 11

Phase 2: Individual Group Assembly

Group: Base Frame Assembly

Assemble the four main legs and the lower horizontal support rails to create the basic structure.

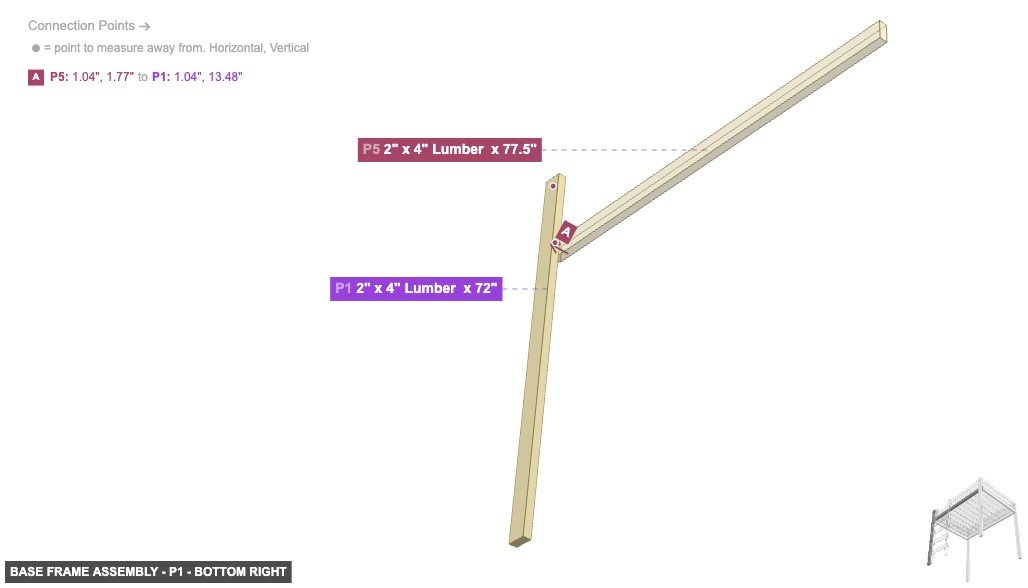

Part: 2" x 4" Lumber x 72" - Angle: back left

P1 (2" x 4" Lumber 72" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 5's 2" x 4" Wood Side #2, also ensure its 2" x 4" Wood End #1 faces top, and ensure its 2" x 4" Wood Side #1 faces left. Also, its 2" x 4" Wood Side #3 needs to point right, also ensure its 2" x 4" Wood Side #4 faces front, and its 2" x 4" Wood End #2 must be oriented bottom

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

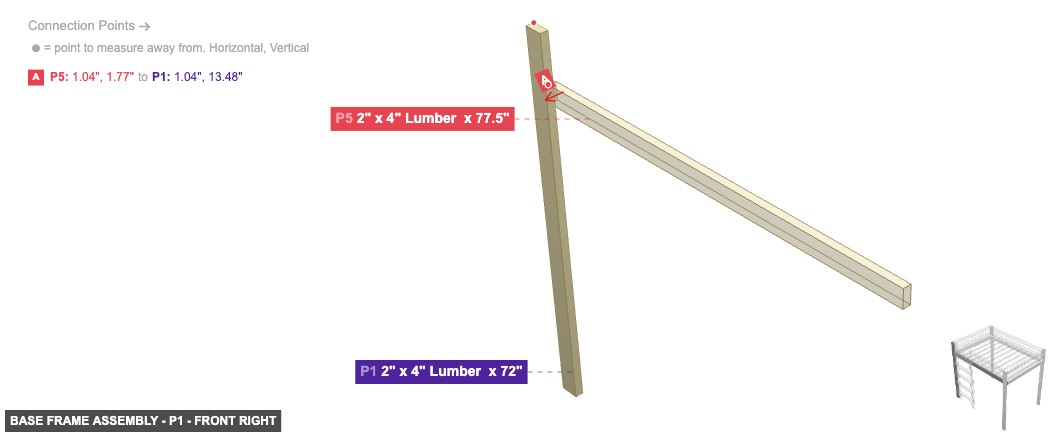

Part: 2" x 4" Lumber x 72" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Part: 2" x 4" Lumber x 72" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Part: 2" x 4" Lumber x 72" - Angle: back left

P2 (2" x 4" Lumber 72" length) - attach its 2" x 4" Wood Side #2 facing front to part 8's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 should be directed bottom. Also, its 2" x 4" Wood Side #1 must be oriented left, plus its 2" x 4" Wood Side #3 must be oriented right. Additionally, its 2" x 4" Wood Side #4 should be directed back, and its 2" x 4" Wood End #2 should be directed top

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

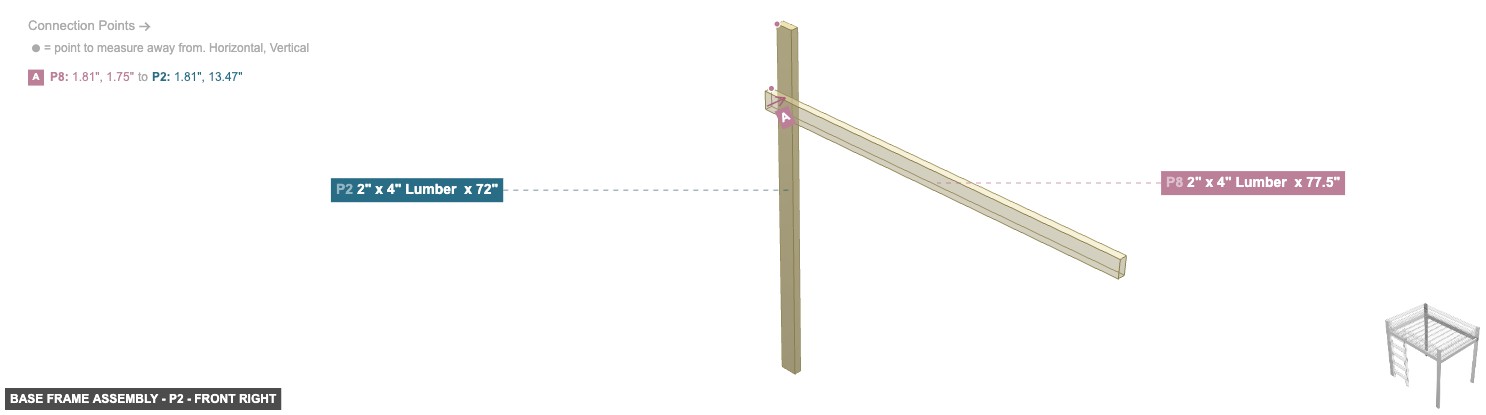

Part: 2" x 4" Lumber x 72" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

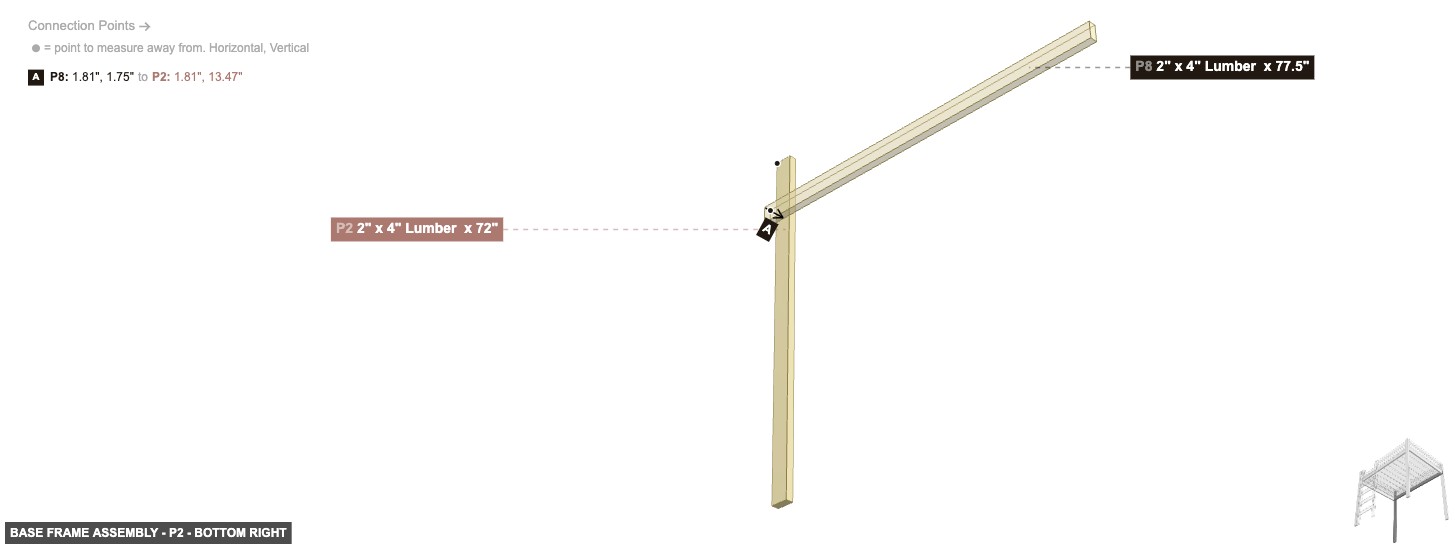

Part: 2" x 4" Lumber x 72" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

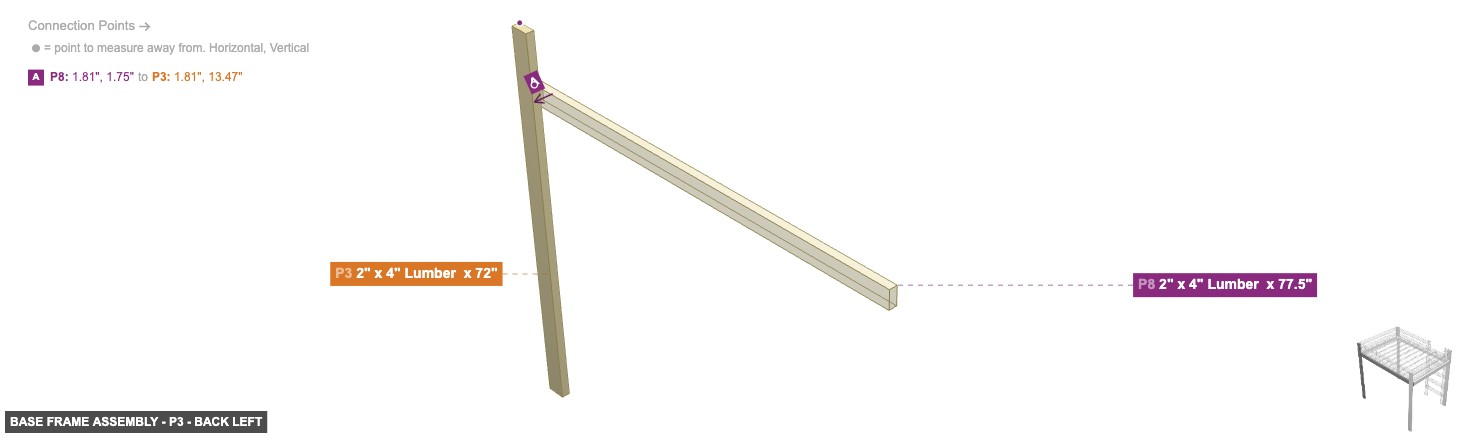

Part: 2" x 4" Lumber x 72" - Angle: back left

P3 (2" x 4" Lumber 72" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 8's 2" x 4" Wood Side #4, also its 2" x 4" Wood End #1 should be directed bottom. Next, ensure its 2" x 4" Wood Side #1 faces left, plus its 2" x 4" Wood Side #3 must be oriented right. After that, its 2" x 4" Wood Side #4 should be directed back, plus its 2" x 4" Wood End #2 must be oriented top

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

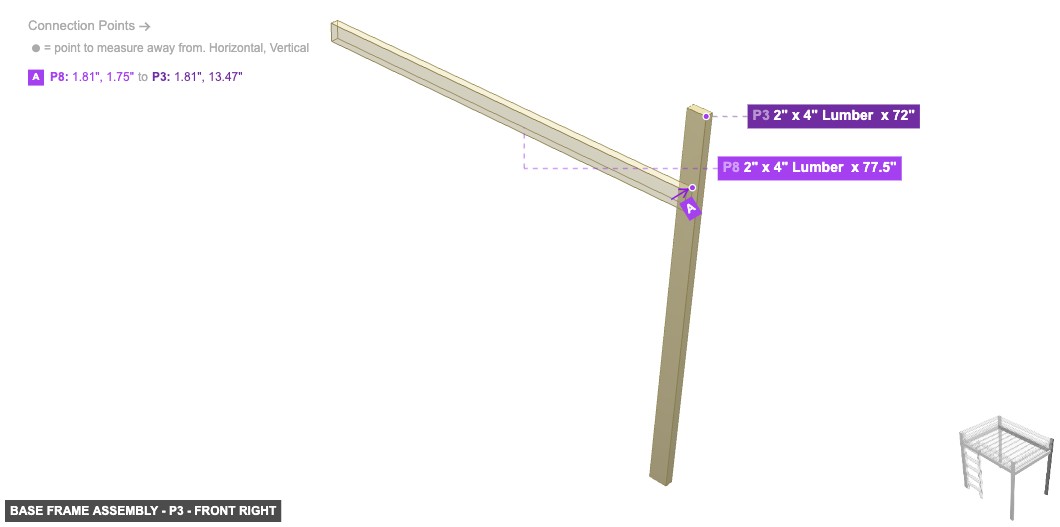

Part: 2" x 4" Lumber x 72" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

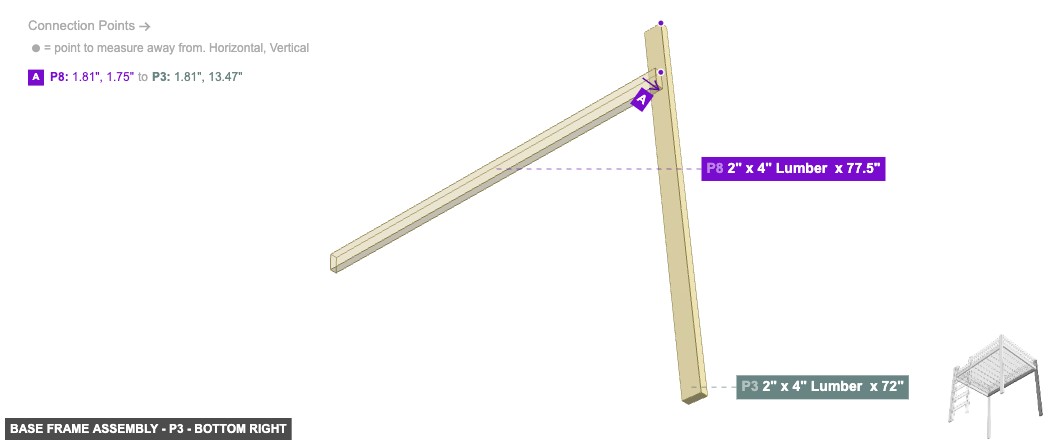

Part: 2" x 4" Lumber x 72" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

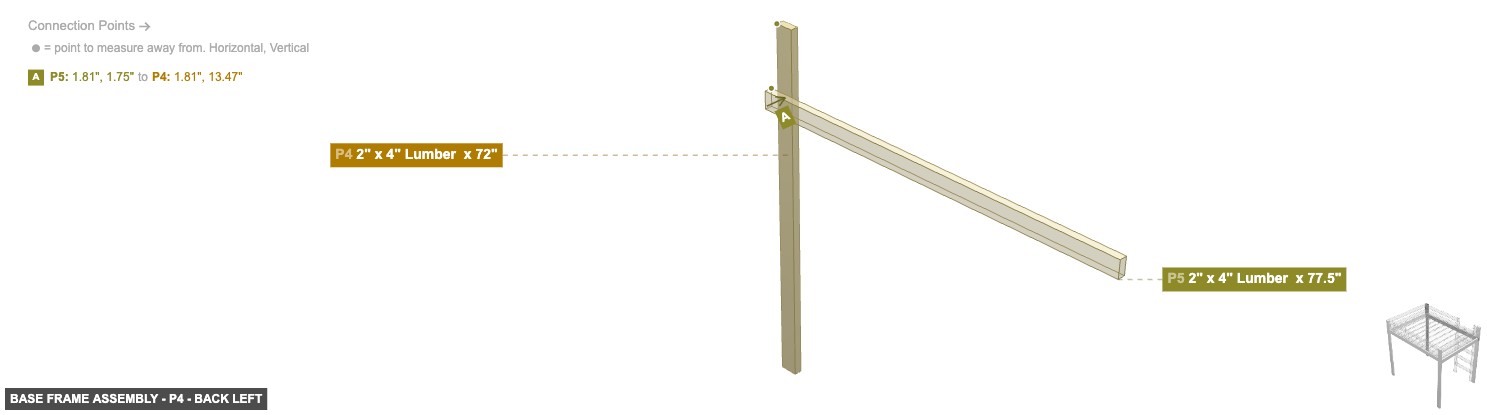

Part: 2" x 4" Lumber x 72" - Angle: back left

P4 (2" x 4" Lumber 72" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 5's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #1 must be oriented top, also its 2" x 4" Wood Side #1 must be oriented left. Additionally, its 2" x 4" Wood Side #3 should be directed right. Additionally, its 2" x 4" Wood Side #4 should be directed front, also its 2" x 4" Wood End #2 should be directed bottom

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

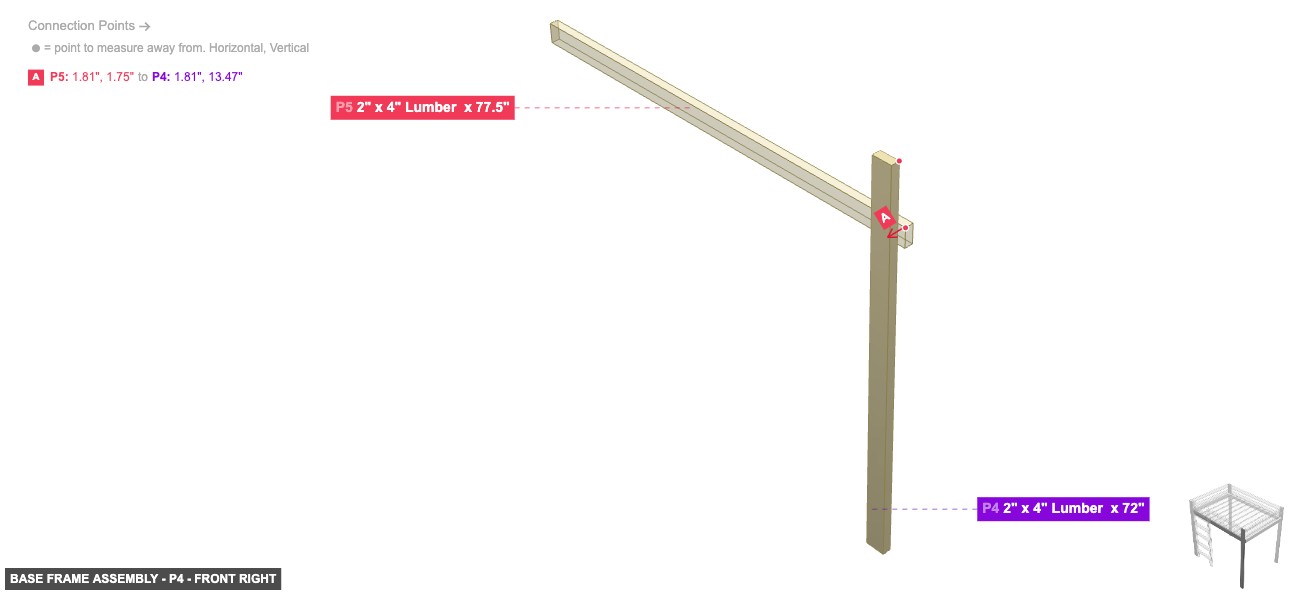

Part: 2" x 4" Lumber x 72" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

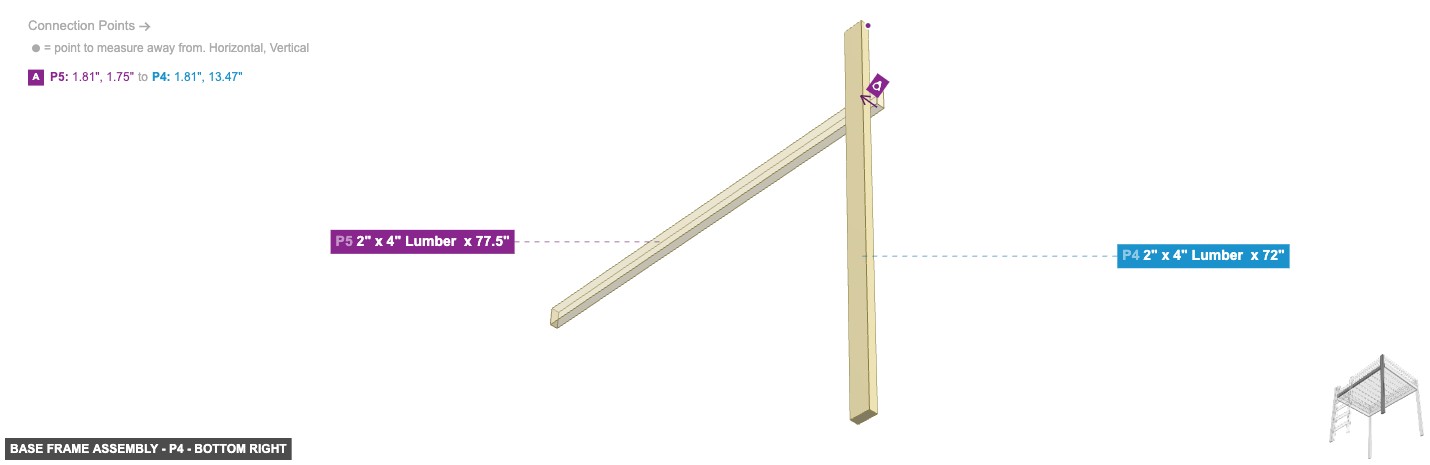

Part: 2" x 4" Lumber x 72" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

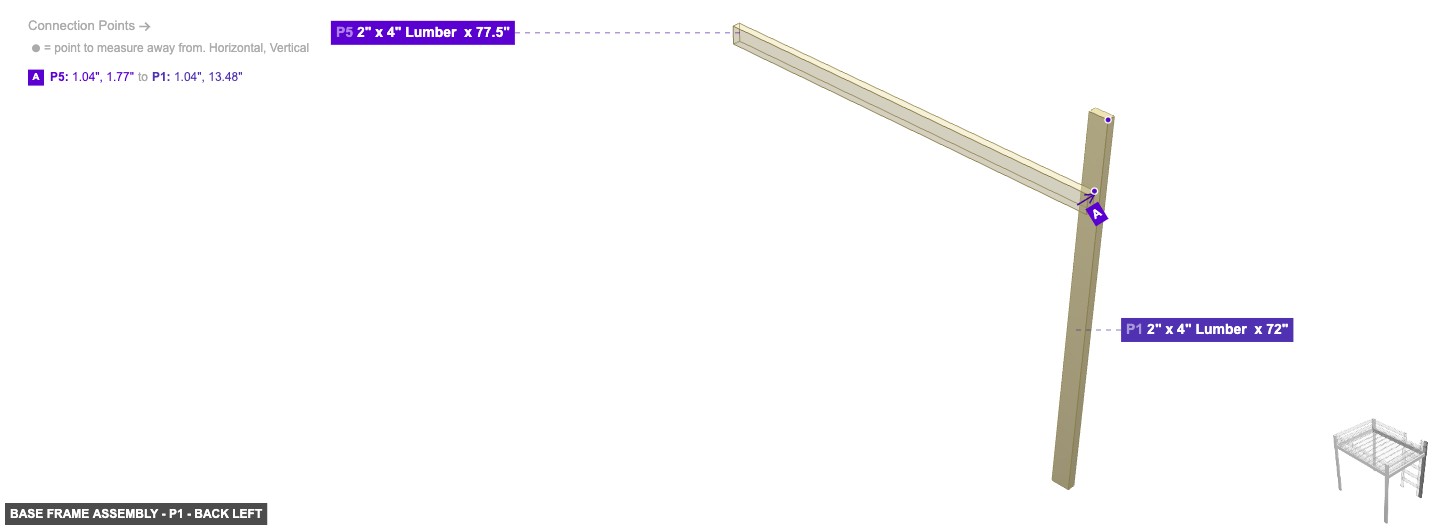

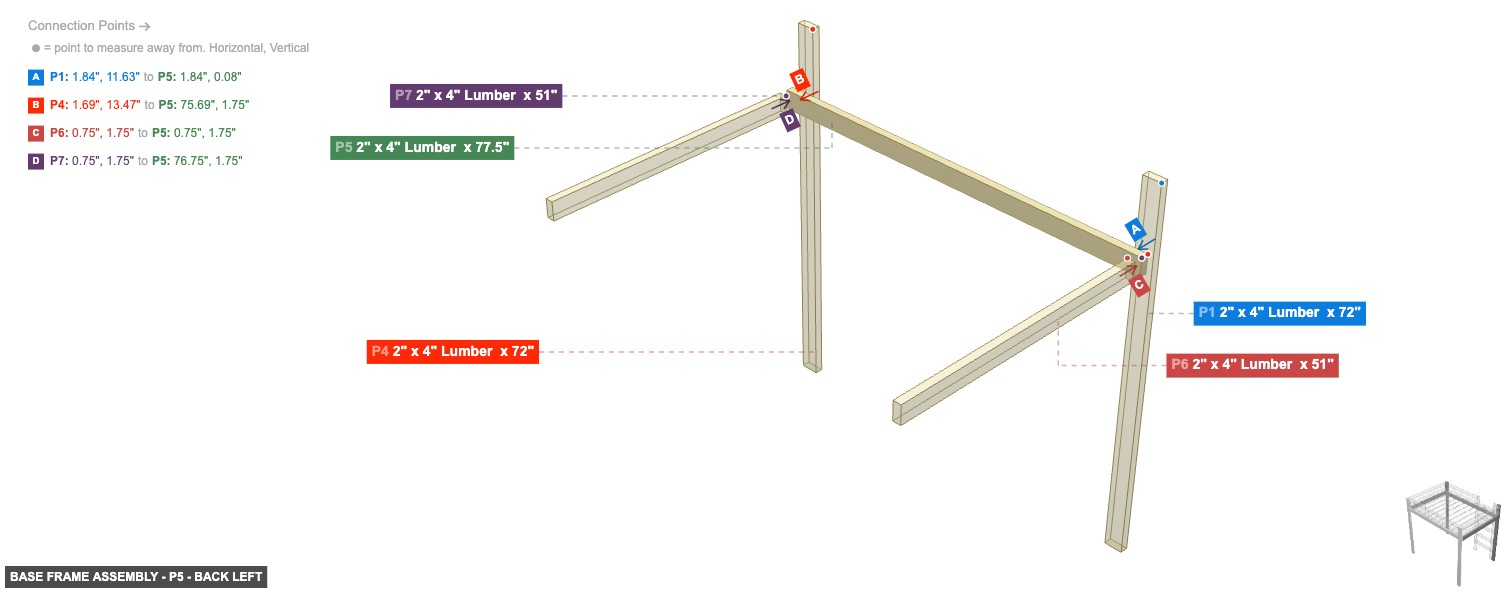

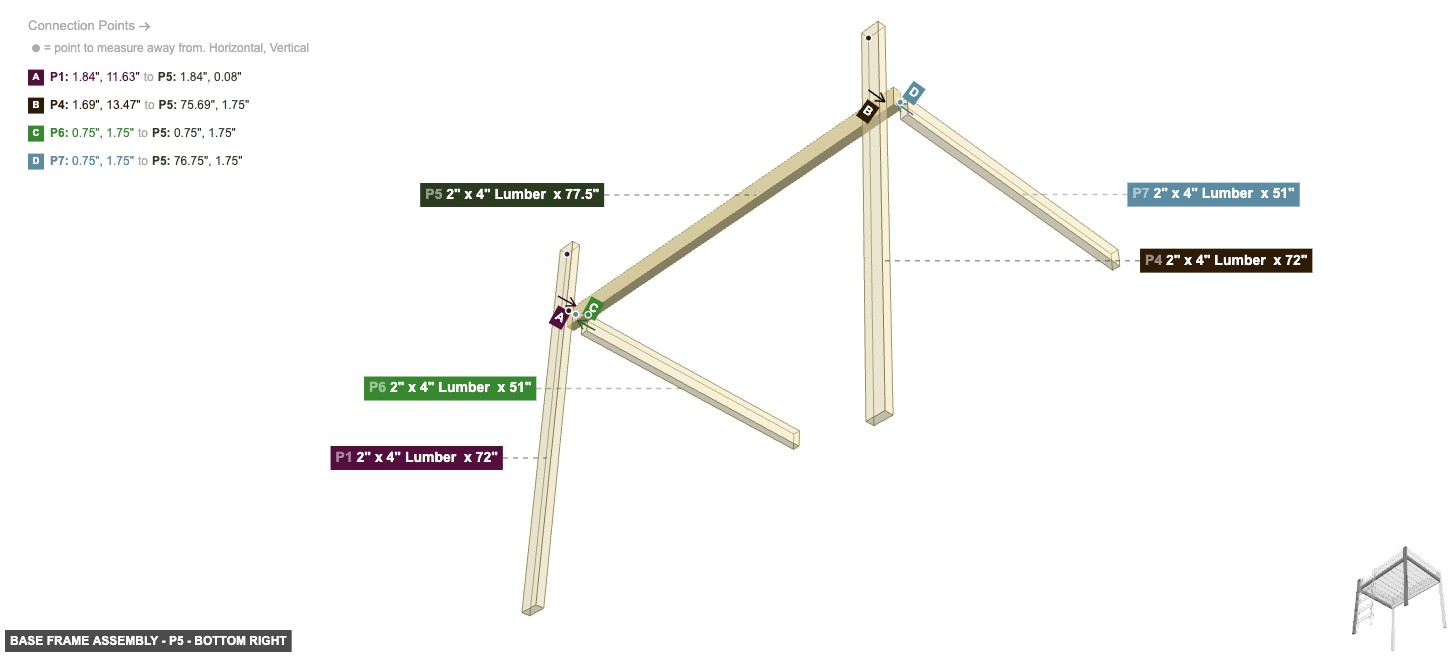

Part: 2" x 4" Lumber x 77.5" - Angle: back left

P5 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 1's 2" x 4" Wood Side #2, also connect its 2" x 4" Wood Side #4 oriented back links with part 6's 2" x 4" Wood End #2, plus its 2" x 4" Wood End #1 must be oriented right, also ensure its 2" x 4" Wood Side #1 faces bottom. Also, its 2" x 4" Wood Side #3 needs to point top. Also, its 2" x 4" Wood End #2 should be directed left

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

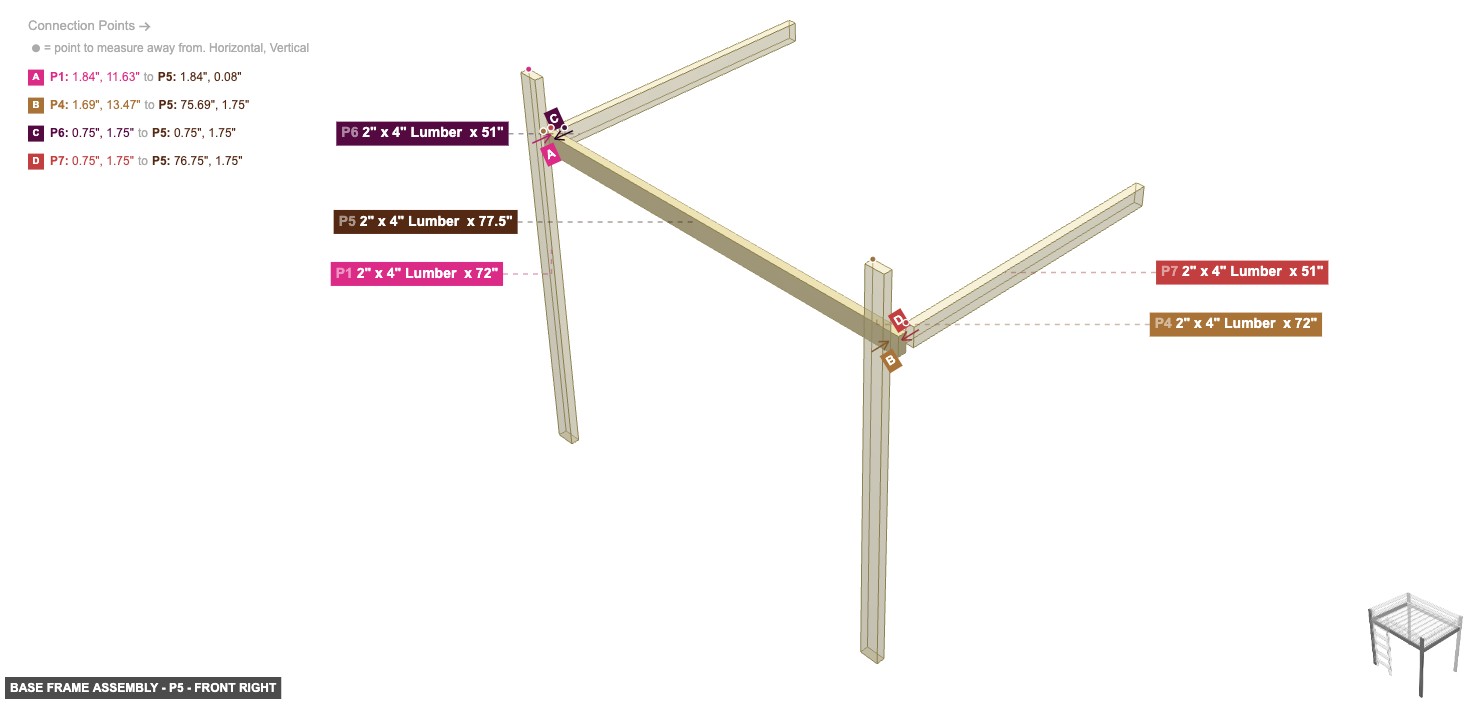

Part: 2" x 4" Lumber x 77.5" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Part: 2" x 4" Lumber x 77.5" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

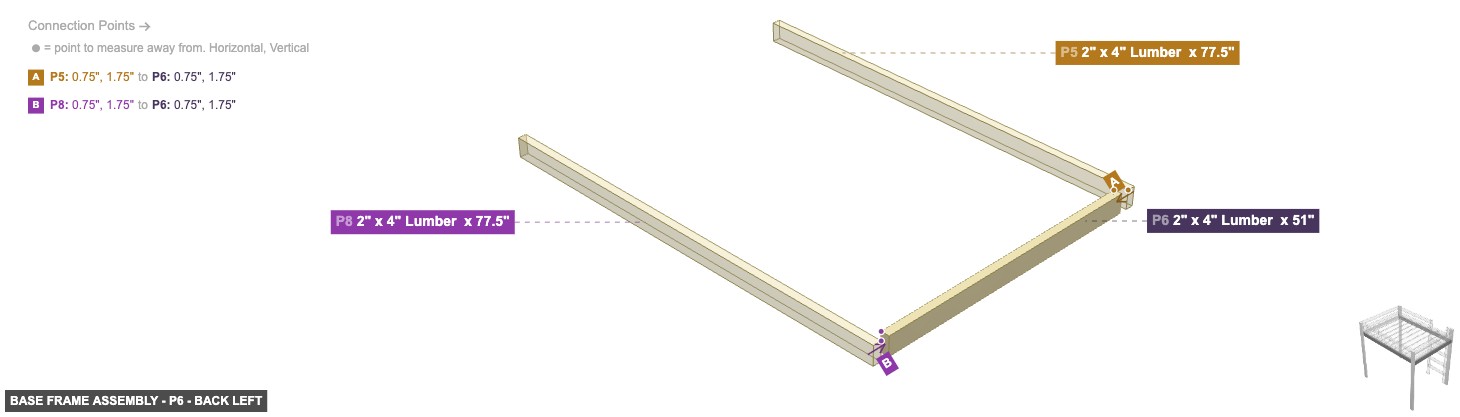

Part: 2" x 4" Lumber x 51" - Angle: back left

P6 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing back to part 8's 2" x 4" Wood Side #2, also attach its 2" x 4" Wood End #2 facing front to part 5's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood Side #1 should be directed bottom. Next, ensure its 2" x 4" Wood Side #2 faces right, also ensure its 2" x 4" Wood Side #3 faces top. Next, its 2" x 4" Wood Side #4 must be oriented left

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

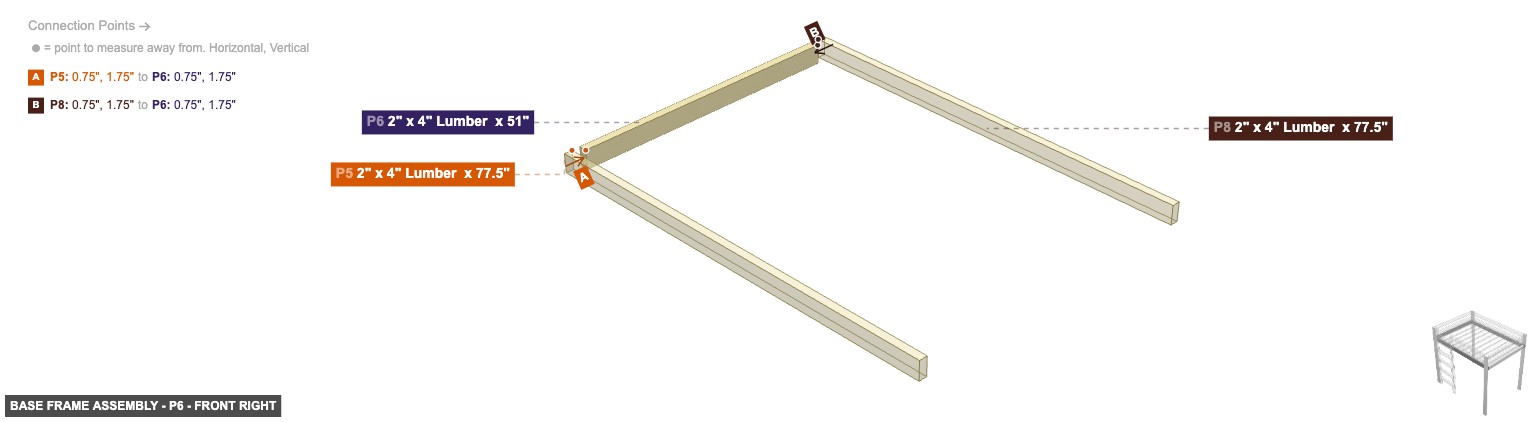

Part: 2" x 4" Lumber x 51" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

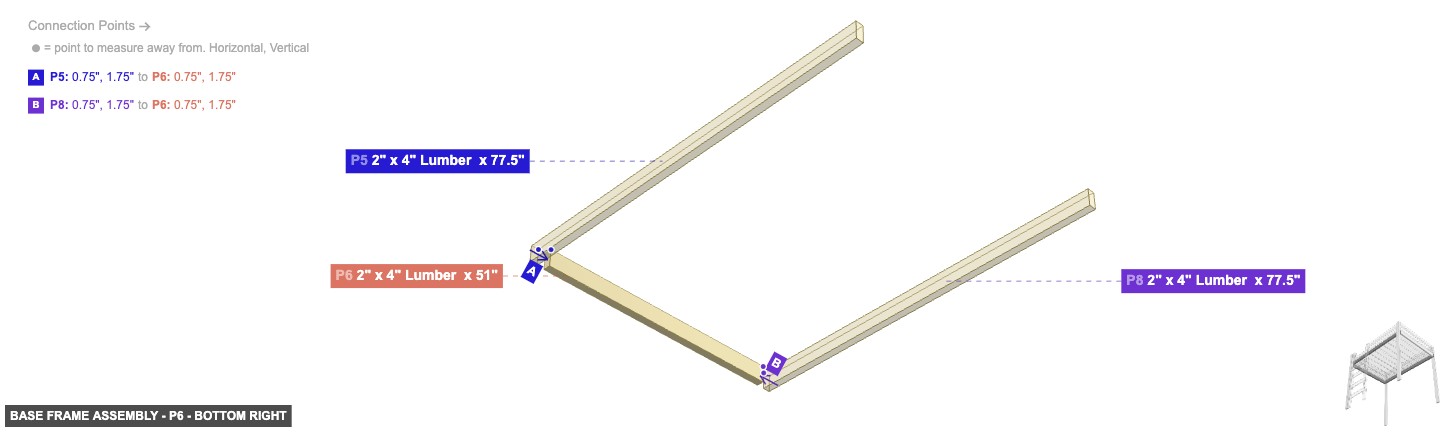

Part: 2" x 4" Lumber x 51" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

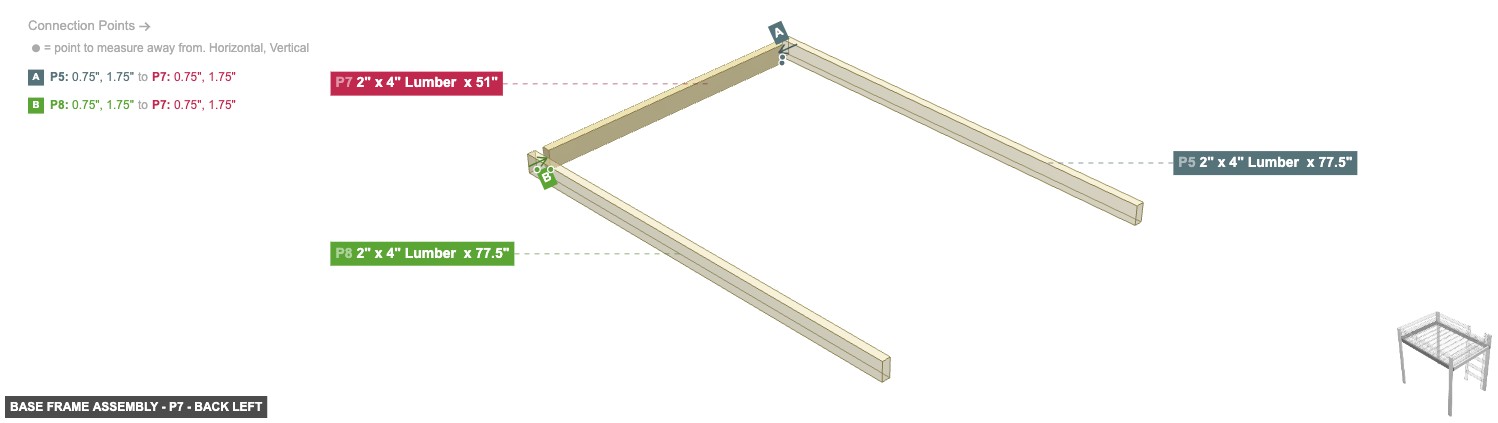

Part: 2" x 4" Lumber x 51" - Angle: back left

P7 (2" x 4" Lumber 51" length) - connect its 2" x 4" Wood End #1 oriented back links with part 8's 2" x 4" Wood Side #2, then attach its 2" x 4" Wood End #2 facing front to part 5's 2" x 4" Wood Side #4. After that, ensure its 2" x 4" Wood Side #1 faces bottom, plus its 2" x 4" Wood Side #2 should be directed right, then its 2" x 4" Wood Side #3 must be oriented top. After that, its 2" x 4" Wood Side #4 needs to point left

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

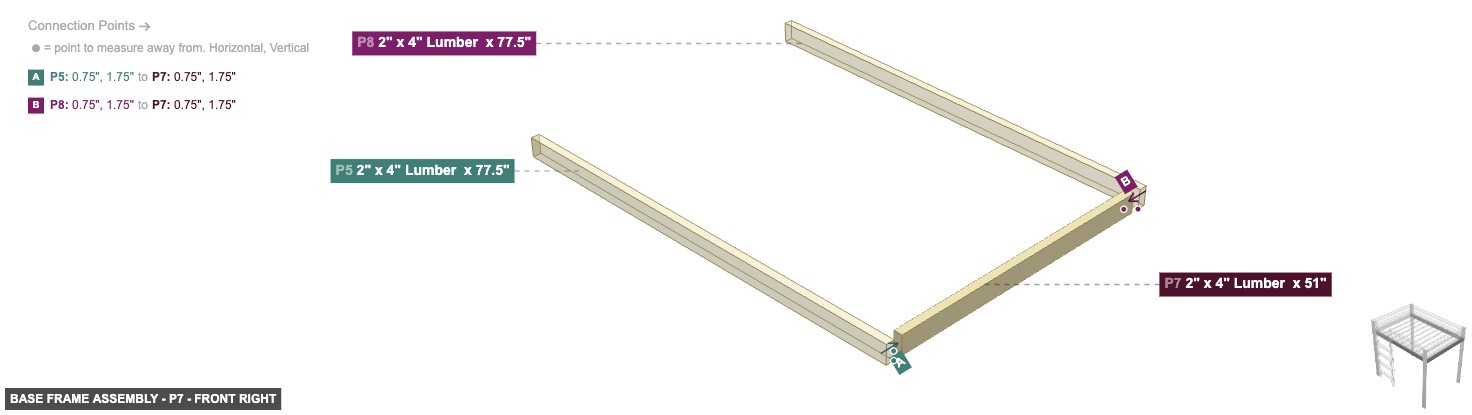

Part: 2" x 4" Lumber x 51" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

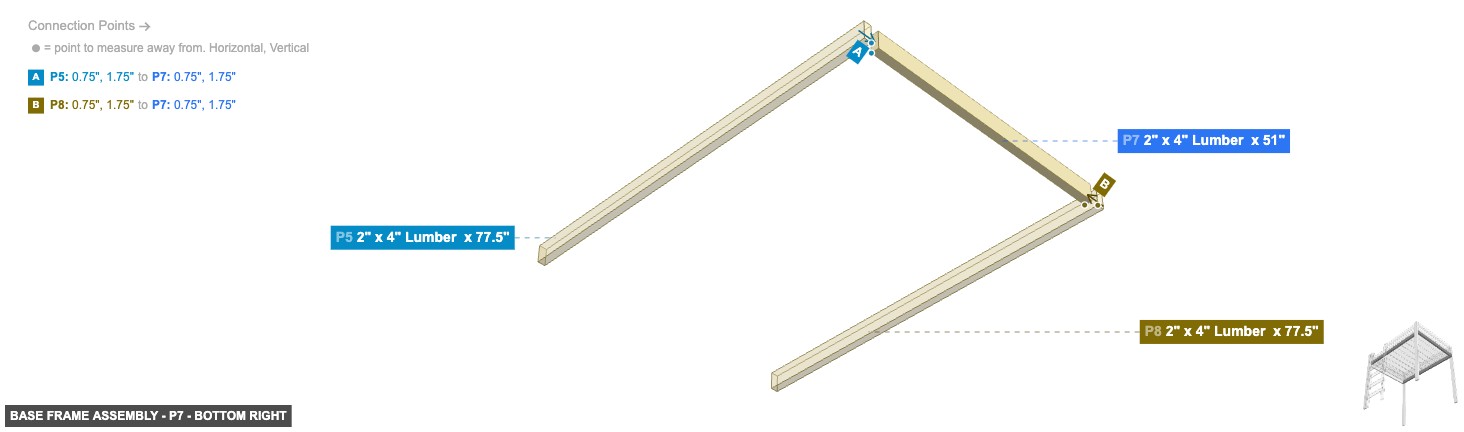

Part: 2" x 4" Lumber x 51" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

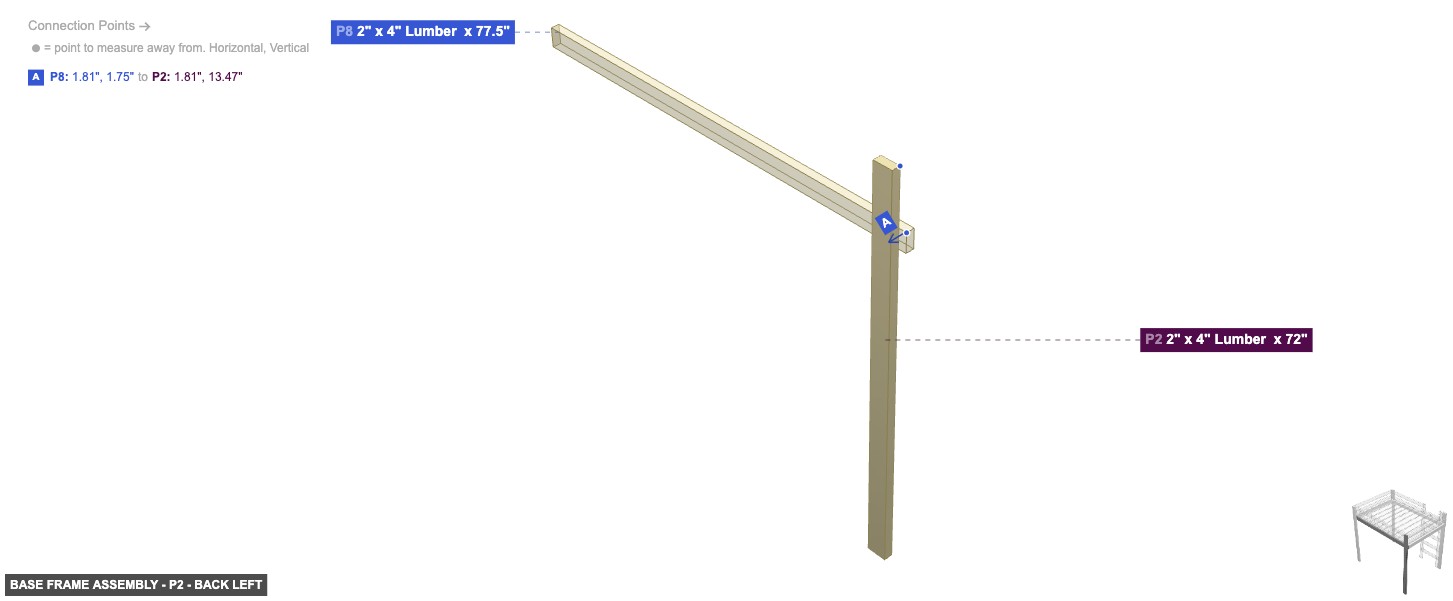

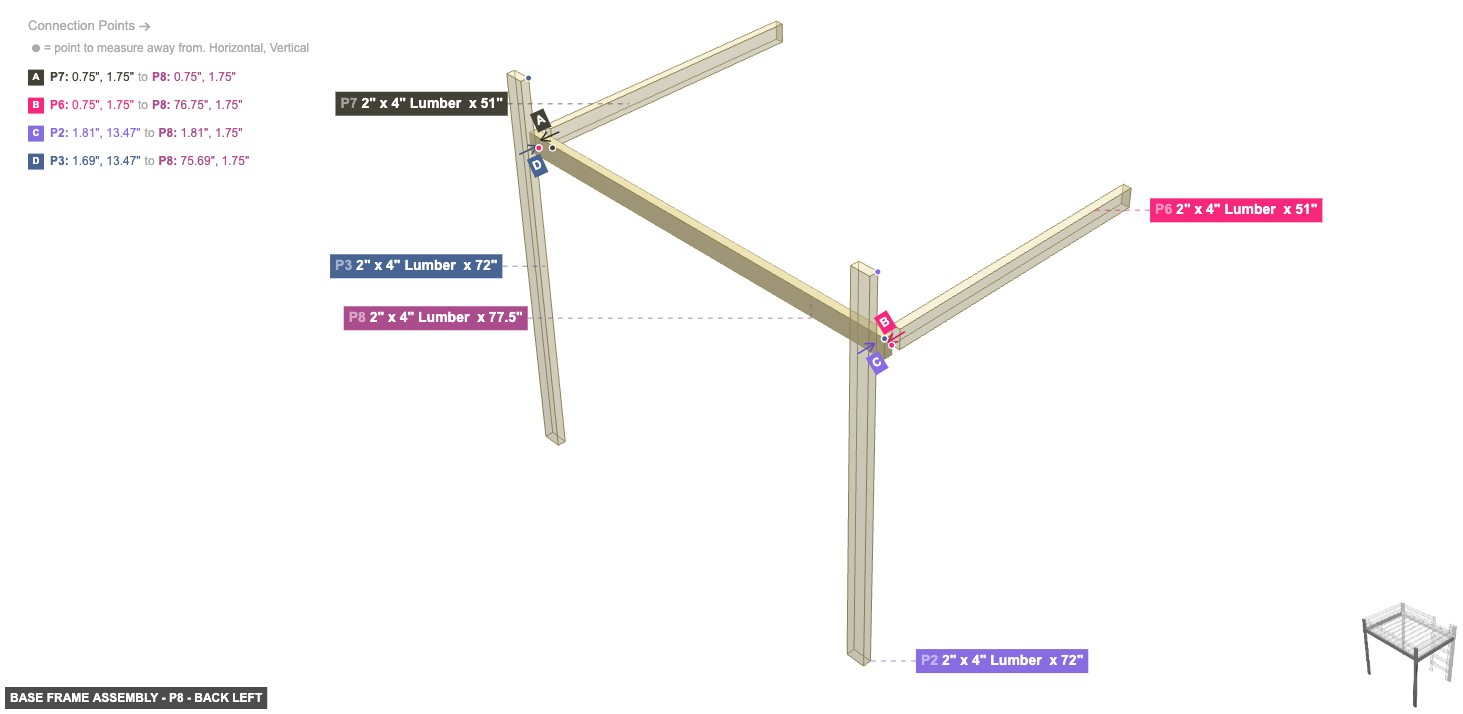

Part: 2" x 4" Lumber x 77.5" - Angle: back left

P8 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 7's 2" x 4" Wood End #1. Additionally, connect its 2" x 4" Wood Side #4 oriented back links with part 2's 2" x 4" Wood Side #2. After that, ensure its 2" x 4" Wood End #1 faces left, also its 2" x 4" Wood Side #3 must be oriented bottom. Also, its 2" x 4" Wood End #2 must be oriented right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

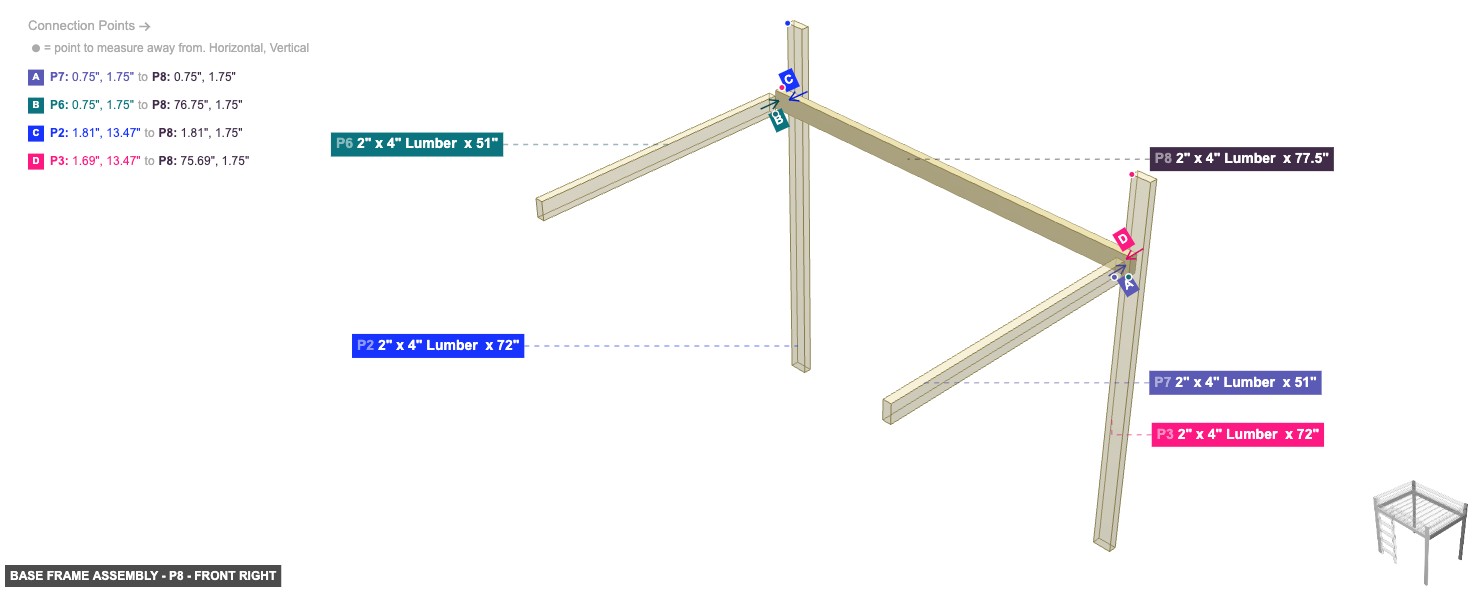

Part: 2" x 4" Lumber x 77.5" - Angle: front right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

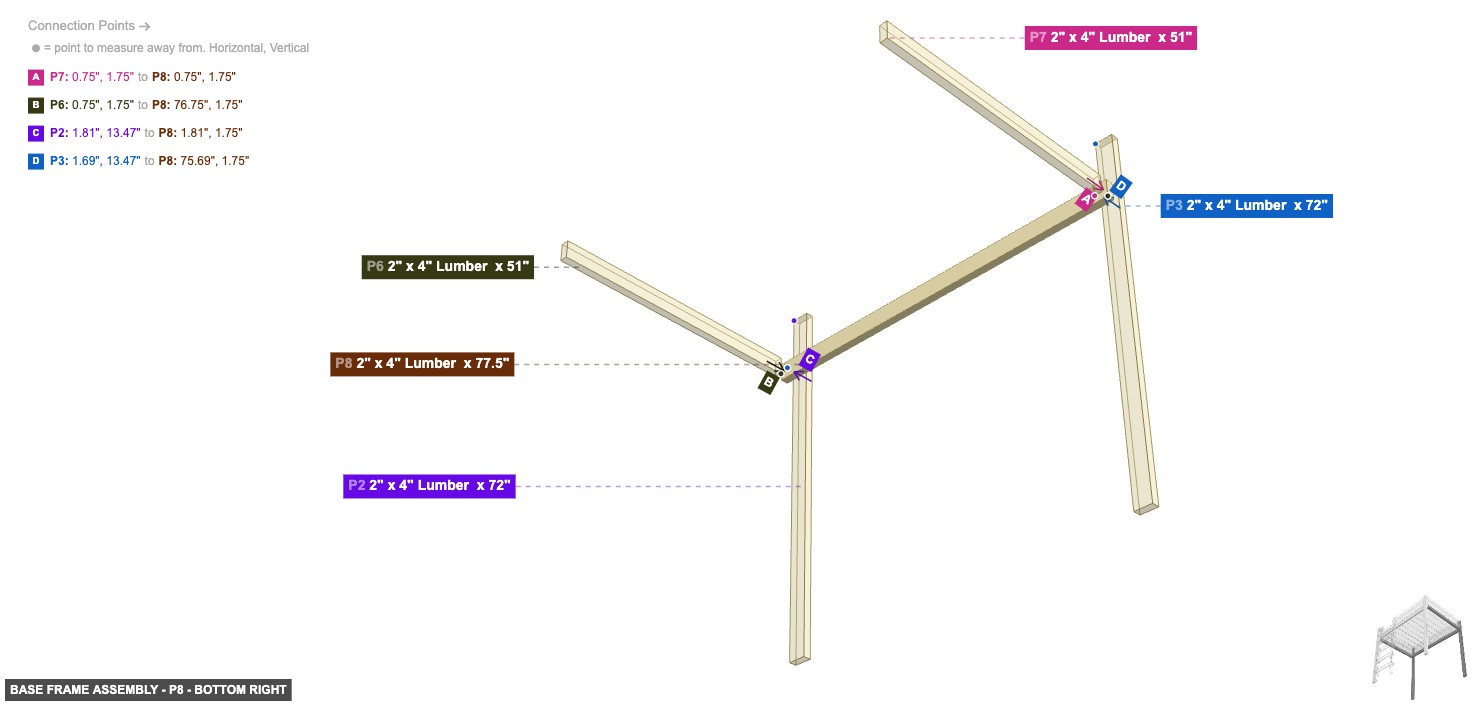

Part: 2" x 4" Lumber x 77.5" - Angle: bottom right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

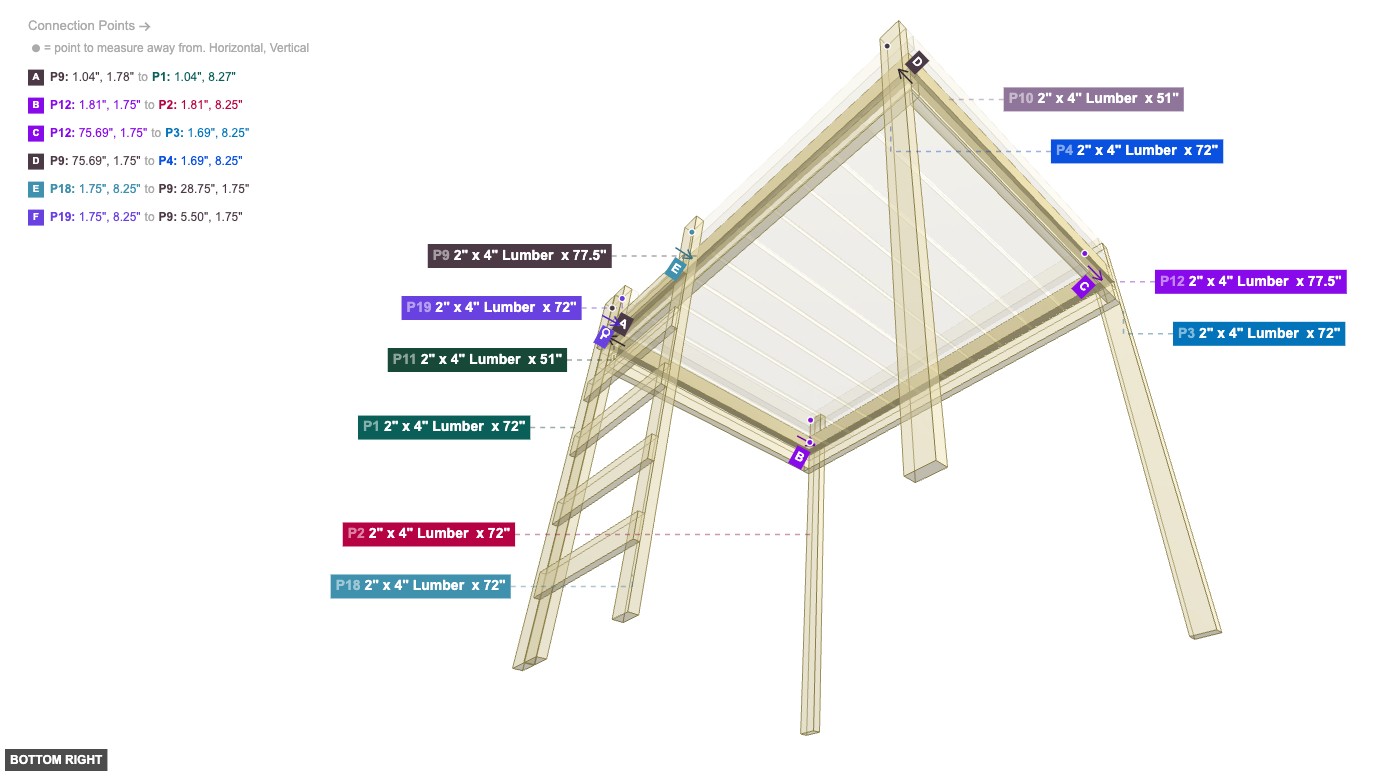

Group: Upper Frame Assembly

Attach the upper horizontal support rails to complete the main bed frame.

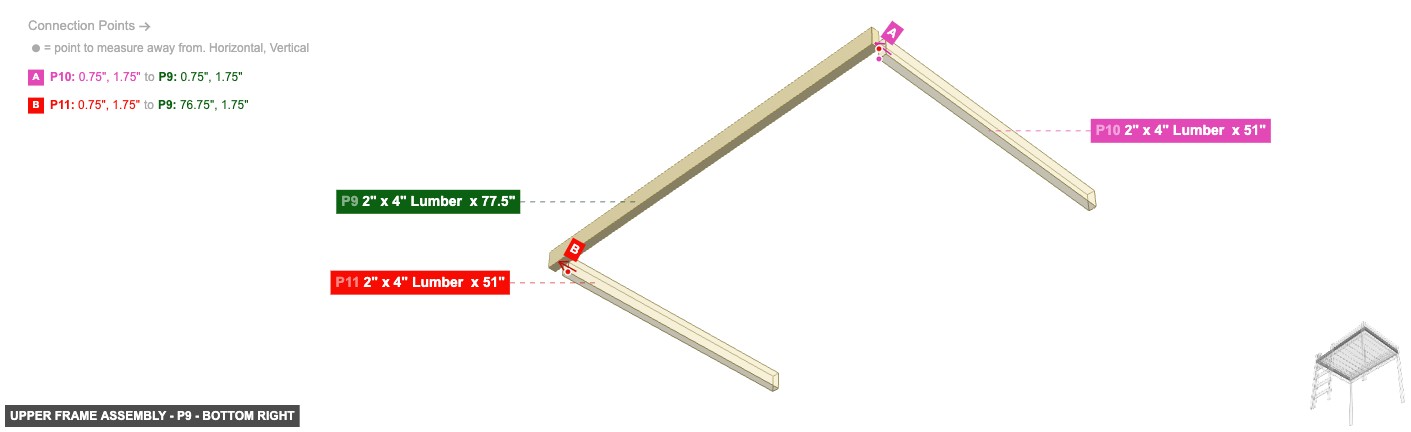

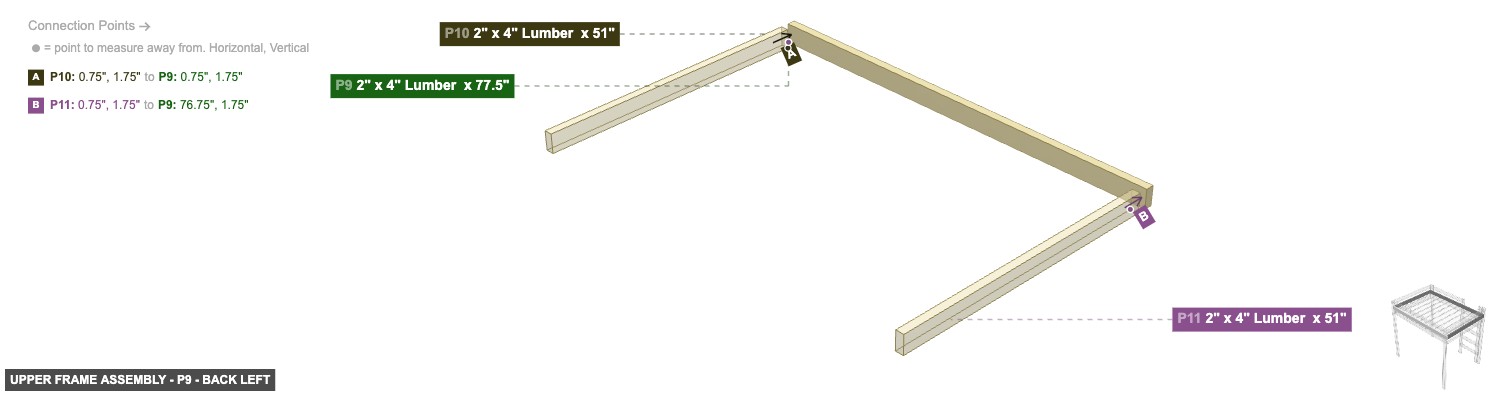

Part: 2" x 4" Lumber x 77.5" - Angle: back left

P9 (2" x 4" Lumber 77.5" length) - its 2" x 4" Wood Side #4, which is back-facing, should connect to part 10's 2" x 4" Wood End #2. Next, its 2" x 4" Wood End #1 needs to point right. After that, its 2" x 4" Wood Side #1 needs to point bottom, then its 2" x 4" Wood Side #3 must be oriented top. After that, its 2" x 4" Wood End #2 needs to point left

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

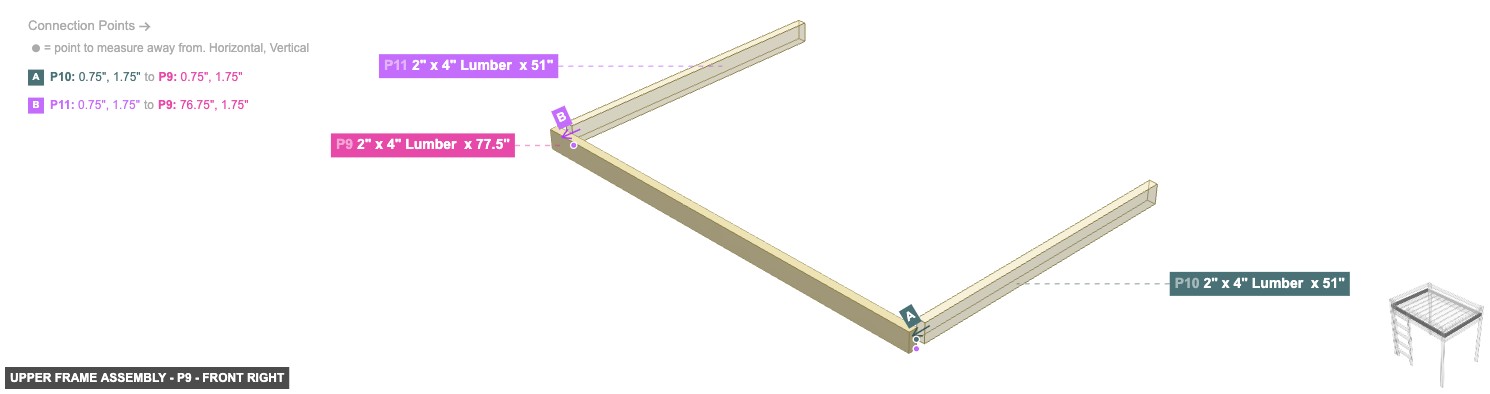

Part: 2" x 4" Lumber x 77.5" - Angle: front right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Part: 2" x 4" Lumber x 77.5" - Angle: bottom right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

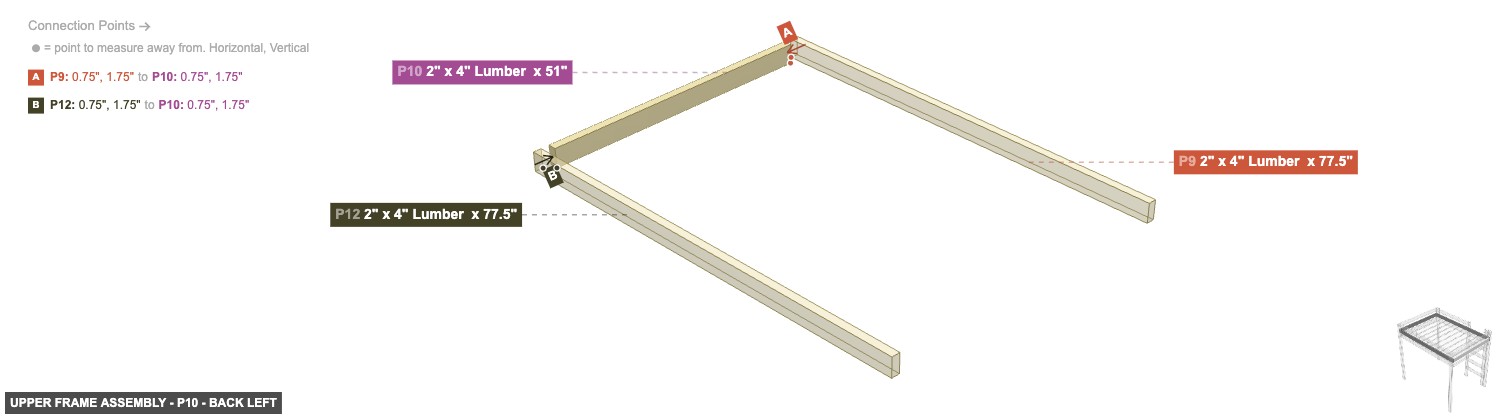

Part: 2" x 4" Lumber x 51" - Angle: back left

P10 (2" x 4" Lumber 51" length) - connect its 2" x 4" Wood End #1 oriented back links with part 12's 2" x 4" Wood Side #2, also connect its 2" x 4" Wood End #2 oriented front links with part 9's 2" x 4" Wood Side #4, also ensure its 2" x 4" Wood Side #1 faces bottom. Also, its 2" x 4" Wood Side #2 must be oriented right, and its 2" x 4" Wood Side #3 must be oriented top, plus its 2" x 4" Wood Side #4 needs to point left

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

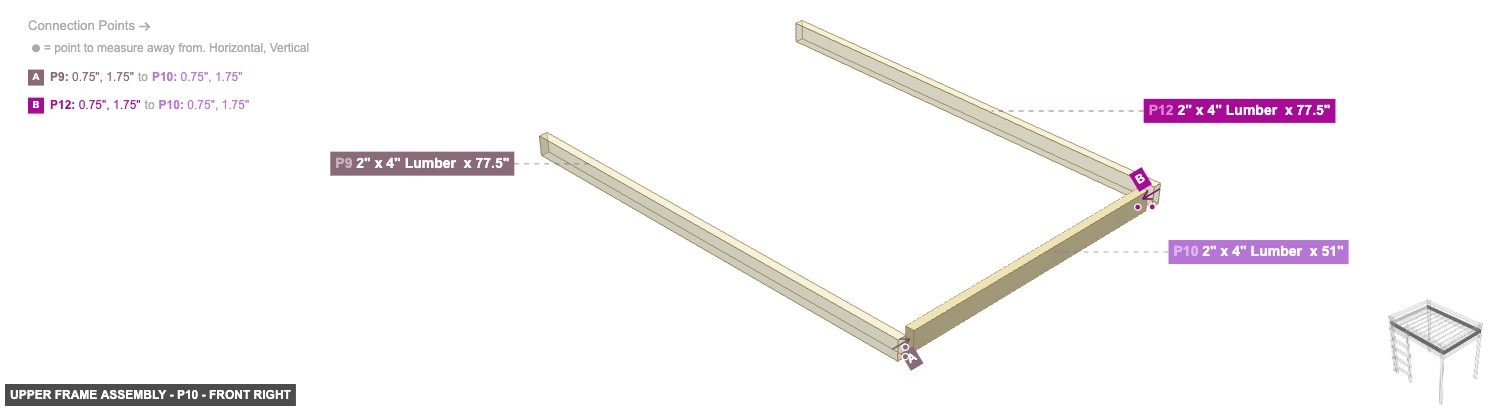

Part: 2" x 4" Lumber x 51" - Angle: front right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

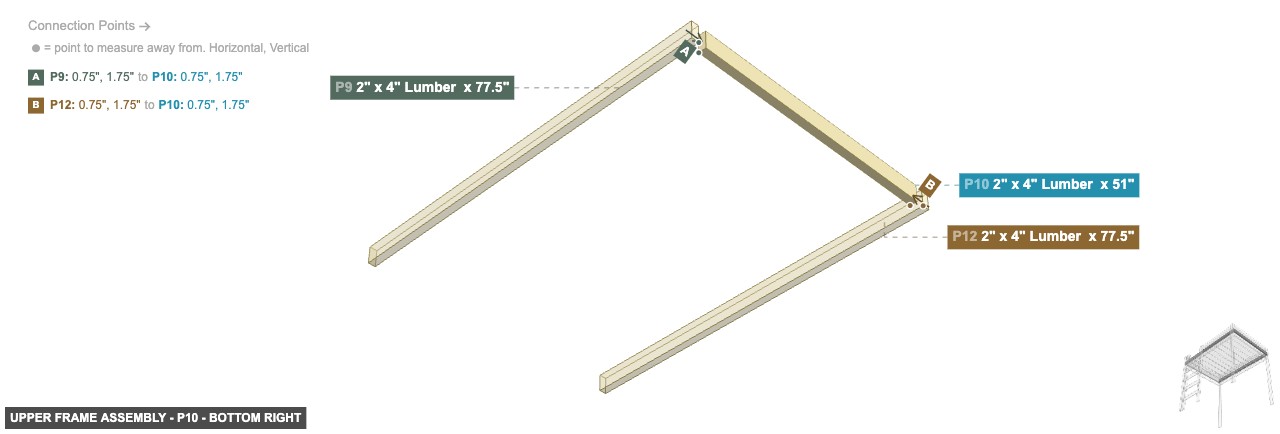

Part: 2" x 4" Lumber x 51" - Angle: bottom right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

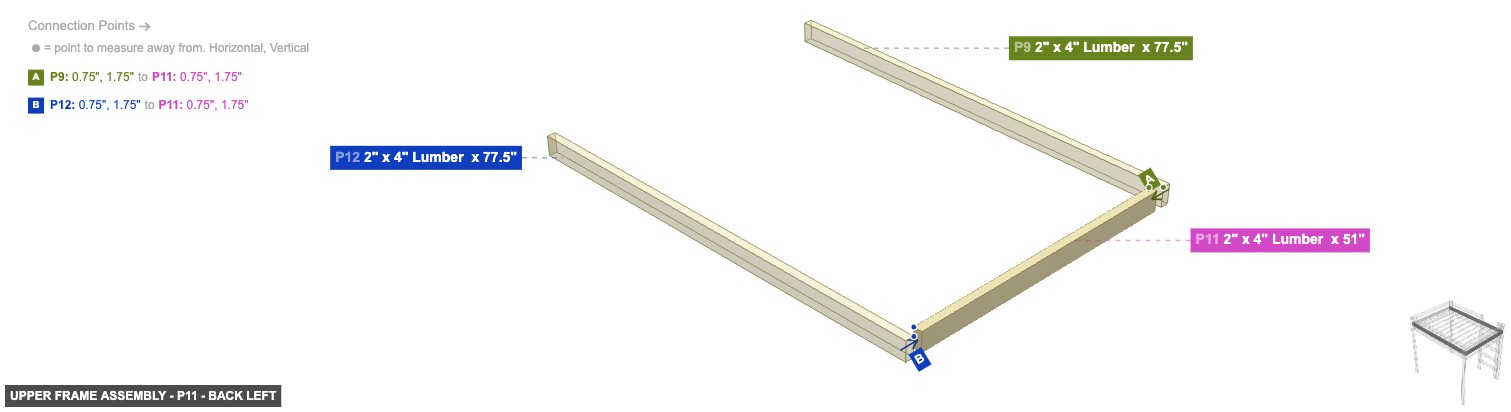

Part: 2" x 4" Lumber x 51" - Angle: back left

P11 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing back to part 12's 2" x 4" Wood Side #2, also attach its 2" x 4" Wood End #2 facing front to part 9's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood Side #1 must be oriented bottom. Additionally, its 2" x 4" Wood Side #2 should be directed right, also its 2" x 4" Wood Side #3 must be oriented top. Also, its 2" x 4" Wood Side #4 should be directed left

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

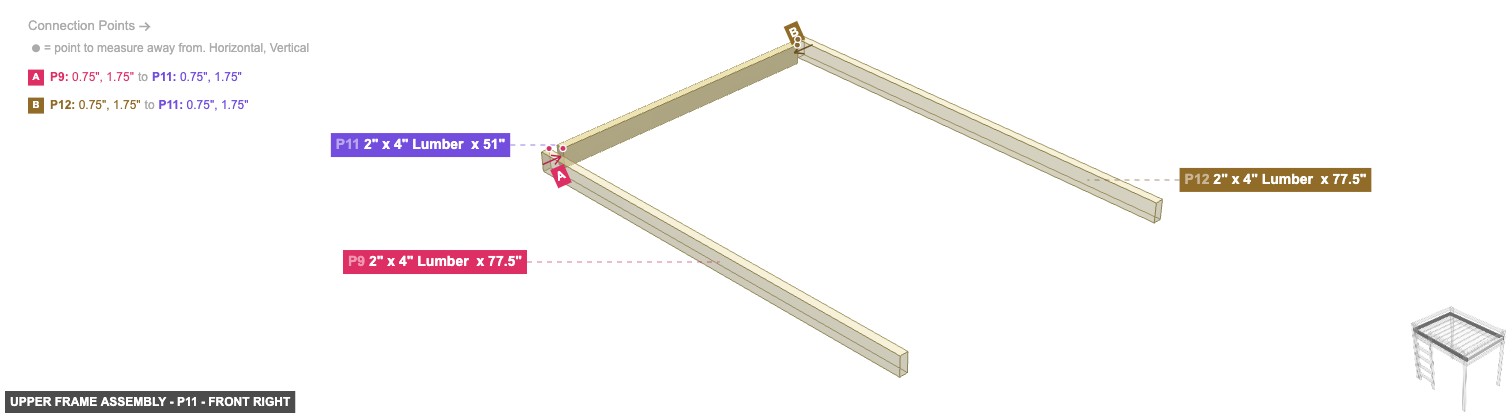

Part: 2" x 4" Lumber x 51" - Angle: front right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

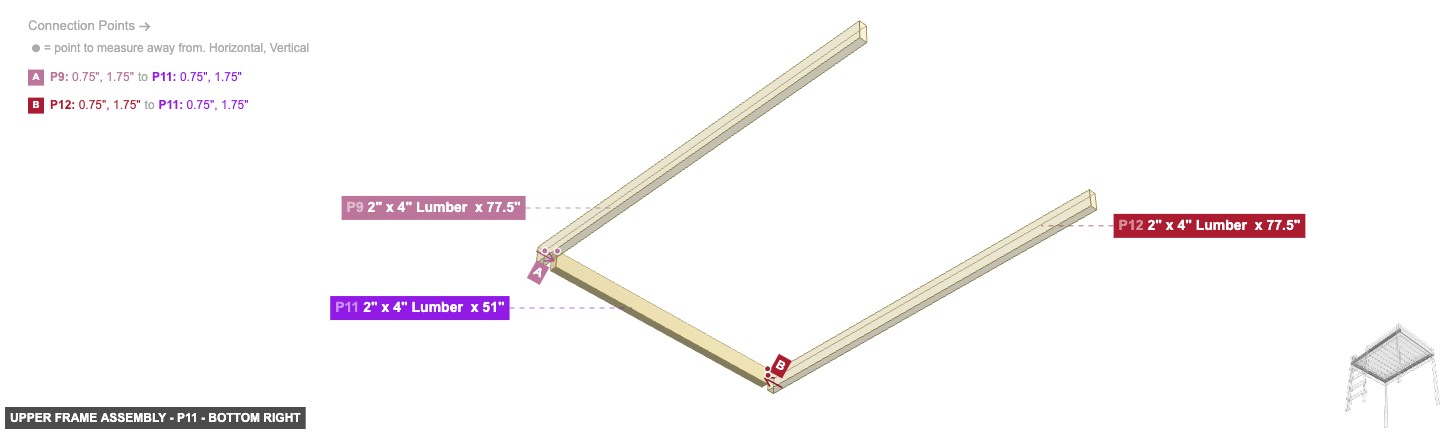

Part: 2" x 4" Lumber x 51" - Angle: bottom right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

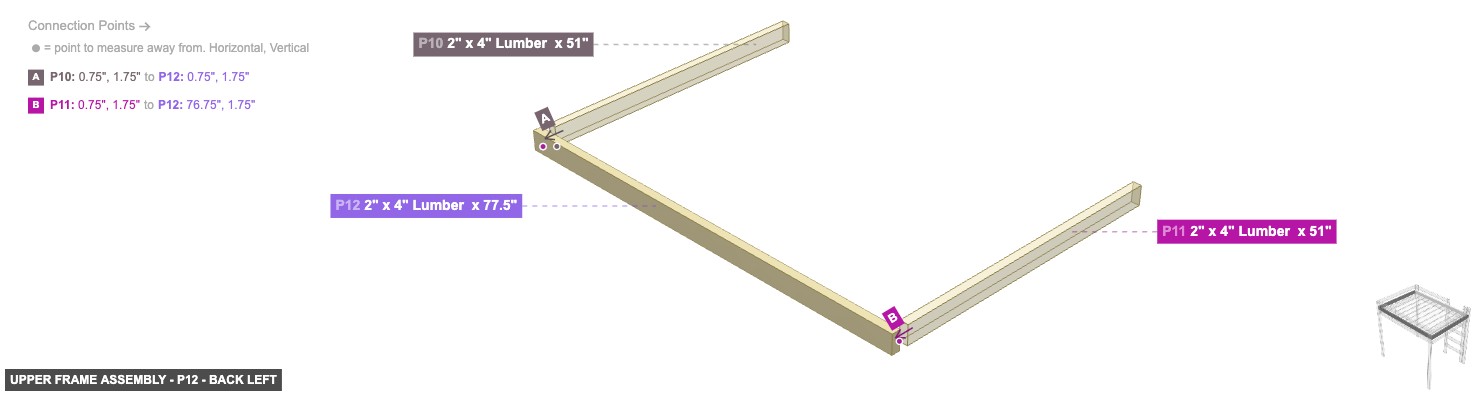

Part: 2" x 4" Lumber x 77.5" - Angle: back left

P12 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 10's 2" x 4" Wood End #1, also its 2" x 4" Wood End #1 should be directed left, also its 2" x 4" Wood Side #1 needs to point top. Also, ensure its 2" x 4" Wood Side #3 faces bottom. After that, ensure its 2" x 4" Wood End #2 faces right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

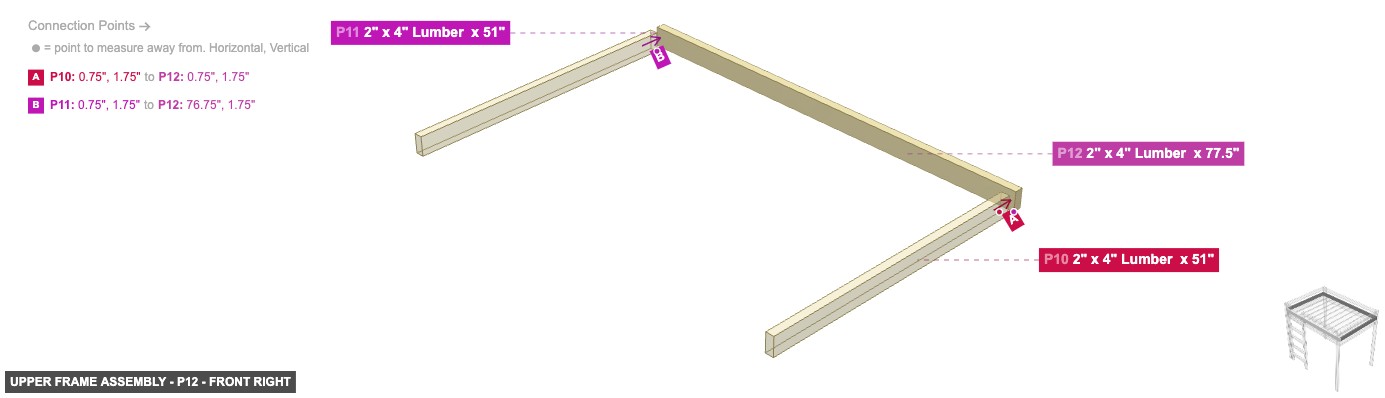

Part: 2" x 4" Lumber x 77.5" - Angle: front right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

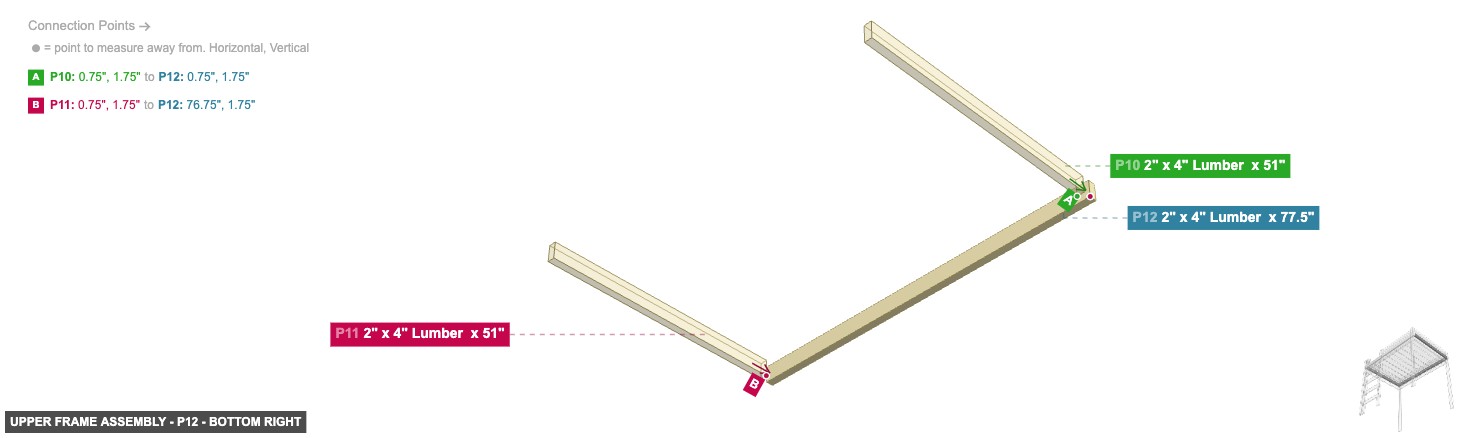

Part: 2" x 4" Lumber x 77.5" - Angle: bottom right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

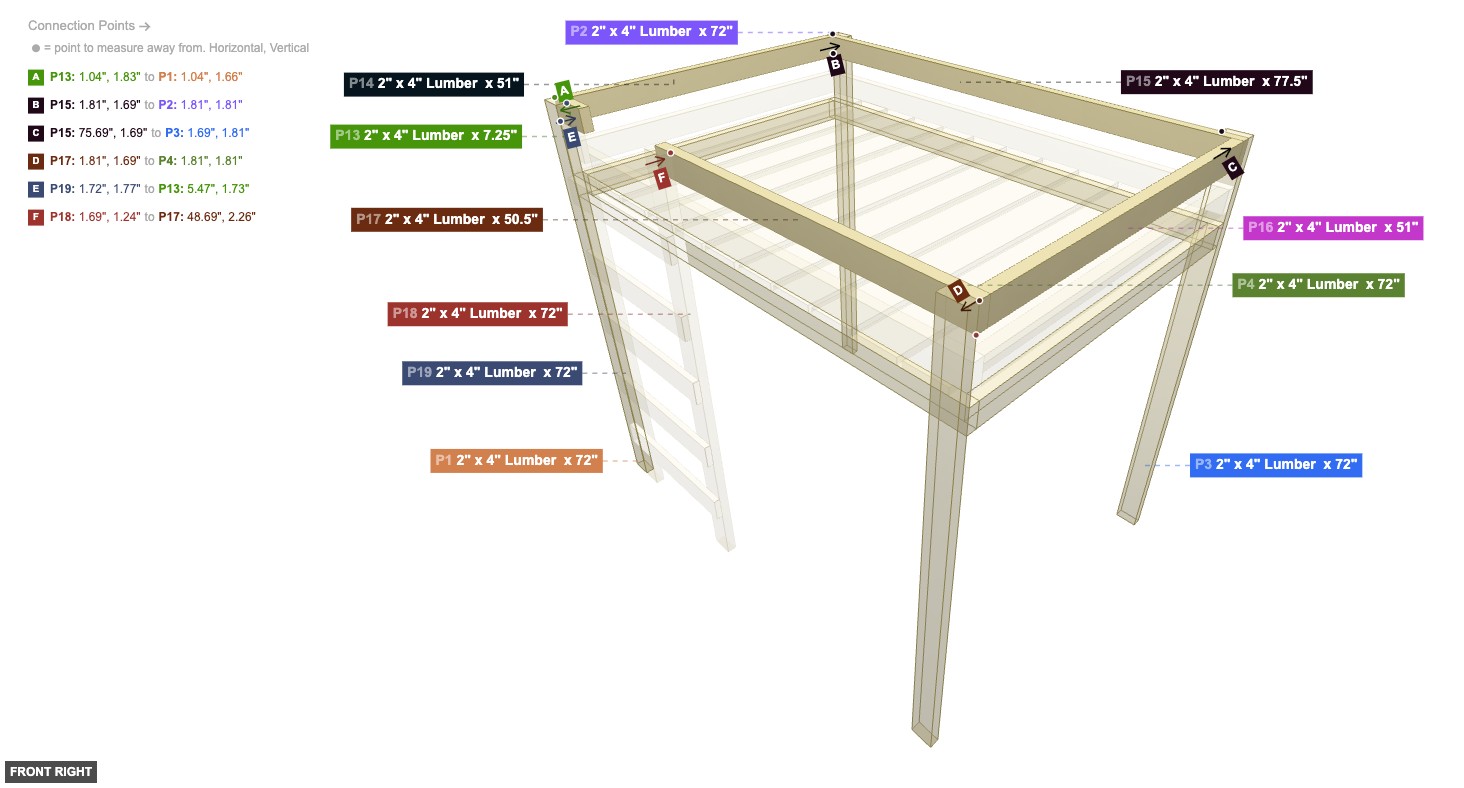

Group: Right Side Guard Rail Assembly

Assemble and attach the guard rail components to the right side of the bed frame.

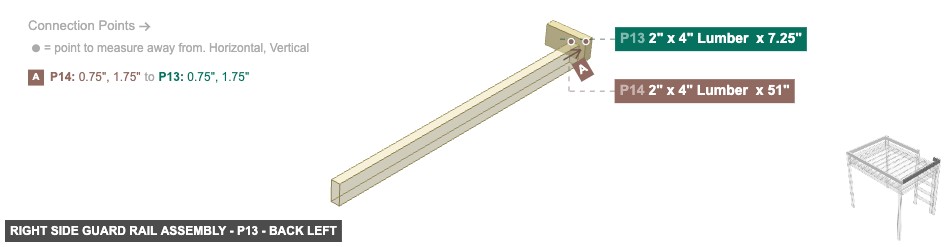

Part: 2" x 4" Lumber x 7.25" - Angle: back left

P13 (2" x 4" Lumber 7.25" length) - attach its 2" x 4" Wood Side #4 facing back to part 14's 2" x 4" Wood End #2. After that, its 2" x 4" Wood End #1 must be oriented right. Also, its 2" x 4" Wood Side #1 needs to point bottom. Additionally, its 2" x 4" Wood Side #3 should be directed top. Next, its 2" x 4" Wood End #2 needs to point left

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

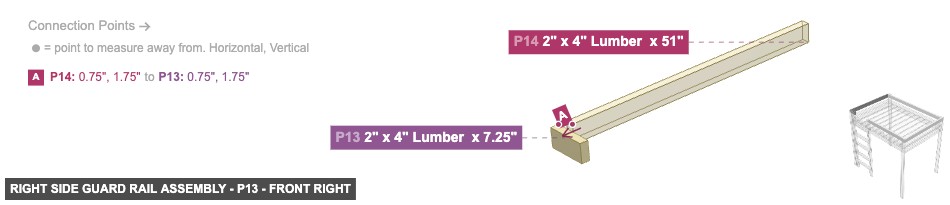

Part: 2" x 4" Lumber x 7.25" - Angle: front right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

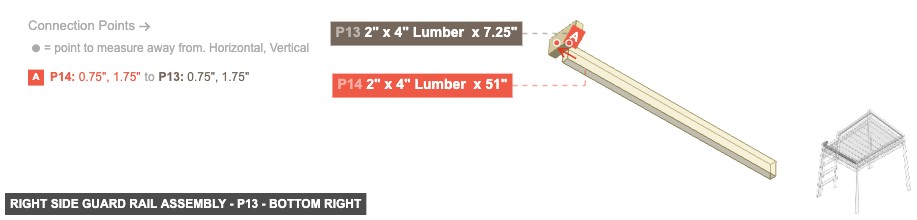

Part: 2" x 4" Lumber x 7.25" - Angle: bottom right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

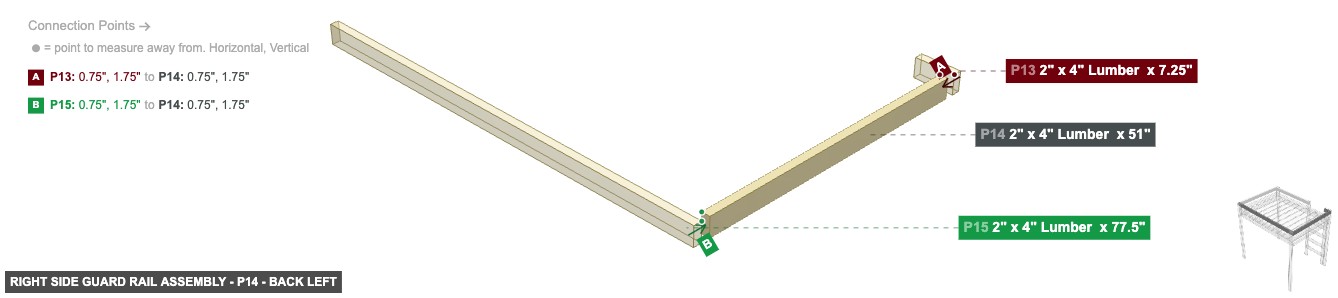

Part: 2" x 4" Lumber x 51" - Angle: back left

P14 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing back to part 15's 2" x 4" Wood Side #2, and attach its 2" x 4" Wood End #2 facing front to part 13's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood Side #1 needs to point bottom, and ensure its 2" x 4" Wood Side #2 faces right. Next, its 2" x 4" Wood Side #3 should be directed top, also its 2" x 4" Wood Side #4 must be oriented left

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

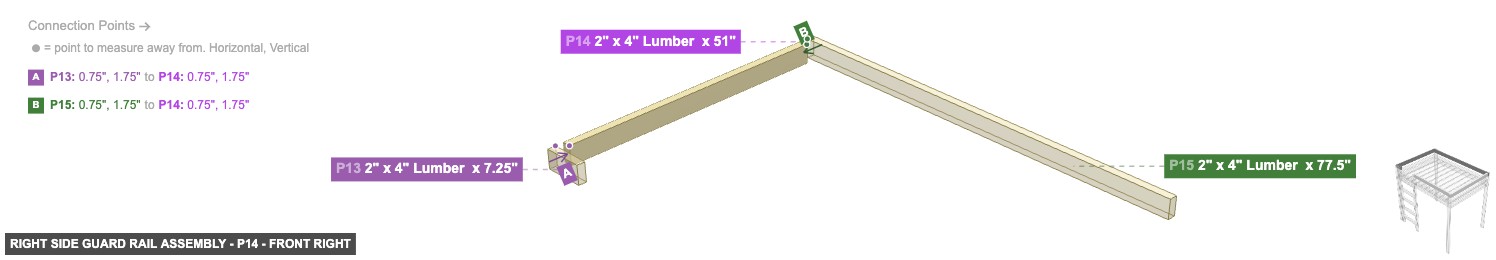

Part: 2" x 4" Lumber x 51" - Angle: front right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Part: 2" x 4" Lumber x 51" - Angle: bottom right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

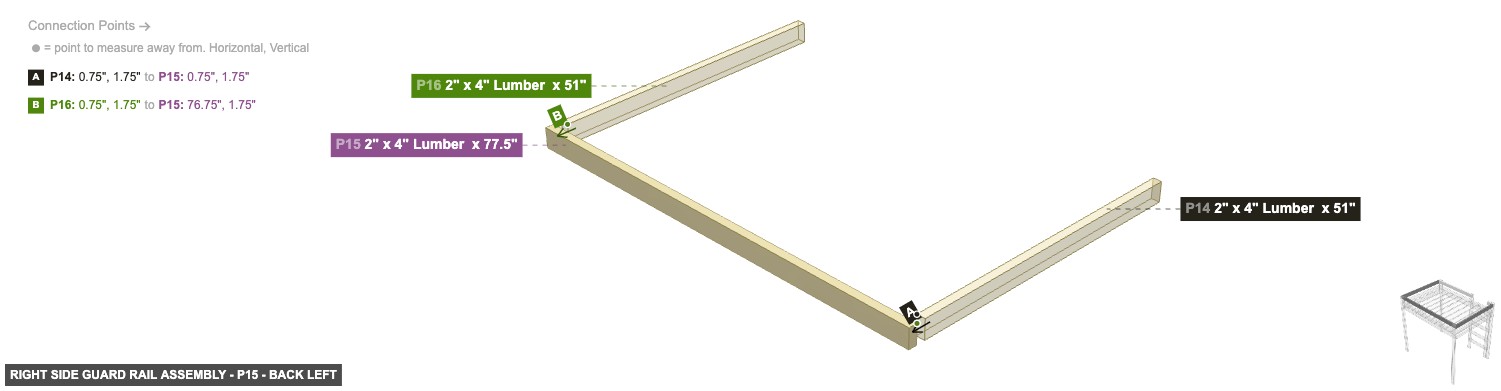

Part: 2" x 4" Lumber x 77.5" - Angle: back left

P15 (2" x 4" Lumber 77.5" length) - its 2" x 4" Wood Side #2, which is front-facing, should connect to part 14's 2" x 4" Wood End #1. Additionally, its 2" x 4" Wood End #1 needs to point left. Also, its 2" x 4" Wood Side #1 should be directed top, plus its 2" x 4" Wood Side #3 should be directed bottom. Next, its 2" x 4" Wood End #2 needs to point right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

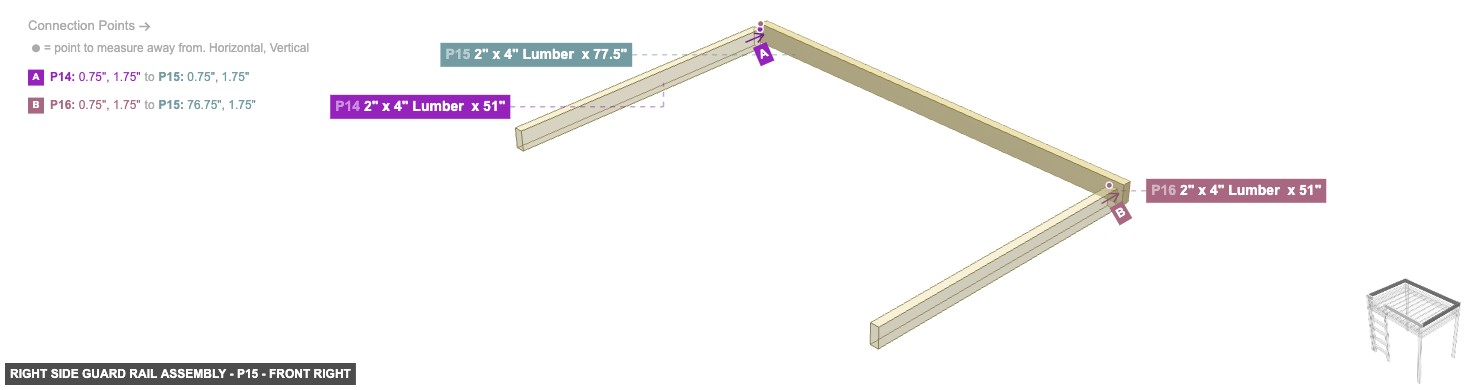

Part: 2" x 4" Lumber x 77.5" - Angle: front right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

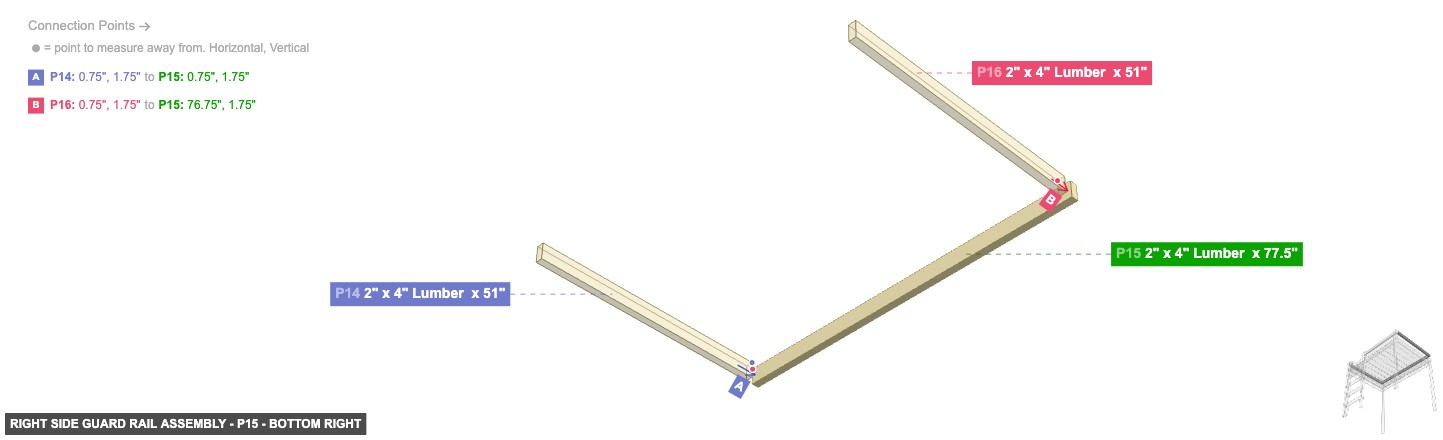

Part: 2" x 4" Lumber x 77.5" - Angle: bottom right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

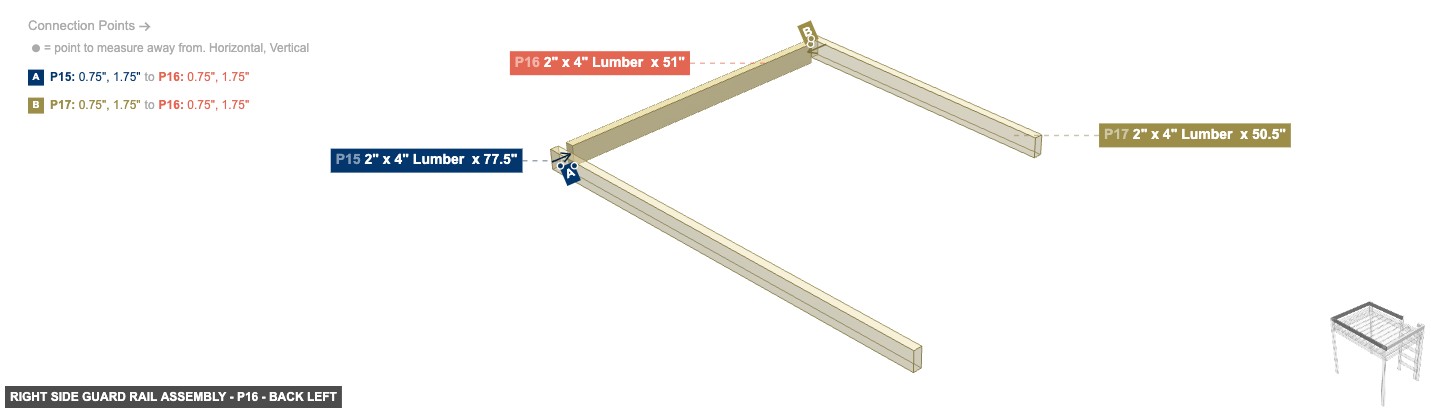

Part: 2" x 4" Lumber x 51" - Angle: back left

P16 (2" x 4" Lumber 51" length) - connect its 2" x 4" Wood End #1 oriented front links with part 17's 2" x 4" Wood Side #2, plus attach its 2" x 4" Wood End #2 facing back to part 15's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #1 must be oriented top. Also, ensure its 2" x 4" Wood Side #2 faces right, also its 2" x 4" Wood Side #3 must be oriented bottom, plus its 2" x 4" Wood Side #4 needs to point left

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

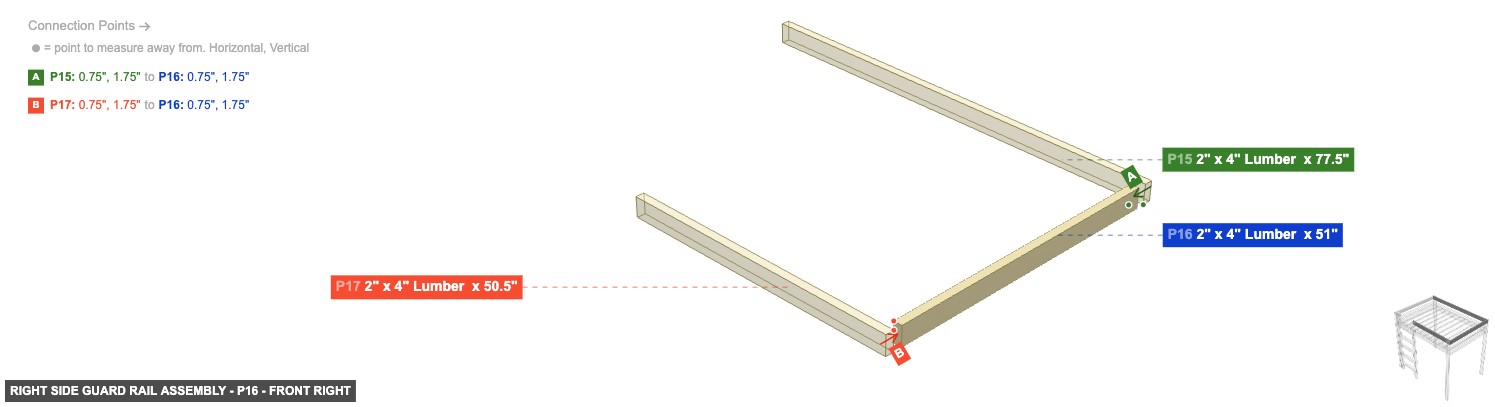

Part: 2" x 4" Lumber x 51" - Angle: front right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

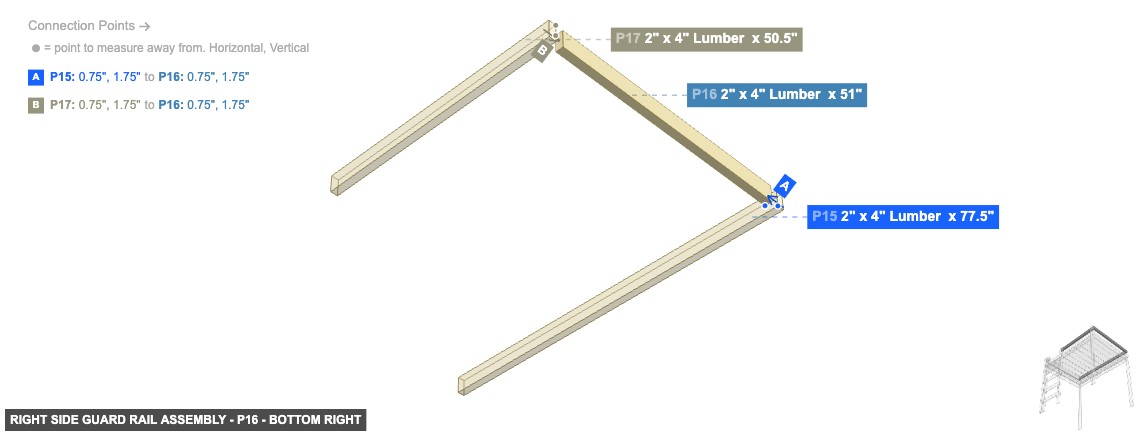

Part: 2" x 4" Lumber x 51" - Angle: bottom right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

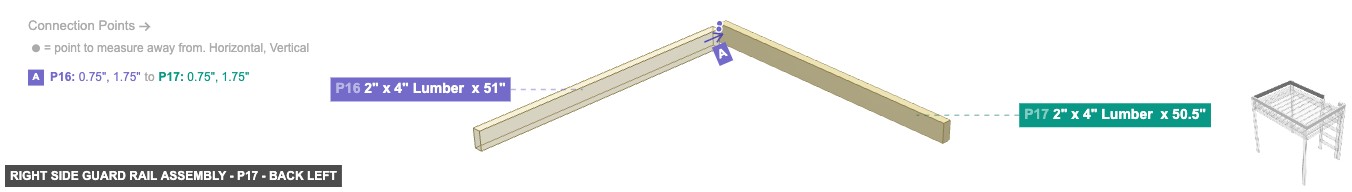

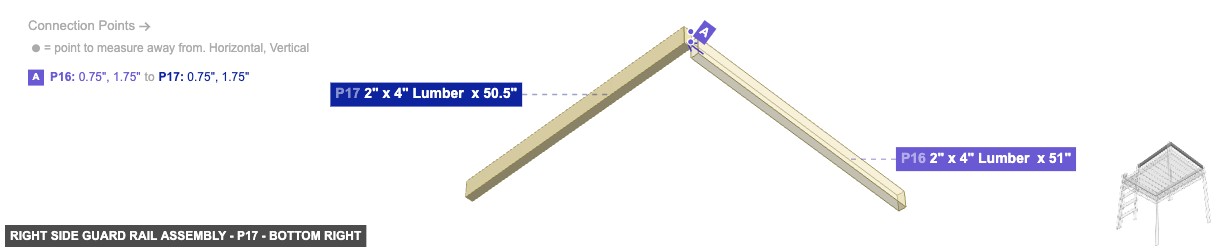

Part: 2" x 4" Lumber x 50.5" - Angle: back left

P17 (2" x 4" Lumber 50.5" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 16's 2" x 4" Wood End #1. Next, its 2" x 4" Wood End #1 must be oriented left. Next, ensure its 2" x 4" Wood Side #1 faces bottom, plus its 2" x 4" Wood Side #3 needs to point top, and its 2" x 4" Wood End #2 should be directed right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

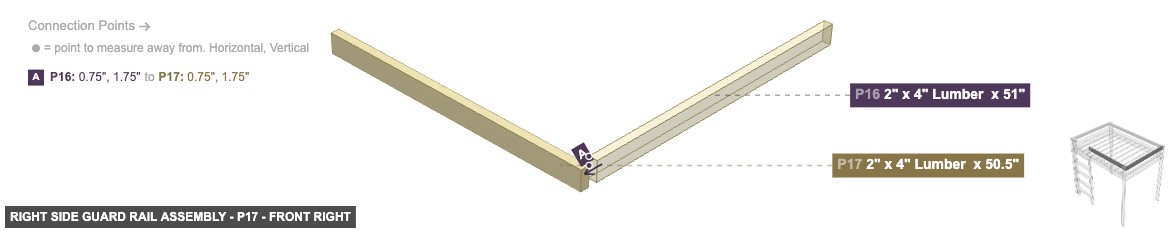

Part: 2" x 4" Lumber x 50.5" - Angle: front right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Part: 2" x 4" Lumber x 50.5" - Angle: bottom right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

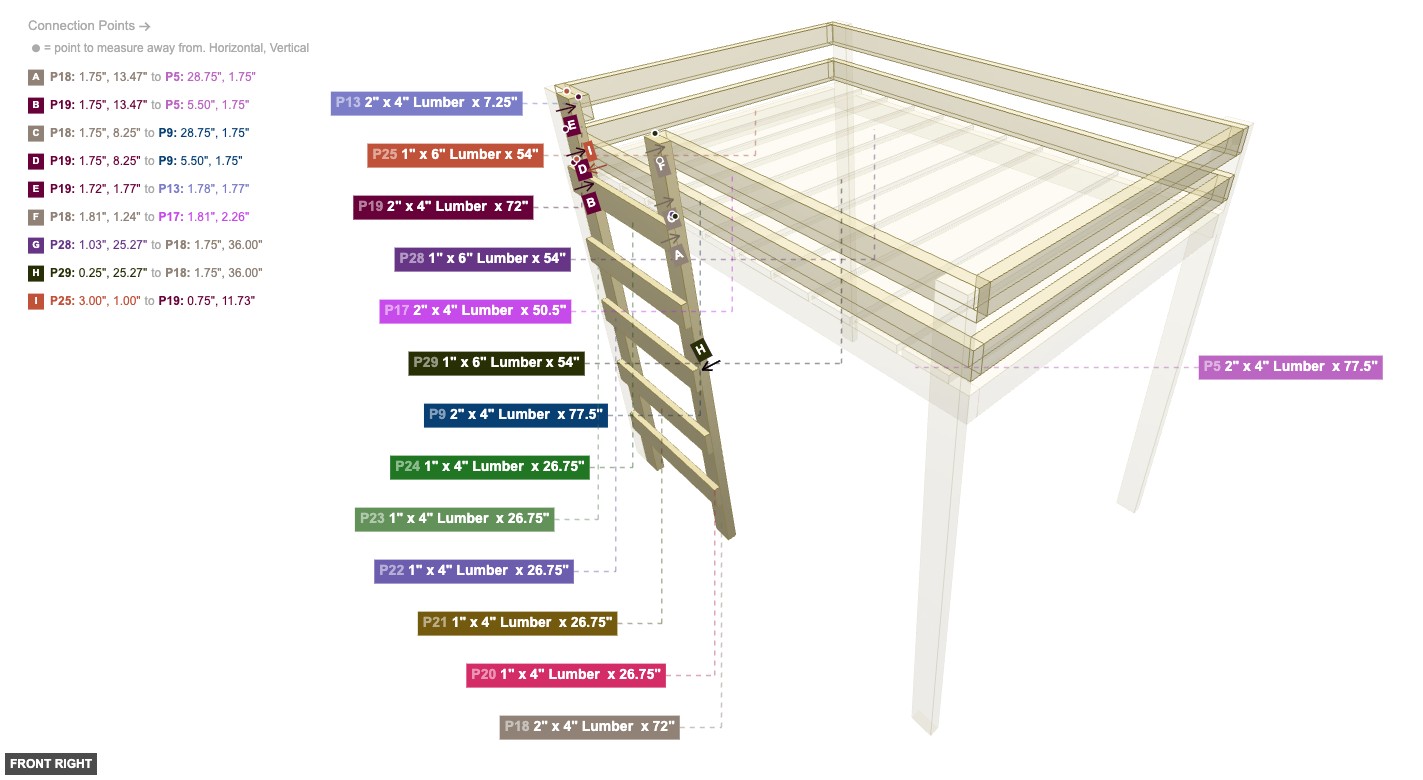

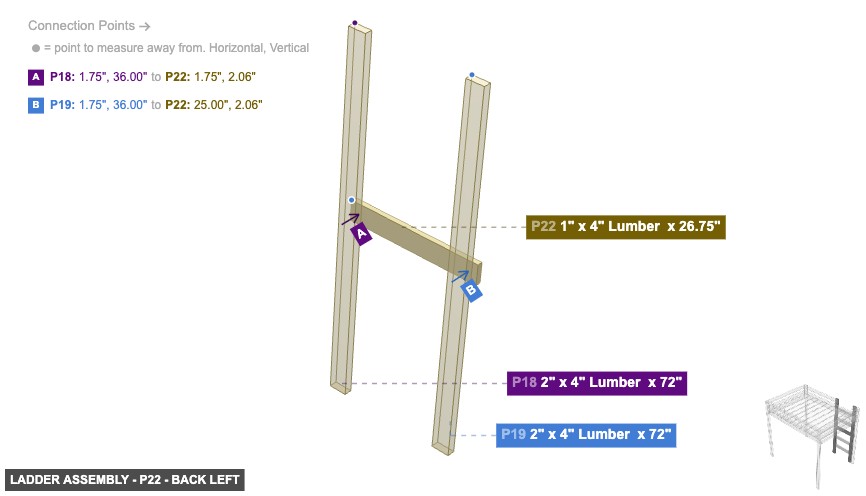

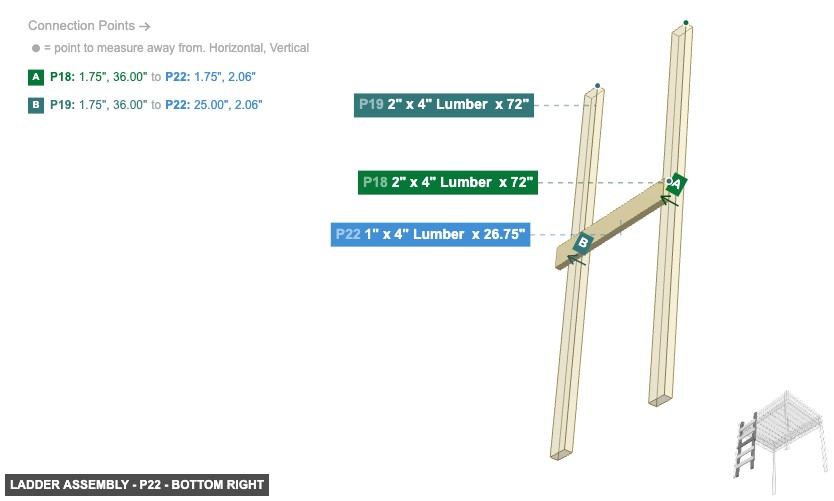

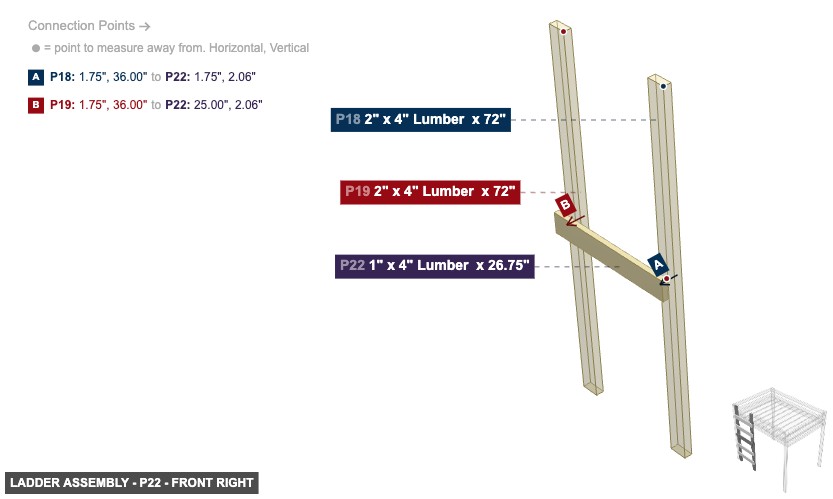

Group: Ladder Assembly

Assemble the ladder structure and attach it to the front-left side of the bed frame.

Part: 2" x 4" Lumber x 72" - Angle: back left

P18 (2" x 4" Lumber 72" length) - attach its 2" x 4" Wood Side #4 facing front to part 20's 1" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 must be oriented top, and its 2" x 4" Wood Side #1 must be oriented left, plus its 2" x 4" Wood Side #3 must be oriented right, also its 2" x 4" Wood End #2 should be directed bottom

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

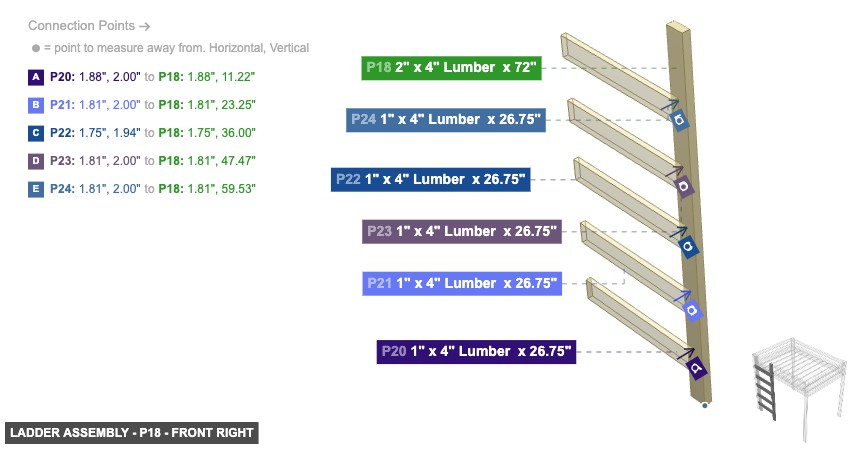

Part: 2" x 4" Lumber x 72" - Angle: front right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 2" x 4" Lumber x 72" - Angle: bottom right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

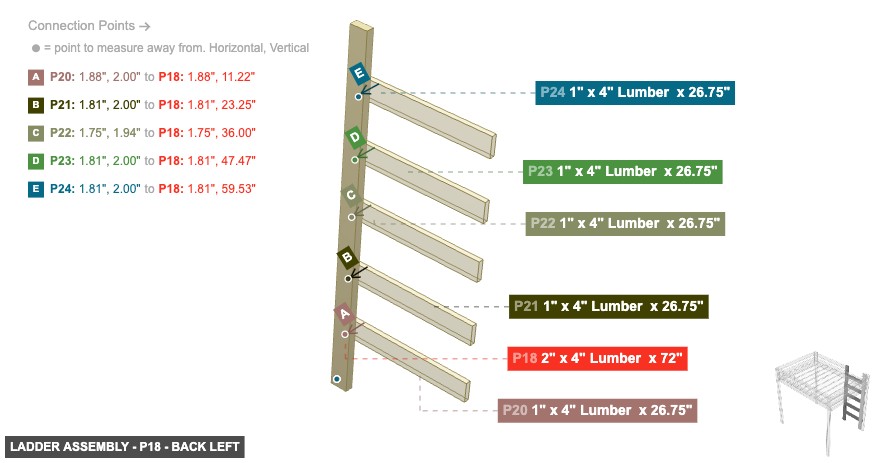

Part: 2" x 4" Lumber x 72" - Angle: back left

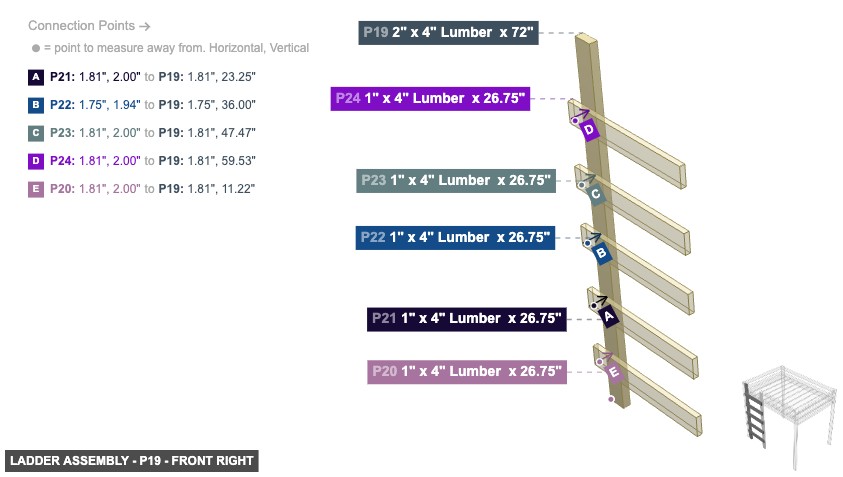

P19 (2" x 4" Lumber 72" length) - its 2" x 4" Wood Side #4, which is front-facing, should connect to part 21's 1" x 4" Wood Side #2, then its 2" x 4" Wood End #1 must be oriented top, plus its 2" x 4" Wood Side #1 needs to point left. After that, ensure its 2" x 4" Wood Side #3 faces right. Next, its 2" x 4" Wood End #2 needs to point bottom

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 2" x 4" Lumber x 72" - Angle: front right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

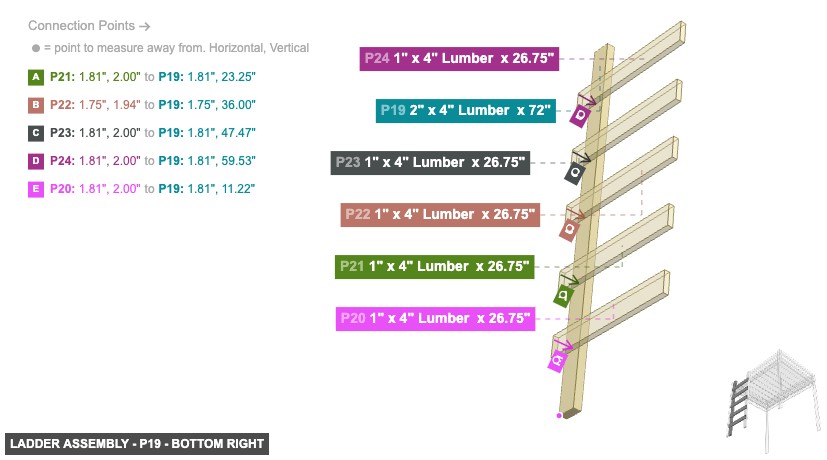

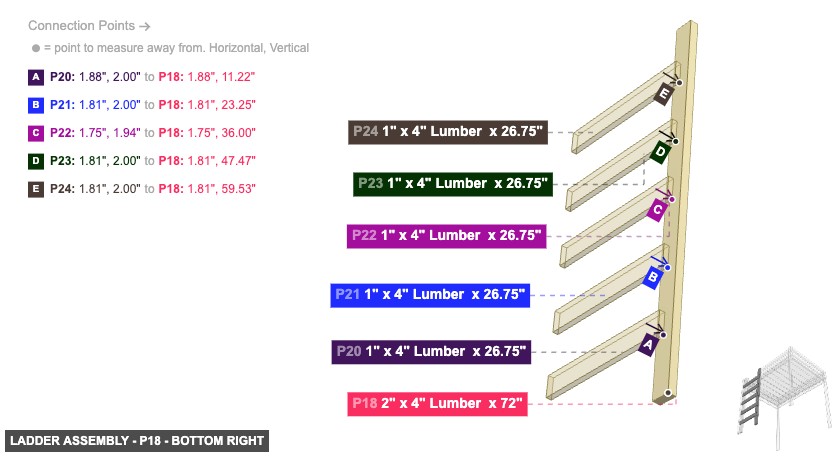

Part: 2" x 4" Lumber x 72" - Angle: bottom right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

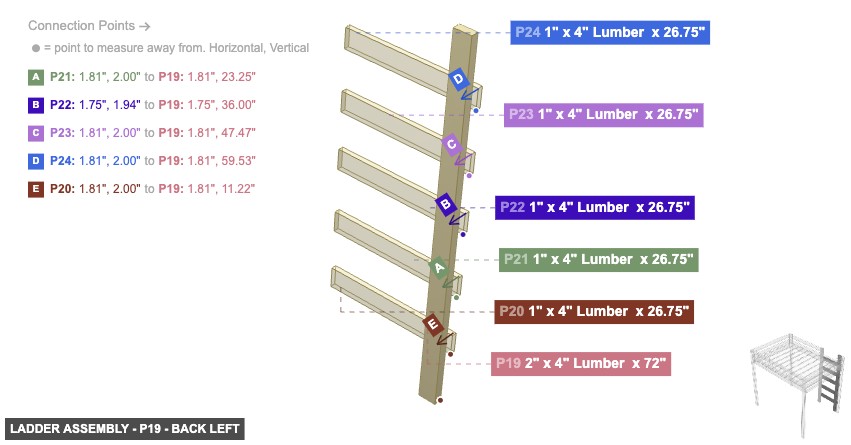

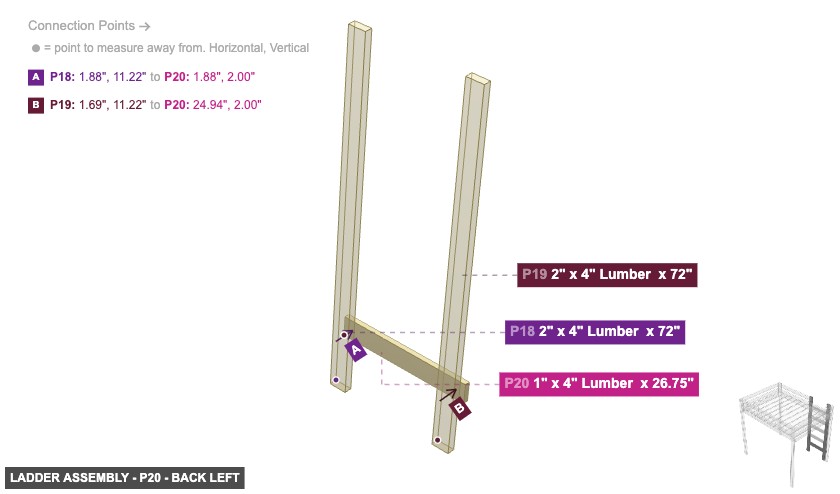

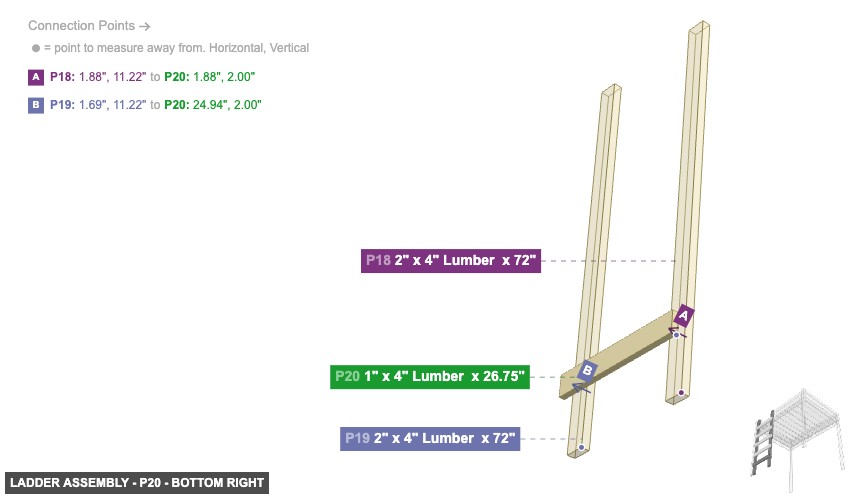

Part: 1" x 4" Lumber x 26.75" - Angle: back left

P20 (1" x 4" Lumber 26.75" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 18's 2" x 4" Wood Side #4. Next, ensure its 1" x 4" Wood End #1 faces right, plus its 1" x 4" Wood Side #1 must be oriented top, and its 1" x 4" Wood Side #3 should be directed bottom. Also, its 1" x 4" Wood Side #4 must be oriented front. Next, ensure its 1" x 4" Wood End #2 faces left

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

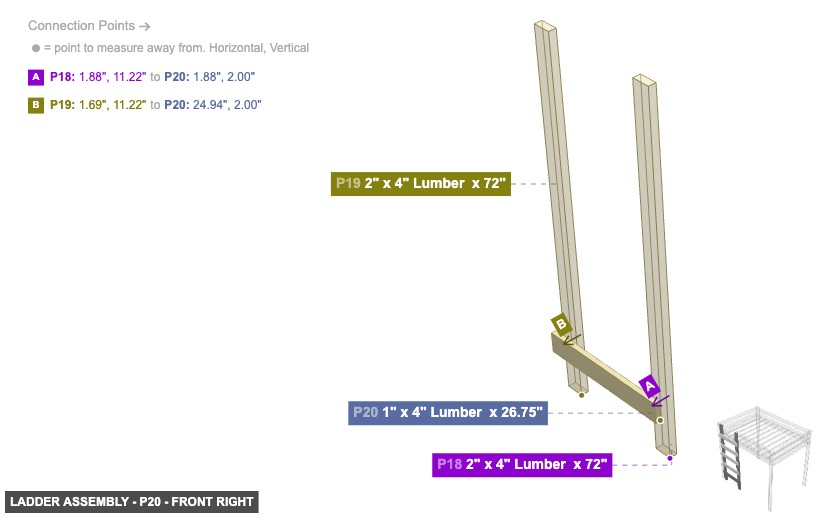

Part: 1" x 4" Lumber x 26.75" - Angle: front right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: bottom right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

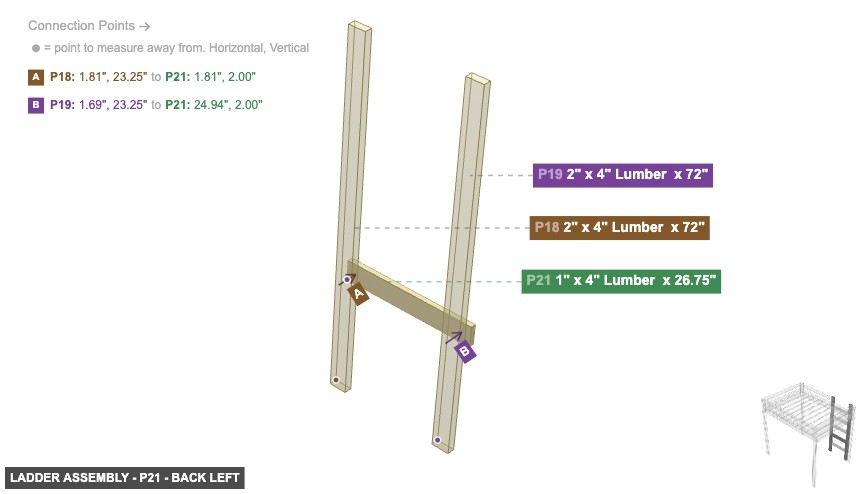

Part: 1" x 4" Lumber x 26.75" - Angle: back left

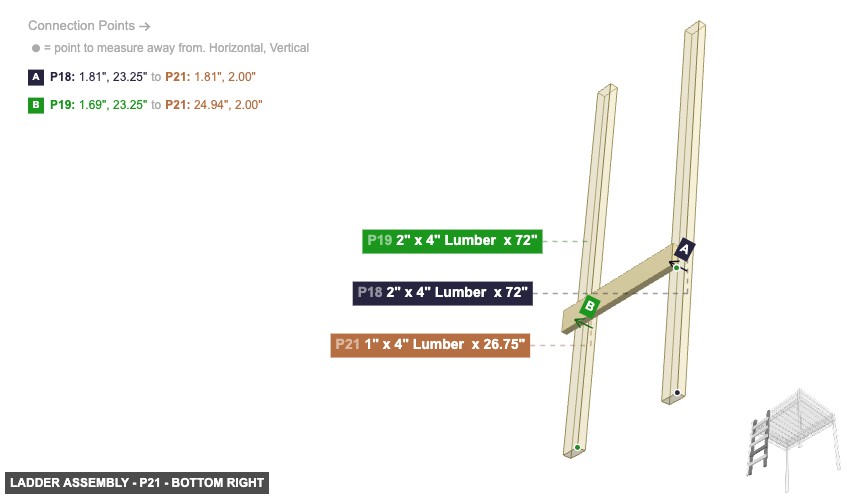

P21 (1" x 4" Lumber 26.75" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 18's 2" x 4" Wood Side #4. Also, its 1" x 4" Wood End #1 should be directed left, also its 1" x 4" Wood Side #1 must be oriented bottom. After that, its 1" x 4" Wood Side #3 should be directed top, and ensure its 1" x 4" Wood Side #4 faces front, then its 1" x 4" Wood End #2 needs to point right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

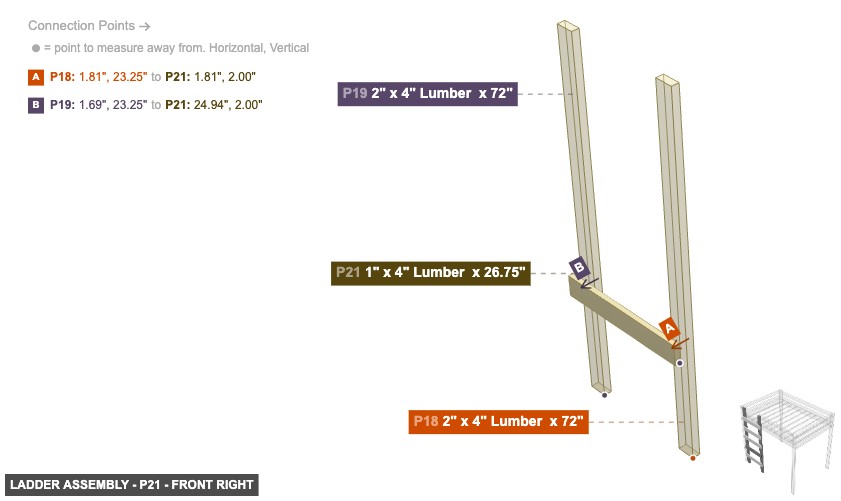

Part: 1" x 4" Lumber x 26.75" - Angle: front right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: bottom right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: back left

P22 (1" x 4" Lumber 26.75" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 18's 2" x 4" Wood Side #4, and its 1" x 4" Wood End #1 should be directed left. Also, its 1" x 4" Wood Side #1 needs to point bottom. After that, its 1" x 4" Wood Side #3 must be oriented top. After that, its 1" x 4" Wood Side #4 should be directed front. After that, its 1" x 4" Wood End #2 should be directed right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: front right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: bottom right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: back left

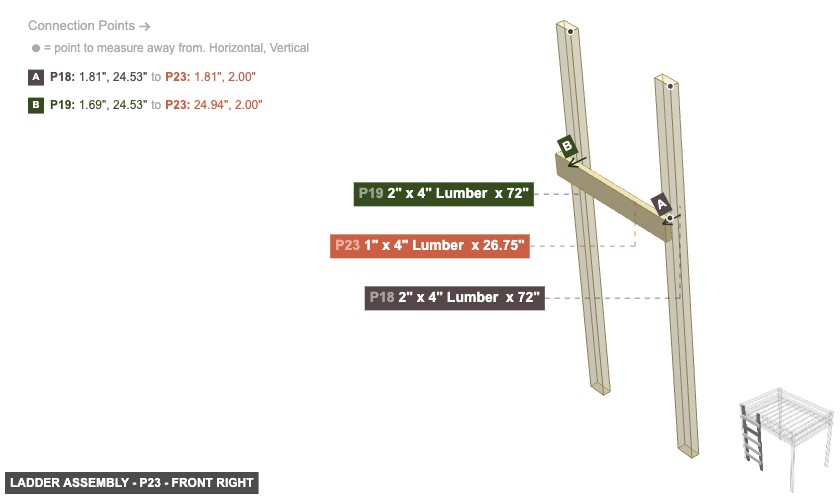

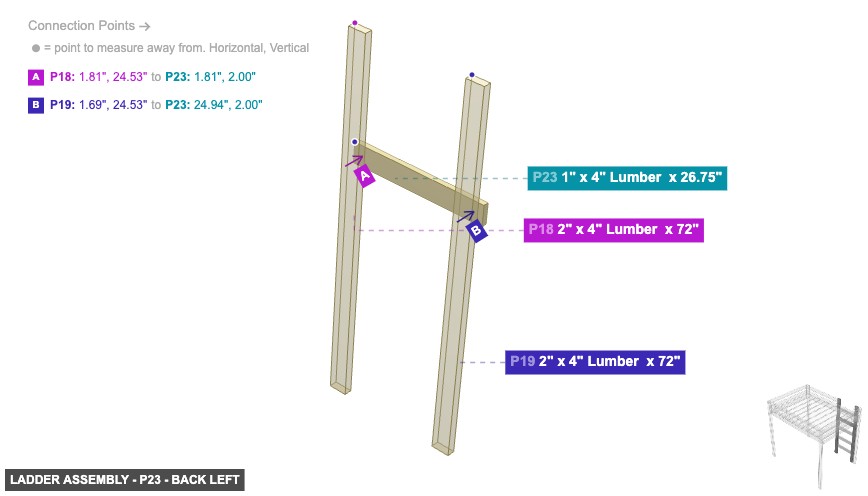

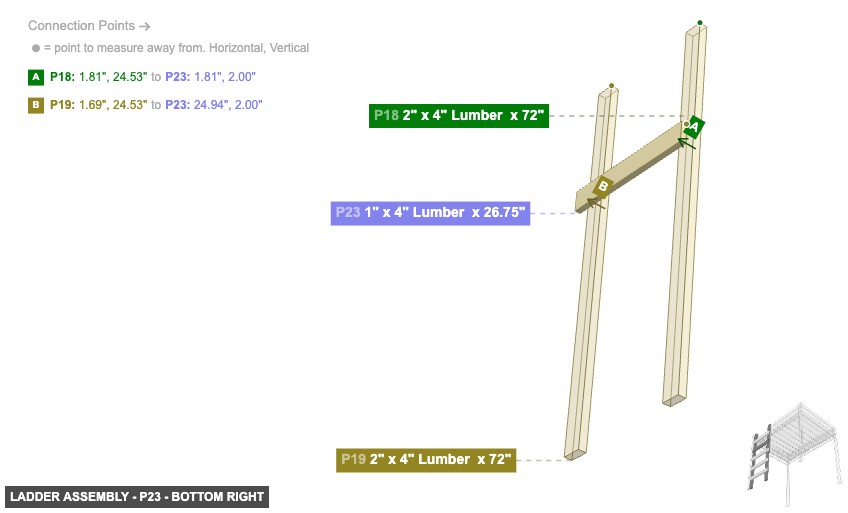

P23 (1" x 4" Lumber 26.75" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 18's 2" x 4" Wood Side #4. Additionally, its 1" x 4" Wood End #1 needs to point left. Also, its 1" x 4" Wood Side #1 needs to point bottom. Additionally, its 1" x 4" Wood Side #3 must be oriented top, plus its 1" x 4" Wood Side #4 should be directed front, and its 1" x 4" Wood End #2 needs to point right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: front right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: bottom right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: back left

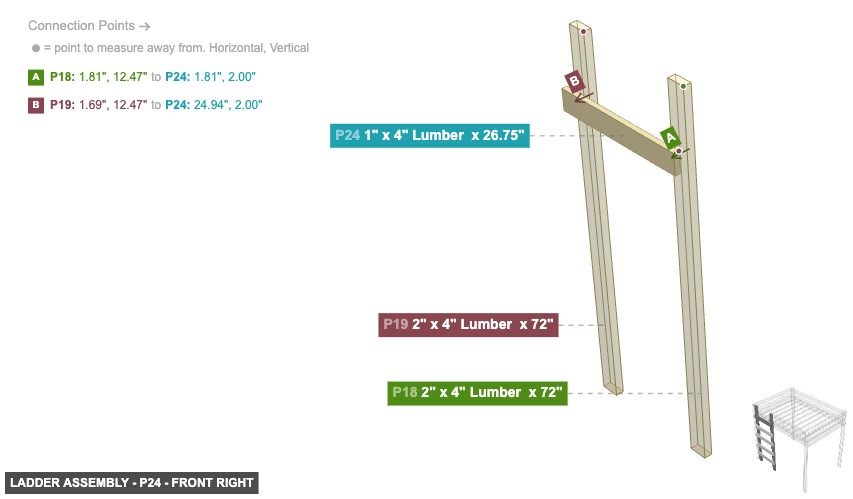

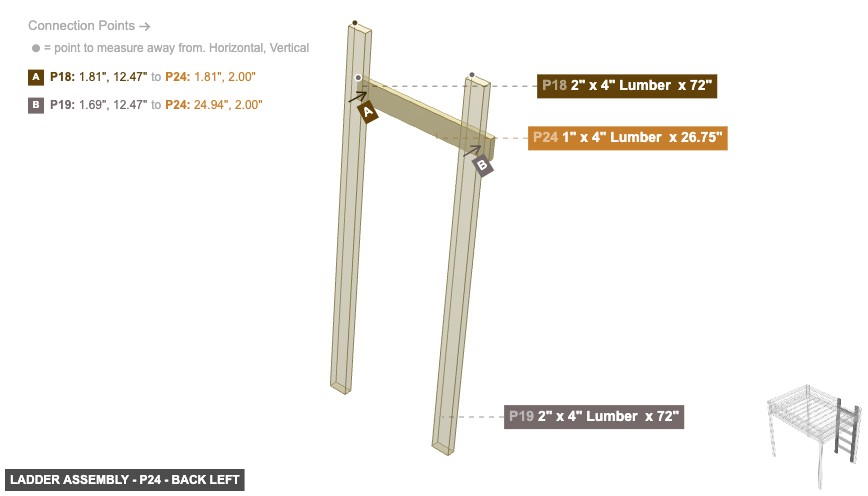

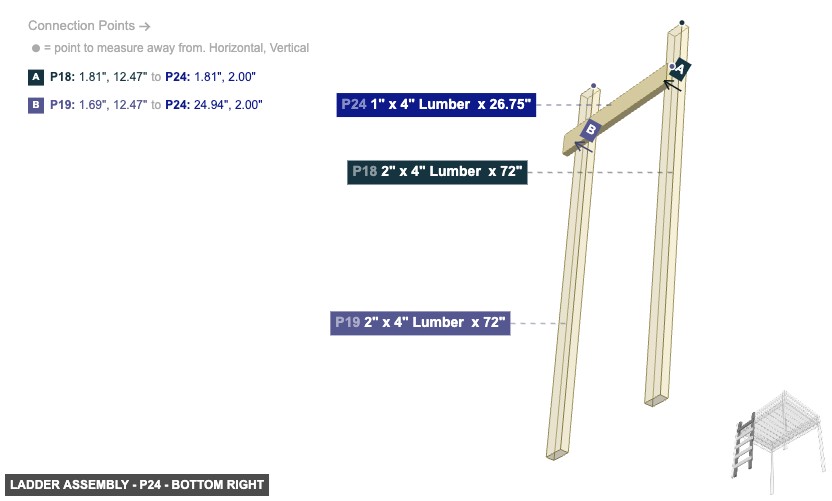

P24 (1" x 4" Lumber 26.75" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 18's 2" x 4" Wood Side #4. Also, its 1" x 4" Wood End #1 must be oriented left, and its 1" x 4" Wood Side #1 must be oriented bottom, also its 1" x 4" Wood Side #3 needs to point top. Additionally, ensure its 1" x 4" Wood Side #4 faces front, then its 1" x 4" Wood End #2 should be directed right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: front right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Part: 1" x 4" Lumber x 26.75" - Angle: bottom right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Phase 3: Inter-Group Assembly

Attaching: Base Frame Assembly

Assemble the four main legs and the lower horizontal support rails to create the basic structure.

Angle: back left

Assembly of Base Frame Assembly - back_left

P1 (2" x 4" Lumber 72" length) - attach its 2" x 4" Wood Side #2 facing back to part 5's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #1 should be directed top, and its 2" x 4" Wood Side #1 should be directed left. Next, its 2" x 4" Wood Side #3 must be oriented right. Next, its 2" x 4" Wood Side #4 needs to point front. Next, its 2" x 4" Wood End #2 needs to point bottom P2 (2" x 4" Lumber 72" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 8's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 needs to point bottom, plus its 2" x 4" Wood Side #1 should be directed left. After that, ensure its 2" x 4" Wood Side #3 faces right. After that, ensure its 2" x 4" Wood Side #4 faces back, also its 2" x 4" Wood End #2 must be oriented top P3 (2" x 4" Lumber 72" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 8's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood End #1 needs to point bottom. Additionally, its 2" x 4" Wood Side #1 needs to point left, and its 2" x 4" Wood Side #3 needs to point right. Next, its 2" x 4" Wood Side #4 needs to point back, also ensure its 2" x 4" Wood End #2 faces top P4 (2" x 4" Lumber 72" length) - attach its 2" x 4" Wood Side #2 facing back to part 5's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood End #1 must be oriented top, and its 2" x 4" Wood Side #1 should be directed left, also ensure its 2" x 4" Wood Side #3 faces right. After that, its 2" x 4" Wood Side #4 needs to point front, plus its 2" x 4" Wood End #2 should be directed bottom P5 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 1's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood Side #4, which is back-facing, should connect to part 6's 2" x 4" Wood End #2. Next, ensure its 2" x 4" Wood End #1 faces right, then its 2" x 4" Wood Side #1 should be directed bottom, then its 2" x 4" Wood Side #3 needs to point top. After that, ensure its 2" x 4" Wood End #2 faces left P6 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing back to part 8's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #2, which is front-facing, should connect to part 5's 2" x 4" Wood Side #4, plus its 2" x 4" Wood Side #1 should be directed bottom. Next, its 2" x 4" Wood Side #2 should be directed right. After that, ensure its 2" x 4" Wood Side #3 faces top, plus its 2" x 4" Wood Side #4 must be oriented left P7 (2" x 4" Lumber 51" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 8's 2" x 4" Wood Side #2, plus connect its 2" x 4" Wood End #2 oriented front links with part 5's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood Side #1 should be directed bottom, then its 2" x 4" Wood Side #2 should be directed right, then its 2" x 4" Wood Side #3 needs to point top, then its 2" x 4" Wood Side #4 needs to point left P8 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood Side #1 oriented top links with part 25's 1" x 6" Wood Side #2, also its 2" x 4" Wood Side #2, which is front-facing, should connect to part 7's 2" x 4" Wood End #1. Additionally, attach its 2" x 4" Wood Side #4 facing back to part 2's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #1 should be directed left. After that, its 2" x 4" Wood Side #3 needs to point bottom, plus ensure its 2" x 4" Wood End #2 faces right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Angle: front right

Assembly of Base Frame Assembly - front_right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Angle: bottom right

Assembly of Base Frame Assembly - bottom_right

2" x 4" Lumber x 72"x 4

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Attaching: Upper Frame Assembly

Attach the upper horizontal support rails to complete the main bed frame.

Angle: back left

Assembly of Upper Frame Assembly - back_left

P9 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 1's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #4, which is back-facing, should connect to part 10's 2" x 4" Wood End #2. Next, its 2" x 4" Wood End #1 must be oriented right. After that, its 2" x 4" Wood Side #1 should be directed bottom. Also, its 2" x 4" Wood Side #3 should be directed top. After that, its 2" x 4" Wood End #2 must be oriented left P10 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing back to part 12's 2" x 4" Wood Side #2, also connect its 2" x 4" Wood End #2 oriented front links with part 9's 2" x 4" Wood Side #4, and its 2" x 4" Wood Side #1 needs to point bottom. After that, its 2" x 4" Wood Side #2 must be oriented right, plus its 2" x 4" Wood Side #3 must be oriented top. After that, ensure its 2" x 4" Wood Side #4 faces left P11 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing back to part 12's 2" x 4" Wood Side #2, and its 2" x 4" Wood End #2, which is front-facing, should connect to part 9's 2" x 4" Wood Side #4, plus ensure its 2" x 4" Wood Side #1 faces bottom. Next, its 2" x 4" Wood Side #2 must be oriented right, and its 2" x 4" Wood Side #3 needs to point top. Next, its 2" x 4" Wood Side #4 needs to point left P12 (2" x 4" Lumber 77.5" length) - attach its 2" x 4" Wood Side #2 facing front to part 10's 2" x 4" Wood End #1, and its 2" x 4" Wood Side #4, which is back-facing, should connect to part 2's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #1 needs to point left, plus its 2" x 4" Wood Side #1 needs to point top, then its 2" x 4" Wood Side #3 needs to point bottom, and its 2" x 4" Wood End #2 should be directed right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Angle: front right

Assembly of Upper Frame Assembly - front_right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Angle: bottom right

Assembly of Upper Frame Assembly - bottom_right

2" x 4" Lumber x 77.5"x 2

2" x 4" Lumber x 51"x 2

Attaching: Right Side Guard Rail Assembly

Assemble and attach the guard rail components to the right side of the bed frame.

Angle: back left

Assembly of Right Side Guard Rail Assembly - back_left

P13 (2" x 4" Lumber 7.25" length) - connect its 2" x 4" Wood Side #2 oriented front links with part 1's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood Side #4, which is back-facing, should connect to part 14's 2" x 4" Wood End #2. Next, its 2" x 4" Wood End #1 should be directed right. After that, its 2" x 4" Wood Side #1 needs to point bottom, then its 2" x 4" Wood Side #3 must be oriented top, also its 2" x 4" Wood End #2 must be oriented left P14 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing back to part 15's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 13's 2" x 4" Wood Side #4, and its 2" x 4" Wood Side #1 must be oriented bottom, also its 2" x 4" Wood Side #2 needs to point right, also its 2" x 4" Wood Side #3 needs to point top. Additionally, ensure its 2" x 4" Wood Side #4 faces left P15 (2" x 4" Lumber 77.5" length) - attach its 2" x 4" Wood Side #2 facing front to part 14's 2" x 4" Wood End #1. Next, attach its 2" x 4" Wood Side #4 facing back to part 2's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 should be directed left, then its 2" x 4" Wood Side #1 should be directed top, also its 2" x 4" Wood Side #3 should be directed bottom, then its 2" x 4" Wood End #2 needs to point right P16 (2" x 4" Lumber 51" length) - attach its 2" x 4" Wood End #1 facing front to part 17's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is back-facing, should connect to part 15's 2" x 4" Wood Side #2, plus its 2" x 4" Wood Side #1 must be oriented top, then its 2" x 4" Wood Side #2 should be directed right. Next, its 2" x 4" Wood Side #3 should be directed bottom, also its 2" x 4" Wood Side #4 must be oriented left P17 (2" x 4" Lumber 50.5" length) - connect its 2" x 4" Wood Side #2 oriented back links with part 16's 2" x 4" Wood End #1, plus attach its 2" x 4" Wood Side #4 facing front to part 4's 2" x 4" Wood Side #2, plus ensure its 2" x 4" Wood End #1 faces left. Also, its 2" x 4" Wood Side #1 should be directed bottom, then its 2" x 4" Wood Side #3 must be oriented top. Additionally, its 2" x 4" Wood End #2 must be oriented right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Angle: front right

Assembly of Right Side Guard Rail Assembly - front_right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Angle: bottom right

Assembly of Right Side Guard Rail Assembly - bottom_right

2" x 4" Lumber x 7.25"x 1

2" x 4" Lumber x 51"x 2

2" x 4" Lumber x 77.5"x 1

2" x 4" Lumber x 50.5"x 1

Attaching: Ladder Assembly

Assemble the ladder structure and attach it to the front-left side of the bed frame.

Angle: back left

P18 (2" x 4" Lumber 72" length) - attach its 2" x 4" Wood Side #2 facing back to part 17's 2" x 4" Wood Side #4, also its 2" x 4" Wood Side #4, which is front-facing, should connect to part 20's 1" x 4" Wood Side #2, and its 2" x 4" Wood End #1 needs to point top. After that, ensure its 2" x 4" Wood Side #1 faces left, then its 2" x 4" Wood Side #3 must be oriented right. Also, ensure its 2" x 4" Wood End #2 faces bottom P19 (2" x 4" Lumber 72" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 13's 2" x 4" Wood Side #2, also attach its 2" x 4" Wood Side #4 facing front to part 21's 1" x 4" Wood Side #2, then its 2" x 4" Wood End #1 needs to point top. Also, its 2" x 4" Wood Side #1 should be directed left. Also, its 2" x 4" Wood Side #3 should be directed right, and its 2" x 4" Wood End #2 needs to point bottom P20 (1" x 4" Lumber 26.75" length) - attach its 1" x 4" Wood Side #2 facing back to part 18's 2" x 4" Wood Side #4, and its 1" x 4" Wood End #1 must be oriented right. Additionally, its 1" x 4" Wood Side #1 needs to point top, then its 1" x 4" Wood Side #3 must be oriented bottom, also its 1" x 4" Wood Side #4 should be directed front, then its 1" x 4" Wood End #2 should be directed left P21 (1" x 4" Lumber 26.75" length) - connect its 1" x 4" Wood Side #2 oriented back links with part 18's 2" x 4" Wood Side #4, then ensure its 1" x 4" Wood End #1 faces left, then its 1" x 4" Wood Side #1 needs to point bottom. Next, its 1" x 4" Wood Side #3 must be oriented top, also its 1" x 4" Wood Side #4 should be directed front. Also, ensure its 1" x 4" Wood End #2 faces right P22 (1" x 4" Lumber 26.75" length) - attach its 1" x 4" Wood Side #2 facing back to part 18's 2" x 4" Wood Side #4. After that, ensure its 1" x 4" Wood End #1 faces left. Additionally, its 1" x 4" Wood Side #1 should be directed bottom, also its 1" x 4" Wood Side #3 must be oriented top. Additionally, its 1" x 4" Wood Side #4 needs to point front, also ensure its 1" x 4" Wood End #2 faces right P23 (1" x 4" Lumber 26.75" length) - attach its 1" x 4" Wood Side #2 facing back to part 18's 2" x 4" Wood Side #4. After that, ensure its 1" x 4" Wood End #1 faces left, then its 1" x 4" Wood Side #1 must be oriented bottom. After that, its 1" x 4" Wood Side #3 must be oriented top, plus its 1" x 4" Wood Side #4 should be directed front, and its 1" x 4" Wood End #2 needs to point right P24 (1" x 4" Lumber 26.75" length) - its 1" x 4" Wood Side #2, which is back-facing, should connect to part 18's 2" x 4" Wood Side #4, and its 1" x 4" Wood End #1 must be oriented left, also ensure its 1" x 4" Wood Side #1 faces bottom. Next, its 1" x 4" Wood Side #3 must be oriented top. After that, its 1" x 4" Wood Side #4 needs to point front, plus its 1" x 4" Wood End #2 must be oriented right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Angle: front right

Assembly of Ladder Assembly - front_right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Angle: bottom right

Assembly of Ladder Assembly - bottom_right

2" x 4" Lumber x 72"x 2

1" x 4" Lumber x 26.75"x 5

Attaching: Bed Slat Installation

Install the mattress support slats onto the bed frame.

Angle: back left

Assembly of Bed Slat Installation - back_left

P25 (1" x 6" Lumber 54" length) - connect its 1" x 6" Wood End #1 oriented back links with part 2's 2" x 4" Wood Side #2, plus its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 8's 2" x 4" Wood Side #1. Additionally, connect its 1" x 6" Wood End #2 oriented front links with part 1's 2" x 4" Wood Side #2, plus its 1" x 6" Wood Side #1 must be oriented left, plus its 1" x 6" Wood Side #3 must be oriented right, and its 1" x 6" Wood Side #4 should be directed top P26 (1" x 6" Lumber 54" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #1. Next, its 1" x 6" Wood End #1 must be oriented back, then its 1" x 6" Wood Side #1 needs to point left. Additionally, its 1" x 6" Wood Side #3 needs to point right. Also, its 1" x 6" Wood Side #4 must be oriented top. Also, ensure its 1" x 6" Wood End #2 faces front P27 (1" x 6" Lumber 54" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #1. Additionally, ensure its 1" x 6" Wood End #1 faces back. Also, its 1" x 6" Wood Side #1 needs to point left. Additionally, its 1" x 6" Wood Side #3 should be directed right. Also, its 1" x 6" Wood Side #4 needs to point top, also ensure its 1" x 6" Wood End #2 faces front P28 (1" x 6" Lumber 54" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #1, plus attach its 1" x 6" Wood End #2 facing front to part 18's 2" x 4" Wood Side #2. Next, its 1" x 6" Wood End #1 should be directed back, plus its 1" x 6" Wood Side #1 needs to point left, plus ensure its 1" x 6" Wood Side #3 faces right. After that, its 1" x 6" Wood Side #4 needs to point top P29 (1" x 6" Lumber 54" length) - its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 8's 2" x 4" Wood Side #1, then attach its 1" x 6" Wood End #2 facing front to part 18's 2" x 4" Wood Side #2. After that, ensure its 1" x 6" Wood End #1 faces back, then ensure its 1" x 6" Wood Side #1 faces left, then its 1" x 6" Wood Side #3 must be oriented right. Next, its 1" x 6" Wood Side #4 must be oriented top P30 (1" x 6" Lumber 54" length) - connect its 1" x 6" Wood Side #2 oriented bottom links with part 8's 2" x 4" Wood Side #1. Also, its 1" x 6" Wood End #1 must be oriented back. Additionally, its 1" x 6" Wood Side #1 needs to point left, and its 1" x 6" Wood Side #3 needs to point right. Additionally, ensure its 1" x 6" Wood Side #4 faces top. After that, its 1" x 6" Wood End #2 must be oriented front P31 (1" x 6" Lumber 54" length) - connect its 1" x 6" Wood Side #2 oriented bottom links with part 8's 2" x 4" Wood Side #1, and its 1" x 6" Wood End #1 should be directed back, also its 1" x 6" Wood Side #1 should be directed left, also its 1" x 6" Wood Side #3 must be oriented right, and its 1" x 6" Wood Side #4 needs to point top. After that, its 1" x 6" Wood End #2 must be oriented front P32 (1" x 6" Lumber 54" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #1. Also, its 1" x 6" Wood End #1 must be oriented back. Also, its 1" x 6" Wood Side #1 should be directed left, plus its 1" x 6" Wood Side #3 should be directed right, also its 1" x 6" Wood Side #4 should be directed top. Also, its 1" x 6" Wood End #2 must be oriented front P33 (1" x 6" Lumber 54" length) - its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 8's 2" x 4" Wood Side #1. Next, ensure its 1" x 6" Wood End #1 faces back. Also, its 1" x 6" Wood Side #1 must be oriented left. Also, its 1" x 6" Wood Side #3 must be oriented right. Additionally, ensure its 1" x 6" Wood Side #4 faces top, plus ensure its 1" x 6" Wood End #2 faces front P34 (1" x 6" Lumber 54" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #1, and its 1" x 6" Wood End #1 should be directed back. Next, its 1" x 6" Wood Side #1 must be oriented left, plus its 1" x 6" Wood Side #3 must be oriented right. After that, its 1" x 6" Wood Side #4 needs to point top, then its 1" x 6" Wood End #2 must be oriented front P35 (1" x 6" Lumber 54" length) - connect its 1" x 6" Wood End #1 oriented back links with part 3's 2" x 4" Wood Side #2, also connect its 1" x 6" Wood Side #2 oriented bottom links with part 8's 2" x 4" Wood Side #1, then attach its 1" x 6" Wood End #2 facing front to part 4's 2" x 4" Wood Side #2. Next, ensure its 1" x 6" Wood Side #1 faces left, and its 1" x 6" Wood Side #3 must be oriented right, then ensure its 1" x 6" Wood Side #4 faces top

1" x 6" Lumber x 54"x 11

Angle: front right

Assembly of Bed Slat Installation - front_right

1" x 6" Lumber x 54"x 11

Angle: bottom right

Assembly of Bed Slat Installation - bottom_right

1" x 6" Lumber x 54"x 11
