Aluminum Organizer Cart - Comprehensive Assembly Plan And Visual Guide

Aluminum Organizer Cart Free Plan And Visual Guide

A multi-level rolling cart constructed from T-slot aluminum extrusions (80/20). It features several horizontal shelf levels, diagonal bracing, vertical supports, wheels at the base, acrylic divider panels in the central section, handles at the top, and bin holders on one of the upper levels. - Aluminum Organizer CartA tall, wheeled, multi-level organizer cart constructed from T-slot aluminum extrusions. It features numerous shelves, acrylic side/back panels, pull handles, and holders for storage bins. - Aluminum Organizer Cart

Phase 1: Group Overview

Angle: back left

Aluminum Organizer Cart - Overview back_left

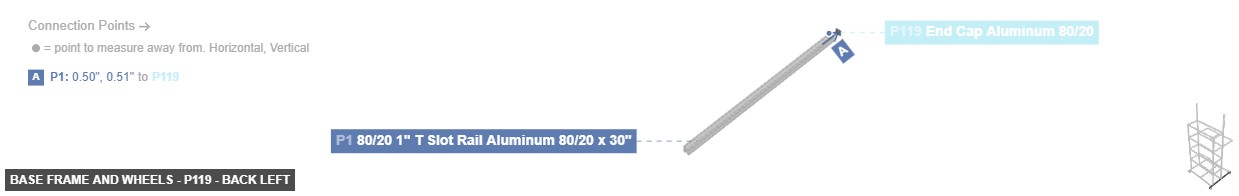

Base Frame and Wheels
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

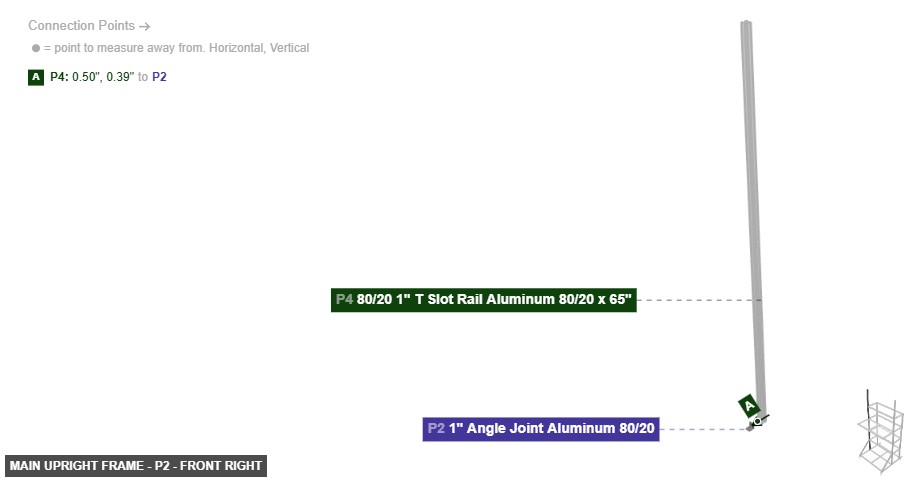

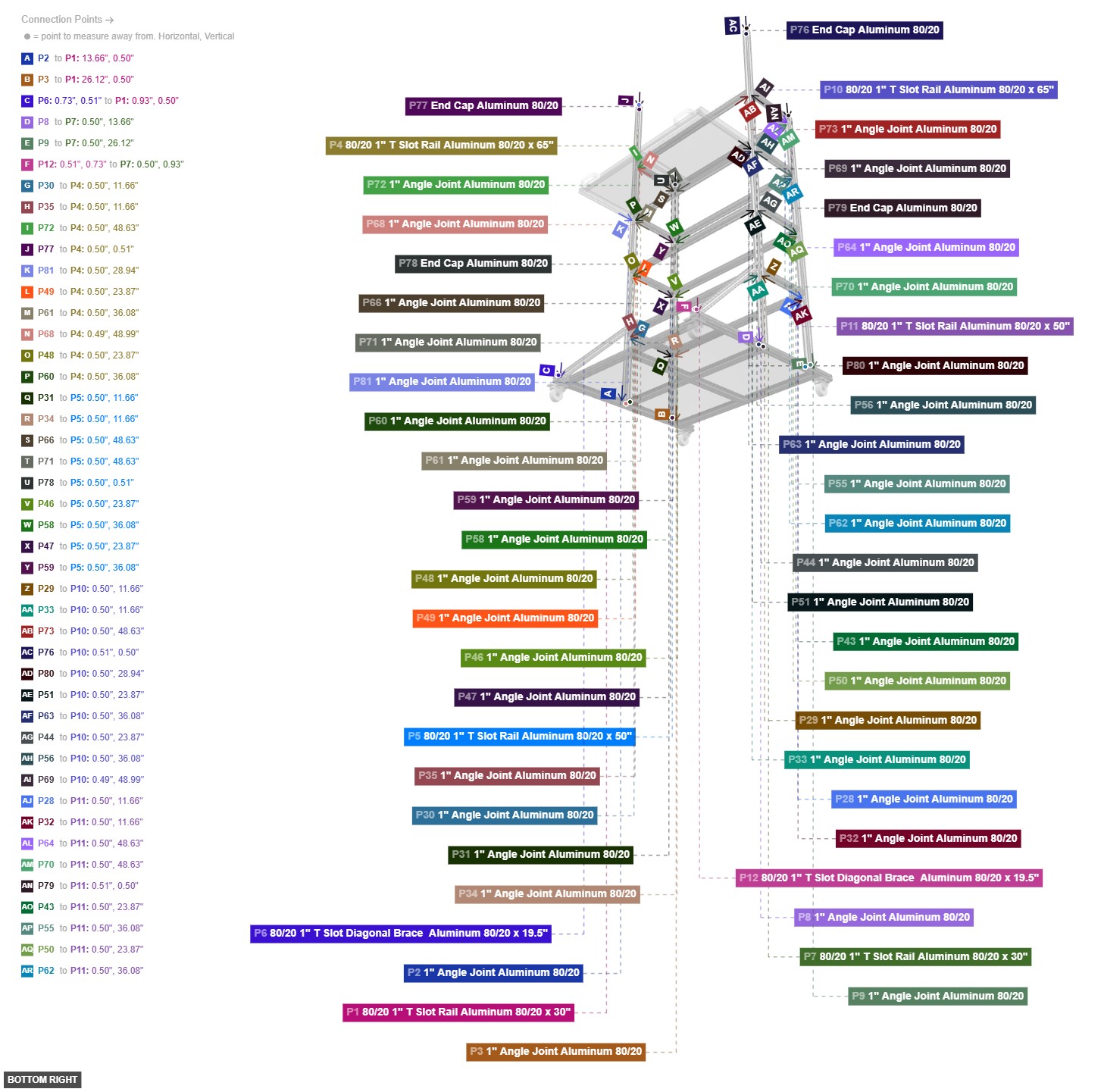

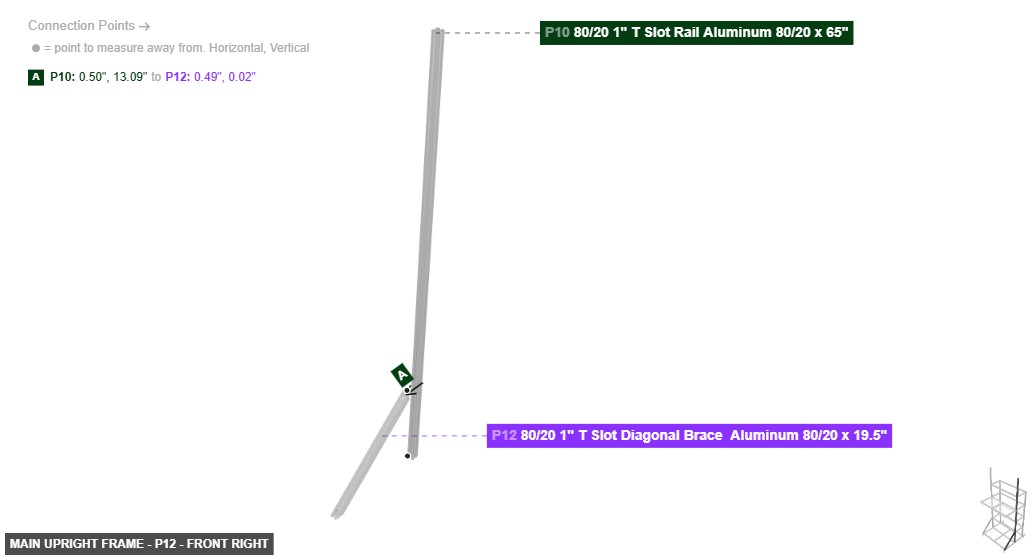

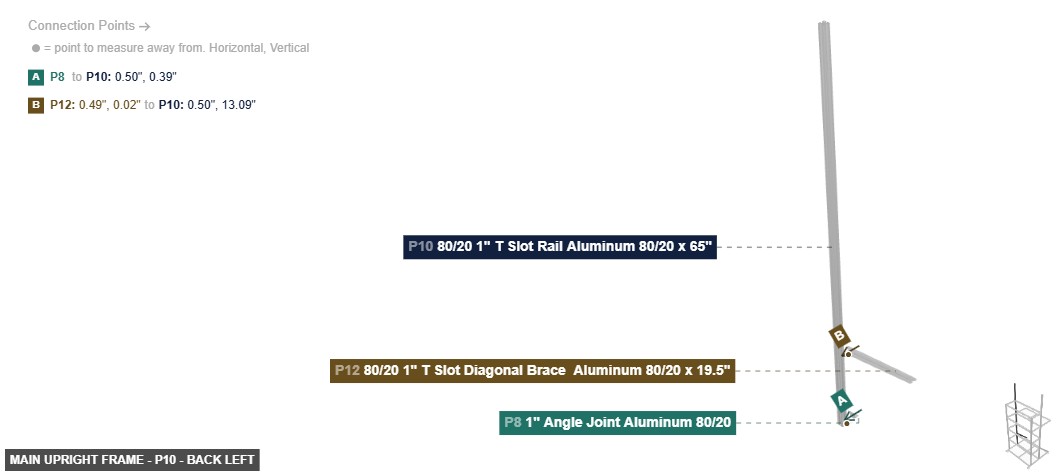

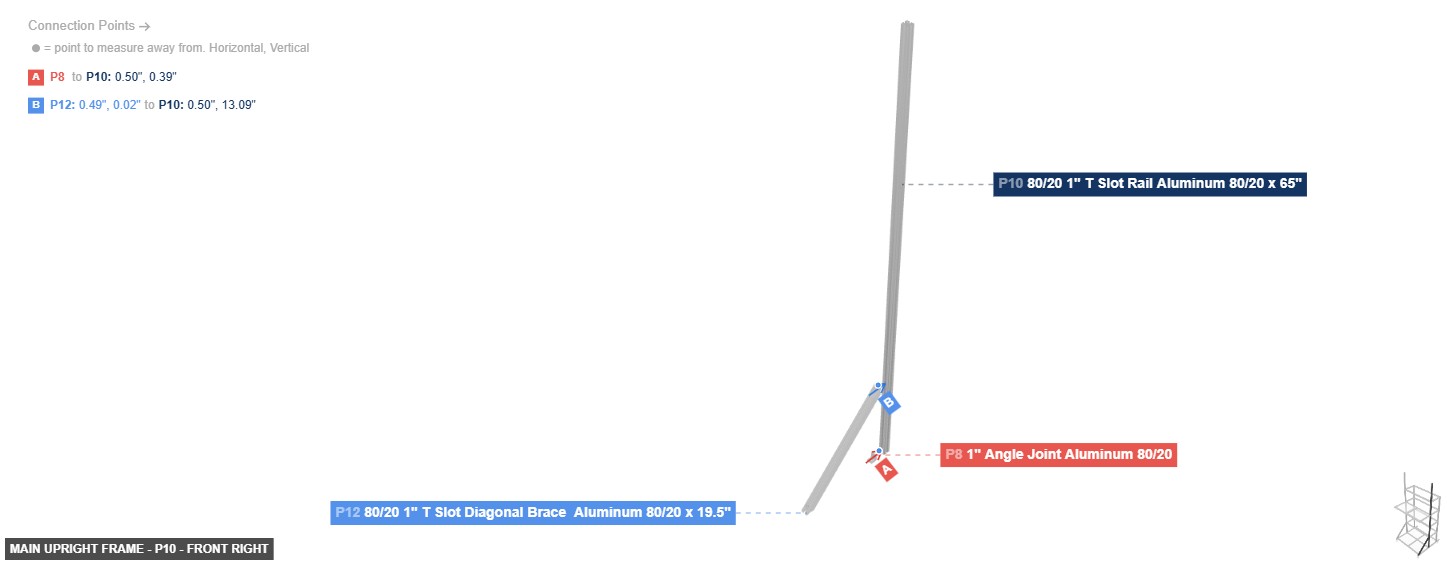

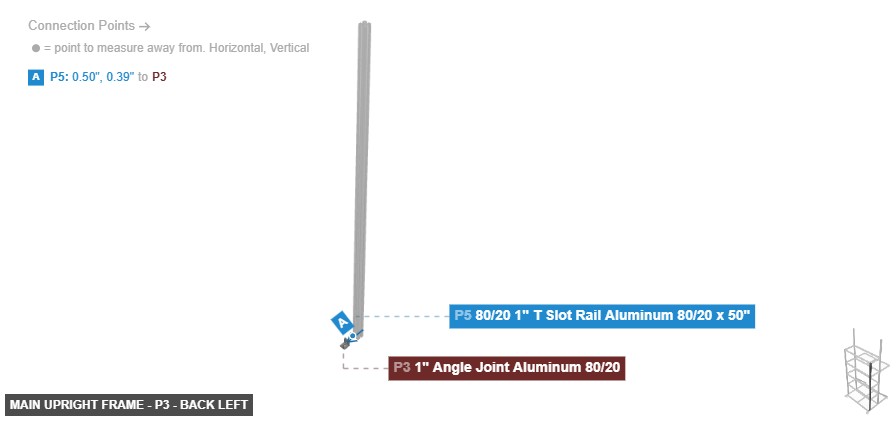

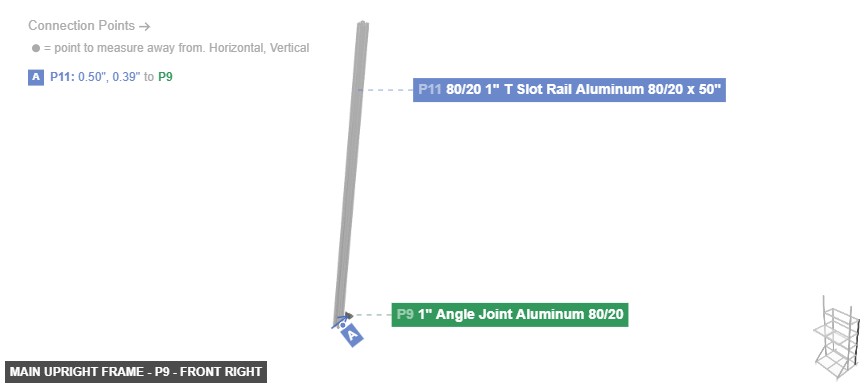

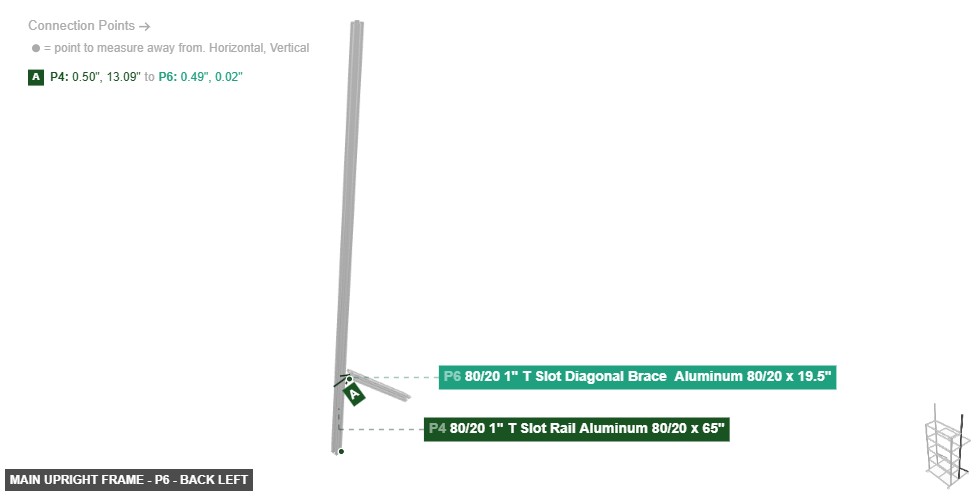

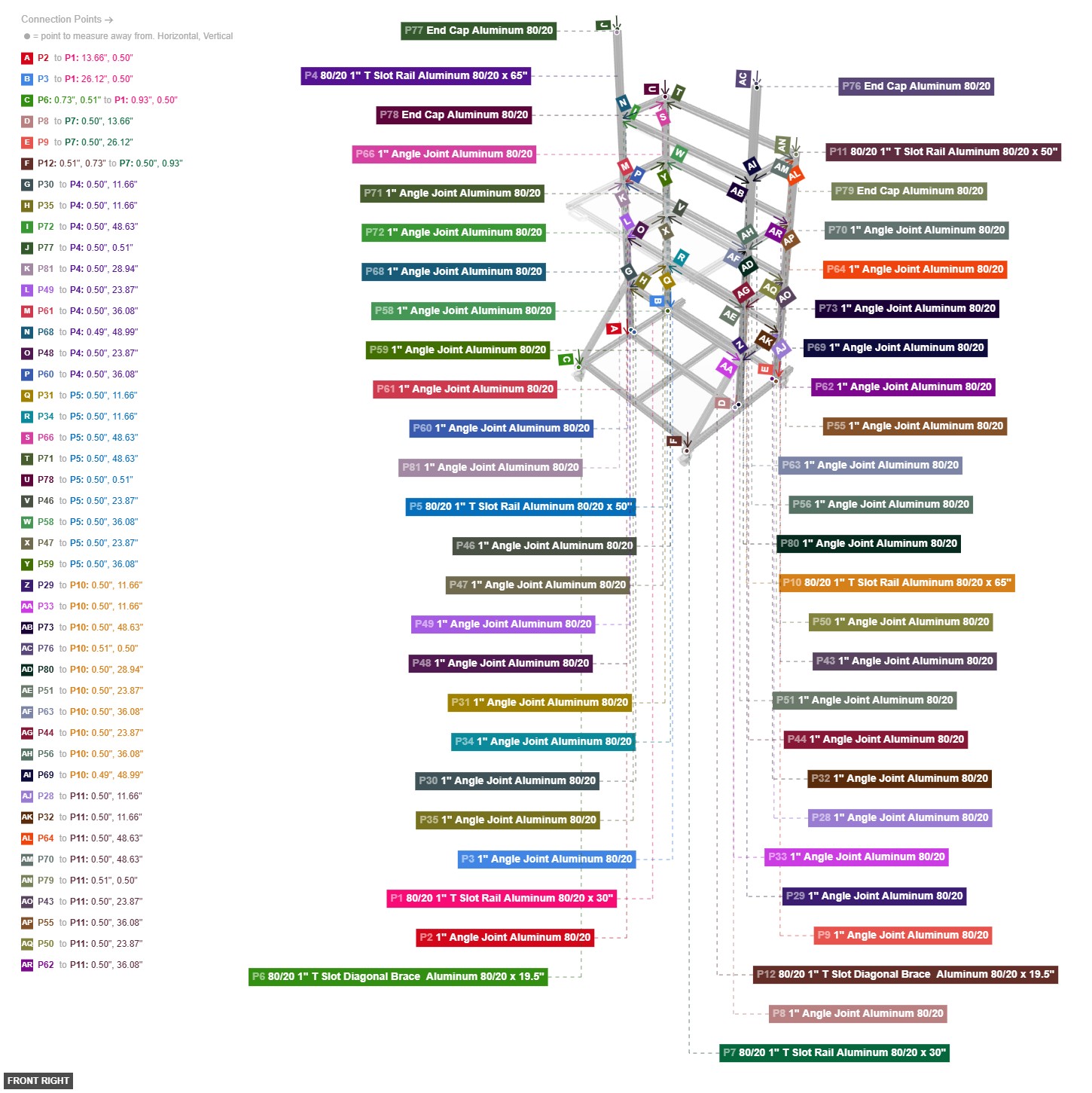

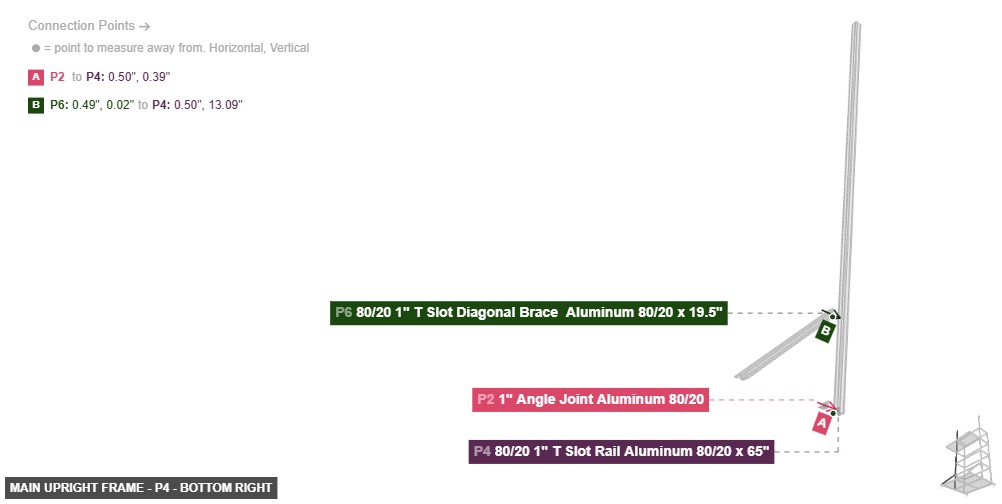

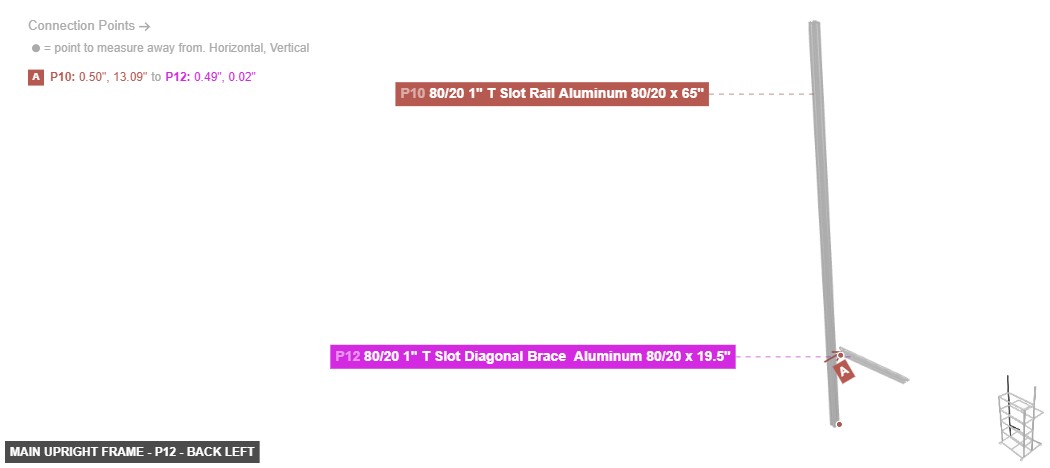

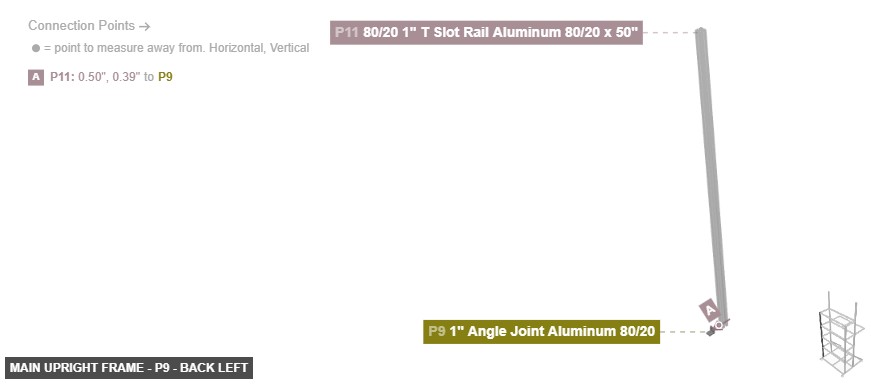

Main Upright Frame
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

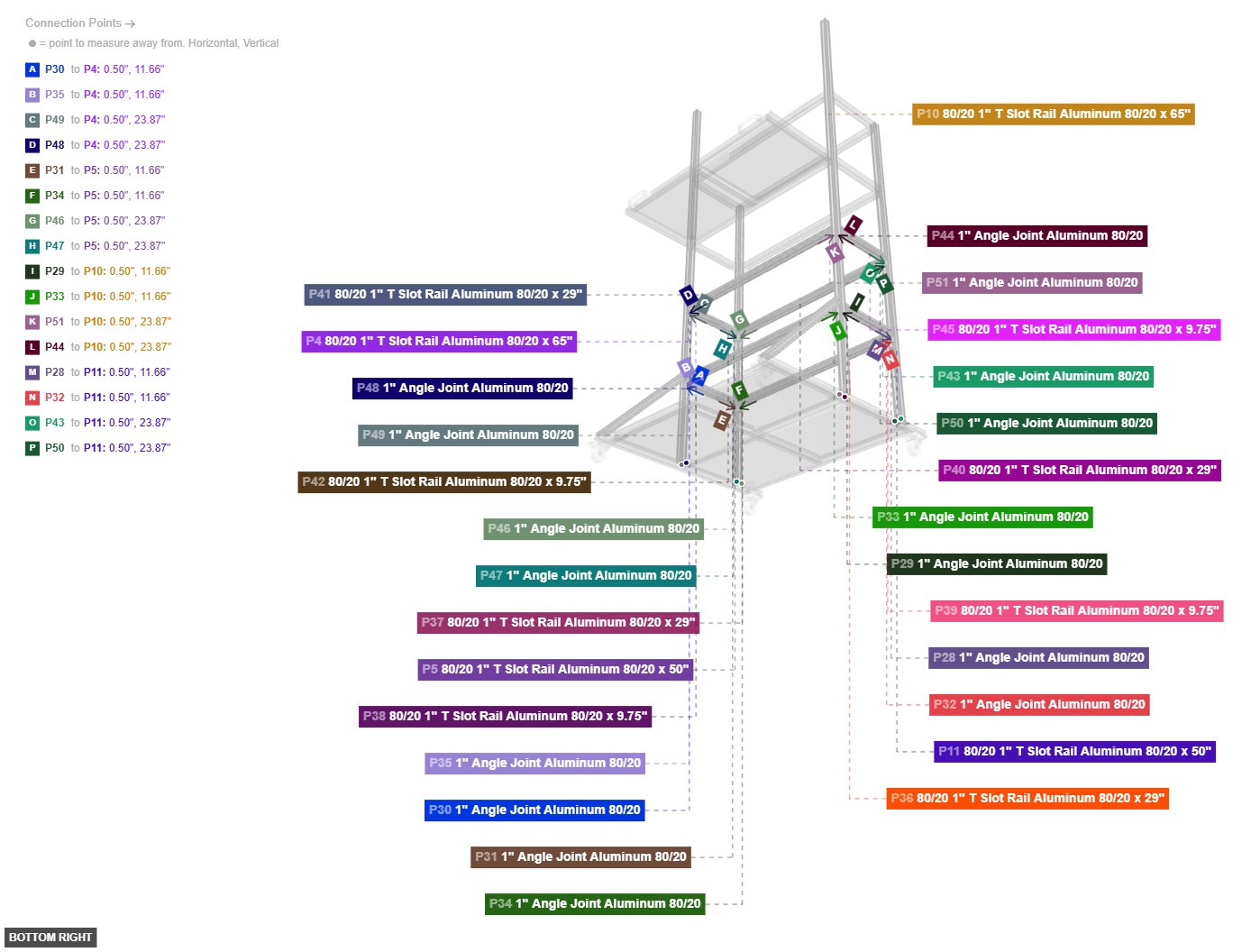

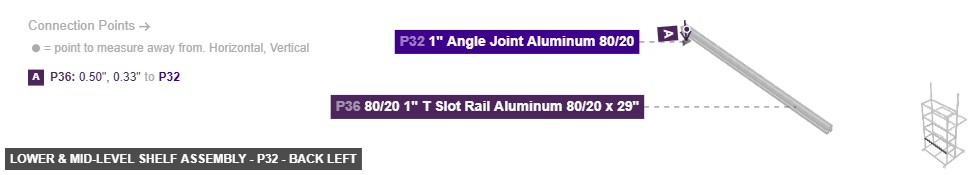

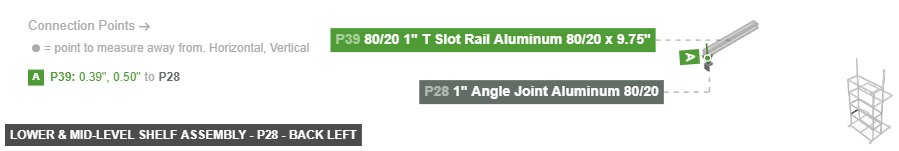

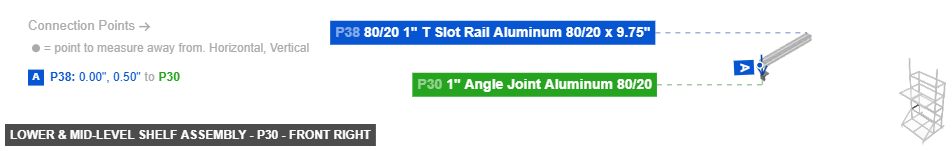

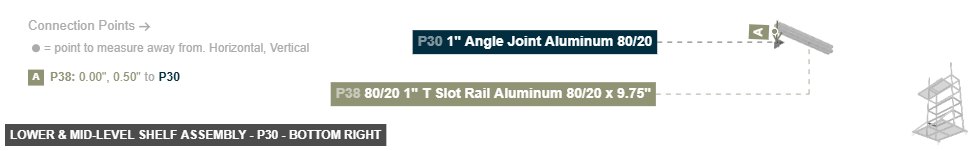

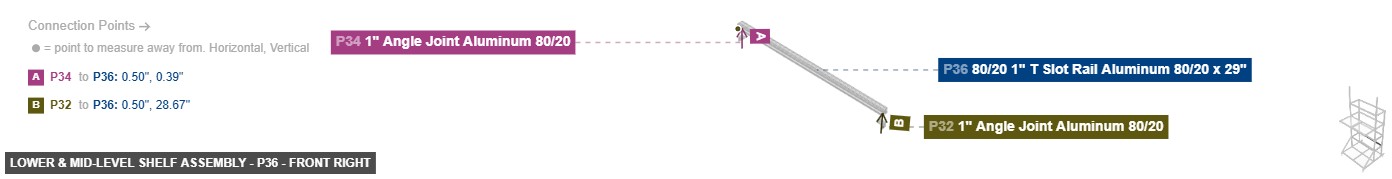

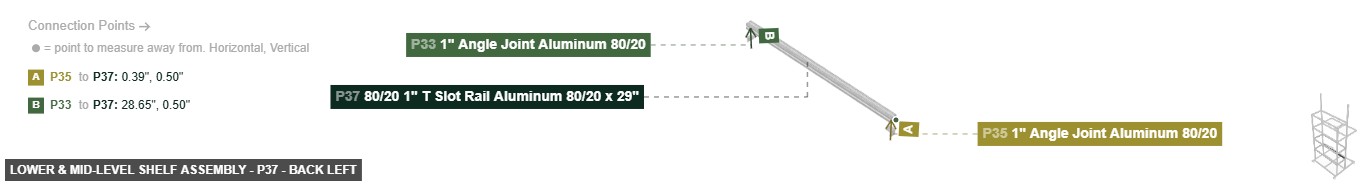

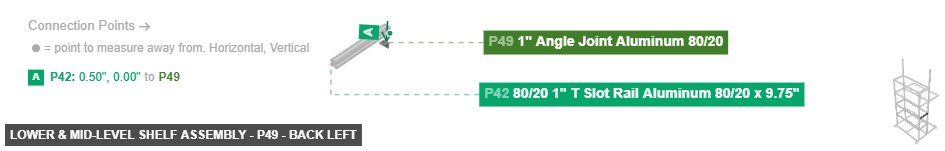

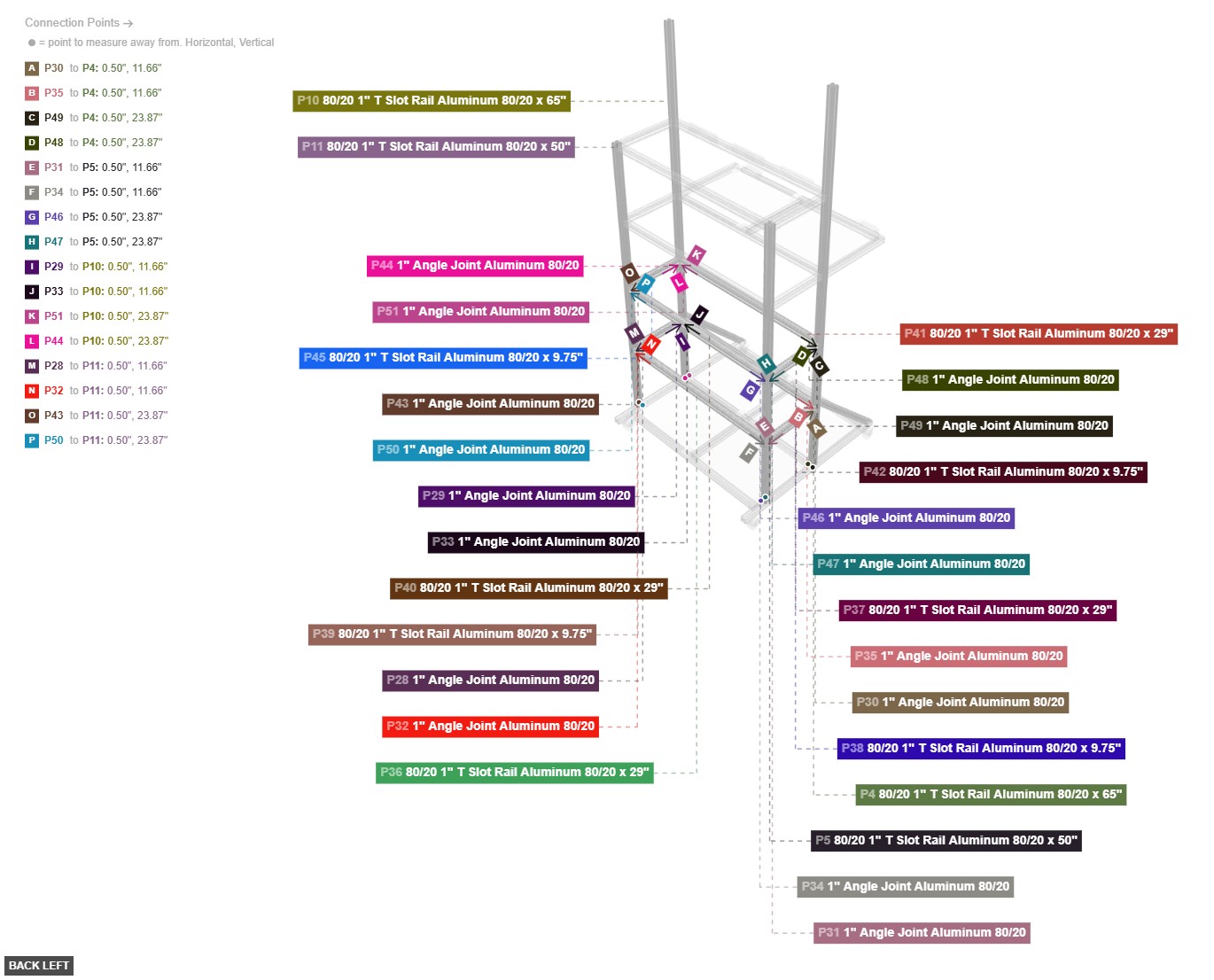

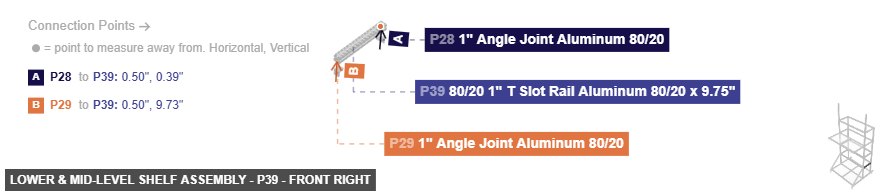

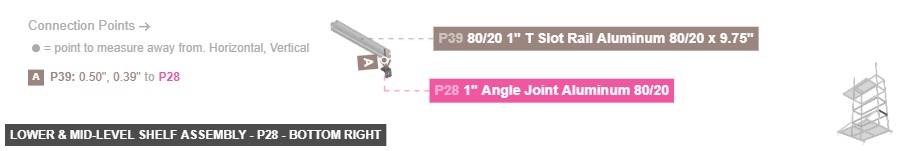

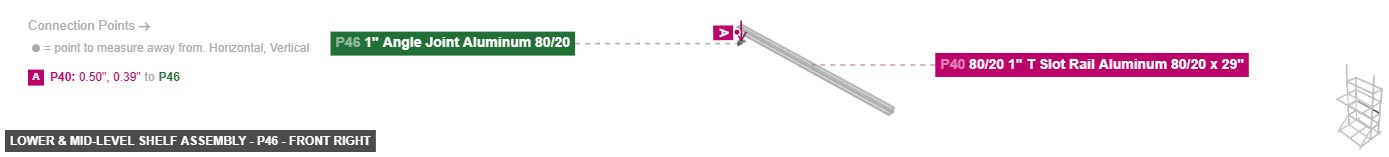

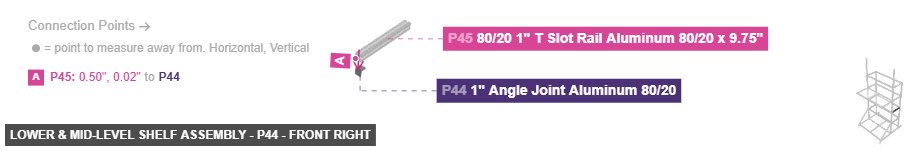

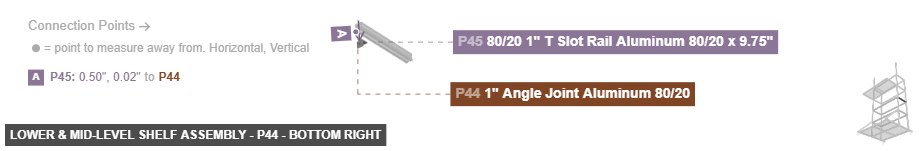

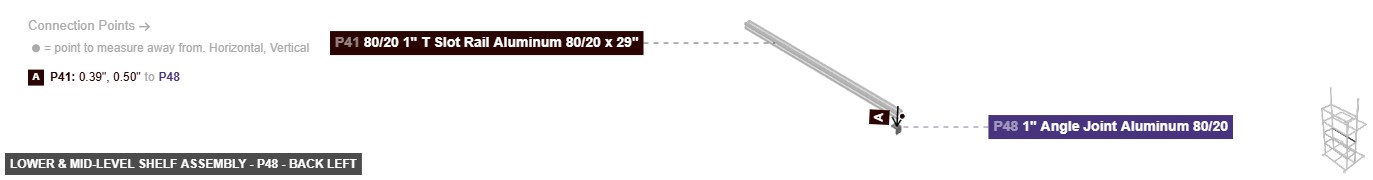

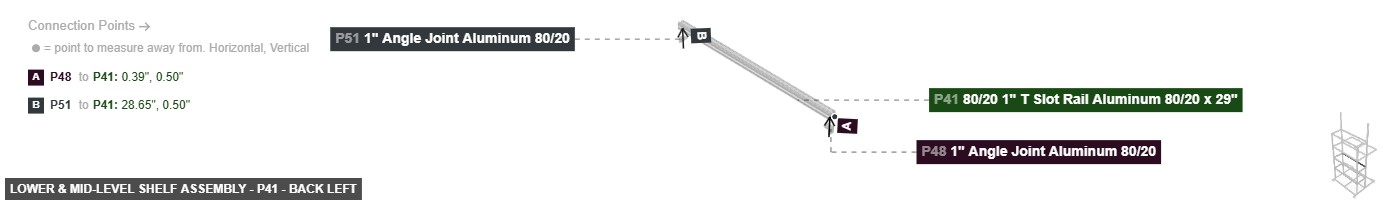

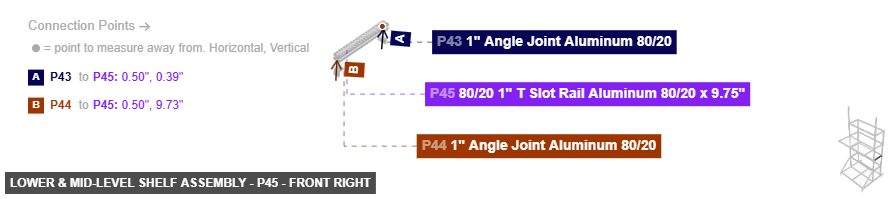

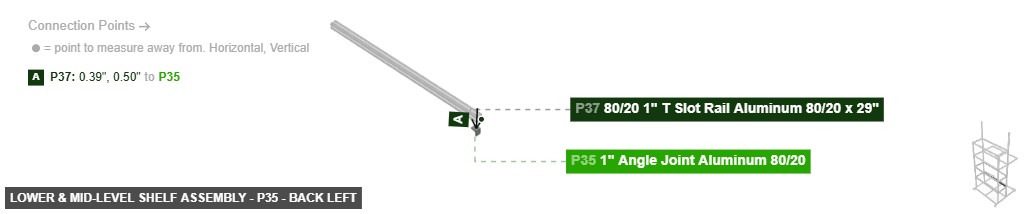

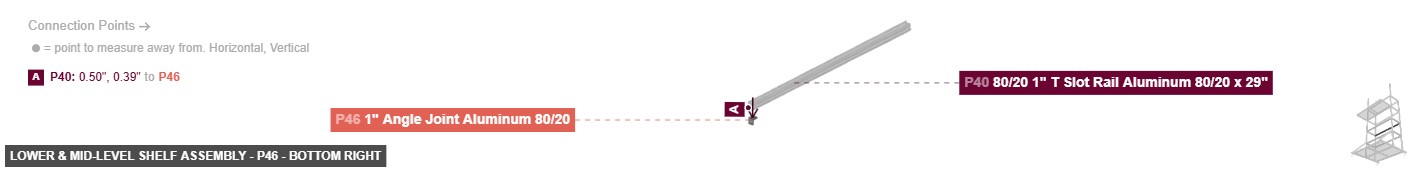

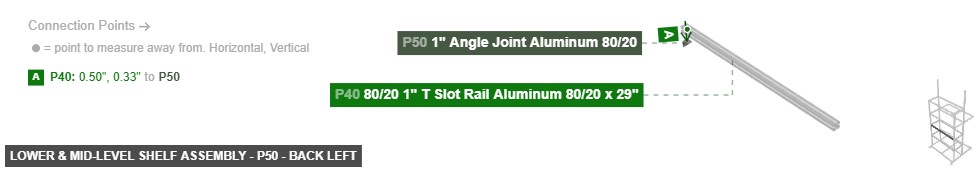

Lower & Mid-Level Shelf Assembly
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

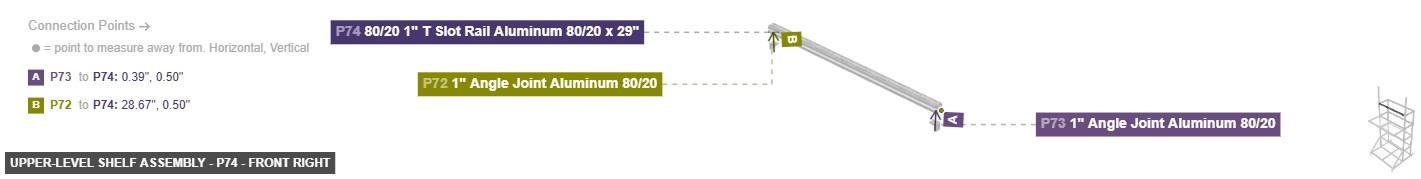

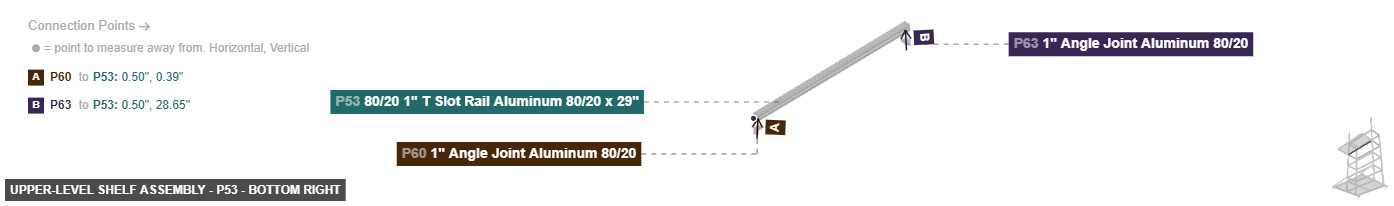

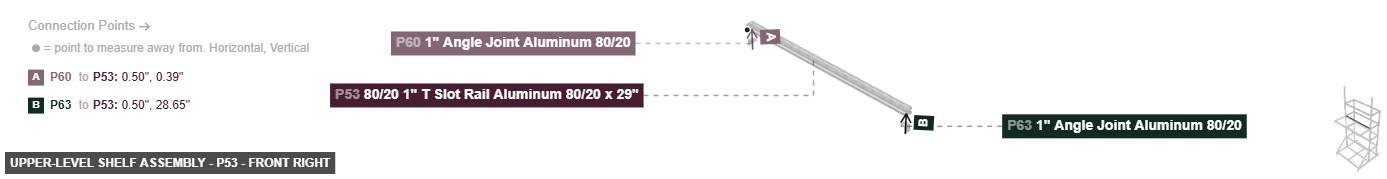

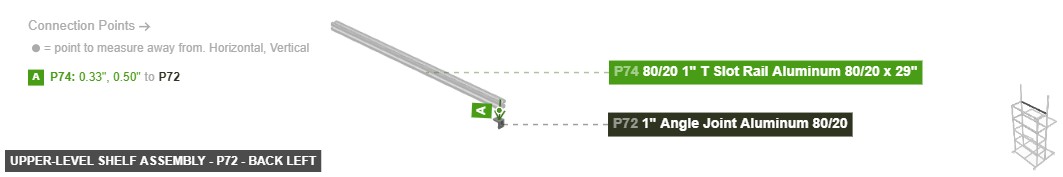

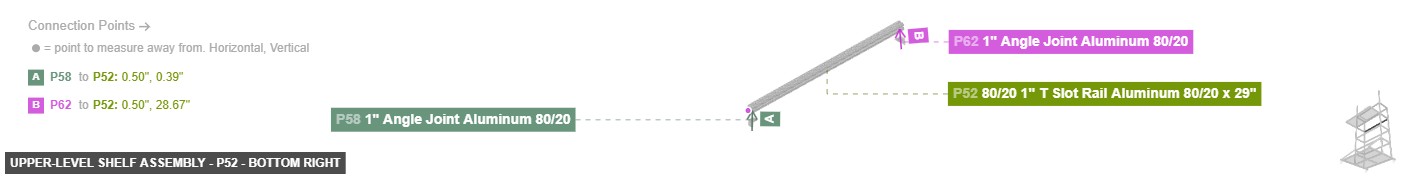

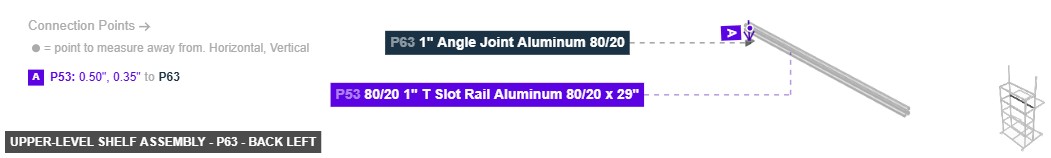

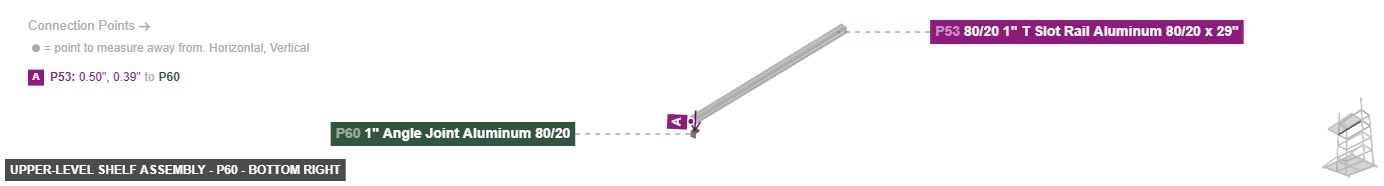

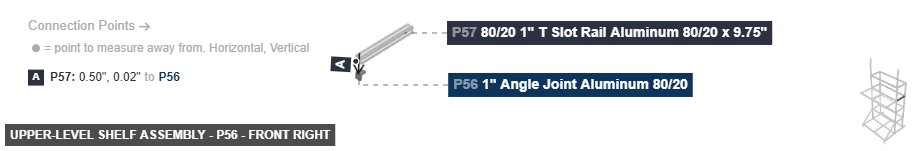

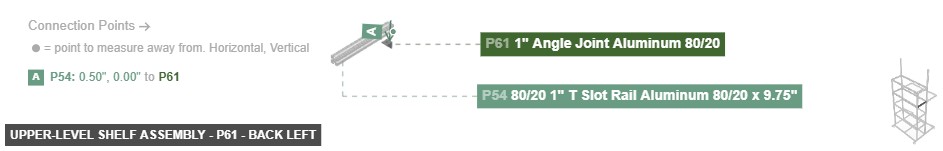

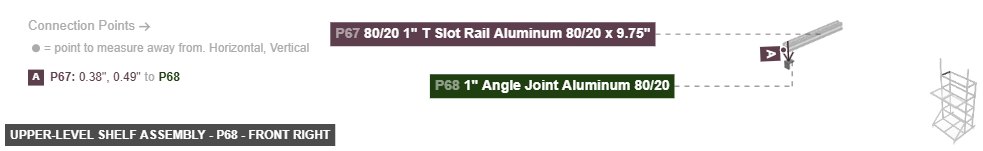

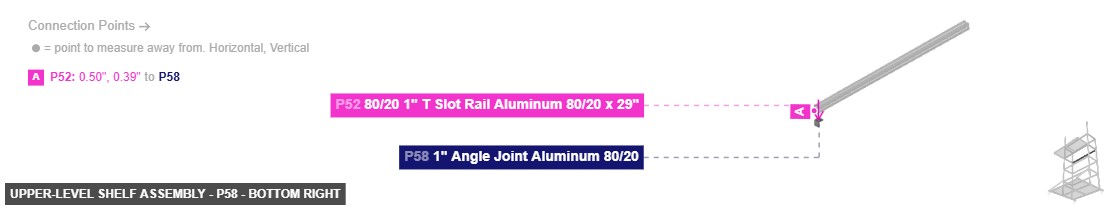

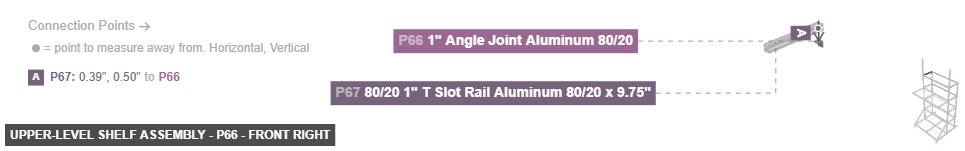

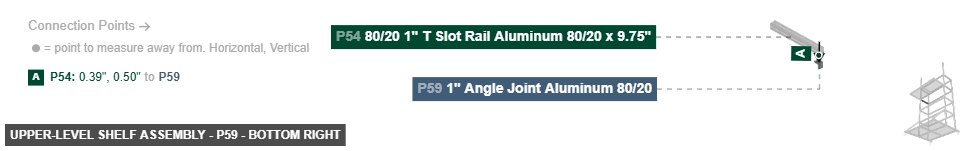

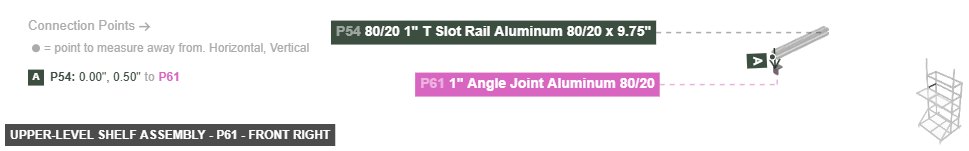

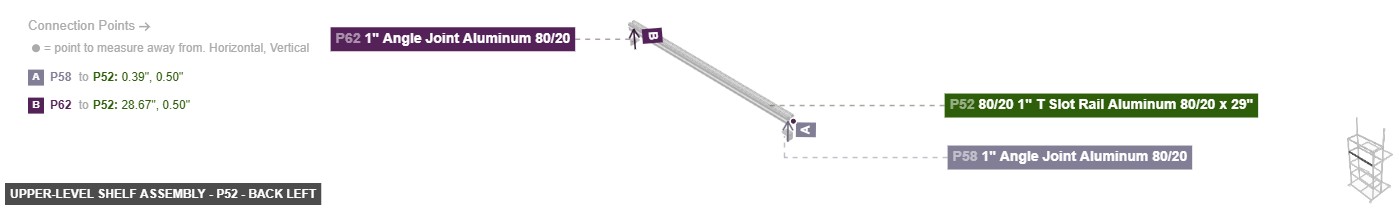

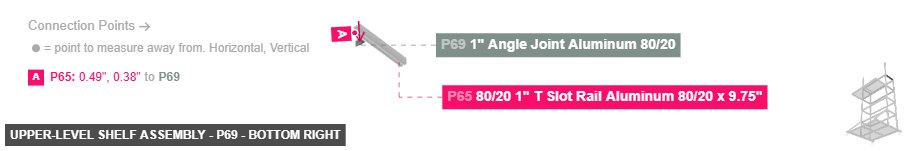

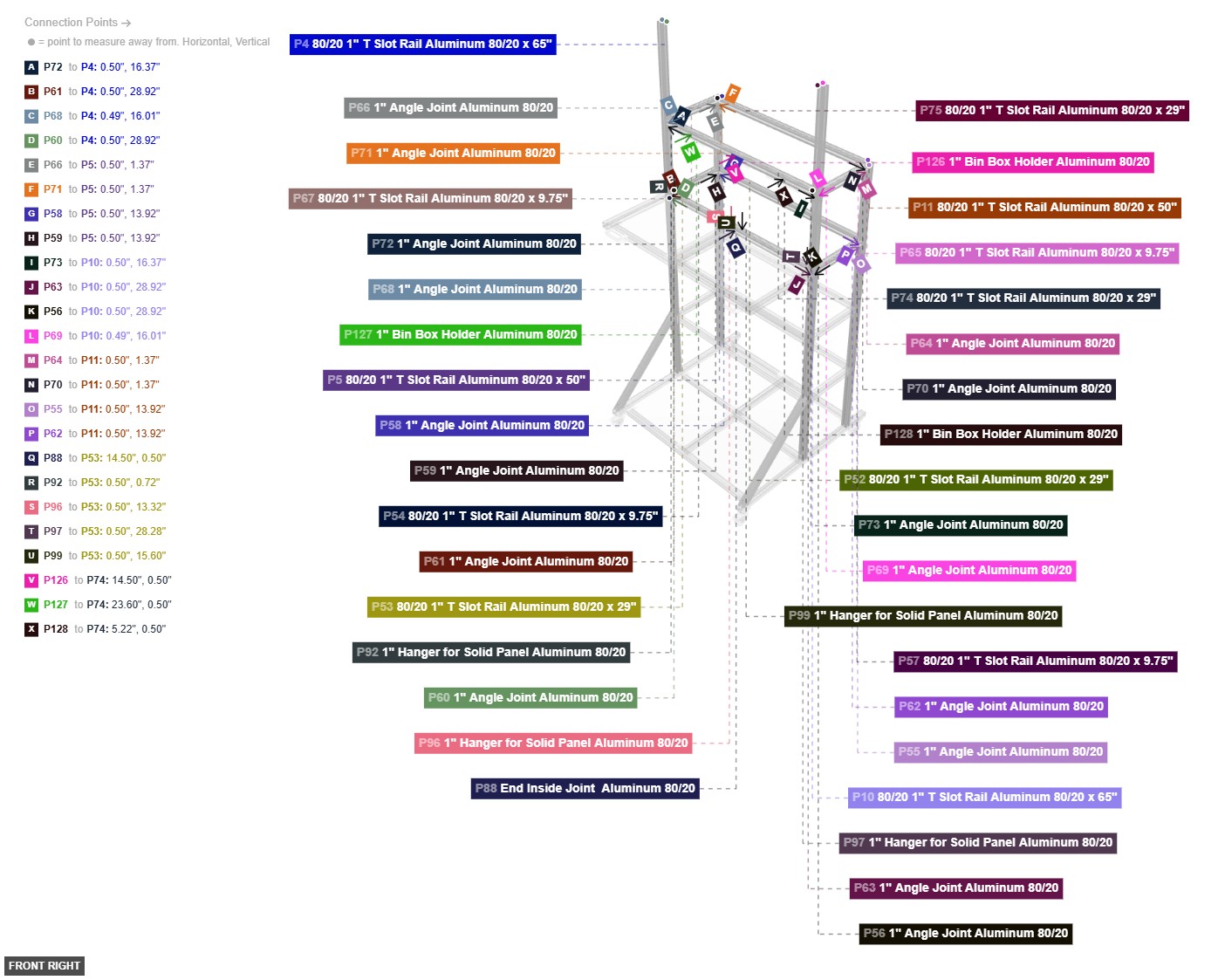

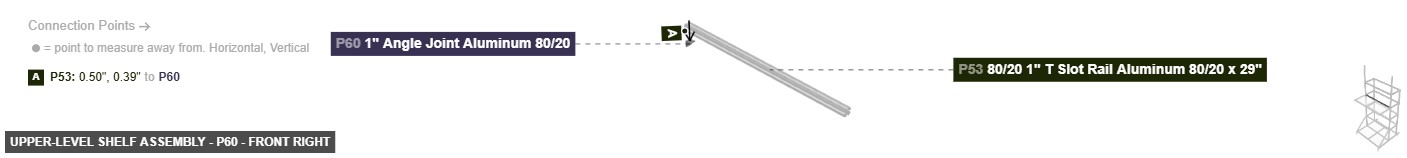

Upper-Level Shelf Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

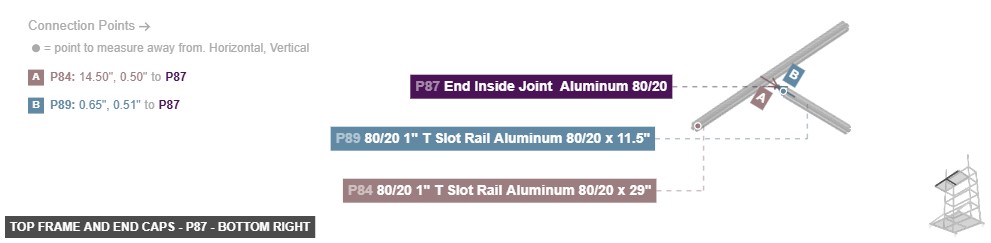

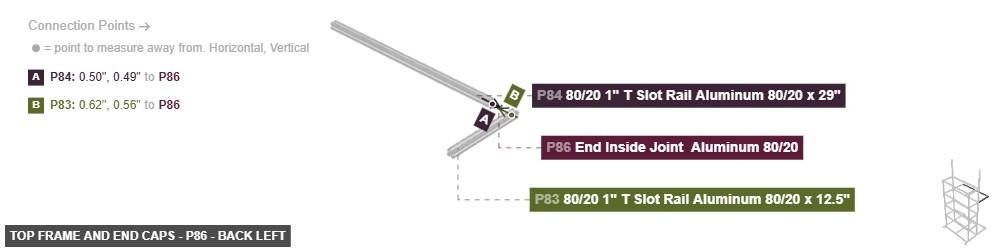

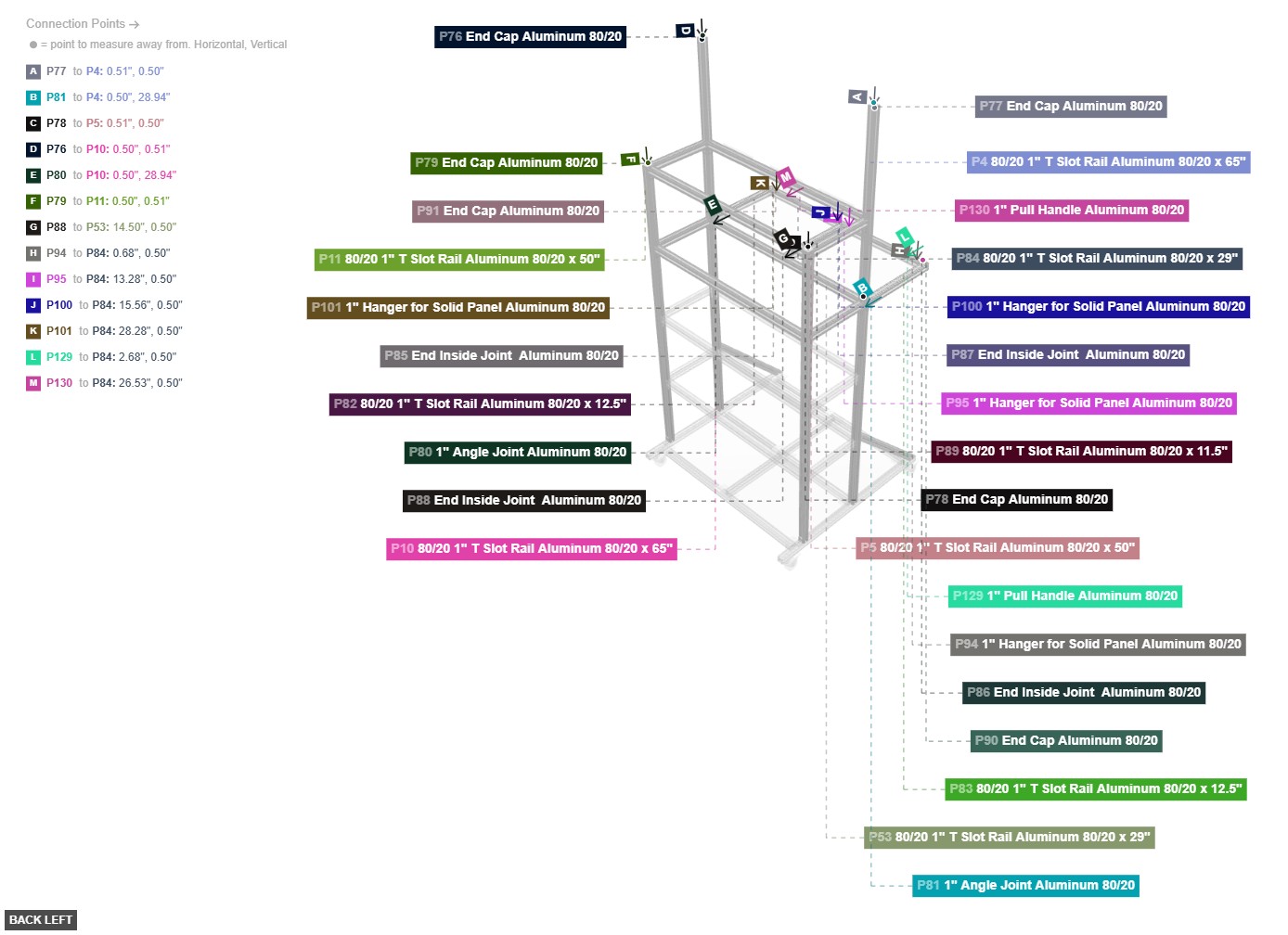

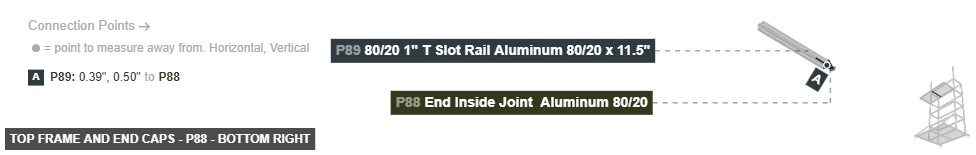

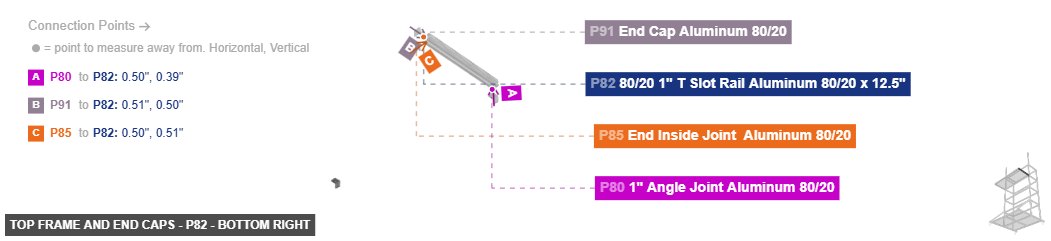

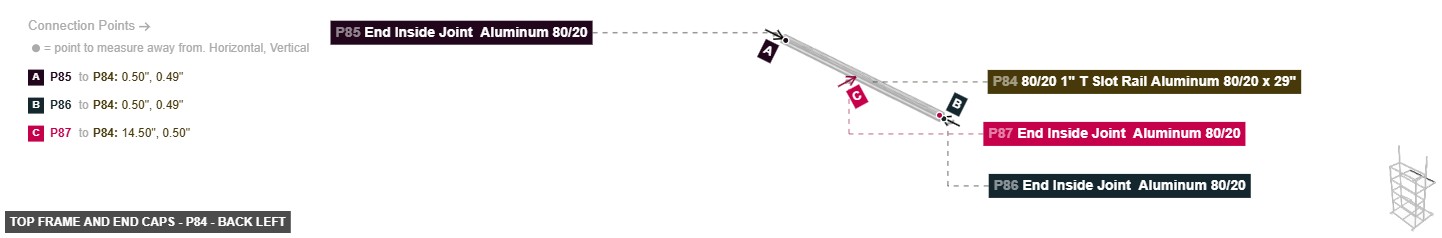

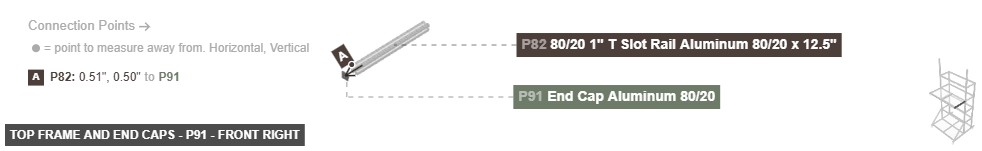

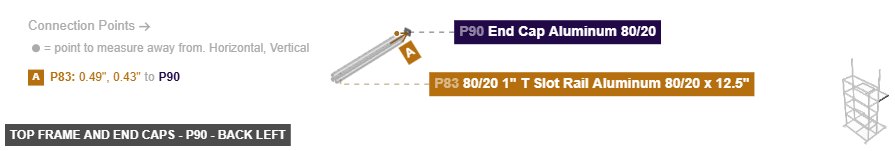

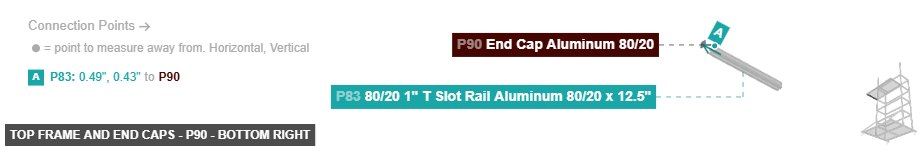

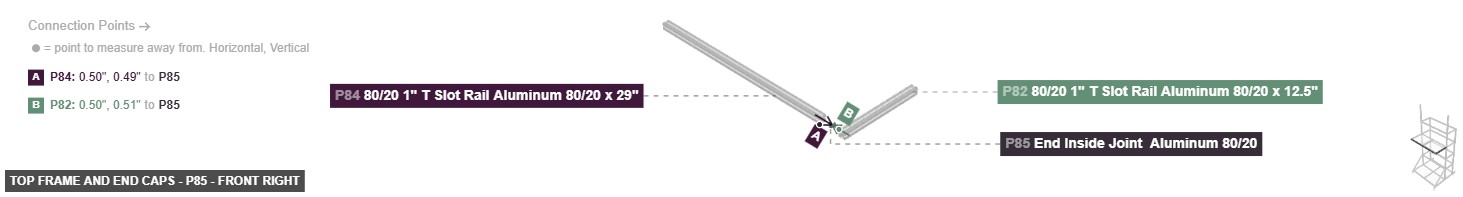

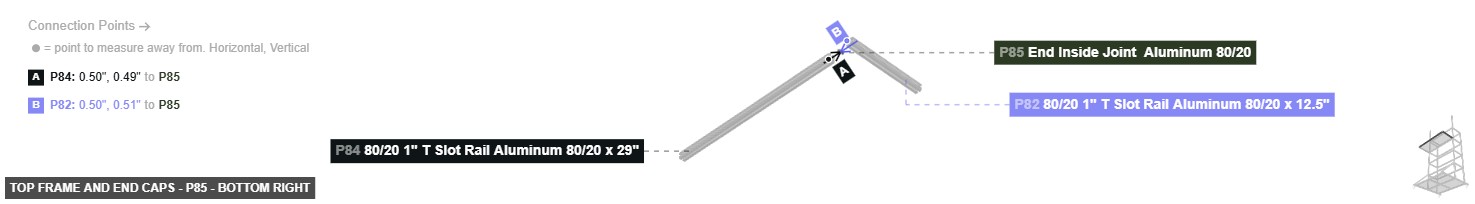

Top Frame and End Caps
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

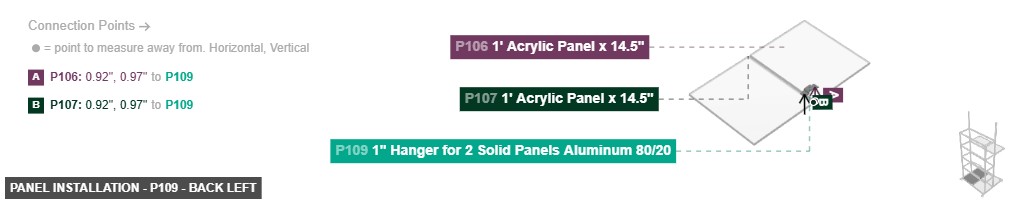

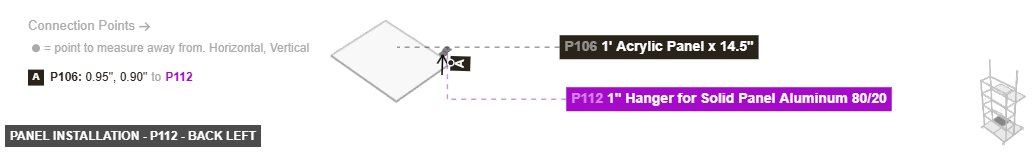

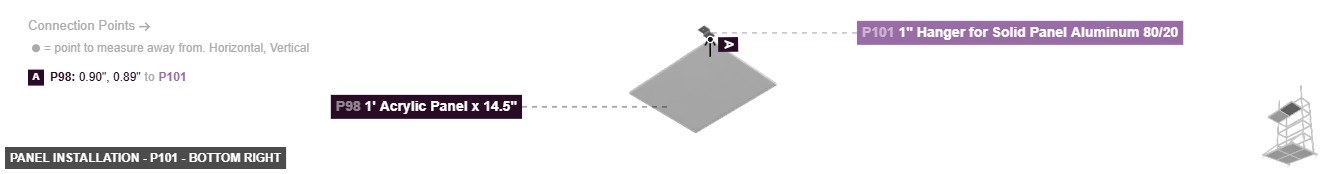

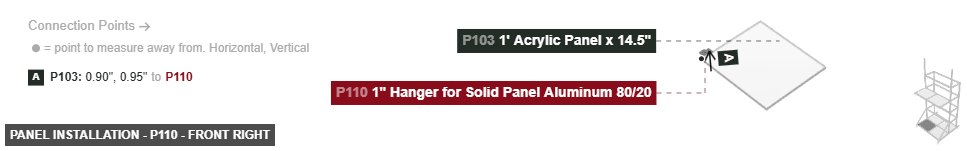

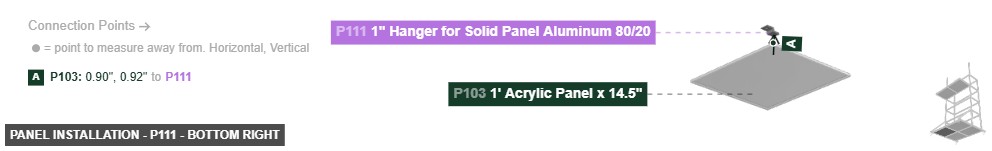

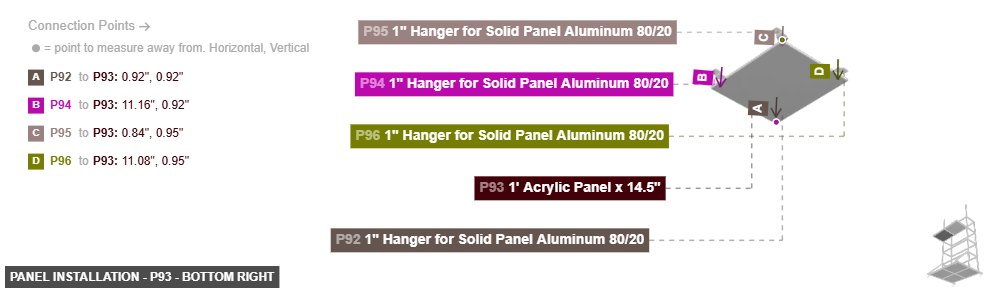

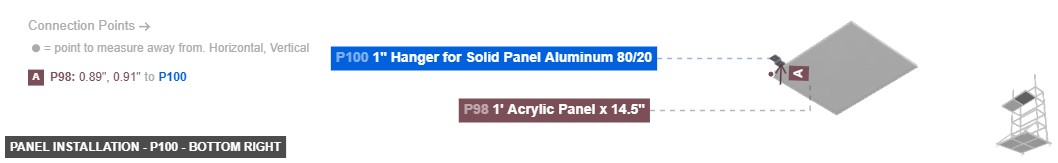

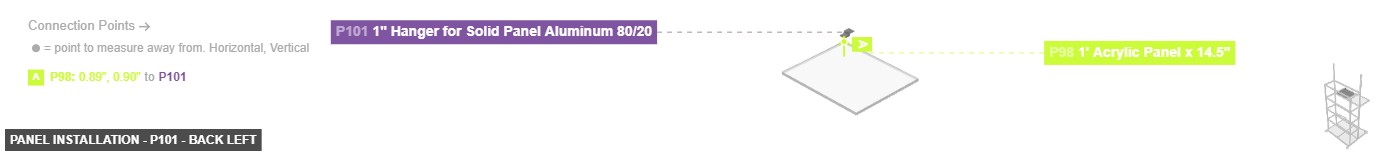

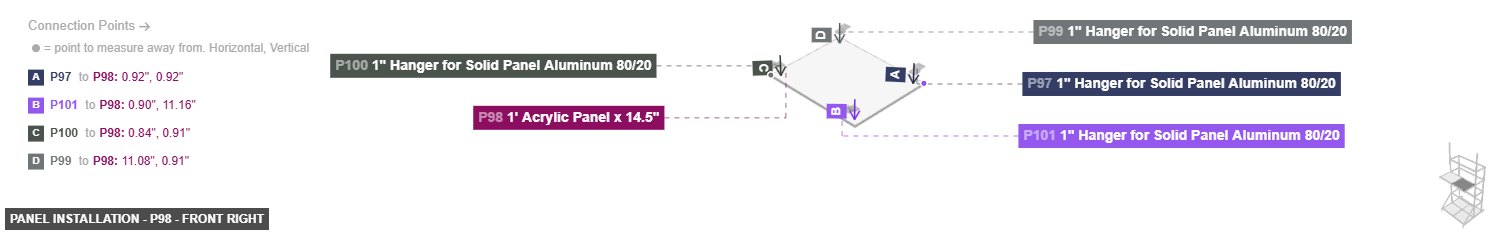

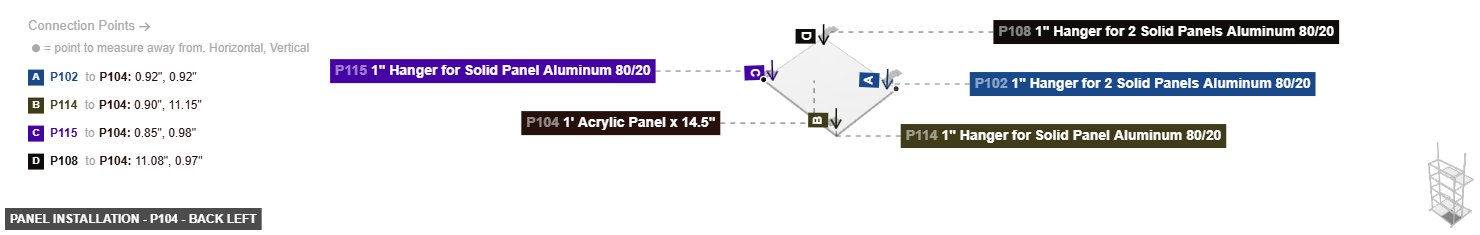

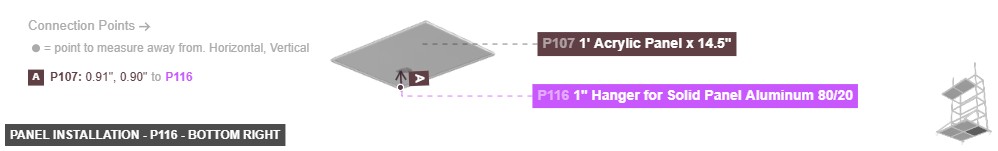

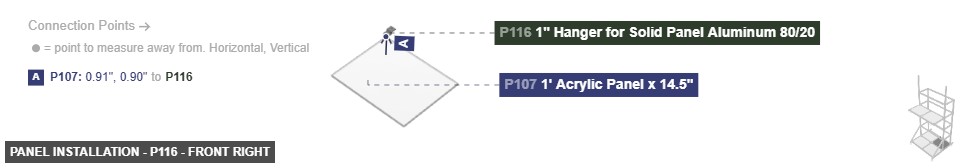

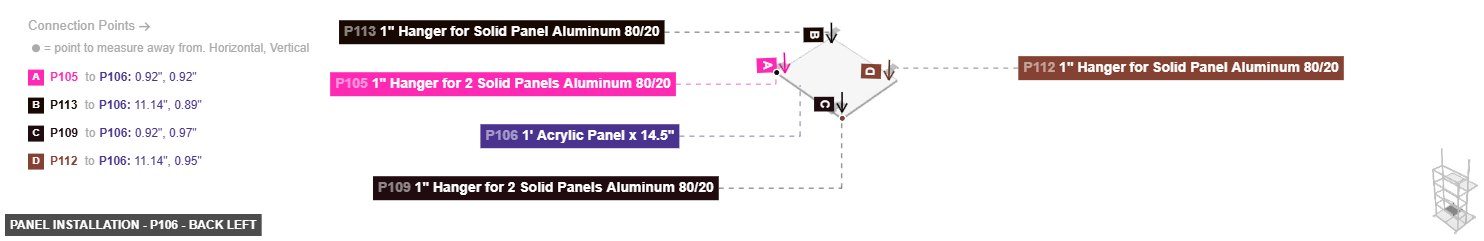

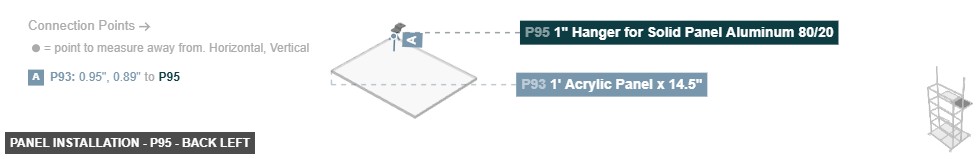

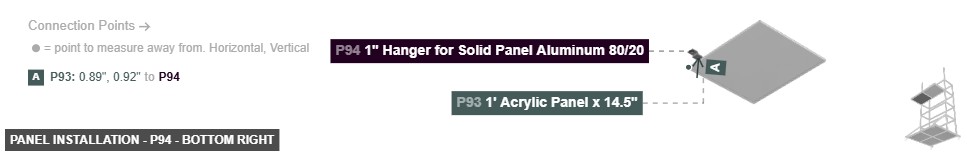

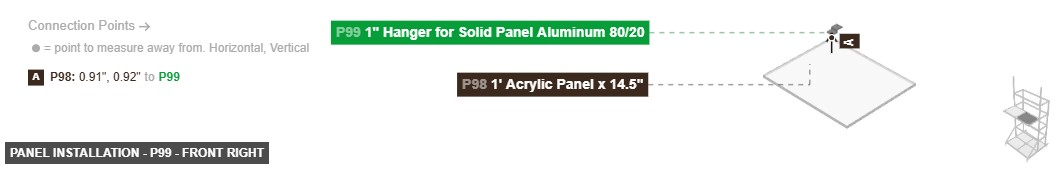

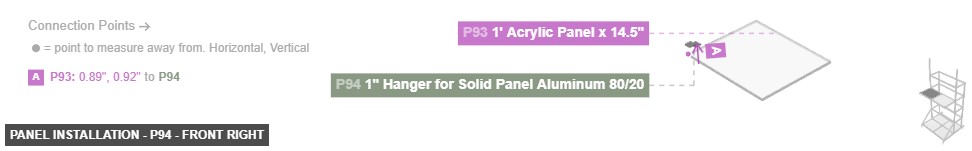

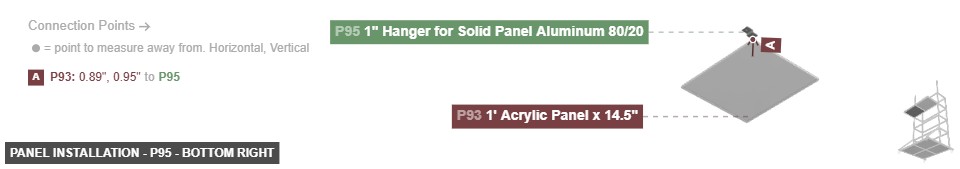

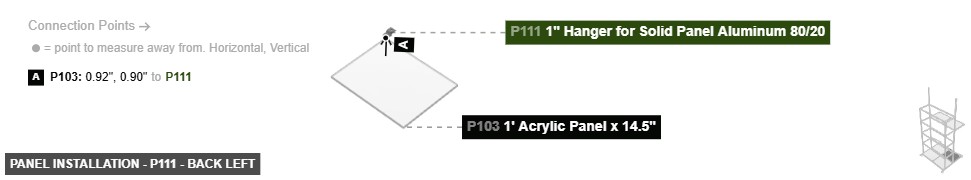

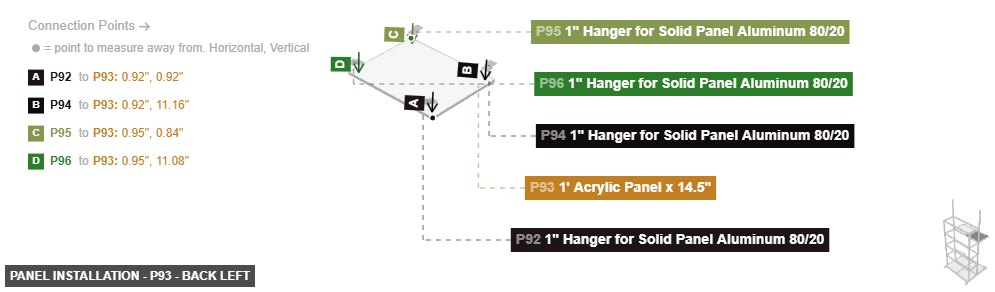

Panel Installation
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

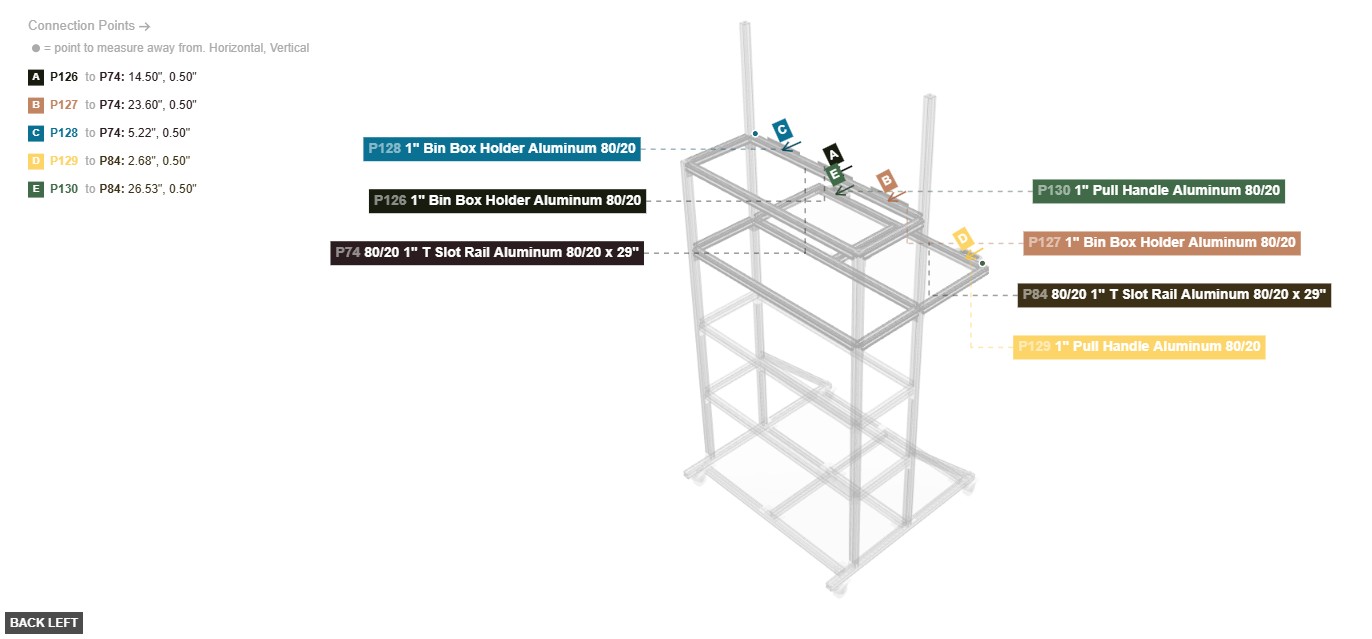

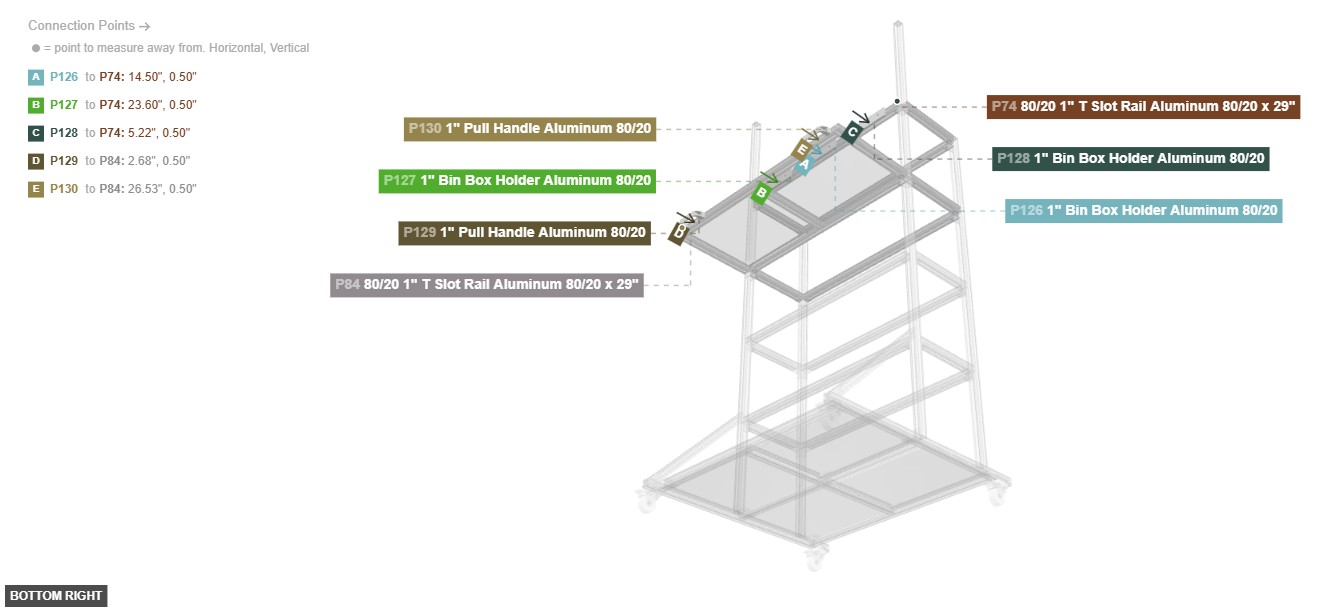

Final Accessories
11" Bin Box Holder Aluminum 80/20x 3
11" Pull Handle Aluminum 80/20x 2

Angle: front right

Aluminum Organizer Cart - Overview front_right
Base Frame and Wheels
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4
Main Upright Frame
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

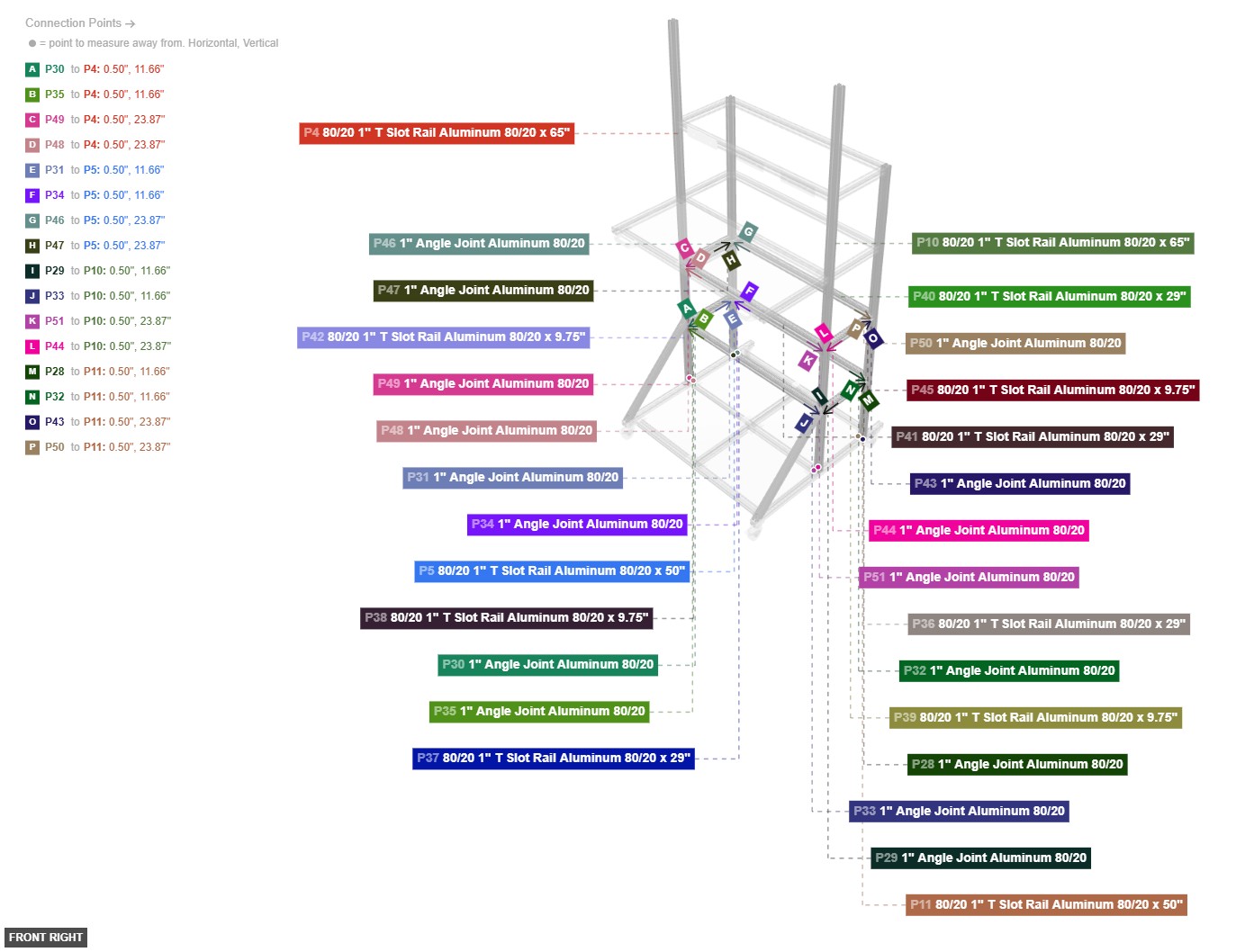

Lower & Mid-Level Shelf Assembly
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
Upper-Level Shelf Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16
Top Frame and End Caps
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

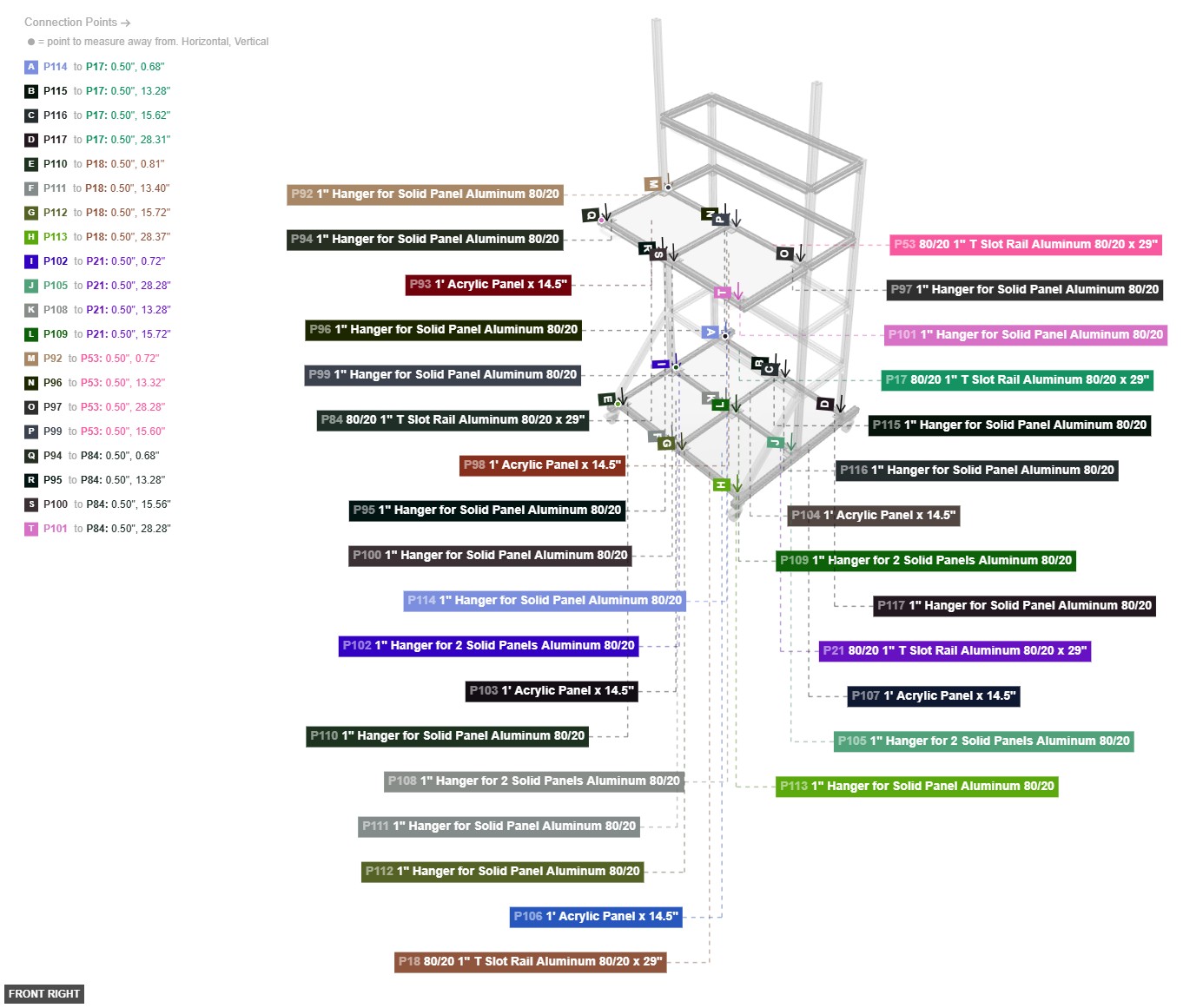

Panel Installation
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4
Final Accessories
11" Bin Box Holder Aluminum 80/20x 3
11" Pull Handle Aluminum 80/20x 2

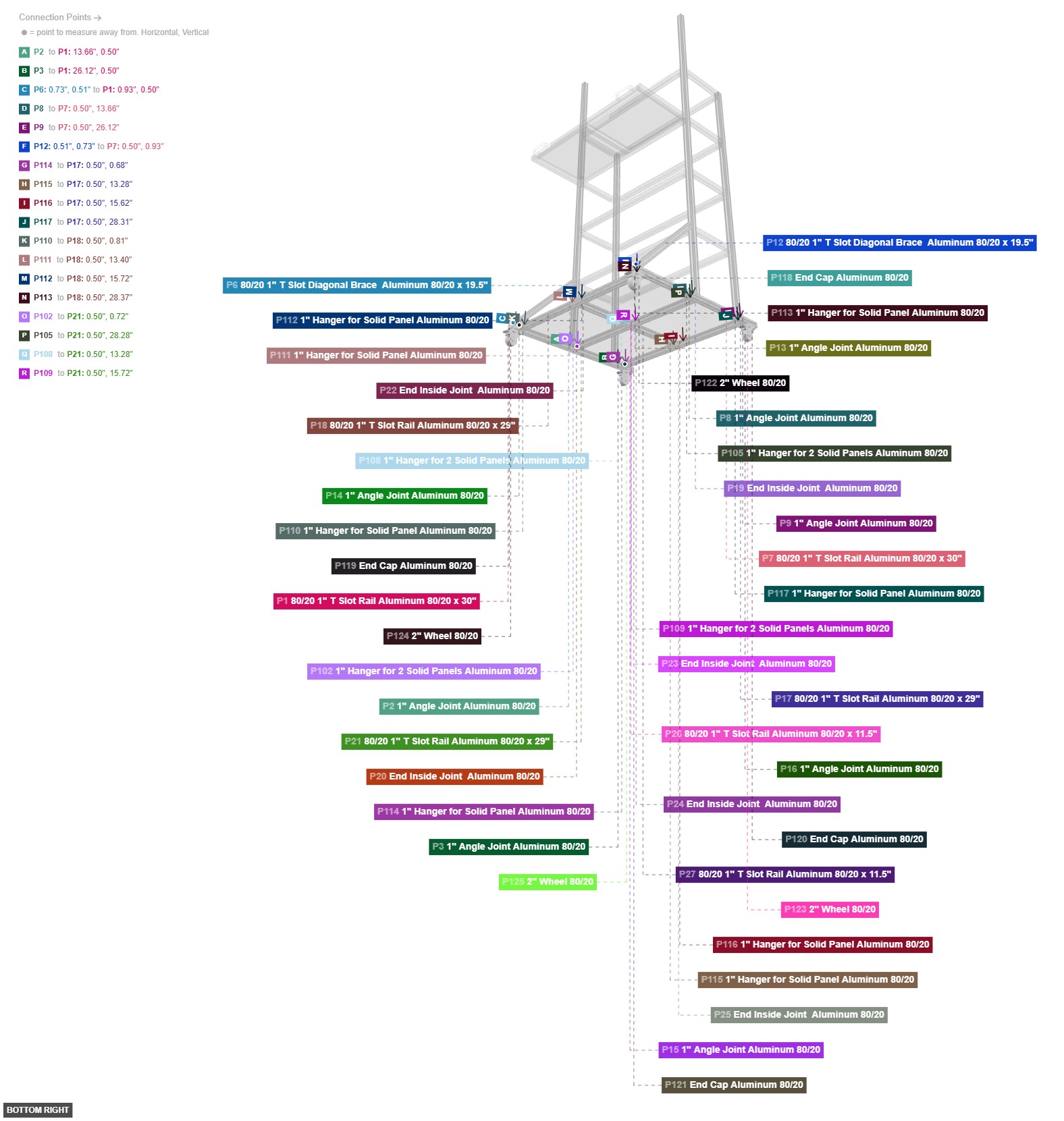

Angle: bottom right

Aluminum Organizer Cart - Overview bottom_right
Base Frame and Wheels
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4
Main Upright Frame
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2
Lower & Mid-Level Shelf Assembly
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

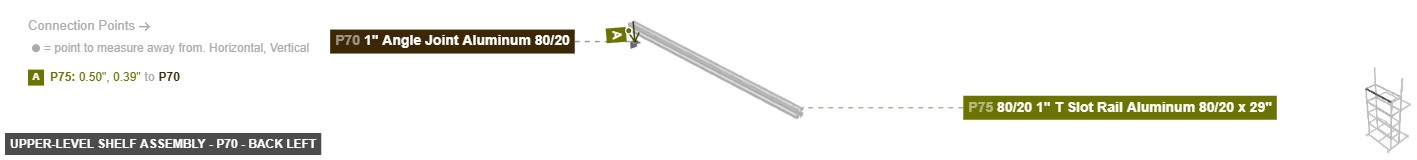

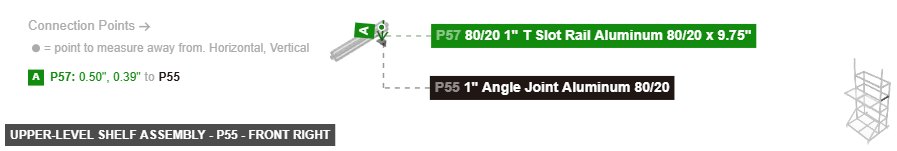

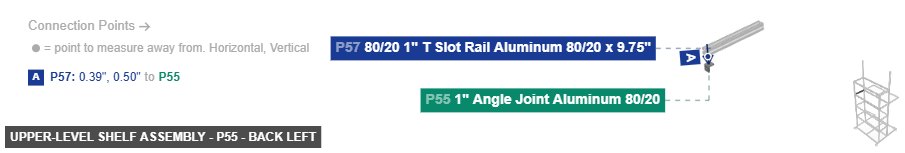

Upper-Level Shelf Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16
Top Frame and End Caps
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

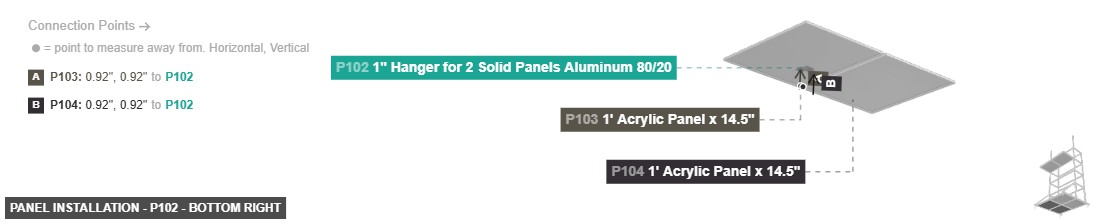

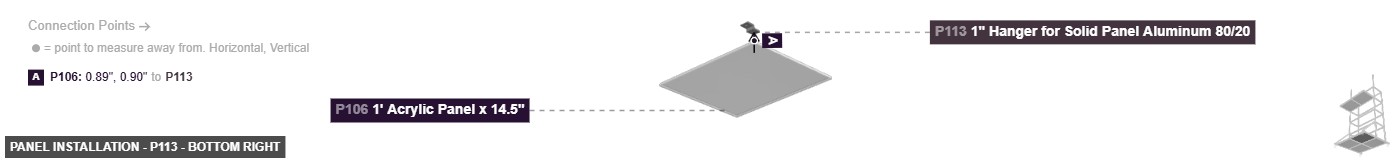

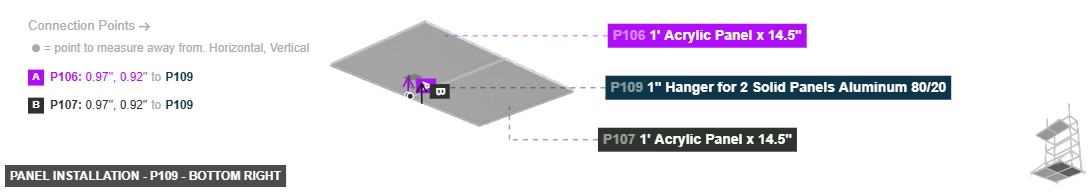

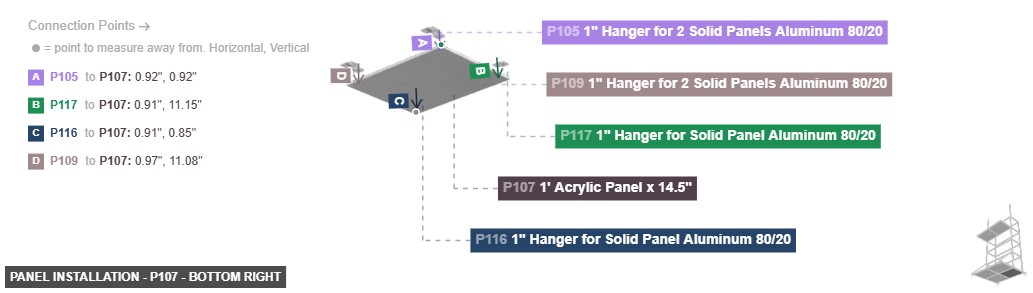

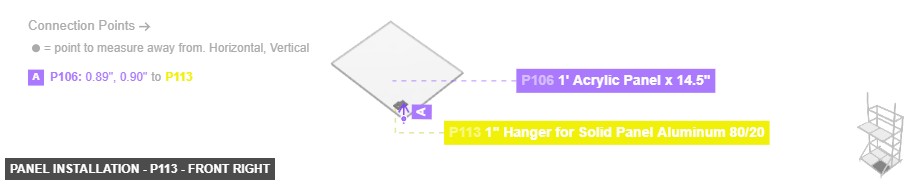

Panel Installation
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4
Final Accessories
11" Bin Box Holder Aluminum 80/20x 3
11" Pull Handle Aluminum 80/20x 2

Phase 2: Individual Group Assembly

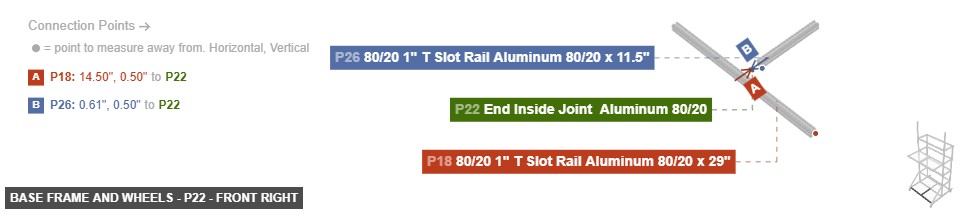

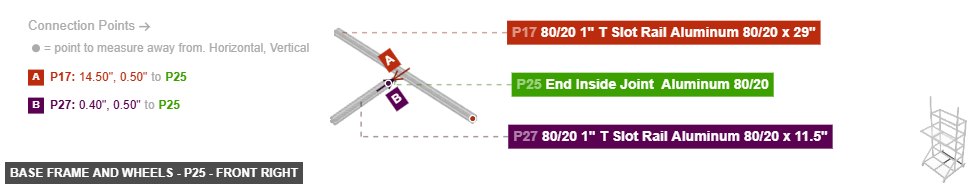

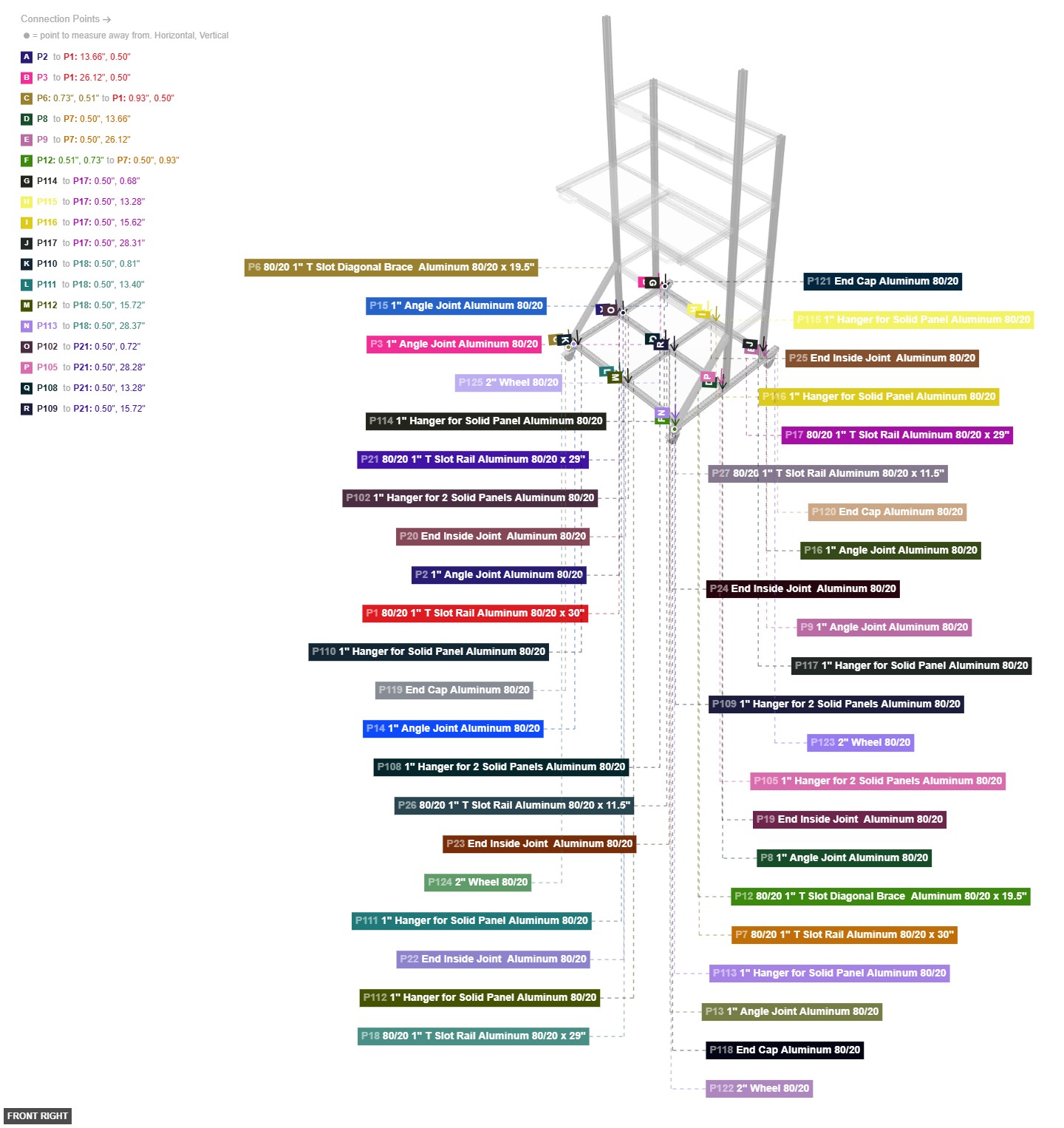

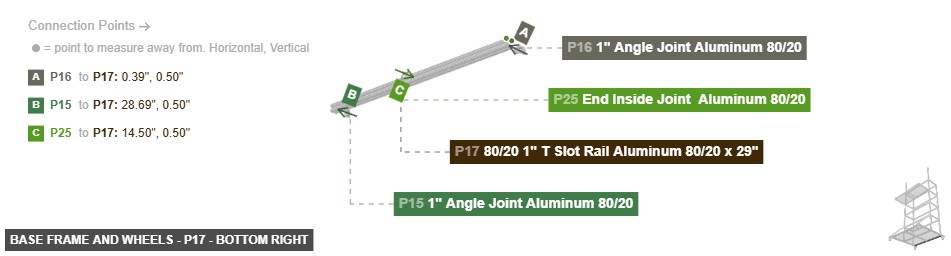

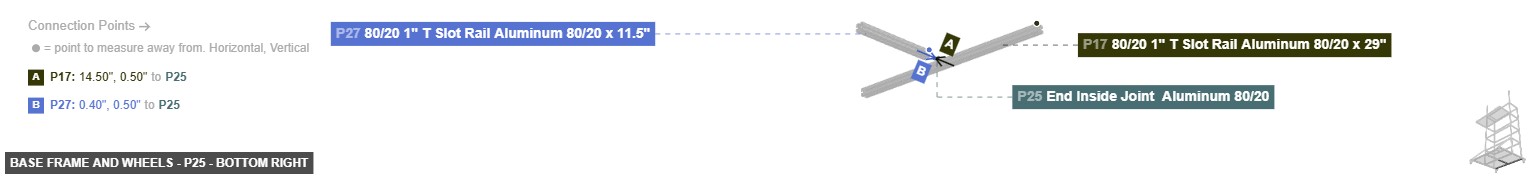

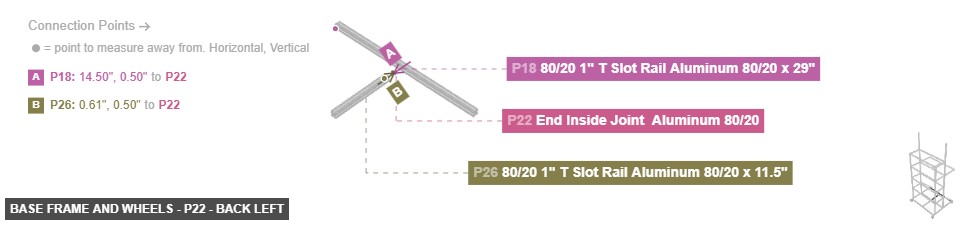

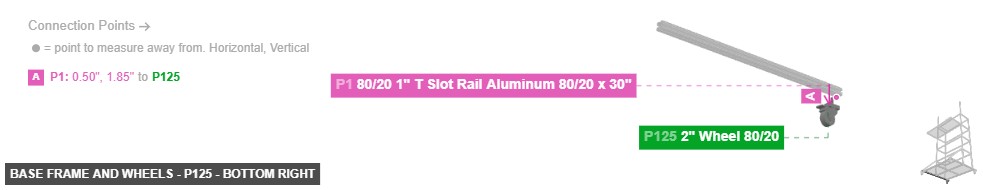

Group: Base Frame and Wheels

Forms the mobile foundation of the cart, including the main bottom frame, cross-members, and wheels.

Assemble the main rectangular frame using side rails P1 and P7 and cross rails P17, P18, and P21 with their corresponding joints (P13-P16, P19-P20). Install the inner cross rails P26 and P27 using joints P22-P25. Attach the four wheels (P122-P125) to the bottom of rails P1 and P7. Finish by attaching the end caps (P118-P121) to the open ends of the rails.

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: back left

Base Frame and Wheels - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 30" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 119's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3, which is right-facing, should connect to part 14's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 124's 1" Rail 80/20 M #1. After that, attach its 1" 80/20 End Hole F #2 facing back to part 121's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: front right

Base Frame and Wheels - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 30" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 119's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3, which is right-facing, should connect to part 14's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 124's 1" Rail 80/20 M #1. After that, attach its 1" 80/20 End Hole F #2 facing back to part 121's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: bottom right

Base Frame and Wheels - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 30" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 119's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3, which is right-facing, should connect to part 14's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 124's 1" Rail 80/20 M #1. After that, attach its 1" 80/20 End Hole F #2 facing back to part 121's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: back left

Base Frame and Wheels - Part 80/20 1

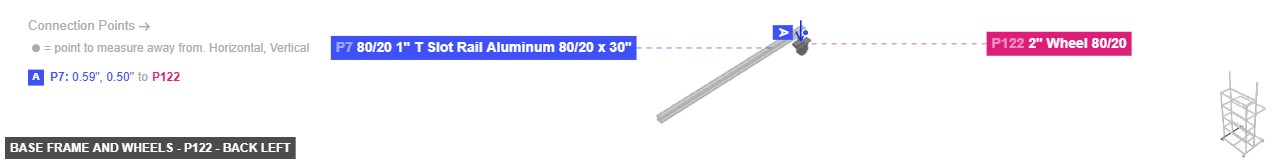

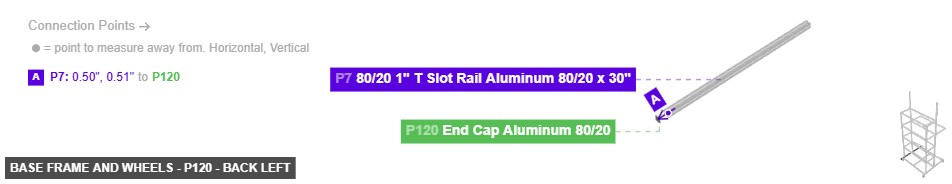

P7 (4" 1" T Slot Rail Aluminum 80/20 30" length) - attach its 1" 80/20 End Hole F #1 facing front to part 118's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1, which is left-facing, should connect to part 13's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 122's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 120's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #3 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

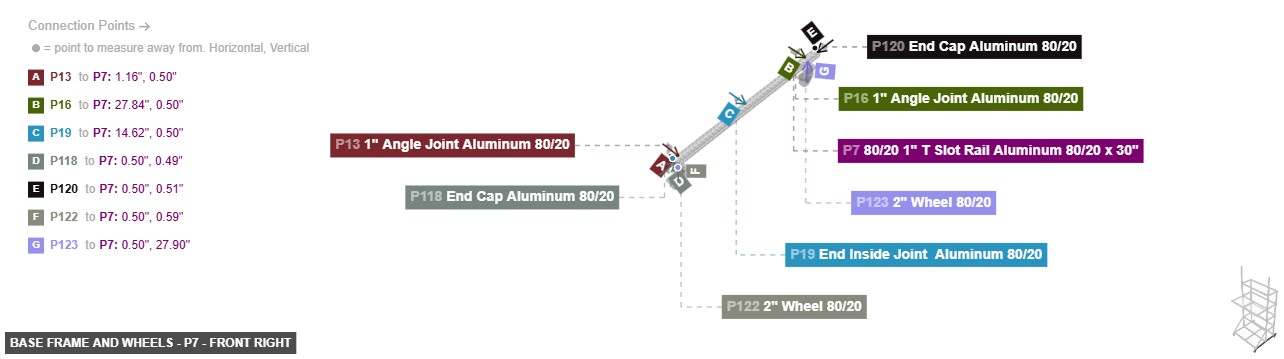

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: front right

Base Frame and Wheels - Part 80/20 1
P7 (4" 1" T Slot Rail Aluminum 80/20 30" length) - attach its 1" 80/20 End Hole F #1 facing front to part 118's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1, which is left-facing, should connect to part 13's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 122's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 120's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #3 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

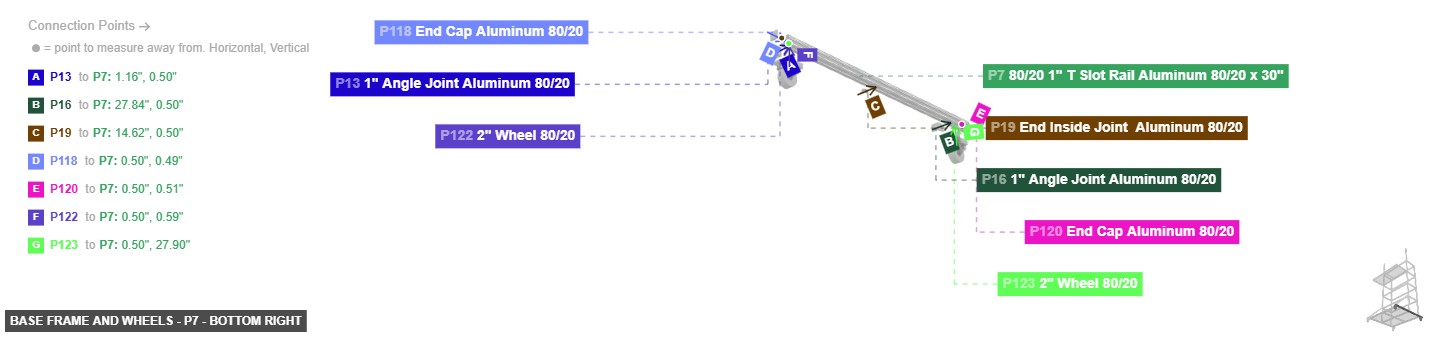

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: bottom right

Base Frame and Wheels - Part 80/20 1
P7 (4" 1" T Slot Rail Aluminum 80/20 30" length) - attach its 1" 80/20 End Hole F #1 facing front to part 118's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1, which is left-facing, should connect to part 13's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 122's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 120's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #3 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part 1

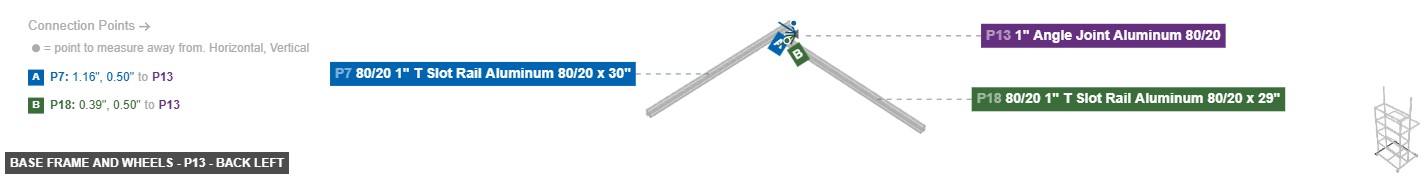

P13 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 7's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented back links with part 18's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

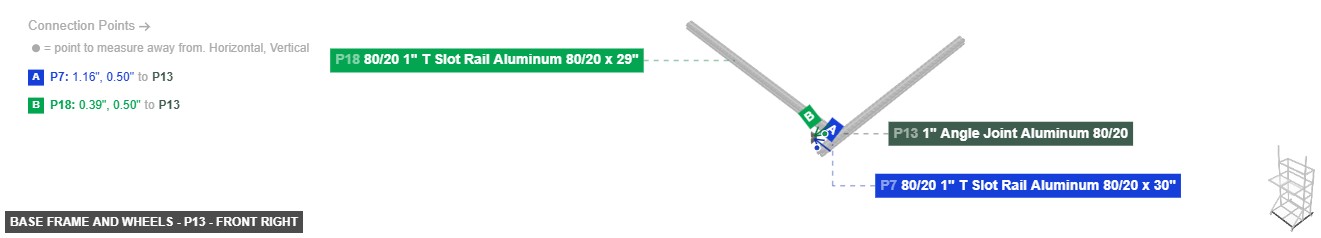

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part 1
P13 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 7's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented back links with part 18's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part 1
P13 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 7's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented back links with part 18's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

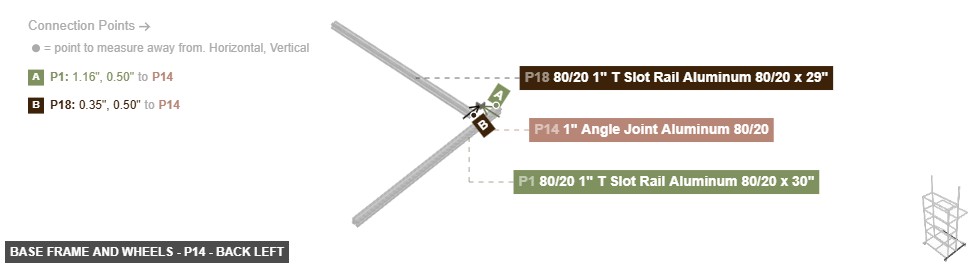

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part 1
P14 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 1's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is back-facing, should connect to part 18's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part 1
P14 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 1's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is back-facing, should connect to part 18's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part 1
P14 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 1's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is back-facing, should connect to part 18's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part 1

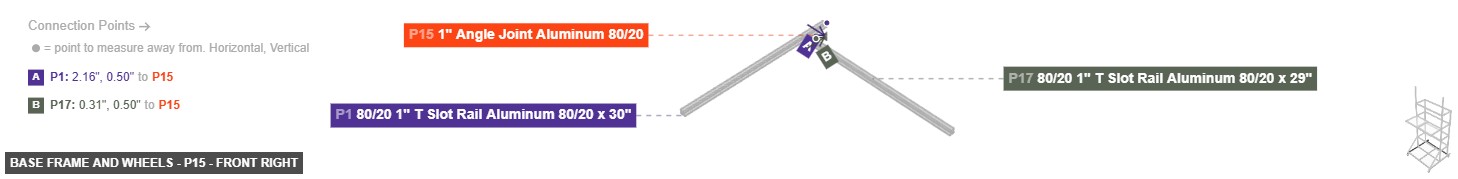

P15 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is front-facing, should connect to part 17's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part 1
P15 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is front-facing, should connect to part 17's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part 1
P15 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is front-facing, should connect to part 17's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part 1
P16 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 7's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented front links with part 17's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part 1
P16 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 7's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented front links with part 17's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part 1
P16 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 7's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented front links with part 17's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Base Frame and Wheels - Part 80/20 1
P17 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 16's 1" Rail 80/20 M #2. After that, connect its 1" Rail 80/20 F #3 oriented front links with part 25's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point left. Additionally, its 1" Rail 80/20 F #4 needs to point bottom. Next, its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Base Frame and Wheels - Part 80/20 1
P17 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 16's 1" Rail 80/20 M #2. After that, connect its 1" Rail 80/20 F #3 oriented front links with part 25's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point left. Additionally, its 1" Rail 80/20 F #4 needs to point bottom. Next, its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Base Frame and Wheels - Part 80/20 1
P17 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 16's 1" Rail 80/20 M #2. After that, connect its 1" Rail 80/20 F #3 oriented front links with part 25's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point left. Additionally, its 1" Rail 80/20 F #4 needs to point bottom. Next, its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

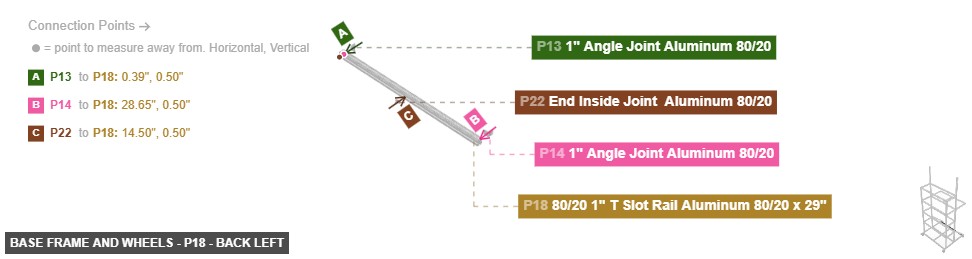

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Base Frame and Wheels - Part 80/20 1
P18 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 13's 1" Rail 80/20 M #2, also connect its 1" Rail 80/20 F #3 oriented back links with part 22's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 needs to point left. Also, ensure its 1" Rail 80/20 F #2 faces bottom. Also, its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Base Frame and Wheels - Part 80/20 1
P18 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 13's 1" Rail 80/20 M #2, also connect its 1" Rail 80/20 F #3 oriented back links with part 22's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 needs to point left. Also, ensure its 1" Rail 80/20 F #2 faces bottom. Also, its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Base Frame and Wheels - Part 80/20 1
P18 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 13's 1" Rail 80/20 M #2, also connect its 1" Rail 80/20 F #3 oriented back links with part 22's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 needs to point left. Also, ensure its 1" Rail 80/20 F #2 faces bottom. Also, its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - back_left
P19 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 7's 1" Rail 80/20 F #1. After that, connect its 1" 80/20 End Hole M #1 oriented left links with part 21's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

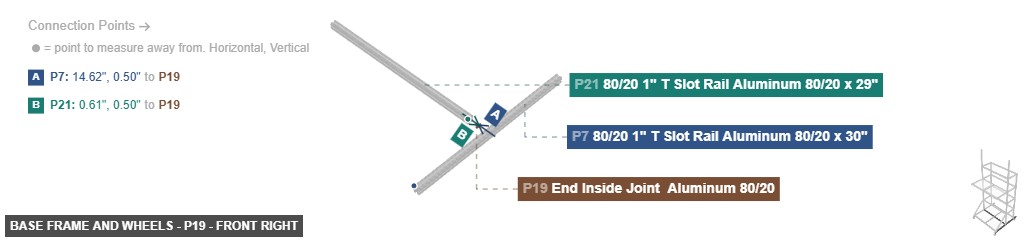

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - front_right
P19 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 7's 1" Rail 80/20 F #1. After that, connect its 1" 80/20 End Hole M #1 oriented left links with part 21's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - bottom_right
P19 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 7's 1" Rail 80/20 F #1. After that, connect its 1" 80/20 End Hole M #1 oriented left links with part 21's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - back_left
P20 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3, then its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 21's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - front_right
P20 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3, then its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 21's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - bottom_right
P20 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3, then its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 21's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Base Frame and Wheels - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" 80/20 End Hole F #1, which is left-facing, should connect to part 20's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #2 facing front to part 23's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is back-facing, should connect to part 24's 1" Rail 80/20 M #1. Next, attach its 1" 80/20 End Hole F #2 facing right to part 19's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #3 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Base Frame and Wheels - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" 80/20 End Hole F #1, which is left-facing, should connect to part 20's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #2 facing front to part 23's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is back-facing, should connect to part 24's 1" Rail 80/20 M #1. Next, attach its 1" 80/20 End Hole F #2 facing right to part 19's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #3 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Base Frame and Wheels - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" 80/20 End Hole F #1, which is left-facing, should connect to part 20's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #2 facing front to part 23's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is back-facing, should connect to part 24's 1" Rail 80/20 M #1. Next, attach its 1" 80/20 End Hole F #2 facing right to part 19's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #3 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - back_left
P22 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 18's 1" Rail 80/20 F #3, and connect its 1" 80/20 End Hole M #1 oriented back links with part 26's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - front_right
P22 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 18's 1" Rail 80/20 F #3, and connect its 1" 80/20 End Hole M #1 oriented back links with part 26's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

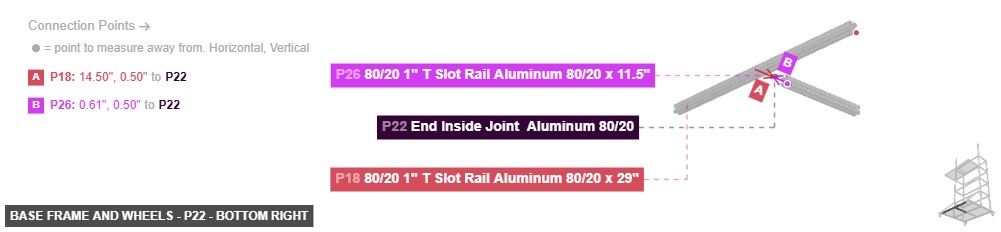

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - bottom_right
P22 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 18's 1" Rail 80/20 F #3, and connect its 1" 80/20 End Hole M #1 oriented back links with part 26's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - back_left
P23 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 21's 1" Rail 80/20 F #2, plus its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 26's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

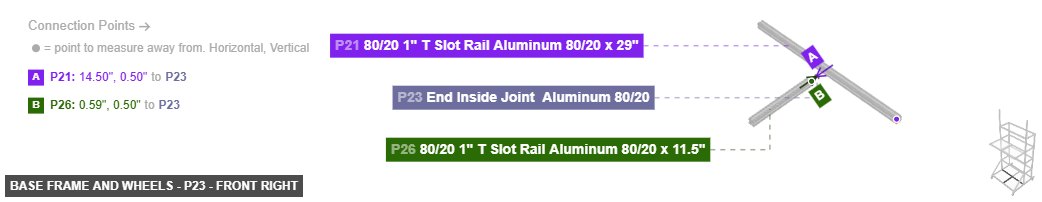

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - front_right
P23 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 21's 1" Rail 80/20 F #2, plus its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 26's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - bottom_right
P23 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 21's 1" Rail 80/20 F #2, plus its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 26's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - back_left
P24 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #4. Additionally, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 27's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

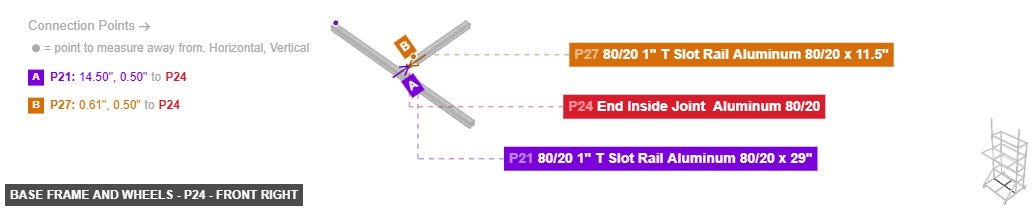

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - front_right
P24 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #4. Additionally, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 27's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - bottom_right
P24 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #4. Additionally, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 27's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - back_left
P25 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #3. Next, its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 27's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - front_right
P25 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #3. Next, its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 27's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Inside Joint Aluminum 80/20 - bottom_right
P25 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #3. Next, its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 27's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: back left

Base Frame and Wheels - Part 80/20 1
P26 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 23's 1" 80/20 End Hole M #1, then attach its 1" 80/20 End Hole F #2 facing front to part 22's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 must be oriented bottom, and its 1" Rail 80/20 F #2 needs to point right, and its 1" Rail 80/20 F #3 needs to point top. Also, its 1" Rail 80/20 F #4 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: front right

Base Frame and Wheels - Part 80/20 1
P26 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 23's 1" 80/20 End Hole M #1, then attach its 1" 80/20 End Hole F #2 facing front to part 22's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 must be oriented bottom, and its 1" Rail 80/20 F #2 needs to point right, and its 1" Rail 80/20 F #3 needs to point top. Also, its 1" Rail 80/20 F #4 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: bottom right

Base Frame and Wheels - Part 80/20 1
P26 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 23's 1" 80/20 End Hole M #1, then attach its 1" 80/20 End Hole F #2 facing front to part 22's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 must be oriented bottom, and its 1" Rail 80/20 F #2 needs to point right, and its 1" Rail 80/20 F #3 needs to point top. Also, its 1" Rail 80/20 F #4 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

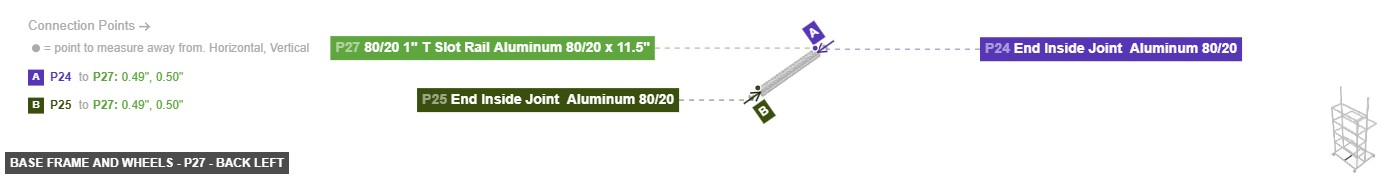

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: back left

Base Frame and Wheels - Part 80/20 1
P27 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 25's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented front links with part 24's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1 should be directed top. Additionally, its 1" Rail 80/20 F #2 needs to point left. Also, ensure its 1" Rail 80/20 F #3 faces bottom. After that, ensure its 1" Rail 80/20 F #4 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: front right

Base Frame and Wheels - Part 80/20 1
P27 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 25's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented front links with part 24's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1 should be directed top. Additionally, its 1" Rail 80/20 F #2 needs to point left. Also, ensure its 1" Rail 80/20 F #3 faces bottom. After that, ensure its 1" Rail 80/20 F #4 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: bottom right

Base Frame and Wheels - Part 80/20 1
P27 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 25's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented front links with part 24's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1 should be directed top. Additionally, its 1" Rail 80/20 F #2 needs to point left. Also, ensure its 1" Rail 80/20 F #3 faces bottom. After that, ensure its 1" Rail 80/20 F #4 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Cap Aluminum 80/20 - back_left
P118 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 7's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

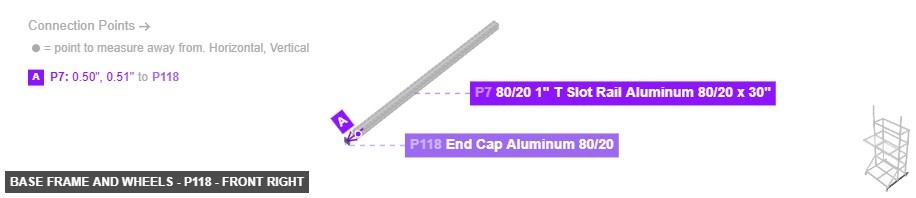

Part: End Cap Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - front_right
P118 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 7's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - bottom_right
P118 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 7's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Cap Aluminum 80/20 - back_left
P119 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

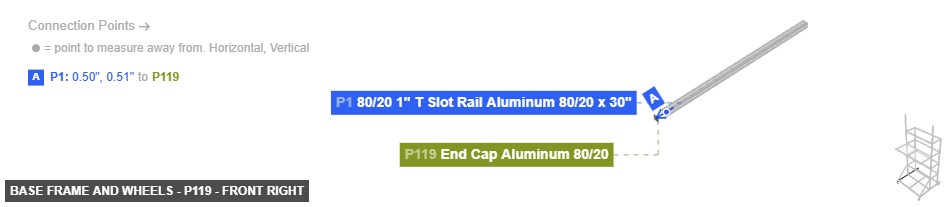

Part: End Cap Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - front_right
P119 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - bottom_right
P119 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Cap Aluminum 80/20 - back_left
P120 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 7's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - front_right
P120 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 7's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - bottom_right
P120 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 7's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

Base Frame and Wheels - Part End Cap Aluminum 80/20 - back_left
P121 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - front_right
P121 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Frame and Wheels - Part End Cap Aluminum 80/20 - bottom_right
P121 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: back left

Base Frame and Wheels - Part 2
P122 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: front right

Base Frame and Wheels - Part 2
P122 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: bottom right

Base Frame and Wheels - Part 2
P122 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: back left

Base Frame and Wheels - Part 2
P123 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 7's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: front right

Base Frame and Wheels - Part 2
P123 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 7's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: bottom right

Base Frame and Wheels - Part 2
P123 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 7's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: back left

Base Frame and Wheels - Part 2
P124 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

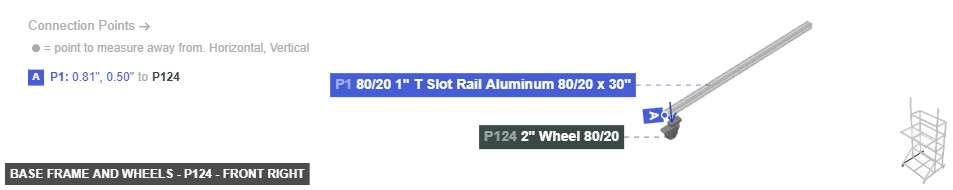

Part: 2" Wheel 80/20 - Angle: front right

Base Frame and Wheels - Part 2
P124 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

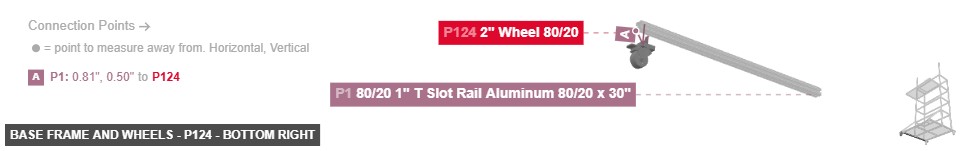

Part: 2" Wheel 80/20 - Angle: bottom right

Base Frame and Wheels - Part 2
P124 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: back left

Base Frame and Wheels - Part 2
P125 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: front right

Base Frame and Wheels - Part 2
P125 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Part: 2" Wheel 80/20 - Angle: bottom right

Base Frame and Wheels - Part 2
P125 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

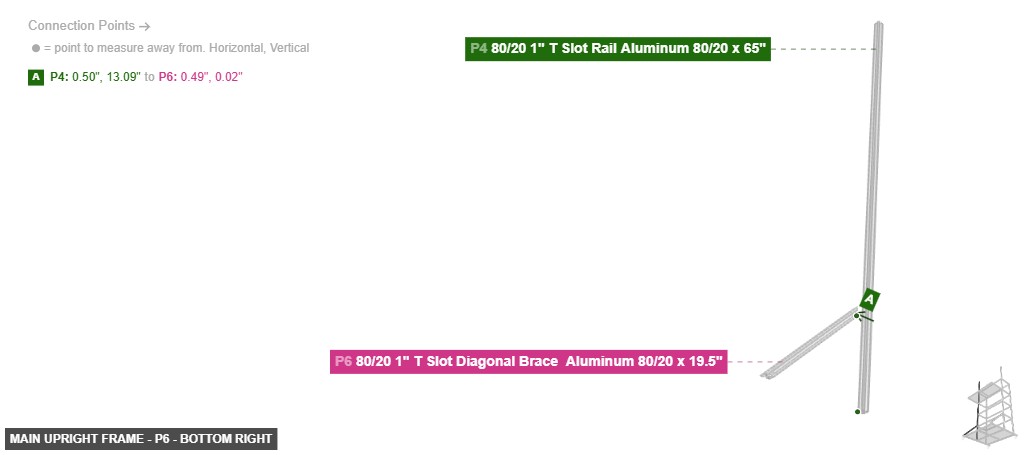

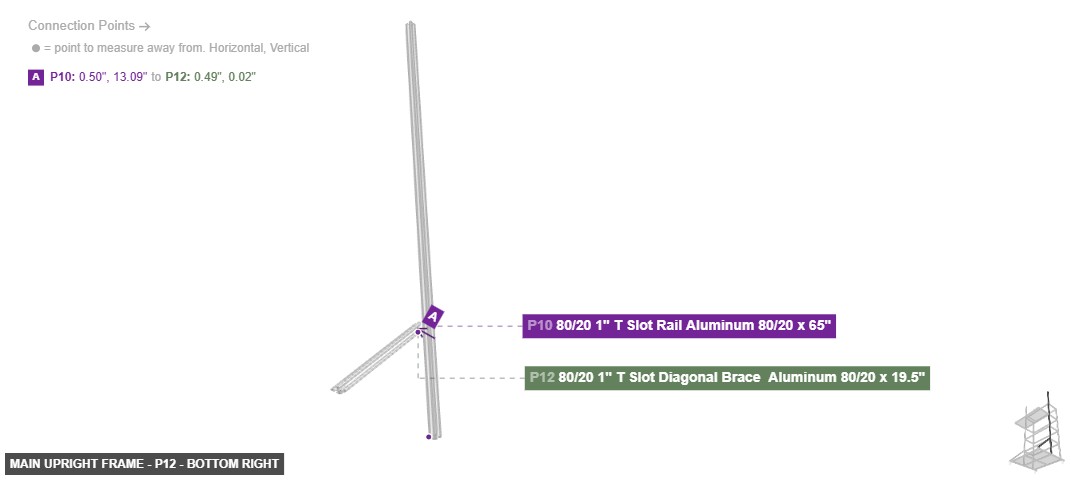

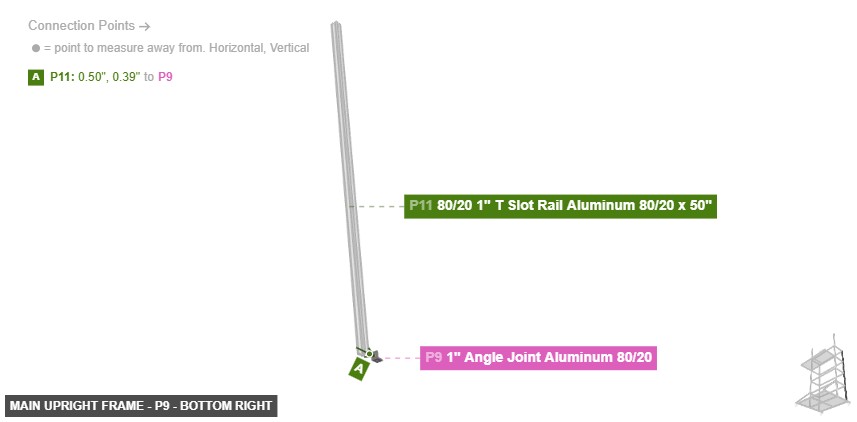

Group: Main Upright Frame

Establishes the full height and primary vertical structure of the cart.

Attach the left vertical rails (P4, P5) to the base rail P1 using angle joints P2 and P3. Attach the right vertical rails (P10, P11) to the base rail P7 using angle joints P8 and P9. Add the diagonal braces P6 and P12 for stability, connecting the vertical rails to the base.

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Upright Frame - Part 1
P2 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented back links with part 4's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

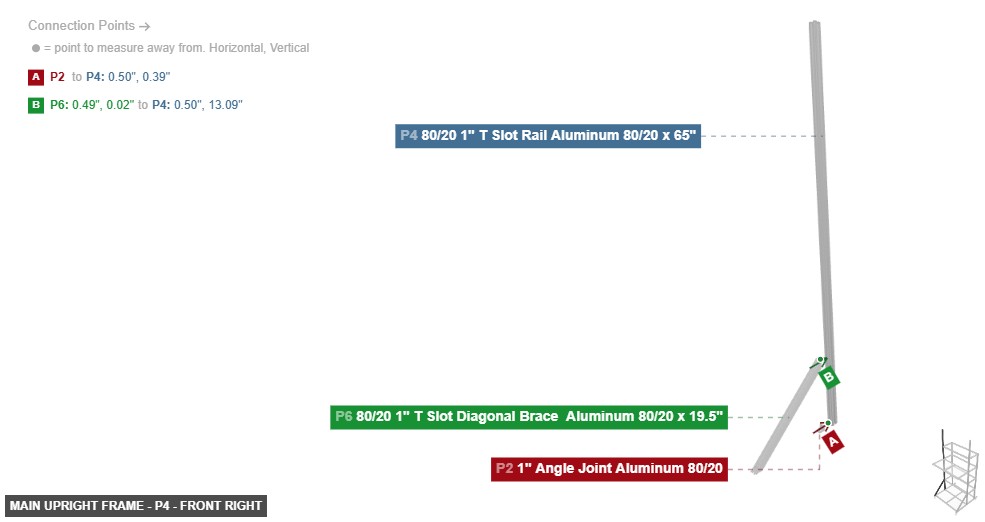

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Upright Frame - Part 1
P2 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented back links with part 4's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Upright Frame - Part 1
P2 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented back links with part 4's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Upright Frame - Part 1
P3 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented front links with part 5's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

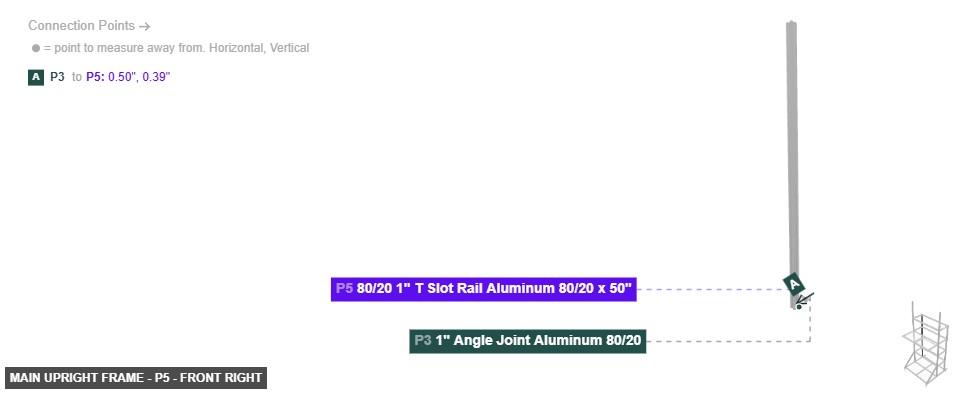

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Upright Frame - Part 1
P3 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented front links with part 5's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Upright Frame - Part 1
P3 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented front links with part 5's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 65" - Angle: back left

Main Upright Frame - Part 80/20 1
P4 (4" 1" T Slot Rail Aluminum 80/20 65" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 2's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented left, then its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 65" - Angle: front right

Main Upright Frame - Part 80/20 1
P4 (4" 1" T Slot Rail Aluminum 80/20 65" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 2's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented left, then its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 65" - Angle: bottom right

Main Upright Frame - Part 80/20 1
P4 (4" 1" T Slot Rail Aluminum 80/20 65" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 2's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented left, then its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 50" - Angle: back left

Main Upright Frame - Part 80/20 1
P5 (4" 1" T Slot Rail Aluminum 80/20 50" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 3's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #4 should be directed left, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 50" - Angle: front right

Main Upright Frame - Part 80/20 1
P5 (4" 1" T Slot Rail Aluminum 80/20 50" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 3's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #4 should be directed left, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 50" - Angle: bottom right

Main Upright Frame - Part 80/20 1
P5 (4" 1" T Slot Rail Aluminum 80/20 50" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 3's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #4 should be directed left, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5" - Angle: back left

Main Upright Frame - Part 80/20 1
P6 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1. Next, ensure its 1" Rail 80/20 F #1 faces right, and its 1" Rail 80/20 F #2 must be oriented front-top. Additionally, its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5" - Angle: front right

Main Upright Frame - Part 80/20 1
P6 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1. Next, ensure its 1" Rail 80/20 F #1 faces right, and its 1" Rail 80/20 F #2 must be oriented front-top. Additionally, its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5" - Angle: bottom right

Main Upright Frame - Part 80/20 1
P6 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1. Next, ensure its 1" Rail 80/20 F #1 faces right, and its 1" Rail 80/20 F #2 must be oriented front-top. Additionally, its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Upright Frame - Part 1
P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Upright Frame - Part 1
P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Upright Frame - Part 1
P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Upright Frame - Part 1
P9 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented front links with part 11's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Upright Frame - Part 1
P9 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented front links with part 11's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Upright Frame - Part 1
P9 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented front links with part 11's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 65" - Angle: back left

Main Upright Frame - Part 80/20 1
P10 (4" 1" T Slot Rail Aluminum 80/20 65" length) - ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 65" - Angle: front right

Main Upright Frame - Part 80/20 1
P10 (4" 1" T Slot Rail Aluminum 80/20 65" length) - ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 65" - Angle: bottom right

Main Upright Frame - Part 80/20 1
P10 (4" 1" T Slot Rail Aluminum 80/20 65" length) - ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 50" - Angle: back left

Main Upright Frame - Part 80/20 1
P11 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 9's 1" Rail 80/20 M #2. Also, ensure its 1" Rail 80/20 F #2 faces right, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 50" - Angle: front right

Main Upright Frame - Part 80/20 1
P11 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 9's 1" Rail 80/20 M #2. Also, ensure its 1" Rail 80/20 F #2 faces right, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 50" - Angle: bottom right

Main Upright Frame - Part 80/20 1
P11 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 9's 1" Rail 80/20 M #2. Also, ensure its 1" Rail 80/20 F #2 faces right, also its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5" - Angle: back left

Main Upright Frame - Part 80/20 1
P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - attach its 1" Rail 80/20 M #1 facing back to part 10's 1" Rail 80/20 F #1. Next, its 1" Rail 80/20 F #1 must be oriented right. Also, its 1" Rail 80/20 F #2 should be directed front-top, and its 1" Rail 80/20 F #3 should be directed left. After that, its 1" Rail 80/20 F #4 needs to point back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5" - Angle: front right

Main Upright Frame - Part 80/20 1
P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - attach its 1" Rail 80/20 M #1 facing back to part 10's 1" Rail 80/20 F #1. Next, its 1" Rail 80/20 F #1 must be oriented right. Also, its 1" Rail 80/20 F #2 should be directed front-top, and its 1" Rail 80/20 F #3 should be directed left. After that, its 1" Rail 80/20 F #4 needs to point back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5" - Angle: bottom right

Main Upright Frame - Part 80/20 1
P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - attach its 1" Rail 80/20 M #1 facing back to part 10's 1" Rail 80/20 F #1. Next, its 1" Rail 80/20 F #1 must be oriented right. Also, its 1" Rail 80/20 F #2 should be directed front-top, and its 1" Rail 80/20 F #3 should be directed left. After that, its 1" Rail 80/20 F #4 needs to point back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Group: Lower & Mid-Level Shelf Assembly

Installs the horizontal rails that form the lower and middle tiers of shelving, adding rigidity to the structure.

Using the various angle joints (P28-P35 and P43-P51), install the horizontal shelf rails (P36-P39, P40-P42, and P45) between the left and right sides of the Main Upright Frame.

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 39's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 39's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 39's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P29 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 39's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P29 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 39's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P29 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 39's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P30 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 38's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P30 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 38's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P30 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 38's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P31 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P31 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P31 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P32 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P32 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P32 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 37's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 37's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 37's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P34 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P34 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P34 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P35 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 37's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P35 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 37's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P35 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 37's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P36 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 34's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 should be directed right, also its 1" Rail 80/20 F #2 needs to point front. Also, its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 needs to point back. After that, its 1" 80/20 End Hole F #2 needs to point left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P36 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 34's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 should be directed right, also its 1" Rail 80/20 F #2 needs to point front. Also, its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 needs to point back. After that, its 1" 80/20 End Hole F #2 needs to point left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P36 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 34's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 should be directed right, also its 1" Rail 80/20 F #2 needs to point front. Also, its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 needs to point back. After that, its 1" 80/20 End Hole F #2 needs to point left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 35's 1" Rail 80/20 M #2. Also, its 1" 80/20 End Hole F #1 should be directed right. Also, its 1" Rail 80/20 F #2 needs to point front. After that, ensure its 1" Rail 80/20 F #3 faces top, and ensure its 1" Rail 80/20 F #4 faces back, also ensure its 1" 80/20 End Hole F #2 faces left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 35's 1" Rail 80/20 M #2. Also, its 1" 80/20 End Hole F #1 should be directed right. Also, its 1" Rail 80/20 F #2 needs to point front. After that, ensure its 1" Rail 80/20 F #3 faces top, and ensure its 1" Rail 80/20 F #4 faces back, also ensure its 1" 80/20 End Hole F #2 faces left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 35's 1" Rail 80/20 M #2. Also, its 1" 80/20 End Hole F #1 should be directed right. Also, its 1" Rail 80/20 F #2 needs to point front. After that, ensure its 1" Rail 80/20 F #3 faces top, and ensure its 1" Rail 80/20 F #4 faces back, also ensure its 1" 80/20 End Hole F #2 faces left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P38 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 31's 1" Rail 80/20 M #2. Also, its 1" 80/20 End Hole F #1 should be directed front, also its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 must be oriented top. Also, its 1" Rail 80/20 F #4 needs to point right. Also, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P38 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 31's 1" Rail 80/20 M #2. Also, its 1" 80/20 End Hole F #1 should be directed front, also its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 must be oriented top. Also, its 1" Rail 80/20 F #4 needs to point right. Also, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P38 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 31's 1" Rail 80/20 M #2. Also, its 1" 80/20 End Hole F #1 should be directed front, also its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 must be oriented top. Also, its 1" Rail 80/20 F #4 needs to point right. Also, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P39 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2. Also, ensure its 1" 80/20 End Hole F #1 faces front, plus its 1" Rail 80/20 F #2 needs to point left. Also, its 1" Rail 80/20 F #3 must be oriented top, also ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P39 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2. Also, ensure its 1" 80/20 End Hole F #1 faces front, plus its 1" Rail 80/20 F #2 needs to point left. Also, its 1" Rail 80/20 F #3 must be oriented top, also ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P39 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2. Also, ensure its 1" 80/20 End Hole F #1 faces front, plus its 1" Rail 80/20 F #2 needs to point left. Also, its 1" Rail 80/20 F #3 must be oriented top, also ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 46's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 needs to point right, then ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 needs to point top, plus its 1" Rail 80/20 F #4 must be oriented back. Also, its 1" 80/20 End Hole F #2 must be oriented left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 46's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 needs to point right, then ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 needs to point top, plus its 1" Rail 80/20 F #4 must be oriented back. Also, its 1" 80/20 End Hole F #2 must be oriented left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 46's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 needs to point right, then ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 needs to point top, plus its 1" Rail 80/20 F #4 must be oriented back. Also, its 1" 80/20 End Hole F #2 must be oriented left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P41 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 48's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right, and its 1" Rail 80/20 F #2 needs to point front, then its 1" Rail 80/20 F #3 needs to point top. Additionally, ensure its 1" Rail 80/20 F #4 faces back, also its 1" 80/20 End Hole F #2 must be oriented left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P41 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 48's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right, and its 1" Rail 80/20 F #2 needs to point front, then its 1" Rail 80/20 F #3 needs to point top. Additionally, ensure its 1" Rail 80/20 F #4 faces back, also its 1" 80/20 End Hole F #2 must be oriented left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P41 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 48's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right, and its 1" Rail 80/20 F #2 needs to point front, then its 1" Rail 80/20 F #3 needs to point top. Additionally, ensure its 1" Rail 80/20 F #4 faces back, also its 1" 80/20 End Hole F #2 must be oriented left
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P42 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 47's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 should be directed front. Also, its 1" Rail 80/20 F #2 must be oriented left. Additionally, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 should be directed right, also its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P42 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 47's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 should be directed front. Also, its 1" Rail 80/20 F #2 must be oriented left. Additionally, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 should be directed right, also its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P42 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 47's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 should be directed front. Also, its 1" Rail 80/20 F #2 must be oriented left. Additionally, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 should be directed right, also its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P43 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 45's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P43 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 45's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P43 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 45's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P44 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 45's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P44 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 45's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P44 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 45's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P45 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 43's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 should be directed front, then ensure its 1" Rail 80/20 F #2 faces left. After that, its 1" Rail 80/20 F #3 must be oriented top. Additionally, its 1" Rail 80/20 F #4 must be oriented right, then its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P45 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 43's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 should be directed front, then ensure its 1" Rail 80/20 F #2 faces left. After that, its 1" Rail 80/20 F #3 must be oriented top. Additionally, its 1" Rail 80/20 F #4 must be oriented right, then its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 80/20 1
P45 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 43's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 should be directed front, then ensure its 1" Rail 80/20 F #2 faces left. After that, its 1" Rail 80/20 F #3 must be oriented top. Additionally, its 1" Rail 80/20 F #4 must be oriented right, then its 1" 80/20 End Hole F #2 should be directed back
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P46 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P46 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P46 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P47 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 42's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P47 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 42's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P47 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 42's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P48 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P48 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P48 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P49 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 42's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P49 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 42's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P49 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 42's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P50 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P50 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P50 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Lower & Mid-Level Shelf Assembly - Part 1
P51 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Lower & Mid-Level Shelf Assembly - Part 1
P51 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Lower & Mid-Level Shelf Assembly - Part 1
P51 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Group: Upper-Level Shelf Assembly

Installs the horizontal rails that form the upper tiers of shelving.

Continue building upwards by installing the upper horizontal shelf rails (P52, P53, P54, P57, P65, P67, P74, P75) using their corresponding angle joints (P55-P64, P66, P68-P73) to connect them to the main uprights.

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P52 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 58's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 needs to point right. Additionally, its 1" Rail 80/20 F #2 should be directed front, then its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P52 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 58's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 needs to point right. Additionally, its 1" Rail 80/20 F #2 should be directed front, then its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P52 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 58's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 needs to point right. Additionally, its 1" Rail 80/20 F #2 should be directed front, then its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P53 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 60's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 must be oriented right. Also, its 1" Rail 80/20 F #4 should be directed back. After that, its 1" 80/20 End Hole F #2 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P53 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 60's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 must be oriented right. Also, its 1" Rail 80/20 F #4 should be directed back. After that, its 1" 80/20 End Hole F #2 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P53 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 60's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 must be oriented right. Also, its 1" Rail 80/20 F #4 should be directed back. After that, its 1" 80/20 End Hole F #2 should be directed left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P54 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 59's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front, then its 1" Rail 80/20 F #2 must be oriented left. Additionally, ensure its 1" Rail 80/20 F #3 faces top. After that, ensure its 1" Rail 80/20 F #4 faces right, and its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P54 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 59's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front, then its 1" Rail 80/20 F #2 must be oriented left. Additionally, ensure its 1" Rail 80/20 F #3 faces top. After that, ensure its 1" Rail 80/20 F #4 faces right, and its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P54 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 59's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front, then its 1" Rail 80/20 F #2 must be oriented left. Additionally, ensure its 1" Rail 80/20 F #3 faces top. After that, ensure its 1" Rail 80/20 F #4 faces right, and its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P55 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P55 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P55 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P56 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 57's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P56 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 57's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P56 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 57's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P57 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 55's 1" Rail 80/20 M #2. Next, ensure its 1" 80/20 End Hole F #1 faces front, plus its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 needs to point right, also its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P57 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 55's 1" Rail 80/20 M #2. Next, ensure its 1" 80/20 End Hole F #1 faces front, plus its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 needs to point right, also its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P57 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 55's 1" Rail 80/20 M #2. Next, ensure its 1" 80/20 End Hole F #1 faces front, plus its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 needs to point right, also its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P58 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 52's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P58 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 52's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P58 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 52's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P59 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 54's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P59 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 54's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P59 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 54's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P60 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 53's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P60 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 53's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P60 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 53's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P61 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 54's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P61 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 54's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P61 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 54's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P62 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 52's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P62 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 52's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P62 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 52's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P63 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 53's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P63 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 53's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P63 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 53's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P64 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 65's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P64 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 65's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P64 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 65's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P65 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 64's 1" Rail 80/20 M #2. Next, ensure its 1" 80/20 End Hole F #1 faces front, plus ensure its 1" Rail 80/20 F #2 faces left. Also, ensure its 1" Rail 80/20 F #3 faces top, plus ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P65 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 64's 1" Rail 80/20 M #2. Next, ensure its 1" 80/20 End Hole F #1 faces front, plus ensure its 1" Rail 80/20 F #2 faces left. Also, ensure its 1" Rail 80/20 F #3 faces top, plus ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P65 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 64's 1" Rail 80/20 M #2. Next, ensure its 1" 80/20 End Hole F #1 faces front, plus ensure its 1" Rail 80/20 F #2 faces left. Also, ensure its 1" Rail 80/20 F #3 faces top, plus ensure its 1" Rail 80/20 F #4 faces right, also its 1" 80/20 End Hole F #2 needs to point back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P66 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 67's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P66 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 67's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P66 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 67's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P67 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 66's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front. Also, its 1" Rail 80/20 F #2 should be directed left. Also, ensure its 1" Rail 80/20 F #3 faces top, also its 1" Rail 80/20 F #4 must be oriented right, then ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P67 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 66's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front. Also, its 1" Rail 80/20 F #2 should be directed left. Also, ensure its 1" Rail 80/20 F #3 faces top, also its 1" Rail 80/20 F #4 must be oriented right, then ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 9.75" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P67 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 66's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front. Also, its 1" Rail 80/20 F #2 should be directed left. Also, ensure its 1" Rail 80/20 F #3 faces top, also its 1" Rail 80/20 F #4 must be oriented right, then ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P69 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 65's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P69 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 65's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P69 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 65's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 75's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 75's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 75's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P71 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 75's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P71 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 75's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P71 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 75's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P72 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 74's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P72 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 74's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P72 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 74's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper-Level Shelf Assembly - Part 1
P73 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 74's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper-Level Shelf Assembly - Part 1
P73 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 74's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper-Level Shelf Assembly - Part 1
P73 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 74's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P74 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 73's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left. Next, its 1" Rail 80/20 F #2 must be oriented back, also ensure its 1" Rail 80/20 F #3 faces top, plus its 1" 80/20 End Hole F #2 needs to point right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P74 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 73's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left. Next, its 1" Rail 80/20 F #2 must be oriented back, also ensure its 1" Rail 80/20 F #3 faces top, plus its 1" 80/20 End Hole F #2 needs to point right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P74 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 73's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left. Next, its 1" Rail 80/20 F #2 must be oriented back, also ensure its 1" Rail 80/20 F #3 faces top, plus its 1" 80/20 End Hole F #2 needs to point right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Upper-Level Shelf Assembly - Part 80/20 1
P75 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 70's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 must be oriented left, and ensure its 1" Rail 80/20 F #2 faces back, and ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 should be directed front. Additionally, ensure its 1" 80/20 End Hole F #2 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Upper-Level Shelf Assembly - Part 80/20 1
P75 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 70's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 must be oriented left, and ensure its 1" Rail 80/20 F #2 faces back, and ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 should be directed front. Additionally, ensure its 1" 80/20 End Hole F #2 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Upper-Level Shelf Assembly - Part 80/20 1
P75 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 70's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 must be oriented left, and ensure its 1" Rail 80/20 F #2 faces back, and ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 should be directed front. Additionally, ensure its 1" 80/20 End Hole F #2 faces right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Group: Top Frame and End Caps

Constructs the top-most frame structure and adds the finishing end caps to the main vertical rails.

Assemble the top frame using rails P82, P83, P84, and P89 with their various joints (P80, P81, P85-P88). Attach this assembly to the top of the main uprights. Install the end caps P90 and P91 on the top frame, and end caps P76-P79 on the tops of the main vertical rails (P4, P5, P10, P11).

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Top Frame and End Caps - Part 1
P80 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 82's 1" Rail 80/20 F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Top Frame and End Caps - Part 1
P80 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 82's 1" Rail 80/20 F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Top Frame and End Caps - Part 1
P80 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 82's 1" Rail 80/20 F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 12.5" - Angle: back left

Top Frame and End Caps - Part 80/20 1
P82 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 91's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing bottom to part 80's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #2 facing left to part 85's 1" Rail 80/20 M #1, then ensure its 1" Rail 80/20 F #3 faces top. Additionally, its 1" Rail 80/20 F #4 must be oriented right. Also, ensure its 1" 80/20 End Hole F #2 faces back
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 12.5" - Angle: front right

Top Frame and End Caps - Part 80/20 1
P82 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 91's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing bottom to part 80's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #2 facing left to part 85's 1" Rail 80/20 M #1, then ensure its 1" Rail 80/20 F #3 faces top. Additionally, its 1" Rail 80/20 F #4 must be oriented right. Also, ensure its 1" 80/20 End Hole F #2 faces back
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 12.5" - Angle: bottom right

Top Frame and End Caps - Part 80/20 1
P82 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 91's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing bottom to part 80's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #2 facing left to part 85's 1" Rail 80/20 M #1, then ensure its 1" Rail 80/20 F #3 faces top. Additionally, its 1" Rail 80/20 F #4 must be oriented right. Also, ensure its 1" 80/20 End Hole F #2 faces back
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 12.5" - Angle: back left

Top Frame and End Caps - Part 80/20 1
P83 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 90's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #4 oriented right links with part 86's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #1 needs to point bottom. Also, its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 should be directed top, plus its 1" 80/20 End Hole F #2 must be oriented back
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 12.5" - Angle: front right

Top Frame and End Caps - Part 80/20 1
P83 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 90's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #4 oriented right links with part 86's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #1 needs to point bottom. Also, its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 should be directed top, plus its 1" 80/20 End Hole F #2 must be oriented back
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 12.5" - Angle: bottom right

Top Frame and End Caps - Part 80/20 1
P83 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 90's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #4 oriented right links with part 86's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #1 needs to point bottom. Also, its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 should be directed top, plus its 1" 80/20 End Hole F #2 must be oriented back
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: back left

Top Frame and End Caps - Part 80/20 1
P84 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" 80/20 End Hole F #1, which is left-facing, should connect to part 86's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is back-facing, should connect to part 87's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 85's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #4 needs to point bottom
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: front right

Top Frame and End Caps - Part 80/20 1
P84 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" 80/20 End Hole F #1, which is left-facing, should connect to part 86's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is back-facing, should connect to part 87's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 85's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #4 needs to point bottom
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 29" - Angle: bottom right

Top Frame and End Caps - Part 80/20 1
P84 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" 80/20 End Hole F #1, which is left-facing, should connect to part 86's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is back-facing, should connect to part 87's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 85's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #4 needs to point bottom
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - back_left
P85 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 82's 1" Rail 80/20 F #2. Also, attach its 1" 80/20 End Hole M #1 facing left to part 84's 1" 80/20 End Hole F #2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - front_right
P85 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 82's 1" Rail 80/20 F #2. Also, attach its 1" 80/20 End Hole M #1 facing left to part 84's 1" 80/20 End Hole F #2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - bottom_right
P85 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 82's 1" Rail 80/20 F #2. Also, attach its 1" 80/20 End Hole M #1 facing left to part 84's 1" 80/20 End Hole F #2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - back_left
P86 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 83's 1" Rail 80/20 F #4, also attach its 1" 80/20 End Hole M #1 facing right to part 84's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - front_right
P86 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 83's 1" Rail 80/20 F #4, also attach its 1" 80/20 End Hole M #1 facing right to part 84's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - bottom_right
P86 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 83's 1" Rail 80/20 F #4, also attach its 1" 80/20 End Hole M #1 facing right to part 84's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - back_left
P87 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 84's 1" Rail 80/20 F #1. Also, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 89's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - front_right
P87 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 84's 1" Rail 80/20 F #1. Also, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 89's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - bottom_right
P87 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 84's 1" Rail 80/20 F #1. Also, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 89's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - back_left
P88 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 89's 1" 80/20 End Hole F #2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - front_right
P88 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 89's 1" 80/20 End Hole F #2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Top Frame and End Caps - Part End Inside Joint Aluminum 80/20 - bottom_right
P88 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 89's 1" 80/20 End Hole F #2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: back left

Top Frame and End Caps - Part 80/20 1
P89 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 87's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented back links with part 88's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 needs to point bottom, plus its 1" Rail 80/20 F #2 should be directed left. Next, its 1" Rail 80/20 F #3 needs to point top. Also, its 1" Rail 80/20 F #4 must be oriented right
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: front right

Top Frame and End Caps - Part 80/20 1
P89 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 87's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented back links with part 88's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 needs to point bottom, plus its 1" Rail 80/20 F #2 should be directed left. Next, its 1" Rail 80/20 F #3 needs to point top. Also, its 1" Rail 80/20 F #4 must be oriented right
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: bottom right

Top Frame and End Caps - Part 80/20 1
P89 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 87's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented back links with part 88's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 needs to point bottom, plus its 1" Rail 80/20 F #2 should be directed left. Next, its 1" Rail 80/20 F #3 needs to point top. Also, its 1" Rail 80/20 F #4 must be oriented right
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Cap Aluminum 80/20 - Angle: back left

Top Frame and End Caps - Part End Cap Aluminum 80/20 - back_left
P90 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 83's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Cap Aluminum 80/20 - Angle: front right

Top Frame and End Caps - Part End Cap Aluminum 80/20 - front_right
P90 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 83's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Cap Aluminum 80/20 - Angle: bottom right

Top Frame and End Caps - Part End Cap Aluminum 80/20 - bottom_right
P90 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 83's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Cap Aluminum 80/20 - Angle: back left

Top Frame and End Caps - Part End Cap Aluminum 80/20 - back_left
P91 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 82's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Cap Aluminum 80/20 - Angle: front right

Top Frame and End Caps - Part End Cap Aluminum 80/20 - front_right
P91 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 82's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Part: End Cap Aluminum 80/20 - Angle: bottom right

Top Frame and End Caps - Part End Cap Aluminum 80/20 - bottom_right
P91 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 82's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Group: Panel Installation

To hang the acrylic panels onto the frame, enclosing the sides and back of the cart.

Attach the panel hangers (P92, P94-P97, P99-P102, P105, P108-P117) to the appropriate horizontal and vertical rails. Carefully slide the acrylic panels (P93, P98, P103, P104, P106, P107) into the hangers to secure them in place.

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P92 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 93's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P92 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 93's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P92 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 93's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: back left

Panel Installation - Part 1' Acrylic Panel x 14.5
P93 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 94's 1" 80 20 Panel Holder #1, then attach its 1" 80 20 Panel #2 facing top to part 92's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #3, which is top-facing, should connect to part 95's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #4 facing top to part 96's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: front right

Panel Installation - Part 1' Acrylic Panel x 14.5
P93 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 94's 1" 80 20 Panel Holder #1, then attach its 1" 80 20 Panel #2 facing top to part 92's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #3, which is top-facing, should connect to part 95's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #4 facing top to part 96's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: bottom right

Panel Installation - Part 1' Acrylic Panel x 14.5
P93 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 94's 1" 80 20 Panel Holder #1, then attach its 1" 80 20 Panel #2 facing top to part 92's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #3, which is top-facing, should connect to part 95's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #4 facing top to part 96's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P94 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P94 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P94 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P95 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P95 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P95 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P96 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P96 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P96 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P97 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P97 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P97 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: back left

Panel Installation - Part 1' Acrylic Panel x 14.5
P98 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 100's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #2 facing top to part 99's 1" 80 20 Panel Holder #1. After that, its 1" 80 20 Panel #3, which is top-facing, should connect to part 101's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #4 oriented top links with part 97's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: front right

Panel Installation - Part 1' Acrylic Panel x 14.5
P98 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 100's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #2 facing top to part 99's 1" 80 20 Panel Holder #1. After that, its 1" 80 20 Panel #3, which is top-facing, should connect to part 101's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #4 oriented top links with part 97's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: bottom right

Panel Installation - Part 1' Acrylic Panel x 14.5
P98 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 100's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #2 facing top to part 99's 1" 80 20 Panel Holder #1. After that, its 1" 80 20 Panel #3, which is top-facing, should connect to part 101's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #4 oriented top links with part 97's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P99 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P99 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P99 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P100 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P100 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P100 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P101 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P101 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P101 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 98's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P102 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #4, also attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P102 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #4, also attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P102 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #4, also attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: back left

Panel Installation - Part 1' Acrylic Panel x 14.5
P103 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 108's 1" 80 20 Panel Holder #2, and its 1" 80 20 Panel #2, which is top-facing, should connect to part 111's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 102's 1" 80 20 Panel Holder #2. Also, its 1" 80 20 Panel #4, which is top-facing, should connect to part 110's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: front right

Panel Installation - Part 1' Acrylic Panel x 14.5
P103 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 108's 1" 80 20 Panel Holder #2, and its 1" 80 20 Panel #2, which is top-facing, should connect to part 111's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 102's 1" 80 20 Panel Holder #2. Also, its 1" 80 20 Panel #4, which is top-facing, should connect to part 110's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: bottom right

Panel Installation - Part 1' Acrylic Panel x 14.5
P103 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 108's 1" 80 20 Panel Holder #2, and its 1" 80 20 Panel #2, which is top-facing, should connect to part 111's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 102's 1" 80 20 Panel Holder #2. Also, its 1" 80 20 Panel #4, which is top-facing, should connect to part 110's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: back left

Panel Installation - Part 1' Acrylic Panel x 14.5
P104 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 115's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #2, which is top-facing, should connect to part 108's 1" 80 20 Panel Holder #1, also attach its 1" 80 20 Panel #3 facing top to part 114's 1" 80 20 Panel Holder #1. After that, its 1" 80 20 Panel #4, which is top-facing, should connect to part 102's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: front right

Panel Installation - Part 1' Acrylic Panel x 14.5
P104 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 115's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #2, which is top-facing, should connect to part 108's 1" 80 20 Panel Holder #1, also attach its 1" 80 20 Panel #3 facing top to part 114's 1" 80 20 Panel Holder #1. After that, its 1" 80 20 Panel #4, which is top-facing, should connect to part 102's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: bottom right

Panel Installation - Part 1' Acrylic Panel x 14.5
P104 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 115's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #2, which is top-facing, should connect to part 108's 1" 80 20 Panel Holder #1, also attach its 1" 80 20 Panel #3 facing top to part 114's 1" 80 20 Panel Holder #1. After that, its 1" 80 20 Panel #4, which is top-facing, should connect to part 102's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P105 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #2, and its 1" 80 20 Panel Holder #2, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P105 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #2, and its 1" 80 20 Panel Holder #2, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P105 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #2, and its 1" 80 20 Panel Holder #2, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: back left

Panel Installation - Part 1' Acrylic Panel x 14.5
P106 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #2. Next, attach its 1" 80 20 Panel #2 facing top to part 113's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #3 oriented top links with part 109's 1" 80 20 Panel Holder #2, and its 1" 80 20 Panel #4, which is top-facing, should connect to part 112's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: front right

Panel Installation - Part 1' Acrylic Panel x 14.5
P106 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #2. Next, attach its 1" 80 20 Panel #2 facing top to part 113's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #3 oriented top links with part 109's 1" 80 20 Panel Holder #2, and its 1" 80 20 Panel #4, which is top-facing, should connect to part 112's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: bottom right

Panel Installation - Part 1' Acrylic Panel x 14.5
P106 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #2. Next, attach its 1" 80 20 Panel #2 facing top to part 113's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #3 oriented top links with part 109's 1" 80 20 Panel Holder #2, and its 1" 80 20 Panel #4, which is top-facing, should connect to part 112's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: back left

Panel Installation - Part 1' Acrylic Panel x 14.5
P107 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 117's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #2, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 116's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #4 oriented top links with part 109's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: front right

Panel Installation - Part 1' Acrylic Panel x 14.5
P107 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 117's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #2, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 116's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #4 oriented top links with part 109's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1' Acrylic Panel x 14.5" - Angle: bottom right

Panel Installation - Part 1' Acrylic Panel x 14.5
P107 (1' Acrylic Panel 14.5" length) - connect its 1" 80 20 Panel #1 oriented top links with part 117's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #2, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 116's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #4 oriented top links with part 109's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P108 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #2, and attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P108 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #2, and attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P108 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #2, and attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P109 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #4, plus attach its 1" 80 20 Panel Holder #2 facing bottom to part 106's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P109 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #4, plus attach its 1" 80 20 Panel Holder #2 facing bottom to part 106's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P109 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #4, plus attach its 1" 80 20 Panel Holder #2 facing bottom to part 106's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P110 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 103's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P110 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 103's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P110 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 103's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P111 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 103's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P111 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 103's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P111 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 103's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P112 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 106's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P112 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 106's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P112 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 106's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P113 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 106's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P113 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 106's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P113 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 106's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P114 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P114 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P114 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P115 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P115 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P115 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P116 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P116 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P116 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Panel Installation - Part 1
P117 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Panel Installation - Part 1
P117 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Panel Installation - Part 1
P117 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Phase 3: Inter-Group Assembly

Attaching: Base Frame and Wheels

Forms the mobile foundation of the cart, including the main bottom frame, cross-members, and wheels.

This completed base will serve as the foundation for the Main Upright Frame.

Angle: back left

Assembly of Base Frame and Wheels - back_left
P1 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 119's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #2 facing top to part 2's 1" Rail 80/20 M #1. Additionally, attach its 1" Rail 80/20 F #3 facing right to part 14's 1" Rail 80/20 M #1. Also, attach its 1" Rail 80/20 F #4 facing bottom to part 124's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 121's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1 should be directed left P7 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 118's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented left links with part 13's 1" Rail 80/20 M #1, plus attach its 1" Rail 80/20 F #2 facing top to part 8's 1" Rail 80/20 M #1. Also, connect its 1" Rail 80/20 F #4 oriented bottom links with part 122's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 120's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #3 must be oriented right P13 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1, plus attach its 1" Rail 80/20 M #2 facing back to part 18's 1" Rail 80/20 F #1 P14 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3, plus attach its 1" Rail 80/20 M #2 facing back to part 18's 1" Rail 80/20 F #1 P15 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 1's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing front to part 17's 1" Rail 80/20 F #1 P16 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing front to part 17's 1" Rail 80/20 F #1 P17 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 16's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #2 facing top to part 114's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #3, which is front-facing, should connect to part 25's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented left, and its 1" Rail 80/20 F #4 should be directed bottom. After that, its 1" 80/20 End Hole F #2 should be directed right P18 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 13's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #3, which is back-facing, should connect to part 22's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #4 oriented top links with part 110's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed left, plus its 1" Rail 80/20 F #2 needs to point bottom, and ensure its 1" 80/20 End Hole F #2 faces right P19 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1. After that, attach its 1" 80/20 End Hole M #1 facing left to part 21's 1" 80/20 End Hole F #2 P20 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 1's 1" Rail 80/20 F #3. After that, attach its 1" 80/20 End Hole M #1 facing right to part 21's 1" 80/20 End Hole F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" 80/20 End Hole F #1 facing left to part 20's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 102's 1" Rail 80/20 M #1, then connect its 1" Rail 80/20 F #2 oriented front links with part 23's 1" Rail 80/20 M #1, then connect its 1" Rail 80/20 F #4 oriented back links with part 24's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 19's 1" 80/20 End Hole M #1, and ensure its 1" Rail 80/20 F #3 faces bottom P22 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing front to part 18's 1" Rail 80/20 F #3. Next, attach its 1" 80/20 End Hole M #1 facing back to part 26's 1" 80/20 End Hole F #2 P23 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #2. Next, attach its 1" 80/20 End Hole M #1 facing front to part 26's 1" 80/20 End Hole F #1 P24 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #4, and attach its 1" 80/20 End Hole M #1 facing back to part 27's 1" 80/20 End Hole F #2 P25 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #3, plus its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 27's 1" 80/20 End Hole F #1 P26 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - attach its 1" 80/20 End Hole F #1 facing back to part 23's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented front links with part 22's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1 should be directed bottom, and its 1" Rail 80/20 F #2 should be directed right, also its 1" Rail 80/20 F #3 must be oriented top. Next, ensure its 1" Rail 80/20 F #4 faces left P27 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented back links with part 25's 1" 80/20 End Hole M #1, plus attach its 1" 80/20 End Hole F #2 facing front to part 24's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 should be directed top, then its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 must be oriented bottom, also its 1" Rail 80/20 F #4 must be oriented right P118 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 7's 1" 80/20 End Hole F #1 P119 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1 P120 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 7's 1" 80/20 End Hole F #2 P121 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 1's 1" 80/20 End Hole F #2 P122 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4 P123 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4 P124 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4 P125 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Angle: front right

Assembly of Base Frame and Wheels - front_right
P1 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 119's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #2 facing top to part 2's 1" Rail 80/20 M #1. Additionally, attach its 1" Rail 80/20 F #3 facing right to part 14's 1" Rail 80/20 M #1. Also, attach its 1" Rail 80/20 F #4 facing bottom to part 124's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 121's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1 should be directed left P7 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 118's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented left links with part 13's 1" Rail 80/20 M #1, plus attach its 1" Rail 80/20 F #2 facing top to part 8's 1" Rail 80/20 M #1. Also, connect its 1" Rail 80/20 F #4 oriented bottom links with part 122's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 120's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #3 must be oriented right P13 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1, plus attach its 1" Rail 80/20 M #2 facing back to part 18's 1" Rail 80/20 F #1 P14 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3, plus attach its 1" Rail 80/20 M #2 facing back to part 18's 1" Rail 80/20 F #1 P15 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 1's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing front to part 17's 1" Rail 80/20 F #1 P16 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing front to part 17's 1" Rail 80/20 F #1 P17 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 16's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #2 facing top to part 114's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #3, which is front-facing, should connect to part 25's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented left, and its 1" Rail 80/20 F #4 should be directed bottom. After that, its 1" 80/20 End Hole F #2 should be directed right P18 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 13's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #3, which is back-facing, should connect to part 22's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #4 oriented top links with part 110's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed left, plus its 1" Rail 80/20 F #2 needs to point bottom, and ensure its 1" 80/20 End Hole F #2 faces right P19 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1. After that, attach its 1" 80/20 End Hole M #1 facing left to part 21's 1" 80/20 End Hole F #2 P20 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 1's 1" Rail 80/20 F #3. After that, attach its 1" 80/20 End Hole M #1 facing right to part 21's 1" 80/20 End Hole F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" 80/20 End Hole F #1 facing left to part 20's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 102's 1" Rail 80/20 M #1, then connect its 1" Rail 80/20 F #2 oriented front links with part 23's 1" Rail 80/20 M #1, then connect its 1" Rail 80/20 F #4 oriented back links with part 24's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 19's 1" 80/20 End Hole M #1, and ensure its 1" Rail 80/20 F #3 faces bottom P22 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing front to part 18's 1" Rail 80/20 F #3. Next, attach its 1" 80/20 End Hole M #1 facing back to part 26's 1" 80/20 End Hole F #2 P23 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #2. Next, attach its 1" 80/20 End Hole M #1 facing front to part 26's 1" 80/20 End Hole F #1 P24 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #4, and attach its 1" 80/20 End Hole M #1 facing back to part 27's 1" 80/20 End Hole F #2 P25 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #3, plus its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 27's 1" 80/20 End Hole F #1 P26 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - attach its 1" 80/20 End Hole F #1 facing back to part 23's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented front links with part 22's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1 should be directed bottom, and its 1" Rail 80/20 F #2 should be directed right, also its 1" Rail 80/20 F #3 must be oriented top. Next, ensure its 1" Rail 80/20 F #4 faces left P27 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented back links with part 25's 1" 80/20 End Hole M #1, plus attach its 1" 80/20 End Hole F #2 facing front to part 24's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 should be directed top, then its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 must be oriented bottom, also its 1" Rail 80/20 F #4 must be oriented right P118 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 7's 1" 80/20 End Hole F #1 P119 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1 P120 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 7's 1" 80/20 End Hole F #2 P121 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 1's 1" 80/20 End Hole F #2 P122 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4 P123 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4 P124 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4 P125 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Angle: bottom right

Assembly of Base Frame and Wheels - bottom_right
P1 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 119's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #2 facing top to part 2's 1" Rail 80/20 M #1. Additionally, attach its 1" Rail 80/20 F #3 facing right to part 14's 1" Rail 80/20 M #1. Also, attach its 1" Rail 80/20 F #4 facing bottom to part 124's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 121's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1 should be directed left P7 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 118's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented left links with part 13's 1" Rail 80/20 M #1, plus attach its 1" Rail 80/20 F #2 facing top to part 8's 1" Rail 80/20 M #1. Also, connect its 1" Rail 80/20 F #4 oriented bottom links with part 122's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 120's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #3 must be oriented right P13 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1, plus attach its 1" Rail 80/20 M #2 facing back to part 18's 1" Rail 80/20 F #1 P14 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 1's 1" Rail 80/20 F #3, plus attach its 1" Rail 80/20 M #2 facing back to part 18's 1" Rail 80/20 F #1 P15 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 1's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing front to part 17's 1" Rail 80/20 F #1 P16 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing front to part 17's 1" Rail 80/20 F #1 P17 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 16's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #2 facing top to part 114's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #3, which is front-facing, should connect to part 25's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented left, and its 1" Rail 80/20 F #4 should be directed bottom. After that, its 1" 80/20 End Hole F #2 should be directed right P18 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 13's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #3, which is back-facing, should connect to part 22's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #4 oriented top links with part 110's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed left, plus its 1" Rail 80/20 F #2 needs to point bottom, and ensure its 1" 80/20 End Hole F #2 faces right P19 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 7's 1" Rail 80/20 F #1. After that, attach its 1" 80/20 End Hole M #1 facing left to part 21's 1" 80/20 End Hole F #2 P20 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 1's 1" Rail 80/20 F #3. After that, attach its 1" 80/20 End Hole M #1 facing right to part 21's 1" 80/20 End Hole F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" 80/20 End Hole F #1 facing left to part 20's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 102's 1" Rail 80/20 M #1, then connect its 1" Rail 80/20 F #2 oriented front links with part 23's 1" Rail 80/20 M #1, then connect its 1" Rail 80/20 F #4 oriented back links with part 24's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 19's 1" 80/20 End Hole M #1, and ensure its 1" Rail 80/20 F #3 faces bottom P22 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing front to part 18's 1" Rail 80/20 F #3. Next, attach its 1" 80/20 End Hole M #1 facing back to part 26's 1" 80/20 End Hole F #2 P23 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #2. Next, attach its 1" 80/20 End Hole M #1 facing front to part 26's 1" 80/20 End Hole F #1 P24 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #4, and attach its 1" 80/20 End Hole M #1 facing back to part 27's 1" 80/20 End Hole F #2 P25 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #3, plus its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 27's 1" 80/20 End Hole F #1 P26 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - attach its 1" 80/20 End Hole F #1 facing back to part 23's 1" 80/20 End Hole M #1, and connect its 1" 80/20 End Hole F #2 oriented front links with part 22's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1 should be directed bottom, and its 1" Rail 80/20 F #2 should be directed right, also its 1" Rail 80/20 F #3 must be oriented top. Next, ensure its 1" Rail 80/20 F #4 faces left P27 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented back links with part 25's 1" 80/20 End Hole M #1, plus attach its 1" 80/20 End Hole F #2 facing front to part 24's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 should be directed top, then its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 must be oriented bottom, also its 1" Rail 80/20 F #4 must be oriented right P118 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 7's 1" 80/20 End Hole F #1 P119 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1 P120 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 7's 1" 80/20 End Hole F #2 P121 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 1's 1" 80/20 End Hole F #2 P122 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4 P123 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 7's 1" Rail 80/20 F #4 P124 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4 P125 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 3
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
22" Wheel 80/20x 4

Attaching: Main Upright Frame

Establishes the full height and primary vertical structure of the cart.

This frame connects to the Base Frame and will support all subsequent shelf and panel assemblies.

Angle: back left

Assembly of Main Upright Frame - back_left
P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 1's 1" Rail 80/20 F #2, and its 1" Rail 80/20 M #2, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1 P3 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 1's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented front links with part 5's 1" Rail 80/20 F #1 P4 (4" 1" T Slot Rail Aluminum 80/20 65" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 77's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 2's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is back-facing, should connect to part 30's 1" Rail 80/20 M #1. Next, attach its 1" Rail 80/20 F #4 facing right to part 35's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 should be directed left, plus its 1" 80/20 End Hole F #2 must be oriented bottom P5 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 78's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented back links with part 3's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2, which is right-facing, should connect to part 34's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #3, which is front-facing, should connect to part 31's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #4 must be oriented left. Next, its 1" 80/20 End Hole F #2 must be oriented bottom P6 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1. Also, attach its 1" Rail 80/20 M #2 facing bottom to part 1's 1" Rail 80/20 F #2, then ensure its 1" Rail 80/20 F #1 faces right. After that, ensure its 1" Rail 80/20 F #2 faces front-top, then its 1" Rail 80/20 F #3 needs to point left. After that, its 1" Rail 80/20 F #4 needs to point back-bottom P8 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 7's 1" Rail 80/20 F #2. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1 P9 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 7's 1" Rail 80/20 F #2, then attach its 1" Rail 80/20 M #2 facing front to part 11's 1" Rail 80/20 F #1 P10 (4" 1" T Slot Rail Aluminum 80/20 65" length) - attach its 1" 80/20 End Hole F #1 facing top to part 76's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing front to part 80's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #2 oriented left links with part 33's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented back links with part 29's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #4 needs to point right, also ensure its 1" 80/20 End Hole F #2 faces bottom P11 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 79's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing back to part 9's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented front links with part 28's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #4 oriented left links with part 32's 1" Rail 80/20 M #1. Also, ensure its 1" Rail 80/20 F #2 faces right, and its 1" 80/20 End Hole F #2 should be directed bottom P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - attach its 1" Rail 80/20 M #1 facing back to part 10's 1" Rail 80/20 F #1, then connect its 1" Rail 80/20 M #2 oriented bottom links with part 7's 1" Rail 80/20 F #2, and ensure its 1" Rail 80/20 F #1 faces right. Next, its 1" Rail 80/20 F #2 should be directed front-top, then its 1" Rail 80/20 F #3 should be directed left, also its 1" Rail 80/20 F #4 must be oriented back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Angle: front right

Assembly of Main Upright Frame - front_right
P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 1's 1" Rail 80/20 F #2, and its 1" Rail 80/20 M #2, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1 P3 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 1's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented front links with part 5's 1" Rail 80/20 F #1 P4 (4" 1" T Slot Rail Aluminum 80/20 65" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 77's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 2's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is back-facing, should connect to part 30's 1" Rail 80/20 M #1. Next, attach its 1" Rail 80/20 F #4 facing right to part 35's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 should be directed left, plus its 1" 80/20 End Hole F #2 must be oriented bottom P5 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 78's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented back links with part 3's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2, which is right-facing, should connect to part 34's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #3, which is front-facing, should connect to part 31's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #4 must be oriented left. Next, its 1" 80/20 End Hole F #2 must be oriented bottom P6 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1. Also, attach its 1" Rail 80/20 M #2 facing bottom to part 1's 1" Rail 80/20 F #2, then ensure its 1" Rail 80/20 F #1 faces right. After that, ensure its 1" Rail 80/20 F #2 faces front-top, then its 1" Rail 80/20 F #3 needs to point left. After that, its 1" Rail 80/20 F #4 needs to point back-bottom P8 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 7's 1" Rail 80/20 F #2. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1 P9 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 7's 1" Rail 80/20 F #2, then attach its 1" Rail 80/20 M #2 facing front to part 11's 1" Rail 80/20 F #1 P10 (4" 1" T Slot Rail Aluminum 80/20 65" length) - attach its 1" 80/20 End Hole F #1 facing top to part 76's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing front to part 80's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #2 oriented left links with part 33's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented back links with part 29's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #4 needs to point right, also ensure its 1" 80/20 End Hole F #2 faces bottom P11 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 79's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing back to part 9's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented front links with part 28's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #4 oriented left links with part 32's 1" Rail 80/20 M #1. Also, ensure its 1" Rail 80/20 F #2 faces right, and its 1" 80/20 End Hole F #2 should be directed bottom P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - attach its 1" Rail 80/20 M #1 facing back to part 10's 1" Rail 80/20 F #1, then connect its 1" Rail 80/20 M #2 oriented bottom links with part 7's 1" Rail 80/20 F #2, and ensure its 1" Rail 80/20 F #1 faces right. Next, its 1" Rail 80/20 F #2 should be directed front-top, then its 1" Rail 80/20 F #3 should be directed left, also its 1" Rail 80/20 F #4 must be oriented back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Angle: bottom right

Assembly of Main Upright Frame - bottom_right
P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 1's 1" Rail 80/20 F #2, and its 1" Rail 80/20 M #2, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1 P3 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 1's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented front links with part 5's 1" Rail 80/20 F #1 P4 (4" 1" T Slot Rail Aluminum 80/20 65" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 77's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 2's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is back-facing, should connect to part 30's 1" Rail 80/20 M #1. Next, attach its 1" Rail 80/20 F #4 facing right to part 35's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 should be directed left, plus its 1" 80/20 End Hole F #2 must be oriented bottom P5 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 78's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented back links with part 3's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2, which is right-facing, should connect to part 34's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #3, which is front-facing, should connect to part 31's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #4 must be oriented left. Next, its 1" 80/20 End Hole F #2 must be oriented bottom P6 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 4's 1" Rail 80/20 F #1. Also, attach its 1" Rail 80/20 M #2 facing bottom to part 1's 1" Rail 80/20 F #2, then ensure its 1" Rail 80/20 F #1 faces right. After that, ensure its 1" Rail 80/20 F #2 faces front-top, then its 1" Rail 80/20 F #3 needs to point left. After that, its 1" Rail 80/20 F #4 needs to point back-bottom P8 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 7's 1" Rail 80/20 F #2. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1 P9 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 7's 1" Rail 80/20 F #2, then attach its 1" Rail 80/20 M #2 facing front to part 11's 1" Rail 80/20 F #1 P10 (4" 1" T Slot Rail Aluminum 80/20 65" length) - attach its 1" 80/20 End Hole F #1 facing top to part 76's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing front to part 80's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #2 oriented left links with part 33's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented back links with part 29's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #4 needs to point right, also ensure its 1" 80/20 End Hole F #2 faces bottom P11 (4" 1" T Slot Rail Aluminum 80/20 50" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 79's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing back to part 9's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented front links with part 28's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #4 oriented left links with part 32's 1" Rail 80/20 M #1. Also, ensure its 1" Rail 80/20 F #2 faces right, and its 1" 80/20 End Hole F #2 should be directed bottom P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 19.5" length) - attach its 1" Rail 80/20 M #1 facing back to part 10's 1" Rail 80/20 F #1, then connect its 1" Rail 80/20 M #2 oriented bottom links with part 7's 1" Rail 80/20 F #2, and ensure its 1" Rail 80/20 F #1 faces right. Next, its 1" Rail 80/20 F #2 should be directed front-top, then its 1" Rail 80/20 F #3 should be directed left, also its 1" Rail 80/20 F #4 must be oriented back-bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 65"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 50"x 2
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 19.5"x 2

Attaching: Lower & Mid-Level Shelf Assembly

Installs the horizontal rails that form the lower and middle tiers of shelving, adding rigidity to the structure.

These shelves connect the left and right sides of the Main Upright Frame, providing surfaces for storage.

Angle: back left

Assembly of Lower & Mid-Level Shelf Assembly - back_left
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 11's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented top links with part 39's 1" Rail 80/20 F #1 P29 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 10's 1" Rail 80/20 F #3, then attach its 1" Rail 80/20 M #2 facing top to part 39's 1" Rail 80/20 F #1 P30 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1 P31 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 5's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1 P32 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 36's 1" Rail 80/20 F #1 P33 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 37's 1" Rail 80/20 F #1 P34 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 5's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1 P35 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented top links with part 37's 1" Rail 80/20 F #1 P36 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 34's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right. Next, its 1" Rail 80/20 F #2 needs to point front. Next, its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces left P37 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 35's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right, also its 1" Rail 80/20 F #2 should be directed front. After that, its 1" Rail 80/20 F #3 should be directed top. Additionally, its 1" Rail 80/20 F #4 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces left P38 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 31's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 needs to point front. Additionally, its 1" Rail 80/20 F #2 must be oriented left, and its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 needs to point right. After that, ensure its 1" 80/20 End Hole F #2 faces back P39 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces front. Next, its 1" Rail 80/20 F #2 must be oriented left, then ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 needs to point right. After that, its 1" 80/20 End Hole F #2 must be oriented back P40 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 46's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 should be directed right. Additionally, its 1" Rail 80/20 F #2 must be oriented front, and its 1" Rail 80/20 F #3 must be oriented top. After that, its 1" Rail 80/20 F #4 should be directed back. Also, its 1" 80/20 End Hole F #2 should be directed left P41 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 48's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point right. Next, ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed left P42 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 47's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 should be directed front. Also, its 1" Rail 80/20 F #2 should be directed left, plus its 1" Rail 80/20 F #3 needs to point top, also its 1" Rail 80/20 F #4 needs to point right. After that, its 1" 80/20 End Hole F #2 must be oriented back P43 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 11's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 45's 1" Rail 80/20 F #1 P44 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 10's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing top to part 45's 1" Rail 80/20 F #1 P45 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 43's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 should be directed front. Next, its 1" Rail 80/20 F #2 needs to point left. Also, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 needs to point right. Additionally, its 1" 80/20 End Hole F #2 needs to point back P46 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 5's 1" Rail 80/20 F #2, and attach its 1" Rail 80/20 M #2 facing top to part 40's 1" Rail 80/20 F #1 P47 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 5's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is top-facing, should connect to part 42's 1" Rail 80/20 F #1 P48 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #4. After that, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1 P49 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 4's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 42's 1" Rail 80/20 F #1 P50 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1 P51 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 10's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Angle: front right

Assembly of Lower & Mid-Level Shelf Assembly - front_right
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 11's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented top links with part 39's 1" Rail 80/20 F #1 P29 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 10's 1" Rail 80/20 F #3, then attach its 1" Rail 80/20 M #2 facing top to part 39's 1" Rail 80/20 F #1 P30 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1 P31 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 5's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1 P32 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 36's 1" Rail 80/20 F #1 P33 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 37's 1" Rail 80/20 F #1 P34 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 5's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1 P35 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented top links with part 37's 1" Rail 80/20 F #1 P36 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 34's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right. Next, its 1" Rail 80/20 F #2 needs to point front. Next, its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces left P37 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 35's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right, also its 1" Rail 80/20 F #2 should be directed front. After that, its 1" Rail 80/20 F #3 should be directed top. Additionally, its 1" Rail 80/20 F #4 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces left P38 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 31's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 needs to point front. Additionally, its 1" Rail 80/20 F #2 must be oriented left, and its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 needs to point right. After that, ensure its 1" 80/20 End Hole F #2 faces back P39 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces front. Next, its 1" Rail 80/20 F #2 must be oriented left, then ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 needs to point right. After that, its 1" 80/20 End Hole F #2 must be oriented back P40 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 46's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 should be directed right. Additionally, its 1" Rail 80/20 F #2 must be oriented front, and its 1" Rail 80/20 F #3 must be oriented top. After that, its 1" Rail 80/20 F #4 should be directed back. Also, its 1" 80/20 End Hole F #2 should be directed left P41 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 48's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point right. Next, ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed left P42 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 47's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 should be directed front. Also, its 1" Rail 80/20 F #2 should be directed left, plus its 1" Rail 80/20 F #3 needs to point top, also its 1" Rail 80/20 F #4 needs to point right. After that, its 1" 80/20 End Hole F #2 must be oriented back P43 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 11's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 45's 1" Rail 80/20 F #1 P44 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 10's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing top to part 45's 1" Rail 80/20 F #1 P45 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 43's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 should be directed front. Next, its 1" Rail 80/20 F #2 needs to point left. Also, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 needs to point right. Additionally, its 1" 80/20 End Hole F #2 needs to point back P46 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 5's 1" Rail 80/20 F #2, and attach its 1" Rail 80/20 M #2 facing top to part 40's 1" Rail 80/20 F #1 P47 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 5's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is top-facing, should connect to part 42's 1" Rail 80/20 F #1 P48 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #4. After that, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1 P49 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 4's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 42's 1" Rail 80/20 F #1 P50 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1 P51 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 10's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Angle: bottom right

Assembly of Lower & Mid-Level Shelf Assembly - bottom_right
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 11's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented top links with part 39's 1" Rail 80/20 F #1 P29 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 10's 1" Rail 80/20 F #3, then attach its 1" Rail 80/20 M #2 facing top to part 39's 1" Rail 80/20 F #1 P30 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1 P31 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 5's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing top to part 38's 1" Rail 80/20 F #1 P32 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 36's 1" Rail 80/20 F #1 P33 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 37's 1" Rail 80/20 F #1 P34 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 5's 1" Rail 80/20 F #2, then connect its 1" Rail 80/20 M #2 oriented top links with part 36's 1" Rail 80/20 F #1 P35 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented top links with part 37's 1" Rail 80/20 F #1 P36 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 34's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right. Next, its 1" Rail 80/20 F #2 needs to point front. Next, its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces left P37 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 35's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right, also its 1" Rail 80/20 F #2 should be directed front. After that, its 1" Rail 80/20 F #3 should be directed top. Additionally, its 1" Rail 80/20 F #4 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces left P38 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 31's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 needs to point front. Additionally, its 1" Rail 80/20 F #2 must be oriented left, and its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 needs to point right. After that, ensure its 1" 80/20 End Hole F #2 faces back P39 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces front. Next, its 1" Rail 80/20 F #2 must be oriented left, then ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 needs to point right. After that, its 1" 80/20 End Hole F #2 must be oriented back P40 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 46's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 should be directed right. Additionally, its 1" Rail 80/20 F #2 must be oriented front, and its 1" Rail 80/20 F #3 must be oriented top. After that, its 1" Rail 80/20 F #4 should be directed back. Also, its 1" 80/20 End Hole F #2 should be directed left P41 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 48's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point right. Next, ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed left P42 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 47's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 should be directed front. Also, its 1" Rail 80/20 F #2 should be directed left, plus its 1" Rail 80/20 F #3 needs to point top, also its 1" Rail 80/20 F #4 needs to point right. After that, its 1" 80/20 End Hole F #2 must be oriented back P43 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 11's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 45's 1" Rail 80/20 F #1 P44 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 10's 1" Rail 80/20 F #3. Next, attach its 1" Rail 80/20 M #2 facing top to part 45's 1" Rail 80/20 F #1 P45 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 43's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 should be directed front. Next, its 1" Rail 80/20 F #2 needs to point left. Also, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 needs to point right. Additionally, its 1" 80/20 End Hole F #2 needs to point back P46 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 5's 1" Rail 80/20 F #2, and attach its 1" Rail 80/20 M #2 facing top to part 40's 1" Rail 80/20 F #1 P47 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 5's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is top-facing, should connect to part 42's 1" Rail 80/20 F #1 P48 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #4. After that, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1 P49 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 4's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 42's 1" Rail 80/20 F #1 P50 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 40's 1" Rail 80/20 F #1 P51 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 10's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 41's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 16
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4

Attaching: Upper-Level Shelf Assembly

Installs the horizontal rails that form the upper tiers of shelving.

This group completes the main shelving structure of the cart.

Angle: back left

Assembly of Upper-Level Shelf Assembly - back_left
P52 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 58's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right. Also, its 1" Rail 80/20 F #2 should be directed front, and its 1" Rail 80/20 F #3 should be directed top. Also, ensure its 1" Rail 80/20 F #4 faces back, and its 1" 80/20 End Hole F #2 must be oriented left P53 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 60's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #2 facing front to part 88's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #3 facing top to part 92's 1" Rail 80/20 M #1. After that, ensure its 1" 80/20 End Hole F #1 faces right, also its 1" Rail 80/20 F #4 must be oriented back. After that, its 1" 80/20 End Hole F #2 must be oriented left P54 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 59's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 must be oriented front. Next, its 1" Rail 80/20 F #2 must be oriented left, also its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed right, plus ensure its 1" 80/20 End Hole F #2 faces back P55 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 11's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1 P56 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 10's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 57's 1" Rail 80/20 F #1 P57 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 55's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 needs to point front. Also, its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 must be oriented right. After that, its 1" 80/20 End Hole F #2 should be directed back P58 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 5's 1" Rail 80/20 F #2, plus attach its 1" Rail 80/20 M #2 facing top to part 52's 1" Rail 80/20 F #1 P59 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 5's 1" Rail 80/20 F #3. Additionally, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 54's 1" Rail 80/20 F #1 P60 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #4. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 53's 1" Rail 80/20 F #1 P61 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented top links with part 54's 1" Rail 80/20 F #1 P62 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 52's 1" Rail 80/20 F #1 P63 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 53's 1" Rail 80/20 F #1 P64 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 11's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 65's 1" Rail 80/20 F #1 P65 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 64's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 should be directed front, also its 1" Rail 80/20 F #2 should be directed left. Next, its 1" Rail 80/20 F #3 should be directed top. Next, ensure its 1" Rail 80/20 F #4 faces right, then its 1" 80/20 End Hole F #2 needs to point back P66 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 5's 1" Rail 80/20 F #3. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 67's 1" Rail 80/20 F #1 P67 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 66's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front, also its 1" Rail 80/20 F #2 needs to point left, and its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 must be oriented right, and its 1" 80/20 End Hole F #2 needs to point back P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1, also its 1" Rail 80/20 M #2, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3 P69 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 65's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing front to part 10's 1" Rail 80/20 F #3 P70 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 11's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 75's 1" Rail 80/20 F #1 P71 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 5's 1" Rail 80/20 F #2. After that, attach its 1" Rail 80/20 M #2 facing top to part 75's 1" Rail 80/20 F #1 P72 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #4. After that, attach its 1" Rail 80/20 M #2 facing top to part 74's 1" Rail 80/20 F #1 P73 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2, plus connect its 1" Rail 80/20 M #2 oriented top links with part 74's 1" Rail 80/20 F #1 P74 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 73's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #4, which is front-facing, should connect to part 126's 1" Rail 80/20 M #1, then ensure its 1" 80/20 End Hole F #1 faces left, also its 1" Rail 80/20 F #2 should be directed back, plus its 1" Rail 80/20 F #3 should be directed top, then its 1" 80/20 End Hole F #2 must be oriented right P75 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 70's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 must be oriented left. Also, its 1" Rail 80/20 F #2 must be oriented back, plus its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 must be oriented front, then its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Angle: front right

Assembly of Upper-Level Shelf Assembly - front_right
P52 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 58's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right. Also, its 1" Rail 80/20 F #2 should be directed front, and its 1" Rail 80/20 F #3 should be directed top. Also, ensure its 1" Rail 80/20 F #4 faces back, and its 1" 80/20 End Hole F #2 must be oriented left P53 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 60's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #2 facing front to part 88's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #3 facing top to part 92's 1" Rail 80/20 M #1. After that, ensure its 1" 80/20 End Hole F #1 faces right, also its 1" Rail 80/20 F #4 must be oriented back. After that, its 1" 80/20 End Hole F #2 must be oriented left P54 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 59's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 must be oriented front. Next, its 1" Rail 80/20 F #2 must be oriented left, also its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed right, plus ensure its 1" 80/20 End Hole F #2 faces back P55 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 11's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1 P56 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 10's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 57's 1" Rail 80/20 F #1 P57 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 55's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 needs to point front. Also, its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 must be oriented right. After that, its 1" 80/20 End Hole F #2 should be directed back P58 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 5's 1" Rail 80/20 F #2, plus attach its 1" Rail 80/20 M #2 facing top to part 52's 1" Rail 80/20 F #1 P59 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 5's 1" Rail 80/20 F #3. Additionally, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 54's 1" Rail 80/20 F #1 P60 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #4. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 53's 1" Rail 80/20 F #1 P61 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented top links with part 54's 1" Rail 80/20 F #1 P62 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 52's 1" Rail 80/20 F #1 P63 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 53's 1" Rail 80/20 F #1 P64 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 11's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 65's 1" Rail 80/20 F #1 P65 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 64's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 should be directed front, also its 1" Rail 80/20 F #2 should be directed left. Next, its 1" Rail 80/20 F #3 should be directed top. Next, ensure its 1" Rail 80/20 F #4 faces right, then its 1" 80/20 End Hole F #2 needs to point back P66 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 5's 1" Rail 80/20 F #3. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 67's 1" Rail 80/20 F #1 P67 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 66's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front, also its 1" Rail 80/20 F #2 needs to point left, and its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 must be oriented right, and its 1" 80/20 End Hole F #2 needs to point back P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1, also its 1" Rail 80/20 M #2, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3 P69 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 65's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing front to part 10's 1" Rail 80/20 F #3 P70 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 11's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 75's 1" Rail 80/20 F #1 P71 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 5's 1" Rail 80/20 F #2. After that, attach its 1" Rail 80/20 M #2 facing top to part 75's 1" Rail 80/20 F #1 P72 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #4. After that, attach its 1" Rail 80/20 M #2 facing top to part 74's 1" Rail 80/20 F #1 P73 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2, plus connect its 1" Rail 80/20 M #2 oriented top links with part 74's 1" Rail 80/20 F #1 P74 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 73's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #4, which is front-facing, should connect to part 126's 1" Rail 80/20 M #1, then ensure its 1" 80/20 End Hole F #1 faces left, also its 1" Rail 80/20 F #2 should be directed back, plus its 1" Rail 80/20 F #3 should be directed top, then its 1" 80/20 End Hole F #2 must be oriented right P75 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 70's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 must be oriented left. Also, its 1" Rail 80/20 F #2 must be oriented back, plus its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 must be oriented front, then its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Angle: bottom right

Assembly of Upper-Level Shelf Assembly - bottom_right
P52 (4" 1" T Slot Rail Aluminum 80/20 29" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 58's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point right. Also, its 1" Rail 80/20 F #2 should be directed front, and its 1" Rail 80/20 F #3 should be directed top. Also, ensure its 1" Rail 80/20 F #4 faces back, and its 1" 80/20 End Hole F #2 must be oriented left P53 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 60's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #2 facing front to part 88's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #3 facing top to part 92's 1" Rail 80/20 M #1. After that, ensure its 1" 80/20 End Hole F #1 faces right, also its 1" Rail 80/20 F #4 must be oriented back. After that, its 1" 80/20 End Hole F #2 must be oriented left P54 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 59's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 must be oriented front. Next, its 1" Rail 80/20 F #2 must be oriented left, also its 1" Rail 80/20 F #3 must be oriented top, and its 1" Rail 80/20 F #4 should be directed right, plus ensure its 1" 80/20 End Hole F #2 faces back P55 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 11's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1 P56 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 10's 1" Rail 80/20 F #3. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 57's 1" Rail 80/20 F #1 P57 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 55's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 needs to point front. Also, its 1" Rail 80/20 F #2 should be directed left. After that, its 1" Rail 80/20 F #3 should be directed top. Also, its 1" Rail 80/20 F #4 must be oriented right. After that, its 1" 80/20 End Hole F #2 should be directed back P58 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 5's 1" Rail 80/20 F #2, plus attach its 1" Rail 80/20 M #2 facing top to part 52's 1" Rail 80/20 F #1 P59 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 5's 1" Rail 80/20 F #3. Additionally, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 54's 1" Rail 80/20 F #1 P60 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #4. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 53's 1" Rail 80/20 F #1 P61 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented top links with part 54's 1" Rail 80/20 F #1 P62 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 11's 1" Rail 80/20 F #4, also its 1" Rail 80/20 M #2, which is top-facing, should connect to part 52's 1" Rail 80/20 F #1 P63 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 53's 1" Rail 80/20 F #1 P64 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 11's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 65's 1" Rail 80/20 F #1 P65 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 64's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 should be directed front, also its 1" Rail 80/20 F #2 should be directed left. Next, its 1" Rail 80/20 F #3 should be directed top. Next, ensure its 1" Rail 80/20 F #4 faces right, then its 1" 80/20 End Hole F #2 needs to point back P66 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 5's 1" Rail 80/20 F #3. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 67's 1" Rail 80/20 F #1 P67 (4" 1" T Slot Rail Aluminum 80/20 9.75" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 66's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point front, also its 1" Rail 80/20 F #2 needs to point left, and its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 must be oriented right, and its 1" 80/20 End Hole F #2 needs to point back P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1, also its 1" Rail 80/20 M #2, which is front-facing, should connect to part 4's 1" Rail 80/20 F #3 P69 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 65's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing front to part 10's 1" Rail 80/20 F #3 P70 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 11's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing top to part 75's 1" Rail 80/20 F #1 P71 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 5's 1" Rail 80/20 F #2. After that, attach its 1" Rail 80/20 M #2 facing top to part 75's 1" Rail 80/20 F #1 P72 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #4. After that, attach its 1" Rail 80/20 M #2 facing top to part 74's 1" Rail 80/20 F #1 P73 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 10's 1" Rail 80/20 F #2, plus connect its 1" Rail 80/20 M #2 oriented top links with part 74's 1" Rail 80/20 F #1 P74 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 73's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #4, which is front-facing, should connect to part 126's 1" Rail 80/20 M #1, then ensure its 1" 80/20 End Hole F #1 faces left, also its 1" Rail 80/20 F #2 should be directed back, plus its 1" Rail 80/20 F #3 should be directed top, then its 1" 80/20 End Hole F #2 must be oriented right P75 (4" 1" T Slot Rail Aluminum 80/20 29" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 70's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 must be oriented left. Also, its 1" Rail 80/20 F #2 must be oriented back, plus its 1" Rail 80/20 F #3 needs to point top, then its 1" Rail 80/20 F #4 must be oriented front, then its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 9.75"x 4
11" Angle Joint Aluminum 80/20x 16

Attaching: Top Frame and End Caps

Constructs the top-most frame structure and adds the finishing end caps to the main vertical rails.

This completes the main structural frame of the cart.

Angle: back left

Assembly of Top Frame and End Caps - back_left
P76 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 10's 1" 80/20 End Hole F #1 P77 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 4's 1" 80/20 End Hole F #1 P78 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 5's 1" 80/20 End Hole F #1 P79 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 11's 1" 80/20 End Hole F #1 P80 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 82's 1" Rail 80/20 F #1 P81 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 4's 1" Rail 80/20 F #1, and its 1" Rail 80/20 M #2 should be directed top P82 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 91's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 80's 1" Rail 80/20 M #2, and attach its 1" Rail 80/20 F #2 facing left to part 85's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #3 needs to point top, and its 1" Rail 80/20 F #4 should be directed right. After that, its 1" 80/20 End Hole F #2 needs to point back P83 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 90's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #4, which is right-facing, should connect to part 86's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #1 should be directed bottom. After that, ensure its 1" Rail 80/20 F #2 faces left, also its 1" Rail 80/20 F #3 must be oriented top. Also, its 1" 80/20 End Hole F #2 should be directed back P84 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" 80/20 End Hole F #1 facing left to part 86's 1" 80/20 End Hole M #1. Next, connect its 1" Rail 80/20 F #1 oriented back links with part 87's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2, which is top-facing, should connect to part 94's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #3, which is front-facing, should connect to part 129's 1" Rail 80/20 M #1. Additionally, attach its 1" 80/20 End Hole F #2 facing right to part 85's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #4 needs to point bottom P85 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 82's 1" Rail 80/20 F #2, then attach its 1" 80/20 End Hole M #1 facing left to part 84's 1" 80/20 End Hole F #2 P86 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 83's 1" Rail 80/20 F #4, also its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 84's 1" 80/20 End Hole F #1 P87 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 84's 1" Rail 80/20 F #1. After that, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 89's 1" 80/20 End Hole F #1 P88 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 53's 1" Rail 80/20 F #2. Also, attach its 1" 80/20 End Hole M #1 facing front to part 89's 1" 80/20 End Hole F #2 P89 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 87's 1" 80/20 End Hole M #1. Next, attach its 1" 80/20 End Hole F #2 facing back to part 88's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 needs to point bottom. After that, its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 needs to point top. Additionally, its 1" Rail 80/20 F #4 should be directed right P90 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 83's 1" 80/20 End Hole F #1 P91 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 82's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Angle: front right

Assembly of Top Frame and End Caps - front_right
P76 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 10's 1" 80/20 End Hole F #1 P77 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 4's 1" 80/20 End Hole F #1 P78 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 5's 1" 80/20 End Hole F #1 P79 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 11's 1" 80/20 End Hole F #1 P80 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 82's 1" Rail 80/20 F #1 P81 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 4's 1" Rail 80/20 F #1, and its 1" Rail 80/20 M #2 should be directed top P82 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 91's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 80's 1" Rail 80/20 M #2, and attach its 1" Rail 80/20 F #2 facing left to part 85's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #3 needs to point top, and its 1" Rail 80/20 F #4 should be directed right. After that, its 1" 80/20 End Hole F #2 needs to point back P83 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 90's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #4, which is right-facing, should connect to part 86's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #1 should be directed bottom. After that, ensure its 1" Rail 80/20 F #2 faces left, also its 1" Rail 80/20 F #3 must be oriented top. Also, its 1" 80/20 End Hole F #2 should be directed back P84 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" 80/20 End Hole F #1 facing left to part 86's 1" 80/20 End Hole M #1. Next, connect its 1" Rail 80/20 F #1 oriented back links with part 87's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2, which is top-facing, should connect to part 94's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #3, which is front-facing, should connect to part 129's 1" Rail 80/20 M #1. Additionally, attach its 1" 80/20 End Hole F #2 facing right to part 85's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #4 needs to point bottom P85 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 82's 1" Rail 80/20 F #2, then attach its 1" 80/20 End Hole M #1 facing left to part 84's 1" 80/20 End Hole F #2 P86 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 83's 1" Rail 80/20 F #4, also its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 84's 1" 80/20 End Hole F #1 P87 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 84's 1" Rail 80/20 F #1. After that, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 89's 1" 80/20 End Hole F #1 P88 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 53's 1" Rail 80/20 F #2. Also, attach its 1" 80/20 End Hole M #1 facing front to part 89's 1" 80/20 End Hole F #2 P89 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 87's 1" 80/20 End Hole M #1. Next, attach its 1" 80/20 End Hole F #2 facing back to part 88's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 needs to point bottom. After that, its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 needs to point top. Additionally, its 1" Rail 80/20 F #4 should be directed right P90 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 83's 1" 80/20 End Hole F #1 P91 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 82's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Angle: bottom right

Assembly of Top Frame and End Caps - bottom_right
P76 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 10's 1" 80/20 End Hole F #1 P77 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 4's 1" 80/20 End Hole F #1 P78 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 5's 1" 80/20 End Hole F #1 P79 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 11's 1" 80/20 End Hole F #1 P80 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 10's 1" Rail 80/20 F #1. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 82's 1" Rail 80/20 F #1 P81 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 4's 1" Rail 80/20 F #1, and its 1" Rail 80/20 M #2 should be directed top P82 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 91's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 80's 1" Rail 80/20 M #2, and attach its 1" Rail 80/20 F #2 facing left to part 85's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #3 needs to point top, and its 1" Rail 80/20 F #4 should be directed right. After that, its 1" 80/20 End Hole F #2 needs to point back P83 (4" 1" T Slot Rail Aluminum 80/20 12.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 90's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #4, which is right-facing, should connect to part 86's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #1 should be directed bottom. After that, ensure its 1" Rail 80/20 F #2 faces left, also its 1" Rail 80/20 F #3 must be oriented top. Also, its 1" 80/20 End Hole F #2 should be directed back P84 (4" 1" T Slot Rail Aluminum 80/20 29" length) - attach its 1" 80/20 End Hole F #1 facing left to part 86's 1" 80/20 End Hole M #1. Next, connect its 1" Rail 80/20 F #1 oriented back links with part 87's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2, which is top-facing, should connect to part 94's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #3, which is front-facing, should connect to part 129's 1" Rail 80/20 M #1. Additionally, attach its 1" 80/20 End Hole F #2 facing right to part 85's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #4 needs to point bottom P85 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 82's 1" Rail 80/20 F #2, then attach its 1" 80/20 End Hole M #1 facing left to part 84's 1" 80/20 End Hole F #2 P86 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 83's 1" Rail 80/20 F #4, also its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 84's 1" 80/20 End Hole F #1 P87 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 84's 1" Rail 80/20 F #1. After that, its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 89's 1" 80/20 End Hole F #1 P88 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 53's 1" Rail 80/20 F #2. Also, attach its 1" 80/20 End Hole M #1 facing front to part 89's 1" 80/20 End Hole F #2 P89 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 87's 1" 80/20 End Hole M #1. Next, attach its 1" 80/20 End Hole F #2 facing back to part 88's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 needs to point bottom. After that, its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 needs to point top. Additionally, its 1" Rail 80/20 F #4 should be directed right P90 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 83's 1" 80/20 End Hole F #1 P91 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 82's 1" 80/20 End Hole F #1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 12.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 29"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1

Attaching: Panel Installation

To hang the acrylic panels onto the frame, enclosing the sides and back of the cart.

These panels attach to the main frame and shelf supports to create enclosed sections.

Angle: back left

Assembly of Panel Installation - back_left
P92 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 93's 1" 80 20 Panel #2 P93 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 94's 1" 80 20 Panel Holder #1, and attach its 1" 80 20 Panel #2 facing top to part 92's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 95's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #4 oriented top links with part 96's 1" 80 20 Panel Holder #1 P94 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 84's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #1 P95 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 84's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #3 P96 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3, and its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #4 P97 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #4 P98 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 100's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #2 oriented top links with part 99's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #3, which is top-facing, should connect to part 101's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #4 oriented top links with part 97's 1" 80 20 Panel Holder #1 P99 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #2 P100 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 84's 1" Rail 80/20 F #2. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #1 P101 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 84's 1" Rail 80/20 F #2. Next, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 98's 1" 80 20 Panel #3 P102 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #4, plus attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #3 P103 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 108's 1" 80 20 Panel Holder #2, also attach its 1" 80 20 Panel #2 facing top to part 111's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #3 oriented top links with part 102's 1" 80 20 Panel Holder #2. Also, connect its 1" 80 20 Panel #4 oriented top links with part 110's 1" 80 20 Panel Holder #1 P104 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 115's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #2 oriented top links with part 108's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #3 oriented top links with part 114's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #4, which is top-facing, should connect to part 102's 1" 80 20 Panel Holder #1 P105 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #2, also connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 106's 1" 80 20 Panel #1 P106 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #2, and attach its 1" 80 20 Panel #2 facing top to part 113's 1" 80 20 Panel Holder #1, then its 1" 80 20 Panel #3, which is top-facing, should connect to part 109's 1" 80 20 Panel Holder #2, then connect its 1" 80 20 Panel #4 oriented top links with part 112's 1" 80 20 Panel Holder #1 P107 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 117's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #2 oriented top links with part 105's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #3, which is top-facing, should connect to part 116's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #4 facing top to part 109's 1" 80 20 Panel Holder #1 P108 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 21's 1" Rail 80/20 F #1, and its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #2. Additionally, its 1" 80 20 Panel Holder #2, which is bottom-facing, should connect to part 103's 1" 80 20 Panel #1 P109 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 107's 1" 80 20 Panel #4, then attach its 1" 80 20 Panel Holder #2 facing bottom to part 106's 1" 80 20 Panel #3 P110 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 18's 1" Rail 80/20 F #4. Additionally, attach its 1" 80 20 Panel Holder #1 facing bottom to part 103's 1" 80 20 Panel #4 P111 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 18's 1" Rail 80/20 F #4. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 103's 1" 80 20 Panel #2 P112 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 18's 1" Rail 80/20 F #4. After that, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #4 P113 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 18's 1" Rail 80/20 F #4. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #2 P114 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 17's 1" Rail 80/20 F #2. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #3 P115 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 17's 1" Rail 80/20 F #2, plus attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #1 P116 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 17's 1" Rail 80/20 F #2. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #3 P117 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 17's 1" Rail 80/20 F #2. Next, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 107's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Angle: front right

Assembly of Panel Installation - front_right
P92 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 93's 1" 80 20 Panel #2 P93 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 94's 1" 80 20 Panel Holder #1, and attach its 1" 80 20 Panel #2 facing top to part 92's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 95's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #4 oriented top links with part 96's 1" 80 20 Panel Holder #1 P94 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 84's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #1 P95 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 84's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #3 P96 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3, and its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #4 P97 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #4 P98 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 100's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #2 oriented top links with part 99's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #3, which is top-facing, should connect to part 101's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #4 oriented top links with part 97's 1" 80 20 Panel Holder #1 P99 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #2 P100 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 84's 1" Rail 80/20 F #2. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #1 P101 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 84's 1" Rail 80/20 F #2. Next, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 98's 1" 80 20 Panel #3 P102 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #4, plus attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #3 P103 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 108's 1" 80 20 Panel Holder #2, also attach its 1" 80 20 Panel #2 facing top to part 111's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #3 oriented top links with part 102's 1" 80 20 Panel Holder #2. Also, connect its 1" 80 20 Panel #4 oriented top links with part 110's 1" 80 20 Panel Holder #1 P104 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 115's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #2 oriented top links with part 108's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #3 oriented top links with part 114's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #4, which is top-facing, should connect to part 102's 1" 80 20 Panel Holder #1 P105 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #2, also connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 106's 1" 80 20 Panel #1 P106 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #2, and attach its 1" 80 20 Panel #2 facing top to part 113's 1" 80 20 Panel Holder #1, then its 1" 80 20 Panel #3, which is top-facing, should connect to part 109's 1" 80 20 Panel Holder #2, then connect its 1" 80 20 Panel #4 oriented top links with part 112's 1" 80 20 Panel Holder #1 P107 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 117's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #2 oriented top links with part 105's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #3, which is top-facing, should connect to part 116's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #4 facing top to part 109's 1" 80 20 Panel Holder #1 P108 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 21's 1" Rail 80/20 F #1, and its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #2. Additionally, its 1" 80 20 Panel Holder #2, which is bottom-facing, should connect to part 103's 1" 80 20 Panel #1 P109 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 107's 1" 80 20 Panel #4, then attach its 1" 80 20 Panel Holder #2 facing bottom to part 106's 1" 80 20 Panel #3 P110 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 18's 1" Rail 80/20 F #4. Additionally, attach its 1" 80 20 Panel Holder #1 facing bottom to part 103's 1" 80 20 Panel #4 P111 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 18's 1" Rail 80/20 F #4. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 103's 1" 80 20 Panel #2 P112 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 18's 1" Rail 80/20 F #4. After that, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #4 P113 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 18's 1" Rail 80/20 F #4. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #2 P114 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 17's 1" Rail 80/20 F #2. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #3 P115 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 17's 1" Rail 80/20 F #2, plus attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #1 P116 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 17's 1" Rail 80/20 F #2. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #3 P117 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 17's 1" Rail 80/20 F #2. Next, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 107's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Angle: bottom right

Assembly of Panel Installation - bottom_right
P92 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 93's 1" 80 20 Panel #2 P93 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 94's 1" 80 20 Panel Holder #1, and attach its 1" 80 20 Panel #2 facing top to part 92's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 95's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #4 oriented top links with part 96's 1" 80 20 Panel Holder #1 P94 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 84's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #1 P95 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 84's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 93's 1" 80 20 Panel #3 P96 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3, and its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 93's 1" 80 20 Panel #4 P97 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #4 P98 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 100's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #2 oriented top links with part 99's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #3, which is top-facing, should connect to part 101's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #4 oriented top links with part 97's 1" 80 20 Panel Holder #1 P99 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #3. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #2 P100 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 84's 1" Rail 80/20 F #2. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 98's 1" 80 20 Panel #1 P101 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 84's 1" Rail 80/20 F #2. Next, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 98's 1" 80 20 Panel #3 P102 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. Next, attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #4, plus attach its 1" 80 20 Panel Holder #2 facing bottom to part 103's 1" 80 20 Panel #3 P103 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 108's 1" 80 20 Panel Holder #2, also attach its 1" 80 20 Panel #2 facing top to part 111's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #3 oriented top links with part 102's 1" 80 20 Panel Holder #2. Also, connect its 1" 80 20 Panel #4 oriented top links with part 110's 1" 80 20 Panel Holder #1 P104 (1' Acrylic Panel 14.5" length) - attach its 1" 80 20 Panel #1 facing top to part 115's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #2 oriented top links with part 108's 1" 80 20 Panel Holder #1. After that, connect its 1" 80 20 Panel #3 oriented top links with part 114's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #4, which is top-facing, should connect to part 102's 1" 80 20 Panel Holder #1 P105 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 107's 1" 80 20 Panel #2, also connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 106's 1" 80 20 Panel #1 P106 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 105's 1" 80 20 Panel Holder #2, and attach its 1" 80 20 Panel #2 facing top to part 113's 1" 80 20 Panel Holder #1, then its 1" 80 20 Panel #3, which is top-facing, should connect to part 109's 1" 80 20 Panel Holder #2, then connect its 1" 80 20 Panel #4 oriented top links with part 112's 1" 80 20 Panel Holder #1 P107 (1' Acrylic Panel 14.5" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 117's 1" 80 20 Panel Holder #1. Also, connect its 1" 80 20 Panel #2 oriented top links with part 105's 1" 80 20 Panel Holder #1, also its 1" 80 20 Panel #3, which is top-facing, should connect to part 116's 1" 80 20 Panel Holder #1. After that, attach its 1" 80 20 Panel #4 facing top to part 109's 1" 80 20 Panel Holder #1 P108 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 21's 1" Rail 80/20 F #1, and its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #2. Additionally, its 1" 80 20 Panel Holder #2, which is bottom-facing, should connect to part 103's 1" 80 20 Panel #1 P109 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 21's 1" Rail 80/20 F #1. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 107's 1" 80 20 Panel #4, then attach its 1" 80 20 Panel Holder #2 facing bottom to part 106's 1" 80 20 Panel #3 P110 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 18's 1" Rail 80/20 F #4. Additionally, attach its 1" 80 20 Panel Holder #1 facing bottom to part 103's 1" 80 20 Panel #4 P111 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 18's 1" Rail 80/20 F #4. After that, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 103's 1" 80 20 Panel #2 P112 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 18's 1" Rail 80/20 F #4. After that, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #4 P113 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 18's 1" Rail 80/20 F #4. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 106's 1" 80 20 Panel #2 P114 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 17's 1" Rail 80/20 F #2. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 104's 1" 80 20 Panel #3 P115 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 17's 1" Rail 80/20 F #2, plus attach its 1" 80 20 Panel Holder #1 facing bottom to part 104's 1" 80 20 Panel #1 P116 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 17's 1" Rail 80/20 F #2. Additionally, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 107's 1" 80 20 Panel #3 P117 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 17's 1" Rail 80/20 F #2. Next, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 107's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 16
1' Acrylic Panel1' Acrylic Panel x 14.5"x 6
11" Hanger for 2 Solid Panels Aluminum 80/20x 4

Attaching: Final Accessories

To attach the final functional components: the pull handles and bin holders.

These accessories attach to the completed frame to add final functionality.

Angle: back left

Assembly of Final Accessories - back_left
P126 (1" Bin Box Holder Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 74's 1" Rail 80/20 F #4 P127 (1" Bin Box Holder Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 74's 1" Rail 80/20 F #4 P128 (1" Bin Box Holder Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 74's 1" Rail 80/20 F #4 P129 (1" Pull Handle Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 84's 1" Rail 80/20 F #3 P130 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 84's 1" Rail 80/20 F #3
11" Bin Box Holder Aluminum 80/20x 3
11" Pull Handle Aluminum 80/20x 2

Angle: front right

Assembly of Final Accessories - front_right
P126 (1" Bin Box Holder Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 74's 1" Rail 80/20 F #4 P127 (1" Bin Box Holder Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 74's 1" Rail 80/20 F #4 P128 (1" Bin Box Holder Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 74's 1" Rail 80/20 F #4 P129 (1" Pull Handle Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 84's 1" Rail 80/20 F #3 P130 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 84's 1" Rail 80/20 F #3
11" Bin Box Holder Aluminum 80/20x 3
11" Pull Handle Aluminum 80/20x 2

Angle: bottom right

Assembly of Final Accessories - bottom_right
P126 (1" Bin Box Holder Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 74's 1" Rail 80/20 F #4 P127 (1" Bin Box Holder Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 74's 1" Rail 80/20 F #4 P128 (1" Bin Box Holder Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 74's 1" Rail 80/20 F #4 P129 (1" Pull Handle Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 84's 1" Rail 80/20 F #3 P130 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 84's 1" Rail 80/20 F #3
11" Bin Box Holder Aluminum 80/20x 3
11" Pull Handle Aluminum 80/20x 2
