Baby Walker - Comprehensive Assembly Plan And Visual Guide

A four-wheeled baby walker constructed from PVC pipes and fittings, forming a lower base frame and an upper frame connected by vertical supports. - Baby Walker

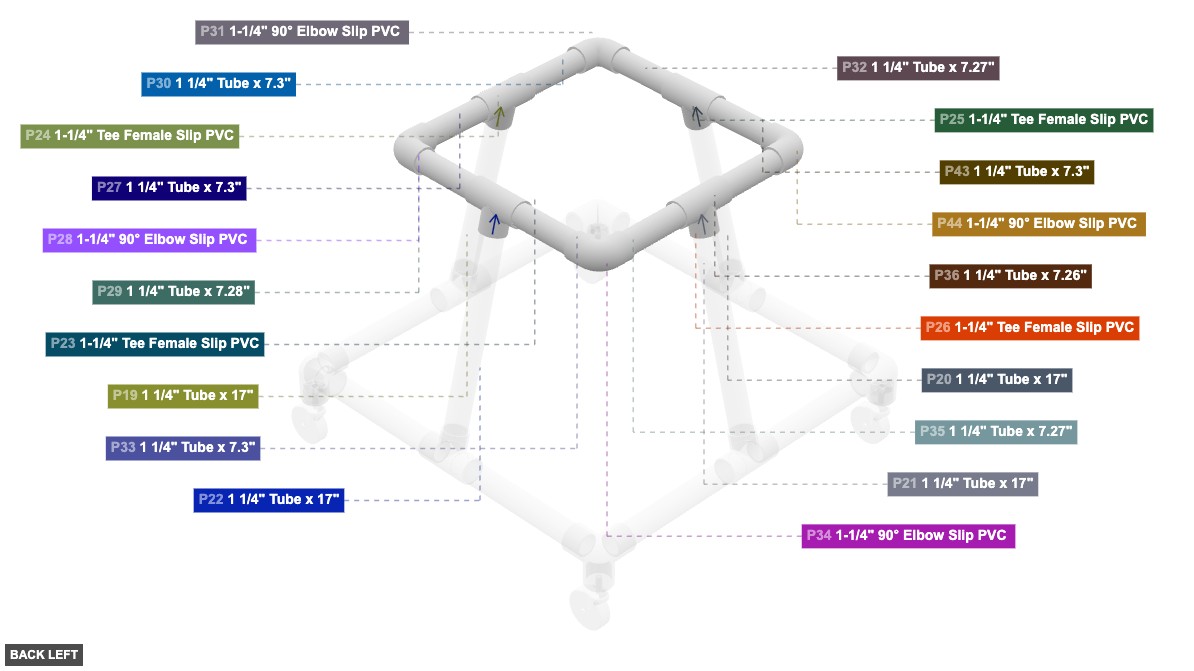

Phase 1: Group Overview

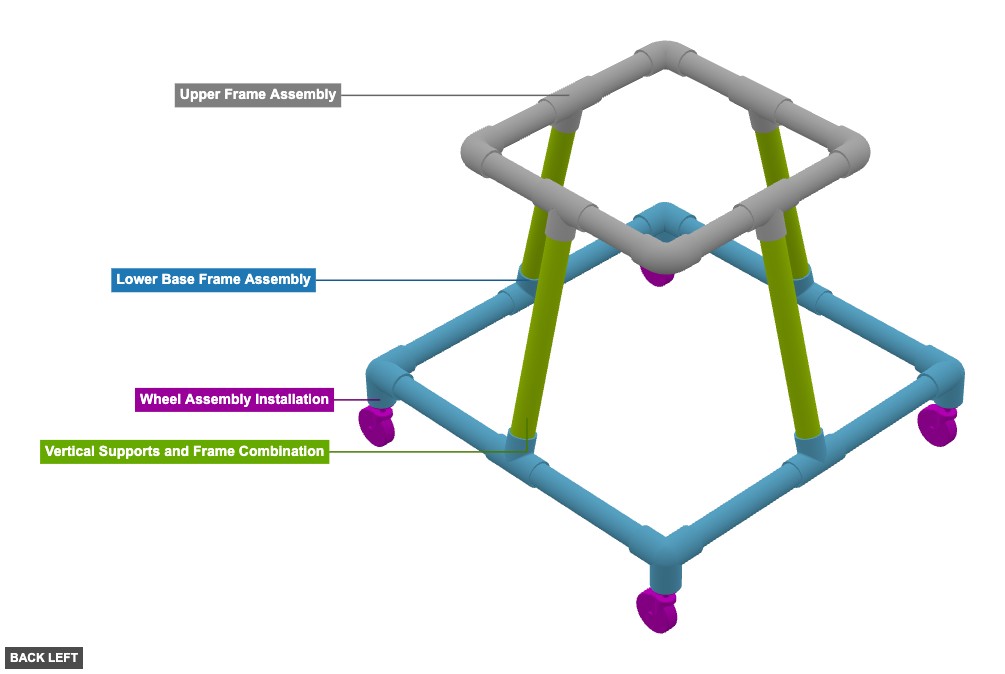

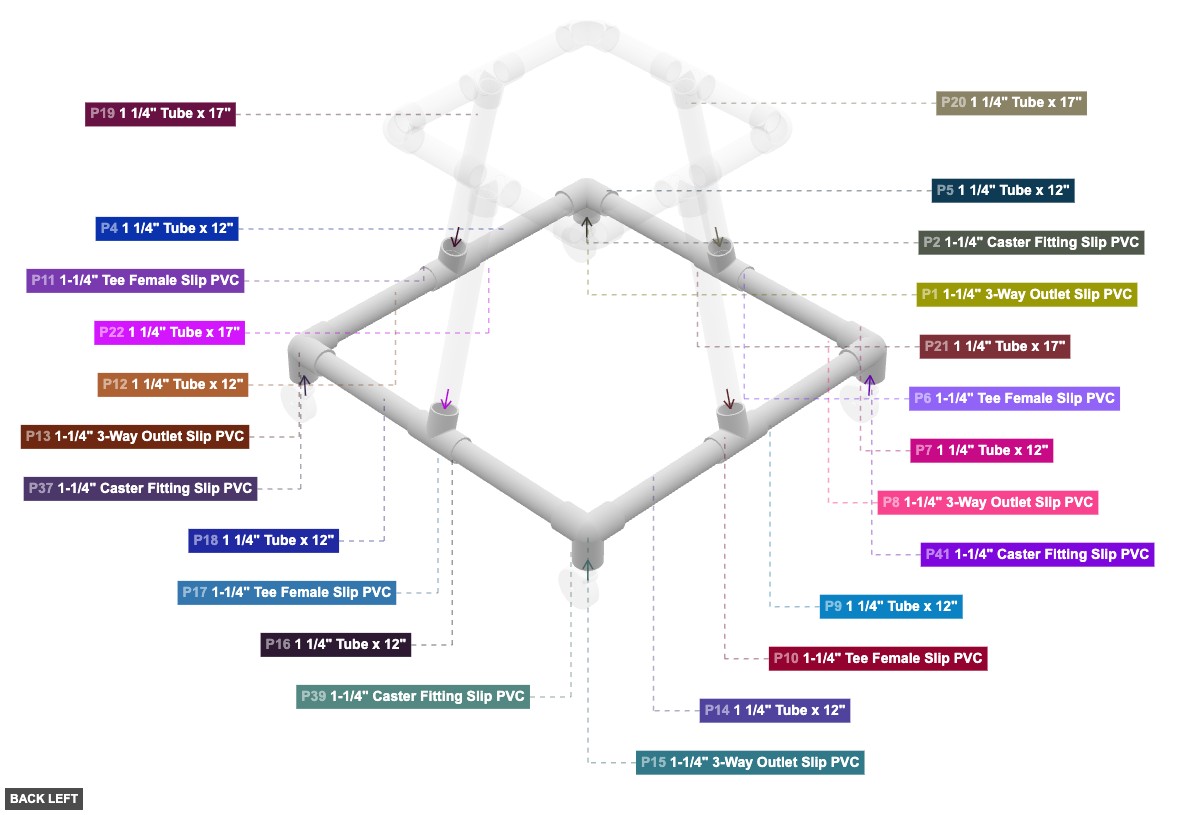

Angle: back left

Lower Base Frame Assembly

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Upper Frame Assembly

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

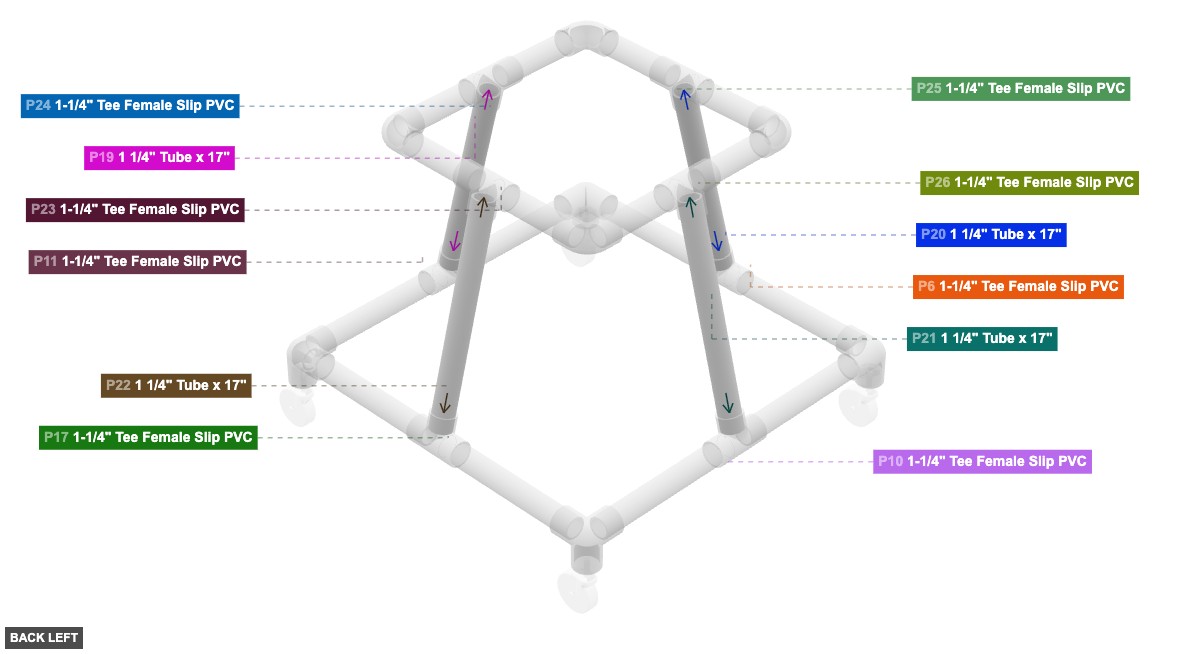

Vertical Supports and Frame Combination

1 1/4" Tube x 17"x 4

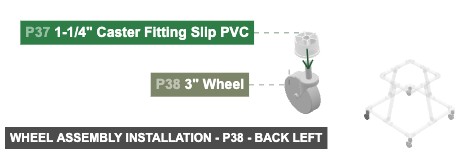

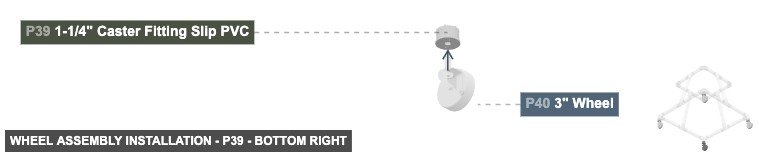

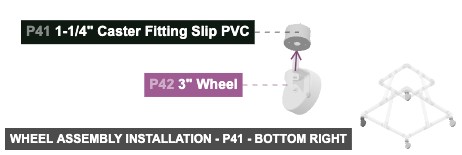

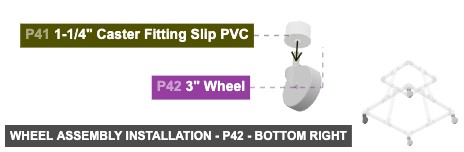

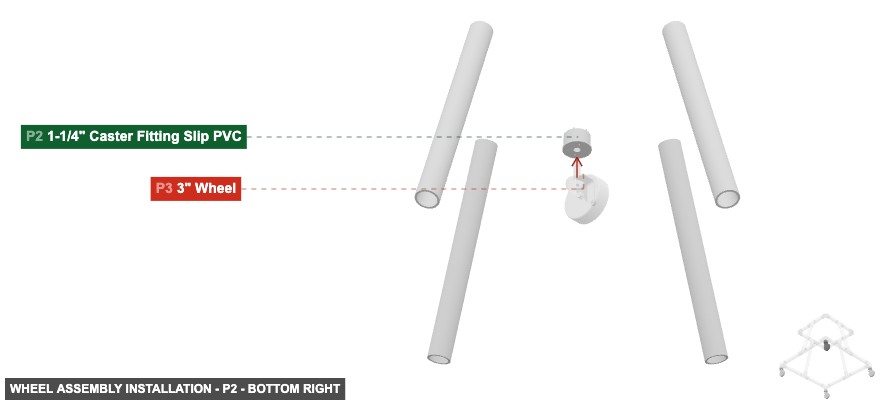

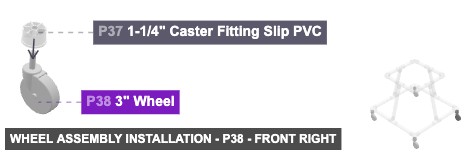

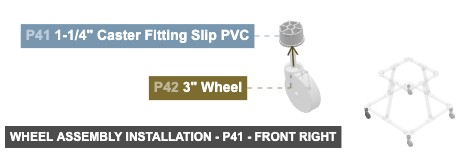

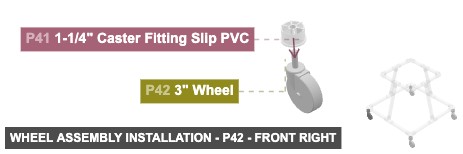

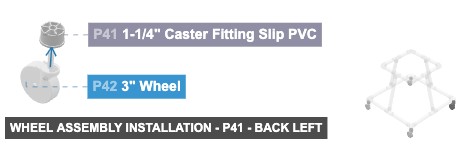

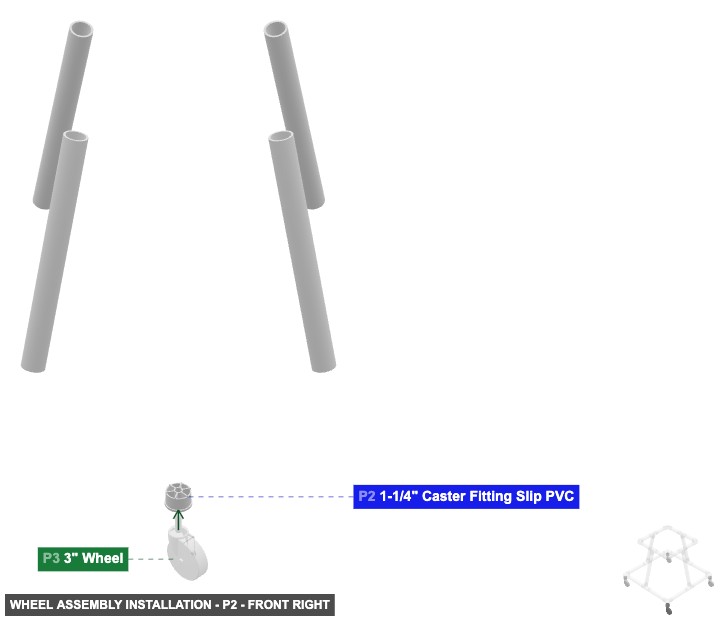

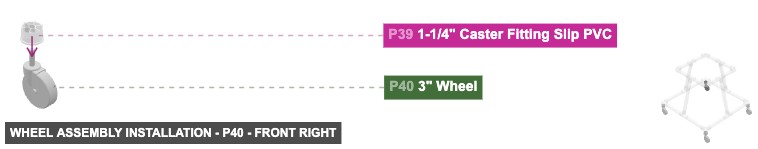

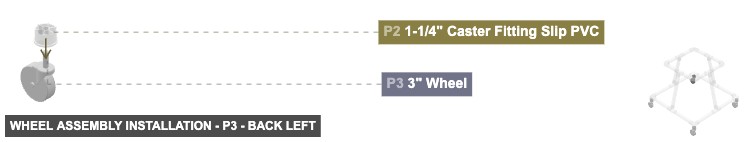

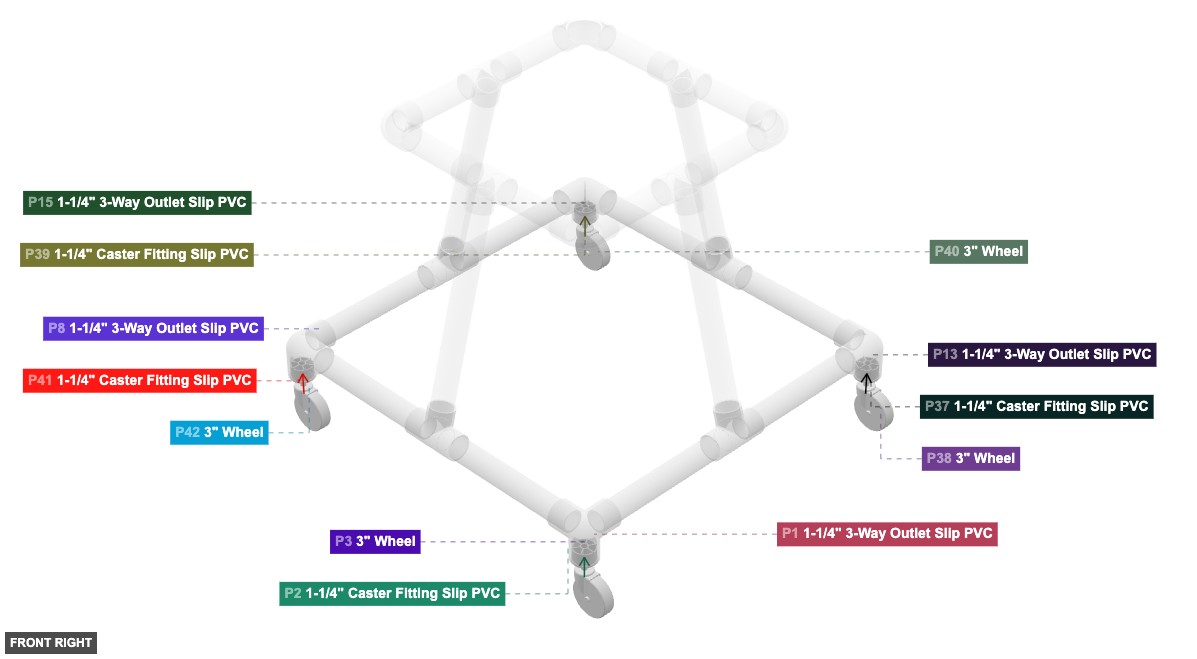

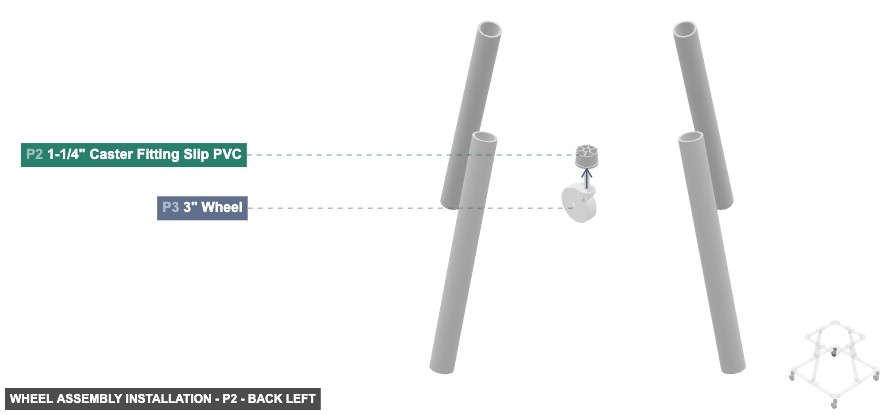

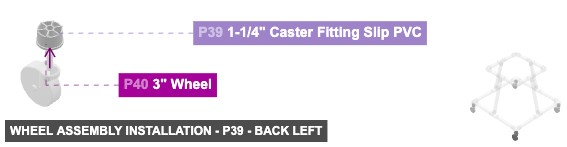

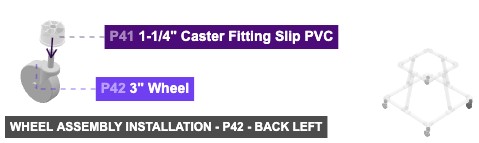

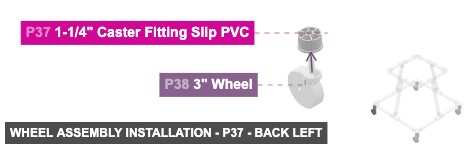

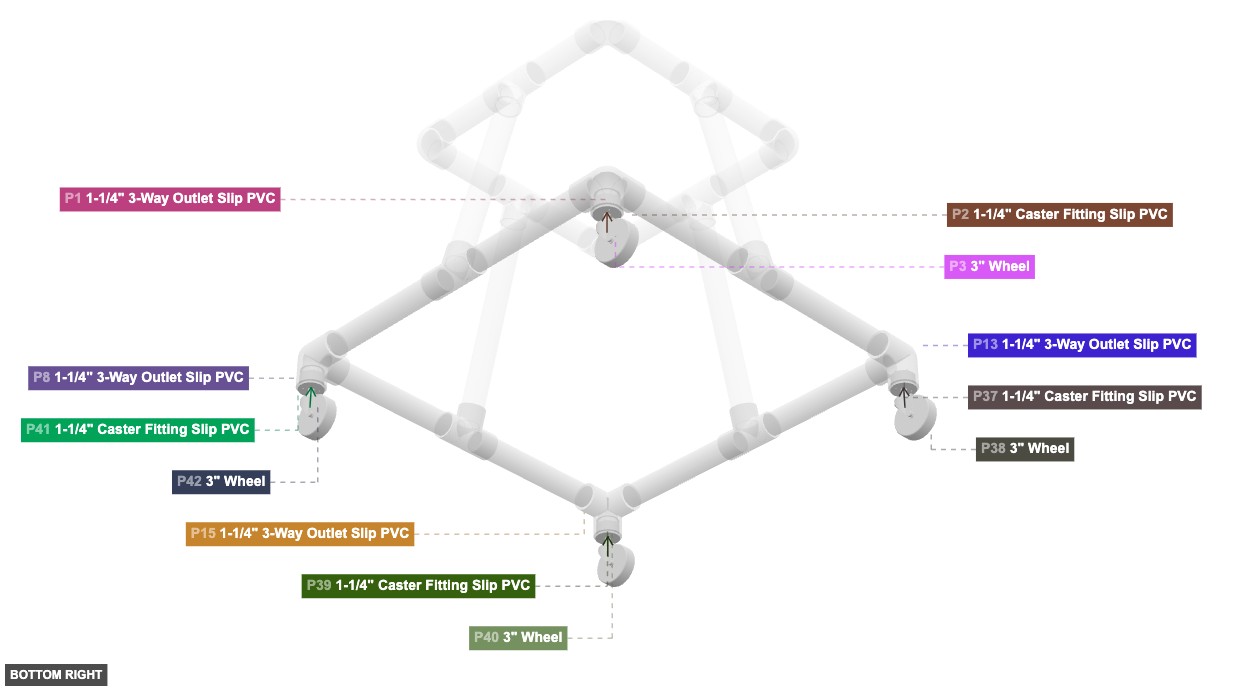

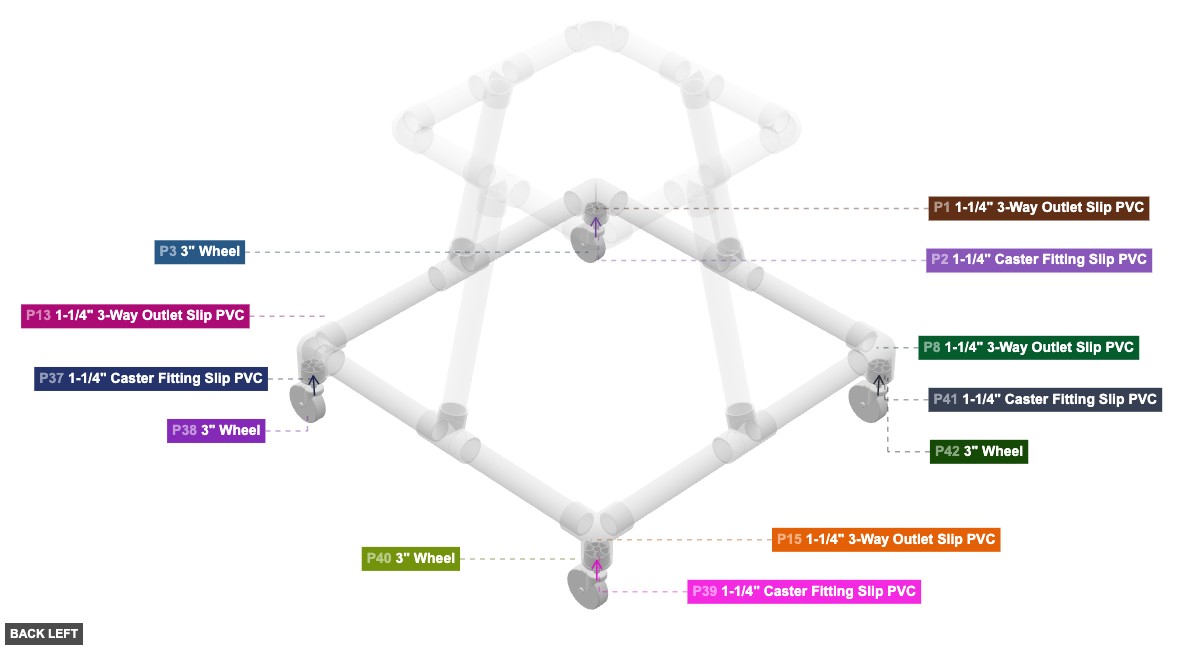

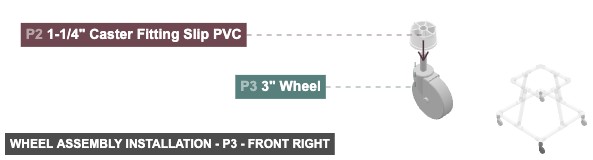

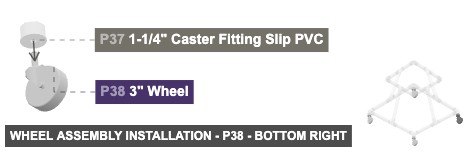

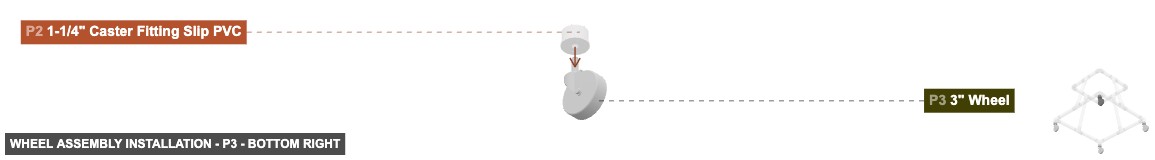

Wheel Assembly Installation

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

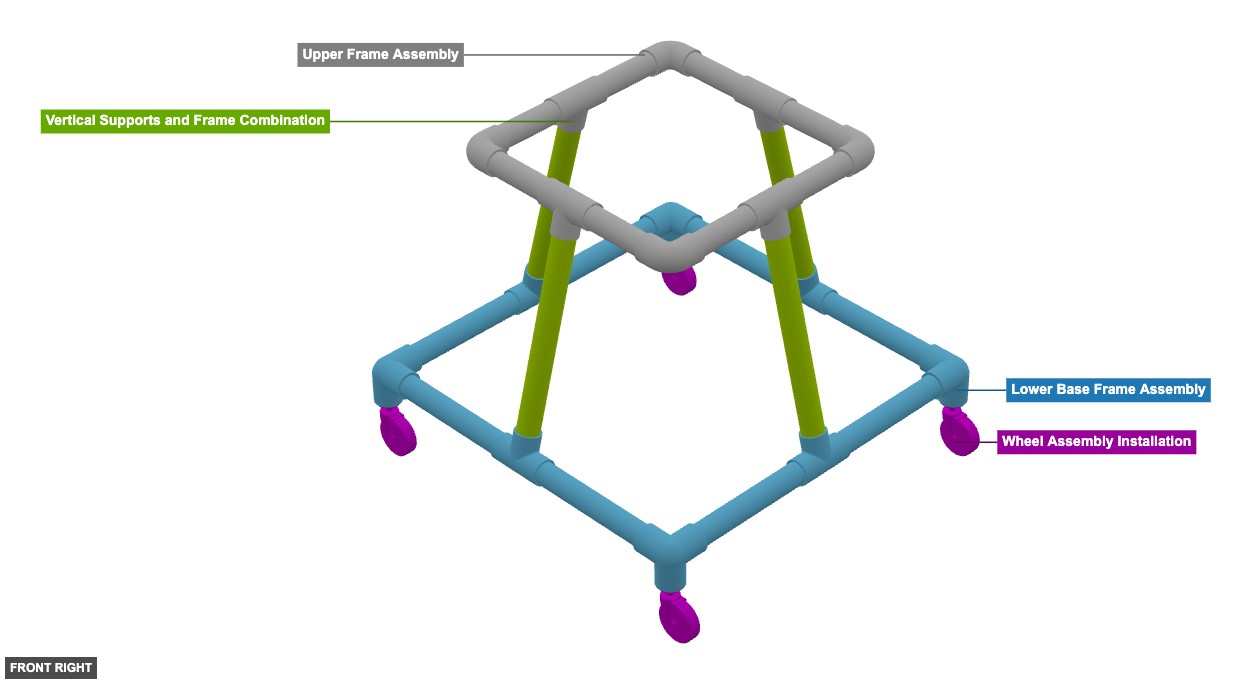

Angle: front right

Lower Base Frame Assembly

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

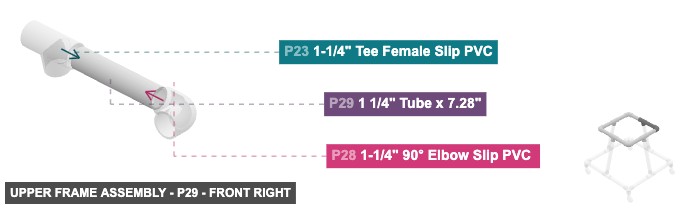

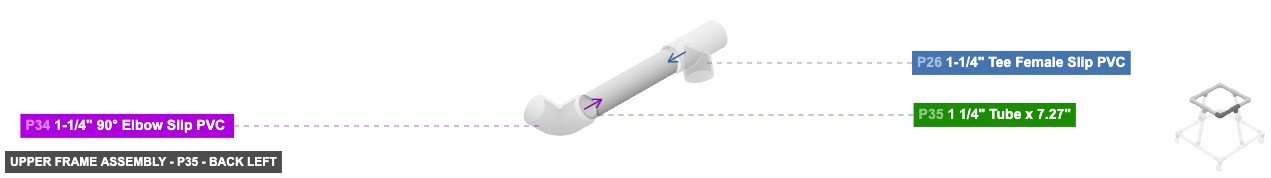

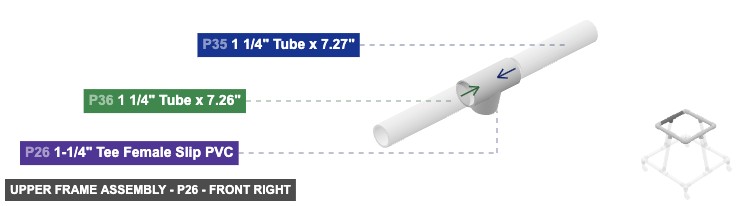

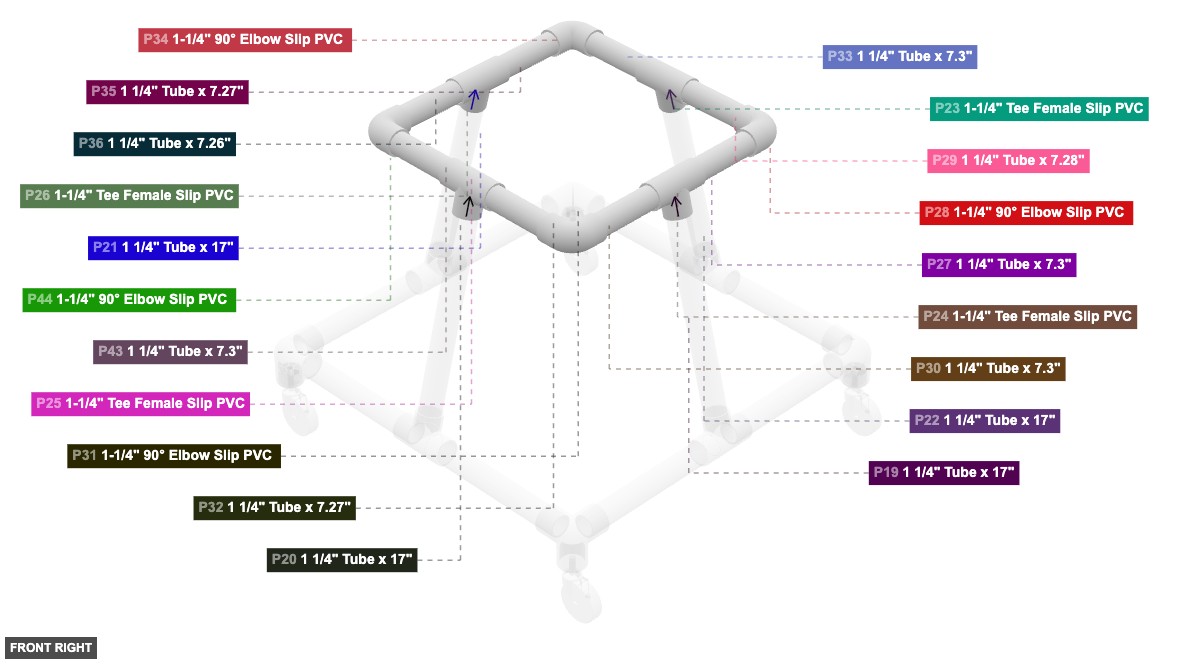

Upper Frame Assembly

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Vertical Supports and Frame Combination

1 1/4" Tube x 17"x 4

Wheel Assembly Installation

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

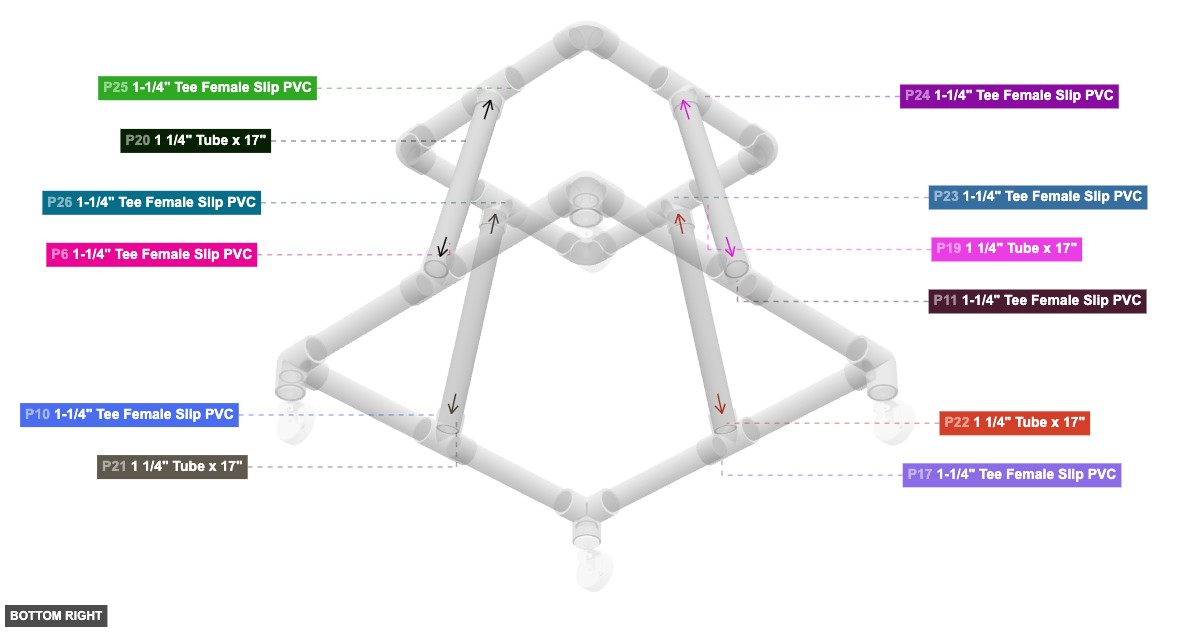

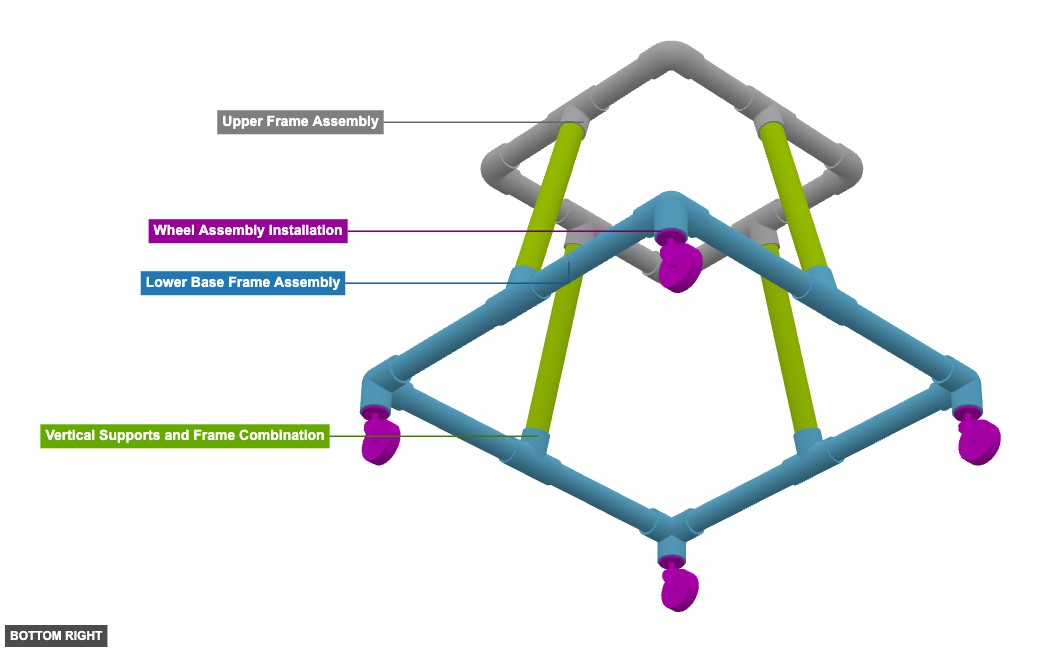

Angle: bottom right

Lower Base Frame Assembly

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Upper Frame Assembly

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Vertical Supports and Frame Combination

1 1/4" Tube x 17"x 4

Wheel Assembly Installation

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Phase 2: Individual Group Assembly

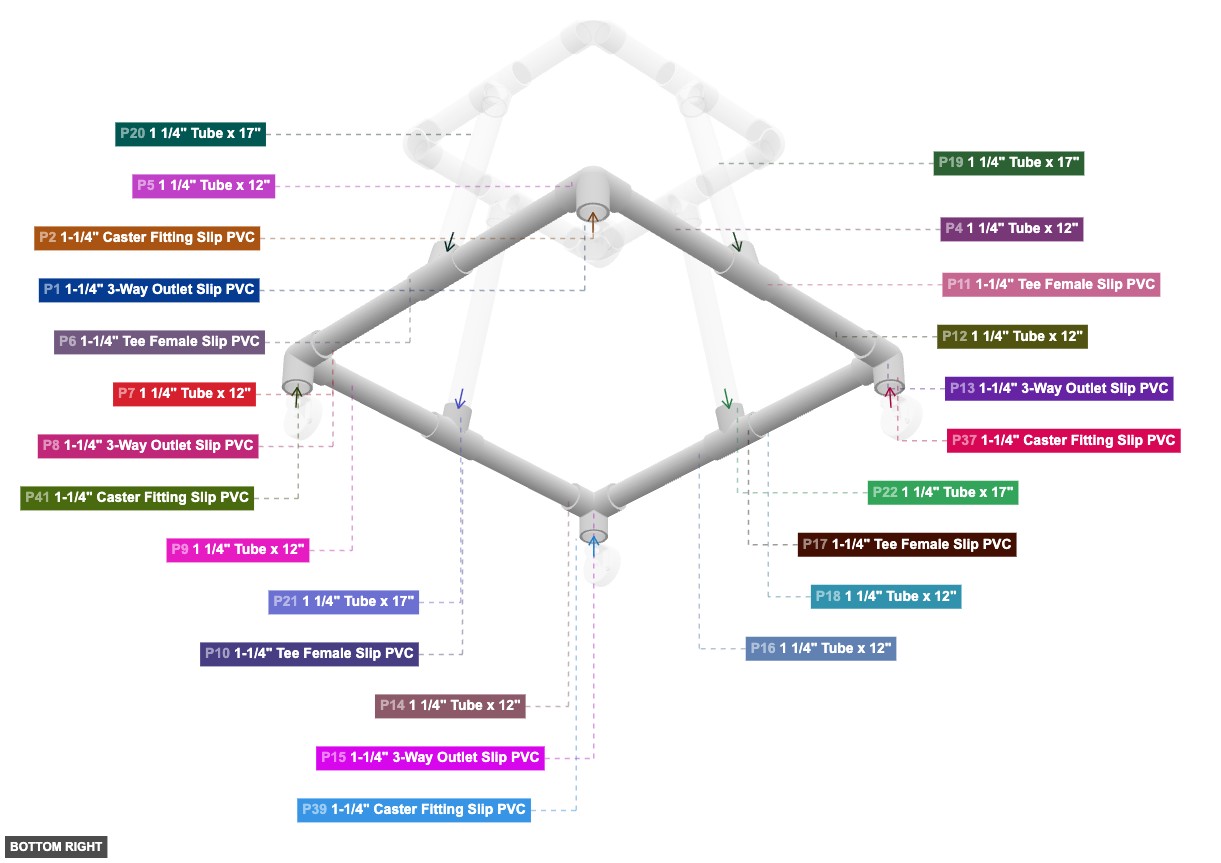

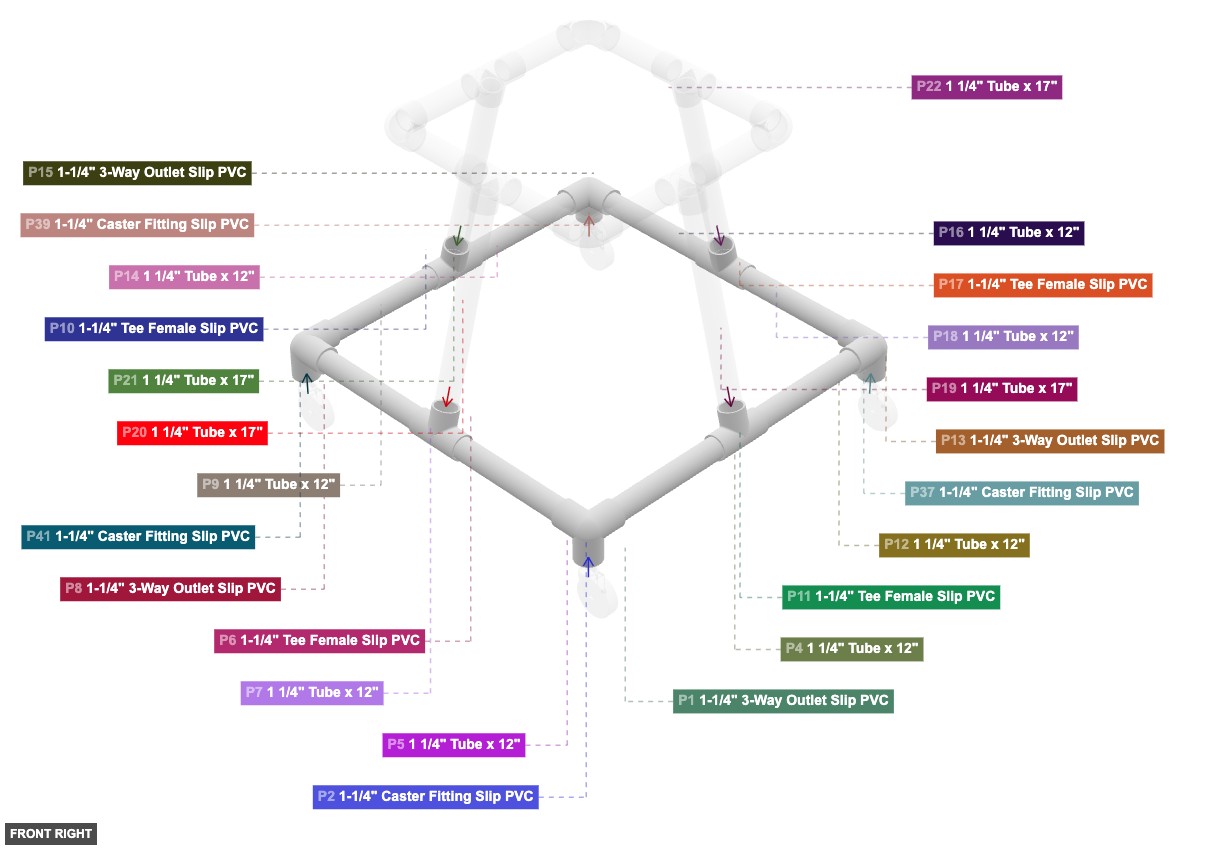

Group: Lower Base Frame Assembly

Forms the bottom structure of the walker.

Assemble the rectangular base frame: Connect corner fitting P1 (3-Way Outlet) and Tee P11 using Tube P4 (12"). Connect P1 and Tee P6 using Tube P5 (12"). Connect P6 and corner fitting P8 (3-Way Outlet) using Tube P7 (12"). Connect P8 and Tee P10 using Tube P9 (12"). Connect P10 and corner fitting P15 (3-Way Outlet) using Tube P14 (12"). Connect P15 and Tee P17 using Tube P16 (12"). Connect P17 and corner fitting P13 (3-Way Outlet) using Tube P18 (12"). Connect P13 and Tee P11 using Tube P12 (12"). Ensure all connections are fully seated.

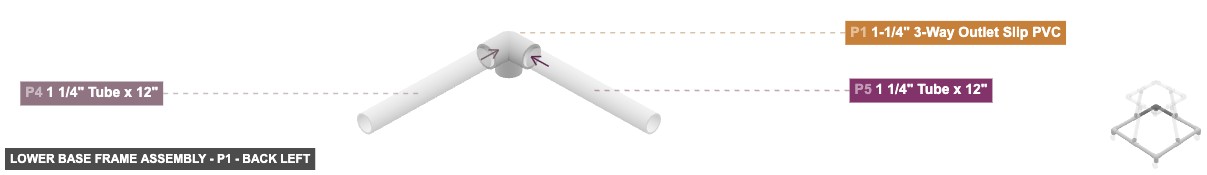

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: back left

P1 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 4's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #2 facing left to part 5's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

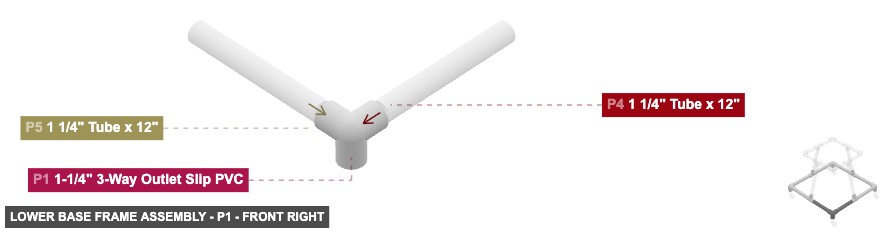

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: front right

P1 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 4's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #2 facing left to part 5's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

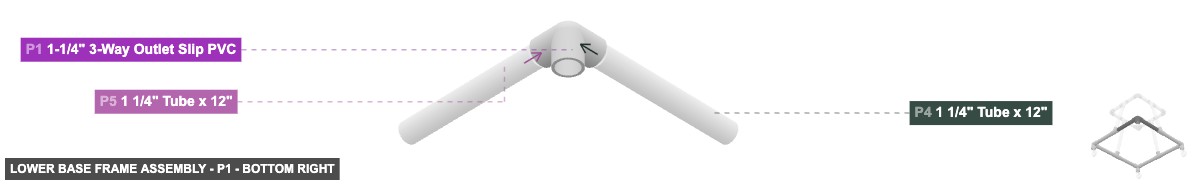

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: bottom right

P1 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented back links with part 4's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #2 facing left to part 5's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

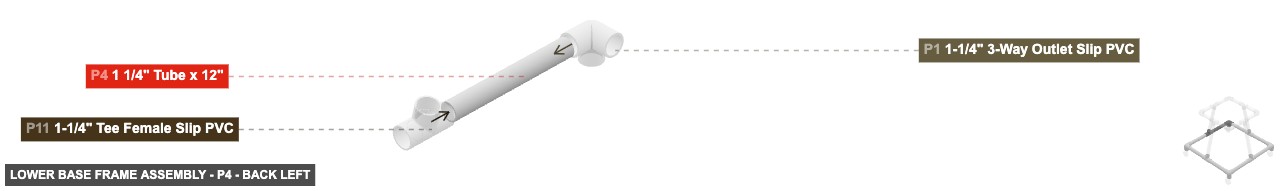

Part: 1 1/4" Tube x 12" - Angle: back left

P4 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 11's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented front links with part 1's 1.25" F SLIP #1

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

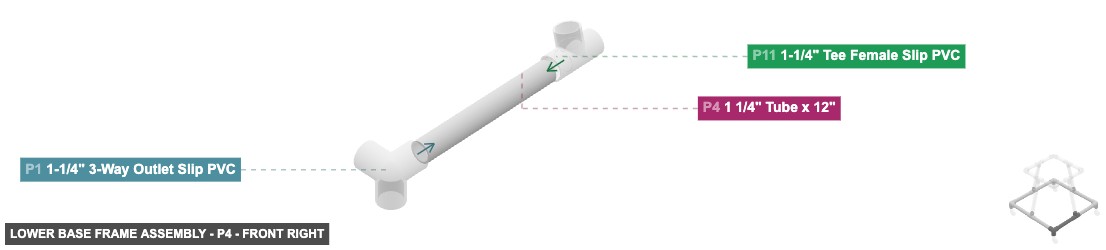

Part: 1 1/4" Tube x 12" - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

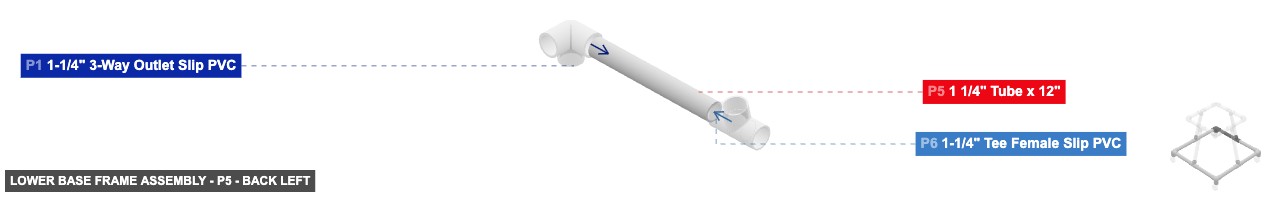

Part: 1 1/4" Tube x 12" - Angle: back left

P5 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 6's 1.25" F SLIP #1. Additionally, connect its 1.25" M SLIP #2 oriented right links with part 1's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

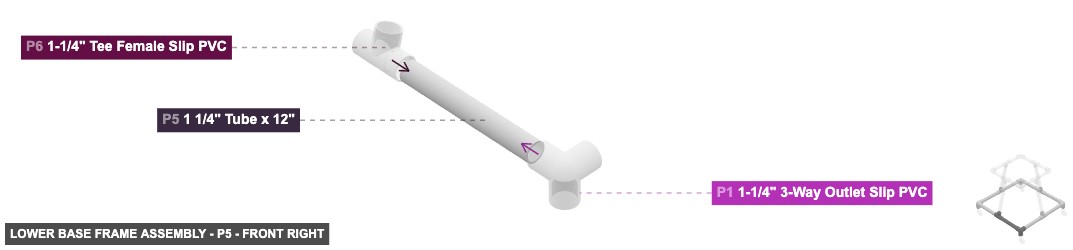

Part: 1 1/4" Tube x 12" - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

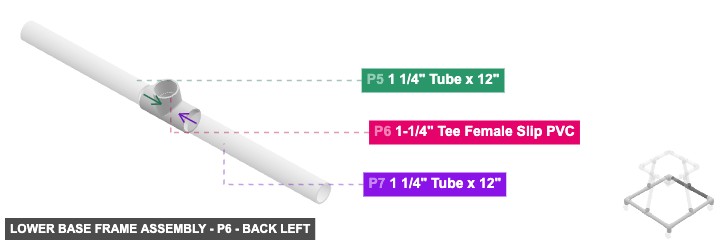

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P6 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing right to part 5's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented left links with part 7's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

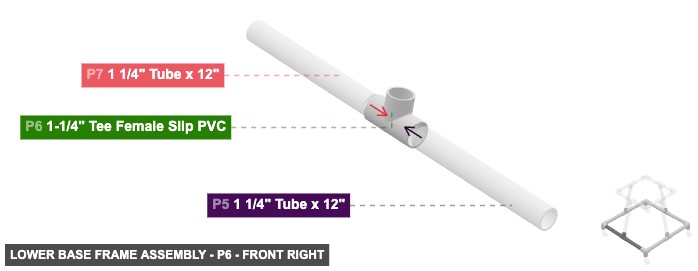

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

P6 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing right to part 5's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented left links with part 7's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

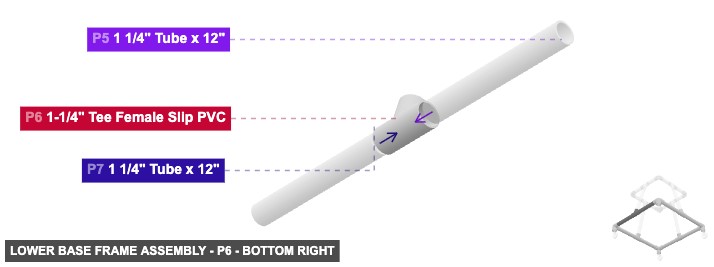

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

P6 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing right to part 5's 1.25" M SLIP #1. Also, connect its 1.25" F SLIP #2 oriented left links with part 7's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

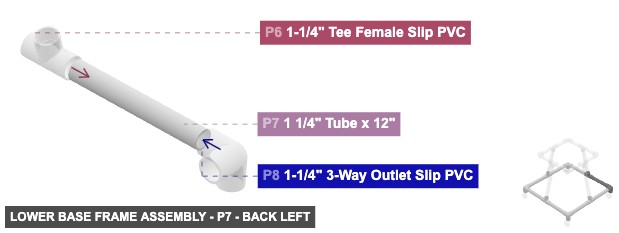

Part: 1 1/4" Tube x 12" - Angle: back left

P7 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented left links with part 8's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is right-facing, should connect to part 6's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

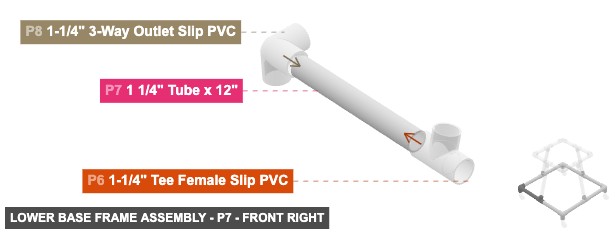

Part: 1 1/4" Tube x 12" - Angle: front right

P7 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented left links with part 8's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is right-facing, should connect to part 6's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

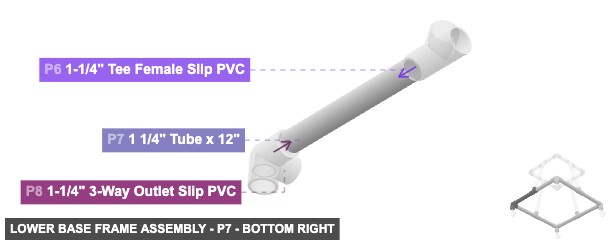

Part: 1 1/4" Tube x 12" - Angle: bottom right

P7 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented left links with part 8's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is right-facing, should connect to part 6's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

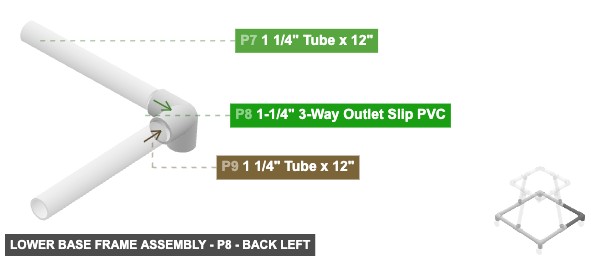

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: back left

P8 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 7's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing back to part 9's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

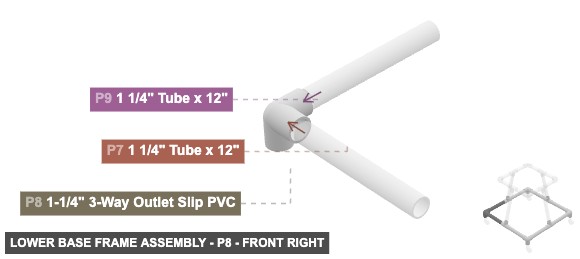

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: front right

P8 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 7's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing back to part 9's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

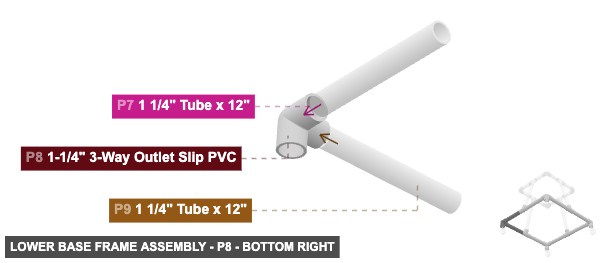

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: bottom right

P8 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented right links with part 7's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing back to part 9's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

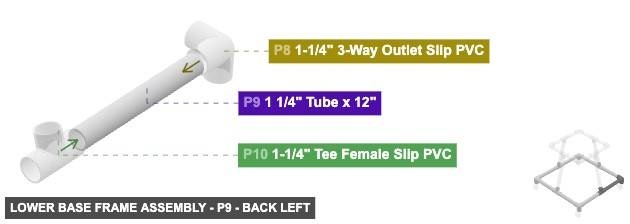

Part: 1 1/4" Tube x 12" - Angle: back left

P9 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing back to part 10's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented front links with part 8's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

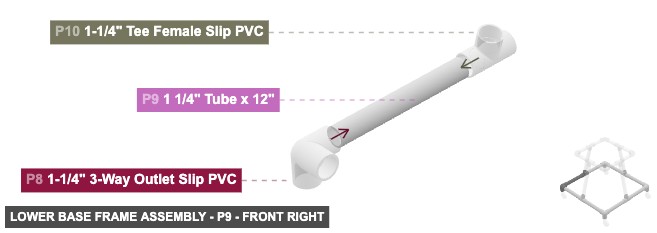

Part: 1 1/4" Tube x 12" - Angle: front right

P9 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing back to part 10's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented front links with part 8's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

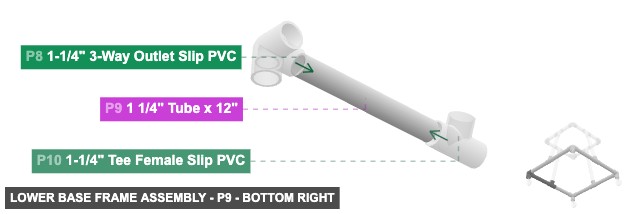

Part: 1 1/4" Tube x 12" - Angle: bottom right

P9 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing back to part 10's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented front links with part 8's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

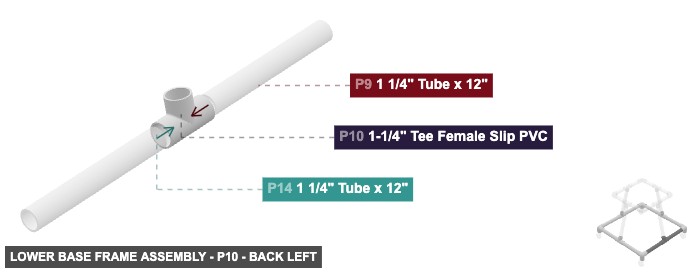

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P10 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 9's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented back links with part 14's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

P10 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 9's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented back links with part 14's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

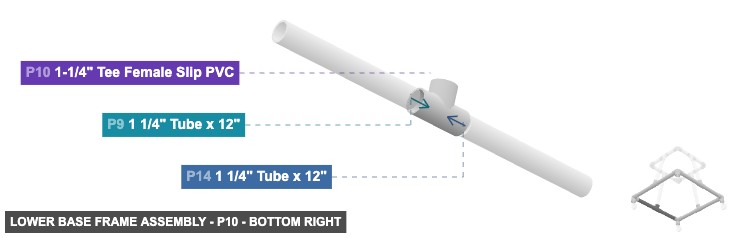

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

P10 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 9's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented back links with part 14's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

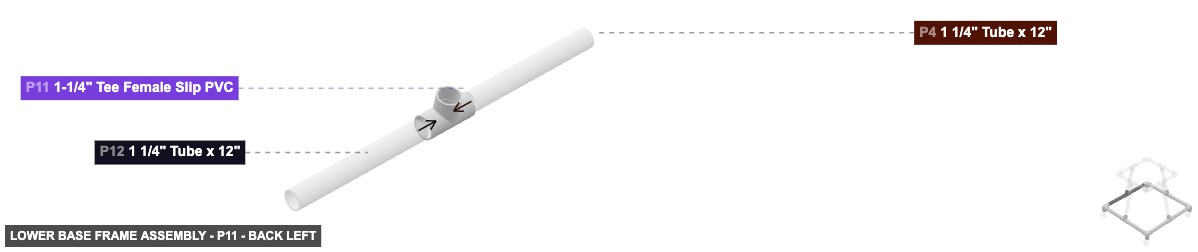

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P11 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is front-facing, should connect to part 4's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented back links with part 12's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

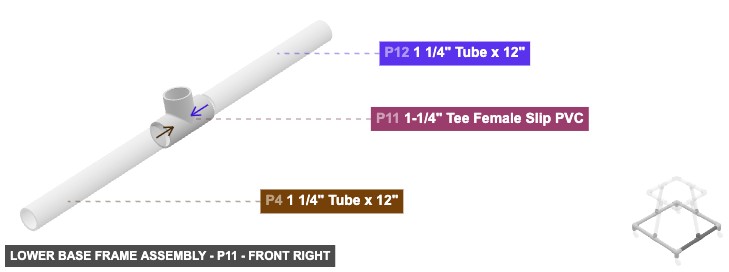

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

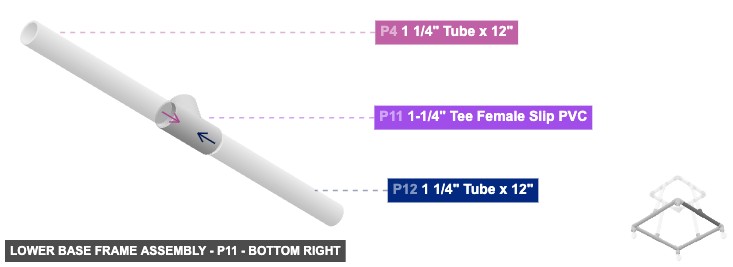

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: back left

P12 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented back links with part 13's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is front-facing, should connect to part 11's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

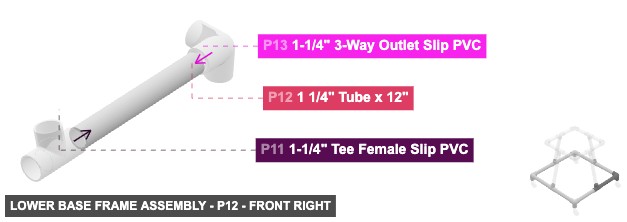

Part: 1 1/4" Tube x 12" - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

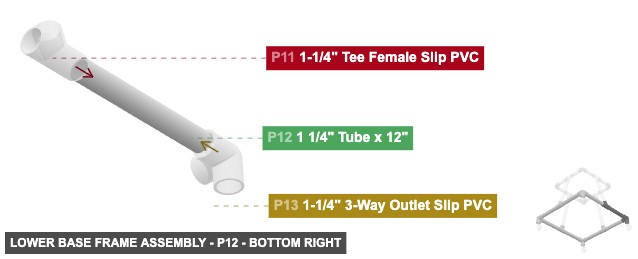

Part: 1 1/4" Tube x 12" - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

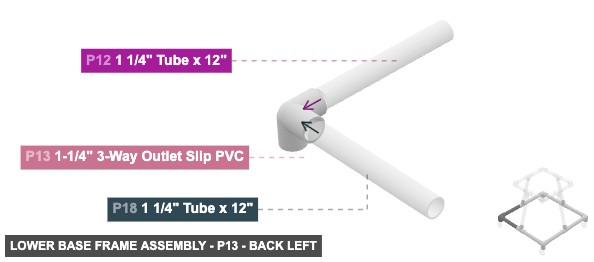

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: back left

P13 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 12's 1.25" M SLIP #1, and its 1.25" F SLIP #3, which is left-facing, should connect to part 18's 1.25" M SLIP #1

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

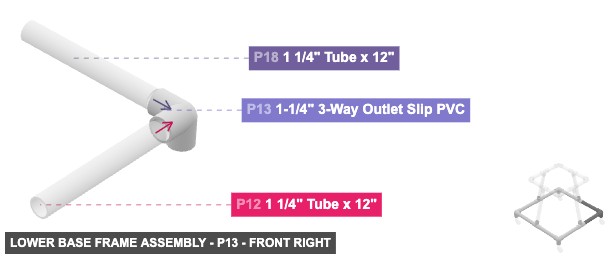

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

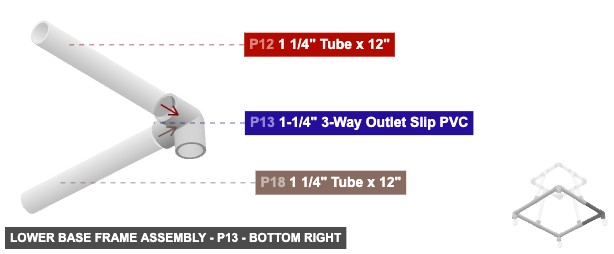

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: back left

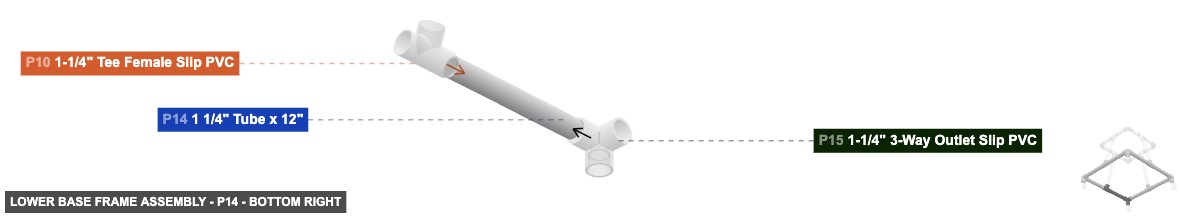

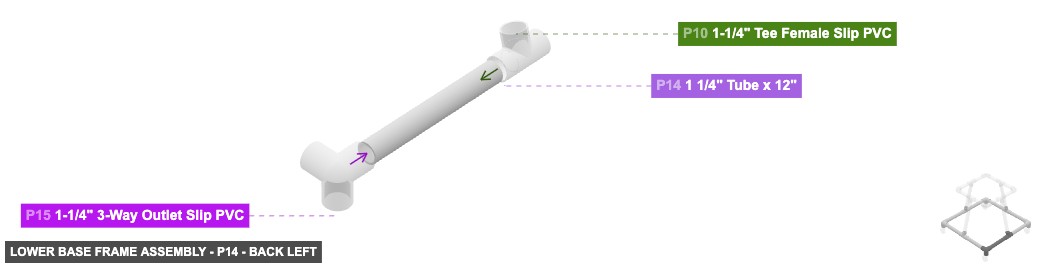

P14 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 15's 1.25" F SLIP #1, also connect its 1.25" M SLIP #2 oriented front links with part 10's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

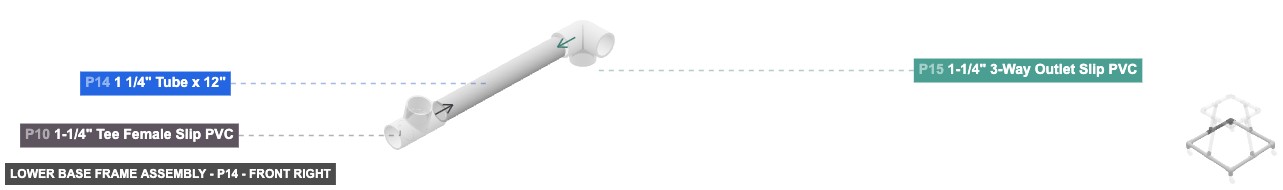

Part: 1 1/4" Tube x 12" - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

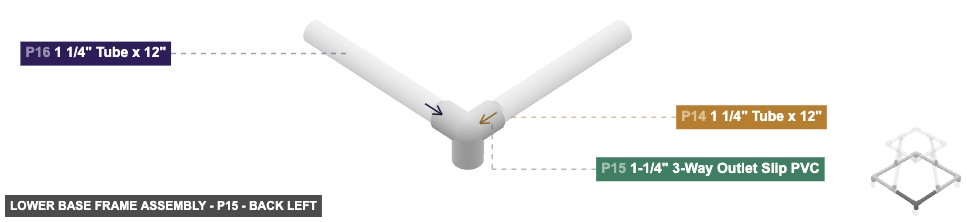

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: back left

P15 (1.25" 3-Way Outlet Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 14's 1.25" M SLIP #1. Next, connect its 1.25" F SLIP #2 oriented right links with part 16's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

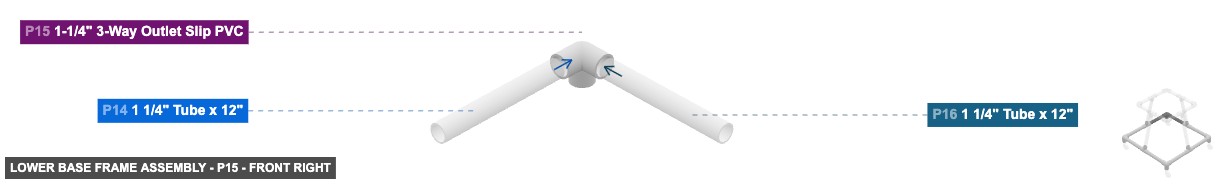

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

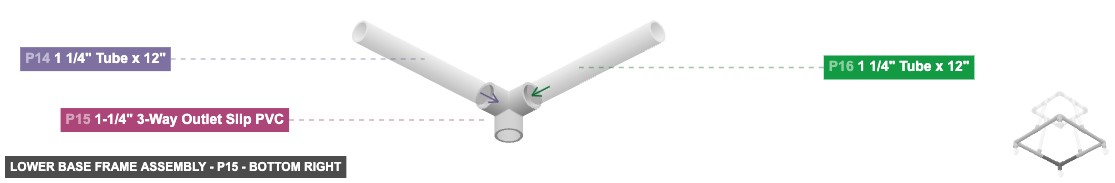

Part: 1-1/4" 3-Way Outlet Slip PVC - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

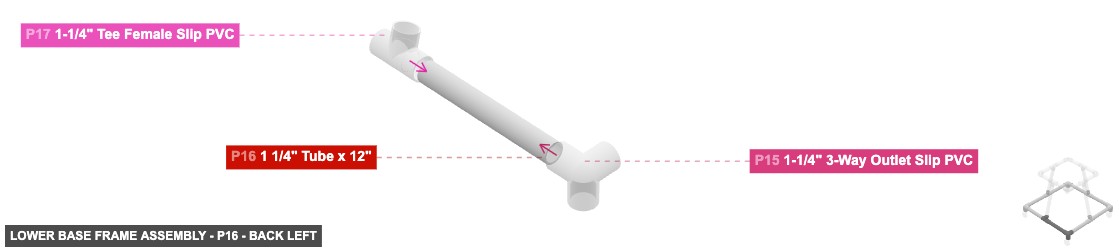

Part: 1 1/4" Tube x 12" - Angle: back left

P16 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented right links with part 17's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing left to part 15's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: front right

P16 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented right links with part 17's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing left to part 15's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: bottom right

P16 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented right links with part 17's 1.25" F SLIP #1, then attach its 1.25" M SLIP #2 facing left to part 15's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

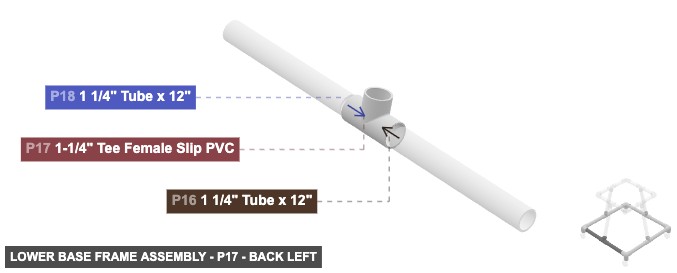

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P17 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing left to part 16's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented right links with part 18's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

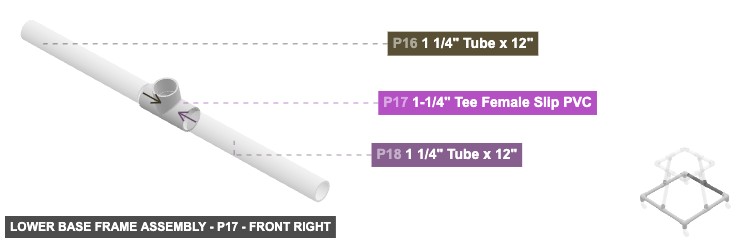

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

P17 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing left to part 16's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented right links with part 18's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

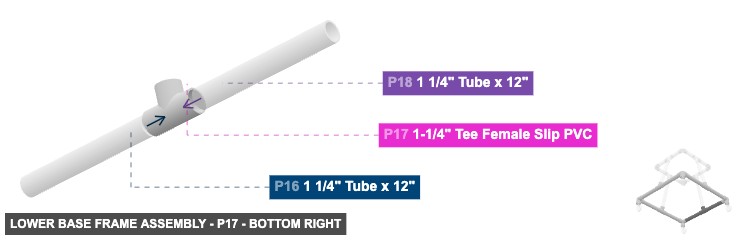

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

P17 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing left to part 16's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented right links with part 18's 1.25" M SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

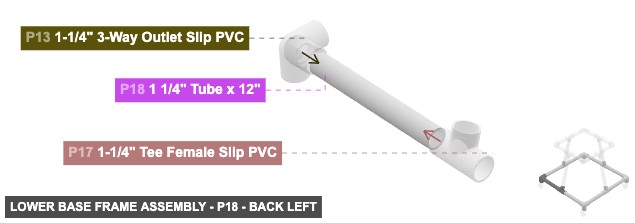

Part: 1 1/4" Tube x 12" - Angle: back left

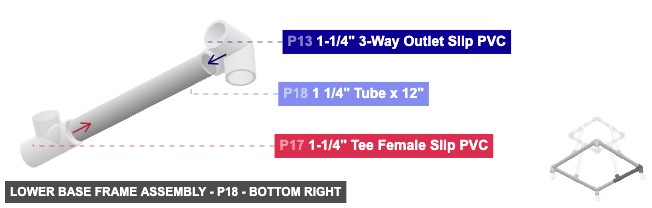

P18 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is right-facing, should connect to part 13's 1.25" F SLIP #3. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 17's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

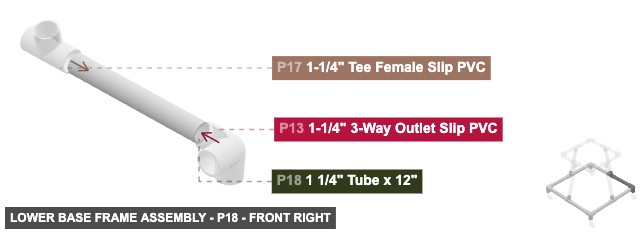

Part: 1 1/4" Tube x 12" - Angle: front right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Part: 1 1/4" Tube x 12" - Angle: bottom right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

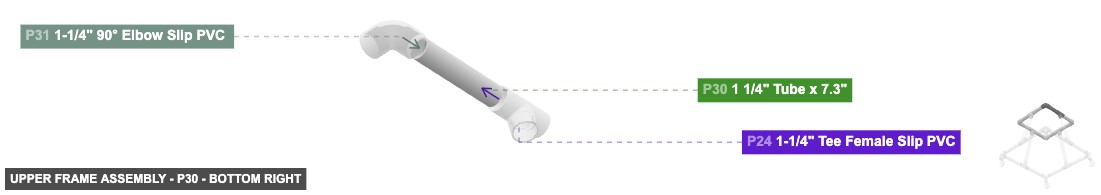

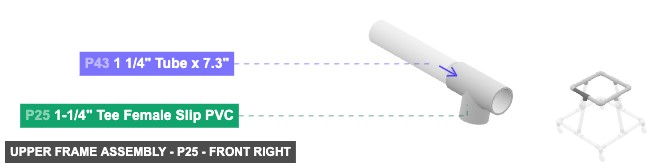

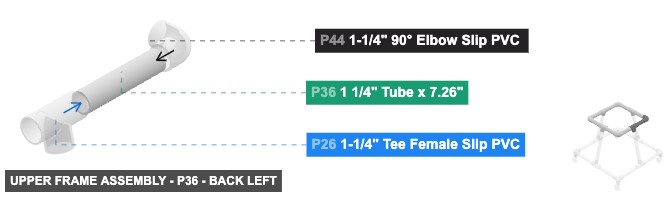

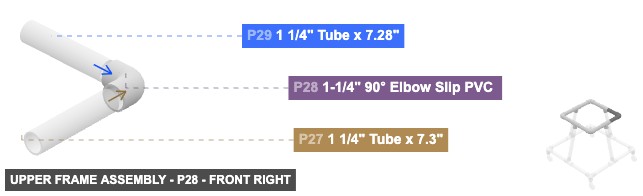

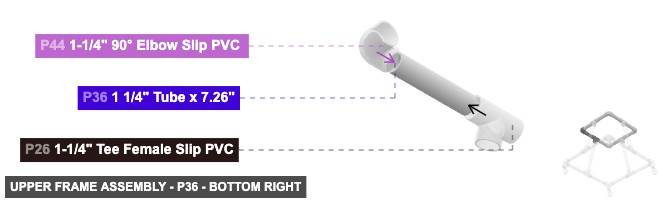

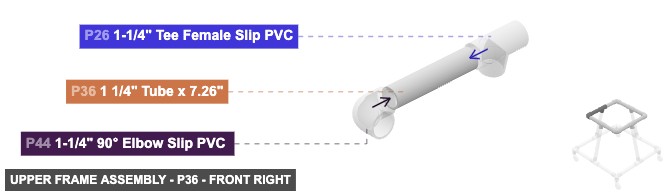

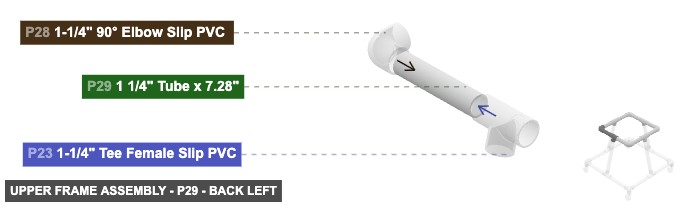

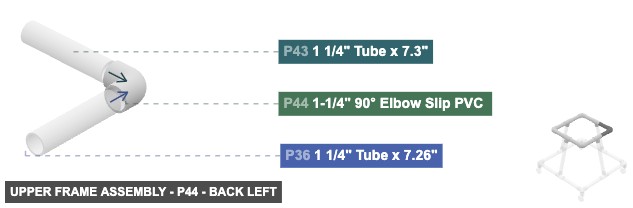

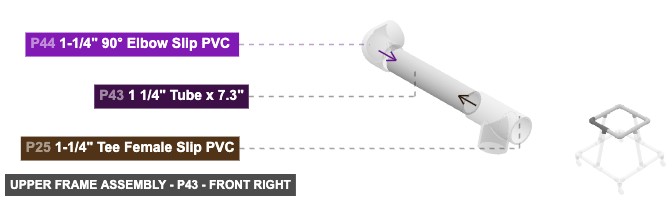

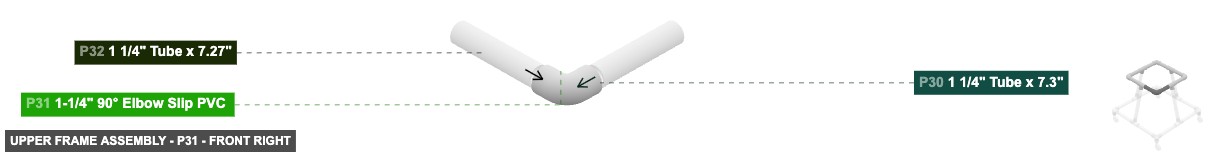

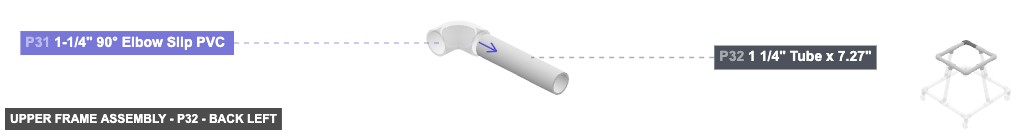

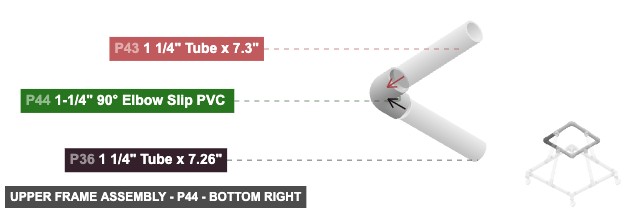

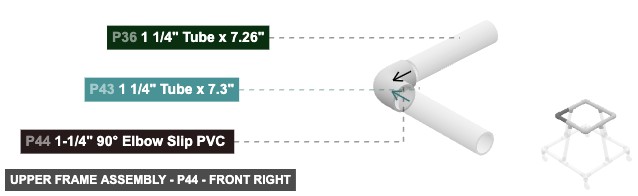

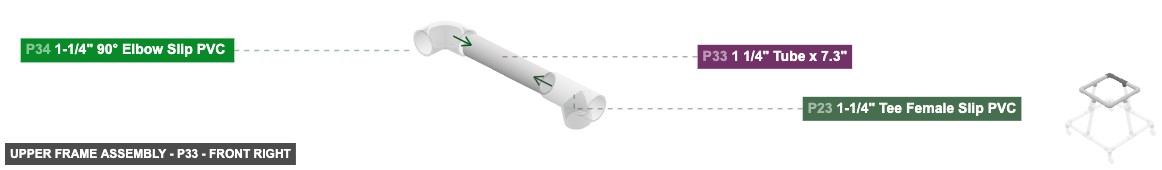

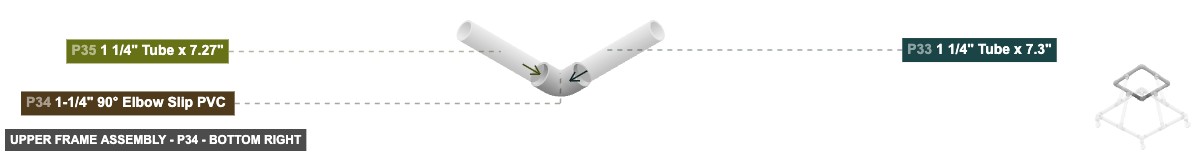

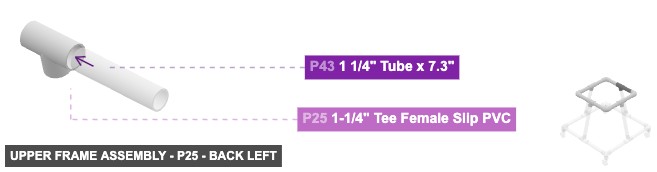

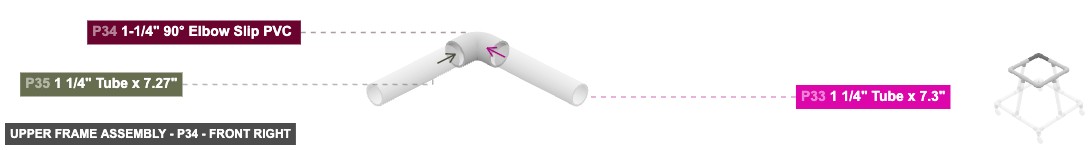

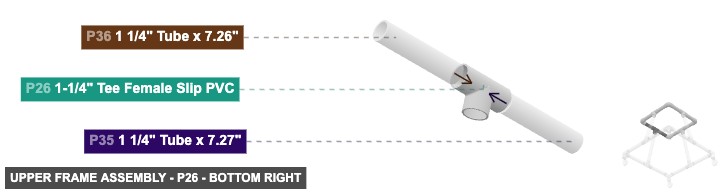

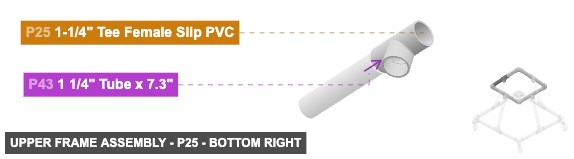

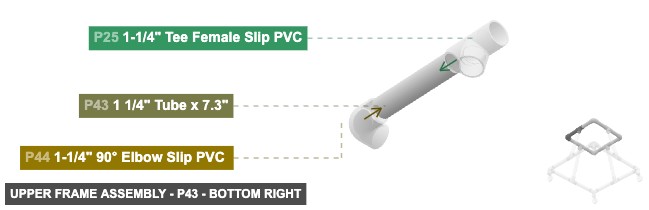

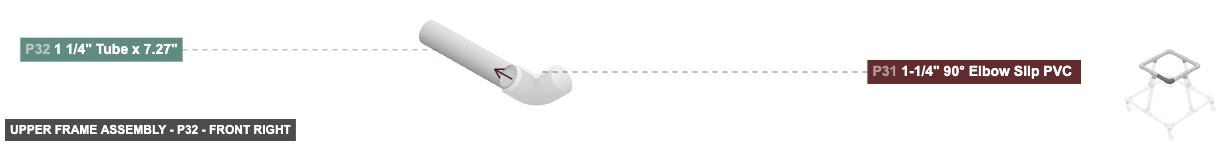

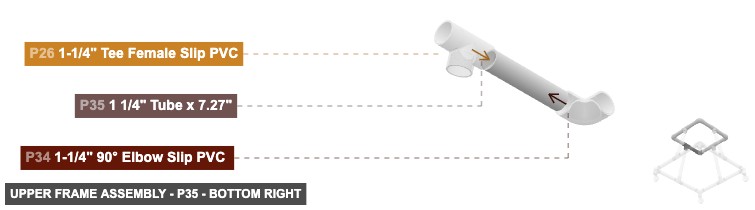

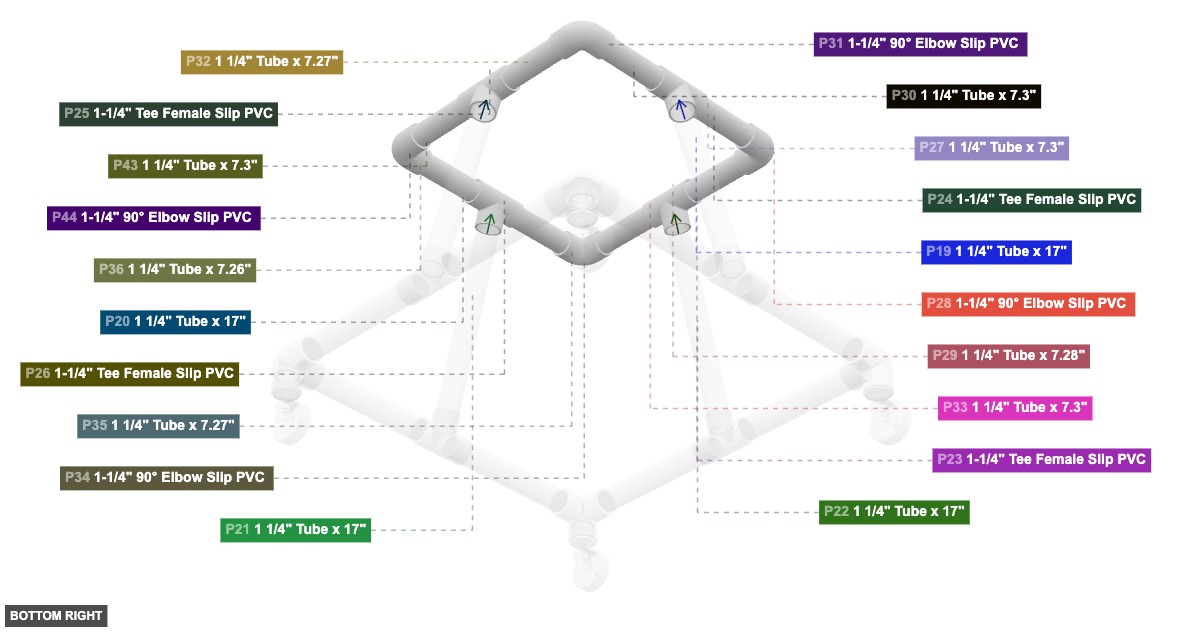

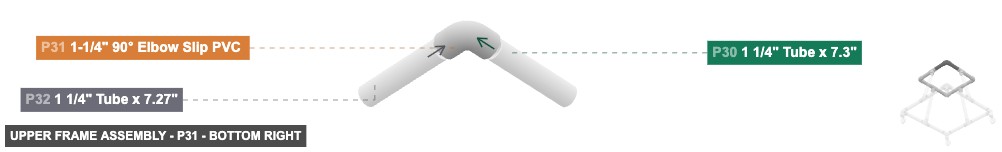

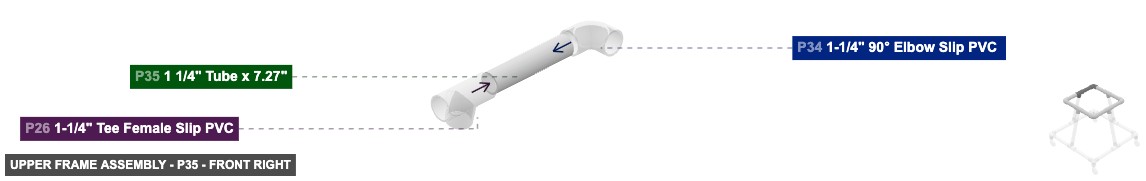

Group: Upper Frame Assembly

Forms the top structure of the walker.

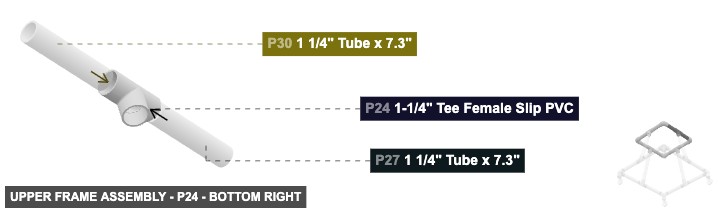

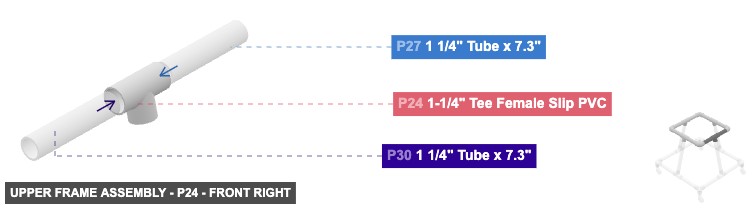

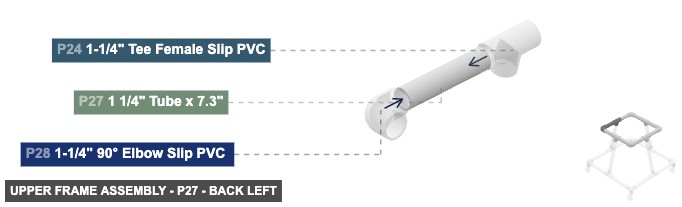

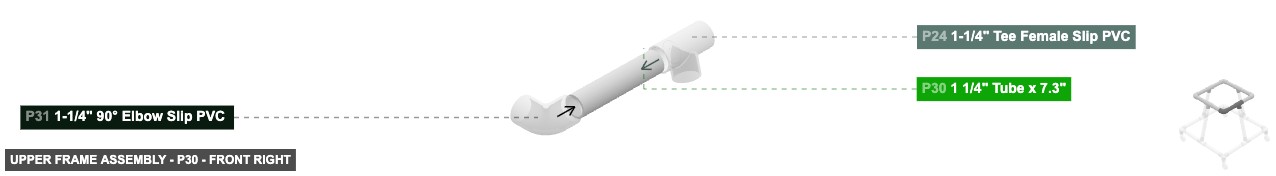

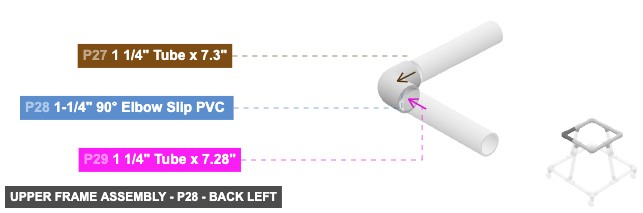

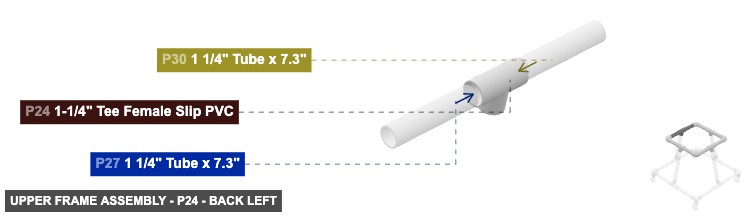

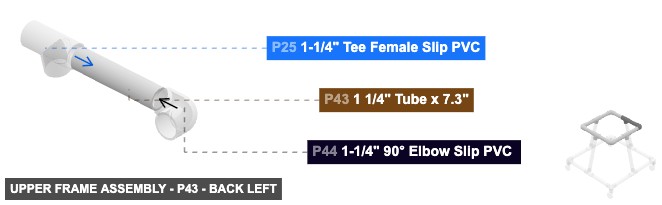

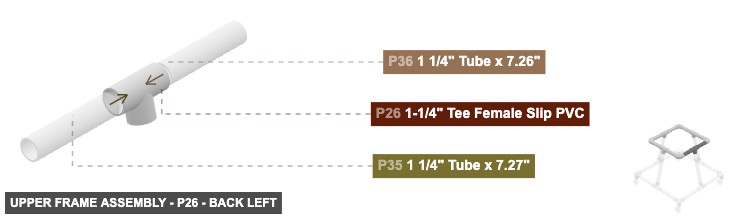

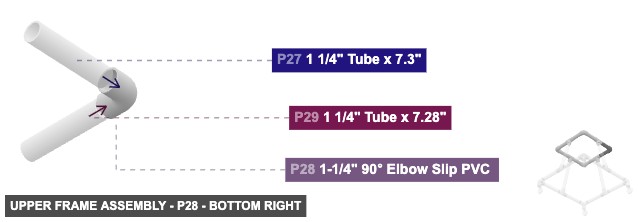

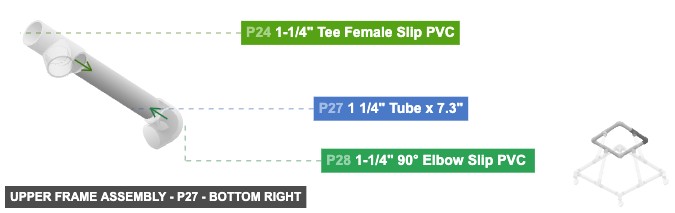

Assemble the rectangular top frame: Connect Tee P24 and Elbow P28 using Tube P27 (7.3"). Connect Elbow P28 and Tee P23 using Tube P29 (7.28"). Connect Tee P23 and Elbow P34 using Tube P33 (7.3"). Connect Elbow P34 and Tee P26 using Tube P35 (7.27"). Connect Tee P26 and Elbow P44 using Tube P36 (7.26"). Connect Elbow P44 and Tee P25 using Tube P43 (7.3"). Connect Tee P25 and Elbow P31 using Tube P32 (7.27"). Connect Elbow P31 and Tee P24 using Tube P30 (7.3"). Ensure all connections are fully seated.

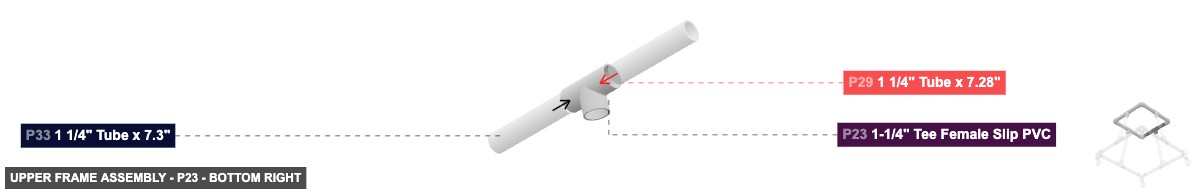

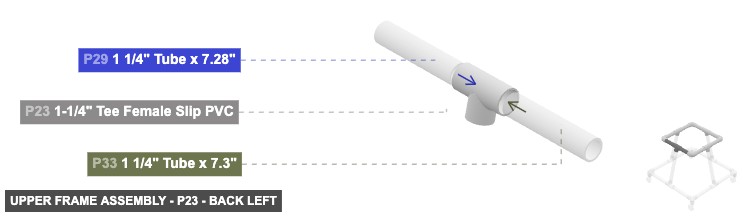

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P23 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 33's 1.25" M SLIP #2, then its 1.25" F SLIP #2, which is right-facing, should connect to part 29's 1.25" M SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

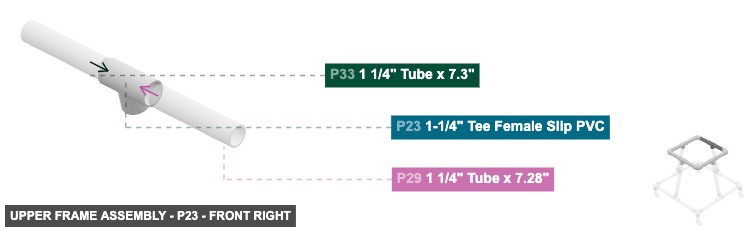

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P24 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 27's 1.25" M SLIP #2. Next, attach its 1.25" F SLIP #2 facing front to part 30's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

P24 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 27's 1.25" M SLIP #2. Next, attach its 1.25" F SLIP #2 facing front to part 30's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

P24 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 27's 1.25" M SLIP #2. Next, attach its 1.25" F SLIP #2 facing front to part 30's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P25 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #2, which is left-facing, should connect to part 43's 1.25" M SLIP #2, also ensure its 1.25" F SLIP #1 faces right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

P25 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #2, which is left-facing, should connect to part 43's 1.25" M SLIP #2, also ensure its 1.25" F SLIP #1 faces right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

P25 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #2, which is left-facing, should connect to part 43's 1.25" M SLIP #2, also ensure its 1.25" F SLIP #1 faces right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: back left

P26 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 36's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is back-facing, should connect to part 35's 1.25" M SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: front right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" Tee Female Slip PVC - Angle: bottom right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: back left

P27 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented back links with part 28's 1.25" F SLIP #1, plus connect its 1.25" M SLIP #2 oriented front links with part 24's 1.25" F SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

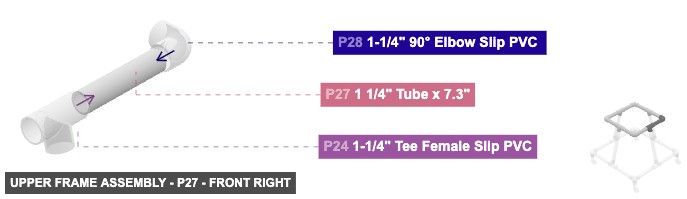

Part: 1 1/4" Tube x 7.3" - Angle: front right

P27 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented back links with part 28's 1.25" F SLIP #1, plus connect its 1.25" M SLIP #2 oriented front links with part 24's 1.25" F SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: bottom right

P27 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented back links with part 28's 1.25" F SLIP #1, plus connect its 1.25" M SLIP #2 oriented front links with part 24's 1.25" F SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

P28 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing front to part 27's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing left to part 29's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

P28 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing front to part 27's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing left to part 29's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

P28 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing front to part 27's 1.25" M SLIP #1, also attach its 1.25" F SLIP #2 facing left to part 29's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.28" - Angle: back left

P29 (1.25" Tube 7.28" length) - connect its 1.25" M SLIP #1 oriented left links with part 23's 1.25" F SLIP #2, also attach its 1.25" M SLIP #2 facing right to part 28's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.28" - Angle: front right

P29 (1.25" Tube 7.28" length) - connect its 1.25" M SLIP #1 oriented left links with part 23's 1.25" F SLIP #2, also attach its 1.25" M SLIP #2 facing right to part 28's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

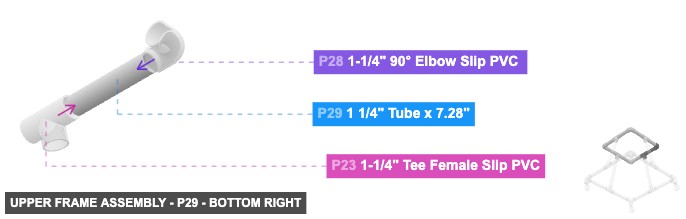

Part: 1 1/4" Tube x 7.28" - Angle: bottom right

P29 (1.25" Tube 7.28" length) - connect its 1.25" M SLIP #1 oriented left links with part 23's 1.25" F SLIP #2, also attach its 1.25" M SLIP #2 facing right to part 28's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

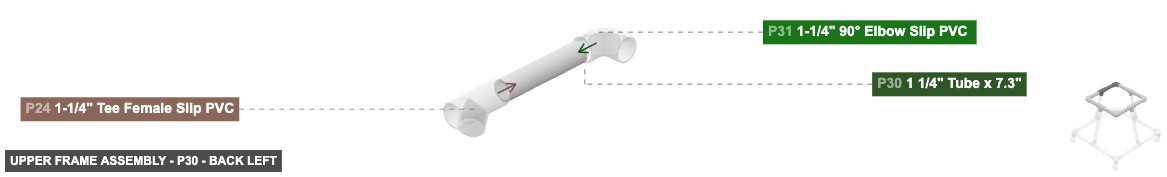

Part: 1 1/4" Tube x 7.3" - Angle: back left

P30 (1.25" Tube 7.3" length) - attach its 1.25" M SLIP #1 facing front to part 31's 1.25" F SLIP #1. Next, attach its 1.25" M SLIP #2 facing back to part 24's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: front right

P30 (1.25" Tube 7.3" length) - attach its 1.25" M SLIP #1 facing front to part 31's 1.25" F SLIP #1. Next, attach its 1.25" M SLIP #2 facing back to part 24's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: bottom right

P30 (1.25" Tube 7.3" length) - attach its 1.25" M SLIP #1 facing front to part 31's 1.25" F SLIP #1. Next, attach its 1.25" M SLIP #2 facing back to part 24's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

P31 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing back to part 30's 1.25" M SLIP #1, then its 1.25" F SLIP #2, which is left-facing, should connect to part 32's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

P31 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing back to part 30's 1.25" M SLIP #1, then its 1.25" F SLIP #2, which is left-facing, should connect to part 32's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

P31 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing back to part 30's 1.25" M SLIP #1, then its 1.25" F SLIP #2, which is left-facing, should connect to part 32's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.27" - Angle: back left

P32 (1.25" Tube 7.27" length) - its 1.25" M SLIP #2, which is right-facing, should connect to part 31's 1.25" F SLIP #2. After that, its 1.25" M SLIP #1 should be directed left

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.27" - Angle: front right

P32 (1.25" Tube 7.27" length) - its 1.25" M SLIP #2, which is right-facing, should connect to part 31's 1.25" F SLIP #2. After that, its 1.25" M SLIP #1 should be directed left

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

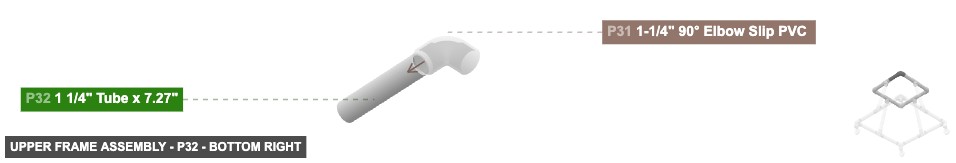

Part: 1 1/4" Tube x 7.27" - Angle: bottom right

P32 (1.25" Tube 7.27" length) - its 1.25" M SLIP #2, which is right-facing, should connect to part 31's 1.25" F SLIP #2. After that, its 1.25" M SLIP #1 should be directed left

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

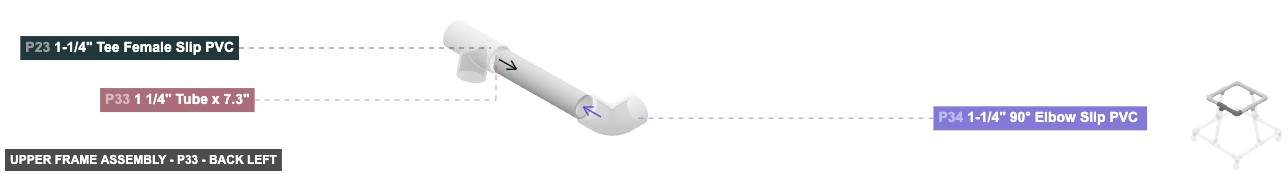

Part: 1 1/4" Tube x 7.3" - Angle: back left

P33 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented left links with part 34's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is right-facing, should connect to part 23's 1.25" F SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: front right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

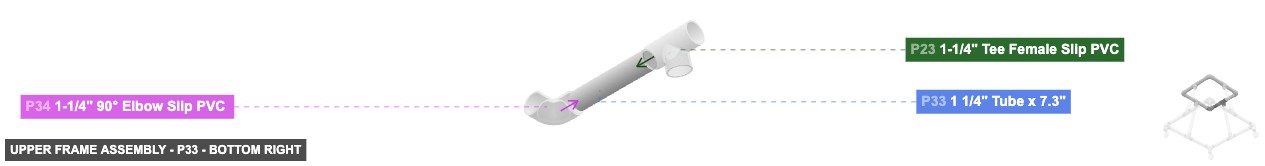

Part: 1 1/4" Tube x 7.3" - Angle: bottom right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

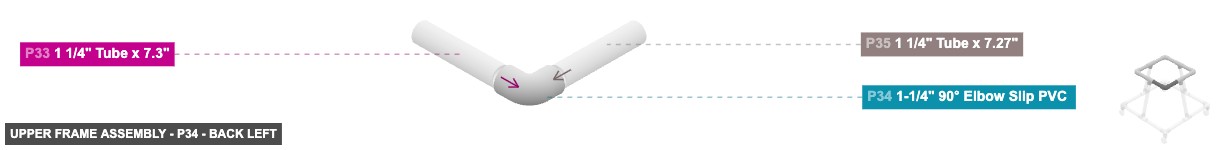

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

P34 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing right to part 33's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing front to part 35's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

P34 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing right to part 33's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing front to part 35's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

P34 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing right to part 33's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #2 facing front to part 35's 1.25" M SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.27" - Angle: back left

P35 (1.25" Tube 7.27" length) - attach its 1.25" M SLIP #1 facing front to part 26's 1.25" F SLIP #2. Next, its 1.25" M SLIP #2, which is back-facing, should connect to part 34's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.27" - Angle: front right

P35 (1.25" Tube 7.27" length) - attach its 1.25" M SLIP #1 facing front to part 26's 1.25" F SLIP #2. Next, its 1.25" M SLIP #2, which is back-facing, should connect to part 34's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.27" - Angle: bottom right

P35 (1.25" Tube 7.27" length) - attach its 1.25" M SLIP #1 facing front to part 26's 1.25" F SLIP #2. Next, its 1.25" M SLIP #2, which is back-facing, should connect to part 34's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.26" - Angle: back left

P36 (1.25" Tube 7.26" length) - attach its 1.25" M SLIP #1 facing back to part 26's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is front-facing, should connect to part 44's 1.25" F SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.26" - Angle: front right

P36 (1.25" Tube 7.26" length) - attach its 1.25" M SLIP #1 facing back to part 26's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is front-facing, should connect to part 44's 1.25" F SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.26" - Angle: bottom right

P36 (1.25" Tube 7.26" length) - attach its 1.25" M SLIP #1 facing back to part 26's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is front-facing, should connect to part 44's 1.25" F SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: back left

P43 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented left links with part 44's 1.25" F SLIP #2, also attach its 1.25" M SLIP #2 facing right to part 25's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: front right

P43 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented left links with part 44's 1.25" F SLIP #2, also attach its 1.25" M SLIP #2 facing right to part 25's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1 1/4" Tube x 7.3" - Angle: bottom right

P43 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented left links with part 44's 1.25" F SLIP #2, also attach its 1.25" M SLIP #2 facing right to part 25's 1.25" F SLIP #2

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: back left

P44 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing back to part 36's 1.25" M SLIP #2. Next, its 1.25" F SLIP #2, which is right-facing, should connect to part 43's 1.25" M SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: front right

P44 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing back to part 36's 1.25" M SLIP #2. Next, its 1.25" F SLIP #2, which is right-facing, should connect to part 43's 1.25" M SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Part: 1-1/4" 90° Elbow Slip PVC - Angle: bottom right

P44 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing back to part 36's 1.25" M SLIP #2. Next, its 1.25" F SLIP #2, which is right-facing, should connect to part 43's 1.25" M SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Group: Wheel Assembly Installation

Allows the walker to roll.

For the Front Right corner: Insert Wheel P3 (Caster Insert 7/16") into Caster Fitting P2 (Caster Socket 7/16"). Then, insert the top Male SLIP 1 1/4" end of P2 into the bottom Female SLIP 1 1/4" opening of Base Frame corner fitting P1. Repeat for the other corners: P42/P41 into P8 (Front Left), P38/P37 into P13 (Back Left), P40/P39 into P15 (Back Right).

Part: 1-1/4" Caster Fitting Slip PVC - Angle: back left

Wheel Assembly Installation - Part 1-1/4

P2 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 3's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: front right

P2 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 3's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: bottom right

P2 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 3's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: back left

P3 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 2's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: front right

P3 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 2's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: bottom right

P3 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 2's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: back left

P37 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 38's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

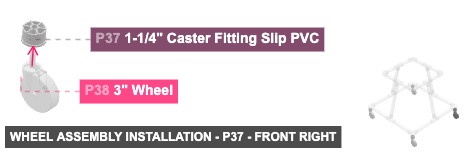

Part: 1-1/4" Caster Fitting Slip PVC - Angle: front right

P37 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 38's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

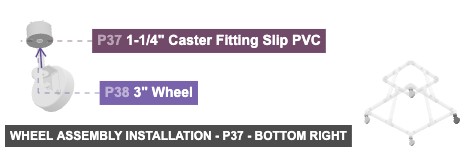

Part: 1-1/4" Caster Fitting Slip PVC - Angle: bottom right

P37 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 38's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: back left

P38 (3" Wheel) - its 0.4375" Caster Insert #1, which is top-facing, should connect to part 37's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: front right

P38 (3" Wheel) - its 0.4375" Caster Insert #1, which is top-facing, should connect to part 37's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: bottom right

P38 (3" Wheel) - its 0.4375" Caster Insert #1, which is top-facing, should connect to part 37's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: back left

P39 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 40's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

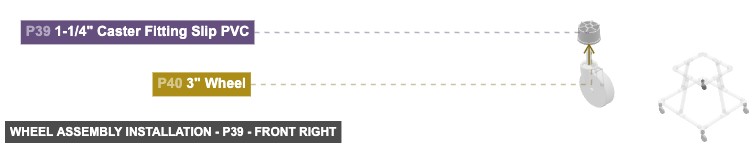

Part: 1-1/4" Caster Fitting Slip PVC - Angle: front right

P39 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 40's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: bottom right

P39 (1.25" Caster Fitting Slip PVC) - attach its 0.4375" Caster Socket #1 facing bottom to part 40's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: back left

P40 (3" Wheel) - attach its 0.4375" Caster Insert #1 facing top to part 39's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: front right

P40 (3" Wheel) - attach its 0.4375" Caster Insert #1 facing top to part 39's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

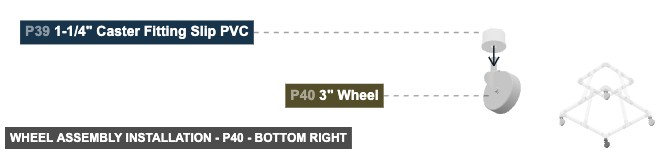

Part: 3" Wheel - Angle: bottom right

P40 (3" Wheel) - attach its 0.4375" Caster Insert #1 facing top to part 39's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: back left

P41 (1.25" Caster Fitting Slip PVC) - its 0.4375" Caster Socket #1, which is bottom-facing, should connect to part 42's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: front right

P41 (1.25" Caster Fitting Slip PVC) - its 0.4375" Caster Socket #1, which is bottom-facing, should connect to part 42's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 1-1/4" Caster Fitting Slip PVC - Angle: bottom right

P41 (1.25" Caster Fitting Slip PVC) - its 0.4375" Caster Socket #1, which is bottom-facing, should connect to part 42's 0.4375" Caster Insert #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: back left

P42 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 41's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: front right

P42 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 41's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Part: 3" Wheel - Angle: bottom right

P42 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 41's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Phase 3: Inter-Group Assembly

Attaching: Lower Base Frame Assembly

Forms the bottom structure of the walker.

The vertical supports will attach to the top Female SLIP 1 1/4" openings of Tees P6, P10, P11, P17. The wheel assemblies will attach to the bottom Female SLIP 1 1/4" openings of corner fittings P1, P8, P13, P15.

Angle: back left

Assembly of Lower Base Frame Assembly - back_left

P1 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 4's 1.25" M SLIP #2. After that, its 1.25" F SLIP #2, which is left-facing, should connect to part 5's 1.25" M SLIP #2, then connect its 1.25" F SLIP #3 oriented bottom links with part 2's 1.25" M SLIP #1 P4 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 11's 1.25" F SLIP #1. Next, its 1.25" M SLIP #2, which is front-facing, should connect to part 1's 1.25" F SLIP #1 P5 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing left to part 6's 1.25" F SLIP #1. Next, connect its 1.25" M SLIP #2 oriented right links with part 1's 1.25" F SLIP #2 P6 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is right-facing, should connect to part 5's 1.25" M SLIP #1. Also, its 1.25" F SLIP #2, which is left-facing, should connect to part 7's 1.25" M SLIP #2, and attach its 1.25" F SLIP #3 facing top to part 20's 1.25" M SLIP #2 P7 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing left to part 8's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is right-facing, should connect to part 6's 1.25" F SLIP #2 P8 (1.25" 3-Way Outlet Slip PVC) - attach its 1.25" F SLIP #1 facing right to part 7's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented back links with part 9's 1.25" M SLIP #2, then connect its 1.25" F SLIP #3 oriented bottom links with part 41's 1.25" M SLIP #1 P9 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 10's 1.25" F SLIP #1, then its 1.25" M SLIP #2, which is front-facing, should connect to part 8's 1.25" F SLIP #2 P10 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing front to part 9's 1.25" M SLIP #1, also its 1.25" F SLIP #2, which is back-facing, should connect to part 14's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #3, which is top-facing, should connect to part 21's 1.25" M SLIP #2 P11 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented front links with part 4's 1.25" M SLIP #1, plus connect its 1.25" F SLIP #2 oriented back links with part 12's 1.25" M SLIP #2, then its 1.25" F SLIP #3, which is top-facing, should connect to part 19's 1.25" M SLIP #2 P12 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented back links with part 13's 1.25" F SLIP #1. Next, attach its 1.25" M SLIP #2 facing front to part 11's 1.25" F SLIP #2 P13 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is front-facing, should connect to part 12's 1.25" M SLIP #1, then its 1.25" F SLIP #2, which is bottom-facing, should connect to part 37's 1.25" M SLIP #1. After that, its 1.25" F SLIP #3, which is left-facing, should connect to part 18's 1.25" M SLIP #1 P14 (1.25" Tube 12" length) - its 1.25" M SLIP #1, which is back-facing, should connect to part 15's 1.25" F SLIP #1, plus connect its 1.25" M SLIP #2 oriented front links with part 10's 1.25" F SLIP #2 P15 (1.25" 3-Way Outlet Slip PVC) - its 1.25" F SLIP #1, which is front-facing, should connect to part 14's 1.25" M SLIP #1. Additionally, connect its 1.25" F SLIP #2 oriented right links with part 16's 1.25" M SLIP #2. Also, its 1.25" F SLIP #3, which is bottom-facing, should connect to part 39's 1.25" M SLIP #1 P16 (1.25" Tube 12" length) - attach its 1.25" M SLIP #1 facing right to part 17's 1.25" F SLIP #1. After that, its 1.25" M SLIP #2, which is left-facing, should connect to part 15's 1.25" F SLIP #2 P17 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #1 oriented left links with part 16's 1.25" M SLIP #1, also connect its 1.25" F SLIP #2 oriented right links with part 18's 1.25" M SLIP #2, then connect its 1.25" F SLIP #3 oriented top links with part 22's 1.25" M SLIP #2 P18 (1.25" Tube 12" length) - connect its 1.25" M SLIP #1 oriented right links with part 13's 1.25" F SLIP #3. Additionally, its 1.25" M SLIP #2, which is left-facing, should connect to part 17's 1.25" F SLIP #2

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Angle: front right

Assembly of Lower Base Frame Assembly - front_right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Angle: bottom right

Assembly of Lower Base Frame Assembly - bottom_right

1-1/4" 3-Way Outlet Slip PVCx 4

1 1/4" Tube x 12"x 8

1-1/4" Tee Female Slip PVCx 4

Attaching: Upper Frame Assembly

Forms the top structure of the walker.

This frame will attach to the top of the vertical supports via the bottom Female SLIP 1 1/4" openings of Tees P23, P24, P25, P26.

Angle: back left

Assembly of Upper Frame Assembly - back_left

P23 (1.25" Tee F Slip PVC) - its 1.25" F SLIP #1, which is left-facing, should connect to part 33's 1.25" M SLIP #2. Additionally, attach its 1.25" F SLIP #2 facing right to part 29's 1.25" M SLIP #1, plus attach its 1.25" F SLIP #3 facing bottom to part 22's 1.25" M SLIP #1 P24 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing back to part 27's 1.25" M SLIP #2, also connect its 1.25" F SLIP #2 oriented front links with part 30's 1.25" M SLIP #2. Also, attach its 1.25" F SLIP #3 facing bottom to part 19's 1.25" M SLIP #1 P25 (1.25" Tee F Slip PVC) - connect its 1.25" F SLIP #2 oriented left links with part 43's 1.25" M SLIP #2. Additionally, its 1.25" F SLIP #3, which is bottom-facing, should connect to part 20's 1.25" M SLIP #1, also its 1.25" F SLIP #1 needs to point right P26 (1.25" Tee F Slip PVC) - attach its 1.25" F SLIP #1 facing front to part 36's 1.25" M SLIP #1, and its 1.25" F SLIP #2, which is back-facing, should connect to part 35's 1.25" M SLIP #1. Additionally, attach its 1.25" F SLIP #3 facing bottom to part 21's 1.25" M SLIP #1 P27 (1.25" Tube 7.3" length) - attach its 1.25" M SLIP #1 facing back to part 28's 1.25" F SLIP #1, then connect its 1.25" M SLIP #2 oriented front links with part 24's 1.25" F SLIP #1 P28 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing front to part 27's 1.25" M SLIP #1, and connect its 1.25" F SLIP #2 oriented left links with part 29's 1.25" M SLIP #2 P29 (1.25" Tube 7.28" length) - its 1.25" M SLIP #1, which is left-facing, should connect to part 23's 1.25" F SLIP #2. Also, its 1.25" M SLIP #2, which is right-facing, should connect to part 28's 1.25" F SLIP #2 P30 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented front links with part 31's 1.25" F SLIP #1. Also, its 1.25" M SLIP #2, which is back-facing, should connect to part 24's 1.25" F SLIP #2 P31 (1.25" 90° Elbow Slip PVC ) - connect its 1.25" F SLIP #1 oriented back links with part 30's 1.25" M SLIP #1. Also, attach its 1.25" F SLIP #2 facing left to part 32's 1.25" M SLIP #2 P32 (1.25" Tube 7.27" length) - its 1.25" M SLIP #2, which is right-facing, should connect to part 31's 1.25" F SLIP #2. Also, its 1.25" M SLIP #1 must be oriented left P33 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented left links with part 34's 1.25" F SLIP #1. Additionally, attach its 1.25" M SLIP #2 facing right to part 23's 1.25" F SLIP #1 P34 (1.25" 90° Elbow Slip PVC ) - attach its 1.25" F SLIP #1 facing right to part 33's 1.25" M SLIP #1. Additionally, its 1.25" F SLIP #2, which is front-facing, should connect to part 35's 1.25" M SLIP #2 P35 (1.25" Tube 7.27" length) - attach its 1.25" M SLIP #1 facing front to part 26's 1.25" F SLIP #2. After that, connect its 1.25" M SLIP #2 oriented back links with part 34's 1.25" F SLIP #2 P36 (1.25" Tube 7.26" length) - connect its 1.25" M SLIP #1 oriented back links with part 26's 1.25" F SLIP #1. Also, connect its 1.25" M SLIP #2 oriented front links with part 44's 1.25" F SLIP #1 P43 (1.25" Tube 7.3" length) - connect its 1.25" M SLIP #1 oriented left links with part 44's 1.25" F SLIP #2, then its 1.25" M SLIP #2, which is right-facing, should connect to part 25's 1.25" F SLIP #2 P44 (1.25" 90° Elbow Slip PVC ) - its 1.25" F SLIP #1, which is back-facing, should connect to part 36's 1.25" M SLIP #2, also its 1.25" F SLIP #2, which is right-facing, should connect to part 43's 1.25" M SLIP #1

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Angle: front right

Assembly of Upper Frame Assembly - front_right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Angle: bottom right

Assembly of Upper Frame Assembly - bottom_right

1-1/4" Tee Female Slip PVCx 4

1 1/4" Tube x 7.3"x 4

1-1/4" 90° Elbow Slip PVC x 4

1 1/4" Tube x 7.28"x 1

1 1/4" Tube x 7.27"x 2

1 1/4" Tube x 7.26"x 1

Attaching: Vertical Supports and Frame Combination

Connects the base frame to the top frame, providing height.

The combined frame structure is now ready for the wheel assemblies to be attached to the base.

Angle: back left

Assembly of Vertical Supports and Frame Combination - back_left

P19 (1.25" Tube 17" length) - connect its 1.25" M SLIP #1 oriented top links with part 24's 1.25" F SLIP #3, plus its 1.25" M SLIP #2, which is bottom-facing, should connect to part 11's 1.25" F SLIP #3 P20 (1.25" Tube 17" length) - its 1.25" M SLIP #1, which is top-facing, should connect to part 25's 1.25" F SLIP #3, plus connect its 1.25" M SLIP #2 oriented bottom links with part 6's 1.25" F SLIP #3 P21 (1.25" Tube 17" length) - connect its 1.25" M SLIP #1 oriented top links with part 26's 1.25" F SLIP #3. Additionally, its 1.25" M SLIP #2, which is bottom-facing, should connect to part 10's 1.25" F SLIP #3 P22 (1.25" Tube 17" length) - connect its 1.25" M SLIP #1 oriented top links with part 23's 1.25" F SLIP #3, also its 1.25" M SLIP #2, which is bottom-facing, should connect to part 17's 1.25" F SLIP #3

1 1/4" Tube x 17"x 4

Angle: front right

Assembly of Vertical Supports and Frame Combination - front_right

1 1/4" Tube x 17"x 4

Angle: bottom right

Assembly of Vertical Supports and Frame Combination - bottom_right

1 1/4" Tube x 17"x 4

Attaching: Wheel Assembly Installation

Allows the walker to roll.

This completes the final assembly of the baby walker.

Angle: back left

Assembly of Wheel Assembly Installation - back_left

P2 (1.25" Caster Fitting Slip PVC) - its 0.4375" Caster Socket #1, which is bottom-facing, should connect to part 3's 0.4375" Caster Insert #1, and attach its 1.25" M SLIP #1 facing top to part 1's 1.25" F SLIP #3 P3 (3" Wheel) - its 0.4375" Caster Insert #1, which is top-facing, should connect to part 2's 0.4375" Caster Socket #1 P37 (1.25" Caster Fitting Slip PVC) - connect its 0.4375" Caster Socket #1 oriented bottom links with part 38's 0.4375" Caster Insert #1, and its 1.25" M SLIP #1, which is top-facing, should connect to part 13's 1.25" F SLIP #2 P38 (3" Wheel) - attach its 0.4375" Caster Insert #1 facing top to part 37's 0.4375" Caster Socket #1 P39 (1.25" Caster Fitting Slip PVC) - its 0.4375" Caster Socket #1, which is bottom-facing, should connect to part 40's 0.4375" Caster Insert #1, plus connect its 1.25" M SLIP #1 oriented top links with part 15's 1.25" F SLIP #3 P40 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 39's 0.4375" Caster Socket #1 P41 (1.25" Caster Fitting Slip PVC) - connect its 0.4375" Caster Socket #1 oriented bottom links with part 42's 0.4375" Caster Insert #1, and its 1.25" M SLIP #1, which is top-facing, should connect to part 8's 1.25" F SLIP #3 P42 (3" Wheel) - connect its 0.4375" Caster Insert #1 oriented top links with part 41's 0.4375" Caster Socket #1

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Angle: front right

Assembly of Wheel Assembly Installation - front_right

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4

Angle: bottom right

Assembly of Wheel Assembly Installation - bottom_right

1-1/4" Caster Fitting Slip PVCx 4

3" Wheelx 4
