3D Printer Frame - Comprehensive Assembly Plan And Visual Guide

3D Printer Frame Free Plan And Visual Guide

A cubic frame constructed from 1" T-slot aluminum extrusions (four long vertical posts, twelve shorter horizontal rails forming bottom, middle, and top squares), connected by angle joints. It includes top and bottom end caps for the vertical posts and a flat acrylic panel mounted horizontally near the bottom using panel hangers. - 3D Printer Frame / Enclosure FrameA tall, cuboid structural frame for a 3D printer, constructed from T-slot aluminum extrusions. It is composed of a base square, a top square, and a middle shelf, all connected by four vertical posts. - 3D Printer Frame

Phase 1: Group Overview

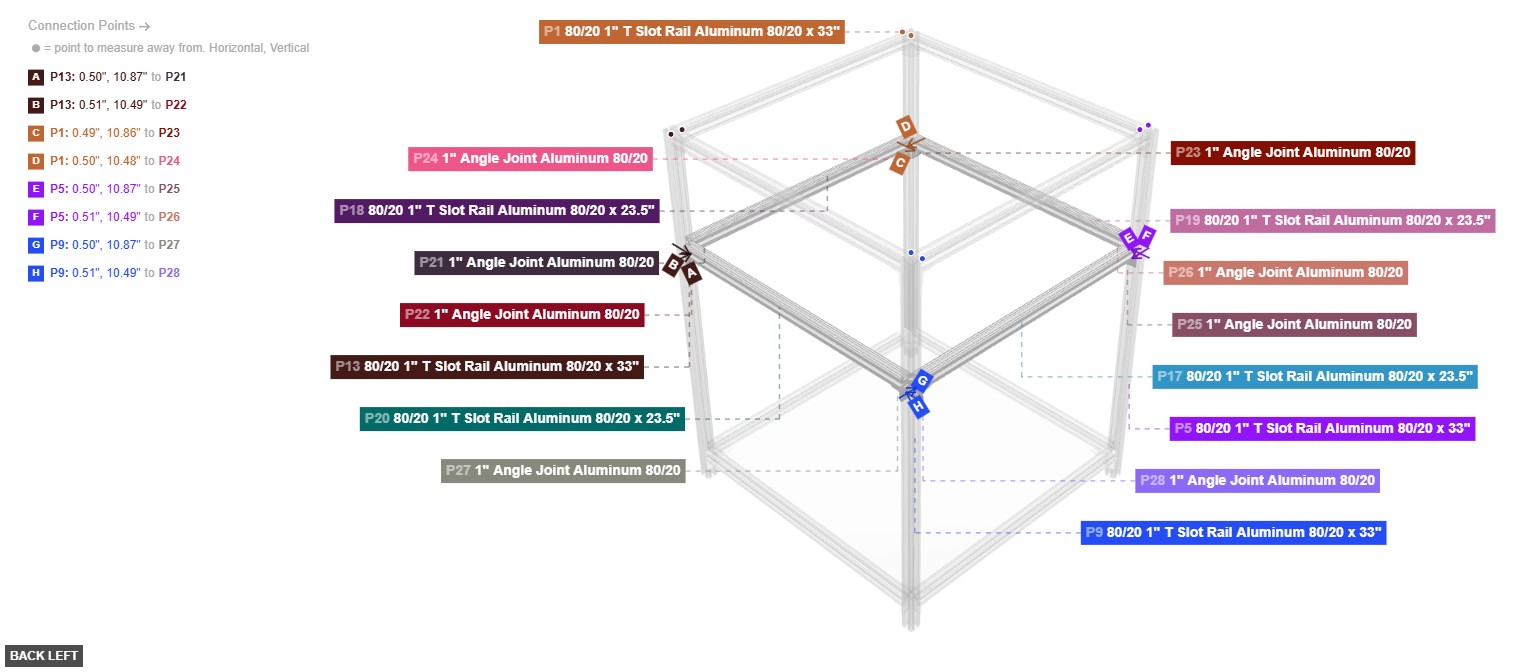

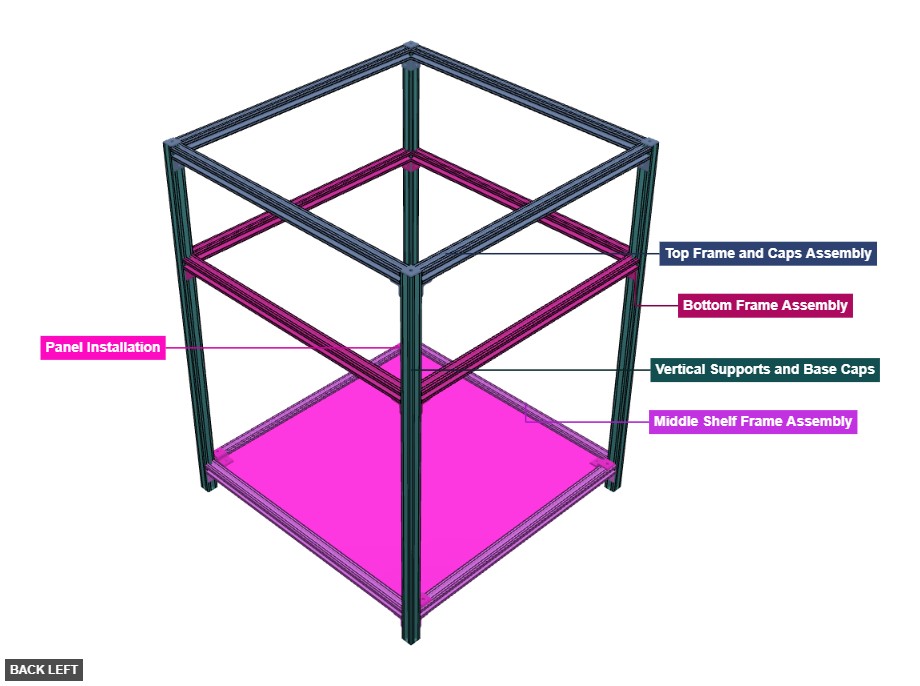

Angle: back left

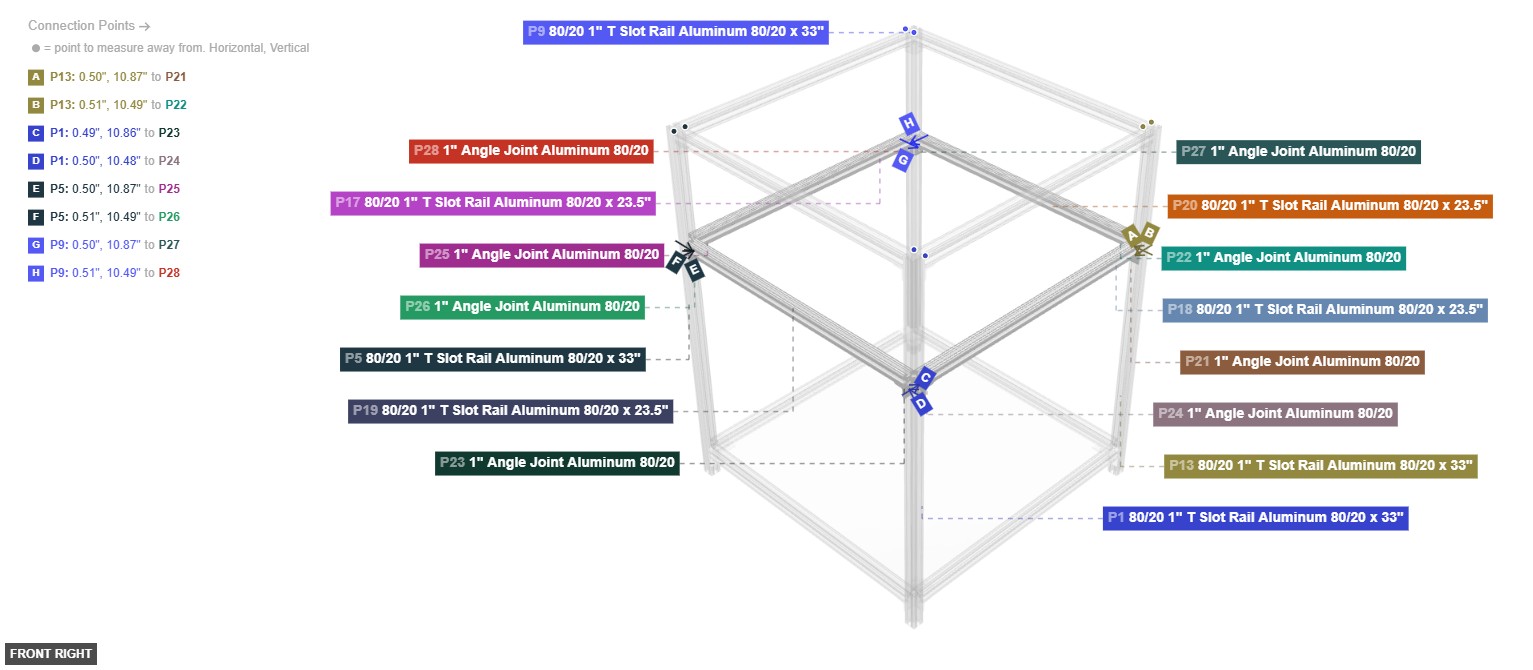

Bottom Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Vertical Supports and Base Caps

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

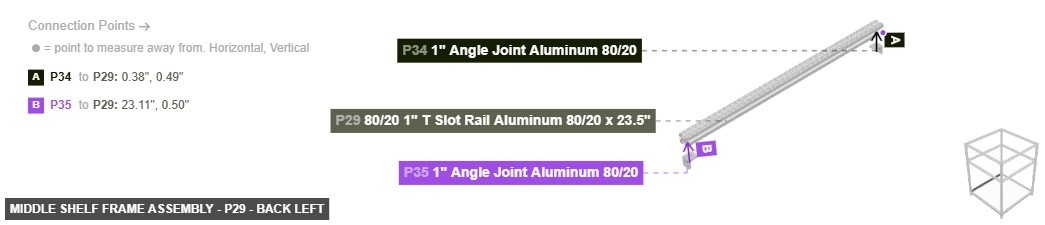

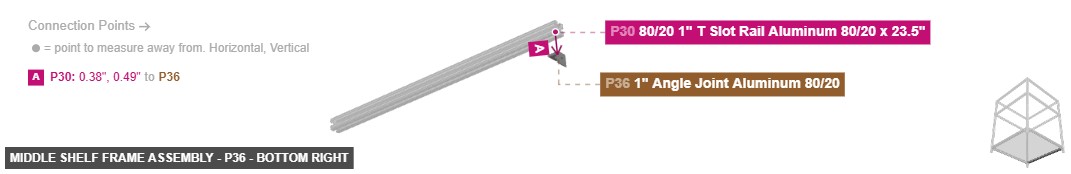

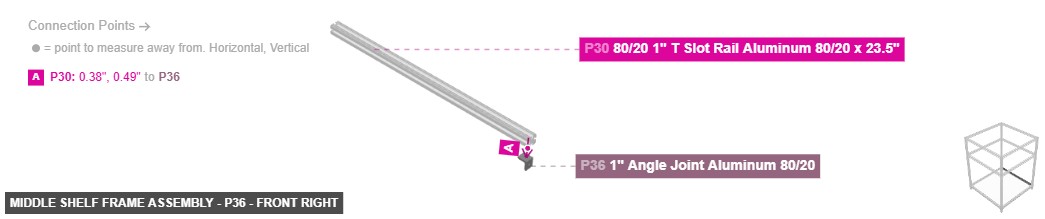

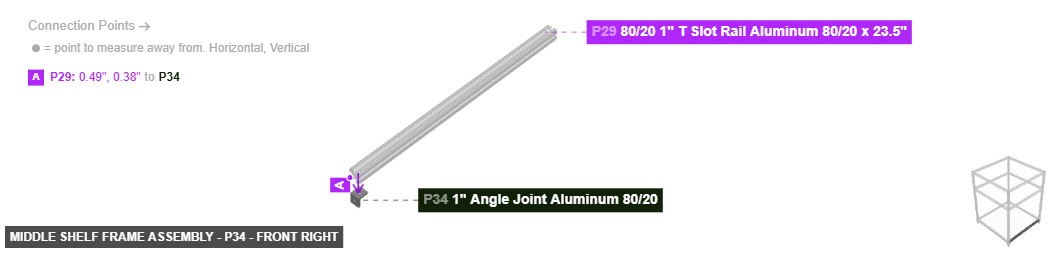

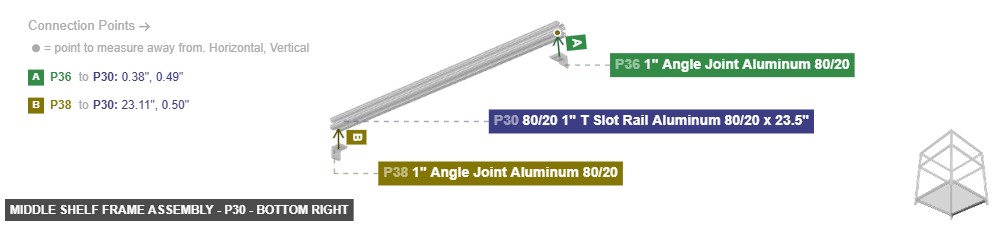

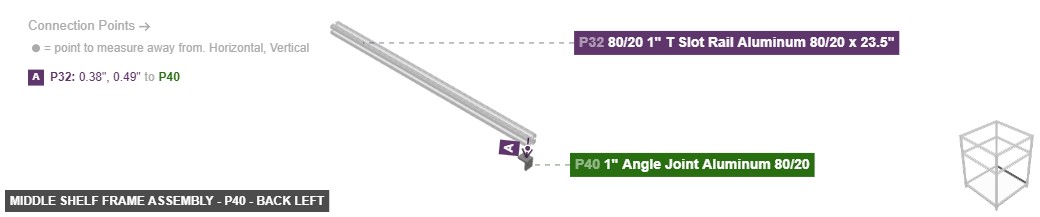

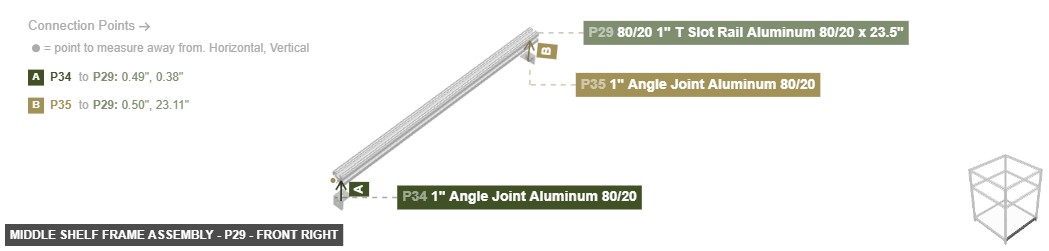

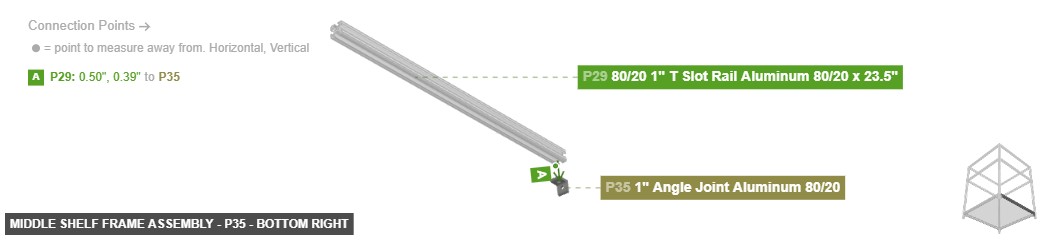

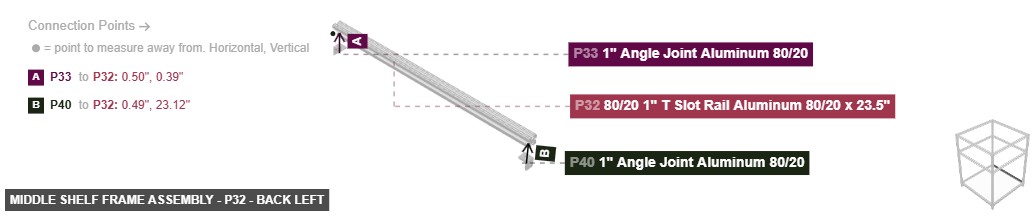

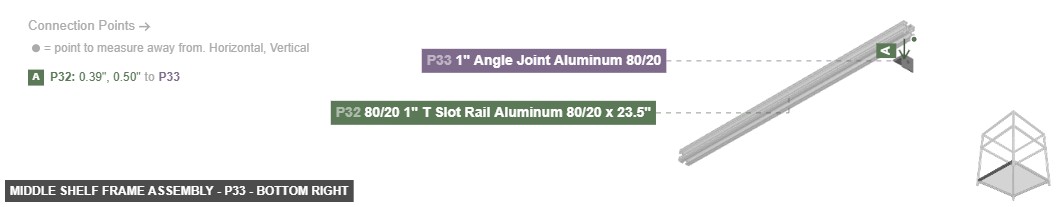

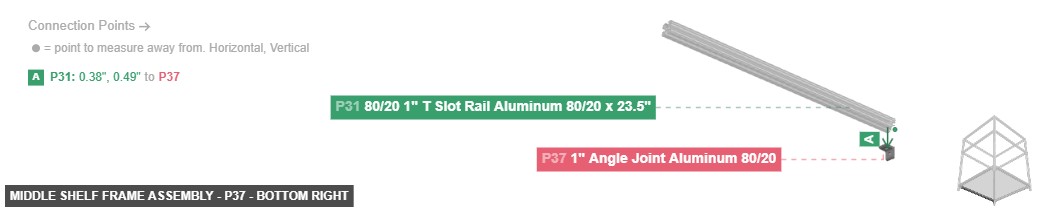

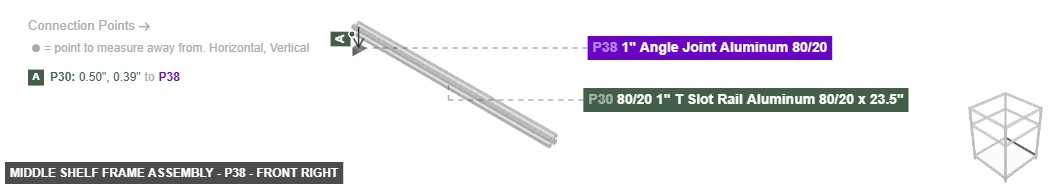

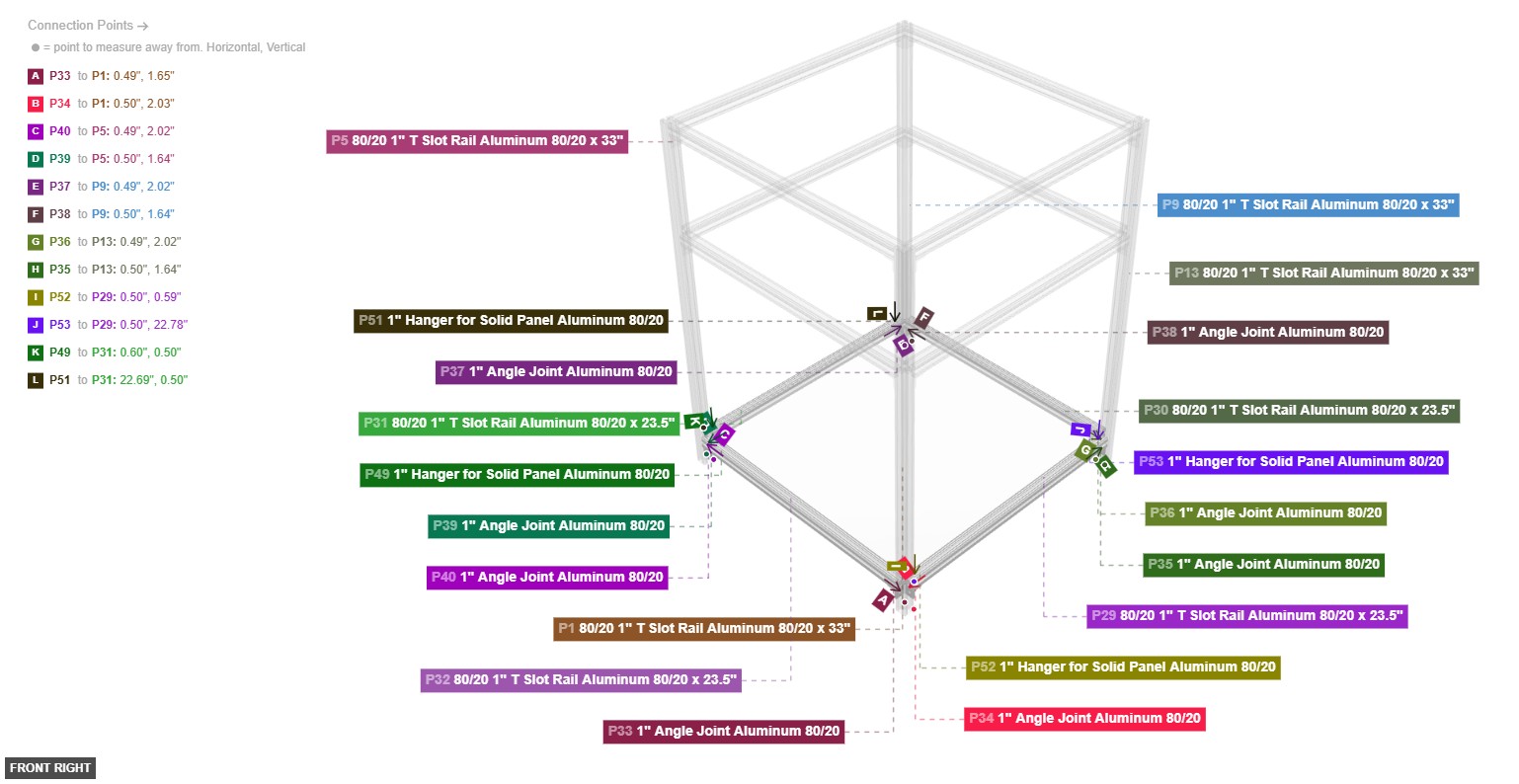

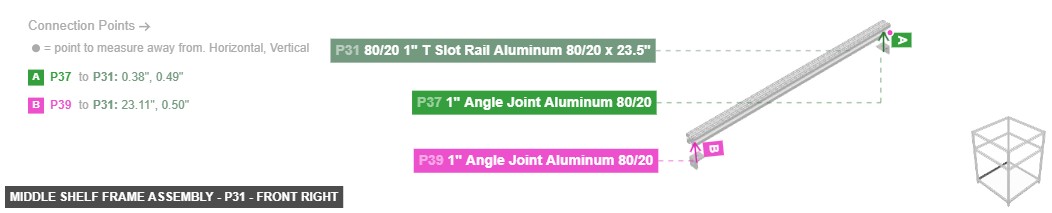

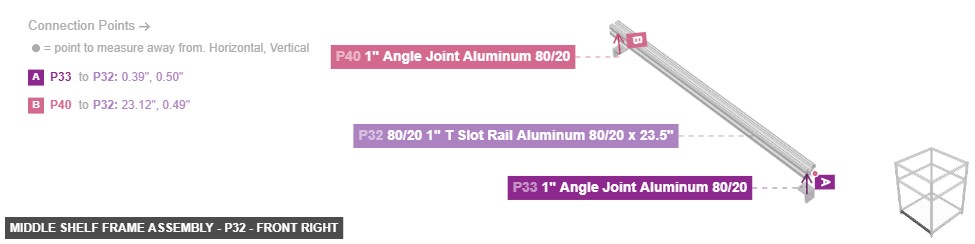

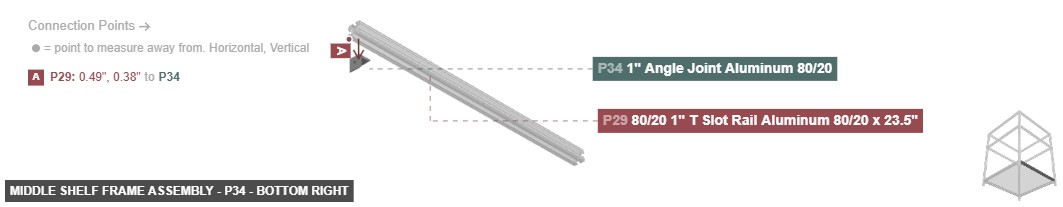

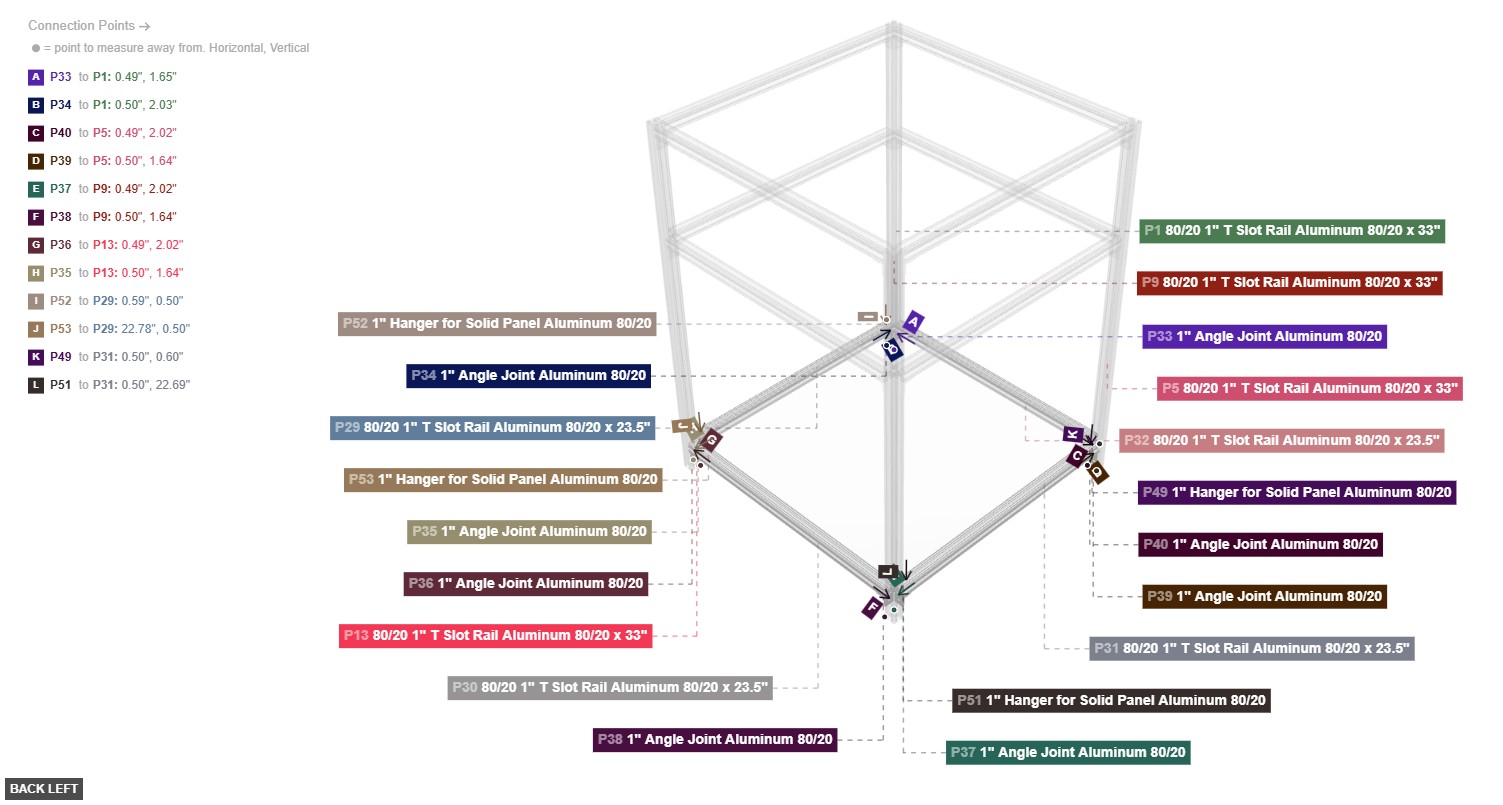

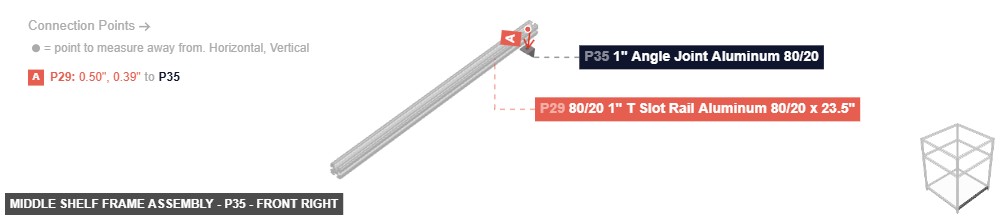

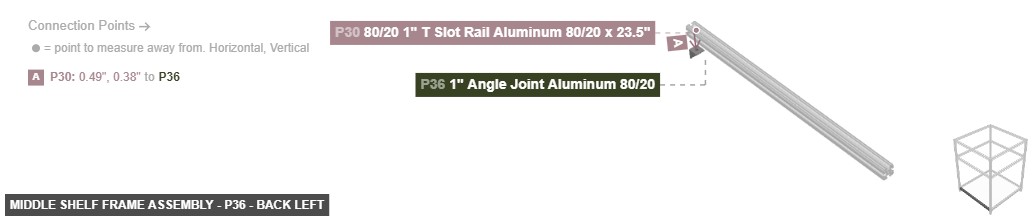

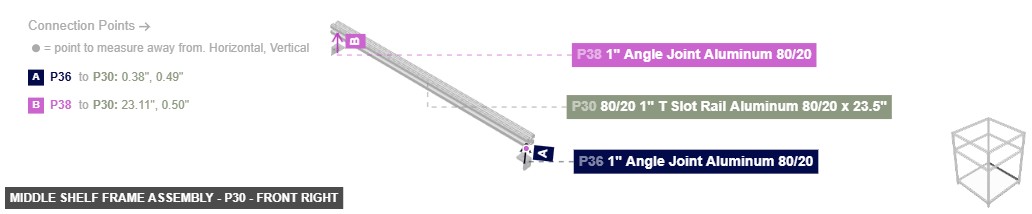

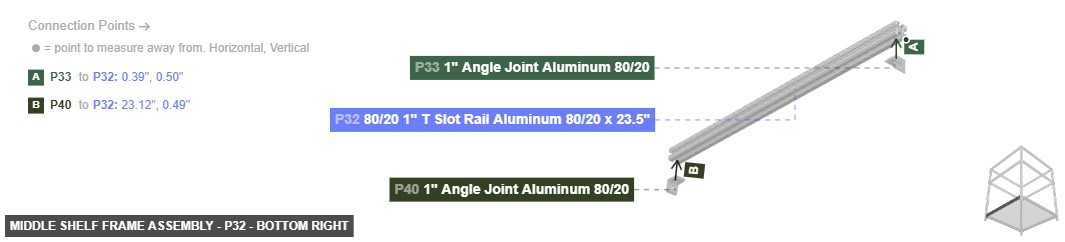

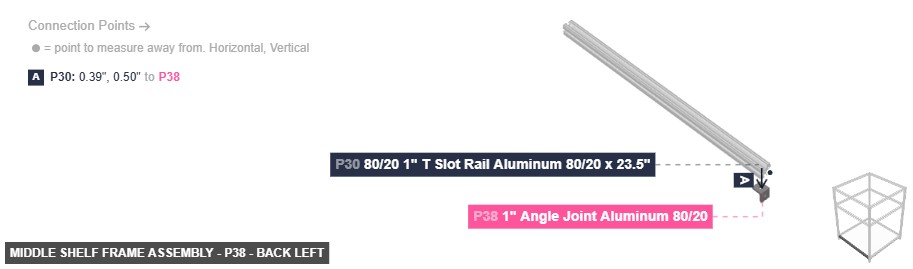

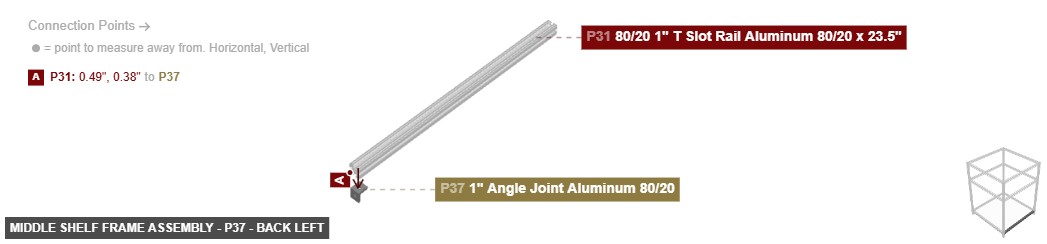

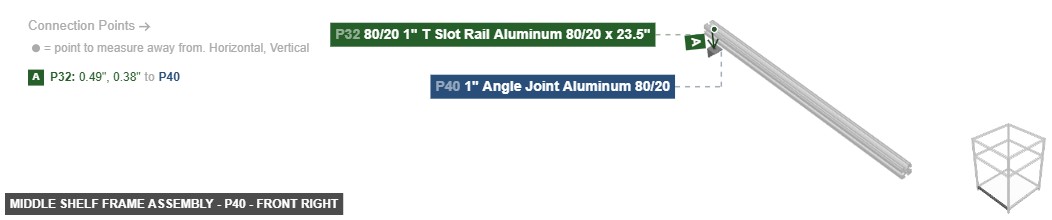

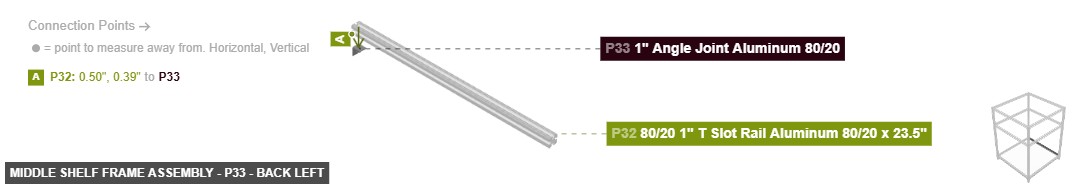

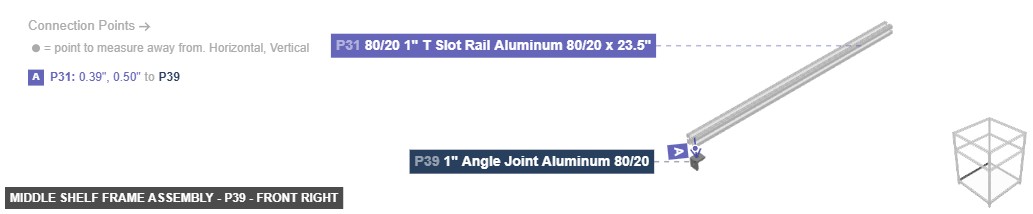

Middle Shelf Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

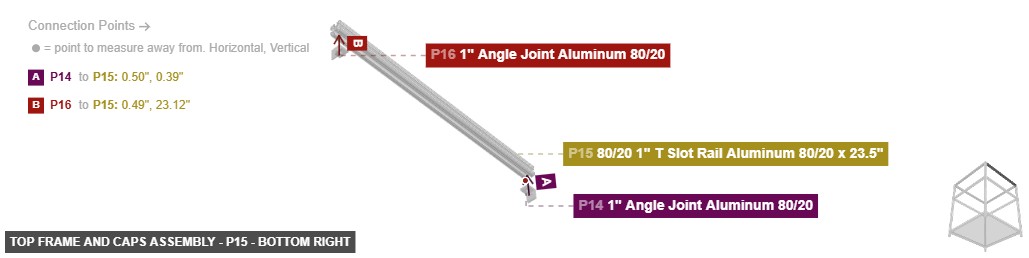

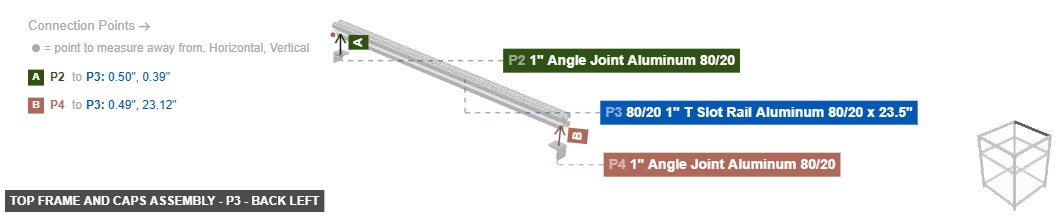

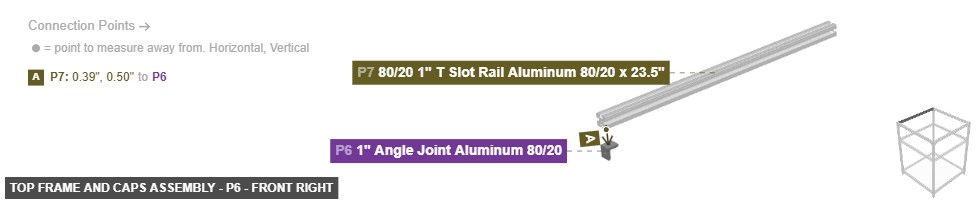

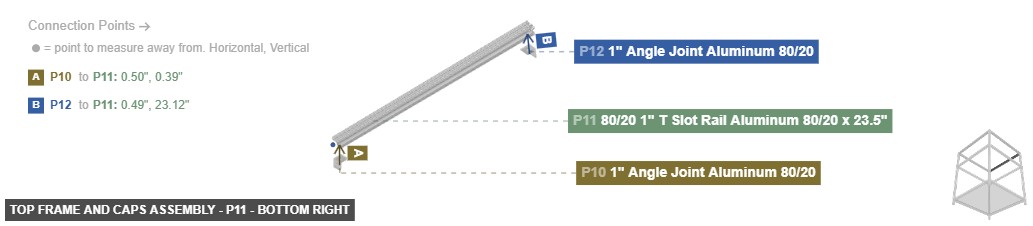

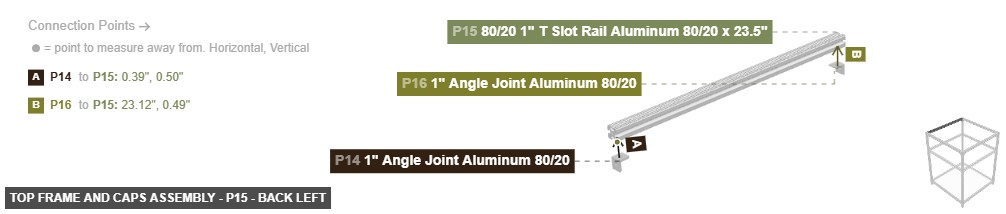

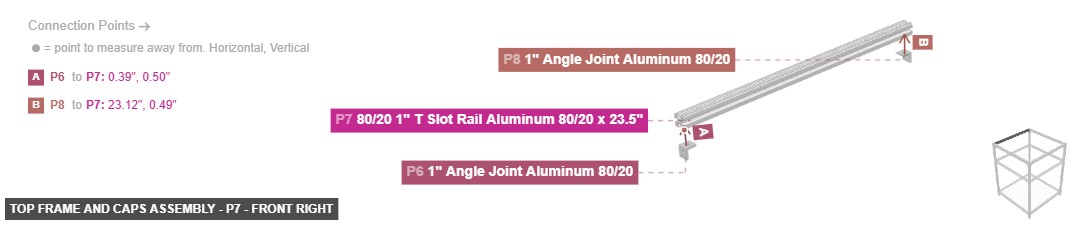

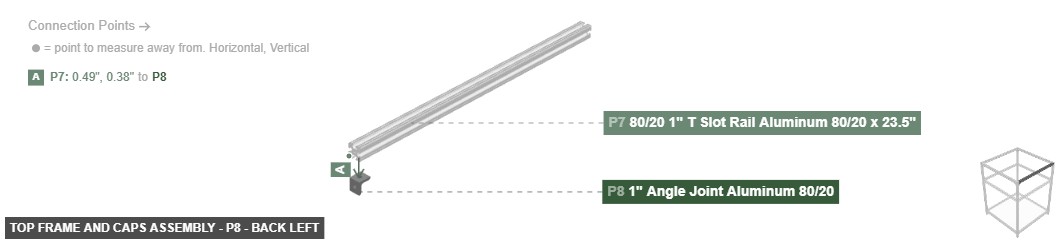

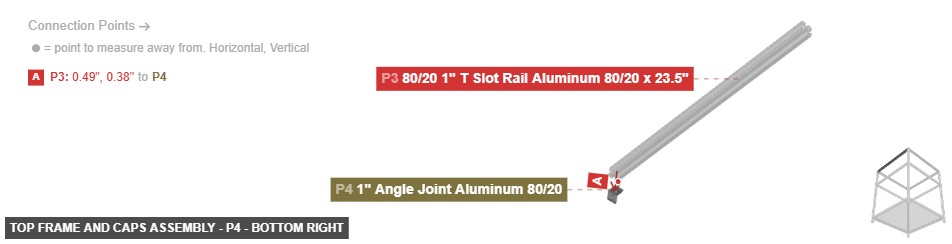

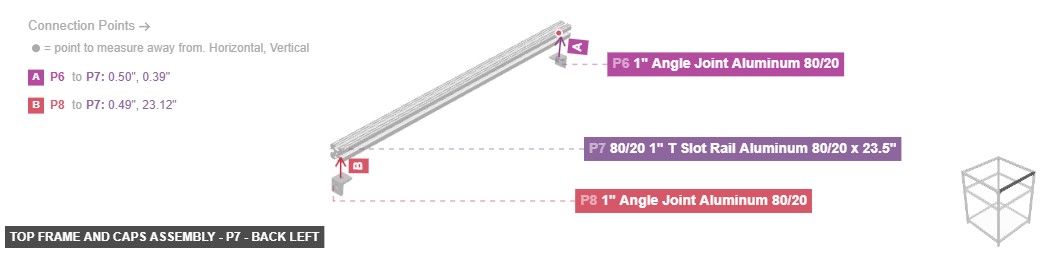

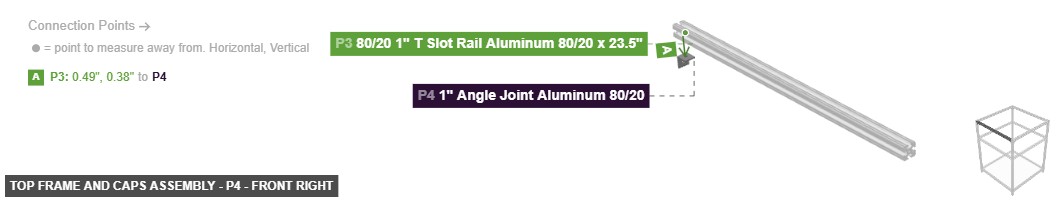

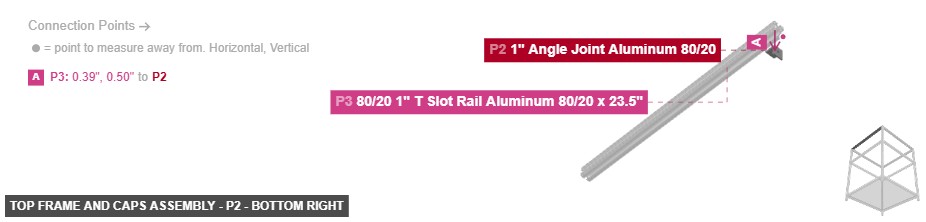

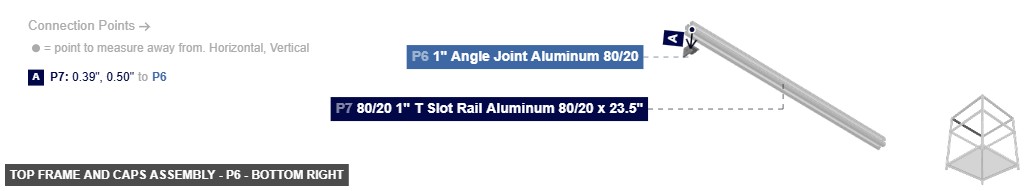

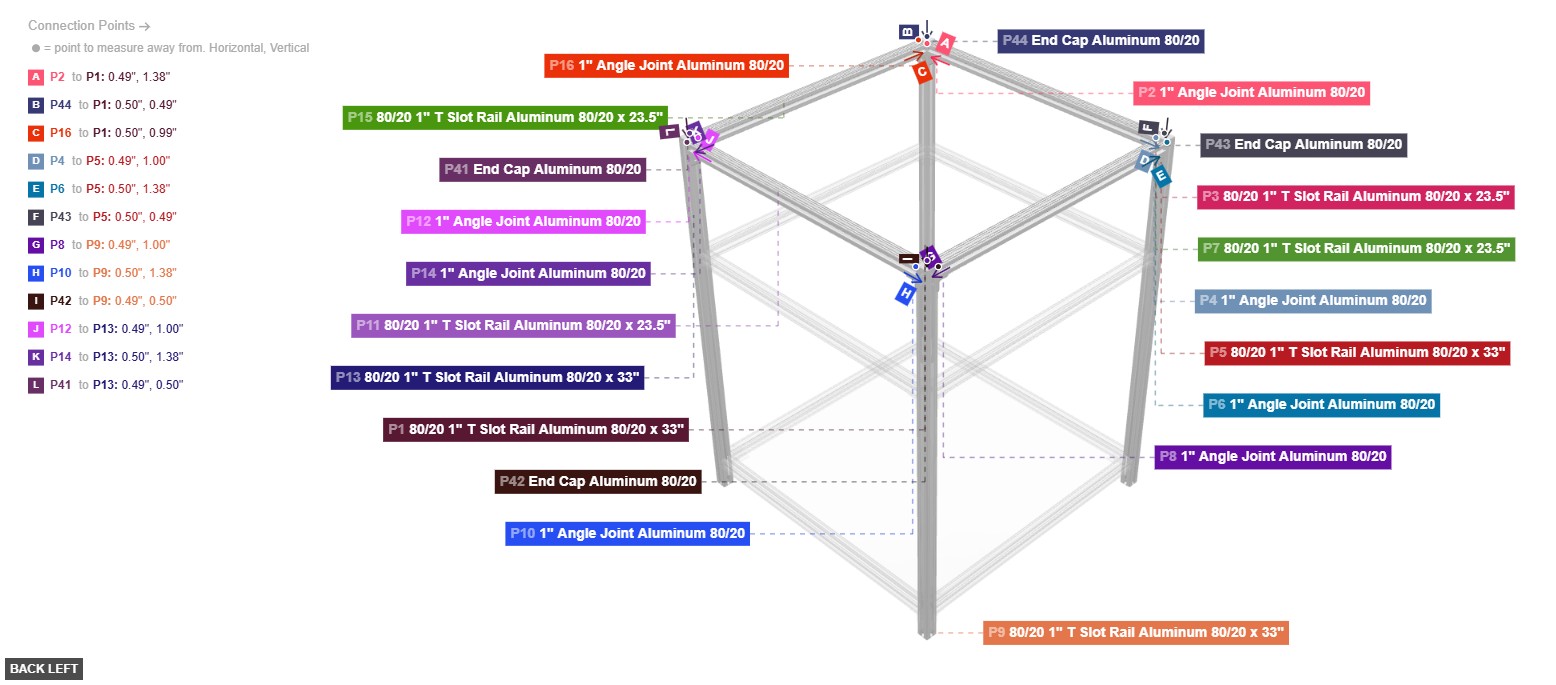

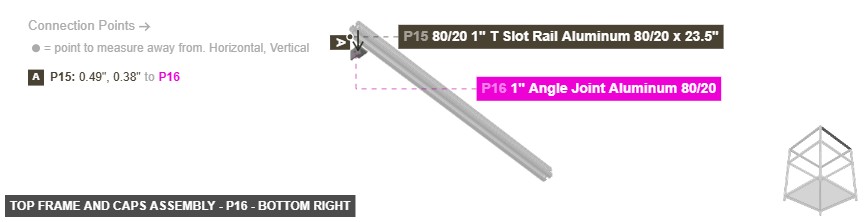

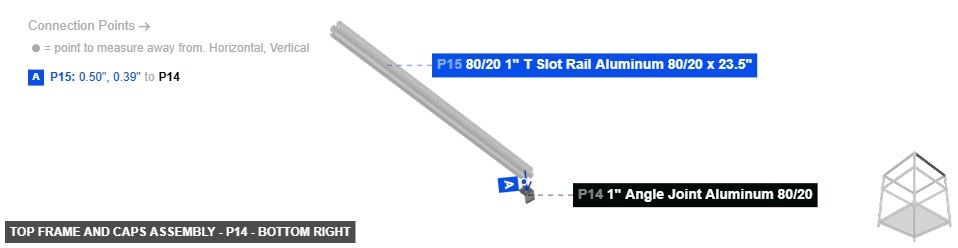

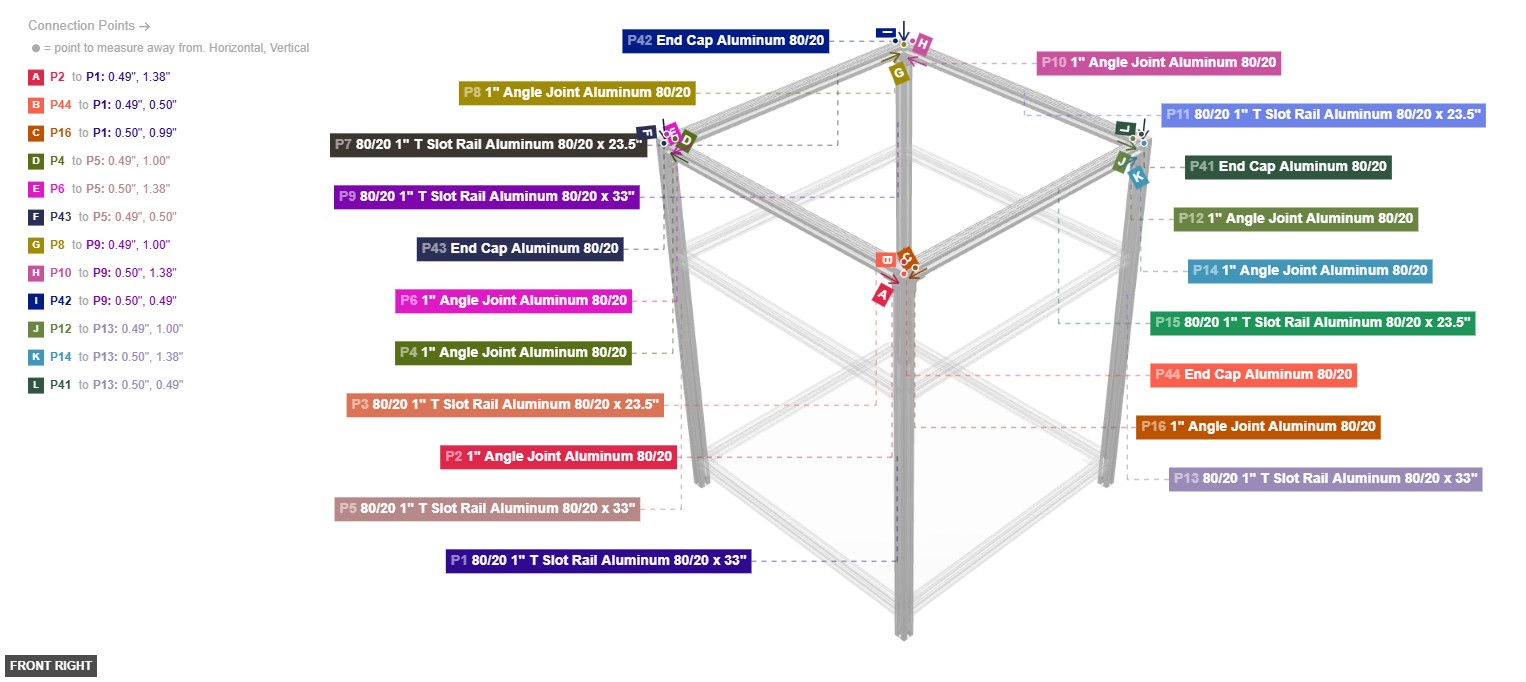

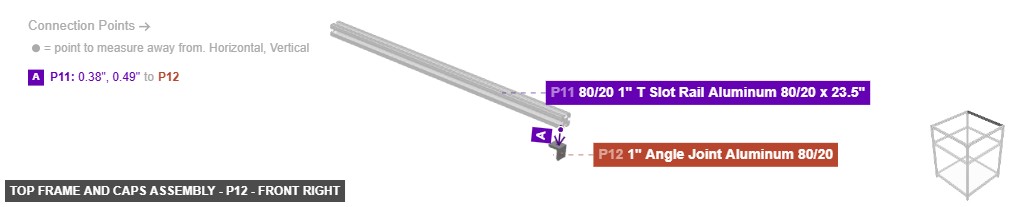

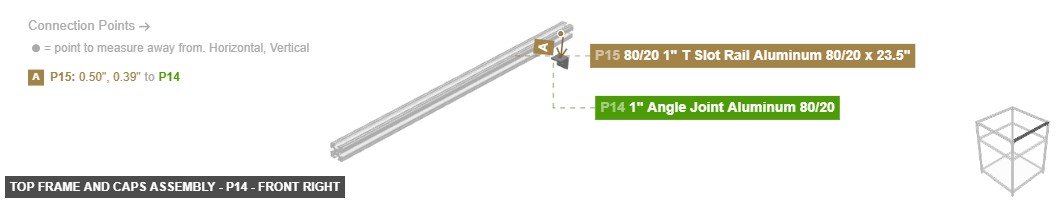

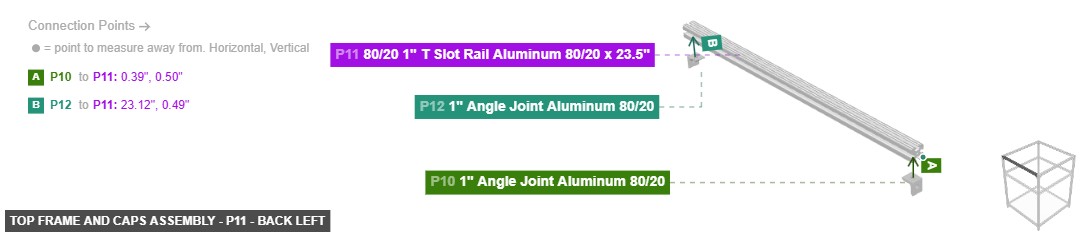

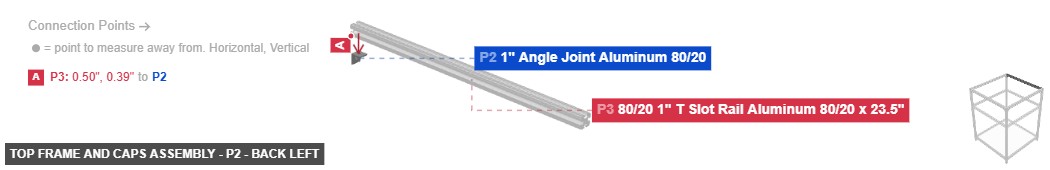

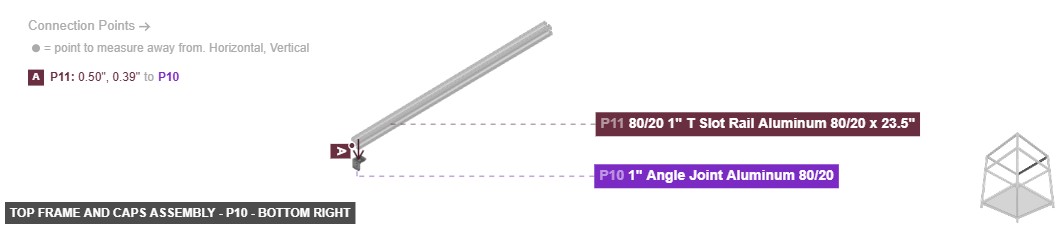

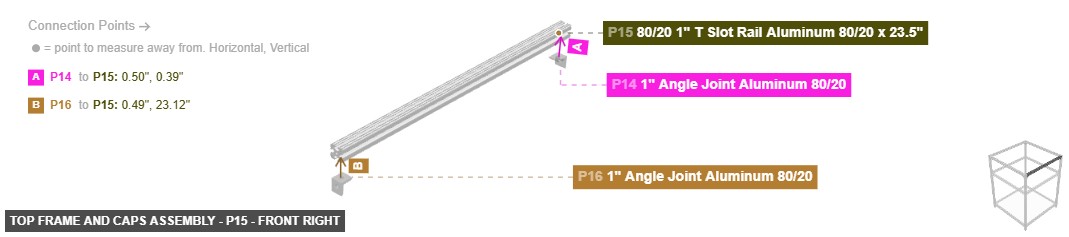

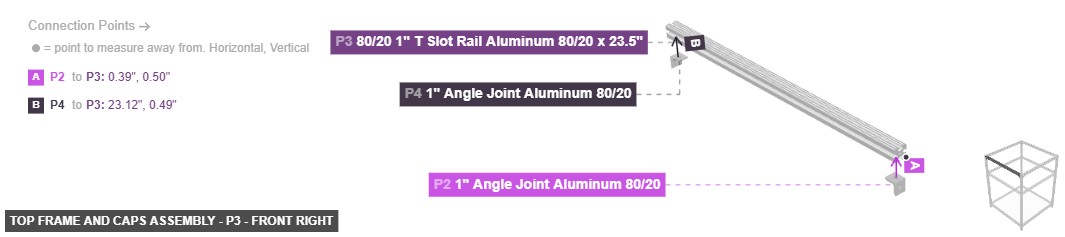

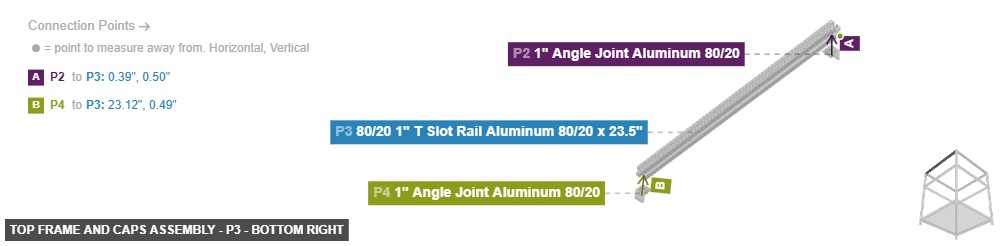

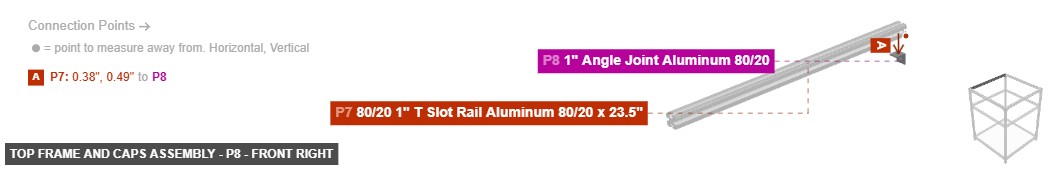

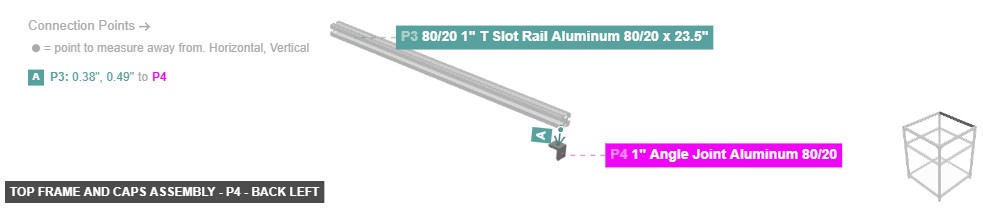

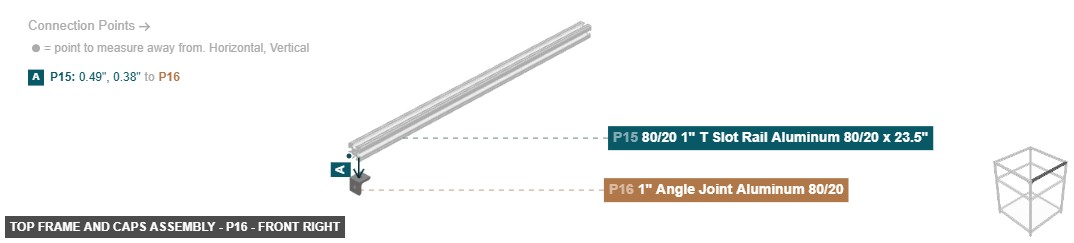

Top Frame and Caps Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

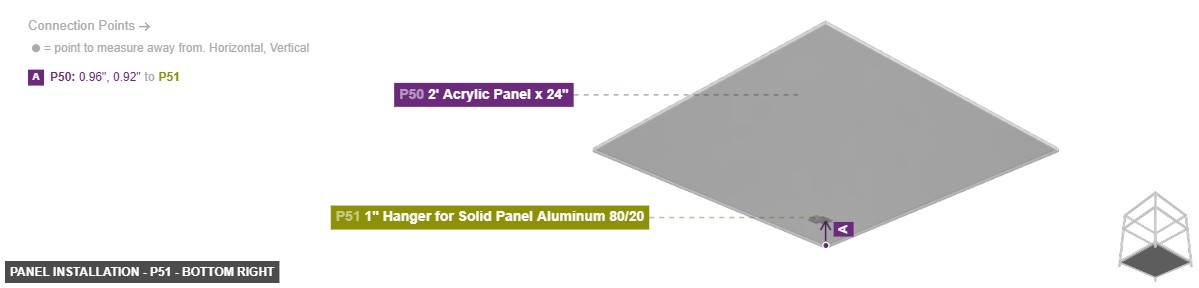

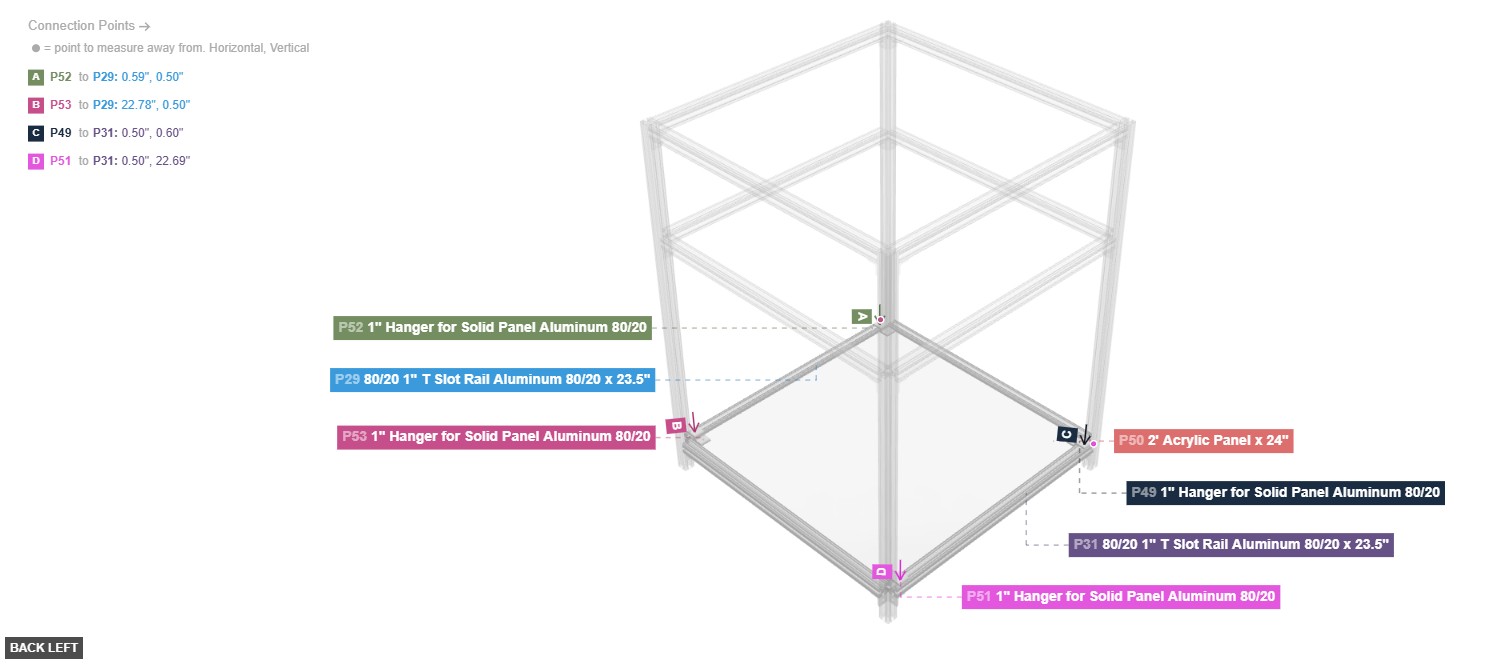

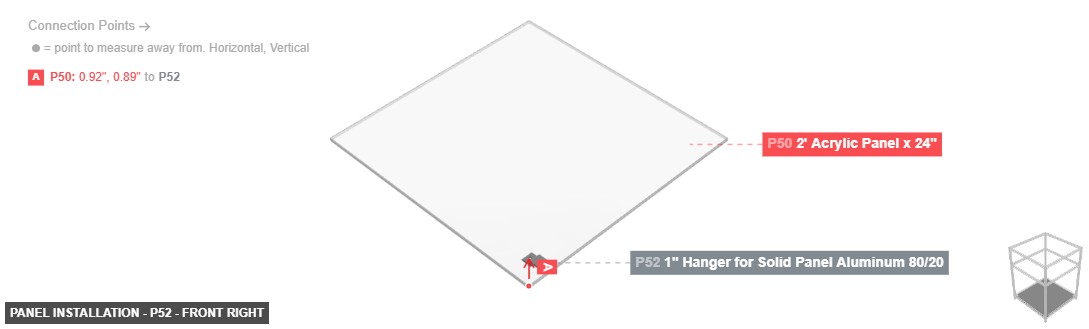

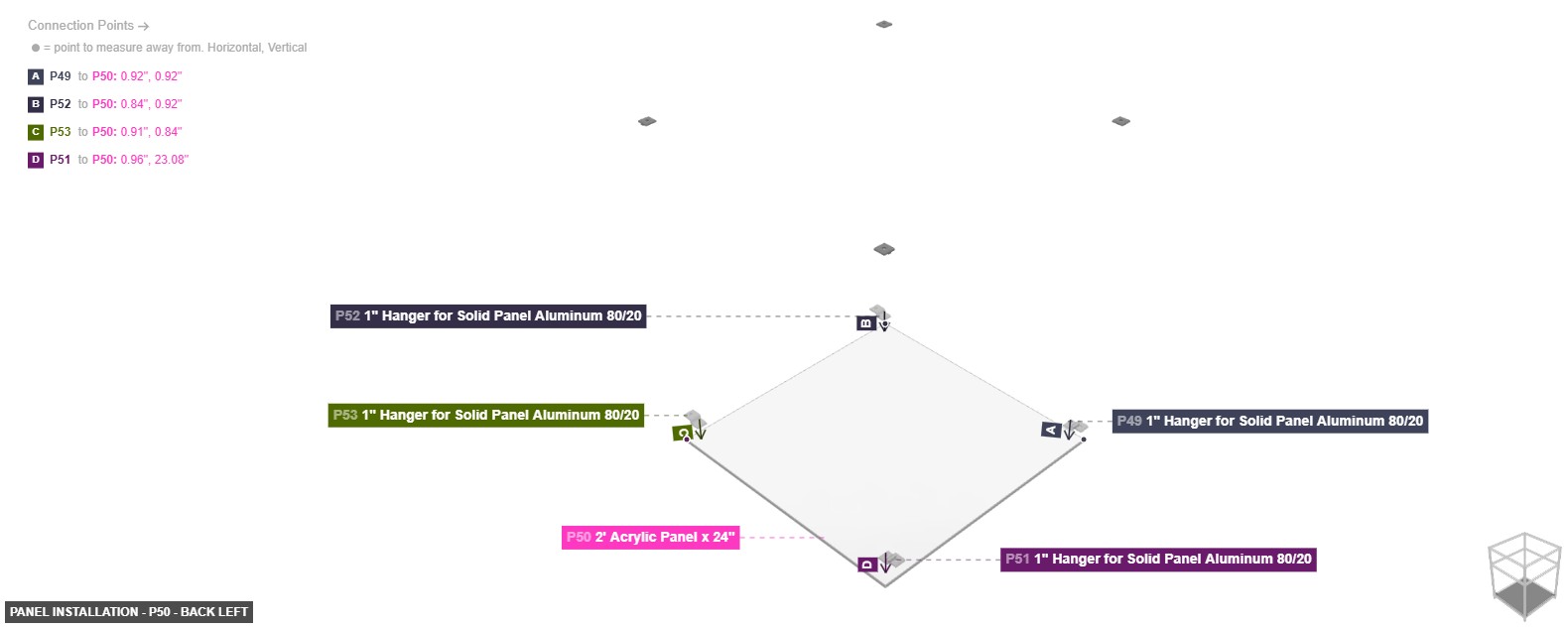

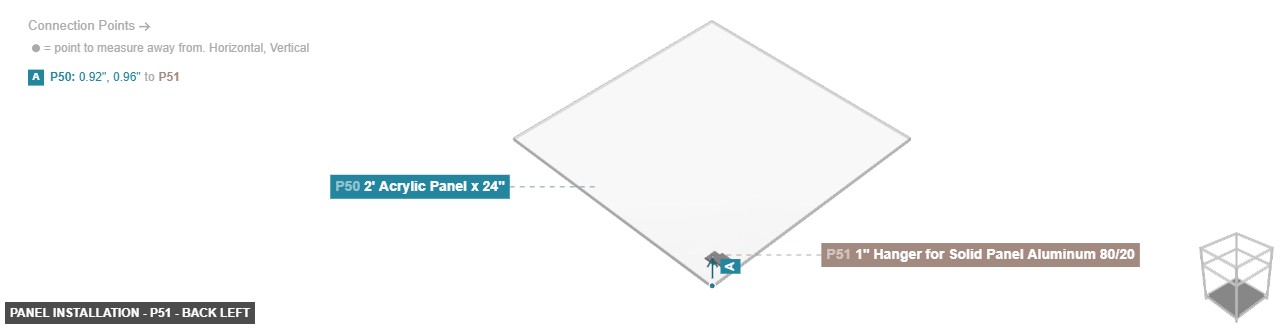

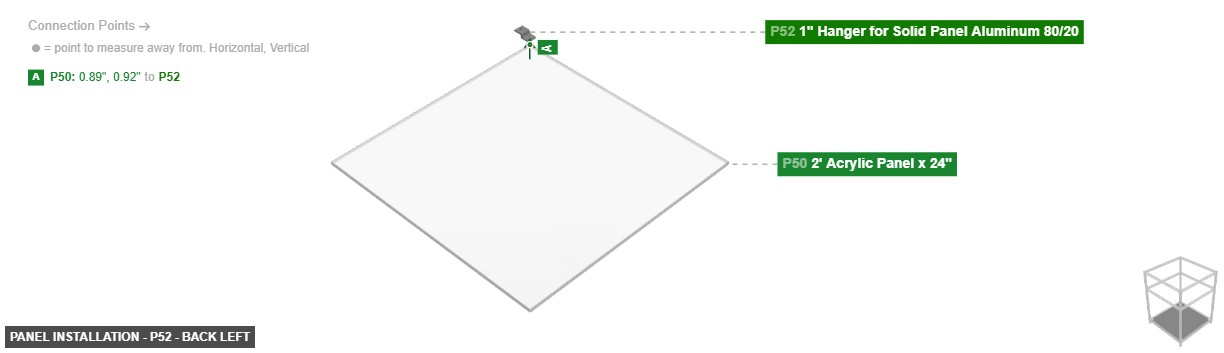

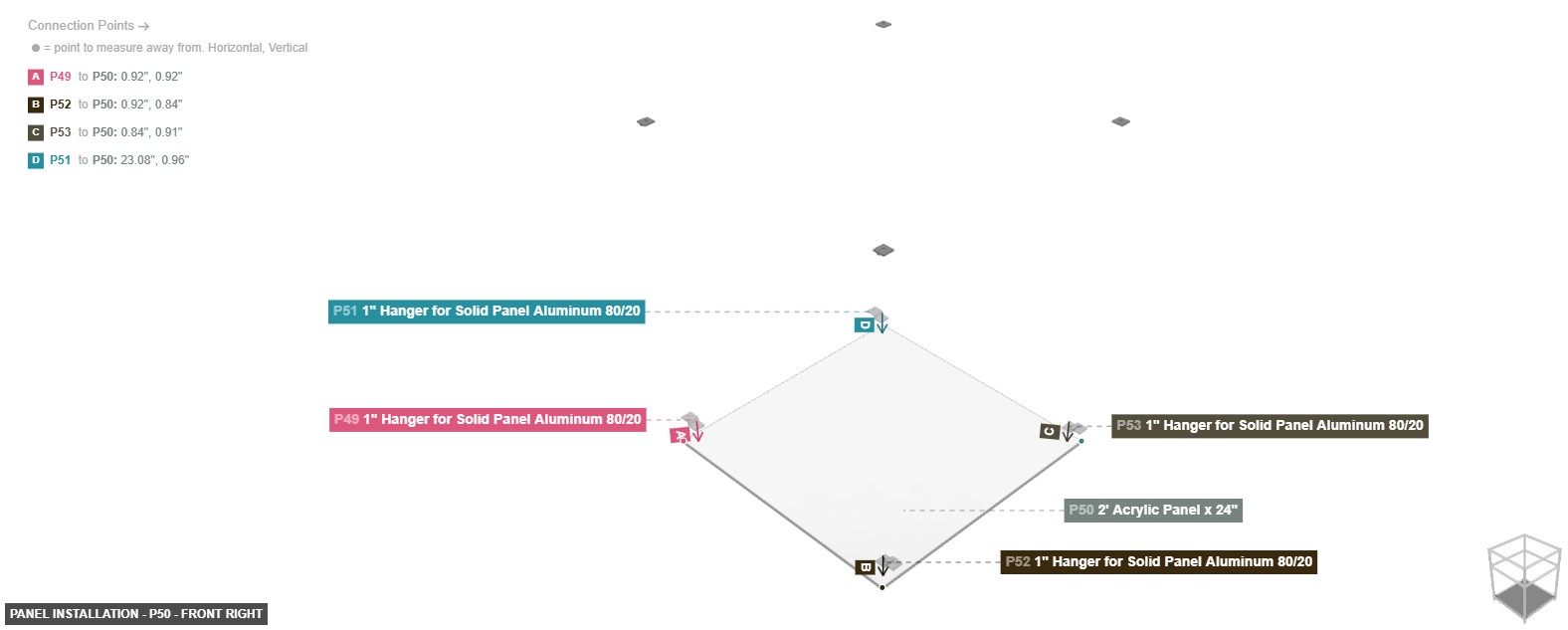

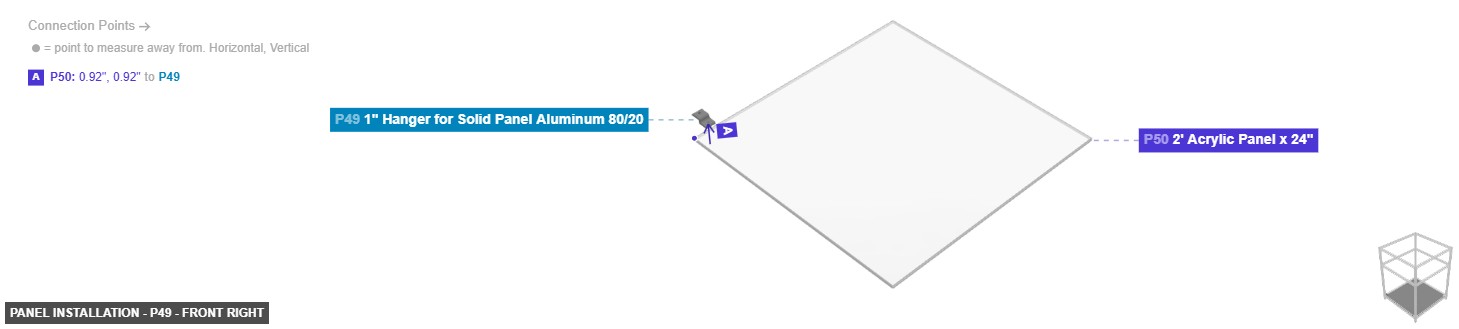

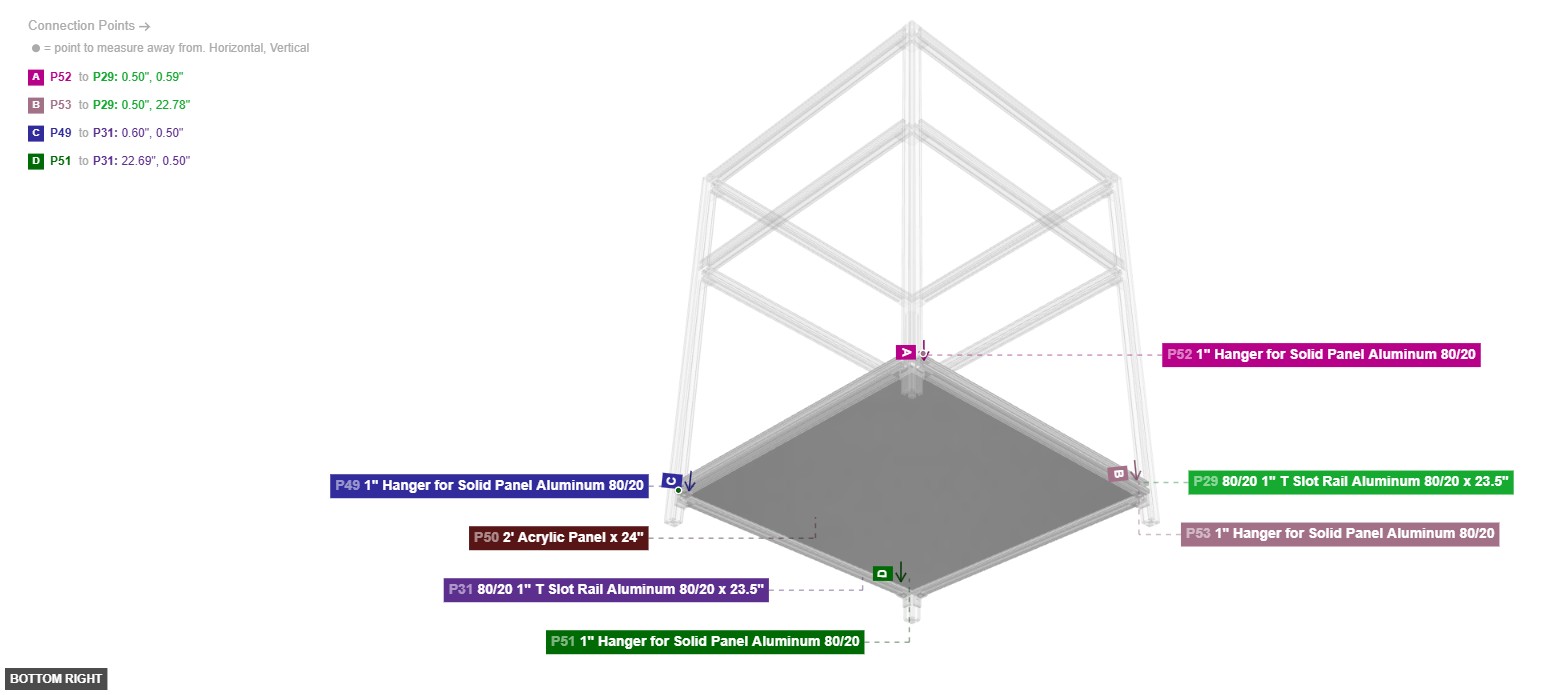

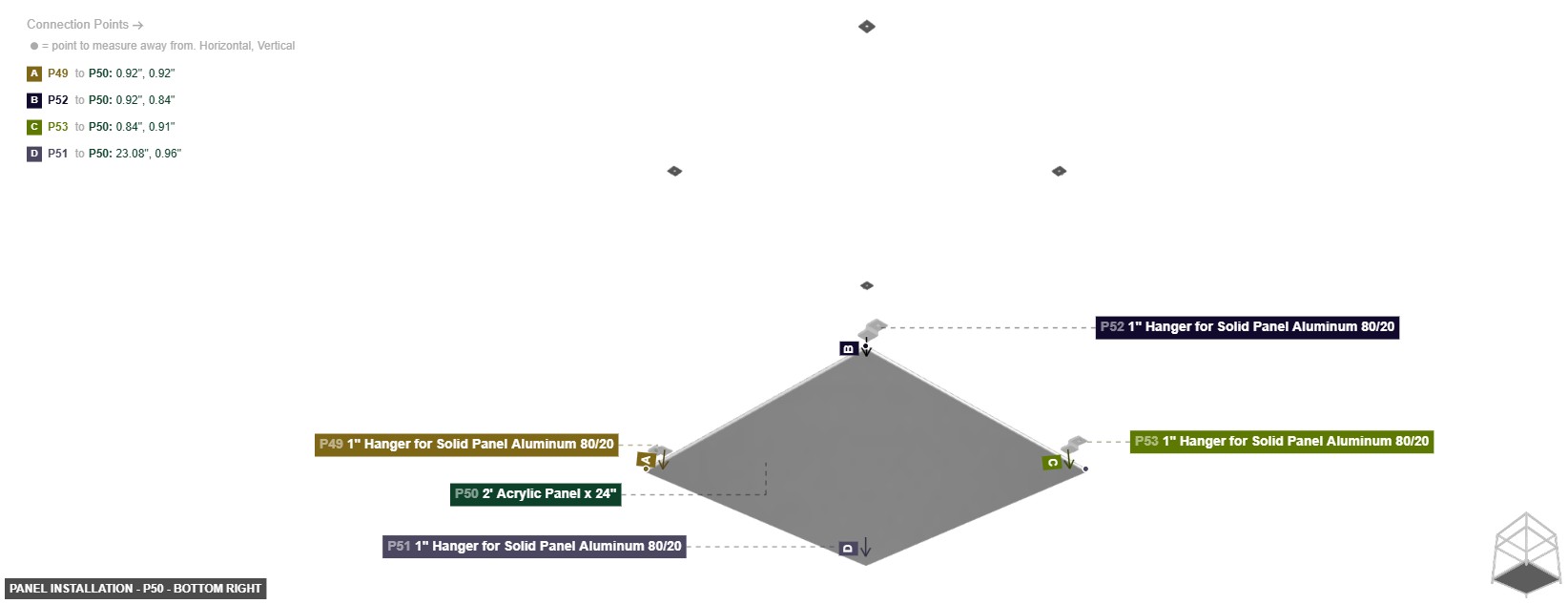

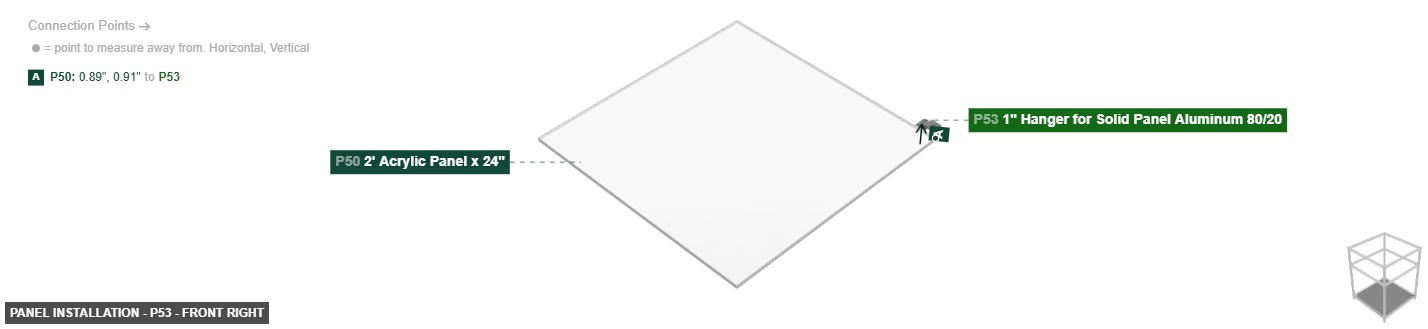

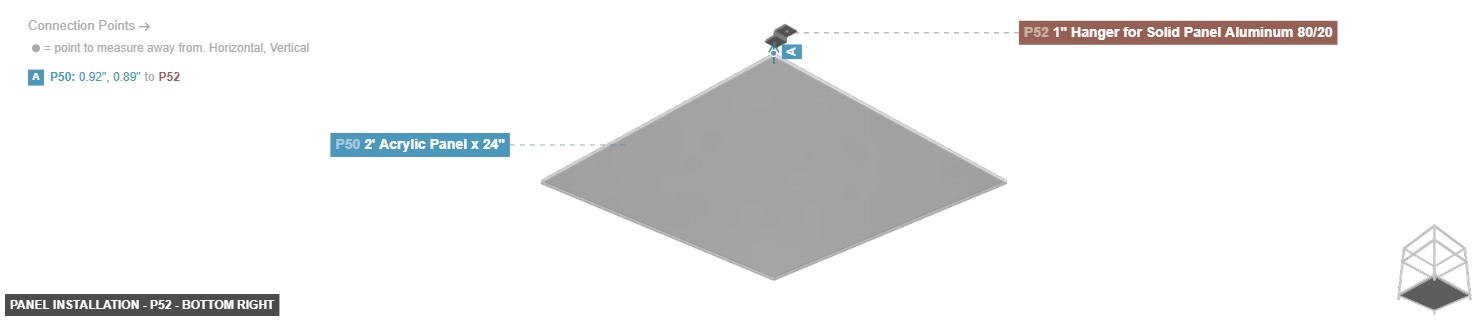

Panel Installation

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

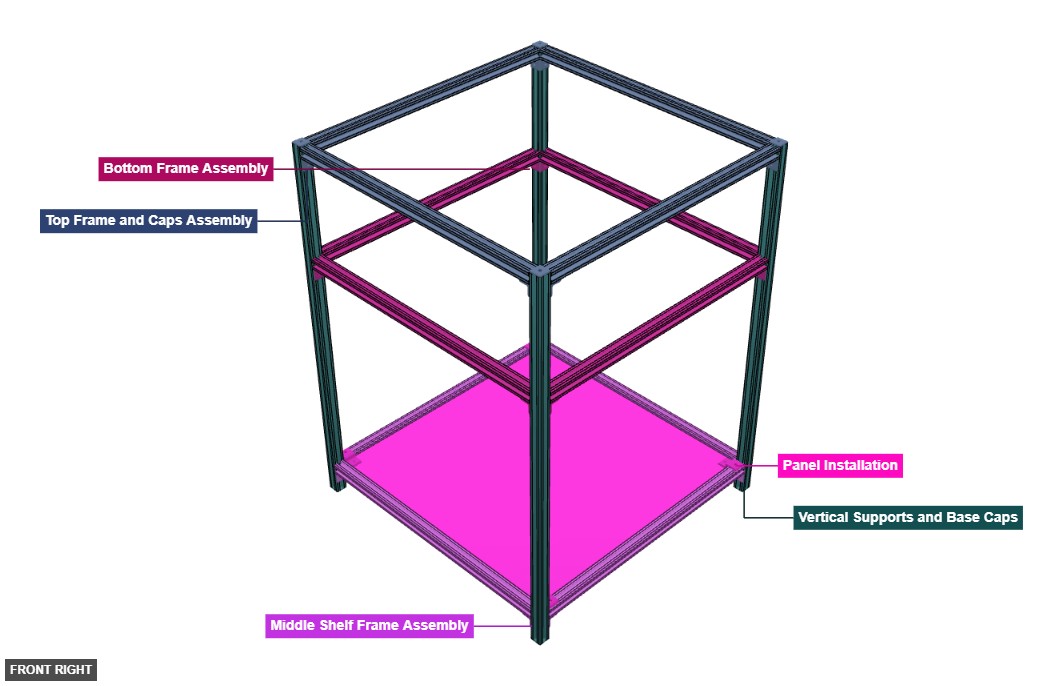

Angle: front right

Bottom Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Vertical Supports and Base Caps

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Middle Shelf Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Top Frame and Caps Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

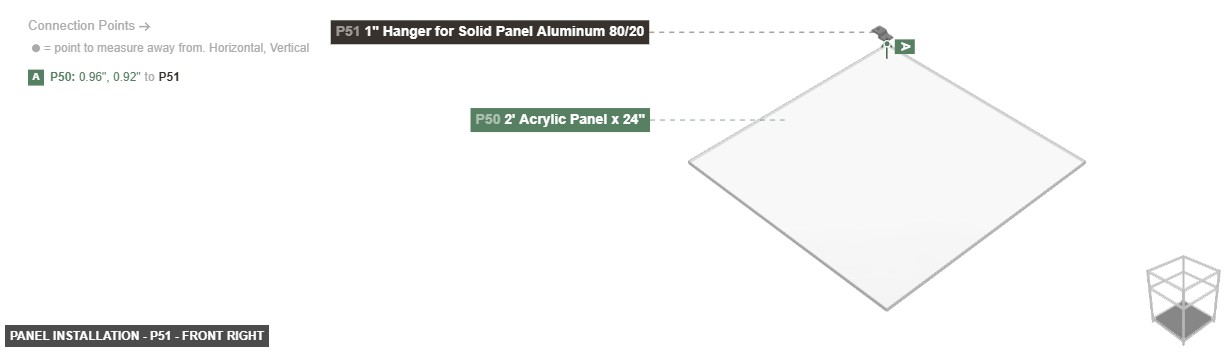

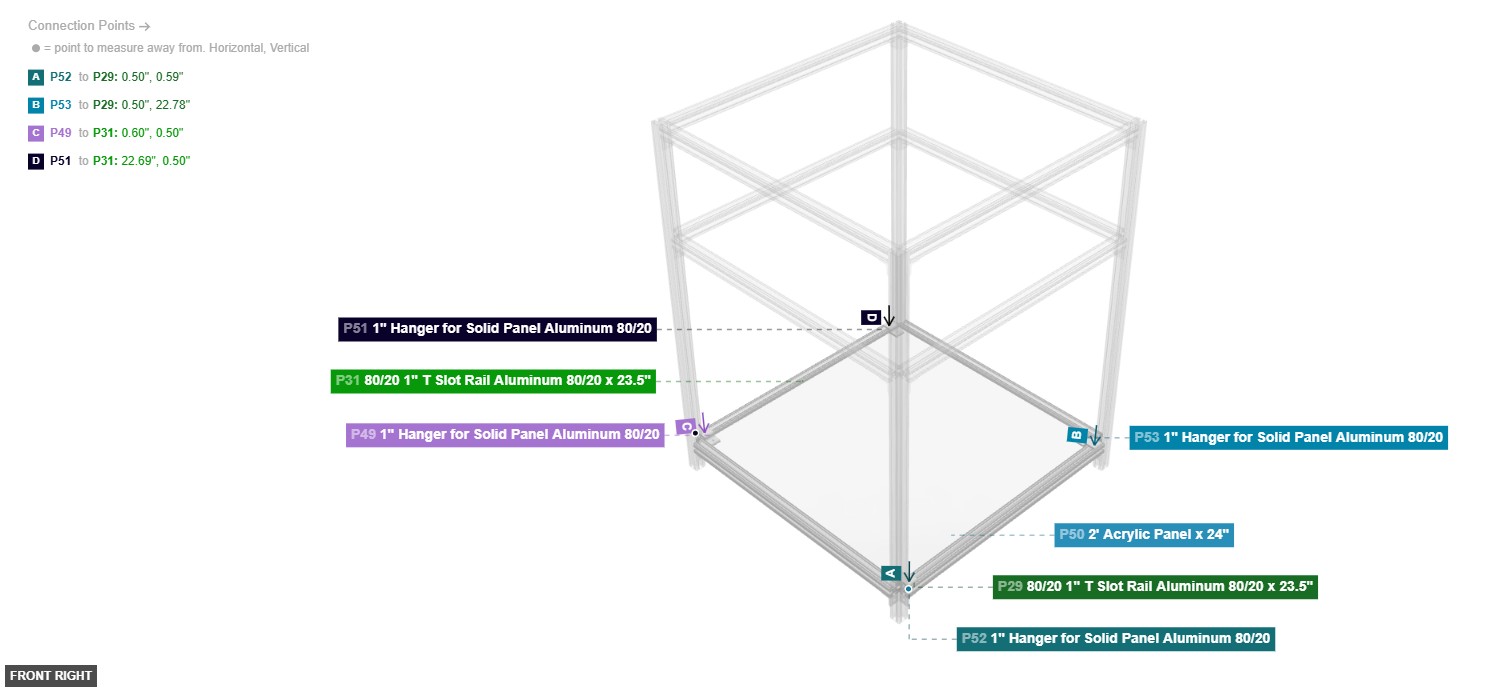

Panel Installation

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Angle: bottom right

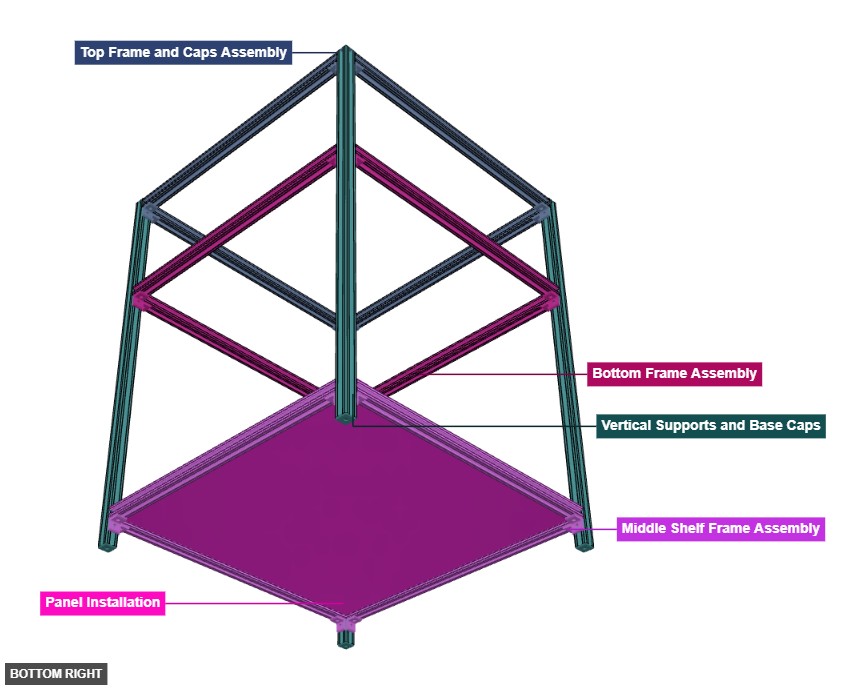

3D Printer Frame - Overview bottom_right

Bottom Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Vertical Supports and Base Caps

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

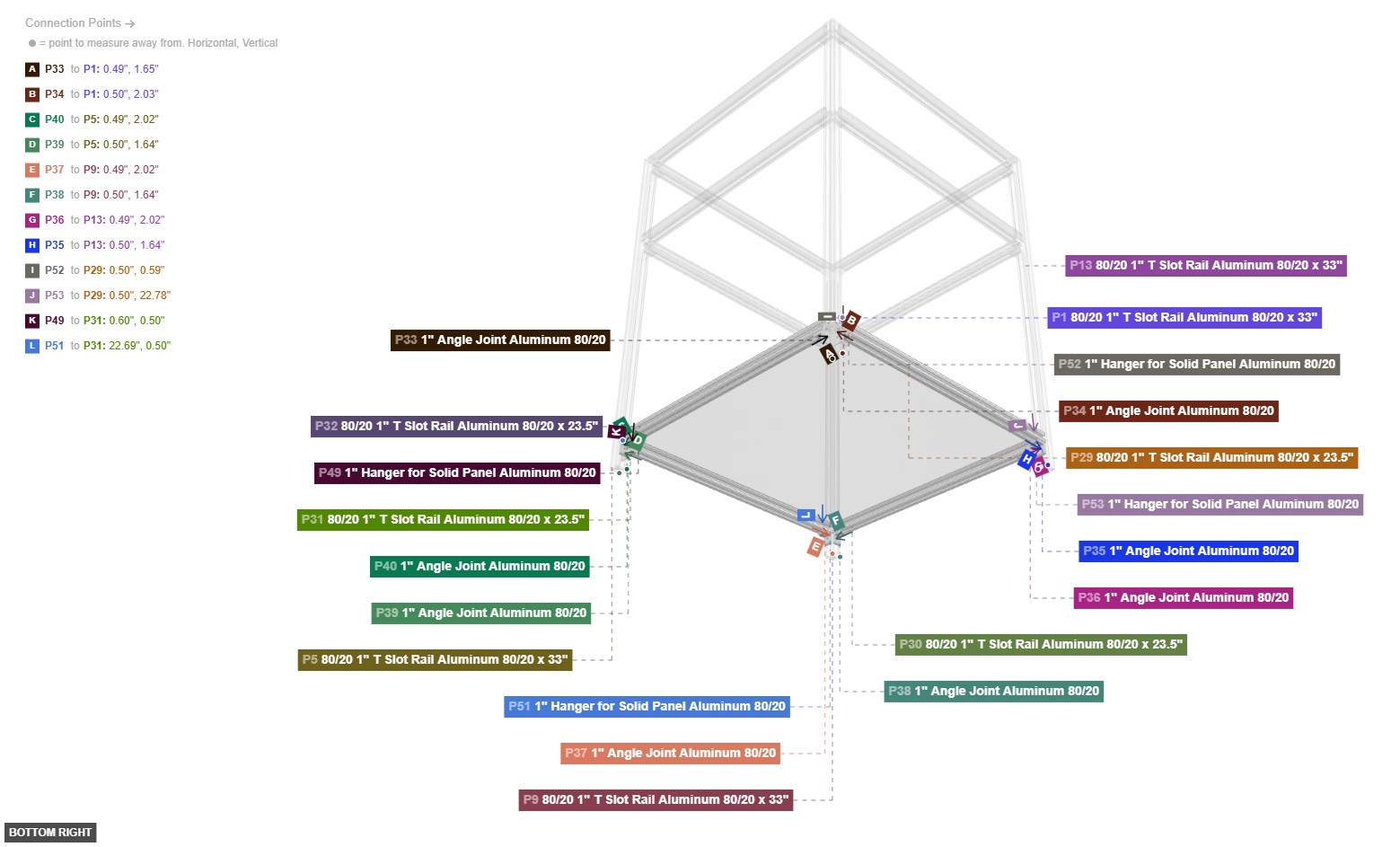

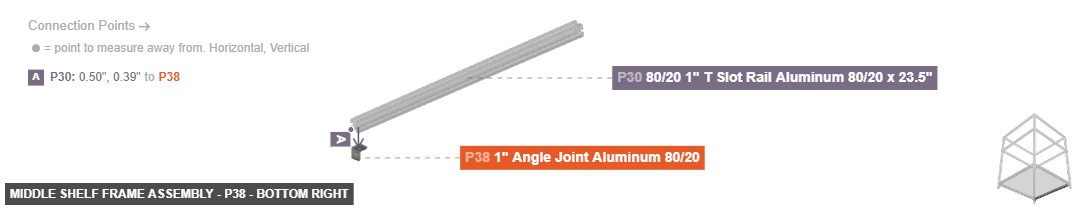

Middle Shelf Frame Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Top Frame and Caps Assembly

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

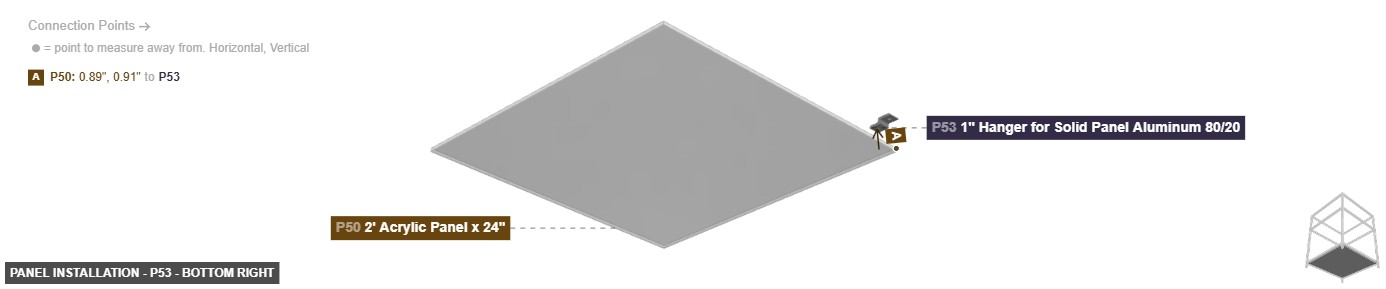

Panel Installation

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Phase 2: Individual Group Assembly

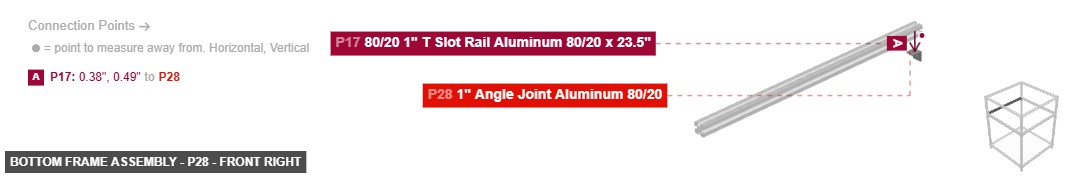

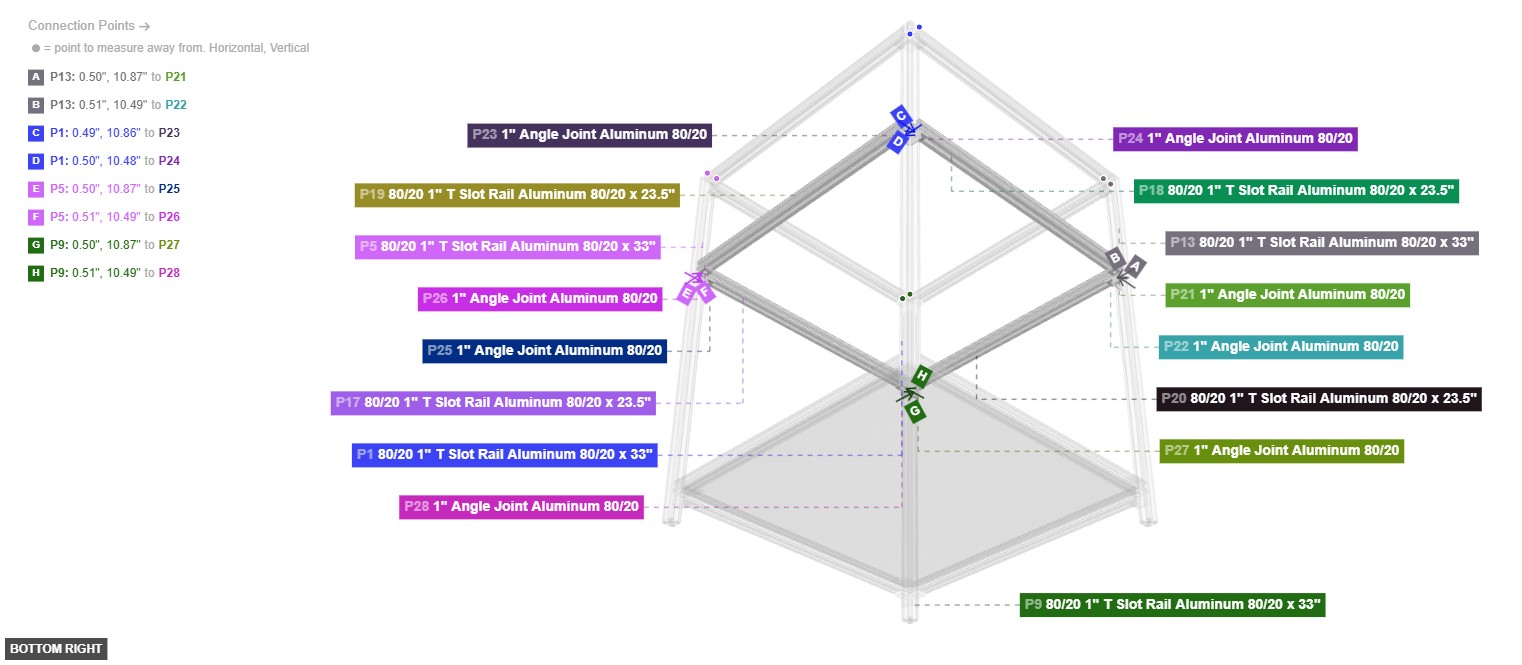

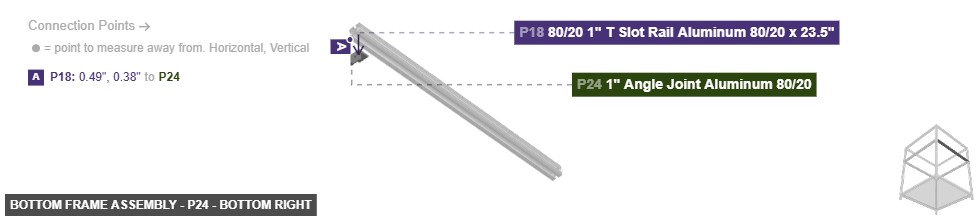

Group: Bottom Frame Assembly

Forms the lowest square of the main structure, providing a stable base for the vertical posts.

Connect the four horizontal rails (P17, P18, P19, P20) into a square using the eight angle joints (P21, P22, P23, P24, P25, P26, P27, P28). For example, use joints P23 and P26 to connect rail P19 to where the vertical posts will be.

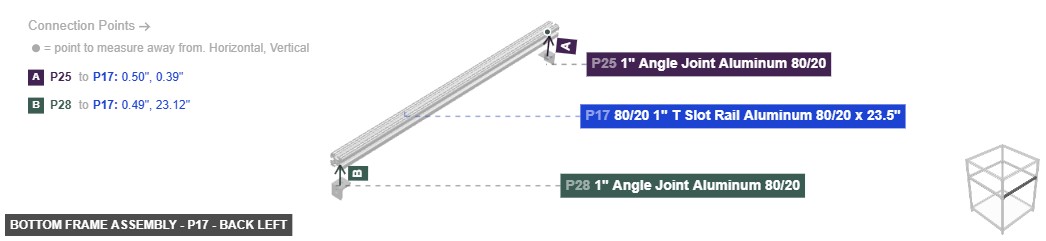

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

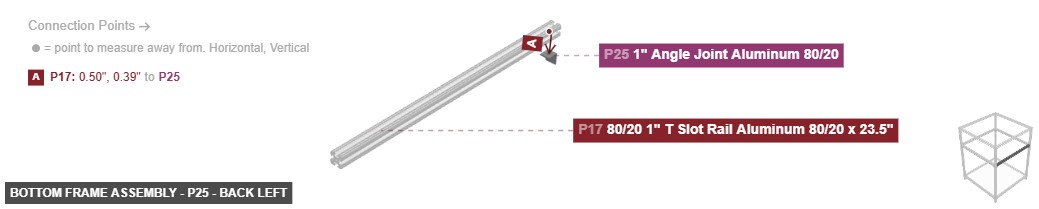

P17 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 25's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point back. Next, its 1" Rail 80/20 F #2 should be directed right, plus its 1" Rail 80/20 F #3 must be oriented top, plus its 1" Rail 80/20 F #4 should be directed left, also its 1" 80/20 End Hole F #2 needs to point front

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

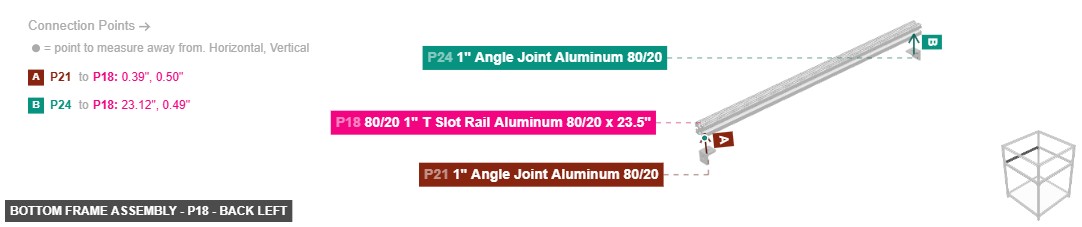

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

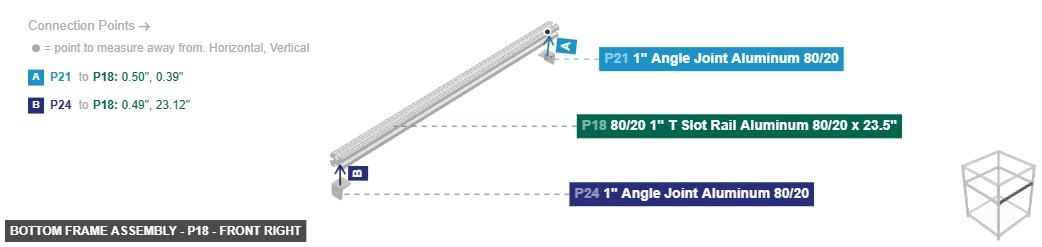

P18 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 21's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 needs to point front, also its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #3 must be oriented top, also ensure its 1" Rail 80/20 F #4 faces right. After that, ensure its 1" 80/20 End Hole F #2 faces back

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

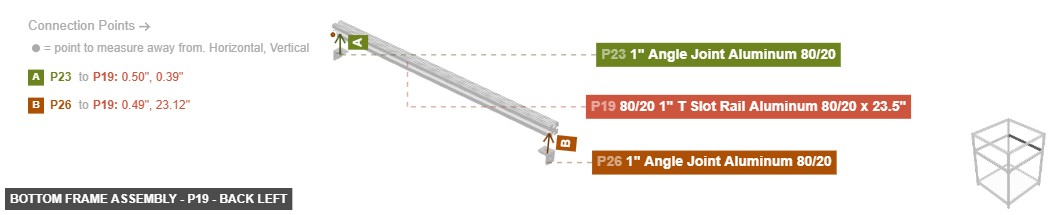

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

P19 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 23's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 must be oriented left, plus its 1" Rail 80/20 F #2 needs to point back, and its 1" Rail 80/20 F #3 must be oriented top. After that, ensure its 1" Rail 80/20 F #4 faces front. Additionally, its 1" 80/20 End Hole F #2 must be oriented right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

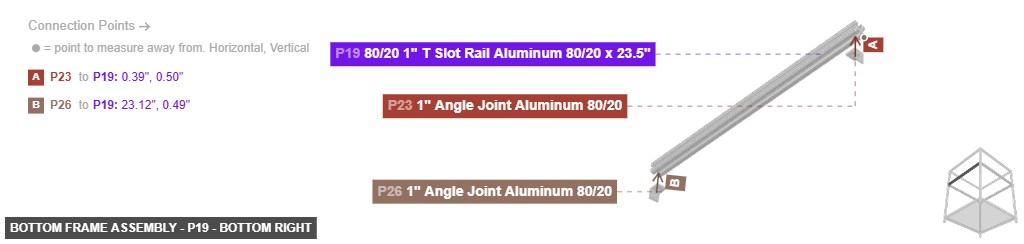

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

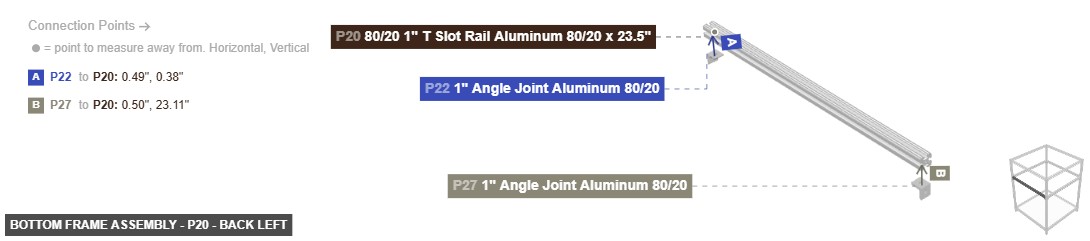

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

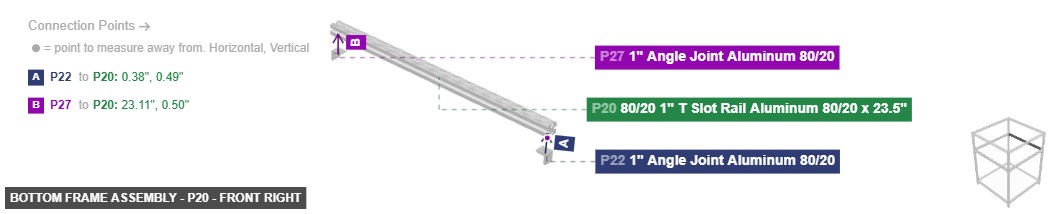

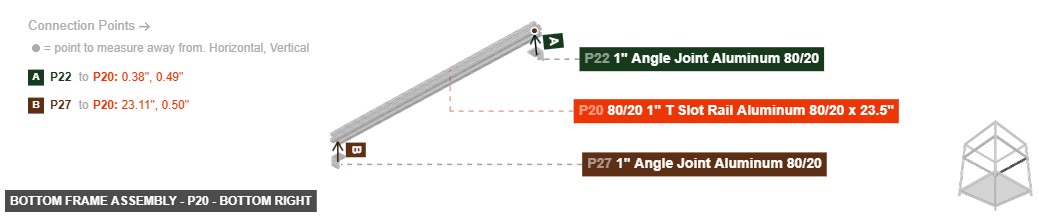

P20 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 22's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #1 needs to point right. Next, its 1" Rail 80/20 F #2 should be directed front. Additionally, ensure its 1" Rail 80/20 F #3 faces top, plus ensure its 1" Rail 80/20 F #4 faces back. After that, its 1" 80/20 End Hole F #2 should be directed left

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

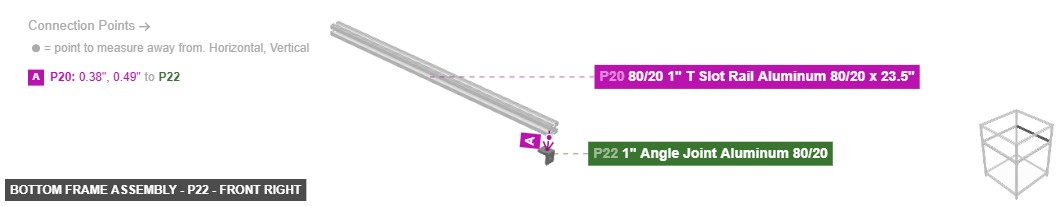

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P21 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 18's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

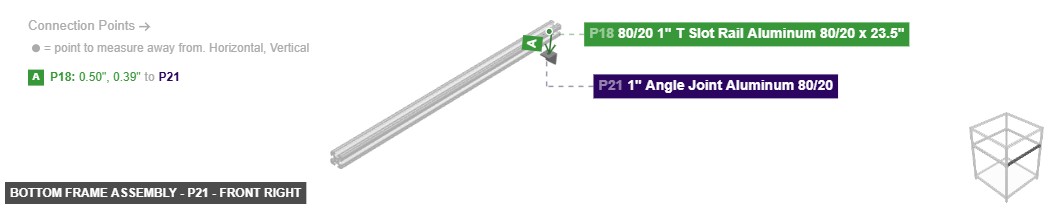

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P21 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 18's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

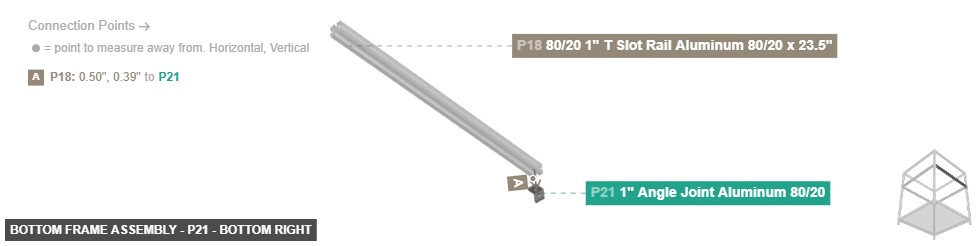

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P21 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 18's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

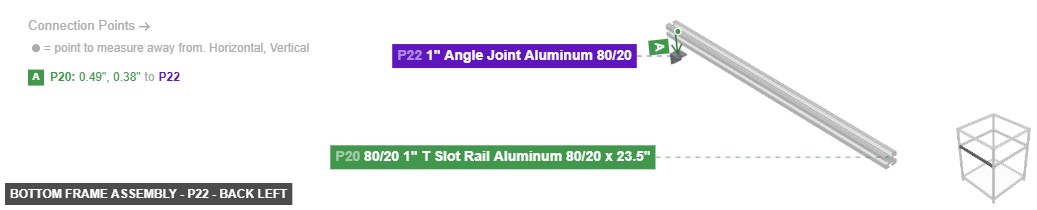

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

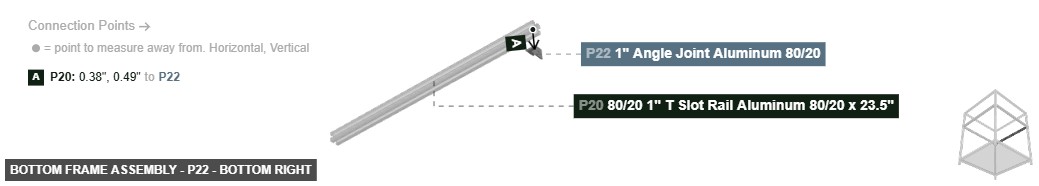

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

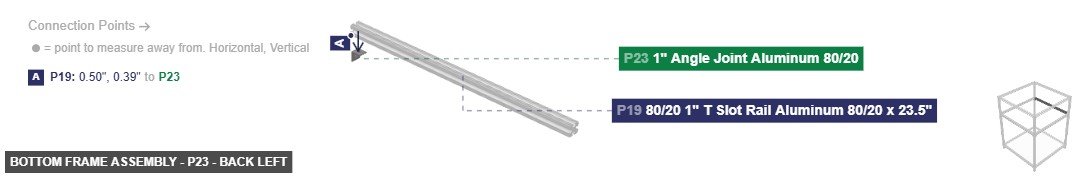

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P23 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 19's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

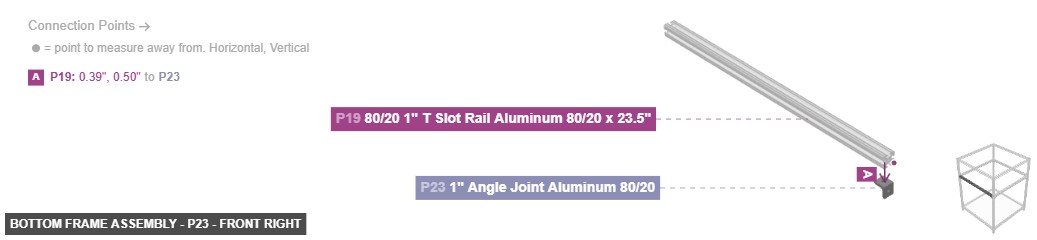

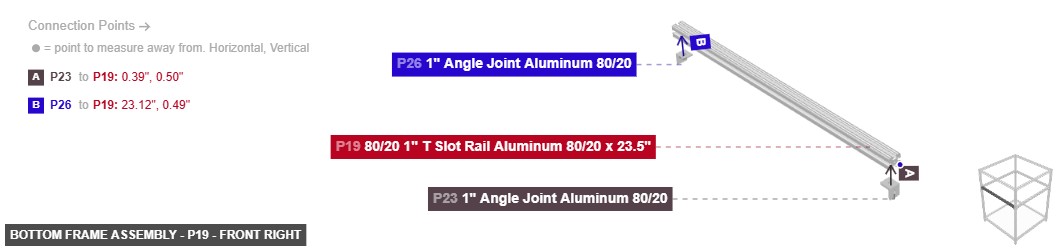

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P23 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 19's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

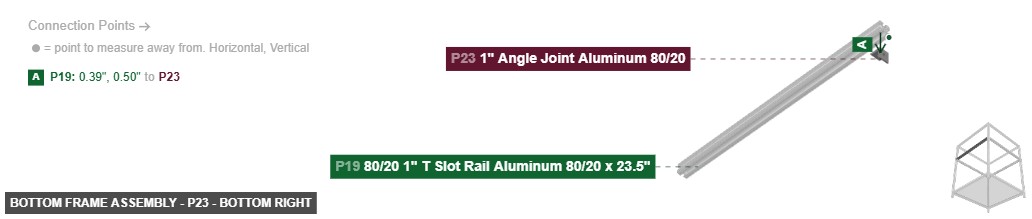

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P23 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 19's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

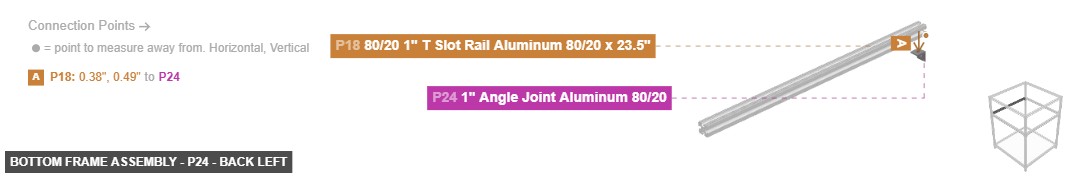

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P24 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 18's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

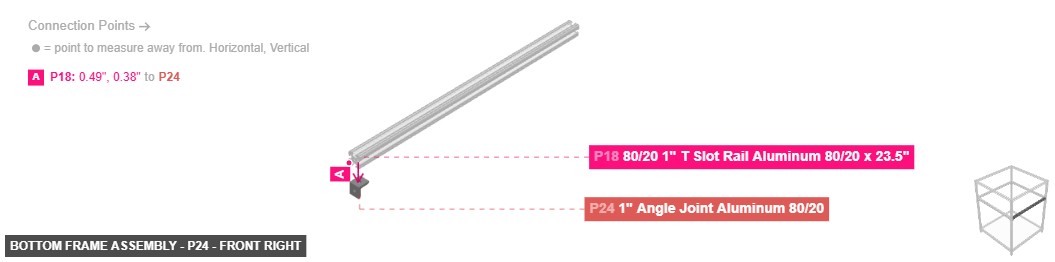

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P24 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 18's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P24 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 18's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P25 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

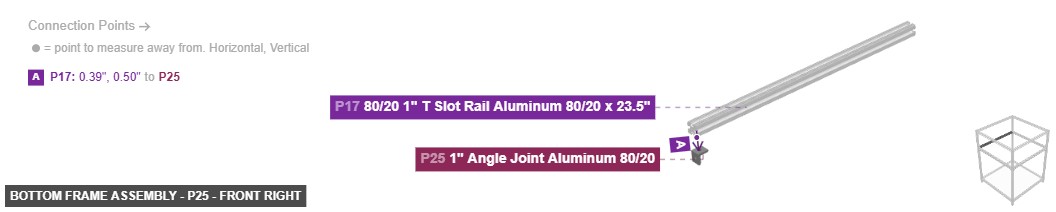

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P25 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

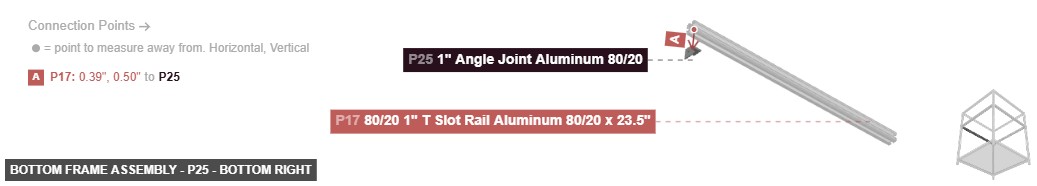

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P25 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

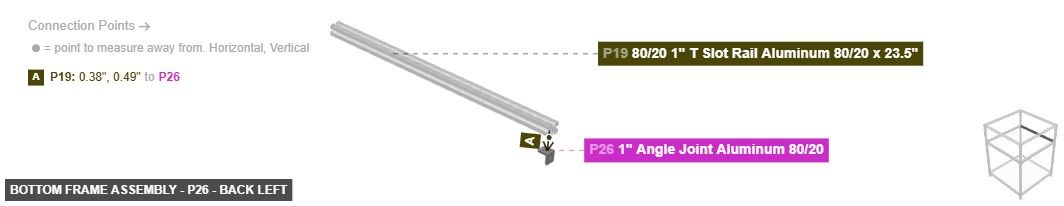

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P26 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

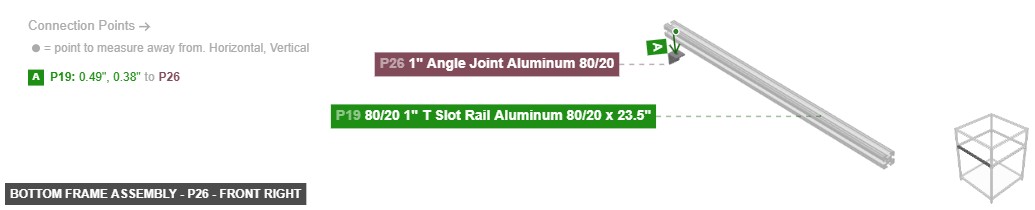

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P26 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

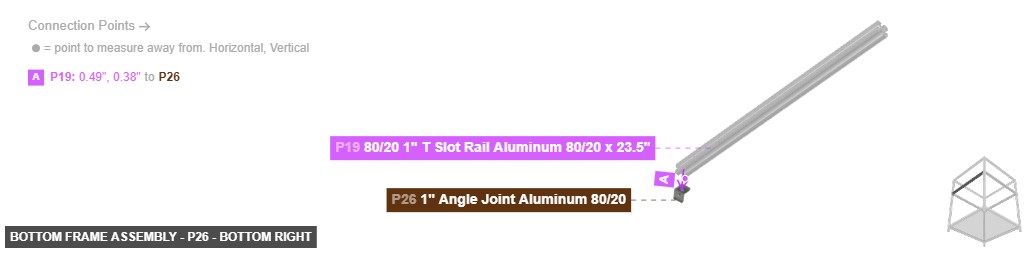

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P26 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

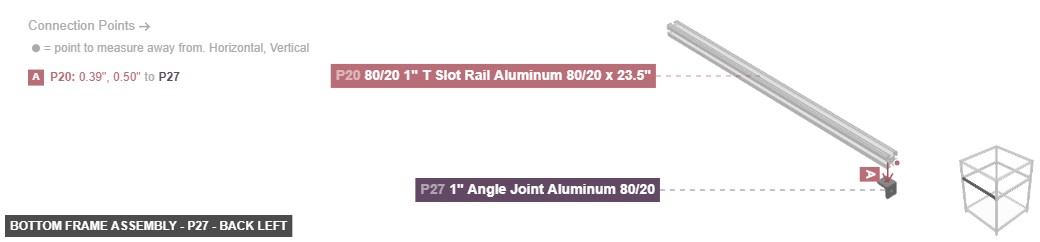

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P27 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

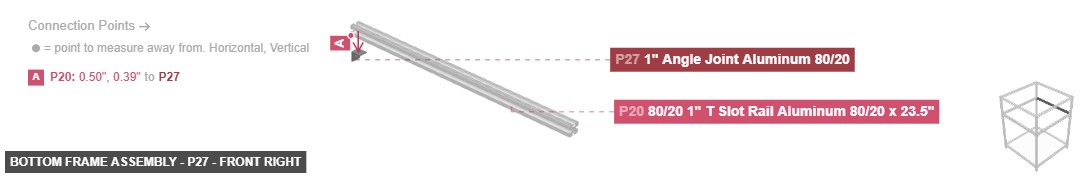

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P27 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P27 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 20's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

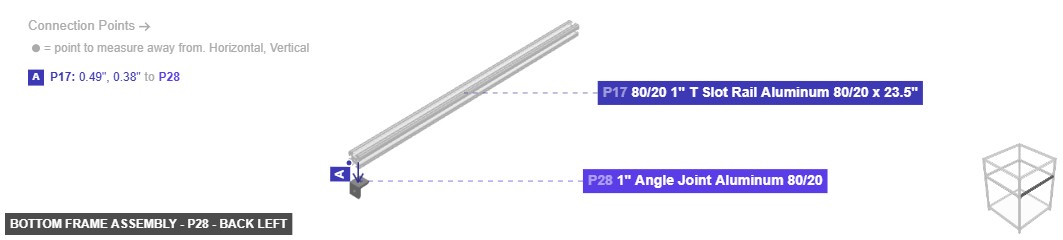

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

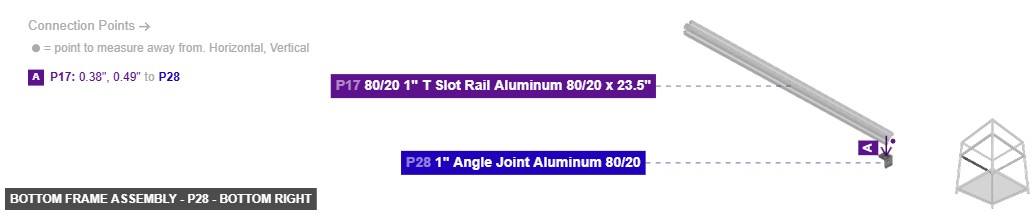

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 17's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

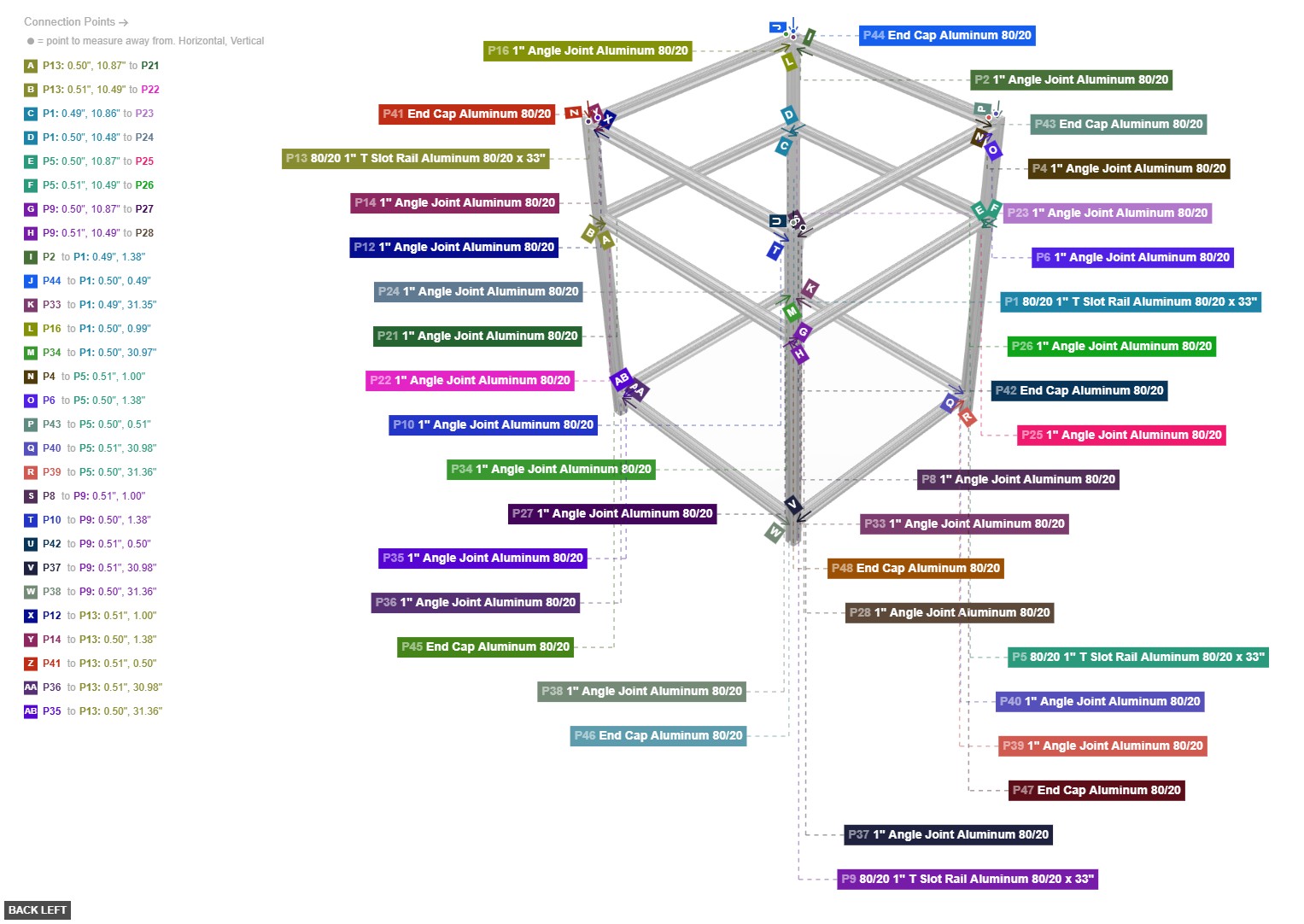

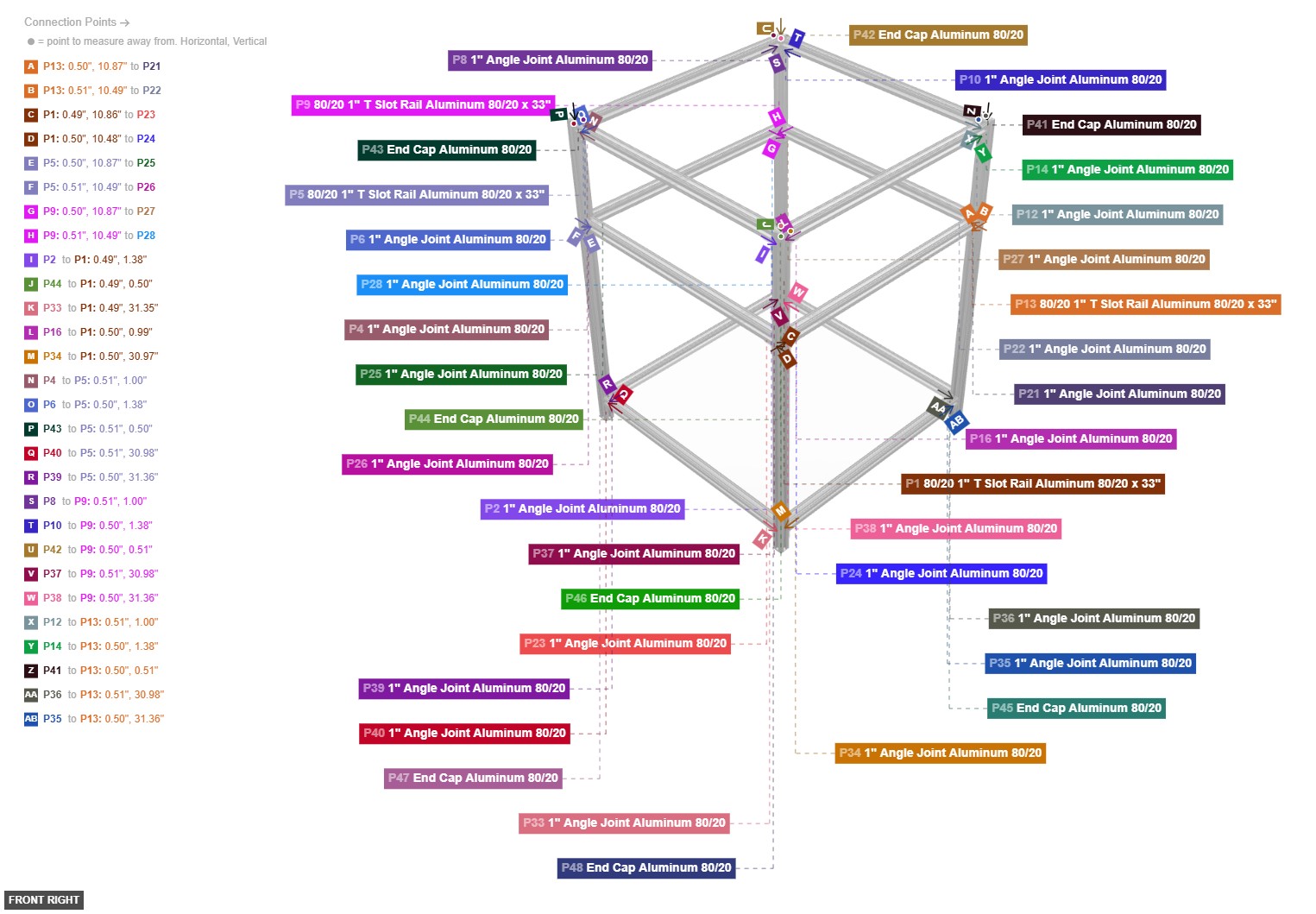

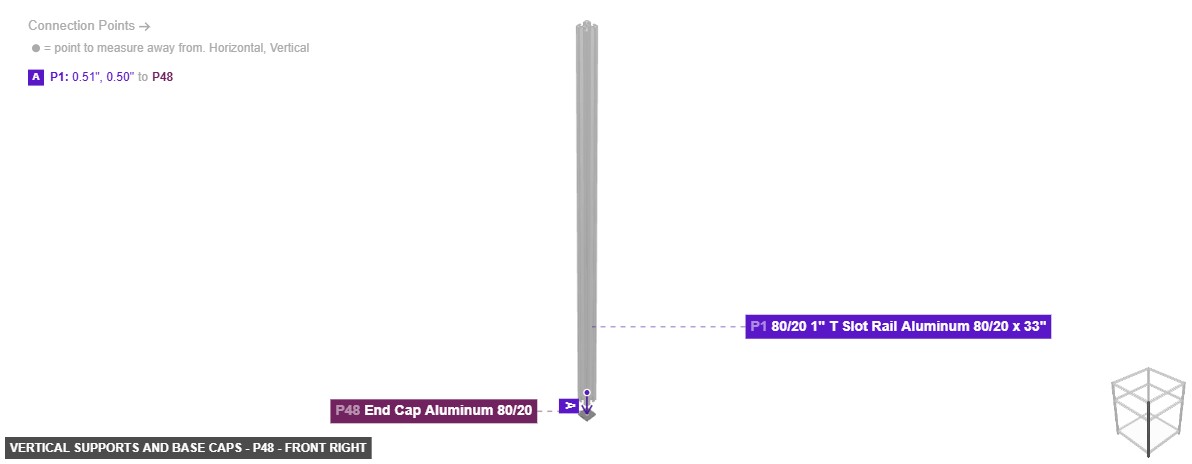

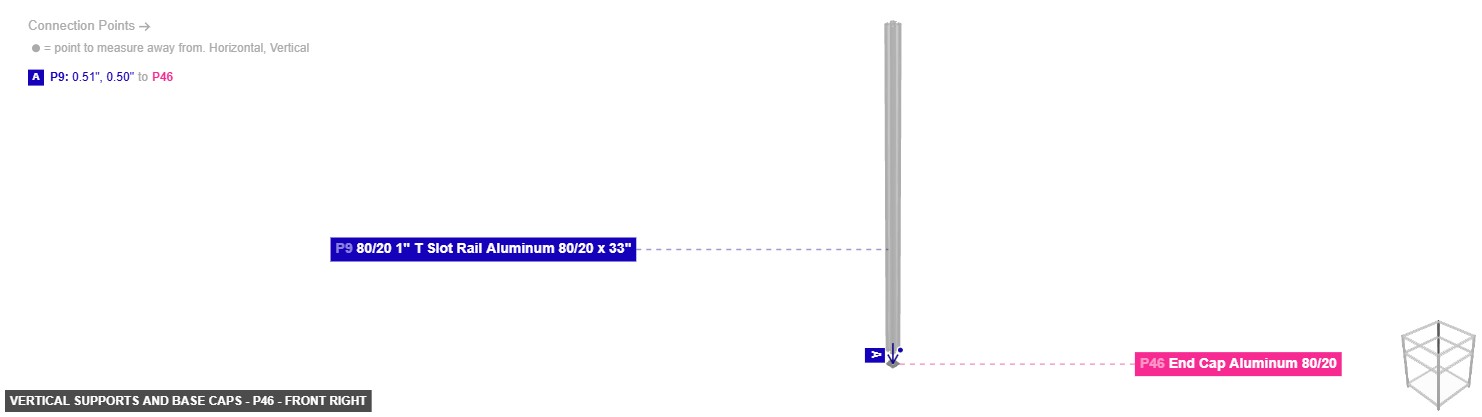

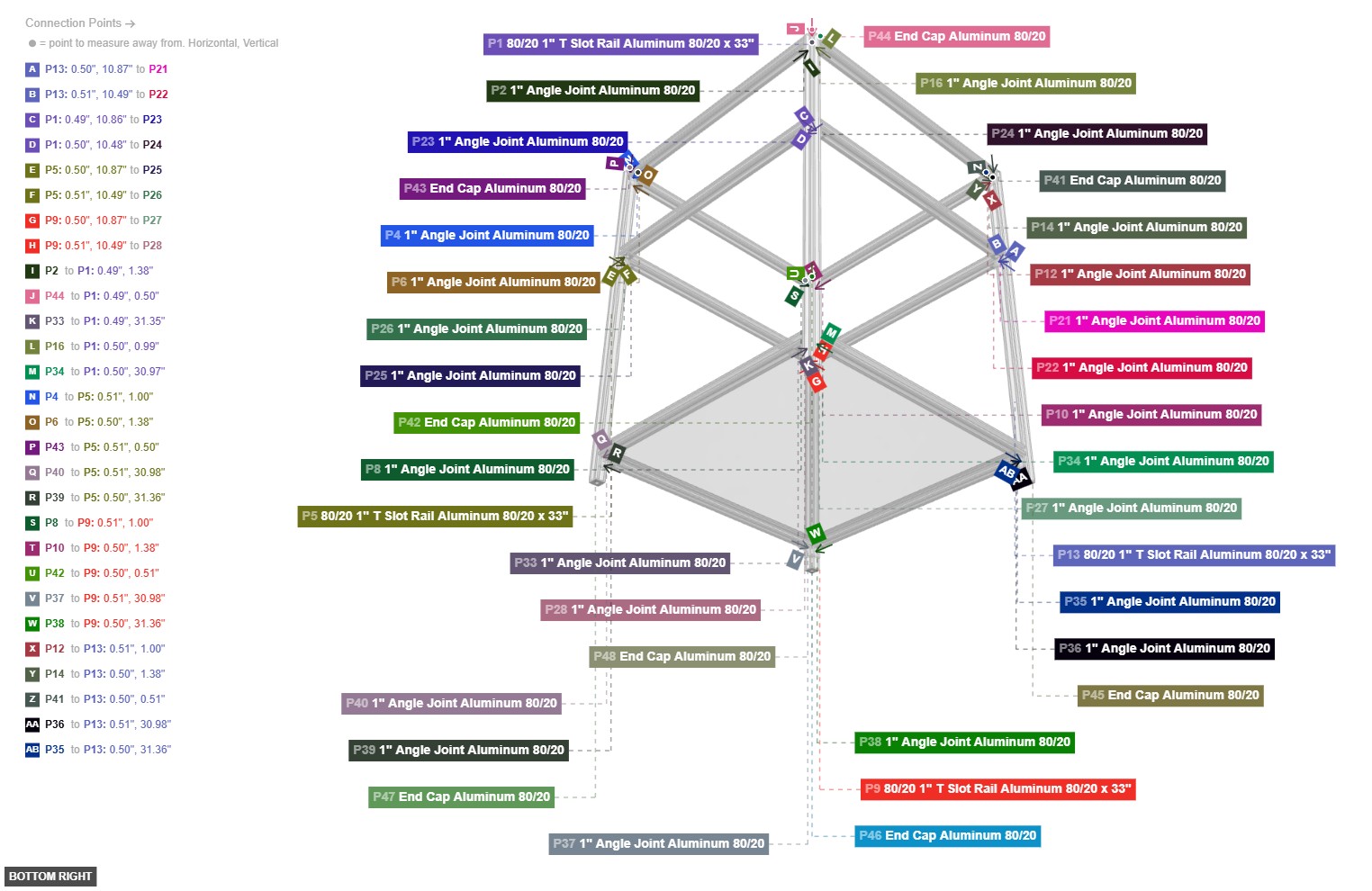

Group: Vertical Supports and Base Caps

Creates the main height of the frame and connects the base to the upper sections.

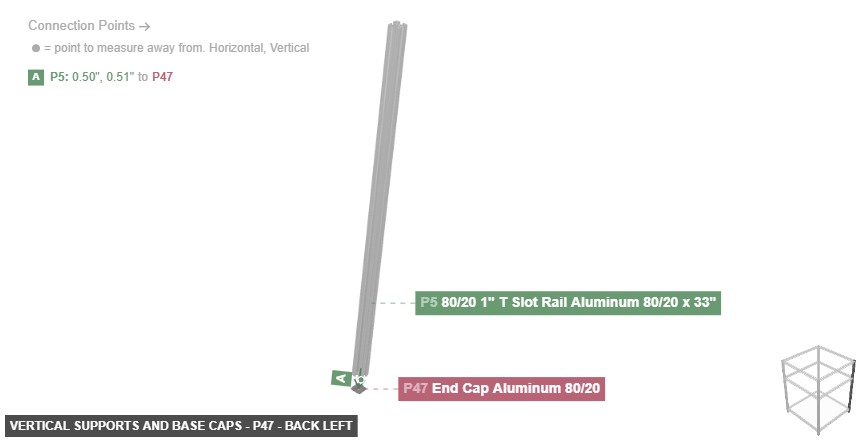

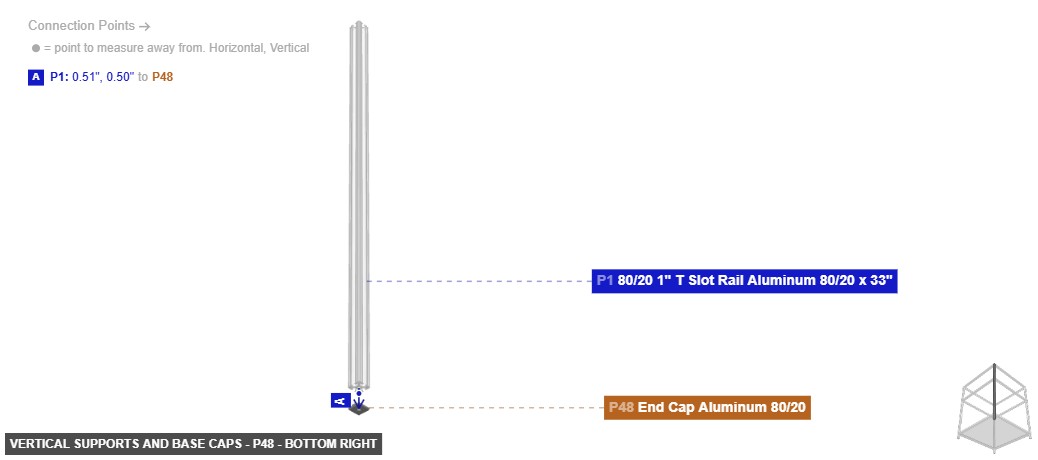

Attach one end cap (P45, P46, P47, P48) to the bottom of each of the four vertical posts (P1, P5, P9, P13).

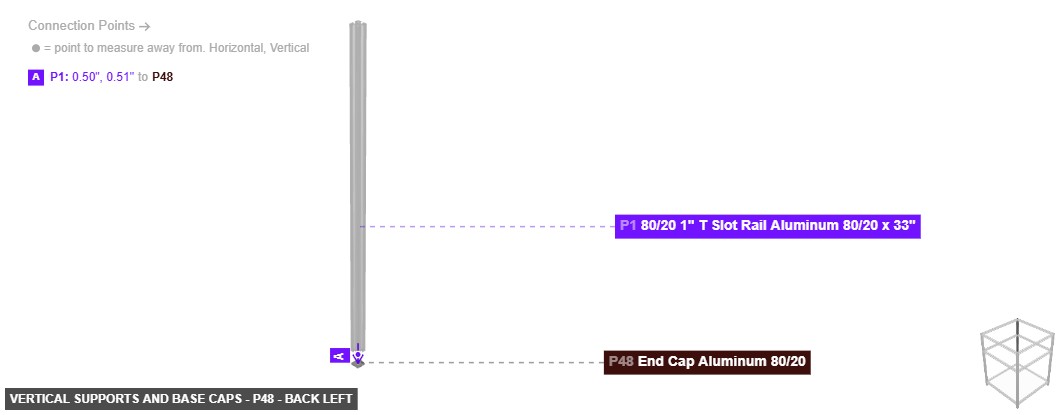

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: back left

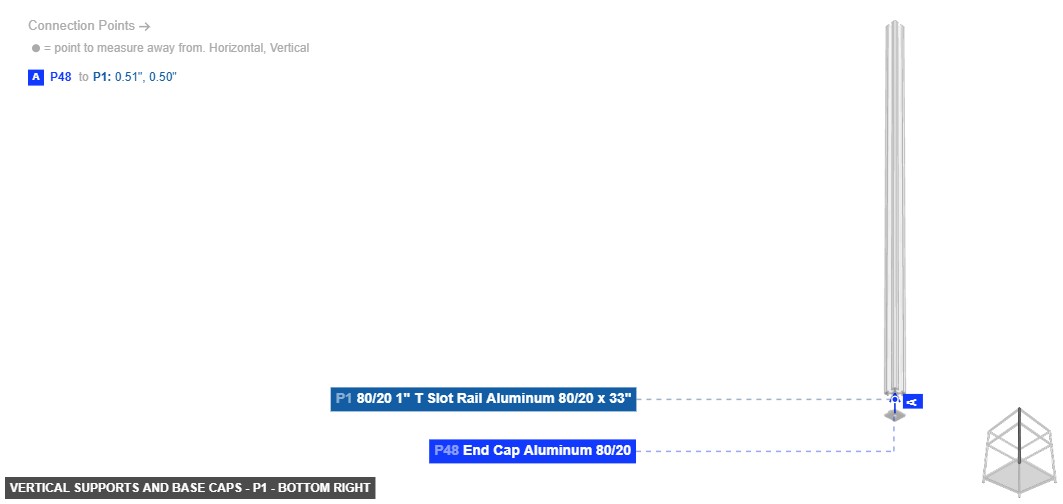

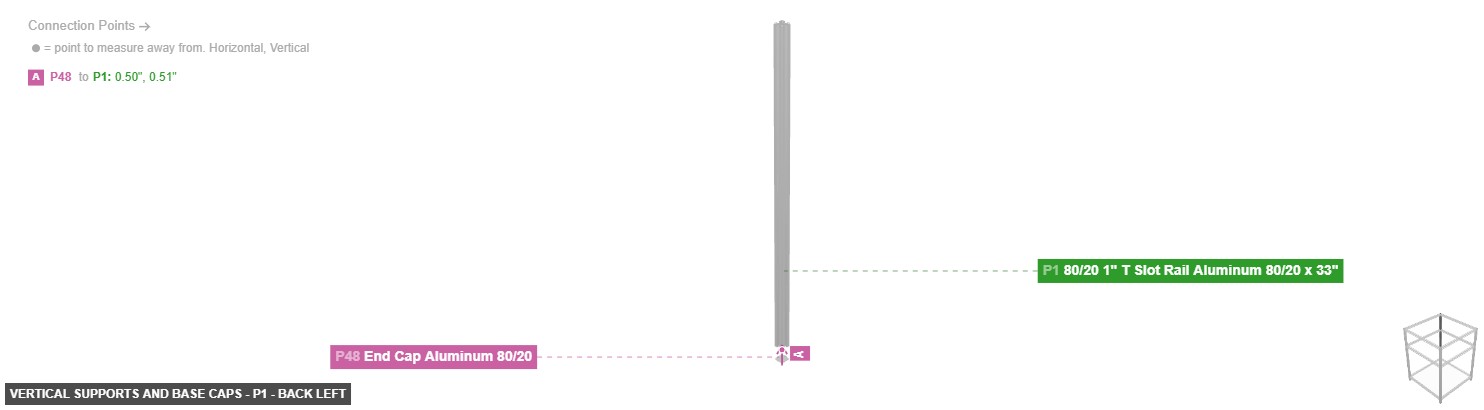

Vertical Supports and Base Caps - Part 80/20 1

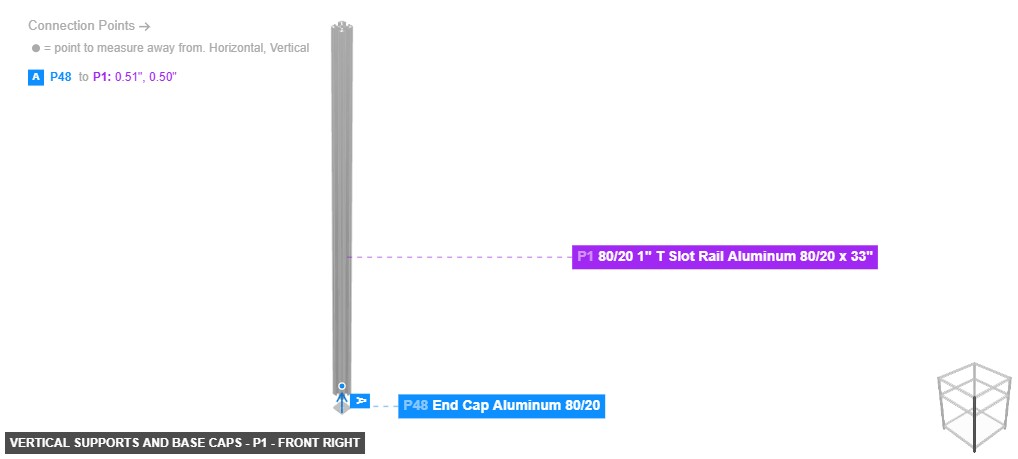

P1 (4" 1" T Slot Rail Aluminum 80/20 33" length) - attach its 1" 80/20 End Hole F #2 facing bottom to part 48's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3 needs to point right, also ensure its 1" Rail 80/20 F #4 faces front

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

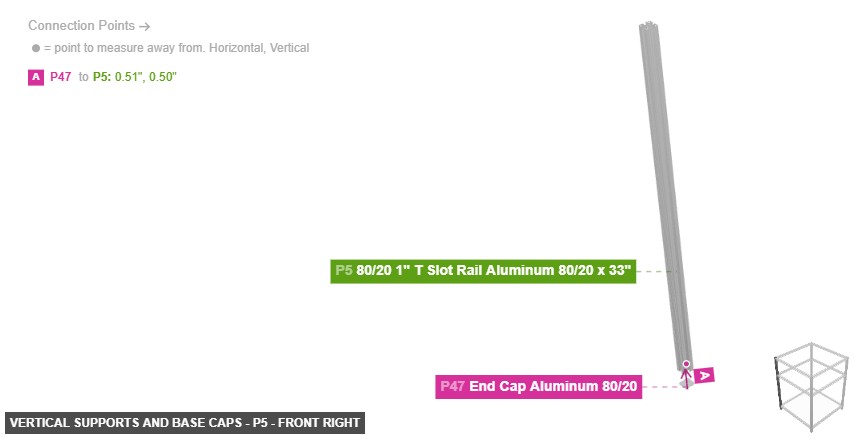

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: back left

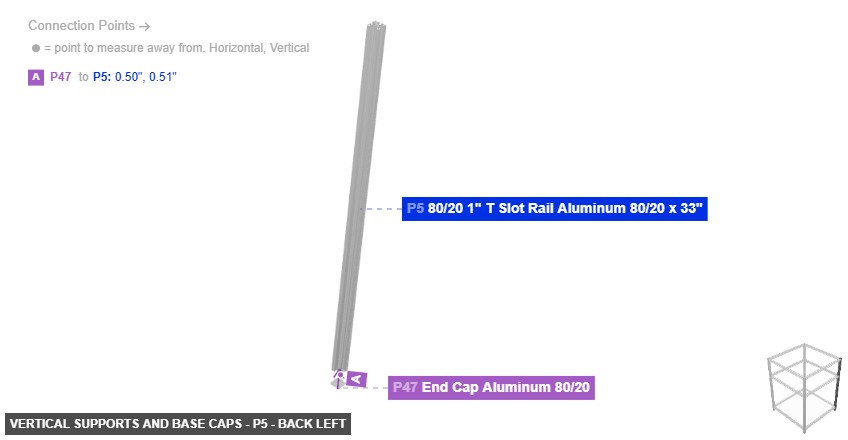

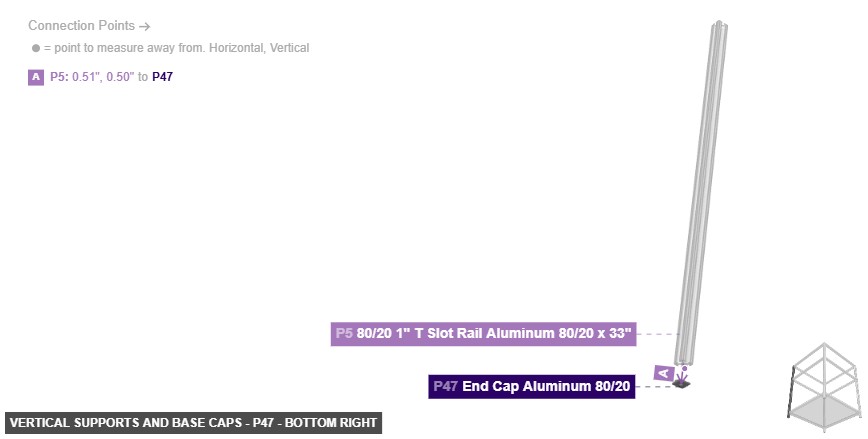

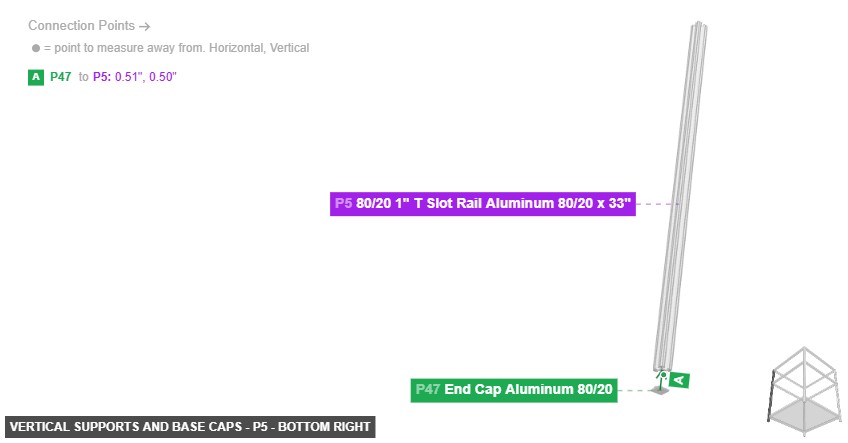

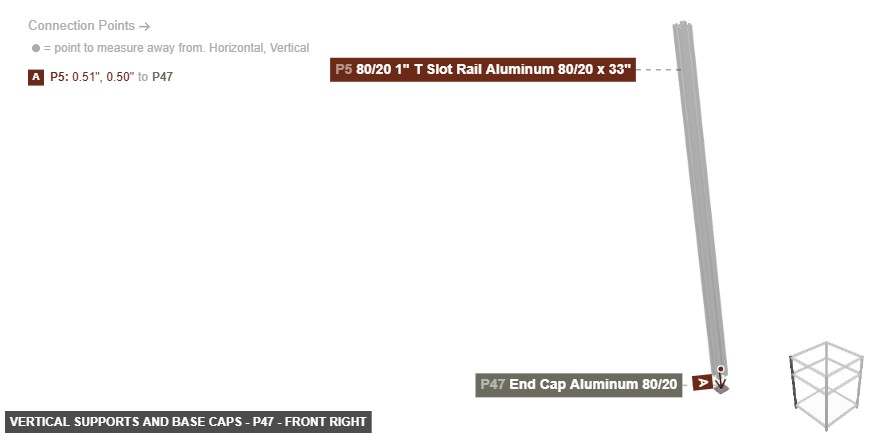

P5 (4" 1" T Slot Rail Aluminum 80/20 33" length) - connect its 1" 80/20 End Hole F #1 oriented bottom links with part 47's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #3 must be oriented left, also its 1" Rail 80/20 F #4 should be directed front

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

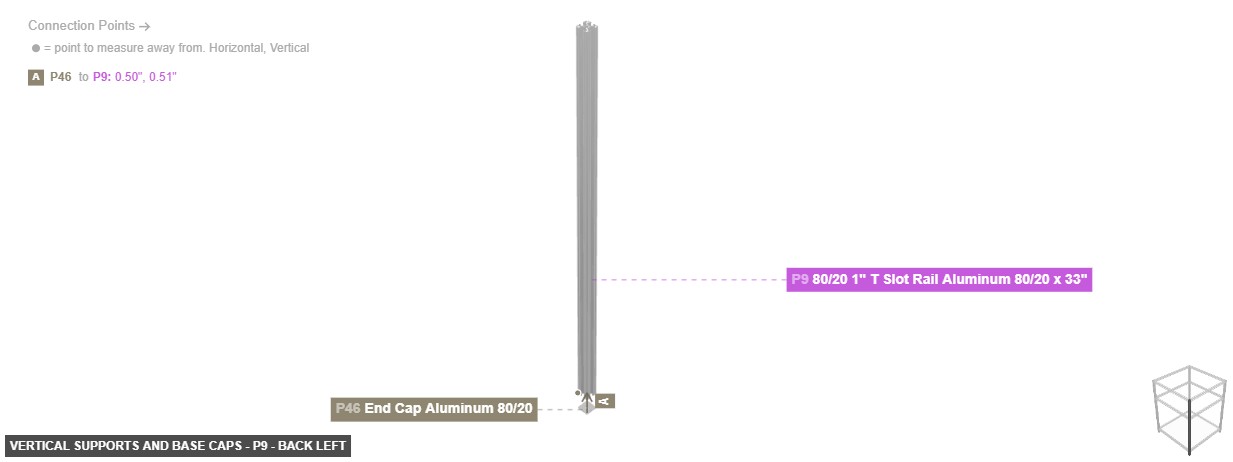

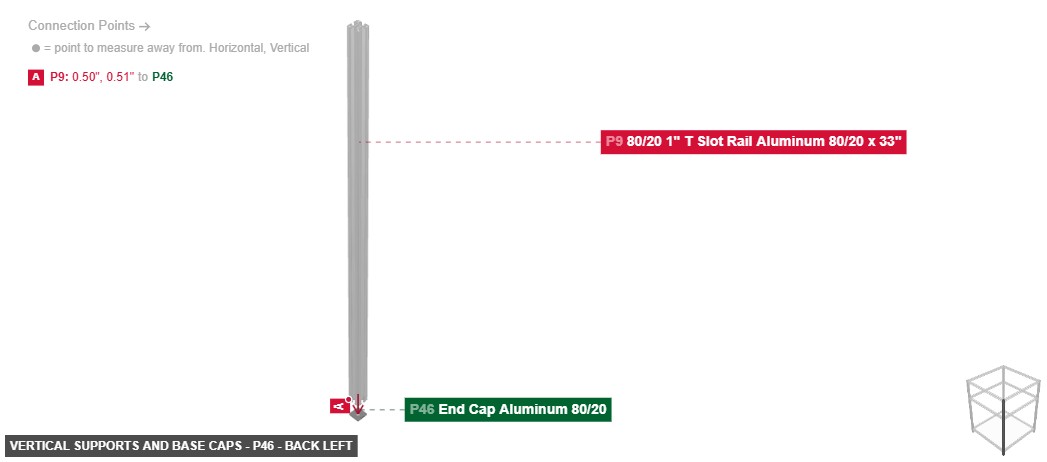

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: back left

P9 (4" 1" T Slot Rail Aluminum 80/20 33" length) - connect its 1" 80/20 End Hole F #1 oriented bottom links with part 46's 1" 80/20 End Hole M #1. Also, ensure its 1" Rail 80/20 F #3 faces back, also its 1" Rail 80/20 F #4 must be oriented left

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

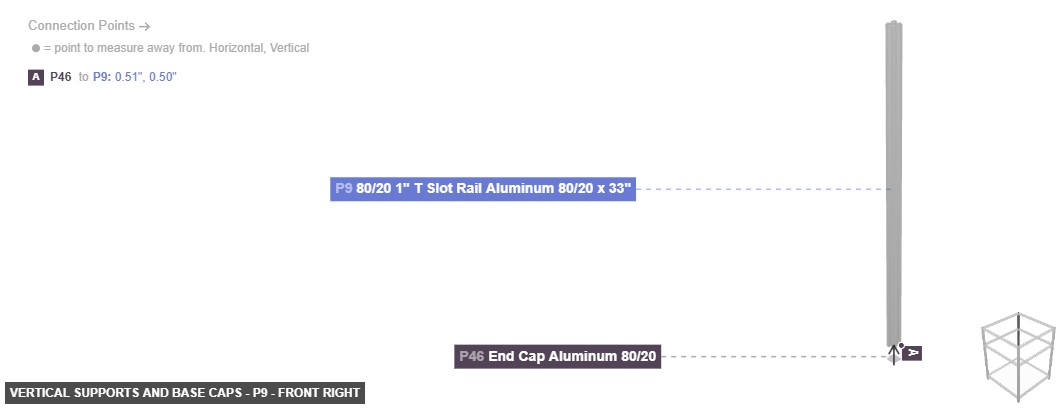

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

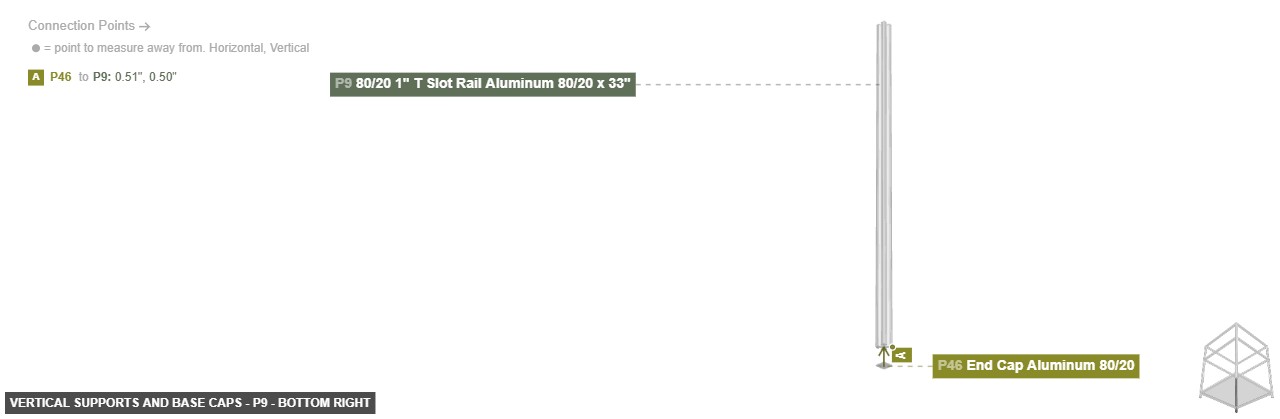

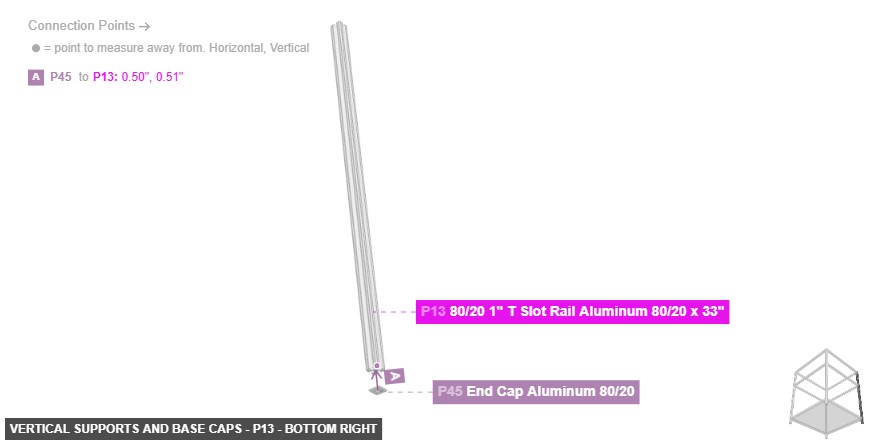

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

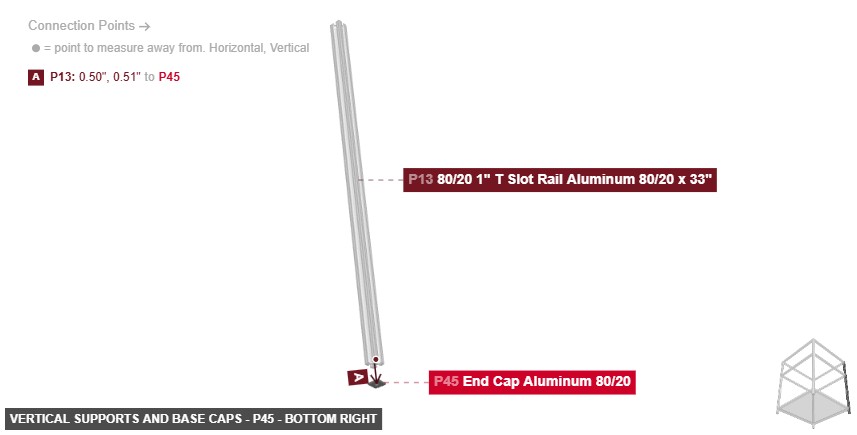

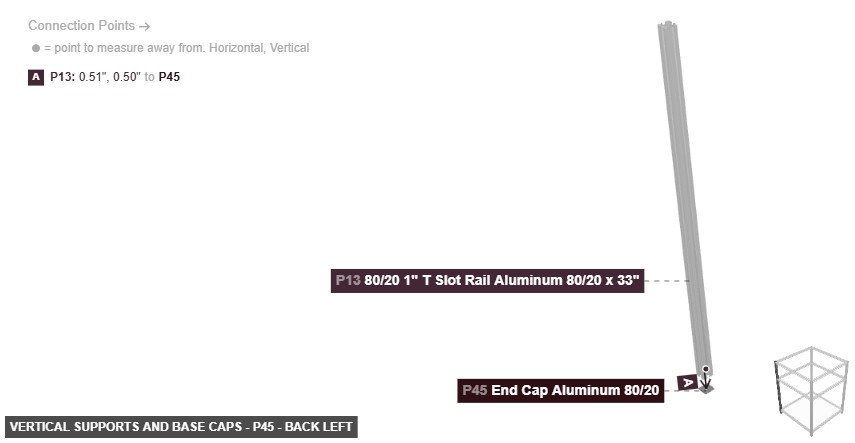

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: back left

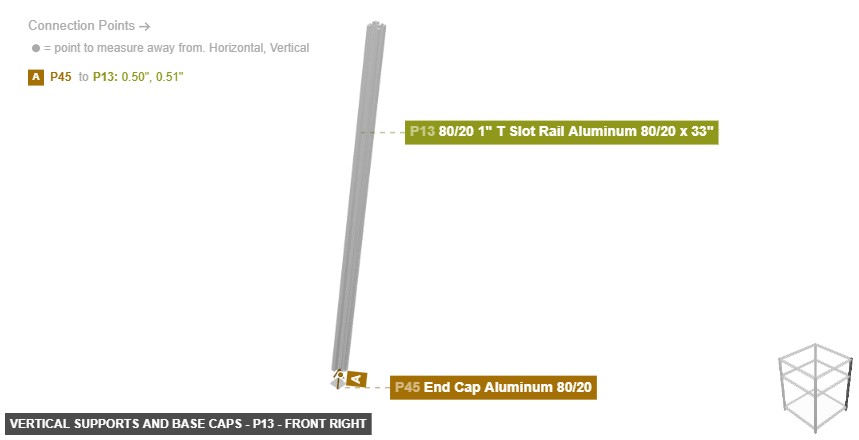

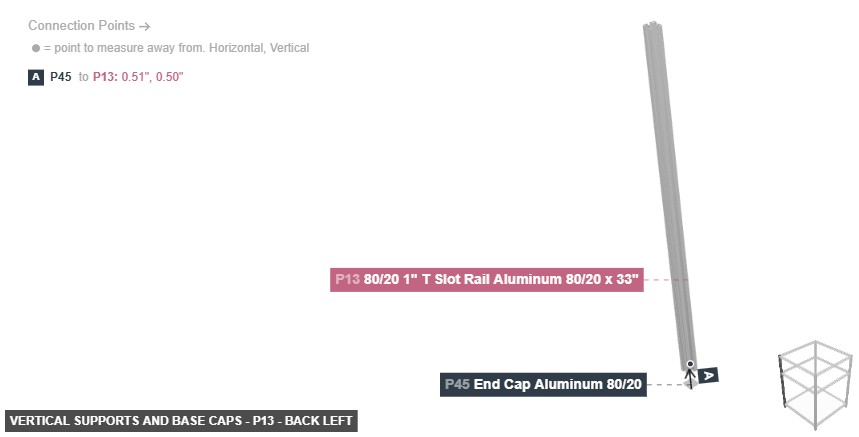

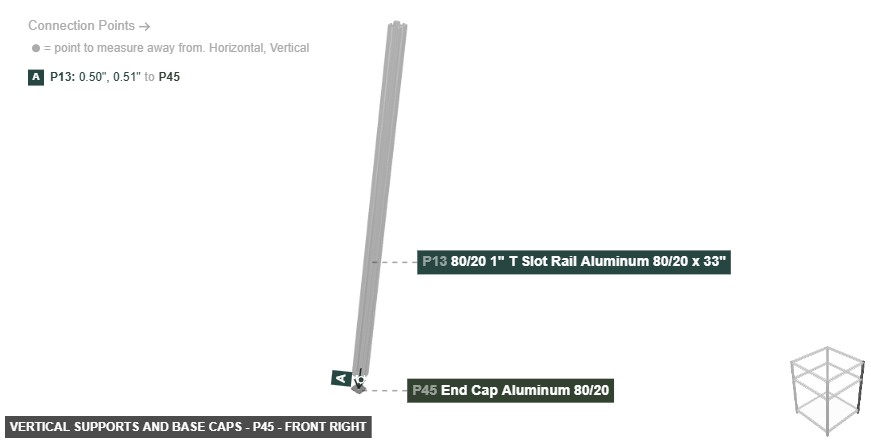

P13 (4" 1" T Slot Rail Aluminum 80/20 33" length) - its 1" 80/20 End Hole F #1, which is bottom-facing, should connect to part 45's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #3 should be directed right. After that, ensure its 1" Rail 80/20 F #4 faces back

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 33" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

Vertical Supports and Base Caps - Part End Cap Aluminum 80/20 - back_left

P48 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing top to part 1's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

Vertical Supports and Base Caps - Part End Cap Aluminum 80/20 - front_right

P48 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing top to part 1's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

Vertical Supports and Base Caps - Part End Cap Aluminum 80/20 - bottom_right

P48 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing top to part 1's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

P47 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented top links with part 5's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

P47 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented top links with part 5's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

P47 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented top links with part 5's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

P46 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented top links with part 9's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

P46 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented top links with part 9's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

P46 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented top links with part 9's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: back left

P45 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing top to part 13's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: front right

P45 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing top to part 13's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Part: End Cap Aluminum 80/20 - Angle: bottom right

P45 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing top to part 13's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Group: Middle Shelf Frame Assembly

Forms the middle support square which will hold the equipment panel.

Connect the four horizontal rails (P29, P30, P31, P32) into a square using the eight angle joints (P33, P34, P35, P36, P37, P38, P39, P40).

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

Middle Shelf Frame Assembly - Part 80/20 1

P29 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 34's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #1 should be directed front. After that, ensure its 1" Rail 80/20 F #2 faces left, plus its 1" Rail 80/20 F #4 must be oriented right, then its 1" 80/20 End Hole F #2 should be directed back

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

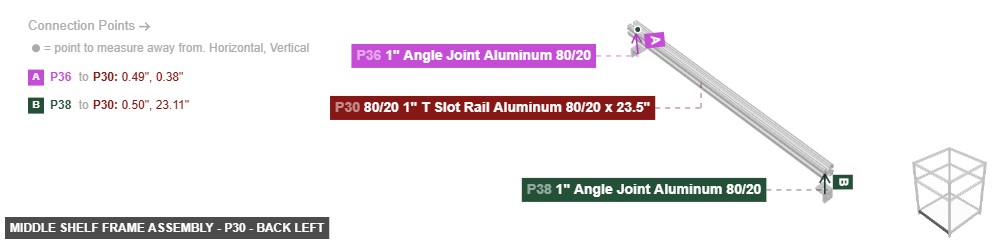

P30 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 36's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #1 needs to point right. Next, ensure its 1" Rail 80/20 F #2 faces front, and ensure its 1" Rail 80/20 F #3 faces top, then its 1" Rail 80/20 F #4 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces left

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

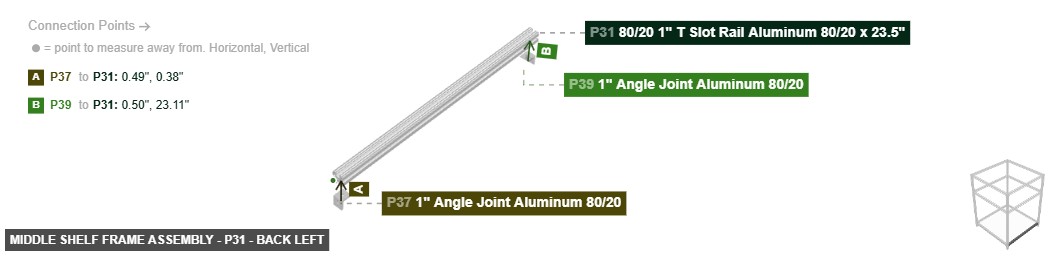

P31 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 37's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 should be directed back. Next, its 1" Rail 80/20 F #2 needs to point right. After that, its 1" Rail 80/20 F #4 needs to point left. After that, ensure its 1" 80/20 End Hole F #2 faces front

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

P32 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 33's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 needs to point left, also its 1" Rail 80/20 F #2 must be oriented back, also its 1" Rail 80/20 F #3 must be oriented top, also its 1" Rail 80/20 F #4 needs to point front, then its 1" 80/20 End Hole F #2 should be directed right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P33 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 32's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

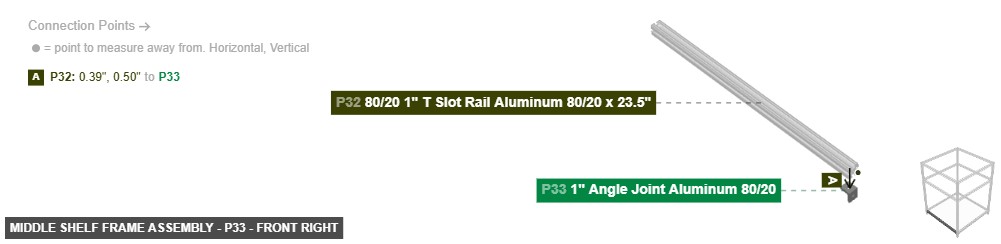

P33 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 32's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P33 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 32's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 29's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 29's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 29's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

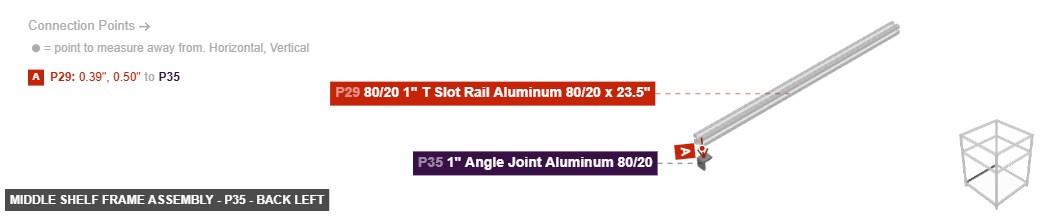

P35 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 29's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P35 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 29's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P35 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 29's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P36 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 30's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P36 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 30's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P36 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 30's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P37 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 31's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

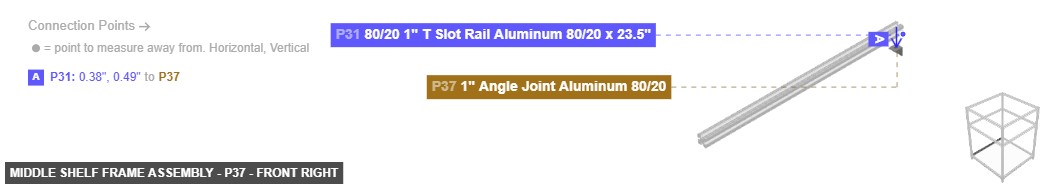

P37 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 31's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P37 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 31's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

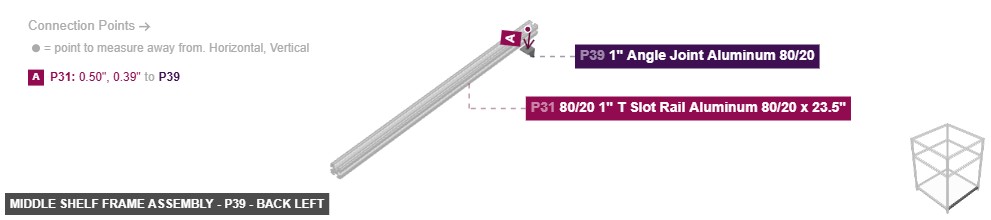

P39 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 31's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P39 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 31's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P39 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 31's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P40 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 32's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P40 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 32's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P40 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 32's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

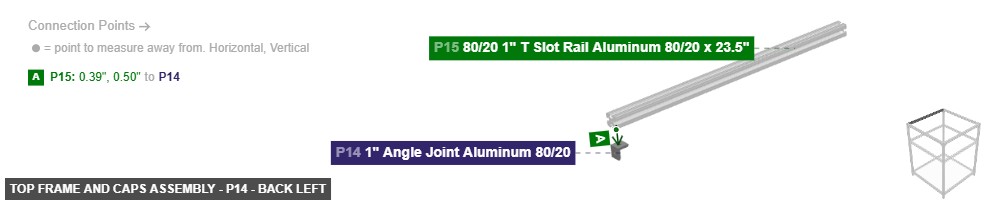

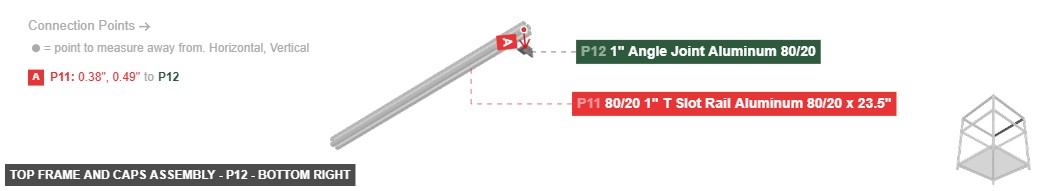

Group: Top Frame and Caps Assembly

Forms the top cube of the structure and caps the vertical posts, completing the main frame.

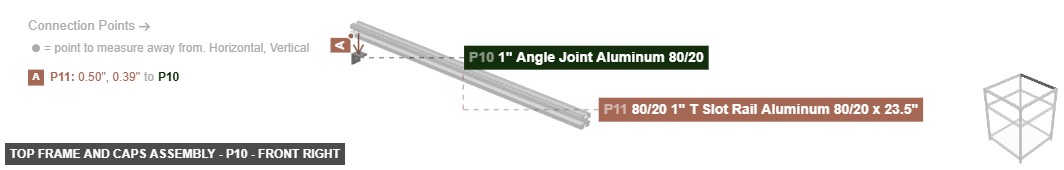

Connect the four horizontal rails (P3, P7, P11, P15) into a square using the eight angle joints (P2, P4, P6, P8, P10, P12, P14, P16).

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

Top Frame and Caps Assembly - Part 80/20 1

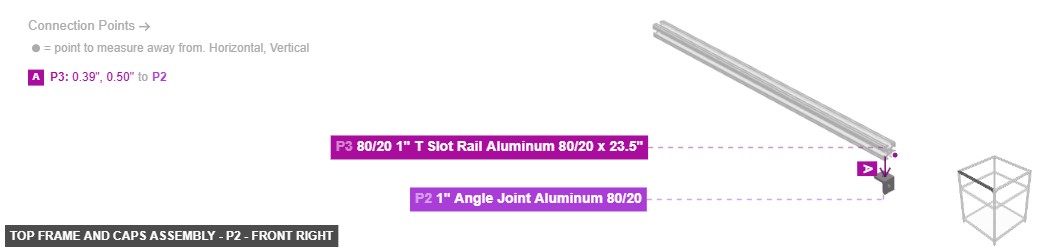

P3 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 2's 1" Rail 80/20 M #2, plus ensure its 1" 80/20 End Hole F #1 faces left. Additionally, its 1" Rail 80/20 F #2 must be oriented back, also its 1" Rail 80/20 F #3 needs to point top, also ensure its 1" Rail 80/20 F #4 faces front, and ensure its 1" 80/20 End Hole F #2 faces right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

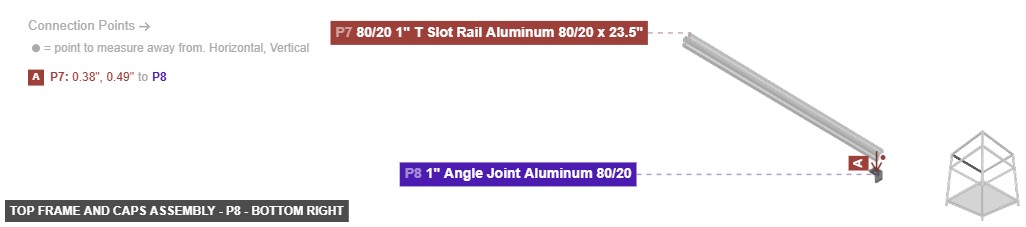

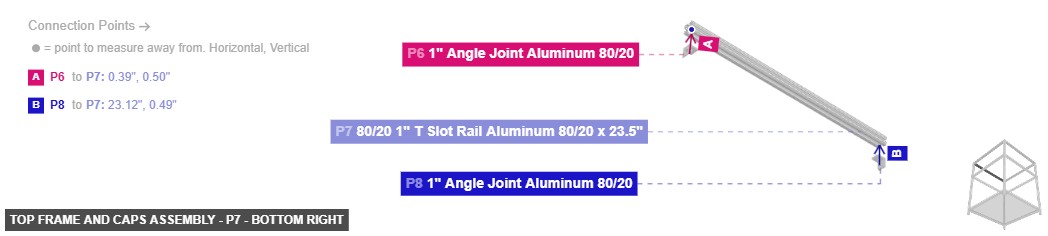

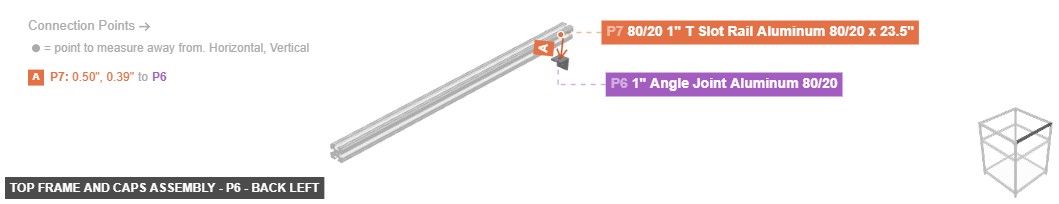

P7 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 6's 1" Rail 80/20 M #2. Next, its 1" 80/20 End Hole F #1 should be directed back, and its 1" Rail 80/20 F #2 needs to point right, also ensure its 1" Rail 80/20 F #3 faces top, also its 1" Rail 80/20 F #4 must be oriented left, and ensure its 1" 80/20 End Hole F #2 faces front

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

P11 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 10's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented right, plus its 1" Rail 80/20 F #2 should be directed front. Also, its 1" Rail 80/20 F #3 must be oriented top. Next, its 1" Rail 80/20 F #4 should be directed back, and its 1" 80/20 End Hole F #2 needs to point left

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: back left

P15 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 14's 1" Rail 80/20 M #2, also its 1" 80/20 End Hole F #1 should be directed front, and ensure its 1" Rail 80/20 F #2 faces left. Next, its 1" Rail 80/20 F #3 should be directed top. Next, its 1" Rail 80/20 F #4 should be directed right, also its 1" 80/20 End Hole F #2 needs to point back

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: front right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 23.5" - Angle: bottom right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P2 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 3's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P2 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 3's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P2 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 3's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P4 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 3's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P4 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 3's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P4 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 3's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P6 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P6 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P6 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P8 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 7's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P8 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 7's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P8 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 7's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P10 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 11's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P10 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 11's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P10 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 11's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P12 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 11's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P12 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 11's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P12 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 11's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P14 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 15's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P14 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 15's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P14 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 15's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

P16 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 15's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

P16 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 15's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

P16 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 15's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Group: Panel Installation

Provides a solid surface on the middle shelf, likely for mounting electronics or a print bed.

This group consists of the panel and its hangers, which are assembled directly onto the main frame.

Part: 2' Acrylic Panel x 24" - Angle: back left

Panel Installation - Part 2' Acrylic Panel x 24

P50 (2' Acrylic Panel 24" length) - attach its 1" 80 20 Panel #1 facing top to part 52's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #2, which is top-facing, should connect to part 49's 1" 80 20 Panel Holder #1, and attach its 1" 80 20 Panel #3 facing top to part 53's 1" 80 20 Panel Holder #1. Also, its 1" 80 20 Panel #4, which is top-facing, should connect to part 51's 1" 80 20 Panel Holder #1

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 2' Acrylic Panel x 24" - Angle: front right

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 2' Acrylic Panel x 24" - Angle: bottom right

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #2

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #2

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #2

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

P51 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #4

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P51 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #4

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P51 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #4

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

P52 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 50's 1" 80 20 Panel #1

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P52 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 50's 1" 80 20 Panel #1

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P52 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 50's 1" 80 20 Panel #1

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

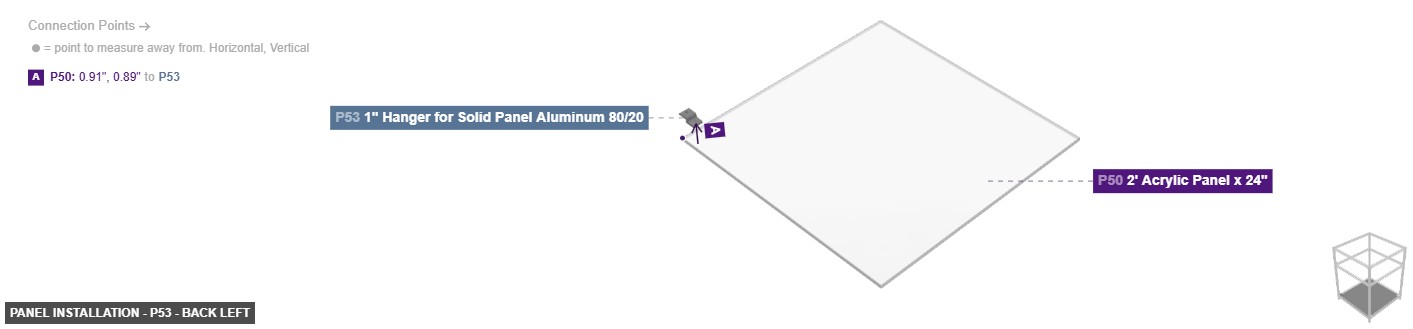

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

P53 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #3

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

P53 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #3

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

P53 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #3

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Phase 3: Inter-Group Assembly

Attaching: Bottom Frame Assembly

Forms the lowest square of the main structure, providing a stable base for the vertical posts.

This is the foundational group. The Vertical Supports will be attached to the corners of this frame in the next step.

Angle: back left

Assembly of Bottom Frame Assembly - back_left

P17 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 25's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 needs to point back, and ensure its 1" Rail 80/20 F #2 faces right, plus its 1" Rail 80/20 F #3 needs to point top, also its 1" Rail 80/20 F #4 should be directed left, then its 1" 80/20 End Hole F #2 must be oriented front P18 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 21's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 must be oriented front. After that, its 1" Rail 80/20 F #2 should be directed left, and its 1" Rail 80/20 F #3 must be oriented top. Also, its 1" Rail 80/20 F #4 should be directed right, then its 1" 80/20 End Hole F #2 should be directed back P19 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 23's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 must be oriented left. Additionally, ensure its 1" Rail 80/20 F #2 faces back, and its 1" Rail 80/20 F #3 needs to point top, also its 1" Rail 80/20 F #4 must be oriented front, and its 1" 80/20 End Hole F #2 should be directed right P20 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 22's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point right, plus ensure its 1" Rail 80/20 F #2 faces front, also its 1" Rail 80/20 F #3 should be directed top. After that, its 1" Rail 80/20 F #4 should be directed back, also its 1" 80/20 End Hole F #2 must be oriented left P21 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 13's 1" Rail 80/20 F #2. Next, attach its 1" Rail 80/20 M #2 facing top to part 18's 1" Rail 80/20 F #1 P22 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 20's 1" Rail 80/20 F #1. After that, connect its 1" Rail 80/20 M #2 oriented right links with part 13's 1" Rail 80/20 F #1 P23 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 1's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented top links with part 19's 1" Rail 80/20 F #1 P24 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 18's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is front-facing, should connect to part 1's 1" Rail 80/20 F #2 P25 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 5's 1" Rail 80/20 F #2, also attach its 1" Rail 80/20 M #2 facing top to part 17's 1" Rail 80/20 F #1 P26 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented left links with part 5's 1" Rail 80/20 F #1 P27 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 9's 1" Rail 80/20 F #2, plus its 1" Rail 80/20 M #2, which is top-facing, should connect to part 20's 1" Rail 80/20 F #1 P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 17's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Angle: front right

Assembly of Bottom Frame Assembly - front_right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Angle: bottom right

Assembly of Bottom Frame Assembly - bottom_right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Attaching: Vertical Supports and Base Caps

Creates the main height of the frame and connects the base to the upper sections.

Attach the four vertical posts to the inside corners of the Bottom Frame Assembly. For example, post P1 connects to joints P23 and P24 on the bottom frame.

Angle: back left

Assembly of Vertical Supports and Base Caps - back_left

P1 (4" 1" T Slot Rail Aluminum 80/20 33" length) - attach its 1" 80/20 End Hole F #1 facing top to part 44's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1, which is left-facing, should connect to part 2's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #2, which is back-facing, should connect to part 16's 1" Rail 80/20 M #2. Also, its 1" 80/20 End Hole F #2, which is bottom-facing, should connect to part 48's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3 should be directed right. Additionally, its 1" Rail 80/20 F #4 must be oriented front P5 (4" 1" T Slot Rail Aluminum 80/20 33" length) - its 1" 80/20 End Hole F #1, which is bottom-facing, should connect to part 47's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented right links with part 4's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #2, which is back-facing, should connect to part 6's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #2, which is top-facing, should connect to part 43's 1" 80/20 End Hole M #1, and ensure its 1" Rail 80/20 F #3 faces left. After that, ensure its 1" Rail 80/20 F #4 faces front P9 (4" 1" T Slot Rail Aluminum 80/20 33" length) - its 1" 80/20 End Hole F #1, which is bottom-facing, should connect to part 46's 1" 80/20 End Hole M #1, also attach its 1" Rail 80/20 F #1 facing front to part 8's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #2 facing right to part 10's 1" Rail 80/20 M #1, then attach its 1" 80/20 End Hole F #2 facing top to part 42's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #3 faces back. Next, its 1" Rail 80/20 F #4 should be directed left P13 (4" 1" T Slot Rail Aluminum 80/20 33" length) - connect its 1" 80/20 End Hole F #1 oriented bottom links with part 45's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing left to part 12's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #2, which is front-facing, should connect to part 14's 1" Rail 80/20 M #1, plus connect its 1" 80/20 End Hole F #2 oriented top links with part 41's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #3 must be oriented right. Also, its 1" Rail 80/20 F #4 should be directed back P48 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is top-facing, should connect to part 1's 1" 80/20 End Hole F #2 P47 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is top-facing, should connect to part 5's 1" 80/20 End Hole F #1 P46 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing top to part 9's 1" 80/20 End Hole F #1 P45 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented top links with part 13's 1" 80/20 End Hole F #1

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Angle: front right

Assembly of Vertical Supports and Base Caps - front_right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Angle: bottom right

Assembly of Vertical Supports and Base Caps - bottom_right

80/20 1" T Slot Rail Aluminum 80/20 x 33"x 4

End Cap Aluminum 80/20x 4

Attaching: Middle Shelf Frame Assembly

Forms the middle support square which will hold the equipment panel.

Slide the completed Middle Shelf Frame down over the Vertical Supports and secure it at the desired height by fastening the angle joints to the posts. For example, joints P33 and P34 attach to post P1.

Angle: back left

Assembly of Middle Shelf Frame Assembly - back_left

P29 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 34's 1" Rail 80/20 M #1. After that, connect its 1" Rail 80/20 F #3 oriented top links with part 52's 1" Rail 80/20 M #1, and ensure its 1" 80/20 End Hole F #1 faces front, then its 1" Rail 80/20 F #2 should be directed left. Additionally, its 1" Rail 80/20 F #4 should be directed right. Also, ensure its 1" 80/20 End Hole F #2 faces back P30 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 36's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed right. Next, its 1" Rail 80/20 F #2 needs to point front. Additionally, its 1" Rail 80/20 F #3 must be oriented top, then its 1" Rail 80/20 F #4 must be oriented back, and its 1" 80/20 End Hole F #2 needs to point left P31 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 37's 1" Rail 80/20 M #1, then connect its 1" Rail 80/20 F #3 oriented top links with part 49's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented back. Next, its 1" Rail 80/20 F #2 must be oriented right, then its 1" Rail 80/20 F #4 should be directed left, then ensure its 1" 80/20 End Hole F #2 faces front P32 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 33's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 must be oriented left, plus its 1" Rail 80/20 F #2 should be directed back, and ensure its 1" Rail 80/20 F #3 faces top. Additionally, its 1" Rail 80/20 F #4 should be directed front. Additionally, its 1" 80/20 End Hole F #2 should be directed right P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 1's 1" Rail 80/20 F #1, also attach its 1" Rail 80/20 M #2 facing top to part 32's 1" Rail 80/20 F #1 P34 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 29's 1" Rail 80/20 F #1, and connect its 1" Rail 80/20 M #2 oriented front links with part 1's 1" Rail 80/20 F #2 P35 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 13's 1" Rail 80/20 F #2. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 29's 1" Rail 80/20 F #1 P36 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 30's 1" Rail 80/20 F #1. Additionally, attach its 1" Rail 80/20 M #2 facing right to part 13's 1" Rail 80/20 F #1 P37 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 31's 1" Rail 80/20 F #1, also attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1 P38 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 9's 1" Rail 80/20 F #2, plus attach its 1" Rail 80/20 M #2 facing top to part 30's 1" Rail 80/20 F #1 P39 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 5's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 31's 1" Rail 80/20 F #1 P40 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 32's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing left to part 5's 1" Rail 80/20 F #1

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Angle: front right

Assembly of Middle Shelf Frame Assembly - front_right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Angle: bottom right

Assembly of Middle Shelf Frame Assembly - bottom_right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

Attaching: Top Frame and Caps Assembly

Forms the top cube of the structure and caps the vertical posts, completing the main frame.

Place the completed top frame onto the top of the Vertical Supports and secure it by fastening the angle joints. For example, joints P2 and P16 attach to post P1. After the frame is secure, place the four end caps (P41, P42, P43, P44) on the exposed tops of the vertical posts.

Angle: back left

Assembly of Top Frame and Caps Assembly - back_left

P3 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 2's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 must be oriented left. After that, ensure its 1" Rail 80/20 F #2 faces back. Also, its 1" Rail 80/20 F #3 should be directed top, then ensure its 1" Rail 80/20 F #4 faces front. Next, its 1" 80/20 End Hole F #2 must be oriented right P7 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 6's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 should be directed back. Also, its 1" Rail 80/20 F #2 needs to point right. Additionally, ensure its 1" Rail 80/20 F #3 faces top, plus its 1" Rail 80/20 F #4 should be directed left. Additionally, its 1" 80/20 End Hole F #2 needs to point front P11 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 10's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 needs to point right. Next, its 1" Rail 80/20 F #2 needs to point front, then its 1" Rail 80/20 F #3 should be directed top, then ensure its 1" Rail 80/20 F #4 faces back. Next, its 1" 80/20 End Hole F #2 needs to point left P15 (4" 1" T Slot Rail Aluminum 80/20 23.5" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 14's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 must be oriented front. After that, its 1" Rail 80/20 F #2 must be oriented left. Also, its 1" Rail 80/20 F #3 must be oriented top. Next, its 1" Rail 80/20 F #4 should be directed right, plus its 1" 80/20 End Hole F #2 needs to point back P2 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 1's 1" Rail 80/20 F #1, also attach its 1" Rail 80/20 M #2 facing top to part 3's 1" Rail 80/20 F #1 P4 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 3's 1" Rail 80/20 F #1. Additionally, its 1" Rail 80/20 M #2, which is left-facing, should connect to part 5's 1" Rail 80/20 F #1 P6 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 5's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 7's 1" Rail 80/20 F #1 P8 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 7's 1" Rail 80/20 F #1, and its 1" Rail 80/20 M #2, which is back-facing, should connect to part 9's 1" Rail 80/20 F #1 P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 9's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 11's 1" Rail 80/20 F #1 P12 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 11's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is right-facing, should connect to part 13's 1" Rail 80/20 F #1 P14 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 13's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 15's 1" Rail 80/20 F #1 P16 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 15's 1" Rail 80/20 F #1. Next, attach its 1" Rail 80/20 M #2 facing front to part 1's 1" Rail 80/20 F #2 P44 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 1's 1" 80/20 End Hole F #1 P43 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 5's 1" 80/20 End Hole F #2 P42 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 9's 1" 80/20 End Hole F #2 P41 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 13's 1" 80/20 End Hole F #2

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Angle: front right

Assembly of Top Frame and Caps Assembly - front_right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Angle: bottom right

Assembly of Top Frame and Caps Assembly - bottom_right

80/20 1" T Slot Rail Aluminum 80/20 x 23.5"x 4

1" Angle Joint Aluminum 80/20x 8

End Cap Aluminum 80/20x 4

Attaching: Panel Installation

Provides a solid surface on the middle shelf, likely for mounting electronics or a print bed.

Attach the four panel hangers (P49, P51, P52, P53) to the rails of the Middle Shelf Frame (P29 and P31). Then, place the acrylic panel (P50) onto the hangers to secure it.

Angle: back left

Assembly of Panel Installation - back_left

P50 (2' Acrylic Panel 24" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 52's 1" 80 20 Panel Holder #1, then attach its 1" 80 20 Panel #2 facing top to part 49's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #3, which is top-facing, should connect to part 53's 1" 80 20 Panel Holder #1. Next, attach its 1" 80 20 Panel #4 facing top to part 51's 1" 80 20 Panel Holder #1 P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 31's 1" Rail 80/20 F #3. After that, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 50's 1" 80 20 Panel #2 P51 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 31's 1" Rail 80/20 F #3, then connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 50's 1" 80 20 Panel #4 P52 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 29's 1" Rail 80/20 F #3, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #1 P53 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 29's 1" Rail 80/20 F #3, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 50's 1" 80 20 Panel #3

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Angle: front right

Assembly of Panel Installation - front_right

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4

Angle: bottom right

Assembly of Panel Installation - bottom_right

2' Acrylic Panel x 24"x 1

1" Hanger for Solid Panel Aluminum 80/20x 4
