Platform Bed 2 - Comprehensive Assembly Plan And Visual Guide

Platform Bed 2 Free Plan And Visual Guide

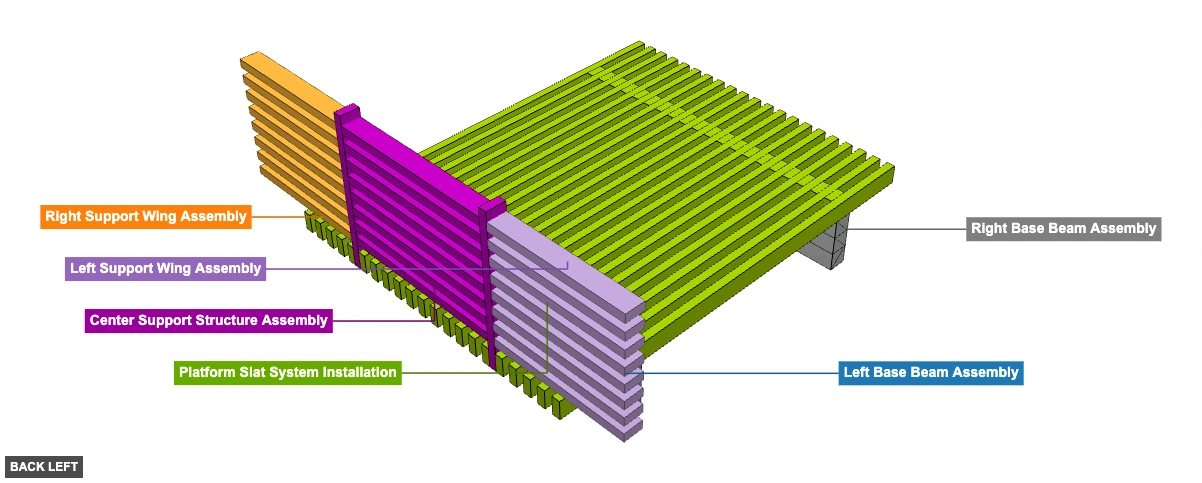

A wooden platform bed frame constructed from stacked 4x4 lumber forming two main side beams. A dense array of 2x4 lumber pieces acts as the platform slats, resting on the side beams. An additional underlying support structure made of 2x4s provides central support. - Platform Bed Frame

Phase 1: Group Overview

Angle: back left

Left Base Beam Assembly

4" x 4" Lumber x 61.5"x 3

Right Base Beam Assembly

4" x 4" Lumber x 61.5"x 3

Platform Slat System Installation

2" x 4" Lumber x 80"x 21

2" x 4" Lumber x 3.5"x 40

Center Support Structure Assembly

2" x 4" Lumber x 29.25"x 2

2" x 4" Lumber x 31.5"x 8

Left Support Wing Assembly

2" x 4" Lumber x 26"x 8

Right Support Wing Assembly

2" x 4" Lumber x 26"x 8

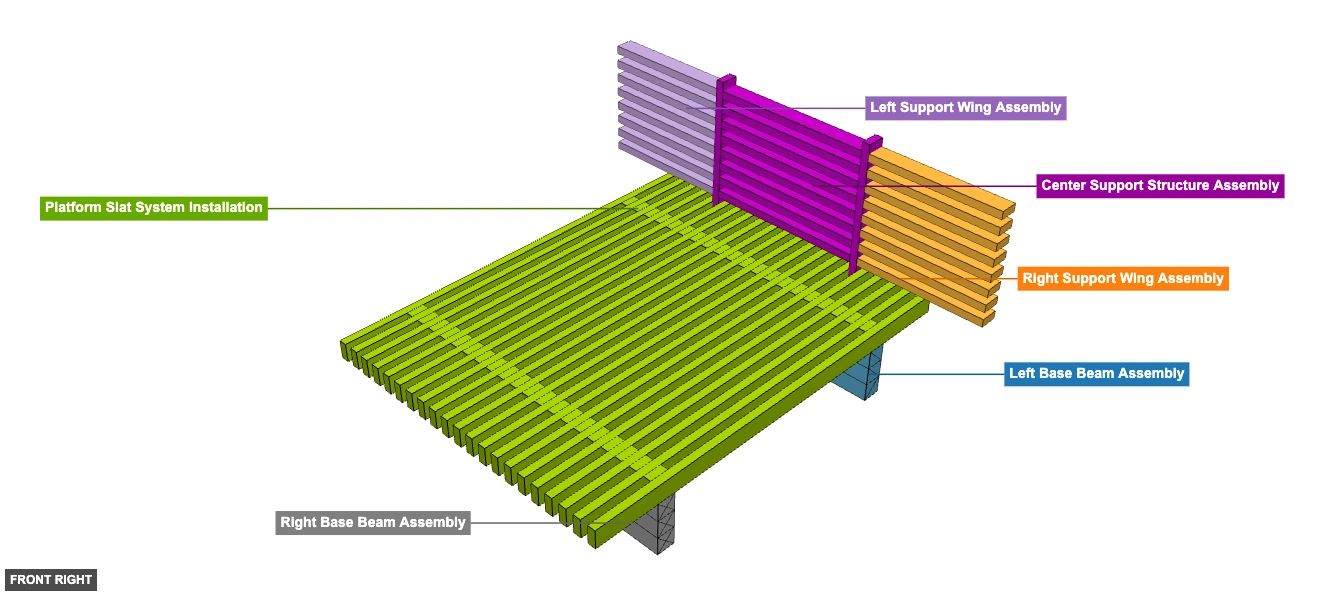

Angle: front right

Left Base Beam Assembly

4" x 4" Lumber x 61.5"x 3

Right Base Beam Assembly

4" x 4" Lumber x 61.5"x 3

Platform Slat System Installation

2" x 4" Lumber x 80"x 21

2" x 4" Lumber x 3.5"x 40

Center Support Structure Assembly

2" x 4" Lumber x 29.25"x 2

2" x 4" Lumber x 31.5"x 8

Left Support Wing Assembly

2" x 4" Lumber x 26"x 8

Right Support Wing Assembly

2" x 4" Lumber x 26"x 8

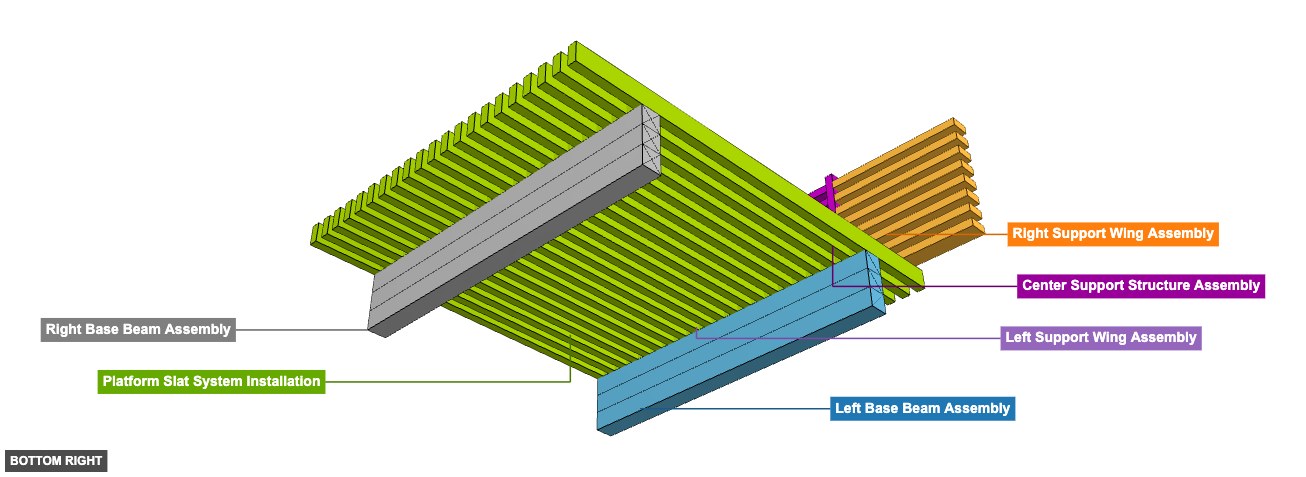

Angle: bottom right

Left Base Beam Assembly

4" x 4" Lumber x 61.5"x 3

Right Base Beam Assembly

4" x 4" Lumber x 61.5"x 3

Platform Slat System Installation

2" x 4" Lumber x 80"x 21

2" x 4" Lumber x 3.5"x 40

Center Support Structure Assembly

2" x 4" Lumber x 29.25"x 2

2" x 4" Lumber x 31.5"x 8

Left Support Wing Assembly

2" x 4" Lumber x 26"x 8

Right Support Wing Assembly

4" x 4" Lumber x 61.5"x 3

Part: 4" x 4" Lumber x 61.5" - Angle: bottom right

4" x 4" Lumber x 61.5"x 3

4" x 4" Lumber x 61.5"x 3

2" x 4" Lumber x 80"x 21

2" x 4" Lumber x 3.5"x 40

2" x 4" Lumber x 29.25"x 2

2" x 4" Lumber x 31.5"x 8

Phase 3: Inter-Group Assembly

Attaching: Left Base Beam Assembly

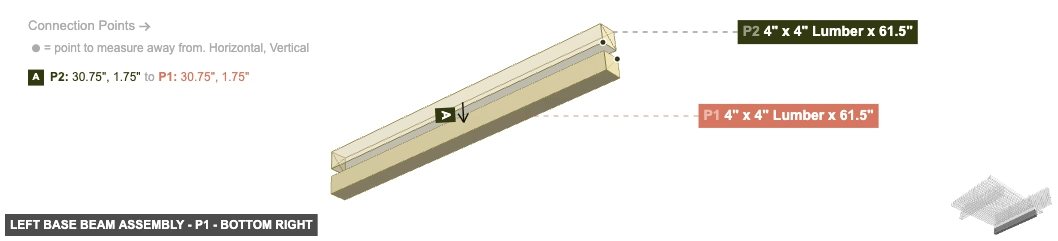

Assemble the three 4x4 lumber pieces that form the left main support beam.

Angle: back left

Assembly of Left Base Beam Assembly - back_left

P1 (4" x 4" Lumber 61.5" length) - connect its 4" x 4" Wood Side #2 oriented top links with part 2's 4" x 4" Wood Side #1. Also, ensure its 4" x 4" Wood End #1 faces right. After that, its 4" x 4" Wood Side #1 needs to point front, also ensure its 4" x 4" Wood Side #3 faces back, and its 4" x 4" Wood Side #4 needs to point bottom. Next, ensure its 4" x 4" Wood End #2 faces left P2 (4" x 4" Lumber 61.5" length) - its 4" x 4" Wood Side #1, which is bottom-facing, should connect to part 1's 4" x 4" Wood Side #2. Next, connect its 4" x 4" Wood Side #3 oriented top links with part 3's 4" x 4" Wood Side #1. Also, its 4" x 4" Wood End #1 should be directed right, also its 4" x 4" Wood Side #2 must be oriented front, plus its 4" x 4" Wood Side #4 must be oriented back. Also, its 4" x 4" Wood End #2 should be directed left P3 (4" x 4" Lumber 61.5" length) - attach its 4" x 4" Wood Side #1 facing bottom to part 2's 4" x 4" Wood Side #3, plus connect its 4" x 4" Wood Side #3 oriented top links with part 7's 2" x 4" Wood Side #1. Next, its 4" x 4" Wood End #1 should be directed right. Additionally, ensure its 4" x 4" Wood Side #2 faces front, and its 4" x 4" Wood Side #4 should be directed back. Also, its 4" x 4" Wood End #2 must be oriented left

4" x 4" Lumber x 61.5"x 3

Angle: front right

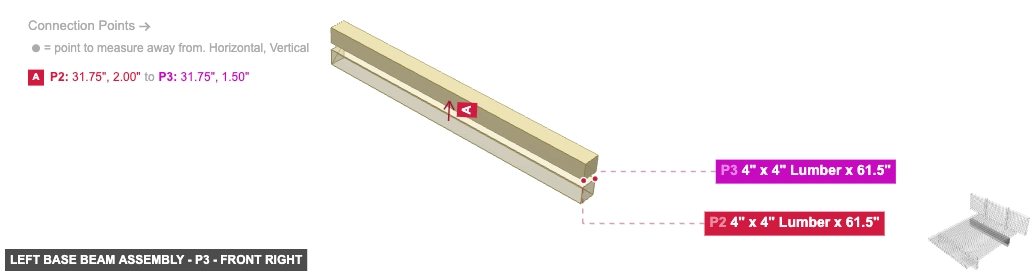

Assembly of Left Base Beam Assembly - front_right

4" x 4" Lumber x 61.5"x 3

Angle: bottom right

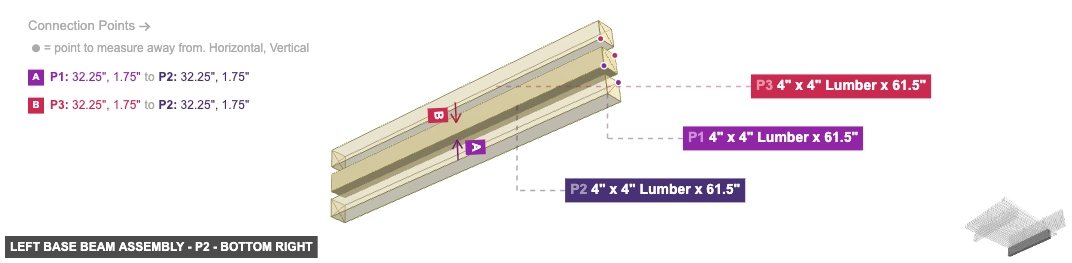

Assembly of Left Base Beam Assembly - bottom_right

4" x 4" Lumber x 61.5"x 3

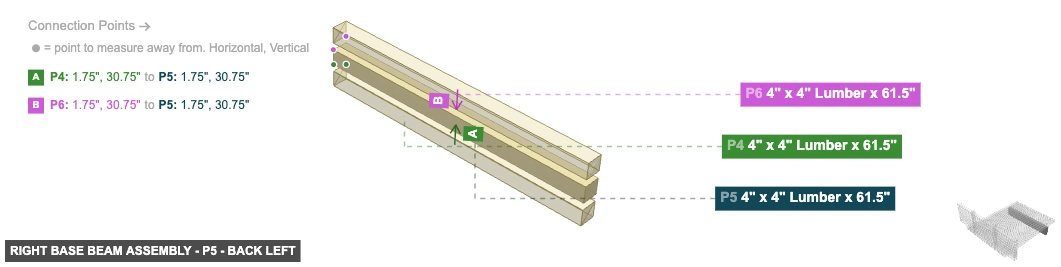

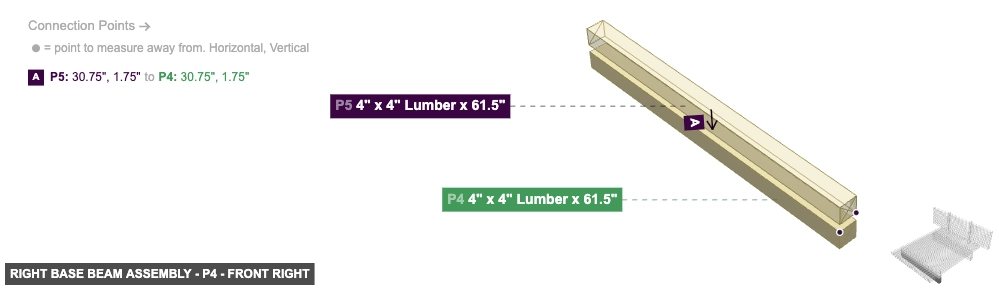

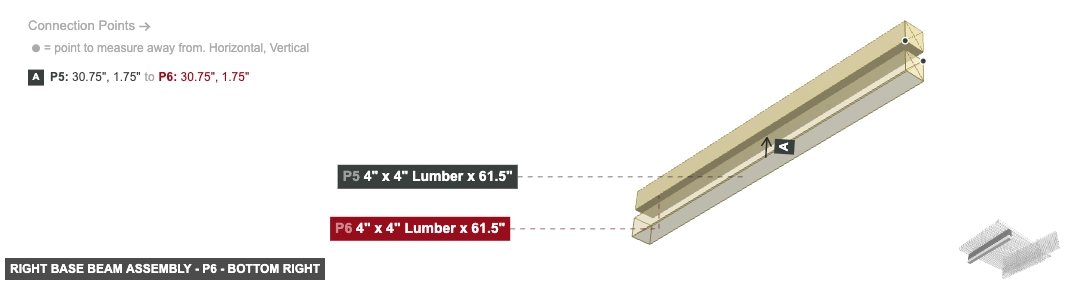

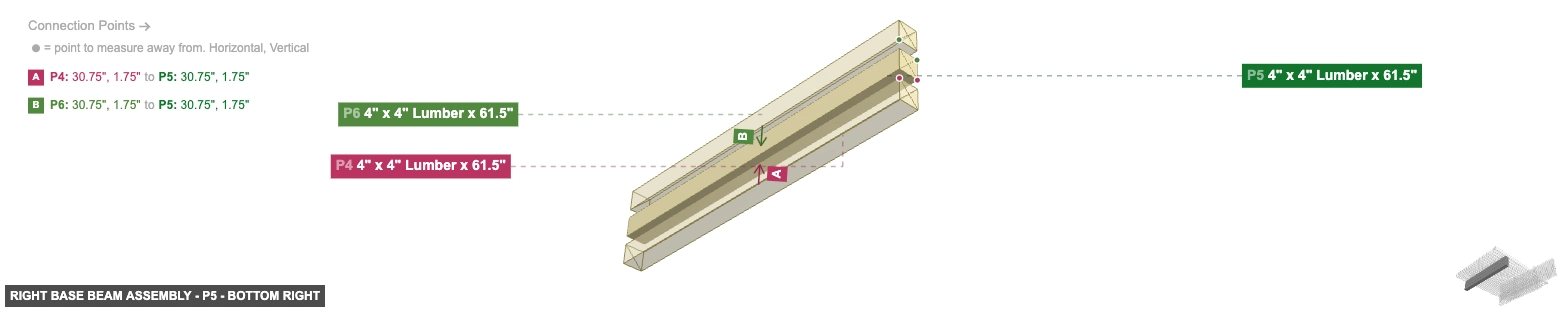

Attaching: Right Base Beam Assembly

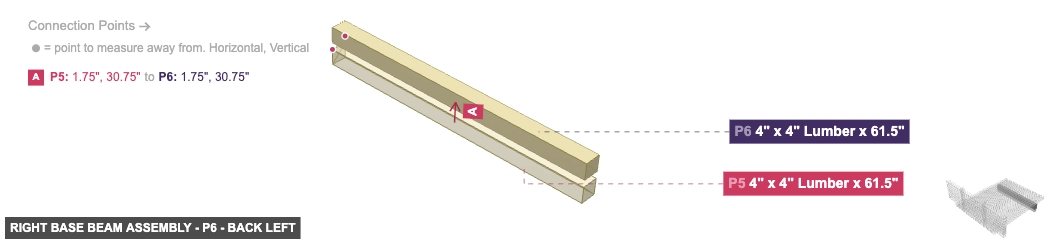

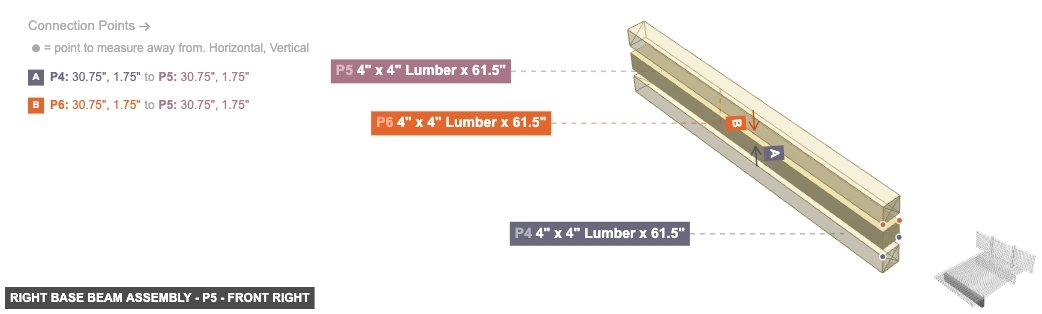

Assemble the three 4x4 lumber pieces that form the right main support beam.

Angle: back left

Assembly of Right Base Beam Assembly - back_left

P4 (4" x 4" Lumber 61.5" length) - attach its 4" x 4" Wood Side #2 facing top to part 5's 4" x 4" Wood Side #1. After that, its 4" x 4" Wood End #1 needs to point left. Next, its 4" x 4" Wood Side #1 must be oriented back, and its 4" x 4" Wood Side #3 needs to point front. Also, its 4" x 4" Wood Side #4 should be directed bottom. Additionally, its 4" x 4" Wood End #2 needs to point right P5 (4" x 4" Lumber 61.5" length) - connect its 4" x 4" Wood Side #1 oriented bottom links with part 4's 4" x 4" Wood Side #2, plus its 4" x 4" Wood Side #3, which is top-facing, should connect to part 6's 4" x 4" Wood Side #1. Next, its 4" x 4" Wood End #1 must be oriented left, plus ensure its 4" x 4" Wood Side #2 faces back. Additionally, ensure its 4" x 4" Wood Side #4 faces front. Also, its 4" x 4" Wood End #2 must be oriented right P6 (4" x 4" Lumber 61.5" length) - connect its 4" x 4" Wood Side #1 oriented bottom links with part 5's 4" x 4" Wood Side #3. Also, attach its 4" x 4" Wood Side #3 facing top to part 7's 2" x 4" Wood Side #1. Next, its 4" x 4" Wood End #1 must be oriented left. Additionally, its 4" x 4" Wood Side #2 must be oriented back, plus its 4" x 4" Wood Side #4 needs to point front. Next, ensure its 4" x 4" Wood End #2 faces right

4" x 4" Lumber x 61.5"x 3

Angle: front right

Assembly of Right Base Beam Assembly - front_right

4" x 4" Lumber x 61.5"x 3

Angle: bottom right

Assembly of Right Base Beam Assembly - bottom_right

4" x 4" Lumber x 61.5"x 3

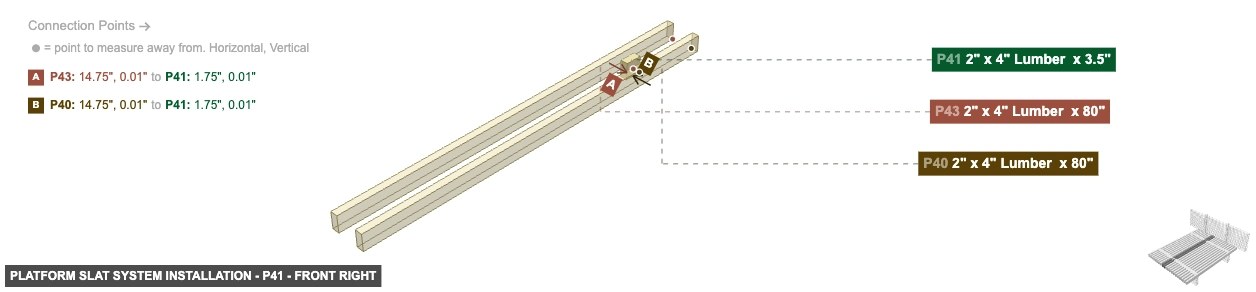

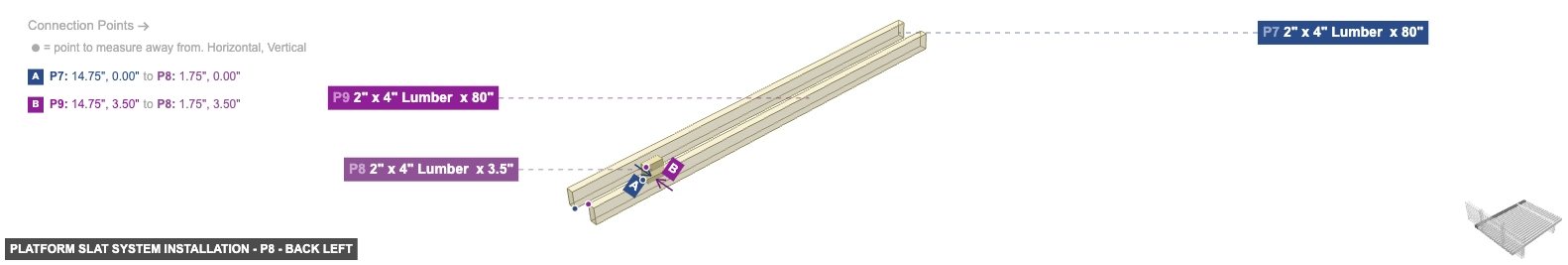

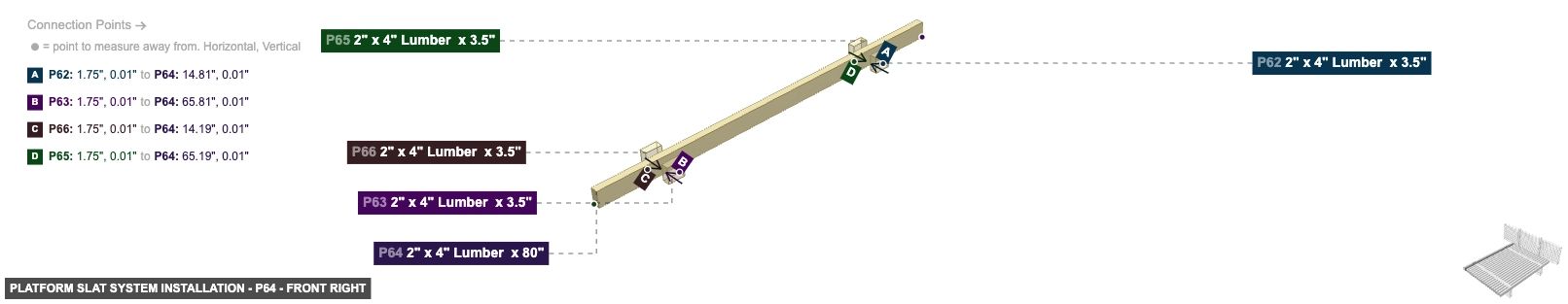

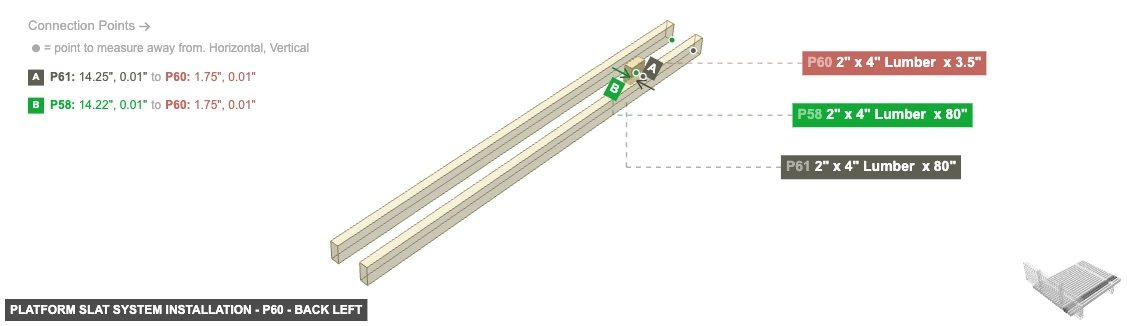

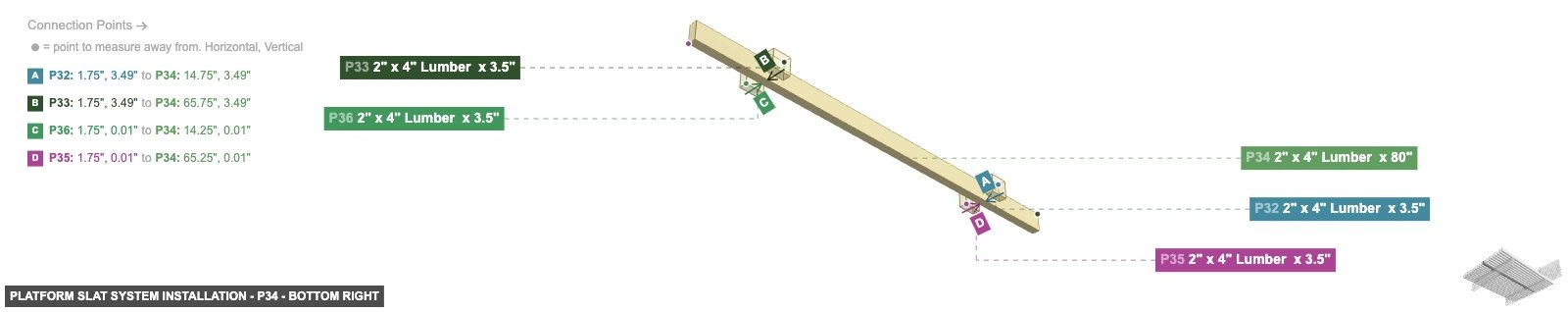

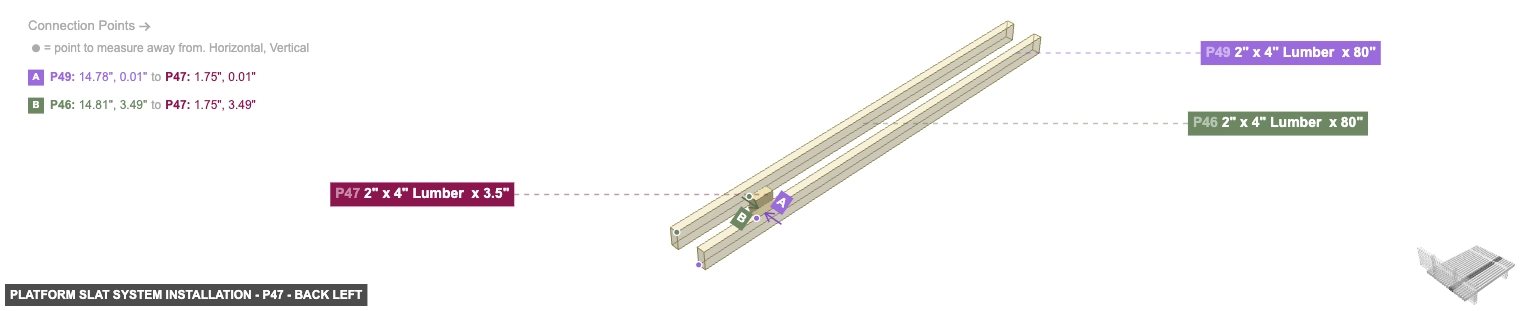

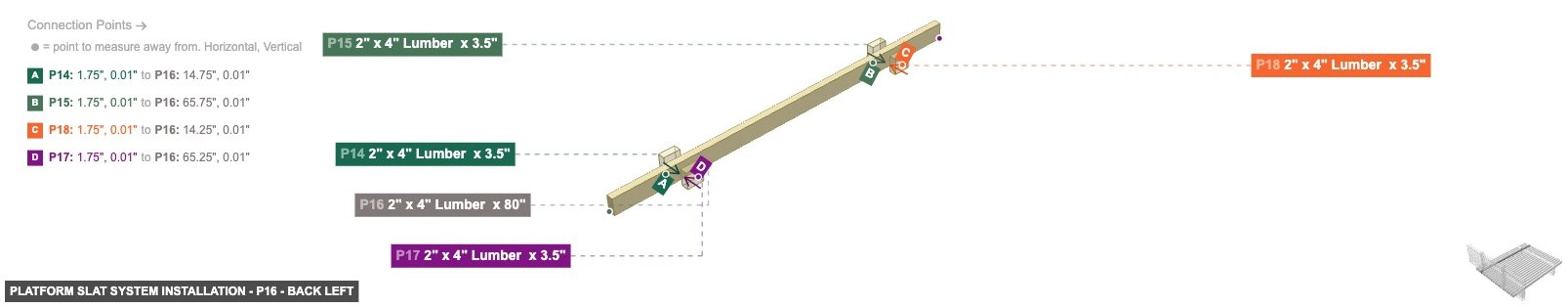

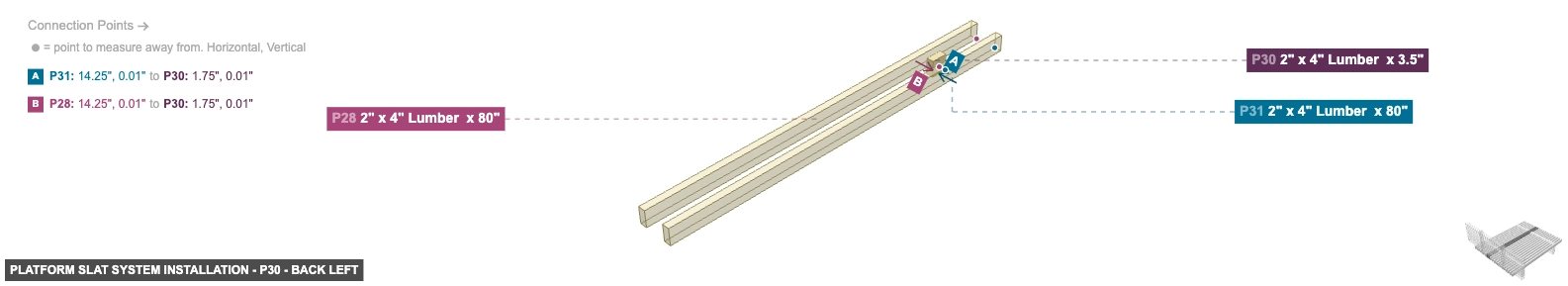

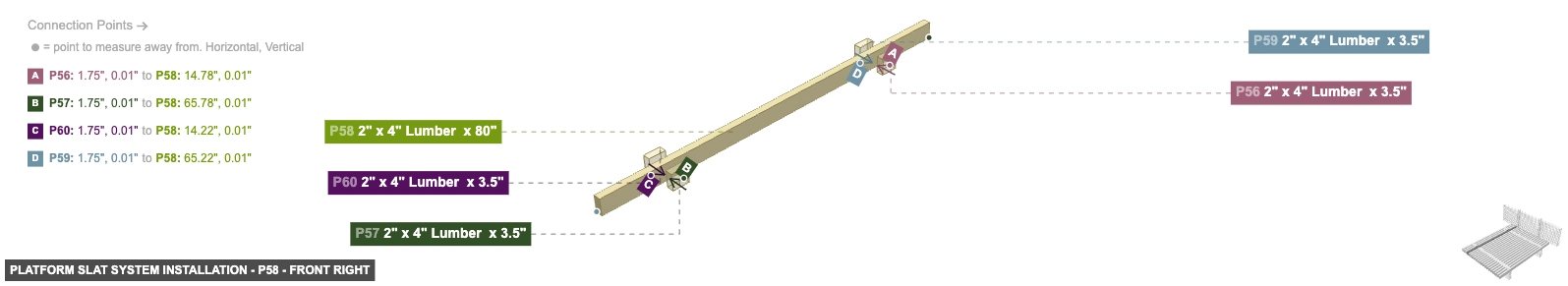

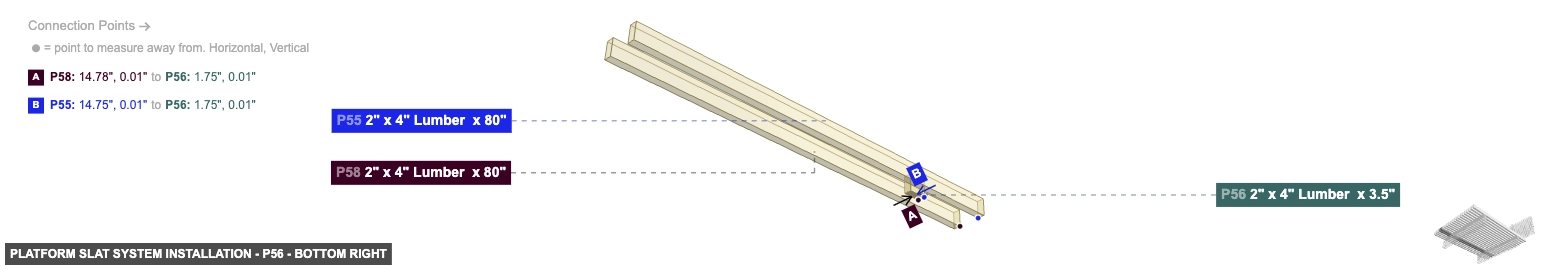

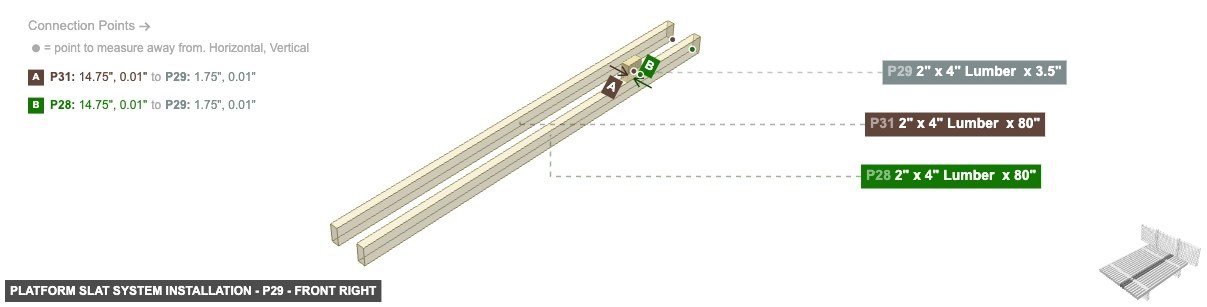

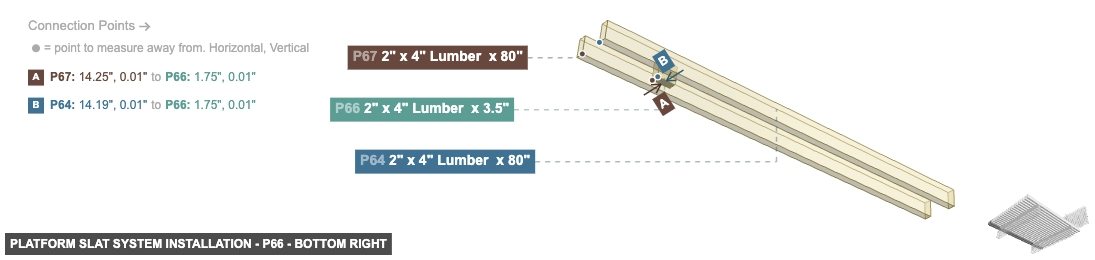

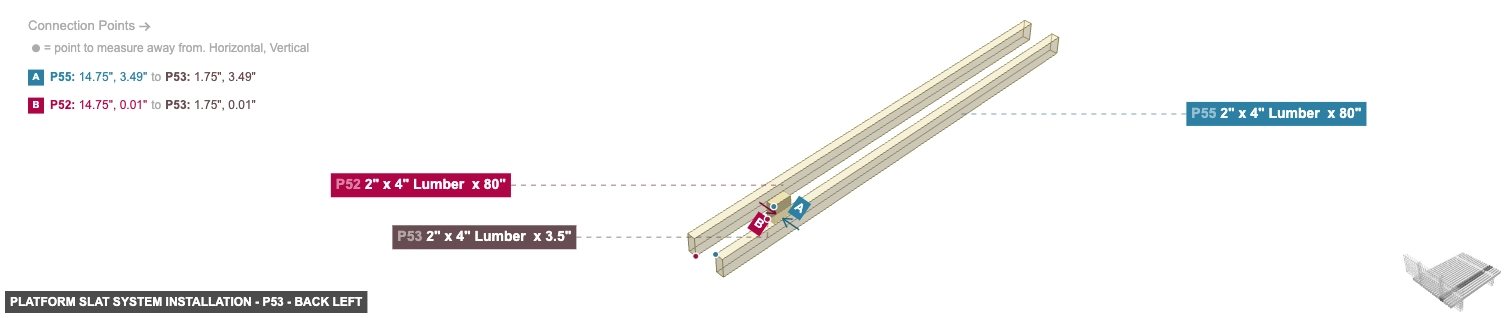

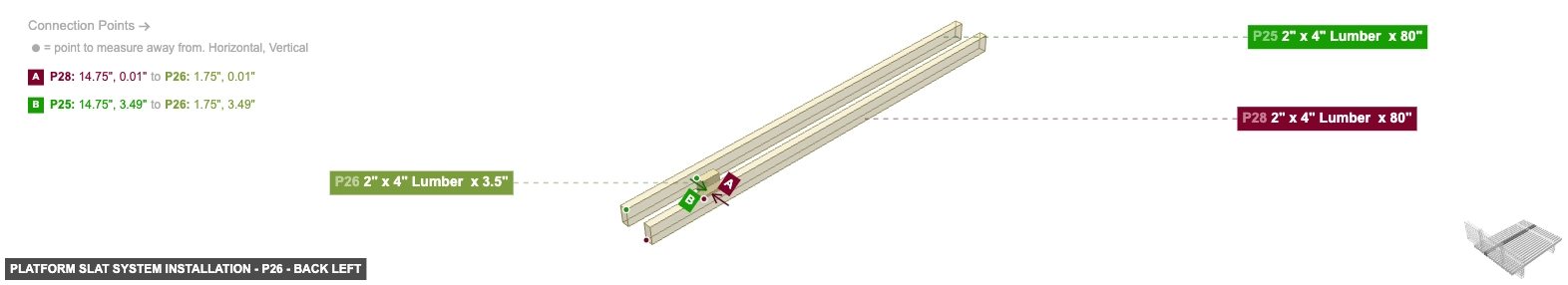

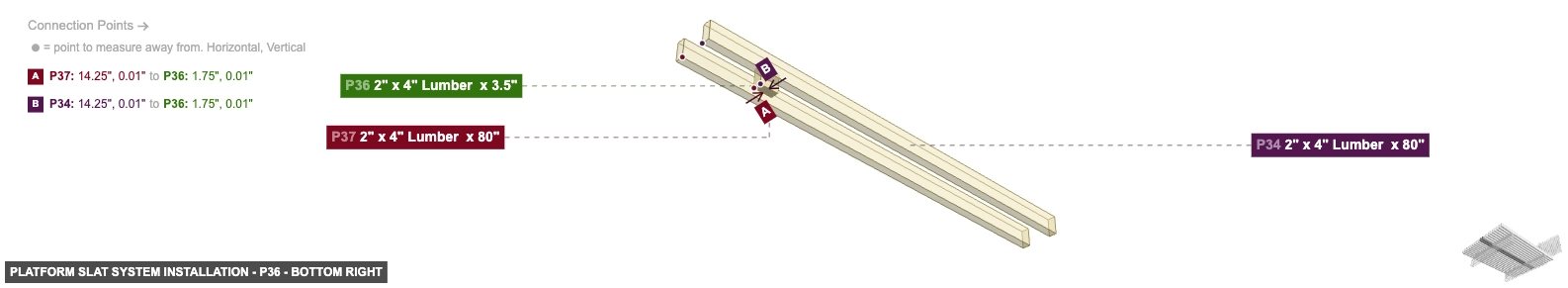

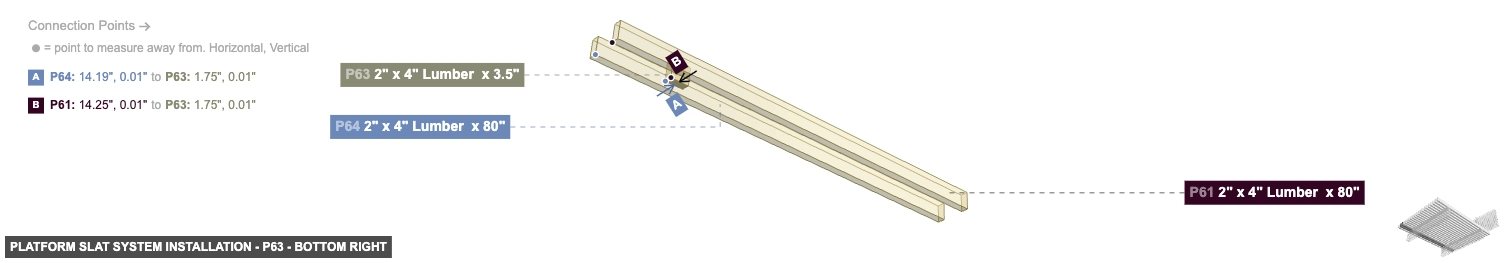

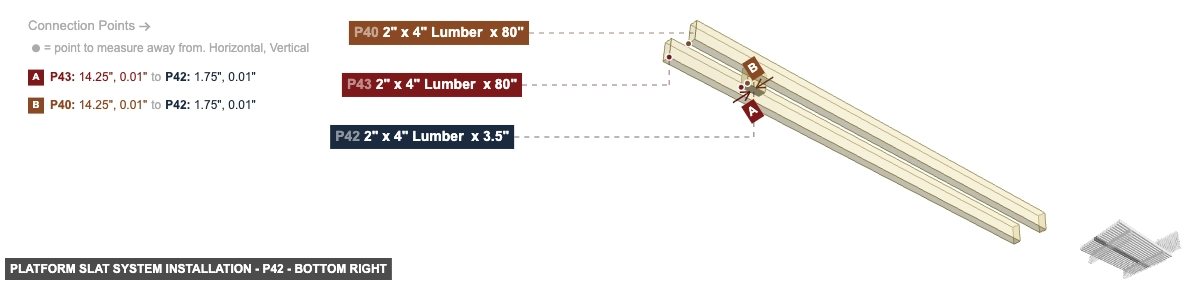

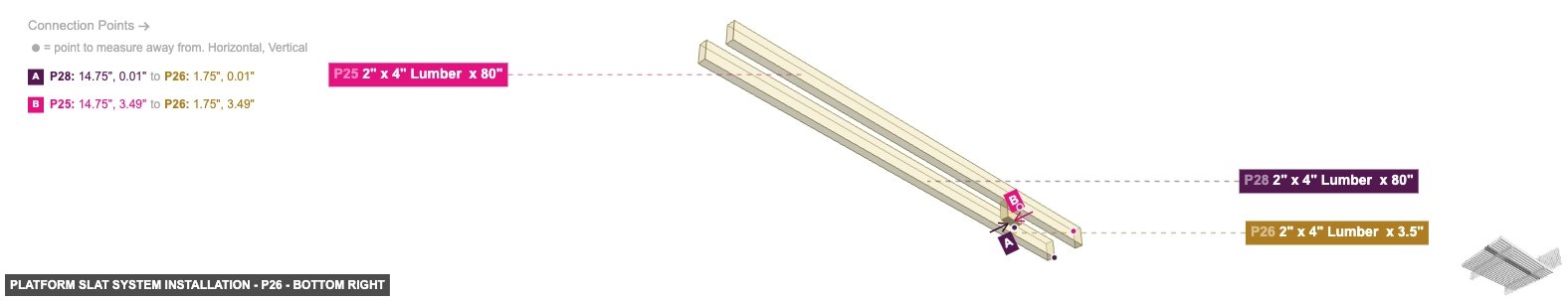

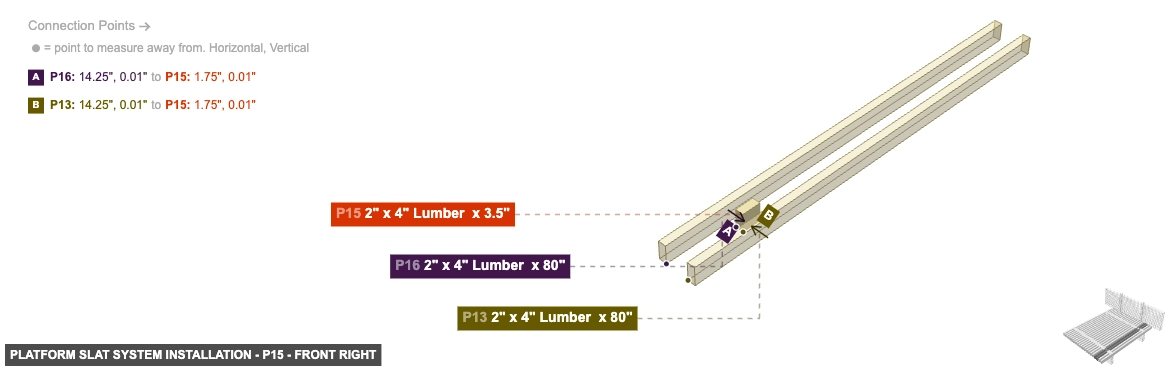

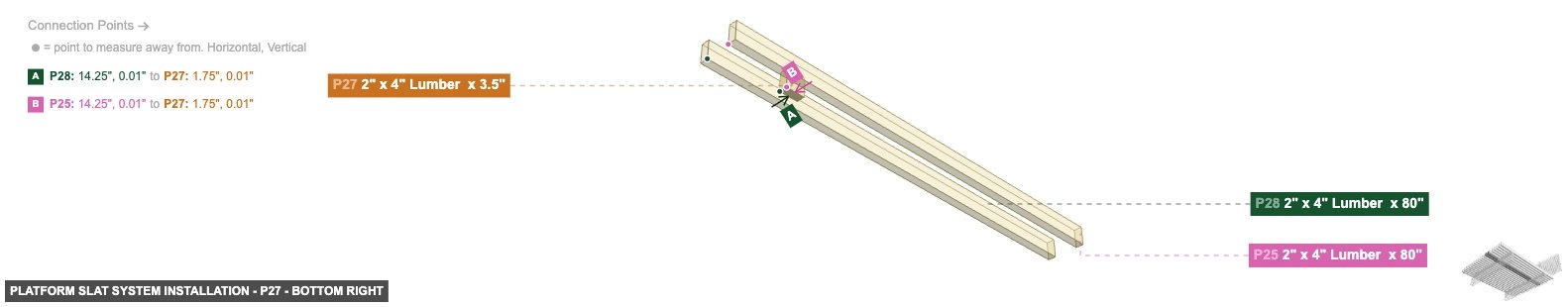

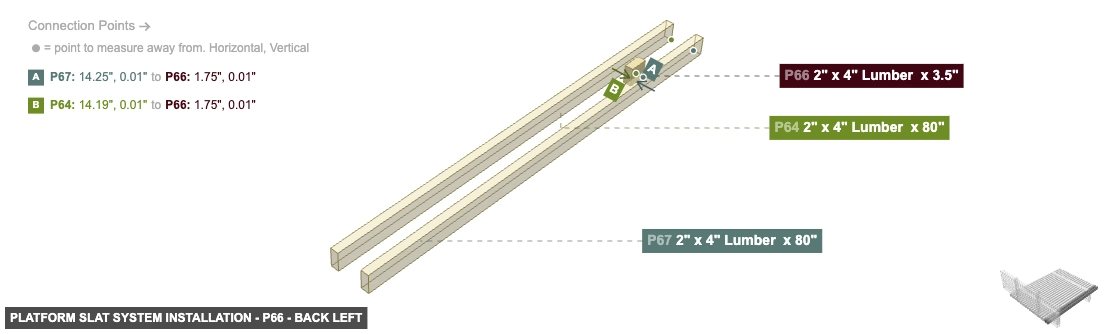

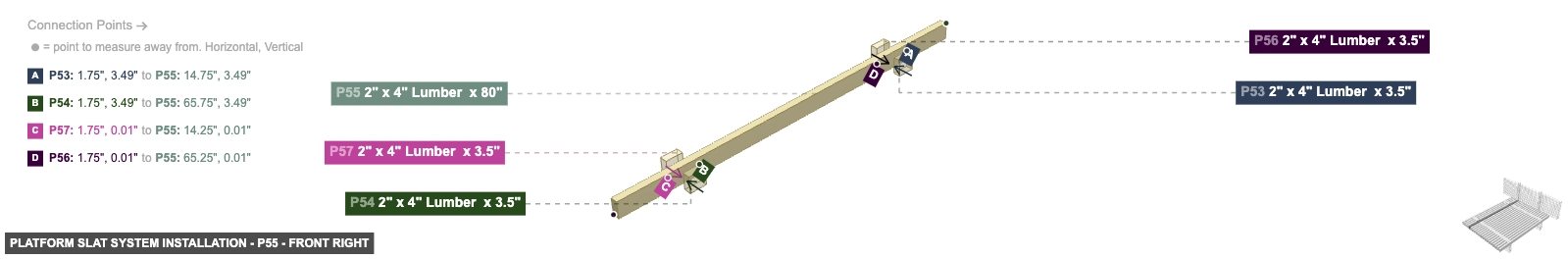

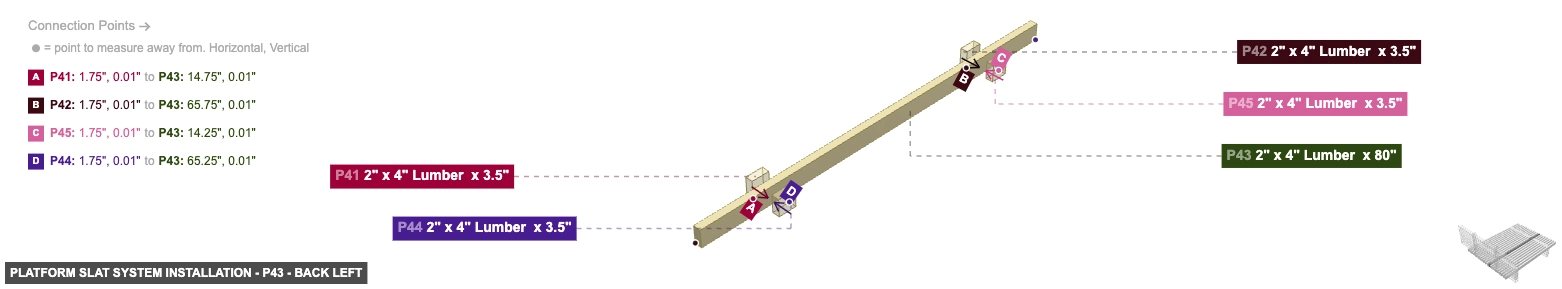

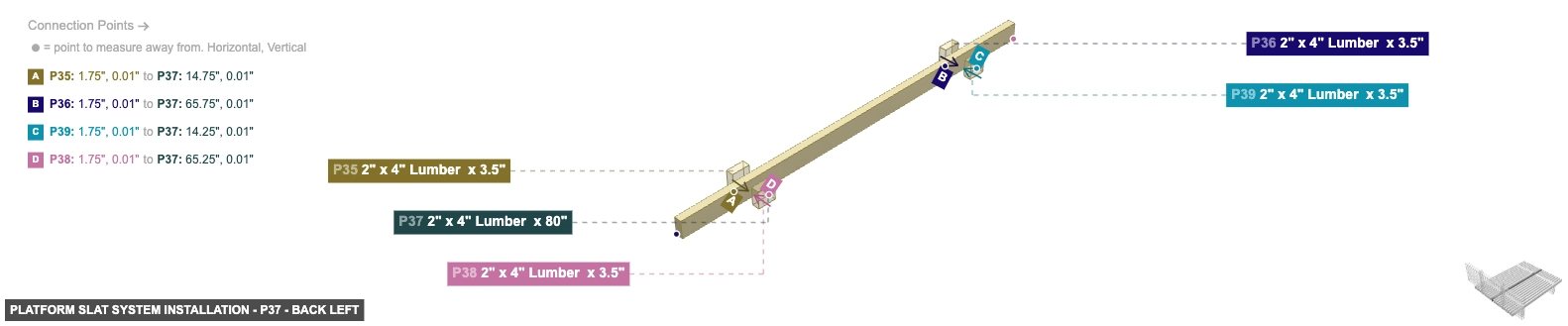

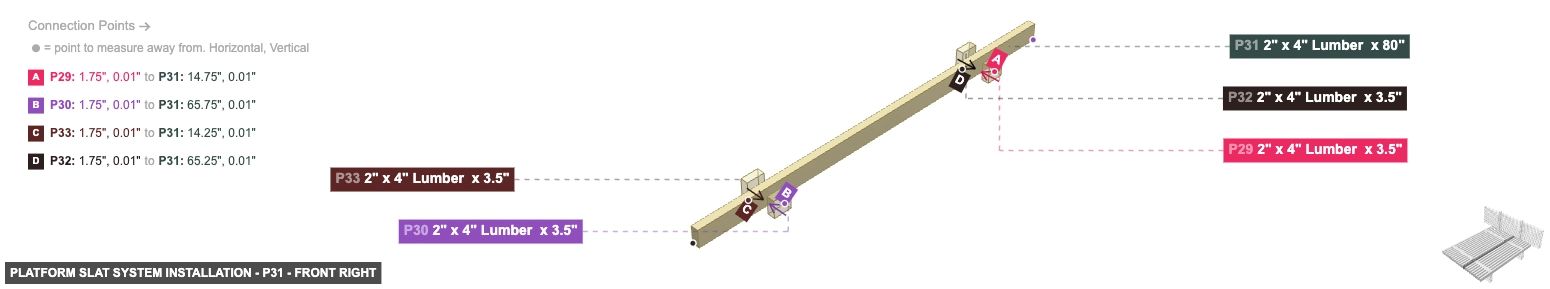

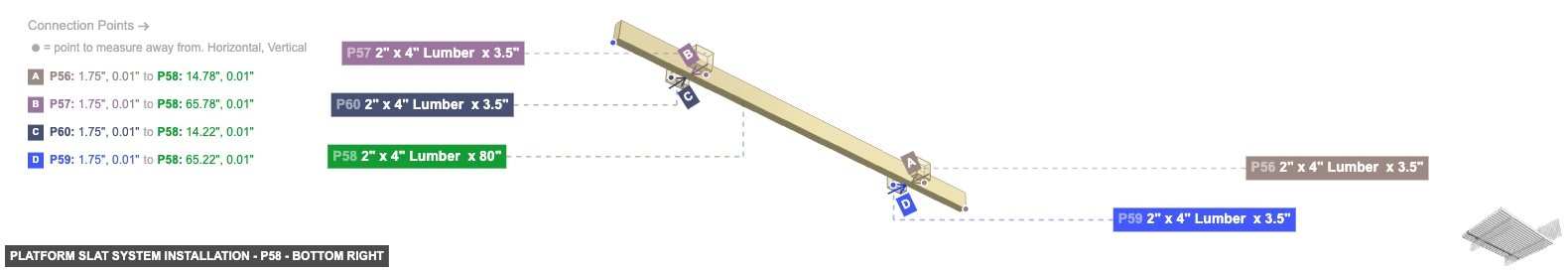

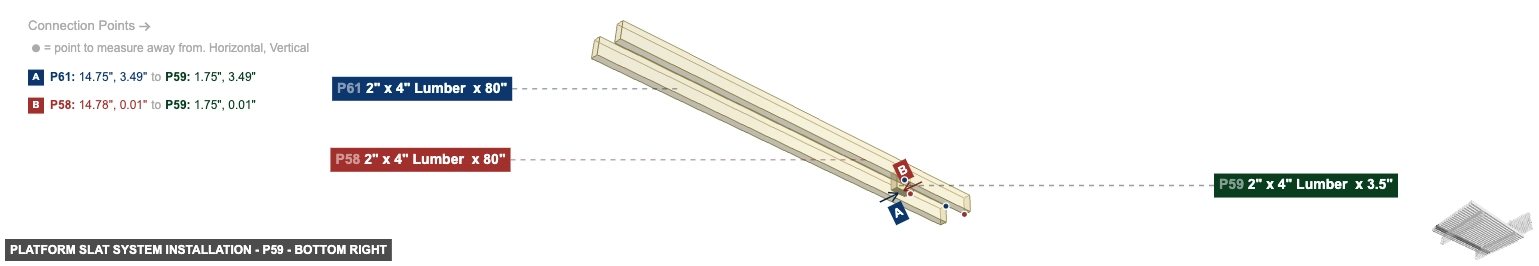

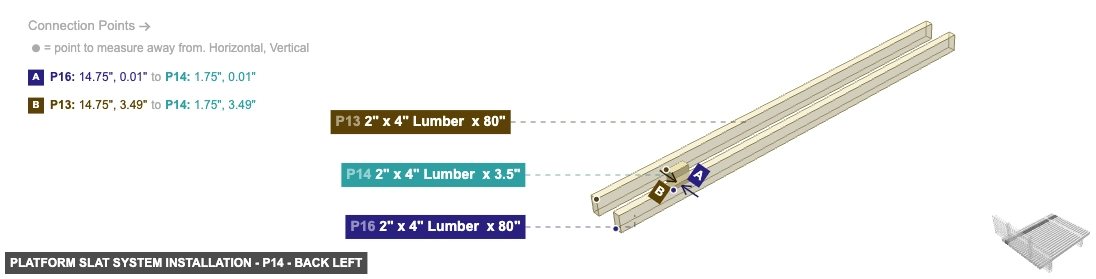

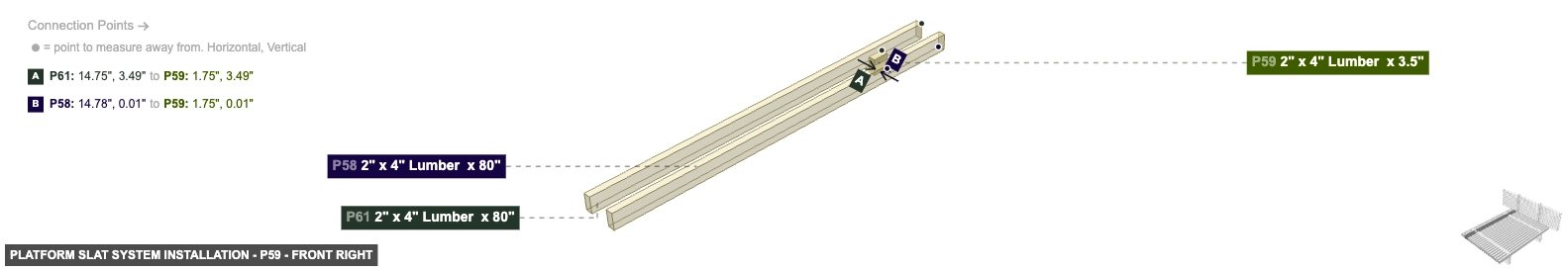

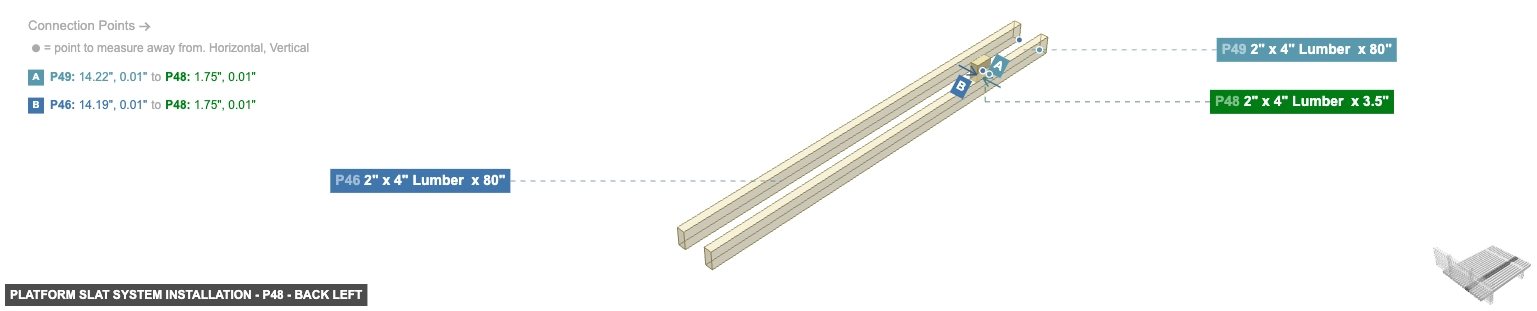

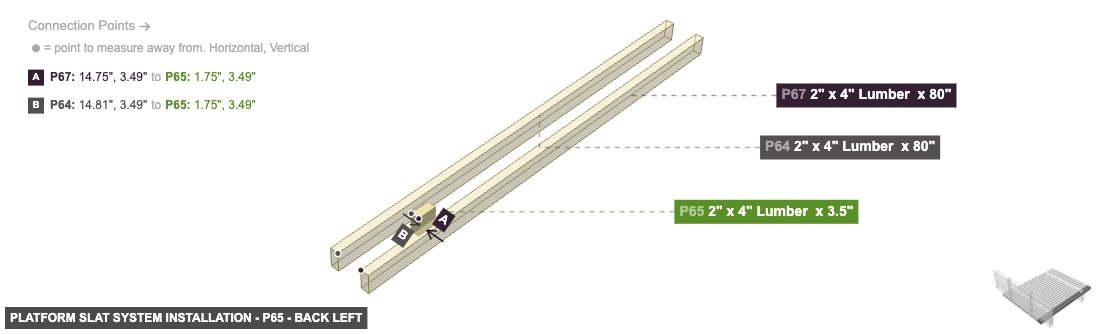

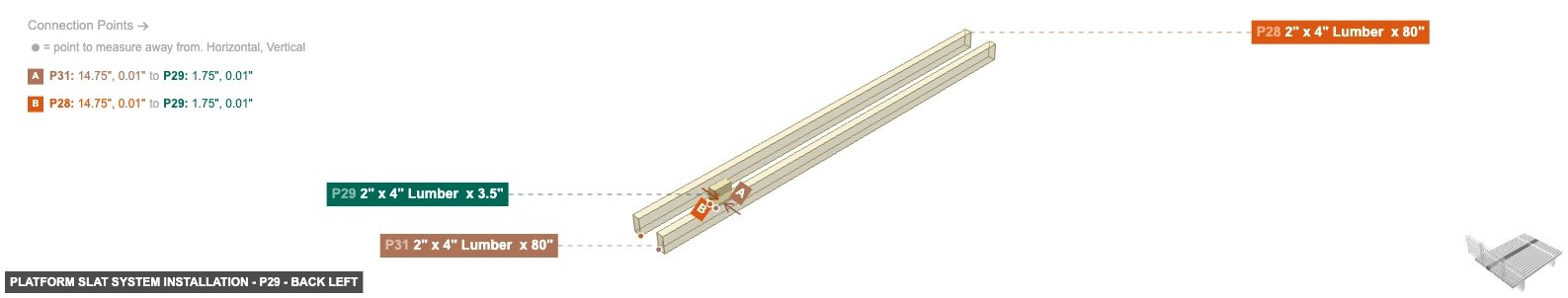

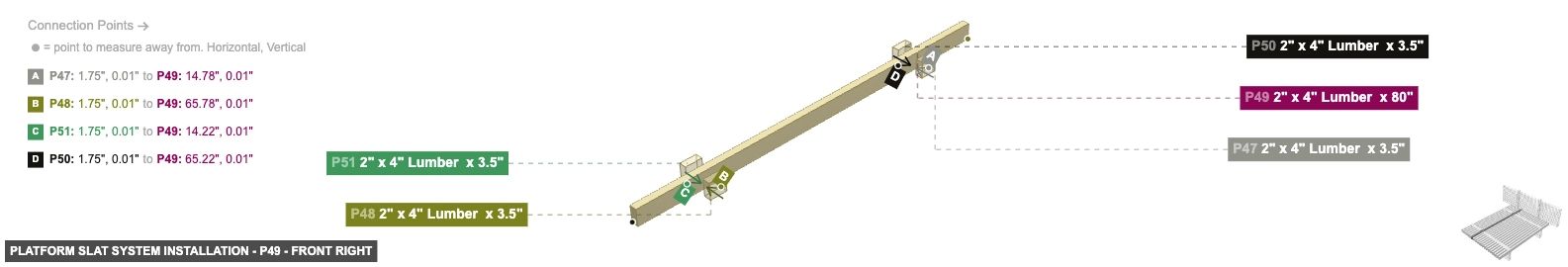

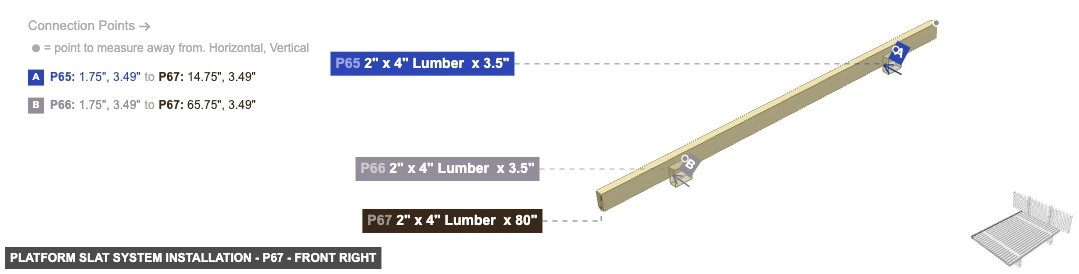

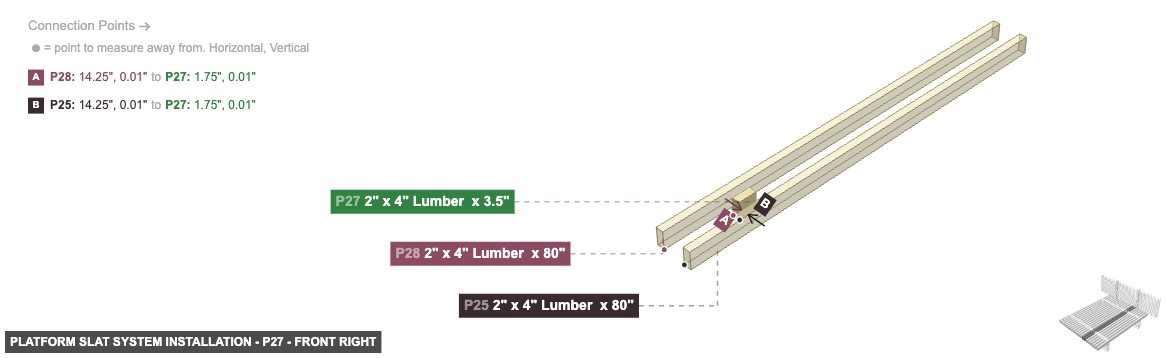

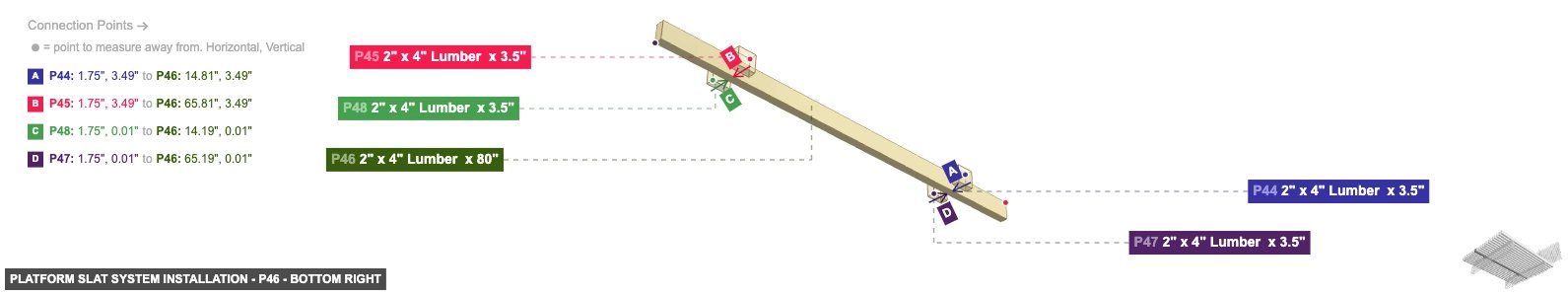

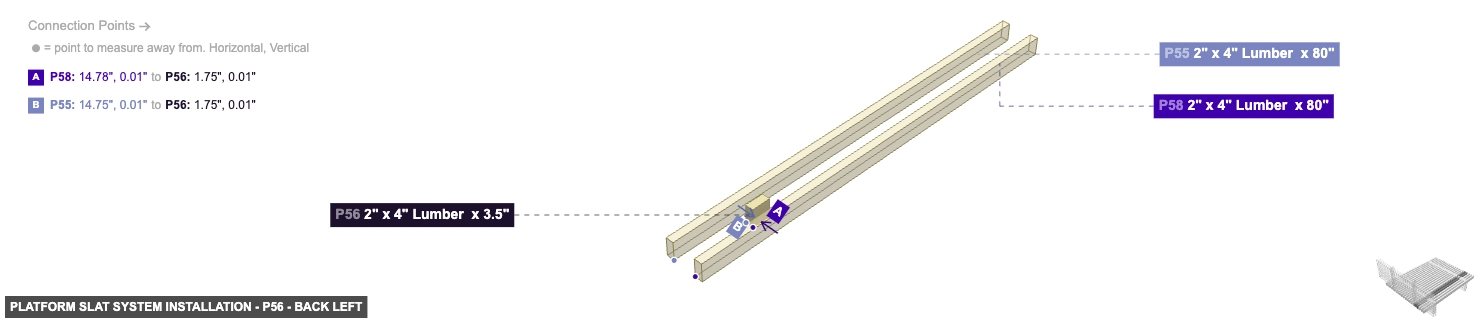

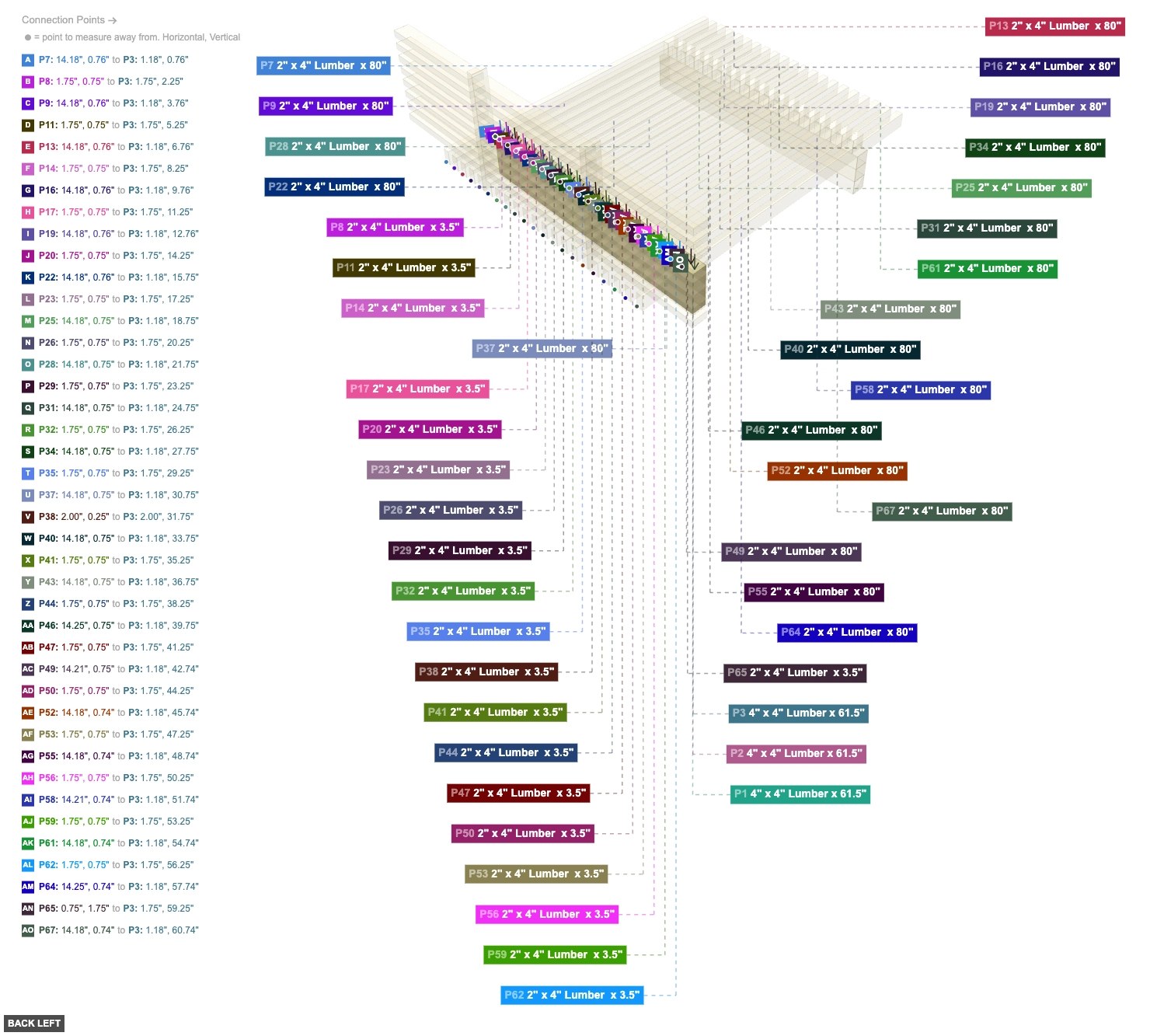

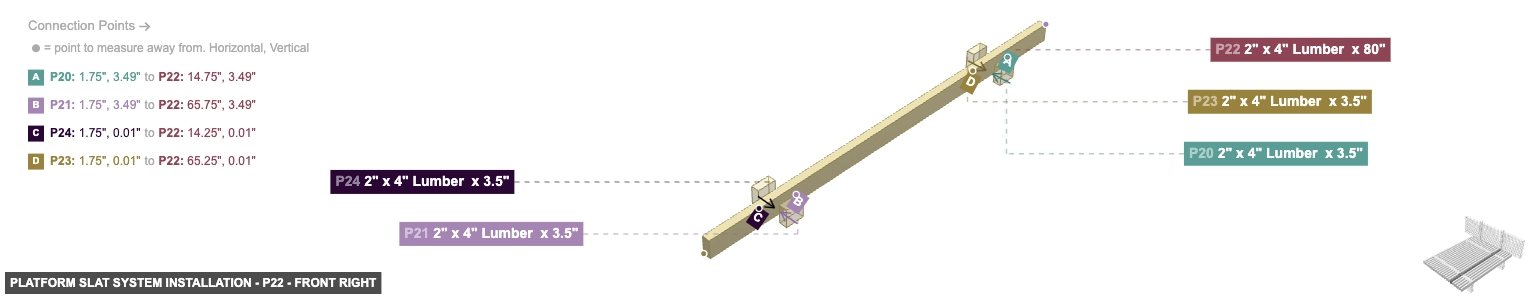

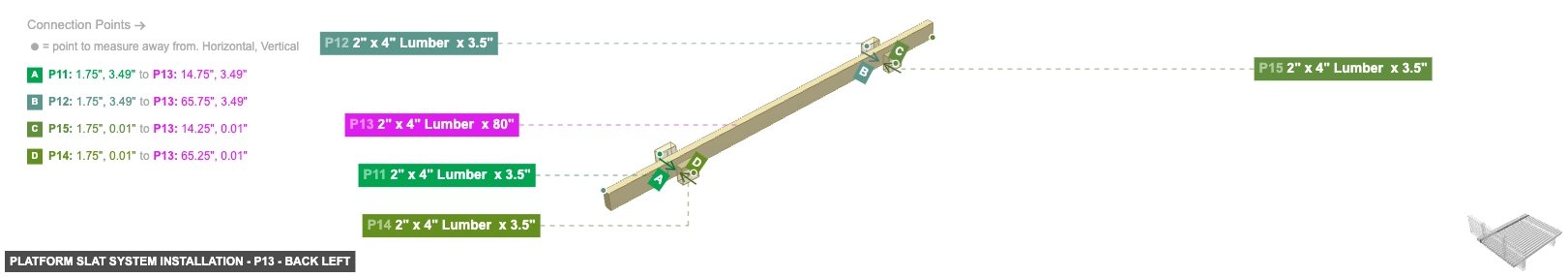

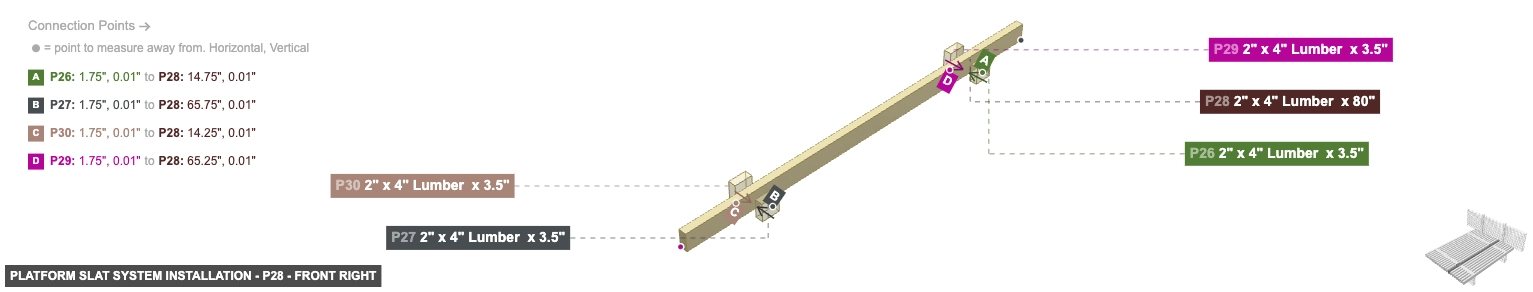

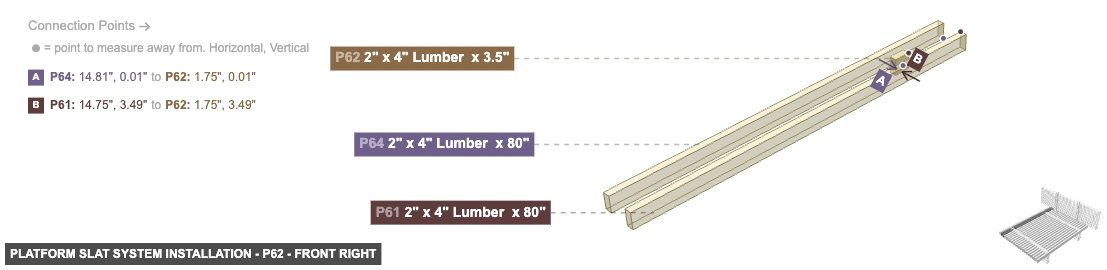

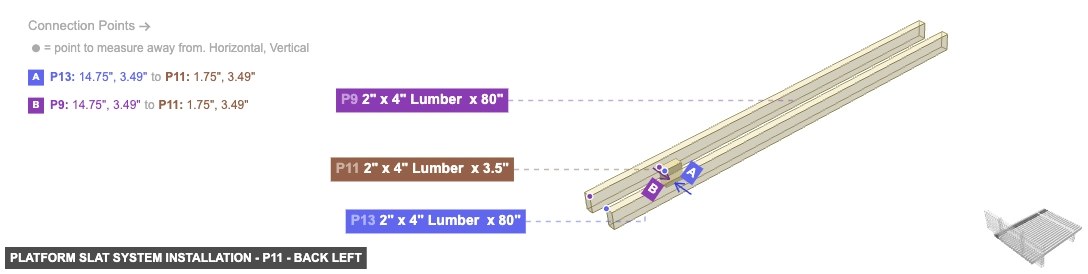

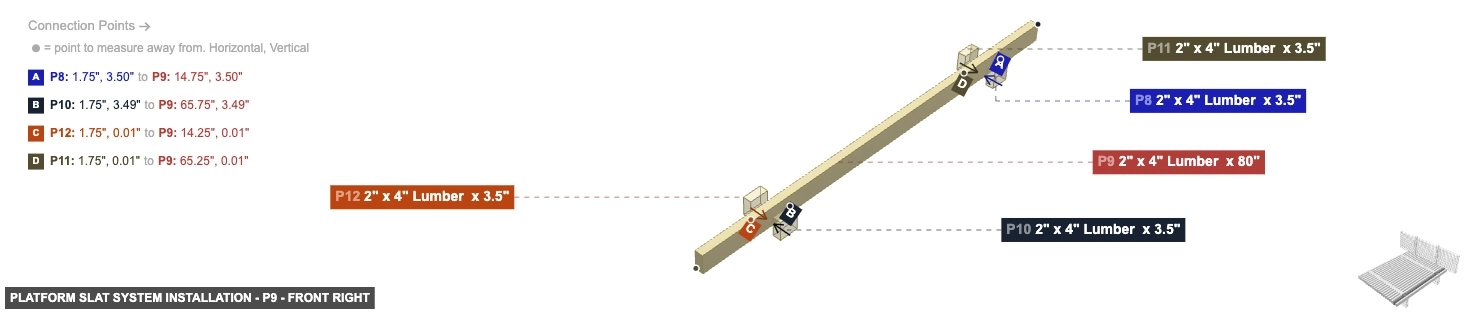

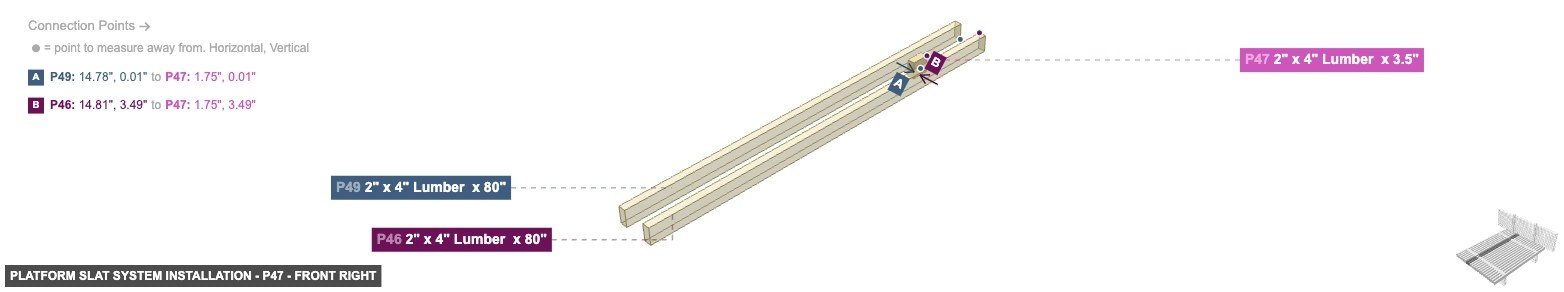

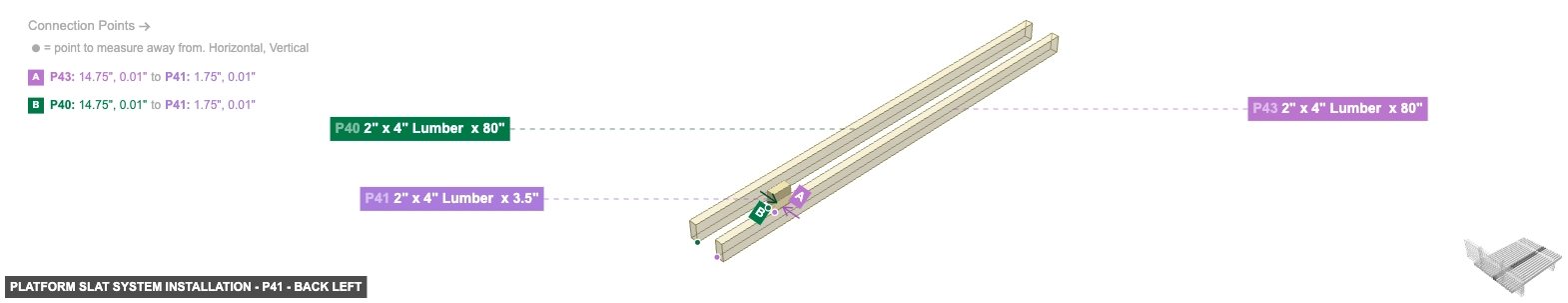

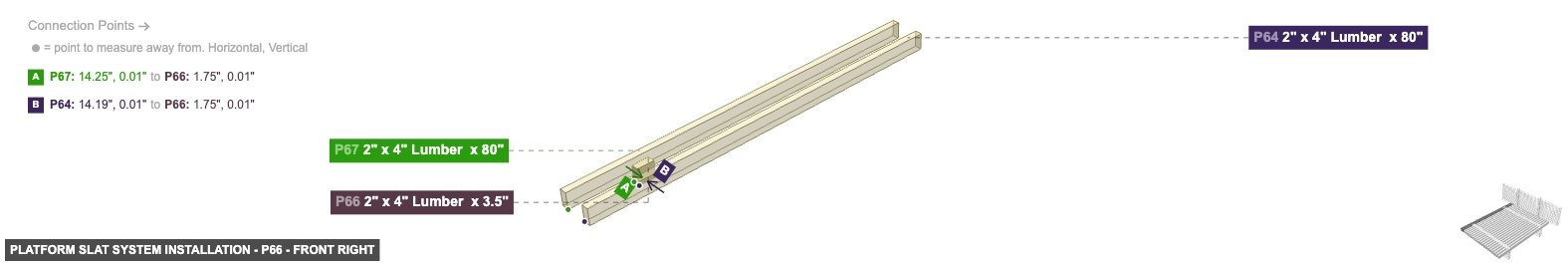

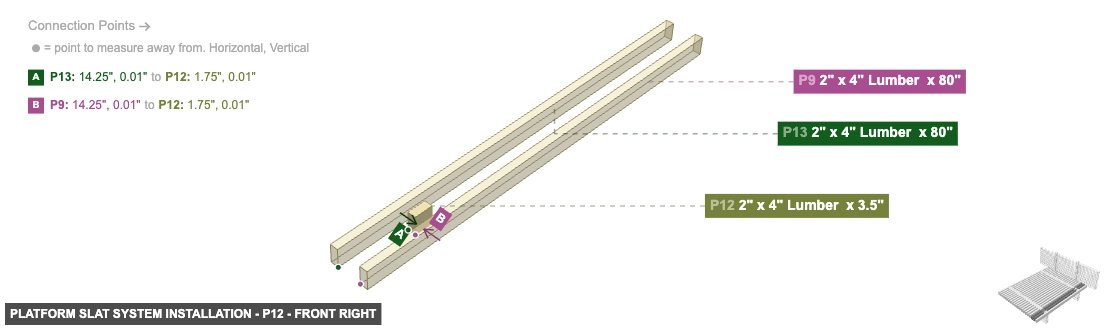

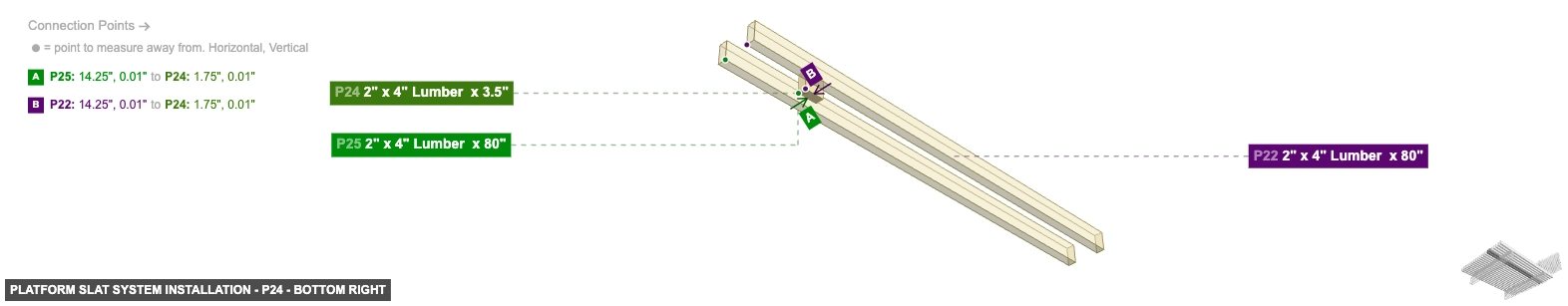

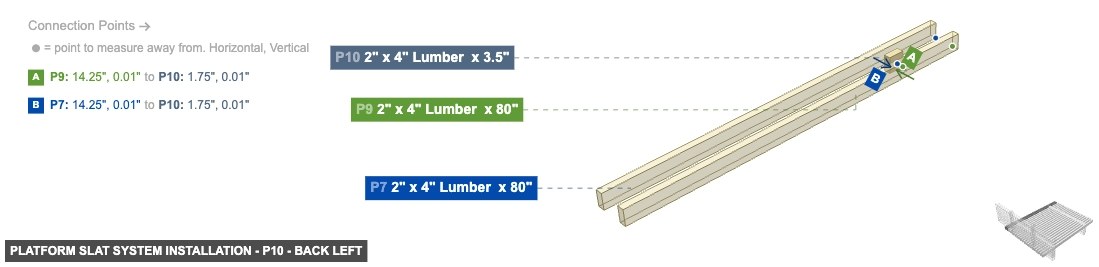

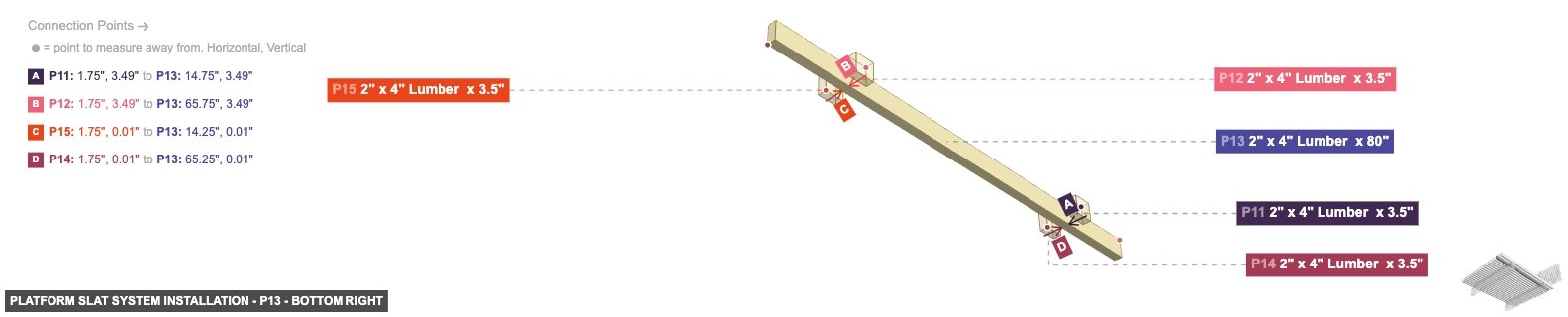

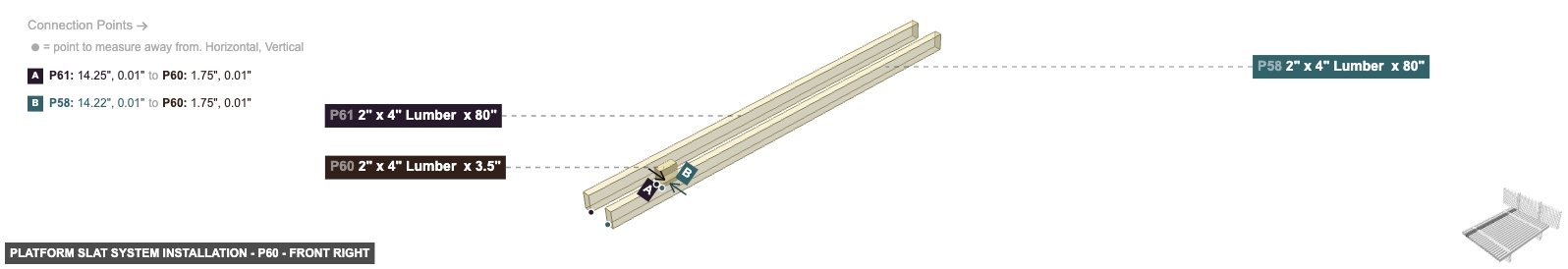

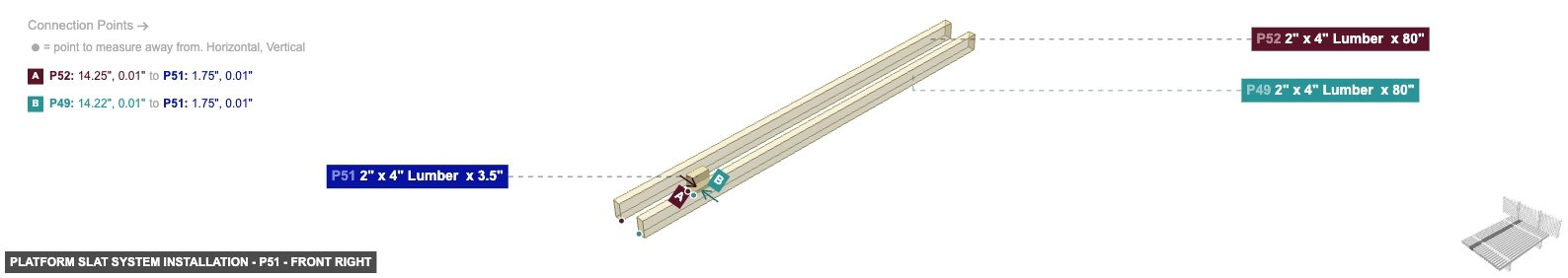

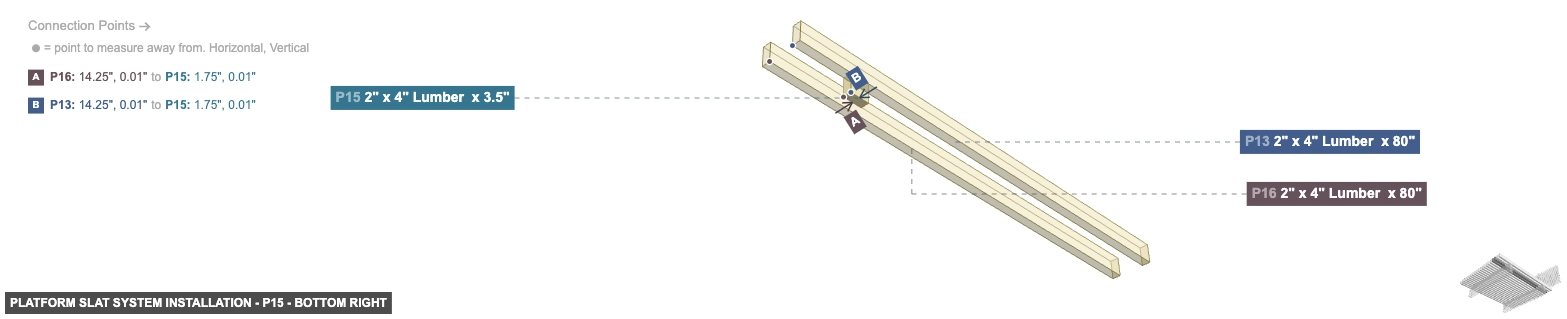

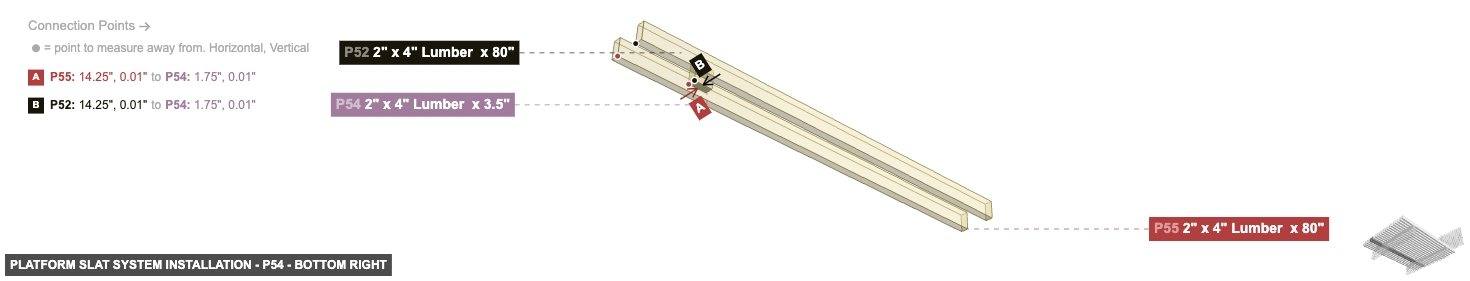

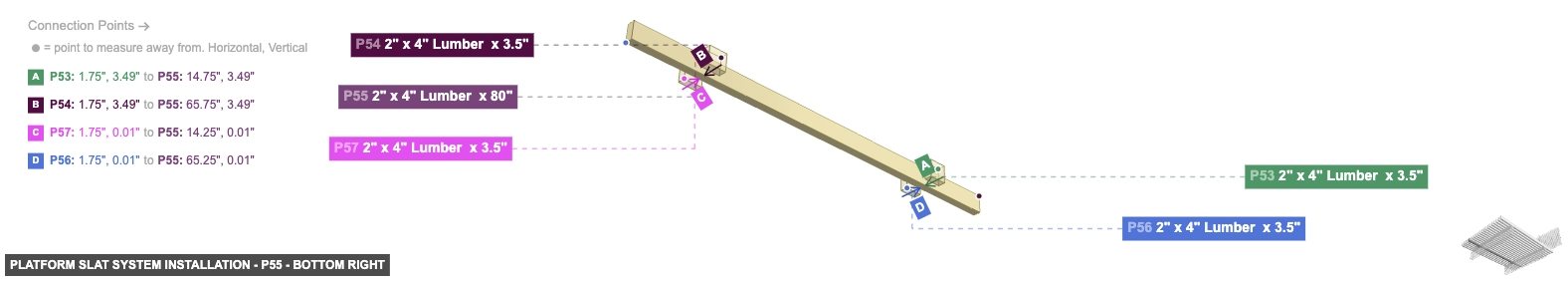

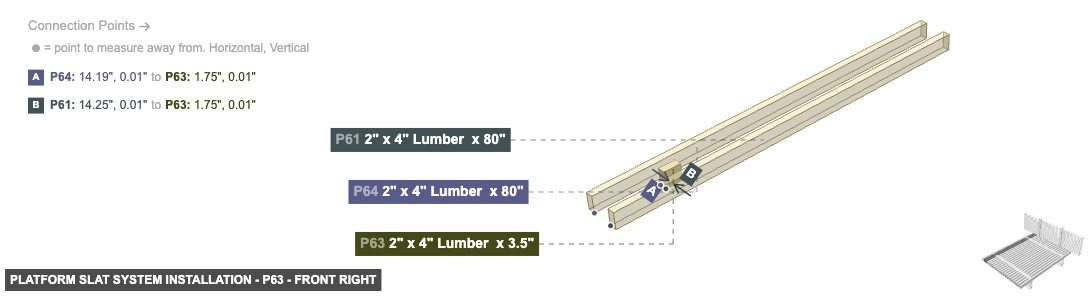

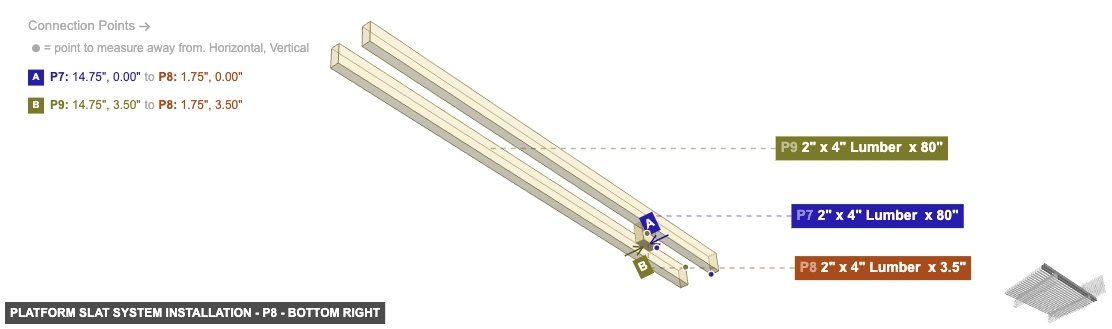

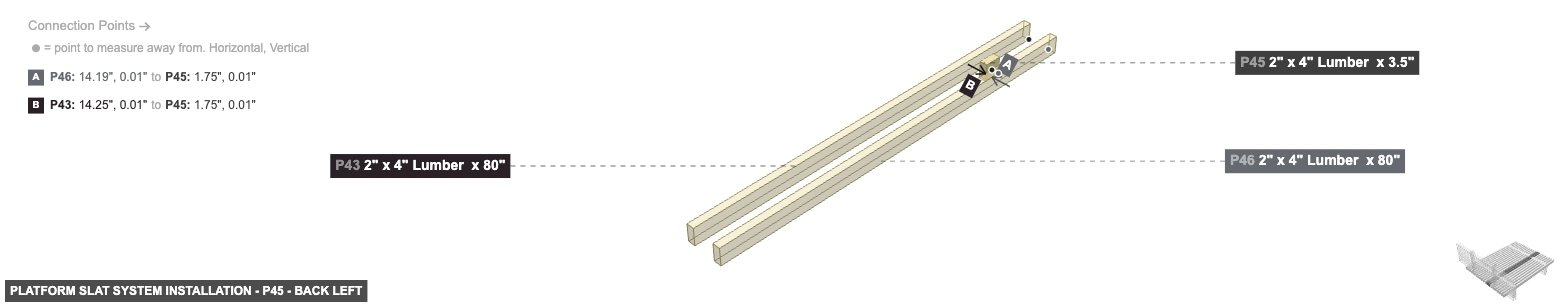

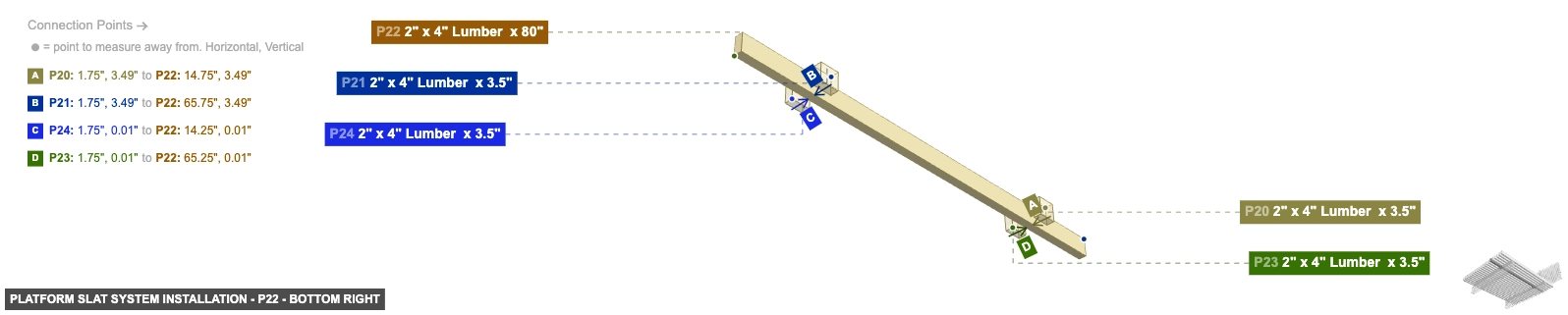

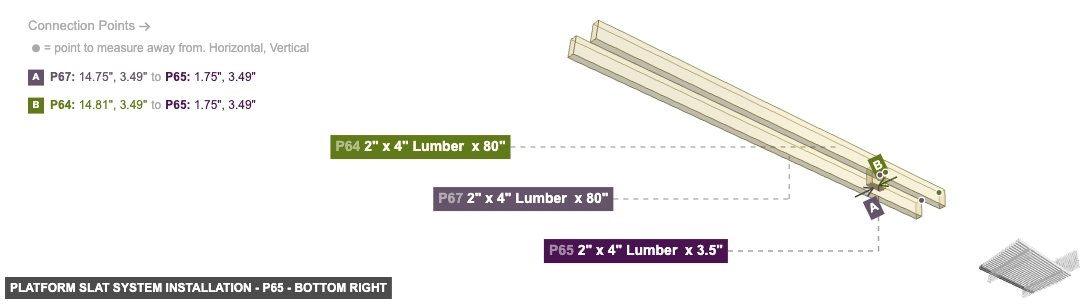

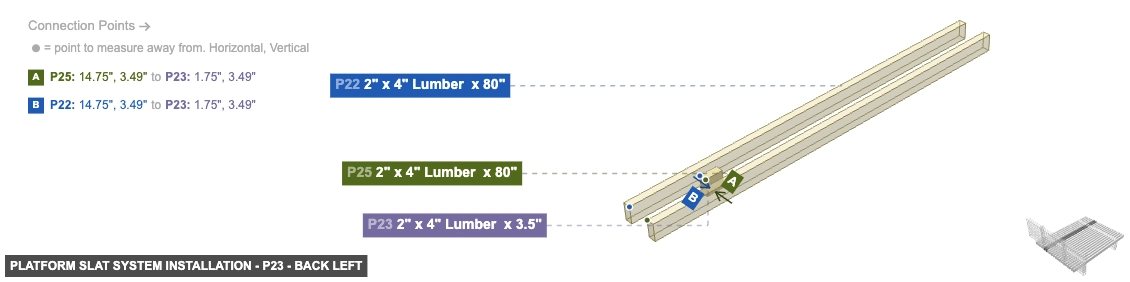

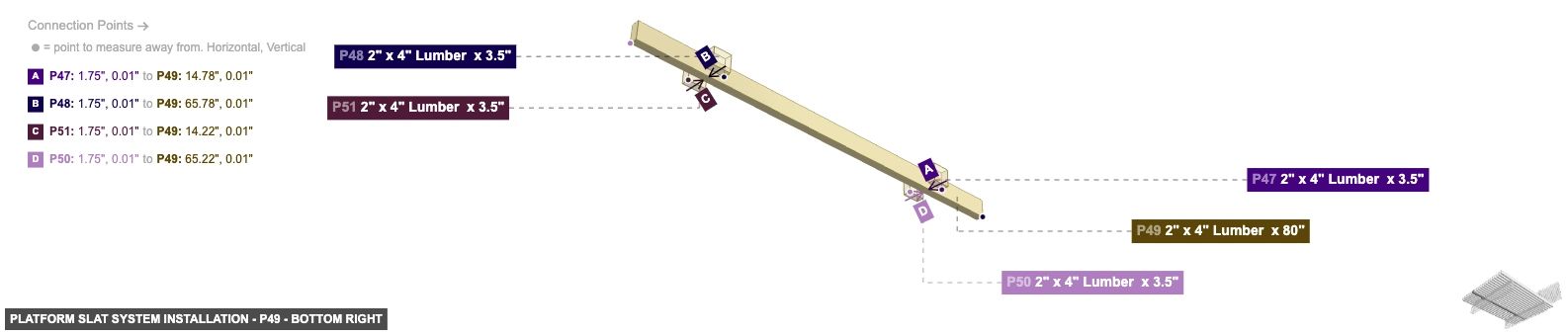

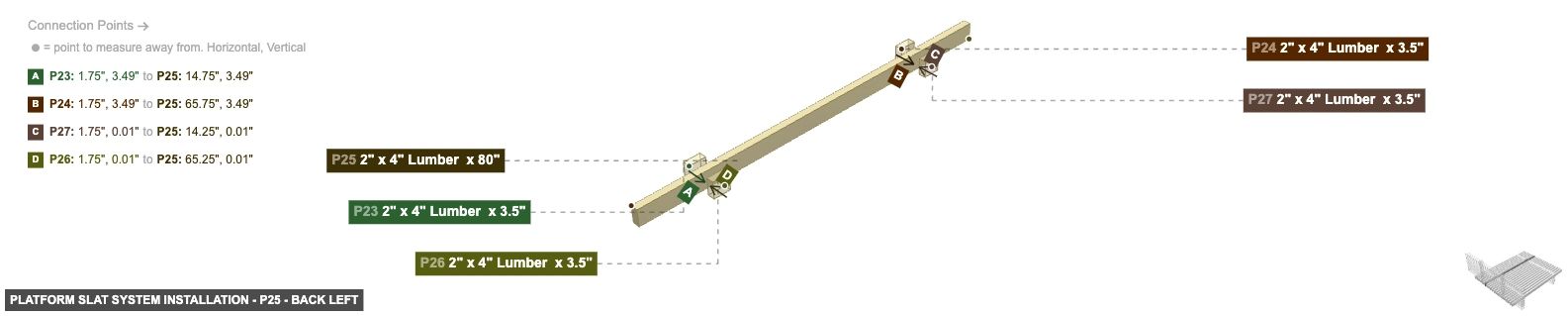

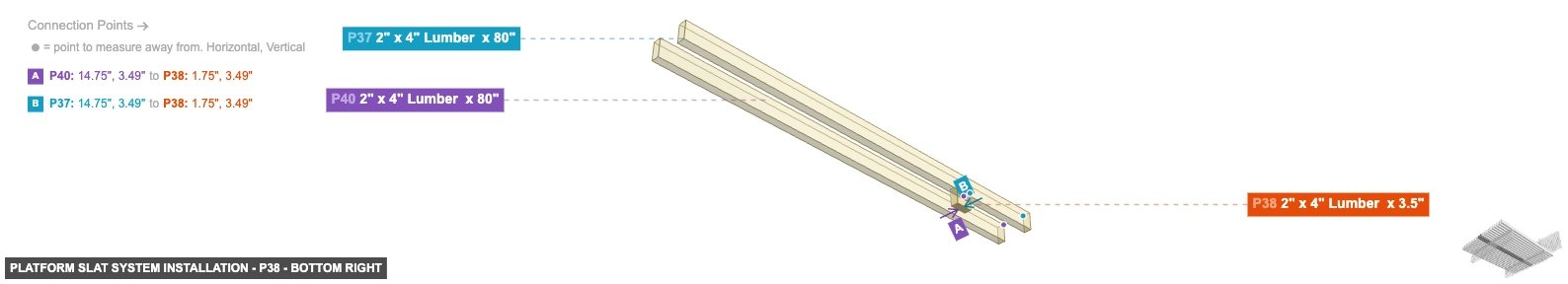

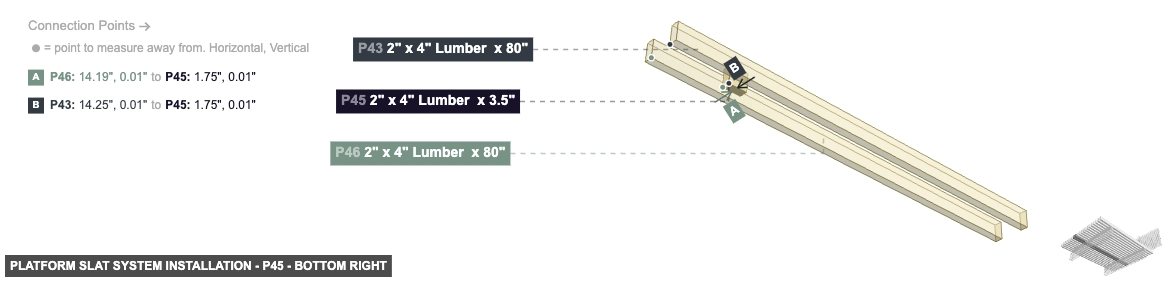

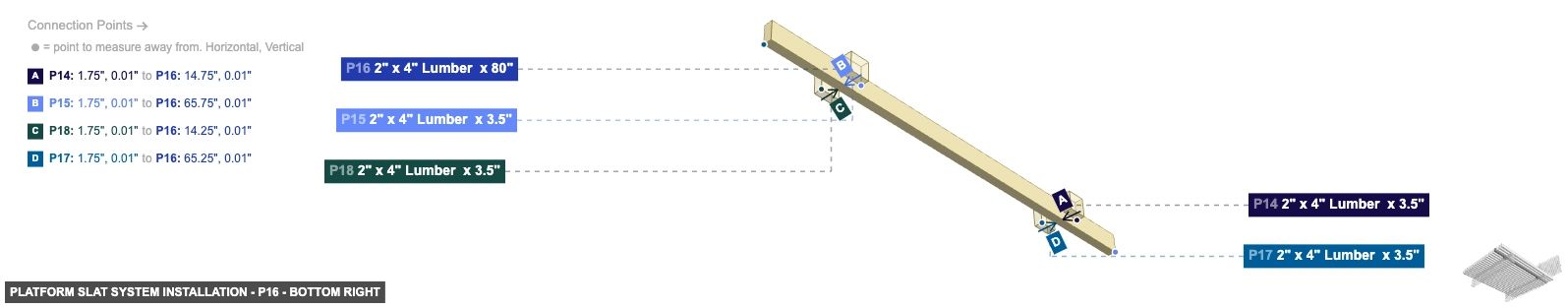

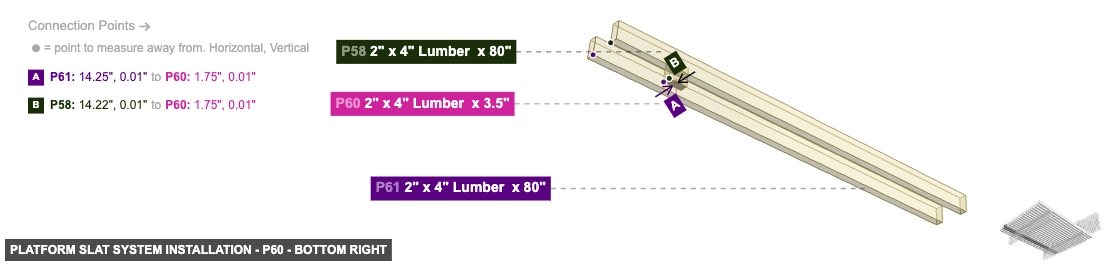

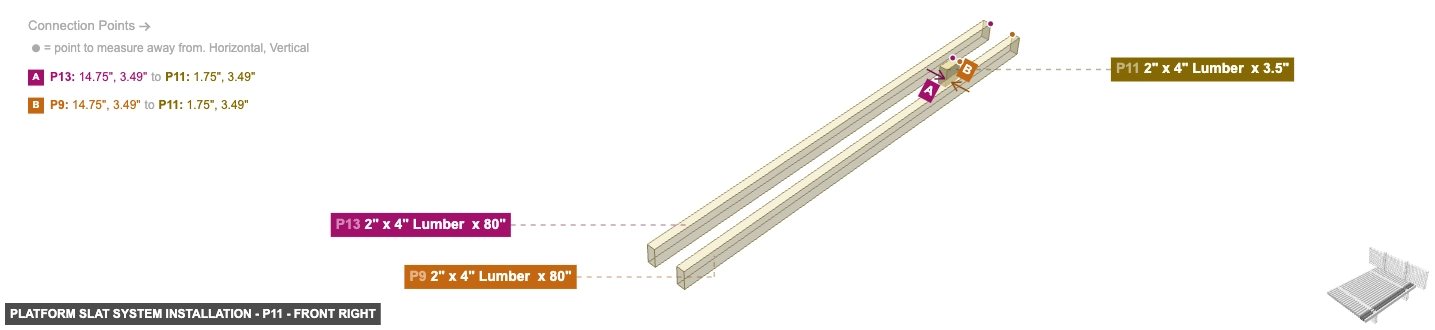

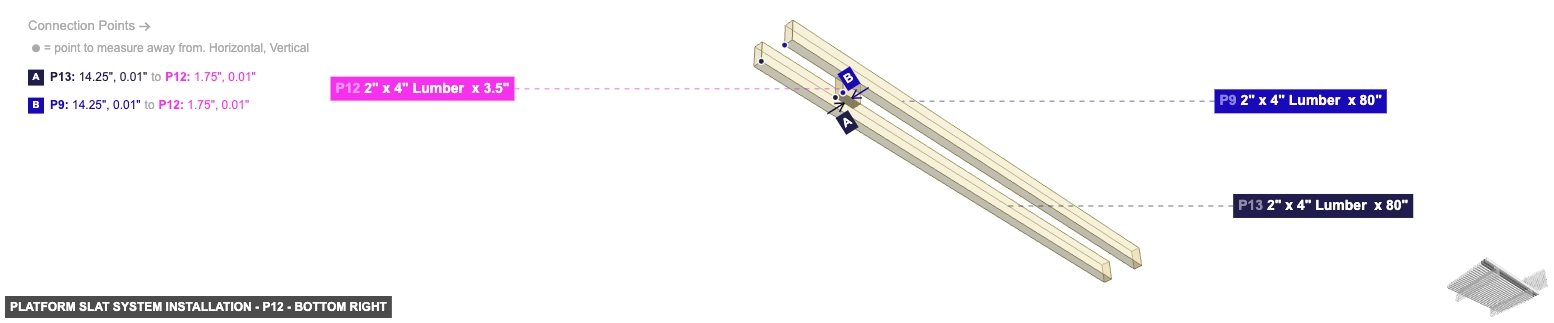

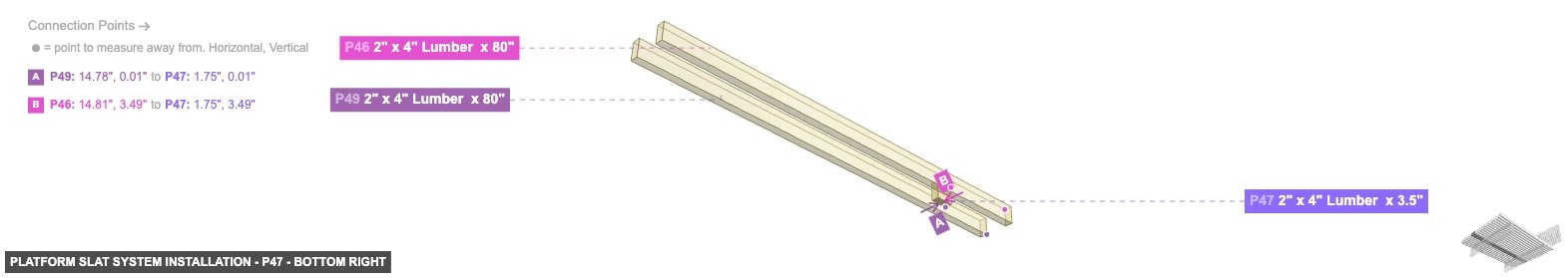

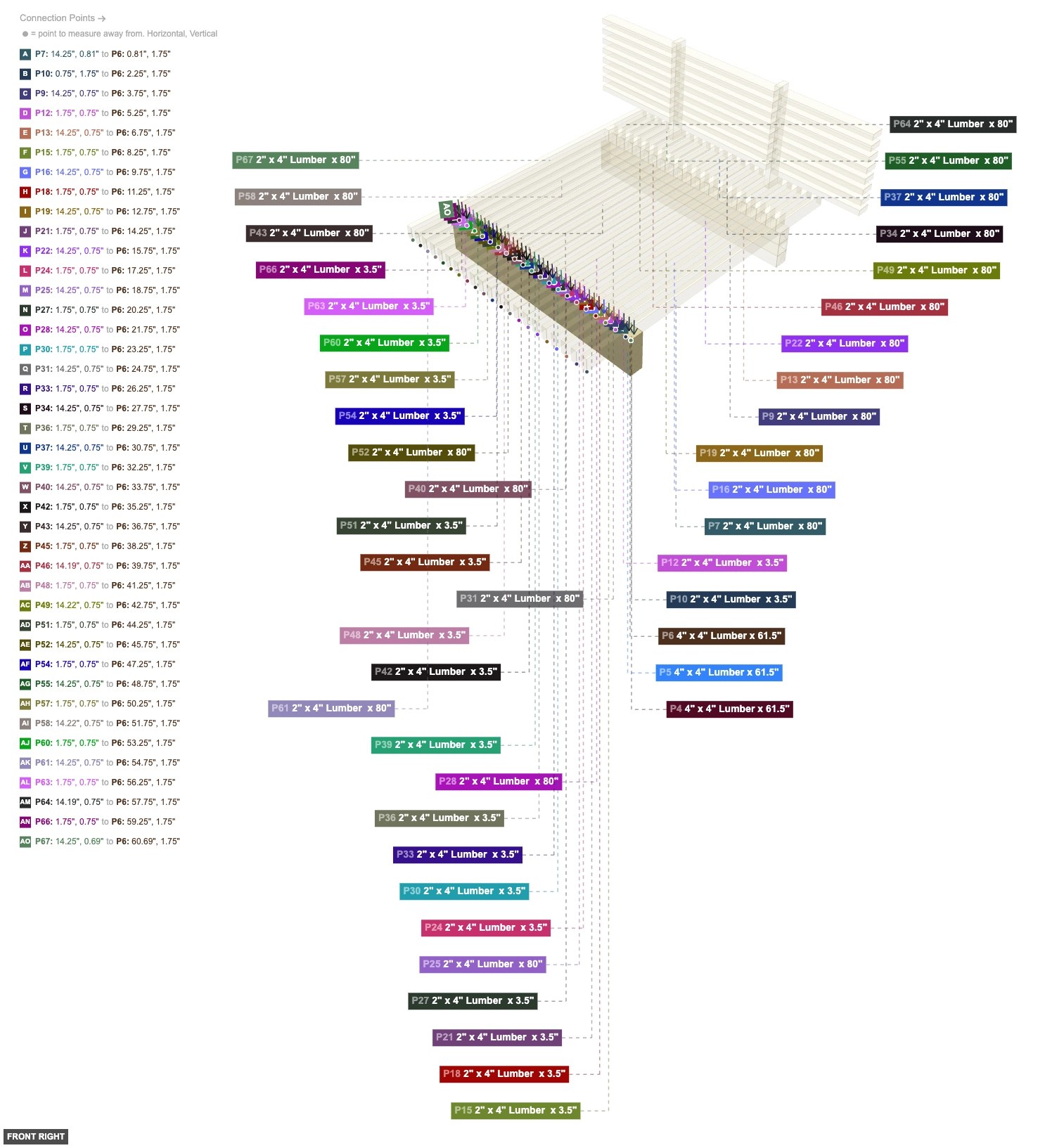

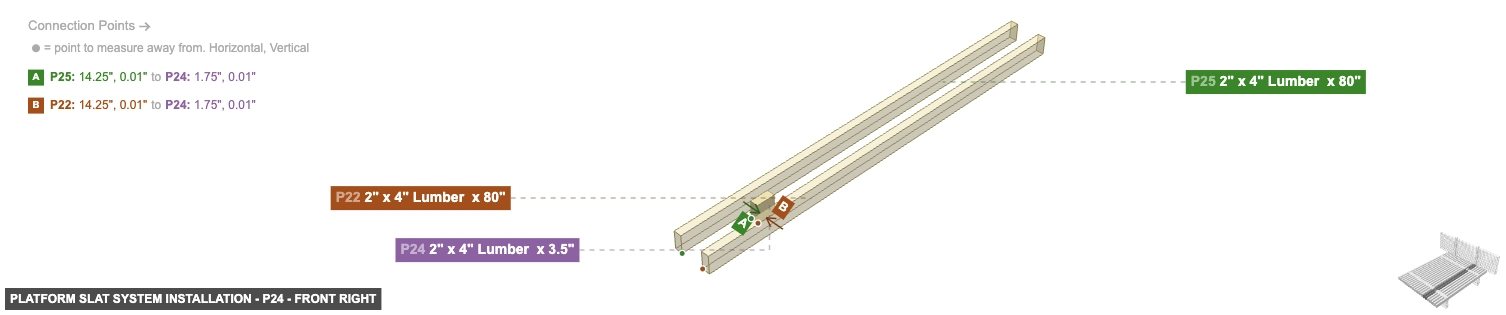

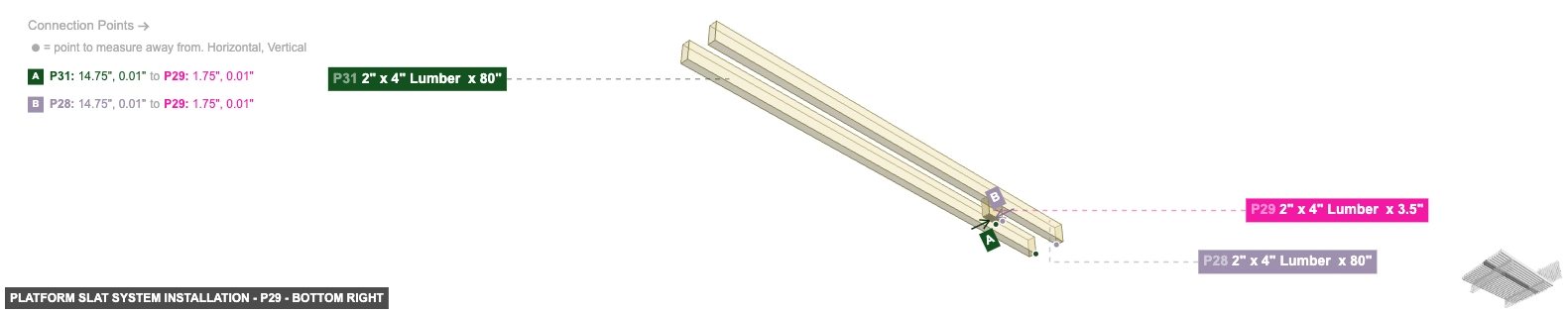

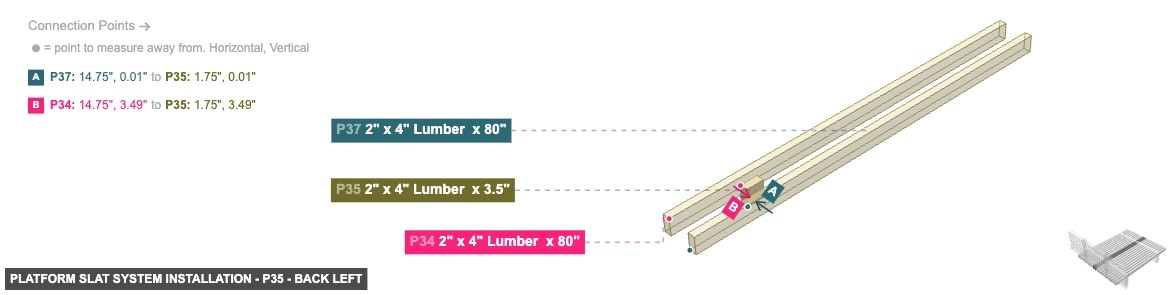

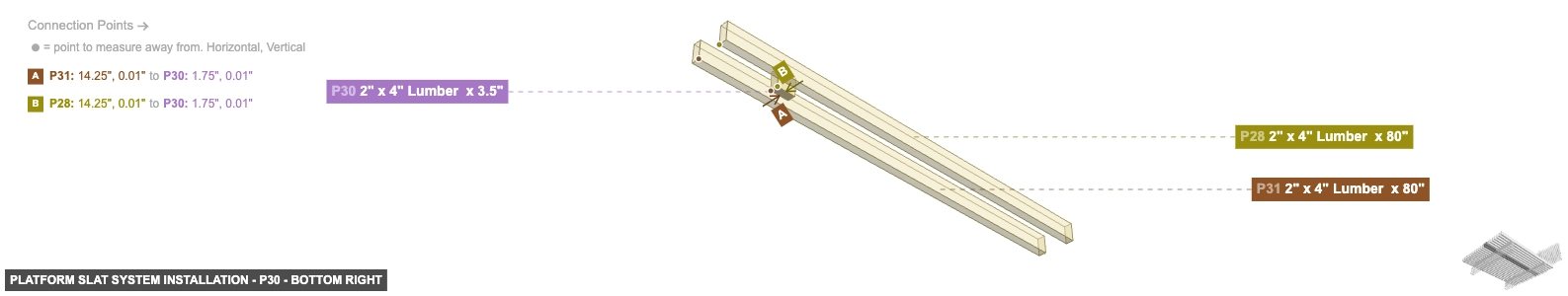

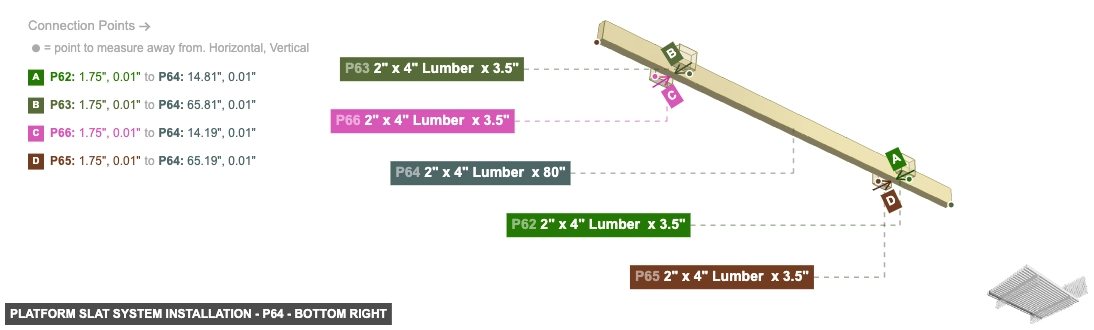

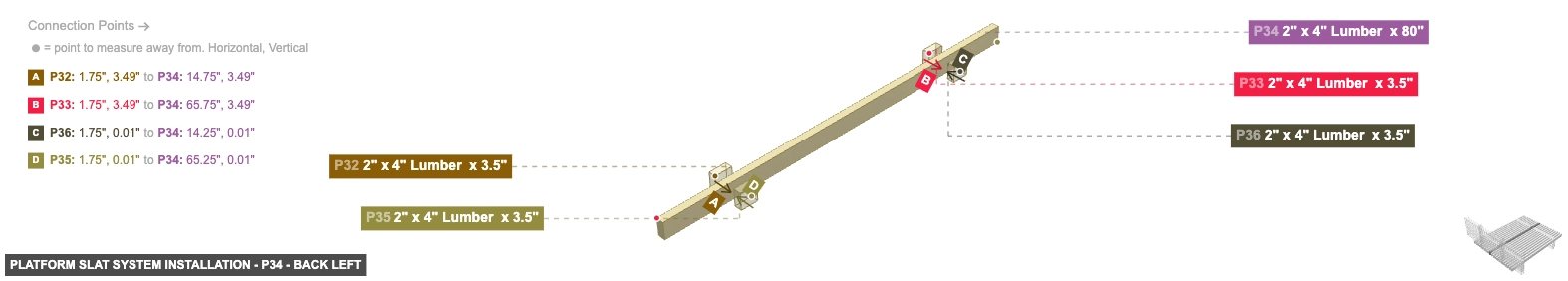

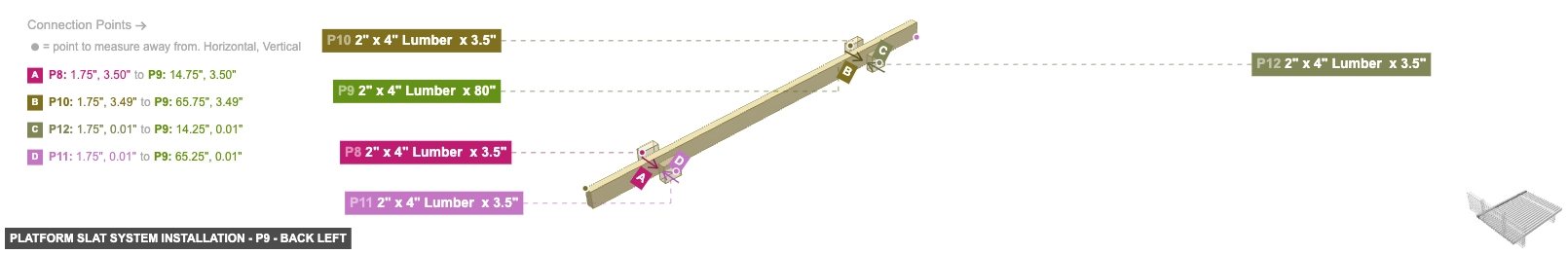

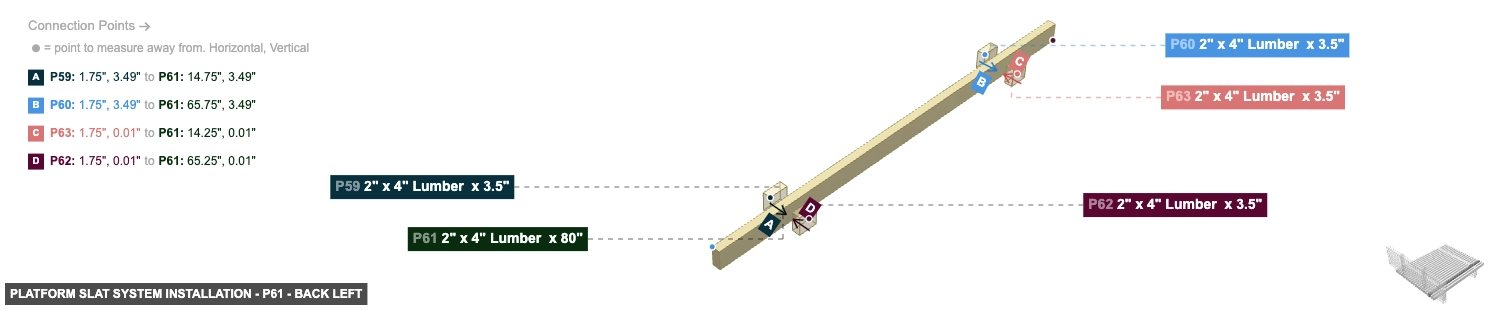

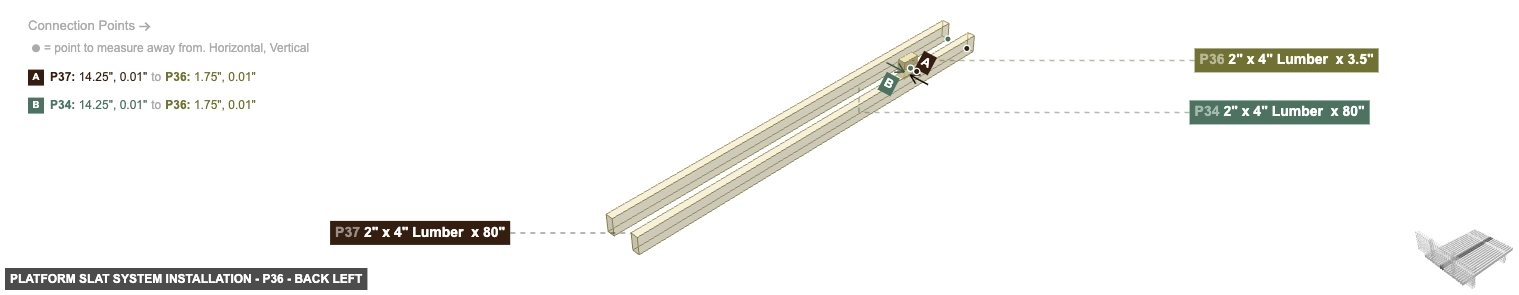

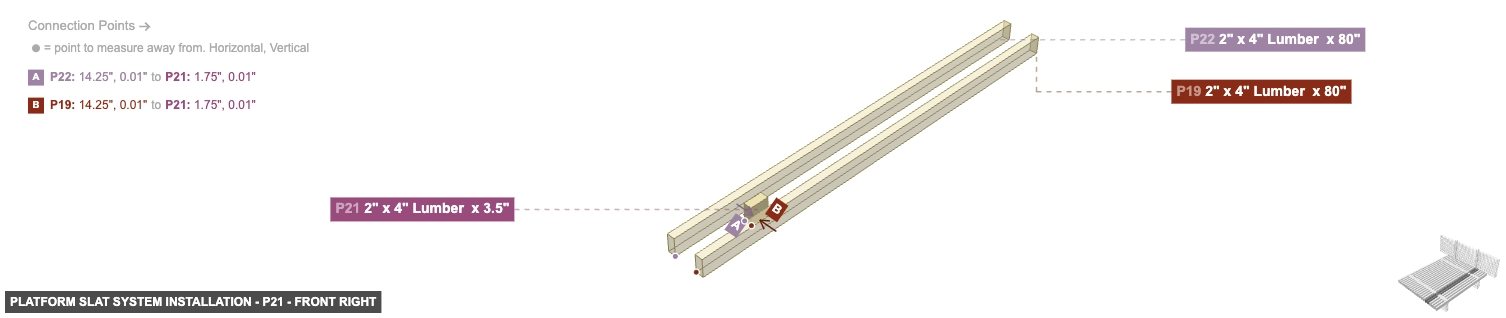

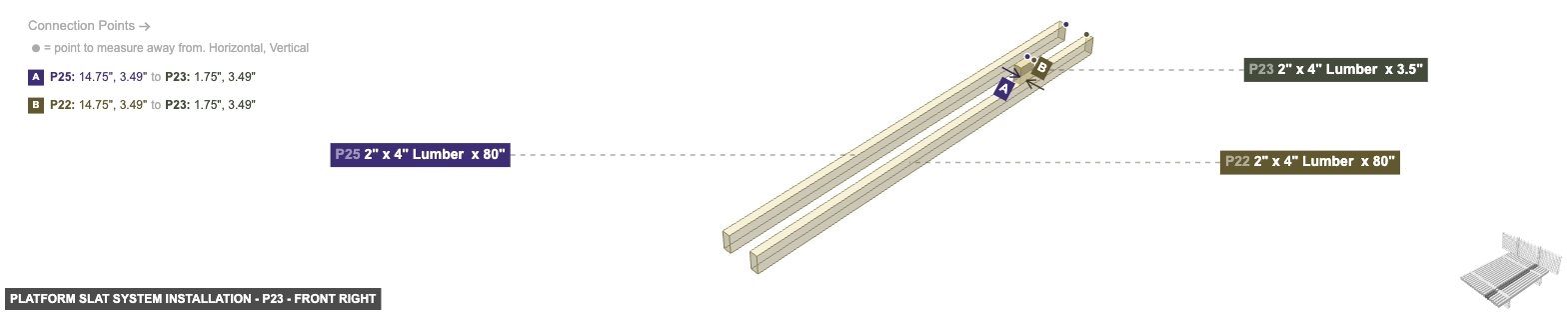

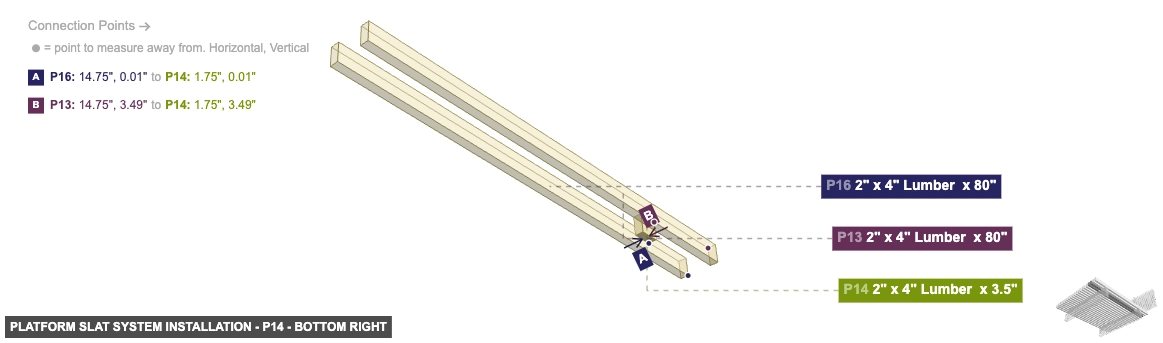

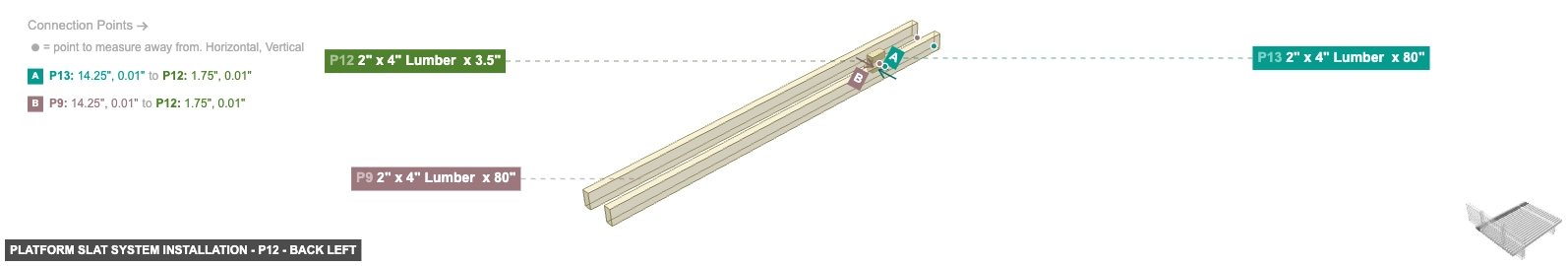

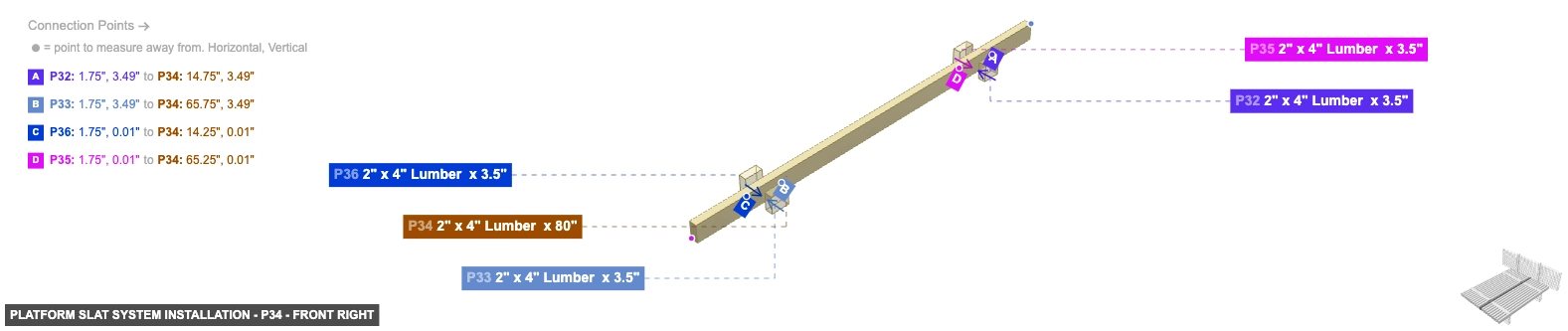

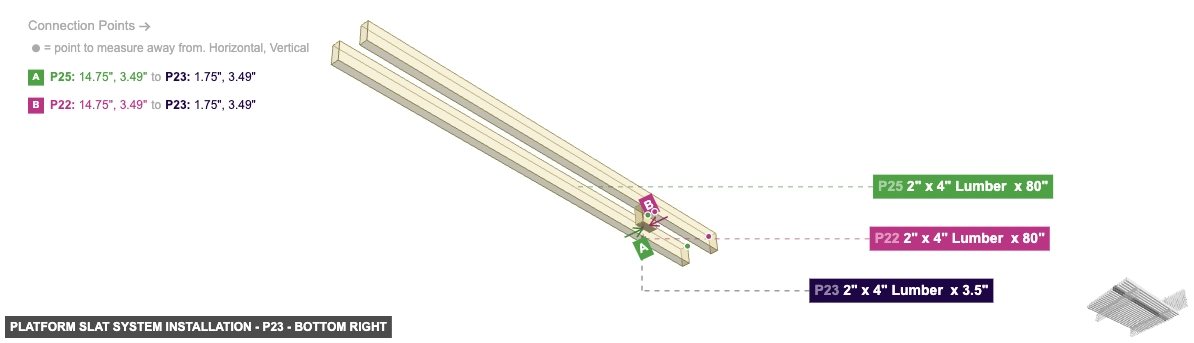

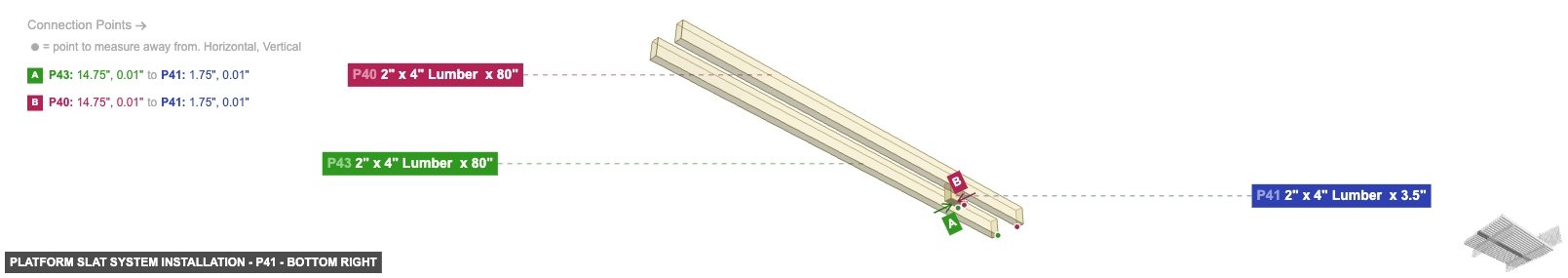

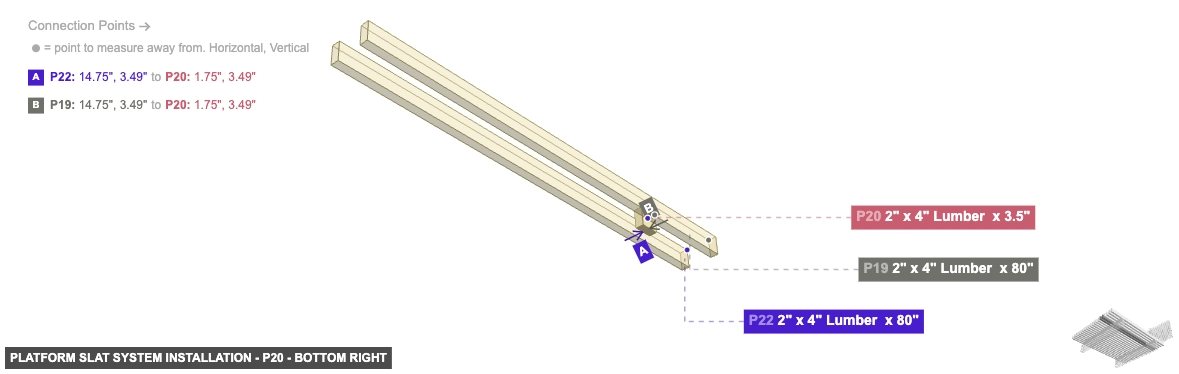

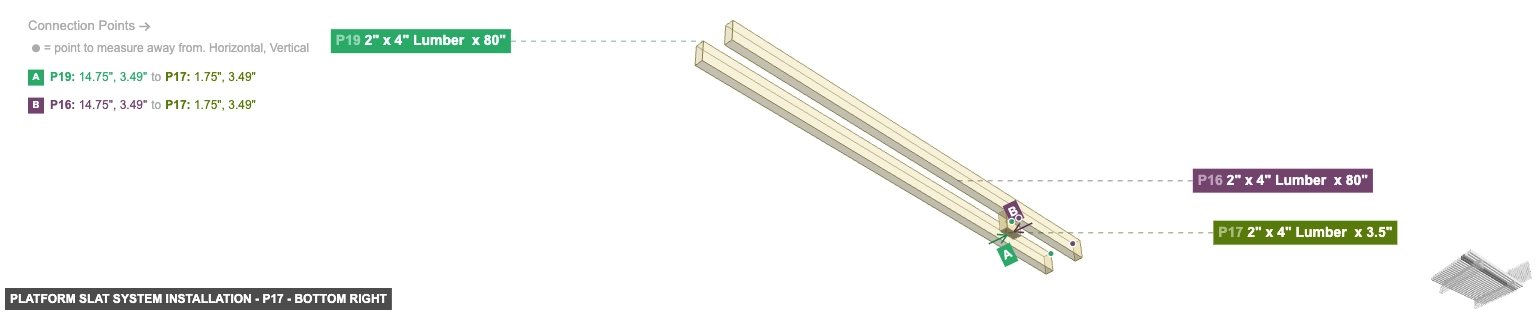

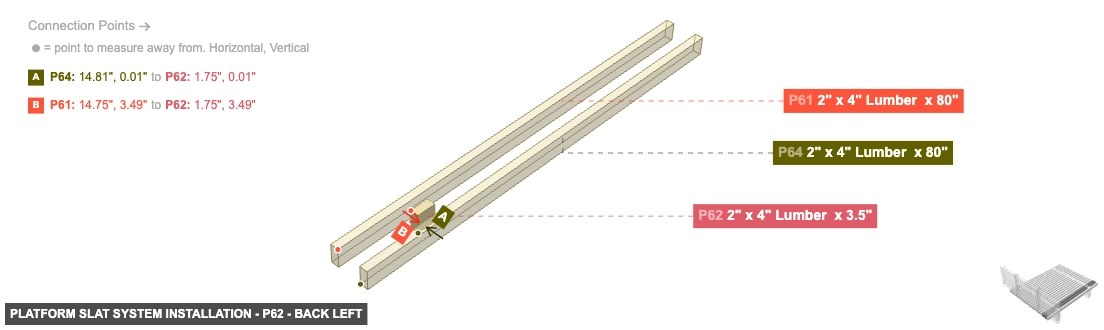

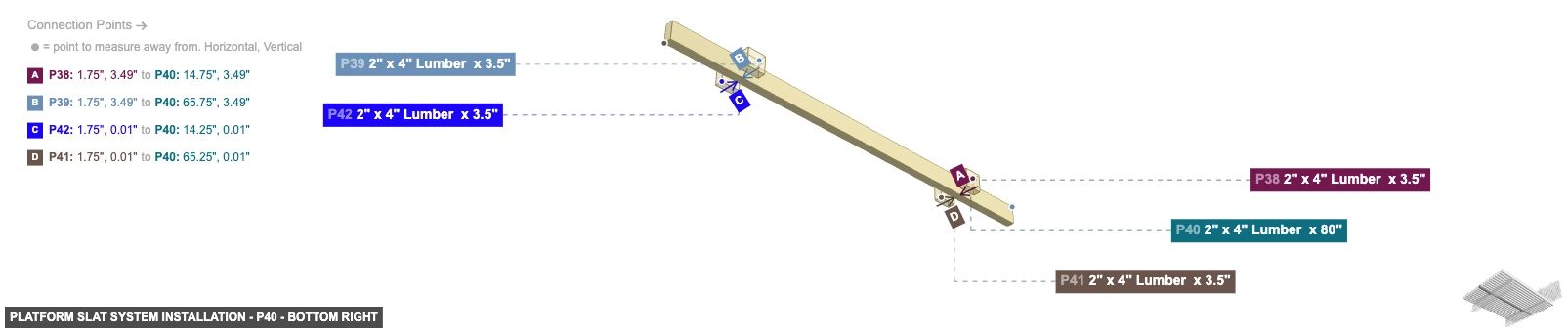

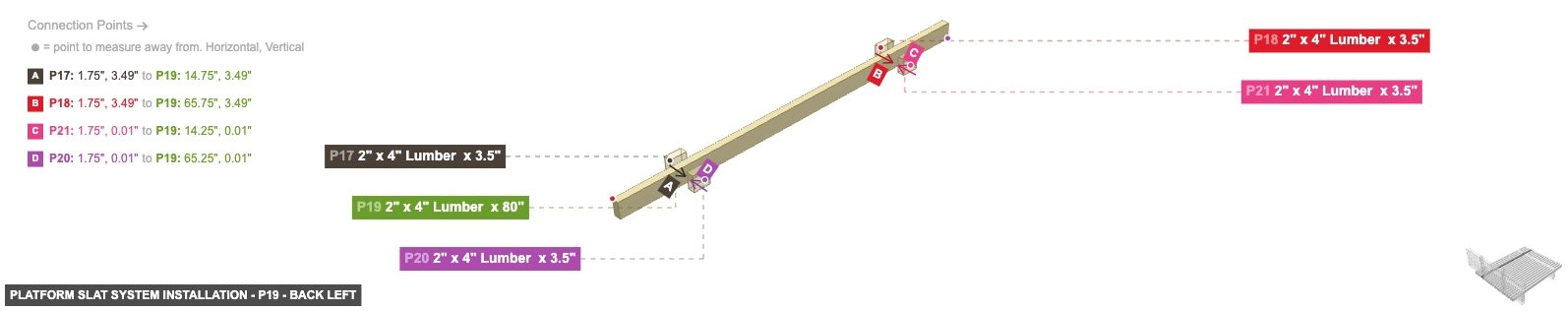

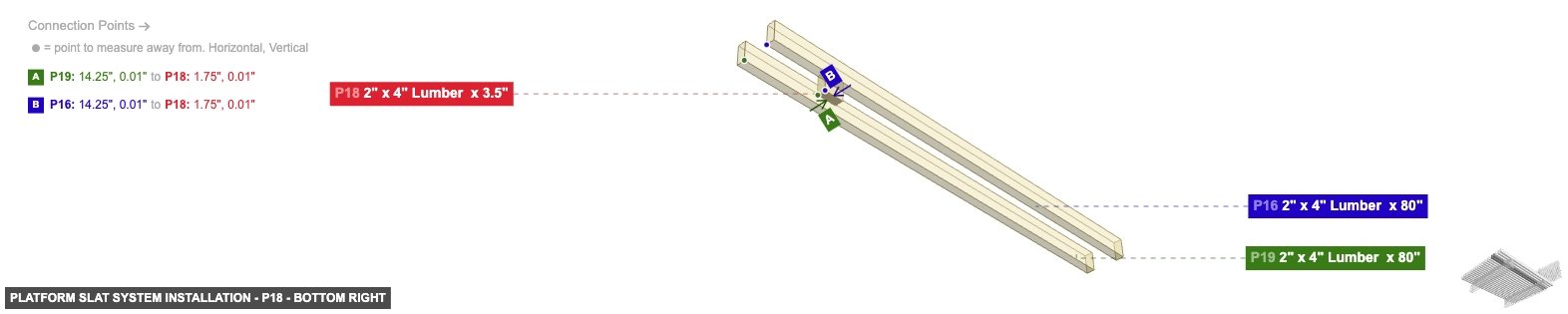

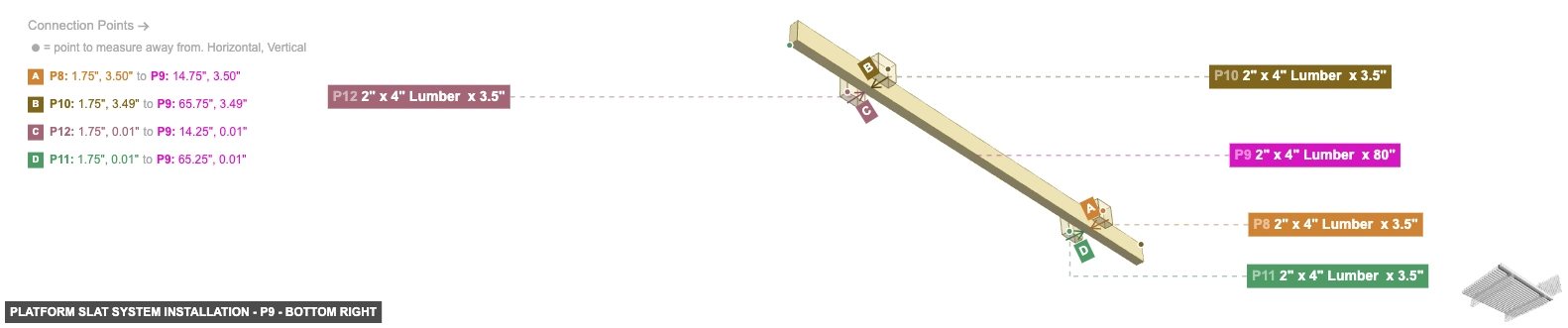

Attaching: Platform Slat System Installation

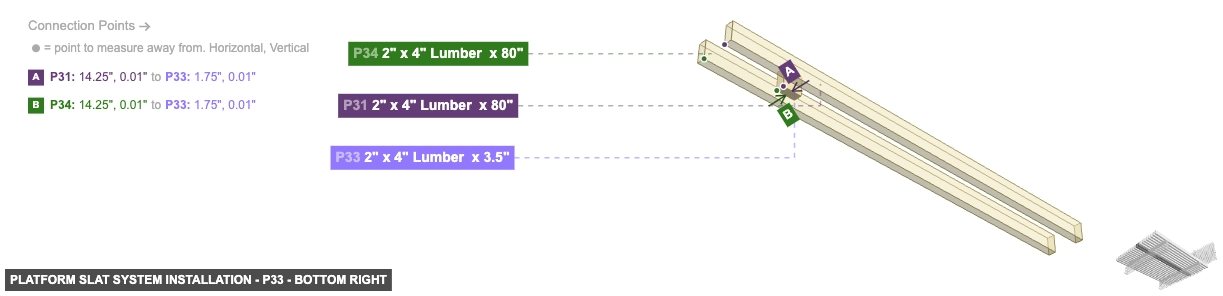

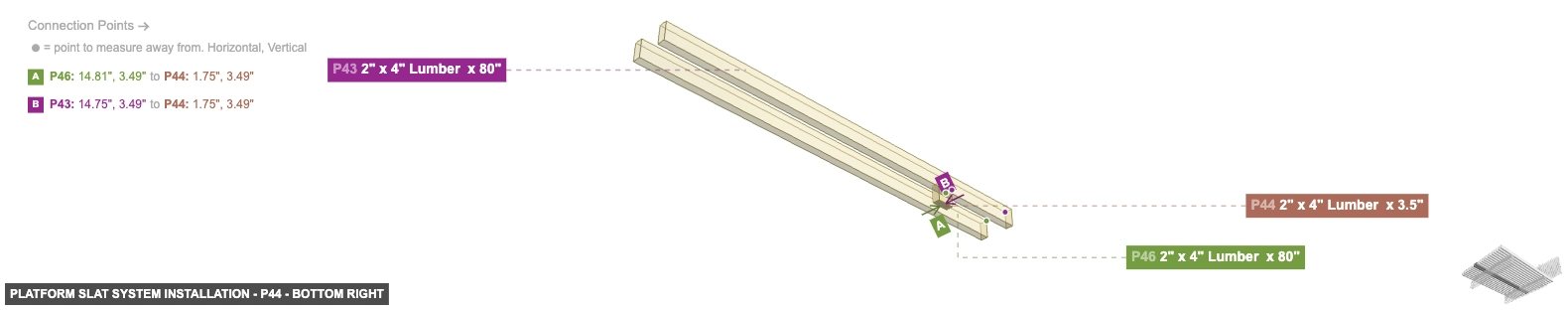

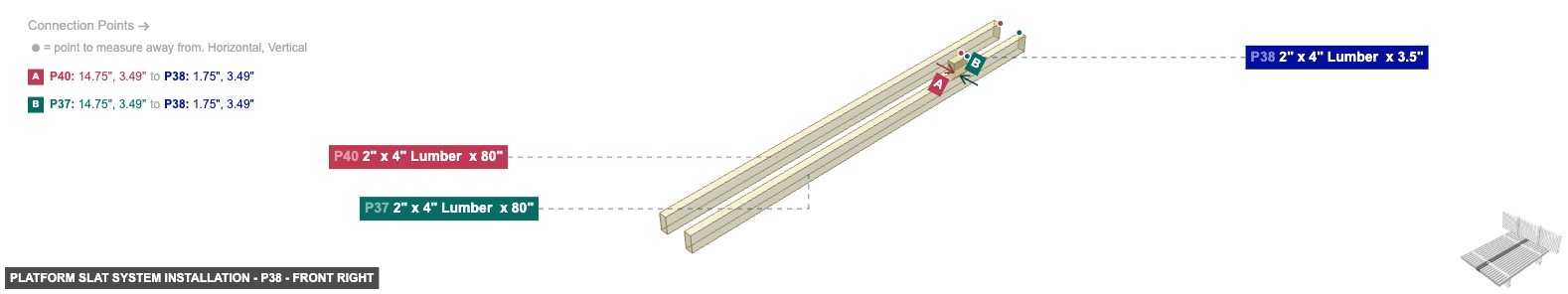

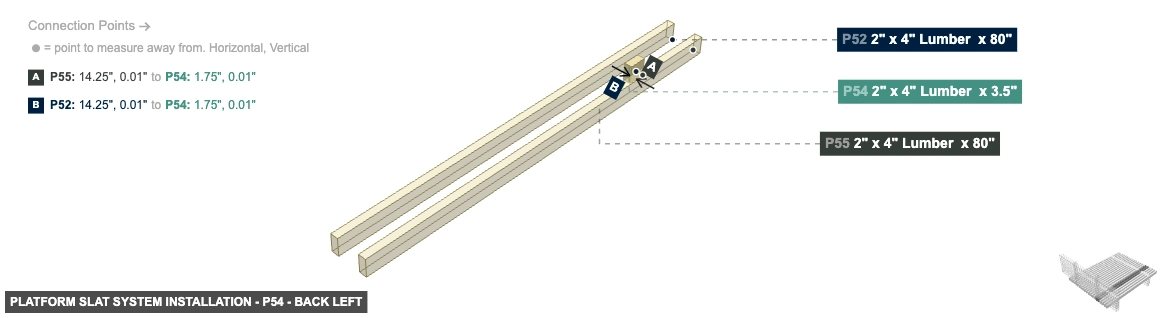

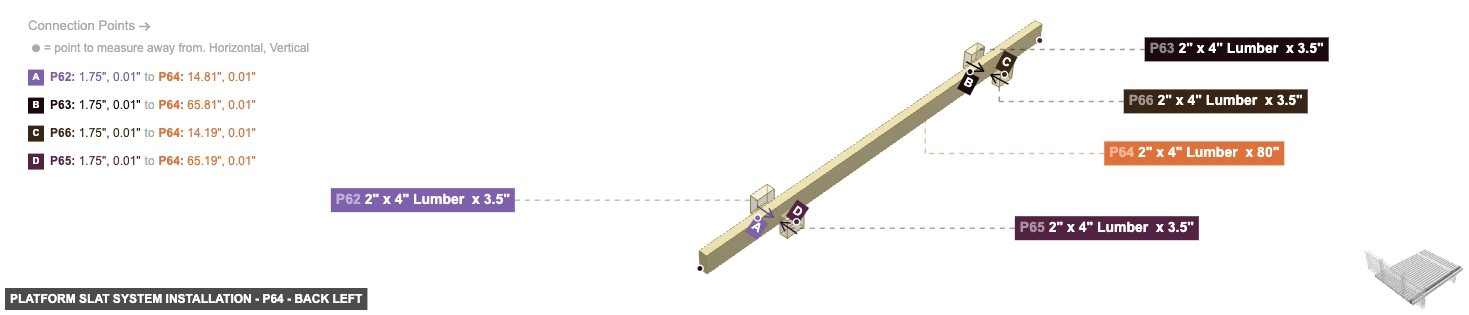

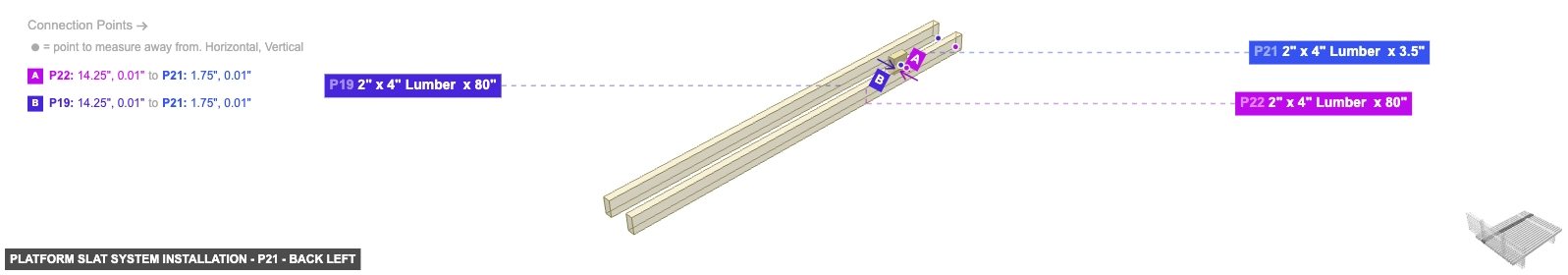

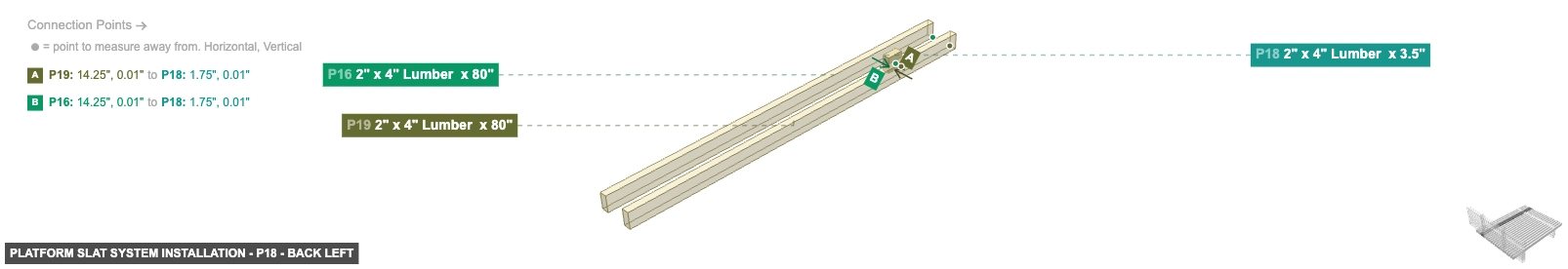

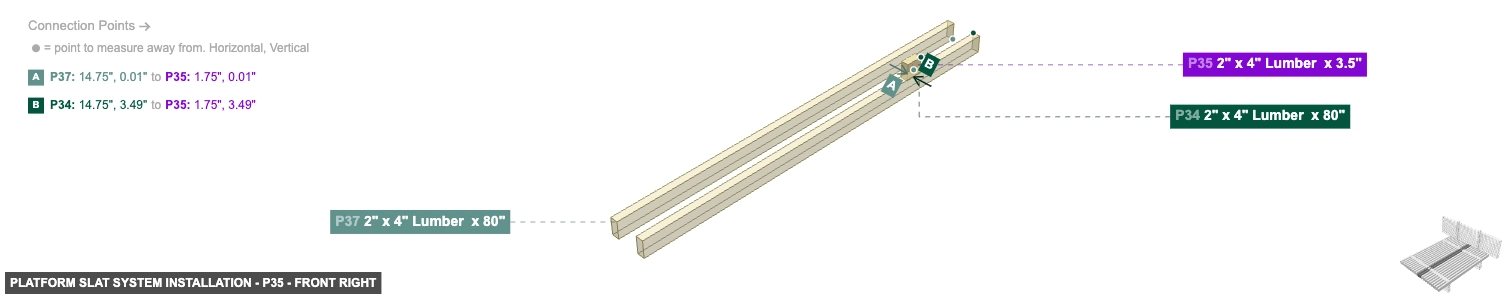

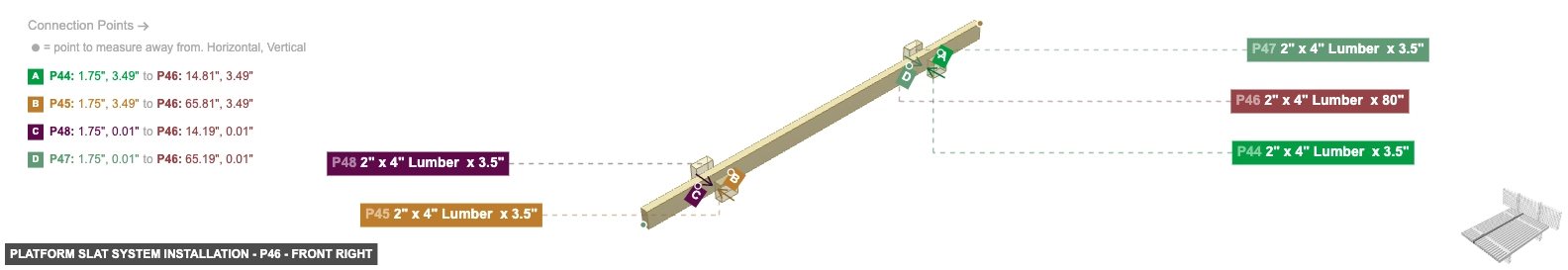

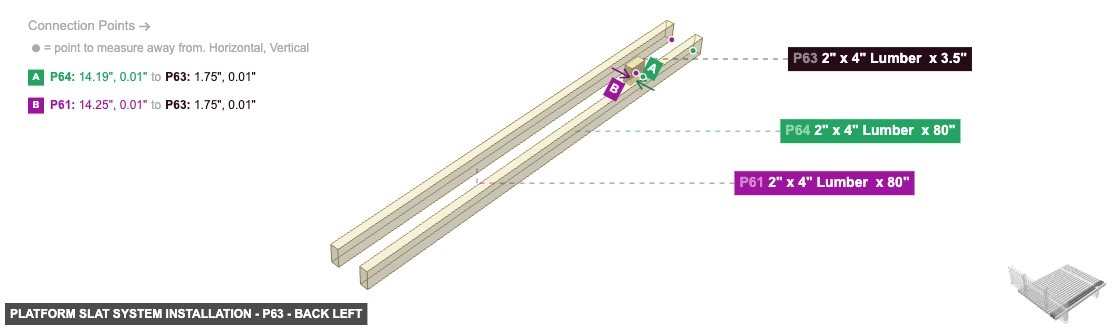

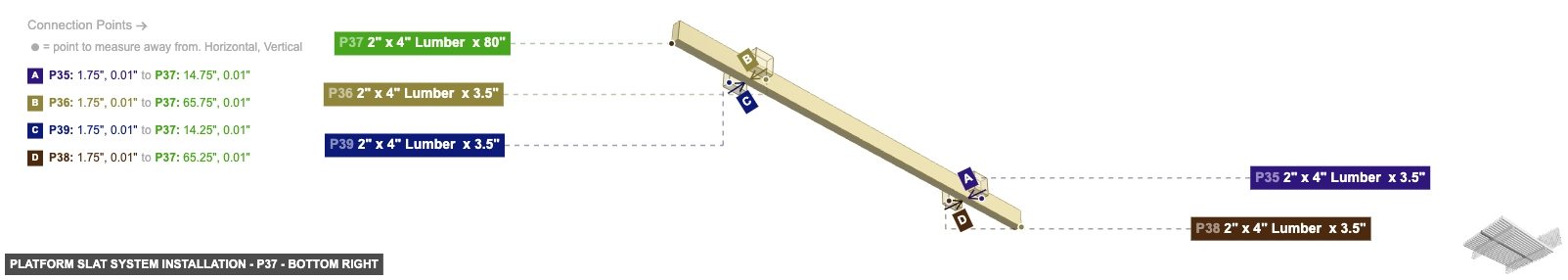

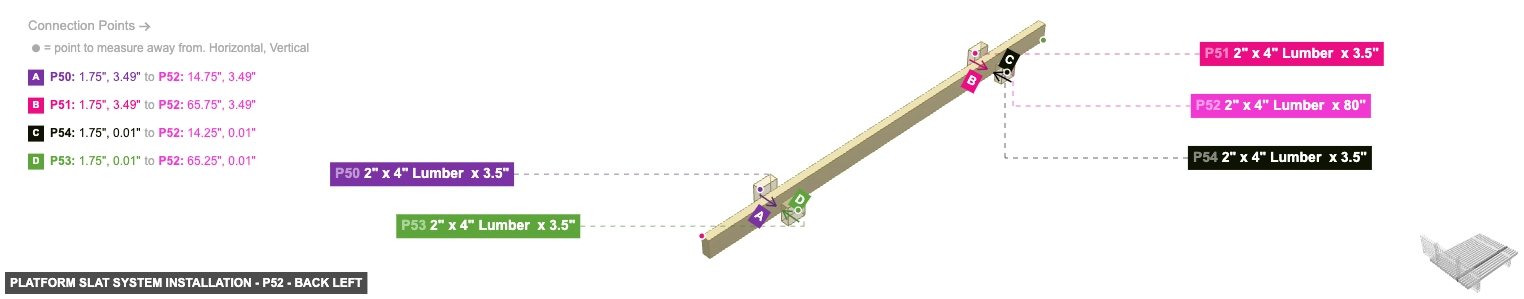

Install the series of long and short 2x4 slats onto the top of the left and right base beams (P3 and P6) to form the bed platform. Install sequentially from front to back.

Angle: back left

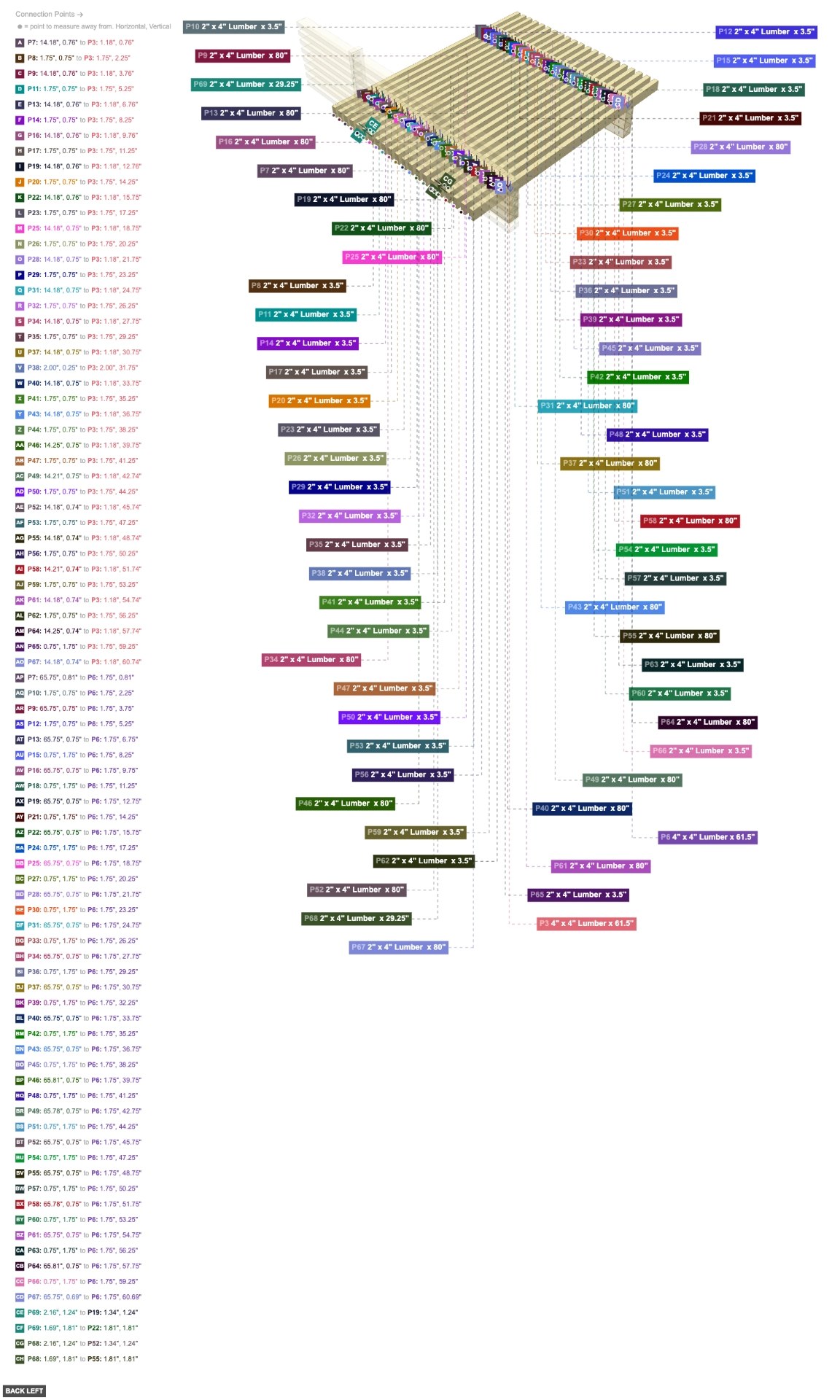

Assembly of Platform Slat System Installation - back_left

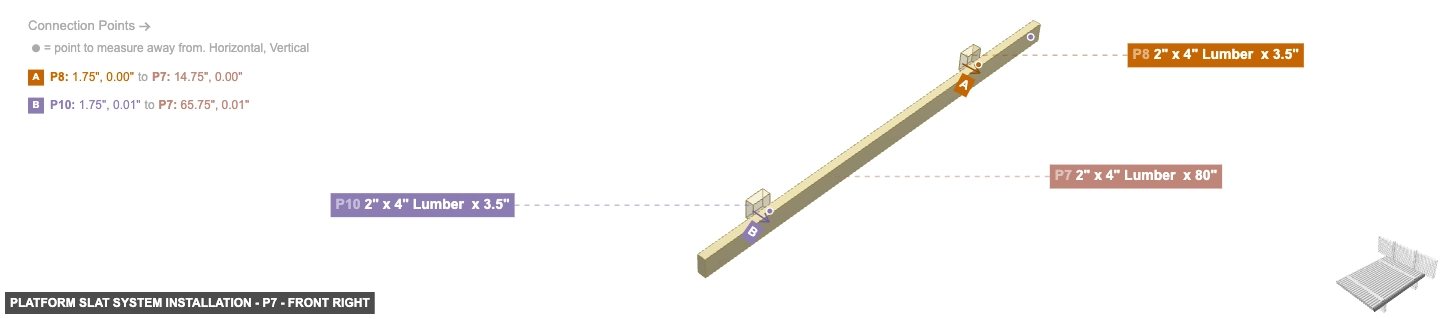

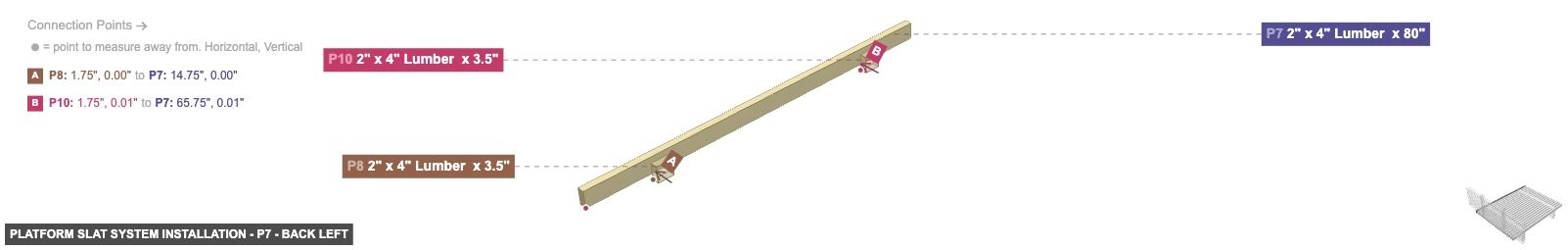

P7 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3, then attach its 2" x 4" Wood Side #2 facing left to part 8's 2" x 4" Wood Side #4, and ensure its 2" x 4" Wood End #1 faces front. After that, its 2" x 4" Wood Side #3 should be directed top. Also, its 2" x 4" Wood Side #4 must be oriented right. After that, its 2" x 4" Wood End #2 must be oriented back P8 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3, plus its 2" x 4" Wood Side #2, which is left-facing, should connect to part 9's 2" x 4" Wood Side #4, and its 2" x 4" Wood Side #4, which is right-facing, should connect to part 7's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 needs to point front, plus its 2" x 4" Wood Side #3 should be directed top. After that, its 2" x 4" Wood End #2 must be oriented back P9 (2" x 4" Lumber 80" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3. After that, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 12's 2" x 4" Wood Side #2, and connect its 2" x 4" Wood Side #4 oriented right links with part 8's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 needs to point front. After that, its 2" x 4" Wood Side #3 should be directed top. Next, its 2" x 4" Wood End #2 should be directed back P10 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, and attach its 2" x 4" Wood Side #2 facing right to part 7's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #4, which is left-facing, should connect to part 9's 2" x 4" Wood Side #4, and its 2" x 4" Wood End #1 must be oriented back. Also, ensure its 2" x 4" Wood Side #3 faces top, and its 2" x 4" Wood End #2 should be directed front P11 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3. After that, connect its 2" x 4" Wood Side #2 oriented left links with part 13's 2" x 4" Wood Side #4, then its 2" x 4" Wood Side #4, which is right-facing, should connect to part 9's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #1 needs to point front. Additionally, its 2" x 4" Wood Side #3 needs to point top. Also, ensure its 2" x 4" Wood End #2 faces back P12 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 6's 4" x 4" Wood Side #3, then attach its 2" x 4" Wood Side #2 facing right to part 9's 2" x 4" Wood Side #2, and attach its 2" x 4" Wood Side #4 facing left to part 13's 2" x 4" Wood Side #4. After that, ensure its 2" x 4" Wood End #1 faces back. Next, its 2" x 4" Wood Side #3 needs to point top, and its 2" x 4" Wood End #2 needs to point front P13 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3, plus its 2" x 4" Wood Side #2, which is left-facing, should connect to part 15's 2" x 4" Wood Side #2, then attach its 2" x 4" Wood Side #4 facing right to part 11's 2" x 4" Wood Side #2, also its 2" x 4" Wood End #1 must be oriented front. Additionally, its 2" x 4" Wood Side #3 must be oriented top, also ensure its 2" x 4" Wood End #2 faces back P14 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3, and connect its 2" x 4" Wood Side #2 oriented left links with part 16's 2" x 4" Wood Side #4, also attach its 2" x 4" Wood Side #4 facing right to part 13's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 should be directed front, then ensure its 2" x 4" Wood Side #3 faces top. Next, ensure its 2" x 4" Wood End #2 faces back P15 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, and its 2" x 4" Wood Side #2, which is right-facing, should connect to part 13's 2" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #4 facing left to part 16's 2" x 4" Wood Side #4. Next, its 2" x 4" Wood End #1 should be directed back, then its 2" x 4" Wood Side #3 needs to point top, and its 2" x 4" Wood End #2 must be oriented front P16 (2" x 4" Lumber 80" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, then connect its 2" x 4" Wood Side #2 oriented left links with part 18's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented right links with part 14's 2" x 4" Wood Side #2, also its 2" x 4" Wood End #1 needs to point front. Also, its 2" x 4" Wood Side #3 should be directed top, plus its 2" x 4" Wood End #2 should be directed back P17 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. After that, connect its 2" x 4" Wood Side #2 oriented left links with part 19's 2" x 4" Wood Side #4. Next, attach its 2" x 4" Wood Side #4 facing right to part 16's 2" x 4" Wood Side #2, and its 2" x 4" Wood End #1 should be directed front. Also, its 2" x 4" Wood Side #3 should be directed top, also ensure its 2" x 4" Wood End #2 faces back P18 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 6's 4" x 4" Wood Side #3. Additionally, its 2" x 4" Wood Side #2, which is right-facing, should connect to part 16's 2" x 4" Wood Side #2, also its 2" x 4" Wood Side #4, which is left-facing, should connect to part 19's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 needs to point back, also its 2" x 4" Wood Side #3 needs to point top, then its 2" x 4" Wood End #2 should be directed front P19 (2" x 4" Lumber 80" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3. Additionally, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 21's 2" x 4" Wood Side #2, also its 2" x 4" Wood Side #4, which is right-facing, should connect to part 17's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #1 should be directed front. Additionally, its 2" x 4" Wood Side #3 needs to point top. After that, its 2" x 4" Wood End #2 must be oriented back P20 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3, plus attach its 2" x 4" Wood Side #2 facing left to part 22's 2" x 4" Wood Side #4, then connect its 2" x 4" Wood Side #4 oriented right links with part 19's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 should be directed front, and its 2" x 4" Wood Side #3 must be oriented top, plus its 2" x 4" Wood End #2 should be directed back P21 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, and connect its 2" x 4" Wood Side #2 oriented right links with part 19's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #4, which is left-facing, should connect to part 22's 2" x 4" Wood Side #4, and ensure its 2" x 4" Wood End #1 faces back, then its 2" x 4" Wood Side #3 must be oriented top, plus its 2" x 4" Wood End #2 needs to point front P22 (2" x 4" Lumber 80" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3. Also, connect its 2" x 4" Wood Side #2 oriented left links with part 24's 2" x 4" Wood Side #2, also connect its 2" x 4" Wood Side #4 oriented right links with part 20's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #1 should be directed front, then its 2" x 4" Wood Side #3 needs to point top. Also, its 2" x 4" Wood End #2 should be directed back P23 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. After that, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 25's 2" x 4" Wood Side #4, also connect its 2" x 4" Wood Side #4 oriented right links with part 22's 2" x 4" Wood Side #2, and ensure its 2" x 4" Wood End #1 faces front, and its 2" x 4" Wood Side #3 should be directed top. After that, its 2" x 4" Wood End #2 should be directed back P24 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 6's 4" x 4" Wood Side #3. Also, connect its 2" x 4" Wood Side #2 oriented right links with part 22's 2" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #4 facing left to part 25's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood End #1 should be directed back, also ensure its 2" x 4" Wood Side #3 faces top, also its 2" x 4" Wood End #2 needs to point front P25 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. Additionally, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 27's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented right links with part 23's 2" x 4" Wood Side #2. Next, ensure its 2" x 4" Wood End #1 faces front, and ensure its 2" x 4" Wood Side #3 faces top. After that, its 2" x 4" Wood End #2 should be directed back P26 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3. Next, attach its 2" x 4" Wood Side #2 facing left to part 28's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood Side #4, which is right-facing, should connect to part 25's 2" x 4" Wood Side #2. After that, ensure its 2" x 4" Wood End #1 faces front, then its 2" x 4" Wood Side #3 must be oriented top, and its 2" x 4" Wood End #2 needs to point back P27 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 6's 4" x 4" Wood Side #3. Additionally, connect its 2" x 4" Wood Side #2 oriented right links with part 25's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented left links with part 28's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood End #1 must be oriented back, also its 2" x 4" Wood Side #3 needs to point top. After that, its 2" x 4" Wood End #2 should be directed front P28 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3, then attach its 2" x 4" Wood Side #2 facing left to part 30's 2" x 4" Wood Side #2. Additionally, attach its 2" x 4" Wood Side #4 facing right to part 26's 2" x 4" Wood Side #2, also its 2" x 4" Wood End #1 needs to point front. After that, its 2" x 4" Wood Side #3 needs to point top. Next, its 2" x 4" Wood End #2 should be directed back P29 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3, also its 2" x 4" Wood Side #2, which is left-facing, should connect to part 31's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood Side #4, which is right-facing, should connect to part 28's 2" x 4" Wood Side #2. After that, ensure its 2" x 4" Wood End #1 faces front, also its 2" x 4" Wood Side #3 needs to point top. After that, its 2" x 4" Wood End #2 needs to point back P30 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 6's 4" x 4" Wood Side #3, also attach its 2" x 4" Wood Side #2 facing right to part 28's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #4, which is left-facing, should connect to part 31's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood End #1 needs to point back. After that, its 2" x 4" Wood Side #3 must be oriented top, plus its 2" x 4" Wood End #2 must be oriented front P31 (2" x 4" Lumber 80" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, also connect its 2" x 4" Wood Side #2 oriented left links with part 33's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #4, which is right-facing, should connect to part 29's 2" x 4" Wood Side #2. After that, ensure its 2" x 4" Wood End #1 faces front. Additionally, ensure its 2" x 4" Wood Side #3 faces top. After that, its 2" x 4" Wood End #2 should be directed back P32 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 34's 2" x 4" Wood Side #4. Next, attach its 2" x 4" Wood Side #4 facing right to part 31's 2" x 4" Wood Side #2, then ensure its 2" x 4" Wood End #1 faces front, and ensure its 2" x 4" Wood Side #3 faces top. Next, ensure its 2" x 4" Wood End #2 faces back P33 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 6's 4" x 4" Wood Side #3, and attach its 2" x 4" Wood Side #2 facing right to part 31's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented left links with part 34's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 needs to point back, and ensure its 2" x 4" Wood Side #3 faces top, and its 2" x 4" Wood End #2 should be directed front P34 (2" x 4" Lumber 80" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3. Next, connect its 2" x 4" Wood Side #2 oriented left links with part 36's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #4, which is right-facing, should connect to part 32's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 needs to point front, plus its 2" x 4" Wood Side #3 should be directed top, also its 2" x 4" Wood End #2 needs to point back P35 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3, plus connect its 2" x 4" Wood Side #2 oriented left links with part 37's 2" x 4" Wood Side #4, and attach its 2" x 4" Wood Side #4 facing right to part 34's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #1 needs to point front. Additionally, its 2" x 4" Wood Side #3 must be oriented top, plus ensure its 2" x 4" Wood End #2 faces back P36 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 6's 4" x 4" Wood Side #3, and attach its 2" x 4" Wood Side #2 facing right to part 34's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #4, which is left-facing, should connect to part 37's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 needs to point back, also its 2" x 4" Wood Side #3 must be oriented top, plus ensure its 2" x 4" Wood End #2 faces front P37 (2" x 4" Lumber 80" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 39's 2" x 4" Wood Side #2. Next, connect its 2" x 4" Wood Side #4 oriented right links with part 35's 2" x 4" Wood Side #2. Next, ensure its 2" x 4" Wood End #1 faces front. Next, its 2" x 4" Wood Side #3 needs to point top, also its 2" x 4" Wood End #2 should be directed back P38 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3. After that, attach its 2" x 4" Wood Side #2 facing left to part 40's 2" x 4" Wood Side #4, plus its 2" x 4" Wood Side #4, which is right-facing, should connect to part 37's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #1 should be directed front. Next, ensure its 2" x 4" Wood Side #3 faces top. After that, its 2" x 4" Wood End #2 needs to point back P39 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 6's 4" x 4" Wood Side #3. Next, attach its 2" x 4" Wood Side #2 facing right to part 37's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #4, which is left-facing, should connect to part 40's 2" x 4" Wood Side #4, also its 2" x 4" Wood End #1 should be directed back, plus ensure its 2" x 4" Wood Side #3 faces top, also its 2" x 4" Wood End #2 needs to point front P40 (2" x 4" Lumber 80" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 42's 2" x 4" Wood Side #2, then connect its 2" x 4" Wood Side #4 oriented right links with part 38's 2" x 4" Wood Side #2. Also, ensure its 2" x 4" Wood End #1 faces front, also ensure its 2" x 4" Wood Side #3 faces top, then its 2" x 4" Wood End #2 should be directed back P41 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, also attach its 2" x 4" Wood Side #2 facing left to part 43's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood Side #4, which is right-facing, should connect to part 40's 2" x 4" Wood Side #2, then ensure its 2" x 4" Wood End #1 faces front. Next, its 2" x 4" Wood Side #3 should be directed top, then its 2" x 4" Wood End #2 needs to point back P42 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, then its 2" x 4" Wood Side #2, which is right-facing, should connect to part 40's 2" x 4" Wood Side #2, also its 2" x 4" Wood Side #4, which is left-facing, should connect to part 43's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood End #1 must be oriented back. After that, its 2" x 4" Wood Side #3 must be oriented top. Additionally, ensure its 2" x 4" Wood End #2 faces front P43 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. Also, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 45's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood Side #4, which is right-facing, should connect to part 41's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood End #1 needs to point front. Additionally, its 2" x 4" Wood Side #3 must be oriented top. Next, its 2" x 4" Wood End #2 should be directed back P44 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3. Also, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 46's 2" x 4" Wood Side #4, also connect its 2" x 4" Wood Side #4 oriented right links with part 43's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 must be oriented front. After that, its 2" x 4" Wood Side #3 should be directed top, then its 2" x 4" Wood End #2 must be oriented back P45 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, also connect its 2" x 4" Wood Side #2 oriented right links with part 43's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood Side #4, which is left-facing, should connect to part 46's 2" x 4" Wood Side #4, also its 2" x 4" Wood End #1 should be directed back, then its 2" x 4" Wood Side #3 must be oriented top. Also, its 2" x 4" Wood End #2 needs to point front P46 (2" x 4" Lumber 80" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3, also its 2" x 4" Wood Side #2, which is left-facing, should connect to part 48's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #4, which is right-facing, should connect to part 44's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 should be directed front. Additionally, its 2" x 4" Wood Side #3 should be directed top, then its 2" x 4" Wood End #2 should be directed back P47 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3, then attach its 2" x 4" Wood Side #2 facing left to part 49's 2" x 4" Wood Side #4, plus connect its 2" x 4" Wood Side #4 oriented right links with part 46's 2" x 4" Wood Side #2, plus ensure its 2" x 4" Wood End #1 faces front. Additionally, its 2" x 4" Wood Side #3 must be oriented top. Next, its 2" x 4" Wood End #2 should be directed back P48 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, then attach its 2" x 4" Wood Side #2 facing right to part 46's 2" x 4" Wood Side #2, and connect its 2" x 4" Wood Side #4 oriented left links with part 49's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood End #1 should be directed back. After that, ensure its 2" x 4" Wood Side #3 faces top, then its 2" x 4" Wood End #2 should be directed front P49 (2" x 4" Lumber 80" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, then connect its 2" x 4" Wood Side #2 oriented left links with part 51's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #4, which is right-facing, should connect to part 47's 2" x 4" Wood Side #2, then ensure its 2" x 4" Wood End #1 faces front, also its 2" x 4" Wood Side #3 must be oriented top. Next, its 2" x 4" Wood End #2 should be directed back P50 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, also connect its 2" x 4" Wood Side #2 oriented left links with part 52's 2" x 4" Wood Side #4, also attach its 2" x 4" Wood Side #4 facing right to part 49's 2" x 4" Wood Side #2, and its 2" x 4" Wood End #1 must be oriented front. After that, its 2" x 4" Wood Side #3 needs to point top. After that, ensure its 2" x 4" Wood End #2 faces back P51 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 6's 4" x 4" Wood Side #3, also its 2" x 4" Wood Side #2, which is right-facing, should connect to part 49's 2" x 4" Wood Side #2, then its 2" x 4" Wood Side #4, which is left-facing, should connect to part 52's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood End #1 should be directed back, plus ensure its 2" x 4" Wood Side #3 faces top, and its 2" x 4" Wood End #2 must be oriented front P52 (2" x 4" Lumber 80" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3, also connect its 2" x 4" Wood Side #2 oriented left links with part 54's 2" x 4" Wood Side #2, and attach its 2" x 4" Wood Side #4 facing right to part 50's 2" x 4" Wood Side #2, and its 2" x 4" Wood End #1 should be directed front. Also, its 2" x 4" Wood Side #3 needs to point top, plus its 2" x 4" Wood End #2 should be directed back P53 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, and its 2" x 4" Wood Side #2, which is left-facing, should connect to part 55's 2" x 4" Wood Side #4. Additionally, attach its 2" x 4" Wood Side #4 facing right to part 52's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood End #1 must be oriented front, also its 2" x 4" Wood Side #3 must be oriented top. Also, its 2" x 4" Wood End #2 needs to point back P54 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 6's 4" x 4" Wood Side #3, plus connect its 2" x 4" Wood Side #2 oriented right links with part 52's 2" x 4" Wood Side #2. Additionally, attach its 2" x 4" Wood Side #4 facing left to part 55's 2" x 4" Wood Side #4. Next, ensure its 2" x 4" Wood End #1 faces back. After that, its 2" x 4" Wood Side #3 should be directed top. Additionally, ensure its 2" x 4" Wood End #2 faces front P55 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. Next, connect its 2" x 4" Wood Side #2 oriented left links with part 57's 2" x 4" Wood Side #2, and attach its 2" x 4" Wood Side #4 facing right to part 53's 2" x 4" Wood Side #2, and its 2" x 4" Wood End #1 should be directed front. Additionally, its 2" x 4" Wood Side #3 should be directed top, then its 2" x 4" Wood End #2 must be oriented back P56 (2" x 4" Lumber 3.5" length) - attach its 2" x 4" Wood Side #1 facing bottom to part 3's 4" x 4" Wood Side #3, plus attach its 2" x 4" Wood Side #2 facing left to part 58's 2" x 4" Wood Side #4. Also, connect its 2" x 4" Wood Side #4 oriented right links with part 55's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood End #1 should be directed front. Next, its 2" x 4" Wood Side #3 should be directed top. After that, its 2" x 4" Wood End #2 must be oriented back P57 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, then its 2" x 4" Wood Side #2, which is right-facing, should connect to part 55's 2" x 4" Wood Side #2, also its 2" x 4" Wood Side #4, which is left-facing, should connect to part 58's 2" x 4" Wood Side #4, and its 2" x 4" Wood End #1 must be oriented back. After that, its 2" x 4" Wood Side #3 needs to point top. Also, ensure its 2" x 4" Wood End #2 faces front P58 (2" x 4" Lumber 80" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, plus connect its 2" x 4" Wood Side #2 oriented left links with part 60's 2" x 4" Wood Side #2, also connect its 2" x 4" Wood Side #4 oriented right links with part 56's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #1 needs to point front, plus its 2" x 4" Wood Side #3 should be directed top, then its 2" x 4" Wood End #2 needs to point back P59 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. Next, connect its 2" x 4" Wood Side #2 oriented left links with part 61's 2" x 4" Wood Side #4, also connect its 2" x 4" Wood Side #4 oriented right links with part 58's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 must be oriented front. Also, its 2" x 4" Wood Side #3 needs to point top, and its 2" x 4" Wood End #2 needs to point back P60 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 6's 4" x 4" Wood Side #3, also attach its 2" x 4" Wood Side #2 facing right to part 58's 2" x 4" Wood Side #2, also its 2" x 4" Wood Side #4, which is left-facing, should connect to part 61's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 should be directed back. After that, its 2" x 4" Wood Side #3 should be directed top. After that, ensure its 2" x 4" Wood End #2 faces front P61 (2" x 4" Lumber 80" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3. Also, connect its 2" x 4" Wood Side #2 oriented left links with part 63's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood Side #4, which is right-facing, should connect to part 59's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood End #1 needs to point front, also its 2" x 4" Wood Side #3 needs to point top. Next, its 2" x 4" Wood End #2 needs to point back P62 (2" x 4" Lumber 3.5" length) - connect its 2" x 4" Wood Side #1 oriented bottom links with part 3's 4" x 4" Wood Side #3, plus its 2" x 4" Wood Side #2, which is left-facing, should connect to part 64's 2" x 4" Wood Side #4, and connect its 2" x 4" Wood Side #4 oriented right links with part 61's 2" x 4" Wood Side #2, plus its 2" x 4" Wood End #1 needs to point front, also its 2" x 4" Wood Side #3 must be oriented top, then its 2" x 4" Wood End #2 should be directed back P63 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 6's 4" x 4" Wood Side #3, also attach its 2" x 4" Wood Side #2 facing right to part 61's 2" x 4" Wood Side #2, plus connect its 2" x 4" Wood Side #4 oriented left links with part 64's 2" x 4" Wood Side #4, and ensure its 2" x 4" Wood End #1 faces back. After that, its 2" x 4" Wood Side #3 must be oriented top, also its 2" x 4" Wood End #2 must be oriented front P64 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. Additionally, attach its 2" x 4" Wood Side #2 facing left to part 66's 2" x 4" Wood Side #2, plus attach its 2" x 4" Wood Side #4 facing right to part 62's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 should be directed front. Also, its 2" x 4" Wood Side #3 should be directed top. Also, its 2" x 4" Wood End #2 needs to point back P65 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood Side #2, which is left-facing, should connect to part 67's 2" x 4" Wood Side #4, also its 2" x 4" Wood Side #4, which is right-facing, should connect to part 64's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 needs to point front, and its 2" x 4" Wood Side #3 should be directed top, and its 2" x 4" Wood End #2 needs to point back P66 (2" x 4" Lumber 3.5" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 6's 4" x 4" Wood Side #3. Next, connect its 2" x 4" Wood Side #2 oriented right links with part 64's 2" x 4" Wood Side #2. Also, attach its 2" x 4" Wood Side #4 facing left to part 67's 2" x 4" Wood Side #4. Next, ensure its 2" x 4" Wood End #1 faces back, and its 2" x 4" Wood Side #3 must be oriented top. Additionally, its 2" x 4" Wood End #2 should be directed front P67 (2" x 4" Lumber 80" length) - its 2" x 4" Wood Side #1, which is bottom-facing, should connect to part 3's 4" x 4" Wood Side #3, and connect its 2" x 4" Wood Side #4 oriented right links with part 65's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 should be directed front, then its 2" x 4" Wood Side #2 should be directed left. After that, its 2" x 4" Wood Side #3 needs to point top. Additionally, ensure its 2" x 4" Wood End #2 faces back

2" x 4" Lumber x 80"x 21

2" x 4" Lumber x 3.5"x 40

Angle: front right

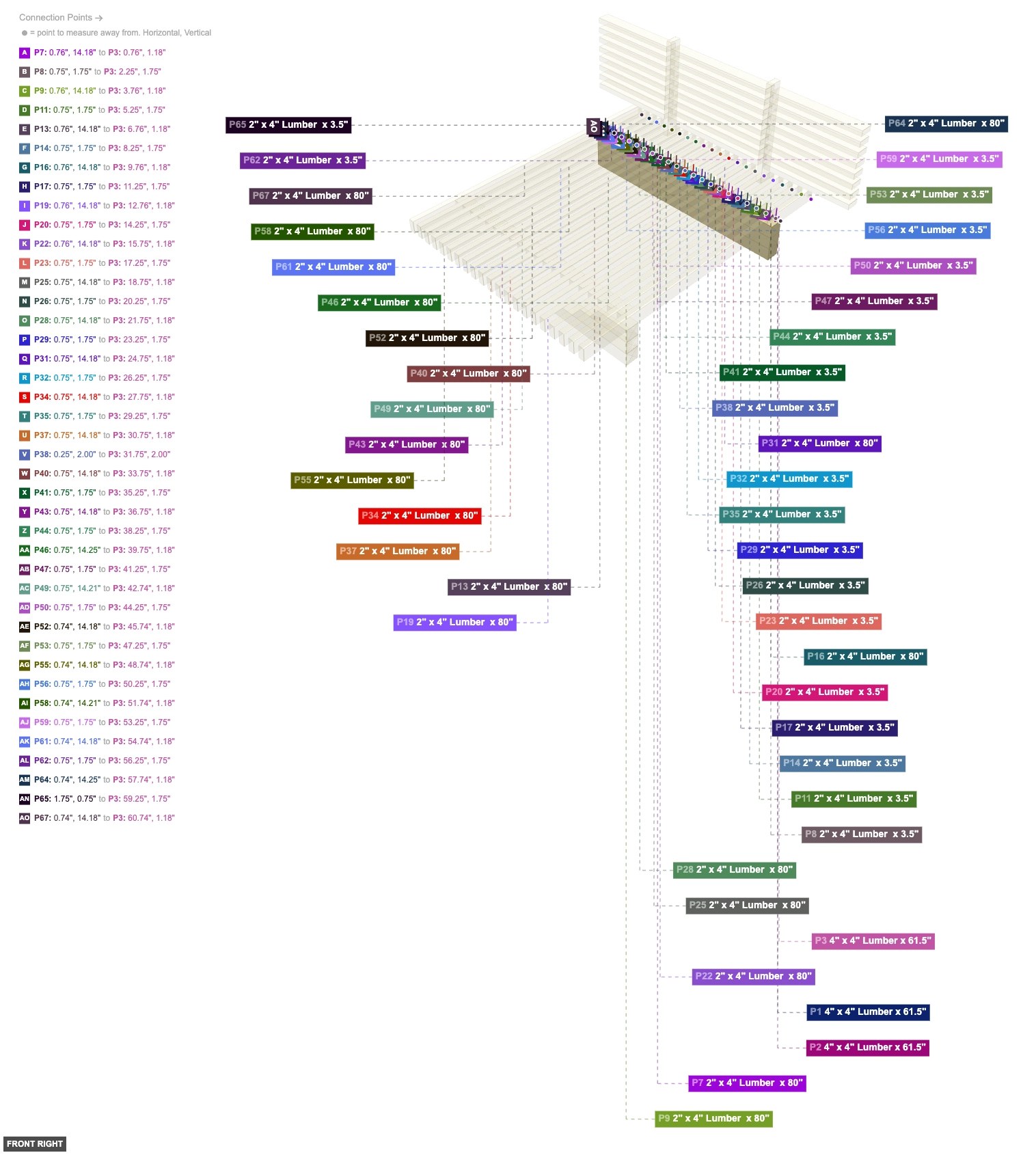

Assembly of Platform Slat System Installation - front_right

2" x 4" Lumber x 80"x 21

2" x 4" Lumber x 3.5"x 40

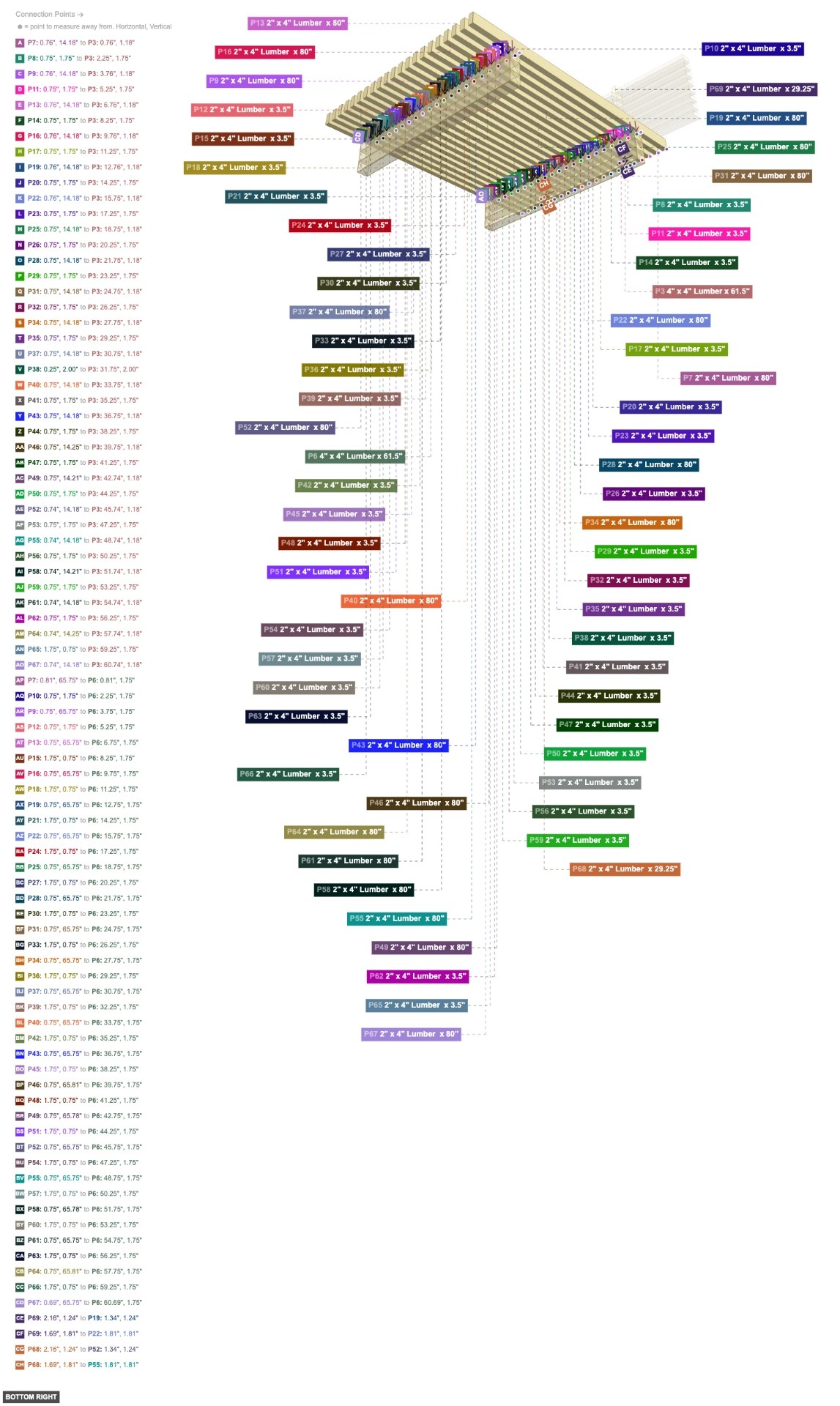

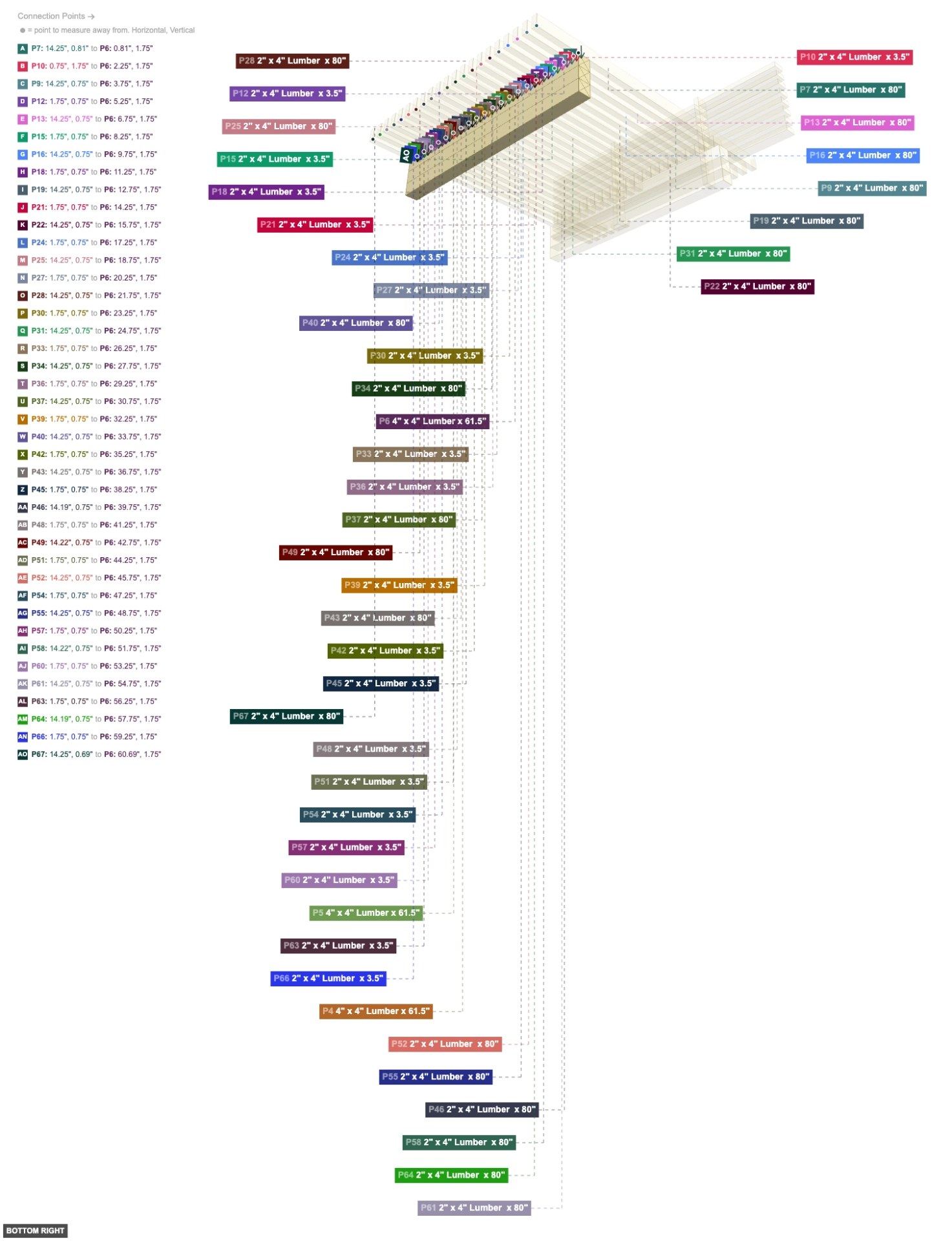

Angle: bottom right

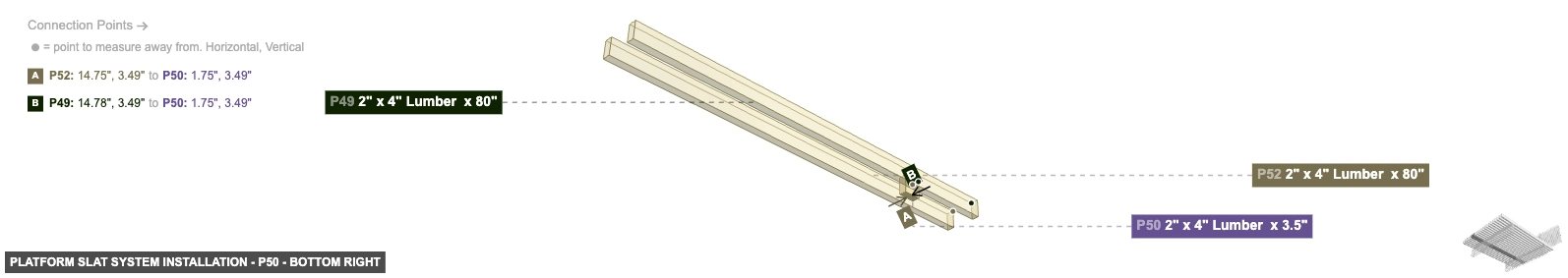

Assembly of Platform Slat System Installation - bottom_right

2" x 4" Lumber x 80"x 21

2" x 4" Lumber x 3.5"x 40

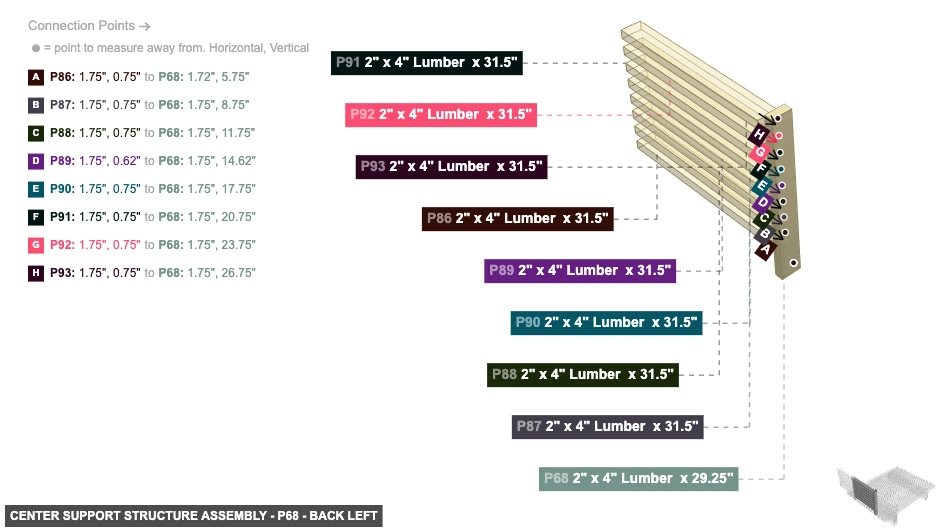

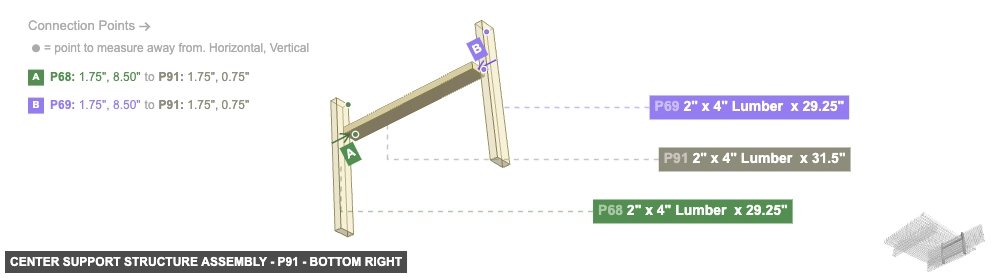

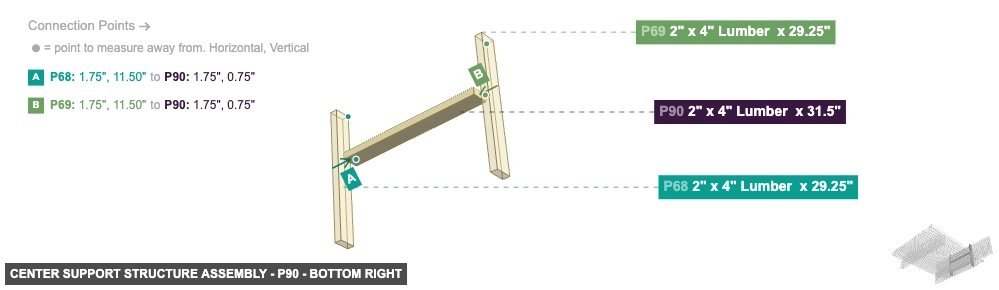

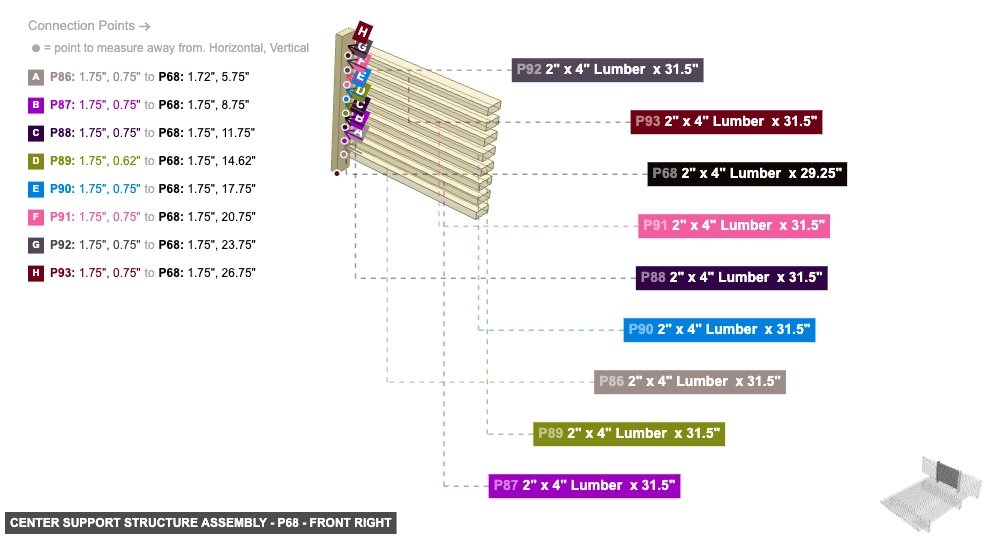

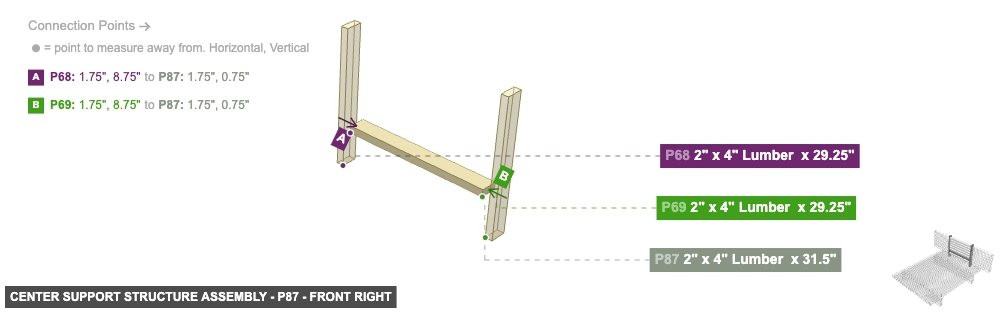

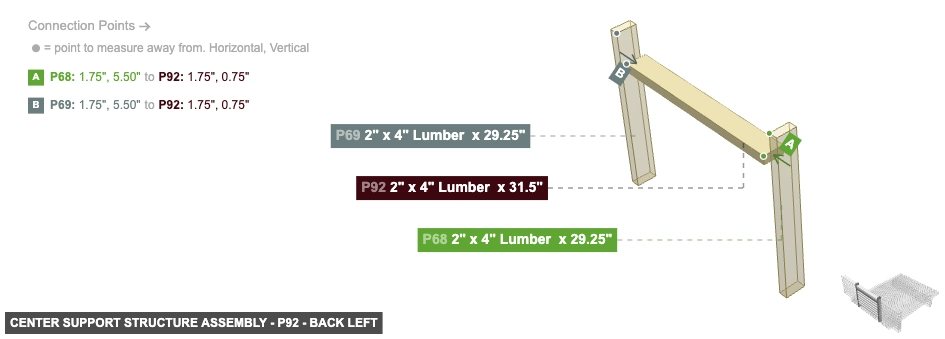

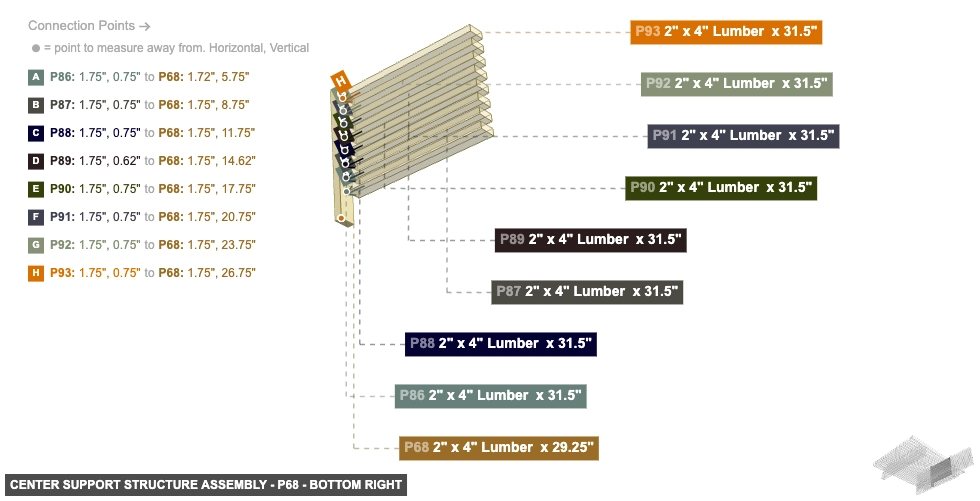

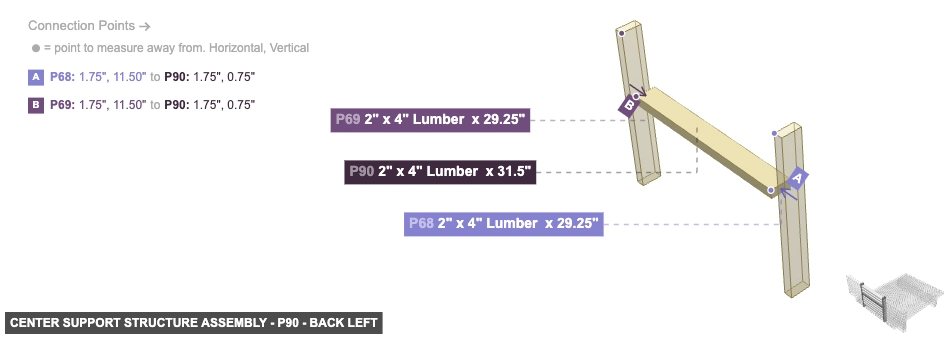

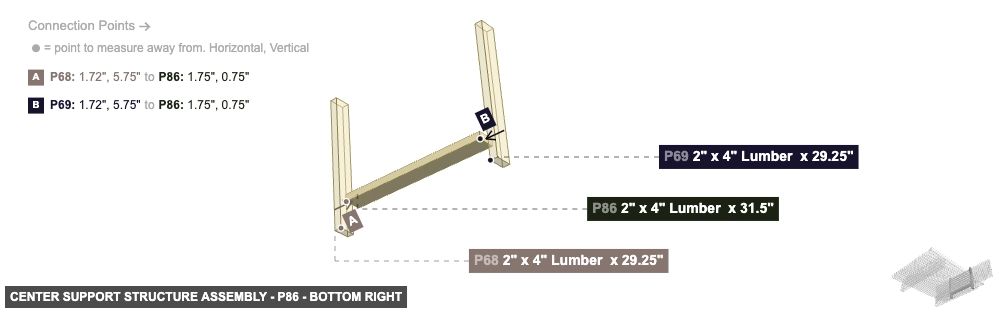

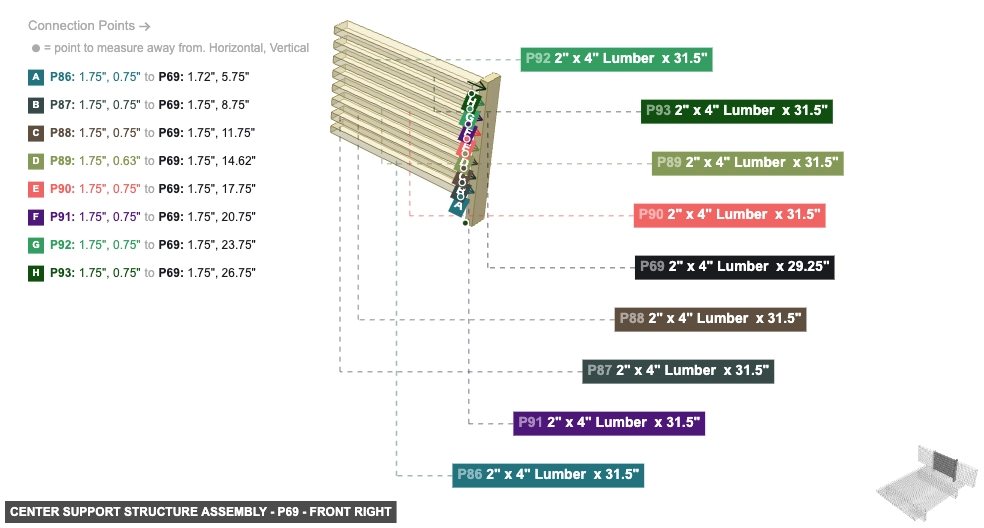

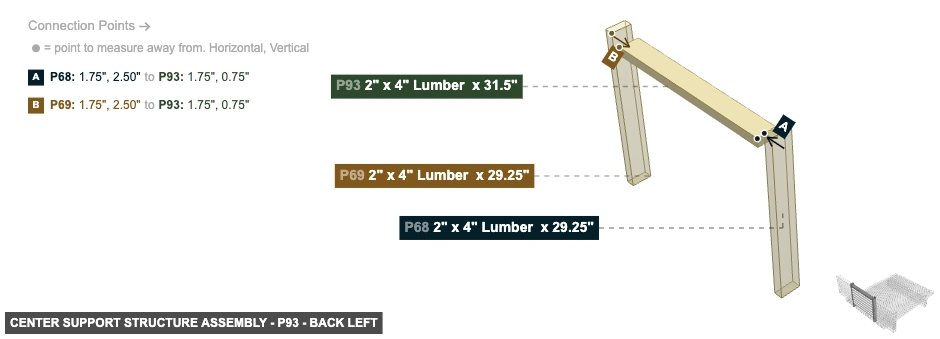

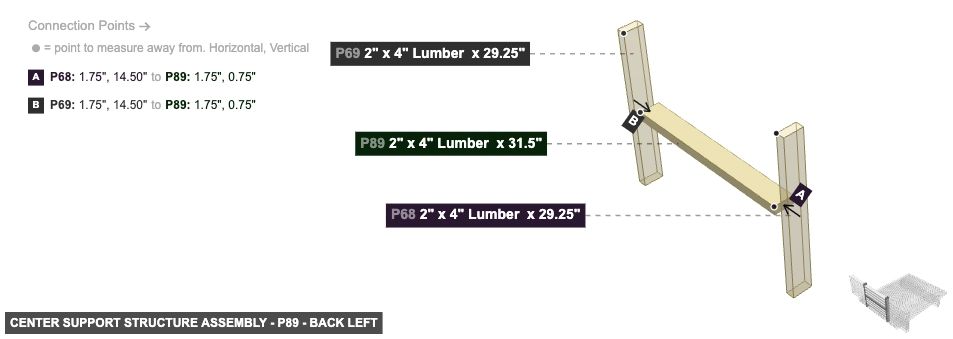

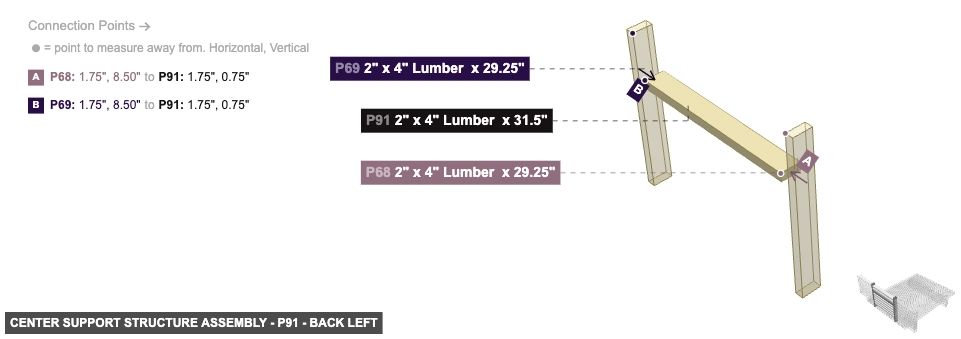

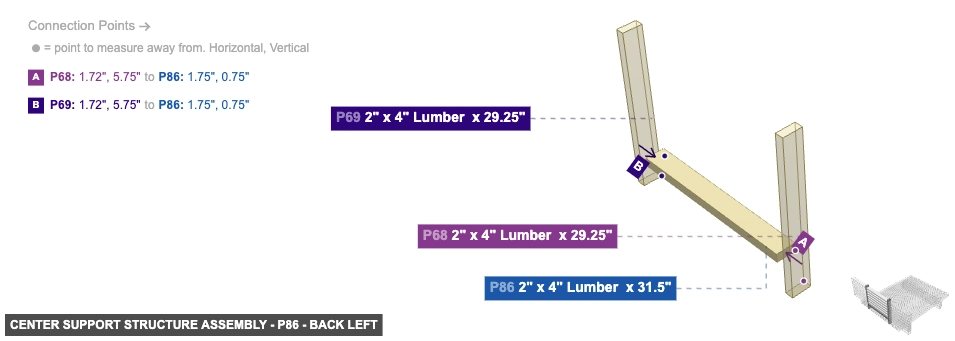

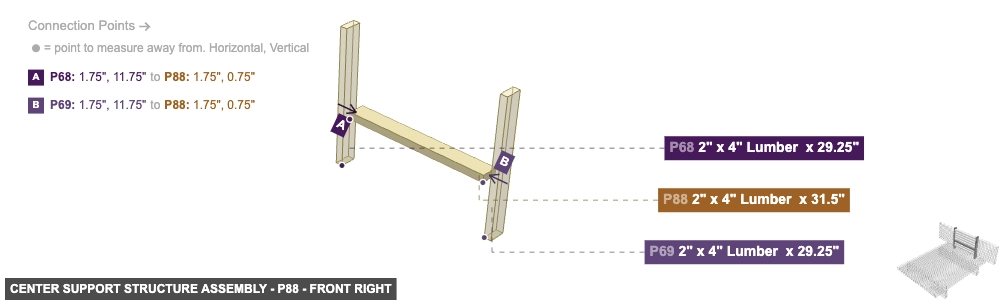

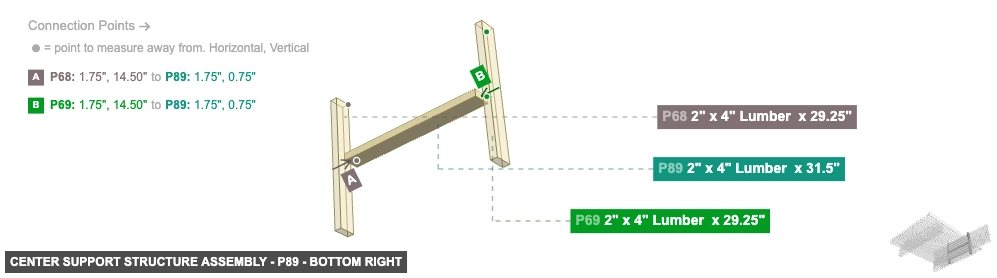

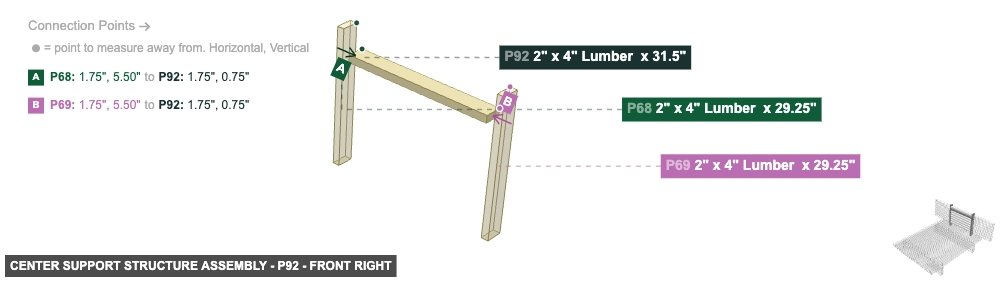

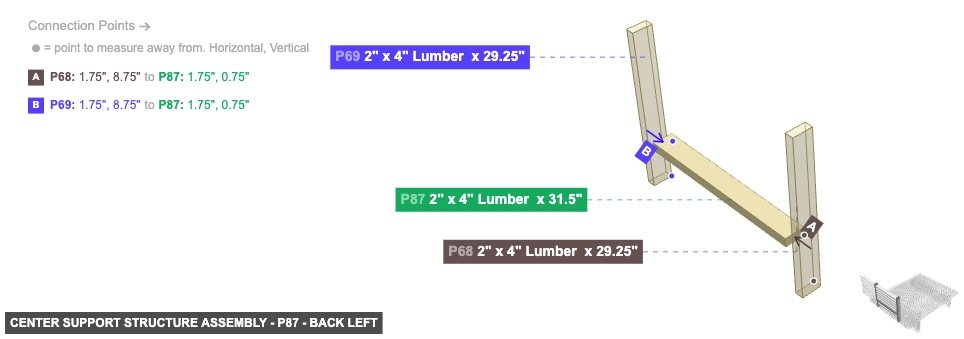

Attaching: Center Support Structure Assembly

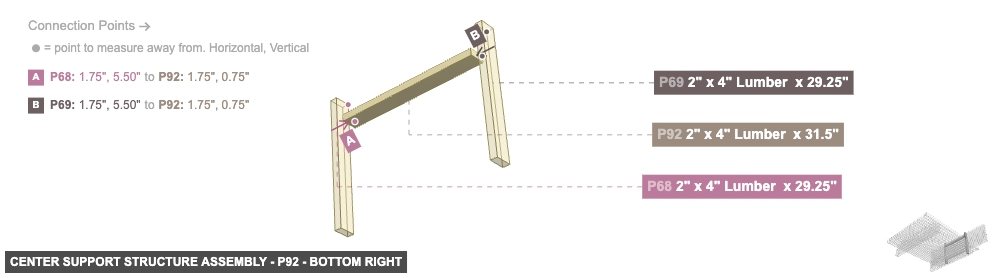

Assemble the central under-support structure by connecting the two vertical posts (P68, P69) with the horizontal crossbars (P86-P93). Attach this assembly underneath the platform slats.

Angle: back left

Assembly of Center Support Structure Assembly - back_left

P68 (2" x 4" Lumber 29.25" length) - its 2" x 4" Wood Side #2, which is right-facing, should connect to part 52's 2" x 4" Wood Side #2. After that, attach its 2" x 4" Wood Side #4 facing left to part 55's 2" x 4" Wood Side #4, also ensure its 2" x 4" Wood End #1 faces top, and ensure its 2" x 4" Wood Side #1 faces back, then its 2" x 4" Wood Side #3 should be directed front. Additionally, its 2" x 4" Wood End #2 should be directed bottom P69 (2" x 4" Lumber 29.25" length) - attach its 2" x 4" Wood Side #2 facing right to part 19's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #4, which is left-facing, should connect to part 22's 2" x 4" Wood Side #4, plus ensure its 2" x 4" Wood End #1 faces top, then its 2" x 4" Wood Side #1 should be directed back, plus its 2" x 4" Wood Side #3 should be directed front. Additionally, its 2" x 4" Wood End #2 must be oriented bottom P86 (2" x 4" Lumber 31.5" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 69's 2" x 4" Wood Side #4, and its 2" x 4" Wood End #2, which is left-facing, should connect to part 68's 2" x 4" Wood Side #2, plus ensure its 2" x 4" Wood Side #1 faces back, then ensure its 2" x 4" Wood Side #2 faces bottom. Also, its 2" x 4" Wood Side #3 must be oriented front. Next, its 2" x 4" Wood Side #4 should be directed top P87 (2" x 4" Lumber 31.5" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 69's 2" x 4" Wood Side #4, also attach its 2" x 4" Wood End #2 facing left to part 68's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #1 must be oriented back, and its 2" x 4" Wood Side #2 must be oriented bottom. Next, its 2" x 4" Wood Side #3 needs to point front, and its 2" x 4" Wood Side #4 needs to point top P88 (2" x 4" Lumber 31.5" length) - connect its 2" x 4" Wood End #1 oriented right links with part 69's 2" x 4" Wood Side #4, also its 2" x 4" Wood End #2, which is left-facing, should connect to part 68's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #1 needs to point back, plus its 2" x 4" Wood Side #2 should be directed bottom. Next, its 2" x 4" Wood Side #3 must be oriented front. After that, its 2" x 4" Wood Side #4 needs to point top P89 (2" x 4" Lumber 31.5" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 69's 2" x 4" Wood Side #4, plus its 2" x 4" Wood End #2, which is left-facing, should connect to part 68's 2" x 4" Wood Side #2, then ensure its 2" x 4" Wood Side #1 faces back. Also, its 2" x 4" Wood Side #2 needs to point bottom. After that, its 2" x 4" Wood Side #3 must be oriented front, and its 2" x 4" Wood Side #4 should be directed top P90 (2" x 4" Lumber 31.5" length) - attach its 2" x 4" Wood End #1 facing right to part 69's 2" x 4" Wood Side #4. Additionally, connect its 2" x 4" Wood End #2 oriented left links with part 68's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #1 needs to point back. Additionally, its 2" x 4" Wood Side #2 should be directed bottom. Next, its 2" x 4" Wood Side #3 must be oriented front. Additionally, its 2" x 4" Wood Side #4 needs to point top P91 (2" x 4" Lumber 31.5" length) - attach its 2" x 4" Wood End #1 facing right to part 69's 2" x 4" Wood Side #4, then connect its 2" x 4" Wood End #2 oriented left links with part 68's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #1 must be oriented back, and its 2" x 4" Wood Side #2 should be directed bottom. After that, its 2" x 4" Wood Side #3 must be oriented front, then its 2" x 4" Wood Side #4 should be directed top P92 (2" x 4" Lumber 31.5" length) - attach its 2" x 4" Wood End #1 facing right to part 69's 2" x 4" Wood Side #4. Additionally, attach its 2" x 4" Wood End #2 facing left to part 68's 2" x 4" Wood Side #2. Additionally, ensure its 2" x 4" Wood Side #1 faces back. Additionally, its 2" x 4" Wood Side #2 should be directed bottom. Additionally, its 2" x 4" Wood Side #3 should be directed front. Also, its 2" x 4" Wood Side #4 needs to point top P93 (2" x 4" Lumber 31.5" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 69's 2" x 4" Wood Side #4. After that, attach its 2" x 4" Wood End #2 facing left to part 68's 2" x 4" Wood Side #2, plus its 2" x 4" Wood Side #1 should be directed back, then ensure its 2" x 4" Wood Side #2 faces bottom. Also, its 2" x 4" Wood Side #3 needs to point front, then its 2" x 4" Wood Side #4 needs to point top

2" x 4" Lumber x 29.25"x 2

2" x 4" Lumber x 31.5"x 8

Angle: front right

Assembly of Center Support Structure Assembly - front_right

2" x 4" Lumber x 29.25"x 2

2" x 4" Lumber x 31.5"x 8

Angle: bottom right

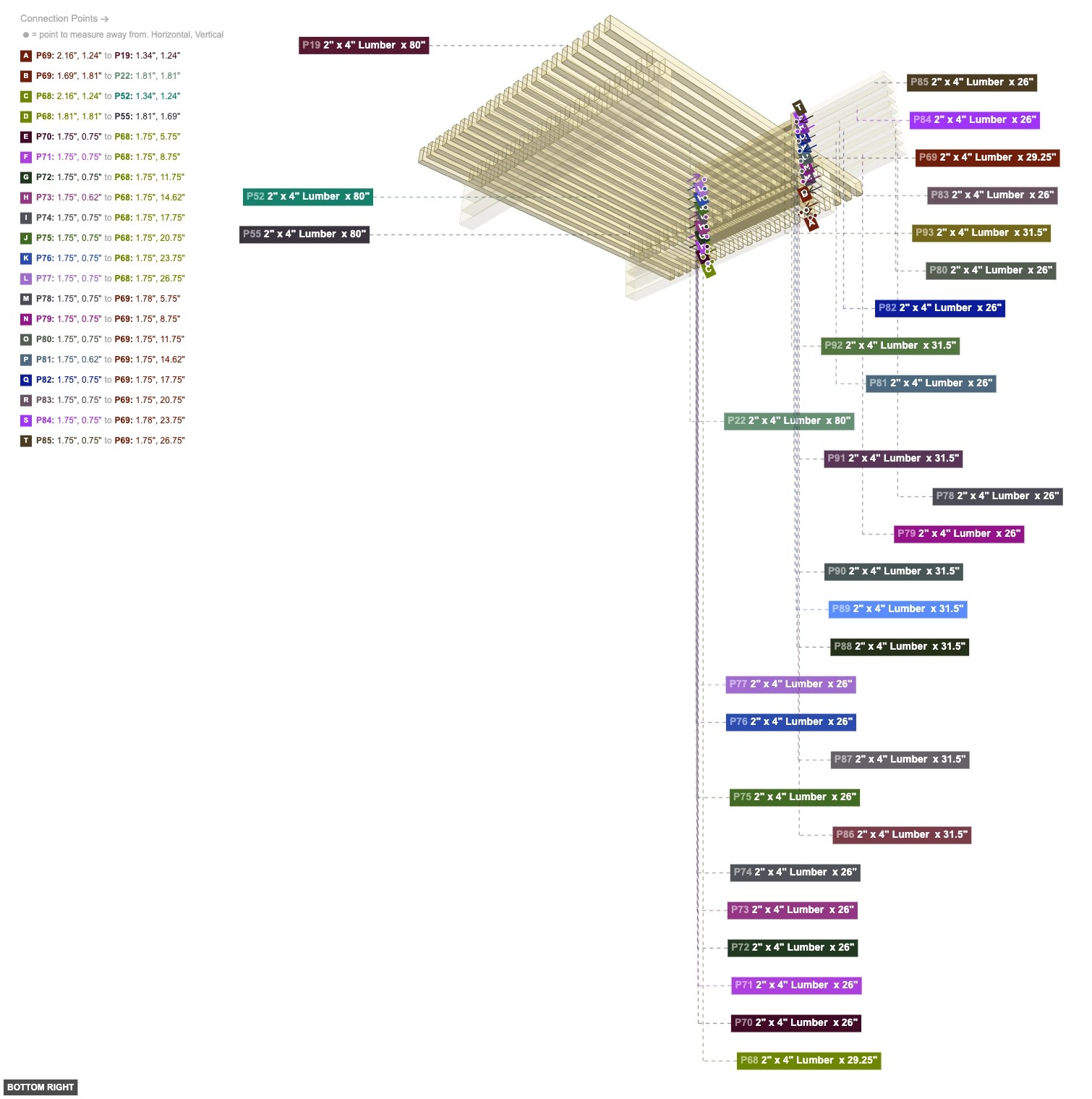

Assembly of Center Support Structure Assembly - bottom_right

2" x 4" Lumber x 29.25"x 2

2" x 4" Lumber x 31.5"x 8

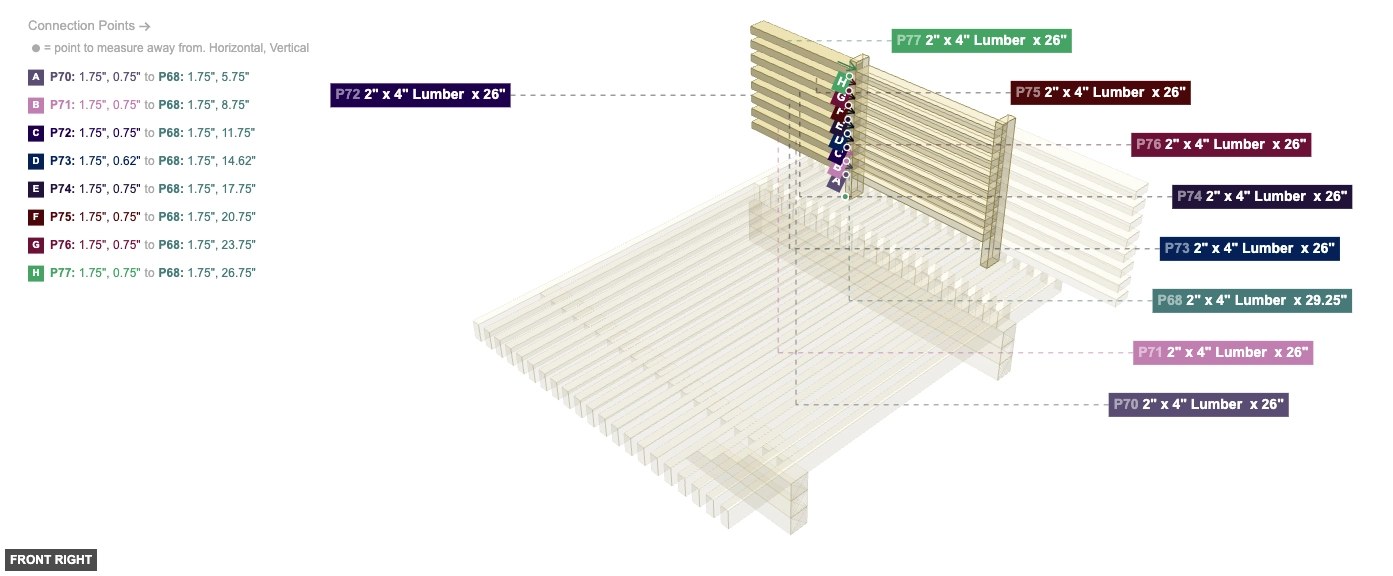

Attaching: Left Support Wing Assembly

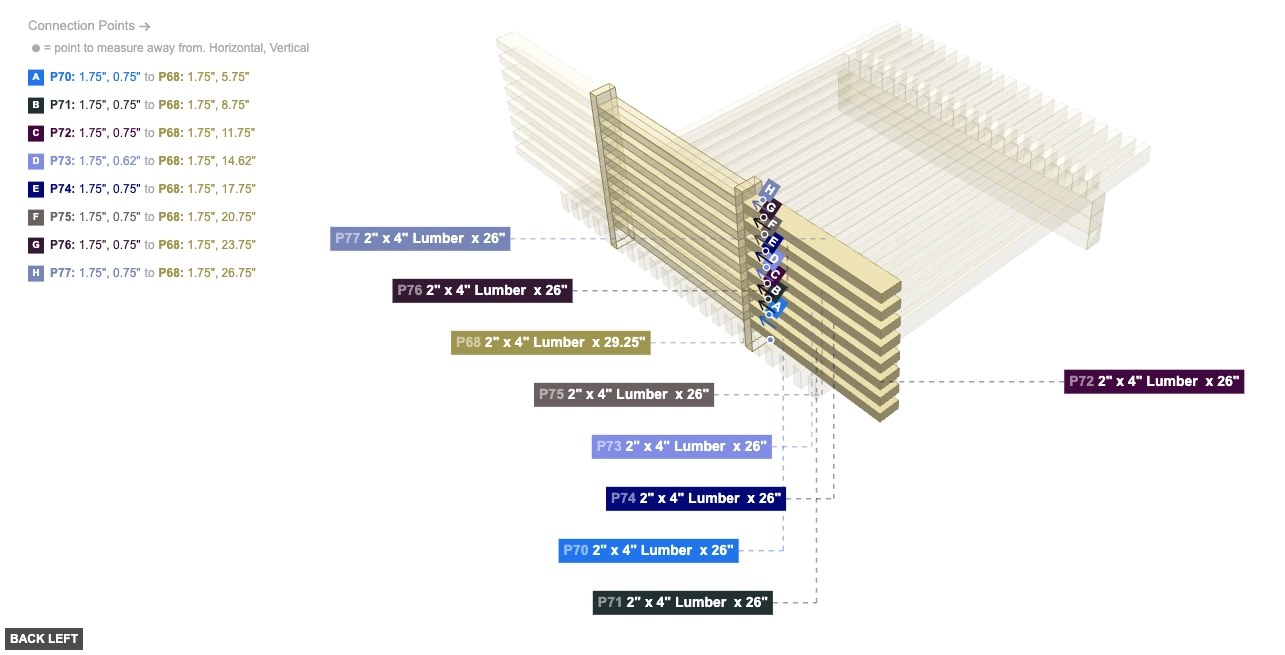

Attach the set of shorter crossbars to the left vertical support post (P68).

Angle: back left

Assembly of Left Support Wing Assembly - back_left

P70 (2" x 4" Lumber 26" length) - connect its 2" x 4" Wood End #2 oriented right links with part 68's 2" x 4" Wood Side #4, and its 2" x 4" Wood End #1 should be directed left. After that, its 2" x 4" Wood Side #1 needs to point back. After that, its 2" x 4" Wood Side #2 needs to point top. Next, its 2" x 4" Wood Side #3 should be directed front. Additionally, its 2" x 4" Wood Side #4 should be directed bottom P71 (2" x 4" Lumber 26" length) - connect its 2" x 4" Wood End #2 oriented right links with part 68's 2" x 4" Wood Side #4, and ensure its 2" x 4" Wood End #1 faces left. Also, its 2" x 4" Wood Side #1 needs to point back. Also, ensure its 2" x 4" Wood Side #2 faces top, plus its 2" x 4" Wood Side #3 should be directed front, plus its 2" x 4" Wood Side #4 should be directed bottom P72 (2" x 4" Lumber 26" length) - its 2" x 4" Wood End #2, which is right-facing, should connect to part 68's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood End #1 needs to point left. Also, its 2" x 4" Wood Side #1 should be directed back. Additionally, ensure its 2" x 4" Wood Side #2 faces top. Additionally, its 2" x 4" Wood Side #3 should be directed front. Next, its 2" x 4" Wood Side #4 should be directed bottom P73 (2" x 4" Lumber 26" length) - connect its 2" x 4" Wood End #2 oriented right links with part 68's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 should be directed left, plus its 2" x 4" Wood Side #1 must be oriented back, plus its 2" x 4" Wood Side #2 must be oriented top, then its 2" x 4" Wood Side #3 needs to point front. After that, its 2" x 4" Wood Side #4 needs to point bottom P74 (2" x 4" Lumber 26" length) - connect its 2" x 4" Wood End #2 oriented right links with part 68's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 should be directed left, and its 2" x 4" Wood Side #1 must be oriented back. Also, ensure its 2" x 4" Wood Side #2 faces top, then its 2" x 4" Wood Side #3 should be directed front. After that, ensure its 2" x 4" Wood Side #4 faces bottom P75 (2" x 4" Lumber 26" length) - attach its 2" x 4" Wood End #2 facing right to part 68's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 must be oriented left, plus its 2" x 4" Wood Side #1 must be oriented back, and its 2" x 4" Wood Side #2 must be oriented top. Additionally, its 2" x 4" Wood Side #3 should be directed front. Also, its 2" x 4" Wood Side #4 needs to point bottom P76 (2" x 4" Lumber 26" length) - attach its 2" x 4" Wood End #2 facing right to part 68's 2" x 4" Wood Side #4, plus ensure its 2" x 4" Wood End #1 faces left, plus its 2" x 4" Wood Side #1 needs to point back. After that, its 2" x 4" Wood Side #2 must be oriented top, plus ensure its 2" x 4" Wood Side #3 faces front, also ensure its 2" x 4" Wood Side #4 faces bottom P77 (2" x 4" Lumber 26" length) - its 2" x 4" Wood End #2, which is right-facing, should connect to part 68's 2" x 4" Wood Side #4, plus ensure its 2" x 4" Wood End #1 faces left. Also, its 2" x 4" Wood Side #1 must be oriented back, plus its 2" x 4" Wood Side #2 needs to point top, plus its 2" x 4" Wood Side #3 should be directed front, also ensure its 2" x 4" Wood Side #4 faces bottom

2" x 4" Lumber x 26"x 8

Angle: front right

Assembly of Left Support Wing Assembly - front_right

2" x 4" Lumber x 26"x 8

Angle: bottom right

Assembly of Left Support Wing Assembly - bottom_right

2" x 4" Lumber x 26"x 8

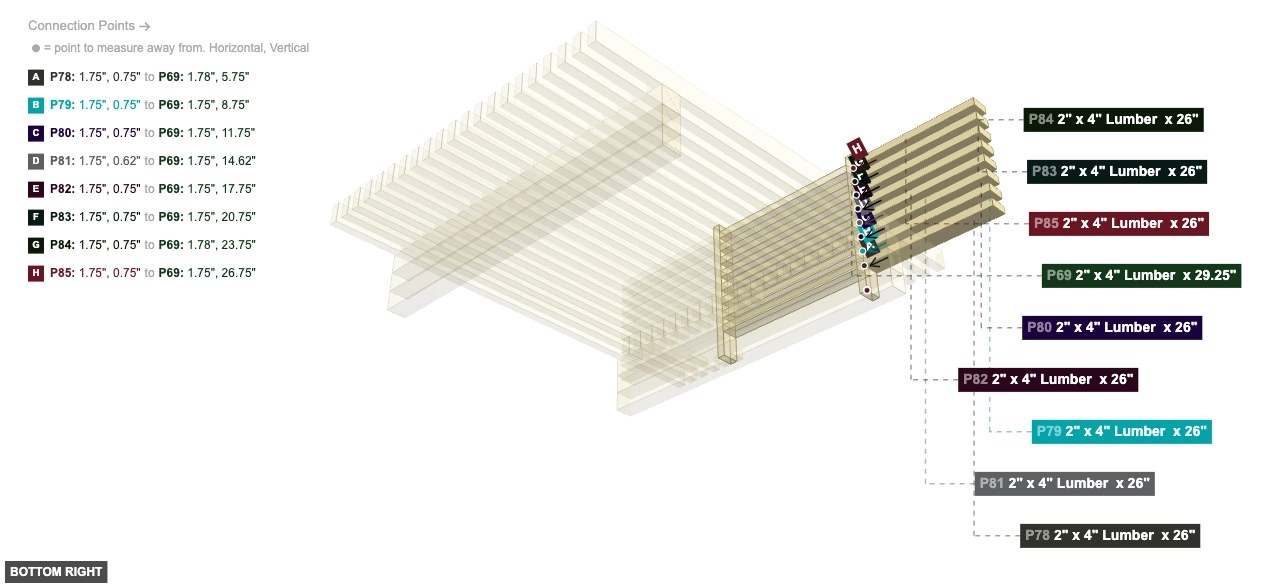

Attaching: Right Support Wing Assembly

Attach the set of shorter crossbars to the right vertical support post (P69).

Angle: back left

Assembly of Right Support Wing Assembly - back_left

P78 (2" x 4" Lumber 26" length) - connect its 2" x 4" Wood End #2 oriented left links with part 69's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood End #1 should be directed right, also its 2" x 4" Wood Side #1 needs to point back, also ensure its 2" x 4" Wood Side #2 faces bottom, and its 2" x 4" Wood Side #3 should be directed front, also its 2" x 4" Wood Side #4 must be oriented top P79 (2" x 4" Lumber 26" length) - attach its 2" x 4" Wood End #2 facing left to part 69's 2" x 4" Wood Side #2. Next, its 2" x 4" Wood End #1 needs to point right. After that, its 2" x 4" Wood Side #1 must be oriented back, then its 2" x 4" Wood Side #2 should be directed bottom. Next, its 2" x 4" Wood Side #3 needs to point front. Also, its 2" x 4" Wood Side #4 needs to point top P80 (2" x 4" Lumber 26" length) - connect its 2" x 4" Wood End #2 oriented left links with part 69's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood End #1 must be oriented right, and its 2" x 4" Wood Side #1 should be directed back. Next, its 2" x 4" Wood Side #2 should be directed bottom, and its 2" x 4" Wood Side #3 must be oriented front, plus ensure its 2" x 4" Wood Side #4 faces top P81 (2" x 4" Lumber 26" length) - connect its 2" x 4" Wood End #2 oriented left links with part 69's 2" x 4" Wood Side #2. Also, its 2" x 4" Wood End #1 must be oriented right, and its 2" x 4" Wood Side #1 must be oriented back. Additionally, its 2" x 4" Wood Side #2 should be directed bottom. After that, its 2" x 4" Wood Side #3 should be directed front, plus its 2" x 4" Wood Side #4 needs to point top P82 (2" x 4" Lumber 26" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 69's 2" x 4" Wood Side #2, also its 2" x 4" Wood End #1 must be oriented right. Also, ensure its 2" x 4" Wood Side #1 faces back. Also, its 2" x 4" Wood Side #2 needs to point bottom. Additionally, its 2" x 4" Wood Side #3 needs to point front. Additionally, its 2" x 4" Wood Side #4 needs to point top P83 (2" x 4" Lumber 26" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 69's 2" x 4" Wood Side #2, and its 2" x 4" Wood End #1 must be oriented right, and ensure its 2" x 4" Wood Side #1 faces back. Also, its 2" x 4" Wood Side #2 should be directed bottom, and its 2" x 4" Wood Side #3 needs to point front. Also, its 2" x 4" Wood Side #4 should be directed top P84 (2" x 4" Lumber 26" length) - attach its 2" x 4" Wood End #2 facing left to part 69's 2" x 4" Wood Side #2, and its 2" x 4" Wood End #1 should be directed right, then ensure its 2" x 4" Wood Side #1 faces back. Also, its 2" x 4" Wood Side #2 should be directed bottom, then its 2" x 4" Wood Side #3 needs to point front, and its 2" x 4" Wood Side #4 should be directed top P85 (2" x 4" Lumber 26" length) - attach its 2" x 4" Wood End #2 facing left to part 69's 2" x 4" Wood Side #2. Additionally, ensure its 2" x 4" Wood End #1 faces right, then its 2" x 4" Wood Side #1 needs to point back, then its 2" x 4" Wood Side #2 must be oriented bottom. Next, its 2" x 4" Wood Side #3 should be directed front, then its 2" x 4" Wood Side #4 must be oriented top

2" x 4" Lumber x 26"x 8

Angle: front right

Assembly of Right Support Wing Assembly - front_right

2" x 4" Lumber x 26"x 8

Angle: bottom right

Assembly of Right Support Wing Assembly - bottom_right

2" x 4" Lumber x 26"x 8
