Greenhouse 2 - Comprehensive Assembly Plan And Visual Guide

This is a wooden frame greenhouse structure (Greenhouse 2) with 4x4 posts and 2x4 framing. It includes a door on the front side and a pitched roof covered with polycarbonate panels. The structure appears designed for outdoor use. - GreenhouseA large, wood-framed greenhouse with a pitched roof covered in polycarbonate panels. The structure is assembled from four wall frames (left, right, front, back) and a roof assembly. - Greenhouse

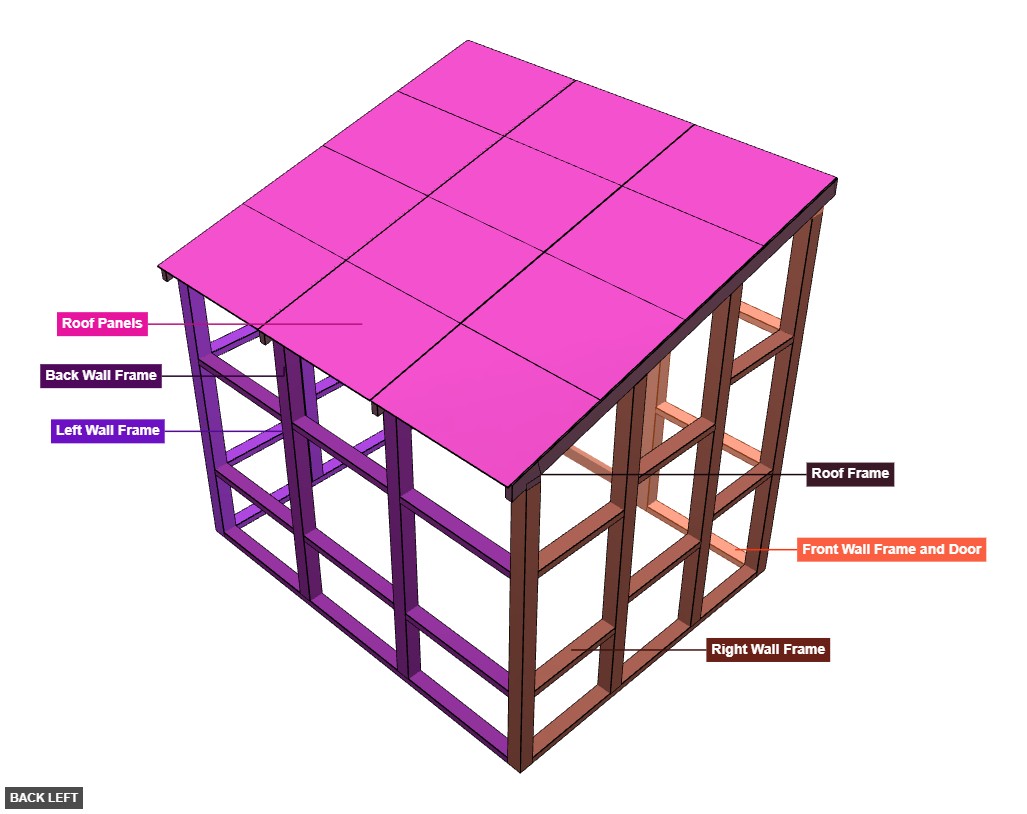

Phase 1: Group Overview

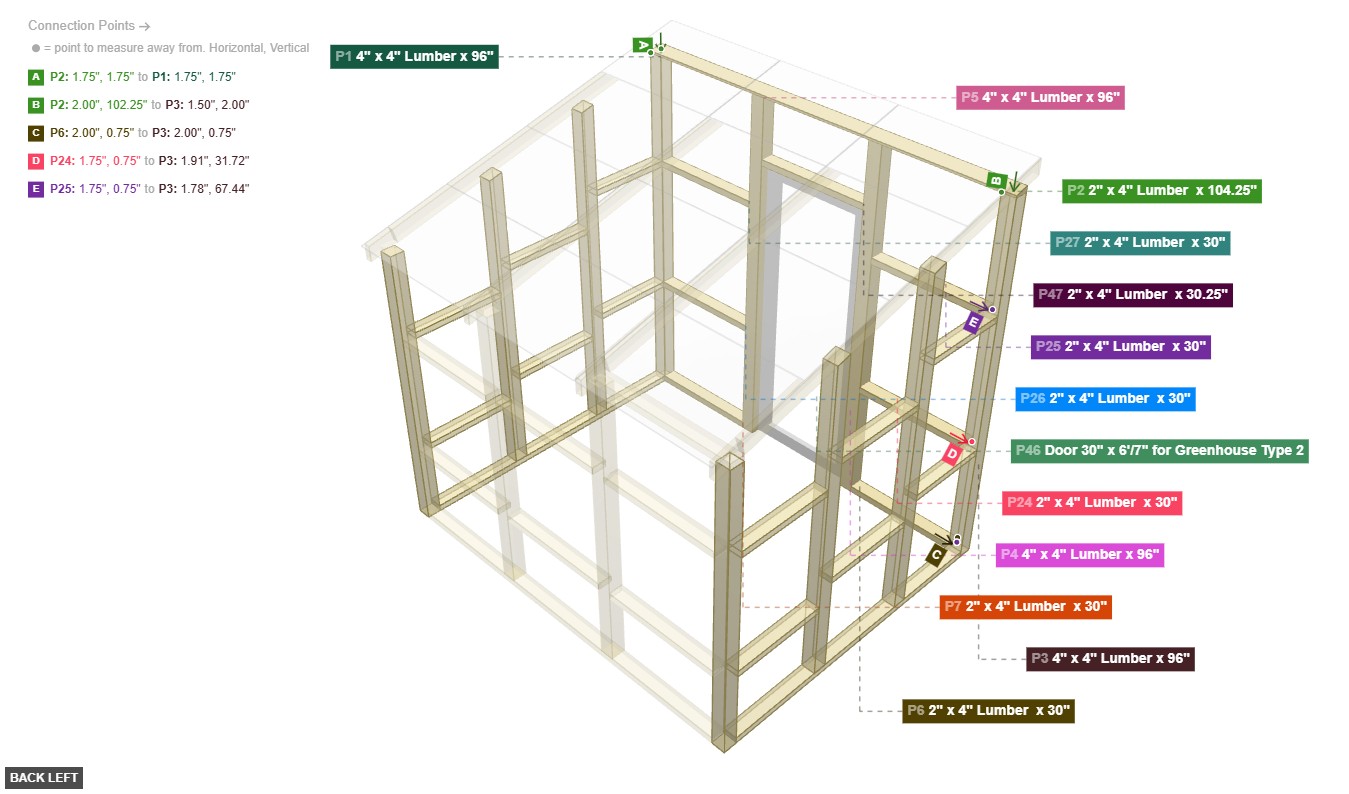

Angle: back left

Left Wall Frame

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

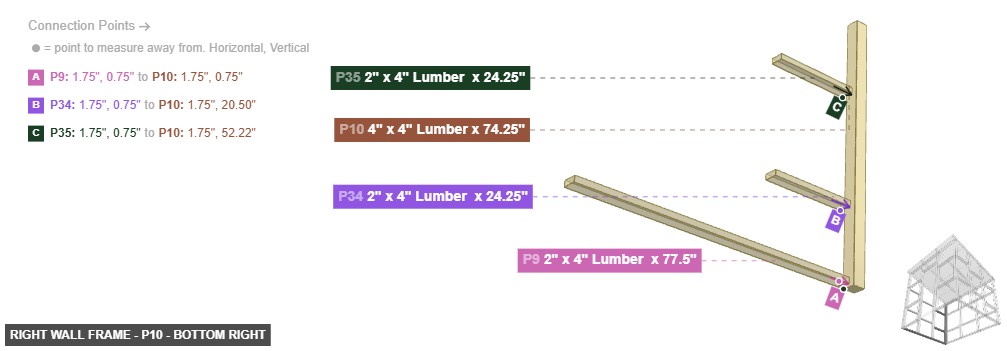

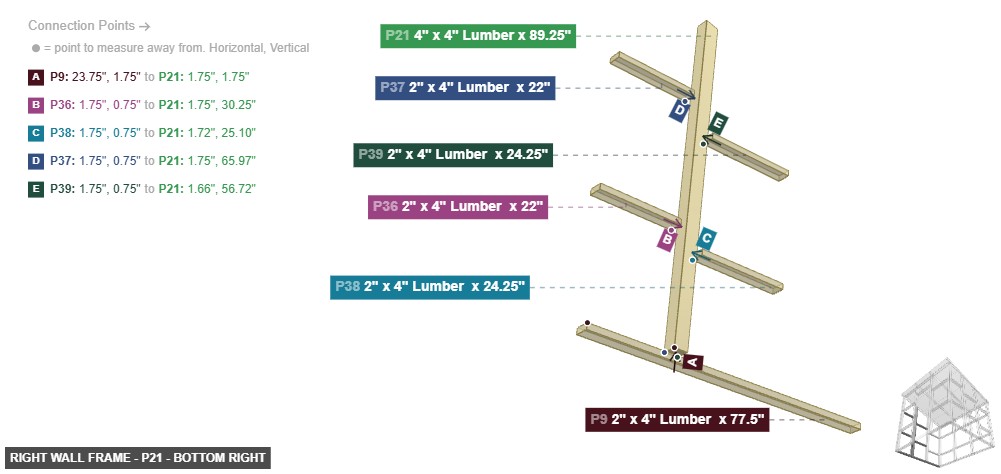

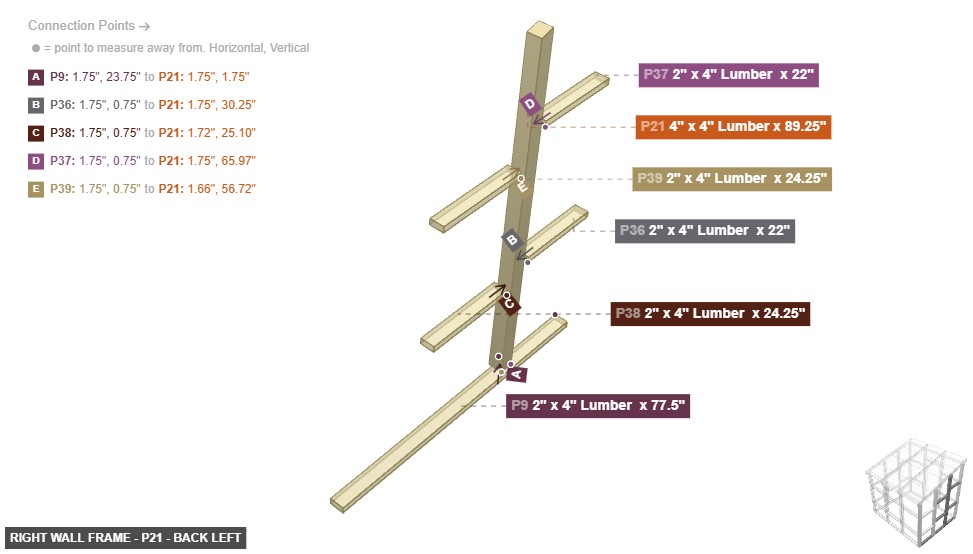

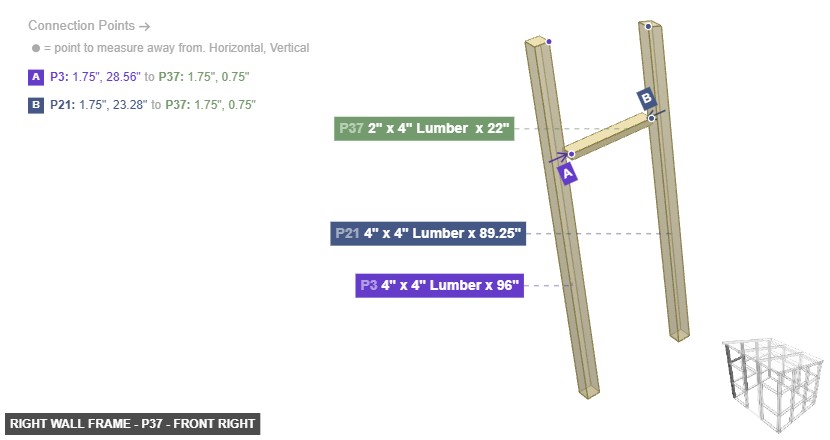

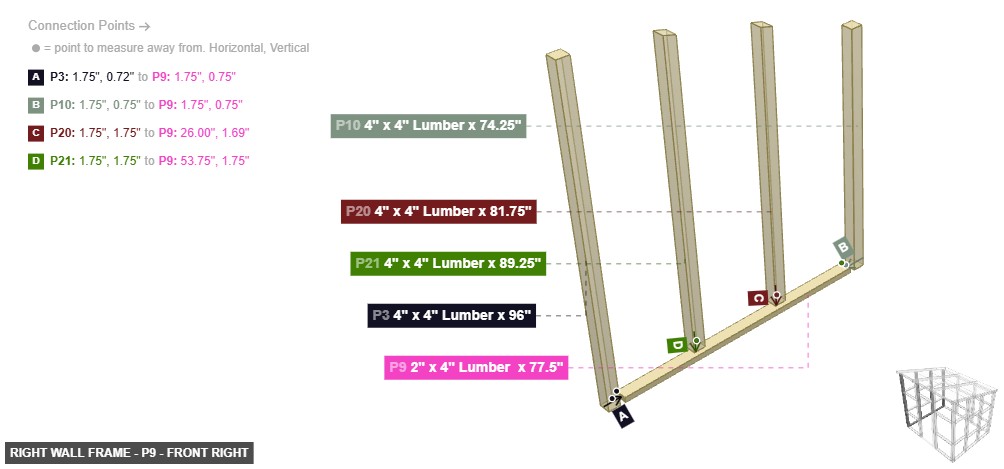

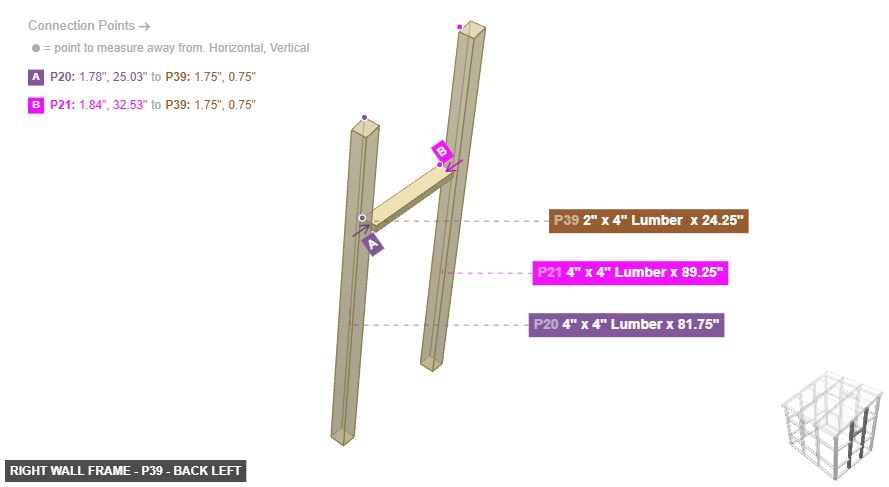

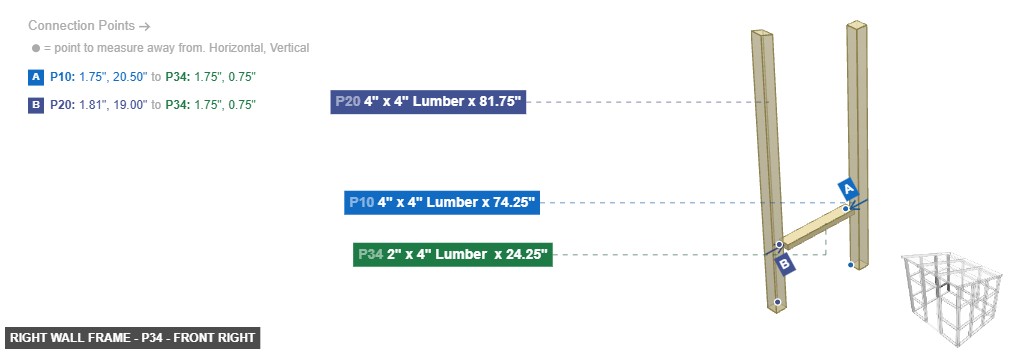

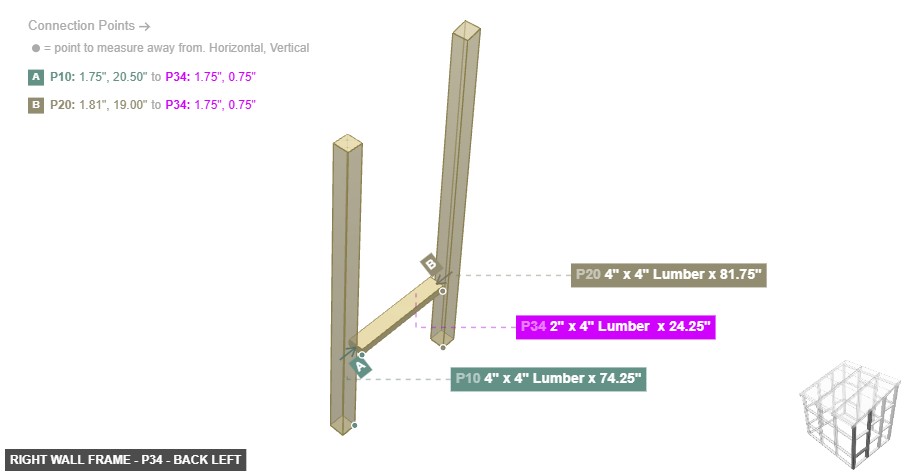

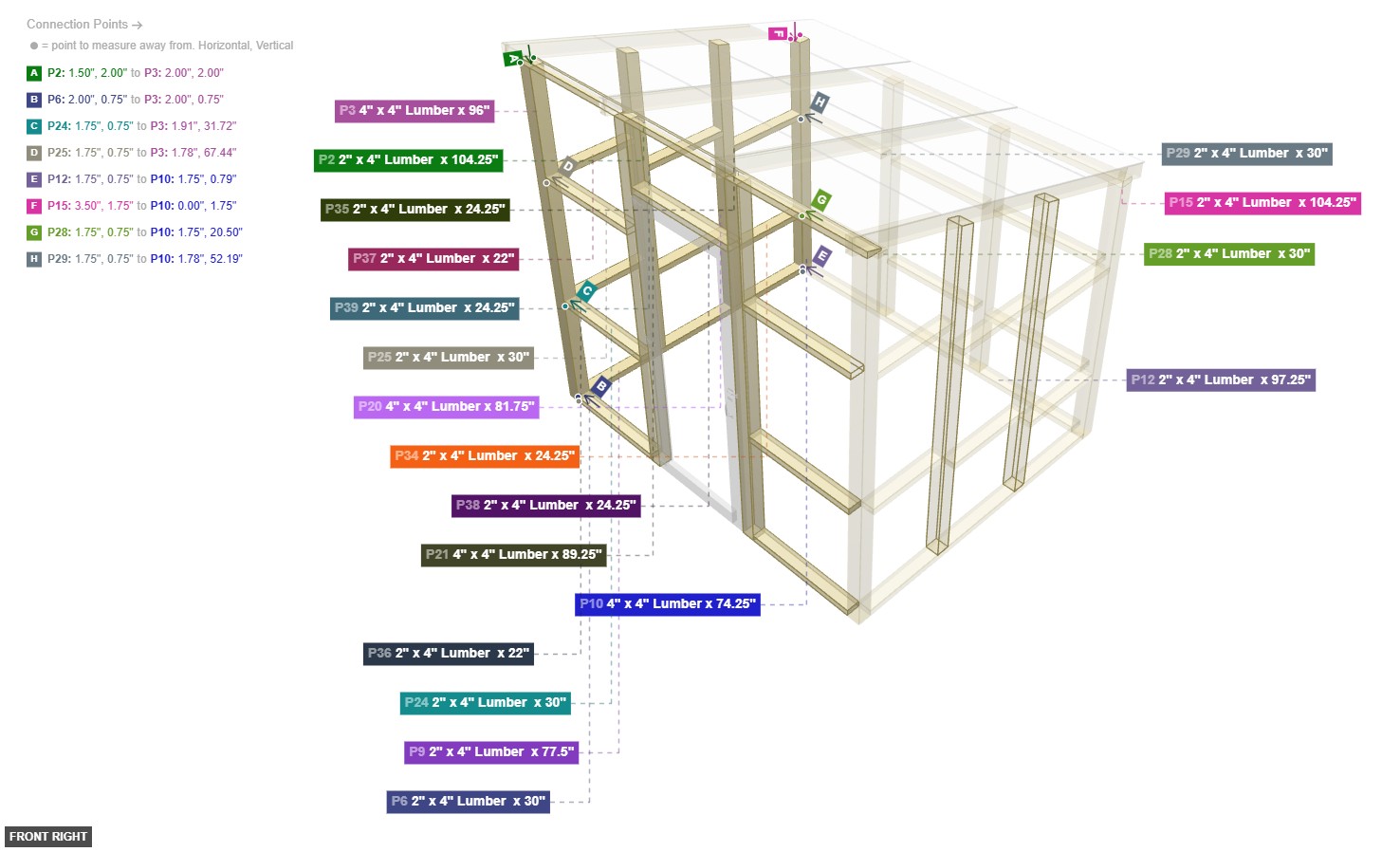

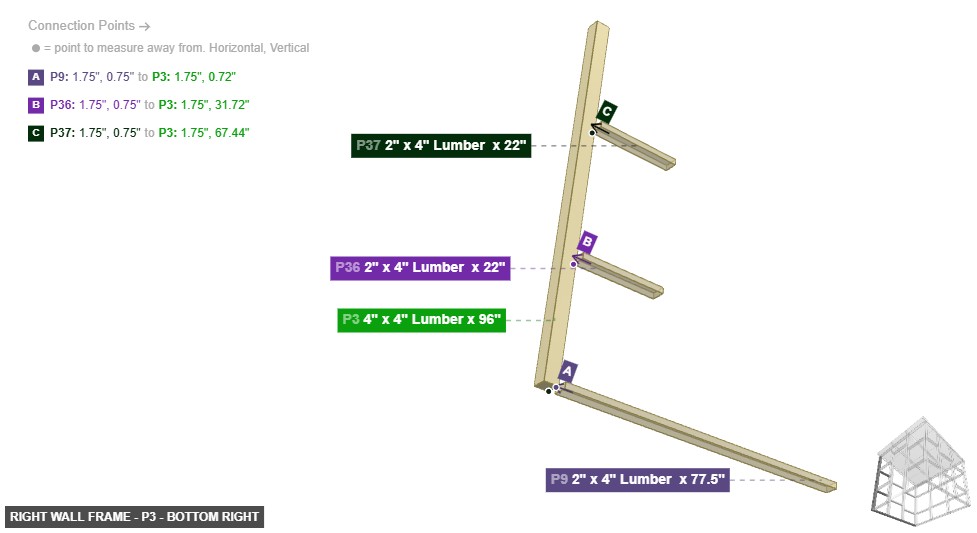

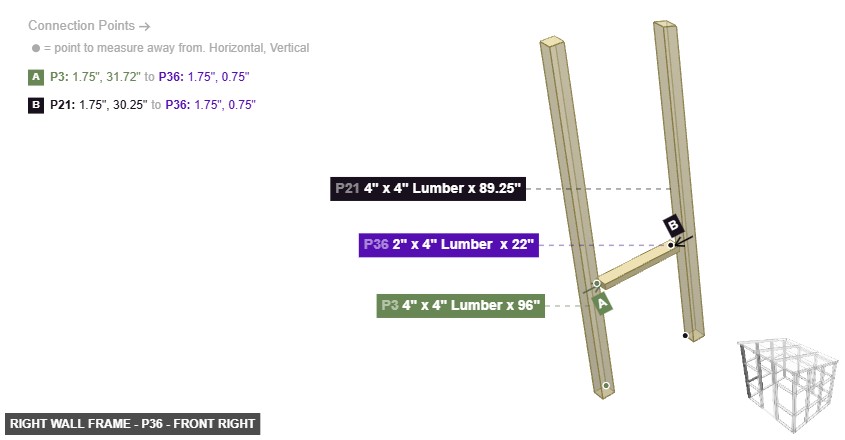

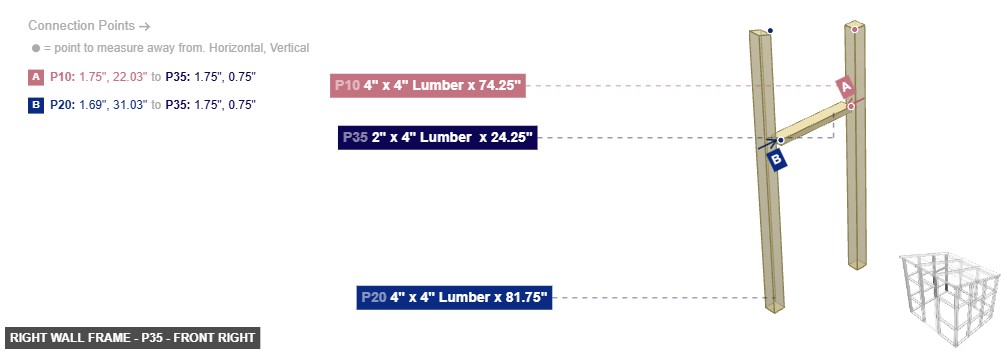

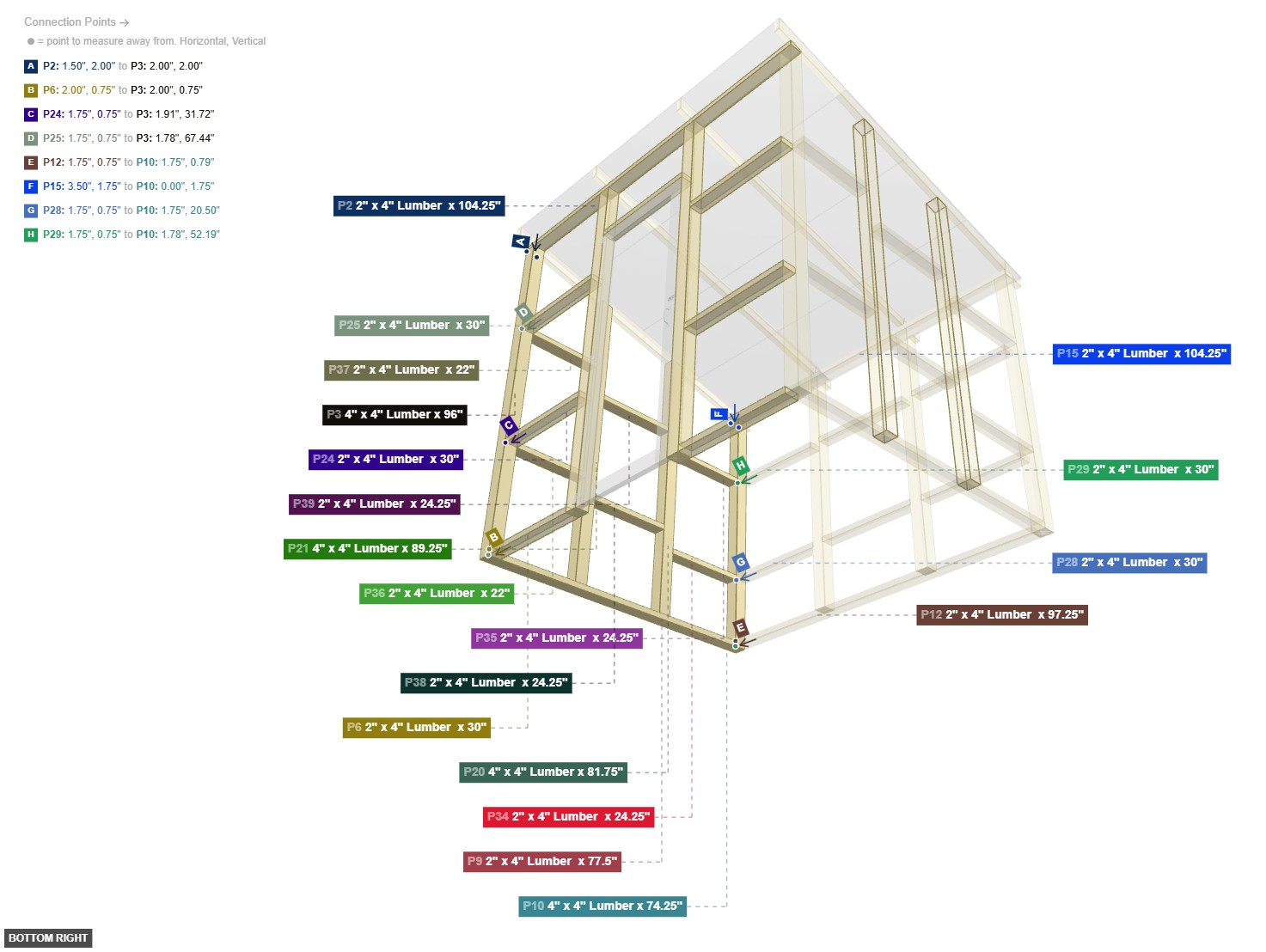

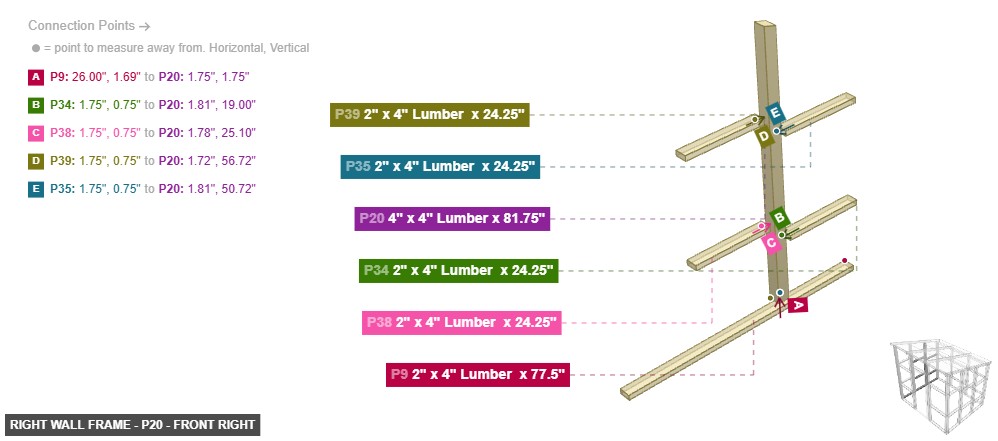

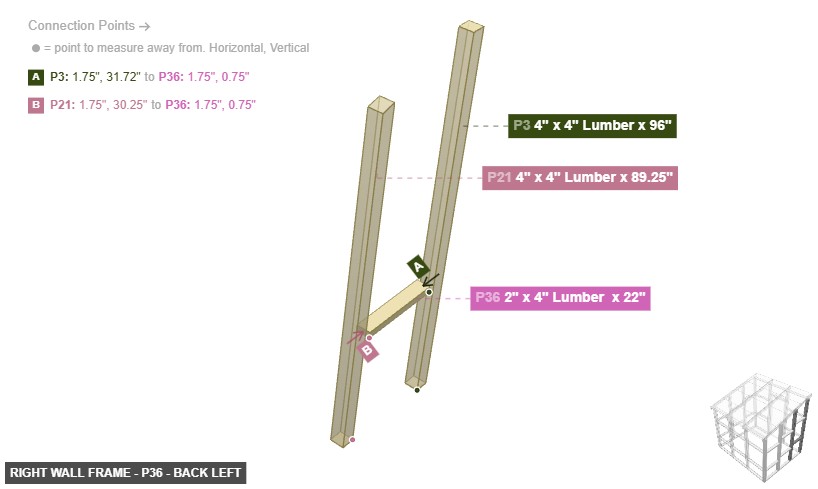

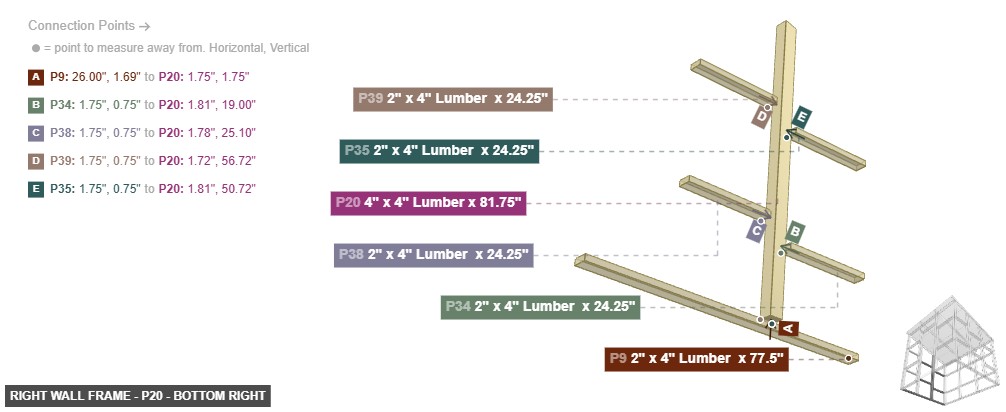

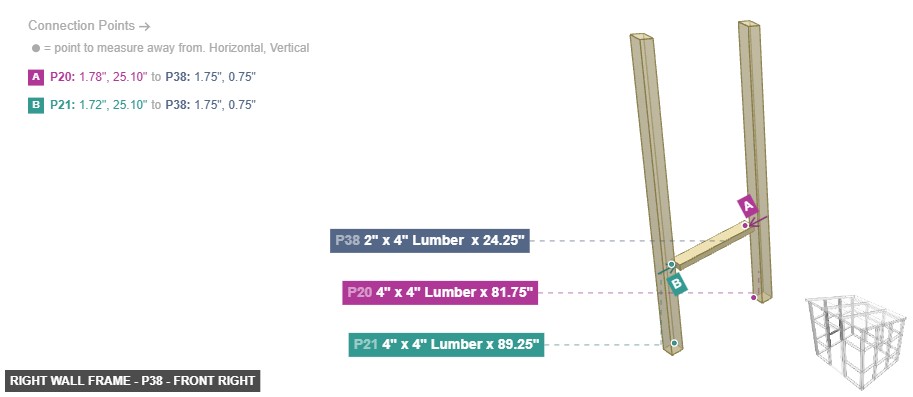

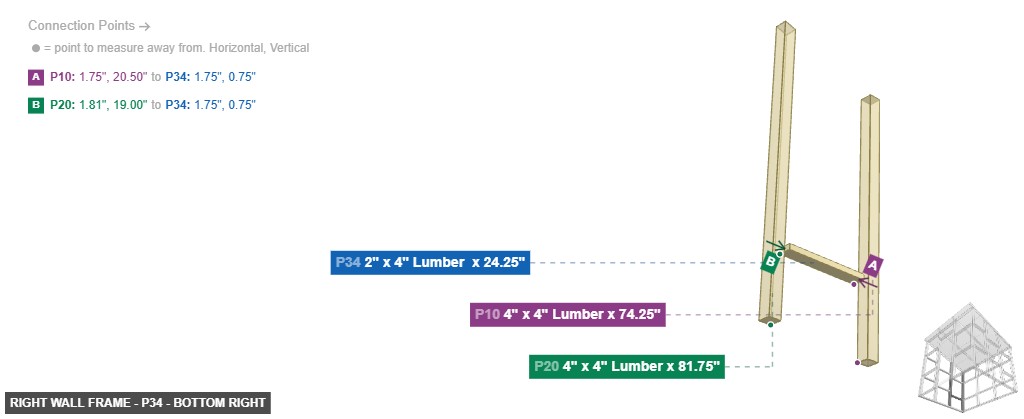

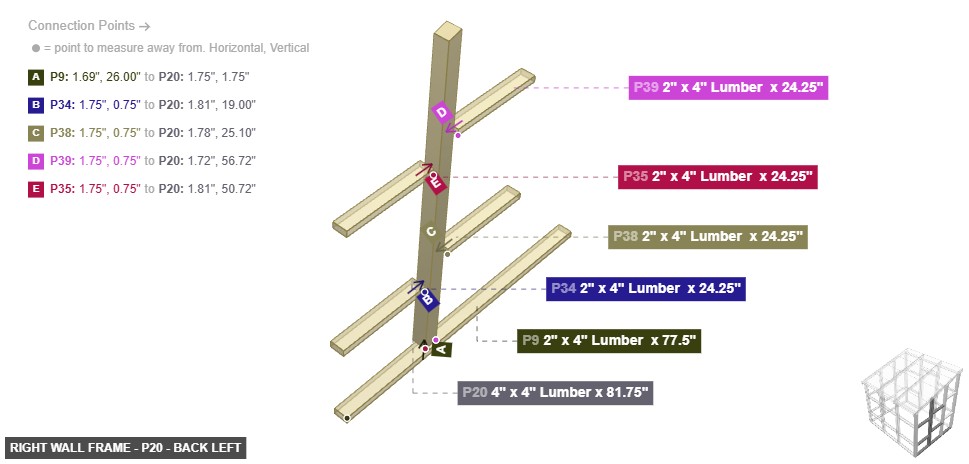

Right Wall Frame

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

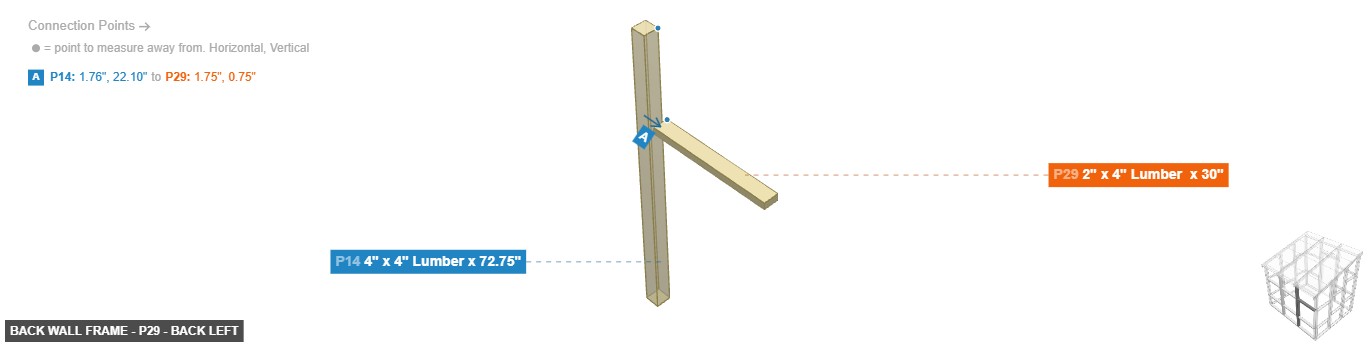

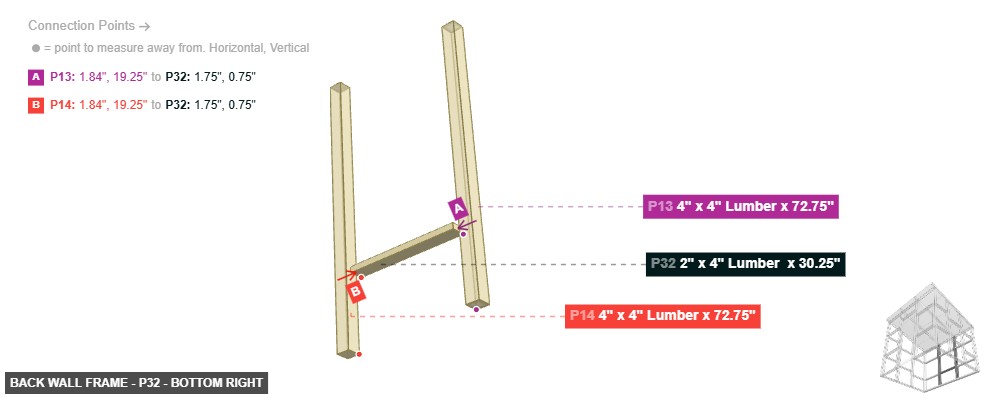

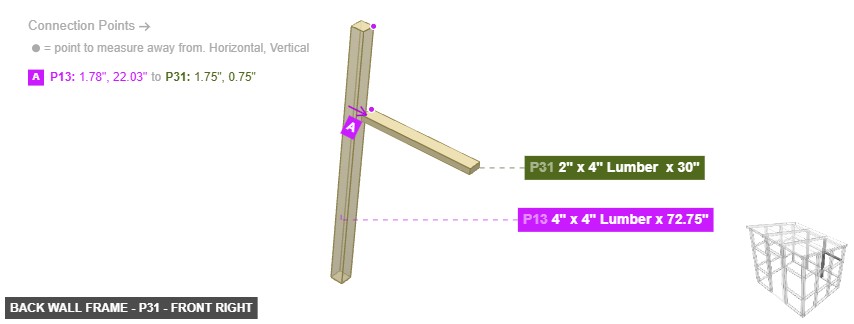

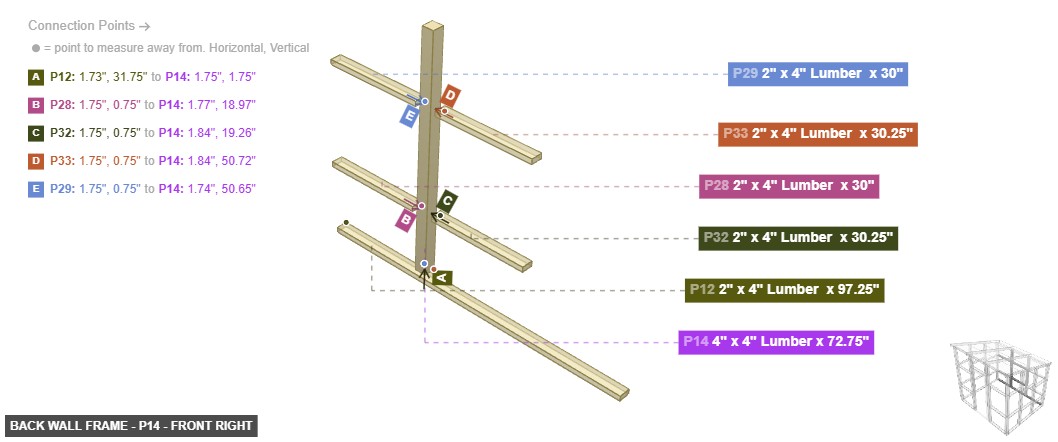

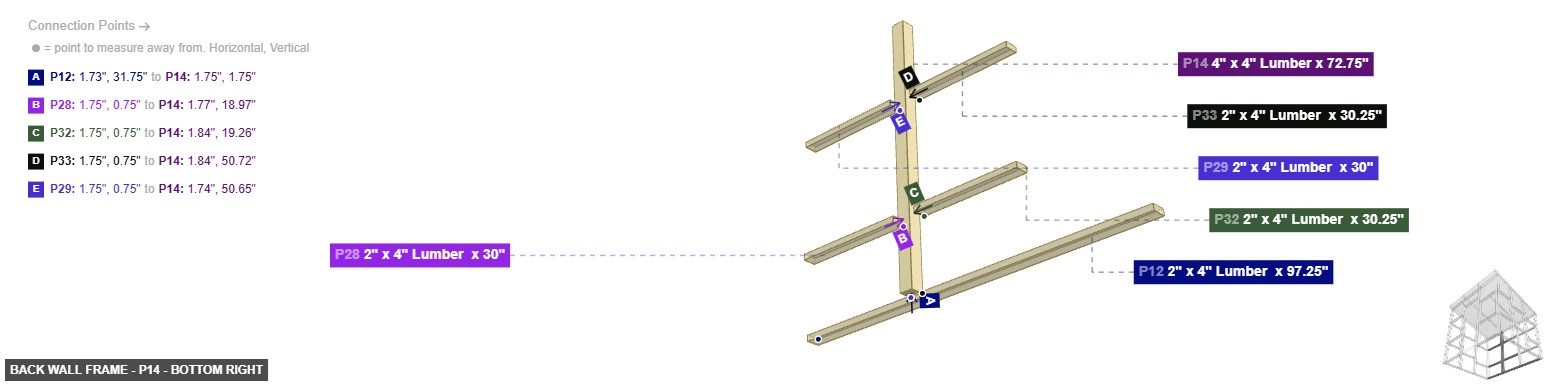

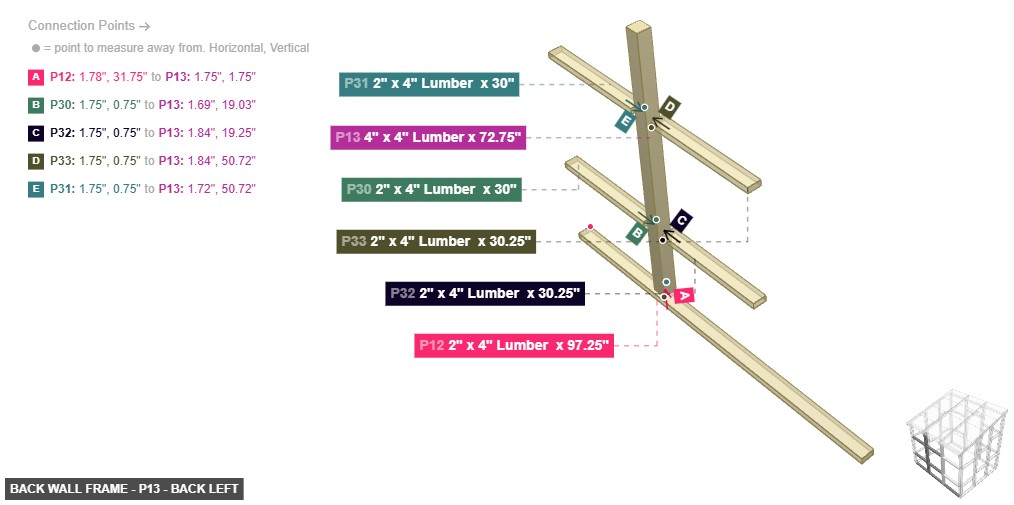

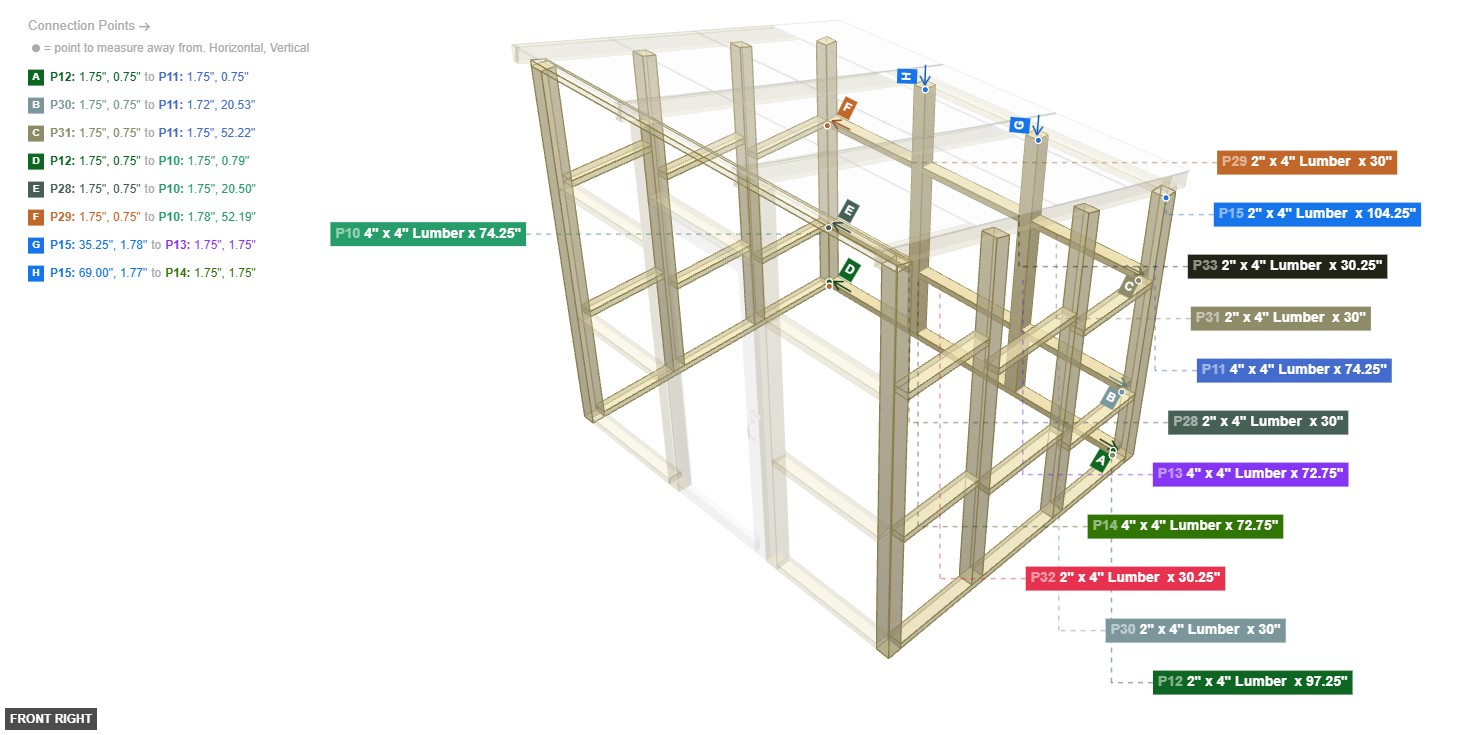

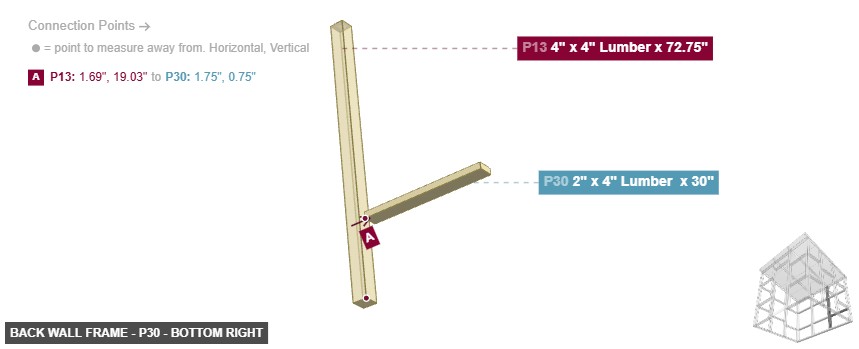

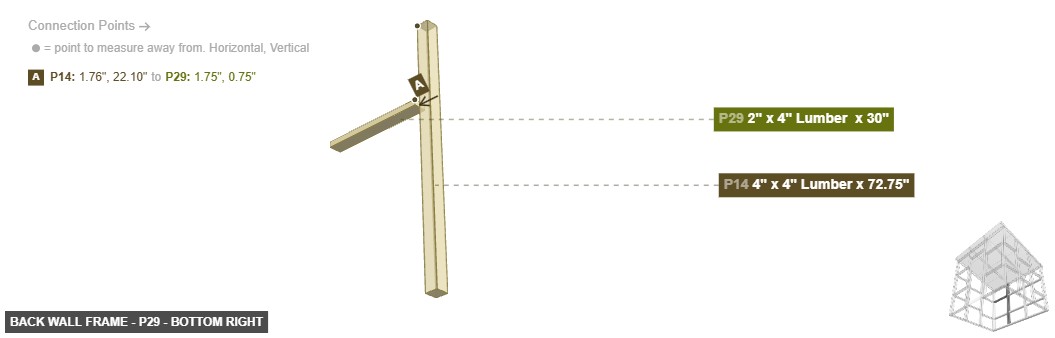

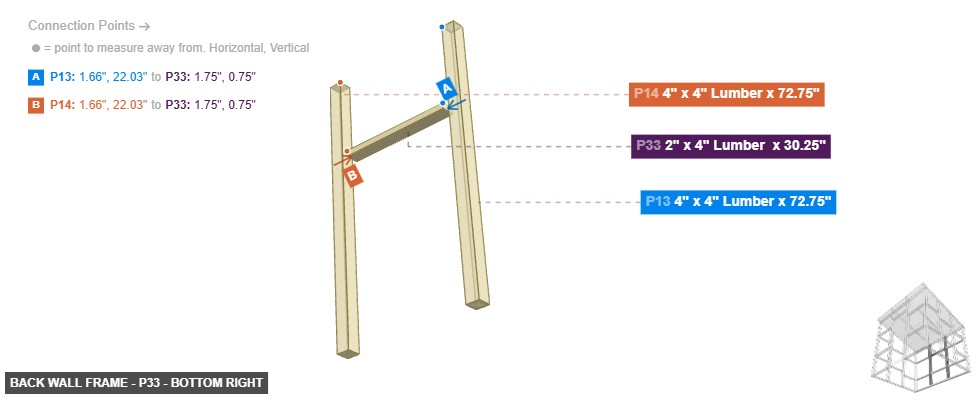

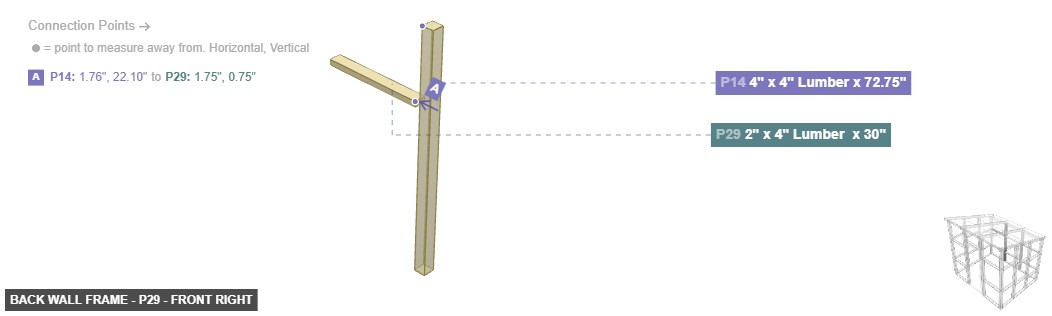

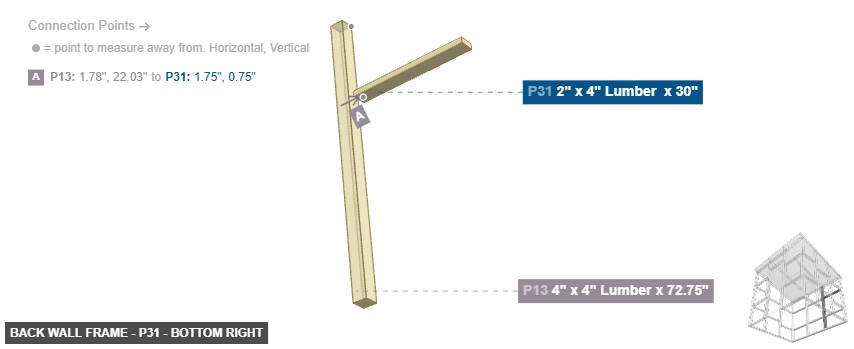

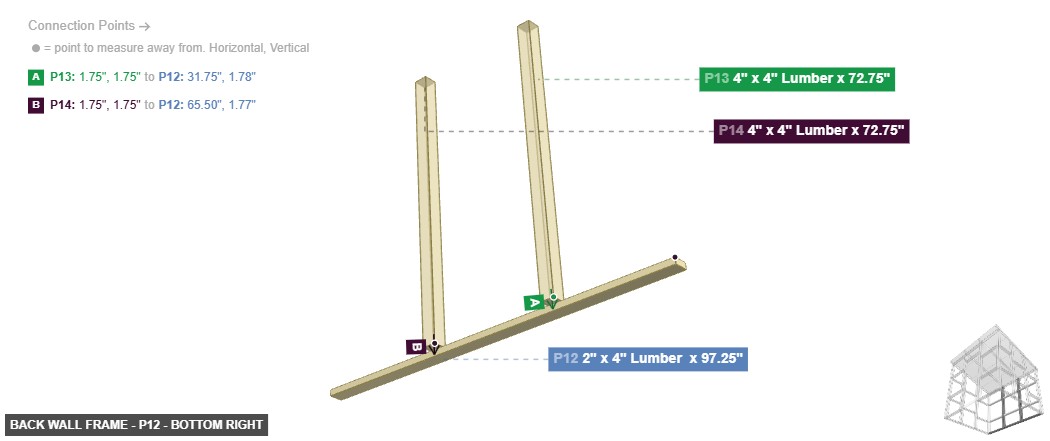

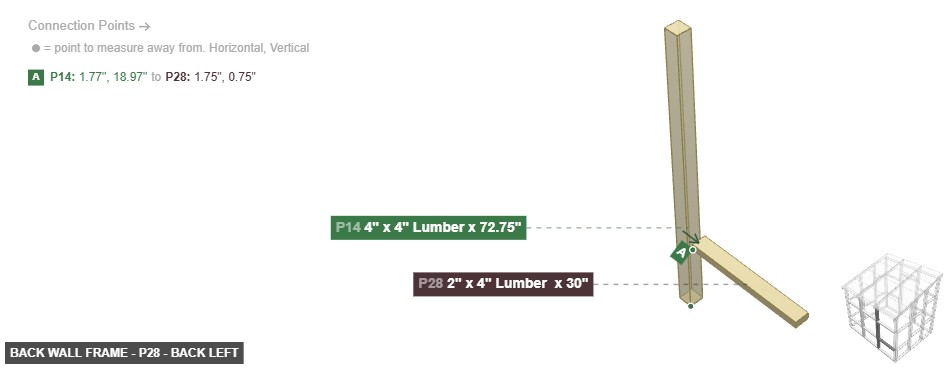

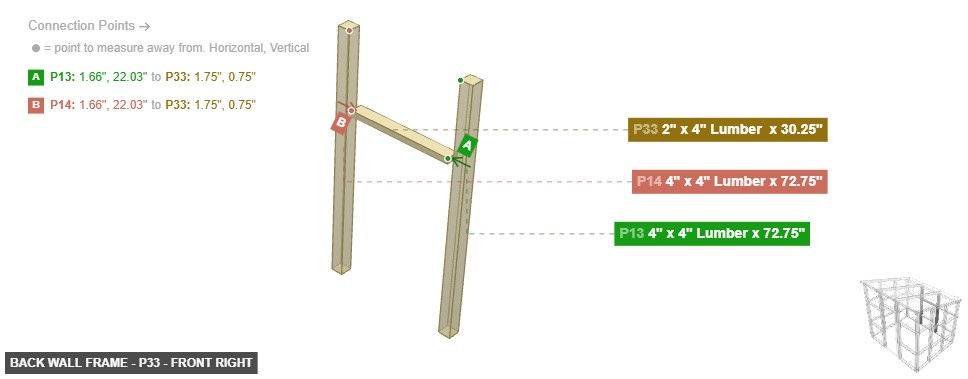

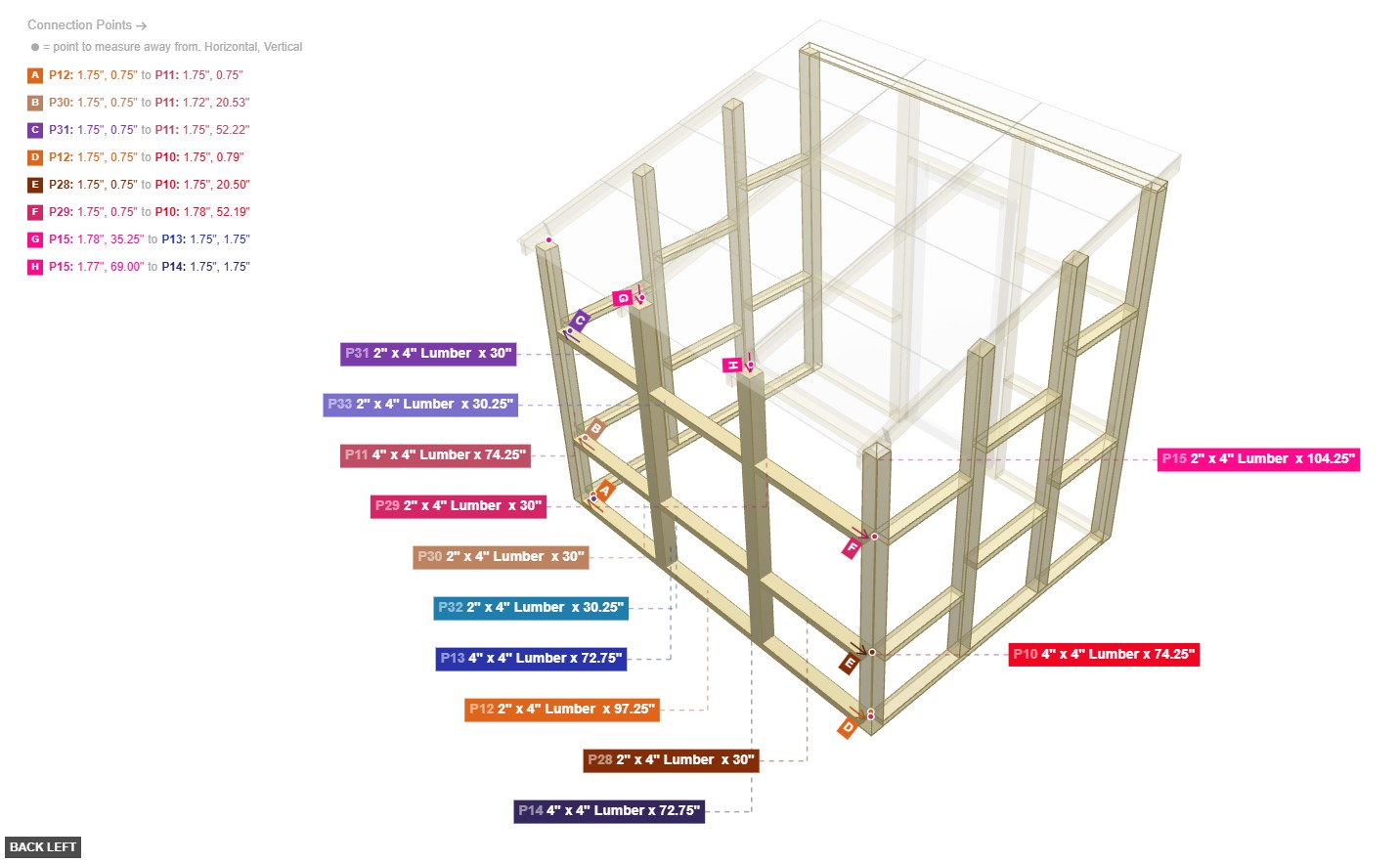

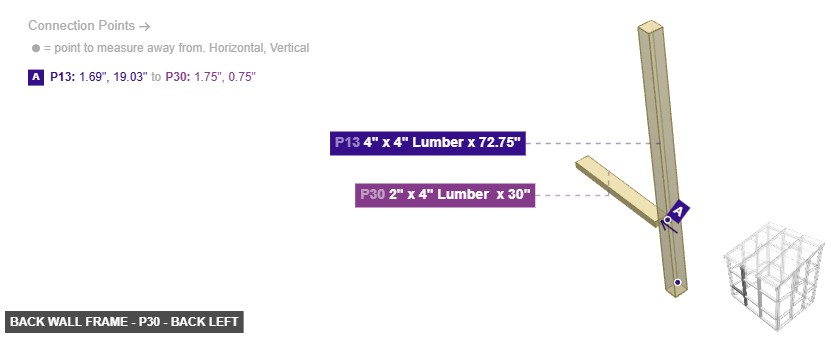

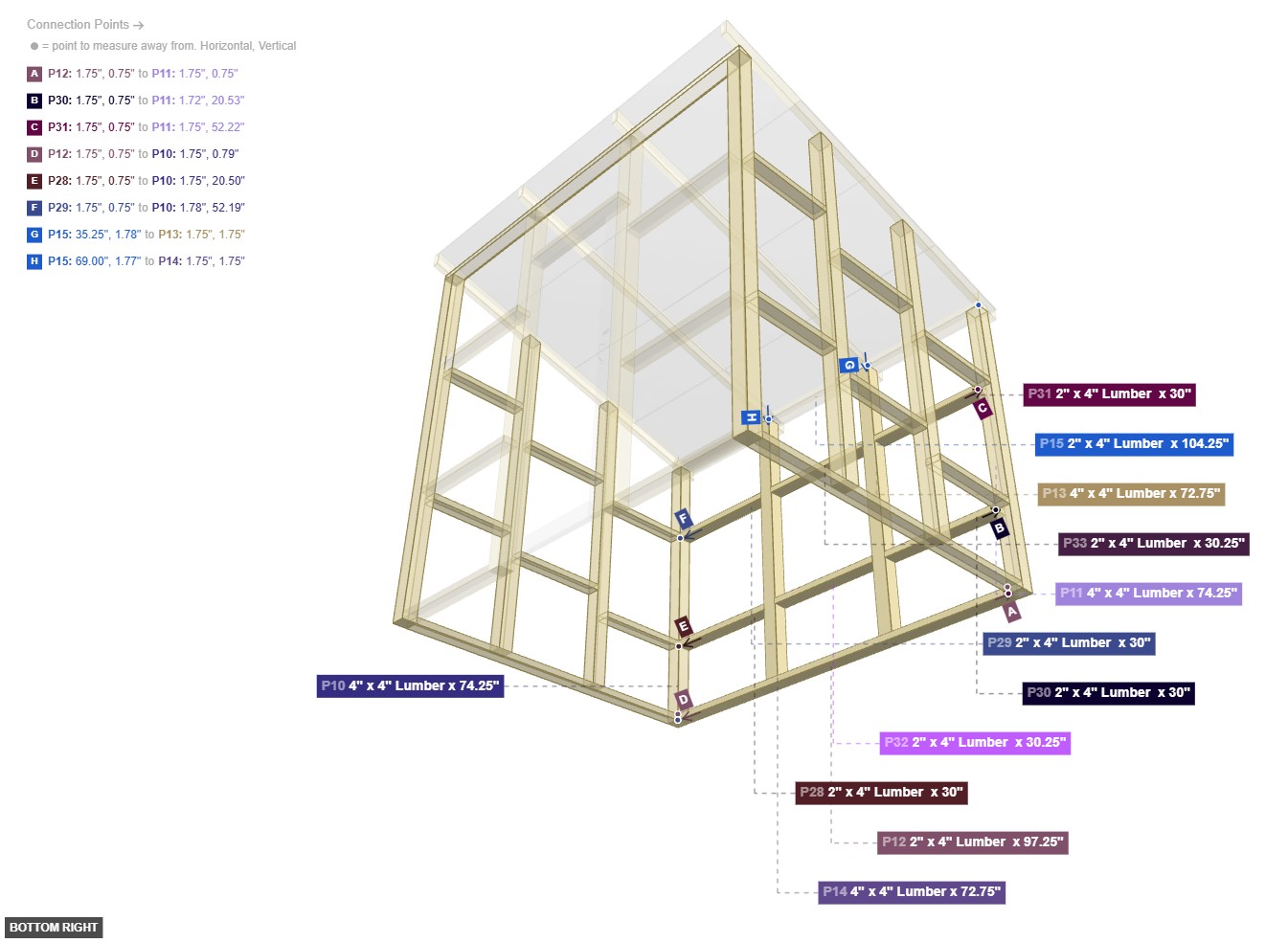

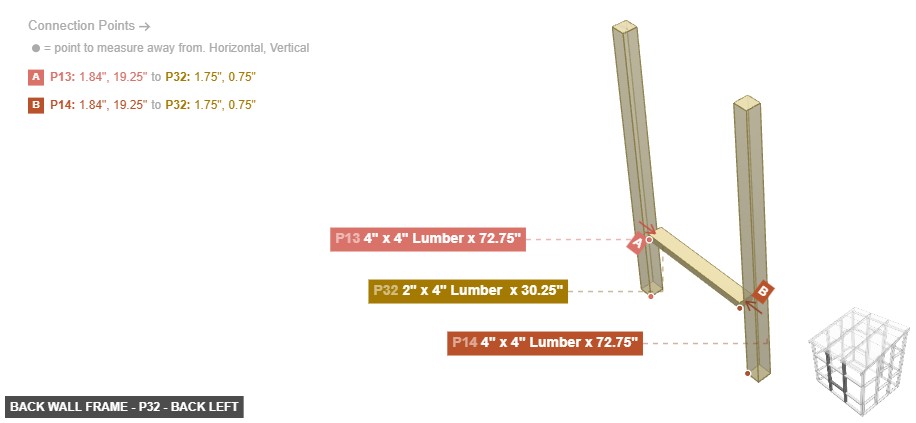

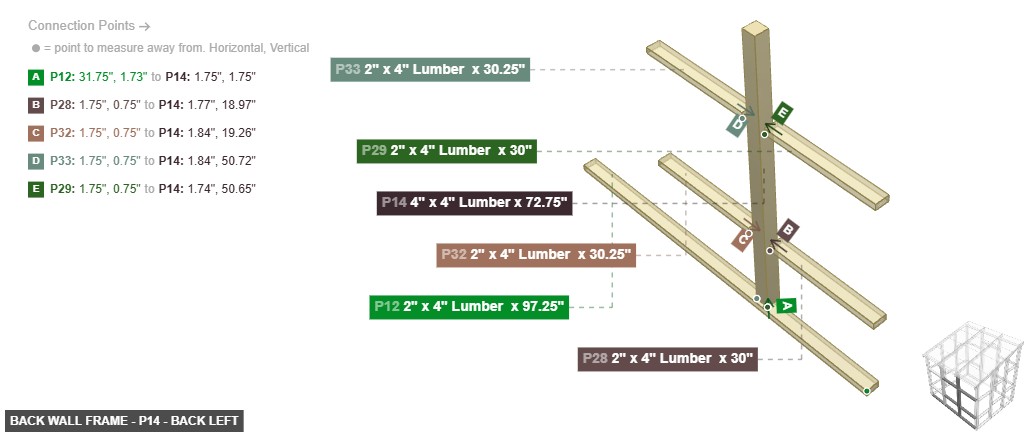

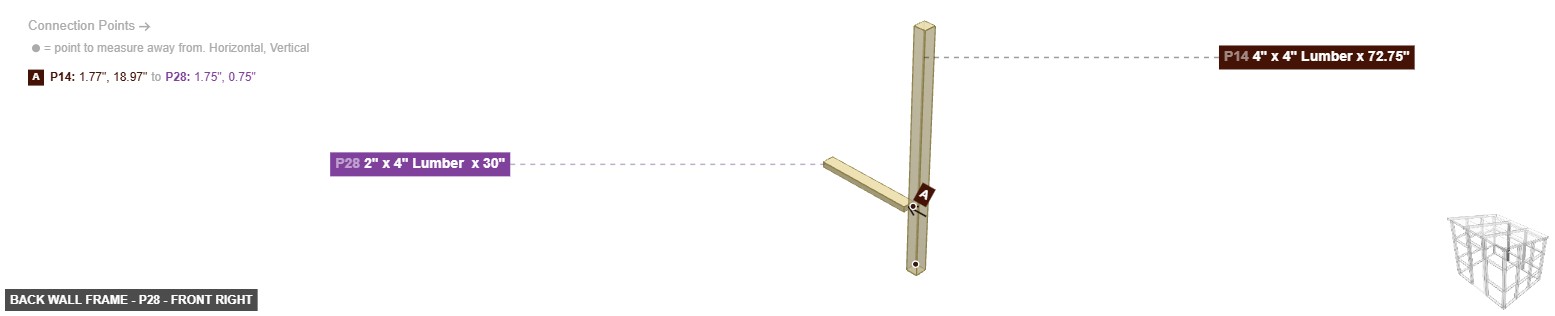

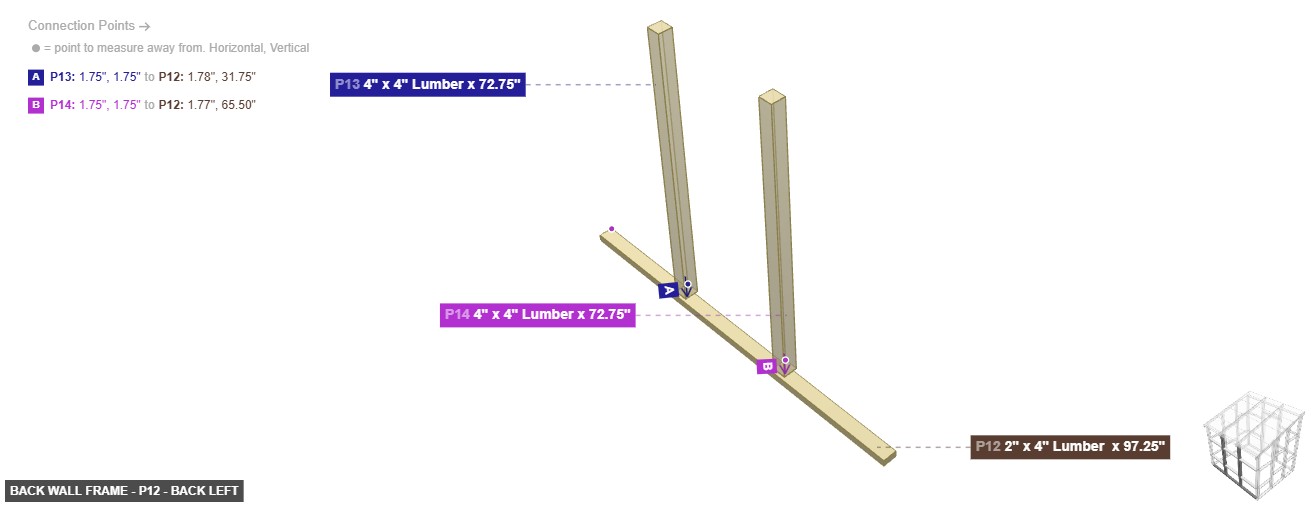

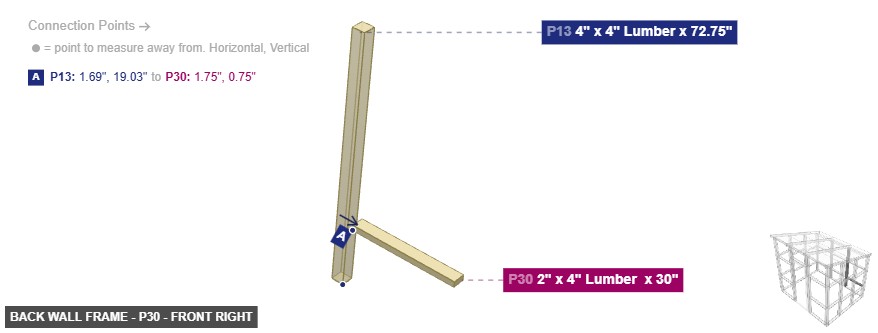

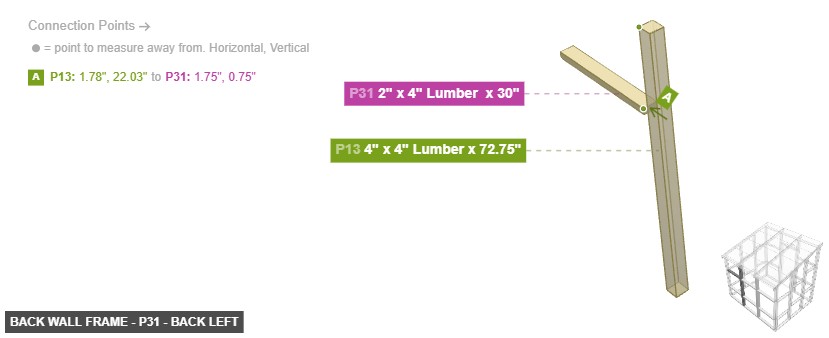

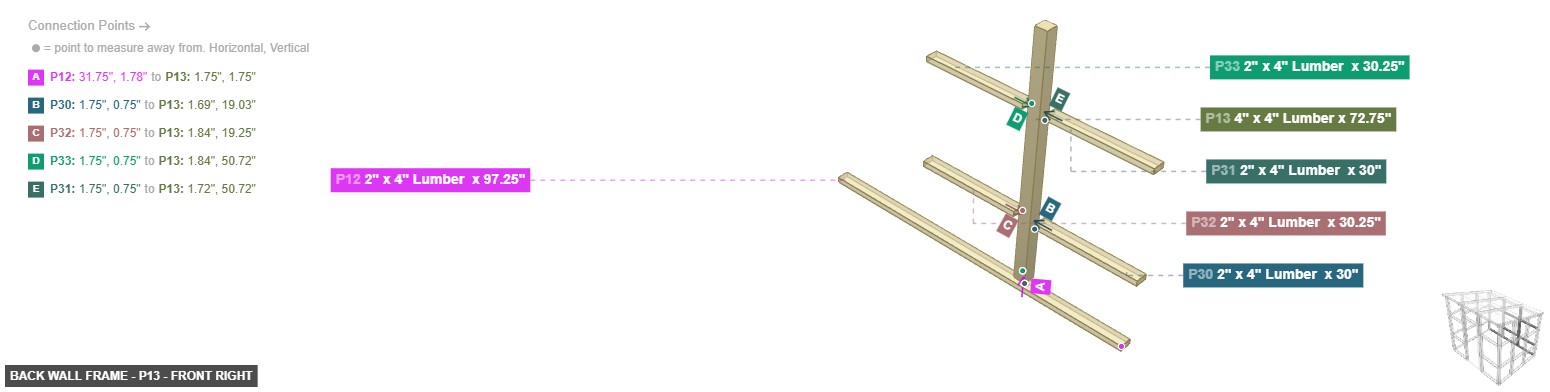

Back Wall Frame

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

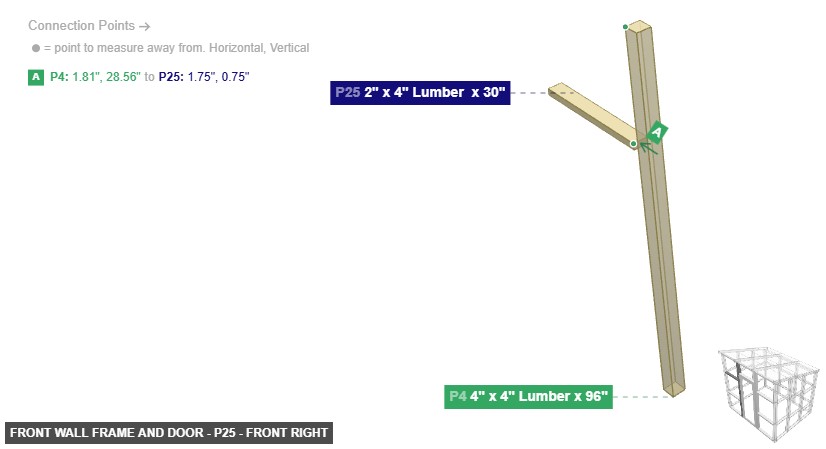

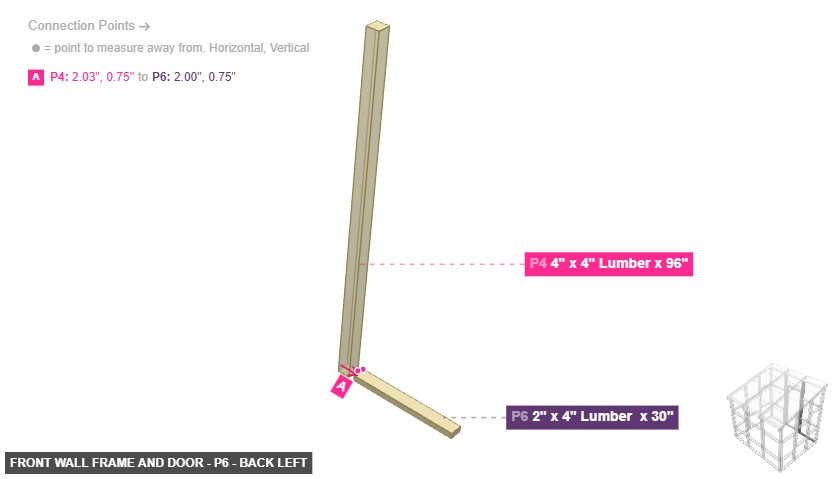

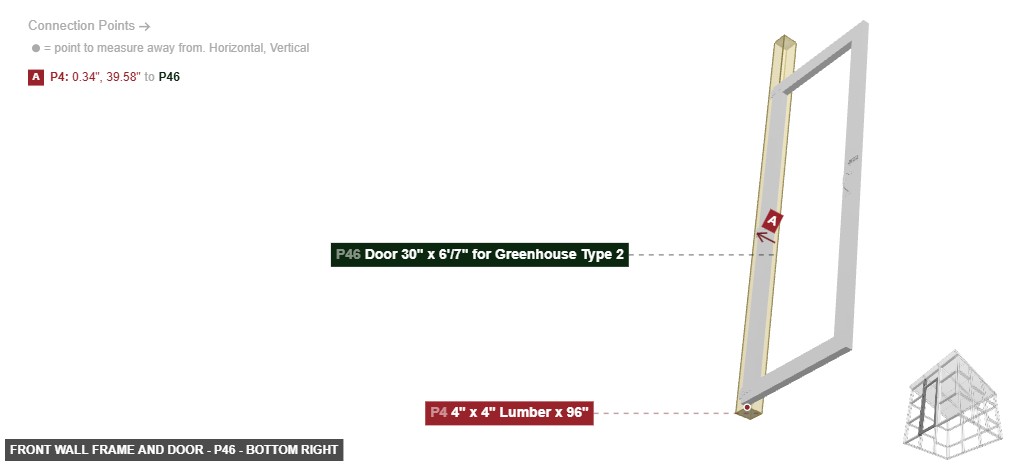

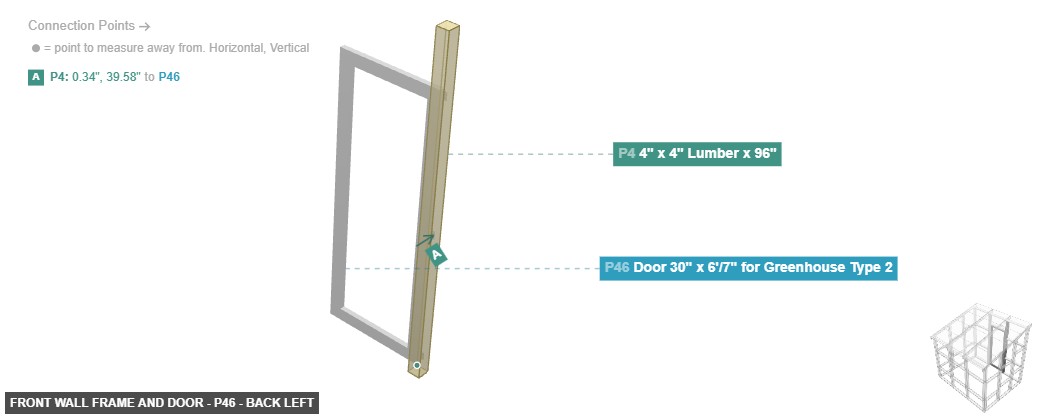

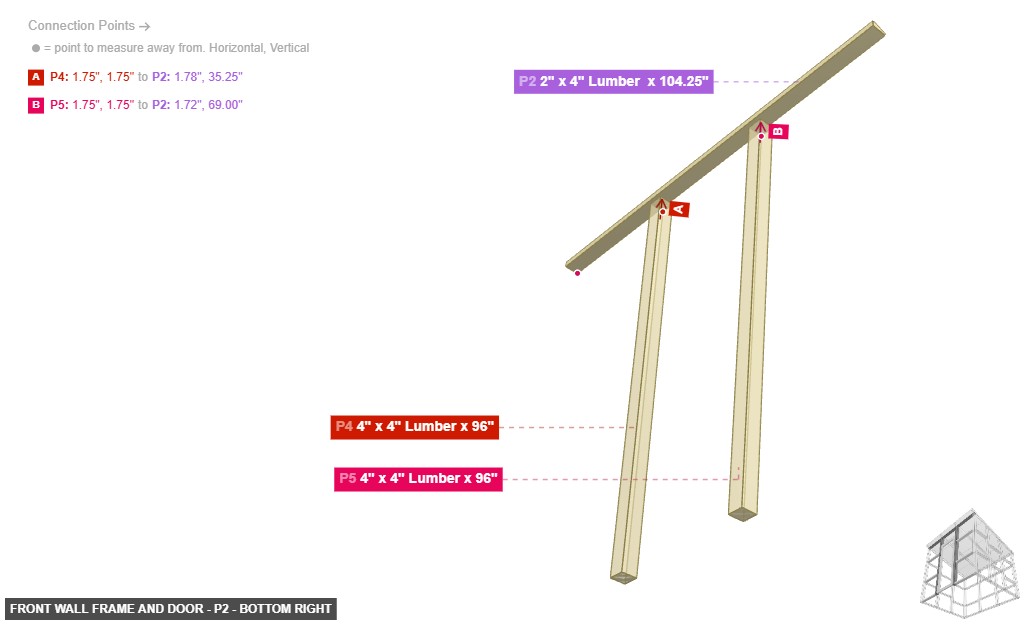

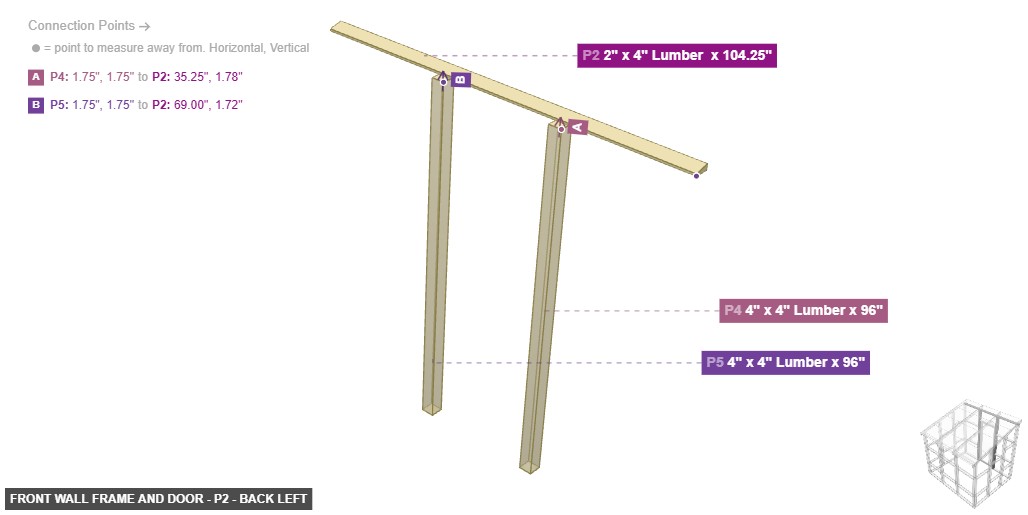

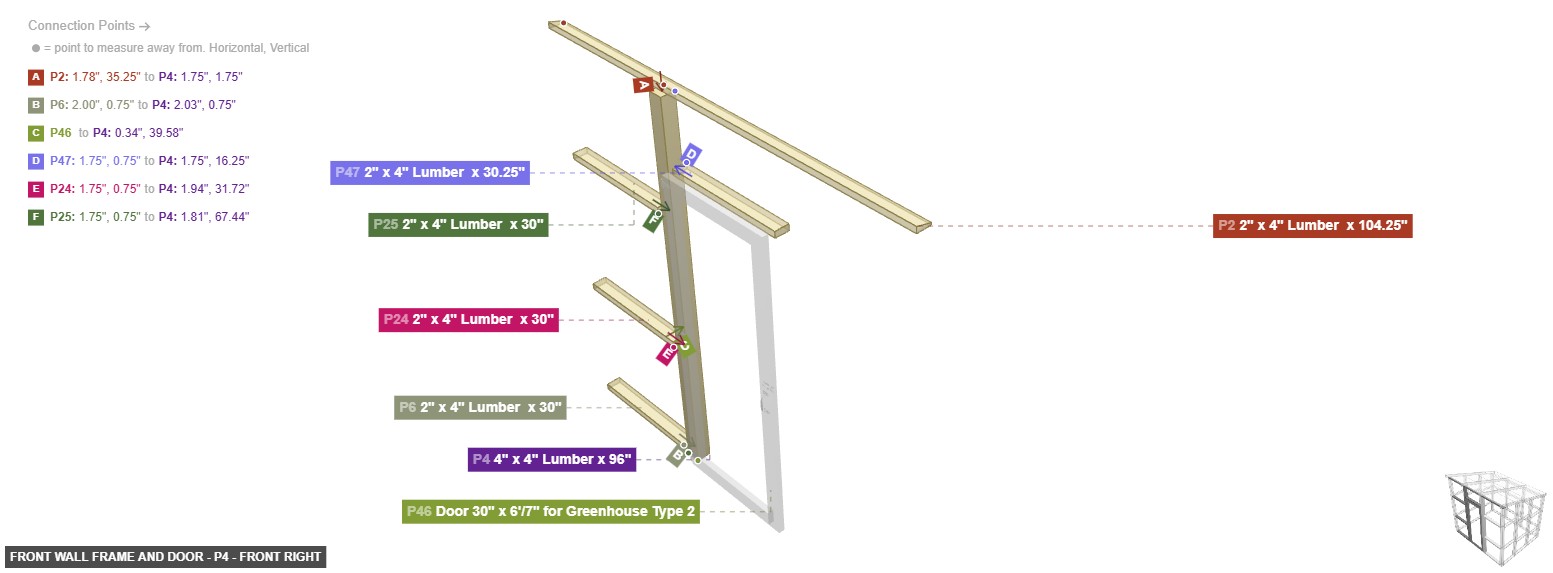

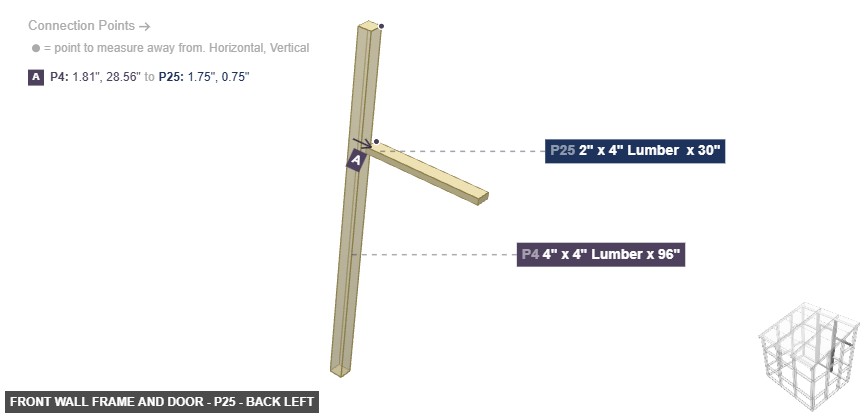

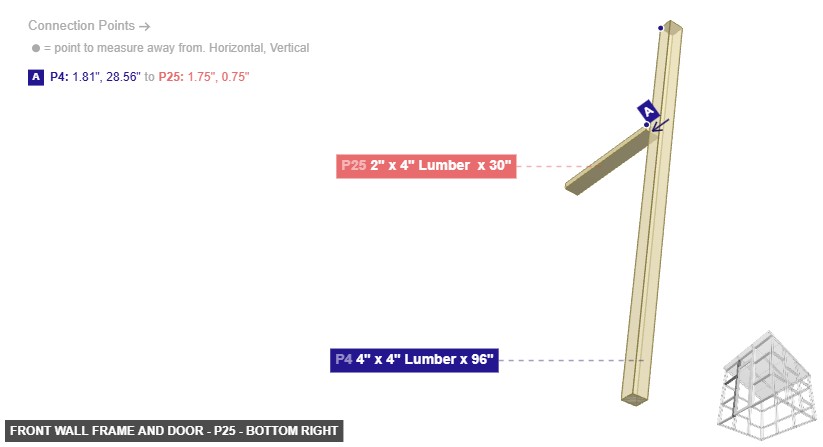

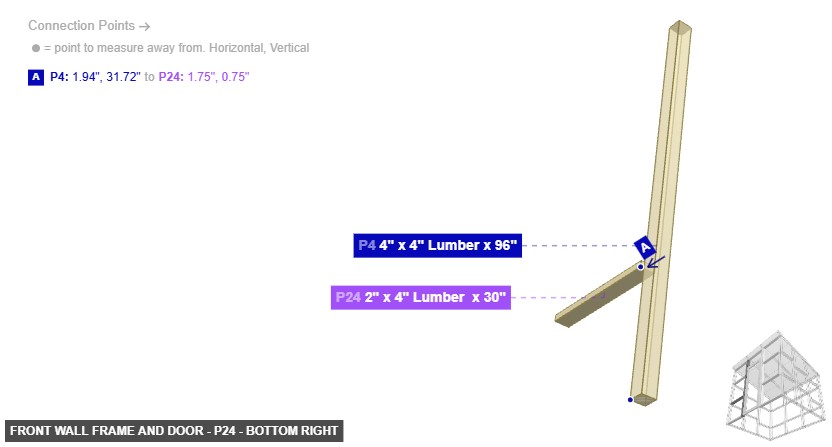

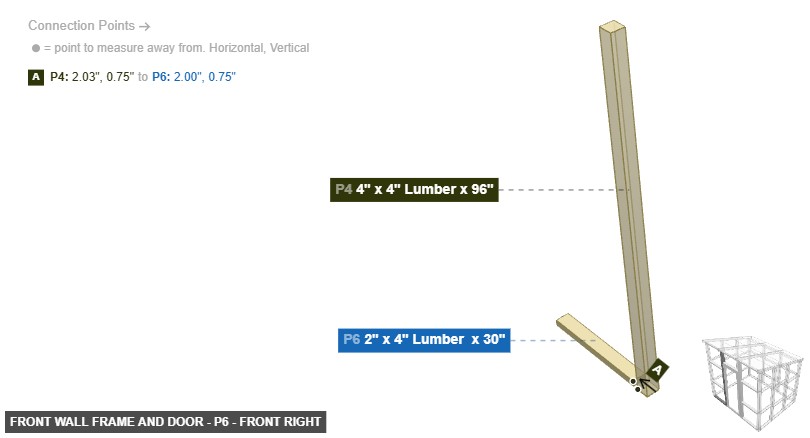

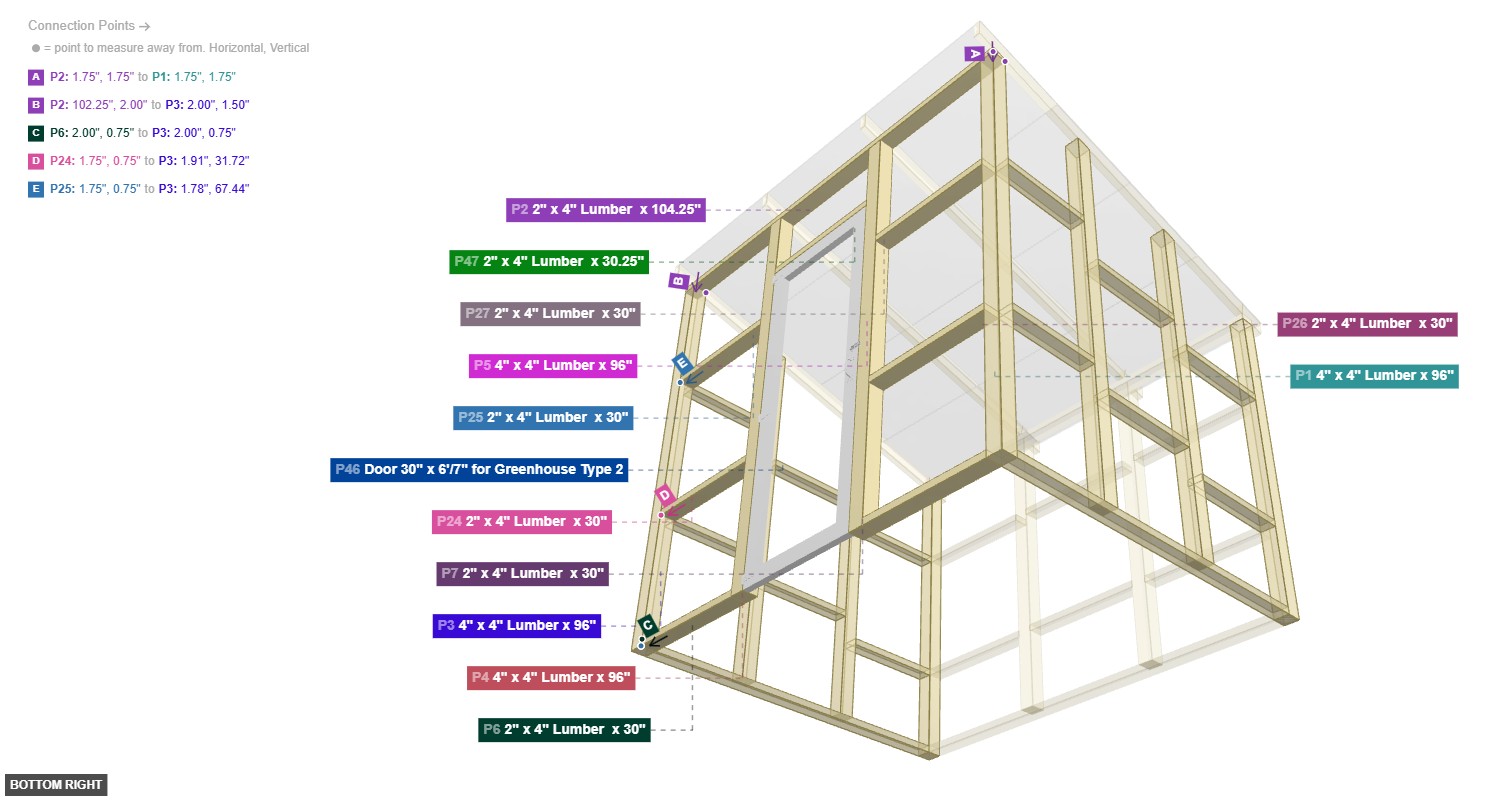

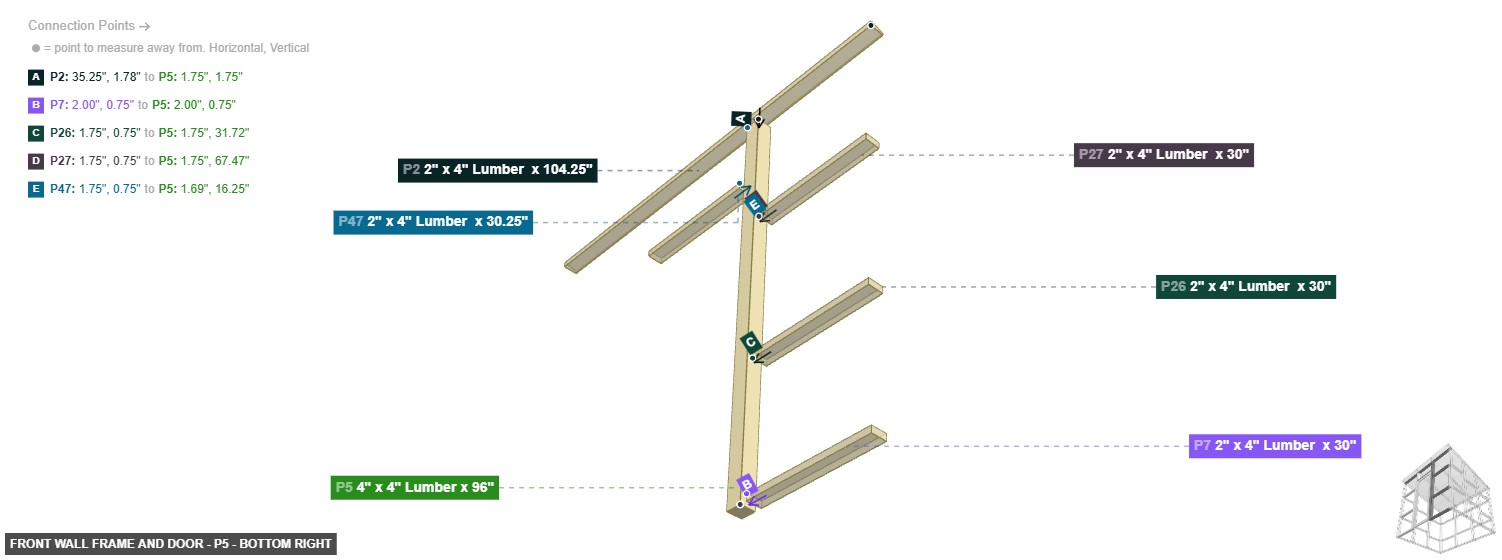

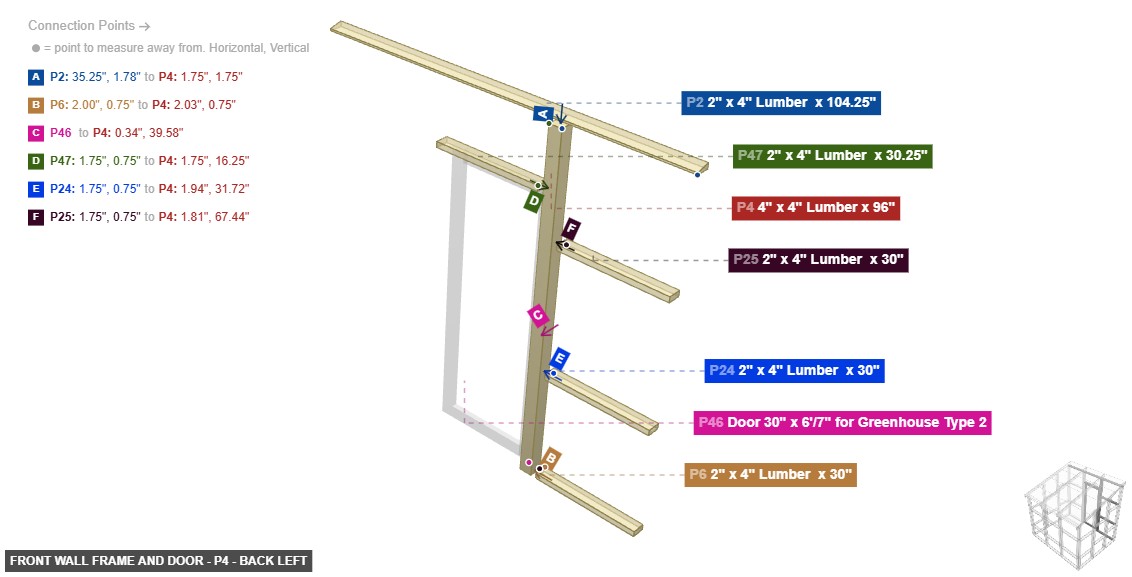

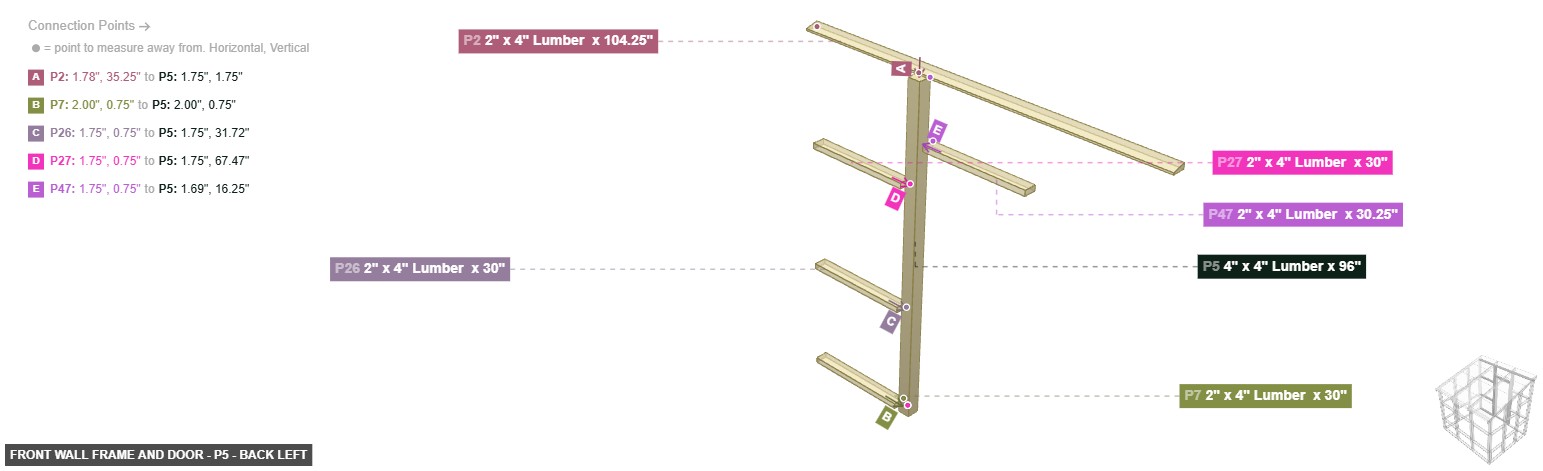

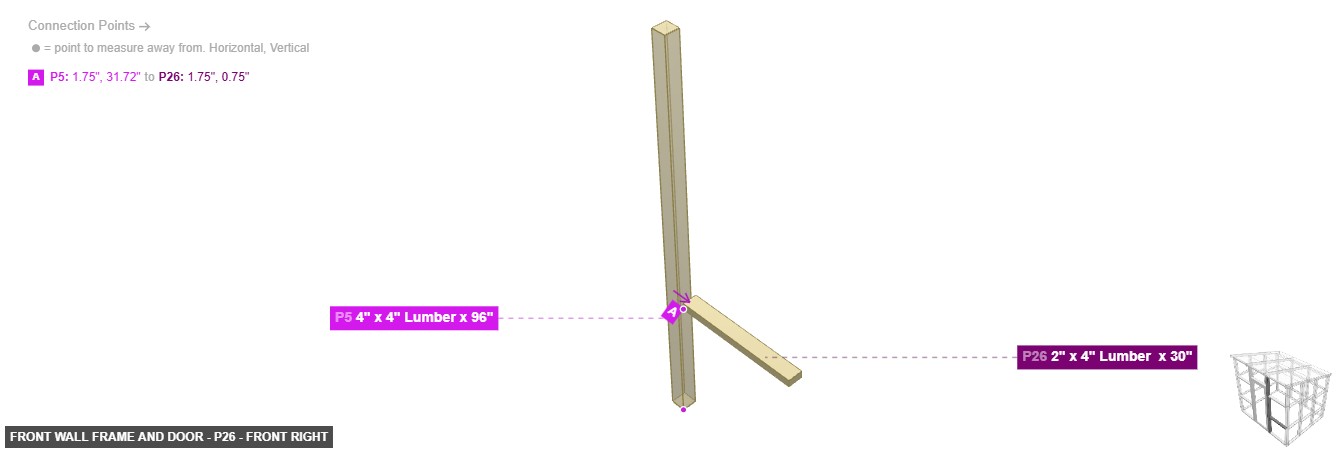

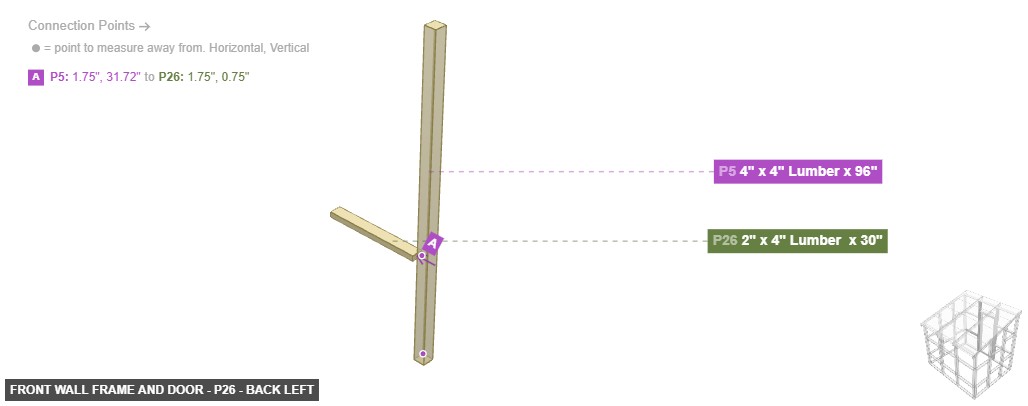

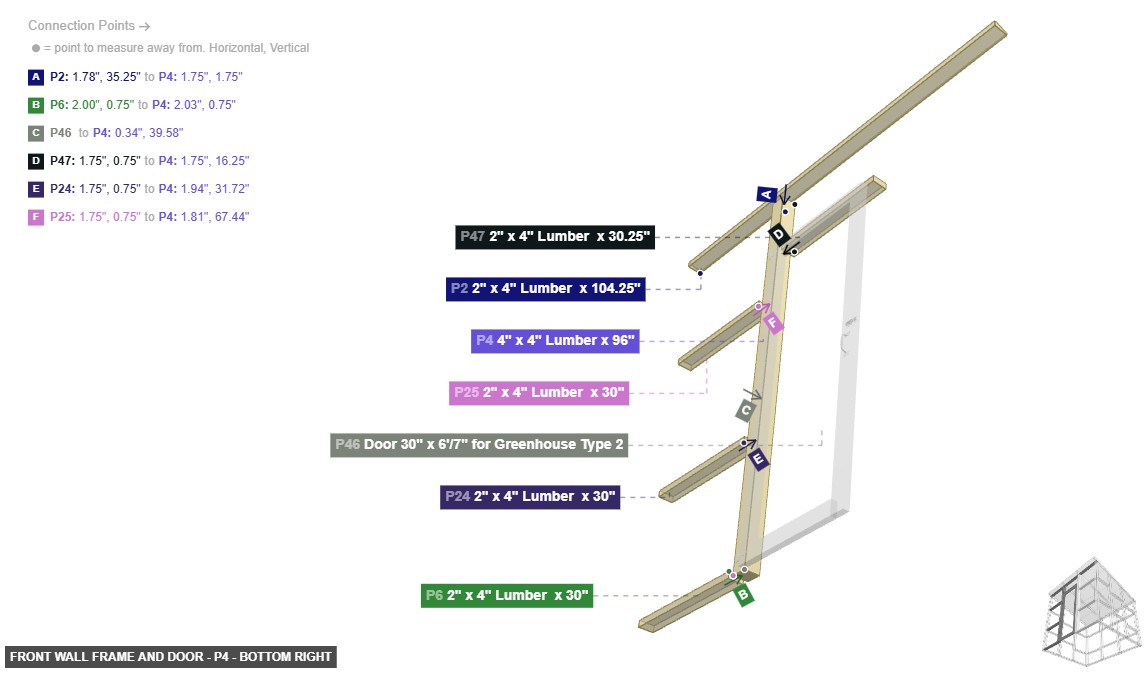

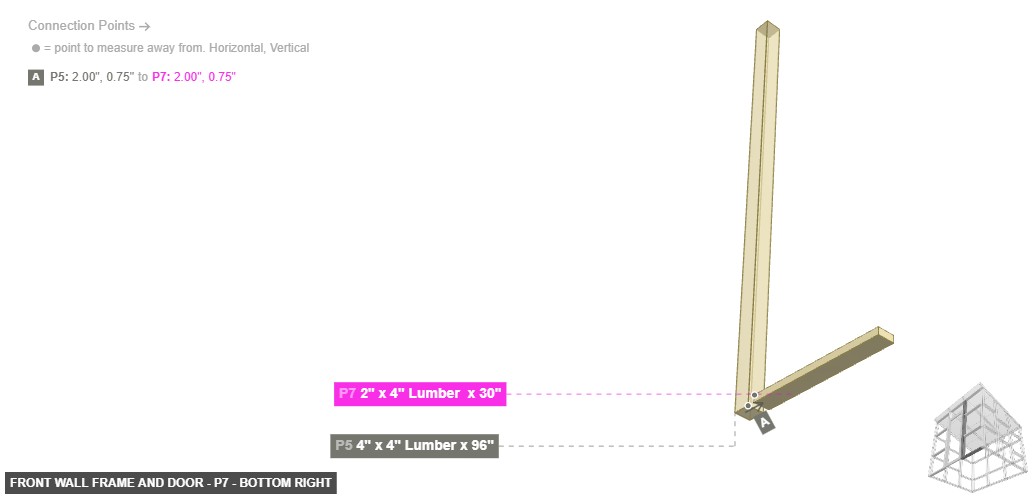

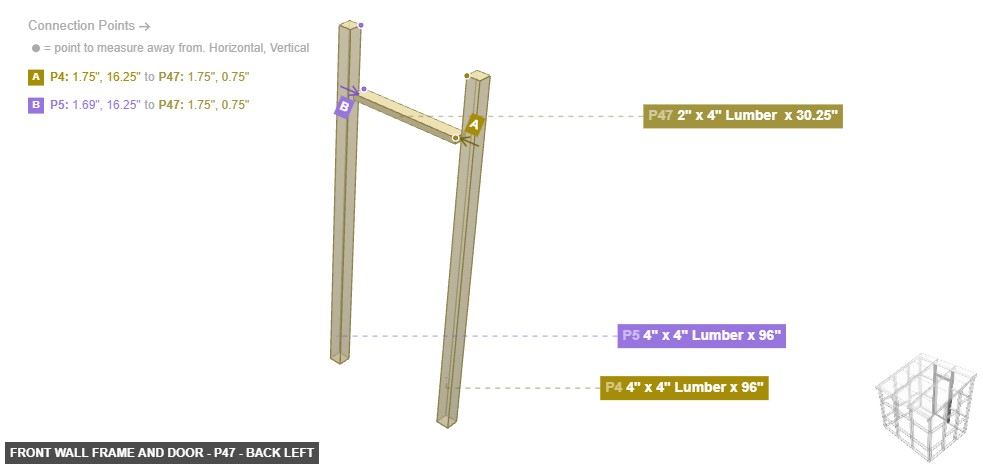

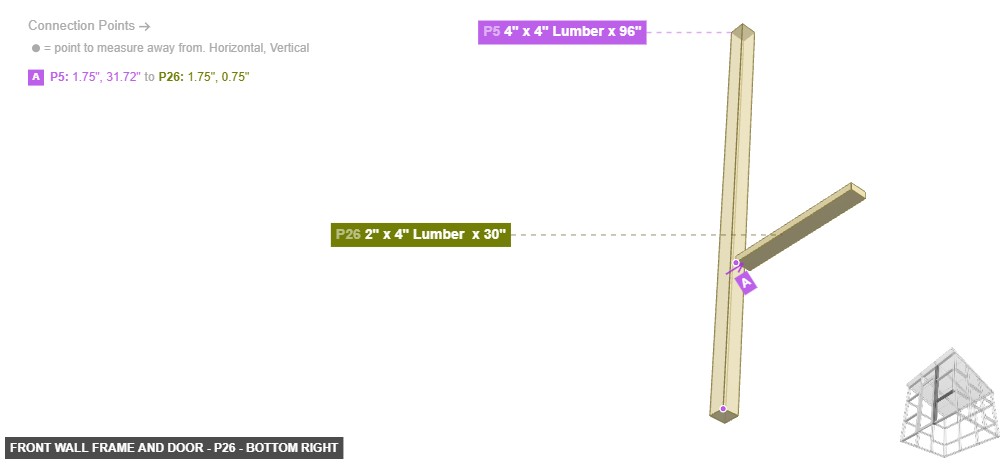

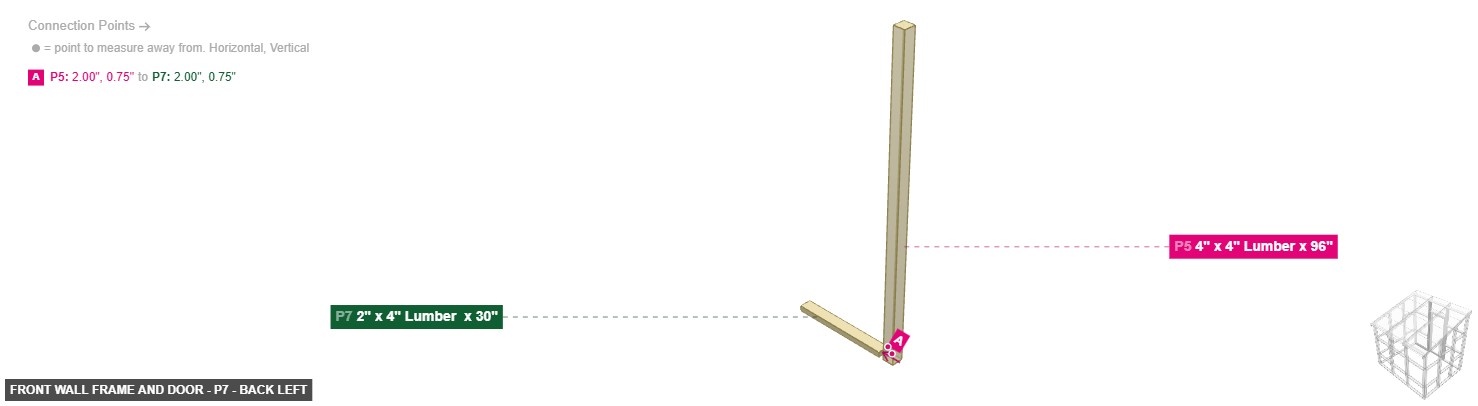

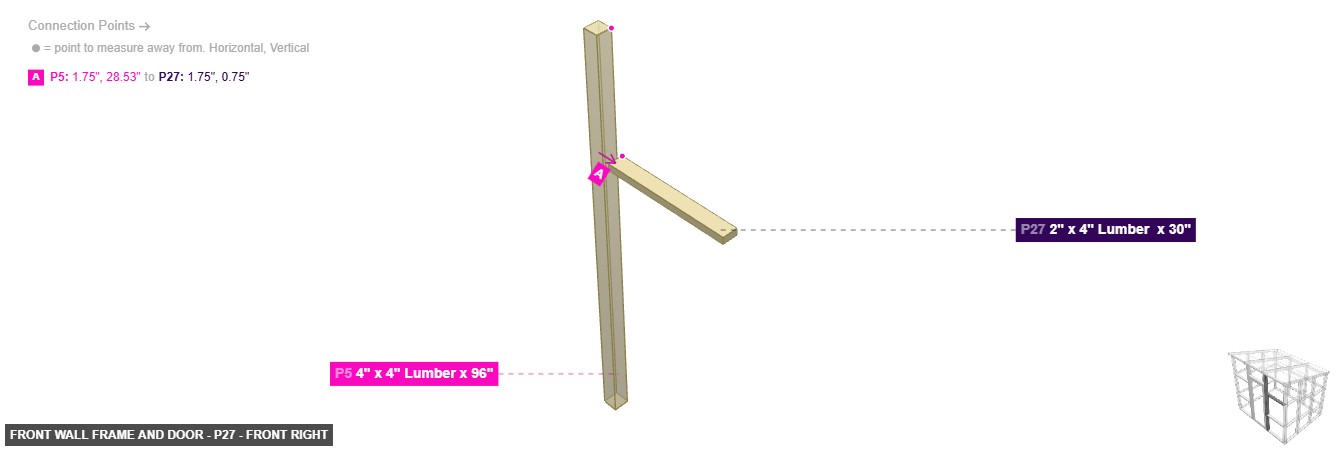

Front Wall Frame and Door

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

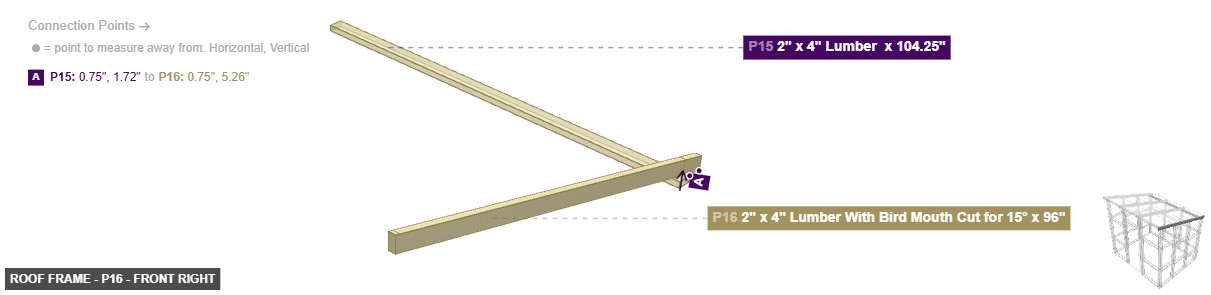

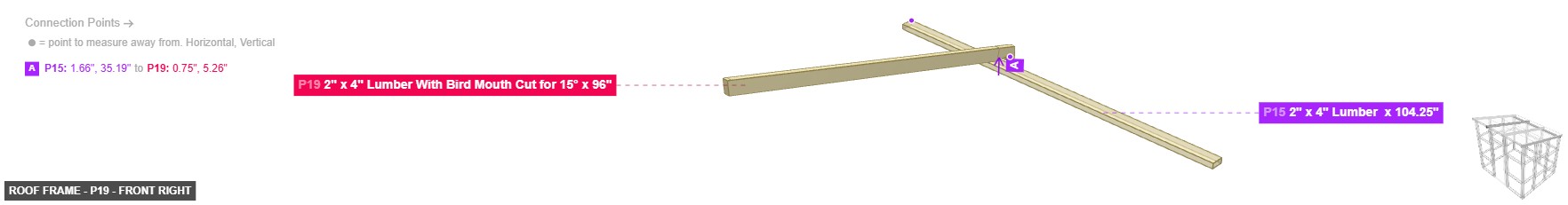

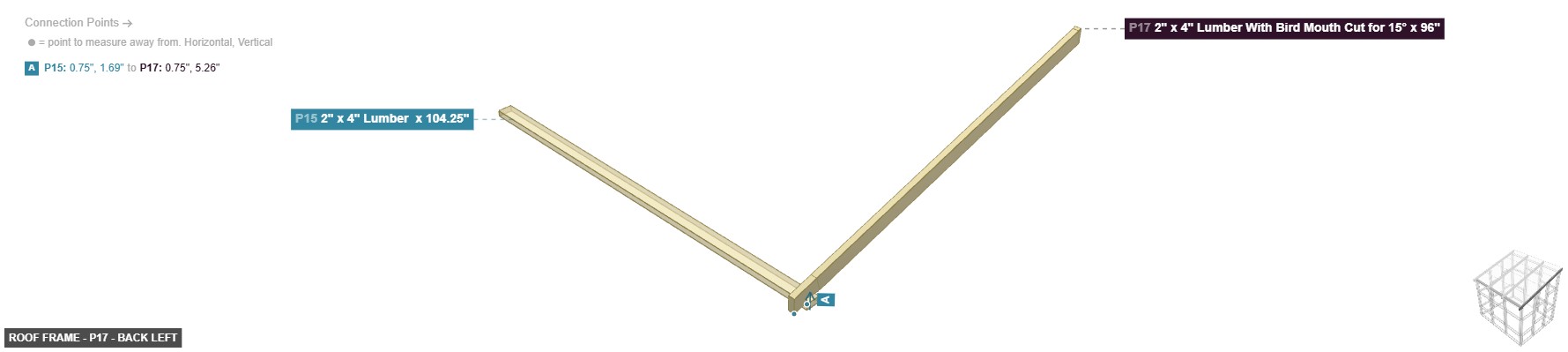

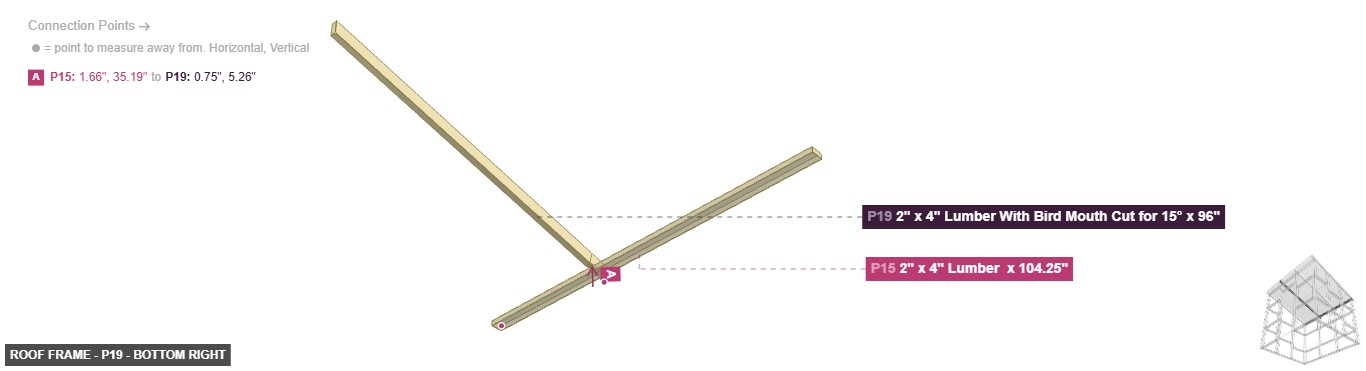

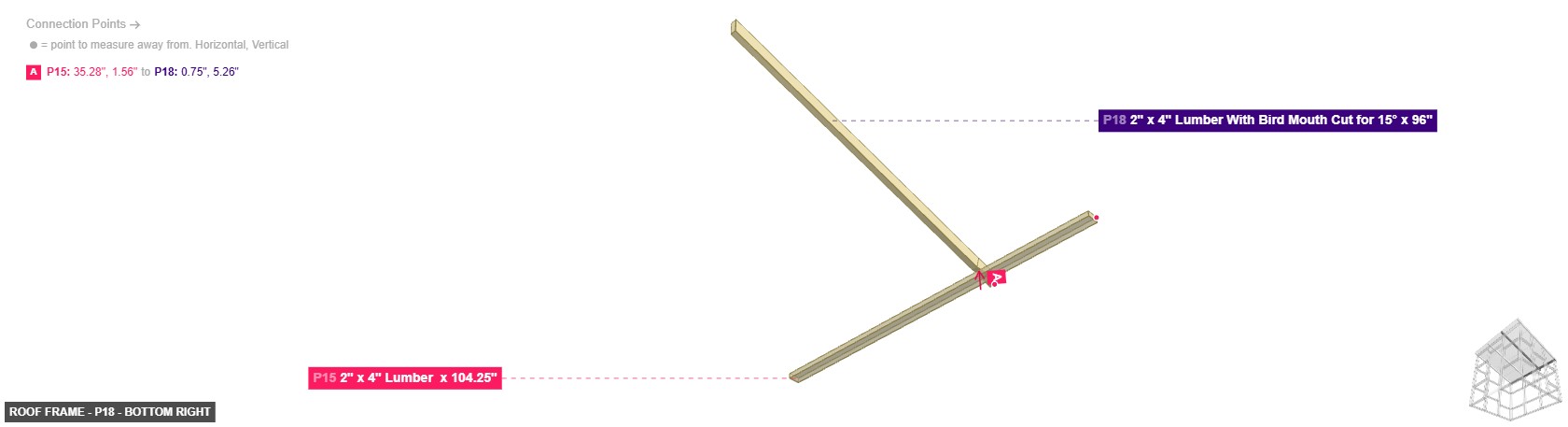

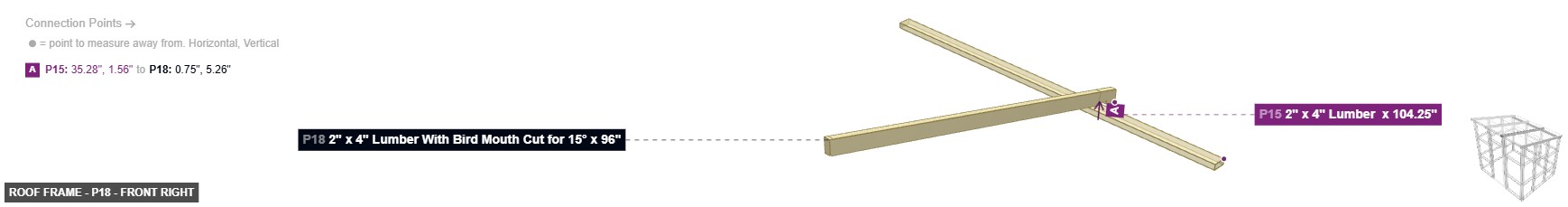

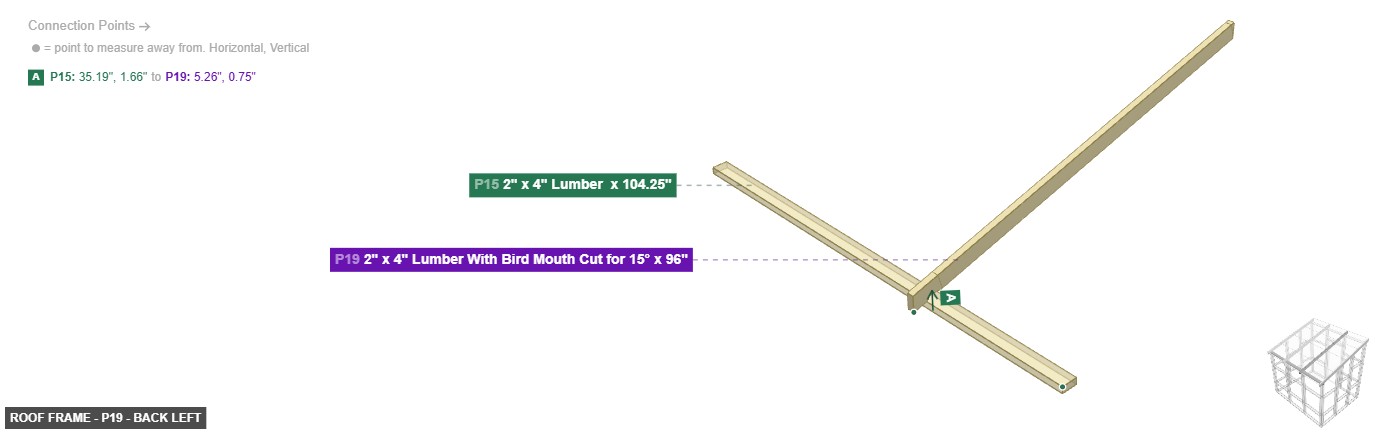

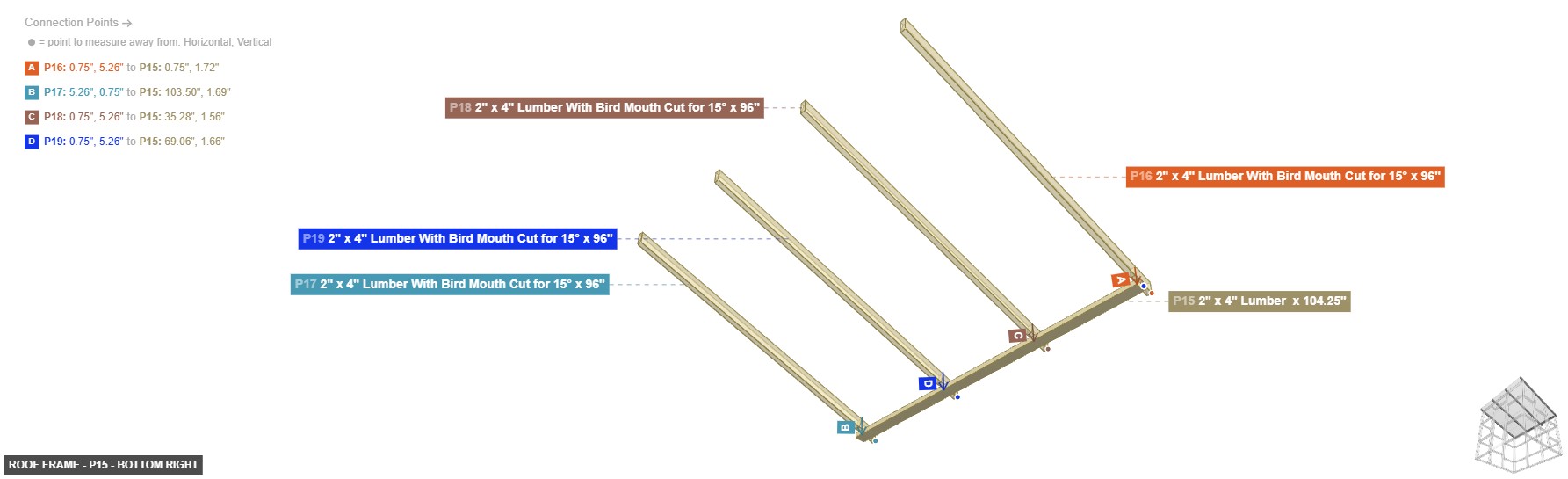

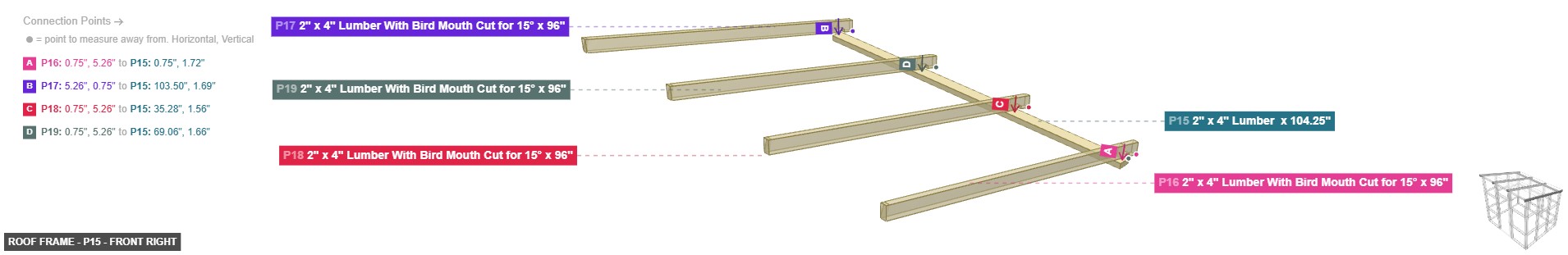

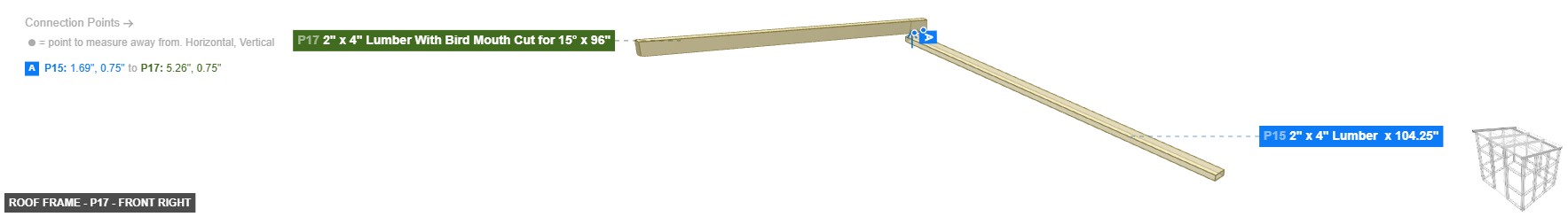

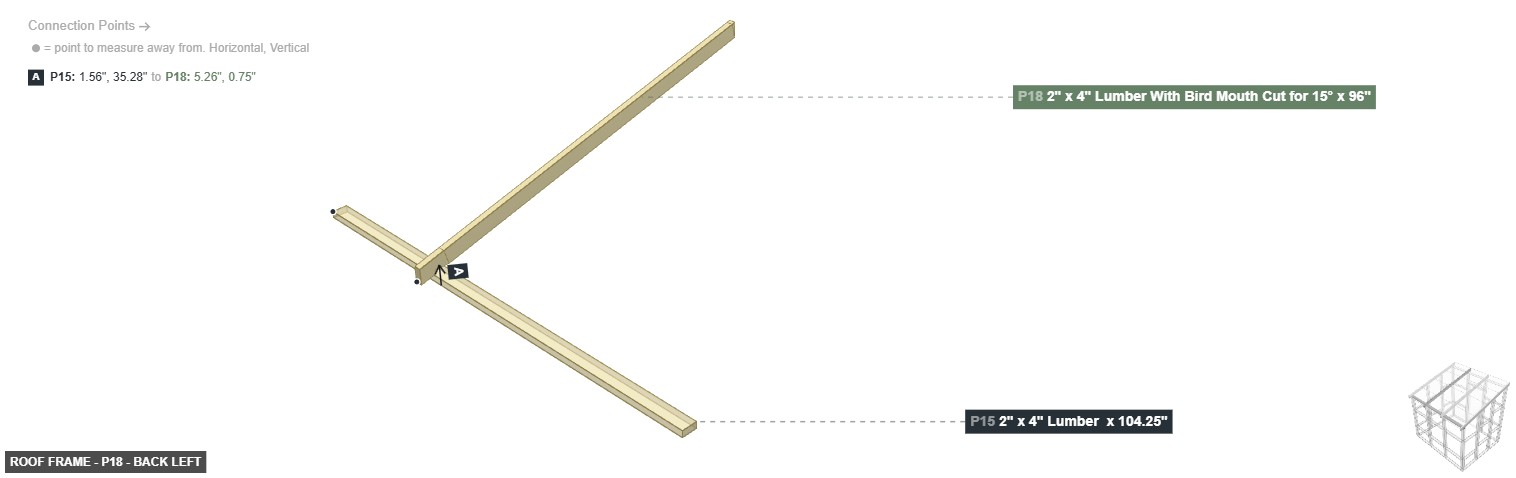

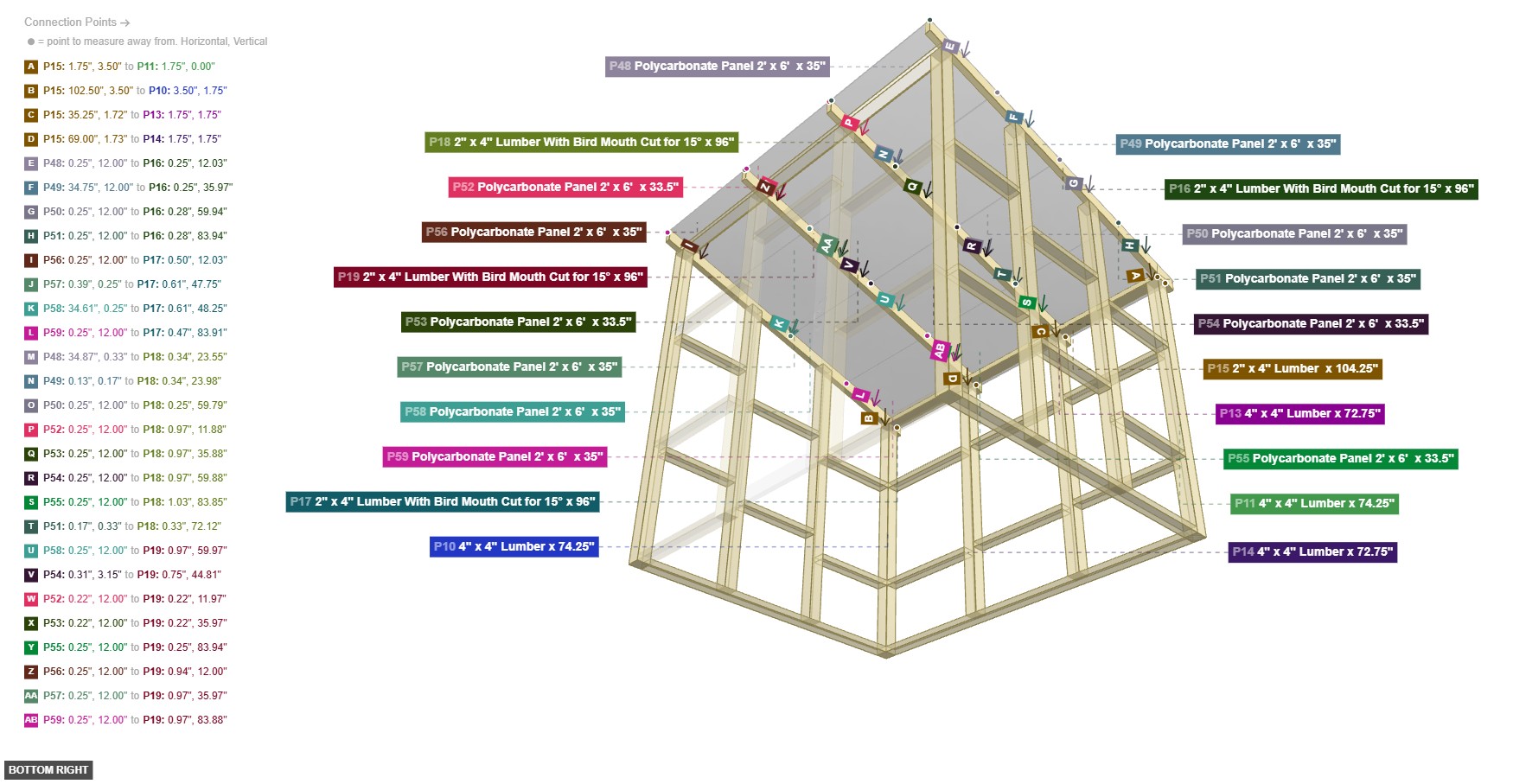

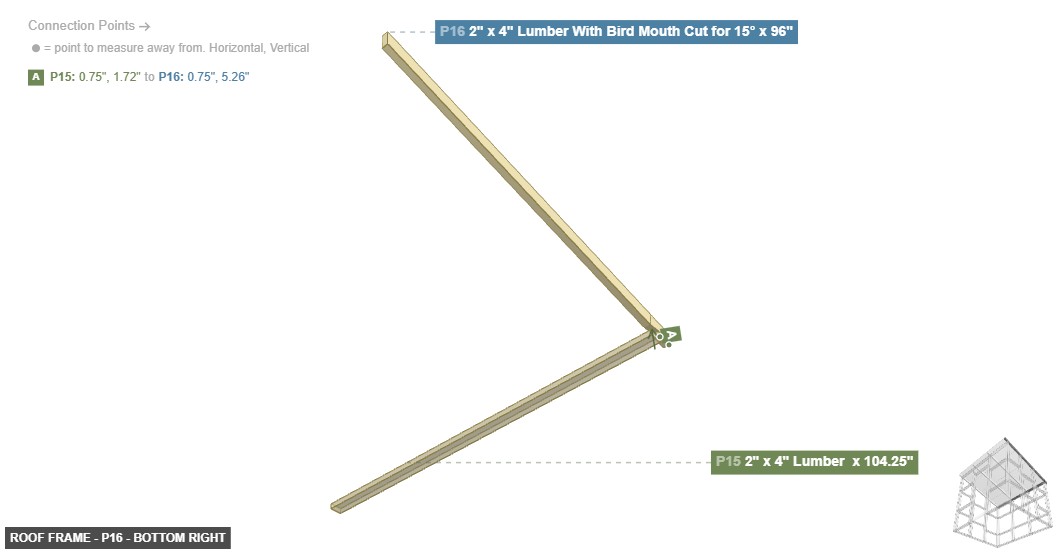

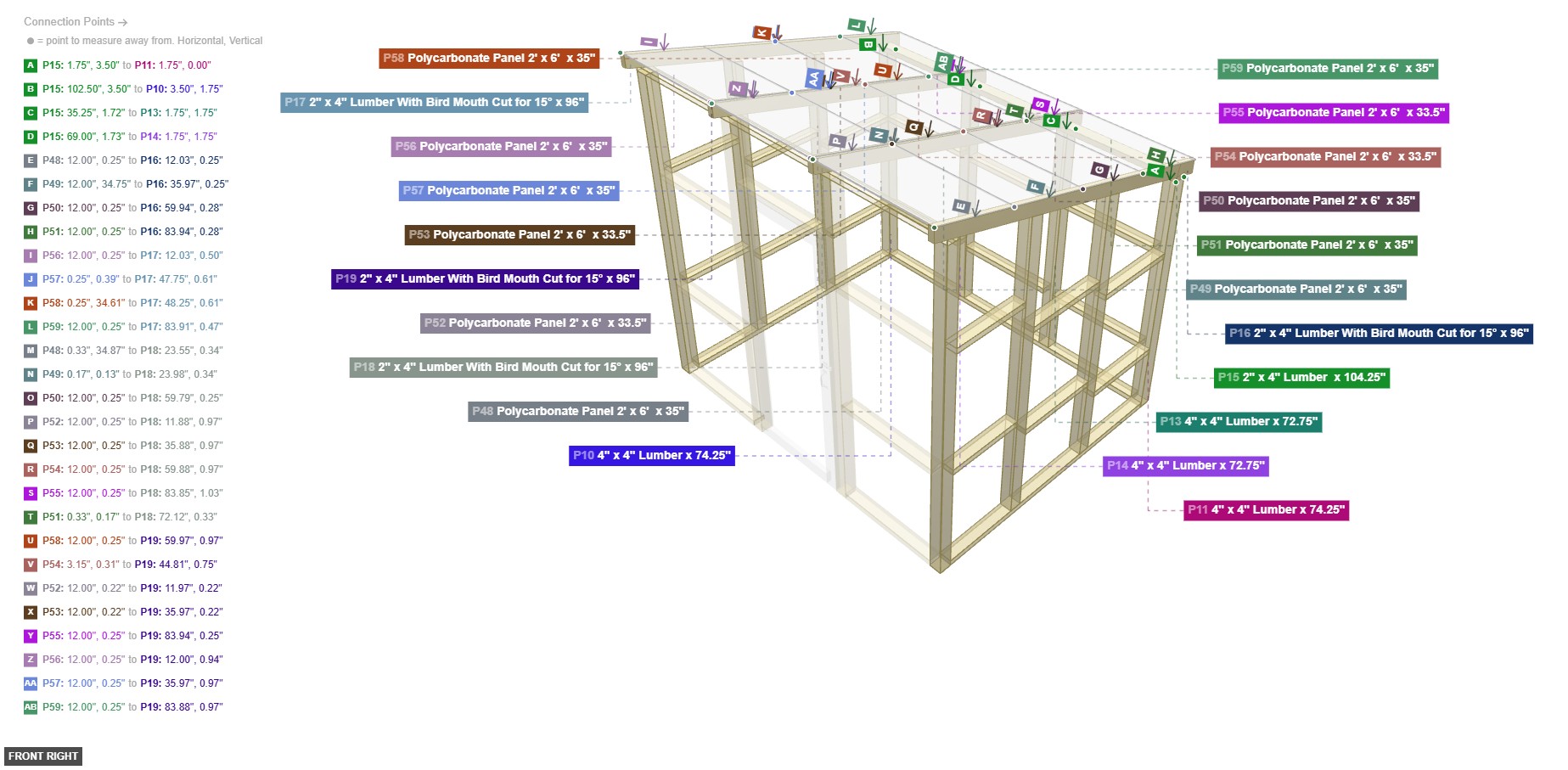

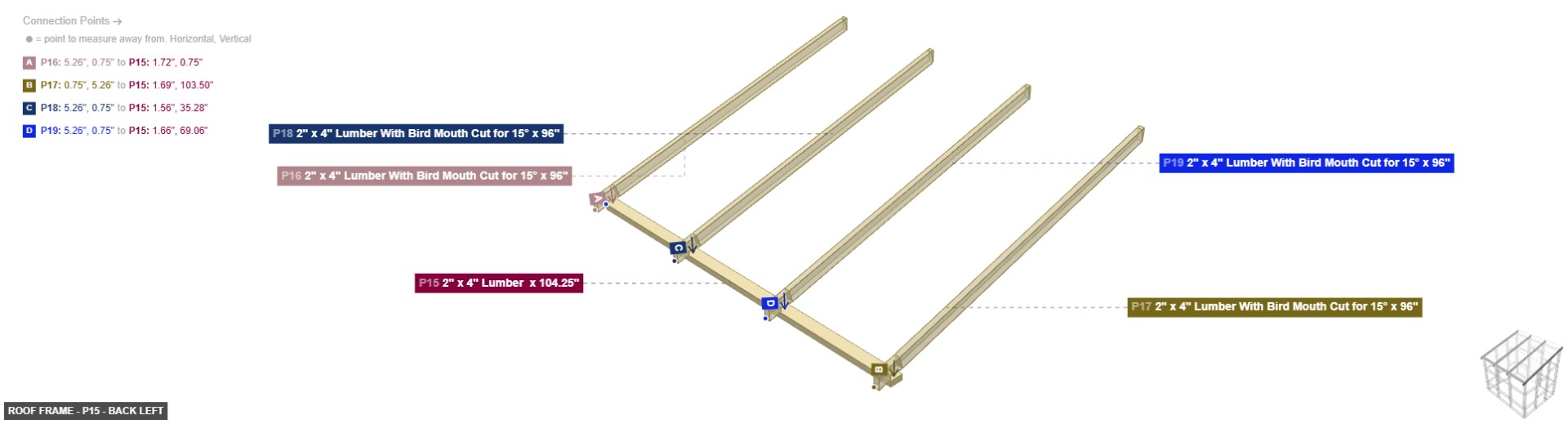

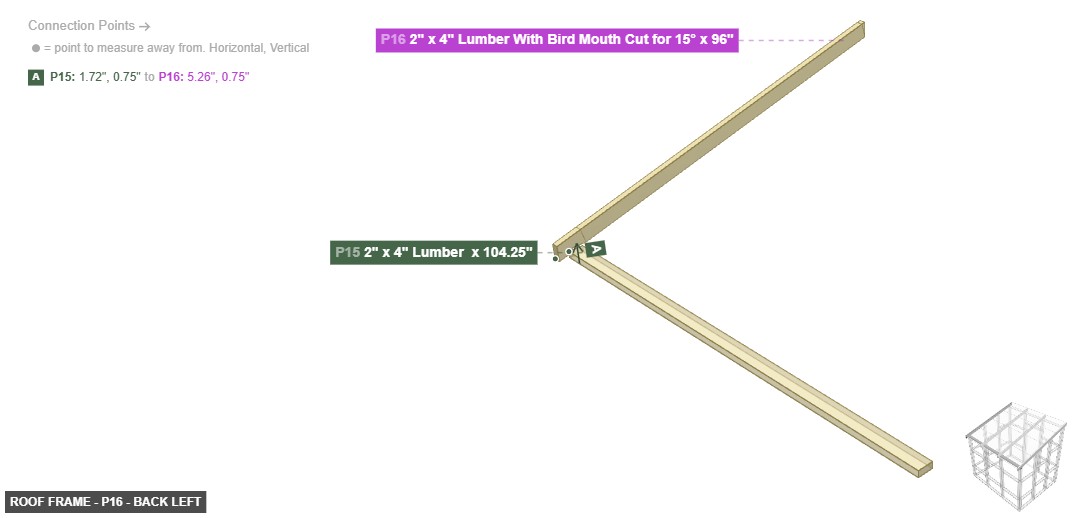

Roof Frame

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

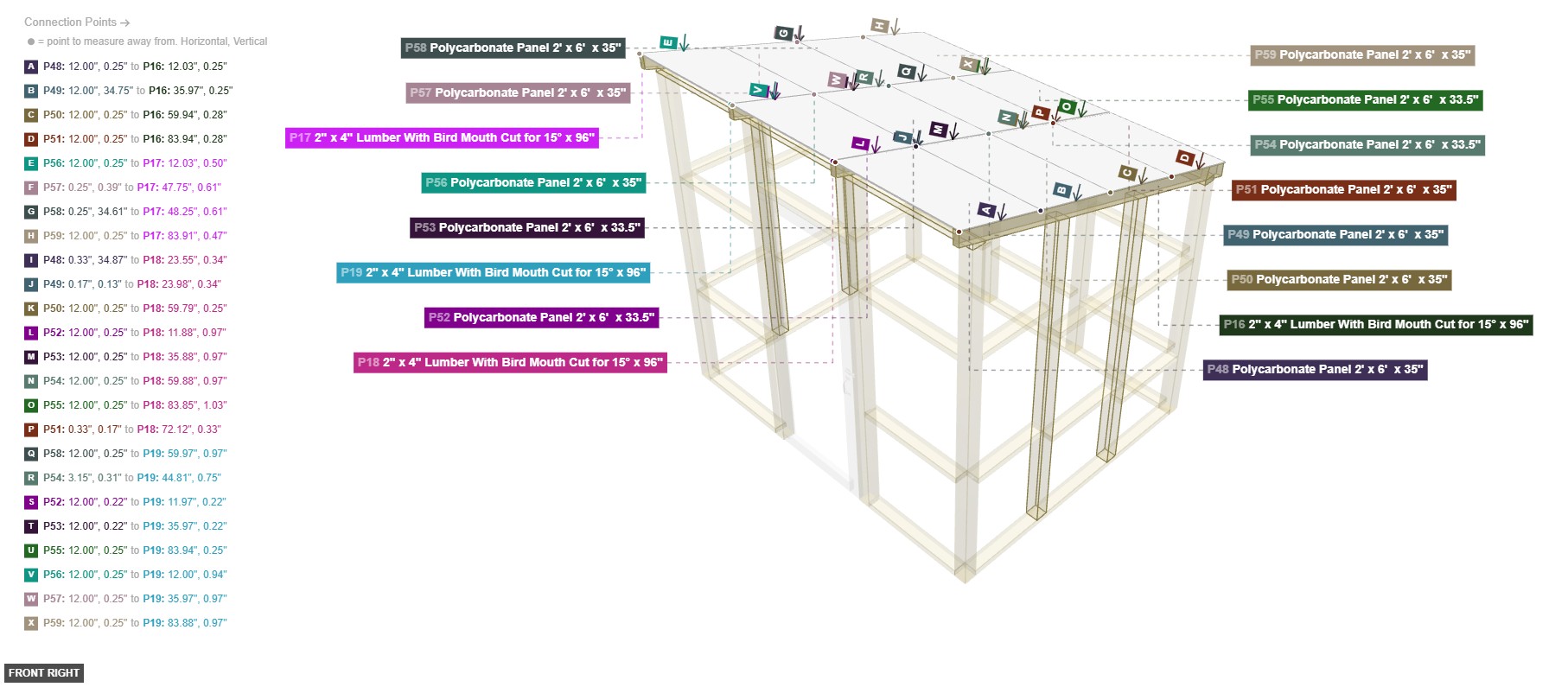

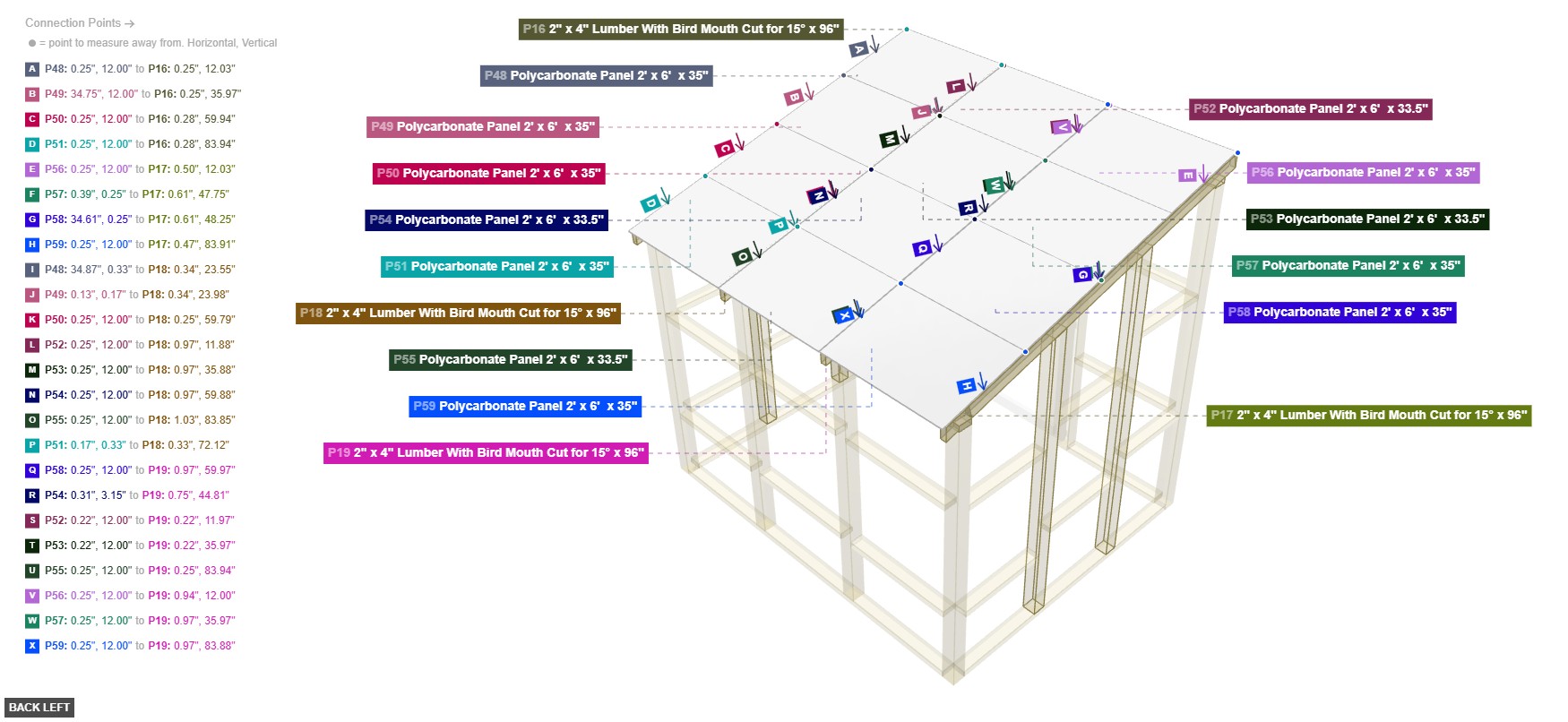

Roof Panels

Polycarbonate Panel 2' x 6' x 35"x 8

Polycarbonate Panel 2' x 6' x 33.5"x 4

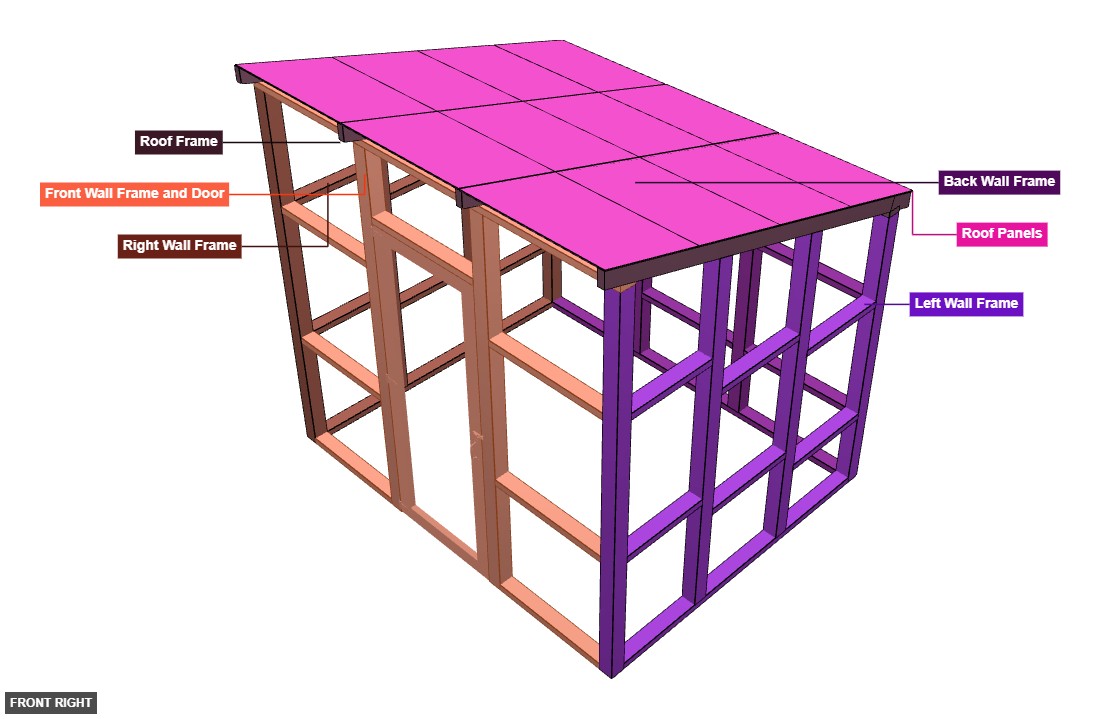

Angle: front right

Left Wall Frame

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

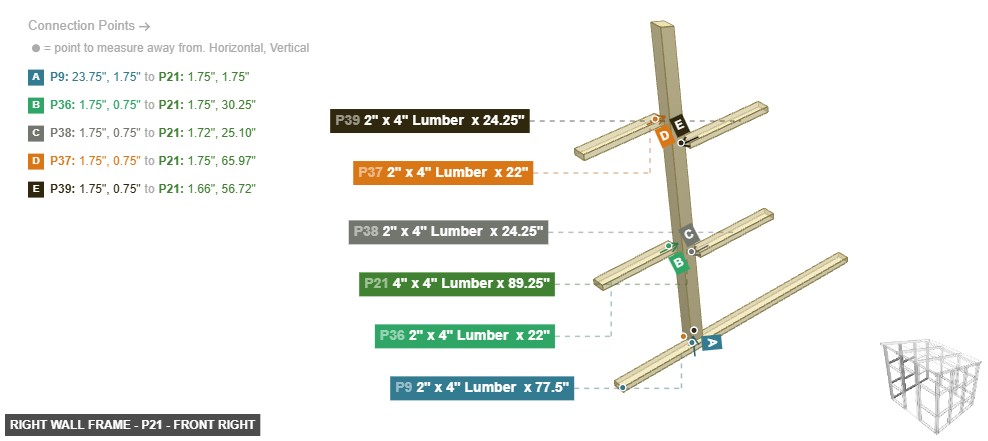

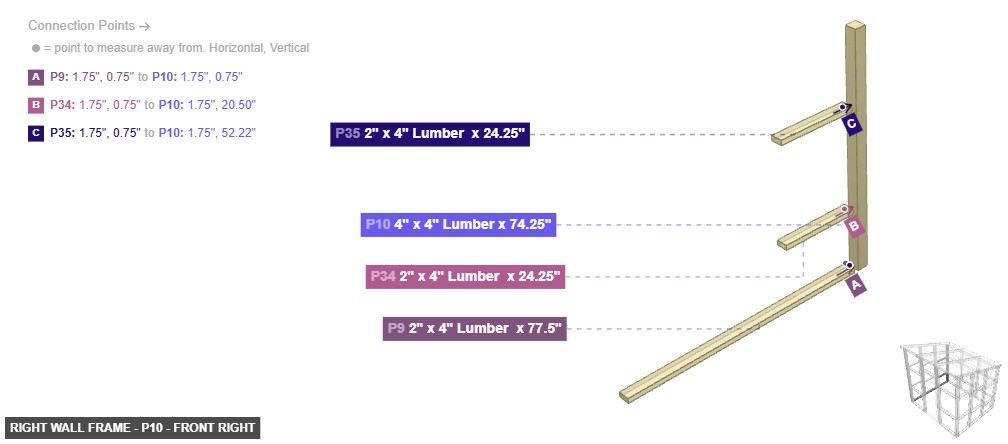

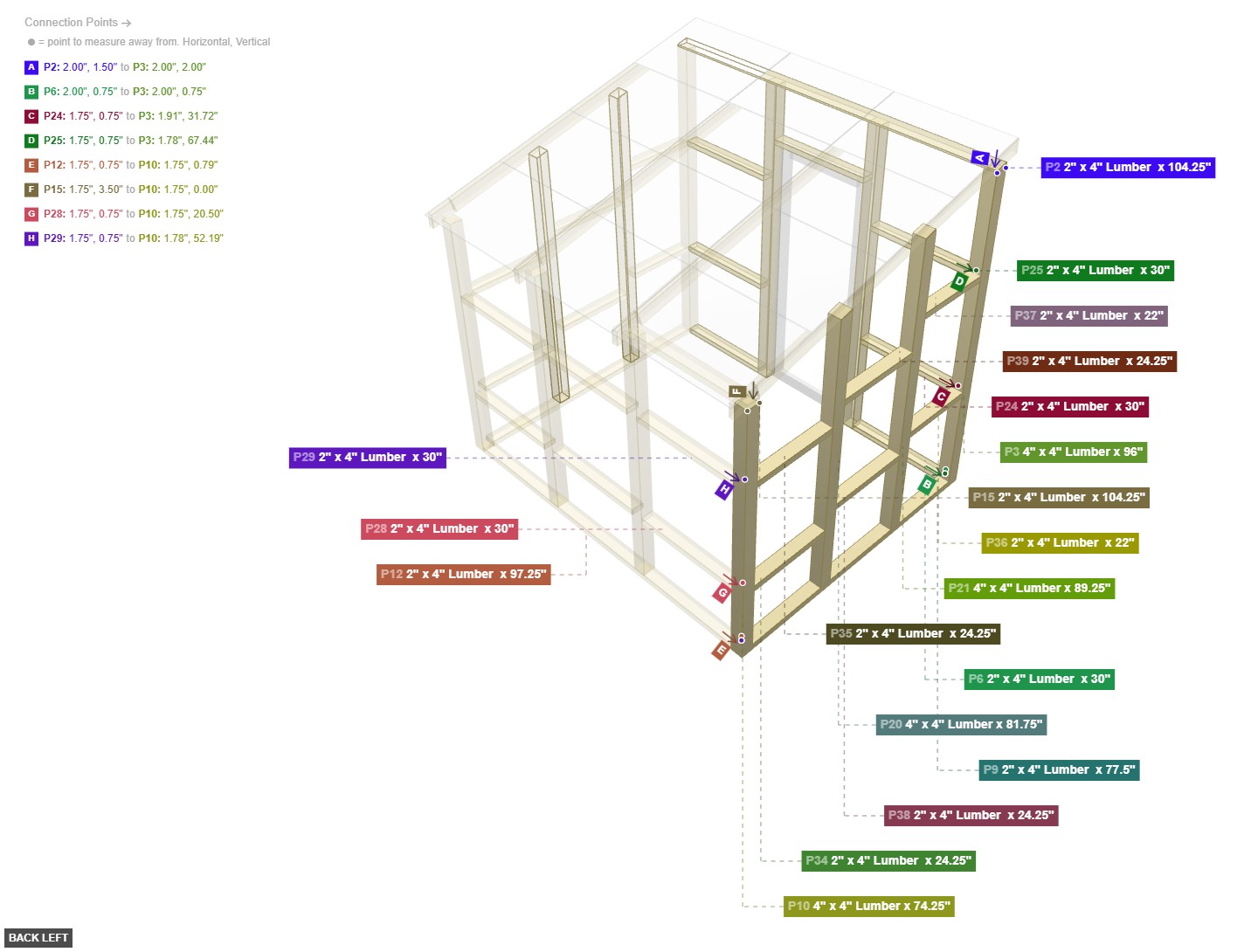

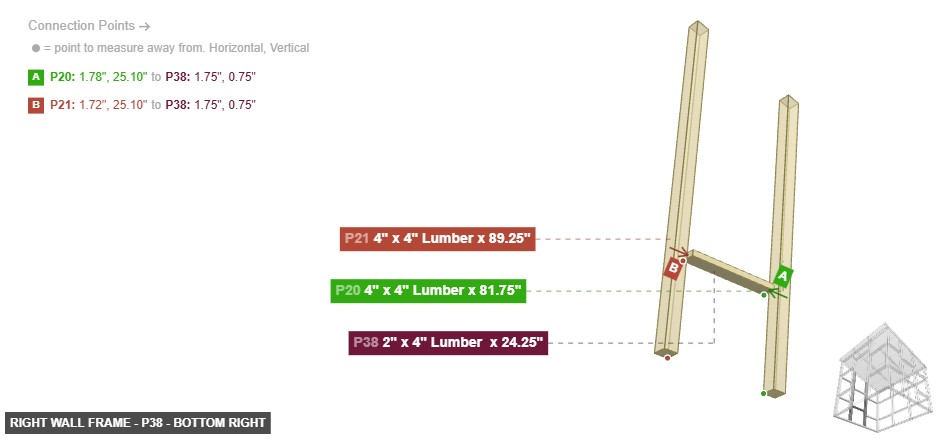

Right Wall Frame

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Back Wall Frame

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

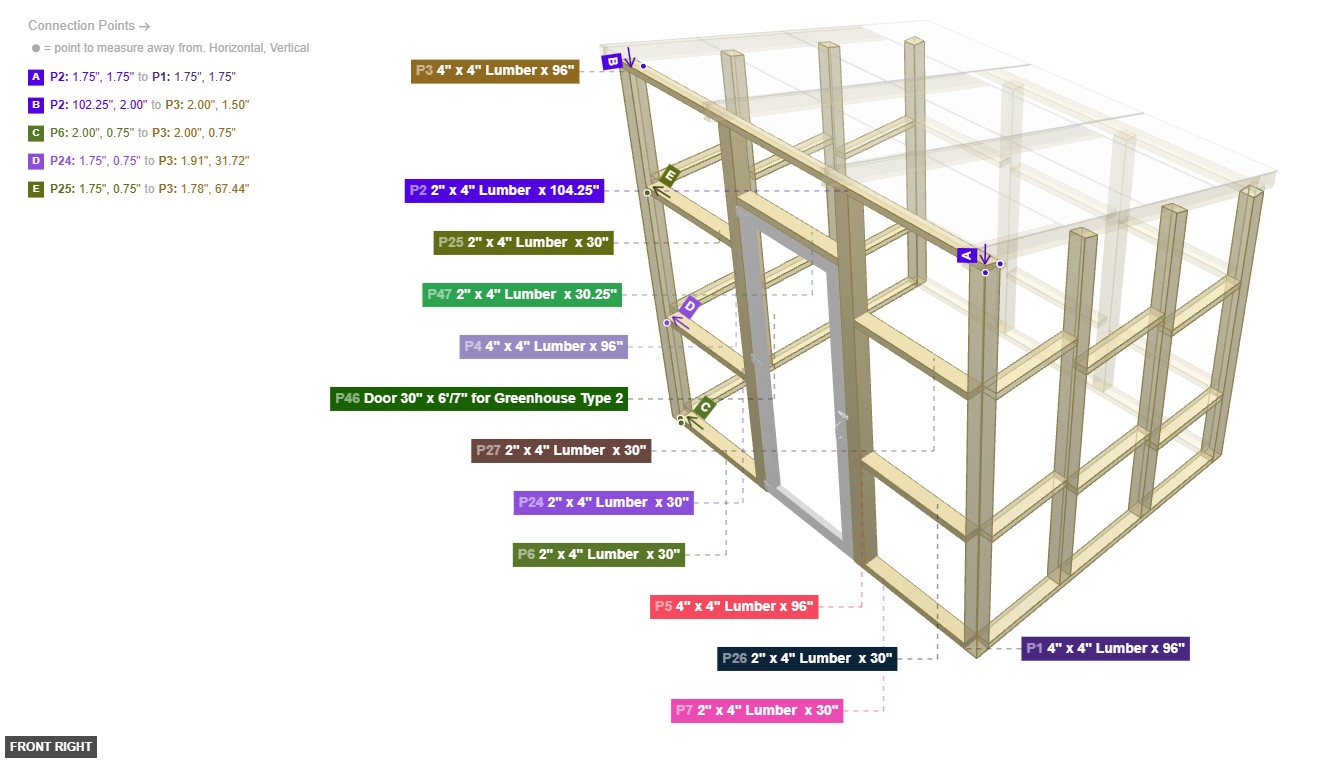

Front Wall Frame and Door

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Roof Frame

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Roof Panels

Polycarbonate Panel 2' x 6' x 35"x 8

Polycarbonate Panel 2' x 6' x 33.5"x 4

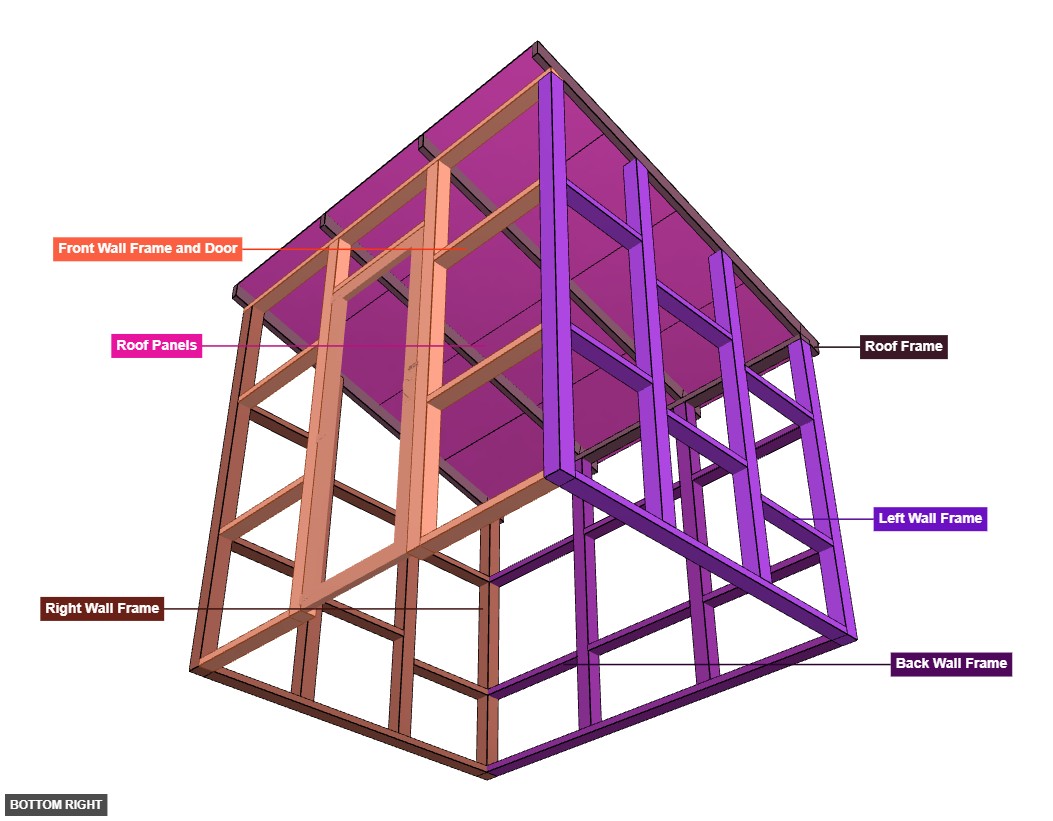

Angle: bottom right

Left Wall Frame

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Right Wall Frame

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

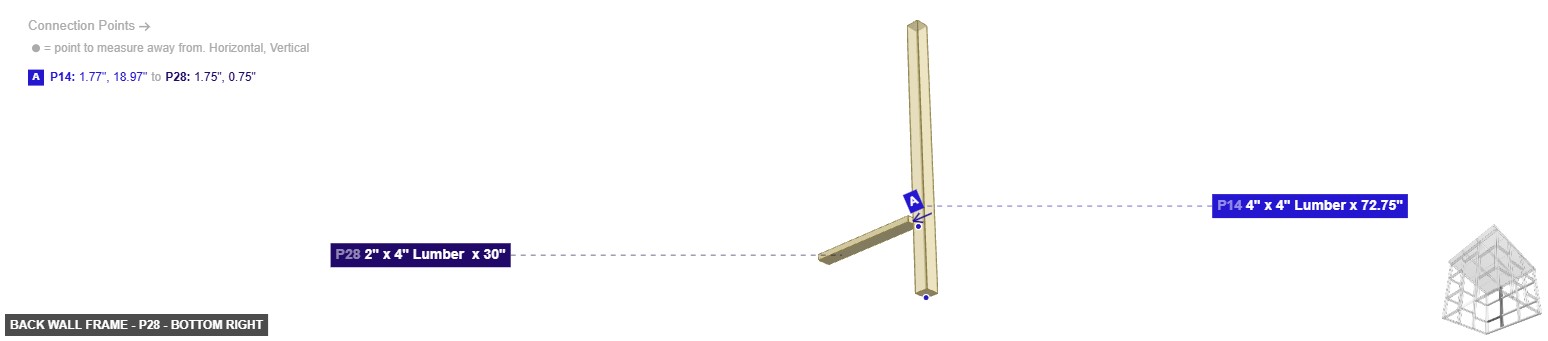

Back Wall Frame

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Front Wall Frame and Door

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Roof Frame

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Roof Panels

Polycarbonate Panel 2' x 6' x 35"x 8

Polycarbonate Panel 2' x 6' x 33.5"x 4

Phase 2: Individual Group Assembly

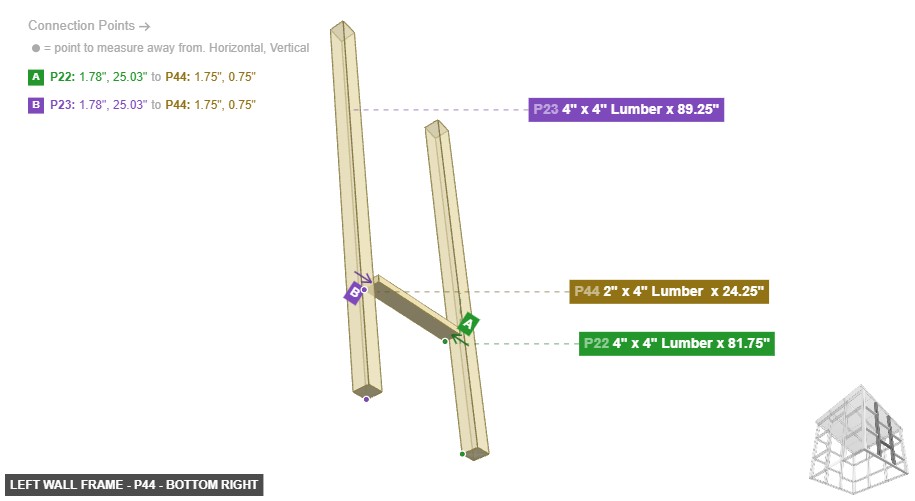

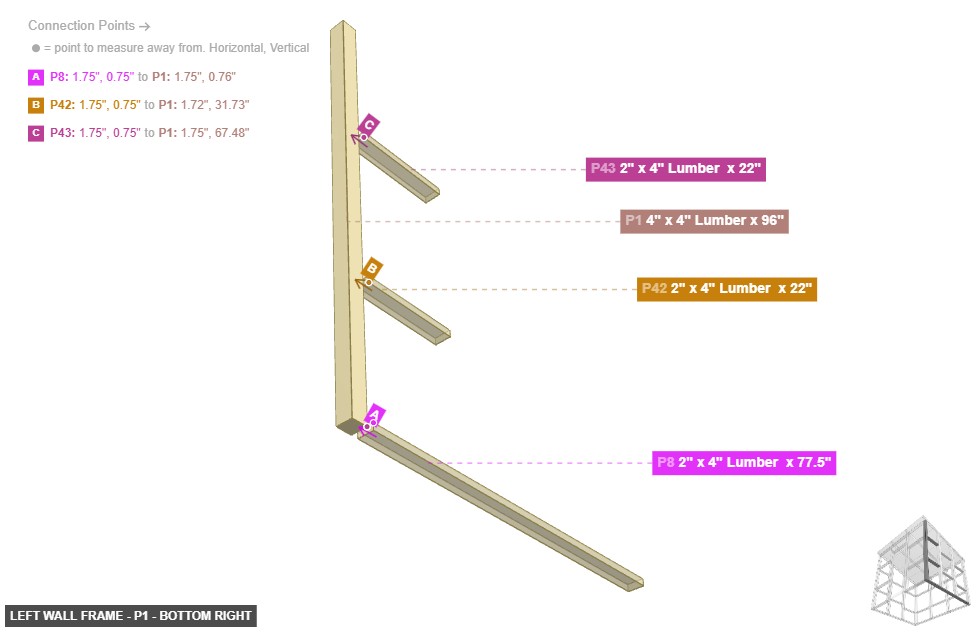

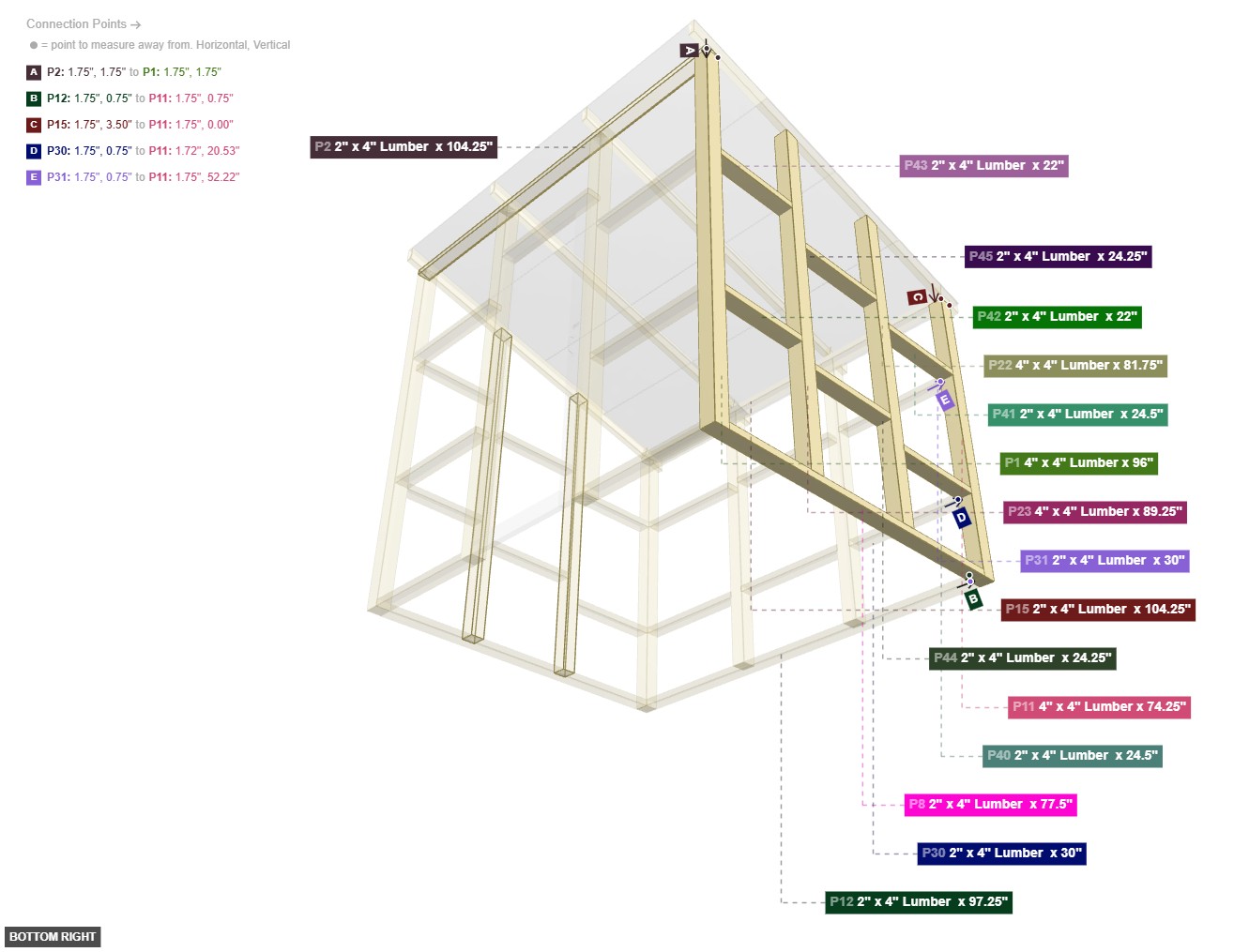

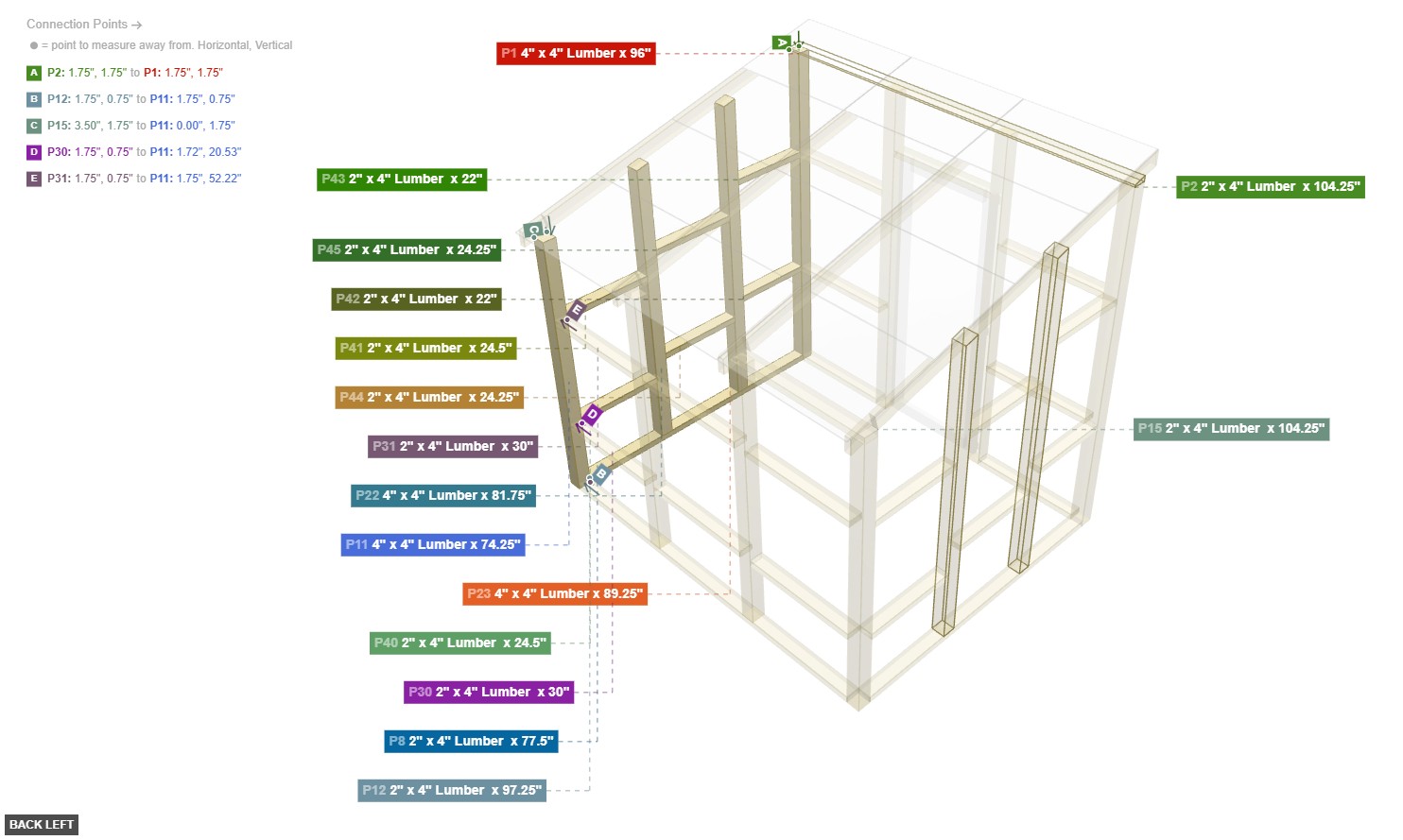

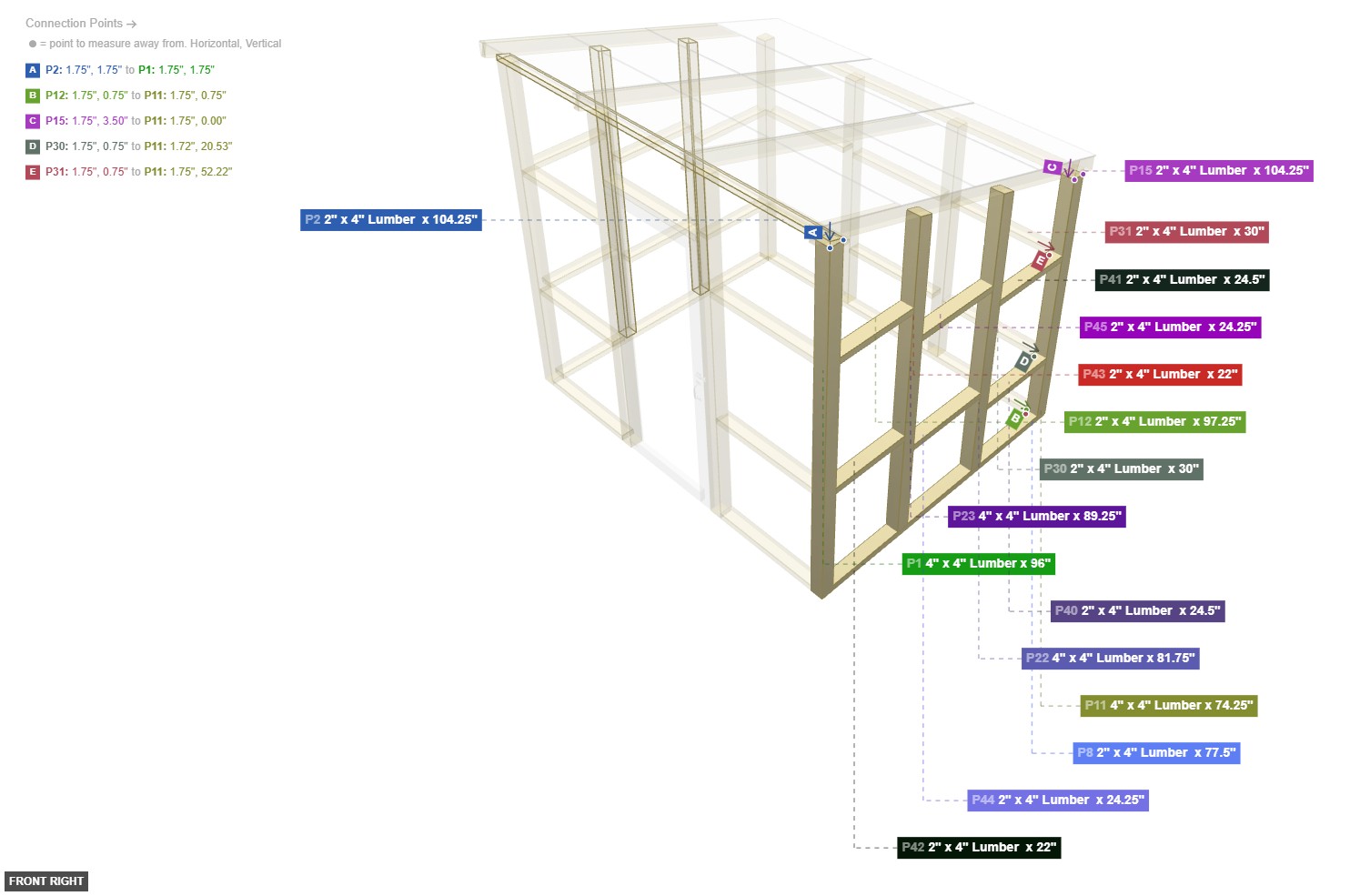

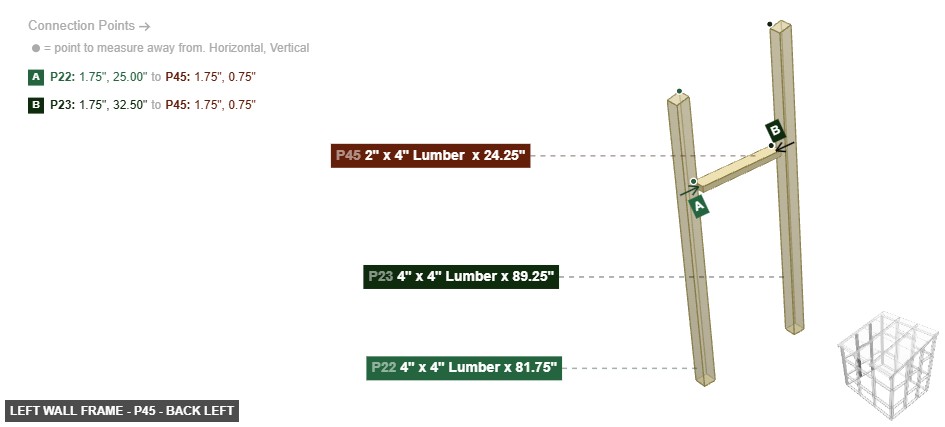

Group: Left Wall Frame

Forms the main structural frame for the left side of the greenhouse.

Lay out the main vertical posts P1, P11, P22, and P23. Attach the long horizontal beam P8 to connect these posts. Install the smaller support beams P40, P41, P42, P43, P44, and P45 into their designated positions between the main posts.

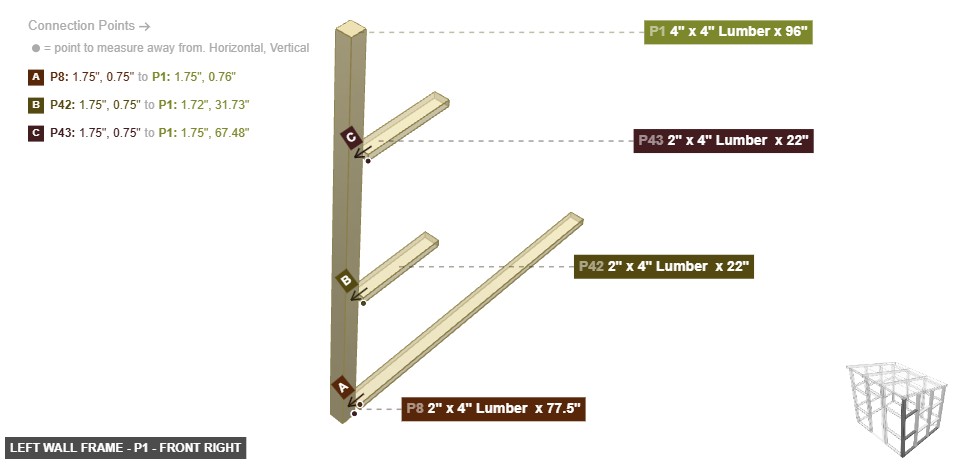

Part: 4" x 4" Lumber x 96" - Angle: back left

P1 (4" x 4" Lumber 96" length) - attach its 4" x 4" Wood Side #2 facing back to part 8's 2" x 4" Wood End #2. Additionally, its 4" x 4" Wood Side #1 should be directed left. Next, ensure its 4" x 4" Wood Side #3 faces right, also its 4" x 4" Wood Side #4 should be directed front. Additionally, its 4" x 4" Wood End #2 should be directed bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 96" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 96" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 77.5" - Angle: back left

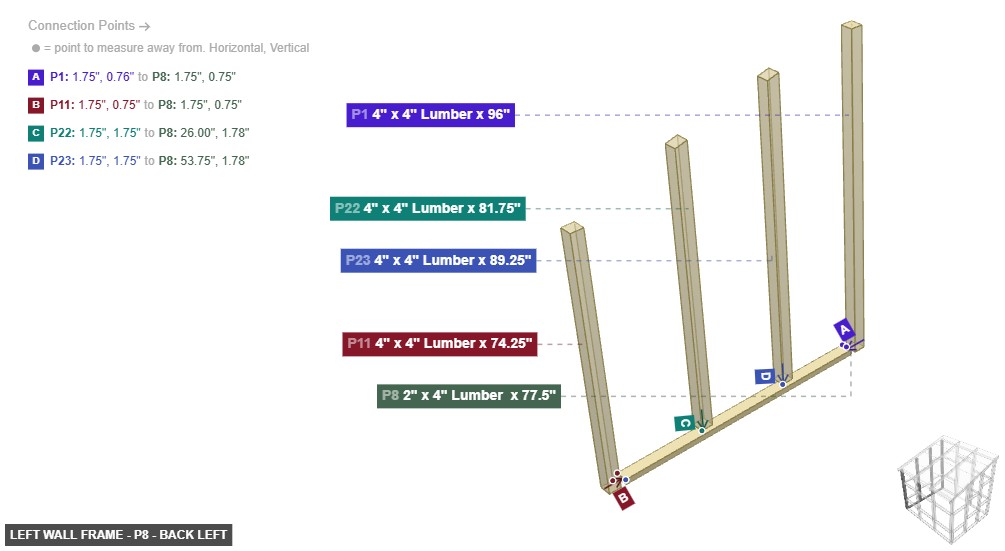

P8 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood End #1 oriented back links with part 11's 4" x 4" Wood Side #1. Next, connect its 2" x 4" Wood Side #4 oriented top links with part 22's 4" x 4" Wood End #2, and attach its 2" x 4" Wood End #2 facing front to part 1's 4" x 4" Wood Side #2, plus its 2" x 4" Wood Side #1 should be directed left, also ensure its 2" x 4" Wood Side #2 faces bottom. Additionally, its 2" x 4" Wood Side #3 must be oriented right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

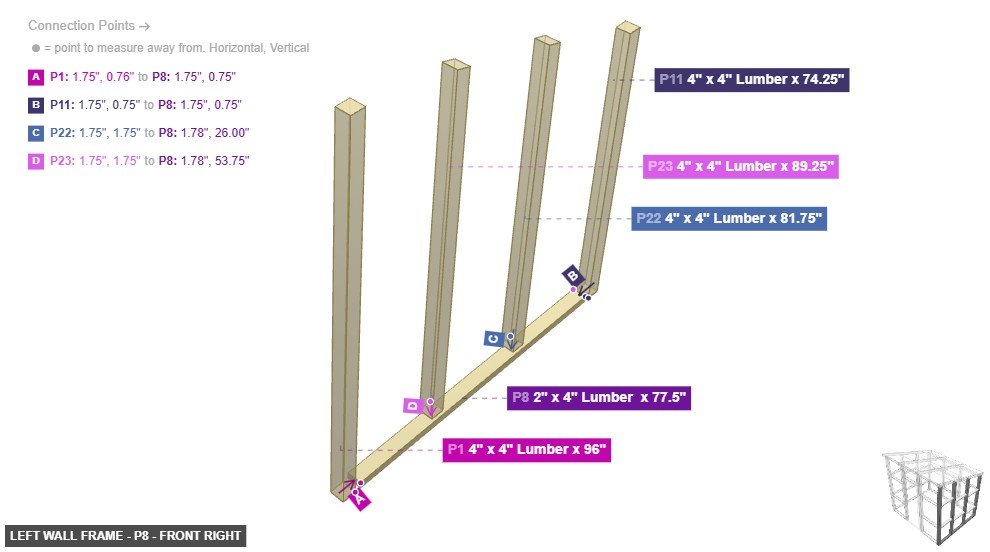

Part: 2" x 4" Lumber x 77.5" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

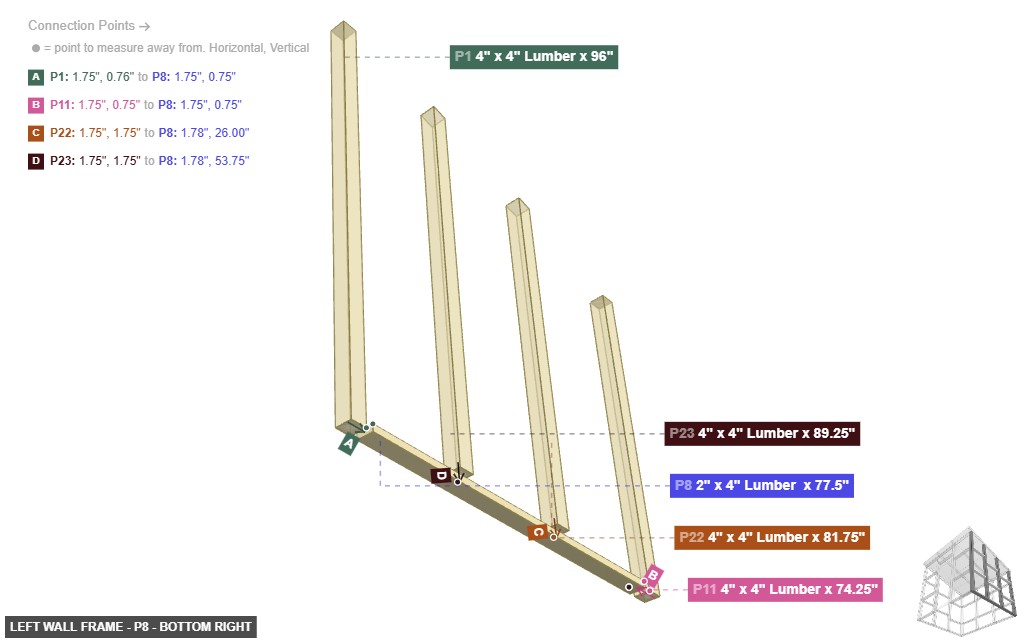

Part: 2" x 4" Lumber x 77.5" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

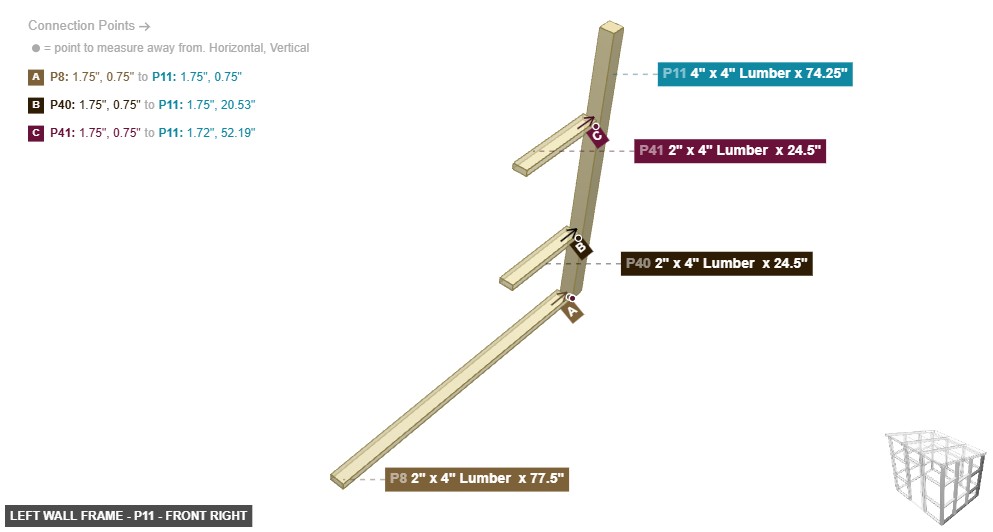

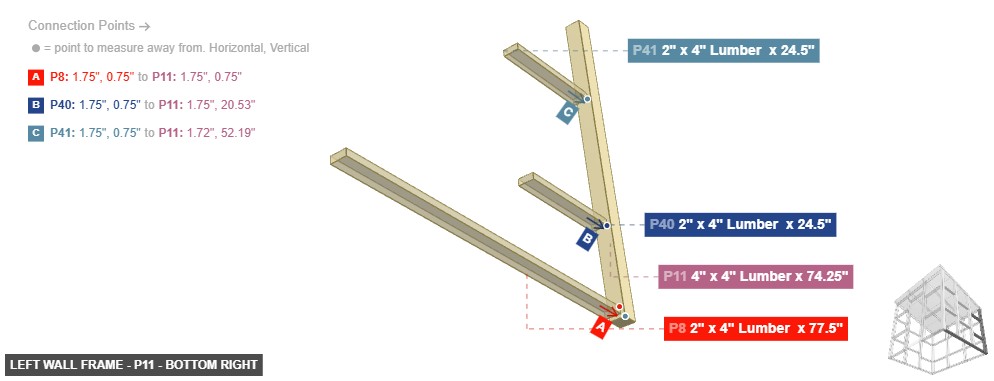

Part: 4" x 4" Lumber x 74.25" - Angle: back left

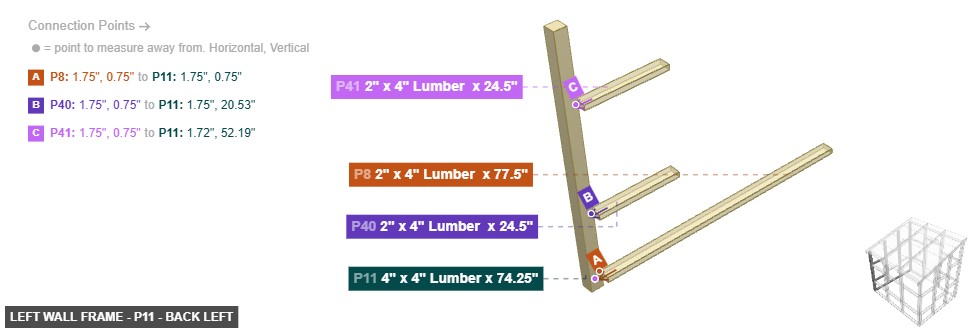

P11 (4" x 4" Lumber 74.25" length) - attach its 4" x 4" Wood Side #1 facing front to part 8's 2" x 4" Wood End #1. After that, its 4" x 4" Wood Side #3 needs to point back, then its 4" x 4" Wood Side #4 needs to point right, also its 4" x 4" Wood End #2 needs to point bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 74.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 74.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

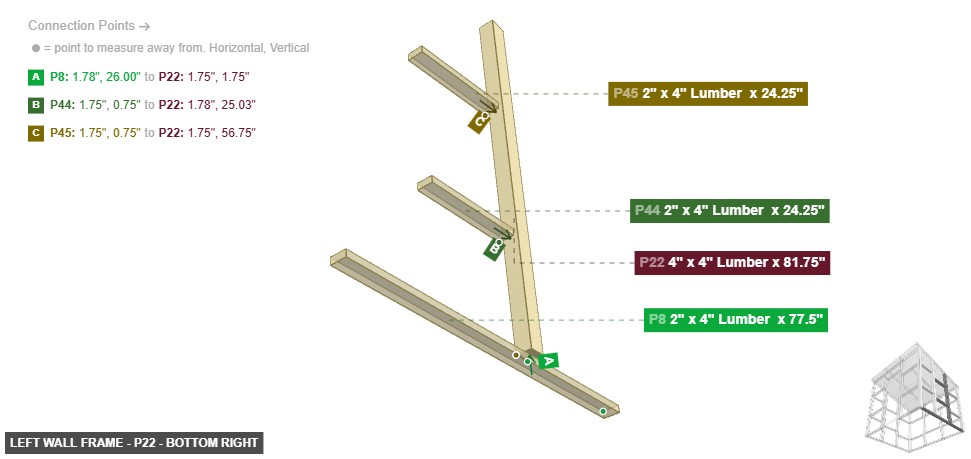

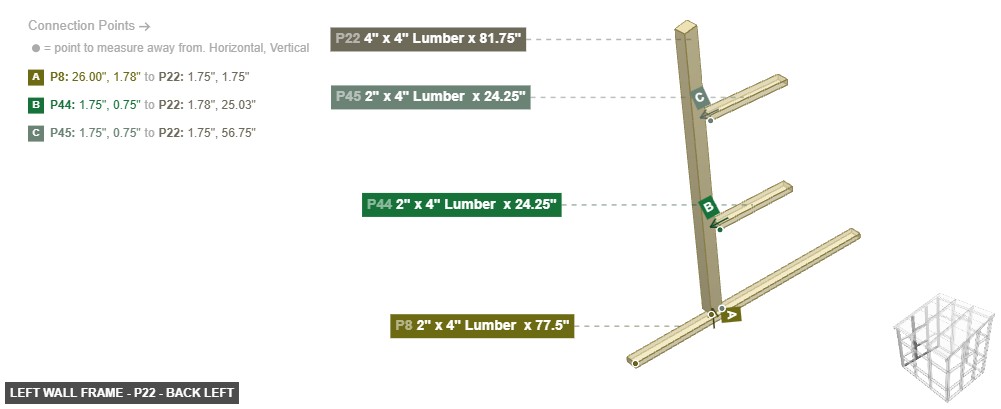

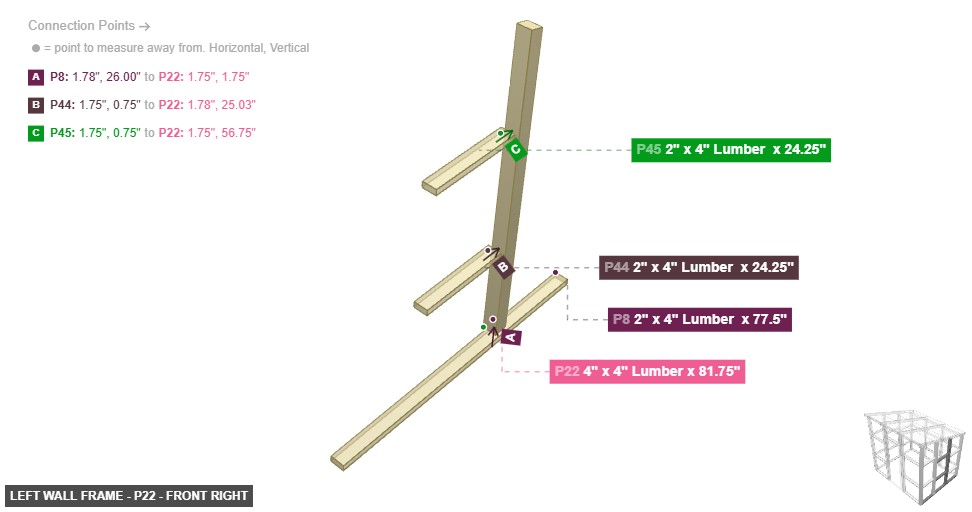

Part: 4" x 4" Lumber x 81.75" - Angle: back left

P22 (4" x 4" Lumber 81.75" length) - its 4" x 4" Wood Side #1, which is front-facing, should connect to part 44's 2" x 4" Wood End #2. Additionally, connect its 4" x 4" Wood End #2 oriented bottom links with part 8's 2" x 4" Wood Side #4, then its 4" x 4" Wood End #1 must be oriented top, then ensure its 4" x 4" Wood Side #2 faces left, then its 4" x 4" Wood Side #3 needs to point back. After that, its 4" x 4" Wood Side #4 needs to point right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 81.75" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 81.75" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

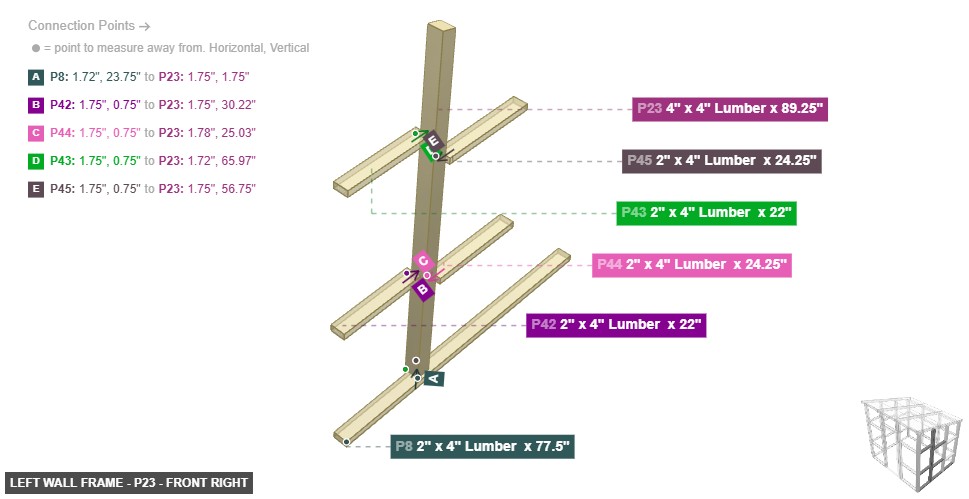

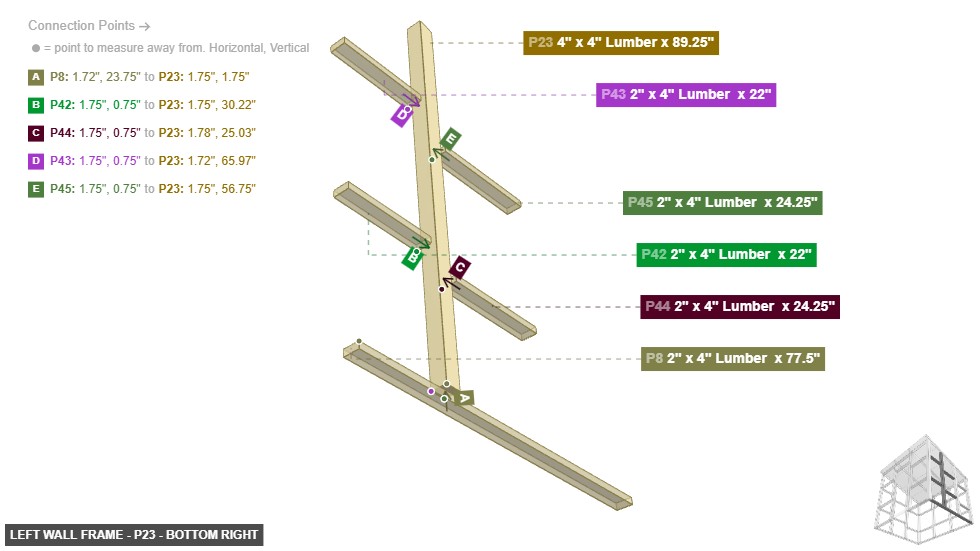

Part: 4" x 4" Lumber x 89.25" - Angle: back left

P23 (4" x 4" Lumber 89.25" length) - its 4" x 4" Wood Side #1, which is front-facing, should connect to part 42's 2" x 4" Wood End #1, then attach its 4" x 4" Wood Side #3 facing back to part 44's 2" x 4" Wood End #1. Next, attach its 4" x 4" Wood End #2 facing bottom to part 8's 2" x 4" Wood Side #4, then its 4" x 4" Wood End #1 must be oriented top. Also, its 4" x 4" Wood Side #2 should be directed left. Additionally, its 4" x 4" Wood Side #4 should be directed right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 89.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 4" x 4" Lumber x 89.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

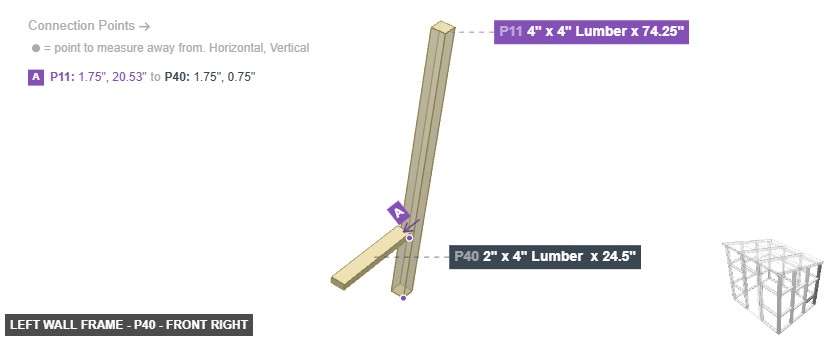

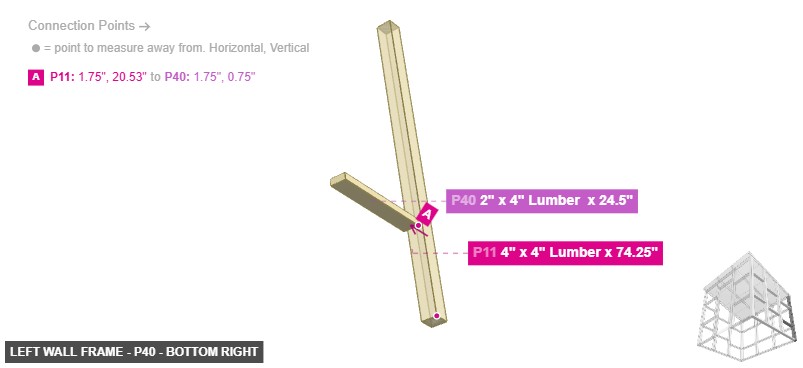

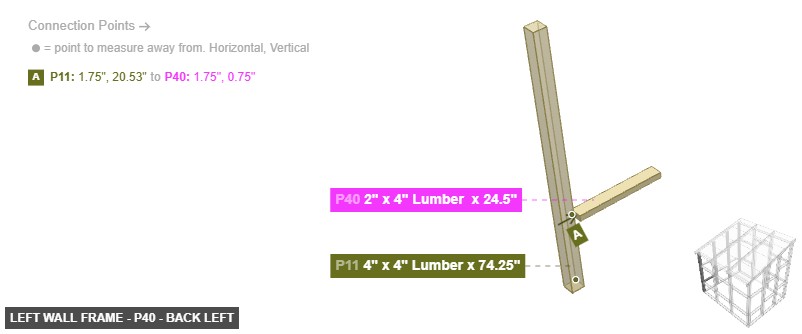

Part: 2" x 4" Lumber x 24.5" - Angle: back left

P40 (2" x 4" Lumber 24.5" length) - its 2" x 4" Wood End #2, which is back-facing, should connect to part 11's 4" x 4" Wood Side #1, and its 2" x 4" Wood End #1 should be directed front, and its 2" x 4" Wood Side #1 must be oriented left. After that, ensure its 2" x 4" Wood Side #2 faces top, and its 2" x 4" Wood Side #3 needs to point right, then its 2" x 4" Wood Side #4 should be directed bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.5" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.5" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

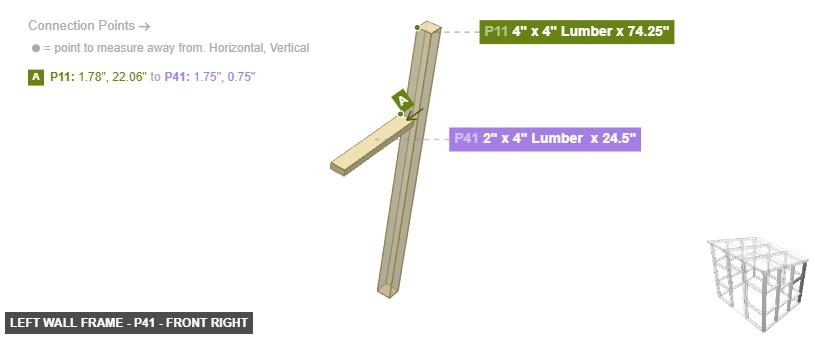

Part: 2" x 4" Lumber x 24.5" - Angle: back left

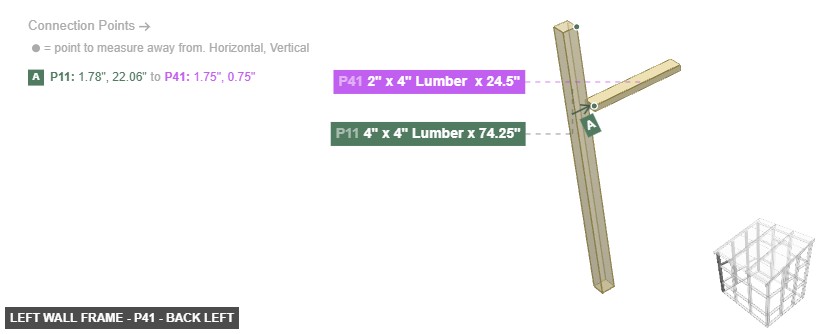

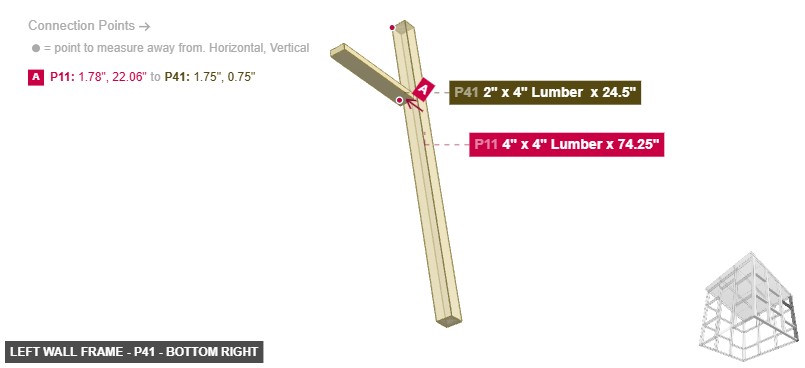

P41 (2" x 4" Lumber 24.5" length) - connect its 2" x 4" Wood End #2 oriented back links with part 11's 4" x 4" Wood Side #1, then its 2" x 4" Wood End #1 needs to point front, and its 2" x 4" Wood Side #1 should be directed left, plus its 2" x 4" Wood Side #2 should be directed top, and its 2" x 4" Wood Side #3 should be directed right. Additionally, its 2" x 4" Wood Side #4 should be directed bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.5" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.5" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

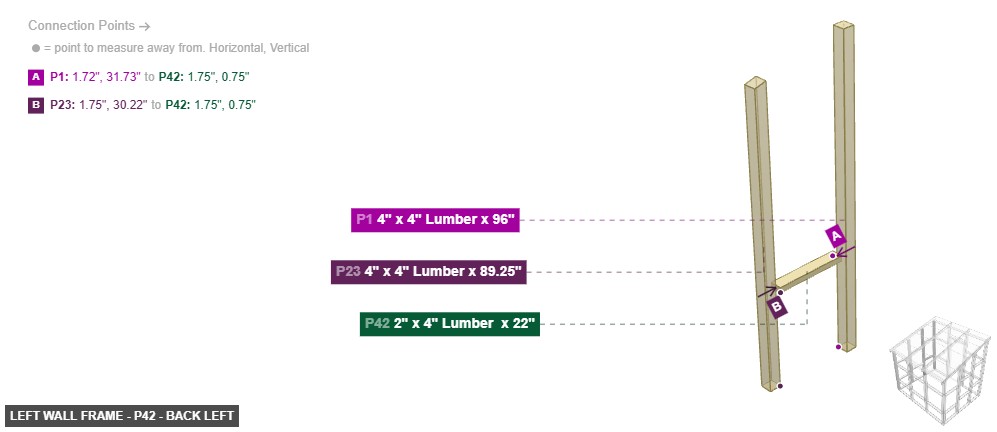

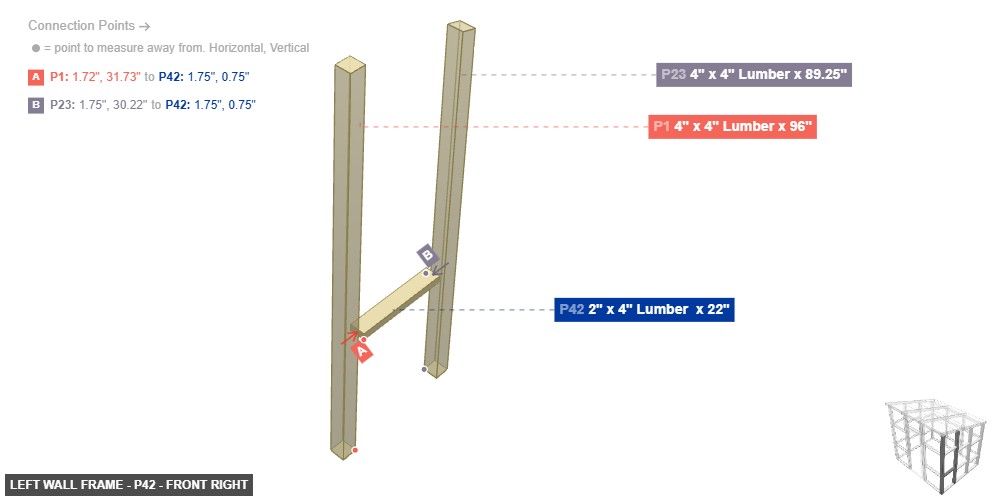

Part: 2" x 4" Lumber x 22" - Angle: back left

P42 (2" x 4" Lumber 22" length) - attach its 2" x 4" Wood End #1 facing back to part 23's 4" x 4" Wood Side #1, plus its 2" x 4" Wood End #2, which is front-facing, should connect to part 1's 4" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #1 must be oriented left, plus its 2" x 4" Wood Side #2 needs to point bottom, also its 2" x 4" Wood Side #3 needs to point right. Additionally, its 2" x 4" Wood Side #4 must be oriented top

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 22" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 22" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

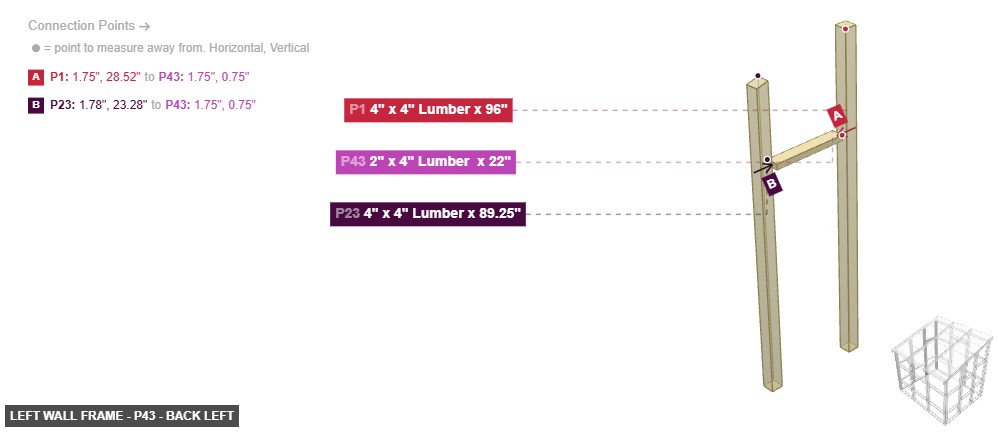

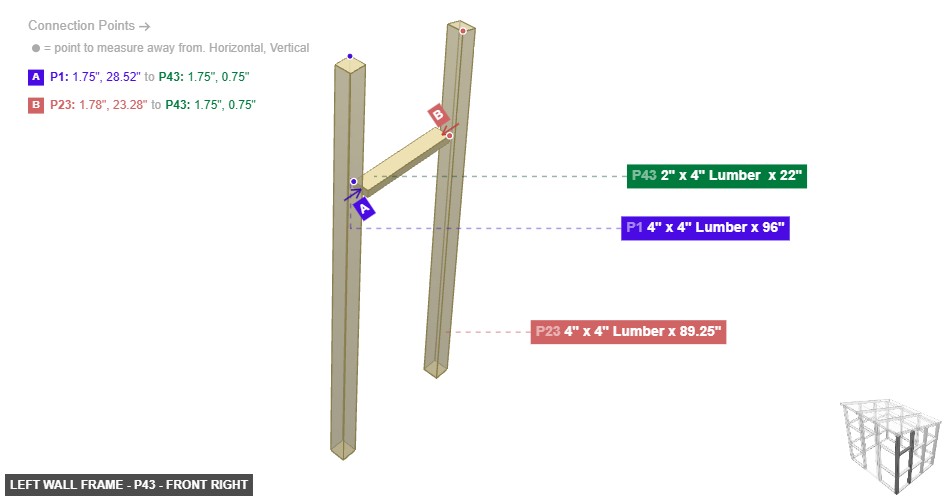

Part: 2" x 4" Lumber x 22" - Angle: back left

P43 (2" x 4" Lumber 22" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 23's 4" x 4" Wood Side #1. After that, attach its 2" x 4" Wood End #2 facing front to part 1's 4" x 4" Wood Side #2. Next, its 2" x 4" Wood Side #1 must be oriented left. Also, ensure its 2" x 4" Wood Side #2 faces bottom. Additionally, its 2" x 4" Wood Side #3 must be oriented right. Next, its 2" x 4" Wood Side #4 needs to point top

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 22" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

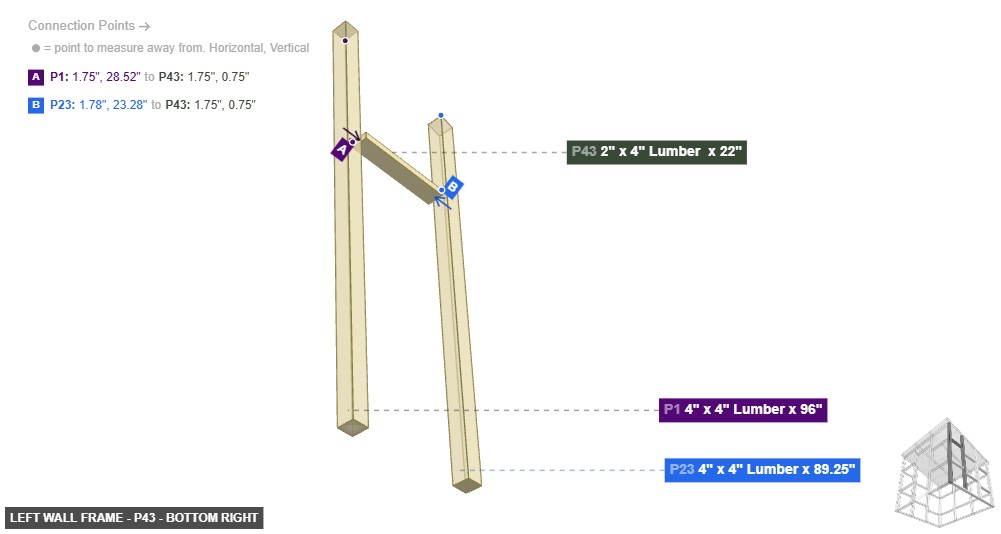

Part: 2" x 4" Lumber x 22" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: back left

P44 (2" x 4" Lumber 24.25" length) - attach its 2" x 4" Wood End #1 facing front to part 23's 4" x 4" Wood Side #3, also its 2" x 4" Wood End #2, which is back-facing, should connect to part 22's 4" x 4" Wood Side #1. After that, its 2" x 4" Wood Side #1 should be directed left, then ensure its 2" x 4" Wood Side #2 faces top, also its 2" x 4" Wood Side #3 should be directed right. Additionally, its 2" x 4" Wood Side #4 needs to point bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

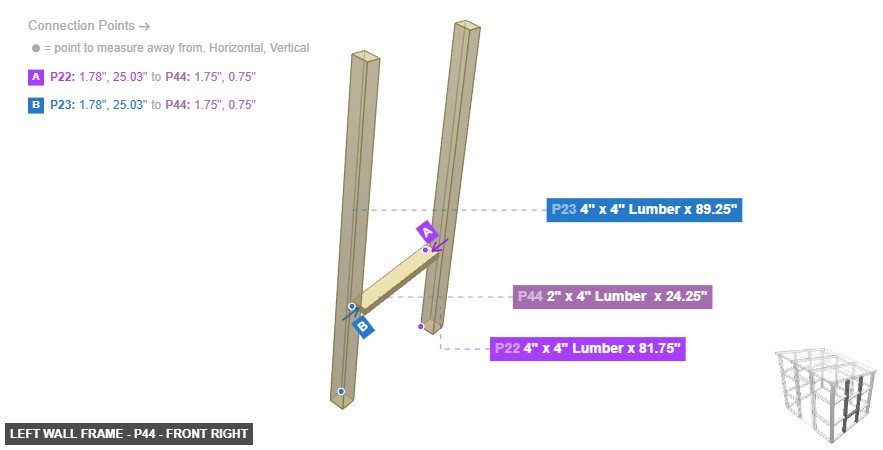

Part: 2" x 4" Lumber x 24.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: back left

P45 (2" x 4" Lumber 24.25" length) - attach its 2" x 4" Wood End #1 facing front to part 23's 4" x 4" Wood Side #3, then its 2" x 4" Wood End #2, which is back-facing, should connect to part 22's 4" x 4" Wood Side #1. After that, its 2" x 4" Wood Side #1 needs to point left, then ensure its 2" x 4" Wood Side #2 faces top, plus its 2" x 4" Wood Side #3 must be oriented right, then its 2" x 4" Wood Side #4 needs to point bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Group: Right Wall Frame

Forms the main structural frame for the right side of the greenhouse.

Lay out the main vertical posts P3, P10, P20, and P21. Attach the long horizontal beam P9 to connect these posts. Install the smaller support beams P34, P35, P36, P37, P38, and P39 into their designated positions between the main posts.

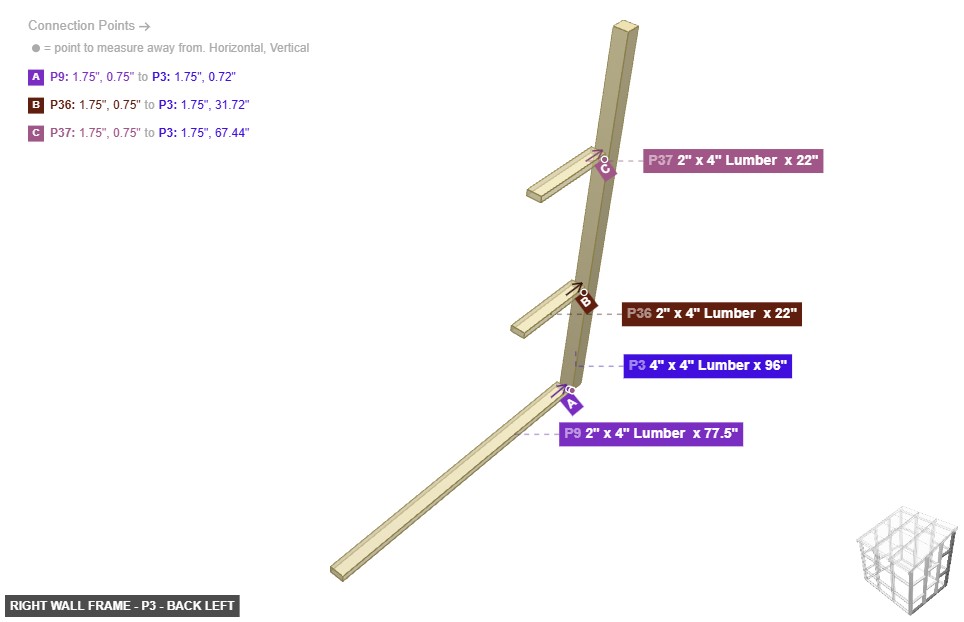

Part: 4" x 4" Lumber x 96" - Angle: back left

P3 (4" x 4" Lumber 96" length) - connect its 4" x 4" Wood Side #4 oriented back links with part 9's 2" x 4" Wood End #2. Also, ensure its 4" x 4" Wood End #1 faces bottom, plus its 4" x 4" Wood Side #1 must be oriented left, and its 4" x 4" Wood Side #2 must be oriented front

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

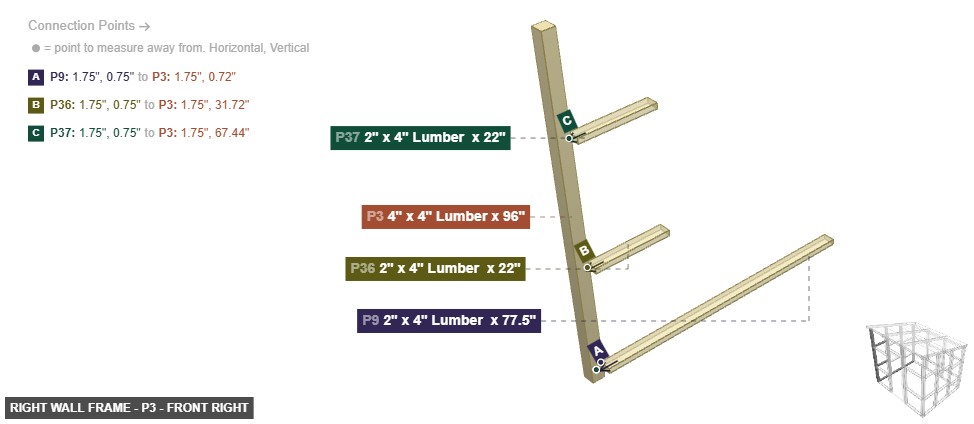

Part: 4" x 4" Lumber x 96" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 96" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 77.5" - Angle: back left

P9 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood End #1 oriented back links with part 10's 4" x 4" Wood Side #1, and its 2" x 4" Wood Side #4, which is top-facing, should connect to part 20's 4" x 4" Wood End #2, also connect its 2" x 4" Wood End #2 oriented front links with part 3's 4" x 4" Wood Side #4. Additionally, its 2" x 4" Wood Side #1 needs to point left, also its 2" x 4" Wood Side #2 should be directed bottom, and its 2" x 4" Wood Side #3 must be oriented right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 77.5" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

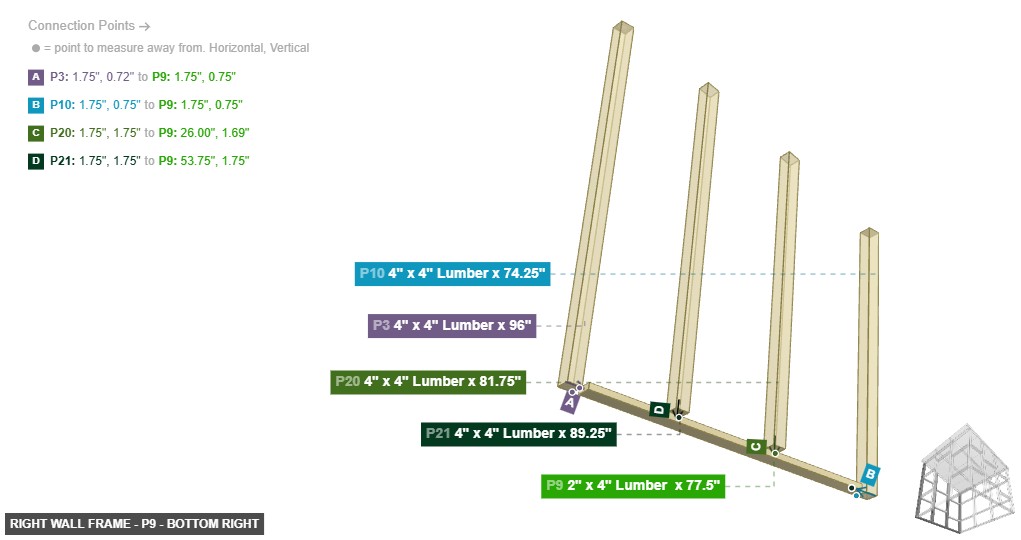

Part: 2" x 4" Lumber x 77.5" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 74.25" - Angle: back left

P10 (4" x 4" Lumber 74.25" length) - connect its 4" x 4" Wood Side #1 oriented front links with part 9's 2" x 4" Wood End #1. After that, ensure its 4" x 4" Wood Side #2 faces left. Also, its 4" x 4" Wood Side #3 needs to point back. After that, ensure its 4" x 4" Wood End #2 faces bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 74.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 74.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 81.75" - Angle: back left

P20 (4" x 4" Lumber 81.75" length) - its 4" x 4" Wood Side #1, which is front-facing, should connect to part 38's 2" x 4" Wood End #2. Next, attach its 4" x 4" Wood Side #3 facing back to part 34's 2" x 4" Wood End #1. Also, connect its 4" x 4" Wood End #2 oriented bottom links with part 9's 2" x 4" Wood Side #4, plus ensure its 4" x 4" Wood End #1 faces top. Also, its 4" x 4" Wood Side #2 should be directed left, then ensure its 4" x 4" Wood Side #4 faces right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 81.75" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 81.75" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 89.25" - Angle: back left

P21 (4" x 4" Lumber 89.25" length) - attach its 4" x 4" Wood Side #1 facing front to part 36's 2" x 4" Wood End #1. After that, attach its 4" x 4" Wood Side #3 facing back to part 38's 2" x 4" Wood End #1. Also, attach its 4" x 4" Wood End #2 facing bottom to part 9's 2" x 4" Wood Side #4. Additionally, its 4" x 4" Wood End #1 must be oriented top, and its 4" x 4" Wood Side #2 needs to point left. After that, its 4" x 4" Wood Side #4 should be directed right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 89.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 4" x 4" Lumber x 89.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: back left

P34 (2" x 4" Lumber 24.25" length) - attach its 2" x 4" Wood End #1 facing front to part 20's 4" x 4" Wood Side #3, plus attach its 2" x 4" Wood End #2 facing back to part 10's 4" x 4" Wood Side #1, then its 2" x 4" Wood Side #1 should be directed left. Next, its 2" x 4" Wood Side #2 needs to point top, and its 2" x 4" Wood Side #3 needs to point right, plus ensure its 2" x 4" Wood Side #4 faces bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

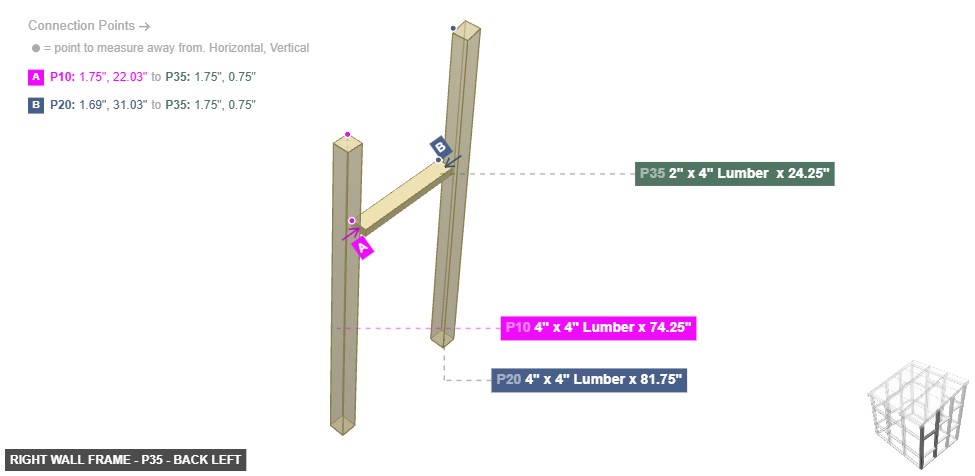

Part: 2" x 4" Lumber x 24.25" - Angle: back left

P35 (2" x 4" Lumber 24.25" length) - connect its 2" x 4" Wood End #1 oriented front links with part 20's 4" x 4" Wood Side #3. Next, connect its 2" x 4" Wood End #2 oriented back links with part 10's 4" x 4" Wood Side #1, plus ensure its 2" x 4" Wood Side #1 faces left. After that, its 2" x 4" Wood Side #2 must be oriented top, then ensure its 2" x 4" Wood Side #3 faces right. After that, ensure its 2" x 4" Wood Side #4 faces bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

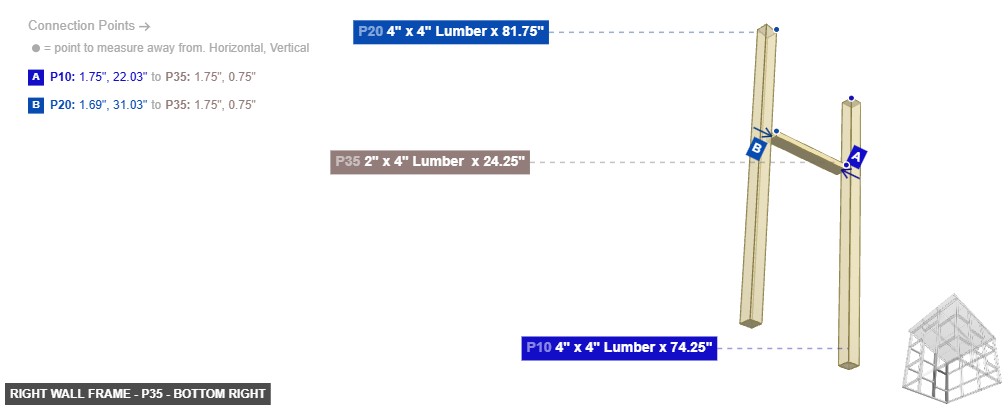

Part: 2" x 4" Lumber x 24.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 22" - Angle: back left

P36 (2" x 4" Lumber 22" length) - connect its 2" x 4" Wood End #1 oriented back links with part 21's 4" x 4" Wood Side #1. Next, attach its 2" x 4" Wood End #2 facing front to part 3's 4" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 must be oriented left, also its 2" x 4" Wood Side #2 needs to point bottom, then its 2" x 4" Wood Side #3 must be oriented right. After that, its 2" x 4" Wood Side #4 should be directed top

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 22" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

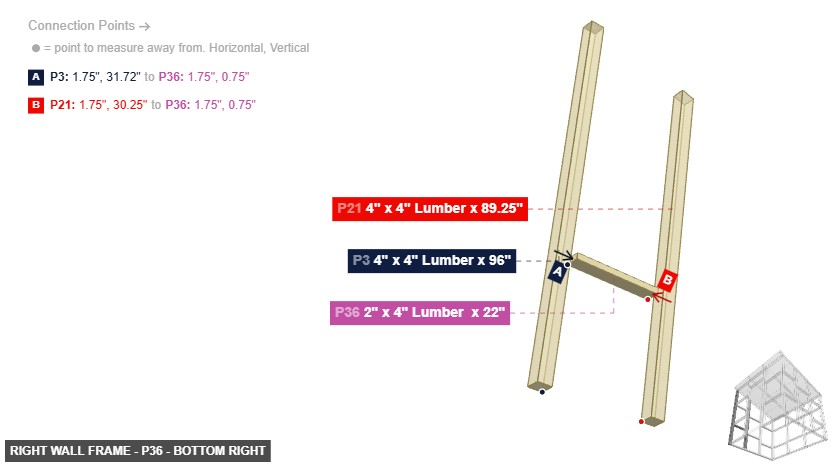

Part: 2" x 4" Lumber x 22" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 22" - Angle: back left

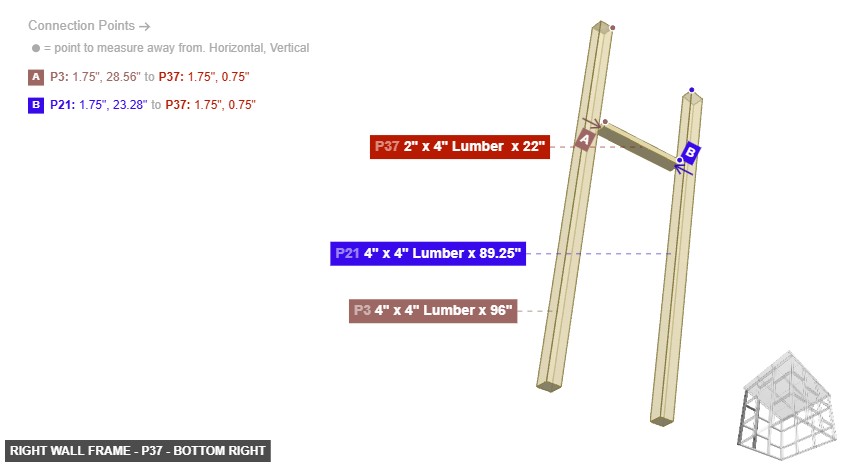

P37 (2" x 4" Lumber 22" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 21's 4" x 4" Wood Side #1. After that, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 4" x 4" Wood Side #4, and its 2" x 4" Wood Side #1 must be oriented left. Also, ensure its 2" x 4" Wood Side #2 faces bottom, then its 2" x 4" Wood Side #3 should be directed right. Also, ensure its 2" x 4" Wood Side #4 faces top

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 22" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 22" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

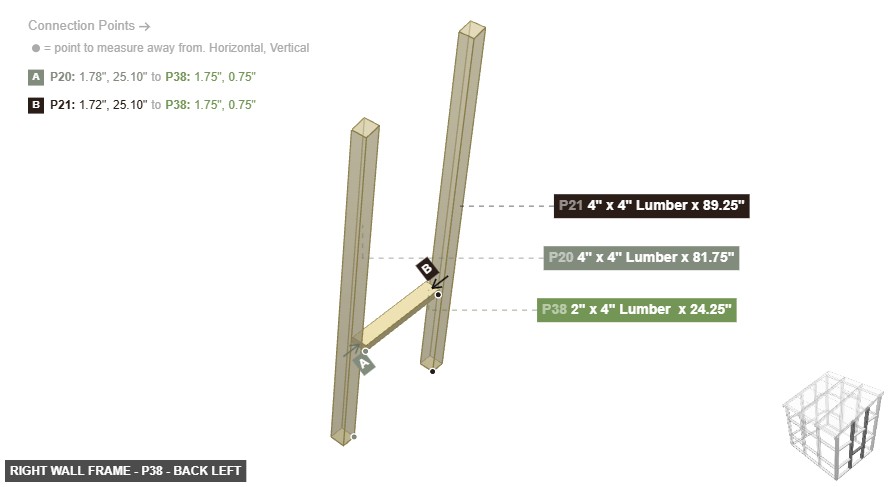

Part: 2" x 4" Lumber x 24.25" - Angle: back left

P38 (2" x 4" Lumber 24.25" length) - connect its 2" x 4" Wood End #1 oriented front links with part 21's 4" x 4" Wood Side #3. Additionally, its 2" x 4" Wood End #2, which is back-facing, should connect to part 20's 4" x 4" Wood Side #1, then ensure its 2" x 4" Wood Side #1 faces left, and its 2" x 4" Wood Side #2 needs to point top, then ensure its 2" x 4" Wood Side #3 faces right, also ensure its 2" x 4" Wood Side #4 faces bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

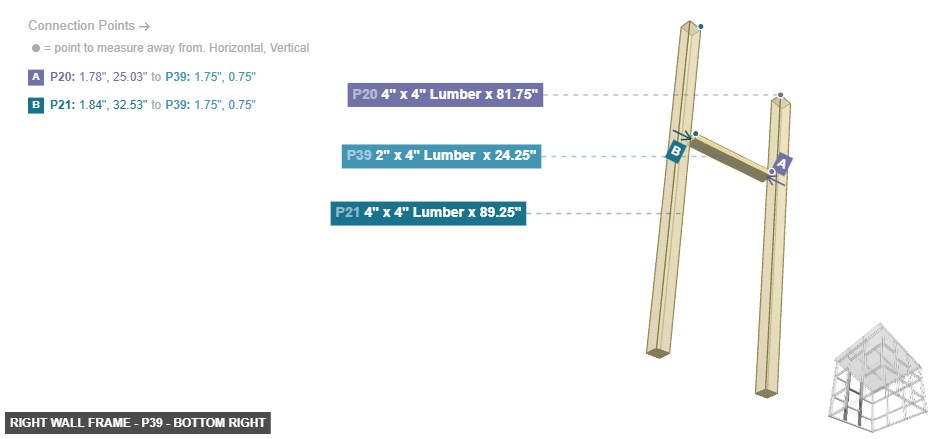

Part: 2" x 4" Lumber x 24.25" - Angle: back left

P39 (2" x 4" Lumber 24.25" length) - attach its 2" x 4" Wood End #1 facing front to part 21's 4" x 4" Wood Side #3, also its 2" x 4" Wood End #2, which is back-facing, should connect to part 20's 4" x 4" Wood Side #1, plus its 2" x 4" Wood Side #1 needs to point left. Next, its 2" x 4" Wood Side #2 needs to point top. Next, ensure its 2" x 4" Wood Side #3 faces right. Additionally, its 2" x 4" Wood Side #4 must be oriented bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: front right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Part: 2" x 4" Lumber x 24.25" - Angle: bottom right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

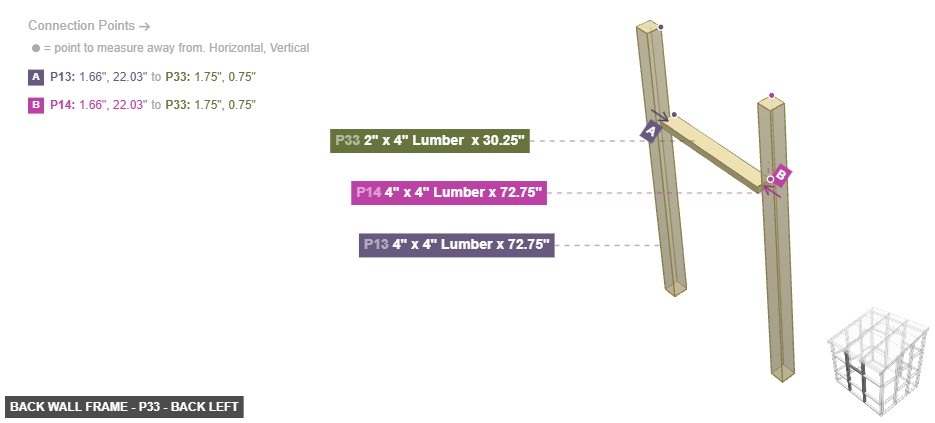

Group: Back Wall Frame

Forms the structural frame for the back of the greenhouse, connecting the left and right walls.

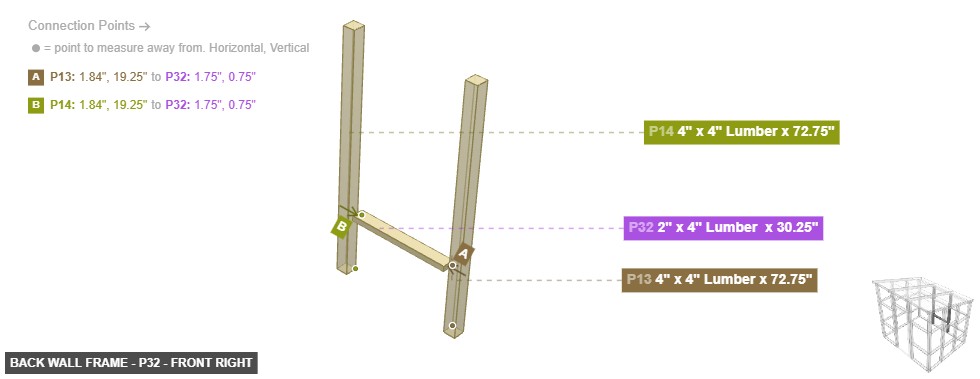

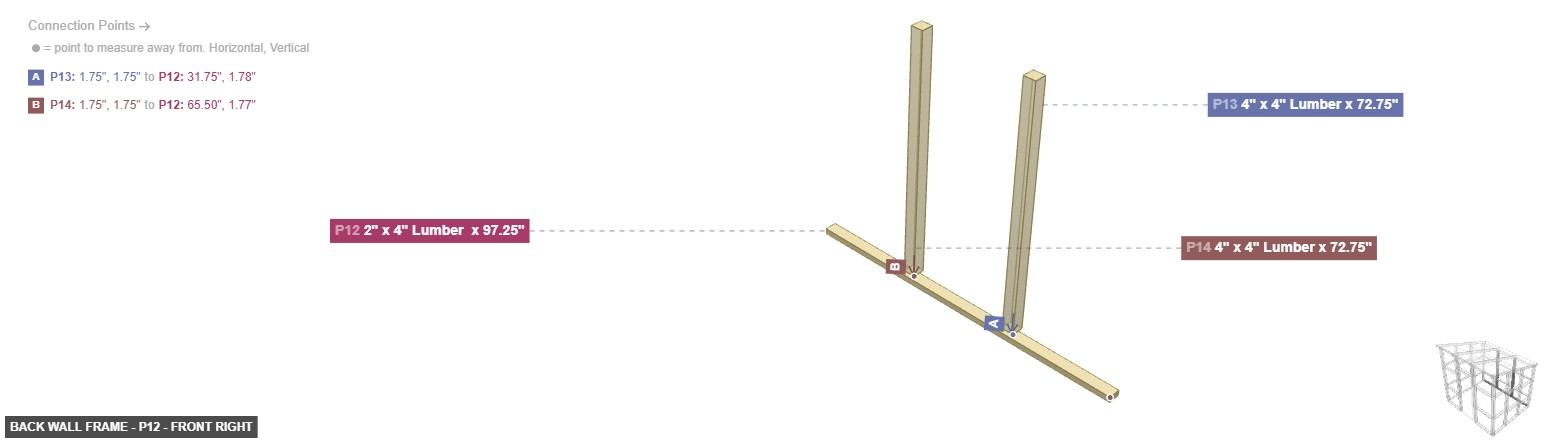

Connect the intermediate posts P13 and P14 using the horizontal beams P32 and P33. Attach the top beam P12 across the top of P13 and P14. The remaining supports P28, P29, P30, and P31 will be used to attach this frame to the side walls.

Part: 2" x 4" Lumber x 97.25" - Angle: back left

P12 (2" x 4" Lumber 97.25" length) - attach its 2" x 4" Wood Side #4 facing top to part 13's 4" x 4" Wood End #2, plus its 2" x 4" Wood Side #1 should be directed front. Also, its 2" x 4" Wood Side #2 should be directed bottom, plus its 2" x 4" Wood Side #3 should be directed back

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 97.25" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 97.25" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 4" x 4" Lumber x 72.75" - Angle: back left

P13 (4" x 4" Lumber 72.75" length) - connect its 4" x 4" Wood Side #1 oriented right links with part 30's 2" x 4" Wood End #1. After that, connect its 4" x 4" Wood Side #3 oriented left links with part 32's 2" x 4" Wood End #2. Also, its 4" x 4" Wood End #2, which is bottom-facing, should connect to part 12's 2" x 4" Wood Side #4, then its 4" x 4" Wood Side #2 needs to point front, plus its 4" x 4" Wood Side #4 needs to point back

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 4" x 4" Lumber x 72.75" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 4" x 4" Lumber x 72.75" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 4" x 4" Lumber x 72.75" - Angle: back left

P14 (4" x 4" Lumber 72.75" length) - its 4" x 4" Wood Side #1, which is right-facing, should connect to part 32's 2" x 4" Wood End #1, then connect its 4" x 4" Wood Side #3 oriented left links with part 28's 2" x 4" Wood End #1, then connect its 4" x 4" Wood End #2 oriented bottom links with part 12's 2" x 4" Wood Side #4. Also, its 4" x 4" Wood Side #2 should be directed front, and ensure its 4" x 4" Wood Side #4 faces back

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 4" x 4" Lumber x 72.75" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 4" x 4" Lumber x 72.75" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: back left

P28 (2" x 4" Lumber 30" length) - connect its 2" x 4" Wood End #1 oriented right links with part 14's 4" x 4" Wood Side #3. Also, its 2" x 4" Wood Side #1 should be directed front. After that, ensure its 2" x 4" Wood Side #2 faces top. Additionally, ensure its 2" x 4" Wood Side #3 faces back, plus its 2" x 4" Wood Side #4 should be directed bottom

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: back left

P29 (2" x 4" Lumber 30" length) - connect its 2" x 4" Wood End #1 oriented right links with part 14's 4" x 4" Wood Side #3. Additionally, its 2" x 4" Wood Side #1 must be oriented front. Additionally, its 2" x 4" Wood Side #2 must be oriented top, then its 2" x 4" Wood Side #3 must be oriented back, and its 2" x 4" Wood Side #4 needs to point bottom

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: back left

P30 (2" x 4" Lumber 30" length) - attach its 2" x 4" Wood End #1 facing left to part 13's 4" x 4" Wood Side #1. After that, its 2" x 4" Wood Side #1 needs to point front. After that, its 2" x 4" Wood Side #2 must be oriented bottom, plus its 2" x 4" Wood Side #3 needs to point back. Next, its 2" x 4" Wood Side #4 needs to point top

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: back left

P31 (2" x 4" Lumber 30" length) - connect its 2" x 4" Wood End #1 oriented left links with part 13's 4" x 4" Wood Side #1. Also, ensure its 2" x 4" Wood Side #1 faces front, plus its 2" x 4" Wood Side #2 needs to point bottom. After that, its 2" x 4" Wood Side #3 needs to point back, then its 2" x 4" Wood Side #4 must be oriented top

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30.25" - Angle: back left

P32 (2" x 4" Lumber 30.25" length) - attach its 2" x 4" Wood End #1 facing left to part 14's 4" x 4" Wood Side #1, plus attach its 2" x 4" Wood End #2 facing right to part 13's 4" x 4" Wood Side #3, plus its 2" x 4" Wood Side #1 should be directed front, plus its 2" x 4" Wood Side #2 needs to point bottom. After that, its 2" x 4" Wood Side #3 needs to point back. Additionally, ensure its 2" x 4" Wood Side #4 faces top

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30.25" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30.25" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30.25" - Angle: back left

P33 (2" x 4" Lumber 30.25" length) - connect its 2" x 4" Wood End #1 oriented left links with part 14's 4" x 4" Wood Side #1. Next, attach its 2" x 4" Wood End #2 facing right to part 13's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood Side #1 must be oriented front, and its 2" x 4" Wood Side #2 needs to point bottom. Also, its 2" x 4" Wood Side #3 should be directed back. Additionally, ensure its 2" x 4" Wood Side #4 faces top

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30.25" - Angle: front right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Part: 2" x 4" Lumber x 30.25" - Angle: bottom right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Group: Front Wall Frame and Door

Forms the front of the greenhouse, including the door and its frame.

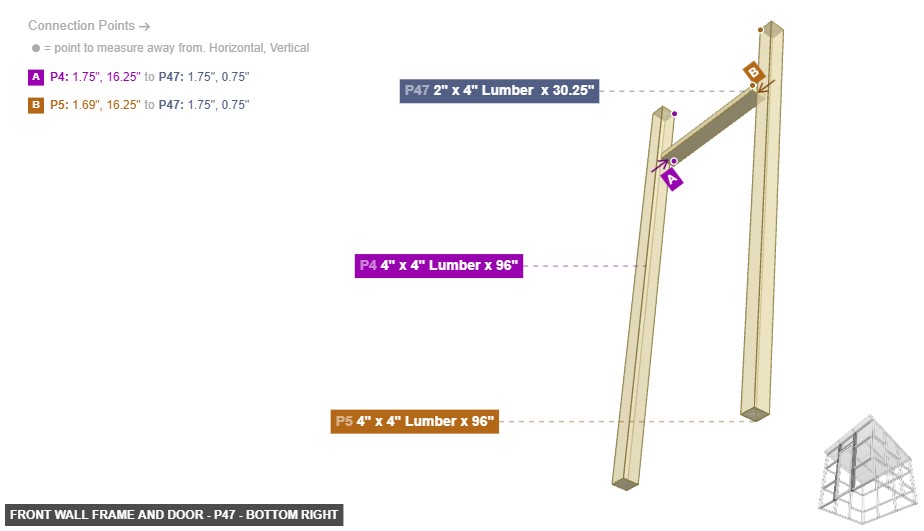

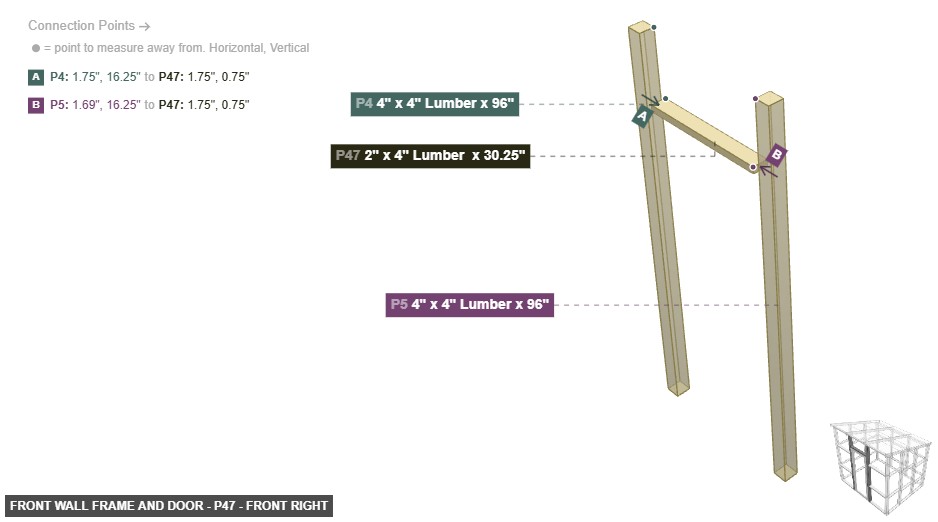

Create the door frame by connecting posts P4 and P5 with beam P47. Attach the horizontal beams P6, P7, P24, P25, P26, and P27 to the posts. Install the door P46 onto post P4. The entire assembly is capped with the top plate P2.

Part: 2" x 4" Lumber x 104.25" - Angle: back left

P2 (2" x 4" Lumber 104.25" length) - its 2" x 4" Wood End #1 should be directed left. Additionally, its 2" x 4" Wood Side #1 should be directed front, plus ensure its 2" x 4" Wood Side #3 faces back. Also, ensure its 2" x 4" Wood Side #4 faces top, plus its 2" x 4" Wood End #2 should be directed right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

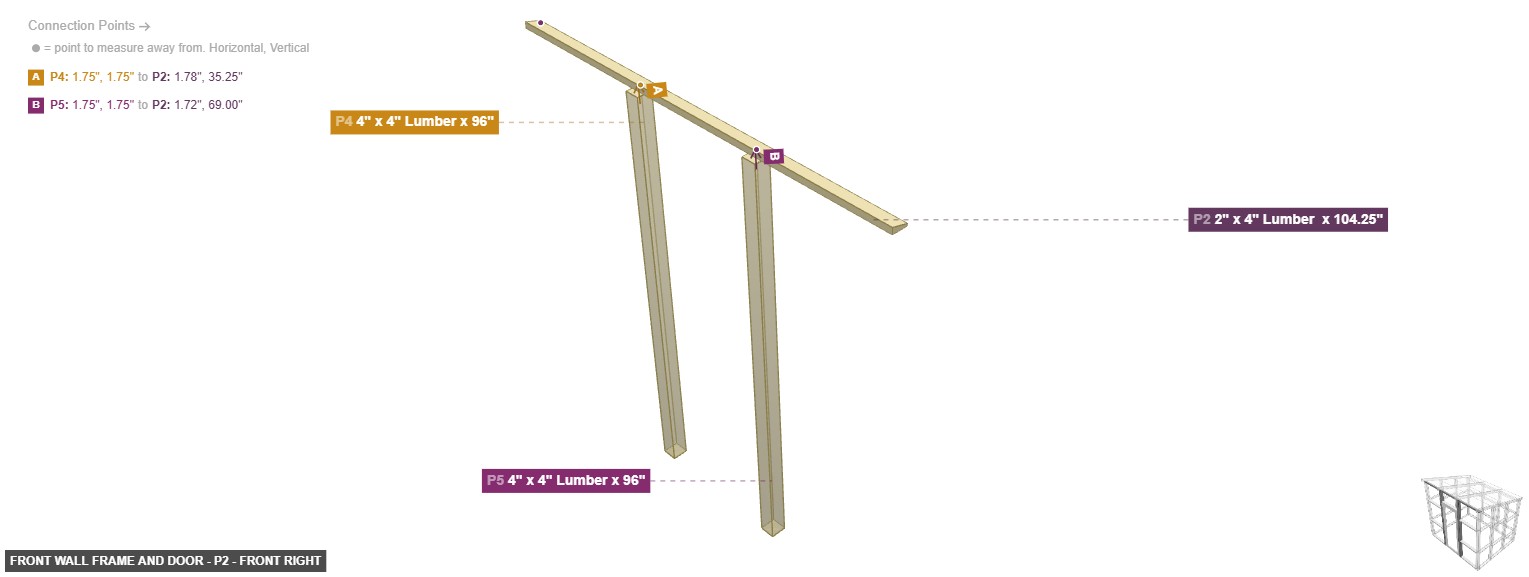

Part: 2" x 4" Lumber x 104.25" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 104.25" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 4" x 4" Lumber x 96" - Angle: back left

P4 (4" x 4" Lumber 96" length) - connect its 4" x 4" Wood Side #1 oriented left links with part 6's 2" x 4" Wood End #1. Additionally, its 4" x 4" Wood Side #2, which is front-facing, should connect to part 46's Screw-In Screw In #1, then its 4" x 4" Wood Side #3, which is right-facing, should connect to part 47's 2" x 4" Wood End #2. Additionally, connect its 4" x 4" Wood End #2 oriented top links with part 2's 2" x 4" Wood Side #2. Additionally, its 4" x 4" Wood End #1 should be directed bottom, and its 4" x 4" Wood Side #4 needs to point back

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 4" x 4" Lumber x 96" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 4" x 4" Lumber x 96" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 4" x 4" Lumber x 96" - Angle: back left

P5 (4" x 4" Lumber 96" length) - attach its 4" x 4" Wood Side #1 facing left to part 47's 2" x 4" Wood End #1. Next, connect its 4" x 4" Wood Side #3 oriented right links with part 7's 2" x 4" Wood End #2, and attach its 4" x 4" Wood End #2 facing top to part 2's 2" x 4" Wood Side #2. Next, ensure its 4" x 4" Wood End #1 faces bottom. Additionally, ensure its 4" x 4" Wood Side #2 faces front. After that, its 4" x 4" Wood Side #4 must be oriented back

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

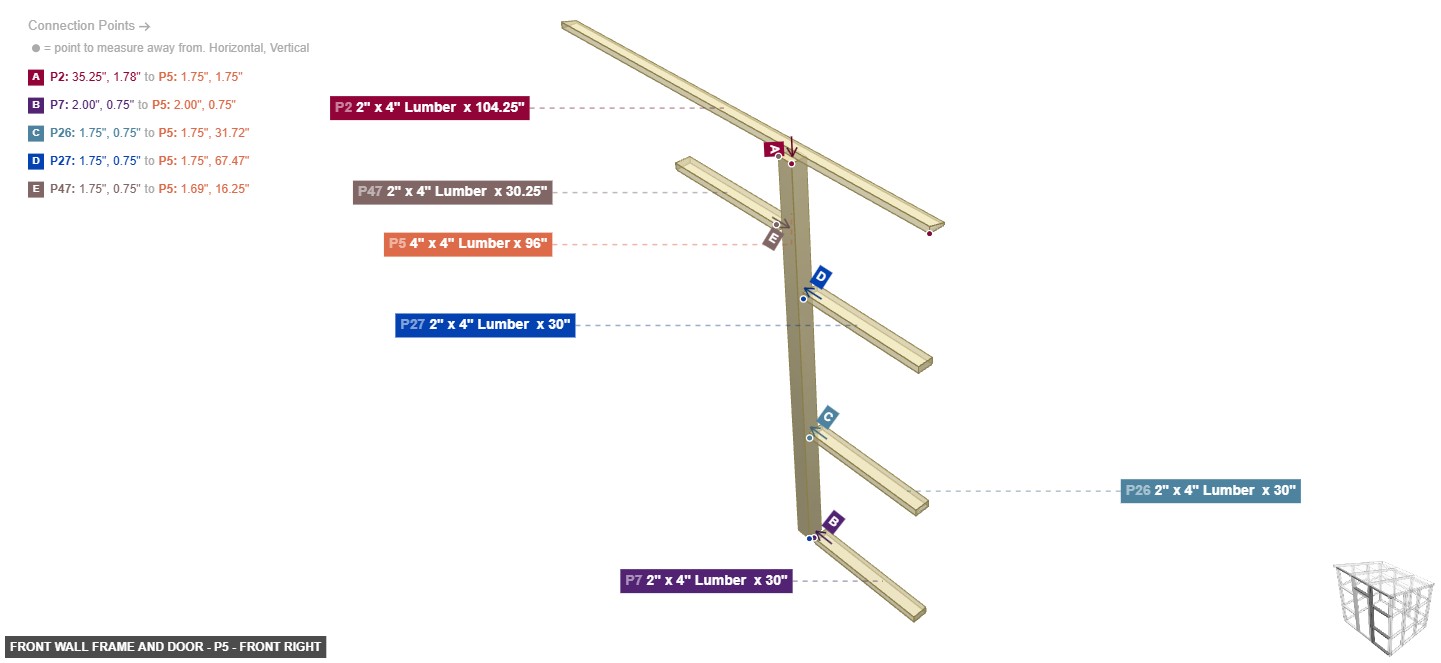

Part: 4" x 4" Lumber x 96" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 4" x 4" Lumber x 96" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: back left

P6 (2" x 4" Lumber 30" length) - attach its 2" x 4" Wood End #1 facing right to part 4's 4" x 4" Wood Side #1, then ensure its 2" x 4" Wood Side #1 faces front, then ensure its 2" x 4" Wood Side #2 faces top, and its 2" x 4" Wood Side #3 should be directed back. Additionally, its 2" x 4" Wood Side #4 needs to point bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

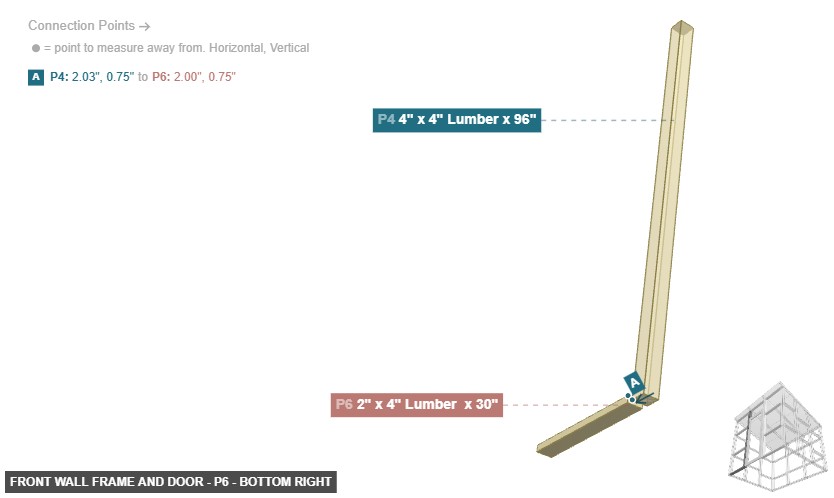

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: back left

P7 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 5's 4" x 4" Wood Side #3. After that, its 2" x 4" Wood End #1 needs to point right, then its 2" x 4" Wood Side #1 needs to point front, and its 2" x 4" Wood Side #2 needs to point top, also its 2" x 4" Wood Side #3 needs to point back, plus its 2" x 4" Wood Side #4 needs to point bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

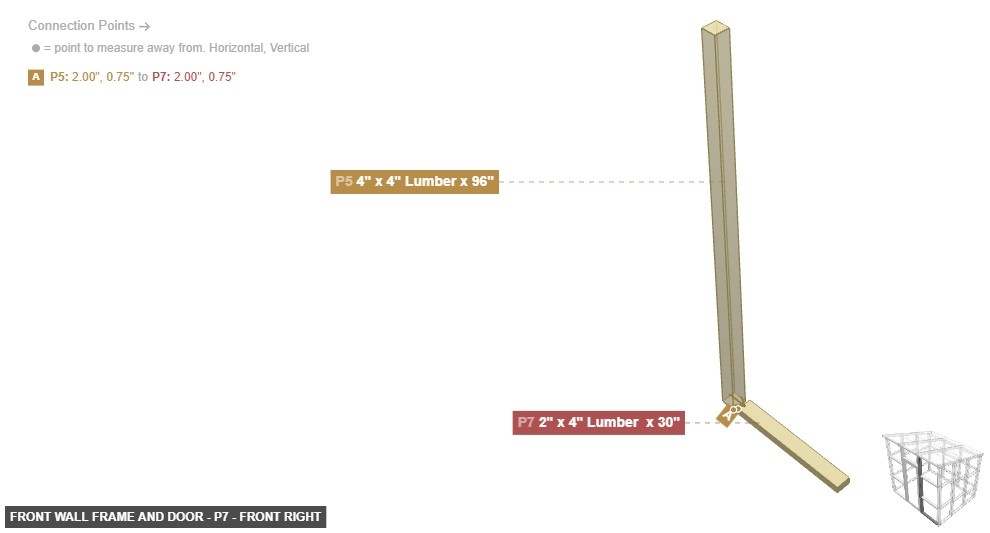

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: back left

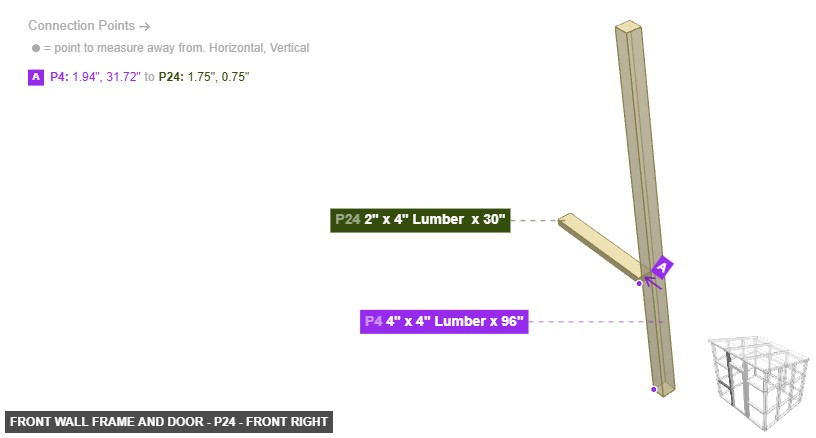

P24 (2" x 4" Lumber 30" length) - connect its 2" x 4" Wood End #1 oriented right links with part 4's 4" x 4" Wood Side #1, and its 2" x 4" Wood Side #1 needs to point front. Next, its 2" x 4" Wood Side #2 should be directed top. After that, its 2" x 4" Wood Side #3 needs to point back. Next, its 2" x 4" Wood Side #4 needs to point bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: back left

P25 (2" x 4" Lumber 30" length) - connect its 2" x 4" Wood End #1 oriented right links with part 4's 4" x 4" Wood Side #1, plus its 2" x 4" Wood Side #1 should be directed front, and its 2" x 4" Wood Side #2 should be directed top, and ensure its 2" x 4" Wood Side #3 faces back. Next, ensure its 2" x 4" Wood Side #4 faces bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: back left

P26 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 5's 4" x 4" Wood Side #3. After that, ensure its 2" x 4" Wood End #1 faces right. Next, its 2" x 4" Wood Side #1 should be directed front, also its 2" x 4" Wood Side #2 must be oriented top. After that, ensure its 2" x 4" Wood Side #3 faces back. Also, ensure its 2" x 4" Wood Side #4 faces bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

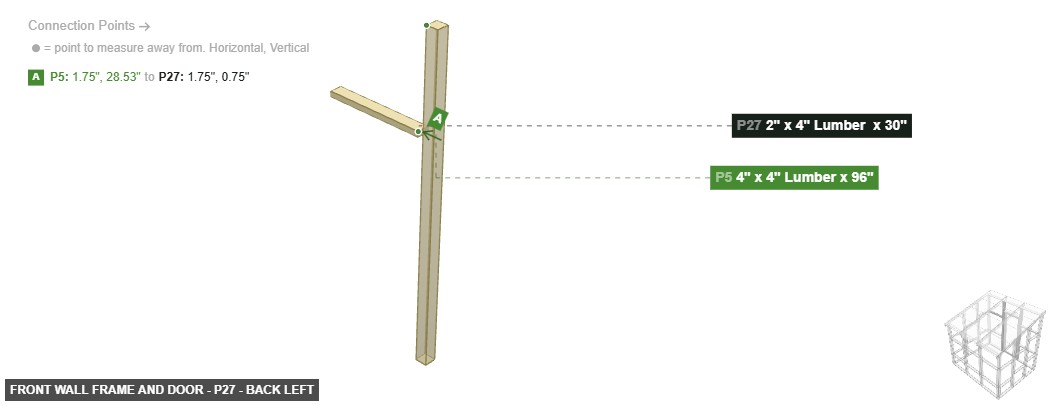

Part: 2" x 4" Lumber x 30" - Angle: back left

P27 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 5's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood End #1 needs to point right, also its 2" x 4" Wood Side #1 must be oriented front, then its 2" x 4" Wood Side #2 must be oriented top, plus its 2" x 4" Wood Side #3 must be oriented back, then its 2" x 4" Wood Side #4 should be directed bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

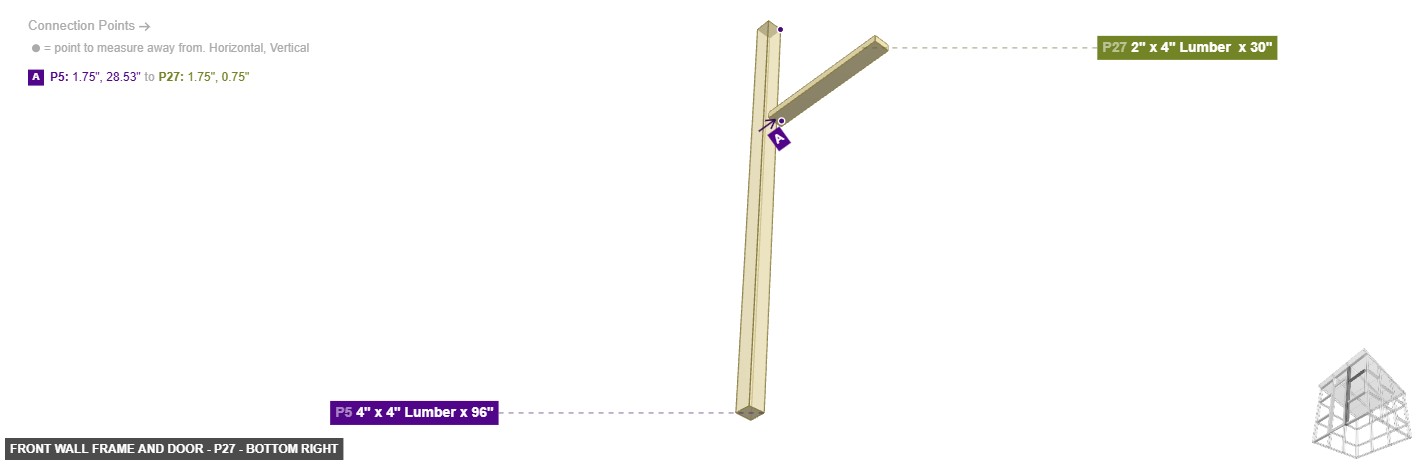

Part: 2" x 4" Lumber x 30" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

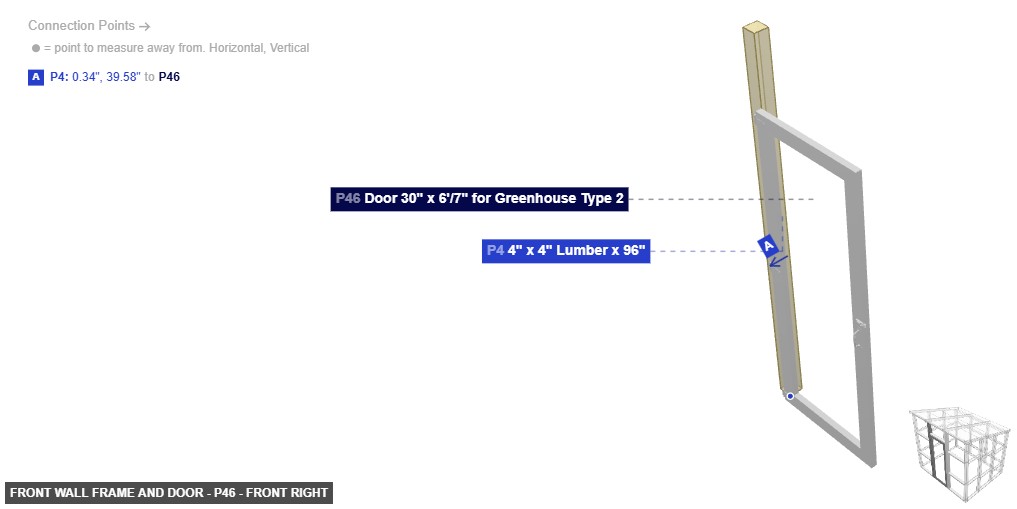

Part: Door 30" x 6'/7" for Greenhouse Type 2 - Angle: back left

Front Wall Frame and Door - Part Door 30

P46 (Door 30" x 6'/7" for Greenhouse Type 2) - attach its Screw-In Screw In #1 facing back to part 4's 4" x 4" Wood Side #2

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: Door 30" x 6'/7" for Greenhouse Type 2 - Angle: front right

P46 (Door 30" x 6'/7" for Greenhouse Type 2) - attach its Screw-In Screw In #1 facing back to part 4's 4" x 4" Wood Side #2

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: Door 30" x 6'/7" for Greenhouse Type 2 - Angle: bottom right

P46 (Door 30" x 6'/7" for Greenhouse Type 2) - attach its Screw-In Screw In #1 facing back to part 4's 4" x 4" Wood Side #2

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30.25" - Angle: back left

P47 (2" x 4" Lumber 30.25" length) - attach its 2" x 4" Wood End #1 facing right to part 5's 4" x 4" Wood Side #1, also its 2" x 4" Wood End #2, which is left-facing, should connect to part 4's 4" x 4" Wood Side #3. After that, ensure its 2" x 4" Wood Side #1 faces front, also its 2" x 4" Wood Side #2 must be oriented top. Additionally, its 2" x 4" Wood Side #3 should be directed back, plus its 2" x 4" Wood Side #4 needs to point bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30.25" - Angle: front right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Part: 2" x 4" Lumber x 30.25" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Group: Roof Frame

Creates the pitched roof structure that sits on top of the walls.

Attach the rafters (P16, P17, P18, P19) to the main top plate P15, ensuring the bird mouth cuts are properly seated.

Part: 2" x 4" Lumber x 104.25" - Angle: back left

P15 (2" x 4" Lumber 104.25" length) - its 2" x 4" Wood Side #4, which is top-facing, should connect to part 16's 2" x 4" Wood End #2. After that, ensure its 2" x 4" Wood End #1 faces right, also ensure its 2" x 4" Wood Side #1 faces back, also its 2" x 4" Wood Side #3 should be directed front, plus ensure its 2" x 4" Wood End #2 faces left

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber x 104.25" - Angle: front right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber x 104.25" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: back left

P16 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - attach its 2" x 4" Wood End #2 facing bottom to part 15's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 should be directed front, also its 2" x 4" Wood Side #1 needs to point left, also its 2" x 4" Wood Side #3 should be directed right. Also, ensure its 2" x 4" Wood Side #4 faces bottom. Also, its 2" x 4" Wood Side #5 must be oriented back

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: front right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: back left

P17 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - its 2" x 4" Wood End #2, which is bottom-facing, should connect to part 15's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 should be directed front. Next, its 2" x 4" Wood Side #1 needs to point left, plus its 2" x 4" Wood Side #3 should be directed right, then its 2" x 4" Wood Side #4 must be oriented bottom. After that, ensure its 2" x 4" Wood Side #5 faces back

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: front right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

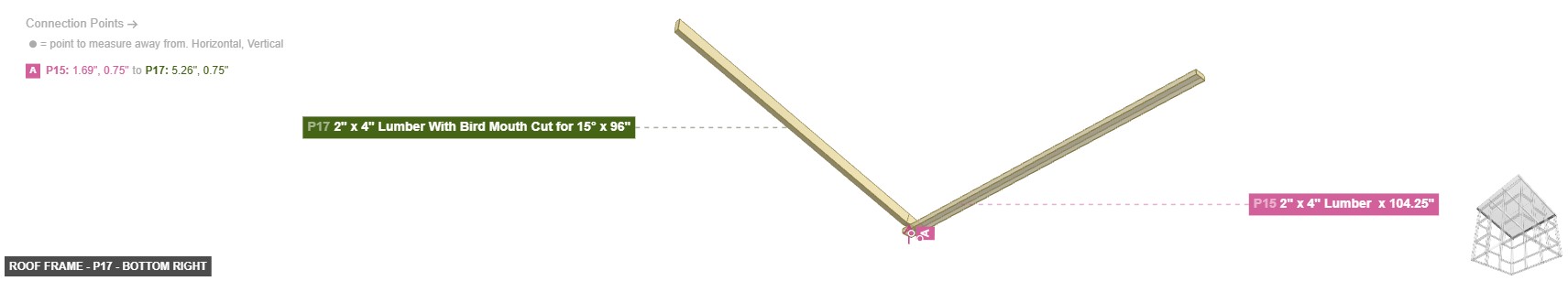

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: back left

P18 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - attach its 2" x 4" Wood End #2 facing bottom to part 15's 2" x 4" Wood Side #4. Next, its 2" x 4" Wood End #1 should be directed front. Next, its 2" x 4" Wood Side #1 needs to point left. Also, its 2" x 4" Wood Side #3 must be oriented right, and its 2" x 4" Wood Side #4 needs to point bottom, and its 2" x 4" Wood Side #5 should be directed back

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: front right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: back left

P19 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - its 2" x 4" Wood End #2, which is bottom-facing, should connect to part 15's 2" x 4" Wood Side #4, plus its 2" x 4" Wood End #1 must be oriented front, also its 2" x 4" Wood Side #1 must be oriented left, and its 2" x 4" Wood Side #3 needs to point right, also its 2" x 4" Wood Side #4 should be directed bottom. Additionally, its 2" x 4" Wood Side #5 should be directed back

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: front right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Part: 2" x 4" Lumber With Bird Mouth Cut for 15° x 96" - Angle: bottom right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Phase 3: Inter-Group Assembly

Attaching: Left Wall Frame

Forms the main structural frame for the left side of the greenhouse.

This wall will be erected and connected to the Front, Back, and Right Wall frames to form the main structure.

Angle: back left

P1 (4" x 4" Lumber 96" length) - attach its 4" x 4" Wood End #1 facing top to part 2's 2" x 4" Wood Side #2. Also, connect its 4" x 4" Wood Side #2 oriented back links with part 8's 2" x 4" Wood End #2. Additionally, its 4" x 4" Wood Side #1 must be oriented left. Additionally, its 4" x 4" Wood Side #3 must be oriented right. Also, its 4" x 4" Wood Side #4 must be oriented front. Next, ensure its 4" x 4" Wood End #2 faces bottom P8 (2" x 4" Lumber 77.5" length) - connect its 2" x 4" Wood End #1 oriented back links with part 11's 4" x 4" Wood Side #1, plus attach its 2" x 4" Wood Side #4 facing top to part 22's 4" x 4" Wood End #2, then its 2" x 4" Wood End #2, which is front-facing, should connect to part 1's 4" x 4" Wood Side #2. After that, ensure its 2" x 4" Wood Side #1 faces left, then its 2" x 4" Wood Side #2 needs to point bottom, plus its 2" x 4" Wood Side #3 needs to point right P11 (4" x 4" Lumber 74.25" length) - its 4" x 4" Wood End #1, which is top-facing, should connect to part 15's 2" x 4" Wood Side #2. Also, attach its 4" x 4" Wood Side #1 facing front to part 8's 2" x 4" Wood End #1. Next, connect its 4" x 4" Wood Side #2 oriented left links with part 12's 2" x 4" Wood End #2. Additionally, its 4" x 4" Wood Side #3 should be directed back, then its 4" x 4" Wood Side #4 must be oriented right, then its 4" x 4" Wood End #2 needs to point bottom P22 (4" x 4" Lumber 81.75" length) - its 4" x 4" Wood Side #1, which is front-facing, should connect to part 44's 2" x 4" Wood End #2, and attach its 4" x 4" Wood End #2 facing bottom to part 8's 2" x 4" Wood Side #4. After that, ensure its 4" x 4" Wood End #1 faces top. Next, its 4" x 4" Wood Side #2 should be directed left. Next, ensure its 4" x 4" Wood Side #3 faces back, plus ensure its 4" x 4" Wood Side #4 faces right P23 (4" x 4" Lumber 89.25" length) - connect its 4" x 4" Wood Side #1 oriented front links with part 42's 2" x 4" Wood End #1. Next, connect its 4" x 4" Wood Side #3 oriented back links with part 44's 2" x 4" Wood End #1. Next, attach its 4" x 4" Wood End #2 facing bottom to part 8's 2" x 4" Wood Side #4, then its 4" x 4" Wood End #1 must be oriented top, and its 4" x 4" Wood Side #2 must be oriented left. Additionally, ensure its 4" x 4" Wood Side #4 faces right P40 (2" x 4" Lumber 24.5" length) - connect its 2" x 4" Wood End #2 oriented back links with part 11's 4" x 4" Wood Side #1. Additionally, its 2" x 4" Wood End #1 should be directed front. Next, its 2" x 4" Wood Side #1 must be oriented left. Additionally, its 2" x 4" Wood Side #2 must be oriented top. Additionally, ensure its 2" x 4" Wood Side #3 faces right. After that, its 2" x 4" Wood Side #4 should be directed bottom P41 (2" x 4" Lumber 24.5" length) - its 2" x 4" Wood End #2, which is back-facing, should connect to part 11's 4" x 4" Wood Side #1, then its 2" x 4" Wood End #1 should be directed front. Additionally, its 2" x 4" Wood Side #1 should be directed left. Also, its 2" x 4" Wood Side #2 should be directed top. After that, its 2" x 4" Wood Side #3 needs to point right, plus its 2" x 4" Wood Side #4 should be directed bottom P42 (2" x 4" Lumber 22" length) - connect its 2" x 4" Wood End #1 oriented back links with part 23's 4" x 4" Wood Side #1. After that, attach its 2" x 4" Wood End #2 facing front to part 1's 4" x 4" Wood Side #2, also its 2" x 4" Wood Side #1 must be oriented left. Also, its 2" x 4" Wood Side #2 must be oriented bottom, and its 2" x 4" Wood Side #3 needs to point right. Next, its 2" x 4" Wood Side #4 needs to point top P43 (2" x 4" Lumber 22" length) - attach its 2" x 4" Wood End #1 facing back to part 23's 4" x 4" Wood Side #1. Additionally, connect its 2" x 4" Wood End #2 oriented front links with part 1's 4" x 4" Wood Side #2, then its 2" x 4" Wood Side #1 should be directed left, plus its 2" x 4" Wood Side #2 should be directed bottom. Additionally, its 2" x 4" Wood Side #3 must be oriented right, plus its 2" x 4" Wood Side #4 must be oriented top P44 (2" x 4" Lumber 24.25" length) - connect its 2" x 4" Wood End #1 oriented front links with part 23's 4" x 4" Wood Side #3. Additionally, attach its 2" x 4" Wood End #2 facing back to part 22's 4" x 4" Wood Side #1, also its 2" x 4" Wood Side #1 needs to point left. After that, its 2" x 4" Wood Side #2 needs to point top. Also, ensure its 2" x 4" Wood Side #3 faces right. Next, ensure its 2" x 4" Wood Side #4 faces bottom P45 (2" x 4" Lumber 24.25" length) - connect its 2" x 4" Wood End #1 oriented front links with part 23's 4" x 4" Wood Side #3. After that, connect its 2" x 4" Wood End #2 oriented back links with part 22's 4" x 4" Wood Side #1, plus its 2" x 4" Wood Side #1 needs to point left, then its 2" x 4" Wood Side #2 needs to point top. Also, its 2" x 4" Wood Side #3 must be oriented right, then its 2" x 4" Wood Side #4 must be oriented bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Angle: front right

Assembly of Left Wall Frame - front_right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Angle: bottom right

Assembly of Left Wall Frame - bottom_right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.5"x 2

2" x 4" Lumber x 22"x 2

2" x 4" Lumber x 24.25"x 2

Attaching: Right Wall Frame

Forms the main structural frame for the right side of the greenhouse.

This wall will be erected and connected to the Left, Front, and Back Wall frames to form the main structure.

Angle: back left

Assembly of Right Wall Frame - back_left

P3 (4" x 4" Lumber 96" length) - connect its 4" x 4" Wood Side #3 oriented right links with part 6's 2" x 4" Wood End #2. After that, its 4" x 4" Wood Side #4, which is back-facing, should connect to part 9's 2" x 4" Wood End #2. After that, connect its 4" x 4" Wood End #2 oriented top links with part 2's 2" x 4" Wood Side #2. Additionally, its 4" x 4" Wood End #1 needs to point bottom. Also, its 4" x 4" Wood Side #1 should be directed left, also its 4" x 4" Wood Side #2 should be directed front P9 (2" x 4" Lumber 77.5" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 10's 4" x 4" Wood Side #1. Also, its 2" x 4" Wood Side #4, which is top-facing, should connect to part 20's 4" x 4" Wood End #2, plus its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 4" x 4" Wood Side #4, then ensure its 2" x 4" Wood Side #1 faces left, and its 2" x 4" Wood Side #2 should be directed bottom, and its 2" x 4" Wood Side #3 should be directed right P10 (4" x 4" Lumber 74.25" length) - connect its 4" x 4" Wood End #1 oriented top links with part 15's 2" x 4" Wood Side #2. After that, its 4" x 4" Wood Side #1, which is front-facing, should connect to part 9's 2" x 4" Wood End #1. Next, connect its 4" x 4" Wood Side #4 oriented right links with part 12's 2" x 4" Wood End #1. Also, its 4" x 4" Wood Side #2 should be directed left. Additionally, ensure its 4" x 4" Wood Side #3 faces back. Next, its 4" x 4" Wood End #2 needs to point bottom P20 (4" x 4" Lumber 81.75" length) - attach its 4" x 4" Wood Side #1 facing front to part 38's 2" x 4" Wood End #2. After that, connect its 4" x 4" Wood Side #3 oriented back links with part 34's 2" x 4" Wood End #1, plus connect its 4" x 4" Wood End #2 oriented bottom links with part 9's 2" x 4" Wood Side #4, plus its 4" x 4" Wood End #1 needs to point top. Additionally, its 4" x 4" Wood Side #2 should be directed left. Also, its 4" x 4" Wood Side #4 must be oriented right P21 (4" x 4" Lumber 89.25" length) - its 4" x 4" Wood Side #1, which is front-facing, should connect to part 36's 2" x 4" Wood End #1, plus connect its 4" x 4" Wood Side #3 oriented back links with part 38's 2" x 4" Wood End #1. Also, its 4" x 4" Wood End #2, which is bottom-facing, should connect to part 9's 2" x 4" Wood Side #4, then its 4" x 4" Wood End #1 should be directed top, plus its 4" x 4" Wood Side #2 needs to point left. Also, its 4" x 4" Wood Side #4 should be directed right P34 (2" x 4" Lumber 24.25" length) - connect its 2" x 4" Wood End #1 oriented front links with part 20's 4" x 4" Wood Side #3, also its 2" x 4" Wood End #2, which is back-facing, should connect to part 10's 4" x 4" Wood Side #1, and its 2" x 4" Wood Side #1 should be directed left, and ensure its 2" x 4" Wood Side #2 faces top. After that, its 2" x 4" Wood Side #3 should be directed right, then ensure its 2" x 4" Wood Side #4 faces bottom P35 (2" x 4" Lumber 24.25" length) - attach its 2" x 4" Wood End #1 facing front to part 20's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood End #2, which is back-facing, should connect to part 10's 4" x 4" Wood Side #1. After that, ensure its 2" x 4" Wood Side #1 faces left, also ensure its 2" x 4" Wood Side #2 faces top, plus its 2" x 4" Wood Side #3 must be oriented right, plus its 2" x 4" Wood Side #4 should be directed bottom P36 (2" x 4" Lumber 22" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 21's 4" x 4" Wood Side #1. Next, its 2" x 4" Wood End #2, which is front-facing, should connect to part 3's 4" x 4" Wood Side #4, and ensure its 2" x 4" Wood Side #1 faces left. After that, its 2" x 4" Wood Side #2 should be directed bottom, plus its 2" x 4" Wood Side #3 must be oriented right. After that, its 2" x 4" Wood Side #4 needs to point top P37 (2" x 4" Lumber 22" length) - connect its 2" x 4" Wood End #1 oriented back links with part 21's 4" x 4" Wood Side #1, and connect its 2" x 4" Wood End #2 oriented front links with part 3's 4" x 4" Wood Side #4. Additionally, its 2" x 4" Wood Side #1 must be oriented left. Next, its 2" x 4" Wood Side #2 needs to point bottom, then its 2" x 4" Wood Side #3 needs to point right. After that, its 2" x 4" Wood Side #4 needs to point top P38 (2" x 4" Lumber 24.25" length) - attach its 2" x 4" Wood End #1 facing front to part 21's 4" x 4" Wood Side #3. Next, connect its 2" x 4" Wood End #2 oriented back links with part 20's 4" x 4" Wood Side #1. Next, its 2" x 4" Wood Side #1 needs to point left, also its 2" x 4" Wood Side #2 needs to point top. Also, its 2" x 4" Wood Side #3 needs to point right, then its 2" x 4" Wood Side #4 must be oriented bottom P39 (2" x 4" Lumber 24.25" length) - attach its 2" x 4" Wood End #1 facing front to part 21's 4" x 4" Wood Side #3. After that, attach its 2" x 4" Wood End #2 facing back to part 20's 4" x 4" Wood Side #1, then ensure its 2" x 4" Wood Side #1 faces left. Additionally, its 2" x 4" Wood Side #2 needs to point top. Also, its 2" x 4" Wood Side #3 needs to point right, also its 2" x 4" Wood Side #4 must be oriented bottom

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Angle: front right

Assembly of Right Wall Frame - front_right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Angle: bottom right

Assembly of Right Wall Frame - bottom_right

4" x 4" Lumber x 96"x 1

2" x 4" Lumber x 77.5"x 1

4" x 4" Lumber x 74.25"x 1

4" x 4" Lumber x 81.75"x 1

4" x 4" Lumber x 89.25"x 1

2" x 4" Lumber x 24.25"x 4

2" x 4" Lumber x 22"x 2

Attaching: Back Wall Frame

Forms the structural frame for the back of the greenhouse, connecting the left and right walls.

Install this frame between the completed Left Wall Frame (at post P11) and Right Wall Frame (at post P10).

Angle: back left

P12 (2" x 4" Lumber 97.25" length) - connect its 2" x 4" Wood End #1 oriented left links with part 10's 4" x 4" Wood Side #4, also its 2" x 4" Wood Side #4, which is top-facing, should connect to part 13's 4" x 4" Wood End #2, also connect its 2" x 4" Wood End #2 oriented right links with part 11's 4" x 4" Wood Side #2, also its 2" x 4" Wood Side #1 must be oriented front. After that, its 2" x 4" Wood Side #2 needs to point bottom, then ensure its 2" x 4" Wood Side #3 faces back P13 (4" x 4" Lumber 72.75" length) - connect its 4" x 4" Wood End #1 oriented top links with part 15's 2" x 4" Wood Side #2, then its 4" x 4" Wood Side #1, which is right-facing, should connect to part 30's 2" x 4" Wood End #1, plus attach its 4" x 4" Wood Side #3 facing left to part 32's 2" x 4" Wood End #2, and attach its 4" x 4" Wood End #2 facing bottom to part 12's 2" x 4" Wood Side #4, then ensure its 4" x 4" Wood Side #2 faces front. Also, its 4" x 4" Wood Side #4 should be directed back P14 (4" x 4" Lumber 72.75" length) - connect its 4" x 4" Wood End #1 oriented top links with part 15's 2" x 4" Wood Side #2. Also, attach its 4" x 4" Wood Side #1 facing right to part 32's 2" x 4" Wood End #1, plus attach its 4" x 4" Wood Side #3 facing left to part 28's 2" x 4" Wood End #1. Next, connect its 4" x 4" Wood End #2 oriented bottom links with part 12's 2" x 4" Wood Side #4, also ensure its 4" x 4" Wood Side #2 faces front. After that, its 4" x 4" Wood Side #4 should be directed back P28 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 14's 4" x 4" Wood Side #3. Next, attach its 2" x 4" Wood End #2 facing left to part 10's 4" x 4" Wood Side #4. Also, ensure its 2" x 4" Wood Side #1 faces front. After that, its 2" x 4" Wood Side #2 should be directed top. Also, its 2" x 4" Wood Side #3 needs to point back, and its 2" x 4" Wood Side #4 must be oriented bottom P29 (2" x 4" Lumber 30" length) - connect its 2" x 4" Wood End #1 oriented right links with part 14's 4" x 4" Wood Side #3, plus connect its 2" x 4" Wood End #2 oriented left links with part 10's 4" x 4" Wood Side #4. Additionally, ensure its 2" x 4" Wood Side #1 faces front, and its 2" x 4" Wood Side #2 should be directed top, and its 2" x 4" Wood Side #3 should be directed back. After that, ensure its 2" x 4" Wood Side #4 faces bottom P30 (2" x 4" Lumber 30" length) - attach its 2" x 4" Wood End #1 facing left to part 13's 4" x 4" Wood Side #1, plus its 2" x 4" Wood End #2, which is right-facing, should connect to part 11's 4" x 4" Wood Side #2. Additionally, ensure its 2" x 4" Wood Side #1 faces front, plus its 2" x 4" Wood Side #2 should be directed bottom, plus ensure its 2" x 4" Wood Side #3 faces back. Additionally, ensure its 2" x 4" Wood Side #4 faces top P31 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #1, which is left-facing, should connect to part 13's 4" x 4" Wood Side #1. Also, connect its 2" x 4" Wood End #2 oriented right links with part 11's 4" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #1 needs to point front. Next, its 2" x 4" Wood Side #2 needs to point bottom, also its 2" x 4" Wood Side #3 should be directed back, also ensure its 2" x 4" Wood Side #4 faces top P32 (2" x 4" Lumber 30.25" length) - attach its 2" x 4" Wood End #1 facing left to part 14's 4" x 4" Wood Side #1. Also, attach its 2" x 4" Wood End #2 facing right to part 13's 4" x 4" Wood Side #3, also its 2" x 4" Wood Side #1 should be directed front, then its 2" x 4" Wood Side #2 should be directed bottom, then its 2" x 4" Wood Side #3 needs to point back, also its 2" x 4" Wood Side #4 needs to point top P33 (2" x 4" Lumber 30.25" length) - its 2" x 4" Wood End #1, which is left-facing, should connect to part 14's 4" x 4" Wood Side #1, plus attach its 2" x 4" Wood End #2 facing right to part 13's 4" x 4" Wood Side #3. Also, ensure its 2" x 4" Wood Side #1 faces front. After that, its 2" x 4" Wood Side #2 needs to point bottom, and its 2" x 4" Wood Side #3 needs to point back. Additionally, its 2" x 4" Wood Side #4 should be directed top

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Angle: front right

Assembly of Back Wall Frame - front_right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Angle: bottom right

Assembly of Back Wall Frame - bottom_right

2" x 4" Lumber x 97.25"x 1

4" x 4" Lumber x 72.75"x 2

2" x 4" Lumber x 30"x 4

2" x 4" Lumber x 30.25"x 2

Attaching: Front Wall Frame and Door

Forms the front of the greenhouse, including the door and its frame.

Install this frame between the Left Wall Frame (at post P1) and Right Wall Frame (at post P3). The top plate P2 will rest on all four front posts (P1, P3, P4, P5).

Angle: back left

Assembly of Front Wall Frame and Door - back_left

P2 (2" x 4" Lumber 104.25" length) - connect its 2" x 4" Wood Side #2 oriented bottom links with part 1's 4" x 4" Wood End #1. Also, ensure its 2" x 4" Wood End #1 faces left, plus ensure its 2" x 4" Wood Side #1 faces front, then its 2" x 4" Wood Side #3 should be directed back. Next, its 2" x 4" Wood Side #4 should be directed top, then its 2" x 4" Wood End #2 needs to point right P4 (4" x 4" Lumber 96" length) - its 4" x 4" Wood Side #1, which is left-facing, should connect to part 6's 2" x 4" Wood End #1, plus connect its 4" x 4" Wood Side #2 oriented front links with part 46's Screw-In Screw In #1, then attach its 4" x 4" Wood Side #3 facing right to part 47's 2" x 4" Wood End #2. Next, its 4" x 4" Wood End #2, which is top-facing, should connect to part 2's 2" x 4" Wood Side #2. After that, its 4" x 4" Wood End #1 should be directed bottom. Also, ensure its 4" x 4" Wood Side #4 faces back P5 (4" x 4" Lumber 96" length) - connect its 4" x 4" Wood Side #1 oriented left links with part 47's 2" x 4" Wood End #1, then connect its 4" x 4" Wood Side #3 oriented right links with part 7's 2" x 4" Wood End #2, also attach its 4" x 4" Wood End #2 facing top to part 2's 2" x 4" Wood Side #2, also ensure its 4" x 4" Wood End #1 faces bottom, then its 4" x 4" Wood Side #2 needs to point front. Next, its 4" x 4" Wood Side #4 should be directed back P6 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 4's 4" x 4" Wood Side #1, then attach its 2" x 4" Wood End #2 facing left to part 3's 4" x 4" Wood Side #3, and its 2" x 4" Wood Side #1 needs to point front. Next, its 2" x 4" Wood Side #2 needs to point top, and its 2" x 4" Wood Side #3 should be directed back, and ensure its 2" x 4" Wood Side #4 faces bottom P7 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 5's 4" x 4" Wood Side #3, also its 2" x 4" Wood End #1 must be oriented right, plus its 2" x 4" Wood Side #1 must be oriented front, then its 2" x 4" Wood Side #2 should be directed top, plus its 2" x 4" Wood Side #3 should be directed back, then ensure its 2" x 4" Wood Side #4 faces bottom P24 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 4's 4" x 4" Wood Side #1, then its 2" x 4" Wood End #2, which is left-facing, should connect to part 3's 4" x 4" Wood Side #3, and its 2" x 4" Wood Side #1 must be oriented front, and ensure its 2" x 4" Wood Side #2 faces top, then ensure its 2" x 4" Wood Side #3 faces back, and ensure its 2" x 4" Wood Side #4 faces bottom P25 (2" x 4" Lumber 30" length) - attach its 2" x 4" Wood End #1 facing right to part 4's 4" x 4" Wood Side #1, then attach its 2" x 4" Wood End #2 facing left to part 3's 4" x 4" Wood Side #3, plus its 2" x 4" Wood Side #1 should be directed front, also its 2" x 4" Wood Side #2 must be oriented top. Additionally, ensure its 2" x 4" Wood Side #3 faces back. Next, its 2" x 4" Wood Side #4 needs to point bottom P26 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 5's 4" x 4" Wood Side #3. Next, its 2" x 4" Wood End #1 should be directed right, then its 2" x 4" Wood Side #1 should be directed front, also its 2" x 4" Wood Side #2 must be oriented top. After that, its 2" x 4" Wood Side #3 must be oriented back. After that, ensure its 2" x 4" Wood Side #4 faces bottom P27 (2" x 4" Lumber 30" length) - its 2" x 4" Wood End #2, which is left-facing, should connect to part 5's 4" x 4" Wood Side #3. Next, ensure its 2" x 4" Wood End #1 faces right, plus its 2" x 4" Wood Side #1 needs to point front. Additionally, its 2" x 4" Wood Side #2 must be oriented top, then ensure its 2" x 4" Wood Side #3 faces back, also ensure its 2" x 4" Wood Side #4 faces bottom P46 (Door 30" x 6'/7" for Greenhouse Type 2) - connect its Screw-In Screw In #1 oriented back links with part 4's 4" x 4" Wood Side #2 P47 (2" x 4" Lumber 30.25" length) - connect its 2" x 4" Wood End #1 oriented right links with part 5's 4" x 4" Wood Side #1. Also, attach its 2" x 4" Wood End #2 facing left to part 4's 4" x 4" Wood Side #3. After that, its 2" x 4" Wood Side #1 should be directed front. Additionally, its 2" x 4" Wood Side #2 must be oriented top. Next, its 2" x 4" Wood Side #3 needs to point back, plus its 2" x 4" Wood Side #4 should be directed bottom

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Angle: front right

Assembly of Front Wall Frame and Door - front_right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Angle: bottom right

Assembly of Front Wall Frame and Door - bottom_right

2" x 4" Lumber x 104.25"x 1

4" x 4" Lumber x 96"x 2

2" x 4" Lumber x 30"x 6

Door 30" x 6'/7" for Greenhouse Type 2x 1

2" x 4" Lumber x 30.25"x 1

Attaching: Roof Frame

Creates the pitched roof structure that sits on top of the walls.

Lift and secure the completed roof frame onto the top plates of the assembled wall structure.

Angle: back left

P15 (2" x 4" Lumber 104.25" length) - its 2" x 4" Wood Side #2, which is bottom-facing, should connect to part 10's 4" x 4" Wood End #1, and attach its 2" x 4" Wood Side #4 facing top to part 16's 2" x 4" Wood End #2. Next, its 2" x 4" Wood End #1 must be oriented right. Additionally, its 2" x 4" Wood Side #1 must be oriented back. Next, ensure its 2" x 4" Wood Side #3 faces front, then its 2" x 4" Wood End #2 should be directed left P16 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - attach its 2" x 4" Wood Side #2 facing top to part 48's Screw-In Wood / Plastic Sheat #3. Next, its 2" x 4" Wood End #2, which is bottom-facing, should connect to part 15's 2" x 4" Wood Side #4, also its 2" x 4" Wood End #1 must be oriented front, then its 2" x 4" Wood Side #1 should be directed left, also its 2" x 4" Wood Side #3 needs to point right. Also, its 2" x 4" Wood Side #4 must be oriented bottom. Next, its 2" x 4" Wood Side #5 should be directed back P17 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - attach its 2" x 4" Wood Side #2 facing top to part 56's Screw-In Wood / Plastic Sheat #4, also its 2" x 4" Wood End #2, which is bottom-facing, should connect to part 15's 2" x 4" Wood Side #4, also its 2" x 4" Wood End #1 must be oriented front. Also, its 2" x 4" Wood Side #1 needs to point left. Next, its 2" x 4" Wood Side #3 should be directed right, plus its 2" x 4" Wood Side #4 needs to point bottom, also its 2" x 4" Wood Side #5 needs to point back P18 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - attach its 2" x 4" Wood Side #2 facing top to part 48's Screw-In Wood / Plastic Sheat #3. Also, attach its 2" x 4" Wood End #2 facing bottom to part 15's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 needs to point front. Also, ensure its 2" x 4" Wood Side #1 faces left, plus its 2" x 4" Wood Side #3 should be directed right, also its 2" x 4" Wood Side #4 must be oriented bottom, then its 2" x 4" Wood Side #5 needs to point back P19 (2" x 4" Lumber With Bird Mouth Cut for 15° 96" length) - its 2" x 4" Wood Side #2, which is top-facing, should connect to part 58's Screw-In Wood / Plastic Sheat #2. Next, connect its 2" x 4" Wood End #2 oriented bottom links with part 15's 2" x 4" Wood Side #4, then its 2" x 4" Wood End #1 needs to point front, and ensure its 2" x 4" Wood Side #1 faces left. Additionally, its 2" x 4" Wood Side #3 must be oriented right, also its 2" x 4" Wood Side #4 should be directed bottom, and ensure its 2" x 4" Wood Side #5 faces back

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Angle: front right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Angle: bottom right

2" x 4" Lumber x 104.25"x 1

2" x 4" Lumber With Bird Mouth Cut for 15° x 96"x 4

Attaching: Roof Panels

Provides the transparent covering for the roof.

Carefully lay the polycarbonate panels (P48 through P59) onto the Roof Frame. Secure each panel to the rafters (P16, P17, P18, P19) according to the design.

Angle: back left

P48 (Polycarbonate Panel 2' x 6' 35" length) - attach its Screw-In Wood / Plastic Sheat #3 facing bottom to part 18's 2" x 4" Wood Side #2, plus ensure its Screw-In Wood / Plastic Sheat #1 faces bottom. Next, its Screw-In Wood / Plastic Sheat #2 needs to point bottom. After that, its Screw-In Wood / Plastic Sheat #4 must be oriented bottom P49 (Polycarbonate Panel 2' x 6' 35" length) - its Screw-In Wood / Plastic Sheat #2, which is bottom-facing, should connect to part 18's 2" x 4" Wood Side #2. Next, its Screw-In Wood / Plastic Sheat #1 should be directed bottom, then ensure its Screw-In Wood / Plastic Sheat #3 faces bottom, also its Screw-In Wood / Plastic Sheat #4 should be directed bottom P50 (Polycarbonate Panel 2' x 6' 35" length) - attach its Screw-In Wood / Plastic Sheat #2 facing bottom to part 16's 2" x 4" Wood Side #2. Additionally, attach its Screw-In Wood / Plastic Sheat #4 facing bottom to part 18's 2" x 4" Wood Side #2. Next, its Screw-In Wood / Plastic Sheat #1 needs to point bottom. Next, its Screw-In Wood / Plastic Sheat #3 should be directed bottom P51 (Polycarbonate Panel 2' x 6' 35" length) - its Screw-In Wood / Plastic Sheat #1, which is bottom-facing, should connect to part 16's 2" x 4" Wood Side #2. After that, attach its Screw-In Wood / Plastic Sheat #2 facing bottom to part 18's 2" x 4" Wood Side #2. Also, its Screw-In Wood / Plastic Sheat #3 needs to point bottom, also its Screw-In Wood / Plastic Sheat #4 should be directed bottom P52 (Polycarbonate Panel 2' x 6' 33.5" length) - attach its Screw-In Wood / Plastic Sheat #1 facing bottom to part 18's 2" x 4" Wood Side #2, plus attach its Screw-In Wood / Plastic Sheat #4 facing bottom to part 19's 2" x 4" Wood Side #2, and ensure its Screw-In Wood / Plastic Sheat #2 faces bottom, plus its Screw-In Wood / Plastic Sheat #3 must be oriented bottom P53 (Polycarbonate Panel 2' x 6' 33.5" length) - its Screw-In Wood / Plastic Sheat #1, which is bottom-facing, should connect to part 18's 2" x 4" Wood Side #2, plus its Screw-In Wood / Plastic Sheat #4, which is bottom-facing, should connect to part 19's 2" x 4" Wood Side #2. Additionally, its Screw-In Wood / Plastic Sheat #2 must be oriented bottom, and its Screw-In Wood / Plastic Sheat #3 should be directed bottom P54 (Polycarbonate Panel 2' x 6' 33.5" length) - attach its Screw-In Wood / Plastic Sheat #1 facing bottom to part 18's 2" x 4" Wood Side #2. Also, its Screw-In Wood / Plastic Sheat #2, which is bottom-facing, should connect to part 19's 2" x 4" Wood Side #2, then its Screw-In Wood / Plastic Sheat #3 needs to point bottom. Also, ensure its Screw-In Wood / Plastic Sheat #4 faces bottom P55 (Polycarbonate Panel 2' x 6' 33.5" length) - its Screw-In Wood / Plastic Sheat #1, which is bottom-facing, should connect to part 18's 2" x 4" Wood Side #2. Also, its Screw-In Wood / Plastic Sheat #4, which is bottom-facing, should connect to part 19's 2" x 4" Wood Side #2. Additionally, its Screw-In Wood / Plastic Sheat #2 should be directed bottom, then its Screw-In Wood / Plastic Sheat #3 should be directed bottom P56 (Polycarbonate Panel 2' x 6' 35" length) - attach its Screw-In Wood / Plastic Sheat #1 facing bottom to part 19's 2" x 4" Wood Side #2, and connect its Screw-In Wood / Plastic Sheat #4 oriented bottom links with part 17's 2" x 4" Wood Side #2, plus its Screw-In Wood / Plastic Sheat #2 must be oriented bottom, and its Screw-In Wood / Plastic Sheat #3 must be oriented bottom P57 (Polycarbonate Panel 2' x 6' 35" length) - connect its Screw-In Wood / Plastic Sheat #1 oriented bottom links with part 19's 2" x 4" Wood Side #2, also its Screw-In Wood / Plastic Sheat #3, which is bottom-facing, should connect to part 17's 2" x 4" Wood Side #2, also its Screw-In Wood / Plastic Sheat #2 needs to point bottom. Additionally, its Screw-In Wood / Plastic Sheat #4 should be directed bottom P58 (Polycarbonate Panel 2' x 6' 35" length) - its Screw-In Wood / Plastic Sheat #2, which is bottom-facing, should connect to part 17's 2" x 4" Wood Side #2, and its Screw-In Wood / Plastic Sheat #1 must be oriented bottom, and its Screw-In Wood / Plastic Sheat #3 needs to point bottom, also its Screw-In Wood / Plastic Sheat #4 must be oriented bottom P59 (Polycarbonate Panel 2' x 6' 35" length) - its Screw-In Wood / Plastic Sheat #1, which is bottom-facing, should connect to part 19's 2" x 4" Wood Side #2, plus connect its Screw-In Wood / Plastic Sheat #4 oriented bottom links with part 17's 2" x 4" Wood Side #2, plus its Screw-In Wood / Plastic Sheat #2 must be oriented bottom. Additionally, its Screw-In Wood / Plastic Sheat #3 should be directed bottom

Polycarbonate Panel 2' x 6' x 35"x 8

Polycarbonate Panel 2' x 6' x 33.5"x 4

Angle: front right

Polycarbonate Panel 2' x 6' x 35"x 8

Polycarbonate Panel 2' x 6' x 33.5"x 4

Angle: bottom right

Polycarbonate Panel 2' x 6' x 35"x 8

Polycarbonate Panel 2' x 6' x 33.5"x 4
