Pergola With Bench 2 - Comprehensive Assembly Plan And Visual Guide

Pergola With Bench 2 Free Plan And Visual Guide

This is a wooden pergola structure featuring four main posts supporting a slatted roof. It includes an integrated bench with a seat and backrest. Slats or lattice panels are present on the sides, front, and back between the posts. - Pergola With Bench -A wooden pergola structure featuring four posts (P1, P3, P5, P7), an integrated bench (seat slats P10-P13 supported by P2, P6, P8, P14), a slatted backrest (slats P27-P44 supported by beams P15-P17), side panels (P18-P21), and a slatted roof (slats P22-P26 supported by P45, P46). - Pergola With Bench

Phase 1: Group Overview

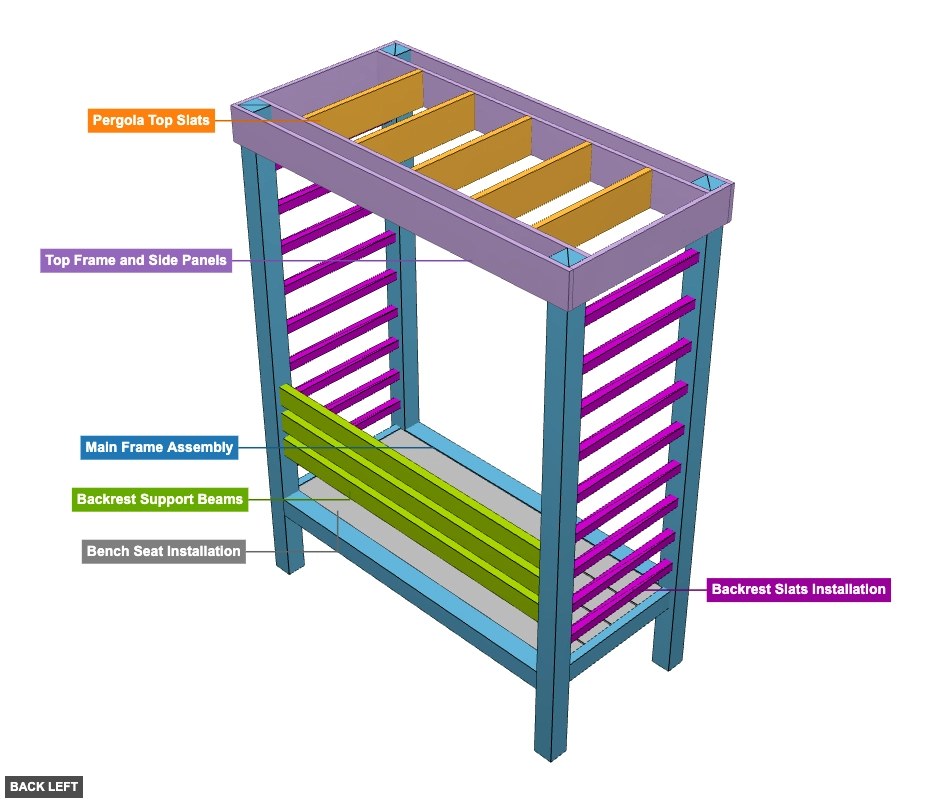

Angle: back left

Pergola With Bench 2 - Overview back_left

Main Frame Assembly

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Bench Seat Installation

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

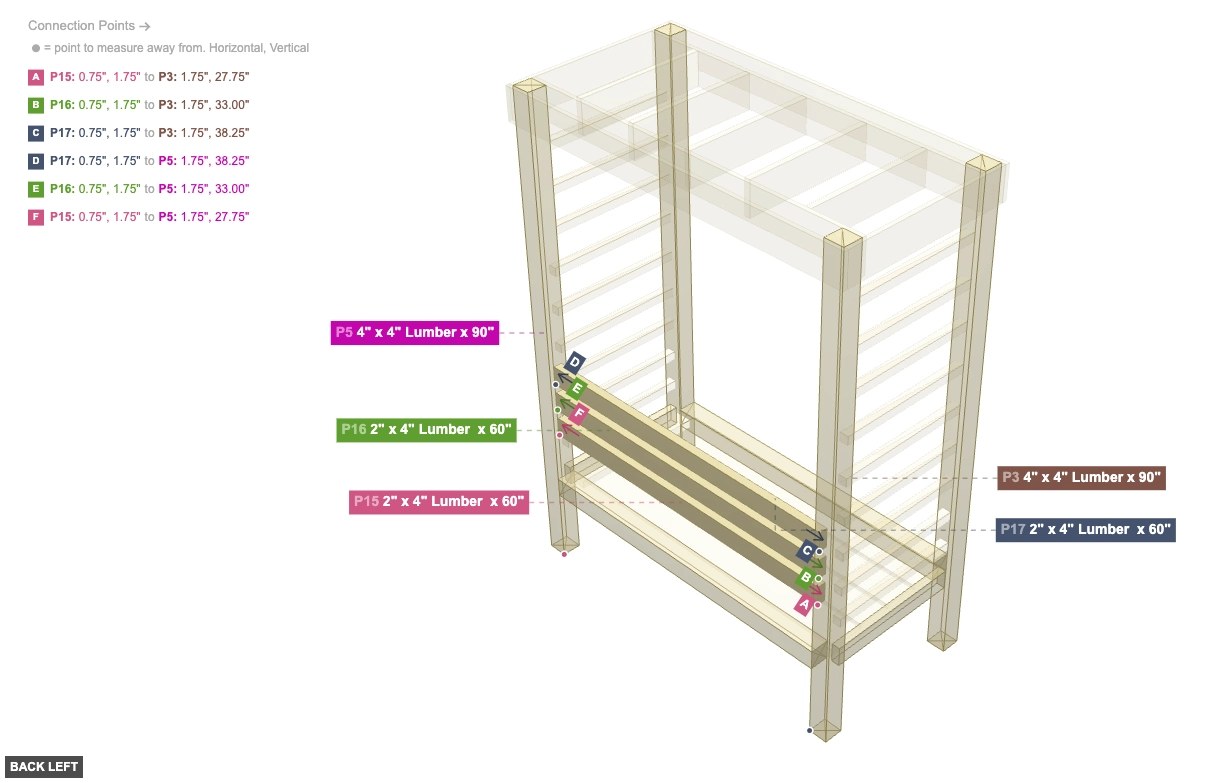

Backrest Support Beams

2" x 4" Lumber x 60"x 3

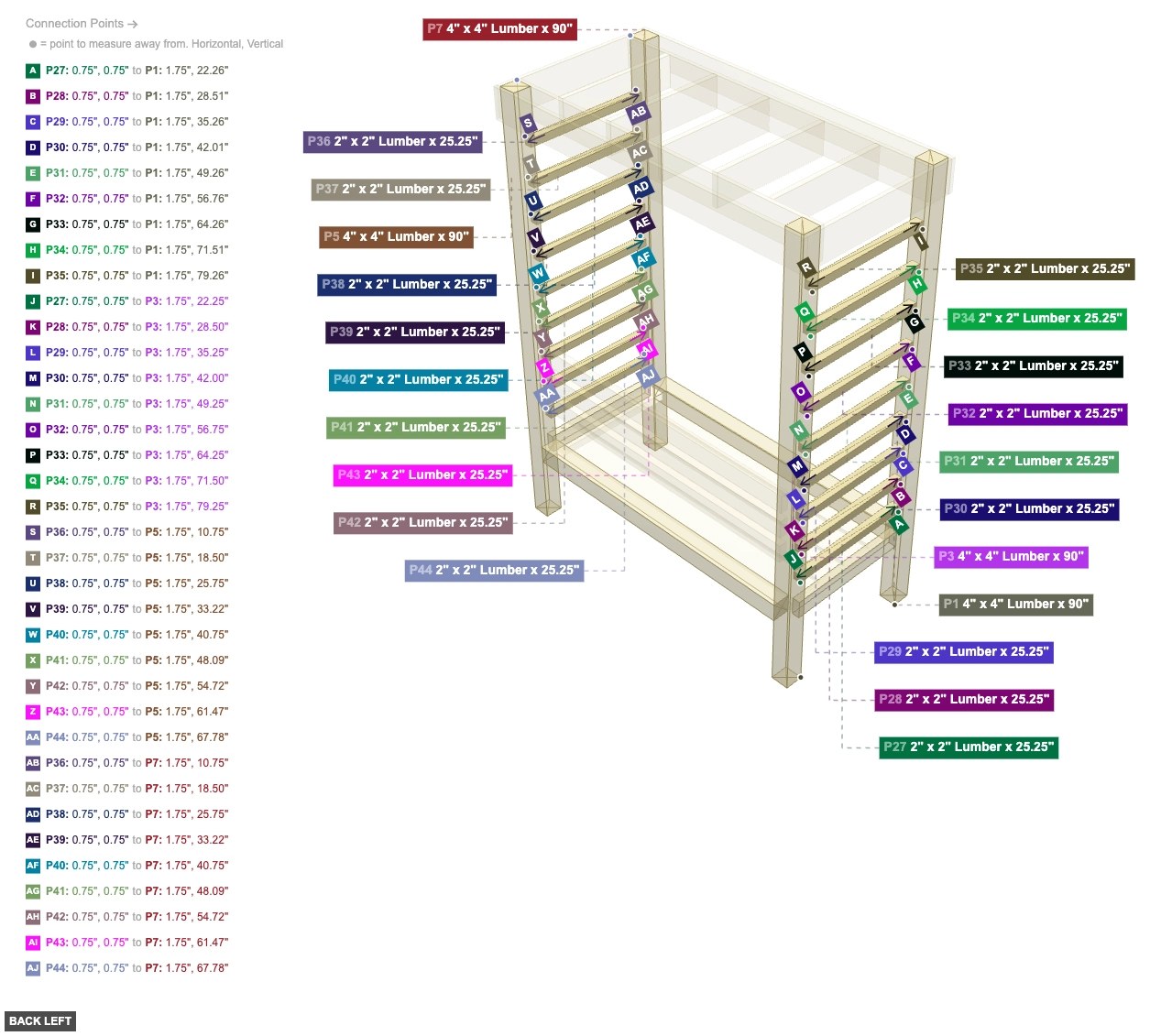

Backrest Slats Installation

2" x 2" Lumber x 25.25"x 18

Top Frame and Side Panels

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

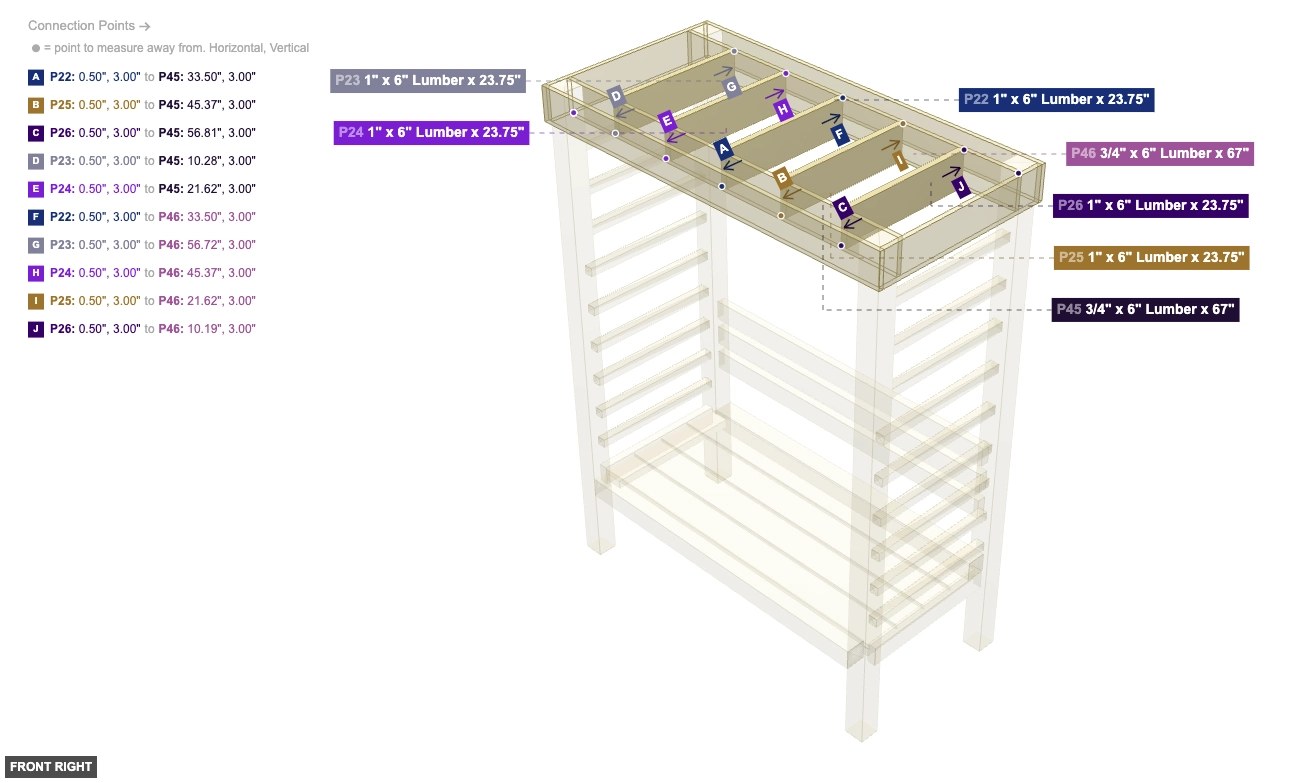

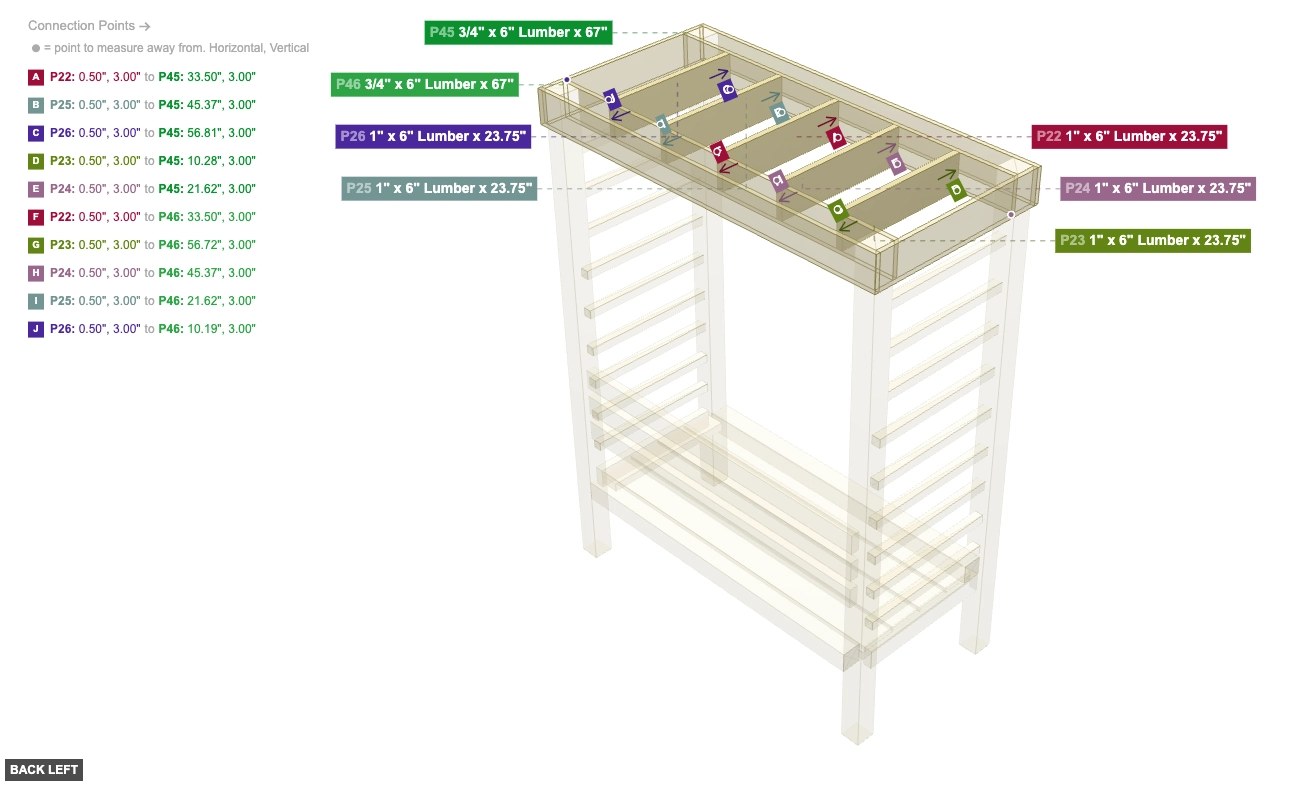

Pergola Top Slats

1" x 6" Lumber x 23.75"x 5

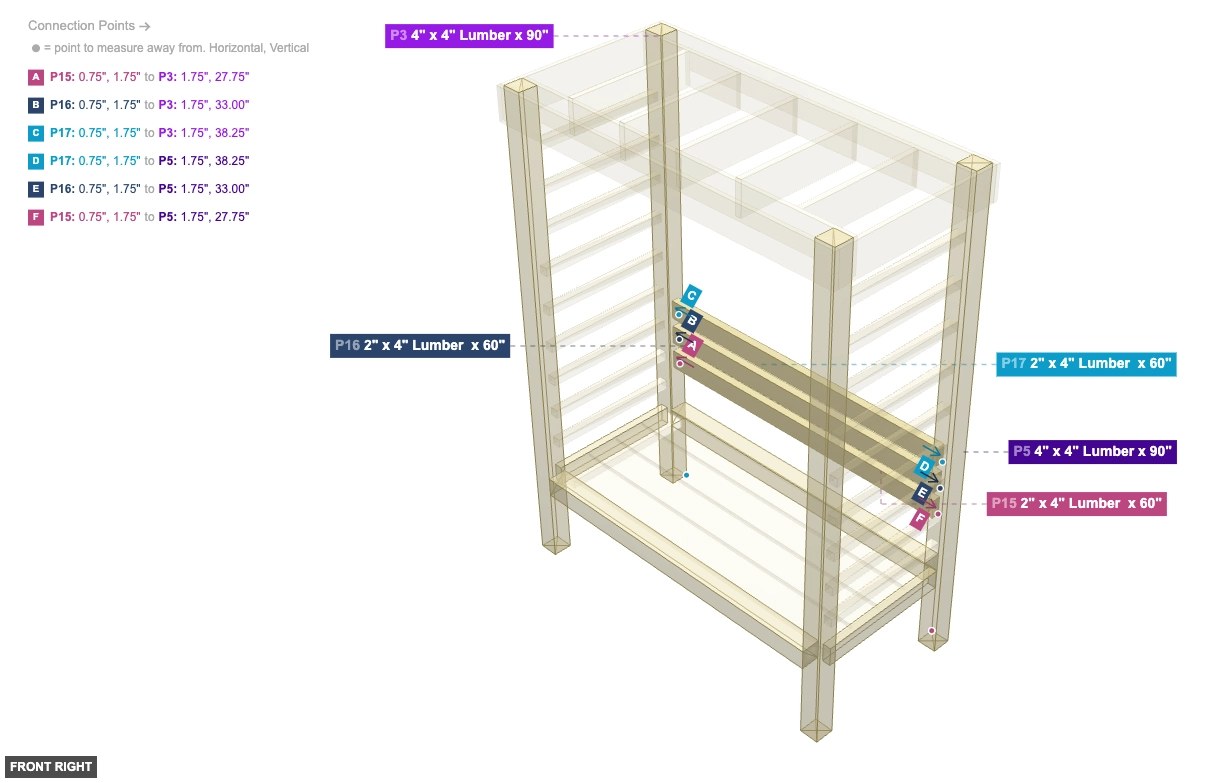

Angle: front right

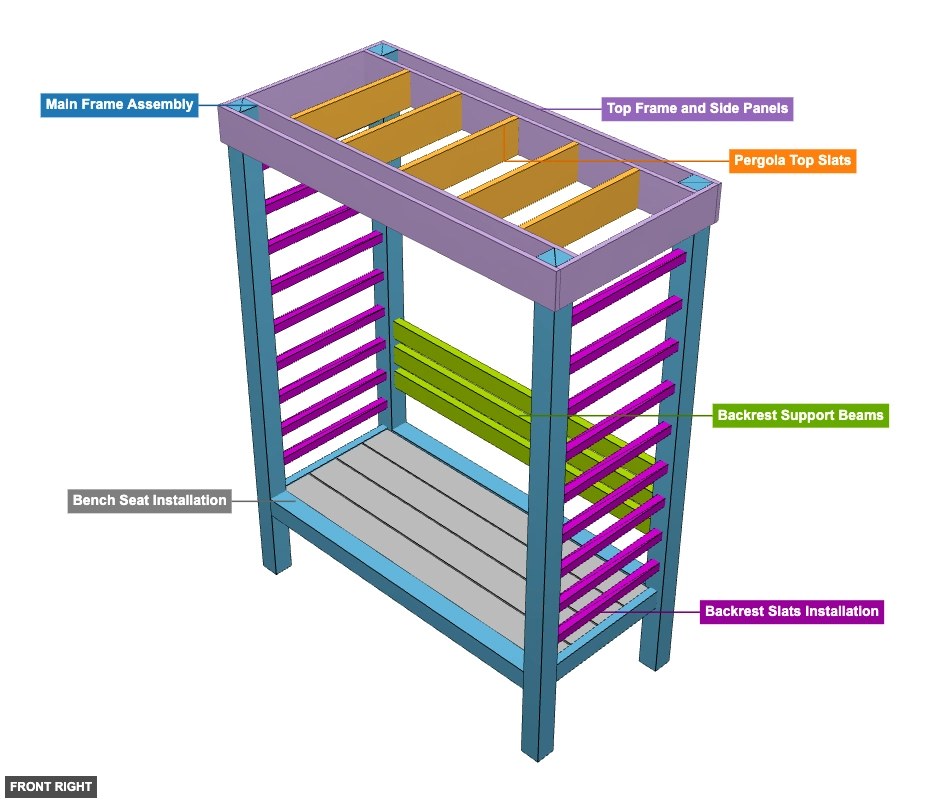

Pergola With Bench 2 - Overview front_right

Main Frame Assembly

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

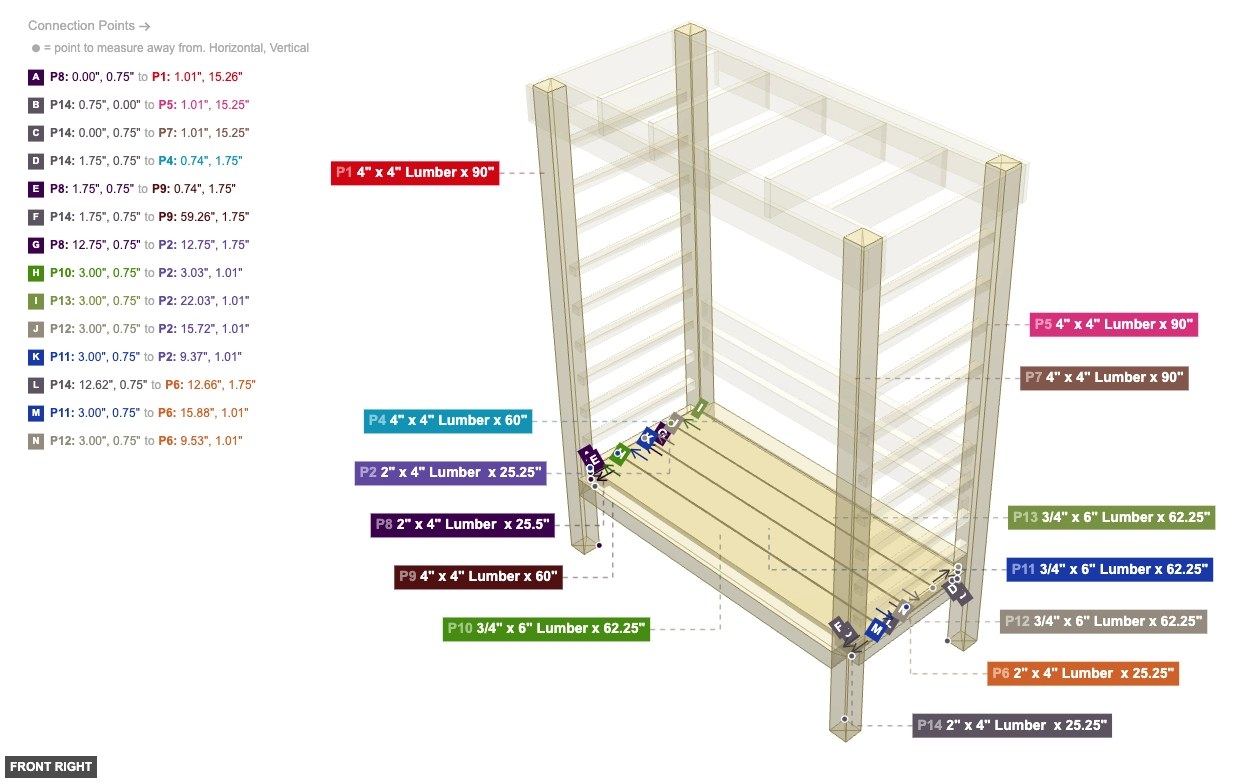

Bench Seat Installation

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Backrest Support Beams

2" x 4" Lumber x 60"x 3

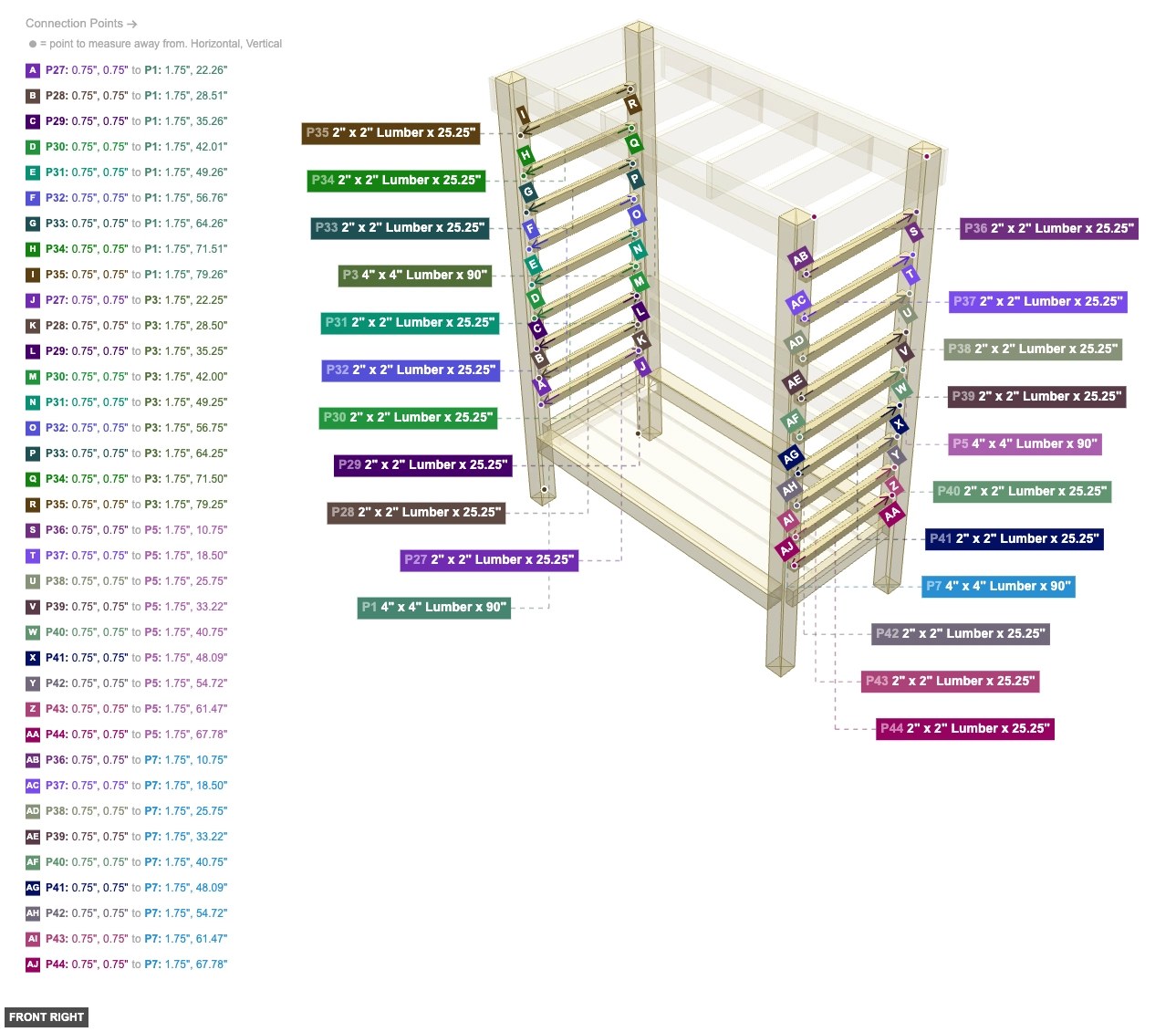

Backrest Slats Installation

2" x 2" Lumber x 25.25"x 18

Top Frame and Side Panels

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Pergola Top Slats

1" x 6" Lumber x 23.75"x 5

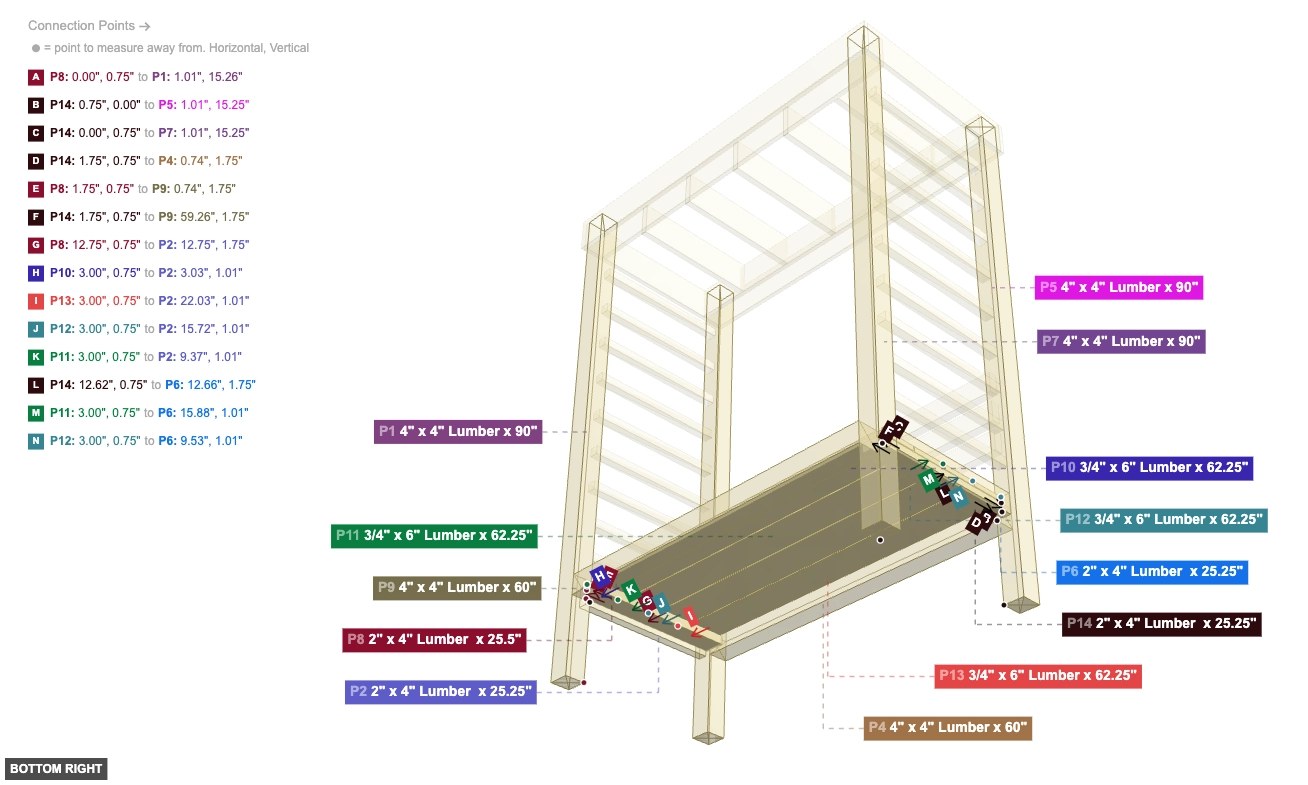

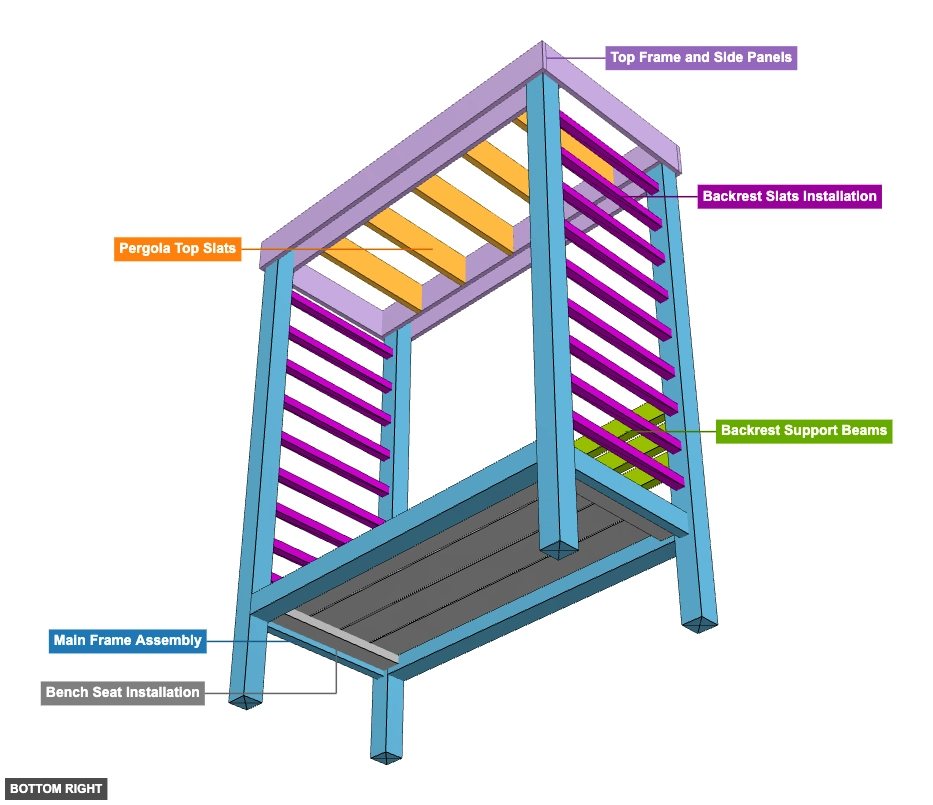

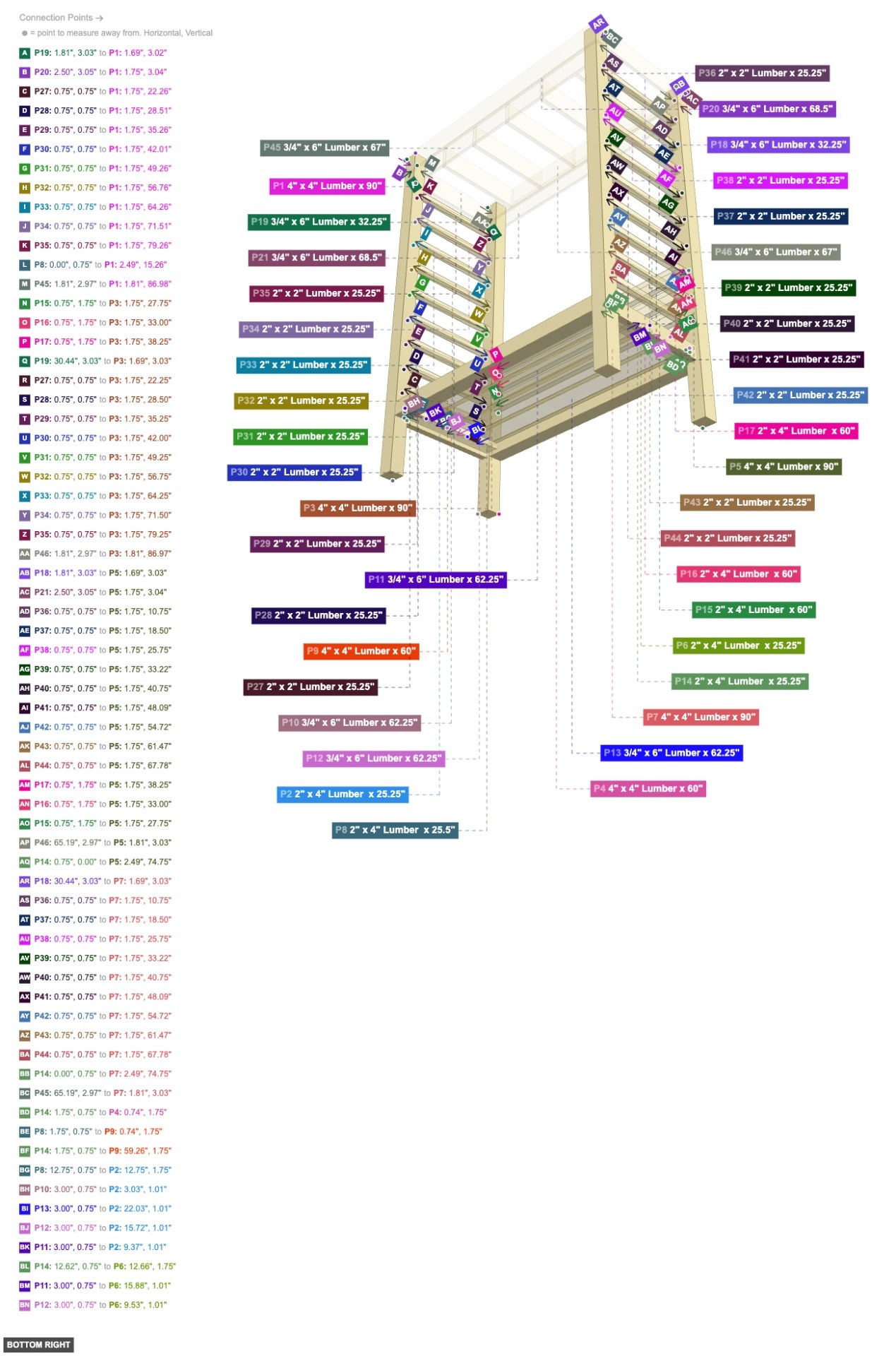

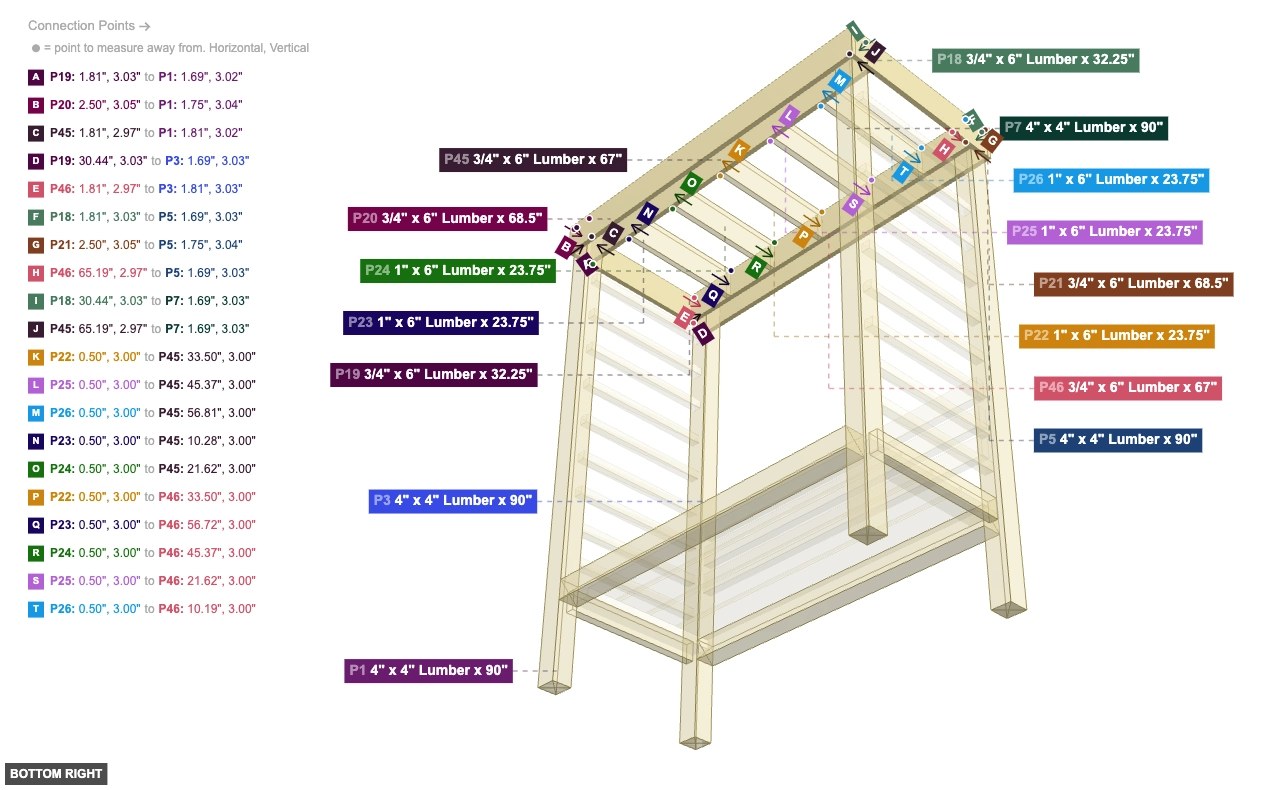

Angle: bottom right

Pergola With Bench 2 - Overview bottom_right

Main Frame Assembly

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Bench Seat Installation

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Backrest Support Beams

2" x 4" Lumber x 60"x 3

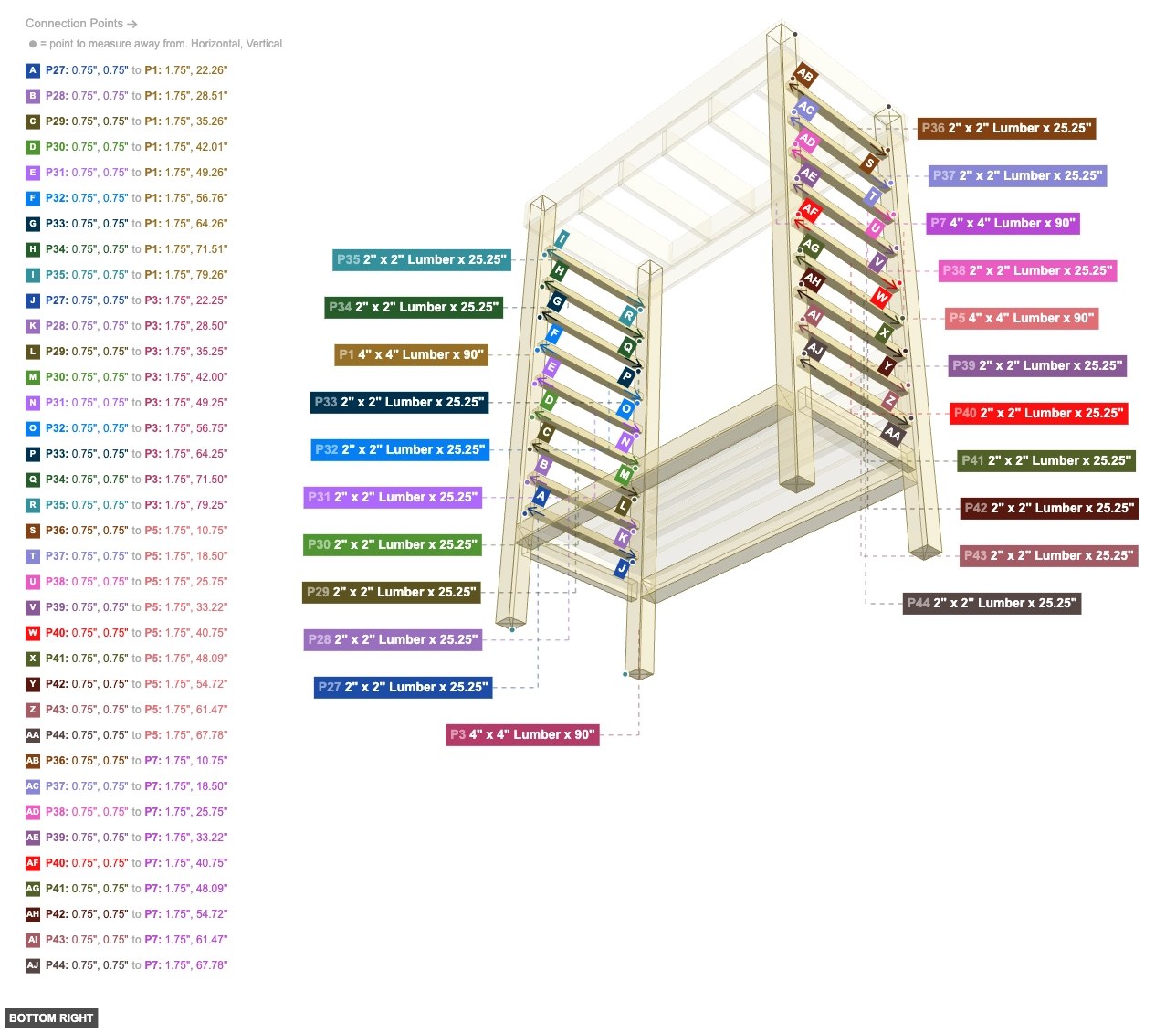

Backrest Slats Installation

2" x 2" Lumber x 25.25"x 18

Top Frame and Side Panels

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Pergola Top Slats

1" x 6" Lumber x 23.75"x 5

Phase 2: Individual Group Assembly

Group: Main Frame Assembly

Assemble the four main posts and the primary connecting beams for the base structure and lower bench support.

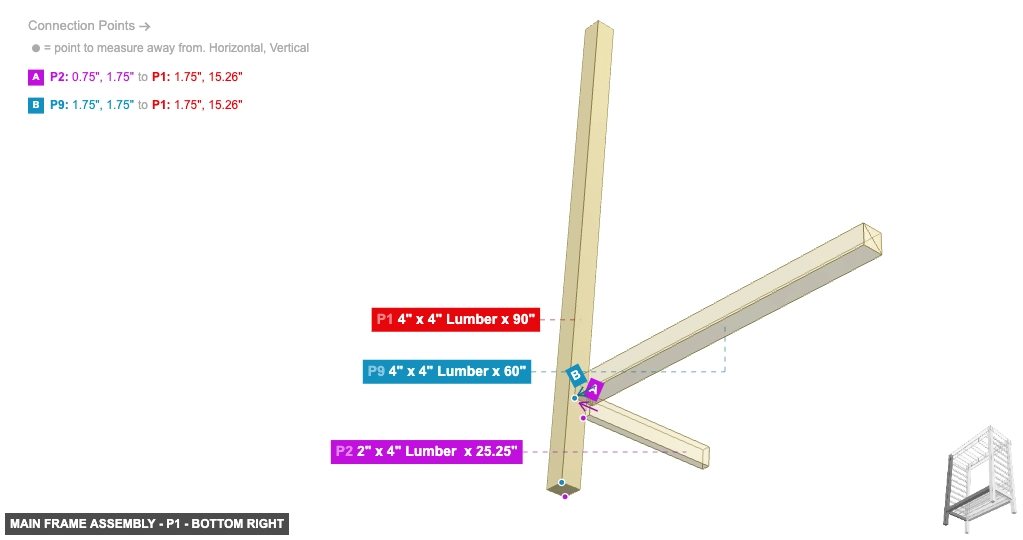

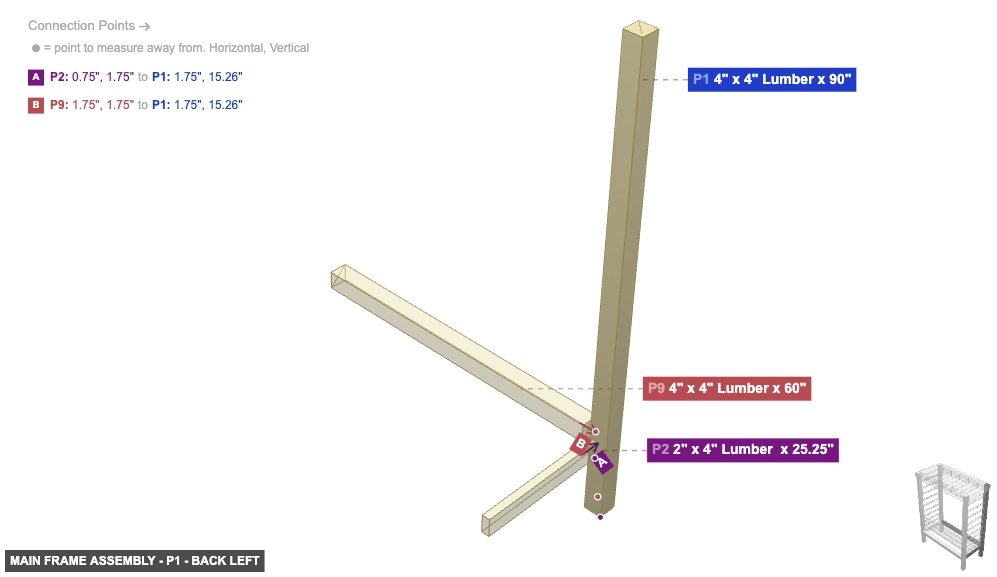

Part: 4" x 4" Lumber x 90" - Angle: back left

P1 (4" x 4" Lumber 90" length) - connect its 4" x 4" Wood Side #1 oriented back links with part 2's 2" x 4" Wood End #2. Additionally, its 4" x 4" Wood Side #2, which is right-facing, should connect to part 9's 4" x 4" Wood End #2. Also, its 4" x 4" Wood End #1 needs to point top, also its 4" x 4" Wood End #2 must be oriented bottom

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

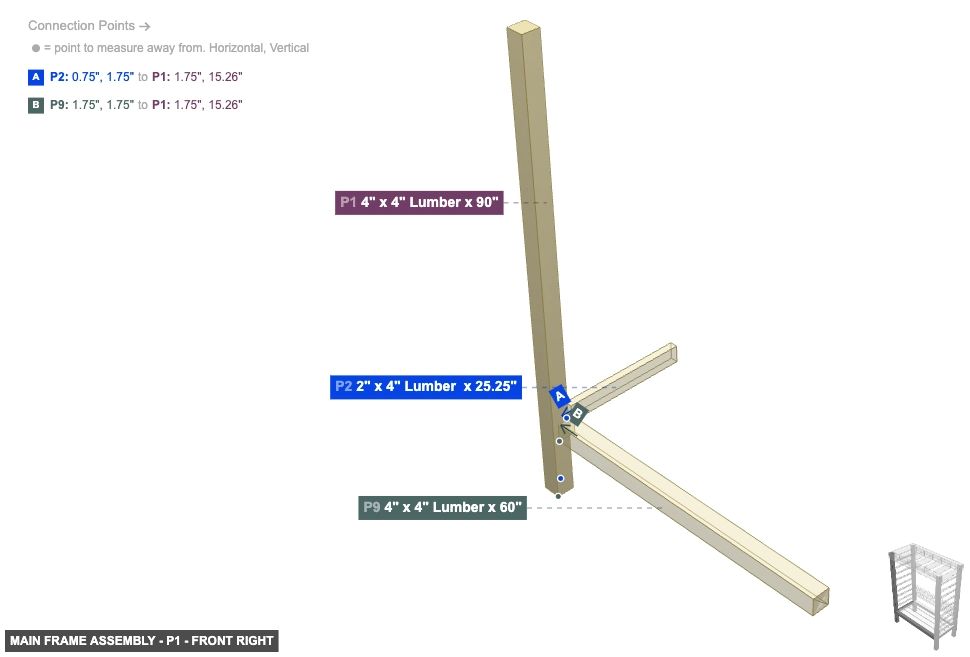

Part: 4" x 4" Lumber x 90" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Part: 4" x 4" Lumber x 90" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

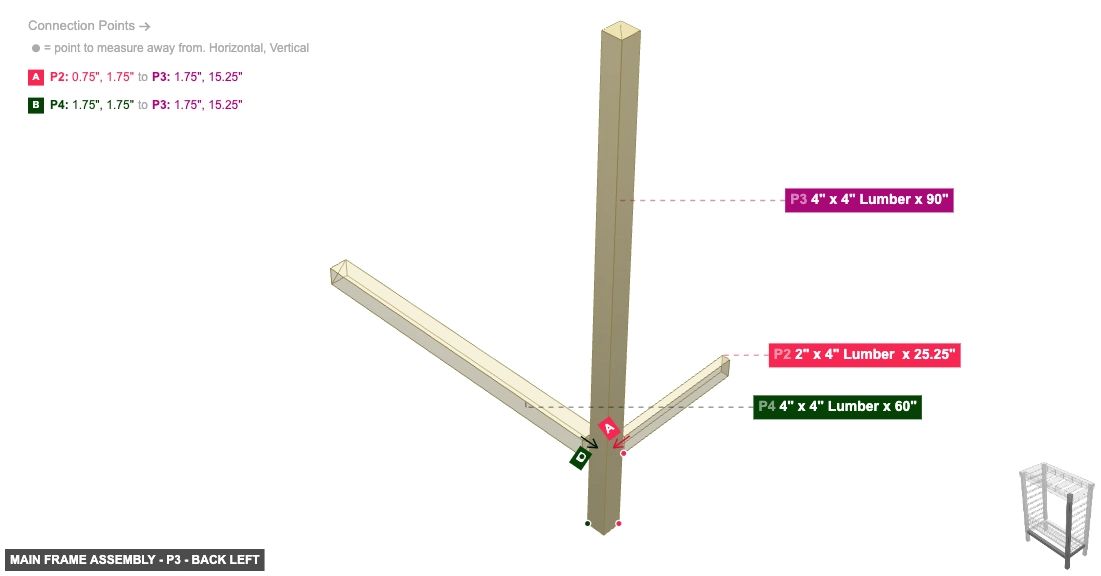

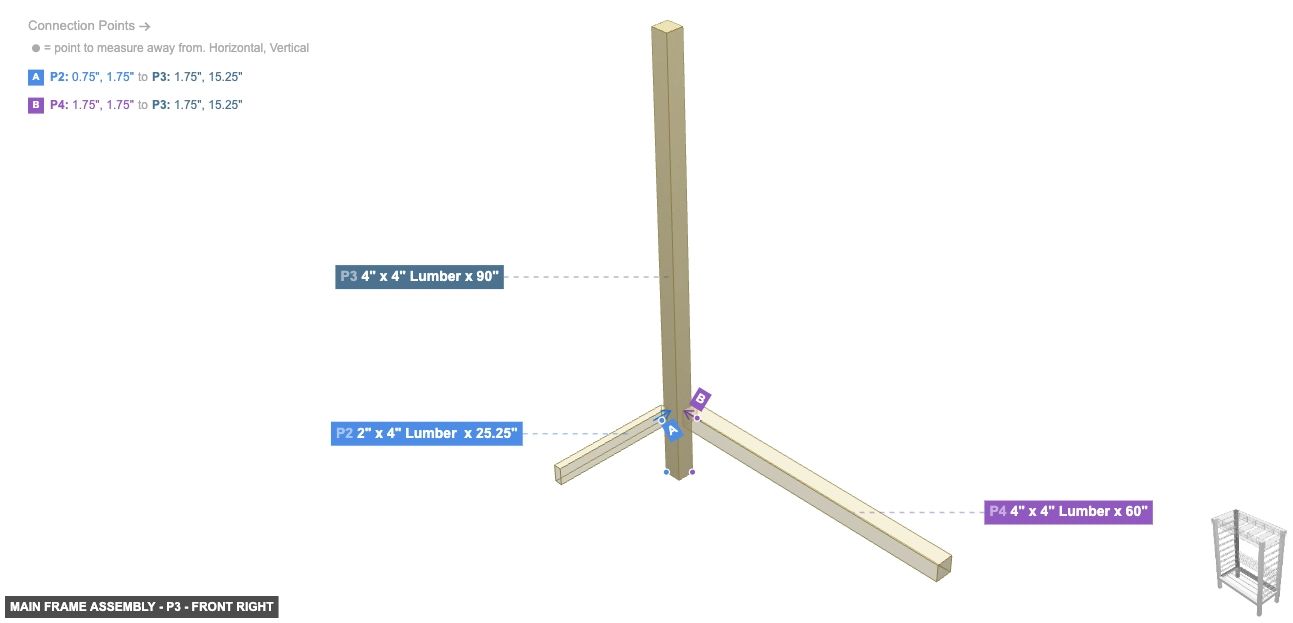

Part: 4" x 4" Lumber x 90" - Angle: back left

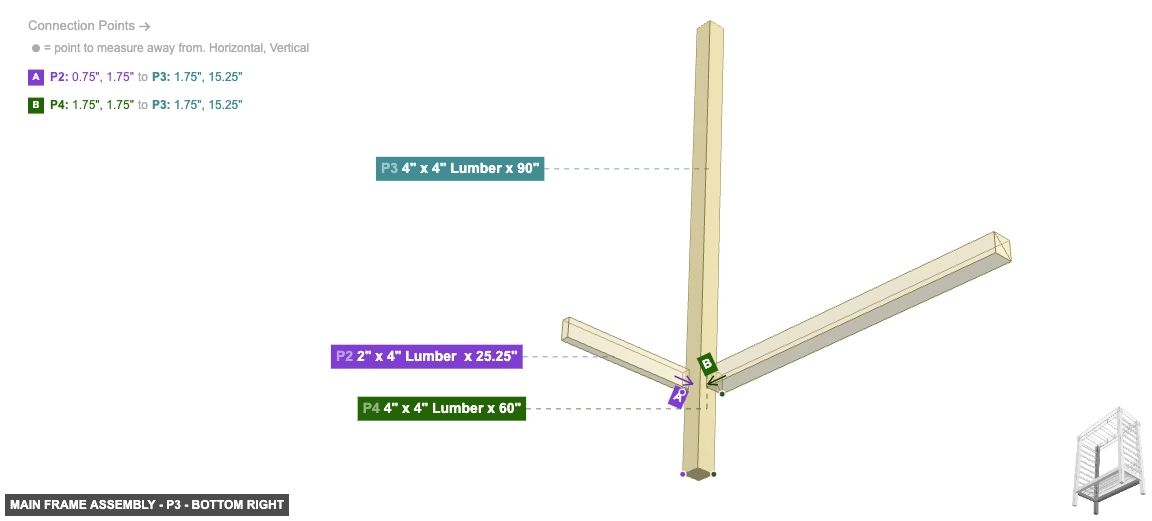

P3 (4" x 4" Lumber 90" length) - connect its 4" x 4" Wood Side #1 oriented front links with part 2's 2" x 4" Wood End #1. Also, attach its 4" x 4" Wood Side #4 facing right to part 4's 4" x 4" Wood End #2. After that, its 4" x 4" Wood End #1 needs to point top. Also, its 4" x 4" Wood Side #3 needs to point back. After that, its 4" x 4" Wood End #2 needs to point bottom

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Part: 4" x 4" Lumber x 90" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Part: 4" x 4" Lumber x 90" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

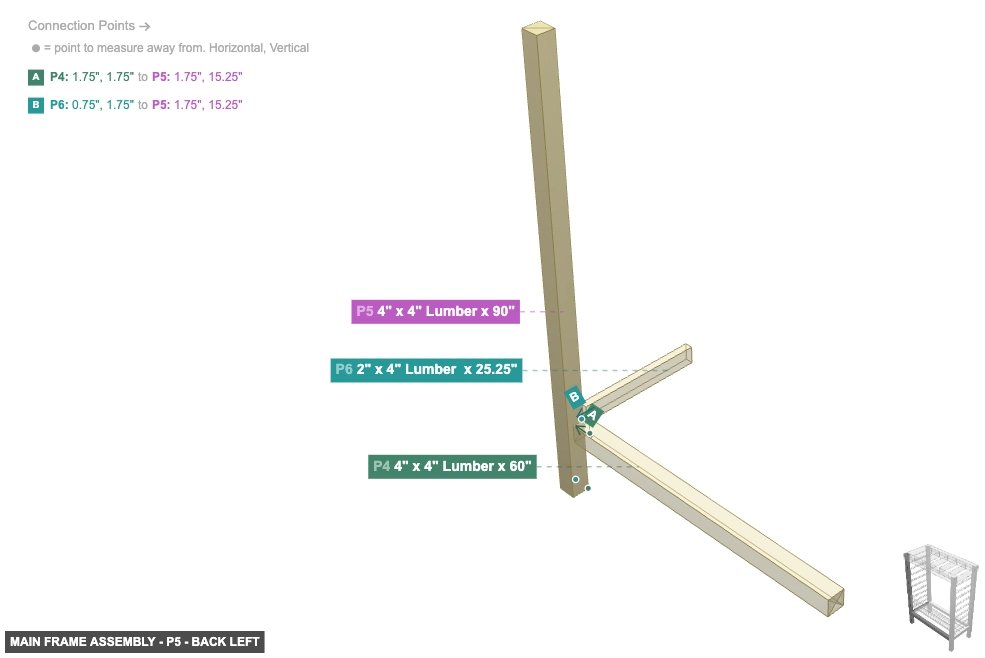

Part: 4" x 4" Lumber x 90" - Angle: back left

P5 (4" x 4" Lumber 90" length) - attach its 4" x 4" Wood Side #1 facing left to part 4's 4" x 4" Wood End #1, then connect its 4" x 4" Wood Side #4 oriented front links with part 6's 2" x 4" Wood End #2. After that, ensure its 4" x 4" Wood End #1 faces top, and ensure its 4" x 4" Wood End #2 faces bottom

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

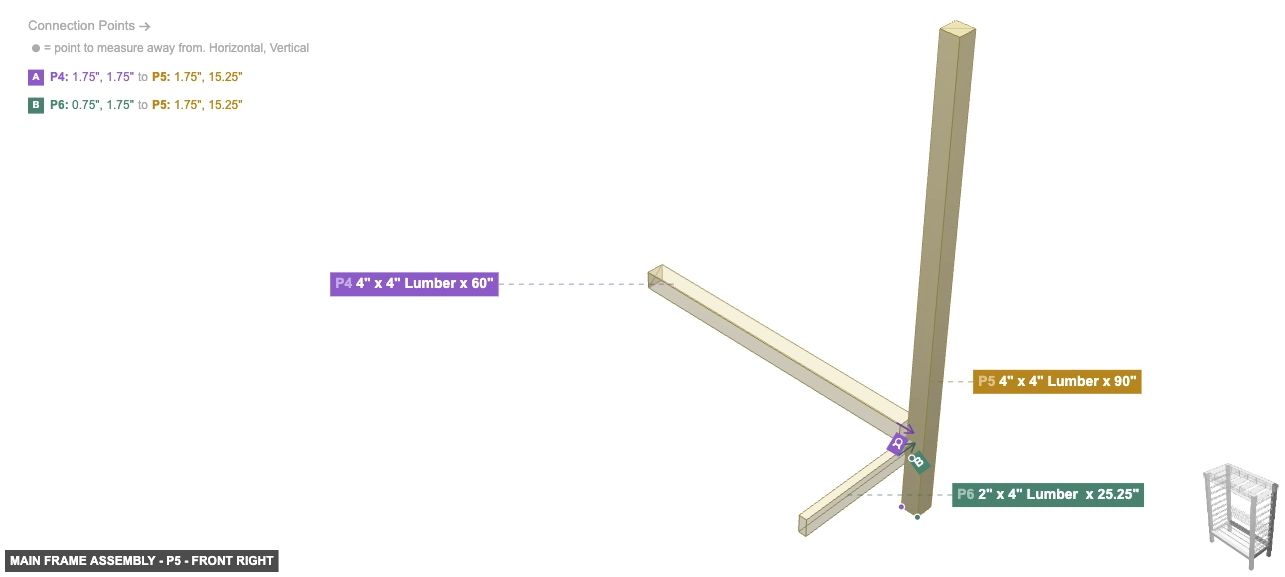

Part: 4" x 4" Lumber x 90" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

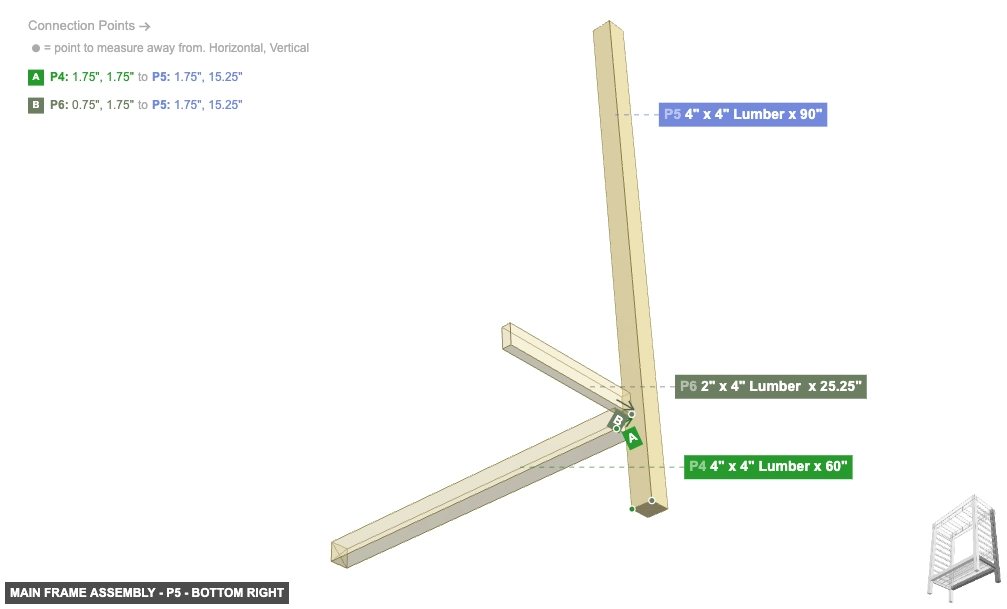

Part: 4" x 4" Lumber x 90" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

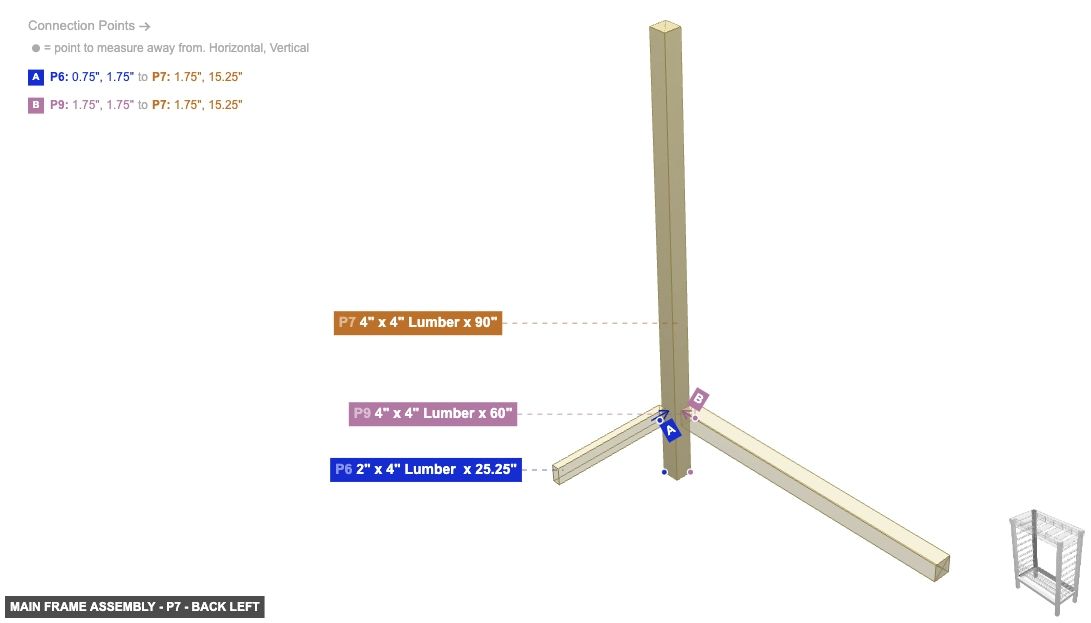

Part: 4" x 4" Lumber x 90" - Angle: back left

P7 (4" x 4" Lumber 90" length) - connect its 4" x 4" Wood Side #1 oriented back links with part 6's 2" x 4" Wood End #1, also attach its 4" x 4" Wood Side #4 facing left to part 9's 4" x 4" Wood End #1. Additionally, its 4" x 4" Wood End #1 must be oriented top, plus ensure its 4" x 4" Wood Side #3 faces front, also its 4" x 4" Wood End #2 needs to point bottom

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

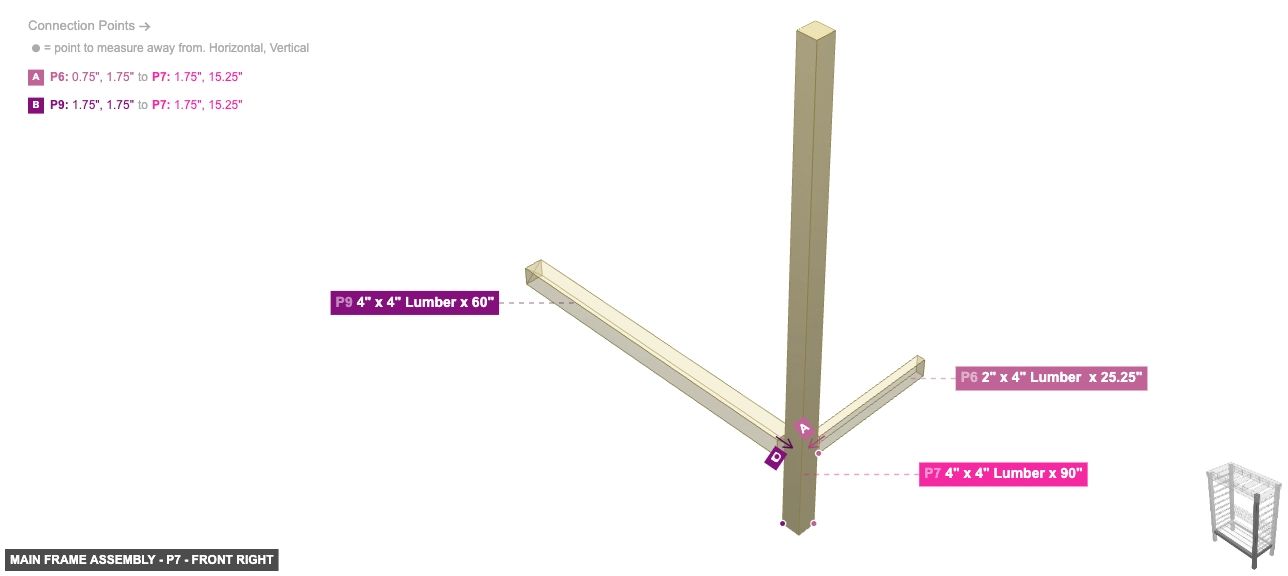

Part: 4" x 4" Lumber x 90" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

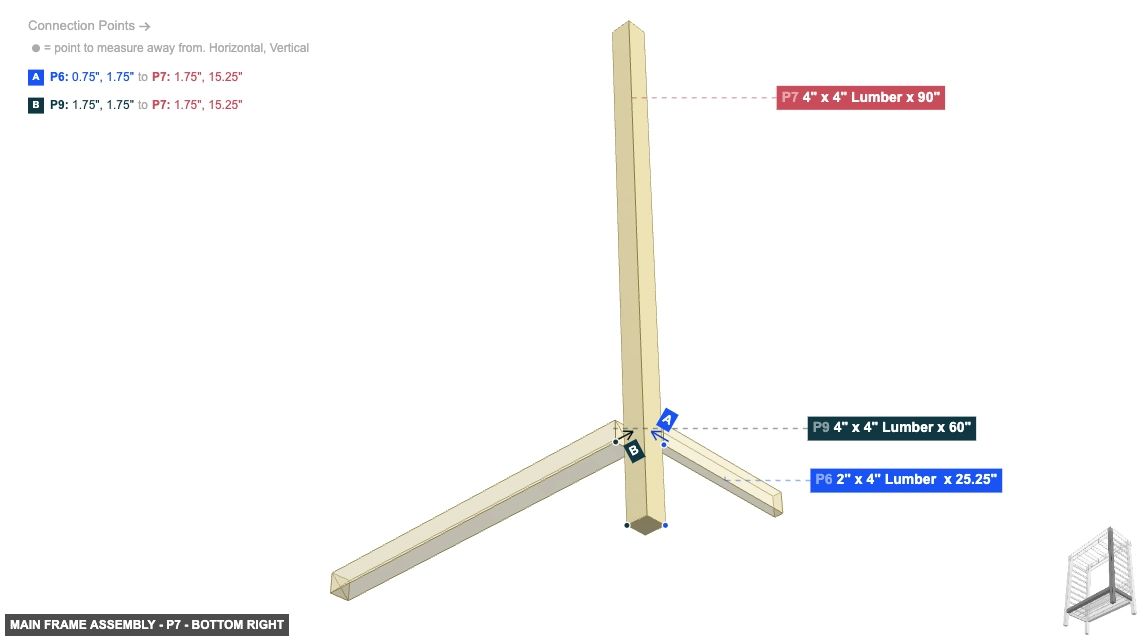

Part: 4" x 4" Lumber x 90" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

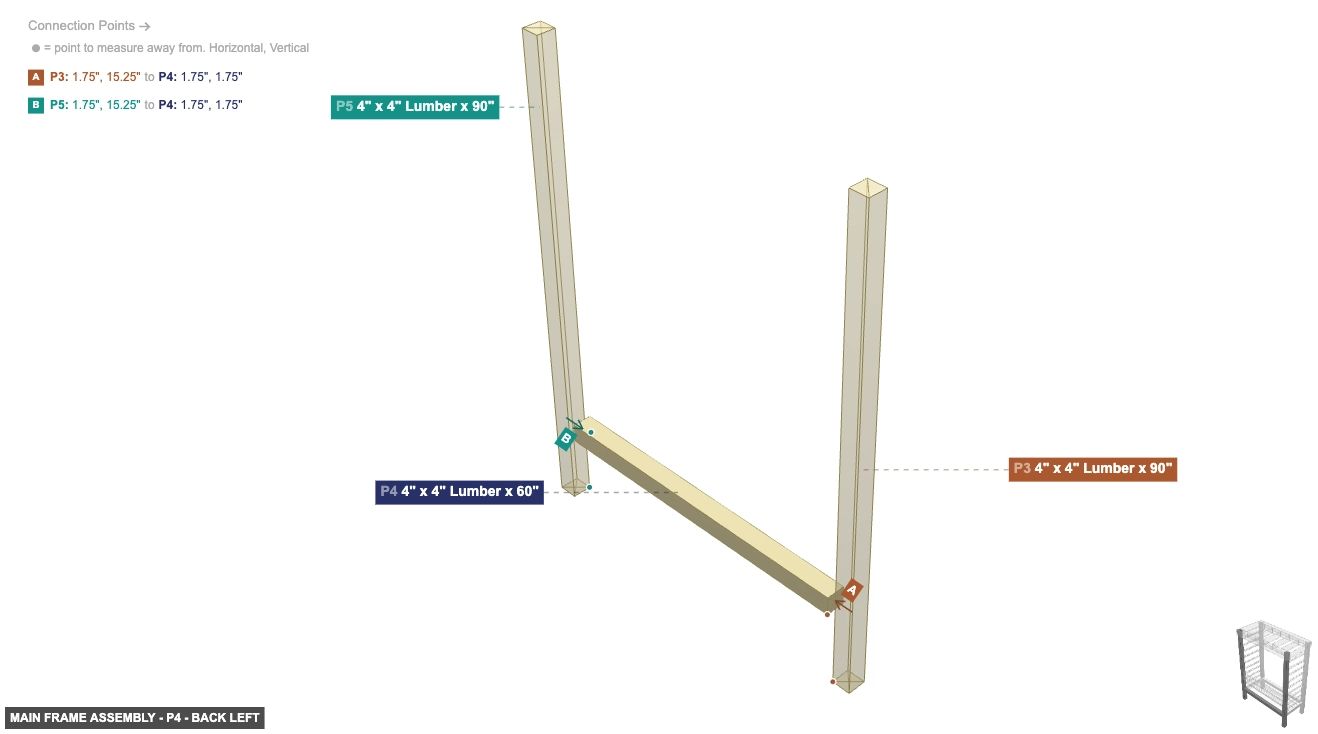

Part: 4" x 4" Lumber x 60" - Angle: back left

P4 (4" x 4" Lumber 60" length) - connect its 4" x 4" Wood End #1 oriented right links with part 5's 4" x 4" Wood Side #1, plus attach its 4" x 4" Wood End #2 facing left to part 3's 4" x 4" Wood Side #4, also ensure its 4" x 4" Wood Side #1 faces bottom. Also, its 4" x 4" Wood Side #3 needs to point top, then its 4" x 4" Wood Side #4 needs to point back

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

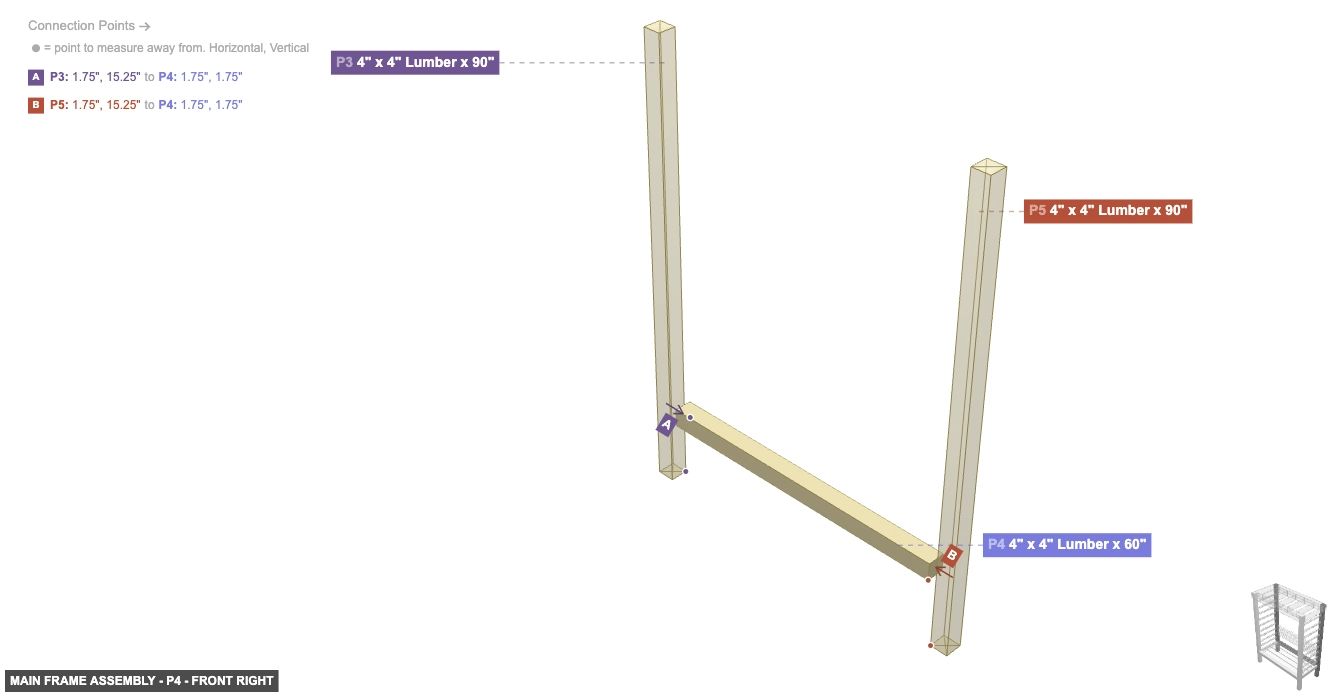

Part: 4" x 4" Lumber x 60" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

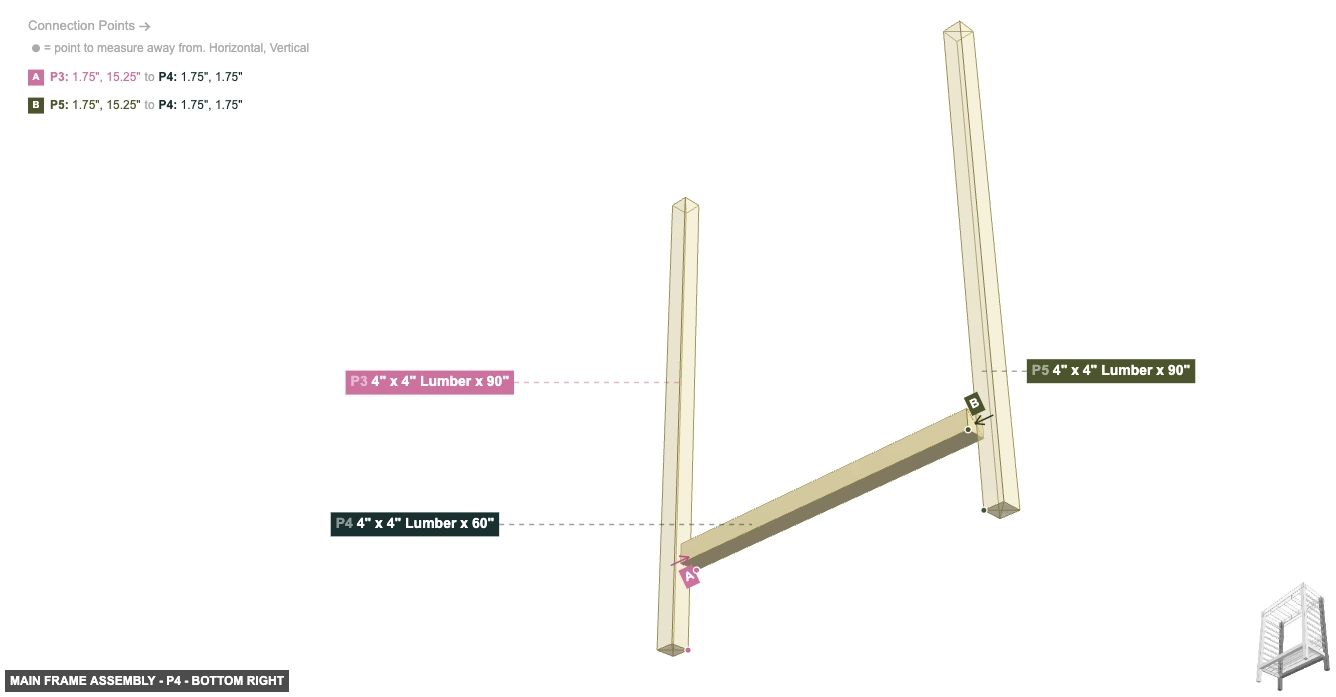

Part: 4" x 4" Lumber x 60" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

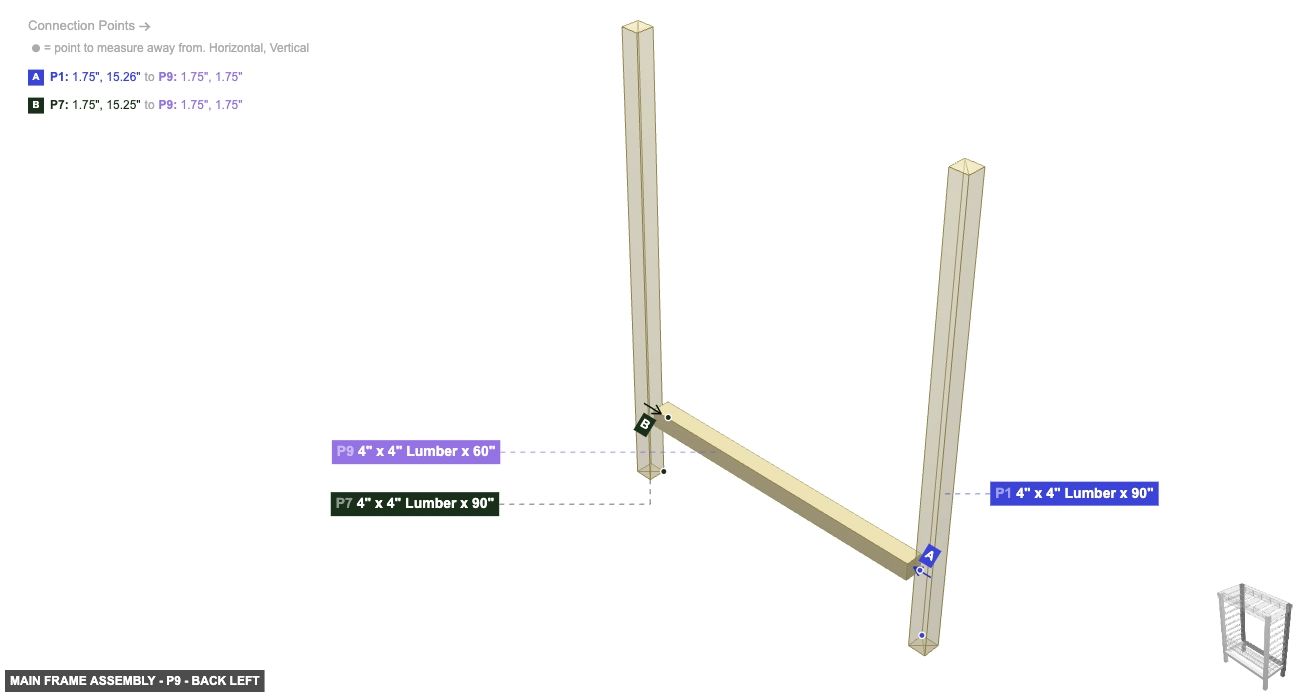

Part: 4" x 4" Lumber x 60" - Angle: back left

P9 (4" x 4" Lumber 60" length) - connect its 4" x 4" Wood End #1 oriented right links with part 7's 4" x 4" Wood Side #4. Next, connect its 4" x 4" Wood End #2 oriented left links with part 1's 4" x 4" Wood Side #2, and its 4" x 4" Wood Side #1 needs to point top, and its 4" x 4" Wood Side #3 should be directed bottom. Also, its 4" x 4" Wood Side #4 must be oriented front

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

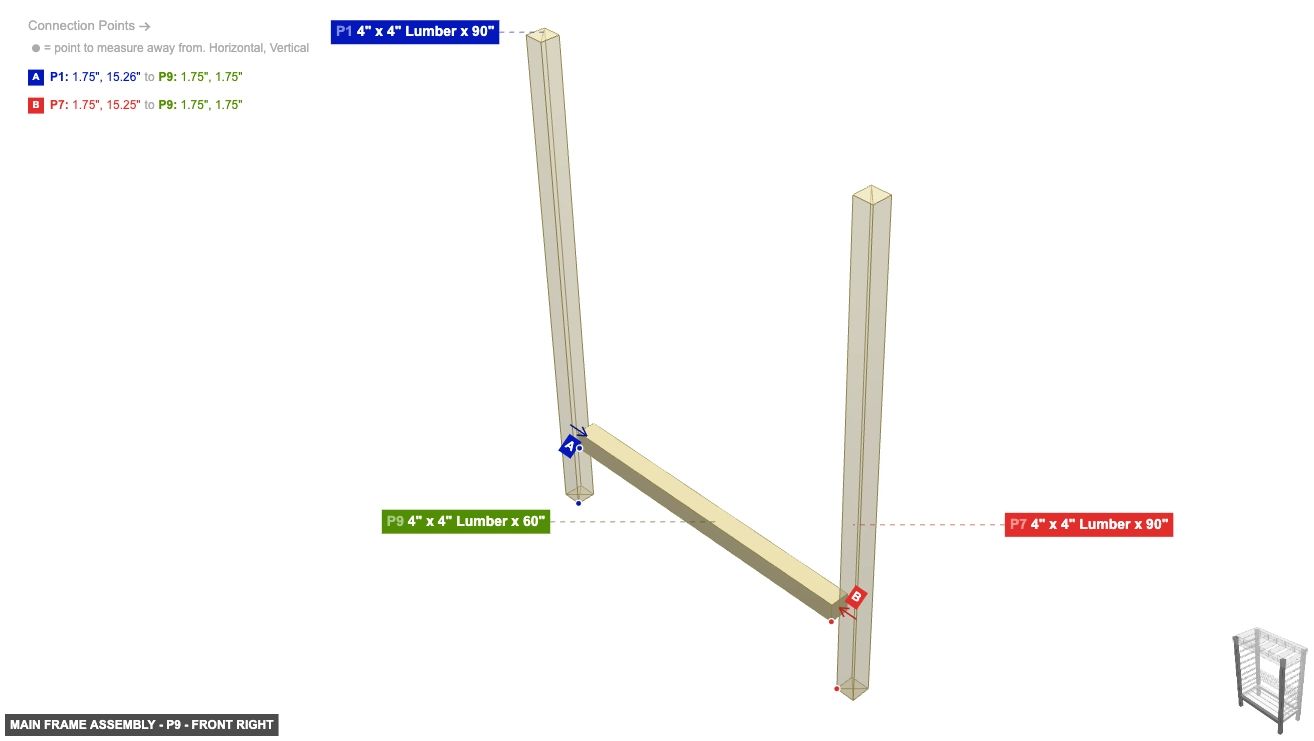

Part: 4" x 4" Lumber x 60" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

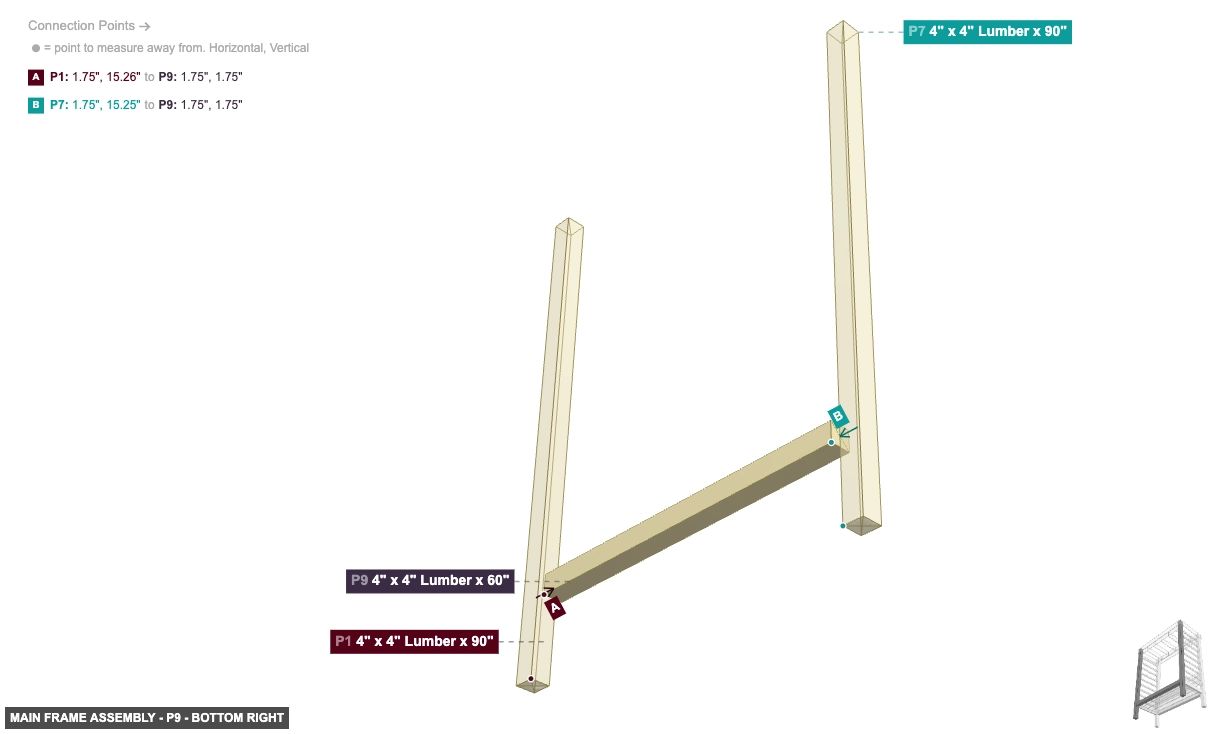

Part: 4" x 4" Lumber x 60" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

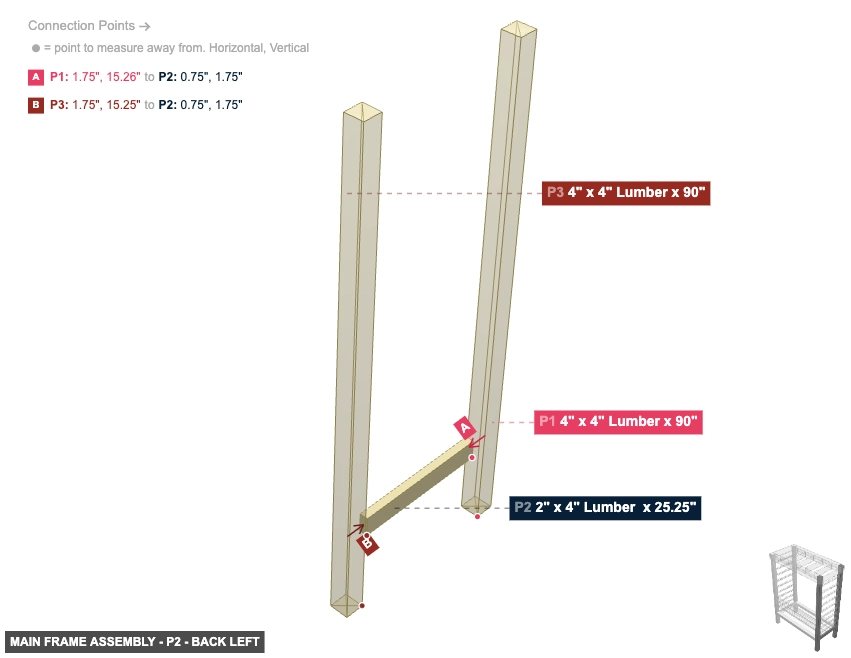

Part: 2" x 4" Lumber x 25.25" - Angle: back left

P2 (2" x 4" Lumber 25.25" length) - attach its 2" x 4" Wood End #1 facing back to part 3's 4" x 4" Wood Side #1, also attach its 2" x 4" Wood End #2 facing front to part 1's 4" x 4" Wood Side #1. Additionally, its 2" x 4" Wood Side #1 should be directed bottom, plus its 2" x 4" Wood Side #3 should be directed top. Next, ensure its 2" x 4" Wood Side #4 faces left

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

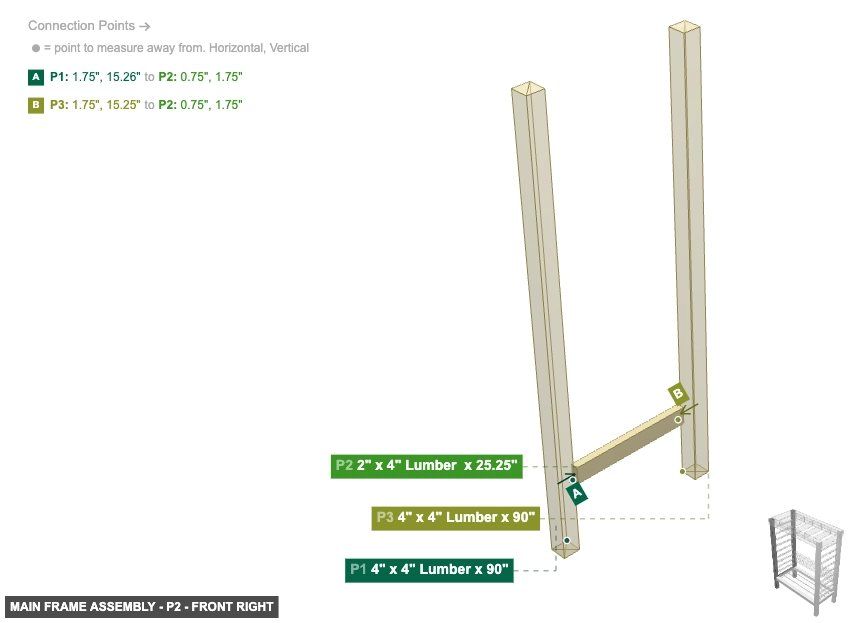

Part: 2" x 4" Lumber x 25.25" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

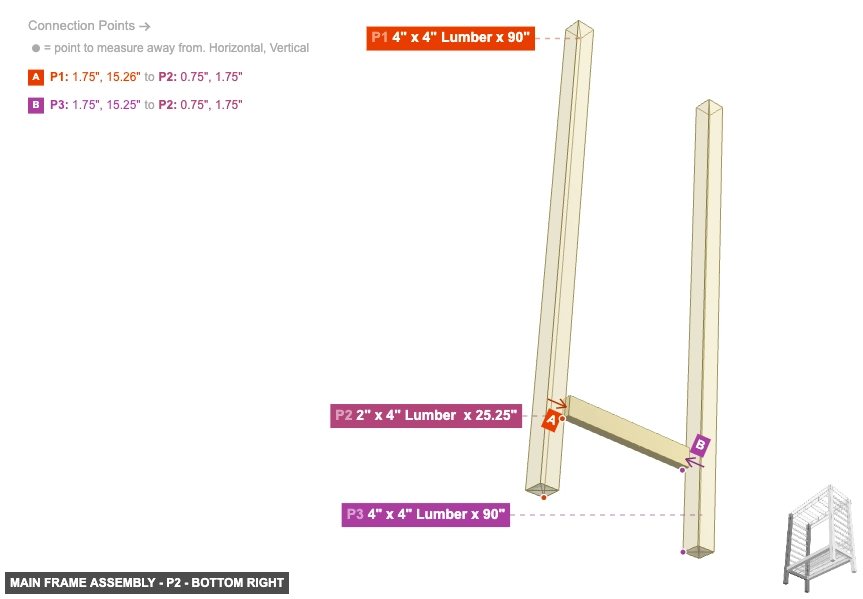

Part: 2" x 4" Lumber x 25.25" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

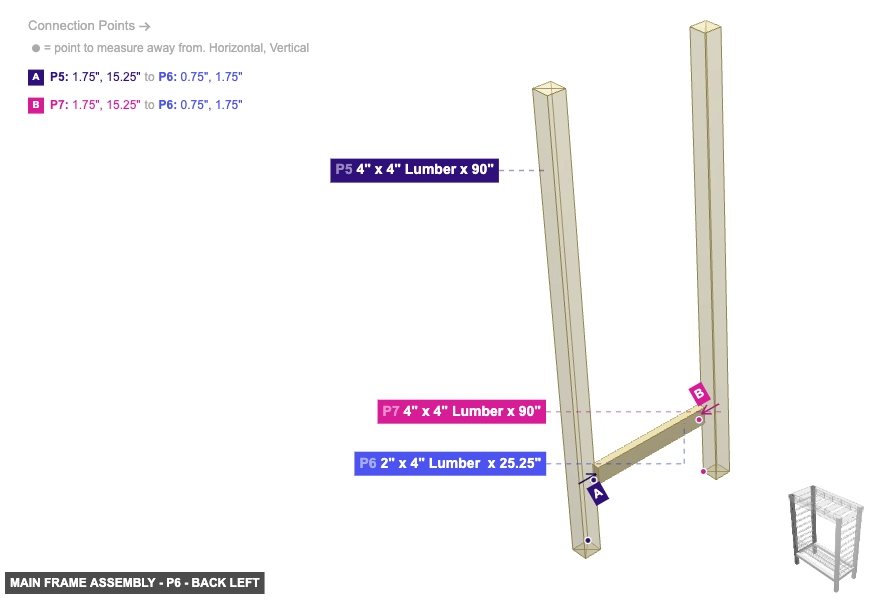

Part: 2" x 4" Lumber x 25.25" - Angle: back left

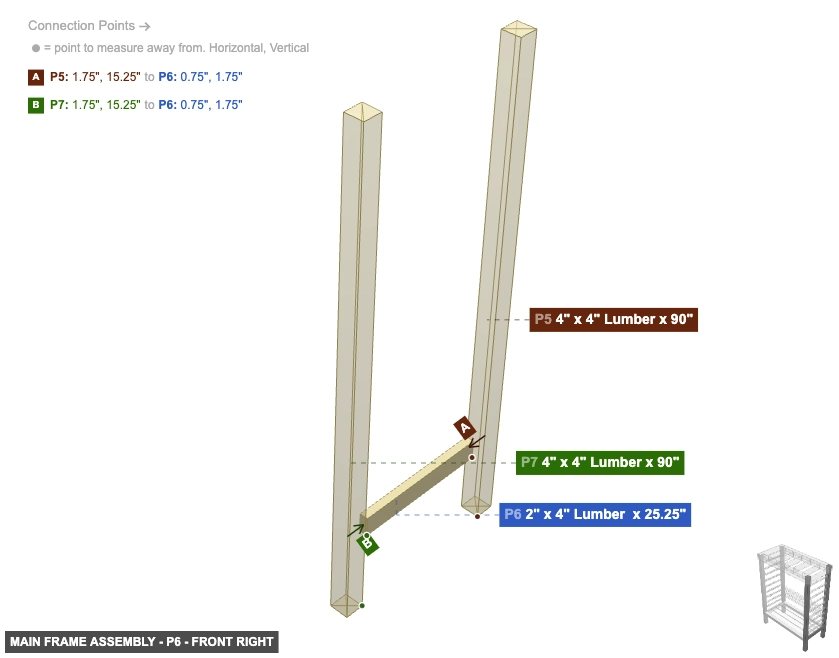

P6 (2" x 4" Lumber 25.25" length) - connect its 2" x 4" Wood End #1 oriented front links with part 7's 4" x 4" Wood Side #1. Additionally, attach its 2" x 4" Wood End #2 facing back to part 5's 4" x 4" Wood Side #4, plus its 2" x 4" Wood Side #1 must be oriented bottom. After that, its 2" x 4" Wood Side #3 should be directed top, then its 2" x 4" Wood Side #4 should be directed right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Part: 2" x 4" Lumber x 25.25" - Angle: front right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

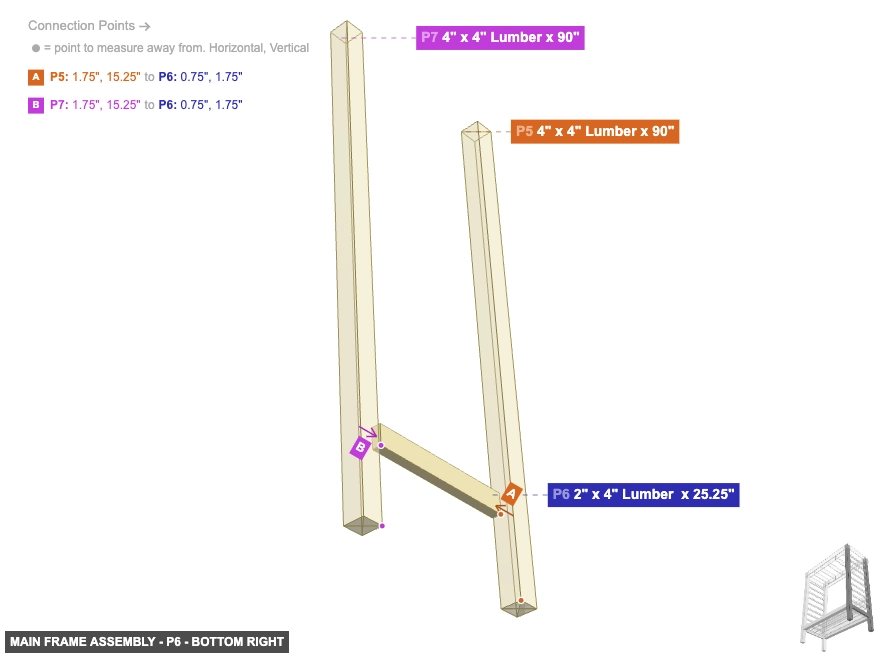

Part: 2" x 4" Lumber x 25.25" - Angle: bottom right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Group: Bench Seat Installation

Install the central bench supports and attach the seat slats.

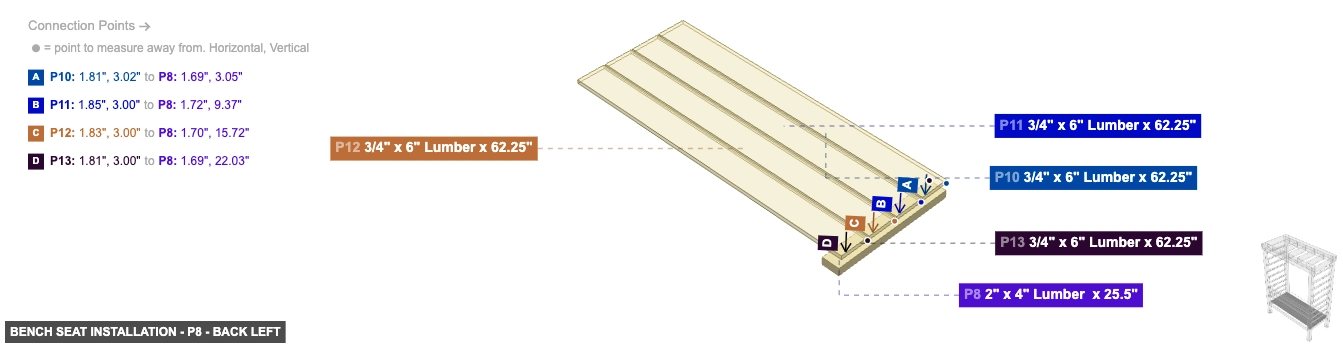

Part: 2" x 4" Lumber x 25.5" - Angle: back left

P8 (2" x 4" Lumber 25.5" length) - its 2" x 4" Wood Side #4, which is top-facing, should connect to part 10's 1" x 6" Wood Side #2, and ensure its 2" x 4" Wood End #1 faces back, also its 2" x 4" Wood Side #2 must be oriented bottom. Also, its 2" x 4" Wood Side #3 should be directed right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

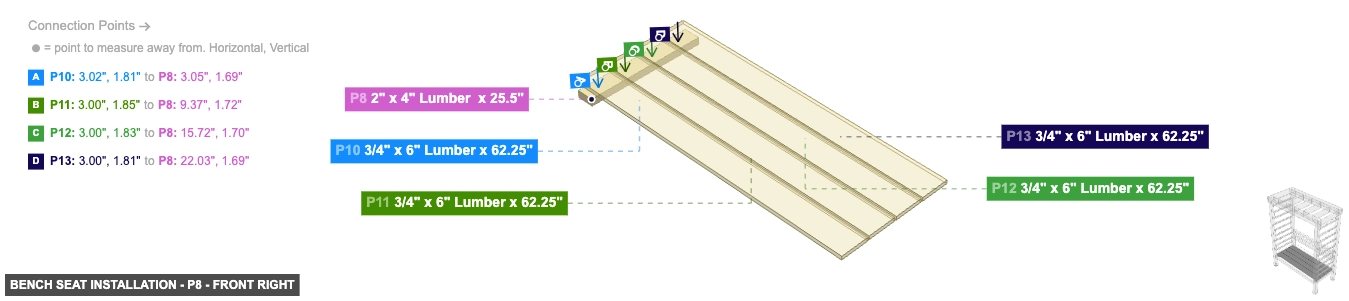

Part: 2" x 4" Lumber x 25.5" - Angle: front right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

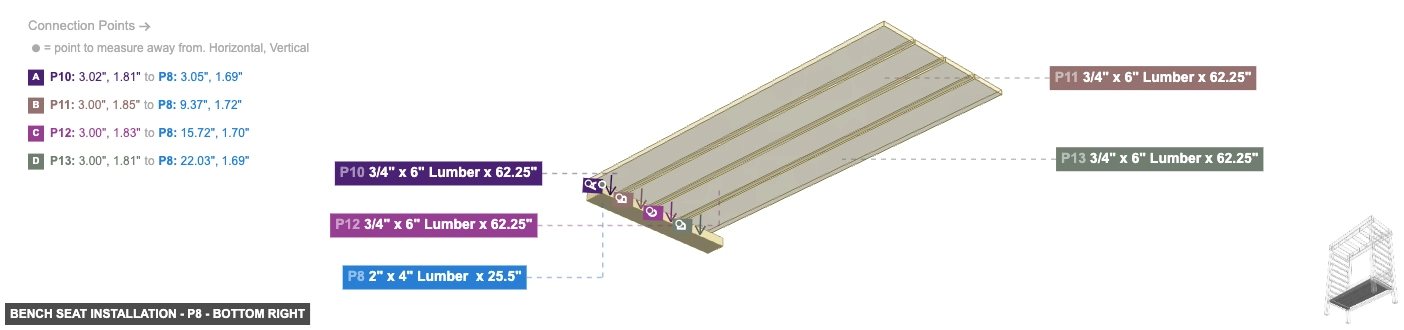

Part: 2" x 4" Lumber x 25.5" - Angle: bottom right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

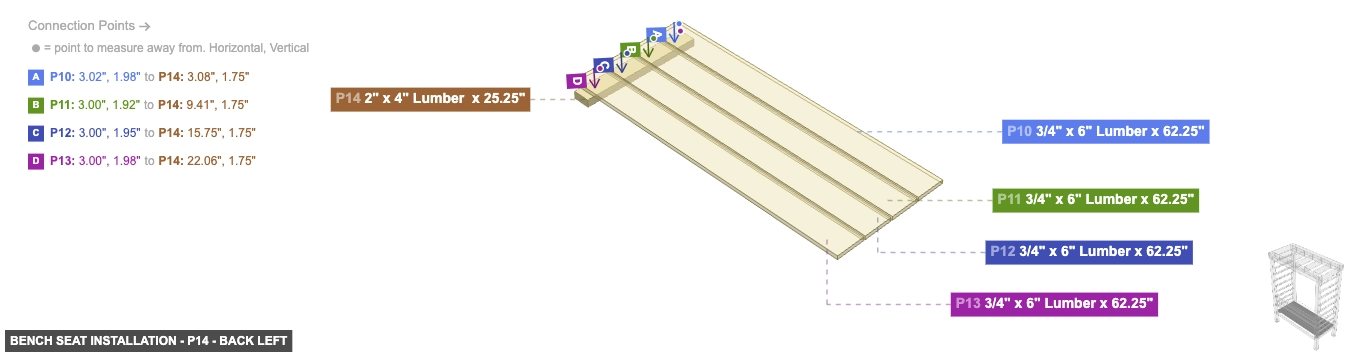

Part: 2" x 4" Lumber x 25.25" - Angle: back left

P14 (2" x 4" Lumber 25.25" length) - its 2" x 4" Wood Side #4, which is top-facing, should connect to part 10's 1" x 6" Wood Side #2, and ensure its 2" x 4" Wood Side #2 faces bottom, also its 2" x 4" Wood Side #3 needs to point left

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

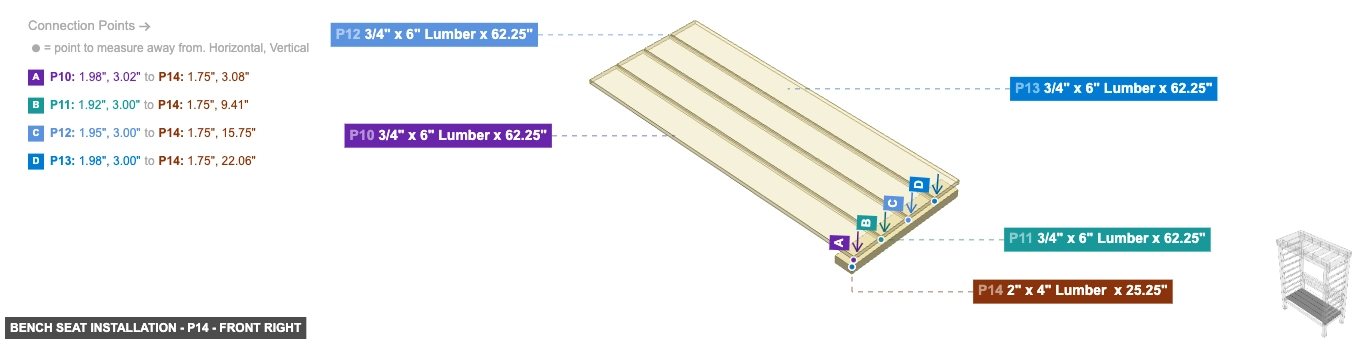

Part: 2" x 4" Lumber x 25.25" - Angle: front right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

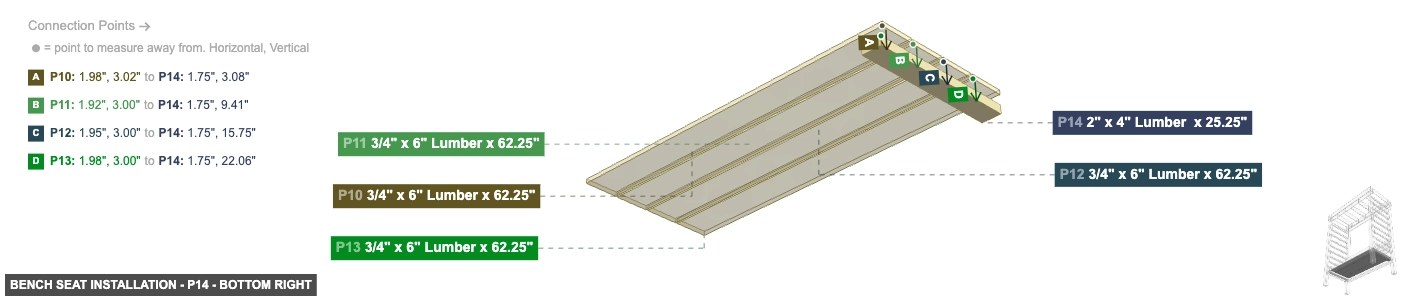

Part: 2" x 4" Lumber x 25.25" - Angle: bottom right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

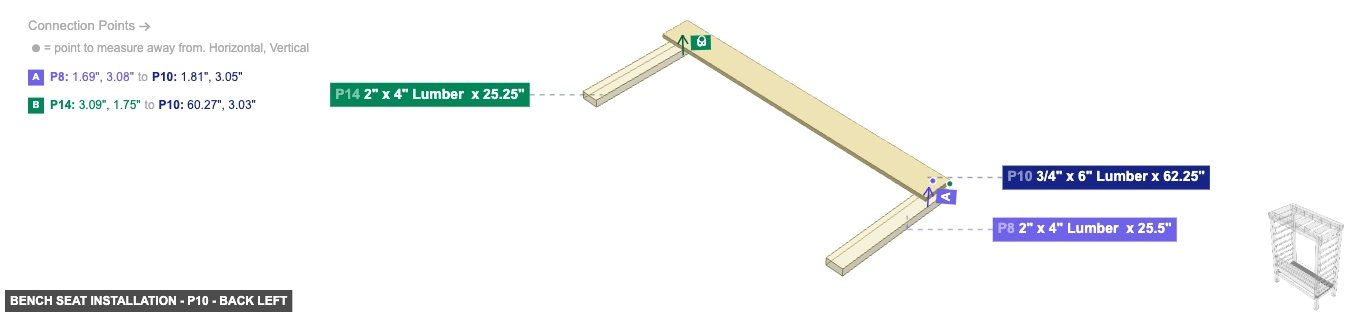

Part: 3/4" x 6" Lumber x 62.25" - Angle: back left

P10 (0.75" x 6" Lumber 62.25" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #4. Additionally, its 1" x 6" Wood End #1 should be directed right. Next, its 1" x 6" Wood Side #1 should be directed back, plus its 1" x 6" Wood Side #3 must be oriented front. Also, its 1" x 6" Wood Side #4 needs to point top

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

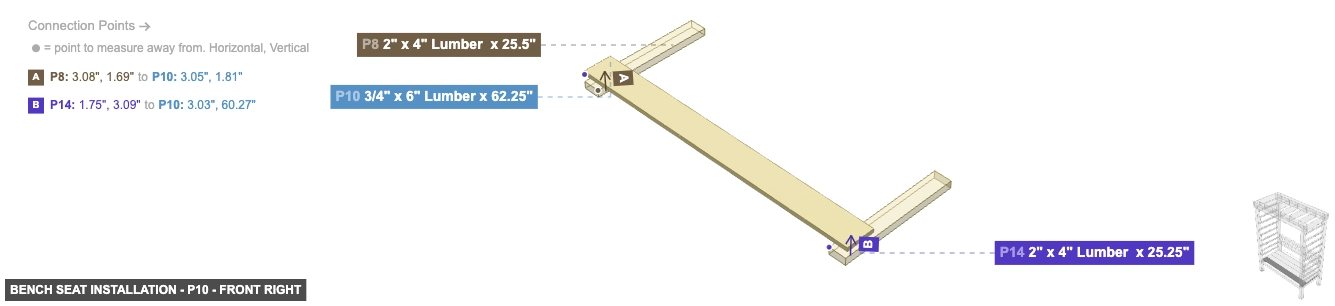

Part: 3/4" x 6" Lumber x 62.25" - Angle: front right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Part: 3/4" x 6" Lumber x 62.25" - Angle: bottom right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

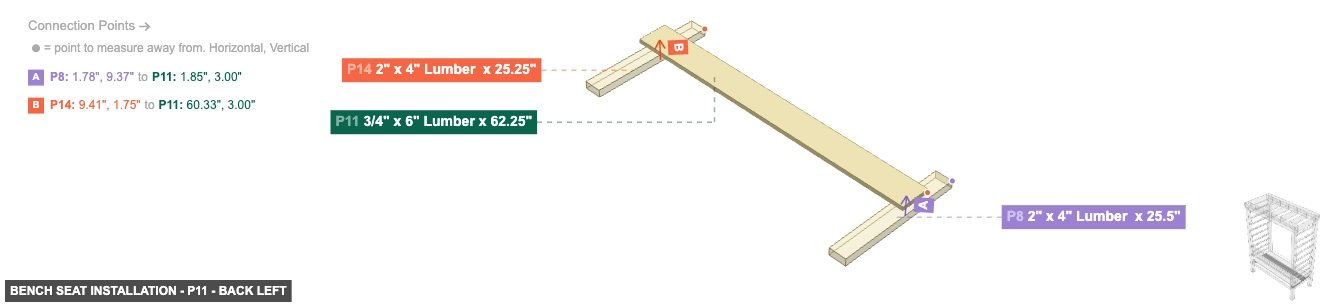

Part: 3/4" x 6" Lumber x 62.25" - Angle: back left

P11 (0.75" x 6" Lumber 62.25" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #4, and ensure its 1" x 6" Wood Side #1 faces back, and ensure its 1" x 6" Wood Side #3 faces front. After that, ensure its 1" x 6" Wood Side #4 faces top

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

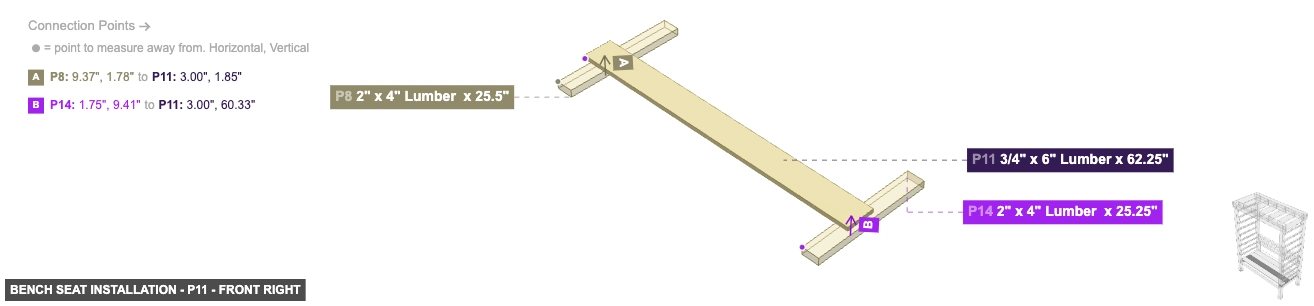

Part: 3/4" x 6" Lumber x 62.25" - Angle: front right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

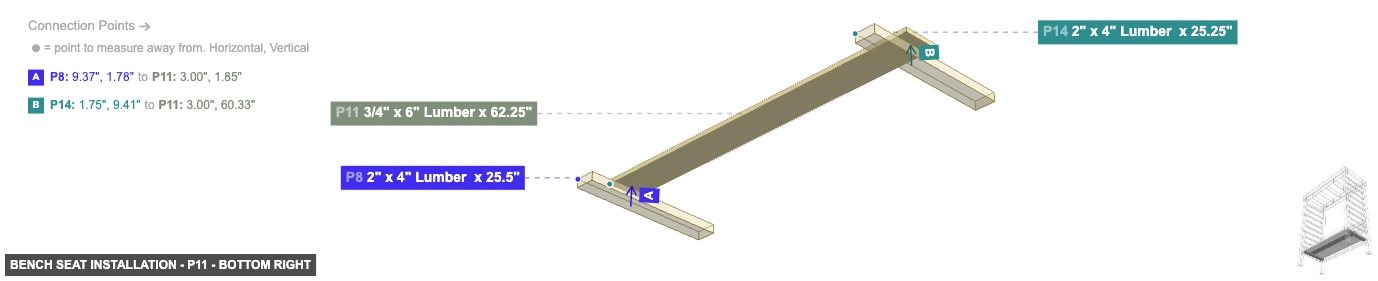

Part: 3/4" x 6" Lumber x 62.25" - Angle: bottom right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Part: 3/4" x 6" Lumber x 62.25" - Angle: back left

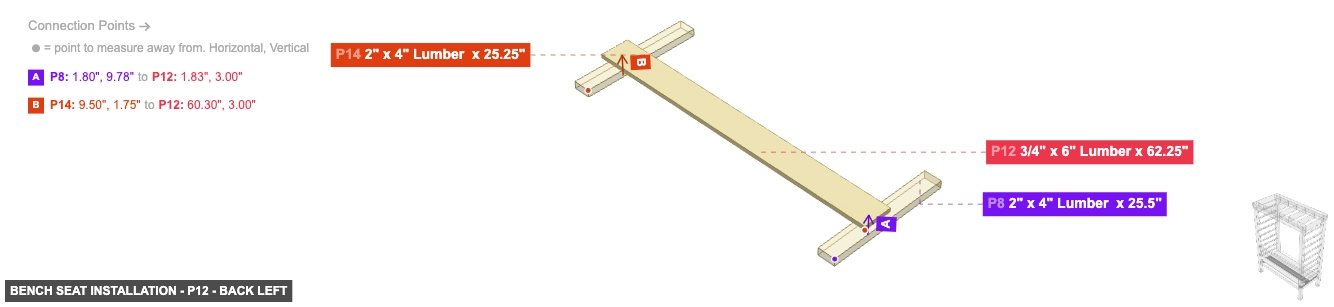

P12 (0.75" x 6" Lumber 62.25" length) - connect its 1" x 6" Wood Side #2 oriented bottom links with part 8's 2" x 4" Wood Side #4. Additionally, its 1" x 6" Wood Side #1 needs to point back. Also, ensure its 1" x 6" Wood Side #3 faces front, and its 1" x 6" Wood Side #4 must be oriented top

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Part: 3/4" x 6" Lumber x 62.25" - Angle: front right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

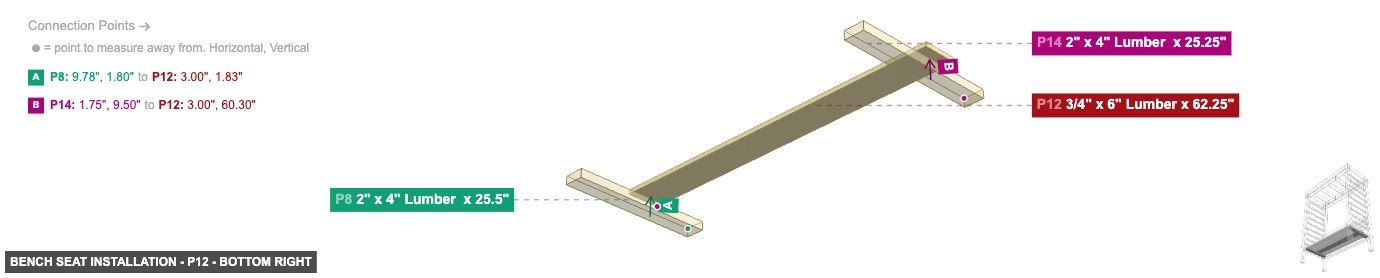

Part: 3/4" x 6" Lumber x 62.25" - Angle: bottom right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

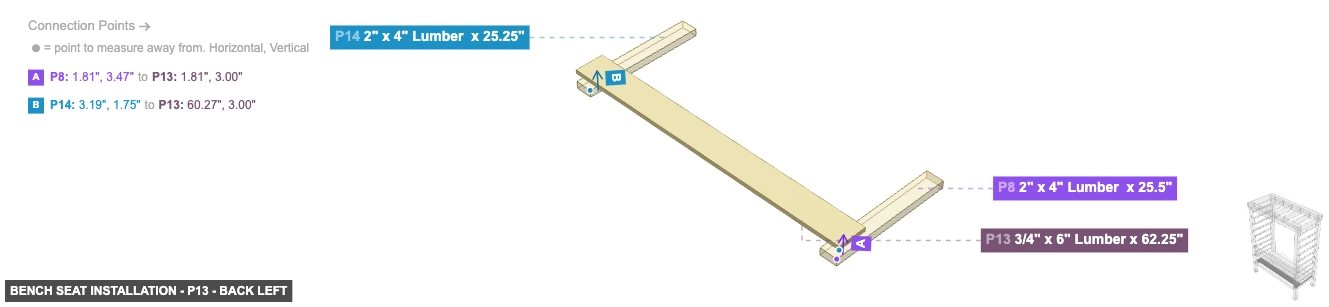

Part: 3/4" x 6" Lumber x 62.25" - Angle: back left

P13 (0.75" x 6" Lumber 62.25" length) - connect its 1" x 6" Wood Side #2 oriented bottom links with part 8's 2" x 4" Wood Side #4. Also, its 1" x 6" Wood End #1 must be oriented right. Also, ensure its 1" x 6" Wood Side #1 faces back. Also, ensure its 1" x 6" Wood Side #3 faces front, plus ensure its 1" x 6" Wood Side #4 faces top

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

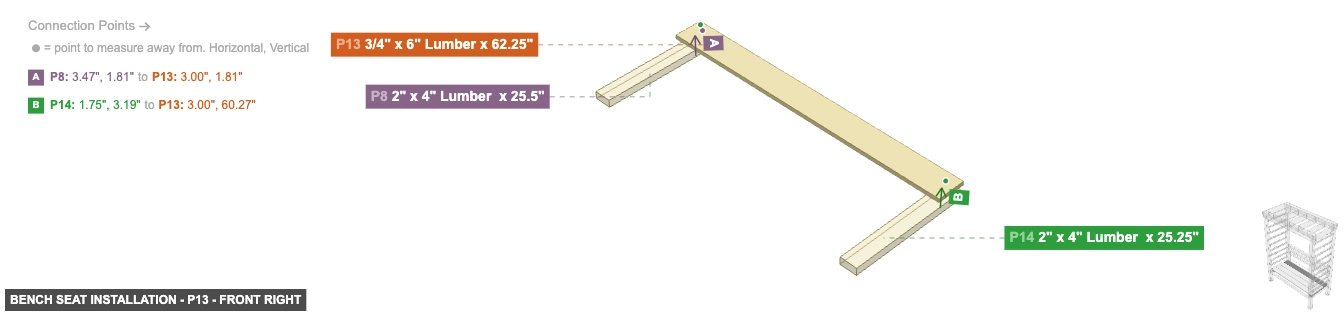

Part: 3/4" x 6" Lumber x 62.25" - Angle: front right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

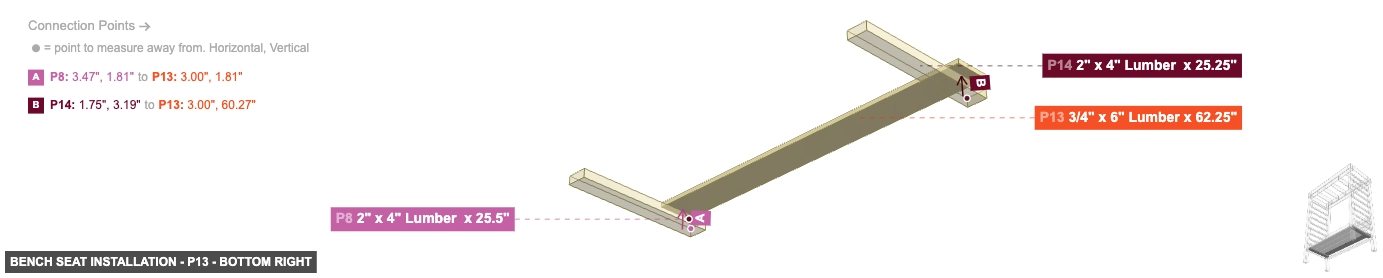

Part: 3/4" x 6" Lumber x 62.25" - Angle: bottom right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Group: Top Frame and Side Panels

Attach the upper side panels (P18-P21) and the main beams (P45, P46) for the pergola top.

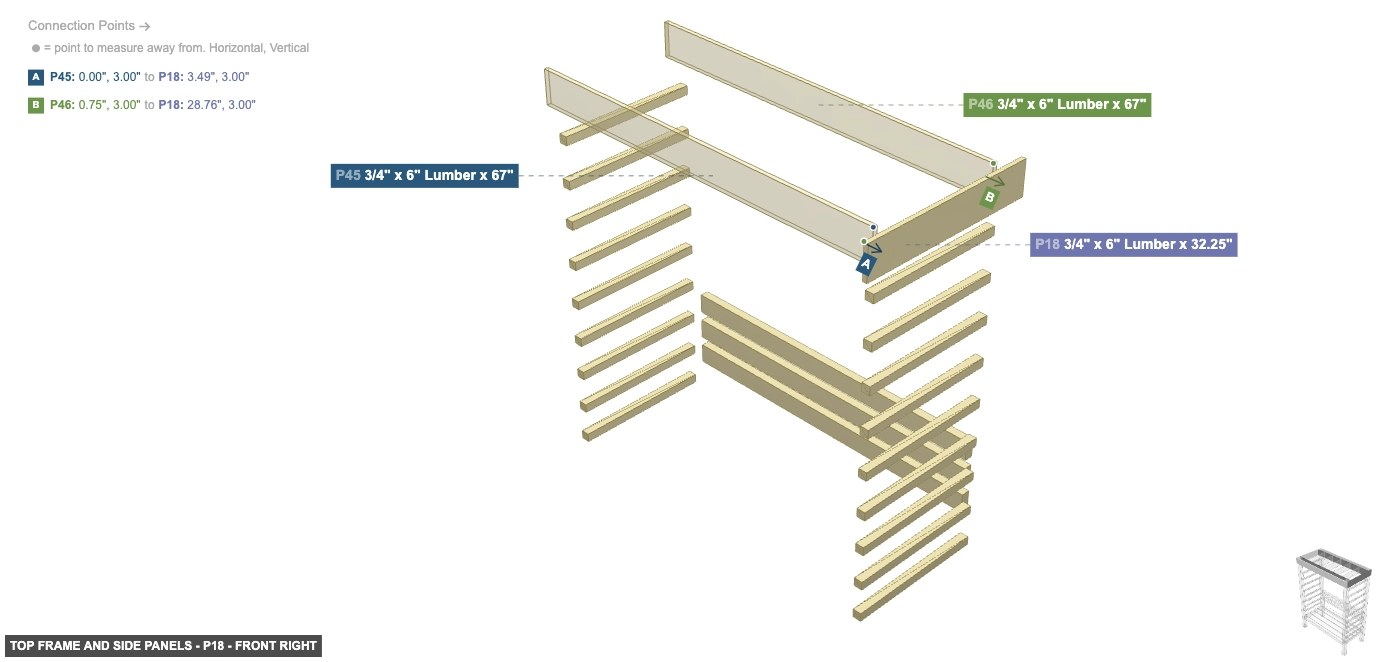

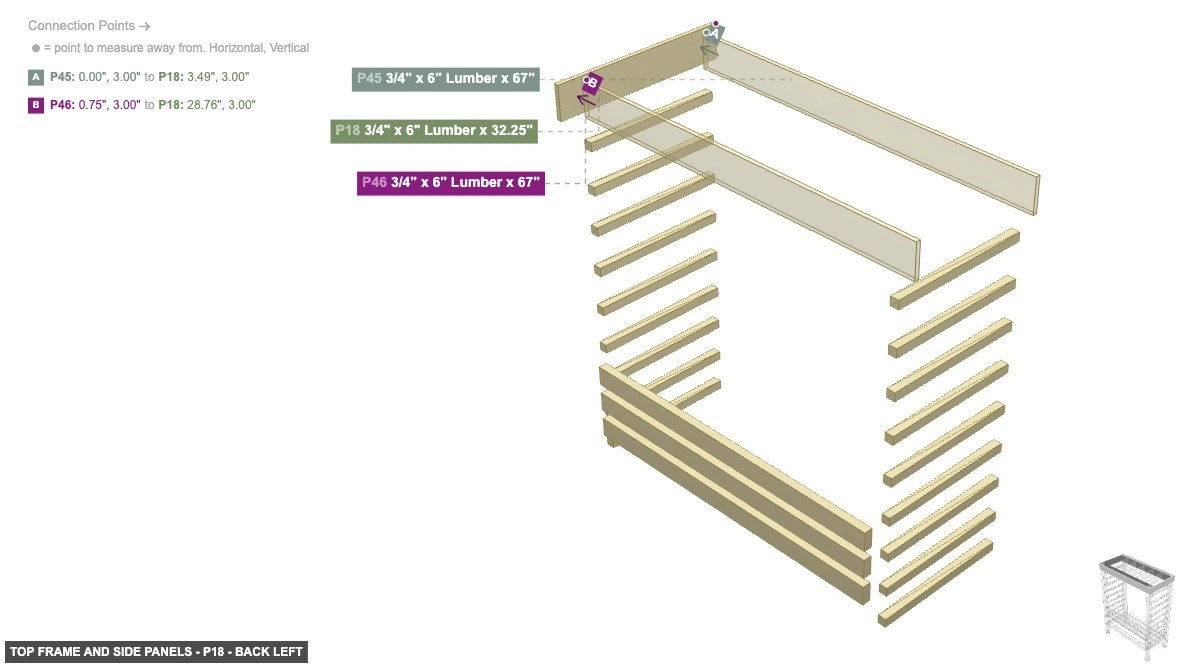

Part: 3/4" x 6" Lumber x 32.25" - Angle: back left

P18 (0.75" x 6" Lumber 32.25" length) - its 1" x 6" Wood End #1 needs to point back, and its 1" x 6" Wood Side #1 should be directed top, also ensure its 1" x 6" Wood Side #3 faces bottom, and its 1" x 6" Wood Side #4 should be directed right. Next, its 1" x 6" Wood End #2 must be oriented front

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Part: 3/4" x 6" Lumber x 32.25" - Angle: front right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

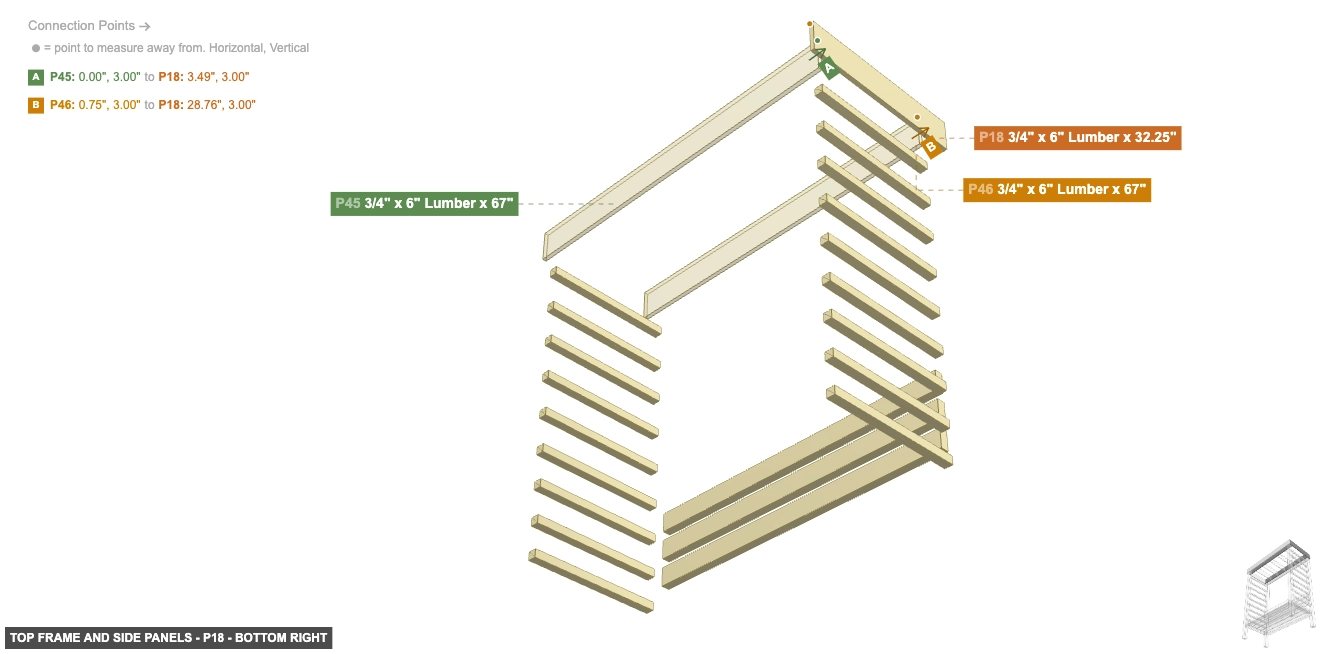

Part: 3/4" x 6" Lumber x 32.25" - Angle: bottom right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

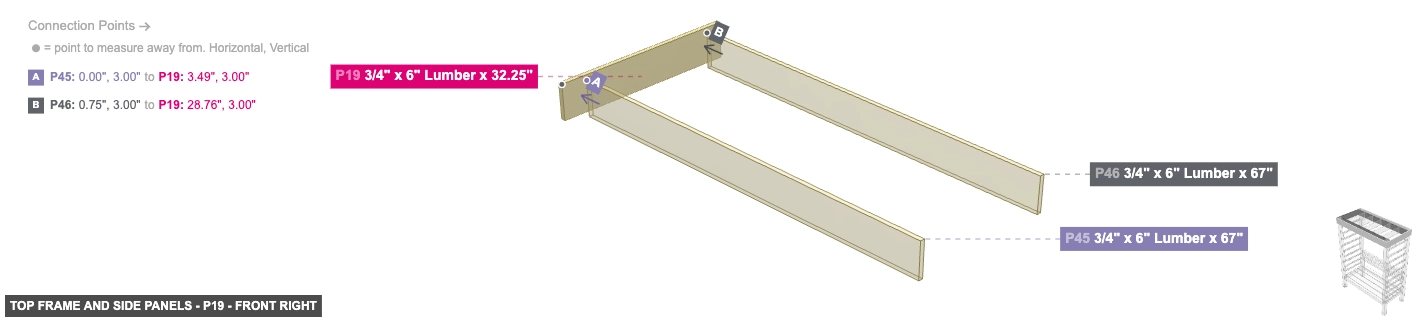

Part: 3/4" x 6" Lumber x 32.25" - Angle: back left

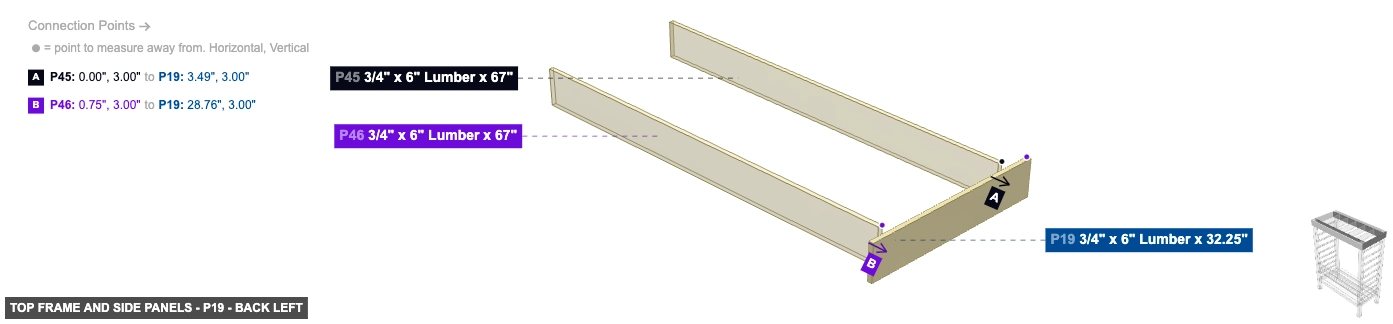

P19 (0.75" x 6" Lumber 32.25" length) - its 1" x 6" Wood End #1 must be oriented front. Next, its 1" x 6" Wood Side #1 should be directed top, plus its 1" x 6" Wood Side #3 should be directed bottom, also ensure its 1" x 6" Wood Side #4 faces left. After that, its 1" x 6" Wood End #2 needs to point back

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Part: 3/4" x 6" Lumber x 32.25" - Angle: front right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

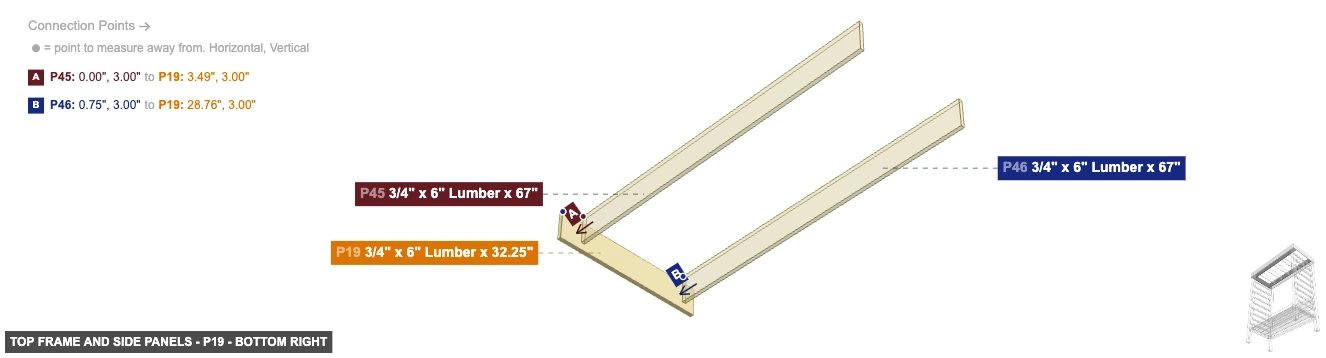

Part: 3/4" x 6" Lumber x 32.25" - Angle: bottom right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

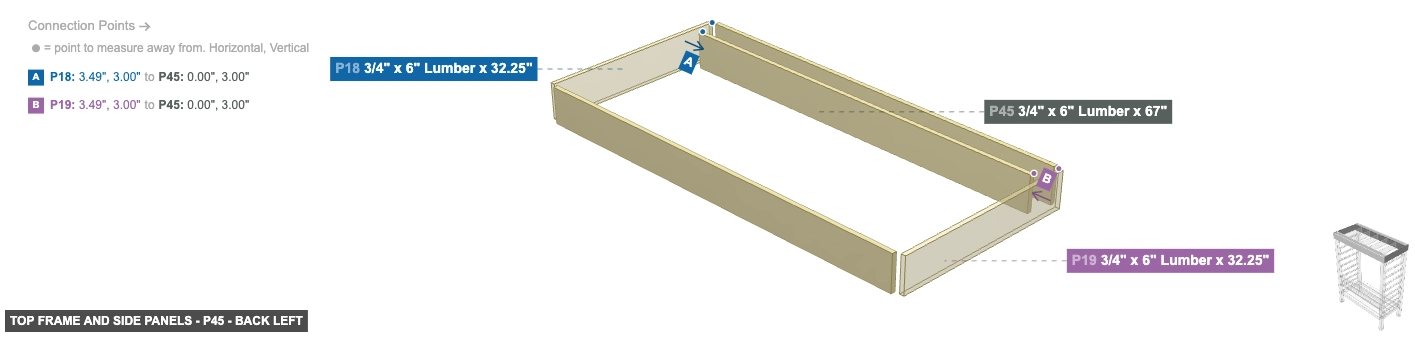

Part: 3/4" x 6" Lumber x 67" - Angle: back left

P45 (0.75" x 6" Lumber 67" length) - attach its 1" x 6" Wood End #1 facing left to part 19's 1" x 6" Wood Side #2. Next, its 1" x 6" Wood End #2, which is right-facing, should connect to part 18's 1" x 6" Wood Side #2, and its 1" x 6" Wood Side #1 should be directed top. Also, ensure its 1" x 6" Wood Side #3 faces bottom

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

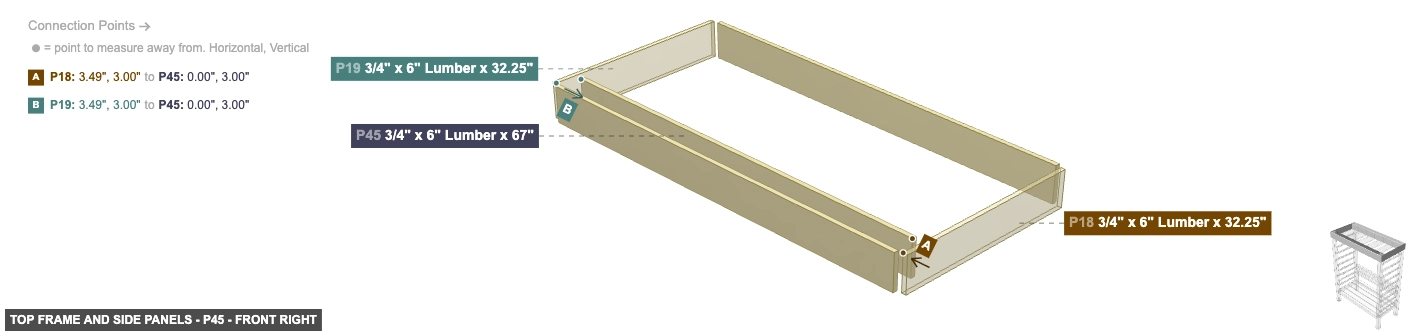

Part: 3/4" x 6" Lumber x 67" - Angle: front right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

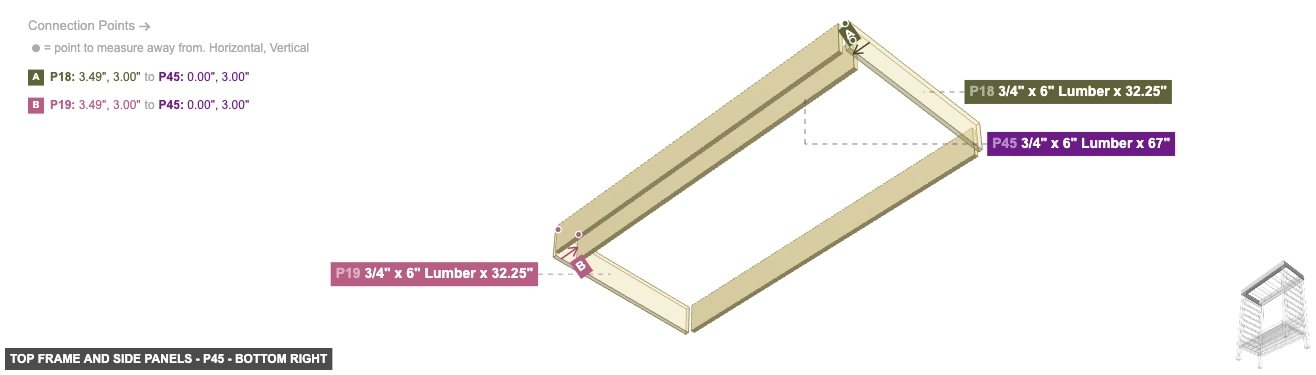

Part: 3/4" x 6" Lumber x 67" - Angle: bottom right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

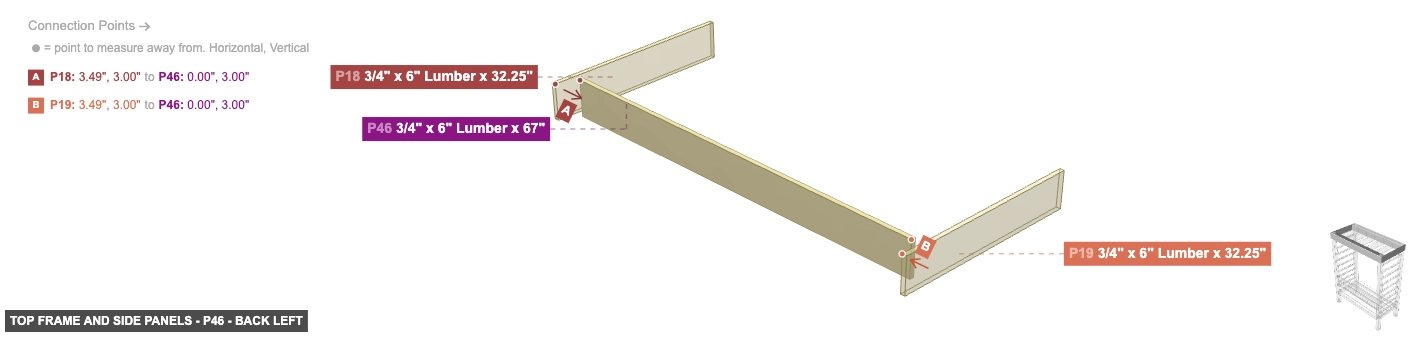

Part: 3/4" x 6" Lumber x 67" - Angle: back left

P46 (0.75" x 6" Lumber 67" length) - attach its 1" x 6" Wood End #1 facing right to part 18's 1" x 6" Wood Side #2. Next, attach its 1" x 6" Wood End #2 facing left to part 19's 1" x 6" Wood Side #2. Next, its 1" x 6" Wood Side #1 must be oriented top, plus its 1" x 6" Wood Side #3 should be directed bottom

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

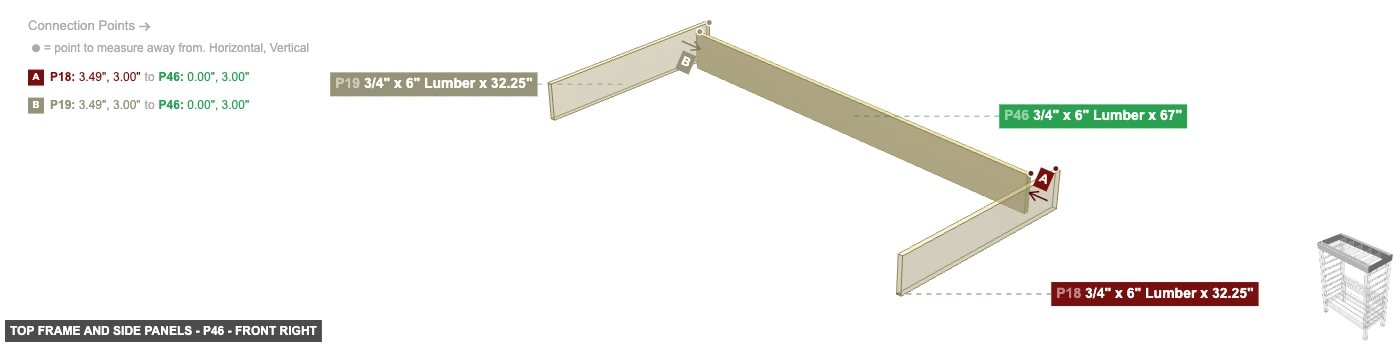

Part: 3/4" x 6" Lumber x 67" - Angle: front right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

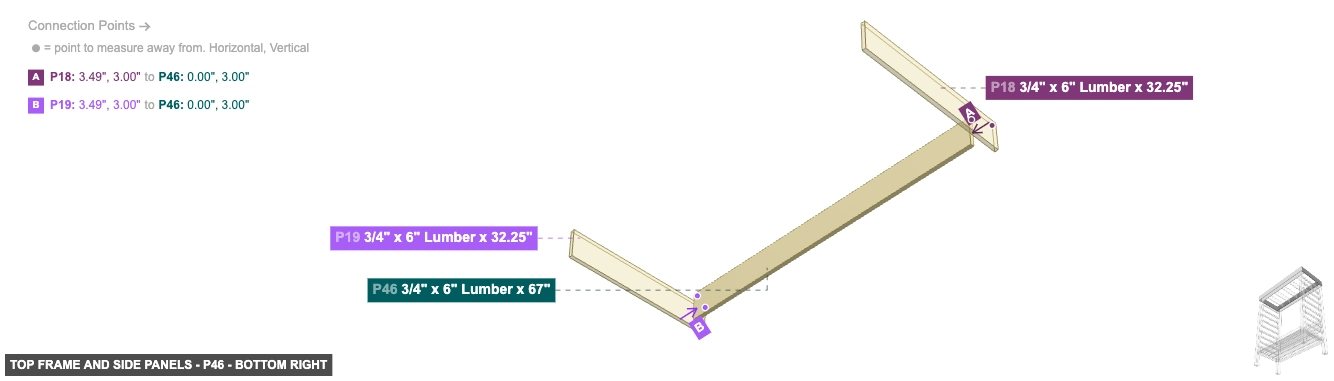

Part: 3/4" x 6" Lumber x 67" - Angle: bottom right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Phase 3: Inter-Group Assembly

Attaching: Main Frame Assembly

Assemble the four main posts and the primary connecting beams for the base structure and lower bench support.

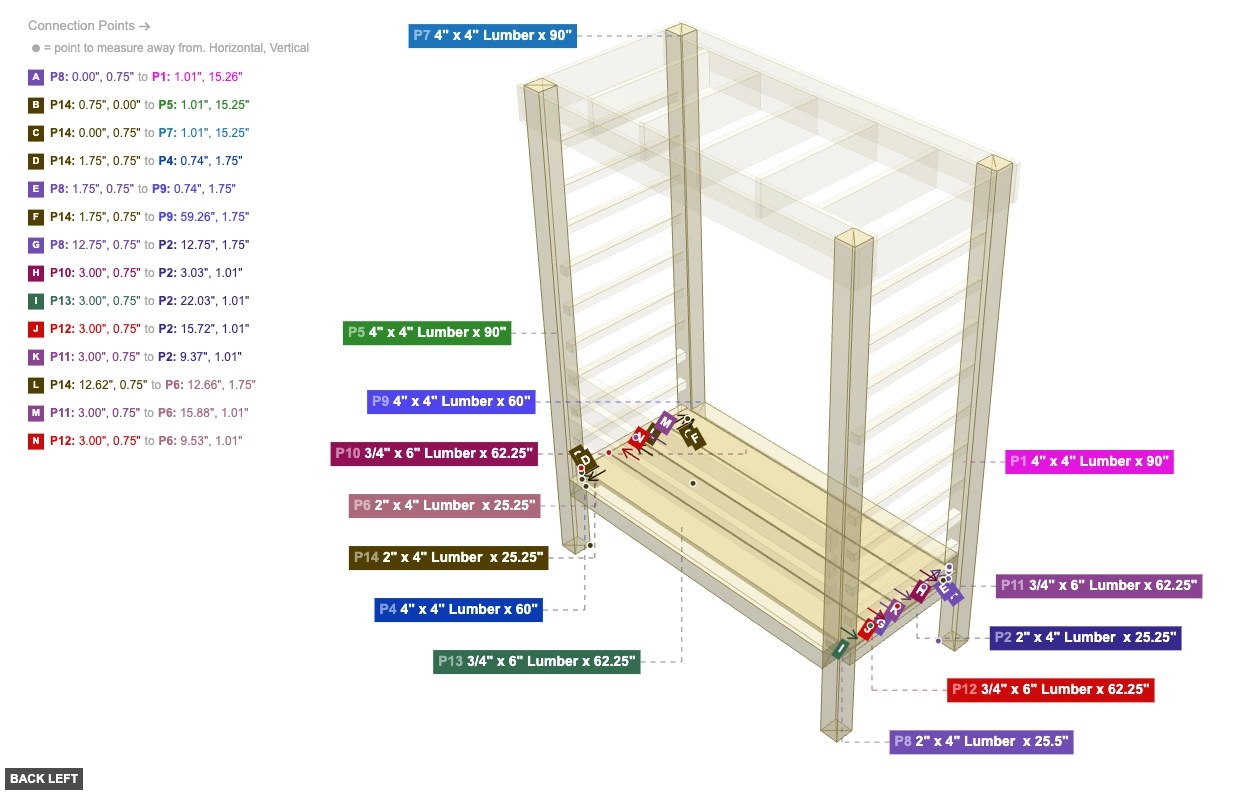

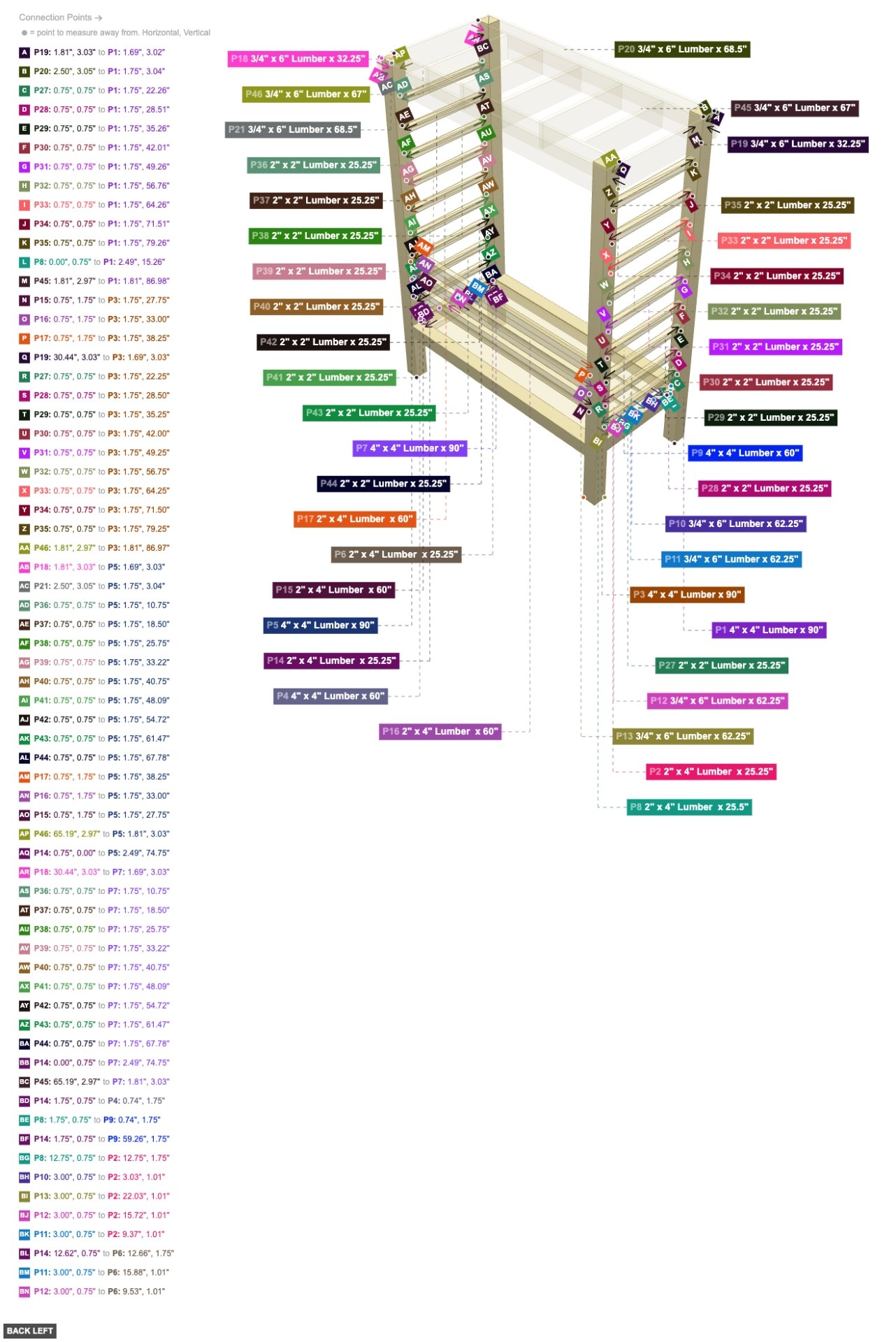

Angle: back left

Assembly of Main Frame Assembly - back_left

P1 (4" x 4" Lumber 90" length) - its 4" x 4" Wood Side #1, which is back-facing, should connect to part 2's 2" x 4" Wood End #2. Additionally, its 4" x 4" Wood Side #2, which is right-facing, should connect to part 9's 4" x 4" Wood End #2. After that, connect its 4" x 4" Wood Side #3 oriented front links with part 20's 1" x 6" Wood Side #2. Additionally, attach its 4" x 4" Wood Side #4 facing left to part 19's 1" x 6" Wood Side #2. After that, ensure its 4" x 4" Wood End #1 faces top. Next, its 4" x 4" Wood End #2 should be directed bottom P3 (4" x 4" Lumber 90" length) - attach its 4" x 4" Wood Side #1 facing front to part 2's 2" x 4" Wood End #1. Additionally, connect its 4" x 4" Wood Side #2 oriented left links with part 19's 1" x 6" Wood Side #2. Also, attach its 4" x 4" Wood Side #4 facing right to part 4's 4" x 4" Wood End #2. Next, its 4" x 4" Wood End #1 should be directed top. After that, ensure its 4" x 4" Wood Side #3 faces back. Next, its 4" x 4" Wood End #2 must be oriented bottom P5 (4" x 4" Lumber 90" length) - its 4" x 4" Wood Side #1, which is left-facing, should connect to part 4's 4" x 4" Wood End #1, then its 4" x 4" Wood Side #2, which is back-facing, should connect to part 21's 1" x 6" Wood Side #2, and connect its 4" x 4" Wood Side #3 oriented right links with part 18's 1" x 6" Wood Side #2. Also, connect its 4" x 4" Wood Side #4 oriented front links with part 6's 2" x 4" Wood End #2, plus ensure its 4" x 4" Wood End #1 faces top, and its 4" x 4" Wood End #2 needs to point bottom P7 (4" x 4" Lumber 90" length) - attach its 4" x 4" Wood Side #1 facing back to part 6's 2" x 4" Wood End #1. Also, attach its 4" x 4" Wood Side #2 facing right to part 18's 1" x 6" Wood Side #2, also attach its 4" x 4" Wood Side #4 facing left to part 9's 4" x 4" Wood End #1. Next, its 4" x 4" Wood End #1 should be directed top, also ensure its 4" x 4" Wood Side #3 faces front. After that, its 4" x 4" Wood End #2 must be oriented bottom P4 (4" x 4" Lumber 60" length) - attach its 4" x 4" Wood End #1 facing right to part 5's 4" x 4" Wood Side #1. Additionally, attach its 4" x 4" Wood Side #2 facing front to part 14's 2" x 4" Wood End #2, also its 4" x 4" Wood End #2, which is left-facing, should connect to part 3's 4" x 4" Wood Side #4, plus its 4" x 4" Wood Side #1 should be directed bottom. Additionally, ensure its 4" x 4" Wood Side #3 faces top, and its 4" x 4" Wood Side #4 should be directed back P9 (4" x 4" Lumber 60" length) - its 4" x 4" Wood End #1, which is right-facing, should connect to part 7's 4" x 4" Wood Side #4, and its 4" x 4" Wood Side #2, which is back-facing, should connect to part 8's 2" x 4" Wood End #2. Next, its 4" x 4" Wood End #2, which is left-facing, should connect to part 1's 4" x 4" Wood Side #2, and its 4" x 4" Wood Side #1 needs to point top. Next, ensure its 4" x 4" Wood Side #3 faces bottom. After that, its 4" x 4" Wood Side #4 needs to point front P2 (2" x 4" Lumber 25.25" length) - connect its 2" x 4" Wood End #1 oriented back links with part 3's 4" x 4" Wood Side #1, then its 2" x 4" Wood Side #2, which is right-facing, should connect to part 8's 2" x 4" Wood Side #1, plus its 2" x 4" Wood End #2, which is front-facing, should connect to part 1's 4" x 4" Wood Side #1. After that, ensure its 2" x 4" Wood Side #1 faces bottom. Additionally, its 2" x 4" Wood Side #3 needs to point top, also its 2" x 4" Wood Side #4 should be directed left P6 (2" x 4" Lumber 25.25" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 7's 4" x 4" Wood Side #1, also connect its 2" x 4" Wood Side #2 oriented left links with part 14's 2" x 4" Wood Side #1, and attach its 2" x 4" Wood End #2 facing back to part 5's 4" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 should be directed bottom. Also, its 2" x 4" Wood Side #3 needs to point top. Additionally, its 2" x 4" Wood Side #4 must be oriented right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Angle: front right

Assembly of Main Frame Assembly - front_right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Angle: bottom right

Assembly of Main Frame Assembly - bottom_right

4" x 4" Lumber x 90"x 4

4" x 4" Lumber x 60"x 2

2" x 4" Lumber x 25.25"x 2

Attaching: Bench Seat Installation

Install the central bench supports and attach the seat slats.

Angle: back left

Assembly of Bench Seat Installation - back_left

P8 (2" x 4" Lumber 25.5" length) - attach its 2" x 4" Wood Side #1 facing left to part 2's 2" x 4" Wood Side #2, also attach its 2" x 4" Wood Side #4 facing top to part 10's 1" x 6" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 9's 4" x 4" Wood Side #2, then ensure its 2" x 4" Wood End #1 faces back, then ensure its 2" x 4" Wood Side #2 faces bottom. Additionally, ensure its 2" x 4" Wood Side #3 faces right P14 (2" x 4" Lumber 25.25" length) - attach its 2" x 4" Wood End #1 facing front to part 9's 4" x 4" Wood Side #2. Also, its 2" x 4" Wood Side #1, which is right-facing, should connect to part 6's 2" x 4" Wood Side #2, plus connect its 2" x 4" Wood Side #4 oriented top links with part 10's 1" x 6" Wood Side #2, then connect its 2" x 4" Wood End #2 oriented back links with part 4's 4" x 4" Wood Side #2, and its 2" x 4" Wood Side #2 should be directed bottom. Additionally, its 2" x 4" Wood Side #3 needs to point left P10 (0.75" x 6" Lumber 62.25" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #4. Also, its 1" x 6" Wood End #2, which is left-facing, should connect to part 2's 2" x 4" Wood Side #2, and its 1" x 6" Wood End #1 should be directed right, and its 1" x 6" Wood Side #1 must be oriented back, then ensure its 1" x 6" Wood Side #3 faces front, plus its 1" x 6" Wood Side #4 needs to point top P11 (0.75" x 6" Lumber 62.25" length) - connect its 1" x 6" Wood End #1 oriented right links with part 6's 2" x 4" Wood Side #2, plus connect its 1" x 6" Wood Side #2 oriented bottom links with part 8's 2" x 4" Wood Side #4. Next, connect its 1" x 6" Wood End #2 oriented left links with part 2's 2" x 4" Wood Side #2, plus its 1" x 6" Wood Side #1 should be directed back. Next, its 1" x 6" Wood Side #3 must be oriented front, then its 1" x 6" Wood Side #4 should be directed top P12 (0.75" x 6" Lumber 62.25" length) - its 1" x 6" Wood End #1, which is right-facing, should connect to part 6's 2" x 4" Wood Side #2, plus its 1" x 6" Wood Side #2, which is bottom-facing, should connect to part 8's 2" x 4" Wood Side #4, then its 1" x 6" Wood End #2, which is left-facing, should connect to part 2's 2" x 4" Wood Side #2. Additionally, its 1" x 6" Wood Side #1 must be oriented back. Additionally, its 1" x 6" Wood Side #3 should be directed front, then ensure its 1" x 6" Wood Side #4 faces top P13 (0.75" x 6" Lumber 62.25" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 8's 2" x 4" Wood Side #4, also connect its 1" x 6" Wood End #2 oriented left links with part 2's 2" x 4" Wood Side #2. Next, ensure its 1" x 6" Wood End #1 faces right. Also, its 1" x 6" Wood Side #1 needs to point back. Also, ensure its 1" x 6" Wood Side #3 faces front. After that, its 1" x 6" Wood Side #4 should be directed top

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Angle: front right

Assembly of Bench Seat Installation - front_right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Angle: bottom right

Assembly of Bench Seat Installation - bottom_right

2" x 4" Lumber x 25.5"x 1

2" x 4" Lumber x 25.25"x 1

3/4" x 6" Lumber x 62.25"x 4

Attaching: Backrest Support Beams

Attach the horizontal beams that connect the back posts and support the backrest slats.

Angle: back left

Assembly of Backrest Support Beams - back_left

P15 (2" x 4" Lumber 60" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 5's 4" x 4" Wood Side #1. Next, attach its 2" x 4" Wood End #2 facing left to part 3's 4" x 4" Wood Side #4. Additionally, ensure its 2" x 4" Wood Side #1 faces bottom. Next, its 2" x 4" Wood Side #2 needs to point front, also its 2" x 4" Wood Side #3 must be oriented top. After that, its 2" x 4" Wood Side #4 needs to point back P16 (2" x 4" Lumber 60" length) - connect its 2" x 4" Wood End #1 oriented right links with part 5's 4" x 4" Wood Side #1, also connect its 2" x 4" Wood End #2 oriented left links with part 3's 4" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 must be oriented bottom, plus its 2" x 4" Wood Side #2 must be oriented front, also ensure its 2" x 4" Wood Side #3 faces top. Also, ensure its 2" x 4" Wood Side #4 faces back P17 (2" x 4" Lumber 60" length) - attach its 2" x 4" Wood End #1 facing right to part 5's 4" x 4" Wood Side #1, plus its 2" x 4" Wood End #2, which is left-facing, should connect to part 3's 4" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 should be directed bottom, then its 2" x 4" Wood Side #2 should be directed front. Additionally, its 2" x 4" Wood Side #3 must be oriented top. Additionally, its 2" x 4" Wood Side #4 must be oriented back

2" x 4" Lumber x 60"x 3

Angle: front right

Assembly of Backrest Support Beams - front_right

2" x 4" Lumber x 60"x 3

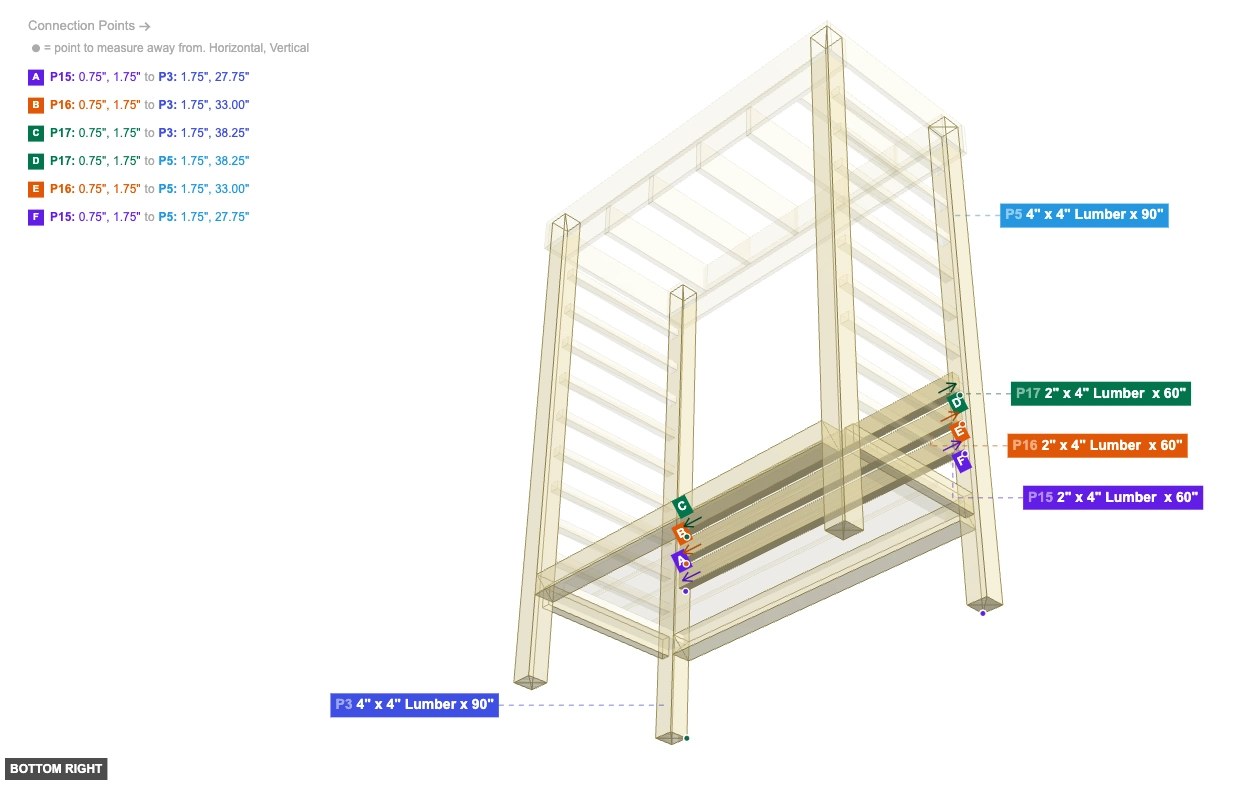

Angle: bottom right

Assembly of Backrest Support Beams - bottom_right

2" x 4" Lumber x 60"x 3

Attaching: Backrest Slats Installation

Attach the vertical slats for the left side (connecting P1 & P3) and right side (connecting P5 & P7) of the backrest.

Angle: back left

Assembly of Backrest Slats Installation - back_left

P27 (2" x 2" Lumber 25.25" length) - its 2" x 2" Wood End #1, which is front-facing, should connect to part 1's 4" x 4" Wood Side #1, also its 2" x 2" Wood End #2, which is back-facing, should connect to part 3's 4" x 4" Wood Side #1. Additionally, ensure its 2" x 2" Wood Side #1 faces bottom, also its 2" x 2" Wood Side #2 must be oriented left. Next, its 2" x 2" Wood Side #3 must be oriented top, plus ensure its 2" x 2" Wood Side #4 faces right P28 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 1's 4" x 4" Wood Side #1. After that, connect its 2" x 2" Wood End #2 oriented back links with part 3's 4" x 4" Wood Side #1, and its 2" x 2" Wood Side #1 needs to point bottom, then its 2" x 2" Wood Side #2 must be oriented left, then its 2" x 2" Wood Side #3 must be oriented top. After that, its 2" x 2" Wood Side #4 should be directed right P29 (2" x 2" Lumber 25.25" length) - its 2" x 2" Wood End #1, which is front-facing, should connect to part 1's 4" x 4" Wood Side #1. After that, attach its 2" x 2" Wood End #2 facing back to part 3's 4" x 4" Wood Side #1. After that, ensure its 2" x 2" Wood Side #1 faces bottom. Additionally, ensure its 2" x 2" Wood Side #2 faces left. After that, its 2" x 2" Wood Side #3 must be oriented top. After that, ensure its 2" x 2" Wood Side #4 faces right P30 (2" x 2" Lumber 25.25" length) - its 2" x 2" Wood End #1, which is front-facing, should connect to part 1's 4" x 4" Wood Side #1. Additionally, attach its 2" x 2" Wood End #2 facing back to part 3's 4" x 4" Wood Side #1. Additionally, its 2" x 2" Wood Side #1 must be oriented bottom. Additionally, its 2" x 2" Wood Side #2 must be oriented left, and ensure its 2" x 2" Wood Side #3 faces top. Additionally, ensure its 2" x 2" Wood Side #4 faces right P31 (2" x 2" Lumber 25.25" length) - its 2" x 2" Wood End #1, which is front-facing, should connect to part 1's 4" x 4" Wood Side #1, also its 2" x 2" Wood End #2, which is back-facing, should connect to part 3's 4" x 4" Wood Side #1. Also, its 2" x 2" Wood Side #1 must be oriented bottom, and its 2" x 2" Wood Side #2 must be oriented left. After that, its 2" x 2" Wood Side #3 must be oriented top. Also, ensure its 2" x 2" Wood Side #4 faces right P32 (2" x 2" Lumber 25.25" length) - connect its 2" x 2" Wood End #1 oriented front links with part 1's 4" x 4" Wood Side #1, also its 2" x 2" Wood End #2, which is back-facing, should connect to part 3's 4" x 4" Wood Side #1, plus its 2" x 2" Wood Side #1 must be oriented bottom, plus its 2" x 2" Wood Side #2 needs to point left. Additionally, its 2" x 2" Wood Side #3 must be oriented top, and its 2" x 2" Wood Side #4 needs to point right P33 (2" x 2" Lumber 25.25" length) - connect its 2" x 2" Wood End #1 oriented front links with part 1's 4" x 4" Wood Side #1, plus its 2" x 2" Wood End #2, which is back-facing, should connect to part 3's 4" x 4" Wood Side #1. Additionally, its 2" x 2" Wood Side #1 needs to point bottom. After that, its 2" x 2" Wood Side #2 should be directed left. Next, its 2" x 2" Wood Side #3 must be oriented top. Additionally, its 2" x 2" Wood Side #4 should be directed right P34 (2" x 2" Lumber 25.25" length) - connect its 2" x 2" Wood End #1 oriented front links with part 1's 4" x 4" Wood Side #1, plus its 2" x 2" Wood End #2, which is back-facing, should connect to part 3's 4" x 4" Wood Side #1, plus its 2" x 2" Wood Side #1 must be oriented bottom, then its 2" x 2" Wood Side #2 should be directed left, also its 2" x 2" Wood Side #3 needs to point top, plus ensure its 2" x 2" Wood Side #4 faces right P35 (2" x 2" Lumber 25.25" length) - its 2" x 2" Wood End #1, which is front-facing, should connect to part 1's 4" x 4" Wood Side #1. Also, attach its 2" x 2" Wood End #2 facing back to part 3's 4" x 4" Wood Side #1, and its 2" x 2" Wood Side #1 should be directed bottom. After that, its 2" x 2" Wood Side #2 must be oriented left. Additionally, its 2" x 2" Wood Side #3 needs to point top, and its 2" x 2" Wood Side #4 should be directed right P36 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 7's 4" x 4" Wood Side #1, and its 2" x 2" Wood End #2, which is back-facing, should connect to part 5's 4" x 4" Wood Side #4. Additionally, its 2" x 2" Wood Side #1 must be oriented bottom, and ensure its 2" x 2" Wood Side #2 faces left. Additionally, its 2" x 2" Wood Side #3 needs to point top. Also, its 2" x 2" Wood Side #4 should be directed right P37 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 7's 4" x 4" Wood Side #1. Also, attach its 2" x 2" Wood End #2 facing back to part 5's 4" x 4" Wood Side #4, also its 2" x 2" Wood Side #1 should be directed bottom, then its 2" x 2" Wood Side #2 needs to point left, also its 2" x 2" Wood Side #3 needs to point top, plus ensure its 2" x 2" Wood Side #4 faces right P38 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 7's 4" x 4" Wood Side #1. Additionally, connect its 2" x 2" Wood End #2 oriented back links with part 5's 4" x 4" Wood Side #4, and its 2" x 2" Wood Side #1 needs to point bottom, then its 2" x 2" Wood Side #2 needs to point left. After that, its 2" x 2" Wood Side #3 needs to point top. Next, its 2" x 2" Wood Side #4 should be directed right P39 (2" x 2" Lumber 25.25" length) - its 2" x 2" Wood End #1, which is front-facing, should connect to part 7's 4" x 4" Wood Side #1. Additionally, connect its 2" x 2" Wood End #2 oriented back links with part 5's 4" x 4" Wood Side #4, then its 2" x 2" Wood Side #1 should be directed bottom. Additionally, its 2" x 2" Wood Side #2 needs to point left. After that, its 2" x 2" Wood Side #3 needs to point top, and its 2" x 2" Wood Side #4 must be oriented right P40 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 7's 4" x 4" Wood Side #1. Additionally, attach its 2" x 2" Wood End #2 facing back to part 5's 4" x 4" Wood Side #4, and its 2" x 2" Wood Side #1 must be oriented bottom. Also, its 2" x 2" Wood Side #2 should be directed left. Next, its 2" x 2" Wood Side #3 must be oriented top, also its 2" x 2" Wood Side #4 must be oriented right P41 (2" x 2" Lumber 25.25" length) - connect its 2" x 2" Wood End #1 oriented front links with part 7's 4" x 4" Wood Side #1, also attach its 2" x 2" Wood End #2 facing back to part 5's 4" x 4" Wood Side #4, and ensure its 2" x 2" Wood Side #1 faces bottom, then its 2" x 2" Wood Side #2 must be oriented left. After that, its 2" x 2" Wood Side #3 should be directed top. Next, its 2" x 2" Wood Side #4 should be directed right P42 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 7's 4" x 4" Wood Side #1. Next, its 2" x 2" Wood End #2, which is back-facing, should connect to part 5's 4" x 4" Wood Side #4. Also, its 2" x 2" Wood Side #1 must be oriented bottom. After that, its 2" x 2" Wood Side #2 should be directed left, also ensure its 2" x 2" Wood Side #3 faces top. After that, its 2" x 2" Wood Side #4 needs to point right P43 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 7's 4" x 4" Wood Side #1, plus its 2" x 2" Wood End #2, which is back-facing, should connect to part 5's 4" x 4" Wood Side #4. Next, its 2" x 2" Wood Side #1 needs to point bottom. Next, its 2" x 2" Wood Side #2 needs to point left. Additionally, ensure its 2" x 2" Wood Side #3 faces top. Also, its 2" x 2" Wood Side #4 must be oriented right P44 (2" x 2" Lumber 25.25" length) - attach its 2" x 2" Wood End #1 facing front to part 7's 4" x 4" Wood Side #1. After that, connect its 2" x 2" Wood End #2 oriented back links with part 5's 4" x 4" Wood Side #4. Also, ensure its 2" x 2" Wood Side #1 faces bottom, also its 2" x 2" Wood Side #2 needs to point left, then its 2" x 2" Wood Side #3 should be directed top. After that, its 2" x 2" Wood Side #4 needs to point right

2" x 2" Lumber x 25.25"x 18

Angle: front right

Assembly of Backrest Slats Installation - front_right

2" x 2" Lumber x 25.25"x 18

Angle: bottom right

Assembly of Backrest Slats Installation - bottom_right

2" x 2" Lumber x 25.25"x 18

Attaching: Top Frame and Side Panels

Attach the upper side panels (P18-P21) and the main beams (P45, P46) for the pergola top.

Angle: back left

Assembly of Top Frame and Side Panels - back_left

P18 (0.75" x 6" Lumber 32.25" length) - attach its 1" x 6" Wood Side #2 facing left to part 7's 4" x 4" Wood Side #2. Also, its 1" x 6" Wood End #1 should be directed back, plus ensure its 1" x 6" Wood Side #1 faces top. Also, its 1" x 6" Wood Side #3 must be oriented bottom, and its 1" x 6" Wood Side #4 should be directed right, also ensure its 1" x 6" Wood End #2 faces front P19 (0.75" x 6" Lumber 32.25" length) - its 1" x 6" Wood Side #2, which is right-facing, should connect to part 3's 4" x 4" Wood Side #2. Next, its 1" x 6" Wood End #1 should be directed front, plus its 1" x 6" Wood Side #1 must be oriented top, also its 1" x 6" Wood Side #3 should be directed bottom. After that, its 1" x 6" Wood Side #4 should be directed left, also its 1" x 6" Wood End #2 must be oriented back P20 (0.75" x 6" Lumber 68.5" length) - attach its 1" x 6" Wood Side #2 facing back to part 1's 4" x 4" Wood Side #3. Next, its 1" x 6" Wood End #1 must be oriented right. Additionally, its 1" x 6" Wood Side #1 must be oriented top. Additionally, ensure its 1" x 6" Wood Side #3 faces bottom, then its 1" x 6" Wood Side #4 needs to point front. Next, its 1" x 6" Wood End #2 needs to point left P21 (0.75" x 6" Lumber 68.5" length) - attach its 1" x 6" Wood Side #2 facing front to part 5's 4" x 4" Wood Side #2, plus its 1" x 6" Wood End #1 should be directed left, and its 1" x 6" Wood Side #1 must be oriented top, also its 1" x 6" Wood Side #3 should be directed bottom, also its 1" x 6" Wood Side #4 must be oriented back, plus ensure its 1" x 6" Wood End #2 faces right P45 (0.75" x 6" Lumber 67" length) - attach its 1" x 6" Wood End #1 facing left to part 19's 1" x 6" Wood Side #2. After that, its 1" x 6" Wood Side #2, which is front-facing, should connect to part 7's 4" x 4" Wood Side #1. Next, connect its 1" x 6" Wood Side #4 oriented back links with part 22's 1" x 6" Wood End #1, and its 1" x 6" Wood End #2, which is right-facing, should connect to part 18's 1" x 6" Wood Side #2. Additionally, its 1" x 6" Wood Side #1 needs to point top. After that, ensure its 1" x 6" Wood Side #3 faces bottom P46 (0.75" x 6" Lumber 67" length) - connect its 1" x 6" Wood End #1 oriented right links with part 18's 1" x 6" Wood Side #2. After that, connect its 1" x 6" Wood Side #2 oriented back links with part 5's 4" x 4" Wood Side #4, then attach its 1" x 6" Wood Side #4 facing front to part 22's 1" x 6" Wood End #2. After that, its 1" x 6" Wood End #2, which is left-facing, should connect to part 19's 1" x 6" Wood Side #2. Additionally, ensure its 1" x 6" Wood Side #1 faces top, then ensure its 1" x 6" Wood Side #3 faces bottom

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Angle: front right

Assembly of Top Frame and Side Panels - front_right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Angle: bottom right

Assembly of Top Frame and Side Panels - bottom_right

3/4" x 6" Lumber x 32.25"x 2

3/4" x 6" Lumber x 68.5"x 2

3/4" x 6" Lumber x 67"x 2

Attaching: Pergola Top Slats

Install the final slats across the top beams (P45, P46) of the pergola structure.

Angle: back left

Assembly of Pergola Top Slats - back_left

P22 (1" x 6" Lumber 23.75" length) - attach its 1" x 6" Wood End #1 facing front to part 45's 1" x 6" Wood Side #4, and attach its 1" x 6" Wood End #2 facing back to part 46's 1" x 6" Wood Side #4. Additionally, its 1" x 6" Wood Side #1 needs to point top, plus ensure its 1" x 6" Wood Side #2 faces right. After that, ensure its 1" x 6" Wood Side #3 faces bottom. Also, its 1" x 6" Wood Side #4 needs to point left P23 (1" x 6" Lumber 23.75" length) - attach its 1" x 6" Wood End #1 facing front to part 45's 1" x 6" Wood Side #4, also connect its 1" x 6" Wood End #2 oriented back links with part 46's 1" x 6" Wood Side #4. Also, ensure its 1" x 6" Wood Side #1 faces top, plus ensure its 1" x 6" Wood Side #2 faces right. Next, its 1" x 6" Wood Side #3 needs to point bottom, and its 1" x 6" Wood Side #4 should be directed left P24 (1" x 6" Lumber 23.75" length) - connect its 1" x 6" Wood End #1 oriented front links with part 45's 1" x 6" Wood Side #4, plus its 1" x 6" Wood End #2, which is back-facing, should connect to part 46's 1" x 6" Wood Side #4, and ensure its 1" x 6" Wood Side #1 faces top, and its 1" x 6" Wood Side #2 needs to point right, and its 1" x 6" Wood Side #3 must be oriented bottom, then its 1" x 6" Wood Side #4 should be directed left P25 (1" x 6" Lumber 23.75" length) - attach its 1" x 6" Wood End #1 facing front to part 45's 1" x 6" Wood Side #4. Additionally, attach its 1" x 6" Wood End #2 facing back to part 46's 1" x 6" Wood Side #4, and its 1" x 6" Wood Side #1 must be oriented top, also its 1" x 6" Wood Side #2 must be oriented right, and its 1" x 6" Wood Side #3 must be oriented bottom, then ensure its 1" x 6" Wood Side #4 faces left P26 (1" x 6" Lumber 23.75" length) - its 1" x 6" Wood End #1, which is front-facing, should connect to part 45's 1" x 6" Wood Side #4, then its 1" x 6" Wood End #2, which is back-facing, should connect to part 46's 1" x 6" Wood Side #4. Additionally, its 1" x 6" Wood Side #1 needs to point top. After that, ensure its 1" x 6" Wood Side #2 faces right, also its 1" x 6" Wood Side #3 should be directed bottom, plus its 1" x 6" Wood Side #4 must be oriented left

1" x 6" Lumber x 23.75"x 5

Angle: front right

Assembly of Pergola Top Slats - front_right

1" x 6" Lumber x 23.75"x 5

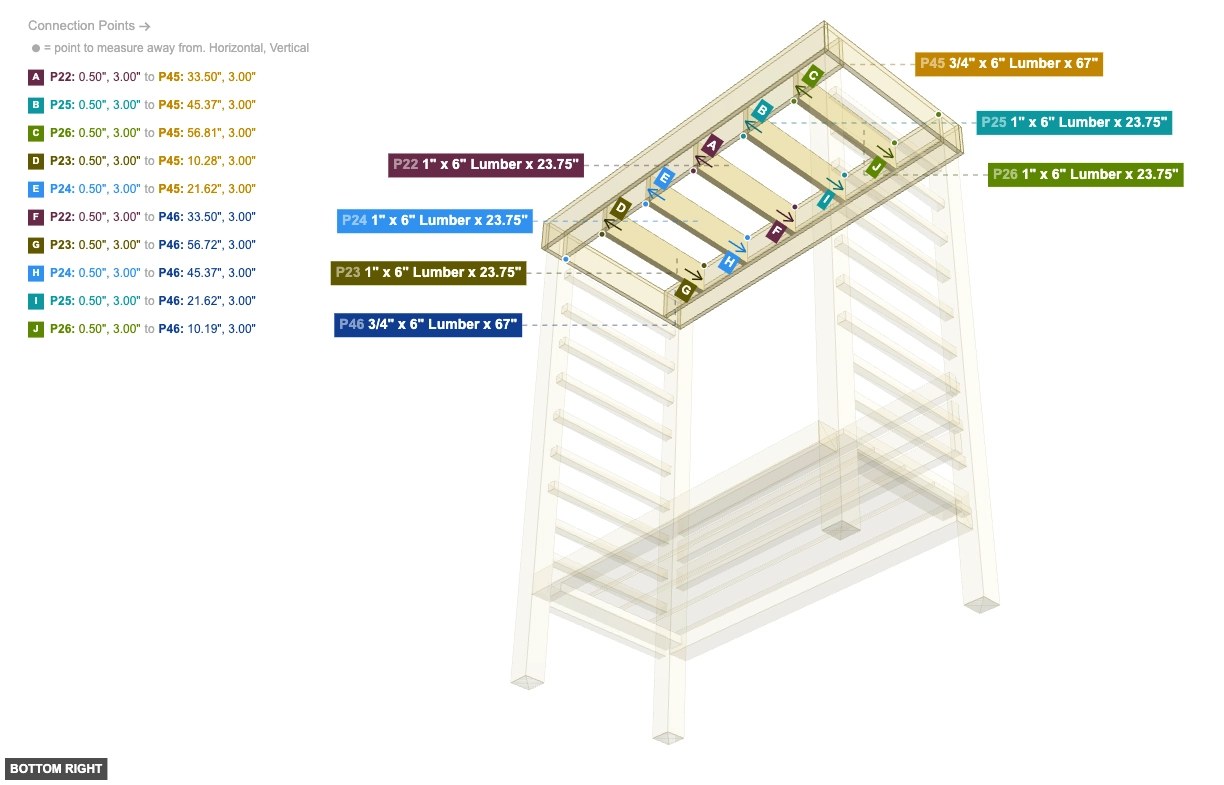

Angle: bottom right

Assembly of Pergola Top Slats - bottom_right

1" x 6" Lumber x 23.75"x 5
