Hydroponic Setup with Submersible Pump - Comprehensive Assembly Plan And Visual Guide

Hydroponic Setup with Submersible Pump Free Plan And Visual Guide

A multi-level vertical hydroponic system constructed primarily from PVC pipes and fittings. It features four horizontal grow levels using 4" pipes, connected by 2" pipes and fittings. A separate 1" PVC manifold system forms a lower support structure, likely for water distribution or drainage. A submersible pump (P91) at the base feeds water up through a 0.5" pipe to the top level (P29). - Vertical Hydroponic System -A multi-level vertical hydroponic system featuring four horizontal 4-inch grow pipes connected by 2-inch drainage/flow pipes. A central 1-inch pipe water distribution system feeds the levels, supplied by a submersible pump at the base via 1/2-inch tubing. - Vertical Hydroponic System -A multi-tower vertical hydroponic system constructed primarily from PVC pipes. It includes a support frame, four vertical growing towers (4" pipes), a water distribution manifold (1" pipes), a drainage manifold (2" pipes), and a submersible pump with a delivery line (0.5" pipe). - Vertical Hydroponic System

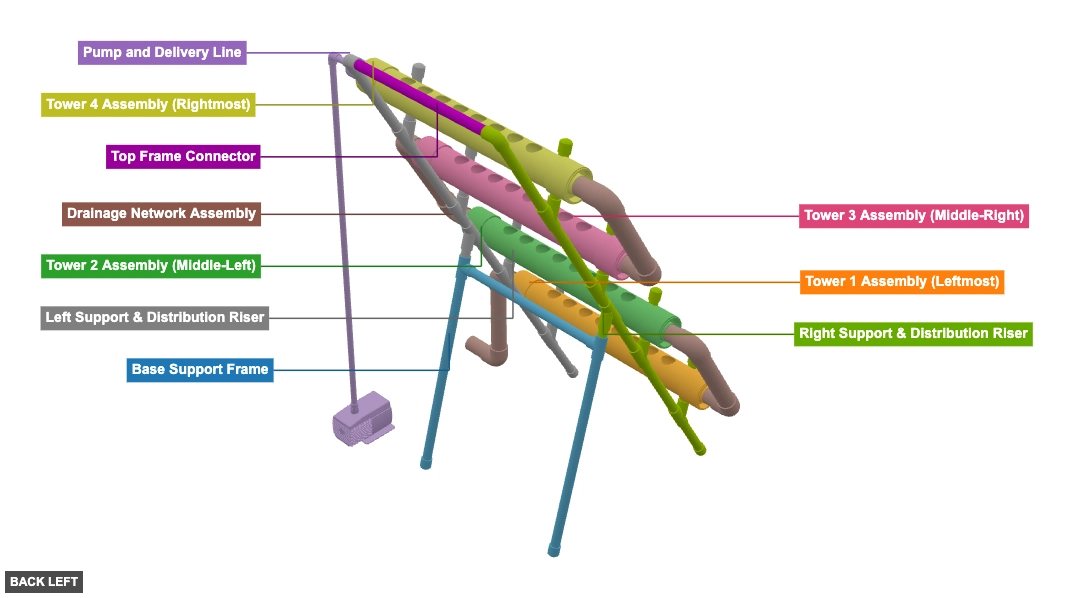

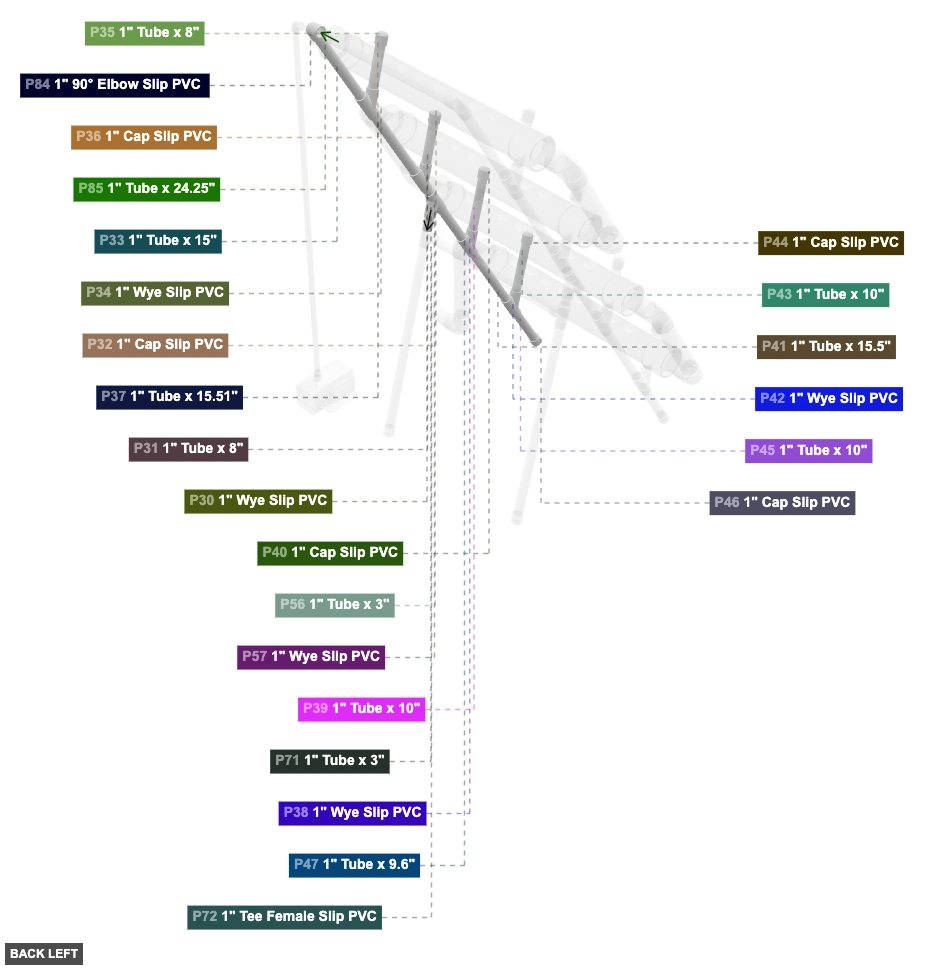

Phase 1: Group Overview

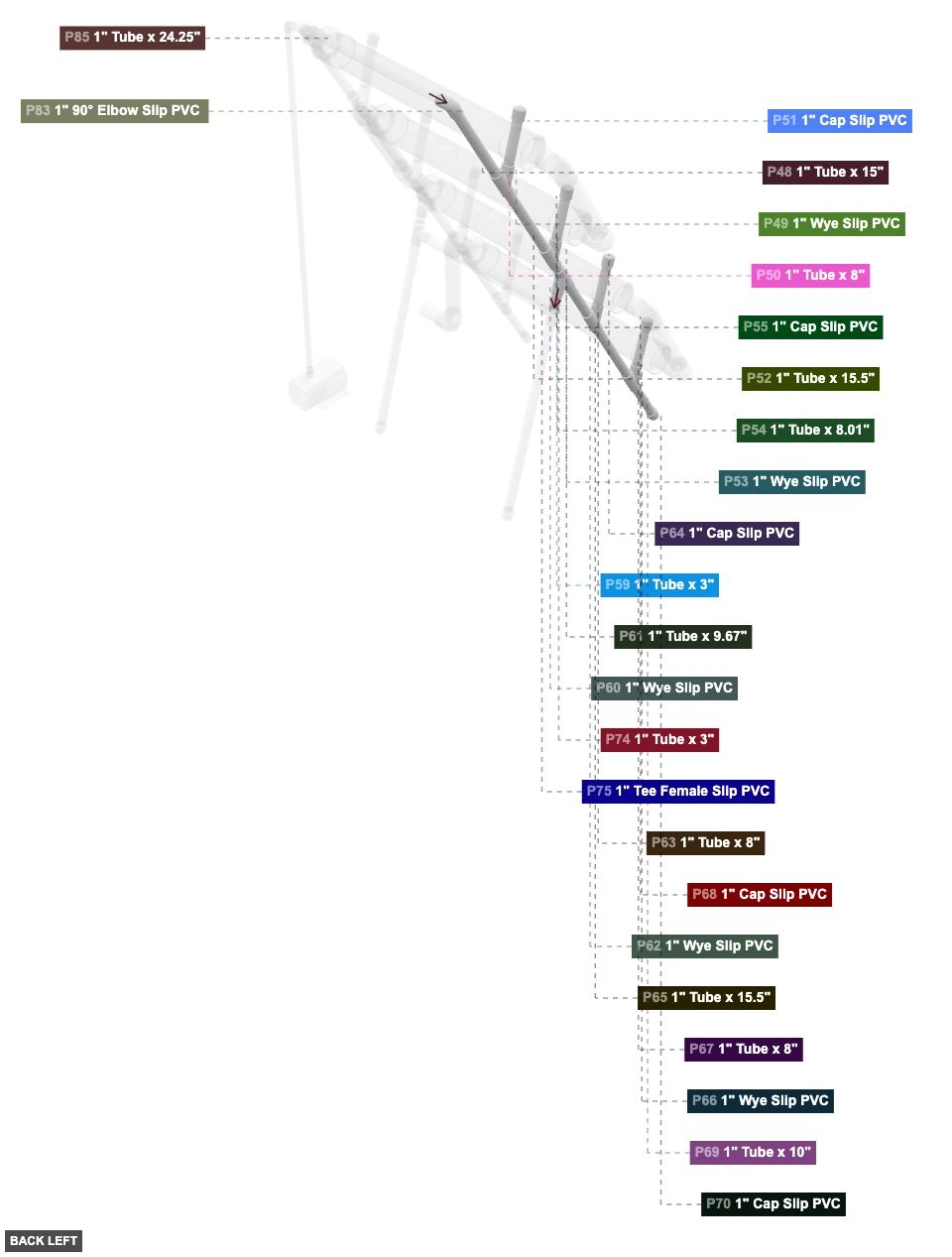

Angle: back left

Hydroponic Setup with Submersible Pump - Overview back_left
Base Support Frame
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

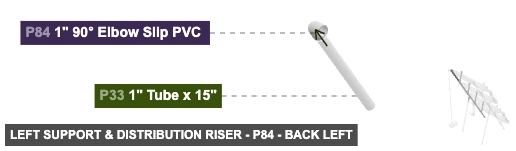

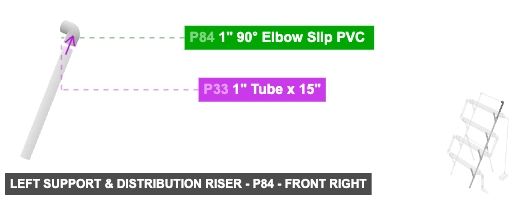

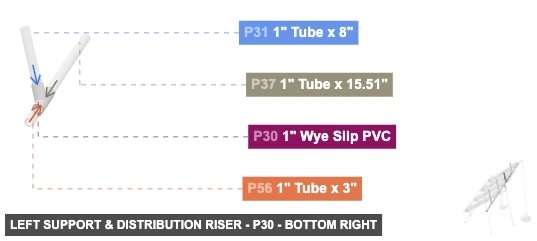

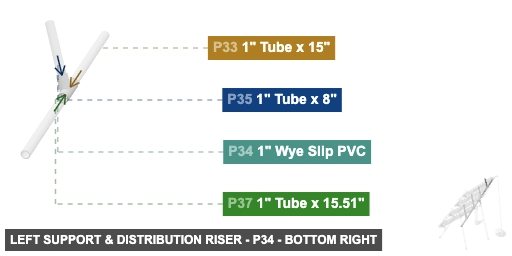

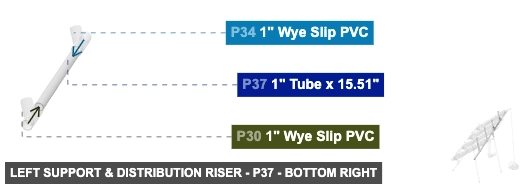

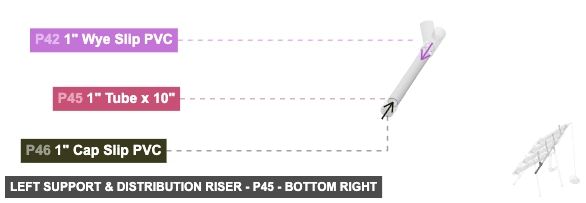

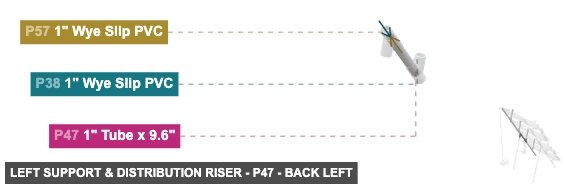

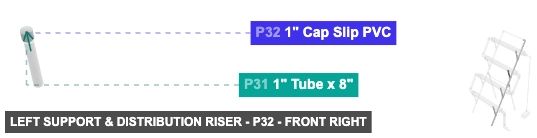

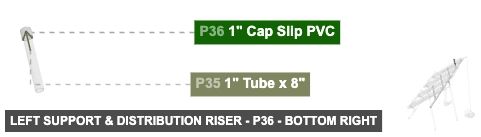

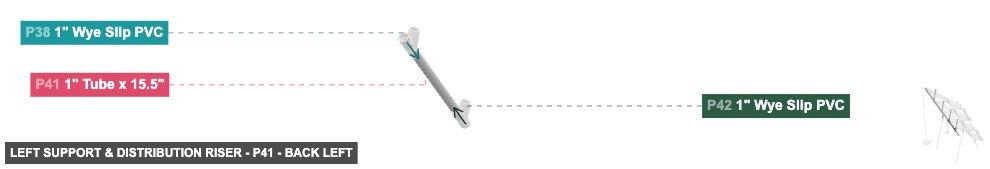

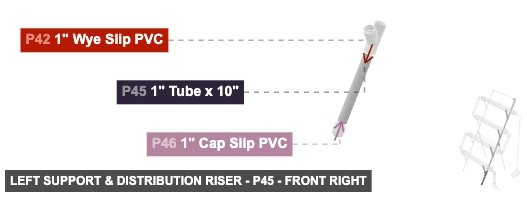

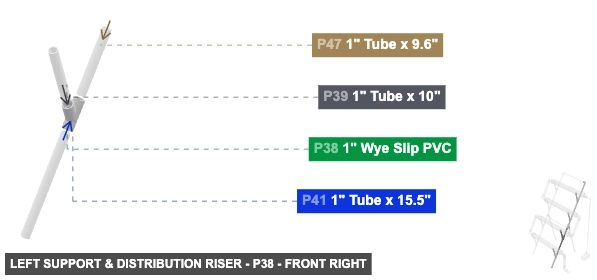

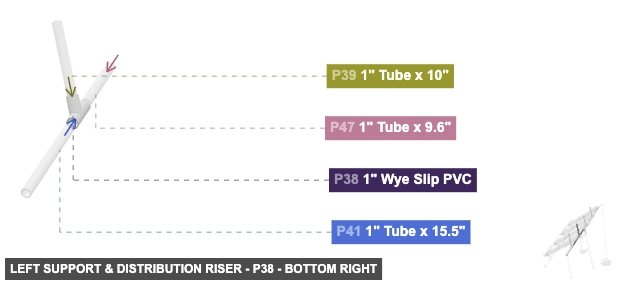

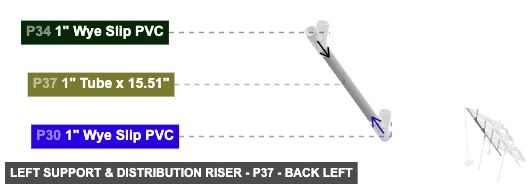

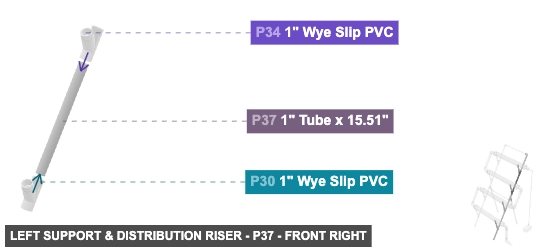

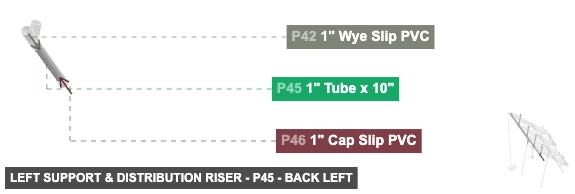

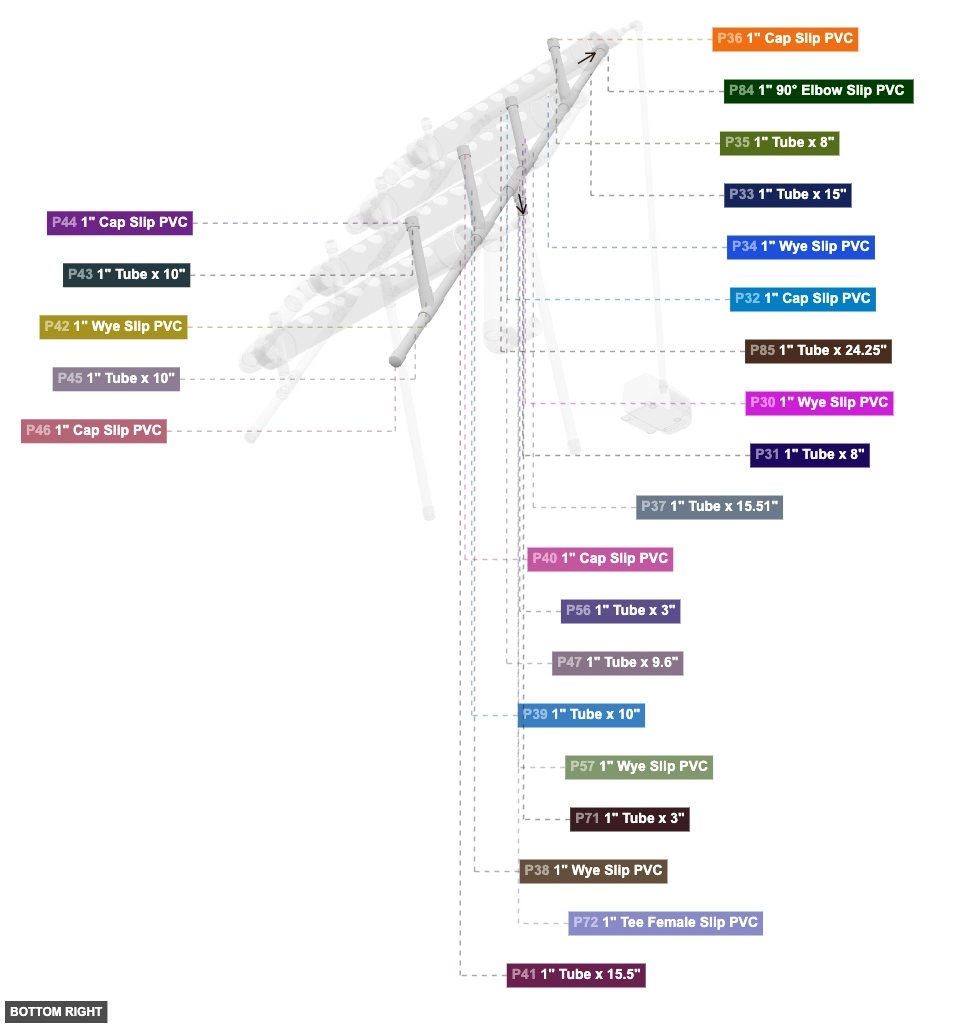

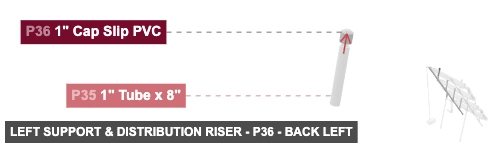

Left Support & Distribution Riser

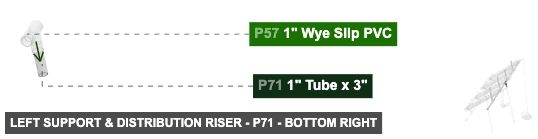

11" Wye Slip PVCx 5

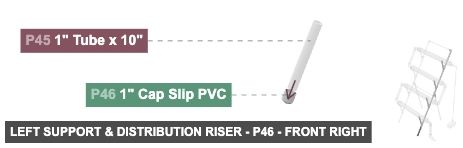

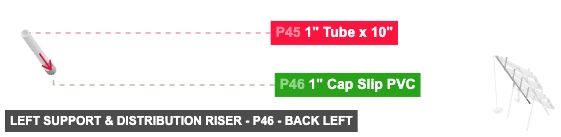

11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1

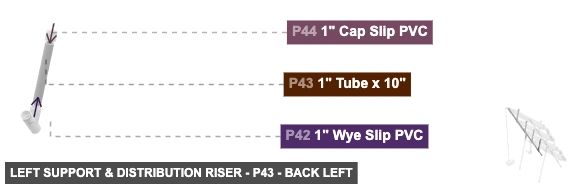

11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

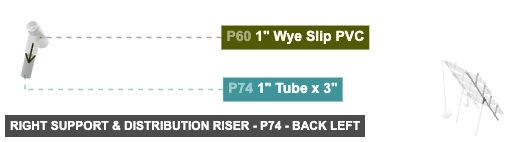

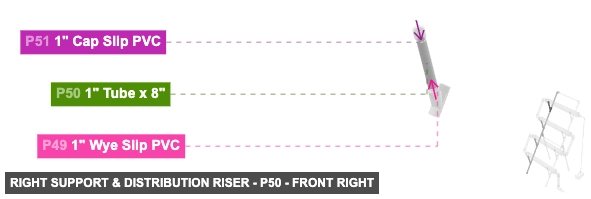

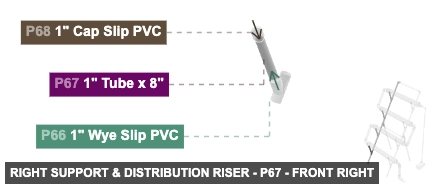

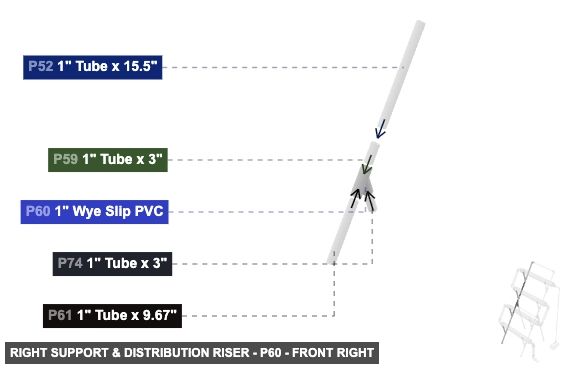

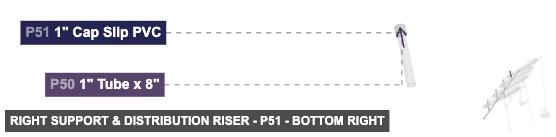

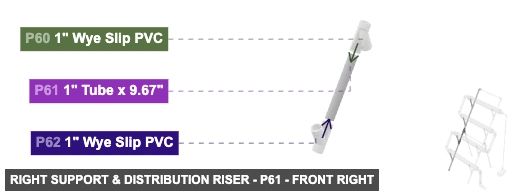

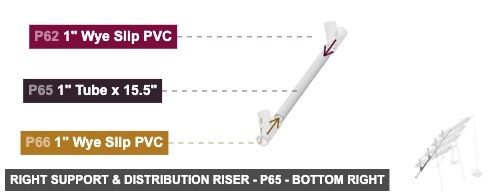

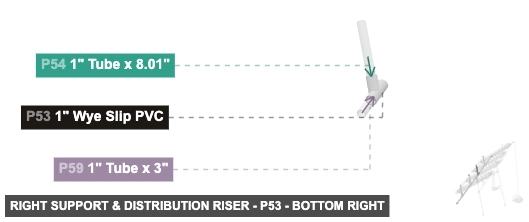

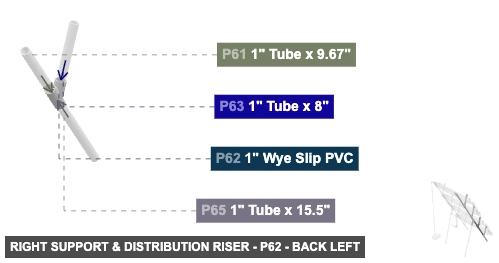

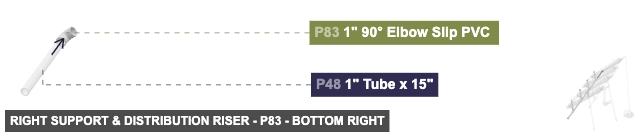

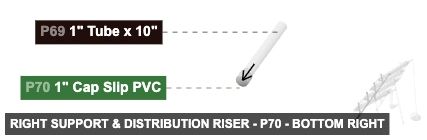

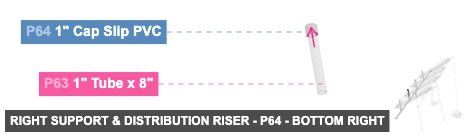

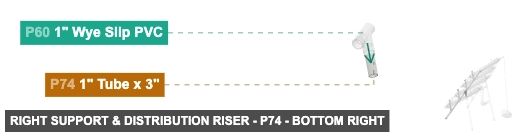

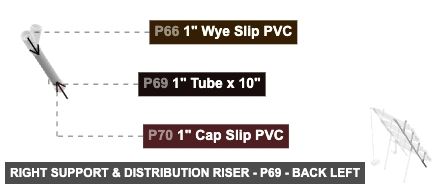

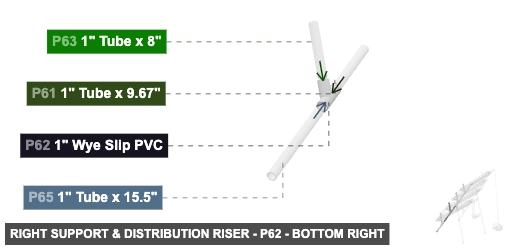

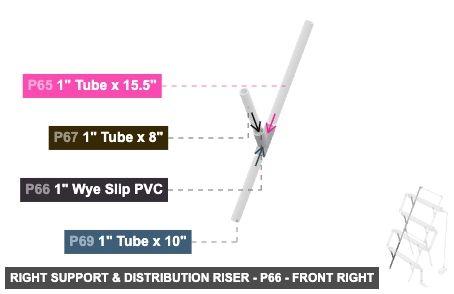

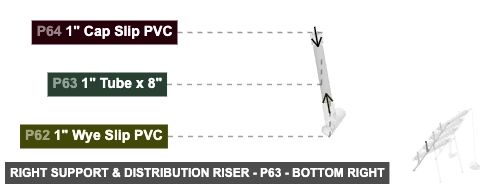

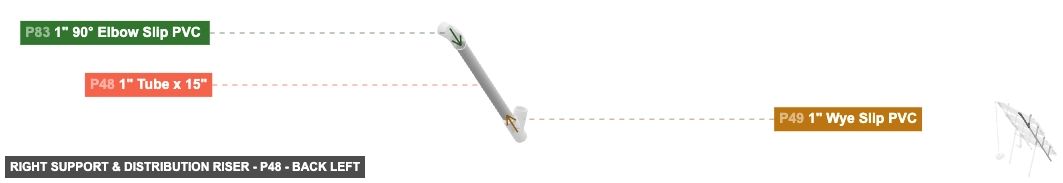

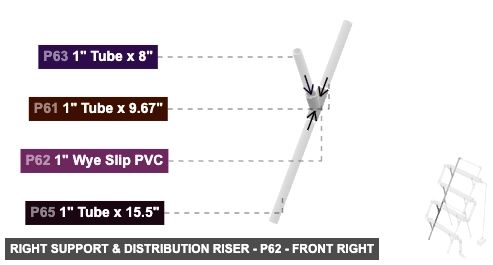

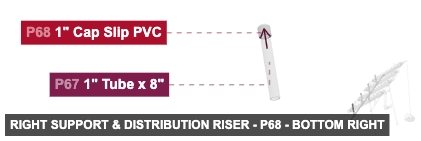

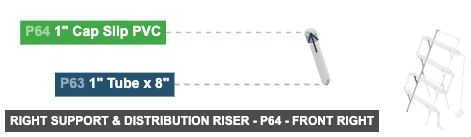

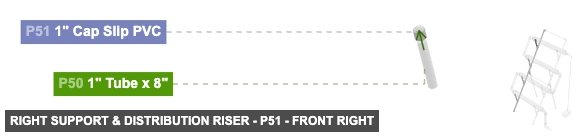

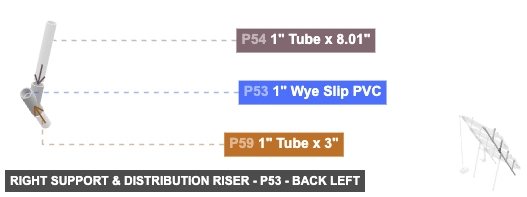

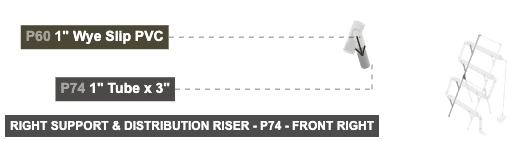

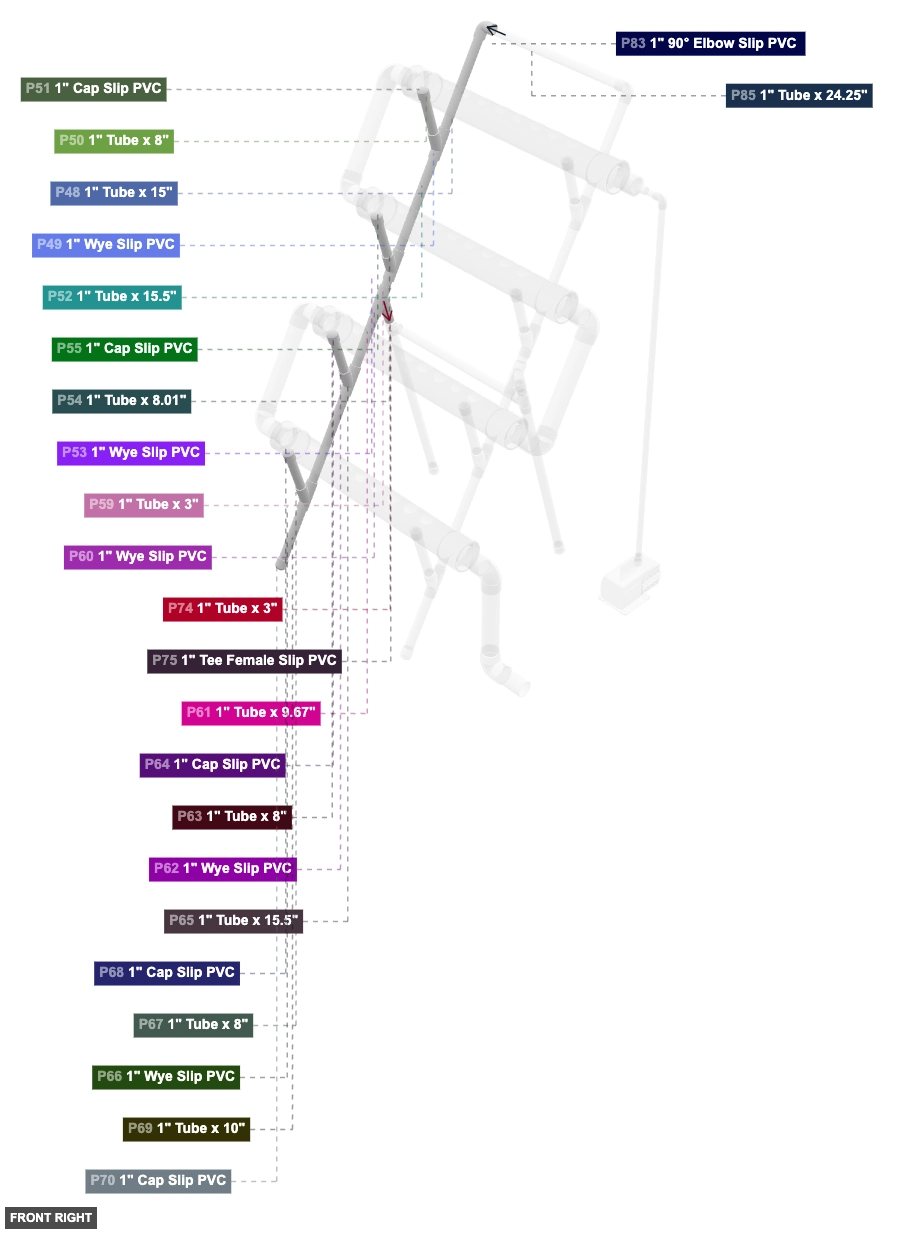

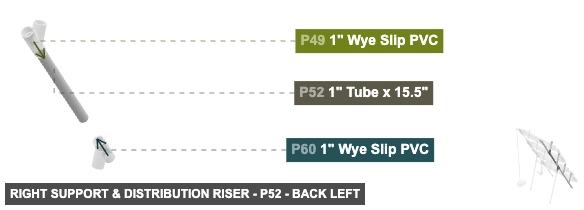

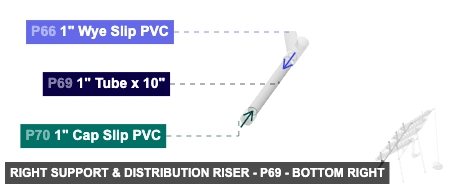

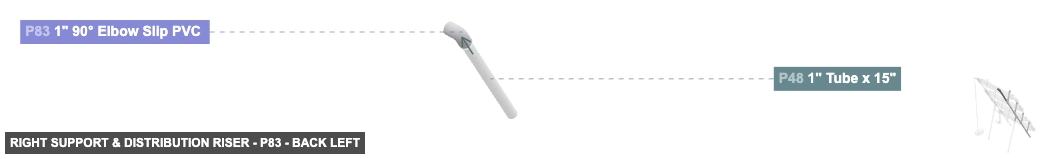

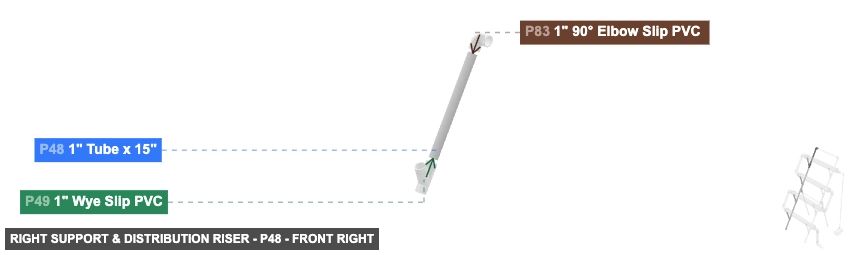

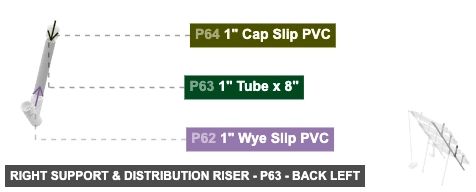

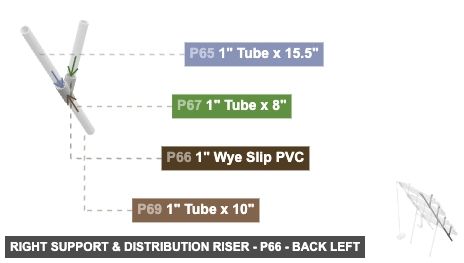

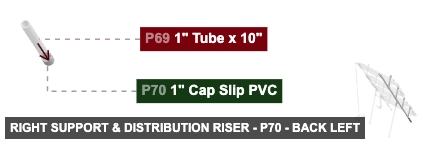

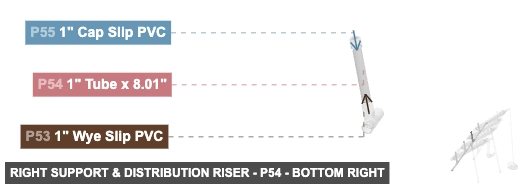

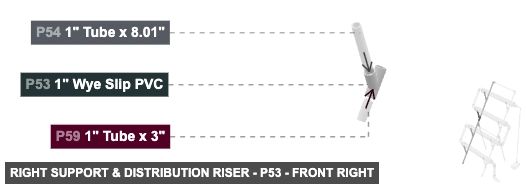

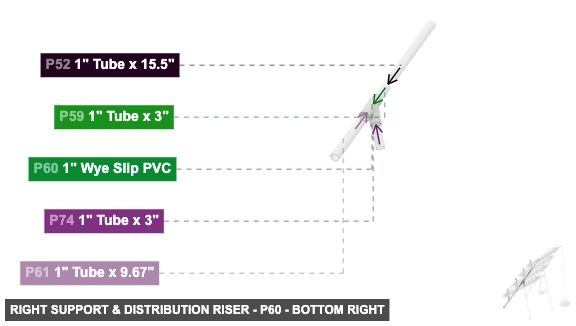

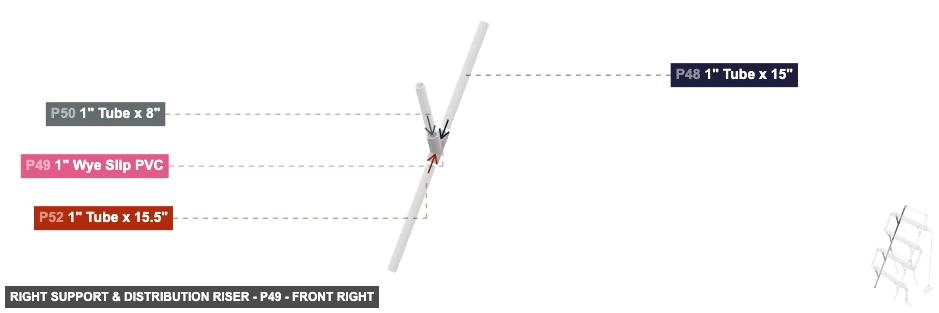

Right Support & Distribution Riser
11" Tube x 15"x 1

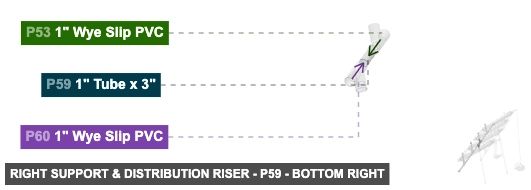

11" Wye Slip PVCx 5

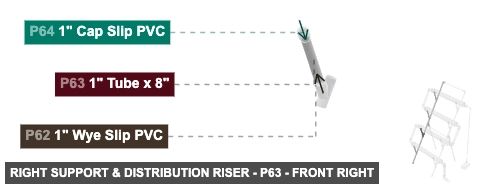

11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2

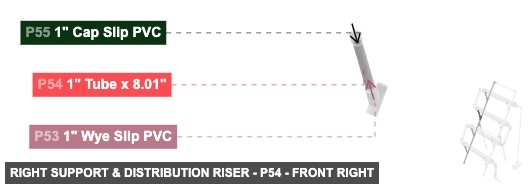

11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

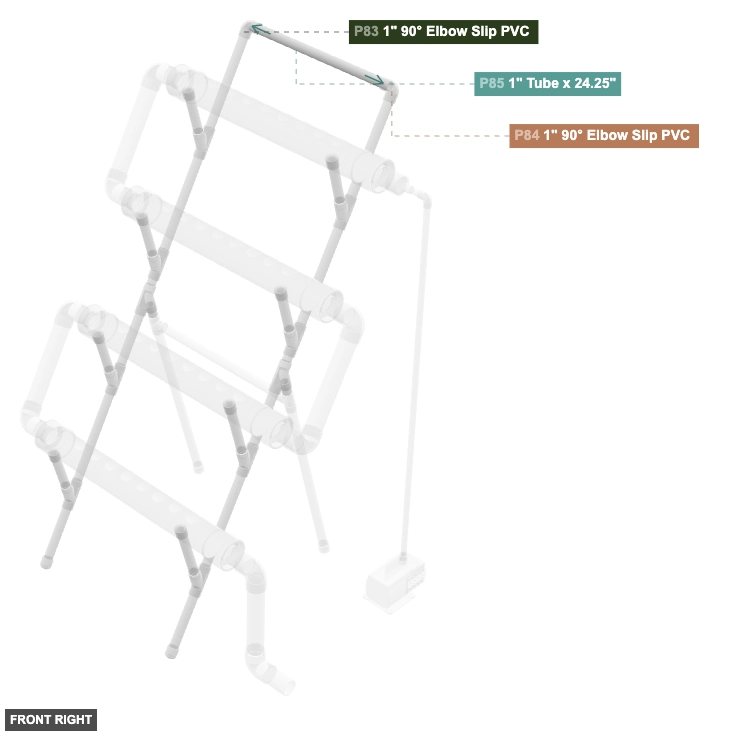

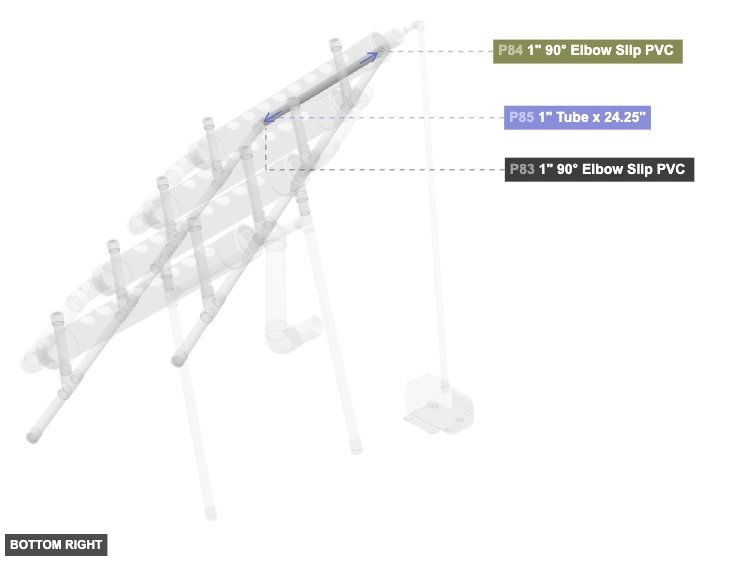

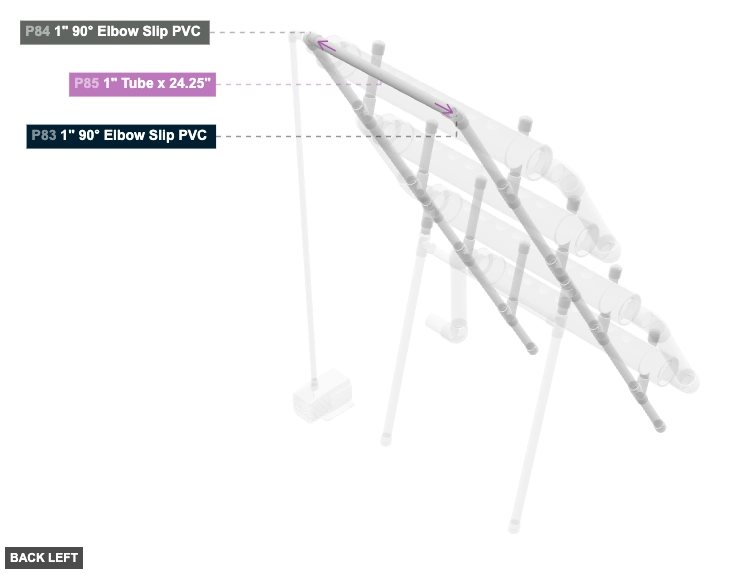

Top Frame Connector
11" Tube x 24.25"x 1

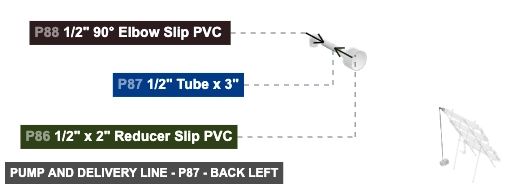

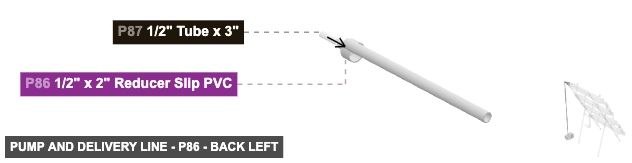

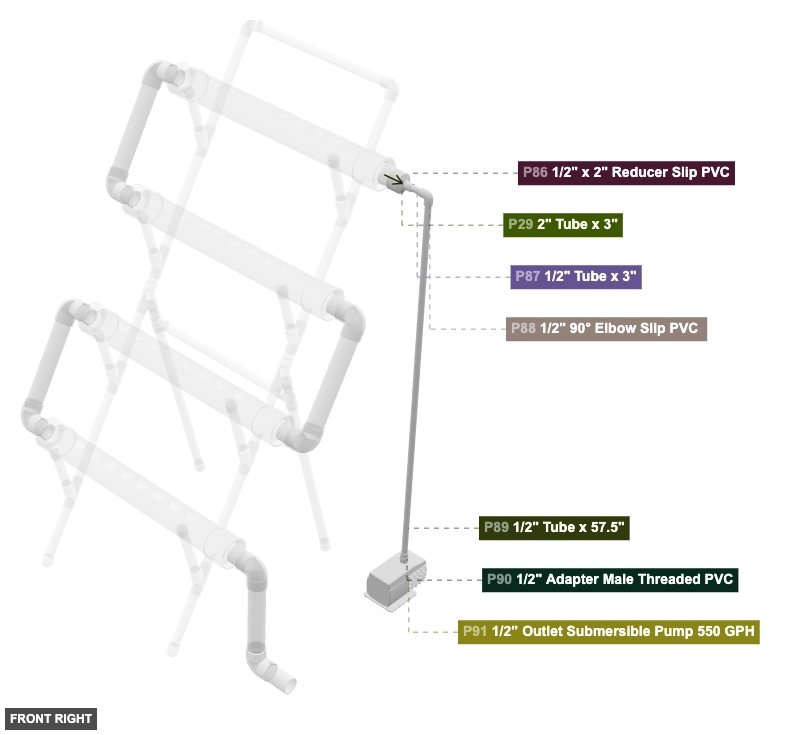

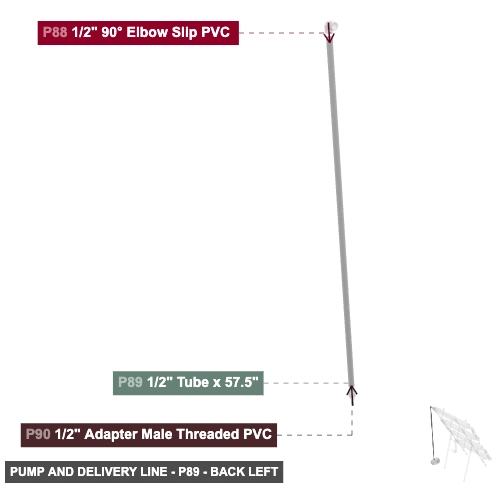

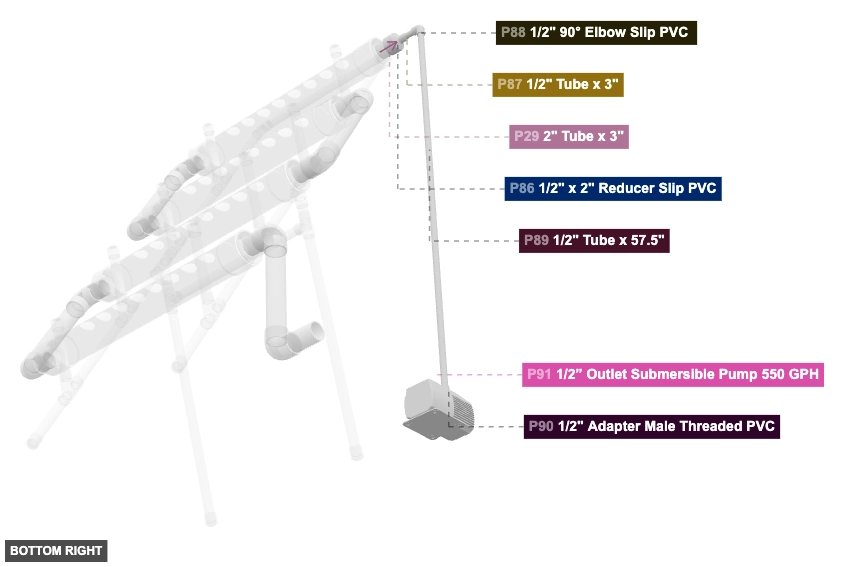

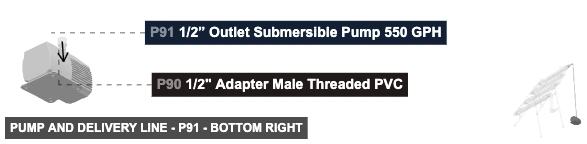

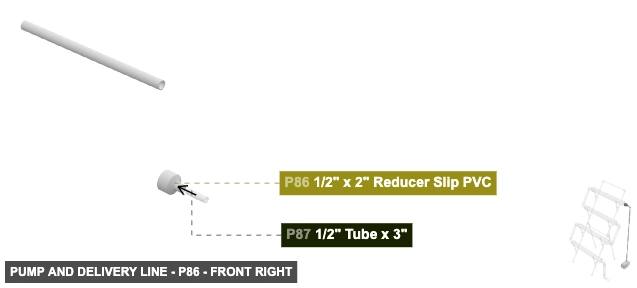

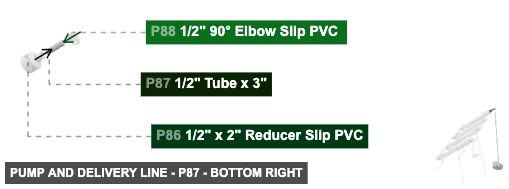

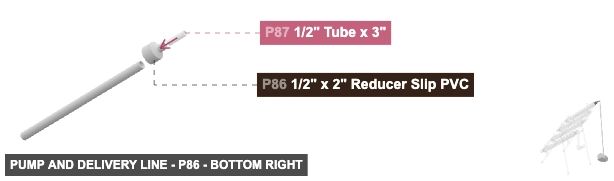

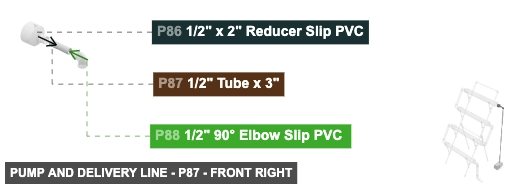

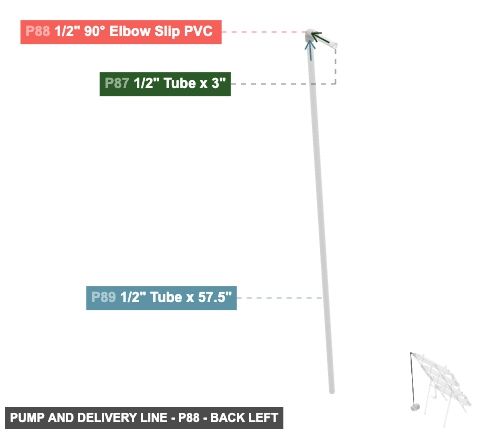

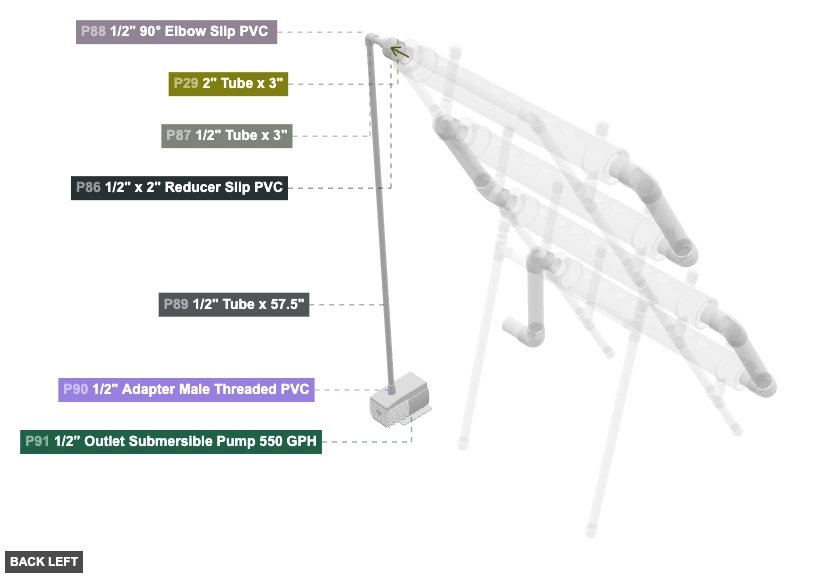

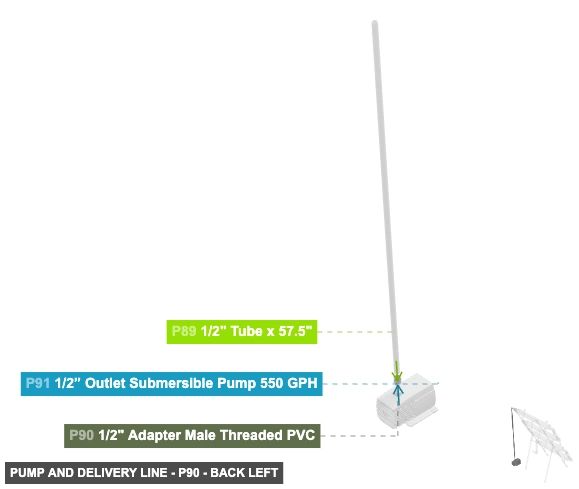

Pump and Delivery Line
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1

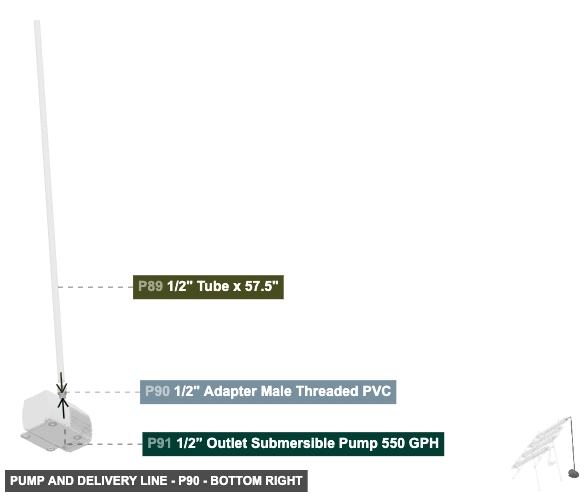

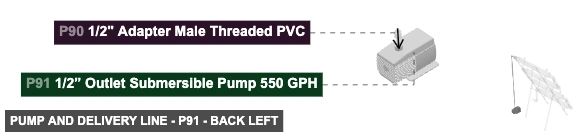

1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

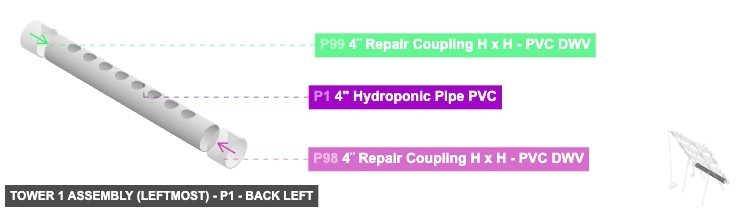

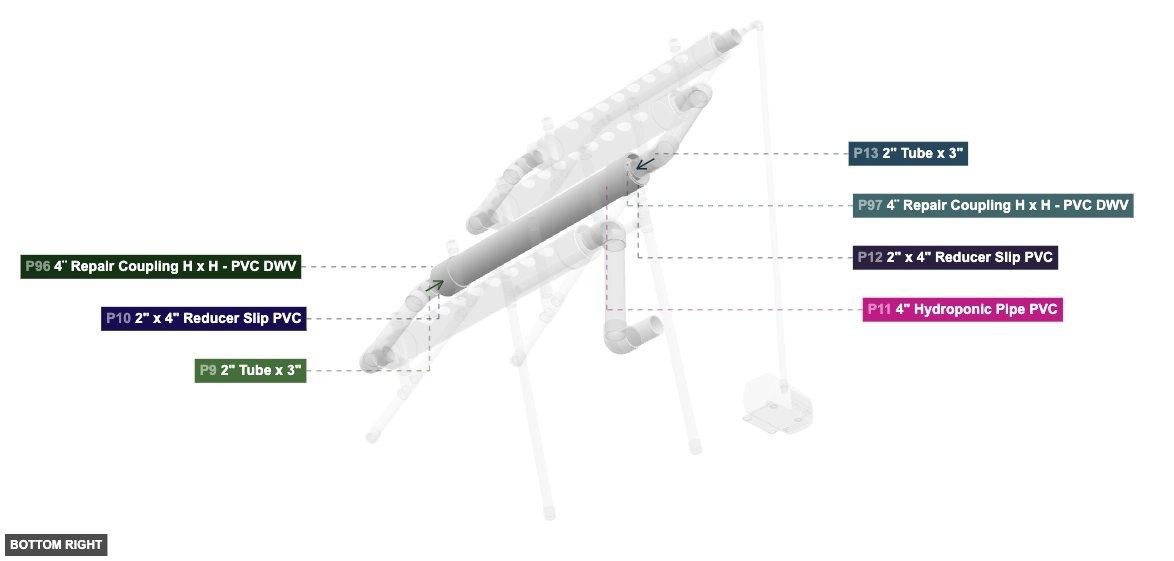

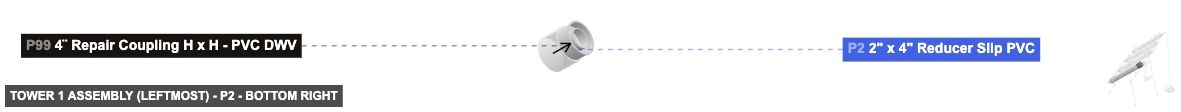

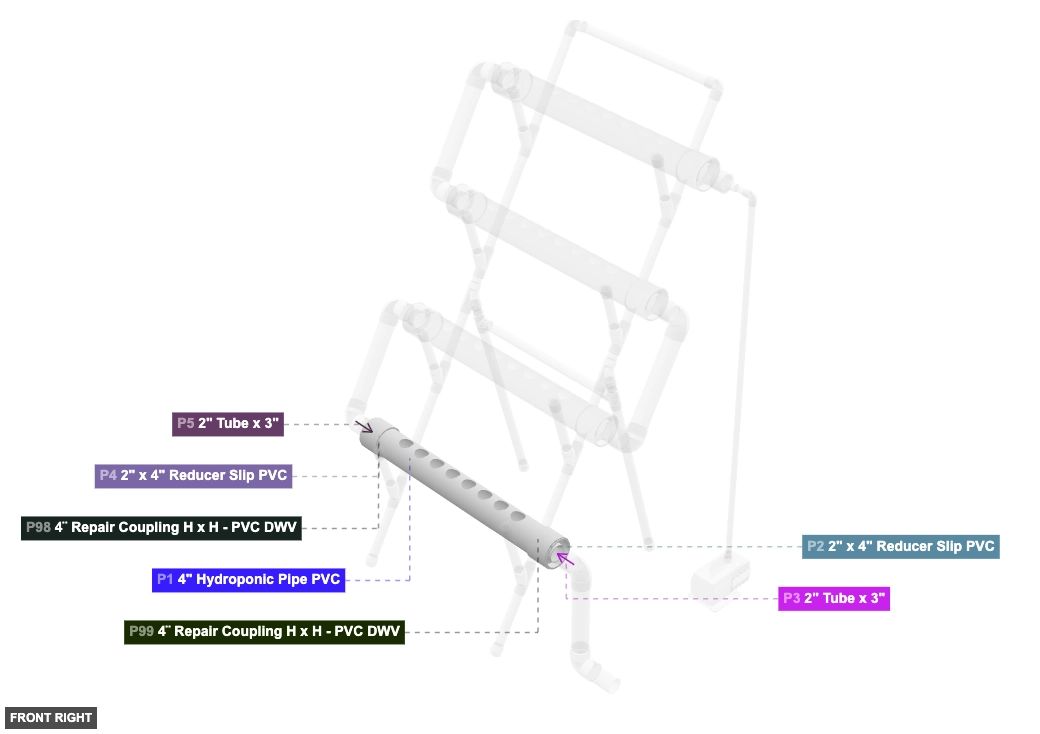

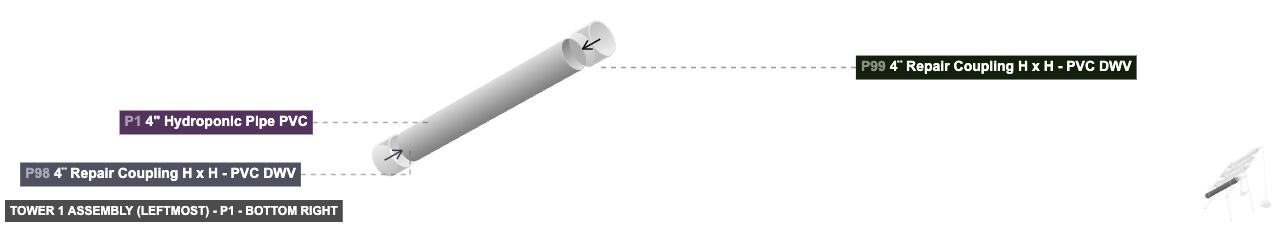

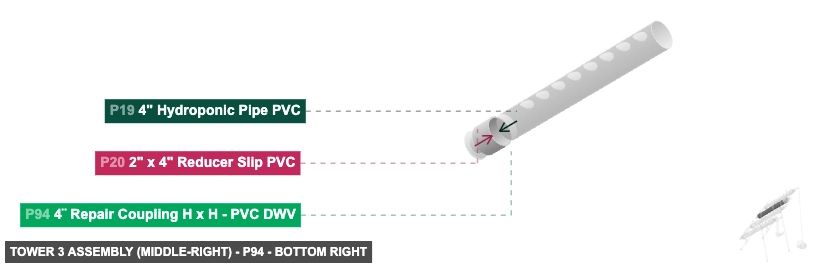

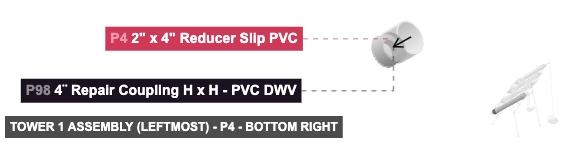

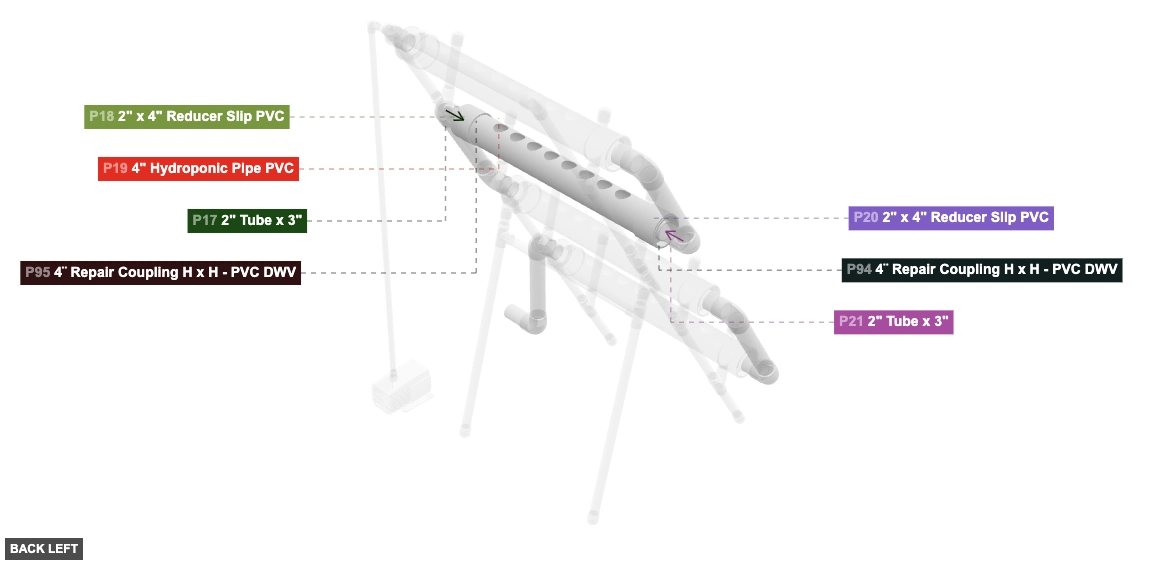

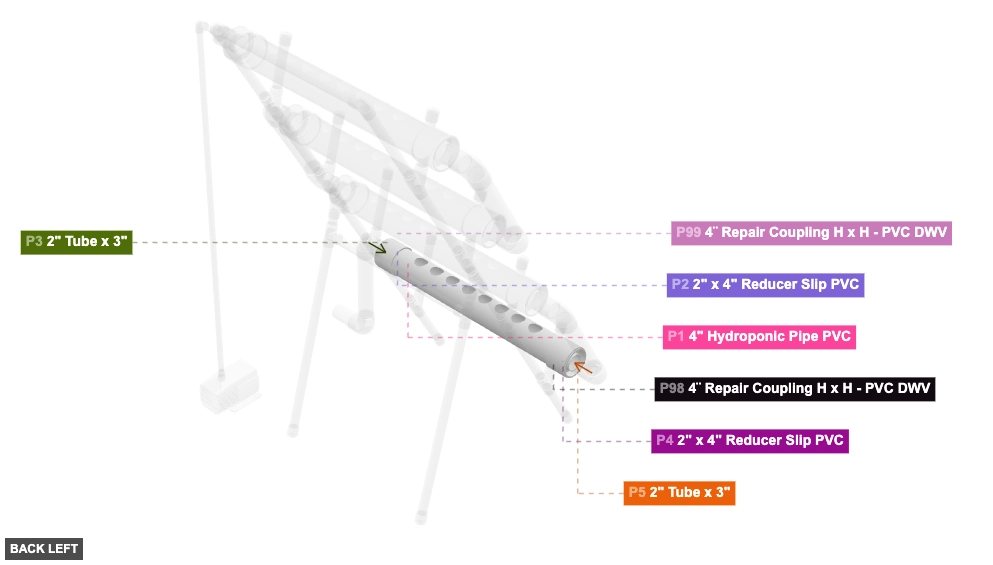

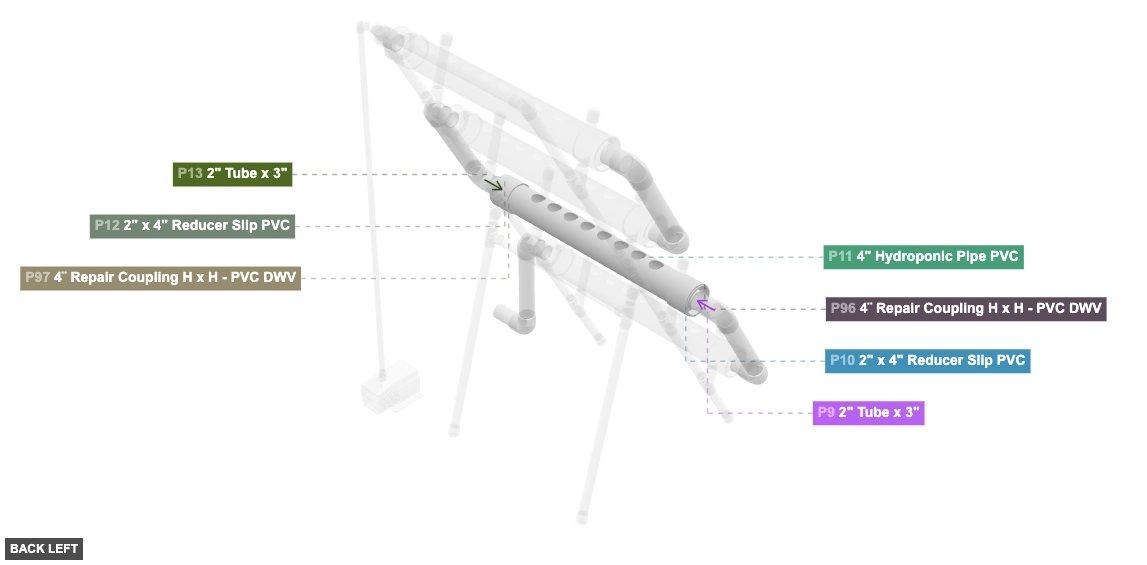

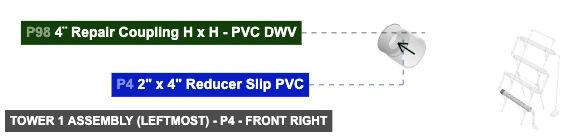

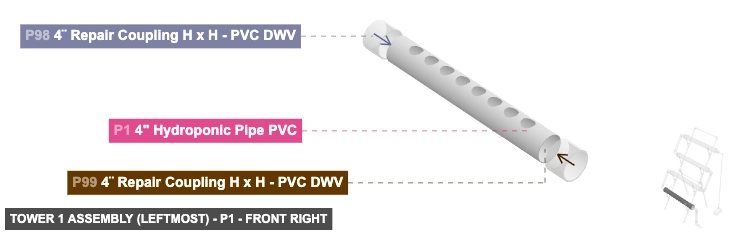

Tower 1 Assembly (Leftmost)

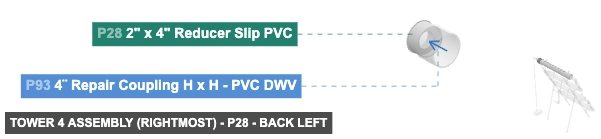

44" Hydroponic Pipe PVCx 1

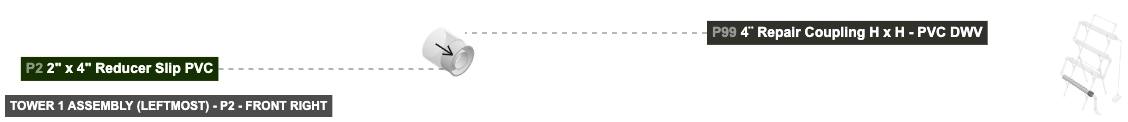

22" x 4" Reducer Slip PVCx 2

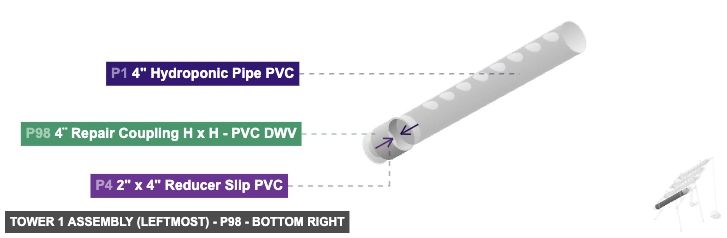

4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

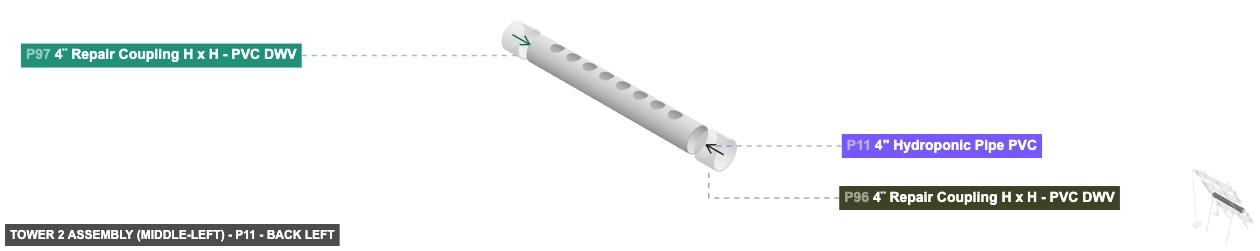

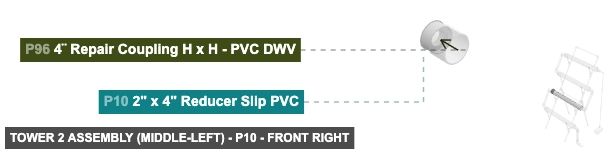

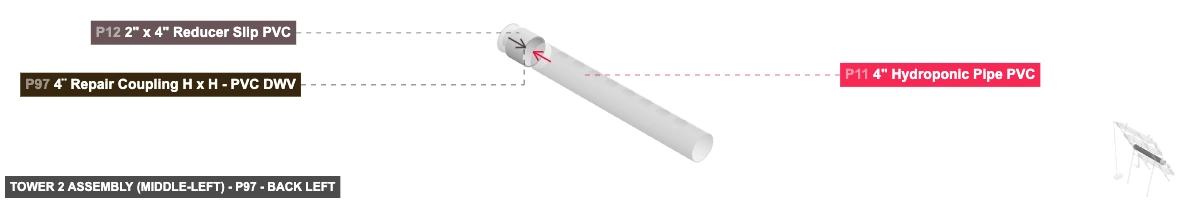

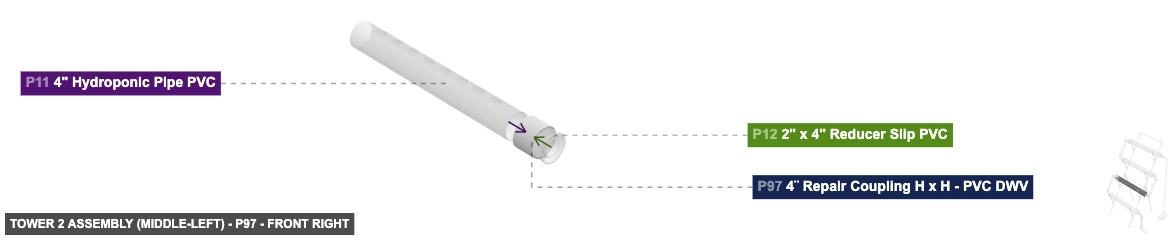

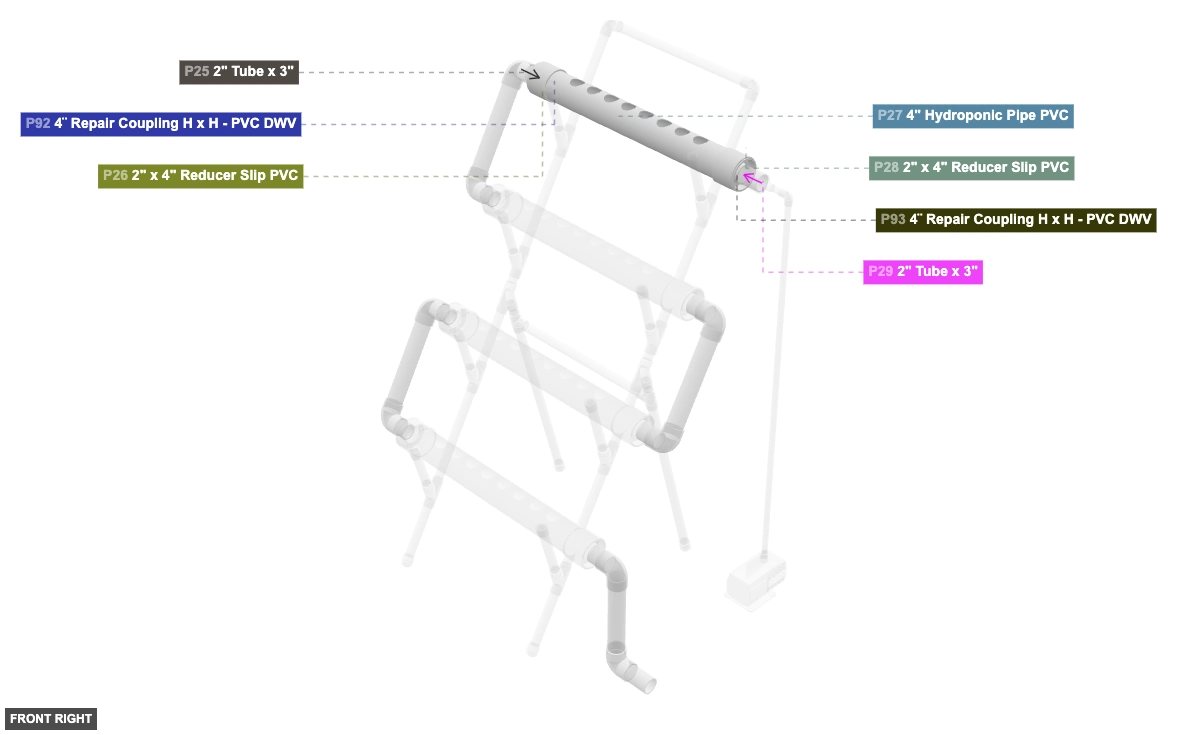

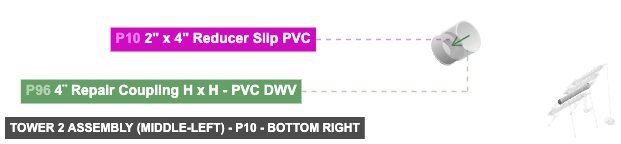

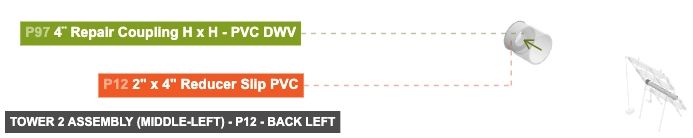

Tower 2 Assembly (Middle-Left)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

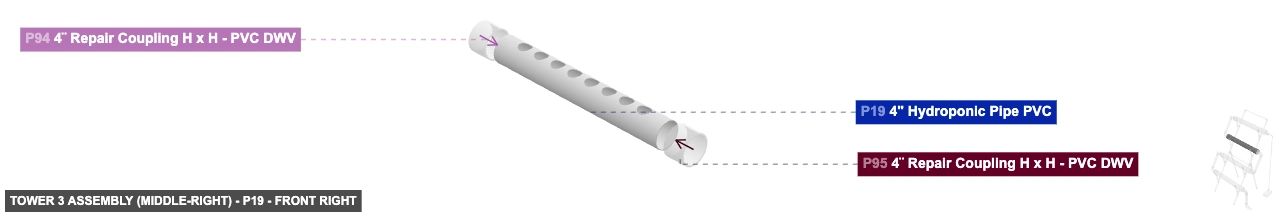

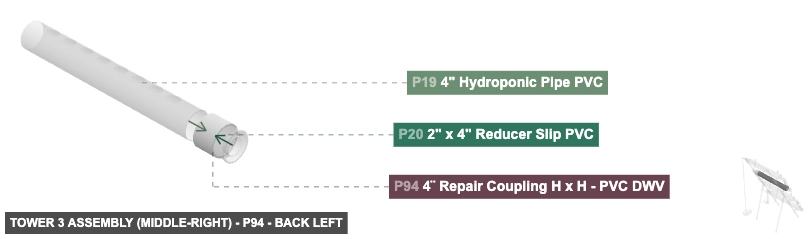

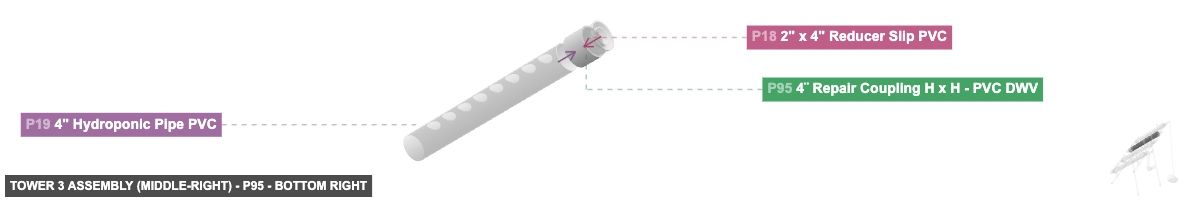

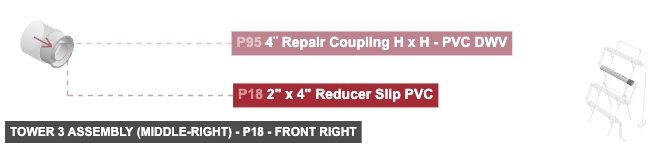

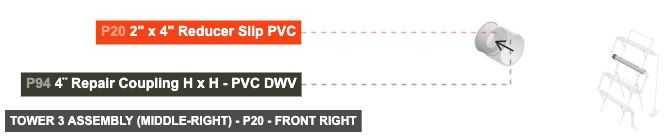

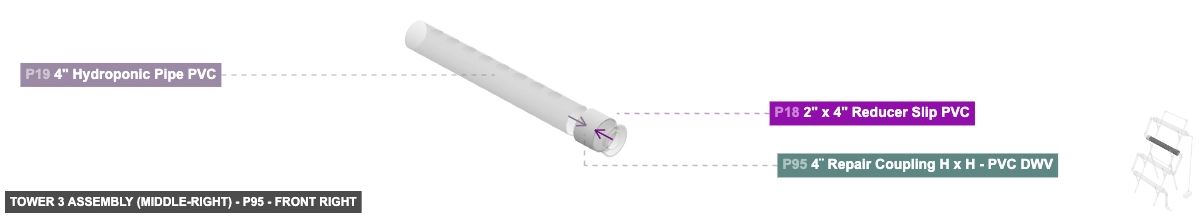

Tower 3 Assembly (Middle-Right)

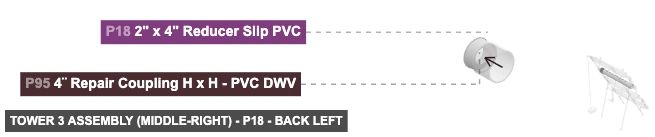

22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

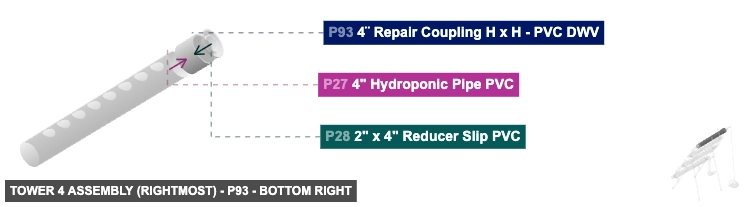

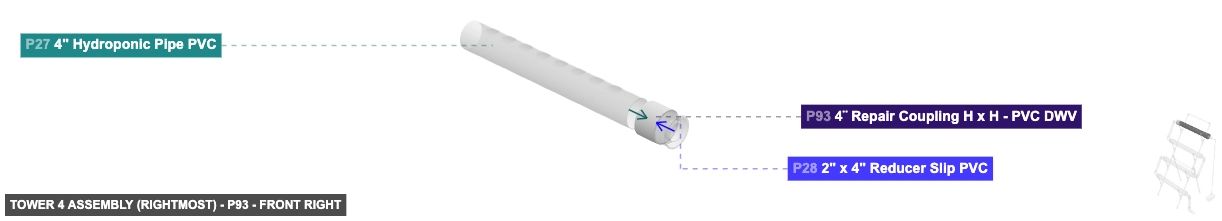

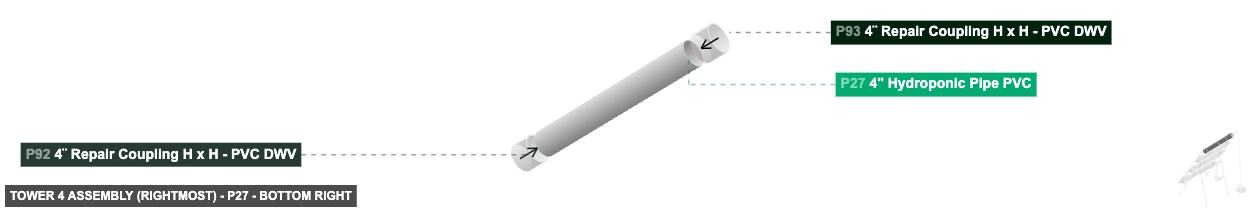

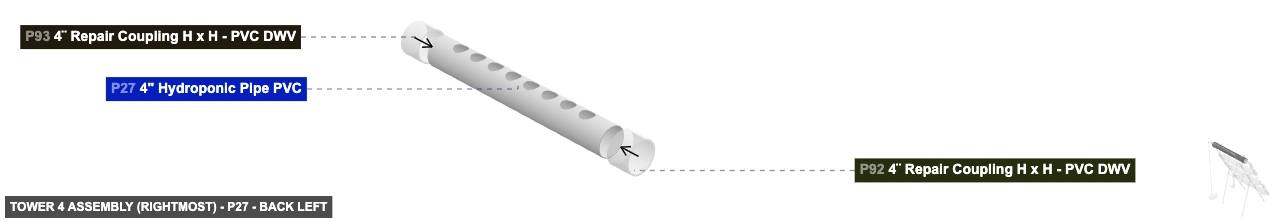

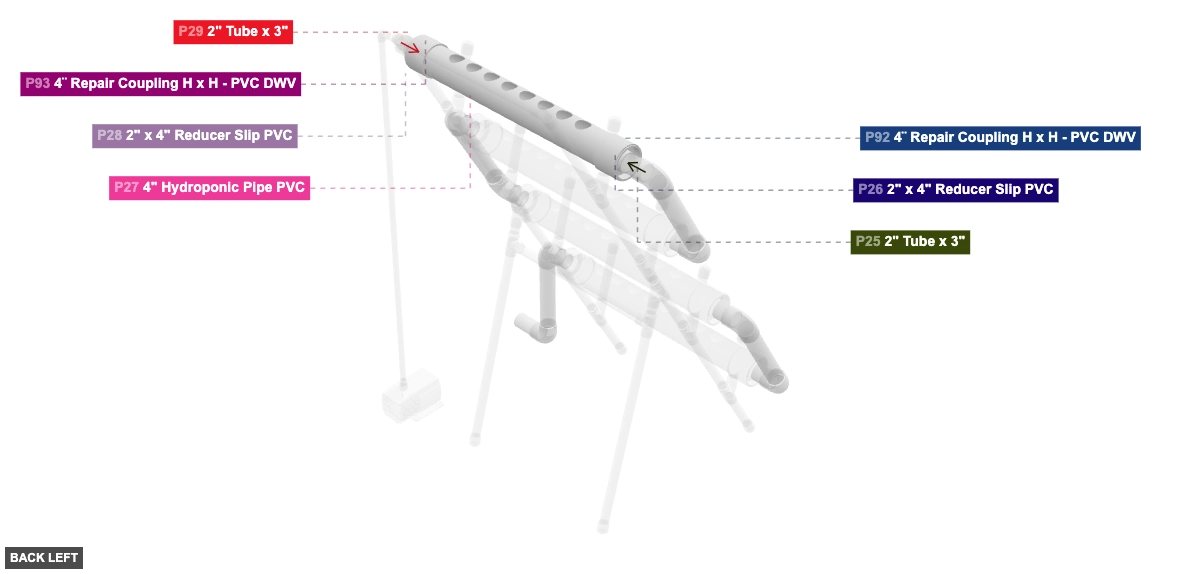

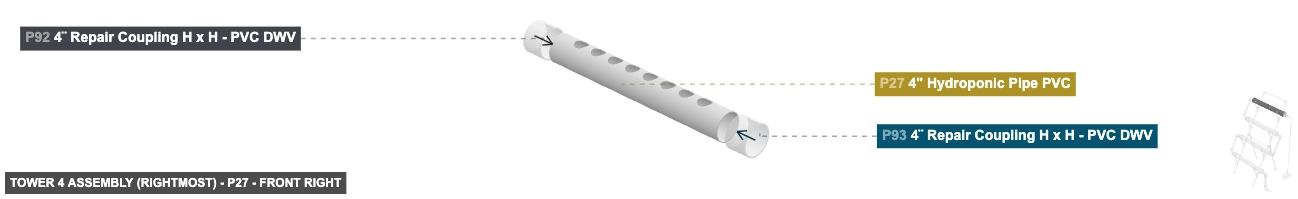

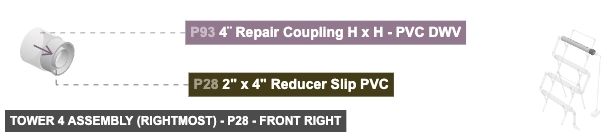

Tower 4 Assembly (Rightmost)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

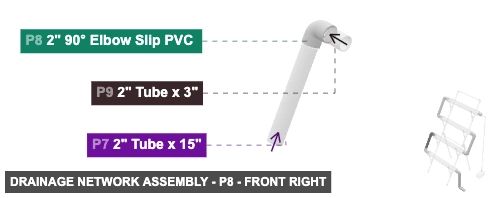

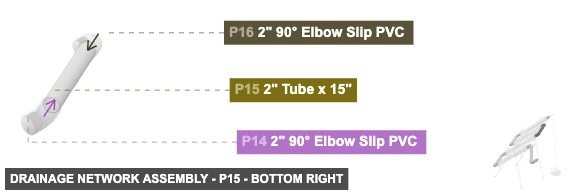

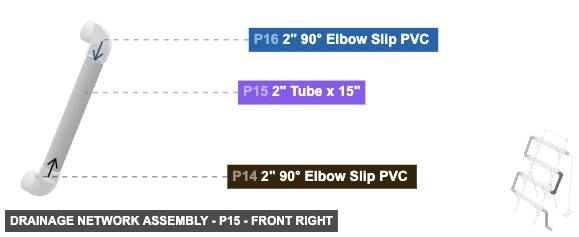

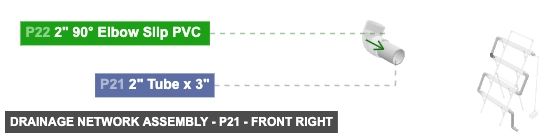

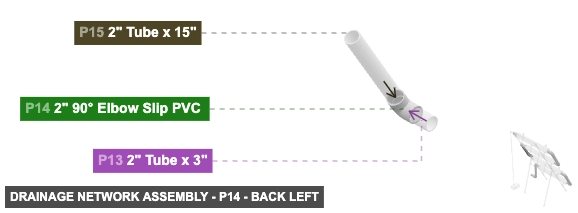

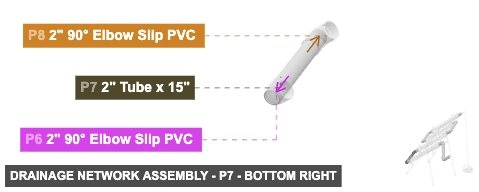

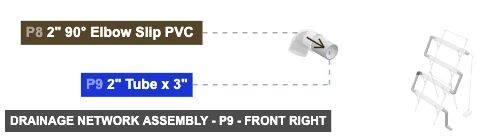

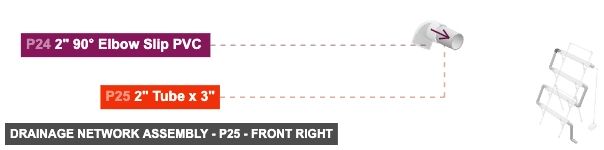

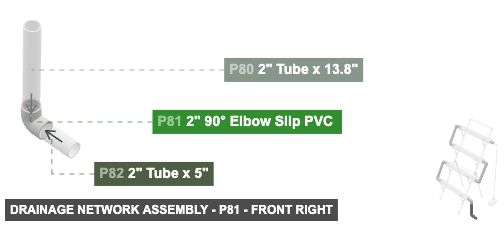

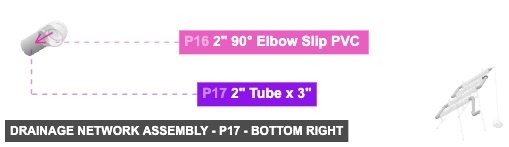

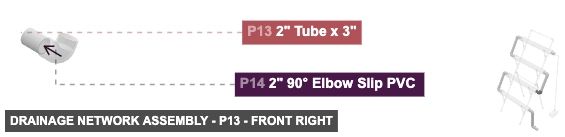

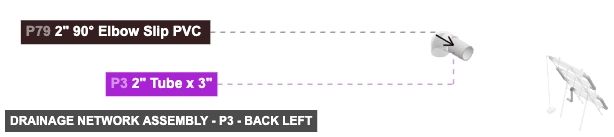

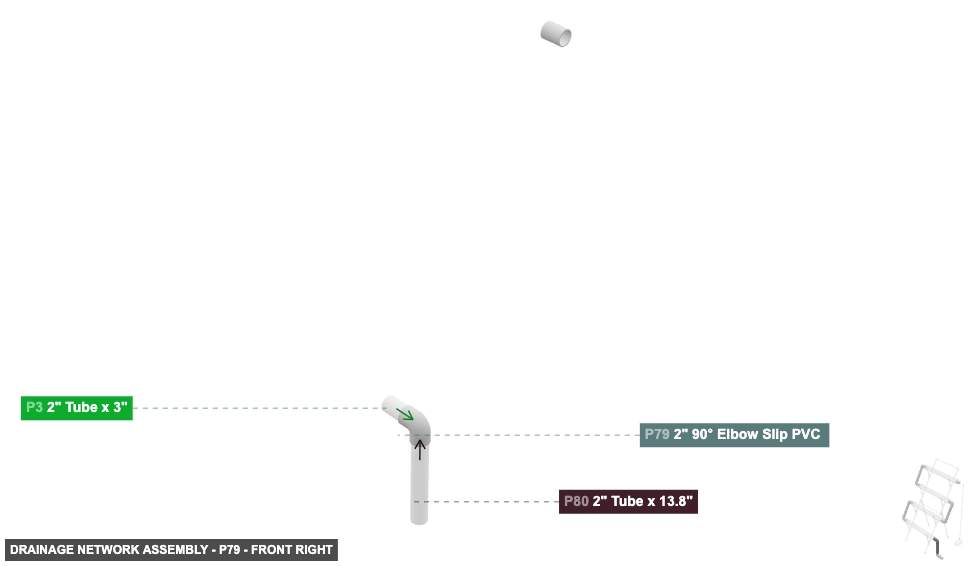

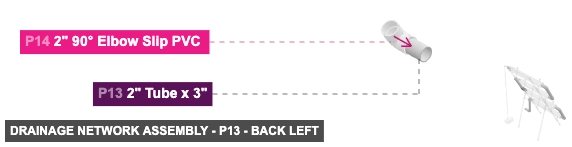

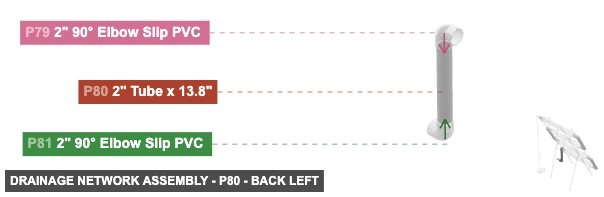

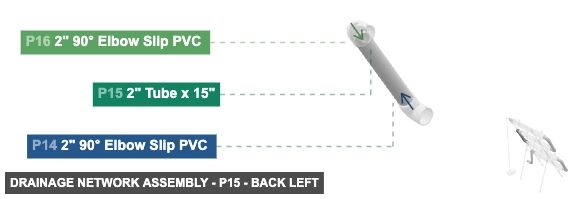

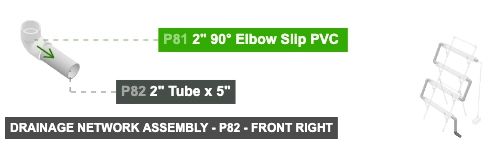

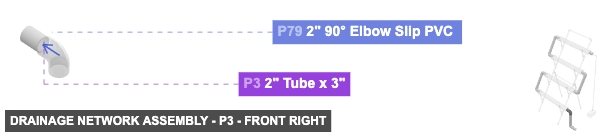

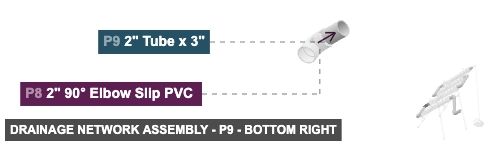

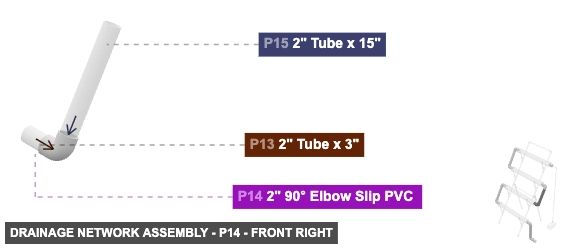

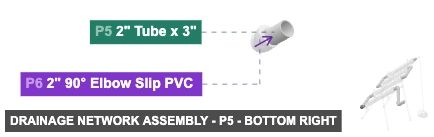

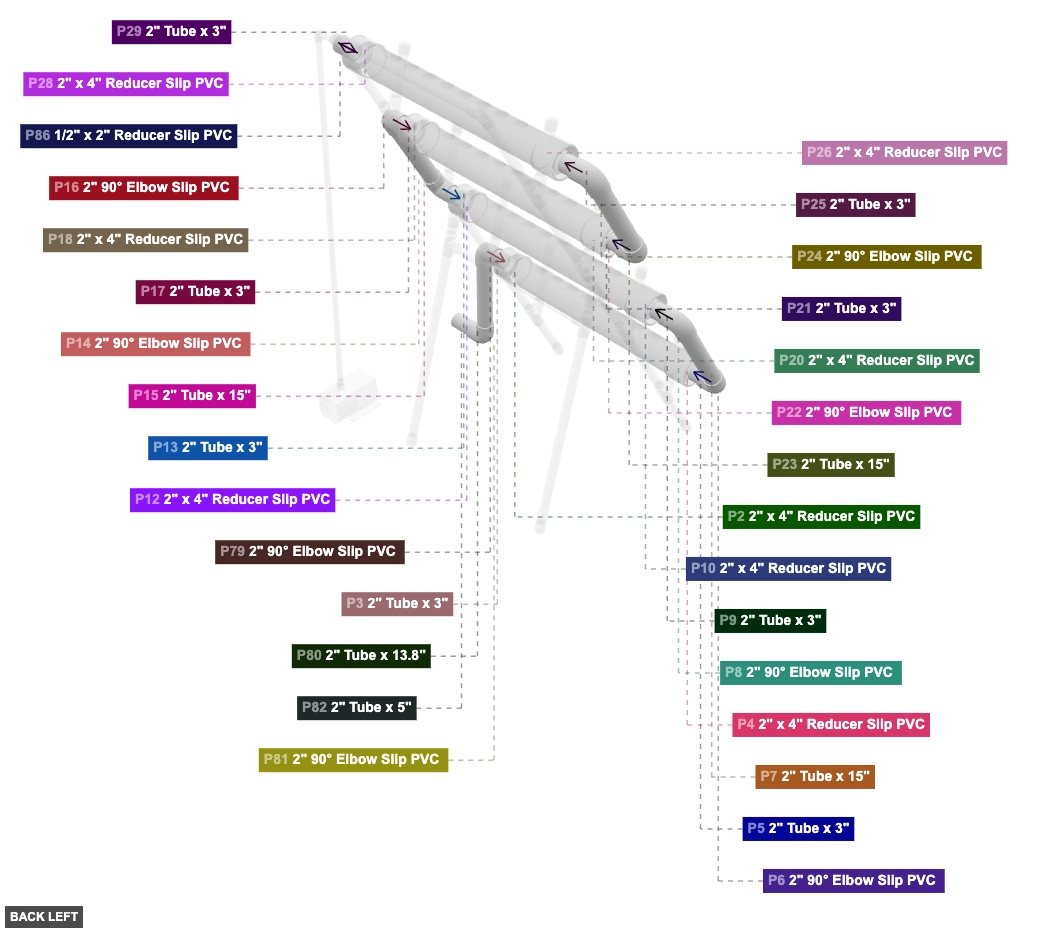

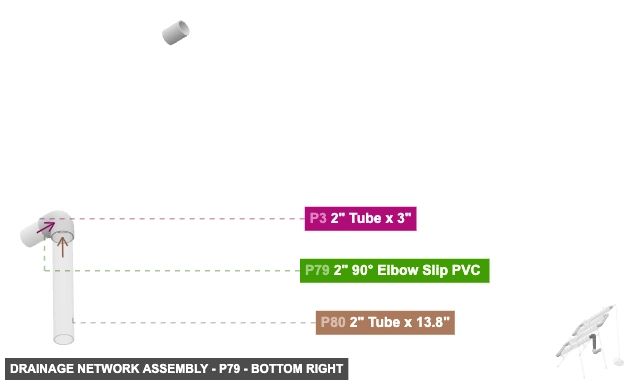

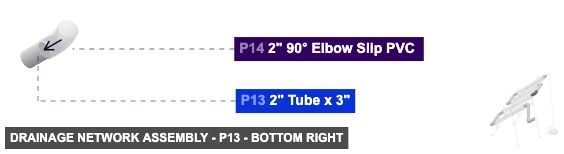

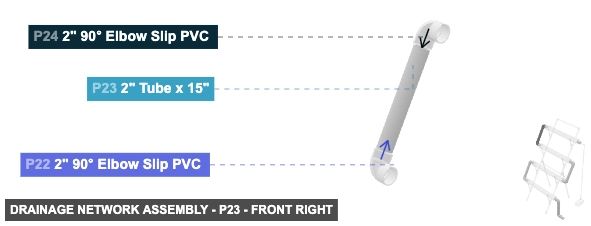

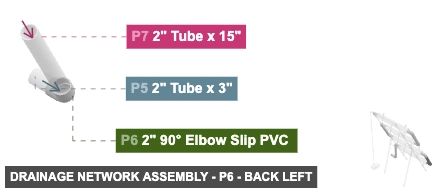

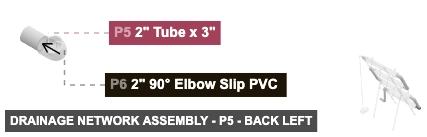

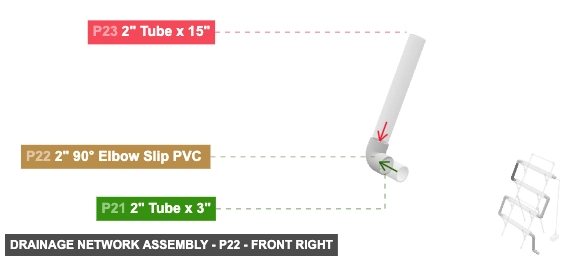

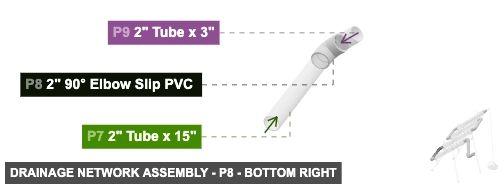

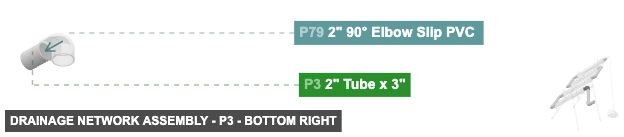

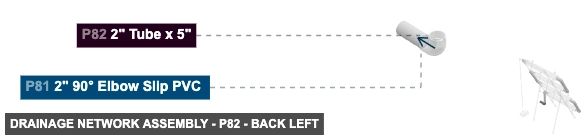

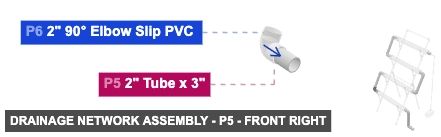

Drainage Network Assembly
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3

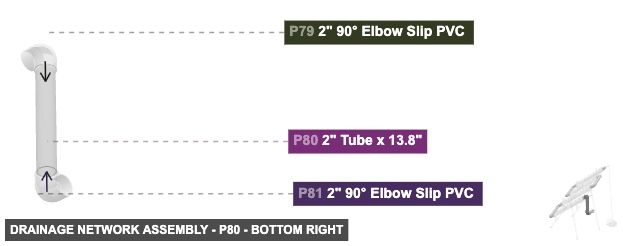

22" Tube x 13.8"x 1
22" Tube x 5"x 1

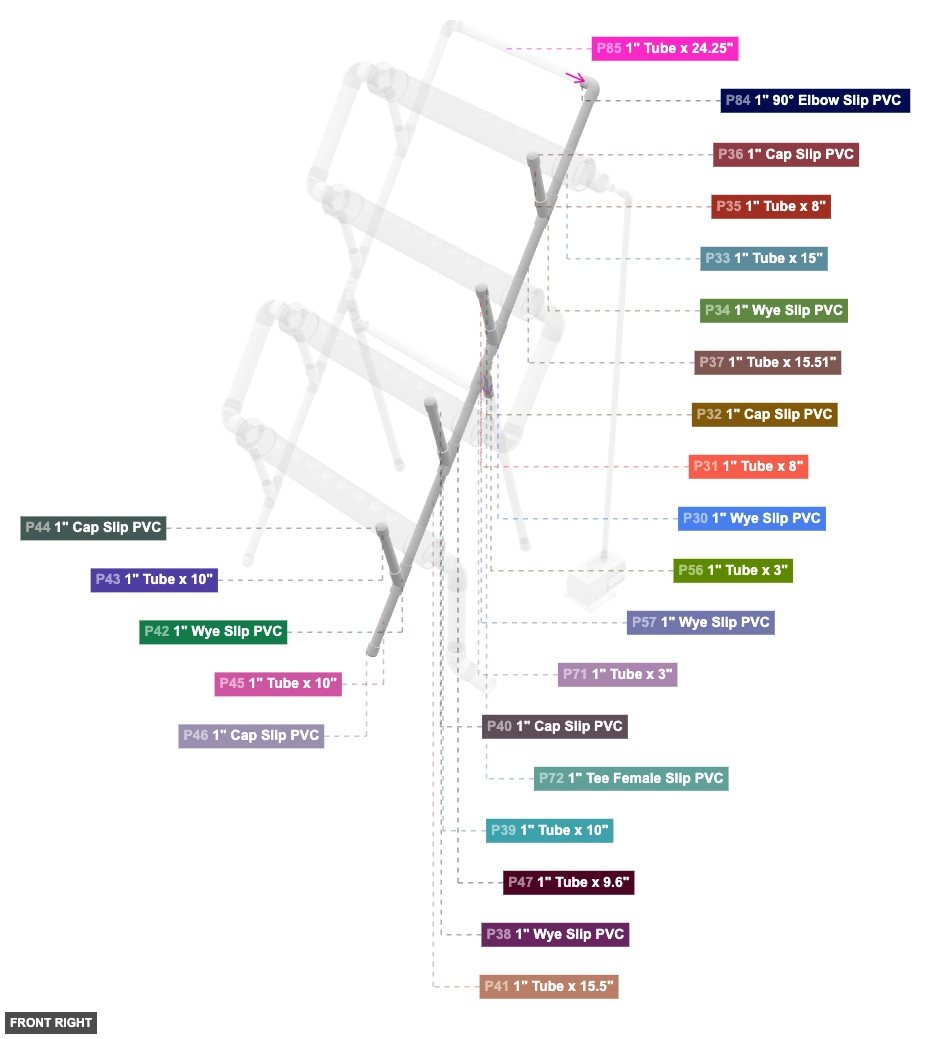

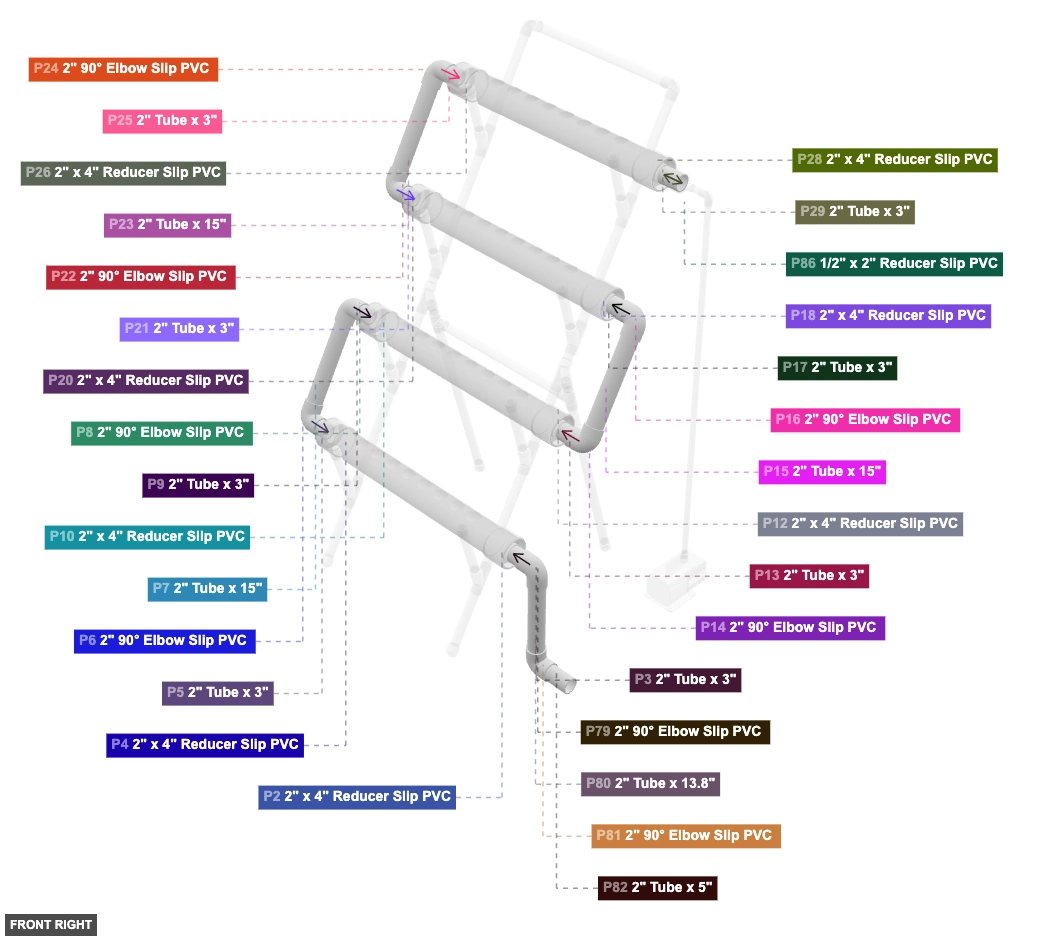

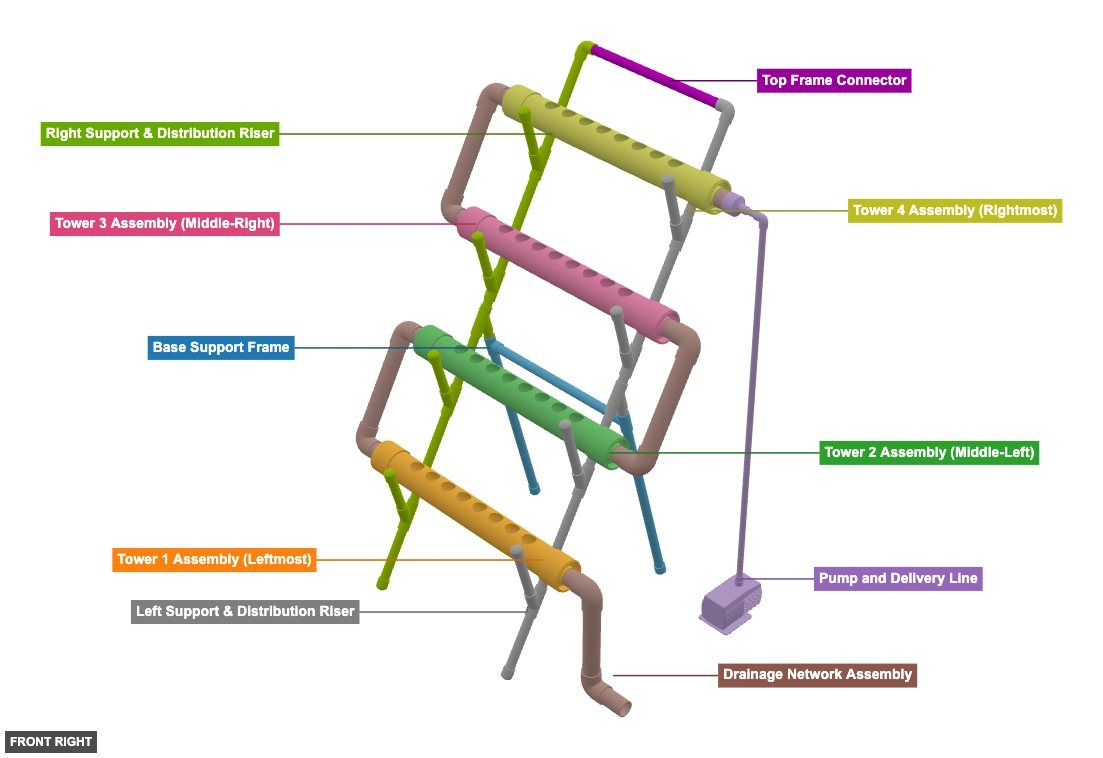

Angle: front right

Hydroponic Setup with Submersible Pump - Overview front_right
Base Support Frame
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

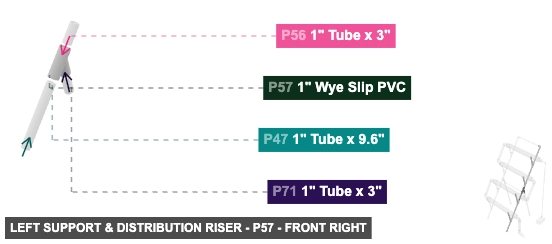

Left Support & Distribution Riser
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

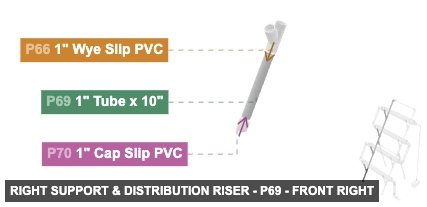

Right Support & Distribution Riser
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1
Top Frame Connector
11" Tube x 24.25"x 1

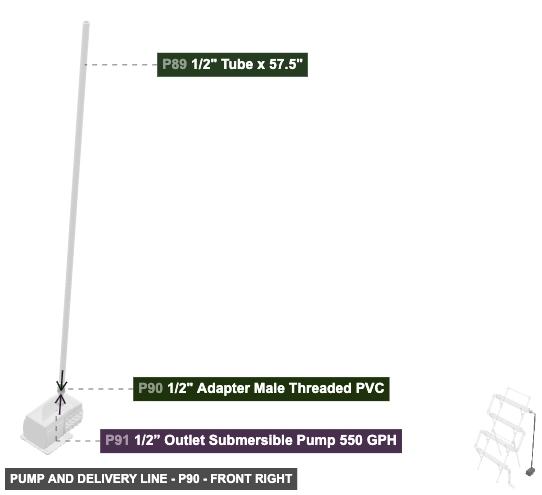

Pump and Delivery Line
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

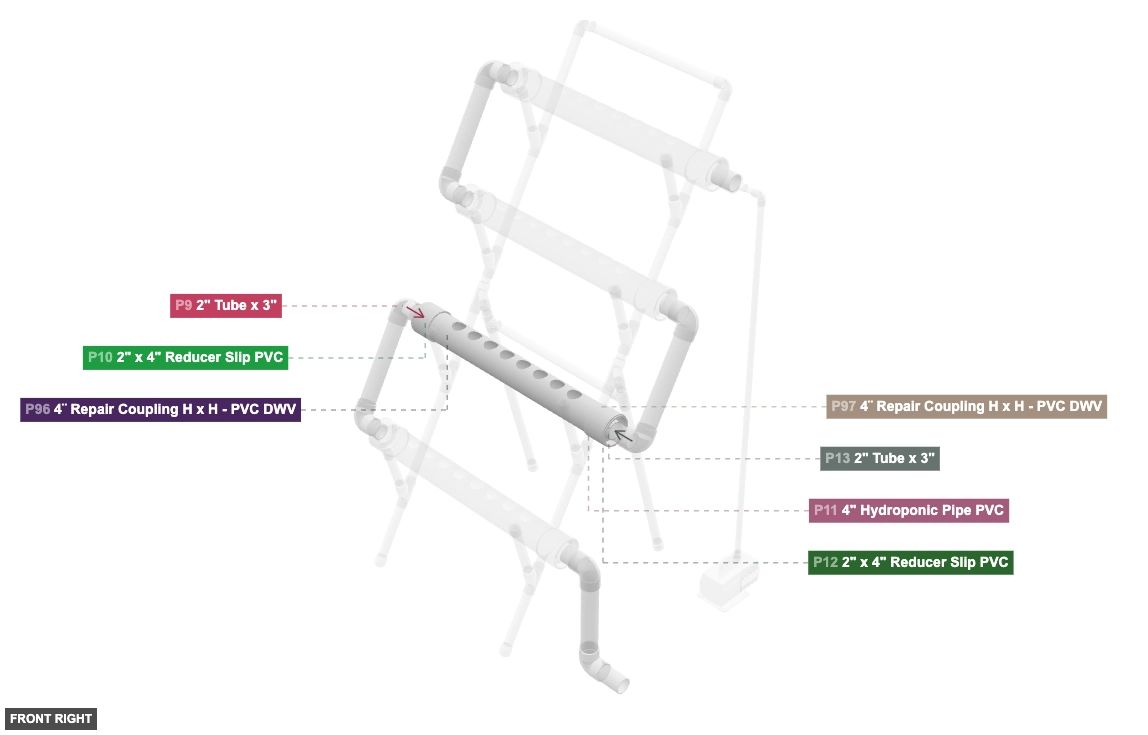

Tower 1 Assembly (Leftmost)
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2
Tower 2 Assembly (Middle-Left)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

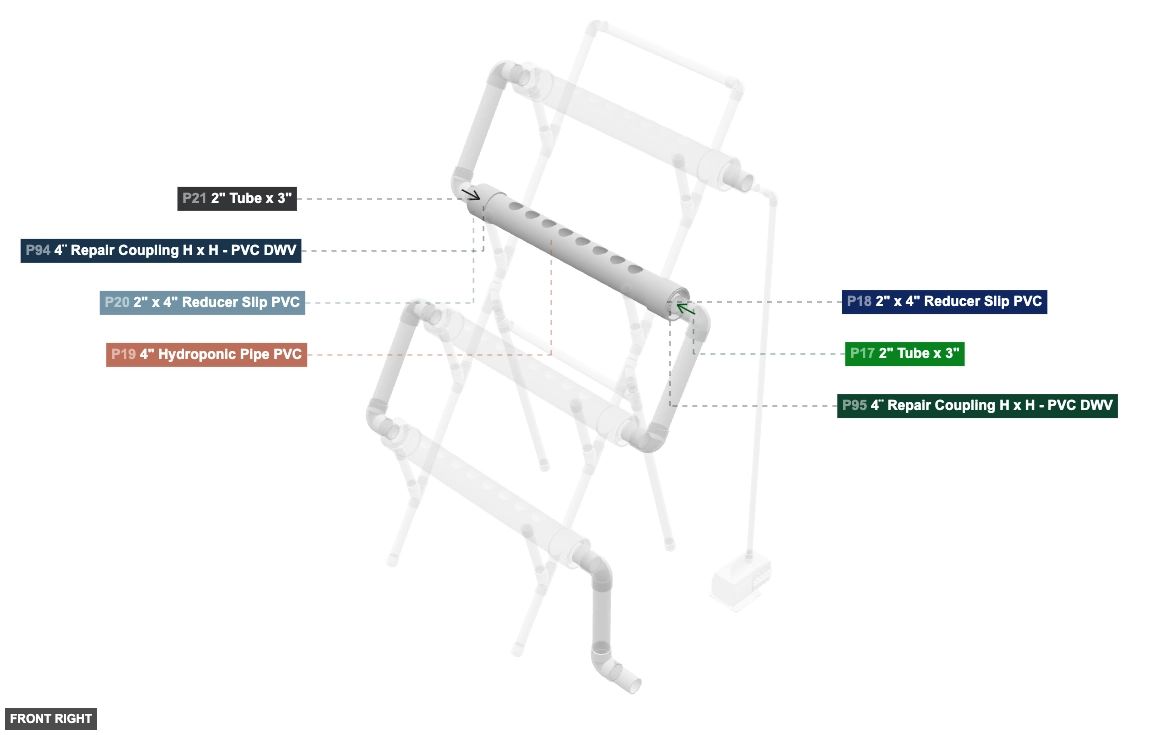

Tower 3 Assembly (Middle-Right)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2
Tower 4 Assembly (Rightmost)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2
Drainage Network Assembly
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

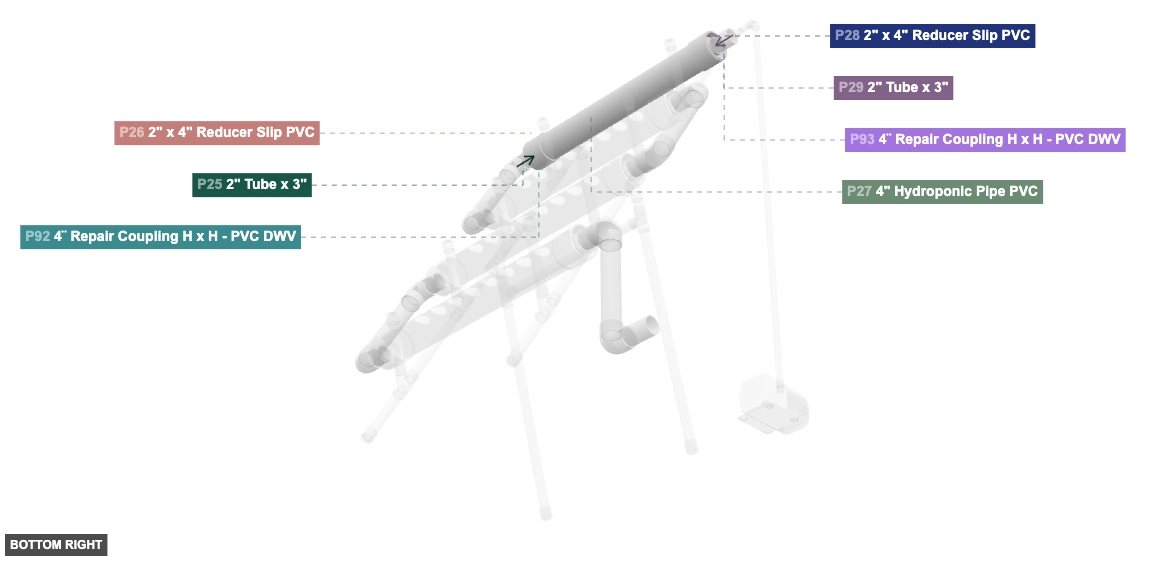

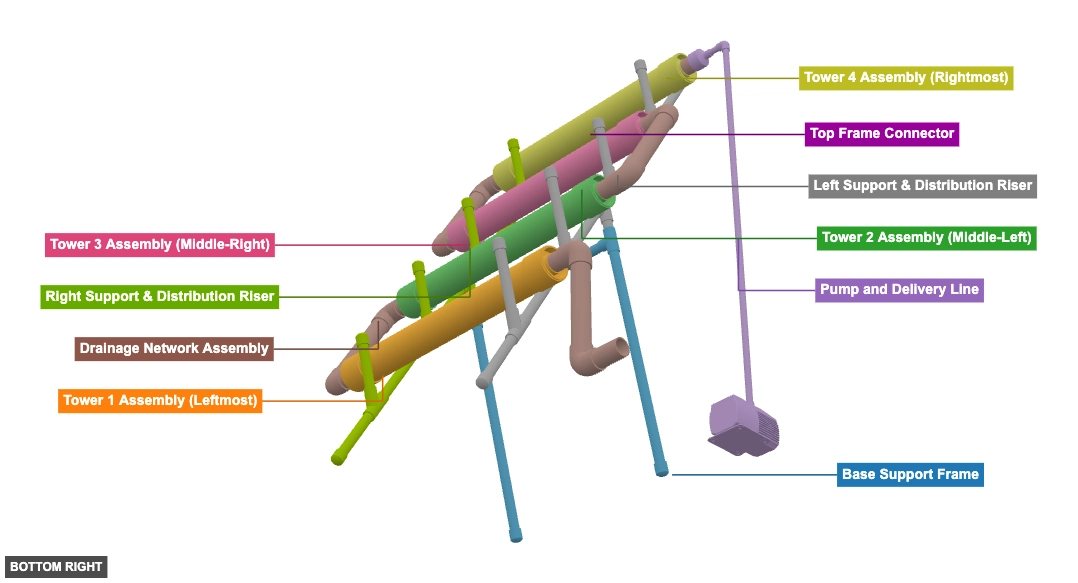

Angle: bottom right

Hydroponic Setup with Submersible Pump - Overview bottom_right
Base Support Frame
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1
Left Support & Distribution Riser
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

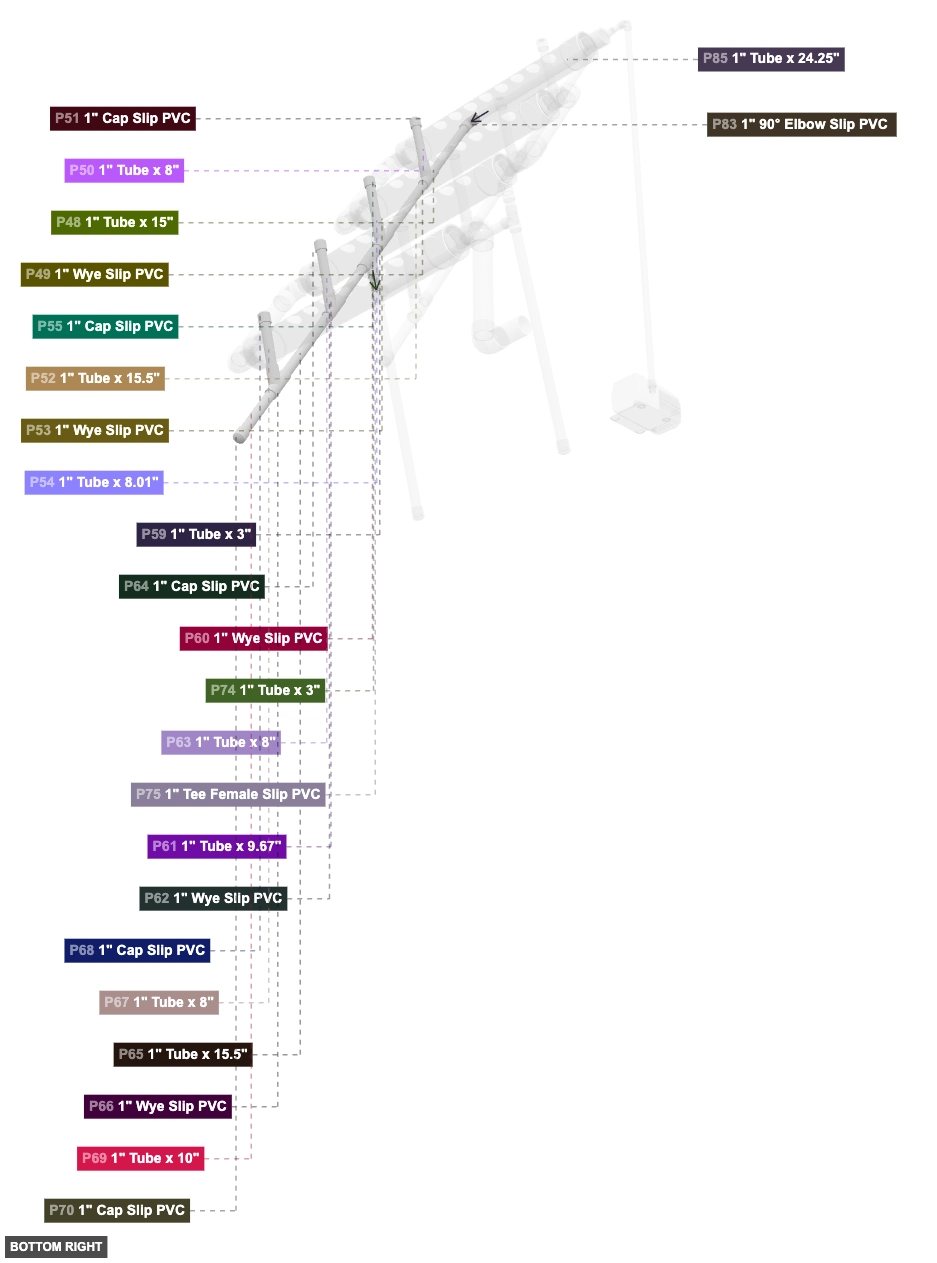

Right Support & Distribution Riser
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1
Top Frame Connector
11" Tube x 24.25"x 1
Pump and Delivery Line
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

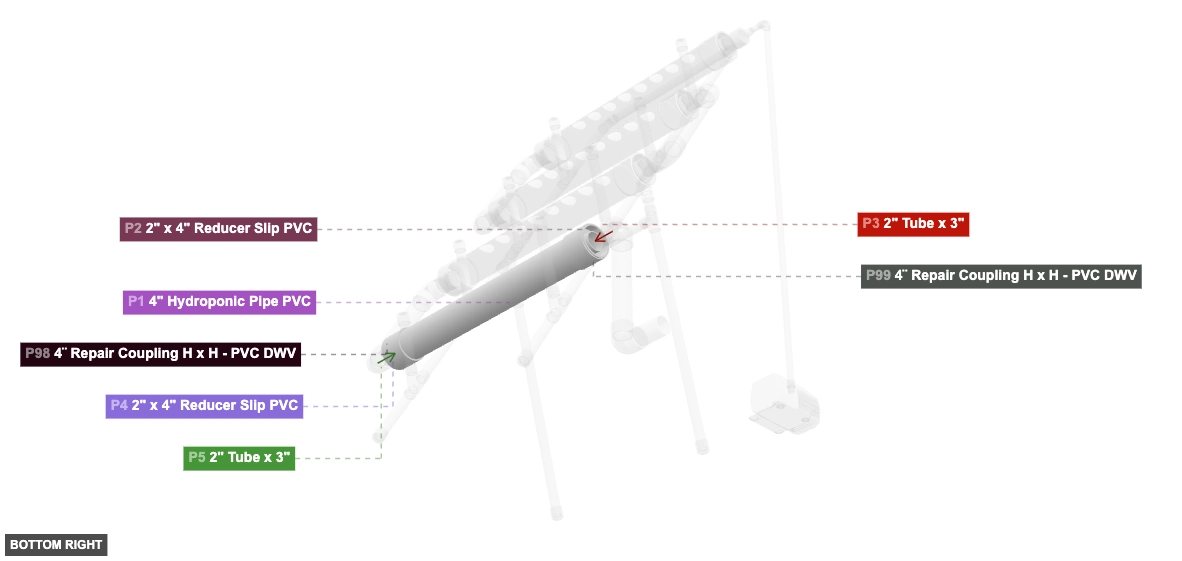

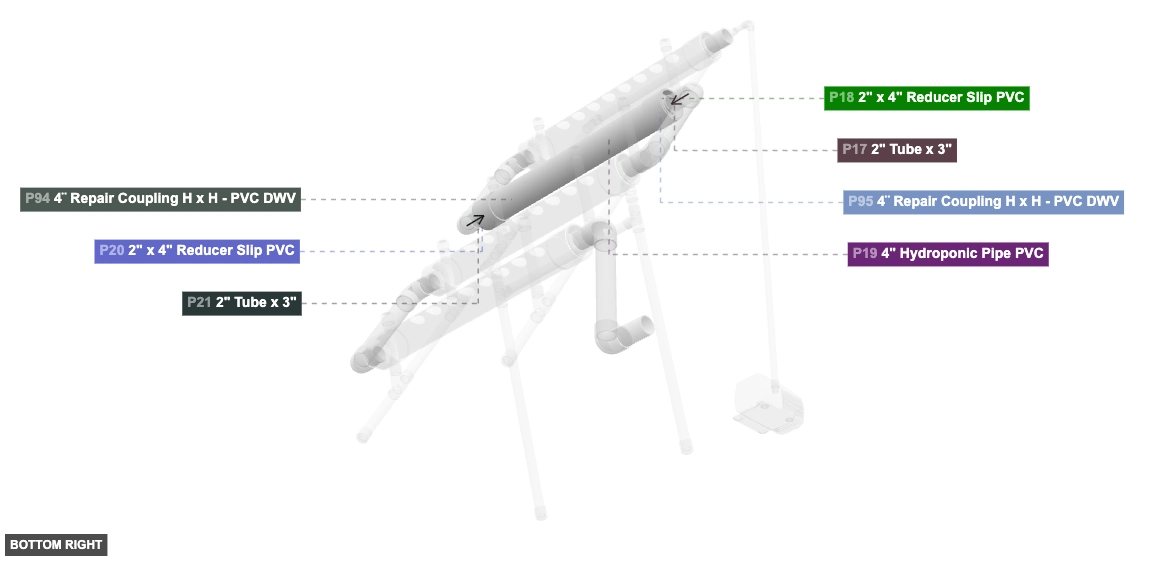

Tower 1 Assembly (Leftmost)
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2
Tower 2 Assembly (Middle-Left)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2
Tower 3 Assembly (Middle-Right)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2
Tower 4 Assembly (Rightmost)
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

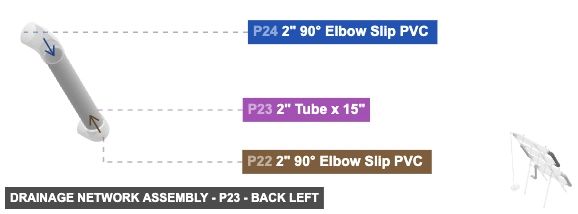

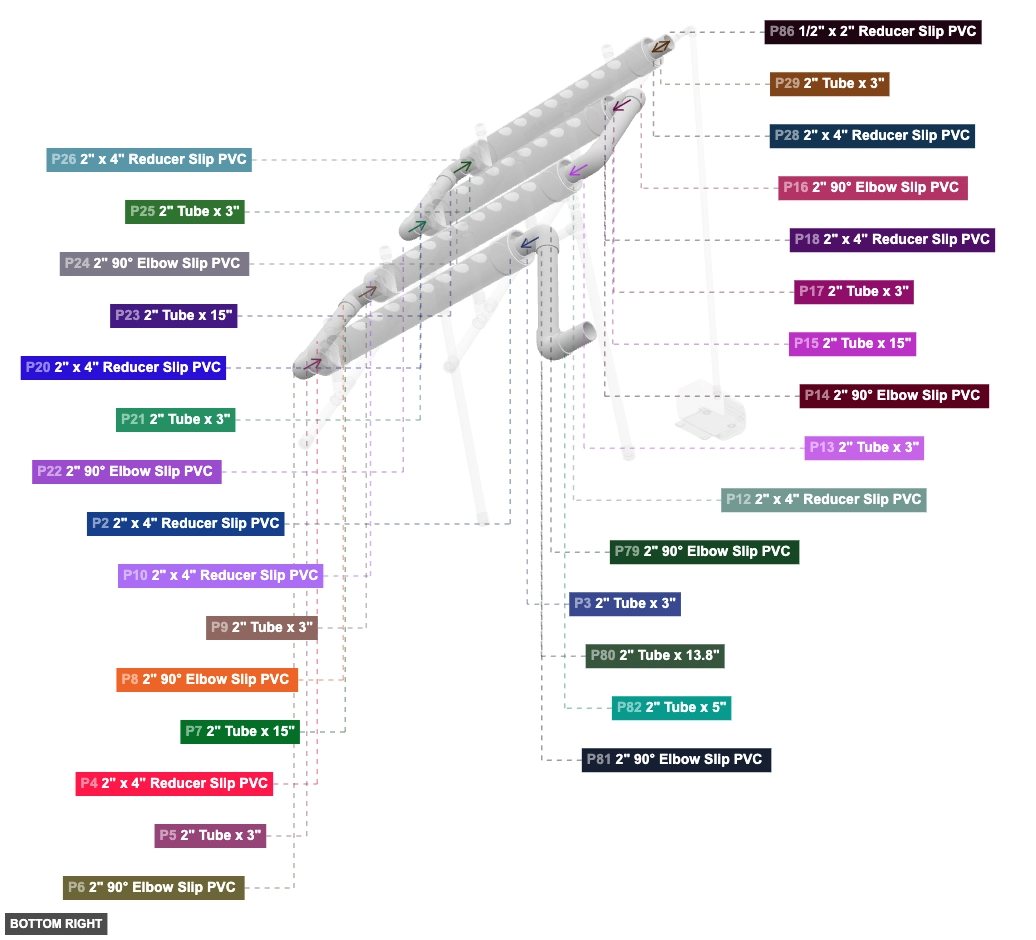

Drainage Network Assembly
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Phase 2: Individual Group Assembly

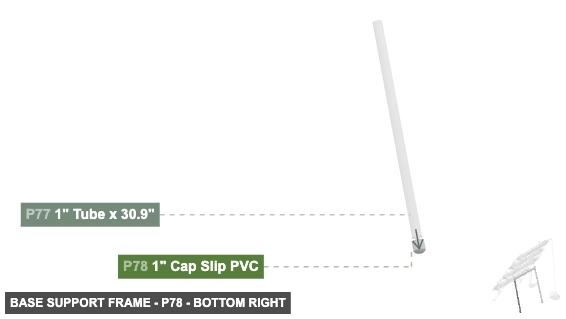

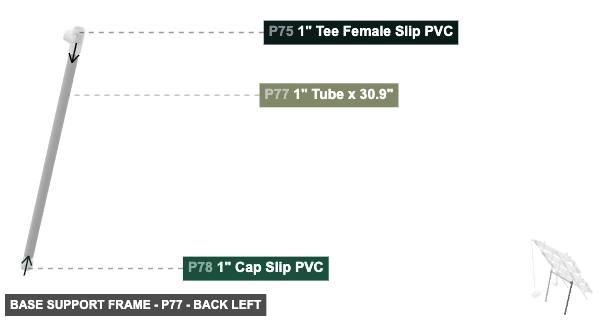

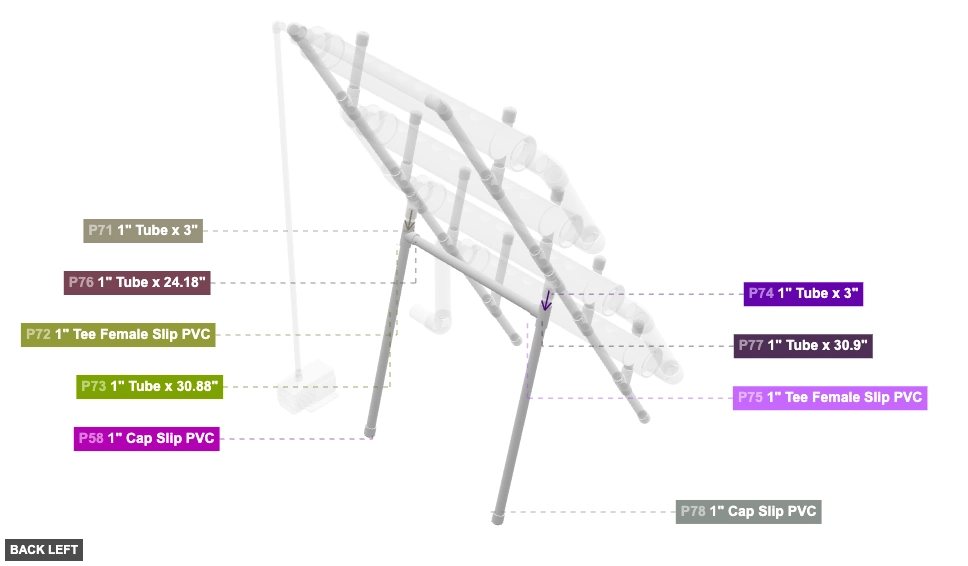

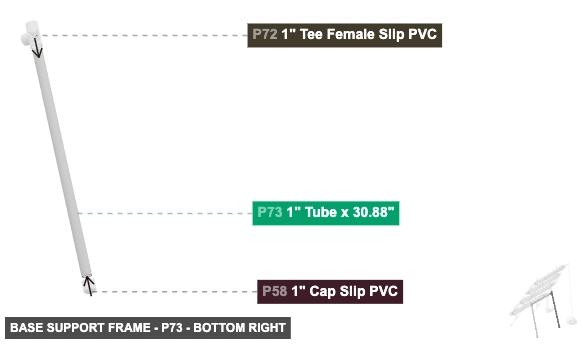

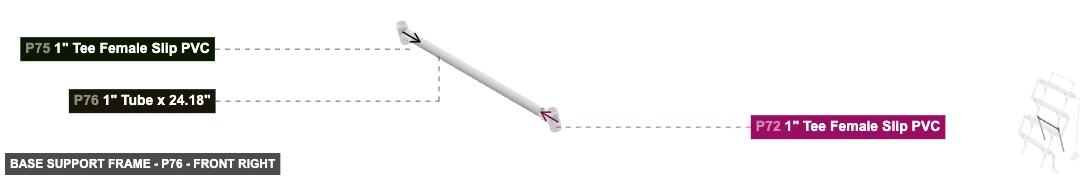

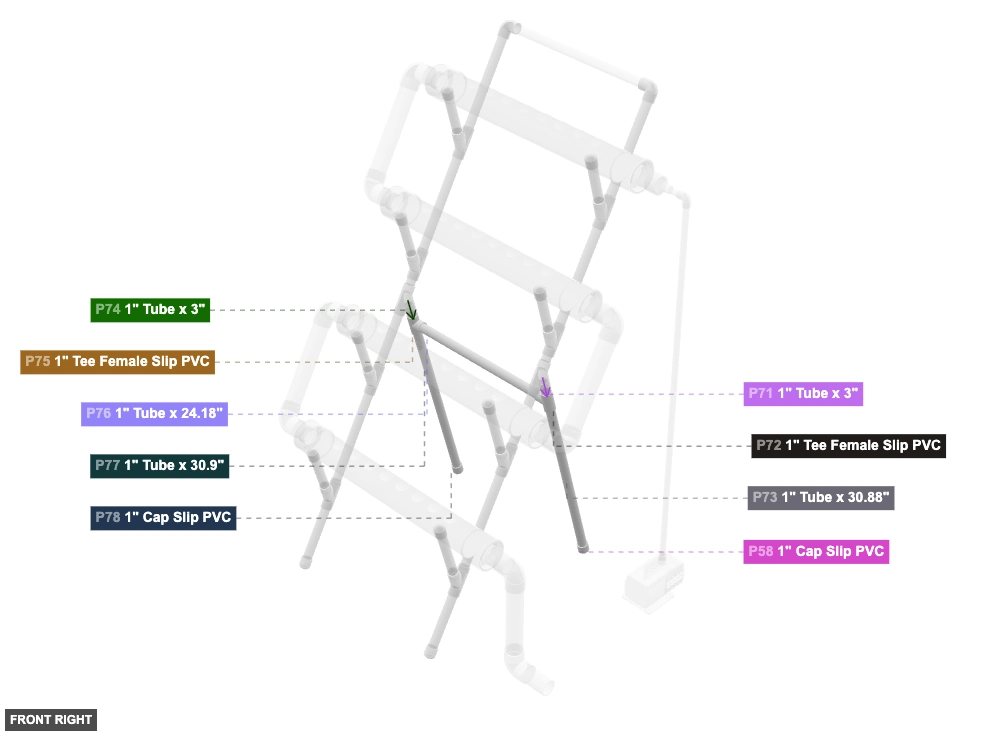

Group: Base Support Frame

Provides a stable base for the entire structure using 1" PVC pipes.

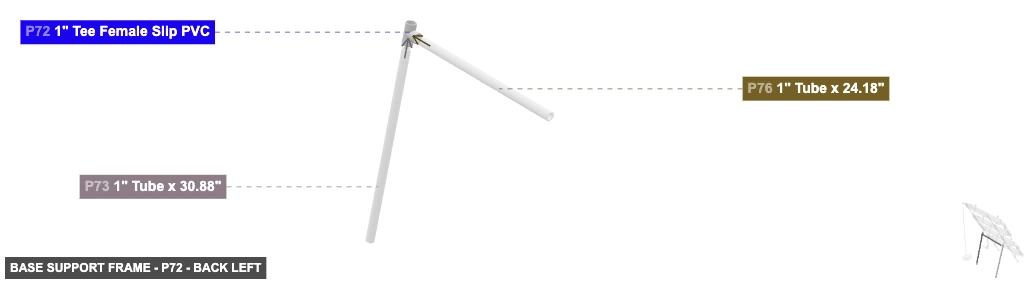

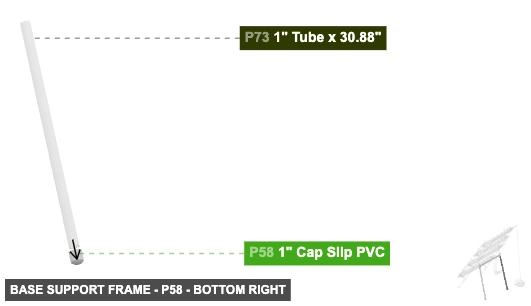

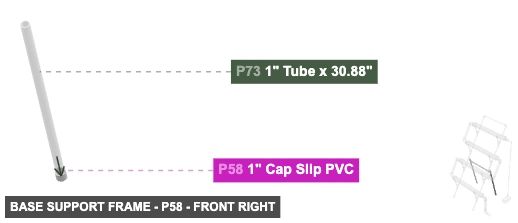

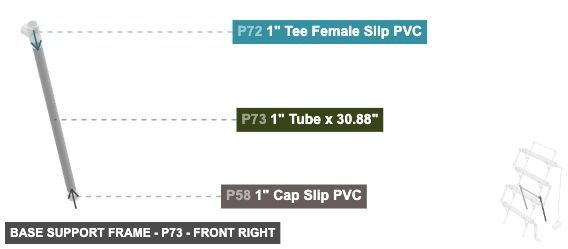

Connect P73 (1" Tube 30.88" length) to P72 (1" Tee F Slip PVC) top-facing Female SLIP 1". Cap the bottom end of P73 with P58 (1" Cap Slip PVC). Connect P77 (1" Tube 30.9" length) to P75 (1" Tee F Slip PVC) top-facing Female SLIP 1". Cap the bottom end of P77 with P78 (1" Cap Slip PVC). Connect P76 (1" Tube 24.18" length) between the left-facing Female SLIP 1" of P72 and the right-facing Female SLIP 1" of P75.

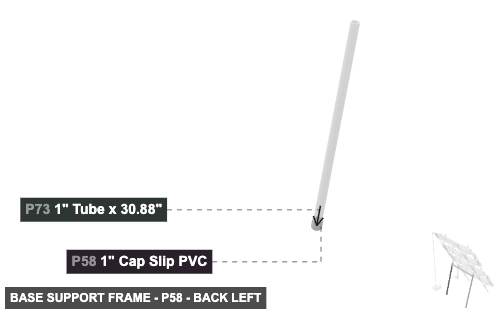

Part: 1" Cap Slip PVC - Angle: back left

Base Support Frame - Part 1
P58 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 73's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Cap Slip PVC - Angle: front right

Base Support Frame - Part 1
P58 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 73's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Cap Slip PVC - Angle: bottom right

Base Support Frame - Part 1
P58 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 73's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Tee Female Slip PVC - Angle: back left

Base Support Frame - Part 1
P72 (1" Tee F Slip PVC) - its 1" F SLIP #2, which is bottom-facing, should connect to part 73's 1" M SLIP #2. After that, attach its 1" F SLIP #3 facing left to part 76's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

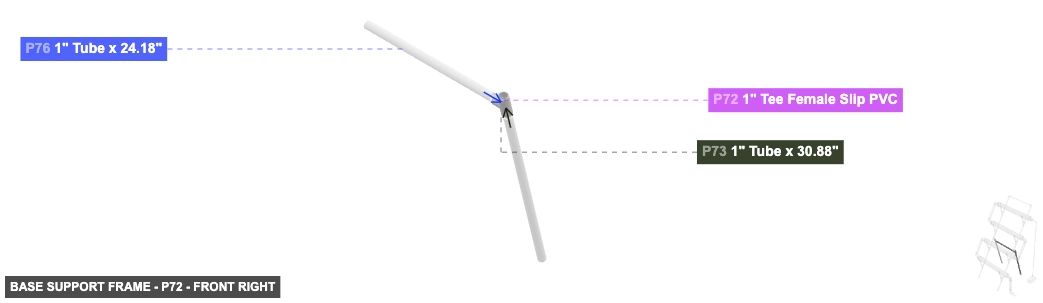

Part: 1" Tee Female Slip PVC - Angle: front right

Base Support Frame - Part 1
P72 (1" Tee F Slip PVC) - its 1" F SLIP #2, which is bottom-facing, should connect to part 73's 1" M SLIP #2. After that, attach its 1" F SLIP #3 facing left to part 76's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

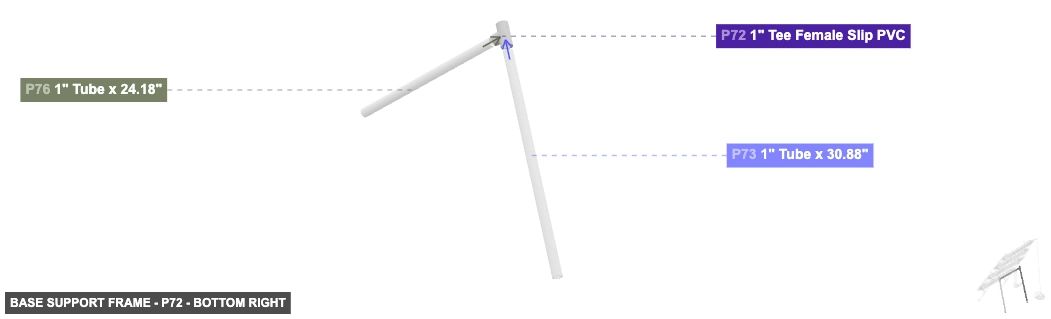

Part: 1" Tee Female Slip PVC - Angle: bottom right

Base Support Frame - Part 1
P72 (1" Tee F Slip PVC) - its 1" F SLIP #2, which is bottom-facing, should connect to part 73's 1" M SLIP #2. After that, attach its 1" F SLIP #3 facing left to part 76's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

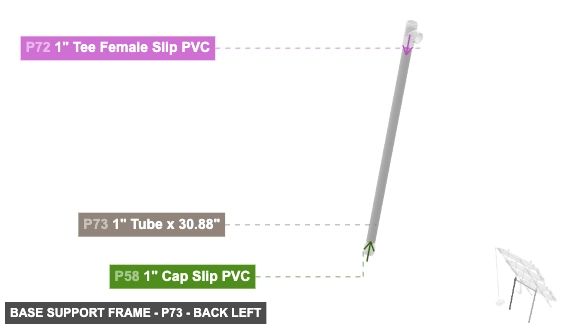

Part: 1" Tube x 30.88" - Angle: back left

Base Support Frame - Part 1
P73 (1" Tube 30.88" length) - attach its 1" M SLIP #1 facing bottom to part 58's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented top links with part 72's 1" F SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Tube x 30.88" - Angle: front right

Base Support Frame - Part 1
P73 (1" Tube 30.88" length) - attach its 1" M SLIP #1 facing bottom to part 58's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented top links with part 72's 1" F SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Tube x 30.88" - Angle: bottom right

Base Support Frame - Part 1
P73 (1" Tube 30.88" length) - attach its 1" M SLIP #1 facing bottom to part 58's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented top links with part 72's 1" F SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

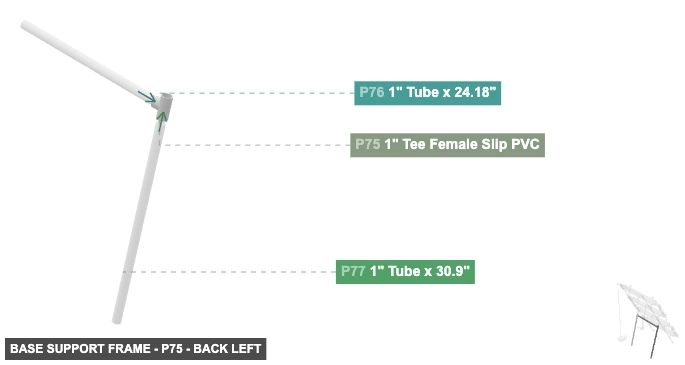

Part: 1" Tee Female Slip PVC - Angle: back left

Base Support Frame - Part 1
P75 (1" Tee F Slip PVC) - attach its 1" F SLIP #2 facing bottom to part 77's 1" M SLIP #2, plus connect its 1" F SLIP #3 oriented right links with part 76's 1" M SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

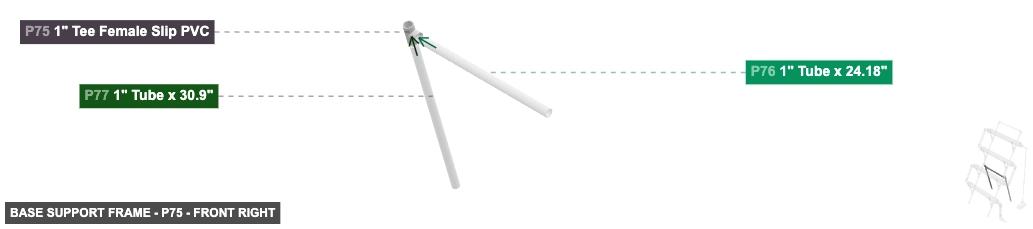

Part: 1" Tee Female Slip PVC - Angle: front right

Base Support Frame - Part 1
P75 (1" Tee F Slip PVC) - attach its 1" F SLIP #2 facing bottom to part 77's 1" M SLIP #2, plus connect its 1" F SLIP #3 oriented right links with part 76's 1" M SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

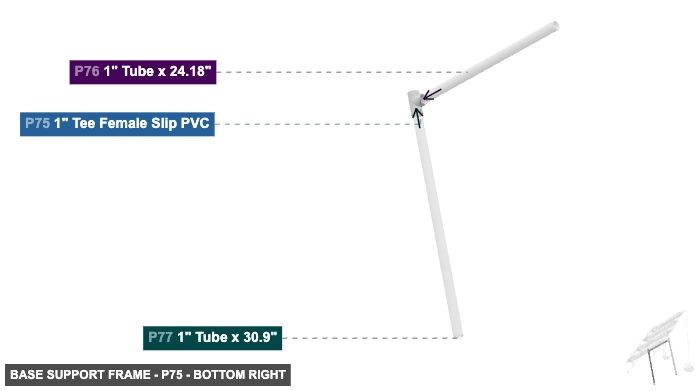

Part: 1" Tee Female Slip PVC - Angle: bottom right

Base Support Frame - Part 1
P75 (1" Tee F Slip PVC) - attach its 1" F SLIP #2 facing bottom to part 77's 1" M SLIP #2, plus connect its 1" F SLIP #3 oriented right links with part 76's 1" M SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

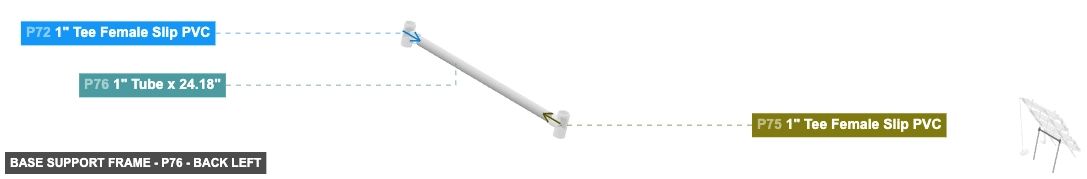

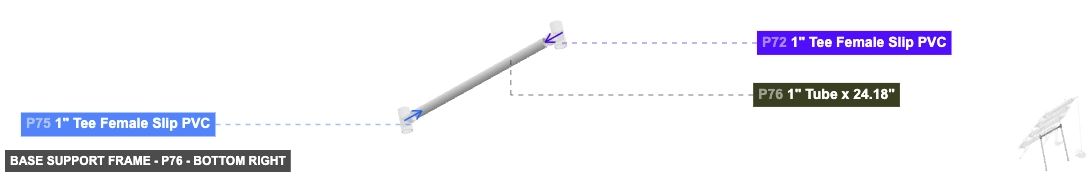

Part: 1" Tube x 24.18" - Angle: back left

Base Support Frame - Part 1
P76 (1" Tube 24.18" length) - its 1" M SLIP #1, which is right-facing, should connect to part 72's 1" F SLIP #3. Additionally, its 1" M SLIP #2, which is left-facing, should connect to part 75's 1" F SLIP #3
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Tube x 24.18" - Angle: front right

Base Support Frame - Part 1
P76 (1" Tube 24.18" length) - its 1" M SLIP #1, which is right-facing, should connect to part 72's 1" F SLIP #3. Additionally, its 1" M SLIP #2, which is left-facing, should connect to part 75's 1" F SLIP #3
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Tube x 24.18" - Angle: bottom right

Base Support Frame - Part 1
P76 (1" Tube 24.18" length) - its 1" M SLIP #1, which is right-facing, should connect to part 72's 1" F SLIP #3. Additionally, its 1" M SLIP #2, which is left-facing, should connect to part 75's 1" F SLIP #3
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Tube x 30.9" - Angle: back left

Base Support Frame - Part 1
P77 (1" Tube 30.9" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 78's 1" F SLIP #1, and attach its 1" M SLIP #2 facing top to part 75's 1" F SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

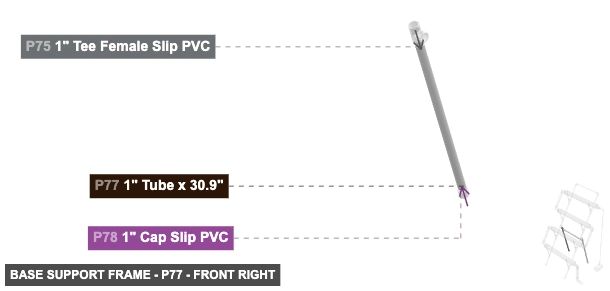

Part: 1" Tube x 30.9" - Angle: front right

Base Support Frame - Part 1
P77 (1" Tube 30.9" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 78's 1" F SLIP #1, and attach its 1" M SLIP #2 facing top to part 75's 1" F SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

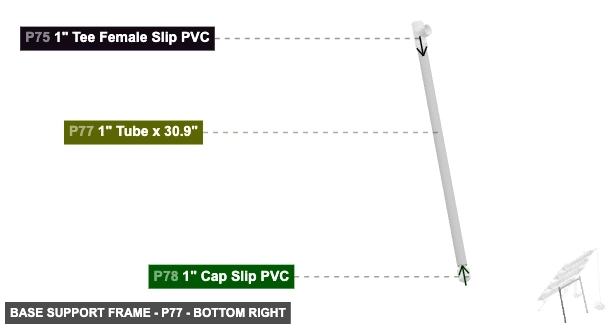

Part: 1" Tube x 30.9" - Angle: bottom right

Base Support Frame - Part 1
P77 (1" Tube 30.9" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 78's 1" F SLIP #1, and attach its 1" M SLIP #2 facing top to part 75's 1" F SLIP #2
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

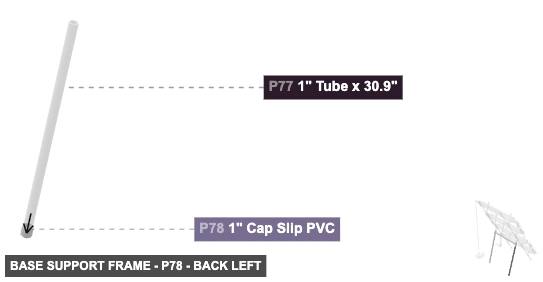

Part: 1" Cap Slip PVC - Angle: back left

Base Support Frame - Part 1
P78 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 77's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Cap Slip PVC - Angle: front right

Base Support Frame - Part 1
P78 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 77's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Part: 1" Cap Slip PVC - Angle: bottom right

Base Support Frame - Part 1
P78 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 77's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

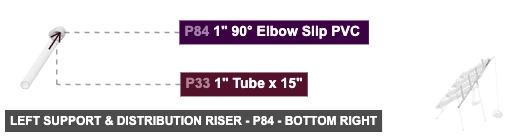

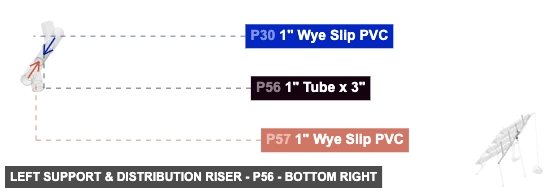

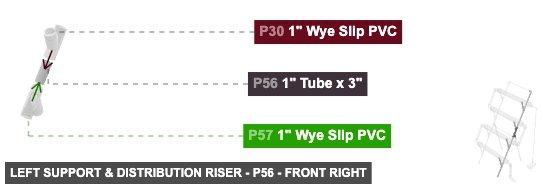

Group: Left Support & Distribution Riser

Forms the left vertical support structure and the corresponding water distribution lines using 1" PVC pipes.

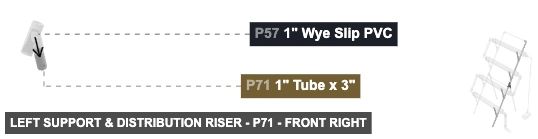

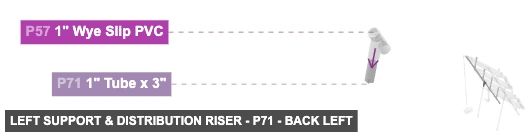

Assemble Main Riser: Connect P71 (1" Tube 3" length) bottom Male SLIP 1" to P72 Tee (from Base Frame) top Female SLIP 1". Connect P57 (1" Wye Slip PVC) bottom Female SLIP 1" to P71 top Male SLIP 1". Connect P56 (1" Tube 3" length) bottom Male SLIP 1" to P57 top Female SLIP 1". Connect P30 (1" Wye Slip PVC) bottom Female SLIP 1" to P56 top Male SLIP 1". Connect P37 (1" Tube 15.51" length) bottom Male SLIP 1" to P30 top Female SLIP 1". Connect P34 (1" Wye Slip PVC) bottom Female SLIP 1" to P37 top Male SLIP 1". Connect P33 (1" Tube 15" length) bottom Male SLIP 1" to P34 top Female SLIP 1". Connect P84 (1" 90° Elbow Slip PVC) bottom Female SLIP 1" to P33 top Male SLIP 1". Assemble Branches: Connect P31 (1" Tube 8" length) bottom Male SLIP 1" to P30 side Female SLIP 1", cap top with P32 (1" Cap Slip PVC). Connect P35 (1" Tube 8" length) bottom Male SLIP 1" to P34 side Female SLIP 1", cap top with P36 (1" Cap Slip PVC). Assemble Secondary Riser: Connect P47 (1" Tube 9.6" length) bottom Male SLIP 1" to P57 side Female SLIP 1". Connect P38 (1" Wye Slip PVC) bottom Female SLIP 1" to P47 top Male SLIP 1". Connect P41 (1" Tube 15.5" length) bottom Male SLIP 1" to P38 top Female SLIP 1". Connect P42 (1" Wye Slip PVC) bottom Female SLIP 1" to P41 top Male SLIP 1". Connect P45 (1" Tube 10" length) bottom Male SLIP 1" to P42 top Female SLIP 1". Cap bottom of P45 with P46 (1" Cap Slip PVC). Add Branches to Secondary Riser: Connect P39 (1" Tube 10" length) bottom Male SLIP 1" to P38 side Female SLIP 1", cap top with P40 (1" Cap Slip PVC). Connect P43 (1" Tube 10" length) bottom Male SLIP 1" to P42 side Female SLIP 1", cap top with P44 (1" Cap Slip PVC).

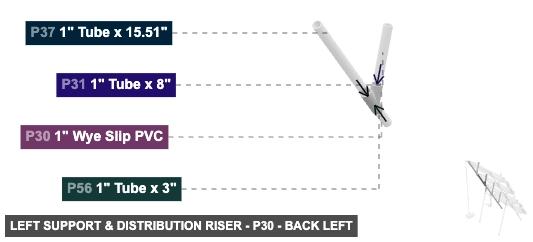

Part: 1" Wye Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P30 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 37's 1" M SLIP #1. Next, its 1" F SLIP #2, which is bottom-facing, should connect to part 56's 1" M SLIP #2. Additionally, its 1" F SLIP #3, which is top-facing, should connect to part 31's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P30 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 37's 1" M SLIP #1. Next, its 1" F SLIP #2, which is bottom-facing, should connect to part 56's 1" M SLIP #2. Additionally, its 1" F SLIP #3, which is top-facing, should connect to part 31's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P30 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 37's 1" M SLIP #1. Next, its 1" F SLIP #2, which is bottom-facing, should connect to part 56's 1" M SLIP #2. Additionally, its 1" F SLIP #3, which is top-facing, should connect to part 31's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

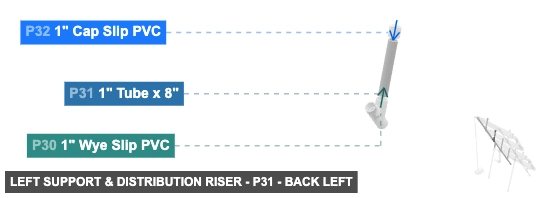

Part: 1" Tube x 8" - Angle: back left

Left Support & Distribution Riser - Part 1
P31 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 32's 1" F SLIP #1. After that, attach its 1" M SLIP #2 facing bottom to part 30's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

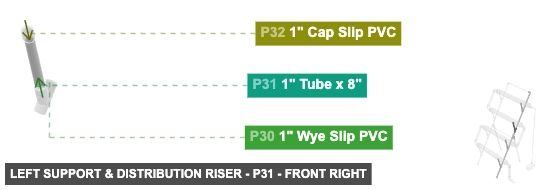

Part: 1" Tube x 8" - Angle: front right

Left Support & Distribution Riser - Part 1
P31 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 32's 1" F SLIP #1. After that, attach its 1" M SLIP #2 facing bottom to part 30's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P31 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 32's 1" F SLIP #1. After that, attach its 1" M SLIP #2 facing bottom to part 30's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

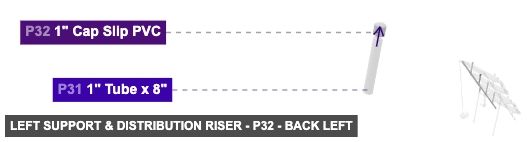

Part: 1" Cap Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P32 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 31's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P32 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 31's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

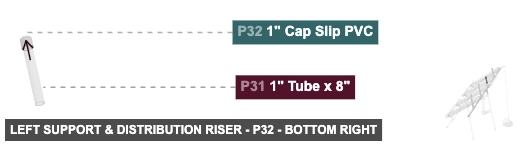

Part: 1" Cap Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P32 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 31's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

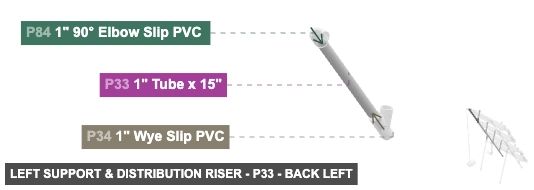

Part: 1" Tube x 15" - Angle: back left

Left Support & Distribution Riser - Part 1
P33 (1" Tube 15" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 34's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 84's 1" F SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

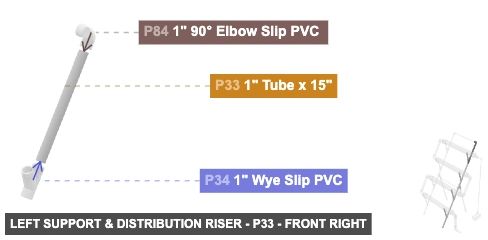

Part: 1" Tube x 15" - Angle: front right

Left Support & Distribution Riser - Part 1
P33 (1" Tube 15" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 34's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 84's 1" F SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

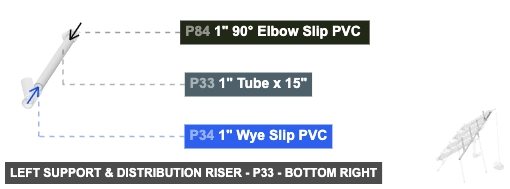

Part: 1" Tube x 15" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P33 (1" Tube 15" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 34's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 84's 1" F SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

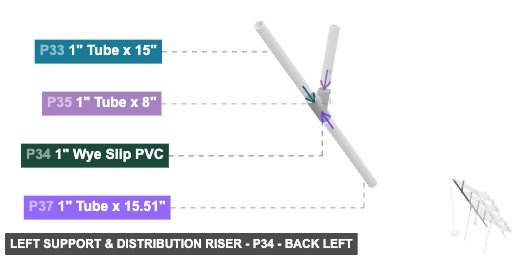

Part: 1" Wye Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P34 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 33's 1" M SLIP #1. Additionally, connect its 1" F SLIP #2 oriented bottom links with part 37's 1" M SLIP #2. After that, its 1" F SLIP #3, which is top-facing, should connect to part 35's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

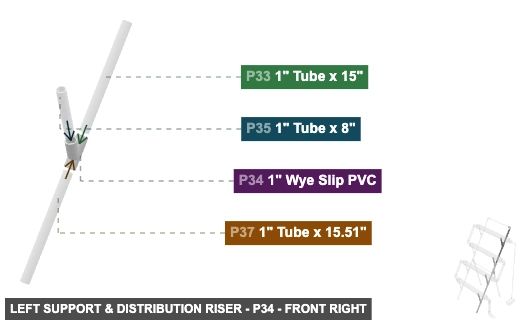

Part: 1" Wye Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P34 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 33's 1" M SLIP #1. Additionally, connect its 1" F SLIP #2 oriented bottom links with part 37's 1" M SLIP #2. After that, its 1" F SLIP #3, which is top-facing, should connect to part 35's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P34 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 33's 1" M SLIP #1. Additionally, connect its 1" F SLIP #2 oriented bottom links with part 37's 1" M SLIP #2. After that, its 1" F SLIP #3, which is top-facing, should connect to part 35's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

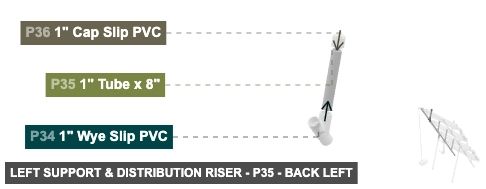

Part: 1" Tube x 8" - Angle: back left

Left Support & Distribution Riser - Part 1
P35 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 36's 1" F SLIP #1. Also, its 1" M SLIP #2, which is bottom-facing, should connect to part 34's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

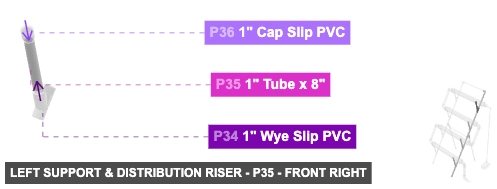

Part: 1" Tube x 8" - Angle: front right

Left Support & Distribution Riser - Part 1
P35 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 36's 1" F SLIP #1. Also, its 1" M SLIP #2, which is bottom-facing, should connect to part 34's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

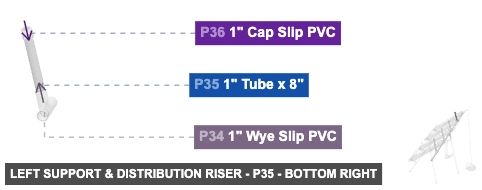

Part: 1" Tube x 8" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P35 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 36's 1" F SLIP #1. Also, its 1" M SLIP #2, which is bottom-facing, should connect to part 34's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P36 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 35's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

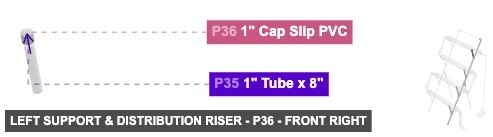

Part: 1" Cap Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P36 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 35's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P36 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 35's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15.51" - Angle: back left

Left Support & Distribution Riser - Part 1
P37 (1" Tube 15.51" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 30's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 34's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15.51" - Angle: front right

Left Support & Distribution Riser - Part 1
P37 (1" Tube 15.51" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 30's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 34's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15.51" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P37 (1" Tube 15.51" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 30's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 34's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

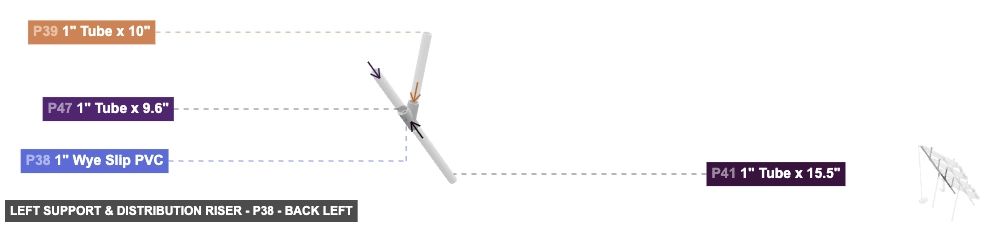

Part: 1" Wye Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P38 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 47's 1" M SLIP #2, then attach its 1" F SLIP #2 facing bottom to part 41's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 39's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P38 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 47's 1" M SLIP #2, then attach its 1" F SLIP #2 facing bottom to part 41's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 39's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P38 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 47's 1" M SLIP #2, then attach its 1" F SLIP #2 facing bottom to part 41's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 39's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

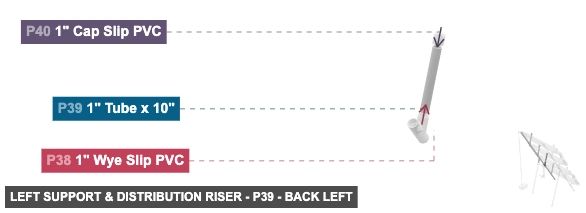

Part: 1" Tube x 10" - Angle: back left

Left Support & Distribution Riser - Part 1
P39 (1" Tube 10" length) - attach its 1" M SLIP #1 facing top to part 40's 1" F SLIP #1. After that, attach its 1" M SLIP #2 facing bottom to part 38's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

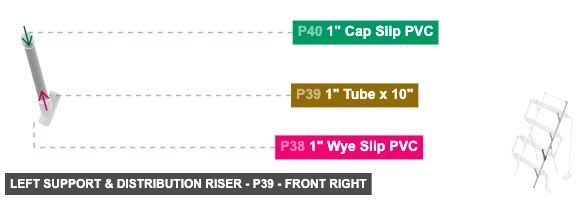

Part: 1" Tube x 10" - Angle: front right

Left Support & Distribution Riser - Part 1
P39 (1" Tube 10" length) - attach its 1" M SLIP #1 facing top to part 40's 1" F SLIP #1. After that, attach its 1" M SLIP #2 facing bottom to part 38's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

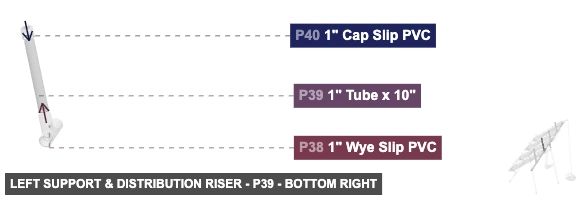

Part: 1" Tube x 10" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P39 (1" Tube 10" length) - attach its 1" M SLIP #1 facing top to part 40's 1" F SLIP #1. After that, attach its 1" M SLIP #2 facing bottom to part 38's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

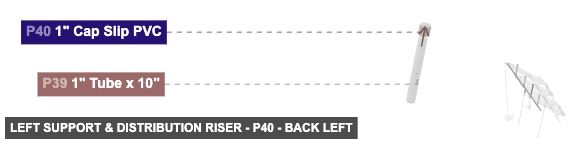

Part: 1" Cap Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P40 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 39's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

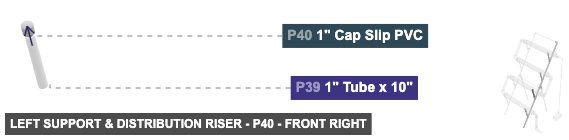

Part: 1" Cap Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P40 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 39's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

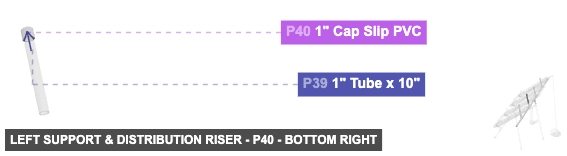

Part: 1" Cap Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P40 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 39's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15.5" - Angle: back left

Left Support & Distribution Riser - Part 1
P41 (1" Tube 15.5" length) - attach its 1" M SLIP #1 facing bottom to part 42's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 38's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

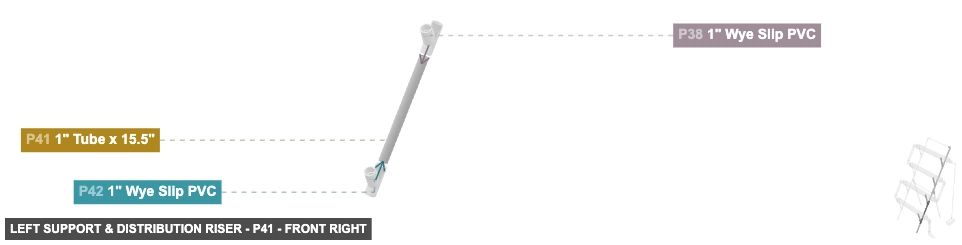

Part: 1" Tube x 15.5" - Angle: front right

Left Support & Distribution Riser - Part 1
P41 (1" Tube 15.5" length) - attach its 1" M SLIP #1 facing bottom to part 42's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 38's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

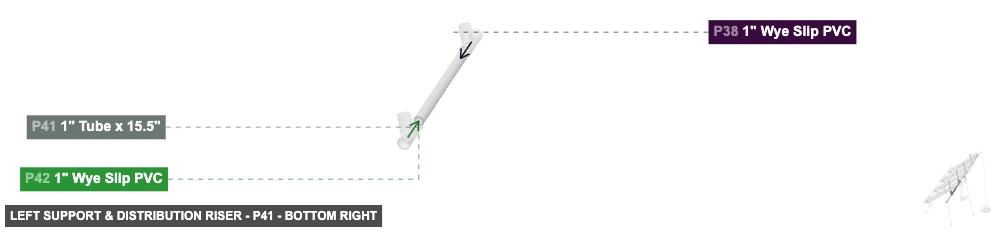

Part: 1" Tube x 15.5" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P41 (1" Tube 15.5" length) - attach its 1" M SLIP #1 facing bottom to part 42's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 38's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

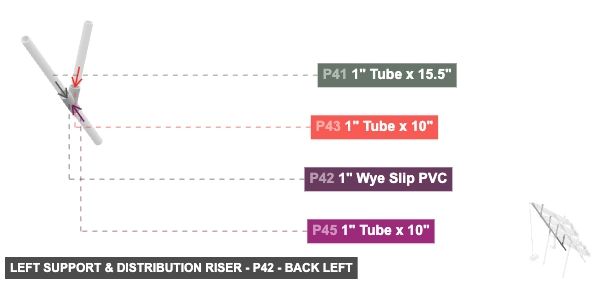

Part: 1" Wye Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P42 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 41's 1" M SLIP #1, then connect its 1" F SLIP #2 oriented bottom links with part 45's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 43's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

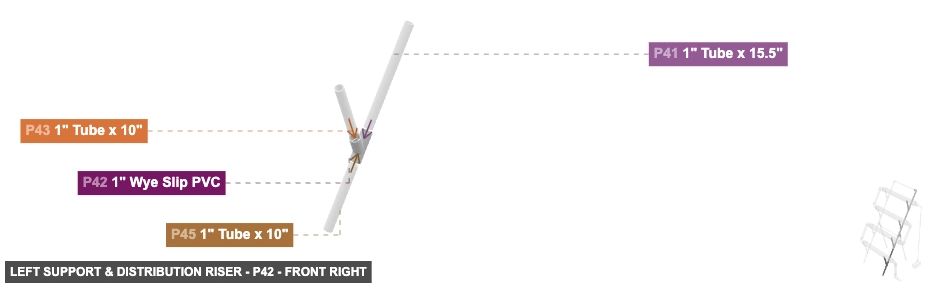

Part: 1" Wye Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P42 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 41's 1" M SLIP #1, then connect its 1" F SLIP #2 oriented bottom links with part 45's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 43's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

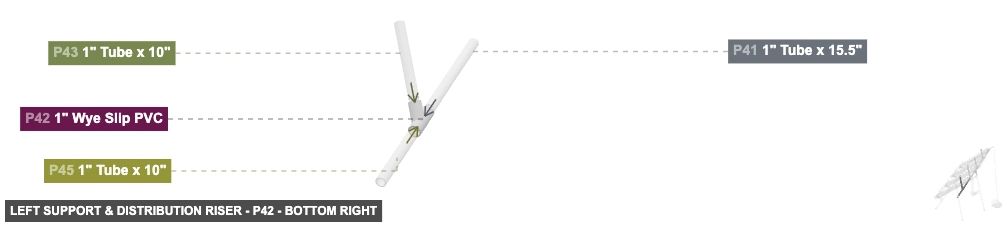

Part: 1" Wye Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P42 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 41's 1" M SLIP #1, then connect its 1" F SLIP #2 oriented bottom links with part 45's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 43's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 10" - Angle: back left

Left Support & Distribution Riser - Part 1
P43 (1" Tube 10" length) - its 1" M SLIP #1, which is top-facing, should connect to part 44's 1" F SLIP #1, also attach its 1" M SLIP #2 facing bottom to part 42's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

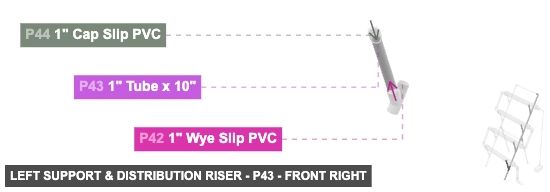

Part: 1" Tube x 10" - Angle: front right

Left Support & Distribution Riser - Part 1
P43 (1" Tube 10" length) - its 1" M SLIP #1, which is top-facing, should connect to part 44's 1" F SLIP #1, also attach its 1" M SLIP #2 facing bottom to part 42's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

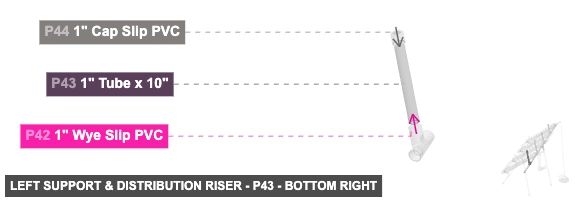

Part: 1" Tube x 10" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P43 (1" Tube 10" length) - its 1" M SLIP #1, which is top-facing, should connect to part 44's 1" F SLIP #1, also attach its 1" M SLIP #2 facing bottom to part 42's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

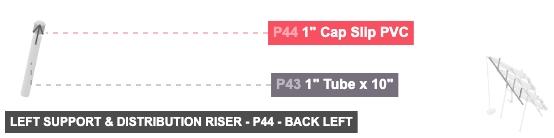

Part: 1" Cap Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P44 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 43's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

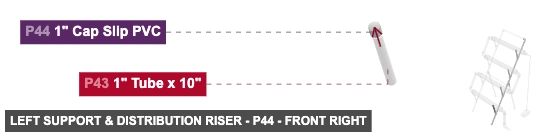

Part: 1" Cap Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P44 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 43's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

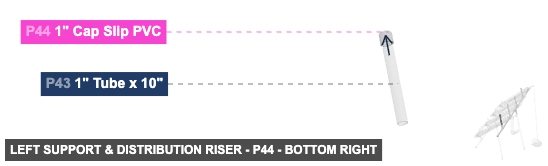

Part: 1" Cap Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P44 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 43's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 10" - Angle: back left

Left Support & Distribution Riser - Part 1
P45 (1" Tube 10" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 46's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 42's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 10" - Angle: front right

Left Support & Distribution Riser - Part 1
P45 (1" Tube 10" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 46's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 42's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 10" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P45 (1" Tube 10" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 46's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 42's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P46 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 45's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P46 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 45's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

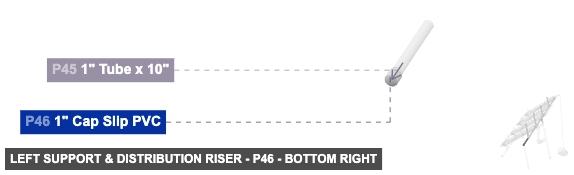

Part: 1" Cap Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P46 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 45's 1" M SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 9.6" - Angle: back left

Left Support & Distribution Riser - Part 1
P47 (1" Tube 9.6" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #1, then connect its 1" M SLIP #2 oriented top links with part 38's 1" F SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

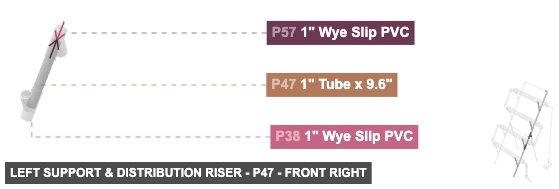

Part: 1" Tube x 9.6" - Angle: front right

Left Support & Distribution Riser - Part 1
P47 (1" Tube 9.6" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #1, then connect its 1" M SLIP #2 oriented top links with part 38's 1" F SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

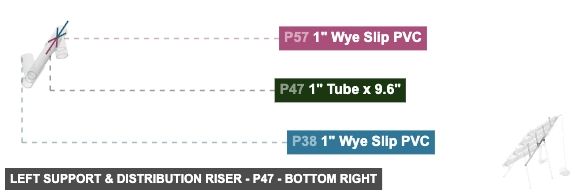

Part: 1" Tube x 9.6" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P47 (1" Tube 9.6" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #1, then connect its 1" M SLIP #2 oriented top links with part 38's 1" F SLIP #1
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: back left

Left Support & Distribution Riser - Part 1
P56 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #2, and its 1" M SLIP #2, which is top-facing, should connect to part 30's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: front right

Left Support & Distribution Riser - Part 1
P56 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #2, and its 1" M SLIP #2, which is top-facing, should connect to part 30's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P56 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #2, and its 1" M SLIP #2, which is top-facing, should connect to part 30's 1" F SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

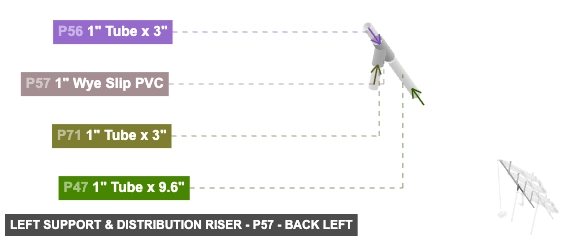

Part: 1" Wye Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P57 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 47's 1" M SLIP #1, also attach its 1" F SLIP #2 facing top to part 56's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented bottom links with part 71's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P57 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 47's 1" M SLIP #1, also attach its 1" F SLIP #2 facing top to part 56's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented bottom links with part 71's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

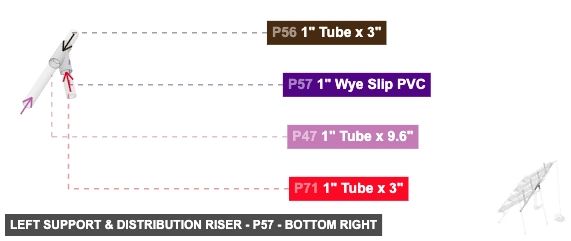

Part: 1" Wye Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P57 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 47's 1" M SLIP #1, also attach its 1" F SLIP #2 facing top to part 56's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented bottom links with part 71's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: back left

Left Support & Distribution Riser - Part 1
P71 (1" Tube 3" length) - attach its 1" M SLIP #2 facing top to part 57's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: front right

Left Support & Distribution Riser - Part 1
P71 (1" Tube 3" length) - attach its 1" M SLIP #2 facing top to part 57's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: bottom right

Left Support & Distribution Riser - Part 1
P71 (1" Tube 3" length) - attach its 1" M SLIP #2 facing top to part 57's 1" F SLIP #3
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" 90° Elbow Slip PVC - Angle: back left

Left Support & Distribution Riser - Part 1
P84 (1" 90° Elbow Slip PVC ) - its 1" F SLIP #1, which is bottom-facing, should connect to part 33's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" 90° Elbow Slip PVC - Angle: front right

Left Support & Distribution Riser - Part 1
P84 (1" 90° Elbow Slip PVC ) - its 1" F SLIP #1, which is bottom-facing, should connect to part 33's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Part: 1" 90° Elbow Slip PVC - Angle: bottom right

Left Support & Distribution Riser - Part 1
P84 (1" 90° Elbow Slip PVC ) - its 1" F SLIP #1, which is bottom-facing, should connect to part 33's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Group: Right Support & Distribution Riser

Forms the right vertical support structure and the corresponding water distribution lines using 1" PVC pipes.

Assemble Main Riser: Connect P74 (1" Tube 3" length) bottom Male SLIP 1" to P75 Tee (from Base Frame) top Female SLIP 1". Connect P60 (1" Wye Slip PVC) bottom Female SLIP 1" to P74 top Male SLIP 1". Connect P52 (1" Tube 15.5" length) bottom Male SLIP 1" to P60 top Female SLIP 1". Connect P49 (1" Wye Slip PVC) bottom Female SLIP 1" to P52 top Male SLIP 1". Connect P48 (1" Tube 15" length) bottom Male SLIP 1" to P49 top Female SLIP 1". Connect P83 (1" 90° Elbow Slip PVC) bottom Female SLIP 1" to P48 top Male SLIP 1". Assemble Branches: Connect P50 (1" Tube 8" length) bottom Male SLIP 1" to P49 side Female SLIP 1", cap top with P51 (1" Cap Slip PVC). Assemble Secondary Riser: Connect P61 (1" Tube 9.67" length) bottom Male SLIP 1" to P60 side Female SLIP 1". Connect P62 (1" Wye Slip PVC) bottom Female SLIP 1" to P61 top Male SLIP 1". Connect P65 (1" Tube 15.5" length) bottom Male SLIP 1" to P62 top Female SLIP 1". Connect P66 (1" Wye Slip PVC) bottom Female SLIP 1" to P65 top Male SLIP 1". Connect P69 (1" Tube 10" length) bottom Male SLIP 1" to P66 top Female SLIP 1". Cap bottom of P69 with P70 (1" Cap Slip PVC). Add Branches to Secondary Riser: Connect P63 (1" Tube 8" length) bottom Male SLIP 1" to P62 side Female SLIP 1", cap top with P64 (1" Cap Slip PVC). Connect P67 (1" Tube 8" length) bottom Male SLIP 1" to P66 side Female SLIP 1", cap top with P68 (1" Cap Slip PVC). Assemble Side Branch: Connect P59 (1" Tube 3" length) bottom Male SLIP 1" to P60 side Female SLIP 1". Connect P53 (1" Wye Slip PVC) bottom Female SLIP 1" to P59 top Male SLIP 1". Connect P54 (1" Tube 8.01" length) bottom Male SLIP 1" to P53 side Female SLIP 1", cap top with P55 (1" Cap Slip PVC).

Part: 1" Tube x 15" - Angle: back left

Right Support & Distribution Riser - Part 1
P48 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 49's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 83's 1" F SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15" - Angle: front right

Right Support & Distribution Riser - Part 1
P48 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 49's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 83's 1" F SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P48 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 49's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 83's 1" F SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

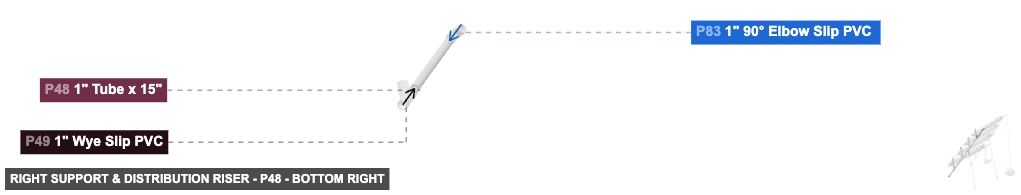

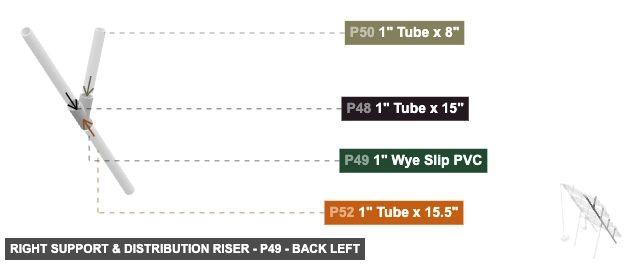

Part: 1" Wye Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P49 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 48's 1" M SLIP #1. Next, attach its 1" F SLIP #2 facing bottom to part 52's 1" M SLIP #2, and connect its 1" F SLIP #3 oriented top links with part 50's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P49 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 48's 1" M SLIP #1. Next, attach its 1" F SLIP #2 facing bottom to part 52's 1" M SLIP #2, and connect its 1" F SLIP #3 oriented top links with part 50's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

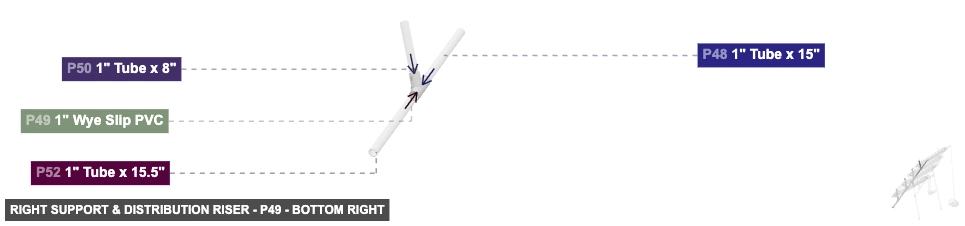

Part: 1" Wye Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P49 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 48's 1" M SLIP #1. Next, attach its 1" F SLIP #2 facing bottom to part 52's 1" M SLIP #2, and connect its 1" F SLIP #3 oriented top links with part 50's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

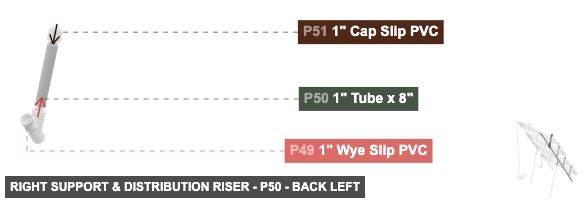

Part: 1" Tube x 8" - Angle: back left

Right Support & Distribution Riser - Part 1
P50 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 51's 1" F SLIP #1, and attach its 1" M SLIP #2 facing bottom to part 49's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8" - Angle: front right

Right Support & Distribution Riser - Part 1
P50 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 51's 1" F SLIP #1, and attach its 1" M SLIP #2 facing bottom to part 49's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

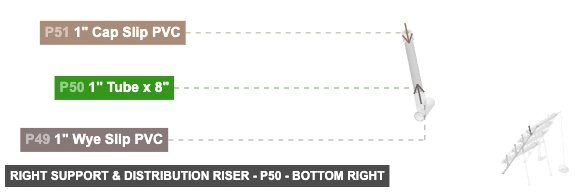

Part: 1" Tube x 8" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P50 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 51's 1" F SLIP #1, and attach its 1" M SLIP #2 facing bottom to part 49's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

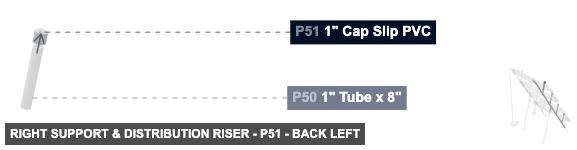

Part: 1" Cap Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P51 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 50's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P51 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 50's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P51 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 50's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15.5" - Angle: back left

Right Support & Distribution Riser - Part 1
P52 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 60's 1" F SLIP #2, then its 1" M SLIP #2, which is top-facing, should connect to part 49's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

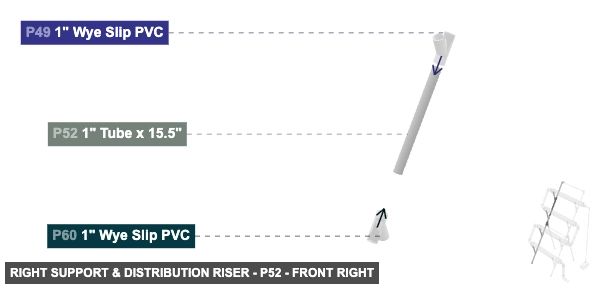

Part: 1" Tube x 15.5" - Angle: front right

Right Support & Distribution Riser - Part 1
P52 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 60's 1" F SLIP #2, then its 1" M SLIP #2, which is top-facing, should connect to part 49's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

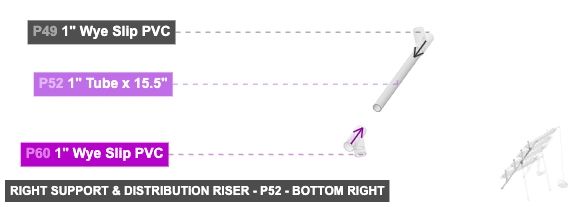

Part: 1" Tube x 15.5" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P52 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 60's 1" F SLIP #2, then its 1" M SLIP #2, which is top-facing, should connect to part 49's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P53 (1" Wye Slip PVC) - its 1" F SLIP #2, which is bottom-facing, should connect to part 59's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 54's 1" M SLIP #2. Additionally, its 1" F SLIP #1 must be oriented top
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P53 (1" Wye Slip PVC) - its 1" F SLIP #2, which is bottom-facing, should connect to part 59's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 54's 1" M SLIP #2. Additionally, its 1" F SLIP #1 must be oriented top
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P53 (1" Wye Slip PVC) - its 1" F SLIP #2, which is bottom-facing, should connect to part 59's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 54's 1" M SLIP #2. Additionally, its 1" F SLIP #1 must be oriented top
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

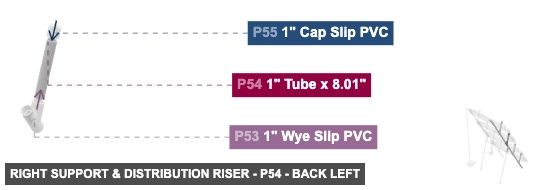

Part: 1" Tube x 8.01" - Angle: back left

Right Support & Distribution Riser - Part 1
P54 (1" Tube 8.01" length) - its 1" M SLIP #1, which is top-facing, should connect to part 55's 1" F SLIP #1, then its 1" M SLIP #2, which is bottom-facing, should connect to part 53's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8.01" - Angle: front right

Right Support & Distribution Riser - Part 1
P54 (1" Tube 8.01" length) - its 1" M SLIP #1, which is top-facing, should connect to part 55's 1" F SLIP #1, then its 1" M SLIP #2, which is bottom-facing, should connect to part 53's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8.01" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P54 (1" Tube 8.01" length) - its 1" M SLIP #1, which is top-facing, should connect to part 55's 1" F SLIP #1, then its 1" M SLIP #2, which is bottom-facing, should connect to part 53's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

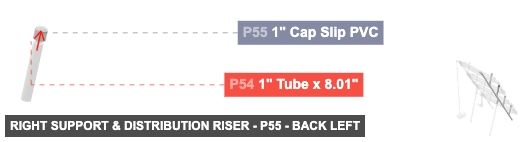

Part: 1" Cap Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P55 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 54's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

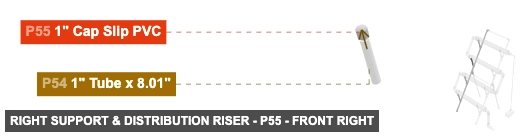

Part: 1" Cap Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P55 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 54's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

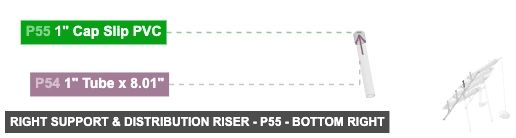

Part: 1" Cap Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P55 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 54's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

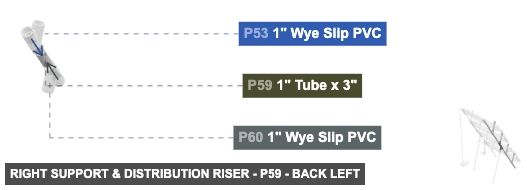

Part: 1" Tube x 3" - Angle: back left

Right Support & Distribution Riser - Part 1
P59 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 60's 1" F SLIP #2, and connect its 1" M SLIP #2 oriented top links with part 53's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

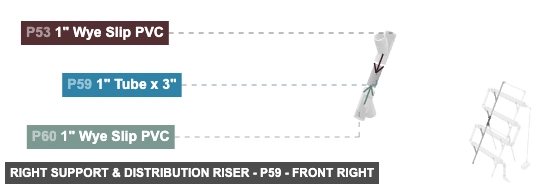

Part: 1" Tube x 3" - Angle: front right

Right Support & Distribution Riser - Part 1
P59 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 60's 1" F SLIP #2, and connect its 1" M SLIP #2 oriented top links with part 53's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P59 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 60's 1" F SLIP #2, and connect its 1" M SLIP #2 oriented top links with part 53's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

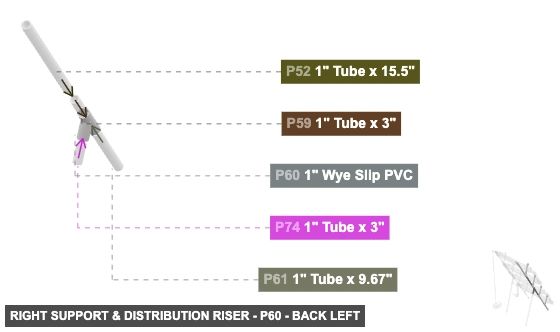

Part: 1" Wye Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P60 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 61's 1" M SLIP #2. After that, its 1" F SLIP #2, which is top-facing, should connect to part 59's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented bottom links with part 74's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P60 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 61's 1" M SLIP #2. After that, its 1" F SLIP #2, which is top-facing, should connect to part 59's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented bottom links with part 74's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P60 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 61's 1" M SLIP #2. After that, its 1" F SLIP #2, which is top-facing, should connect to part 59's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented bottom links with part 74's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

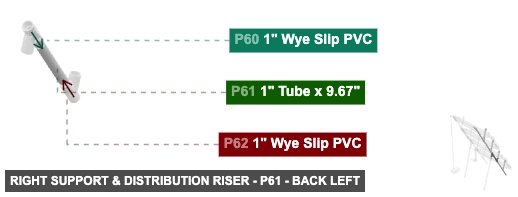

Part: 1" Tube x 9.67" - Angle: back left

Right Support & Distribution Riser - Part 1
P61 (1" Tube 9.67" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 62's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 60's 1" F SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 9.67" - Angle: front right

Right Support & Distribution Riser - Part 1
P61 (1" Tube 9.67" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 62's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 60's 1" F SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

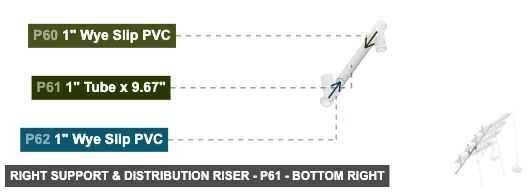

Part: 1" Tube x 9.67" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P61 (1" Tube 9.67" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 62's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 60's 1" F SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P62 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 61's 1" M SLIP #1. After that, its 1" F SLIP #2, which is bottom-facing, should connect to part 65's 1" M SLIP #2. Also, connect its 1" F SLIP #3 oriented top links with part 63's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P62 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 61's 1" M SLIP #1. After that, its 1" F SLIP #2, which is bottom-facing, should connect to part 65's 1" M SLIP #2. Also, connect its 1" F SLIP #3 oriented top links with part 63's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P62 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 61's 1" M SLIP #1. After that, its 1" F SLIP #2, which is bottom-facing, should connect to part 65's 1" M SLIP #2. Also, connect its 1" F SLIP #3 oriented top links with part 63's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8" - Angle: back left

Right Support & Distribution Riser - Part 1
P63 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 64's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing bottom to part 62's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8" - Angle: front right

Right Support & Distribution Riser - Part 1
P63 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 64's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing bottom to part 62's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P63 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 64's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing bottom to part 62's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

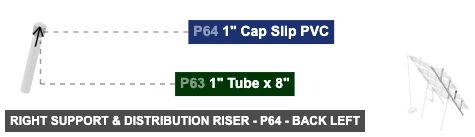

Part: 1" Cap Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P64 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 63's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P64 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 63's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P64 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 63's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

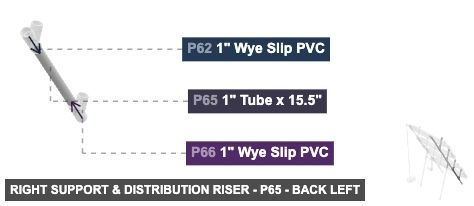

Part: 1" Tube x 15.5" - Angle: back left

Right Support & Distribution Riser - Part 1
P65 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 66's 1" F SLIP #1, also attach its 1" M SLIP #2 facing top to part 62's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15.5" - Angle: front right

Right Support & Distribution Riser - Part 1
P65 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 66's 1" F SLIP #1, also attach its 1" M SLIP #2 facing top to part 62's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 15.5" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P65 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 66's 1" F SLIP #1, also attach its 1" M SLIP #2 facing top to part 62's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P66 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 65's 1" M SLIP #1. After that, attach its 1" F SLIP #2 facing bottom to part 69's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 67's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Wye Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P66 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 65's 1" M SLIP #1. After that, attach its 1" F SLIP #2 facing bottom to part 69's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 67's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

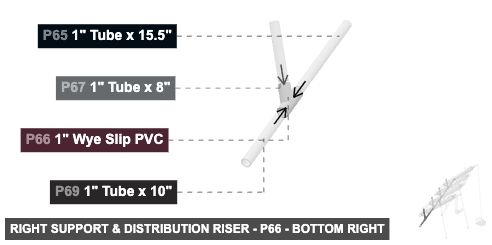

Part: 1" Wye Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P66 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 65's 1" M SLIP #1. After that, attach its 1" F SLIP #2 facing bottom to part 69's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 67's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

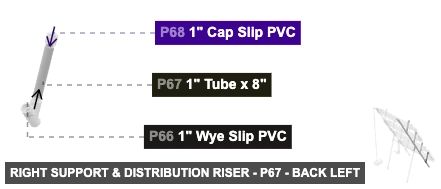

Part: 1" Tube x 8" - Angle: back left

Right Support & Distribution Riser - Part 1
P67 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 68's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing bottom to part 66's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 8" - Angle: front right

Right Support & Distribution Riser - Part 1
P67 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 68's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing bottom to part 66's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

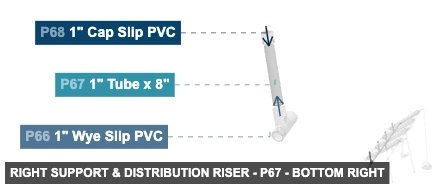

Part: 1" Tube x 8" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P67 (1" Tube 8" length) - its 1" M SLIP #1, which is top-facing, should connect to part 68's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing bottom to part 66's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

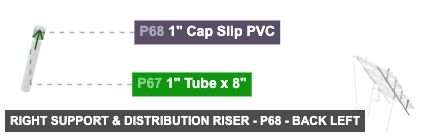

Part: 1" Cap Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P68 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 67's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

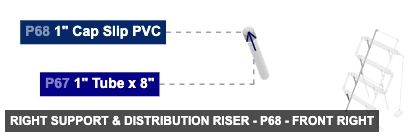

Part: 1" Cap Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P68 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 67's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P68 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 67's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 10" - Angle: back left

Right Support & Distribution Riser - Part 1
P69 (1" Tube 10" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 70's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 66's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 10" - Angle: front right

Right Support & Distribution Riser - Part 1
P69 (1" Tube 10" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 70's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 66's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 10" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P69 (1" Tube 10" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 70's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 66's 1" F SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P70 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 69's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

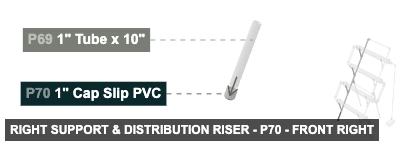

Part: 1" Cap Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P70 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 69's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Cap Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P70 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 69's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: back left

Right Support & Distribution Riser - Part 1
P74 (1" Tube 3" length) - its 1" M SLIP #2, which is top-facing, should connect to part 60's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: front right

Right Support & Distribution Riser - Part 1
P74 (1" Tube 3" length) - its 1" M SLIP #2, which is top-facing, should connect to part 60's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" Tube x 3" - Angle: bottom right

Right Support & Distribution Riser - Part 1
P74 (1" Tube 3" length) - its 1" M SLIP #2, which is top-facing, should connect to part 60's 1" F SLIP #3
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" 90° Elbow Slip PVC - Angle: back left

Right Support & Distribution Riser - Part 1
P83 (1" 90° Elbow Slip PVC ) - attach its 1" F SLIP #1 facing bottom to part 48's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

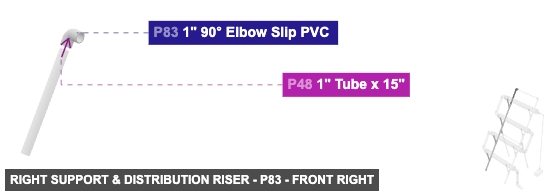

Part: 1" 90° Elbow Slip PVC - Angle: front right

Right Support & Distribution Riser - Part 1
P83 (1" 90° Elbow Slip PVC ) - attach its 1" F SLIP #1 facing bottom to part 48's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Part: 1" 90° Elbow Slip PVC - Angle: bottom right

Right Support & Distribution Riser - Part 1
P83 (1" 90° Elbow Slip PVC ) - attach its 1" F SLIP #1 facing bottom to part 48's 1" M SLIP #2
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Group: Pump and Delivery Line

Houses the pump and the pipe delivering water to the distribution manifold.

Connect P90 (0.5" Adapter M Threaded PVC) Male Threaded 1/2" end to P91 (0.5" Outlet Submersible Pump 550 GPH) Female Threaded 1/2" outlet. Connect P89 (0.5" Tube 57.5" length) bottom Male SLIP 1/2" to P90 Female SLIP 1/2". Connect P88 (0.5" 90° Elbow Slip PVC) bottom Female SLIP 1/2" to P89 top Male SLIP 1/2". Connect P87 (0.5" Tube 3" length) left Male SLIP 1/2" to P88 side Female SLIP 1/2". Connect P86 (0.5" x 2" Reducer Slip PVC) Female SLIP 1/2" to P87 right Male SLIP 1/2".

Part: 1/2" x 2" Reducer Slip PVC - Angle: back left

Pump and Delivery Line - Part 1/2
P86 (0.5" x 2" Reducer Slip PVC) - connect its 0.5" F SLIP #1 oriented right links with part 87's 0.5" M SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" x 2" Reducer Slip PVC - Angle: front right

Pump and Delivery Line - Part 1/2
P86 (0.5" x 2" Reducer Slip PVC) - connect its 0.5" F SLIP #1 oriented right links with part 87's 0.5" M SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" x 2" Reducer Slip PVC - Angle: bottom right

Pump and Delivery Line - Part 1/2
P86 (0.5" x 2" Reducer Slip PVC) - connect its 0.5" F SLIP #1 oriented right links with part 87's 0.5" M SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" Tube x 3" - Angle: back left

Pump and Delivery Line - Part 1/2
P87 (0.5" Tube 3" length) - its 0.5" M SLIP #1, which is right-facing, should connect to part 88's 0.5" F SLIP #1. After that, its 0.5" M SLIP #2, which is left-facing, should connect to part 86's 0.5" F SLIP #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" Tube x 3" - Angle: front right

Pump and Delivery Line - Part 1/2
P87 (0.5" Tube 3" length) - its 0.5" M SLIP #1, which is right-facing, should connect to part 88's 0.5" F SLIP #1. After that, its 0.5" M SLIP #2, which is left-facing, should connect to part 86's 0.5" F SLIP #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" Tube x 3" - Angle: bottom right

Pump and Delivery Line - Part 1/2
P87 (0.5" Tube 3" length) - its 0.5" M SLIP #1, which is right-facing, should connect to part 88's 0.5" F SLIP #1. After that, its 0.5" M SLIP #2, which is left-facing, should connect to part 86's 0.5" F SLIP #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

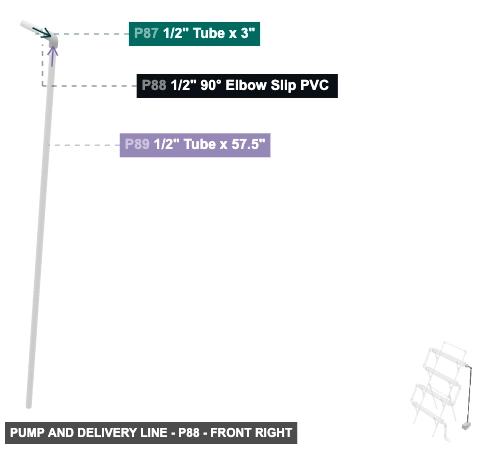

Part: 1/2" 90° Elbow Slip PVC - Angle: back left

Pump and Delivery Line - Part 1/2
P88 (0.5" 90° Elbow Slip PVC ) - its 0.5" F SLIP #1, which is left-facing, should connect to part 87's 0.5" M SLIP #1. Next, connect its 0.5" F SLIP #2 oriented bottom links with part 89's 0.5" M SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" 90° Elbow Slip PVC - Angle: front right

Pump and Delivery Line - Part 1/2
P88 (0.5" 90° Elbow Slip PVC ) - its 0.5" F SLIP #1, which is left-facing, should connect to part 87's 0.5" M SLIP #1. Next, connect its 0.5" F SLIP #2 oriented bottom links with part 89's 0.5" M SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

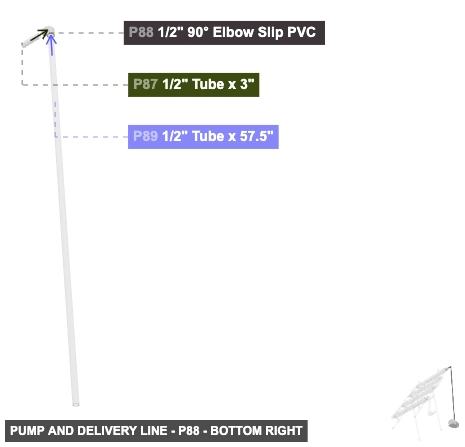

Part: 1/2" 90° Elbow Slip PVC - Angle: bottom right

Pump and Delivery Line - Part 1/2
P88 (0.5" 90° Elbow Slip PVC ) - its 0.5" F SLIP #1, which is left-facing, should connect to part 87's 0.5" M SLIP #1. Next, connect its 0.5" F SLIP #2 oriented bottom links with part 89's 0.5" M SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" Tube x 57.5" - Angle: back left

Pump and Delivery Line - Part 1/2
P89 (0.5" Tube 57.5" length) - connect its 0.5" M SLIP #1 oriented bottom links with part 90's 0.5" F SLIP #1, also connect its 0.5" M SLIP #2 oriented top links with part 88's 0.5" F SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

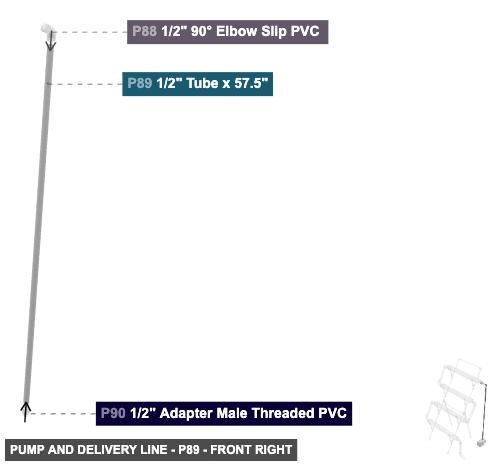

Part: 1/2" Tube x 57.5" - Angle: front right

Pump and Delivery Line - Part 1/2
P89 (0.5" Tube 57.5" length) - connect its 0.5" M SLIP #1 oriented bottom links with part 90's 0.5" F SLIP #1, also connect its 0.5" M SLIP #2 oriented top links with part 88's 0.5" F SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

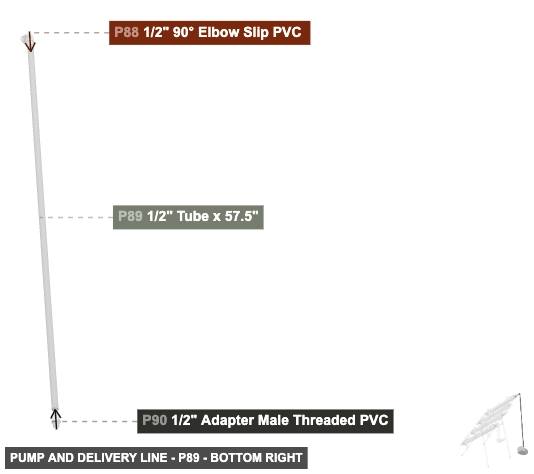

Part: 1/2" Tube x 57.5" - Angle: bottom right

Pump and Delivery Line - Part 1/2
P89 (0.5" Tube 57.5" length) - connect its 0.5" M SLIP #1 oriented bottom links with part 90's 0.5" F SLIP #1, also connect its 0.5" M SLIP #2 oriented top links with part 88's 0.5" F SLIP #2
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" Adapter Male Threaded PVC - Angle: back left

Pump and Delivery Line - Part 1/2
P90 (0.5" Adapter M Threaded PVC) - attach its 0.5" M Threaded #1 facing bottom to part 91's 0.5" F Threaded #1, plus connect its 0.5" F SLIP #1 oriented top links with part 89's 0.5" M SLIP #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" Adapter Male Threaded PVC - Angle: front right

Pump and Delivery Line - Part 1/2
P90 (0.5" Adapter M Threaded PVC) - attach its 0.5" M Threaded #1 facing bottom to part 91's 0.5" F Threaded #1, plus connect its 0.5" F SLIP #1 oriented top links with part 89's 0.5" M SLIP #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2" Adapter Male Threaded PVC - Angle: bottom right

Pump and Delivery Line - Part 1/2
P90 (0.5" Adapter M Threaded PVC) - attach its 0.5" M Threaded #1 facing bottom to part 91's 0.5" F Threaded #1, plus connect its 0.5" F SLIP #1 oriented top links with part 89's 0.5" M SLIP #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2” Outlet Submersible Pump 550 GPH - Angle: back left

Pump and Delivery Line - Part 1/2” Outlet Submersible Pump 550 GPH - back_left
P91 (0.5"” Outlet Submersible Pump 550 GPH) - attach its 0.5" F Threaded #1 facing top to part 90's 0.5" M Threaded #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

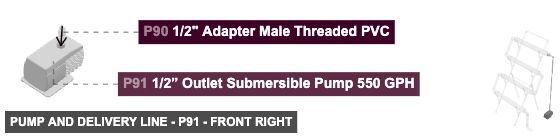

Part: 1/2” Outlet Submersible Pump 550 GPH - Angle: front right

Pump and Delivery Line - Part 1/2” Outlet Submersible Pump 550 GPH - front_right
P91 (0.5"” Outlet Submersible Pump 550 GPH) - attach its 0.5" F Threaded #1 facing top to part 90's 0.5" M Threaded #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Part: 1/2” Outlet Submersible Pump 550 GPH - Angle: bottom right

Pump and Delivery Line - Part 1/2” Outlet Submersible Pump 550 GPH - bottom_right
P91 (0.5"” Outlet Submersible Pump 550 GPH) - attach its 0.5" F Threaded #1 facing top to part 90's 0.5" M Threaded #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Group: Tower 1 Assembly (Leftmost)

Forms the leftmost vertical growing tower using 4" PVC pipe and connectors.

Attach P99 (4" Repair Coupling H x H) to the right end Male SLIP 4" of P1 (4" Hydroponic Pipe PVC). Attach P98 (4" Repair Coupling H x H) to the left end Male SLIP 4" of P1. Attach P2 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the right-facing Female DWV 4" of P99. Attach P4 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the left-facing Female DWV 4" of P98.

Part: 4" Hydroponic Pipe PVC - Angle: back left

Tower 1 Assembly (Leftmost) - Part 4
P1 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 98's 4" DWV F #2, plus connect its 4" M SLIP #2 oriented right links with part 99's 4" DWV F #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4" Hydroponic Pipe PVC - Angle: front right

Tower 1 Assembly (Leftmost) - Part 4
P1 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 98's 4" DWV F #2, plus connect its 4" M SLIP #2 oriented right links with part 99's 4" DWV F #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4" Hydroponic Pipe PVC - Angle: bottom right

Tower 1 Assembly (Leftmost) - Part 4
P1 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 98's 4" DWV F #2, plus connect its 4" M SLIP #2 oriented right links with part 99's 4" DWV F #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

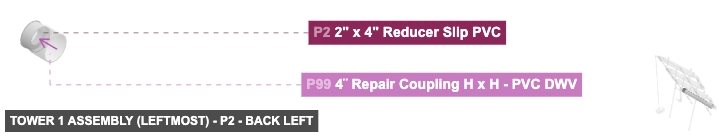

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 1 Assembly (Leftmost) - Part 2
P2 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 99's 4" DWV F #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 1 Assembly (Leftmost) - Part 2
P2 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 99's 4" DWV F #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 1 Assembly (Leftmost) - Part 2
P2 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 99's 4" DWV F #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

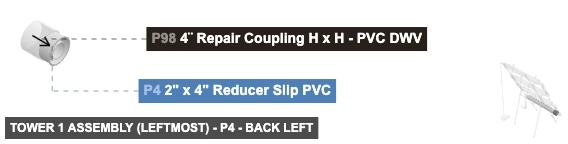

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 1 Assembly (Leftmost) - Part 2
P4 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 98's 4" DWV F #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 1 Assembly (Leftmost) - Part 2
P4 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 98's 4" DWV F #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 1 Assembly (Leftmost) - Part 2
P4 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 98's 4" DWV F #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

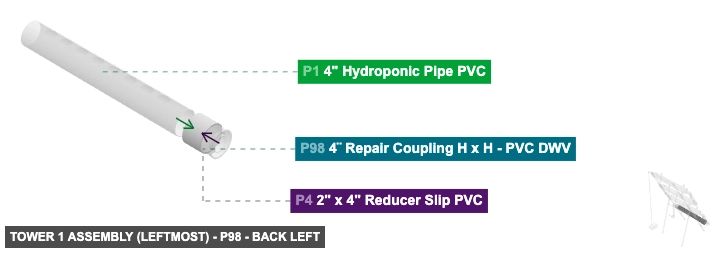

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 1 Assembly (Leftmost) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P98 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 4's 4" M SLIP #1, also connect its 4" DWV F #2 oriented right links with part 1's 4" M SLIP #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

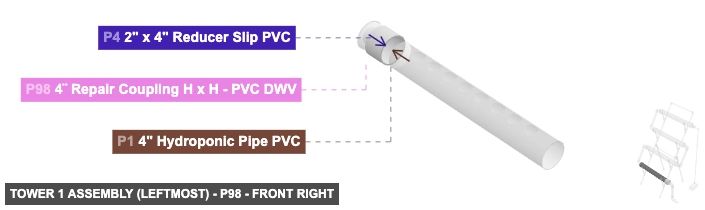

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 1 Assembly (Leftmost) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P98 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 4's 4" M SLIP #1, also connect its 4" DWV F #2 oriented right links with part 1's 4" M SLIP #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 1 Assembly (Leftmost) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P98 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 4's 4" M SLIP #1, also connect its 4" DWV F #2 oriented right links with part 1's 4" M SLIP #1
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

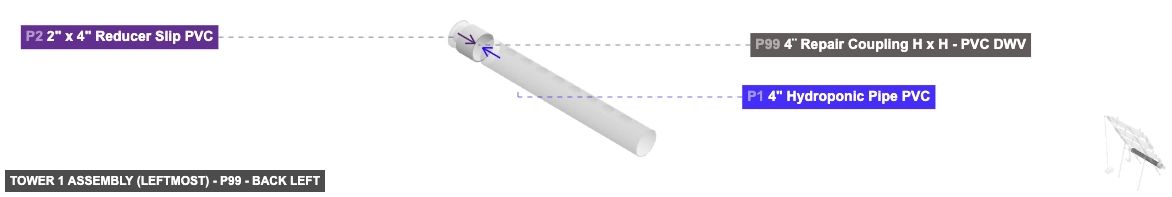

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 1 Assembly (Leftmost) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P99 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 2's 4" M SLIP #1, plus attach its 4" DWV F #2 facing left to part 1's 4" M SLIP #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

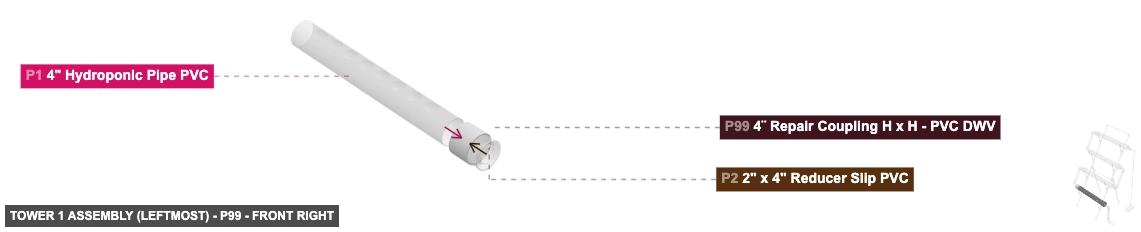

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 1 Assembly (Leftmost) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P99 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 2's 4" M SLIP #1, plus attach its 4" DWV F #2 facing left to part 1's 4" M SLIP #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

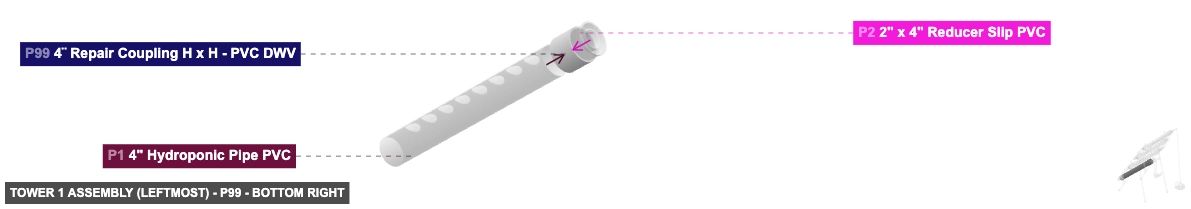

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 1 Assembly (Leftmost) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P99 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 2's 4" M SLIP #1, plus attach its 4" DWV F #2 facing left to part 1's 4" M SLIP #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Group: Tower 2 Assembly (Middle-Left)

Forms the middle-left vertical growing tower using 4" PVC pipe and connectors.

Attach P97 (4" Repair Coupling H x H) to the right end Male SLIP 4" of P11 (4" Hydroponic Pipe PVC). Attach P96 (4" Repair Coupling H x H) to the left end Male SLIP 4" of P11. Attach P12 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the right-facing Female DWV 4" of P97. Attach P10 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the left-facing Female DWV 4" of P96.

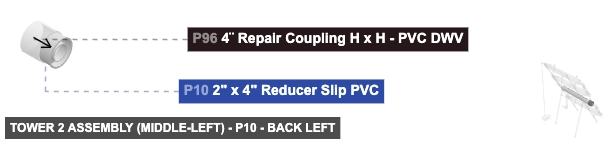

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 2 Assembly (Middle-Left) - Part 2
P10 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 96's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 2 Assembly (Middle-Left) - Part 2
P10 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 96's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 2 Assembly (Middle-Left) - Part 2
P10 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 96's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4" Hydroponic Pipe PVC - Angle: back left

Tower 2 Assembly (Middle-Left) - Part 4
P11 (4" Hydroponic Pipe PVC) - attach its 4" M SLIP #1 facing left to part 96's 4" DWV F #2, and connect its 4" M SLIP #2 oriented right links with part 97's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

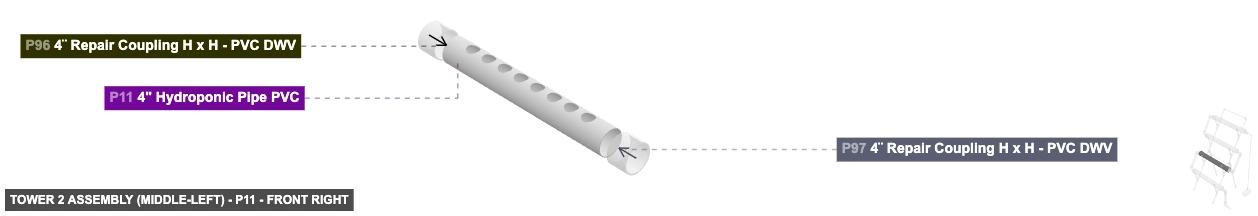

Part: 4" Hydroponic Pipe PVC - Angle: front right

Tower 2 Assembly (Middle-Left) - Part 4
P11 (4" Hydroponic Pipe PVC) - attach its 4" M SLIP #1 facing left to part 96's 4" DWV F #2, and connect its 4" M SLIP #2 oriented right links with part 97's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

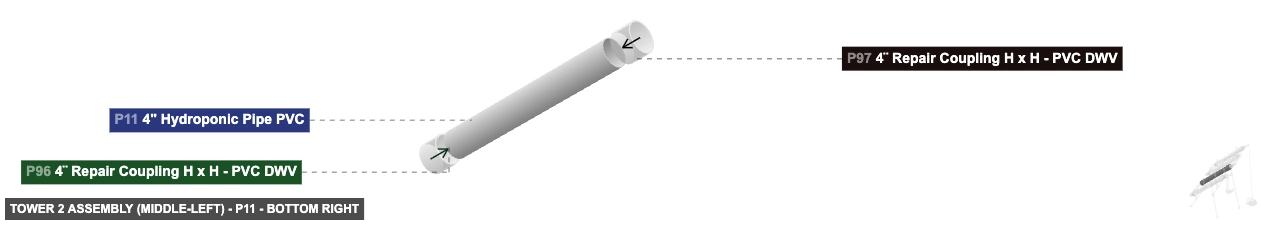

Part: 4" Hydroponic Pipe PVC - Angle: bottom right

Tower 2 Assembly (Middle-Left) - Part 4
P11 (4" Hydroponic Pipe PVC) - attach its 4" M SLIP #1 facing left to part 96's 4" DWV F #2, and connect its 4" M SLIP #2 oriented right links with part 97's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 2 Assembly (Middle-Left) - Part 2
P12 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing left to part 97's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 2 Assembly (Middle-Left) - Part 2
P12 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing left to part 97's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

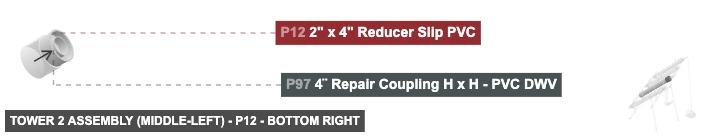

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 2 Assembly (Middle-Left) - Part 2
P12 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing left to part 97's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

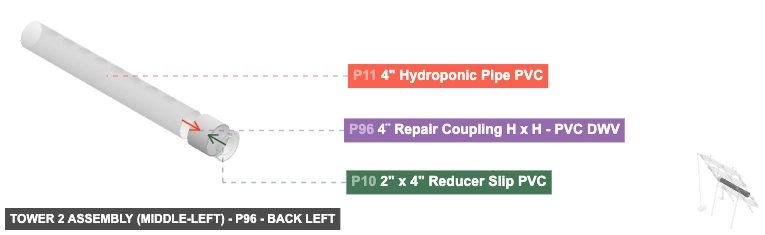

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 2 Assembly (Middle-Left) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P96 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 10's 4" M SLIP #1, plus its 4" DWV F #2, which is right-facing, should connect to part 11's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 2 Assembly (Middle-Left) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P96 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 10's 4" M SLIP #1, plus its 4" DWV F #2, which is right-facing, should connect to part 11's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

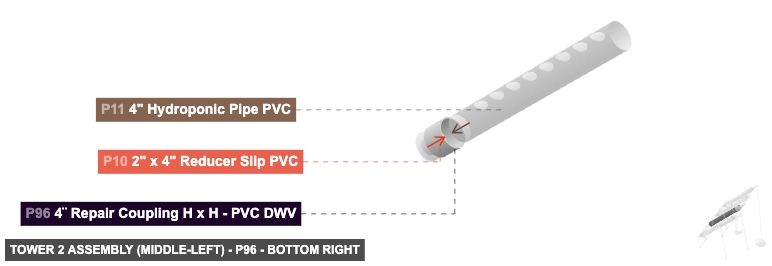

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 2 Assembly (Middle-Left) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P96 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 10's 4" M SLIP #1, plus its 4" DWV F #2, which is right-facing, should connect to part 11's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 2 Assembly (Middle-Left) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P97 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 12's 4" M SLIP #1, plus attach its 4" DWV F #2 facing left to part 11's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 2 Assembly (Middle-Left) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P97 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 12's 4" M SLIP #1, plus attach its 4" DWV F #2 facing left to part 11's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

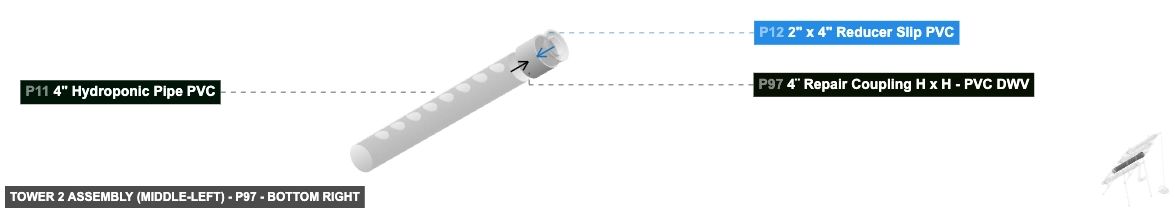

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 2 Assembly (Middle-Left) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P97 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 12's 4" M SLIP #1, plus attach its 4" DWV F #2 facing left to part 11's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Group: Tower 3 Assembly (Middle-Right)

Forms the middle-right vertical growing tower using 4" PVC pipe and connectors.

Attach P95 (4" Repair Coupling H x H) to the right end Male SLIP 4" of P19 (4" Hydroponic Pipe PVC). Attach P94 (4" Repair Coupling H x H) to the left end Male SLIP 4" of P19. Attach P18 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the right-facing Female DWV 4" of P95. Attach P20 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the left-facing Female DWV 4" of P94.

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 3 Assembly (Middle-Right) - Part 2
P18 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 95's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 3 Assembly (Middle-Right) - Part 2
P18 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 95's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

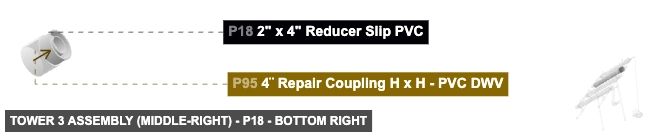

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 3 Assembly (Middle-Right) - Part 2
P18 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 95's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

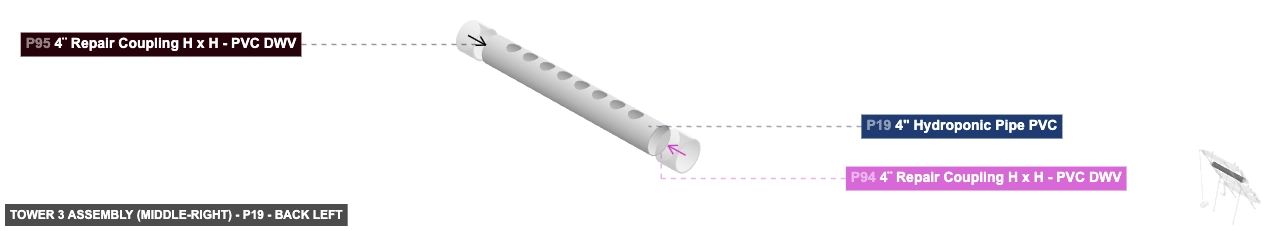

Part: 4" Hydroponic Pipe PVC - Angle: back left

Tower 3 Assembly (Middle-Right) - Part 4
P19 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is right-facing, should connect to part 95's 4" DWV F #2, plus its 4" M SLIP #2, which is left-facing, should connect to part 94's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4" Hydroponic Pipe PVC - Angle: front right

Tower 3 Assembly (Middle-Right) - Part 4
P19 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is right-facing, should connect to part 95's 4" DWV F #2, plus its 4" M SLIP #2, which is left-facing, should connect to part 94's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

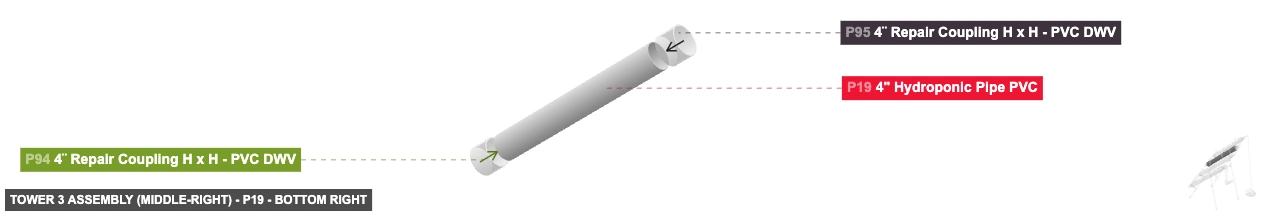

Part: 4" Hydroponic Pipe PVC - Angle: bottom right

Tower 3 Assembly (Middle-Right) - Part 4
P19 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is right-facing, should connect to part 95's 4" DWV F #2, plus its 4" M SLIP #2, which is left-facing, should connect to part 94's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

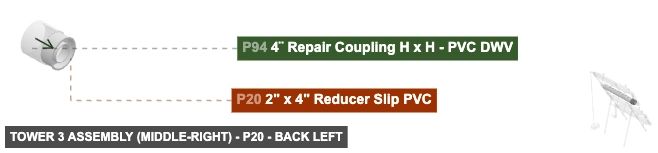

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 3 Assembly (Middle-Right) - Part 2
P20 (2" x 4" Reducer Slip PVC) - its 4" M SLIP #1, which is right-facing, should connect to part 94's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 3 Assembly (Middle-Right) - Part 2
P20 (2" x 4" Reducer Slip PVC) - its 4" M SLIP #1, which is right-facing, should connect to part 94's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

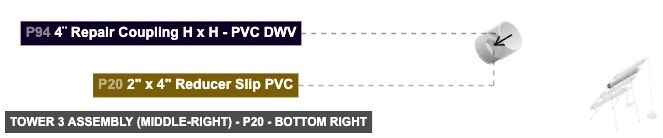

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 3 Assembly (Middle-Right) - Part 2
P20 (2" x 4" Reducer Slip PVC) - its 4" M SLIP #1, which is right-facing, should connect to part 94's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 3 Assembly (Middle-Right) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P94 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 20's 4" M SLIP #1, then its 4" DWV F #2, which is right-facing, should connect to part 19's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

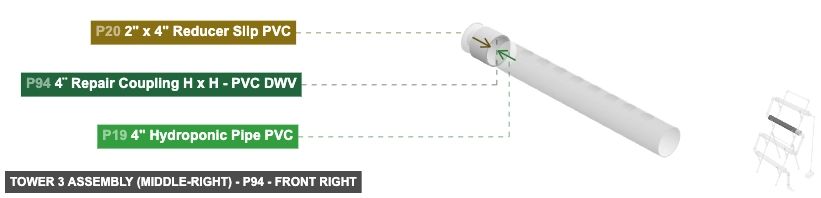

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 3 Assembly (Middle-Right) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P94 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 20's 4" M SLIP #1, then its 4" DWV F #2, which is right-facing, should connect to part 19's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 3 Assembly (Middle-Right) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P94 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is left-facing, should connect to part 20's 4" M SLIP #1, then its 4" DWV F #2, which is right-facing, should connect to part 19's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

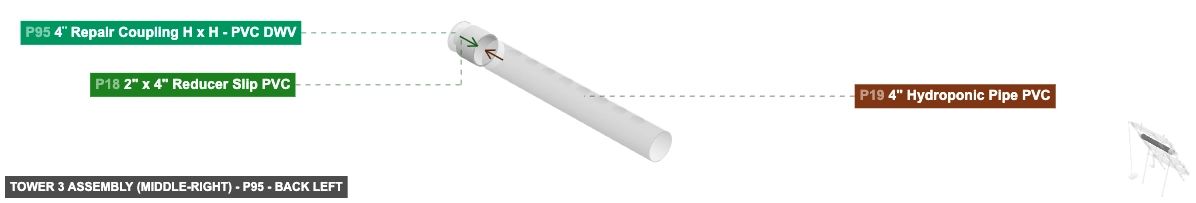

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 3 Assembly (Middle-Right) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P95 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is right-facing, should connect to part 18's 4" M SLIP #1. Next, attach its 4" DWV F #2 facing left to part 19's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 3 Assembly (Middle-Right) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P95 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is right-facing, should connect to part 18's 4" M SLIP #1. Next, attach its 4" DWV F #2 facing left to part 19's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 3 Assembly (Middle-Right) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P95 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is right-facing, should connect to part 18's 4" M SLIP #1. Next, attach its 4" DWV F #2 facing left to part 19's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Group: Tower 4 Assembly (Rightmost)

Forms the rightmost vertical growing tower using 4" PVC pipe and connectors.

Attach P93 (4" Repair Coupling H x H) to the right end Male SLIP 4" of P27 (4" Hydroponic Pipe PVC). Attach P92 (4" Repair Coupling H x H) to the left end Male SLIP 4" of P27. Attach P28 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the right-facing Female DWV 4" of P93. Attach P26 (2" x 4" Reducer Slip PVC) Male SLIP 4" to the left-facing Female DWV 4" of P92.

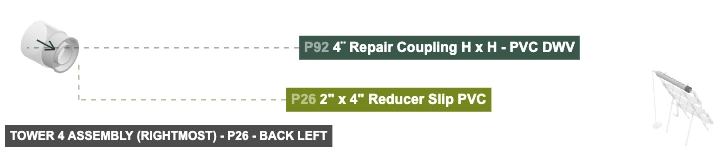

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 4 Assembly (Rightmost) - Part 2
P26 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 92's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 4 Assembly (Rightmost) - Part 2
P26 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 92's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

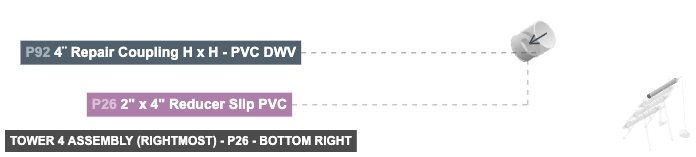

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 4 Assembly (Rightmost) - Part 2
P26 (2" x 4" Reducer Slip PVC) - attach its 4" M SLIP #1 facing right to part 92's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4" Hydroponic Pipe PVC - Angle: back left

Tower 4 Assembly (Rightmost) - Part 4
P27 (4" Hydroponic Pipe PVC) - connect its 4" M SLIP #1 oriented left links with part 92's 4" DWV F #2. Additionally, attach its 4" M SLIP #2 facing right to part 93's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4" Hydroponic Pipe PVC - Angle: front right

Tower 4 Assembly (Rightmost) - Part 4
P27 (4" Hydroponic Pipe PVC) - connect its 4" M SLIP #1 oriented left links with part 92's 4" DWV F #2. Additionally, attach its 4" M SLIP #2 facing right to part 93's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4" Hydroponic Pipe PVC - Angle: bottom right

Tower 4 Assembly (Rightmost) - Part 4
P27 (4" Hydroponic Pipe PVC) - connect its 4" M SLIP #1 oriented left links with part 92's 4" DWV F #2. Additionally, attach its 4" M SLIP #2 facing right to part 93's 4" DWV F #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: back left

Tower 4 Assembly (Rightmost) - Part 2
P28 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 93's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 2" x 4" Reducer Slip PVC - Angle: front right

Tower 4 Assembly (Rightmost) - Part 2
P28 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 93's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

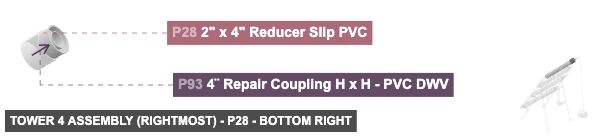

Part: 2" x 4" Reducer Slip PVC - Angle: bottom right

Tower 4 Assembly (Rightmost) - Part 2
P28 (2" x 4" Reducer Slip PVC) - connect its 4" M SLIP #1 oriented left links with part 93's 4" DWV F #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

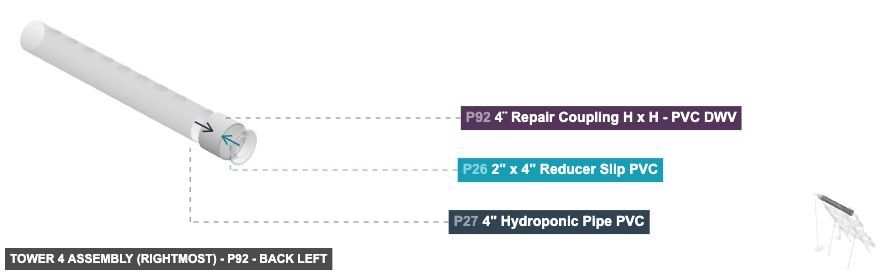

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 4 Assembly (Rightmost) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P92 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 26's 4" M SLIP #1, and attach its 4" DWV F #2 facing right to part 27's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

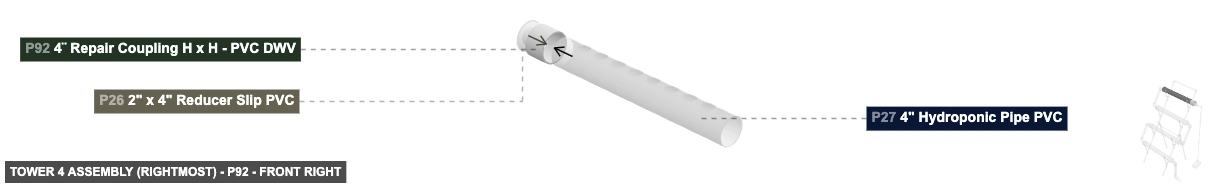

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 4 Assembly (Rightmost) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P92 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 26's 4" M SLIP #1, and attach its 4" DWV F #2 facing right to part 27's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 4 Assembly (Rightmost) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P92 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 26's 4" M SLIP #1, and attach its 4" DWV F #2 facing right to part 27's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

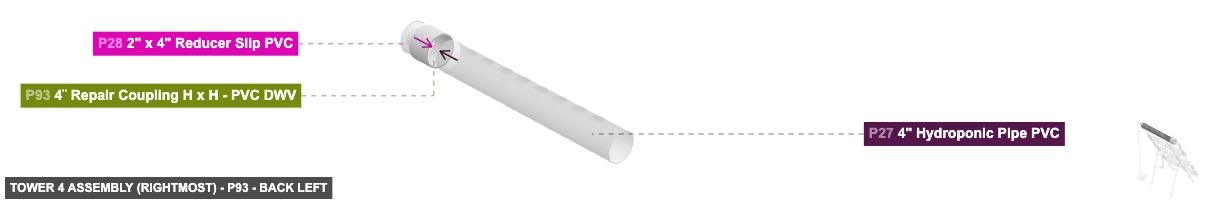

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: back left

Tower 4 Assembly (Rightmost) - Part 4¨ Repair Coupling H x H - PVC DWV - back_left
P93 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is right-facing, should connect to part 28's 4" M SLIP #1. Next, connect its 4" DWV F #2 oriented left links with part 27's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: front right

Tower 4 Assembly (Rightmost) - Part 4¨ Repair Coupling H x H - PVC DWV - front_right
P93 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is right-facing, should connect to part 28's 4" M SLIP #1. Next, connect its 4" DWV F #2 oriented left links with part 27's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Part: 4¨ Repair Coupling H x H - PVC DWV - Angle: bottom right

Tower 4 Assembly (Rightmost) - Part 4¨ Repair Coupling H x H - PVC DWV - bottom_right
P93 (4¨ Repair Coupling H x H - PVC DWV) - its 4" DWV F #1, which is right-facing, should connect to part 28's 4" M SLIP #1. Next, connect its 4" DWV F #2 oriented left links with part 27's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Group: Drainage Network Assembly

Connects the bottom of the towers using 2" PVC pipes to collect water and channel it, likely back towards the pump/reservoir.

Assemble Leftmost Drain Section: Connect P3 (2" Tube 3" length) between P2 Reducer (Female SLIP 2") and P79 Elbow (Female SLIP 2"). Connect P80 (2" Tube 13.8" length) top Male SLIP 2" to P79 Elbow bottom Female SLIP 2". Connect P81 (2" 90° Elbow Slip PVC) top Female SLIP 2" to P80 bottom Male SLIP 2". Connect P82 (2" Tube 5" length) left Male SLIP 2" to P81 right Female SLIP 2". Assemble Second Drain Section: Connect P5 (2" Tube 3" length) between P4 Reducer (Female SLIP 2") and P6 Elbow (Female SLIP 2"). Connect P7 (2" Tube 15" length) top Male SLIP 2" to P6 Elbow top Female SLIP 2". Connect P8 (2" 90° Elbow Slip PVC) bottom Female SLIP 2" to P7 bottom Male SLIP 2". Connect P9 (2" Tube 3" length) between P8 Elbow left Female SLIP 2" and P10 Reducer left Female SLIP 2". Assemble Third Drain Section: Connect P13 (2" Tube 3" length) between P12 Reducer (Female SLIP 2") and P14 Elbow (Female SLIP 2"). Connect P15 (2" Tube 15" length) bottom Male SLIP 2" to P14 Elbow top Female SLIP 2". Connect P16 (2" 90° Elbow Slip PVC) bottom Female SLIP 2" to P15 top Male SLIP 2". Connect P17 (2" Tube 3" length) between P16 Elbow right Female SLIP 2" and P18 Reducer right Female SLIP 2". Assemble Rightmost Drain Section: Connect P21 (2" Tube 3" length) between P20 Reducer (Female SLIP 2") and P22 Elbow (Female SLIP 2"). Connect P23 (2" Tube 15" length) bottom Male SLIP 2" to P22 Elbow top Female SLIP 2". Connect P24 (2" 90° Elbow Slip PVC) bottom Female SLIP 2" to P23 top Male SLIP 2". Connect P25 (2" Tube 3" length) between P24 Elbow left Female SLIP 2" and P26 Reducer left Female SLIP 2". Connect P29 (2" Tube 3" length) between P28 Reducer (Female SLIP 2") and P86 Reducer (Female SLIP 2" from Pump Group). Connect Drain Sections (Verify connections based on fit): Connect P82 right Male SLIP 2" to P5 left Male SLIP 2". Connect P9 right Male SLIP 2" to P13 left Male SLIP 2". Connect P17 left Male SLIP 2" to P21 right Male SLIP 2". Connect P25 right Male SLIP 2" to P29 left Male SLIP 2".

Part: 2" Tube x 3" - Angle: back left

Drainage Network Assembly - Part 2
P3 (2" Tube 3" length) - its 2" M SLIP #1, which is right-facing, should connect to part 79's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: front right

Drainage Network Assembly - Part 2
P3 (2" Tube 3" length) - its 2" M SLIP #1, which is right-facing, should connect to part 79's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: bottom right

Drainage Network Assembly - Part 2
P3 (2" Tube 3" length) - its 2" M SLIP #1, which is right-facing, should connect to part 79's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: back left

Drainage Network Assembly - Part 2
P5 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 6's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: front right

Drainage Network Assembly - Part 2
P5 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 6's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: bottom right

Drainage Network Assembly - Part 2
P5 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 6's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P6 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is right-facing, should connect to part 5's 2" M SLIP #1. Next, connect its 2" F SLIP #2 oriented top links with part 7's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

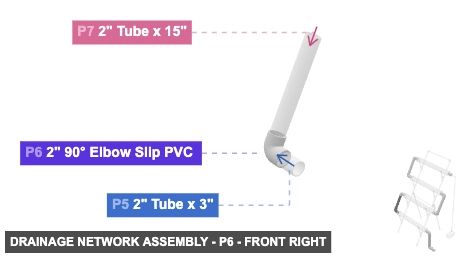

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P6 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is right-facing, should connect to part 5's 2" M SLIP #1. Next, connect its 2" F SLIP #2 oriented top links with part 7's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

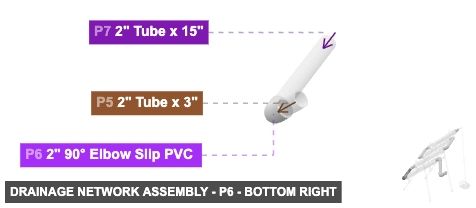

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P6 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is right-facing, should connect to part 5's 2" M SLIP #1. Next, connect its 2" F SLIP #2 oriented top links with part 7's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

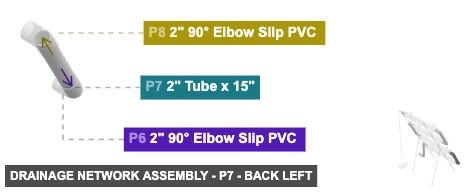

Part: 2" Tube x 15" - Angle: back left

Drainage Network Assembly - Part 2
P7 (2" Tube 15" length) - connect its 2" M SLIP #1 oriented bottom links with part 8's 2" F SLIP #1, then connect its 2" M SLIP #2 oriented top links with part 6's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

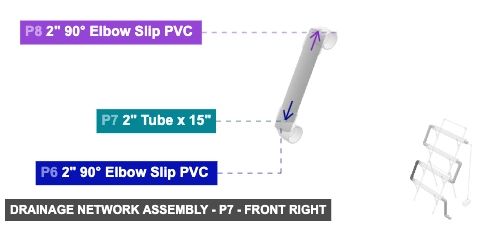

Part: 2" Tube x 15" - Angle: front right

Drainage Network Assembly - Part 2
P7 (2" Tube 15" length) - connect its 2" M SLIP #1 oriented bottom links with part 8's 2" F SLIP #1, then connect its 2" M SLIP #2 oriented top links with part 6's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 15" - Angle: bottom right

Drainage Network Assembly - Part 2
P7 (2" Tube 15" length) - connect its 2" M SLIP #1 oriented bottom links with part 8's 2" F SLIP #1, then connect its 2" M SLIP #2 oriented top links with part 6's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

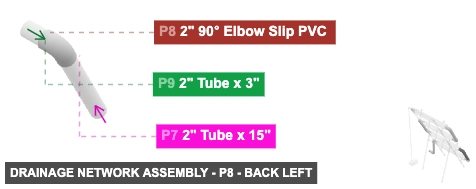

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P8 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 7's 2" M SLIP #1. Also, connect its 2" F SLIP #2 oriented right links with part 9's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P8 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 7's 2" M SLIP #1. Also, connect its 2" F SLIP #2 oriented right links with part 9's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P8 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 7's 2" M SLIP #1. Also, connect its 2" F SLIP #2 oriented right links with part 9's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

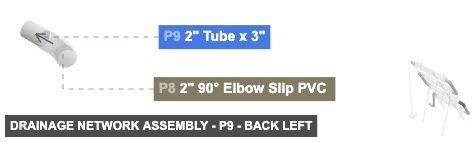

Part: 2" Tube x 3" - Angle: back left

Drainage Network Assembly - Part 2
P9 (2" Tube 3" length) - its 2" M SLIP #2, which is left-facing, should connect to part 8's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: front right

Drainage Network Assembly - Part 2
P9 (2" Tube 3" length) - its 2" M SLIP #2, which is left-facing, should connect to part 8's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: bottom right

Drainage Network Assembly - Part 2
P9 (2" Tube 3" length) - its 2" M SLIP #2, which is left-facing, should connect to part 8's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: back left

Drainage Network Assembly - Part 2
P13 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 14's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: front right

Drainage Network Assembly - Part 2
P13 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 14's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: bottom right

Drainage Network Assembly - Part 2
P13 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 14's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P14 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 13's 2" M SLIP #1, then connect its 2" F SLIP #2 oriented top links with part 15's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P14 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 13's 2" M SLIP #1, then connect its 2" F SLIP #2 oriented top links with part 15's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

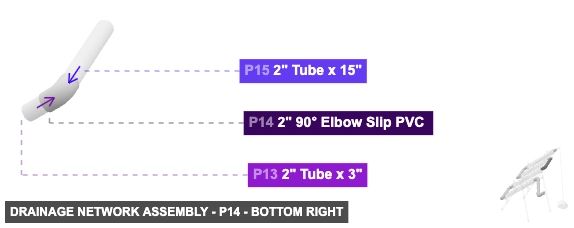

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P14 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 13's 2" M SLIP #1, then connect its 2" F SLIP #2 oriented top links with part 15's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 15" - Angle: back left

Drainage Network Assembly - Part 2
P15 (2" Tube 15" length) - attach its 2" M SLIP #1 facing top to part 16's 2" F SLIP #1, plus its 2" M SLIP #2, which is bottom-facing, should connect to part 14's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 15" - Angle: front right

Drainage Network Assembly - Part 2
P15 (2" Tube 15" length) - attach its 2" M SLIP #1 facing top to part 16's 2" F SLIP #1, plus its 2" M SLIP #2, which is bottom-facing, should connect to part 14's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 15" - Angle: bottom right

Drainage Network Assembly - Part 2
P15 (2" Tube 15" length) - attach its 2" M SLIP #1 facing top to part 16's 2" F SLIP #1, plus its 2" M SLIP #2, which is bottom-facing, should connect to part 14's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

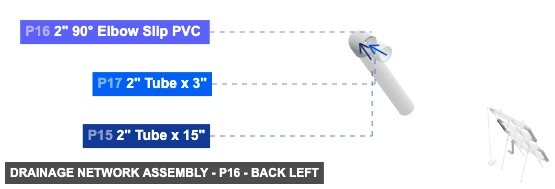

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P16 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is bottom-facing, should connect to part 15's 2" M SLIP #1. Additionally, attach its 2" F SLIP #2 facing left to part 17's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

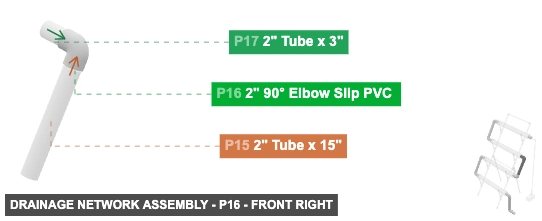

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P16 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is bottom-facing, should connect to part 15's 2" M SLIP #1. Additionally, attach its 2" F SLIP #2 facing left to part 17's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

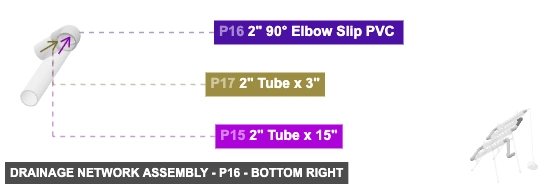

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P16 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is bottom-facing, should connect to part 15's 2" M SLIP #1. Additionally, attach its 2" F SLIP #2 facing left to part 17's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

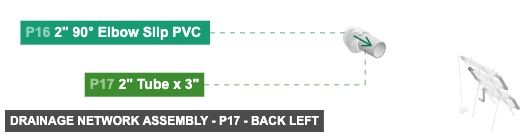

Part: 2" Tube x 3" - Angle: back left

Drainage Network Assembly - Part 2
P17 (2" Tube 3" length) - attach its 2" M SLIP #2 facing right to part 16's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

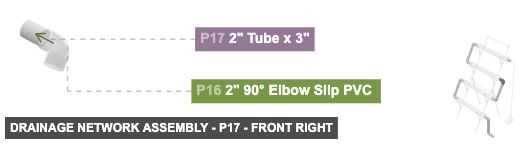

Part: 2" Tube x 3" - Angle: front right

Drainage Network Assembly - Part 2
P17 (2" Tube 3" length) - attach its 2" M SLIP #2 facing right to part 16's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: bottom right

Drainage Network Assembly - Part 2
P17 (2" Tube 3" length) - attach its 2" M SLIP #2 facing right to part 16's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

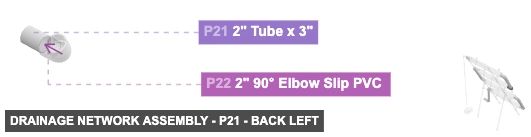

Part: 2" Tube x 3" - Angle: back left

Drainage Network Assembly - Part 2
P21 (2" Tube 3" length) - its 2" M SLIP #1, which is left-facing, should connect to part 22's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: front right

Drainage Network Assembly - Part 2
P21 (2" Tube 3" length) - its 2" M SLIP #1, which is left-facing, should connect to part 22's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

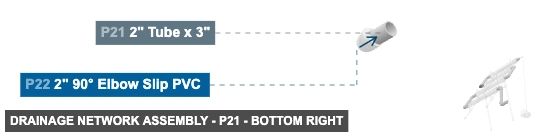

Part: 2" Tube x 3" - Angle: bottom right

Drainage Network Assembly - Part 2
P21 (2" Tube 3" length) - its 2" M SLIP #1, which is left-facing, should connect to part 22's 2" F SLIP #1
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

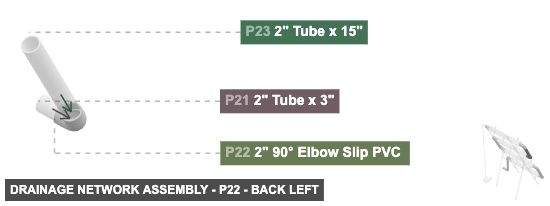

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P22 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented right links with part 21's 2" M SLIP #1, then its 2" F SLIP #2, which is top-facing, should connect to part 23's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P22 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented right links with part 21's 2" M SLIP #1, then its 2" F SLIP #2, which is top-facing, should connect to part 23's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

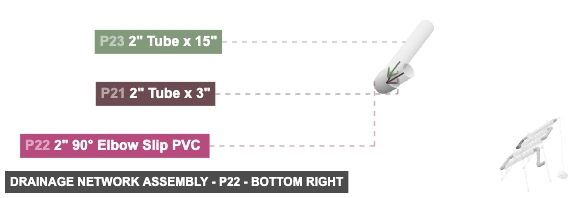

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P22 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented right links with part 21's 2" M SLIP #1, then its 2" F SLIP #2, which is top-facing, should connect to part 23's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 15" - Angle: back left

Drainage Network Assembly - Part 2
P23 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 24's 2" F SLIP #1, then its 2" M SLIP #2, which is bottom-facing, should connect to part 22's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 15" - Angle: front right

Drainage Network Assembly - Part 2
P23 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 24's 2" F SLIP #1, then its 2" M SLIP #2, which is bottom-facing, should connect to part 22's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

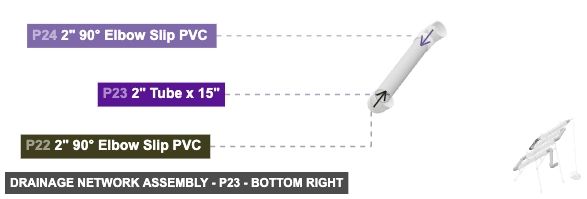

Part: 2" Tube x 15" - Angle: bottom right

Drainage Network Assembly - Part 2
P23 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 24's 2" F SLIP #1, then its 2" M SLIP #2, which is bottom-facing, should connect to part 22's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

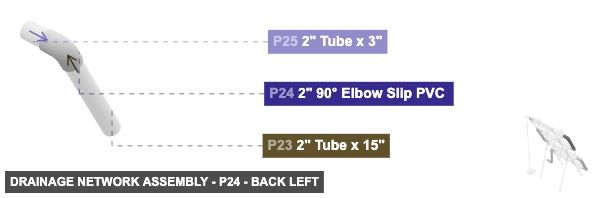

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P24 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 23's 2" M SLIP #1, then attach its 2" F SLIP #2 facing right to part 25's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

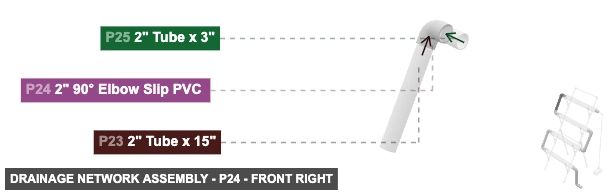

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P24 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 23's 2" M SLIP #1, then attach its 2" F SLIP #2 facing right to part 25's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

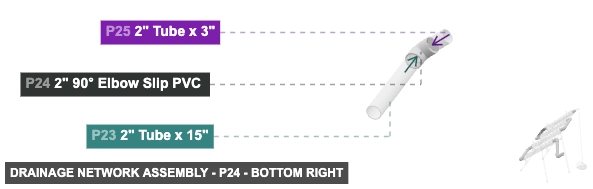

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P24 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 23's 2" M SLIP #1, then attach its 2" F SLIP #2 facing right to part 25's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

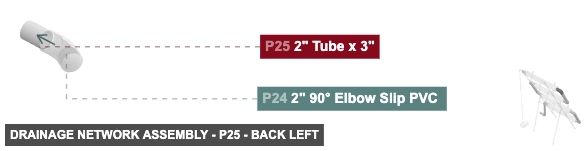

Part: 2" Tube x 3" - Angle: back left

Drainage Network Assembly - Part 2
P25 (2" Tube 3" length) - its 2" M SLIP #2, which is left-facing, should connect to part 24's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 3" - Angle: front right

Drainage Network Assembly - Part 2
P25 (2" Tube 3" length) - its 2" M SLIP #2, which is left-facing, should connect to part 24's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

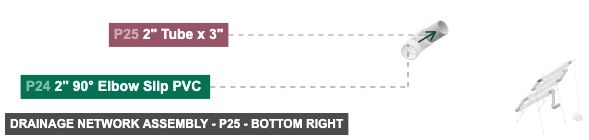

Part: 2" Tube x 3" - Angle: bottom right

Drainage Network Assembly - Part 2
P25 (2" Tube 3" length) - its 2" M SLIP #2, which is left-facing, should connect to part 24's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P79 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 3's 2" M SLIP #1. Next, connect its 2" F SLIP #2 oriented bottom links with part 80's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P79 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 3's 2" M SLIP #1. Next, connect its 2" F SLIP #2 oriented bottom links with part 80's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P79 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 3's 2" M SLIP #1. Next, connect its 2" F SLIP #2 oriented bottom links with part 80's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 13.8" - Angle: back left

Drainage Network Assembly - Part 2
P80 (2" Tube 13.8" length) - attach its 2" M SLIP #1 facing bottom to part 81's 2" F SLIP #1. Next, attach its 2" M SLIP #2 facing top to part 79's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

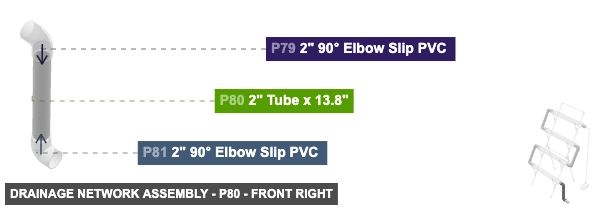

Part: 2" Tube x 13.8" - Angle: front right

Drainage Network Assembly - Part 2
P80 (2" Tube 13.8" length) - attach its 2" M SLIP #1 facing bottom to part 81's 2" F SLIP #1. Next, attach its 2" M SLIP #2 facing top to part 79's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 13.8" - Angle: bottom right

Drainage Network Assembly - Part 2
P80 (2" Tube 13.8" length) - attach its 2" M SLIP #1 facing bottom to part 81's 2" F SLIP #1. Next, attach its 2" M SLIP #2 facing top to part 79's 2" F SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

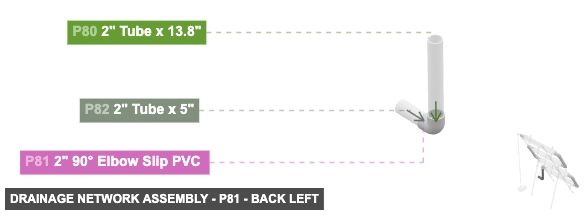

Part: 2" 90° Elbow Slip PVC - Angle: back left

Drainage Network Assembly - Part 2
P81 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is top-facing, should connect to part 80's 2" M SLIP #1. Additionally, connect its 2" F SLIP #2 oriented right links with part 82's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" 90° Elbow Slip PVC - Angle: front right

Drainage Network Assembly - Part 2
P81 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is top-facing, should connect to part 80's 2" M SLIP #1. Additionally, connect its 2" F SLIP #2 oriented right links with part 82's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

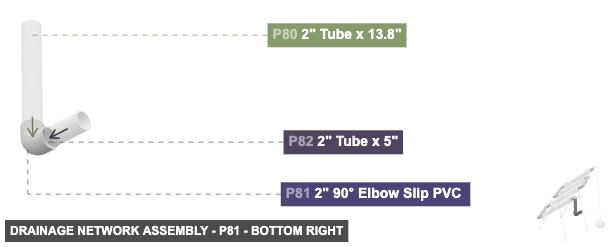

Part: 2" 90° Elbow Slip PVC - Angle: bottom right

Drainage Network Assembly - Part 2
P81 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is top-facing, should connect to part 80's 2" M SLIP #1. Additionally, connect its 2" F SLIP #2 oriented right links with part 82's 2" M SLIP #2
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 5" - Angle: back left

Drainage Network Assembly - Part 2
P82 (2" Tube 5" length) - connect its 2" M SLIP #2 oriented left links with part 81's 2" F SLIP #2. After that, its 2" M SLIP #1 needs to point right
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Part: 2" Tube x 5" - Angle: front right

Drainage Network Assembly - Part 2
P82 (2" Tube 5" length) - connect its 2" M SLIP #2 oriented left links with part 81's 2" F SLIP #2. After that, its 2" M SLIP #1 needs to point right
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

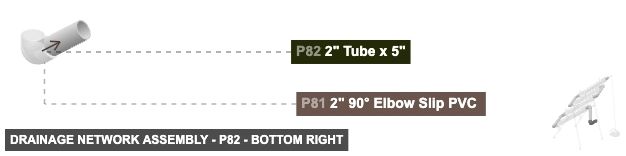

Part: 2" Tube x 5" - Angle: bottom right

Drainage Network Assembly - Part 2
P82 (2" Tube 5" length) - connect its 2" M SLIP #2 oriented left links with part 81's 2" F SLIP #2. After that, its 2" M SLIP #1 needs to point right
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Phase 3: Inter-Group Assembly

Attaching: Base Support Frame

Provides a stable base for the entire structure using 1" PVC pipes.

This frame forms the base. The Left and Right Distribution Risers will connect to the Tees (P72 and P75).

Angle: back left

Assembly of Base Support Frame - back_left
P58 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 73's 1" M SLIP #1 P72 (1" Tee F Slip PVC) - attach its 1" F SLIP #1 facing top to part 71's 1" M SLIP #1, and its 1" F SLIP #2, which is bottom-facing, should connect to part 73's 1" M SLIP #2, and its 1" F SLIP #3, which is left-facing, should connect to part 76's 1" M SLIP #1 P73 (1" Tube 30.88" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 58's 1" F SLIP #1, also attach its 1" M SLIP #2 facing top to part 72's 1" F SLIP #2 P75 (1" Tee F Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 74's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented bottom links with part 77's 1" M SLIP #2, and attach its 1" F SLIP #3 facing right to part 76's 1" M SLIP #2 P76 (1" Tube 24.18" length) - connect its 1" M SLIP #1 oriented right links with part 72's 1" F SLIP #3. Next, connect its 1" M SLIP #2 oriented left links with part 75's 1" F SLIP #3 P77 (1" Tube 30.9" length) - connect its 1" M SLIP #1 oriented bottom links with part 78's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented top links with part 75's 1" F SLIP #2 P78 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 77's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Angle: front right

Assembly of Base Support Frame - front_right
P58 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 73's 1" M SLIP #1 P72 (1" Tee F Slip PVC) - attach its 1" F SLIP #1 facing top to part 71's 1" M SLIP #1, and its 1" F SLIP #2, which is bottom-facing, should connect to part 73's 1" M SLIP #2, and its 1" F SLIP #3, which is left-facing, should connect to part 76's 1" M SLIP #1 P73 (1" Tube 30.88" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 58's 1" F SLIP #1, also attach its 1" M SLIP #2 facing top to part 72's 1" F SLIP #2 P75 (1" Tee F Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 74's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented bottom links with part 77's 1" M SLIP #2, and attach its 1" F SLIP #3 facing right to part 76's 1" M SLIP #2 P76 (1" Tube 24.18" length) - connect its 1" M SLIP #1 oriented right links with part 72's 1" F SLIP #3. Next, connect its 1" M SLIP #2 oriented left links with part 75's 1" F SLIP #3 P77 (1" Tube 30.9" length) - connect its 1" M SLIP #1 oriented bottom links with part 78's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented top links with part 75's 1" F SLIP #2 P78 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 77's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Angle: bottom right

Assembly of Base Support Frame - bottom_right
P58 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 73's 1" M SLIP #1 P72 (1" Tee F Slip PVC) - attach its 1" F SLIP #1 facing top to part 71's 1" M SLIP #1, and its 1" F SLIP #2, which is bottom-facing, should connect to part 73's 1" M SLIP #2, and its 1" F SLIP #3, which is left-facing, should connect to part 76's 1" M SLIP #1 P73 (1" Tube 30.88" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 58's 1" F SLIP #1, also attach its 1" M SLIP #2 facing top to part 72's 1" F SLIP #2 P75 (1" Tee F Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 74's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented bottom links with part 77's 1" M SLIP #2, and attach its 1" F SLIP #3 facing right to part 76's 1" M SLIP #2 P76 (1" Tube 24.18" length) - connect its 1" M SLIP #1 oriented right links with part 72's 1" F SLIP #3. Next, connect its 1" M SLIP #2 oriented left links with part 75's 1" F SLIP #3 P77 (1" Tube 30.9" length) - connect its 1" M SLIP #1 oriented bottom links with part 78's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented top links with part 75's 1" F SLIP #2 P78 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing top to part 77's 1" M SLIP #1
11" Cap Slip PVCx 2
11" Tee Female Slip PVCx 2
11" Tube x 30.88"x 1
11" Tube x 24.18"x 1
11" Tube x 30.9"x 1

Attaching: Left Support & Distribution Riser

Forms the left vertical support structure and the corresponding water distribution lines using 1" PVC pipes.

Connect the bottom of this assembly (P71) to the Base Support Frame (P72). The top elbow (P84) will connect to the Top Frame Connector (P85).

Angle: back left

Assembly of Left Support & Distribution Riser - back_left
P30 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 37's 1" M SLIP #1, plus attach its 1" F SLIP #2 facing bottom to part 56's 1" M SLIP #2. Also, attach its 1" F SLIP #3 facing top to part 31's 1" M SLIP #2 P31 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 32's 1" F SLIP #1, and connect its 1" M SLIP #2 oriented bottom links with part 30's 1" F SLIP #3 P32 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 31's 1" M SLIP #1 P33 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 34's 1" F SLIP #1. Also, its 1" M SLIP #2, which is top-facing, should connect to part 84's 1" F SLIP #1 P34 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 33's 1" M SLIP #1. After that, its 1" F SLIP #2, which is bottom-facing, should connect to part 37's 1" M SLIP #2, plus connect its 1" F SLIP #3 oriented top links with part 35's 1" M SLIP #2 P35 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 36's 1" F SLIP #1, then attach its 1" M SLIP #2 facing bottom to part 34's 1" F SLIP #3 P36 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 35's 1" M SLIP #1 P37 (1" Tube 15.51" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 30's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 34's 1" F SLIP #2 P38 (1" Wye Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 47's 1" M SLIP #2, and attach its 1" F SLIP #2 facing bottom to part 41's 1" M SLIP #2, also connect its 1" F SLIP #3 oriented top links with part 39's 1" M SLIP #2 P39 (1" Tube 10" length) - its 1" M SLIP #1, which is top-facing, should connect to part 40's 1" F SLIP #1. Next, connect its 1" M SLIP #2 oriented bottom links with part 38's 1" F SLIP #3 P40 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 39's 1" M SLIP #1 P41 (1" Tube 15.5" length) - connect its 1" M SLIP #1 oriented bottom links with part 42's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 38's 1" F SLIP #2 P42 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 41's 1" M SLIP #1, also its 1" F SLIP #2, which is bottom-facing, should connect to part 45's 1" M SLIP #2, plus attach its 1" F SLIP #3 facing top to part 43's 1" M SLIP #2 P43 (1" Tube 10" length) - connect its 1" M SLIP #1 oriented top links with part 44's 1" F SLIP #1, then connect its 1" M SLIP #2 oriented bottom links with part 42's 1" F SLIP #3 P44 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 43's 1" M SLIP #1 P45 (1" Tube 10" length) - attach its 1" M SLIP #1 facing bottom to part 46's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing top to part 42's 1" F SLIP #2 P46 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 45's 1" M SLIP #1 P47 (1" Tube 9.6" length) - connect its 1" M SLIP #1 oriented bottom links with part 57's 1" F SLIP #1, and attach its 1" M SLIP #2 facing top to part 38's 1" F SLIP #1 P56 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #2. After that, its 1" M SLIP #2, which is top-facing, should connect to part 30's 1" F SLIP #2 P57 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 47's 1" M SLIP #1, then its 1" F SLIP #2, which is top-facing, should connect to part 56's 1" M SLIP #1. Additionally, connect its 1" F SLIP #3 oriented bottom links with part 71's 1" M SLIP #2 P71 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 72's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing top to part 57's 1" F SLIP #3 P84 (1" 90° Elbow Slip PVC ) - connect its 1" F SLIP #1 oriented bottom links with part 33's 1" M SLIP #2. Additionally, connect its 1" F SLIP #2 oriented left links with part 85's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Angle: front right

Assembly of Left Support & Distribution Riser - front_right
P30 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 37's 1" M SLIP #1, plus attach its 1" F SLIP #2 facing bottom to part 56's 1" M SLIP #2. Also, attach its 1" F SLIP #3 facing top to part 31's 1" M SLIP #2 P31 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 32's 1" F SLIP #1, and connect its 1" M SLIP #2 oriented bottom links with part 30's 1" F SLIP #3 P32 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 31's 1" M SLIP #1 P33 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 34's 1" F SLIP #1. Also, its 1" M SLIP #2, which is top-facing, should connect to part 84's 1" F SLIP #1 P34 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 33's 1" M SLIP #1. After that, its 1" F SLIP #2, which is bottom-facing, should connect to part 37's 1" M SLIP #2, plus connect its 1" F SLIP #3 oriented top links with part 35's 1" M SLIP #2 P35 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 36's 1" F SLIP #1, then attach its 1" M SLIP #2 facing bottom to part 34's 1" F SLIP #3 P36 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 35's 1" M SLIP #1 P37 (1" Tube 15.51" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 30's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 34's 1" F SLIP #2 P38 (1" Wye Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 47's 1" M SLIP #2, and attach its 1" F SLIP #2 facing bottom to part 41's 1" M SLIP #2, also connect its 1" F SLIP #3 oriented top links with part 39's 1" M SLIP #2 P39 (1" Tube 10" length) - its 1" M SLIP #1, which is top-facing, should connect to part 40's 1" F SLIP #1. Next, connect its 1" M SLIP #2 oriented bottom links with part 38's 1" F SLIP #3 P40 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 39's 1" M SLIP #1 P41 (1" Tube 15.5" length) - connect its 1" M SLIP #1 oriented bottom links with part 42's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 38's 1" F SLIP #2 P42 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 41's 1" M SLIP #1, also its 1" F SLIP #2, which is bottom-facing, should connect to part 45's 1" M SLIP #2, plus attach its 1" F SLIP #3 facing top to part 43's 1" M SLIP #2 P43 (1" Tube 10" length) - connect its 1" M SLIP #1 oriented top links with part 44's 1" F SLIP #1, then connect its 1" M SLIP #2 oriented bottom links with part 42's 1" F SLIP #3 P44 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 43's 1" M SLIP #1 P45 (1" Tube 10" length) - attach its 1" M SLIP #1 facing bottom to part 46's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing top to part 42's 1" F SLIP #2 P46 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 45's 1" M SLIP #1 P47 (1" Tube 9.6" length) - connect its 1" M SLIP #1 oriented bottom links with part 57's 1" F SLIP #1, and attach its 1" M SLIP #2 facing top to part 38's 1" F SLIP #1 P56 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #2. After that, its 1" M SLIP #2, which is top-facing, should connect to part 30's 1" F SLIP #2 P57 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 47's 1" M SLIP #1, then its 1" F SLIP #2, which is top-facing, should connect to part 56's 1" M SLIP #1. Additionally, connect its 1" F SLIP #3 oriented bottom links with part 71's 1" M SLIP #2 P71 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 72's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing top to part 57's 1" F SLIP #3 P84 (1" 90° Elbow Slip PVC ) - connect its 1" F SLIP #1 oriented bottom links with part 33's 1" M SLIP #2. Additionally, connect its 1" F SLIP #2 oriented left links with part 85's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Angle: bottom right

Assembly of Left Support & Distribution Riser - bottom_right
P30 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 37's 1" M SLIP #1, plus attach its 1" F SLIP #2 facing bottom to part 56's 1" M SLIP #2. Also, attach its 1" F SLIP #3 facing top to part 31's 1" M SLIP #2 P31 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 32's 1" F SLIP #1, and connect its 1" M SLIP #2 oriented bottom links with part 30's 1" F SLIP #3 P32 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 31's 1" M SLIP #1 P33 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 34's 1" F SLIP #1. Also, its 1" M SLIP #2, which is top-facing, should connect to part 84's 1" F SLIP #1 P34 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 33's 1" M SLIP #1. After that, its 1" F SLIP #2, which is bottom-facing, should connect to part 37's 1" M SLIP #2, plus connect its 1" F SLIP #3 oriented top links with part 35's 1" M SLIP #2 P35 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 36's 1" F SLIP #1, then attach its 1" M SLIP #2 facing bottom to part 34's 1" F SLIP #3 P36 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 35's 1" M SLIP #1 P37 (1" Tube 15.51" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 30's 1" F SLIP #1, plus its 1" M SLIP #2, which is top-facing, should connect to part 34's 1" F SLIP #2 P38 (1" Wye Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 47's 1" M SLIP #2, and attach its 1" F SLIP #2 facing bottom to part 41's 1" M SLIP #2, also connect its 1" F SLIP #3 oriented top links with part 39's 1" M SLIP #2 P39 (1" Tube 10" length) - its 1" M SLIP #1, which is top-facing, should connect to part 40's 1" F SLIP #1. Next, connect its 1" M SLIP #2 oriented bottom links with part 38's 1" F SLIP #3 P40 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 39's 1" M SLIP #1 P41 (1" Tube 15.5" length) - connect its 1" M SLIP #1 oriented bottom links with part 42's 1" F SLIP #1. Next, its 1" M SLIP #2, which is top-facing, should connect to part 38's 1" F SLIP #2 P42 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 41's 1" M SLIP #1, also its 1" F SLIP #2, which is bottom-facing, should connect to part 45's 1" M SLIP #2, plus attach its 1" F SLIP #3 facing top to part 43's 1" M SLIP #2 P43 (1" Tube 10" length) - connect its 1" M SLIP #1 oriented top links with part 44's 1" F SLIP #1, then connect its 1" M SLIP #2 oriented bottom links with part 42's 1" F SLIP #3 P44 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 43's 1" M SLIP #1 P45 (1" Tube 10" length) - attach its 1" M SLIP #1 facing bottom to part 46's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing top to part 42's 1" F SLIP #2 P46 (1" Cap Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 45's 1" M SLIP #1 P47 (1" Tube 9.6" length) - connect its 1" M SLIP #1 oriented bottom links with part 57's 1" F SLIP #1, and attach its 1" M SLIP #2 facing top to part 38's 1" F SLIP #1 P56 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 57's 1" F SLIP #2. After that, its 1" M SLIP #2, which is top-facing, should connect to part 30's 1" F SLIP #2 P57 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 47's 1" M SLIP #1, then its 1" F SLIP #2, which is top-facing, should connect to part 56's 1" M SLIP #1. Additionally, connect its 1" F SLIP #3 oriented bottom links with part 71's 1" M SLIP #2 P71 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 72's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing top to part 57's 1" F SLIP #3 P84 (1" 90° Elbow Slip PVC ) - connect its 1" F SLIP #1 oriented bottom links with part 33's 1" M SLIP #2. Additionally, connect its 1" F SLIP #2 oriented left links with part 85's 1" M SLIP #2
11" Wye Slip PVCx 5
11" Tube x 8"x 2
11" Cap Slip PVCx 5
11" Tube x 15"x 1
11" Tube x 15.51"x 1
11" Tube x 10"x 3
11" Tube x 15.5"x 1
11" Tube x 9.6"x 1
11" Tube x 3"x 2
11" 90° Elbow Slip PVC x 1

Attaching: Right Support & Distribution Riser

Forms the right vertical support structure and the corresponding water distribution lines using 1" PVC pipes.

Connect the bottom of this assembly (P74) to the Base Support Frame (P75). The top elbow (P83) will connect to the Top Frame Connector (P85).

Angle: back left

Assembly of Right Support & Distribution Riser - back_left
P48 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 49's 1" F SLIP #1. Additionally, attach its 1" M SLIP #2 facing top to part 83's 1" F SLIP #1 P49 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 48's 1" M SLIP #1, plus connect its 1" F SLIP #2 oriented bottom links with part 52's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 50's 1" M SLIP #2 P50 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 51's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented bottom links with part 49's 1" F SLIP #3 P51 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 50's 1" M SLIP #1 P52 (1" Tube 15.5" length) - attach its 1" M SLIP #1 facing bottom to part 60's 1" F SLIP #2, then its 1" M SLIP #2, which is top-facing, should connect to part 49's 1" F SLIP #2 P53 (1" Wye Slip PVC) - connect its 1" F SLIP #2 oriented bottom links with part 59's 1" M SLIP #2. Additionally, connect its 1" F SLIP #3 oriented top links with part 54's 1" M SLIP #2. Next, its 1" F SLIP #1 must be oriented top P54 (1" Tube 8.01" length) - attach its 1" M SLIP #1 facing top to part 55's 1" F SLIP #1. Next, its 1" M SLIP #2, which is bottom-facing, should connect to part 53's 1" F SLIP #3 P55 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 54's 1" M SLIP #1 P59 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 60's 1" F SLIP #2, plus its 1" M SLIP #2, which is top-facing, should connect to part 53's 1" F SLIP #2 P60 (1" Wye Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 61's 1" M SLIP #2, plus attach its 1" F SLIP #2 facing top to part 59's 1" M SLIP #1. After that, its 1" F SLIP #3, which is bottom-facing, should connect to part 74's 1" M SLIP #2 P61 (1" Tube 9.67" length) - attach its 1" M SLIP #1 facing bottom to part 62's 1" F SLIP #1, plus attach its 1" M SLIP #2 facing top to part 60's 1" F SLIP #1 P62 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 61's 1" M SLIP #1, and connect its 1" F SLIP #2 oriented bottom links with part 65's 1" M SLIP #2, plus its 1" F SLIP #3, which is top-facing, should connect to part 63's 1" M SLIP #2 P63 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 64's 1" F SLIP #1. Next, its 1" M SLIP #2, which is bottom-facing, should connect to part 62's 1" F SLIP #3 P64 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 63's 1" M SLIP #1 P65 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 66's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 62's 1" F SLIP #2 P66 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 65's 1" M SLIP #1, then attach its 1" F SLIP #2 facing bottom to part 69's 1" M SLIP #2. After that, attach its 1" F SLIP #3 facing top to part 67's 1" M SLIP #2 P67 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 68's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing bottom to part 66's 1" F SLIP #3 P68 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 67's 1" M SLIP #1 P69 (1" Tube 10" length) - connect its 1" M SLIP #1 oriented bottom links with part 70's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing top to part 66's 1" F SLIP #2 P70 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 69's 1" M SLIP #1 P74 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 75's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 60's 1" F SLIP #3 P83 (1" 90° Elbow Slip PVC ) - its 1" F SLIP #1, which is bottom-facing, should connect to part 48's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented right links with part 85's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Angle: front right

Assembly of Right Support & Distribution Riser - front_right
P48 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 49's 1" F SLIP #1. Additionally, attach its 1" M SLIP #2 facing top to part 83's 1" F SLIP #1 P49 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 48's 1" M SLIP #1, plus connect its 1" F SLIP #2 oriented bottom links with part 52's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 50's 1" M SLIP #2 P50 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 51's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented bottom links with part 49's 1" F SLIP #3 P51 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 50's 1" M SLIP #1 P52 (1" Tube 15.5" length) - attach its 1" M SLIP #1 facing bottom to part 60's 1" F SLIP #2, then its 1" M SLIP #2, which is top-facing, should connect to part 49's 1" F SLIP #2 P53 (1" Wye Slip PVC) - connect its 1" F SLIP #2 oriented bottom links with part 59's 1" M SLIP #2. Additionally, connect its 1" F SLIP #3 oriented top links with part 54's 1" M SLIP #2. Next, its 1" F SLIP #1 must be oriented top P54 (1" Tube 8.01" length) - attach its 1" M SLIP #1 facing top to part 55's 1" F SLIP #1. Next, its 1" M SLIP #2, which is bottom-facing, should connect to part 53's 1" F SLIP #3 P55 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 54's 1" M SLIP #1 P59 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 60's 1" F SLIP #2, plus its 1" M SLIP #2, which is top-facing, should connect to part 53's 1" F SLIP #2 P60 (1" Wye Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 61's 1" M SLIP #2, plus attach its 1" F SLIP #2 facing top to part 59's 1" M SLIP #1. After that, its 1" F SLIP #3, which is bottom-facing, should connect to part 74's 1" M SLIP #2 P61 (1" Tube 9.67" length) - attach its 1" M SLIP #1 facing bottom to part 62's 1" F SLIP #1, plus attach its 1" M SLIP #2 facing top to part 60's 1" F SLIP #1 P62 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 61's 1" M SLIP #1, and connect its 1" F SLIP #2 oriented bottom links with part 65's 1" M SLIP #2, plus its 1" F SLIP #3, which is top-facing, should connect to part 63's 1" M SLIP #2 P63 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 64's 1" F SLIP #1. Next, its 1" M SLIP #2, which is bottom-facing, should connect to part 62's 1" F SLIP #3 P64 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 63's 1" M SLIP #1 P65 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 66's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 62's 1" F SLIP #2 P66 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 65's 1" M SLIP #1, then attach its 1" F SLIP #2 facing bottom to part 69's 1" M SLIP #2. After that, attach its 1" F SLIP #3 facing top to part 67's 1" M SLIP #2 P67 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 68's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing bottom to part 66's 1" F SLIP #3 P68 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 67's 1" M SLIP #1 P69 (1" Tube 10" length) - connect its 1" M SLIP #1 oriented bottom links with part 70's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing top to part 66's 1" F SLIP #2 P70 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 69's 1" M SLIP #1 P74 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 75's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 60's 1" F SLIP #3 P83 (1" 90° Elbow Slip PVC ) - its 1" F SLIP #1, which is bottom-facing, should connect to part 48's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented right links with part 85's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Angle: bottom right

Assembly of Right Support & Distribution Riser - bottom_right
P48 (1" Tube 15" length) - attach its 1" M SLIP #1 facing bottom to part 49's 1" F SLIP #1. Additionally, attach its 1" M SLIP #2 facing top to part 83's 1" F SLIP #1 P49 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 48's 1" M SLIP #1, plus connect its 1" F SLIP #2 oriented bottom links with part 52's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing top to part 50's 1" M SLIP #2 P50 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 51's 1" F SLIP #1. Additionally, connect its 1" M SLIP #2 oriented bottom links with part 49's 1" F SLIP #3 P51 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 50's 1" M SLIP #1 P52 (1" Tube 15.5" length) - attach its 1" M SLIP #1 facing bottom to part 60's 1" F SLIP #2, then its 1" M SLIP #2, which is top-facing, should connect to part 49's 1" F SLIP #2 P53 (1" Wye Slip PVC) - connect its 1" F SLIP #2 oriented bottom links with part 59's 1" M SLIP #2. Additionally, connect its 1" F SLIP #3 oriented top links with part 54's 1" M SLIP #2. Next, its 1" F SLIP #1 must be oriented top P54 (1" Tube 8.01" length) - attach its 1" M SLIP #1 facing top to part 55's 1" F SLIP #1. Next, its 1" M SLIP #2, which is bottom-facing, should connect to part 53's 1" F SLIP #3 P55 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 54's 1" M SLIP #1 P59 (1" Tube 3" length) - attach its 1" M SLIP #1 facing bottom to part 60's 1" F SLIP #2, plus its 1" M SLIP #2, which is top-facing, should connect to part 53's 1" F SLIP #2 P60 (1" Wye Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 61's 1" M SLIP #2, plus attach its 1" F SLIP #2 facing top to part 59's 1" M SLIP #1. After that, its 1" F SLIP #3, which is bottom-facing, should connect to part 74's 1" M SLIP #2 P61 (1" Tube 9.67" length) - attach its 1" M SLIP #1 facing bottom to part 62's 1" F SLIP #1, plus attach its 1" M SLIP #2 facing top to part 60's 1" F SLIP #1 P62 (1" Wye Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 61's 1" M SLIP #1, and connect its 1" F SLIP #2 oriented bottom links with part 65's 1" M SLIP #2, plus its 1" F SLIP #3, which is top-facing, should connect to part 63's 1" M SLIP #2 P63 (1" Tube 8" length) - attach its 1" M SLIP #1 facing top to part 64's 1" F SLIP #1. Next, its 1" M SLIP #2, which is bottom-facing, should connect to part 62's 1" F SLIP #3 P64 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented bottom links with part 63's 1" M SLIP #1 P65 (1" Tube 15.5" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 66's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 62's 1" F SLIP #2 P66 (1" Wye Slip PVC) - attach its 1" F SLIP #1 facing top to part 65's 1" M SLIP #1, then attach its 1" F SLIP #2 facing bottom to part 69's 1" M SLIP #2. After that, attach its 1" F SLIP #3 facing top to part 67's 1" M SLIP #2 P67 (1" Tube 8" length) - connect its 1" M SLIP #1 oriented top links with part 68's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing bottom to part 66's 1" F SLIP #3 P68 (1" Cap Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 67's 1" M SLIP #1 P69 (1" Tube 10" length) - connect its 1" M SLIP #1 oriented bottom links with part 70's 1" F SLIP #1. Next, attach its 1" M SLIP #2 facing top to part 66's 1" F SLIP #2 P70 (1" Cap Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 69's 1" M SLIP #1 P74 (1" Tube 3" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 75's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented top links with part 60's 1" F SLIP #3 P83 (1" 90° Elbow Slip PVC ) - its 1" F SLIP #1, which is bottom-facing, should connect to part 48's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented right links with part 85's 1" M SLIP #1
11" Tube x 15"x 1
11" Wye Slip PVCx 5
11" Tube x 8"x 3
11" Cap Slip PVCx 5
11" Tube x 15.5"x 2
11" Tube x 8.01"x 1
11" Tube x 3"x 2
11" Tube x 9.67"x 1
11" Tube x 10"x 1
11" 90° Elbow Slip PVC x 1

Attaching: Top Frame Connector

Connects the Left and Right Support & Distribution Risers at the top.

Connect the left Male SLIP 1" of P85 to the right-facing Female SLIP 1" of P83 (Right Riser). Connect the right Male SLIP 1" of P85 to the left-facing Female SLIP 1" of P84 (Left Riser).

Angle: back left

Assembly of Top Frame Connector - back_left
P85 (1" Tube 24.25" length) - connect its 1" M SLIP #1 oriented left links with part 83's 1" F SLIP #2. Additionally, attach its 1" M SLIP #2 facing right to part 84's 1" F SLIP #2
11" Tube x 24.25"x 1

Angle: front right

Assembly of Top Frame Connector - front_right
P85 (1" Tube 24.25" length) - connect its 1" M SLIP #1 oriented left links with part 83's 1" F SLIP #2. Additionally, attach its 1" M SLIP #2 facing right to part 84's 1" F SLIP #2
11" Tube x 24.25"x 1

Angle: bottom right

Assembly of Top Frame Connector - bottom_right
P85 (1" Tube 24.25" length) - connect its 1" M SLIP #1 oriented left links with part 83's 1" F SLIP #2. Additionally, attach its 1" M SLIP #2 facing right to part 84's 1" F SLIP #2
11" Tube x 24.25"x 1

Attaching: Pump and Delivery Line

Houses the pump and the pipe delivering water to the distribution manifold.

Place the P91 pump in the water reservoir (not included). The P86 Reducer's Female SLIP 2" end will connect to the Drainage Network Assembly (P29).

Angle: back left

Assembly of Pump and Delivery Line - back_left
P86 (0.5" x 2" Reducer Slip PVC) - attach its 0.5" F SLIP #1 facing right to part 87's 0.5" M SLIP #2. Next, connect its 2" F SLIP #1 oriented left links with part 29's 2" M SLIP #1 P87 (0.5" Tube 3" length) - its 0.5" M SLIP #1, which is right-facing, should connect to part 88's 0.5" F SLIP #1, plus attach its 0.5" M SLIP #2 facing left to part 86's 0.5" F SLIP #1 P88 (0.5" 90° Elbow Slip PVC ) - connect its 0.5" F SLIP #1 oriented left links with part 87's 0.5" M SLIP #1. Also, attach its 0.5" F SLIP #2 facing bottom to part 89's 0.5" M SLIP #2 P89 (0.5" Tube 57.5" length) - attach its 0.5" M SLIP #1 facing bottom to part 90's 0.5" F SLIP #1, then connect its 0.5" M SLIP #2 oriented top links with part 88's 0.5" F SLIP #2 P90 (0.5" Adapter M Threaded PVC) - connect its 0.5" M Threaded #1 oriented bottom links with part 91's 0.5" F Threaded #1, then attach its 0.5" F SLIP #1 facing top to part 89's 0.5" M SLIP #1 P91 (0.5"” Outlet Submersible Pump 550 GPH) - its 0.5" F Threaded #1, which is top-facing, should connect to part 90's 0.5" M Threaded #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Angle: front right

Assembly of Pump and Delivery Line - front_right
P86 (0.5" x 2" Reducer Slip PVC) - attach its 0.5" F SLIP #1 facing right to part 87's 0.5" M SLIP #2. Next, connect its 2" F SLIP #1 oriented left links with part 29's 2" M SLIP #1 P87 (0.5" Tube 3" length) - its 0.5" M SLIP #1, which is right-facing, should connect to part 88's 0.5" F SLIP #1, plus attach its 0.5" M SLIP #2 facing left to part 86's 0.5" F SLIP #1 P88 (0.5" 90° Elbow Slip PVC ) - connect its 0.5" F SLIP #1 oriented left links with part 87's 0.5" M SLIP #1. Also, attach its 0.5" F SLIP #2 facing bottom to part 89's 0.5" M SLIP #2 P89 (0.5" Tube 57.5" length) - attach its 0.5" M SLIP #1 facing bottom to part 90's 0.5" F SLIP #1, then connect its 0.5" M SLIP #2 oriented top links with part 88's 0.5" F SLIP #2 P90 (0.5" Adapter M Threaded PVC) - connect its 0.5" M Threaded #1 oriented bottom links with part 91's 0.5" F Threaded #1, then attach its 0.5" F SLIP #1 facing top to part 89's 0.5" M SLIP #1 P91 (0.5"” Outlet Submersible Pump 550 GPH) - its 0.5" F Threaded #1, which is top-facing, should connect to part 90's 0.5" M Threaded #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Angle: bottom right

Assembly of Pump and Delivery Line - bottom_right
P86 (0.5" x 2" Reducer Slip PVC) - attach its 0.5" F SLIP #1 facing right to part 87's 0.5" M SLIP #2. Next, connect its 2" F SLIP #1 oriented left links with part 29's 2" M SLIP #1 P87 (0.5" Tube 3" length) - its 0.5" M SLIP #1, which is right-facing, should connect to part 88's 0.5" F SLIP #1, plus attach its 0.5" M SLIP #2 facing left to part 86's 0.5" F SLIP #1 P88 (0.5" 90° Elbow Slip PVC ) - connect its 0.5" F SLIP #1 oriented left links with part 87's 0.5" M SLIP #1. Also, attach its 0.5" F SLIP #2 facing bottom to part 89's 0.5" M SLIP #2 P89 (0.5" Tube 57.5" length) - attach its 0.5" M SLIP #1 facing bottom to part 90's 0.5" F SLIP #1, then connect its 0.5" M SLIP #2 oriented top links with part 88's 0.5" F SLIP #2 P90 (0.5" Adapter M Threaded PVC) - connect its 0.5" M Threaded #1 oriented bottom links with part 91's 0.5" F Threaded #1, then attach its 0.5" F SLIP #1 facing top to part 89's 0.5" M SLIP #1 P91 (0.5"” Outlet Submersible Pump 550 GPH) - its 0.5" F Threaded #1, which is top-facing, should connect to part 90's 0.5" M Threaded #1
1/21/2" x 2" Reducer Slip PVCx 1
1/21/2" Tube x 3"x 1
1/21/2" 90° Elbow Slip PVC x 1
1/21/2" Tube x 57.5"x 1
1/21/2" Adapter Male Threaded PVCx 1
1/2” Outlet Submersible Pump 550 GPH1/2” Outlet Submersible Pump 550 GPHx 1

Attaching: Tower 1 Assembly (Leftmost)

Forms the leftmost vertical growing tower using 4" PVC pipe and connectors.

Mount this tower onto the support frame. The reducers (P2, P4) will connect to the Drainage Network Assembly.

Angle: back left

Assembly of Tower 1 Assembly (Leftmost) - back_left
P1 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 98's 4" DWV F #2, also connect its 4" M SLIP #2 oriented right links with part 99's 4" DWV F #2 P2 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented right links with part 3's 2" M SLIP #2. Additionally, attach its 4" M SLIP #1 facing left to part 99's 4" DWV F #1 P4 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented left links with part 5's 2" M SLIP #2. Additionally, its 4" M SLIP #1, which is right-facing, should connect to part 98's 4" DWV F #1 P98 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing left to part 4's 4" M SLIP #1. Also, attach its 4" DWV F #2 facing right to part 1's 4" M SLIP #1 P99 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 2's 4" M SLIP #1, also attach its 4" DWV F #2 facing left to part 1's 4" M SLIP #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: front right

Assembly of Tower 1 Assembly (Leftmost) - front_right
P1 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 98's 4" DWV F #2, also connect its 4" M SLIP #2 oriented right links with part 99's 4" DWV F #2 P2 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented right links with part 3's 2" M SLIP #2. Additionally, attach its 4" M SLIP #1 facing left to part 99's 4" DWV F #1 P4 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented left links with part 5's 2" M SLIP #2. Additionally, its 4" M SLIP #1, which is right-facing, should connect to part 98's 4" DWV F #1 P98 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing left to part 4's 4" M SLIP #1. Also, attach its 4" DWV F #2 facing right to part 1's 4" M SLIP #1 P99 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 2's 4" M SLIP #1, also attach its 4" DWV F #2 facing left to part 1's 4" M SLIP #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: bottom right

Assembly of Tower 1 Assembly (Leftmost) - bottom_right
P1 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 98's 4" DWV F #2, also connect its 4" M SLIP #2 oriented right links with part 99's 4" DWV F #2 P2 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented right links with part 3's 2" M SLIP #2. Additionally, attach its 4" M SLIP #1 facing left to part 99's 4" DWV F #1 P4 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented left links with part 5's 2" M SLIP #2. Additionally, its 4" M SLIP #1, which is right-facing, should connect to part 98's 4" DWV F #1 P98 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing left to part 4's 4" M SLIP #1. Also, attach its 4" DWV F #2 facing right to part 1's 4" M SLIP #1 P99 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 2's 4" M SLIP #1, also attach its 4" DWV F #2 facing left to part 1's 4" M SLIP #2
44" Hydroponic Pipe PVCx 1
22" x 4" Reducer Slip PVCx 2
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Attaching: Tower 2 Assembly (Middle-Left)

Forms the middle-left vertical growing tower using 4" PVC pipe and connectors.

Mount this tower onto the support frame. The reducers (P10, P12) will connect to the Drainage Network Assembly.

Angle: back left

Assembly of Tower 2 Assembly (Middle-Left) - back_left
P10 (2" x 4" Reducer Slip PVC) - its 2" F SLIP #1, which is left-facing, should connect to part 9's 2" M SLIP #1, then its 4" M SLIP #1, which is right-facing, should connect to part 96's 4" DWV F #1 P11 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 96's 4" DWV F #2. Additionally, connect its 4" M SLIP #2 oriented right links with part 97's 4" DWV F #2 P12 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented right links with part 13's 2" M SLIP #2, and attach its 4" M SLIP #1 facing left to part 97's 4" DWV F #1 P96 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 10's 4" M SLIP #1, plus its 4" DWV F #2, which is right-facing, should connect to part 11's 4" M SLIP #1 P97 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 12's 4" M SLIP #1. Next, attach its 4" DWV F #2 facing left to part 11's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: front right

Assembly of Tower 2 Assembly (Middle-Left) - front_right
P10 (2" x 4" Reducer Slip PVC) - its 2" F SLIP #1, which is left-facing, should connect to part 9's 2" M SLIP #1, then its 4" M SLIP #1, which is right-facing, should connect to part 96's 4" DWV F #1 P11 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 96's 4" DWV F #2. Additionally, connect its 4" M SLIP #2 oriented right links with part 97's 4" DWV F #2 P12 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented right links with part 13's 2" M SLIP #2, and attach its 4" M SLIP #1 facing left to part 97's 4" DWV F #1 P96 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 10's 4" M SLIP #1, plus its 4" DWV F #2, which is right-facing, should connect to part 11's 4" M SLIP #1 P97 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 12's 4" M SLIP #1. Next, attach its 4" DWV F #2 facing left to part 11's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: bottom right

Assembly of Tower 2 Assembly (Middle-Left) - bottom_right
P10 (2" x 4" Reducer Slip PVC) - its 2" F SLIP #1, which is left-facing, should connect to part 9's 2" M SLIP #1, then its 4" M SLIP #1, which is right-facing, should connect to part 96's 4" DWV F #1 P11 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 96's 4" DWV F #2. Additionally, connect its 4" M SLIP #2 oriented right links with part 97's 4" DWV F #2 P12 (2" x 4" Reducer Slip PVC) - connect its 2" F SLIP #1 oriented right links with part 13's 2" M SLIP #2, and attach its 4" M SLIP #1 facing left to part 97's 4" DWV F #1 P96 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 10's 4" M SLIP #1, plus its 4" DWV F #2, which is right-facing, should connect to part 11's 4" M SLIP #1 P97 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented right links with part 12's 4" M SLIP #1. Next, attach its 4" DWV F #2 facing left to part 11's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Attaching: Tower 3 Assembly (Middle-Right)

Forms the middle-right vertical growing tower using 4" PVC pipe and connectors.

Mount this tower onto the support frame. The reducers (P18, P20) will connect to the Drainage Network Assembly.

Angle: back left

Assembly of Tower 3 Assembly (Middle-Right) - back_left
P18 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing right to part 17's 2" M SLIP #1. After that, attach its 4" M SLIP #1 facing left to part 95's 4" DWV F #1 P19 (4" Hydroponic Pipe PVC) - attach its 4" M SLIP #1 facing right to part 95's 4" DWV F #2, plus connect its 4" M SLIP #2 oriented left links with part 94's 4" DWV F #2 P20 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing left to part 21's 2" M SLIP #2. Also, attach its 4" M SLIP #1 facing right to part 94's 4" DWV F #1 P94 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 20's 4" M SLIP #1, and connect its 4" DWV F #2 oriented right links with part 19's 4" M SLIP #2 P95 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing right to part 18's 4" M SLIP #1. Also, attach its 4" DWV F #2 facing left to part 19's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: front right

Assembly of Tower 3 Assembly (Middle-Right) - front_right
P18 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing right to part 17's 2" M SLIP #1. After that, attach its 4" M SLIP #1 facing left to part 95's 4" DWV F #1 P19 (4" Hydroponic Pipe PVC) - attach its 4" M SLIP #1 facing right to part 95's 4" DWV F #2, plus connect its 4" M SLIP #2 oriented left links with part 94's 4" DWV F #2 P20 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing left to part 21's 2" M SLIP #2. Also, attach its 4" M SLIP #1 facing right to part 94's 4" DWV F #1 P94 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 20's 4" M SLIP #1, and connect its 4" DWV F #2 oriented right links with part 19's 4" M SLIP #2 P95 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing right to part 18's 4" M SLIP #1. Also, attach its 4" DWV F #2 facing left to part 19's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: bottom right

Assembly of Tower 3 Assembly (Middle-Right) - bottom_right
P18 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing right to part 17's 2" M SLIP #1. After that, attach its 4" M SLIP #1 facing left to part 95's 4" DWV F #1 P19 (4" Hydroponic Pipe PVC) - attach its 4" M SLIP #1 facing right to part 95's 4" DWV F #2, plus connect its 4" M SLIP #2 oriented left links with part 94's 4" DWV F #2 P20 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing left to part 21's 2" M SLIP #2. Also, attach its 4" M SLIP #1 facing right to part 94's 4" DWV F #1 P94 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 20's 4" M SLIP #1, and connect its 4" DWV F #2 oriented right links with part 19's 4" M SLIP #2 P95 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing right to part 18's 4" M SLIP #1. Also, attach its 4" DWV F #2 facing left to part 19's 4" M SLIP #1
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Attaching: Tower 4 Assembly (Rightmost)

Forms the rightmost vertical growing tower using 4" PVC pipe and connectors.

Mount this tower onto the support frame. The reducers (P26, P28) will connect to the Drainage Network Assembly.

Angle: back left

Assembly of Tower 4 Assembly (Rightmost) - back_left
P26 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing left to part 25's 2" M SLIP #1, and attach its 4" M SLIP #1 facing right to part 92's 4" DWV F #1 P27 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 92's 4" DWV F #2, then attach its 4" M SLIP #2 facing right to part 93's 4" DWV F #2 P28 (2" x 4" Reducer Slip PVC) - its 2" F SLIP #1, which is right-facing, should connect to part 29's 2" M SLIP #2, plus attach its 4" M SLIP #1 facing left to part 93's 4" DWV F #1 P92 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 26's 4" M SLIP #1. Also, connect its 4" DWV F #2 oriented right links with part 27's 4" M SLIP #1 P93 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing right to part 28's 4" M SLIP #1. Also, connect its 4" DWV F #2 oriented left links with part 27's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: front right

Assembly of Tower 4 Assembly (Rightmost) - front_right
P26 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing left to part 25's 2" M SLIP #1, and attach its 4" M SLIP #1 facing right to part 92's 4" DWV F #1 P27 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 92's 4" DWV F #2, then attach its 4" M SLIP #2 facing right to part 93's 4" DWV F #2 P28 (2" x 4" Reducer Slip PVC) - its 2" F SLIP #1, which is right-facing, should connect to part 29's 2" M SLIP #2, plus attach its 4" M SLIP #1 facing left to part 93's 4" DWV F #1 P92 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 26's 4" M SLIP #1. Also, connect its 4" DWV F #2 oriented right links with part 27's 4" M SLIP #1 P93 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing right to part 28's 4" M SLIP #1. Also, connect its 4" DWV F #2 oriented left links with part 27's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Angle: bottom right

Assembly of Tower 4 Assembly (Rightmost) - bottom_right
P26 (2" x 4" Reducer Slip PVC) - attach its 2" F SLIP #1 facing left to part 25's 2" M SLIP #1, and attach its 4" M SLIP #1 facing right to part 92's 4" DWV F #1 P27 (4" Hydroponic Pipe PVC) - its 4" M SLIP #1, which is left-facing, should connect to part 92's 4" DWV F #2, then attach its 4" M SLIP #2 facing right to part 93's 4" DWV F #2 P28 (2" x 4" Reducer Slip PVC) - its 2" F SLIP #1, which is right-facing, should connect to part 29's 2" M SLIP #2, plus attach its 4" M SLIP #1 facing left to part 93's 4" DWV F #1 P92 (4¨ Repair Coupling H x H - PVC DWV) - connect its 4" DWV F #1 oriented left links with part 26's 4" M SLIP #1. Also, connect its 4" DWV F #2 oriented right links with part 27's 4" M SLIP #1 P93 (4¨ Repair Coupling H x H - PVC DWV) - attach its 4" DWV F #1 facing right to part 28's 4" M SLIP #1. Also, connect its 4" DWV F #2 oriented left links with part 27's 4" M SLIP #2
22" x 4" Reducer Slip PVCx 2
44" Hydroponic Pipe PVCx 1
4¨ Repair Coupling H x H - PVC DWV4¨ Repair Coupling H x H - PVC DWVx 2

Attaching: Drainage Network Assembly

Connects the bottom of the towers using 2" PVC pipes to collect water and channel it, likely back towards the pump/reservoir.

Connect the Female SLIP 2" ends of the tower reducers (P2, P4, P10, P12, P18, P20, P26, P28 from Tower Assemblies) to the corresponding inputs on this drainage network (P3, P5, P9, P13, P17, P21, P25, P29). Ensure the connection to the Pump Assembly via P86/P29 is secure.

Angle: back left

Assembly of Drainage Network Assembly - back_left
P3 (2" Tube 3" length) - attach its 2" M SLIP #1 facing right to part 79's 2" F SLIP #1. Also, attach its 2" M SLIP #2 facing left to part 2's 2" F SLIP #1 P5 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 6's 2" F SLIP #1, plus connect its 2" M SLIP #2 oriented right links with part 4's 2" F SLIP #1 P6 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented right links with part 5's 2" M SLIP #1, also connect its 2" F SLIP #2 oriented top links with part 7's 2" M SLIP #2 P7 (2" Tube 15" length) - its 2" M SLIP #1, which is bottom-facing, should connect to part 8's 2" F SLIP #1, also attach its 2" M SLIP #2 facing top to part 6's 2" F SLIP #2 P8 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 7's 2" M SLIP #1, plus connect its 2" F SLIP #2 oriented right links with part 9's 2" M SLIP #2 P9 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 10's 2" F SLIP #1, also attach its 2" M SLIP #2 facing left to part 8's 2" F SLIP #2 P13 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 14's 2" F SLIP #1. After that, its 2" M SLIP #2, which is left-facing, should connect to part 12's 2" F SLIP #1 P14 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is left-facing, should connect to part 13's 2" M SLIP #1, then its 2" F SLIP #2, which is top-facing, should connect to part 15's 2" M SLIP #2 P15 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 16's 2" F SLIP #1. Additionally, connect its 2" M SLIP #2 oriented bottom links with part 14's 2" F SLIP #2 P16 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is bottom-facing, should connect to part 15's 2" M SLIP #1, also its 2" F SLIP #2, which is left-facing, should connect to part 17's 2" M SLIP #2 P17 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 18's 2" F SLIP #1. Additionally, attach its 2" M SLIP #2 facing right to part 16's 2" F SLIP #2 P21 (2" Tube 3" length) - attach its 2" M SLIP #1 facing left to part 22's 2" F SLIP #1, and attach its 2" M SLIP #2 facing right to part 20's 2" F SLIP #1 P22 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing right to part 21's 2" M SLIP #1. Additionally, its 2" F SLIP #2, which is top-facing, should connect to part 23's 2" M SLIP #2 P23 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 24's 2" F SLIP #1, and attach its 2" M SLIP #2 facing bottom to part 22's 2" F SLIP #2 P24 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented bottom links with part 23's 2" M SLIP #1, and its 2" F SLIP #2, which is right-facing, should connect to part 25's 2" M SLIP #2 P25 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 26's 2" F SLIP #1. After that, attach its 2" M SLIP #2 facing left to part 24's 2" F SLIP #2 P29 (2" Tube 3" length) - its 2" M SLIP #1, which is right-facing, should connect to part 86's 2" F SLIP #1, plus attach its 2" M SLIP #2 facing left to part 28's 2" F SLIP #1 P79 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 3's 2" M SLIP #1. After that, attach its 2" F SLIP #2 facing bottom to part 80's 2" M SLIP #2 P80 (2" Tube 13.8" length) - attach its 2" M SLIP #1 facing bottom to part 81's 2" F SLIP #1, also connect its 2" M SLIP #2 oriented top links with part 79's 2" F SLIP #2 P81 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented top links with part 80's 2" M SLIP #1, then connect its 2" F SLIP #2 oriented right links with part 82's 2" M SLIP #2 P82 (2" Tube 5" length) - its 2" M SLIP #2, which is left-facing, should connect to part 81's 2" F SLIP #2. After that, ensure its 2" M SLIP #1 faces right
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Angle: front right

Assembly of Drainage Network Assembly - front_right
P3 (2" Tube 3" length) - attach its 2" M SLIP #1 facing right to part 79's 2" F SLIP #1. Also, attach its 2" M SLIP #2 facing left to part 2's 2" F SLIP #1 P5 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 6's 2" F SLIP #1, plus connect its 2" M SLIP #2 oriented right links with part 4's 2" F SLIP #1 P6 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented right links with part 5's 2" M SLIP #1, also connect its 2" F SLIP #2 oriented top links with part 7's 2" M SLIP #2 P7 (2" Tube 15" length) - its 2" M SLIP #1, which is bottom-facing, should connect to part 8's 2" F SLIP #1, also attach its 2" M SLIP #2 facing top to part 6's 2" F SLIP #2 P8 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 7's 2" M SLIP #1, plus connect its 2" F SLIP #2 oriented right links with part 9's 2" M SLIP #2 P9 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 10's 2" F SLIP #1, also attach its 2" M SLIP #2 facing left to part 8's 2" F SLIP #2 P13 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 14's 2" F SLIP #1. After that, its 2" M SLIP #2, which is left-facing, should connect to part 12's 2" F SLIP #1 P14 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is left-facing, should connect to part 13's 2" M SLIP #1, then its 2" F SLIP #2, which is top-facing, should connect to part 15's 2" M SLIP #2 P15 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 16's 2" F SLIP #1. Additionally, connect its 2" M SLIP #2 oriented bottom links with part 14's 2" F SLIP #2 P16 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is bottom-facing, should connect to part 15's 2" M SLIP #1, also its 2" F SLIP #2, which is left-facing, should connect to part 17's 2" M SLIP #2 P17 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 18's 2" F SLIP #1. Additionally, attach its 2" M SLIP #2 facing right to part 16's 2" F SLIP #2 P21 (2" Tube 3" length) - attach its 2" M SLIP #1 facing left to part 22's 2" F SLIP #1, and attach its 2" M SLIP #2 facing right to part 20's 2" F SLIP #1 P22 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing right to part 21's 2" M SLIP #1. Additionally, its 2" F SLIP #2, which is top-facing, should connect to part 23's 2" M SLIP #2 P23 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 24's 2" F SLIP #1, and attach its 2" M SLIP #2 facing bottom to part 22's 2" F SLIP #2 P24 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented bottom links with part 23's 2" M SLIP #1, and its 2" F SLIP #2, which is right-facing, should connect to part 25's 2" M SLIP #2 P25 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 26's 2" F SLIP #1. After that, attach its 2" M SLIP #2 facing left to part 24's 2" F SLIP #2 P29 (2" Tube 3" length) - its 2" M SLIP #1, which is right-facing, should connect to part 86's 2" F SLIP #1, plus attach its 2" M SLIP #2 facing left to part 28's 2" F SLIP #1 P79 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 3's 2" M SLIP #1. After that, attach its 2" F SLIP #2 facing bottom to part 80's 2" M SLIP #2 P80 (2" Tube 13.8" length) - attach its 2" M SLIP #1 facing bottom to part 81's 2" F SLIP #1, also connect its 2" M SLIP #2 oriented top links with part 79's 2" F SLIP #2 P81 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented top links with part 80's 2" M SLIP #1, then connect its 2" F SLIP #2 oriented right links with part 82's 2" M SLIP #2 P82 (2" Tube 5" length) - its 2" M SLIP #2, which is left-facing, should connect to part 81's 2" F SLIP #2. After that, ensure its 2" M SLIP #1 faces right
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1

Angle: bottom right

Assembly of Drainage Network Assembly - bottom_right
P3 (2" Tube 3" length) - attach its 2" M SLIP #1 facing right to part 79's 2" F SLIP #1. Also, attach its 2" M SLIP #2 facing left to part 2's 2" F SLIP #1 P5 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 6's 2" F SLIP #1, plus connect its 2" M SLIP #2 oriented right links with part 4's 2" F SLIP #1 P6 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented right links with part 5's 2" M SLIP #1, also connect its 2" F SLIP #2 oriented top links with part 7's 2" M SLIP #2 P7 (2" Tube 15" length) - its 2" M SLIP #1, which is bottom-facing, should connect to part 8's 2" F SLIP #1, also attach its 2" M SLIP #2 facing top to part 6's 2" F SLIP #2 P8 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing bottom to part 7's 2" M SLIP #1, plus connect its 2" F SLIP #2 oriented right links with part 9's 2" M SLIP #2 P9 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 10's 2" F SLIP #1, also attach its 2" M SLIP #2 facing left to part 8's 2" F SLIP #2 P13 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 14's 2" F SLIP #1. After that, its 2" M SLIP #2, which is left-facing, should connect to part 12's 2" F SLIP #1 P14 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is left-facing, should connect to part 13's 2" M SLIP #1, then its 2" F SLIP #2, which is top-facing, should connect to part 15's 2" M SLIP #2 P15 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 16's 2" F SLIP #1. Additionally, connect its 2" M SLIP #2 oriented bottom links with part 14's 2" F SLIP #2 P16 (2" 90° Elbow Slip PVC ) - its 2" F SLIP #1, which is bottom-facing, should connect to part 15's 2" M SLIP #1, also its 2" F SLIP #2, which is left-facing, should connect to part 17's 2" M SLIP #2 P17 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented left links with part 18's 2" F SLIP #1. Additionally, attach its 2" M SLIP #2 facing right to part 16's 2" F SLIP #2 P21 (2" Tube 3" length) - attach its 2" M SLIP #1 facing left to part 22's 2" F SLIP #1, and attach its 2" M SLIP #2 facing right to part 20's 2" F SLIP #1 P22 (2" 90° Elbow Slip PVC ) - attach its 2" F SLIP #1 facing right to part 21's 2" M SLIP #1. Additionally, its 2" F SLIP #2, which is top-facing, should connect to part 23's 2" M SLIP #2 P23 (2" Tube 15" length) - its 2" M SLIP #1, which is top-facing, should connect to part 24's 2" F SLIP #1, and attach its 2" M SLIP #2 facing bottom to part 22's 2" F SLIP #2 P24 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented bottom links with part 23's 2" M SLIP #1, and its 2" F SLIP #2, which is right-facing, should connect to part 25's 2" M SLIP #2 P25 (2" Tube 3" length) - connect its 2" M SLIP #1 oriented right links with part 26's 2" F SLIP #1. After that, attach its 2" M SLIP #2 facing left to part 24's 2" F SLIP #2 P29 (2" Tube 3" length) - its 2" M SLIP #1, which is right-facing, should connect to part 86's 2" F SLIP #1, plus attach its 2" M SLIP #2 facing left to part 28's 2" F SLIP #1 P79 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented left links with part 3's 2" M SLIP #1. After that, attach its 2" F SLIP #2 facing bottom to part 80's 2" M SLIP #2 P80 (2" Tube 13.8" length) - attach its 2" M SLIP #1 facing bottom to part 81's 2" F SLIP #1, also connect its 2" M SLIP #2 oriented top links with part 79's 2" F SLIP #2 P81 (2" 90° Elbow Slip PVC ) - connect its 2" F SLIP #1 oriented top links with part 80's 2" M SLIP #1, then connect its 2" F SLIP #2 oriented right links with part 82's 2" M SLIP #2 P82 (2" Tube 5" length) - its 2" M SLIP #2, which is left-facing, should connect to part 81's 2" F SLIP #2. After that, ensure its 2" M SLIP #1 faces right
22" Tube x 3"x 8
22" 90° Elbow Slip PVC x 8
22" Tube x 15"x 3
22" Tube x 13.8"x 1
22" Tube x 5"x 1
