Compact Workstation - Comprehensive Assembly Plan And Visual Guide

Compact Workstation Free Plan And Visual Guide

A mobile workstation built with T-slot aluminum extrusions. It features a wheeled base, a main vertical frame, a central drawer assembly with an acrylic panel, and a top vertical extension possibly for mounting equipment. - Compact Mobile Workstation/CartA tall, mobile workstation built from T-slot aluminum extrusions. It features a wheeled base, a main vertical tower, an upper shelf, and a lower tray/drawer assembly with an acrylic base. - Compact Workstation

Phase 1: Group Overview

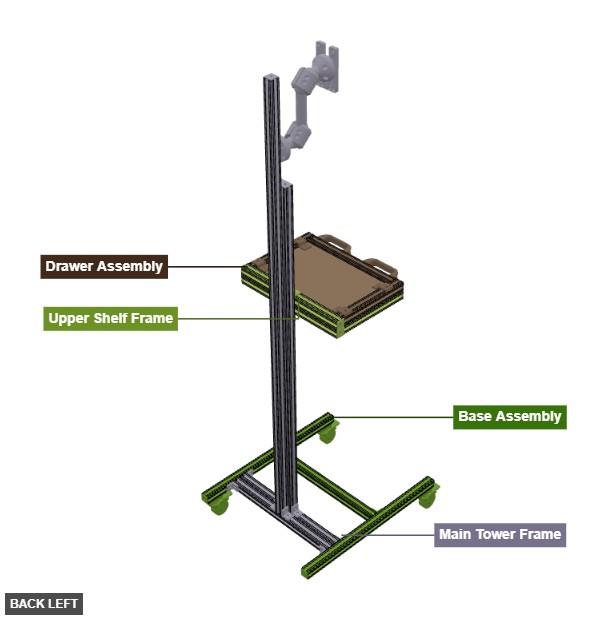

Angle: back left

Compact Workstation - Overview back_left
Base Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

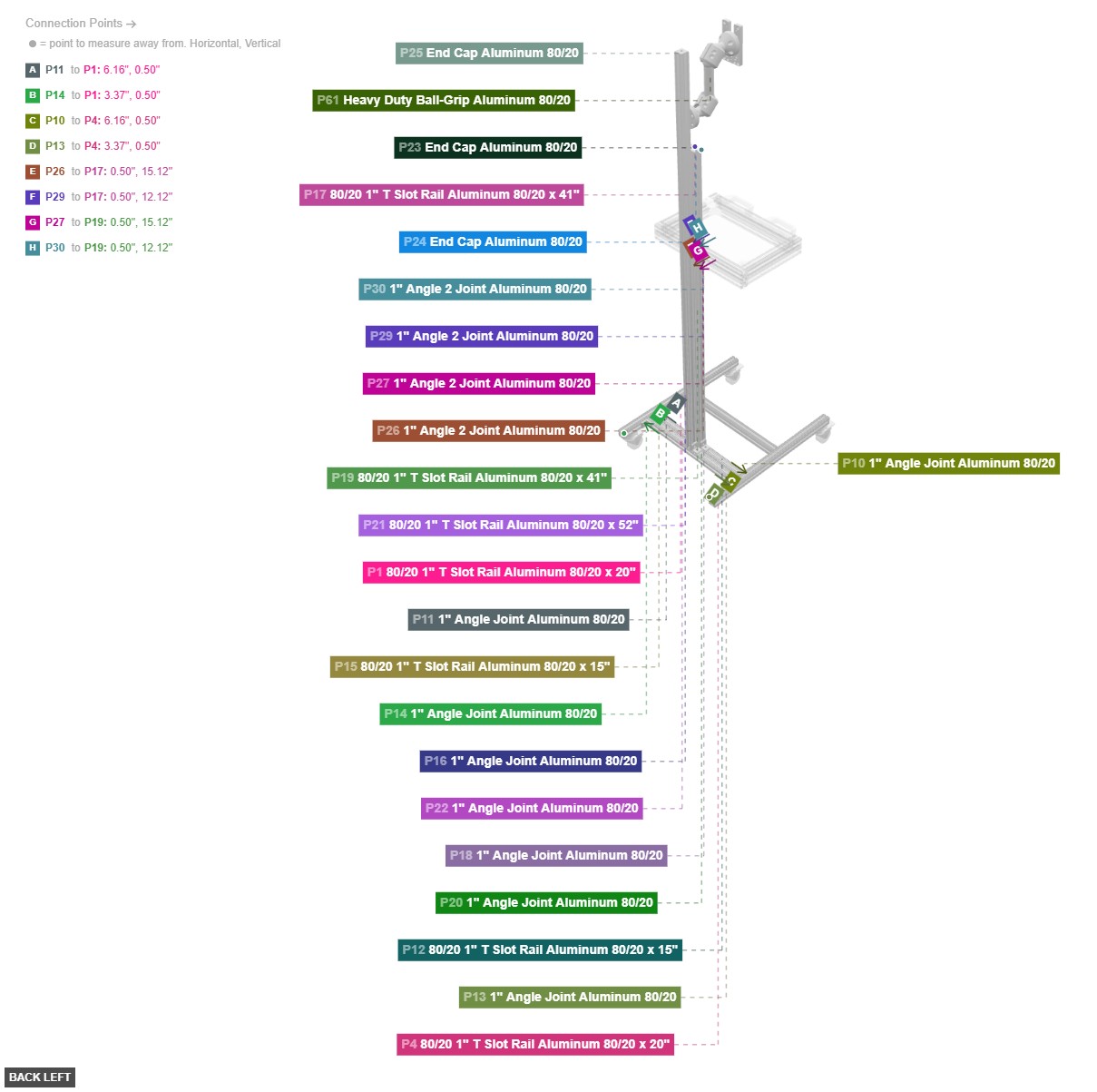

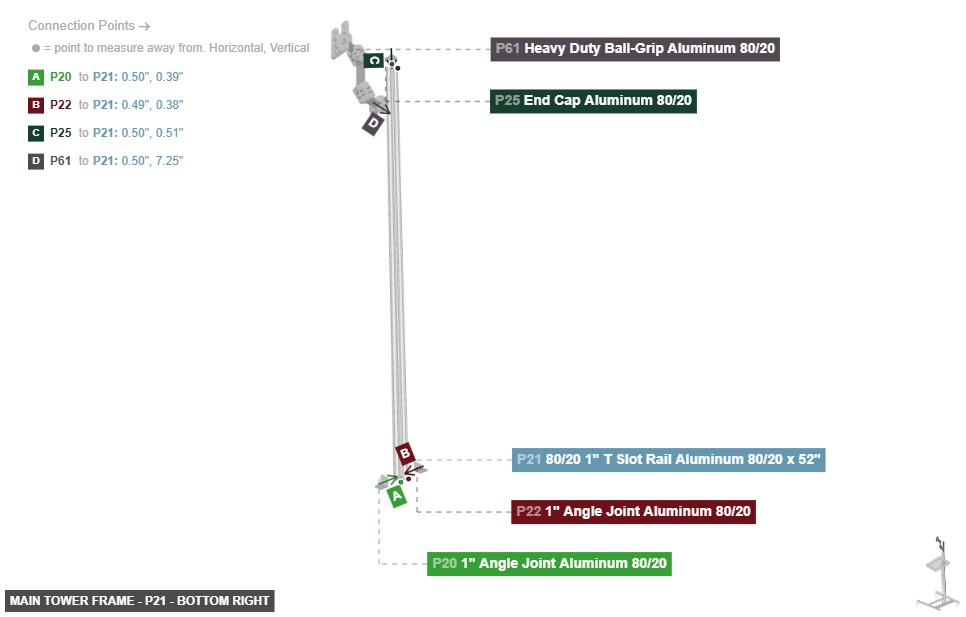

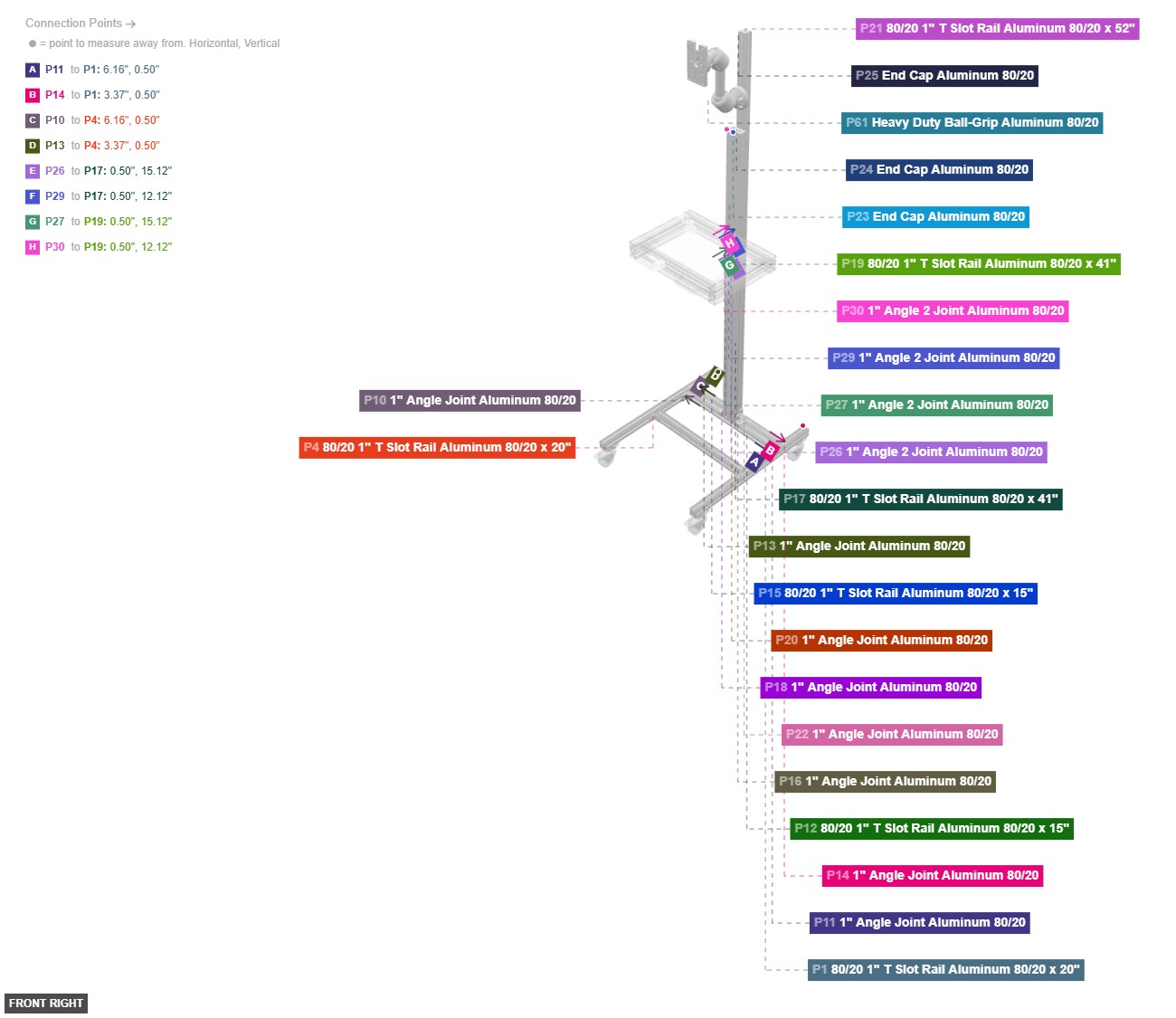

Main Tower Frame
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

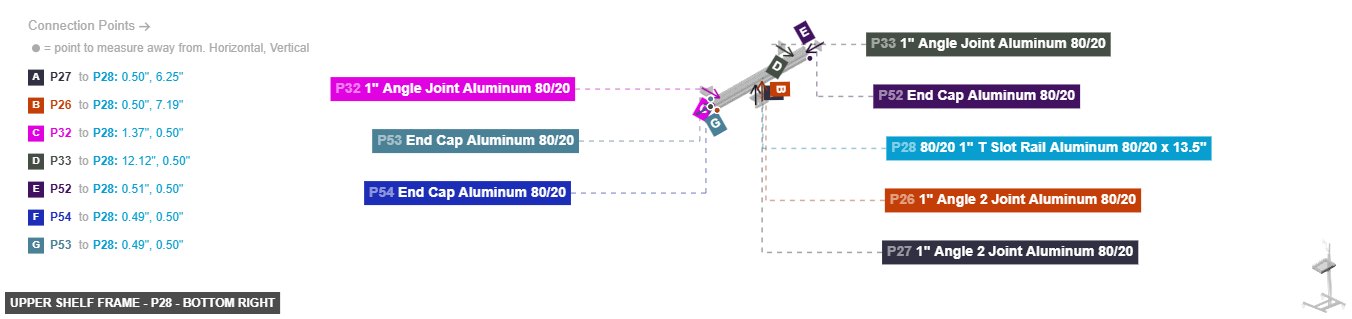

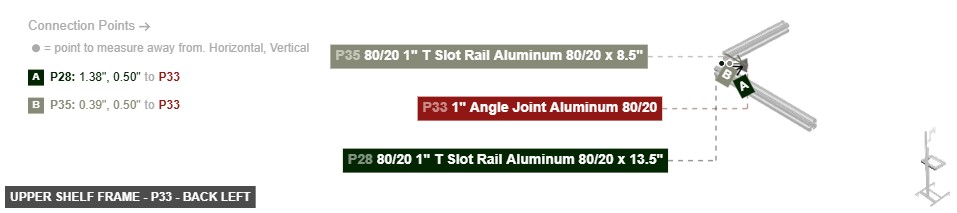

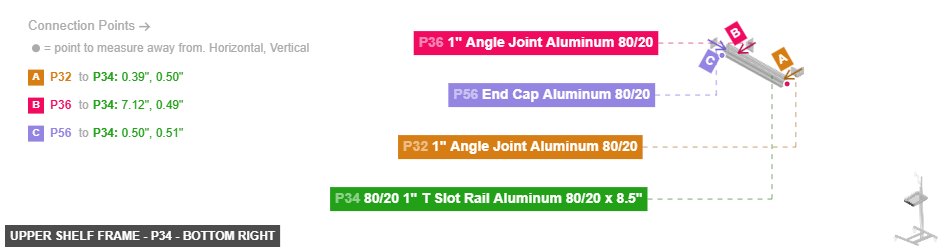

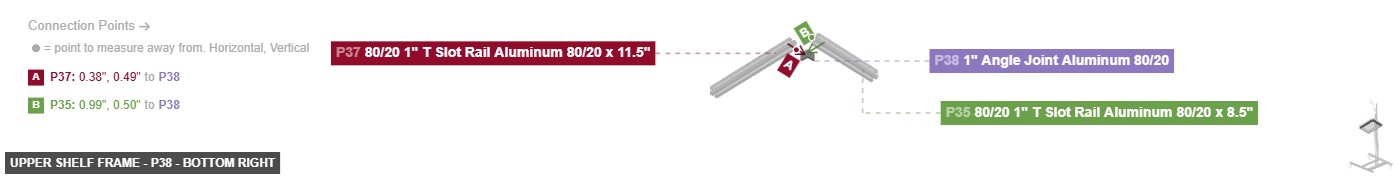

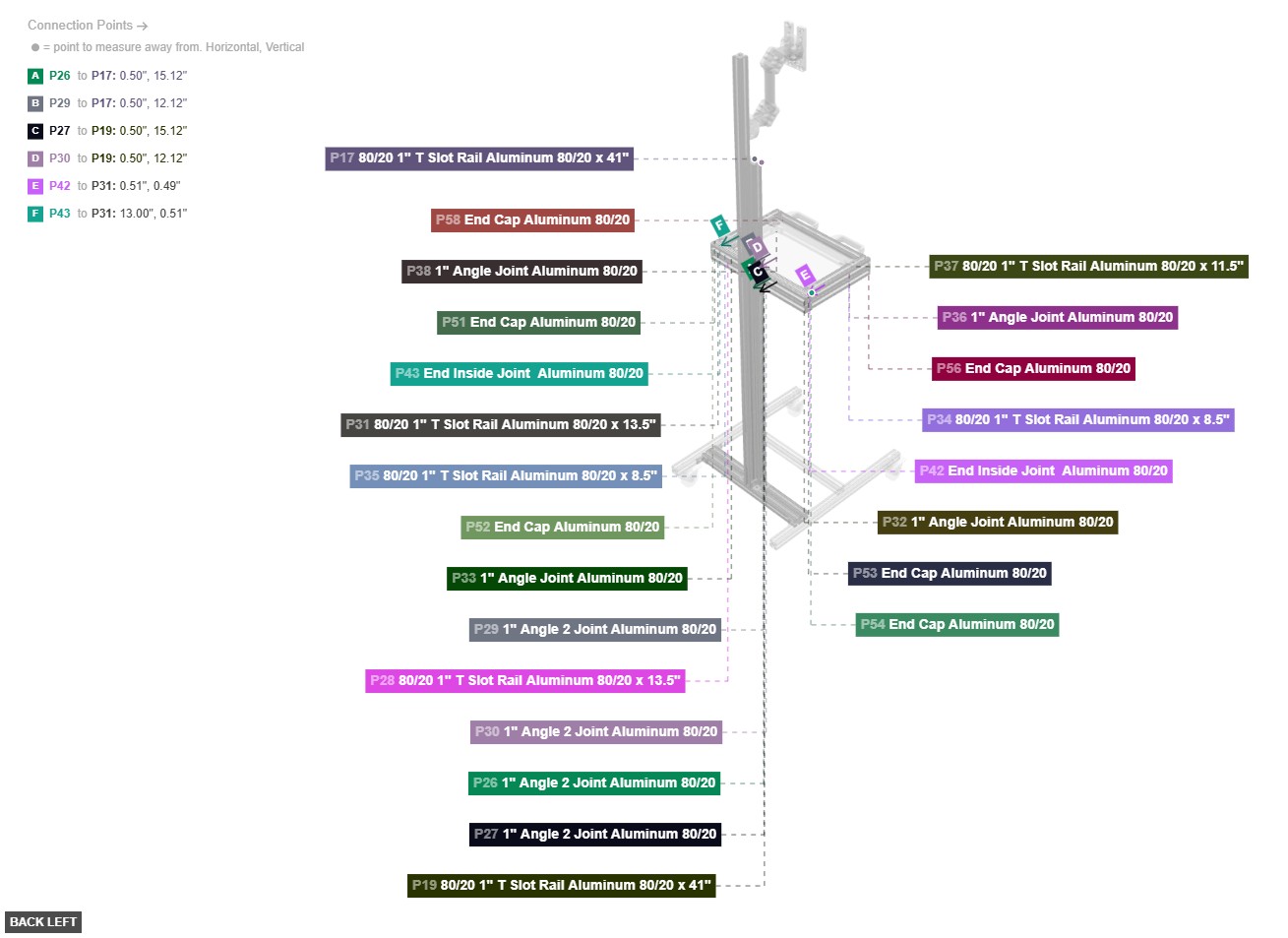

Upper Shelf Frame
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

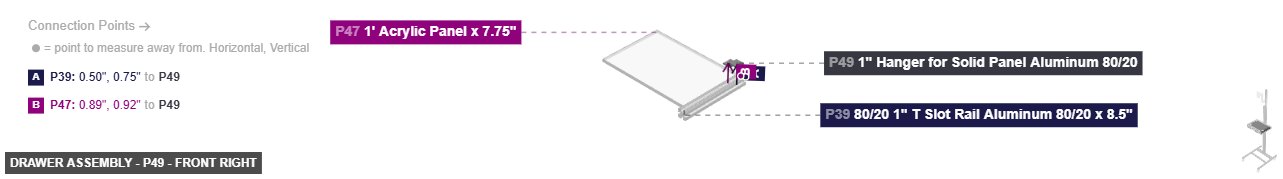

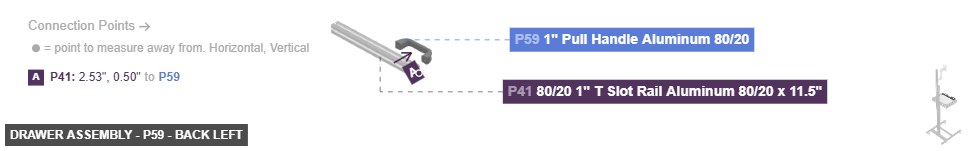

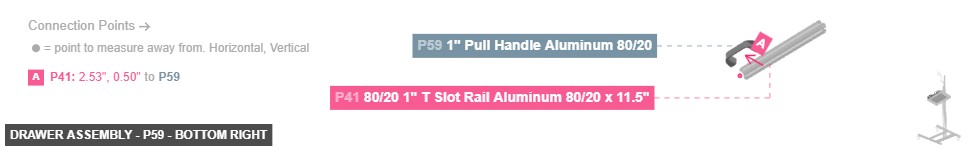

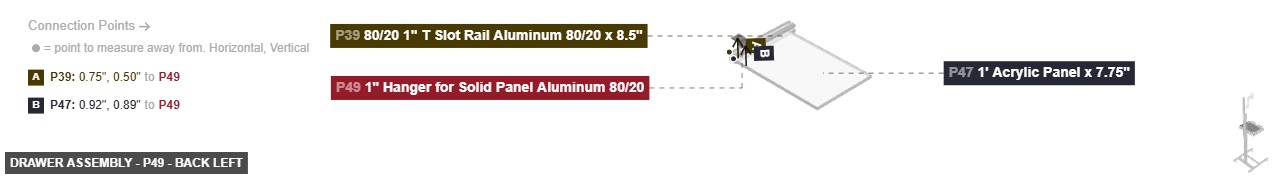

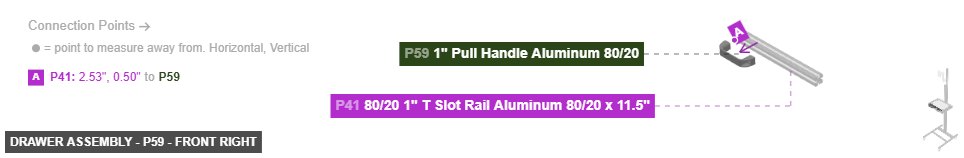

Drawer Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Angle: front right

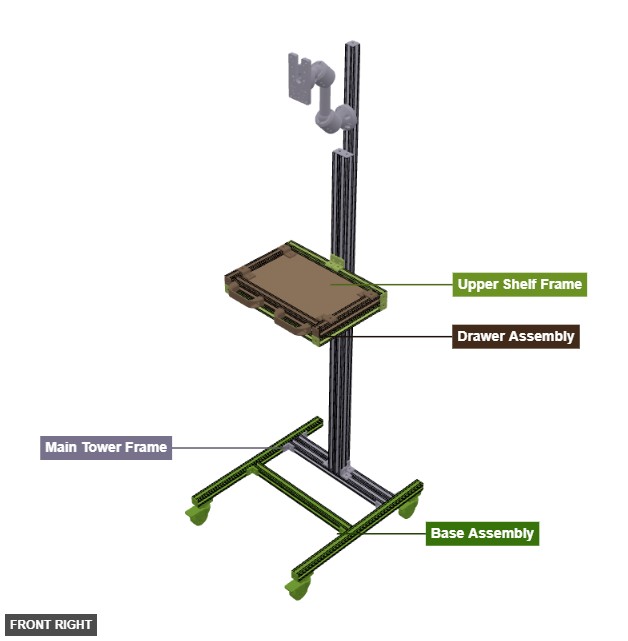

Compact Workstation - Overview front_right
Base Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3
Main Tower Frame
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1
Upper Shelf Frame
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
Drawer Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

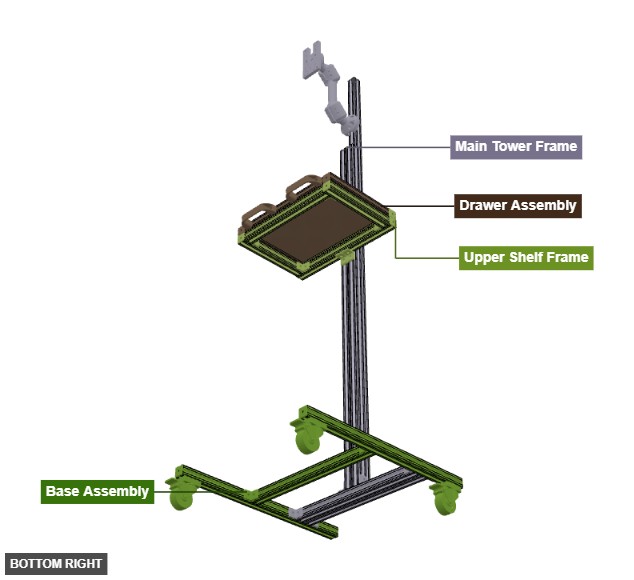

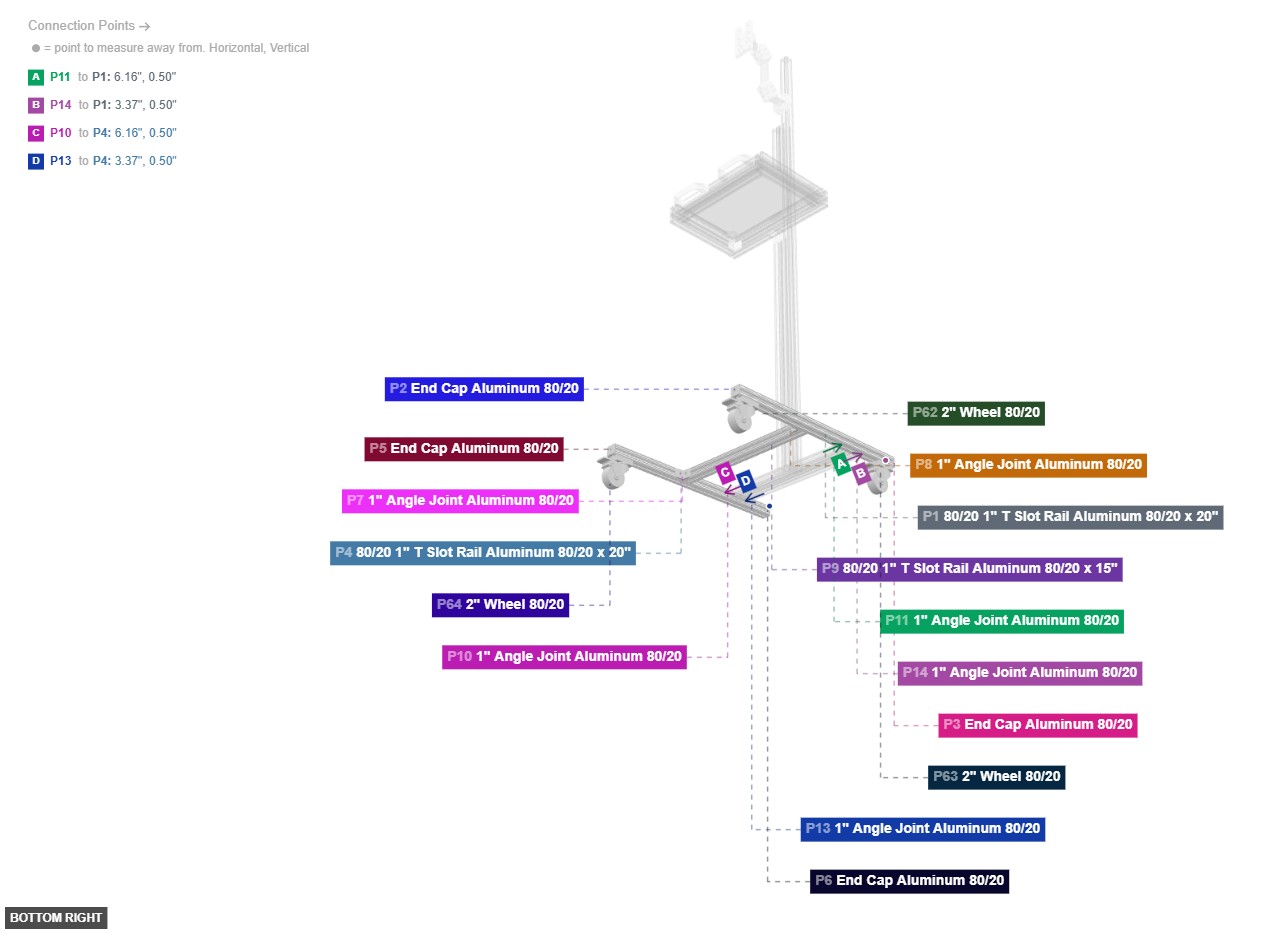

Angle: bottom right

Compact Workstation - Overview bottom_right
Base Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3
Main Tower Frame
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1
Upper Shelf Frame
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
Drawer Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Phase 2: Individual Group Assembly

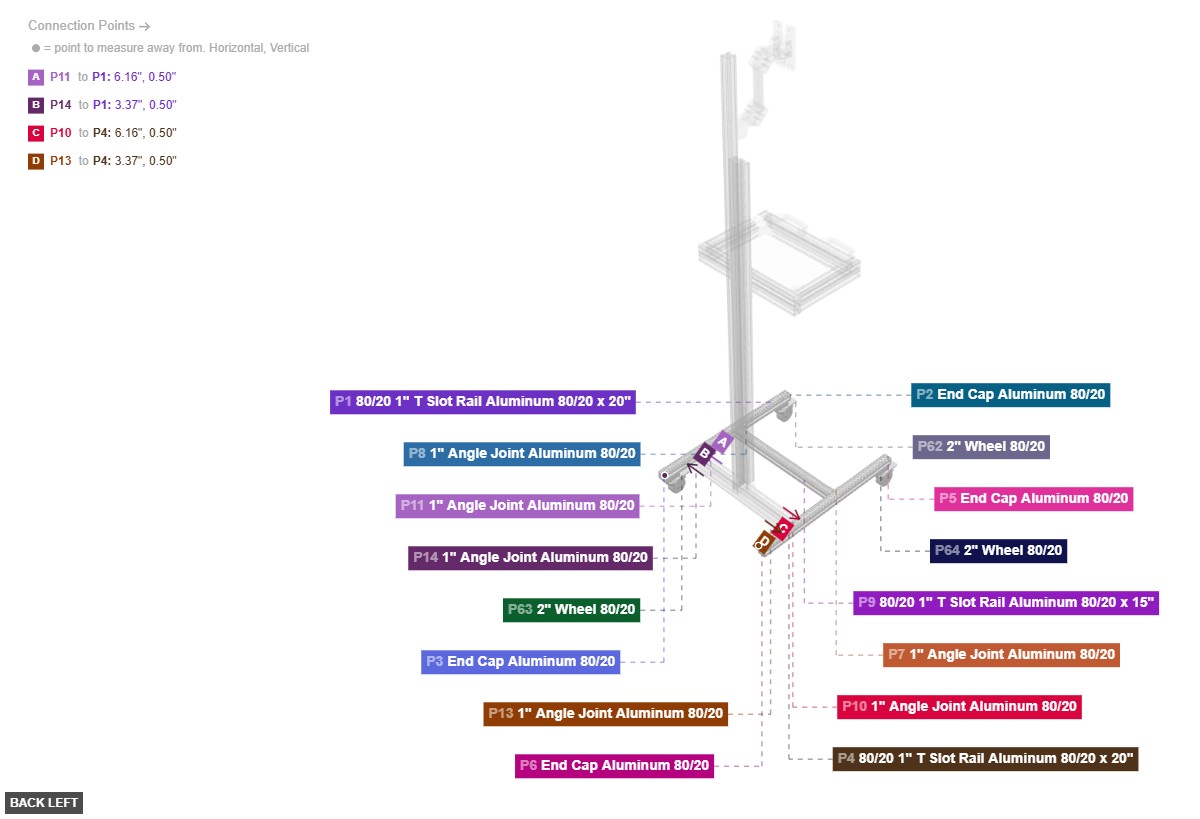

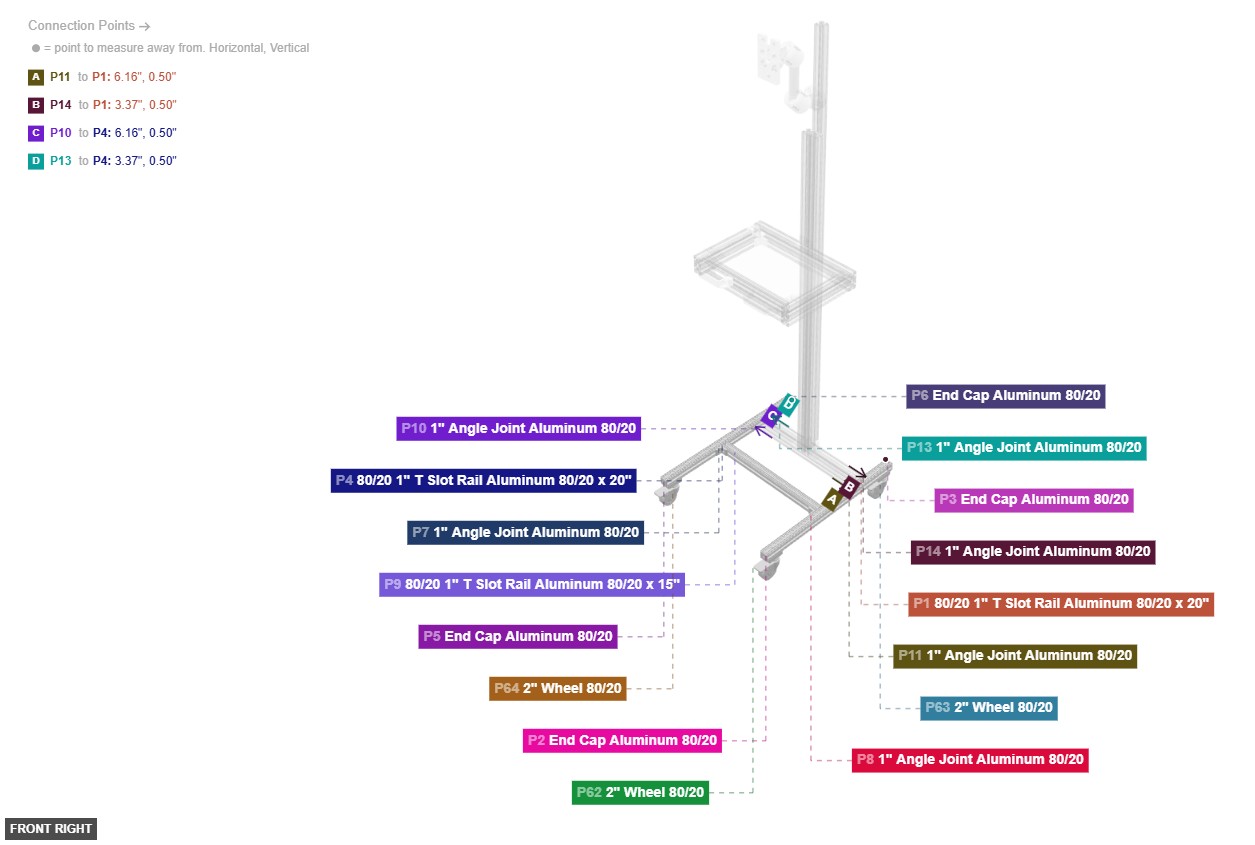

Group: Base Assembly

Forms the rolling foundation of the workstation.

First, attach end caps P2 and P3 to the left rail (P1), and end caps P5 and P6 to the right rail (P4). Connect the cross-member (P9) between the left and right rails using angle joints P7 and P8 to form an H-shape. Finally, attach the three wheels (P62, P63, P64) to the bottom of the left and right rails.

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: back left

Base Assembly - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 2's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 8's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 62's 1" Rail 80/20 M #1, also connect its 1" 80/20 End Hole F #2 oriented back links with part 3's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #2 faces top, plus its 1" Rail 80/20 F #3 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

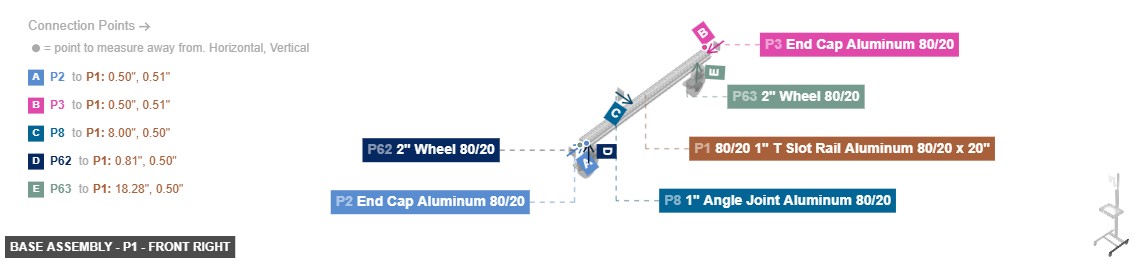

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: front right

Base Assembly - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 2's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 8's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 62's 1" Rail 80/20 M #1, also connect its 1" 80/20 End Hole F #2 oriented back links with part 3's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #2 faces top, plus its 1" Rail 80/20 F #3 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

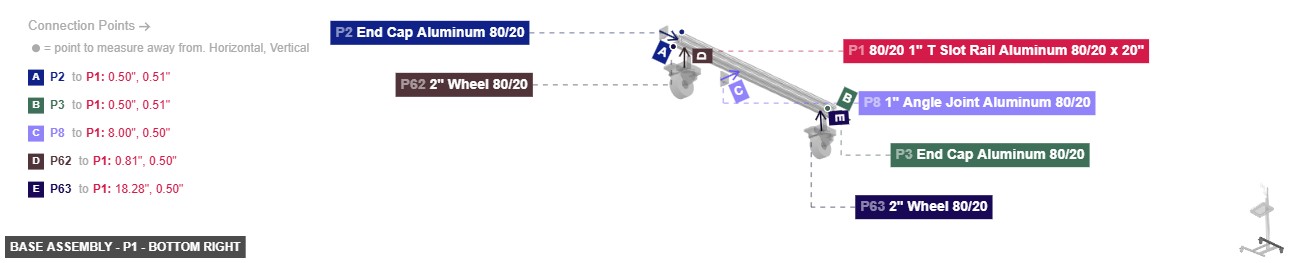

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: bottom right

Base Assembly - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 2's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 8's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 62's 1" Rail 80/20 M #1, also connect its 1" 80/20 End Hole F #2 oriented back links with part 3's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #2 faces top, plus its 1" Rail 80/20 F #3 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

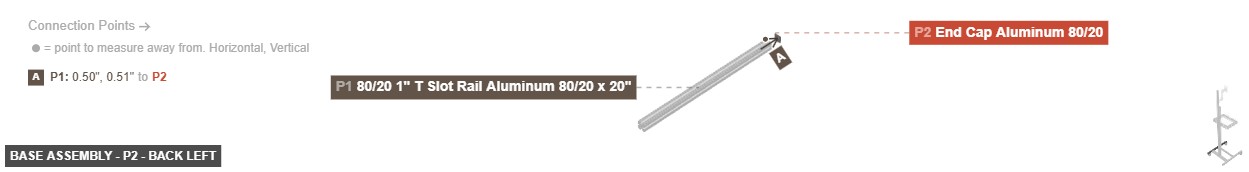

Part: End Cap Aluminum 80/20 - Angle: back left

Base Assembly - Part End Cap Aluminum 80/20 - back_left
P2 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: End Cap Aluminum 80/20 - Angle: front right

Base Assembly - Part End Cap Aluminum 80/20 - front_right
P2 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

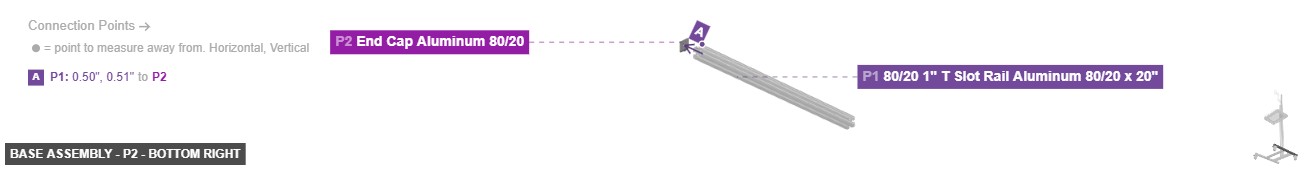

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Assembly - Part End Cap Aluminum 80/20 - bottom_right
P2 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

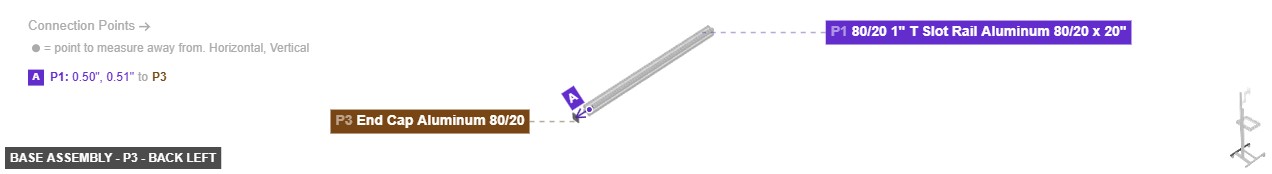

Part: End Cap Aluminum 80/20 - Angle: back left

Base Assembly - Part End Cap Aluminum 80/20 - back_left
P3 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

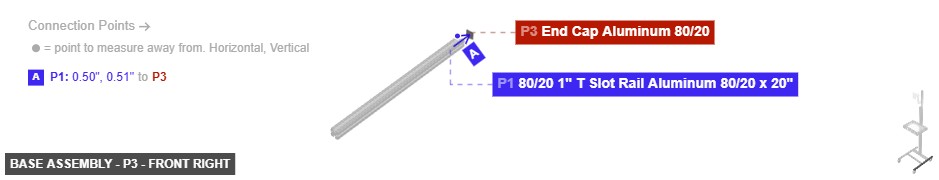

Part: End Cap Aluminum 80/20 - Angle: front right

Base Assembly - Part End Cap Aluminum 80/20 - front_right
P3 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Assembly - Part End Cap Aluminum 80/20 - bottom_right
P3 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 1's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: back left

Base Assembly - Part 80/20 1

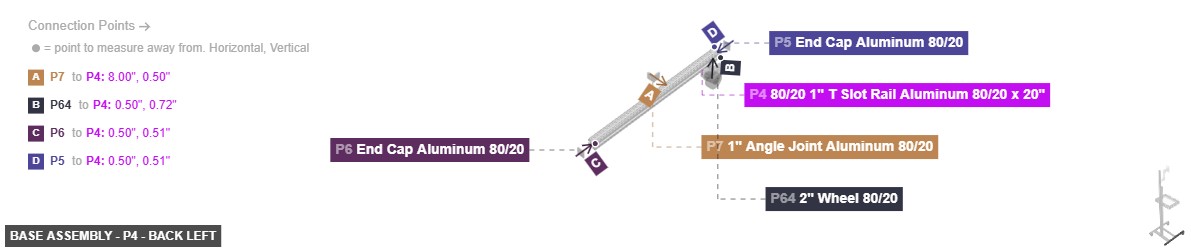

P4 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 5's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #3 facing right to part 7's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 64's 1" Rail 80/20 M #1, plus connect its 1" 80/20 End Hole F #2 oriented back links with part 6's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1 should be directed left. Additionally, its 1" Rail 80/20 F #2 should be directed top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

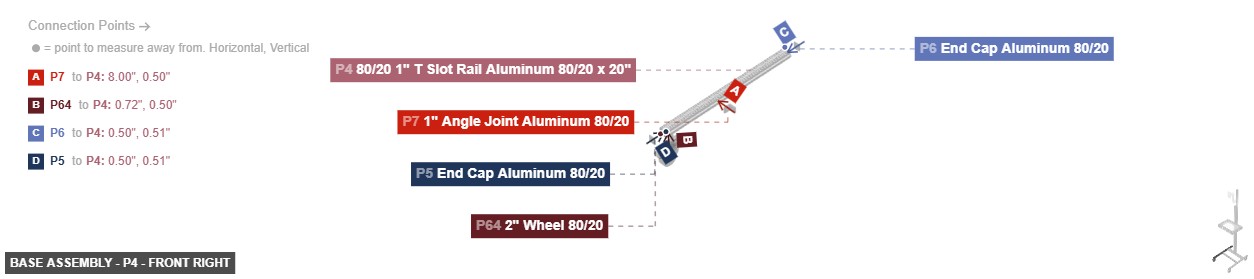

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: front right

Base Assembly - Part 80/20 1
P4 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 5's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #3 facing right to part 7's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 64's 1" Rail 80/20 M #1, plus connect its 1" 80/20 End Hole F #2 oriented back links with part 6's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1 should be directed left. Additionally, its 1" Rail 80/20 F #2 should be directed top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

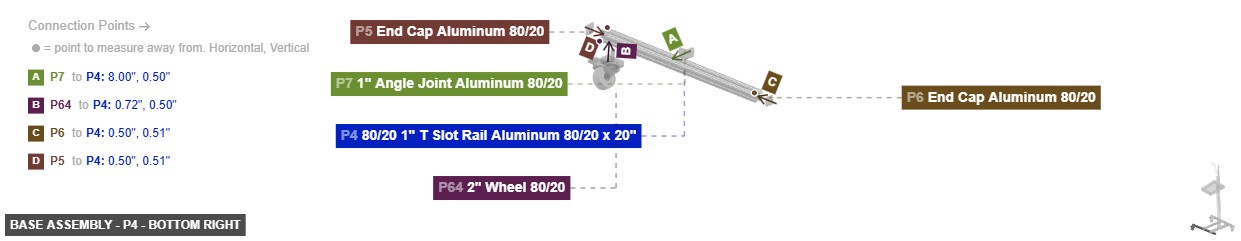

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 20" - Angle: bottom right

Base Assembly - Part 80/20 1
P4 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 5's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #3 facing right to part 7's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 64's 1" Rail 80/20 M #1, plus connect its 1" 80/20 End Hole F #2 oriented back links with part 6's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1 should be directed left. Additionally, its 1" Rail 80/20 F #2 should be directed top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: End Cap Aluminum 80/20 - Angle: back left

Base Assembly - Part End Cap Aluminum 80/20 - back_left

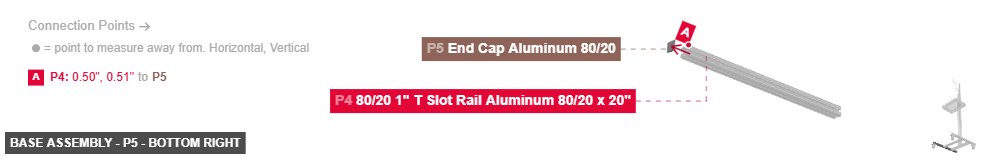

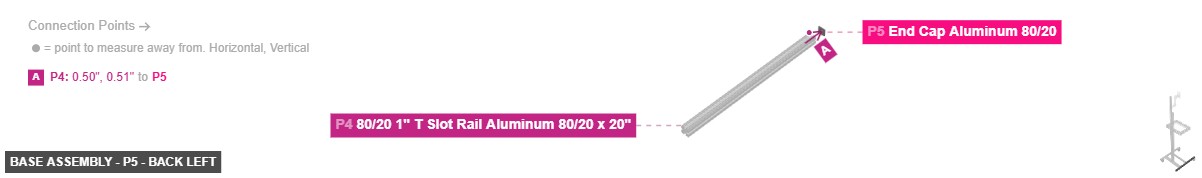

P5 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 4's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: End Cap Aluminum 80/20 - Angle: front right

Base Assembly - Part End Cap Aluminum 80/20 - front_right
P5 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 4's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Assembly - Part End Cap Aluminum 80/20 - bottom_right
P5 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 4's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

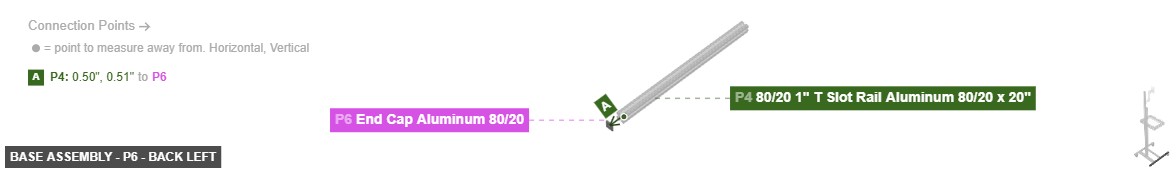

Part: End Cap Aluminum 80/20 - Angle: back left

Base Assembly - Part End Cap Aluminum 80/20 - back_left
P6 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 4's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: End Cap Aluminum 80/20 - Angle: front right

Base Assembly - Part End Cap Aluminum 80/20 - front_right
P6 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 4's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

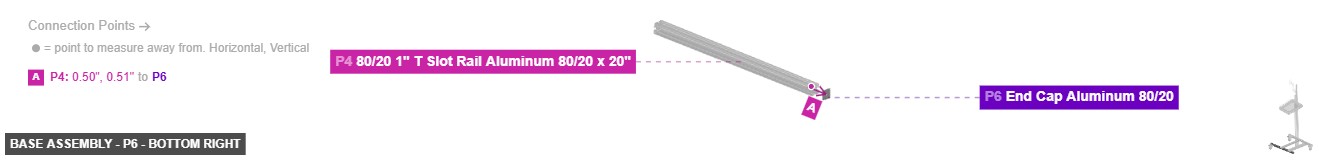

Part: End Cap Aluminum 80/20 - Angle: bottom right

Base Assembly - Part End Cap Aluminum 80/20 - bottom_right
P6 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 4's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

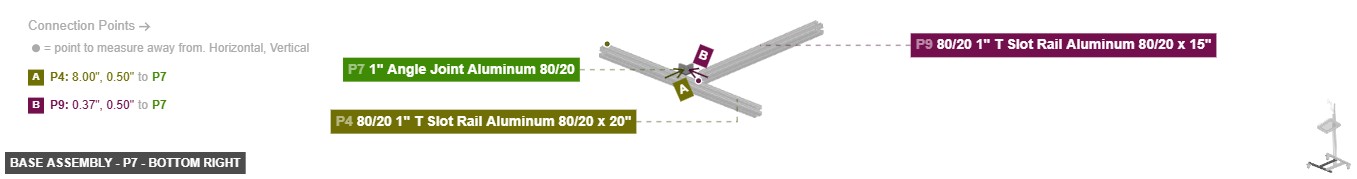

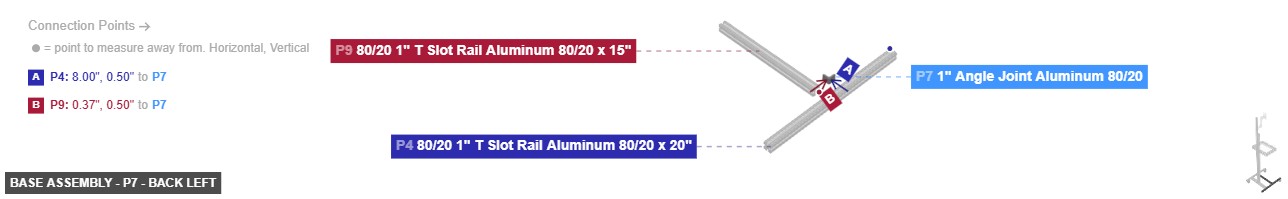

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Base Assembly - Part 1
P7 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 4's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Base Assembly - Part 1
P7 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 4's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Base Assembly - Part 1
P7 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 4's 1" Rail 80/20 F #3, also connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Base Assembly - Part 1
P8 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Additionally, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Base Assembly - Part 1
P8 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Additionally, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Base Assembly - Part 1
P8 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Additionally, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

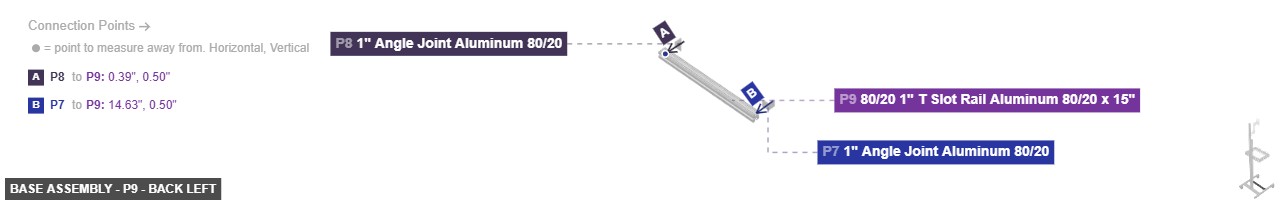

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: back left

Base Assembly - Part 80/20 1
P9 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 should be directed left, then its 1" Rail 80/20 F #2 needs to point bottom. Also, ensure its 1" Rail 80/20 F #3 faces back, and ensure its 1" Rail 80/20 F #4 faces top. Also, its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: front right

Base Assembly - Part 80/20 1
P9 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 should be directed left, then its 1" Rail 80/20 F #2 needs to point bottom. Also, ensure its 1" Rail 80/20 F #3 faces back, and ensure its 1" Rail 80/20 F #4 faces top. Also, its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

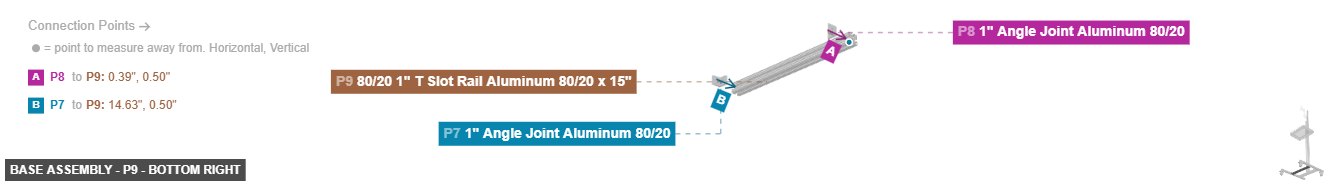

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: bottom right

Base Assembly - Part 80/20 1
P9 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 should be directed left, then its 1" Rail 80/20 F #2 needs to point bottom. Also, ensure its 1" Rail 80/20 F #3 faces back, and ensure its 1" Rail 80/20 F #4 faces top. Also, its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 2" Wheel 80/20 - Angle: back left

Base Assembly - Part 2
P62 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

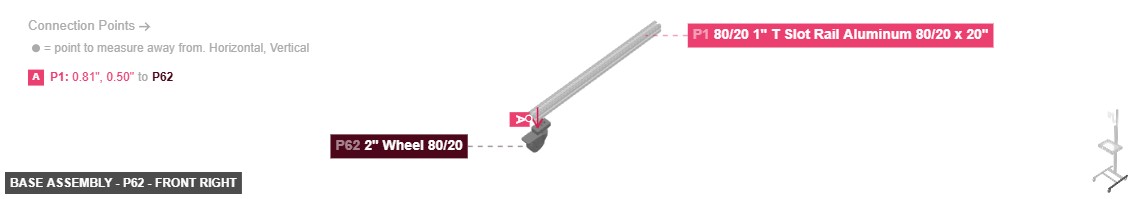

Part: 2" Wheel 80/20 - Angle: front right

Base Assembly - Part 2
P62 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 2" Wheel 80/20 - Angle: bottom right

Base Assembly - Part 2
P62 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 2" Wheel 80/20 - Angle: back left

Base Assembly - Part 2
P63 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

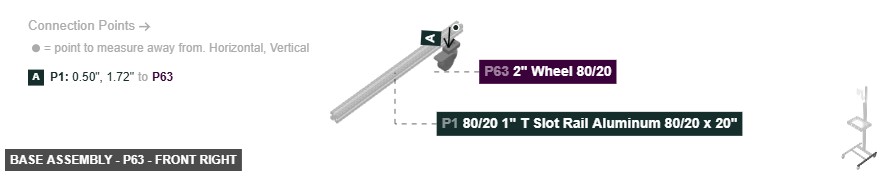

Part: 2" Wheel 80/20 - Angle: front right

Base Assembly - Part 2
P63 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

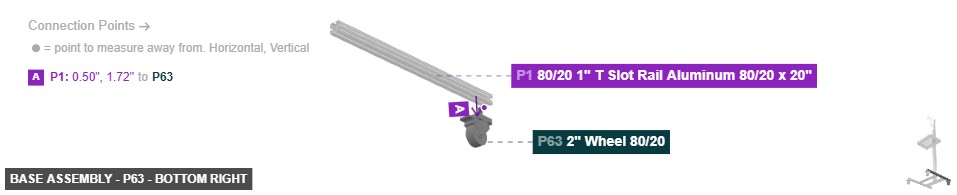

Part: 2" Wheel 80/20 - Angle: bottom right

Base Assembly - Part 2
P63 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 1's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

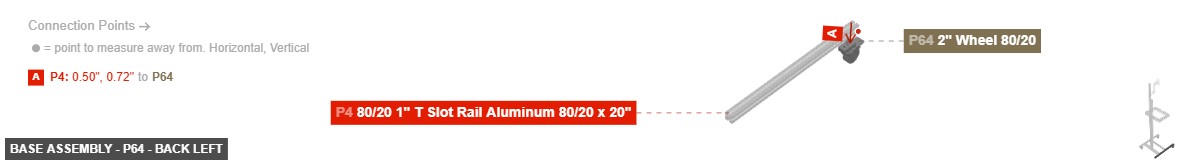

Part: 2" Wheel 80/20 - Angle: back left

Base Assembly - Part 2
P64 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 4's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Part: 2" Wheel 80/20 - Angle: front right

Base Assembly - Part 2
P64 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 4's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

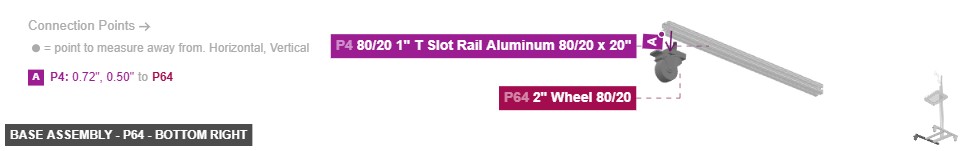

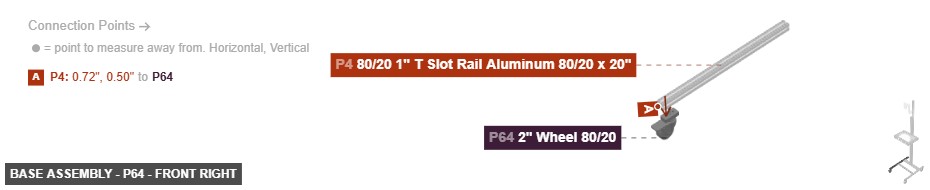

Part: 2" Wheel 80/20 - Angle: bottom right

Base Assembly - Part 2
P64 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 4's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

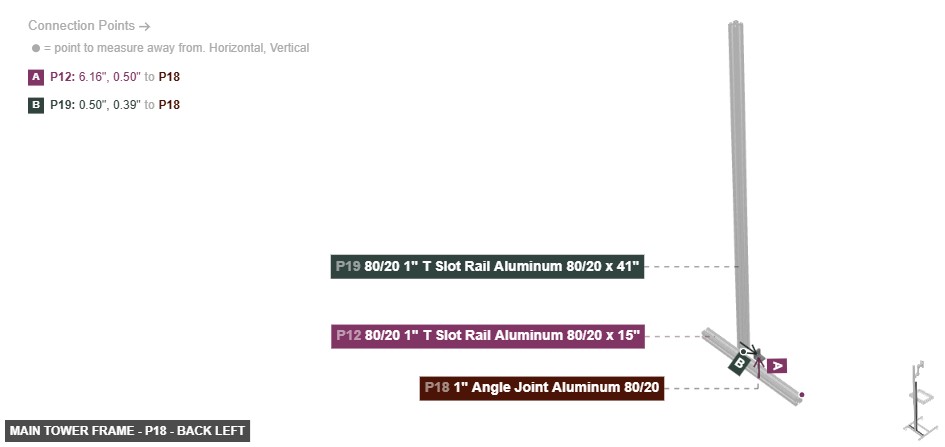

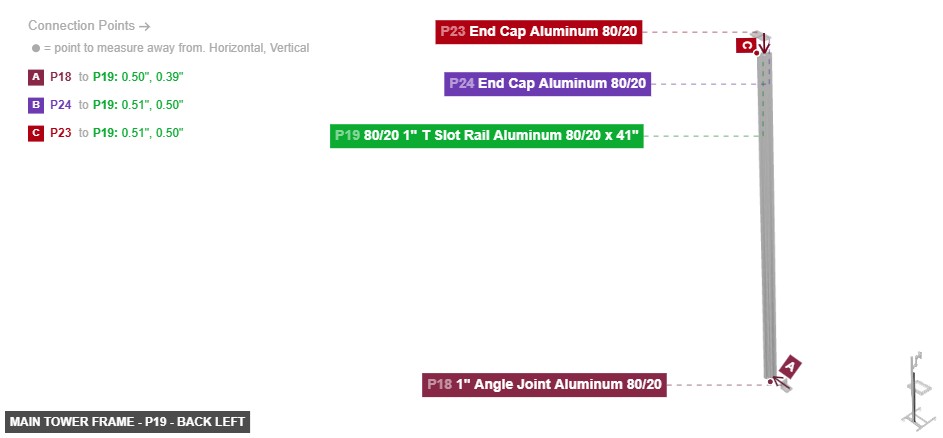

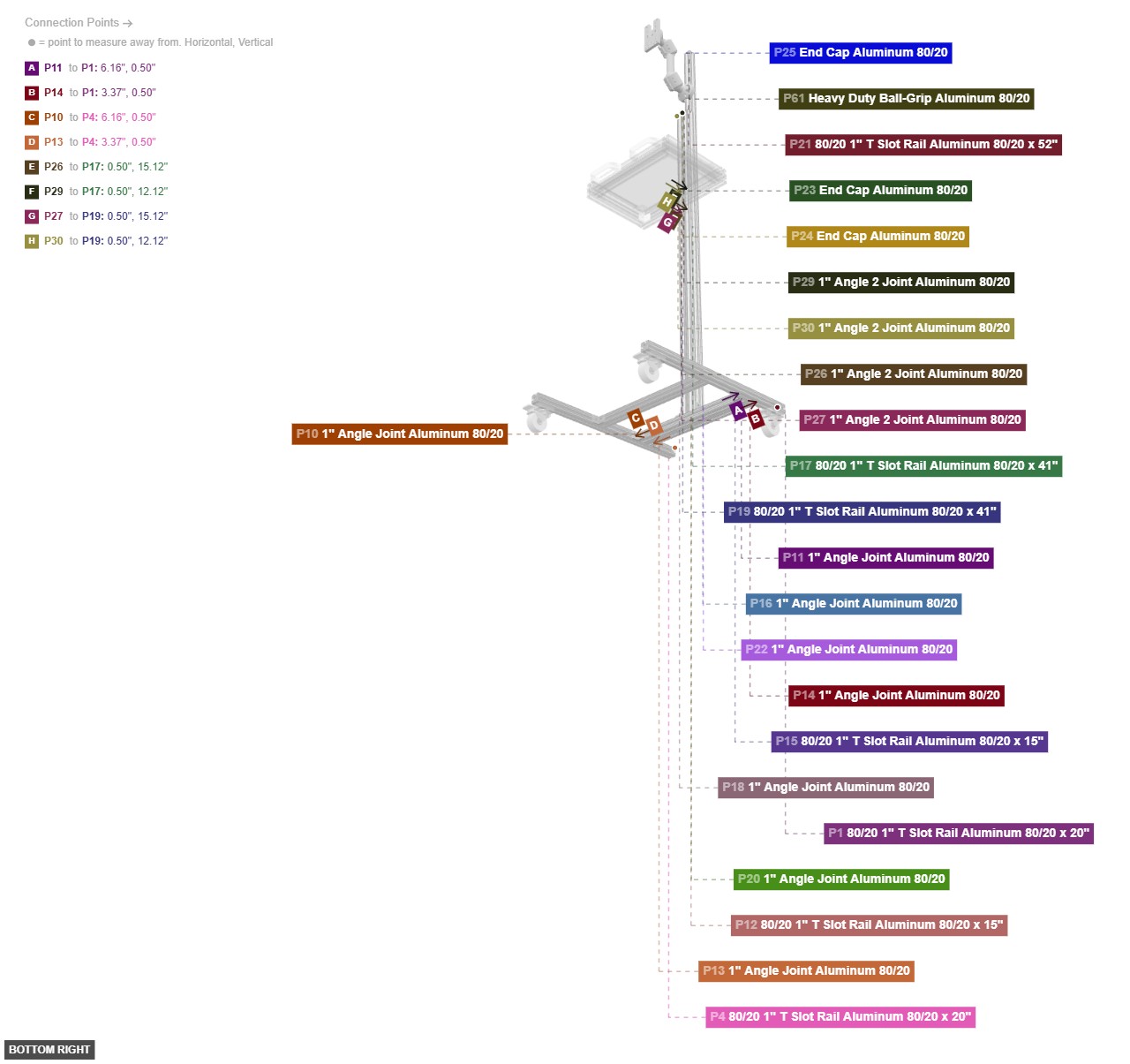

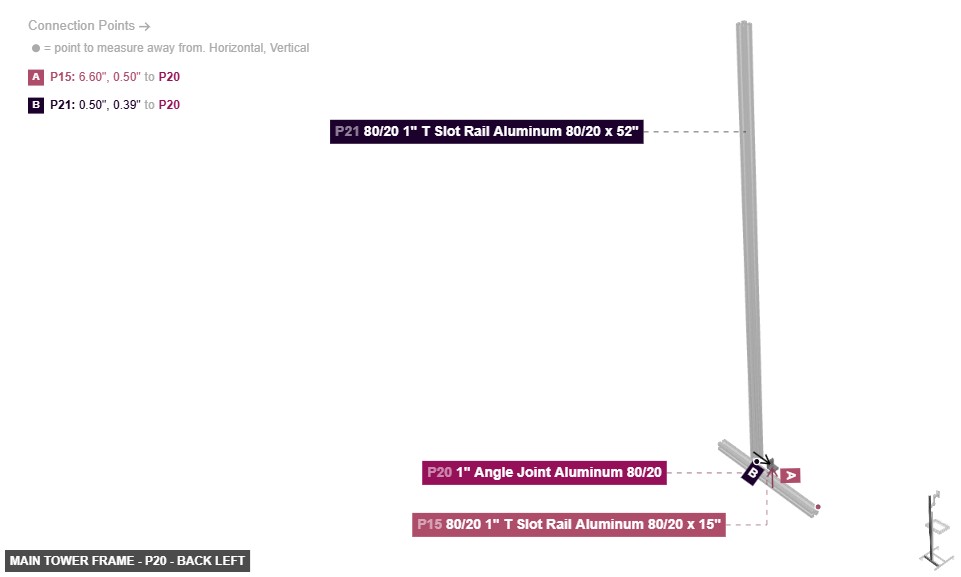

Group: Main Tower Frame

Creates the primary vertical structure of the workstation.

Create the main vertical structure. Connect the two back vertical rails (P17, P19) and the front vertical rail (P21) using the horizontal cross-members (P12, P15) and their corresponding angle joints (P10, P11, P13, P14, P16, P18, P20, P22). Attach the end caps (P23, P24, P25) to the top of the three vertical rails. Finally, attach the large ball-grip handle (P61) to the front vertical rail (P21).

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Tower Frame - Part 1
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing back to part 12's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

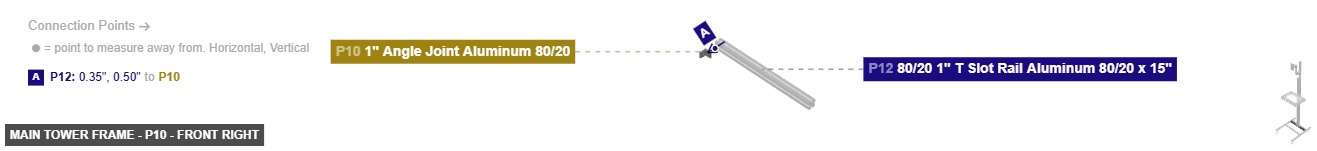

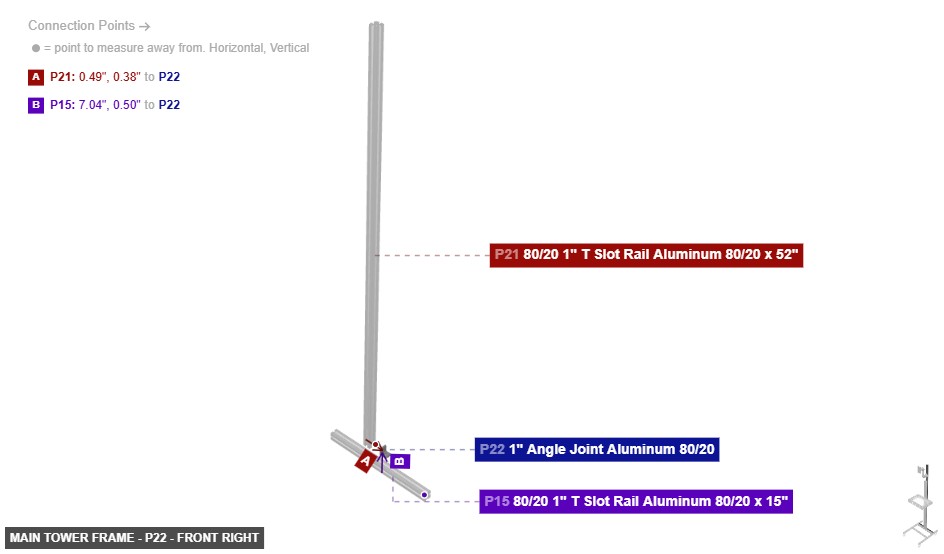

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Tower Frame - Part 1
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing back to part 12's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

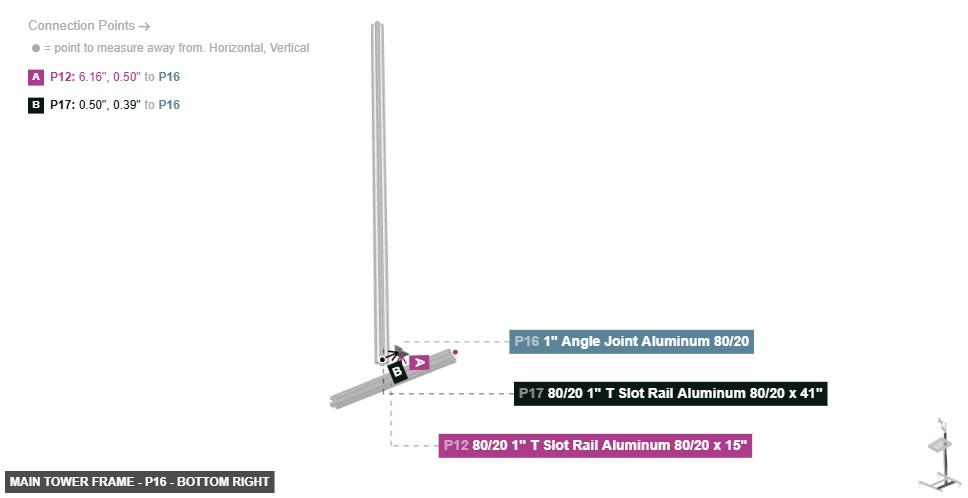

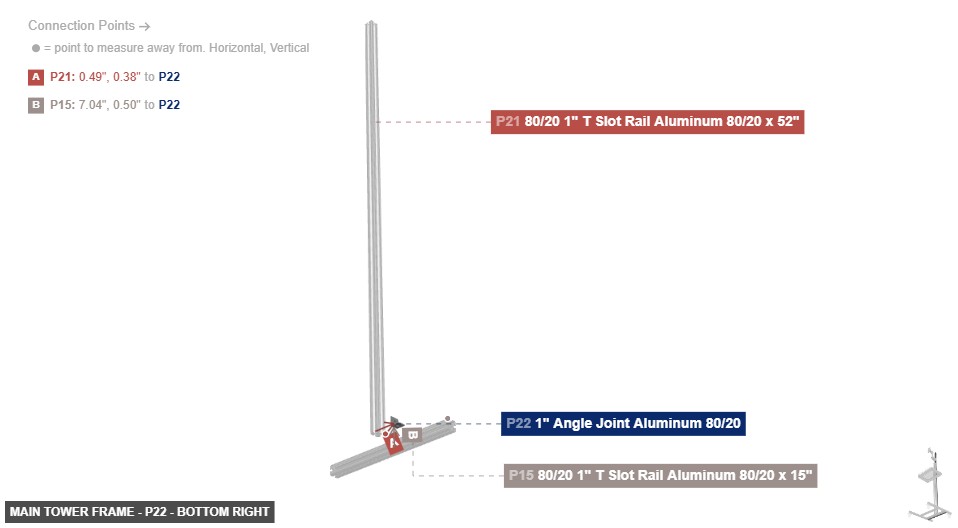

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part 1
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing back to part 12's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Tower Frame - Part 1
P11 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

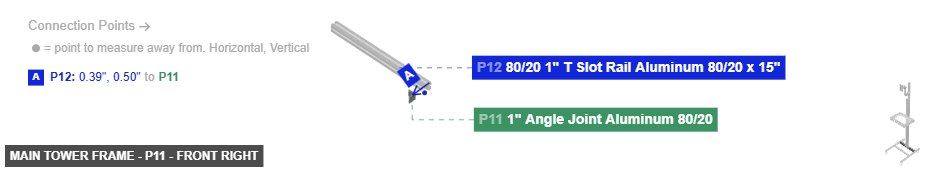

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Tower Frame - Part 1
P11 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part 1
P11 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: back left

Main Tower Frame - Part 80/20 1
P12 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 11's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #4, which is top-facing, should connect to part 16's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 should be directed left. After that, ensure its 1" Rail 80/20 F #2 faces bottom, then its 1" Rail 80/20 F #3 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces right
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: front right

Main Tower Frame - Part 80/20 1
P12 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 11's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #4, which is top-facing, should connect to part 16's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 should be directed left. After that, ensure its 1" Rail 80/20 F #2 faces bottom, then its 1" Rail 80/20 F #3 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces right
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: bottom right

Main Tower Frame - Part 80/20 1
P12 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 11's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #4, which is top-facing, should connect to part 16's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 should be directed left. After that, ensure its 1" Rail 80/20 F #2 faces bottom, then its 1" Rail 80/20 F #3 should be directed back. Next, ensure its 1" 80/20 End Hole F #2 faces right
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

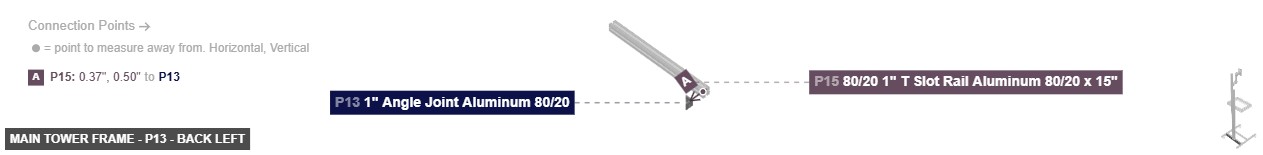

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Tower Frame - Part 1
P13 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Tower Frame - Part 1
P13 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

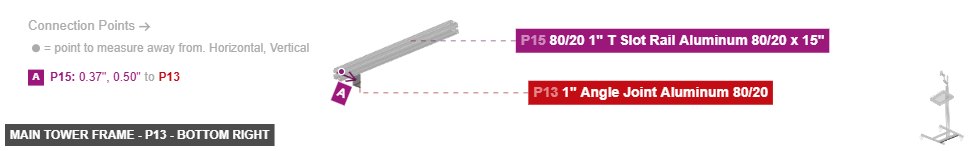

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

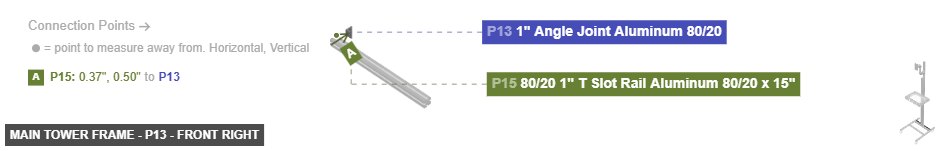

Main Tower Frame - Part 1
P13 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

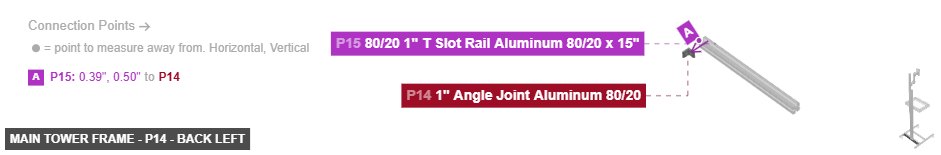

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Tower Frame - Part 1
P14 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

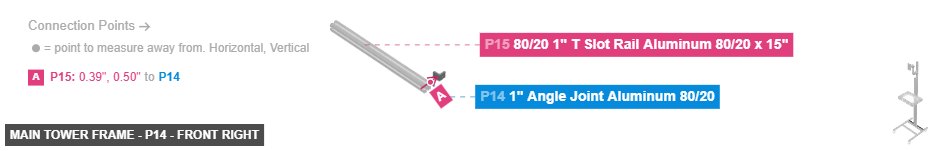

Main Tower Frame - Part 1
P14 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part 1
P14 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 15's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: back left

Main Tower Frame - Part 80/20 1
P15 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 14's 1" Rail 80/20 M #2. After that, its 1" Rail 80/20 F #2, which is top-facing, should connect to part 20's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 should be directed left. Additionally, its 1" Rail 80/20 F #3 needs to point front. Next, its 1" Rail 80/20 F #4 needs to point bottom. After that, its 1" 80/20 End Hole F #2 needs to point right
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: front right

Main Tower Frame - Part 80/20 1
P15 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 14's 1" Rail 80/20 M #2. After that, its 1" Rail 80/20 F #2, which is top-facing, should connect to part 20's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 should be directed left. Additionally, its 1" Rail 80/20 F #3 needs to point front. Next, its 1" Rail 80/20 F #4 needs to point bottom. After that, its 1" 80/20 End Hole F #2 needs to point right
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

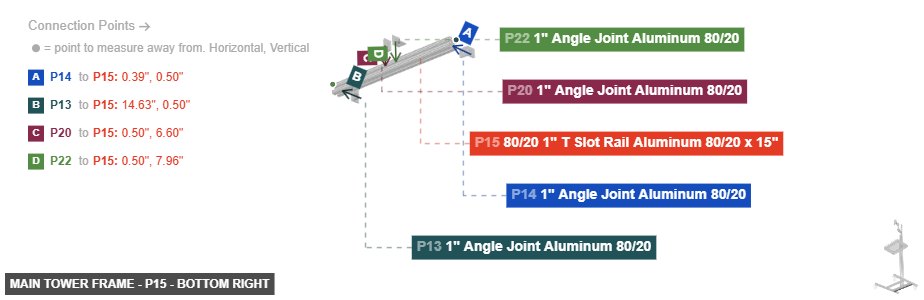

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: bottom right

Main Tower Frame - Part 80/20 1
P15 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 14's 1" Rail 80/20 M #2. After that, its 1" Rail 80/20 F #2, which is top-facing, should connect to part 20's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 should be directed left. Additionally, its 1" Rail 80/20 F #3 needs to point front. Next, its 1" Rail 80/20 F #4 needs to point bottom. After that, its 1" 80/20 End Hole F #2 needs to point right
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Tower Frame - Part 1
P16 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 12's 1" Rail 80/20 F #4, and its 1" Rail 80/20 M #2, which is left-facing, should connect to part 17's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Tower Frame - Part 1
P16 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 12's 1" Rail 80/20 F #4, and its 1" Rail 80/20 M #2, which is left-facing, should connect to part 17's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part 1
P16 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 12's 1" Rail 80/20 F #4, and its 1" Rail 80/20 M #2, which is left-facing, should connect to part 17's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 41" - Angle: back left

Main Tower Frame - Part 80/20 1
P17 (4" 1" T Slot Rail Aluminum 80/20 41" length) - attach its 1" 80/20 End Hole F #1 facing top to part 23's 1" 80/20 End Hole M #1, plus connect its 1" Rail 80/20 F #1 oriented right links with part 16's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #3 must be oriented left, then its 1" Rail 80/20 F #4 should be directed back. Also, its 1" 80/20 End Hole F #2 needs to point bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 41" - Angle: front right

Main Tower Frame - Part 80/20 1
P17 (4" 1" T Slot Rail Aluminum 80/20 41" length) - attach its 1" 80/20 End Hole F #1 facing top to part 23's 1" 80/20 End Hole M #1, plus connect its 1" Rail 80/20 F #1 oriented right links with part 16's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #3 must be oriented left, then its 1" Rail 80/20 F #4 should be directed back. Also, its 1" 80/20 End Hole F #2 needs to point bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 41" - Angle: bottom right

Main Tower Frame - Part 80/20 1
P17 (4" 1" T Slot Rail Aluminum 80/20 41" length) - attach its 1" 80/20 End Hole F #1 facing top to part 23's 1" 80/20 End Hole M #1, plus connect its 1" Rail 80/20 F #1 oriented right links with part 16's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #3 must be oriented left, then its 1" Rail 80/20 F #4 should be directed back. Also, its 1" 80/20 End Hole F #2 needs to point bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

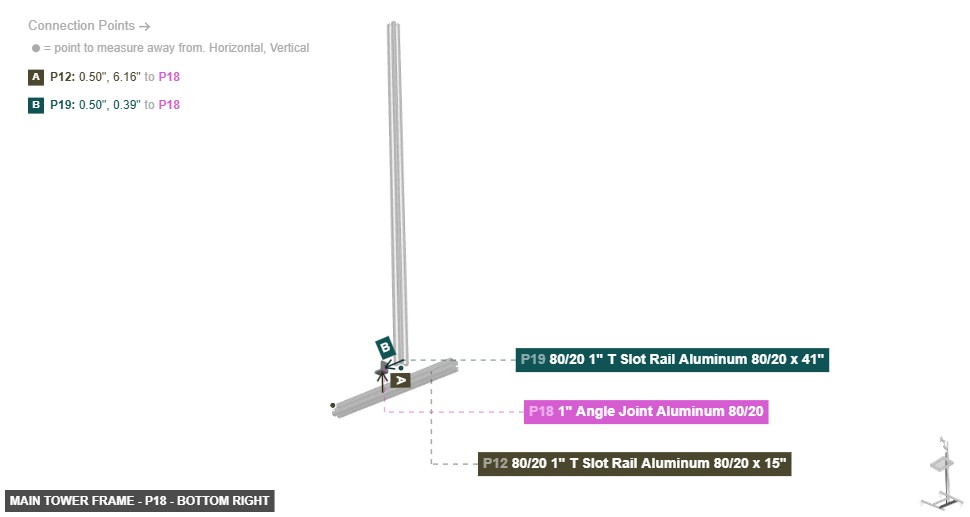

Main Tower Frame - Part 1
P18 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 12's 1" Rail 80/20 F #4. Also, connect its 1" Rail 80/20 M #2 oriented right links with part 19's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

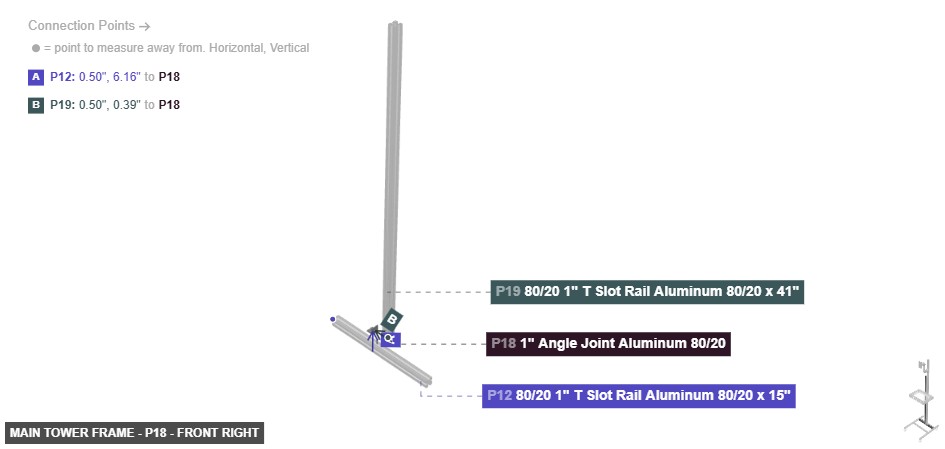

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Tower Frame - Part 1
P18 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 12's 1" Rail 80/20 F #4. Also, connect its 1" Rail 80/20 M #2 oriented right links with part 19's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part 1
P18 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 12's 1" Rail 80/20 F #4. Also, connect its 1" Rail 80/20 M #2 oriented right links with part 19's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 41" - Angle: back left

Main Tower Frame - Part 80/20 1
P19 (4" 1" T Slot Rail Aluminum 80/20 41" length) - attach its 1" 80/20 End Hole F #1 facing top to part 24's 1" 80/20 End Hole M #1. Next, connect its 1" Rail 80/20 F #1 oriented left links with part 18's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 should be directed back, also ensure its 1" Rail 80/20 F #3 faces right, also its 1" 80/20 End Hole F #2 must be oriented bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 41" - Angle: front right

Main Tower Frame - Part 80/20 1
P19 (4" 1" T Slot Rail Aluminum 80/20 41" length) - attach its 1" 80/20 End Hole F #1 facing top to part 24's 1" 80/20 End Hole M #1. Next, connect its 1" Rail 80/20 F #1 oriented left links with part 18's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 should be directed back, also ensure its 1" Rail 80/20 F #3 faces right, also its 1" 80/20 End Hole F #2 must be oriented bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 41" - Angle: bottom right

Main Tower Frame - Part 80/20 1
P19 (4" 1" T Slot Rail Aluminum 80/20 41" length) - attach its 1" 80/20 End Hole F #1 facing top to part 24's 1" 80/20 End Hole M #1. Next, connect its 1" Rail 80/20 F #1 oriented left links with part 18's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 should be directed back, also ensure its 1" Rail 80/20 F #3 faces right, also its 1" 80/20 End Hole F #2 must be oriented bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Tower Frame - Part 1
P20 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 15's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 21's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Tower Frame - Part 1
P20 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 15's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 21's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

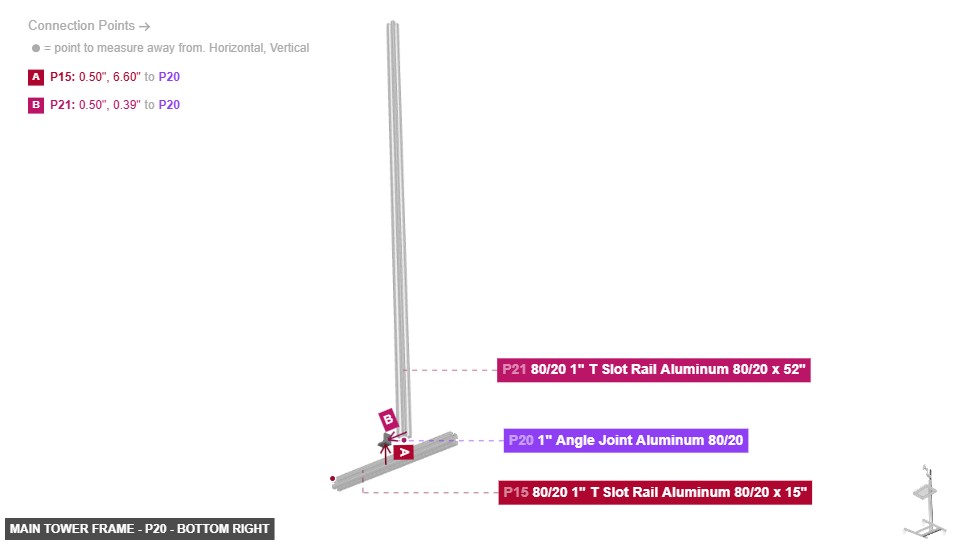

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part 1
P20 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 15's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 21's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

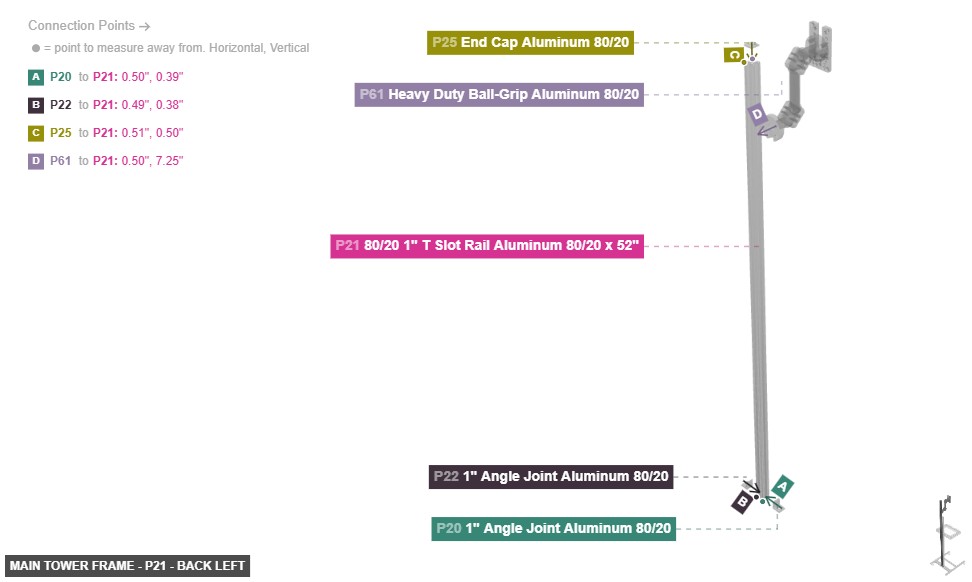

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 52" - Angle: back left

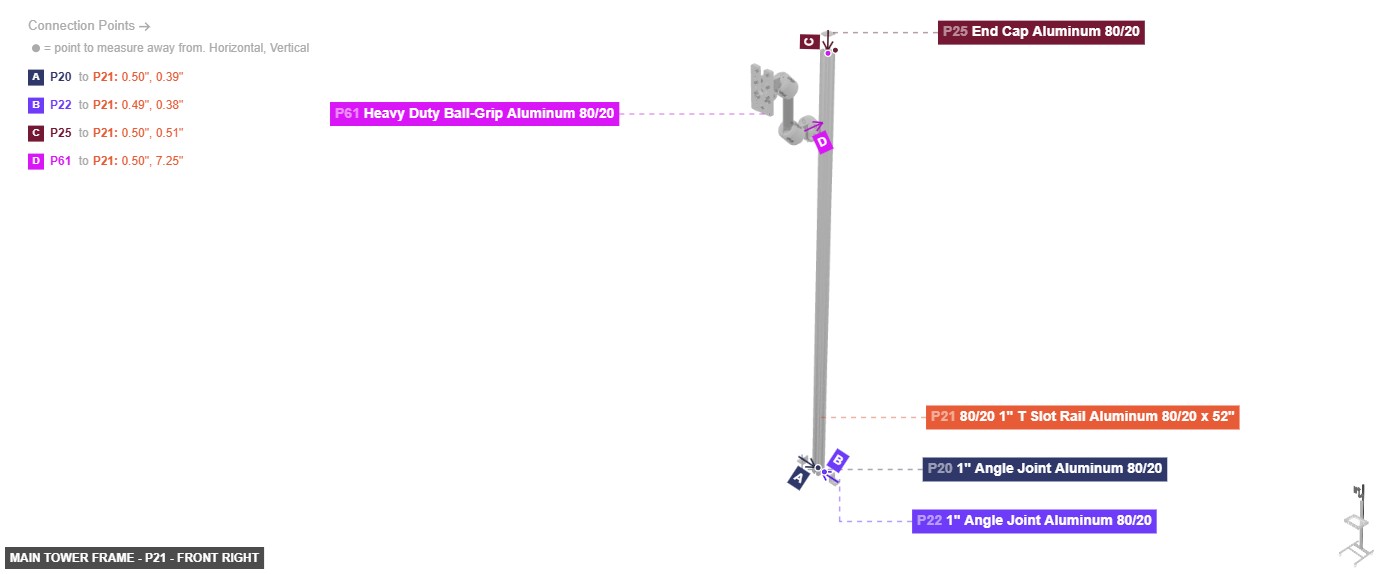

Main Tower Frame - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 52" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 25's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #1 facing left to part 20's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #3 facing right to part 22's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 61's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 needs to point back, and its 1" 80/20 End Hole F #2 needs to point bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 52" - Angle: front right

Main Tower Frame - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 52" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 25's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #1 facing left to part 20's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #3 facing right to part 22's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 61's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 needs to point back, and its 1" 80/20 End Hole F #2 needs to point bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 52" - Angle: bottom right

Main Tower Frame - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 52" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 25's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #1 facing left to part 20's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #3 facing right to part 22's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 61's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 needs to point back, and its 1" 80/20 End Hole F #2 needs to point bottom
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Tower Frame - Part 1
P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 21's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 15's 1" Rail 80/20 F #2
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Tower Frame - Part 1
P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 21's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 15's 1" Rail 80/20 F #2
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part 1
P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 21's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 15's 1" Rail 80/20 F #2
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: back left

Main Tower Frame - Part End Cap Aluminum 80/20 - back_left
P23 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 17's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: front right

Main Tower Frame - Part End Cap Aluminum 80/20 - front_right
P23 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 17's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

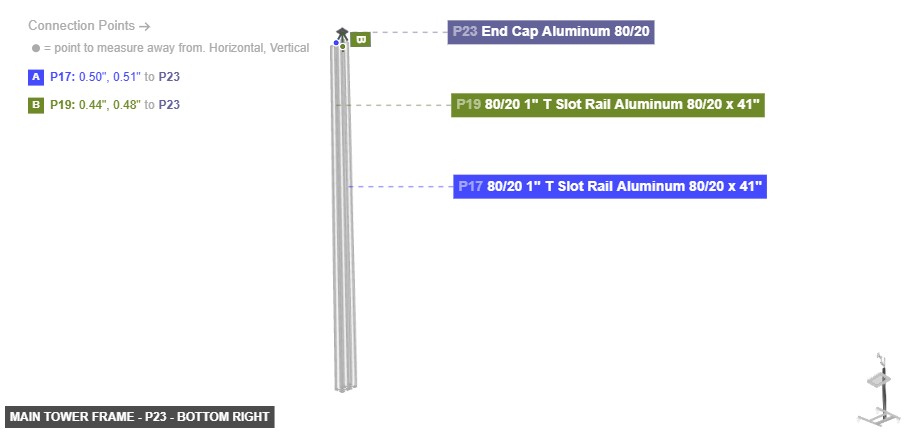

Part: End Cap Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part End Cap Aluminum 80/20 - bottom_right
P23 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 17's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

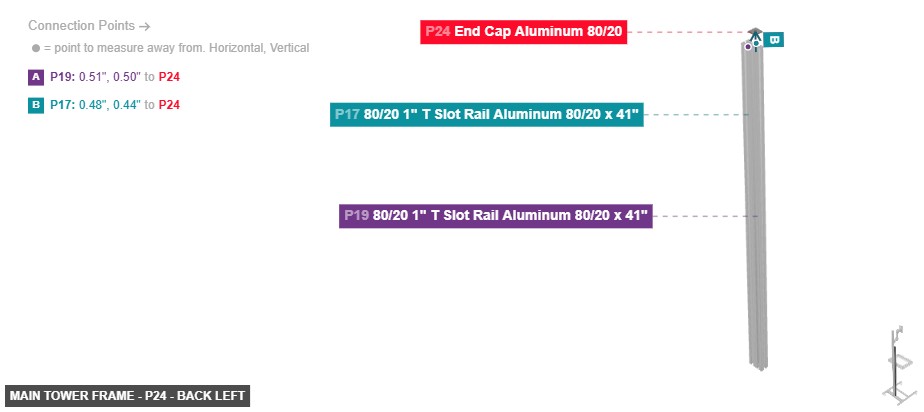

Part: End Cap Aluminum 80/20 - Angle: back left

Main Tower Frame - Part End Cap Aluminum 80/20 - back_left
P24 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 19's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

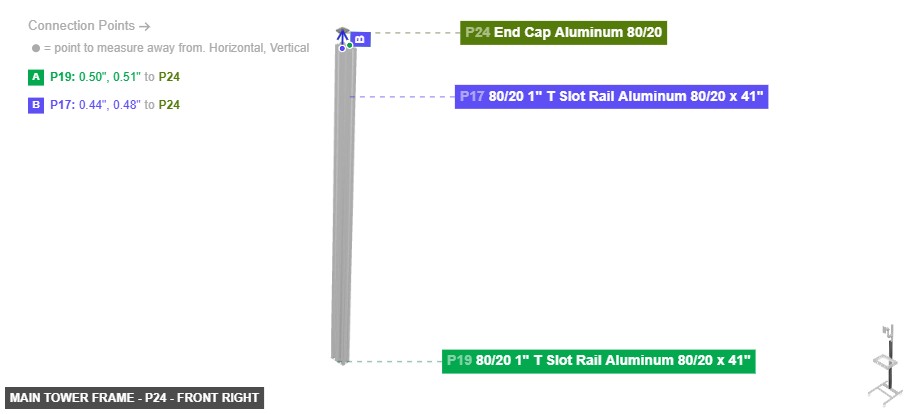

Part: End Cap Aluminum 80/20 - Angle: front right

Main Tower Frame - Part End Cap Aluminum 80/20 - front_right
P24 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 19's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part End Cap Aluminum 80/20 - bottom_right
P24 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 19's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: back left

Main Tower Frame - Part End Cap Aluminum 80/20 - back_left
P25 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 21's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

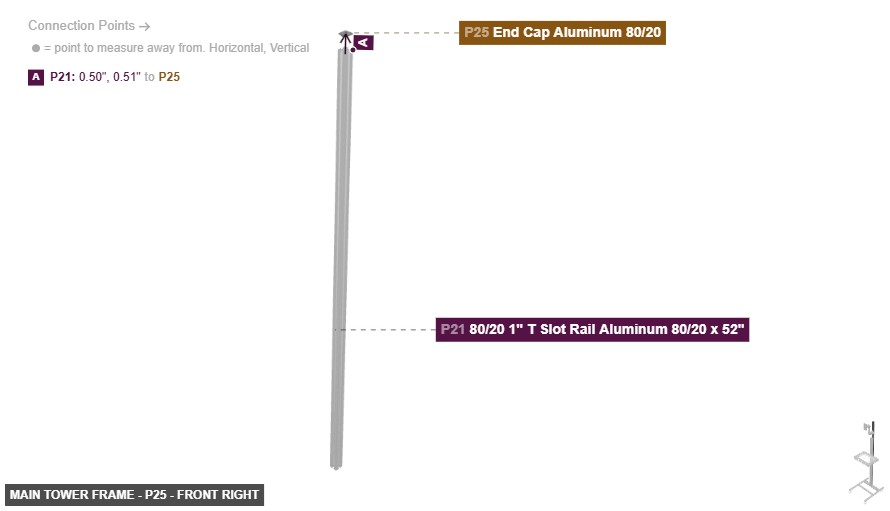

Part: End Cap Aluminum 80/20 - Angle: front right

Main Tower Frame - Part End Cap Aluminum 80/20 - front_right
P25 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 21's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

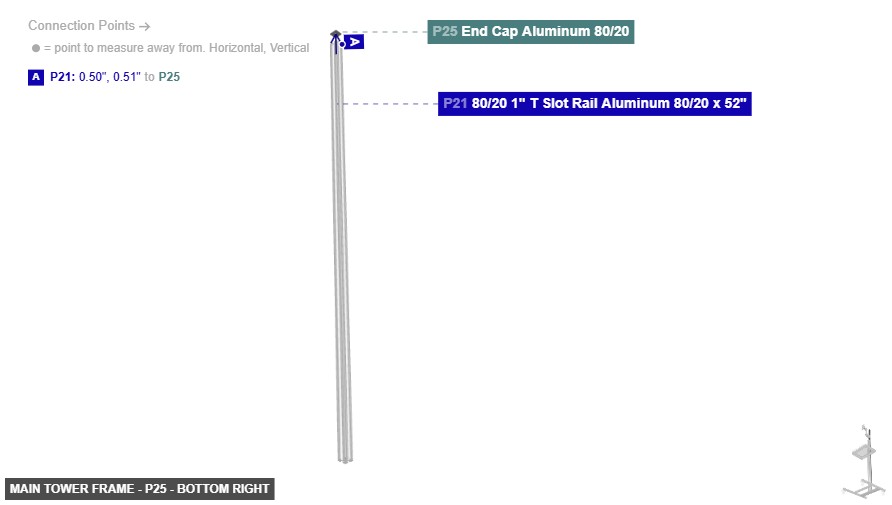

Part: End Cap Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part End Cap Aluminum 80/20 - bottom_right
P25 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 21's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

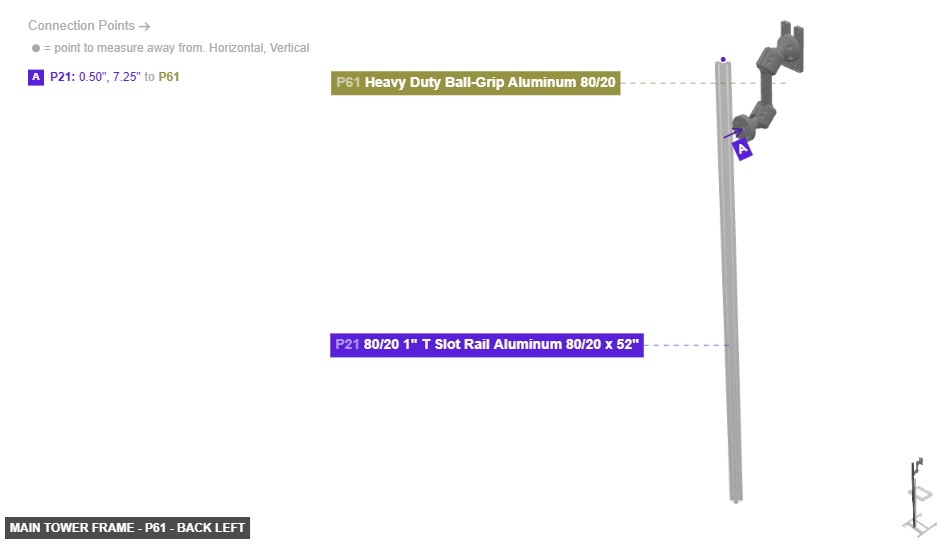

Part: Heavy Duty Ball-Grip Aluminum 80/20 - Angle: back left

Main Tower Frame - Part Heavy Duty Ball-Grip Aluminum 80/20 - back_left
P61 (Heavy Duty Ball-Grip Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 21's 1" Rail 80/20 F #4
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: Heavy Duty Ball-Grip Aluminum 80/20 - Angle: front right

Main Tower Frame - Part Heavy Duty Ball-Grip Aluminum 80/20 - front_right
P61 (Heavy Duty Ball-Grip Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 21's 1" Rail 80/20 F #4
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

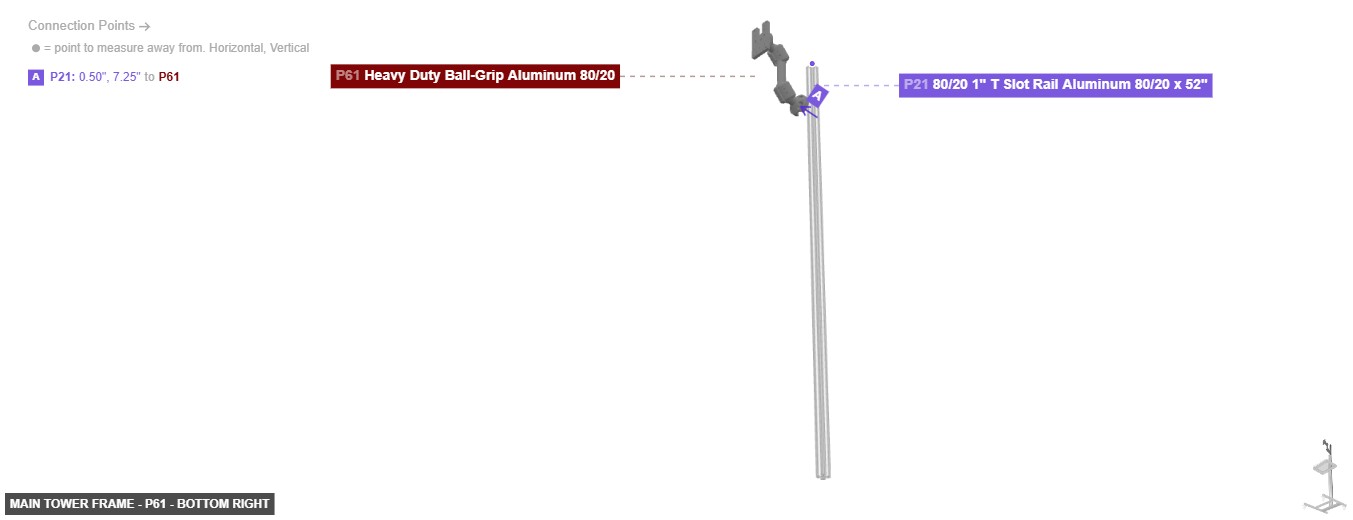

Part: Heavy Duty Ball-Grip Aluminum 80/20 - Angle: bottom right

Main Tower Frame - Part Heavy Duty Ball-Grip Aluminum 80/20 - bottom_right
P61 (Heavy Duty Ball-Grip Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 21's 1" Rail 80/20 F #4
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

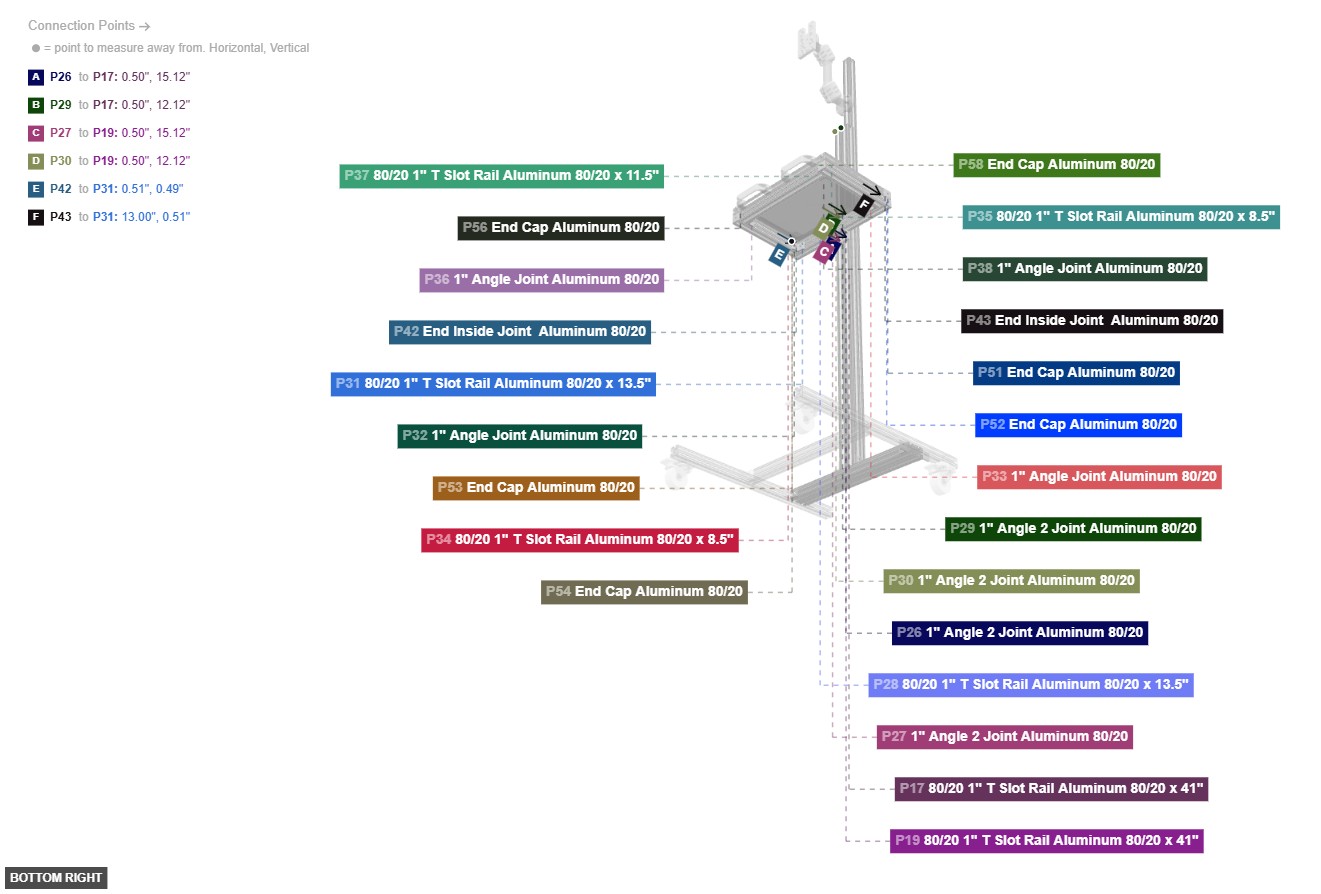

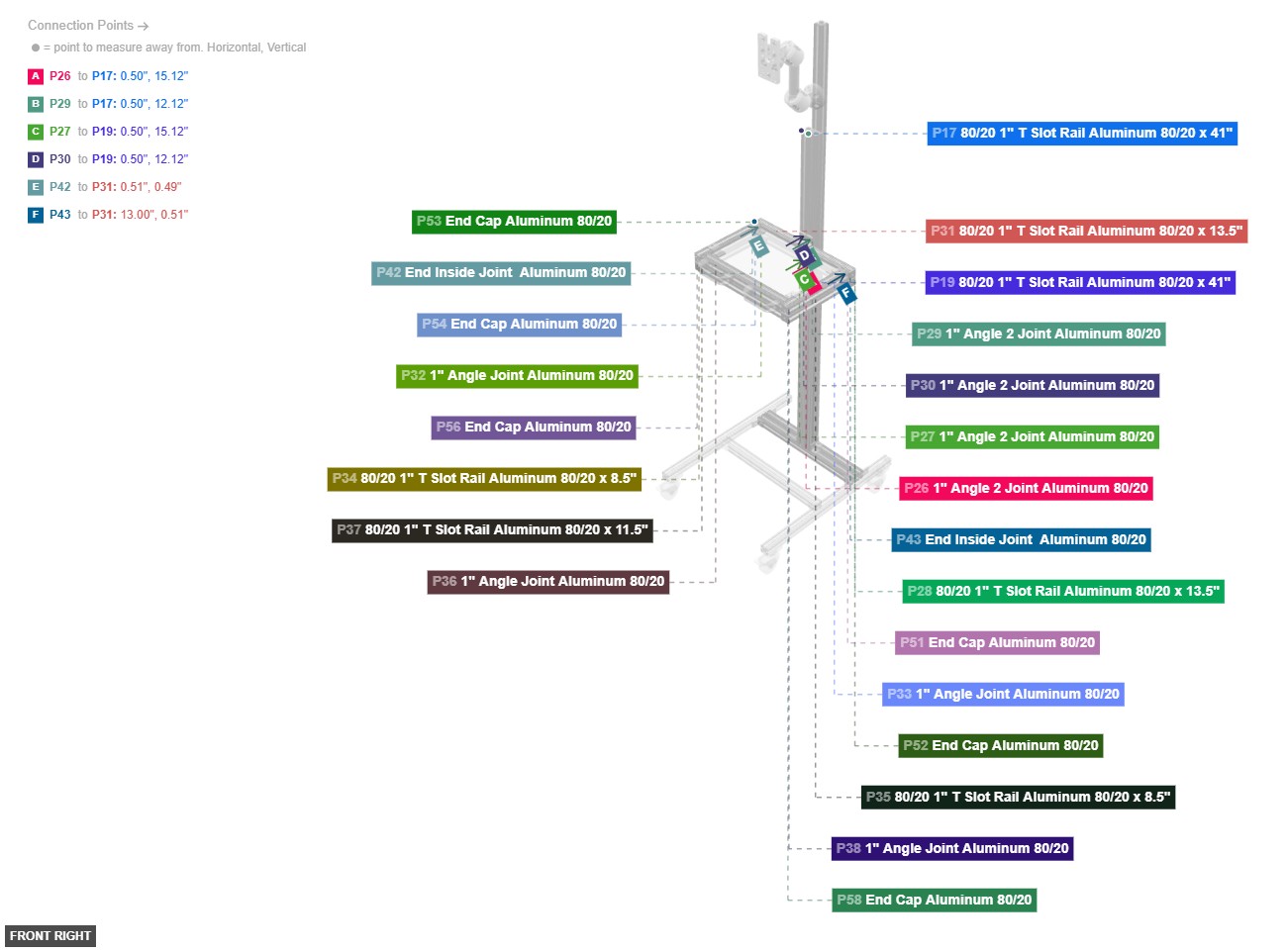

Group: Upper Shelf Frame

Forms a fixed shelf structure on the main tower.

Build the shelf frame by connecting the front rail (P28) and rear rail (P31) with the two side rails (P34, P35) using angle joints (P32, P33). Add the central cross-member (P37) between the side rails using angle joints (P36, P38). Attach end caps (P51, P52, P53, P54, P56, P58) to all open rail ends.

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P26 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P26 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

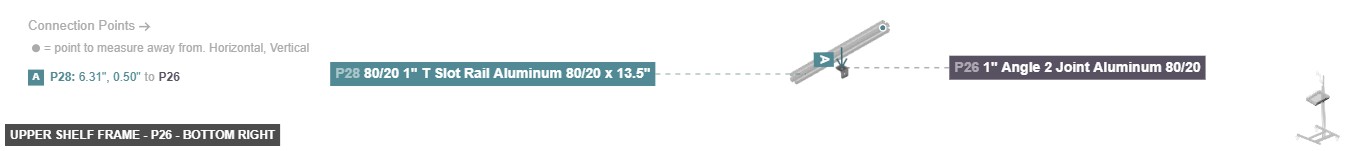

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P26 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

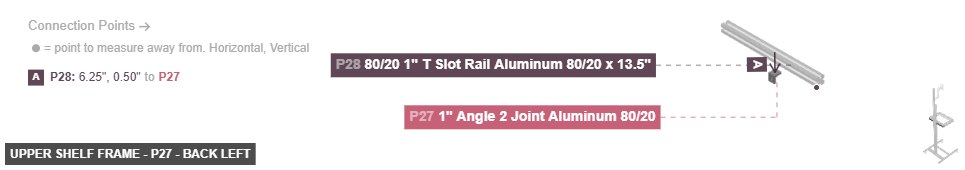

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P27 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 28's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P27 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 28's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

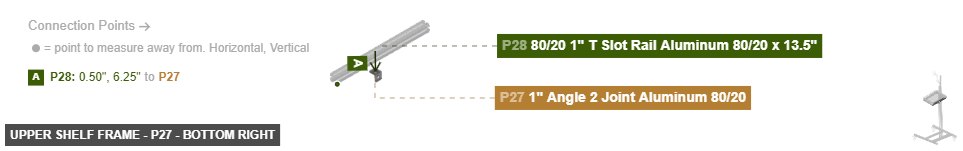

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P27 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 28's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: back left

Upper Shelf Frame - Part 80/20 1
P28 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 54's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 27's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 32's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 52's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #2 should be directed back. Next, its 1" Rail 80/20 F #3 needs to point top
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: front right

Upper Shelf Frame - Part 80/20 1
P28 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 54's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 27's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 32's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 52's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #2 should be directed back. Next, its 1" Rail 80/20 F #3 needs to point top
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: bottom right

Upper Shelf Frame - Part 80/20 1
P28 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 54's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 27's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 32's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is right-facing, should connect to part 52's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #2 should be directed back. Next, its 1" Rail 80/20 F #3 needs to point top
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P29 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented bottom links with part 31's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P29 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented bottom links with part 31's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P29 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented bottom links with part 31's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P30 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 31's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P30 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 31's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P30 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 31's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: back left

Upper Shelf Frame - Part 80/20 1
P31 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 51's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing top to part 30's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 53's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #2 needs to point back, then its 1" Rail 80/20 F #3 needs to point bottom
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: front right

Upper Shelf Frame - Part 80/20 1
P31 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 51's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing top to part 30's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 53's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #2 needs to point back, then its 1" Rail 80/20 F #3 needs to point bottom
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: bottom right

Upper Shelf Frame - Part 80/20 1
P31 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 51's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing top to part 30's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 53's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #2 needs to point back, then its 1" Rail 80/20 F #3 needs to point bottom
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P32 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 28's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is left-facing, should connect to part 34's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P32 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 28's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is left-facing, should connect to part 34's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P32 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 28's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is left-facing, should connect to part 34's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 28's 1" Rail 80/20 F #4. After that, attach its 1" Rail 80/20 M #2 facing right to part 35's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 28's 1" Rail 80/20 F #4. After that, attach its 1" Rail 80/20 M #2 facing right to part 35's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 28's 1" Rail 80/20 F #4. After that, attach its 1" Rail 80/20 M #2 facing right to part 35's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: back left

Upper Shelf Frame - Part 80/20 1
P34 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 56's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented right links with part 32's 1" Rail 80/20 M #2. Next, ensure its 1" Rail 80/20 F #2 faces bottom. After that, ensure its 1" Rail 80/20 F #3 faces left. Next, ensure its 1" Rail 80/20 F #4 faces top, and its 1" 80/20 End Hole F #2 must be oriented back
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: front right

Upper Shelf Frame - Part 80/20 1
P34 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 56's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented right links with part 32's 1" Rail 80/20 M #2. Next, ensure its 1" Rail 80/20 F #2 faces bottom. After that, ensure its 1" Rail 80/20 F #3 faces left. Next, ensure its 1" Rail 80/20 F #4 faces top, and its 1" 80/20 End Hole F #2 must be oriented back
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: bottom right

Upper Shelf Frame - Part 80/20 1
P34 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 56's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented right links with part 32's 1" Rail 80/20 M #2. Next, ensure its 1" Rail 80/20 F #2 faces bottom. After that, ensure its 1" Rail 80/20 F #3 faces left. Next, ensure its 1" Rail 80/20 F #4 faces top, and its 1" 80/20 End Hole F #2 must be oriented back
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: back left

Upper Shelf Frame - Part 80/20 1
P35 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 58's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 33's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 should be directed top. Next, its 1" Rail 80/20 F #3 must be oriented right, also ensure its 1" Rail 80/20 F #4 faces bottom, then ensure its 1" 80/20 End Hole F #2 faces back
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: front right

Upper Shelf Frame - Part 80/20 1
P35 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 58's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 33's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 should be directed top. Next, its 1" Rail 80/20 F #3 must be oriented right, also ensure its 1" Rail 80/20 F #4 faces bottom, then ensure its 1" 80/20 End Hole F #2 faces back
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: bottom right

Upper Shelf Frame - Part 80/20 1
P35 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 58's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 33's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 should be directed top. Next, its 1" Rail 80/20 F #3 must be oriented right, also ensure its 1" Rail 80/20 F #4 faces bottom, then ensure its 1" 80/20 End Hole F #2 faces back
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P36 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 34's 1" Rail 80/20 F #1. Next, attach its 1" Rail 80/20 M #2 facing front to part 37's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P36 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 34's 1" Rail 80/20 F #1. Next, attach its 1" Rail 80/20 M #2 facing front to part 37's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P36 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 34's 1" Rail 80/20 F #1. Next, attach its 1" Rail 80/20 M #2 facing front to part 37's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: back left

Upper Shelf Frame - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 36's 1" Rail 80/20 M #2, and ensure its 1" 80/20 End Hole F #1 faces right, plus ensure its 1" Rail 80/20 F #2 faces bottom, and its 1" Rail 80/20 F #3 should be directed front. Also, its 1" Rail 80/20 F #4 must be oriented top, then its 1" 80/20 End Hole F #2 must be oriented left
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: front right

Upper Shelf Frame - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 36's 1" Rail 80/20 M #2, and ensure its 1" 80/20 End Hole F #1 faces right, plus ensure its 1" Rail 80/20 F #2 faces bottom, and its 1" Rail 80/20 F #3 should be directed front. Also, its 1" Rail 80/20 F #4 must be oriented top, then its 1" 80/20 End Hole F #2 must be oriented left
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: bottom right

Upper Shelf Frame - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 36's 1" Rail 80/20 M #2, and ensure its 1" 80/20 End Hole F #1 faces right, plus ensure its 1" Rail 80/20 F #2 faces bottom, and its 1" Rail 80/20 F #3 should be directed front. Also, its 1" Rail 80/20 F #4 must be oriented top, then its 1" 80/20 End Hole F #2 must be oriented left
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part 1
P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is right-facing, should connect to part 35's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part 1
P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is right-facing, should connect to part 35's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part 1
P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is right-facing, should connect to part 35's 1" Rail 80/20 F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P51 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 31's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P51 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 31's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P51 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 31's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P52 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 28's 1" 80/20 End Hole F #2
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P52 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 28's 1" 80/20 End Hole F #2
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P52 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 28's 1" 80/20 End Hole F #2
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P53 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 31's 1" 80/20 End Hole F #2
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P53 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 31's 1" 80/20 End Hole F #2
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P53 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 31's 1" 80/20 End Hole F #2
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P54 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing right to part 28's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P54 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing right to part 28's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P54 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing right to part 28's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P56 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 34's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P56 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 34's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P56 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 34's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 35's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 35's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 35's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Group: Drawer Assembly

Creates a removable tray with a handle and an acrylic base.

Build the drawer. Create the frame by connecting the side rails (P39, P40) to the front rail (P41) with end-inside joints (P44, P45). Attach end caps (P55, P57) to the rear of the side rails. Secure the acrylic panel (P47) to the bottom of the frame using the four panel hangers (P46, P48, P49, P50). Attach the two pull handles (P59, P60) to the front rail (P41).

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: back left

Drawer Assembly - Part 80/20 1
P39 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 57's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing left to part 44's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #2, which is top-facing, should connect to part 49's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 43's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #3 should be directed right, also its 1" Rail 80/20 F #4 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: front right

Drawer Assembly - Part 80/20 1
P39 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 57's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing left to part 44's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #2, which is top-facing, should connect to part 49's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 43's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #3 should be directed right, also its 1" Rail 80/20 F #4 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: bottom right

Drawer Assembly - Part 80/20 1
P39 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 57's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing left to part 44's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #2, which is top-facing, should connect to part 49's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 43's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #3 should be directed right, also its 1" Rail 80/20 F #4 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: back left

Drawer Assembly - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 55's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented right links with part 45's 1" Rail 80/20 M #1, plus connect its 1" Rail 80/20 F #4 oriented top links with part 46's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 42's 1" 80/20 End Hole M #1. Additionally, ensure its 1" Rail 80/20 F #2 faces bottom. Additionally, its 1" Rail 80/20 F #3 must be oriented left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: front right

Drawer Assembly - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 55's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented right links with part 45's 1" Rail 80/20 M #1, plus connect its 1" Rail 80/20 F #4 oriented top links with part 46's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 42's 1" 80/20 End Hole M #1. Additionally, ensure its 1" Rail 80/20 F #2 faces bottom. Additionally, its 1" Rail 80/20 F #3 must be oriented left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 8.5" - Angle: bottom right

Drawer Assembly - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 55's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented right links with part 45's 1" Rail 80/20 M #1, plus connect its 1" Rail 80/20 F #4 oriented top links with part 46's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 42's 1" 80/20 End Hole M #1. Additionally, ensure its 1" Rail 80/20 F #2 faces bottom. Additionally, its 1" Rail 80/20 F #3 must be oriented left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: back left

Drawer Assembly - Part 80/20 1
P41 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 44's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #3 oriented front links with part 59's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 45's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #1 needs to point back, also its 1" Rail 80/20 F #2 should be directed bottom, and ensure its 1" Rail 80/20 F #4 faces top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: front right

Drawer Assembly - Part 80/20 1
P41 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 44's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #3 oriented front links with part 59's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 45's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #1 needs to point back, also its 1" Rail 80/20 F #2 should be directed bottom, and ensure its 1" Rail 80/20 F #4 faces top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: bottom right

Drawer Assembly - Part 80/20 1
P41 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 44's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #3 oriented front links with part 59's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 45's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #1 needs to point back, also its 1" Rail 80/20 F #2 should be directed bottom, and ensure its 1" Rail 80/20 F #4 faces top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - back_left
P42 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 40's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - front_right
P42 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 40's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - bottom_right
P42 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 40's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - back_left
P43 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 39's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - front_right
P43 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 39's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - bottom_right
P43 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 39's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - back_left
P44 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 39's 1" Rail 80/20 F #1. After that, connect its 1" 80/20 End Hole M #1 oriented left links with part 41's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - front_right
P44 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 39's 1" Rail 80/20 F #1. After that, connect its 1" 80/20 End Hole M #1 oriented left links with part 41's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - bottom_right
P44 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 39's 1" Rail 80/20 F #1. After that, connect its 1" 80/20 End Hole M #1 oriented left links with part 41's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - back_left
P45 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 40's 1" Rail 80/20 F #1, and its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 41's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - front_right
P45 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 40's 1" Rail 80/20 F #1, and its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 41's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part End Inside Joint Aluminum 80/20 - bottom_right
P45 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 40's 1" Rail 80/20 F #1, and its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 41's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Drawer Assembly - Part 1
P46 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #4, then attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Drawer Assembly - Part 1
P46 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #4, then attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part 1
P46 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #4, then attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1' Acrylic Panel x 7.75" - Angle: back left

Drawer Assembly - Part 1' Acrylic Panel x 7.75
P47 (1' Acrylic Panel 7.75" length) - connect its 1" 80 20 Panel #1 oriented top links with part 50's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #2, which is top-facing, should connect to part 48's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #3, which is top-facing, should connect to part 49's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #4 oriented top links with part 46's 1" 80 20 Panel Holder #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1' Acrylic Panel x 7.75" - Angle: front right

Drawer Assembly - Part 1' Acrylic Panel x 7.75
P47 (1' Acrylic Panel 7.75" length) - connect its 1" 80 20 Panel #1 oriented top links with part 50's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #2, which is top-facing, should connect to part 48's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #3, which is top-facing, should connect to part 49's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #4 oriented top links with part 46's 1" 80 20 Panel Holder #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1' Acrylic Panel x 7.75" - Angle: bottom right

Drawer Assembly - Part 1' Acrylic Panel x 7.75
P47 (1' Acrylic Panel 7.75" length) - connect its 1" 80 20 Panel #1 oriented top links with part 50's 1" 80 20 Panel Holder #1, and its 1" 80 20 Panel #2, which is top-facing, should connect to part 48's 1" 80 20 Panel Holder #1, plus its 1" 80 20 Panel #3, which is top-facing, should connect to part 49's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #4 oriented top links with part 46's 1" 80 20 Panel Holder #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Drawer Assembly - Part 1
P48 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #4, also connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 47's 1" 80 20 Panel #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Drawer Assembly - Part 1
P48 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #4, also connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 47's 1" 80 20 Panel #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part 1
P48 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #4, also connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 47's 1" 80 20 Panel #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Drawer Assembly - Part 1
P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2. After that, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Drawer Assembly - Part 1
P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2. After that, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part 1
P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2. After that, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Drawer Assembly - Part 1
P50 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 39's 1" Rail 80/20 F #2, also its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Drawer Assembly - Part 1
P50 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 39's 1" Rail 80/20 F #2, also its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part 1
P50 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 39's 1" Rail 80/20 F #2, also its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Drawer Assembly - Part End Cap Aluminum 80/20 - back_left
P55 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 40's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Drawer Assembly - Part End Cap Aluminum 80/20 - front_right
P55 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 40's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part End Cap Aluminum 80/20 - bottom_right
P55 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 40's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Drawer Assembly - Part End Cap Aluminum 80/20 - back_left
P57 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 39's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Drawer Assembly - Part End Cap Aluminum 80/20 - front_right
P57 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 39's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part End Cap Aluminum 80/20 - bottom_right
P57 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 39's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Pull Handle Aluminum 80/20 - Angle: back left

Drawer Assembly - Part 1
P59 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Pull Handle Aluminum 80/20 - Angle: front right

Drawer Assembly - Part 1
P59 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Pull Handle Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part 1
P59 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Pull Handle Aluminum 80/20 - Angle: back left

Drawer Assembly - Part 1
P60 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Pull Handle Aluminum 80/20 - Angle: front right

Drawer Assembly - Part 1
P60 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Part: 1" Pull Handle Aluminum 80/20 - Angle: bottom right

Drawer Assembly - Part 1
P60 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Phase 3: Inter-Group Assembly

Attaching: Base Assembly

Forms the rolling foundation of the workstation.

The Main Tower Frame mounts on top of this base. The vertical rails of the tower will connect to the base rails (P1, P4) and cross-member (P9).

Angle: back left

Assembly of Base Assembly - back_left
P1 (4" 1" T Slot Rail Aluminum 80/20 20" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 2's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1, which is left-facing, should connect to part 8's 1" Rail 80/20 M #1, and attach its 1" Rail 80/20 F #4 facing bottom to part 62's 1" Rail 80/20 M #1, then connect its 1" 80/20 End Hole F #2 oriented back links with part 3's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 should be directed top. Next, ensure its 1" Rail 80/20 F #3 faces right P2 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1 P3 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 1's 1" 80/20 End Hole F #2 P4 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 5's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #3 facing right to part 7's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #4 facing bottom to part 64's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 6's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #1 needs to point left. Additionally, its 1" Rail 80/20 F #2 must be oriented top P5 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 4's 1" 80/20 End Hole F #1 P6 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 4's 1" 80/20 End Hole F #2 P7 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #3, and connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1 P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 1's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1 P9 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2. Additionally, ensure its 1" 80/20 End Hole F #1 faces left. After that, its 1" Rail 80/20 F #2 must be oriented bottom. Next, its 1" Rail 80/20 F #3 needs to point back. Additionally, its 1" Rail 80/20 F #4 should be directed top, then its 1" 80/20 End Hole F #2 should be directed right P62 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4 P63 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 1's 1" Rail 80/20 F #4 P64 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 4's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Angle: front right

Assembly of Base Assembly - front_right
P1 (4" 1" T Slot Rail Aluminum 80/20 20" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 2's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1, which is left-facing, should connect to part 8's 1" Rail 80/20 M #1, and attach its 1" Rail 80/20 F #4 facing bottom to part 62's 1" Rail 80/20 M #1, then connect its 1" 80/20 End Hole F #2 oriented back links with part 3's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 should be directed top. Next, ensure its 1" Rail 80/20 F #3 faces right P2 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1 P3 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 1's 1" 80/20 End Hole F #2 P4 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 5's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #3 facing right to part 7's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #4 facing bottom to part 64's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 6's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #1 needs to point left. Additionally, its 1" Rail 80/20 F #2 must be oriented top P5 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 4's 1" 80/20 End Hole F #1 P6 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 4's 1" 80/20 End Hole F #2 P7 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #3, and connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1 P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 1's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1 P9 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2. Additionally, ensure its 1" 80/20 End Hole F #1 faces left. After that, its 1" Rail 80/20 F #2 must be oriented bottom. Next, its 1" Rail 80/20 F #3 needs to point back. Additionally, its 1" Rail 80/20 F #4 should be directed top, then its 1" 80/20 End Hole F #2 should be directed right P62 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4 P63 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 1's 1" Rail 80/20 F #4 P64 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 4's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Angle: bottom right

Assembly of Base Assembly - bottom_right
P1 (4" 1" T Slot Rail Aluminum 80/20 20" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 2's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1, which is left-facing, should connect to part 8's 1" Rail 80/20 M #1, and attach its 1" Rail 80/20 F #4 facing bottom to part 62's 1" Rail 80/20 M #1, then connect its 1" 80/20 End Hole F #2 oriented back links with part 3's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 should be directed top. Next, ensure its 1" Rail 80/20 F #3 faces right P2 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1 P3 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 1's 1" 80/20 End Hole F #2 P4 (4" 1" T Slot Rail Aluminum 80/20 20" length) - attach its 1" 80/20 End Hole F #1 facing front to part 5's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #3 facing right to part 7's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #4 facing bottom to part 64's 1" Rail 80/20 M #1. Additionally, connect its 1" 80/20 End Hole F #2 oriented back links with part 6's 1" 80/20 End Hole M #1. Additionally, its 1" Rail 80/20 F #1 needs to point left. Additionally, its 1" Rail 80/20 F #2 must be oriented top P5 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 4's 1" 80/20 End Hole F #1 P6 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 4's 1" 80/20 End Hole F #2 P7 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented left links with part 4's 1" Rail 80/20 F #3, and connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1 P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 1's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1 P9 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2. Additionally, ensure its 1" 80/20 End Hole F #1 faces left. After that, its 1" Rail 80/20 F #2 must be oriented bottom. Next, its 1" Rail 80/20 F #3 needs to point back. Additionally, its 1" Rail 80/20 F #4 should be directed top, then its 1" 80/20 End Hole F #2 should be directed right P62 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4 P63 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 1's 1" Rail 80/20 F #4 P64 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 4's 1" Rail 80/20 F #4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 20"x 2
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 1
22" Wheel 80/20x 3

Attaching: Main Tower Frame

Creates the primary vertical structure of the workstation.

Mount this tower onto the completed Base Assembly. The Upper Shelf Frame will then be attached to the vertical back rails (P17, P19) of this tower.

Angle: back left

Assembly of Main Tower Frame - back_left
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1 P11 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1 P12 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" Rail 80/20 F #1 facing front to part 11's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #4, which is top-facing, should connect to part 16's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 should be directed left, also ensure its 1" Rail 80/20 F #2 faces bottom, and its 1" Rail 80/20 F #3 should be directed back. Also, ensure its 1" 80/20 End Hole F #2 faces right P13 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented front links with part 15's 1" Rail 80/20 F #1 P14 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Also, attach its 1" Rail 80/20 M #2 facing front to part 15's 1" Rail 80/20 F #1 P15 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 14's 1" Rail 80/20 M #2. Additionally, connect its 1" Rail 80/20 F #2 oriented top links with part 20's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #1 must be oriented left. After that, its 1" Rail 80/20 F #3 needs to point front, plus ensure its 1" Rail 80/20 F #4 faces bottom. Also, its 1" 80/20 End Hole F #2 must be oriented right P16 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 12's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing left to part 17's 1" Rail 80/20 F #1 P17 (4" 1" T Slot Rail Aluminum 80/20 41" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 23's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #1 facing right to part 16's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #2, which is front-facing, should connect to part 26's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented back. After that, its 1" 80/20 End Hole F #2 must be oriented bottom P18 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 12's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented right links with part 19's 1" Rail 80/20 F #1 P19 (4" 1" T Slot Rail Aluminum 80/20 41" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 24's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing left to part 18's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #4 facing front to part 27's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 needs to point back, plus its 1" Rail 80/20 F #3 needs to point right, plus its 1" 80/20 End Hole F #2 should be directed bottom P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 15's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 21's 1" Rail 80/20 F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 52" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 25's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 20's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing right to part 22's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is front-facing, should connect to part 61's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 needs to point back, plus its 1" 80/20 End Hole F #2 should be directed bottom P22 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 21's 1" Rail 80/20 F #3. Additionally, connect its 1" Rail 80/20 M #2 oriented bottom links with part 15's 1" Rail 80/20 F #2 P23 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 17's 1" 80/20 End Hole F #1 P24 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 19's 1" 80/20 End Hole F #1 P25 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 21's 1" 80/20 End Hole F #1 P61 (Heavy Duty Ball-Grip Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #4
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Angle: front right

Assembly of Main Tower Frame - front_right
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1 P11 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1 P12 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" Rail 80/20 F #1 facing front to part 11's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #4, which is top-facing, should connect to part 16's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 should be directed left, also ensure its 1" Rail 80/20 F #2 faces bottom, and its 1" Rail 80/20 F #3 should be directed back. Also, ensure its 1" 80/20 End Hole F #2 faces right P13 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented front links with part 15's 1" Rail 80/20 F #1 P14 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Also, attach its 1" Rail 80/20 M #2 facing front to part 15's 1" Rail 80/20 F #1 P15 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 14's 1" Rail 80/20 M #2. Additionally, connect its 1" Rail 80/20 F #2 oriented top links with part 20's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #1 must be oriented left. After that, its 1" Rail 80/20 F #3 needs to point front, plus ensure its 1" Rail 80/20 F #4 faces bottom. Also, its 1" 80/20 End Hole F #2 must be oriented right P16 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 12's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing left to part 17's 1" Rail 80/20 F #1 P17 (4" 1" T Slot Rail Aluminum 80/20 41" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 23's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #1 facing right to part 16's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #2, which is front-facing, should connect to part 26's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented back. After that, its 1" 80/20 End Hole F #2 must be oriented bottom P18 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 12's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented right links with part 19's 1" Rail 80/20 F #1 P19 (4" 1" T Slot Rail Aluminum 80/20 41" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 24's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing left to part 18's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #4 facing front to part 27's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 needs to point back, plus its 1" Rail 80/20 F #3 needs to point right, plus its 1" 80/20 End Hole F #2 should be directed bottom P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 15's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 21's 1" Rail 80/20 F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 52" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 25's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 20's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing right to part 22's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is front-facing, should connect to part 61's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 needs to point back, plus its 1" 80/20 End Hole F #2 should be directed bottom P22 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 21's 1" Rail 80/20 F #3. Additionally, connect its 1" Rail 80/20 M #2 oriented bottom links with part 15's 1" Rail 80/20 F #2 P23 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 17's 1" 80/20 End Hole F #1 P24 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 19's 1" 80/20 End Hole F #1 P25 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 21's 1" 80/20 End Hole F #1 P61 (Heavy Duty Ball-Grip Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #4
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Angle: bottom right

Assembly of Main Tower Frame - bottom_right
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #3. Next, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1 P11 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 12's 1" Rail 80/20 F #1 P12 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" Rail 80/20 F #1 facing front to part 11's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #4, which is top-facing, should connect to part 16's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 should be directed left, also ensure its 1" Rail 80/20 F #2 faces bottom, and its 1" Rail 80/20 F #3 should be directed back. Also, ensure its 1" 80/20 End Hole F #2 faces right P13 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 4's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented front links with part 15's 1" Rail 80/20 F #1 P14 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Also, attach its 1" Rail 80/20 M #2 facing front to part 15's 1" Rail 80/20 F #1 P15 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 14's 1" Rail 80/20 M #2. Additionally, connect its 1" Rail 80/20 F #2 oriented top links with part 20's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #1 must be oriented left. After that, its 1" Rail 80/20 F #3 needs to point front, plus ensure its 1" Rail 80/20 F #4 faces bottom. Also, its 1" 80/20 End Hole F #2 must be oriented right P16 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 12's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing left to part 17's 1" Rail 80/20 F #1 P17 (4" 1" T Slot Rail Aluminum 80/20 41" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 23's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #1 facing right to part 16's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #2, which is front-facing, should connect to part 26's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented back. After that, its 1" 80/20 End Hole F #2 must be oriented bottom P18 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 12's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented right links with part 19's 1" Rail 80/20 F #1 P19 (4" 1" T Slot Rail Aluminum 80/20 41" length) - connect its 1" 80/20 End Hole F #1 oriented top links with part 24's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing left to part 18's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #4 facing front to part 27's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 needs to point back, plus its 1" Rail 80/20 F #3 needs to point right, plus its 1" 80/20 End Hole F #2 should be directed bottom P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 15's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 21's 1" Rail 80/20 F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 52" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 25's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing left to part 20's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing right to part 22's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #4, which is front-facing, should connect to part 61's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 needs to point back, plus its 1" 80/20 End Hole F #2 should be directed bottom P22 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 21's 1" Rail 80/20 F #3. Additionally, connect its 1" Rail 80/20 M #2 oriented bottom links with part 15's 1" Rail 80/20 F #2 P23 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 17's 1" 80/20 End Hole F #1 P24 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 19's 1" 80/20 End Hole F #1 P25 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 21's 1" 80/20 End Hole F #1 P61 (Heavy Duty Ball-Grip Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #4
11" Angle Joint Aluminum 80/20x 8
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 41"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 52"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 3
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Attaching: Upper Shelf Frame

Forms a fixed shelf structure on the main tower.

Attach this shelf assembly to the Main Tower Frame. The shelf's front and rear rails (P28, P31) connect to the tower's vertical back rails (P17, P19) using angle joints P26, P27, P29, and P30.

Angle: back left

Assembly of Upper Shelf Frame - back_left
P26 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #2. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1 P27 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 19's 1" Rail 80/20 F #4, and connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1 P28 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 54's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 27's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 32's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented right links with part 52's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 must be oriented back, also its 1" Rail 80/20 F #3 needs to point top P29 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 17's 1" Rail 80/20 F #2, also connect its 1" Rail 80/20 M #2 oriented bottom links with part 31's 1" Rail 80/20 F #1 P30 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 19's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 31's 1" Rail 80/20 F #1 P31 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 51's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented top links with part 30's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #4 oriented front links with part 42's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 53's 1" 80/20 End Hole M #1. Next, ensure its 1" Rail 80/20 F #2 faces back. Next, its 1" Rail 80/20 F #3 should be directed bottom P32 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 28's 1" Rail 80/20 F #4, and connect its 1" Rail 80/20 M #2 oriented left links with part 34's 1" Rail 80/20 F #1 P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 28's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented right links with part 35's 1" Rail 80/20 F #1 P34 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 56's 1" 80/20 End Hole M #1, also attach its 1" Rail 80/20 F #1 facing right to part 32's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented bottom. Also, its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented top. After that, its 1" 80/20 End Hole F #2 should be directed back P35 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 58's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing left to part 33's 1" Rail 80/20 M #2, plus ensure its 1" Rail 80/20 F #2 faces top, and its 1" Rail 80/20 F #3 must be oriented right, and its 1" Rail 80/20 F #4 should be directed bottom. After that, ensure its 1" 80/20 End Hole F #2 faces back P36 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 34's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1 P37 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 36's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right, then its 1" Rail 80/20 F #2 should be directed bottom, and its 1" Rail 80/20 F #3 should be directed front, then its 1" Rail 80/20 F #4 must be oriented top, and its 1" 80/20 End Hole F #2 needs to point left P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is right-facing, should connect to part 35's 1" Rail 80/20 F #1 P51 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 31's 1" 80/20 End Hole F #1 P52 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing left to part 28's 1" 80/20 End Hole F #2 P53 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 31's 1" 80/20 End Hole F #2 P54 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 28's 1" 80/20 End Hole F #1 P56 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 34's 1" 80/20 End Hole F #1 P58 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 35's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Angle: front right

Assembly of Upper Shelf Frame - front_right
P26 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #2. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1 P27 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 19's 1" Rail 80/20 F #4, and connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1 P28 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 54's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 27's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 32's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented right links with part 52's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 must be oriented back, also its 1" Rail 80/20 F #3 needs to point top P29 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 17's 1" Rail 80/20 F #2, also connect its 1" Rail 80/20 M #2 oriented bottom links with part 31's 1" Rail 80/20 F #1 P30 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 19's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 31's 1" Rail 80/20 F #1 P31 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 51's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented top links with part 30's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #4 oriented front links with part 42's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 53's 1" 80/20 End Hole M #1. Next, ensure its 1" Rail 80/20 F #2 faces back. Next, its 1" Rail 80/20 F #3 should be directed bottom P32 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 28's 1" Rail 80/20 F #4, and connect its 1" Rail 80/20 M #2 oriented left links with part 34's 1" Rail 80/20 F #1 P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 28's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented right links with part 35's 1" Rail 80/20 F #1 P34 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 56's 1" 80/20 End Hole M #1, also attach its 1" Rail 80/20 F #1 facing right to part 32's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented bottom. Also, its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented top. After that, its 1" 80/20 End Hole F #2 should be directed back P35 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 58's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing left to part 33's 1" Rail 80/20 M #2, plus ensure its 1" Rail 80/20 F #2 faces top, and its 1" Rail 80/20 F #3 must be oriented right, and its 1" Rail 80/20 F #4 should be directed bottom. After that, ensure its 1" 80/20 End Hole F #2 faces back P36 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 34's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1 P37 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 36's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right, then its 1" Rail 80/20 F #2 should be directed bottom, and its 1" Rail 80/20 F #3 should be directed front, then its 1" Rail 80/20 F #4 must be oriented top, and its 1" 80/20 End Hole F #2 needs to point left P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is right-facing, should connect to part 35's 1" Rail 80/20 F #1 P51 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 31's 1" 80/20 End Hole F #1 P52 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing left to part 28's 1" 80/20 End Hole F #2 P53 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 31's 1" 80/20 End Hole F #2 P54 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 28's 1" 80/20 End Hole F #1 P56 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 34's 1" 80/20 End Hole F #1 P58 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 35's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Angle: bottom right

Assembly of Upper Shelf Frame - bottom_right
P26 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 17's 1" Rail 80/20 F #2. Additionally, connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1 P27 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 19's 1" Rail 80/20 F #4, and connect its 1" Rail 80/20 M #2 oriented top links with part 28's 1" Rail 80/20 F #1 P28 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 54's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 27's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #4, which is front-facing, should connect to part 32's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented right links with part 52's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 must be oriented back, also its 1" Rail 80/20 F #3 needs to point top P29 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 17's 1" Rail 80/20 F #2, also connect its 1" Rail 80/20 M #2 oriented bottom links with part 31's 1" Rail 80/20 F #1 P30 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 19's 1" Rail 80/20 F #4. Additionally, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 31's 1" Rail 80/20 F #1 P31 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 51's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented top links with part 30's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #4 oriented front links with part 42's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 53's 1" 80/20 End Hole M #1. Next, ensure its 1" Rail 80/20 F #2 faces back. Next, its 1" Rail 80/20 F #3 should be directed bottom P32 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 28's 1" Rail 80/20 F #4, and connect its 1" Rail 80/20 M #2 oriented left links with part 34's 1" Rail 80/20 F #1 P33 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 28's 1" Rail 80/20 F #4, then connect its 1" Rail 80/20 M #2 oriented right links with part 35's 1" Rail 80/20 F #1 P34 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 56's 1" 80/20 End Hole M #1, also attach its 1" Rail 80/20 F #1 facing right to part 32's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented bottom. Also, its 1" Rail 80/20 F #3 should be directed left. Next, its 1" Rail 80/20 F #4 must be oriented top. After that, its 1" 80/20 End Hole F #2 should be directed back P35 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 58's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing left to part 33's 1" Rail 80/20 M #2, plus ensure its 1" Rail 80/20 F #2 faces top, and its 1" Rail 80/20 F #3 must be oriented right, and its 1" Rail 80/20 F #4 should be directed bottom. After that, ensure its 1" 80/20 End Hole F #2 faces back P36 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing left to part 34's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1 P37 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" Rail 80/20 F #1 oriented back links with part 36's 1" Rail 80/20 M #2. After that, ensure its 1" 80/20 End Hole F #1 faces right, then its 1" Rail 80/20 F #2 should be directed bottom, and its 1" Rail 80/20 F #3 should be directed front, then its 1" Rail 80/20 F #4 must be oriented top, and its 1" 80/20 End Hole F #2 needs to point left P38 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is right-facing, should connect to part 35's 1" Rail 80/20 F #1 P51 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 31's 1" 80/20 End Hole F #1 P52 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing left to part 28's 1" 80/20 End Hole F #2 P53 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 31's 1" 80/20 End Hole F #2 P54 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 28's 1" 80/20 End Hole F #1 P56 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 34's 1" 80/20 End Hole F #1 P58 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 35's 1" 80/20 End Hole F #1
11" Angle 2 Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6

Attaching: Drawer Assembly

Creates a removable tray with a handle and an acrylic base.

Install the completed drawer into the main structure. The rear of the drawer connects to the Upper Shelf Frame's rear rail (P31) using the end-inside joints (P42, P43).

Angle: back left

Assembly of Drawer Assembly - back_left
P39 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 57's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing left to part 44's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2, which is top-facing, should connect to part 49's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 43's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #3 needs to point right, and ensure its 1" Rail 80/20 F #4 faces bottom P40 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 55's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing right to part 45's 1" Rail 80/20 M #1. Also, connect its 1" Rail 80/20 F #4 oriented top links with part 46's 1" Rail 80/20 M #1. Also, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 42's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #2 must be oriented bottom. Additionally, its 1" Rail 80/20 F #3 should be directed left P41 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 44's 1" 80/20 End Hole M #1. After that, connect its 1" Rail 80/20 F #3 oriented front links with part 59's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented left links with part 45's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 needs to point back, and ensure its 1" Rail 80/20 F #2 faces bottom, then its 1" Rail 80/20 F #4 should be directed top P42 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 31's 1" Rail 80/20 F #4, then connect its 1" 80/20 End Hole M #1 oriented front links with part 40's 1" 80/20 End Hole F #2 P43 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 31's 1" Rail 80/20 F #4. Additionally, attach its 1" 80/20 End Hole M #1 facing front to part 39's 1" 80/20 End Hole F #2 P44 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 39's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented left links with part 41's 1" 80/20 End Hole F #1 P45 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 40's 1" Rail 80/20 F #1, plus connect its 1" 80/20 End Hole M #1 oriented right links with part 41's 1" 80/20 End Hole F #2 P46 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 40's 1" Rail 80/20 F #4, also its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #4 P47 (1' Acrylic Panel 7.75" length) - connect its 1" 80 20 Panel #1 oriented top links with part 50's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #2 oriented top links with part 48's 1" 80 20 Panel Holder #1, then attach its 1" 80 20 Panel #3 facing top to part 49's 1" 80 20 Panel Holder #1, also connect its 1" 80 20 Panel #4 oriented top links with part 46's 1" 80 20 Panel Holder #1 P48 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 40's 1" Rail 80/20 F #4, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #2 P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #3 P50 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2. Also, attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #1 P55 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 40's 1" 80/20 End Hole F #1 P57 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 39's 1" 80/20 End Hole F #1 P59 (1" Pull Handle Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 41's 1" Rail 80/20 F #3 P60 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Angle: front right

Assembly of Drawer Assembly - front_right
P39 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 57's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing left to part 44's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2, which is top-facing, should connect to part 49's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 43's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #3 needs to point right, and ensure its 1" Rail 80/20 F #4 faces bottom P40 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 55's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing right to part 45's 1" Rail 80/20 M #1. Also, connect its 1" Rail 80/20 F #4 oriented top links with part 46's 1" Rail 80/20 M #1. Also, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 42's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #2 must be oriented bottom. Additionally, its 1" Rail 80/20 F #3 should be directed left P41 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 44's 1" 80/20 End Hole M #1. After that, connect its 1" Rail 80/20 F #3 oriented front links with part 59's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented left links with part 45's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 needs to point back, and ensure its 1" Rail 80/20 F #2 faces bottom, then its 1" Rail 80/20 F #4 should be directed top P42 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 31's 1" Rail 80/20 F #4, then connect its 1" 80/20 End Hole M #1 oriented front links with part 40's 1" 80/20 End Hole F #2 P43 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 31's 1" Rail 80/20 F #4. Additionally, attach its 1" 80/20 End Hole M #1 facing front to part 39's 1" 80/20 End Hole F #2 P44 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 39's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented left links with part 41's 1" 80/20 End Hole F #1 P45 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 40's 1" Rail 80/20 F #1, plus connect its 1" 80/20 End Hole M #1 oriented right links with part 41's 1" 80/20 End Hole F #2 P46 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 40's 1" Rail 80/20 F #4, also its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #4 P47 (1' Acrylic Panel 7.75" length) - connect its 1" 80 20 Panel #1 oriented top links with part 50's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #2 oriented top links with part 48's 1" 80 20 Panel Holder #1, then attach its 1" 80 20 Panel #3 facing top to part 49's 1" 80 20 Panel Holder #1, also connect its 1" 80 20 Panel #4 oriented top links with part 46's 1" 80 20 Panel Holder #1 P48 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 40's 1" Rail 80/20 F #4, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #2 P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #3 P50 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2. Also, attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #1 P55 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 40's 1" 80/20 End Hole F #1 P57 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 39's 1" 80/20 End Hole F #1 P59 (1" Pull Handle Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 41's 1" Rail 80/20 F #3 P60 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2

Angle: bottom right

Assembly of Drawer Assembly - bottom_right
P39 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 57's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing left to part 44's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2, which is top-facing, should connect to part 49's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 43's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #3 needs to point right, and ensure its 1" Rail 80/20 F #4 faces bottom P40 (4" 1" T Slot Rail Aluminum 80/20 8.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 55's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing right to part 45's 1" Rail 80/20 M #1. Also, connect its 1" Rail 80/20 F #4 oriented top links with part 46's 1" Rail 80/20 M #1. Also, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 42's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #2 must be oriented bottom. Additionally, its 1" Rail 80/20 F #3 should be directed left P41 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 44's 1" 80/20 End Hole M #1. After that, connect its 1" Rail 80/20 F #3 oriented front links with part 59's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented left links with part 45's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1 needs to point back, and ensure its 1" Rail 80/20 F #2 faces bottom, then its 1" Rail 80/20 F #4 should be directed top P42 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 31's 1" Rail 80/20 F #4, then connect its 1" 80/20 End Hole M #1 oriented front links with part 40's 1" 80/20 End Hole F #2 P43 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 31's 1" Rail 80/20 F #4. Additionally, attach its 1" 80/20 End Hole M #1 facing front to part 39's 1" 80/20 End Hole F #2 P44 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 39's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented left links with part 41's 1" 80/20 End Hole F #1 P45 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 40's 1" Rail 80/20 F #1, plus connect its 1" 80/20 End Hole M #1 oriented right links with part 41's 1" 80/20 End Hole F #2 P46 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 40's 1" Rail 80/20 F #4, also its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #4 P47 (1' Acrylic Panel 7.75" length) - connect its 1" 80 20 Panel #1 oriented top links with part 50's 1" 80 20 Panel Holder #1. Next, connect its 1" 80 20 Panel #2 oriented top links with part 48's 1" 80 20 Panel Holder #1, then attach its 1" 80 20 Panel #3 facing top to part 49's 1" 80 20 Panel Holder #1, also connect its 1" 80 20 Panel #4 oriented top links with part 46's 1" 80 20 Panel Holder #1 P48 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 40's 1" Rail 80/20 F #4, and attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #2 P49 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 47's 1" 80 20 Panel #3 P50 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 39's 1" Rail 80/20 F #2. Also, attach its 1" 80 20 Panel Holder #1 facing bottom to part 47's 1" 80 20 Panel #1 P55 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 40's 1" 80/20 End Hole F #1 P57 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 39's 1" 80/20 End Hole F #1 P59 (1" Pull Handle Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 41's 1" Rail 80/20 F #3 P60 (1" Pull Handle Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 41's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 8.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7.75"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Pull Handle Aluminum 80/20x 2
