Plant Stands 2 - Comprehensive Assembly Plan And Visual Guide

Plant Stands 2 Free Plan And Visual Guide

A wooden plant stand constructed from 1x2 lumber pieces. It features a large rectangular base platform and four smaller platforms arranged at different heights, supported by multiple vertical posts. The overall structure creates several levels for displaying plants. - Multi-Tiered Plant Stand

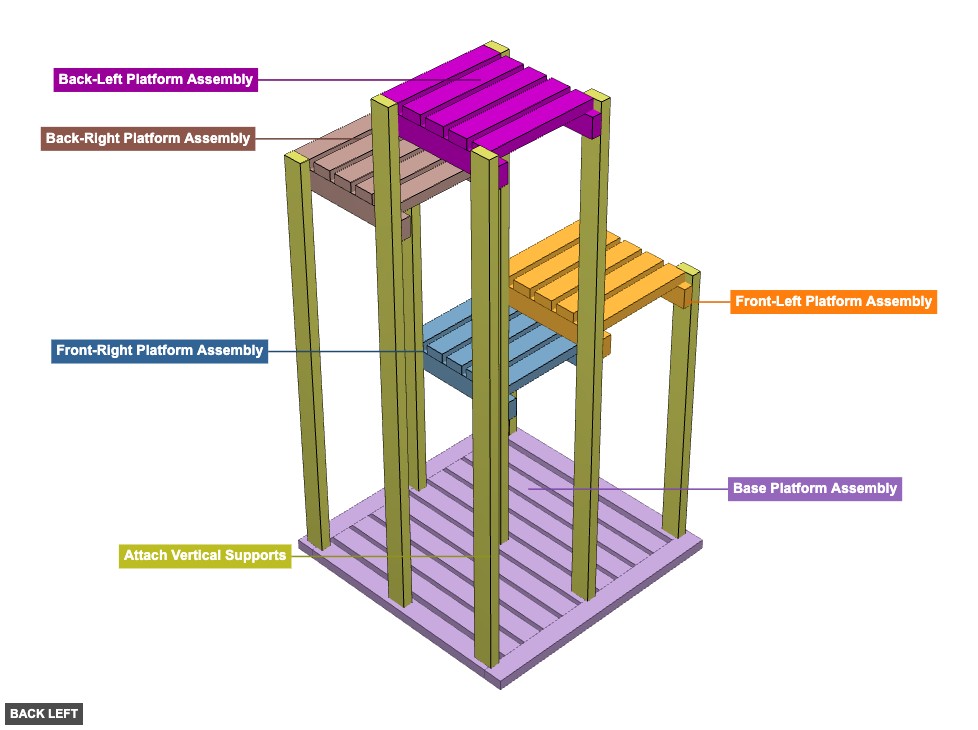

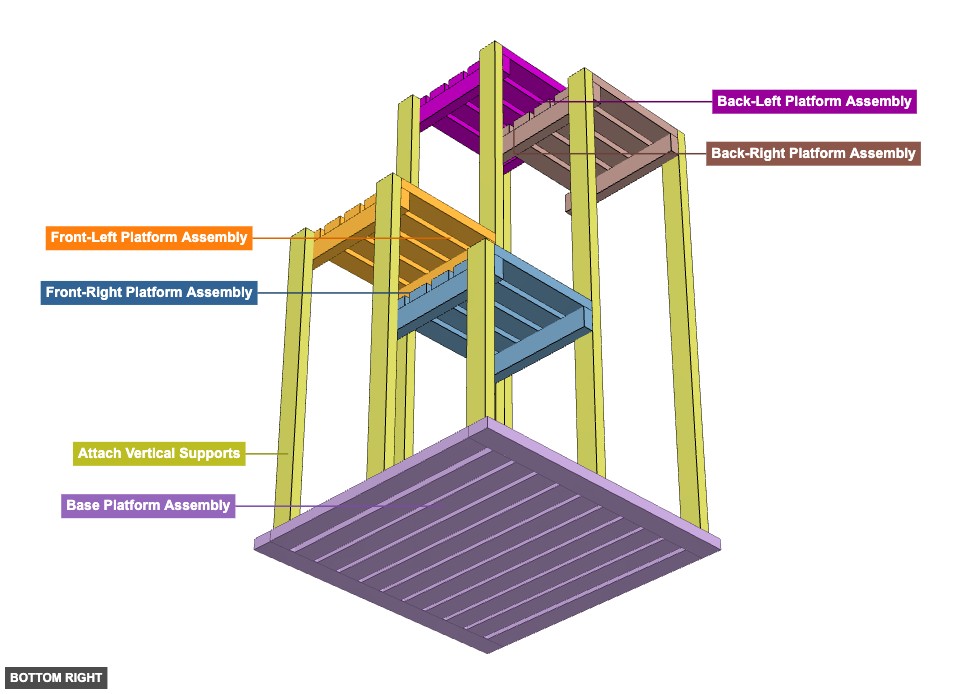

Phase 1: Group Overview

Angle: back left

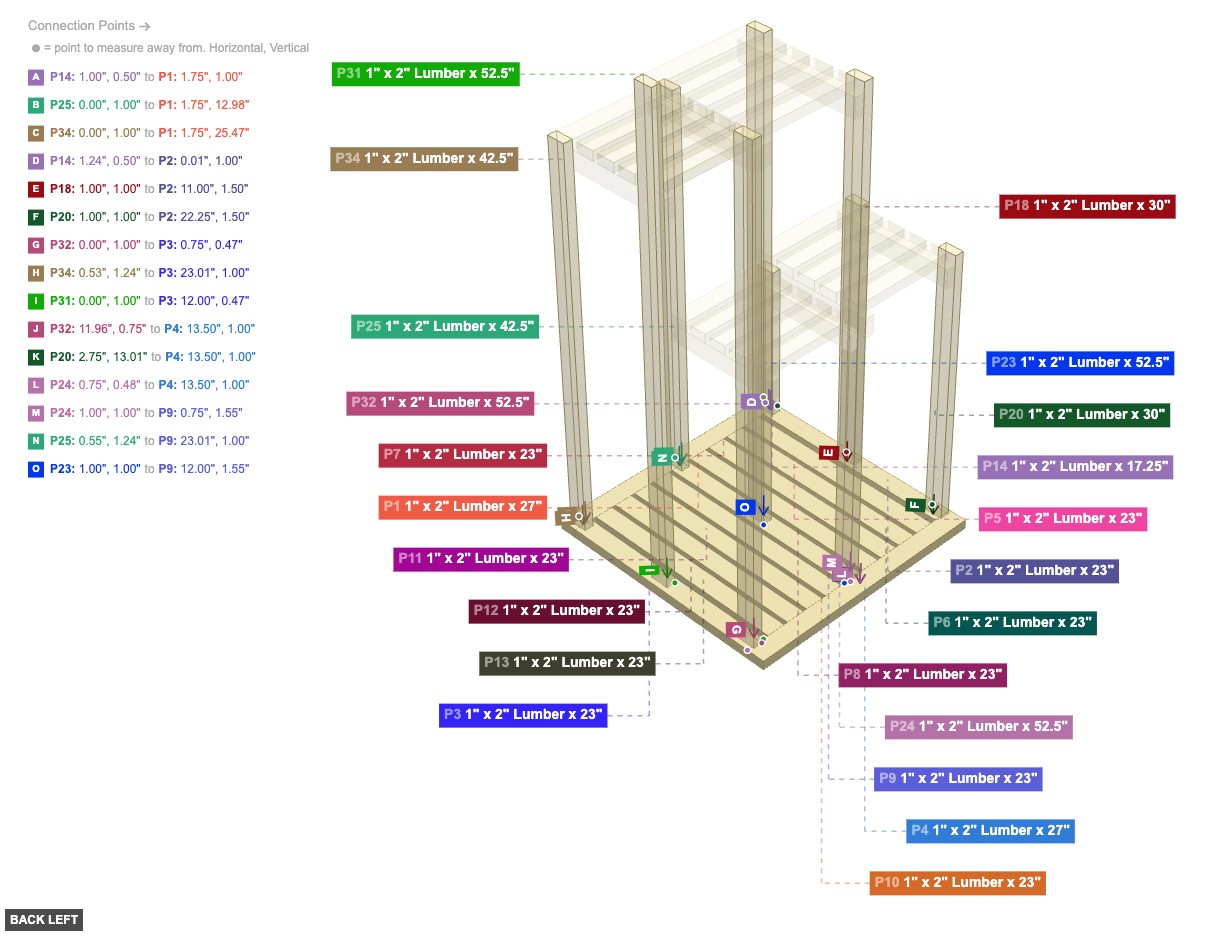

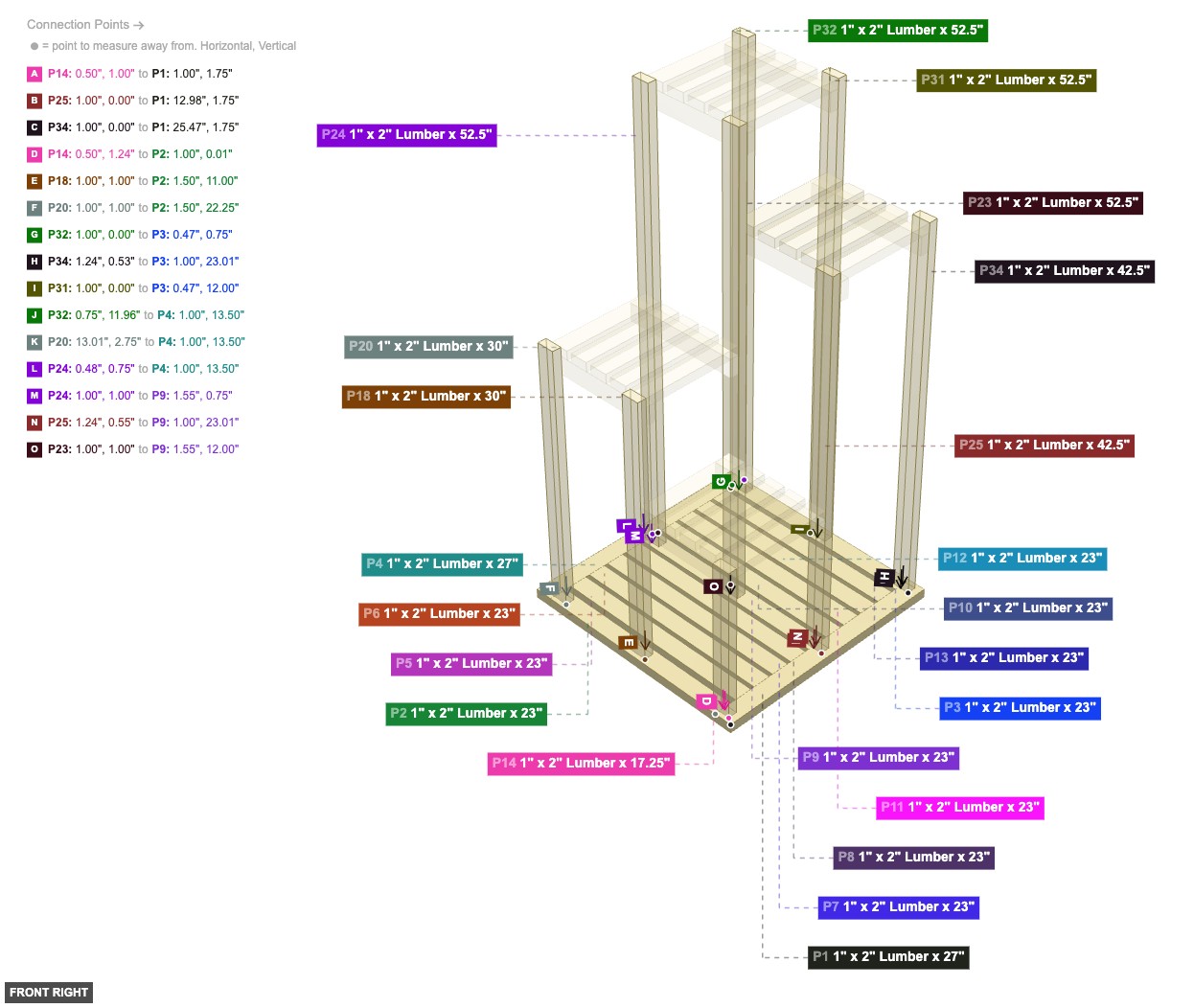

Base Platform Assembly

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

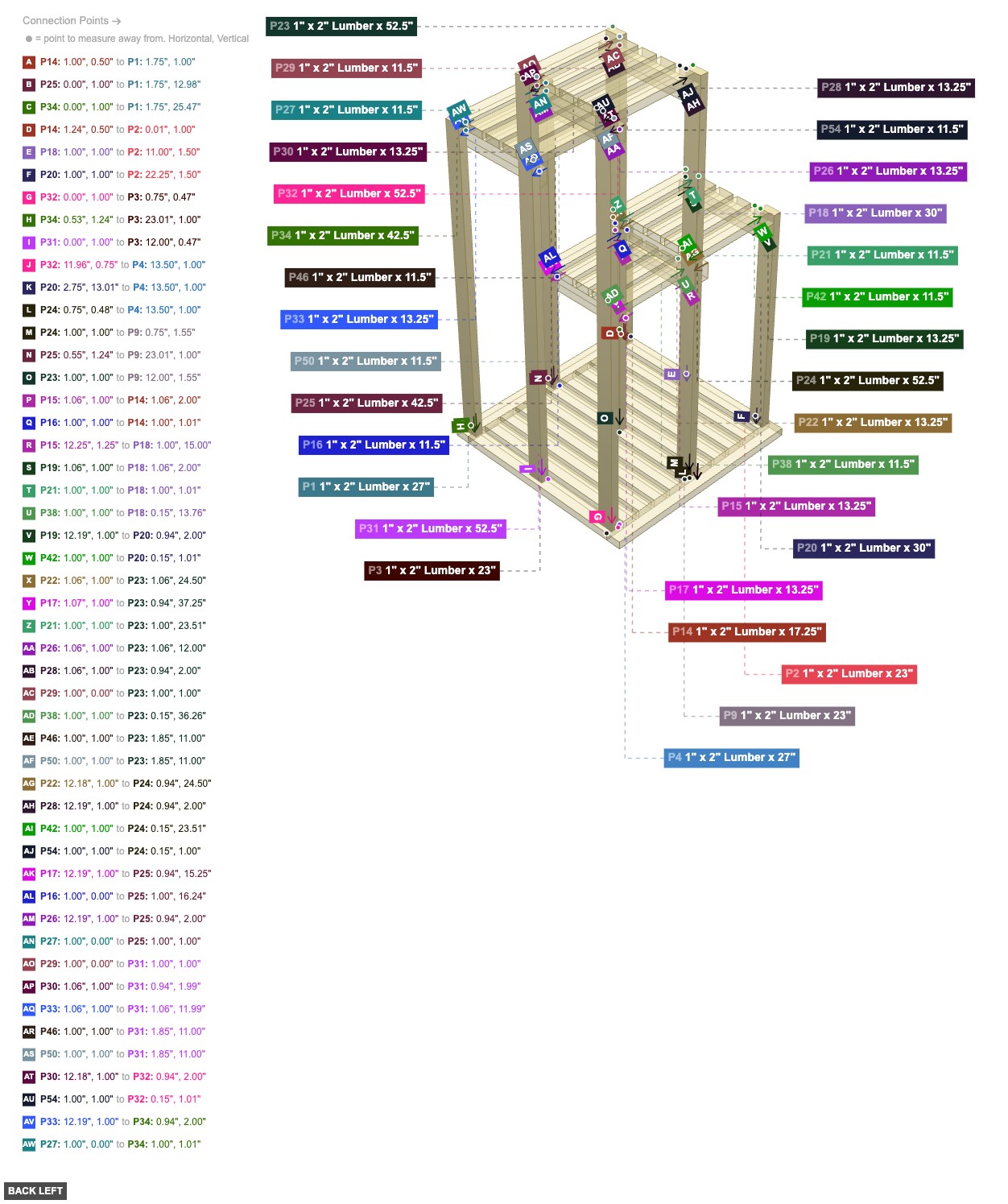

Attach Vertical Supports

1" x 2" Lumber x 17.25"x 1

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 52.5"x 4

1" x 2" Lumber x 42.5"x 2

Front-Right Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Front-Left Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

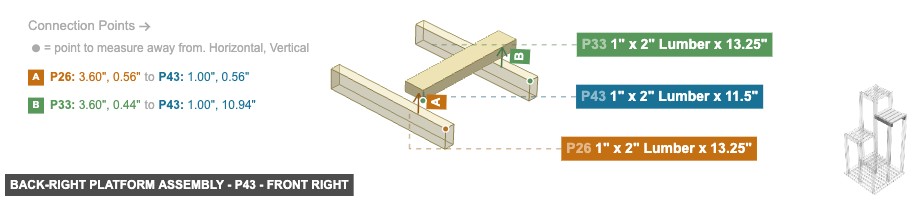

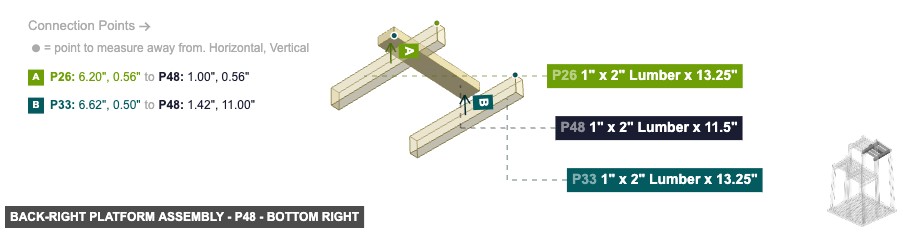

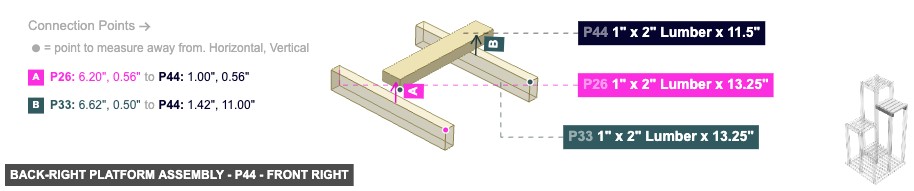

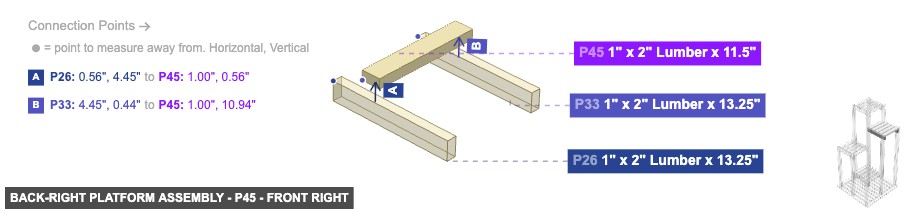

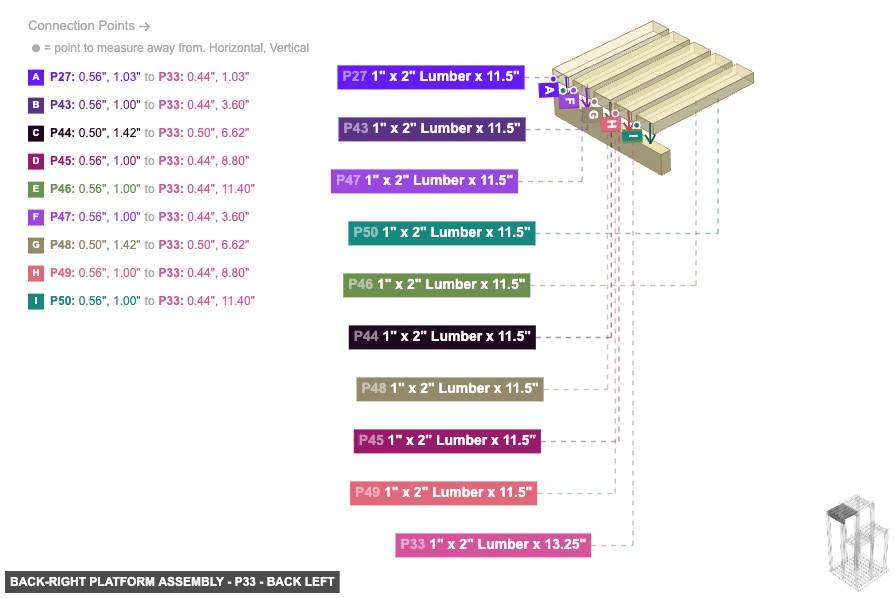

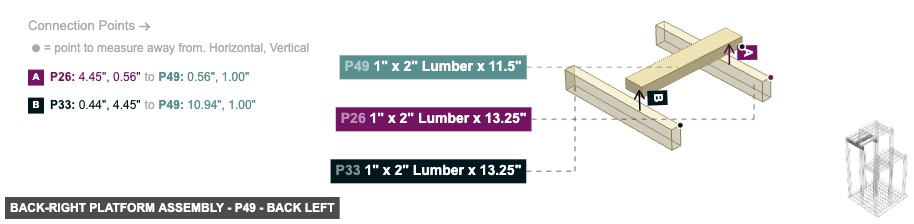

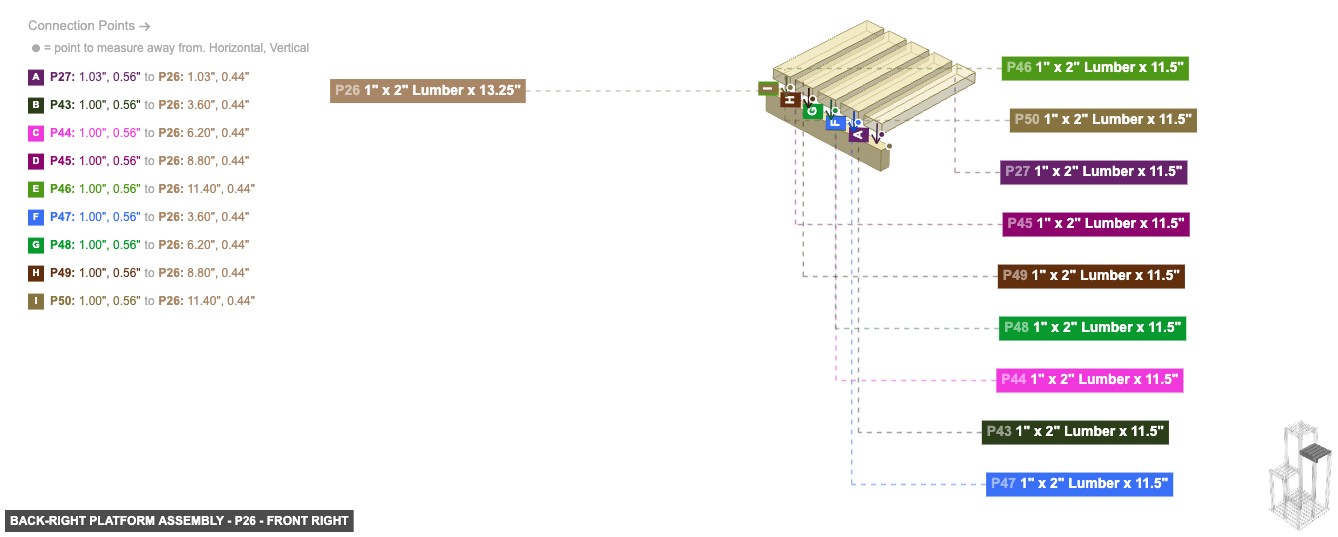

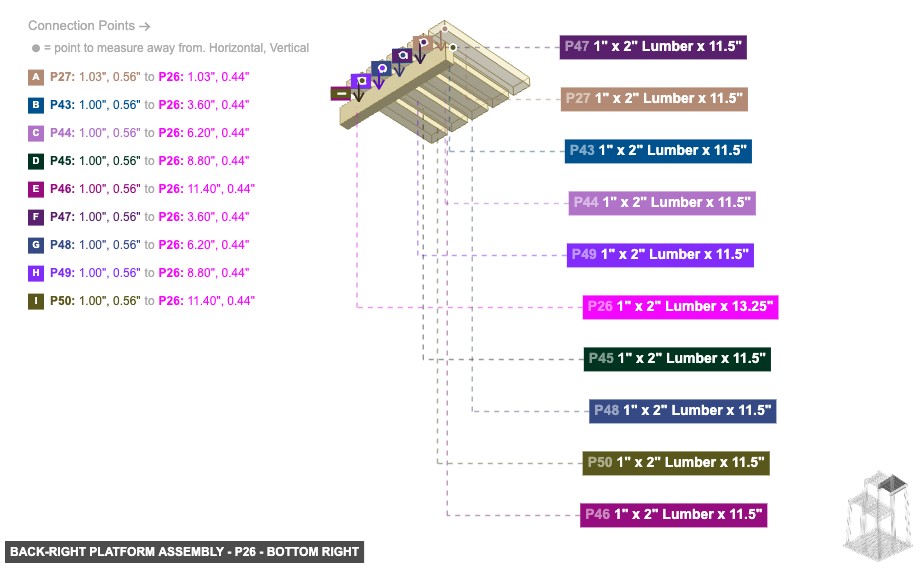

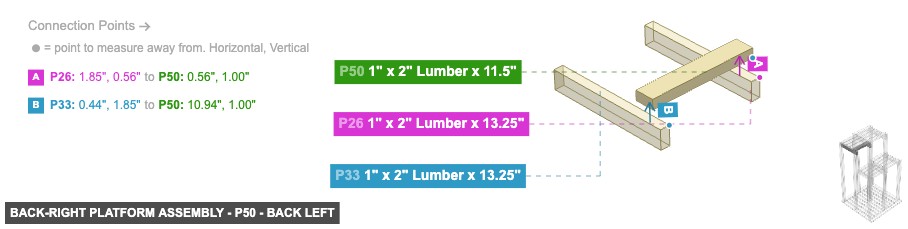

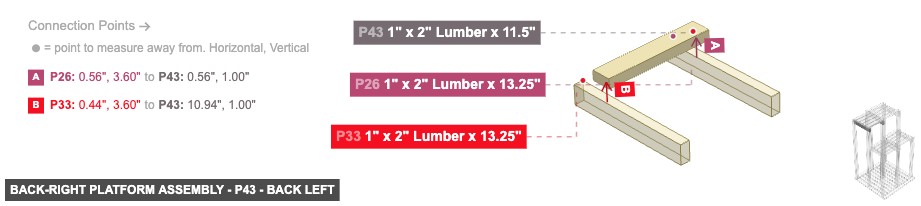

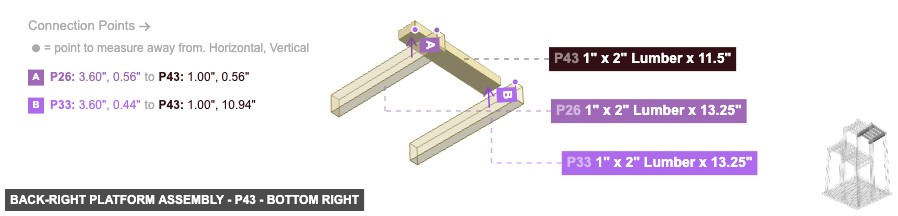

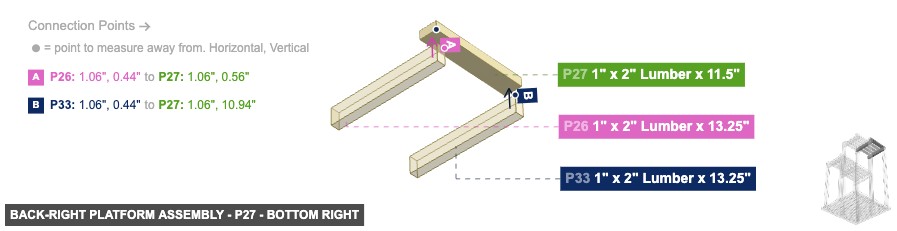

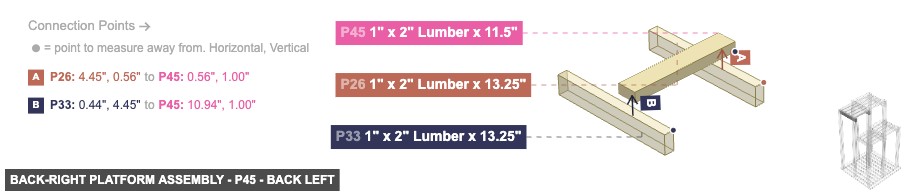

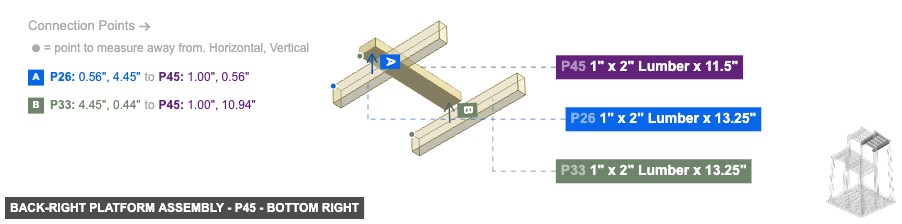

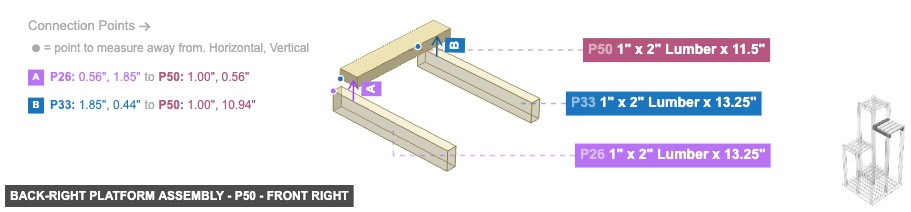

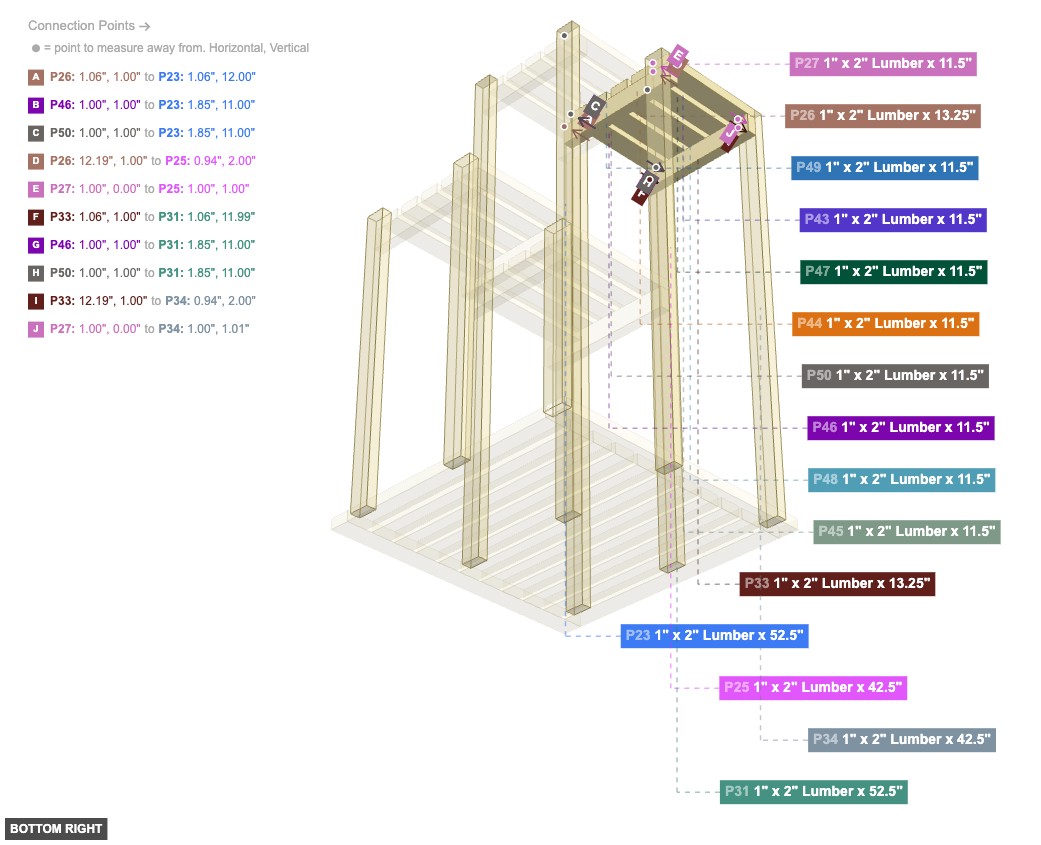

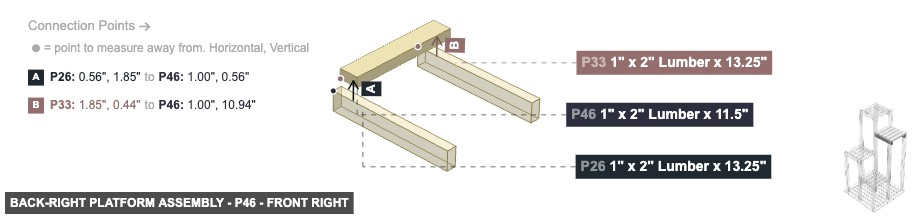

Back-Right Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

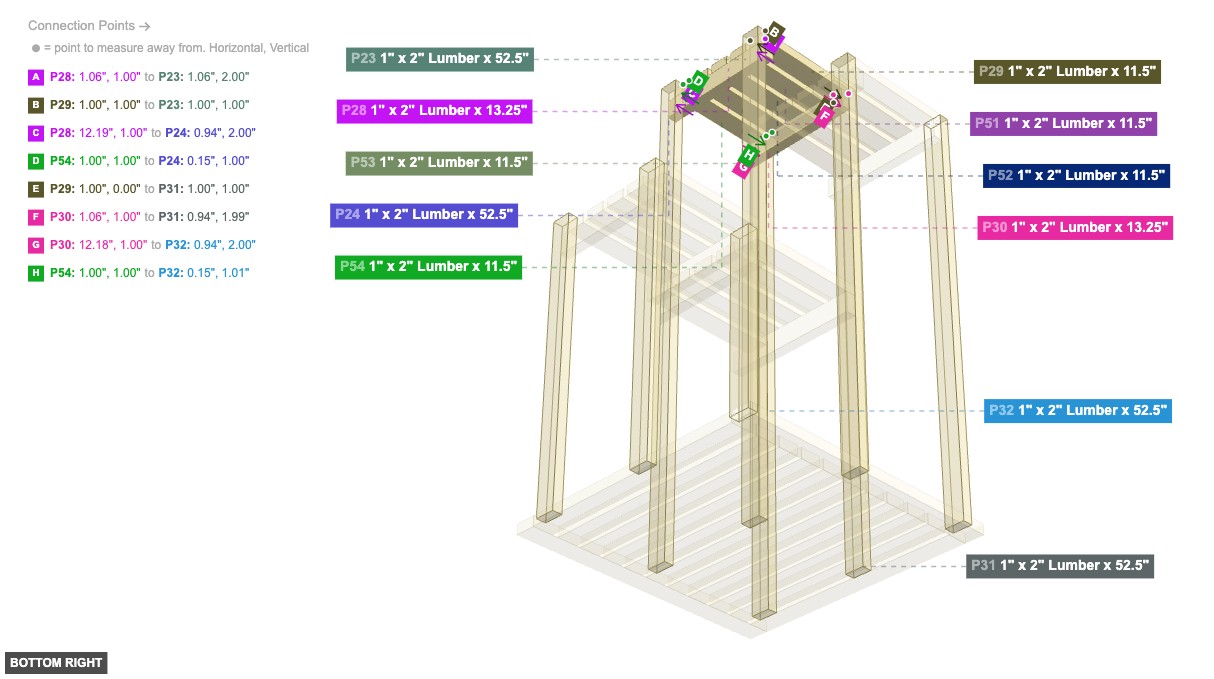

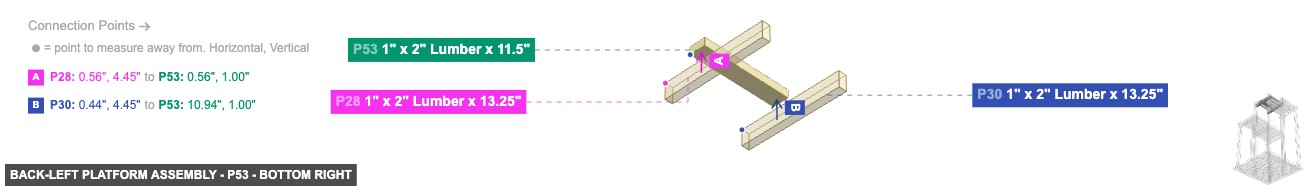

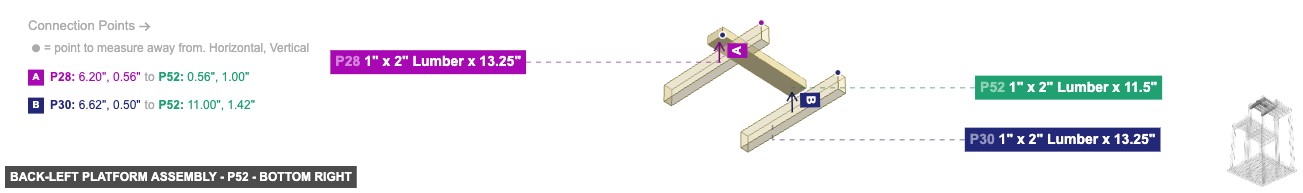

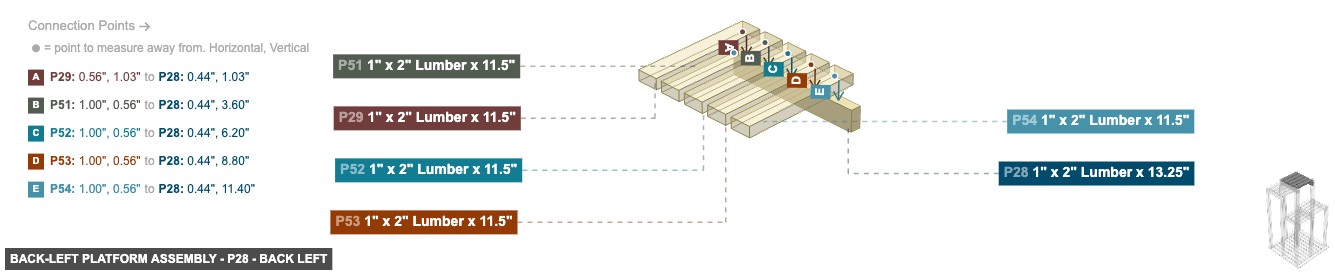

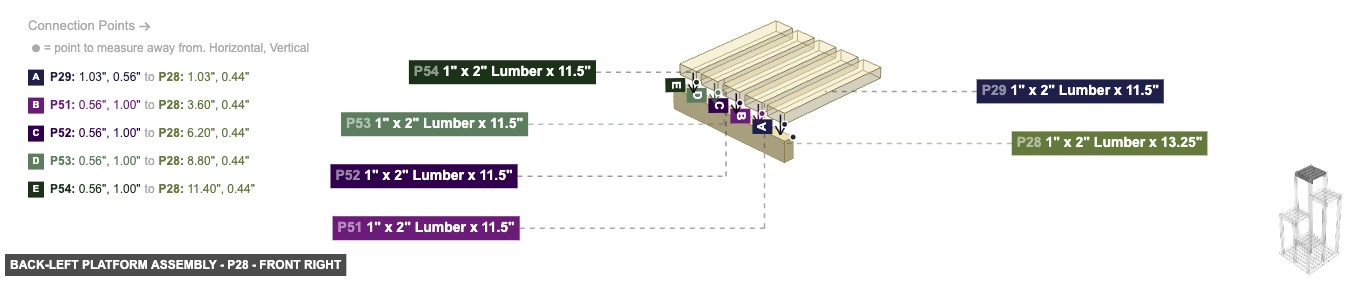

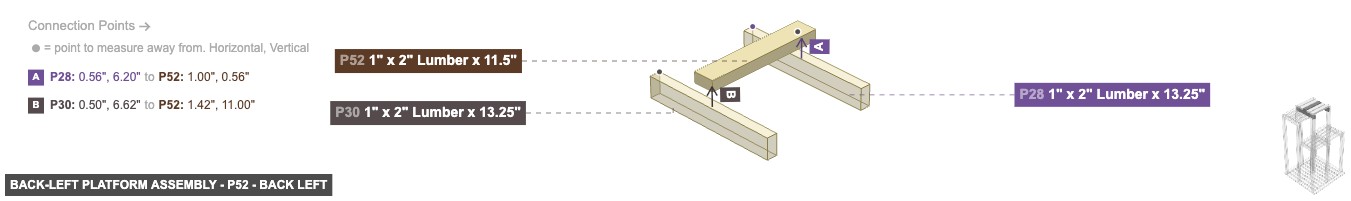

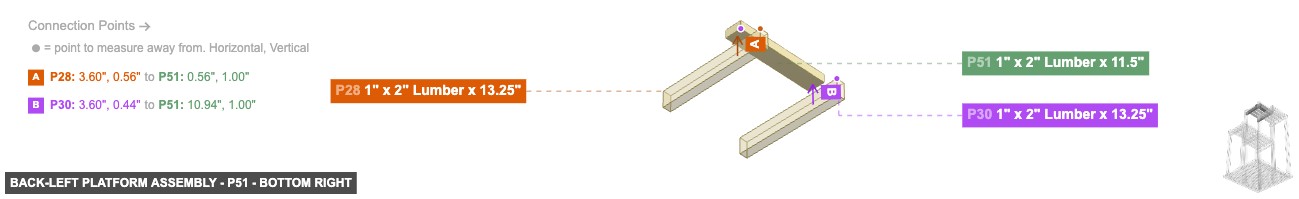

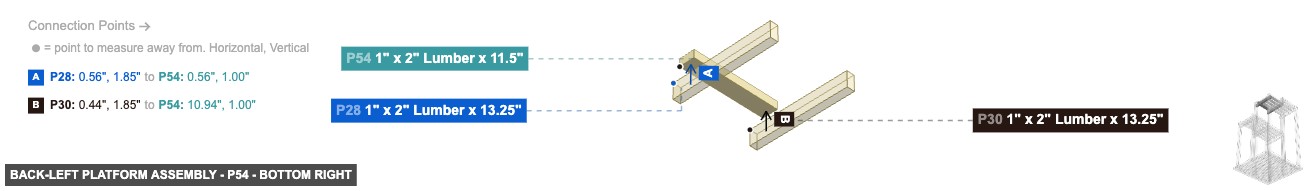

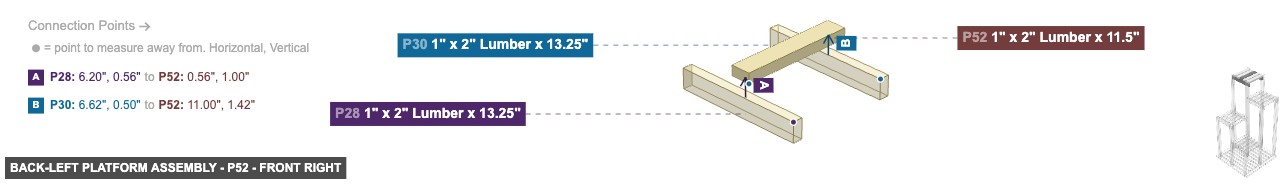

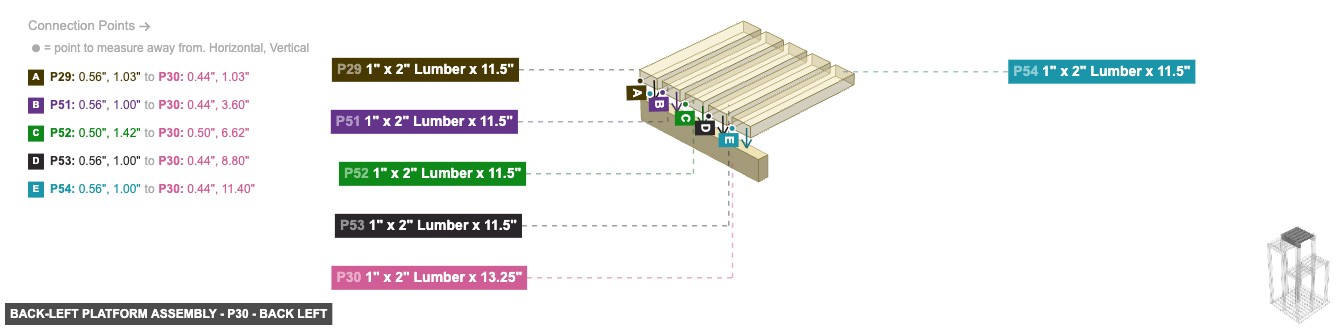

Back-Left Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

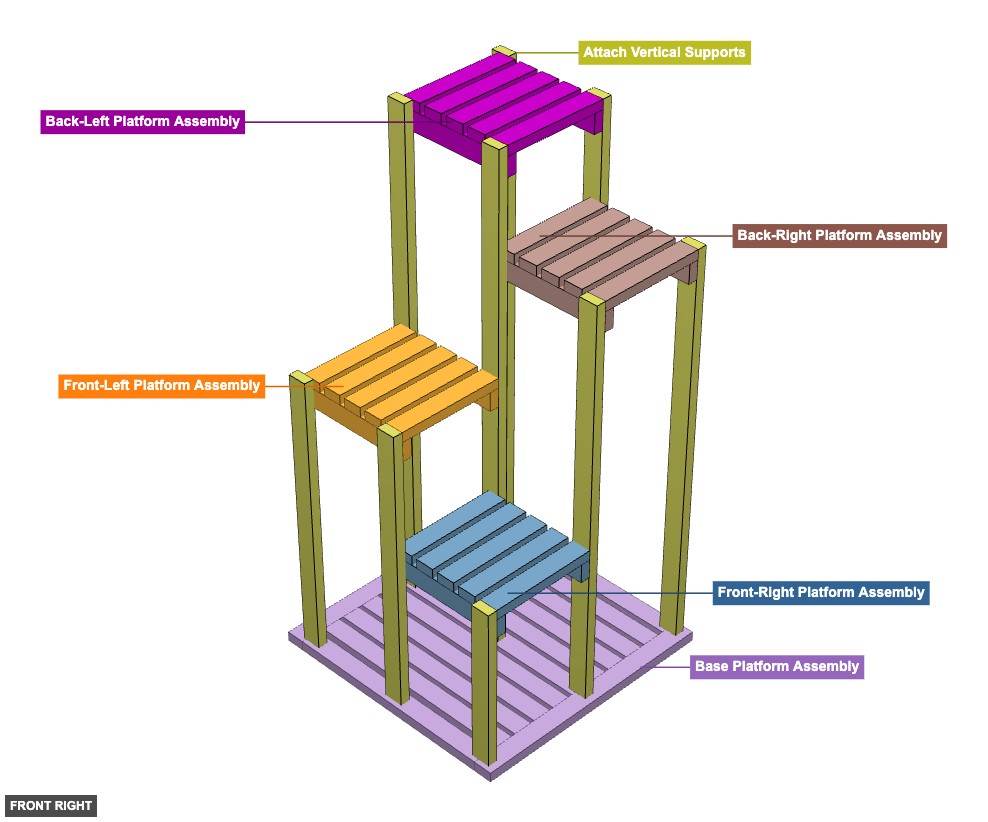

Angle: front right

Base Platform Assembly

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

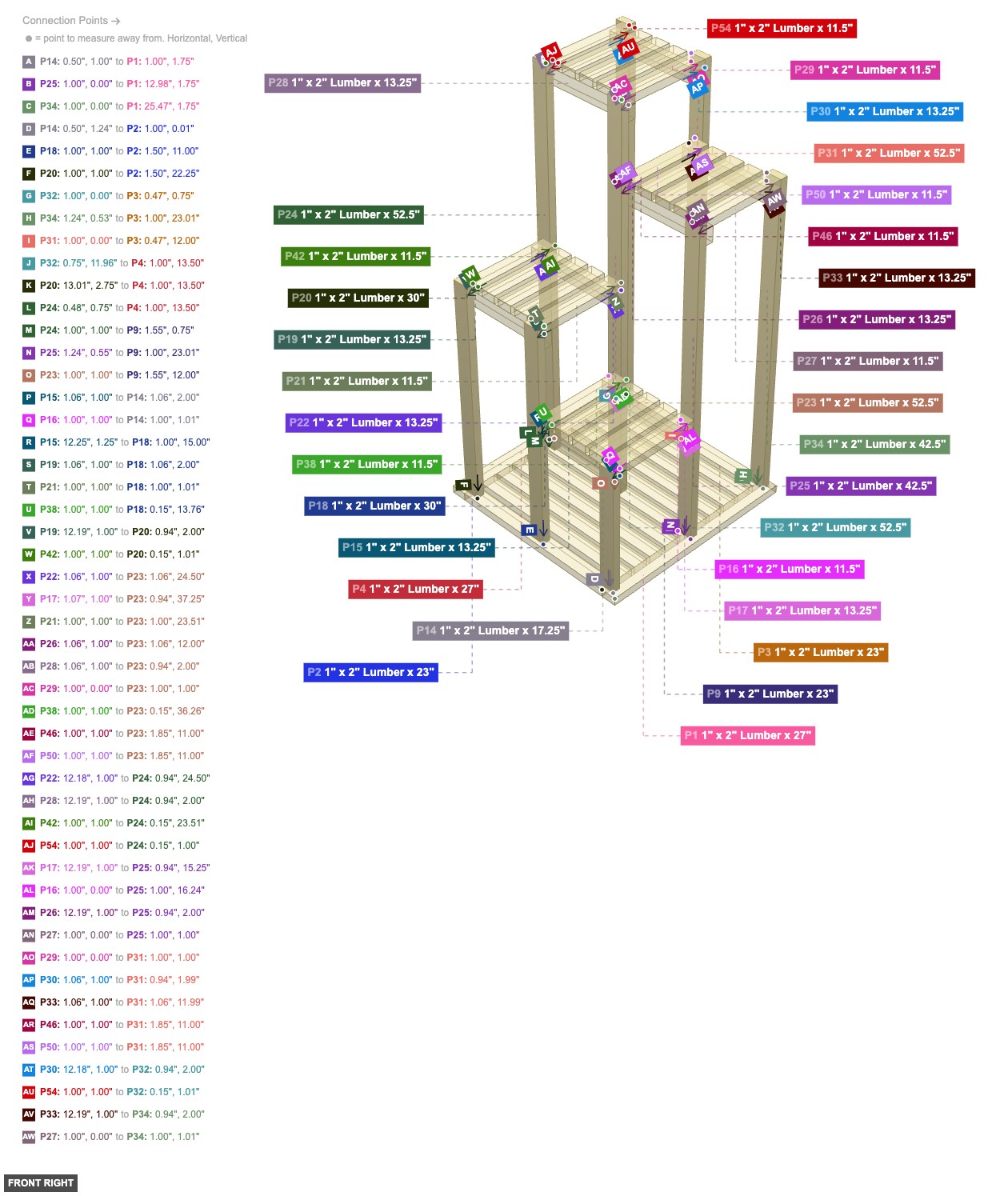

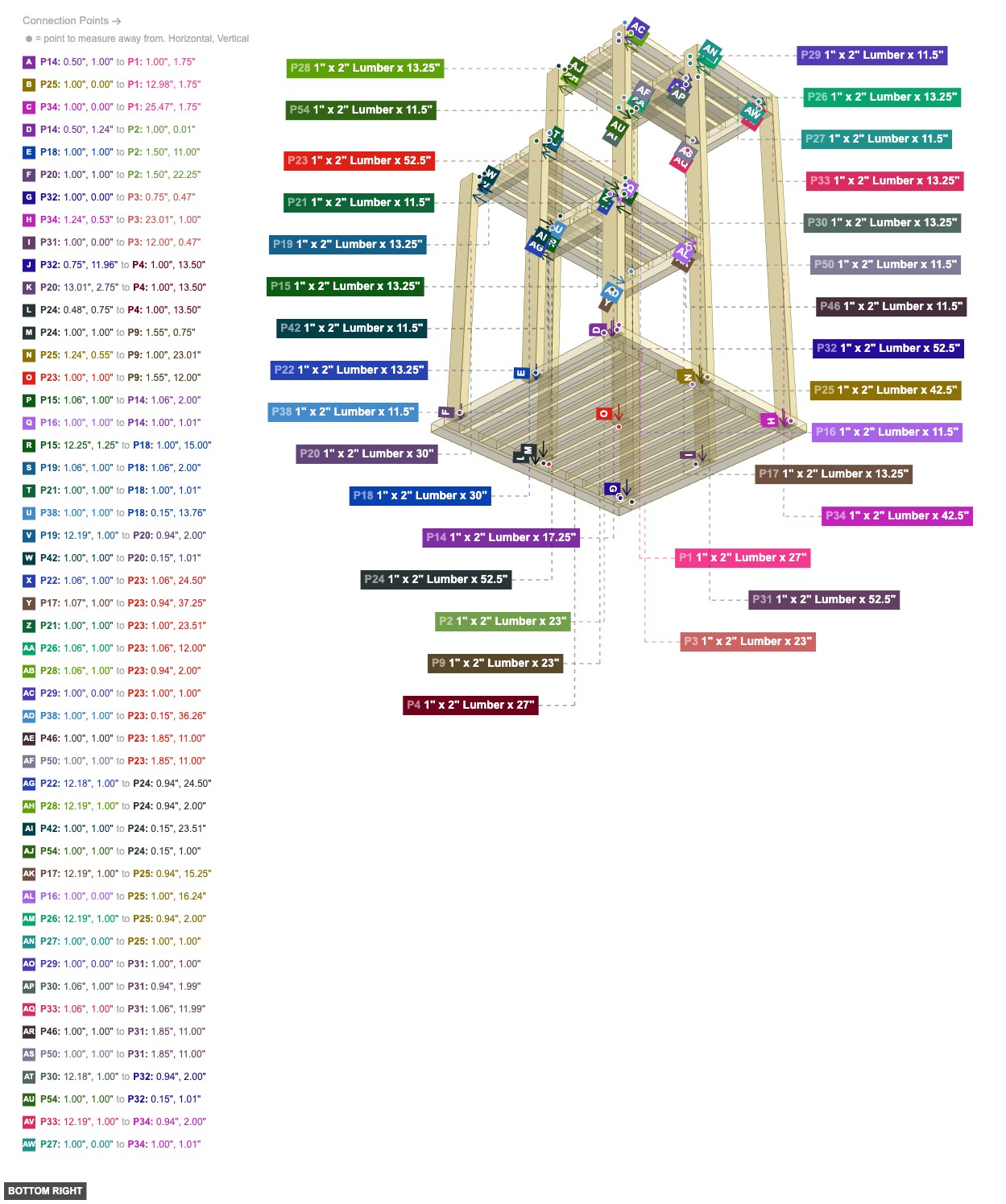

Attach Vertical Supports

1" x 2" Lumber x 17.25"x 1

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 52.5"x 4

1" x 2" Lumber x 42.5"x 2

Front-Right Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Front-Left Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Back-Right Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Back-Left Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Angle: bottom right

Base Platform Assembly

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Attach Vertical Supports

1" x 2" Lumber x 17.25"x 1

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 52.5"x 4

1" x 2" Lumber x 42.5"x 2

Front-Right Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Front-Left Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Back-Right Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Back-Left Platform Assembly

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Phase 2: Individual Group Assembly

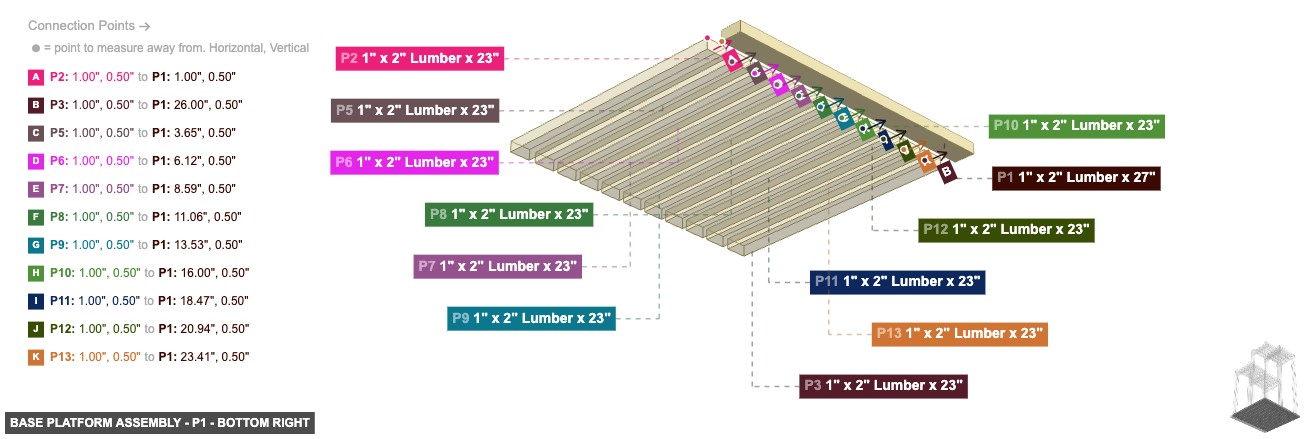

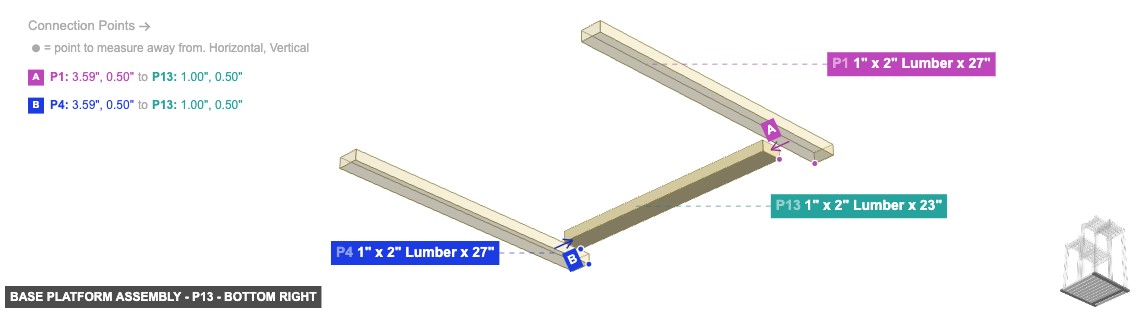

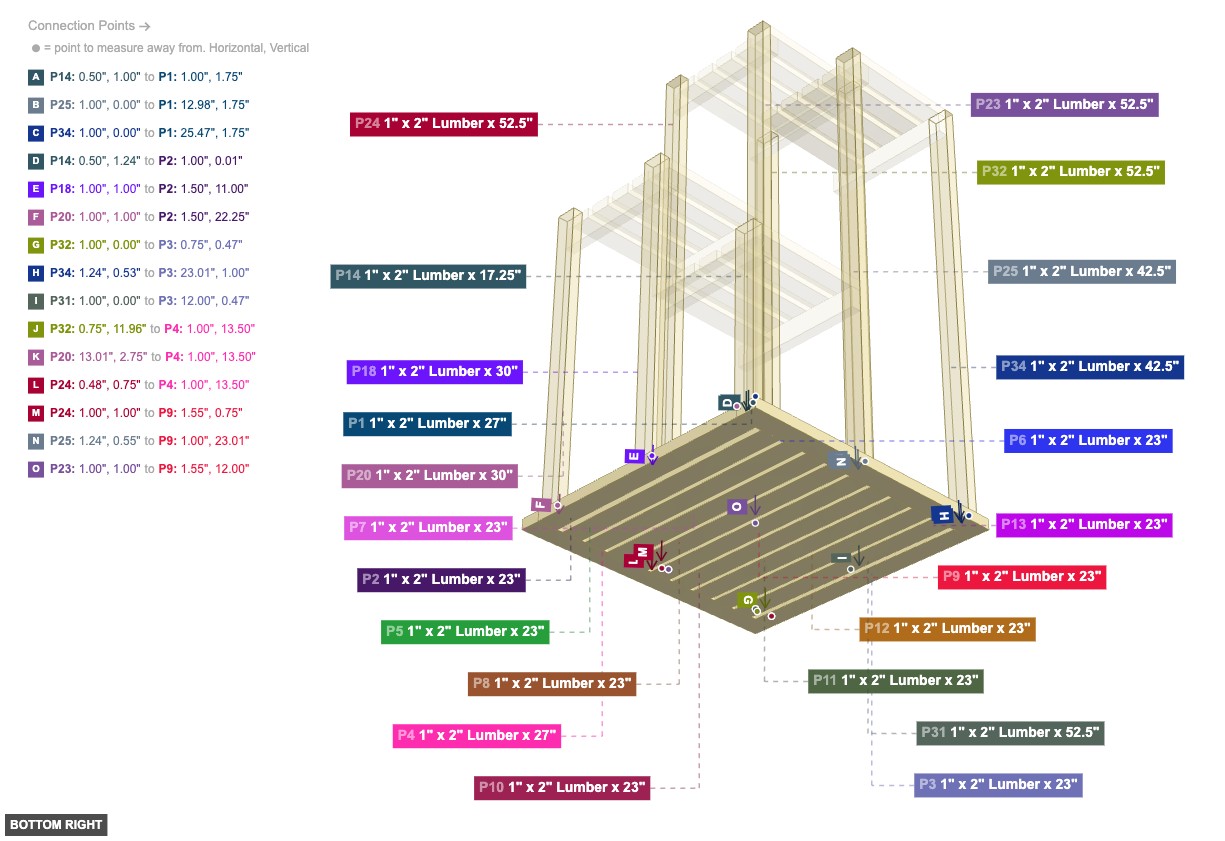

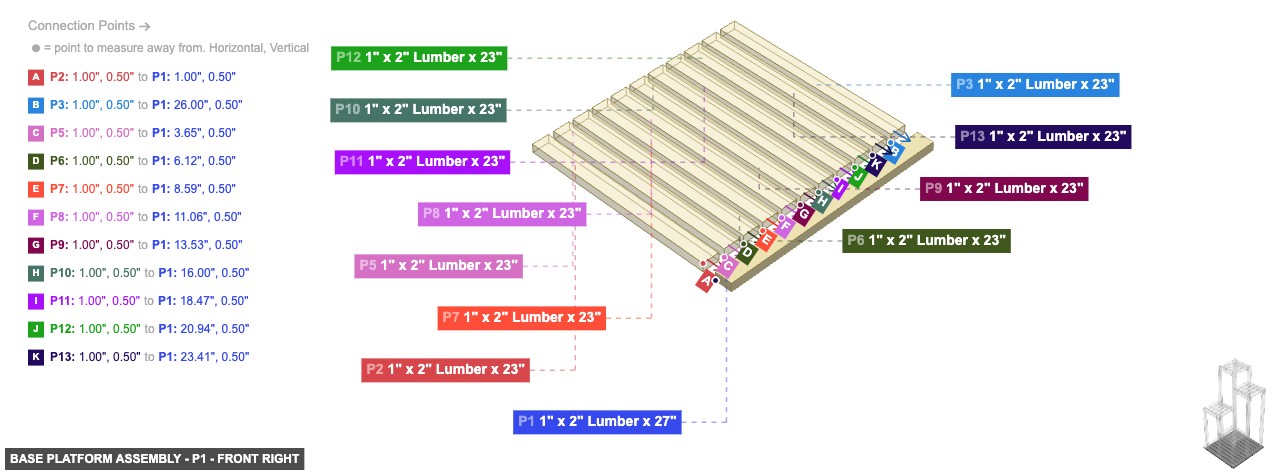

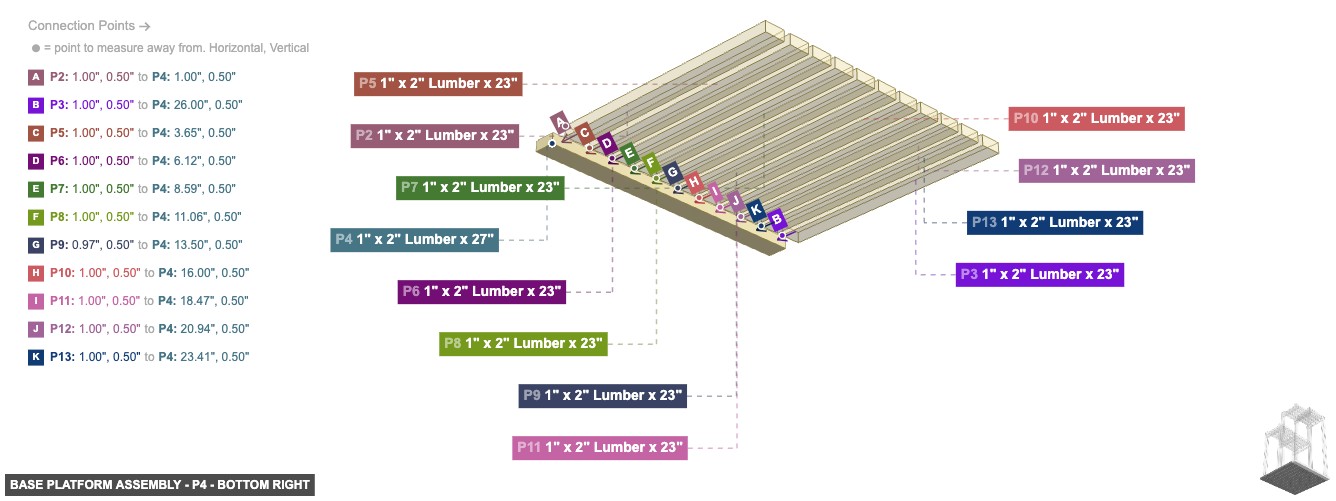

Group: Base Platform Assembly

Assemble the main base frame using the longest side pieces (P1, P4) and attach the shorter base slats (P2, P3, P5-P13) between them.

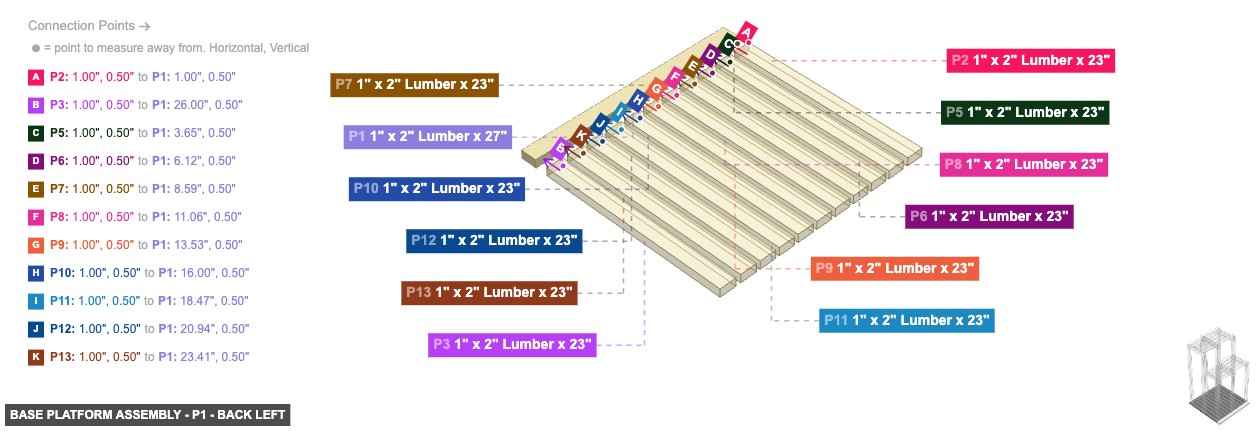

Part: 1" x 2" Lumber x 27" - Angle: back left

P1 (1" x 2" Lumber 27" length) - attach its 1" x 2" Wood Side #1 facing left to part 2's 1" x 2" Wood End #2, plus its 1" x 2" Wood End #1 needs to point front. Additionally, its 1" x 2" Wood Side #3 needs to point right, then its 1" x 2" Wood Side #4 must be oriented bottom. Additionally, ensure its 1" x 2" Wood End #2 faces back

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 27" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 27" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

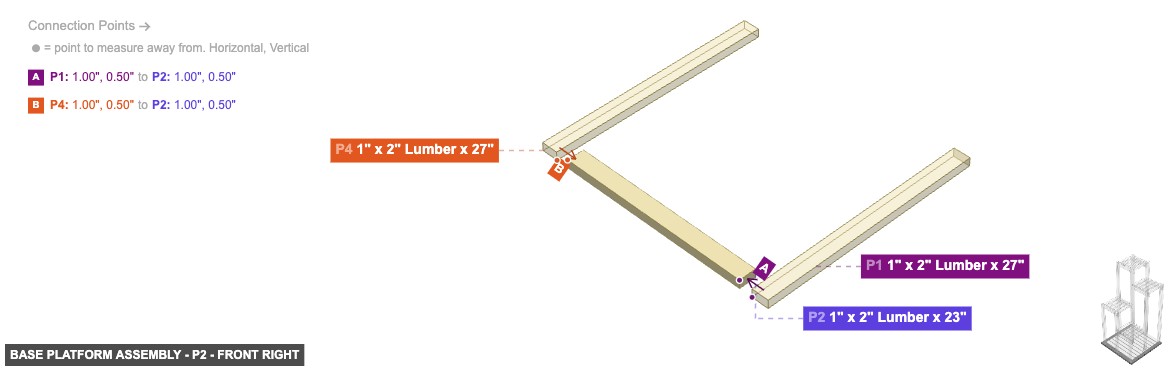

Part: 1" x 2" Lumber x 23" - Angle: back left

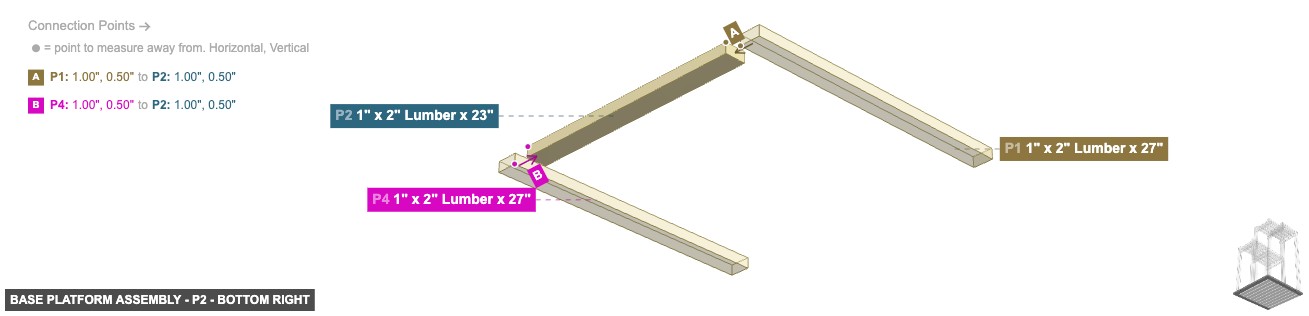

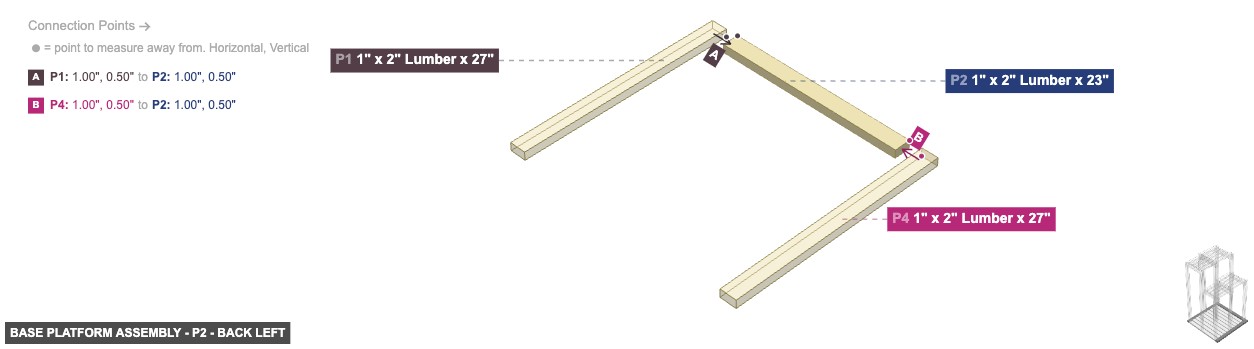

P2 (1" x 2" Lumber 23" length) - attach its 1" x 2" Wood End #1 facing left to part 4's 1" x 2" Wood Side #1, and connect its 1" x 2" Wood End #2 oriented right links with part 1's 1" x 2" Wood Side #1. Also, ensure its 1" x 2" Wood Side #1 faces back. Additionally, its 1" x 2" Wood Side #3 should be directed front. Next, its 1" x 2" Wood Side #4 should be directed bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: back left

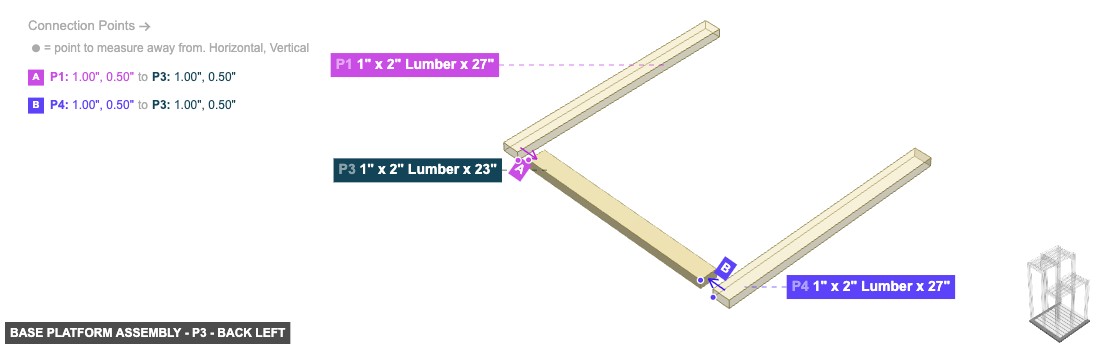

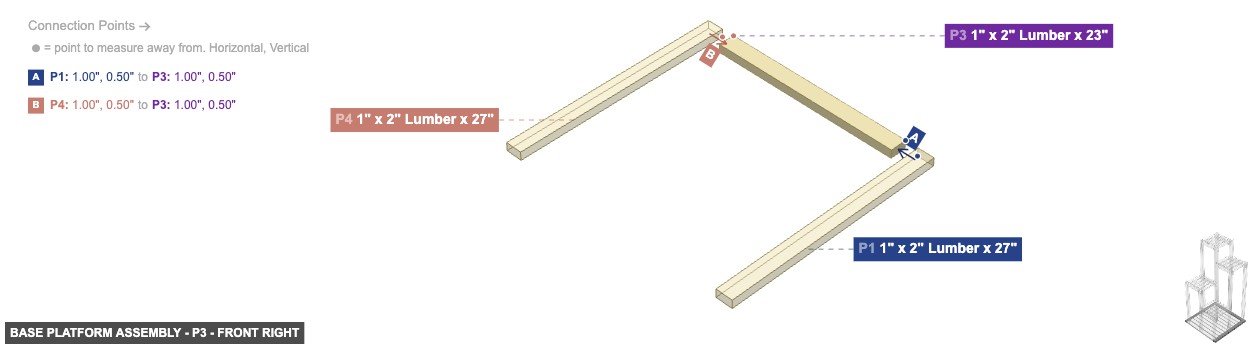

P3 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1, also attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1. After that, its 1" x 2" Wood Side #1 needs to point back, plus its 1" x 2" Wood Side #3 needs to point front, and its 1" x 2" Wood Side #4 should be directed bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

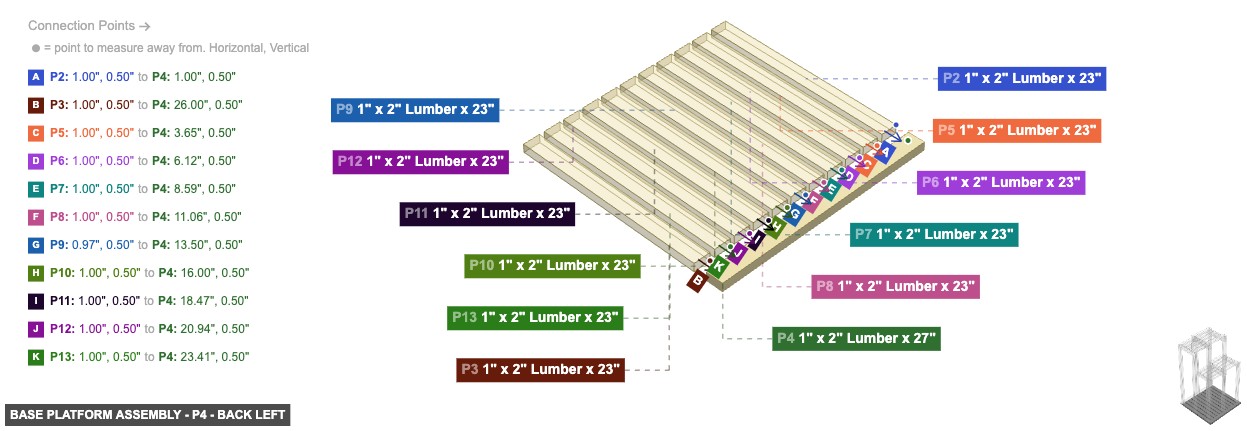

Part: 1" x 2" Lumber x 27" - Angle: back left

P4 (1" x 2" Lumber 27" length) - attach its 1" x 2" Wood Side #1 facing right to part 2's 1" x 2" Wood End #1. Also, its 1" x 2" Wood End #1 needs to point back, also its 1" x 2" Wood Side #3 must be oriented left, then its 1" x 2" Wood Side #4 must be oriented bottom, also its 1" x 2" Wood End #2 should be directed front

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 27" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 27" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: back left

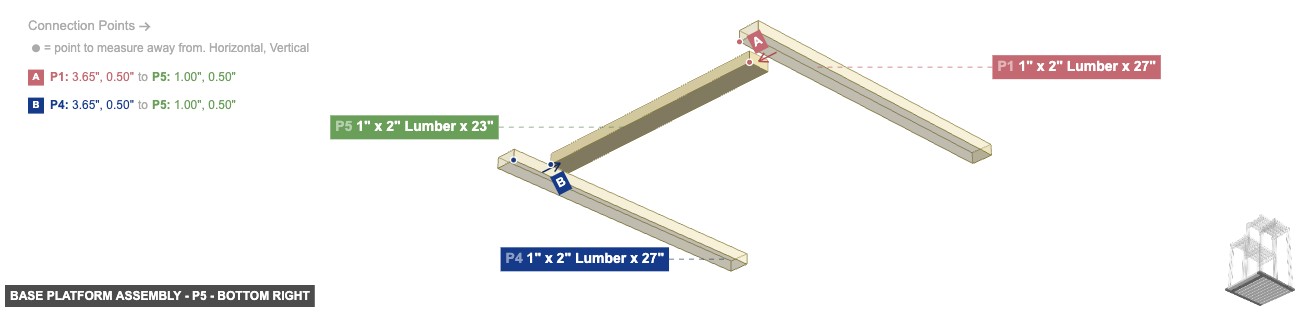

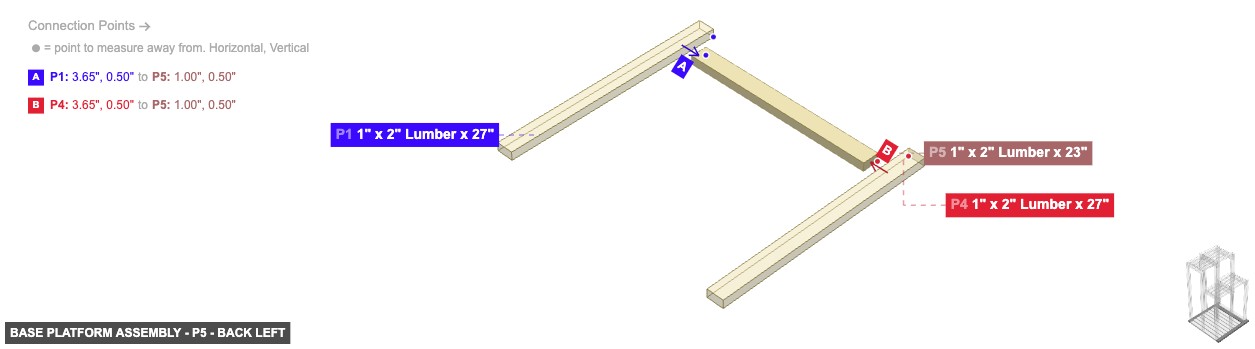

P5 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, then its 1" x 2" Wood End #2, which is right-facing, should connect to part 1's 1" x 2" Wood Side #1. Also, its 1" x 2" Wood Side #1 must be oriented back, then ensure its 1" x 2" Wood Side #2 faces top, also its 1" x 2" Wood Side #3 must be oriented front, plus ensure its 1" x 2" Wood Side #4 faces bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: back left

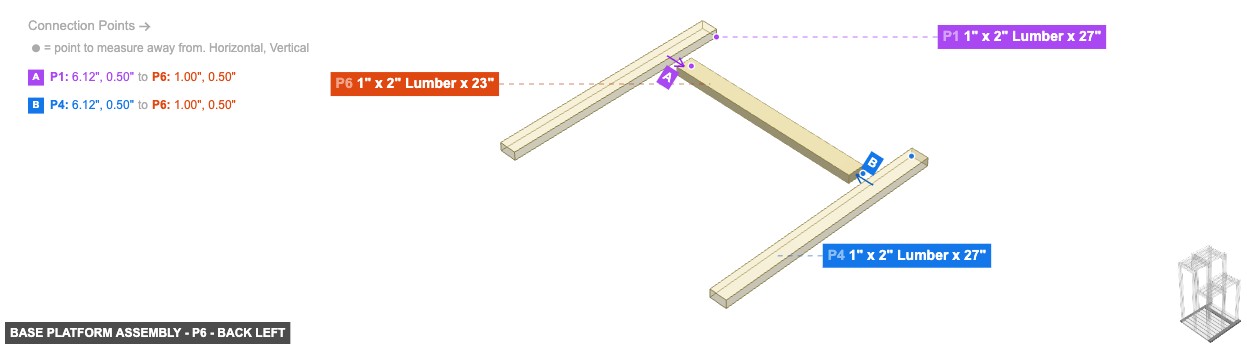

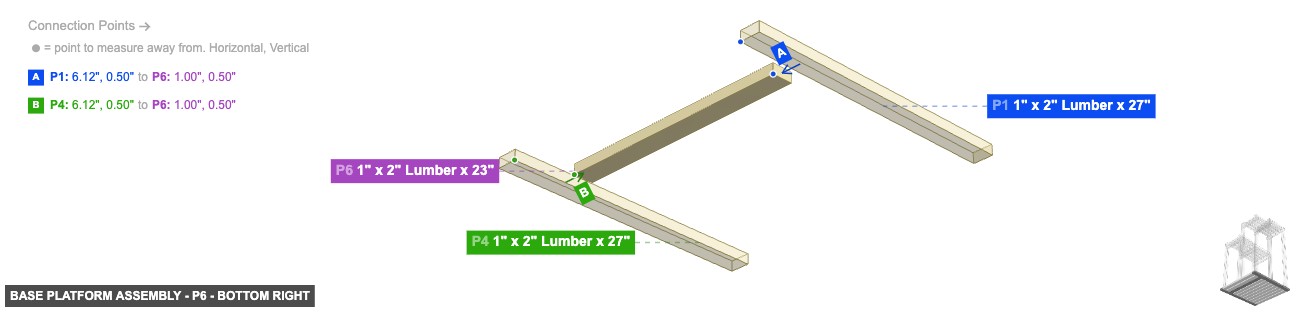

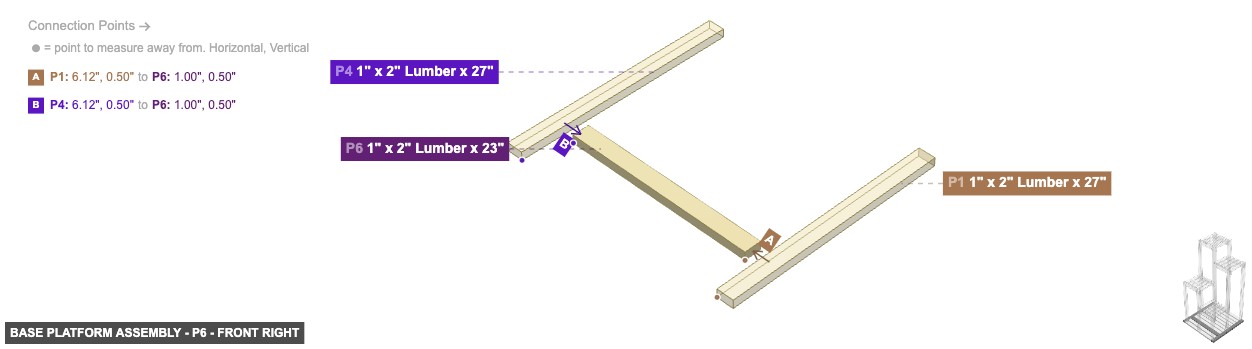

P6 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1. Also, attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1, and its 1" x 2" Wood Side #1 must be oriented back. After that, its 1" x 2" Wood Side #2 needs to point top. Next, ensure its 1" x 2" Wood Side #3 faces front. After that, its 1" x 2" Wood Side #4 must be oriented bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

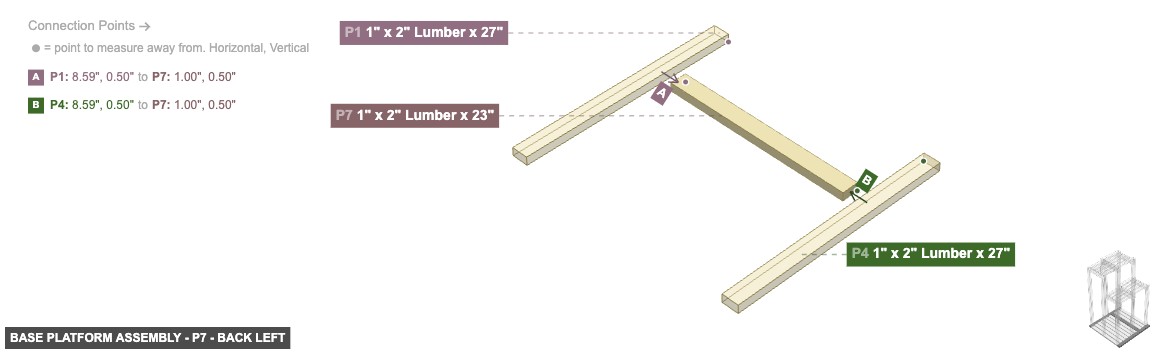

Part: 1" x 2" Lumber x 23" - Angle: back left

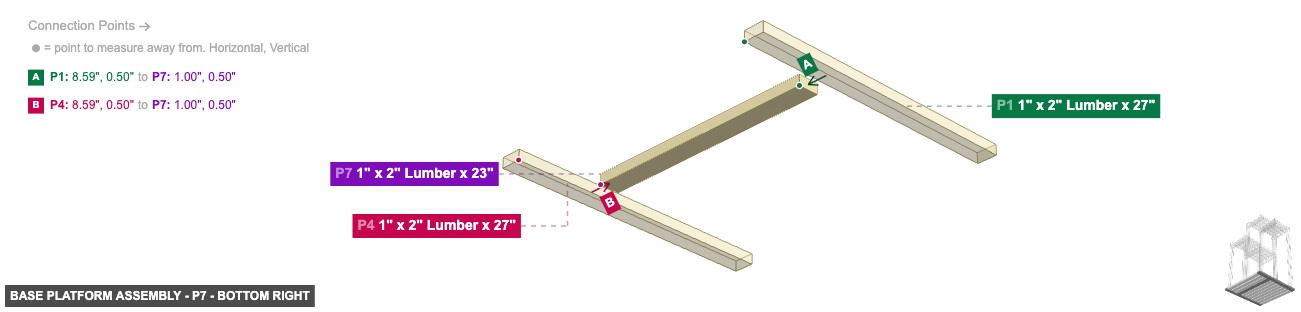

P7 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1. Additionally, connect its 1" x 2" Wood End #2 oriented right links with part 1's 1" x 2" Wood Side #1. Additionally, its 1" x 2" Wood Side #1 must be oriented back, and its 1" x 2" Wood Side #2 needs to point top. Also, its 1" x 2" Wood Side #3 needs to point front, also ensure its 1" x 2" Wood Side #4 faces bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

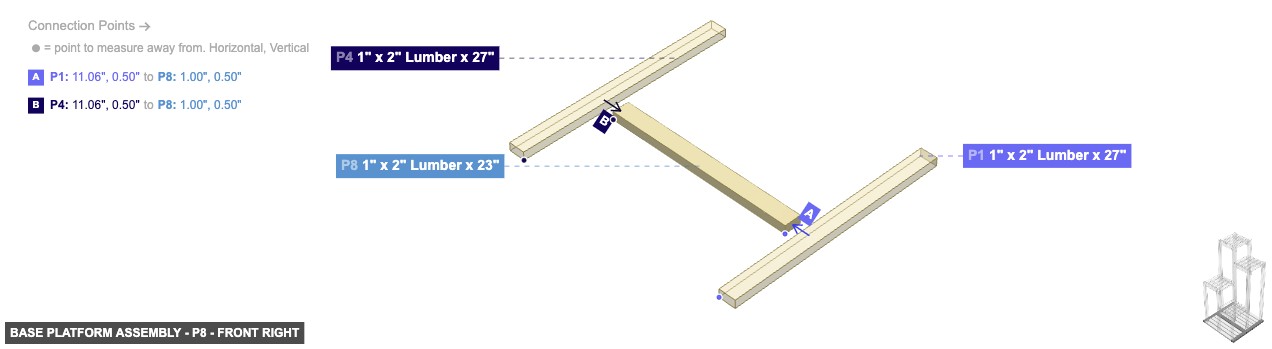

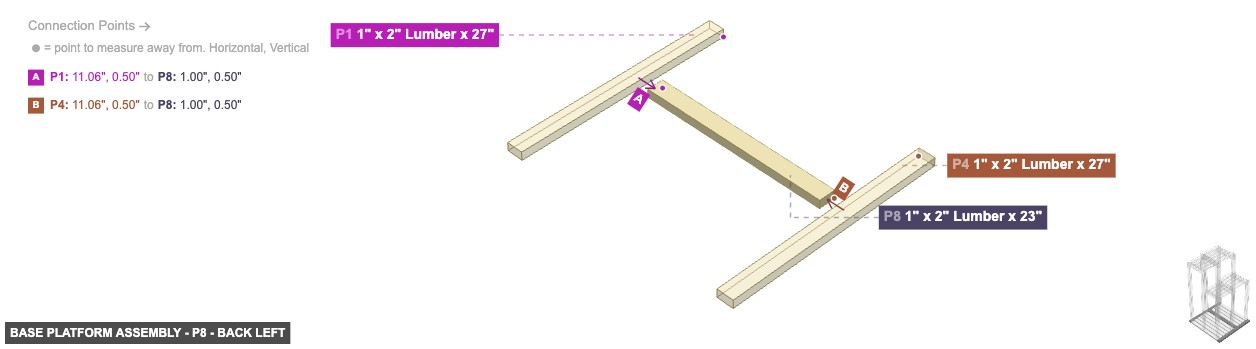

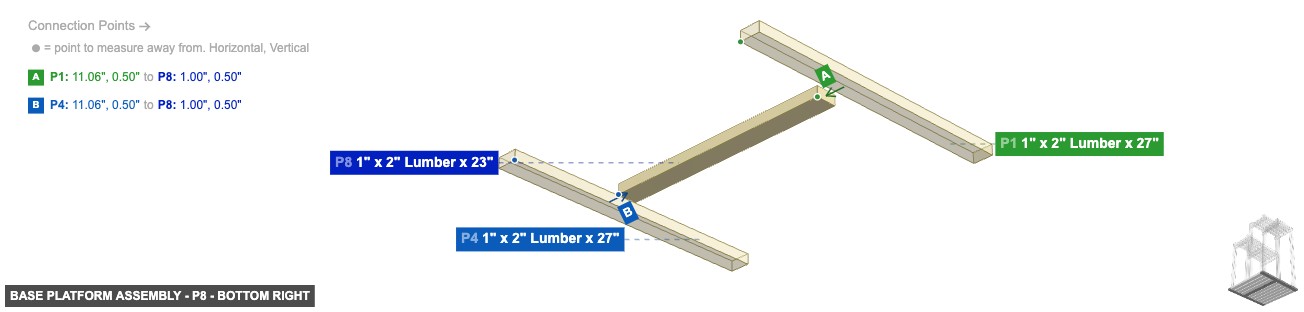

Part: 1" x 2" Lumber x 23" - Angle: back left

P8 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1, plus attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1, plus ensure its 1" x 2" Wood Side #1 faces back. After that, its 1" x 2" Wood Side #2 should be directed top, plus its 1" x 2" Wood Side #3 should be directed front. Next, its 1" x 2" Wood Side #4 should be directed bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: back left

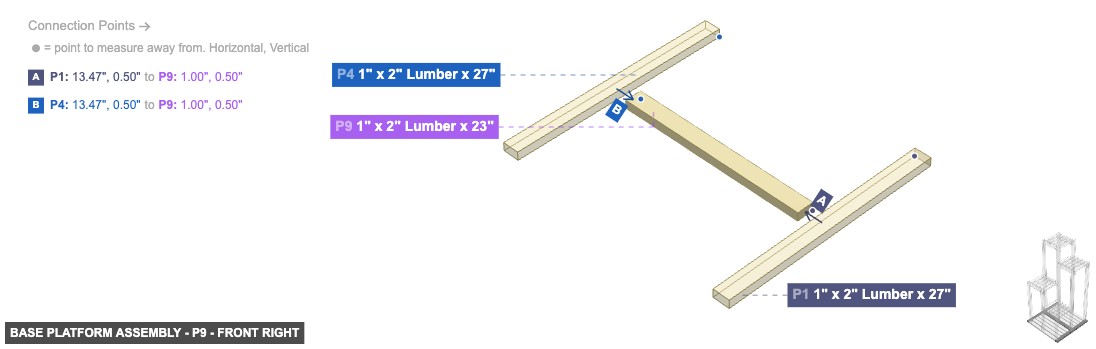

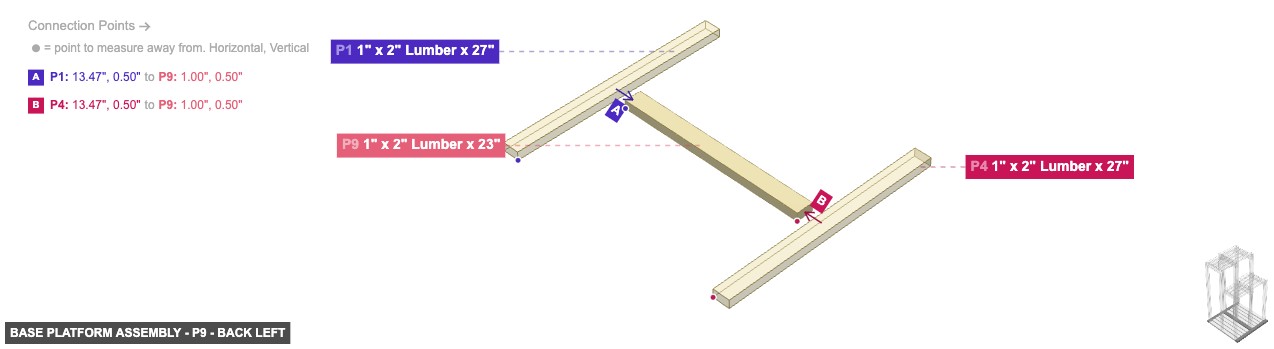

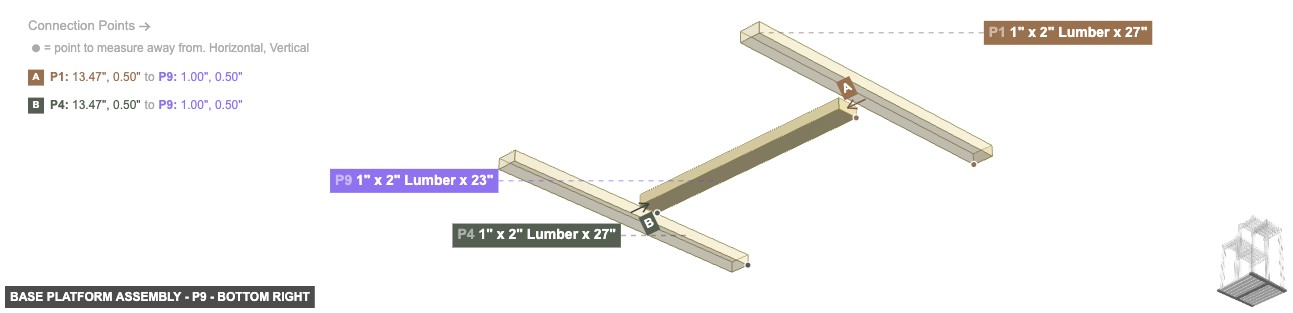

P9 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1, and attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1. Also, its 1" x 2" Wood Side #1 needs to point back, also ensure its 1" x 2" Wood Side #3 faces front. Additionally, its 1" x 2" Wood Side #4 should be directed bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

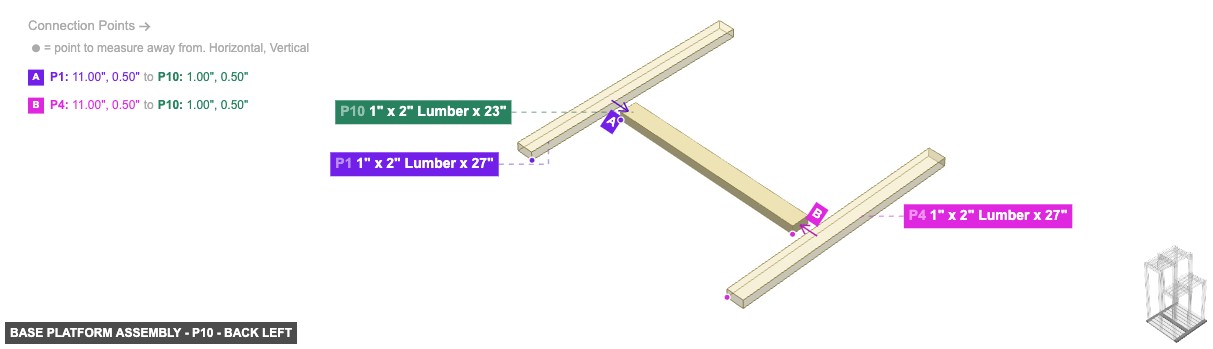

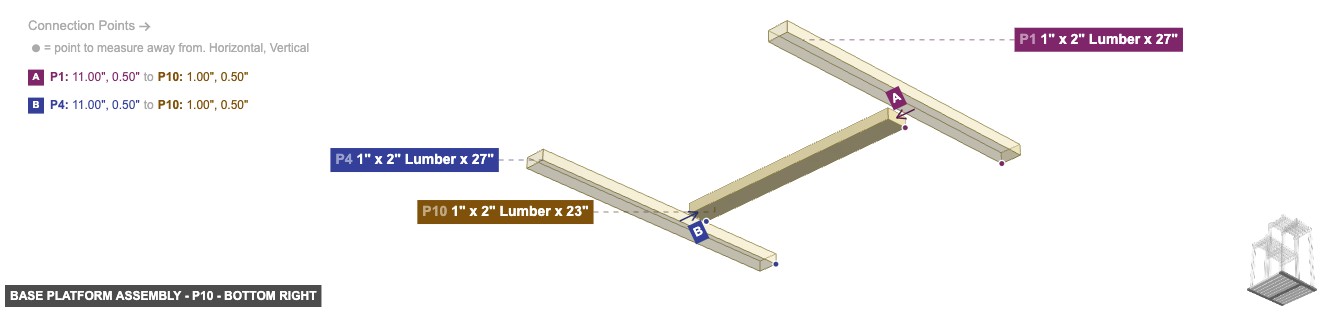

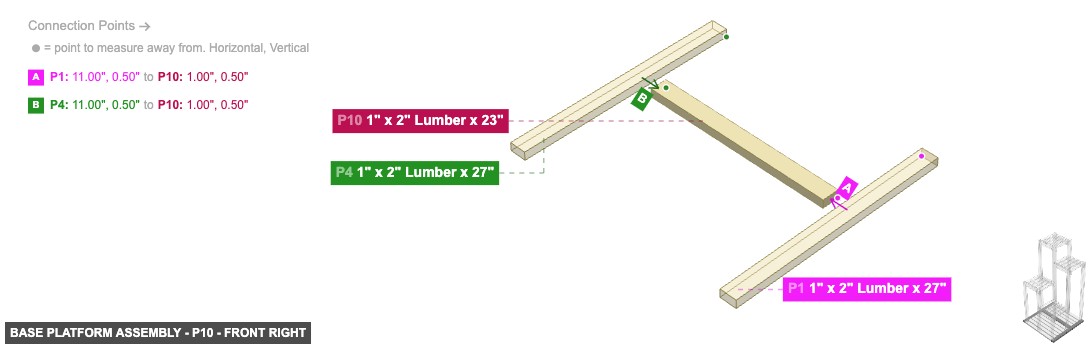

Part: 1" x 2" Lumber x 23" - Angle: back left

P10 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, then attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1. Also, its 1" x 2" Wood Side #1 must be oriented back, and its 1" x 2" Wood Side #2 must be oriented top. After that, its 1" x 2" Wood Side #3 needs to point front. Next, ensure its 1" x 2" Wood Side #4 faces bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: back left

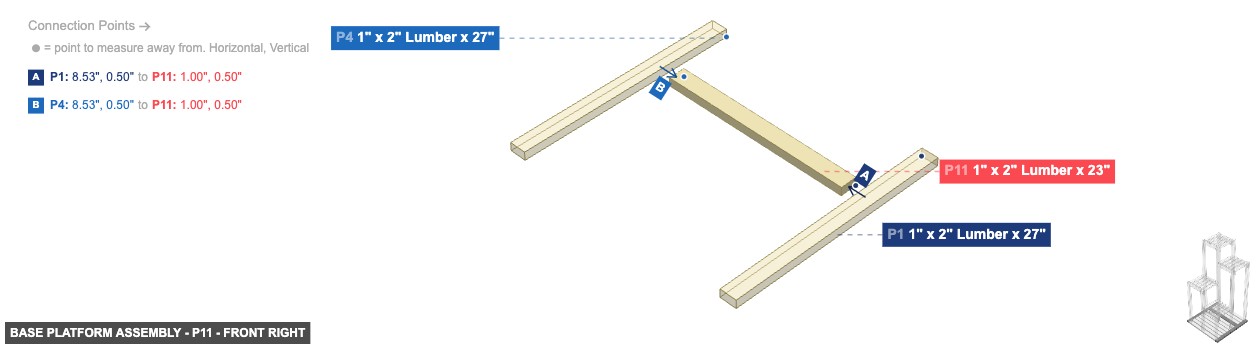

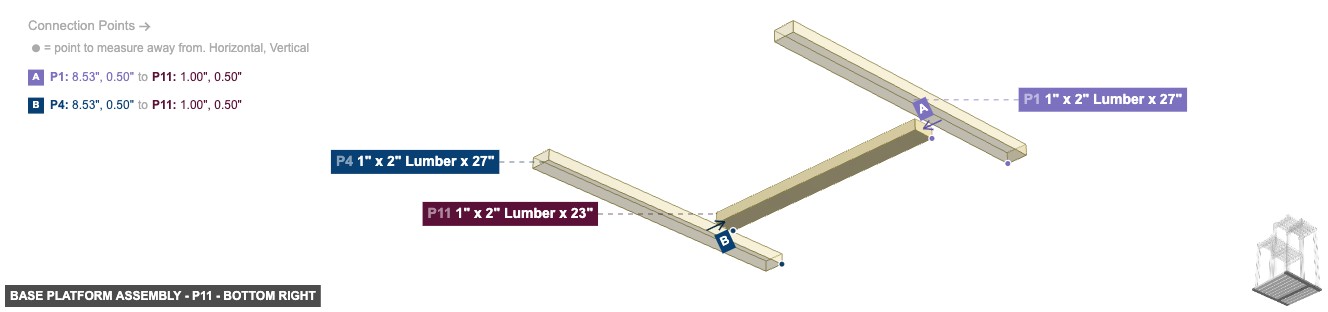

P11 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, and attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1, then its 1" x 2" Wood Side #1 needs to point back, then its 1" x 2" Wood Side #2 must be oriented top. Also, its 1" x 2" Wood Side #3 must be oriented front, plus its 1" x 2" Wood Side #4 must be oriented bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

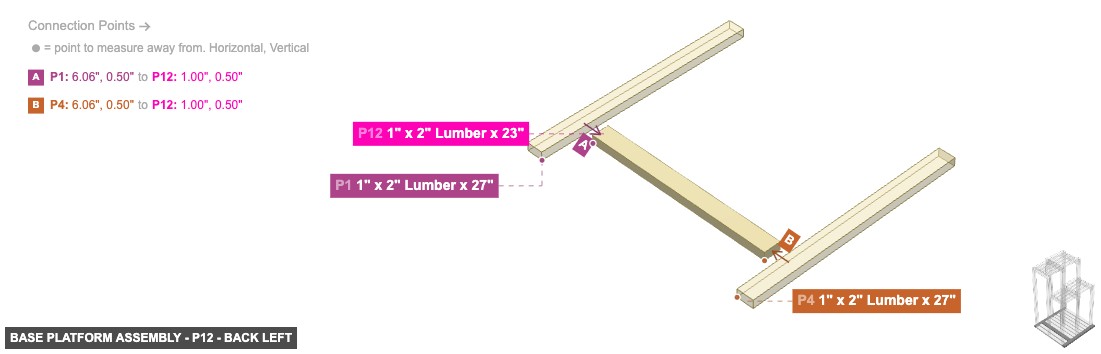

Part: 1" x 2" Lumber x 23" - Angle: back left

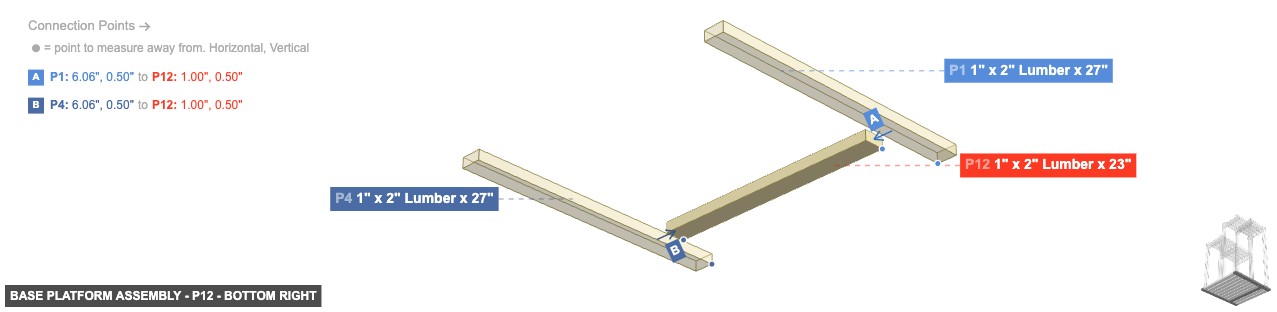

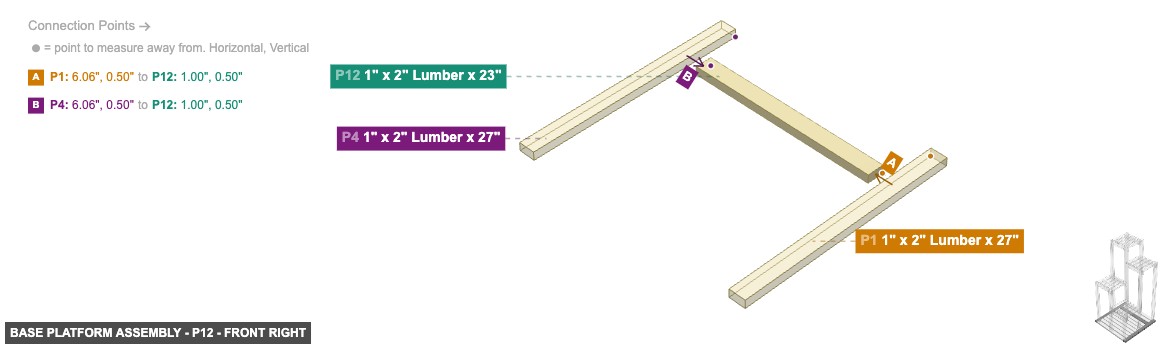

P12 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, plus its 1" x 2" Wood End #2, which is right-facing, should connect to part 1's 1" x 2" Wood Side #1, and its 1" x 2" Wood Side #1 must be oriented back. Additionally, its 1" x 2" Wood Side #2 must be oriented top, plus ensure its 1" x 2" Wood Side #3 faces front. Additionally, its 1" x 2" Wood Side #4 should be directed bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

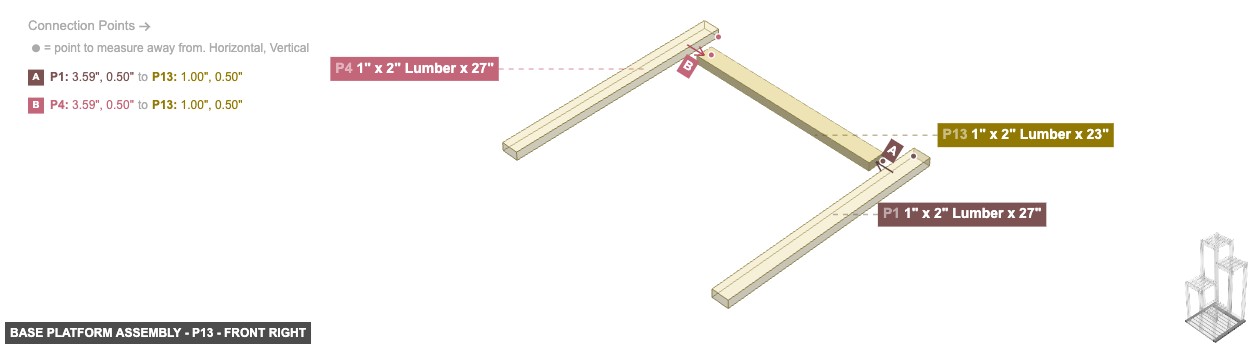

Part: 1" x 2" Lumber x 23" - Angle: back left

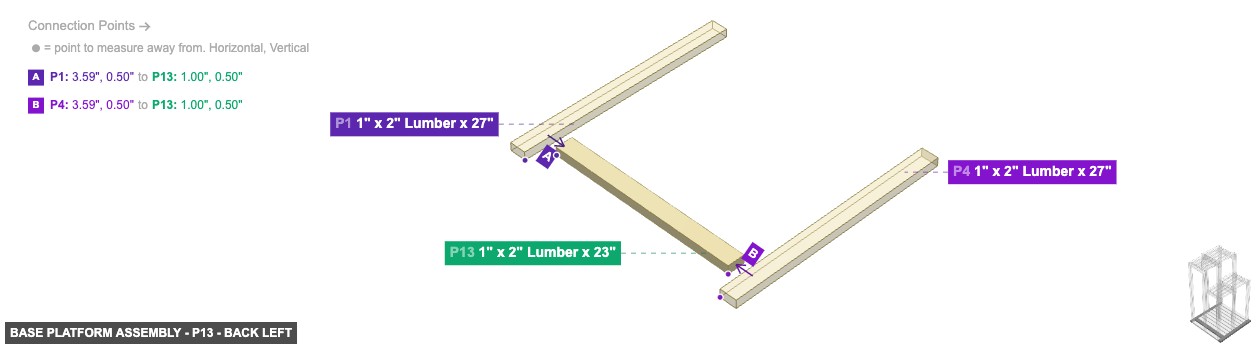

P13 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1, and its 1" x 2" Wood End #2, which is right-facing, should connect to part 1's 1" x 2" Wood Side #1, plus ensure its 1" x 2" Wood Side #1 faces back. Additionally, its 1" x 2" Wood Side #2 should be directed top. Next, its 1" x 2" Wood Side #3 needs to point front, also its 1" x 2" Wood Side #4 needs to point bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: front right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Part: 1" x 2" Lumber x 23" - Angle: bottom right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

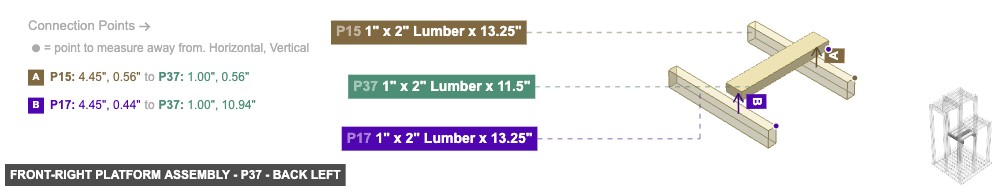

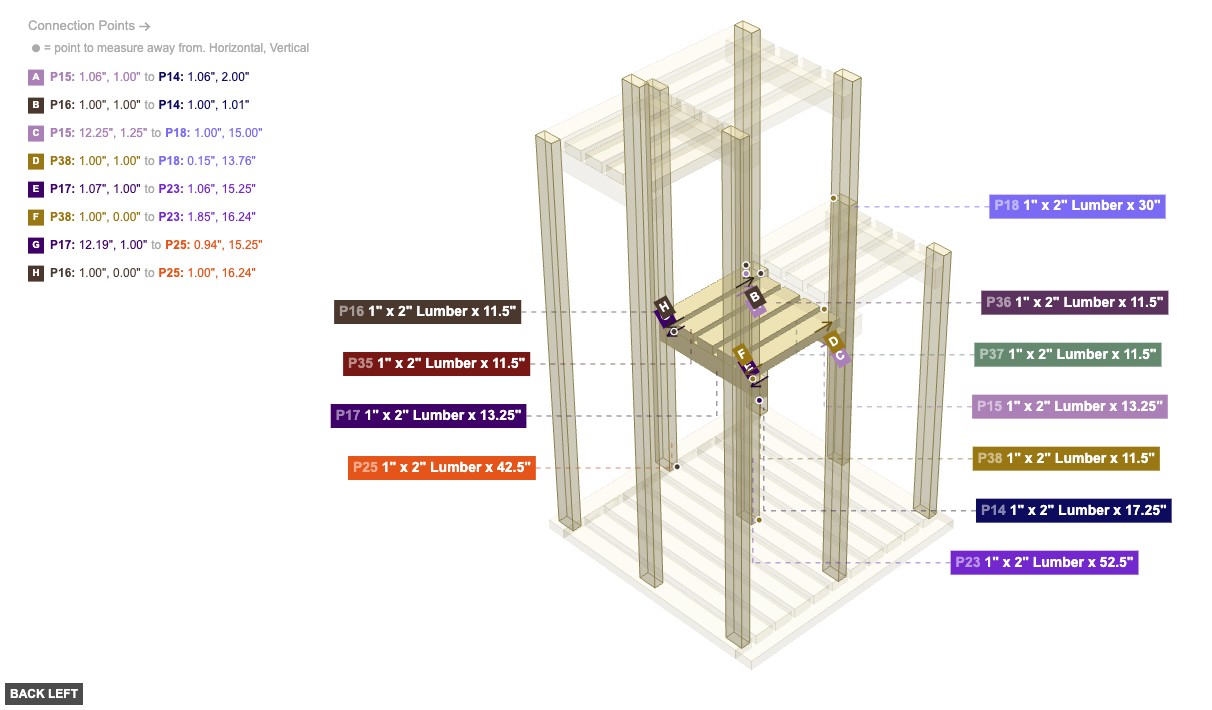

Group: Front-Right Platform Assembly

Construct the lowest platform structure located at the front-right. Attach the horizontal frame pieces (P15, P16, P17) to the corresponding vertical supports (P14, P25, P23) and add the platform slats (P35-P38).

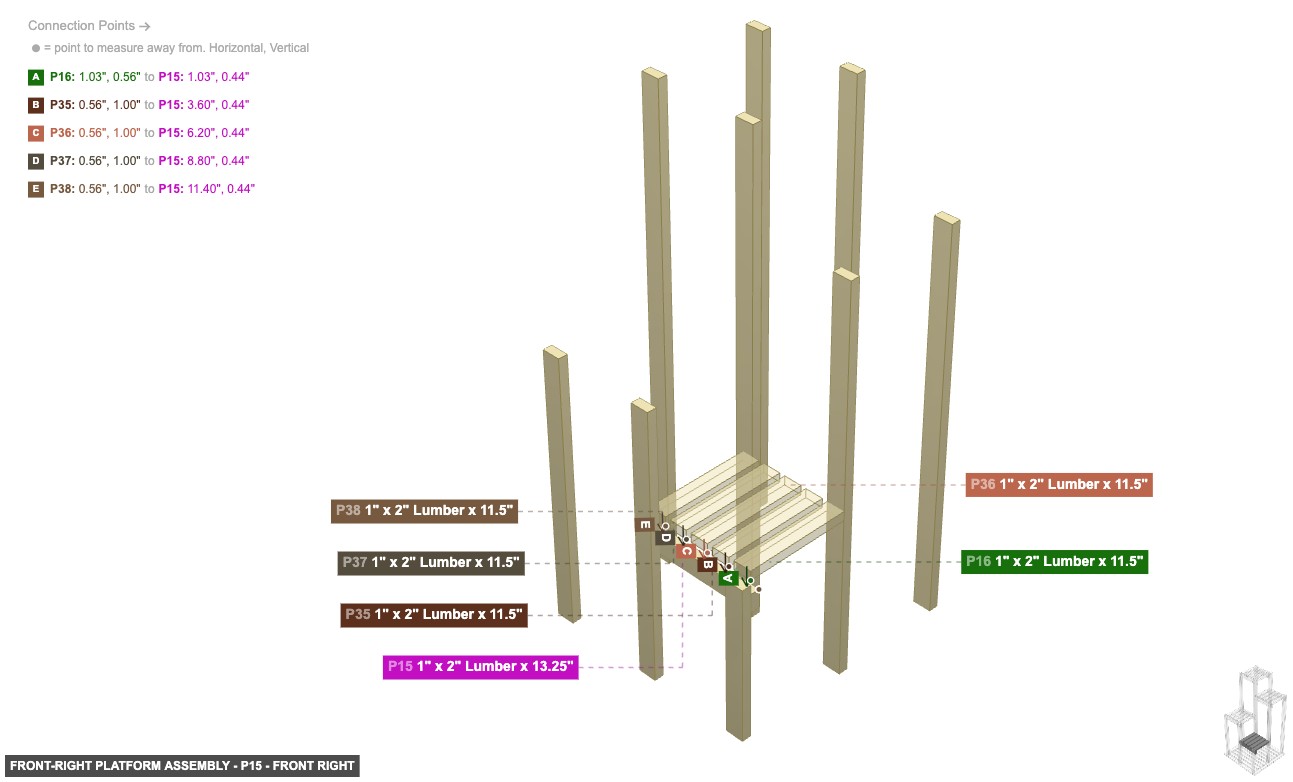

Part: 1" x 2" Lumber x 13.25" - Angle: back left

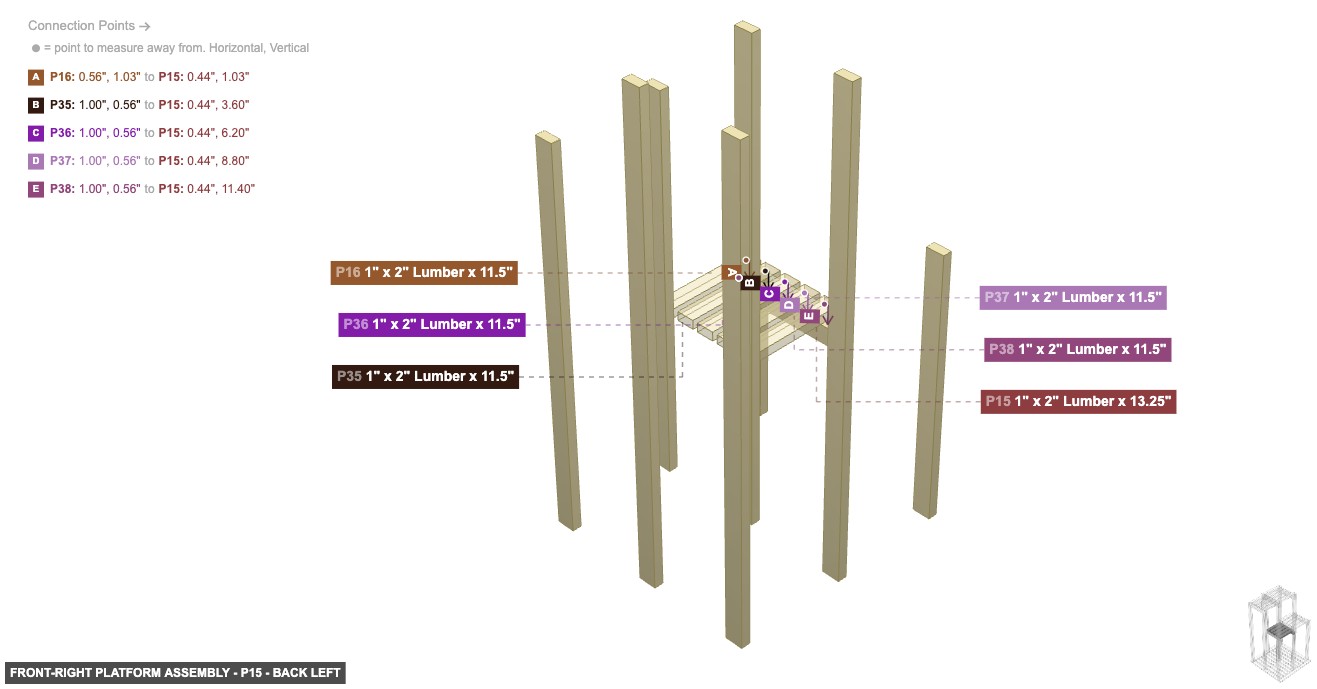

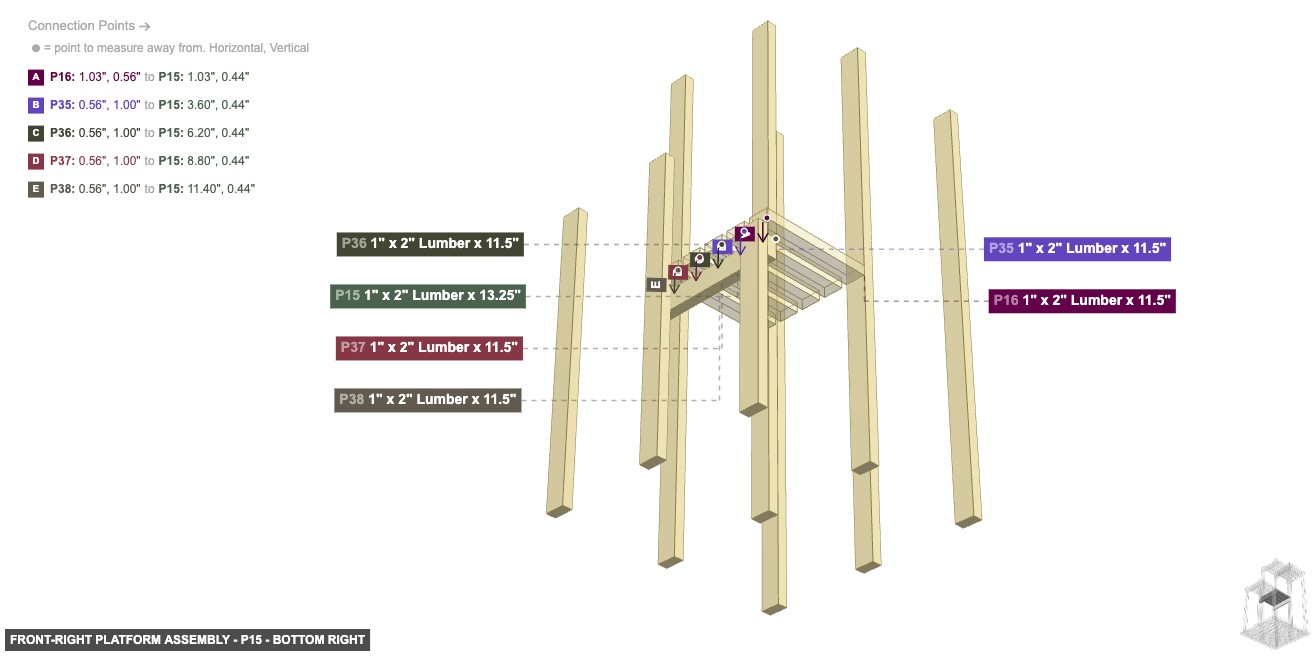

P15 (1" x 2" Lumber 13.25" length) - its 1" x 2" Wood Side #3, which is top-facing, should connect to part 16's 1" x 2" Wood Side #2. After that, ensure its 1" x 2" Wood End #1 faces right. Also, its 1" x 2" Wood Side #1 needs to point bottom. After that, its 1" x 2" Wood Side #4 needs to point back. Next, ensure its 1" x 2" Wood End #2 faces left

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

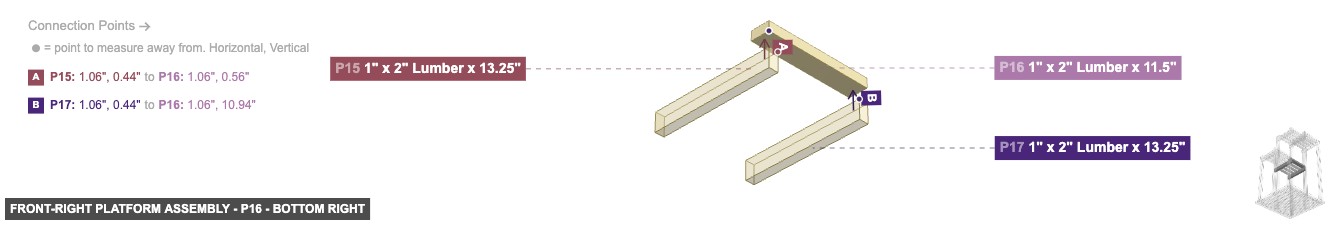

P16 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 15's 1" x 2" Wood Side #3, plus its 1" x 2" Wood Side #1 needs to point left. After that, its 1" x 2" Wood Side #3 must be oriented right. Additionally, its 1" x 2" Wood Side #4 must be oriented top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: back left

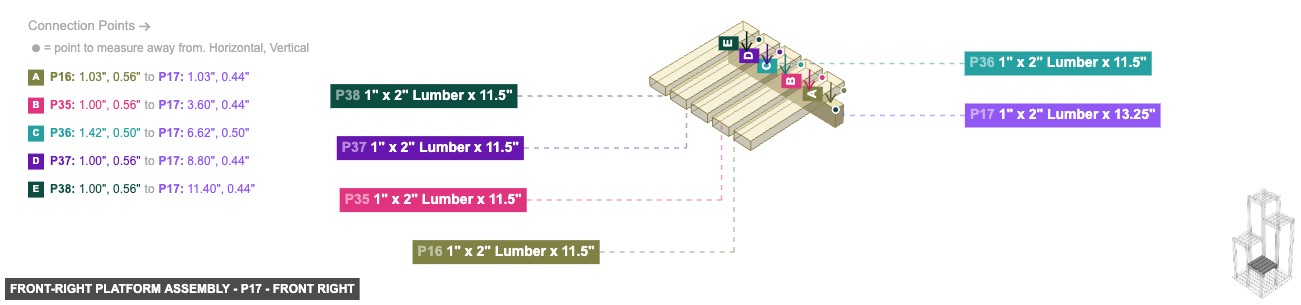

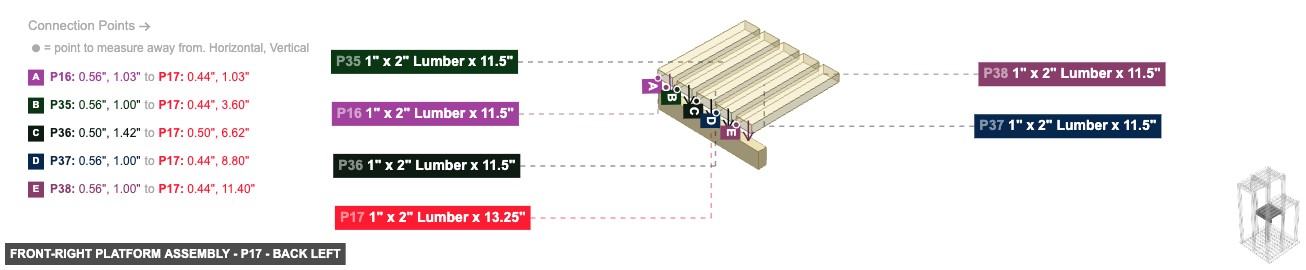

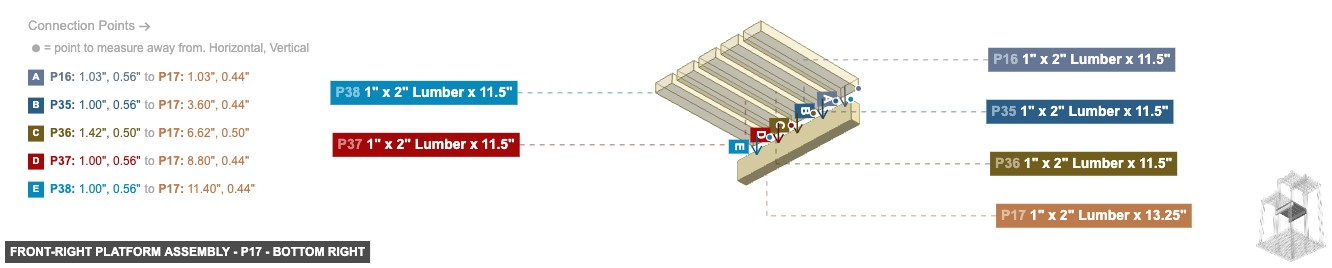

P17 (1" x 2" Lumber 13.25" length) - connect its 1" x 2" Wood Side #1 oriented top links with part 16's 1" x 2" Wood Side #2, plus ensure its 1" x 2" Wood End #1 faces left, plus its 1" x 2" Wood Side #2 should be directed front, plus its 1" x 2" Wood Side #3 needs to point bottom. Also, ensure its 1" x 2" Wood End #2 faces right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

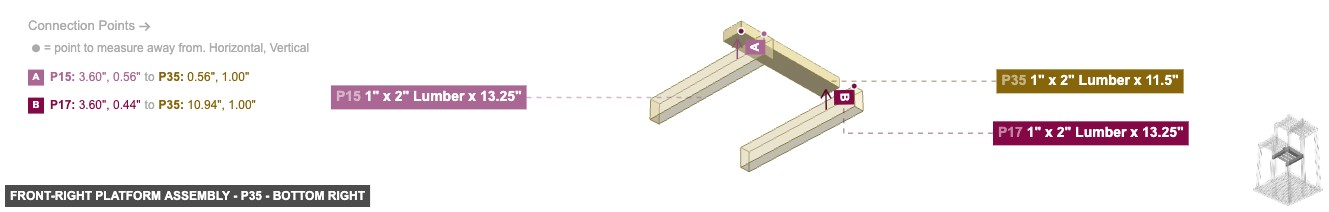

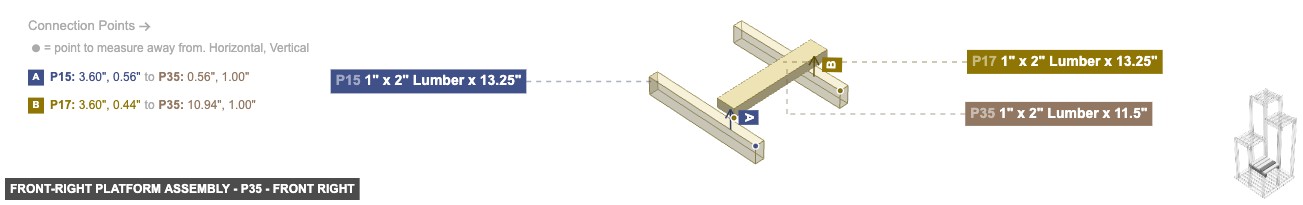

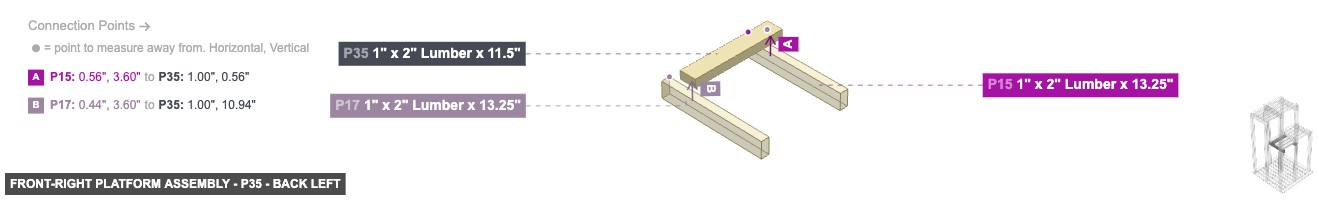

P35 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 15's 1" x 2" Wood Side #3. Also, its 1" x 2" Wood End #1 needs to point back. Also, its 1" x 2" Wood Side #1 must be oriented left. Additionally, its 1" x 2" Wood Side #3 should be directed right, plus its 1" x 2" Wood Side #4 must be oriented top, plus ensure its 1" x 2" Wood End #2 faces front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P36 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 15's 1" x 2" Wood Side #3. Additionally, its 1" x 2" Wood End #1 needs to point back, also its 1" x 2" Wood Side #1 must be oriented left, also its 1" x 2" Wood Side #3 must be oriented right, also its 1" x 2" Wood Side #4 needs to point top, plus its 1" x 2" Wood End #2 must be oriented front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

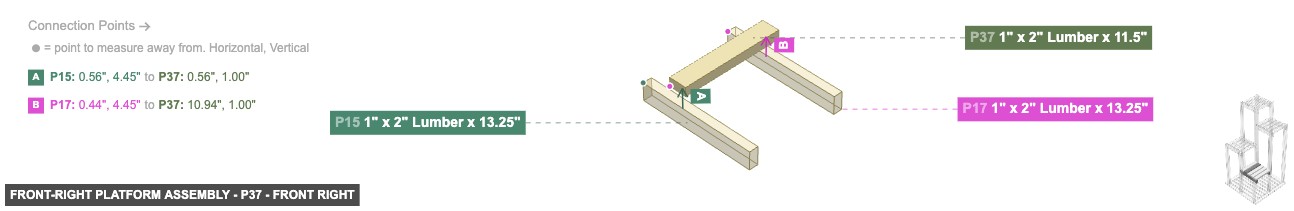

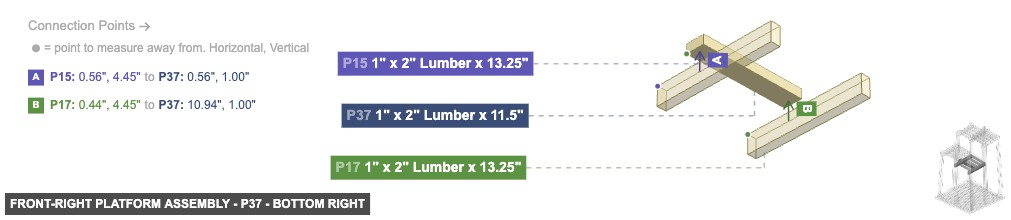

P37 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 15's 1" x 2" Wood Side #3. After that, ensure its 1" x 2" Wood End #1 faces back. Additionally, its 1" x 2" Wood Side #1 should be directed left, also its 1" x 2" Wood Side #3 must be oriented right. Next, its 1" x 2" Wood Side #4 needs to point top. Next, its 1" x 2" Wood End #2 must be oriented front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

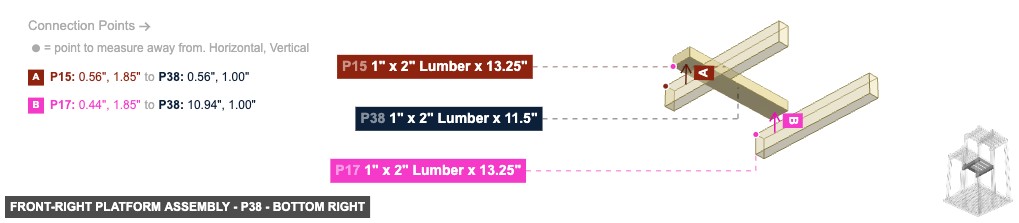

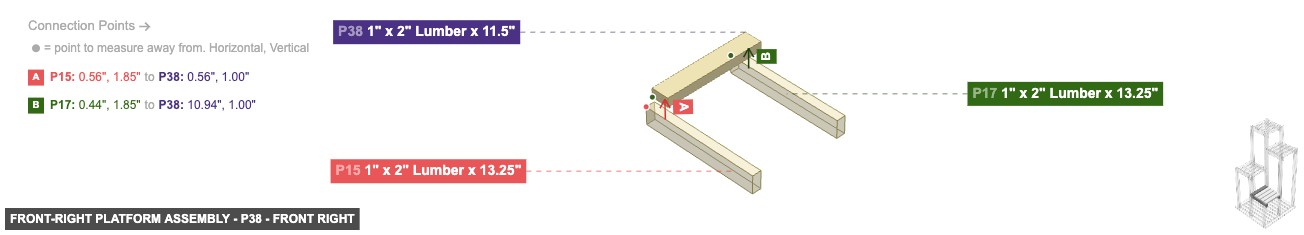

P38 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 15's 1" x 2" Wood Side #3. Additionally, ensure its 1" x 2" Wood Side #1 faces left, then ensure its 1" x 2" Wood Side #3 faces right, then its 1" x 2" Wood Side #4 needs to point top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

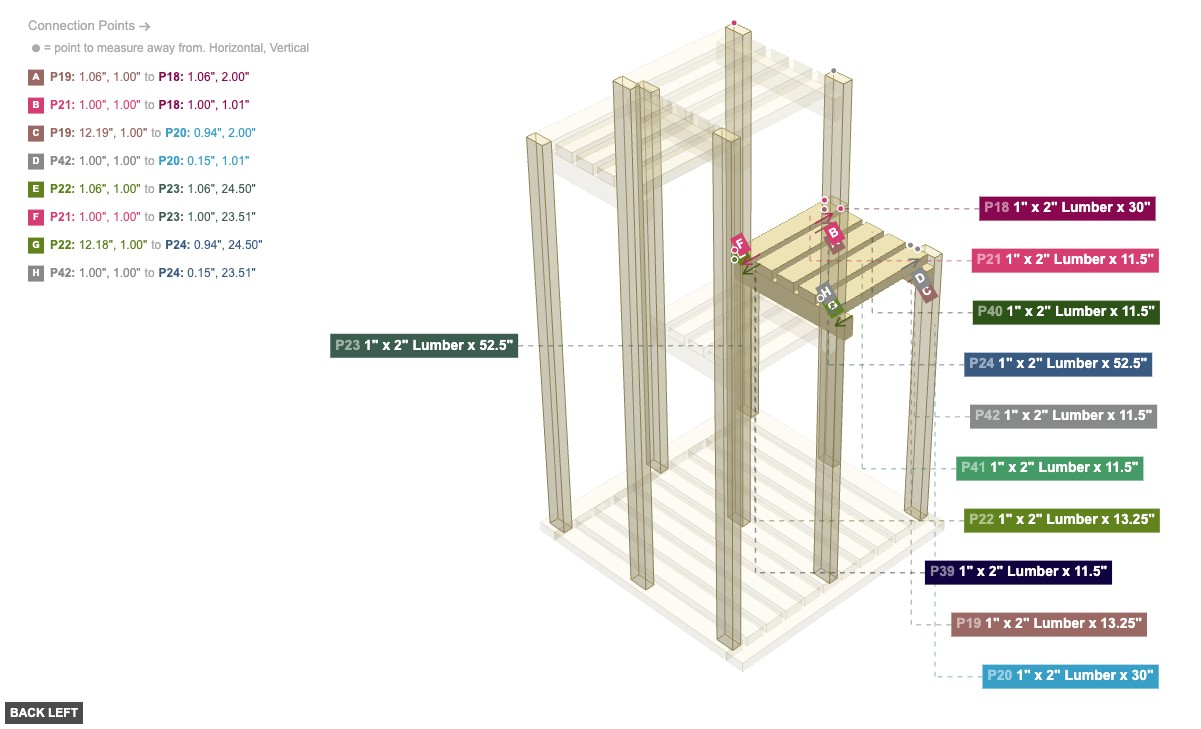

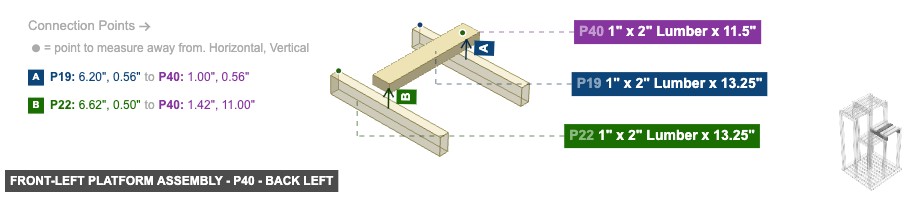

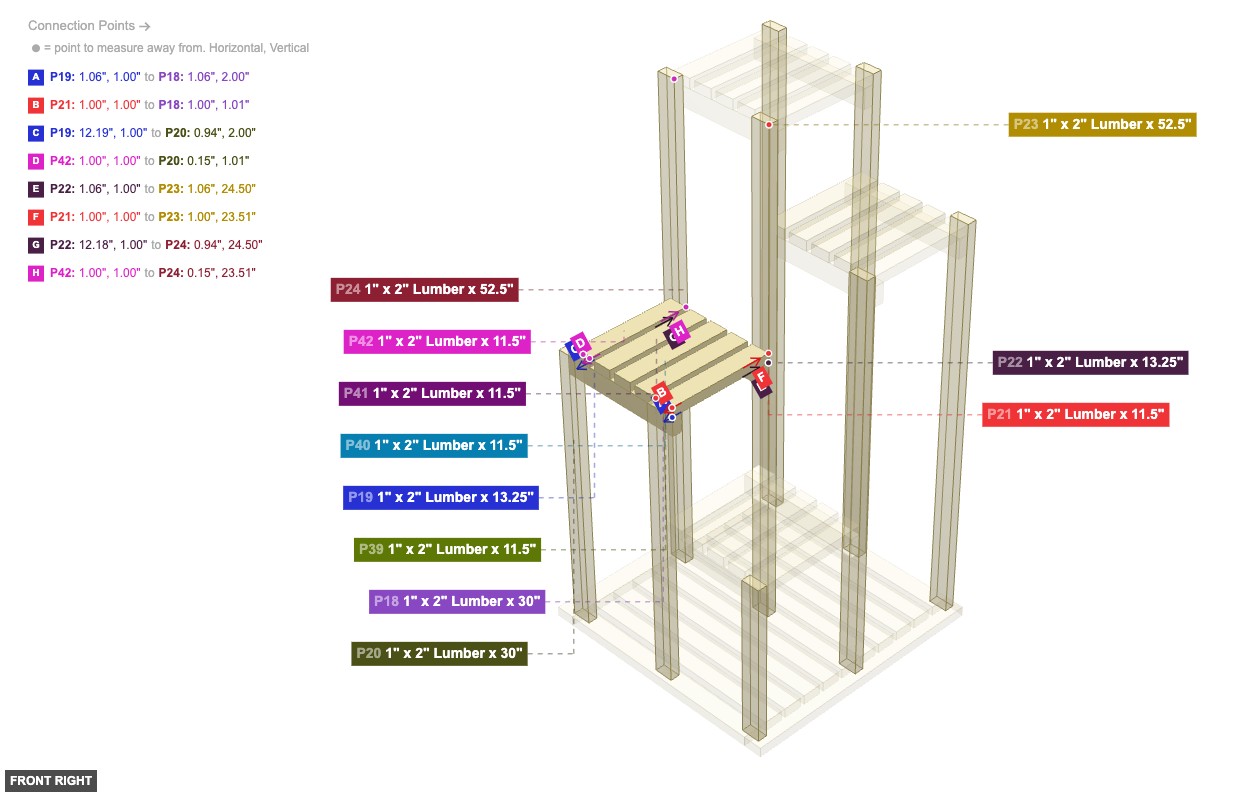

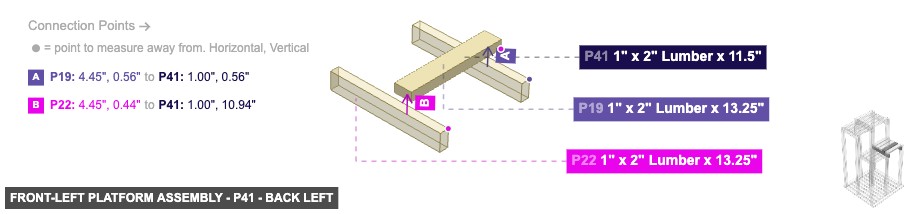

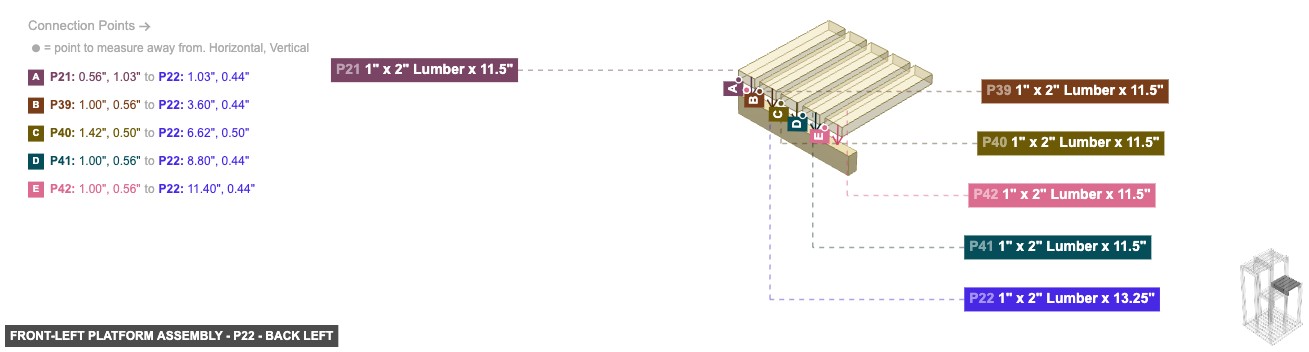

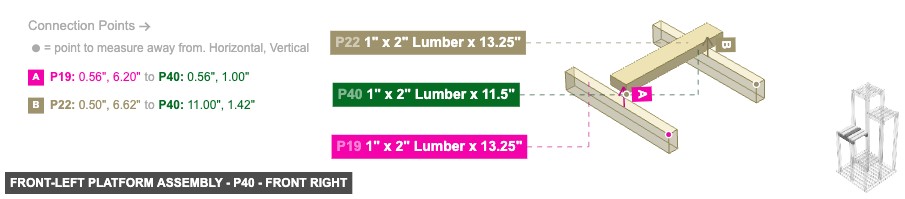

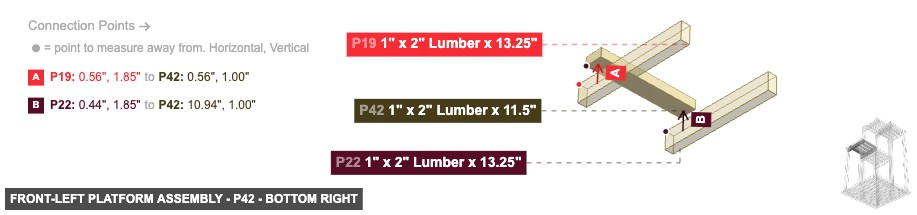

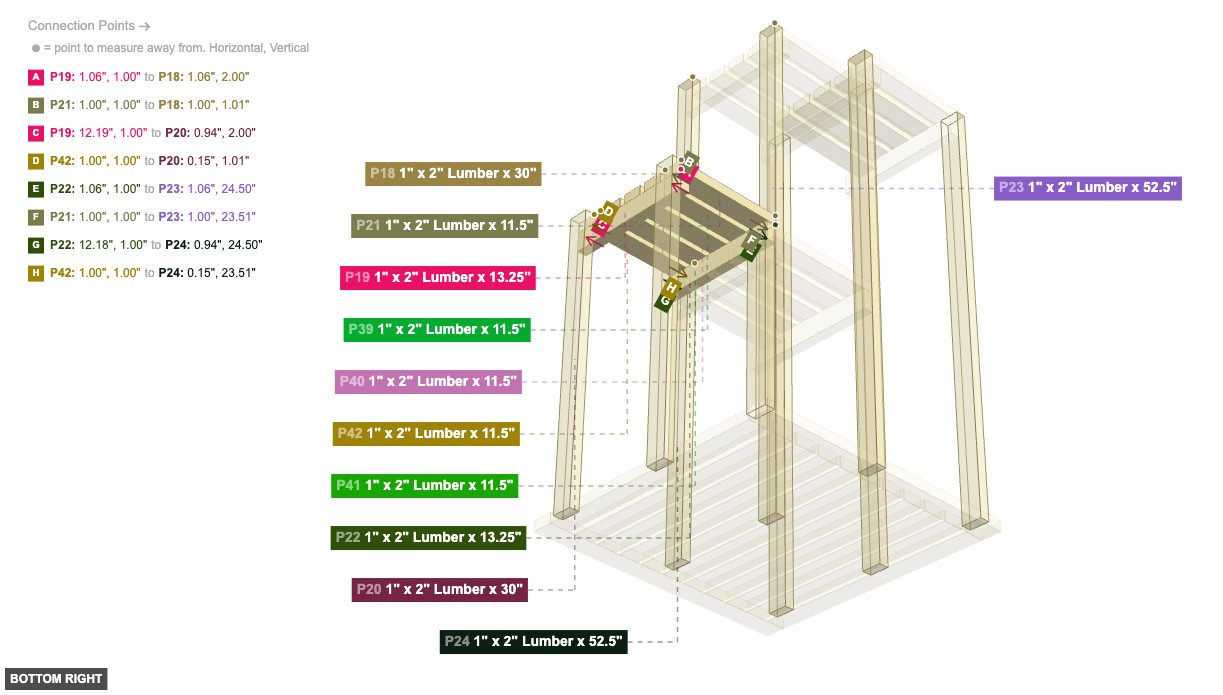

Group: Front-Left Platform Assembly

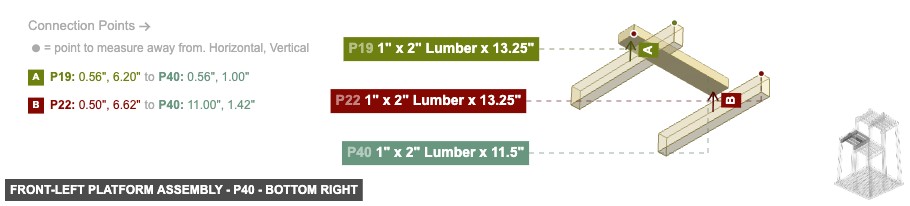

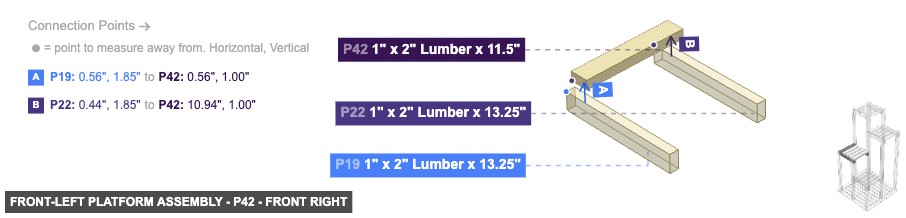

Construct the lower-middle platform structure located at the front-left. Attach the horizontal frame pieces (P19, P21, P22) to the corresponding vertical supports (P18, P20, P23) and add the platform slats (P39-P42).

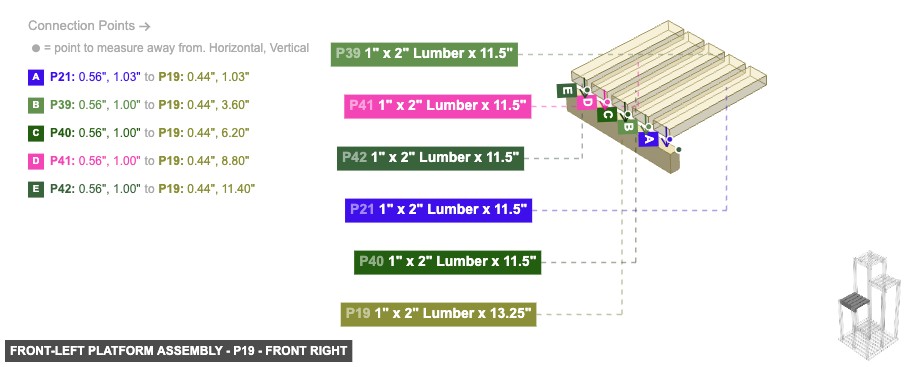

Part: 1" x 2" Lumber x 13.25" - Angle: back left

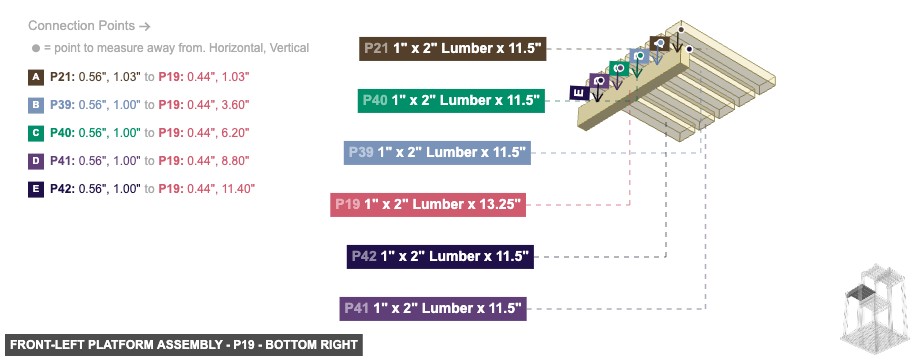

P19 (1" x 2" Lumber 13.25" length) - its 1" x 2" Wood Side #3, which is top-facing, should connect to part 21's 1" x 2" Wood Side #2, plus its 1" x 2" Wood End #1 must be oriented right, plus its 1" x 2" Wood Side #1 must be oriented bottom, then its 1" x 2" Wood Side #4 should be directed back. Additionally, its 1" x 2" Wood End #2 should be directed left

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

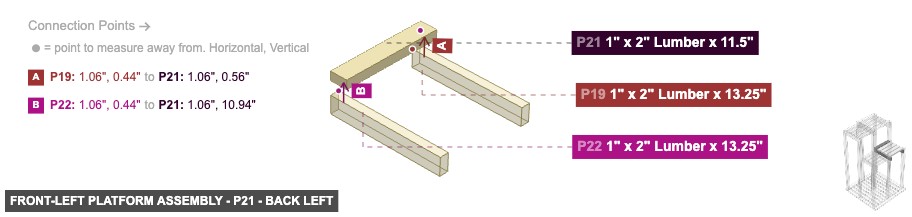

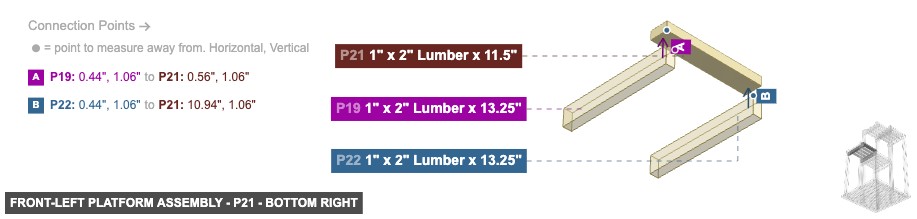

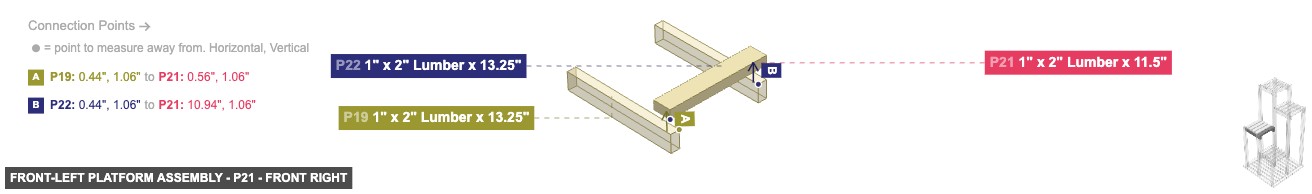

P21 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 19's 1" x 2" Wood Side #3. Next, its 1" x 2" Wood Side #1 needs to point left. Additionally, its 1" x 2" Wood Side #3 must be oriented right. Additionally, its 1" x 2" Wood Side #4 needs to point top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

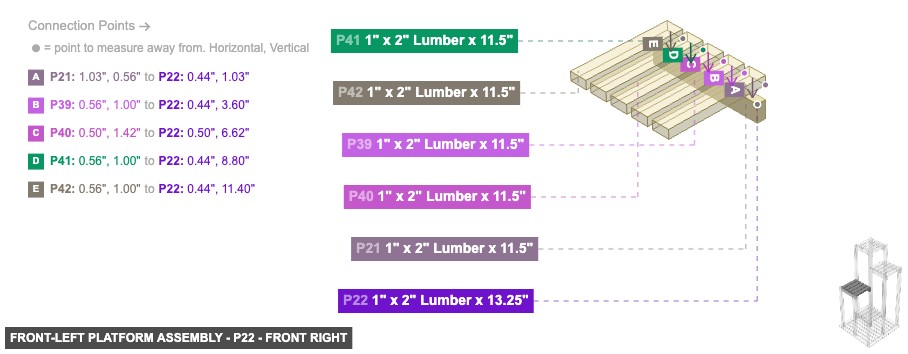

Part: 1" x 2" Lumber x 13.25" - Angle: back left

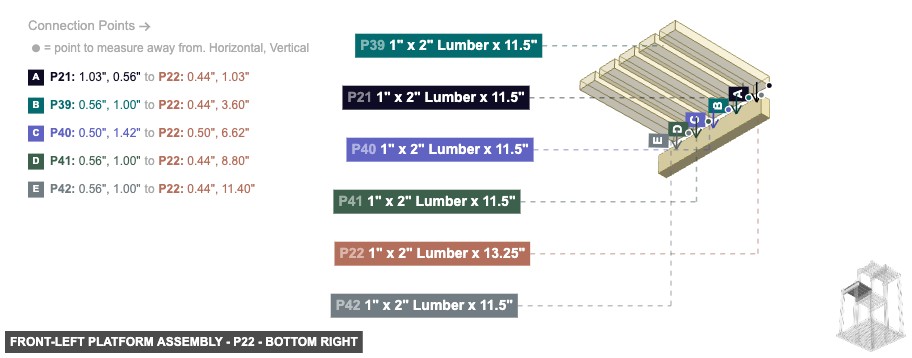

P22 (1" x 2" Lumber 13.25" length) - its 1" x 2" Wood Side #1, which is top-facing, should connect to part 21's 1" x 2" Wood Side #2, and its 1" x 2" Wood End #1 must be oriented left, also ensure its 1" x 2" Wood Side #2 faces front. Additionally, ensure its 1" x 2" Wood Side #3 faces bottom, also its 1" x 2" Wood End #2 needs to point right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

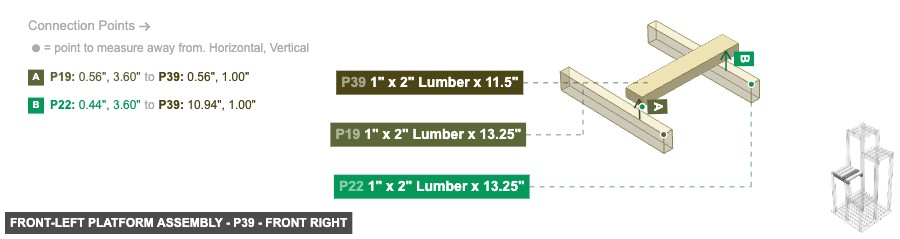

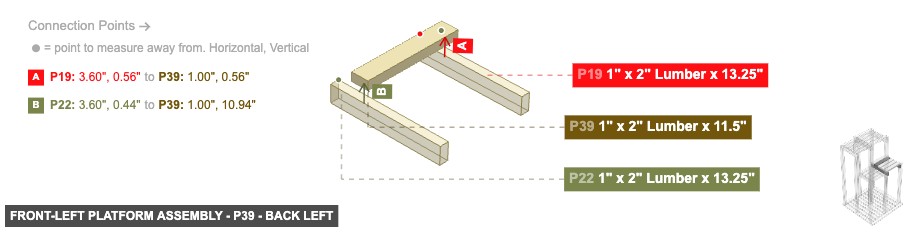

Part: 1" x 2" Lumber x 11.5" - Angle: back left

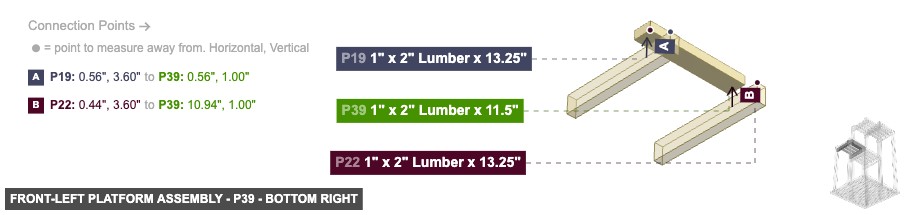

P39 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 19's 1" x 2" Wood Side #3. After that, ensure its 1" x 2" Wood End #1 faces back. Also, its 1" x 2" Wood Side #1 needs to point left. After that, ensure its 1" x 2" Wood Side #3 faces right, and ensure its 1" x 2" Wood Side #4 faces top, also ensure its 1" x 2" Wood End #2 faces front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P40 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 19's 1" x 2" Wood Side #3. Also, ensure its 1" x 2" Wood End #1 faces back. Next, ensure its 1" x 2" Wood Side #1 faces left. Next, its 1" x 2" Wood Side #3 should be directed right, then its 1" x 2" Wood Side #4 must be oriented top, plus its 1" x 2" Wood End #2 should be directed front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

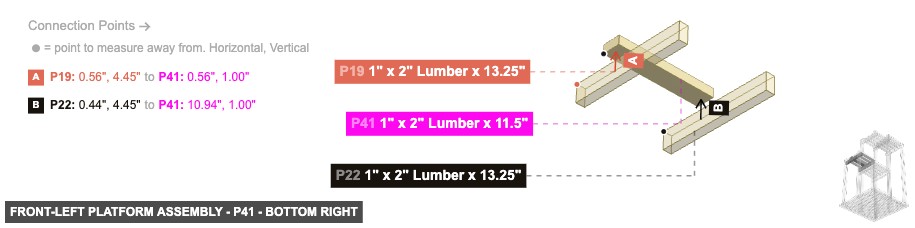

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P41 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 19's 1" x 2" Wood Side #3. Also, ensure its 1" x 2" Wood End #1 faces back. Next, ensure its 1" x 2" Wood Side #1 faces left. After that, its 1" x 2" Wood Side #3 must be oriented right. Next, ensure its 1" x 2" Wood Side #4 faces top. Also, its 1" x 2" Wood End #2 needs to point front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

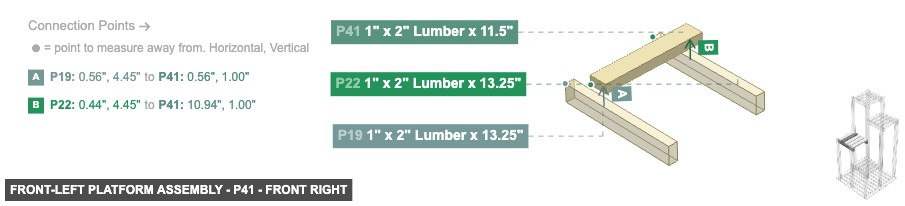

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

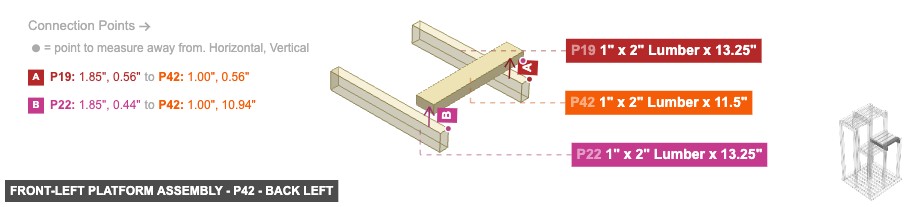

P42 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 19's 1" x 2" Wood Side #3, also its 1" x 2" Wood Side #1 needs to point left, also its 1" x 2" Wood Side #3 should be directed right. After that, ensure its 1" x 2" Wood Side #4 faces top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

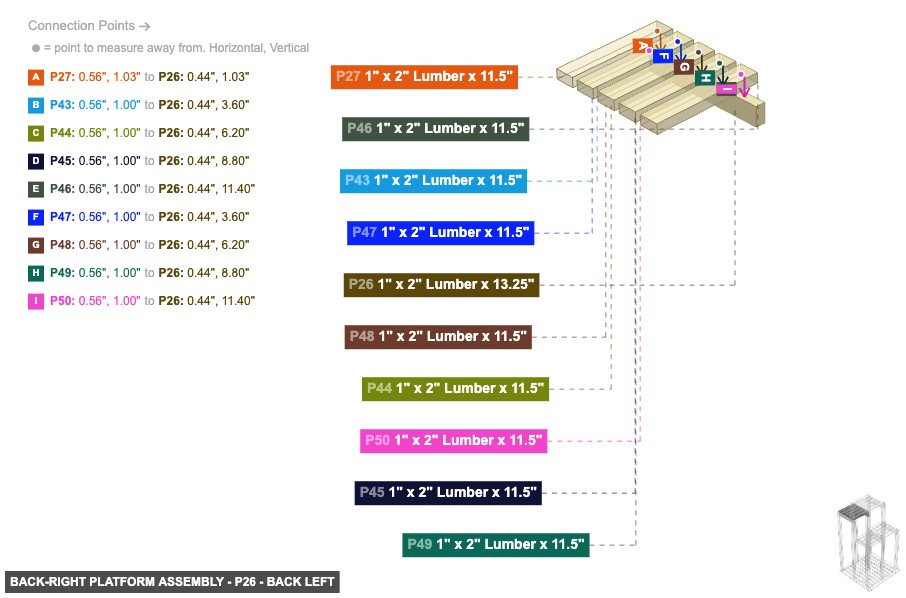

Group: Back-Right Platform Assembly

Construct the upper-middle platform structure located at the back-right. Attach the horizontal frame pieces (P26, P27, P33) to the corresponding vertical supports (P25, P34, P23, P31) and add the platform slats (P43-P50).

Part: 1" x 2" Lumber x 13.25" - Angle: back left

P26 (1" x 2" Lumber 13.25" length) - its 1" x 2" Wood Side #3, which is top-facing, should connect to part 27's 1" x 2" Wood Side #2. After that, ensure its 1" x 2" Wood End #1 faces right. After that, ensure its 1" x 2" Wood Side #1 faces bottom, plus ensure its 1" x 2" Wood Side #4 faces back. Also, ensure its 1" x 2" Wood End #2 faces left

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

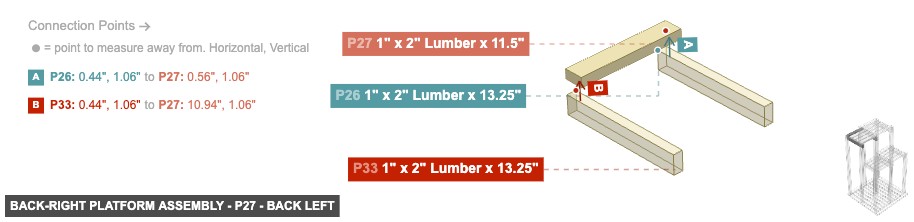

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P27 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 26's 1" x 2" Wood Side #3. After that, its 1" x 2" Wood Side #1 should be directed left, also its 1" x 2" Wood Side #3 must be oriented right, and its 1" x 2" Wood Side #4 should be directed top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

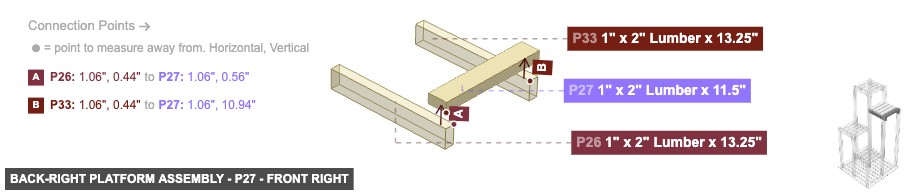

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 13.25" - Angle: back left

P33 (1" x 2" Lumber 13.25" length) - attach its 1" x 2" Wood Side #1 facing top to part 27's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood End #1 needs to point left, plus ensure its 1" x 2" Wood Side #2 faces front, then its 1" x 2" Wood Side #3 needs to point bottom. After that, its 1" x 2" Wood End #2 must be oriented right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P43 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 26's 1" x 2" Wood Side #3, plus its 1" x 2" Wood End #1 must be oriented back. Also, its 1" x 2" Wood Side #1 should be directed left. Next, its 1" x 2" Wood Side #3 should be directed right, plus its 1" x 2" Wood Side #4 must be oriented top, and ensure its 1" x 2" Wood End #2 faces front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

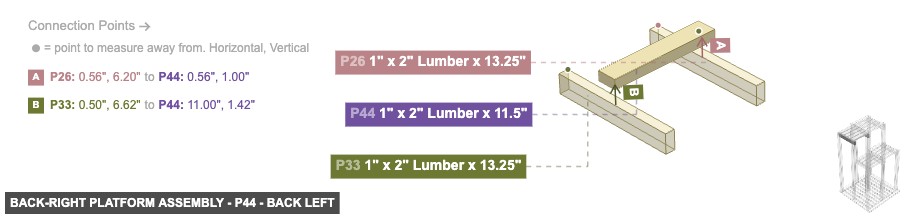

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P44 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 26's 1" x 2" Wood Side #3. After that, its 1" x 2" Wood End #1 should be directed back, then its 1" x 2" Wood Side #1 must be oriented left, also its 1" x 2" Wood Side #3 needs to point right. Also, ensure its 1" x 2" Wood Side #4 faces top. Next, its 1" x 2" Wood End #2 must be oriented front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P45 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 26's 1" x 2" Wood Side #3, and ensure its 1" x 2" Wood End #1 faces back. Also, its 1" x 2" Wood Side #1 must be oriented left. Additionally, ensure its 1" x 2" Wood Side #3 faces right. After that, ensure its 1" x 2" Wood Side #4 faces top. Next, its 1" x 2" Wood End #2 should be directed front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: back left

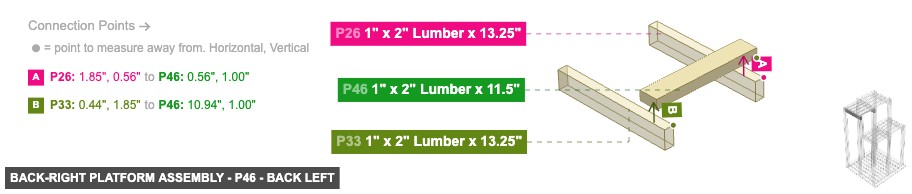

P46 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 26's 1" x 2" Wood Side #3. Additionally, its 1" x 2" Wood Side #1 should be directed left, also its 1" x 2" Wood Side #3 needs to point right. Next, its 1" x 2" Wood Side #4 needs to point top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: back left

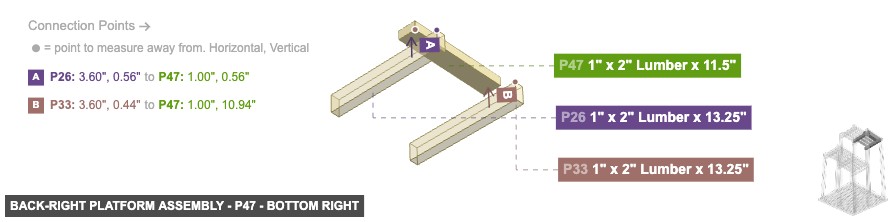

P47 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 26's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #1 needs to point back, plus its 1" x 2" Wood Side #1 must be oriented left. Also, its 1" x 2" Wood Side #3 needs to point right, plus its 1" x 2" Wood Side #4 should be directed top, plus its 1" x 2" Wood End #2 must be oriented front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

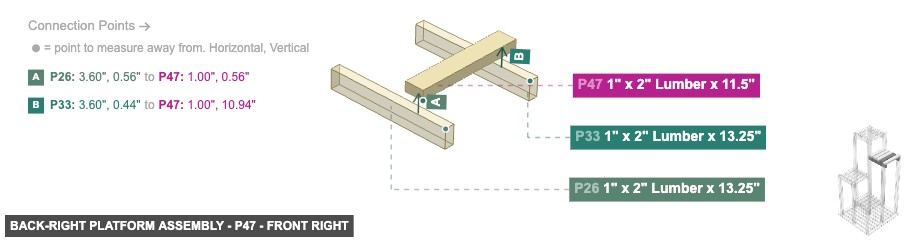

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P48 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 26's 1" x 2" Wood Side #3. Also, its 1" x 2" Wood End #1 should be directed back. Also, its 1" x 2" Wood Side #1 should be directed left, and its 1" x 2" Wood Side #3 needs to point right. After that, its 1" x 2" Wood Side #4 needs to point top. Also, its 1" x 2" Wood End #2 should be directed front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

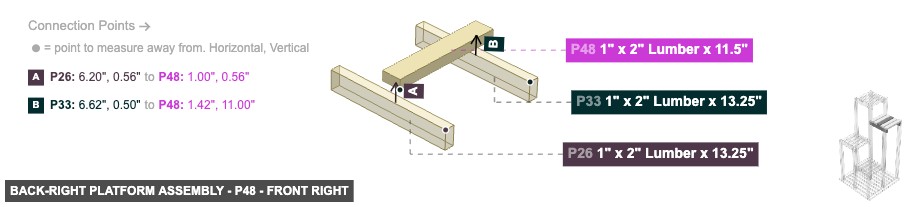

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P49 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 26's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #1 needs to point back, also its 1" x 2" Wood Side #1 should be directed left, then its 1" x 2" Wood Side #3 needs to point right. After that, its 1" x 2" Wood Side #4 must be oriented top. Additionally, its 1" x 2" Wood End #2 should be directed front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

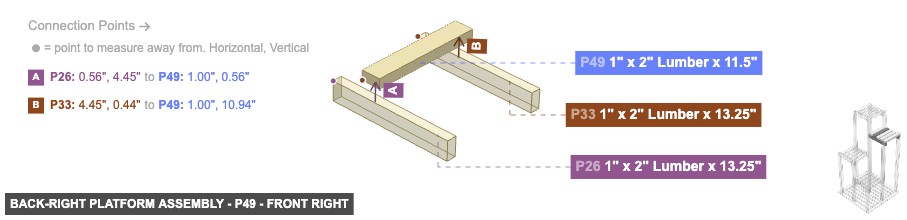

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

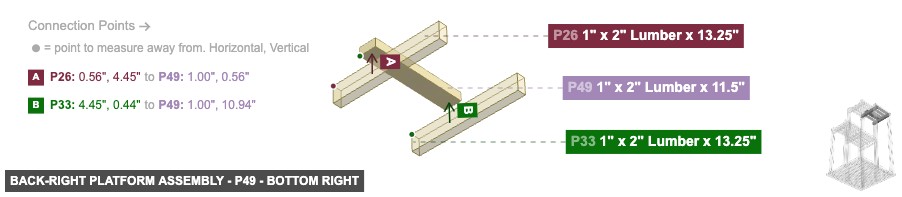

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: back left

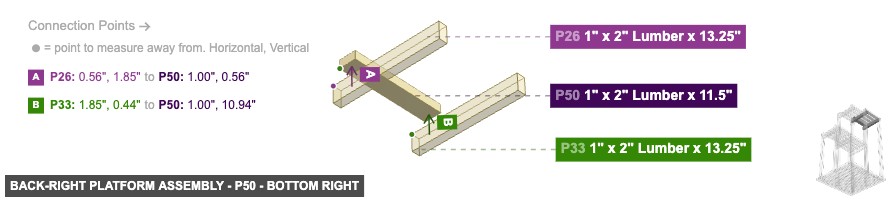

P50 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 26's 1" x 2" Wood Side #3, then its 1" x 2" Wood Side #1 needs to point left. Additionally, its 1" x 2" Wood Side #3 needs to point right, and its 1" x 2" Wood Side #4 should be directed top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

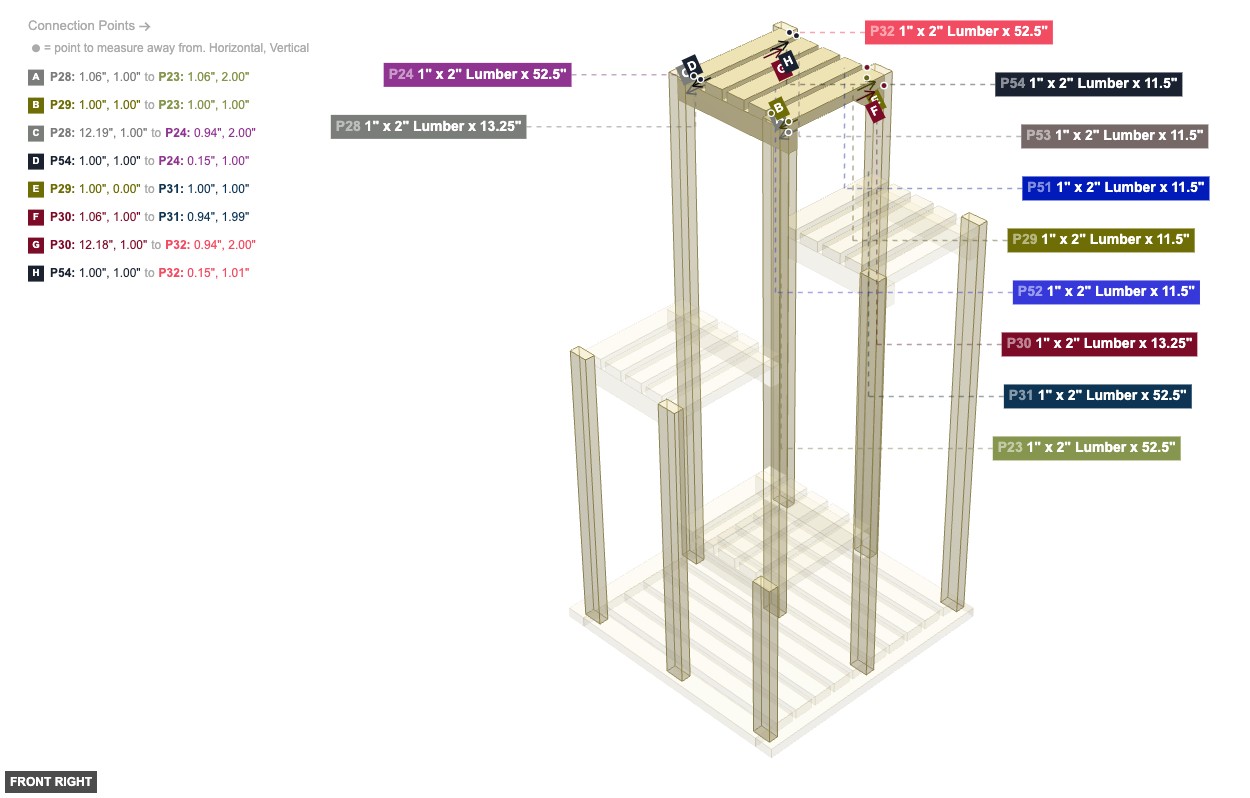

Group: Back-Left Platform Assembly

Construct the highest platform structure located at the back-left. Attach the horizontal frame pieces (P28, P29, P30) to the corresponding vertical supports (P23, P24, P31, P32) and add the platform slats (P51-P54).

Part: 1" x 2" Lumber x 13.25" - Angle: back left

P28 (1" x 2" Lumber 13.25" length) - connect its 1" x 2" Wood Side #3 oriented top links with part 29's 1" x 2" Wood Side #2, then its 1" x 2" Wood End #1 should be directed right, also its 1" x 2" Wood Side #1 should be directed bottom, also its 1" x 2" Wood Side #4 needs to point back. Also, its 1" x 2" Wood End #2 should be directed left

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

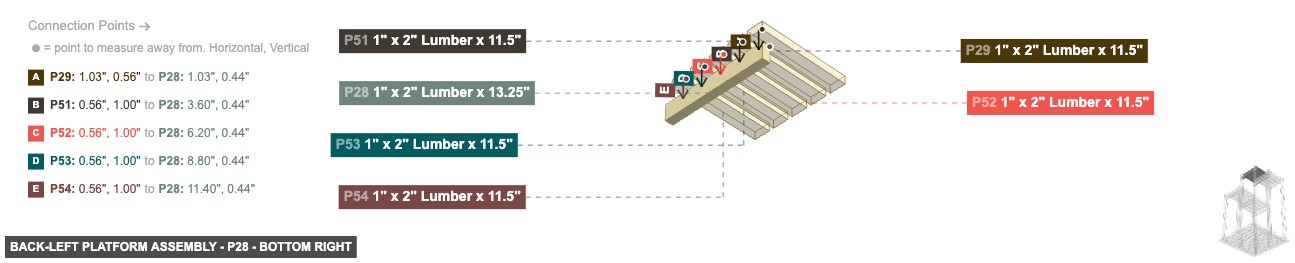

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P29 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 28's 1" x 2" Wood Side #3, plus its 1" x 2" Wood Side #1 must be oriented left, also ensure its 1" x 2" Wood Side #3 faces right, also its 1" x 2" Wood Side #4 should be directed top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

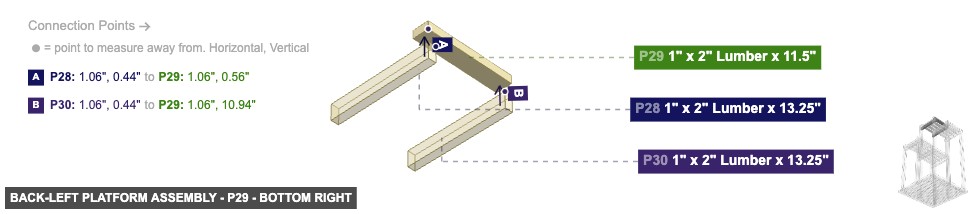

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: back left

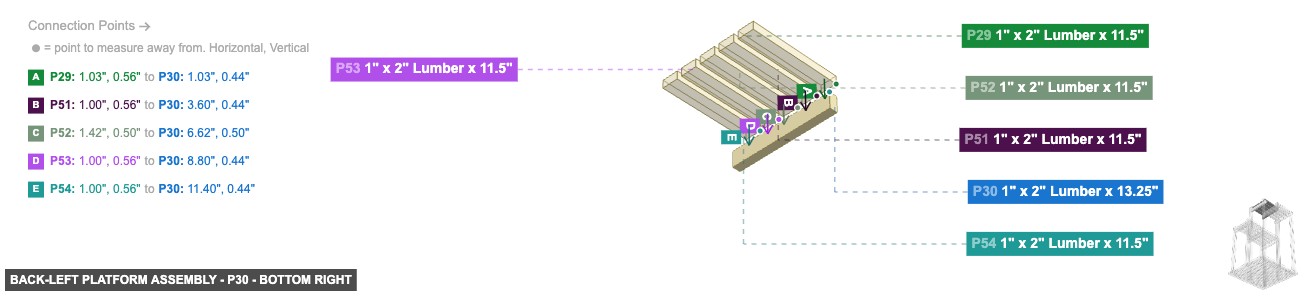

P30 (1" x 2" Lumber 13.25" length) - its 1" x 2" Wood Side #1, which is top-facing, should connect to part 29's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood End #1 must be oriented left. Next, its 1" x 2" Wood Side #2 must be oriented front. After that, ensure its 1" x 2" Wood Side #3 faces bottom, also ensure its 1" x 2" Wood End #2 faces right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 13.25" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

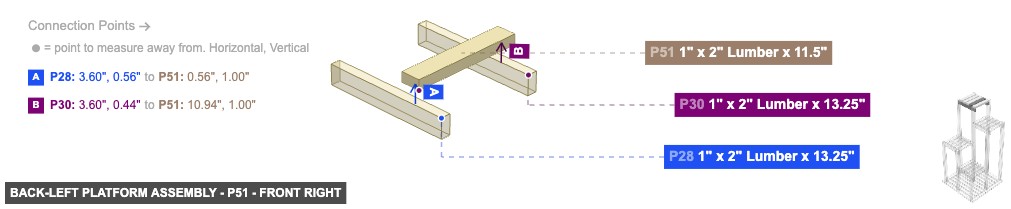

Part: 1" x 2" Lumber x 11.5" - Angle: back left

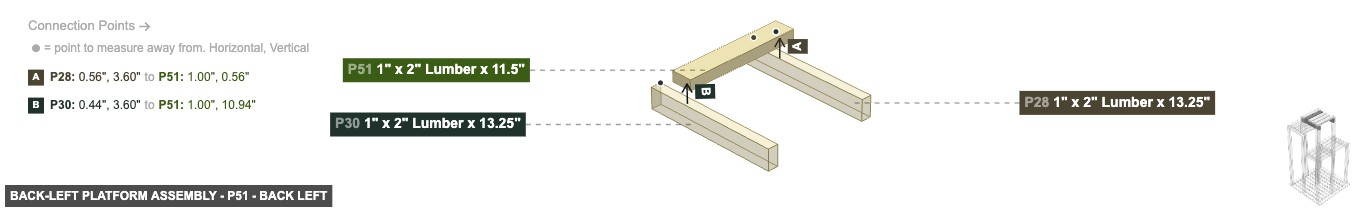

P51 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 28's 1" x 2" Wood Side #3, and its 1" x 2" Wood End #1 must be oriented back. Additionally, its 1" x 2" Wood Side #1 should be directed left. Additionally, its 1" x 2" Wood Side #3 must be oriented right. After that, ensure its 1" x 2" Wood Side #4 faces top, and its 1" x 2" Wood End #2 needs to point front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

P52 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 28's 1" x 2" Wood Side #3. Additionally, ensure its 1" x 2" Wood End #1 faces back, also its 1" x 2" Wood Side #1 needs to point left. Additionally, its 1" x 2" Wood Side #3 needs to point right. Also, ensure its 1" x 2" Wood Side #4 faces top, plus its 1" x 2" Wood End #2 must be oriented front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

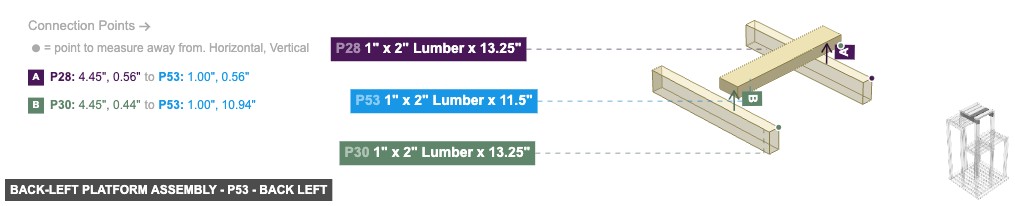

P53 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 28's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #1 needs to point back, plus ensure its 1" x 2" Wood Side #1 faces left. Additionally, its 1" x 2" Wood Side #3 should be directed right, plus ensure its 1" x 2" Wood Side #4 faces top, also its 1" x 2" Wood End #2 should be directed front

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

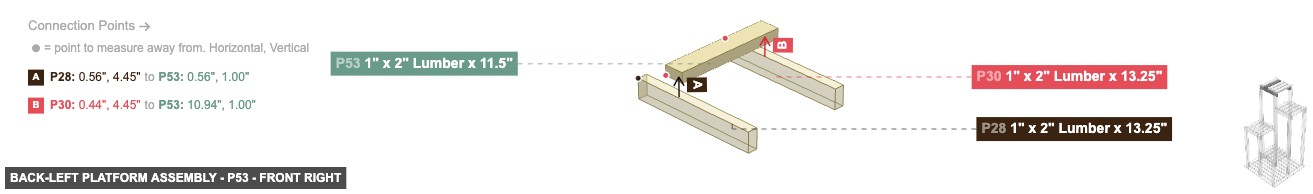

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: back left

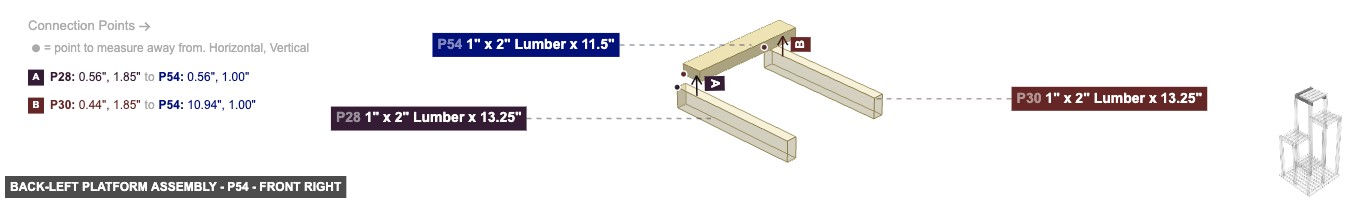

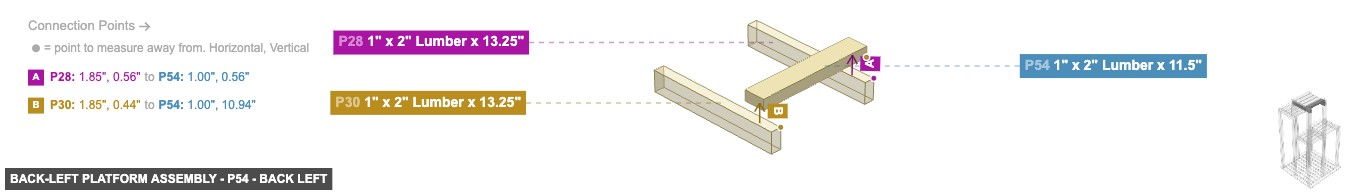

P54 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 28's 1" x 2" Wood Side #3, plus ensure its 1" x 2" Wood Side #1 faces left. Also, its 1" x 2" Wood Side #3 should be directed right. After that, its 1" x 2" Wood Side #4 should be directed top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: front right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Part: 1" x 2" Lumber x 11.5" - Angle: bottom right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Phase 3: Inter-Group Assembly

Attaching: Base Platform Assembly

Assemble the main base frame using the longest side pieces (P1, P4) and attach the shorter base slats (P2, P3, P5-P13) between them.

Angle: back left

Assembly of Base Platform Assembly - back_left

P1 (1" x 2" Lumber 27" length) - connect its 1" x 2" Wood Side #1 oriented left links with part 2's 1" x 2" Wood End #2, also connect its 1" x 2" Wood Side #2 oriented top links with part 14's 1" x 2" Wood End #2, and its 1" x 2" Wood End #1 must be oriented front. Next, its 1" x 2" Wood Side #3 must be oriented right. After that, its 1" x 2" Wood Side #4 should be directed bottom. After that, ensure its 1" x 2" Wood End #2 faces back P2 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1, plus connect its 1" x 2" Wood Side #2 oriented top links with part 14's 1" x 2" Wood End #2. After that, connect its 1" x 2" Wood End #2 oriented right links with part 1's 1" x 2" Wood Side #1, also its 1" x 2" Wood Side #1 should be directed back. After that, its 1" x 2" Wood Side #3 needs to point front, also its 1" x 2" Wood Side #4 must be oriented bottom P3 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1. Also, attach its 1" x 2" Wood Side #2 facing top to part 32's 1" x 2" Wood End #1, and attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1. Next, its 1" x 2" Wood Side #1 must be oriented back. Also, its 1" x 2" Wood Side #3 should be directed front, and ensure its 1" x 2" Wood Side #4 faces bottom P4 (1" x 2" Lumber 27" length) - its 1" x 2" Wood Side #1, which is right-facing, should connect to part 2's 1" x 2" Wood End #1, also connect its 1" x 2" Wood Side #2 oriented top links with part 32's 1" x 2" Wood End #1, also its 1" x 2" Wood End #1 needs to point back. Also, ensure its 1" x 2" Wood Side #3 faces left, also its 1" x 2" Wood Side #4 should be directed bottom, also its 1" x 2" Wood End #2 must be oriented front P5 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1. Additionally, its 1" x 2" Wood End #2, which is right-facing, should connect to part 1's 1" x 2" Wood Side #1. Next, its 1" x 2" Wood Side #1 must be oriented back. Next, its 1" x 2" Wood Side #2 needs to point top, then its 1" x 2" Wood Side #3 must be oriented front. After that, ensure its 1" x 2" Wood Side #4 faces bottom P6 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, and attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1. After that, its 1" x 2" Wood Side #1 needs to point back. Next, ensure its 1" x 2" Wood Side #2 faces top, plus its 1" x 2" Wood Side #3 must be oriented front. Also, ensure its 1" x 2" Wood Side #4 faces bottom P7 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, then attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1. Additionally, its 1" x 2" Wood Side #1 must be oriented back. After that, its 1" x 2" Wood Side #2 needs to point top, and its 1" x 2" Wood Side #3 must be oriented front, then ensure its 1" x 2" Wood Side #4 faces bottom P8 (1" x 2" Lumber 23" length) - connect its 1" x 2" Wood End #1 oriented left links with part 4's 1" x 2" Wood Side #1, also connect its 1" x 2" Wood End #2 oriented right links with part 1's 1" x 2" Wood Side #1. Next, its 1" x 2" Wood Side #1 needs to point back. Next, its 1" x 2" Wood Side #2 must be oriented top. After that, ensure its 1" x 2" Wood Side #3 faces front, also its 1" x 2" Wood Side #4 needs to point bottom P9 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1. Also, its 1" x 2" Wood Side #2, which is top-facing, should connect to part 24's 1" x 2" Wood End #1. Next, attach its 1" x 2" Wood End #2 facing right to part 1's 1" x 2" Wood Side #1, then its 1" x 2" Wood Side #1 needs to point back, then its 1" x 2" Wood Side #3 should be directed front. Additionally, its 1" x 2" Wood Side #4 needs to point bottom P10 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1. After that, its 1" x 2" Wood End #2, which is right-facing, should connect to part 1's 1" x 2" Wood Side #1. Additionally, its 1" x 2" Wood Side #1 needs to point back, then its 1" x 2" Wood Side #2 must be oriented top. Additionally, its 1" x 2" Wood Side #3 should be directed front. Also, its 1" x 2" Wood Side #4 should be directed bottom P11 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, plus connect its 1" x 2" Wood End #2 oriented right links with part 1's 1" x 2" Wood Side #1, also its 1" x 2" Wood Side #1 should be directed back. Next, ensure its 1" x 2" Wood Side #2 faces top. Also, its 1" x 2" Wood Side #3 must be oriented front, plus its 1" x 2" Wood Side #4 should be directed bottom P12 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1. After that, its 1" x 2" Wood End #2, which is right-facing, should connect to part 1's 1" x 2" Wood Side #1, plus its 1" x 2" Wood Side #1 needs to point back, and its 1" x 2" Wood Side #2 must be oriented top. After that, its 1" x 2" Wood Side #3 needs to point front, plus its 1" x 2" Wood Side #4 must be oriented bottom P13 (1" x 2" Lumber 23" length) - its 1" x 2" Wood End #1, which is left-facing, should connect to part 4's 1" x 2" Wood Side #1, also connect its 1" x 2" Wood End #2 oriented right links with part 1's 1" x 2" Wood Side #1. Additionally, its 1" x 2" Wood Side #1 must be oriented back, also its 1" x 2" Wood Side #2 should be directed top. Also, ensure its 1" x 2" Wood Side #3 faces front. Additionally, its 1" x 2" Wood Side #4 must be oriented bottom

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Angle: front right

Assembly of Base Platform Assembly - front_right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Angle: bottom right

Assembly of Base Platform Assembly - bottom_right

1" x 2" Lumber x 27"x 2

1" x 2" Lumber x 23"x 11

Attaching: Attach Vertical Supports

Attach the nine main vertical support legs (P14, P18, P20, P23, P24, P25, P31, P32, P34) to their designated positions on the assembled base platform.

Angle: back left

Assembly of Attach Vertical Supports - back_left

P14 (1" x 2" Lumber 17.25" length) - attach its 1" x 2" Wood Side #2 facing back to part 15's 1" x 2" Wood Side #2. Also, attach its 1" x 2" Wood End #2 facing bottom to part 1's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 needs to point top. Additionally, ensure its 1" x 2" Wood Side #1 faces left, plus ensure its 1" x 2" Wood Side #3 faces right, plus ensure its 1" x 2" Wood Side #4 faces front P18 (1" x 2" Lumber 30" length) - attach its 1" x 2" Wood Side #2 facing back to part 15's 1" x 2" Wood Side #2, then its 1" x 2" Wood End #2, which is bottom-facing, should connect to part 2's 1" x 2" Wood Side #2. After that, its 1" x 2" Wood End #1 needs to point top. Next, its 1" x 2" Wood Side #1 needs to point left. Next, ensure its 1" x 2" Wood Side #3 faces right. Additionally, ensure its 1" x 2" Wood Side #4 faces front P20 (1" x 2" Lumber 30" length) - attach its 1" x 2" Wood Side #2 facing back to part 19's 1" x 2" Wood Side #2, then connect its 1" x 2" Wood End #2 oriented bottom links with part 2's 1" x 2" Wood Side #2, also its 1" x 2" Wood End #1 must be oriented top, and ensure its 1" x 2" Wood Side #1 faces left. After that, its 1" x 2" Wood Side #3 must be oriented right, and its 1" x 2" Wood Side #4 needs to point front P23 (1" x 2" Lumber 52.5" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 9's 1" x 2" Wood Side #2. Additionally, attach its 1" x 2" Wood Side #2 facing front to part 22's 1" x 2" Wood Side #4. Additionally, attach its 1" x 2" Wood Side #4 facing back to part 26's 1" x 2" Wood Side #2, plus its 1" x 2" Wood Side #1 should be directed left, also its 1" x 2" Wood Side #3 should be directed right, and its 1" x 2" Wood End #2 needs to point top P24 (1" x 2" Lumber 52.5" length) - connect its 1" x 2" Wood End #1 oriented bottom links with part 9's 1" x 2" Wood Side #2, and its 1" x 2" Wood Side #2, which is front-facing, should connect to part 22's 1" x 2" Wood Side #4. After that, attach its 1" x 2" Wood Side #4 facing back to part 28's 1" x 2" Wood Side #2, also its 1" x 2" Wood Side #1 needs to point left. Next, its 1" x 2" Wood Side #3 should be directed right, then ensure its 1" x 2" Wood End #2 faces top P25 (1" x 2" Lumber 42.5" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 1's 1" x 2" Wood Side #2, then connect its 1" x 2" Wood Side #2 oriented front links with part 17's 1" x 2" Wood Side #4. Additionally, attach its 1" x 2" Wood Side #4 facing back to part 26's 1" x 2" Wood Side #2. Next, ensure its 1" x 2" Wood Side #1 faces left, plus ensure its 1" x 2" Wood Side #3 faces right. After that, ensure its 1" x 2" Wood End #2 faces top P31 (1" x 2" Lumber 52.5" length) - its 1" x 2" Wood Side #2, which is front-facing, should connect to part 29's 1" x 2" Wood End #1, then its 1" x 2" Wood End #2, which is bottom-facing, should connect to part 3's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 must be oriented top. Also, ensure its 1" x 2" Wood Side #1 faces right, plus ensure its 1" x 2" Wood Side #3 faces left. Additionally, its 1" x 2" Wood Side #4 needs to point back P32 (1" x 2" Lumber 52.5" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 3's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood Side #2, which is front-facing, should connect to part 30's 1" x 2" Wood Side #4, and its 1" x 2" Wood Side #1 should be directed left. Next, its 1" x 2" Wood Side #3 should be directed right, then its 1" x 2" Wood Side #4 should be directed back, also its 1" x 2" Wood End #2 must be oriented top P34 (1" x 2" Lumber 42.5" length) - its 1" x 2" Wood End #1, which is bottom-facing, should connect to part 1's 1" x 2" Wood Side #2. After that, its 1" x 2" Wood Side #2, which is front-facing, should connect to part 33's 1" x 2" Wood Side #4. Also, ensure its 1" x 2" Wood Side #1 faces left, also ensure its 1" x 2" Wood Side #3 faces right. Next, its 1" x 2" Wood Side #4 needs to point back, then ensure its 1" x 2" Wood End #2 faces top

1" x 2" Lumber x 17.25"x 1

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 52.5"x 4

1" x 2" Lumber x 42.5"x 2

Angle: front right

Assembly of Attach Vertical Supports - front_right

1" x 2" Lumber x 17.25"x 1

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 52.5"x 4

1" x 2" Lumber x 42.5"x 2

Angle: bottom right

Assembly of Attach Vertical Supports - bottom_right

1" x 2" Lumber x 17.25"x 1

1" x 2" Lumber x 30"x 2

1" x 2" Lumber x 52.5"x 4

1" x 2" Lumber x 42.5"x 2

Attaching: Front-Right Platform Assembly

Angle: back left

Assembly of Front-Right Platform Assembly - back_left

P15 (1" x 2" Lumber 13.25" length) - connect its 1" x 2" Wood Side #2 oriented front links with part 14's 1" x 2" Wood Side #2, and attach its 1" x 2" Wood Side #3 facing top to part 16's 1" x 2" Wood Side #2, also ensure its 1" x 2" Wood End #1 faces right. After that, its 1" x 2" Wood Side #1 must be oriented bottom. Next, its 1" x 2" Wood Side #4 must be oriented back, and its 1" x 2" Wood End #2 needs to point left P16 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood End #1 oriented back links with part 25's 1" x 2" Wood Side #2, and its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 15's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #2, which is front-facing, should connect to part 14's 1" x 2" Wood Side #2, then ensure its 1" x 2" Wood Side #1 faces left, then ensure its 1" x 2" Wood Side #3 faces right, plus its 1" x 2" Wood Side #4 needs to point top P17 (1" x 2" Lumber 13.25" length) - attach its 1" x 2" Wood Side #1 facing top to part 16's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood Side #4, which is back-facing, should connect to part 23's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood End #1 must be oriented left, and its 1" x 2" Wood Side #2 should be directed front. After that, its 1" x 2" Wood Side #3 needs to point bottom. Also, its 1" x 2" Wood End #2 needs to point right P35 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 15's 1" x 2" Wood Side #3, and its 1" x 2" Wood End #1 should be directed back, then ensure its 1" x 2" Wood Side #1 faces left. Next, its 1" x 2" Wood Side #3 needs to point right, plus ensure its 1" x 2" Wood Side #4 faces top. After that, its 1" x 2" Wood End #2 must be oriented front P36 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 15's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #1 needs to point back. Additionally, its 1" x 2" Wood Side #1 should be directed left, plus its 1" x 2" Wood Side #3 should be directed right, then its 1" x 2" Wood Side #4 should be directed top, and its 1" x 2" Wood End #2 should be directed front P37 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 15's 1" x 2" Wood Side #3. Also, ensure its 1" x 2" Wood End #1 faces back. Next, its 1" x 2" Wood Side #1 should be directed left, plus its 1" x 2" Wood Side #3 must be oriented right. Additionally, its 1" x 2" Wood Side #4 needs to point top. Additionally, ensure its 1" x 2" Wood End #2 faces front P38 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood End #1 facing back to part 23's 1" x 2" Wood Side #2. Next, attach its 1" x 2" Wood Side #2 facing bottom to part 15's 1" x 2" Wood Side #3, and connect its 1" x 2" Wood End #2 oriented front links with part 18's 1" x 2" Wood Side #2, and its 1" x 2" Wood Side #1 needs to point left, plus its 1" x 2" Wood Side #3 must be oriented right. Also, its 1" x 2" Wood Side #4 needs to point top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Angle: front right

Assembly of Front-Right Platform Assembly - front_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Angle: bottom right

Assembly of Front-Right Platform Assembly - bottom_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Attaching: Front-Left Platform Assembly

Angle: back left

Assembly of Front-Left Platform Assembly - back_left

P19 (1" x 2" Lumber 13.25" length) - connect its 1" x 2" Wood Side #2 oriented front links with part 18's 1" x 2" Wood Side #2, then its 1" x 2" Wood Side #3, which is top-facing, should connect to part 21's 1" x 2" Wood Side #2. Next, its 1" x 2" Wood End #1 needs to point right, also ensure its 1" x 2" Wood Side #1 faces bottom. Also, its 1" x 2" Wood Side #4 must be oriented back. Next, ensure its 1" x 2" Wood End #2 faces left P21 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood End #1 facing back to part 23's 1" x 2" Wood Side #2, and its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 19's 1" x 2" Wood Side #3, and its 1" x 2" Wood End #2, which is front-facing, should connect to part 18's 1" x 2" Wood Side #2, and its 1" x 2" Wood Side #1 must be oriented left. After that, ensure its 1" x 2" Wood Side #3 faces right, also its 1" x 2" Wood Side #4 must be oriented top P22 (1" x 2" Lumber 13.25" length) - connect its 1" x 2" Wood Side #1 oriented top links with part 21's 1" x 2" Wood Side #2, plus attach its 1" x 2" Wood Side #4 facing back to part 23's 1" x 2" Wood Side #2, and its 1" x 2" Wood End #1 must be oriented left. After that, its 1" x 2" Wood Side #2 must be oriented front, then its 1" x 2" Wood Side #3 must be oriented bottom, and ensure its 1" x 2" Wood End #2 faces right P39 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 19's 1" x 2" Wood Side #3, then its 1" x 2" Wood End #1 needs to point back, plus its 1" x 2" Wood Side #1 should be directed left, also its 1" x 2" Wood Side #3 needs to point right. Also, its 1" x 2" Wood Side #4 must be oriented top. Additionally, ensure its 1" x 2" Wood End #2 faces front P40 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 19's 1" x 2" Wood Side #3, then its 1" x 2" Wood End #1 must be oriented back, and its 1" x 2" Wood Side #1 needs to point left. Additionally, ensure its 1" x 2" Wood Side #3 faces right, also its 1" x 2" Wood Side #4 must be oriented top, also its 1" x 2" Wood End #2 should be directed front P41 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 19's 1" x 2" Wood Side #3, plus ensure its 1" x 2" Wood End #1 faces back, then its 1" x 2" Wood Side #1 should be directed left. Additionally, its 1" x 2" Wood Side #3 needs to point right, then its 1" x 2" Wood Side #4 needs to point top. Also, its 1" x 2" Wood End #2 needs to point front P42 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood End #1, which is back-facing, should connect to part 24's 1" x 2" Wood Side #2, then connect its 1" x 2" Wood Side #2 oriented bottom links with part 19's 1" x 2" Wood Side #3. Additionally, its 1" x 2" Wood End #2, which is front-facing, should connect to part 20's 1" x 2" Wood Side #2. After that, ensure its 1" x 2" Wood Side #1 faces left. Additionally, ensure its 1" x 2" Wood Side #3 faces right, also its 1" x 2" Wood Side #4 should be directed top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Angle: front right

Assembly of Front-Left Platform Assembly - front_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Angle: bottom right

Assembly of Front-Left Platform Assembly - bottom_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

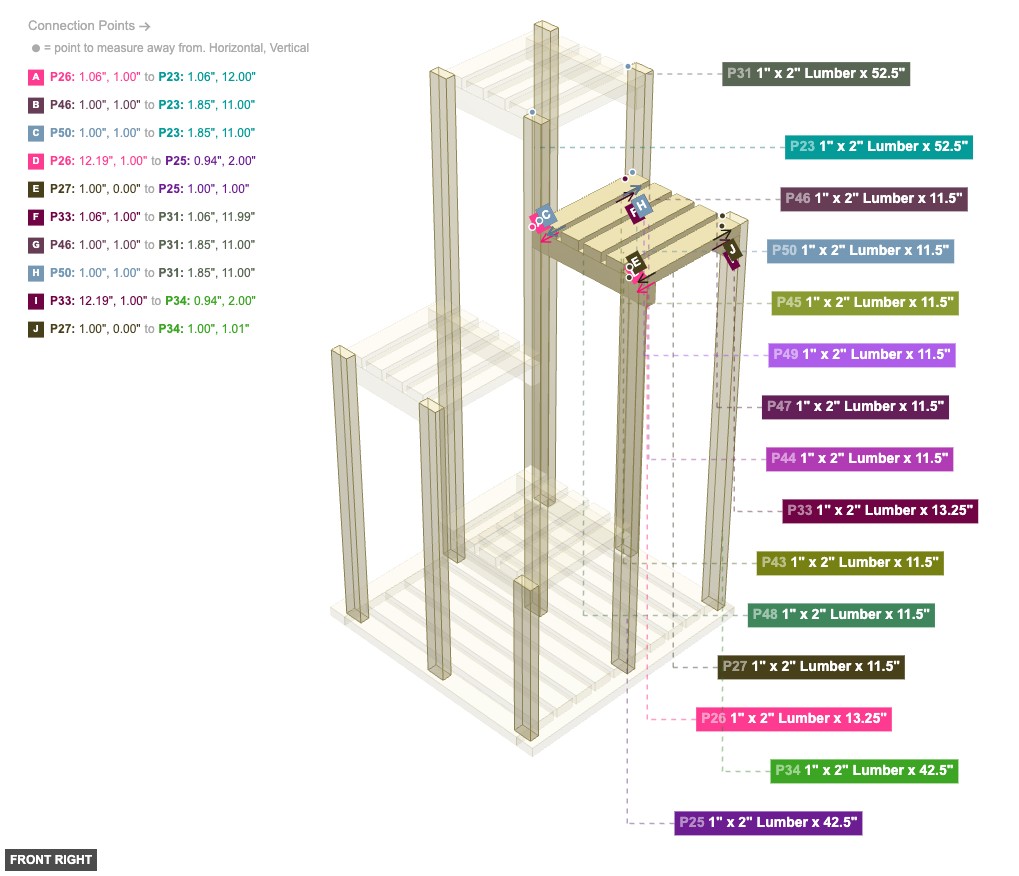

Attaching: Back-Right Platform Assembly

Angle: back left

Assembly of Back-Right Platform Assembly - back_left

P26 (1" x 2" Lumber 13.25" length) - attach its 1" x 2" Wood Side #2 facing front to part 25's 1" x 2" Wood Side #4, and connect its 1" x 2" Wood Side #3 oriented top links with part 27's 1" x 2" Wood Side #2, and its 1" x 2" Wood End #1 must be oriented right, and ensure its 1" x 2" Wood Side #1 faces bottom. Next, its 1" x 2" Wood Side #4 should be directed back, also its 1" x 2" Wood End #2 must be oriented left P27 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood End #1 oriented back links with part 34's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 26's 1" x 2" Wood Side #3. Next, attach its 1" x 2" Wood End #2 facing front to part 25's 1" x 2" Wood Side #4. Additionally, ensure its 1" x 2" Wood Side #1 faces left. Next, its 1" x 2" Wood Side #3 needs to point right. Also, ensure its 1" x 2" Wood Side #4 faces top P33 (1" x 2" Lumber 13.25" length) - its 1" x 2" Wood Side #1, which is top-facing, should connect to part 27's 1" x 2" Wood Side #2. Also, connect its 1" x 2" Wood Side #4 oriented back links with part 31's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood End #1 needs to point left. Also, its 1" x 2" Wood Side #2 should be directed front. Also, its 1" x 2" Wood Side #3 should be directed bottom, then its 1" x 2" Wood End #2 must be oriented right P43 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 26's 1" x 2" Wood Side #3, and its 1" x 2" Wood End #1 needs to point back, then ensure its 1" x 2" Wood Side #1 faces left. After that, its 1" x 2" Wood Side #3 should be directed right. After that, its 1" x 2" Wood Side #4 needs to point top, plus its 1" x 2" Wood End #2 should be directed front P44 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 26's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #1 needs to point back, then its 1" x 2" Wood Side #1 should be directed left, then its 1" x 2" Wood Side #3 must be oriented right. Additionally, its 1" x 2" Wood Side #4 should be directed top, plus its 1" x 2" Wood End #2 needs to point front P45 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 26's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #1 needs to point back, and ensure its 1" x 2" Wood Side #1 faces left. Next, its 1" x 2" Wood Side #3 needs to point right. Additionally, its 1" x 2" Wood Side #4 must be oriented top, also its 1" x 2" Wood End #2 should be directed front P46 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood End #1 facing back to part 31's 1" x 2" Wood Side #2, and connect its 1" x 2" Wood Side #2 oriented bottom links with part 26's 1" x 2" Wood Side #3. After that, attach its 1" x 2" Wood End #2 facing front to part 23's 1" x 2" Wood Side #4, then its 1" x 2" Wood Side #1 must be oriented left. Next, ensure its 1" x 2" Wood Side #3 faces right, then its 1" x 2" Wood Side #4 must be oriented top P47 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 26's 1" x 2" Wood Side #3, and its 1" x 2" Wood End #1 needs to point back. Next, its 1" x 2" Wood Side #1 needs to point left. Additionally, its 1" x 2" Wood Side #3 should be directed right, also its 1" x 2" Wood Side #4 should be directed top. Next, its 1" x 2" Wood End #2 should be directed front P48 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 26's 1" x 2" Wood Side #3, and ensure its 1" x 2" Wood End #1 faces back. Next, its 1" x 2" Wood Side #1 needs to point left. After that, ensure its 1" x 2" Wood Side #3 faces right. Next, its 1" x 2" Wood Side #4 needs to point top, and its 1" x 2" Wood End #2 needs to point front P49 (1" x 2" Lumber 11.5" length) - attach its 1" x 2" Wood Side #2 facing bottom to part 26's 1" x 2" Wood Side #3. Additionally, its 1" x 2" Wood End #1 should be directed back. Additionally, its 1" x 2" Wood Side #1 needs to point left. After that, its 1" x 2" Wood Side #3 should be directed right, also its 1" x 2" Wood Side #4 must be oriented top, plus its 1" x 2" Wood End #2 needs to point front P50 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood End #1, which is back-facing, should connect to part 31's 1" x 2" Wood Side #2, and attach its 1" x 2" Wood Side #2 facing bottom to part 26's 1" x 2" Wood Side #3. Additionally, connect its 1" x 2" Wood End #2 oriented front links with part 23's 1" x 2" Wood Side #4, and its 1" x 2" Wood Side #1 should be directed left. After that, ensure its 1" x 2" Wood Side #3 faces right. Also, its 1" x 2" Wood Side #4 needs to point top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Angle: front right

Assembly of Back-Right Platform Assembly - front_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Angle: bottom right

Assembly of Back-Right Platform Assembly - bottom_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 9

Attaching: Back-Left Platform Assembly

Angle: back left

Assembly of Back-Left Platform Assembly - back_left

P28 (1" x 2" Lumber 13.25" length) - connect its 1" x 2" Wood Side #2 oriented front links with part 23's 1" x 2" Wood Side #4, also its 1" x 2" Wood Side #3, which is top-facing, should connect to part 29's 1" x 2" Wood Side #2. Also, its 1" x 2" Wood End #1 needs to point right, then ensure its 1" x 2" Wood Side #1 faces bottom. Additionally, ensure its 1" x 2" Wood Side #4 faces back. After that, its 1" x 2" Wood End #2 must be oriented left P29 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood End #1, which is back-facing, should connect to part 31's 1" x 2" Wood Side #2. Also, attach its 1" x 2" Wood Side #2 facing bottom to part 28's 1" x 2" Wood Side #3, and connect its 1" x 2" Wood End #2 oriented front links with part 23's 1" x 2" Wood Side #4, then its 1" x 2" Wood Side #1 needs to point left, also its 1" x 2" Wood Side #3 should be directed right, then its 1" x 2" Wood Side #4 must be oriented top P30 (1" x 2" Lumber 13.25" length) - attach its 1" x 2" Wood Side #1 facing top to part 29's 1" x 2" Wood Side #2, and attach its 1" x 2" Wood Side #4 facing back to part 31's 1" x 2" Wood Side #2. Additionally, its 1" x 2" Wood End #1 should be directed left. After that, its 1" x 2" Wood Side #2 needs to point front. After that, ensure its 1" x 2" Wood Side #3 faces bottom, also its 1" x 2" Wood End #2 must be oriented right P51 (1" x 2" Lumber 11.5" length) - its 1" x 2" Wood Side #2, which is bottom-facing, should connect to part 28's 1" x 2" Wood Side #3, also its 1" x 2" Wood End #1 should be directed back. Next, ensure its 1" x 2" Wood Side #1 faces left. Also, its 1" x 2" Wood Side #3 should be directed right. Next, its 1" x 2" Wood Side #4 must be oriented top, plus ensure its 1" x 2" Wood End #2 faces front P52 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 28's 1" x 2" Wood Side #3. Next, ensure its 1" x 2" Wood End #1 faces back. After that, ensure its 1" x 2" Wood Side #1 faces left, and its 1" x 2" Wood Side #3 should be directed right. Next, its 1" x 2" Wood Side #4 should be directed top, and its 1" x 2" Wood End #2 needs to point front P53 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood Side #2 oriented bottom links with part 28's 1" x 2" Wood Side #3, and its 1" x 2" Wood End #1 must be oriented back. After that, its 1" x 2" Wood Side #1 needs to point left. Additionally, its 1" x 2" Wood Side #3 needs to point right. Next, its 1" x 2" Wood Side #4 must be oriented top, then its 1" x 2" Wood End #2 should be directed front P54 (1" x 2" Lumber 11.5" length) - connect its 1" x 2" Wood End #1 oriented back links with part 32's 1" x 2" Wood Side #2, plus connect its 1" x 2" Wood Side #2 oriented bottom links with part 28's 1" x 2" Wood Side #3, plus its 1" x 2" Wood End #2, which is front-facing, should connect to part 24's 1" x 2" Wood Side #4. Next, its 1" x 2" Wood Side #1 should be directed left. Next, its 1" x 2" Wood Side #3 must be oriented right, and ensure its 1" x 2" Wood Side #4 faces top

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Angle: front right

Assembly of Back-Left Platform Assembly - front_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5

Angle: bottom right

Assembly of Back-Left Platform Assembly - bottom_right

1" x 2" Lumber x 13.25"x 2

1" x 2" Lumber x 11.5"x 5
