Deck 2 - Comprehensive Assembly Plan And Visual Guide

A raised wooden deck structure featuring a main platform supported by 4x4 posts, access stairs on the front-right side, and railings with balusters around the perimeter of the platform and potentially along one side. - Wooden Deck with Stairs and Railings

Phase 1: Group Overview

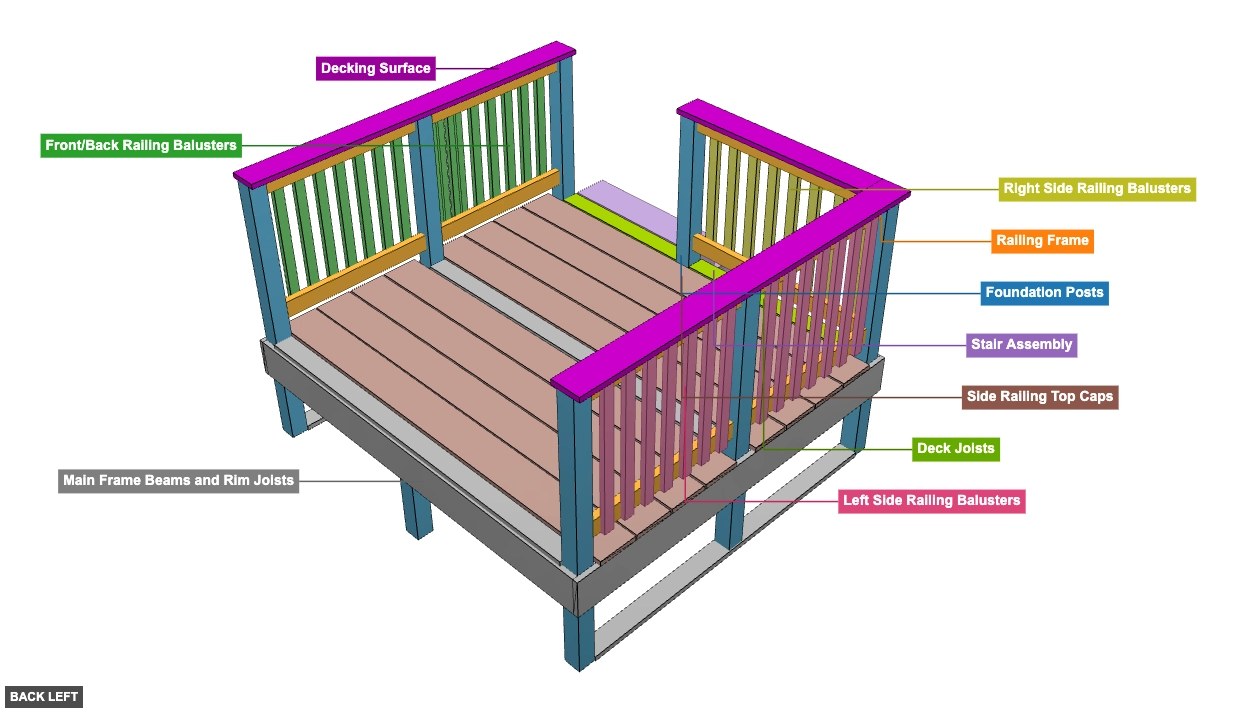

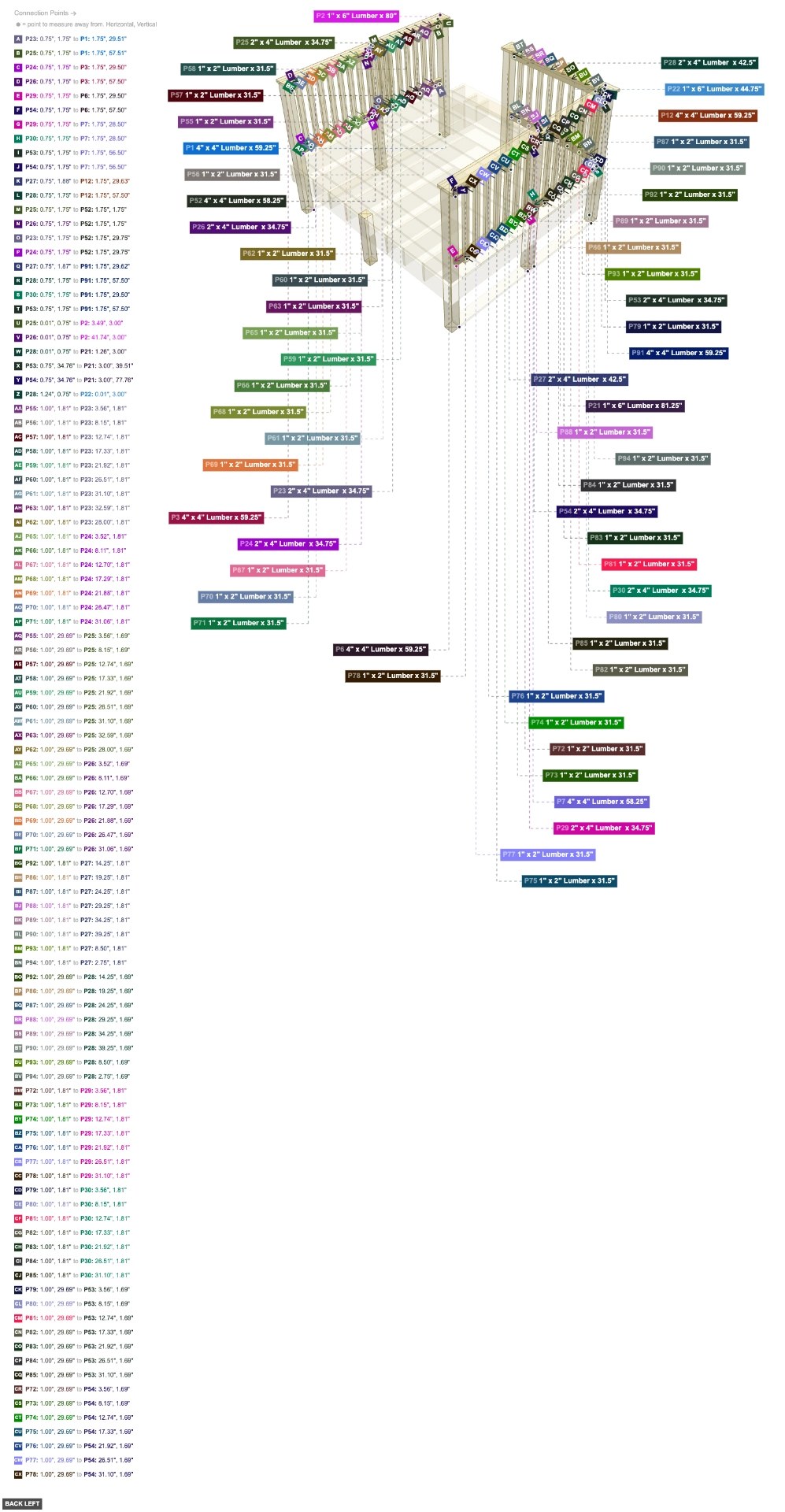

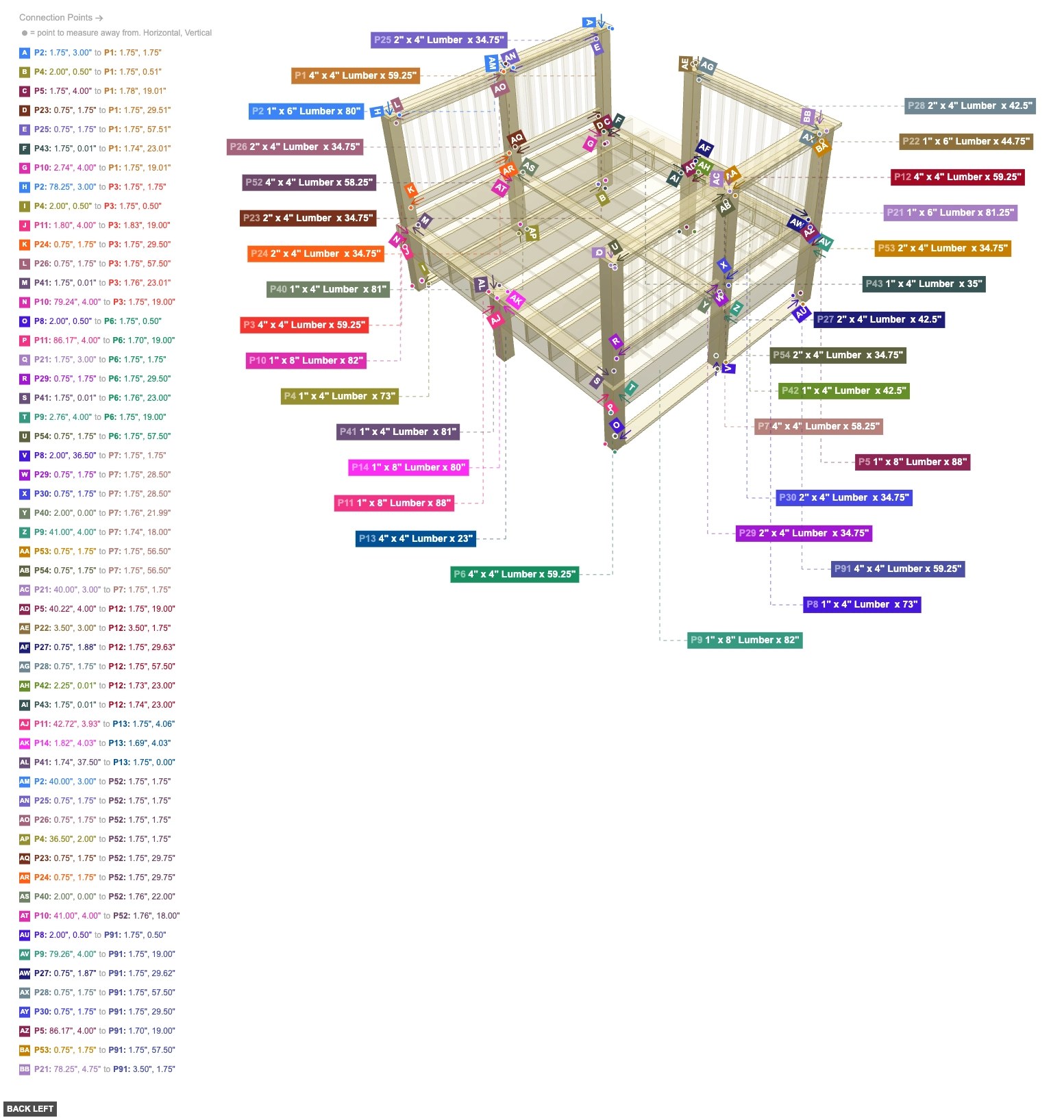

Angle: back left

Foundation Posts

4" x 4" Lumber x 59.25"x 5

4" x 4" Lumber x 58.25"x 2

4" x 4" Lumber x 23"x 1

Main Frame Beams and Rim Joists

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Deck Joists

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Decking Surface

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

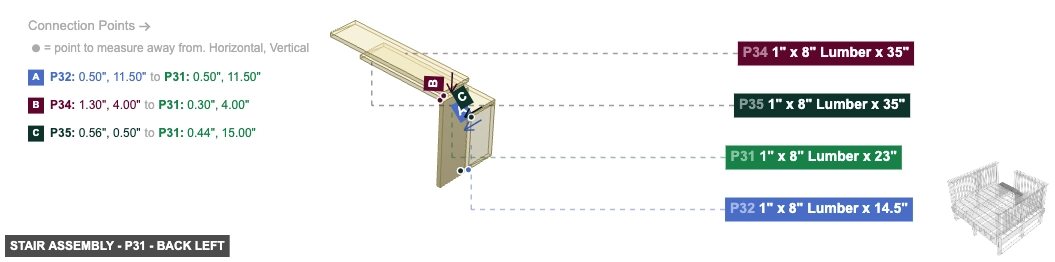

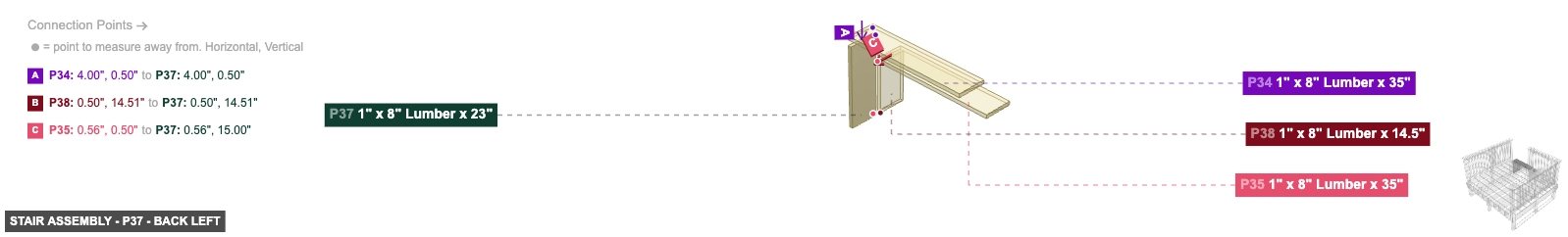

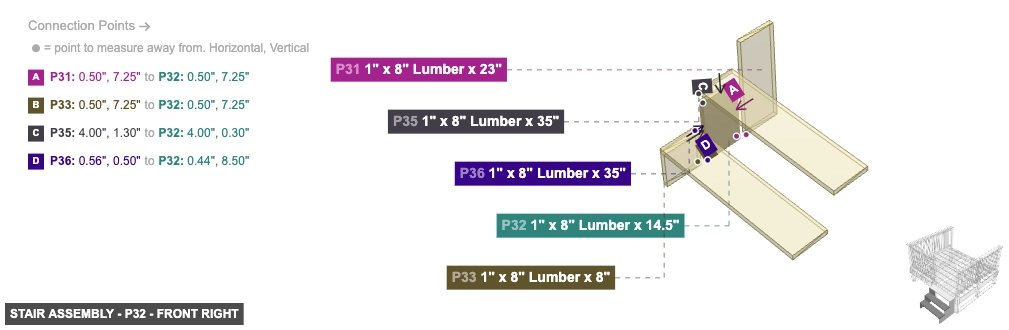

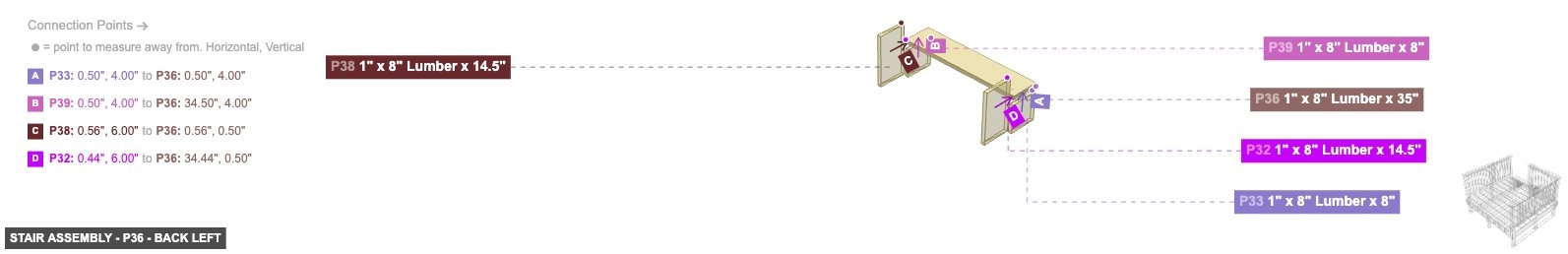

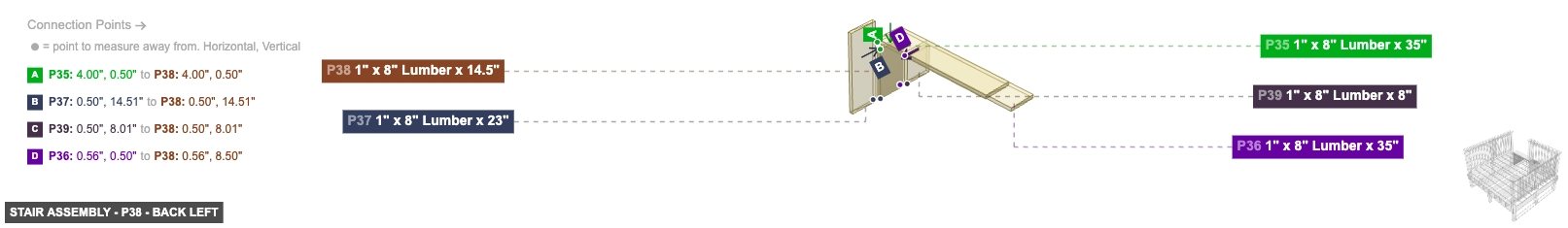

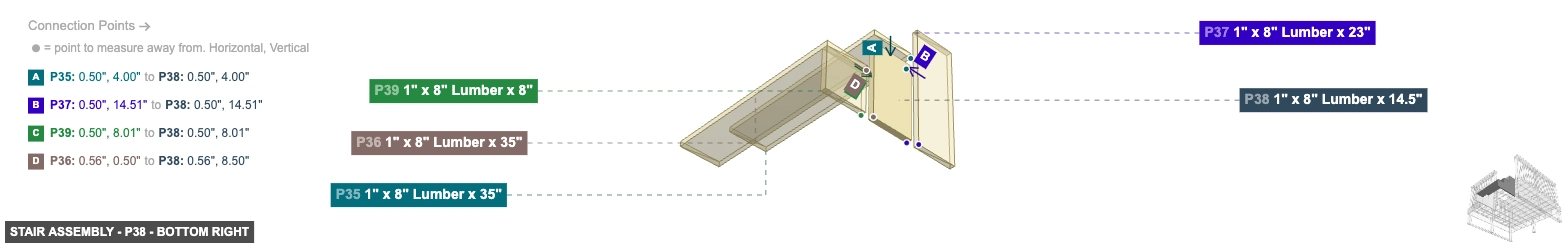

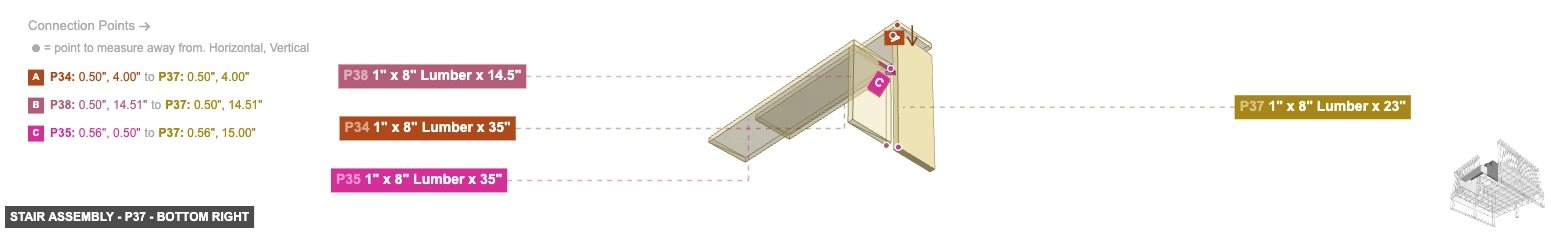

Stair Assembly

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Railing Frame

2" x 4" Lumber x 34.75"x 8

2" x 4" Lumber x 42.5"x 2

Front/Back Railing Balusters

1" x 2" Lumber x 31.5"x 17

Left Side Railing Balusters

1" x 2" Lumber x 31.5"x 14

Right Side Railing Balusters

1" x 2" Lumber x 31.5"x 8

Side Railing Top Caps

1" x 8" Lumber x 90"x 8

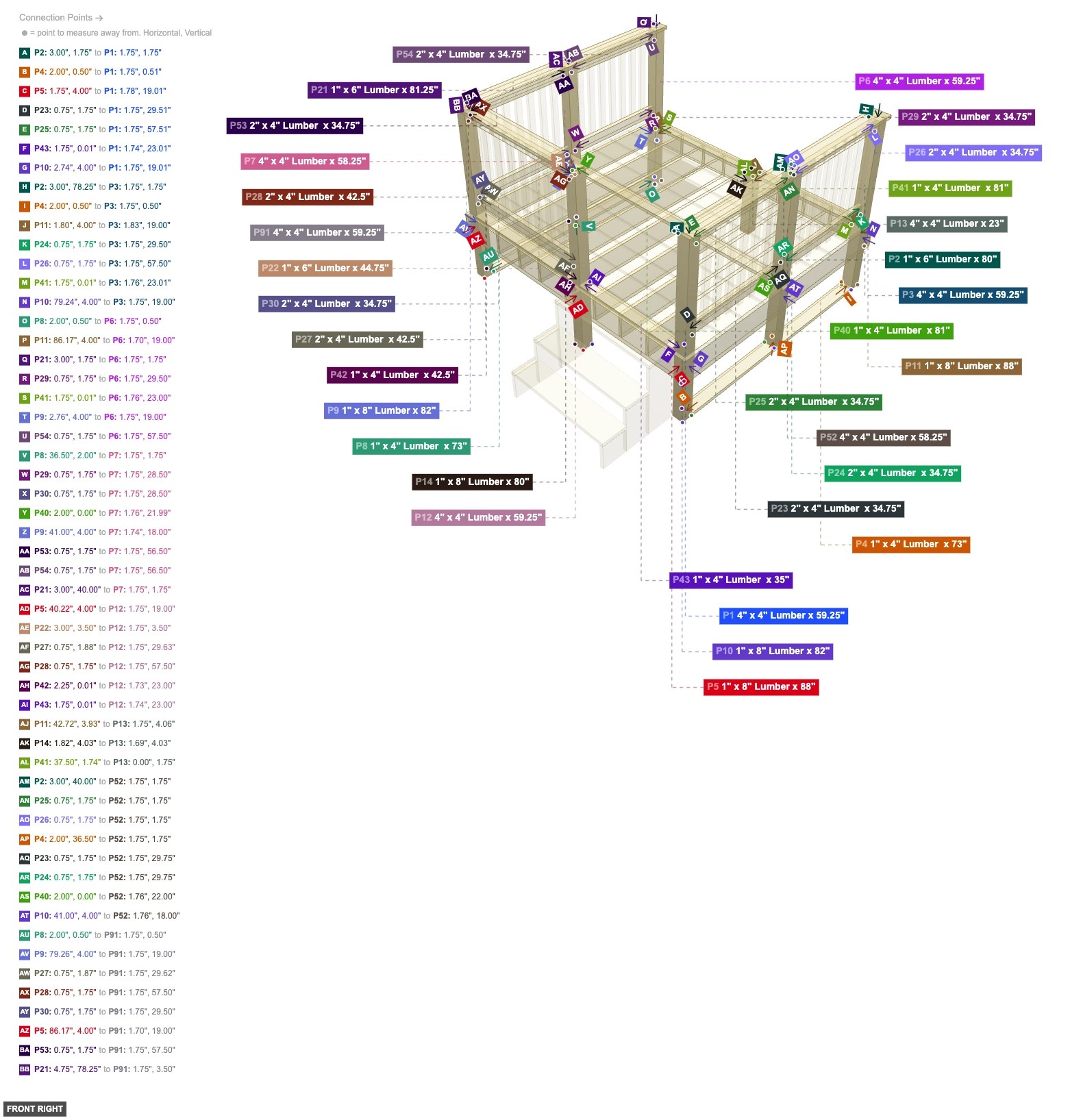

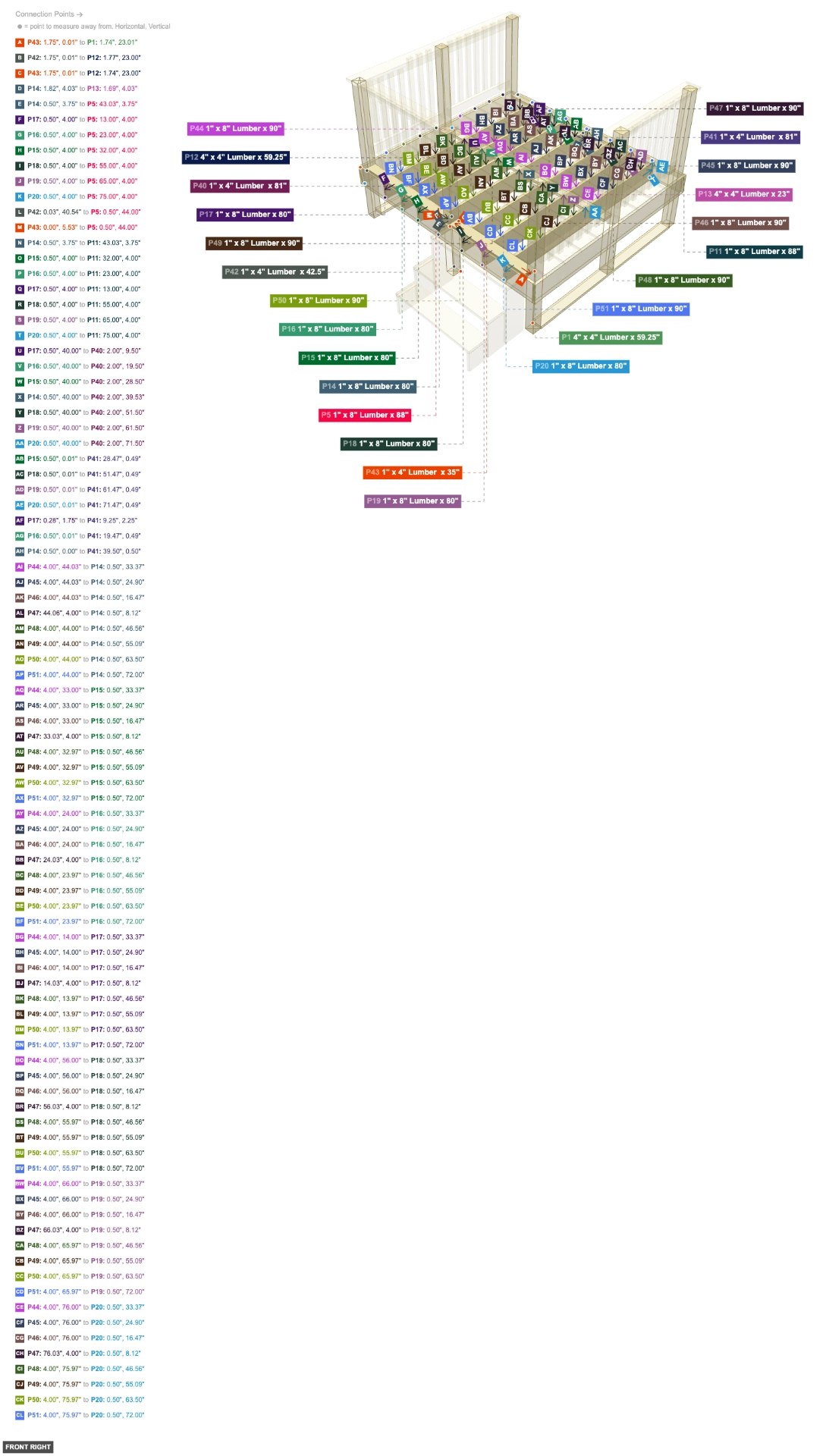

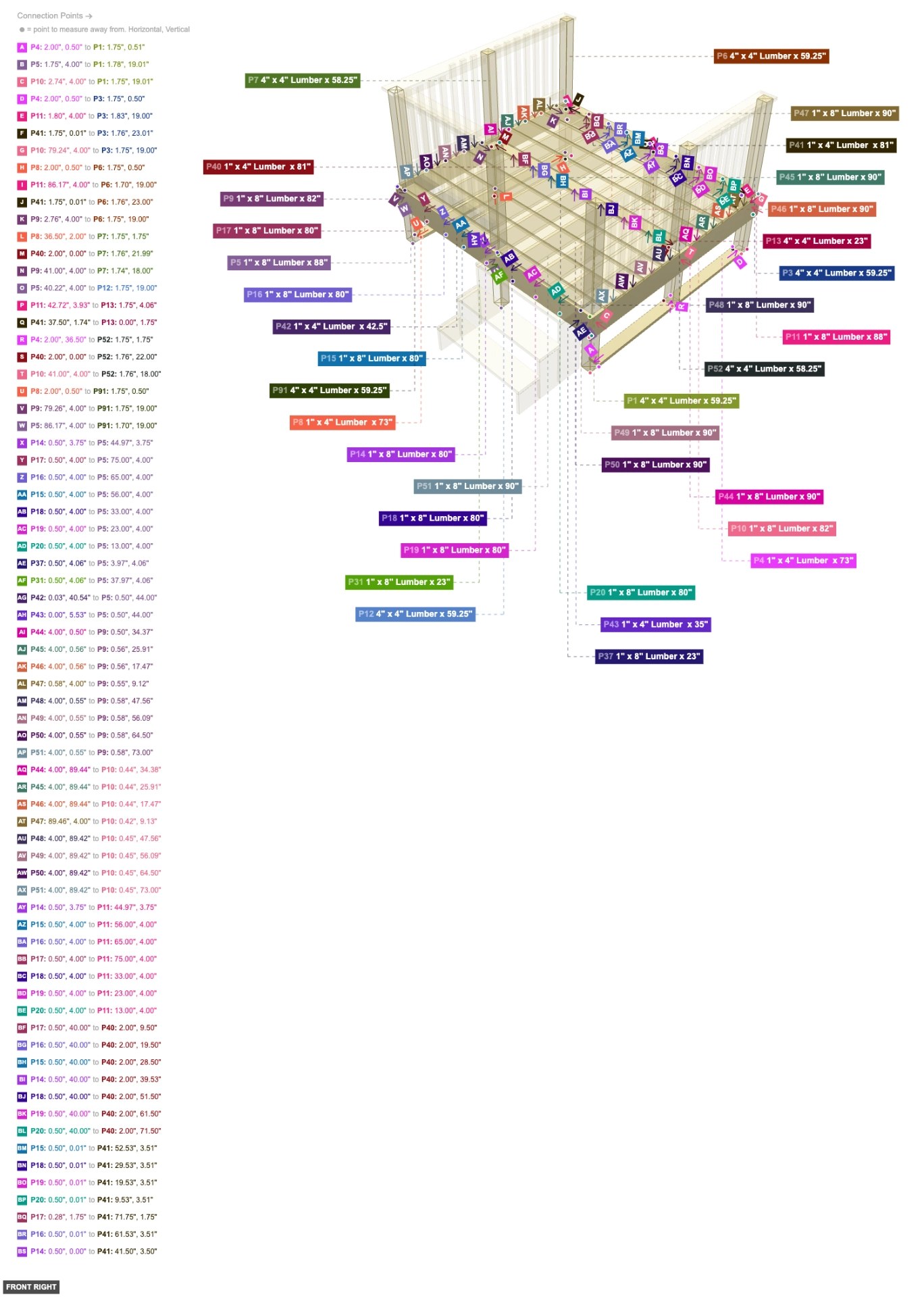

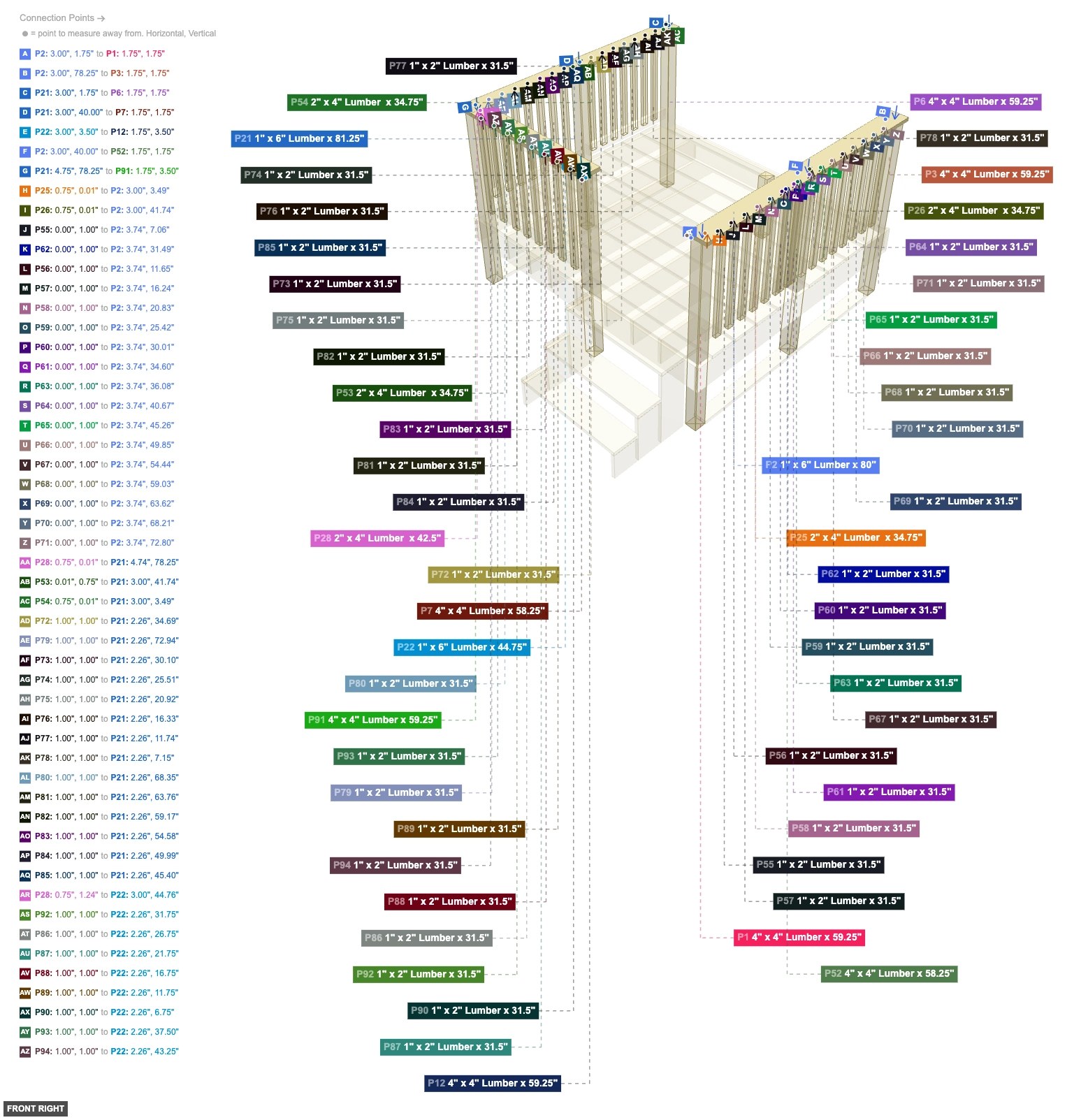

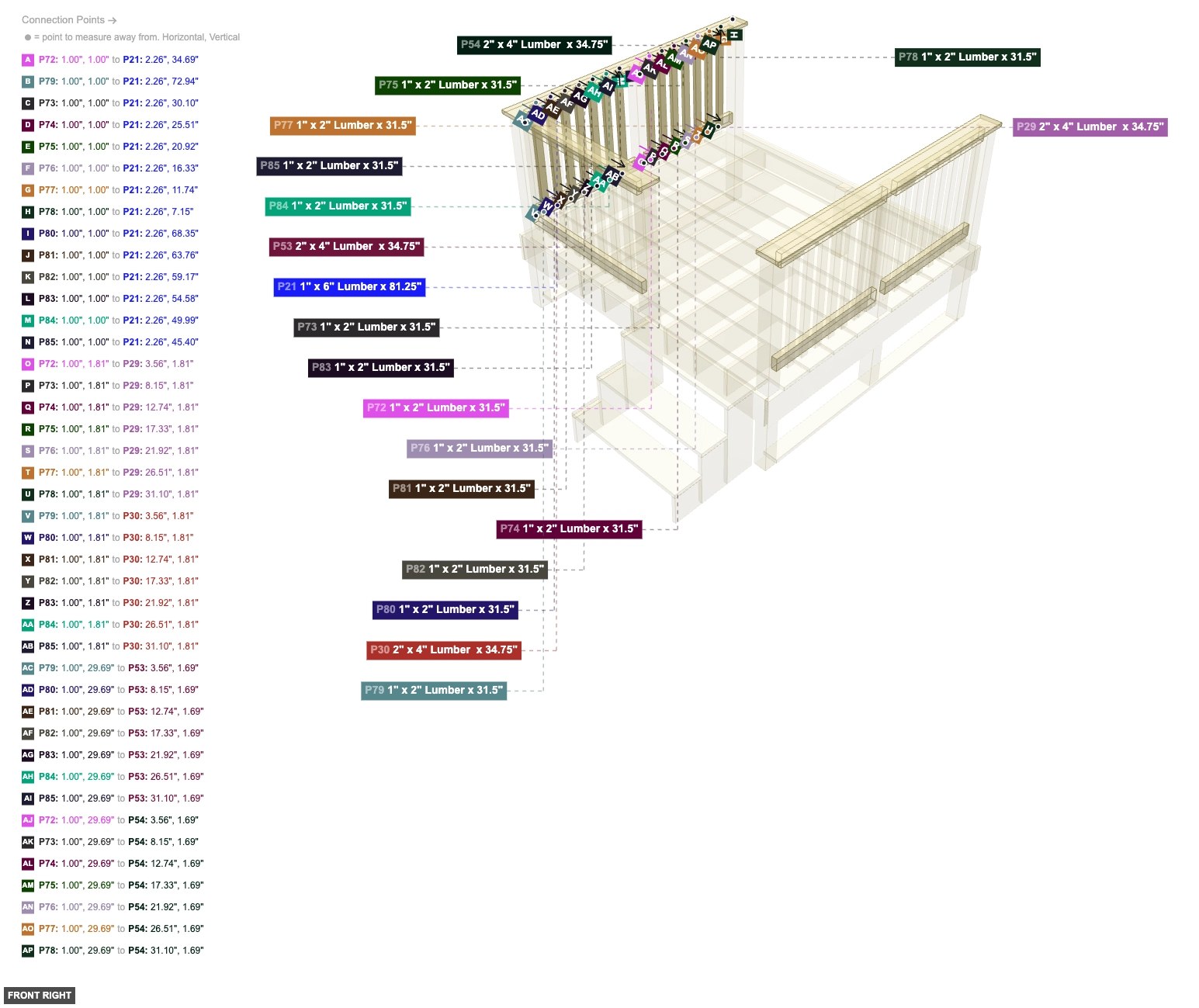

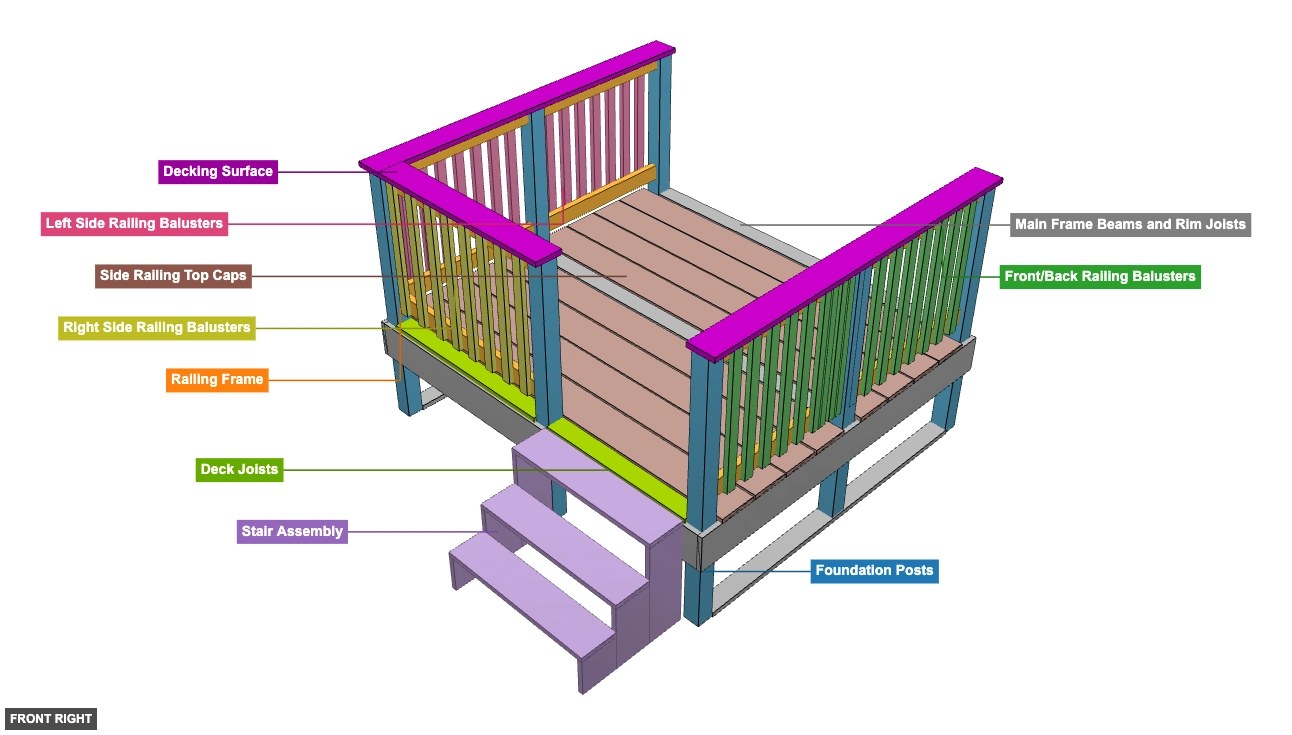

Angle: front right

Foundation Posts

4" x 4" Lumber x 59.25"x 5

4" x 4" Lumber x 58.25"x 2

4" x 4" Lumber x 23"x 1

Main Frame Beams and Rim Joists

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Deck Joists

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Decking Surface

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

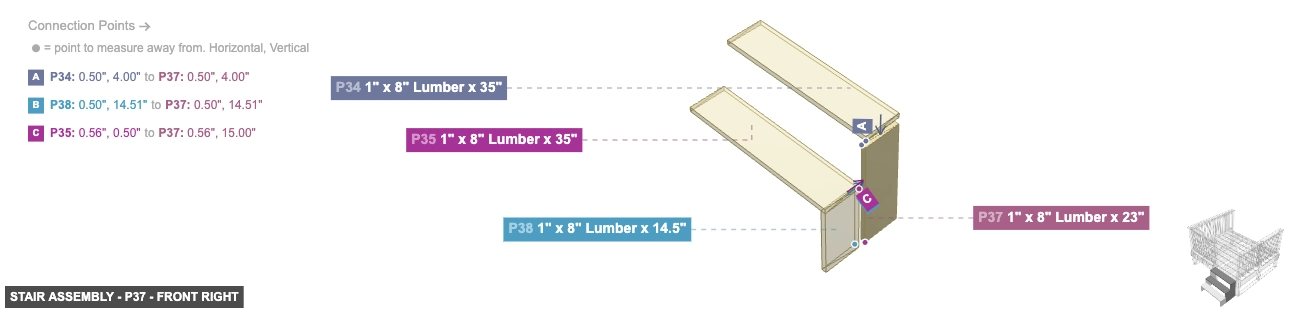

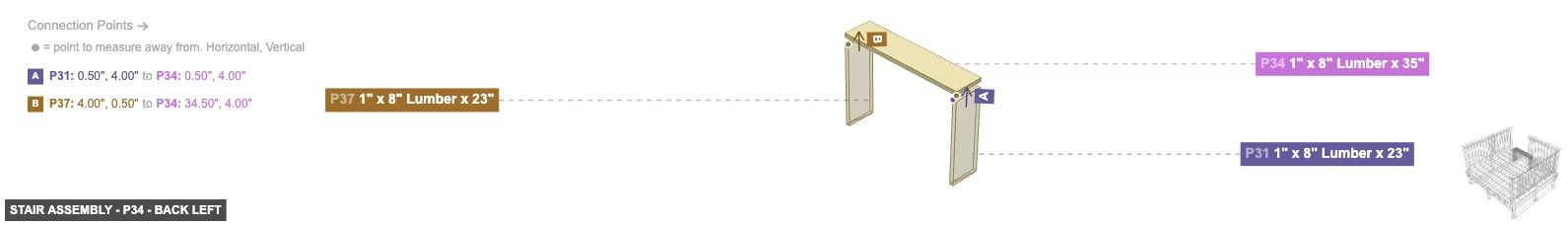

Stair Assembly

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Railing Frame

2" x 4" Lumber x 34.75"x 8

2" x 4" Lumber x 42.5"x 2

Front/Back Railing Balusters

1" x 2" Lumber x 31.5"x 17

Left Side Railing Balusters

1" x 2" Lumber x 31.5"x 14

Right Side Railing Balusters

1" x 2" Lumber x 31.5"x 8

Side Railing Top Caps

1" x 8" Lumber x 90"x 8

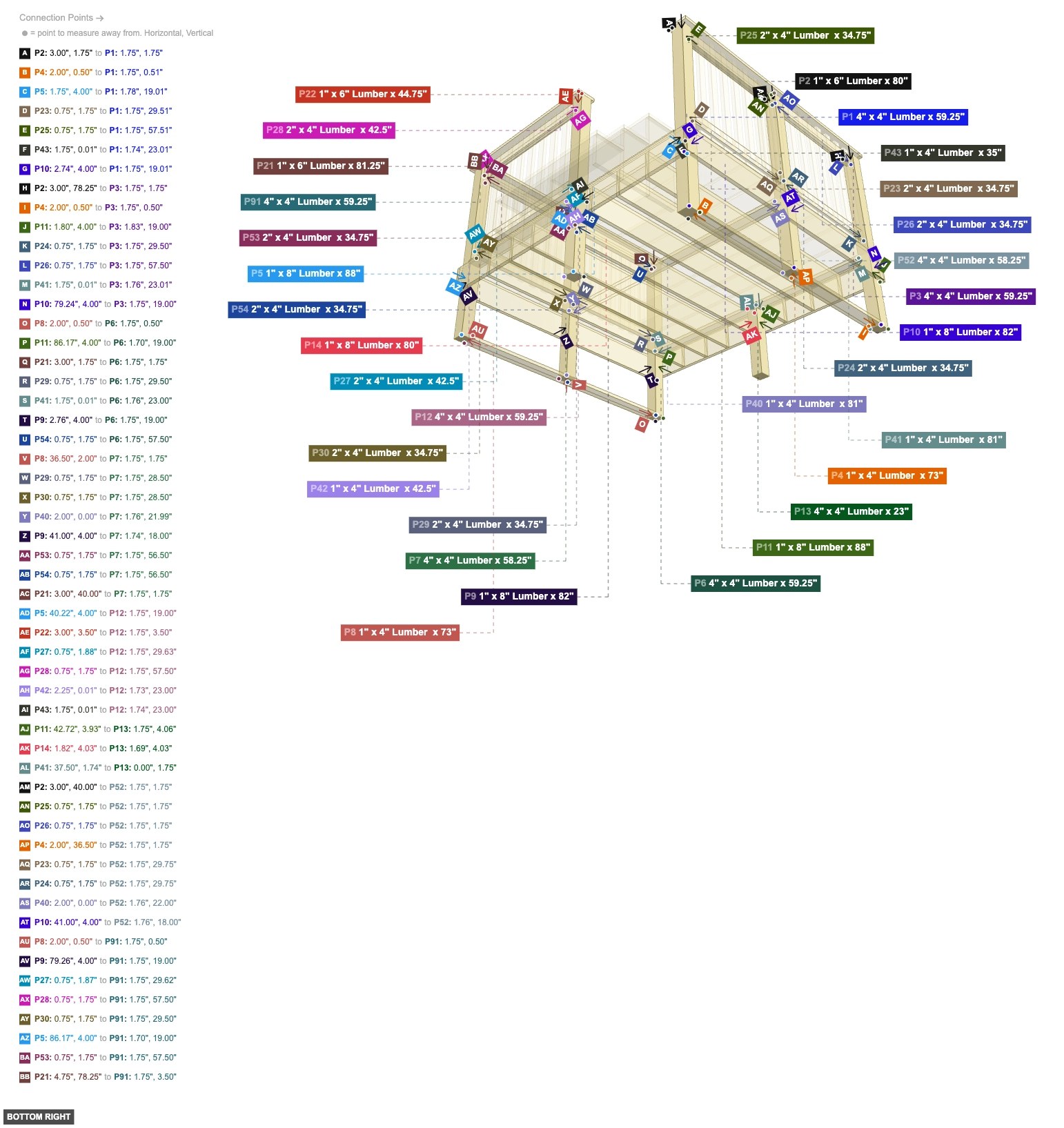

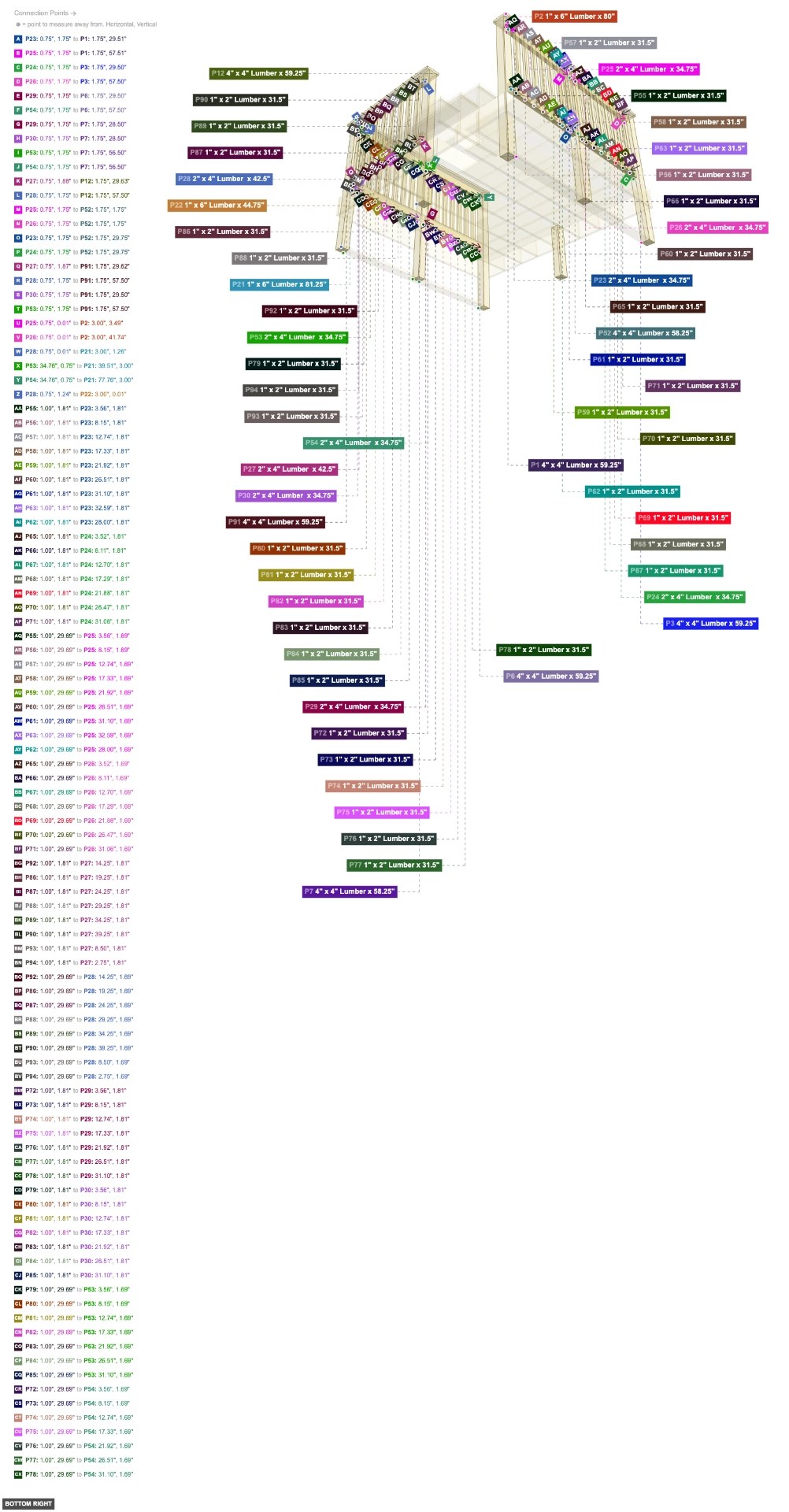

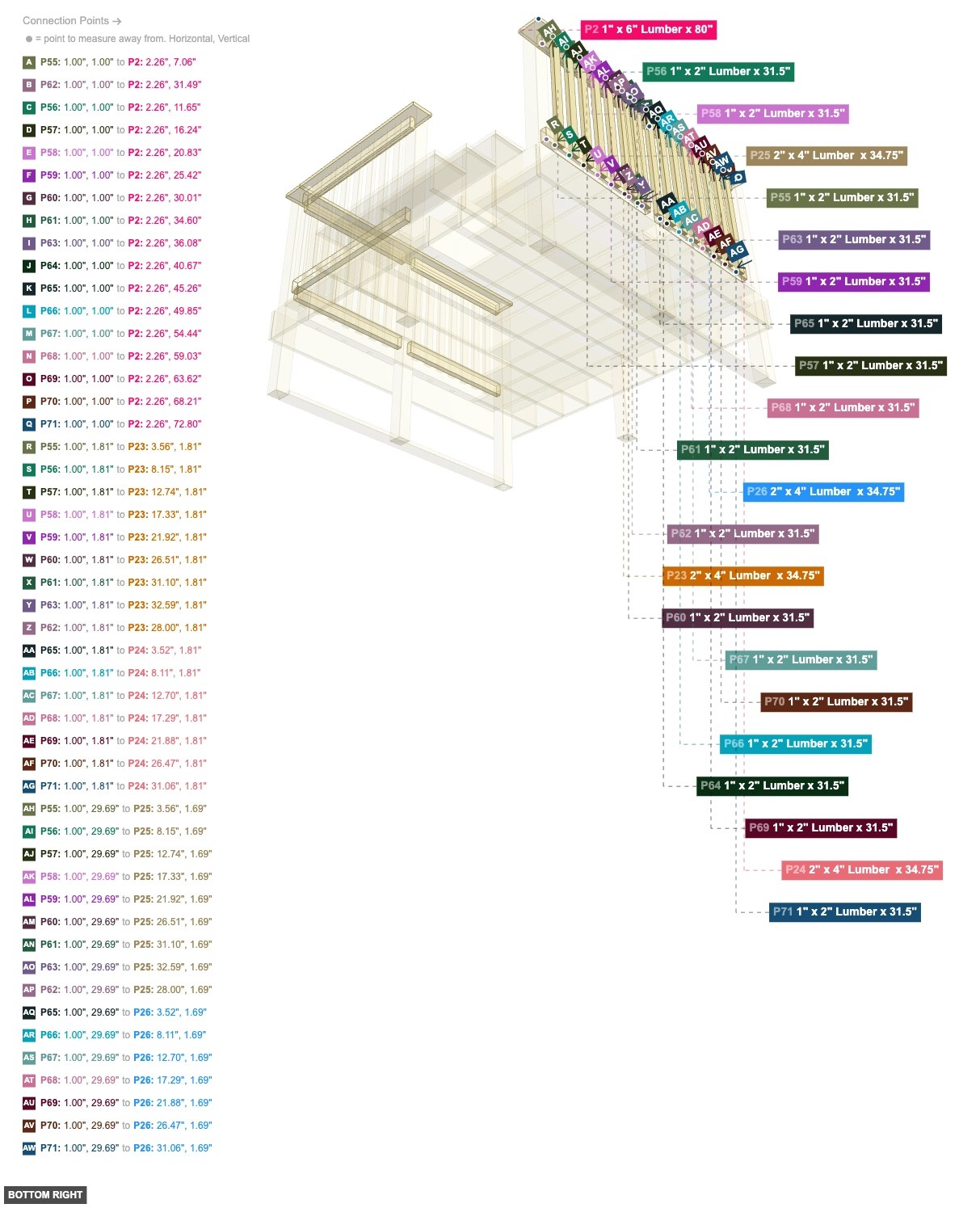

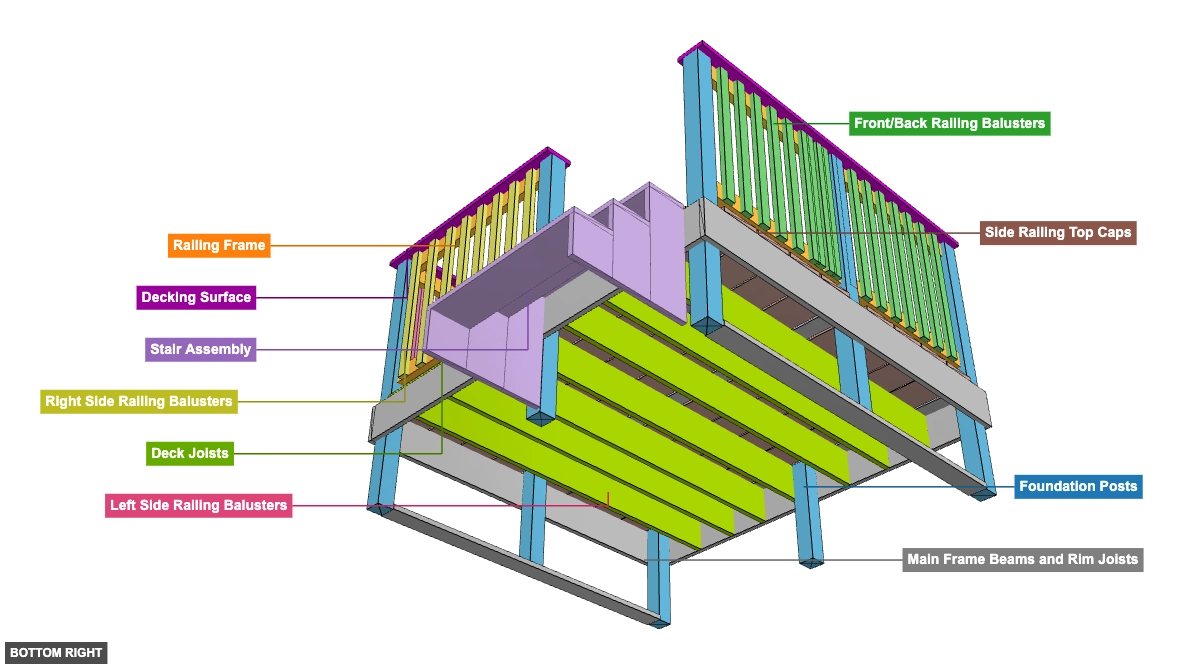

Angle: bottom right

Foundation Posts

4" x 4" Lumber x 59.25"x 5

4" x 4" Lumber x 58.25"x 2

4" x 4" Lumber x 23"x 1

Main Frame Beams and Rim Joists

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Deck Joists

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Decking Surface

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

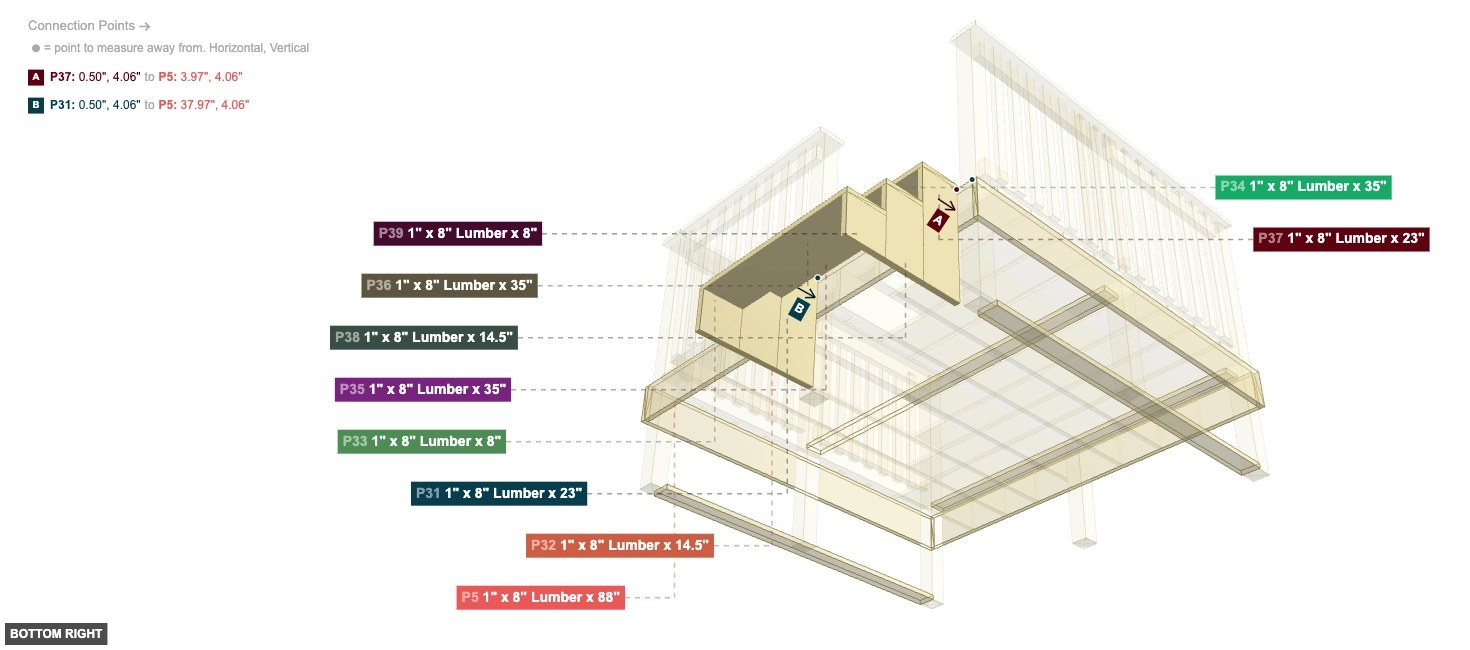

Stair Assembly

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Railing Frame

2" x 4" Lumber x 34.75"x 8

2" x 4" Lumber x 42.5"x 2

Front/Back Railing Balusters

1" x 2" Lumber x 31.5"x 17

Left Side Railing Balusters

1" x 2" Lumber x 31.5"x 14

Right Side Railing Balusters

1" x 2" Lumber x 31.5"x 8

Side Railing Top Caps

1" x 8" Lumber x 90"x 8

Phase 2: Individual Group Assembly

Group: Main Frame Beams and Rim Joists

Attach the main horizontal frame components (beams and rim joists) connecting the foundation posts.

Part: 1" x 8" Lumber x 88" - Angle: back left

Main Frame Beams and Rim Joists - Part 1

P5 (1" x 8" Lumber 88" length) - its 1" x 8" Wood End #1, which is left-facing, should connect to part 9's 1" x 8" Wood Side #2, then attach its 1" x 8" Wood End #2 facing right to part 10's 1" x 8" Wood Side #2. Also, its 1" x 8" Wood Side #1 must be oriented bottom

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

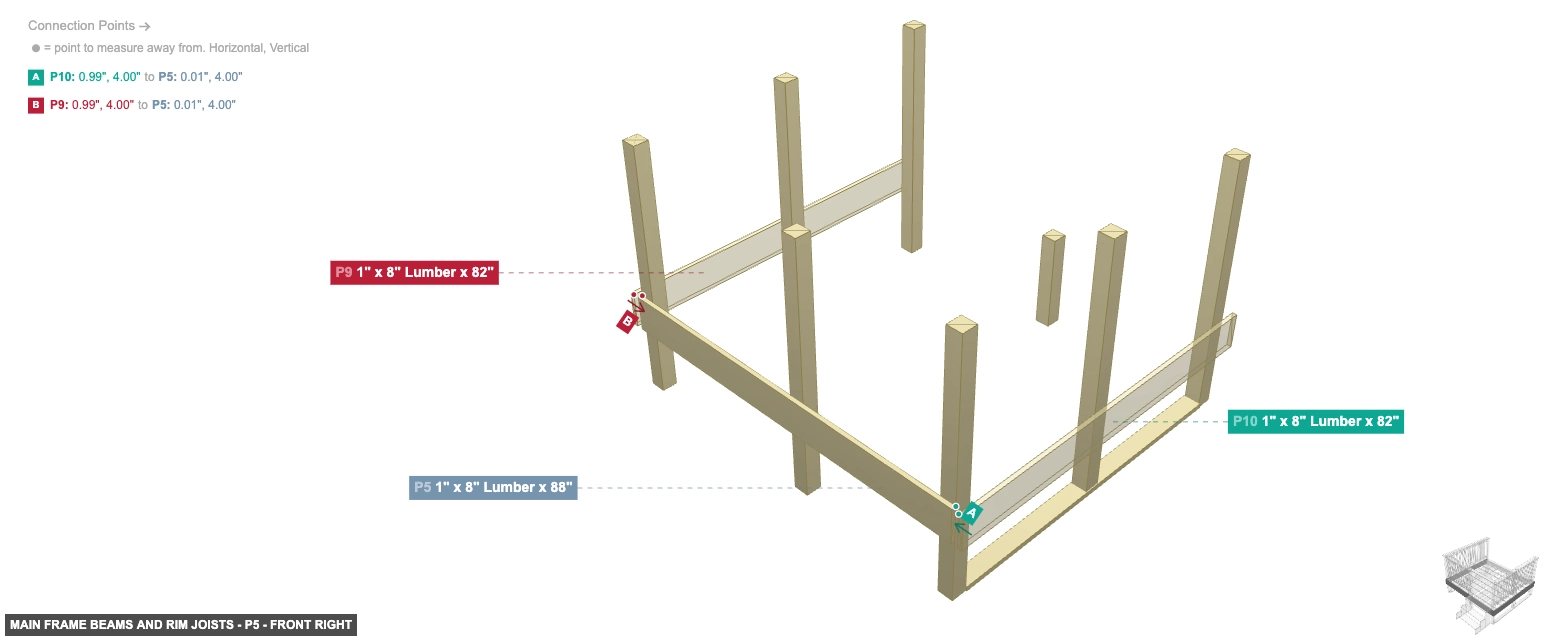

Part: 1" x 8" Lumber x 88" - Angle: front right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

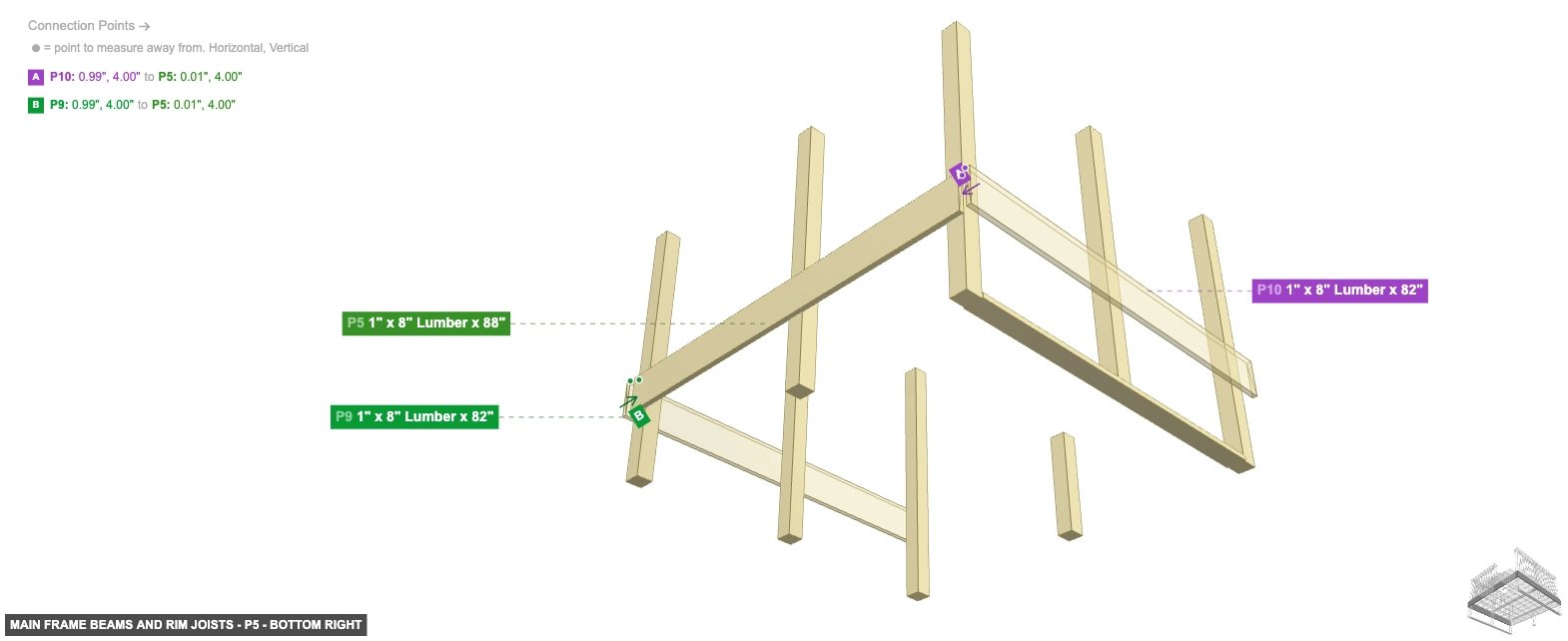

Part: 1" x 8" Lumber x 88" - Angle: bottom right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 82" - Angle: back left

P9 (1" x 8" Lumber 82" length) - ensure its 1" x 8" Wood End #1 faces front, also its 1" x 8" Wood Side #3 should be directed bottom, and ensure its 1" x 8" Wood Side #4 faces left, then its 1" x 8" Wood End #2 should be directed back

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

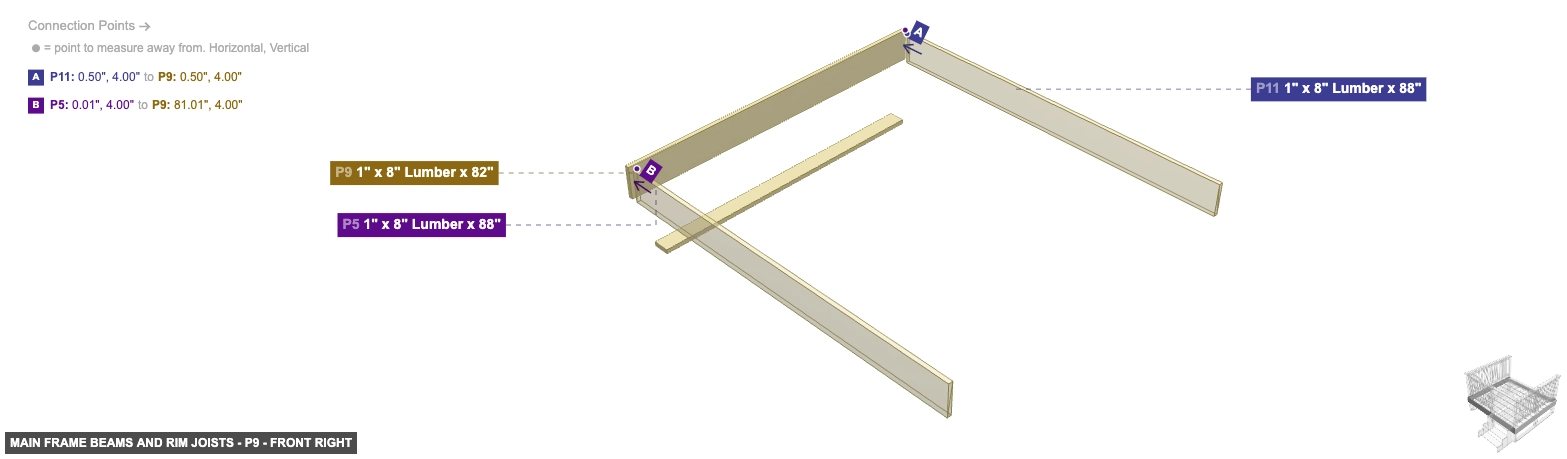

Part: 1" x 8" Lumber x 82" - Angle: front right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 82" - Angle: bottom right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 82" - Angle: back left

P10 (1" x 8" Lumber 82" length) - attach its 1" x 8" Wood Side #2 facing left to part 5's 1" x 8" Wood End #2, then its 1" x 8" Wood End #1 needs to point front, and its 1" x 8" Wood Side #1 should be directed bottom. Next, its 1" x 8" Wood Side #4 must be oriented right. After that, ensure its 1" x 8" Wood End #2 faces back

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 82" - Angle: front right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 82" - Angle: bottom right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 88" - Angle: back left

P11 (1" x 8" Lumber 88" length) - its 1" x 8" Wood End #1, which is right-facing, should connect to part 10's 1" x 8" Wood Side #2, also its 1" x 8" Wood Side #1, which is top-facing, should connect to part 41's 1" x 4" Wood Side #2, and its 1" x 8" Wood End #2, which is left-facing, should connect to part 9's 1" x 8" Wood Side #2, also its 1" x 8" Wood Side #2 must be oriented back, also ensure its 1" x 8" Wood Side #3 faces bottom

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 88" - Angle: front right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 8" Lumber x 88" - Angle: bottom right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

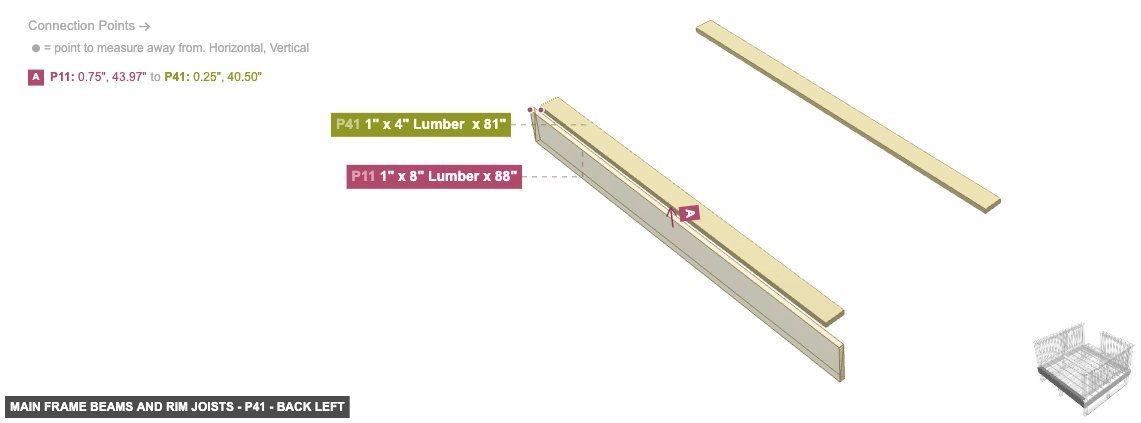

Part: 1" x 4" Lumber x 81" - Angle: back left

P41 (1" x 4" Lumber 81" length) - its 1" x 4" Wood Side #1 needs to point back, plus ensure its 1" x 4" Wood Side #3 faces front, also ensure its 1" x 4" Wood Side #4 faces top

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Part: 1" x 4" Lumber x 81" - Angle: front right

P41 (1" x 4" Lumber 81" length) - its 1" x 4" Wood Side #1 needs to point back, plus ensure its 1" x 4" Wood Side #3 faces front, also ensure its 1" x 4" Wood Side #4 faces top

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

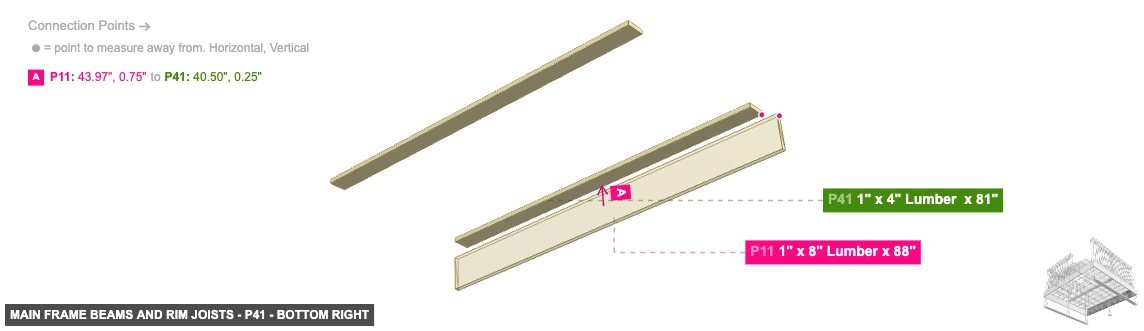

Part: 1" x 4" Lumber x 81" - Angle: bottom right

P41 (1" x 4" Lumber 81" length) - its 1" x 4" Wood Side #1 needs to point back, plus ensure its 1" x 4" Wood Side #3 faces front, also ensure its 1" x 4" Wood Side #4 faces top

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

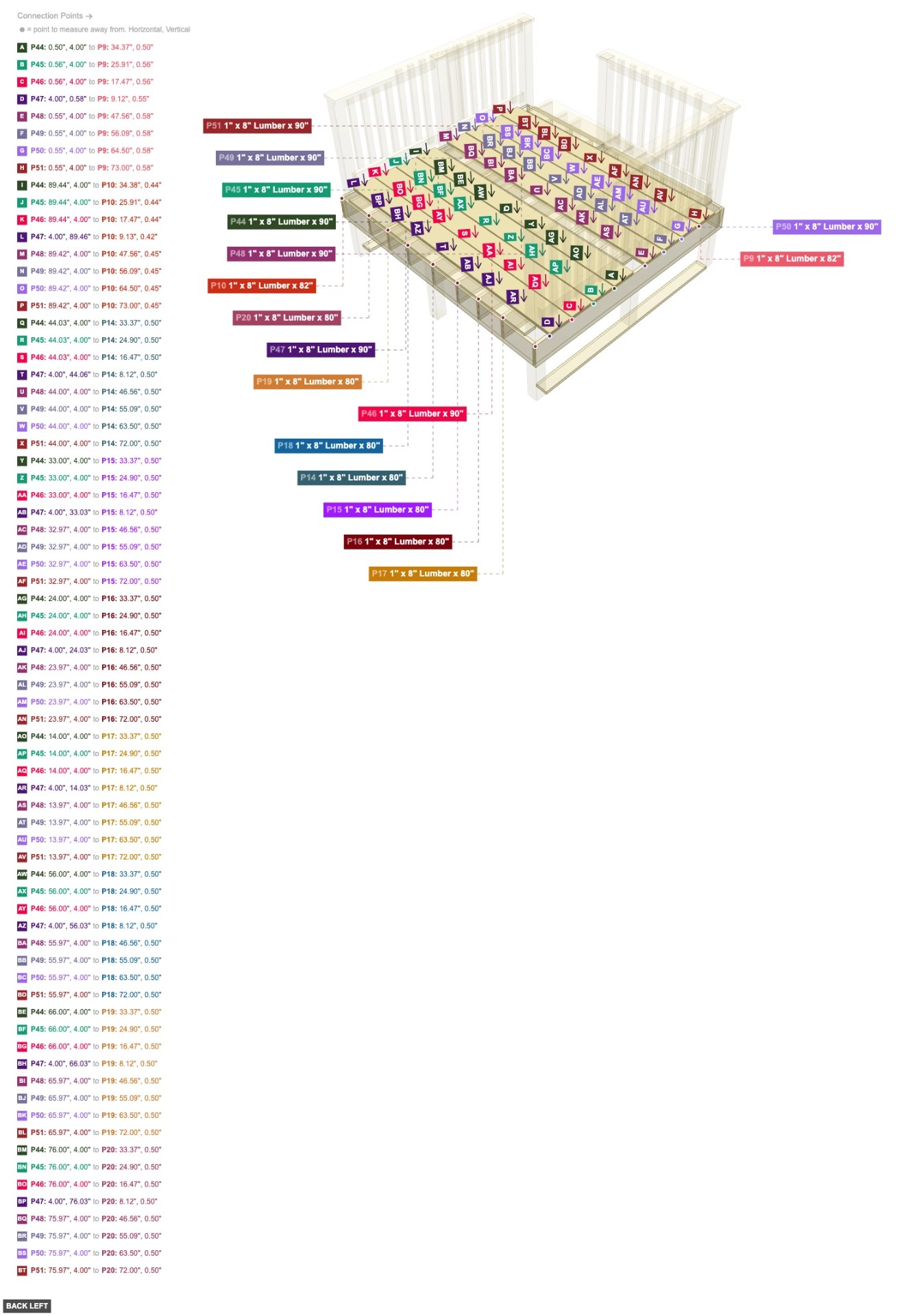

Group: Deck Joists

Install the internal joists that will support the decking boards.

Part: 1" x 8" Lumber x 80" - Angle: back left

P14 (1" x 8" Lumber 80" length) - ensure its 1" x 8" Wood Side #3 faces bottom. Also, its 1" x 8" Wood Side #4 should be directed left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: front right

P14 (1" x 8" Lumber 80" length) - ensure its 1" x 8" Wood Side #3 faces bottom. Also, its 1" x 8" Wood Side #4 should be directed left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: bottom right

P14 (1" x 8" Lumber 80" length) - ensure its 1" x 8" Wood Side #3 faces bottom. Also, its 1" x 8" Wood Side #4 should be directed left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

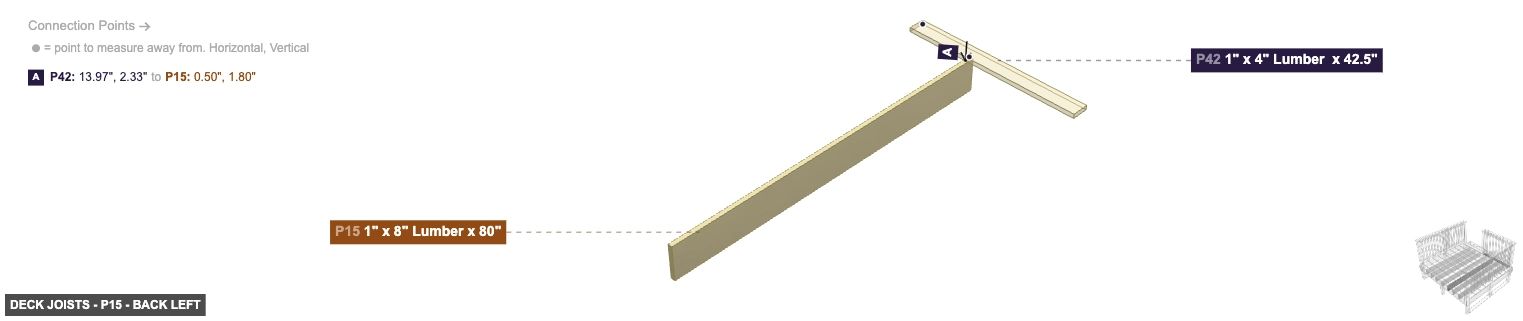

Part: 1" x 8" Lumber x 80" - Angle: back left

P15 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, plus its 1" x 8" Wood Side #3 must be oriented bottom, then ensure its 1" x 8" Wood Side #4 faces left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

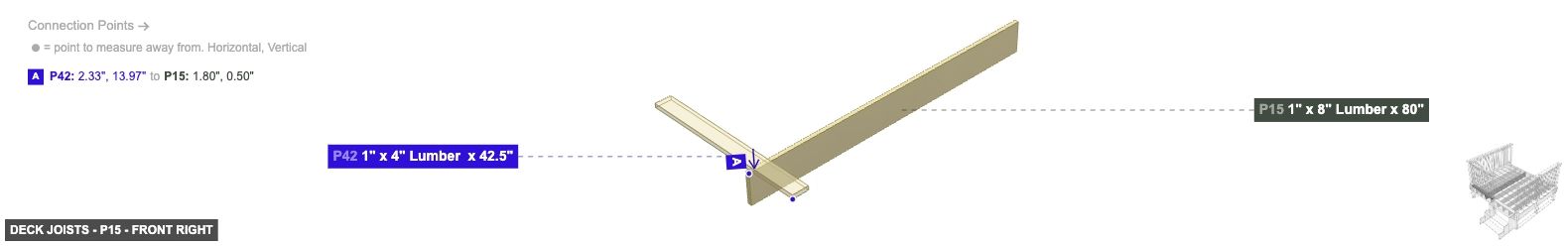

Part: 1" x 8" Lumber x 80" - Angle: front right

P15 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, plus its 1" x 8" Wood Side #3 must be oriented bottom, then ensure its 1" x 8" Wood Side #4 faces left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

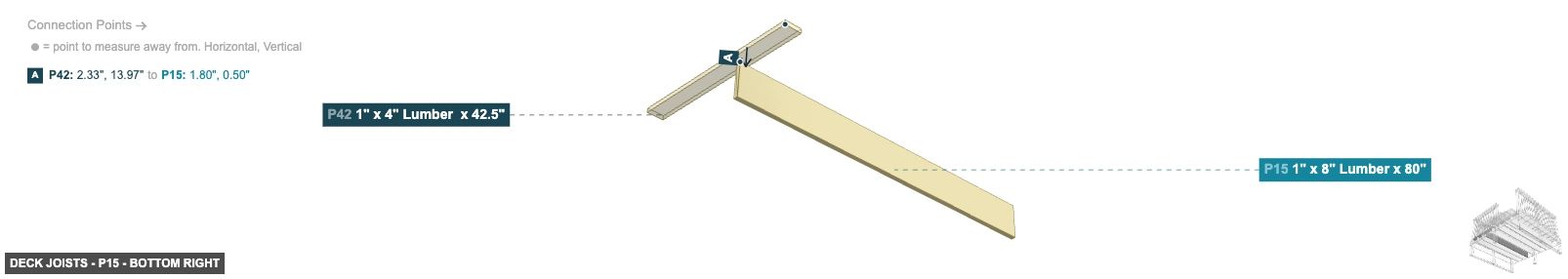

Part: 1" x 8" Lumber x 80" - Angle: bottom right

P15 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, plus its 1" x 8" Wood Side #3 must be oriented bottom, then ensure its 1" x 8" Wood Side #4 faces left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

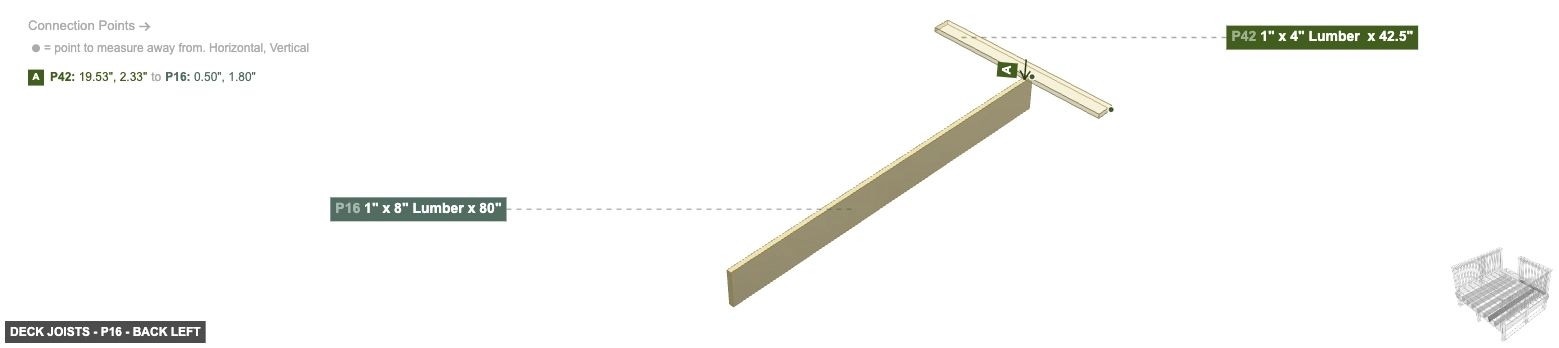

Part: 1" x 8" Lumber x 80" - Angle: back left

P16 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, and its 1" x 8" Wood Side #3 should be directed bottom, plus its 1" x 8" Wood Side #4 needs to point left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: front right

P16 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, and its 1" x 8" Wood Side #3 should be directed bottom, plus its 1" x 8" Wood Side #4 needs to point left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

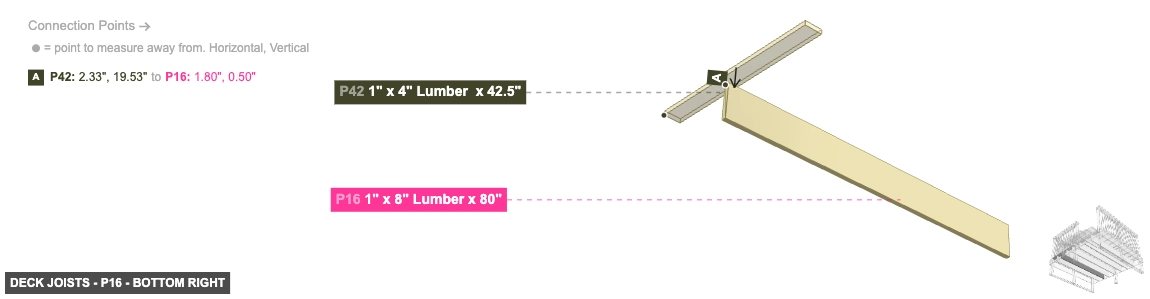

Part: 1" x 8" Lumber x 80" - Angle: bottom right

P16 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, and its 1" x 8" Wood Side #3 should be directed bottom, plus its 1" x 8" Wood Side #4 needs to point left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: back left

P17 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 needs to point right. After that, ensure its 1" x 8" Wood Side #3 faces bottom. Also, its 1" x 8" Wood Side #4 needs to point left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: front right

P17 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 needs to point right. After that, ensure its 1" x 8" Wood Side #3 faces bottom. Also, its 1" x 8" Wood Side #4 needs to point left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: bottom right

P17 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 needs to point right. After that, ensure its 1" x 8" Wood Side #3 faces bottom. Also, its 1" x 8" Wood Side #4 needs to point left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: back left

P18 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, then its 1" x 8" Wood Side #3 needs to point bottom, and its 1" x 8" Wood Side #4 should be directed left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: front right

P18 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, then its 1" x 8" Wood Side #3 needs to point bottom, and its 1" x 8" Wood Side #4 should be directed left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: bottom right

P18 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 should be directed right, then its 1" x 8" Wood Side #3 needs to point bottom, and its 1" x 8" Wood Side #4 should be directed left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: back left

P19 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 must be oriented right. After that, its 1" x 8" Wood Side #3 must be oriented bottom. Next, ensure its 1" x 8" Wood Side #4 faces left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: front right

P19 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 must be oriented right. After that, its 1" x 8" Wood Side #3 must be oriented bottom. Next, ensure its 1" x 8" Wood Side #4 faces left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: bottom right

P19 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 must be oriented right. After that, its 1" x 8" Wood Side #3 must be oriented bottom. Next, ensure its 1" x 8" Wood Side #4 faces left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: back left

P20 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 needs to point right. Next, its 1" x 8" Wood Side #3 needs to point bottom, plus its 1" x 8" Wood Side #4 must be oriented left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

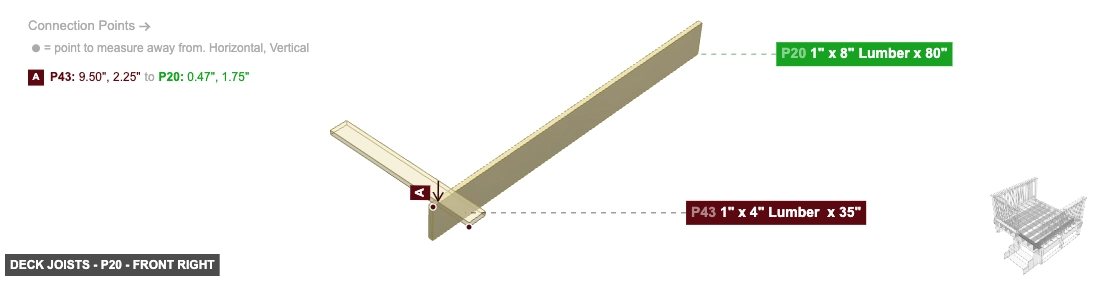

Part: 1" x 8" Lumber x 80" - Angle: front right

P20 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 needs to point right. Next, its 1" x 8" Wood Side #3 needs to point bottom, plus its 1" x 8" Wood Side #4 must be oriented left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 8" Lumber x 80" - Angle: bottom right

P20 (1" x 8" Lumber 80" length) - its 1" x 8" Wood Side #2 needs to point right. Next, its 1" x 8" Wood Side #3 needs to point bottom, plus its 1" x 8" Wood Side #4 must be oriented left

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 4" Lumber x 42.5" - Angle: back left

P42 (1" x 4" Lumber 42.5" length) - attach its 1" x 4" Wood Side #2 facing bottom to part 16's 1" x 8" Wood Side #1, and its 1" x 4" Wood End #1 must be oriented left, plus its 1" x 4" Wood Side #1 must be oriented front. Also, ensure its 1" x 4" Wood Side #3 faces back, then its 1" x 4" Wood Side #4 should be directed top

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

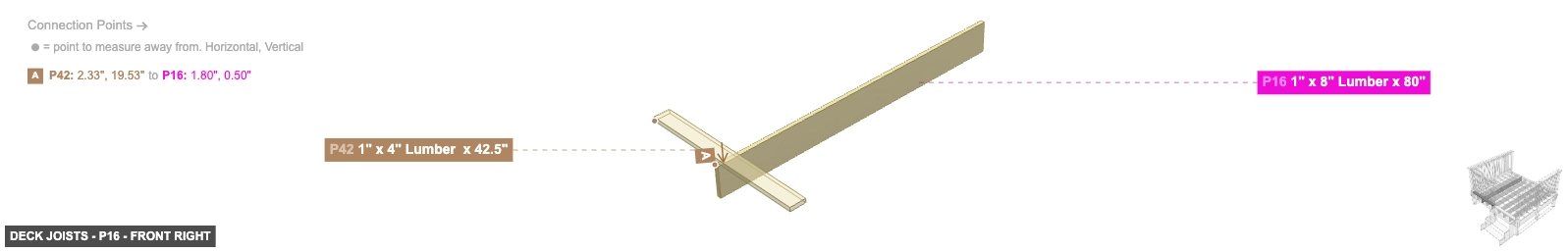

Part: 1" x 4" Lumber x 42.5" - Angle: front right

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

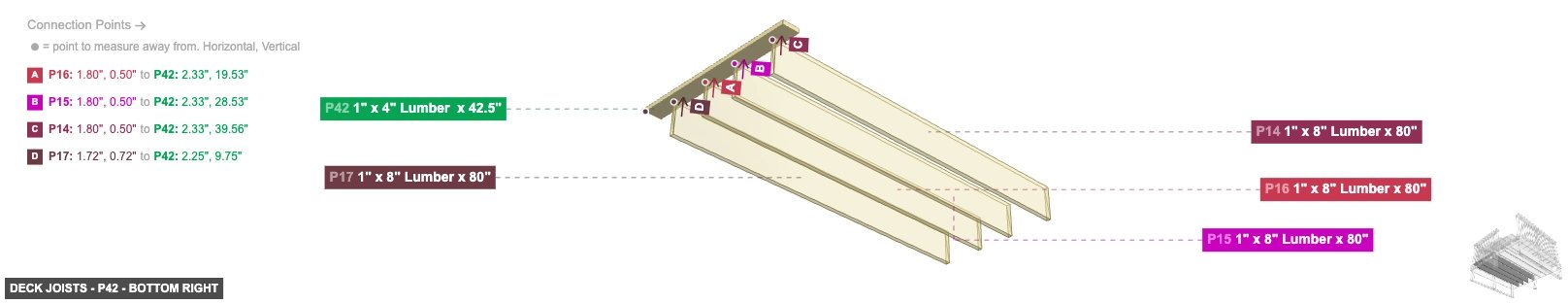

Part: 1" x 4" Lumber x 42.5" - Angle: bottom right

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

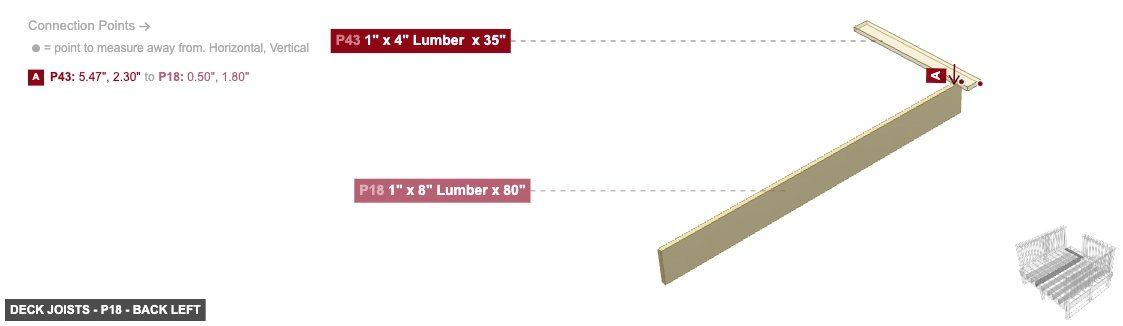

Part: 1" x 4" Lumber x 35" - Angle: back left

P43 (1" x 4" Lumber 35" length) - its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 18's 1" x 8" Wood Side #1. Next, its 1" x 4" Wood Side #1 should be directed front, then ensure its 1" x 4" Wood Side #3 faces back. Also, its 1" x 4" Wood Side #4 should be directed top

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

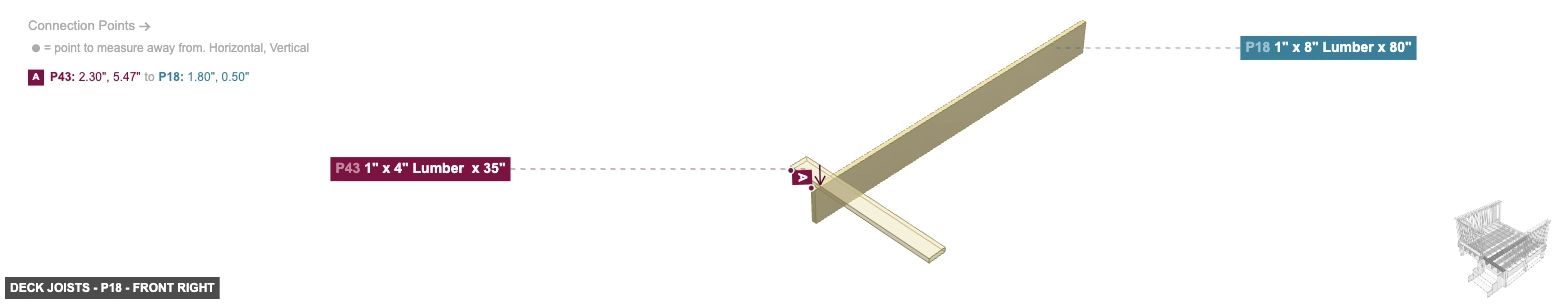

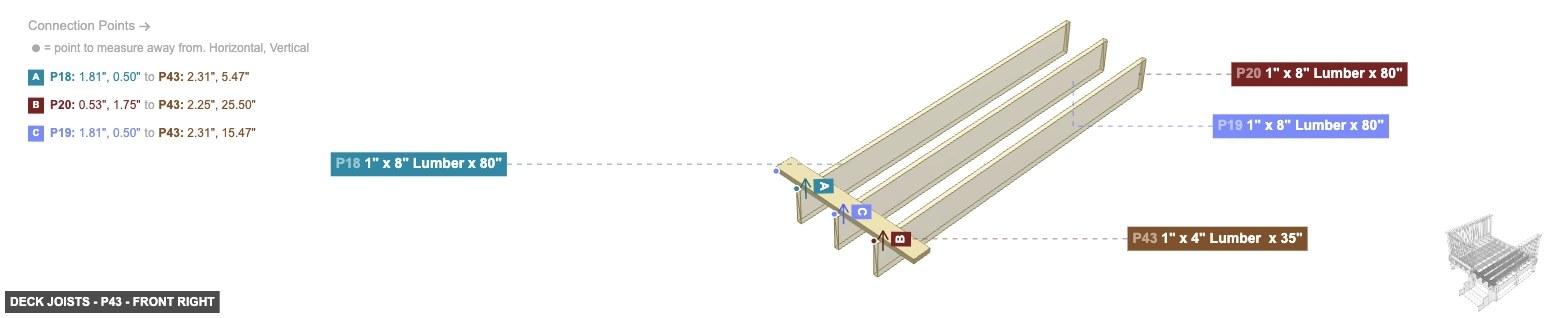

Part: 1" x 4" Lumber x 35" - Angle: front right

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Part: 1" x 4" Lumber x 35" - Angle: bottom right

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Group: Decking Surface

Lay down the main decking boards onto the joists and frame.

Part: 1" x 6" Lumber x 81.25" - Angle: back left

P21 (1" x 6" Lumber 81.25" length) - attach its 1" x 6" Wood Side #1 facing right to part 22's 1" x 6" Wood End #2. Additionally, its 1" x 6" Wood End #1 needs to point front. Also, ensure its 1" x 6" Wood Side #3 faces left. After that, its 1" x 6" Wood Side #4 needs to point top. Next, its 1" x 6" Wood End #2 should be directed back

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Part: 1" x 6" Lumber x 81.25" - Angle: front right

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Part: 1" x 6" Lumber x 81.25" - Angle: bottom right

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Part: 1" x 6" Lumber x 44.75" - Angle: back left

P22 (1" x 6" Lumber 44.75" length) - its 1" x 6" Wood End #2, which is left-facing, should connect to part 21's 1" x 6" Wood Side #1. Next, its 1" x 6" Wood End #1 needs to point right, and its 1" x 6" Wood Side #1 needs to point back, plus ensure its 1" x 6" Wood Side #3 faces front, plus its 1" x 6" Wood Side #4 must be oriented top

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Part: 1" x 6" Lumber x 44.75" - Angle: front right

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Part: 1" x 6" Lumber x 44.75" - Angle: bottom right

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Group: Stair Assembly

Assemble the stair stringers and treads, and attach the assembly to the main deck frame.

Part: 1" x 8" Lumber x 23" - Angle: back left

P31 (1" x 8" Lumber 23" length) - attach its 1" x 8" Wood Side #3 facing front to part 32's 1" x 8" Wood Side #1, then connect its 1" x 8" Wood End #2 oriented top links with part 34's 1" x 8" Wood Side #2, also ensure its 1" x 8" Wood End #1 faces bottom, also its 1" x 8" Wood Side #2 should be directed left. After that, ensure its 1" x 8" Wood Side #4 faces right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

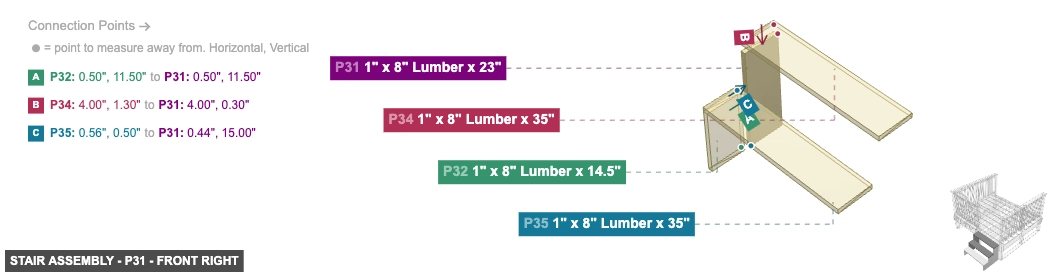

Part: 1" x 8" Lumber x 23" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

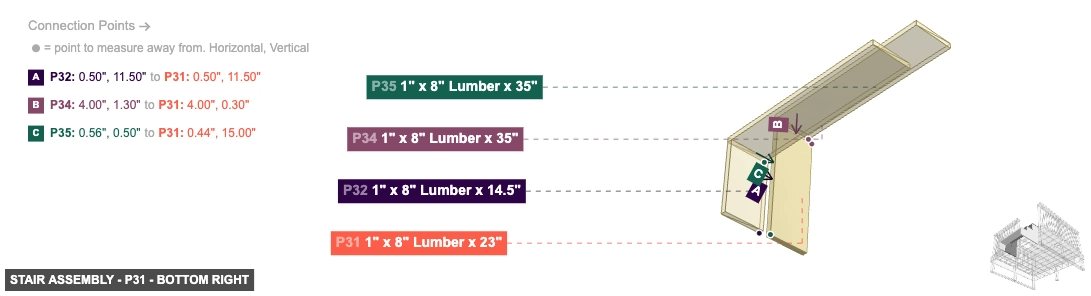

Part: 1" x 8" Lumber x 23" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 14.5" - Angle: back left

P32 (1" x 8" Lumber 14.5" length) - attach its 1" x 8" Wood Side #1 facing back to part 31's 1" x 8" Wood Side #3, and attach its 1" x 8" Wood Side #3 facing front to part 33's 1" x 8" Wood Side #1, also connect its 1" x 8" Wood End #2 oriented top links with part 35's 1" x 8" Wood Side #2, then ensure its 1" x 8" Wood End #1 faces bottom, plus its 1" x 8" Wood Side #2 must be oriented left. After that, its 1" x 8" Wood Side #4 should be directed right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 14.5" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

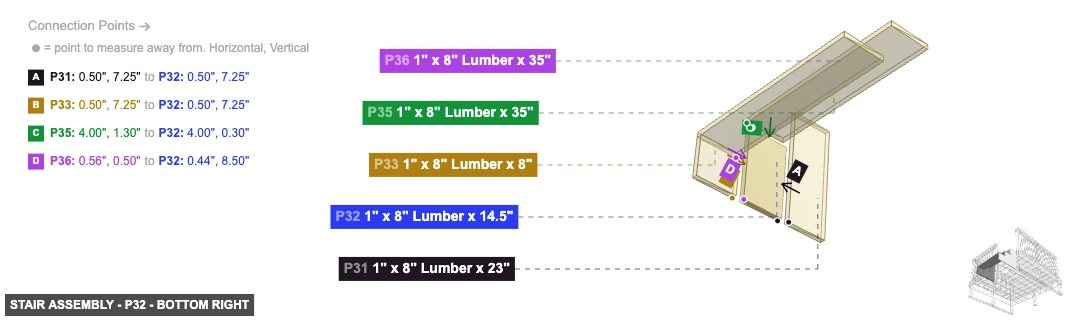

Part: 1" x 8" Lumber x 14.5" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

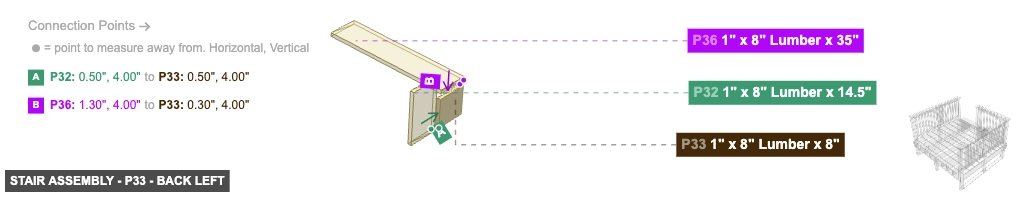

Part: 1" x 8" Lumber x 8" - Angle: back left

P33 (1" x 8" Lumber 8" length) - its 1" x 8" Wood Side #1, which is back-facing, should connect to part 32's 1" x 8" Wood Side #3, also attach its 1" x 8" Wood End #2 facing top to part 36's 1" x 8" Wood Side #2. After that, ensure its 1" x 8" Wood End #1 faces bottom, then its 1" x 8" Wood Side #2 must be oriented left. Next, its 1" x 8" Wood Side #3 should be directed front, also its 1" x 8" Wood Side #4 should be directed right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 8" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 8" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 35" - Angle: back left

P34 (1" x 8" Lumber 35" length) - its 1" x 8" Wood Side #2, which is bottom-facing, should connect to part 31's 1" x 8" Wood End #2. Next, its 1" x 8" Wood End #1 must be oriented right. Additionally, ensure its 1" x 8" Wood Side #1 faces back. Additionally, its 1" x 8" Wood Side #3 should be directed front. Additionally, its 1" x 8" Wood Side #4 needs to point top. Additionally, its 1" x 8" Wood End #2 needs to point left

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

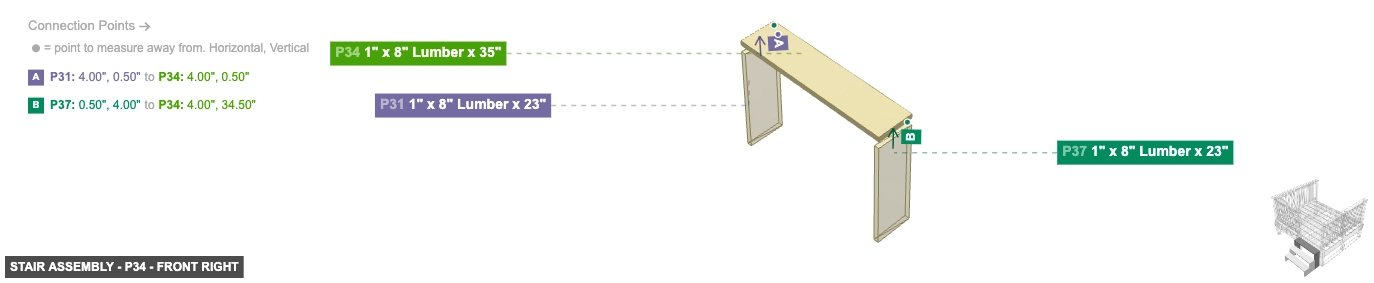

Part: 1" x 8" Lumber x 35" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

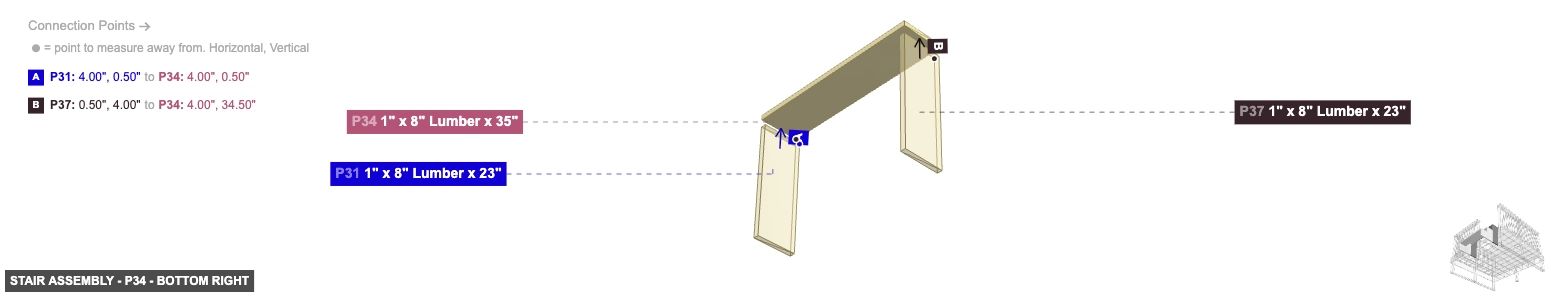

Part: 1" x 8" Lumber x 35" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

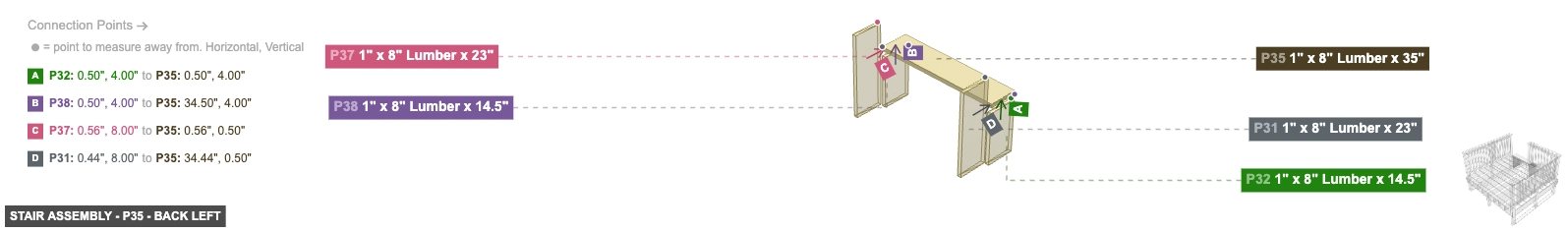

Part: 1" x 8" Lumber x 35" - Angle: back left

P35 (1" x 8" Lumber 35" length) - connect its 1" x 8" Wood Side #1 oriented back links with part 37's 1" x 8" Wood Side #3, then attach its 1" x 8" Wood Side #2 facing bottom to part 32's 1" x 8" Wood End #2. Next, ensure its 1" x 8" Wood End #1 faces right, and its 1" x 8" Wood Side #3 needs to point front, plus its 1" x 8" Wood Side #4 needs to point top, then its 1" x 8" Wood End #2 needs to point left

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

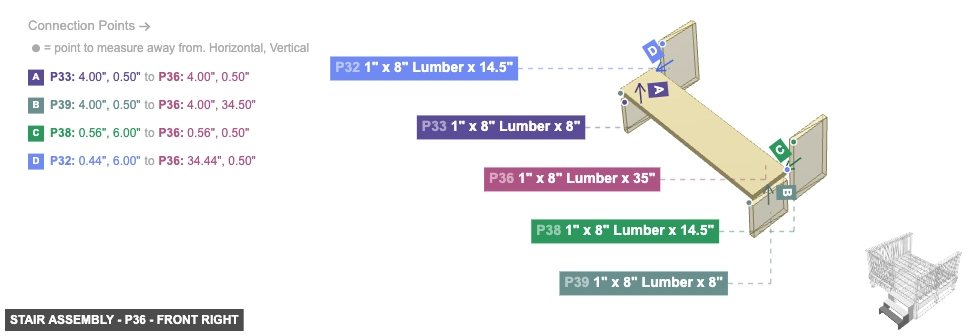

Part: 1" x 8" Lumber x 35" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 35" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 35" - Angle: back left

P36 (1" x 8" Lumber 35" length) - connect its 1" x 8" Wood Side #1 oriented back links with part 38's 1" x 8" Wood Side #3. After that, its 1" x 8" Wood Side #2, which is bottom-facing, should connect to part 33's 1" x 8" Wood End #2, also ensure its 1" x 8" Wood End #1 faces right, then its 1" x 8" Wood Side #3 should be directed front. Additionally, its 1" x 8" Wood Side #4 needs to point top. Additionally, its 1" x 8" Wood End #2 needs to point left

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 35" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 35" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

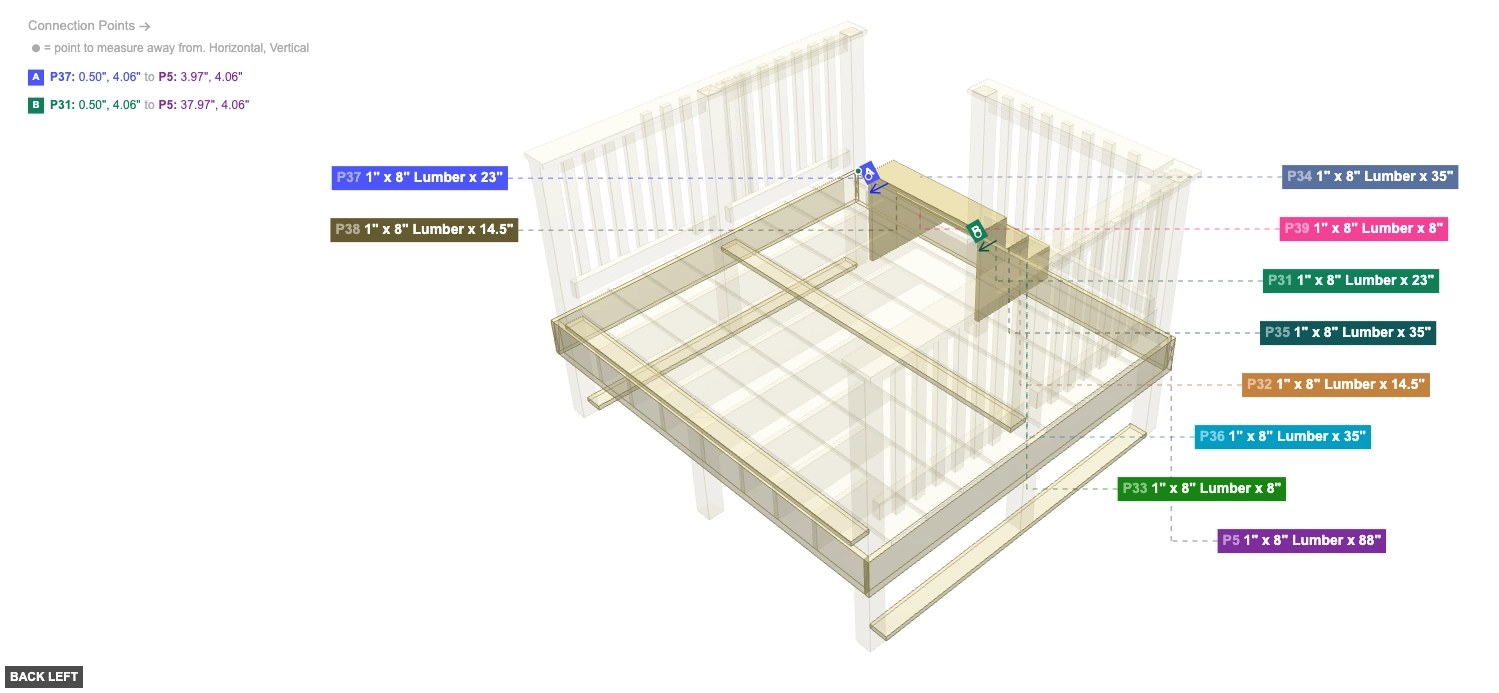

Part: 1" x 8" Lumber x 23" - Angle: back left

P37 (1" x 8" Lumber 23" length) - attach its 1" x 8" Wood Side #3 facing front to part 38's 1" x 8" Wood Side #1, and its 1" x 8" Wood End #2, which is top-facing, should connect to part 34's 1" x 8" Wood Side #2, plus its 1" x 8" Wood End #1 needs to point bottom. After that, its 1" x 8" Wood Side #2 should be directed left, plus its 1" x 8" Wood Side #4 should be directed right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 23" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 23" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

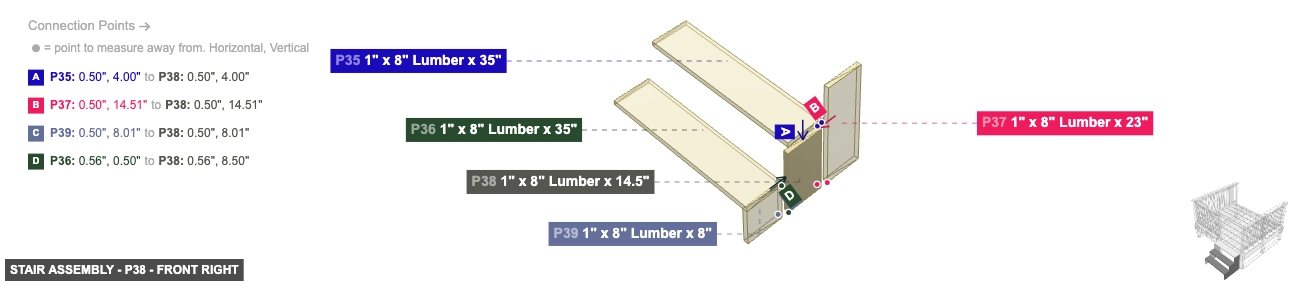

Part: 1" x 8" Lumber x 14.5" - Angle: back left

P38 (1" x 8" Lumber 14.5" length) - attach its 1" x 8" Wood Side #1 facing back to part 37's 1" x 8" Wood Side #3, also its 1" x 8" Wood Side #3, which is front-facing, should connect to part 39's 1" x 8" Wood Side #1. Additionally, its 1" x 8" Wood End #2, which is top-facing, should connect to part 35's 1" x 8" Wood Side #2, also its 1" x 8" Wood End #1 needs to point bottom, plus its 1" x 8" Wood Side #2 should be directed left, and ensure its 1" x 8" Wood Side #4 faces right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 14.5" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 14.5" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

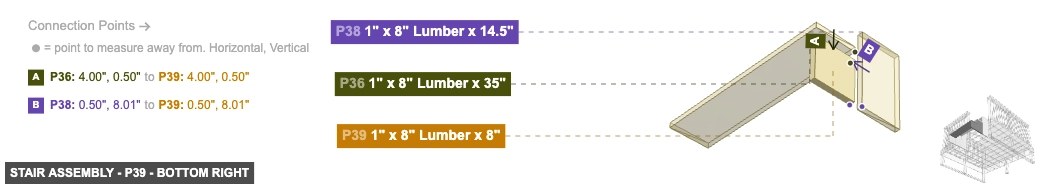

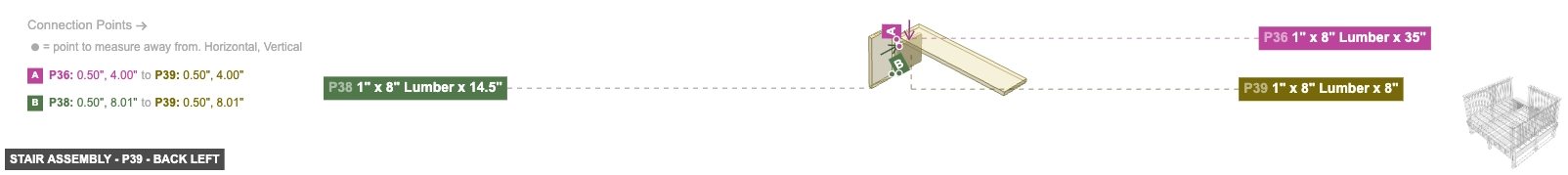

Part: 1" x 8" Lumber x 8" - Angle: back left

P39 (1" x 8" Lumber 8" length) - connect its 1" x 8" Wood Side #1 oriented back links with part 38's 1" x 8" Wood Side #3, then attach its 1" x 8" Wood End #2 facing top to part 36's 1" x 8" Wood Side #2, also its 1" x 8" Wood End #1 needs to point bottom, and its 1" x 8" Wood Side #2 needs to point left. Next, its 1" x 8" Wood Side #3 should be directed front. Next, its 1" x 8" Wood Side #4 must be oriented right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

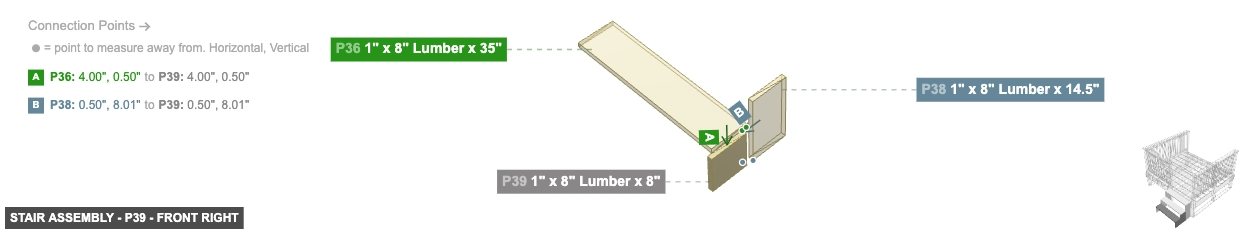

Part: 1" x 8" Lumber x 8" - Angle: front right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Part: 1" x 8" Lumber x 8" - Angle: bottom right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Phase 3: Inter-Group Assembly

Attaching: Foundation Posts

Install the main vertical 4x4 support posts for the deck structure.

Angle: back left

Assembly of Foundation Posts - back_left

P1 (4" x 4" Lumber 59.25" length) - connect its 4" x 4" Wood End #1 oriented top links with part 2's 1" x 6" Wood Side #2. After that, connect its 4" x 4" Wood Side #1 oriented left links with part 43's 1" x 4" Wood End #2, plus connect its 4" x 4" Wood Side #2 oriented back links with part 4's 1" x 4" Wood End #2, plus connect its 4" x 4" Wood Side #3 oriented right links with part 10's 1" x 8" Wood Side #2, and connect its 4" x 4" Wood Side #4 oriented front links with part 5's 1" x 8" Wood Side #2, then its 4" x 4" Wood End #2 needs to point bottom P3 (4" x 4" Lumber 59.25" length) - attach its 4" x 4" Wood Side #1 facing front to part 4's 1" x 4" Wood End #1, and its 4" x 4" Wood Side #2, which is right-facing, should connect to part 10's 1" x 8" Wood Side #2, plus attach its 4" x 4" Wood Side #3 facing back to part 11's 1" x 8" Wood Side #4. After that, its 4" x 4" Wood Side #4, which is left-facing, should connect to part 41's 1" x 4" Wood End #1, plus connect its 4" x 4" Wood End #2 oriented top links with part 2's 1" x 6" Wood Side #2, also its 4" x 4" Wood End #1 needs to point bottom P6 (4" x 4" Lumber 59.25" length) - its 4" x 4" Wood Side #1, which is front-facing, should connect to part 8's 1" x 4" Wood End #2. Additionally, attach its 4" x 4" Wood Side #2 facing right to part 41's 1" x 4" Wood End #2. Also, its 4" x 4" Wood Side #3, which is back-facing, should connect to part 11's 1" x 8" Wood Side #4. Also, attach its 4" x 4" Wood Side #4 facing left to part 9's 1" x 8" Wood Side #2. Next, attach its 4" x 4" Wood End #2 facing top to part 21's 1" x 6" Wood Side #2. Additionally, its 4" x 4" Wood End #1 should be directed bottom P7 (4" x 4" Lumber 58.25" length) - connect its 4" x 4" Wood End #1 oriented bottom links with part 8's 1" x 4" Wood Side #4, and attach its 4" x 4" Wood Side #1 facing front to part 30's 2" x 4" Wood End #1. Next, attach its 4" x 4" Wood Side #2 facing right to part 40's 1" x 4" Wood End #1, also its 4" x 4" Wood Side #3, which is back-facing, should connect to part 29's 2" x 4" Wood End #1, then its 4" x 4" Wood Side #4, which is left-facing, should connect to part 9's 1" x 8" Wood Side #2. Also, attach its 4" x 4" Wood End #2 facing top to part 21's 1" x 6" Wood Side #2 P12 (4" x 4" Lumber 59.25" length) - its 4" x 4" Wood End #1, which is top-facing, should connect to part 22's 1" x 6" Wood Side #2. Also, its 4" x 4" Wood Side #1, which is left-facing, should connect to part 27's 2" x 4" Wood End #1, and its 4" x 4" Wood Side #3, which is right-facing, should connect to part 43's 1" x 4" Wood End #1, and its 4" x 4" Wood Side #4, which is front-facing, should connect to part 5's 1" x 8" Wood Side #2. Also, its 4" x 4" Wood Side #2 needs to point back, also its 4" x 4" Wood End #2 needs to point bottom P13 (4" x 4" Lumber 23" length) - attach its 4" x 4" Wood End #1 facing top to part 41's 1" x 4" Wood Side #2, and attach its 4" x 4" Wood Side #3 facing left to part 14's 1" x 8" Wood Side #2. After that, attach its 4" x 4" Wood Side #4 facing back to part 11's 1" x 8" Wood Side #4, also its 4" x 4" Wood Side #1 must be oriented right, then ensure its 4" x 4" Wood Side #2 faces front, and its 4" x 4" Wood End #2 needs to point bottom P52 (4" x 4" Lumber 58.25" length) - its 4" x 4" Wood End #1, which is bottom-facing, should connect to part 4's 1" x 4" Wood Side #4, then connect its 4" x 4" Wood Side #1 oriented front links with part 25's 2" x 4" Wood End #1, then connect its 4" x 4" Wood Side #2 oriented right links with part 10's 1" x 8" Wood Side #2. Also, connect its 4" x 4" Wood Side #3 oriented back links with part 26's 2" x 4" Wood End #2, also its 4" x 4" Wood Side #4, which is left-facing, should connect to part 40's 1" x 4" Wood End #2. Also, connect its 4" x 4" Wood End #2 oriented top links with part 2's 1" x 6" Wood Side #2 P91 (4" x 4" Lumber 59.25" length) - connect its 4" x 4" Wood Side #1 oriented right links with part 27's 2" x 4" Wood End #2. Also, attach its 4" x 4" Wood Side #2 facing back to part 8's 1" x 4" Wood End #1. Additionally, connect its 4" x 4" Wood Side #3 oriented left links with part 9's 1" x 8" Wood Side #2, and its 4" x 4" Wood Side #4, which is front-facing, should connect to part 5's 1" x 8" Wood Side #2. Also, connect its 4" x 4" Wood End #2 oriented top links with part 21's 1" x 6" Wood Side #2, plus its 4" x 4" Wood End #1 must be oriented bottom

4" x 4" Lumber x 59.25"x 5

4" x 4" Lumber x 58.25"x 2

4" x 4" Lumber x 23"x 1

Angle: front right

Assembly of Foundation Posts - front_right

4" x 4" Lumber x 59.25"x 5

4" x 4" Lumber x 58.25"x 2

4" x 4" Lumber x 23"x 1

Angle: bottom right

Assembly of Foundation Posts - bottom_right

4" x 4" Lumber x 59.25"x 5

4" x 4" Lumber x 58.25"x 2

4" x 4" Lumber x 23"x 1

Attaching: Main Frame Beams and Rim Joists

Attach the main horizontal frame components (beams and rim joists) connecting the foundation posts.

Angle: back left

Assembly of Main Frame Beams and Rim Joists - back_left

P4 (1" x 4" Lumber 73" length) - its 1" x 4" Wood End #1, which is back-facing, should connect to part 3's 4" x 4" Wood Side #1. After that, its 1" x 4" Wood Side #4, which is top-facing, should connect to part 52's 4" x 4" Wood End #1, also attach its 1" x 4" Wood End #2 facing front to part 1's 4" x 4" Wood Side #2, also its 1" x 4" Wood Side #1 should be directed left. Additionally, its 1" x 4" Wood Side #2 must be oriented bottom. Next, its 1" x 4" Wood Side #3 must be oriented right P5 (1" x 8" Lumber 88" length) - attach its 1" x 8" Wood End #1 facing left to part 9's 1" x 8" Wood Side #2. Also, attach its 1" x 8" Wood Side #2 facing back to part 1's 4" x 4" Wood Side #4. Additionally, its 1" x 8" Wood Side #3, which is top-facing, should connect to part 42's 1" x 4" Wood Side #2. Next, its 1" x 8" Wood Side #4, which is front-facing, should connect to part 37's 1" x 8" Wood Side #1, plus its 1" x 8" Wood End #2, which is right-facing, should connect to part 10's 1" x 8" Wood Side #2, and its 1" x 8" Wood Side #1 needs to point bottom P8 (1" x 4" Lumber 73" length) - connect its 1" x 4" Wood End #1 oriented front links with part 91's 4" x 4" Wood Side #2, and connect its 1" x 4" Wood Side #4 oriented top links with part 7's 4" x 4" Wood End #1. Additionally, its 1" x 4" Wood End #2, which is back-facing, should connect to part 6's 4" x 4" Wood Side #1. Next, its 1" x 4" Wood Side #1 should be directed right, then its 1" x 4" Wood Side #2 should be directed bottom. After that, its 1" x 4" Wood Side #3 needs to point left P9 (1" x 8" Lumber 82" length) - attach its 1" x 8" Wood Side #1 facing top to part 44's 1" x 8" Wood Side #2, plus connect its 1" x 8" Wood Side #2 oriented right links with part 91's 4" x 4" Wood Side #3, plus its 1" x 8" Wood End #1 should be directed front, plus its 1" x 8" Wood Side #3 must be oriented bottom, plus its 1" x 8" Wood Side #4 needs to point left. After that, its 1" x 8" Wood End #2 must be oriented back P10 (1" x 8" Lumber 82" length) - attach its 1" x 8" Wood Side #2 facing left to part 5's 1" x 8" Wood End #2. After that, connect its 1" x 8" Wood Side #3 oriented top links with part 44's 1" x 8" Wood Side #2, and ensure its 1" x 8" Wood End #1 faces front, then ensure its 1" x 8" Wood Side #1 faces bottom, plus ensure its 1" x 8" Wood Side #4 faces right. Also, ensure its 1" x 8" Wood End #2 faces back P11 (1" x 8" Lumber 88" length) - connect its 1" x 8" Wood End #1 oriented right links with part 10's 1" x 8" Wood Side #2. After that, attach its 1" x 8" Wood Side #1 facing top to part 41's 1" x 4" Wood Side #2, also attach its 1" x 8" Wood Side #4 facing front to part 6's 4" x 4" Wood Side #3, then its 1" x 8" Wood End #2, which is left-facing, should connect to part 9's 1" x 8" Wood Side #2. After that, its 1" x 8" Wood Side #2 must be oriented back, plus its 1" x 8" Wood Side #3 must be oriented bottom P40 (1" x 4" Lumber 81" length) - attach its 1" x 4" Wood End #1 facing left to part 7's 4" x 4" Wood Side #2, and attach its 1" x 4" Wood Side #2 facing bottom to part 17's 1" x 8" Wood Side #1. Additionally, its 1" x 4" Wood End #2, which is right-facing, should connect to part 52's 4" x 4" Wood Side #4. After that, its 1" x 4" Wood Side #1 needs to point front, plus its 1" x 4" Wood Side #3 should be directed back. After that, ensure its 1" x 4" Wood Side #4 faces top P41 (1" x 4" Lumber 81" length) - its 1" x 4" Wood End #1, which is right-facing, should connect to part 3's 4" x 4" Wood Side #4. Additionally, connect its 1" x 4" Wood Side #2 oriented bottom links with part 13's 4" x 4" Wood End #1. Next, attach its 1" x 4" Wood End #2 facing left to part 6's 4" x 4" Wood Side #2. After that, ensure its 1" x 4" Wood Side #1 faces back. Next, its 1" x 4" Wood Side #3 needs to point front, then its 1" x 4" Wood Side #4 should be directed top

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Angle: front right

Assembly of Main Frame Beams and Rim Joists - front_right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Angle: bottom right

Assembly of Main Frame Beams and Rim Joists - bottom_right

1" x 4" Lumber x 73"x 2

1" x 8" Lumber x 88"x 2

1" x 8" Lumber x 82"x 2

1" x 4" Lumber x 81"x 2

Attaching: Deck Joists

Install the internal joists that will support the decking boards.

Angle: back left

P14 (1" x 8" Lumber 80" length) - connect its 1" x 8" Wood End #1 oriented front links with part 5's 1" x 8" Wood Side #2, plus its 1" x 8" Wood Side #1, which is top-facing, should connect to part 40's 1" x 4" Wood Side #2, then attach its 1" x 8" Wood Side #2 facing right to part 13's 4" x 4" Wood Side #3. Also, its 1" x 8" Wood End #2, which is back-facing, should connect to part 11's 1" x 8" Wood Side #4, then its 1" x 8" Wood Side #3 needs to point bottom. Additionally, ensure its 1" x 8" Wood Side #4 faces left P15 (1" x 8" Lumber 80" length) - attach its 1" x 8" Wood End #1 facing front to part 5's 1" x 8" Wood Side #2. After that, attach its 1" x 8" Wood Side #1 facing top to part 40's 1" x 4" Wood Side #2. Also, its 1" x 8" Wood End #2, which is back-facing, should connect to part 11's 1" x 8" Wood Side #4. After that, its 1" x 8" Wood Side #2 must be oriented right, and its 1" x 8" Wood Side #3 needs to point bottom, and its 1" x 8" Wood Side #4 should be directed left P16 (1" x 8" Lumber 80" length) - its 1" x 8" Wood End #1, which is front-facing, should connect to part 5's 1" x 8" Wood Side #2, then attach its 1" x 8" Wood Side #1 facing top to part 40's 1" x 4" Wood Side #2. After that, connect its 1" x 8" Wood End #2 oriented back links with part 11's 1" x 8" Wood Side #4, and ensure its 1" x 8" Wood Side #2 faces right, plus its 1" x 8" Wood Side #3 must be oriented bottom. Also, ensure its 1" x 8" Wood Side #4 faces left P17 (1" x 8" Lumber 80" length) - its 1" x 8" Wood End #1, which is front-facing, should connect to part 5's 1" x 8" Wood Side #2. Additionally, connect its 1" x 8" Wood Side #1 oriented top links with part 40's 1" x 4" Wood Side #2. Additionally, connect its 1" x 8" Wood End #2 oriented back links with part 11's 1" x 8" Wood Side #4. Also, its 1" x 8" Wood Side #2 must be oriented right. After that, its 1" x 8" Wood Side #3 needs to point bottom. Also, its 1" x 8" Wood Side #4 needs to point left P18 (1" x 8" Lumber 80" length) - its 1" x 8" Wood End #1, which is front-facing, should connect to part 5's 1" x 8" Wood Side #2. Next, connect its 1" x 8" Wood Side #1 oriented top links with part 40's 1" x 4" Wood Side #2. After that, attach its 1" x 8" Wood End #2 facing back to part 11's 1" x 8" Wood Side #4. After that, its 1" x 8" Wood Side #2 needs to point right. Next, its 1" x 8" Wood Side #3 should be directed bottom, plus its 1" x 8" Wood Side #4 should be directed left P19 (1" x 8" Lumber 80" length) - connect its 1" x 8" Wood End #1 oriented front links with part 5's 1" x 8" Wood Side #2, and its 1" x 8" Wood Side #1, which is top-facing, should connect to part 40's 1" x 4" Wood Side #2. Next, its 1" x 8" Wood End #2, which is back-facing, should connect to part 11's 1" x 8" Wood Side #4. Also, its 1" x 8" Wood Side #2 should be directed right, and its 1" x 8" Wood Side #3 must be oriented bottom. Also, ensure its 1" x 8" Wood Side #4 faces left P20 (1" x 8" Lumber 80" length) - its 1" x 8" Wood End #1, which is front-facing, should connect to part 5's 1" x 8" Wood Side #2. After that, attach its 1" x 8" Wood Side #1 facing top to part 40's 1" x 4" Wood Side #2. After that, its 1" x 8" Wood End #2, which is back-facing, should connect to part 11's 1" x 8" Wood Side #4, also its 1" x 8" Wood Side #2 needs to point right, then its 1" x 8" Wood Side #3 needs to point bottom, and its 1" x 8" Wood Side #4 must be oriented left P42 (1" x 4" Lumber 42.5" length) - connect its 1" x 4" Wood Side #2 oriented bottom links with part 16's 1" x 8" Wood Side #1, plus its 1" x 4" Wood End #2, which is right-facing, should connect to part 12's 4" x 4" Wood Side #1. Also, its 1" x 4" Wood End #1 must be oriented left. Additionally, its 1" x 4" Wood Side #1 needs to point front. After that, its 1" x 4" Wood Side #3 must be oriented back, plus its 1" x 4" Wood Side #4 must be oriented top P43 (1" x 4" Lumber 35" length) - attach its 1" x 4" Wood End #1 facing left to part 12's 4" x 4" Wood Side #3. After that, attach its 1" x 4" Wood Side #2 facing bottom to part 18's 1" x 8" Wood Side #1, then attach its 1" x 4" Wood End #2 facing right to part 1's 4" x 4" Wood Side #1, then ensure its 1" x 4" Wood Side #1 faces front. Additionally, its 1" x 4" Wood Side #3 needs to point back, plus ensure its 1" x 4" Wood Side #4 faces top

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Angle: front right

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

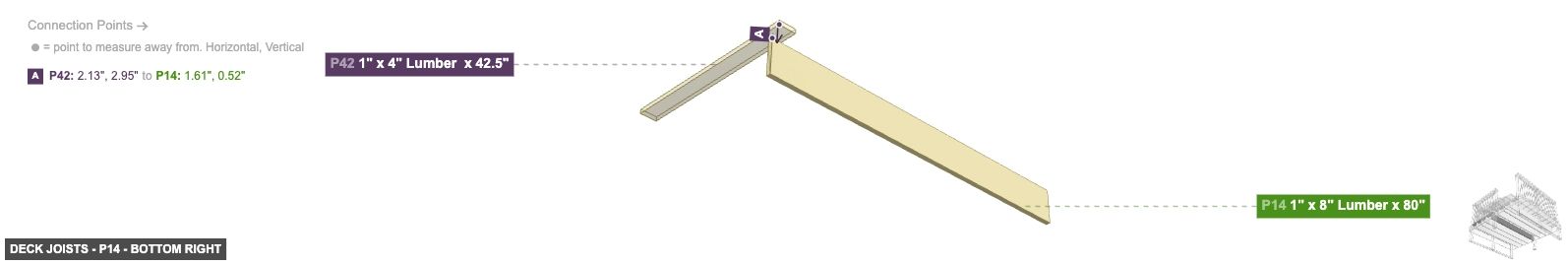

Angle: bottom right

1" x 8" Lumber x 80"x 7

1" x 4" Lumber x 42.5"x 1

1" x 4" Lumber x 35"x 1

Attaching: Decking Surface

Lay down the main decking boards onto the joists and frame.

Angle: back left

P2 (1" x 6" Lumber 80" length) - attach its 1" x 6" Wood Side #2 facing bottom to part 1's 4" x 4" Wood End #1. Also, its 1" x 6" Wood End #1 should be directed front, also ensure its 1" x 6" Wood Side #1 faces right. Additionally, its 1" x 6" Wood Side #3 needs to point left, then its 1" x 6" Wood Side #4 needs to point top, and ensure its 1" x 6" Wood End #2 faces back P21 (1" x 6" Lumber 81.25" length) - its 1" x 6" Wood Side #1, which is right-facing, should connect to part 22's 1" x 6" Wood End #2, also attach its 1" x 6" Wood Side #2 facing bottom to part 6's 4" x 4" Wood End #2, then its 1" x 6" Wood End #1 should be directed front. After that, ensure its 1" x 6" Wood Side #3 faces left. Additionally, its 1" x 6" Wood Side #4 needs to point top, and its 1" x 6" Wood End #2 should be directed back P22 (1" x 6" Lumber 44.75" length) - connect its 1" x 6" Wood Side #2 oriented bottom links with part 12's 4" x 4" Wood End #1. After that, connect its 1" x 6" Wood End #2 oriented left links with part 21's 1" x 6" Wood Side #1. Additionally, its 1" x 6" Wood End #1 must be oriented right. Also, its 1" x 6" Wood Side #1 must be oriented back, plus its 1" x 6" Wood Side #3 must be oriented front, then its 1" x 6" Wood Side #4 needs to point top

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Angle: front right

Assembly of Decking Surface - front_right

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Angle: bottom right

Assembly of Decking Surface - bottom_right

1" x 6" Lumber x 80"x 1

1" x 6" Lumber x 81.25"x 1

1" x 6" Lumber x 44.75"x 1

Attaching: Stair Assembly

Assemble the stair stringers and treads, and attach the assembly to the main deck frame.

Angle: back left

P31 (1" x 8" Lumber 23" length) - connect its 1" x 8" Wood Side #1 oriented back links with part 5's 1" x 8" Wood Side #4, and its 1" x 8" Wood Side #3, which is front-facing, should connect to part 32's 1" x 8" Wood Side #1. Additionally, connect its 1" x 8" Wood End #2 oriented top links with part 34's 1" x 8" Wood Side #2, plus ensure its 1" x 8" Wood End #1 faces bottom, and its 1" x 8" Wood Side #2 should be directed left. After that, ensure its 1" x 8" Wood Side #4 faces right P32 (1" x 8" Lumber 14.5" length) - connect its 1" x 8" Wood Side #1 oriented back links with part 31's 1" x 8" Wood Side #3, and its 1" x 8" Wood Side #3, which is front-facing, should connect to part 33's 1" x 8" Wood Side #1, also connect its 1" x 8" Wood End #2 oriented top links with part 35's 1" x 8" Wood Side #2, and its 1" x 8" Wood End #1 must be oriented bottom, plus its 1" x 8" Wood Side #2 should be directed left, then ensure its 1" x 8" Wood Side #4 faces right P33 (1" x 8" Lumber 8" length) - its 1" x 8" Wood Side #1, which is back-facing, should connect to part 32's 1" x 8" Wood Side #3, then connect its 1" x 8" Wood End #2 oriented top links with part 36's 1" x 8" Wood Side #2, and its 1" x 8" Wood End #1 should be directed bottom. After that, its 1" x 8" Wood Side #2 should be directed left. Additionally, its 1" x 8" Wood Side #3 needs to point front. Also, its 1" x 8" Wood Side #4 must be oriented right P34 (1" x 8" Lumber 35" length) - its 1" x 8" Wood Side #2, which is bottom-facing, should connect to part 31's 1" x 8" Wood End #2. Also, its 1" x 8" Wood End #1 needs to point right. Additionally, its 1" x 8" Wood Side #1 must be oriented back, also its 1" x 8" Wood Side #3 must be oriented front, plus its 1" x 8" Wood Side #4 should be directed top, and its 1" x 8" Wood End #2 must be oriented left P35 (1" x 8" Lumber 35" length) - attach its 1" x 8" Wood Side #1 facing back to part 37's 1" x 8" Wood Side #3. Also, its 1" x 8" Wood Side #2, which is bottom-facing, should connect to part 32's 1" x 8" Wood End #2, and its 1" x 8" Wood End #1 needs to point right, then ensure its 1" x 8" Wood Side #3 faces front, also its 1" x 8" Wood Side #4 needs to point top, and its 1" x 8" Wood End #2 should be directed left P36 (1" x 8" Lumber 35" length) - attach its 1" x 8" Wood Side #1 facing back to part 38's 1" x 8" Wood Side #3. Additionally, connect its 1" x 8" Wood Side #2 oriented bottom links with part 33's 1" x 8" Wood End #2. Also, its 1" x 8" Wood End #1 needs to point right, also its 1" x 8" Wood Side #3 should be directed front. After that, its 1" x 8" Wood Side #4 must be oriented top. After that, ensure its 1" x 8" Wood End #2 faces left P37 (1" x 8" Lumber 23" length) - its 1" x 8" Wood Side #1, which is back-facing, should connect to part 5's 1" x 8" Wood Side #4, also its 1" x 8" Wood Side #3, which is front-facing, should connect to part 38's 1" x 8" Wood Side #1, plus connect its 1" x 8" Wood End #2 oriented top links with part 34's 1" x 8" Wood Side #2, and its 1" x 8" Wood End #1 needs to point bottom, then its 1" x 8" Wood Side #2 needs to point left, plus its 1" x 8" Wood Side #4 should be directed right P38 (1" x 8" Lumber 14.5" length) - attach its 1" x 8" Wood Side #1 facing back to part 37's 1" x 8" Wood Side #3. Also, connect its 1" x 8" Wood Side #3 oriented front links with part 39's 1" x 8" Wood Side #1. Next, connect its 1" x 8" Wood End #2 oriented top links with part 35's 1" x 8" Wood Side #2. Additionally, its 1" x 8" Wood End #1 must be oriented bottom, then its 1" x 8" Wood Side #2 should be directed left. Next, its 1" x 8" Wood Side #4 must be oriented right P39 (1" x 8" Lumber 8" length) - its 1" x 8" Wood Side #1, which is back-facing, should connect to part 38's 1" x 8" Wood Side #3. After that, connect its 1" x 8" Wood End #2 oriented top links with part 36's 1" x 8" Wood Side #2, also ensure its 1" x 8" Wood End #1 faces bottom. Next, ensure its 1" x 8" Wood Side #2 faces left. Also, its 1" x 8" Wood Side #3 should be directed front. Also, its 1" x 8" Wood Side #4 should be directed right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

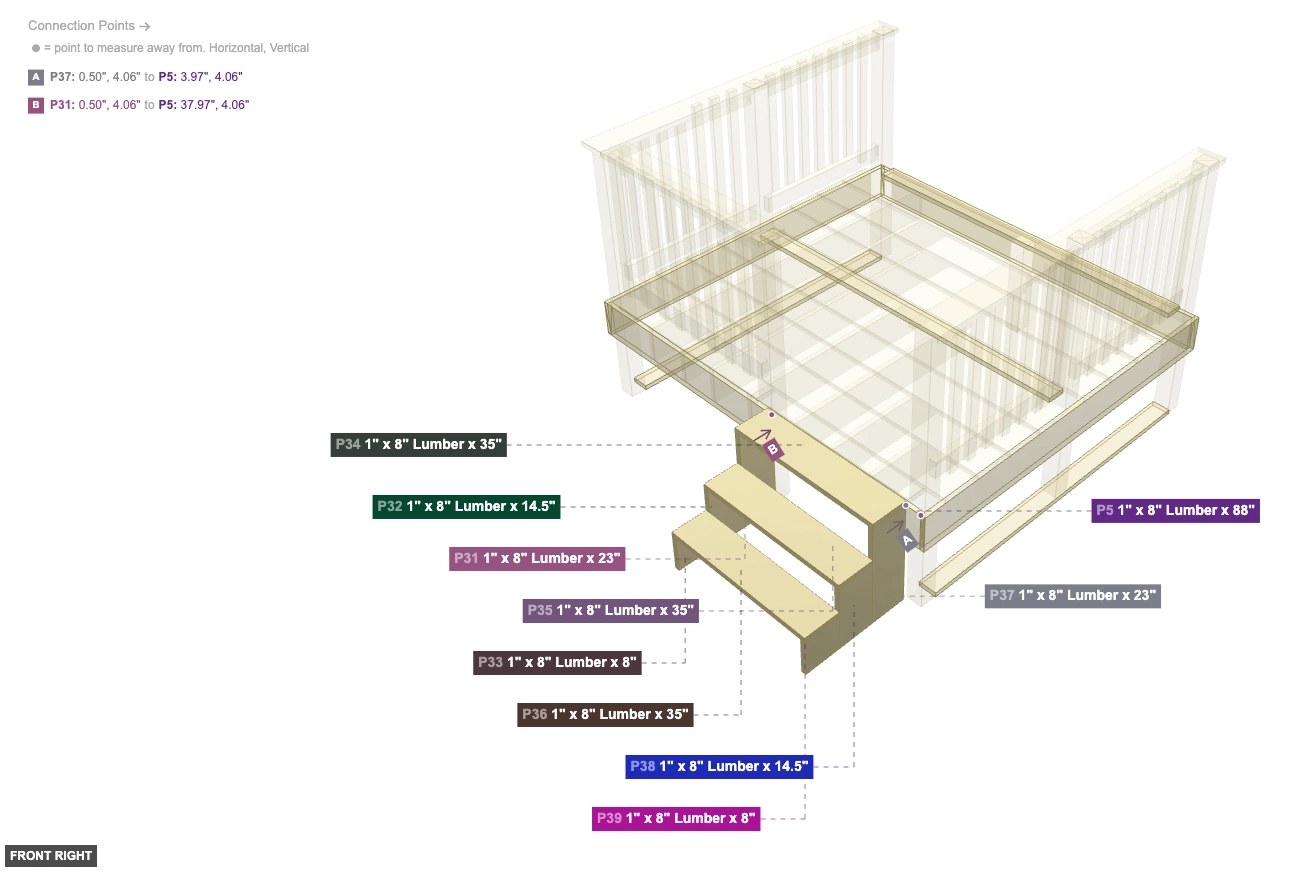

Angle: front right

Assembly of Stair Assembly - front_right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Angle: bottom right

Assembly of Stair Assembly - bottom_right

1" x 8" Lumber x 23"x 2

1" x 8" Lumber x 14.5"x 2

1" x 8" Lumber x 8"x 2

1" x 8" Lumber x 35"x 3

Attaching: Railing Frame

Install the horizontal top and bottom rails for the railing system between the posts.

Angle: back left

P23 (2" x 4" Lumber 34.75" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 52's 4" x 4" Wood Side #1, plus attach its 2" x 4" Wood Side #4 facing right to part 55's 1" x 2" Wood Side #2, plus attach its 2" x 4" Wood End #2 facing front to part 1's 4" x 4" Wood Side #2, also ensure its 2" x 4" Wood Side #1 faces top, also its 2" x 4" Wood Side #2 needs to point left. Additionally, its 2" x 4" Wood Side #3 should be directed bottom P24 (2" x 4" Lumber 34.75" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 52's 4" x 4" Wood Side #3. Also, attach its 2" x 4" Wood Side #2 facing right to part 65's 1" x 2" Wood Side #2, then connect its 2" x 4" Wood End #2 oriented back links with part 3's 4" x 4" Wood Side #1, plus its 2" x 4" Wood Side #1 must be oriented top. Additionally, ensure its 2" x 4" Wood Side #3 faces bottom, then ensure its 2" x 4" Wood Side #4 faces left P25 (2" x 4" Lumber 34.75" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 52's 4" x 4" Wood Side #1, plus attach its 2" x 4" Wood Side #1 facing top to part 2's 1" x 6" Wood Side #2. After that, connect its 2" x 4" Wood Side #4 oriented right links with part 55's 1" x 2" Wood Side #2, also attach its 2" x 4" Wood End #2 facing front to part 1's 4" x 4" Wood Side #2. Additionally, its 2" x 4" Wood Side #2 should be directed left. Next, ensure its 2" x 4" Wood Side #3 faces bottom P26 (2" x 4" Lumber 34.75" length) - connect its 2" x 4" Wood End #1 oriented back links with part 3's 4" x 4" Wood Side #1, and attach its 2" x 4" Wood Side #2 facing right to part 65's 1" x 2" Wood Side #2, and its 2" x 4" Wood Side #3, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2, also attach its 2" x 4" Wood End #2 facing front to part 52's 4" x 4" Wood Side #3. Additionally, ensure its 2" x 4" Wood Side #1 faces bottom. After that, ensure its 2" x 4" Wood Side #4 faces left P27 (2" x 4" Lumber 42.5" length) - attach its 2" x 4" Wood End #1 facing right to part 12's 4" x 4" Wood Side #1. After that, its 2" x 4" Wood Side #4, which is front-facing, should connect to part 92's 1" x 2" Wood Side #2. Additionally, attach its 2" x 4" Wood End #2 facing left to part 91's 4" x 4" Wood Side #1. After that, its 2" x 4" Wood Side #1 needs to point top. Also, its 2" x 4" Wood Side #2 should be directed back. Next, its 2" x 4" Wood Side #3 should be directed bottom P28 (2" x 4" Lumber 42.5" length) - attach its 2" x 4" Wood End #1 facing right to part 12's 4" x 4" Wood Side #1. Additionally, connect its 2" x 4" Wood Side #1 oriented top links with part 22's 1" x 6" Wood Side #2. Also, attach its 2" x 4" Wood Side #4 facing front to part 92's 1" x 2" Wood Side #2, plus attach its 2" x 4" Wood End #2 facing left to part 91's 4" x 4" Wood Side #1. Next, its 2" x 4" Wood Side #2 should be directed back, plus its 2" x 4" Wood Side #3 must be oriented bottom P29 (2" x 4" Lumber 34.75" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 7's 4" x 4" Wood Side #3, plus attach its 2" x 4" Wood Side #4 facing left to part 72's 1" x 2" Wood Side #2, and attach its 2" x 4" Wood End #2 facing back to part 6's 4" x 4" Wood Side #1. After that, ensure its 2" x 4" Wood Side #1 faces top, and its 2" x 4" Wood Side #2 needs to point right, then its 2" x 4" Wood Side #3 must be oriented bottom P30 (2" x 4" Lumber 34.75" length) - connect its 2" x 4" Wood End #1 oriented back links with part 7's 4" x 4" Wood Side #1, plus its 2" x 4" Wood Side #4, which is left-facing, should connect to part 79's 1" x 2" Wood Side #2, and connect its 2" x 4" Wood End #2 oriented front links with part 91's 4" x 4" Wood Side #2. Next, its 2" x 4" Wood Side #1 must be oriented bottom. Next, ensure its 2" x 4" Wood Side #2 faces right, and its 2" x 4" Wood Side #3 must be oriented top P53 (2" x 4" Lumber 34.75" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 91's 4" x 4" Wood Side #2, and connect its 2" x 4" Wood Side #1 oriented top links with part 21's 1" x 6" Wood Side #2, then its 2" x 4" Wood Side #4, which is left-facing, should connect to part 79's 1" x 2" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is back-facing, should connect to part 7's 4" x 4" Wood Side #1. Also, ensure its 2" x 4" Wood Side #2 faces right. Additionally, its 2" x 4" Wood Side #3 must be oriented bottom P54 (2" x 4" Lumber 34.75" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 7's 4" x 4" Wood Side #3, also connect its 2" x 4" Wood Side #1 oriented top links with part 21's 1" x 6" Wood Side #2, also connect its 2" x 4" Wood Side #4 oriented left links with part 72's 1" x 2" Wood Side #2. After that, connect its 2" x 4" Wood End #2 oriented back links with part 6's 4" x 4" Wood Side #1. Also, ensure its 2" x 4" Wood Side #2 faces right, plus ensure its 2" x 4" Wood Side #3 faces bottom

2" x 4" Lumber x 34.75"x 8

2" x 4" Lumber x 42.5"x 2

Angle: front right

2" x 4" Lumber x 34.75"x 8

2" x 4" Lumber x 42.5"x 2

Angle: bottom right

Assembly of Railing Frame - bottom_right

2" x 4" Lumber x 34.75"x 8

2" x 4" Lumber x 42.5"x 2

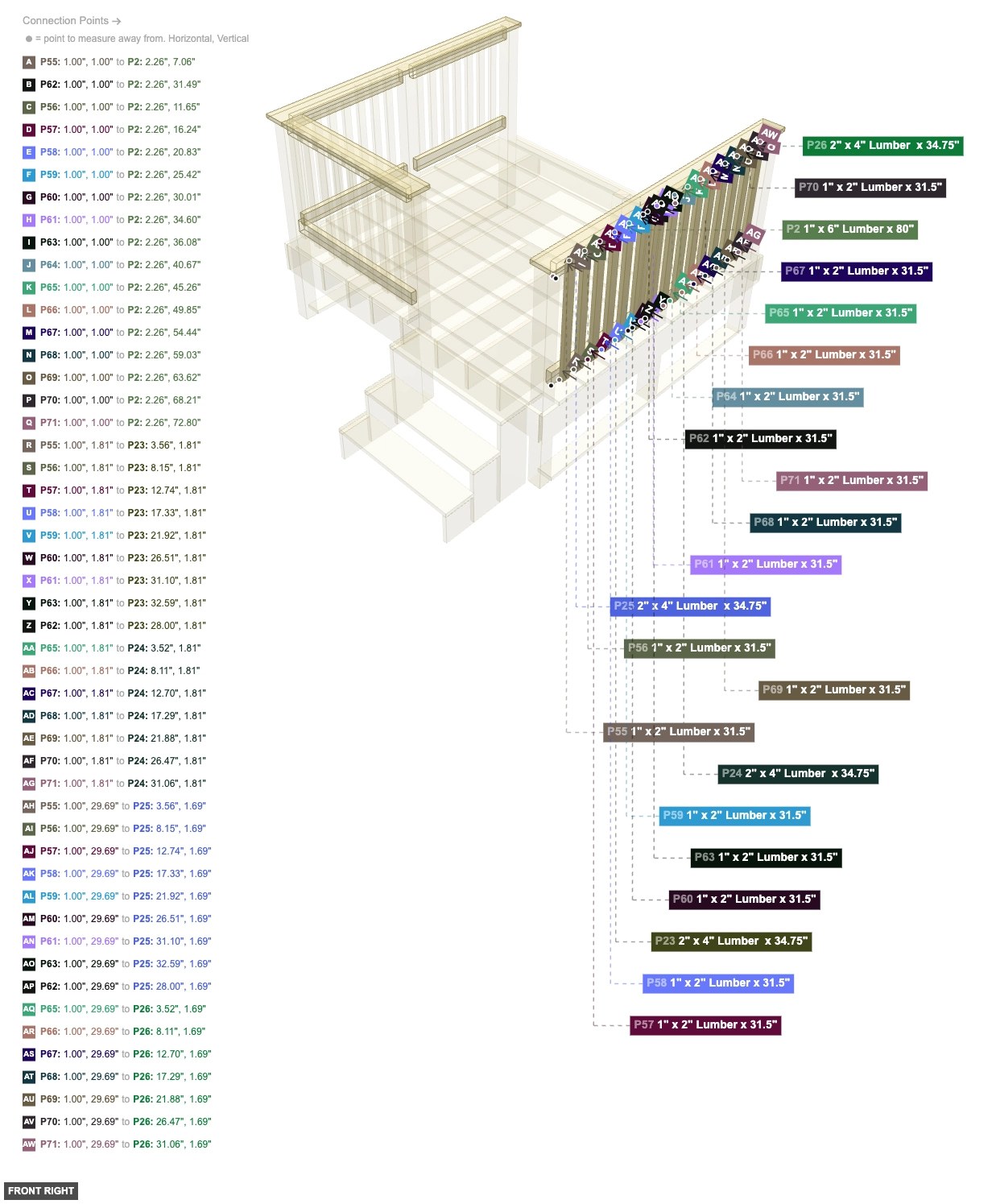

Attaching: Front/Back Railing Balusters

Attach the vertical balusters (spindles) to the front and back sections of the railing frame.

Angle: back left

Assembly of Front/Back Railing Balusters - back_left

P55 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 23's 2" x 4" Wood Side #4, then connect its 1" x 2" Wood End #2 oriented top links with part 2's 1" x 6" Wood Side #2, then ensure its 1" x 2" Wood End #1 faces bottom. Also, ensure its 1" x 2" Wood Side #1 faces back. Additionally, ensure its 1" x 2" Wood Side #3 faces front, then ensure its 1" x 2" Wood Side #4 faces right P56 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 23's 2" x 4" Wood Side #4. After that, attach its 1" x 2" Wood End #2 facing top to part 2's 1" x 6" Wood Side #2, then its 1" x 2" Wood End #1 should be directed bottom, and its 1" x 2" Wood Side #1 must be oriented back, plus ensure its 1" x 2" Wood Side #3 faces front. Next, its 1" x 2" Wood Side #4 must be oriented right P57 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing left to part 23's 2" x 4" Wood Side #4. After that, its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2, then its 1" x 2" Wood End #1 needs to point bottom, also its 1" x 2" Wood Side #1 should be directed back. Additionally, its 1" x 2" Wood Side #3 should be directed front. Next, its 1" x 2" Wood Side #4 needs to point right P58 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 23's 2" x 4" Wood Side #4. Next, connect its 1" x 2" Wood End #2 oriented top links with part 2's 1" x 6" Wood Side #2, then its 1" x 2" Wood End #1 must be oriented bottom, plus ensure its 1" x 2" Wood Side #1 faces back, plus its 1" x 2" Wood Side #3 needs to point front, and its 1" x 2" Wood Side #4 should be directed right P59 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is left-facing, should connect to part 23's 2" x 4" Wood Side #4. Additionally, attach its 1" x 2" Wood End #2 facing top to part 2's 1" x 6" Wood Side #2, also its 1" x 2" Wood End #1 needs to point bottom. Next, ensure its 1" x 2" Wood Side #1 faces back, plus ensure its 1" x 2" Wood Side #3 faces front, also its 1" x 2" Wood Side #4 must be oriented right P60 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 23's 2" x 4" Wood Side #4, plus attach its 1" x 2" Wood End #2 facing top to part 2's 1" x 6" Wood Side #2. Also, ensure its 1" x 2" Wood End #1 faces bottom. Next, its 1" x 2" Wood Side #1 should be directed back, plus its 1" x 2" Wood Side #3 must be oriented front, also its 1" x 2" Wood Side #4 should be directed right P61 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is left-facing, should connect to part 23's 2" x 4" Wood Side #4, then its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2, plus its 1" x 2" Wood End #1 needs to point bottom, also ensure its 1" x 2" Wood Side #1 faces back, also its 1" x 2" Wood Side #3 needs to point front, plus its 1" x 2" Wood Side #4 should be directed right P62 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 23's 2" x 4" Wood Side #4, then attach its 1" x 2" Wood End #2 facing top to part 2's 1" x 6" Wood Side #2, then ensure its 1" x 2" Wood End #1 faces bottom. Additionally, ensure its 1" x 2" Wood Side #1 faces back, and its 1" x 2" Wood Side #3 should be directed front. Also, its 1" x 2" Wood Side #4 needs to point right P63 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 23's 2" x 4" Wood Side #4. Also, attach its 1" x 2" Wood End #2 facing top to part 2's 1" x 6" Wood Side #2, and its 1" x 2" Wood End #1 must be oriented bottom, plus its 1" x 2" Wood Side #1 needs to point back, then its 1" x 2" Wood Side #3 should be directed front. Also, its 1" x 2" Wood Side #4 should be directed right P64 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2, also ensure its 1" x 2" Wood End #1 faces bottom, also its 1" x 2" Wood Side #1 must be oriented back, also its 1" x 2" Wood Side #2 should be directed left, also its 1" x 2" Wood Side #3 should be directed front, then its 1" x 2" Wood Side #4 should be directed right P65 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing left to part 24's 2" x 4" Wood Side #2, and its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2. After that, its 1" x 2" Wood End #1 should be directed bottom, then ensure its 1" x 2" Wood Side #1 faces back, and its 1" x 2" Wood Side #3 should be directed front. Also, ensure its 1" x 2" Wood Side #4 faces right P66 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is left-facing, should connect to part 24's 2" x 4" Wood Side #2, plus its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2, also its 1" x 2" Wood End #1 needs to point bottom. Next, its 1" x 2" Wood Side #1 should be directed back, and its 1" x 2" Wood Side #3 should be directed front. Additionally, its 1" x 2" Wood Side #4 must be oriented right P67 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is left-facing, should connect to part 24's 2" x 4" Wood Side #2. Also, its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2, plus its 1" x 2" Wood End #1 needs to point bottom, and ensure its 1" x 2" Wood Side #1 faces back, plus its 1" x 2" Wood Side #3 should be directed front, then its 1" x 2" Wood Side #4 should be directed right P68 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing left to part 24's 2" x 4" Wood Side #2, and attach its 1" x 2" Wood End #2 facing top to part 2's 1" x 6" Wood Side #2. Also, ensure its 1" x 2" Wood End #1 faces bottom. Next, ensure its 1" x 2" Wood Side #1 faces back, and its 1" x 2" Wood Side #3 must be oriented front. Also, its 1" x 2" Wood Side #4 needs to point right P69 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 24's 2" x 4" Wood Side #2, then attach its 1" x 2" Wood End #2 facing top to part 2's 1" x 6" Wood Side #2. After that, its 1" x 2" Wood End #1 needs to point bottom. Also, ensure its 1" x 2" Wood Side #1 faces back. Next, ensure its 1" x 2" Wood Side #3 faces front. Also, its 1" x 2" Wood Side #4 should be directed right P70 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 24's 2" x 4" Wood Side #2. Additionally, its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2. Next, its 1" x 2" Wood End #1 must be oriented bottom, and its 1" x 2" Wood Side #1 should be directed back, then its 1" x 2" Wood Side #3 needs to point front. After that, its 1" x 2" Wood Side #4 must be oriented right P71 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented left links with part 24's 2" x 4" Wood Side #2. Also, its 1" x 2" Wood End #2, which is top-facing, should connect to part 2's 1" x 6" Wood Side #2. Additionally, its 1" x 2" Wood End #1 should be directed bottom. Also, its 1" x 2" Wood Side #1 needs to point back. Additionally, its 1" x 2" Wood Side #3 should be directed front. After that, its 1" x 2" Wood Side #4 must be oriented right

1" x 2" Lumber x 31.5"x 17

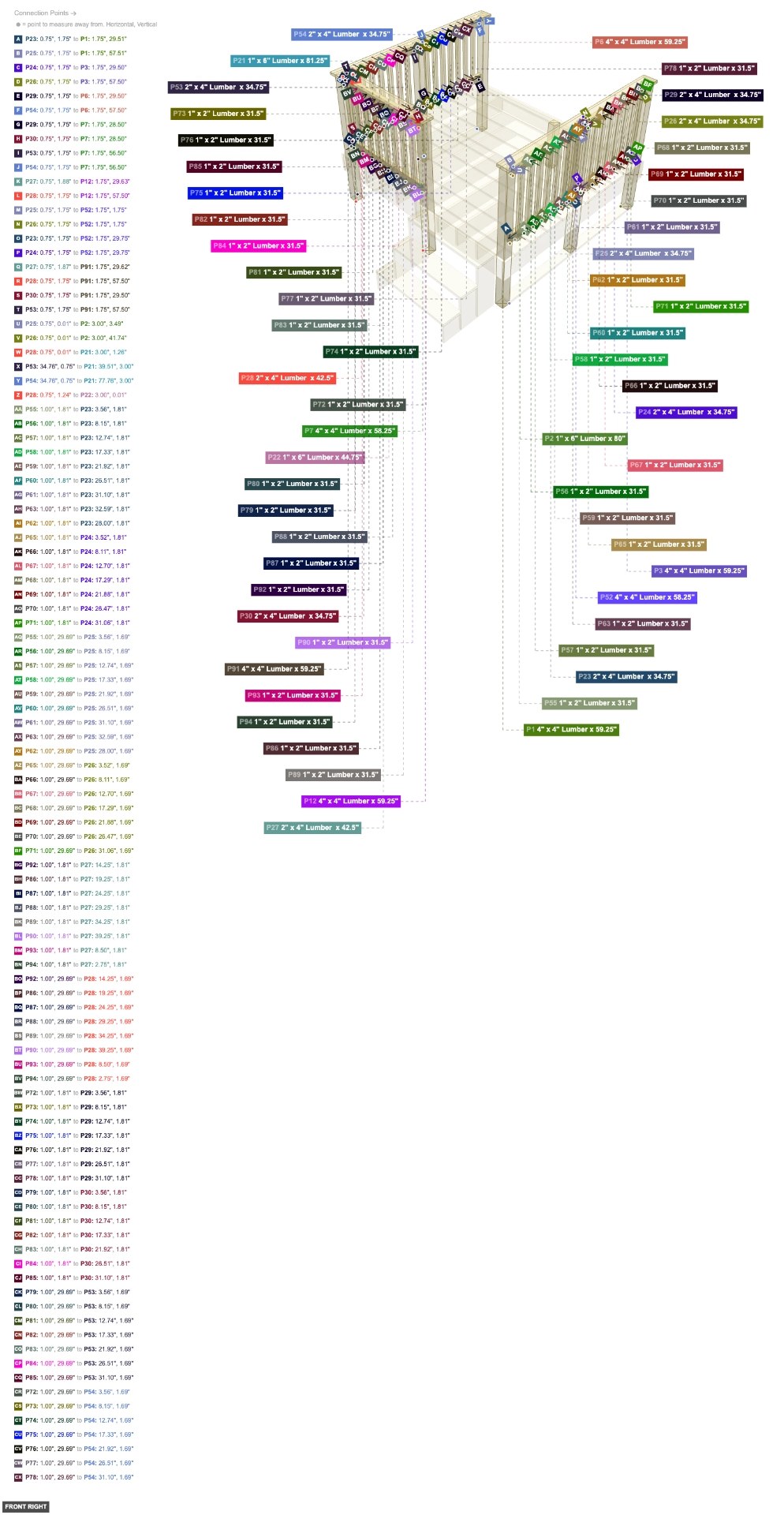

Angle: front right

Assembly of Front/Back Railing Balusters - front_right

1" x 2" Lumber x 31.5"x 17

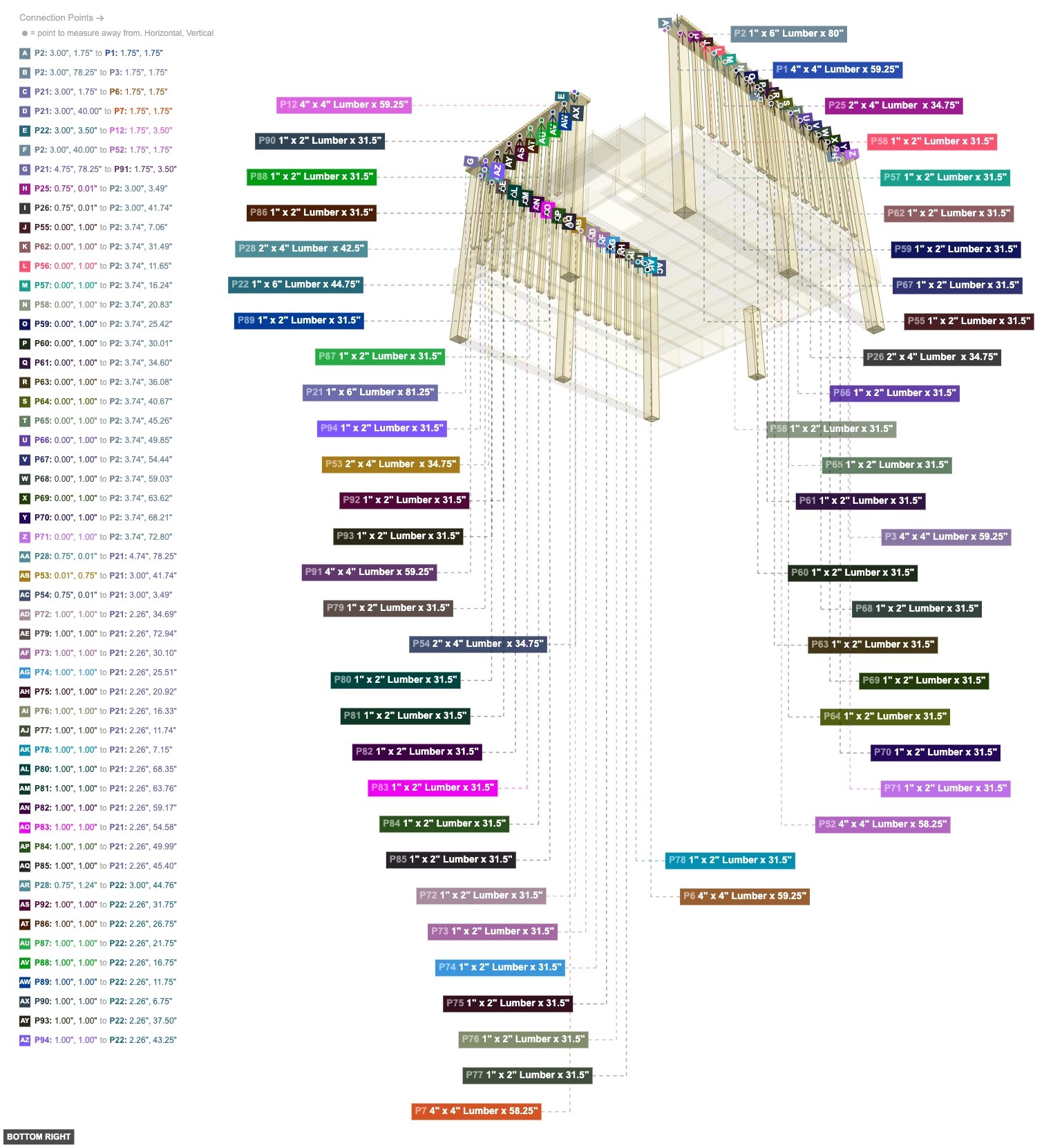

Angle: bottom right

Assembly of Front/Back Railing Balusters - bottom_right

1" x 2" Lumber x 31.5"x 17

Attaching: Left Side Railing Balusters

Attach the vertical balusters (spindles) to the left side section of the railing frame.

Angle: back left

Assembly of Left Side Railing Balusters - back_left

P72 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented right links with part 29's 2" x 4" Wood Side #4. Also, connect its 1" x 2" Wood End #2 oriented top links with part 21's 1" x 6" Wood Side #2, then its 1" x 2" Wood End #1 needs to point bottom. Next, its 1" x 2" Wood Side #1 must be oriented front. Next, its 1" x 2" Wood Side #3 needs to point back, and ensure its 1" x 2" Wood Side #4 faces left P73 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing right to part 29's 2" x 4" Wood Side #4, then connect its 1" x 2" Wood End #2 oriented top links with part 21's 1" x 6" Wood Side #2, then ensure its 1" x 2" Wood End #1 faces bottom. Next, its 1" x 2" Wood Side #1 must be oriented front. Additionally, its 1" x 2" Wood Side #3 should be directed back. Also, its 1" x 2" Wood Side #4 must be oriented left P74 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing right to part 29's 2" x 4" Wood Side #4. Next, connect its 1" x 2" Wood End #2 oriented top links with part 21's 1" x 6" Wood Side #2, plus its 1" x 2" Wood End #1 should be directed bottom. Next, its 1" x 2" Wood Side #1 must be oriented front. Next, ensure its 1" x 2" Wood Side #3 faces back, then its 1" x 2" Wood Side #4 needs to point left P75 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing right to part 29's 2" x 4" Wood Side #4, and connect its 1" x 2" Wood End #2 oriented top links with part 21's 1" x 6" Wood Side #2. Next, its 1" x 2" Wood End #1 needs to point bottom, and ensure its 1" x 2" Wood Side #1 faces front. Also, ensure its 1" x 2" Wood Side #3 faces back, also ensure its 1" x 2" Wood Side #4 faces left P76 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 29's 2" x 4" Wood Side #4, plus attach its 1" x 2" Wood End #2 facing top to part 21's 1" x 6" Wood Side #2, plus its 1" x 2" Wood End #1 needs to point bottom. After that, its 1" x 2" Wood Side #1 needs to point front, plus its 1" x 2" Wood Side #3 needs to point back, plus its 1" x 2" Wood Side #4 must be oriented left P77 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is right-facing, should connect to part 29's 2" x 4" Wood Side #4, plus connect its 1" x 2" Wood End #2 oriented top links with part 21's 1" x 6" Wood Side #2, and its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 must be oriented front. After that, its 1" x 2" Wood Side #3 must be oriented back, and its 1" x 2" Wood Side #4 should be directed left P78 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing right to part 29's 2" x 4" Wood Side #4, and its 1" x 2" Wood End #2, which is top-facing, should connect to part 21's 1" x 6" Wood Side #2. Next, its 1" x 2" Wood End #1 must be oriented bottom, also its 1" x 2" Wood Side #1 should be directed front. Next, its 1" x 2" Wood Side #3 should be directed back, and ensure its 1" x 2" Wood Side #4 faces left P79 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 21's 1" x 6" Wood Side #2, also connect its 1" x 2" Wood Side #2 oriented right links with part 30's 2" x 4" Wood Side #4. Next, its 1" x 2" Wood Side #1 should be directed back, then ensure its 1" x 2" Wood Side #3 faces front. Next, ensure its 1" x 2" Wood Side #4 faces left, then ensure its 1" x 2" Wood End #2 faces bottom P80 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood End #1, which is top-facing, should connect to part 21's 1" x 6" Wood Side #2, plus attach its 1" x 2" Wood Side #2 facing right to part 30's 2" x 4" Wood Side #4, plus its 1" x 2" Wood Side #1 should be directed back. Also, ensure its 1" x 2" Wood Side #3 faces front, then ensure its 1" x 2" Wood Side #4 faces left. Also, ensure its 1" x 2" Wood End #2 faces bottom P81 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood End #1 facing top to part 21's 1" x 6" Wood Side #2. Also, connect its 1" x 2" Wood Side #2 oriented right links with part 30's 2" x 4" Wood Side #4. Also, ensure its 1" x 2" Wood Side #1 faces back, plus its 1" x 2" Wood Side #3 must be oriented front, then its 1" x 2" Wood Side #4 needs to point left, plus its 1" x 2" Wood End #2 needs to point bottom P82 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood End #1 facing top to part 21's 1" x 6" Wood Side #2. After that, connect its 1" x 2" Wood Side #2 oriented right links with part 30's 2" x 4" Wood Side #4, then ensure its 1" x 2" Wood Side #1 faces back, also its 1" x 2" Wood Side #3 needs to point front. Additionally, ensure its 1" x 2" Wood Side #4 faces left. Next, its 1" x 2" Wood End #2 should be directed bottom P83 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood End #1 facing top to part 21's 1" x 6" Wood Side #2. After that, connect its 1" x 2" Wood Side #2 oriented right links with part 30's 2" x 4" Wood Side #4, plus its 1" x 2" Wood Side #1 needs to point back, also ensure its 1" x 2" Wood Side #3 faces front. Additionally, its 1" x 2" Wood Side #4 should be directed left. After that, its 1" x 2" Wood End #2 needs to point bottom P84 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood End #1 oriented top links with part 21's 1" x 6" Wood Side #2, also its 1" x 2" Wood Side #2, which is right-facing, should connect to part 30's 2" x 4" Wood Side #4, then its 1" x 2" Wood Side #1 must be oriented back, then its 1" x 2" Wood Side #3 needs to point front, plus its 1" x 2" Wood Side #4 should be directed left, then its 1" x 2" Wood End #2 needs to point bottom P85 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood End #1 facing top to part 21's 1" x 6" Wood Side #2. Next, connect its 1" x 2" Wood Side #2 oriented right links with part 30's 2" x 4" Wood Side #4. After that, ensure its 1" x 2" Wood Side #1 faces back. Next, its 1" x 2" Wood Side #3 should be directed front. Also, its 1" x 2" Wood Side #4 must be oriented left. Also, ensure its 1" x 2" Wood End #2 faces bottom

1" x 2" Lumber x 31.5"x 14

Angle: front right

Assembly of Left Side Railing Balusters - front_right

1" x 2" Lumber x 31.5"x 14

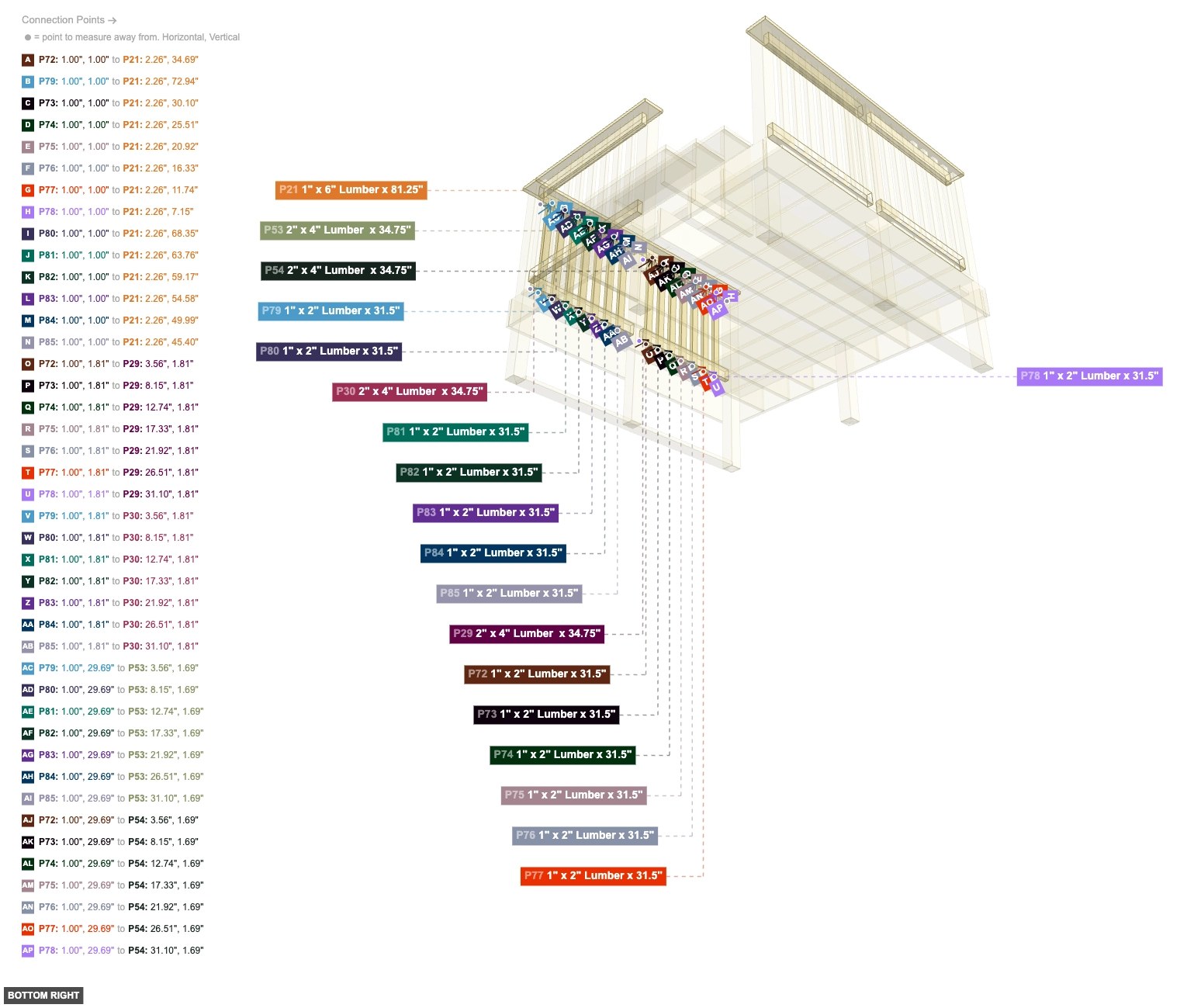

Angle: bottom right

Assembly of Left Side Railing Balusters - bottom_right

1" x 2" Lumber x 31.5"x 14

Attaching: Right Side Railing Balusters

Attach the vertical balusters (spindles) to the right side section of the railing frame.

Angle: back left

Assembly of Right Side Railing Balusters - back_left

P86 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented back links with part 27's 2" x 4" Wood Side #4, then attach its 1" x 2" Wood End #2 facing top to part 22's 1" x 6" Wood Side #2. After that, ensure its 1" x 2" Wood End #1 faces bottom, plus ensure its 1" x 2" Wood Side #1 faces right, also its 1" x 2" Wood Side #3 needs to point left. Also, its 1" x 2" Wood Side #4 should be directed front P87 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is back-facing, should connect to part 27's 2" x 4" Wood Side #4. Also, its 1" x 2" Wood End #2, which is top-facing, should connect to part 22's 1" x 6" Wood Side #2, then its 1" x 2" Wood End #1 needs to point bottom, also its 1" x 2" Wood Side #1 must be oriented right. Next, its 1" x 2" Wood Side #3 needs to point left, and ensure its 1" x 2" Wood Side #4 faces front P88 (1" x 2" Lumber 31.5" length) - connect its 1" x 2" Wood Side #2 oriented back links with part 27's 2" x 4" Wood Side #4, then its 1" x 2" Wood End #2, which is top-facing, should connect to part 22's 1" x 6" Wood Side #2, also ensure its 1" x 2" Wood End #1 faces bottom. Also, its 1" x 2" Wood Side #1 should be directed right, then its 1" x 2" Wood Side #3 must be oriented left, then its 1" x 2" Wood Side #4 needs to point front P89 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing back to part 27's 2" x 4" Wood Side #4. Additionally, attach its 1" x 2" Wood End #2 facing top to part 22's 1" x 6" Wood Side #2. Next, its 1" x 2" Wood End #1 should be directed bottom, plus its 1" x 2" Wood Side #1 must be oriented right. Next, ensure its 1" x 2" Wood Side #3 faces left. Also, its 1" x 2" Wood Side #4 needs to point front P90 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing back to part 27's 2" x 4" Wood Side #4. After that, connect its 1" x 2" Wood End #2 oriented top links with part 22's 1" x 6" Wood Side #2, then its 1" x 2" Wood End #1 needs to point bottom. Also, its 1" x 2" Wood Side #1 needs to point right. Also, its 1" x 2" Wood Side #3 needs to point left. After that, its 1" x 2" Wood Side #4 must be oriented front P92 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is back-facing, should connect to part 27's 2" x 4" Wood Side #4, plus attach its 1" x 2" Wood End #2 facing top to part 22's 1" x 6" Wood Side #2, also its 1" x 2" Wood End #1 should be directed bottom, and its 1" x 2" Wood Side #1 must be oriented right. After that, its 1" x 2" Wood Side #3 needs to point left. After that, its 1" x 2" Wood Side #4 should be directed front P93 (1" x 2" Lumber 31.5" length) - attach its 1" x 2" Wood Side #2 facing back to part 27's 2" x 4" Wood Side #4, plus its 1" x 2" Wood End #2, which is top-facing, should connect to part 22's 1" x 6" Wood Side #2, plus ensure its 1" x 2" Wood End #1 faces bottom, then its 1" x 2" Wood Side #1 must be oriented right. Next, its 1" x 2" Wood Side #3 needs to point left, then its 1" x 2" Wood Side #4 must be oriented front P94 (1" x 2" Lumber 31.5" length) - its 1" x 2" Wood Side #2, which is back-facing, should connect to part 27's 2" x 4" Wood Side #4. After that, its 1" x 2" Wood End #2, which is top-facing, should connect to part 22's 1" x 6" Wood Side #2, plus its 1" x 2" Wood End #1 should be directed bottom. Additionally, its 1" x 2" Wood Side #1 needs to point right, plus its 1" x 2" Wood Side #3 should be directed left, and its 1" x 2" Wood Side #4 needs to point front

1" x 2" Lumber x 31.5"x 8

Angle: front right

Assembly of Right Side Railing Balusters - front_right

1" x 2" Lumber x 31.5"x 8

Angle: bottom right

Assembly of Right Side Railing Balusters - bottom_right

1" x 2" Lumber x 31.5"x 8

Attaching: Side Railing Top Caps

Install the top cap boards onto the side railing sections.

Angle: back left

Assembly of Side Railing Top Caps - back_left

P44 (1" x 8" Lumber 90" length) - attach its 1" x 8" Wood Side #2 facing bottom to part 10's 1" x 8" Wood Side #3, then ensure its 1" x 8" Wood End #1 faces right. After that, its 1" x 8" Wood Side #1 needs to point back. After that, ensure its 1" x 8" Wood Side #3 faces front. Also, its 1" x 8" Wood Side #4 needs to point top. Next, its 1" x 8" Wood End #2 must be oriented left P45 (1" x 8" Lumber 90" length) - connect its 1" x 8" Wood Side #2 oriented bottom links with part 10's 1" x 8" Wood Side #3, and its 1" x 8" Wood End #1 must be oriented right. Also, its 1" x 8" Wood Side #1 should be directed back. Next, its 1" x 8" Wood Side #3 must be oriented front, plus its 1" x 8" Wood Side #4 should be directed top, also its 1" x 8" Wood End #2 needs to point left P46 (1" x 8" Lumber 90" length) - connect its 1" x 8" Wood Side #2 oriented bottom links with part 10's 1" x 8" Wood Side #3, also its 1" x 8" Wood End #1 needs to point right. Additionally, its 1" x 8" Wood Side #1 should be directed back. Additionally, ensure its 1" x 8" Wood Side #3 faces front, then its 1" x 8" Wood Side #4 should be directed top. After that, its 1" x 8" Wood End #2 needs to point left P47 (1" x 8" Lumber 90" length) - connect its 1" x 8" Wood Side #2 oriented bottom links with part 10's 1" x 8" Wood Side #3, plus its 1" x 8" Wood End #1 should be directed right, also its 1" x 8" Wood Side #1 must be oriented back, and its 1" x 8" Wood Side #3 should be directed front, then its 1" x 8" Wood Side #4 must be oriented top. Also, ensure its 1" x 8" Wood End #2 faces left P48 (1" x 8" Lumber 90" length) - attach its 1" x 8" Wood Side #2 facing bottom to part 10's 1" x 8" Wood Side #3. After that, its 1" x 8" Wood End #1 needs to point right, then ensure its 1" x 8" Wood Side #1 faces back, then its 1" x 8" Wood Side #3 should be directed front, then ensure its 1" x 8" Wood Side #4 faces top, plus its 1" x 8" Wood End #2 must be oriented left P49 (1" x 8" Lumber 90" length) - attach its 1" x 8" Wood Side #2 facing bottom to part 10's 1" x 8" Wood Side #3. Next, its 1" x 8" Wood End #1 needs to point right, also its 1" x 8" Wood Side #1 must be oriented back. Next, ensure its 1" x 8" Wood Side #3 faces front, then ensure its 1" x 8" Wood Side #4 faces top. Also, its 1" x 8" Wood End #2 needs to point left P50 (1" x 8" Lumber 90" length) - its 1" x 8" Wood Side #2, which is bottom-facing, should connect to part 10's 1" x 8" Wood Side #3, and ensure its 1" x 8" Wood End #1 faces right, also ensure its 1" x 8" Wood Side #1 faces back. Additionally, its 1" x 8" Wood Side #3 should be directed front. Also, its 1" x 8" Wood Side #4 should be directed top. Next, its 1" x 8" Wood End #2 must be oriented left P51 (1" x 8" Lumber 90" length) - connect its 1" x 8" Wood Side #2 oriented bottom links with part 10's 1" x 8" Wood Side #3, also ensure its 1" x 8" Wood End #1 faces right, then ensure its 1" x 8" Wood Side #1 faces back. Additionally, its 1" x 8" Wood Side #3 must be oriented front. Also, its 1" x 8" Wood Side #4 needs to point top. Next, ensure its 1" x 8" Wood End #2 faces left

1" x 8" Lumber x 90"x 8

Angle: front right

Assembly of Side Railing Top Caps - front_right

1" x 8" Lumber x 90"x 8

Angle: bottom right

Assembly of Side Railing Top Caps - bottom_right

1" x 8" Lumber x 90"x 8
