Sliding Truck Bed - Comprehensive Assembly Plan And Visual Guide

Sliding Truck Bed Free Plan And Visual Guide

A sliding platform, likely for a truck bed or storage area, constructed from T-slot aluminum extrusions. It features a main rectangular frame, a sliding mechanism with rollers and support rails, and a top surface made of acrylic panels attached with hangers. Handles are mounted on the front rail. - Sliding Truck Bed Drawer/Platform

Phase 1: Group Overview

Angle: back left

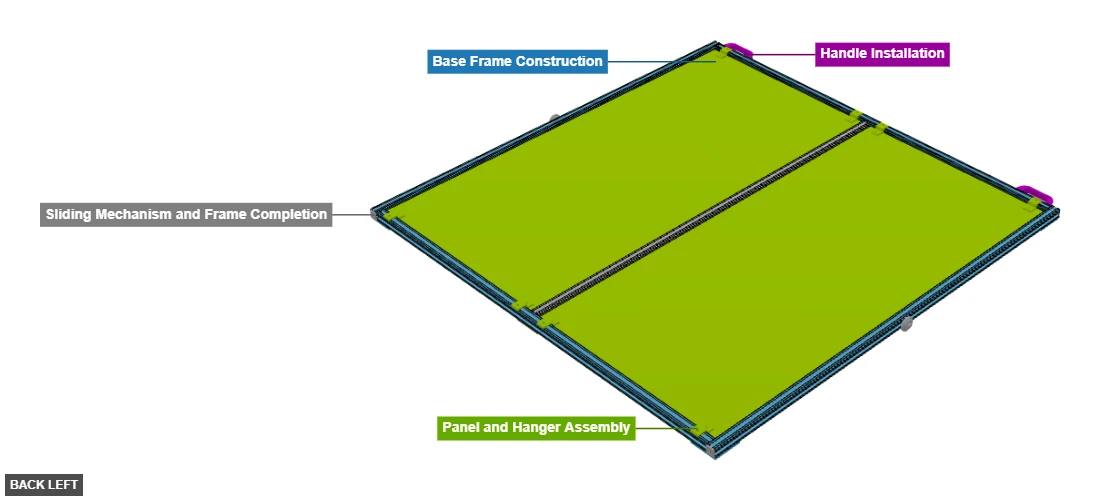

Sliding Truck Bed - Overview back_left
Base Frame Construction
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 49.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 47.75"x 2
11" Right 5 Hole 90° Angled Aluminum 80/20x 2
11" Left 5 Hole 90° Angled Aluminum 80/20x 2
Sliding Mechanism and Frame Completion
11" Tee Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 47.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
Roller WheelRoller Wheelx 2
Panel and Hanger Assembly
Hanger for Solid Panel Aluminum 80/20Hanger for Solid Panel Aluminum 80/20x 8
4' x 2' Acrylic Panel4' x 2' Acrylic Panelx 2
Handle Installation
Pull Handle Aluminum 80/20Pull Handle Aluminum 80/20x 2

Angle: front right

Sliding Truck Bed - Overview front_right
Base Frame Construction
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 49.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 47.75"x 2
11" Right 5 Hole 90° Angled Aluminum 80/20x 2
11" Left 5 Hole 90° Angled Aluminum 80/20x 2
Sliding Mechanism and Frame Completion
11" Tee Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 47.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
Roller WheelRoller Wheelx 2
Panel and Hanger Assembly
Hanger for Solid Panel Aluminum 80/20Hanger for Solid Panel Aluminum 80/20x 8
4' x 2' Acrylic Panel4' x 2' Acrylic Panelx 2
Handle Installation
Pull Handle Aluminum 80/20Pull Handle Aluminum 80/20x 2

Angle: bottom right

Sliding Truck Bed - Overview bottom_right
Base Frame Construction
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 49.5"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 47.75"x 2
11" Right 5 Hole 90° Angled Aluminum 80/20x 2
11" Left 5 Hole 90° Angled Aluminum 80/20x 2
Sliding Mechanism and Frame Completion
11" Tee Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 47.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 4
Roller WheelRoller Wheelx 2
Panel and Hanger Assembly
Hanger for Solid Panel Aluminum 80/20Hanger for Solid Panel Aluminum 80/20x 8
4' x 2' Acrylic Panel4' x 2' Acrylic Panelx 2
Handle Installation
Pull Handle Aluminum 80/20Pull Handle Aluminum 80/20x 2

Phase 2: Individual Group Assembly

Group: Base Frame Construction

To assemble the main rectangular structure of the sliding platform.

Connect Right Angle Bracket P21 between the bottom slot (Female Rail 80/20 #4) of Front Rail P2 and the bottom slot (Female Rail 80/20 #4) of Right Rail P1. Connect Left Angle Bracket P20 between the bottom slot (Female Rail 80/20 #4) of Front Rail P2 and the bottom slot (Female Rail 80/20 #2) of Left Rail P4. Connect Left Angle Bracket P19 between the bottom slot (Female Rail 80/20 #2) of Back Rail P3 and the bottom slot (Female Rail 80/20 #4) of Right Rail P1. Connect Right Angle Bracket P18 between the bottom slot (Female Rail 80/20 #2) of Back Rail P3 and the bottom slot (Female Rail 80/20 #2) of Left Rail P4.
