Utility Cart 2 - Comprehensive Assembly Plan And Visual Guide

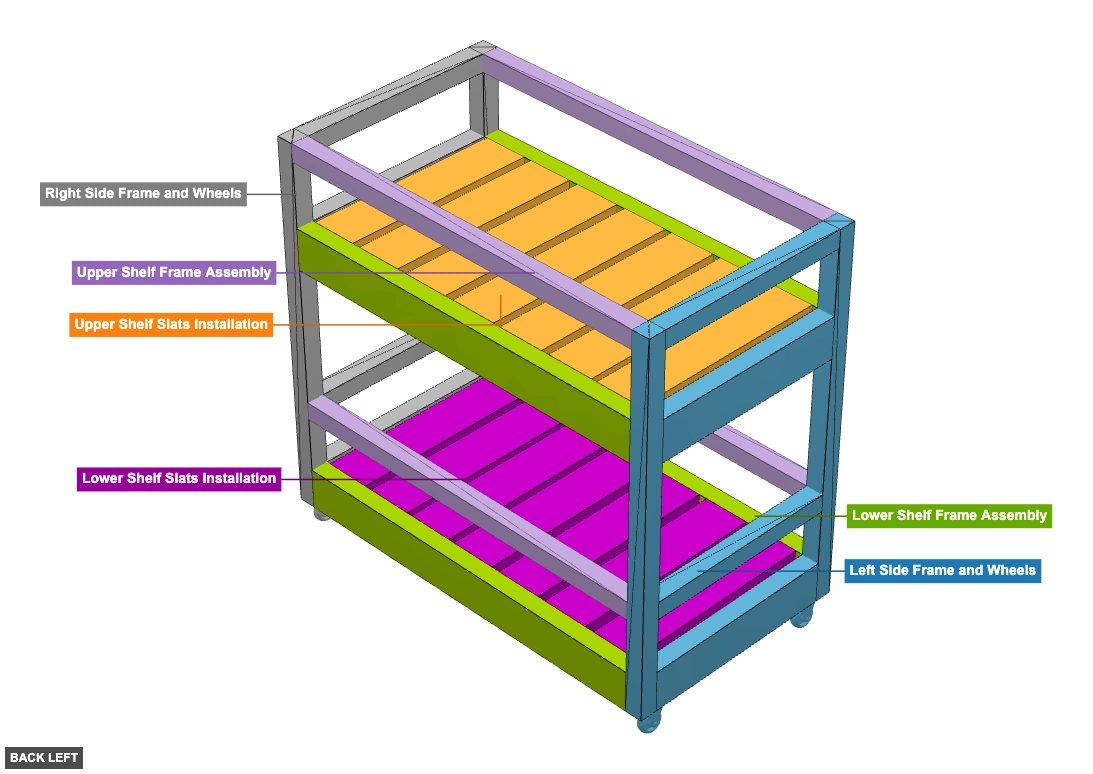

Utility Cart 2 Free Plan And Visual Guide

A two-tiered wooden utility cart with four caster wheels. The frame is constructed from 2x2 and 2x4 lumber, and the shelves are surfaced with 1x4 planks. - Utility Cart -A two-tiered wooden utility cart constructed from lumber (2x2s, 2x4s, 1x4s). It features four vertical posts, horizontal framing for two shelves, slatted shelf surfaces, and four caster wheels at the base. - Utility Cart

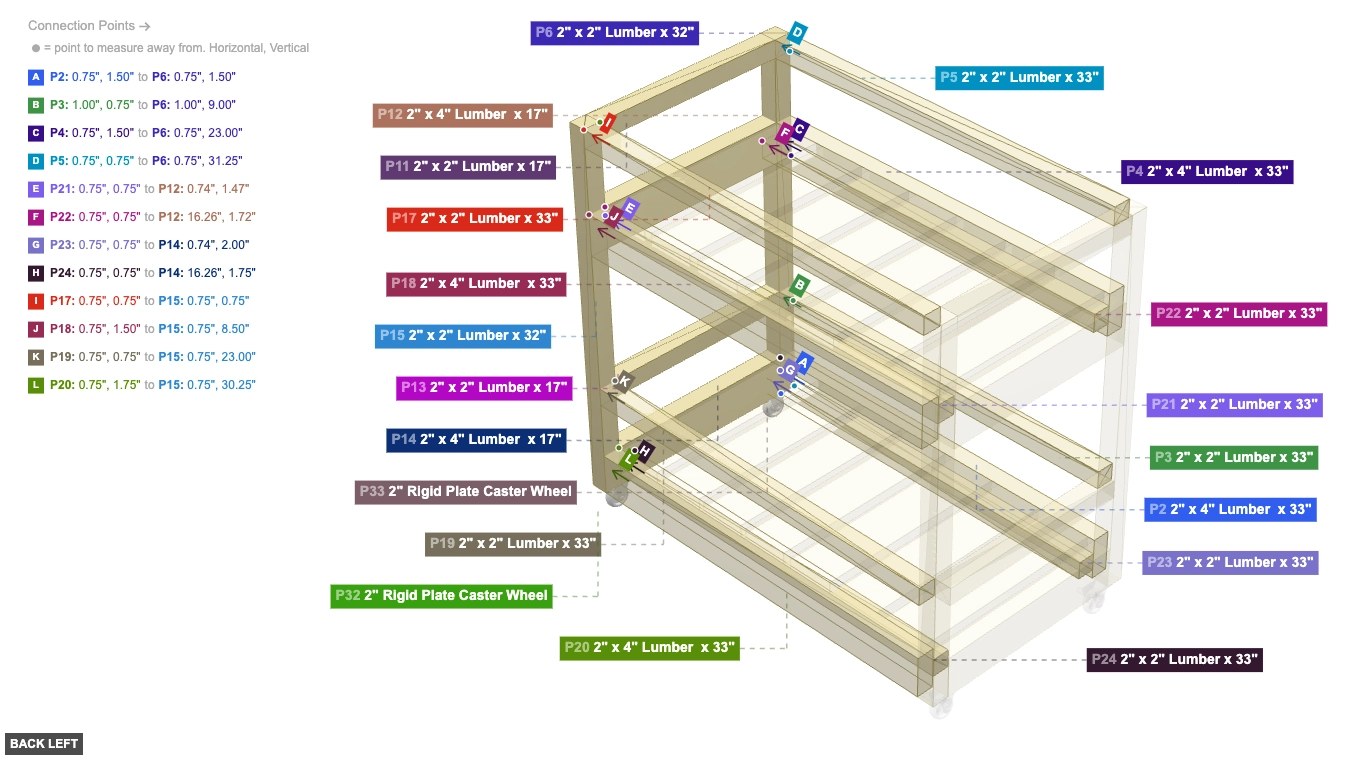

Phase 1: Group Overview

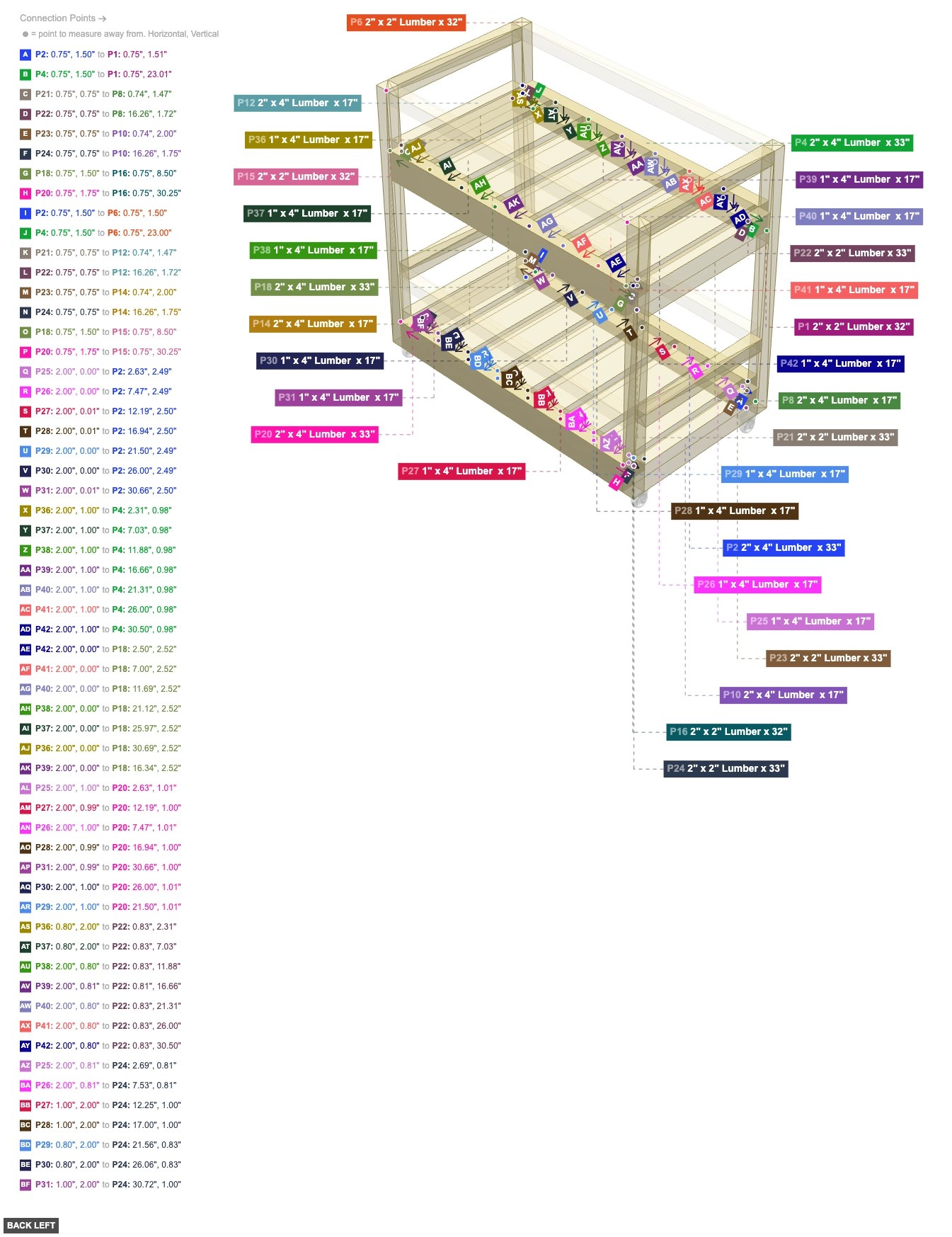

Angle: back left

Left Side Frame and Wheels

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Right Side Frame and Wheels

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

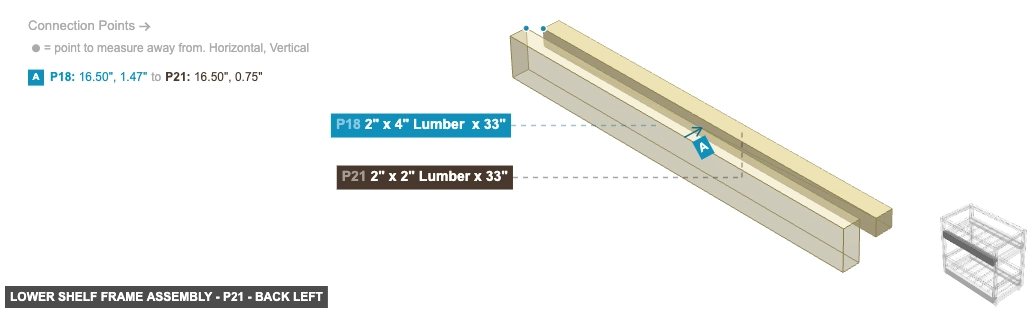

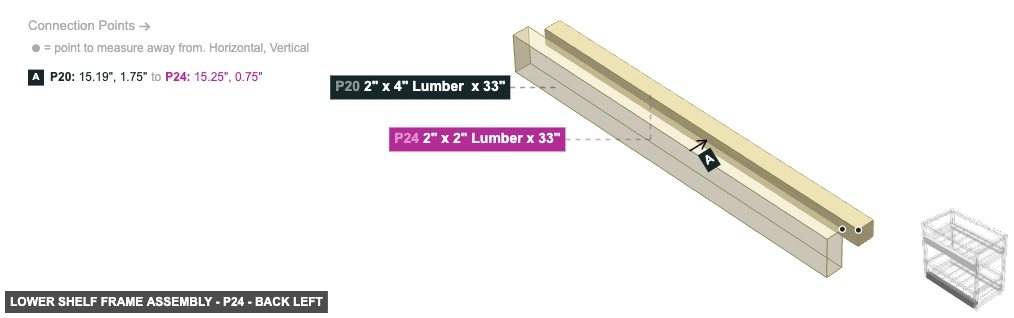

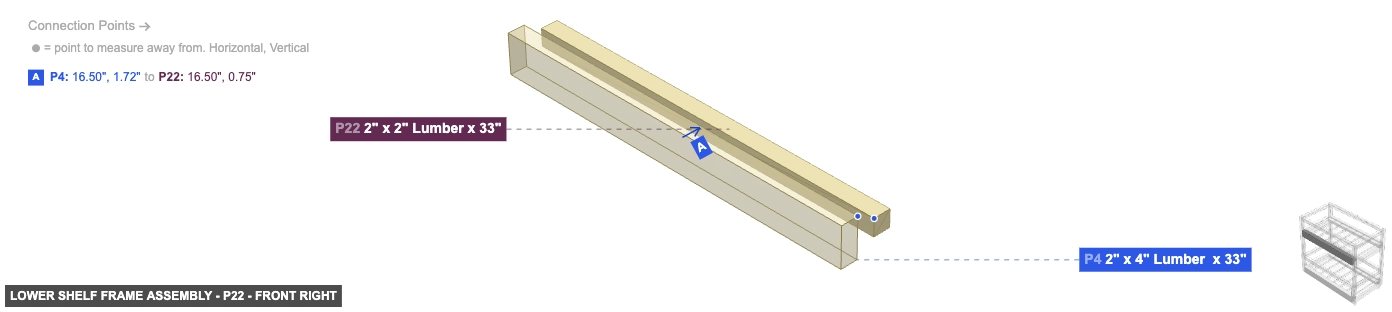

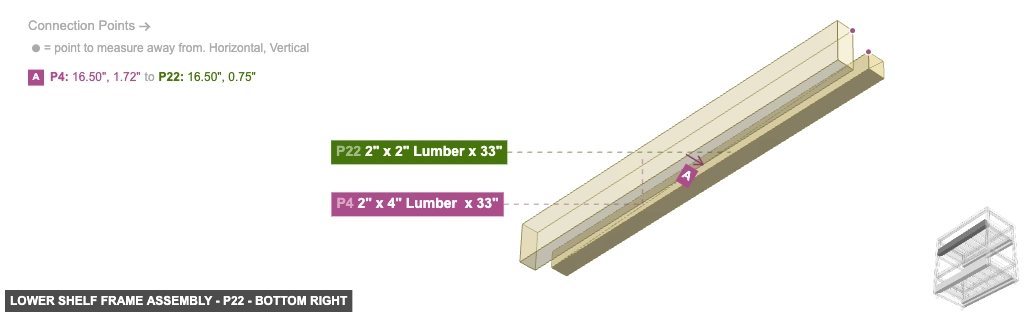

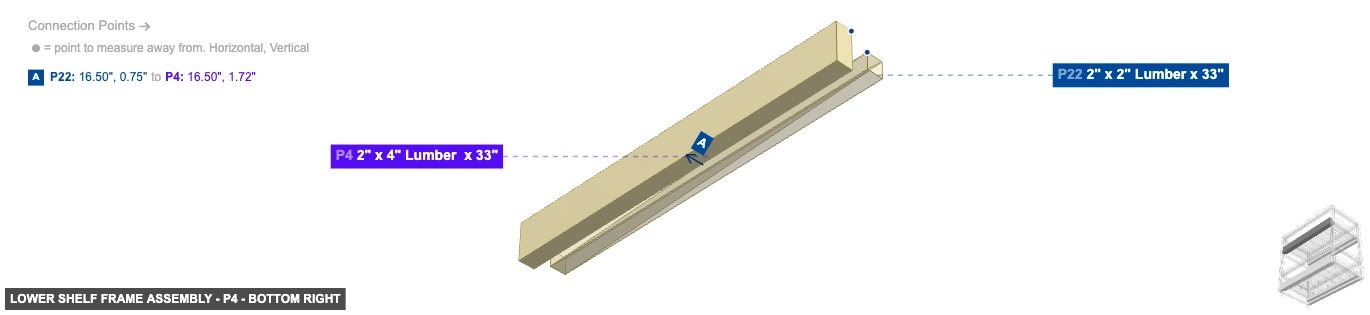

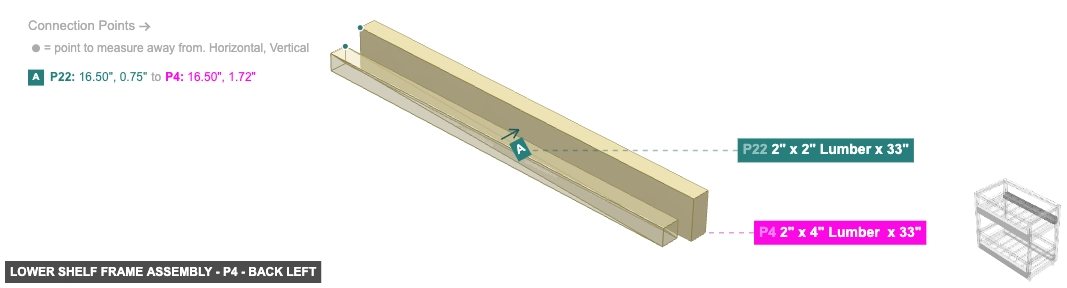

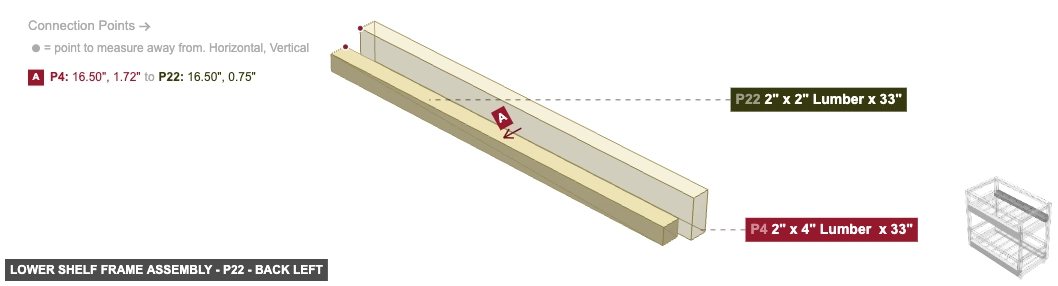

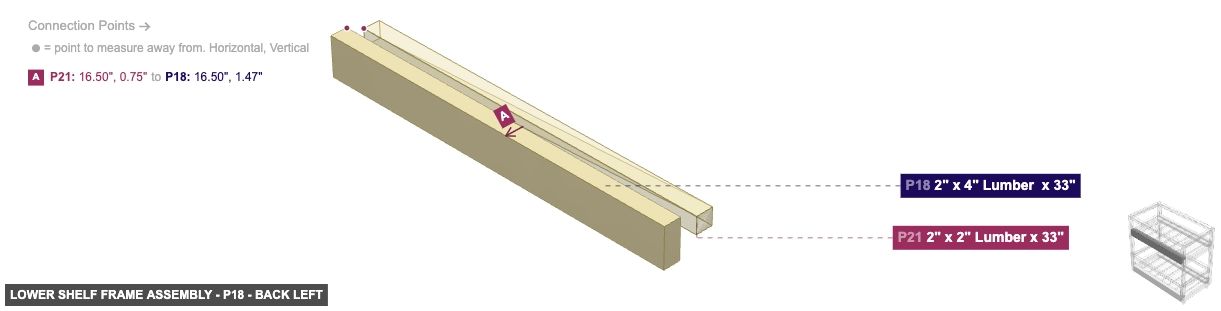

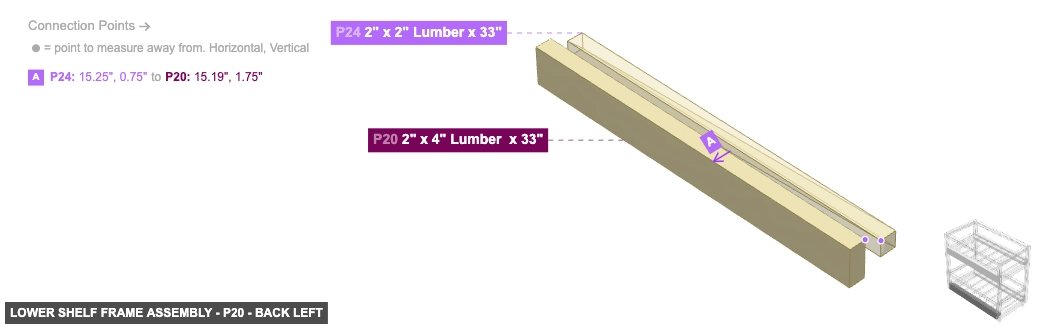

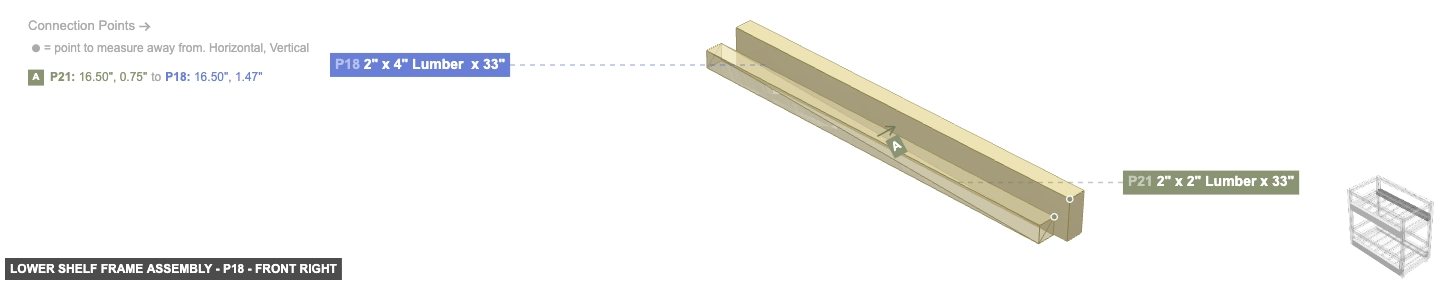

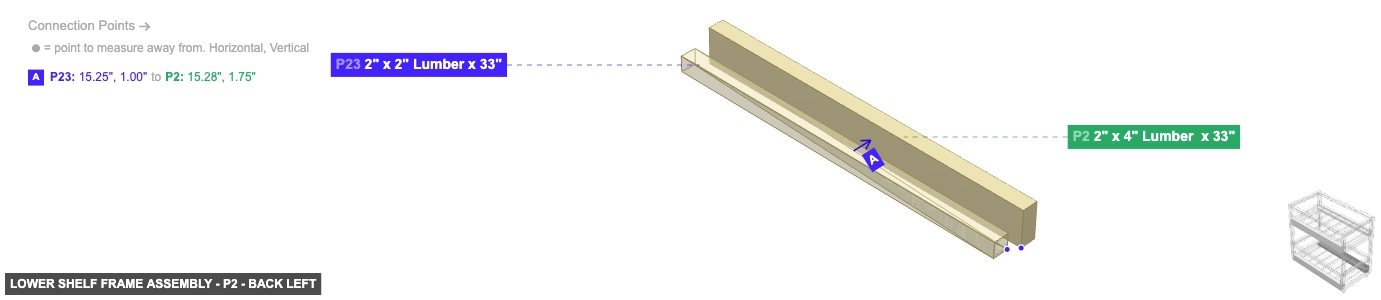

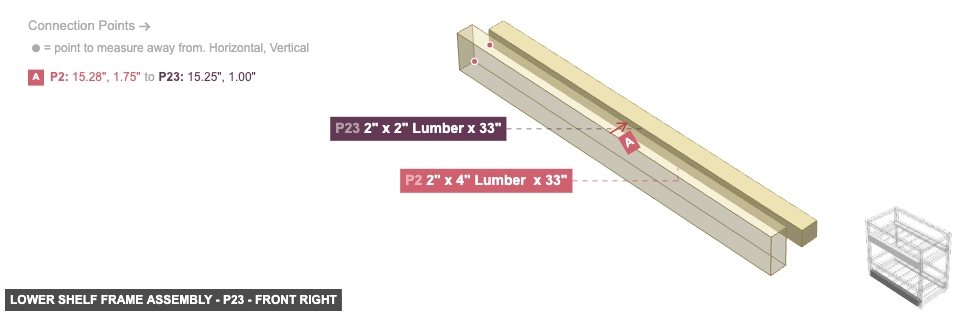

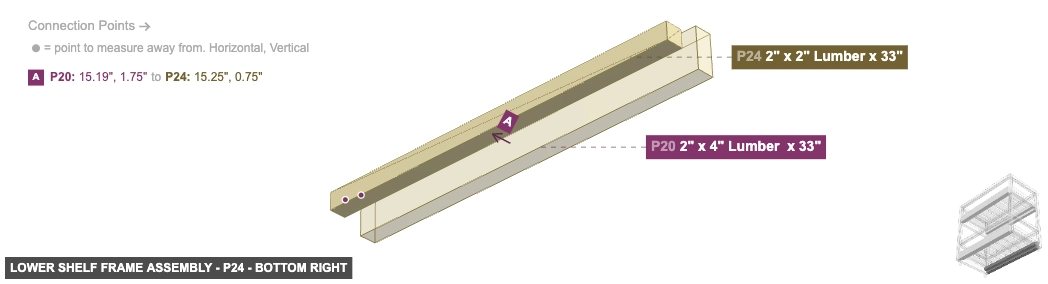

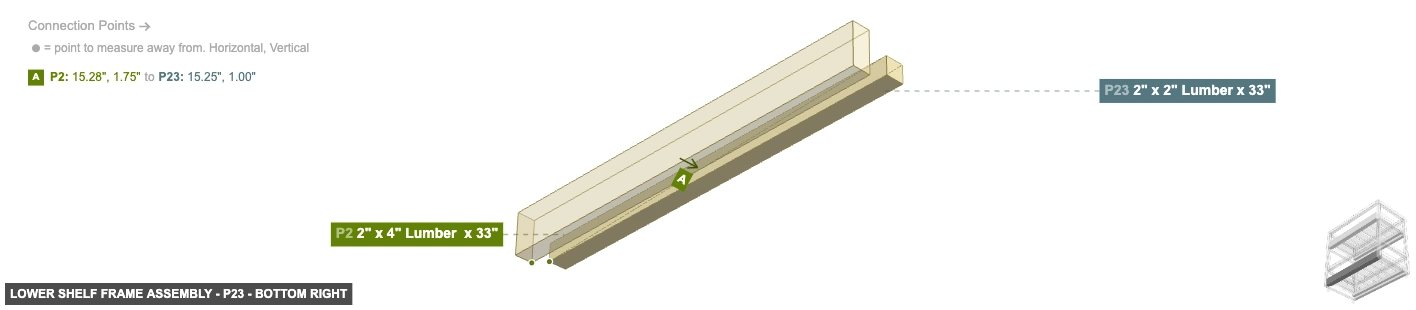

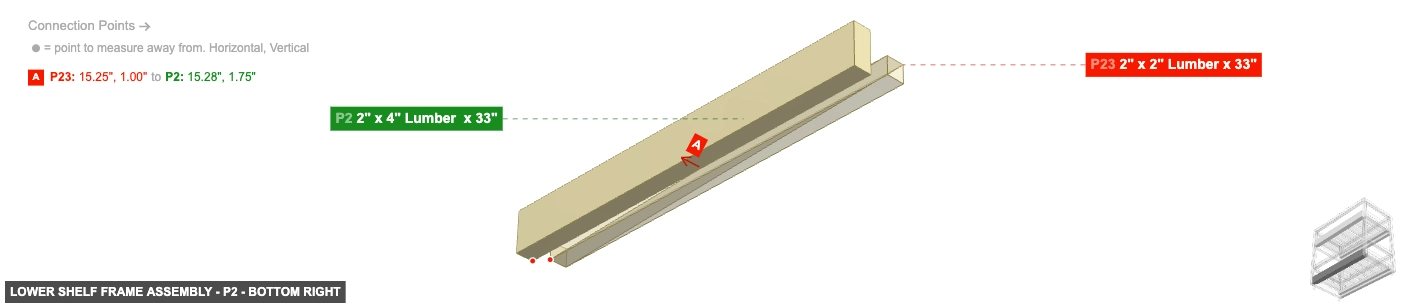

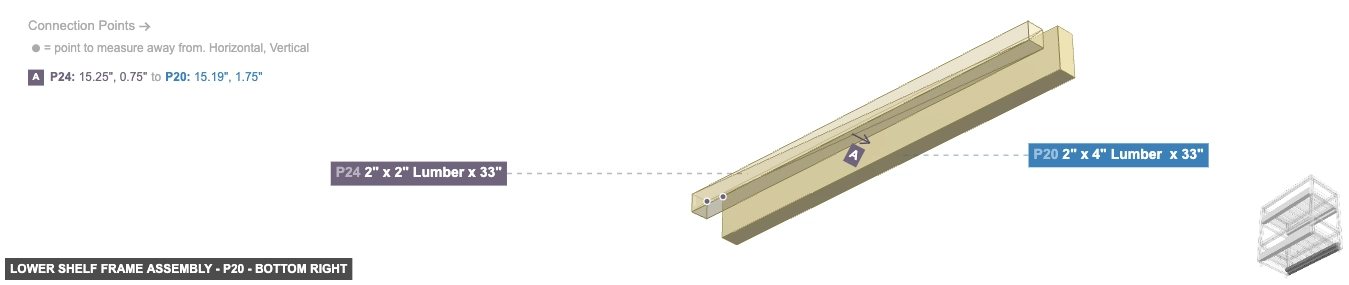

Lower Shelf Frame Assembly

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

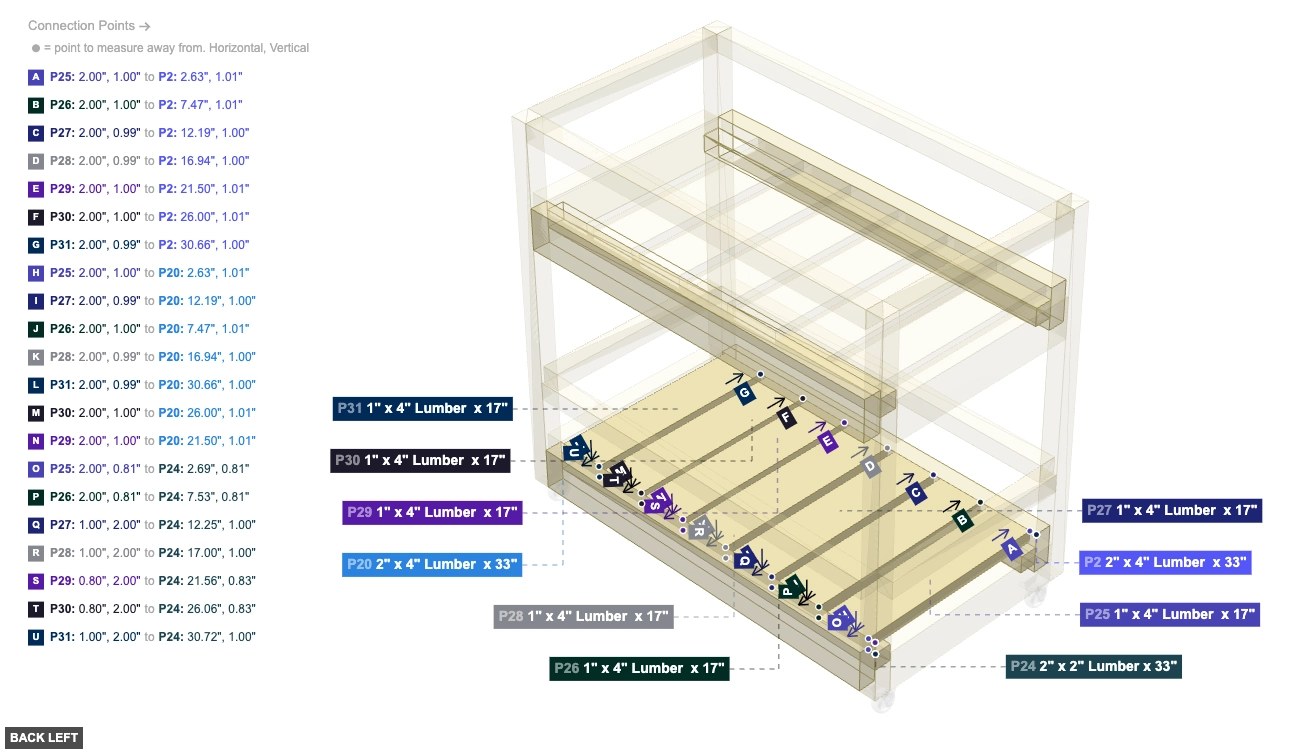

Lower Shelf Slats Installation

1" x 4" Lumber x 17"x 7

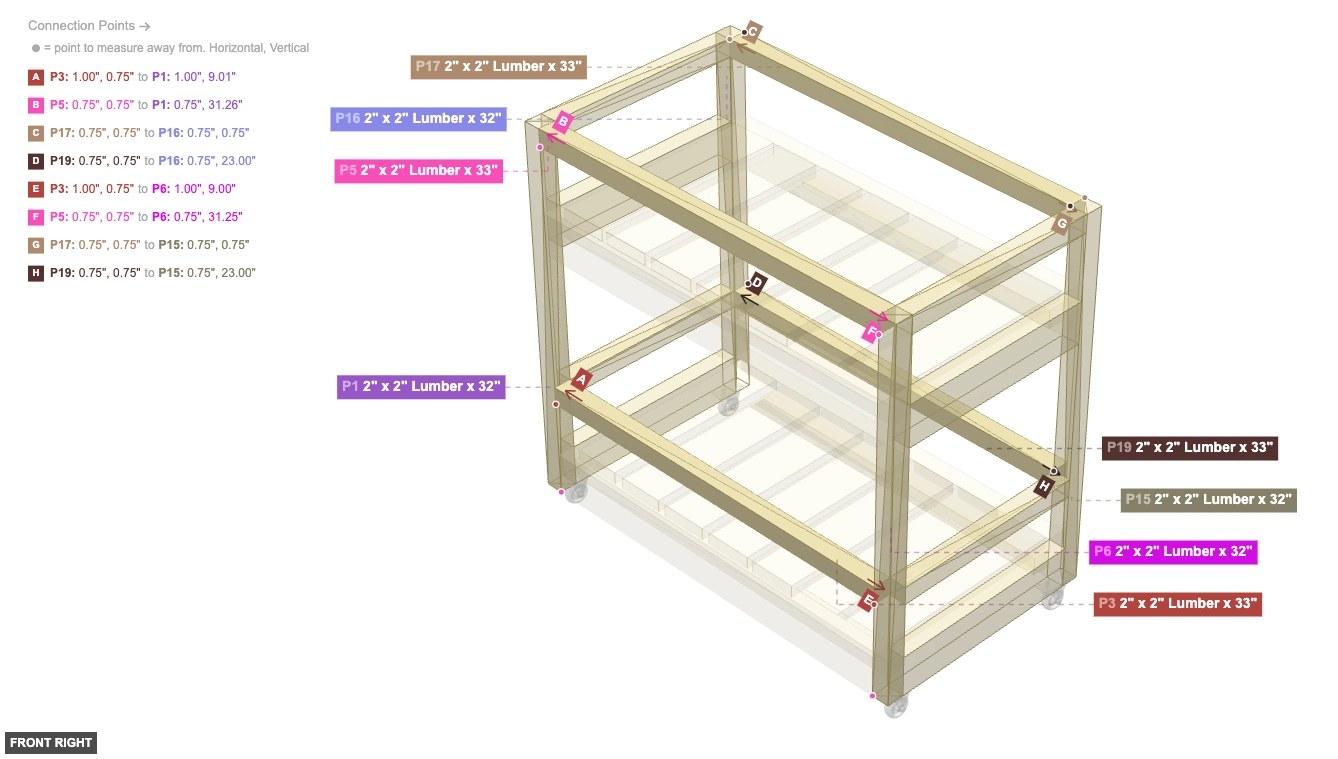

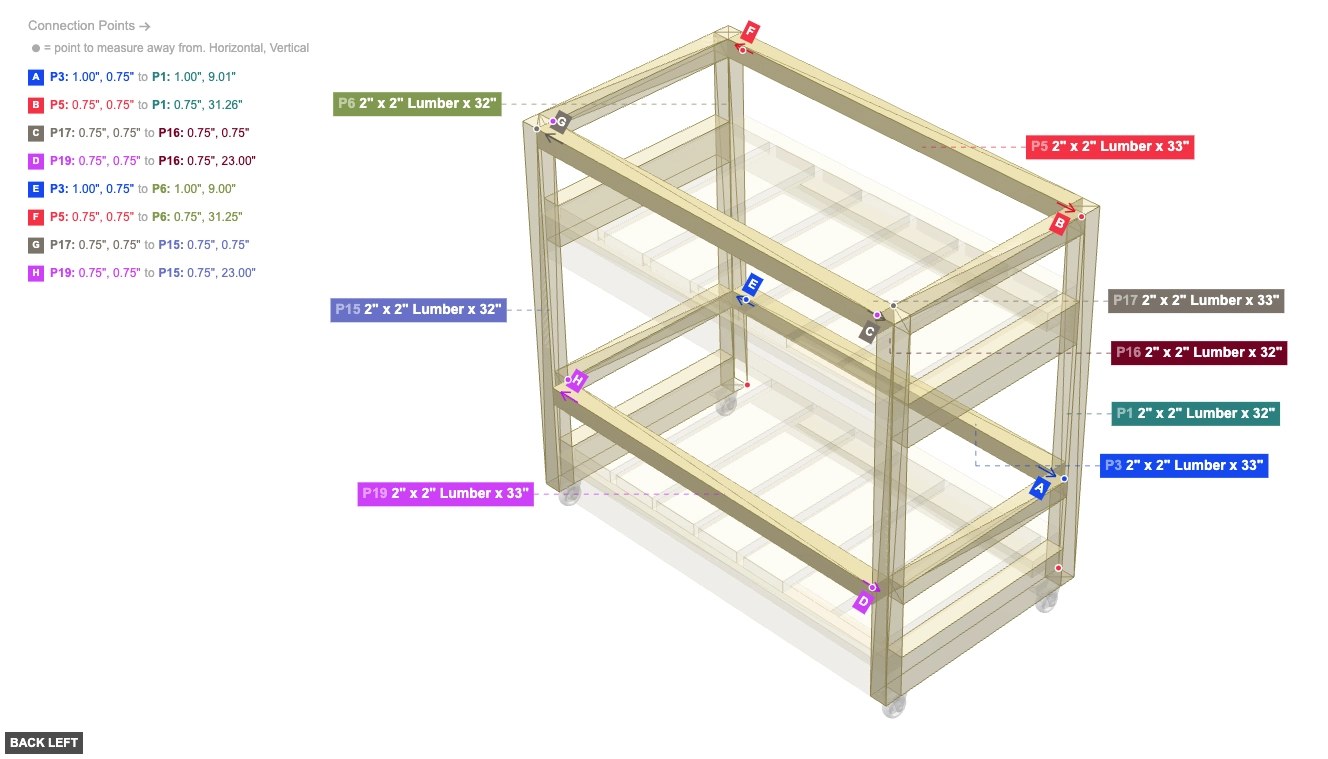

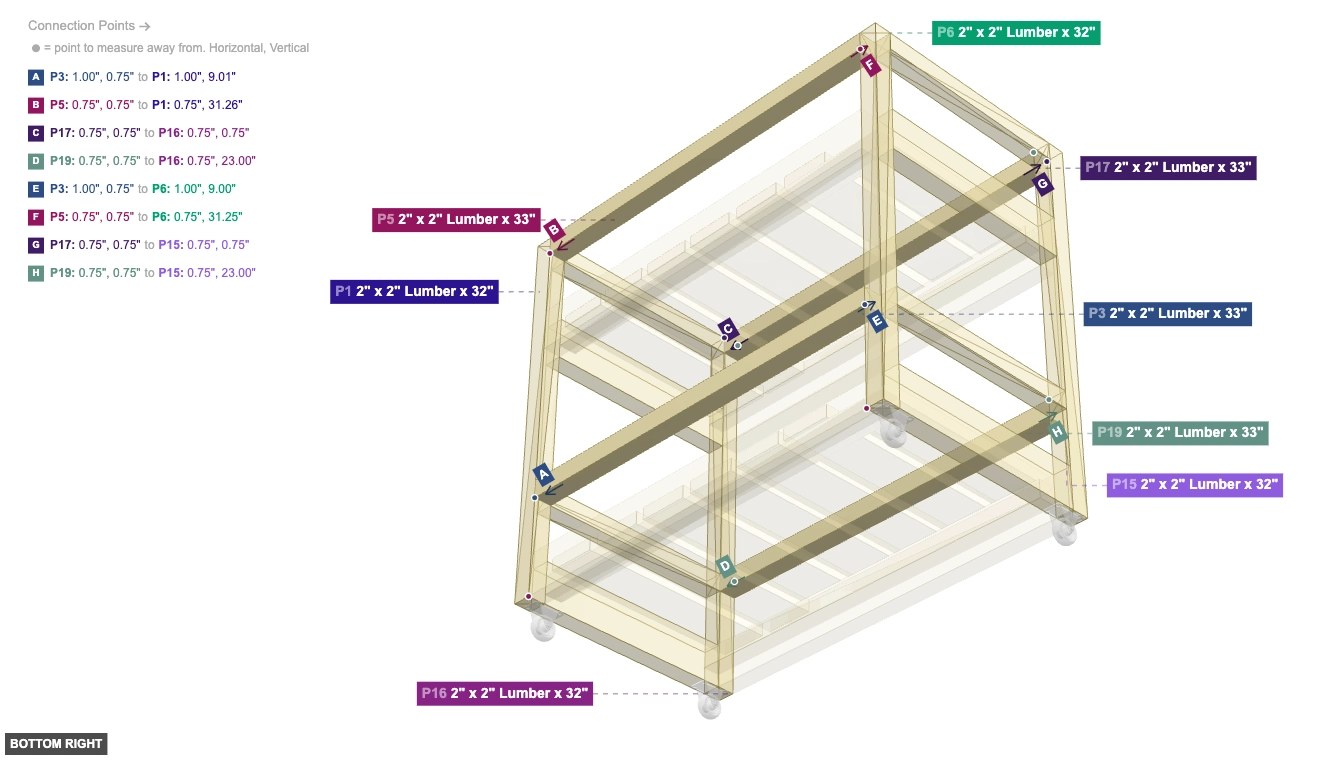

Upper Shelf Frame Assembly

2" x 2" Lumber x 33"x 4

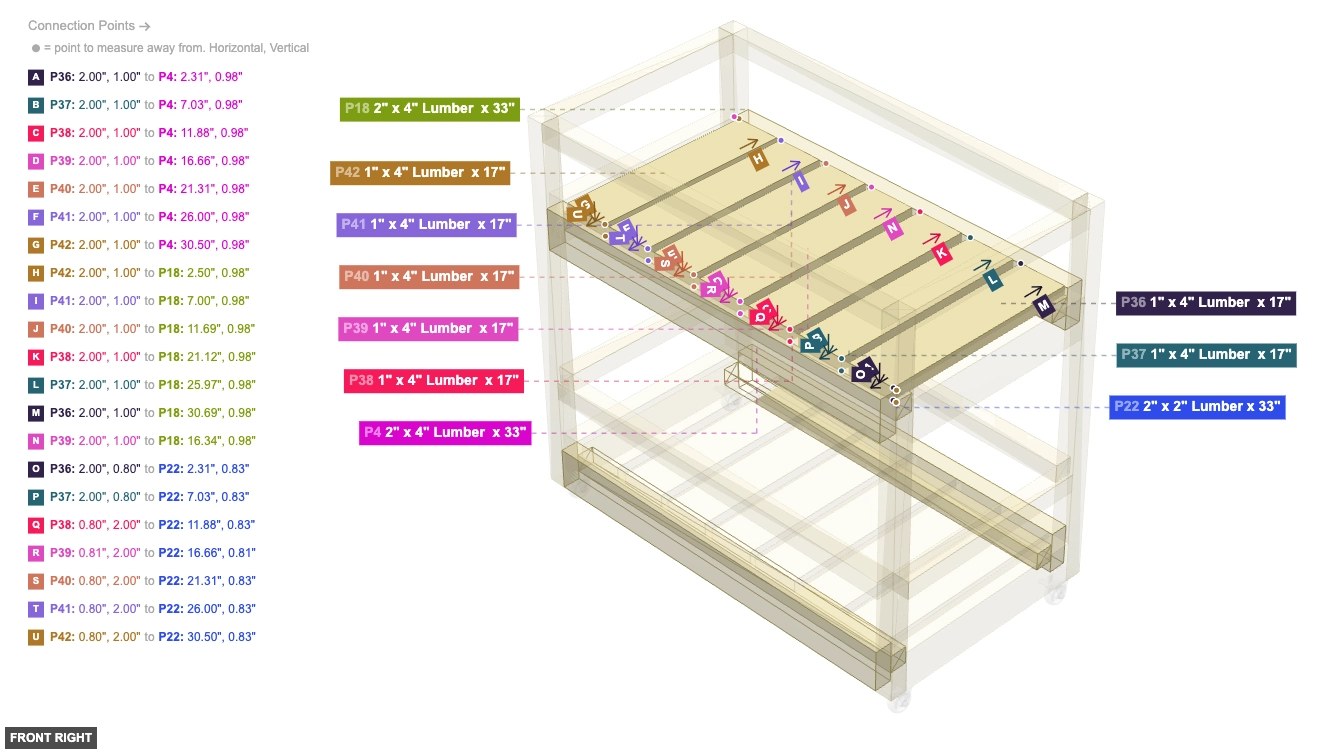

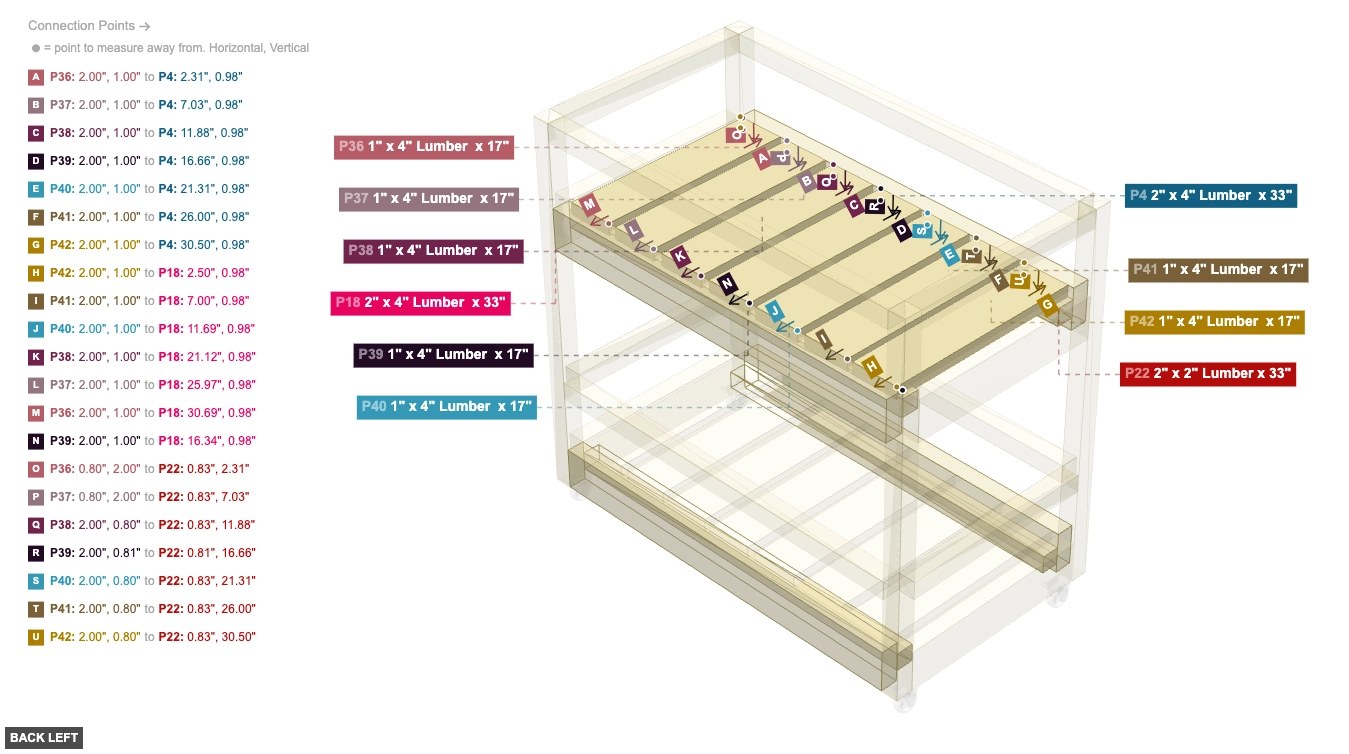

Upper Shelf Slats Installation

1" x 4" Lumber x 17"x 7

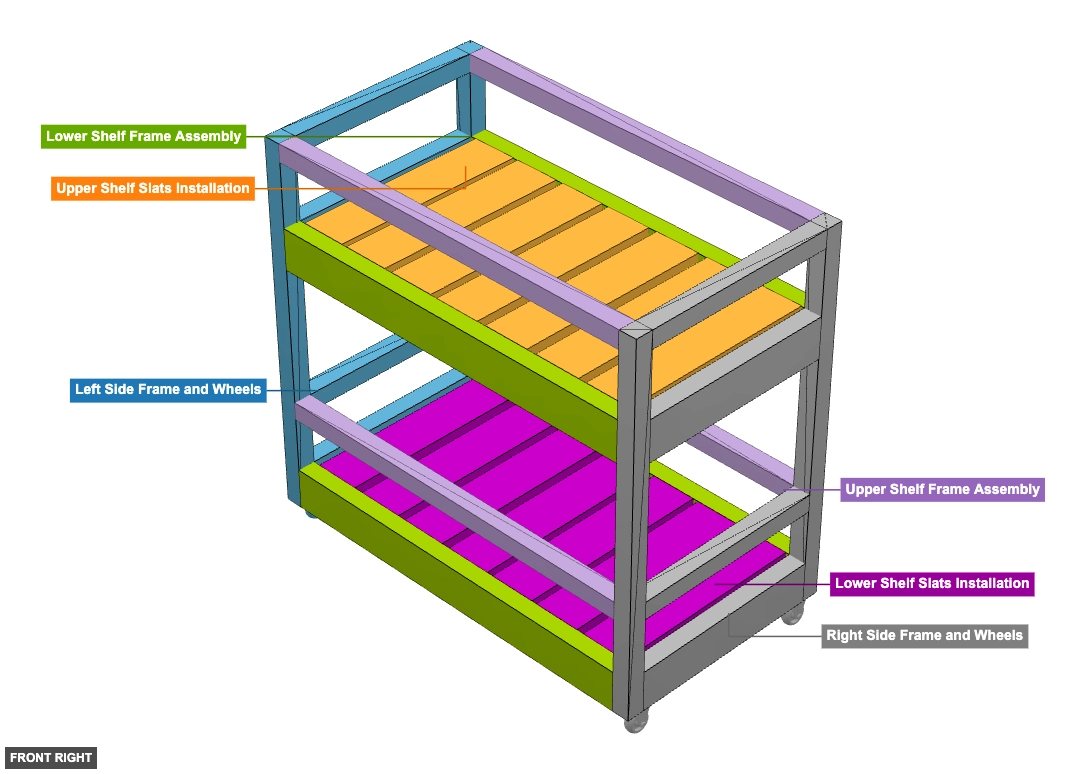

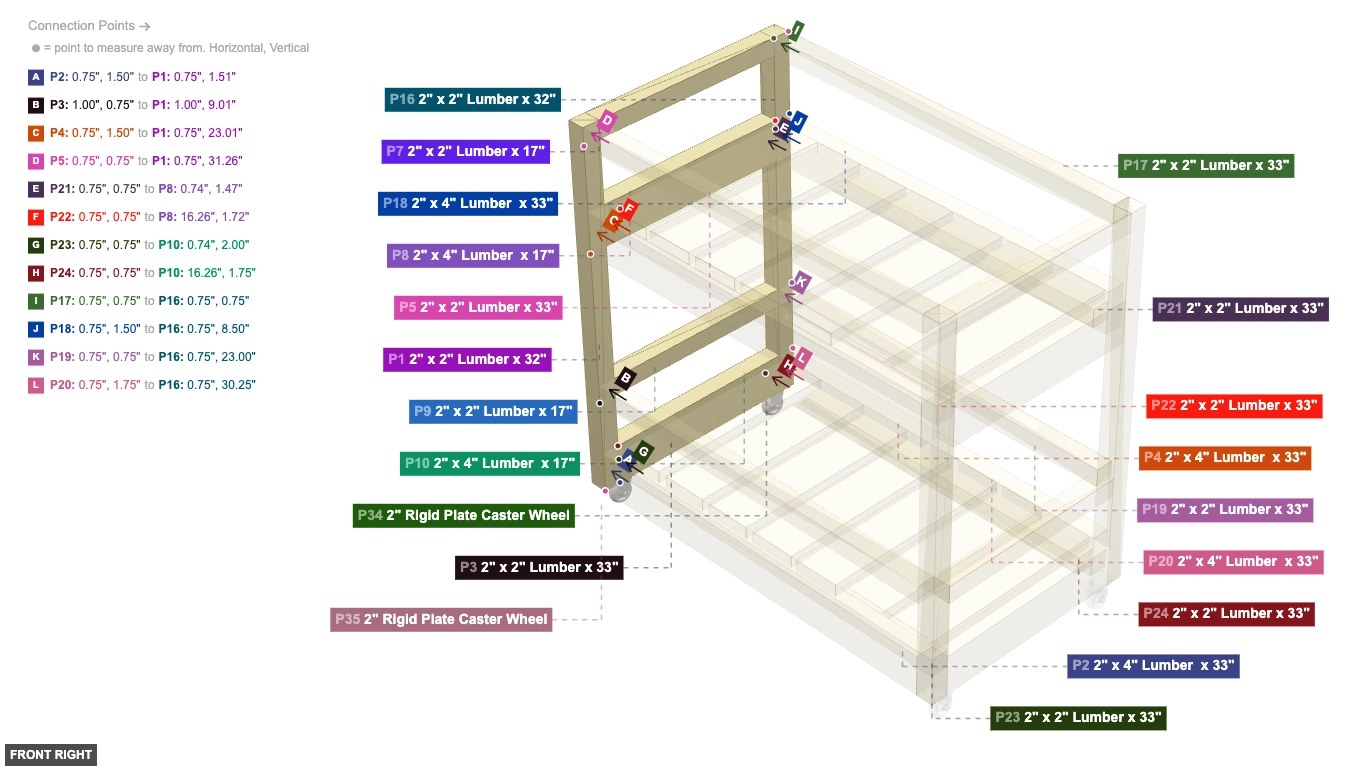

Angle: front right

Left Side Frame and Wheels

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Right Side Frame and Wheels

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

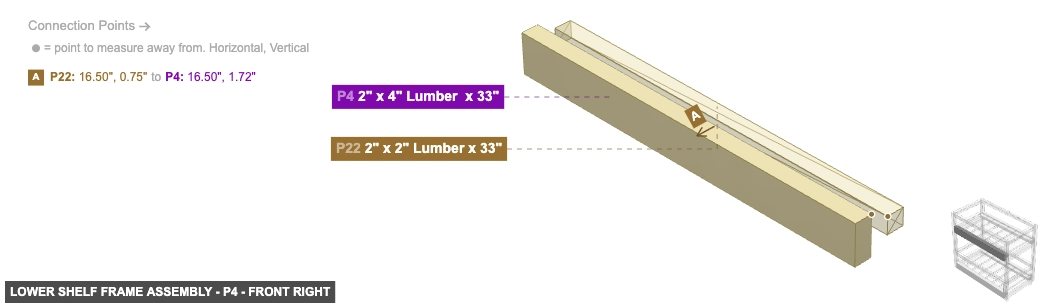

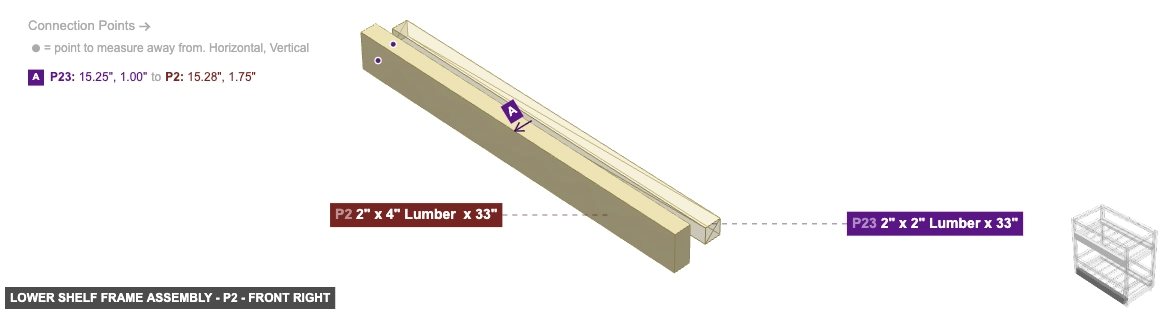

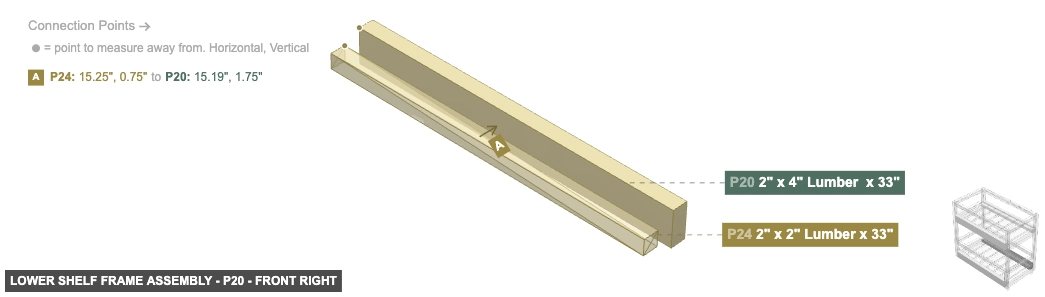

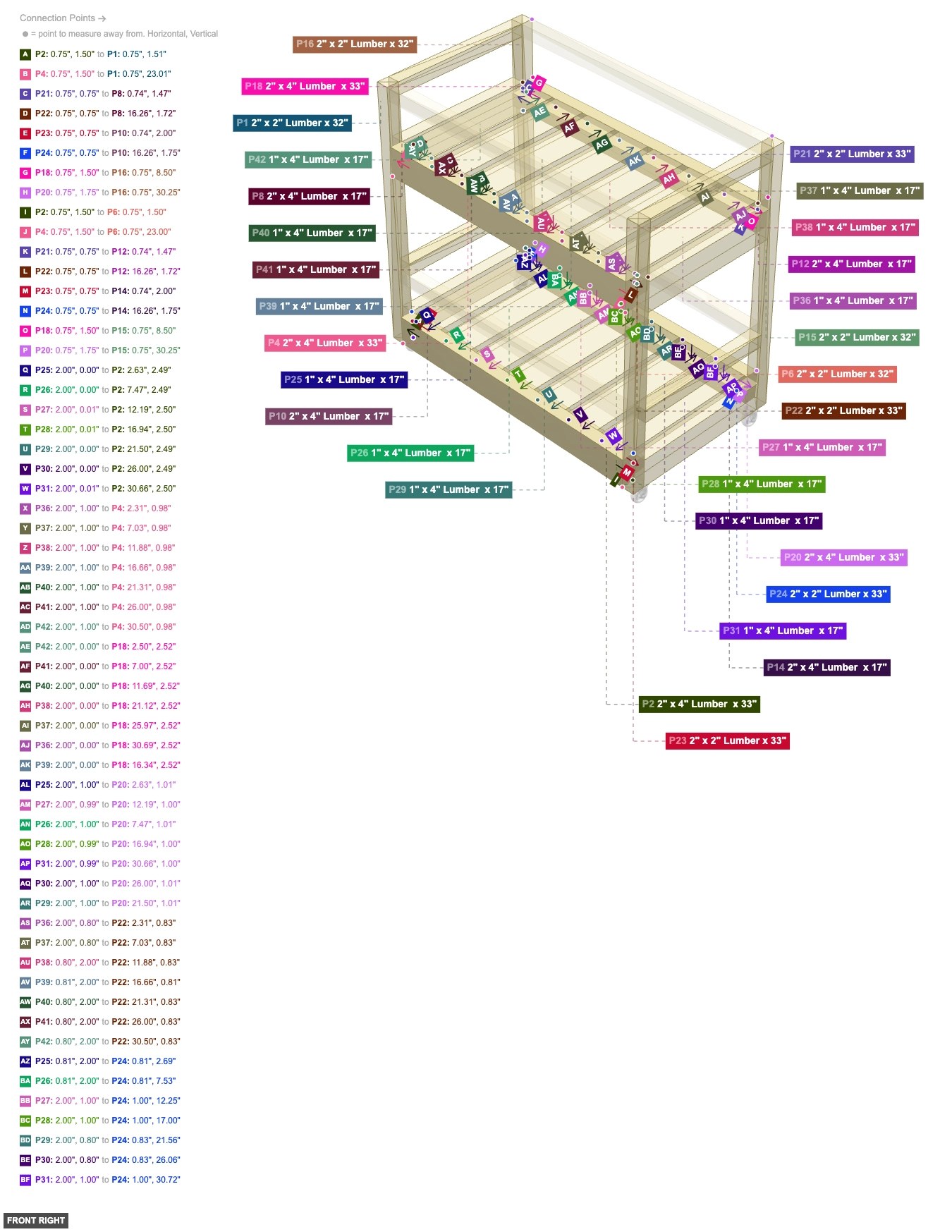

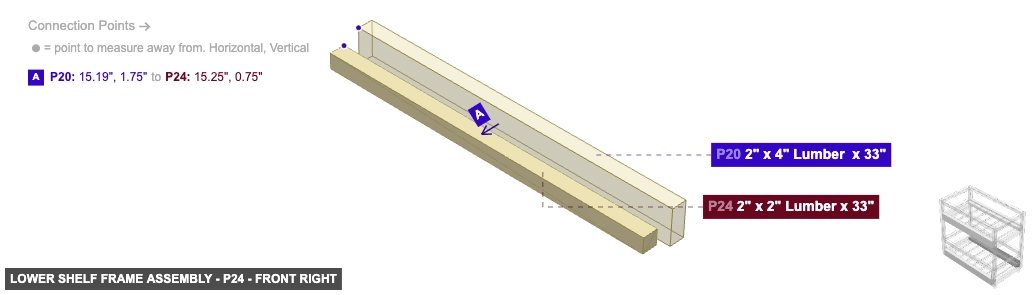

Lower Shelf Frame Assembly

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

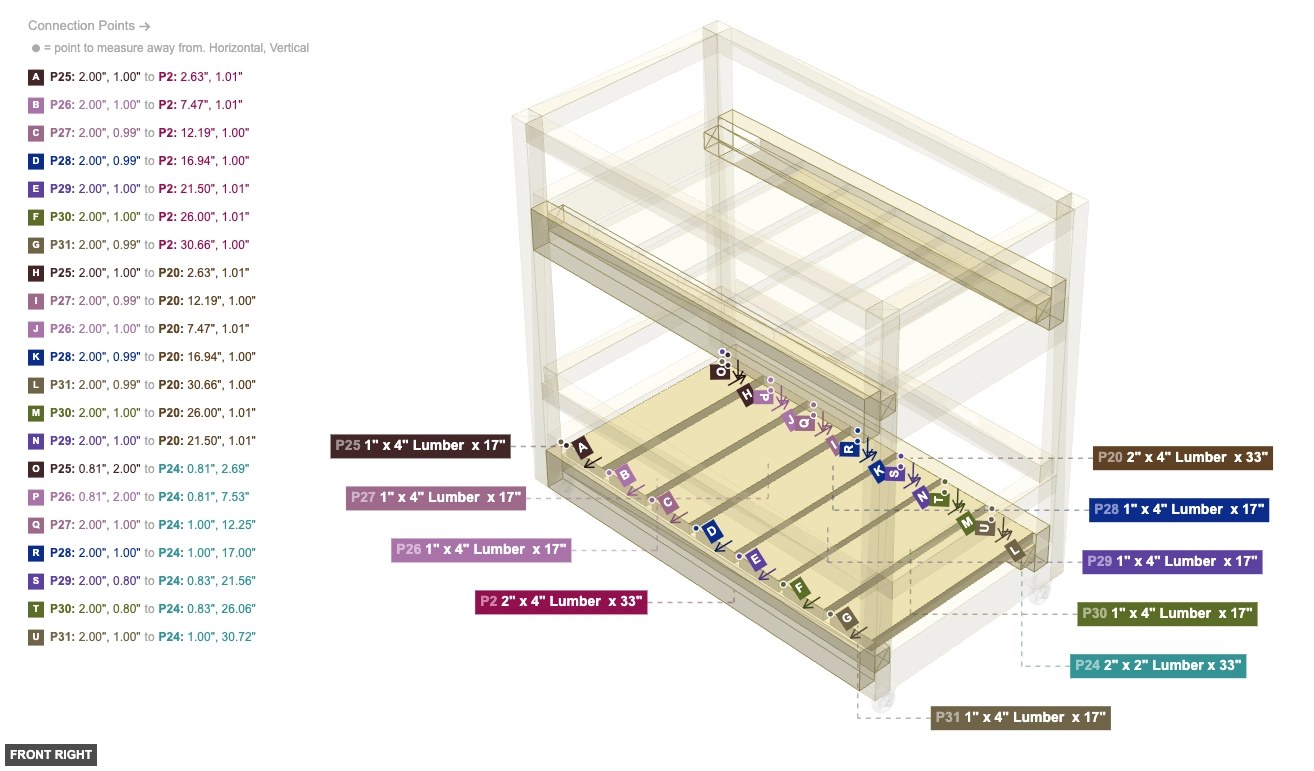

Lower Shelf Slats Installation

1" x 4" Lumber x 17"x 7

Upper Shelf Frame Assembly

2" x 2" Lumber x 33"x 4

Upper Shelf Slats Installation

1" x 4" Lumber x 17"x 7

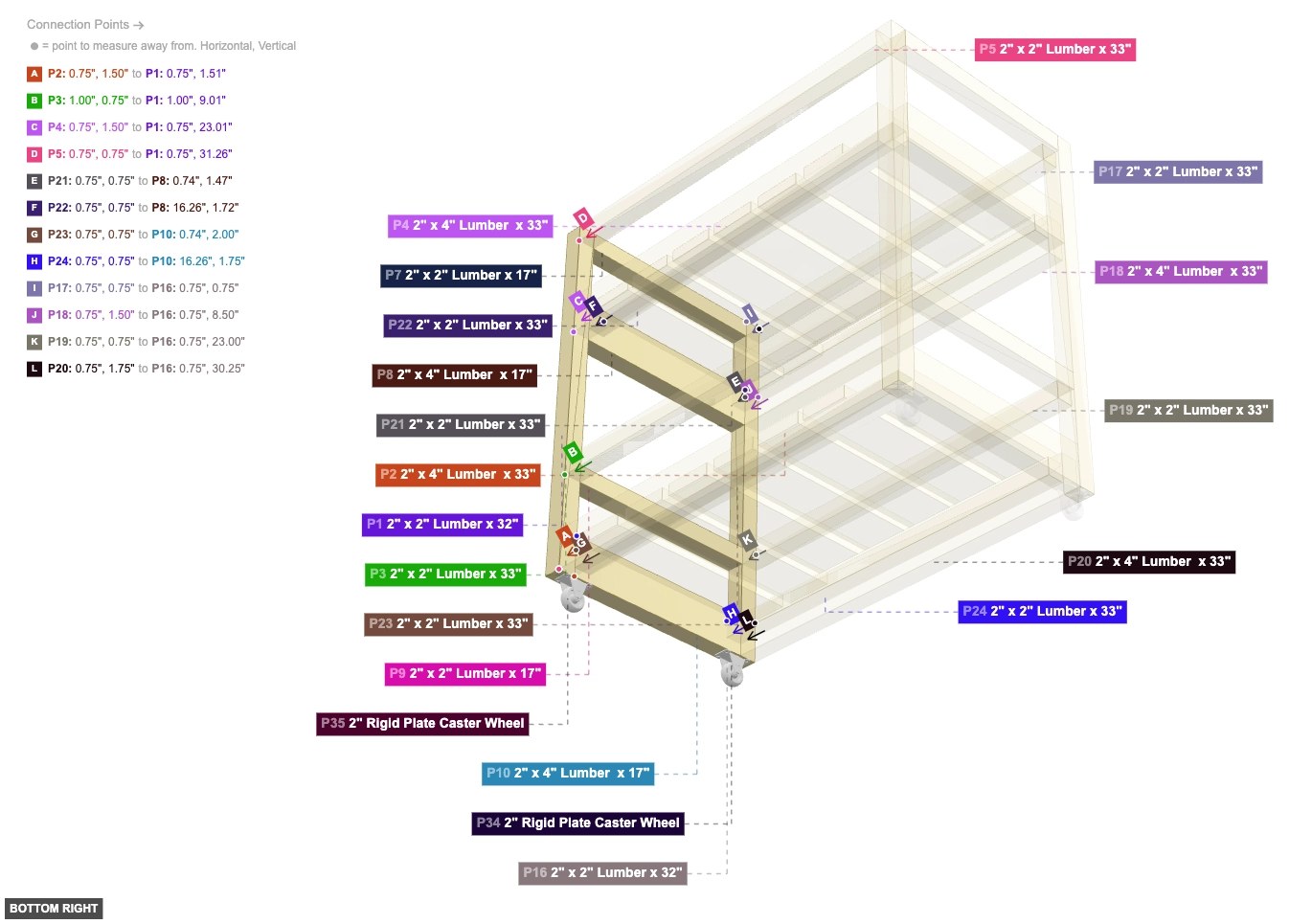

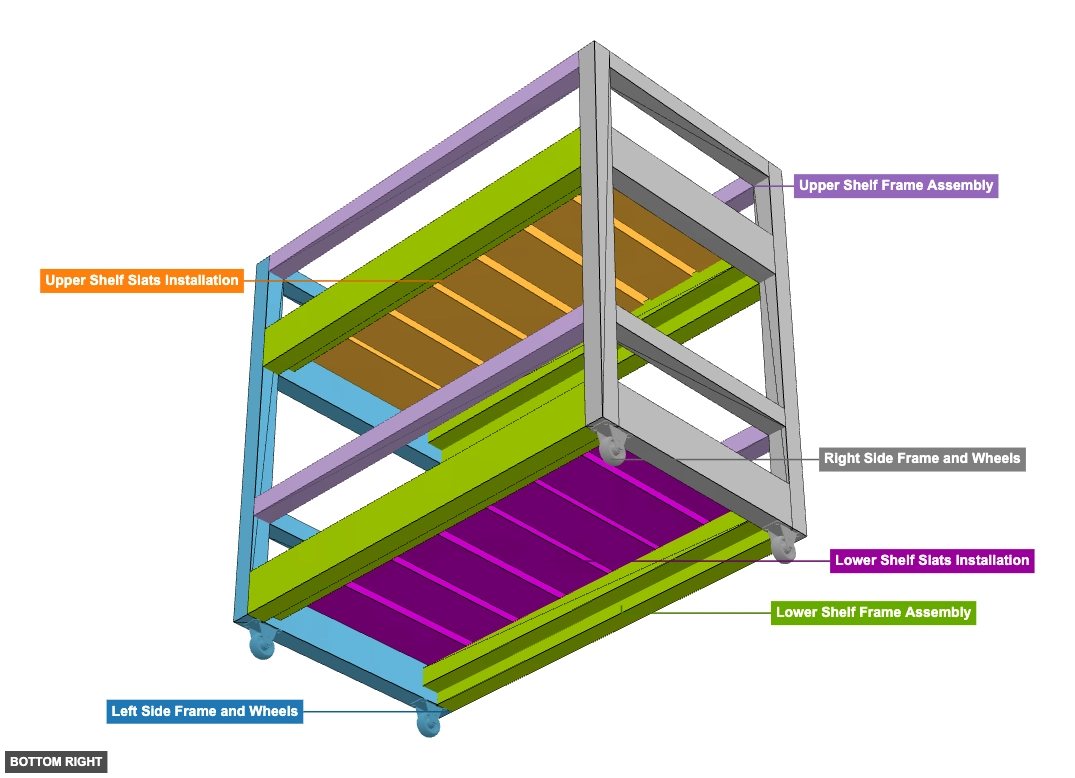

Angle: bottom right

Left Side Frame and Wheels

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Right Side Frame and Wheels

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

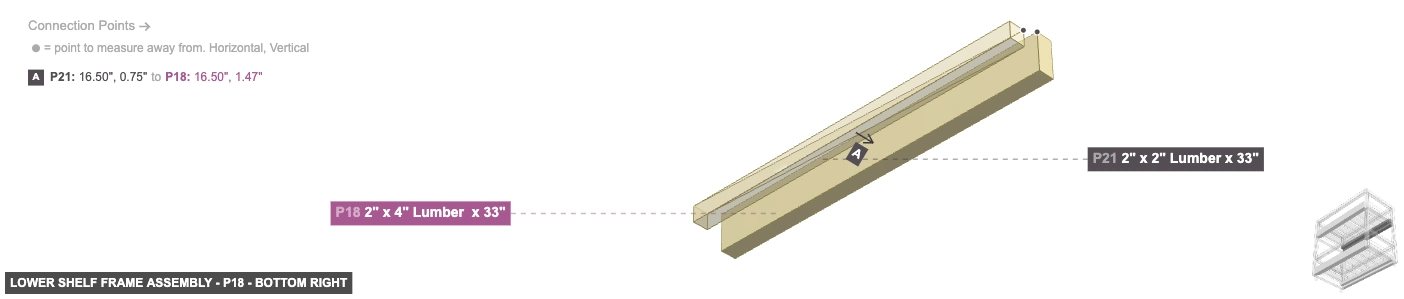

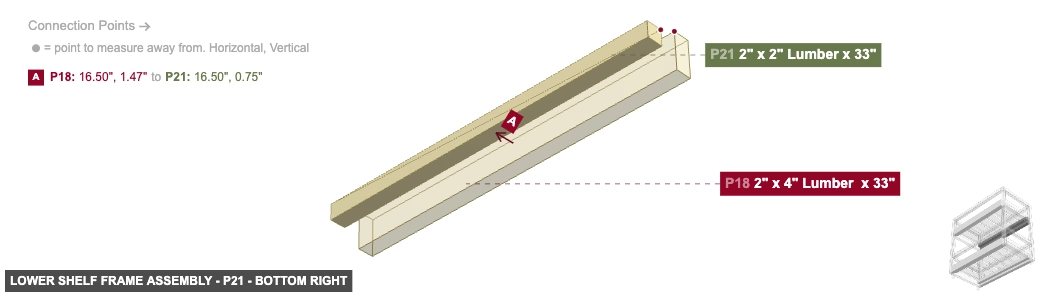

Lower Shelf Frame Assembly

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Lower Shelf Slats Installation

1" x 4" Lumber x 17"x 7

Upper Shelf Frame Assembly

2" x 2" Lumber x 33"x 4

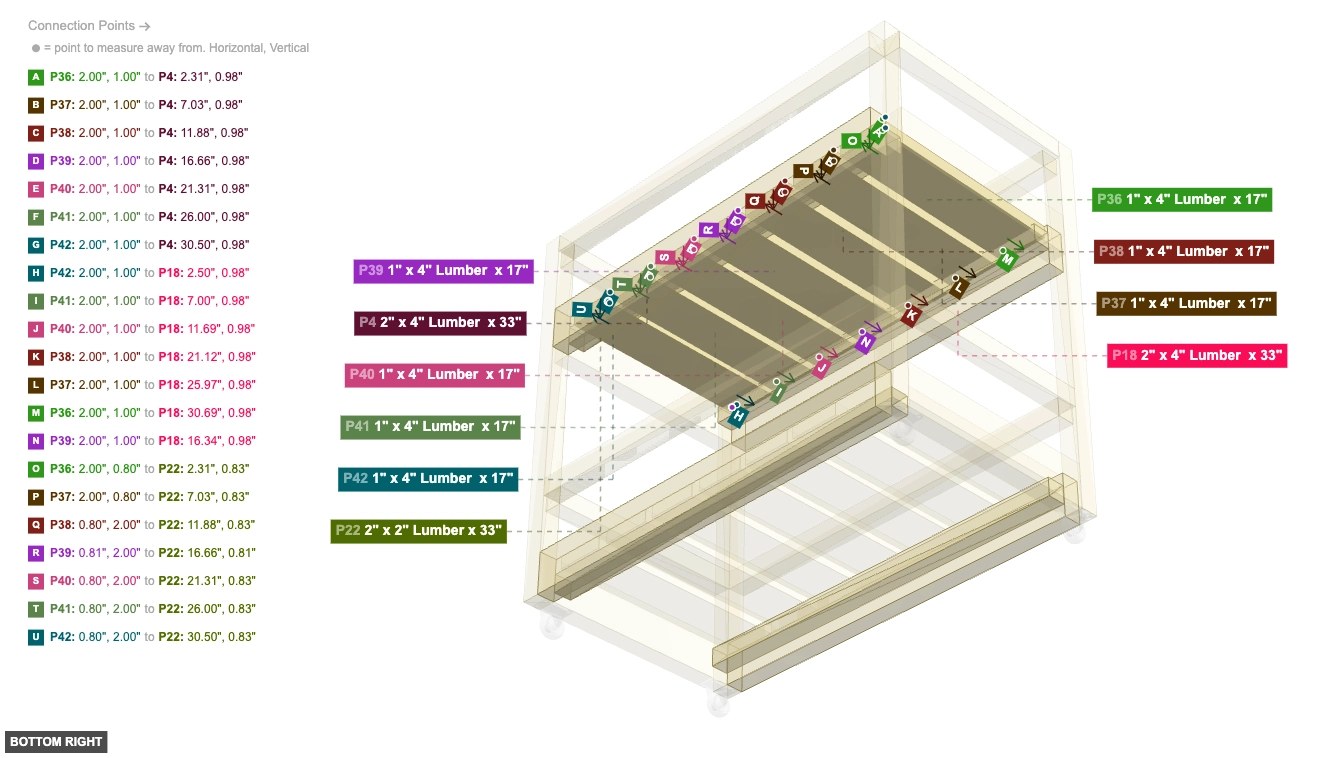

Upper Shelf Slats Installation

1" x 4" Lumber x 17"x 7

Phase 2: Individual Group Assembly

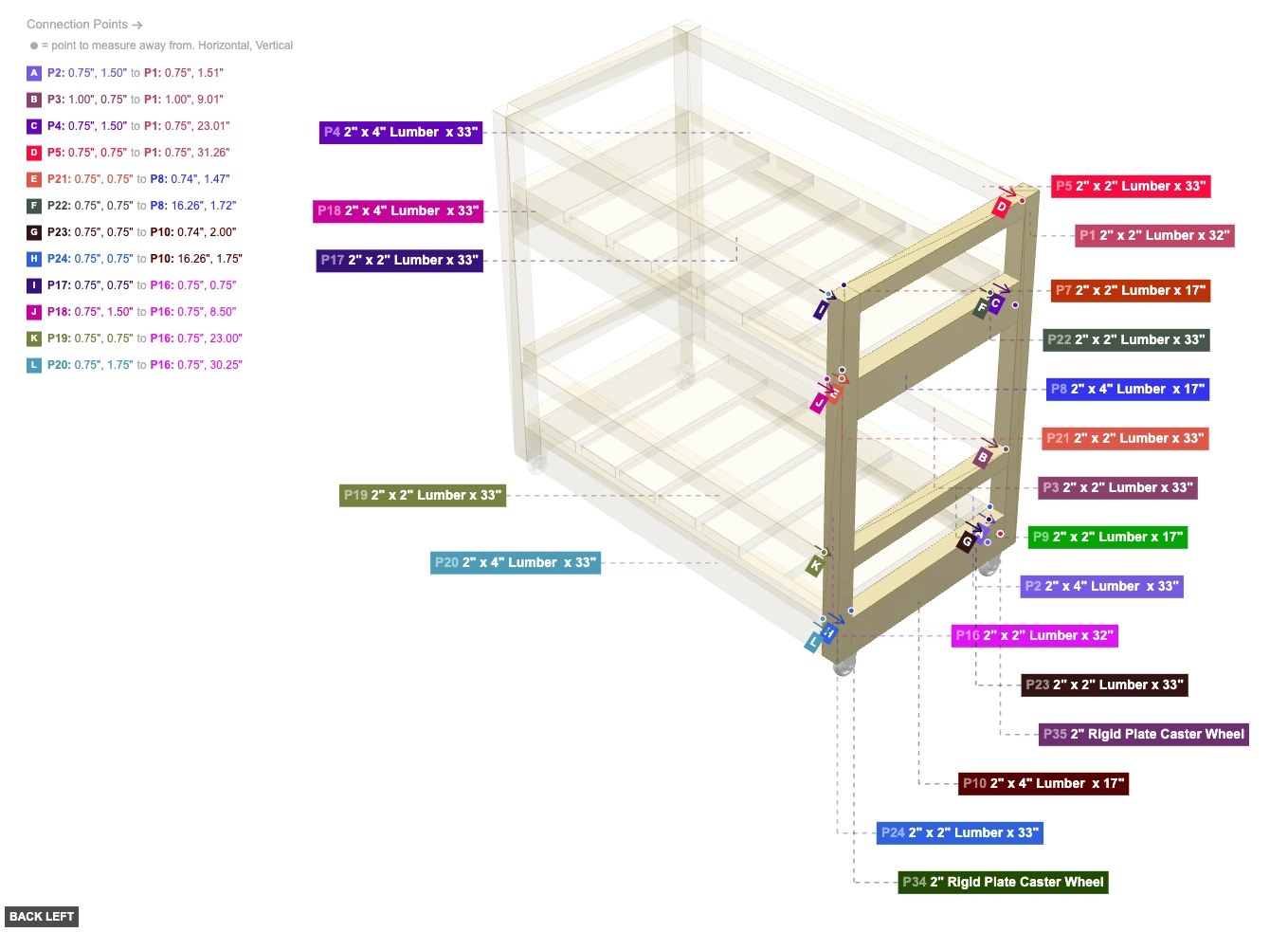

Group: Left Side Frame and Wheels

Assemble the left vertical posts (P1, P16) and the horizontal supports connecting them (P7, P8, P9, P10). Attach the left caster wheels (P34, P35) to the bottom.

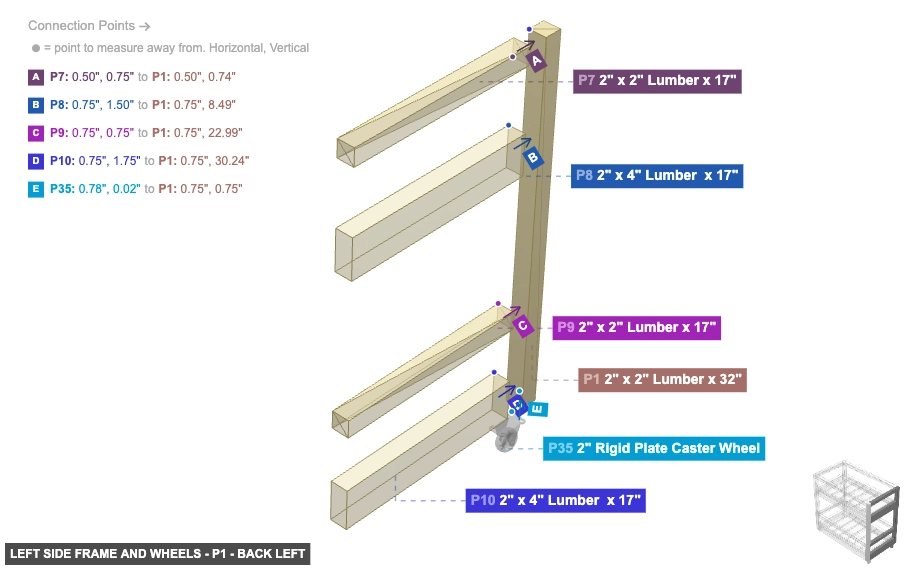

Part: 2" x 2" Lumber x 32" - Angle: back left

P1 (2" x 2" Lumber 32" length) - its 2" x 2" Wood Side #2, which is back-facing, should connect to part 7's 2" x 2" Wood End #2, then connect its 2" x 2" Wood End #2 oriented bottom links with part 35's Screw-In Screw In #1. Also, its 2" x 2" Wood End #1 should be directed top. Next, its 2" x 2" Wood Side #1 should be directed left. Next, ensure its 2" x 2" Wood Side #4 faces front

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

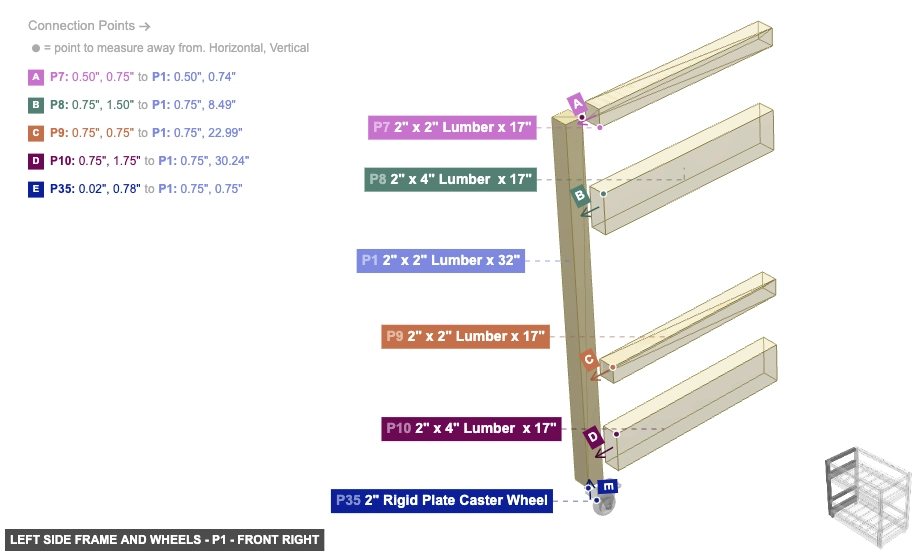

Part: 2" x 2" Lumber x 32" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

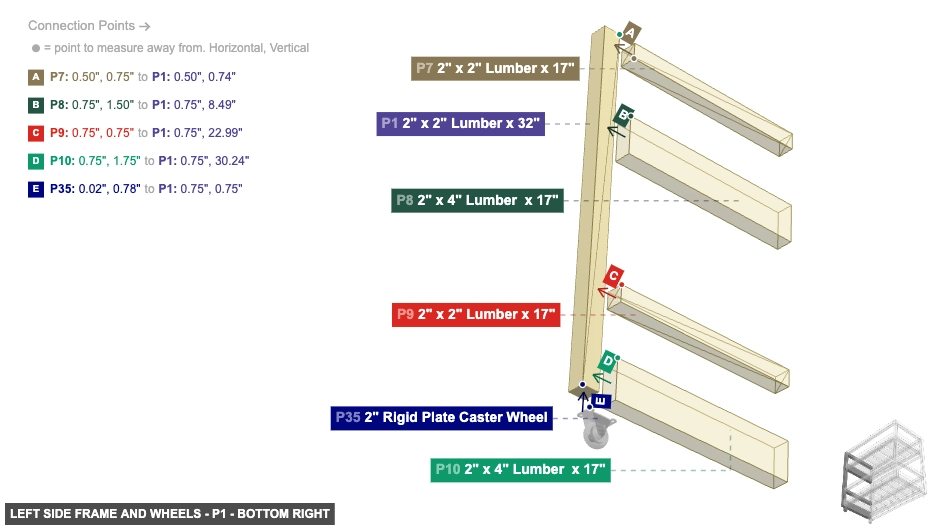

Part: 2" x 2" Lumber x 32" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

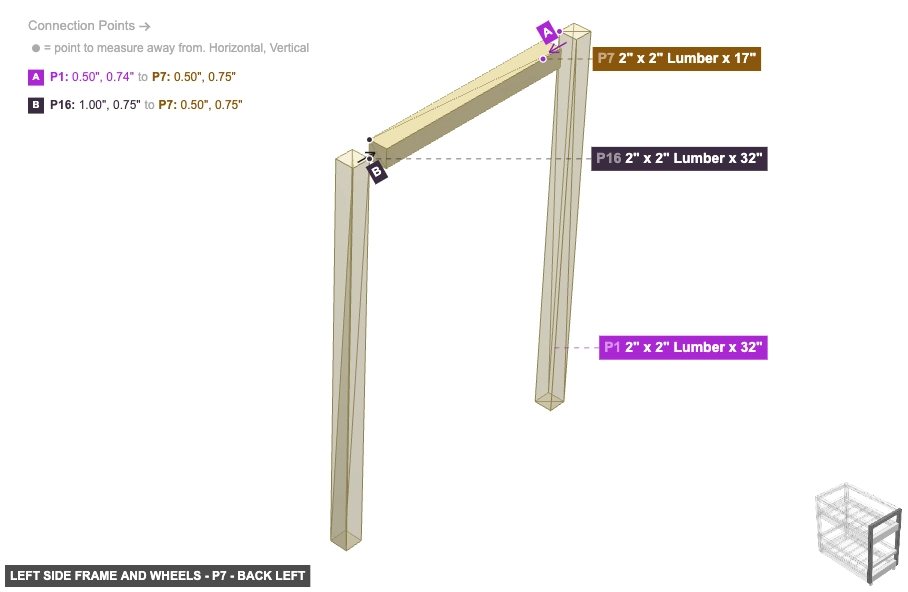

Part: 2" x 2" Lumber x 17" - Angle: back left

P7 (2" x 2" Lumber 17" length) - attach its 2" x 2" Wood End #1 facing back to part 16's 2" x 2" Wood Side #1. Also, connect its 2" x 2" Wood End #2 oriented front links with part 1's 2" x 2" Wood Side #2. Also, ensure its 2" x 2" Wood Side #1 faces bottom, plus its 2" x 2" Wood Side #2 needs to point right. Also, its 2" x 2" Wood Side #3 must be oriented top. Also, ensure its 2" x 2" Wood Side #4 faces left

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

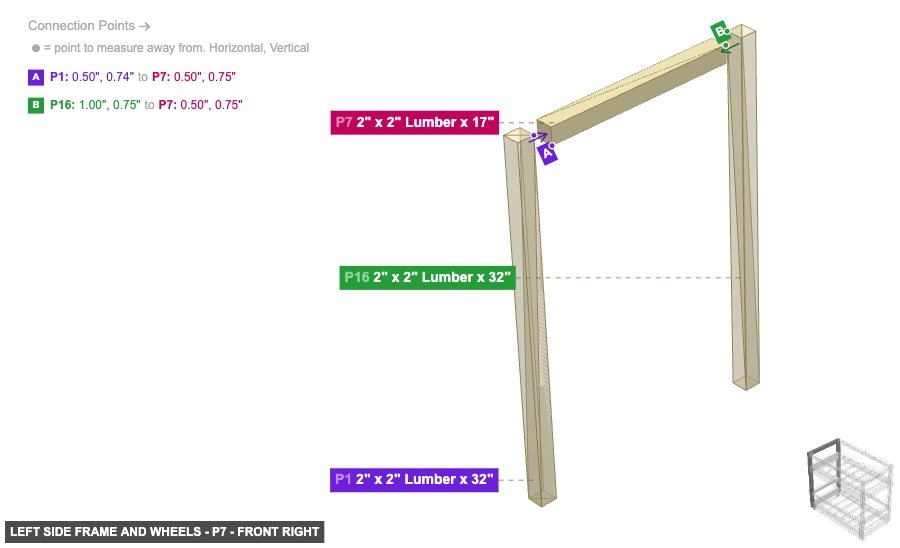

Part: 2" x 2" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

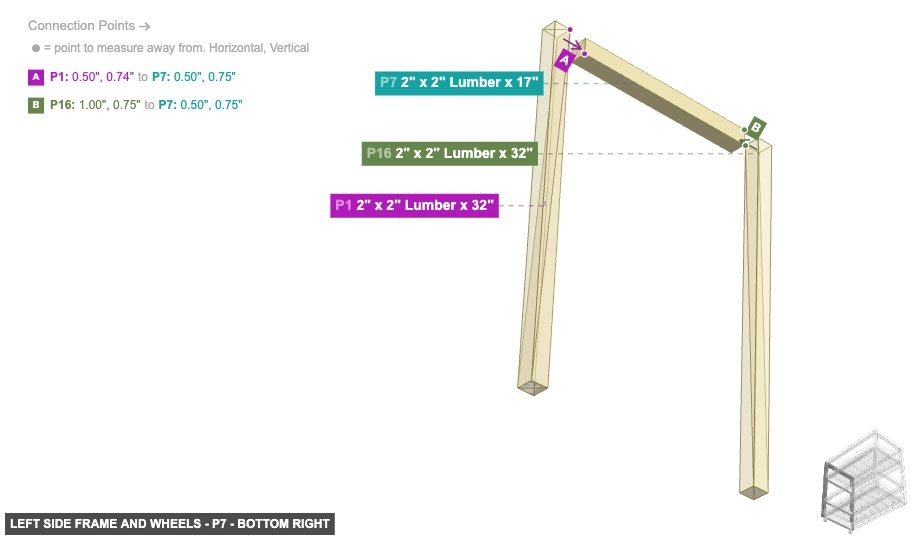

Part: 2" x 2" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

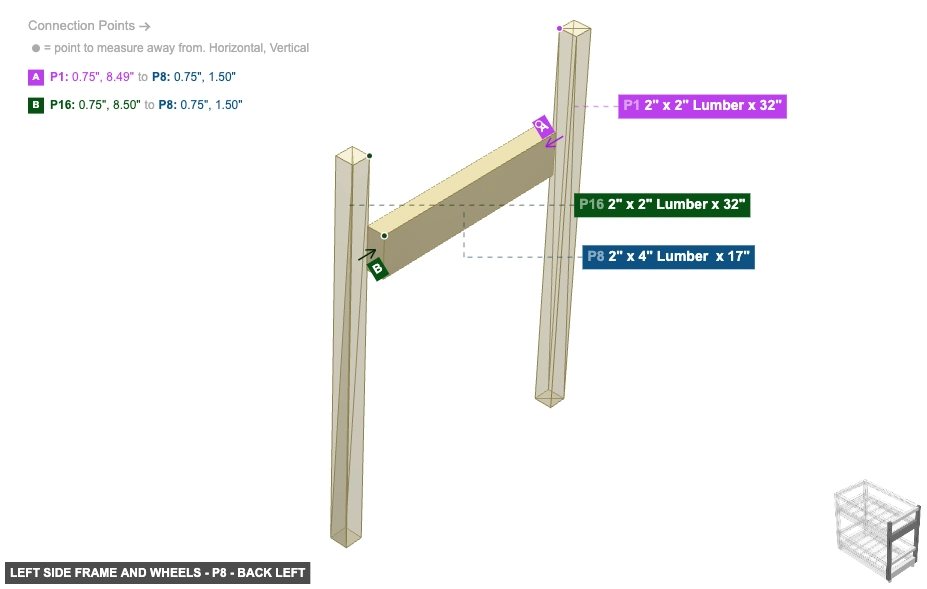

Part: 2" x 4" Lumber x 17" - Angle: back left

P8 (2" x 4" Lumber 17" length) - connect its 2" x 4" Wood End #1 oriented back links with part 16's 2" x 2" Wood Side #1, also its 2" x 4" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #2, plus its 2" x 4" Wood Side #1 should be directed bottom, plus ensure its 2" x 4" Wood Side #3 faces top. Next, its 2" x 4" Wood Side #4 must be oriented left

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

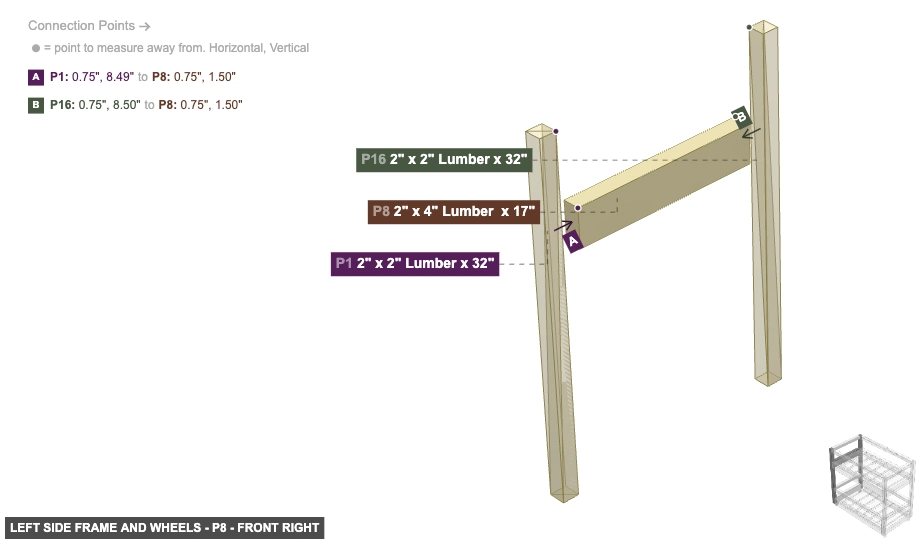

Part: 2" x 4" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

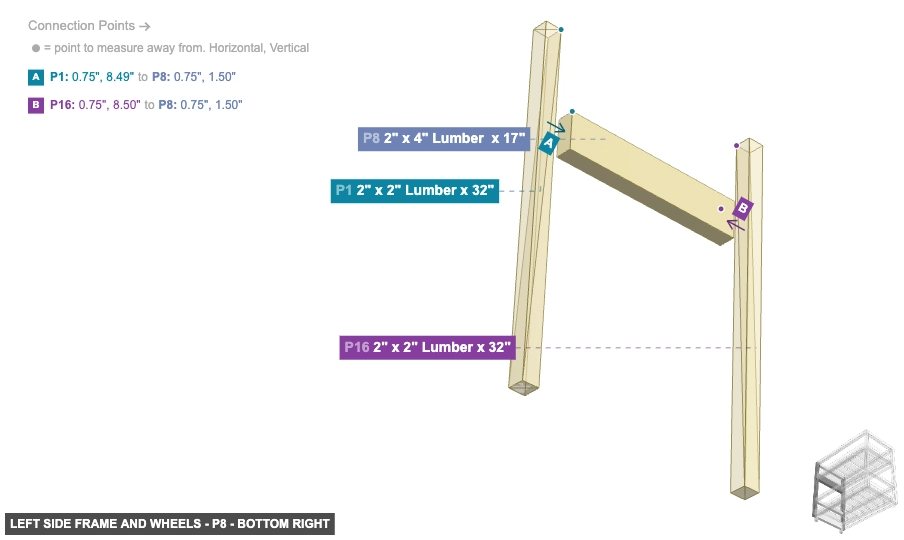

Part: 2" x 4" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

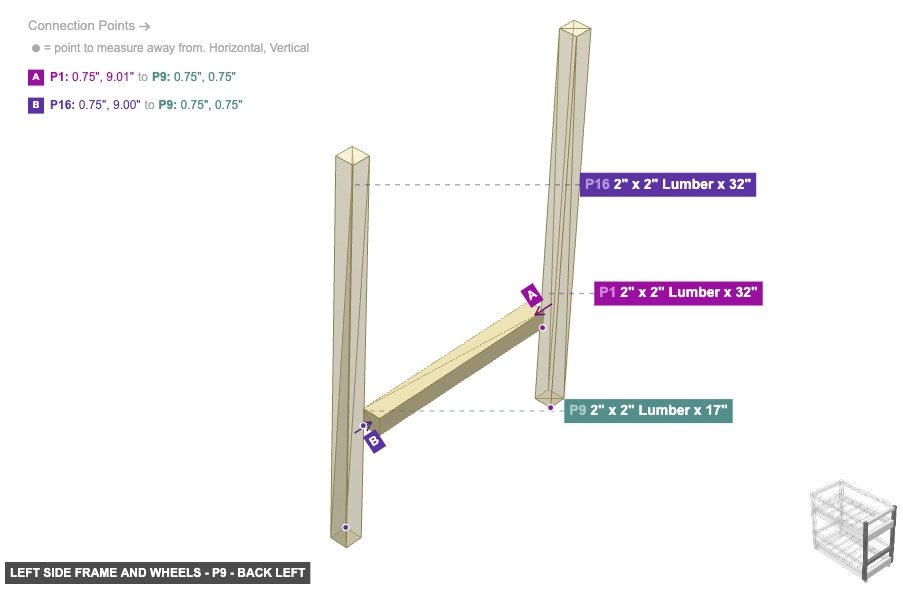

Part: 2" x 2" Lumber x 17" - Angle: back left

P9 (2" x 2" Lumber 17" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 16's 2" x 2" Wood Side #1. Also, its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #2. Next, its 2" x 2" Wood Side #1 needs to point bottom, then its 2" x 2" Wood Side #2 needs to point right. Next, its 2" x 2" Wood Side #3 needs to point top, and its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Part: 2" x 2" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Part: 2" x 2" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

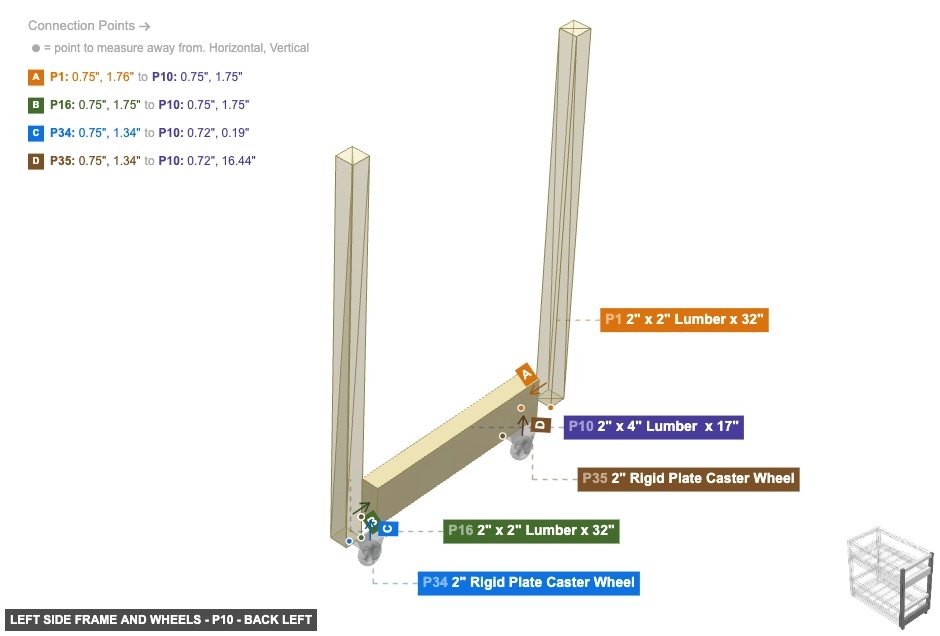

Part: 2" x 4" Lumber x 17" - Angle: back left

P10 (2" x 4" Lumber 17" length) - attach its 2" x 4" Wood End #1 facing back to part 16's 2" x 2" Wood Side #1. Additionally, connect its 2" x 4" Wood Side #1 oriented bottom links with part 34's Screw-In Screw In #1, and connect its 2" x 4" Wood End #2 oriented front links with part 1's 2" x 2" Wood Side #2, also ensure its 2" x 4" Wood Side #3 faces top, and its 2" x 4" Wood Side #4 needs to point left

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

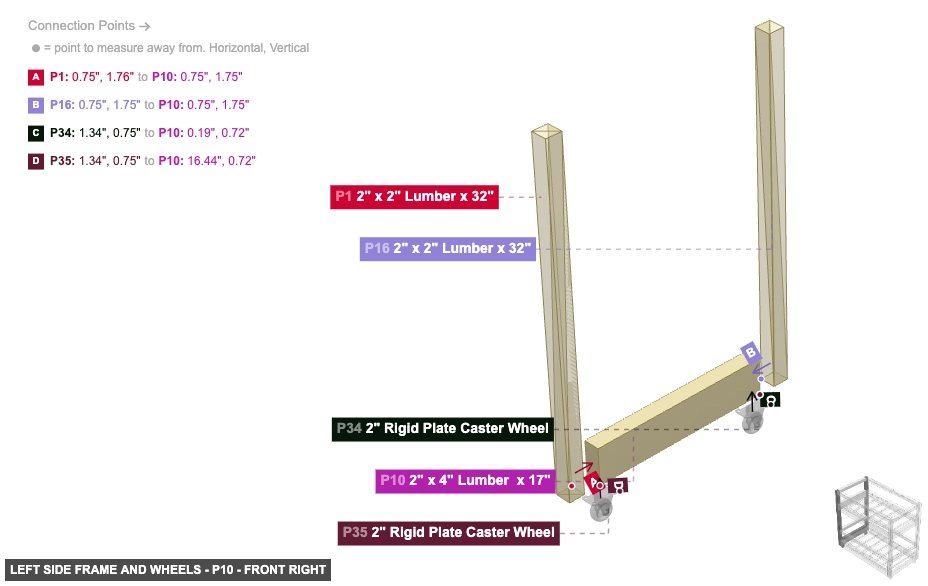

Part: 2" x 4" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

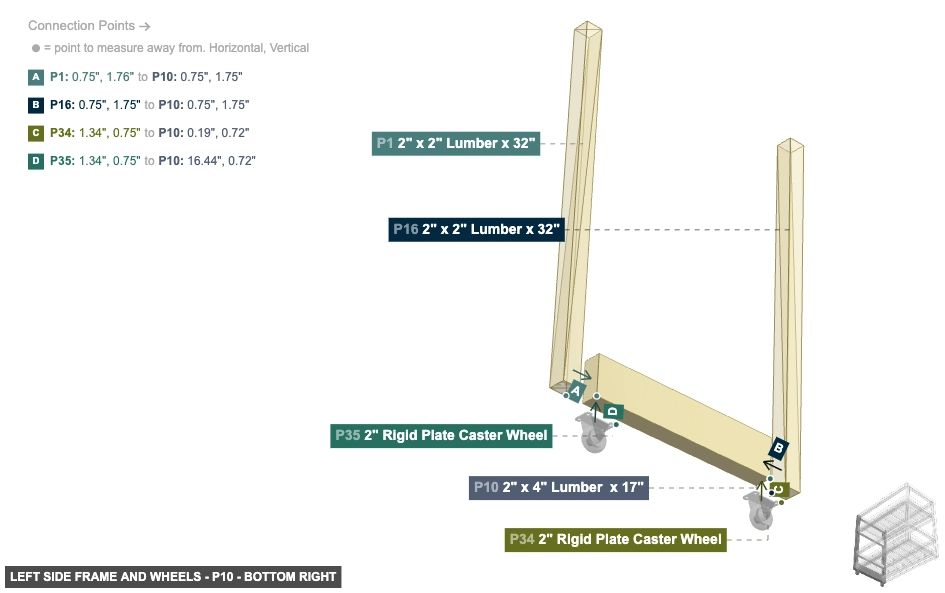

Part: 2" x 4" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

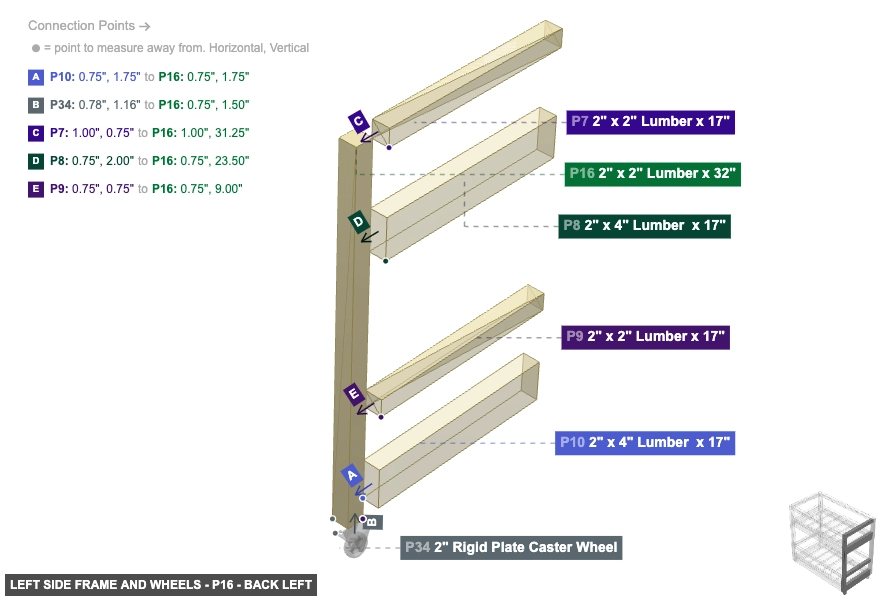

Part: 2" x 2" Lumber x 32" - Angle: back left

P16 (2" x 2" Lumber 32" length) - connect its 2" x 2" Wood Side #1 oriented front links with part 10's 2" x 4" Wood End #1. Next, attach its 2" x 2" Wood End #2 facing bottom to part 34's Screw-In Screw In #1, plus its 2" x 2" Wood End #1 must be oriented top. Also, its 2" x 2" Wood Side #2 needs to point left. Also, its 2" x 2" Wood Side #3 must be oriented back

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Part: 2" x 2" Lumber x 32" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

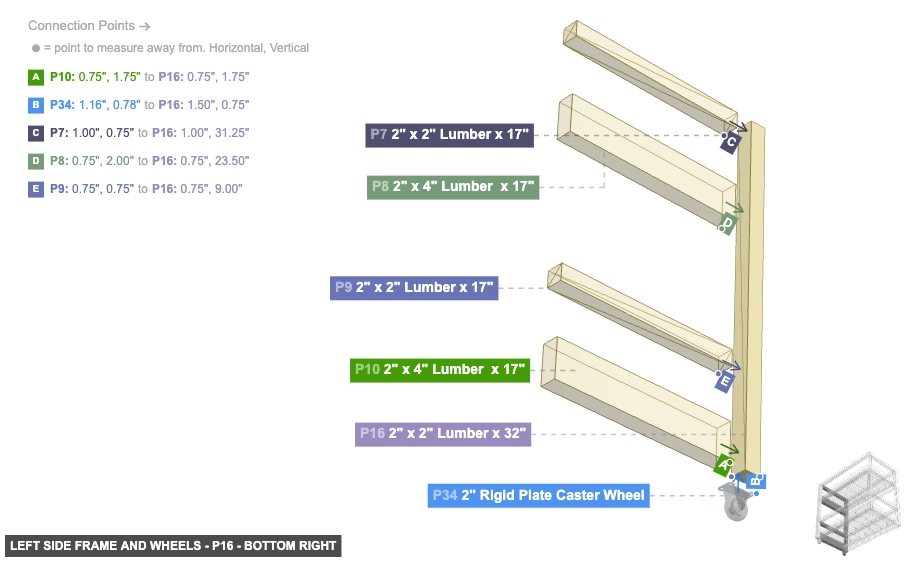

Part: 2" x 2" Lumber x 32" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

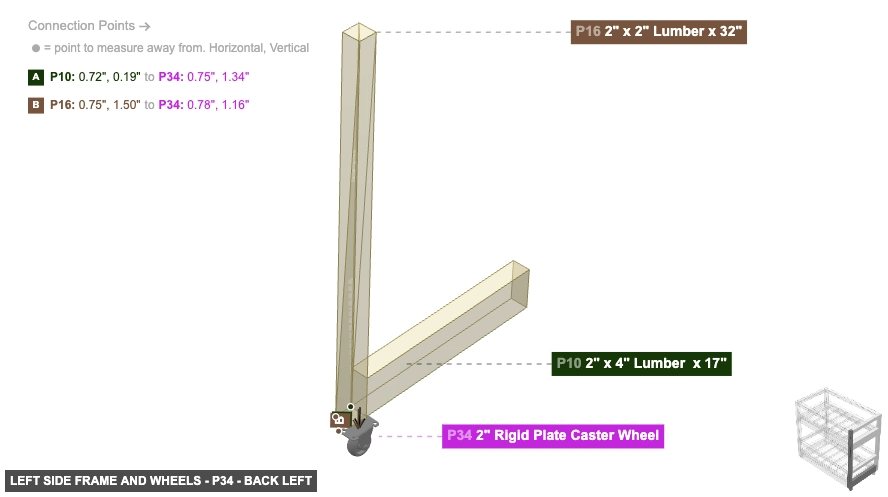

Part: 2" Rigid Plate Caster Wheel - Angle: back left

P34 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 10's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

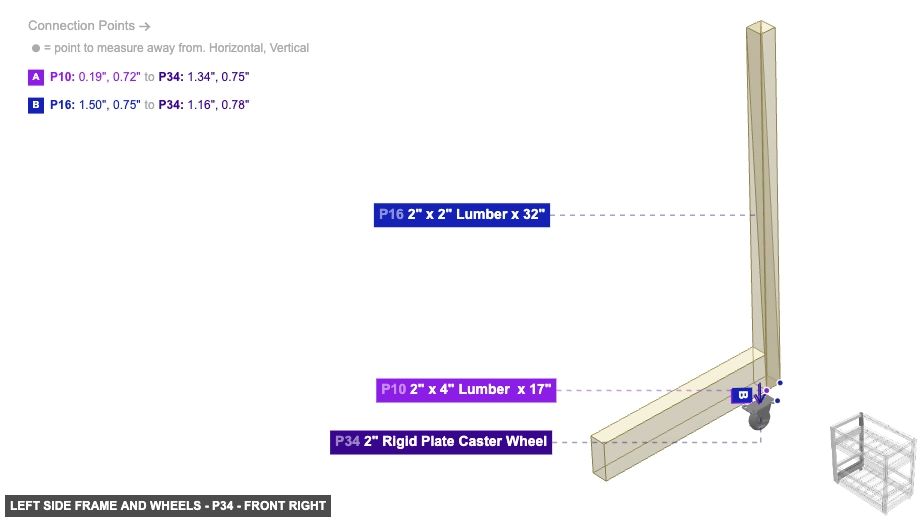

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P34 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 10's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

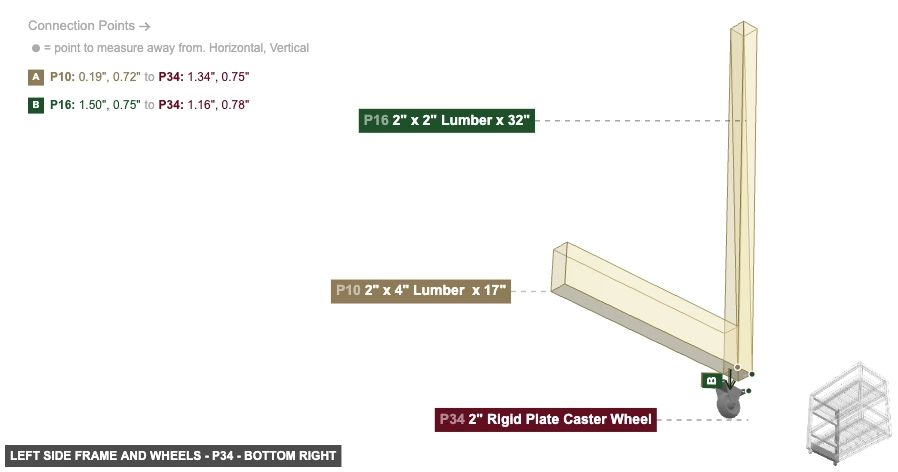

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P34 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 10's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

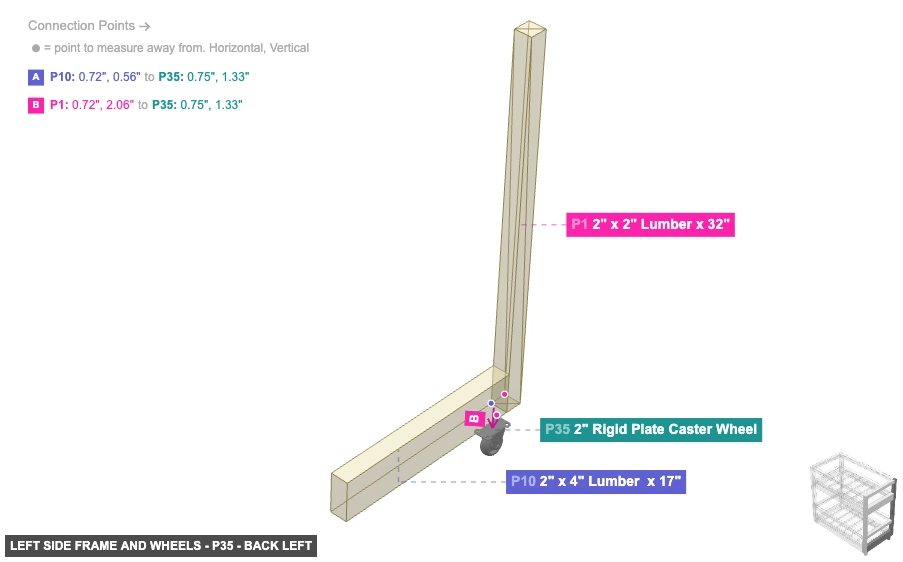

Part: 2" Rigid Plate Caster Wheel - Angle: back left

P35 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 10's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

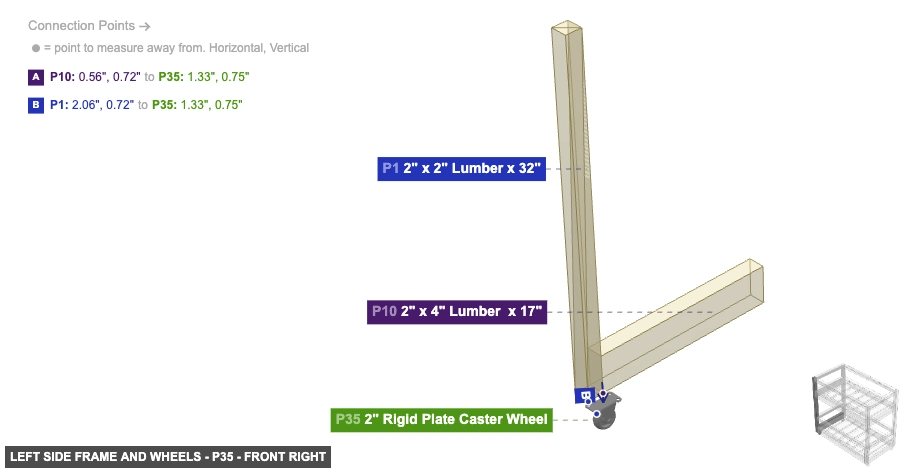

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P35 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 10's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

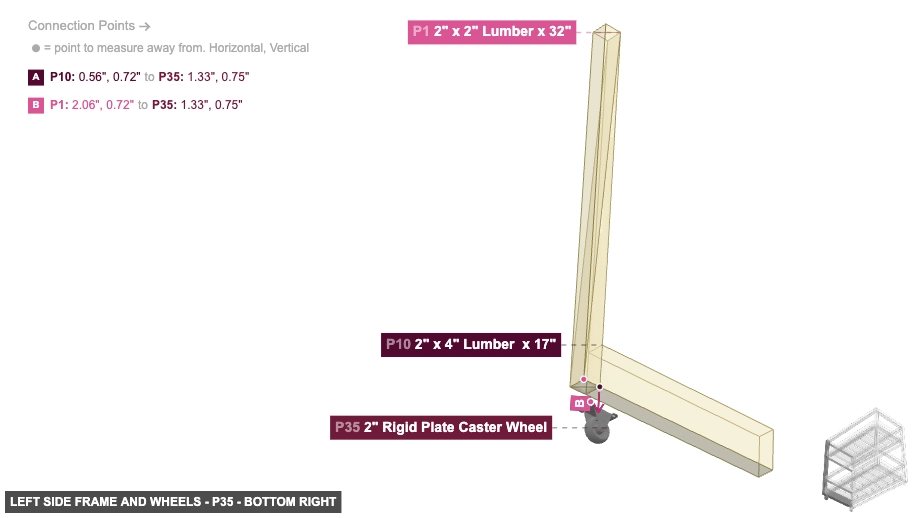

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P35 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 10's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

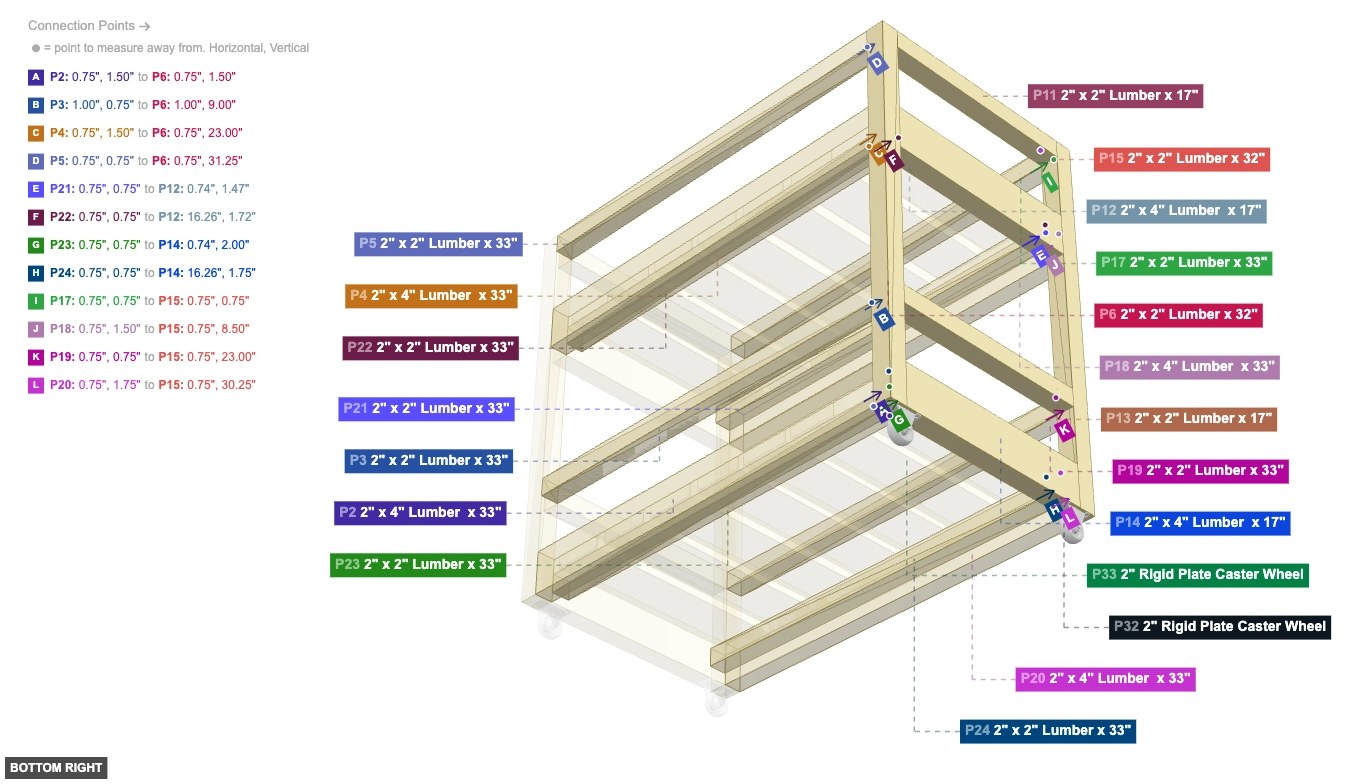

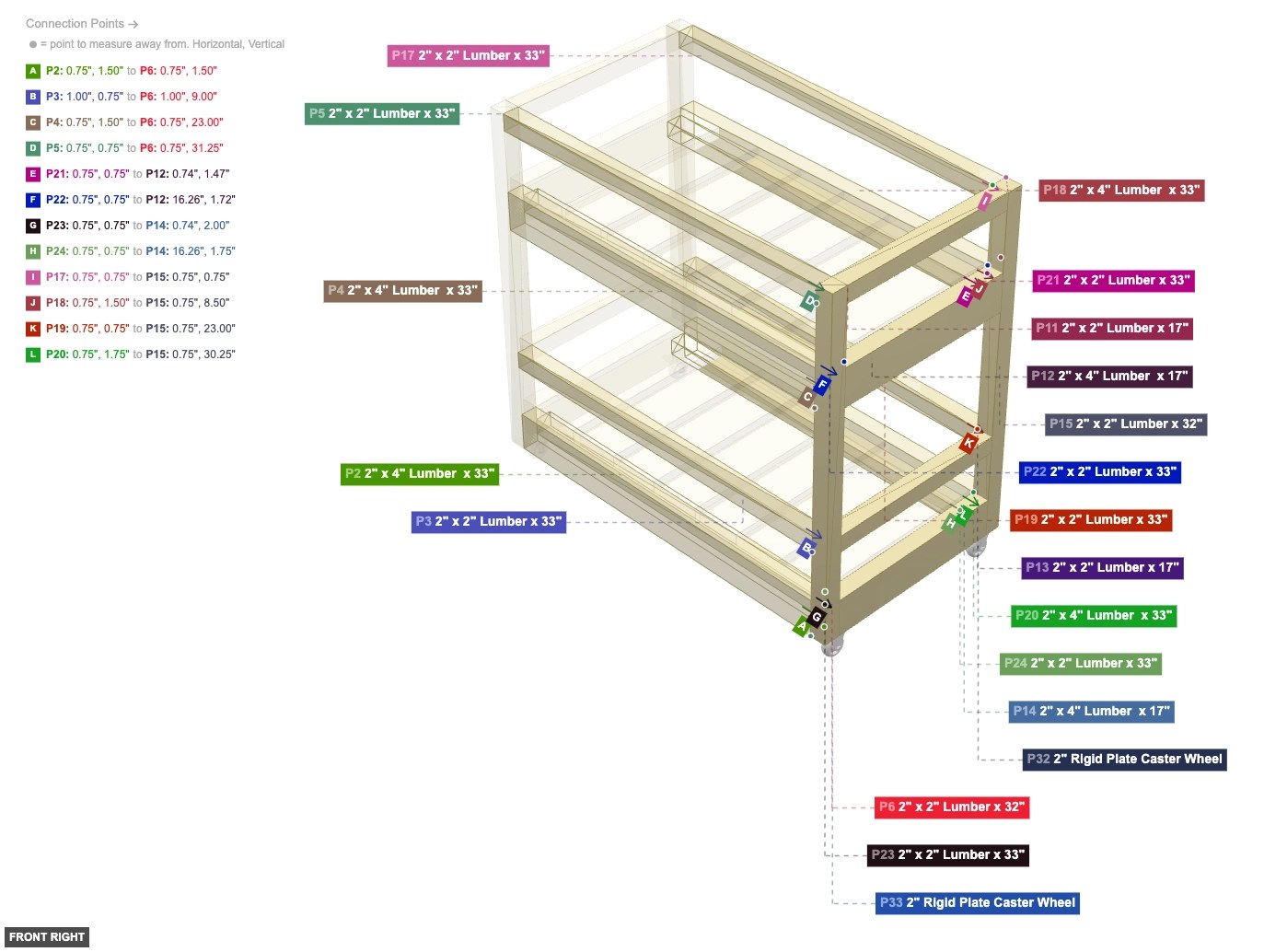

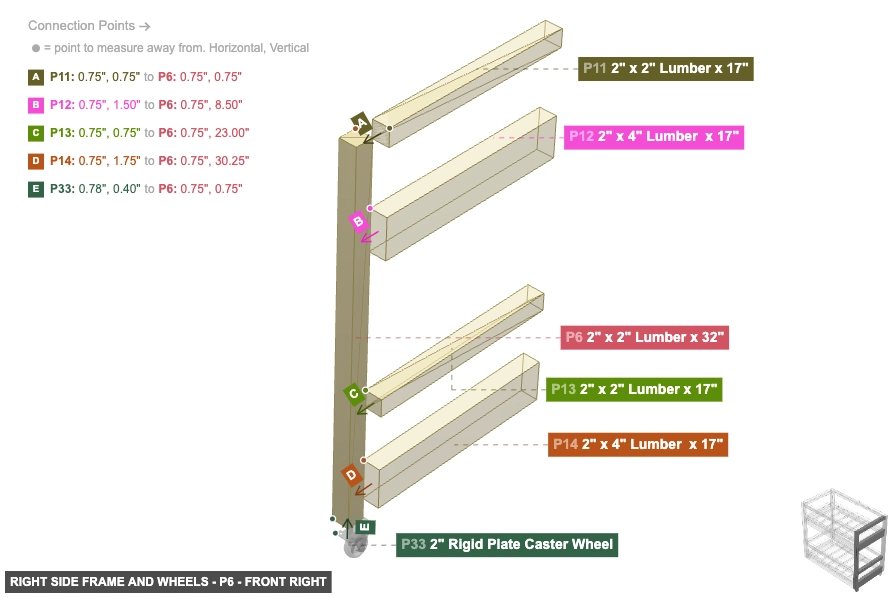

Group: Right Side Frame and Wheels

Assemble the right vertical posts (P6, P15) and the horizontal supports connecting them (P11, P12, P13, P14). Attach the right caster wheels (P32, P33) to the bottom.

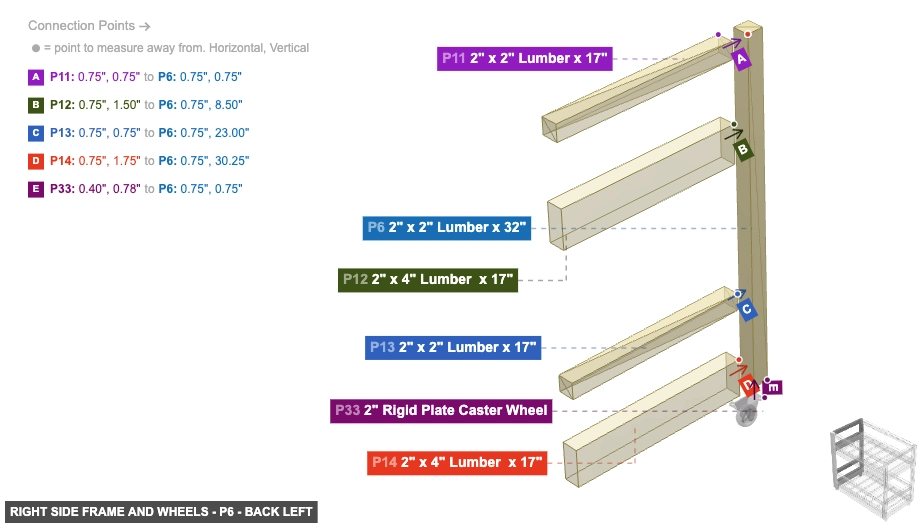

Part: 2" x 2" Lumber x 32" - Angle: back left

P6 (2" x 2" Lumber 32" length) - connect its 2" x 2" Wood Side #2 oriented back links with part 11's 2" x 2" Wood End #2. Next, its 2" x 2" Wood End #2, which is bottom-facing, should connect to part 33's Screw-In Screw In #1, then ensure its 2" x 2" Wood End #1 faces top, and its 2" x 2" Wood Side #3 needs to point right, and its 2" x 2" Wood Side #4 should be directed front

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Part: 2" x 2" Lumber x 32" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

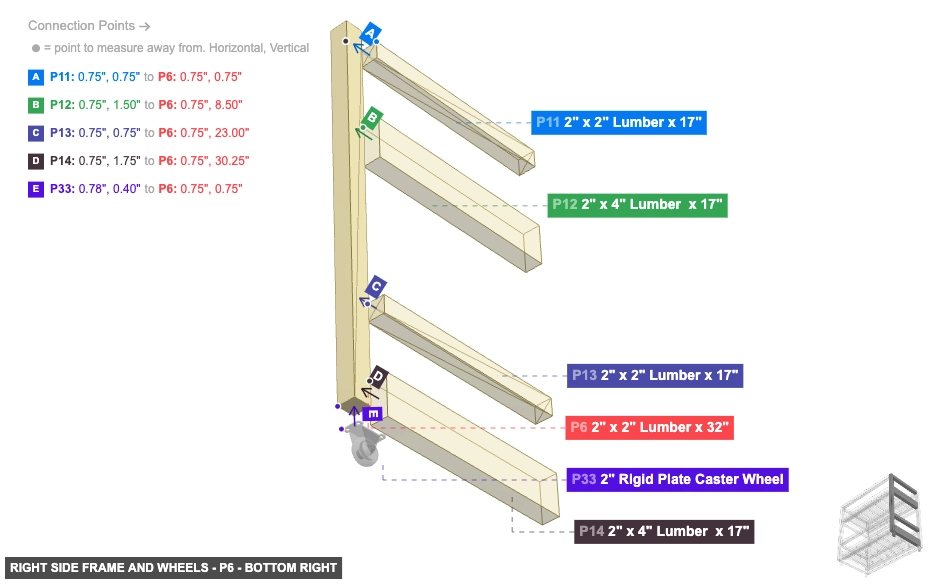

Part: 2" x 2" Lumber x 32" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

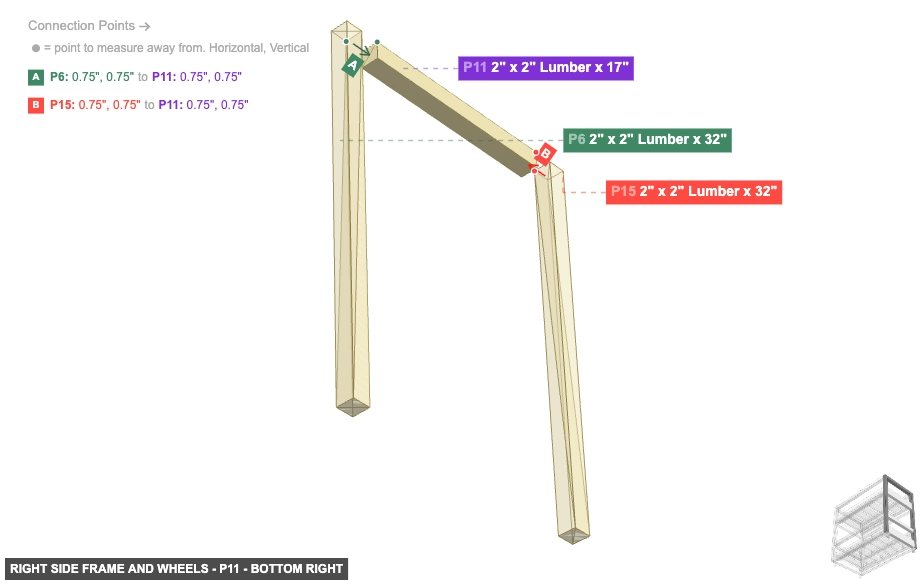

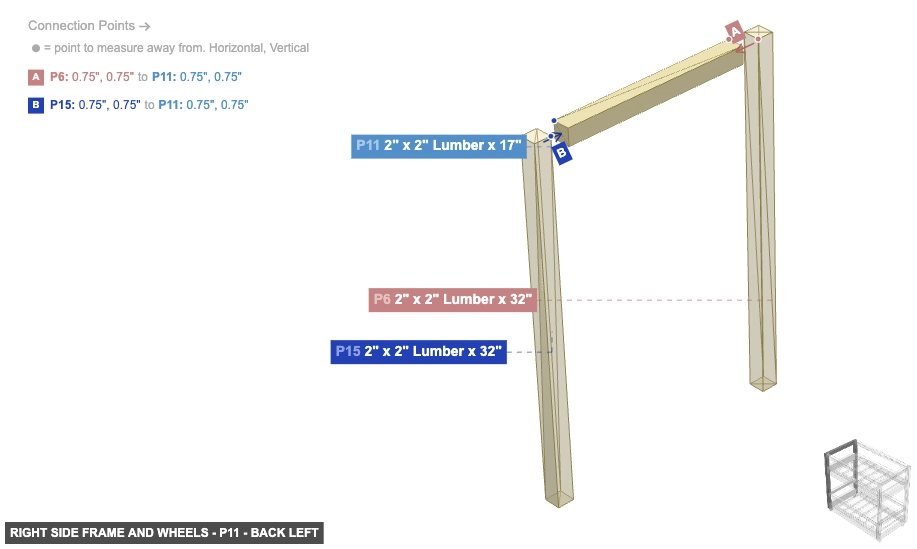

Part: 2" x 2" Lumber x 17" - Angle: back left

P11 (2" x 2" Lumber 17" length) - attach its 2" x 2" Wood End #1 facing back to part 15's 2" x 2" Wood Side #1, plus connect its 2" x 2" Wood End #2 oriented front links with part 6's 2" x 2" Wood Side #2, then ensure its 2" x 2" Wood Side #1 faces bottom, and its 2" x 2" Wood Side #2 must be oriented right, and its 2" x 2" Wood Side #3 needs to point top, and its 2" x 2" Wood Side #4 needs to point left

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

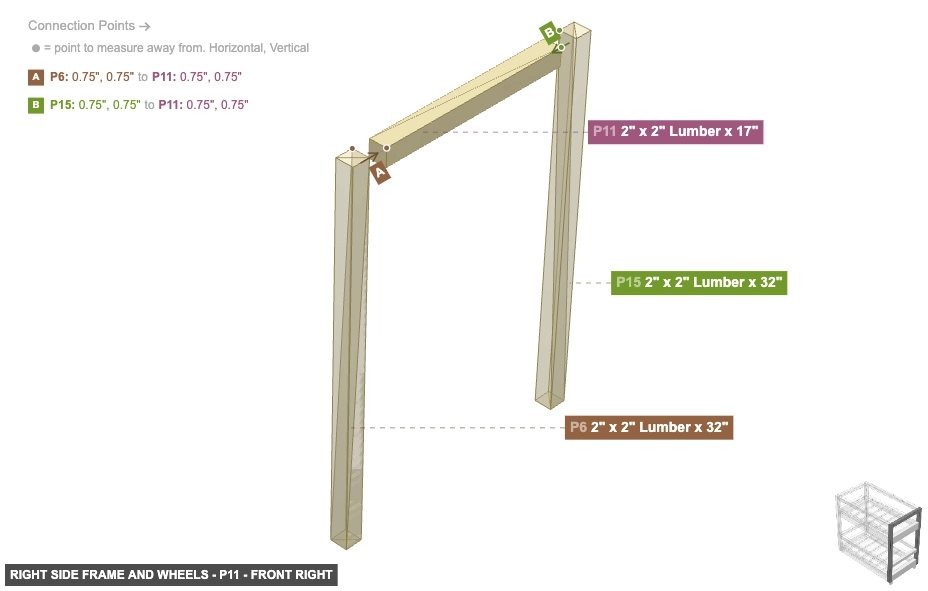

Part: 2" x 2" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Part: 2" x 2" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

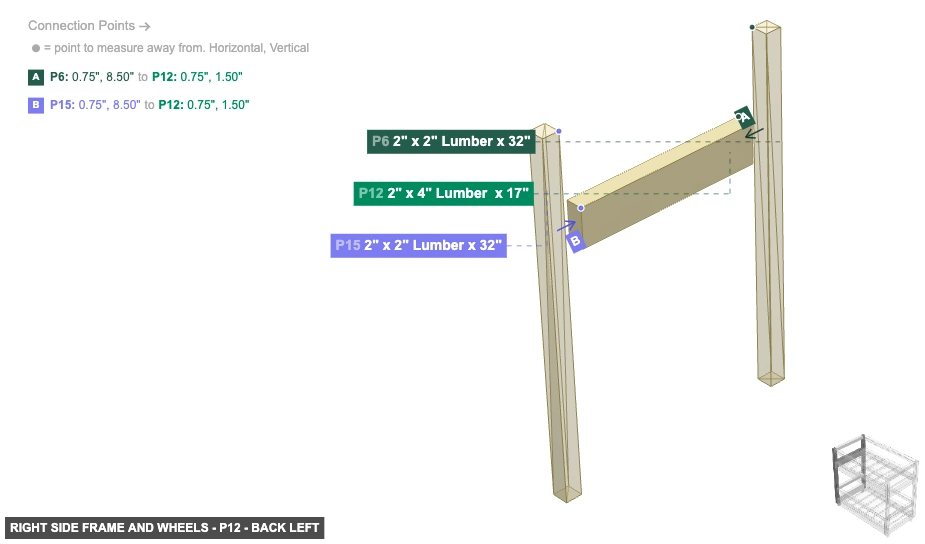

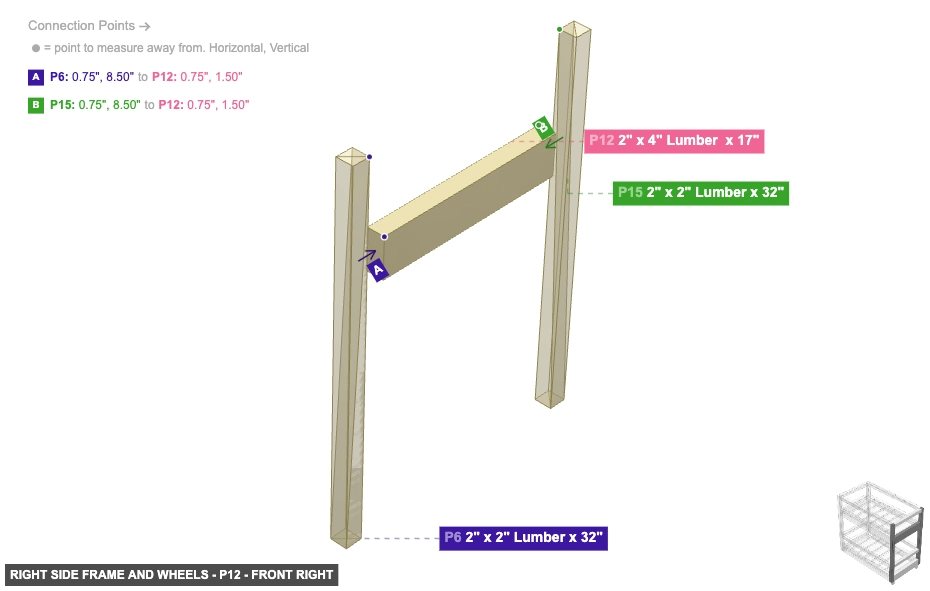

Part: 2" x 4" Lumber x 17" - Angle: back left

P12 (2" x 4" Lumber 17" length) - attach its 2" x 4" Wood End #1 facing back to part 15's 2" x 2" Wood Side #1. Additionally, its 2" x 4" Wood End #2, which is front-facing, should connect to part 6's 2" x 2" Wood Side #2. Also, ensure its 2" x 4" Wood Side #1 faces bottom, and its 2" x 4" Wood Side #2 must be oriented right. Also, its 2" x 4" Wood Side #3 should be directed top

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Part: 2" x 4" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

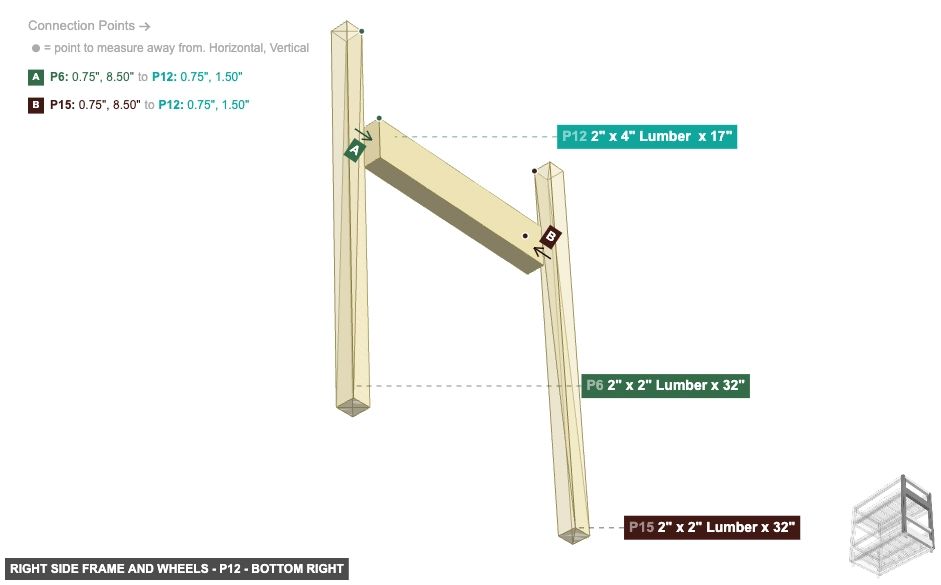

Part: 2" x 4" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

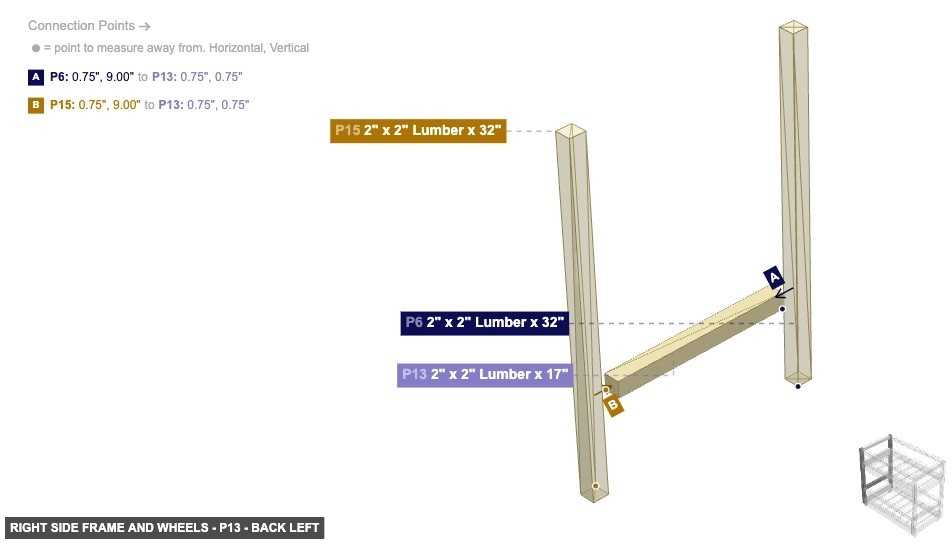

Part: 2" x 2" Lumber x 17" - Angle: back left

P13 (2" x 2" Lumber 17" length) - attach its 2" x 2" Wood End #1 facing back to part 15's 2" x 2" Wood Side #1. Additionally, attach its 2" x 2" Wood End #2 facing front to part 6's 2" x 2" Wood Side #2, then its 2" x 2" Wood Side #1 needs to point bottom, also its 2" x 2" Wood Side #2 should be directed right, plus its 2" x 2" Wood Side #3 should be directed top, plus its 2" x 2" Wood Side #4 should be directed left

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

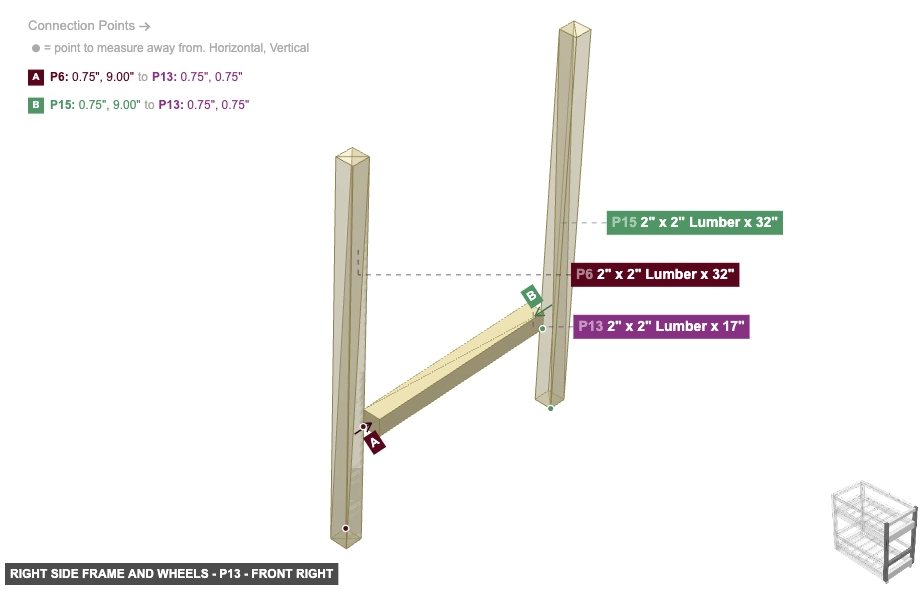

Part: 2" x 2" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

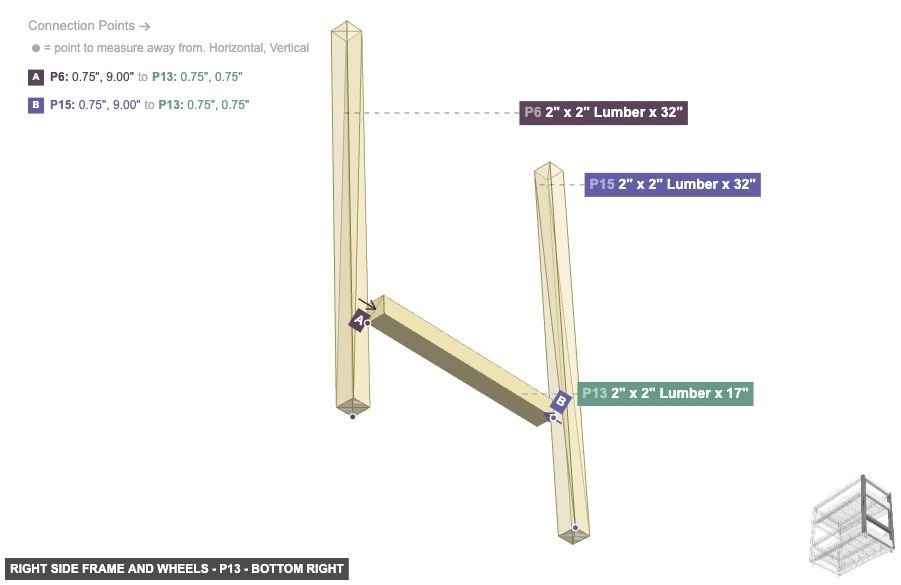

Part: 2" x 2" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

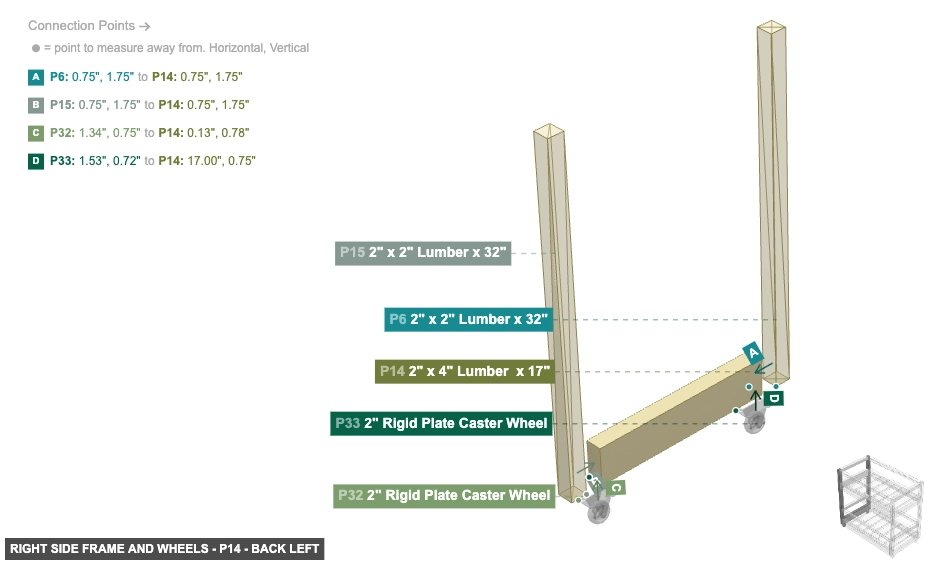

Part: 2" x 4" Lumber x 17" - Angle: back left

P14 (2" x 4" Lumber 17" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 15's 2" x 2" Wood Side #1, and attach its 2" x 4" Wood Side #1 facing bottom to part 32's Screw-In Screw In #1, then attach its 2" x 4" Wood End #2 facing front to part 6's 2" x 2" Wood Side #2. Also, ensure its 2" x 4" Wood Side #2 faces right. After that, its 2" x 4" Wood Side #3 needs to point top

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

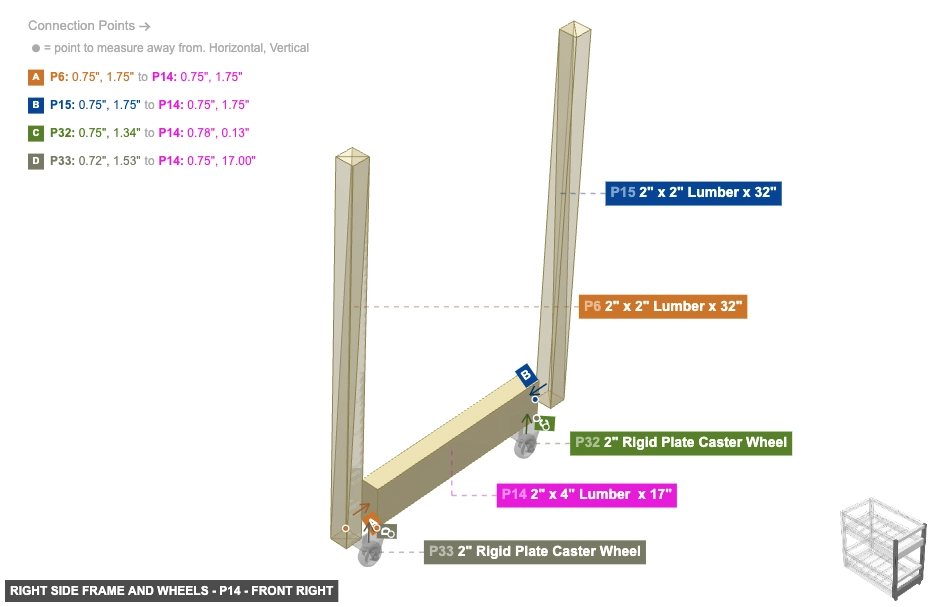

Part: 2" x 4" Lumber x 17" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

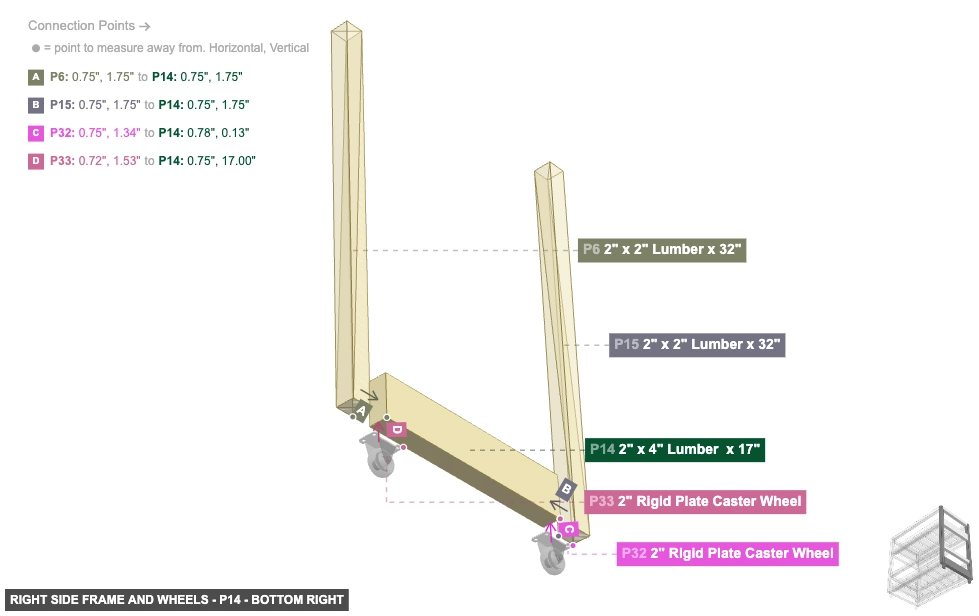

Part: 2" x 4" Lumber x 17" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

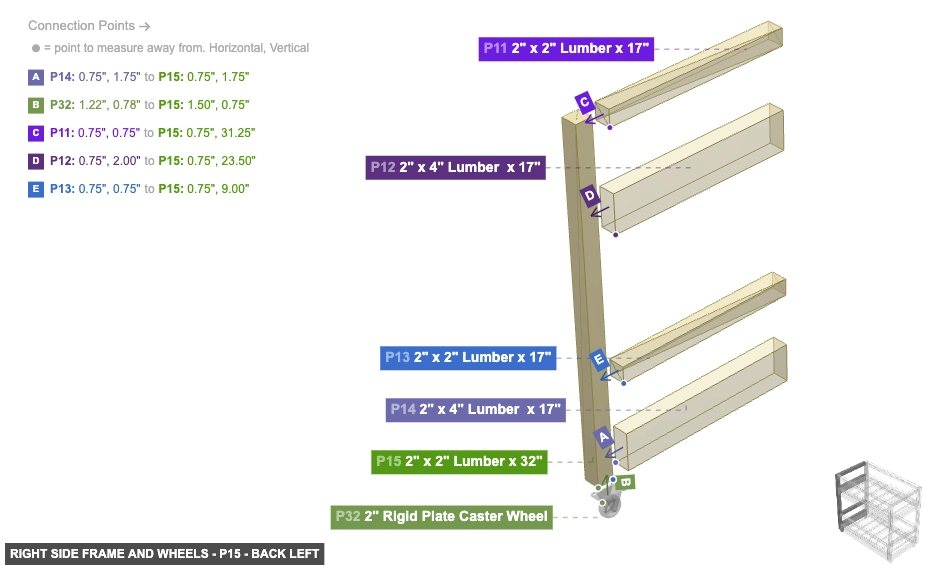

Part: 2" x 2" Lumber x 32" - Angle: back left

P15 (2" x 2" Lumber 32" length) - attach its 2" x 2" Wood Side #1 facing front to part 14's 2" x 4" Wood End #1. After that, attach its 2" x 2" Wood End #2 facing bottom to part 32's Screw-In Screw In #1. Also, ensure its 2" x 2" Wood End #1 faces top, also its 2" x 2" Wood Side #3 must be oriented back, plus its 2" x 2" Wood Side #4 should be directed right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Part: 2" x 2" Lumber x 32" - Angle: front right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

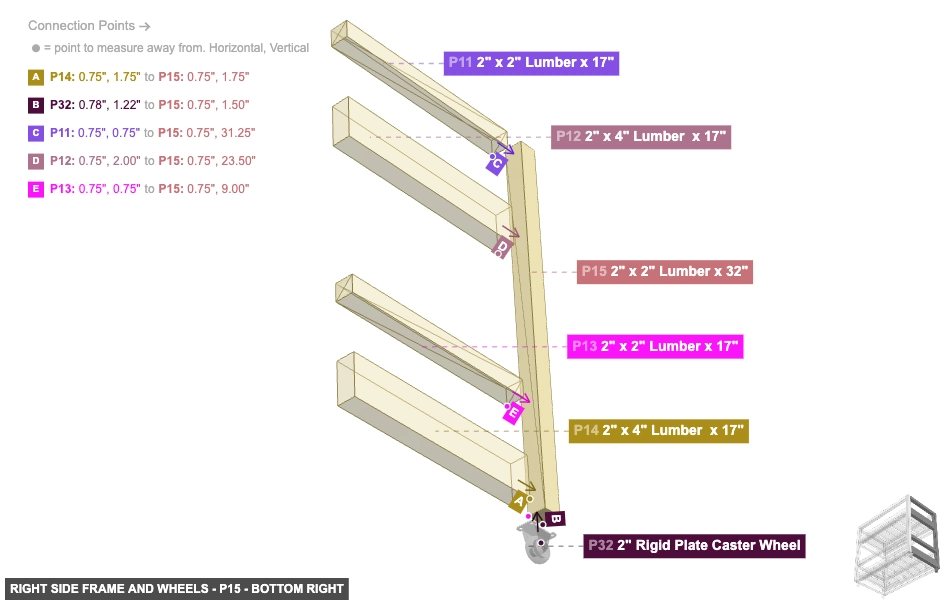

Part: 2" x 2" Lumber x 32" - Angle: bottom right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

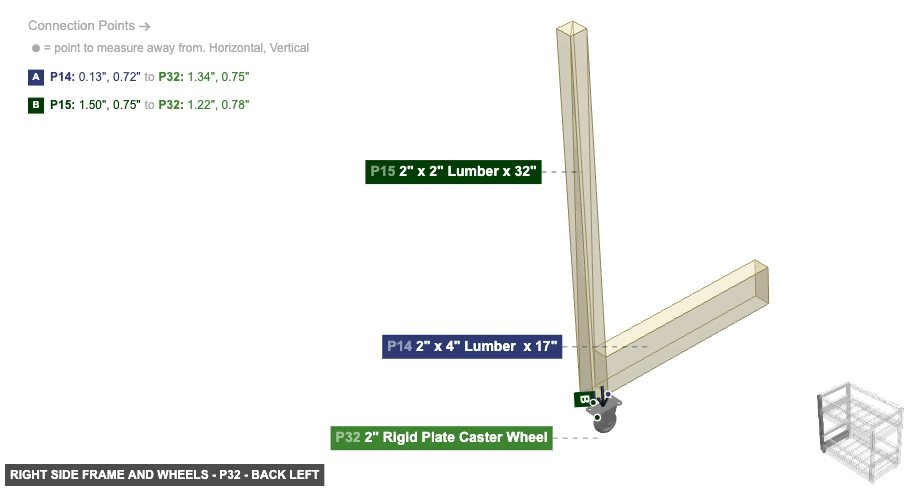

Part: 2" Rigid Plate Caster Wheel - Angle: back left

P32 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 14's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

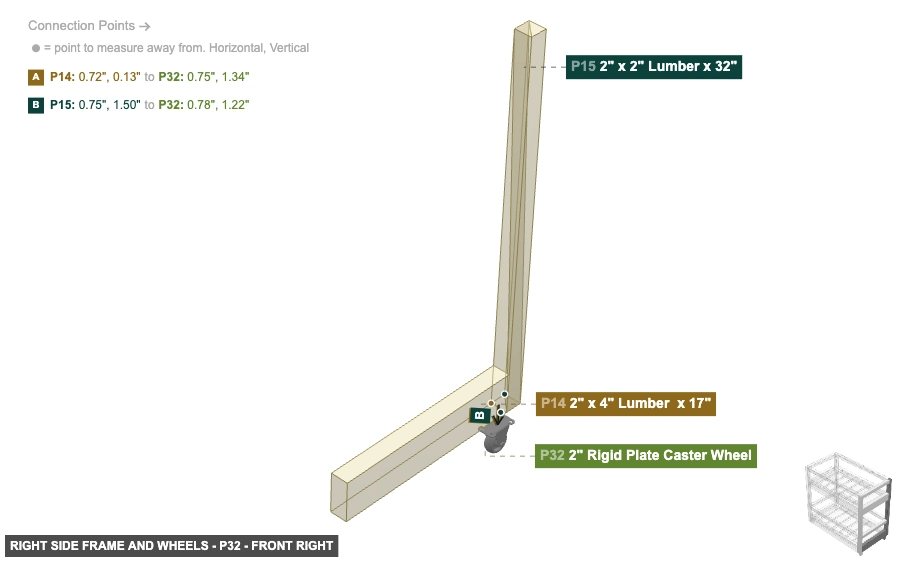

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P32 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 14's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

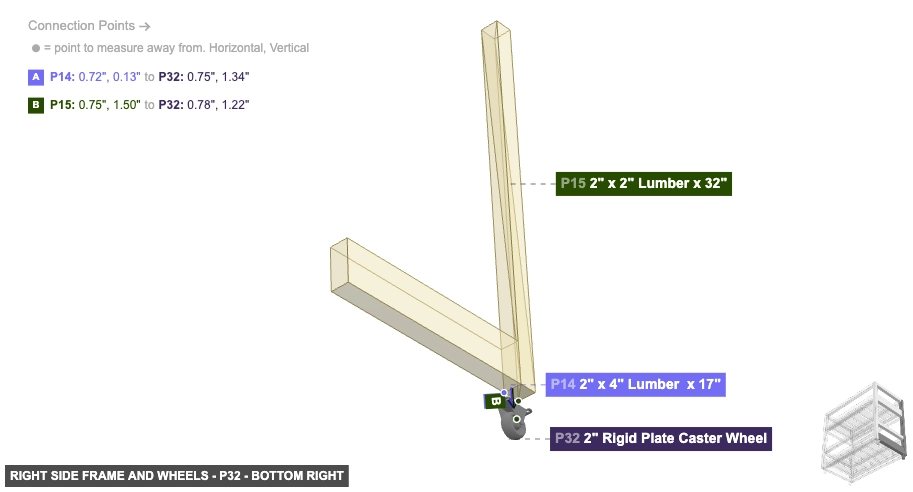

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P32 (2" Rigid Plate Caster Wheel) - its Screw-In Screw In #1, which is top-facing, should connect to part 14's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

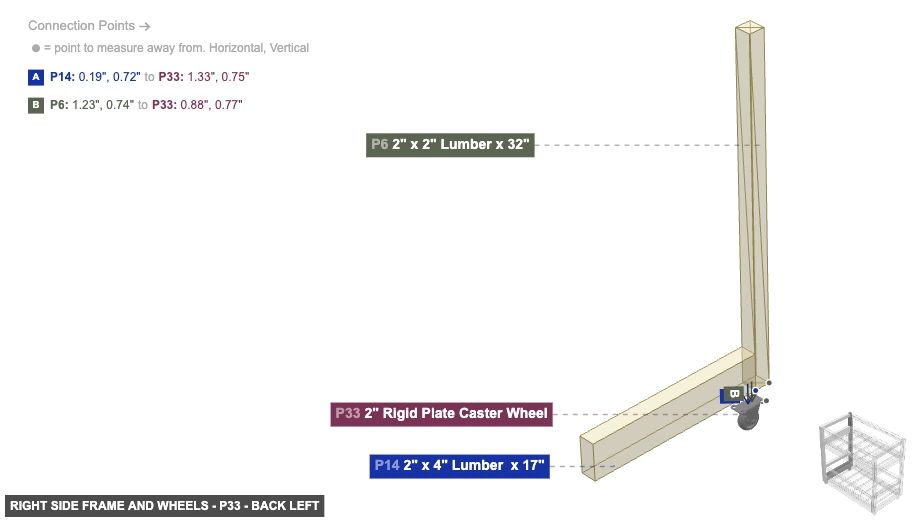

Part: 2" Rigid Plate Caster Wheel - Angle: back left

P33 (2" Rigid Plate Caster Wheel) - connect its Screw-In Screw In #1 oriented top links with part 14's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

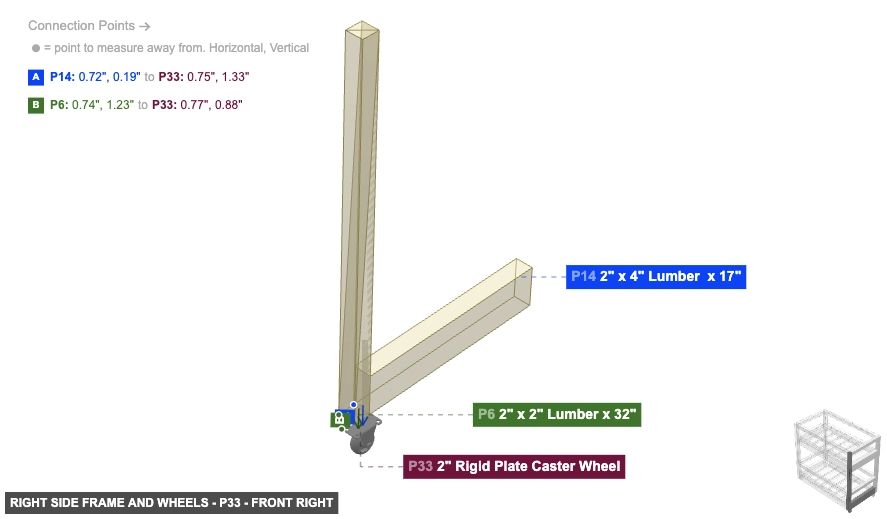

Part: 2" Rigid Plate Caster Wheel - Angle: front right

P33 (2" Rigid Plate Caster Wheel) - connect its Screw-In Screw In #1 oriented top links with part 14's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

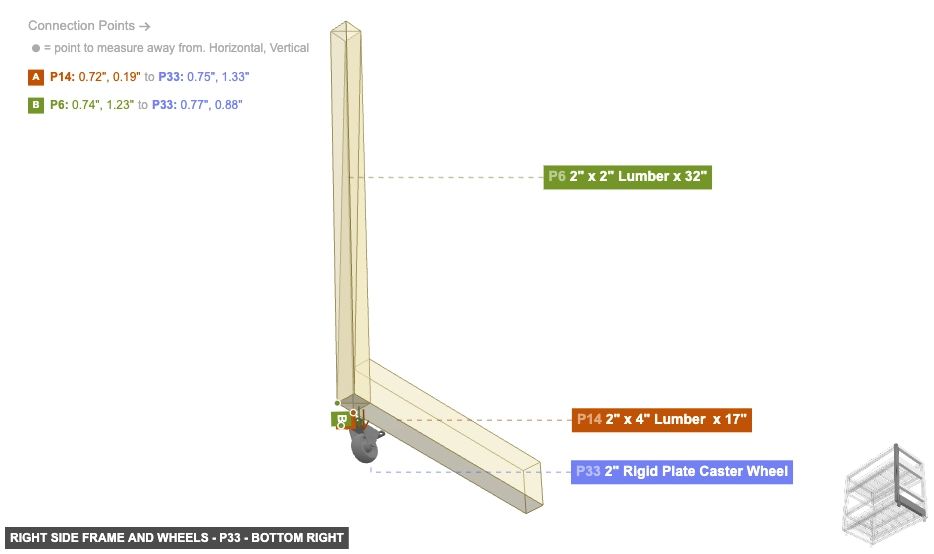

Part: 2" Rigid Plate Caster Wheel - Angle: bottom right

P33 (2" Rigid Plate Caster Wheel) - connect its Screw-In Screw In #1 oriented top links with part 14's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Group: Lower Shelf Frame Assembly

Connect the completed Left and Right Side Frames using the lower shelf's front (P2, P4), back (P18, P20), and central support beams (P21, P22, P23, P24).

Part: 2" x 4" Lumber x 33" - Angle: back left

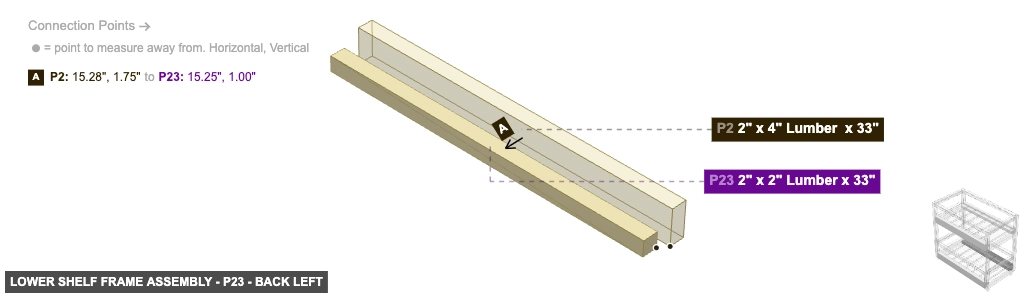

P2 (2" x 4" Lumber 33" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 23's 2" x 2" Wood Side #1. Additionally, its 2" x 4" Wood Side #1 needs to point top, then its 2" x 4" Wood Side #3 needs to point bottom. Next, its 2" x 4" Wood Side #4 must be oriented front

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: back left

P4 (2" x 4" Lumber 33" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 22's 2" x 2" Wood Side #1. After that, its 2" x 4" Wood Side #1 must be oriented top. Next, its 2" x 4" Wood Side #3 needs to point bottom. Also, its 2" x 4" Wood Side #4 needs to point front

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: back left

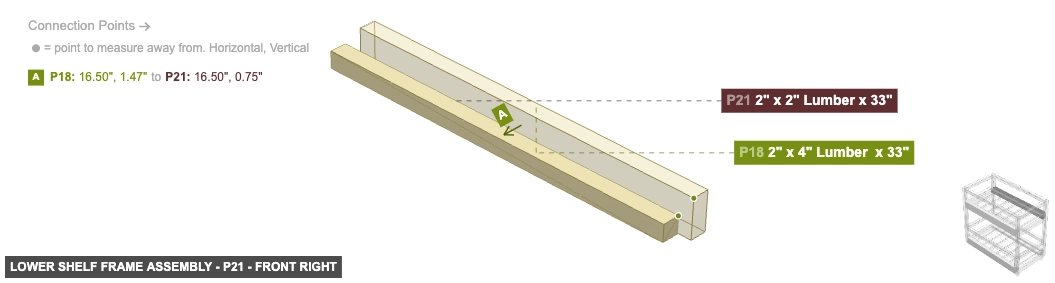

P18 (2" x 4" Lumber 33" length) - its 2" x 4" Wood Side #4, which is front-facing, should connect to part 21's 2" x 2" Wood Side #1. After that, ensure its 2" x 4" Wood Side #1 faces bottom. Additionally, ensure its 2" x 4" Wood Side #2 faces back, then its 2" x 4" Wood Side #3 should be directed top

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: back left

P20 (2" x 4" Lumber 33" length) - attach its 2" x 4" Wood Side #4 facing front to part 24's 2" x 2" Wood Side #1. Additionally, its 2" x 4" Wood Side #1 needs to point bottom, plus its 2" x 4" Wood Side #2 needs to point back, and ensure its 2" x 4" Wood Side #3 faces top

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 4" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: back left

P21 (2" x 2" Lumber 33" length) - connect its 2" x 2" Wood Side #1 oriented back links with part 18's 2" x 4" Wood Side #4, then its 2" x 2" Wood Side #2 should be directed bottom. After that, its 2" x 2" Wood Side #3 needs to point front, then its 2" x 2" Wood Side #4 needs to point top

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: back left

P22 (2" x 2" Lumber 33" length) - attach its 2" x 2" Wood Side #1 facing front to part 4's 2" x 4" Wood Side #2. After that, ensure its 2" x 2" Wood Side #3 faces back, plus its 2" x 2" Wood Side #4 must be oriented bottom

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: back left

P23 (2" x 2" Lumber 33" length) - its 2" x 2" Wood Side #1, which is front-facing, should connect to part 2's 2" x 4" Wood Side #2, then its 2" x 2" Wood Side #2 must be oriented top. Also, its 2" x 2" Wood Side #3 must be oriented back. Next, its 2" x 2" Wood Side #4 must be oriented bottom

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: back left

P24 (2" x 2" Lumber 33" length) - connect its 2" x 2" Wood Side #1 oriented back links with part 20's 2" x 4" Wood Side #4. Also, its 2" x 2" Wood Side #2 must be oriented bottom, also its 2" x 2" Wood Side #3 needs to point front

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: front right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Part: 2" x 2" Lumber x 33" - Angle: bottom right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Phase 3: Inter-Group Assembly

Attaching: Left Side Frame and Wheels

Assemble the left vertical posts (P1, P16) and the horizontal supports connecting them (P7, P8, P9, P10). Attach the left caster wheels (P34, P35) to the bottom.

Angle: back left

Assembly of Left Side Frame and Wheels - back_left

P1 (2" x 2" Lumber 32" length) - connect its 2" x 2" Wood Side #2 oriented back links with part 7's 2" x 2" Wood End #2, and attach its 2" x 2" Wood Side #3 facing right to part 2's 2" x 4" Wood End #2, then connect its 2" x 2" Wood End #2 oriented bottom links with part 35's Screw-In Screw In #1. Also, its 2" x 2" Wood End #1 must be oriented top, and its 2" x 2" Wood Side #1 needs to point left, then its 2" x 2" Wood Side #4 should be directed front P7 (2" x 2" Lumber 17" length) - connect its 2" x 2" Wood End #1 oriented back links with part 16's 2" x 2" Wood Side #1, also its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #2, and its 2" x 2" Wood Side #1 needs to point bottom. After that, its 2" x 2" Wood Side #2 should be directed right. Additionally, ensure its 2" x 2" Wood Side #3 faces top. Next, its 2" x 2" Wood Side #4 needs to point left P8 (2" x 4" Lumber 17" length) - attach its 2" x 4" Wood End #1 facing back to part 16's 2" x 2" Wood Side #1. Next, connect its 2" x 4" Wood Side #2 oriented right links with part 21's 2" x 2" Wood End #2, plus attach its 2" x 4" Wood End #2 facing front to part 1's 2" x 2" Wood Side #2. Also, its 2" x 4" Wood Side #1 should be directed bottom. After that, ensure its 2" x 4" Wood Side #3 faces top. Next, its 2" x 4" Wood Side #4 must be oriented left P9 (2" x 2" Lumber 17" length) - attach its 2" x 2" Wood End #1 facing back to part 16's 2" x 2" Wood Side #1. Also, its 2" x 2" Wood End #2, which is front-facing, should connect to part 1's 2" x 2" Wood Side #2, also its 2" x 2" Wood Side #1 must be oriented bottom, also ensure its 2" x 2" Wood Side #2 faces right. After that, ensure its 2" x 2" Wood Side #3 faces top. Additionally, ensure its 2" x 2" Wood Side #4 faces left P10 (2" x 4" Lumber 17" length) - connect its 2" x 4" Wood End #1 oriented back links with part 16's 2" x 2" Wood Side #1, then connect its 2" x 4" Wood Side #1 oriented bottom links with part 34's Screw-In Screw In #1. Next, its 2" x 4" Wood Side #2, which is right-facing, should connect to part 23's 2" x 2" Wood End #2, plus connect its 2" x 4" Wood End #2 oriented front links with part 1's 2" x 2" Wood Side #2, and its 2" x 4" Wood Side #3 needs to point top, plus its 2" x 4" Wood Side #4 needs to point left P16 (2" x 2" Lumber 32" length) - attach its 2" x 2" Wood Side #1 facing front to part 10's 2" x 4" Wood End #1, plus attach its 2" x 2" Wood Side #4 facing right to part 17's 2" x 2" Wood End #1. Next, attach its 2" x 2" Wood End #2 facing bottom to part 34's Screw-In Screw In #1, also its 2" x 2" Wood End #1 must be oriented top. Additionally, its 2" x 2" Wood Side #2 should be directed left. Additionally, its 2" x 2" Wood Side #3 must be oriented back P34 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 10's 2" x 4" Wood Side #1 P35 (2" Rigid Plate Caster Wheel) - connect its Screw-In Screw In #1 oriented top links with part 10's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Angle: front right

Assembly of Left Side Frame and Wheels - front_right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Angle: bottom right

Assembly of Left Side Frame and Wheels - bottom_right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Attaching: Right Side Frame and Wheels

Assemble the right vertical posts (P6, P15) and the horizontal supports connecting them (P11, P12, P13, P14). Attach the right caster wheels (P32, P33) to the bottom.

Angle: back left

Assembly of Right Side Frame and Wheels - back_left

P6 (2" x 2" Lumber 32" length) - attach its 2" x 2" Wood Side #1 facing left to part 2's 2" x 4" Wood End #1, plus connect its 2" x 2" Wood Side #2 oriented back links with part 11's 2" x 2" Wood End #2. Additionally, attach its 2" x 2" Wood End #2 facing bottom to part 33's Screw-In Screw In #1. Additionally, ensure its 2" x 2" Wood End #1 faces top. After that, its 2" x 2" Wood Side #3 should be directed right. Also, its 2" x 2" Wood Side #4 must be oriented front P11 (2" x 2" Lumber 17" length) - connect its 2" x 2" Wood End #1 oriented back links with part 15's 2" x 2" Wood Side #1. Additionally, its 2" x 2" Wood End #2, which is front-facing, should connect to part 6's 2" x 2" Wood Side #2, and its 2" x 2" Wood Side #1 must be oriented bottom, also its 2" x 2" Wood Side #2 should be directed right, and its 2" x 2" Wood Side #3 needs to point top, then its 2" x 2" Wood Side #4 must be oriented left P12 (2" x 4" Lumber 17" length) - attach its 2" x 4" Wood End #1 facing back to part 15's 2" x 2" Wood Side #1, also attach its 2" x 4" Wood Side #4 facing left to part 21's 2" x 2" Wood End #1, and attach its 2" x 4" Wood End #2 facing front to part 6's 2" x 2" Wood Side #2, also ensure its 2" x 4" Wood Side #1 faces bottom. Additionally, its 2" x 4" Wood Side #2 should be directed right, and its 2" x 4" Wood Side #3 needs to point top P13 (2" x 2" Lumber 17" length) - its 2" x 2" Wood End #1, which is back-facing, should connect to part 15's 2" x 2" Wood Side #1, and connect its 2" x 2" Wood End #2 oriented front links with part 6's 2" x 2" Wood Side #2. After that, its 2" x 2" Wood Side #1 should be directed bottom. Also, its 2" x 2" Wood Side #2 needs to point right. Additionally, its 2" x 2" Wood Side #3 should be directed top. After that, ensure its 2" x 2" Wood Side #4 faces left P14 (2" x 4" Lumber 17" length) - its 2" x 4" Wood End #1, which is back-facing, should connect to part 15's 2" x 2" Wood Side #1, then connect its 2" x 4" Wood Side #1 oriented bottom links with part 32's Screw-In Screw In #1, and attach its 2" x 4" Wood Side #4 facing left to part 23's 2" x 2" Wood End #1, then its 2" x 4" Wood End #2, which is front-facing, should connect to part 6's 2" x 2" Wood Side #2, and ensure its 2" x 4" Wood Side #2 faces right, then its 2" x 4" Wood Side #3 needs to point top P15 (2" x 2" Lumber 32" length) - attach its 2" x 2" Wood Side #1 facing front to part 14's 2" x 4" Wood End #1, then attach its 2" x 2" Wood Side #2 facing left to part 17's 2" x 2" Wood End #2, also connect its 2" x 2" Wood End #2 oriented bottom links with part 32's Screw-In Screw In #1, then ensure its 2" x 2" Wood End #1 faces top. Next, its 2" x 2" Wood Side #3 needs to point back. Next, its 2" x 2" Wood Side #4 needs to point right P32 (2" Rigid Plate Caster Wheel) - attach its Screw-In Screw In #1 facing top to part 14's 2" x 4" Wood Side #1 P33 (2" Rigid Plate Caster Wheel) - connect its Screw-In Screw In #1 oriented top links with part 14's 2" x 4" Wood Side #1

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Angle: front right

Assembly of Right Side Frame and Wheels - front_right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Angle: bottom right

Assembly of Right Side Frame and Wheels - bottom_right

2" x 2" Lumber x 32"x 2

2" x 2" Lumber x 17"x 2

2" x 4" Lumber x 17"x 2

2" Rigid Plate Caster Wheelx 2

Attaching: Lower Shelf Frame Assembly

Connect the completed Left and Right Side Frames using the lower shelf's front (P2, P4), back (P18, P20), and central support beams (P21, P22, P23, P24).

Angle: back left

Assembly of Lower Shelf Frame Assembly - back_left

P2 (2" x 4" Lumber 33" length) - connect its 2" x 4" Wood End #1 oriented right links with part 6's 2" x 2" Wood Side #1, then its 2" x 4" Wood Side #2, which is back-facing, should connect to part 23's 2" x 2" Wood Side #1, also connect its 2" x 4" Wood End #2 oriented left links with part 1's 2" x 2" Wood Side #3. Additionally, ensure its 2" x 4" Wood Side #1 faces top, then its 2" x 4" Wood Side #3 must be oriented bottom. Next, its 2" x 4" Wood Side #4 must be oriented front P4 (2" x 4" Lumber 33" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 6's 2" x 2" Wood Side #1, also its 2" x 4" Wood Side #2, which is back-facing, should connect to part 22's 2" x 2" Wood Side #1, also connect its 2" x 4" Wood End #2 oriented left links with part 1's 2" x 2" Wood Side #3, also ensure its 2" x 4" Wood Side #1 faces top. After that, its 2" x 4" Wood Side #3 needs to point bottom, also its 2" x 4" Wood Side #4 must be oriented front P18 (2" x 4" Lumber 33" length) - attach its 2" x 4" Wood End #1 facing left to part 16's 2" x 2" Wood Side #4, plus connect its 2" x 4" Wood Side #4 oriented front links with part 21's 2" x 2" Wood Side #1, then attach its 2" x 4" Wood End #2 facing right to part 15's 2" x 2" Wood Side #2, plus ensure its 2" x 4" Wood Side #1 faces bottom, then its 2" x 4" Wood Side #2 should be directed back, and its 2" x 4" Wood Side #3 should be directed top P20 (2" x 4" Lumber 33" length) - attach its 2" x 4" Wood End #1 facing left to part 16's 2" x 2" Wood Side #4, and connect its 2" x 4" Wood Side #4 oriented front links with part 24's 2" x 2" Wood Side #1, then its 2" x 4" Wood End #2, which is right-facing, should connect to part 15's 2" x 2" Wood Side #2, also its 2" x 4" Wood Side #1 must be oriented bottom. Additionally, its 2" x 4" Wood Side #2 must be oriented back, plus its 2" x 4" Wood Side #3 should be directed top P21 (2" x 2" Lumber 33" length) - attach its 2" x 2" Wood End #1 facing right to part 12's 2" x 4" Wood Side #4. Next, attach its 2" x 2" Wood Side #1 facing back to part 18's 2" x 4" Wood Side #4, and its 2" x 2" Wood End #2, which is left-facing, should connect to part 8's 2" x 4" Wood Side #2. Additionally, its 2" x 2" Wood Side #2 should be directed bottom, plus its 2" x 2" Wood Side #3 must be oriented front. Next, ensure its 2" x 2" Wood Side #4 faces top P22 (2" x 2" Lumber 33" length) - its 2" x 2" Wood End #1, which is right-facing, should connect to part 12's 2" x 4" Wood Side #4. Also, connect its 2" x 2" Wood Side #1 oriented front links with part 4's 2" x 4" Wood Side #2, and its 2" x 2" Wood Side #2, which is top-facing, should connect to part 36's 1" x 4" Wood Side #2, then its 2" x 2" Wood End #2, which is left-facing, should connect to part 8's 2" x 4" Wood Side #2. Next, ensure its 2" x 2" Wood Side #3 faces back, then ensure its 2" x 2" Wood Side #4 faces bottom P23 (2" x 2" Lumber 33" length) - connect its 2" x 2" Wood End #1 oriented right links with part 14's 2" x 4" Wood Side #4. After that, connect its 2" x 2" Wood Side #1 oriented front links with part 2's 2" x 4" Wood Side #2. Next, attach its 2" x 2" Wood End #2 facing left to part 10's 2" x 4" Wood Side #2. After that, ensure its 2" x 2" Wood Side #2 faces top, and ensure its 2" x 2" Wood Side #3 faces back. Also, its 2" x 2" Wood Side #4 should be directed bottom P24 (2" x 2" Lumber 33" length) - connect its 2" x 2" Wood End #1 oriented right links with part 14's 2" x 4" Wood Side #4, and attach its 2" x 2" Wood Side #1 facing back to part 20's 2" x 4" Wood Side #4, also attach its 2" x 2" Wood Side #4 facing top to part 25's 1" x 4" Wood Side #2, also attach its 2" x 2" Wood End #2 facing left to part 10's 2" x 4" Wood Side #2, then its 2" x 2" Wood Side #2 must be oriented bottom. Additionally, ensure its 2" x 2" Wood Side #3 faces front

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Angle: front right

Assembly of Lower Shelf Frame Assembly - front_right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Angle: bottom right

Assembly of Lower Shelf Frame Assembly - bottom_right

2" x 4" Lumber x 33"x 4

2" x 2" Lumber x 33"x 4

Attaching: Lower Shelf Slats Installation

Attach the wooden slats (P25-P31) onto the lower shelf frame supports to create the shelf surface.

Angle: back left

Assembly of Lower Shelf Slats Installation - back_left

P25 (1" x 4" Lumber 17" length) - connect its 1" x 4" Wood End #1 oriented front links with part 2's 2" x 4" Wood Side #2. Also, attach its 1" x 4" Wood Side #2 facing bottom to part 24's 2" x 2" Wood Side #4. After that, connect its 1" x 4" Wood End #2 oriented back links with part 20's 2" x 4" Wood Side #4. Next, ensure its 1" x 4" Wood Side #1 faces right, and its 1" x 4" Wood Side #3 needs to point left. Additionally, ensure its 1" x 4" Wood Side #4 faces top P26 (1" x 4" Lumber 17" length) - connect its 1" x 4" Wood End #1 oriented front links with part 2's 2" x 4" Wood Side #2, and connect its 1" x 4" Wood Side #2 oriented bottom links with part 24's 2" x 2" Wood Side #4. Also, connect its 1" x 4" Wood End #2 oriented back links with part 20's 2" x 4" Wood Side #4, plus ensure its 1" x 4" Wood Side #1 faces right, also its 1" x 4" Wood Side #3 must be oriented left. Next, ensure its 1" x 4" Wood Side #4 faces top P27 (1" x 4" Lumber 17" length) - connect its 1" x 4" Wood End #1 oriented front links with part 2's 2" x 4" Wood Side #2. After that, connect its 1" x 4" Wood Side #2 oriented bottom links with part 24's 2" x 2" Wood Side #4, also connect its 1" x 4" Wood End #2 oriented back links with part 20's 2" x 4" Wood Side #4, also its 1" x 4" Wood Side #1 should be directed right, then its 1" x 4" Wood Side #3 needs to point left, also ensure its 1" x 4" Wood Side #4 faces top P28 (1" x 4" Lumber 17" length) - connect its 1" x 4" Wood End #1 oriented front links with part 2's 2" x 4" Wood Side #2, also attach its 1" x 4" Wood Side #2 facing bottom to part 24's 2" x 2" Wood Side #4, plus connect its 1" x 4" Wood End #2 oriented back links with part 20's 2" x 4" Wood Side #4, plus its 1" x 4" Wood Side #1 must be oriented right, then its 1" x 4" Wood Side #3 needs to point left, also ensure its 1" x 4" Wood Side #4 faces top P29 (1" x 4" Lumber 17" length) - connect its 1" x 4" Wood End #1 oriented front links with part 2's 2" x 4" Wood Side #2. Next, attach its 1" x 4" Wood Side #2 facing bottom to part 24's 2" x 2" Wood Side #4, then its 1" x 4" Wood End #2, which is back-facing, should connect to part 20's 2" x 4" Wood Side #4. Additionally, its 1" x 4" Wood Side #1 needs to point right, then its 1" x 4" Wood Side #3 needs to point left, and its 1" x 4" Wood Side #4 must be oriented top P30 (1" x 4" Lumber 17" length) - attach its 1" x 4" Wood End #1 facing front to part 2's 2" x 4" Wood Side #2, also connect its 1" x 4" Wood Side #2 oriented bottom links with part 24's 2" x 2" Wood Side #4, and its 1" x 4" Wood End #2, which is back-facing, should connect to part 20's 2" x 4" Wood Side #4, plus its 1" x 4" Wood Side #1 should be directed right. After that, its 1" x 4" Wood Side #3 needs to point left, plus its 1" x 4" Wood Side #4 should be directed top P31 (1" x 4" Lumber 17" length) - attach its 1" x 4" Wood End #1 facing front to part 2's 2" x 4" Wood Side #2. Next, attach its 1" x 4" Wood Side #2 facing bottom to part 24's 2" x 2" Wood Side #4. After that, attach its 1" x 4" Wood End #2 facing back to part 20's 2" x 4" Wood Side #4. Also, ensure its 1" x 4" Wood Side #1 faces right, and its 1" x 4" Wood Side #3 needs to point left, and ensure its 1" x 4" Wood Side #4 faces top

1" x 4" Lumber x 17"x 7

Angle: front right

Assembly of Lower Shelf Slats Installation - front_right

1" x 4" Lumber x 17"x 7

Angle: bottom right

Assembly of Lower Shelf Slats Installation - bottom_right

1" x 4" Lumber x 17"x 7

Attaching: Upper Shelf Frame Assembly

Install the upper shelf's front (P3, P5) and back (P17, P19) structural beams between the top ends of the side frames.

Angle: back left

Assembly of Upper Shelf Frame Assembly - back_left

P3 (2" x 2" Lumber 33" length) - connect its 2" x 2" Wood End #1 oriented right links with part 6's 2" x 2" Wood Side #1, also its 2" x 2" Wood End #2, which is left-facing, should connect to part 1's 2" x 2" Wood Side #3. After that, ensure its 2" x 2" Wood Side #1 faces top. After that, ensure its 2" x 2" Wood Side #2 faces back. Next, its 2" x 2" Wood Side #3 should be directed bottom, and ensure its 2" x 2" Wood Side #4 faces front P5 (2" x 2" Lumber 33" length) - attach its 2" x 2" Wood End #1 facing right to part 6's 2" x 2" Wood Side #1, then attach its 2" x 2" Wood End #2 facing left to part 1's 2" x 2" Wood Side #3, then its 2" x 2" Wood Side #1 should be directed top. Also, ensure its 2" x 2" Wood Side #2 faces back. Additionally, its 2" x 2" Wood Side #3 needs to point bottom. Next, its 2" x 2" Wood Side #4 should be directed front P17 (2" x 2" Lumber 33" length) - connect its 2" x 2" Wood End #1 oriented left links with part 16's 2" x 2" Wood Side #4, then its 2" x 2" Wood End #2, which is right-facing, should connect to part 15's 2" x 2" Wood Side #2, then its 2" x 2" Wood Side #1 must be oriented bottom. Also, its 2" x 2" Wood Side #2 must be oriented back. After that, its 2" x 2" Wood Side #3 needs to point top, then ensure its 2" x 2" Wood Side #4 faces front P19 (2" x 2" Lumber 33" length) - connect its 2" x 2" Wood End #1 oriented left links with part 16's 2" x 2" Wood Side #4. After that, its 2" x 2" Wood End #2, which is right-facing, should connect to part 15's 2" x 2" Wood Side #2, and its 2" x 2" Wood Side #1 needs to point bottom. Also, its 2" x 2" Wood Side #2 must be oriented back, then ensure its 2" x 2" Wood Side #3 faces top. Additionally, its 2" x 2" Wood Side #4 needs to point front

2" x 2" Lumber x 33"x 4

Angle: front right

Assembly of Upper Shelf Frame Assembly - front_right

2" x 2" Lumber x 33"x 4

Angle: bottom right

Assembly of Upper Shelf Frame Assembly - bottom_right

2" x 2" Lumber x 33"x 4

Attaching: Upper Shelf Slats Installation

Attach the wooden slats (P36-P42) onto the upper shelf frame supports to create the top shelf surface.

Angle: back left

Assembly of Upper Shelf Slats Installation - back_left

P36 (1" x 4" Lumber 17" length) - connect its 1" x 4" Wood End #1 oriented back links with part 18's 2" x 4" Wood Side #4. Additionally, its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 22's 2" x 2" Wood Side #2. Next, its 1" x 4" Wood End #2, which is front-facing, should connect to part 4's 2" x 4" Wood Side #2, then its 1" x 4" Wood Side #1 needs to point left. Also, its 1" x 4" Wood Side #3 should be directed right. Additionally, ensure its 1" x 4" Wood Side #4 faces top P37 (1" x 4" Lumber 17" length) - its 1" x 4" Wood End #1, which is back-facing, should connect to part 18's 2" x 4" Wood Side #4, then attach its 1" x 4" Wood Side #2 facing bottom to part 22's 2" x 2" Wood Side #2. After that, attach its 1" x 4" Wood End #2 facing front to part 4's 2" x 4" Wood Side #2, also its 1" x 4" Wood Side #1 needs to point left, and its 1" x 4" Wood Side #3 should be directed right, plus ensure its 1" x 4" Wood Side #4 faces top P38 (1" x 4" Lumber 17" length) - attach its 1" x 4" Wood End #1 facing back to part 18's 2" x 4" Wood Side #4, also connect its 1" x 4" Wood Side #2 oriented bottom links with part 22's 2" x 2" Wood Side #2. Next, its 1" x 4" Wood End #2, which is front-facing, should connect to part 4's 2" x 4" Wood Side #2. Also, its 1" x 4" Wood Side #1 should be directed left, plus its 1" x 4" Wood Side #3 needs to point right, also its 1" x 4" Wood Side #4 must be oriented top P39 (1" x 4" Lumber 17" length) - attach its 1" x 4" Wood End #1 facing back to part 18's 2" x 4" Wood Side #4, also connect its 1" x 4" Wood Side #2 oriented bottom links with part 22's 2" x 2" Wood Side #2, then its 1" x 4" Wood End #2, which is front-facing, should connect to part 4's 2" x 4" Wood Side #2, then its 1" x 4" Wood Side #1 should be directed left. Also, its 1" x 4" Wood Side #3 needs to point right. Also, ensure its 1" x 4" Wood Side #4 faces top P40 (1" x 4" Lumber 17" length) - its 1" x 4" Wood End #1, which is back-facing, should connect to part 18's 2" x 4" Wood Side #4, then connect its 1" x 4" Wood Side #2 oriented bottom links with part 22's 2" x 2" Wood Side #2. Next, connect its 1" x 4" Wood End #2 oriented front links with part 4's 2" x 4" Wood Side #2, also ensure its 1" x 4" Wood Side #1 faces left, then its 1" x 4" Wood Side #3 needs to point right, and ensure its 1" x 4" Wood Side #4 faces top P41 (1" x 4" Lumber 17" length) - its 1" x 4" Wood End #1, which is back-facing, should connect to part 18's 2" x 4" Wood Side #4, then connect its 1" x 4" Wood Side #2 oriented bottom links with part 22's 2" x 2" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented front links with part 4's 2" x 4" Wood Side #2, and its 1" x 4" Wood Side #1 should be directed left, then its 1" x 4" Wood Side #3 must be oriented right, also its 1" x 4" Wood Side #4 needs to point top P42 (1" x 4" Lumber 17" length) - connect its 1" x 4" Wood End #1 oriented back links with part 18's 2" x 4" Wood Side #4, plus its 1" x 4" Wood Side #2, which is bottom-facing, should connect to part 22's 2" x 2" Wood Side #2. Also, connect its 1" x 4" Wood End #2 oriented front links with part 4's 2" x 4" Wood Side #2, plus ensure its 1" x 4" Wood Side #1 faces left, then its 1" x 4" Wood Side #3 needs to point right. Also, its 1" x 4" Wood Side #4 must be oriented top

1" x 4" Lumber x 17"x 7

Angle: front right

Assembly of Upper Shelf Slats Installation - front_right

1" x 4" Lumber x 17"x 7

Angle: bottom right

Assembly of Upper Shelf Slats Installation - bottom_right

1" x 4" Lumber x 17"x 7
