Wooden Chair 3 - Comprehensive Assembly Plan And Visual Guide

Wooden Chair 3 Free Plan And Visual Guide

A wooden chair constructed from 2x4 lumber, featuring two side frames (left and right), cross braces connecting the frames at the front and back, multiple seat slats spanning between the side frames, and armrests on top of each side frame. - Wooden Chair -A sturdy wooden chair constructed from 2x4 lumber pieces. It features two side frames (left and right), each composed of front and back legs connected by horizontal rails at different heights (top/armrest, seat support, bottom). Six seat slats span between the side frames. - Wooden Chair -A sturdy wooden chair constructed from 2x4 lumber. It features two main side frames (each composed of front/back legs, an armrest, and side supports), two back supports connecting the frames, and several seat slats spanning between the side frames. - Wooden Chair -A blocky outdoor-style wooden chair constructed primarily from 2x4 lumber. It features two distinct side frame assemblies (legs, armrests, side supports) connected by front rails and supporting horizontal seat slats. - Wooden Chair

Phase 1: Group Overview

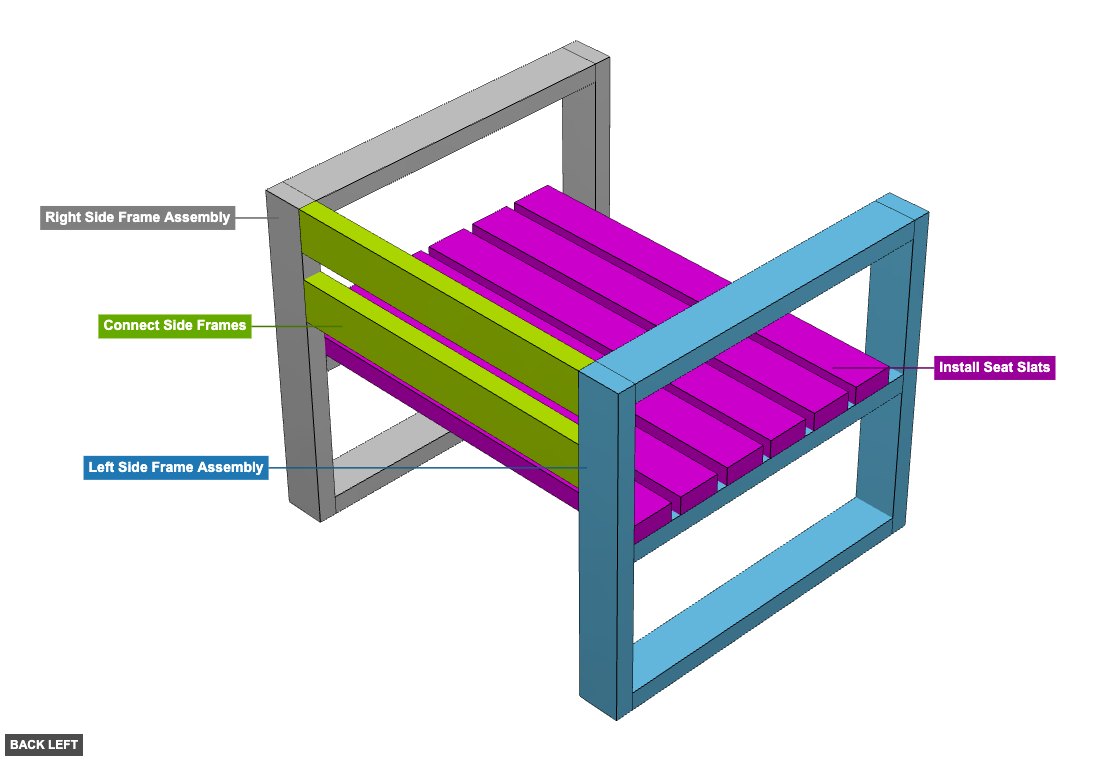

Angle: back left

Left Side Frame Assembly

2" x 4" Lumber x 27"x 5

Right Side Frame Assembly

2" x 4" Lumber x 27"x 5

Connect Side Frames

2" x 4" Lumber x 27"x 2

Install Seat Slats

2" x 4" Lumber x 34"x 6

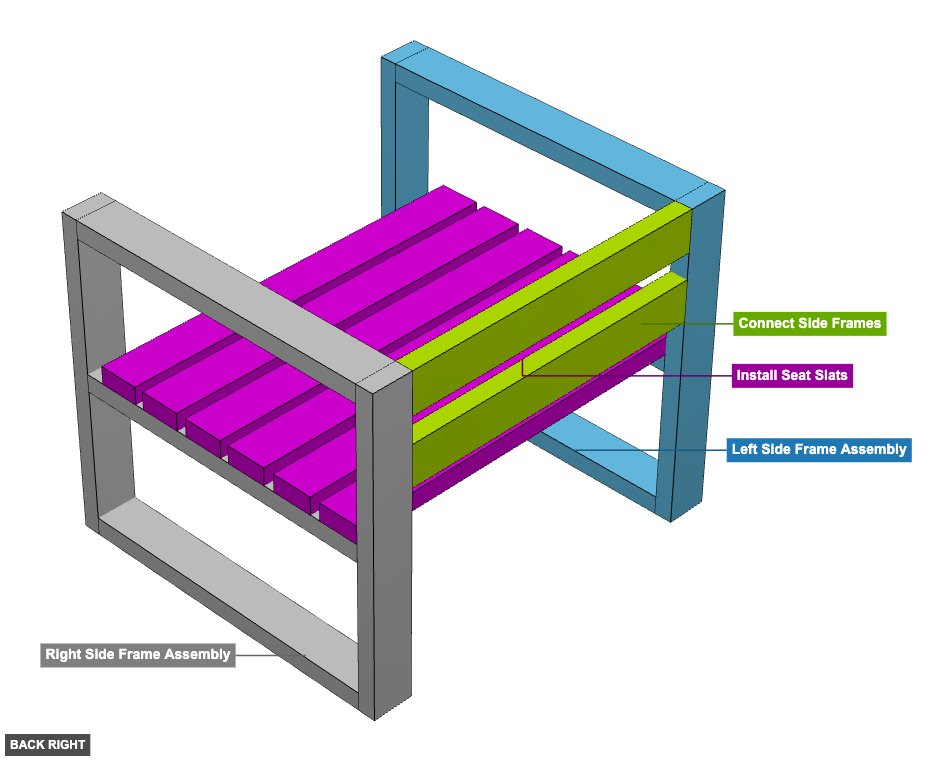

Angle: back right

Left Side Frame Assembly

2" x 4" Lumber x 27"x 5

Right Side Frame Assembly

2" x 4" Lumber x 27"x 5

Connect Side Frames

2" x 4" Lumber x 27"x 2

Install Seat Slats

2" x 4" Lumber x 34"x 6

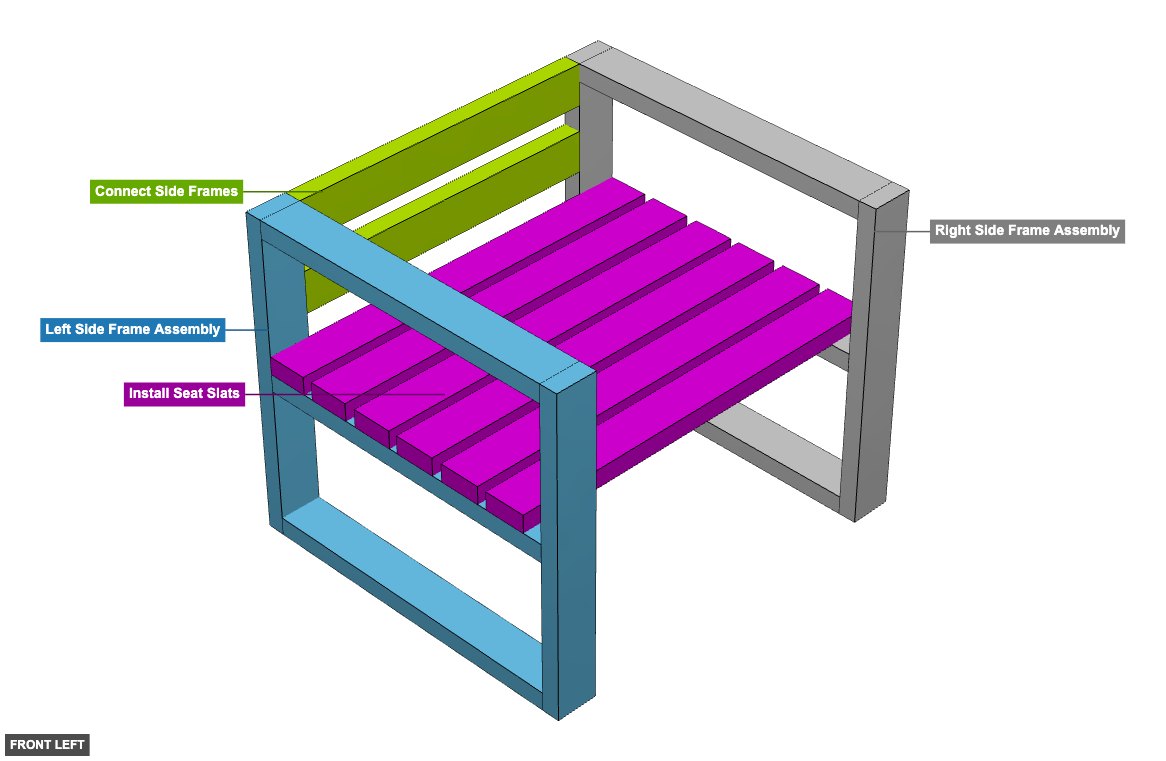

Angle: front left

Left Side Frame Assembly

2" x 4" Lumber x 27"x 5

Right Side Frame Assembly

2" x 4" Lumber x 27"x 5

Connect Side Frames

2" x 4" Lumber x 27"x 2

Install Seat Slats

2" x 4" Lumber x 34"x 6

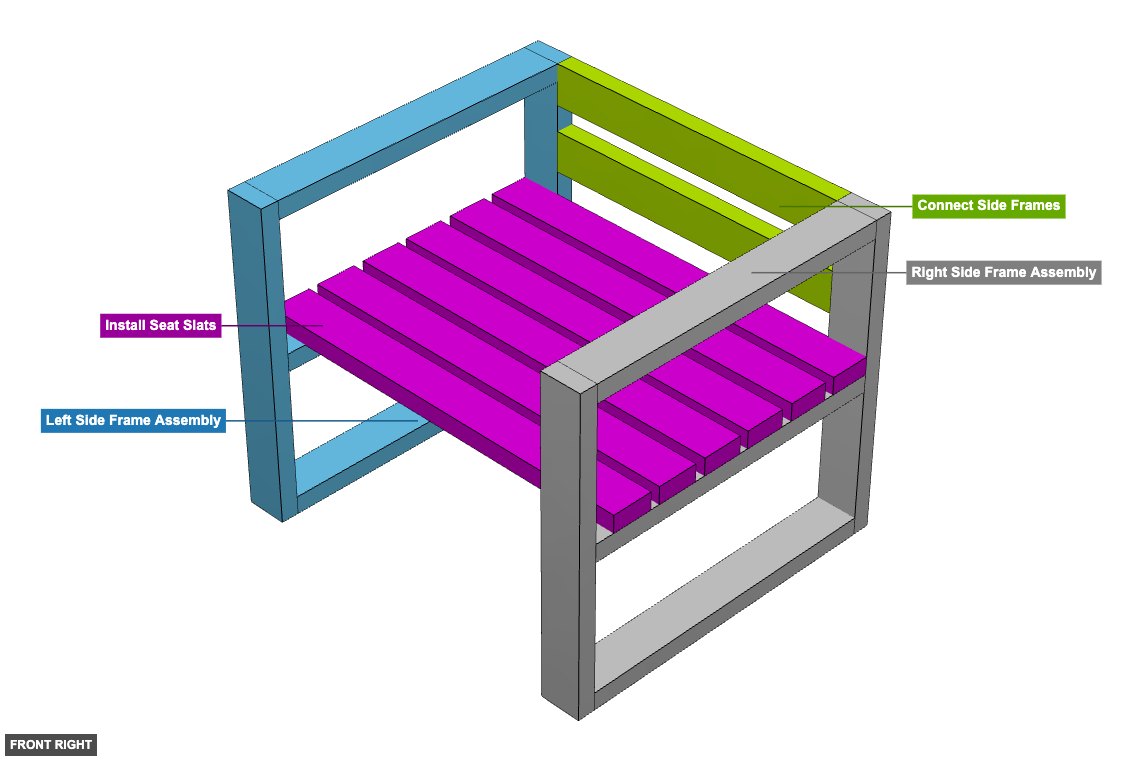

Angle: front right

Left Side Frame Assembly

2" x 4" Lumber x 27"x 5

Right Side Frame Assembly

2" x 4" Lumber x 27"x 5

Connect Side Frames

2" x 4" Lumber x 27"x 2

Install Seat Slats

2" x 4" Lumber x 34"x 6

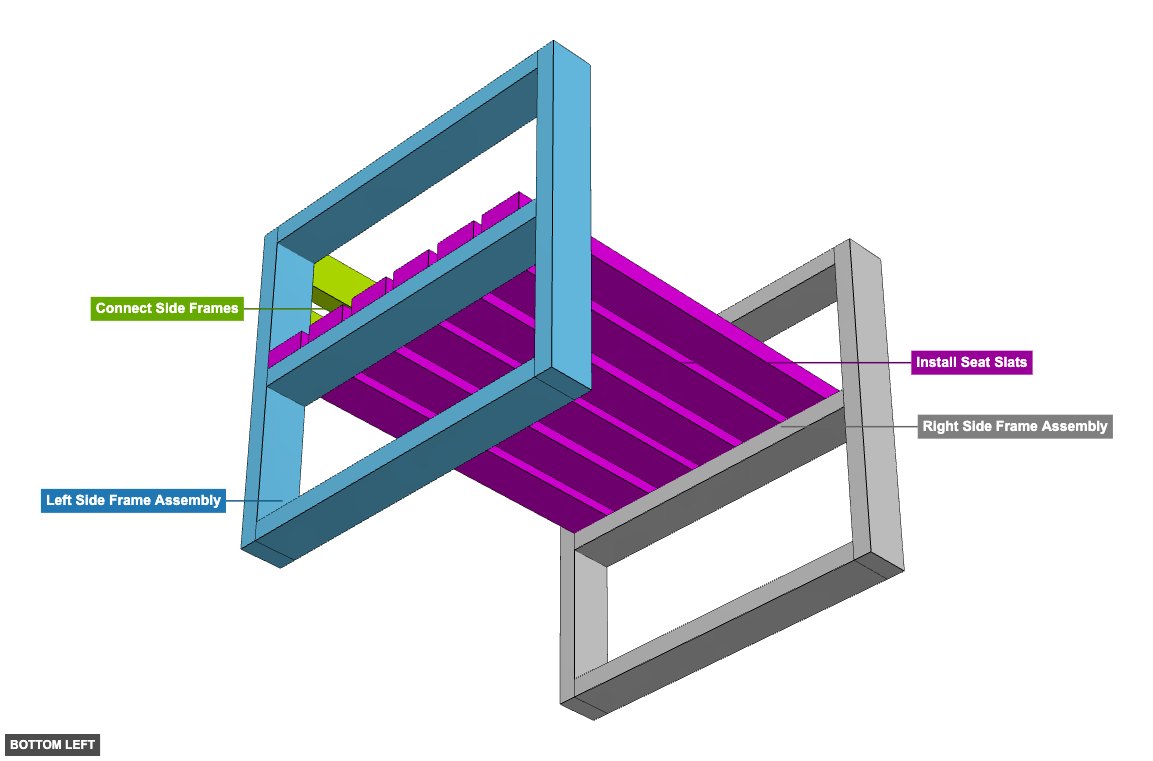

Angle: bottom left

Left Side Frame Assembly

2" x 4" Lumber x 27"x 5

Right Side Frame Assembly

2" x 4" Lumber x 27"x 5

Connect Side Frames

2" x 4" Lumber x 27"x 2

Install Seat Slats

2" x 4" Lumber x 34"x 6

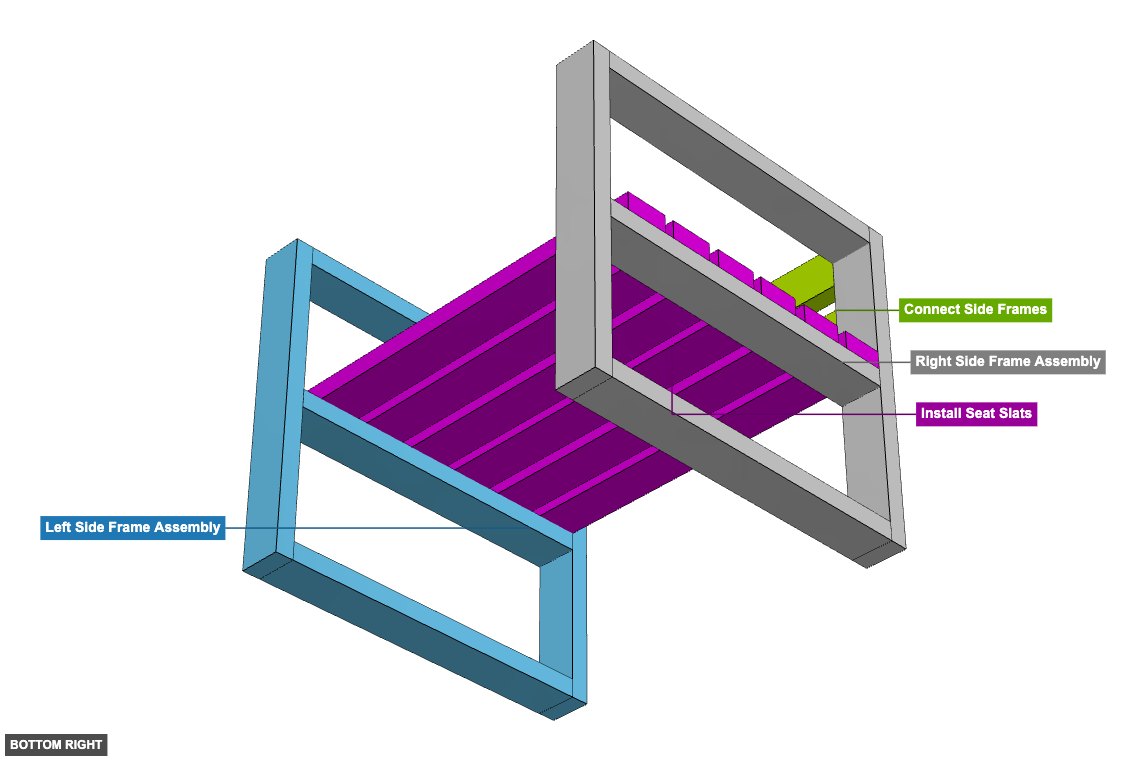

Angle: bottom right

Left Side Frame Assembly

2" x 4" Lumber x 27"x 5

Right Side Frame Assembly

2" x 4" Lumber x 27"x 5

Connect Side Frames

2" x 4" Lumber x 27"x 2

Install Seat Slats

2" x 4" Lumber x 34"x 6

Phase 2: Individual Group Assembly

Group: Left Side Frame Assembly

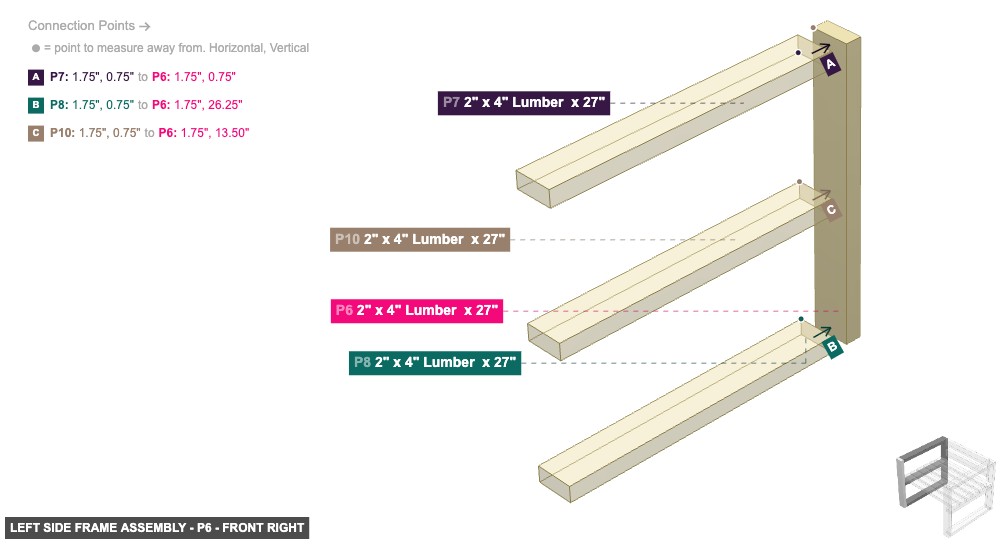

Assemble the left side frame of the chair. This includes the front leg (P6), the back leg components (P9), the armrest (P7), the lower side rail (P8), and the seat slat support (P10).

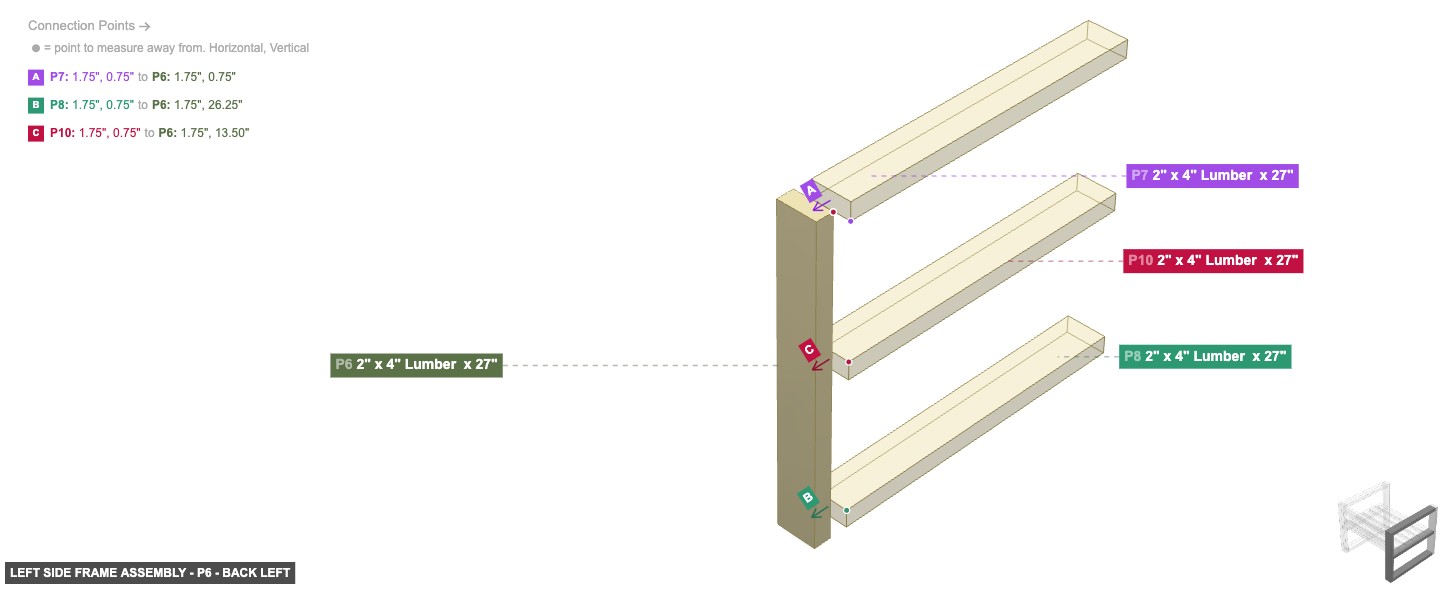

Part: 2" x 4" Lumber x 27" - Angle: back left

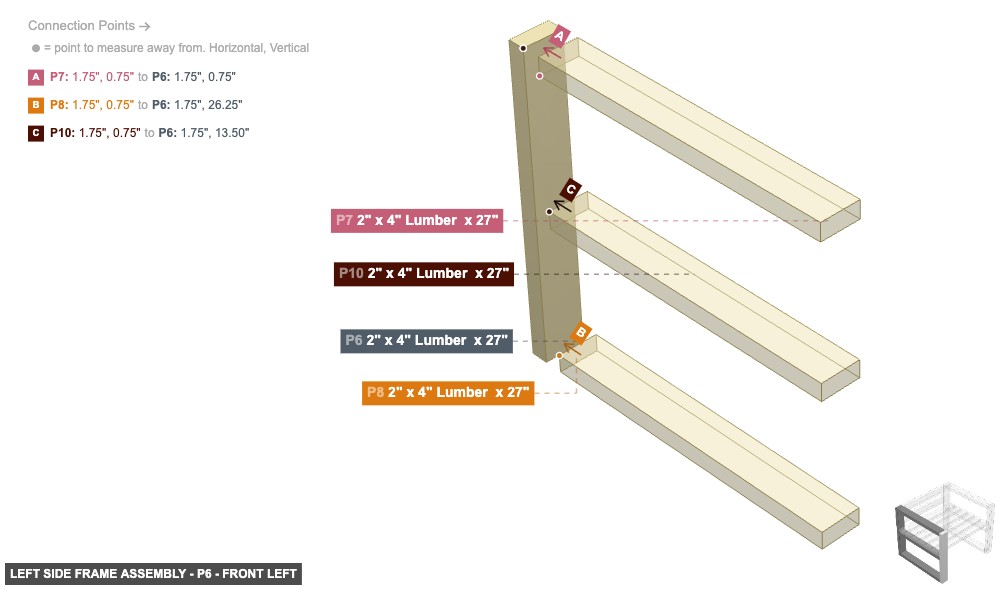

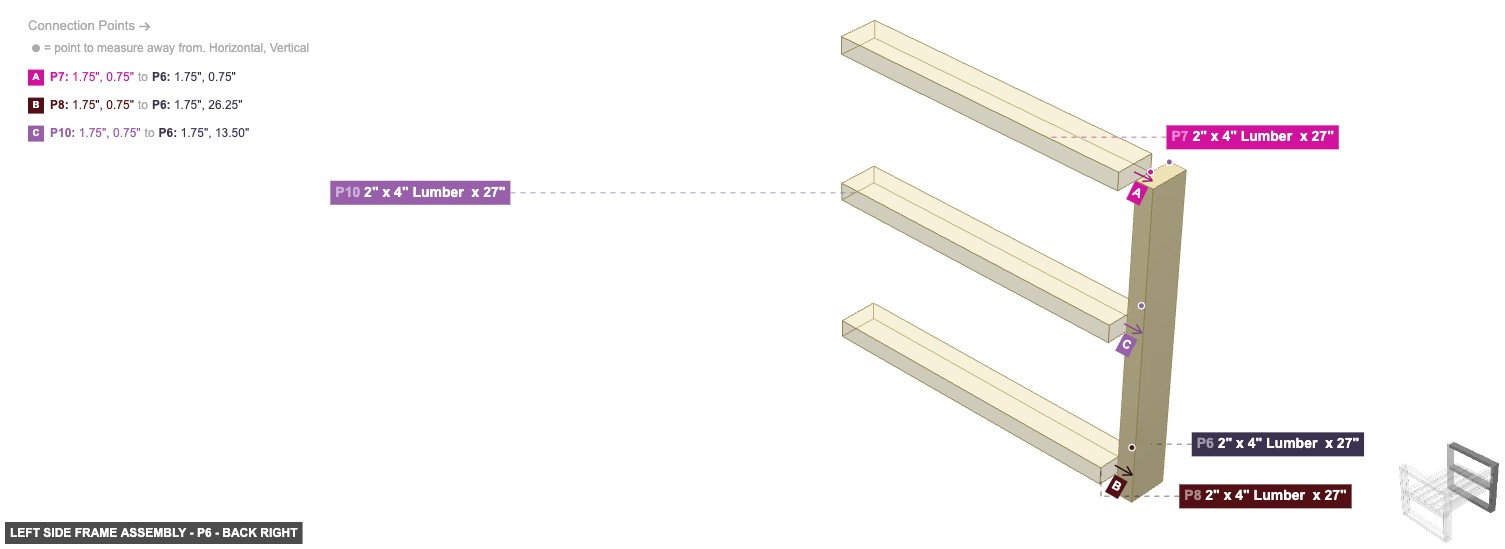

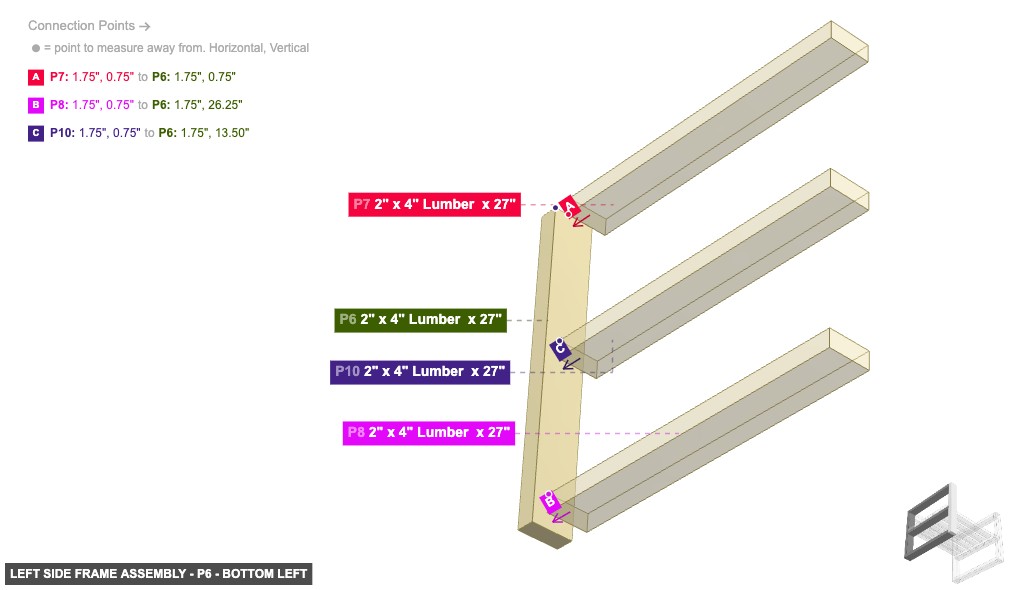

P6 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood Side #4 oriented front links with part 7's 2" x 4" Wood End #2. Also, ensure its 2" x 4" Wood End #1 faces bottom. Next, its 2" x 4" Wood Side #2 should be directed back, then ensure its 2" x 4" Wood Side #3 faces left, then its 2" x 4" Wood End #2 must be oriented top

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

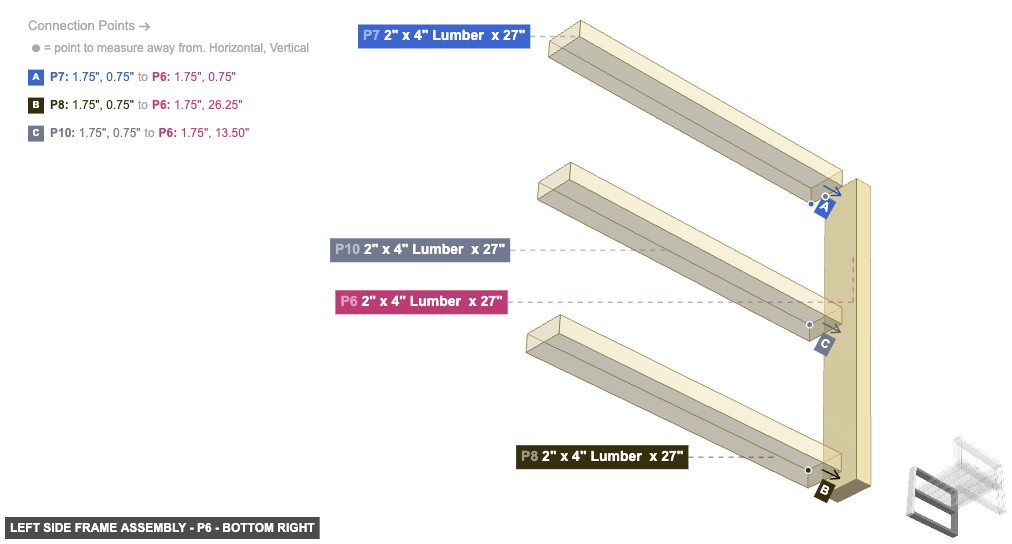

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back left

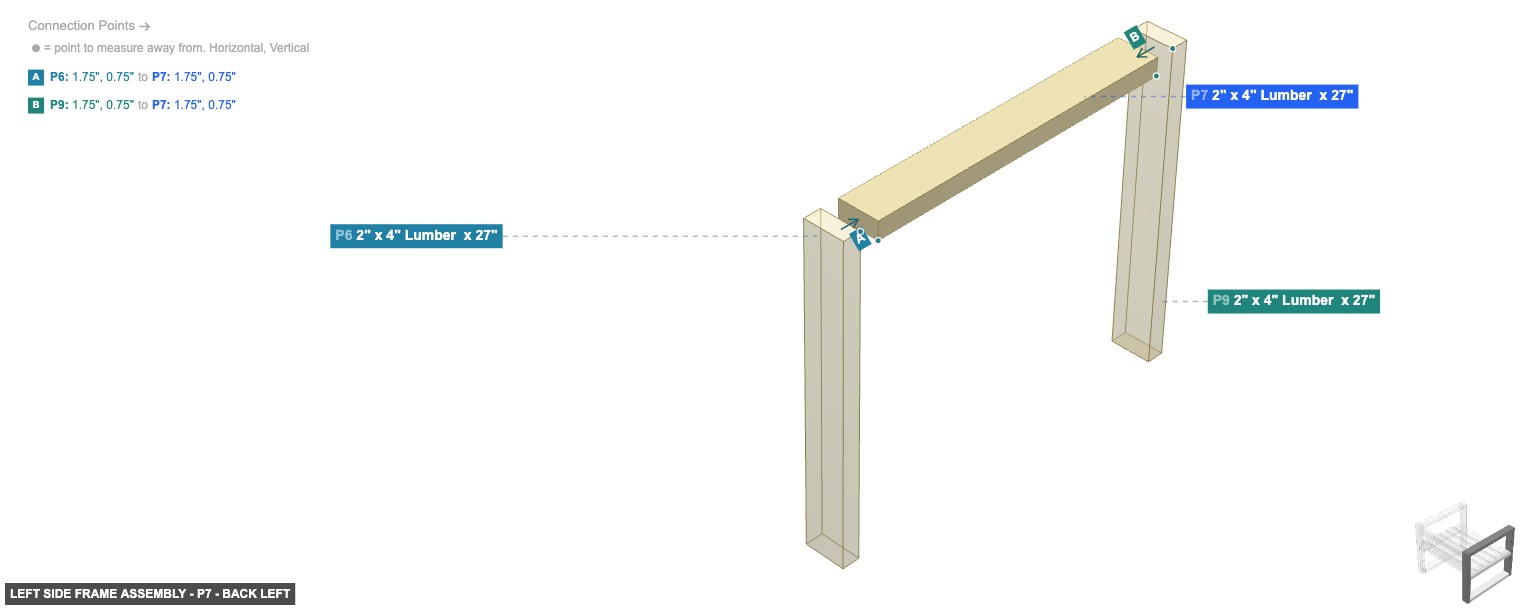

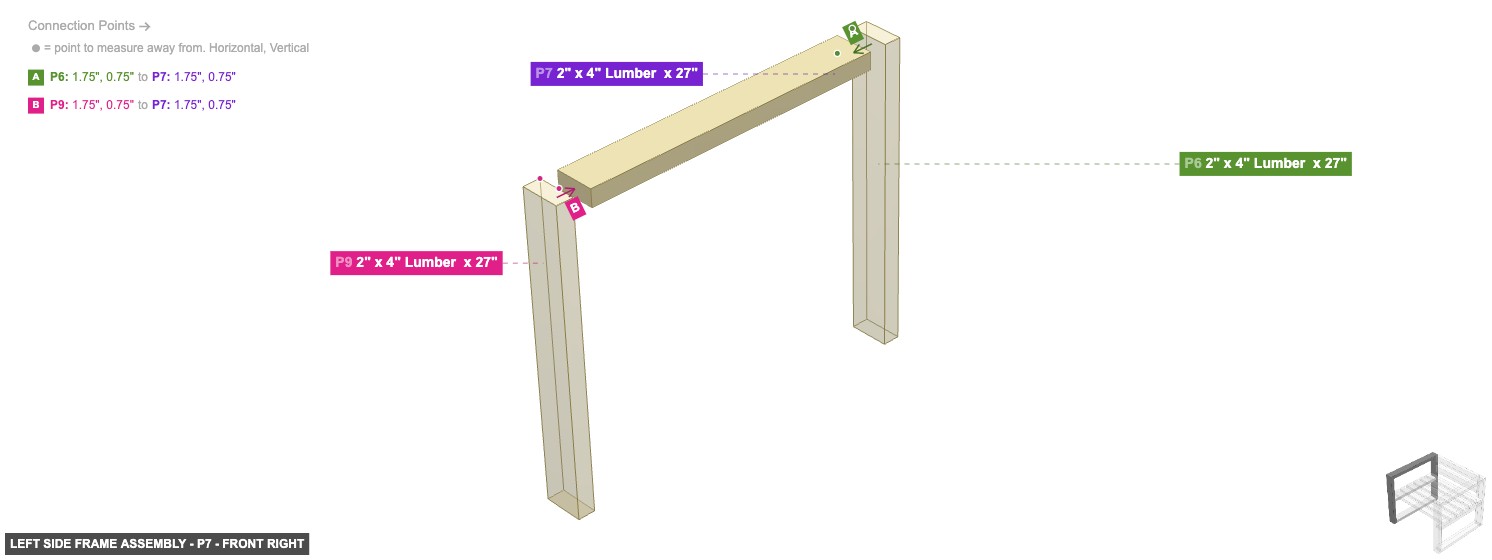

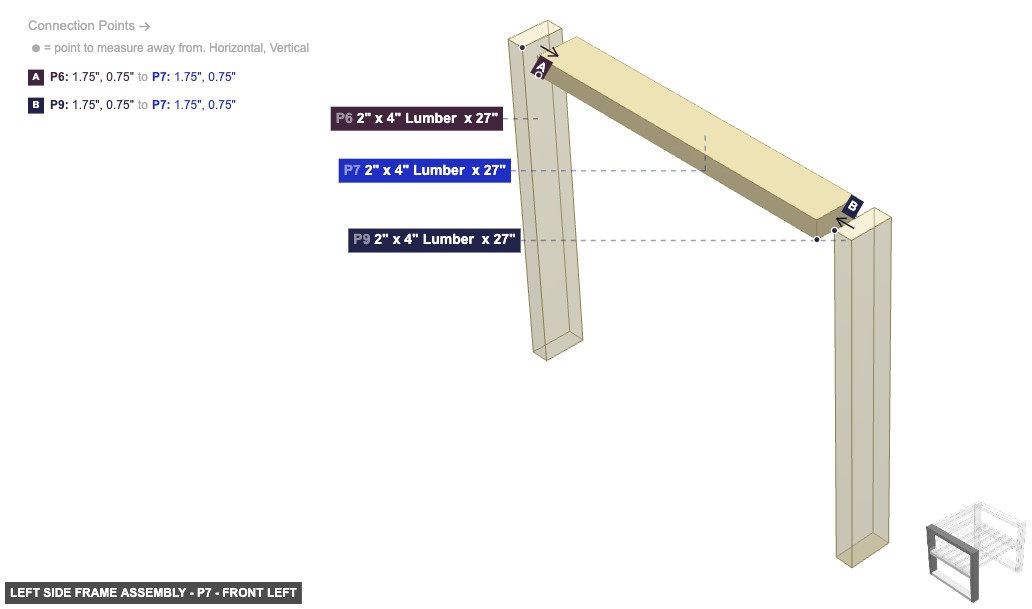

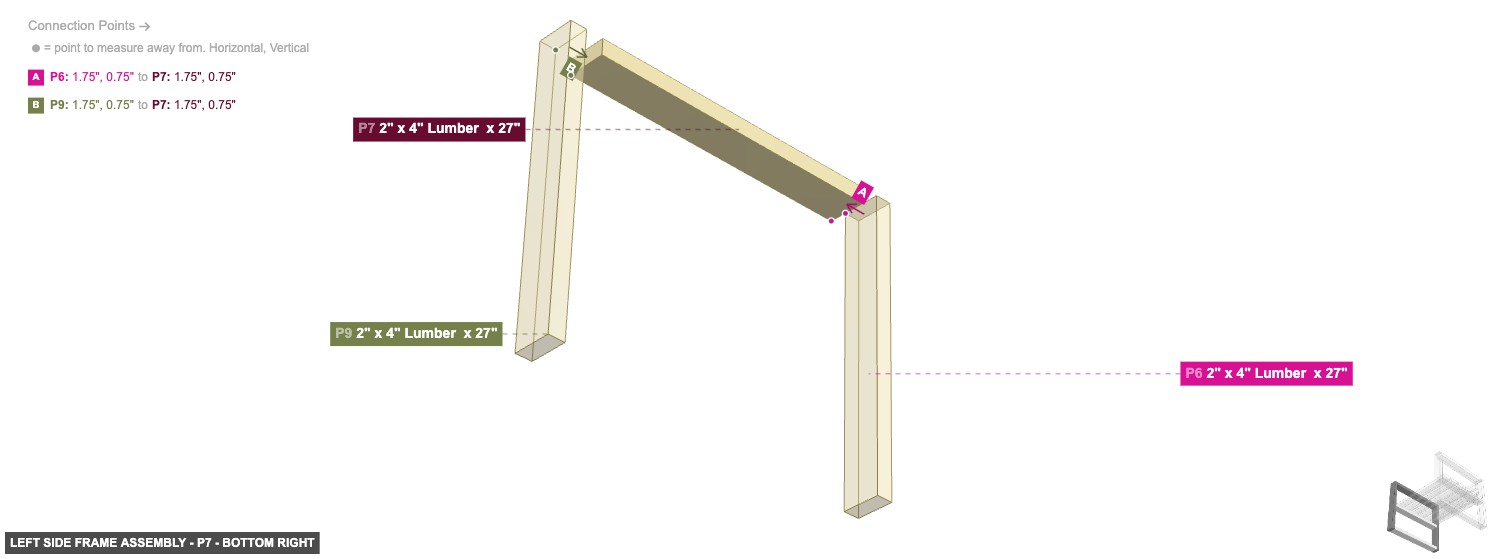

P7 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood End #1 oriented front links with part 9's 2" x 4" Wood Side #2. After that, its 2" x 4" Wood End #2, which is back-facing, should connect to part 6's 2" x 4" Wood Side #4. After that, ensure its 2" x 4" Wood Side #1 faces right. Additionally, ensure its 2" x 4" Wood Side #2 faces bottom. After that, its 2" x 4" Wood Side #3 must be oriented left. Additionally, its 2" x 4" Wood Side #4 should be directed top

2" x 4" Lumber x 27"x 5

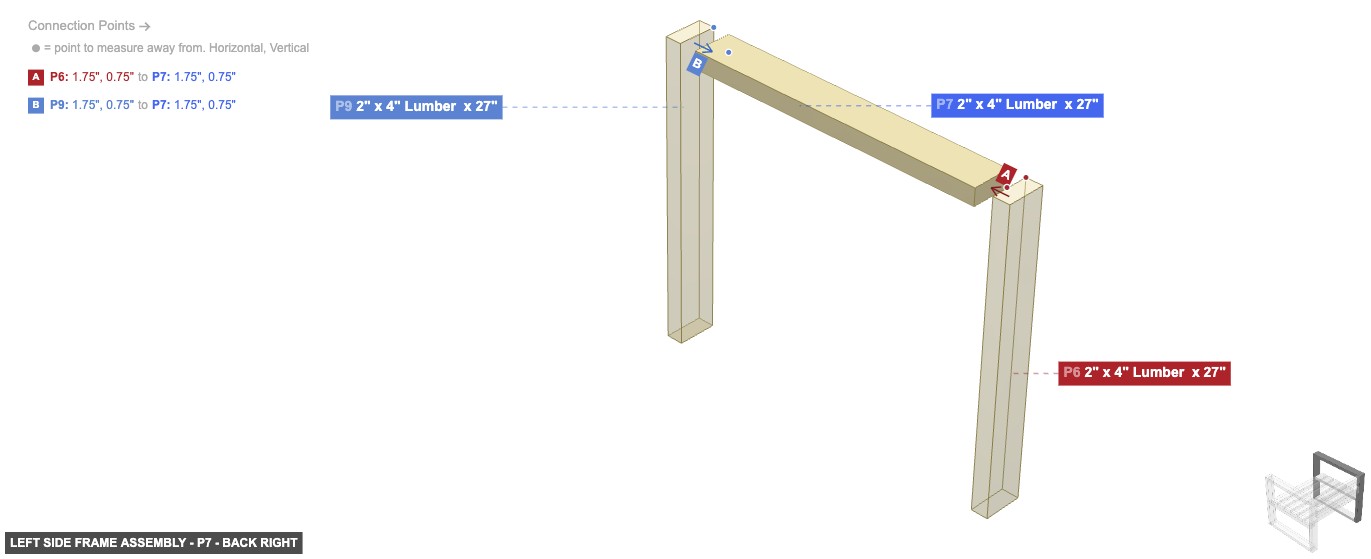

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back left

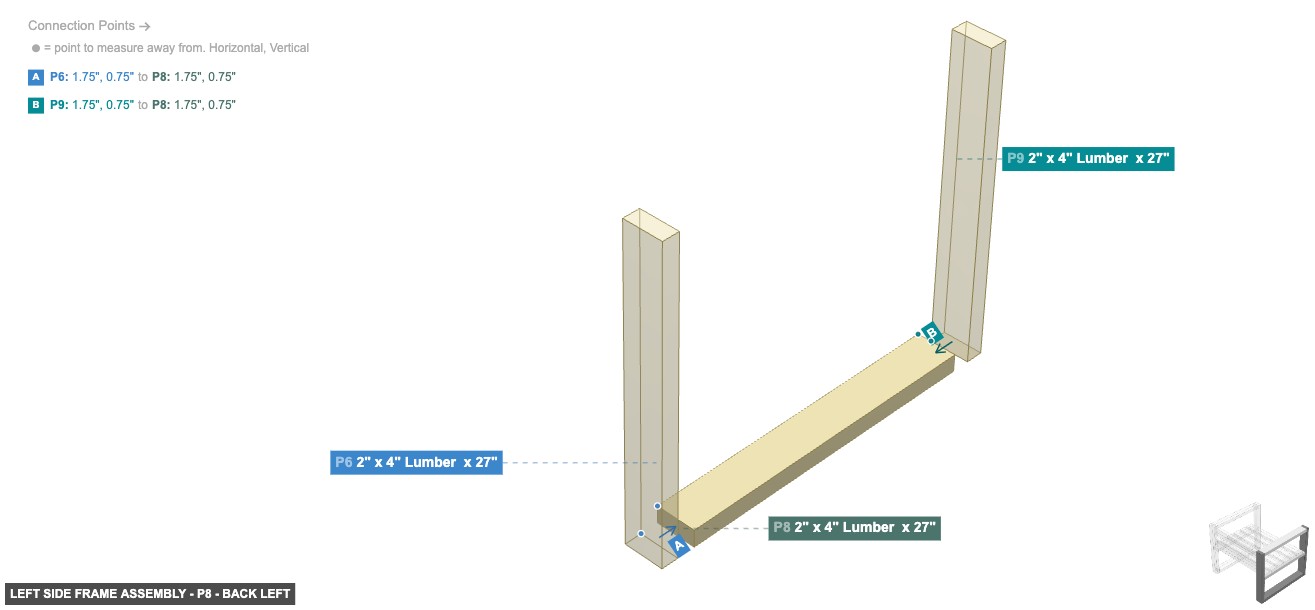

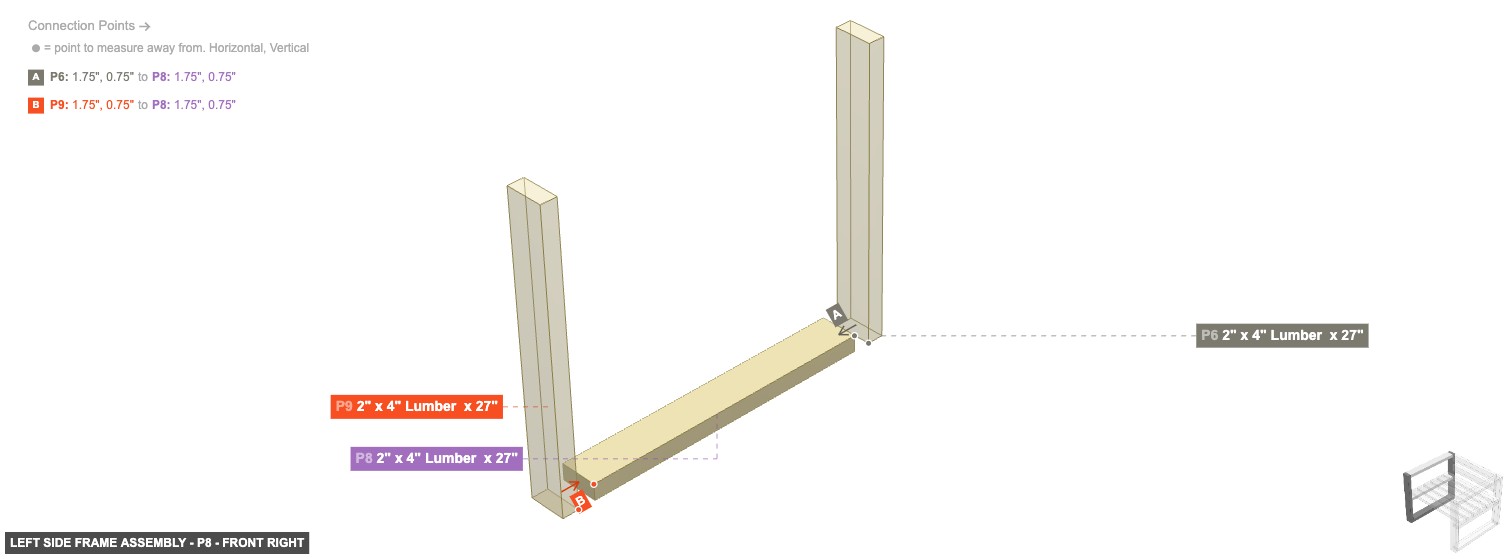

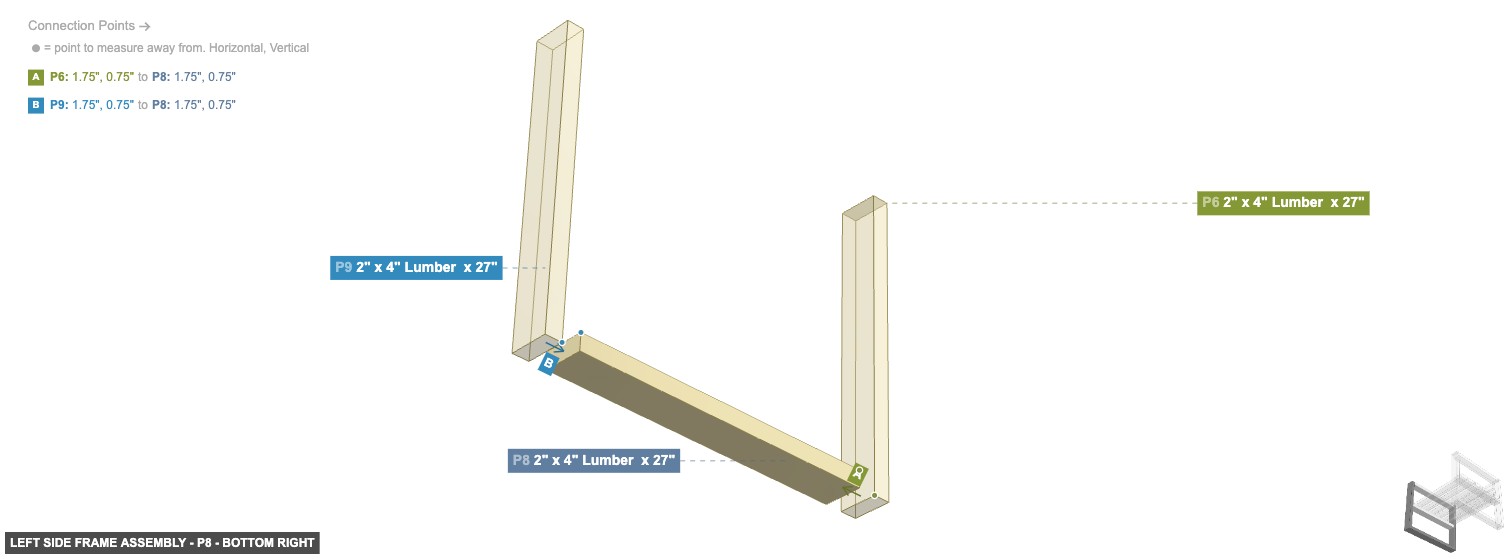

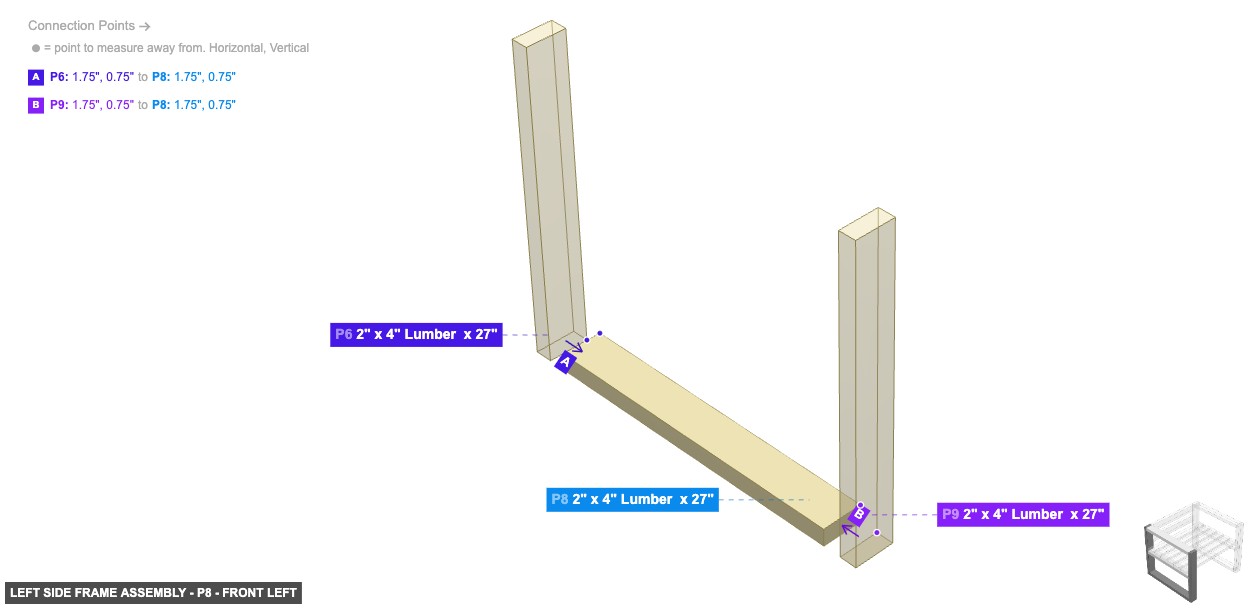

P8 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 9's 2" x 4" Wood Side #2. Also, connect its 2" x 4" Wood End #2 oriented back links with part 6's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood Side #1 needs to point right, and its 2" x 4" Wood Side #2 needs to point bottom, plus its 2" x 4" Wood Side #3 should be directed left. Next, ensure its 2" x 4" Wood Side #4 faces top

2" x 4" Lumber x 27"x 5

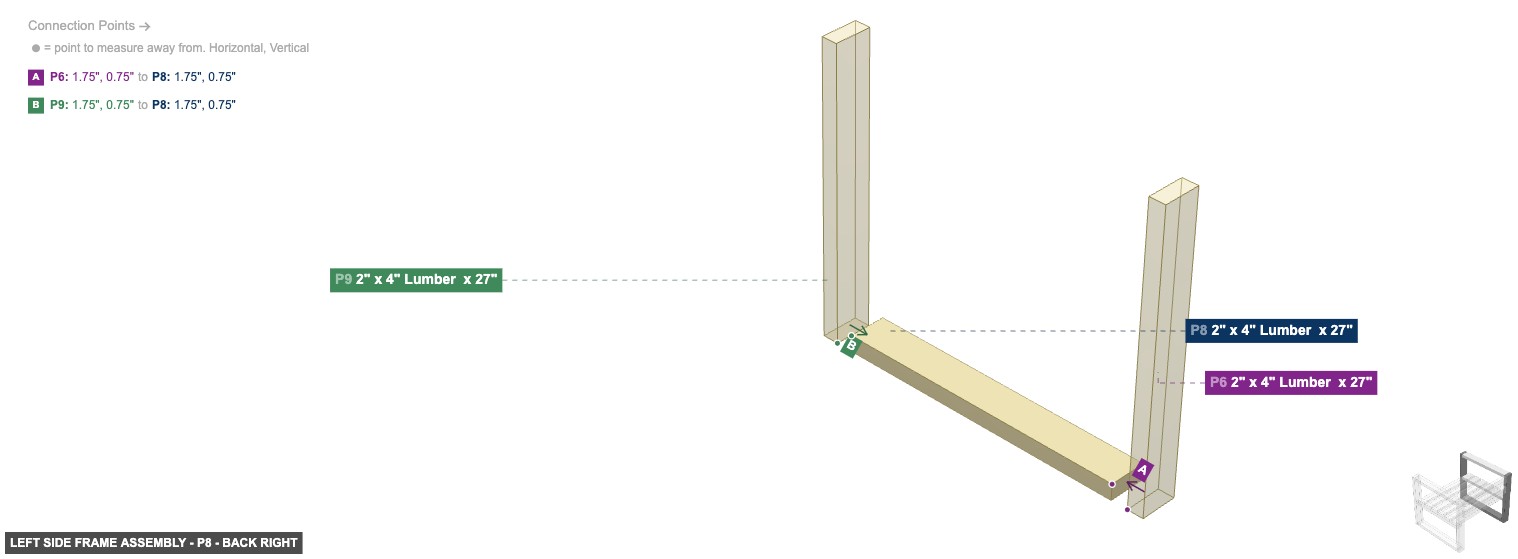

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

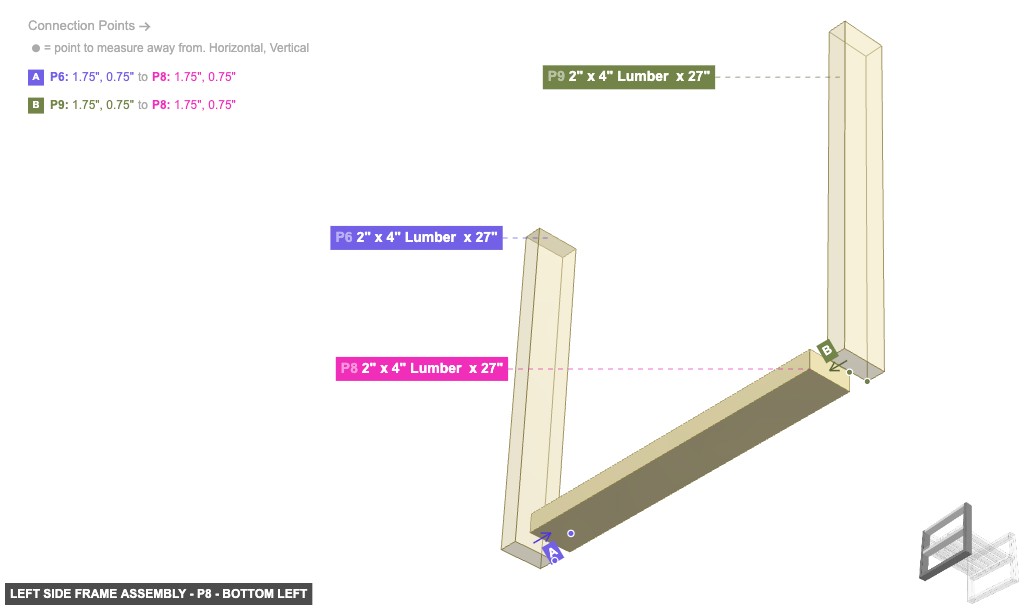

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

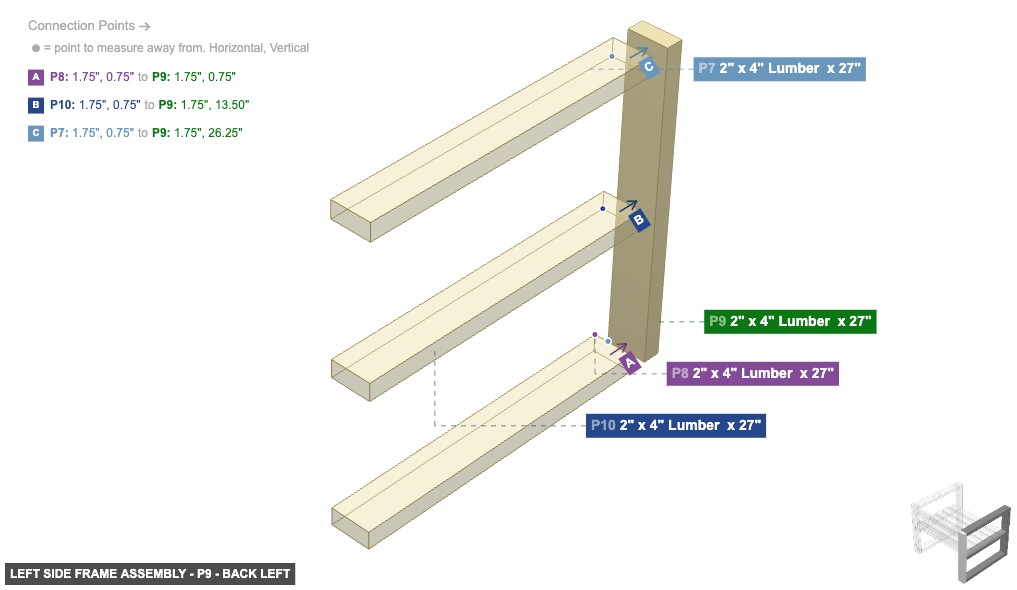

Part: 2" x 4" Lumber x 27" - Angle: back left

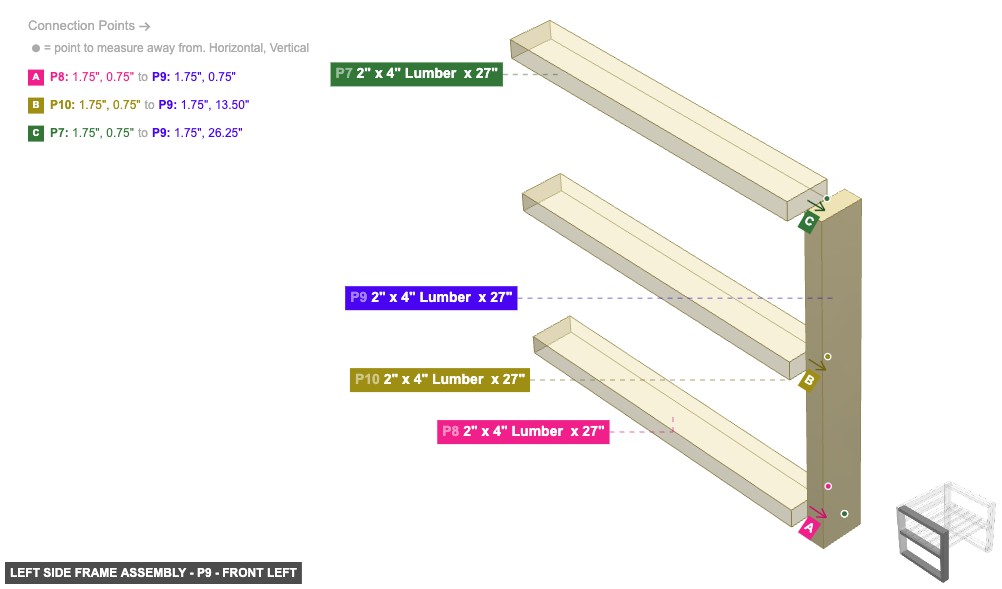

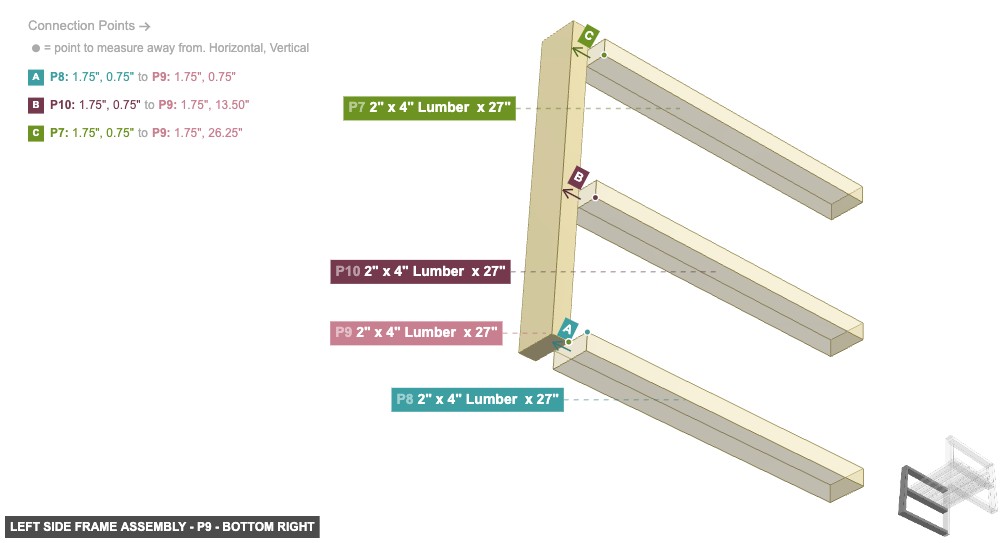

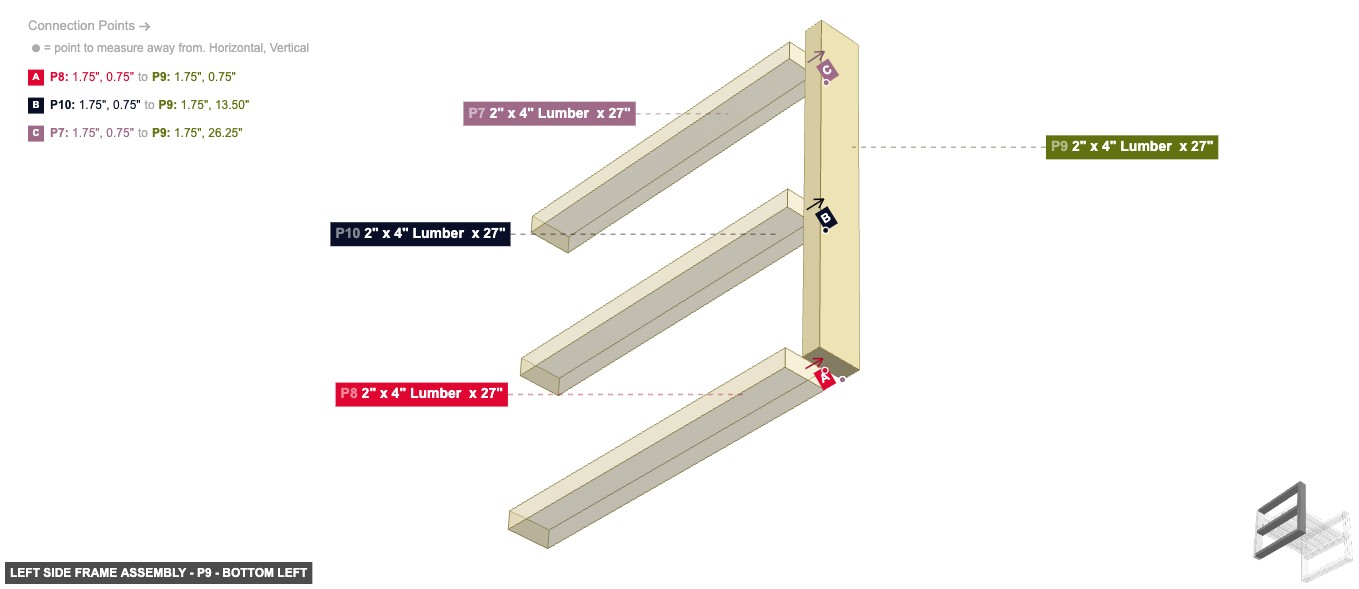

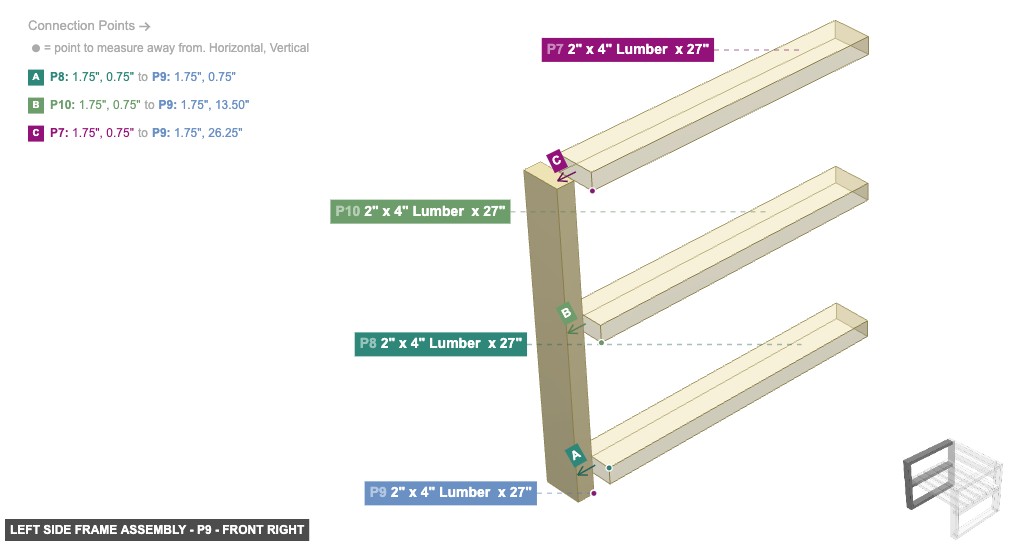

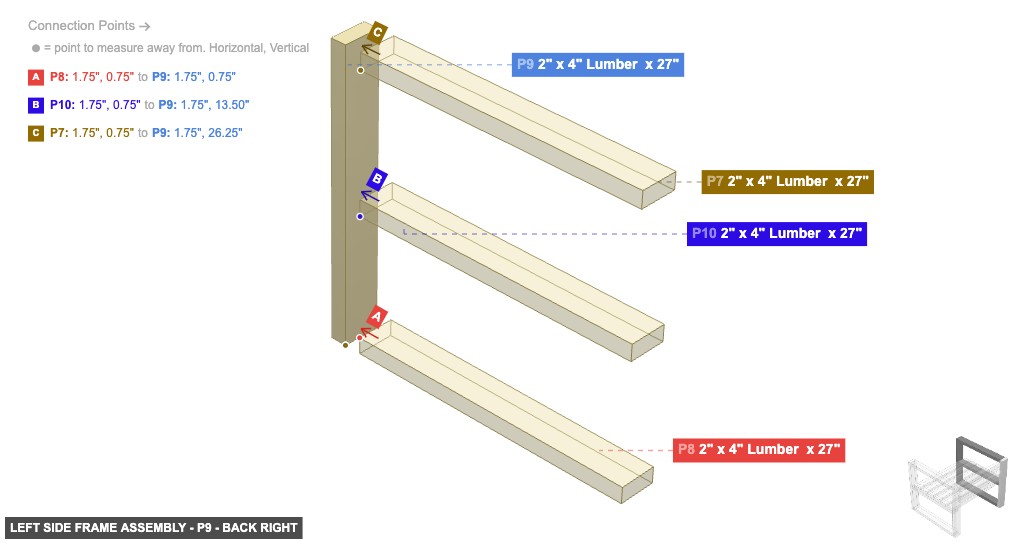

P9 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood Side #2 oriented back links with part 8's 2" x 4" Wood End #1, also ensure its 2" x 4" Wood End #1 faces top, also its 2" x 4" Wood Side #1 must be oriented left. Additionally, its 2" x 4" Wood Side #3 should be directed right. Also, ensure its 2" x 4" Wood Side #4 faces front. Next, ensure its 2" x 4" Wood End #2 faces bottom

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

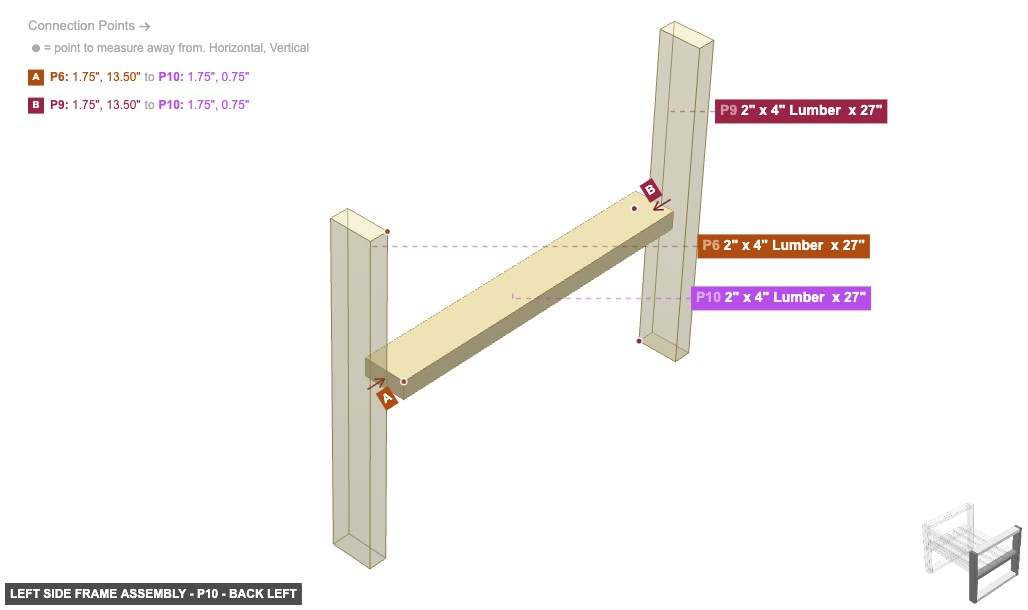

Part: 2" x 4" Lumber x 27" - Angle: back left

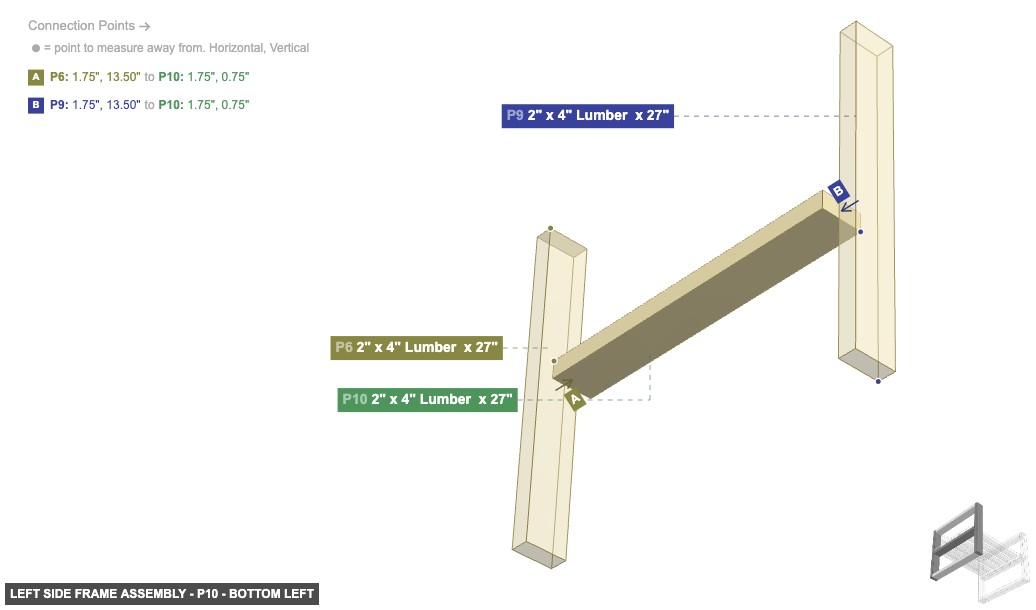

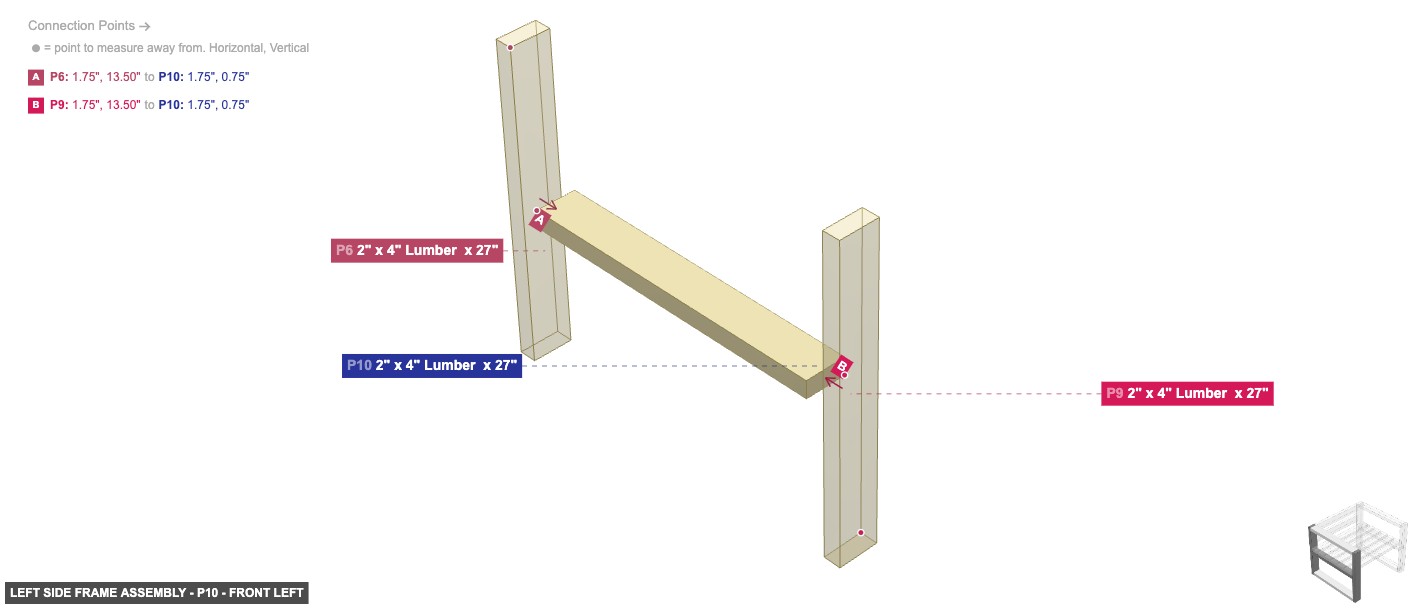

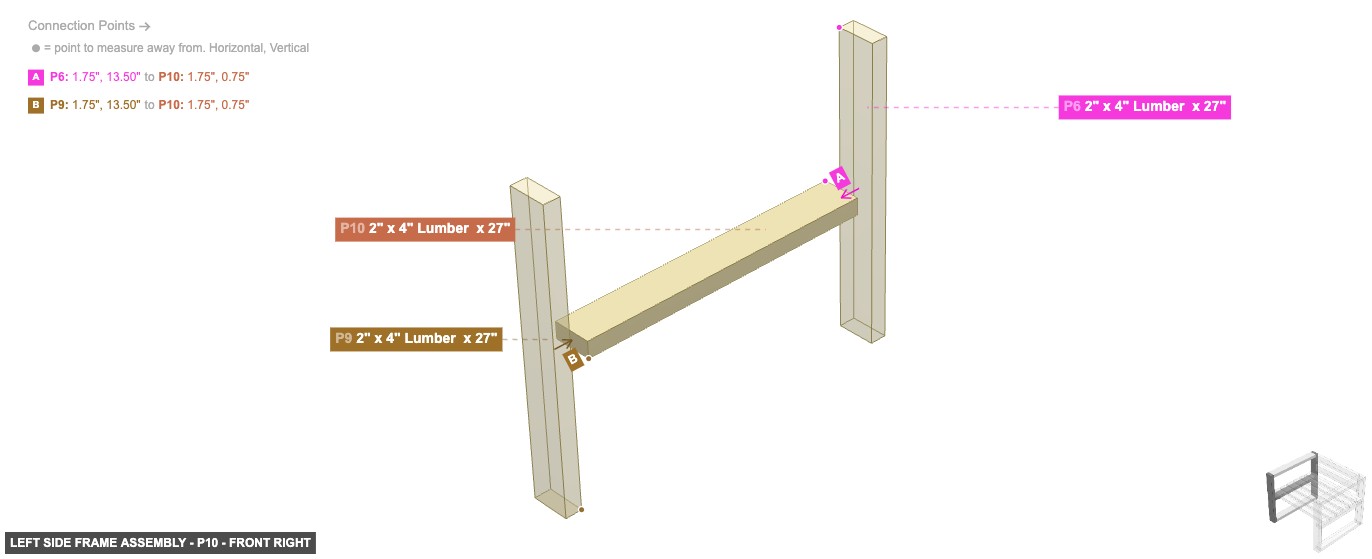

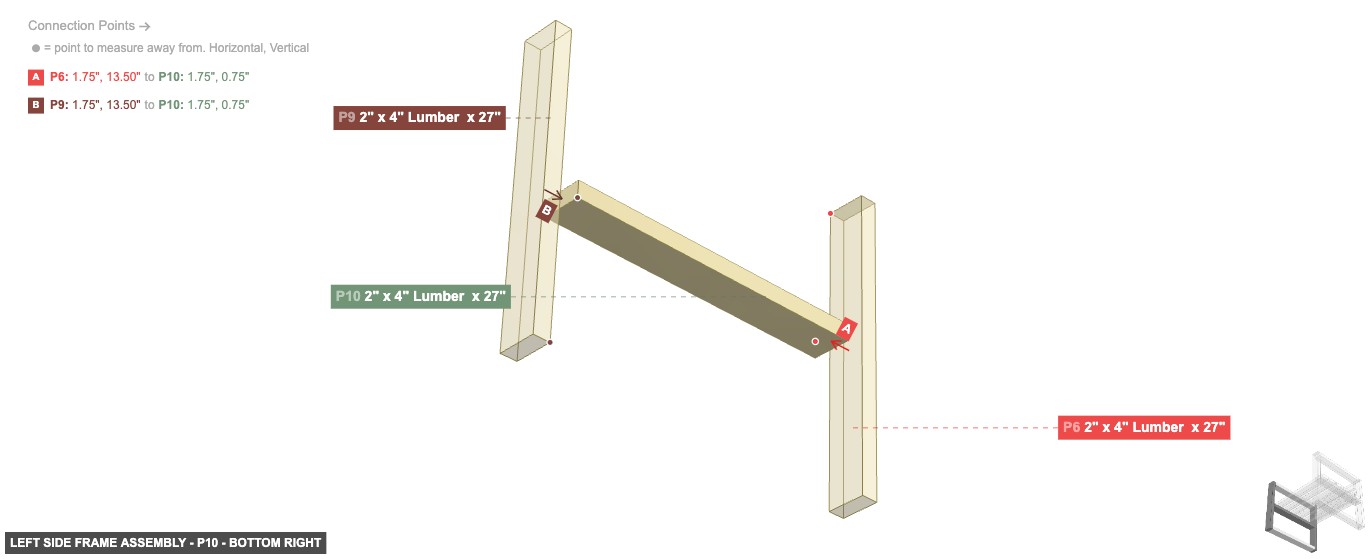

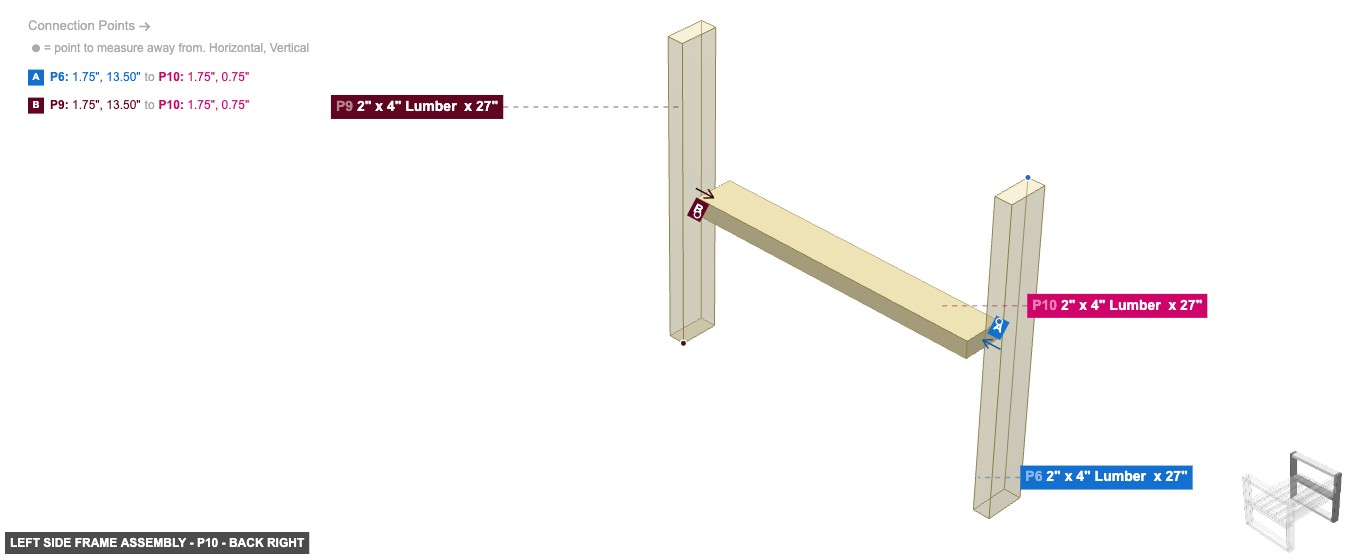

P10 (2" x 4" Lumber 27" length) - attach its 2" x 4" Wood End #1 facing front to part 9's 2" x 4" Wood Side #2, plus attach its 2" x 4" Wood End #2 facing back to part 6's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood Side #1 needs to point right, then ensure its 2" x 4" Wood Side #2 faces bottom, then its 2" x 4" Wood Side #3 must be oriented left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Group: Right Side Frame Assembly

Assemble the right side frame of the chair. This includes the front leg (P2), the back leg components (P5), the armrest (P3), the lower side rail (P4), and the seat slat support (P11).

Part: 2" x 4" Lumber x 27" - Angle: back left

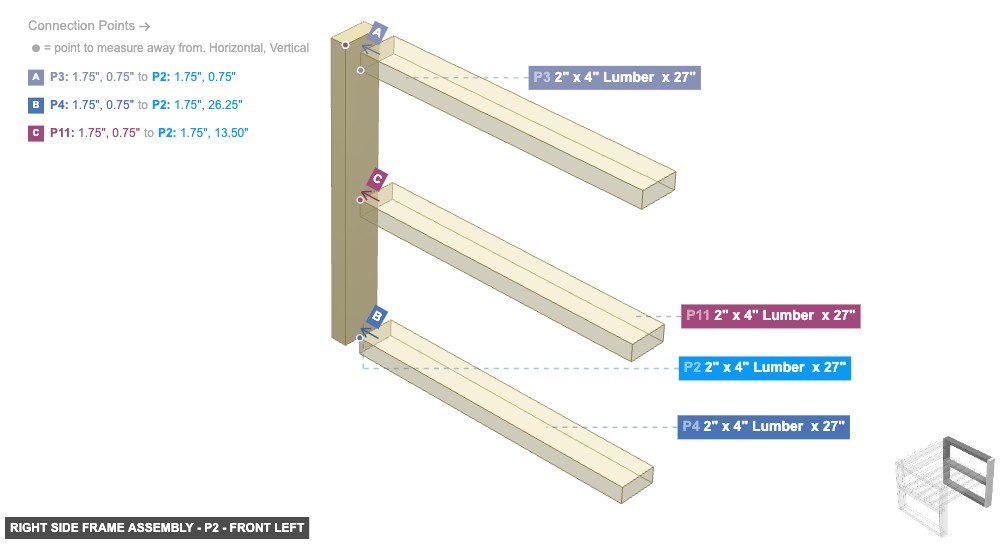

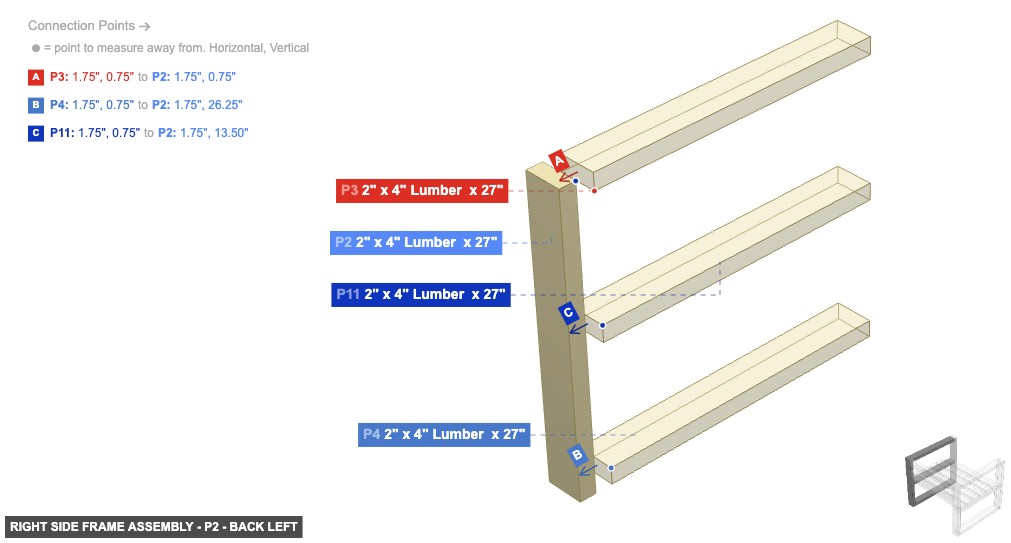

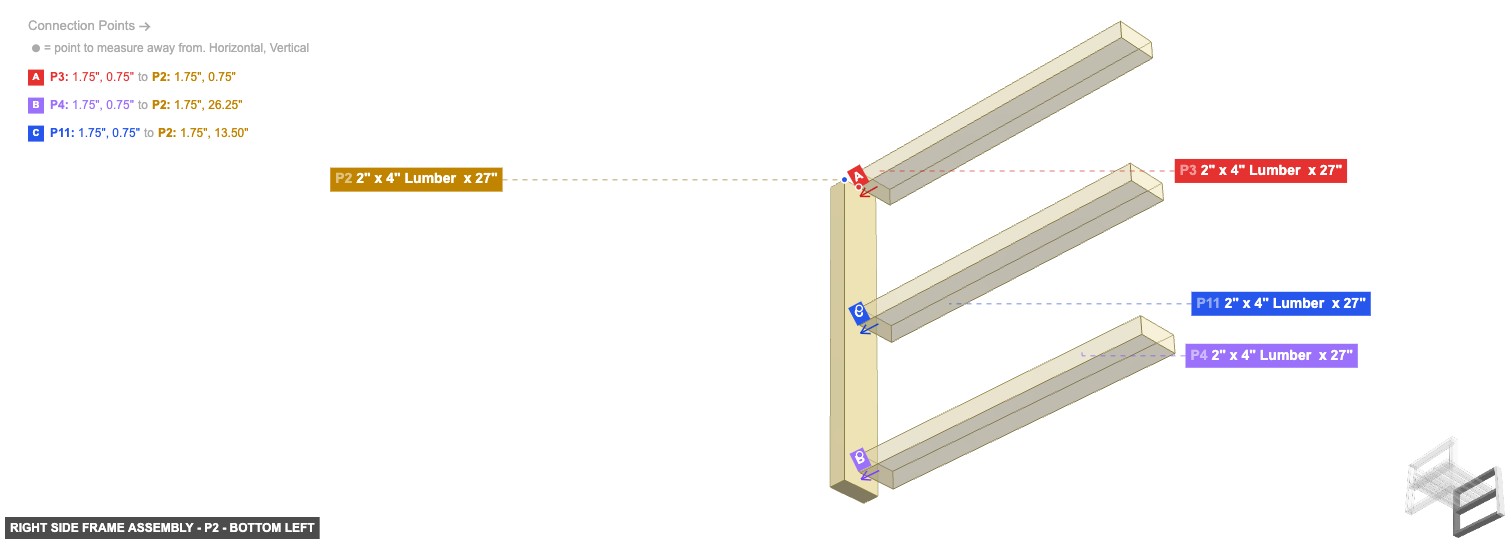

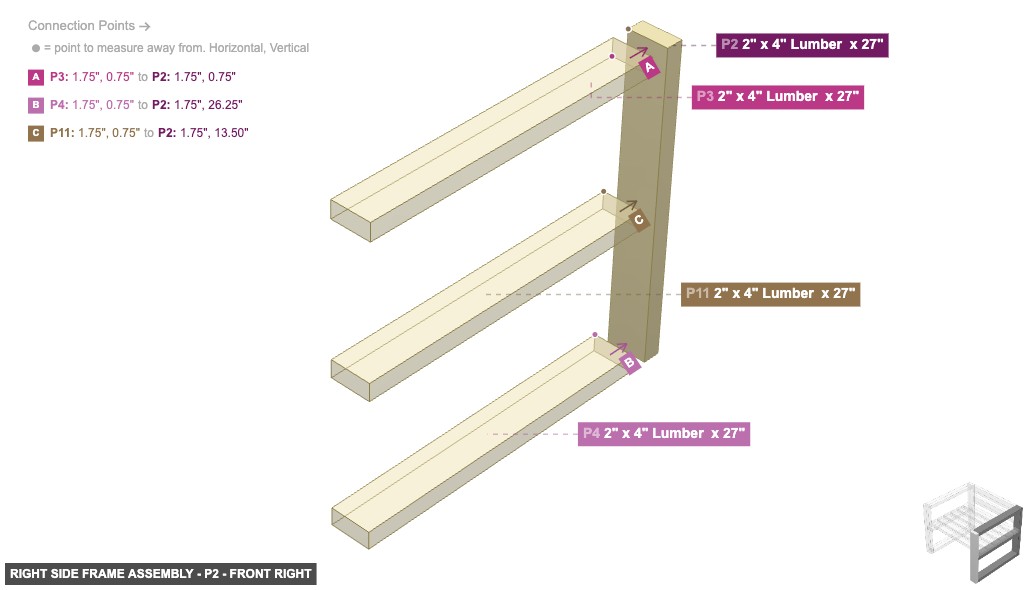

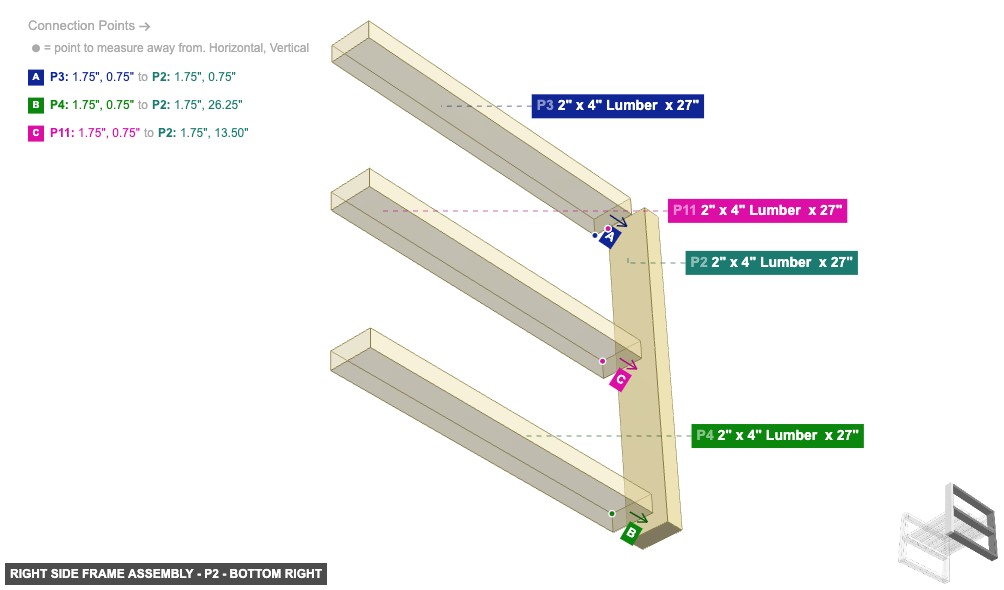

P2 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood Side #4 oriented front links with part 3's 2" x 4" Wood End #2, and its 2" x 4" Wood End #1 must be oriented top, then ensure its 2" x 4" Wood Side #2 faces back. Additionally, ensure its 2" x 4" Wood Side #3 faces right, plus ensure its 2" x 4" Wood End #2 faces bottom

2" x 4" Lumber x 27"x 5

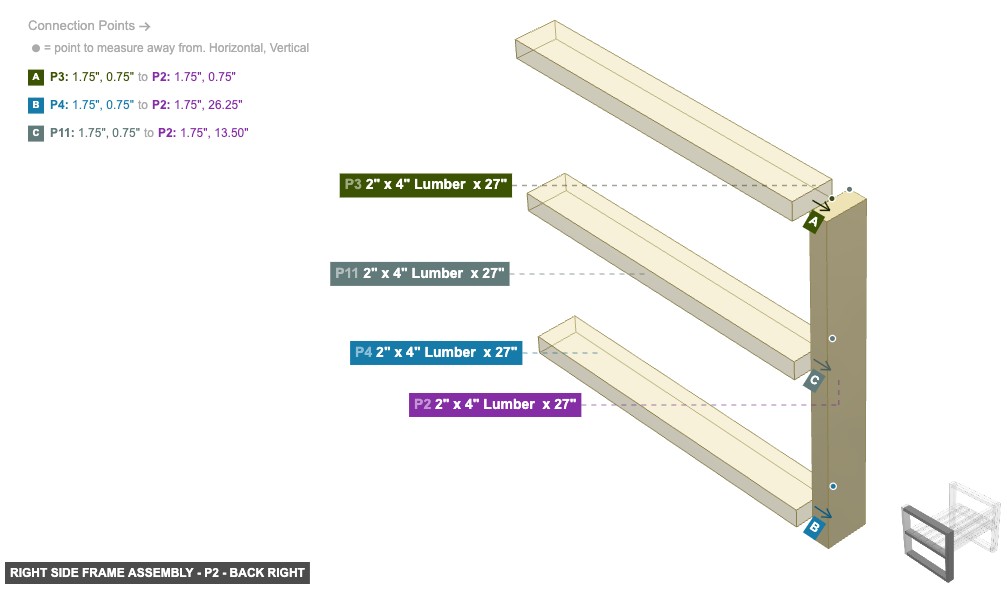

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back left

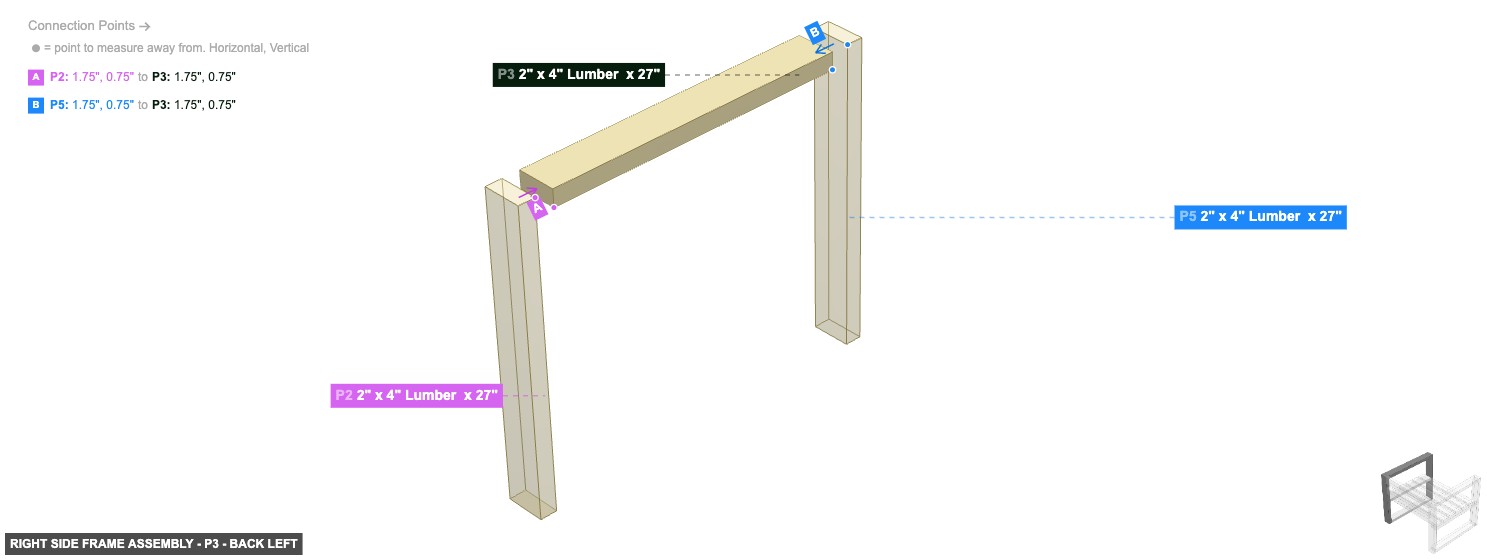

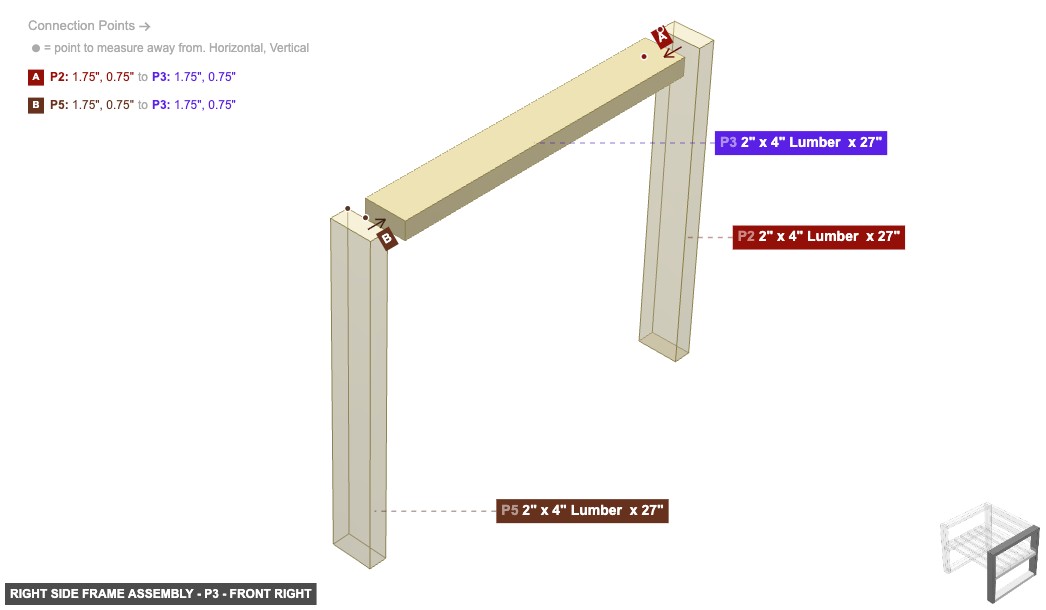

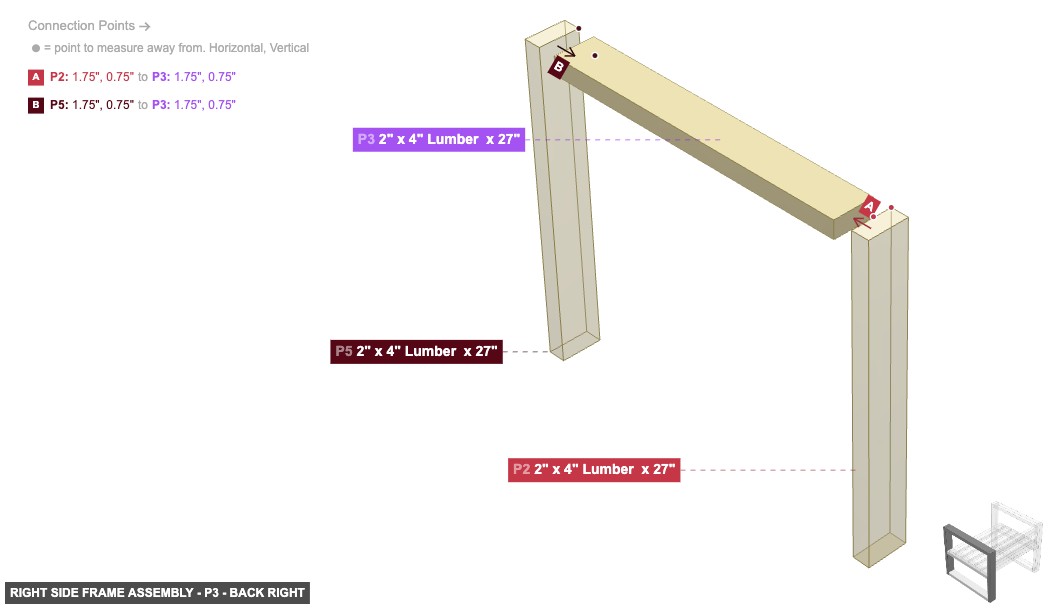

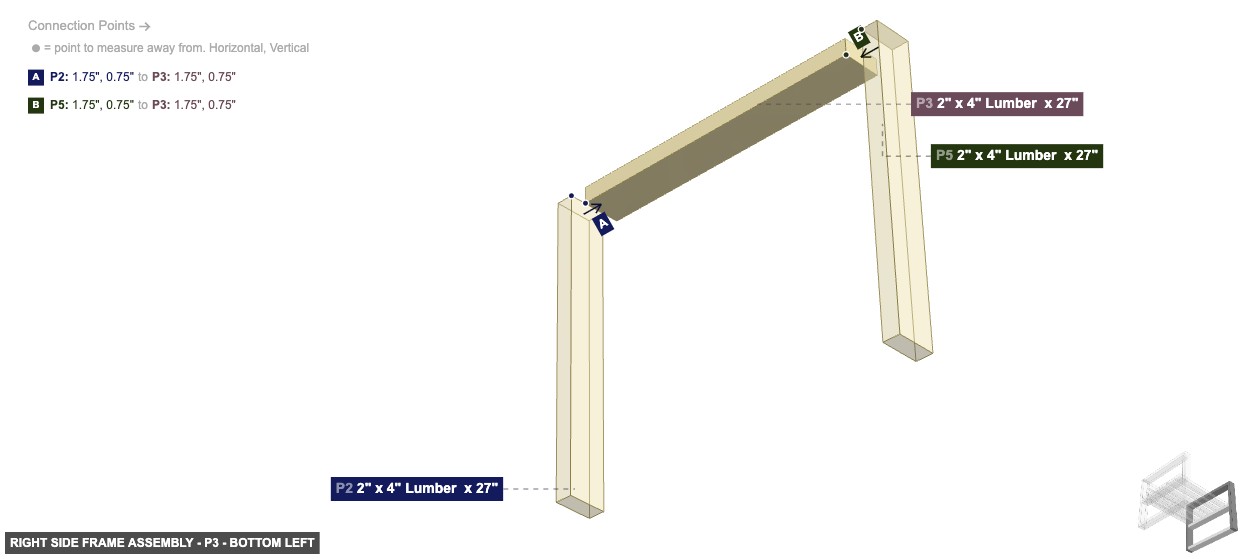

P3 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 5's 2" x 4" Wood Side #2. Additionally, attach its 2" x 4" Wood End #2 facing back to part 2's 2" x 4" Wood Side #4, and its 2" x 4" Wood Side #1 should be directed left, also ensure its 2" x 4" Wood Side #2 faces top, plus its 2" x 4" Wood Side #3 needs to point right. Next, its 2" x 4" Wood Side #4 must be oriented bottom

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

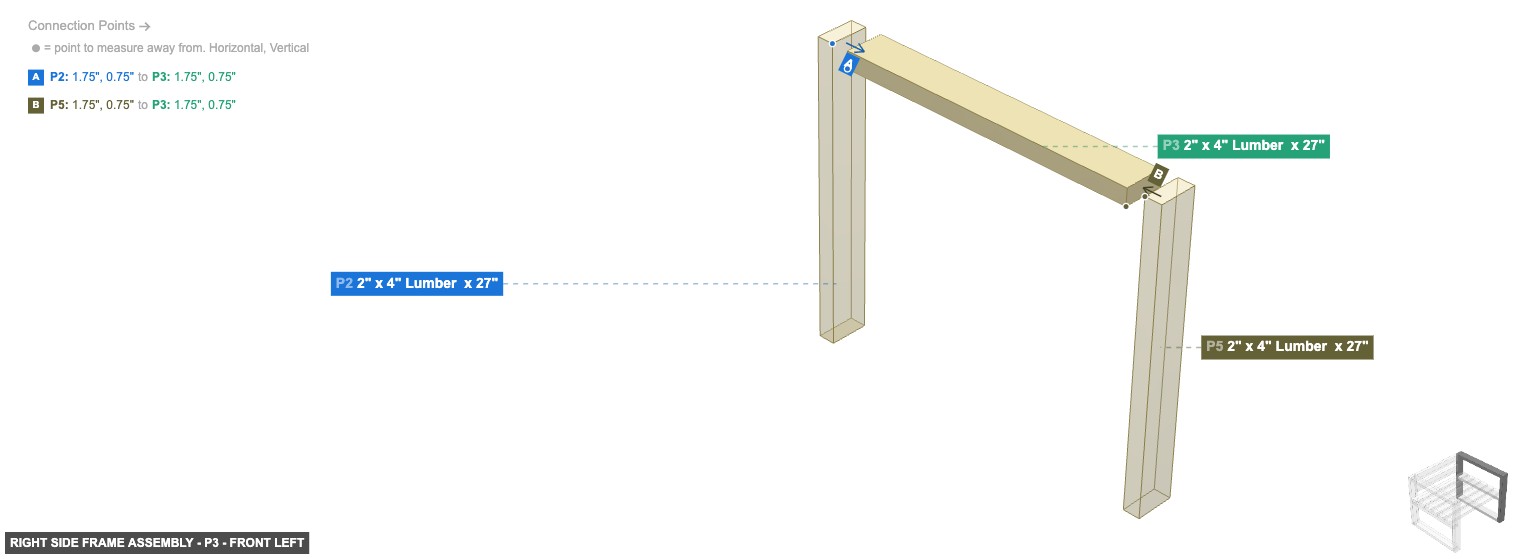

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

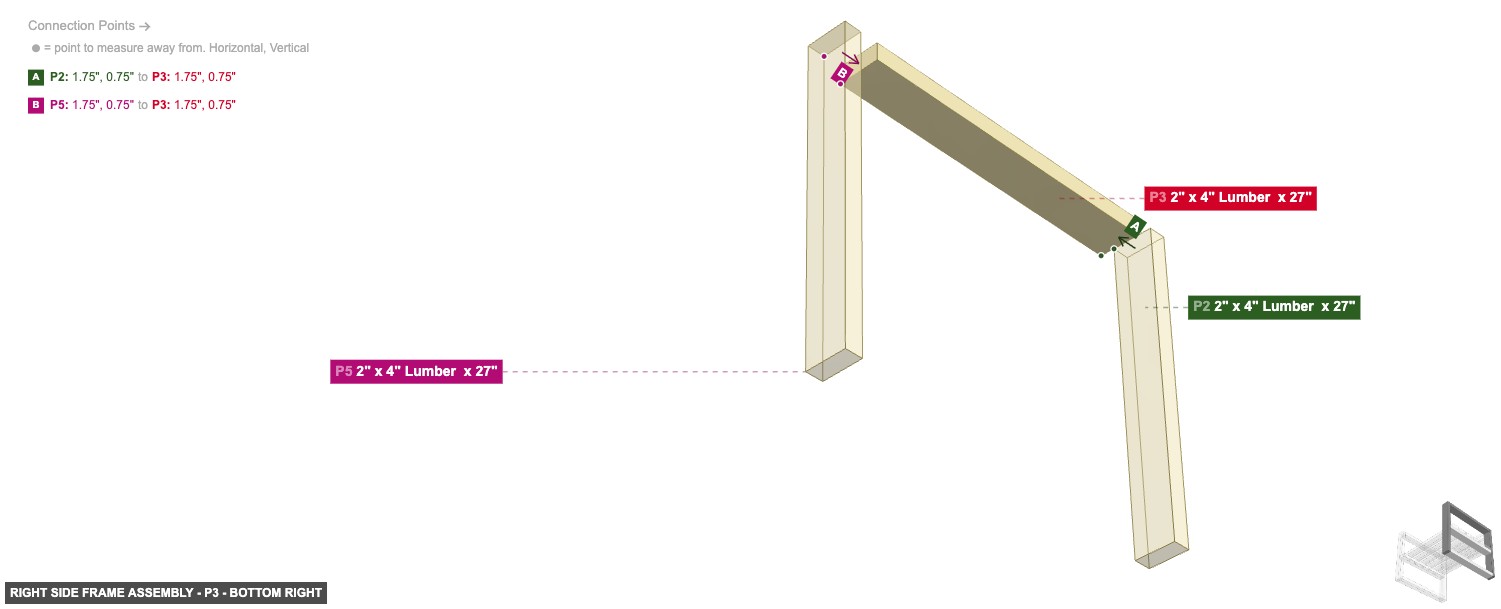

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back left

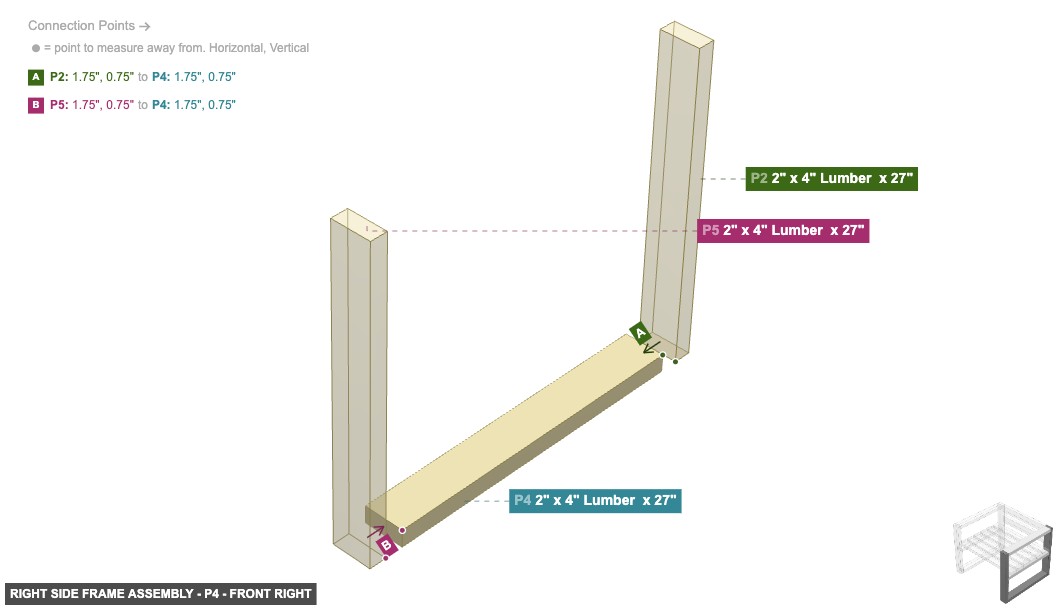

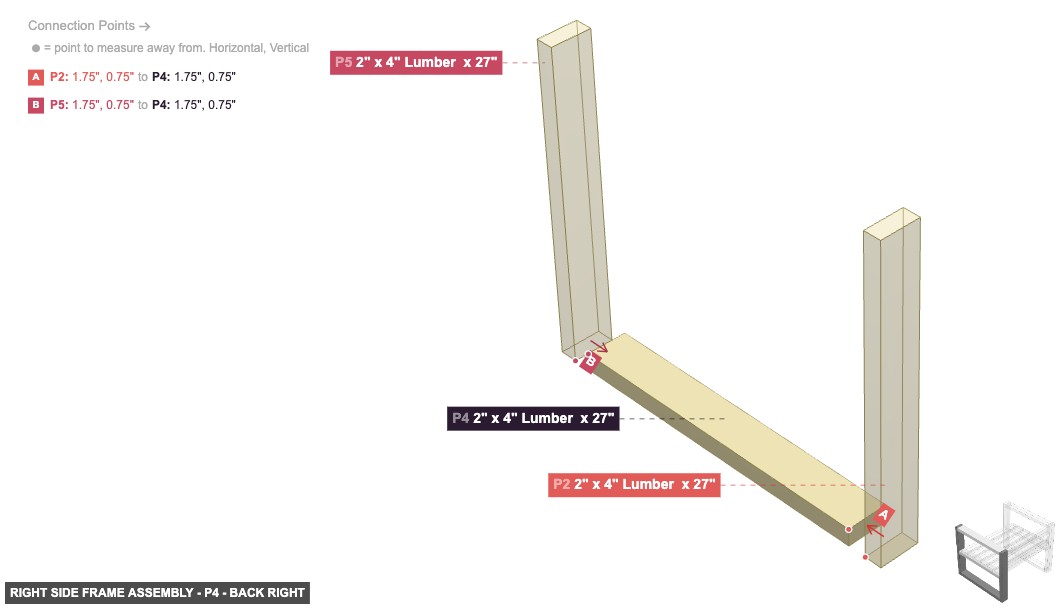

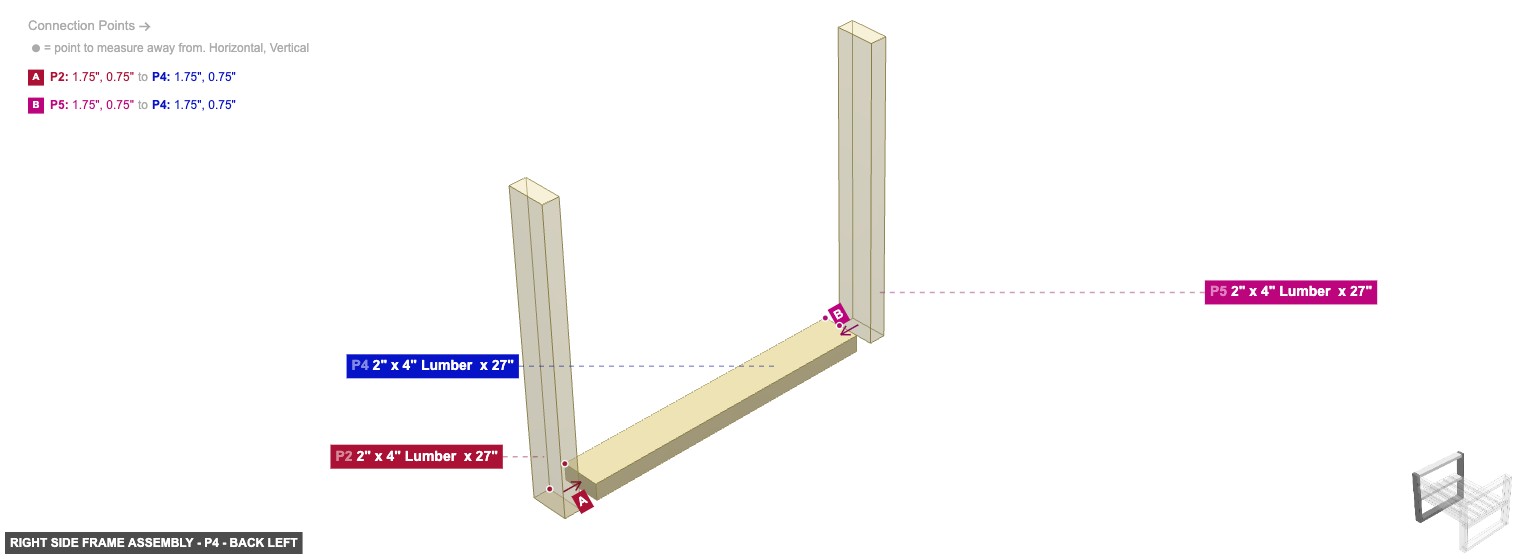

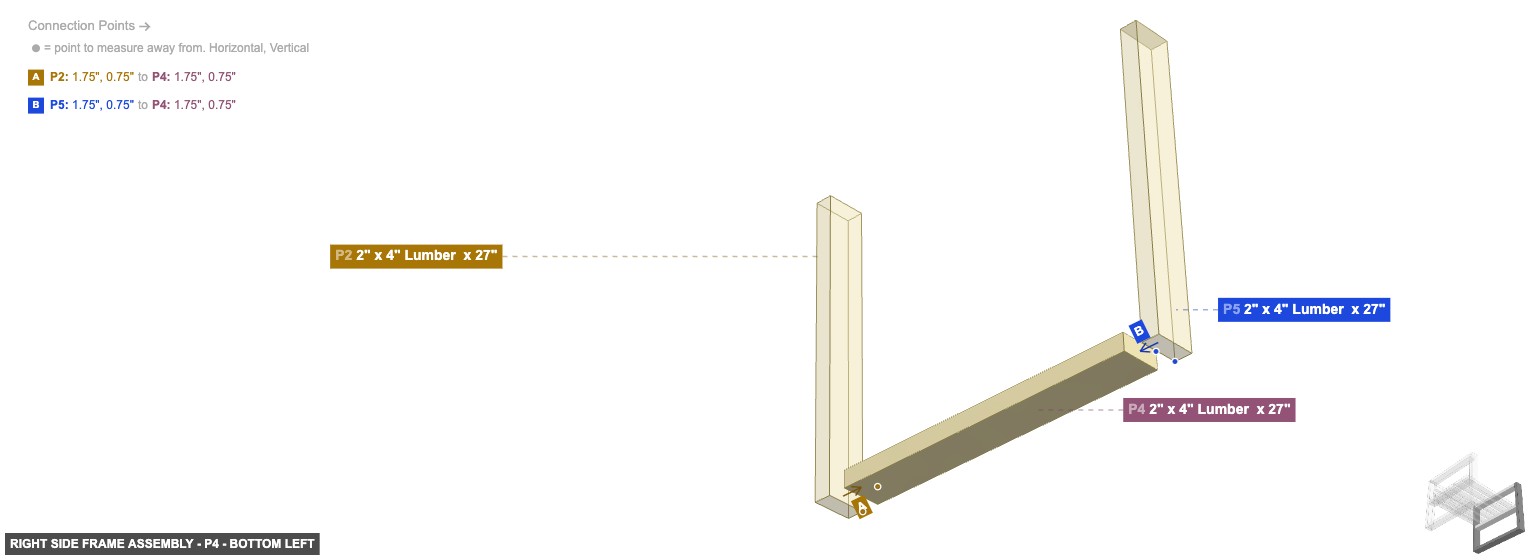

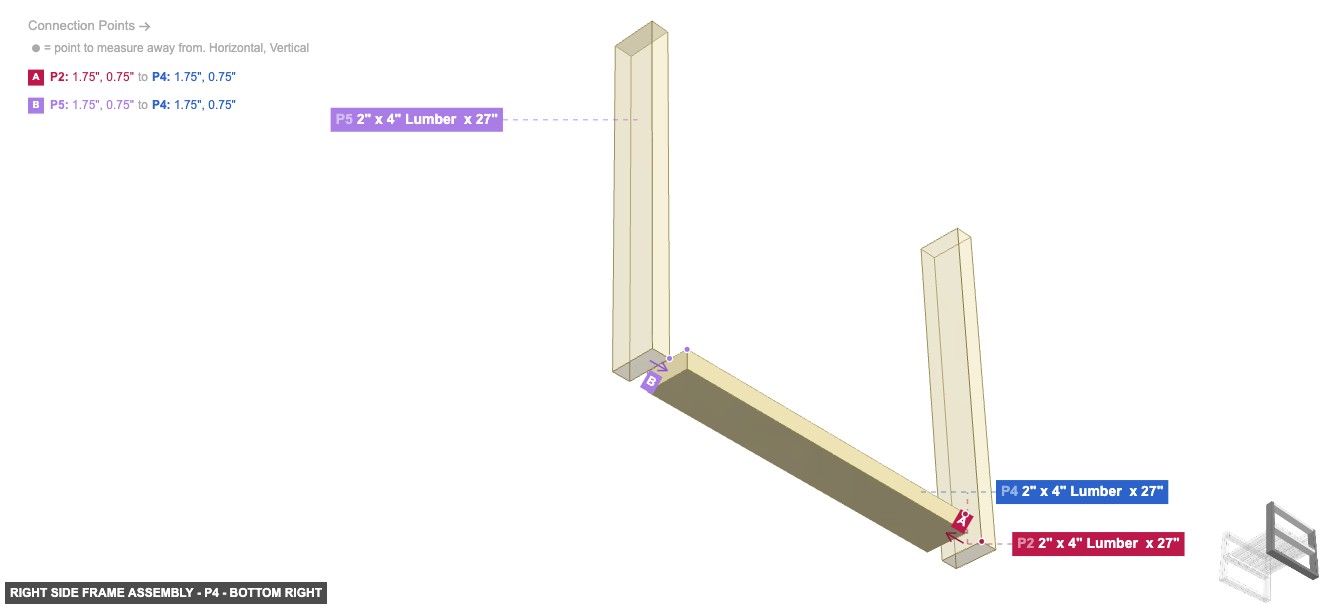

P4 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood End #1 oriented front links with part 5's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #2, which is back-facing, should connect to part 2's 2" x 4" Wood Side #4, plus its 2" x 4" Wood Side #1 needs to point left, and its 2" x 4" Wood Side #2 should be directed top. Also, its 2" x 4" Wood Side #3 needs to point right. Also, ensure its 2" x 4" Wood Side #4 faces bottom

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

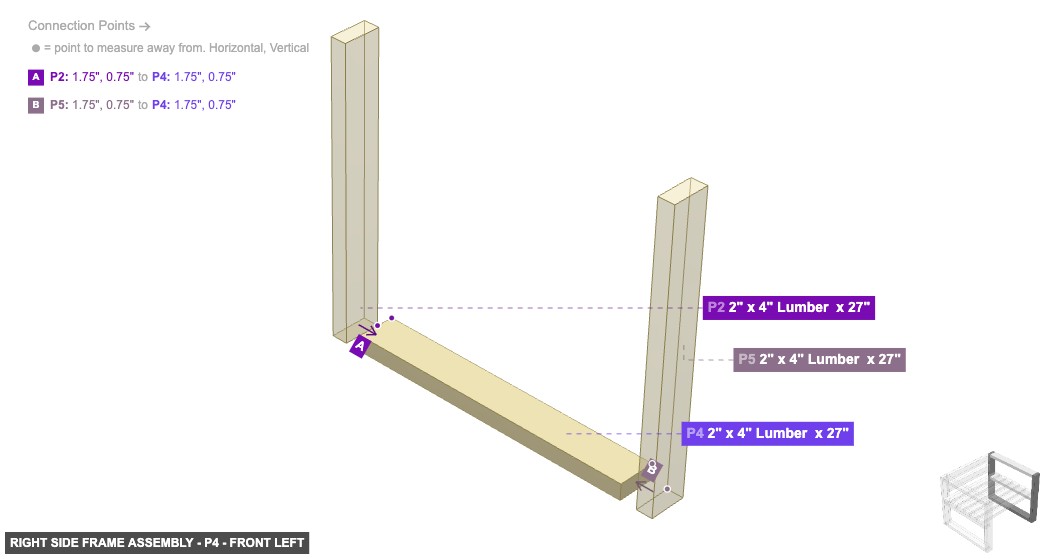

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back left

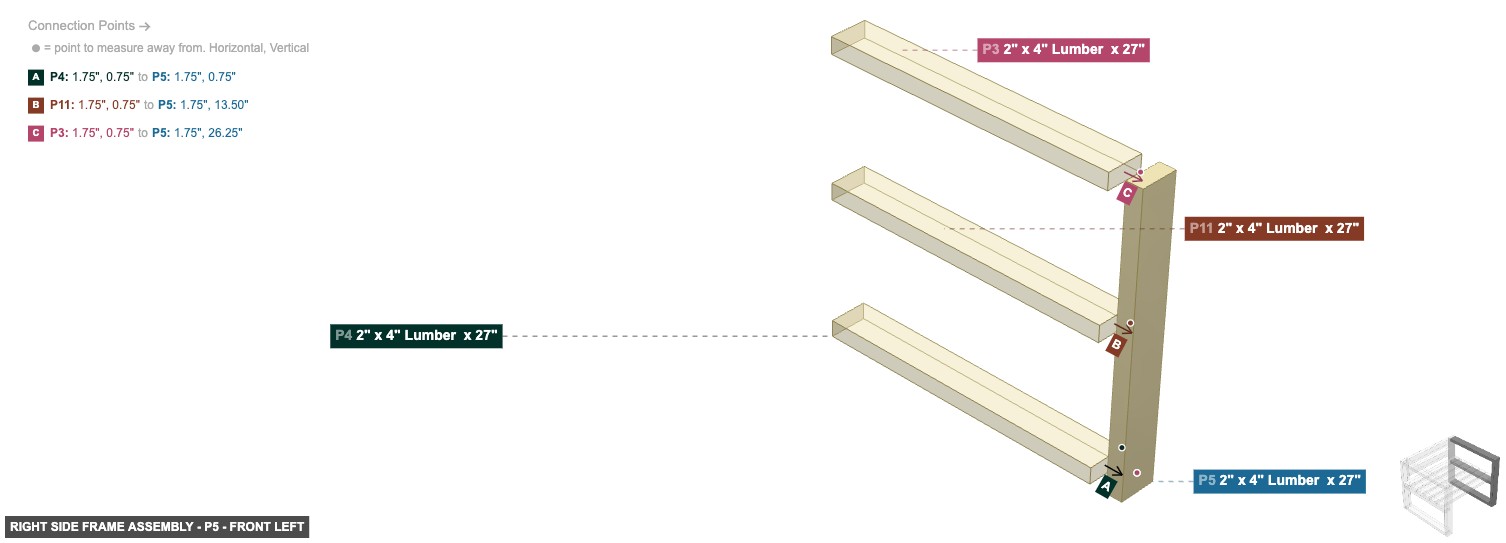

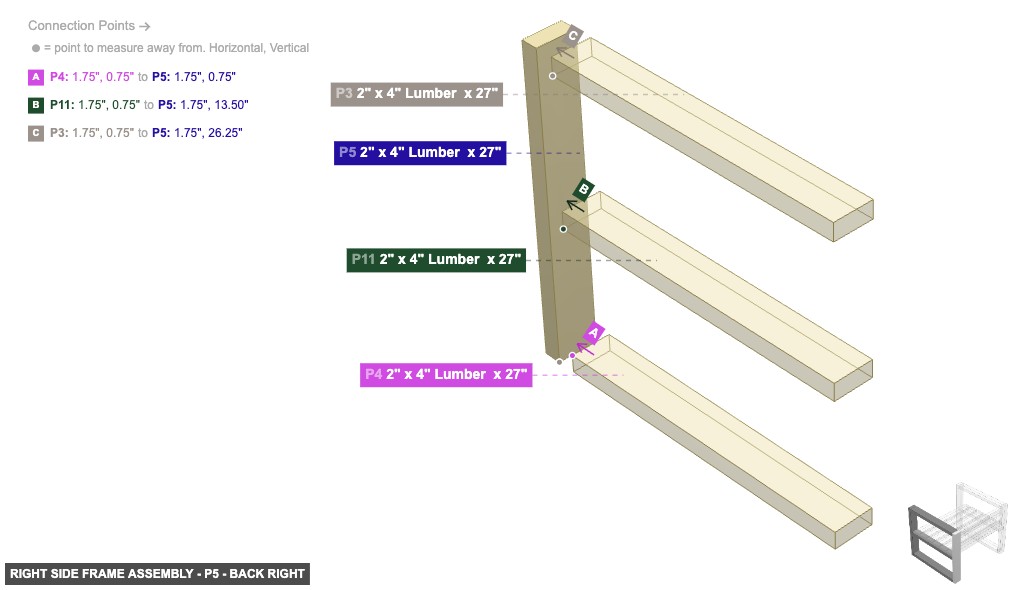

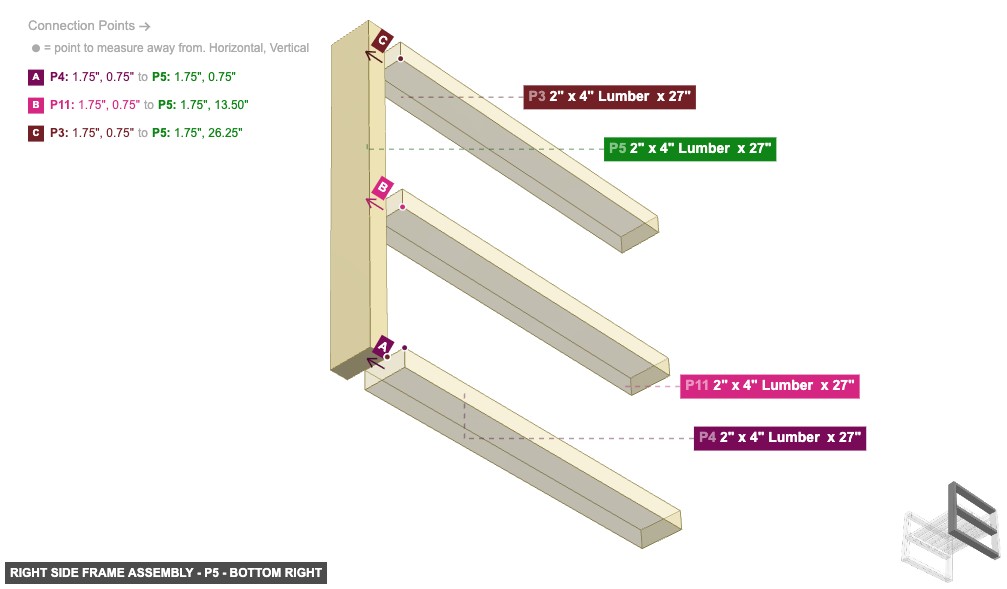

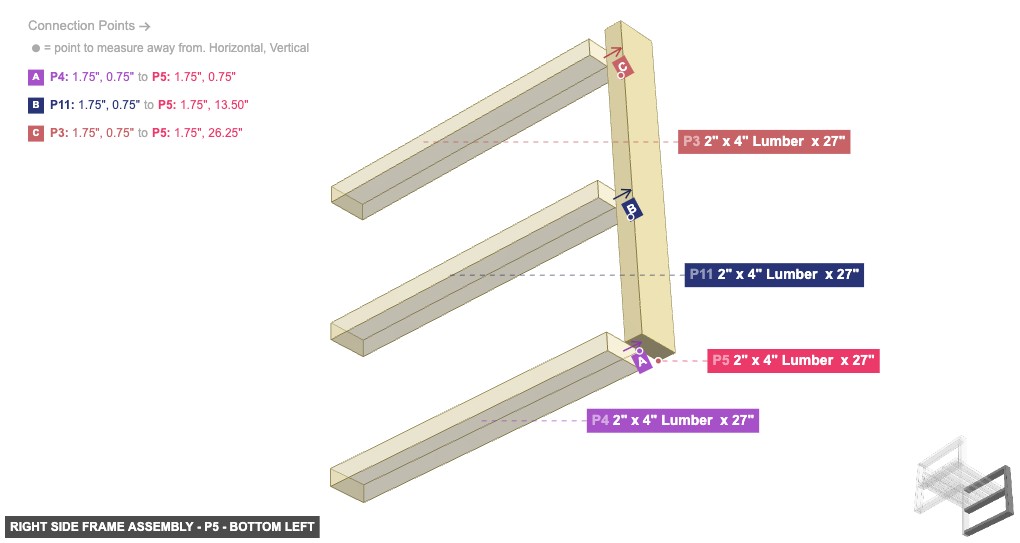

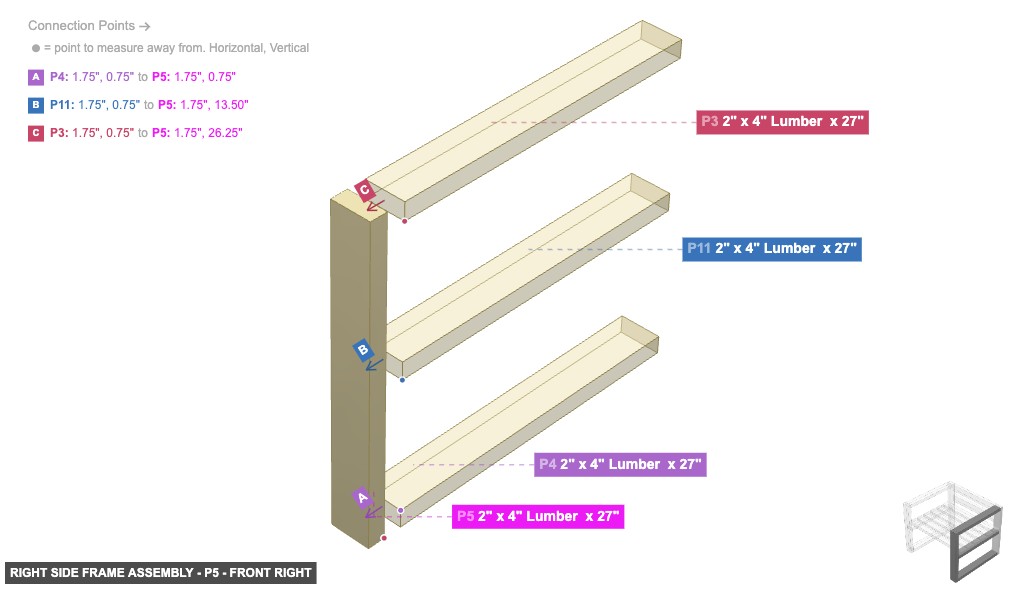

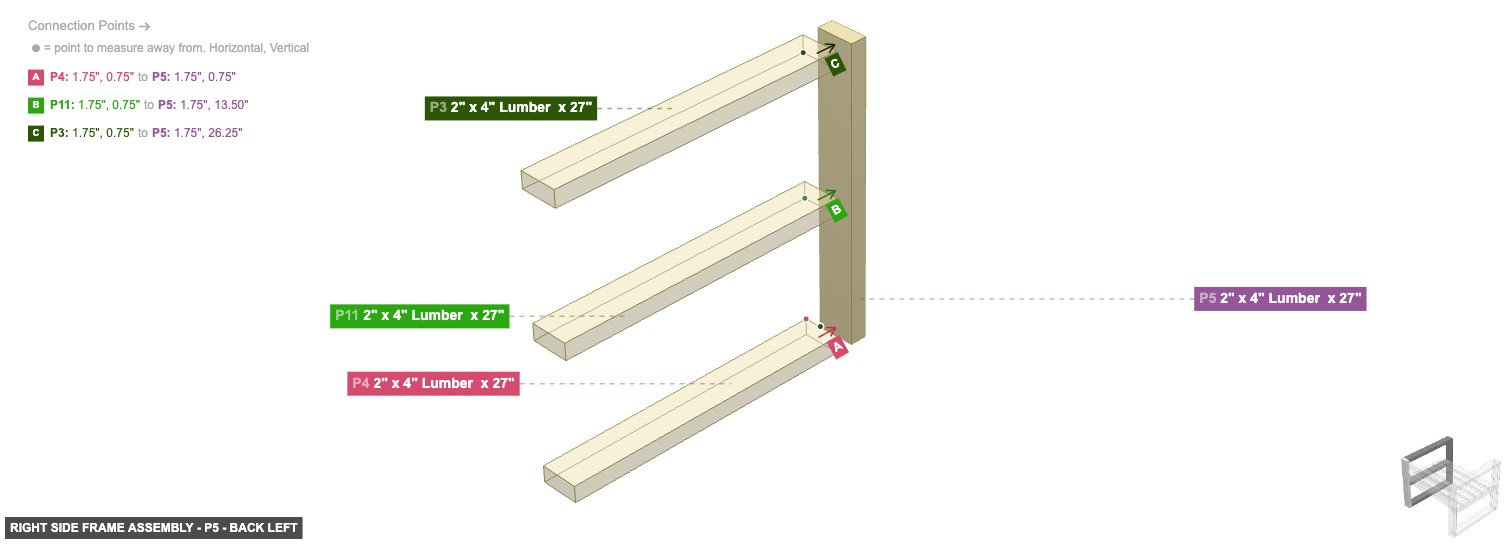

P5 (2" x 4" Lumber 27" length) - attach its 2" x 4" Wood Side #2 facing back to part 4's 2" x 4" Wood End #1, plus its 2" x 4" Wood End #1 should be directed bottom. Also, its 2" x 4" Wood Side #1 must be oriented right, then its 2" x 4" Wood Side #3 must be oriented left, and its 2" x 4" Wood Side #4 should be directed front, then its 2" x 4" Wood End #2 needs to point top

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back left

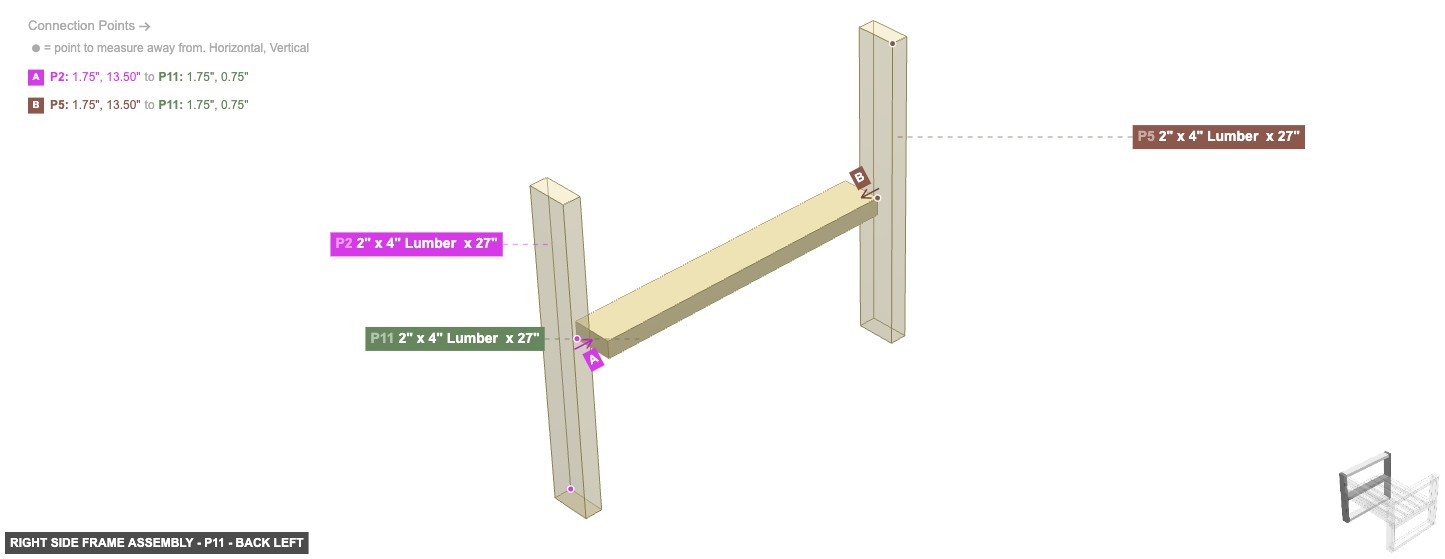

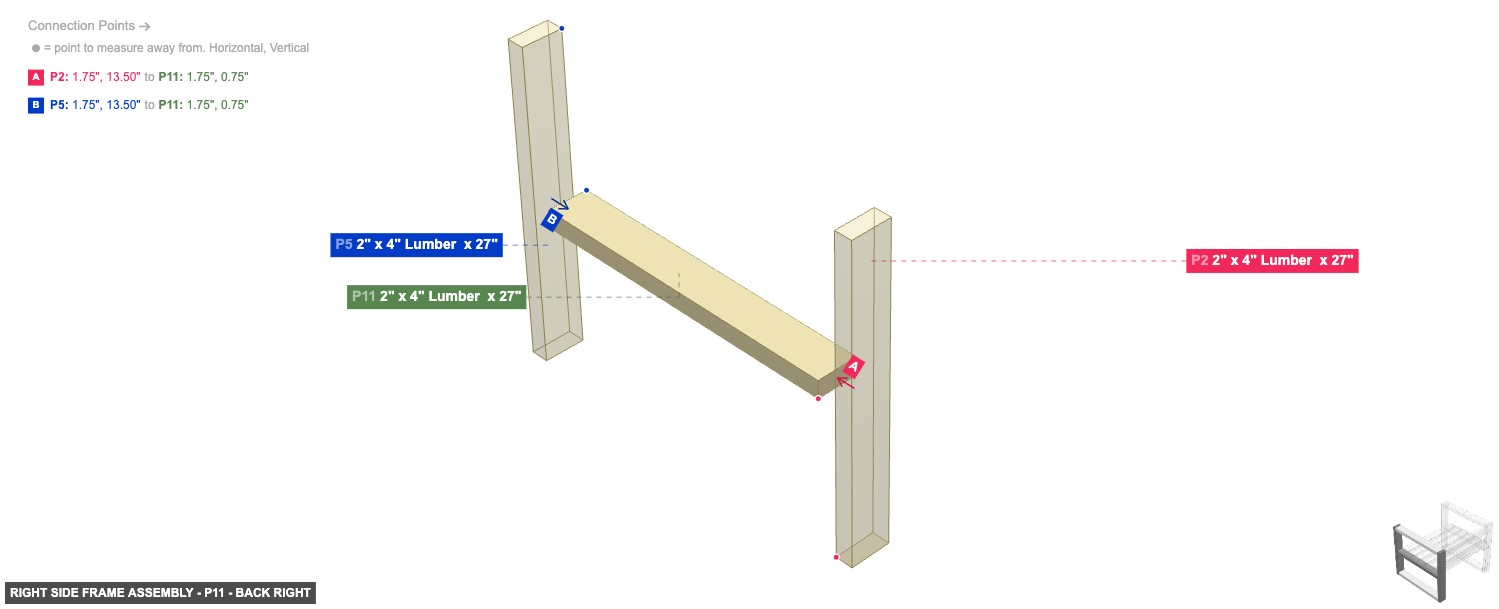

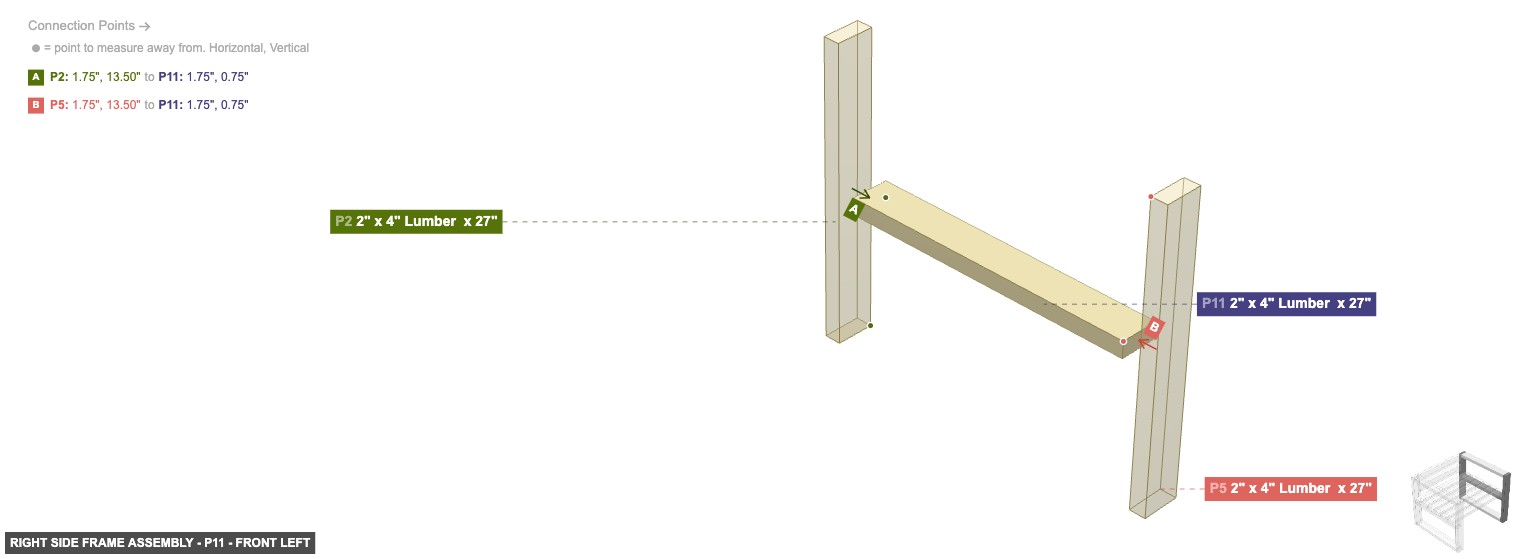

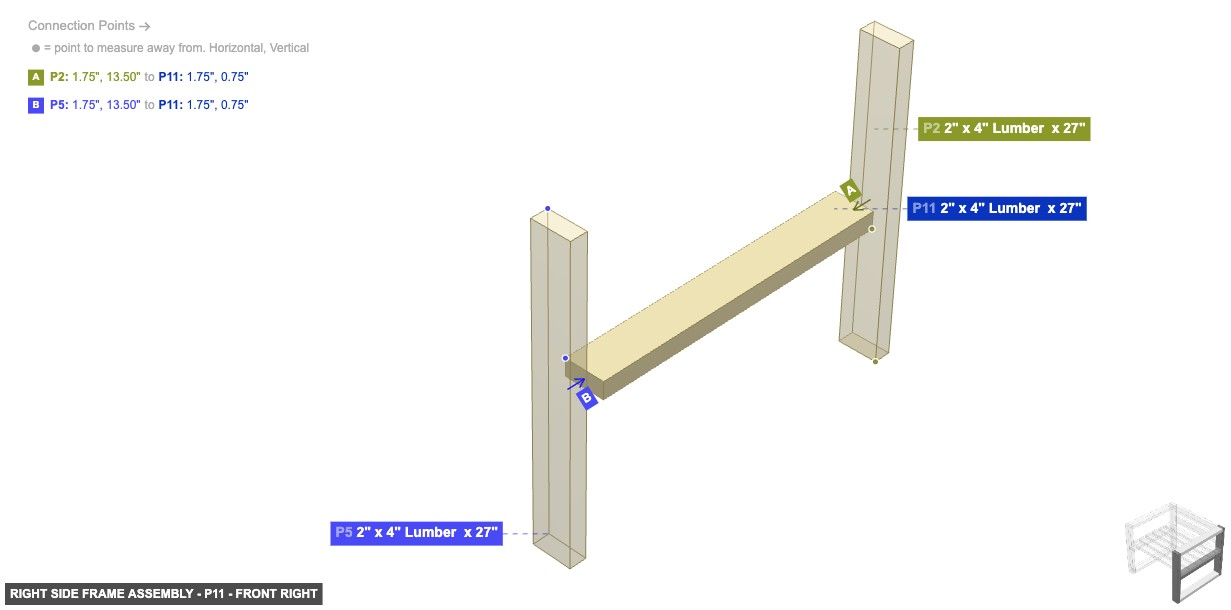

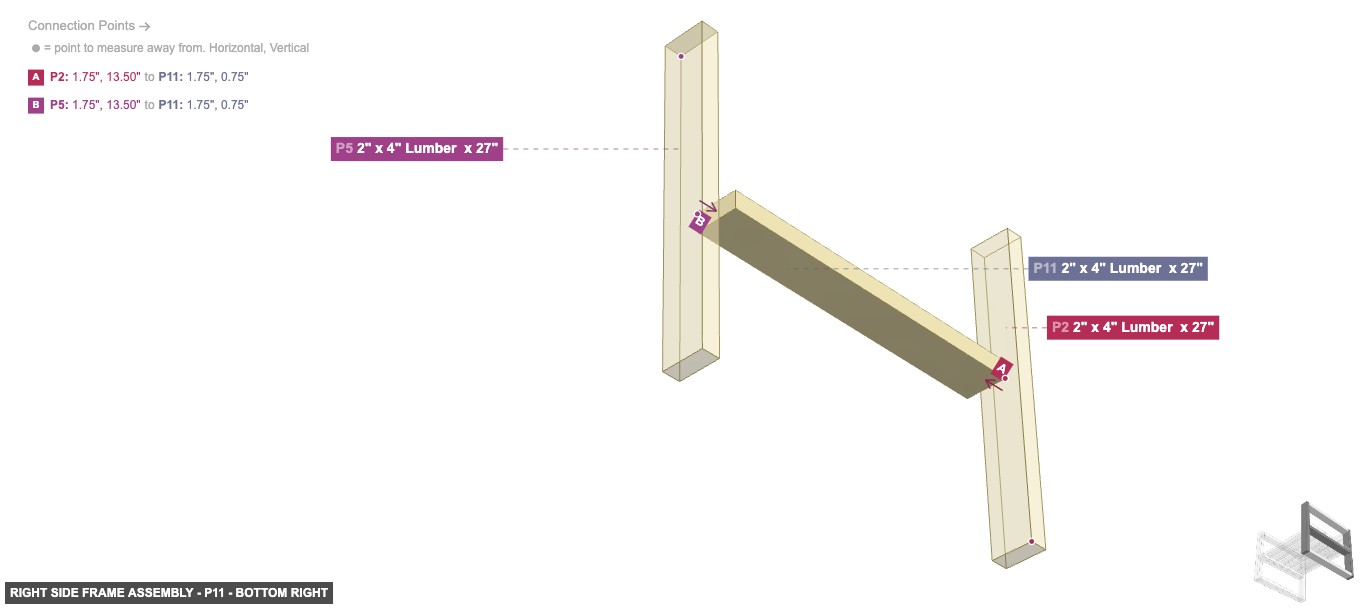

P11 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 5's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #2, which is back-facing, should connect to part 2's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood Side #1 must be oriented left. After that, its 2" x 4" Wood Side #3 should be directed right, also ensure its 2" x 4" Wood Side #4 faces bottom

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: back right

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: front right

2" x 4" Lumber x 27"x 5

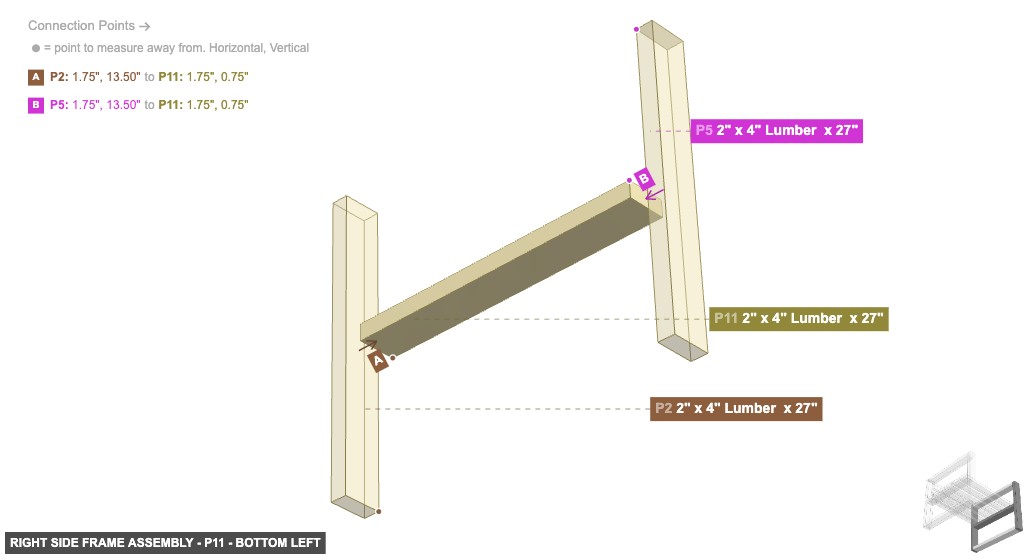

Part: 2" x 4" Lumber x 27" - Angle: bottom left

2" x 4" Lumber x 27"x 5

Part: 2" x 4" Lumber x 27" - Angle: bottom right

2" x 4" Lumber x 27"x 5

Phase 3: Inter-Group Assembly

Attaching: Left Side Frame Assembly

Assemble the left side frame of the chair. This includes the front leg (P6), the back leg components (P9), the armrest (P7), the lower side rail (P8), and the seat slat support (P10).

Angle: back left

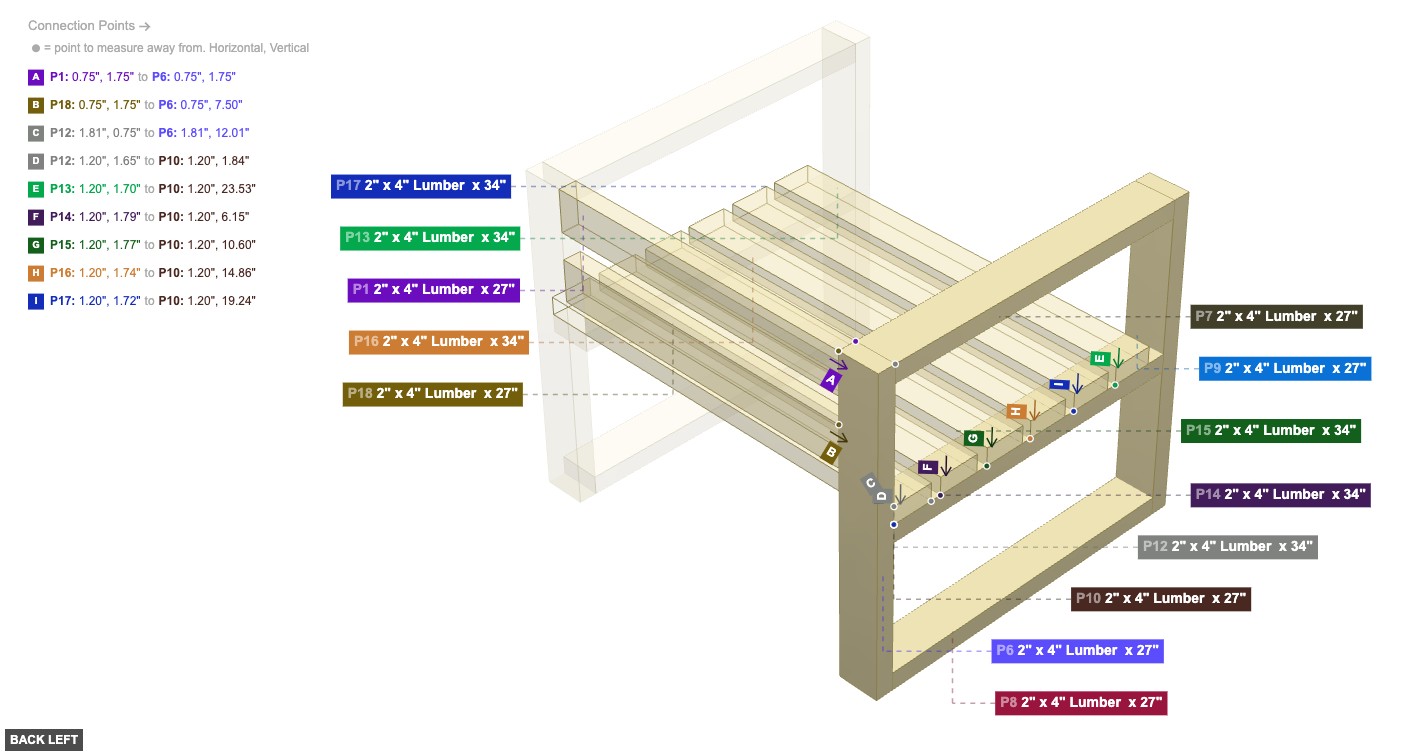

Assembly of Left Side Frame Assembly - back_left

P6 (2" x 4" Lumber 27" length) - its 2" x 4" Wood Side #1, which is right-facing, should connect to part 1's 2" x 4" Wood End #2. After that, attach its 2" x 4" Wood Side #4 facing front to part 7's 2" x 4" Wood End #2, plus its 2" x 4" Wood End #1 must be oriented bottom, and its 2" x 4" Wood Side #2 needs to point back, and its 2" x 4" Wood Side #3 should be directed left. Also, ensure its 2" x 4" Wood End #2 faces top P7 (2" x 4" Lumber 27" length) - attach its 2" x 4" Wood End #1 facing front to part 9's 2" x 4" Wood Side #2. After that, connect its 2" x 4" Wood End #2 oriented back links with part 6's 2" x 4" Wood Side #4, also its 2" x 4" Wood Side #1 must be oriented right, and its 2" x 4" Wood Side #2 needs to point bottom. Next, its 2" x 4" Wood Side #3 must be oriented left, also ensure its 2" x 4" Wood Side #4 faces top P8 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 9's 2" x 4" Wood Side #2. Next, connect its 2" x 4" Wood End #2 oriented back links with part 6's 2" x 4" Wood Side #4, then its 2" x 4" Wood Side #1 should be directed right, plus its 2" x 4" Wood Side #2 should be directed bottom. After that, its 2" x 4" Wood Side #3 should be directed left, and its 2" x 4" Wood Side #4 needs to point top P9 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood Side #2 oriented back links with part 8's 2" x 4" Wood End #1. Also, its 2" x 4" Wood End #1 should be directed top. Additionally, its 2" x 4" Wood Side #1 should be directed left, also its 2" x 4" Wood Side #3 must be oriented right. After that, its 2" x 4" Wood Side #4 must be oriented front, also its 2" x 4" Wood End #2 must be oriented bottom P10 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1, which is front-facing, should connect to part 9's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #4, which is top-facing, should connect to part 12's 2" x 4" Wood Side #2. Additionally, attach its 2" x 4" Wood End #2 facing back to part 6's 2" x 4" Wood Side #4. Next, its 2" x 4" Wood Side #1 should be directed right, then its 2" x 4" Wood Side #2 should be directed bottom, then its 2" x 4" Wood Side #3 must be oriented left

2" x 4" Lumber x 27"x 5

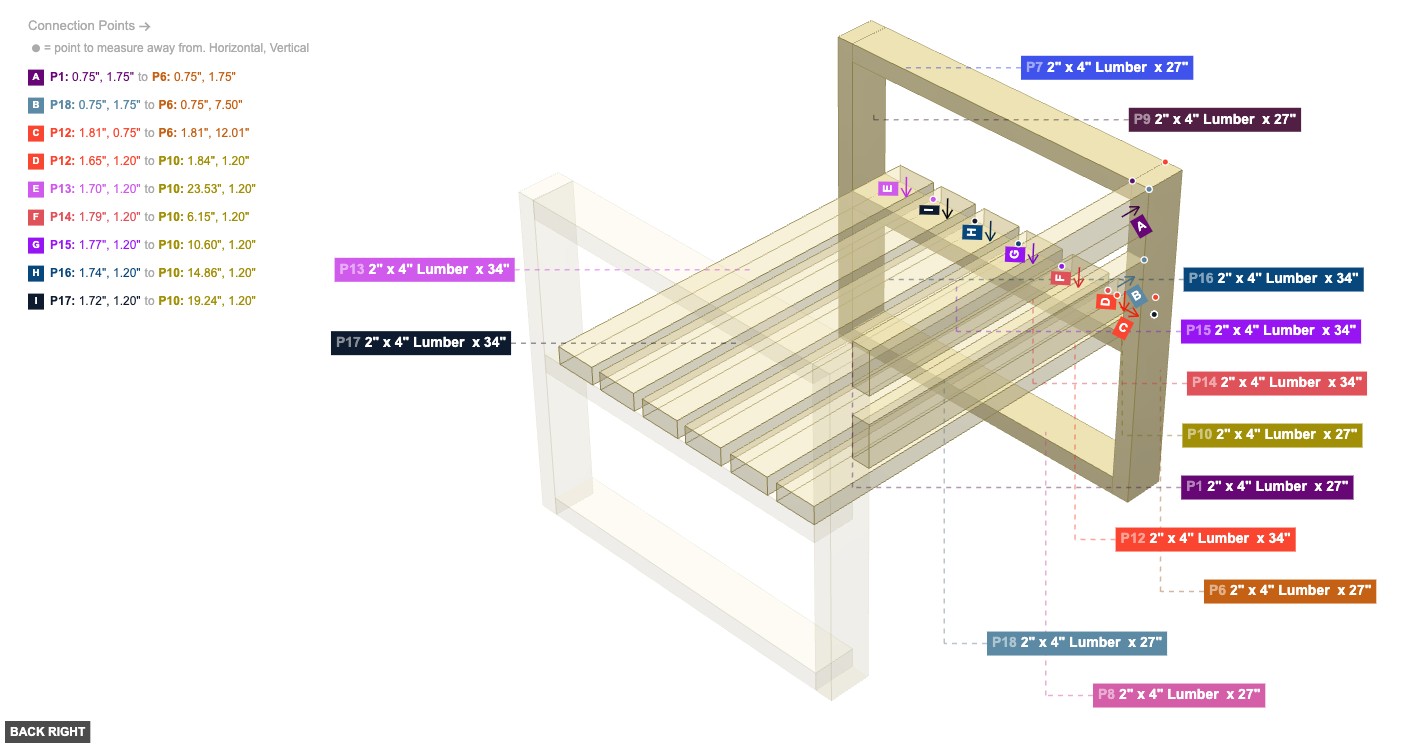

Angle: back right

Assembly of Left Side Frame Assembly - back_right

2" x 4" Lumber x 27"x 5

Angle: front left

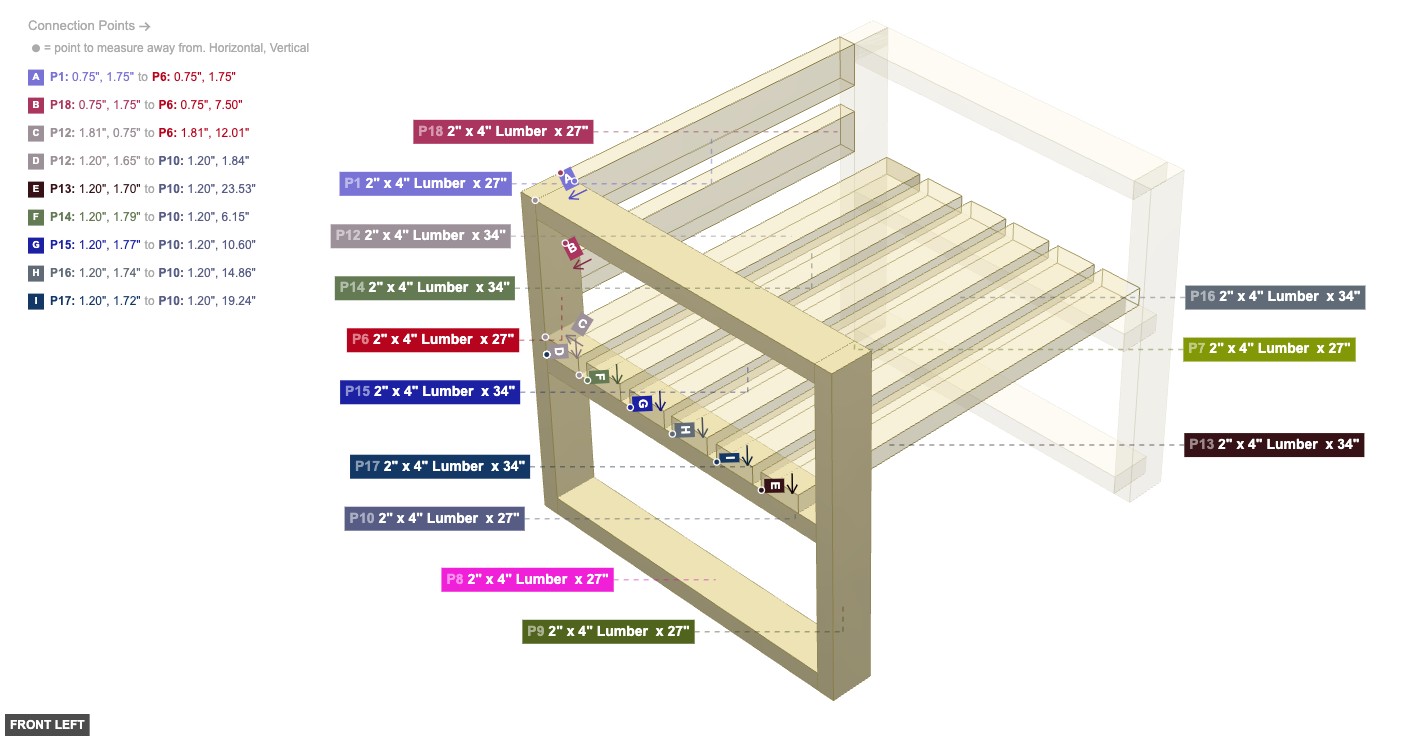

Assembly of Left Side Frame Assembly - front_left

2" x 4" Lumber x 27"x 5

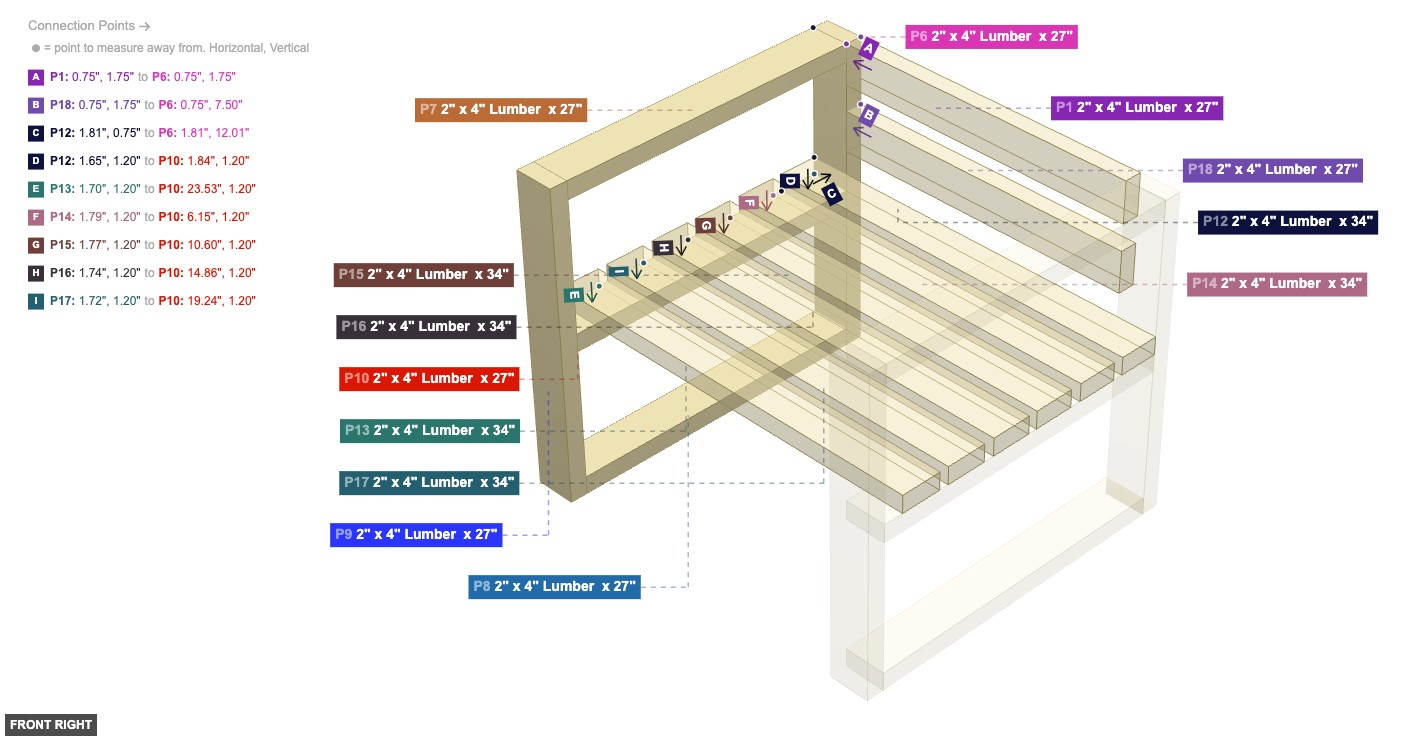

Angle: front right

Assembly of Left Side Frame Assembly - front_right

2" x 4" Lumber x 27"x 5

Angle: bottom left

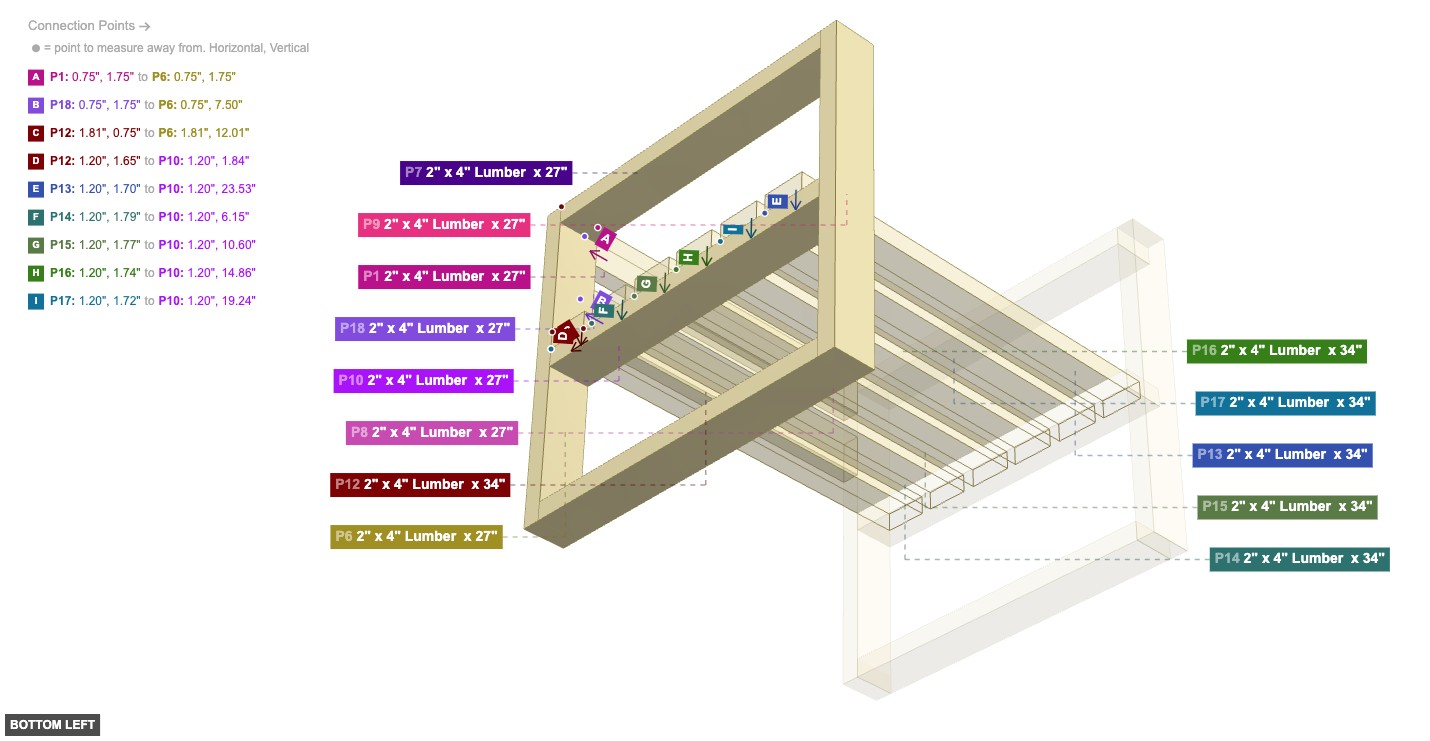

Assembly of Left Side Frame Assembly - bottom_left

2" x 4" Lumber x 27"x 5

Angle: bottom right

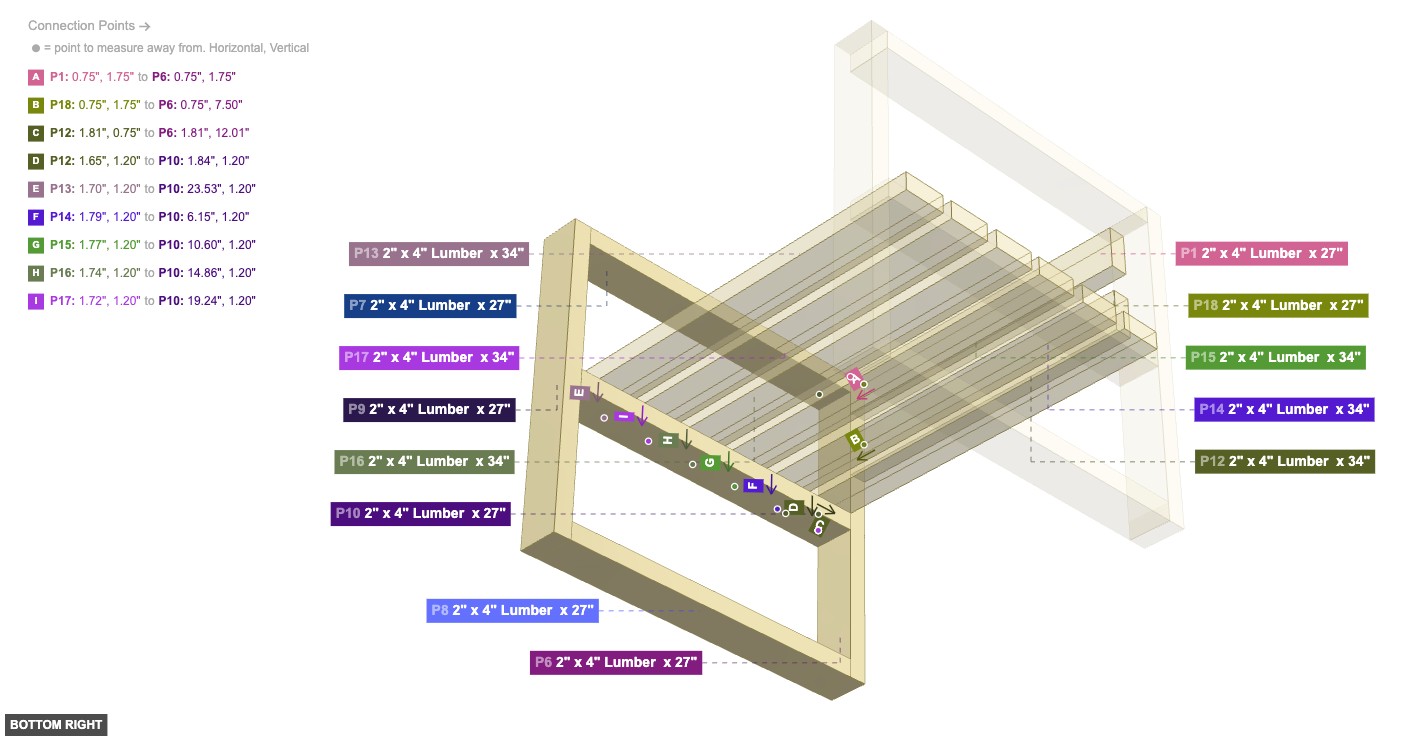

Assembly of Left Side Frame Assembly - bottom_right

2" x 4" Lumber x 27"x 5

Attaching: Right Side Frame Assembly

Assemble the right side frame of the chair. This includes the front leg (P2), the back leg components (P5), the armrest (P3), the lower side rail (P4), and the seat slat support (P11).

Angle: back left

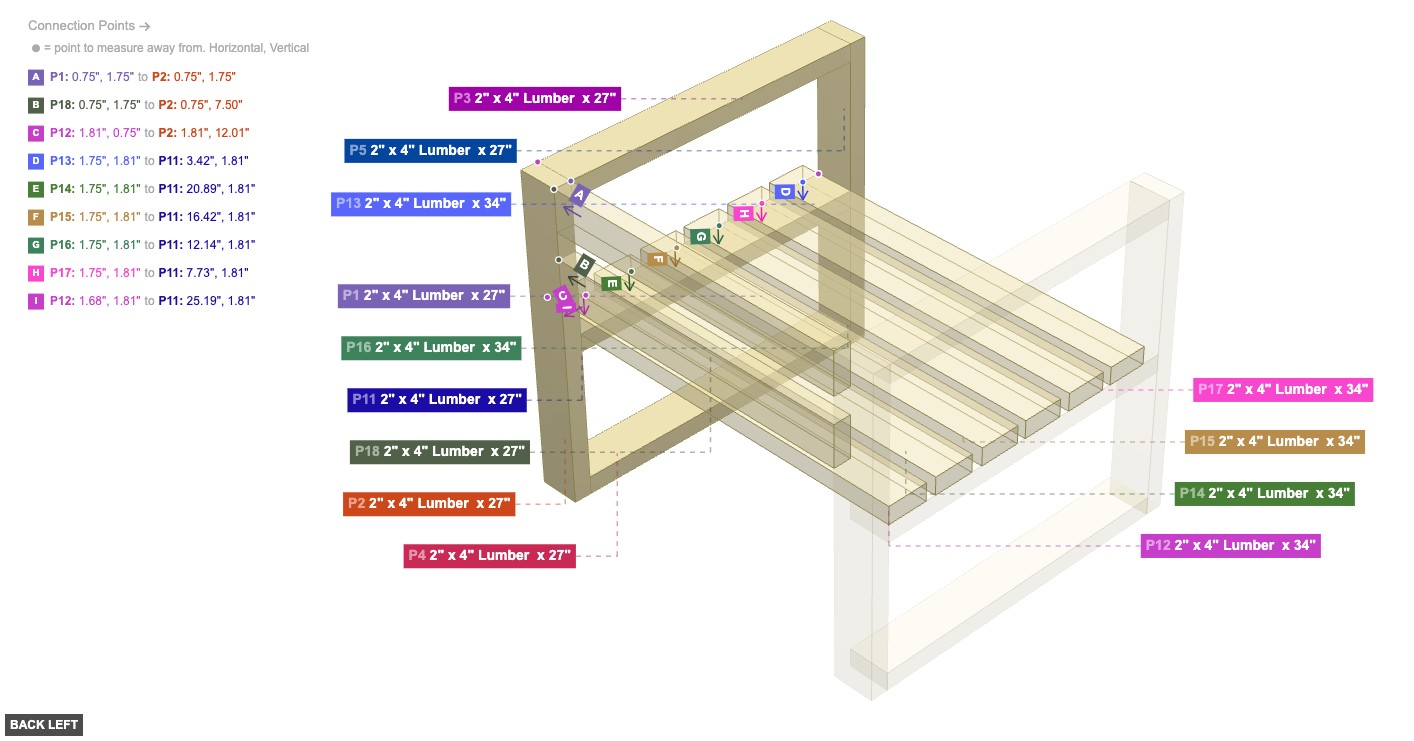

Assembly of Right Side Frame Assembly - back_left

P2 (2" x 4" Lumber 27" length) - its 2" x 4" Wood Side #1, which is left-facing, should connect to part 1's 2" x 4" Wood End #1, then connect its 2" x 4" Wood Side #4 oriented front links with part 3's 2" x 4" Wood End #2. Additionally, ensure its 2" x 4" Wood End #1 faces top. Additionally, ensure its 2" x 4" Wood Side #2 faces back, also ensure its 2" x 4" Wood Side #3 faces right. Also, its 2" x 4" Wood End #2 must be oriented bottom P3 (2" x 4" Lumber 27" length) - attach its 2" x 4" Wood End #1 facing front to part 5's 2" x 4" Wood Side #2. Additionally, attach its 2" x 4" Wood End #2 facing back to part 2's 2" x 4" Wood Side #4. Next, its 2" x 4" Wood Side #1 needs to point left. Also, ensure its 2" x 4" Wood Side #2 faces top, plus ensure its 2" x 4" Wood Side #3 faces right. Additionally, its 2" x 4" Wood Side #4 should be directed bottom P4 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood End #1 oriented front links with part 5's 2" x 4" Wood Side #2, then its 2" x 4" Wood End #2, which is back-facing, should connect to part 2's 2" x 4" Wood Side #4, then its 2" x 4" Wood Side #1 needs to point left, plus its 2" x 4" Wood Side #2 should be directed top, plus its 2" x 4" Wood Side #3 should be directed right. Next, its 2" x 4" Wood Side #4 should be directed bottom P5 (2" x 4" Lumber 27" length) - its 2" x 4" Wood Side #2, which is back-facing, should connect to part 4's 2" x 4" Wood End #1, and its 2" x 4" Wood End #1 needs to point bottom. Additionally, its 2" x 4" Wood Side #1 needs to point right, then its 2" x 4" Wood Side #3 needs to point left, plus its 2" x 4" Wood Side #4 must be oriented front, also ensure its 2" x 4" Wood End #2 faces top P11 (2" x 4" Lumber 27" length) - connect its 2" x 4" Wood End #1 oriented front links with part 5's 2" x 4" Wood Side #2, and its 2" x 4" Wood Side #2, which is top-facing, should connect to part 13's 2" x 4" Wood Side #2. Additionally, its 2" x 4" Wood End #2, which is back-facing, should connect to part 2's 2" x 4" Wood Side #4. Also, its 2" x 4" Wood Side #1 needs to point left. Additionally, its 2" x 4" Wood Side #3 should be directed right, and its 2" x 4" Wood Side #4 must be oriented bottom

2" x 4" Lumber x 27"x 5

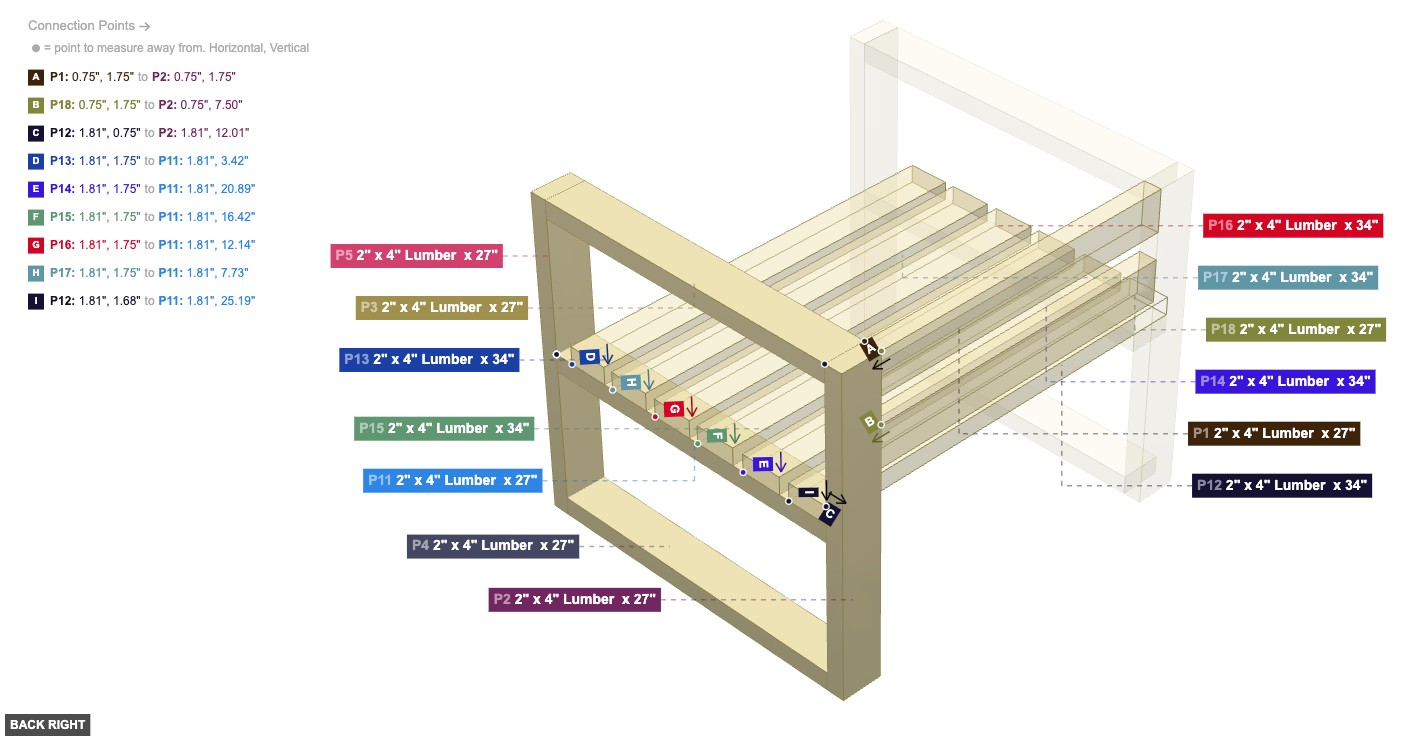

Angle: back right

Assembly of Right Side Frame Assembly - back_right

2" x 4" Lumber x 27"x 5

Angle: front left

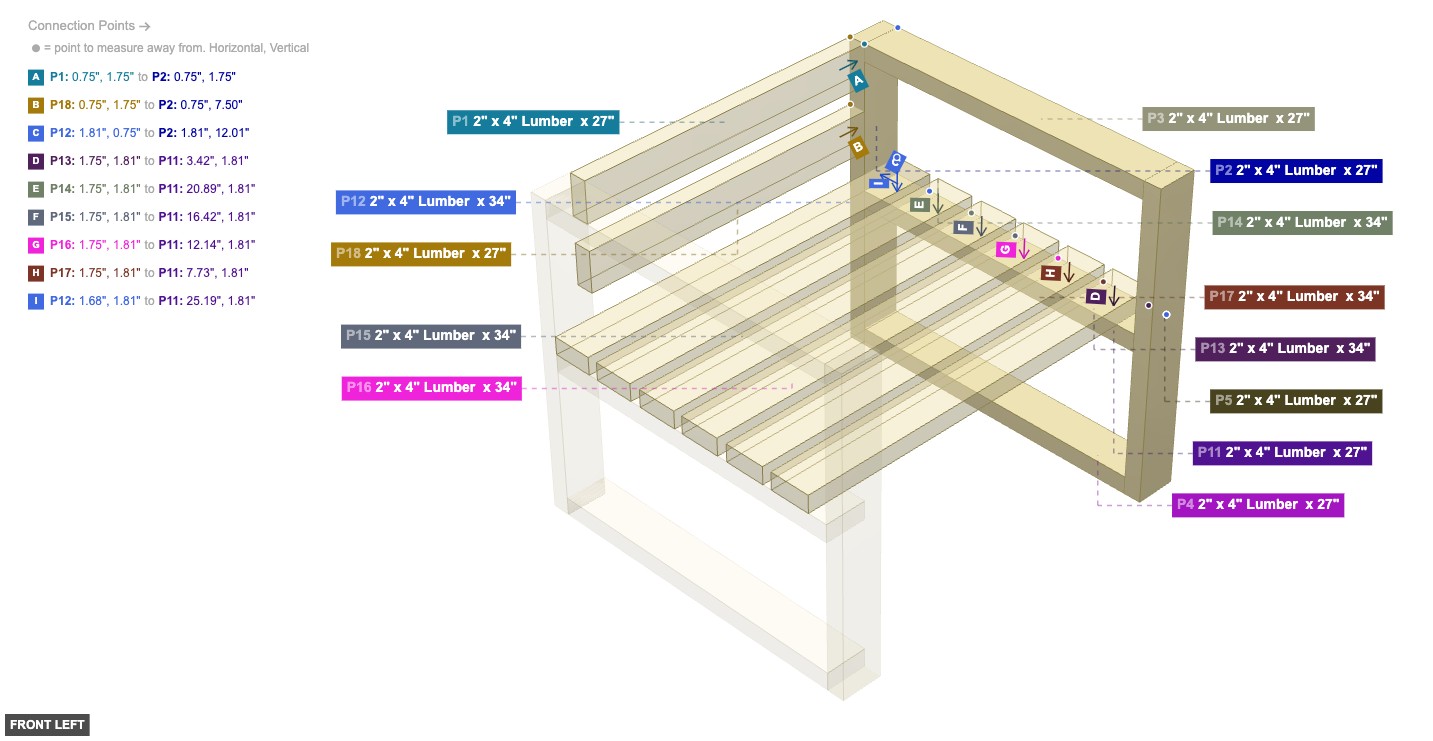

Assembly of Right Side Frame Assembly - front_left

2" x 4" Lumber x 27"x 5

Angle: front right

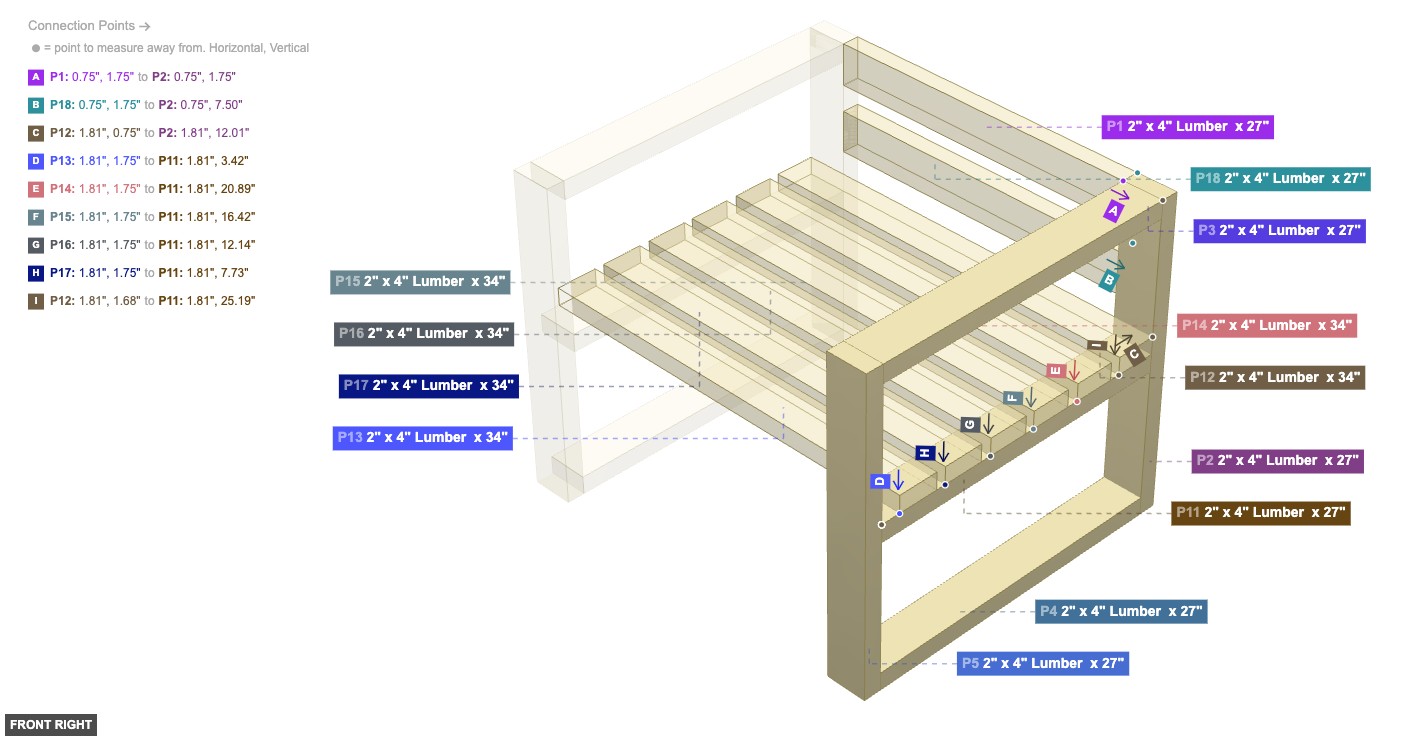

Assembly of Right Side Frame Assembly - front_right

2" x 4" Lumber x 27"x 5

Angle: bottom left

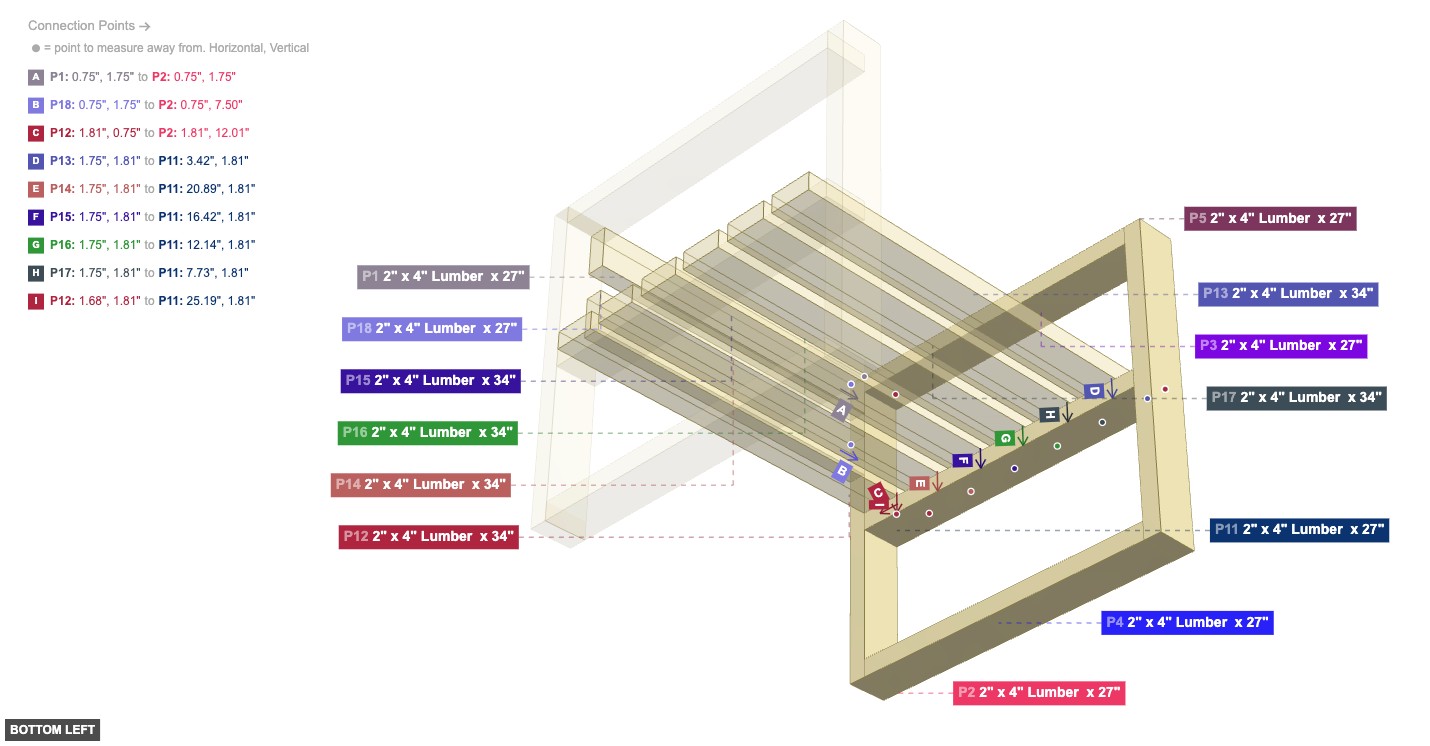

Assembly of Right Side Frame Assembly - bottom_left

2" x 4" Lumber x 27"x 5

Angle: bottom right

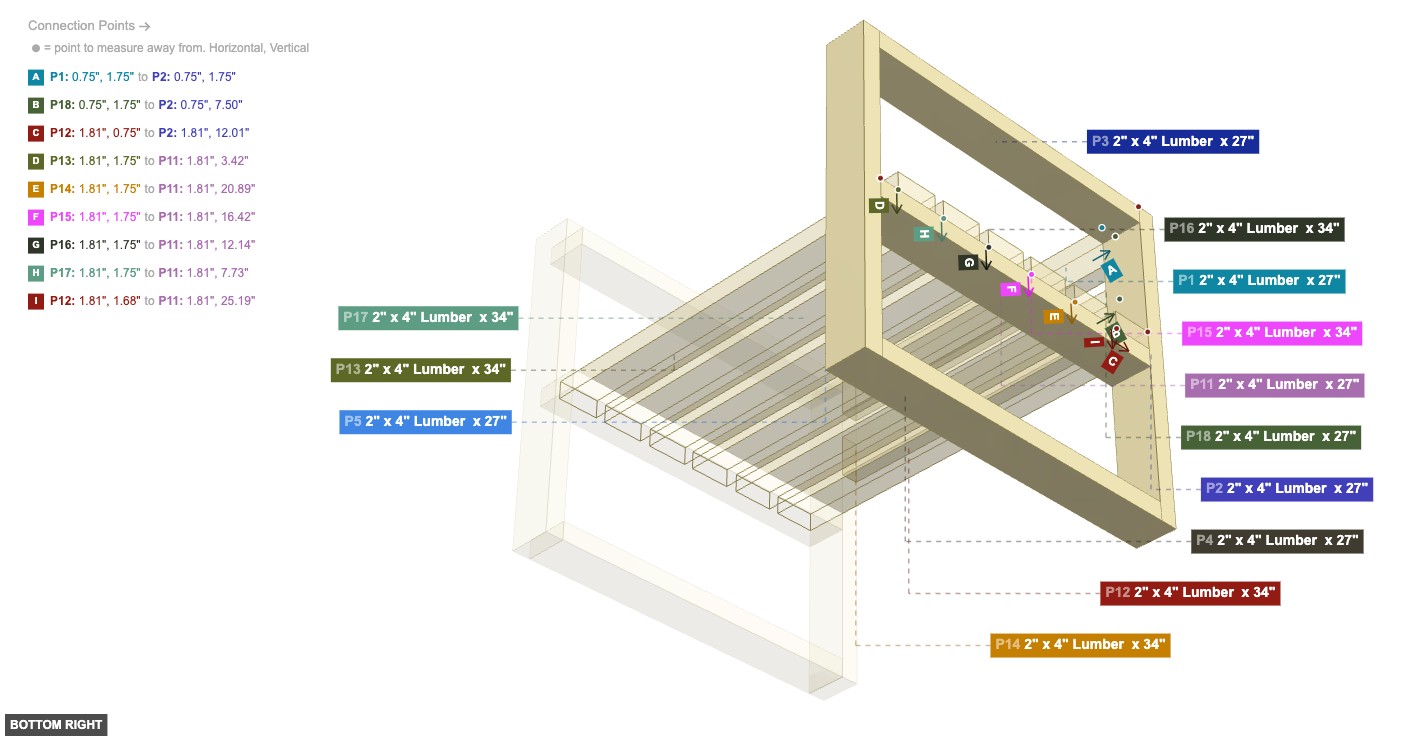

Assembly of Right Side Frame Assembly - bottom_right

2" x 4" Lumber x 27"x 5

Attaching: Connect Side Frames

Connect the completed Left and Right Side Frame assemblies using the top front rail (P1) and the bottom front rail (P18).

Angle: back left

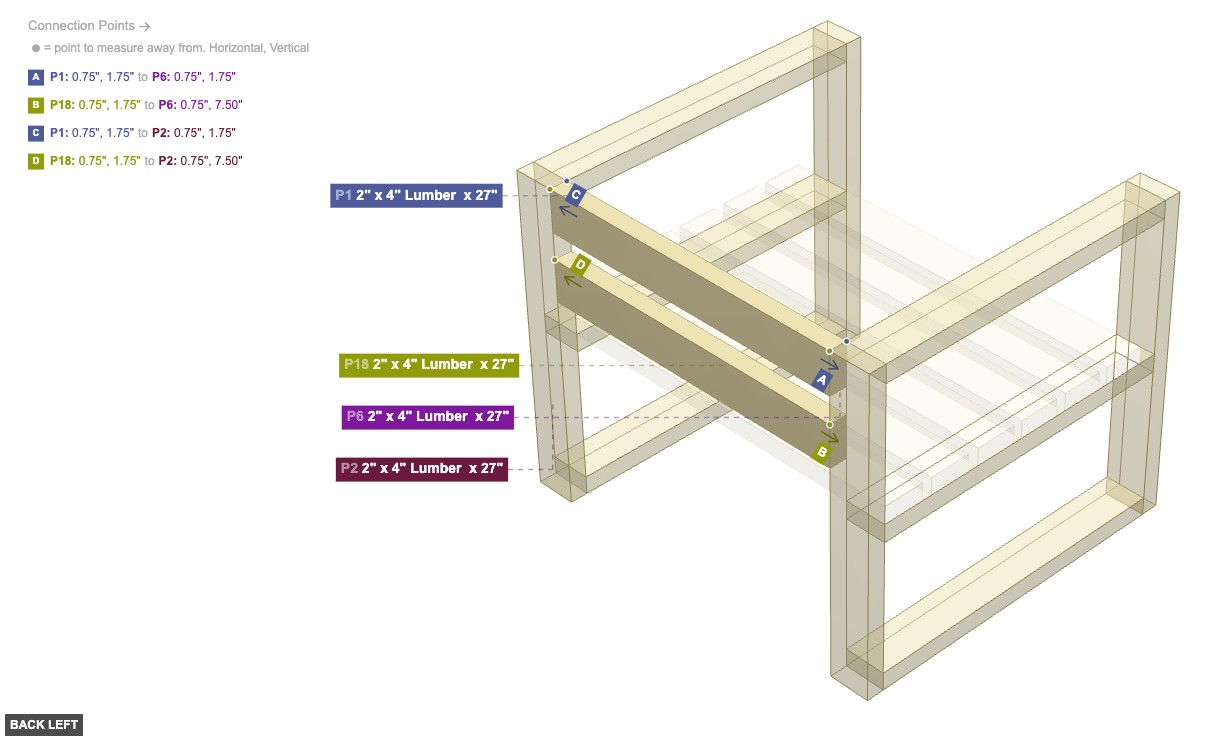

Assembly of Connect Side Frames - back_left

P1 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 2's 2" x 4" Wood Side #1, and its 2" x 4" Wood End #2, which is left-facing, should connect to part 6's 2" x 4" Wood Side #1, plus its 2" x 4" Wood Side #1 must be oriented top. After that, its 2" x 4" Wood Side #2 should be directed back, and its 2" x 4" Wood Side #3 needs to point bottom. Additionally, ensure its 2" x 4" Wood Side #4 faces front P18 (2" x 4" Lumber 27" length) - its 2" x 4" Wood End #1, which is right-facing, should connect to part 2's 2" x 4" Wood Side #1. After that, attach its 2" x 4" Wood End #2 facing left to part 6's 2" x 4" Wood Side #1. Next, its 2" x 4" Wood Side #1 must be oriented top. After that, ensure its 2" x 4" Wood Side #2 faces back. Additionally, its 2" x 4" Wood Side #3 should be directed bottom, and its 2" x 4" Wood Side #4 must be oriented front

2" x 4" Lumber x 27"x 2

Angle: back right

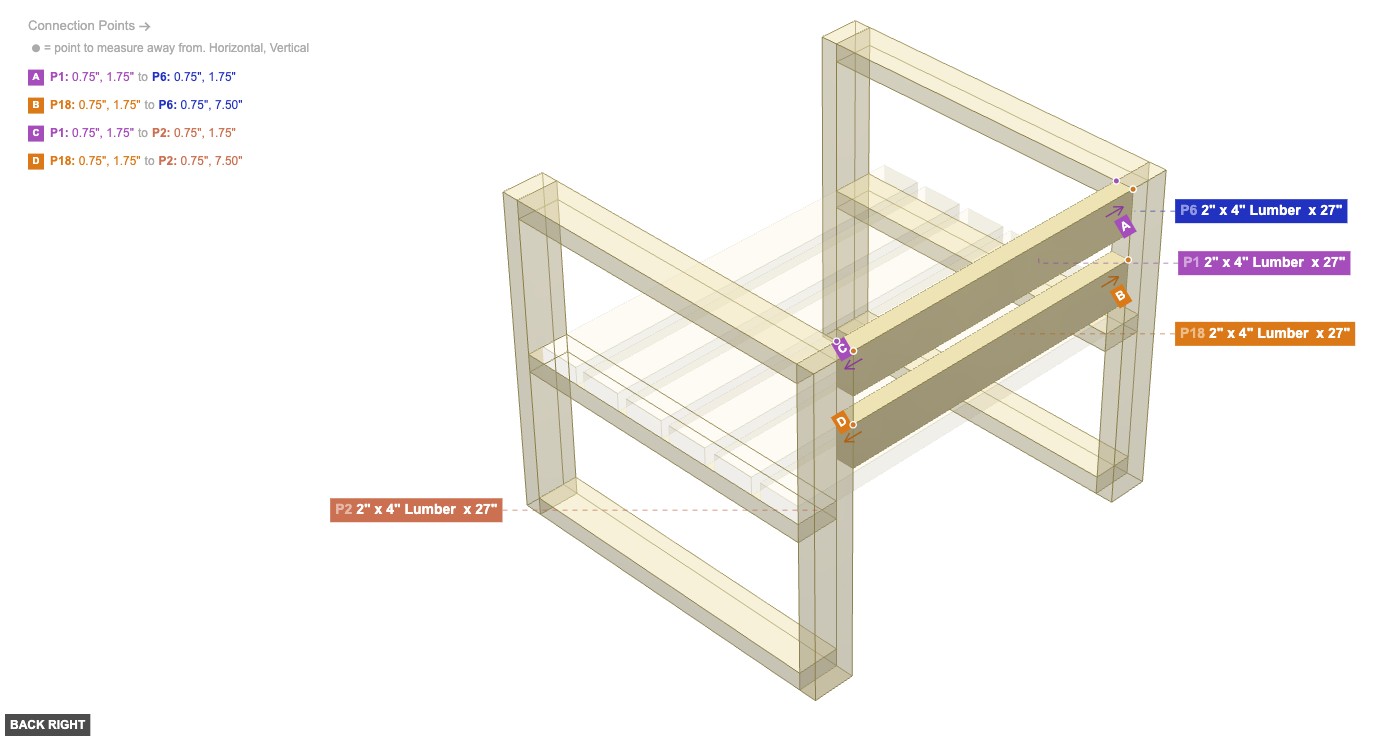

Assembly of Connect Side Frames - back_right

2" x 4" Lumber x 27"x 2

Angle: front left

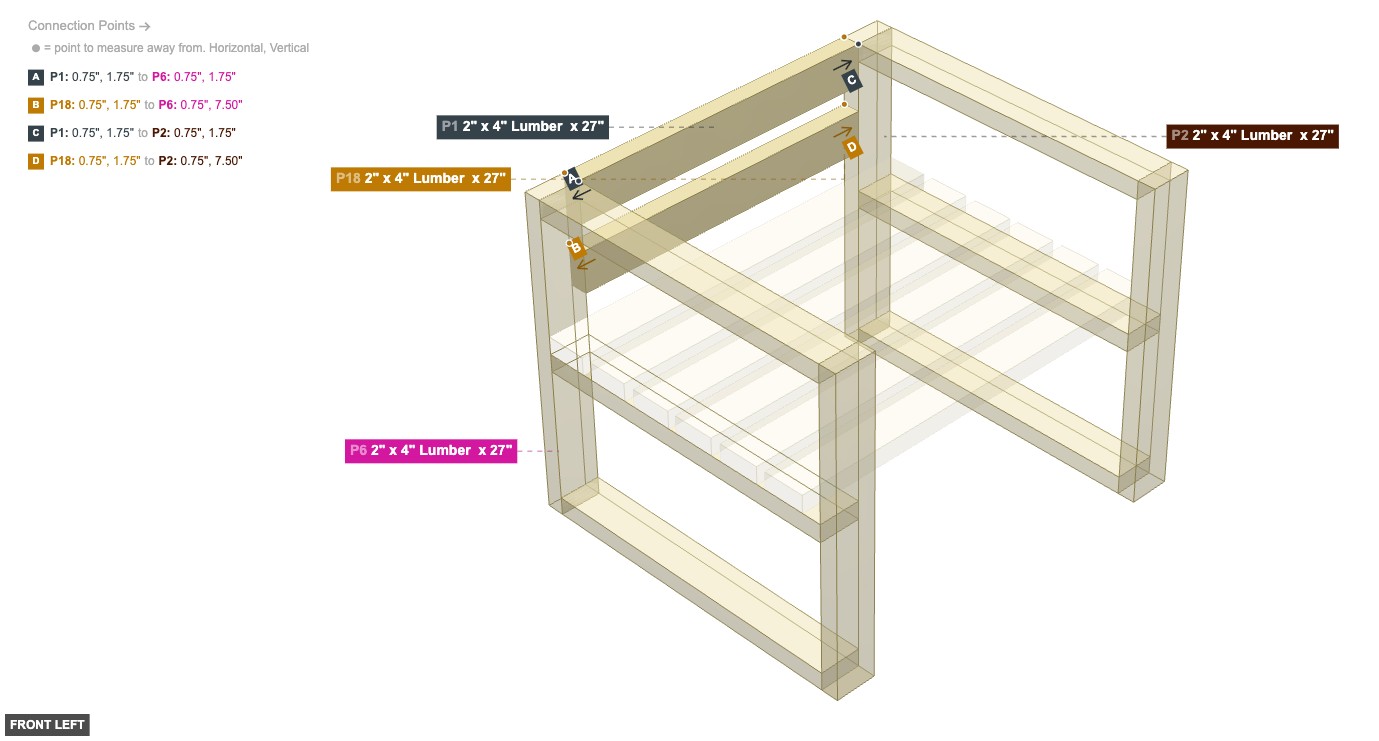

Assembly of Connect Side Frames - front_left

2" x 4" Lumber x 27"x 2

Angle: front right

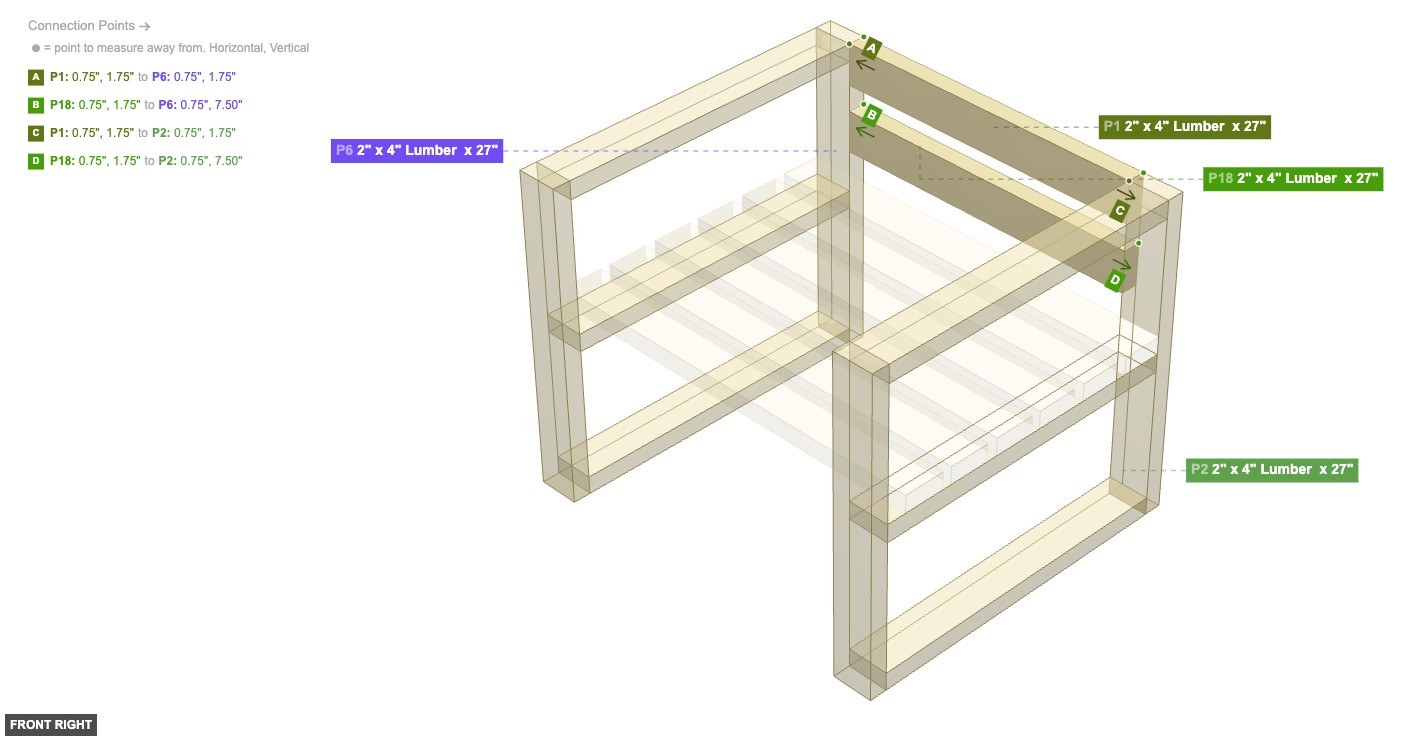

Assembly of Connect Side Frames - front_right

2" x 4" Lumber x 27"x 2

Angle: bottom left

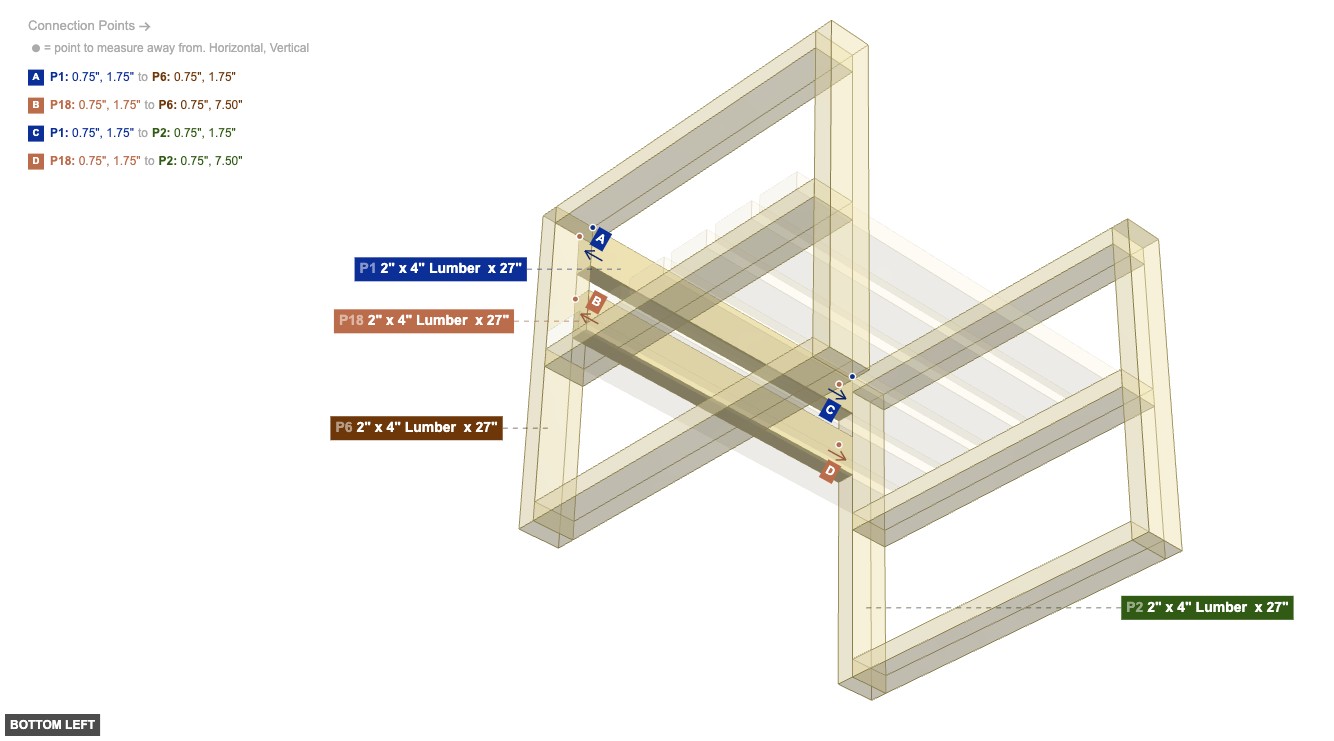

Assembly of Connect Side Frames - bottom_left

2" x 4" Lumber x 27"x 2

Angle: bottom right

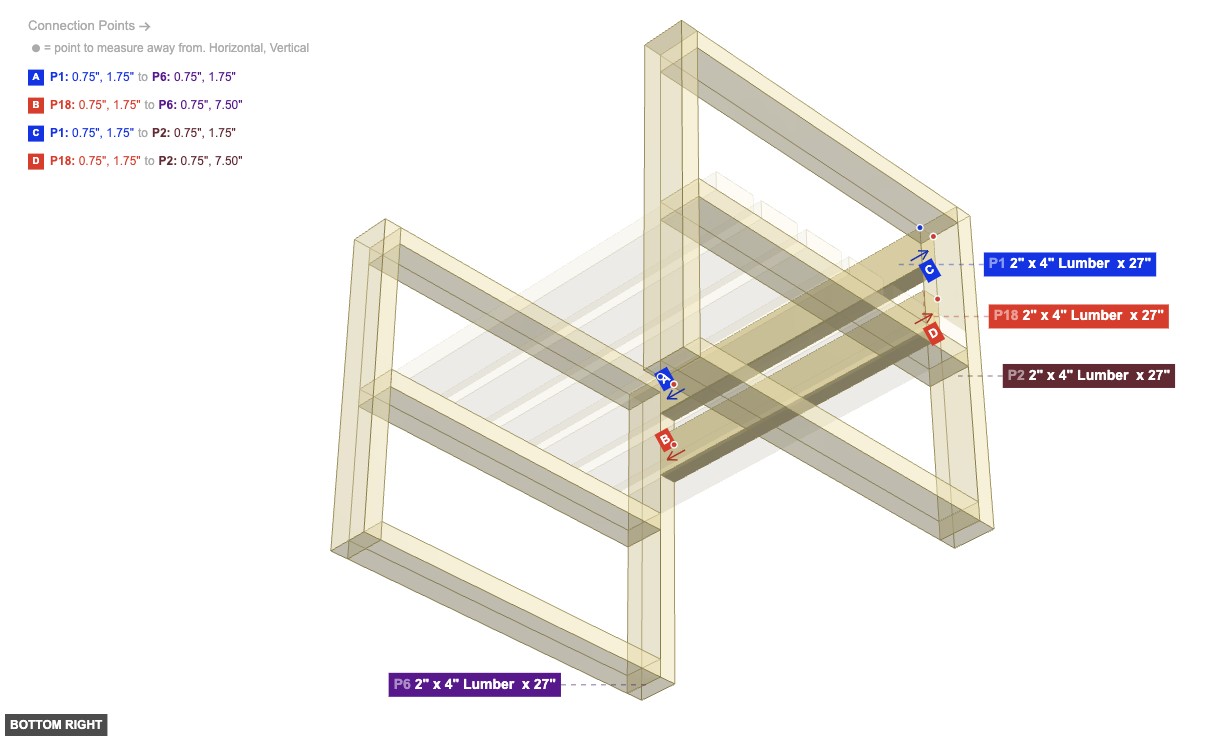

Assembly of Connect Side Frames - bottom_right

2" x 4" Lumber x 27"x 2

Attaching: Install Seat Slats

Attach the seat slats (P12, P13, P14, P15, P16, P17) between the left and right side frames, resting on the seat slat supports (P10 and P11).

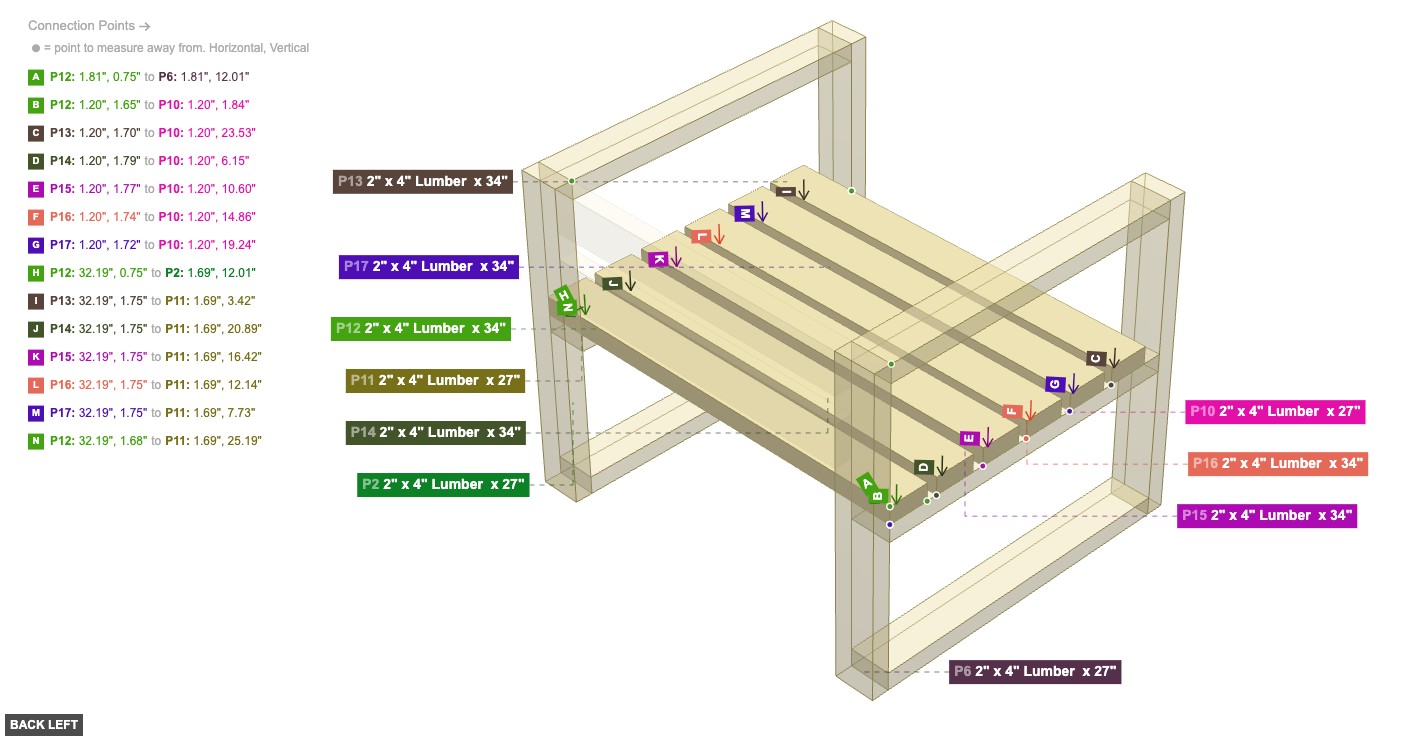

Angle: back left

Assembly of Install Seat Slats - back_left

P12 (2" x 4" Lumber 34" length) - attach its 2" x 4" Wood Side #2 facing bottom to part 10's 2" x 4" Wood Side #4, plus its 2" x 4" Wood Side #3, which is back-facing, should connect to part 2's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 needs to point left. Additionally, its 2" x 4" Wood Side #1 should be directed front. Additionally, its 2" x 4" Wood Side #4 needs to point top, plus its 2" x 4" Wood End #2 needs to point right P13 (2" x 4" Lumber 34" length) - connect its 2" x 4" Wood Side #2 oriented bottom links with part 10's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 needs to point right. After that, ensure its 2" x 4" Wood Side #1 faces back, then its 2" x 4" Wood Side #3 must be oriented front. Additionally, its 2" x 4" Wood Side #4 needs to point top, and its 2" x 4" Wood End #2 should be directed left P14 (2" x 4" Lumber 34" length) - connect its 2" x 4" Wood Side #2 oriented bottom links with part 10's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 needs to point right. After that, its 2" x 4" Wood Side #1 must be oriented back, and its 2" x 4" Wood Side #3 should be directed front, and ensure its 2" x 4" Wood Side #4 faces top. Next, its 2" x 4" Wood End #2 should be directed left P15 (2" x 4" Lumber 34" length) - its 2" x 4" Wood Side #2, which is bottom-facing, should connect to part 10's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood End #1 needs to point right. After that, its 2" x 4" Wood Side #1 needs to point back, and its 2" x 4" Wood Side #3 should be directed front. After that, its 2" x 4" Wood Side #4 needs to point top. Additionally, its 2" x 4" Wood End #2 should be directed left P16 (2" x 4" Lumber 34" length) - attach its 2" x 4" Wood Side #2 facing bottom to part 10's 2" x 4" Wood Side #4. Additionally, its 2" x 4" Wood End #1 must be oriented right. After that, its 2" x 4" Wood Side #1 should be directed back, then its 2" x 4" Wood Side #3 must be oriented front. After that, ensure its 2" x 4" Wood Side #4 faces top. Additionally, its 2" x 4" Wood End #2 should be directed left P17 (2" x 4" Lumber 34" length) - its 2" x 4" Wood Side #2, which is bottom-facing, should connect to part 10's 2" x 4" Wood Side #4. After that, its 2" x 4" Wood End #1 must be oriented right. Additionally, its 2" x 4" Wood Side #1 needs to point back. Next, its 2" x 4" Wood Side #3 must be oriented front. Next, ensure its 2" x 4" Wood Side #4 faces top, then its 2" x 4" Wood End #2 should be directed left

2" x 4" Lumber x 34"x 6

Angle: back right

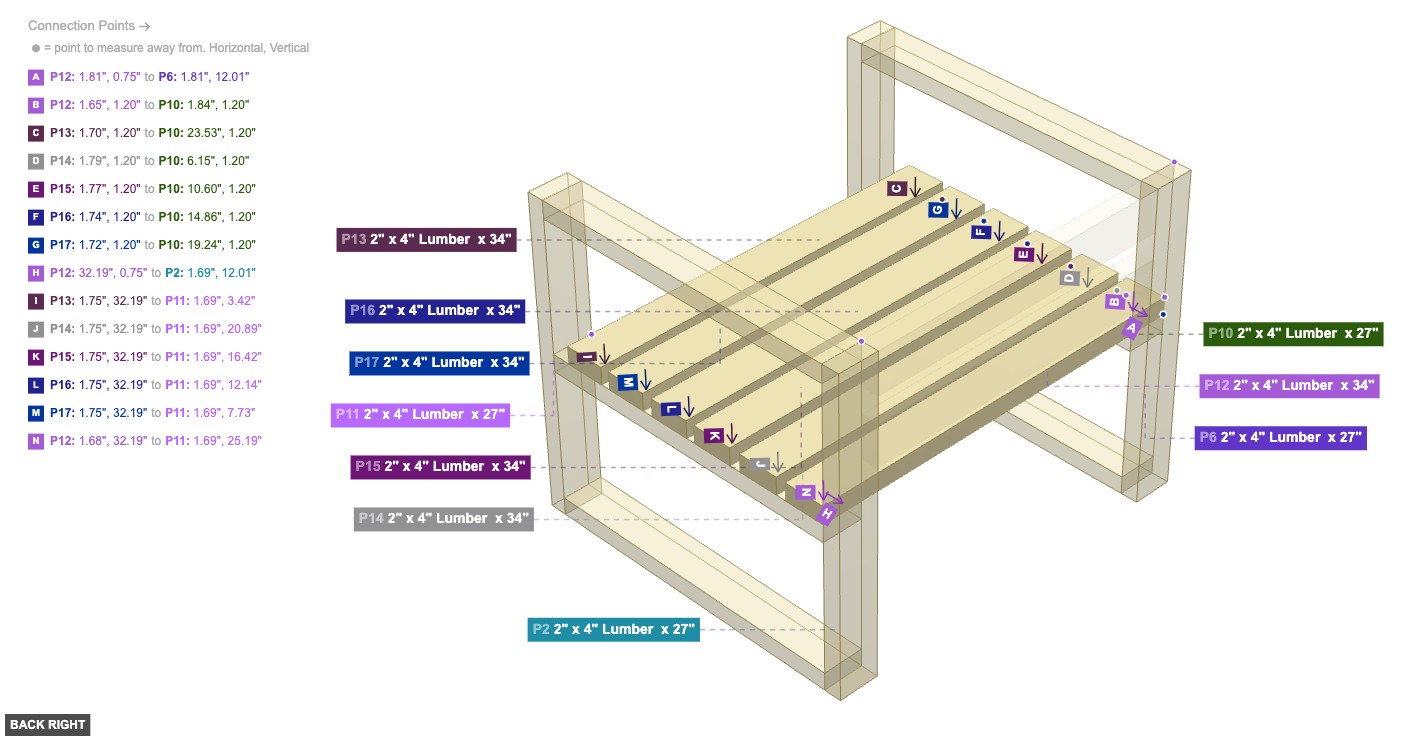

Assembly of Install Seat Slats - back_right

2" x 4" Lumber x 34"x 6

Angle: front left

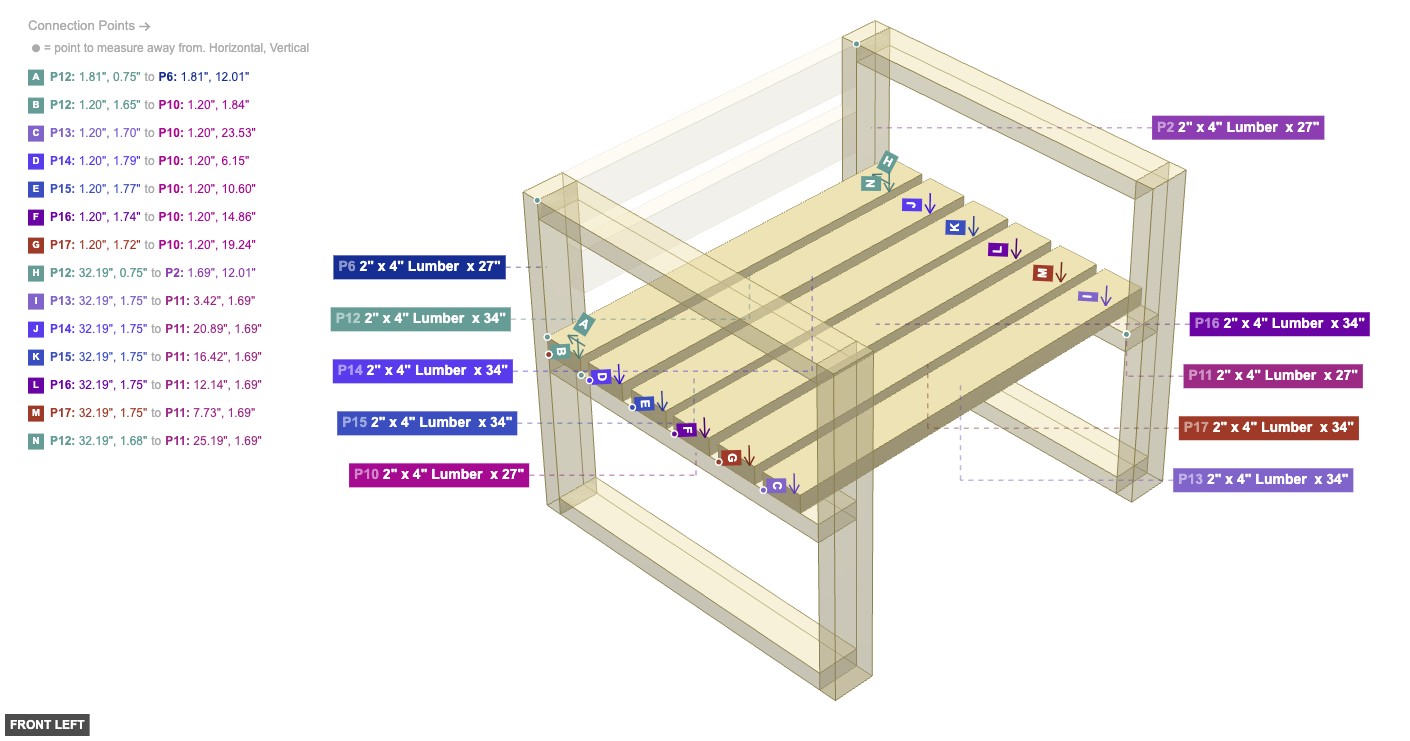

Assembly of Install Seat Slats - front_left

2" x 4" Lumber x 34"x 6

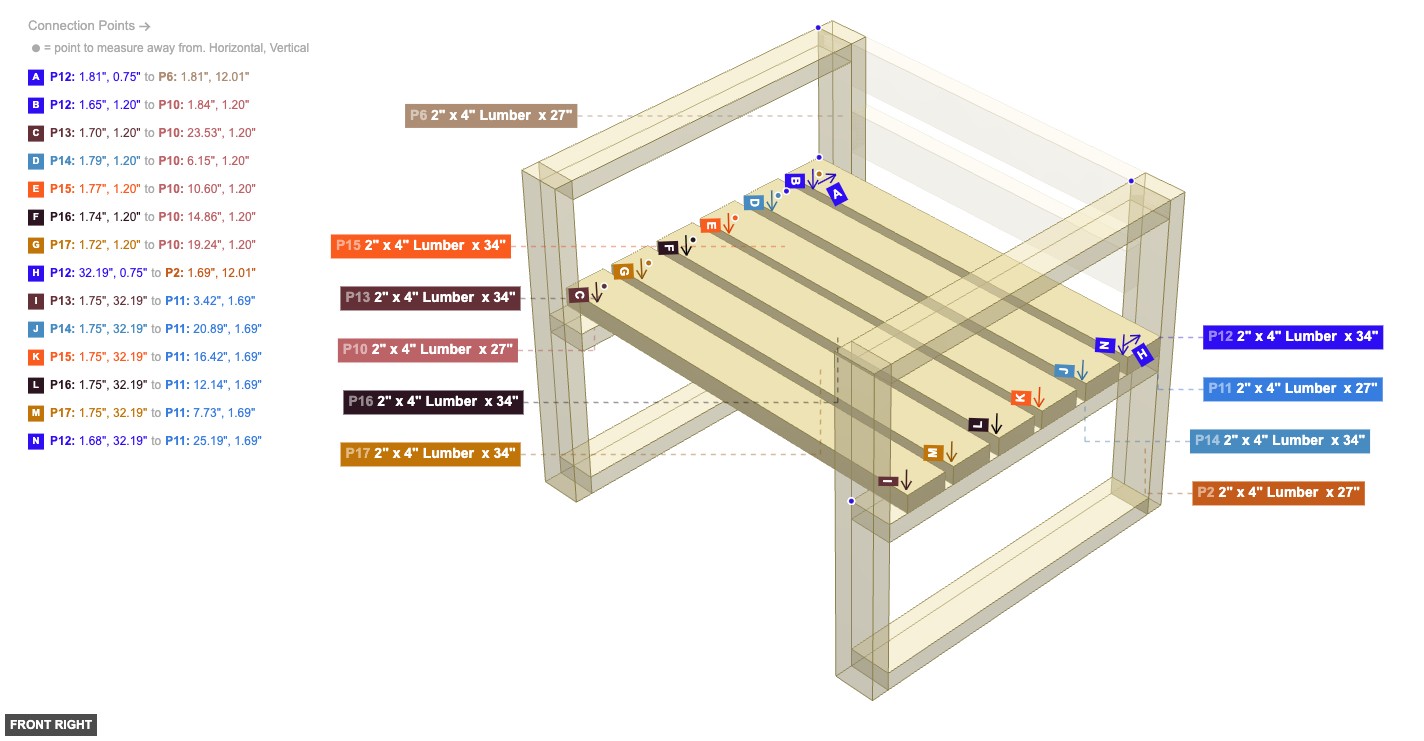

Angle: front right

Assembly of Install Seat Slats - front_right

2" x 4" Lumber x 34"x 6

Angle: bottom left

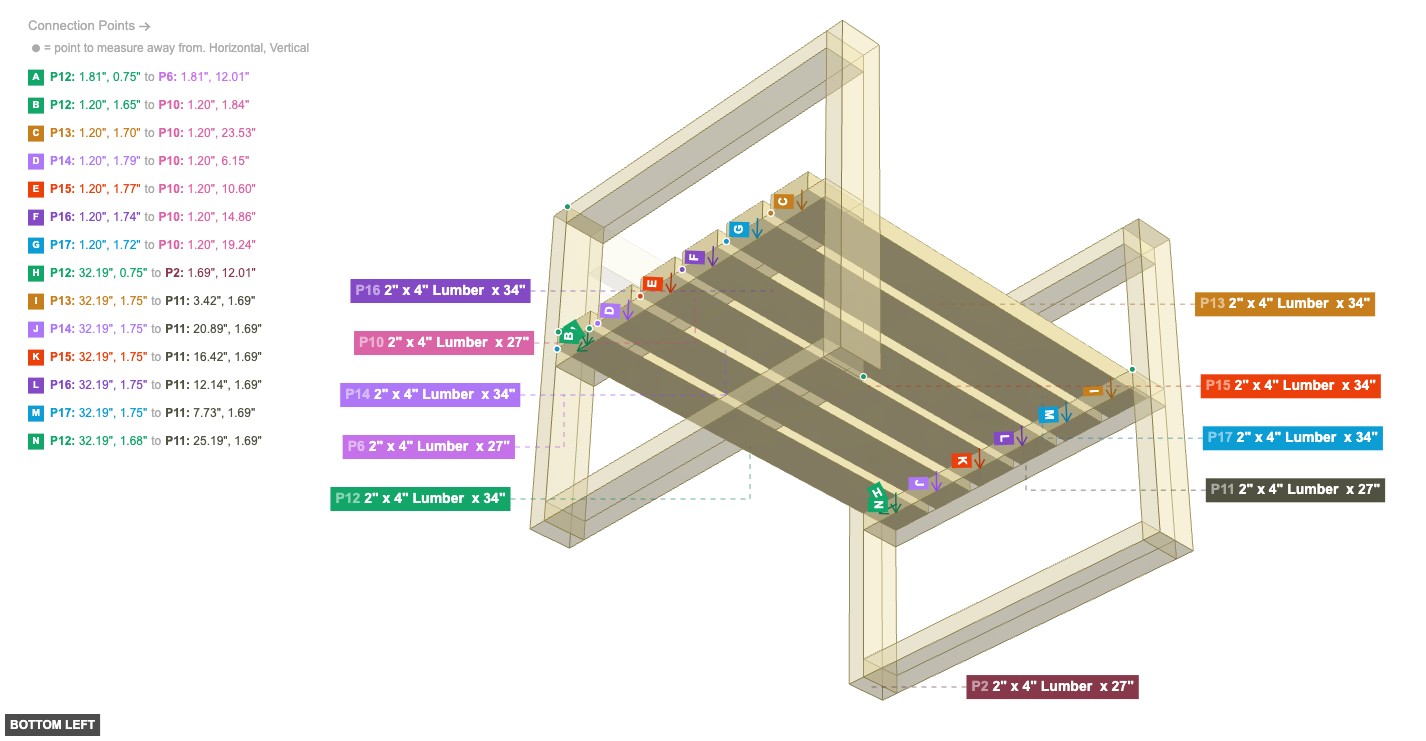

Assembly of Install Seat Slats - bottom_left

2" x 4" Lumber x 34"x 6

Angle: bottom right

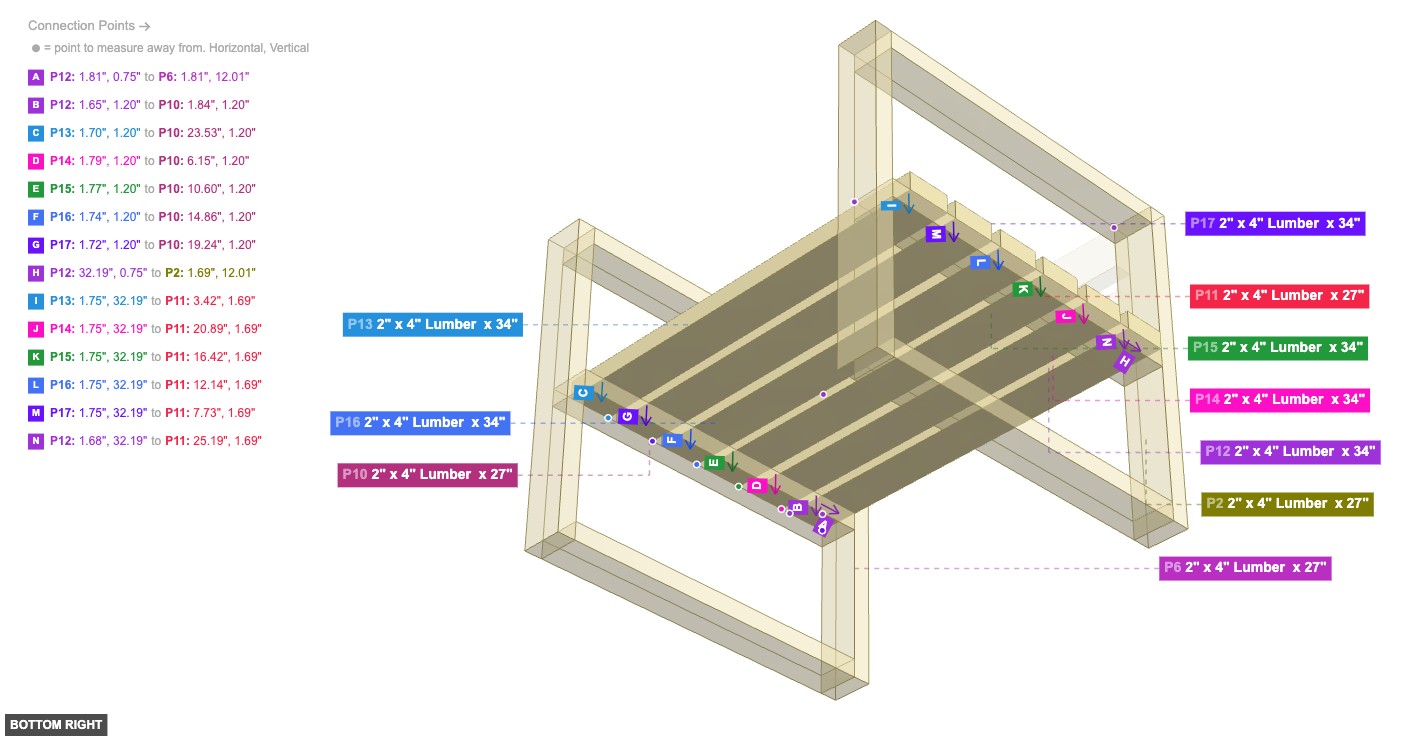

Assembly of Install Seat Slats - bottom_right

2" x 4" Lumber x 34"x 6
