Desk 2 - Comprehensive Assembly Plan And Visual Guide

A wooden desk featuring a flat top surface supported by a simple two-panel leg on the left side and a cabinet structure with two internal shelves on the right side. A back brace connects the top rear. - Desk

Phase 1: Group Overview

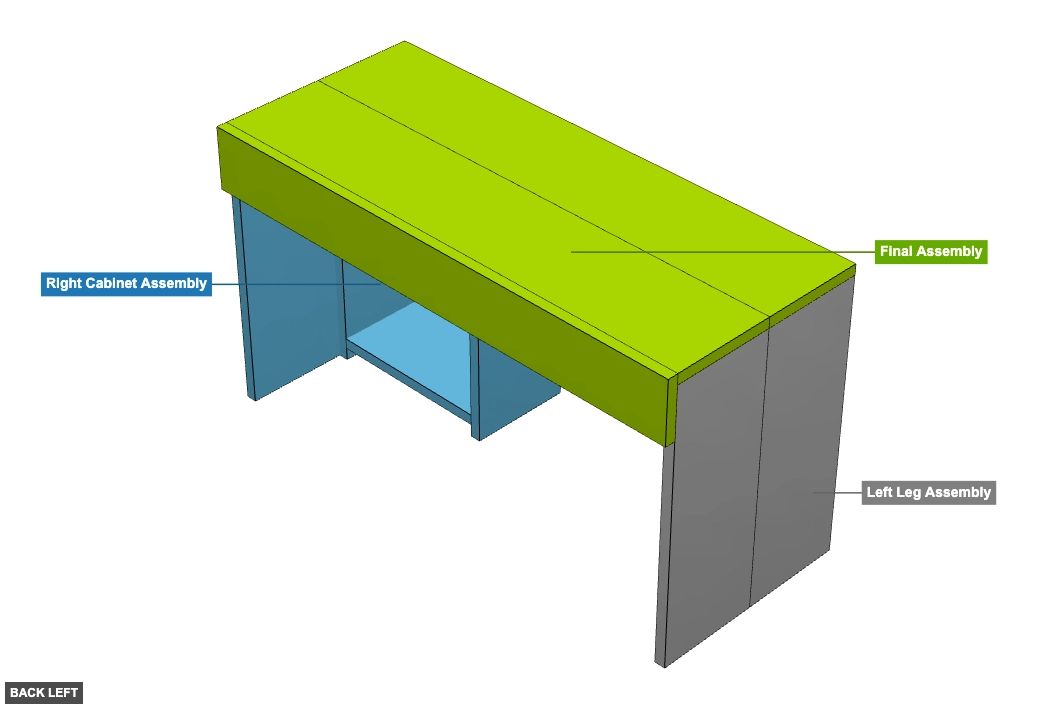

Angle: back left

Right Cabinet Assembly

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Left Leg Assembly

1" x 10" Lumber x 27"x 2

Final Assembly

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

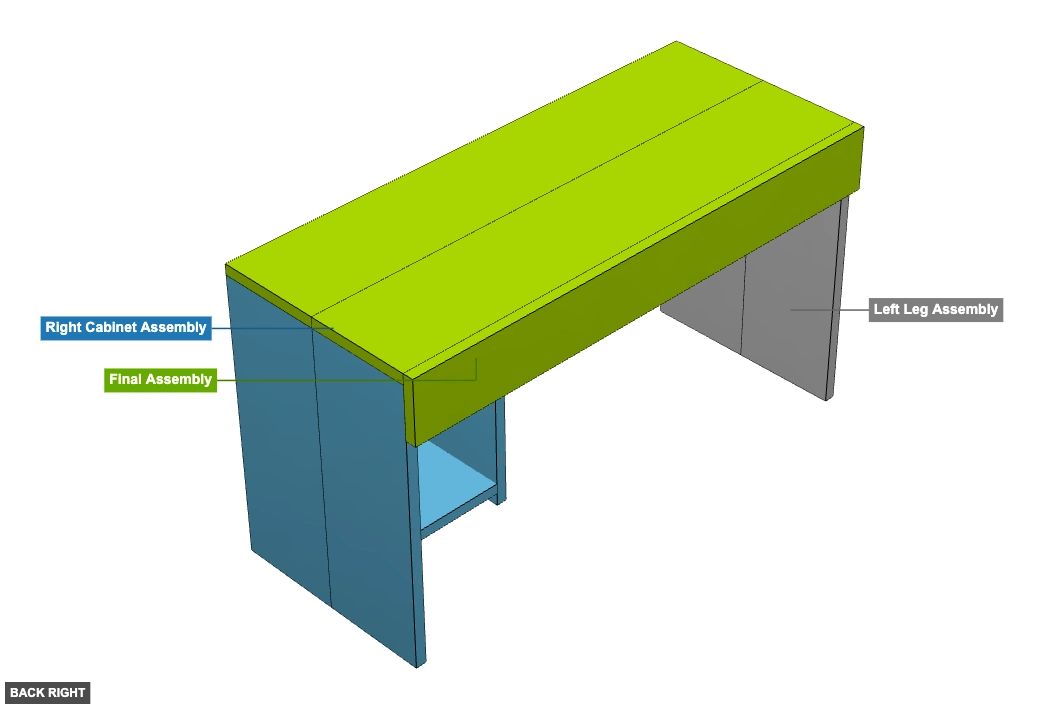

Angle: back right

Right Cabinet Assembly

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Left Leg Assembly

1" x 10" Lumber x 27"x 2

Final Assembly

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

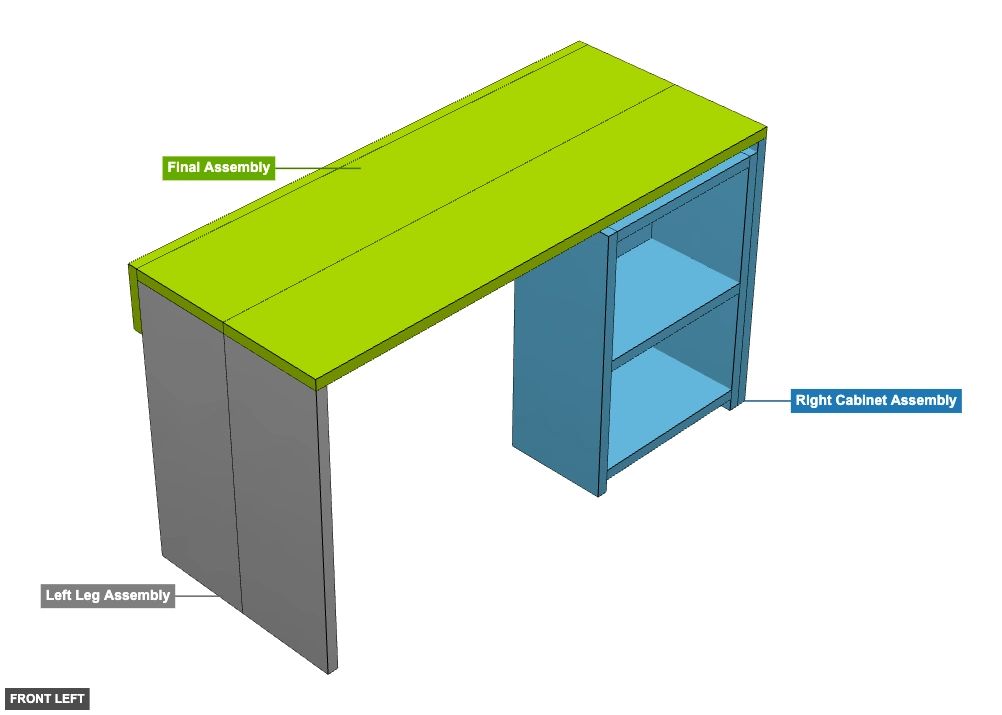

Angle: front left

Right Cabinet Assembly

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Left Leg Assembly

1" x 10" Lumber x 27"x 2

Final Assembly

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

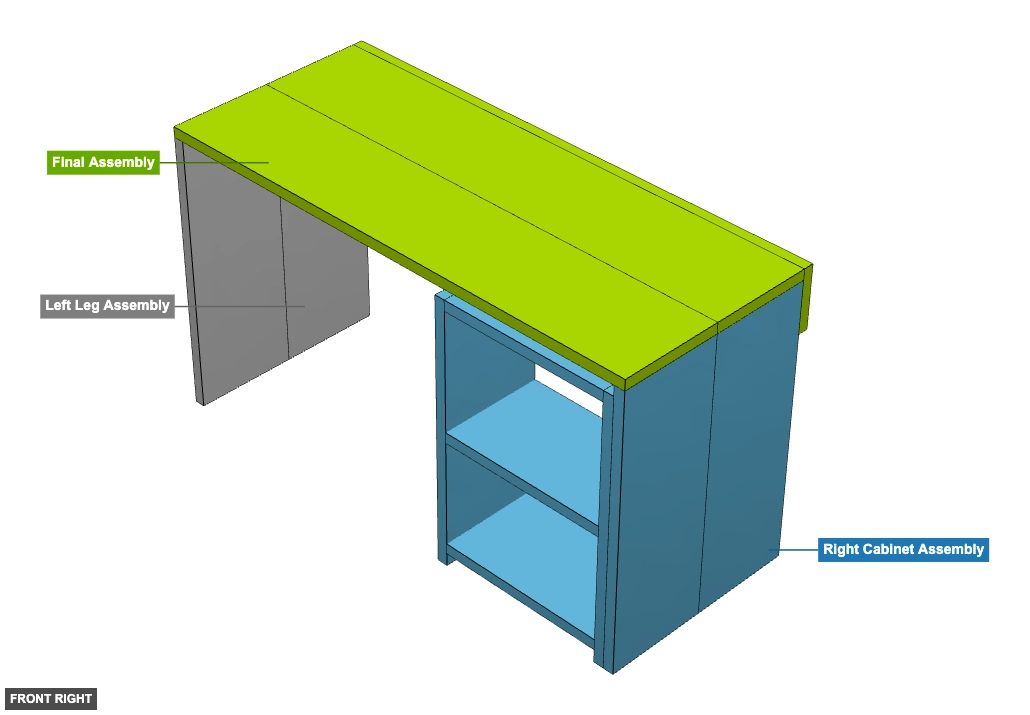

Angle: front right

Right Cabinet Assembly

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Left Leg Assembly

1" x 10" Lumber x 27"x 2

Final Assembly

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

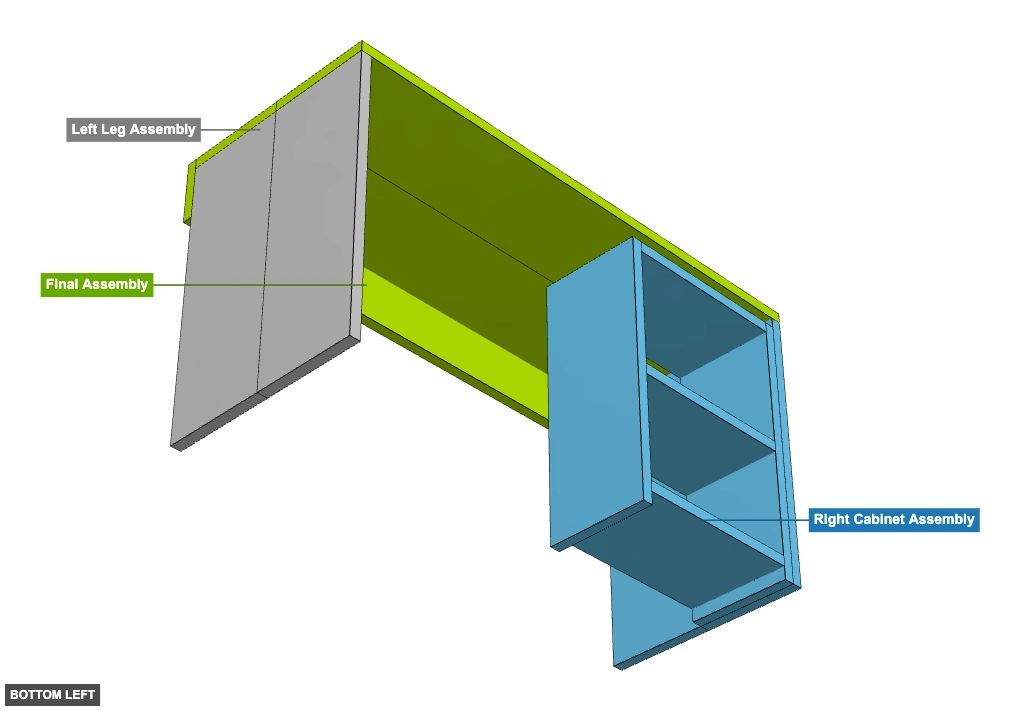

Angle: bottom left

Right Cabinet Assembly

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Left Leg Assembly

1" x 10" Lumber x 27"x 2

Final Assembly

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

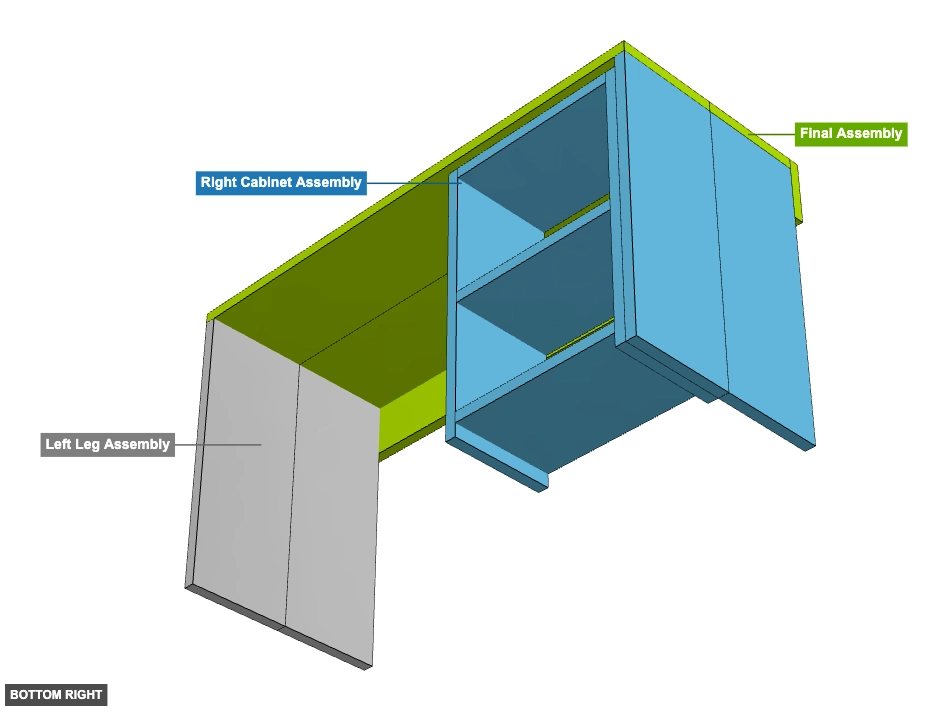

Angle: bottom right

Right Cabinet Assembly

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Left Leg Assembly

1" x 10" Lumber x 27"x 2

Final Assembly

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Phase 2: Individual Group Assembly

Group: Right Cabinet Assembly

Assemble the right-side cabinet structure including the side panels (P3, P4), internal vertical supports (P7, P9), and shelves (P8, P10, P11).

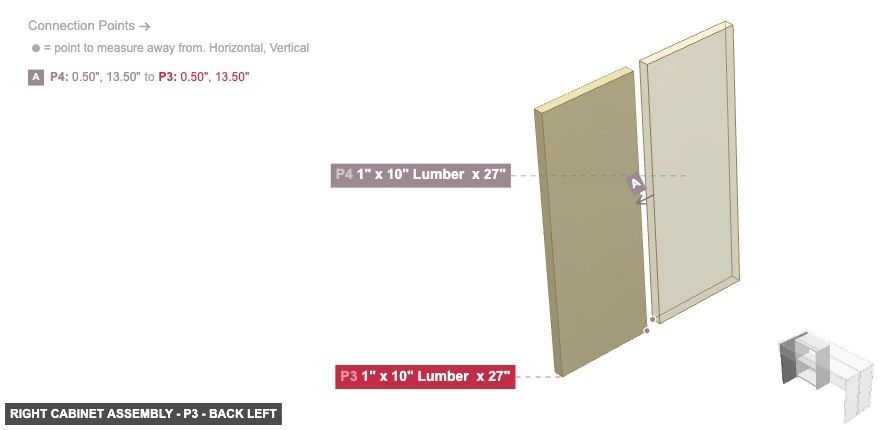

Part: 1" x 10" Lumber x 27" - Angle: back left

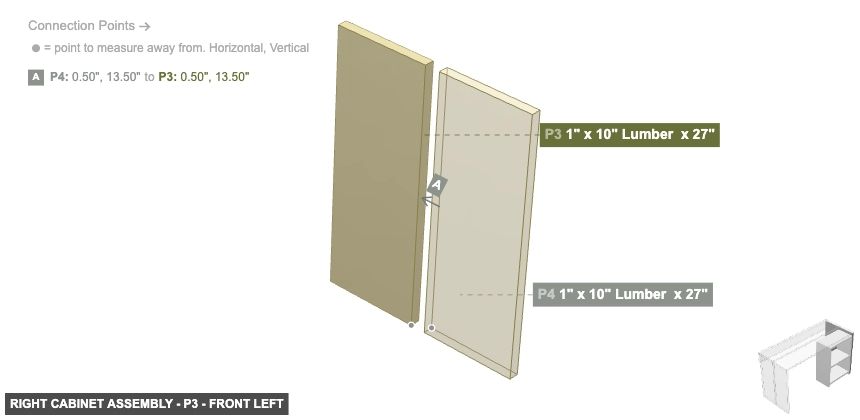

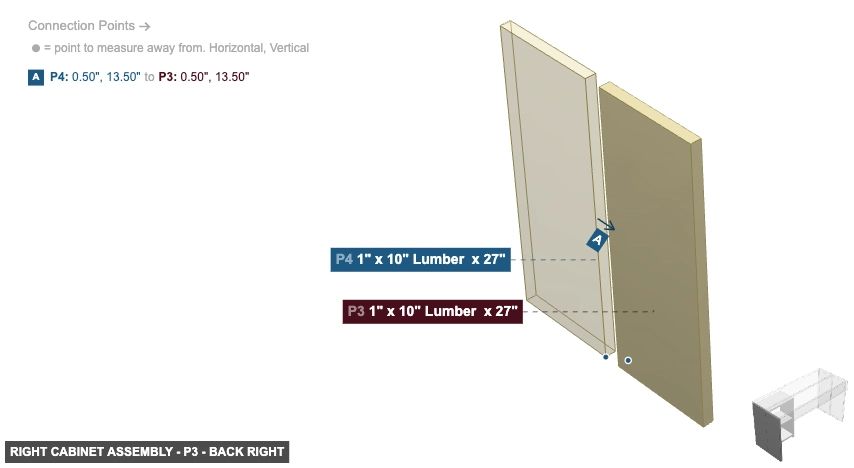

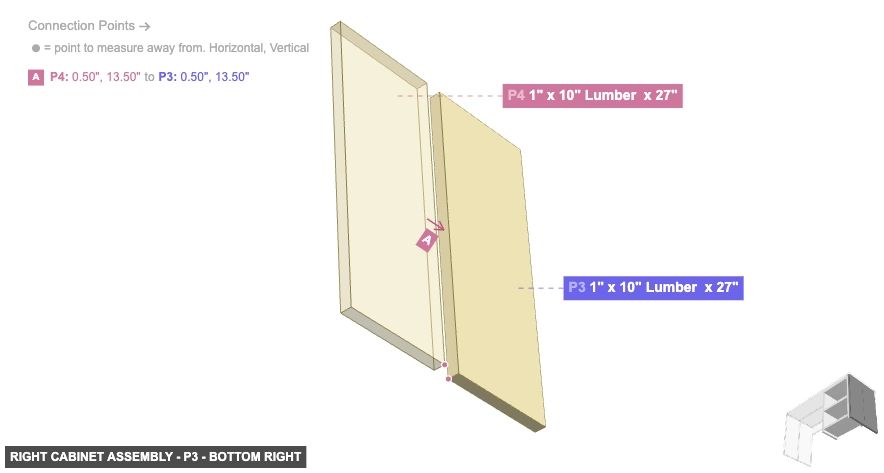

P3 (1" x 10" Lumber 27" length) - its 1" x 10" Wood Side #1, which is front-facing, should connect to part 4's 1" x 10" Wood Side #3, then its 1" x 10" Wood End #1 should be directed bottom, plus ensure its 1" x 10" Wood Side #2 faces right, then its 1" x 10" Wood Side #3 needs to point back, plus its 1" x 10" Wood Side #4 must be oriented left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: back right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: front left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

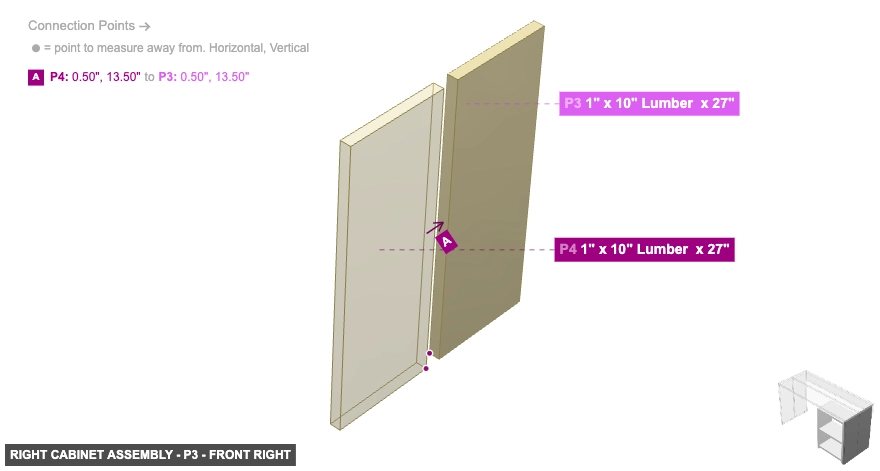

Part: 1" x 10" Lumber x 27" - Angle: front right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: bottom left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: bottom right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: back left

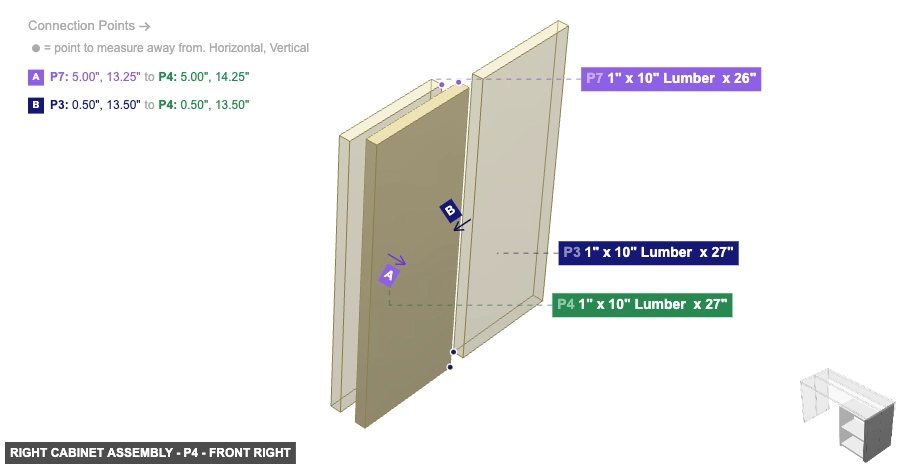

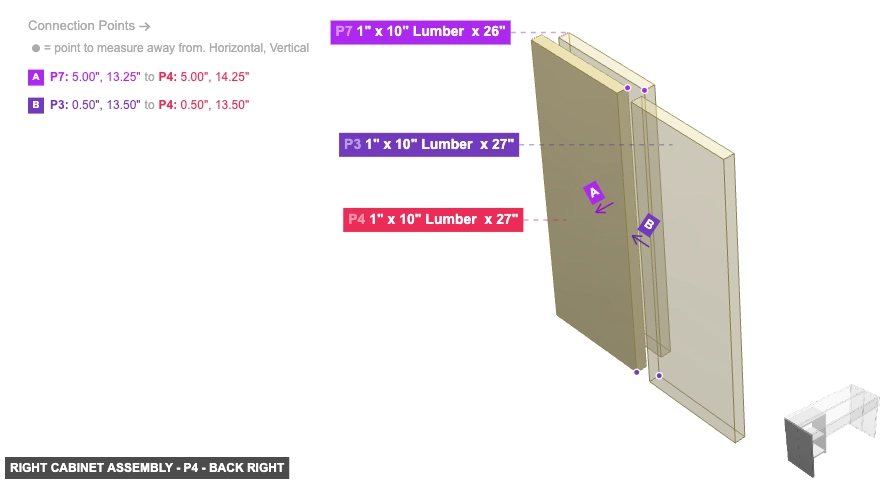

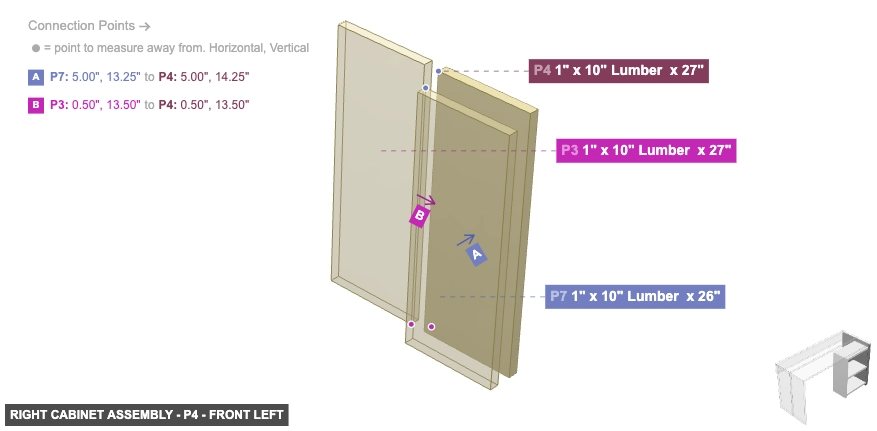

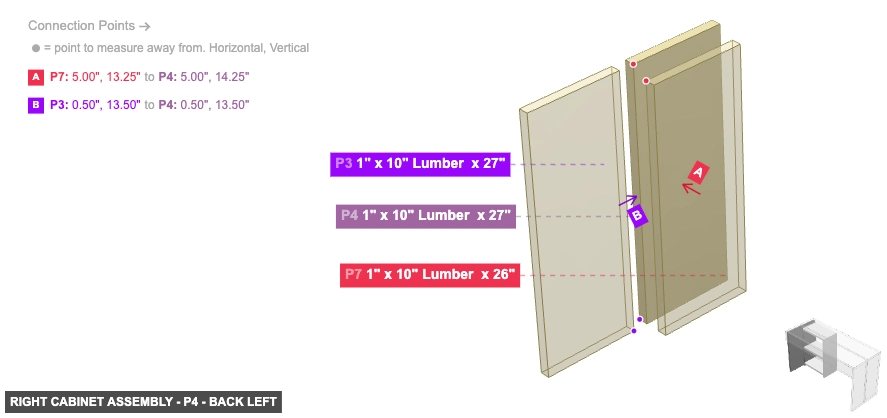

P4 (1" x 10" Lumber 27" length) - connect its 1" x 10" Wood Side #3 oriented back links with part 3's 1" x 10" Wood Side #1. Additionally, connect its 1" x 10" Wood Side #4 oriented left links with part 7's 1" x 10" Wood Side #2, then its 1" x 10" Wood End #1 should be directed bottom. After that, ensure its 1" x 10" Wood Side #1 faces front, plus its 1" x 10" Wood Side #2 needs to point right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: back right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: front left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 27" - Angle: front right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

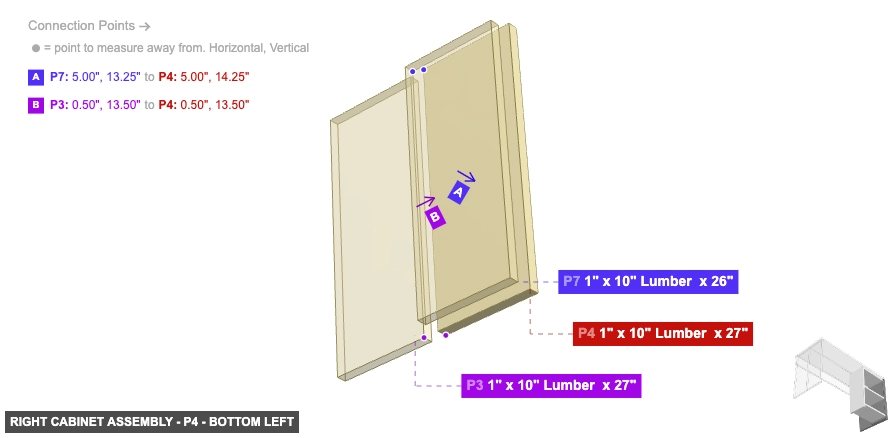

Part: 1" x 10" Lumber x 27" - Angle: bottom left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

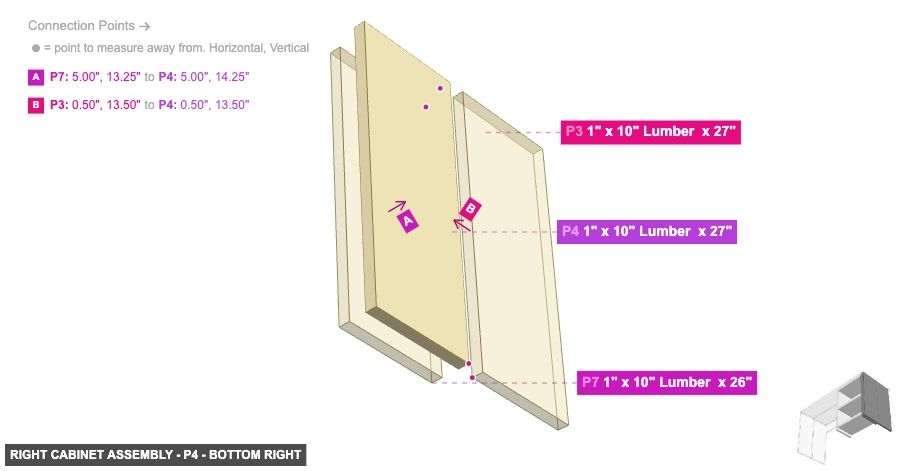

Part: 1" x 10" Lumber x 27" - Angle: bottom right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: back left

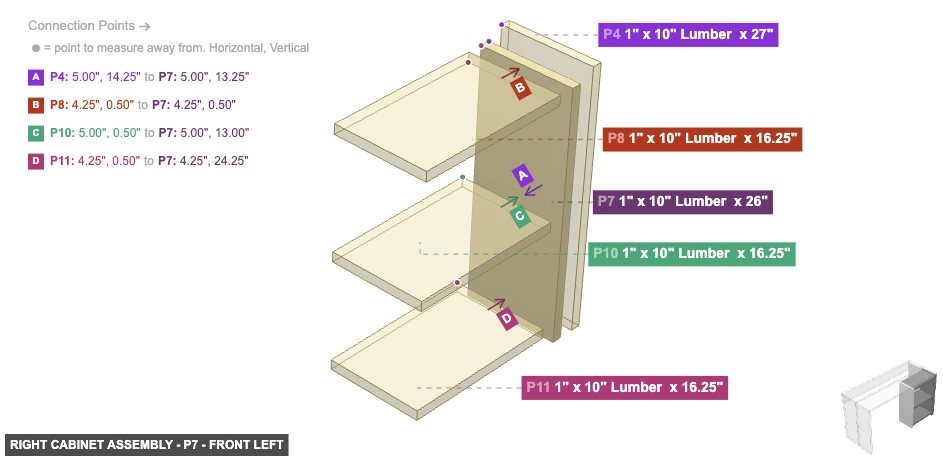

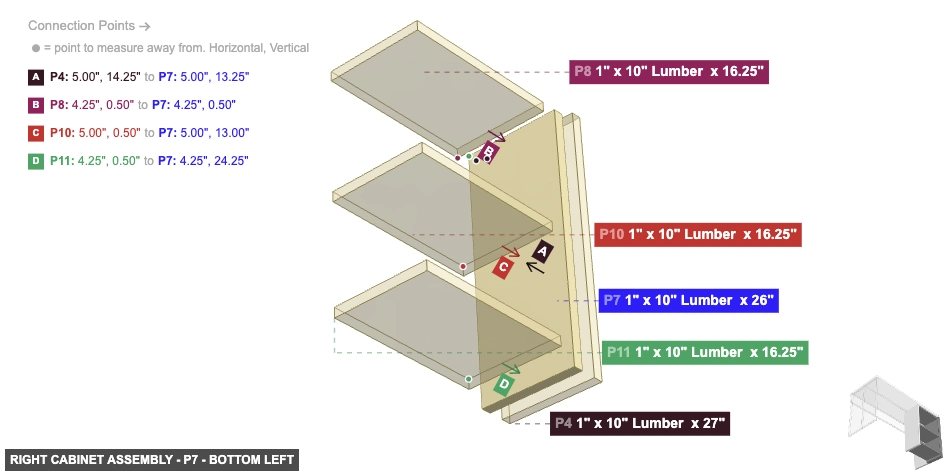

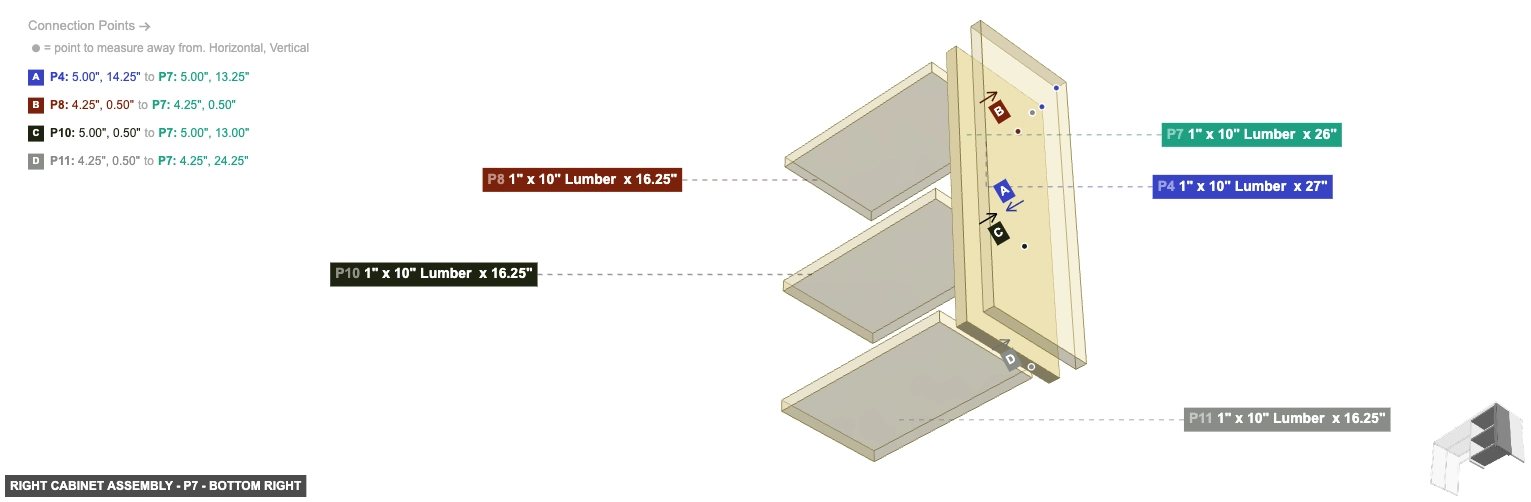

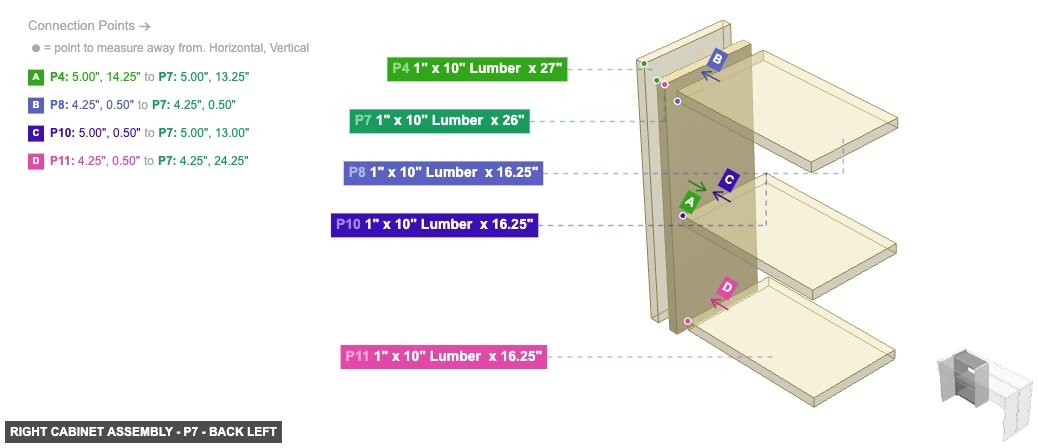

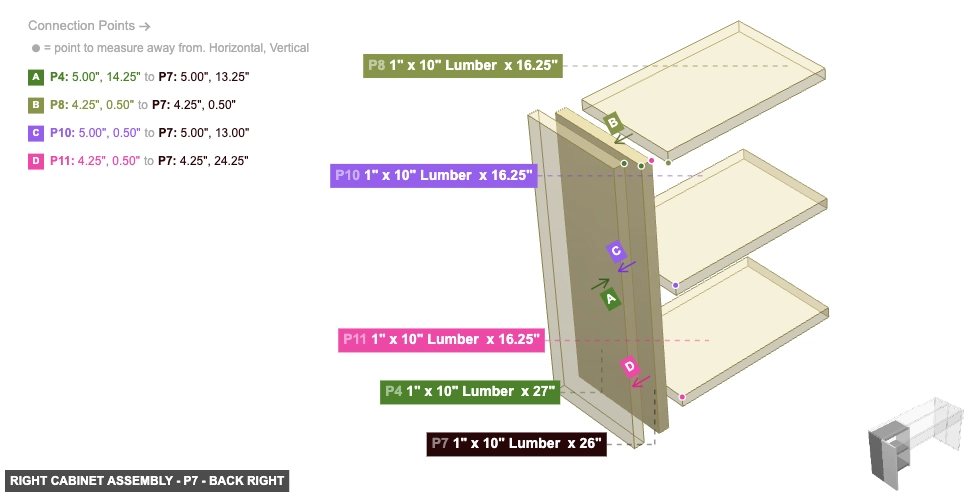

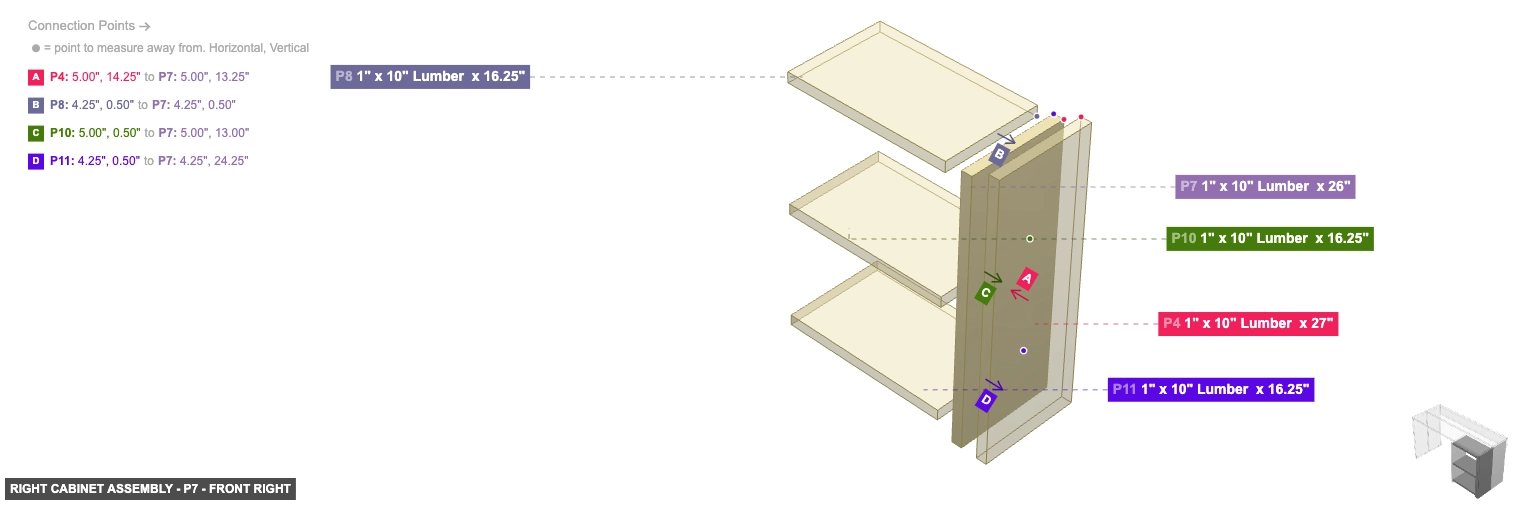

P7 (1" x 10" Lumber 26" length) - attach its 1" x 10" Wood Side #2 facing right to part 4's 1" x 10" Wood Side #4, then attach its 1" x 10" Wood Side #4 facing left to part 8's 1" x 10" Wood End #2. Also, its 1" x 10" Wood End #1 must be oriented bottom, then ensure its 1" x 10" Wood Side #1 faces front. Next, ensure its 1" x 10" Wood Side #3 faces back, then its 1" x 10" Wood End #2 should be directed top

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: back right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: front left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: front right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: bottom left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: bottom right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

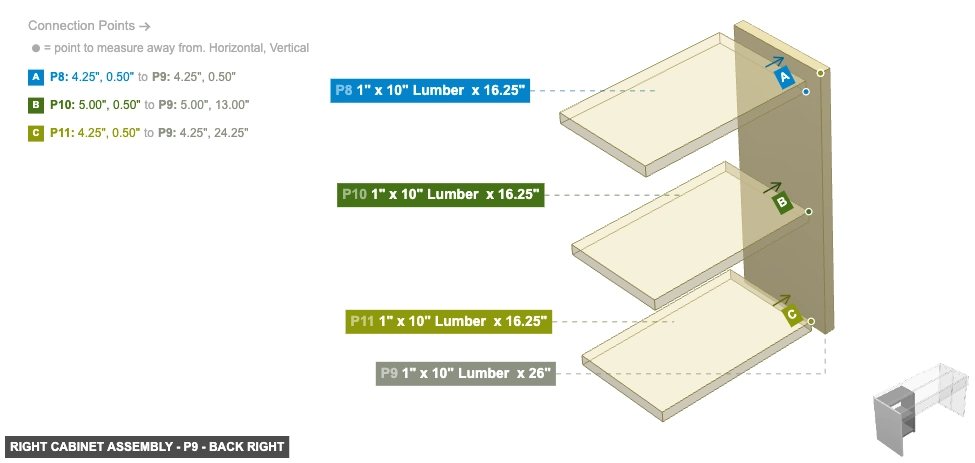

Part: 1" x 10" Lumber x 26" - Angle: back left

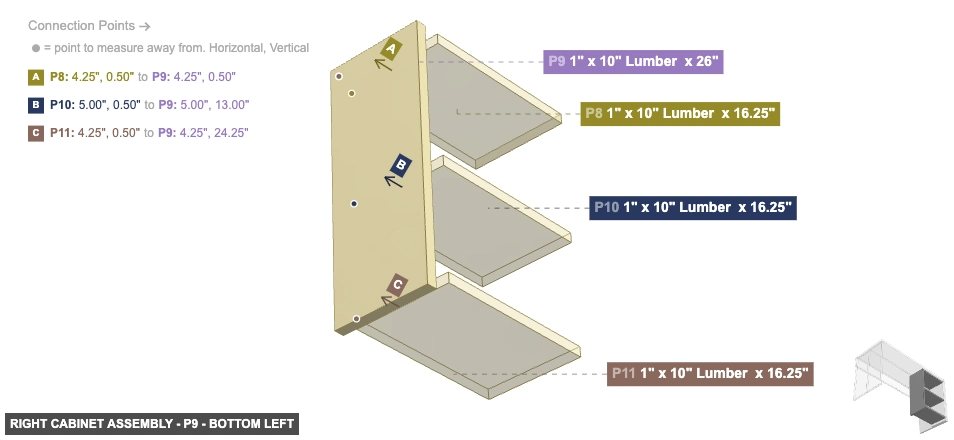

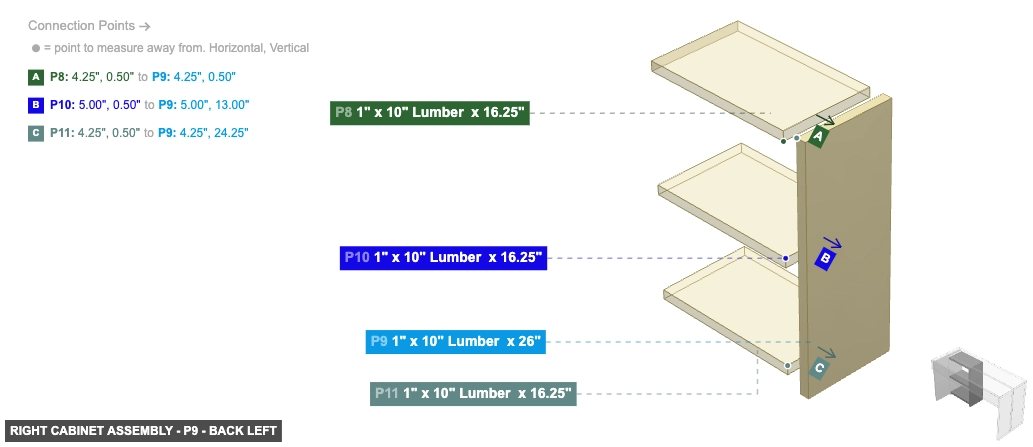

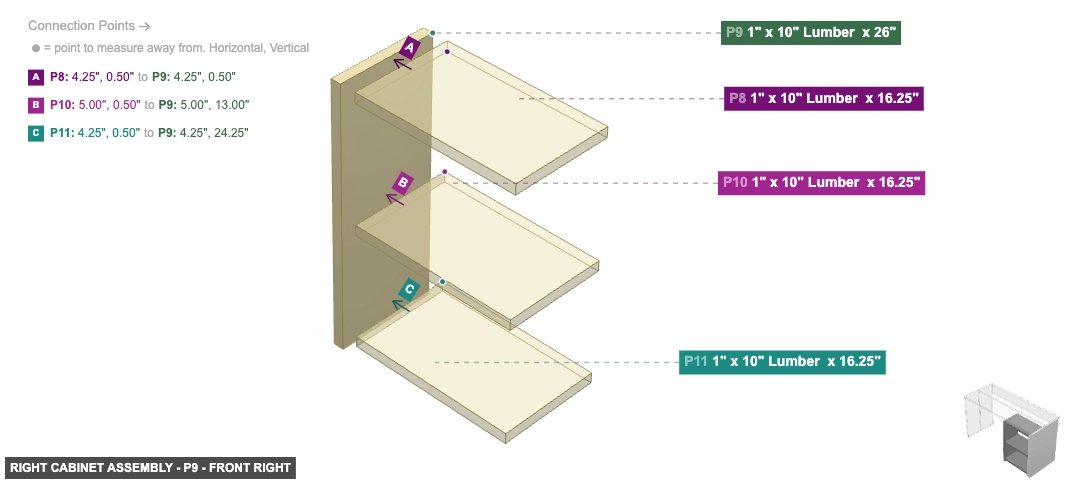

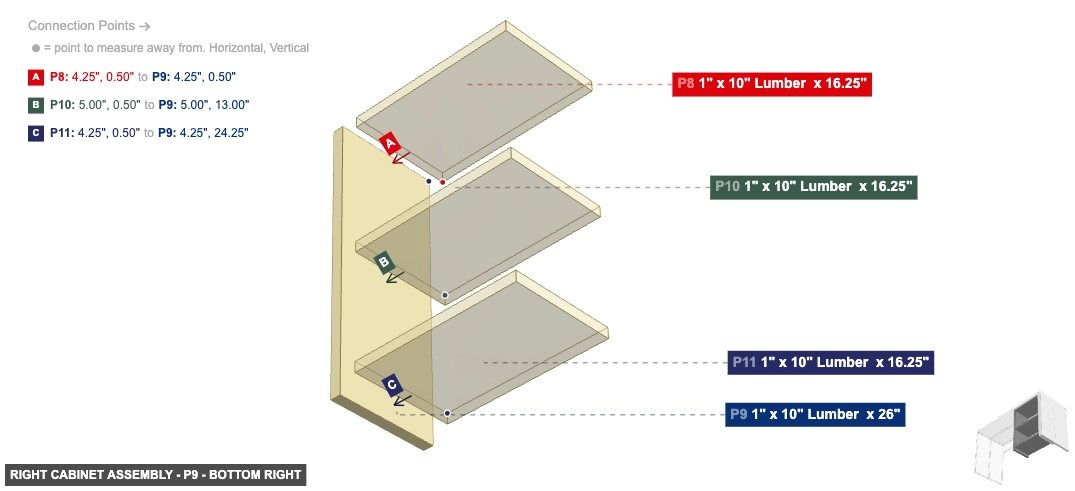

P9 (1" x 10" Lumber 26" length) - connect its 1" x 10" Wood Side #2 oriented right links with part 8's 1" x 10" Wood End #1. Also, its 1" x 10" Wood End #1 must be oriented bottom, also its 1" x 10" Wood Side #1 must be oriented front. Additionally, its 1" x 10" Wood Side #3 must be oriented back. Additionally, ensure its 1" x 10" Wood Side #4 faces left, then ensure its 1" x 10" Wood End #2 faces top

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: back right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

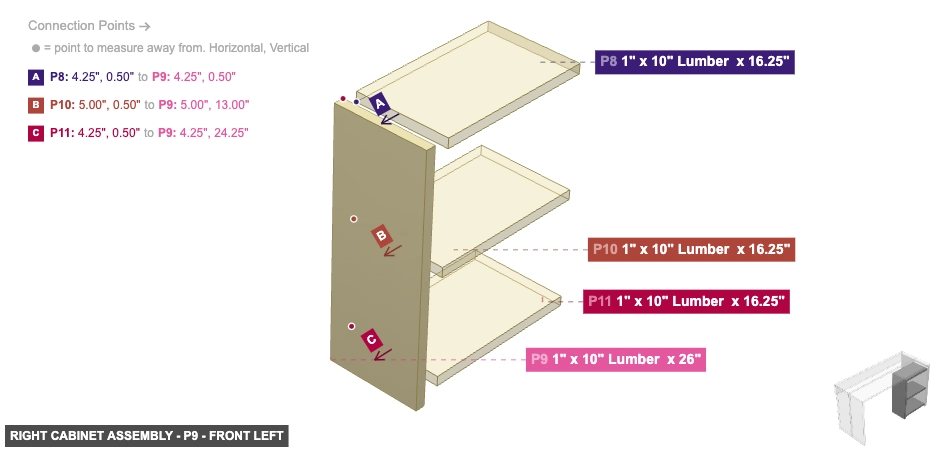

Part: 1" x 10" Lumber x 26" - Angle: front left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: front right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: bottom left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 26" - Angle: bottom right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

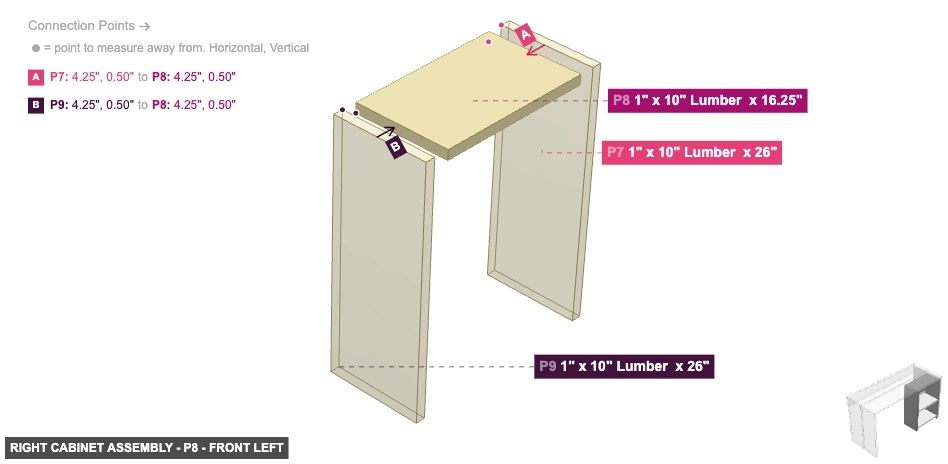

Part: 1" x 10" Lumber x 16.25" - Angle: back left

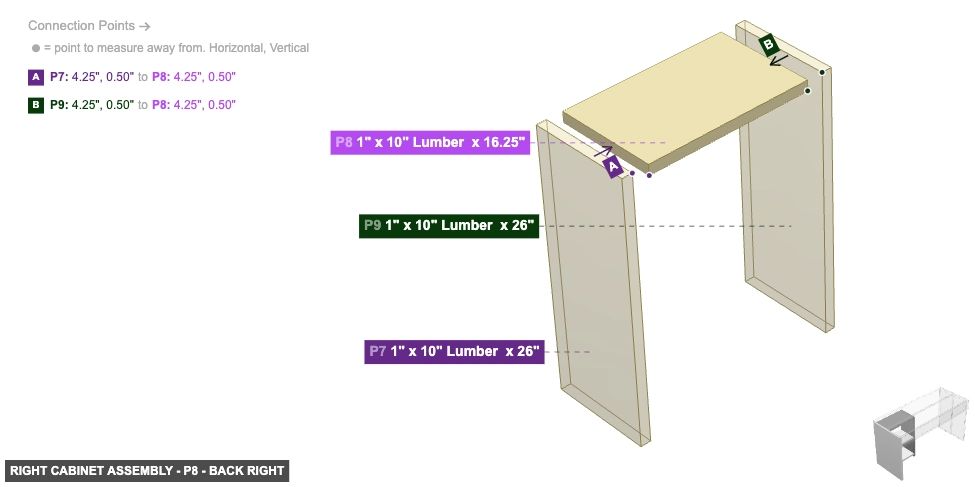

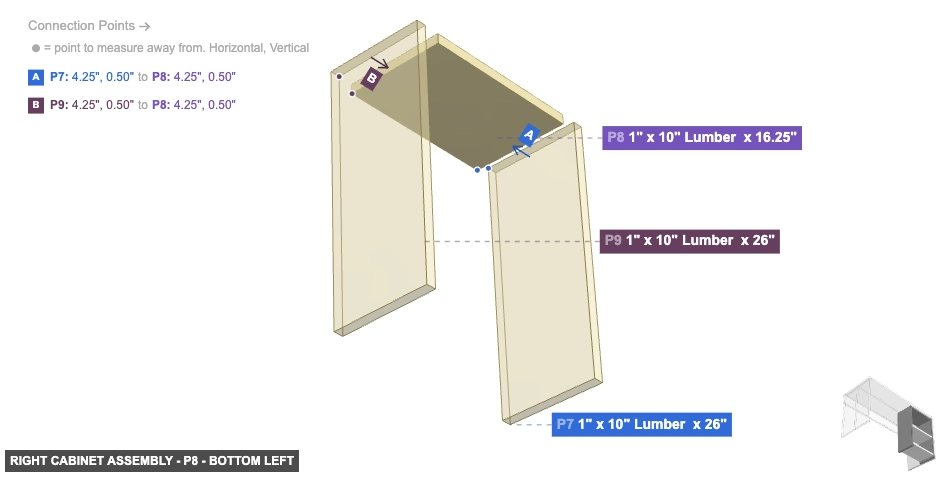

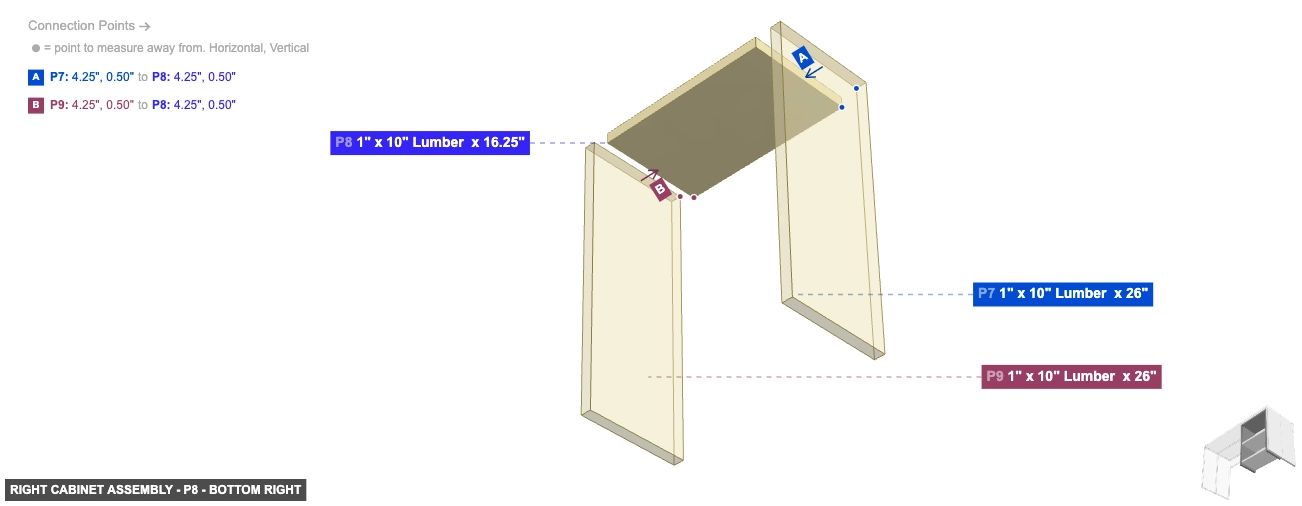

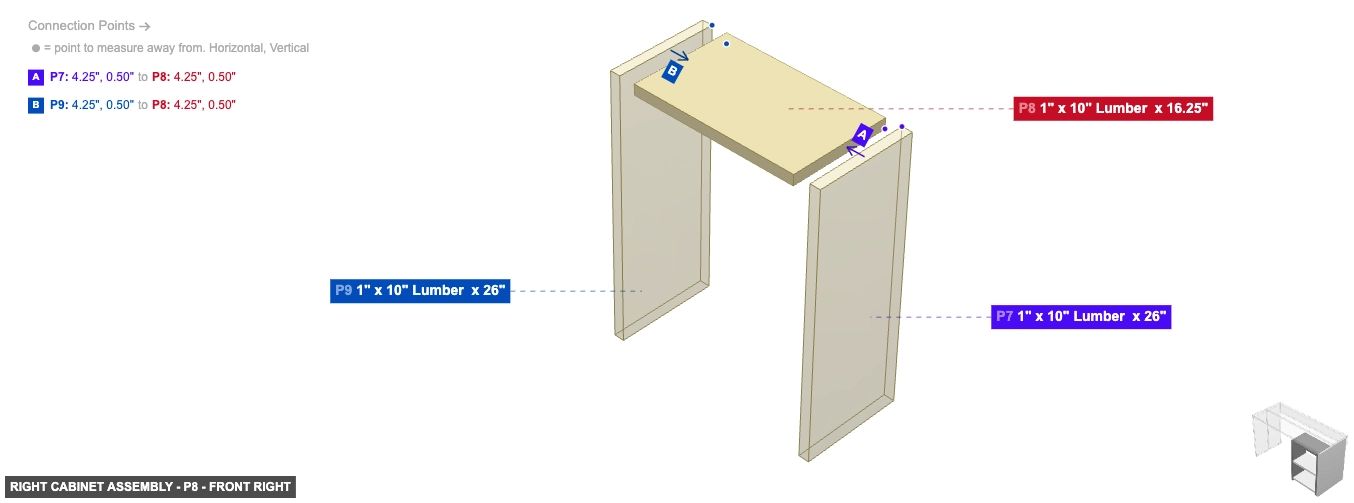

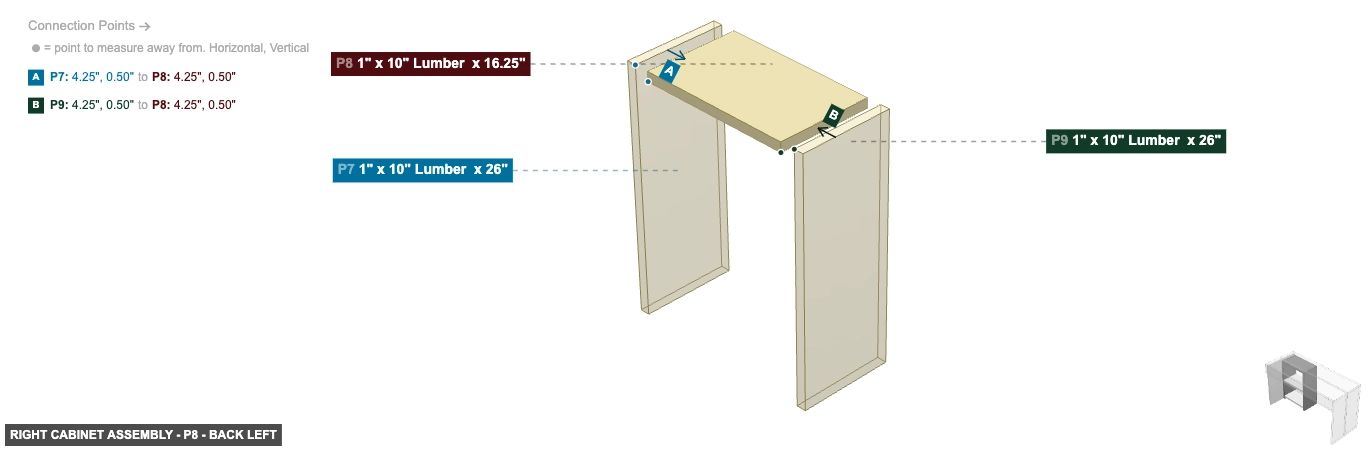

P8 (1" x 10" Lumber 16.25" length) - connect its 1" x 10" Wood End #1 oriented left links with part 9's 1" x 10" Wood Side #2. Also, connect its 1" x 10" Wood End #2 oriented right links with part 7's 1" x 10" Wood Side #4, then its 1" x 10" Wood Side #1 needs to point front. Additionally, its 1" x 10" Wood Side #2 must be oriented bottom, and its 1" x 10" Wood Side #3 must be oriented back, and ensure its 1" x 10" Wood Side #4 faces top

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: back right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: front left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: front right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: bottom left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: bottom right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: back left

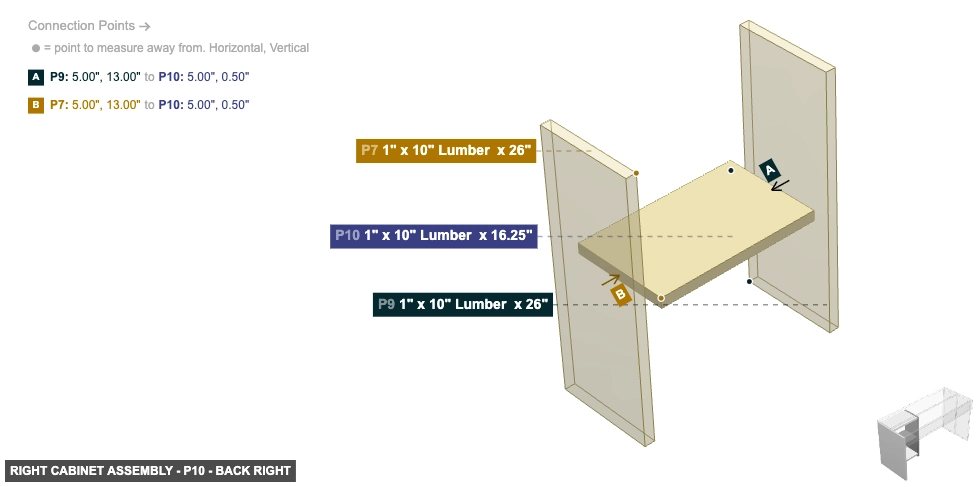

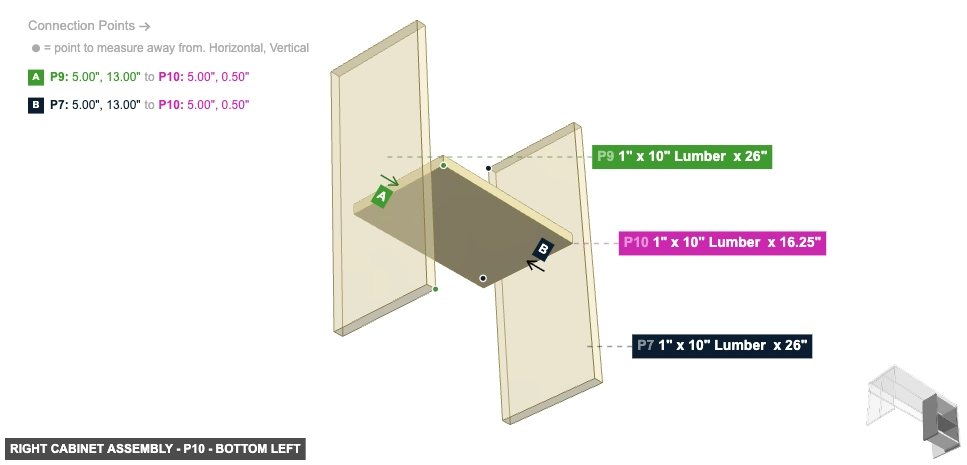

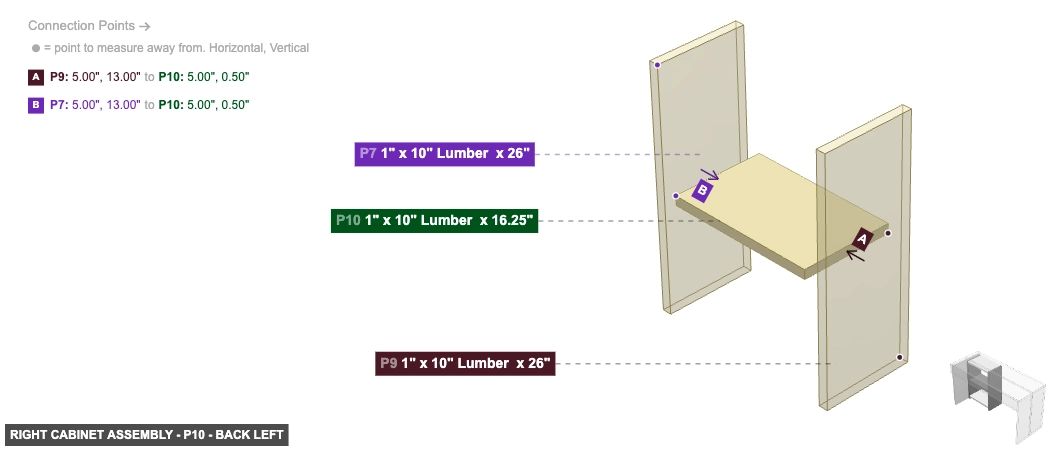

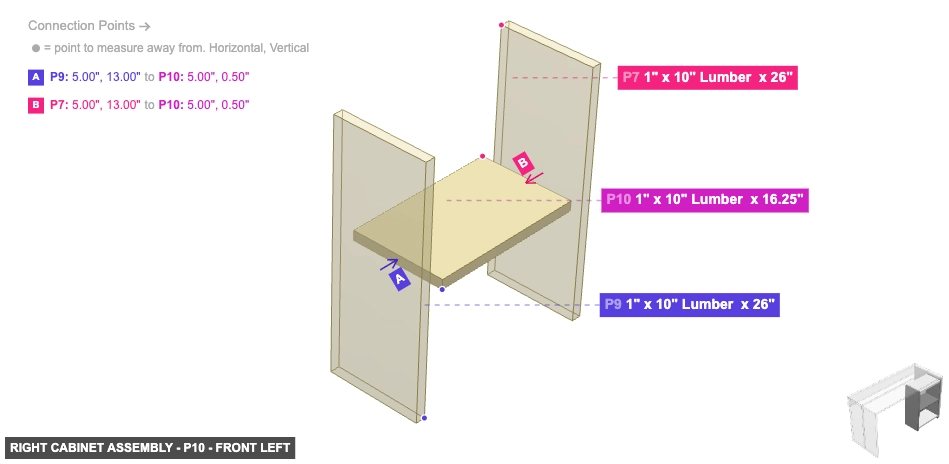

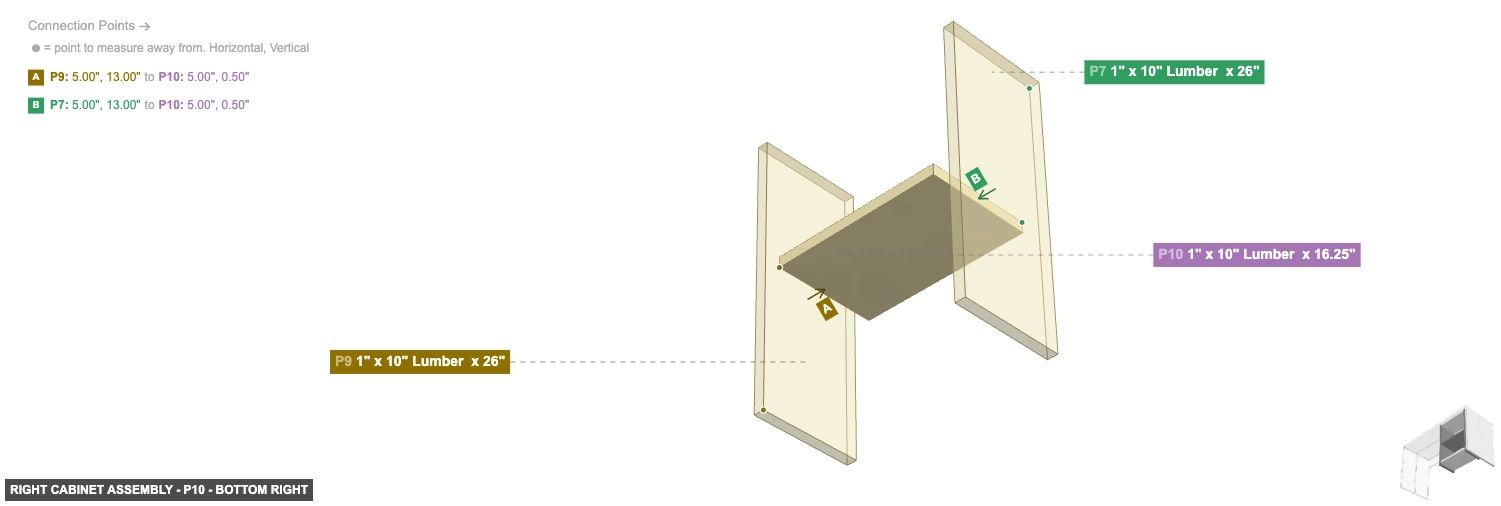

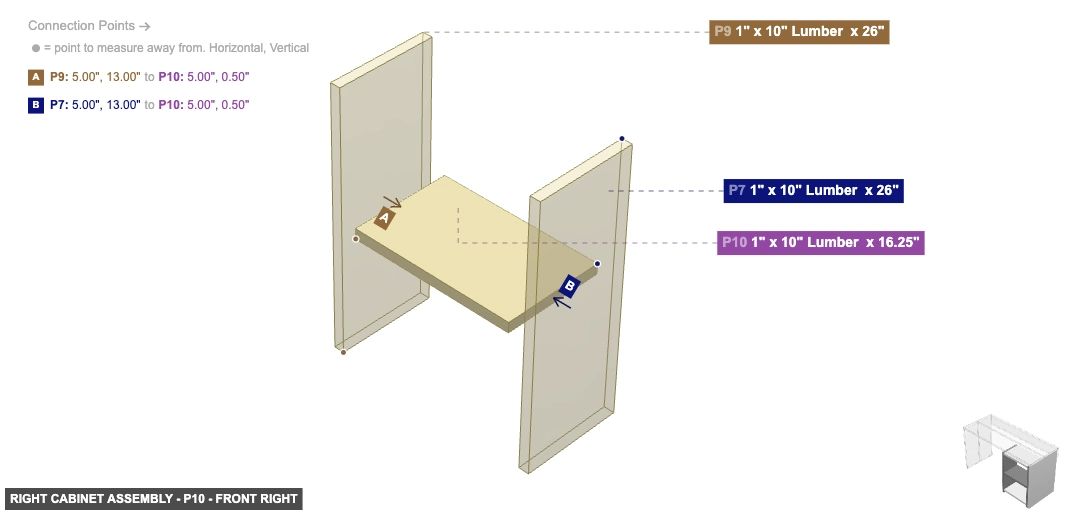

P10 (1" x 10" Lumber 16.25" length) - its 1" x 10" Wood End #1, which is right-facing, should connect to part 7's 1" x 10" Wood Side #4. Next, connect its 1" x 10" Wood End #2 oriented left links with part 9's 1" x 10" Wood Side #2. Also, its 1" x 10" Wood Side #1 must be oriented front, also ensure its 1" x 10" Wood Side #2 faces top, also its 1" x 10" Wood Side #3 should be directed back, and its 1" x 10" Wood Side #4 must be oriented bottom

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: back right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: front left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: front right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: bottom left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: bottom right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

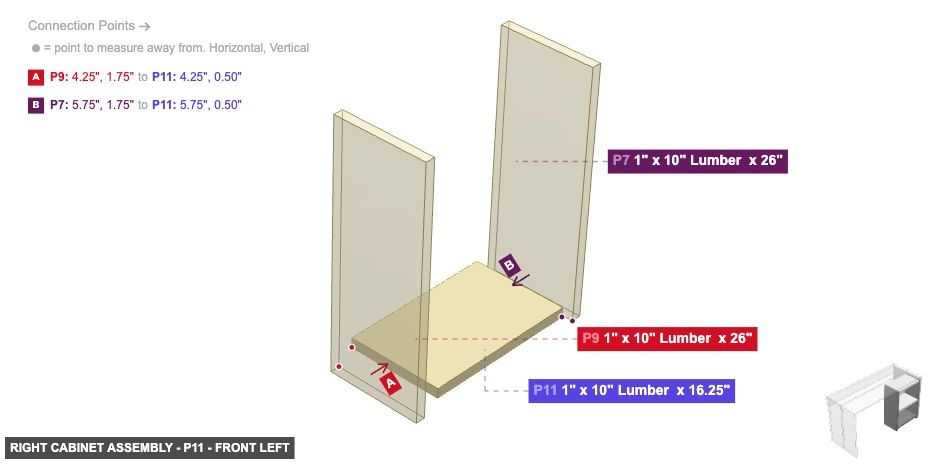

Part: 1" x 10" Lumber x 16.25" - Angle: back left

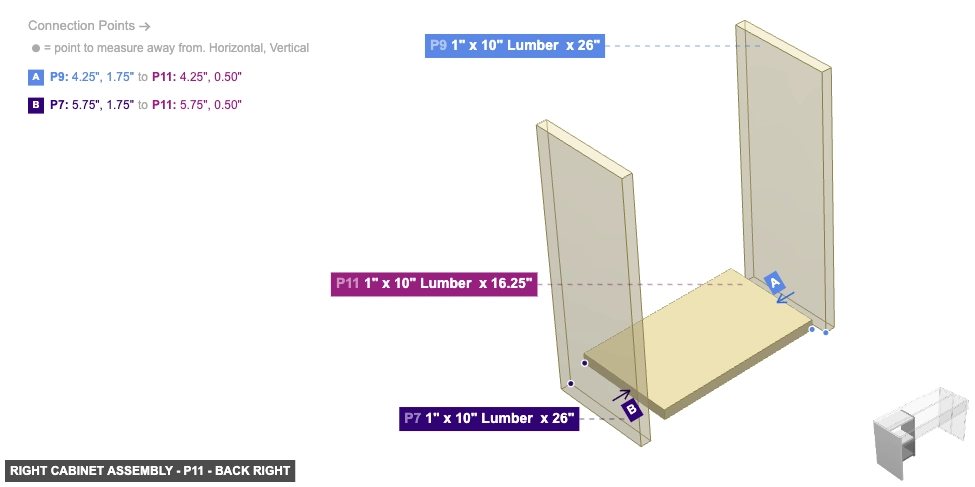

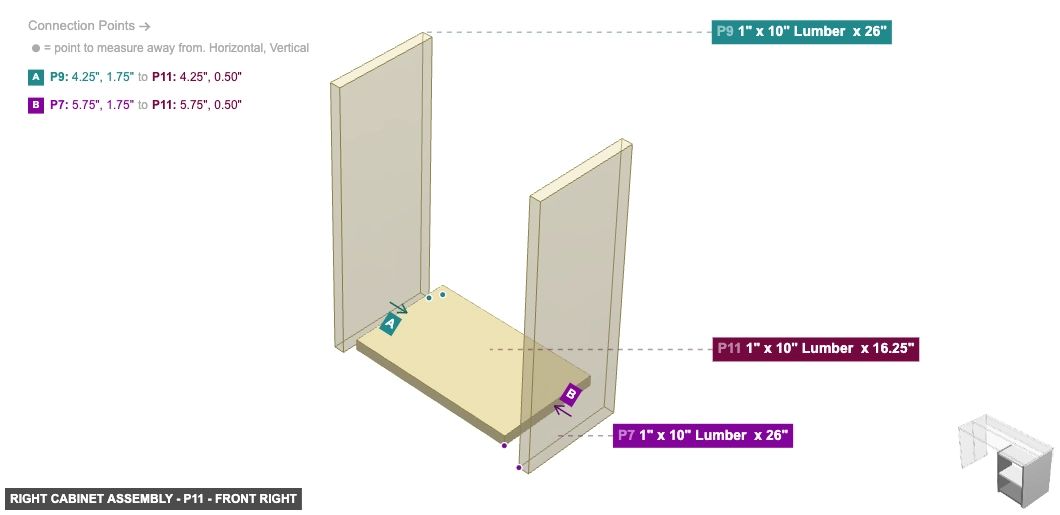

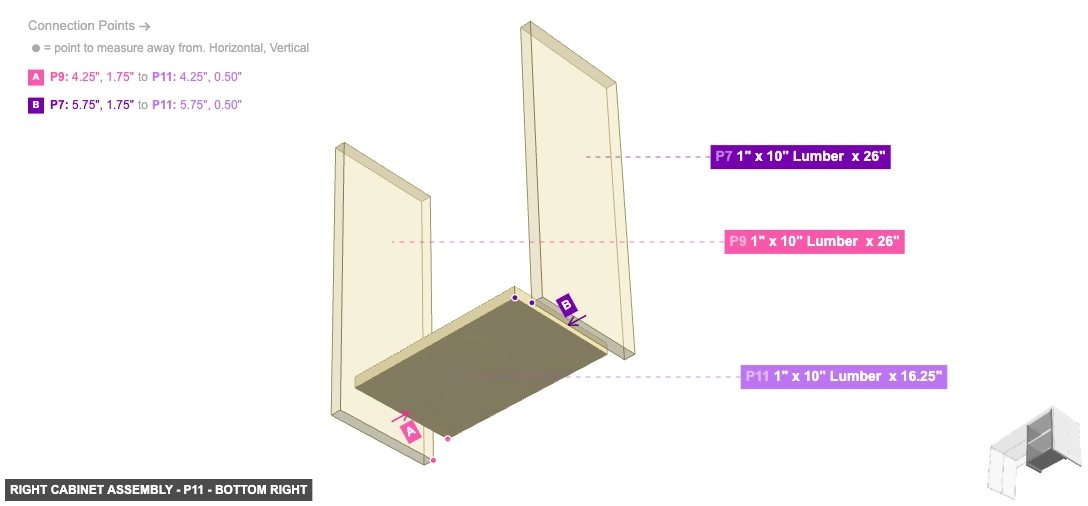

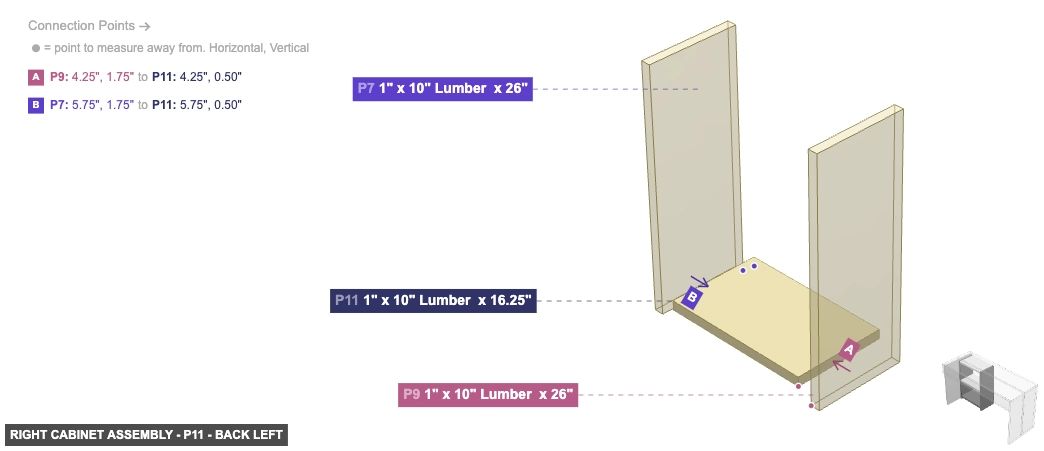

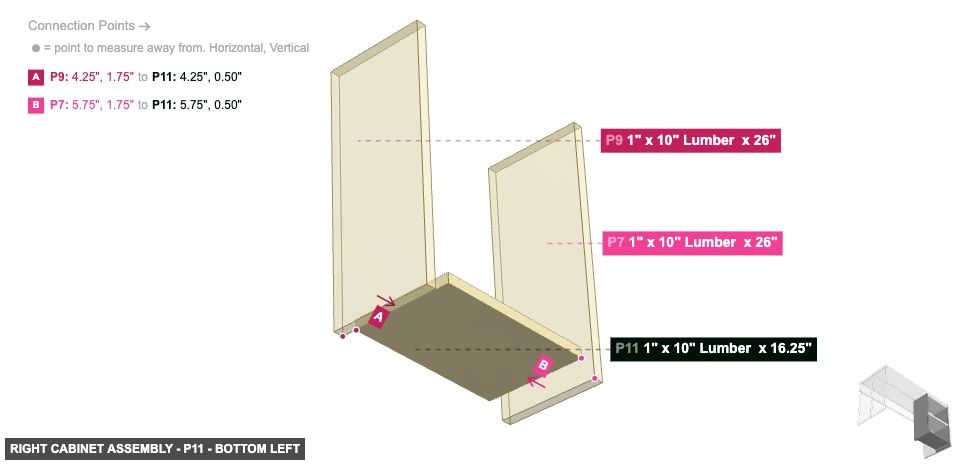

P11 (1" x 10" Lumber 16.25" length) - attach its 1" x 10" Wood End #1 facing right to part 7's 1" x 10" Wood Side #4, and attach its 1" x 10" Wood End #2 facing left to part 9's 1" x 10" Wood Side #2, also its 1" x 10" Wood Side #1 needs to point front, also its 1" x 10" Wood Side #2 must be oriented top, and ensure its 1" x 10" Wood Side #3 faces back, also ensure its 1" x 10" Wood Side #4 faces bottom

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: back right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: front left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: front right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: bottom left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Part: 1" x 10" Lumber x 16.25" - Angle: bottom right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Group: Left Leg Assembly

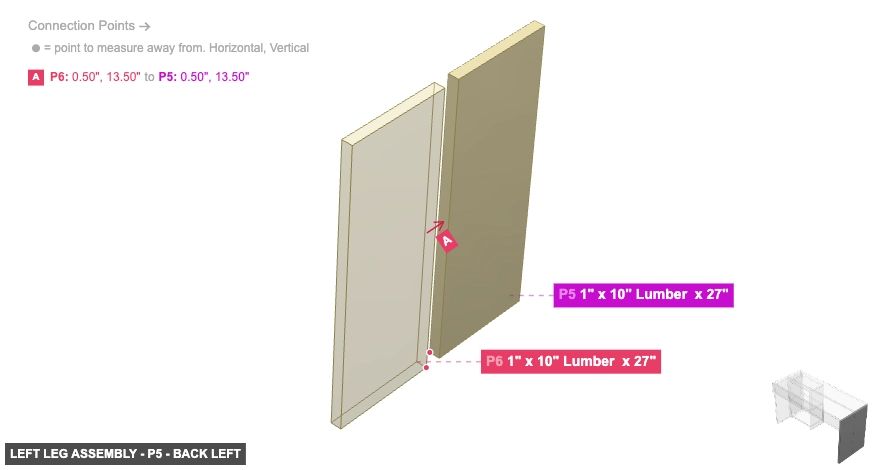

Assemble the two panels (P5, P6) forming the left leg support.

Part: 1" x 10" Lumber x 27" - Angle: back left

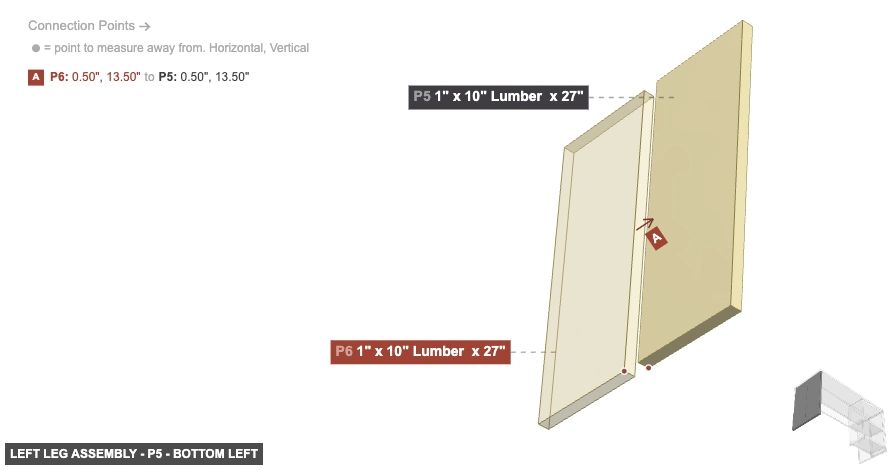

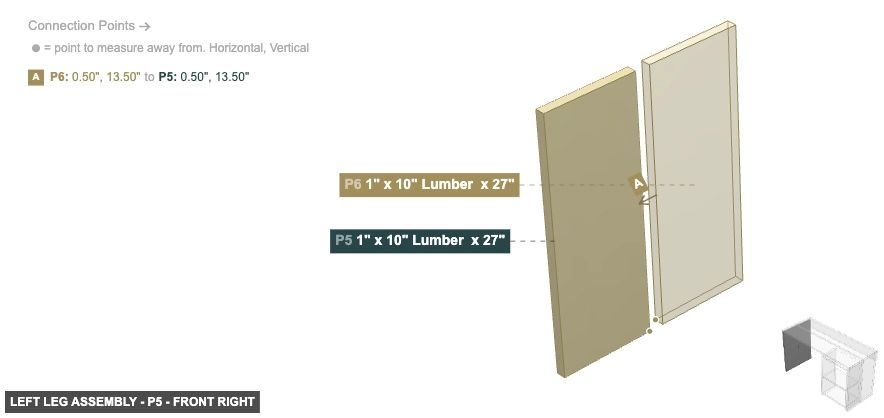

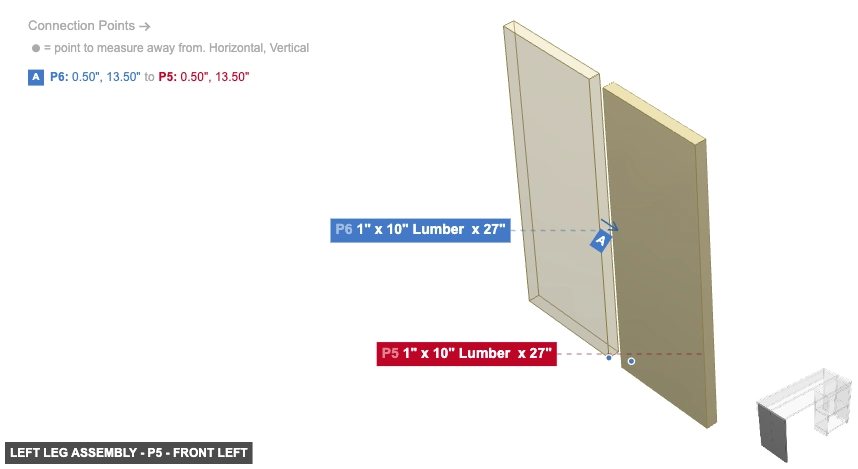

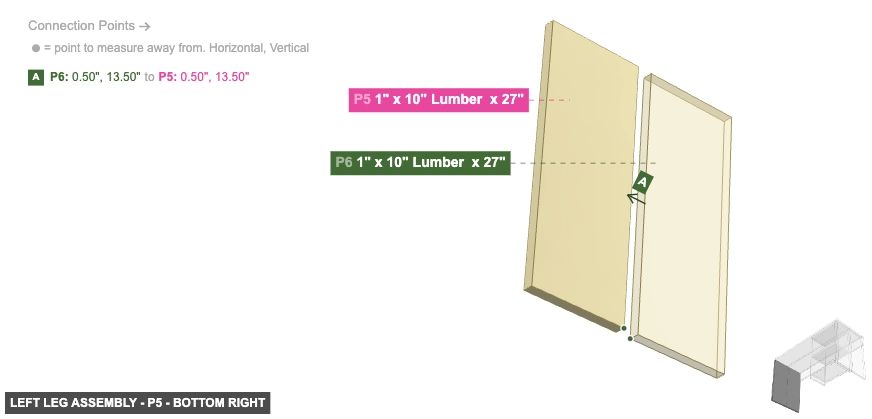

P5 (1" x 10" Lumber 27" length) - attach its 1" x 10" Wood Side #3 facing back to part 6's 1" x 10" Wood Side #1. Next, its 1" x 10" Wood End #1 must be oriented bottom. After that, its 1" x 10" Wood Side #1 should be directed front, and ensure its 1" x 10" Wood Side #2 faces right. After that, its 1" x 10" Wood Side #4 needs to point left

1" x 10" Lumber x 27"x 2

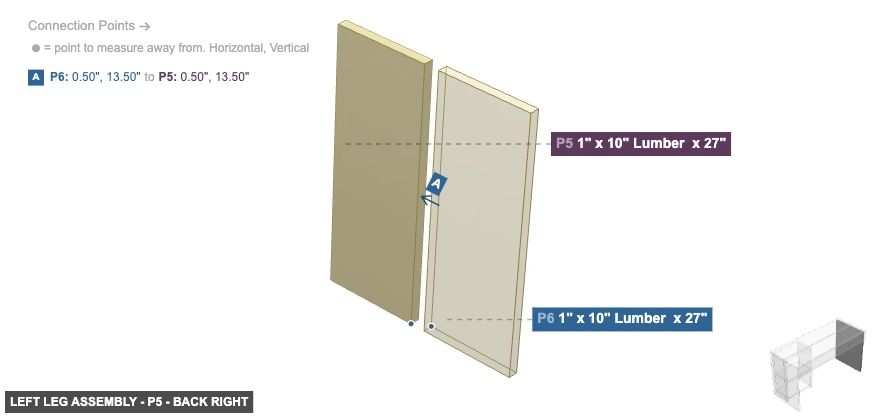

Part: 1" x 10" Lumber x 27" - Angle: back right

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: front left

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: front right

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: bottom left

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: bottom right

1" x 10" Lumber x 27"x 2

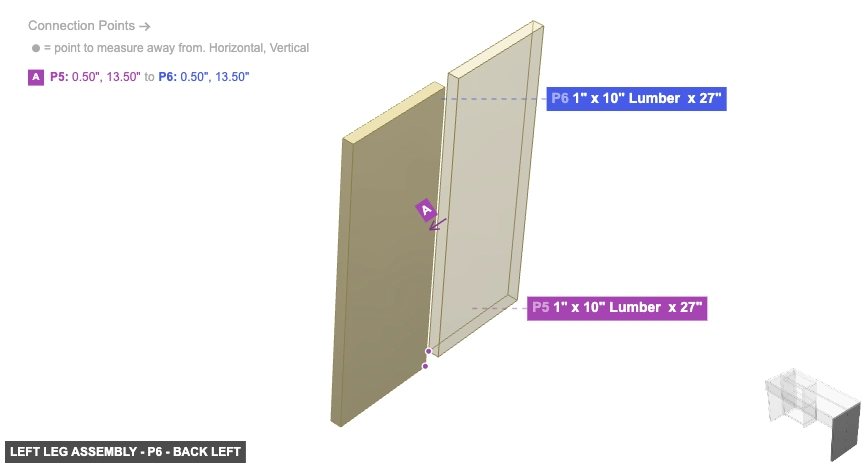

Part: 1" x 10" Lumber x 27" - Angle: back left

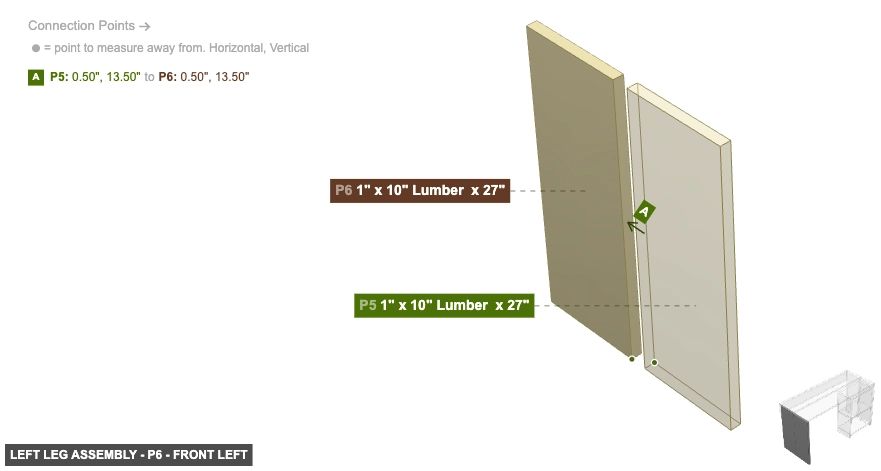

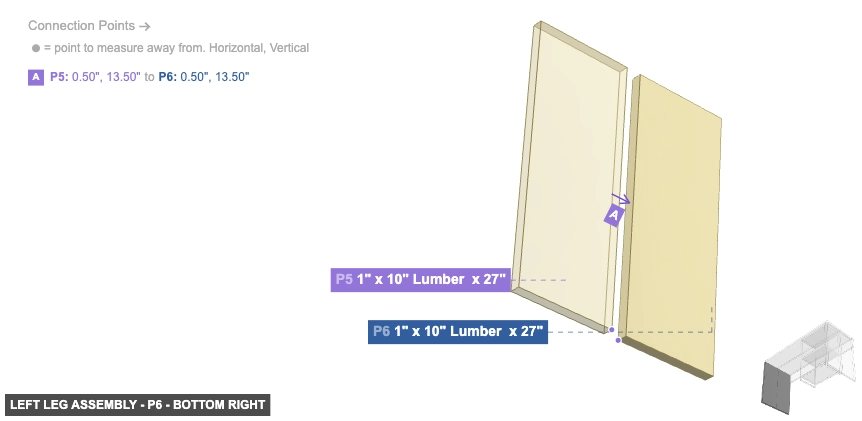

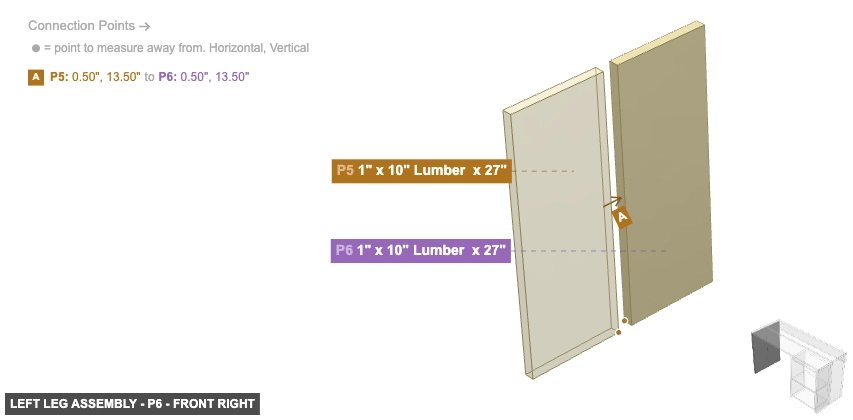

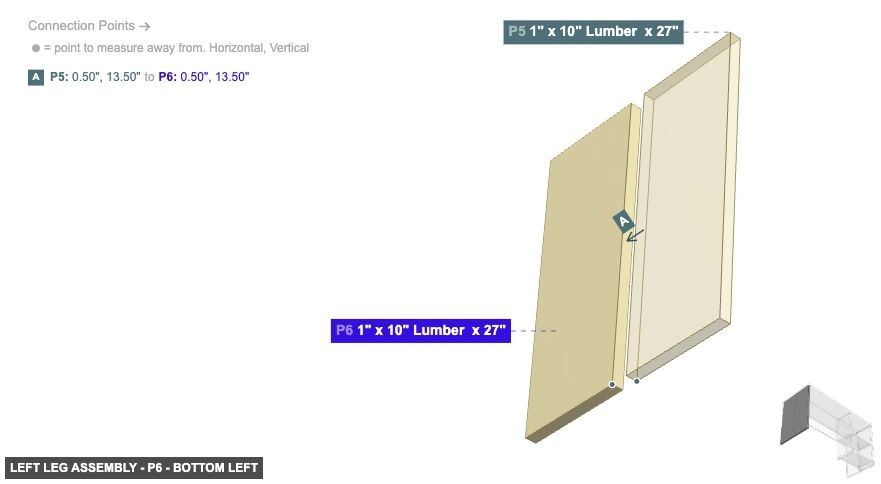

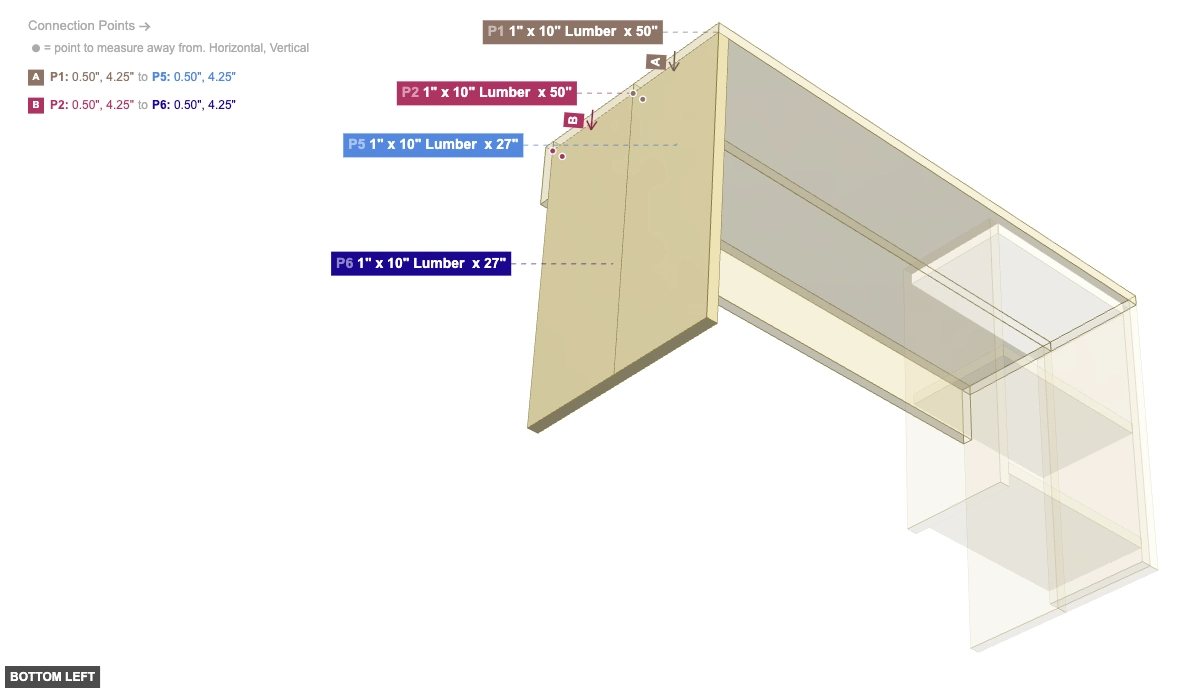

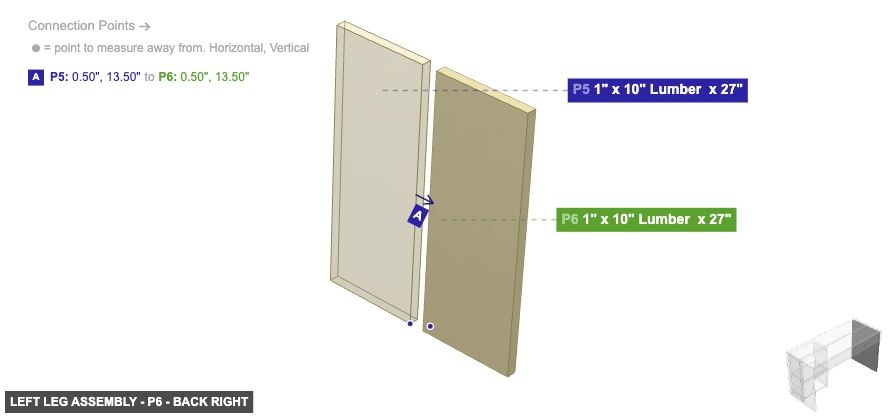

P6 (1" x 10" Lumber 27" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 5's 1" x 10" Wood Side #3, then its 1" x 10" Wood End #1 needs to point bottom, also ensure its 1" x 10" Wood Side #2 faces right. After that, its 1" x 10" Wood Side #3 should be directed back. Additionally, its 1" x 10" Wood Side #4 should be directed left

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: back right

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: front left

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: front right

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: bottom left

1" x 10" Lumber x 27"x 2

Part: 1" x 10" Lumber x 27" - Angle: bottom right

1" x 10" Lumber x 27"x 2

Group: Final Assembly

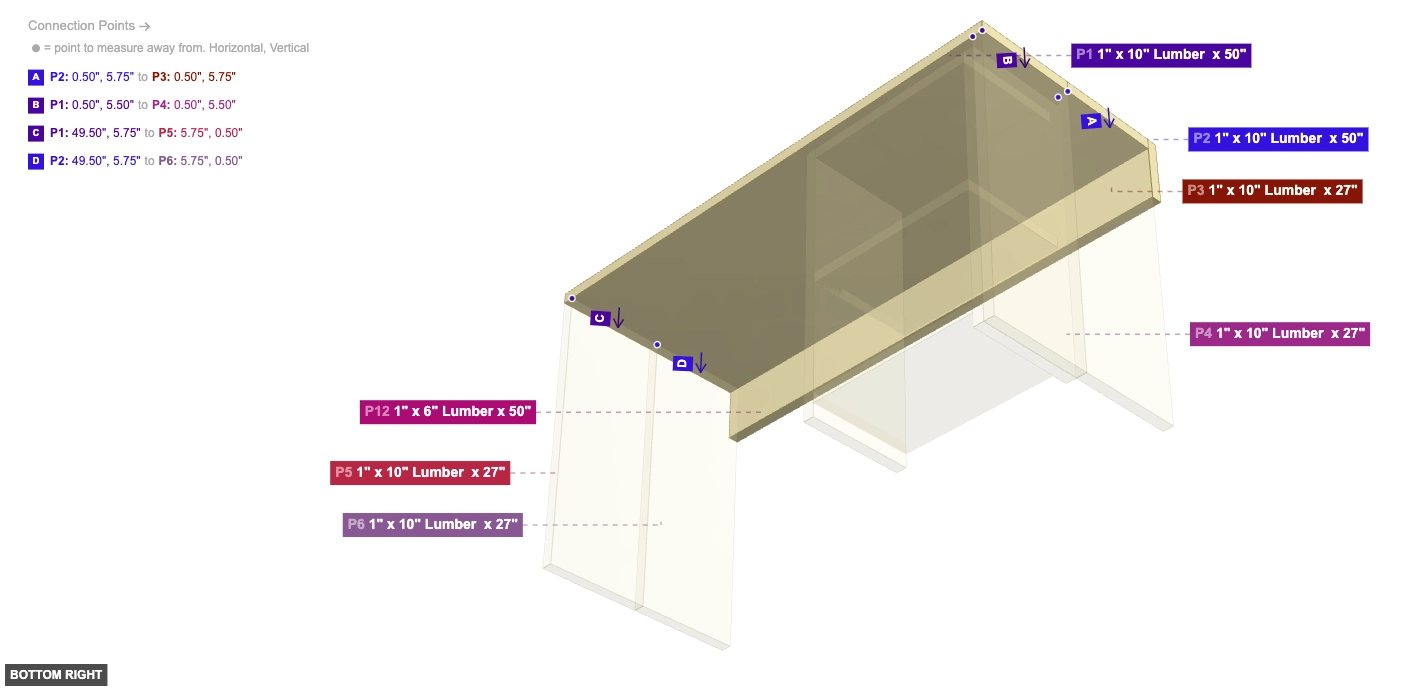

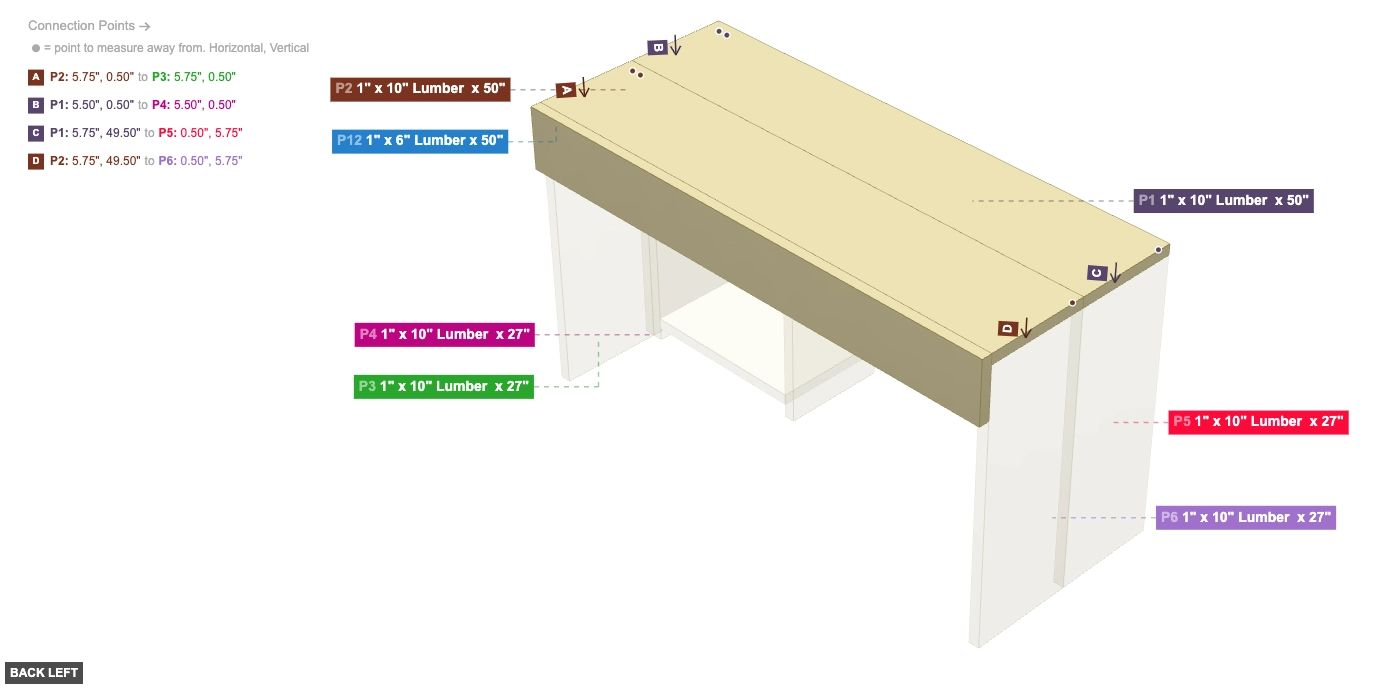

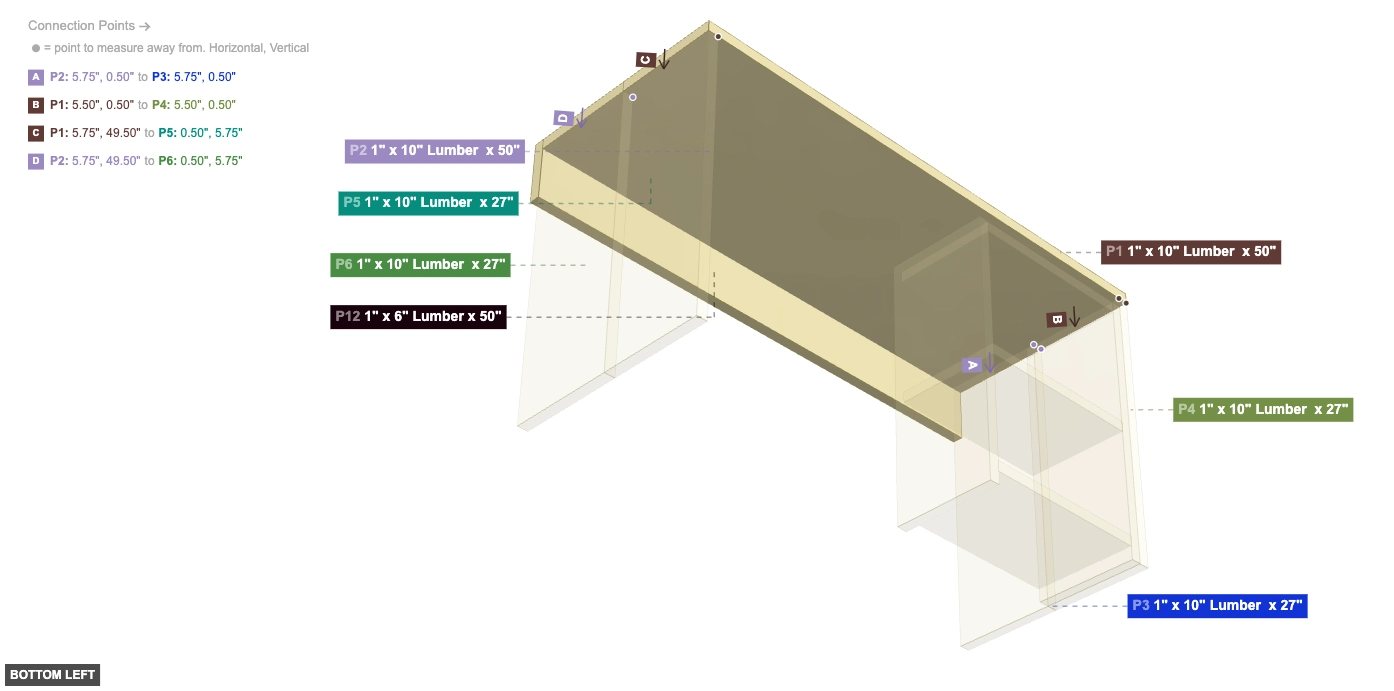

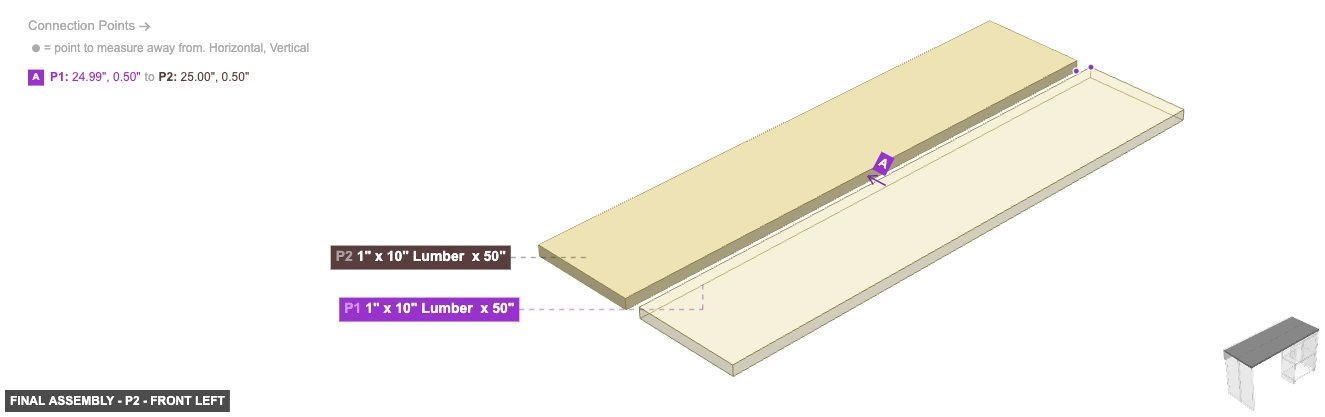

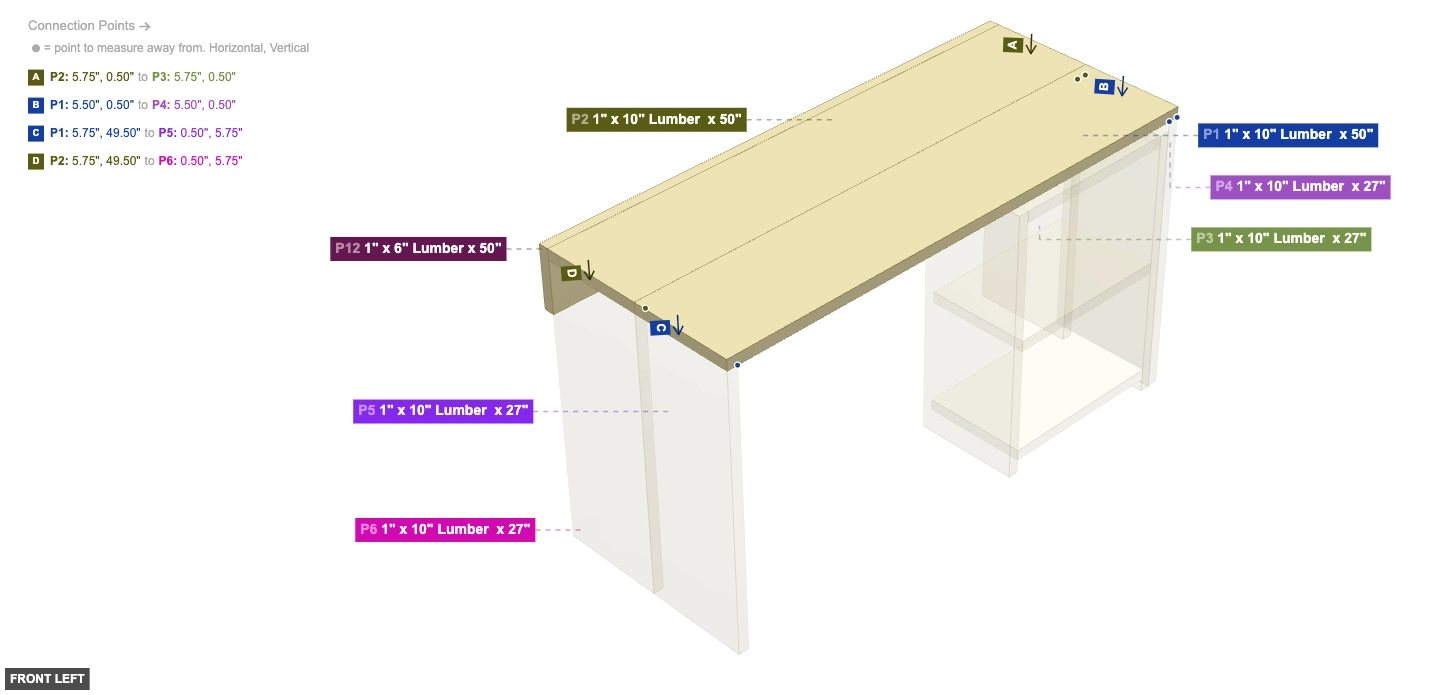

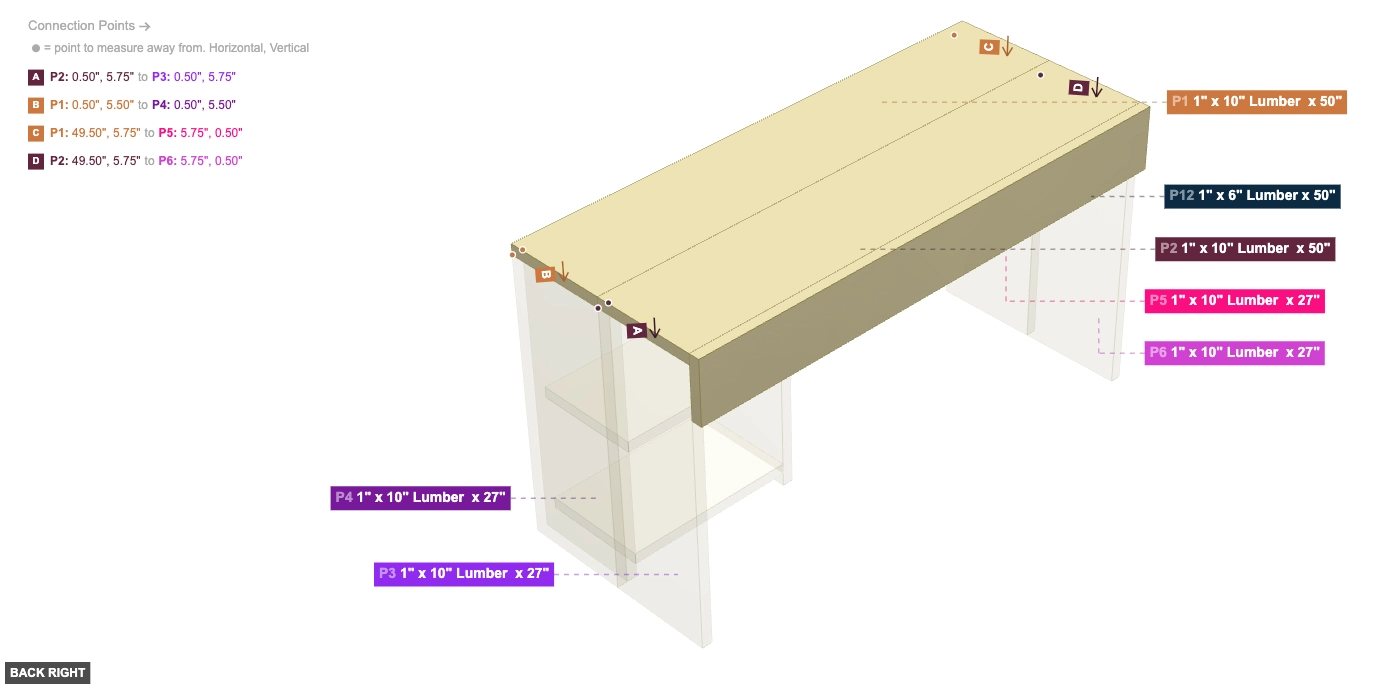

Attach the top panels (P1, P2) to connect the Right Cabinet and Left Leg assemblies. Attach the back brace (P12) to the rear.

Part: 1" x 10" Lumber x 50" - Angle: back left

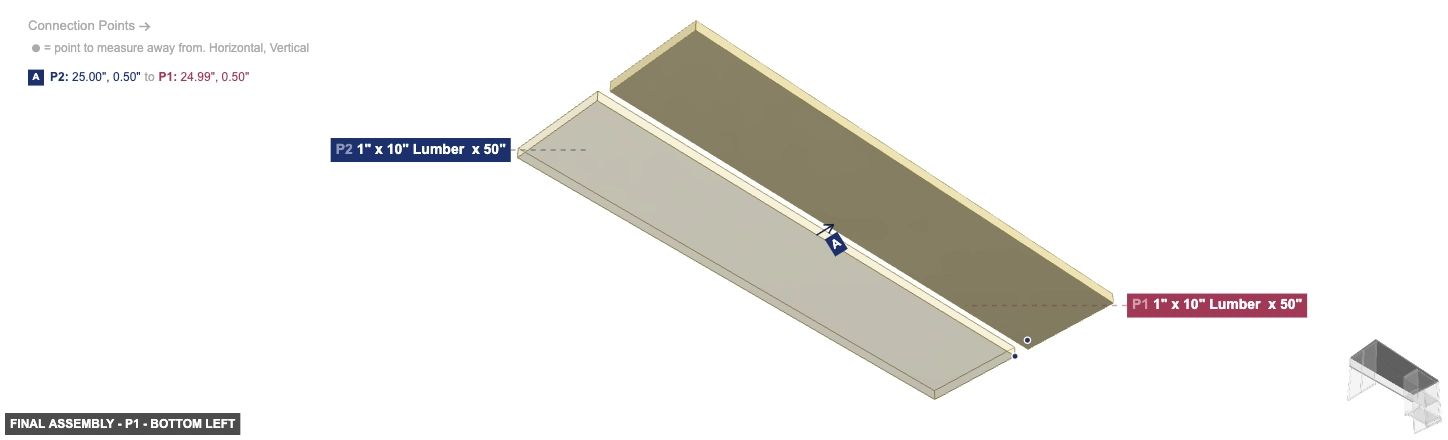

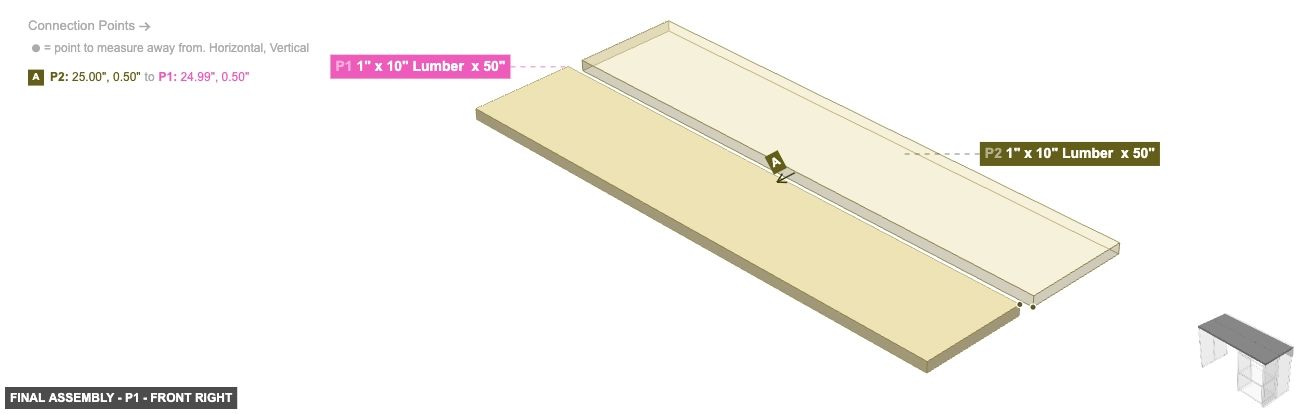

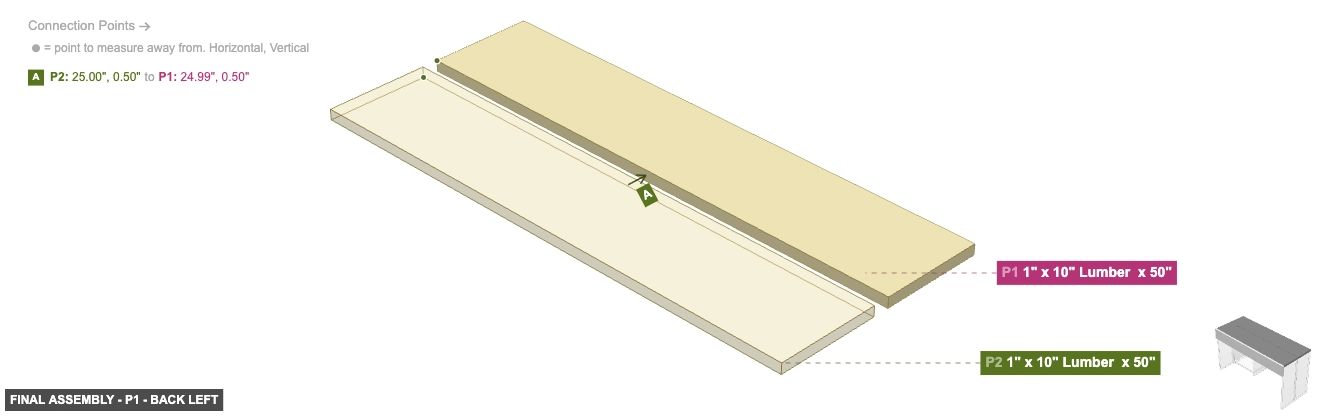

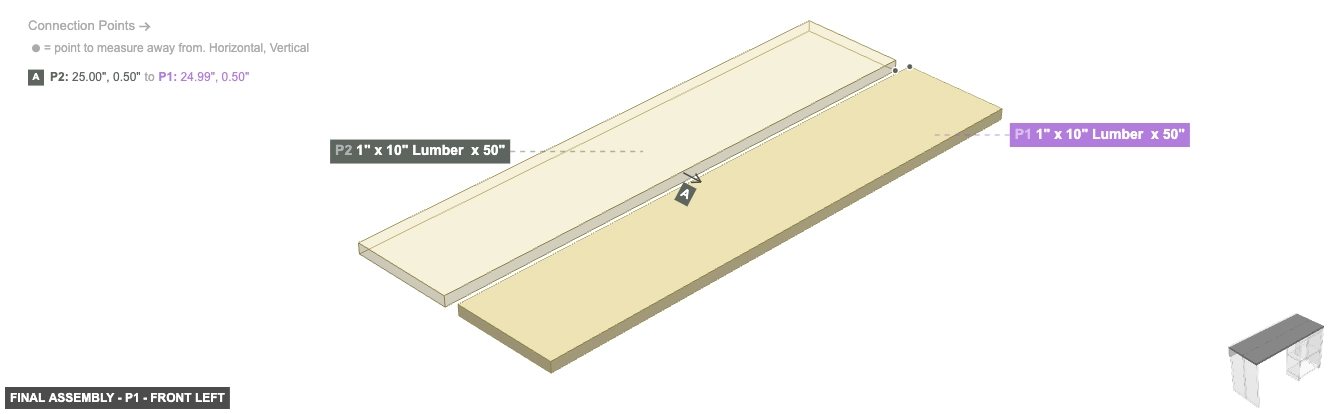

P1 (1" x 10" Lumber 50" length) - connect its 1" x 10" Wood Side #3 oriented back links with part 2's 1" x 10" Wood Side #1, and ensure its 1" x 10" Wood End #1 faces right, also ensure its 1" x 10" Wood Side #1 faces front. Also, its 1" x 10" Wood Side #2 should be directed top, and its 1" x 10" Wood End #2 must be oriented left

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: back right

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: front left

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: front right

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: bottom left

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

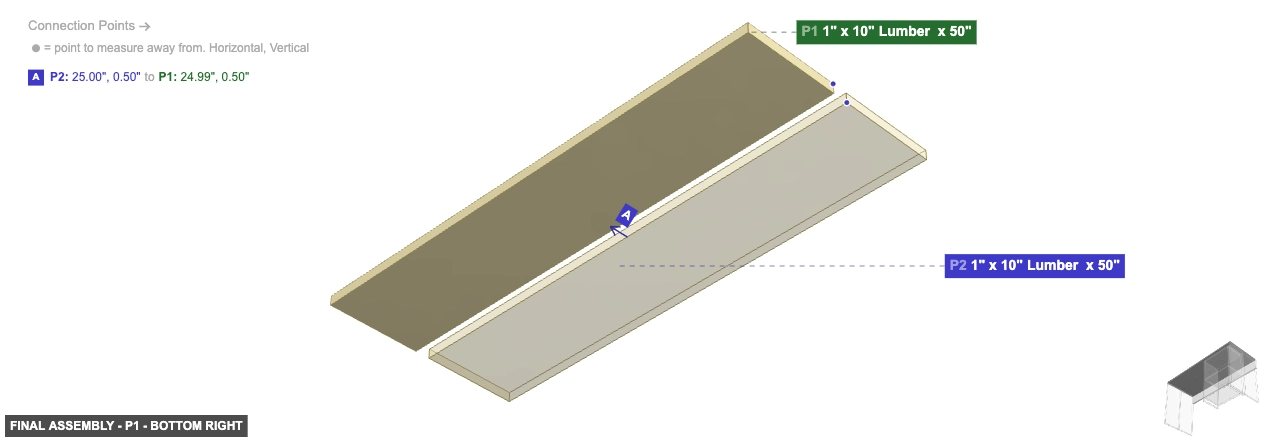

Part: 1" x 10" Lumber x 50" - Angle: bottom right

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: back left

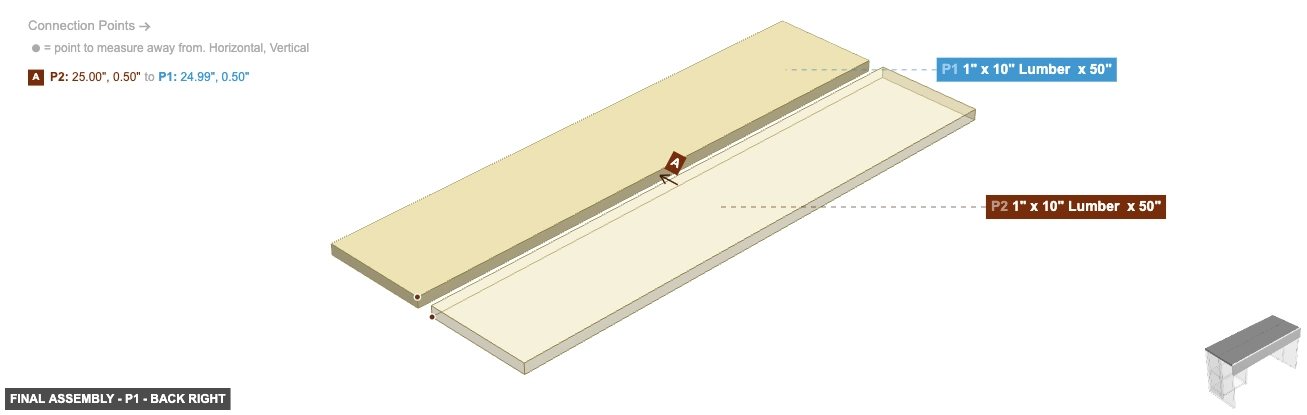

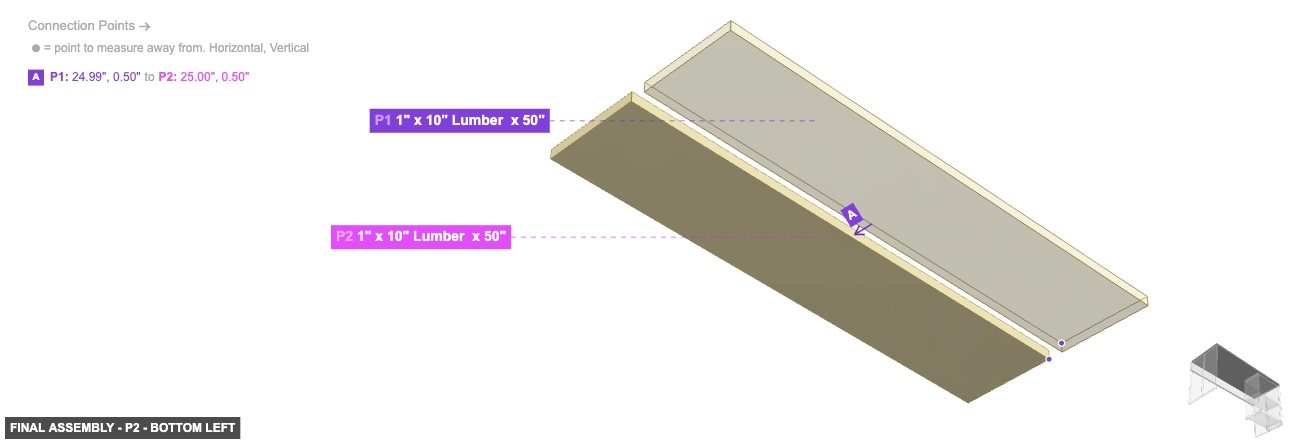

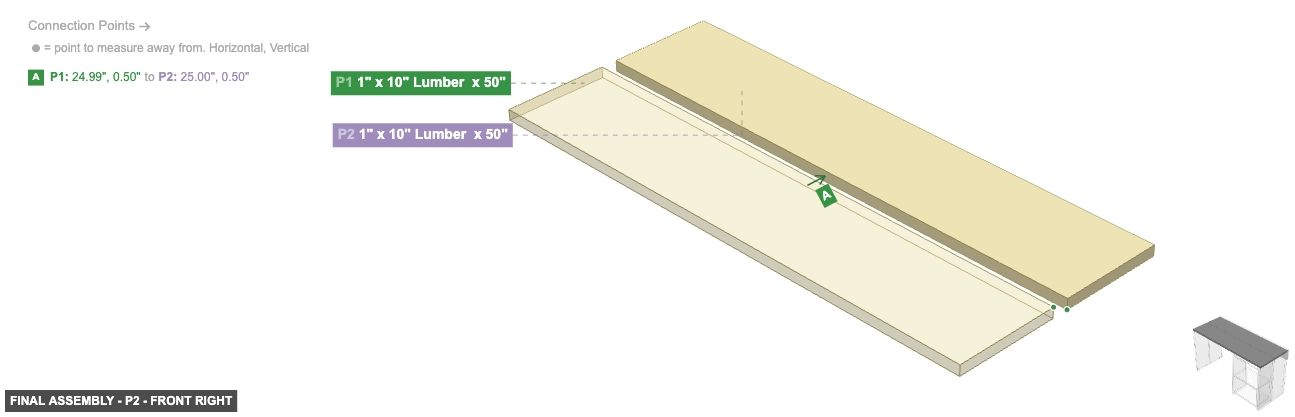

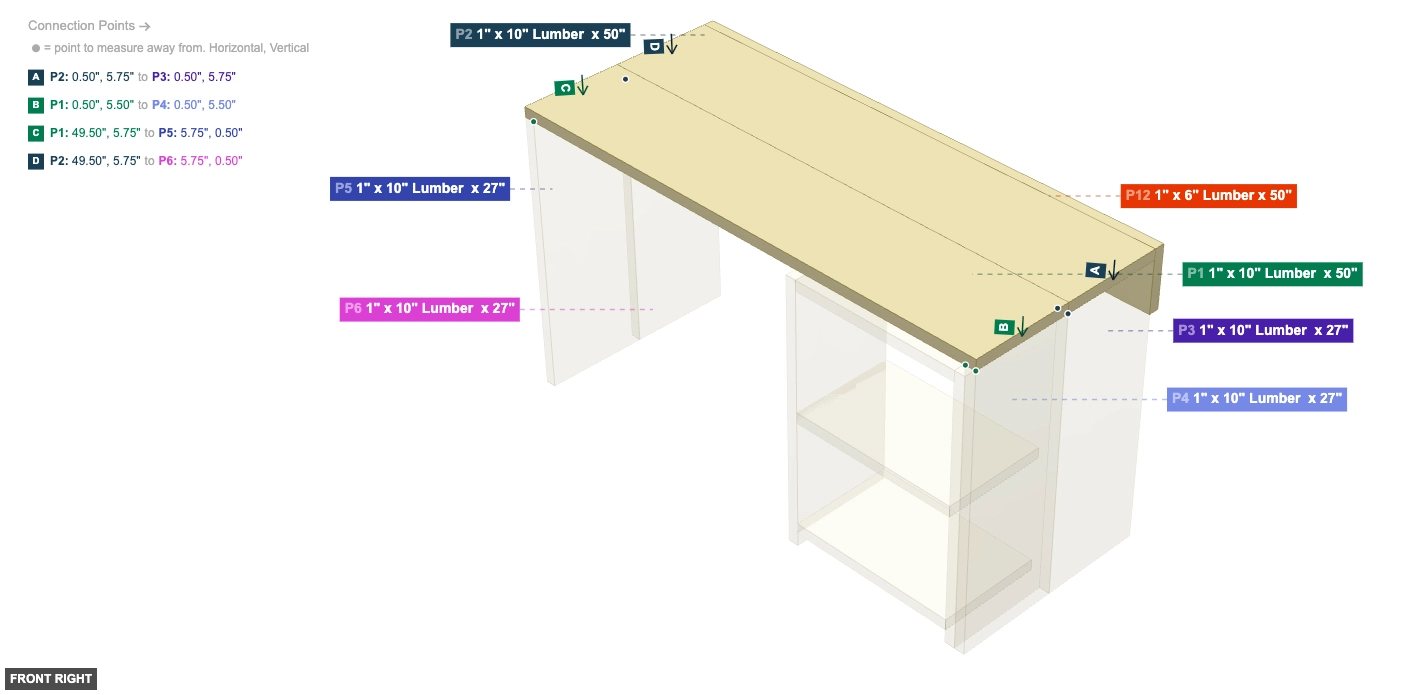

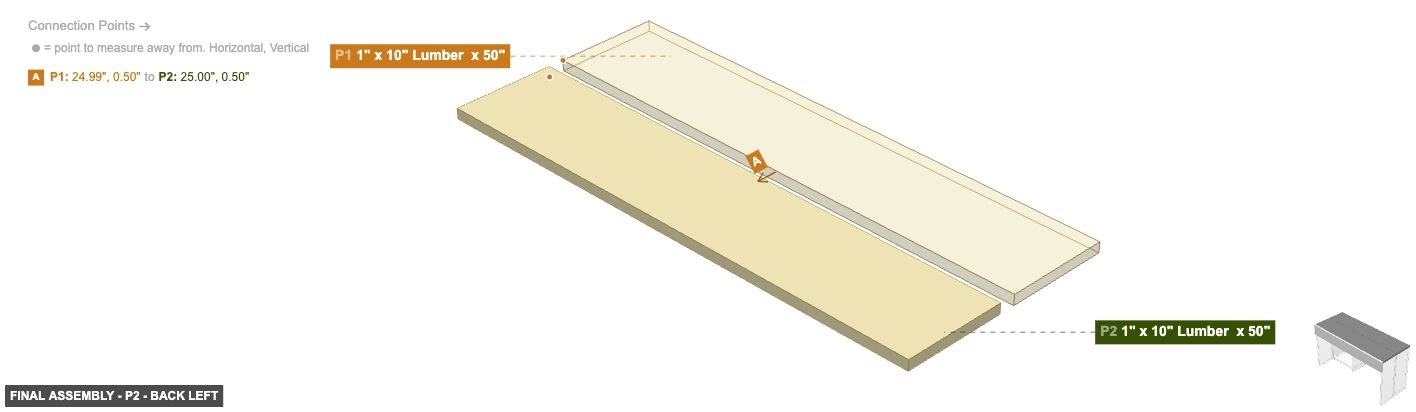

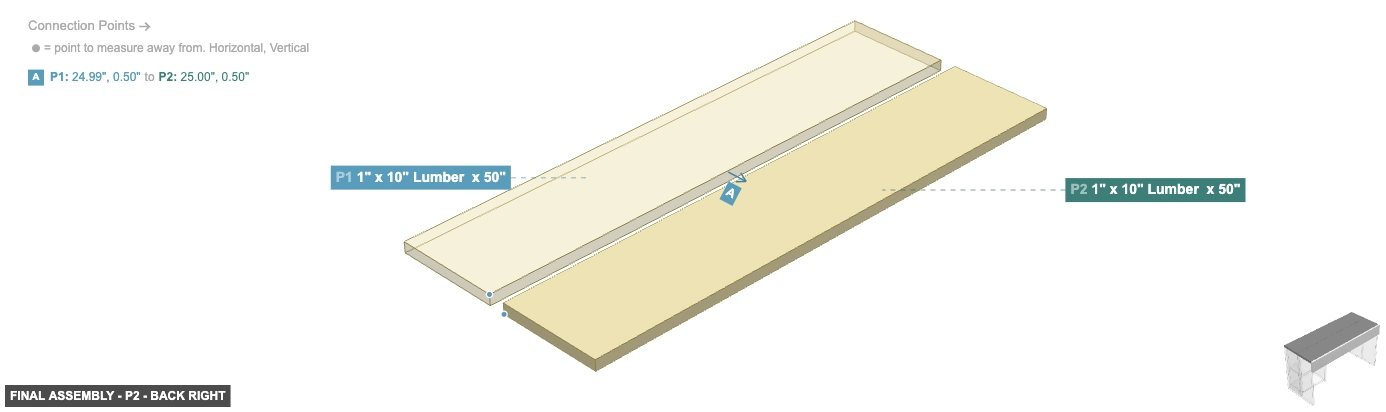

P2 (1" x 10" Lumber 50" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 1's 1" x 10" Wood Side #3, and its 1" x 10" Wood End #1 should be directed right, plus its 1" x 10" Wood Side #2 should be directed top. Also, its 1" x 10" Wood Side #3 needs to point back. Next, its 1" x 10" Wood End #2 must be oriented left

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: back right

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: front left

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: front right

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Part: 1" x 10" Lumber x 50" - Angle: bottom left

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

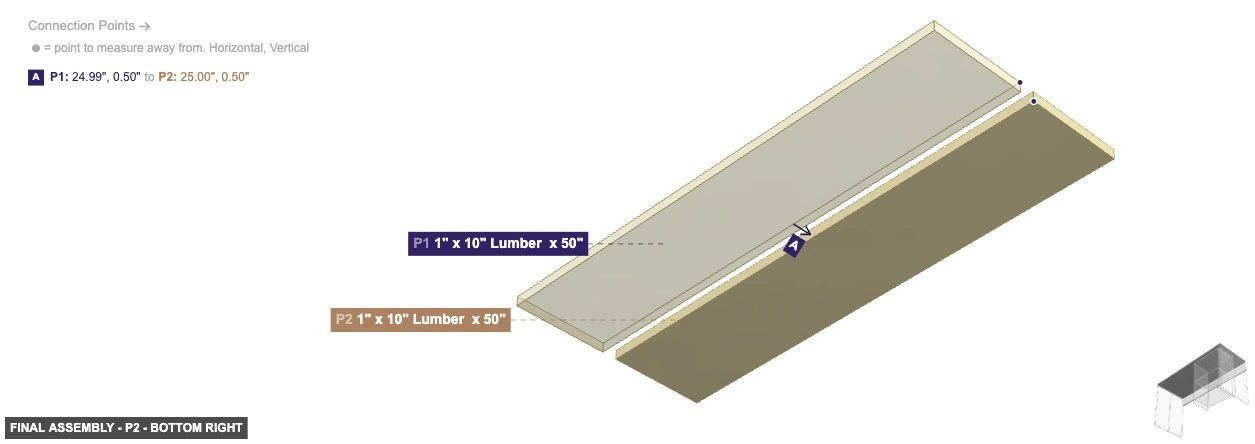

Part: 1" x 10" Lumber x 50" - Angle: bottom right

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1

Phase 3: Inter-Group Assembly

Attaching: Right Cabinet Assembly

Assemble the right-side cabinet structure including the side panels (P3, P4), internal vertical supports (P7, P9), and shelves (P8, P10, P11).

Angle: back left

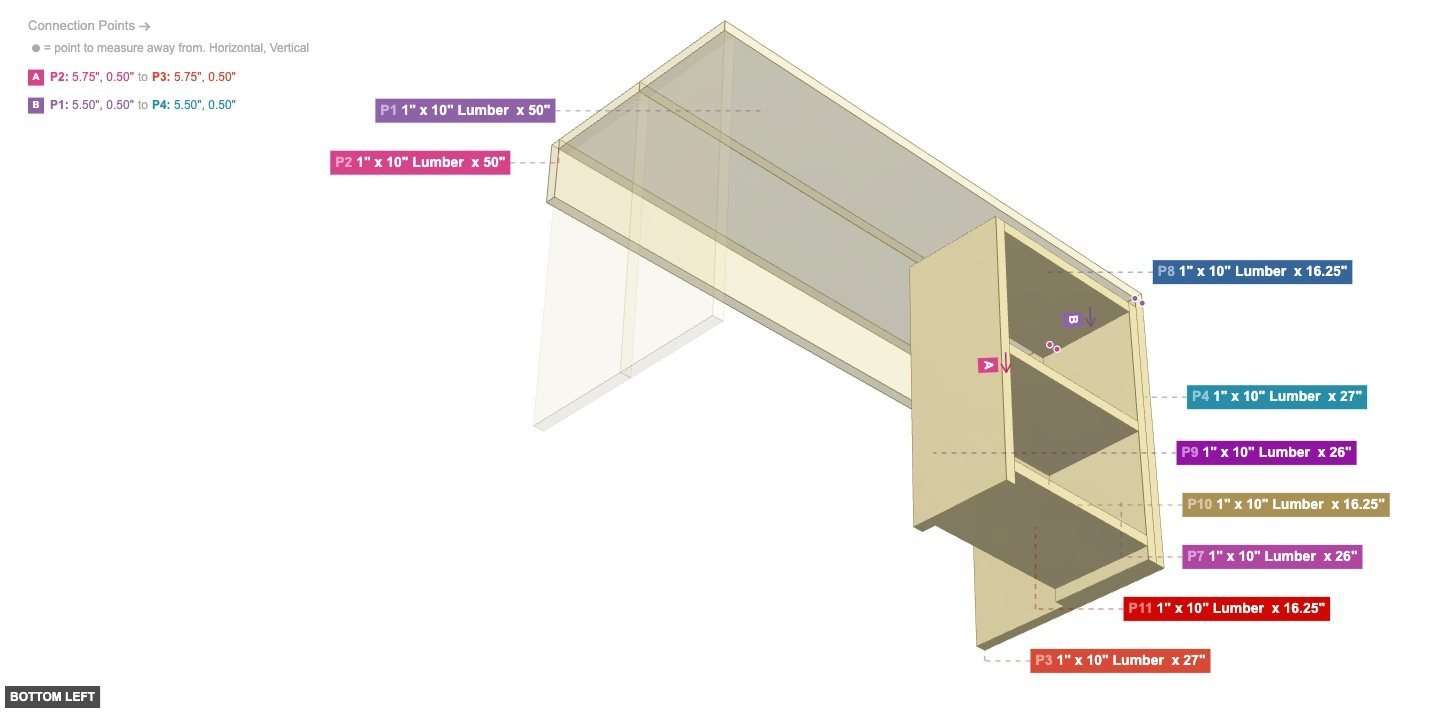

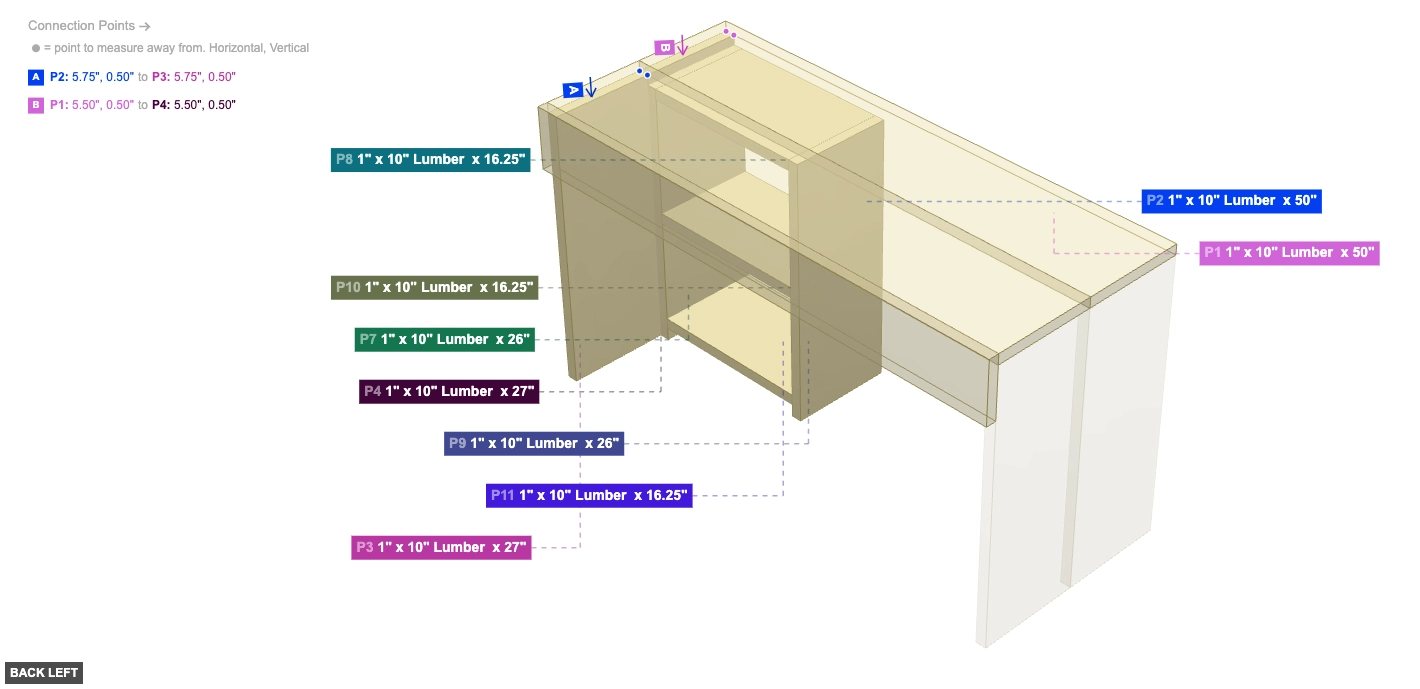

Assembly of Right Cabinet Assembly - back_left

P3 (1" x 10" Lumber 27" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 4's 1" x 10" Wood Side #3. Next, its 1" x 10" Wood End #2, which is top-facing, should connect to part 2's 1" x 10" Wood Side #4, then its 1" x 10" Wood End #1 must be oriented bottom. After that, ensure its 1" x 10" Wood Side #2 faces right. After that, its 1" x 10" Wood Side #3 must be oriented back. Next, ensure its 1" x 10" Wood Side #4 faces left P4 (1" x 10" Lumber 27" length) - attach its 1" x 10" Wood Side #3 facing back to part 3's 1" x 10" Wood Side #1, plus connect its 1" x 10" Wood Side #4 oriented left links with part 7's 1" x 10" Wood Side #2. Next, attach its 1" x 10" Wood End #2 facing top to part 1's 1" x 10" Wood Side #4. Also, ensure its 1" x 10" Wood End #1 faces bottom. Next, its 1" x 10" Wood Side #1 should be directed front. Next, its 1" x 10" Wood Side #2 needs to point right P7 (1" x 10" Lumber 26" length) - attach its 1" x 10" Wood Side #2 facing right to part 4's 1" x 10" Wood Side #4. Also, its 1" x 10" Wood Side #4, which is left-facing, should connect to part 8's 1" x 10" Wood End #2, then its 1" x 10" Wood End #1 needs to point bottom, also its 1" x 10" Wood Side #1 should be directed front. Also, its 1" x 10" Wood Side #3 needs to point back, and its 1" x 10" Wood End #2 should be directed top P9 (1" x 10" Lumber 26" length) - its 1" x 10" Wood Side #2, which is right-facing, should connect to part 8's 1" x 10" Wood End #1. Next, its 1" x 10" Wood End #1 needs to point bottom, then its 1" x 10" Wood Side #1 should be directed front, and its 1" x 10" Wood Side #3 must be oriented back, and its 1" x 10" Wood Side #4 should be directed left, and its 1" x 10" Wood End #2 should be directed top P8 (1" x 10" Lumber 16.25" length) - its 1" x 10" Wood End #1, which is left-facing, should connect to part 9's 1" x 10" Wood Side #2. After that, connect its 1" x 10" Wood End #2 oriented right links with part 7's 1" x 10" Wood Side #4. Next, its 1" x 10" Wood Side #1 needs to point front. Next, its 1" x 10" Wood Side #2 should be directed bottom. Also, its 1" x 10" Wood Side #3 must be oriented back, also its 1" x 10" Wood Side #4 should be directed top P10 (1" x 10" Lumber 16.25" length) - attach its 1" x 10" Wood End #1 facing right to part 7's 1" x 10" Wood Side #4. Additionally, its 1" x 10" Wood End #2, which is left-facing, should connect to part 9's 1" x 10" Wood Side #2, and its 1" x 10" Wood Side #1 needs to point front. Also, its 1" x 10" Wood Side #2 needs to point top. Also, its 1" x 10" Wood Side #3 needs to point back, plus its 1" x 10" Wood Side #4 should be directed bottom P11 (1" x 10" Lumber 16.25" length) - attach its 1" x 10" Wood End #1 facing right to part 7's 1" x 10" Wood Side #4. Also, its 1" x 10" Wood End #2, which is left-facing, should connect to part 9's 1" x 10" Wood Side #2. Additionally, its 1" x 10" Wood Side #1 should be directed front. Additionally, its 1" x 10" Wood Side #2 should be directed top, plus its 1" x 10" Wood Side #3 needs to point back. Also, its 1" x 10" Wood Side #4 must be oriented bottom

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Angle: back right

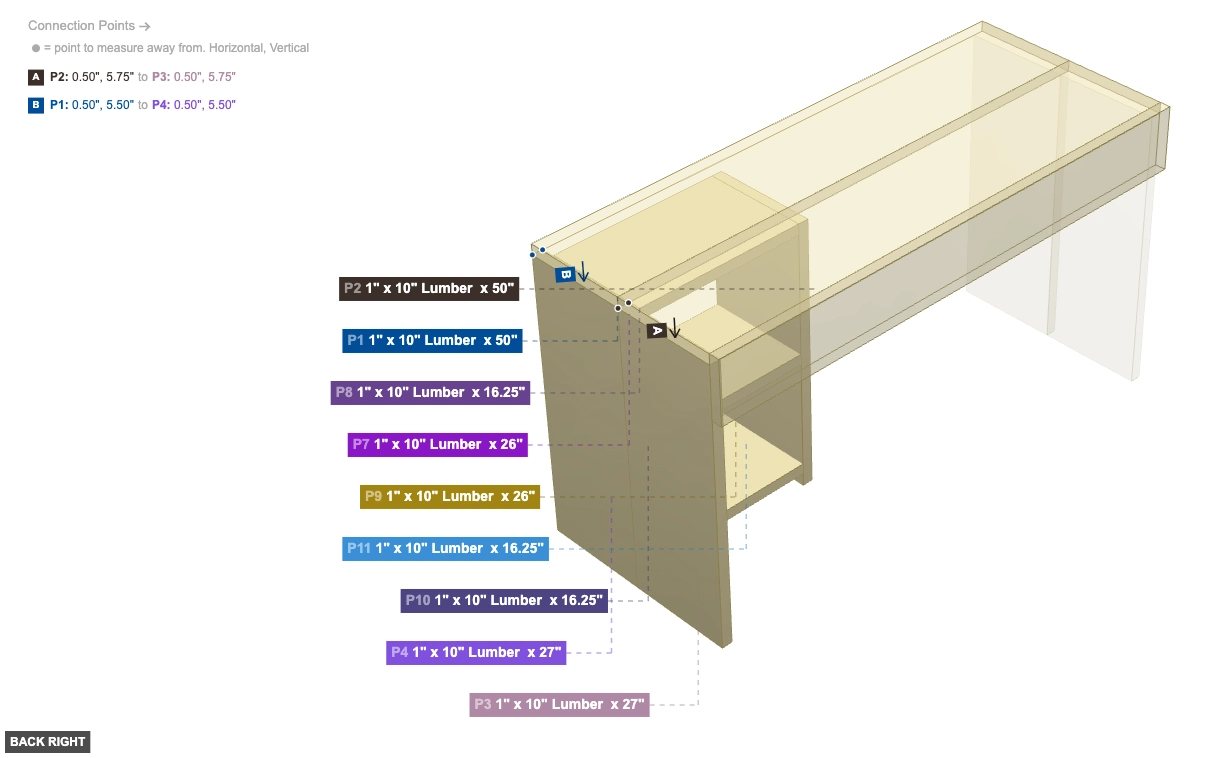

Assembly of Right Cabinet Assembly - back_right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Angle: front left

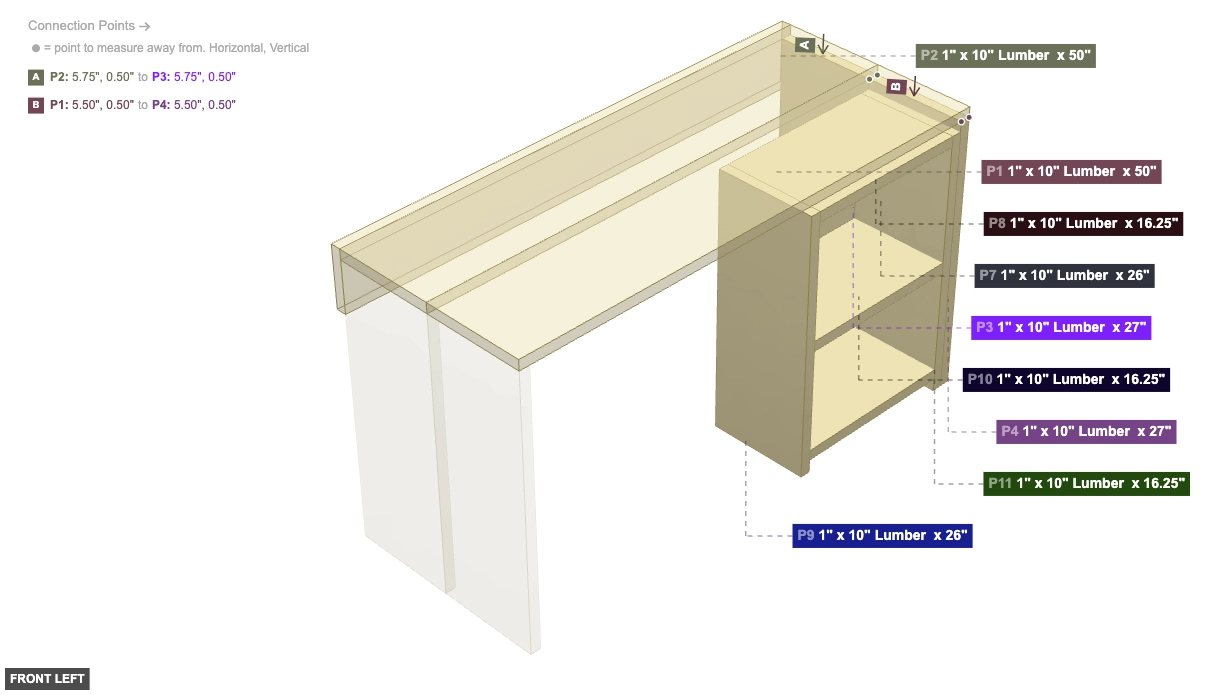

Assembly of Right Cabinet Assembly - front_left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Angle: front right

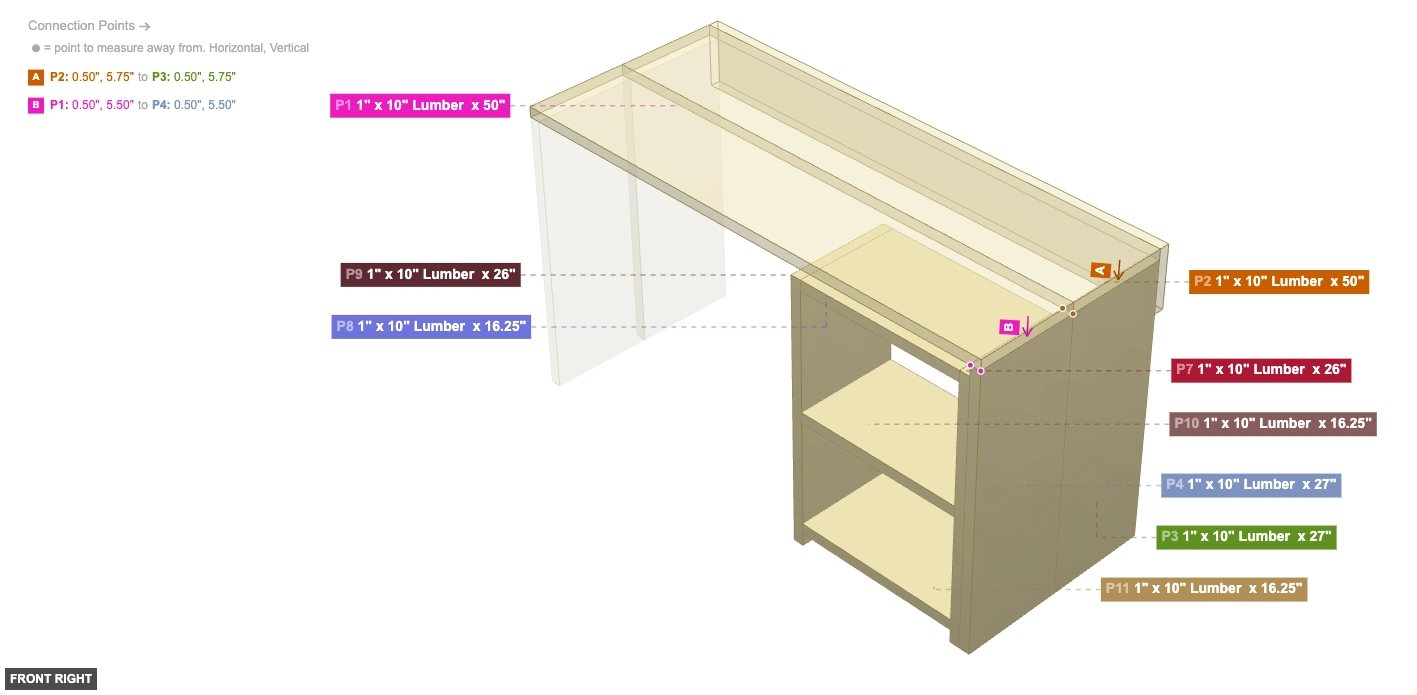

Assembly of Right Cabinet Assembly - front_right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Angle: bottom left

Assembly of Right Cabinet Assembly - bottom_left

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

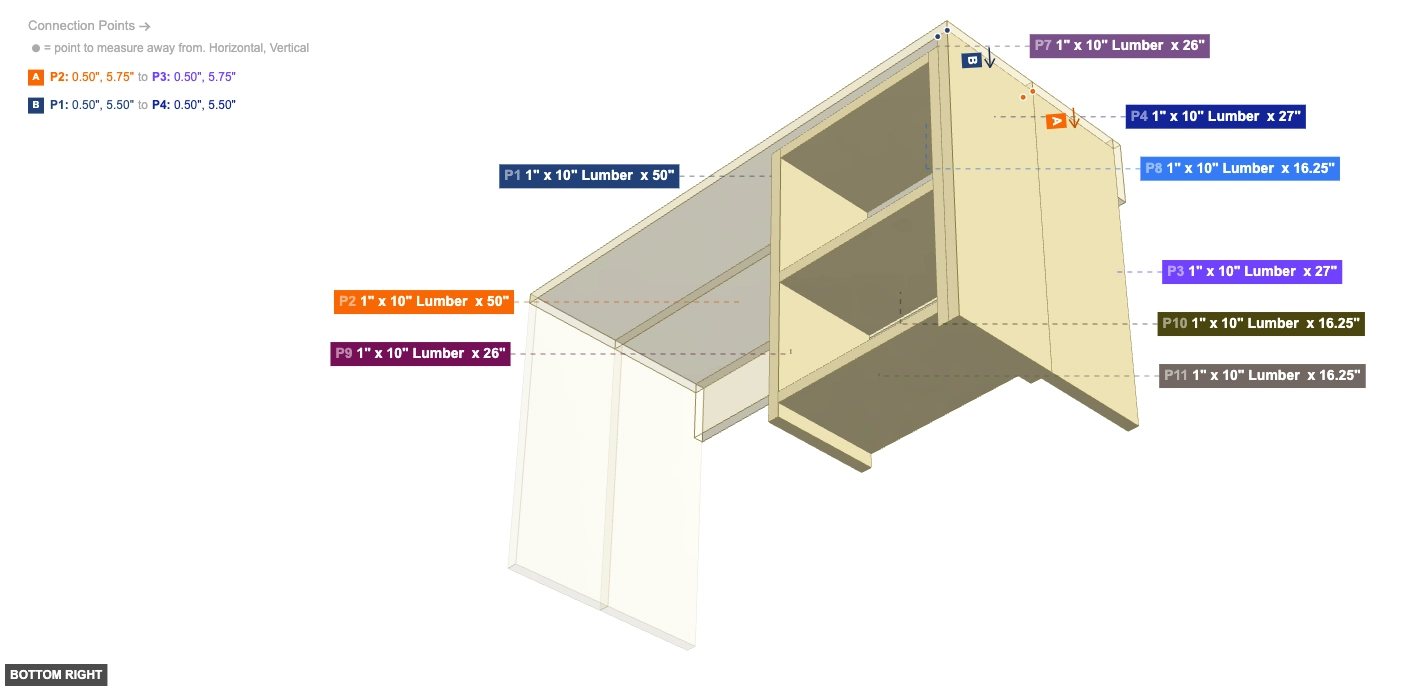

Angle: bottom right

Assembly of Right Cabinet Assembly - bottom_right

1" x 10" Lumber x 27"x 2

1" x 10" Lumber x 26"x 2

1" x 10" Lumber x 16.25"x 3

Attaching: Left Leg Assembly

Assemble the two panels (P5, P6) forming the left leg support.

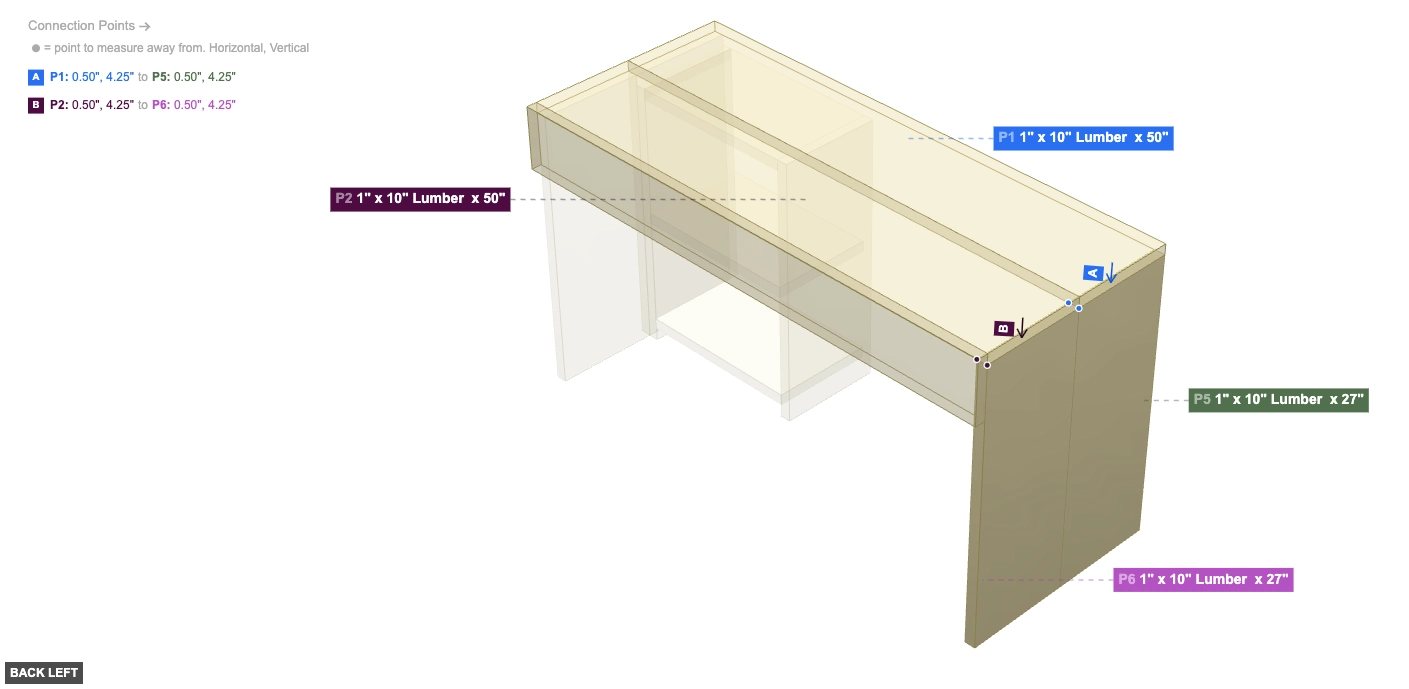

Angle: back left

Assembly of Left Leg Assembly - back_left

P5 (1" x 10" Lumber 27" length) - connect its 1" x 10" Wood Side #3 oriented back links with part 6's 1" x 10" Wood Side #1, and its 1" x 10" Wood End #2, which is top-facing, should connect to part 1's 1" x 10" Wood Side #4, also its 1" x 10" Wood End #1 must be oriented bottom. Next, ensure its 1" x 10" Wood Side #1 faces front. Additionally, ensure its 1" x 10" Wood Side #2 faces right. Additionally, its 1" x 10" Wood Side #4 should be directed left P6 (1" x 10" Lumber 27" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 5's 1" x 10" Wood Side #3. Next, attach its 1" x 10" Wood End #2 facing top to part 2's 1" x 10" Wood Side #4. Additionally, ensure its 1" x 10" Wood End #1 faces bottom, and its 1" x 10" Wood Side #2 should be directed right, and its 1" x 10" Wood Side #3 should be directed back. Additionally, its 1" x 10" Wood Side #4 should be directed left

1" x 10" Lumber x 27"x 2

Angle: back right

Assembly of Left Leg Assembly - back_right

1" x 10" Lumber x 27"x 2

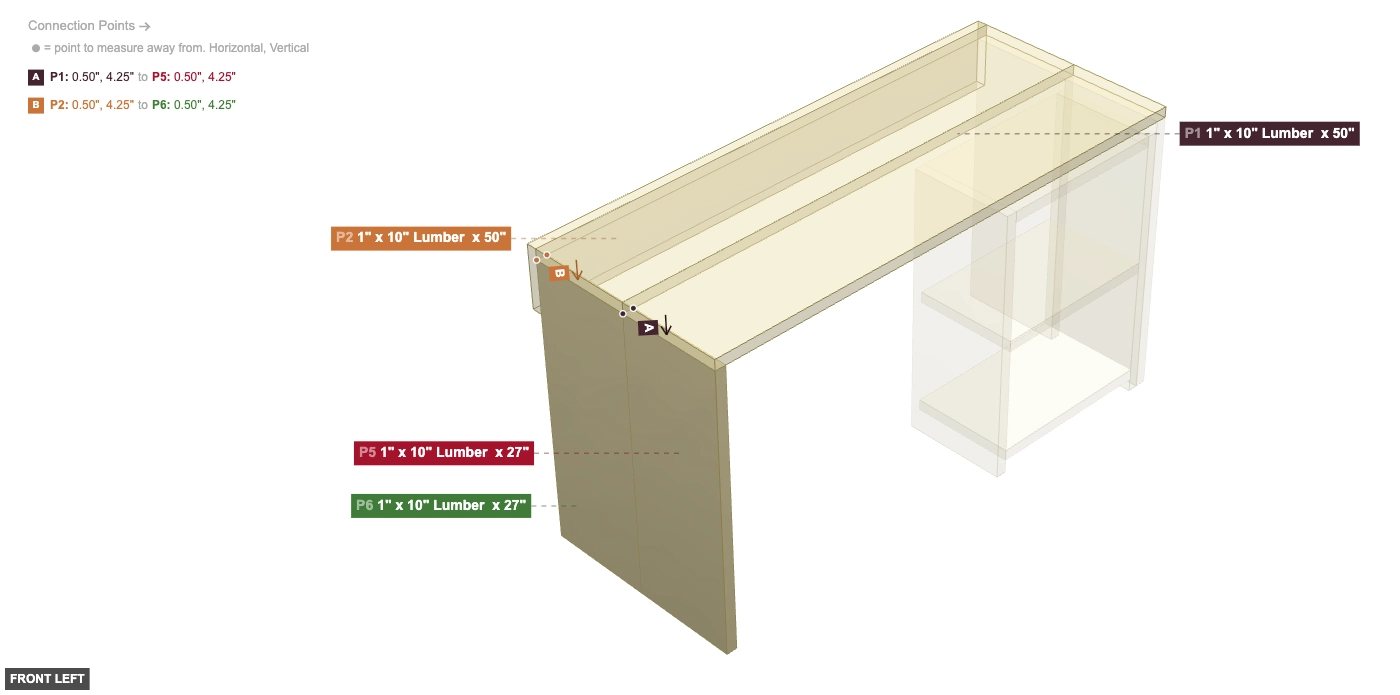

Angle: front left

Assembly of Left Leg Assembly - front_left

1" x 10" Lumber x 27"x 2

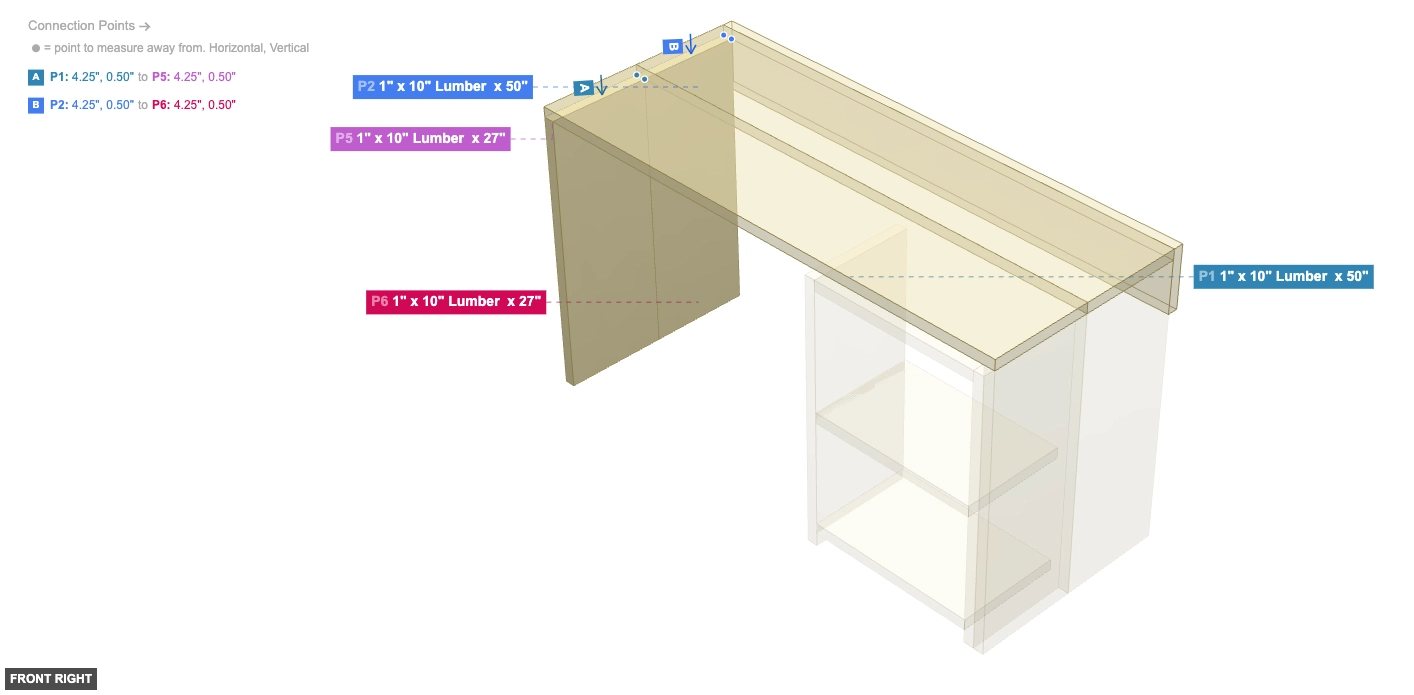

Angle: front right

Assembly of Left Leg Assembly - front_right

1" x 10" Lumber x 27"x 2

Angle: bottom left

Assembly of Left Leg Assembly - bottom_left

1" x 10" Lumber x 27"x 2

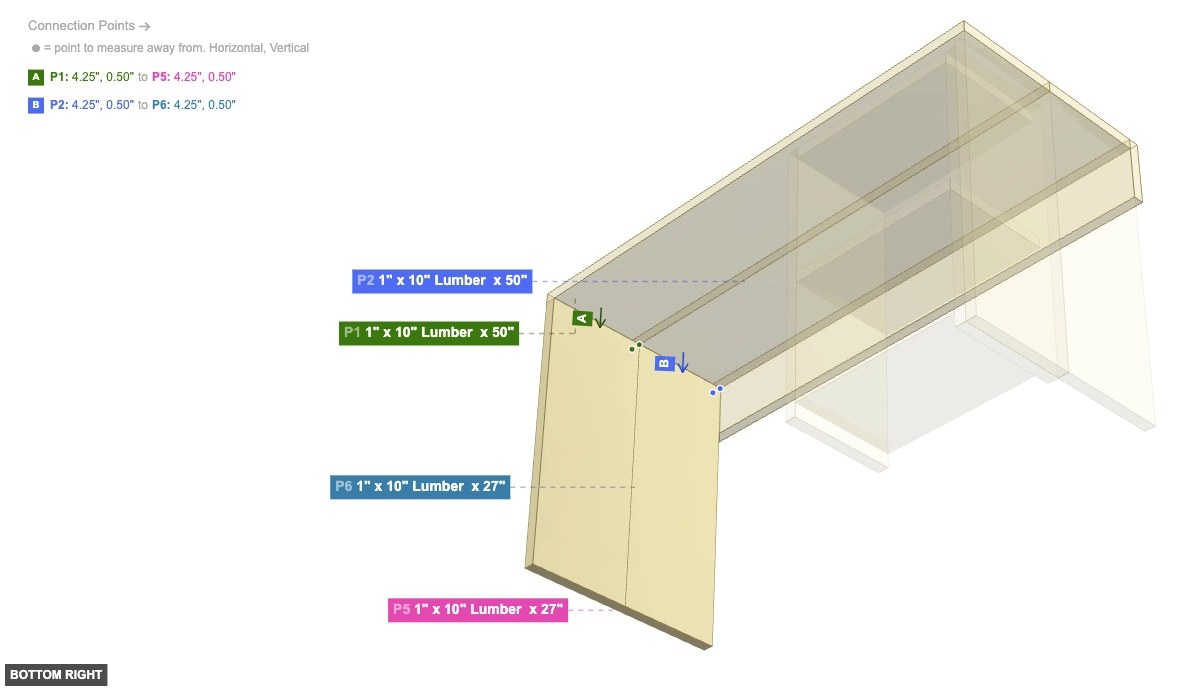

Angle: bottom right

Assembly of Left Leg Assembly - bottom_right

1" x 10" Lumber x 27"x 2

Attaching: Final Assembly

Attach the top panels (P1, P2) to connect the Right Cabinet and Left Leg assemblies. Attach the back brace (P12) to the rear.

Angle: back left

P1 (1" x 10" Lumber 50" length) - its 1" x 10" Wood Side #3, which is back-facing, should connect to part 2's 1" x 10" Wood Side #1, plus attach its 1" x 10" Wood Side #4 facing bottom to part 4's 1" x 10" Wood End #2. Additionally, its 1" x 10" Wood End #1 needs to point right, also its 1" x 10" Wood Side #1 must be oriented front, then its 1" x 10" Wood Side #2 should be directed top. After that, its 1" x 10" Wood End #2 must be oriented left P2 (1" x 10" Lumber 50" length) - connect its 1" x 10" Wood Side #1 oriented front links with part 1's 1" x 10" Wood Side #3, then connect its 1" x 10" Wood Side #4 oriented bottom links with part 3's 1" x 10" Wood End #2, then its 1" x 10" Wood End #1 needs to point right. Also, its 1" x 10" Wood Side #2 must be oriented top, plus its 1" x 10" Wood Side #3 must be oriented back. Also, its 1" x 10" Wood End #2 should be directed left P12 (1" x 6" Lumber 50" length) - its 1" x 6" Wood End #1 needs to point left, then its 1" x 6" Wood Side #1 must be oriented top. Also, its 1" x 6" Wood Side #2 should be directed front, then its 1" x 6" Wood Side #3 must be oriented bottom. Next, ensure its 1" x 6" Wood Side #4 faces back, and its 1" x 6" Wood End #2 should be directed right

1" x 10" Lumber x 50"x 2

1" x 6" Lumber x 50"x 1
