Small Cold Frame - Comprehensive Assembly Plan And Visual Guide

Small Cold Frame Free Plan And Visual Guide

A rectangular PVC pipe frame structure forming a base and main box, topped with a connected pair of arched PVC components that form a hinged lid. The hinges are constructed using metal elbow and nipple fittings connected to PVC bushings. - Small Cold Frame / Mini Greenhouse

Phase 1: Group Overview

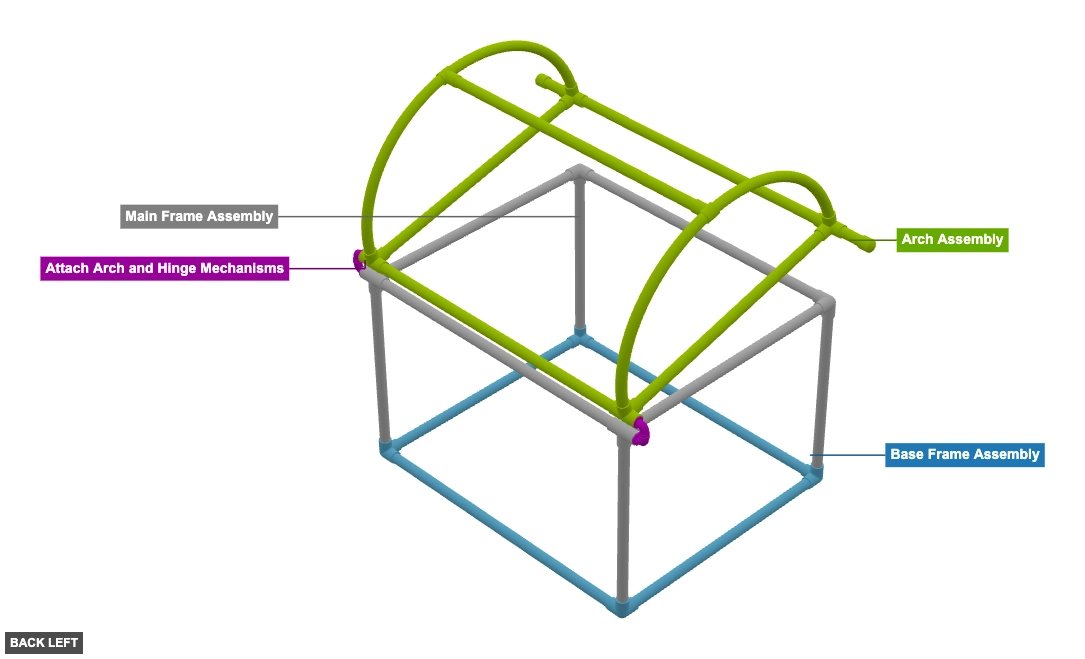

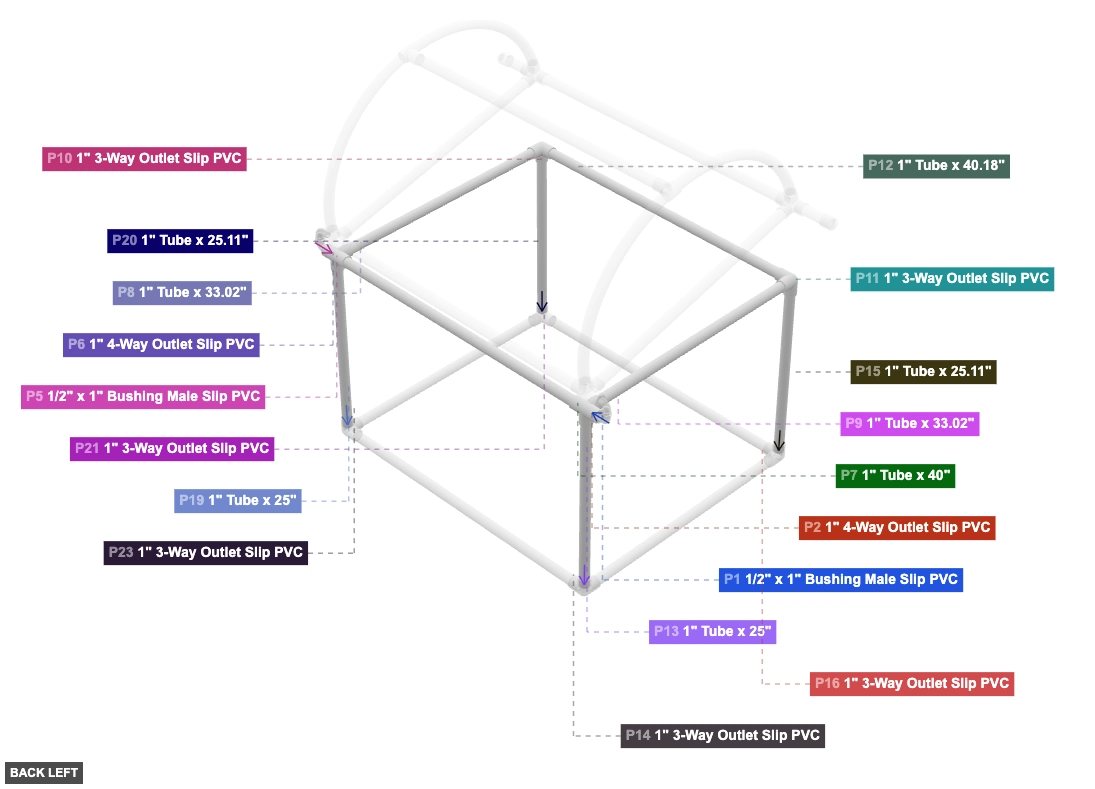

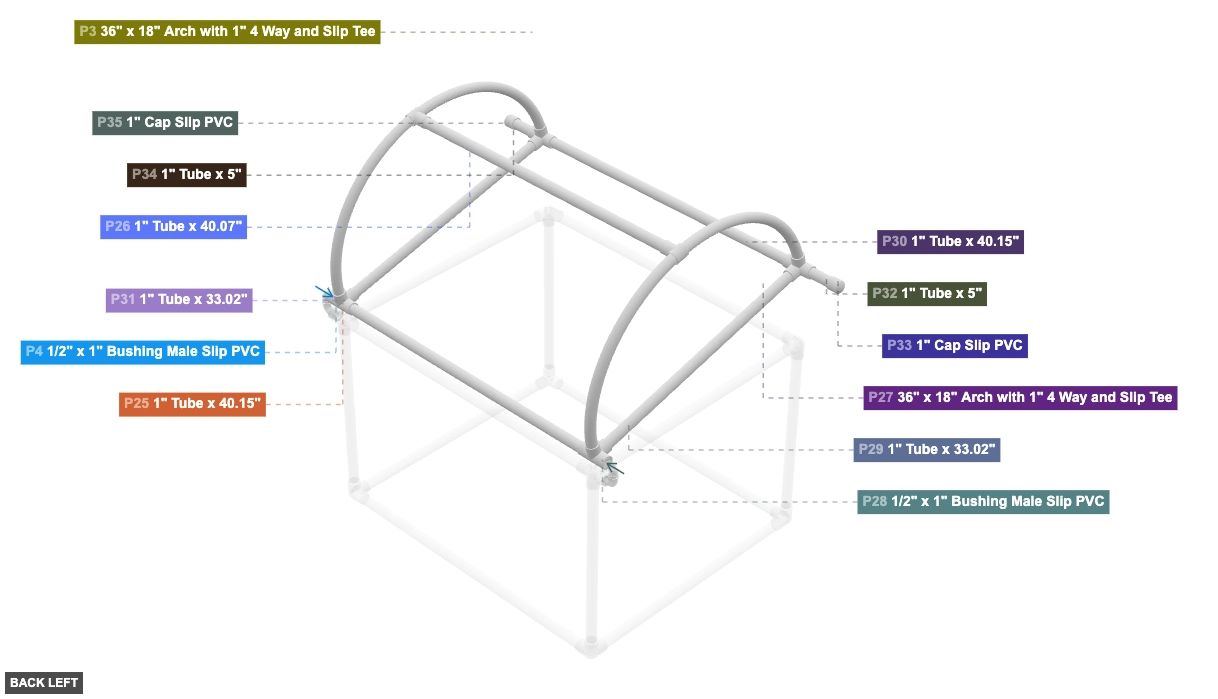

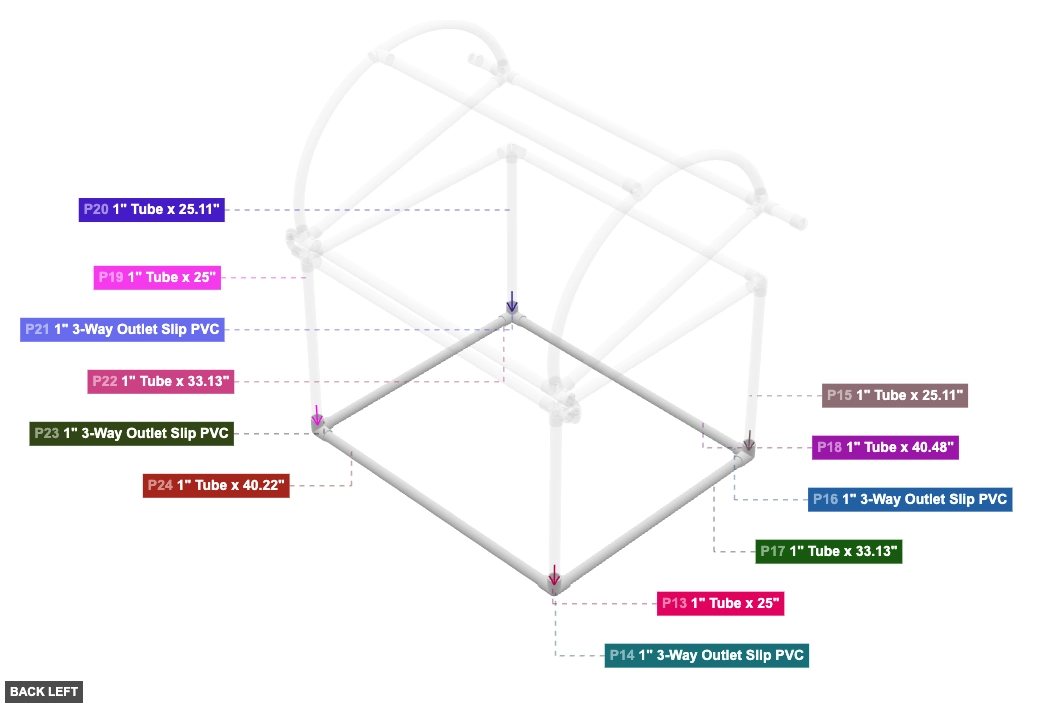

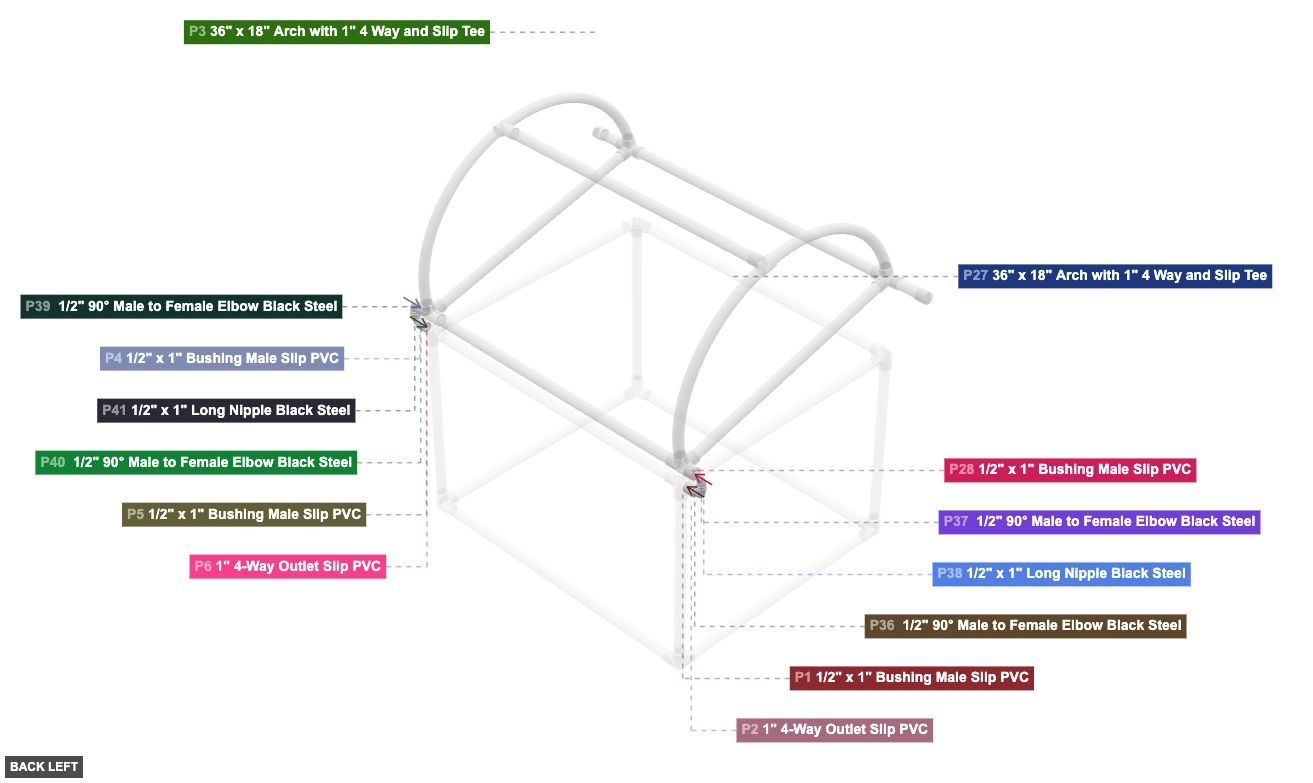

Angle: back left

Small Cold Frame - Overview back_left
Base Frame Assembly
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1
Main Frame Assembly
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

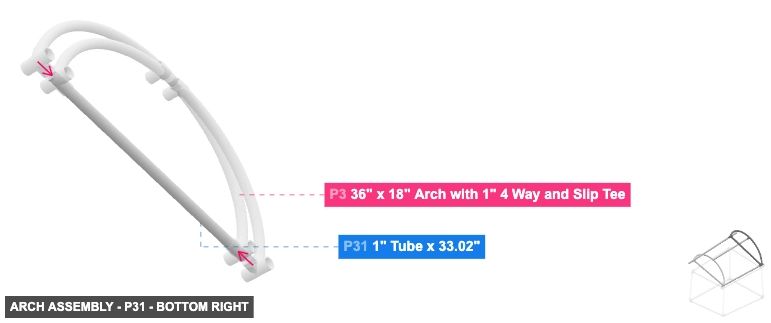

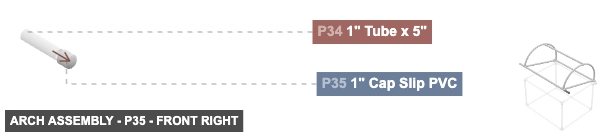

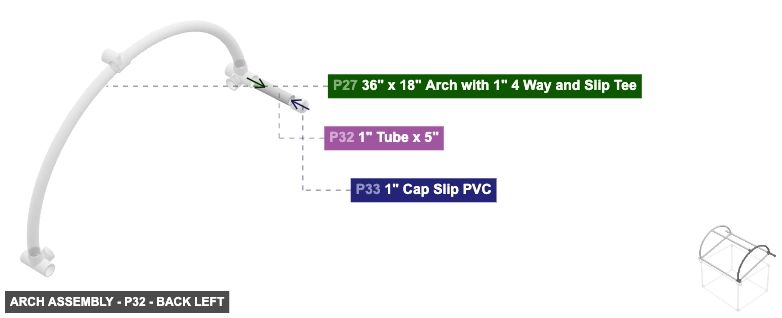

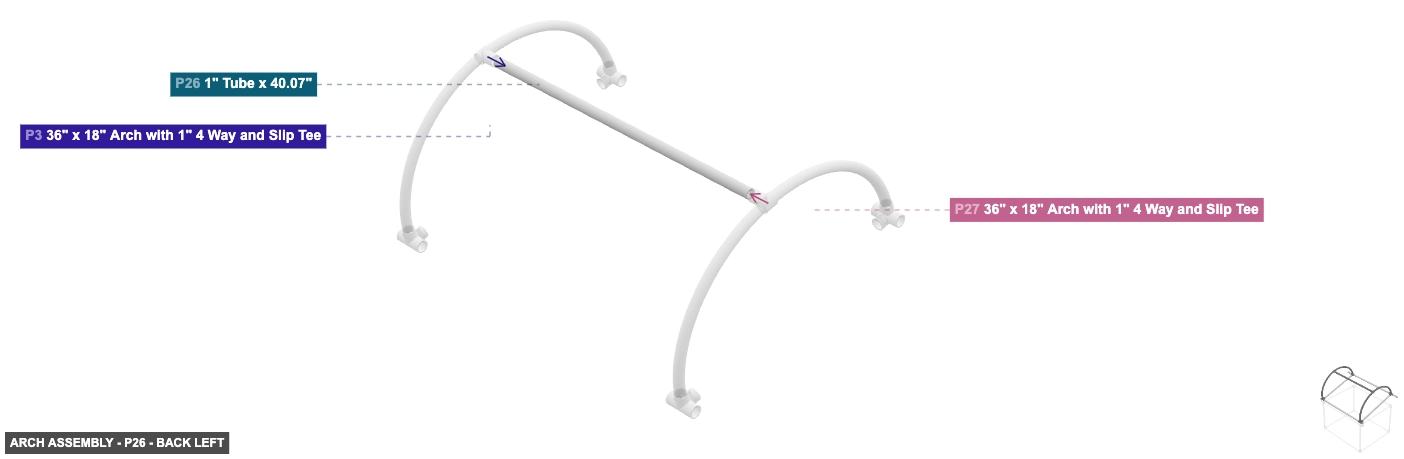

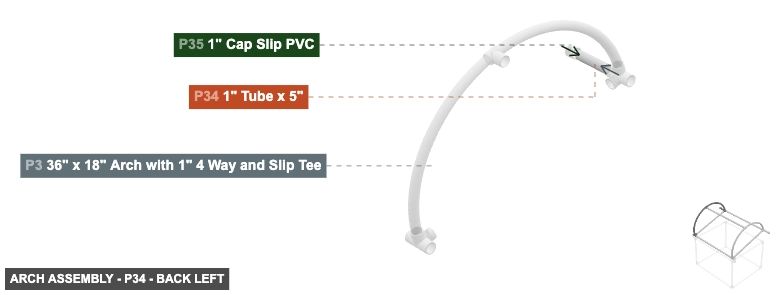

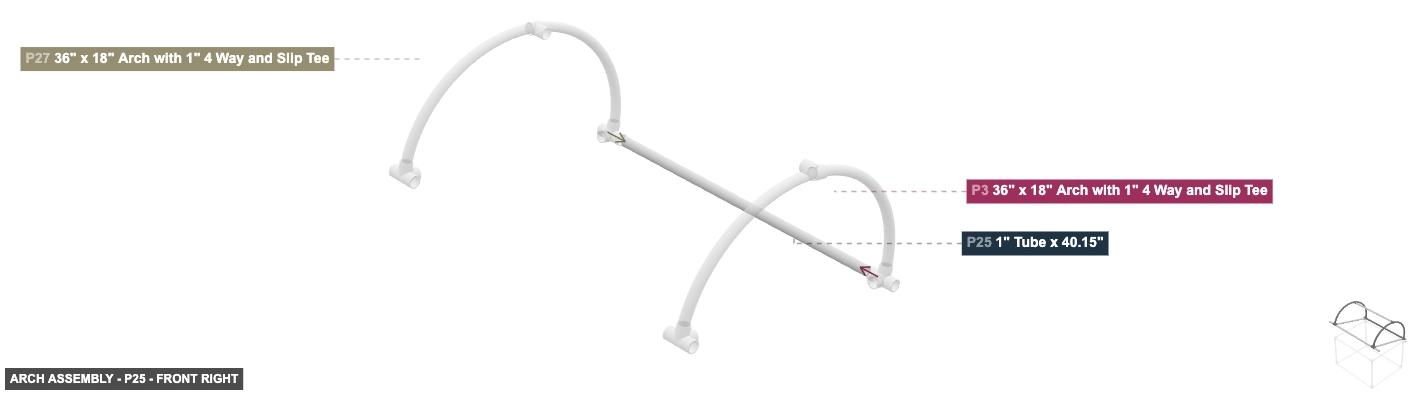

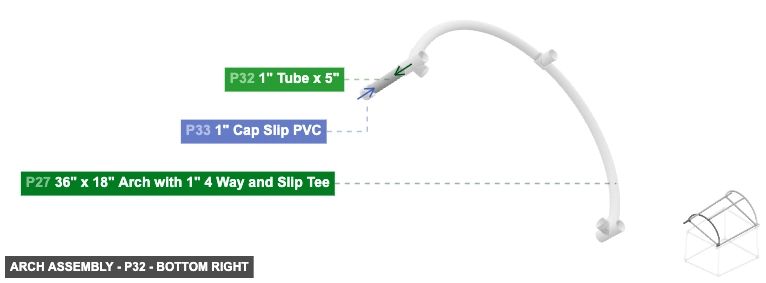

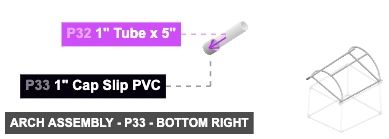

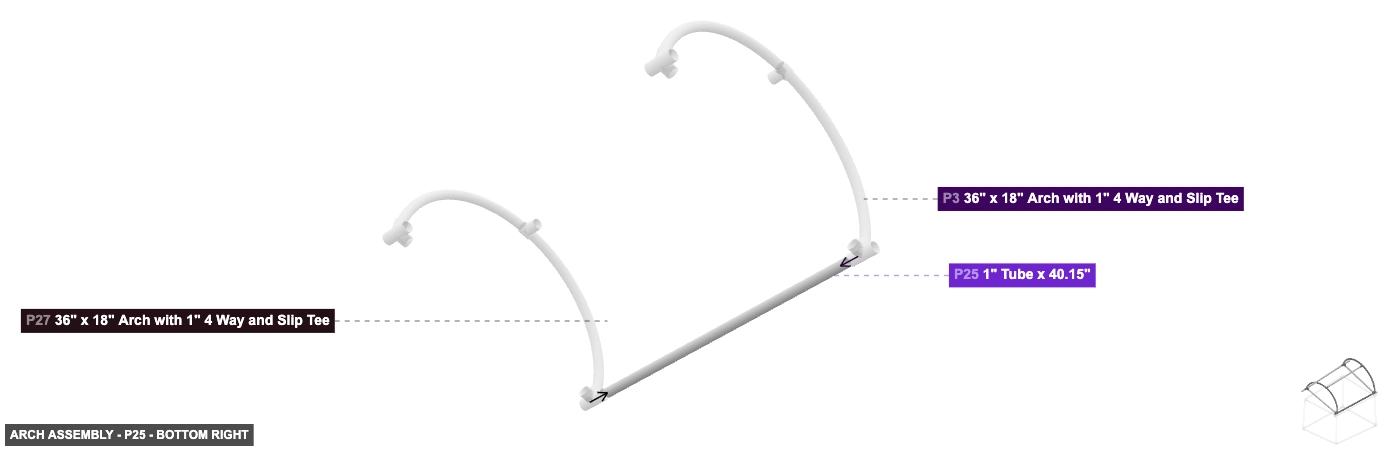

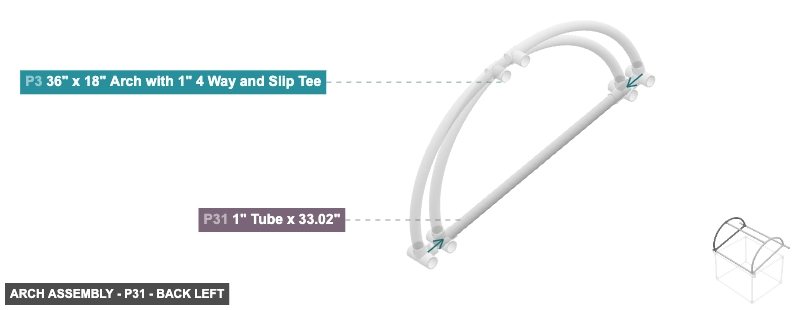

Arch Assembly
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

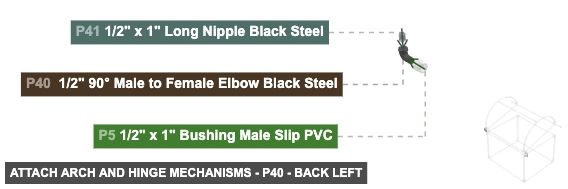

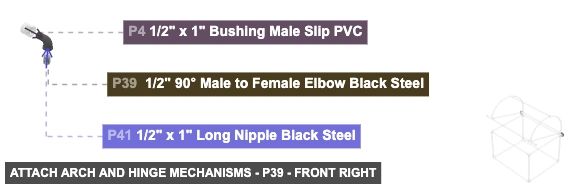

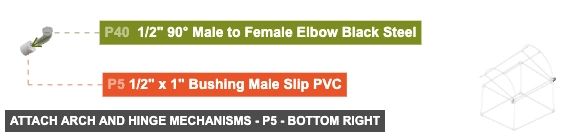

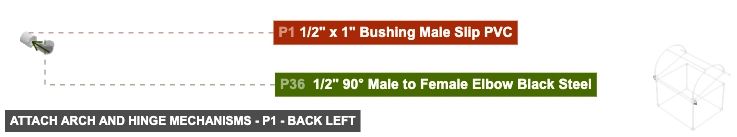

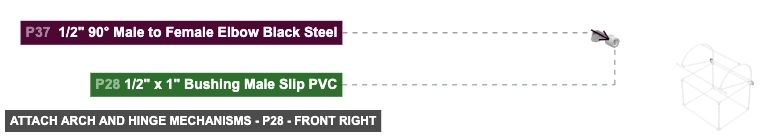

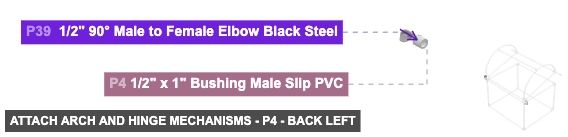

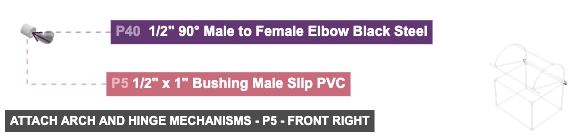

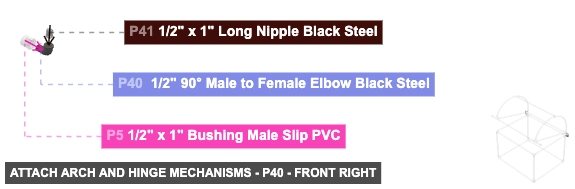

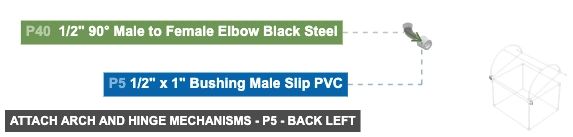

Attach Arch and Hinge Mechanisms
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

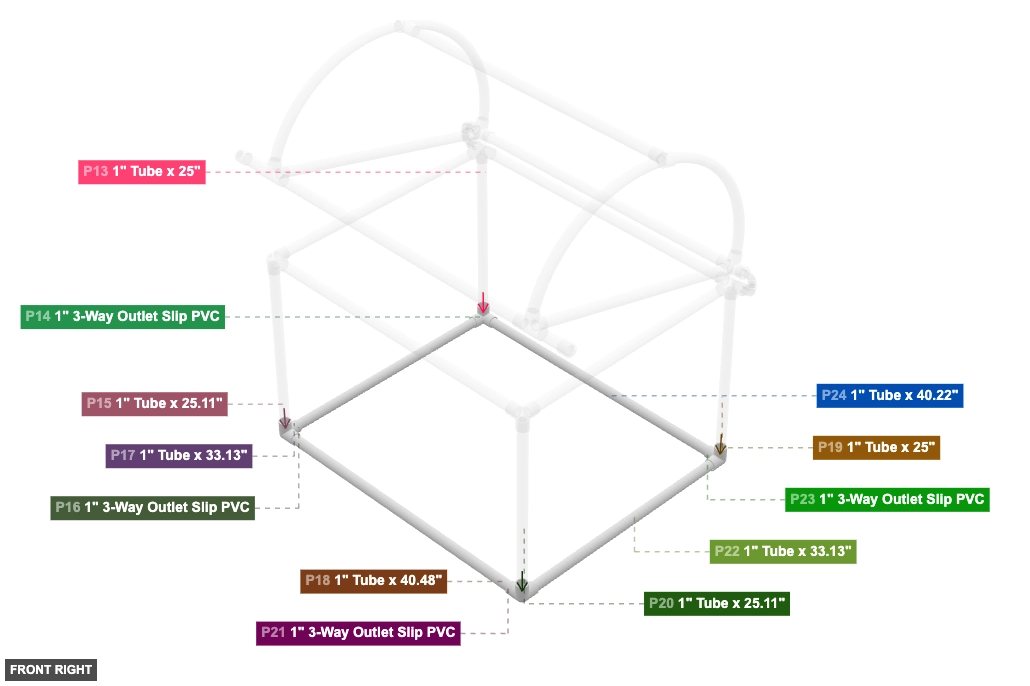

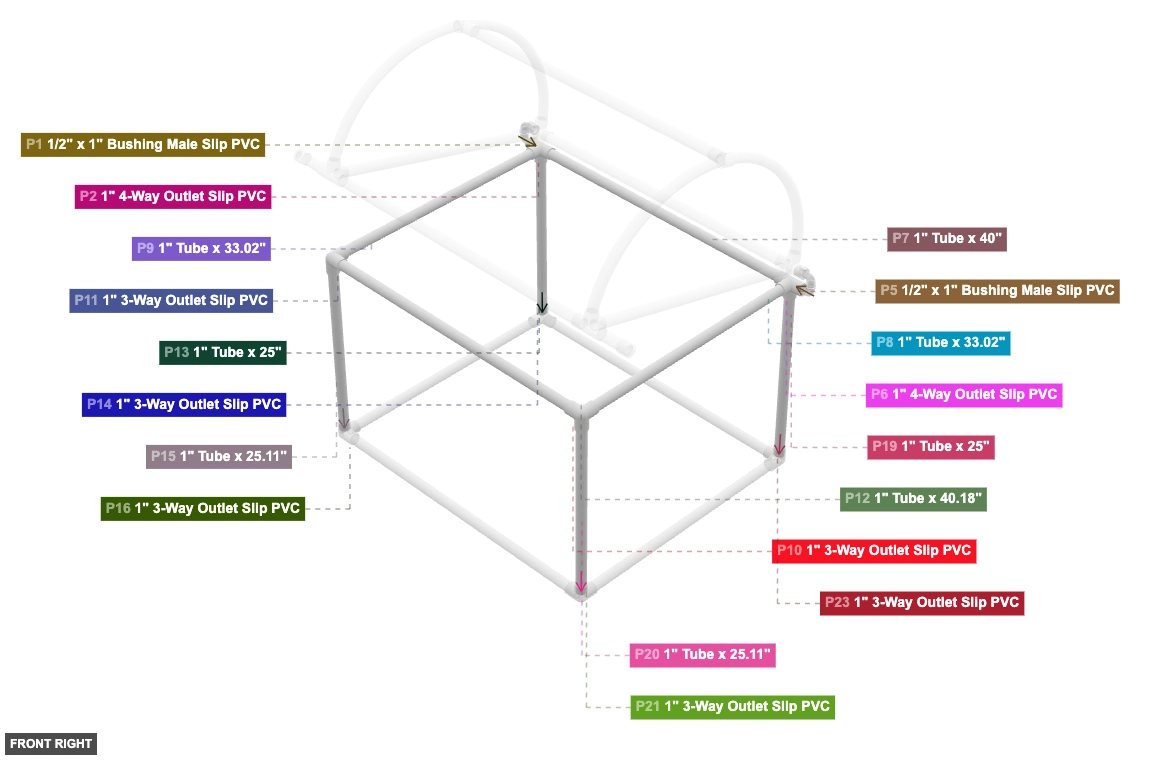

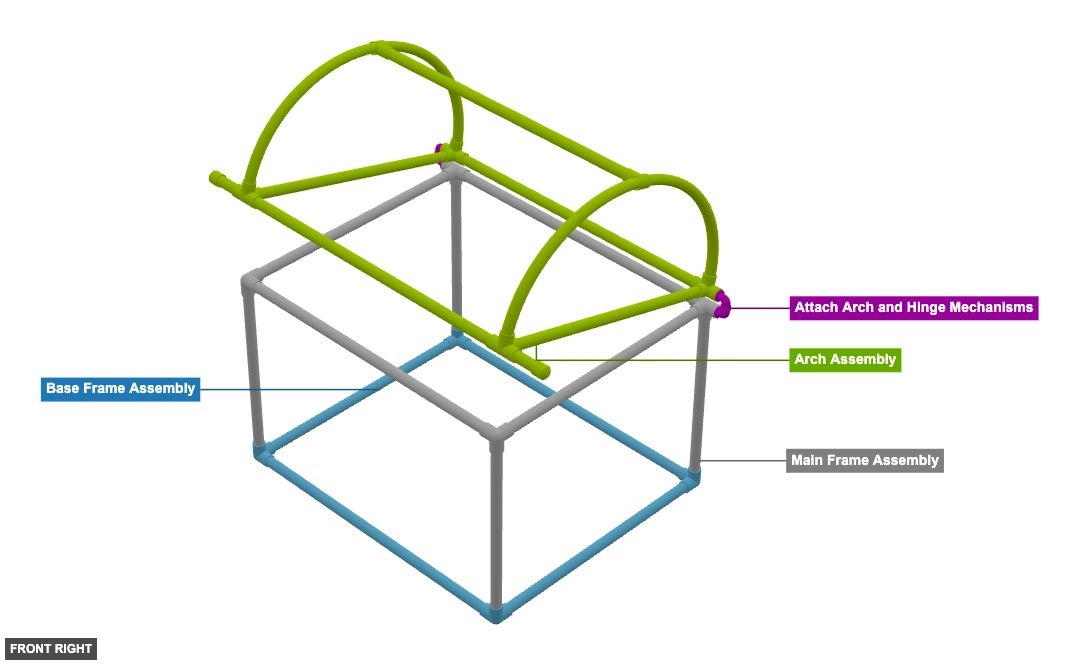

Angle: front right

Small Cold Frame - Overview front_right
Base Frame Assembly
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1
Main Frame Assembly
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

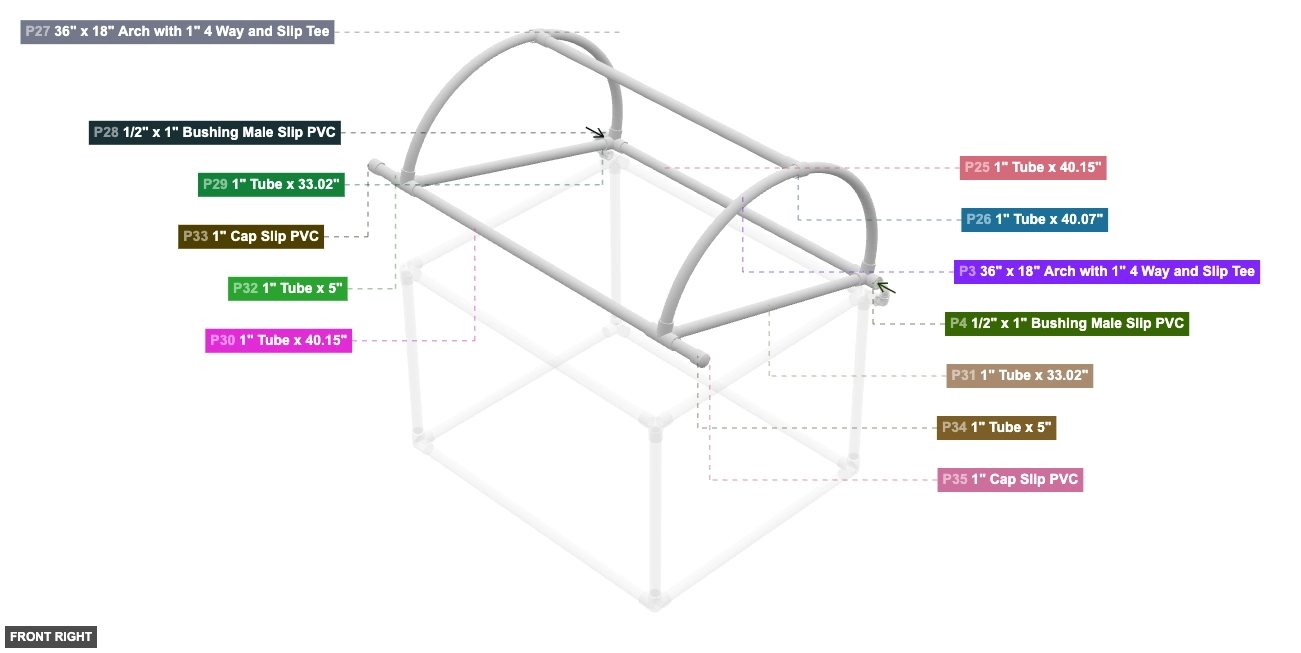

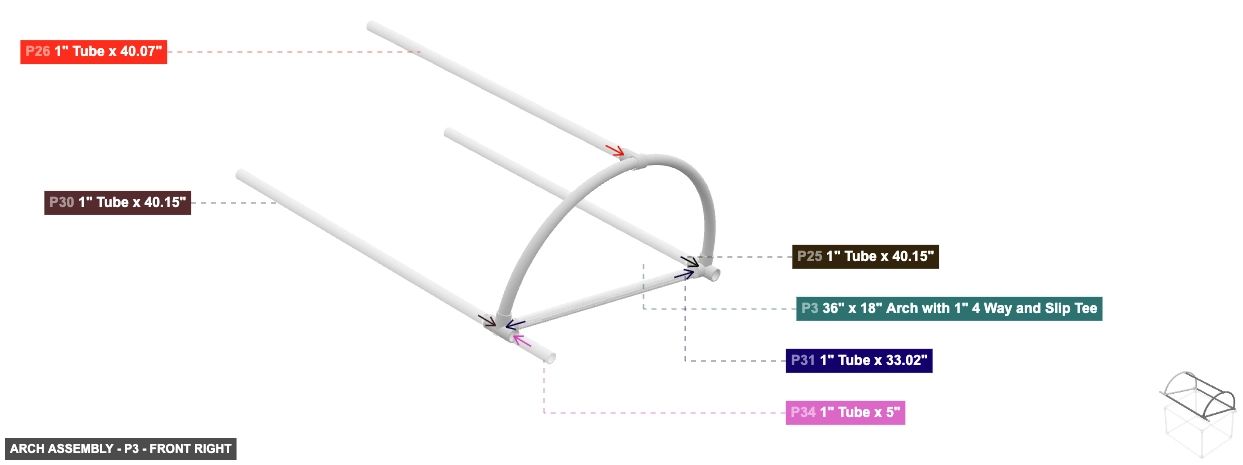

Arch Assembly
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

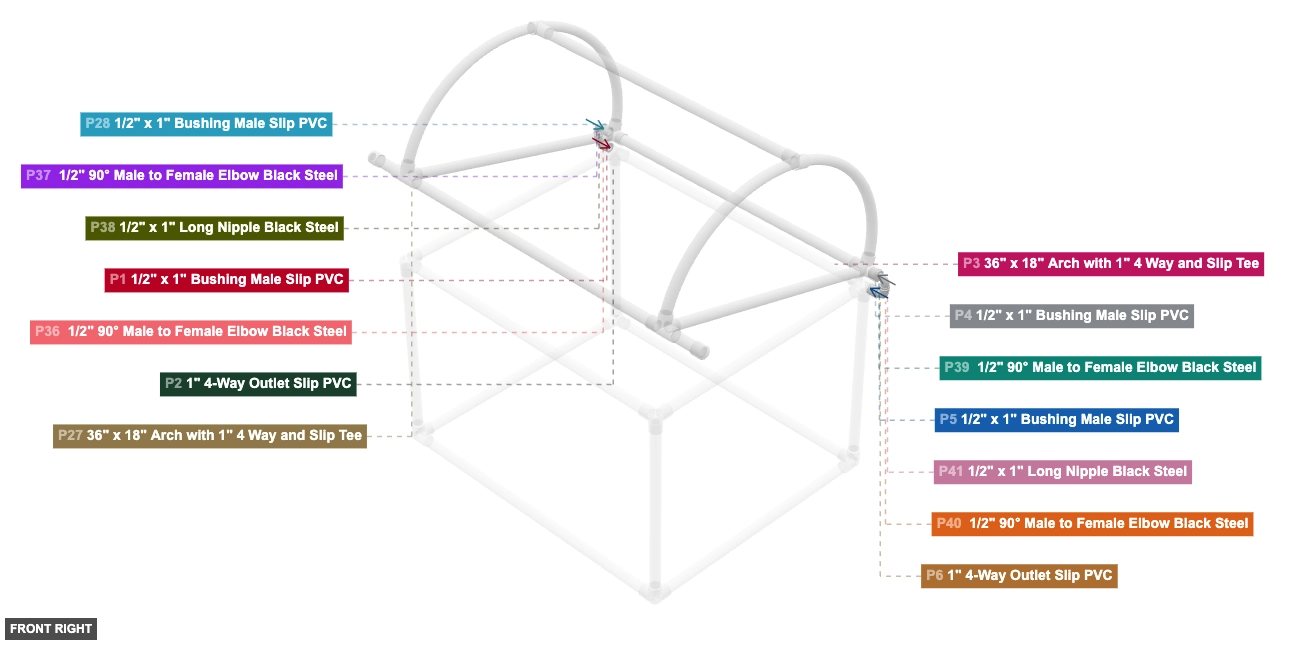

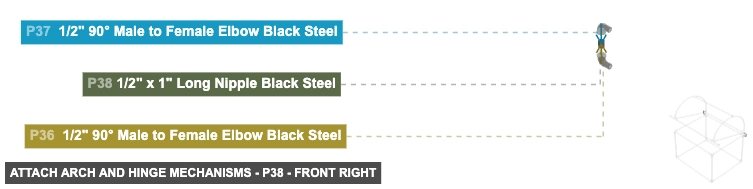

Attach Arch and Hinge Mechanisms
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

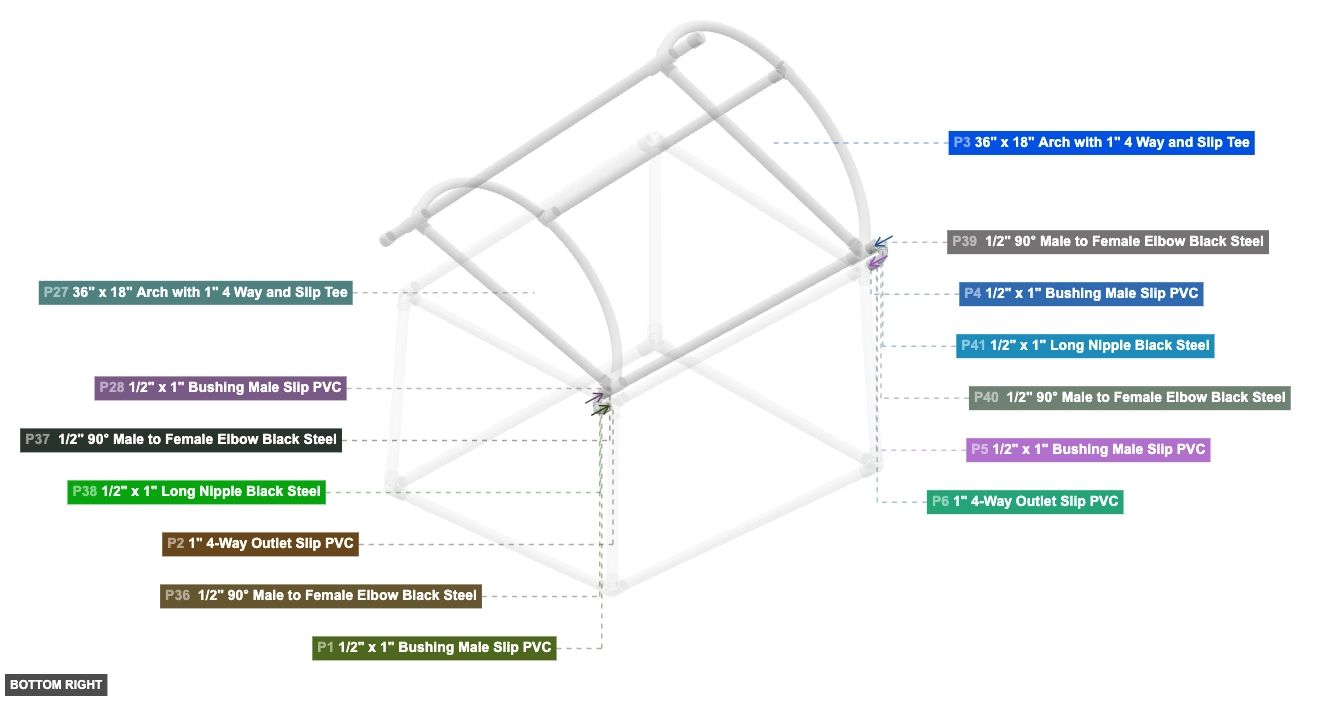

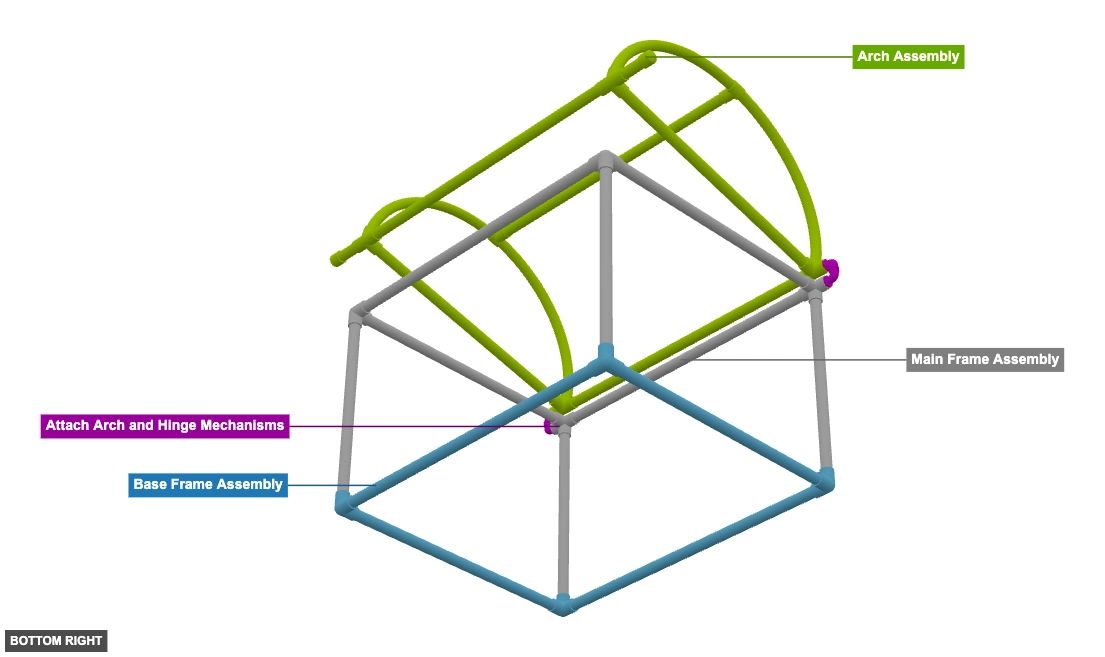

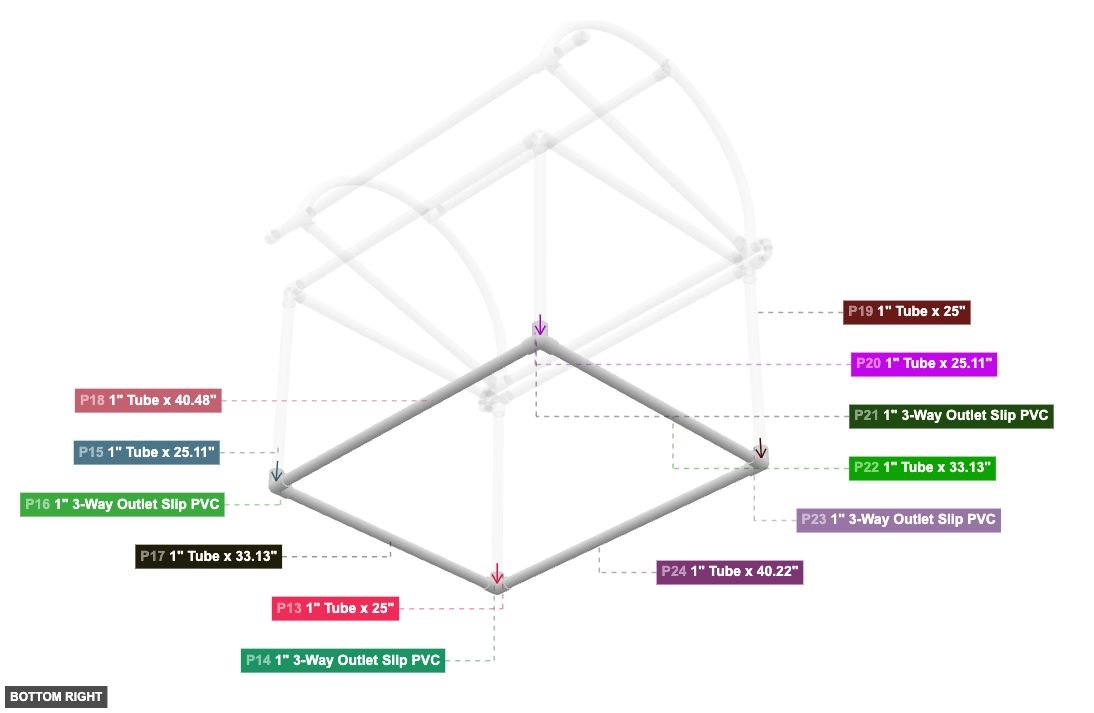

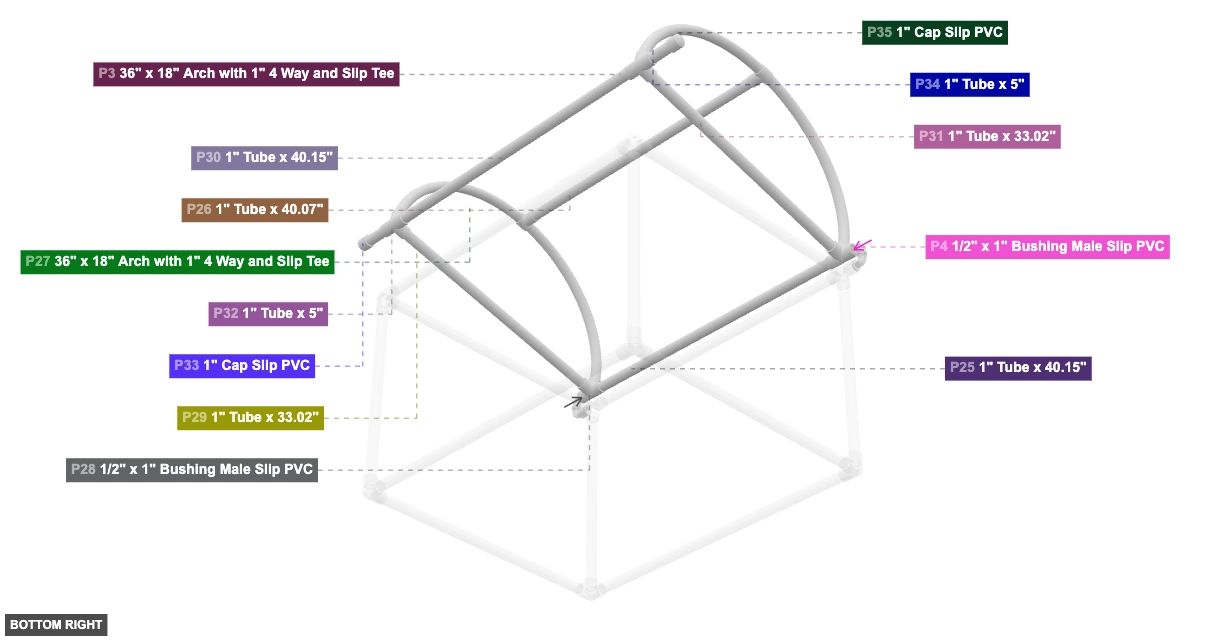

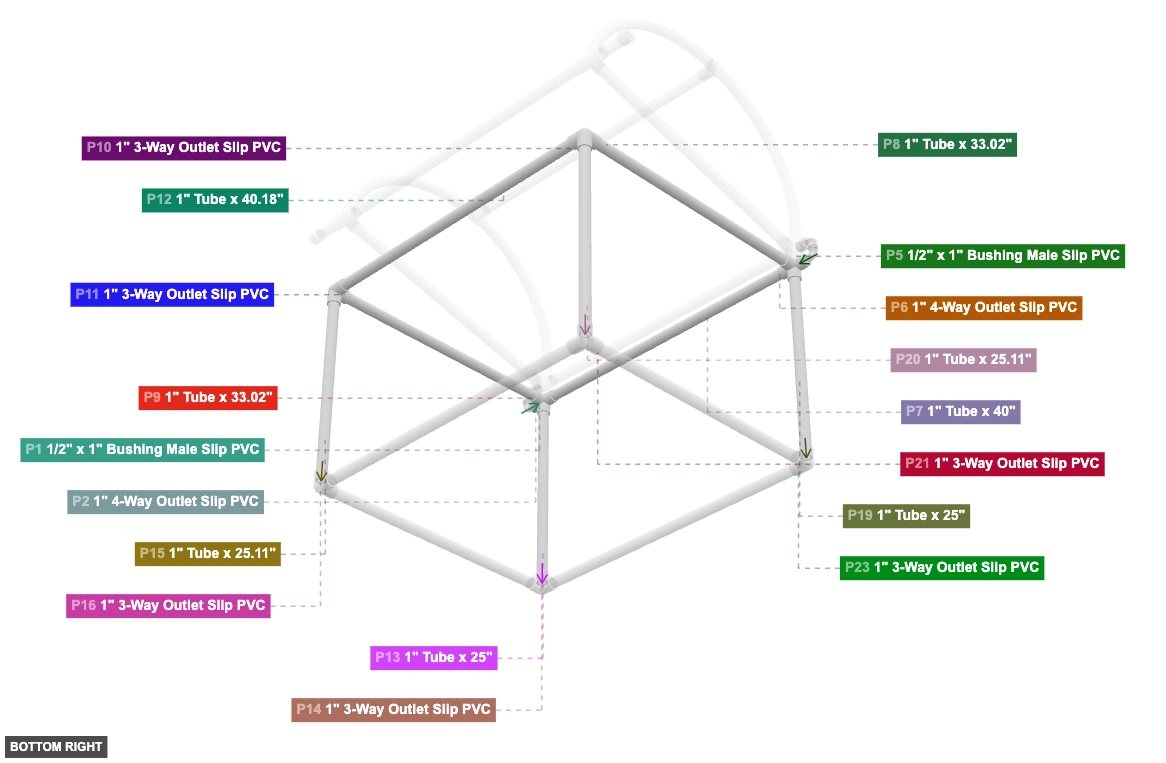

Angle: bottom right

Small Cold Frame - Overview bottom_right
Base Frame Assembly
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1
Main Frame Assembly
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

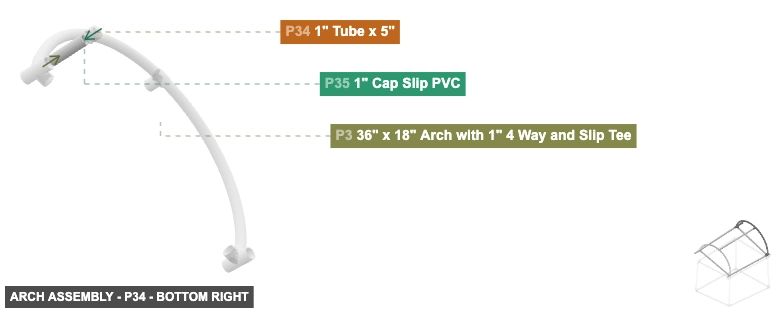

Arch Assembly
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

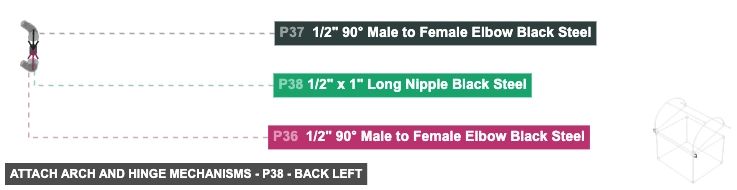

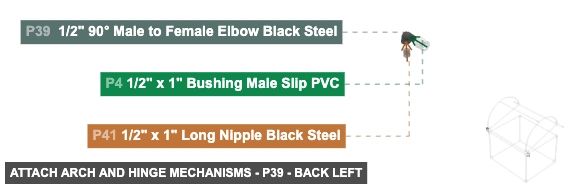

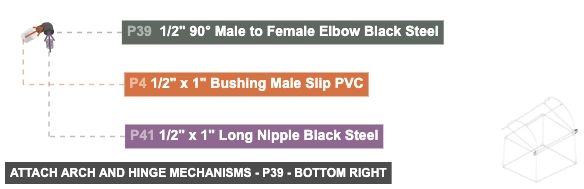

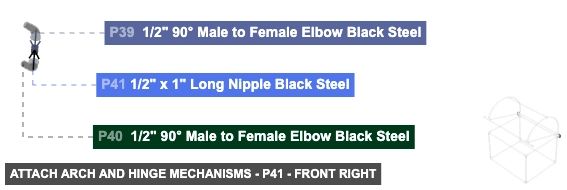

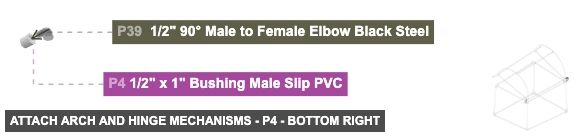

Attach Arch and Hinge Mechanisms
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Phase 2: Individual Group Assembly

Group: Base Frame Assembly

Forms the rectangular foundation of the cold frame that rests on the ground.

Create the rectangular base. Connect Tube P17 (1" x 33.13") between the side 1" Female SLIP outlets of P14 (1" 3-Way Connector) and P16 (1" 3-Way Connector). Connect Tube P22 (1" x 33.13") between the side 1" Female SLIP outlets of P23 (1" 3-Way Connector) and P21 (1" 3-Way Connector). Connect Tube P24 (1" x 40.22") between the front/back 1" Female SLIP outlets of P14 and P23. Connect Tube P18 (1" x 40.48") between the front/back 1" Female SLIP outlets of P16 and P21. Ensure the top 1" Female SLIP outlets of P14, P16, P21, P23 face upwards.

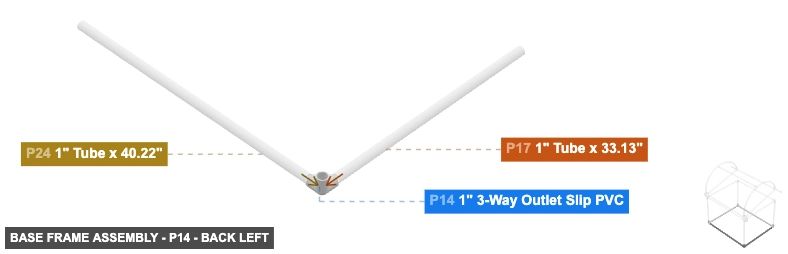

Part: 1" 3-Way Outlet Slip PVC - Angle: back left

Base Frame Assembly - Part 1
P14 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #2 oriented right links with part 24's 1" M SLIP #1, also attach its 1" F SLIP #3 facing front to part 17's 1" M SLIP #1
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

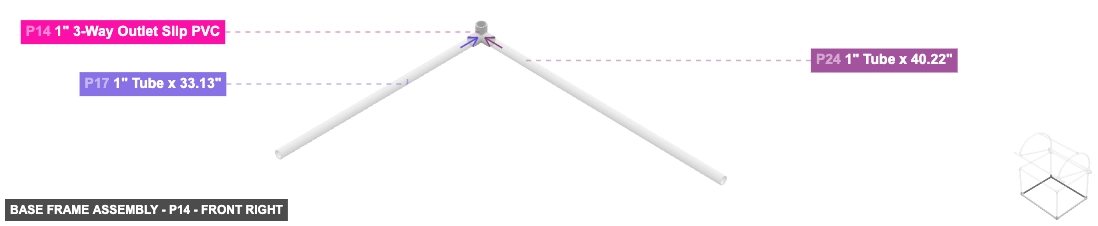

Part: 1" 3-Way Outlet Slip PVC - Angle: front right

Base Frame Assembly - Part 1
P14 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #2 oriented right links with part 24's 1" M SLIP #1, also attach its 1" F SLIP #3 facing front to part 17's 1" M SLIP #1
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

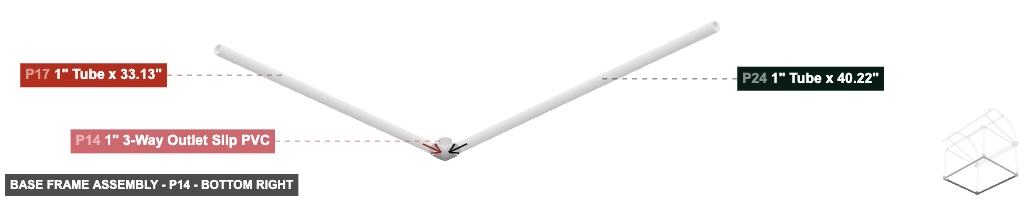

Part: 1" 3-Way Outlet Slip PVC - Angle: bottom right

Base Frame Assembly - Part 1
P14 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #2 oriented right links with part 24's 1" M SLIP #1, also attach its 1" F SLIP #3 facing front to part 17's 1" M SLIP #1
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

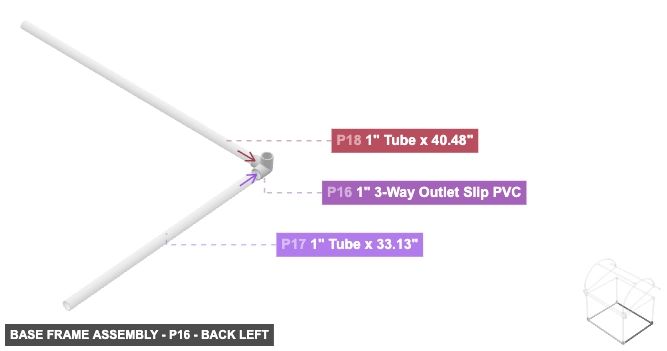

Part: 1" 3-Way Outlet Slip PVC - Angle: back left

Base Frame Assembly - Part 1
P16 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #2 facing back to part 17's 1" M SLIP #2. After that, its 1" F SLIP #3, which is right-facing, should connect to part 18's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

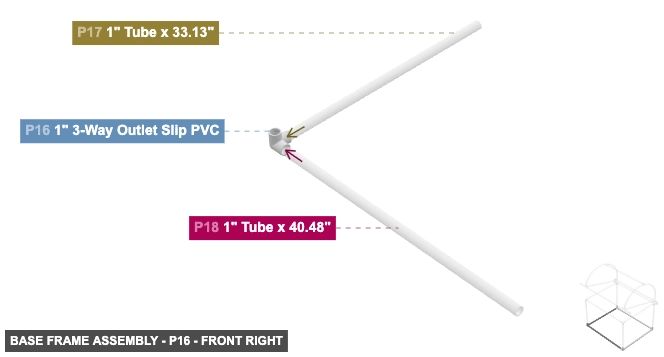

Part: 1" 3-Way Outlet Slip PVC - Angle: front right

Base Frame Assembly - Part 1
P16 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #2 facing back to part 17's 1" M SLIP #2. After that, its 1" F SLIP #3, which is right-facing, should connect to part 18's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

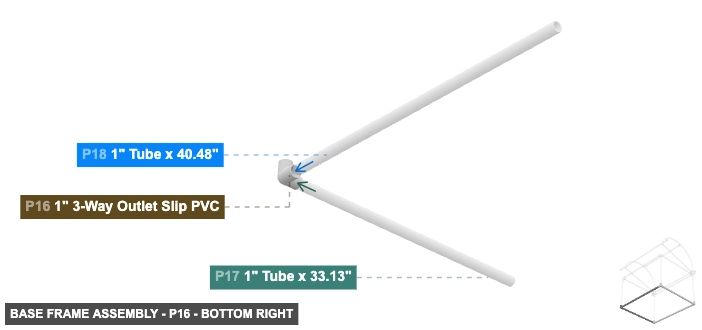

Part: 1" 3-Way Outlet Slip PVC - Angle: bottom right

Base Frame Assembly - Part 1
P16 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #2 facing back to part 17's 1" M SLIP #2. After that, its 1" F SLIP #3, which is right-facing, should connect to part 18's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

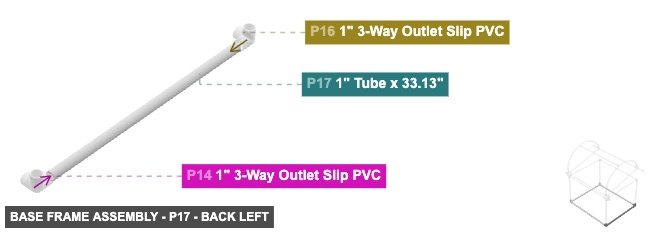

Part: 1" Tube x 33.13" - Angle: back left

Base Frame Assembly - Part 1
P17 (1" Tube 33.13" length) - connect its 1" M SLIP #1 oriented back links with part 14's 1" F SLIP #3. After that, attach its 1" M SLIP #2 facing front to part 16's 1" F SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

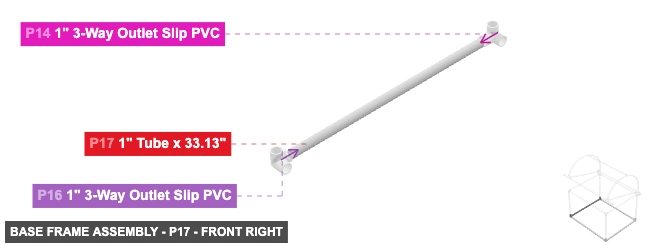

Part: 1" Tube x 33.13" - Angle: front right

Base Frame Assembly - Part 1
P17 (1" Tube 33.13" length) - connect its 1" M SLIP #1 oriented back links with part 14's 1" F SLIP #3. After that, attach its 1" M SLIP #2 facing front to part 16's 1" F SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

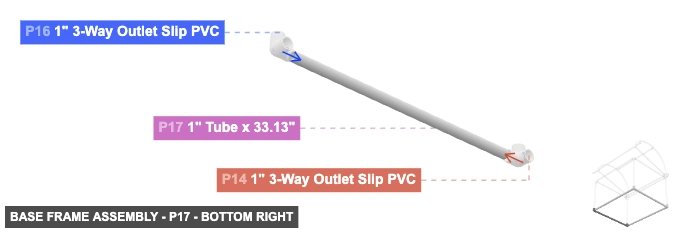

Part: 1" Tube x 33.13" - Angle: bottom right

Base Frame Assembly - Part 1
P17 (1" Tube 33.13" length) - connect its 1" M SLIP #1 oriented back links with part 14's 1" F SLIP #3. After that, attach its 1" M SLIP #2 facing front to part 16's 1" F SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

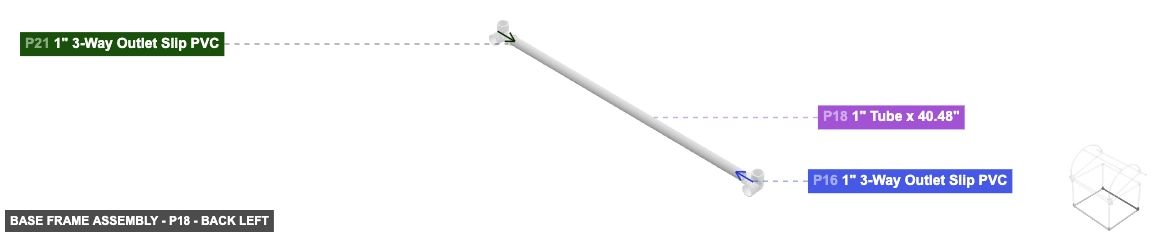

Part: 1" Tube x 40.48" - Angle: back left

Base Frame Assembly - Part 1
P18 (1" Tube 40.48" length) - connect its 1" M SLIP #1 oriented right links with part 21's 1" F SLIP #1, and connect its 1" M SLIP #2 oriented left links with part 16's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

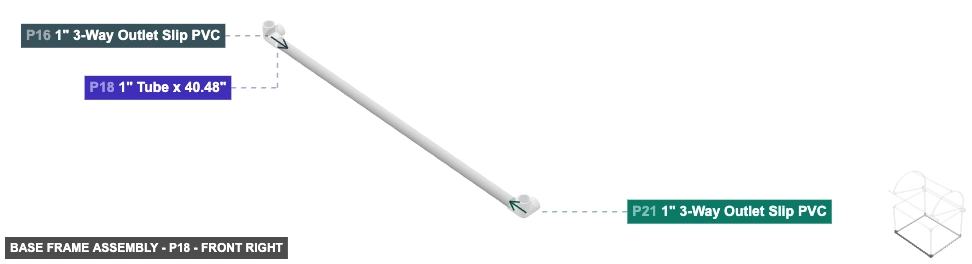

Part: 1" Tube x 40.48" - Angle: front right

Base Frame Assembly - Part 1
P18 (1" Tube 40.48" length) - connect its 1" M SLIP #1 oriented right links with part 21's 1" F SLIP #1, and connect its 1" M SLIP #2 oriented left links with part 16's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

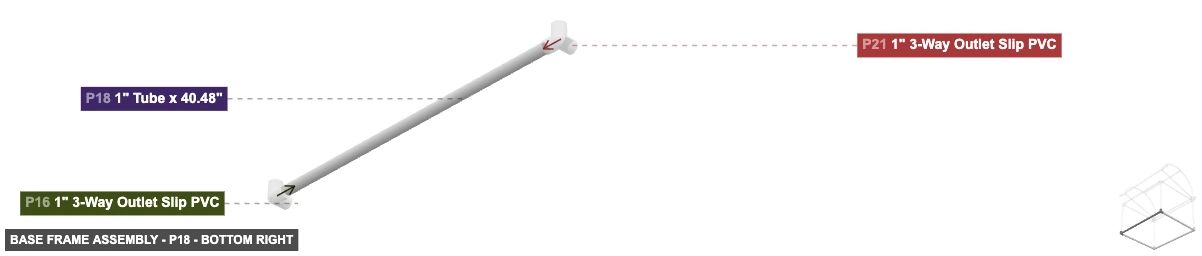

Part: 1" Tube x 40.48" - Angle: bottom right

Base Frame Assembly - Part 1
P18 (1" Tube 40.48" length) - connect its 1" M SLIP #1 oriented right links with part 21's 1" F SLIP #1, and connect its 1" M SLIP #2 oriented left links with part 16's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

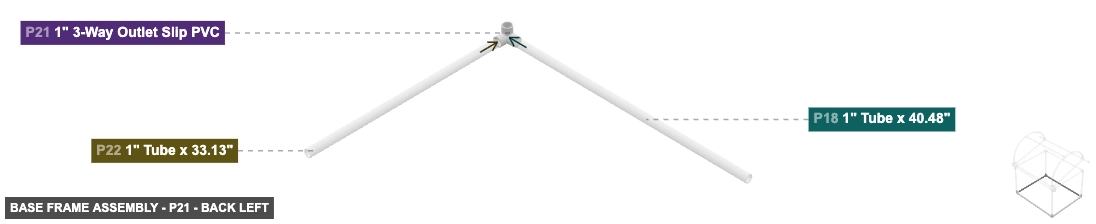

Part: 1" 3-Way Outlet Slip PVC - Angle: back left

Base Frame Assembly - Part 1
P21 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing left to part 18's 1" M SLIP #1, then attach its 1" F SLIP #2 facing back to part 22's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

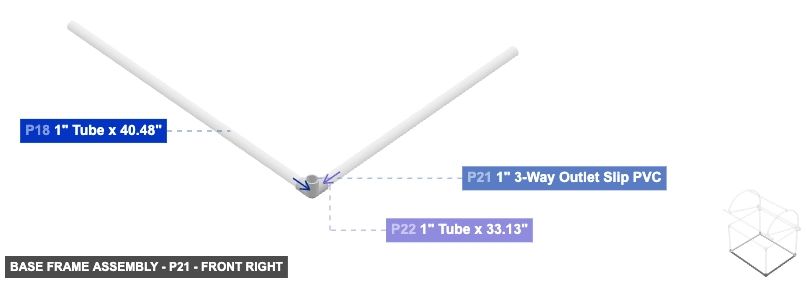

Part: 1" 3-Way Outlet Slip PVC - Angle: front right

Base Frame Assembly - Part 1
P21 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing left to part 18's 1" M SLIP #1, then attach its 1" F SLIP #2 facing back to part 22's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

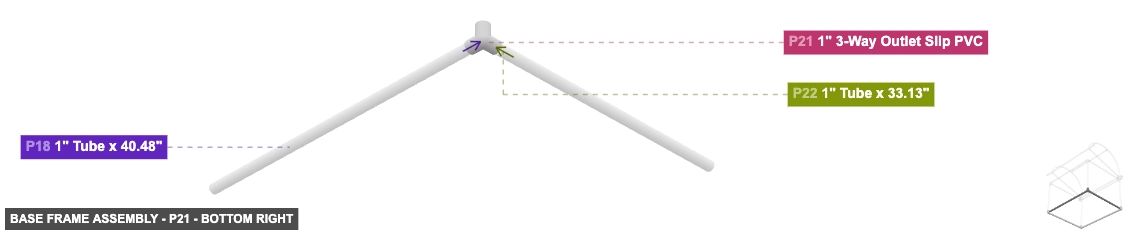

Part: 1" 3-Way Outlet Slip PVC - Angle: bottom right

Base Frame Assembly - Part 1
P21 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing left to part 18's 1" M SLIP #1, then attach its 1" F SLIP #2 facing back to part 22's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

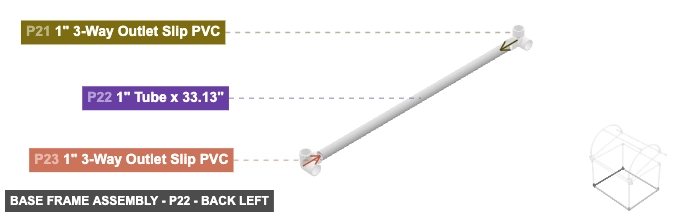

Part: 1" Tube x 33.13" - Angle: back left

Base Frame Assembly - Part 1
P22 (1" Tube 33.13" length) - its 1" M SLIP #1, which is back-facing, should connect to part 23's 1" F SLIP #2. Also, connect its 1" M SLIP #2 oriented front links with part 21's 1" F SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

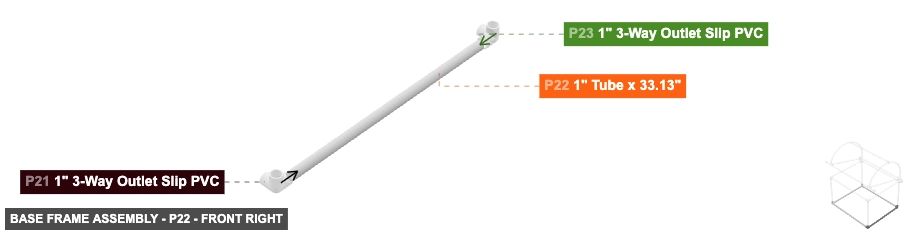

Part: 1" Tube x 33.13" - Angle: front right

Base Frame Assembly - Part 1
P22 (1" Tube 33.13" length) - its 1" M SLIP #1, which is back-facing, should connect to part 23's 1" F SLIP #2. Also, connect its 1" M SLIP #2 oriented front links with part 21's 1" F SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

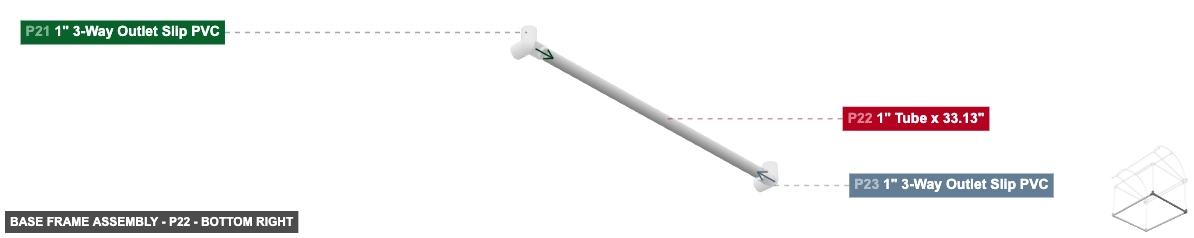

Part: 1" Tube x 33.13" - Angle: bottom right

Base Frame Assembly - Part 1
P22 (1" Tube 33.13" length) - its 1" M SLIP #1, which is back-facing, should connect to part 23's 1" F SLIP #2. Also, connect its 1" M SLIP #2 oriented front links with part 21's 1" F SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

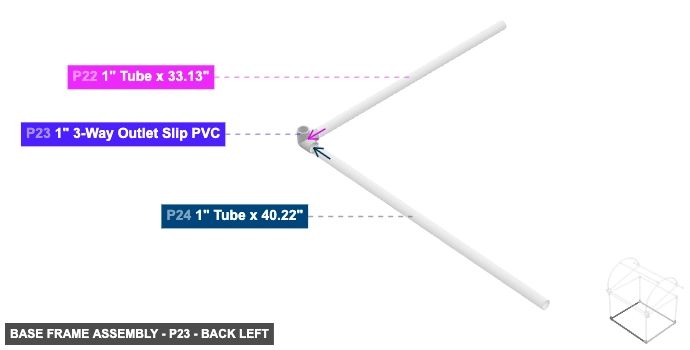

Part: 1" 3-Way Outlet Slip PVC - Angle: back left

Base Frame Assembly - Part 1
P23 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #2, which is front-facing, should connect to part 22's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented left links with part 24's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

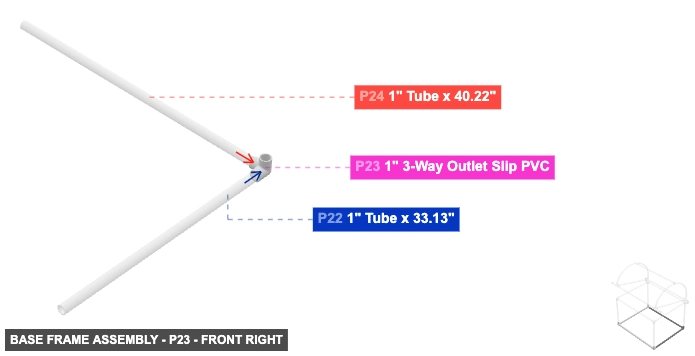

Part: 1" 3-Way Outlet Slip PVC - Angle: front right

Base Frame Assembly - Part 1
P23 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #2, which is front-facing, should connect to part 22's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented left links with part 24's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

Part: 1" 3-Way Outlet Slip PVC - Angle: bottom right

Base Frame Assembly - Part 1
P23 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #2, which is front-facing, should connect to part 22's 1" M SLIP #1, then connect its 1" F SLIP #3 oriented left links with part 24's 1" M SLIP #2
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

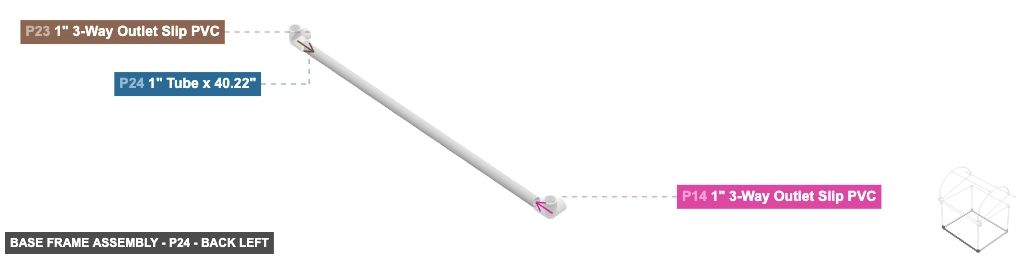

Part: 1" Tube x 40.22" - Angle: back left

Base Frame Assembly - Part 1
P24 (1" Tube 40.22" length) - its 1" M SLIP #1, which is left-facing, should connect to part 14's 1" F SLIP #2, then connect its 1" M SLIP #2 oriented right links with part 23's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

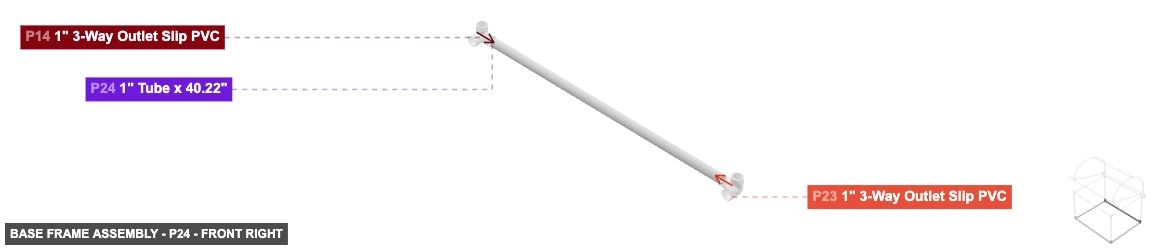

Part: 1" Tube x 40.22" - Angle: front right

Base Frame Assembly - Part 1
P24 (1" Tube 40.22" length) - its 1" M SLIP #1, which is left-facing, should connect to part 14's 1" F SLIP #2, then connect its 1" M SLIP #2 oriented right links with part 23's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

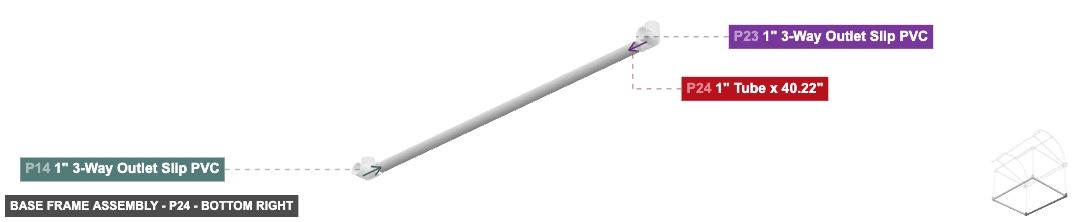

Part: 1" Tube x 40.22" - Angle: bottom right

Base Frame Assembly - Part 1
P24 (1" Tube 40.22" length) - its 1" M SLIP #1, which is left-facing, should connect to part 14's 1" F SLIP #2, then connect its 1" M SLIP #2 oriented right links with part 23's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

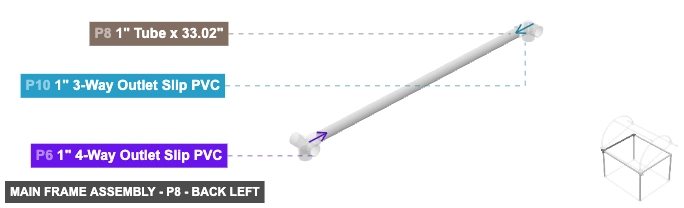

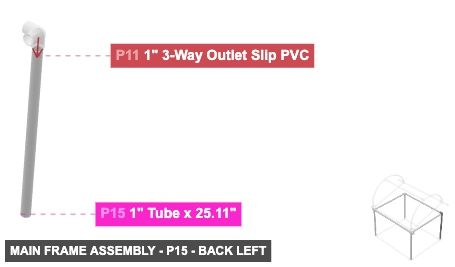

Group: Main Frame Assembly

Builds the main vertical and top structure (box) of the cold frame.

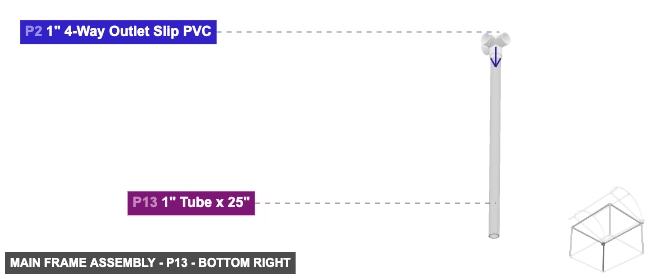

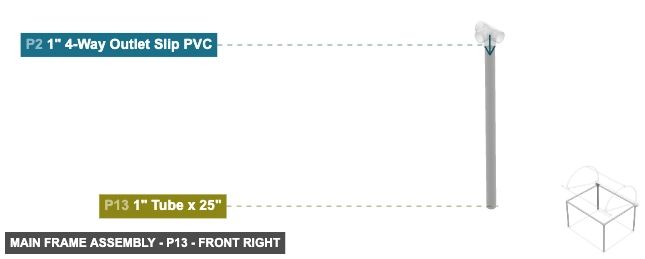

Build the main box structure. Insert Tube P13 (1" x 25") into the top 1" Female SLIP outlet of P14 (from Base Frame). Insert Tube P19 (1" x 25") into the top 1" Female SLIP outlet of P23 (from Base Frame). Insert Tube P15 (1" x 25.11") into the top 1" Female SLIP outlet of P16 (from Base Frame). Insert Tube P20 (1" x 25.11") into the top 1" Female SLIP outlet of P21 (from Base Frame). Attach P2 (1" 4-Way Connector) to the top of P13. Attach P6 (1" 4-Way Connector) to the top of P19. Connect Tube P7 (1" x 40") between the side 1" Female SLIP outlets of P2 and P6. Attach P11 (1" 3-Way Connector) to the top of P15. Attach P10 (1" 3-Way Connector) to the top of P20. Connect Tube P12 (1" x 40.18") between the side 1" Female SLIP outlets of P11 and P10. Connect Tube P9 (1" x 33.02") between the front/back 1" Female SLIP outlet of P2 and the front/back 1" Female SLIP outlet of P11. Connect Tube P8 (1" x 33.02") between the front/back 1" Female SLIP outlet of P6 and the front/back 1" Female SLIP outlet of P10.

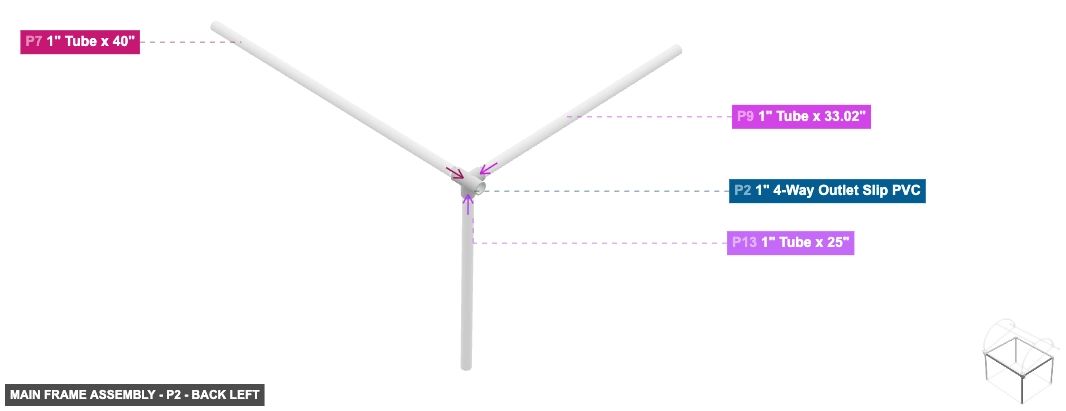

Part: 1" 4-Way Outlet Slip PVC - Angle: back left

Main Frame Assembly - Part 1
P2 (1" 4-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 13's 1" M SLIP #2. Also, connect its 1" F SLIP #2 oriented front links with part 9's 1" M SLIP #2, and its 1" F SLIP #4, which is right-facing, should connect to part 7's 1" M SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

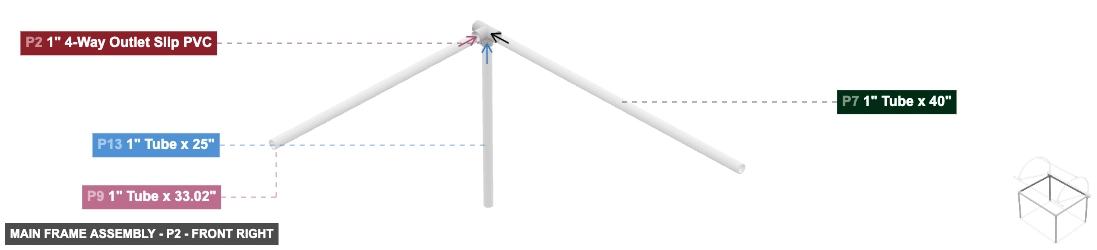

Part: 1" 4-Way Outlet Slip PVC - Angle: front right

Main Frame Assembly - Part 1
P2 (1" 4-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 13's 1" M SLIP #2. Also, connect its 1" F SLIP #2 oriented front links with part 9's 1" M SLIP #2, and its 1" F SLIP #4, which is right-facing, should connect to part 7's 1" M SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

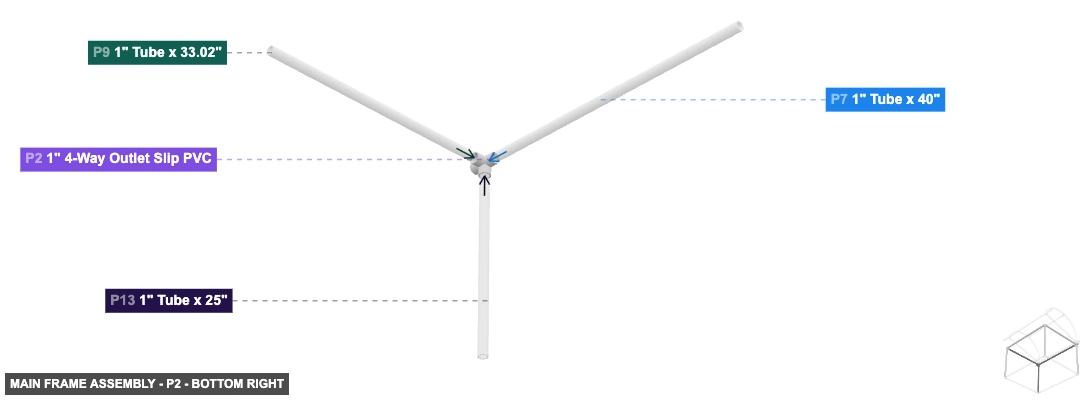

Part: 1" 4-Way Outlet Slip PVC - Angle: bottom right

Main Frame Assembly - Part 1
P2 (1" 4-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing bottom to part 13's 1" M SLIP #2. Also, connect its 1" F SLIP #2 oriented front links with part 9's 1" M SLIP #2, and its 1" F SLIP #4, which is right-facing, should connect to part 7's 1" M SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

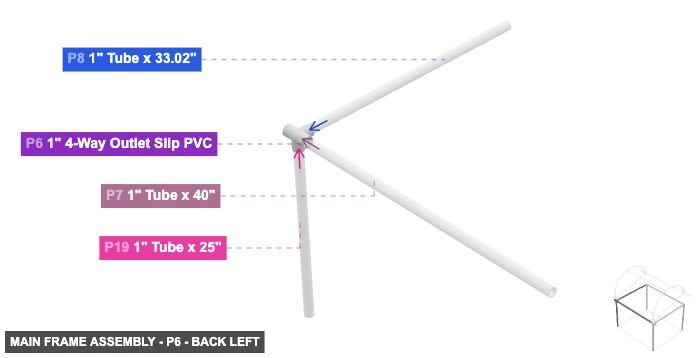

Part: 1" 4-Way Outlet Slip PVC - Angle: back left

Main Frame Assembly - Part 1
P6 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is front-facing, should connect to part 8's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented bottom links with part 19's 1" M SLIP #2, plus connect its 1" F SLIP #4 oriented left links with part 7's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

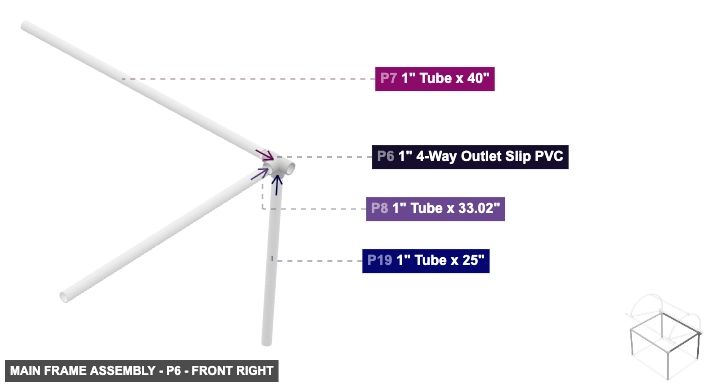

Part: 1" 4-Way Outlet Slip PVC - Angle: front right

Main Frame Assembly - Part 1
P6 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is front-facing, should connect to part 8's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented bottom links with part 19's 1" M SLIP #2, plus connect its 1" F SLIP #4 oriented left links with part 7's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

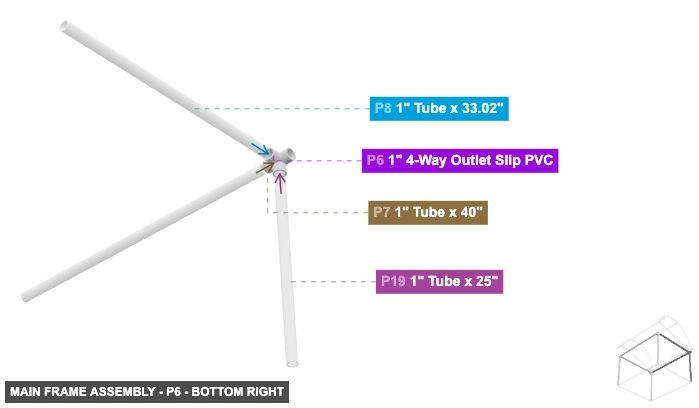

Part: 1" 4-Way Outlet Slip PVC - Angle: bottom right

Main Frame Assembly - Part 1
P6 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is front-facing, should connect to part 8's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented bottom links with part 19's 1" M SLIP #2, plus connect its 1" F SLIP #4 oriented left links with part 7's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

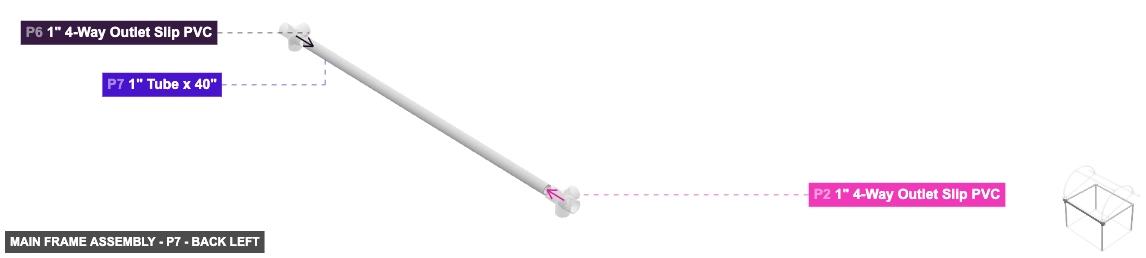

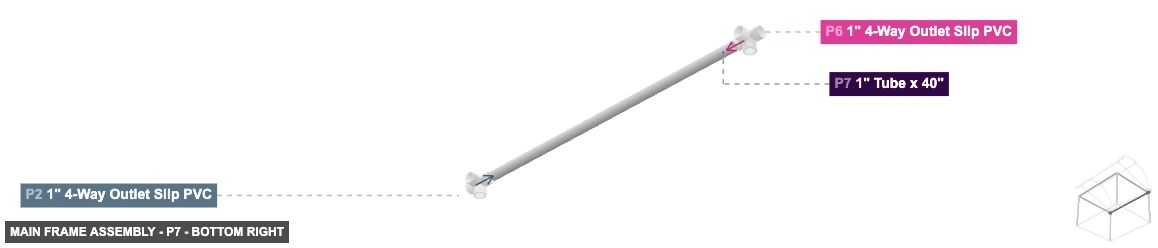

Part: 1" Tube x 40" - Angle: back left

Main Frame Assembly - Part 1
P7 (1" Tube 40" length) - attach its 1" M SLIP #1 facing left to part 2's 1" F SLIP #4, and connect its 1" M SLIP #2 oriented right links with part 6's 1" F SLIP #4
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

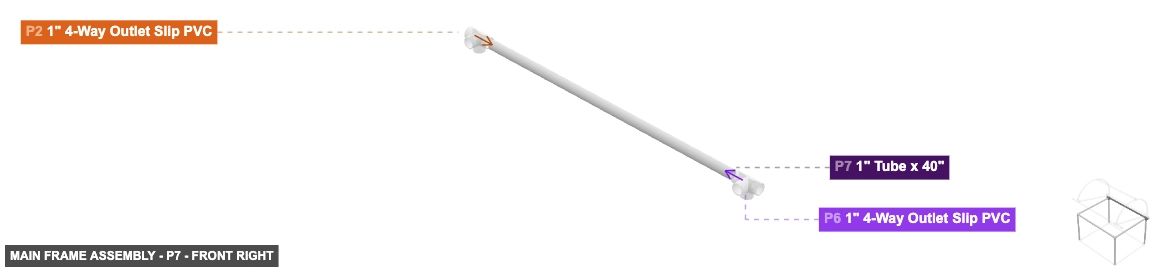

Part: 1" Tube x 40" - Angle: front right

Main Frame Assembly - Part 1
P7 (1" Tube 40" length) - attach its 1" M SLIP #1 facing left to part 2's 1" F SLIP #4, and connect its 1" M SLIP #2 oriented right links with part 6's 1" F SLIP #4
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 40" - Angle: bottom right

Main Frame Assembly - Part 1
P7 (1" Tube 40" length) - attach its 1" M SLIP #1 facing left to part 2's 1" F SLIP #4, and connect its 1" M SLIP #2 oriented right links with part 6's 1" F SLIP #4
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 33.02" - Angle: back left

Main Frame Assembly - Part 1
P8 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 10's 1" F SLIP #1, and its 1" M SLIP #2, which is back-facing, should connect to part 6's 1" F SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

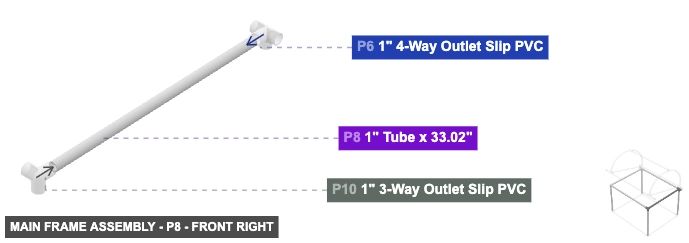

Part: 1" Tube x 33.02" - Angle: front right

Main Frame Assembly - Part 1
P8 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 10's 1" F SLIP #1, and its 1" M SLIP #2, which is back-facing, should connect to part 6's 1" F SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

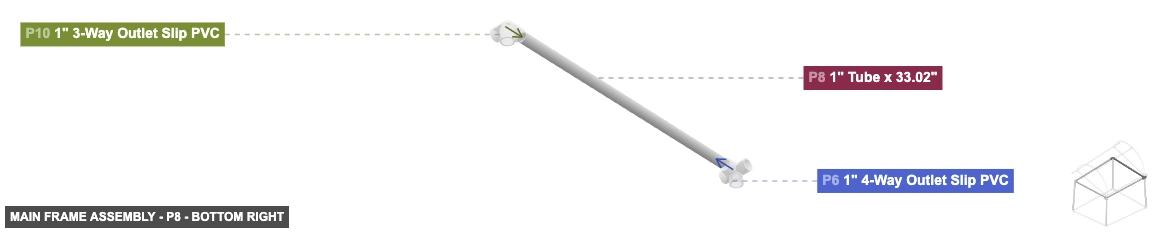

Part: 1" Tube x 33.02" - Angle: bottom right

Main Frame Assembly - Part 1
P8 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 10's 1" F SLIP #1, and its 1" M SLIP #2, which is back-facing, should connect to part 6's 1" F SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

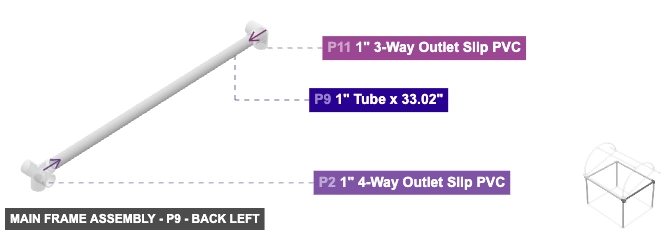

Part: 1" Tube x 33.02" - Angle: back left

Main Frame Assembly - Part 1
P9 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 11's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing back to part 2's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 33.02" - Angle: front right

Main Frame Assembly - Part 1
P9 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 11's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing back to part 2's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

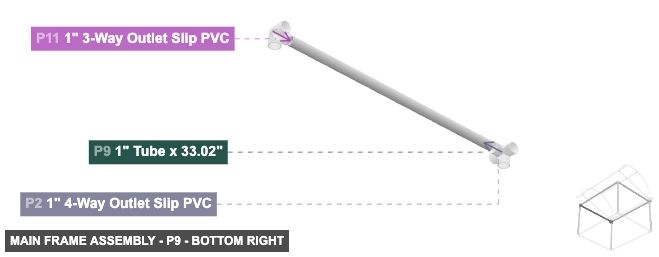

Part: 1" Tube x 33.02" - Angle: bottom right

Main Frame Assembly - Part 1
P9 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 11's 1" F SLIP #1. Also, attach its 1" M SLIP #2 facing back to part 2's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

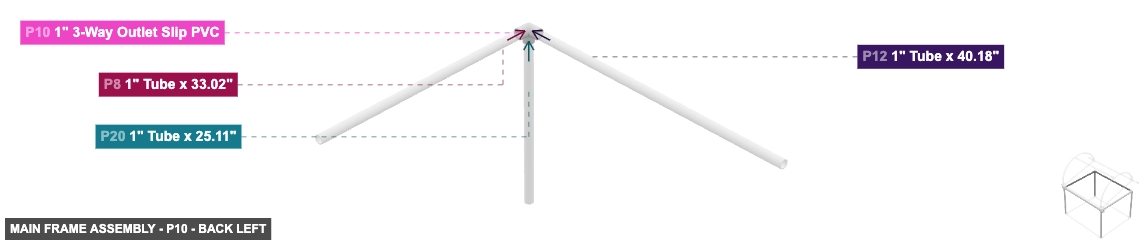

Part: 1" 3-Way Outlet Slip PVC - Angle: back left

Main Frame Assembly - Part 1
P10 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 8's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented left links with part 12's 1" M SLIP #1, then its 1" F SLIP #3, which is bottom-facing, should connect to part 20's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

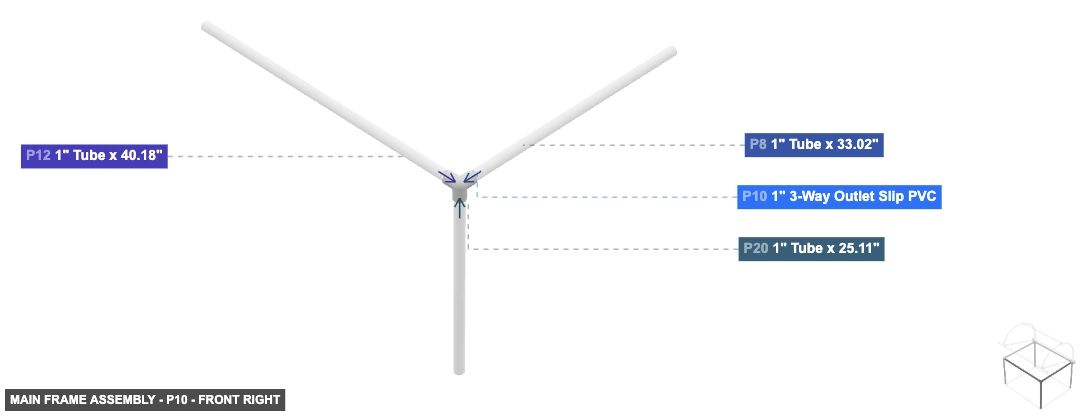

Part: 1" 3-Way Outlet Slip PVC - Angle: front right

Main Frame Assembly - Part 1
P10 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 8's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented left links with part 12's 1" M SLIP #1, then its 1" F SLIP #3, which is bottom-facing, should connect to part 20's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

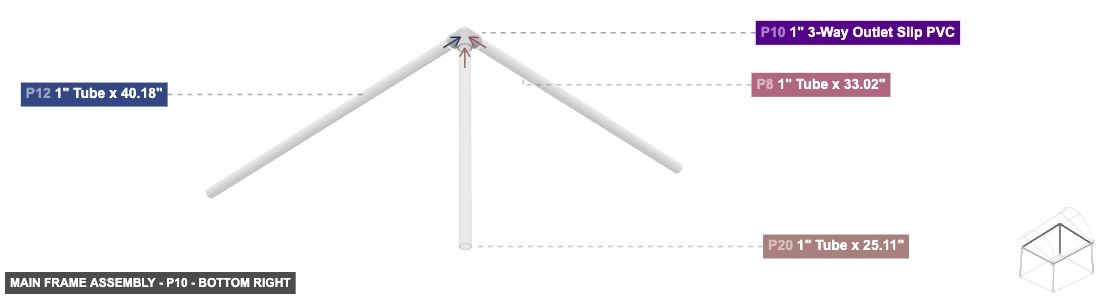

Part: 1" 3-Way Outlet Slip PVC - Angle: bottom right

Main Frame Assembly - Part 1
P10 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 8's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented left links with part 12's 1" M SLIP #1, then its 1" F SLIP #3, which is bottom-facing, should connect to part 20's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

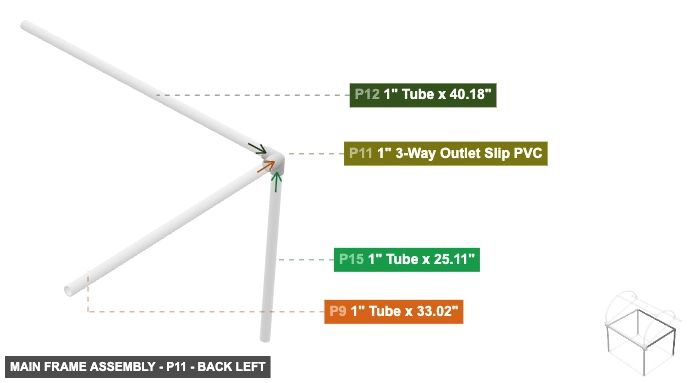

Part: 1" 3-Way Outlet Slip PVC - Angle: back left

Main Frame Assembly - Part 1
P11 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #1, which is back-facing, should connect to part 9's 1" M SLIP #1. Also, connect its 1" F SLIP #2 oriented bottom links with part 15's 1" M SLIP #2. Additionally, its 1" F SLIP #3, which is right-facing, should connect to part 12's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

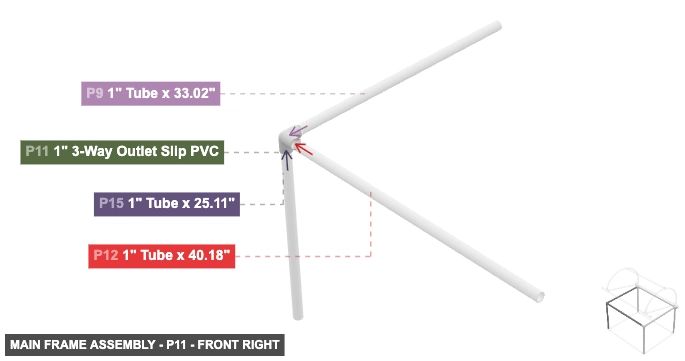

Part: 1" 3-Way Outlet Slip PVC - Angle: front right

Main Frame Assembly - Part 1
P11 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #1, which is back-facing, should connect to part 9's 1" M SLIP #1. Also, connect its 1" F SLIP #2 oriented bottom links with part 15's 1" M SLIP #2. Additionally, its 1" F SLIP #3, which is right-facing, should connect to part 12's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

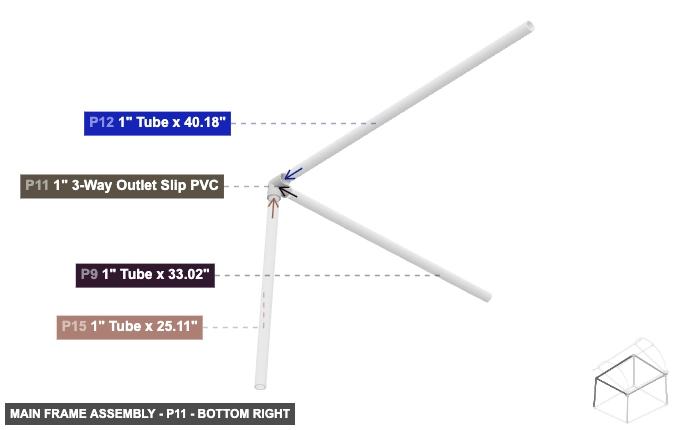

Part: 1" 3-Way Outlet Slip PVC - Angle: bottom right

Main Frame Assembly - Part 1
P11 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #1, which is back-facing, should connect to part 9's 1" M SLIP #1. Also, connect its 1" F SLIP #2 oriented bottom links with part 15's 1" M SLIP #2. Additionally, its 1" F SLIP #3, which is right-facing, should connect to part 12's 1" M SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

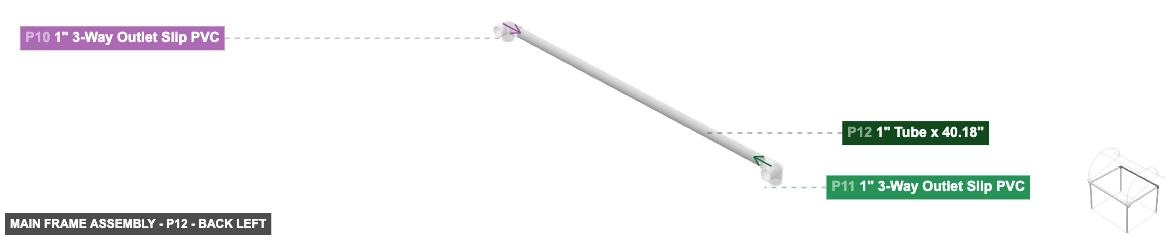

Part: 1" Tube x 40.18" - Angle: back left

Main Frame Assembly - Part 1
P12 (1" Tube 40.18" length) - attach its 1" M SLIP #1 facing right to part 10's 1" F SLIP #2, plus its 1" M SLIP #2, which is left-facing, should connect to part 11's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

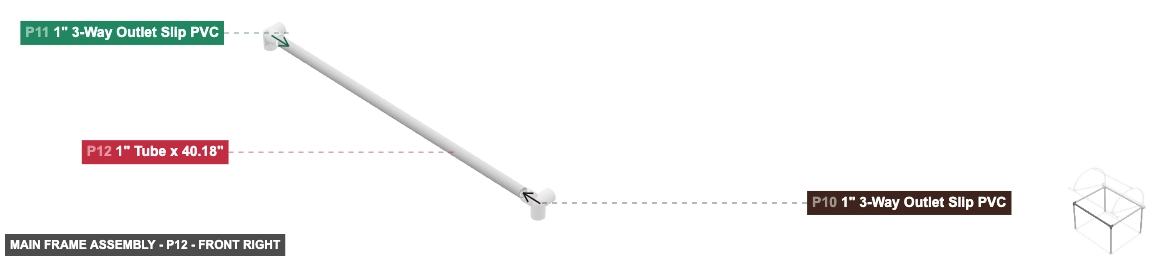

Part: 1" Tube x 40.18" - Angle: front right

Main Frame Assembly - Part 1
P12 (1" Tube 40.18" length) - attach its 1" M SLIP #1 facing right to part 10's 1" F SLIP #2, plus its 1" M SLIP #2, which is left-facing, should connect to part 11's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

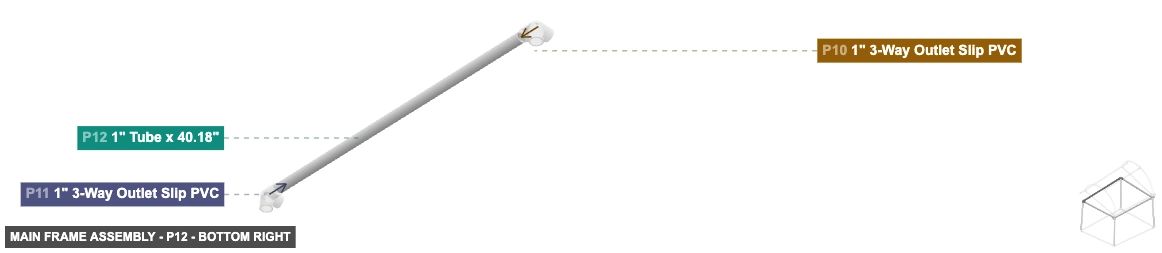

Part: 1" Tube x 40.18" - Angle: bottom right

Main Frame Assembly - Part 1
P12 (1" Tube 40.18" length) - attach its 1" M SLIP #1 facing right to part 10's 1" F SLIP #2, plus its 1" M SLIP #2, which is left-facing, should connect to part 11's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 25" - Angle: back left

Main Frame Assembly - Part 1
P13 (1" Tube 25" length) - attach its 1" M SLIP #2 facing top to part 2's 1" F SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 25" - Angle: front right

Main Frame Assembly - Part 1
P13 (1" Tube 25" length) - attach its 1" M SLIP #2 facing top to part 2's 1" F SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 25" - Angle: bottom right

Main Frame Assembly - Part 1
P13 (1" Tube 25" length) - attach its 1" M SLIP #2 facing top to part 2's 1" F SLIP #1
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 25.11" - Angle: back left

Main Frame Assembly - Part 1
P15 (1" Tube 25.11" length) - attach its 1" M SLIP #2 facing top to part 11's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

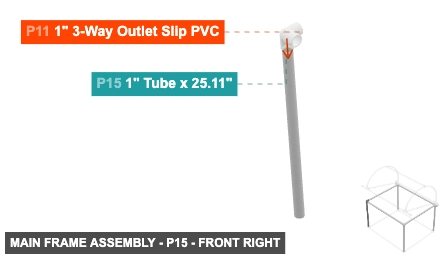

Part: 1" Tube x 25.11" - Angle: front right

Main Frame Assembly - Part 1
P15 (1" Tube 25.11" length) - attach its 1" M SLIP #2 facing top to part 11's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

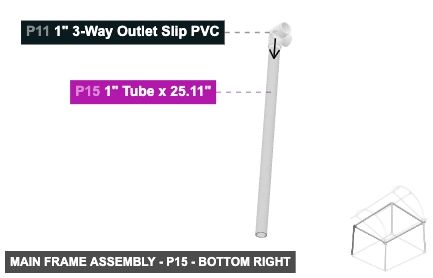

Part: 1" Tube x 25.11" - Angle: bottom right

Main Frame Assembly - Part 1
P15 (1" Tube 25.11" length) - attach its 1" M SLIP #2 facing top to part 11's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 25" - Angle: back left

Main Frame Assembly - Part 1
P19 (1" Tube 25" length) - attach its 1" M SLIP #2 facing top to part 6's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

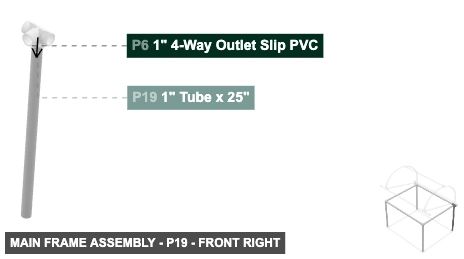

Part: 1" Tube x 25" - Angle: front right

Main Frame Assembly - Part 1
P19 (1" Tube 25" length) - attach its 1" M SLIP #2 facing top to part 6's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

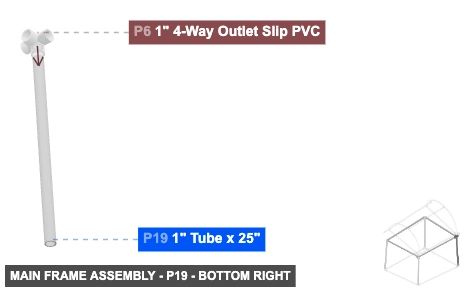

Part: 1" Tube x 25" - Angle: bottom right

Main Frame Assembly - Part 1
P19 (1" Tube 25" length) - attach its 1" M SLIP #2 facing top to part 6's 1" F SLIP #2
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

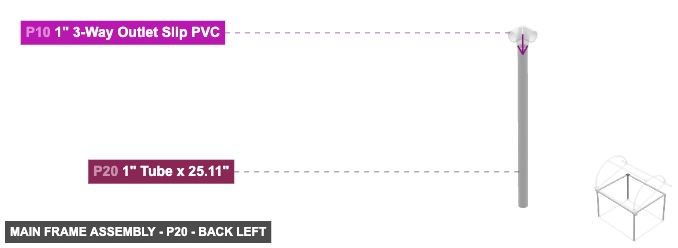

Part: 1" Tube x 25.11" - Angle: back left

Main Frame Assembly - Part 1
P20 (1" Tube 25.11" length) - attach its 1" M SLIP #2 facing top to part 10's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

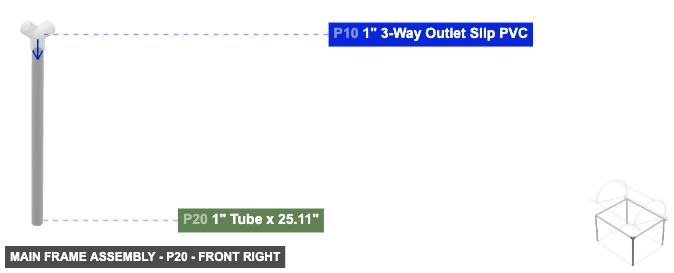

Part: 1" Tube x 25.11" - Angle: front right

Main Frame Assembly - Part 1
P20 (1" Tube 25.11" length) - attach its 1" M SLIP #2 facing top to part 10's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Part: 1" Tube x 25.11" - Angle: bottom right

Main Frame Assembly - Part 1
P20 (1" Tube 25.11" length) - attach its 1" M SLIP #2 facing top to part 10's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Group: Arch Assembly

Creates the curved top structure (lid) of the cold frame.

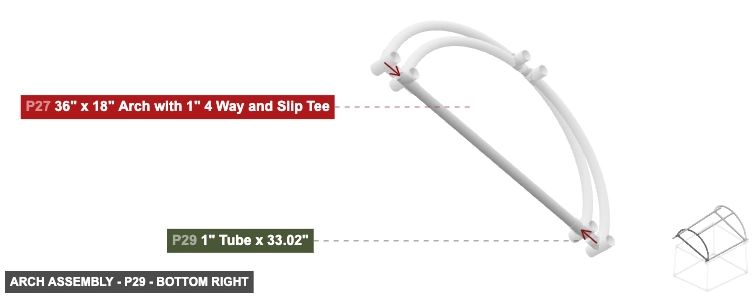

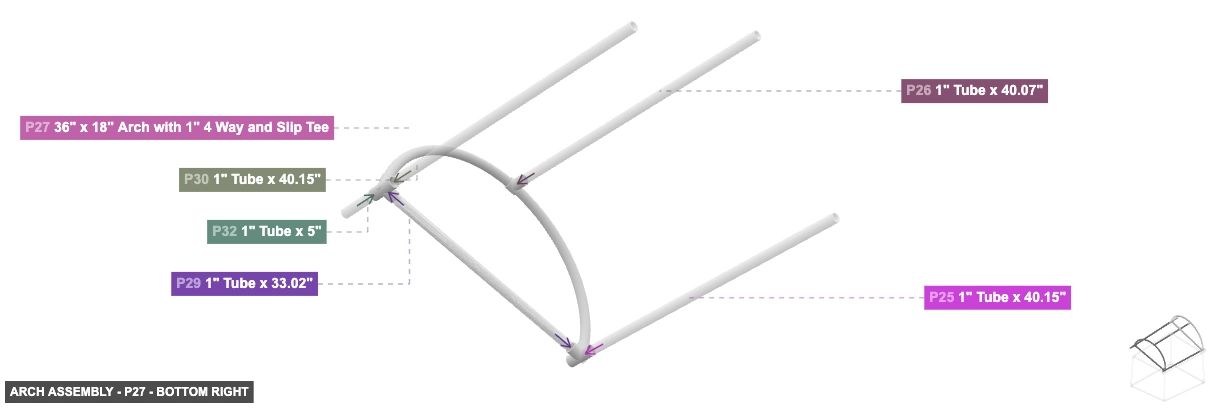

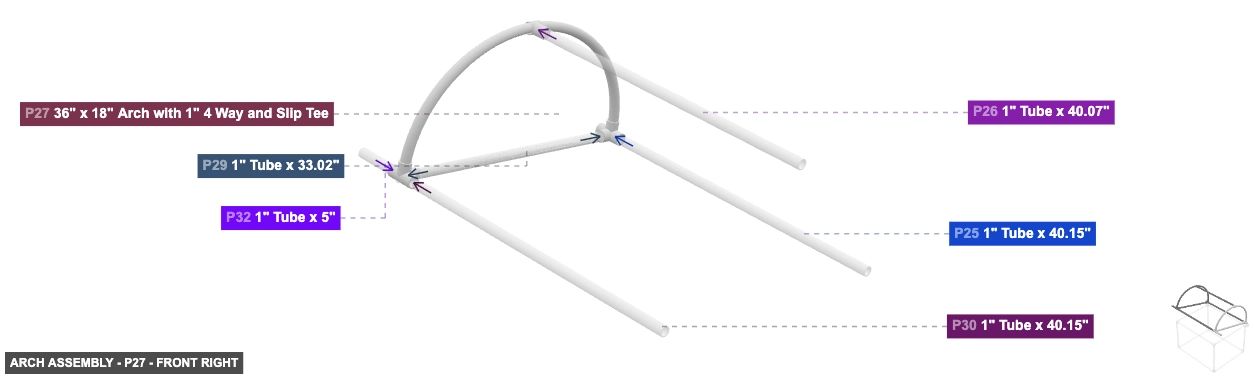

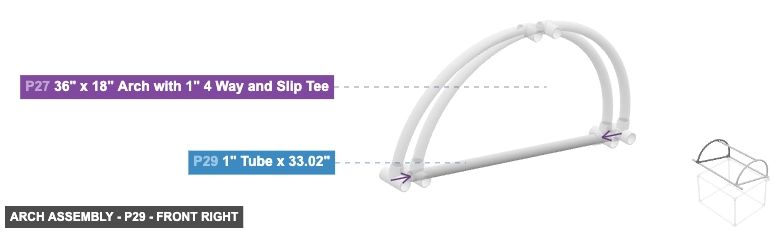

Assemble the curved top. Take Left Arch Component P27. Insert Tube P29 (1" x 33.02") connecting the front and back 1" Female SLIP outlets. Attach Tube P32 (1" x 5") to the outer left 1" Female SLIP outlet and cap with P33 (1" Cap). Take Right Arch Component P3. Insert Tube P31 (1" x 33.02") connecting the front and back 1" Female SLIP outlets. Attach Tube P34 (1" x 5") to the outer right 1" Female SLIP outlet and cap with P35 (1" Cap). Connect the Left Arch P27 and Right Arch P3 using Tubes P25 (1" x 40.15"), P26 (1" x 40.07"), and P30 (1" x 40.15") between their corresponding side 1" Female SLIP outlets.

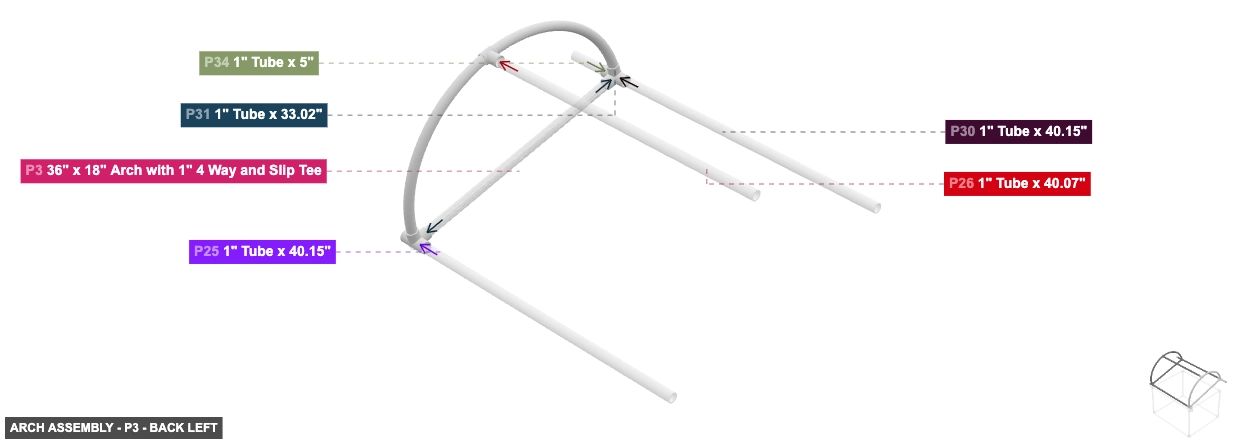

Part: 36" x 18" Arch with 1" 4 Way and Slip Tee - Angle: back left

Arch Assembly - Part 36
P3 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is left-facing, should connect to part 25's 1" M SLIP #2. Also, its 1" F SLIP #3, which is front-facing, should connect to part 31's 1" M SLIP #2, plus attach its 1" F SLIP #4 facing left to part 26's 1" M SLIP #2. Also, connect its 1" F SLIP #5 oriented back links with part 31's 1" M SLIP #1. Also, its 1" F SLIP #6, which is left-facing, should connect to part 30's 1" M SLIP #1, then connect its 1" F SLIP #7 oriented right links with part 34's 1" M SLIP #2
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 36" x 18" Arch with 1" 4 Way and Slip Tee - Angle: front right

Arch Assembly - Part 36
P3 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is left-facing, should connect to part 25's 1" M SLIP #2. Also, its 1" F SLIP #3, which is front-facing, should connect to part 31's 1" M SLIP #2, plus attach its 1" F SLIP #4 facing left to part 26's 1" M SLIP #2. Also, connect its 1" F SLIP #5 oriented back links with part 31's 1" M SLIP #1. Also, its 1" F SLIP #6, which is left-facing, should connect to part 30's 1" M SLIP #1, then connect its 1" F SLIP #7 oriented right links with part 34's 1" M SLIP #2
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

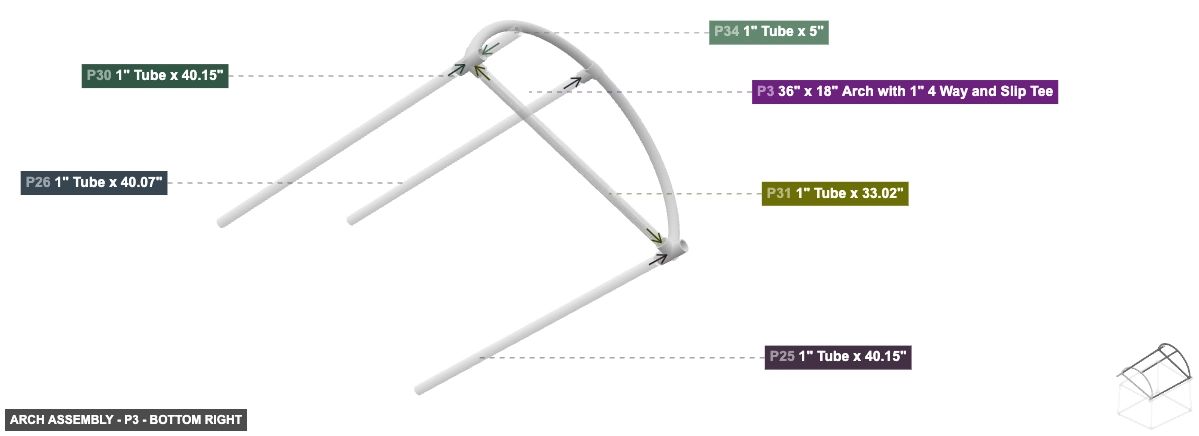

Part: 36" x 18" Arch with 1" 4 Way and Slip Tee - Angle: bottom right

Arch Assembly - Part 36
P3 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is left-facing, should connect to part 25's 1" M SLIP #2. Also, its 1" F SLIP #3, which is front-facing, should connect to part 31's 1" M SLIP #2, plus attach its 1" F SLIP #4 facing left to part 26's 1" M SLIP #2. Also, connect its 1" F SLIP #5 oriented back links with part 31's 1" M SLIP #1. Also, its 1" F SLIP #6, which is left-facing, should connect to part 30's 1" M SLIP #1, then connect its 1" F SLIP #7 oriented right links with part 34's 1" M SLIP #2
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

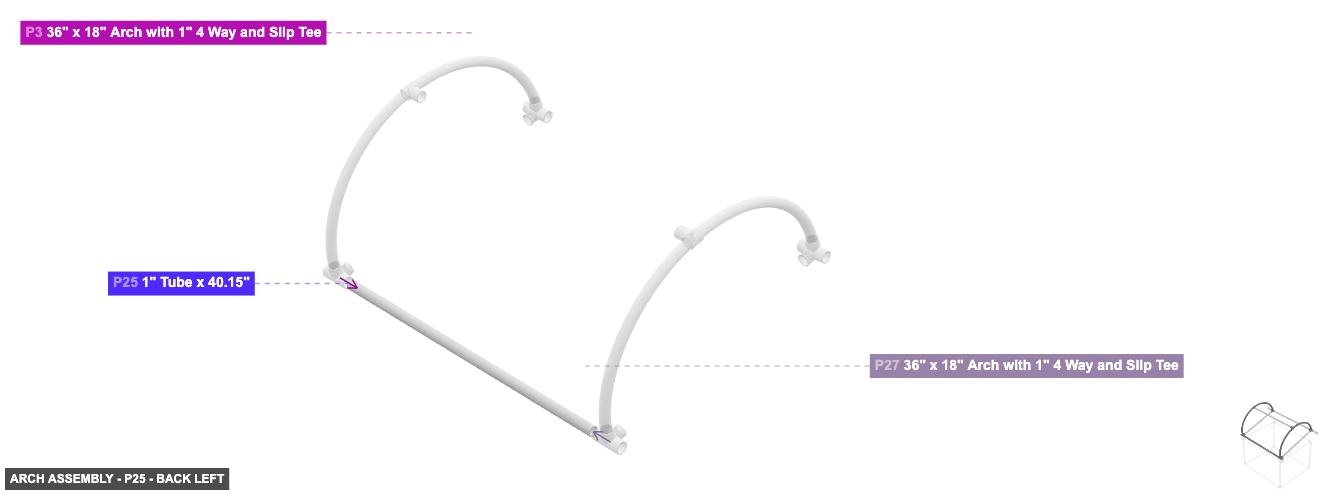

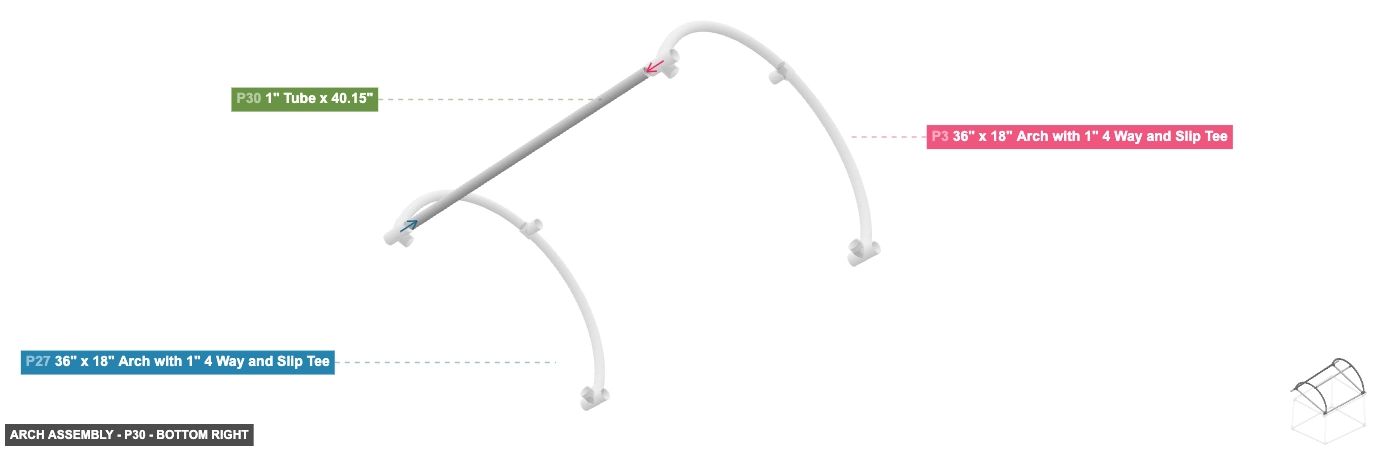

Part: 1" Tube x 40.15" - Angle: back left

Arch Assembly - Part 1
P25 (1" Tube 40.15" length) - connect its 1" M SLIP #1 oriented left links with part 27's 1" F SLIP #6, plus connect its 1" M SLIP #2 oriented right links with part 3's 1" F SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 40.15" - Angle: front right

Arch Assembly - Part 1
P25 (1" Tube 40.15" length) - connect its 1" M SLIP #1 oriented left links with part 27's 1" F SLIP #6, plus connect its 1" M SLIP #2 oriented right links with part 3's 1" F SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 40.15" - Angle: bottom right

Arch Assembly - Part 1
P25 (1" Tube 40.15" length) - connect its 1" M SLIP #1 oriented left links with part 27's 1" F SLIP #6, plus connect its 1" M SLIP #2 oriented right links with part 3's 1" F SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

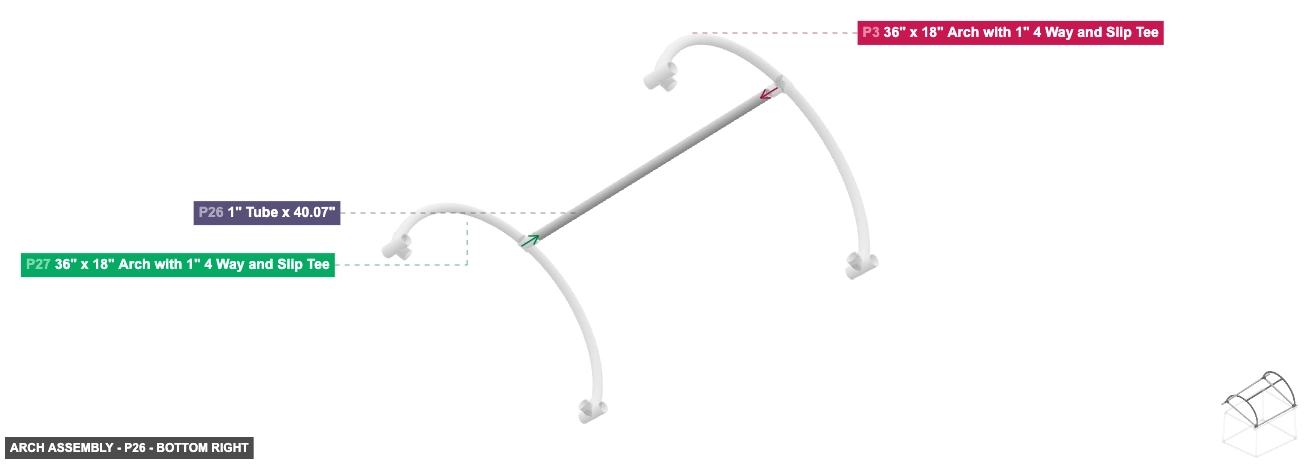

Part: 1" Tube x 40.07" - Angle: back left

Arch Assembly - Part 1
P26 (1" Tube 40.07" length) - connect its 1" M SLIP #1 oriented left links with part 27's 1" F SLIP #4, also its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #4
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 40.07" - Angle: front right

Arch Assembly - Part 1
P26 (1" Tube 40.07" length) - connect its 1" M SLIP #1 oriented left links with part 27's 1" F SLIP #4, also its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #4
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 40.07" - Angle: bottom right

Arch Assembly - Part 1
P26 (1" Tube 40.07" length) - connect its 1" M SLIP #1 oriented left links with part 27's 1" F SLIP #4, also its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #4
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 36" x 18" Arch with 1" 4 Way and Slip Tee - Angle: back left

Arch Assembly - Part 36
P27 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is right-facing, should connect to part 30's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented left links with part 32's 1" M SLIP #2, and its 1" F SLIP #3, which is back-facing, should connect to part 29's 1" M SLIP #1, and its 1" F SLIP #4, which is right-facing, should connect to part 26's 1" M SLIP #1, plus its 1" F SLIP #5, which is front-facing, should connect to part 29's 1" M SLIP #2. Next, its 1" F SLIP #6, which is right-facing, should connect to part 25's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 36" x 18" Arch with 1" 4 Way and Slip Tee - Angle: front right

Arch Assembly - Part 36
P27 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is right-facing, should connect to part 30's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented left links with part 32's 1" M SLIP #2, and its 1" F SLIP #3, which is back-facing, should connect to part 29's 1" M SLIP #1, and its 1" F SLIP #4, which is right-facing, should connect to part 26's 1" M SLIP #1, plus its 1" F SLIP #5, which is front-facing, should connect to part 29's 1" M SLIP #2. Next, its 1" F SLIP #6, which is right-facing, should connect to part 25's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 36" x 18" Arch with 1" 4 Way and Slip Tee - Angle: bottom right

Arch Assembly - Part 36
P27 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is right-facing, should connect to part 30's 1" M SLIP #2. Next, connect its 1" F SLIP #2 oriented left links with part 32's 1" M SLIP #2, and its 1" F SLIP #3, which is back-facing, should connect to part 29's 1" M SLIP #1, and its 1" F SLIP #4, which is right-facing, should connect to part 26's 1" M SLIP #1, plus its 1" F SLIP #5, which is front-facing, should connect to part 29's 1" M SLIP #2. Next, its 1" F SLIP #6, which is right-facing, should connect to part 25's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 33.02" - Angle: back left

Arch Assembly - Part 1
P29 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 27's 1" F SLIP #3. After that, connect its 1" M SLIP #2 oriented back links with part 27's 1" F SLIP #5
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 33.02" - Angle: front right

Arch Assembly - Part 1
P29 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 27's 1" F SLIP #3. After that, connect its 1" M SLIP #2 oriented back links with part 27's 1" F SLIP #5
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 33.02" - Angle: bottom right

Arch Assembly - Part 1
P29 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 27's 1" F SLIP #3. After that, connect its 1" M SLIP #2 oriented back links with part 27's 1" F SLIP #5
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 40.15" - Angle: back left

Arch Assembly - Part 1
P30 (1" Tube 40.15" length) - attach its 1" M SLIP #1 facing right to part 3's 1" F SLIP #6. Additionally, connect its 1" M SLIP #2 oriented left links with part 27's 1" F SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

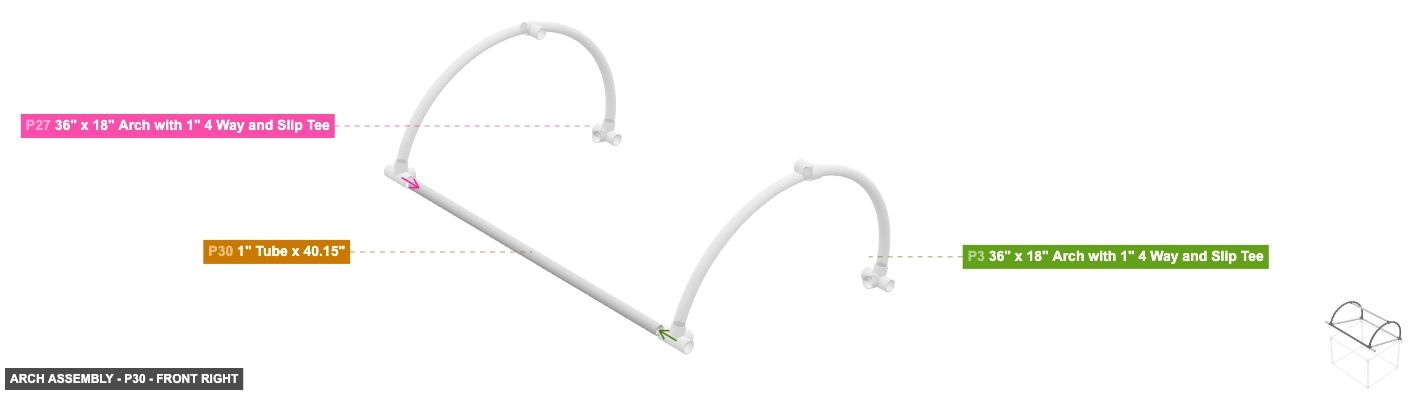

Part: 1" Tube x 40.15" - Angle: front right

Arch Assembly - Part 1
P30 (1" Tube 40.15" length) - attach its 1" M SLIP #1 facing right to part 3's 1" F SLIP #6. Additionally, connect its 1" M SLIP #2 oriented left links with part 27's 1" F SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 40.15" - Angle: bottom right

Arch Assembly - Part 1
P30 (1" Tube 40.15" length) - attach its 1" M SLIP #1 facing right to part 3's 1" F SLIP #6. Additionally, connect its 1" M SLIP #2 oriented left links with part 27's 1" F SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 33.02" - Angle: back left

Arch Assembly - Part 1
P31 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 3's 1" F SLIP #5. Also, its 1" M SLIP #2, which is back-facing, should connect to part 3's 1" F SLIP #3
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

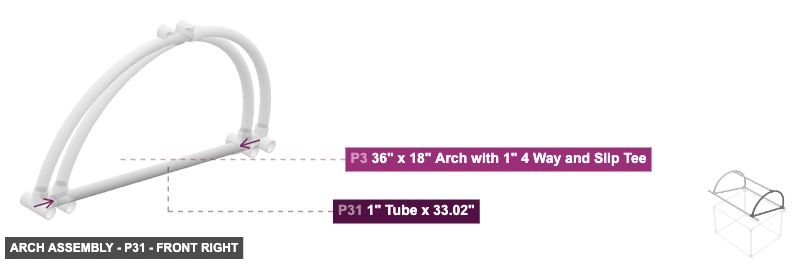

Part: 1" Tube x 33.02" - Angle: front right

Arch Assembly - Part 1
P31 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 3's 1" F SLIP #5. Also, its 1" M SLIP #2, which is back-facing, should connect to part 3's 1" F SLIP #3
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 33.02" - Angle: bottom right

Arch Assembly - Part 1
P31 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 3's 1" F SLIP #5. Also, its 1" M SLIP #2, which is back-facing, should connect to part 3's 1" F SLIP #3
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 5" - Angle: back left

Arch Assembly - Part 1
P32 (1" Tube 5" length) - connect its 1" M SLIP #1 oriented left links with part 33's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is right-facing, should connect to part 27's 1" F SLIP #2
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

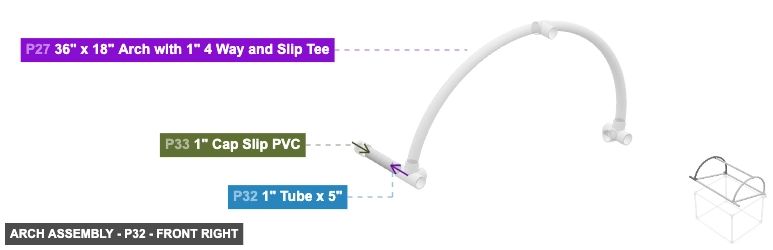

Part: 1" Tube x 5" - Angle: front right

Arch Assembly - Part 1
P32 (1" Tube 5" length) - connect its 1" M SLIP #1 oriented left links with part 33's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is right-facing, should connect to part 27's 1" F SLIP #2
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 5" - Angle: bottom right

Arch Assembly - Part 1
P32 (1" Tube 5" length) - connect its 1" M SLIP #1 oriented left links with part 33's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is right-facing, should connect to part 27's 1" F SLIP #2
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Cap Slip PVC - Angle: back left

Arch Assembly - Part 1
P33 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing right to part 32's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

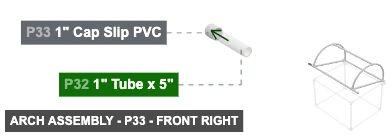

Part: 1" Cap Slip PVC - Angle: front right

Arch Assembly - Part 1
P33 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing right to part 32's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Cap Slip PVC - Angle: bottom right

Arch Assembly - Part 1
P33 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing right to part 32's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 5" - Angle: back left

Arch Assembly - Part 1
P34 (1" Tube 5" length) - attach its 1" M SLIP #1 facing right to part 35's 1" F SLIP #1. Also, connect its 1" M SLIP #2 oriented left links with part 3's 1" F SLIP #7
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 5" - Angle: front right

Arch Assembly - Part 1
P34 (1" Tube 5" length) - attach its 1" M SLIP #1 facing right to part 35's 1" F SLIP #1. Also, connect its 1" M SLIP #2 oriented left links with part 3's 1" F SLIP #7
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Tube x 5" - Angle: bottom right

Arch Assembly - Part 1
P34 (1" Tube 5" length) - attach its 1" M SLIP #1 facing right to part 35's 1" F SLIP #1. Also, connect its 1" M SLIP #2 oriented left links with part 3's 1" F SLIP #7
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Cap Slip PVC - Angle: back left

Arch Assembly - Part 1

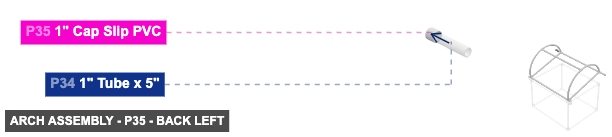

P35 (1" Cap Slip PVC) - its 1" F SLIP #1, which is left-facing, should connect to part 34's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Part: 1" Cap Slip PVC - Angle: front right

Arch Assembly - Part 1
P35 (1" Cap Slip PVC) - its 1" F SLIP #1, which is left-facing, should connect to part 34's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

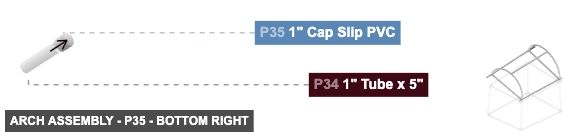

Part: 1" Cap Slip PVC - Angle: bottom right

Arch Assembly - Part 1
P35 (1" Cap Slip PVC) - its 1" F SLIP #1, which is left-facing, should connect to part 34's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Group: Attach Arch and Hinge Mechanisms

Connects the Arch Assembly to the Main Frame and installs the hinge mechanisms allowing the lid to open.

Connect the Arch to the Frame and add hinges. Attach Bushing P1 (1/2" x 1") into the remaining left 1" Female SLIP outlet of P2 on the Main Frame. Attach Bushing P5 (1/2" x 1") into the remaining right 1" Female SLIP outlet of P6 on the Main Frame. Attach Bushing P4 (1/2" x 1") into the remaining right 1" Female SLIP outlet of P3 on the Arch Assembly. Attach Bushing P28 (1/2" x 1") into the remaining left 1" Female SLIP outlet of P27 on the Arch Assembly. Assemble Left Hinge: Screw P36 (1/2" 90° Elbow) onto the 1/2" Male Thread of P1. Screw P37 (1/2" 90° Elbow) onto the 1/2" Male Thread of P28. Connect P38 (1/2" Nipple) between the 1/2" Female Threaded ends of P36 and P37. Assemble Right Hinge: Screw P39 (1/2" 90° Elbow) onto the 1/2" Male Thread of P4. Screw P40 (1/2" 90° Elbow) onto the 1/2" Male Thread of P5. Connect P41 (1/2" Nipple) between the 1/2" Female Threaded ends of P39 and P40.

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: back left

Attach Arch and Hinge Mechanisms - Part 1/2
P1 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 36's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: front right

Attach Arch and Hinge Mechanisms - Part 1/2
P1 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 36's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

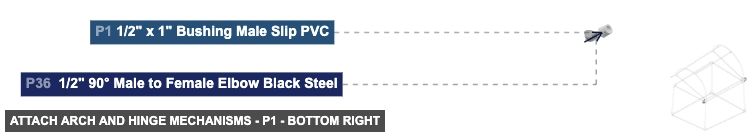

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: bottom right

Attach Arch and Hinge Mechanisms - Part 1/2
P1 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 36's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: back left

Attach Arch and Hinge Mechanisms - Part 1/2
P4 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented right links with part 39's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

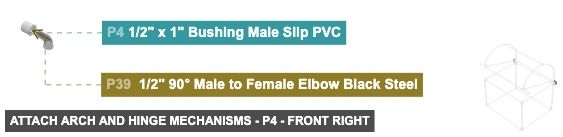

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: front right

Attach Arch and Hinge Mechanisms - Part 1/2
P4 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented right links with part 39's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: bottom right

Attach Arch and Hinge Mechanisms - Part 1/2
P4 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented right links with part 39's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: back left

Attach Arch and Hinge Mechanisms - Part 1/2
P5 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented right links with part 40's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: front right

Attach Arch and Hinge Mechanisms - Part 1/2
P5 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented right links with part 40's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: bottom right

Attach Arch and Hinge Mechanisms - Part 1/2
P5 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented right links with part 40's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

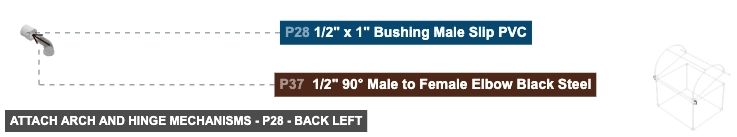

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: back left

Attach Arch and Hinge Mechanisms - Part 1/2
P28 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 37's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: front right

Attach Arch and Hinge Mechanisms - Part 1/2
P28 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 37's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Bushing Male Slip PVC - Angle: bottom right

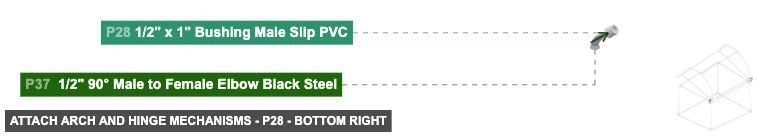

Attach Arch and Hinge Mechanisms - Part 1/2
P28 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 37's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

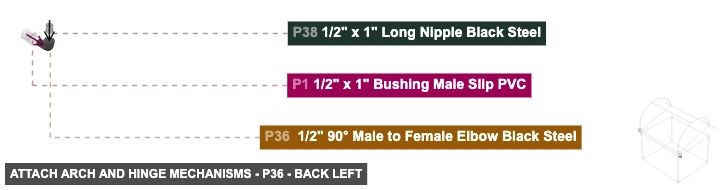

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: back left

Attach Arch and Hinge Mechanisms - Part  1/2
P36 ( 90° M to F Elbow Black Steel) - connect its 0.5" M Threaded #1 oriented right links with part 1's 0.5" F Threaded #1, also attach its 0.5" F Threaded #1 facing top to part 38's 0.5" M Threaded #2
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: front right

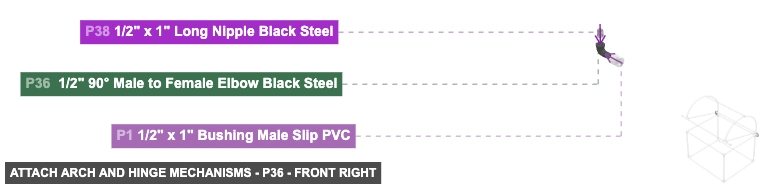

Attach Arch and Hinge Mechanisms - Part  1/2
P36 ( 90° M to F Elbow Black Steel) - connect its 0.5" M Threaded #1 oriented right links with part 1's 0.5" F Threaded #1, also attach its 0.5" F Threaded #1 facing top to part 38's 0.5" M Threaded #2
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: bottom right

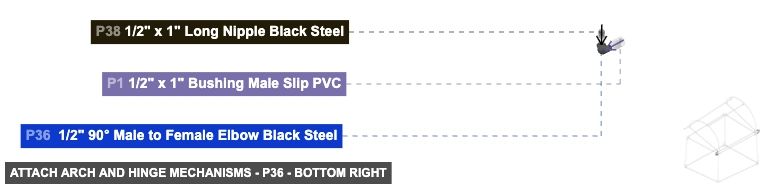

Attach Arch and Hinge Mechanisms - Part  1/2
P36 ( 90° M to F Elbow Black Steel) - connect its 0.5" M Threaded #1 oriented right links with part 1's 0.5" F Threaded #1, also attach its 0.5" F Threaded #1 facing top to part 38's 0.5" M Threaded #2
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: back left

Attach Arch and Hinge Mechanisms - Part  1/2
P37 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 28's 0.5" F Threaded #1, and its 0.5" F Threaded #1, which is bottom-facing, should connect to part 38's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: front right

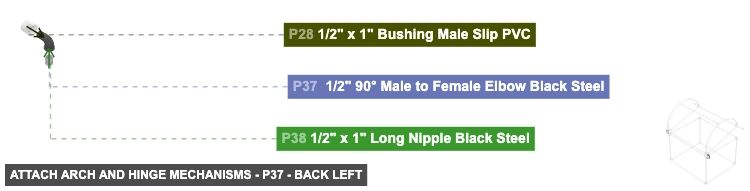

Attach Arch and Hinge Mechanisms - Part  1/2
P37 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 28's 0.5" F Threaded #1, and its 0.5" F Threaded #1, which is bottom-facing, should connect to part 38's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

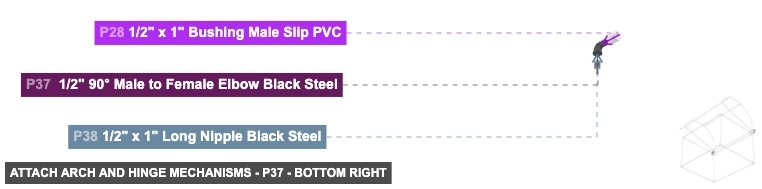

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: bottom right

Attach Arch and Hinge Mechanisms - Part  1/2
P37 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 28's 0.5" F Threaded #1, and its 0.5" F Threaded #1, which is bottom-facing, should connect to part 38's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Long Nipple Black Steel - Angle: back left

Attach Arch and Hinge Mechanisms - Part 1/2
P38 (0.5" x 1" Long Nipple Black Steel) - attach its 0.5" M Threaded #1 facing top to part 37's 0.5" F Threaded #1, and its 0.5" M Threaded #2, which is bottom-facing, should connect to part 36's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Long Nipple Black Steel - Angle: front right

Attach Arch and Hinge Mechanisms - Part 1/2
P38 (0.5" x 1" Long Nipple Black Steel) - attach its 0.5" M Threaded #1 facing top to part 37's 0.5" F Threaded #1, and its 0.5" M Threaded #2, which is bottom-facing, should connect to part 36's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Long Nipple Black Steel - Angle: bottom right

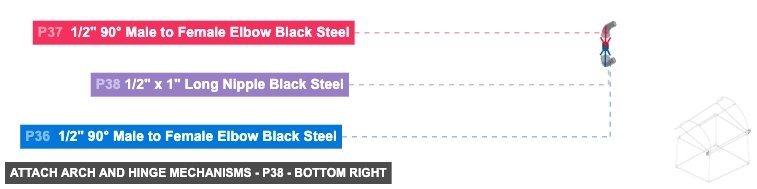

Attach Arch and Hinge Mechanisms - Part 1/2
P38 (0.5" x 1" Long Nipple Black Steel) - attach its 0.5" M Threaded #1 facing top to part 37's 0.5" F Threaded #1, and its 0.5" M Threaded #2, which is bottom-facing, should connect to part 36's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: back left

Attach Arch and Hinge Mechanisms - Part  1/2
P39 ( 90° M to F Elbow Black Steel) - connect its 0.5" M Threaded #1 oriented left links with part 4's 0.5" F Threaded #1, then attach its 0.5" F Threaded #1 facing bottom to part 41's 0.5" M Threaded #2
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: front right

Attach Arch and Hinge Mechanisms - Part  1/2
P39 ( 90° M to F Elbow Black Steel) - connect its 0.5" M Threaded #1 oriented left links with part 4's 0.5" F Threaded #1, then attach its 0.5" F Threaded #1 facing bottom to part 41's 0.5" M Threaded #2
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: bottom right

Attach Arch and Hinge Mechanisms - Part  1/2
P39 ( 90° M to F Elbow Black Steel) - connect its 0.5" M Threaded #1 oriented left links with part 4's 0.5" F Threaded #1, then attach its 0.5" F Threaded #1 facing bottom to part 41's 0.5" M Threaded #2
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: back left

Attach Arch and Hinge Mechanisms - Part  1/2
P40 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is left-facing, should connect to part 5's 0.5" F Threaded #1, and attach its 0.5" F Threaded #1 facing top to part 41's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: front right

Attach Arch and Hinge Mechanisms - Part  1/2
P40 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is left-facing, should connect to part 5's 0.5" F Threaded #1, and attach its 0.5" F Threaded #1 facing top to part 41's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" 90° Male to Female Elbow Black Steel - Angle: bottom right

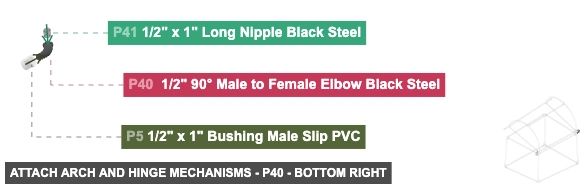

Attach Arch and Hinge Mechanisms - Part  1/2
P40 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is left-facing, should connect to part 5's 0.5" F Threaded #1, and attach its 0.5" F Threaded #1 facing top to part 41's 0.5" M Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Long Nipple Black Steel - Angle: back left

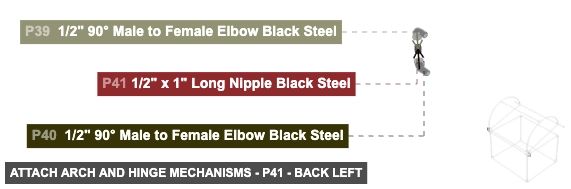

Attach Arch and Hinge Mechanisms - Part 1/2
P41 (0.5" x 1" Long Nipple Black Steel) - connect its 0.5" M Threaded #1 oriented bottom links with part 40's 0.5" F Threaded #1. Also, attach its 0.5" M Threaded #2 facing top to part 39's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Long Nipple Black Steel - Angle: front right

Attach Arch and Hinge Mechanisms - Part 1/2
P41 (0.5" x 1" Long Nipple Black Steel) - connect its 0.5" M Threaded #1 oriented bottom links with part 40's 0.5" F Threaded #1. Also, attach its 0.5" M Threaded #2 facing top to part 39's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Part: 1/2" x 1" Long Nipple Black Steel - Angle: bottom right

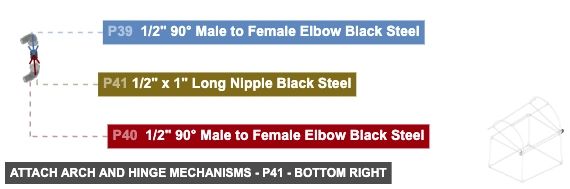

Attach Arch and Hinge Mechanisms - Part 1/2
P41 (0.5" x 1" Long Nipple Black Steel) - connect its 0.5" M Threaded #1 oriented bottom links with part 40's 0.5" F Threaded #1. Also, attach its 0.5" M Threaded #2 facing top to part 39's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Phase 3: Inter-Group Assembly

Attaching: Base Frame Assembly

Forms the rectangular foundation of the cold frame that rests on the ground.

This Base Frame serves as the foundation for the Main Frame Assembly (Group 2).

Angle: back left

Assembly of Base Frame Assembly - back_left
P14 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 13's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented right links with part 24's 1" M SLIP #1, plus attach its 1" F SLIP #3 facing front to part 17's 1" M SLIP #1 P16 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 15's 1" M SLIP #1, plus its 1" F SLIP #2, which is back-facing, should connect to part 17's 1" M SLIP #2. After that, connect its 1" F SLIP #3 oriented right links with part 18's 1" M SLIP #2 P17 (1" Tube 33.13" length) - its 1" M SLIP #1, which is back-facing, should connect to part 14's 1" F SLIP #3, plus its 1" M SLIP #2, which is front-facing, should connect to part 16's 1" F SLIP #2 P18 (1" Tube 40.48" length) - attach its 1" M SLIP #1 facing right to part 21's 1" F SLIP #1, also its 1" M SLIP #2, which is left-facing, should connect to part 16's 1" F SLIP #3 P21 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #1 oriented left links with part 18's 1" M SLIP #1. Additionally, its 1" F SLIP #2, which is back-facing, should connect to part 22's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 20's 1" M SLIP #1 P22 (1" Tube 33.13" length) - attach its 1" M SLIP #1 facing back to part 23's 1" F SLIP #2. Additionally, connect its 1" M SLIP #2 oriented front links with part 21's 1" F SLIP #2 P23 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing top to part 19's 1" M SLIP #1. Next, attach its 1" F SLIP #2 facing front to part 22's 1" M SLIP #1. Additionally, its 1" F SLIP #3, which is left-facing, should connect to part 24's 1" M SLIP #2 P24 (1" Tube 40.22" length) - its 1" M SLIP #1, which is left-facing, should connect to part 14's 1" F SLIP #2, plus attach its 1" M SLIP #2 facing right to part 23's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

Angle: front right

Assembly of Base Frame Assembly - front_right
P14 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 13's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented right links with part 24's 1" M SLIP #1, plus attach its 1" F SLIP #3 facing front to part 17's 1" M SLIP #1 P16 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 15's 1" M SLIP #1, plus its 1" F SLIP #2, which is back-facing, should connect to part 17's 1" M SLIP #2. After that, connect its 1" F SLIP #3 oriented right links with part 18's 1" M SLIP #2 P17 (1" Tube 33.13" length) - its 1" M SLIP #1, which is back-facing, should connect to part 14's 1" F SLIP #3, plus its 1" M SLIP #2, which is front-facing, should connect to part 16's 1" F SLIP #2 P18 (1" Tube 40.48" length) - attach its 1" M SLIP #1 facing right to part 21's 1" F SLIP #1, also its 1" M SLIP #2, which is left-facing, should connect to part 16's 1" F SLIP #3 P21 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #1 oriented left links with part 18's 1" M SLIP #1. Additionally, its 1" F SLIP #2, which is back-facing, should connect to part 22's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 20's 1" M SLIP #1 P22 (1" Tube 33.13" length) - attach its 1" M SLIP #1 facing back to part 23's 1" F SLIP #2. Additionally, connect its 1" M SLIP #2 oriented front links with part 21's 1" F SLIP #2 P23 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing top to part 19's 1" M SLIP #1. Next, attach its 1" F SLIP #2 facing front to part 22's 1" M SLIP #1. Additionally, its 1" F SLIP #3, which is left-facing, should connect to part 24's 1" M SLIP #2 P24 (1" Tube 40.22" length) - its 1" M SLIP #1, which is left-facing, should connect to part 14's 1" F SLIP #2, plus attach its 1" M SLIP #2 facing right to part 23's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

Angle: bottom right

Assembly of Base Frame Assembly - bottom_right
P14 (1" 3-Way Outlet Slip PVC) - its 1" F SLIP #1, which is top-facing, should connect to part 13's 1" M SLIP #1, also connect its 1" F SLIP #2 oriented right links with part 24's 1" M SLIP #1, plus attach its 1" F SLIP #3 facing front to part 17's 1" M SLIP #1 P16 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #1 oriented top links with part 15's 1" M SLIP #1, plus its 1" F SLIP #2, which is back-facing, should connect to part 17's 1" M SLIP #2. After that, connect its 1" F SLIP #3 oriented right links with part 18's 1" M SLIP #2 P17 (1" Tube 33.13" length) - its 1" M SLIP #1, which is back-facing, should connect to part 14's 1" F SLIP #3, plus its 1" M SLIP #2, which is front-facing, should connect to part 16's 1" F SLIP #2 P18 (1" Tube 40.48" length) - attach its 1" M SLIP #1 facing right to part 21's 1" F SLIP #1, also its 1" M SLIP #2, which is left-facing, should connect to part 16's 1" F SLIP #3 P21 (1" 3-Way Outlet Slip PVC) - connect its 1" F SLIP #1 oriented left links with part 18's 1" M SLIP #1. Additionally, its 1" F SLIP #2, which is back-facing, should connect to part 22's 1" M SLIP #2, then attach its 1" F SLIP #3 facing top to part 20's 1" M SLIP #1 P22 (1" Tube 33.13" length) - attach its 1" M SLIP #1 facing back to part 23's 1" F SLIP #2. Additionally, connect its 1" M SLIP #2 oriented front links with part 21's 1" F SLIP #2 P23 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing top to part 19's 1" M SLIP #1. Next, attach its 1" F SLIP #2 facing front to part 22's 1" M SLIP #1. Additionally, its 1" F SLIP #3, which is left-facing, should connect to part 24's 1" M SLIP #2 P24 (1" Tube 40.22" length) - its 1" M SLIP #1, which is left-facing, should connect to part 14's 1" F SLIP #2, plus attach its 1" M SLIP #2 facing right to part 23's 1" F SLIP #3
11" 3-Way Outlet Slip PVCx 4
11" Tube x 33.13"x 2
11" Tube x 40.48"x 1
11" Tube x 40.22"x 1

Attaching: Main Frame Assembly

Builds the main vertical and top structure (box) of the cold frame.

Place this completed Main Frame assembly onto the Base Frame (Group 1), ensuring the vertical tubes insert fully into the base connectors. This structure will support the Arch Assembly (Group 3).

Angle: back left

Assembly of Main Frame Assembly - back_left
P2 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 13's 1" M SLIP #2, also its 1" F SLIP #2, which is front-facing, should connect to part 9's 1" M SLIP #2. Also, connect its 1" F SLIP #3 oriented left links with part 1's 1" M SLIP #1. Also, connect its 1" F SLIP #4 oriented right links with part 7's 1" M SLIP #1 P6 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is front-facing, should connect to part 8's 1" M SLIP #2. Additionally, its 1" F SLIP #2, which is bottom-facing, should connect to part 19's 1" M SLIP #2, and attach its 1" F SLIP #3 facing right to part 5's 1" M SLIP #1. Next, its 1" F SLIP #4, which is left-facing, should connect to part 7's 1" M SLIP #2 P7 (1" Tube 40" length) - connect its 1" M SLIP #1 oriented left links with part 2's 1" F SLIP #4, plus attach its 1" M SLIP #2 facing right to part 6's 1" F SLIP #4 P8 (1" Tube 33.02" length) - attach its 1" M SLIP #1 facing front to part 10's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented back links with part 6's 1" F SLIP #1 P9 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 11's 1" F SLIP #1, then attach its 1" M SLIP #2 facing back to part 2's 1" F SLIP #2 P10 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 8's 1" M SLIP #1. After that, connect its 1" F SLIP #2 oriented left links with part 12's 1" M SLIP #1, plus attach its 1" F SLIP #3 facing bottom to part 20's 1" M SLIP #2 P11 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 9's 1" M SLIP #1. After that, attach its 1" F SLIP #2 facing bottom to part 15's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing right to part 12's 1" M SLIP #2 P12 (1" Tube 40.18" length) - attach its 1" M SLIP #1 facing right to part 10's 1" F SLIP #2, also attach its 1" M SLIP #2 facing left to part 11's 1" F SLIP #3 P13 (1" Tube 25" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 14's 1" F SLIP #1, plus attach its 1" M SLIP #2 facing top to part 2's 1" F SLIP #1 P15 (1" Tube 25.11" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 16's 1" F SLIP #1. Additionally, attach its 1" M SLIP #2 facing top to part 11's 1" F SLIP #2 P19 (1" Tube 25" length) - connect its 1" M SLIP #1 oriented bottom links with part 23's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 6's 1" F SLIP #2 P20 (1" Tube 25.11" length) - attach its 1" M SLIP #1 facing bottom to part 21's 1" F SLIP #3, then its 1" M SLIP #2, which is top-facing, should connect to part 10's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Angle: front right

Assembly of Main Frame Assembly - front_right
P2 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 13's 1" M SLIP #2, also its 1" F SLIP #2, which is front-facing, should connect to part 9's 1" M SLIP #2. Also, connect its 1" F SLIP #3 oriented left links with part 1's 1" M SLIP #1. Also, connect its 1" F SLIP #4 oriented right links with part 7's 1" M SLIP #1 P6 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is front-facing, should connect to part 8's 1" M SLIP #2. Additionally, its 1" F SLIP #2, which is bottom-facing, should connect to part 19's 1" M SLIP #2, and attach its 1" F SLIP #3 facing right to part 5's 1" M SLIP #1. Next, its 1" F SLIP #4, which is left-facing, should connect to part 7's 1" M SLIP #2 P7 (1" Tube 40" length) - connect its 1" M SLIP #1 oriented left links with part 2's 1" F SLIP #4, plus attach its 1" M SLIP #2 facing right to part 6's 1" F SLIP #4 P8 (1" Tube 33.02" length) - attach its 1" M SLIP #1 facing front to part 10's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented back links with part 6's 1" F SLIP #1 P9 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 11's 1" F SLIP #1, then attach its 1" M SLIP #2 facing back to part 2's 1" F SLIP #2 P10 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 8's 1" M SLIP #1. After that, connect its 1" F SLIP #2 oriented left links with part 12's 1" M SLIP #1, plus attach its 1" F SLIP #3 facing bottom to part 20's 1" M SLIP #2 P11 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 9's 1" M SLIP #1. After that, attach its 1" F SLIP #2 facing bottom to part 15's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing right to part 12's 1" M SLIP #2 P12 (1" Tube 40.18" length) - attach its 1" M SLIP #1 facing right to part 10's 1" F SLIP #2, also attach its 1" M SLIP #2 facing left to part 11's 1" F SLIP #3 P13 (1" Tube 25" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 14's 1" F SLIP #1, plus attach its 1" M SLIP #2 facing top to part 2's 1" F SLIP #1 P15 (1" Tube 25.11" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 16's 1" F SLIP #1. Additionally, attach its 1" M SLIP #2 facing top to part 11's 1" F SLIP #2 P19 (1" Tube 25" length) - connect its 1" M SLIP #1 oriented bottom links with part 23's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 6's 1" F SLIP #2 P20 (1" Tube 25.11" length) - attach its 1" M SLIP #1 facing bottom to part 21's 1" F SLIP #3, then its 1" M SLIP #2, which is top-facing, should connect to part 10's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Angle: bottom right

Assembly of Main Frame Assembly - bottom_right
P2 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is bottom-facing, should connect to part 13's 1" M SLIP #2, also its 1" F SLIP #2, which is front-facing, should connect to part 9's 1" M SLIP #2. Also, connect its 1" F SLIP #3 oriented left links with part 1's 1" M SLIP #1. Also, connect its 1" F SLIP #4 oriented right links with part 7's 1" M SLIP #1 P6 (1" 4-Way Outlet Slip PVC) - its 1" F SLIP #1, which is front-facing, should connect to part 8's 1" M SLIP #2. Additionally, its 1" F SLIP #2, which is bottom-facing, should connect to part 19's 1" M SLIP #2, and attach its 1" F SLIP #3 facing right to part 5's 1" M SLIP #1. Next, its 1" F SLIP #4, which is left-facing, should connect to part 7's 1" M SLIP #2 P7 (1" Tube 40" length) - connect its 1" M SLIP #1 oriented left links with part 2's 1" F SLIP #4, plus attach its 1" M SLIP #2 facing right to part 6's 1" F SLIP #4 P8 (1" Tube 33.02" length) - attach its 1" M SLIP #1 facing front to part 10's 1" F SLIP #1, also connect its 1" M SLIP #2 oriented back links with part 6's 1" F SLIP #1 P9 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 11's 1" F SLIP #1, then attach its 1" M SLIP #2 facing back to part 2's 1" F SLIP #2 P10 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 8's 1" M SLIP #1. After that, connect its 1" F SLIP #2 oriented left links with part 12's 1" M SLIP #1, plus attach its 1" F SLIP #3 facing bottom to part 20's 1" M SLIP #2 P11 (1" 3-Way Outlet Slip PVC) - attach its 1" F SLIP #1 facing back to part 9's 1" M SLIP #1. After that, attach its 1" F SLIP #2 facing bottom to part 15's 1" M SLIP #2. Additionally, attach its 1" F SLIP #3 facing right to part 12's 1" M SLIP #2 P12 (1" Tube 40.18" length) - attach its 1" M SLIP #1 facing right to part 10's 1" F SLIP #2, also attach its 1" M SLIP #2 facing left to part 11's 1" F SLIP #3 P13 (1" Tube 25" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 14's 1" F SLIP #1, plus attach its 1" M SLIP #2 facing top to part 2's 1" F SLIP #1 P15 (1" Tube 25.11" length) - its 1" M SLIP #1, which is bottom-facing, should connect to part 16's 1" F SLIP #1. Additionally, attach its 1" M SLIP #2 facing top to part 11's 1" F SLIP #2 P19 (1" Tube 25" length) - connect its 1" M SLIP #1 oriented bottom links with part 23's 1" F SLIP #1. Additionally, its 1" M SLIP #2, which is top-facing, should connect to part 6's 1" F SLIP #2 P20 (1" Tube 25.11" length) - attach its 1" M SLIP #1 facing bottom to part 21's 1" F SLIP #3, then its 1" M SLIP #2, which is top-facing, should connect to part 10's 1" F SLIP #3
11" 4-Way Outlet Slip PVCx 2
11" Tube x 40"x 1
11" Tube x 33.02"x 2
11" 3-Way Outlet Slip PVCx 2
11" Tube x 40.18"x 1
11" Tube x 25"x 2
11" Tube x 25.11"x 2

Attaching: Arch Assembly

Creates the curved top structure (lid) of the cold frame.

This Arch Assembly will be attached to the Main Frame Assembly (Group 2) using the bushings and hinge components from Group 4.

Angle: back left

Assembly of Arch Assembly - back_left
P3 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is left-facing, should connect to part 25's 1" M SLIP #2. Additionally, its 1" F SLIP #2, which is right-facing, should connect to part 4's 1" M SLIP #1. After that, its 1" F SLIP #3, which is front-facing, should connect to part 31's 1" M SLIP #2, and attach its 1" F SLIP #4 facing left to part 26's 1" M SLIP #2. After that, connect its 1" F SLIP #5 oriented back links with part 31's 1" M SLIP #1, then its 1" F SLIP #6, which is left-facing, should connect to part 30's 1" M SLIP #1. Additionally, connect its 1" F SLIP #7 oriented right links with part 34's 1" M SLIP #2 P25 (1" Tube 40.15" length) - attach its 1" M SLIP #1 facing left to part 27's 1" F SLIP #6, and its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #1 P26 (1" Tube 40.07" length) - attach its 1" M SLIP #1 facing left to part 27's 1" F SLIP #4. Next, its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #4 P27 (36" x 18" Arch with 1" 4 Way and Slip Tee) - attach its 1" F SLIP #1 facing right to part 30's 1" M SLIP #2, also attach its 1" F SLIP #2 facing left to part 32's 1" M SLIP #2, and connect its 1" F SLIP #3 oriented back links with part 29's 1" M SLIP #1, plus connect its 1" F SLIP #4 oriented right links with part 26's 1" M SLIP #1, plus attach its 1" F SLIP #5 facing front to part 29's 1" M SLIP #2, also connect its 1" F SLIP #6 oriented right links with part 25's 1" M SLIP #1. Also, connect its 1" F SLIP #7 oriented left links with part 28's 1" M SLIP #1 P29 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 27's 1" F SLIP #3. Additionally, attach its 1" M SLIP #2 facing back to part 27's 1" F SLIP #5 P30 (1" Tube 40.15" length) - its 1" M SLIP #1, which is right-facing, should connect to part 3's 1" F SLIP #6. Next, attach its 1" M SLIP #2 facing left to part 27's 1" F SLIP #1 P31 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 3's 1" F SLIP #5, and connect its 1" M SLIP #2 oriented back links with part 3's 1" F SLIP #3 P32 (1" Tube 5" length) - connect its 1" M SLIP #1 oriented left links with part 33's 1" F SLIP #1, and attach its 1" M SLIP #2 facing right to part 27's 1" F SLIP #2 P33 (1" Cap Slip PVC) - its 1" F SLIP #1, which is right-facing, should connect to part 32's 1" M SLIP #1 P34 (1" Tube 5" length) - attach its 1" M SLIP #1 facing right to part 35's 1" F SLIP #1. After that, connect its 1" M SLIP #2 oriented left links with part 3's 1" F SLIP #7 P35 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing left to part 34's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Angle: front right

Assembly of Arch Assembly - front_right
P3 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is left-facing, should connect to part 25's 1" M SLIP #2. Additionally, its 1" F SLIP #2, which is right-facing, should connect to part 4's 1" M SLIP #1. After that, its 1" F SLIP #3, which is front-facing, should connect to part 31's 1" M SLIP #2, and attach its 1" F SLIP #4 facing left to part 26's 1" M SLIP #2. After that, connect its 1" F SLIP #5 oriented back links with part 31's 1" M SLIP #1, then its 1" F SLIP #6, which is left-facing, should connect to part 30's 1" M SLIP #1. Additionally, connect its 1" F SLIP #7 oriented right links with part 34's 1" M SLIP #2 P25 (1" Tube 40.15" length) - attach its 1" M SLIP #1 facing left to part 27's 1" F SLIP #6, and its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #1 P26 (1" Tube 40.07" length) - attach its 1" M SLIP #1 facing left to part 27's 1" F SLIP #4. Next, its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #4 P27 (36" x 18" Arch with 1" 4 Way and Slip Tee) - attach its 1" F SLIP #1 facing right to part 30's 1" M SLIP #2, also attach its 1" F SLIP #2 facing left to part 32's 1" M SLIP #2, and connect its 1" F SLIP #3 oriented back links with part 29's 1" M SLIP #1, plus connect its 1" F SLIP #4 oriented right links with part 26's 1" M SLIP #1, plus attach its 1" F SLIP #5 facing front to part 29's 1" M SLIP #2, also connect its 1" F SLIP #6 oriented right links with part 25's 1" M SLIP #1. Also, connect its 1" F SLIP #7 oriented left links with part 28's 1" M SLIP #1 P29 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 27's 1" F SLIP #3. Additionally, attach its 1" M SLIP #2 facing back to part 27's 1" F SLIP #5 P30 (1" Tube 40.15" length) - its 1" M SLIP #1, which is right-facing, should connect to part 3's 1" F SLIP #6. Next, attach its 1" M SLIP #2 facing left to part 27's 1" F SLIP #1 P31 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 3's 1" F SLIP #5, and connect its 1" M SLIP #2 oriented back links with part 3's 1" F SLIP #3 P32 (1" Tube 5" length) - connect its 1" M SLIP #1 oriented left links with part 33's 1" F SLIP #1, and attach its 1" M SLIP #2 facing right to part 27's 1" F SLIP #2 P33 (1" Cap Slip PVC) - its 1" F SLIP #1, which is right-facing, should connect to part 32's 1" M SLIP #1 P34 (1" Tube 5" length) - attach its 1" M SLIP #1 facing right to part 35's 1" F SLIP #1. After that, connect its 1" M SLIP #2 oriented left links with part 3's 1" F SLIP #7 P35 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing left to part 34's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Angle: bottom right

Assembly of Arch Assembly - bottom_right
P3 (36" x 18" Arch with 1" 4 Way and Slip Tee) - its 1" F SLIP #1, which is left-facing, should connect to part 25's 1" M SLIP #2. Additionally, its 1" F SLIP #2, which is right-facing, should connect to part 4's 1" M SLIP #1. After that, its 1" F SLIP #3, which is front-facing, should connect to part 31's 1" M SLIP #2, and attach its 1" F SLIP #4 facing left to part 26's 1" M SLIP #2. After that, connect its 1" F SLIP #5 oriented back links with part 31's 1" M SLIP #1, then its 1" F SLIP #6, which is left-facing, should connect to part 30's 1" M SLIP #1. Additionally, connect its 1" F SLIP #7 oriented right links with part 34's 1" M SLIP #2 P25 (1" Tube 40.15" length) - attach its 1" M SLIP #1 facing left to part 27's 1" F SLIP #6, and its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #1 P26 (1" Tube 40.07" length) - attach its 1" M SLIP #1 facing left to part 27's 1" F SLIP #4. Next, its 1" M SLIP #2, which is right-facing, should connect to part 3's 1" F SLIP #4 P27 (36" x 18" Arch with 1" 4 Way and Slip Tee) - attach its 1" F SLIP #1 facing right to part 30's 1" M SLIP #2, also attach its 1" F SLIP #2 facing left to part 32's 1" M SLIP #2, and connect its 1" F SLIP #3 oriented back links with part 29's 1" M SLIP #1, plus connect its 1" F SLIP #4 oriented right links with part 26's 1" M SLIP #1, plus attach its 1" F SLIP #5 facing front to part 29's 1" M SLIP #2, also connect its 1" F SLIP #6 oriented right links with part 25's 1" M SLIP #1. Also, connect its 1" F SLIP #7 oriented left links with part 28's 1" M SLIP #1 P29 (1" Tube 33.02" length) - its 1" M SLIP #1, which is front-facing, should connect to part 27's 1" F SLIP #3. Additionally, attach its 1" M SLIP #2 facing back to part 27's 1" F SLIP #5 P30 (1" Tube 40.15" length) - its 1" M SLIP #1, which is right-facing, should connect to part 3's 1" F SLIP #6. Next, attach its 1" M SLIP #2 facing left to part 27's 1" F SLIP #1 P31 (1" Tube 33.02" length) - connect its 1" M SLIP #1 oriented front links with part 3's 1" F SLIP #5, and connect its 1" M SLIP #2 oriented back links with part 3's 1" F SLIP #3 P32 (1" Tube 5" length) - connect its 1" M SLIP #1 oriented left links with part 33's 1" F SLIP #1, and attach its 1" M SLIP #2 facing right to part 27's 1" F SLIP #2 P33 (1" Cap Slip PVC) - its 1" F SLIP #1, which is right-facing, should connect to part 32's 1" M SLIP #1 P34 (1" Tube 5" length) - attach its 1" M SLIP #1 facing right to part 35's 1" F SLIP #1. After that, connect its 1" M SLIP #2 oriented left links with part 3's 1" F SLIP #7 P35 (1" Cap Slip PVC) - attach its 1" F SLIP #1 facing left to part 34's 1" M SLIP #1
3636" x 18" Arch with 1" 4 Way and Slip Teex 2
11" Tube x 40.15"x 2
11" Tube x 40.07"x 1
11" Tube x 33.02"x 2
11" Tube x 5"x 2
11" Cap Slip PVCx 2

Attaching: Attach Arch and Hinge Mechanisms

Connects the Arch Assembly to the Main Frame and installs the hinge mechanisms allowing the lid to open.

This step physically links the Arch Assembly (Group 3) to the Main Frame (Group 2) via the bushings (P1, P4, P5, P28) and hinge components (P36, P37, P38, P39, P40, P41). The Arch Assembly should now pivot on the Main Frame.

Angle: back left

Assembly of Attach Arch and Hinge Mechanisms - back_left
P1 (0.5" x 1" Bushing M Slip PVC) - its 0.5" F Threaded #1, which is left-facing, should connect to part 36's 0.5" M Threaded #1, also attach its 1" M SLIP #1 facing right to part 2's 1" F SLIP #3 P4 (0.5" x 1" Bushing M Slip PVC) - attach its 0.5" F Threaded #1 facing right to part 39's 0.5" M Threaded #1, also its 1" M SLIP #1, which is left-facing, should connect to part 3's 1" F SLIP #2 P5 (0.5" x 1" Bushing M Slip PVC) - attach its 0.5" F Threaded #1 facing right to part 40's 0.5" M Threaded #1, plus connect its 1" M SLIP #1 oriented left links with part 6's 1" F SLIP #3 P28 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 37's 0.5" M Threaded #1, also its 1" M SLIP #1, which is right-facing, should connect to part 27's 1" F SLIP #7 P36 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 1's 0.5" F Threaded #1, also attach its 0.5" F Threaded #1 facing top to part 38's 0.5" M Threaded #2 P37 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 28's 0.5" F Threaded #1, and its 0.5" F Threaded #1, which is bottom-facing, should connect to part 38's 0.5" M Threaded #1 P38 (0.5" x 1" Long Nipple Black Steel) - attach its 0.5" M Threaded #1 facing top to part 37's 0.5" F Threaded #1, and connect its 0.5" M Threaded #2 oriented bottom links with part 36's 0.5" F Threaded #1 P39 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is left-facing, should connect to part 4's 0.5" F Threaded #1. Also, its 0.5" F Threaded #1, which is bottom-facing, should connect to part 41's 0.5" M Threaded #2 P40 ( 90° M to F Elbow Black Steel) - attach its 0.5" M Threaded #1 facing left to part 5's 0.5" F Threaded #1, then its 0.5" F Threaded #1, which is top-facing, should connect to part 41's 0.5" M Threaded #1 P41 (0.5" x 1" Long Nipple Black Steel) - connect its 0.5" M Threaded #1 oriented bottom links with part 40's 0.5" F Threaded #1. Also, connect its 0.5" M Threaded #2 oriented top links with part 39's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Angle: front right

Assembly of Attach Arch and Hinge Mechanisms - front_right
P1 (0.5" x 1" Bushing M Slip PVC) - its 0.5" F Threaded #1, which is left-facing, should connect to part 36's 0.5" M Threaded #1, also attach its 1" M SLIP #1 facing right to part 2's 1" F SLIP #3 P4 (0.5" x 1" Bushing M Slip PVC) - attach its 0.5" F Threaded #1 facing right to part 39's 0.5" M Threaded #1, also its 1" M SLIP #1, which is left-facing, should connect to part 3's 1" F SLIP #2 P5 (0.5" x 1" Bushing M Slip PVC) - attach its 0.5" F Threaded #1 facing right to part 40's 0.5" M Threaded #1, plus connect its 1" M SLIP #1 oriented left links with part 6's 1" F SLIP #3 P28 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 37's 0.5" M Threaded #1, also its 1" M SLIP #1, which is right-facing, should connect to part 27's 1" F SLIP #7 P36 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 1's 0.5" F Threaded #1, also attach its 0.5" F Threaded #1 facing top to part 38's 0.5" M Threaded #2 P37 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 28's 0.5" F Threaded #1, and its 0.5" F Threaded #1, which is bottom-facing, should connect to part 38's 0.5" M Threaded #1 P38 (0.5" x 1" Long Nipple Black Steel) - attach its 0.5" M Threaded #1 facing top to part 37's 0.5" F Threaded #1, and connect its 0.5" M Threaded #2 oriented bottom links with part 36's 0.5" F Threaded #1 P39 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is left-facing, should connect to part 4's 0.5" F Threaded #1. Also, its 0.5" F Threaded #1, which is bottom-facing, should connect to part 41's 0.5" M Threaded #2 P40 ( 90° M to F Elbow Black Steel) - attach its 0.5" M Threaded #1 facing left to part 5's 0.5" F Threaded #1, then its 0.5" F Threaded #1, which is top-facing, should connect to part 41's 0.5" M Threaded #1 P41 (0.5" x 1" Long Nipple Black Steel) - connect its 0.5" M Threaded #1 oriented bottom links with part 40's 0.5" F Threaded #1. Also, connect its 0.5" M Threaded #2 oriented top links with part 39's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2

Angle: bottom right

Assembly of Attach Arch and Hinge Mechanisms - bottom_right
P1 (0.5" x 1" Bushing M Slip PVC) - its 0.5" F Threaded #1, which is left-facing, should connect to part 36's 0.5" M Threaded #1, also attach its 1" M SLIP #1 facing right to part 2's 1" F SLIP #3 P4 (0.5" x 1" Bushing M Slip PVC) - attach its 0.5" F Threaded #1 facing right to part 39's 0.5" M Threaded #1, also its 1" M SLIP #1, which is left-facing, should connect to part 3's 1" F SLIP #2 P5 (0.5" x 1" Bushing M Slip PVC) - attach its 0.5" F Threaded #1 facing right to part 40's 0.5" M Threaded #1, plus connect its 1" M SLIP #1 oriented left links with part 6's 1" F SLIP #3 P28 (0.5" x 1" Bushing M Slip PVC) - connect its 0.5" F Threaded #1 oriented left links with part 37's 0.5" M Threaded #1, also its 1" M SLIP #1, which is right-facing, should connect to part 27's 1" F SLIP #7 P36 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 1's 0.5" F Threaded #1, also attach its 0.5" F Threaded #1 facing top to part 38's 0.5" M Threaded #2 P37 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is right-facing, should connect to part 28's 0.5" F Threaded #1, and its 0.5" F Threaded #1, which is bottom-facing, should connect to part 38's 0.5" M Threaded #1 P38 (0.5" x 1" Long Nipple Black Steel) - attach its 0.5" M Threaded #1 facing top to part 37's 0.5" F Threaded #1, and connect its 0.5" M Threaded #2 oriented bottom links with part 36's 0.5" F Threaded #1 P39 ( 90° M to F Elbow Black Steel) - its 0.5" M Threaded #1, which is left-facing, should connect to part 4's 0.5" F Threaded #1. Also, its 0.5" F Threaded #1, which is bottom-facing, should connect to part 41's 0.5" M Threaded #2 P40 ( 90° M to F Elbow Black Steel) - attach its 0.5" M Threaded #1 facing left to part 5's 0.5" F Threaded #1, then its 0.5" F Threaded #1, which is top-facing, should connect to part 41's 0.5" M Threaded #1 P41 (0.5" x 1" Long Nipple Black Steel) - connect its 0.5" M Threaded #1 oriented bottom links with part 40's 0.5" F Threaded #1. Also, connect its 0.5" M Threaded #2 oriented top links with part 39's 0.5" F Threaded #1
1/21/2" x 1" Bushing Male Slip PVCx 4
 1/2 1/2" 90° Male to Female Elbow Black Steelx 4
1/21/2" x 1" Long Nipple Black Steelx 2
