8020 Workstation - Comprehensive Assembly Plan And Visual Guide

8020 Workstation Free Plan And Visual Guide

A workstation frame constructed from 80/20 aluminum T-slot extrusions. It consists of two main leg assemblies on wheels, connected by lower and upper cross beams, supporting an upper frame structure with accessory rails and panels. - 8020 WorkstationA tall, mobile workstation frame constructed from 80/20 T-slot aluminum extrusions. It consists of two main vertical leg assemblies connected by cross-members, with an upper shelf structure featuring sliding panels and a smaller side-mounted accessory shelf. - 8020 Workstation / Simulator Rig Frame

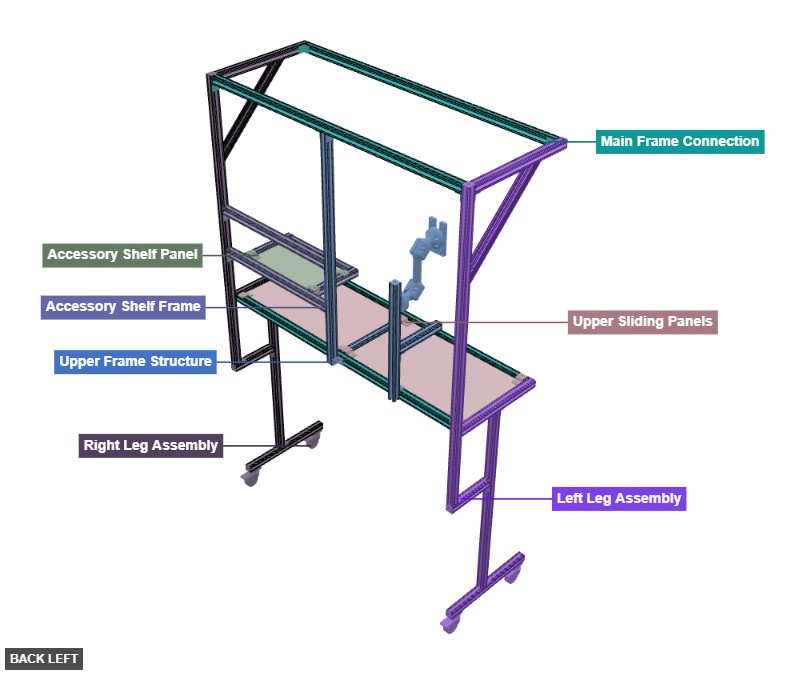

Phase 1: Group Overview

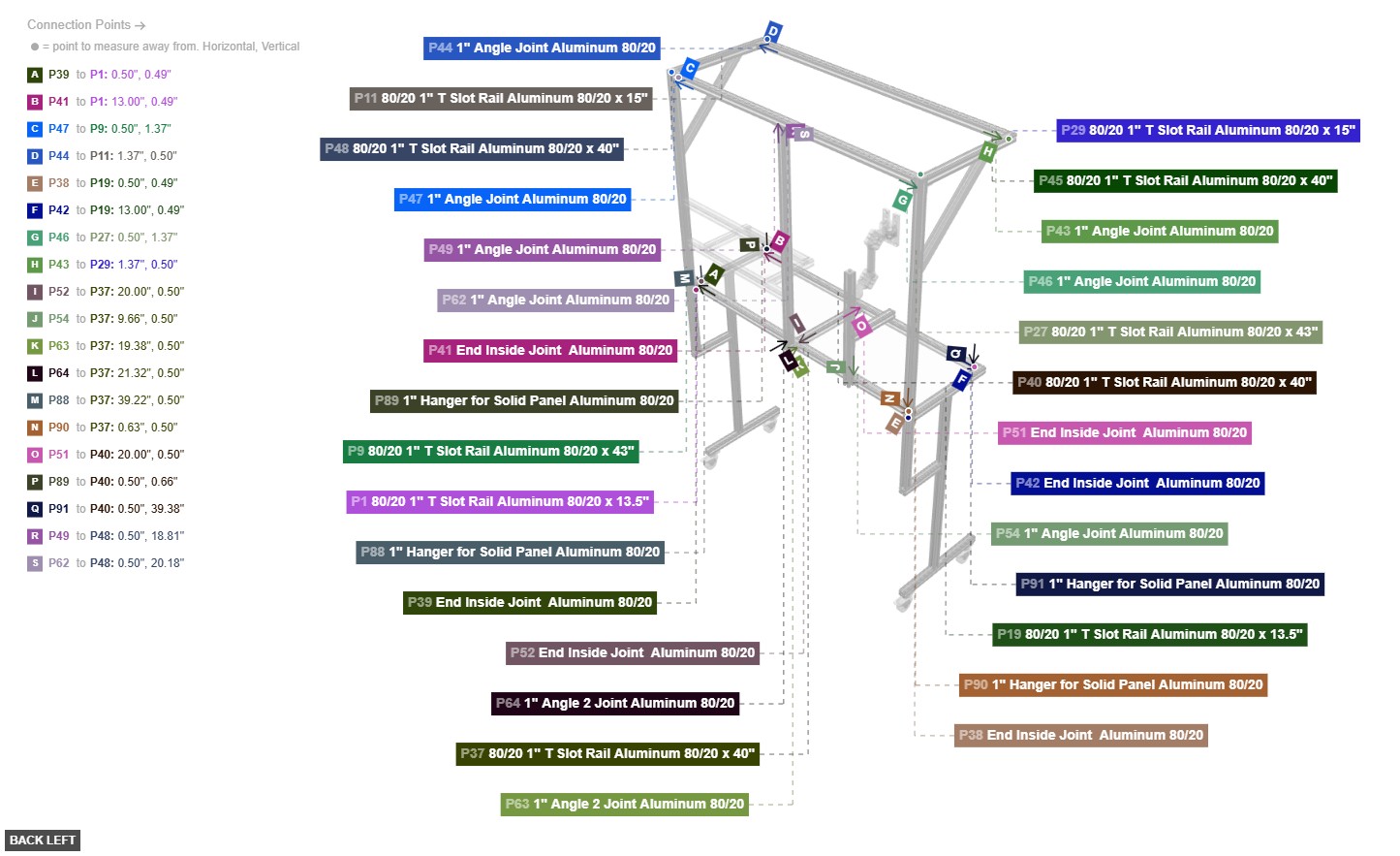

Angle: back left

8020 Workstation - Overview back_left

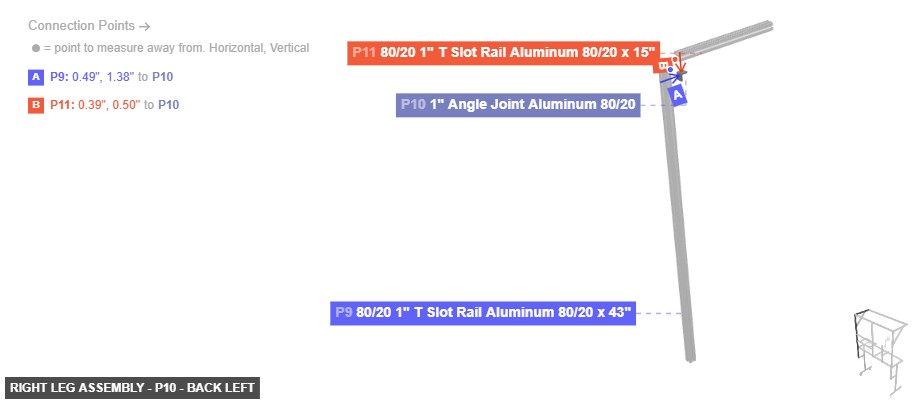

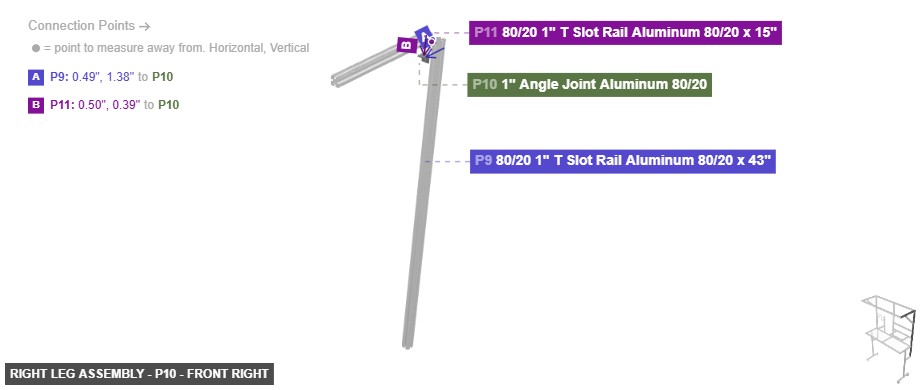

Right Leg Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

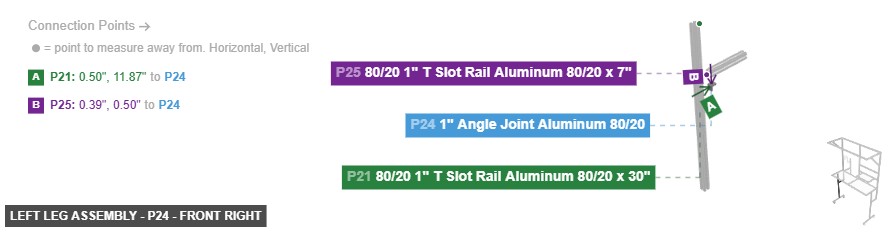

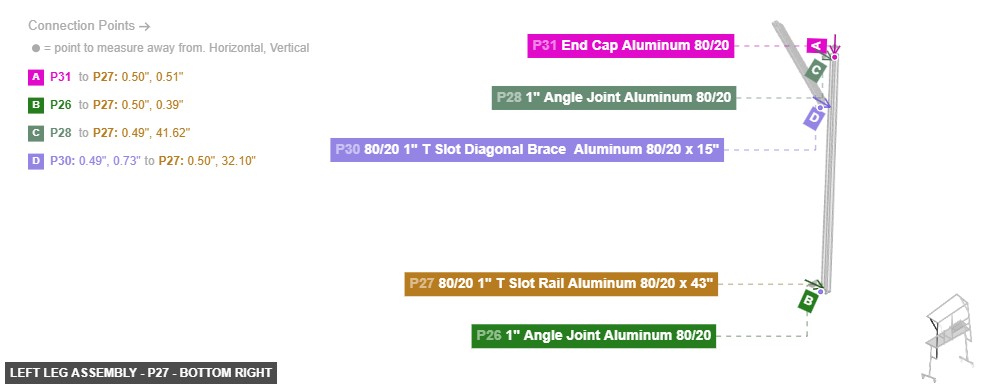

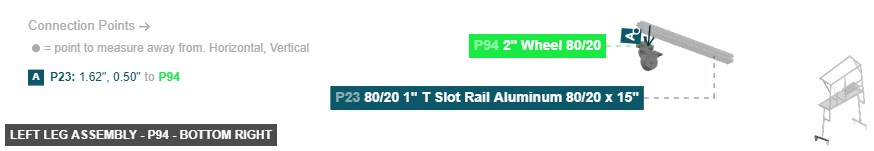

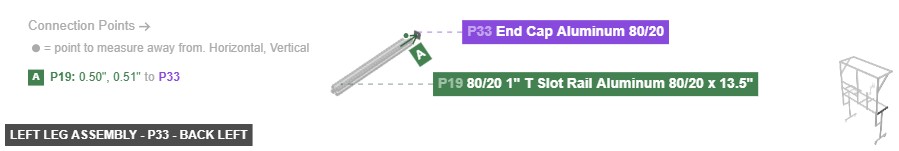

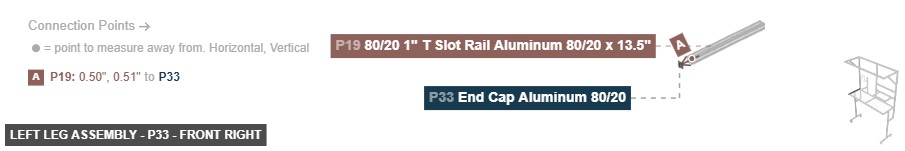

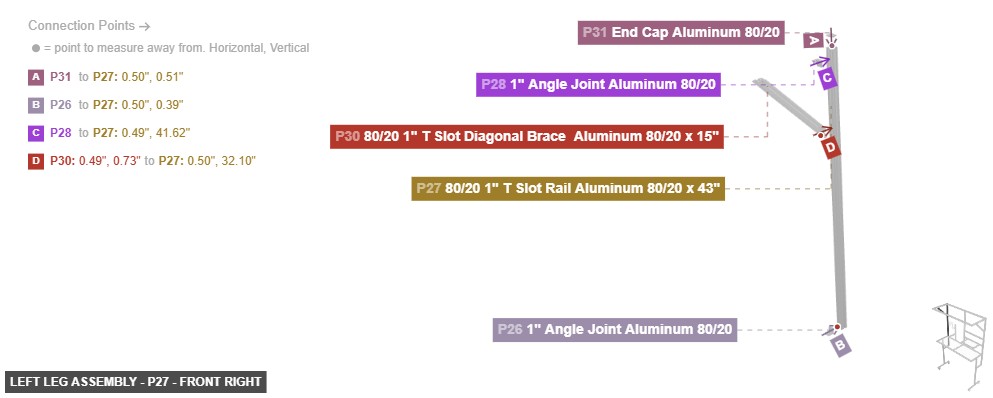

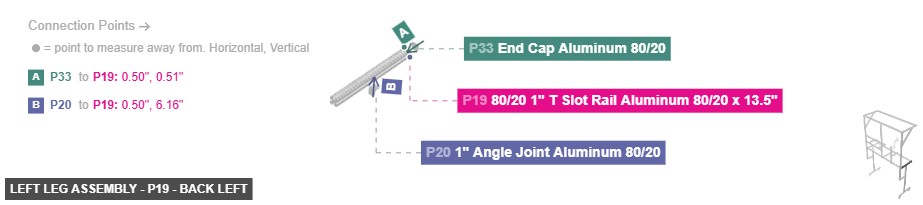

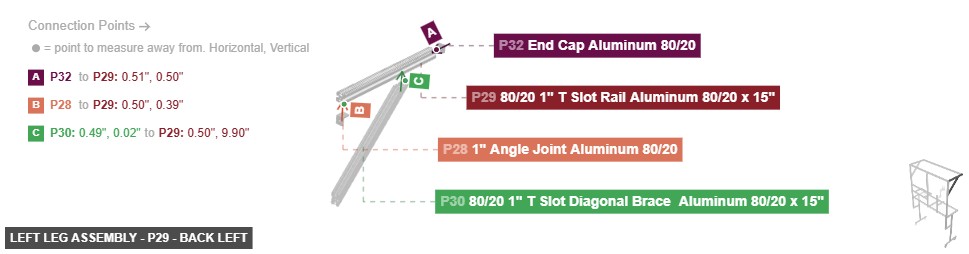

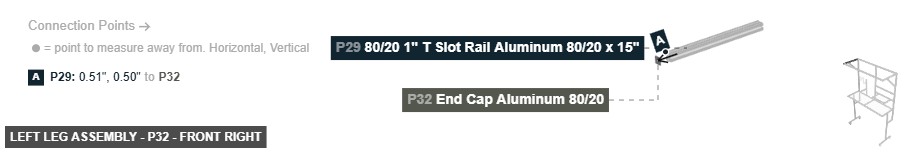

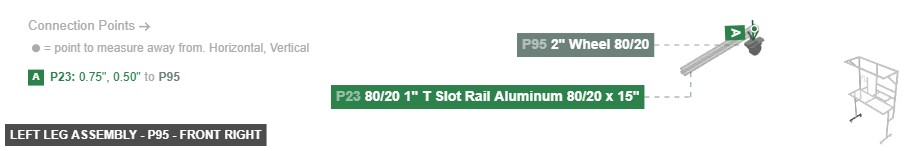

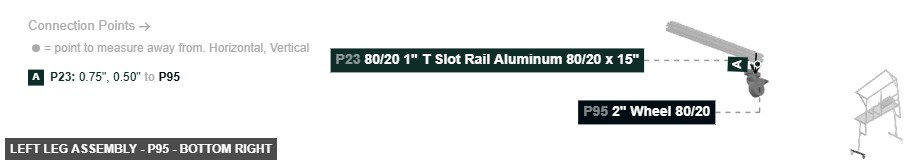

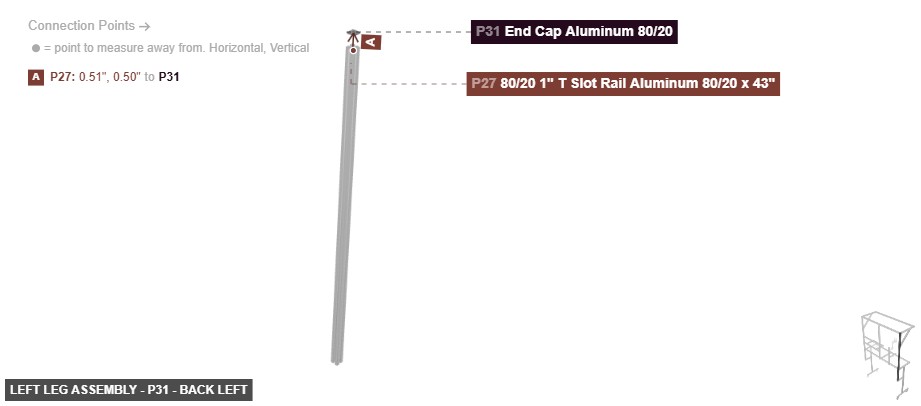

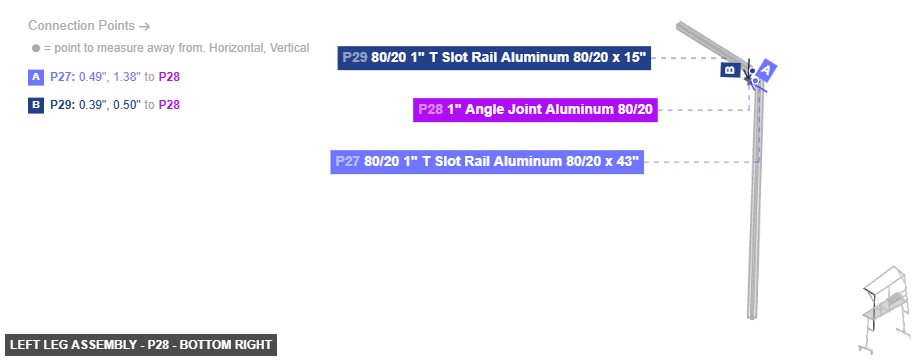

Left Leg Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

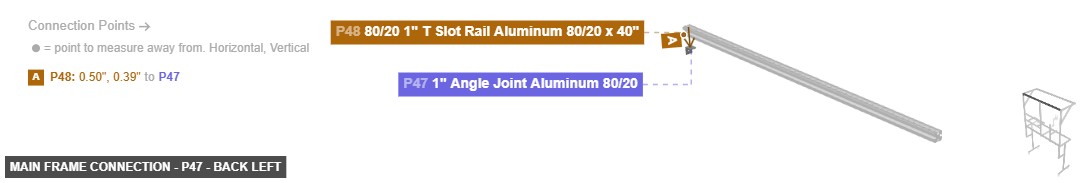

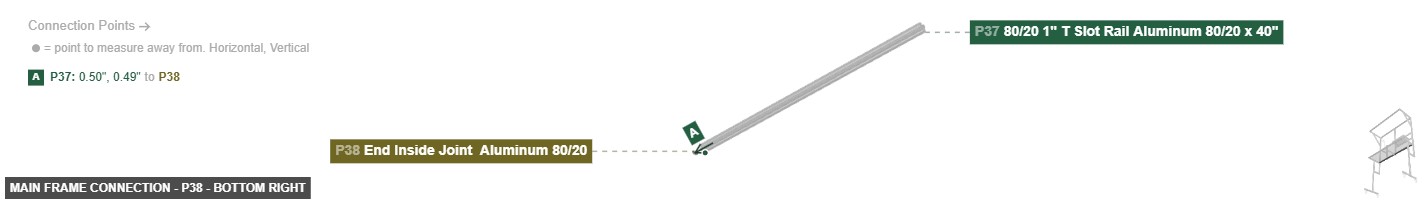

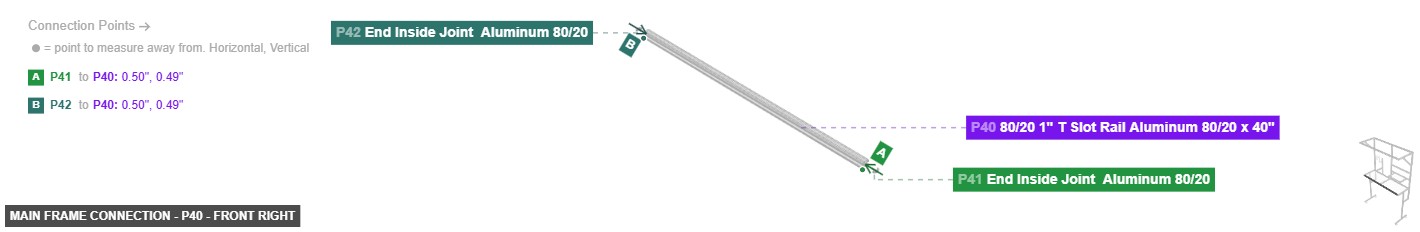

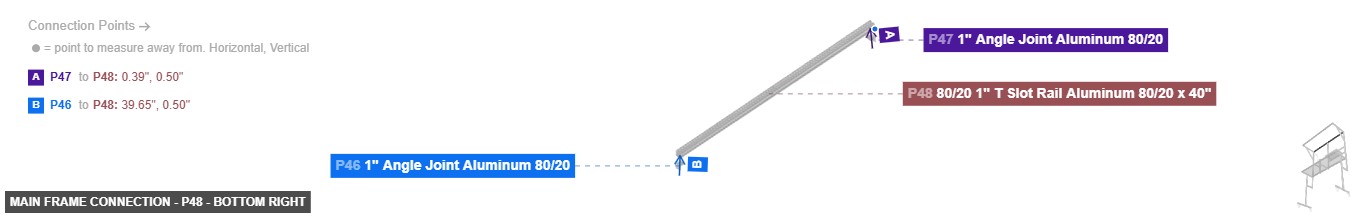

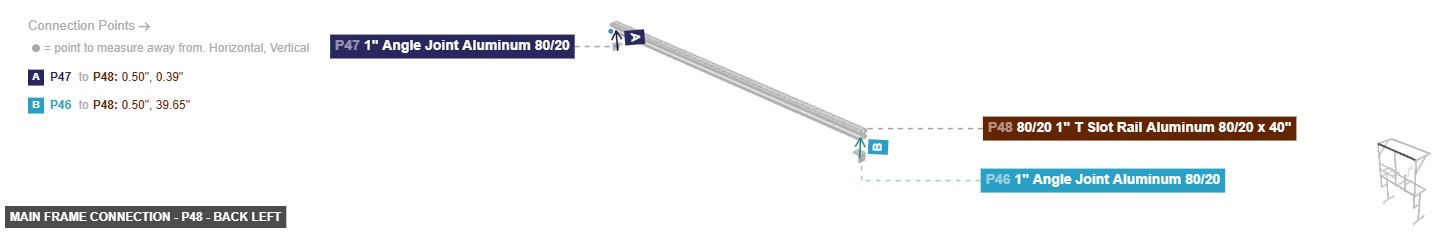

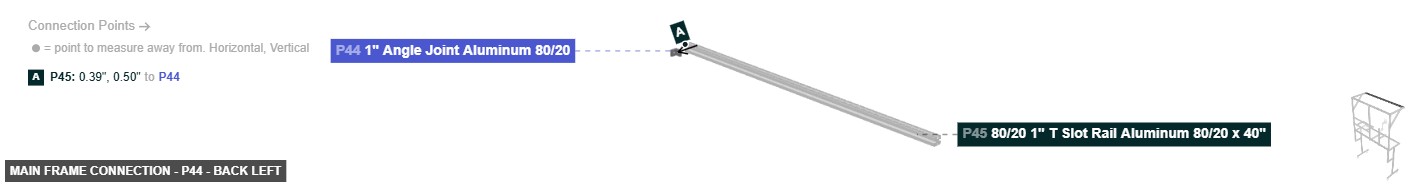

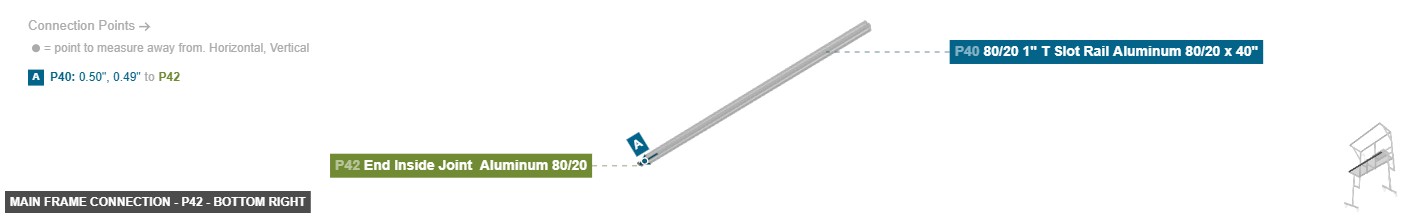

Main Frame Connection
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

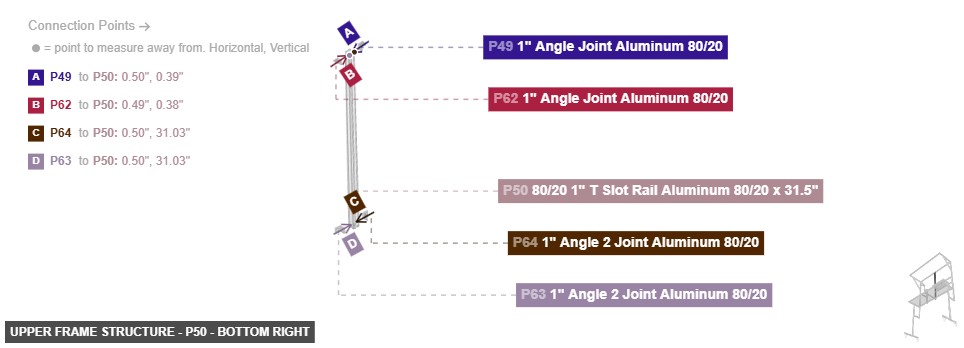

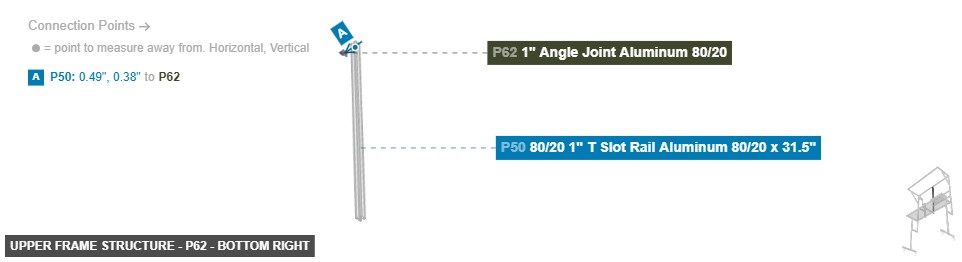

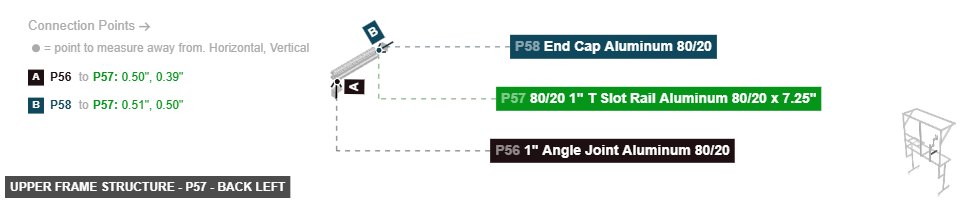

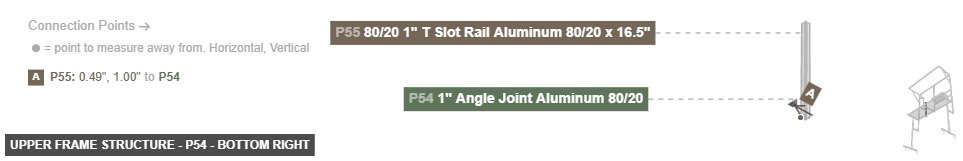

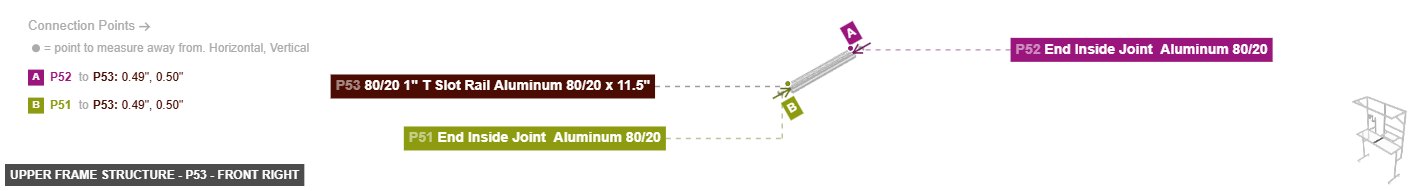

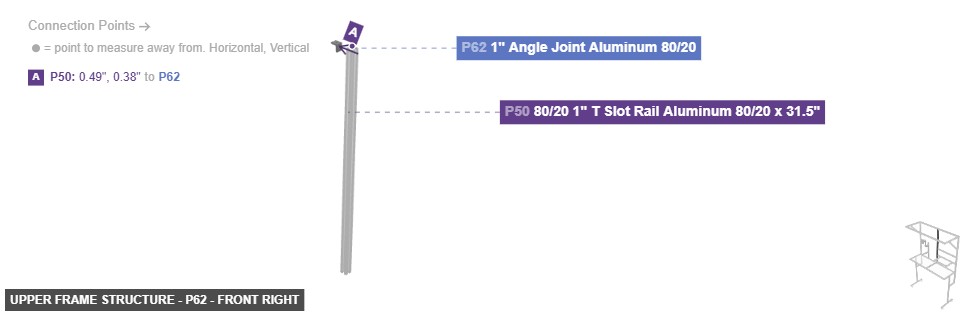

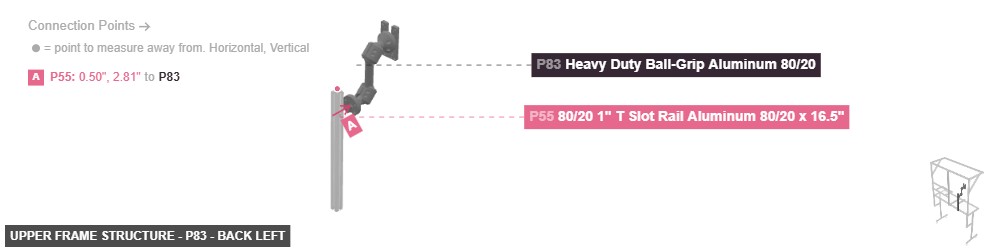

Upper Frame Structure
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

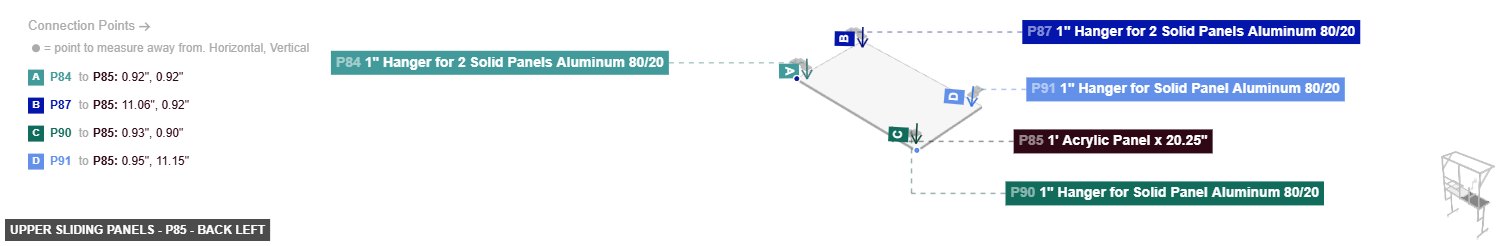

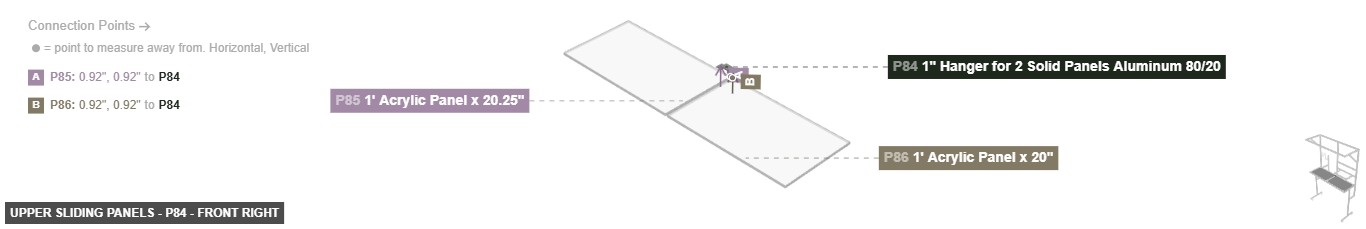

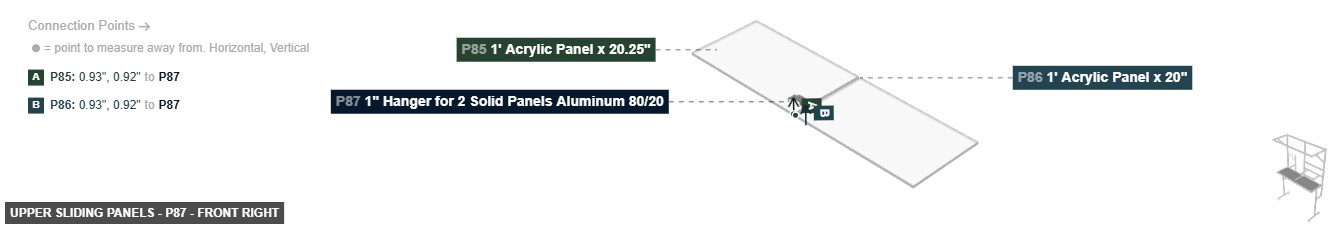

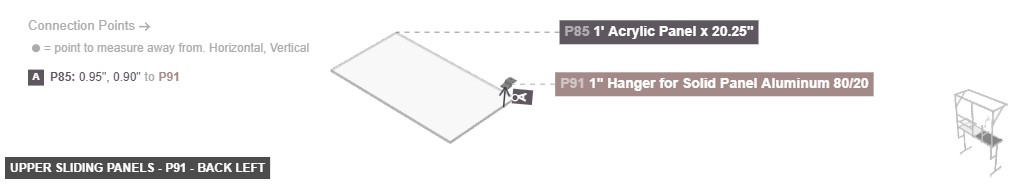

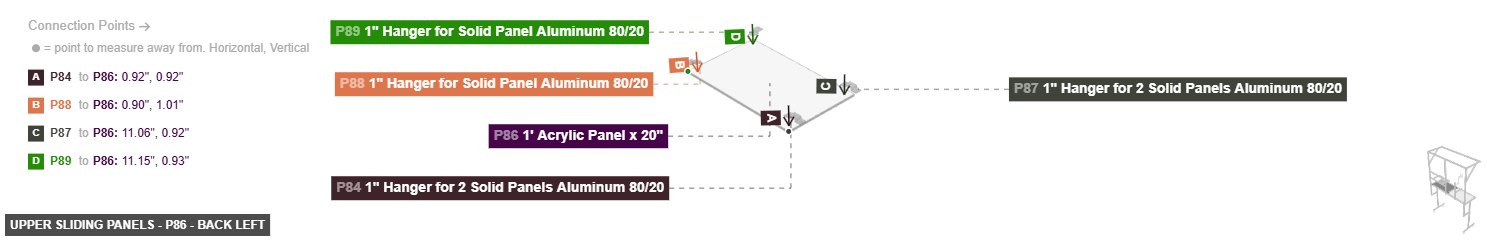

Upper Sliding Panels
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

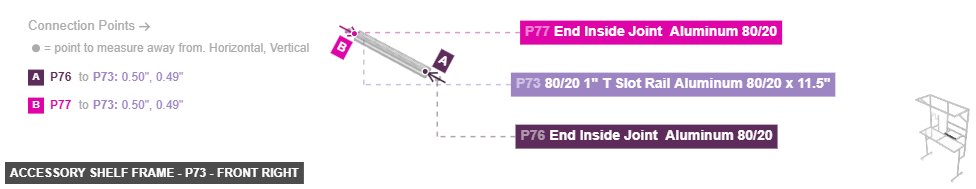

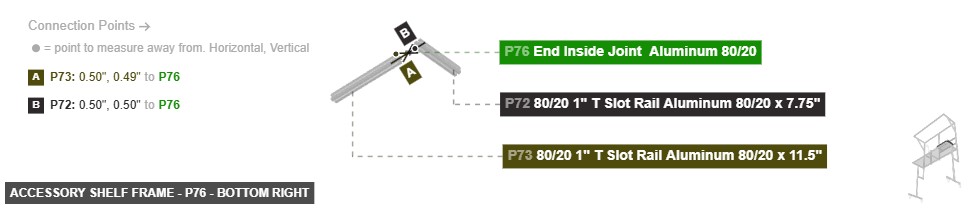

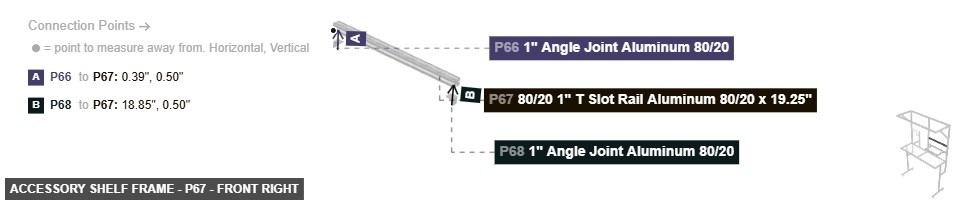

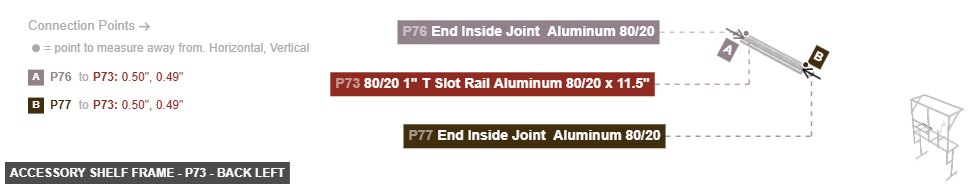

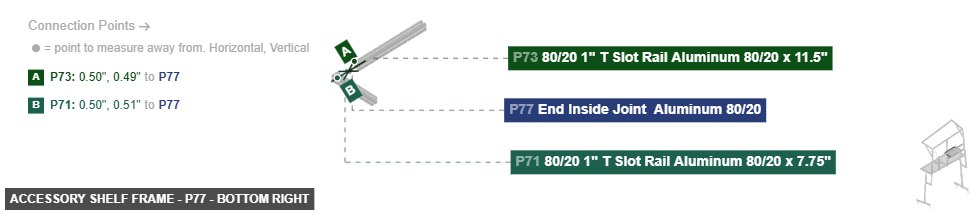

Accessory Shelf Frame
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

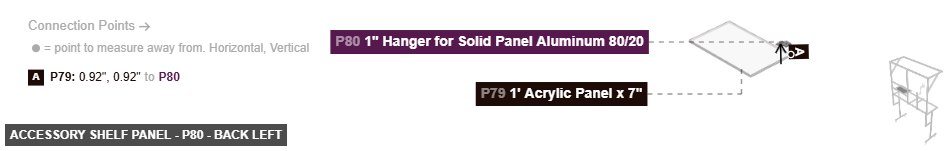

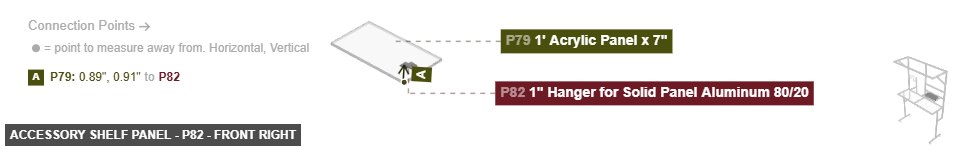

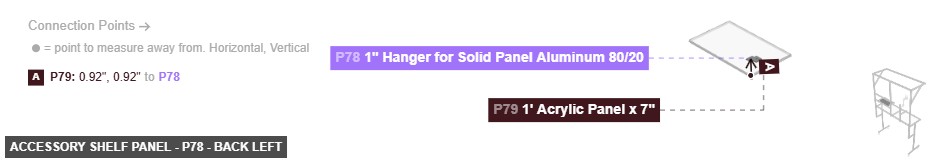

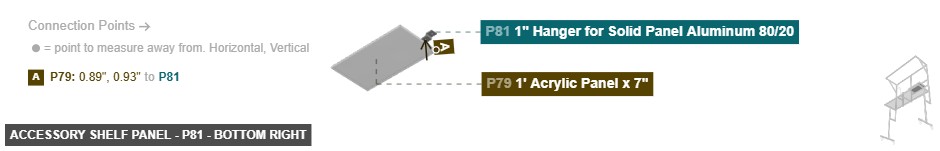

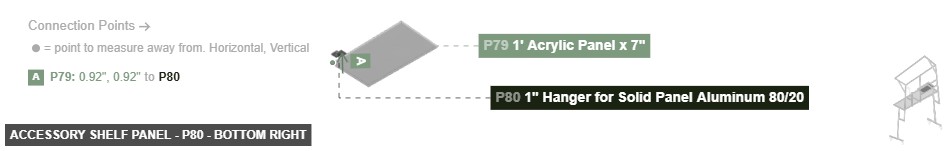

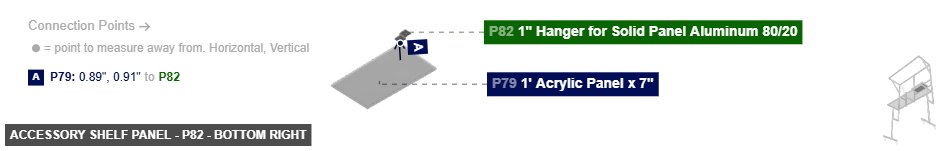

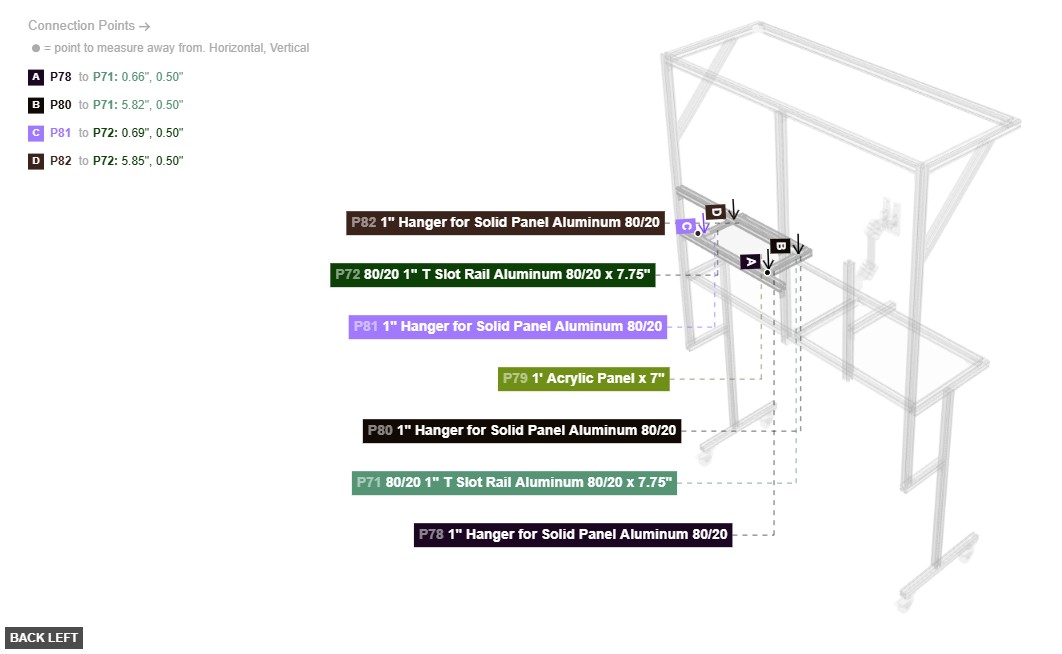

Accessory Shelf Panel
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

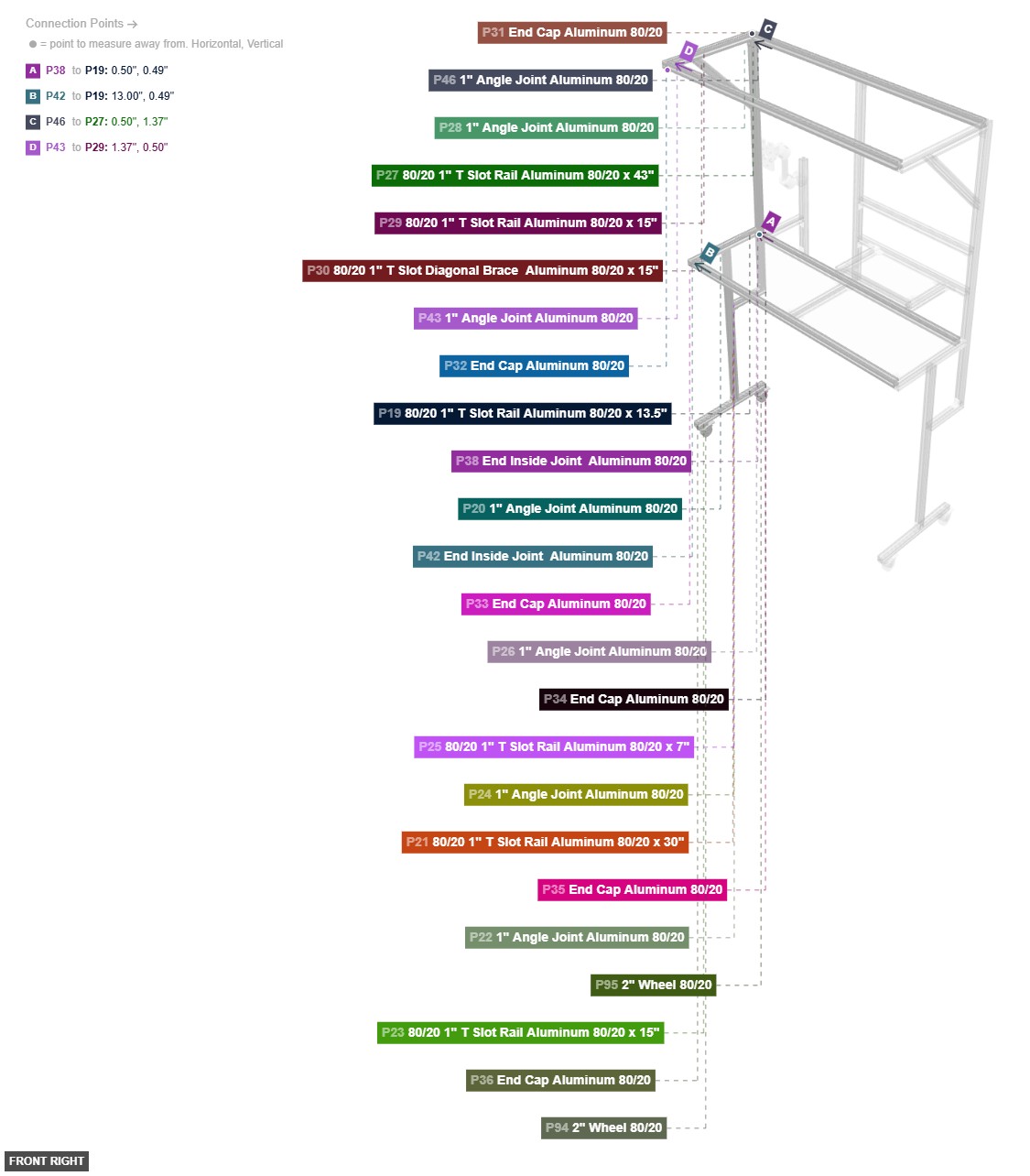

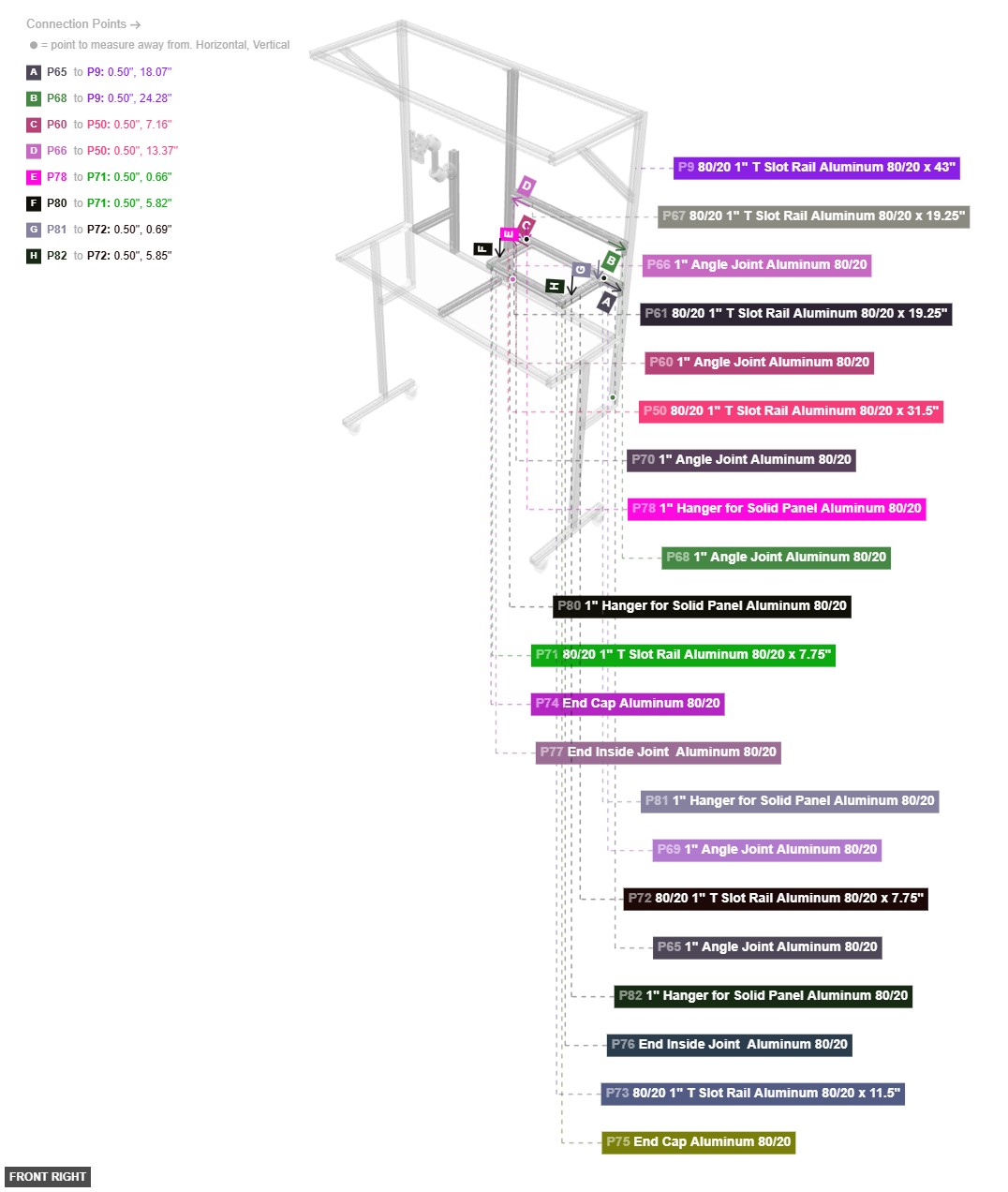

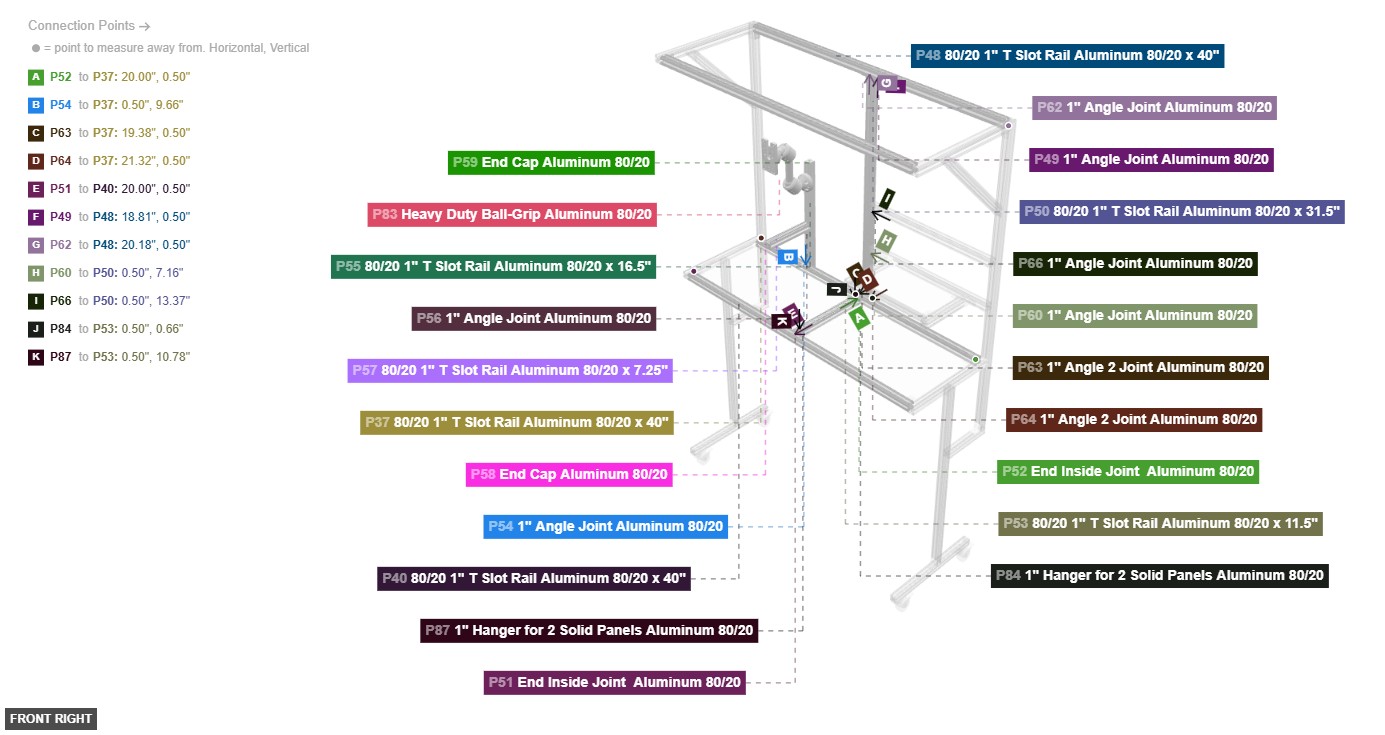

Angle: front right

8020 Workstation - Overview front_right
Right Leg Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

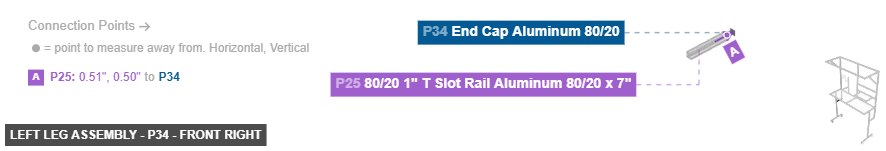

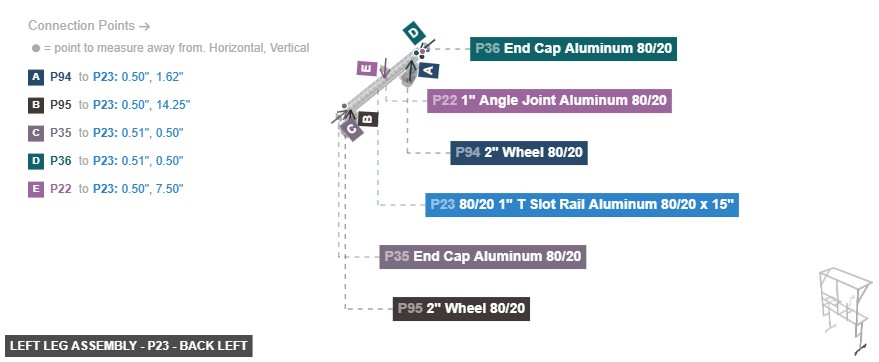

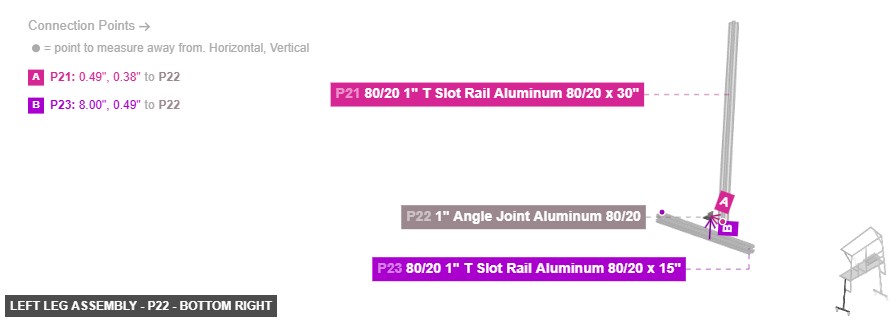

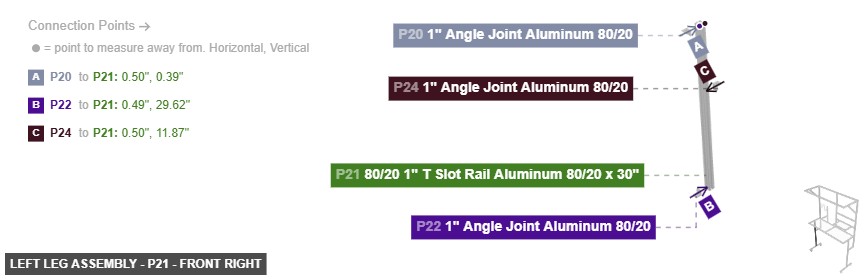

Left Leg Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

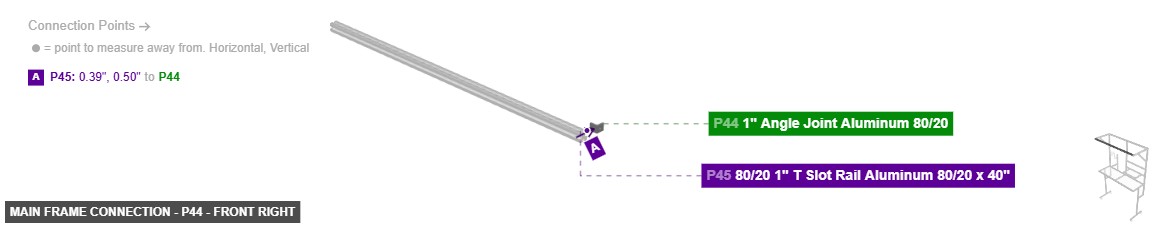

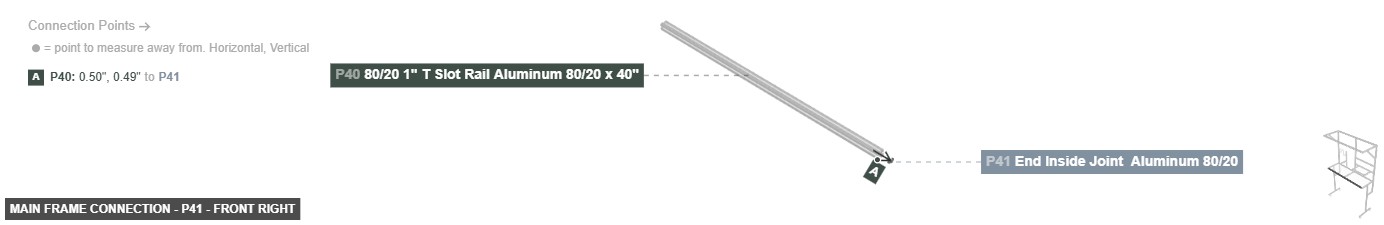

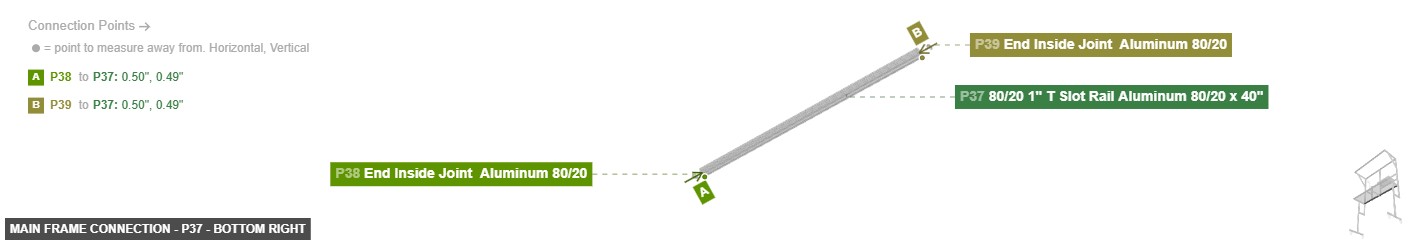

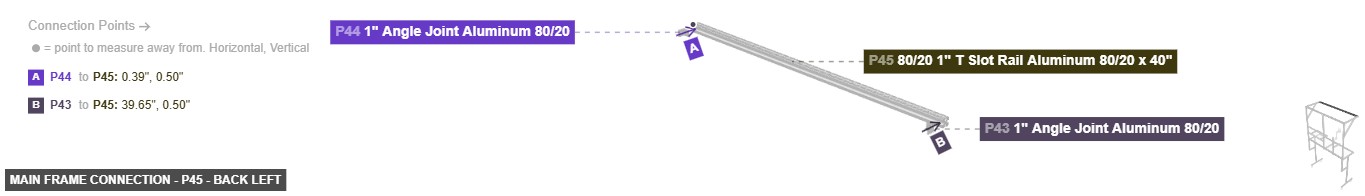

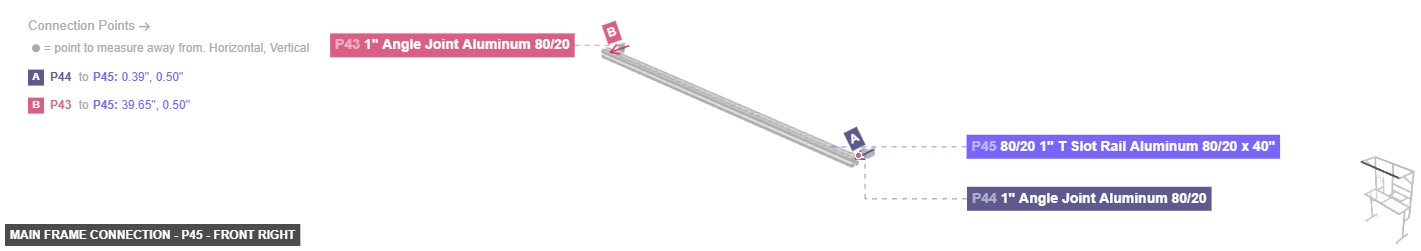

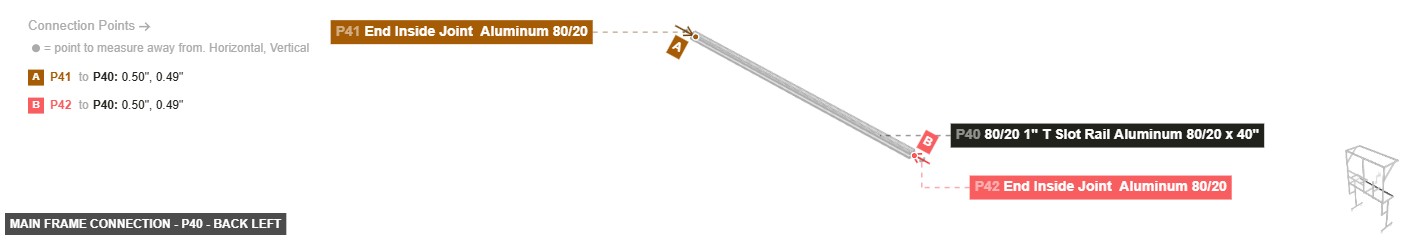

Main Frame Connection
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

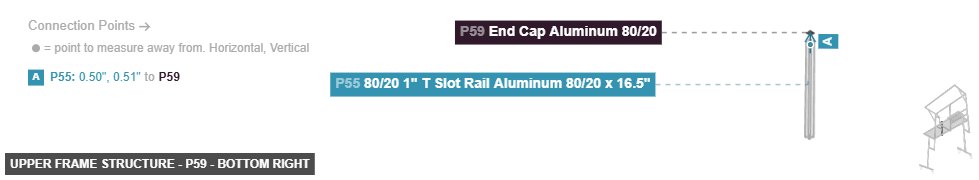

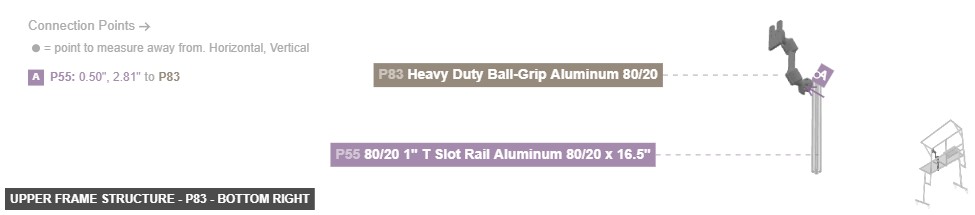

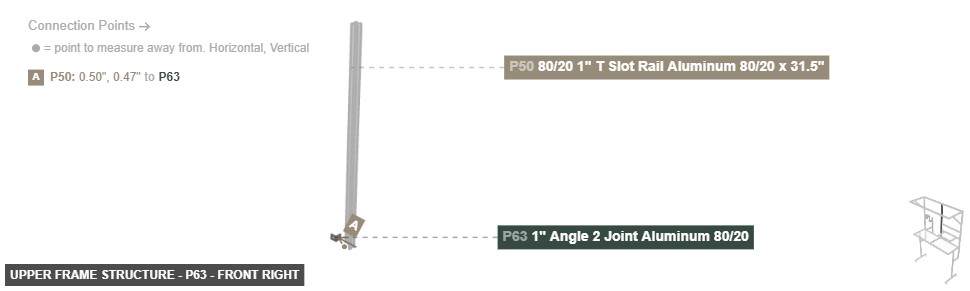

Upper Frame Structure
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

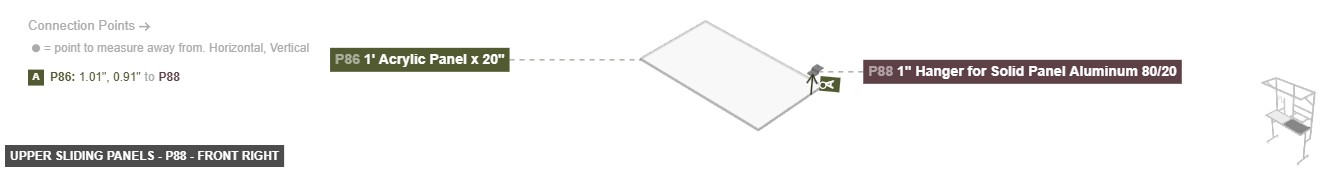

Upper Sliding Panels
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

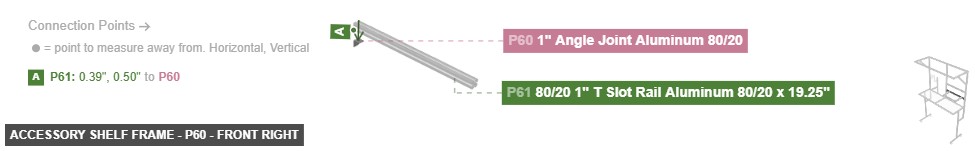

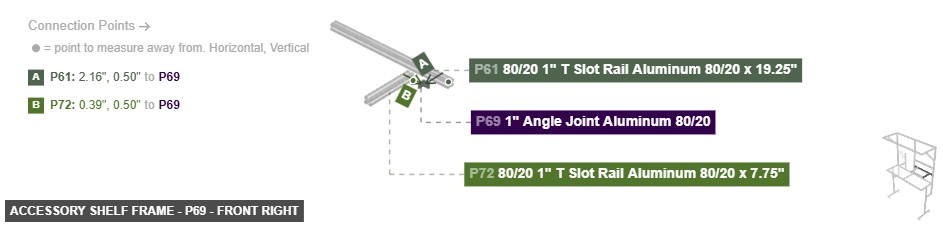

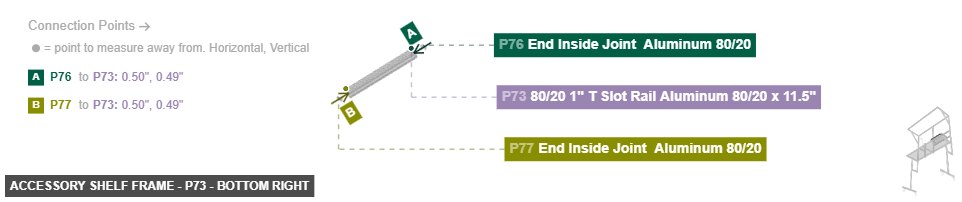

Accessory Shelf Frame
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

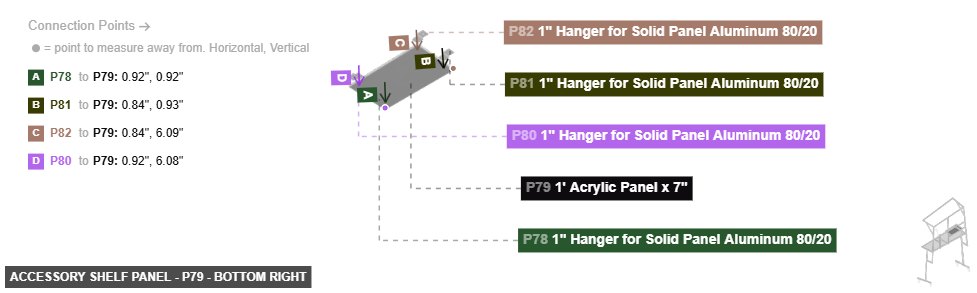

Accessory Shelf Panel
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

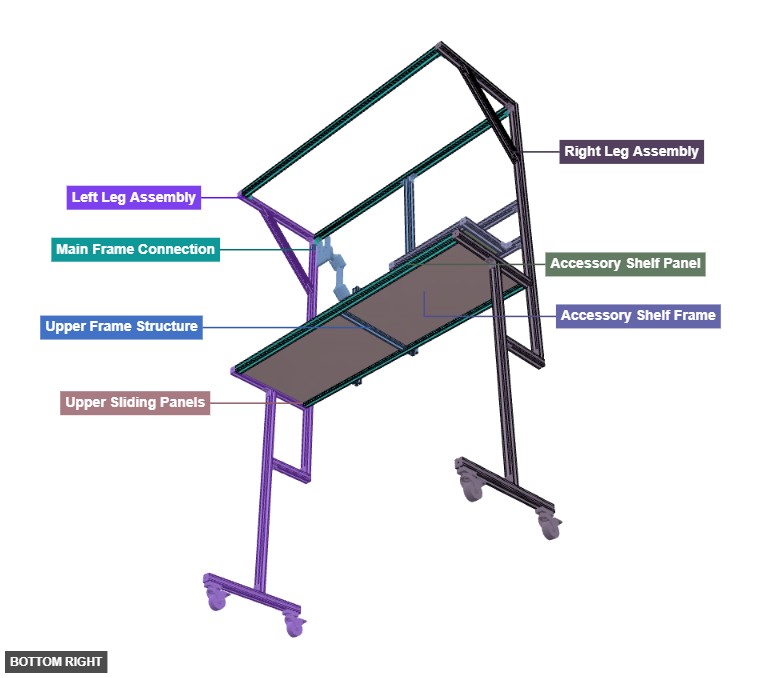

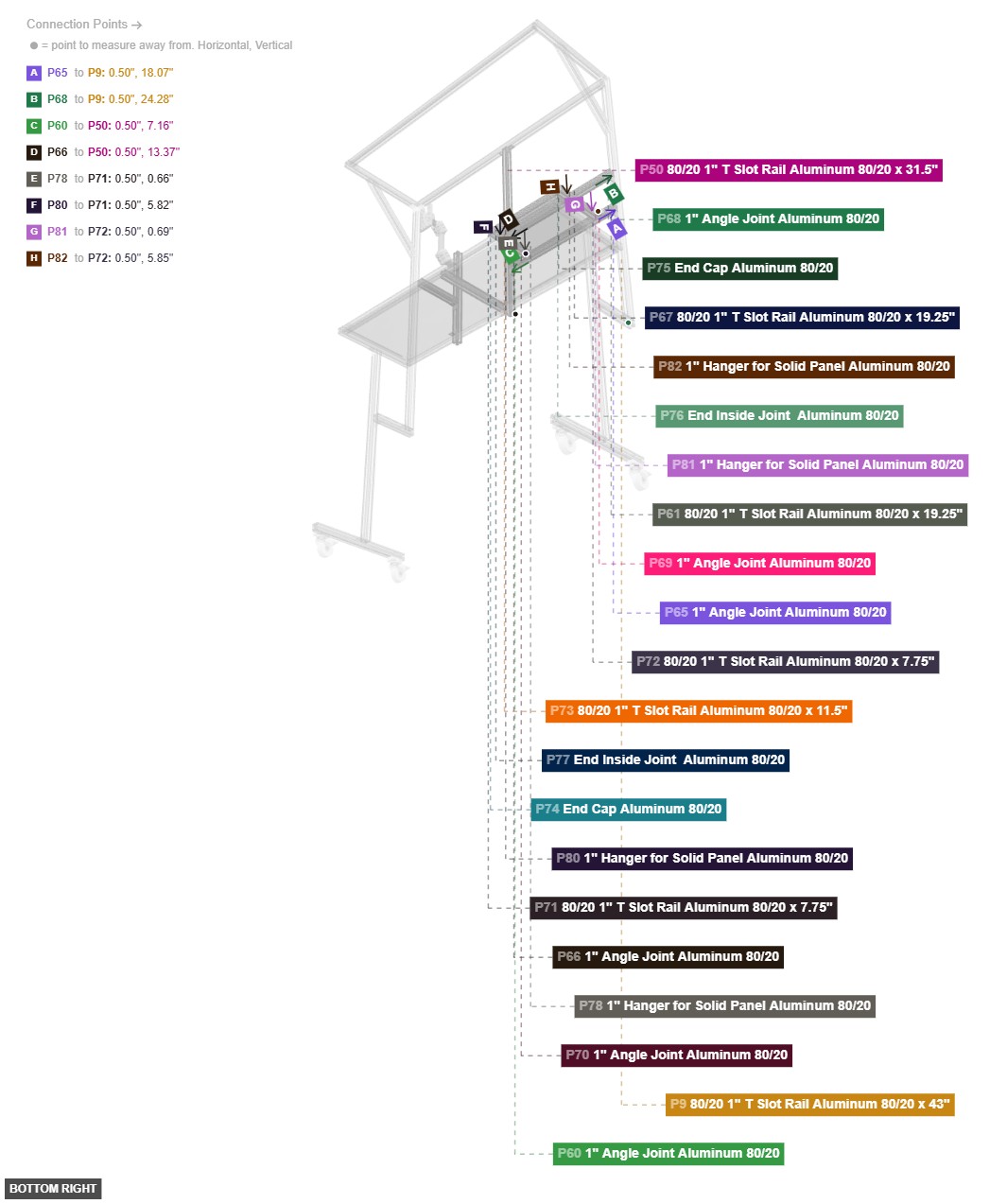

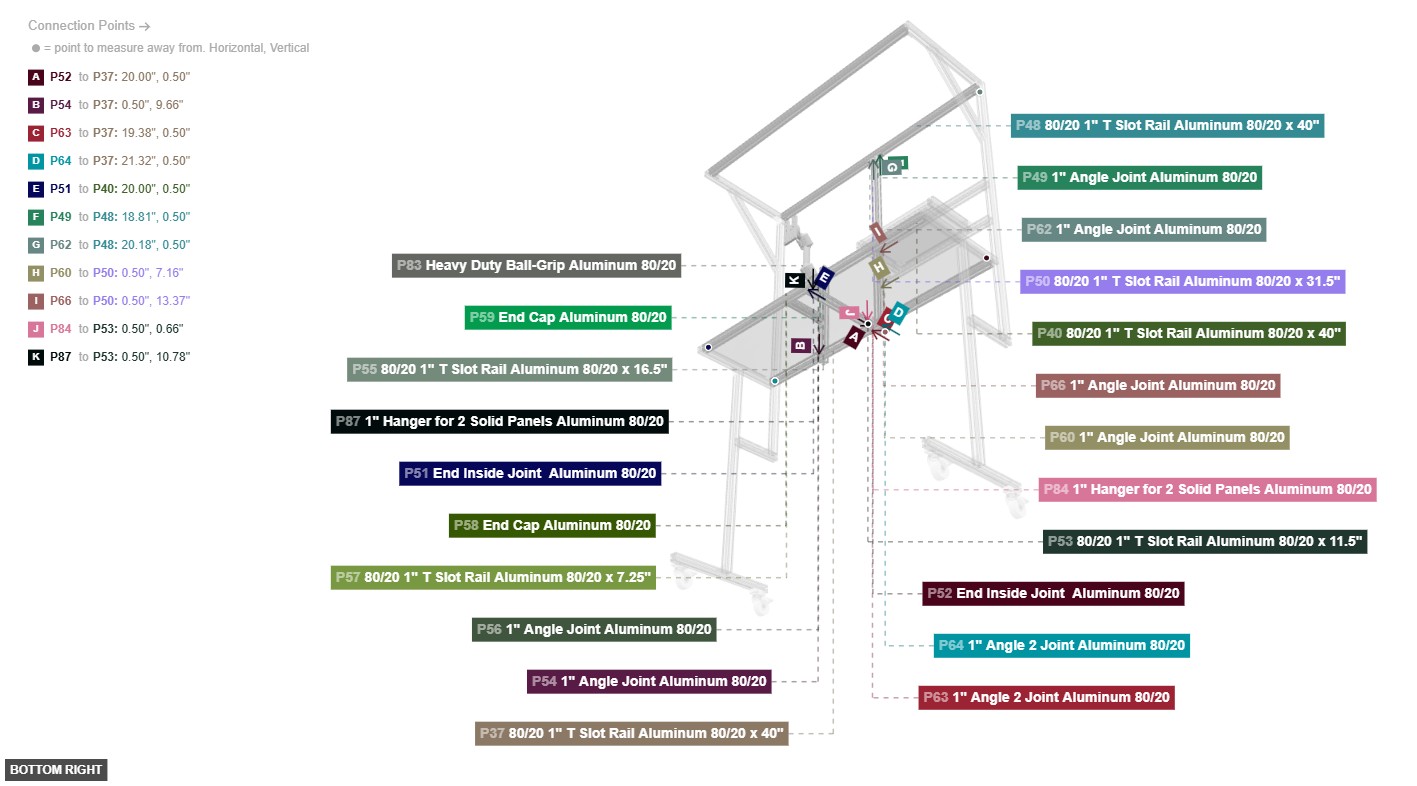

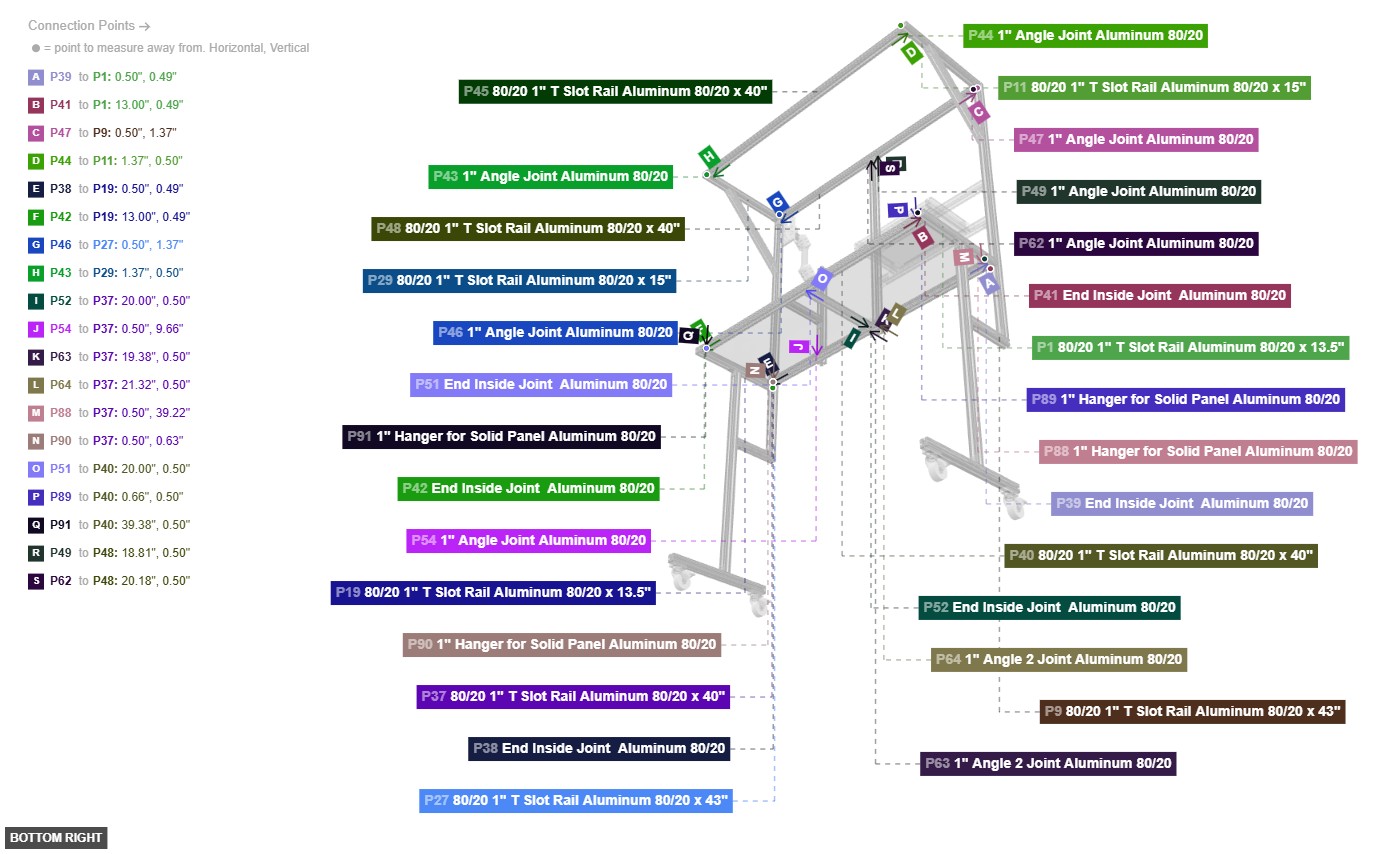

Angle: bottom right

8020 Workstation - Overview bottom_right
Right Leg Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

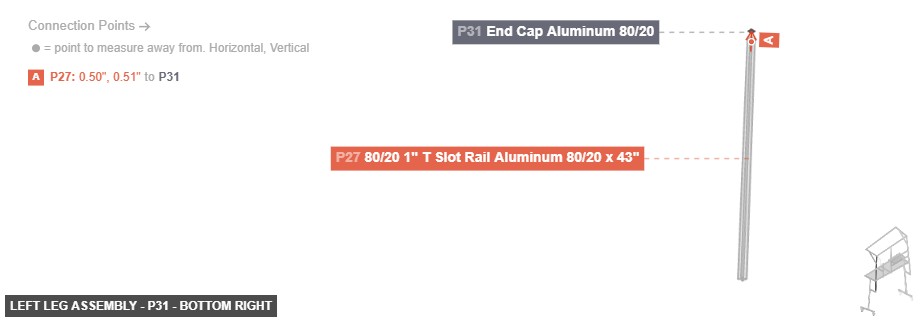

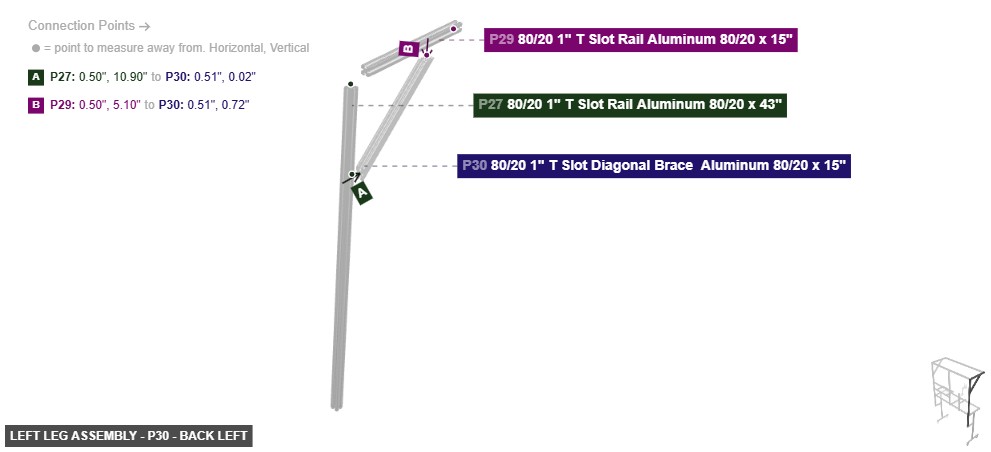

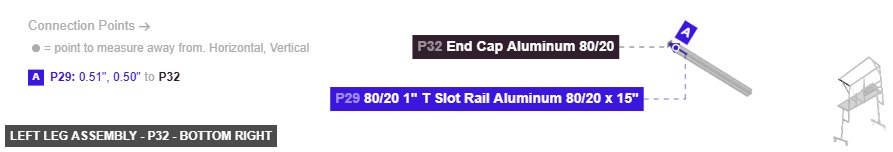

Left Leg Assembly
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

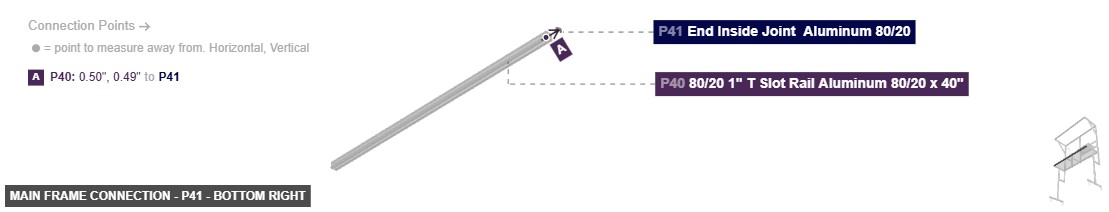

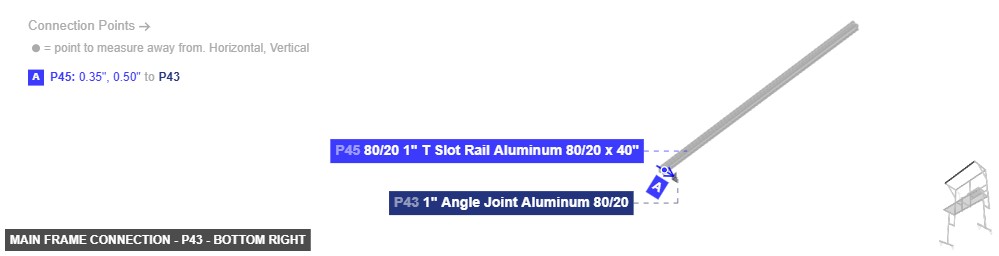

Main Frame Connection
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

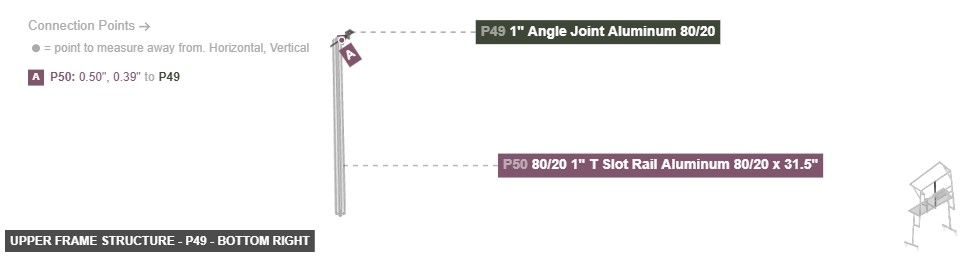

Upper Frame Structure
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

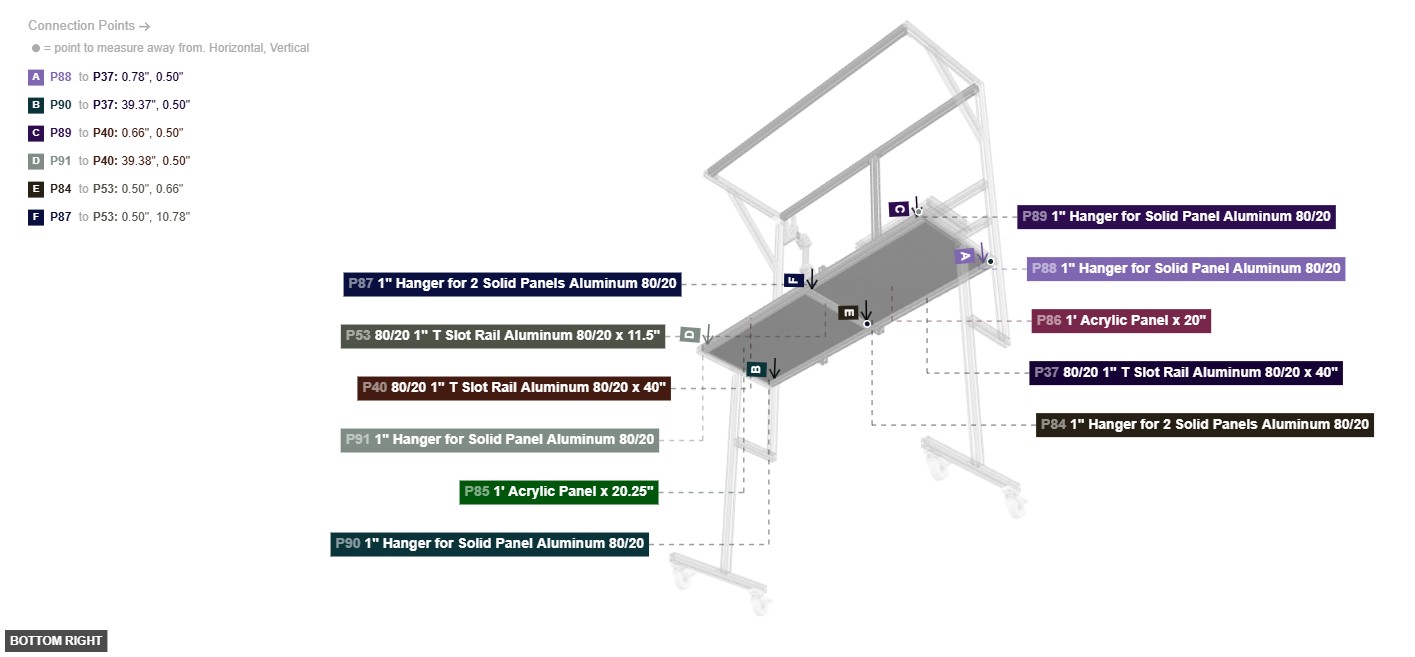

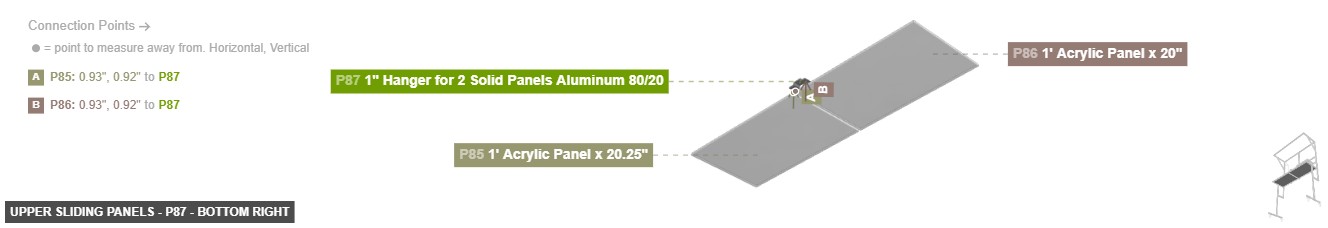

Upper Sliding Panels
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

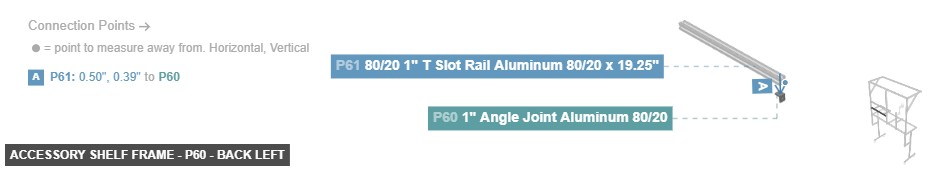

Accessory Shelf Frame
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
Accessory Shelf Panel
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Phase 2: Individual Group Assembly

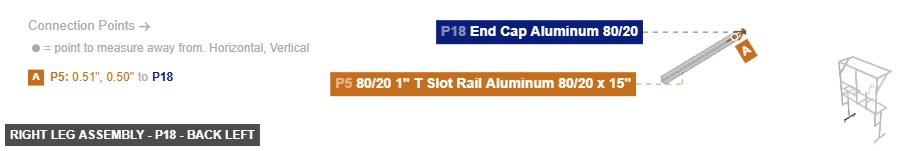

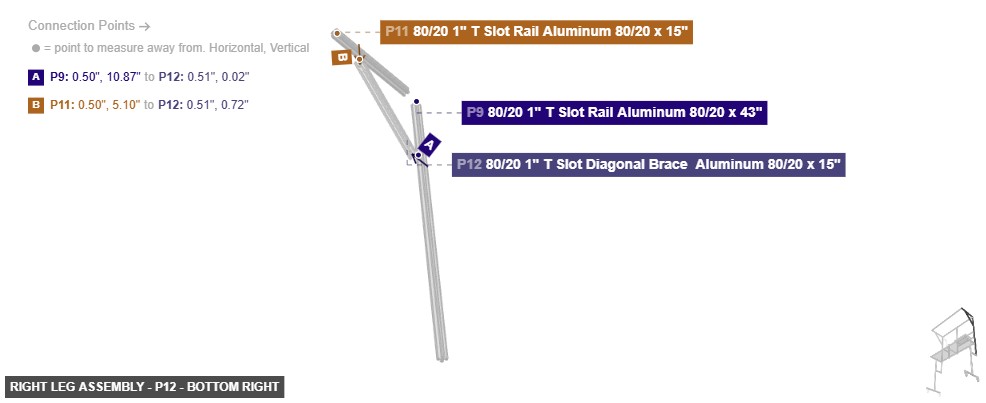

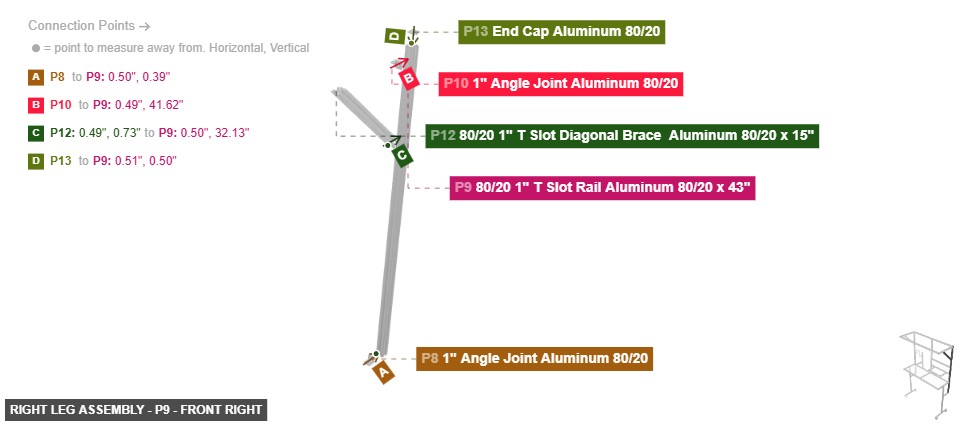

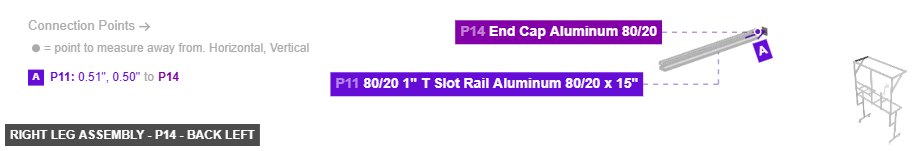

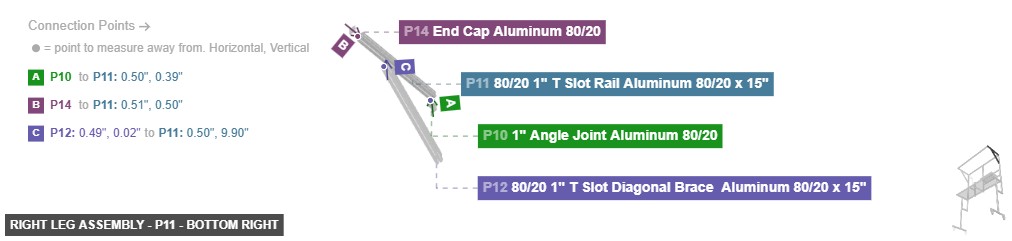

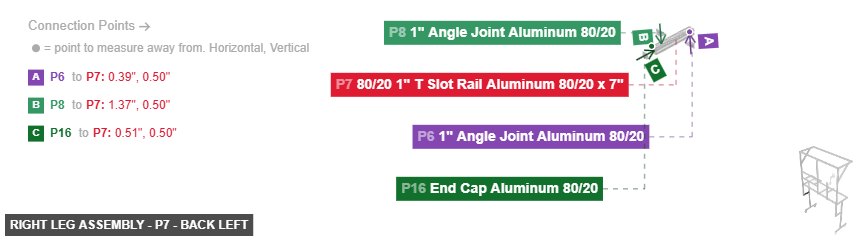

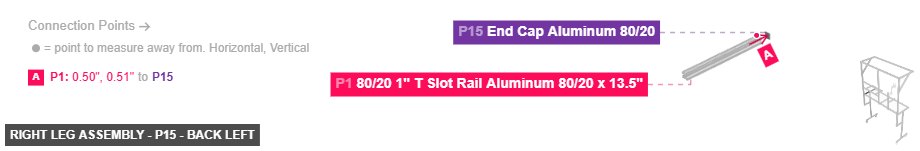

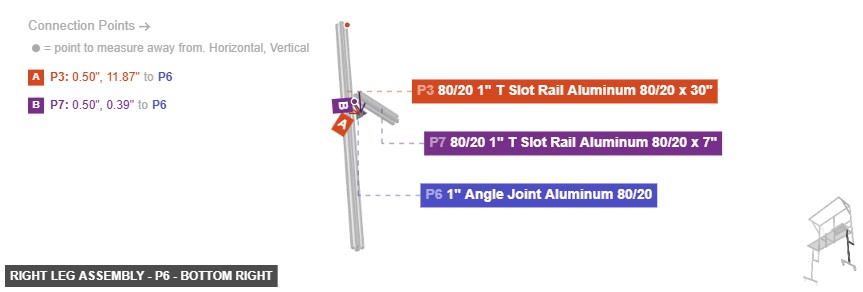

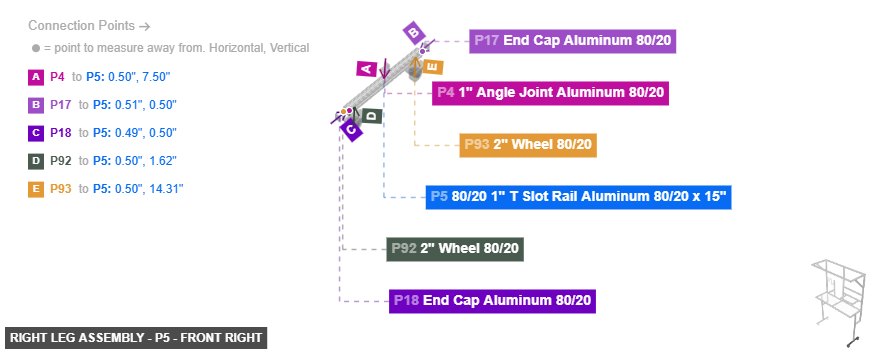

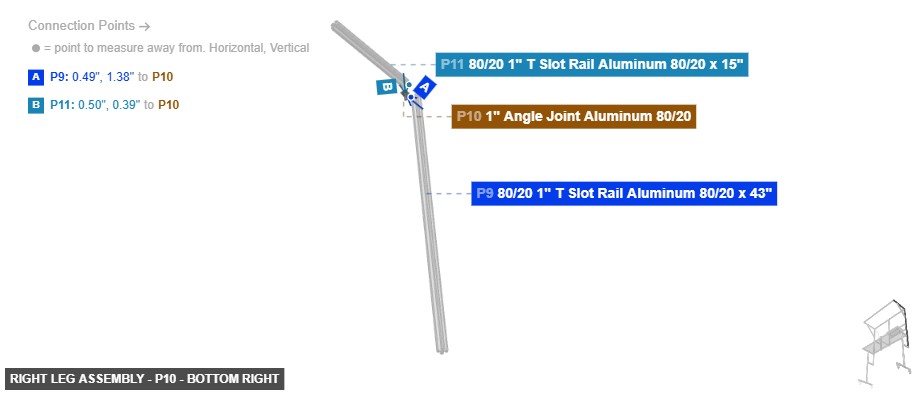

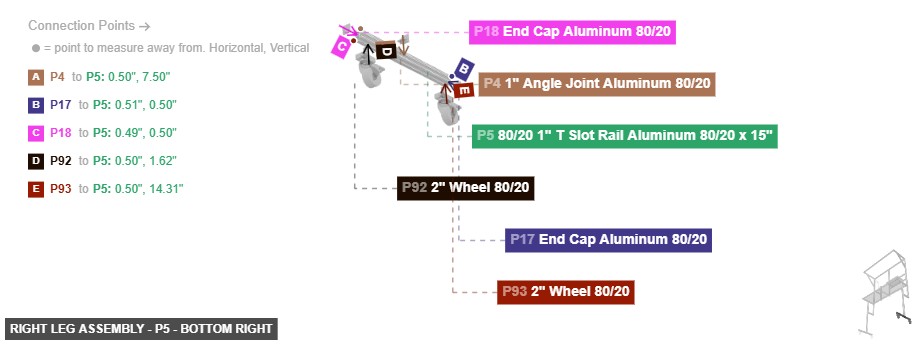

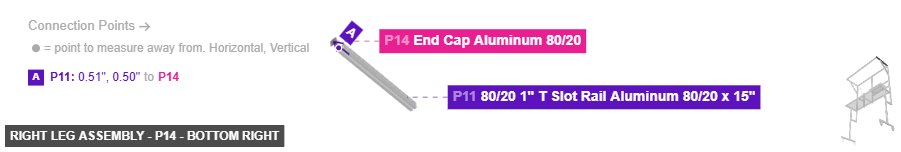

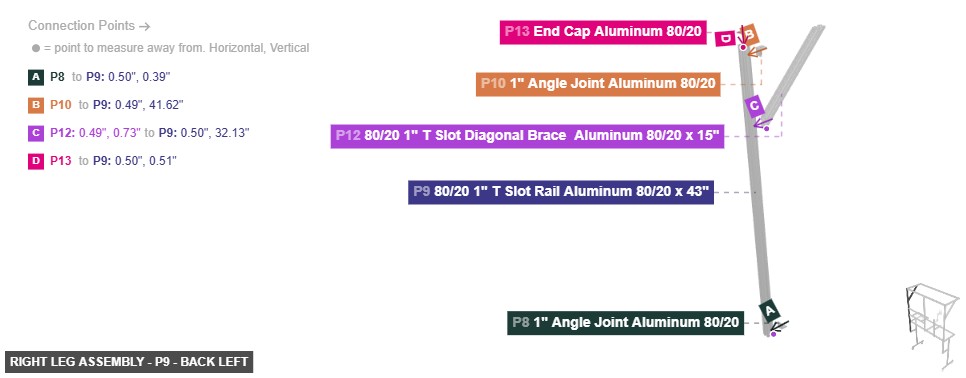

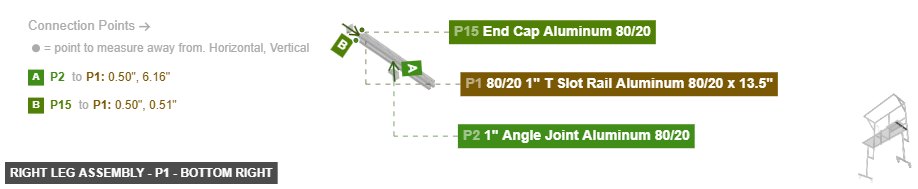

Group: Right Leg Assembly

Forms the main structural support for the right side of the workstation, including the base, vertical posts, and wheel mounts.

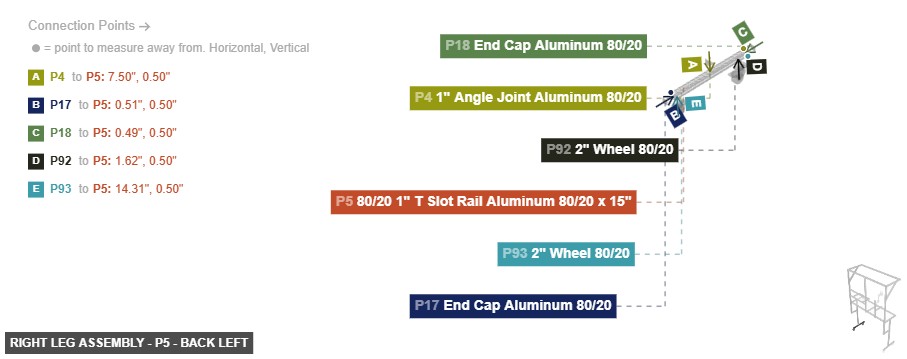

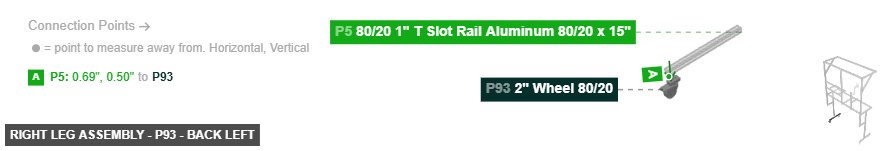

First, attach the two wheels (P92, P93) to the bottom rail (P5). Connect P5 to the vertical rail (P3) using the angle joint (P4). At the top of P3, attach the front rail (P1) with joint (P2) and the back rail (P7) with joint (P6). Connect the main vertical post (P9) to the back rail (P7) with joint (P8). Attach the upper side rail (P11) to P9 with joint (P10). Add the diagonal brace (P12) between P11 and P9. Finally, install all the end caps (P13, P14, P15, P16, P17, P18) on the exposed rail ends.

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: back left

Right Leg Assembly - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 15's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #4 oriented bottom links with part 2's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #2 must be oriented top. Also, its 1" Rail 80/20 F #3 must be oriented right, and ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: front right

Right Leg Assembly - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 15's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #4 oriented bottom links with part 2's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #2 must be oriented top. Also, its 1" Rail 80/20 F #3 must be oriented right, and ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: bottom right

Right Leg Assembly - Part 80/20 1
P1 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 15's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #4 oriented bottom links with part 2's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #2 must be oriented top. Also, its 1" Rail 80/20 F #3 must be oriented right, and ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

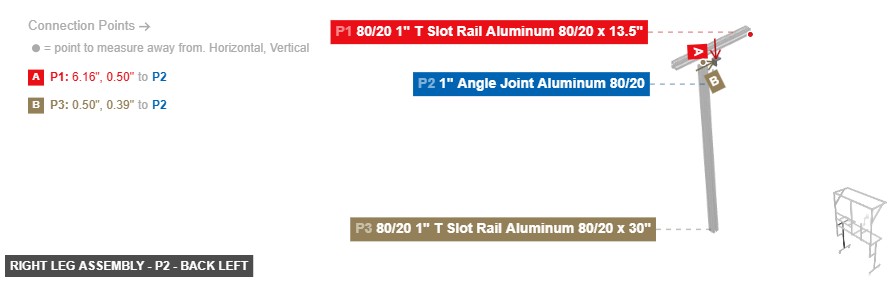

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part 1
P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4, plus connect its 1" Rail 80/20 M #2 oriented back links with part 3's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part 1
P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4, plus connect its 1" Rail 80/20 M #2 oriented back links with part 3's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part 1
P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4, plus connect its 1" Rail 80/20 M #2 oriented back links with part 3's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

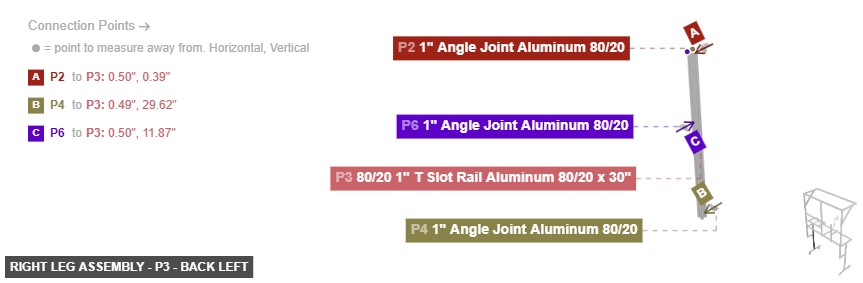

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: back left

Right Leg Assembly - Part 80/20 1

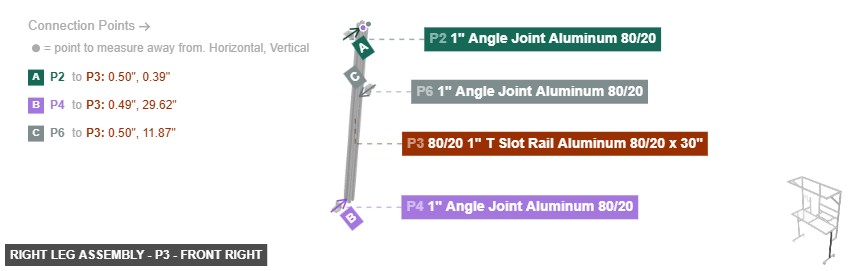

P3 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 2's 1" Rail 80/20 M #2. Also, attach its 1" Rail 80/20 F #3 facing back to part 6's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 needs to point bottom. Also, its 1" Rail 80/20 F #2 should be directed right. Additionally, its 1" Rail 80/20 F #4 needs to point left, also its 1" 80/20 End Hole F #2 needs to point top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: front right

Right Leg Assembly - Part 80/20 1
P3 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 2's 1" Rail 80/20 M #2. Also, attach its 1" Rail 80/20 F #3 facing back to part 6's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 needs to point bottom. Also, its 1" Rail 80/20 F #2 should be directed right. Additionally, its 1" Rail 80/20 F #4 needs to point left, also its 1" 80/20 End Hole F #2 needs to point top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: bottom right

Right Leg Assembly - Part 80/20 1
P3 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 2's 1" Rail 80/20 M #2. Also, attach its 1" Rail 80/20 F #3 facing back to part 6's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 needs to point bottom. Also, its 1" Rail 80/20 F #2 should be directed right. Additionally, its 1" Rail 80/20 F #4 needs to point left, also its 1" 80/20 End Hole F #2 needs to point top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

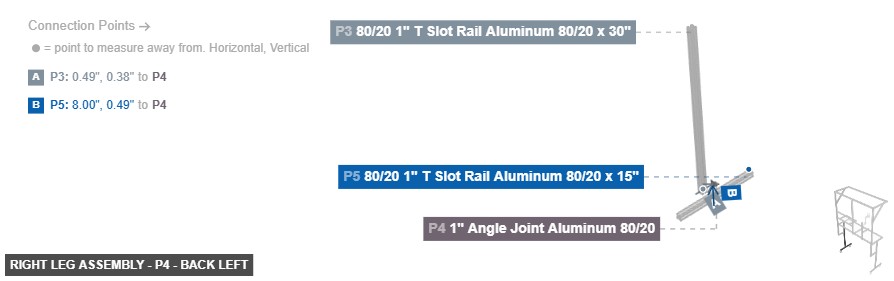

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part 1
P4 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 3's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 5's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part 1
P4 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 3's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 5's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part 1
P4 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 3's 1" Rail 80/20 F #1. After that, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 5's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: back left

Right Leg Assembly - Part 80/20 1
P5 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 18's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 4's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #3, which is bottom-facing, should connect to part 92's 1" Rail 80/20 M #1, then connect its 1" 80/20 End Hole F #2 oriented back links with part 17's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #2 should be directed right, also ensure its 1" Rail 80/20 F #4 faces left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: front right

Right Leg Assembly - Part 80/20 1
P5 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 18's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 4's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #3, which is bottom-facing, should connect to part 92's 1" Rail 80/20 M #1, then connect its 1" 80/20 End Hole F #2 oriented back links with part 17's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #2 should be directed right, also ensure its 1" Rail 80/20 F #4 faces left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: bottom right

Right Leg Assembly - Part 80/20 1
P5 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 18's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 4's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #3, which is bottom-facing, should connect to part 92's 1" Rail 80/20 M #1, then connect its 1" 80/20 End Hole F #2 oriented back links with part 17's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #2 should be directed right, also ensure its 1" Rail 80/20 F #4 faces left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

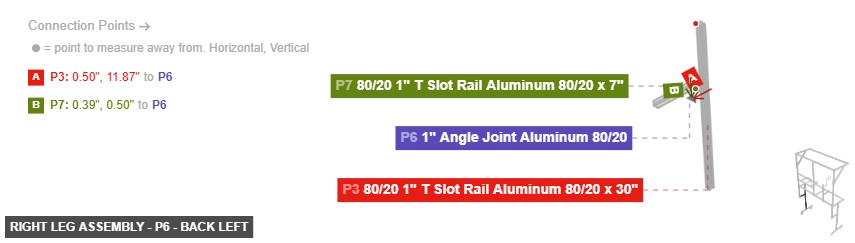

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part 1
P6 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 3's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

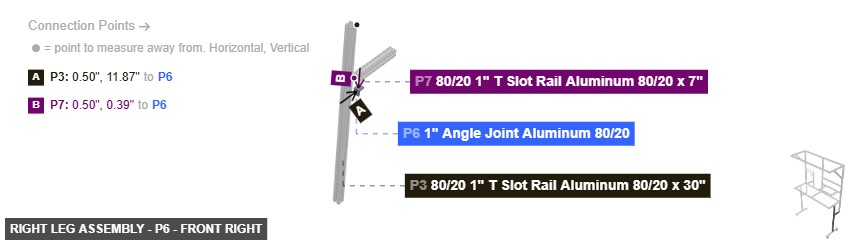

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part 1
P6 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 3's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part 1
P6 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 3's 1" Rail 80/20 F #3. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7" - Angle: back left

Right Leg Assembly - Part 80/20 1
P7 (4" 1" T Slot Rail Aluminum 80/20 7" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 16's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 6's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is top-facing, should connect to part 8's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #2 needs to point right, then its 1" Rail 80/20 F #4 needs to point left, also ensure its 1" 80/20 End Hole F #2 faces front
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7" - Angle: front right

Right Leg Assembly - Part 80/20 1
P7 (4" 1" T Slot Rail Aluminum 80/20 7" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 16's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 6's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is top-facing, should connect to part 8's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #2 needs to point right, then its 1" Rail 80/20 F #4 needs to point left, also ensure its 1" 80/20 End Hole F #2 faces front
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

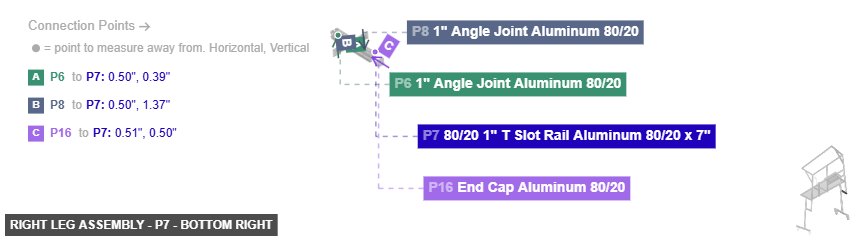

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7" - Angle: bottom right

Right Leg Assembly - Part 80/20 1
P7 (4" 1" T Slot Rail Aluminum 80/20 7" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 16's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 6's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is top-facing, should connect to part 8's 1" Rail 80/20 M #1, also its 1" Rail 80/20 F #2 needs to point right, then its 1" Rail 80/20 F #4 needs to point left, also ensure its 1" 80/20 End Hole F #2 faces front
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

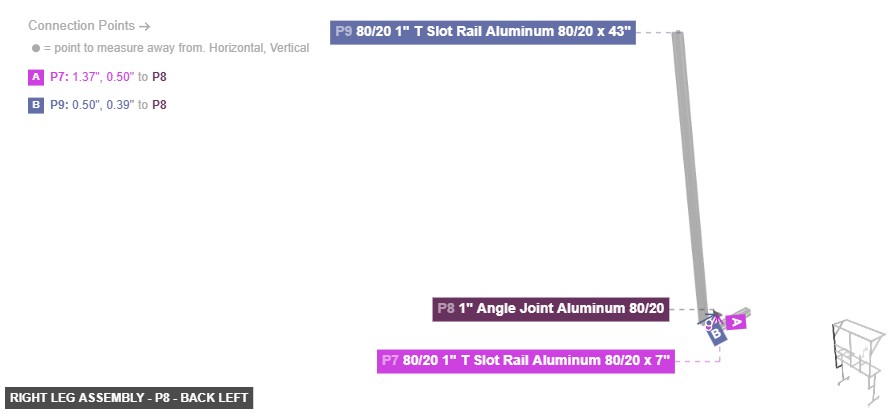

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part 1
P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 7's 1" Rail 80/20 F #3, then connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part 1
P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 7's 1" Rail 80/20 F #3, then connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part 1
P8 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 7's 1" Rail 80/20 F #3, then connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

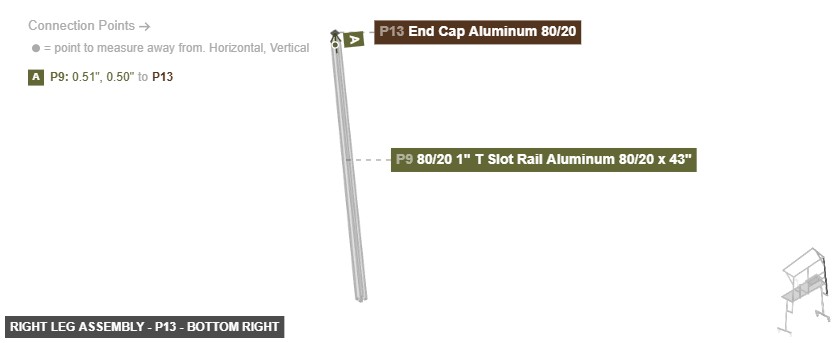

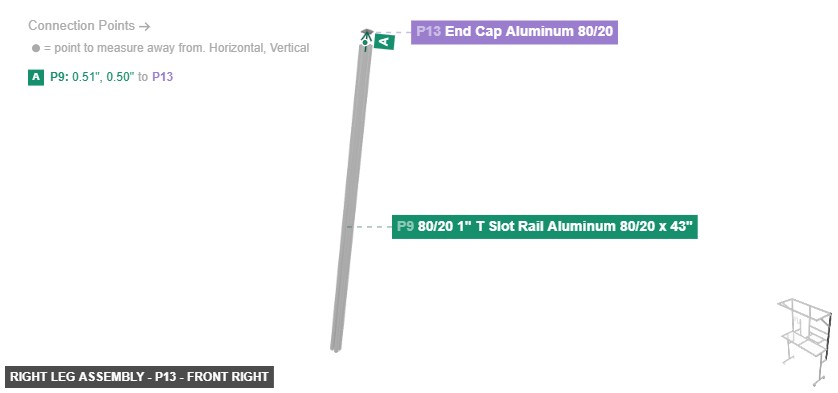

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 43" - Angle: back left

Right Leg Assembly - Part 80/20 1
P9 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 13's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3 must be oriented back, and ensure its 1" Rail 80/20 F #4 faces right, plus its 1" 80/20 End Hole F #2 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 43" - Angle: front right

Right Leg Assembly - Part 80/20 1
P9 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 13's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3 must be oriented back, and ensure its 1" Rail 80/20 F #4 faces right, plus its 1" 80/20 End Hole F #2 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 43" - Angle: bottom right

Right Leg Assembly - Part 80/20 1
P9 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 13's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3 must be oriented back, and ensure its 1" Rail 80/20 F #4 faces right, plus its 1" 80/20 End Hole F #2 must be oriented bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part 1
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 9's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing top to part 11's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part 1
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 9's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing top to part 11's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part 1
P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 9's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing top to part 11's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: back left

Right Leg Assembly - Part 80/20 1
P11 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 14's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing bottom to part 10's 1" Rail 80/20 M #2, plus ensure its 1" Rail 80/20 F #3 faces top, and its 1" Rail 80/20 F #4 should be directed right, plus ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: front right

Right Leg Assembly - Part 80/20 1
P11 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 14's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing bottom to part 10's 1" Rail 80/20 M #2, plus ensure its 1" Rail 80/20 F #3 faces top, and its 1" Rail 80/20 F #4 should be directed right, plus ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: bottom right

Right Leg Assembly - Part 80/20 1
P11 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 14's 1" 80/20 End Hole M #1. Next, attach its 1" Rail 80/20 F #1 facing bottom to part 10's 1" Rail 80/20 M #2, plus ensure its 1" Rail 80/20 F #3 faces top, and its 1" Rail 80/20 F #4 should be directed right, plus ensure its 1" 80/20 End Hole F #2 faces back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15" - Angle: back left

Right Leg Assembly - Part 80/20 1
P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - connect its 1" Rail 80/20 M #1 oriented top links with part 11's 1" Rail 80/20 F #1. After that, connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1, then its 1" Rail 80/20 F #1 must be oriented right, also ensure its 1" Rail 80/20 F #2 faces front-bottom, also its 1" Rail 80/20 F #3 should be directed left, and its 1" Rail 80/20 F #4 must be oriented back-top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15" - Angle: front right

Right Leg Assembly - Part 80/20 1
P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - connect its 1" Rail 80/20 M #1 oriented top links with part 11's 1" Rail 80/20 F #1. After that, connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1, then its 1" Rail 80/20 F #1 must be oriented right, also ensure its 1" Rail 80/20 F #2 faces front-bottom, also its 1" Rail 80/20 F #3 should be directed left, and its 1" Rail 80/20 F #4 must be oriented back-top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15" - Angle: bottom right

Right Leg Assembly - Part 80/20 1
P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - connect its 1" Rail 80/20 M #1 oriented top links with part 11's 1" Rail 80/20 F #1. After that, connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1, then its 1" Rail 80/20 F #1 must be oriented right, also ensure its 1" Rail 80/20 F #2 faces front-bottom, also its 1" Rail 80/20 F #3 should be directed left, and its 1" Rail 80/20 F #4 must be oriented back-top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P13 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 9's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P13 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 9's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P13 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 9's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P14 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 11's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P14 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 11's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P14 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 11's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P15 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P15 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P15 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 1's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

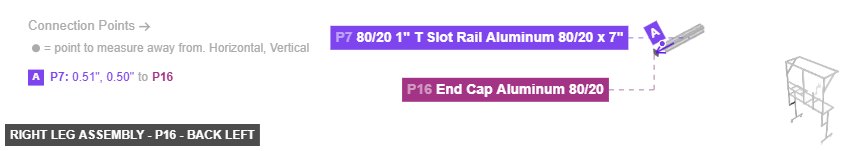

Part: End Cap Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P16 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 7's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P16 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 7's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P16 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 7's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

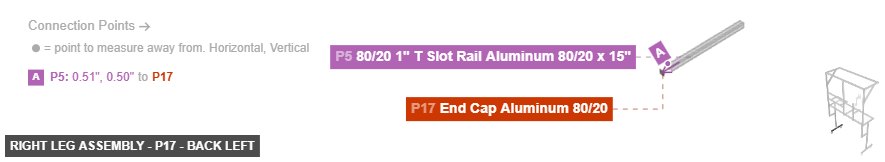

Part: End Cap Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P17 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 5's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P17 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 5's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P17 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 5's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Right Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P18 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 5's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Right Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P18 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 5's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Right Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P18 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 5's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: back left

Right Leg Assembly - Part 2
P92 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: front right

Right Leg Assembly - Part 2
P92 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: bottom right

Right Leg Assembly - Part 2
P92 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: back left

Right Leg Assembly - Part 2
P93 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: front right

Right Leg Assembly - Part 2
P93 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: bottom right

Right Leg Assembly - Part 2
P93 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

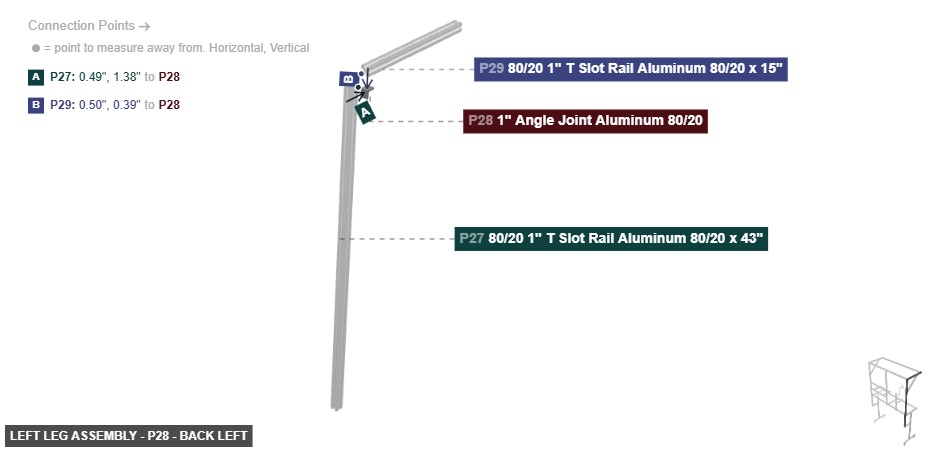

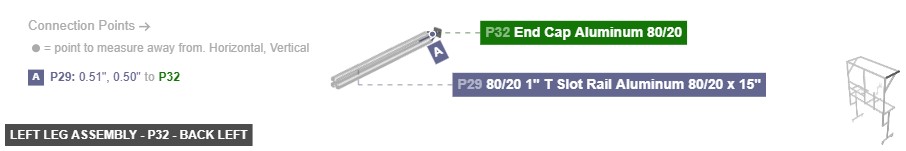

Group: Left Leg Assembly

Forms the main structural support for the left side of the workstation, mirroring the right leg assembly.

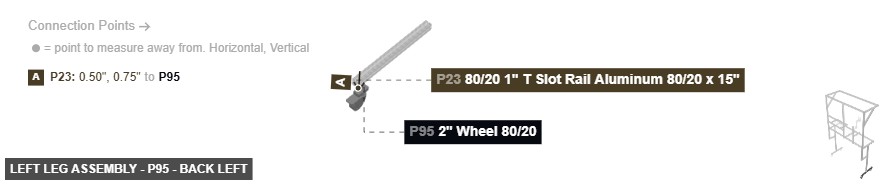

First, attach the two wheels (P94, P95) to the bottom rail (P23). Connect P23 to the vertical rail (P21) using the angle joint (P22). At the top of P21, attach the front rail (P19) with joint (P20) and the back rail (P25) with joint (P24). Connect the main vertical post (P27) to the back rail (P25) with joint (P26). Attach the upper side rail (P29) to P27 with joint (P28). Add the diagonal brace (P30) between P29 and P27. Finally, install all the end caps (P31, P32, P33, P34, P35, P36) on the exposed rail ends.

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: back left

Left Leg Assembly - Part 80/20 1
P19 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 33's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 20's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #1 must be oriented left. After that, its 1" Rail 80/20 F #2 needs to point top, plus its 1" 80/20 End Hole F #2 should be directed back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: front right

Left Leg Assembly - Part 80/20 1
P19 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 33's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 20's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #1 must be oriented left. After that, its 1" Rail 80/20 F #2 needs to point top, plus its 1" 80/20 End Hole F #2 should be directed back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 13.5" - Angle: bottom right

Left Leg Assembly - Part 80/20 1
P19 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 33's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 20's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #1 must be oriented left. After that, its 1" Rail 80/20 F #2 needs to point top, plus its 1" 80/20 End Hole F #2 should be directed back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part 1
P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #4. Also, attach its 1" Rail 80/20 M #2 facing back to part 21's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part 1
P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #4. Also, attach its 1" Rail 80/20 M #2 facing back to part 21's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part 1
P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #4. Also, attach its 1" Rail 80/20 M #2 facing back to part 21's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: back left

Left Leg Assembly - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 20's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #3, which is back-facing, should connect to part 24's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #1 needs to point bottom, and its 1" Rail 80/20 F #2 needs to point right, then its 1" Rail 80/20 F #4 must be oriented left. Next, its 1" 80/20 End Hole F #2 needs to point top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: front right

Left Leg Assembly - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 20's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #3, which is back-facing, should connect to part 24's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #1 needs to point bottom, and its 1" Rail 80/20 F #2 needs to point right, then its 1" Rail 80/20 F #4 must be oriented left. Next, its 1" 80/20 End Hole F #2 needs to point top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 30" - Angle: bottom right

Left Leg Assembly - Part 80/20 1
P21 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 20's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #3, which is back-facing, should connect to part 24's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #1 needs to point bottom, and its 1" Rail 80/20 F #2 needs to point right, then its 1" Rail 80/20 F #4 must be oriented left. Next, its 1" 80/20 End Hole F #2 needs to point top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part 1
P22 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 21's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 23's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part 1
P22 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 21's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 23's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part 1
P22 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 21's 1" Rail 80/20 F #1. Also, its 1" Rail 80/20 M #2, which is bottom-facing, should connect to part 23's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: back left

Left Leg Assembly - Part 80/20 1
P23 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 36's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing top to part 22's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented bottom links with part 94's 1" Rail 80/20 M #1, plus attach its 1" 80/20 End Hole F #2 facing back to part 35's 1" 80/20 End Hole M #1. Next, ensure its 1" Rail 80/20 F #2 faces right, also its 1" Rail 80/20 F #4 needs to point left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: front right

Left Leg Assembly - Part 80/20 1
P23 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 36's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing top to part 22's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented bottom links with part 94's 1" Rail 80/20 M #1, plus attach its 1" 80/20 End Hole F #2 facing back to part 35's 1" 80/20 End Hole M #1. Next, ensure its 1" Rail 80/20 F #2 faces right, also its 1" Rail 80/20 F #4 needs to point left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: bottom right

Left Leg Assembly - Part 80/20 1
P23 (4" 1" T Slot Rail Aluminum 80/20 15" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 36's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing top to part 22's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented bottom links with part 94's 1" Rail 80/20 M #1, plus attach its 1" 80/20 End Hole F #2 facing back to part 35's 1" 80/20 End Hole M #1. Next, ensure its 1" Rail 80/20 F #2 faces right, also its 1" Rail 80/20 F #4 needs to point left
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part 1
P24 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #3, and attach its 1" Rail 80/20 M #2 facing top to part 25's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part 1
P24 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #3, and attach its 1" Rail 80/20 M #2 facing top to part 25's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part 1
P24 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 21's 1" Rail 80/20 F #3, and attach its 1" Rail 80/20 M #2 facing top to part 25's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7" - Angle: back left

Left Leg Assembly - Part 80/20 1
P25 (4" 1" T Slot Rail Aluminum 80/20 7" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 34's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 24's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented top links with part 26's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #2 must be oriented right, also its 1" Rail 80/20 F #4 needs to point left. Also, its 1" 80/20 End Hole F #2 must be oriented front
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7" - Angle: front right

Left Leg Assembly - Part 80/20 1
P25 (4" 1" T Slot Rail Aluminum 80/20 7" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 34's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 24's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented top links with part 26's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #2 must be oriented right, also its 1" Rail 80/20 F #4 needs to point left. Also, its 1" 80/20 End Hole F #2 must be oriented front
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7" - Angle: bottom right

Left Leg Assembly - Part 80/20 1
P25 (4" 1" T Slot Rail Aluminum 80/20 7" length) - its 1" 80/20 End Hole F #1, which is back-facing, should connect to part 34's 1" 80/20 End Hole M #1, also its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 24's 1" Rail 80/20 M #2, and connect its 1" Rail 80/20 F #3 oriented top links with part 26's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #2 must be oriented right, also its 1" Rail 80/20 F #4 needs to point left. Also, its 1" 80/20 End Hole F #2 must be oriented front
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part 1
P26 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 25's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 27's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part 1
P26 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 25's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 27's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part 1
P26 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 25's 1" Rail 80/20 F #3. Also, its 1" Rail 80/20 M #2, which is back-facing, should connect to part 27's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 43" - Angle: back left

Left Leg Assembly - Part 80/20 1
P27 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 31's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing front to part 26's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #2 needs to point left. After that, its 1" Rail 80/20 F #3 should be directed back. After that, ensure its 1" 80/20 End Hole F #2 faces bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 43" - Angle: front right

Left Leg Assembly - Part 80/20 1
P27 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 31's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing front to part 26's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #2 needs to point left. After that, its 1" Rail 80/20 F #3 should be directed back. After that, ensure its 1" 80/20 End Hole F #2 faces bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 43" - Angle: bottom right

Left Leg Assembly - Part 80/20 1
P27 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 31's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing front to part 26's 1" Rail 80/20 M #2. Also, its 1" Rail 80/20 F #2 needs to point left. After that, its 1" Rail 80/20 F #3 should be directed back. After that, ensure its 1" 80/20 End Hole F #2 faces bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part 1
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 27's 1" Rail 80/20 F #1. Next, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 29's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part 1
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 27's 1" Rail 80/20 F #1. Next, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 29's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part 1
P28 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 27's 1" Rail 80/20 F #1. Next, its 1" Rail 80/20 M #2, which is top-facing, should connect to part 29's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: back left

Left Leg Assembly - Part 80/20 1
P29 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 32's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented bottom links with part 28's 1" Rail 80/20 M #2, also ensure its 1" Rail 80/20 F #2 faces left. Next, its 1" Rail 80/20 F #3 should be directed top, also its 1" 80/20 End Hole F #2 should be directed back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: front right

Left Leg Assembly - Part 80/20 1
P29 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 32's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented bottom links with part 28's 1" Rail 80/20 M #2, also ensure its 1" Rail 80/20 F #2 faces left. Next, its 1" Rail 80/20 F #3 should be directed top, also its 1" 80/20 End Hole F #2 should be directed back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 15" - Angle: bottom right

Left Leg Assembly - Part 80/20 1
P29 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 32's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented bottom links with part 28's 1" Rail 80/20 M #2, also ensure its 1" Rail 80/20 F #2 faces left. Next, its 1" Rail 80/20 F #3 should be directed top, also its 1" 80/20 End Hole F #2 should be directed back
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15" - Angle: back left

Left Leg Assembly - Part 80/20 1
P30 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - attach its 1" Rail 80/20 M #1 facing top to part 29's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented back links with part 27's 1" Rail 80/20 F #1, and ensure its 1" Rail 80/20 F #1 faces right. After that, ensure its 1" Rail 80/20 F #2 faces front-bottom. Also, its 1" Rail 80/20 F #3 needs to point left. Next, its 1" Rail 80/20 F #4 must be oriented back-top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15" - Angle: front right

Left Leg Assembly - Part 80/20 1
P30 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - attach its 1" Rail 80/20 M #1 facing top to part 29's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented back links with part 27's 1" Rail 80/20 F #1, and ensure its 1" Rail 80/20 F #1 faces right. After that, ensure its 1" Rail 80/20 F #2 faces front-bottom. Also, its 1" Rail 80/20 F #3 needs to point left. Next, its 1" Rail 80/20 F #4 must be oriented back-top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 80/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15" - Angle: bottom right

Left Leg Assembly - Part 80/20 1
P30 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - attach its 1" Rail 80/20 M #1 facing top to part 29's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented back links with part 27's 1" Rail 80/20 F #1, and ensure its 1" Rail 80/20 F #1 faces right. After that, ensure its 1" Rail 80/20 F #2 faces front-bottom. Also, its 1" Rail 80/20 F #3 needs to point left. Next, its 1" Rail 80/20 F #4 must be oriented back-top
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P31 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 27's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P31 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 27's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P31 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 27's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P32 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 29's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P32 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 29's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P32 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 29's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P33 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 19's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P33 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 19's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P33 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 19's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P34 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 25's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P34 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 25's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P34 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 25's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P35 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 23's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P35 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 23's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P35 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 23's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Left Leg Assembly - Part End Cap Aluminum 80/20 - back_left
P36 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 23's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Left Leg Assembly - Part End Cap Aluminum 80/20 - front_right
P36 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 23's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Left Leg Assembly - Part End Cap Aluminum 80/20 - bottom_right
P36 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 23's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: back left

Left Leg Assembly - Part 2
P94 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: front right

Left Leg Assembly - Part 2
P94 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: bottom right

Left Leg Assembly - Part 2
P94 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: back left

Left Leg Assembly - Part 2
P95 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: front right

Left Leg Assembly - Part 2
P95 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Part: 2" Wheel 80/20 - Angle: bottom right

Left Leg Assembly - Part 2
P95 (2" Wheel 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Group: Main Frame Connection

Consists of all the cross-members and joints required to connect the left and right leg assemblies into a single, rigid frame.

There is no pre-assembly for this group. These parts are used to connect other groups.

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: back left

Main Frame Connection - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 40" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 39's 1" 80/20 End Hole M #1, plus its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 38's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #4 should be directed bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: front right

Main Frame Connection - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 40" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 39's 1" 80/20 End Hole M #1, plus its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 38's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #4 should be directed bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: bottom right

Main Frame Connection - Part 80/20 1
P37 (4" 1" T Slot Rail Aluminum 80/20 40" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 39's 1" 80/20 End Hole M #1, plus its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 38's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #4 should be directed bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - back_left
P38 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 37's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - front_right
P38 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 37's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - bottom_right
P38 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented right links with part 37's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - back_left
P39 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 37's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - front_right
P39 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 37's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - bottom_right
P39 (End Inside Joint Aluminum) - connect its 1" 80/20 End Hole M #1 oriented left links with part 37's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: back left

Main Frame Connection - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 40" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 42's 1" 80/20 End Hole M #1. Also, attach its 1" 80/20 End Hole F #2 facing right to part 41's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3 should be directed front. Additionally, its 1" Rail 80/20 F #4 needs to point bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: front right

Main Frame Connection - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 40" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 42's 1" 80/20 End Hole M #1. Also, attach its 1" 80/20 End Hole F #2 facing right to part 41's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3 should be directed front. Additionally, its 1" Rail 80/20 F #4 needs to point bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: bottom right

Main Frame Connection - Part 80/20 1
P40 (4" 1" T Slot Rail Aluminum 80/20 40" length) - connect its 1" 80/20 End Hole F #1 oriented left links with part 42's 1" 80/20 End Hole M #1. Also, attach its 1" 80/20 End Hole F #2 facing right to part 41's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #3 should be directed front. Additionally, its 1" Rail 80/20 F #4 needs to point bottom
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - back_left
P41 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is left-facing, should connect to part 40's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - front_right
P41 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is left-facing, should connect to part 40's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - bottom_right
P41 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is left-facing, should connect to part 40's 1" 80/20 End Hole F #2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - back_left
P42 (End Inside Joint Aluminum) - attach its 1" 80/20 End Hole M #1 facing right to part 40's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - front_right
P42 (End Inside Joint Aluminum) - attach its 1" 80/20 End Hole M #1 facing right to part 40's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part End Inside Joint Aluminum 80/20 - bottom_right
P42 (End Inside Joint Aluminum) - attach its 1" 80/20 End Hole M #1 facing right to part 40's 1" 80/20 End Hole F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part 1
P43 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing front to part 45's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part 1
P43 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing front to part 45's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part 1
P43 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing front to part 45's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part 1
P44 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 45's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part 1
P44 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 45's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part 1
P44 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is front-facing, should connect to part 45's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: back left

Main Frame Connection - Part 80/20 1
P45 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 44's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left, then its 1" Rail 80/20 F #2 should be directed top. Also, ensure its 1" Rail 80/20 F #3 faces front, plus its 1" Rail 80/20 F #4 needs to point bottom, and its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: front right

Main Frame Connection - Part 80/20 1
P45 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 44's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left, then its 1" Rail 80/20 F #2 should be directed top. Also, ensure its 1" Rail 80/20 F #3 faces front, plus its 1" Rail 80/20 F #4 needs to point bottom, and its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: bottom right

Main Frame Connection - Part 80/20 1
P45 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is back-facing, should connect to part 44's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left, then its 1" Rail 80/20 F #2 should be directed top. Also, ensure its 1" Rail 80/20 F #3 faces front, plus its 1" Rail 80/20 F #4 needs to point bottom, and its 1" 80/20 End Hole F #2 must be oriented right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part 1
P46 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 48's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part 1
P46 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 48's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part 1
P46 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented top links with part 48's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Main Frame Connection - Part 1
P47 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Main Frame Connection - Part 1
P47 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Main Frame Connection - Part 1
P47 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #2, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: back left

Main Frame Connection - Part 80/20 1
P48 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 47's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 should be directed left, then its 1" Rail 80/20 F #2 must be oriented back. Also, ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 should be directed front. After that, its 1" 80/20 End Hole F #2 needs to point right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: front right

Main Frame Connection - Part 80/20 1
P48 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 47's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 should be directed left, then its 1" Rail 80/20 F #2 must be oriented back. Also, ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 should be directed front. After that, its 1" 80/20 End Hole F #2 needs to point right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 40" - Angle: bottom right

Main Frame Connection - Part 80/20 1
P48 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 47's 1" Rail 80/20 M #2. Additionally, its 1" 80/20 End Hole F #1 should be directed left, then its 1" Rail 80/20 F #2 must be oriented back. Also, ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 should be directed front. After that, its 1" 80/20 End Hole F #2 needs to point right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Group: Upper Frame Structure

Creates the top-level shelf and mounting frame that sits above the main workstation structure.

Connect the cross-member (P53) between the main frame's front rails (P37 and P40) using joints (P51, P52). Attach the vertical support (P55) to the front rail (P37) with joint (P54). Attach the small arm (P57) to P55 with joint (P56). Attach the long top rail (P50) to the main frame's top rail (P48) and front rail (P37) using joints (P49, P62, P63, P64). Attach the handle (P83) to P55. Install end caps (P58, P59).

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part 1
P49 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented left links with part 50's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part 1
P49 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented left links with part 50's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part 1
P49 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented left links with part 50's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 31.5" - Angle: back left

Upper Frame Structure - Part 80/20 1
P50 (4" 1" T Slot Rail Aluminum 80/20 31.5" length) - attach its 1" Rail 80/20 F #1 facing right to part 49's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #3 facing left to part 62's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented bottom. Additionally, ensure its 1" Rail 80/20 F #2 faces back, then its 1" Rail 80/20 F #4 must be oriented front. After that, its 1" 80/20 End Hole F #2 should be directed top
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 31.5" - Angle: front right

Upper Frame Structure - Part 80/20 1
P50 (4" 1" T Slot Rail Aluminum 80/20 31.5" length) - attach its 1" Rail 80/20 F #1 facing right to part 49's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #3 facing left to part 62's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented bottom. Additionally, ensure its 1" Rail 80/20 F #2 faces back, then its 1" Rail 80/20 F #4 must be oriented front. After that, its 1" 80/20 End Hole F #2 should be directed top
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 31.5" - Angle: bottom right

Upper Frame Structure - Part 80/20 1
P50 (4" 1" T Slot Rail Aluminum 80/20 31.5" length) - attach its 1" Rail 80/20 F #1 facing right to part 49's 1" Rail 80/20 M #2, plus attach its 1" Rail 80/20 F #3 facing left to part 62's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #1 must be oriented bottom. Additionally, ensure its 1" Rail 80/20 F #2 faces back, then its 1" Rail 80/20 F #4 must be oriented front. After that, its 1" 80/20 End Hole F #2 should be directed top
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part End Inside Joint Aluminum 80/20 - back_left
P51 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 53's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part End Inside Joint Aluminum 80/20 - front_right
P51 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 53's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part End Inside Joint Aluminum 80/20 - bottom_right
P51 (End Inside Joint Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 53's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part End Inside Joint Aluminum 80/20 - back_left
P52 (End Inside Joint Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 53's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part End Inside Joint Aluminum 80/20 - front_right
P52 (End Inside Joint Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 53's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part End Inside Joint Aluminum 80/20 - bottom_right
P52 (End Inside Joint Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 53's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: back left

Upper Frame Structure - Part 80/20 1
P53 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 51's 1" 80/20 End Hole M #1, then attach its 1" 80/20 End Hole F #2 facing back to part 52's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #2 should be directed right. Additionally, its 1" Rail 80/20 F #3 should be directed bottom. Also, ensure its 1" Rail 80/20 F #4 faces left
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: front right

Upper Frame Structure - Part 80/20 1
P53 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 51's 1" 80/20 End Hole M #1, then attach its 1" 80/20 End Hole F #2 facing back to part 52's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #2 should be directed right. Additionally, its 1" Rail 80/20 F #3 should be directed bottom. Also, ensure its 1" Rail 80/20 F #4 faces left
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: bottom right

Upper Frame Structure - Part 80/20 1
P53 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - attach its 1" 80/20 End Hole F #1 facing front to part 51's 1" 80/20 End Hole M #1, then attach its 1" 80/20 End Hole F #2 facing back to part 52's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #2 should be directed right. Additionally, its 1" Rail 80/20 F #3 should be directed bottom. Also, ensure its 1" Rail 80/20 F #4 faces left
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part 1
P54 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented back links with part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part 1
P54 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented back links with part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part 1
P54 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #2 oriented back links with part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 16.5" - Angle: back left

Upper Frame Structure - Part 80/20 1
P55 (4" 1" T Slot Rail Aluminum 80/20 16.5" length) - attach its 1" 80/20 End Hole F #1 facing top to part 59's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented front links with part 54's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented left. After that, its 1" Rail 80/20 F #3 must be oriented back, and ensure its 1" Rail 80/20 F #4 faces right. Next, its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 16.5" - Angle: front right

Upper Frame Structure - Part 80/20 1
P55 (4" 1" T Slot Rail Aluminum 80/20 16.5" length) - attach its 1" 80/20 End Hole F #1 facing top to part 59's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented front links with part 54's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented left. After that, its 1" Rail 80/20 F #3 must be oriented back, and ensure its 1" Rail 80/20 F #4 faces right. Next, its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 16.5" - Angle: bottom right

Upper Frame Structure - Part 80/20 1
P55 (4" 1" T Slot Rail Aluminum 80/20 16.5" length) - attach its 1" 80/20 End Hole F #1 facing top to part 59's 1" 80/20 End Hole M #1, and connect its 1" Rail 80/20 F #1 oriented front links with part 54's 1" Rail 80/20 M #2, plus its 1" Rail 80/20 F #2 must be oriented left. After that, its 1" Rail 80/20 F #3 must be oriented back, and ensure its 1" Rail 80/20 F #4 faces right. Next, its 1" 80/20 End Hole F #2 should be directed bottom
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part 1
P56 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 55's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing top to part 57's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part 1
P56 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 55's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing top to part 57's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part 1
P56 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 55's 1" Rail 80/20 F #1. After that, attach its 1" Rail 80/20 M #2 facing top to part 57's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.25" - Angle: back left

Upper Frame Structure - Part 80/20 1
P57 (4" 1" T Slot Rail Aluminum 80/20 7.25" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 58's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented bottom links with part 56's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 must be oriented left, then its 1" Rail 80/20 F #3 needs to point top. Next, its 1" Rail 80/20 F #4 must be oriented right. Additionally, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.25" - Angle: front right

Upper Frame Structure - Part 80/20 1
P57 (4" 1" T Slot Rail Aluminum 80/20 7.25" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 58's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented bottom links with part 56's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 must be oriented left, then its 1" Rail 80/20 F #3 needs to point top. Next, its 1" Rail 80/20 F #4 must be oriented right. Additionally, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.25" - Angle: bottom right

Upper Frame Structure - Part 80/20 1
P57 (4" 1" T Slot Rail Aluminum 80/20 7.25" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 58's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented bottom links with part 56's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2 must be oriented left, then its 1" Rail 80/20 F #3 needs to point top. Next, its 1" Rail 80/20 F #4 must be oriented right. Additionally, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part End Cap Aluminum 80/20 - back_left
P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 57's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part End Cap Aluminum 80/20 - front_right
P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 57's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part End Cap Aluminum 80/20 - bottom_right
P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 57's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part End Cap Aluminum 80/20 - back_left
P59 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 55's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part End Cap Aluminum 80/20 - front_right
P59 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 55's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: End Cap Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part End Cap Aluminum 80/20 - bottom_right
P59 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented bottom links with part 55's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part 1
P62 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 50's 1" Rail 80/20 F #3
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part 1
P62 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 50's 1" Rail 80/20 F #3
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part 1
P62 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented right links with part 50's 1" Rail 80/20 F #3
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part 1
P63 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing right to part 50's 1" Rail 80/20 F #3
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part 1
P63 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing right to part 50's 1" Rail 80/20 F #3
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part 1
P63 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing right to part 50's 1" Rail 80/20 F #3
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part 1
P64 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing left to part 50's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part 1
P64 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing left to part 50's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: 1" Angle 2 Joint Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part 1
P64 (1" Angle 2 Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing left to part 50's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: Heavy Duty Ball-Grip Aluminum 80/20 - Angle: back left

Upper Frame Structure - Part Heavy Duty Ball-Grip Aluminum 80/20 - back_left
P83 (Heavy Duty Ball-Grip Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: Heavy Duty Ball-Grip Aluminum 80/20 - Angle: front right

Upper Frame Structure - Part Heavy Duty Ball-Grip Aluminum 80/20 - front_right
P83 (Heavy Duty Ball-Grip Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Part: Heavy Duty Ball-Grip Aluminum 80/20 - Angle: bottom right

Upper Frame Structure - Part Heavy Duty Ball-Grip Aluminum 80/20 - bottom_right
P83 (Heavy Duty Ball-Grip Aluminum) - attach its 1" Rail 80/20 M #1 facing back to part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Group: Upper Sliding Panels

Provides two sliding acrylic panels for the upper frame structure.

There is no pre-assembly for this group. These parts are installed directly onto the Upper Frame Structure.

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: back left

Upper Sliding Panels - Part 1
P84 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 85's 1" 80 20 Panel #1, also connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 86's 1" 80 20 Panel #2
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: front right

Upper Sliding Panels - Part 1
P84 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 85's 1" 80 20 Panel #1, also connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 86's 1" 80 20 Panel #2
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: bottom right

Upper Sliding Panels - Part 1
P84 (1" Hanger for 2 Solid Panels Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 85's 1" 80 20 Panel #1, also connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 86's 1" 80 20 Panel #2
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1' Acrylic Panel x 20.25" - Angle: back left

Upper Sliding Panels - Part 1' Acrylic Panel x 20.25
P85 (1' Acrylic Panel 20.25" length) - connect its 1" 80 20 Panel #1 oriented top links with part 84's 1" 80 20 Panel Holder #1. Additionally, its 1" 80 20 Panel #2, which is top-facing, should connect to part 87's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #3 facing top to part 90's 1" 80 20 Panel Holder #1, plus attach its 1" 80 20 Panel #4 facing top to part 91's 1" 80 20 Panel Holder #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1' Acrylic Panel x 20.25" - Angle: front right

Upper Sliding Panels - Part 1' Acrylic Panel x 20.25
P85 (1' Acrylic Panel 20.25" length) - connect its 1" 80 20 Panel #1 oriented top links with part 84's 1" 80 20 Panel Holder #1. Additionally, its 1" 80 20 Panel #2, which is top-facing, should connect to part 87's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #3 facing top to part 90's 1" 80 20 Panel Holder #1, plus attach its 1" 80 20 Panel #4 facing top to part 91's 1" 80 20 Panel Holder #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1' Acrylic Panel x 20.25" - Angle: bottom right

Upper Sliding Panels - Part 1' Acrylic Panel x 20.25
P85 (1' Acrylic Panel 20.25" length) - connect its 1" 80 20 Panel #1 oriented top links with part 84's 1" 80 20 Panel Holder #1. Additionally, its 1" 80 20 Panel #2, which is top-facing, should connect to part 87's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #3 facing top to part 90's 1" 80 20 Panel Holder #1, plus attach its 1" 80 20 Panel #4 facing top to part 91's 1" 80 20 Panel Holder #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1' Acrylic Panel x 20" - Angle: back left

Upper Sliding Panels - Part 1' Acrylic Panel x 20
P86 (1' Acrylic Panel 20" length) - connect its 1" 80 20 Panel #1 oriented top links with part 87's 1" 80 20 Panel Holder #2. After that, attach its 1" 80 20 Panel #2 facing top to part 84's 1" 80 20 Panel Holder #2. Also, connect its 1" 80 20 Panel #3 oriented top links with part 89's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #4 oriented top links with part 88's 1" 80 20 Panel Holder #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1' Acrylic Panel x 20" - Angle: front right

Upper Sliding Panels - Part 1' Acrylic Panel x 20
P86 (1' Acrylic Panel 20" length) - connect its 1" 80 20 Panel #1 oriented top links with part 87's 1" 80 20 Panel Holder #2. After that, attach its 1" 80 20 Panel #2 facing top to part 84's 1" 80 20 Panel Holder #2. Also, connect its 1" 80 20 Panel #3 oriented top links with part 89's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #4 oriented top links with part 88's 1" 80 20 Panel Holder #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1' Acrylic Panel x 20" - Angle: bottom right

Upper Sliding Panels - Part 1' Acrylic Panel x 20
P86 (1' Acrylic Panel 20" length) - connect its 1" 80 20 Panel #1 oriented top links with part 87's 1" 80 20 Panel Holder #2. After that, attach its 1" 80 20 Panel #2 facing top to part 84's 1" 80 20 Panel Holder #2. Also, connect its 1" 80 20 Panel #3 oriented top links with part 89's 1" 80 20 Panel Holder #1. Additionally, connect its 1" 80 20 Panel #4 oriented top links with part 88's 1" 80 20 Panel Holder #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: back left

Upper Sliding Panels - Part 1
P87 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 85's 1" 80 20 Panel #2, and attach its 1" 80 20 Panel Holder #2 facing bottom to part 86's 1" 80 20 Panel #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: front right

Upper Sliding Panels - Part 1
P87 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 85's 1" 80 20 Panel #2, and attach its 1" 80 20 Panel Holder #2 facing bottom to part 86's 1" 80 20 Panel #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for 2 Solid Panels Aluminum 80/20 - Angle: bottom right

Upper Sliding Panels - Part 1
P87 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 85's 1" 80 20 Panel #2, and attach its 1" 80 20 Panel Holder #2 facing bottom to part 86's 1" 80 20 Panel #1
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Upper Sliding Panels - Part 1
P88 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 86's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Upper Sliding Panels - Part 1
P88 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 86's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Upper Sliding Panels - Part 1
P88 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 86's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Upper Sliding Panels - Part 1
P89 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 86's 1" 80 20 Panel #3
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Upper Sliding Panels - Part 1
P89 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 86's 1" 80 20 Panel #3
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Upper Sliding Panels - Part 1
P89 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 86's 1" 80 20 Panel #3
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Upper Sliding Panels - Part 1
P90 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #3
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Upper Sliding Panels - Part 1
P90 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #3
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Upper Sliding Panels - Part 1
P90 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #3
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Upper Sliding Panels - Part 1
P91 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Upper Sliding Panels - Part 1
P91 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Upper Sliding Panels - Part 1
P91 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Group: Accessory Shelf Frame

Forms a small shelf frame that attaches to the side of the main workstation.

Connect the two vertical supports (P61, P67) to the top rail (P50) using joints (P60, P66). Connect these supports to the main vertical post (P9) with joints (P65, P68). Attach the two horizontal arms (P71, P72) to the support (P61) with joints (P69, P70). Connect the arms together with the cross-member (P73) using joints (P76, P77). Install end caps (P74, P75).

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part 1
P60 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 61's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part 1
P60 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 61's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part 1
P60 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 61's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 19.25" - Angle: back left

Accessory Shelf Frame - Part 80/20 1
P61 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 60's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2, which is front-facing, should connect to part 69's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed right, also its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 must be oriented back, and its 1" 80/20 End Hole F #2 should be directed left
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 19.25" - Angle: front right

Accessory Shelf Frame - Part 80/20 1
P61 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 60's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2, which is front-facing, should connect to part 69's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed right, also its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 must be oriented back, and its 1" 80/20 End Hole F #2 should be directed left
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 19.25" - Angle: bottom right

Accessory Shelf Frame - Part 80/20 1
P61 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 60's 1" Rail 80/20 M #2. Next, its 1" Rail 80/20 F #2, which is front-facing, should connect to part 69's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed right, also its 1" Rail 80/20 F #3 should be directed top, also its 1" Rail 80/20 F #4 must be oriented back, and its 1" 80/20 End Hole F #2 should be directed left
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part 1
P65 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 61's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part 1
P65 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 61's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part 1
P65 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 61's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part 1
P66 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 67's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part 1
P66 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 67's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part 1
P66 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #2 facing top to part 67's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 19.25" - Angle: back left

Accessory Shelf Frame - Part 80/20 1
P67 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 66's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 must be oriented right, also ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 should be directed back. Next, its 1" 80/20 End Hole F #2 needs to point left
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 19.25" - Angle: front right

Accessory Shelf Frame - Part 80/20 1
P67 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 66's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 must be oriented right, also ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 should be directed back. Next, its 1" 80/20 End Hole F #2 needs to point left
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 19.25" - Angle: bottom right

Accessory Shelf Frame - Part 80/20 1
P67 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - connect its 1" Rail 80/20 F #1 oriented bottom links with part 66's 1" Rail 80/20 M #2, plus its 1" 80/20 End Hole F #1 must be oriented right, also ensure its 1" Rail 80/20 F #2 faces front. Additionally, its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 should be directed back. Next, its 1" 80/20 End Hole F #2 needs to point left
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part 1
P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part 1
P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part 1
P68 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 67's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part 1
P69 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is left-facing, should connect to part 72's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part 1
P69 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is left-facing, should connect to part 72's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part 1
P69 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2, then its 1" Rail 80/20 M #2, which is left-facing, should connect to part 72's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part 1
P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2, plus its 1" Rail 80/20 M #2, which is right-facing, should connect to part 71's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part 1
P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2, plus its 1" Rail 80/20 M #2, which is right-facing, should connect to part 71's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 1" Angle Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part 1
P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2, plus its 1" Rail 80/20 M #2, which is right-facing, should connect to part 71's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.75" - Angle: back left

Accessory Shelf Frame - Part 80/20 1
P71 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 74's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is left-facing, should connect to part 70's 1" Rail 80/20 M #2, then connect its 1" Rail 80/20 F #3 oriented right links with part 77's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4 needs to point bottom. Next, its 1" 80/20 End Hole F #2 must be oriented back
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.75" - Angle: front right

Accessory Shelf Frame - Part 80/20 1
P71 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 74's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is left-facing, should connect to part 70's 1" Rail 80/20 M #2, then connect its 1" Rail 80/20 F #3 oriented right links with part 77's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4 needs to point bottom. Next, its 1" 80/20 End Hole F #2 must be oriented back
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.75" - Angle: bottom right

Accessory Shelf Frame - Part 80/20 1
P71 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 74's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is left-facing, should connect to part 70's 1" Rail 80/20 M #2, then connect its 1" Rail 80/20 F #3 oriented right links with part 77's 1" Rail 80/20 M #1. Next, its 1" Rail 80/20 F #4 needs to point bottom. Next, its 1" 80/20 End Hole F #2 must be oriented back
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.75" - Angle: back left

Accessory Shelf Frame - Part 80/20 1
P72 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - attach its 1" 80/20 End Hole F #1 facing front to part 75's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is right-facing, should connect to part 69's 1" Rail 80/20 M #2. After that, attach its 1" Rail 80/20 F #3 facing left to part 76's 1" Rail 80/20 M #1. Also, ensure its 1" Rail 80/20 F #2 faces bottom. Next, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.75" - Angle: front right

Accessory Shelf Frame - Part 80/20 1
P72 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - attach its 1" 80/20 End Hole F #1 facing front to part 75's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is right-facing, should connect to part 69's 1" Rail 80/20 M #2. After that, attach its 1" Rail 80/20 F #3 facing left to part 76's 1" Rail 80/20 M #1. Also, ensure its 1" Rail 80/20 F #2 faces bottom. Next, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 7.75" - Angle: bottom right

Accessory Shelf Frame - Part 80/20 1
P72 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - attach its 1" 80/20 End Hole F #1 facing front to part 75's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is right-facing, should connect to part 69's 1" Rail 80/20 M #2. After that, attach its 1" Rail 80/20 F #3 facing left to part 76's 1" Rail 80/20 M #1. Also, ensure its 1" Rail 80/20 F #2 faces bottom. Next, ensure its 1" 80/20 End Hole F #2 faces back
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: back left

Accessory Shelf Frame - Part 80/20 1
P73 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 76's 1" 80/20 End Hole M #1. Additionally, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 77's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 needs to point back. Also, its 1" Rail 80/20 F #2 must be oriented bottom, plus its 1" Rail 80/20 F #3 needs to point front. Next, its 1" Rail 80/20 F #4 should be directed top
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: front right

Accessory Shelf Frame - Part 80/20 1
P73 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 76's 1" 80/20 End Hole M #1. Additionally, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 77's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 needs to point back. Also, its 1" Rail 80/20 F #2 must be oriented bottom, plus its 1" Rail 80/20 F #3 needs to point front. Next, its 1" Rail 80/20 F #4 should be directed top
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: 80/20 1" T Slot Rail Aluminum 80/20 x 11.5" - Angle: bottom right

Accessory Shelf Frame - Part 80/20 1
P73 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented right links with part 76's 1" 80/20 End Hole M #1. Additionally, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 77's 1" 80/20 End Hole M #1, then its 1" Rail 80/20 F #1 needs to point back. Also, its 1" Rail 80/20 F #2 must be oriented bottom, plus its 1" Rail 80/20 F #3 needs to point front. Next, its 1" Rail 80/20 F #4 should be directed top
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P74 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 71's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P74 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 71's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P74 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 71's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part End Cap Aluminum 80/20 - back_left
P75 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 72's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part End Cap Aluminum 80/20 - front_right
P75 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 72's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Cap Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part End Cap Aluminum 80/20 - bottom_right
P75 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 72's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part End Inside Joint Aluminum 80/20 - back_left
P76 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 72's 1" Rail 80/20 F #3. Additionally, attach its 1" 80/20 End Hole M #1 facing left to part 73's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part End Inside Joint Aluminum 80/20 - front_right
P76 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 72's 1" Rail 80/20 F #3. Additionally, attach its 1" 80/20 End Hole M #1 facing left to part 73's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part End Inside Joint Aluminum 80/20 - bottom_right
P76 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 72's 1" Rail 80/20 F #3. Additionally, attach its 1" 80/20 End Hole M #1 facing left to part 73's 1" 80/20 End Hole F #1
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: back left

Accessory Shelf Frame - Part End Inside Joint Aluminum 80/20 - back_left
P77 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 71's 1" Rail 80/20 F #3. Additionally, connect its 1" 80/20 End Hole M #1 oriented right links with part 73's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: front right

Accessory Shelf Frame - Part End Inside Joint Aluminum 80/20 - front_right
P77 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 71's 1" Rail 80/20 F #3. Additionally, connect its 1" 80/20 End Hole M #1 oriented right links with part 73's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Part: End Inside Joint Aluminum 80/20 - Angle: bottom right

Accessory Shelf Frame - Part End Inside Joint Aluminum 80/20 - bottom_right
P77 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 71's 1" Rail 80/20 F #3. Additionally, connect its 1" 80/20 End Hole M #1 oriented right links with part 73's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Group: Accessory Shelf Panel

A single acrylic panel and its hangers for the Accessory Shelf.

There is no pre-assembly for this group. These parts are installed directly onto the Accessory Shelf Frame.

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Accessory Shelf Panel - Part 1
P78 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Accessory Shelf Panel - Part 1
P78 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Accessory Shelf Panel - Part 1
P78 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #4
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1' Acrylic Panel x 7" - Angle: back left

Accessory Shelf Panel - Part 1' Acrylic Panel x 7
P79 (1' Acrylic Panel 7" length) - connect its 1" 80 20 Panel #1 oriented top links with part 82's 1" 80 20 Panel Holder #1. Next, its 1" 80 20 Panel #2, which is top-facing, should connect to part 80's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #3 facing top to part 81's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #4 facing top to part 78's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1' Acrylic Panel x 7" - Angle: front right

Accessory Shelf Panel - Part 1' Acrylic Panel x 7
P79 (1' Acrylic Panel 7" length) - connect its 1" 80 20 Panel #1 oriented top links with part 82's 1" 80 20 Panel Holder #1. Next, its 1" 80 20 Panel #2, which is top-facing, should connect to part 80's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #3 facing top to part 81's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #4 facing top to part 78's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1' Acrylic Panel x 7" - Angle: bottom right

Accessory Shelf Panel - Part 1' Acrylic Panel x 7
P79 (1' Acrylic Panel 7" length) - connect its 1" 80 20 Panel #1 oriented top links with part 82's 1" 80 20 Panel Holder #1. Next, its 1" 80 20 Panel #2, which is top-facing, should connect to part 80's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #3 facing top to part 81's 1" 80 20 Panel Holder #1. Also, attach its 1" 80 20 Panel #4 facing top to part 78's 1" 80 20 Panel Holder #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Accessory Shelf Panel - Part 1
P80 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 79's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Accessory Shelf Panel - Part 1
P80 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 79's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Accessory Shelf Panel - Part 1
P80 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 79's 1" 80 20 Panel #2
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Accessory Shelf Panel - Part 1
P81 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 79's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Accessory Shelf Panel - Part 1
P81 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 79's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Accessory Shelf Panel - Part 1
P81 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" 80 20 Panel Holder #1 facing bottom to part 79's 1" 80 20 Panel #3
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: back left

Accessory Shelf Panel - Part 1
P82 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: front right

Accessory Shelf Panel - Part 1
P82 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Part: 1" Hanger for Solid Panel Aluminum 80/20 - Angle: bottom right

Accessory Shelf Panel - Part 1
P82 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Phase 3: Inter-Group Assembly

Attaching: Right Leg Assembly

Forms the main structural support for the right side of the workstation, including the base, vertical posts, and wheel mounts.

This assembly will be connected to the Left Leg Assembly using the Main Frame Connection parts.

Angle: back left

Assembly of Right Leg Assembly - back_left
P1 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 15's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1, which is left-facing, should connect to part 39's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 2's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #2 should be directed top, then its 1" Rail 80/20 F #3 needs to point right, and its 1" 80/20 End Hole F #2 must be oriented back P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing back to part 3's 1" Rail 80/20 F #1 P3 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 2's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #3 facing back to part 6's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point bottom. After that, its 1" Rail 80/20 F #2 should be directed right, and its 1" Rail 80/20 F #4 needs to point left, and its 1" 80/20 End Hole F #2 should be directed top P4 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 3's 1" Rail 80/20 F #1, then connect its 1" Rail 80/20 M #2 oriented bottom links with part 5's 1" Rail 80/20 F #1 P5 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 18's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 4's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is bottom-facing, should connect to part 92's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 17's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #2 should be directed right. After that, its 1" Rail 80/20 F #4 needs to point left P6 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 3's 1" Rail 80/20 F #3, and connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1 P7 (4" 1" T Slot Rail Aluminum 80/20 7" length) - attach its 1" 80/20 End Hole F #1 facing back to part 16's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing bottom to part 6's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing top to part 8's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #2 must be oriented right. Additionally, its 1" Rail 80/20 F #4 must be oriented left, then its 1" 80/20 End Hole F #2 must be oriented front P8 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 7's 1" Rail 80/20 F #3, also attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1 P9 (4" 1" T Slot Rail Aluminum 80/20 43" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 13's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2, then connect its 1" Rail 80/20 F #2 oriented left links with part 47's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #3 needs to point back. Next, its 1" Rail 80/20 F #4 should be directed right, plus its 1" 80/20 End Hole F #2 needs to point bottom P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 9's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 11's 1" Rail 80/20 F #1 P11 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 14's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing bottom to part 10's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2, which is left-facing, should connect to part 44's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #3 must be oriented top. Additionally, its 1" Rail 80/20 F #4 should be directed right, also its 1" 80/20 End Hole F #2 needs to point back P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 11's 1" Rail 80/20 F #1, and connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1. Additionally, ensure its 1" Rail 80/20 F #1 faces right. Next, ensure its 1" Rail 80/20 F #2 faces front-bottom. After that, its 1" Rail 80/20 F #3 must be oriented left. Additionally, ensure its 1" Rail 80/20 F #4 faces back-top P13 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 9's 1" 80/20 End Hole F #1 P14 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 11's 1" 80/20 End Hole F #1 P15 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 1's 1" 80/20 End Hole F #1 P16 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 7's 1" 80/20 End Hole F #1 P17 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 5's 1" 80/20 End Hole F #2 P18 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 5's 1" 80/20 End Hole F #1 P92 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 5's 1" Rail 80/20 F #3 P93 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Angle: front right

Assembly of Right Leg Assembly - front_right
P1 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 15's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1, which is left-facing, should connect to part 39's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 2's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #2 should be directed top, then its 1" Rail 80/20 F #3 needs to point right, and its 1" 80/20 End Hole F #2 must be oriented back P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing back to part 3's 1" Rail 80/20 F #1 P3 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 2's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #3 facing back to part 6's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point bottom. After that, its 1" Rail 80/20 F #2 should be directed right, and its 1" Rail 80/20 F #4 needs to point left, and its 1" 80/20 End Hole F #2 should be directed top P4 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 3's 1" Rail 80/20 F #1, then connect its 1" Rail 80/20 M #2 oriented bottom links with part 5's 1" Rail 80/20 F #1 P5 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 18's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 4's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is bottom-facing, should connect to part 92's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 17's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #2 should be directed right. After that, its 1" Rail 80/20 F #4 needs to point left P6 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 3's 1" Rail 80/20 F #3, and connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1 P7 (4" 1" T Slot Rail Aluminum 80/20 7" length) - attach its 1" 80/20 End Hole F #1 facing back to part 16's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing bottom to part 6's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing top to part 8's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #2 must be oriented right. Additionally, its 1" Rail 80/20 F #4 must be oriented left, then its 1" 80/20 End Hole F #2 must be oriented front P8 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 7's 1" Rail 80/20 F #3, also attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1 P9 (4" 1" T Slot Rail Aluminum 80/20 43" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 13's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2, then connect its 1" Rail 80/20 F #2 oriented left links with part 47's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #3 needs to point back. Next, its 1" Rail 80/20 F #4 should be directed right, plus its 1" 80/20 End Hole F #2 needs to point bottom P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 9's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 11's 1" Rail 80/20 F #1 P11 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 14's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing bottom to part 10's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2, which is left-facing, should connect to part 44's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #3 must be oriented top. Additionally, its 1" Rail 80/20 F #4 should be directed right, also its 1" 80/20 End Hole F #2 needs to point back P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 11's 1" Rail 80/20 F #1, and connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1. Additionally, ensure its 1" Rail 80/20 F #1 faces right. Next, ensure its 1" Rail 80/20 F #2 faces front-bottom. After that, its 1" Rail 80/20 F #3 must be oriented left. Additionally, ensure its 1" Rail 80/20 F #4 faces back-top P13 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 9's 1" 80/20 End Hole F #1 P14 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 11's 1" 80/20 End Hole F #1 P15 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 1's 1" 80/20 End Hole F #1 P16 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 7's 1" 80/20 End Hole F #1 P17 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 5's 1" 80/20 End Hole F #2 P18 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 5's 1" 80/20 End Hole F #1 P92 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 5's 1" Rail 80/20 F #3 P93 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Angle: bottom right

Assembly of Right Leg Assembly - bottom_right
P1 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 15's 1" 80/20 End Hole M #1, plus its 1" Rail 80/20 F #1, which is left-facing, should connect to part 39's 1" Rail 80/20 M #1, and connect its 1" Rail 80/20 F #4 oriented bottom links with part 2's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #2 should be directed top, then its 1" Rail 80/20 F #3 needs to point right, and its 1" 80/20 End Hole F #2 must be oriented back P2 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing top to part 1's 1" Rail 80/20 F #4. Additionally, attach its 1" Rail 80/20 M #2 facing back to part 3's 1" Rail 80/20 F #1 P3 (4" 1" T Slot Rail Aluminum 80/20 30" length) - connect its 1" Rail 80/20 F #1 oriented front links with part 2's 1" Rail 80/20 M #2. Next, attach its 1" Rail 80/20 F #3 facing back to part 6's 1" Rail 80/20 M #1. Additionally, its 1" 80/20 End Hole F #1 needs to point bottom. After that, its 1" Rail 80/20 F #2 should be directed right, and its 1" Rail 80/20 F #4 needs to point left, and its 1" 80/20 End Hole F #2 should be directed top P4 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 3's 1" Rail 80/20 F #1, then connect its 1" Rail 80/20 M #2 oriented bottom links with part 5's 1" Rail 80/20 F #1 P5 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 18's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is top-facing, should connect to part 4's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #3, which is bottom-facing, should connect to part 92's 1" Rail 80/20 M #1, then its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 17's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #2 should be directed right. After that, its 1" Rail 80/20 F #4 needs to point left P6 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 3's 1" Rail 80/20 F #3, and connect its 1" Rail 80/20 M #2 oriented top links with part 7's 1" Rail 80/20 F #1 P7 (4" 1" T Slot Rail Aluminum 80/20 7" length) - attach its 1" 80/20 End Hole F #1 facing back to part 16's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing bottom to part 6's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing top to part 8's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #2 must be oriented right. Additionally, its 1" Rail 80/20 F #4 must be oriented left, then its 1" 80/20 End Hole F #2 must be oriented front P8 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 7's 1" Rail 80/20 F #3, also attach its 1" Rail 80/20 M #2 facing back to part 9's 1" Rail 80/20 F #1 P9 (4" 1" T Slot Rail Aluminum 80/20 43" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 13's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #1, which is front-facing, should connect to part 8's 1" Rail 80/20 M #2, then connect its 1" Rail 80/20 F #2 oriented left links with part 47's 1" Rail 80/20 M #1, then its 1" Rail 80/20 F #3 needs to point back. Next, its 1" Rail 80/20 F #4 should be directed right, plus its 1" 80/20 End Hole F #2 needs to point bottom P10 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 9's 1" Rail 80/20 F #1. Next, connect its 1" Rail 80/20 M #2 oriented top links with part 11's 1" Rail 80/20 F #1 P11 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 14's 1" 80/20 End Hole M #1. Additionally, attach its 1" Rail 80/20 F #1 facing bottom to part 10's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2, which is left-facing, should connect to part 44's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #3 must be oriented top. Additionally, its 1" Rail 80/20 F #4 should be directed right, also its 1" 80/20 End Hole F #2 needs to point back P12 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 11's 1" Rail 80/20 F #1, and connect its 1" Rail 80/20 M #2 oriented back links with part 9's 1" Rail 80/20 F #1. Additionally, ensure its 1" Rail 80/20 F #1 faces right. Next, ensure its 1" Rail 80/20 F #2 faces front-bottom. After that, its 1" Rail 80/20 F #3 must be oriented left. Additionally, ensure its 1" Rail 80/20 F #4 faces back-top P13 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is bottom-facing, should connect to part 9's 1" 80/20 End Hole F #1 P14 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 11's 1" 80/20 End Hole F #1 P15 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 1's 1" 80/20 End Hole F #1 P16 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented front links with part 7's 1" 80/20 End Hole F #1 P17 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 5's 1" 80/20 End Hole F #2 P18 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 5's 1" 80/20 End Hole F #1 P92 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 5's 1" Rail 80/20 F #3 P93 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 5's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Attaching: Left Leg Assembly

Forms the main structural support for the left side of the workstation, mirroring the right leg assembly.

This assembly will be connected to the Right Leg Assembly using the Main Frame Connection parts.

Angle: back left

Assembly of Left Leg Assembly - back_left
P19 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 33's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #3 facing right to part 38's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 20's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #1 should be directed left. Additionally, its 1" Rail 80/20 F #2 must be oriented top, plus its 1" 80/20 End Hole F #2 must be oriented back P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #4, then attach its 1" Rail 80/20 M #2 facing back to part 21's 1" Rail 80/20 F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 30" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 20's 1" Rail 80/20 M #2, and attach its 1" Rail 80/20 F #3 facing back to part 24's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 must be oriented bottom, also ensure its 1" Rail 80/20 F #2 faces right. After that, its 1" Rail 80/20 F #4 needs to point left, then its 1" 80/20 End Hole F #2 must be oriented top P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing bottom to part 23's 1" Rail 80/20 F #1 P23 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 36's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented top links with part 22's 1" Rail 80/20 M #2. After that, attach its 1" Rail 80/20 F #3 facing bottom to part 94's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 35's 1" 80/20 End Hole M #1. Also, ensure its 1" Rail 80/20 F #2 faces right. Next, its 1" Rail 80/20 F #4 needs to point left P24 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 21's 1" Rail 80/20 F #3, plus its 1" Rail 80/20 M #2, which is top-facing, should connect to part 25's 1" Rail 80/20 F #1 P25 (4" 1" T Slot Rail Aluminum 80/20 7" length) - attach its 1" 80/20 End Hole F #1 facing back to part 34's 1" 80/20 End Hole M #1, then connect its 1" Rail 80/20 F #1 oriented bottom links with part 24's 1" Rail 80/20 M #2. After that, its 1" Rail 80/20 F #3, which is top-facing, should connect to part 26's 1" Rail 80/20 M #1, also ensure its 1" Rail 80/20 F #2 faces right, and its 1" Rail 80/20 F #4 must be oriented left, and its 1" 80/20 End Hole F #2 must be oriented front P26 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 25's 1" Rail 80/20 F #3, also attach its 1" Rail 80/20 M #2 facing back to part 27's 1" Rail 80/20 F #1 P27 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 31's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented front links with part 26's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #4, which is right-facing, should connect to part 46's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 should be directed left, also its 1" Rail 80/20 F #3 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed bottom P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 27's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing top to part 29's 1" Rail 80/20 F #1 P29 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 32's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #4, which is right-facing, should connect to part 43's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 must be oriented left. After that, its 1" Rail 80/20 F #3 must be oriented top, plus its 1" 80/20 End Hole F #2 needs to point back P30 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - connect its 1" Rail 80/20 M #1 oriented top links with part 29's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing back to part 27's 1" Rail 80/20 F #1, also its 1" Rail 80/20 F #1 must be oriented right. Next, its 1" Rail 80/20 F #2 needs to point front-bottom. Additionally, its 1" Rail 80/20 F #3 must be oriented left, then its 1" Rail 80/20 F #4 needs to point back-top P31 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 27's 1" 80/20 End Hole F #1 P32 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 29's 1" 80/20 End Hole F #1 P33 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 19's 1" 80/20 End Hole F #1 P34 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 25's 1" 80/20 End Hole F #1 P35 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 23's 1" 80/20 End Hole F #2 P36 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 23's 1" 80/20 End Hole F #1 P94 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 23's 1" Rail 80/20 F #3 P95 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Angle: front right

Assembly of Left Leg Assembly - front_right
P19 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 33's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #3 facing right to part 38's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 20's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #1 should be directed left. Additionally, its 1" Rail 80/20 F #2 must be oriented top, plus its 1" 80/20 End Hole F #2 must be oriented back P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #4, then attach its 1" Rail 80/20 M #2 facing back to part 21's 1" Rail 80/20 F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 30" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 20's 1" Rail 80/20 M #2, and attach its 1" Rail 80/20 F #3 facing back to part 24's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 must be oriented bottom, also ensure its 1" Rail 80/20 F #2 faces right. After that, its 1" Rail 80/20 F #4 needs to point left, then its 1" 80/20 End Hole F #2 must be oriented top P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing bottom to part 23's 1" Rail 80/20 F #1 P23 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 36's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented top links with part 22's 1" Rail 80/20 M #2. After that, attach its 1" Rail 80/20 F #3 facing bottom to part 94's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 35's 1" 80/20 End Hole M #1. Also, ensure its 1" Rail 80/20 F #2 faces right. Next, its 1" Rail 80/20 F #4 needs to point left P24 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 21's 1" Rail 80/20 F #3, plus its 1" Rail 80/20 M #2, which is top-facing, should connect to part 25's 1" Rail 80/20 F #1 P25 (4" 1" T Slot Rail Aluminum 80/20 7" length) - attach its 1" 80/20 End Hole F #1 facing back to part 34's 1" 80/20 End Hole M #1, then connect its 1" Rail 80/20 F #1 oriented bottom links with part 24's 1" Rail 80/20 M #2. After that, its 1" Rail 80/20 F #3, which is top-facing, should connect to part 26's 1" Rail 80/20 M #1, also ensure its 1" Rail 80/20 F #2 faces right, and its 1" Rail 80/20 F #4 must be oriented left, and its 1" 80/20 End Hole F #2 must be oriented front P26 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 25's 1" Rail 80/20 F #3, also attach its 1" Rail 80/20 M #2 facing back to part 27's 1" Rail 80/20 F #1 P27 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 31's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented front links with part 26's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #4, which is right-facing, should connect to part 46's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 should be directed left, also its 1" Rail 80/20 F #3 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed bottom P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 27's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing top to part 29's 1" Rail 80/20 F #1 P29 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 32's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #4, which is right-facing, should connect to part 43's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 must be oriented left. After that, its 1" Rail 80/20 F #3 must be oriented top, plus its 1" 80/20 End Hole F #2 needs to point back P30 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - connect its 1" Rail 80/20 M #1 oriented top links with part 29's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing back to part 27's 1" Rail 80/20 F #1, also its 1" Rail 80/20 F #1 must be oriented right. Next, its 1" Rail 80/20 F #2 needs to point front-bottom. Additionally, its 1" Rail 80/20 F #3 must be oriented left, then its 1" Rail 80/20 F #4 needs to point back-top P31 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 27's 1" 80/20 End Hole F #1 P32 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 29's 1" 80/20 End Hole F #1 P33 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 19's 1" 80/20 End Hole F #1 P34 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 25's 1" 80/20 End Hole F #1 P35 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 23's 1" 80/20 End Hole F #2 P36 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 23's 1" 80/20 End Hole F #1 P94 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 23's 1" Rail 80/20 F #3 P95 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Angle: bottom right

Assembly of Left Leg Assembly - bottom_right
P19 (4" 1" T Slot Rail Aluminum 80/20 13.5" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 33's 1" 80/20 End Hole M #1. After that, attach its 1" Rail 80/20 F #3 facing right to part 38's 1" Rail 80/20 M #1, and its 1" Rail 80/20 F #4, which is bottom-facing, should connect to part 20's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #1 should be directed left. Additionally, its 1" Rail 80/20 F #2 must be oriented top, plus its 1" 80/20 End Hole F #2 must be oriented back P20 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 19's 1" Rail 80/20 F #4, then attach its 1" Rail 80/20 M #2 facing back to part 21's 1" Rail 80/20 F #1 P21 (4" 1" T Slot Rail Aluminum 80/20 30" length) - its 1" Rail 80/20 F #1, which is front-facing, should connect to part 20's 1" Rail 80/20 M #2, and attach its 1" Rail 80/20 F #3 facing back to part 24's 1" Rail 80/20 M #1, also its 1" 80/20 End Hole F #1 must be oriented bottom, also ensure its 1" Rail 80/20 F #2 faces right. After that, its 1" Rail 80/20 F #4 needs to point left, then its 1" 80/20 End Hole F #2 must be oriented top P22 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing back to part 21's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing bottom to part 23's 1" Rail 80/20 F #1 P23 (4" 1" T Slot Rail Aluminum 80/20 15" length) - attach its 1" 80/20 End Hole F #1 facing front to part 36's 1" 80/20 End Hole M #1. Also, connect its 1" Rail 80/20 F #1 oriented top links with part 22's 1" Rail 80/20 M #2. After that, attach its 1" Rail 80/20 F #3 facing bottom to part 94's 1" Rail 80/20 M #1, and its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 35's 1" 80/20 End Hole M #1. Also, ensure its 1" Rail 80/20 F #2 faces right. Next, its 1" Rail 80/20 F #4 needs to point left P24 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing front to part 21's 1" Rail 80/20 F #3, plus its 1" Rail 80/20 M #2, which is top-facing, should connect to part 25's 1" Rail 80/20 F #1 P25 (4" 1" T Slot Rail Aluminum 80/20 7" length) - attach its 1" 80/20 End Hole F #1 facing back to part 34's 1" 80/20 End Hole M #1, then connect its 1" Rail 80/20 F #1 oriented bottom links with part 24's 1" Rail 80/20 M #2. After that, its 1" Rail 80/20 F #3, which is top-facing, should connect to part 26's 1" Rail 80/20 M #1, also ensure its 1" Rail 80/20 F #2 faces right, and its 1" Rail 80/20 F #4 must be oriented left, and its 1" 80/20 End Hole F #2 must be oriented front P26 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 25's 1" Rail 80/20 F #3, also attach its 1" Rail 80/20 M #2 facing back to part 27's 1" Rail 80/20 F #1 P27 (4" 1" T Slot Rail Aluminum 80/20 43" length) - attach its 1" 80/20 End Hole F #1 facing top to part 31's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented front links with part 26's 1" Rail 80/20 M #2, and its 1" Rail 80/20 F #4, which is right-facing, should connect to part 46's 1" Rail 80/20 M #1, plus its 1" Rail 80/20 F #2 should be directed left, also its 1" Rail 80/20 F #3 should be directed back, plus its 1" 80/20 End Hole F #2 should be directed bottom P28 (1" Angle Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented back links with part 27's 1" Rail 80/20 F #1, and attach its 1" Rail 80/20 M #2 facing top to part 29's 1" Rail 80/20 F #1 P29 (4" 1" T Slot Rail Aluminum 80/20 15" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 32's 1" 80/20 End Hole M #1. Also, its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 28's 1" Rail 80/20 M #2, then its 1" Rail 80/20 F #4, which is right-facing, should connect to part 43's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #2 must be oriented left. After that, its 1" Rail 80/20 F #3 must be oriented top, plus its 1" 80/20 End Hole F #2 needs to point back P30 (4" 1" T Slot Diagonal Brace Aluminum 80/20 15" length) - connect its 1" Rail 80/20 M #1 oriented top links with part 29's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing back to part 27's 1" Rail 80/20 F #1, also its 1" Rail 80/20 F #1 must be oriented right. Next, its 1" Rail 80/20 F #2 needs to point front-bottom. Additionally, its 1" Rail 80/20 F #3 must be oriented left, then its 1" Rail 80/20 F #4 needs to point back-top P31 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 27's 1" 80/20 End Hole F #1 P32 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 29's 1" 80/20 End Hole F #1 P33 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 19's 1" 80/20 End Hole F #1 P34 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing front to part 25's 1" 80/20 End Hole F #1 P35 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is front-facing, should connect to part 23's 1" 80/20 End Hole F #2 P36 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing back to part 23's 1" 80/20 End Hole F #1 P94 (2" Wheel 80/20) - connect its 1" Rail 80/20 M #1 oriented top links with part 23's 1" Rail 80/20 F #3 P95 (2" Wheel 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 23's 1" Rail 80/20 F #3
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 13.5"x 1
11" Angle Joint Aluminum 80/20x 5
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 30"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 15"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 43"x 1
80/20 180/20 1" T Slot Diagonal Brace Aluminum 80/20 x 15"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 6
22" Wheel 80/20x 2

Attaching: Main Frame Connection

Consists of all the cross-members and joints required to connect the left and right leg assemblies into a single, rigid frame.

Use the cross-members (P37, P40, P45, P48) and their corresponding joints (P38, P39, P41, P42, P43, P44, P46, P47) to connect the Left and Right Leg Assemblies. P37 and P40 connect the front posts. P48 connects the tall rear posts. P45 connects the upper side rails.

Angle: back left

Assembly of Main Frame Connection - back_left
P37 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 39's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 52's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #2 facing top to part 54's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented back links with part 63's 1" Rail 80/20 M #1. Also, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 38's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #4 needs to point bottom P38 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 19's 1" Rail 80/20 F #3, plus connect its 1" 80/20 End Hole M #1 oriented right links with part 37's 1" 80/20 End Hole F #2 P39 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1, then its 1" 80/20 End Hole M #1, which is left-facing, should connect to part 37's 1" 80/20 End Hole F #1 P40 (4" 1" T Slot Rail Aluminum 80/20 40" length) - attach its 1" 80/20 End Hole F #1 facing left to part 42's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing back to part 51's 1" Rail 80/20 M #1. Additionally, connect its 1" Rail 80/20 F #2 oriented top links with part 89's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented right links with part 41's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #3 must be oriented front, and its 1" Rail 80/20 F #4 should be directed bottom P41 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Next, attach its 1" 80/20 End Hole M #1 facing left to part 40's 1" 80/20 End Hole F #2 P42 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 19's 1" Rail 80/20 F #3. Also, its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 40's 1" 80/20 End Hole F #1 P43 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 29's 1" Rail 80/20 F #4. Next, attach its 1" Rail 80/20 M #2 facing front to part 45's 1" Rail 80/20 F #1 P44 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #2, plus connect its 1" Rail 80/20 M #2 oriented front links with part 45's 1" Rail 80/20 F #1 P45 (4" 1" T Slot Rail Aluminum 80/20 40" length) - attach its 1" Rail 80/20 F #1 facing back to part 44's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 should be directed left. After that, its 1" Rail 80/20 F #2 needs to point top, and ensure its 1" Rail 80/20 F #3 faces front, plus its 1" Rail 80/20 F #4 should be directed bottom, plus its 1" 80/20 End Hole F #2 needs to point right P46 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 27's 1" Rail 80/20 F #4, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1 P47 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2. After that, connect its 1" Rail 80/20 M #2 oriented top links with part 48's 1" Rail 80/20 F #1 P48 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 47's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left. Additionally, its 1" Rail 80/20 F #2 needs to point back, also its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 should be directed front, plus its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Angle: front right

Assembly of Main Frame Connection - front_right
P37 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 39's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 52's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #2 facing top to part 54's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented back links with part 63's 1" Rail 80/20 M #1. Also, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 38's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #4 needs to point bottom P38 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 19's 1" Rail 80/20 F #3, plus connect its 1" 80/20 End Hole M #1 oriented right links with part 37's 1" 80/20 End Hole F #2 P39 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1, then its 1" 80/20 End Hole M #1, which is left-facing, should connect to part 37's 1" 80/20 End Hole F #1 P40 (4" 1" T Slot Rail Aluminum 80/20 40" length) - attach its 1" 80/20 End Hole F #1 facing left to part 42's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing back to part 51's 1" Rail 80/20 M #1. Additionally, connect its 1" Rail 80/20 F #2 oriented top links with part 89's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented right links with part 41's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #3 must be oriented front, and its 1" Rail 80/20 F #4 should be directed bottom P41 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Next, attach its 1" 80/20 End Hole M #1 facing left to part 40's 1" 80/20 End Hole F #2 P42 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 19's 1" Rail 80/20 F #3. Also, its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 40's 1" 80/20 End Hole F #1 P43 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 29's 1" Rail 80/20 F #4. Next, attach its 1" Rail 80/20 M #2 facing front to part 45's 1" Rail 80/20 F #1 P44 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #2, plus connect its 1" Rail 80/20 M #2 oriented front links with part 45's 1" Rail 80/20 F #1 P45 (4" 1" T Slot Rail Aluminum 80/20 40" length) - attach its 1" Rail 80/20 F #1 facing back to part 44's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 should be directed left. After that, its 1" Rail 80/20 F #2 needs to point top, and ensure its 1" Rail 80/20 F #3 faces front, plus its 1" Rail 80/20 F #4 should be directed bottom, plus its 1" 80/20 End Hole F #2 needs to point right P46 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 27's 1" Rail 80/20 F #4, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1 P47 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2. After that, connect its 1" Rail 80/20 M #2 oriented top links with part 48's 1" Rail 80/20 F #1 P48 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 47's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left. Additionally, its 1" Rail 80/20 F #2 needs to point back, also its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 should be directed front, plus its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Angle: bottom right

Assembly of Main Frame Connection - bottom_right
P37 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 39's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #1, which is front-facing, should connect to part 52's 1" Rail 80/20 M #1. After that, attach its 1" Rail 80/20 F #2 facing top to part 54's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented back links with part 63's 1" Rail 80/20 M #1. Also, its 1" 80/20 End Hole F #2, which is left-facing, should connect to part 38's 1" 80/20 End Hole M #1. After that, its 1" Rail 80/20 F #4 needs to point bottom P38 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 19's 1" Rail 80/20 F #3, plus connect its 1" 80/20 End Hole M #1 oriented right links with part 37's 1" 80/20 End Hole F #2 P39 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1, then its 1" 80/20 End Hole M #1, which is left-facing, should connect to part 37's 1" 80/20 End Hole F #1 P40 (4" 1" T Slot Rail Aluminum 80/20 40" length) - attach its 1" 80/20 End Hole F #1 facing left to part 42's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing back to part 51's 1" Rail 80/20 M #1. Additionally, connect its 1" Rail 80/20 F #2 oriented top links with part 89's 1" Rail 80/20 M #1. Also, connect its 1" 80/20 End Hole F #2 oriented right links with part 41's 1" 80/20 End Hole M #1. Next, its 1" Rail 80/20 F #3 must be oriented front, and its 1" Rail 80/20 F #4 should be directed bottom P41 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing right to part 1's 1" Rail 80/20 F #1. Next, attach its 1" 80/20 End Hole M #1 facing left to part 40's 1" 80/20 End Hole F #2 P42 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented left links with part 19's 1" Rail 80/20 F #3. Also, its 1" 80/20 End Hole M #1, which is right-facing, should connect to part 40's 1" 80/20 End Hole F #1 P43 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 29's 1" Rail 80/20 F #4. Next, attach its 1" Rail 80/20 M #2 facing front to part 45's 1" Rail 80/20 F #1 P44 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 11's 1" Rail 80/20 F #2, plus connect its 1" Rail 80/20 M #2 oriented front links with part 45's 1" Rail 80/20 F #1 P45 (4" 1" T Slot Rail Aluminum 80/20 40" length) - attach its 1" Rail 80/20 F #1 facing back to part 44's 1" Rail 80/20 M #2, then its 1" 80/20 End Hole F #1 should be directed left. After that, its 1" Rail 80/20 F #2 needs to point top, and ensure its 1" Rail 80/20 F #3 faces front, plus its 1" Rail 80/20 F #4 should be directed bottom, plus its 1" 80/20 End Hole F #2 needs to point right P46 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 27's 1" Rail 80/20 F #4, then its 1" Rail 80/20 M #2, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1 P47 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2. After that, connect its 1" Rail 80/20 M #2 oriented top links with part 48's 1" Rail 80/20 F #1 P48 (4" 1" T Slot Rail Aluminum 80/20 40" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 47's 1" Rail 80/20 M #2. After that, its 1" 80/20 End Hole F #1 must be oriented left. Additionally, its 1" Rail 80/20 F #2 needs to point back, also its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 should be directed front, plus its 1" 80/20 End Hole F #2 should be directed right
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 40"x 4
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 4
11" Angle Joint Aluminum 80/20x 4

Attaching: Upper Frame Structure

Creates the top-level shelf and mounting frame that sits above the main workstation structure.

This entire structure is built onto the assembled main frame from the previous steps.

Angle: back left

Assembly of Upper Frame Structure - back_left
P49 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1. Additionally, its 1" Rail 80/20 M #2, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1 P50 (4" 1" T Slot Rail Aluminum 80/20 31.5" length) - its 1" Rail 80/20 F #1, which is right-facing, should connect to part 49's 1" Rail 80/20 M #2. Additionally, attach its 1" Rail 80/20 F #3 facing left to part 62's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #1 needs to point bottom, also its 1" Rail 80/20 F #2 must be oriented back. Next, its 1" Rail 80/20 F #4 needs to point front, plus its 1" 80/20 End Hole F #2 should be directed top P51 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented front links with part 40's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented back links with part 53's 1" 80/20 End Hole F #1 P52 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 37's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented front links with part 53's 1" 80/20 End Hole F #2 P53 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 51's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing top to part 84's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 52's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 should be directed right, then its 1" Rail 80/20 F #3 must be oriented bottom, and its 1" Rail 80/20 F #4 must be oriented left P54 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 37's 1" Rail 80/20 F #2, and connect its 1" Rail 80/20 M #2 oriented back links with part 55's 1" Rail 80/20 F #1 P55 (4" 1" T Slot Rail Aluminum 80/20 16.5" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 59's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing front to part 54's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2 needs to point left, plus its 1" Rail 80/20 F #3 should be directed back. Additionally, its 1" Rail 80/20 F #4 must be oriented right. After that, its 1" 80/20 End Hole F #2 needs to point bottom P56 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 55's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1 P57 (4" 1" T Slot Rail Aluminum 80/20 7.25" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 58's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented bottom links with part 56's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #2 should be directed left, plus its 1" Rail 80/20 F #3 needs to point top, and ensure its 1" Rail 80/20 F #4 faces right. After that, its 1" 80/20 End Hole F #2 must be oriented back P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 57's 1" 80/20 End Hole F #1 P59 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 55's 1" 80/20 End Hole F #1 P62 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 50's 1" Rail 80/20 F #3, and attach its 1" Rail 80/20 M #2 facing top to part 48's 1" Rail 80/20 F #1 P63 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 37's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is right-facing, should connect to part 50's 1" Rail 80/20 F #3 P64 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #3, then connect its 1" Rail 80/20 M #2 oriented left links with part 50's 1" Rail 80/20 F #1 P83 (Heavy Duty Ball-Grip Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Angle: front right

Assembly of Upper Frame Structure - front_right
P49 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1. Additionally, its 1" Rail 80/20 M #2, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1 P50 (4" 1" T Slot Rail Aluminum 80/20 31.5" length) - its 1" Rail 80/20 F #1, which is right-facing, should connect to part 49's 1" Rail 80/20 M #2. Additionally, attach its 1" Rail 80/20 F #3 facing left to part 62's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #1 needs to point bottom, also its 1" Rail 80/20 F #2 must be oriented back. Next, its 1" Rail 80/20 F #4 needs to point front, plus its 1" 80/20 End Hole F #2 should be directed top P51 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented front links with part 40's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented back links with part 53's 1" 80/20 End Hole F #1 P52 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 37's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented front links with part 53's 1" 80/20 End Hole F #2 P53 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 51's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing top to part 84's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 52's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 should be directed right, then its 1" Rail 80/20 F #3 must be oriented bottom, and its 1" Rail 80/20 F #4 must be oriented left P54 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 37's 1" Rail 80/20 F #2, and connect its 1" Rail 80/20 M #2 oriented back links with part 55's 1" Rail 80/20 F #1 P55 (4" 1" T Slot Rail Aluminum 80/20 16.5" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 59's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing front to part 54's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2 needs to point left, plus its 1" Rail 80/20 F #3 should be directed back. Additionally, its 1" Rail 80/20 F #4 must be oriented right. After that, its 1" 80/20 End Hole F #2 needs to point bottom P56 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 55's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1 P57 (4" 1" T Slot Rail Aluminum 80/20 7.25" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 58's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented bottom links with part 56's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #2 should be directed left, plus its 1" Rail 80/20 F #3 needs to point top, and ensure its 1" Rail 80/20 F #4 faces right. After that, its 1" 80/20 End Hole F #2 must be oriented back P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 57's 1" 80/20 End Hole F #1 P59 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 55's 1" 80/20 End Hole F #1 P62 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 50's 1" Rail 80/20 F #3, and attach its 1" Rail 80/20 M #2 facing top to part 48's 1" Rail 80/20 F #1 P63 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 37's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is right-facing, should connect to part 50's 1" Rail 80/20 F #3 P64 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #3, then connect its 1" Rail 80/20 M #2 oriented left links with part 50's 1" Rail 80/20 F #1 P83 (Heavy Duty Ball-Grip Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Angle: bottom right

Assembly of Upper Frame Structure - bottom_right
P49 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 48's 1" Rail 80/20 F #1. Additionally, its 1" Rail 80/20 M #2, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1 P50 (4" 1" T Slot Rail Aluminum 80/20 31.5" length) - its 1" Rail 80/20 F #1, which is right-facing, should connect to part 49's 1" Rail 80/20 M #2. Additionally, attach its 1" Rail 80/20 F #3 facing left to part 62's 1" Rail 80/20 M #1. After that, its 1" 80/20 End Hole F #1 needs to point bottom, also its 1" Rail 80/20 F #2 must be oriented back. Next, its 1" Rail 80/20 F #4 needs to point front, plus its 1" 80/20 End Hole F #2 should be directed top P51 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented front links with part 40's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented back links with part 53's 1" 80/20 End Hole F #1 P52 (End Inside Joint Aluminum) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 37's 1" Rail 80/20 F #1, then connect its 1" 80/20 End Hole M #1 oriented front links with part 53's 1" 80/20 End Hole F #2 P53 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - connect its 1" 80/20 End Hole F #1 oriented front links with part 51's 1" 80/20 End Hole M #1. Also, attach its 1" Rail 80/20 F #1 facing top to part 84's 1" Rail 80/20 M #1. Next, its 1" 80/20 End Hole F #2, which is back-facing, should connect to part 52's 1" 80/20 End Hole M #1, and its 1" Rail 80/20 F #2 should be directed right, then its 1" Rail 80/20 F #3 must be oriented bottom, and its 1" Rail 80/20 F #4 must be oriented left P54 (1" Angle Joint Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 37's 1" Rail 80/20 F #2, and connect its 1" Rail 80/20 M #2 oriented back links with part 55's 1" Rail 80/20 F #1 P55 (4" 1" T Slot Rail Aluminum 80/20 16.5" length) - its 1" 80/20 End Hole F #1, which is top-facing, should connect to part 59's 1" 80/20 End Hole M #1, and attach its 1" Rail 80/20 F #1 facing front to part 54's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2 needs to point left, plus its 1" Rail 80/20 F #3 should be directed back. Additionally, its 1" Rail 80/20 F #4 must be oriented right. After that, its 1" 80/20 End Hole F #2 needs to point bottom P56 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 55's 1" Rail 80/20 F #1. Also, connect its 1" Rail 80/20 M #2 oriented top links with part 57's 1" Rail 80/20 F #1 P57 (4" 1" T Slot Rail Aluminum 80/20 7.25" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 58's 1" 80/20 End Hole M #1, also connect its 1" Rail 80/20 F #1 oriented bottom links with part 56's 1" Rail 80/20 M #2. Additionally, its 1" Rail 80/20 F #2 should be directed left, plus its 1" Rail 80/20 F #3 needs to point top, and ensure its 1" Rail 80/20 F #4 faces right. After that, its 1" 80/20 End Hole F #2 must be oriented back P58 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 57's 1" 80/20 End Hole F #1 P59 (End Cap Aluminum) - attach its 1" 80/20 End Hole M #1 facing bottom to part 55's 1" 80/20 End Hole F #1 P62 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is right-facing, should connect to part 50's 1" Rail 80/20 F #3, and attach its 1" Rail 80/20 M #2 facing top to part 48's 1" Rail 80/20 F #1 P63 (1" Angle 2 Joint Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented front links with part 37's 1" Rail 80/20 F #3, and its 1" Rail 80/20 M #2, which is right-facing, should connect to part 50's 1" Rail 80/20 F #3 P64 (1" Angle 2 Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is front-facing, should connect to part 37's 1" Rail 80/20 F #3, then connect its 1" Rail 80/20 M #2 oriented left links with part 50's 1" Rail 80/20 F #1 P83 (Heavy Duty Ball-Grip Aluminum) - connect its 1" Rail 80/20 M #1 oriented back links with part 55's 1" Rail 80/20 F #1
11" Angle Joint Aluminum 80/20x 4
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 31.5"x 1
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 16.5"x 1
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.25"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
11" Angle 2 Joint Aluminum 80/20x 2
Heavy Duty Ball-Grip Aluminum 80/20Heavy Duty Ball-Grip Aluminum 80/20x 1

Attaching: Upper Sliding Panels

Provides two sliding acrylic panels for the upper frame structure.

Attach the panel hangers (P84, P87, P88, P89, P90, P91) to the rails of the Upper Frame Structure (P37, P40, P53). Hang the two acrylic panels (P85, P86) from the hangers.

Angle: back left

Assembly of Upper Sliding Panels - back_left
P84 (1" Hanger for 2 Solid Panels Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 53's 1" Rail 80/20 F #1, plus attach its 1" 80 20 Panel Holder #1 facing bottom to part 85's 1" 80 20 Panel #1, and connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 86's 1" 80 20 Panel #2 P85 (1' Acrylic Panel 20.25" length) - attach its 1" 80 20 Panel #1 facing top to part 84's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #2 oriented top links with part 87's 1" 80 20 Panel Holder #1, also connect its 1" 80 20 Panel #3 oriented top links with part 90's 1" 80 20 Panel Holder #1. Also, its 1" 80 20 Panel #4, which is top-facing, should connect to part 91's 1" 80 20 Panel Holder #1 P86 (1' Acrylic Panel 20" length) - connect its 1" 80 20 Panel #1 oriented top links with part 87's 1" 80 20 Panel Holder #2. Additionally, its 1" 80 20 Panel #2, which is top-facing, should connect to part 84's 1" 80 20 Panel Holder #2. Also, its 1" 80 20 Panel #3, which is top-facing, should connect to part 89's 1" 80 20 Panel Holder #1. Next, attach its 1" 80 20 Panel #4 facing top to part 88's 1" 80 20 Panel Holder #1 P87 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #1, and connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #2. Additionally, attach its 1" 80 20 Panel Holder #2 facing bottom to part 86's 1" 80 20 Panel #1 P88 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 37's 1" Rail 80/20 F #2. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 86's 1" 80 20 Panel #4 P89 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 86's 1" 80 20 Panel #3 P90 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 37's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #3 P91 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 40's 1" Rail 80/20 F #2. Also, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Angle: front right

Assembly of Upper Sliding Panels - front_right
P84 (1" Hanger for 2 Solid Panels Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 53's 1" Rail 80/20 F #1, plus attach its 1" 80 20 Panel Holder #1 facing bottom to part 85's 1" 80 20 Panel #1, and connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 86's 1" 80 20 Panel #2 P85 (1' Acrylic Panel 20.25" length) - attach its 1" 80 20 Panel #1 facing top to part 84's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #2 oriented top links with part 87's 1" 80 20 Panel Holder #1, also connect its 1" 80 20 Panel #3 oriented top links with part 90's 1" 80 20 Panel Holder #1. Also, its 1" 80 20 Panel #4, which is top-facing, should connect to part 91's 1" 80 20 Panel Holder #1 P86 (1' Acrylic Panel 20" length) - connect its 1" 80 20 Panel #1 oriented top links with part 87's 1" 80 20 Panel Holder #2. Additionally, its 1" 80 20 Panel #2, which is top-facing, should connect to part 84's 1" 80 20 Panel Holder #2. Also, its 1" 80 20 Panel #3, which is top-facing, should connect to part 89's 1" 80 20 Panel Holder #1. Next, attach its 1" 80 20 Panel #4 facing top to part 88's 1" 80 20 Panel Holder #1 P87 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #1, and connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #2. Additionally, attach its 1" 80 20 Panel Holder #2 facing bottom to part 86's 1" 80 20 Panel #1 P88 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 37's 1" Rail 80/20 F #2. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 86's 1" 80 20 Panel #4 P89 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 86's 1" 80 20 Panel #3 P90 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 37's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #3 P91 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 40's 1" Rail 80/20 F #2. Also, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Angle: bottom right

Assembly of Upper Sliding Panels - bottom_right
P84 (1" Hanger for 2 Solid Panels Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 53's 1" Rail 80/20 F #1, plus attach its 1" 80 20 Panel Holder #1 facing bottom to part 85's 1" 80 20 Panel #1, and connect its 1" 80 20 Panel Holder #2 oriented bottom links with part 86's 1" 80 20 Panel #2 P85 (1' Acrylic Panel 20.25" length) - attach its 1" 80 20 Panel #1 facing top to part 84's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #2 oriented top links with part 87's 1" 80 20 Panel Holder #1, also connect its 1" 80 20 Panel #3 oriented top links with part 90's 1" 80 20 Panel Holder #1. Also, its 1" 80 20 Panel #4, which is top-facing, should connect to part 91's 1" 80 20 Panel Holder #1 P86 (1' Acrylic Panel 20" length) - connect its 1" 80 20 Panel #1 oriented top links with part 87's 1" 80 20 Panel Holder #2. Additionally, its 1" 80 20 Panel #2, which is top-facing, should connect to part 84's 1" 80 20 Panel Holder #2. Also, its 1" 80 20 Panel #3, which is top-facing, should connect to part 89's 1" 80 20 Panel Holder #1. Next, attach its 1" 80 20 Panel #4 facing top to part 88's 1" 80 20 Panel Holder #1 P87 (1" Hanger for 2 Solid Panels Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 53's 1" Rail 80/20 F #1, and connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #2. Additionally, attach its 1" 80 20 Panel Holder #2 facing bottom to part 86's 1" 80 20 Panel #1 P88 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 37's 1" Rail 80/20 F #2. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 86's 1" 80 20 Panel #4 P89 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 40's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 86's 1" 80 20 Panel #3 P90 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 37's 1" Rail 80/20 F #2. Additionally, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #3 P91 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 40's 1" Rail 80/20 F #2. Also, connect its 1" 80 20 Panel Holder #1 oriented bottom links with part 85's 1" 80 20 Panel #4
11" Hanger for 2 Solid Panels Aluminum 80/20x 2
1' Acrylic Panel1' Acrylic Panel x 20.25"x 1
1' Acrylic Panel1' Acrylic Panel x 20"x 1
11" Hanger for Solid Panel Aluminum 80/20x 4

Attaching: Accessory Shelf Frame

Forms a small shelf frame that attaches to the side of the main workstation.

This shelf assembly attaches to the right side of the completed main frame.

Angle: back left

Assembly of Accessory Shelf Frame - back_left
P60 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing top to part 61's 1" Rail 80/20 F #1 P61 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 60's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2, which is front-facing, should connect to part 69's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed right. Additionally, its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 needs to point back, plus its 1" 80/20 End Hole F #2 should be directed left P65 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 61's 1" Rail 80/20 F #1, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2 P66 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1, also attach its 1" Rail 80/20 M #2 facing top to part 67's 1" Rail 80/20 F #1 P67 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 66's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 must be oriented right, and its 1" Rail 80/20 F #2 needs to point front, also ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 needs to point back. Next, ensure its 1" 80/20 End Hole F #2 faces left P68 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 67's 1" Rail 80/20 F #1, plus its 1" Rail 80/20 M #2, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2 P69 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented left links with part 72's 1" Rail 80/20 F #1 P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2. After that, attach its 1" Rail 80/20 M #2 facing right to part 71's 1" Rail 80/20 F #1 P71 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 74's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing left to part 70's 1" Rail 80/20 M #2. Additionally, attach its 1" Rail 80/20 F #2 facing top to part 78's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented right links with part 77's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #4 must be oriented bottom. Also, its 1" 80/20 End Hole F #2 needs to point back P72 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - attach its 1" 80/20 End Hole F #1 facing front to part 75's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing right to part 69's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing left to part 76's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #4, which is top-facing, should connect to part 81's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #2 must be oriented bottom, then its 1" 80/20 End Hole F #2 must be oriented back P73 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 76's 1" 80/20 End Hole M #1. Also, connect its 1" 80/20 End Hole F #2 oriented left links with part 77's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #1 faces back. After that, its 1" Rail 80/20 F #2 should be directed bottom, plus its 1" Rail 80/20 F #3 must be oriented front. Also, ensure its 1" Rail 80/20 F #4 faces top P74 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 71's 1" 80/20 End Hole F #1 P75 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 72's 1" 80/20 End Hole F #1 P76 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 72's 1" Rail 80/20 F #3, and connect its 1" 80/20 End Hole M #1 oriented left links with part 73's 1" 80/20 End Hole F #1 P77 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 71's 1" Rail 80/20 F #3. Next, attach its 1" 80/20 End Hole M #1 facing right to part 73's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Angle: front right

Assembly of Accessory Shelf Frame - front_right
P60 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing top to part 61's 1" Rail 80/20 F #1 P61 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 60's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2, which is front-facing, should connect to part 69's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed right. Additionally, its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 needs to point back, plus its 1" 80/20 End Hole F #2 should be directed left P65 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 61's 1" Rail 80/20 F #1, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2 P66 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1, also attach its 1" Rail 80/20 M #2 facing top to part 67's 1" Rail 80/20 F #1 P67 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 66's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 must be oriented right, and its 1" Rail 80/20 F #2 needs to point front, also ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 needs to point back. Next, ensure its 1" 80/20 End Hole F #2 faces left P68 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 67's 1" Rail 80/20 F #1, plus its 1" Rail 80/20 M #2, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2 P69 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented left links with part 72's 1" Rail 80/20 F #1 P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2. After that, attach its 1" Rail 80/20 M #2 facing right to part 71's 1" Rail 80/20 F #1 P71 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 74's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing left to part 70's 1" Rail 80/20 M #2. Additionally, attach its 1" Rail 80/20 F #2 facing top to part 78's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented right links with part 77's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #4 must be oriented bottom. Also, its 1" 80/20 End Hole F #2 needs to point back P72 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - attach its 1" 80/20 End Hole F #1 facing front to part 75's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing right to part 69's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing left to part 76's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #4, which is top-facing, should connect to part 81's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #2 must be oriented bottom, then its 1" 80/20 End Hole F #2 must be oriented back P73 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 76's 1" 80/20 End Hole M #1. Also, connect its 1" 80/20 End Hole F #2 oriented left links with part 77's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #1 faces back. After that, its 1" Rail 80/20 F #2 should be directed bottom, plus its 1" Rail 80/20 F #3 must be oriented front. Also, ensure its 1" Rail 80/20 F #4 faces top P74 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 71's 1" 80/20 End Hole F #1 P75 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 72's 1" 80/20 End Hole F #1 P76 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 72's 1" Rail 80/20 F #3, and connect its 1" 80/20 End Hole M #1 oriented left links with part 73's 1" 80/20 End Hole F #1 P77 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 71's 1" Rail 80/20 F #3. Next, attach its 1" 80/20 End Hole M #1 facing right to part 73's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Angle: bottom right

Assembly of Accessory Shelf Frame - bottom_right
P60 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1, then attach its 1" Rail 80/20 M #2 facing top to part 61's 1" Rail 80/20 F #1 P61 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - attach its 1" Rail 80/20 F #1 facing bottom to part 60's 1" Rail 80/20 M #2, also its 1" Rail 80/20 F #2, which is front-facing, should connect to part 69's 1" Rail 80/20 M #1, plus its 1" 80/20 End Hole F #1 should be directed right. Additionally, its 1" Rail 80/20 F #3 should be directed top, then its 1" Rail 80/20 F #4 needs to point back, plus its 1" 80/20 End Hole F #2 should be directed left P65 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 61's 1" Rail 80/20 F #1, then its 1" Rail 80/20 M #2, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2 P66 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is left-facing, should connect to part 50's 1" Rail 80/20 F #1, also attach its 1" Rail 80/20 M #2 facing top to part 67's 1" Rail 80/20 F #1 P67 (4" 1" T Slot Rail Aluminum 80/20 19.25" length) - its 1" Rail 80/20 F #1, which is bottom-facing, should connect to part 66's 1" Rail 80/20 M #2, and its 1" 80/20 End Hole F #1 must be oriented right, and its 1" Rail 80/20 F #2 needs to point front, also ensure its 1" Rail 80/20 F #3 faces top. Also, its 1" Rail 80/20 F #4 needs to point back. Next, ensure its 1" 80/20 End Hole F #2 faces left P68 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is top-facing, should connect to part 67's 1" Rail 80/20 F #1, plus its 1" Rail 80/20 M #2, which is right-facing, should connect to part 9's 1" Rail 80/20 F #2 P69 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2. Next, connect its 1" Rail 80/20 M #2 oriented left links with part 72's 1" Rail 80/20 F #1 P70 (1" Angle Joint Aluminum 80/20) - its 1" Rail 80/20 M #1, which is back-facing, should connect to part 61's 1" Rail 80/20 F #2. After that, attach its 1" Rail 80/20 M #2 facing right to part 71's 1" Rail 80/20 F #1 P71 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - its 1" 80/20 End Hole F #1, which is front-facing, should connect to part 74's 1" 80/20 End Hole M #1, plus attach its 1" Rail 80/20 F #1 facing left to part 70's 1" Rail 80/20 M #2. Additionally, attach its 1" Rail 80/20 F #2 facing top to part 78's 1" Rail 80/20 M #1. Next, connect its 1" Rail 80/20 F #3 oriented right links with part 77's 1" Rail 80/20 M #1. After that, its 1" Rail 80/20 F #4 must be oriented bottom. Also, its 1" 80/20 End Hole F #2 needs to point back P72 (4" 1" T Slot Rail Aluminum 80/20 7.75" length) - attach its 1" 80/20 End Hole F #1 facing front to part 75's 1" 80/20 End Hole M #1, then attach its 1" Rail 80/20 F #1 facing right to part 69's 1" Rail 80/20 M #2, then attach its 1" Rail 80/20 F #3 facing left to part 76's 1" Rail 80/20 M #1. Additionally, its 1" Rail 80/20 F #4, which is top-facing, should connect to part 81's 1" Rail 80/20 M #1. Also, its 1" Rail 80/20 F #2 must be oriented bottom, then its 1" 80/20 End Hole F #2 must be oriented back P73 (4" 1" T Slot Rail Aluminum 80/20 11.5" length) - its 1" 80/20 End Hole F #1, which is right-facing, should connect to part 76's 1" 80/20 End Hole M #1. Also, connect its 1" 80/20 End Hole F #2 oriented left links with part 77's 1" 80/20 End Hole M #1. After that, ensure its 1" Rail 80/20 F #1 faces back. After that, its 1" Rail 80/20 F #2 should be directed bottom, plus its 1" Rail 80/20 F #3 must be oriented front. Also, ensure its 1" Rail 80/20 F #4 faces top P74 (End Cap Aluminum) - its 1" 80/20 End Hole M #1, which is back-facing, should connect to part 71's 1" 80/20 End Hole F #1 P75 (End Cap Aluminum) - connect its 1" 80/20 End Hole M #1 oriented back links with part 72's 1" 80/20 End Hole F #1 P76 (End Inside Joint Aluminum) - connect its 1" Rail 80/20 M #1 oriented right links with part 72's 1" Rail 80/20 F #3, and connect its 1" 80/20 End Hole M #1 oriented left links with part 73's 1" 80/20 End Hole F #1 P77 (End Inside Joint Aluminum) - attach its 1" Rail 80/20 M #1 facing left to part 71's 1" Rail 80/20 F #3. Next, attach its 1" 80/20 End Hole M #1 facing right to part 73's 1" 80/20 End Hole F #2
11" Angle Joint Aluminum 80/20x 6
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 19.25"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 7.75"x 2
80/20 180/20 1" T Slot Rail Aluminum 80/20 x 11.5"x 1
End Cap Aluminum 80/20End Cap Aluminum 80/20x 2
End Inside Joint Aluminum 80/20End Inside Joint Aluminum 80/20x 2

Attaching: Accessory Shelf Panel

A single acrylic panel and its hangers for the Accessory Shelf.

Attach the panel hangers (P78, P80, P81, P82) to the horizontal arms (P71, P72) of the Accessory Shelf Frame. Hang the acrylic panel (P79) from the hangers.

Angle: back left

Assembly of Accessory Shelf Panel - back_left
P78 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 71's 1" Rail 80/20 F #2. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 79's 1" 80 20 Panel #4 P79 (1' Acrylic Panel 7" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 82's 1" 80 20 Panel Holder #1, then its 1" 80 20 Panel #2, which is top-facing, should connect to part 80's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 81's 1" 80 20 Panel Holder #1. Additionally, attach its 1" 80 20 Panel #4 facing top to part 78's 1" 80 20 Panel Holder #1 P80 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 71's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #2 P81 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 72's 1" Rail 80/20 F #4. Also, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #3 P82 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 72's 1" Rail 80/20 F #4, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Angle: front right

Assembly of Accessory Shelf Panel - front_right
P78 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 71's 1" Rail 80/20 F #2. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 79's 1" 80 20 Panel #4 P79 (1' Acrylic Panel 7" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 82's 1" 80 20 Panel Holder #1, then its 1" 80 20 Panel #2, which is top-facing, should connect to part 80's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 81's 1" 80 20 Panel Holder #1. Additionally, attach its 1" 80 20 Panel #4 facing top to part 78's 1" 80 20 Panel Holder #1 P80 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 71's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #2 P81 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 72's 1" Rail 80/20 F #4. Also, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #3 P82 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 72's 1" Rail 80/20 F #4, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1

Angle: bottom right

Assembly of Accessory Shelf Panel - bottom_right
P78 (1" Hanger for Solid Panel Aluminum 80/20) - connect its 1" Rail 80/20 M #1 oriented bottom links with part 71's 1" Rail 80/20 F #2. After that, attach its 1" 80 20 Panel Holder #1 facing bottom to part 79's 1" 80 20 Panel #4 P79 (1' Acrylic Panel 7" length) - its 1" 80 20 Panel #1, which is top-facing, should connect to part 82's 1" 80 20 Panel Holder #1, then its 1" 80 20 Panel #2, which is top-facing, should connect to part 80's 1" 80 20 Panel Holder #1, and connect its 1" 80 20 Panel #3 oriented top links with part 81's 1" 80 20 Panel Holder #1. Additionally, attach its 1" 80 20 Panel #4 facing top to part 78's 1" 80 20 Panel Holder #1 P80 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 71's 1" Rail 80/20 F #2, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #2 P81 (1" Hanger for Solid Panel Aluminum 80/20) - its 1" Rail 80/20 M #1, which is bottom-facing, should connect to part 72's 1" Rail 80/20 F #4. Also, its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #3 P82 (1" Hanger for Solid Panel Aluminum 80/20) - attach its 1" Rail 80/20 M #1 facing bottom to part 72's 1" Rail 80/20 F #4, plus its 1" 80 20 Panel Holder #1, which is bottom-facing, should connect to part 79's 1" 80 20 Panel #1
11" Hanger for Solid Panel Aluminum 80/20x 4
1' Acrylic Panel1' Acrylic Panel x 7"x 1
